検索 › 比較 › EG9 × EH8
EG9
Honda CIVIC — 2,304 中 1,010 共有
EH8
Honda CIVIC — 2,379 中 1,010 共有

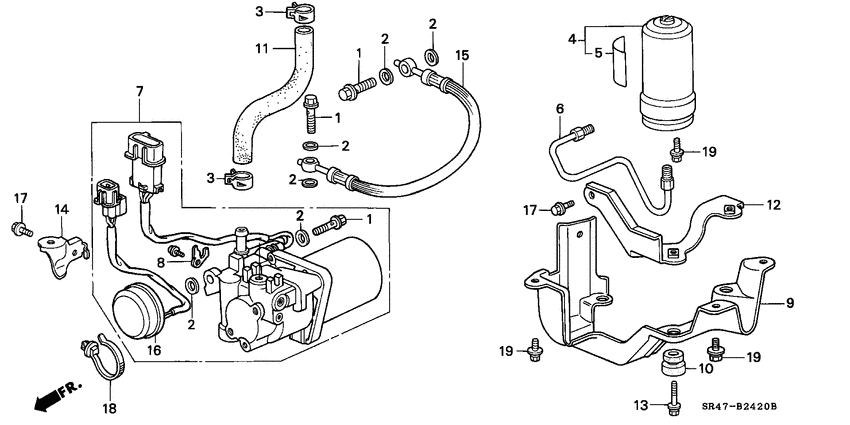

Abs accumulator 3 / 19
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 2 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 18 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |

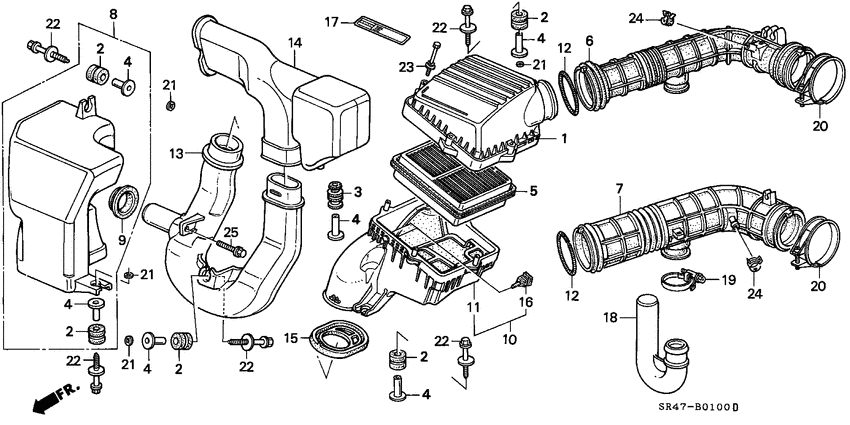

Air cleaner 5 / 24
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 2 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 4 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 21 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 22 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
Air conditioner (CONDENSER) 22 / 22
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 2 | 80107-SR3-000 | Bracket - CONDENSER UPPER | Bracket - CONDENSER UPPER |
| 3 | 80110-SR3-023 | Condenser comp. - SAK | Condenser comp. - SAK |
| 4 | 80115-SR3-000 | Seal - UPPER CONDENSER | Seal - UPPER CONDENSER |
| 5 | 80116-SR3-000 | Seal - R. CONDENSER | Seal - R. CONDENSER |
| 6 | 80117-SR3-000 | Seal - L. CONDENSER | Seal - L. CONDENSER |
| 7 | 80151-SR3-013 | Motor - COOLING FAN | Motor - COOLING FAN |
| 8 | 80152-SR3-013 | Fan comp - COOLING (MITSUBA) | Fan comp - COOLING (MITSUBA) |
| 9 | 80161-SR3-000 | Shroud comp. - CONDENSER FAN | Shroud comp. - CONDENSER FAN |
| 10 | 80162-SR3-000 | Protector - FAN MOTOR | Protector - FAN MOTOR |
| 11 | 80174-SR3-000 | Mount - R. CONDENSER | Mount - R. CONDENSER |
| 12 | 80175-SR3-000 | Mount - L. CONDENSER | Mount - L. CONDENSER |
| 13 | 80176-SR3-000 | Rubber - CONDENSER MOUNTING | Rubber - CONDENSER MOUNTING |
| 14 | 80177-SR3-003 | Mount - CONDENSER LOWER | Mount - CONDENSER LOWER |
| 15 | 80373-SR3-000 | Bracket - DISCHARGE HOSE | Bracket - DISCHARGE HOSE |
| 16 | 80440-SK3-901 | Switch - DUAL PRESSURE (SAGINOMIYA) | Switch - DUAL PRESSURE (SAGINOMIYA) |
| 16 | 80440-SS0-901 | Switch - DUAL PRESSURE (FUJI) | Switch - DUAL PRESSURE (FUJI) |
| 17 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 18 | 90041-PD2-004 | Nut - SPECIAL, 5MM (MITSUBA) | Nut - SPECIAL, 5MM (MITSUBA) |
| 18 | 90311-MB6-003 | Nut toothed 5mm | Nut toothed 5mm |
| 19 | 90078-PR3-000 | Screw - PAN, 4X8 | Screw - PAN, 4X8 |
| 20 | 90403-PM3-004 | Washer - PLAIN, 7MM | Washer - PLAIN, 7MM |
| 21 | 90659-PG6-000 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |

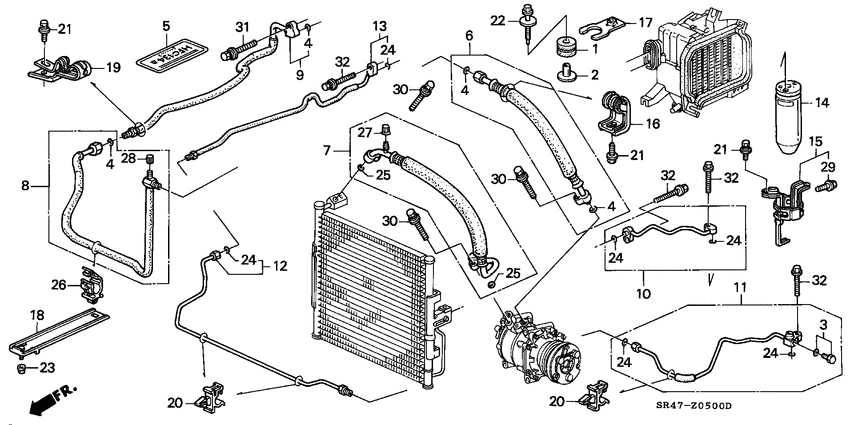

Air conditioner (HOSES/PIPES; LH) 9 / 27
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 4 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 5 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 10 | 80331-SR3-013 | Pipe - CONDENSER (SAK) | Pipe - CONDENSER (SAK) |
| 14 | 80351-ST7-003 | Receiver comp | Receiver comp |
| 15 | 80352-SR3-000 | Bracket - LIQUID TANK | Bracket - LIQUID TANK |
| 21 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 24 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 25 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 27 | 80865-ST0-003 | Cap h - VALVE (NICHIRIN) | Cap h - VALVE (NICHIRIN) |

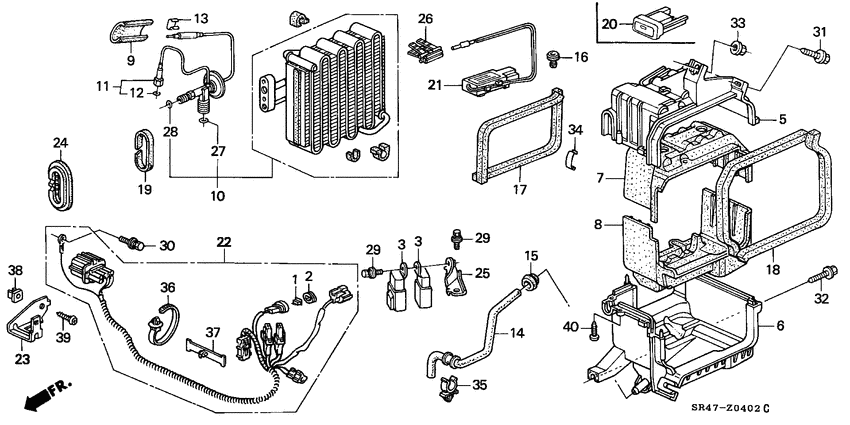

Air conditioner (UNIT; LH; '94-) 26 / 37
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 32147-SF1-003 | Connector - DIODE(3P) | Connector - DIODE(3P) |
| 2 | 32148-SF1-003 | Rubber - SEAL | Rubber - SEAL |
| 3 | 39795-SB2-003 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 9 | 80214-SL5-A01 | Insulator - EXPANSION | Insulator - EXPANSION |
| 11 | 80220-ST7-A02 | Valve assy. - EXPANSION (10N) (FUJI KOKI) | Valve assy. - EXPANSION (10N) (FUJI KOKI) |
| 12 | 80223-ST7-A01 | O-ring - FUJI KOKI | O-ring - FUJI KOKI |
| 13 | 80225-SR3-000 | Clamp | Clamp |
| 15 | 80272-SF4-000 | Grommet - DRAIN HOSE | Grommet - DRAIN HOSE |
| 17 | 80286-SR3-000 | Seal - EVAPORATOR INNER | Seal - EVAPORATOR INNER |
| 18 | 80287-SR3-000 | Seal - EVAPORATOR OUTER | Seal - EVAPORATOR OUTER |
| 19 | 80288-SR3-000 | Seal - EVAPORATOR JOINT | Seal - EVAPORATOR JOINT |
| 20 | 80411-SR3-013 | Knob - AIR CONDITIONER SWITCH | Knob - AIR CONDITIONER SWITCH |
| 24 | 80464-SR3-000 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 25 | 80491-SR3-000 | Bracket - AIR CONDITIONER RELAY | Bracket - AIR CONDITIONER RELAY |
| 26 | 80566-SR3-003 | Clip - EVAPORATOR SENSOR | Clip - EVAPORATOR SENSOR |
| 27 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 28 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 29 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 30 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 31 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 32 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 33 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 34 | 90659-692-000 | Clamp - CASE | Clamp - CASE |
| 35 | 91546-SR3-003 | Clamp - 16.5 | Clamp - 16.5 |
| 36 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 38 | 91619-SA5-000 | Grommet - SCREW, 6MM | Grommet - SCREW, 6MM |

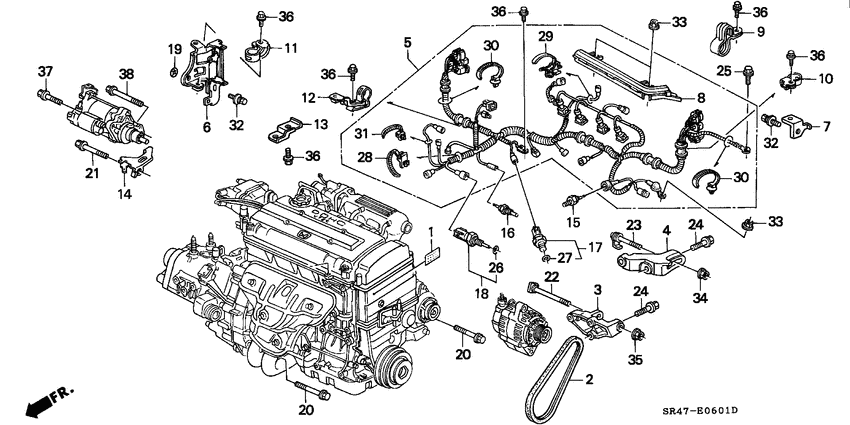

Alternator (DENSO; DOHC) 4 / 27
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 14 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 16 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 17 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 24 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |

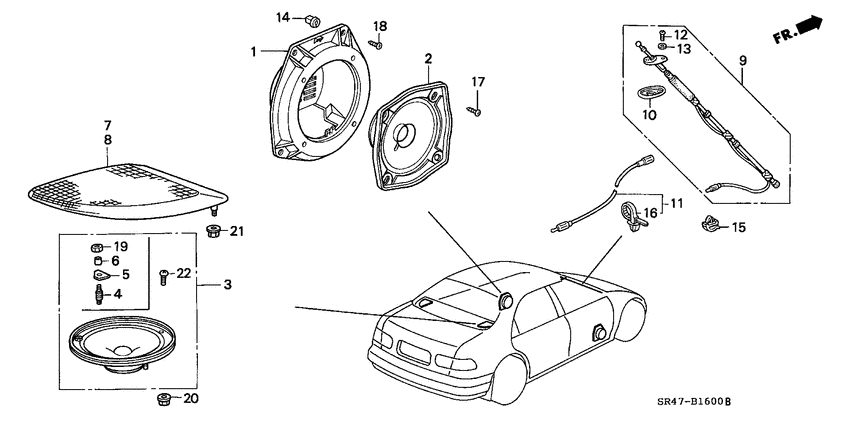

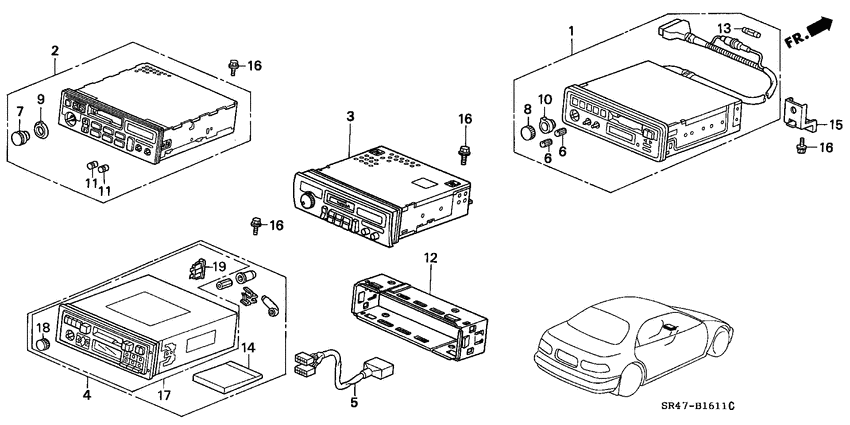

Auto radio ('94-) 1 / 2
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 16 | 91551-SE0-003 | Bolt - FLANGE, 5X7 | Bolt - FLANGE, 5X7 |
Battery (LH) 10 / 17
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 2 | 31512-SR3-000 | Plate - BATTERY SETTING | Plate - BATTERY SETTING |
| 3 | 31513-SR3-000 | Bolt - BATTERY SETTING | Bolt - BATTERY SETTING |
| 4 | 31521-SR3-000 | Box assy - BATTERY | Box assy - BATTERY |
| 5 | 31542-SA5-665 | Plug - VENT (MF) (PANASONIC) | Plug - VENT (MF) (PANASONIC) |
| 5 | 31542-SA5-664 | Plug - VENT (MF) (YUASA) | Plug - VENT (MF) (YUASA) |
| 8 | 32414-SR3-000 | Clamp a - STARTER CABLE | Clamp a - STARTER CABLE |
| 11 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 12 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 13 | 90130-SR3-003 | Bolt - 5X13 | Bolt - 5X13 |
| 14 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |

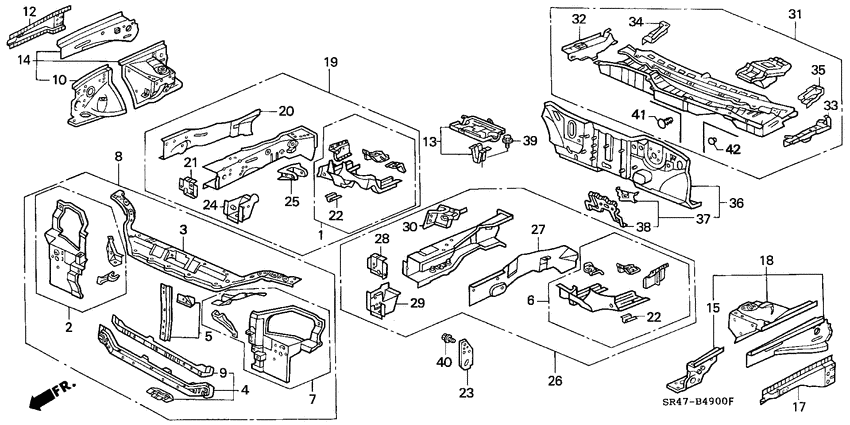

Body structure components (FRONT BULKHEAD) 1 / 1
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 39 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |

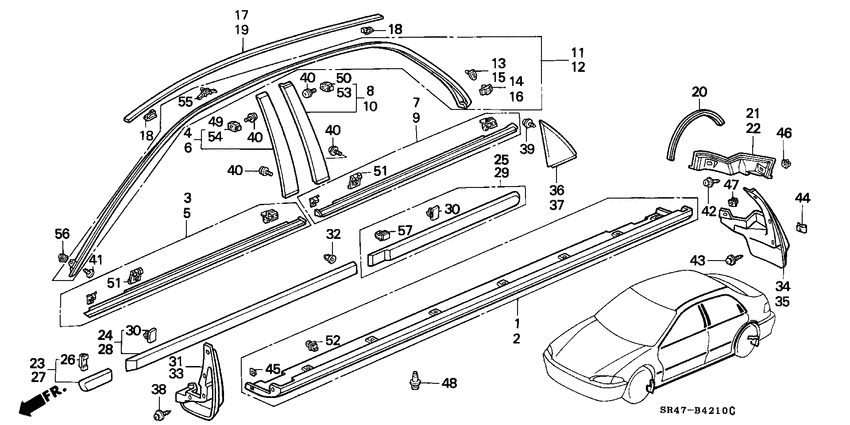

Body structure components (OUTER PANEL) 6 / 6
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 26 | 70494-SE0-000 | Spring - FUEL LID OPENER | Spring - FUEL LID OPENER |
| 27 | 74422-SH3-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 28 | 75450-SM4-000 | Outlet assy - RR. AIR | Outlet assy - RR. AIR |
| 29 | 90147-634-003 | Bolt - FENDER, 6X18 | Bolt - FENDER, 6X18 |
| 30 | 90222-SB4-000 | Nut-washer - 6MM | Nut-washer - 6MM |
| 31 | 90664-SB3-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Brake line (ABS; LH) 11 / 33
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 7 | 46330-ST0-000 | Pipe comp. c - BRAKE | Pipe comp. c - BRAKE |
| 9 | 46340-ST0-000 | Pipe comp. d - BRAKE | Pipe comp. d - BRAKE |
| 17 | 46380-SH3-000 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 19 | 46391-SR3-J00 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 20 | 46391-SR3-J10 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 22 | 46391-SR3-931 | Clip d - BRAKE PIPE | Clip d - BRAKE PIPE |
| 24 | 46392-SR3-000 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 26 | 46392-SR3-931 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 36 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 38 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 41 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |

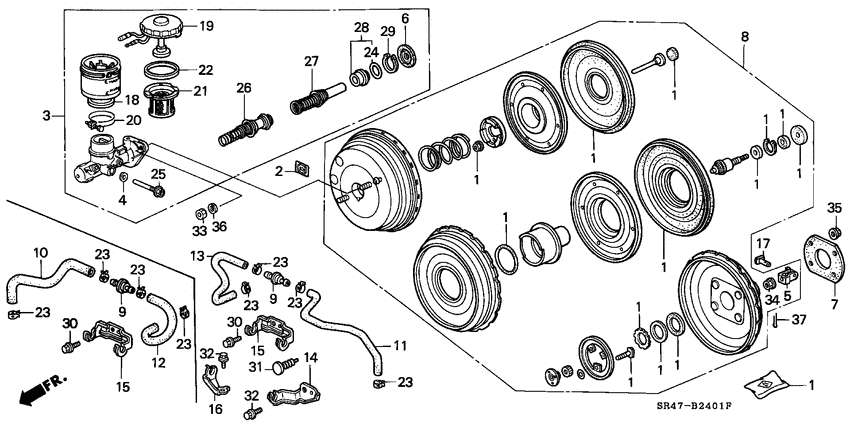

Brake master cylinder/ master power (ABS) 12 / 29
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 4 | 46138-SM4-003 | Packing | Packing |
| 5 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 6 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 7 | 46191-634-000 | Gasket - MASTER CYLINDER BRACKET | Gasket - MASTER CYLINDER BRACKET |
| 9 | 46403-SE0-003 | Valve comp. - CHECK (NISSIN) | Valve comp. - CHECK (NISSIN) |
| 15 | 46406-SR3-000 | Stay - MASTER POWER TUBE | Stay - MASTER POWER TUBE |
| 17 | 46512-SB2-000 | Pin - PEDAL | Pin - PEDAL |
| 20 | 46665-ST5-003 | Band - RESERVE TANK | Band - RESERVE TANK |
| 23 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 24 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
| 29 | 57562-SF1-003 | Circlip | Circlip |
| 31 | 90852-671-003 | Plug - HOLE | Plug - HOLE |

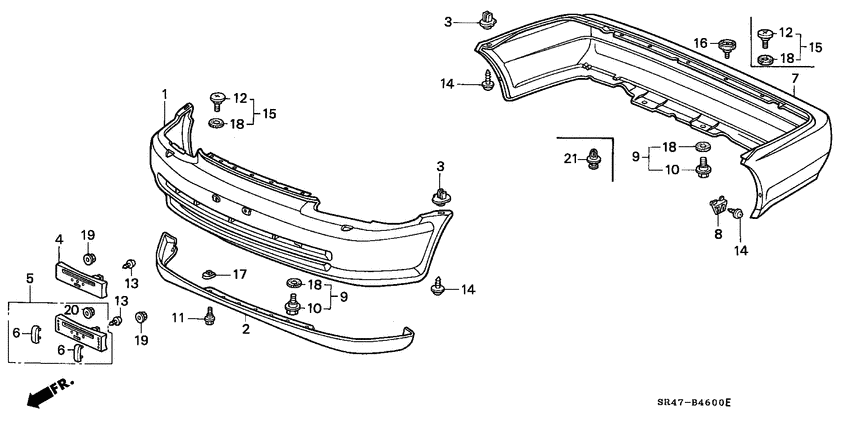

Bumper 8 / 14
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 3 | 71144-SR3-013 | Grommet - BUMPER SIDE | Grommet - BUMPER SIDE |
| 8 | 71598-SR4-000 | Spacer assy. - RR. BUMPER SIDE | Spacer assy. - RR. BUMPER SIDE |
| 9 | 90101-SE0-010 | Bolt assy. b - BUMPER | Bolt assy. b - BUMPER |
| 10 | 90109-SE0-003 | Bolt b - BUMPER | Bolt b - BUMPER |
| 12 | 90112-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 14 | 90121-SA7-000 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 15 | 90130-SB0-010 | Bolt assy - BUMPER | Bolt assy - BUMPER |
| 18 | 90540-SA7-000 | Washer - BUMPER | Washer - BUMPER |
Camshaft/timing belt (DOHC VTEC) 1 / 24
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 17 | 90007-679-000 | Bolt a - TIMING BELT COVER | Bolt a - TIMING BELT COVER |

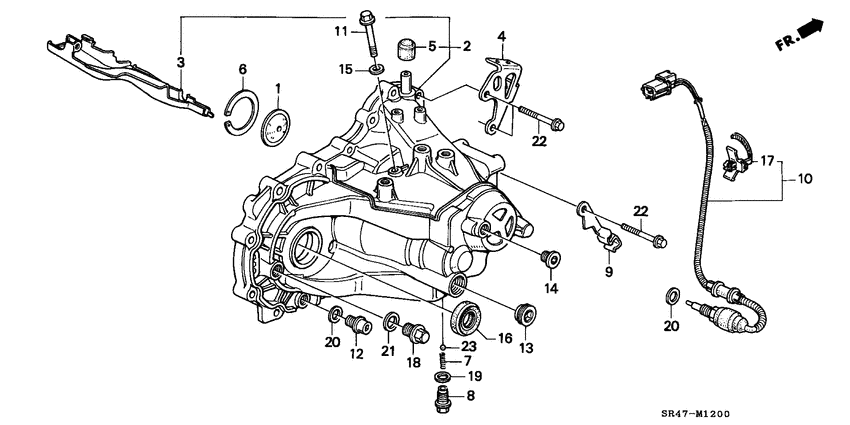

Clutch housing (DOHC) 3 / 36
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 5 | 21120-PG2-003 | Magnet - TRANSMISSION | Magnet - TRANSMISSION |
| 14 | 91205-PL3-A01 | Oil seal - 35X56X8 (ARAI) | Oil seal - 35X56X8 (ARAI) |
| 14 | 91205-PL3-A02 | Oil seal - 35X56X8(NOK) | Oil seal - 35X56X8(NOK) |
Clutch master cylinder (LH) 25 / 36
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 3 | 46151-SA5-003 | Yoke comp. - NISSIN | Yoke comp. - NISSIN |
| 4 | 46164-632-000 | Float | Float |
| 5 | 46182-500-013 | Circlip | Circlip |
| 6 | 46184-611-000 | Dust seal - MASTER CYLINDER | Dust seal - MASTER CYLINDER |
| 7 | 46912-SD4-000 | Pin - CLUTCH PEDAL | Pin - CLUTCH PEDAL |
| 9 | 46918-ST7-000 | Clamp - TUBE (D10.5) | Clamp - TUBE (D10.5) |
| 12 | 46926-SF1-003 | Piston assy. | Piston assy. |
| 13 | 46928-SF1-000 | Seal - CLUTCH MASTER CYLINDER | Seal - CLUTCH MASTER CYLINDER |
| 14 | 46930-SR3-013 | Cylinder assy. - SLAVE | Cylinder assy. - SLAVE |
| 15 | 46932-SD4-003 | Piston - SLAVE CYLINDER | Piston - SLAVE CYLINDER |
| 16 | 46933-SD4-013 | Cup a - PISTON | Cup a - PISTON |
| 17 | 46934-SD4-003 | Cup b - PISTON | Cup b - PISTON |
| 18 | 46935-SP0-000 | Spring - SLAVE CYLINDER | Spring - SLAVE CYLINDER |
| 19 | 46937-SR3-003 | Boot - SLAVE CYLINDER | Boot - SLAVE CYLINDER |
| 20 | 46938-SD4-003 | Rod - PUSH | Rod - PUSH |
| 22 | 46950-SL4-003 | Rod assy - PUSH | Rod assy - PUSH |
| 23 | 46952-SD4-003 | Joint - TUBE | Joint - TUBE |
| 24 | 46953-SD4-003 | Packing | Packing |
| 30 | 46972-SD4-003 | Tank - CLUTCH FLUID | Tank - CLUTCH FLUID |
| 31 | 46973-SD4-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 32 | 46975-SD4-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 35 | 46996-SR3-000 | Bracket b - CLUTCH PIPE | Bracket b - CLUTCH PIPE |
| 39 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Clutch release (DOHC) 6 / 12
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 6 | 22841-P20-000 | Boot - RELEASE FORK | Boot - RELEASE FORK |
| 7 | 23811-P36-000 | Holder comp - SPEEDOMETER GEAR | Holder comp - SPEEDOMETER GEAR |
| 9 | 90003-P03-000 | Bolt-washer - 6X26 | Bolt-washer - 6X26 |
| 10 | 90638-689-000 | Clip - SPEEDOMETER GEAR | Clip - SPEEDOMETER GEAR |
| 11 | 91304-PT0-000 | O-ring - 14.8X1.9 | O-ring - 14.8X1.9 |
| 12 | 91313-611-010 | O-ring - 23.5X2 | O-ring - 23.5X2 |
Clutch/torque converter 2 / 8
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 10 | 90034-689-000 | Bolt - TWELVE POINT, 8MM (TOKAI TRW) | Bolt - TWELVE POINT, 8MM (TOKAI TRW) |
| 12 | 91006-634-008 | Bearing - CLUTCH PILOT (NTN) | Bearing - CLUTCH PILOT (NTN) |

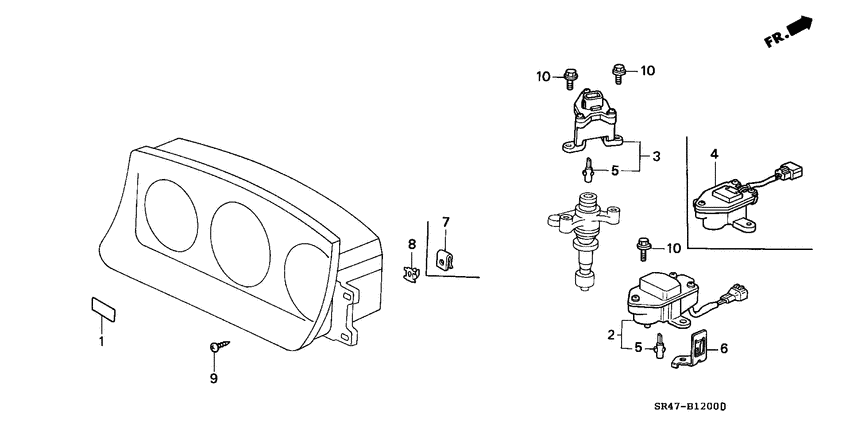

Combination meter (COMPONENTS) 9 / 16
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 4 | 37106-SJ4-J00 | Knob - TRIP | Knob - TRIP |
| 5 | 37238-SD2-A00 | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN |
| 6 | 78108-SR3-G01 | Panel - PRINT | Panel - PRINT |
| 7 | 78110-SR3-J03 | Case assy. | Case assy. |
| 15 | 90131-SF4-003 | Screw-washer - 3X16 (NS) | Screw-washer - 3X16 (NS) |
| 16 | 90132-SM4-003 | Screw-washer - 3X16 | Screw-washer - 3X16 |
| 17 | 91547-SR3-003 | Clamp - WIRE HARNESS | Clamp - WIRE HARNESS |

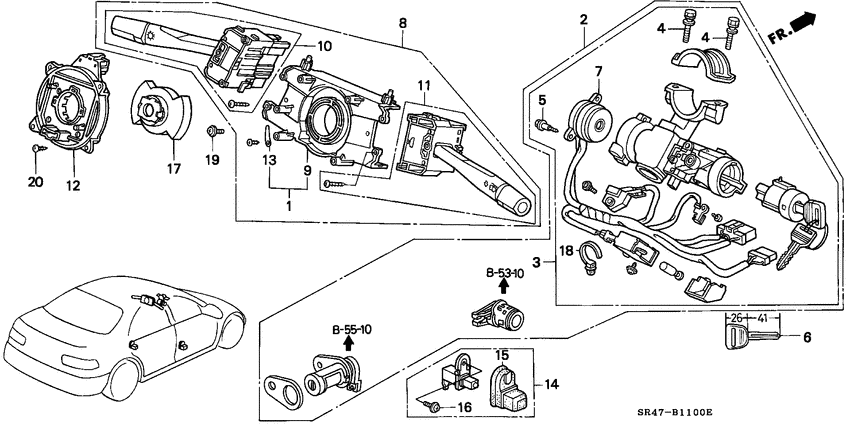

Combination switch 10 / 22
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 4 | 35102-SG0-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 5 | 35103-SE3-003 | Screw - RECESSED, 3X8 | Screw - RECESSED, 3X8 |
| 6 | 35113-SH3-G02 | Key - BLANK (MAIN) (MOLD=BLACK) | Key - BLANK (MAIN) (MOLD=BLACK) |
| 9 | 35251-SR3-003 | Body - SWITCH | Body - SWITCH |
| 14 | 35400-SL4-003 | Switch assy - DOOR | Switch assy - DOOR |
| 15 | 35401-SL4-003 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 16 | 35409-692-013 | Screw - FLANGE, 4X12 | Screw - FLANGE, 4X12 |
| 17 | 53271-SR3-000 | Cam - TURN SIGNAL SWITCH CANCEL | Cam - TURN SIGNAL SWITCH CANCEL |
| 18 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |

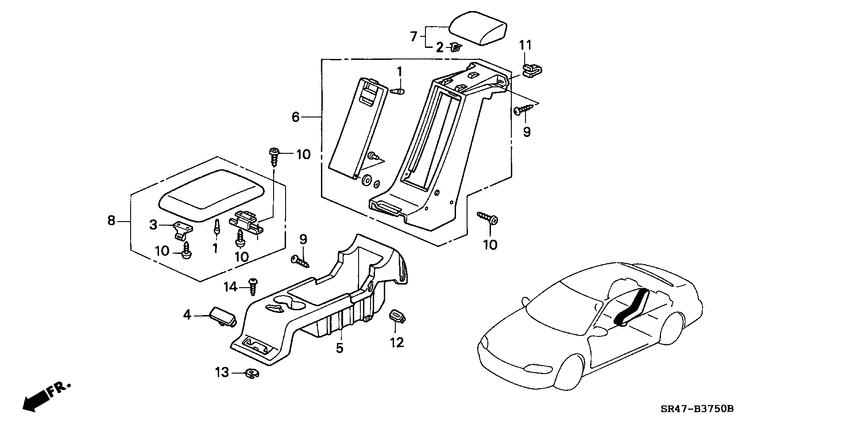

Console 14 / 15
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 66418-SA5-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 2 | 77180-SR3-000 | Bracket - INSTRUMENT CENTER LOWER | Bracket - INSTRUMENT CENTER LOWER |
| 3 | 77189-SR3-000 | Cover - CENTER LOWER BRACKET | Cover - CENTER LOWER BRACKET |
| 6 | 83407-SR4-J00 | Lock - ARMREST LID | Lock - ARMREST LID |
| 11 | 83418-SR4-J00 | Cover - PARKING BRAKE | Cover - PARKING BRAKE |
| 16 | 83443-SR4-J00 | Box | Box |
| 17 | 83445-SR4-J00 | Bracket - RR. CONSOLE | Bracket - RR. CONSOLE |
| 20 | 88324-SB3-950 | Cover - RR. ASHTRAY | Cover - RR. ASHTRAY |
| 21 | 90137-SH3-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 22 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 23 | 90153-SB6-003 | Bolt - EARTH, 6X12(ZN) | Bolt - EARTH, 6X12(ZN) |
| 24 | 90651-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 25 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 26 | 91647-SH3-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Control unit (CABIN; LH) 8 / 26
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 15 | 38235-SA5-003 | Puller - FUSE (SUMITOMO) | Puller - FUSE (SUMITOMO) |
| 16 | 38300-SE3-003 | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) |
| 16 | 38300-SE3-004 | Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO) | Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO) |
| 18 | 38380-SR3-003 | Control unit - AUTO DOOR LOCK (MITSUBA) | Control unit - AUTO DOOR LOCK (MITSUBA) |
| 24 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 24 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 28 | 90670-SG0-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 29 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
Control unit (ENGINE ROOM; LH) 10 / 18
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 6 | 38211-SM4-003 | Fuse - BLOCK (30A) | Fuse - BLOCK (30A) |
| 7 | 38212-SM4-003 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 8 | 38213-SM4-003 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 9 | 38216-SM4-003 | Fuse - BLOCK (80A) | Fuse - BLOCK (80A) |
| 16 | 38252-SR3-003 | Cover - LOWER | Cover - LOWER |
| 18 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 18 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 19 | 90129-SP0-000 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 20 | 90130-SR3-003 | Bolt - 5X13 | Bolt - 5X13 |

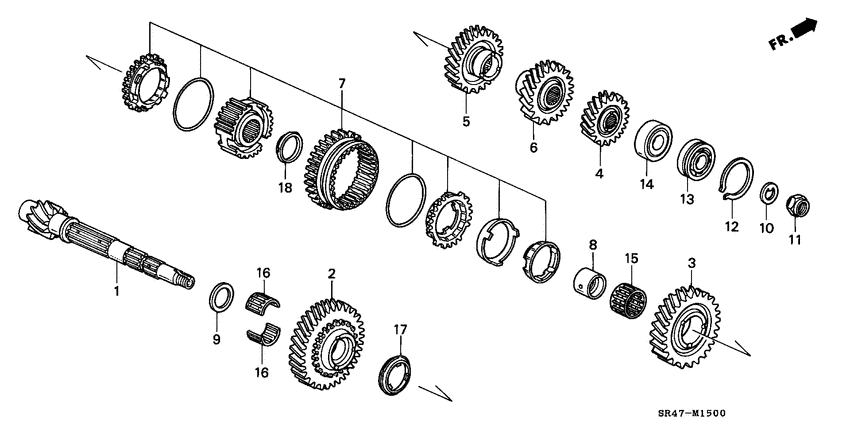

Countershaft (DOHC) 1 / 33
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 12 | 90603-PL3-000 | Ring - SNAP, 52MM | Ring - SNAP, 52MM |

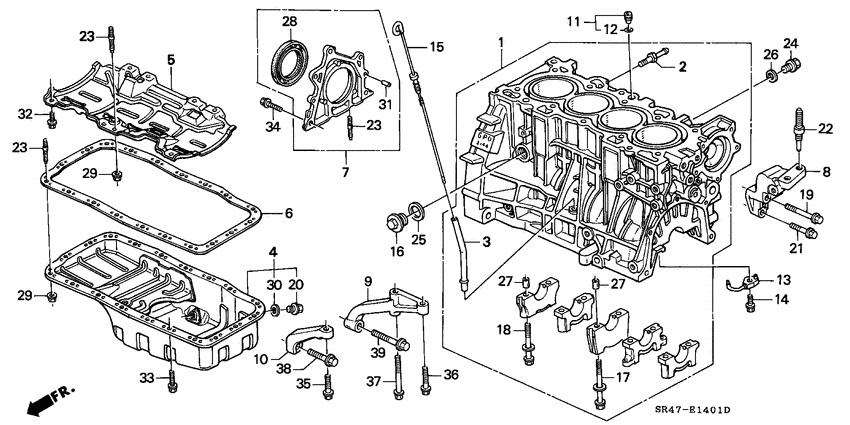

Cylinder block/oil pan (DOHC) 6 / 28
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 16 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 20 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 22 | 90041-P01-000 | Bolt - STUD, 12X40 | Bolt - STUD, 12X40 |
| 23 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 25 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 28 | 91214-PLE-003 | Oil seal | Oil seal |

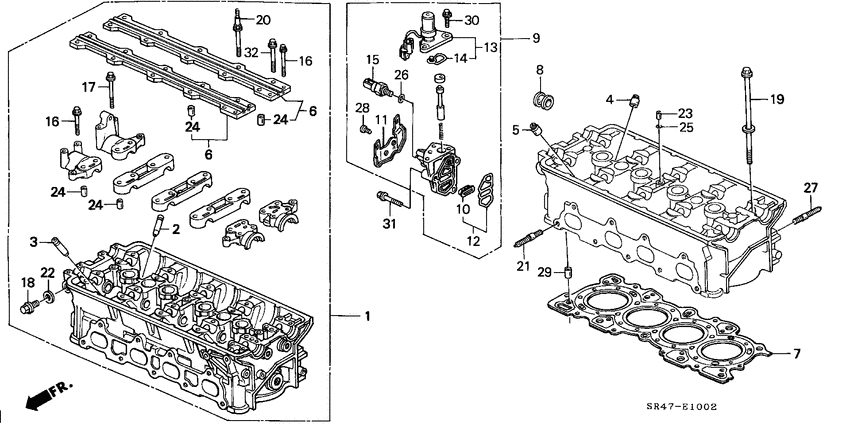

Cylinder head (DOHC VTEC) 6 / 32
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 21 | 90026-PE0-000 | Bolt - STUD, 8X37 | Bolt - STUD, 8X37 |
| 21 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |

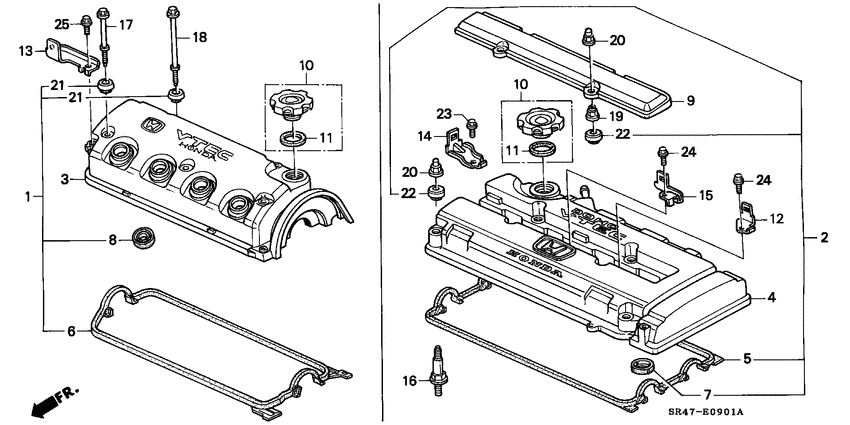

Cylinder head cover (VTEC) 3 / 14
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 10 | 15610-PC6-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 11 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 20 | 90213-PH3-000 | Nut - CAP, 6MM | Nut - CAP, 6MM |
Driveshaft/half shaft 6 / 27
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 8 | 44329-SB0-300 | Band - DRIVESHAFT BOOT | Band - DRIVESHAFT BOOT |
| 8 | 44352-SA2-300 | Band - DAMPER WEIGHT | Band - DAMPER WEIGHT |
| 10 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 13 | 44347-SF1-003 | Ring - OUTBOARD | Ring - OUTBOARD |
| 21 | 90305-692-010 | Nut | Nut |
| 28 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
Emblem 5 / 12
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 2 | 19043-P01-E01 | Label - COOLANT CAUTION | Label - COOLANT CAUTION |
| 6 | 75700-SR3-000 | Emblem - CENTER (H) | Emblem - CENTER (H) |
| 7 | 75701-SR4-000 | Emblem - RR. CENTER (H) | Emblem - RR. CENTER (H) |
| 20 | 76501-SA1-600 | Plate, RR. DOOR LOCK CAUTION | Plate, RR. DOOR LOCK CAUTION |
| 25 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
Engine mounts (DOHC) 22 / 32
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 3 | 50203-SR3-010 | Collar - RR. BEAM | Collar - RR. BEAM |
| 8 | 50810-SR3-030 | Rubber - RR. ENGINE MOUNTING INSULATOR (MT) | Rubber - RR. ENGINE MOUNTING INSULATOR (MT) |
| 9 | 50820-SR3-J11 | RUBBER ASSY., ENGINE SIDE MOUNTING (HYDRO) | RUBBER ASSY., ENGINE SIDE MOUNTING (HYDRO) |
| 16 | 90131-ST7-000 | Bolt - L. FR. STOPPER | Bolt - L. FR. STOPPER |
| 17 | 90133-SR3-010 | Bolt - R. FR. STOPPER | Bolt - R. FR. STOPPER |
| 18 | 90161-SR3-000 | Bolt - FLANGE, 14X107 | Bolt - FLANGE, 14X107 |
| 19 | 90162-SR3-000 | Bolt - FLANGE, 14X60 | Bolt - FLANGE, 14X60 |
| 20 | 90165-SM4-020 | Bolt - FLANGE, 12X101 | Bolt - FLANGE, 12X101 |
| 21 | 90166-SR3-000 | Bolt - FLANGE, 10X30 | Bolt - FLANGE, 10X30 |
| 22 | 90167-SR3-000 | Bolt - FLANGE, 14X120 | Bolt - FLANGE, 14X120 |
| 23 | 90168-SR3-000 | Bolt - FLANGE, 14X35 | Bolt - FLANGE, 14X35 |
| 24 | 90176-SK7-013 | Bolt - FLANGE, 10X31 | Bolt - FLANGE, 10X31 |
| 25 | 90182-SR3-000 | Bolt - FLANGE, 12X112 | Bolt - FLANGE, 12X112 |
| 26 | 90183-SR3-000 | Bolt - FLANGE, 12X100 | Bolt - FLANGE, 12X100 |
| 29 | 90188-SR3-010 | Bolt - FLANGE, 14X67 | Bolt - FLANGE, 14X67 |
| 30 | 90190-SR3-000 | Bolt - FLANGE, 12X64 | Bolt - FLANGE, 12X64 |
| 31 | 90371-SR3-000 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 32 | 90372-SR3-003 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 33 | 90380-SR3-000 | Bolt - STUD, 12X57.6 | Bolt - STUD, 12X57.6 |
| 34 | 90504-SR3-010 | Washer - FR. STOPPER | Washer - FR. STOPPER |
| 35 | 90505-SB2-000 | Washer - SIDE MOUNTING | Washer - SIDE MOUNTING |
| 36 | 90505-SR3-000 | Washer - RR. BRACKET, 14MM | Washer - RR. BRACKET, 14MM |
Engine wire harness/clamp (DOHC) 19 / 36
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 6 | 32113-P01-000 | Stay comp - R. COUPLER | Stay comp - R. COUPLER |
| 9 | 32741-P01-000 | Clamp a - ENGINE HARNESS (GREEN) | Clamp a - ENGINE HARNESS (GREEN) |
| 10 | 32744-P01-000 | Clamp d - ENGINE HARNESS (GREEN) | Clamp d - ENGINE HARNESS (GREEN) |
| 14 | 32752-P01-000 | Stay b - ENGINE WIRE HARNESS | Stay b - ENGINE WIRE HARNESS |
| 15 | 37240-PT0-013 | Switch - OIL PRESSURE (DENSO) | Switch - OIL PRESSURE (DENSO) |
| 15 | 37240-PT0-004 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 16 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 17 | 37760-P00-004 | Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT) | Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT) |
| 17 | 37760-P00-003 | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) |
| 19 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 20 | 90050-PG7-000 | Bolt - FLANGE, 12X65 | Bolt - FLANGE, 12X65 |
| 22 | 90057-PG7-003 | Bolt - ALTERNATOR | Bolt - ALTERNATOR |
| 25 | 90130-SR3-003 | Bolt - 5X13 | Bolt - 5X13 |
| 27 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 27 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 28 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
| 29 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |
| 30 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 31 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
Exhaust manifold (1.6L DOHC) 7 / 13
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 6 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 7 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 8 | 90022-PE0-000 | Bolt - FLANGE, 8X10 | Bolt - FLANGE, 8X10 |
| 9 | 90065-PG6-000 | Bolt, STUD, 10X24 | Bolt, STUD, 10X24 |
| 10 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 10 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 11 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |

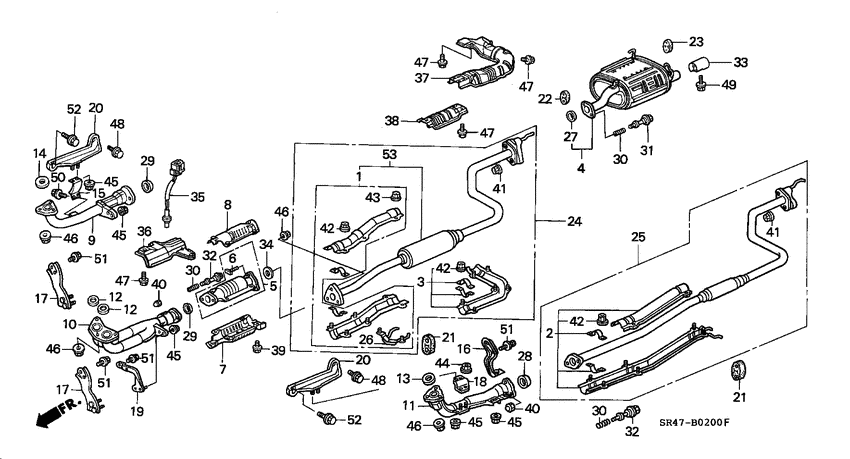

Exhaust pipe (2WD) 11 / 32
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 21 | 18215-SH3-J01 | Rubber - EX. MOUNTING (70X55X30) | Rubber - EX. MOUNTING (70X55X30) |
| 22 | 18215-SR3-000 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 23 | 18215-671-000 | Rubber - SILENCER MOUNTING (74X53X22) | Rubber - SILENCER MOUNTING (74X53X22) |
| 27 | 18229-SH3-X30 | Gasket - EX. FLEXIBLE (50.8MM-64MM) | Gasket - EX. FLEXIBLE (50.8MM-64MM) |
| 30 | 18230-SA0-930 | Spring - FLEXIBLE JOINT | Spring - FLEXIBLE JOINT |
| 31 | 18231-SR3-A22 | Bolt b - FLEXIBLE JOINT | Bolt b - FLEXIBLE JOINT |
| 32 | 18231-SR3-J01 | Bolt a - FLEXIBLE JOINT | Bolt a - FLEXIBLE JOINT |
| 37 | 74651-SR3-000 | Plate - FUEL TANK BAFFLE | Plate - FUEL TANK BAFFLE |
| 40 | 90110-679-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 45 | 90117-SB2-000 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 46 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
Floor mat 7 / 12
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 64436-692-000 | Clip - GUIDE | Clip - GUIDE |
| 5 | 83107-ST7-000 | Insulator - DASHBOARD WINDSHIELD LOWER | Insulator - DASHBOARD WINDSHIELD LOWER |
| 6 | 83108-ST7-000 | Insulator - DASHBOARD UPPER CENTER | Insulator - DASHBOARD UPPER CENTER |
| 16 | 90668-SH3-003 | Clip - SIDE LINING | Clip - SIDE LINING |
| 18 | 91533-SR3-003 | Clip - INSULATOR (NATURAL) | Clip - INSULATOR (NATURAL) |
| 19 | 91535-SR3-003 | Clip - DASHBOARD INSULATOR LOCK (BLACK) | Clip - DASHBOARD INSULATOR LOCK (BLACK) |
| 22 | 91641-SH3-013 | Grommet assy, GARNISH | Grommet assy, GARNISH |

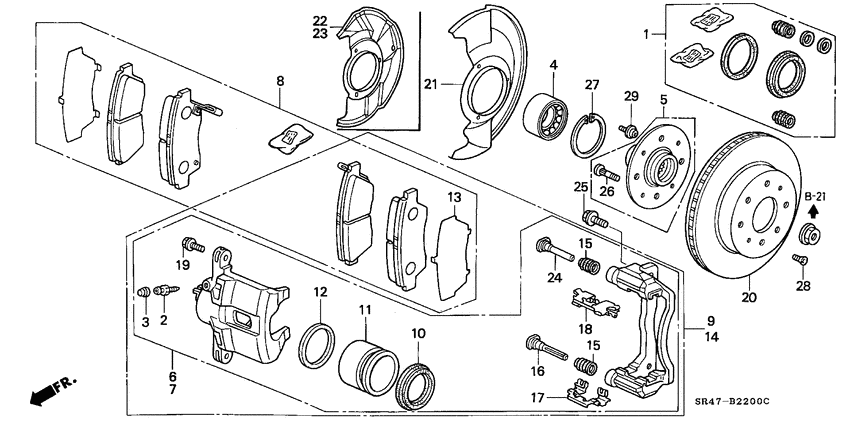

Front brake 11 / 25
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 2 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 3 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 16 | 45235-SR3-003 | Pin a | Pin a |
| 17 | 45237-SR3-003 | Retainer a | Retainer a |
| 18 | 45238-SR3-003 | Retainer b | Retainer b |
| 19 | 45240-SA7-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 24 | 45262-SR3-003 | Pin b | Pin b |
| 25 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 26 | 90113-SA0-023 | Bolt - WHEEL (TOKAI TRW) | Bolt - WHEEL (TOKAI TRW) |
| 26 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 26 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
Front door lining 9 / 9
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 5 | 72335-SR4-003 | Weatherstrip - FR. DOOR INNER | Weatherstrip - FR. DOOR INNER |
| 9 | 83508-SR3-000 | Bracket assy - PULL POCKET | Bracket assy - PULL POCKET |
| 13 | 90131-SE3-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 14 | 90310-SR4-000 | Nut - PUSH, 8MM | Nut - PUSH, 8MM |
| 15 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 16 | 90668-SR4-003 | Clip - LOCK KNOB COVER | Clip - LOCK KNOB COVER |
| 17 | 90678-SK7-003 | Clip - SPEAKER | Clip - SPEAKER |
| 19 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 19 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |

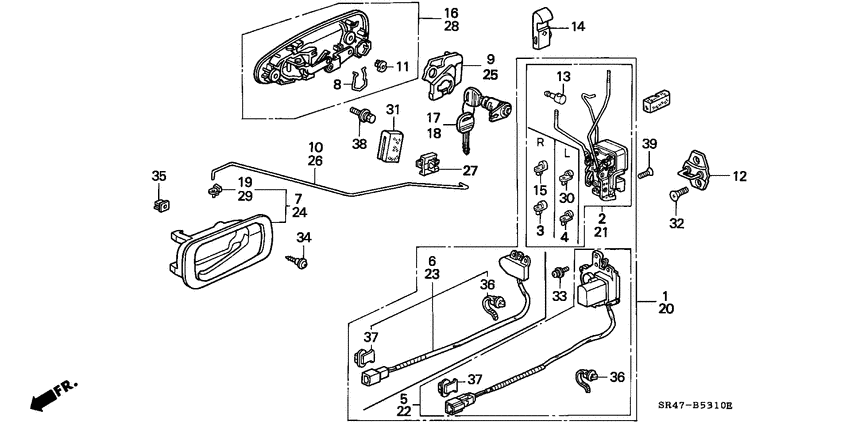

Front door locks 22 / 32
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 3 | 72112-SR4-004 | Snap - BROWN | Snap - BROWN |
| 4 | 72113-SR4-004 | Snap - BLACK | Snap - BLACK |
| 8 | 72123-SR0-003 | Ring - OUTSIDE HANDLE | Ring - OUTSIDE HANDLE |
| 10 | 72131-SR4-004 | Rod - R. FR. INSIDE | Rod - R. FR. INSIDE |
| 11 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 12 | 72135-SR3-003 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 13 | 75411-634-000 | Joint | Joint |
| 15 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 17 | 72145-SR3-003 | Cylinder - R. DOOR | Cylinder - R. DOOR |
| 18 | 72146-SR3-003 | Cylinder - L. DOOR | Cylinder - L. DOOR |
| 19 | 72149-SR4-000 | Snap - R. | Snap - R. |
| 26 | 72171-SR4-004 | Rod - L. FR. INSIDE | Rod - L. FR. INSIDE |
| 27 | 72175-SH3-003 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 29 | 72189-SR4-000 | Snap - L. | Snap - L. |
| 30 | 72616-SM4-003 | Snap - NATURAL | Snap - NATURAL |
| 31 | 75513-SB2-000 | Cushion - LOCK ROD (35MMX58MM) | Cushion - LOCK ROD (35MMX58MM) |
| 32 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 33 | 90101-SR4-003 | Screw - 3X10 | Screw - 3X10 |
| 34 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 35 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 36 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 37 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Front door panels 16 / 18
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 13 | 72310-SR4-003 | Weatherstrip - R. FR. DOOR | Weatherstrip - R. FR. DOOR |
| 15 | 72325-SR4-014 | Sub seal - R. FR. DOOR | Sub seal - R. FR. DOOR |
| 15 | 72325-SR4-024 | Sub seal - R. FR. DOOR | Sub seal - R. FR. DOOR |
| 16 | 72350-SR4-003 | Weatherstrip - L. FR. DOOR | Weatherstrip - L. FR. DOOR |
| 18 | 72365-SR4-024 | Sub seal - L. FR. DOOR | Sub seal - L. FR. DOOR |
| 18 | 72365-SR4-014 | Sub seal - L. FR. DOOR | Sub seal - L. FR. DOOR |
| 19 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 20 | 75750-SE7-003 | Checker comp. - FR. DOOR | Checker comp. - FR. DOOR |
| 21 | 75760-SB2-003 | Pin - DOOR CHECKER | Pin - DOOR CHECKER |
| 22 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 23 | 90001-SD2-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 24 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 25 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 26 | 90755-SB2-000 | E-ring - 6MM | E-ring - 6MM |
| 27 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 28 | 91534-SR3-003 | Clip - DOOR SUB SEAL | Clip - DOOR SUB SEAL |
Front door windows 12 / 16
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 2 | 72211-SR4-J01 | Regulator - R. FR. DOOR POWER | Regulator - R. FR. DOOR POWER |
| 6 | 72231-SR4-003 | Sash - R. FR. DOOR CENTER LOWER | Sash - R. FR. DOOR CENTER LOWER |
| 7 | 72235-SR4-014 | Runchannel - R. FR. DOOR | Runchannel - R. FR. DOOR |
| 8 | 72246-SR3-003 | Stopper - DOOR GLASS | Stopper - DOOR GLASS |
| 10 | 72251-SR4-J01 | Regulator - L. FR. DOOR POWER | Regulator - L. FR. DOOR POWER |
| 12 | 72271-SR4-003 | Sash - L. FR. DOOR CENTER LOWER | Sash - L. FR. DOOR CENTER LOWER |
| 13 | 72275-SR4-014 | Runchannel - L. FR. DOOR | Runchannel - L. FR. DOOR |
| 19 | 90011-896-000 | Bolt - FLANGE, 6X8 | Bolt - FLANGE, 6X8 |
| 20 | 90115-SG0-003 | Bolt - FLANGE, 6MM | Bolt - FLANGE, 6MM |
| 21 | 90120-SE3-003 | Bolt - FLANGE, 6X12 | Bolt - FLANGE, 6X12 |
| 22 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 23 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
Front fenders 7 / 8
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 5 | 74101-SR3-000 | RH FR. INNER Fender | RH FR. INNER Fender |
| 8 | 74151-SR3-000 | LH FR. INNER Fender | LH FR. INNER Fender |
| 9 | 90126-SR4-000 | Screw-washer - 5X16 | Screw-washer - 5X16 |
| 10 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 11 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 12 | 91512-SM4-003 | Clip - INNER FENDER | Clip - INNER FENDER |
| 13 | 91516-SK7-013 | Clip - UNDER COVER | Clip - UNDER COVER |
Front seat (DOHC) 6 / 13
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 20 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 21 | 90161-SB4-003 | Screw - FLAT, 4X16 | Screw - FLAT, 4X16 |
| 22 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 24 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Front seat components 14 / 16
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 2 | 77208-SA5-003 | Bush - NYLON (TS TECH) | Bush - NYLON (TS TECH) |
| 3 | 77209-SB0-003 | Washer - NYLON | Washer - NYLON |
| 4 | 81230-SR3-J03 | Adjuster - R. RECLINING | Adjuster - R. RECLINING |
| 6 | 81260-SR4-J02 | Adjuster - OUTER SLIDE | Adjuster - OUTER SLIDE |
| 7 | 81261-SH4-A21 | Cap - END | Cap - END |
| 8 | 81270-SR4-J01 | Adjuster - R. INNER SLIDE | Adjuster - R. INNER SLIDE |
| 9 | 81630-SR3-A03 | Adjuster - L. RECLINING | Adjuster - L. RECLINING |
| 11 | 81670-SR4-J01 | Adjuster - L. INNER SLIDE | Adjuster - L. INNER SLIDE |
| 12 | 90128-SR4-003 | Bolt-washer - 8X19 | Bolt-washer - 8X19 |
| 13 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 14 | 90135-SK7-A01 | Bolt-washer - 10X27 | Bolt-washer - 10X27 |
| 15 | 90143-SR3-000 | Bolt-washer - 10X22 | Bolt-washer - 10X22 |
| 16 | 90155-SH3-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 17 | 90143-SR3-900 | Bolt-washer - 10X22 | Bolt-washer - 10X22 |
Front shock absorber 16 / 20
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 51401-SR3-N02 | Spring - FR. (MITSUBISHI) | Spring - FR. (MITSUBISHI) |
| 1 | 51401-SR3-N01 | Spring - FR. (SHOWA) | Spring - FR. (SHOWA) |
| 6 | 51621-SB0-004 | Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA) | Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 6 | 51621-SB0-003 | Washer - SHOCK ABSORBER MOUNTING (TOKICO) | Washer - SHOCK ABSORBER MOUNTING (TOKICO) |
| 7 | 51631-SB0-003 | Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.) | Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.) |
| 7 | 51631-S7S-J01 | RUBBER DAMPER M | RUBBER DAMPER M |
| 7 | 51631-SB0-004 | Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA) | Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA) |
| 8 | 51675-SH3-024 | Base - SHOCK ABSORBER MOUNTING (SHOWA) | Base - SHOCK ABSORBER MOUNTING (SHOWA) |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 10 | 51686-SR3-003 | Rubber - SPRING MOUNTING (SHOWA) | Rubber - SPRING MOUNTING (SHOWA) |
| 11 | 51687-SR3-003 | Cover - FR. SLEEVE DUST (SHOWA) | Cover - FR. SLEEVE DUST (SHOWA) |
| 12 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 13 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 14 | 52722-SE0-006 | Rubber - BUMP STOPPER (POLYURETHAN KASEI) | Rubber - BUMP STOPPER (POLYURETHAN KASEI) |
| 15 | 90304-SR3-014 | Nut - FLANGE, 10MM (OHASHI) | Nut - FLANGE, 10MM (OHASHI) |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Front stabilizer/ front lower arm 23 / 27
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 3 | 51308-SR3-000 | Holder - R. FR. STABILIZER | Holder - R. FR. STABILIZER |
| 5 | 51350-SR3-020 | Arm assy. - R. FR. LOWER | Arm assy. - R. FR. LOWER |
| 6 | 51360-SR3-020 | Arm assy. - L. FR. LOWER | Arm assy. - L. FR. LOWER |
| 7 | 51392-SR3-024 | Bush - FR. LOWER ARM | Bush - FR. LOWER ARM |
| 8 | 51395-SR3-N03 | Bush comp - R. FR. COMPLIANCE (YAMASHITA) | Bush comp - R. FR. COMPLIANCE (YAMASHITA) |
| 9 | 51396-SR3-N03 | Bush comp - L. FR. COMPLIANCE (YAMASHITA) | Bush comp - L. FR. COMPLIANCE (YAMASHITA) |
| 10 | 51398-SR3-000 | Washer b - FR. RADIUS ARM (14MM) | Washer b - FR. RADIUS ARM (14MM) |
| 11 | 51399-SR3-010 | Washer a - FR. RADIUS ARM (18MM) | Washer a - FR. RADIUS ARM (18MM) |
| 12 | 51810-SH3-003 | Bush - SHOCK ABSORBER FORK (HOKUSHIN) | Bush - SHOCK ABSORBER FORK (HOKUSHIN) |
| 12 | 51810-SH3-004 | Bush - SHOCK ABSORBER FORK (YAMASHITA) | Bush - SHOCK ABSORBER FORK (YAMASHITA) |
| 12 | 51810-SK7-004 | Bush - SHOCK ABSORBER FORK | Bush - SHOCK ABSORBER FORK |
| 13 | 51811-SR3-010 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 14 | 51821-SR3-010 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 16 | 90112-SE0-000 | Bolt - FR. STABILIZER | Bolt - FR. STABILIZER |
| 17 | 90118-SR3-003 | Bolt - SELF-LOCK, 12X76 | Bolt - SELF-LOCK, 12X76 |
| 18 | 90120-SB0-003 | Bolt - SHOCK ABSORBER LOCK, 10X42 | Bolt - SHOCK ABSORBER LOCK, 10X42 |
| 19 | 90162-SR3-000 | Bolt - FLANGE, 14X60 | Bolt - FLANGE, 14X60 |
| 20 | 90164-SR3-013 | Bolt - SELF-LOCK, 14X34 | Bolt - SELF-LOCK, 14X34 |
| 21 | 90168-SR3-000 | Bolt - FLANGE, 14X35 | Bolt - FLANGE, 14X35 |
| 22 | 90175-SH3-005 | Bolt - SHOCK ABSORBER FORK | Bolt - SHOCK ABSORBER FORK |
| 23 | 90213-SR3-013 | Nut - SELF-LOCK, 14MM | Nut - SELF-LOCK, 14MM |
| 24 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 25 | 90362-SF1-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
Front windshield 11 / 12
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 2 | 73125-SR3-000 | Rubber a - FR. WINDSHIELD DAM | Rubber a - FR. WINDSHIELD DAM |
| 3 | 73126-SR3-000 | Rubber b - FR. WINDSHIELD DAM | Rubber b - FR. WINDSHIELD DAM |
| 4 | 73127-SR3-003 | Holder - FR. WINDSHIELD GLASS | Holder - FR. WINDSHIELD GLASS |
| 5 | 73151-SR3-013 | Molding - FR. WINDSHIELD UPPER | Molding - FR. WINDSHIELD UPPER |
| 6 | 73152-SR4-003 | Molding assy. - R. FR. WINDSHIELD SIDE | Molding assy. - R. FR. WINDSHIELD SIDE |
| 7 | 73162-SR4-003 | Molding assy. - L. FR. WINDSHIELD SIDE | Molding assy. - L. FR. WINDSHIELD SIDE |
| 8 | 91511-SR3-003 | Clip d - FR. WINDSHIELD SIDE MOLDING (ORANGE) | Clip d - FR. WINDSHIELD SIDE MOLDING (ORANGE) |
| 9 | 91518-SR4-003 | Clip A - FR. WINDSHIELD MOLDING SIDE | Clip A - FR. WINDSHIELD MOLDING SIDE |
| 10 | 91519-SR4-003 | Clip b - FR. WINDSHIELD MOLDING SIDE | Clip b - FR. WINDSHIELD MOLDING SIDE |
| 11 | 91520-SR3-003 | Clip c - FR. WINDSHIELD SIDE MOLDING (RED) | Clip c - FR. WINDSHIELD SIDE MOLDING (RED) |
| 12 | 91534-ST0-003 | Clip c - FR. WINDSHIELD SIDE MOLDING (BLUE) | Clip c - FR. WINDSHIELD SIDE MOLDING (BLUE) |

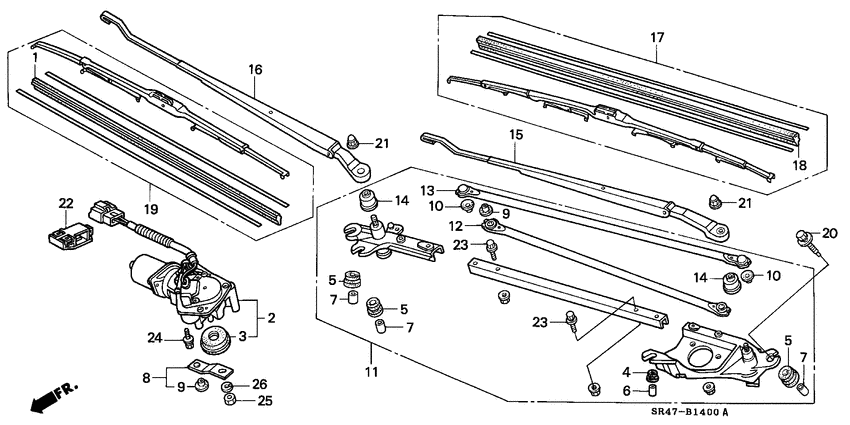

Front windshield wiper (LH) 15 / 25
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 38472-SB2-003 | Rubber - BLADE (450MM) | Rubber - BLADE (450MM) |
| 1 | 76632-S5H-T01 | Rubber - BLADE (450MM) | Rubber - BLADE (450MM) |
| 3 | 76515-SR3-003 | Seal a | Seal a |
| 4 | 76516-SE0-003 | Rubber - BRACKETLESS MOUNTING | Rubber - BRACKETLESS MOUNTING |
| 5 | 76516-SR3-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 6 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 7 | 76517-SM4-003 | Collar | Collar |
| 9 | 76524-SD4-003 | Dust seal | Dust seal |
| 10 | 76524-SE0-013 | Dust seal | Dust seal |
| 12 | 76540-SR3-003 | Rod unit a | Rod unit a |
| 13 | 76550-SM4-003 | Rod unit b | Rod unit b |
| 14 | 76561-SD4-003 | Cap - PIVOT | Cap - PIVOT |
| 20 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 21 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
| 22 | 91556-SR3-003 | Clip - COUPLER | Clip - COUPLER |
Fuel pipe ('95) 12 / 50
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 5 | 16913-SR3-000 | Cover - FR. FUEL PIPE | Cover - FR. FUEL PIPE |
| 6 | 16914-SR4-000 | Cover - RR. FUEL PIPE | Cover - RR. FUEL PIPE |
| 30 | 17761-SR3-010 | Stay a - FUEL PIPE | Stay a - FUEL PIPE |
| 31 | 17762-SR3-J00 | Stay b - FUEL PIPE | Stay b - FUEL PIPE |
| 32 | 17763-SR3-000 | Stay c - FUEL PIPE | Stay c - FUEL PIPE |
| 33 | 17764-SR3-J00 | Stay d - FUEL PIPE | Stay d - FUEL PIPE |
| 35 | 17765-SM4-000 | Stay e - FUEL PIPE | Stay e - FUEL PIPE |
| 39 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 41 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 46 | 91591-SR3-010 | Clip A - BRAKE | Clip A - BRAKE |
| 51 | 91595-SR3-003 | Clamp a - FUEL PIPE | Clamp a - FUEL PIPE |
| 54 | 91597-SR3-003 | Clamp c - FUEL PIPE | Clamp c - FUEL PIPE |

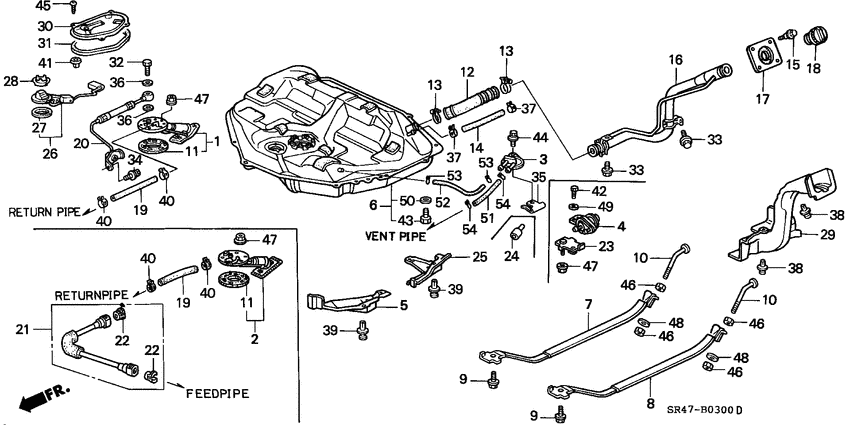

Fuel tank (2WD) 20 / 35
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 5 | 17372-SR3-010 | Cover - TWO WAY VALVE | Cover - TWO WAY VALVE |
| 7 | 17521-SR3-000 | Band assy. - R. FUEL TANK MOUNTING | Band assy. - R. FUEL TANK MOUNTING |
| 8 | 17522-SR3-000 | Band assy. - L. FUEL TANK MOUNTING | Band assy. - L. FUEL TANK MOUNTING |
| 9 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 10 | 17525-SR3-000 | Bolt - FUEL TANK MOUNTING | Bolt - FUEL TANK MOUNTING |
| 10 | 17525-SR3-305 | Bolt | Bolt |
| 12 | 17651-SR3-000 | Tube - FILLER NECK | Tube - FILLER NECK |
| 13 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 14 | 17653-SH7-000 | Tube - BREATHER | Tube - BREATHER |
| 15 | 17656-SR3-003 | Bolt - FILLER PIPE MOUNTING | Bolt - FILLER PIPE MOUNTING |
| 17 | 17662-SR3-000 | Packing - FUEL FILLER | Packing - FUEL FILLER |
| 25 | 17733-SR3-010 | Protector - FUEL FILLER PIPE | Protector - FUEL FILLER PIPE |
| 28 | 37802-SD2-000 | Retainer - FUEL UNIT | Retainer - FUEL UNIT |
| 29 | 74559-SR3-010 | Cover - FUEL FILLER PIPE | Cover - FUEL FILLER PIPE |
| 30 | 74661-SR3-000 | Cap - FLOOR MAINTENANCE HOLE | Cap - FLOOR MAINTENANCE HOLE |
| 31 | 74662-SR3-000 | Rubber - SEAL | Rubber - SEAL |
| 37 | 90602-SA7-931 | Clamp - FUEL HOSE, 18.5MM | Clamp - FUEL HOSE, 18.5MM |
| 38 | 90657-SA5-003 | Clip - SIDE APRON MOLDING | Clip - SIDE APRON MOLDING |
| 39 | 90657-SH3-013 | Clip - TWO WAY VALVE COVER | Clip - TWO WAY VALVE COVER |
| 41 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
Grommet 16 / 19
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 72207-SB2-000 | Cap - FLOOR HOLE, 24MM | Cap - FLOOR HOLE, 24MM |
| 2 | 75826-605-300 | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) |
| 4 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 5 | 83431-SA4-000 | Cushion - FR. TRUNK | Cushion - FR. TRUNK |
| 6 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 7 | 90615-SR3-000 | Cap - WELD HOLE, 51X77 | Cap - WELD HOLE, 51X77 |
| 9 | 90850-SH4-K00 | Cap - OUTSIDE HOLE | Cap - OUTSIDE HOLE |
| 12 | 90852-671-003 | Plug - HOLE | Plug - HOLE |
| 13 | 90855-SA0-000 | Plug - VENTILATION HOLE, 20MM | Plug - VENTILATION HOLE, 20MM |
| 16 | 90860-SA5-003 | Plug - HOLE, 16MM | Plug - HOLE, 16MM |
| 20 | 91610-SB2-003 | Plug - HOLE, 16.7MM (BLACK) | Plug - HOLE, 16.7MM (BLACK) |
| 21 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 22 | 91616-SR3-000 | Seal - FR. INNER LOWER (110X110) (BLACK) | Seal - FR. INNER LOWER (110X110) (BLACK) |
| 23 | 91617-SB6-000 | Grommet - WASHER HOSE, 32MM | Grommet - WASHER HOSE, 32MM |
| 25 | 91617-SH3-000 | Seal - HOLE | Seal - HOLE |
| 26 | 91631-SR3-000 | Plug - AIR CONDITIONER HOLE | Plug - AIR CONDITIONER HOLE |

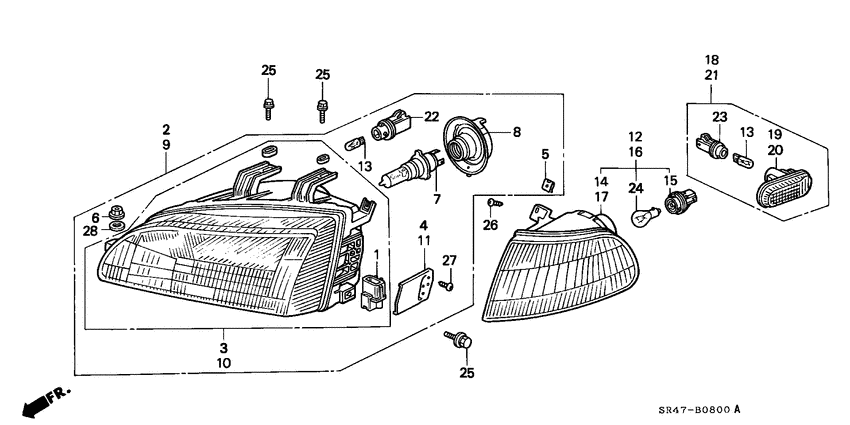

Headlight 22 / 32
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 4 | 33102-SR3-G01 | Plate - R. | Plate - R. |
| 5 | 33104-SR3-G01 | Nut - SPECIAL (3) | Nut - SPECIAL (3) |
| 6 | 33109-SR3-A01 | Nut e - SPECIAL | Nut e - SPECIAL |
| 7 | 33115-SM3-003 | Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY) | Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY) |
| 7 | 33115-SV4-G01 | Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) | Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) |
| 7 | 33115-SM4-003 | Bulb | Bulb |
| 8 | 33126-SH3-003 | Cover - RUBBER | Cover - RUBBER |
| 11 | 33152-SR3-G01 | Plate - L. | Plate - L. |
| 12 | 33300-SR4-013 | Light assy - R. FR. TURN | Light assy - R. FR. TURN |
| 13 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 14 | 33301-SR4-013 | Lamp unit - R. | Lamp unit - R. |
| 15 | 33305-SH3-A01 | Socket comp - GRAY | Socket comp - GRAY |
| 16 | 33350-SR4-013 | Light assy - L. FR. TURN | Light assy - L. FR. TURN |
| 17 | 33351-SR4-013 | Lamp unit - L. | Lamp unit - L. |
| 18 | 33800-SR3-G01 | Light assy - R. SIDE TURN | Light assy - R. SIDE TURN |
| 19 | 33801-SR3-G01 | Housing comp - R. | Housing comp - R. |
| 20 | 33802-SR3-G01 | Housing comp - L. | Housing comp - L. |
| 21 | 33850-SR3-G01 | Light assy - L. SIDE TURN | Light assy - L. SIDE TURN |
| 22 | 34303-SS1-003 | Socket comp - 2P | Socket comp - 2P |
| 23 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 24 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 25 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
Heater blower (LH) 9 / 14
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 2 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 9 | 90121-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 10 | 90123-SR3-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 11 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 12 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 13 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 14 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 15 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Heater control 20 / 23
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 3 | 32257-SR3-000 | Sub cord b - HEATER | Sub cord b - HEATER |
| 5 | 79512-SR3-003 | Lever | Lever |
| 6 | 79514-SR3-003 | Slider | Slider |
| 7 | 79529-SR3-003 | Stopper - CONTROL LEVER | Stopper - CONTROL LEVER |
| 9 | 79550-SR3-013 | Garnish | Garnish |
| 10 | 79551-SR3-013 | Display - MODE CONTROL | Display - MODE CONTROL |
| 11 | 79570-SR3-003 | Switch assy - HEATER FAN | Switch assy - HEATER FAN |
| 12 | 79601-SR3-013 | Knob a | Knob a |
| 13 | 79602-SR3-013 | Knob b | Knob b |
| 14 | 79603-SR3-013 | Knob c | Knob c |
| 15 | 79604-SR3-013 | Knob d | Knob d |
| 16 | 79612-SR3-013 | Lid - AIR CONDITIONER SWITCH | Lid - AIR CONDITIONER SWITCH |
| 17 | 79629-SR3-003 | Bulb assy - BLUE) (14V 14W | Bulb assy - BLUE) (14V 14W |
| 18 | 80411-SR3-013 | Knob - AIR CONDITIONER SWITCH | Knob - AIR CONDITIONER SWITCH |
| 19 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 20 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 21 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 22 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 23 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
Heater unit (LH) 7 / 11
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 5 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 6 | 79195-SF1-003 | Holder - ROD | Holder - ROD |
| 8 | 90122-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 9 | 90125-SR3-003 | Screw - TAPPING, 5X15 | Screw - TAPPING, 5X15 |
| 10 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 11 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
High tension cord/ spark plug 2 / 12
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 6 | 32763-PM3-000 | Clamp c - HIGH TENSION CORD | Clamp c - HIGH TENSION CORD |
| 21 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
Hood 20 / 26
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 6 | 74120-SR3-A01 | Lock assy - HOOD | Lock assy - HOOD |
| 10 | 74134-SH3-003 | Grommet - HOOD WIRE | Grommet - HOOD WIRE |
| 12 | 74142-SR3-010 | Rubber - HOOD SEAL | Rubber - HOOD SEAL |
| 13 | 74143-SR3-000 | Rubber - RR. HOOD SEAL | Rubber - RR. HOOD SEAL |
| 14 | 74145-SR3-000 | Stay - HOOD OPENER | Stay - HOOD OPENER |
| 15 | 74149-SR3-000 | Cover - CONDENSER | Cover - CONDENSER |
| 16 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 17 | 74213-SR4-300 | Cover - R. HOOD HINGE | Cover - R. HOOD HINGE |
| 18 | 74214-SR4-300 | Cover - L. HOOD HINGE | Cover - L. HOOD HINGE |
| 19 | 74144-SR3-000 | Cushion - HOOD | Cushion - HOOD |
| 20 | 90127-SA0-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 21 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 22 | 90672-SJ4-013 | Holder - ROD | Holder - ROD |
| 24 | 91508-SR3-000 | Clip - COWL TOP (BLACK) | Clip - COWL TOP (BLACK) |
| 24 | 91508-SX8-003 | Clip - COWL TOP | Clip - COWL TOP |
| 25 | 91512-SM4-003 | Clip - INNER FENDER | Clip - INNER FENDER |
| 26 | 91515-SR3-000 | Clip - RR. HOOD | Clip - RR. HOOD |
| 27 | 91520-SM4-C01 | Clip - HOOD SEAL RUBBER | Clip - HOOD SEAL RUBBER |
| 28 | 91604-SD2-013 | Grommet - HOOD STAY | Grommet - HOOD STAY |
Instrument panel (LH) 9 / 21
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 3 | 75513-SR3-000 | Cushion - SIDE | Cushion - SIDE |
| 12 | 77212-SR3-003 | Blind - COLUMN | Blind - COLUMN |
| 20 | 77466-SR3-000 | Seal - FR. INSTRUMENT | Seal - FR. INSTRUMENT |
| 25 | 77623-SR3-000 | Bush - UPPER VENT KNOB | Bush - UPPER VENT KNOB |
| 31 | 90106-SD2-000 | Nut - SPRING | Nut - SPRING |
| 32 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 34 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 37 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 38 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (LH; 1) 21 / 23
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 2 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 7 | 66405-SD4-000 | Stay - GLOVE BOX HINGE | Stay - GLOVE BOX HINGE |
| 8 | 66417-SB3-670 | Rubber - GLOVE BOX STOPPER | Rubber - GLOVE BOX STOPPER |
| 9 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 15 | 77509-SR3-000 | Stopper - GLOVE BOX | Stopper - GLOVE BOX |
| 17 | 77542-SR3-000 | Striker - GLOVE BOX | Striker - GLOVE BOX |
| 21 | 77730-SR3-003 | Holder comp - FR. ASHTRAY | Holder comp - FR. ASHTRAY |
| 22 | 77755-SH3-010 | Spring - COIN POCKET | Spring - COIN POCKET |
| 23 | 90137-SH3-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 24 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 25 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 26 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 27 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 28 | 90305-SA0-000 | Nut - FLOATING, 4MM | Nut - FLOATING, 4MM |
| 29 | 90665-SM4-003 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 30 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 31 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 32 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 40 | 39600-SW3-305 | Lighter unit - CIGARETTE | Lighter unit - CIGARETTE |
| 40 | 39600-SW3-505 | LIGHTER ASSYCIGA | LIGHTER ASSYCIGA |
| 41 | 39628-S04-305 | Cord assy | Cord assy |
Instrument panel garnish (LH; 2) 19 / 33
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 2 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 8 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 9 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 20 | 77509-SR3-000 | Stopper - GLOVE BOX | Stopper - GLOVE BOX |
| 26 | 77542-SR3-000 | Striker - GLOVE BOX | Striker - GLOVE BOX |
| 30 | 77730-SR3-003 | Holder comp - FR. ASHTRAY | Holder comp - FR. ASHTRAY |
| 31 | 77755-SH3-010 | Spring - COIN POCKET | Spring - COIN POCKET |
| 36 | 90137-SH3-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 37 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 38 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 39 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 40 | 90305-SA0-000 | Nut - FLOATING, 4MM | Nut - FLOATING, 4MM |
| 41 | 90665-SM4-003 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 42 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 44 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 45 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 59 | 39600-SW3-305 | Lighter unit - CIGARETTE | Lighter unit - CIGARETTE |
| 59 | 39600-SW3-505 | LIGHTER ASSYCIGA | LIGHTER ASSYCIGA |
| 60 | 39628-S04-305 | Cord assy | Cord assy |
Interior light 5 / 5
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 2 | 34252-692-003 | Lens - DAIICHI) (SUNROOF | Lens - DAIICHI) (SUNROOF |
| 3 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 3 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 5 | 34260-SM4-013 | Light assy - TRUNK ROOM | Light assy - TRUNK ROOM |
| 7 | 34295-SA5-003 | Bulb - 12V 3.4W) (DAIICHI | Bulb - 12V 3.4W) (DAIICHI |
Knuckle 14 / 18
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 44348-SR3-000 | Ring - FR. KNUCKLE | Ring - FR. KNUCKLE |
| 4 | 51220-SR3-003 | Joint comp - LOWER BALL (MUSASHI) | Joint comp - LOWER BALL (MUSASHI) |
| 5 | 51225-SR3-003 | Boot - LOWER BALL DUST (MUSASHI) | Boot - LOWER BALL DUST (MUSASHI) |
| 6 | 51450-SR3-013 | Arm assy. - R. FR. UPPER | Arm assy. - R. FR. UPPER |
| 7 | 51455-SR3-004 | Bush - FR. UPPER ARM (SUMITOMO) | Bush - FR. UPPER ARM (SUMITOMO) |
| 7 | 51455-SR3-003 | Bush - FR. UPPER ARM (YAMASHITA) | Bush - FR. UPPER ARM (YAMASHITA) |
| 8 | 51460-SR3-013 | Arm assy. - L. FR. UPPER | Arm assy. - L. FR. UPPER |
| 9 | 51464-SK7-003 | Boot - UPPER BALL JOINT | Boot - UPPER BALL JOINT |
| 10 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 15 | 90185-SR3-013 | Bolt - FR. ARM UPPER (10X58) | Bolt - FR. ARM UPPER (10X58) |
| 16 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 17 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 18 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 19 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
Mirror 14 / 19
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 04762-SR3-J11 | Mirror sub assy. - R. REMOTE CONTROL | Mirror sub assy. - R. REMOTE CONTROL |
| 2 | 04764-SR3-J11 | Mirror sub assy. - L. REMOTE CONTROL | Mirror sub assy. - L. REMOTE CONTROL |
| 11 | 76213-SR3-003 | Pin - STOPPER | Pin - STOPPER |
| 13 | 76220-SR4-900 | Sub garnish - R. DOOR MIRROR | Sub garnish - R. DOOR MIRROR |
| 20 | 76270-SR4-900 | Garnish - L. DOOR MIRROR SUB | Garnish - L. DOOR MIRROR SUB |
| 23 | 76409-SL0-003 | Washer - TOOTHED | Washer - TOOTHED |
| 24 | 76410-SL4-003 | Bolt - LOCK | Bolt - LOCK |
| 25 | 76419-SL4-003 | Spring - HOLDER | Spring - HOLDER |
| 26 | 76420-SL4-003 | Plate - HOOK | Plate - HOOK |
| 27 | 76290-SR3-003 | Screw - TAPPING, 4X10 (TRUSS) (###) | Screw - TAPPING, 4X10 (TRUSS) (###) |
| 28 | 76291-SR3-003 | Screw - TAPPING, 4X16 (TRUSS) | Screw - TAPPING, 4X16 (TRUSS) |
| 29 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 32 | 04763-SR3-000 | Actuator set - R. DOOR MIRROR | Actuator set - R. DOOR MIRROR |
| 33 | 04766-SR3-000 | Actuator set - L. DOOR MIRROR | Actuator set - L. DOOR MIRROR |
Oil pump/oil strainer (DOHC) 6 / 21
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 10 | 15400-PR3-003 | Cartridge - OIL FILTER (TSUCHIYA) | Cartridge - OIL FILTER (TSUCHIYA) |
| 10 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 10 | 15400-PR3-004 | Cartridge - OIL FILTER (TOYO ROKI) | Cartridge - OIL FILTER (TOYO ROKI) |
| 11 | 15400-PR3-305 | Cartridge set - OIL FILTER (TOYO ROKI) | Cartridge set - OIL FILTER (TOYO ROKI) |
| 14 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 16 | 91308-PK1-003 | O-ring - 26.2X2.4 (NOK) | O-ring - 26.2X2.4 (NOK) |
P.s. gear box (LH) 18 / 28
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 53010-SR3-010 | End set - RACK | End set - RACK |
| 3 | 53434-SD9-000 | Clip - TIE ROD | Clip - TIE ROD |
| 3 | 53434-S04-J51 | CLIP, TIE ROD | CLIP, TIE ROD |
| 4 | 53436-SH3-950 | Cushion b - POWER STEERING GEAR BOX | Cushion b - POWER STEERING GEAR BOX |
| 9 | 53449-SL0-A00 | Band b - BELLOWS | Band b - BELLOWS |
| 9 | 53449-S04-J51 | Band b - BELLOWS | Band b - BELLOWS |
| 12 | 53501-SR3-000 | Grommet a - STEERING | Grommet a - STEERING |
| 15 | 53534-SR3-N52 | Dust seal comp. - TIE ROD | Dust seal comp. - TIE ROD |
| 16 | 53536-SR3-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 17 | 53540-SR3-003 | End comp - R. TIE ROD | End comp - R. TIE ROD |
| 18 | 53546-SA0-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 19 | 53548-SL0-A01 | Circlip - TIE ROD | Circlip - TIE ROD |
| 20 | 53560-SR3-003 | End comp - L. TIE ROD | End comp - L. TIE ROD |
| 22 | 53685-SH3-000 | Bush - STEERING GEAR BOX MOUNTING | Bush - STEERING GEAR BOX MOUNTING |
| 23 | 53686-SH3-010 | Collar - STEERING GEAR BOX MOUNTING | Collar - STEERING GEAR BOX MOUNTING |
| 24 | 90108-SR3-951 | Bolt - GEAR BOX MOUNTING (10X65) | Bolt - GEAR BOX MOUNTING (10X65) |
| 25 | 90320-SF1-000 | Nut - CASTLE, 10MM | Nut - CASTLE, 10MM |
| 26 | 90325-SM4-J00 | Washer - PLAIN, 10MM | Washer - PLAIN, 10MM |
P.s. gear box components (LH) 3 / 51
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 8 | 53449-SL0-A00 | Band b - BELLOWS | Band b - BELLOWS |
| 8 | 53449-S04-J51 | Band b - BELLOWS | Band b - BELLOWS |
| 11 | 53536-SR3-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
P.s. line (LH) 11 / 22
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 3 | 53711-SR3-951 | Bracket assy - OIL TANK | Bracket assy - OIL TANK |
| 8 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 15 | 53735-SR3-960 | Hose - OIL COOLER RETURN | Hose - OIL COOLER RETURN |
| 16 | 53736-SR3-950 | Holder - POWER STEERING PIPE | Holder - POWER STEERING PIPE |
| 24 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 24 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 26 | 91370-SM4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 26 | 91370-SM4-004 | O-ring - 11X1.9 (ARAI) | O-ring - 11X1.9 (ARAI) |
| 27 | 91405-PE0-003 | Clamp - TUBE (D20) | Clamp - TUBE (D20) |
| 27 | 91417-SZ3-003 | Clamp - FUEL TUBE (D20) (CHUO HATSUJO) | Clamp - FUEL TUBE (D20) (CHUO HATSUJO) |
P.s. pump 13 / 19
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 2 | 56123-P30-000 | Joint comp - IN. (###) | Joint comp - IN. (###) |
| 3 | 56141-P02-000 | Shaft - POWER STEERING PUMP DRIVE | Shaft - POWER STEERING PUMP DRIVE |
| 4 | 56167-PY3-000 | Spacer - PUMP SEAL | Spacer - PUMP SEAL |
| 9 | 91048-PY3-003 | Bearing - RADIAL BALL, 15X38X12 | Bearing - RADIAL BALL, 15X38X12 |
| 10 | 91148-PY3-003 | Roller - 5X26.8 | Roller - 5X26.8 |
| 11 | 91149-PY3-003 | Roller - 4.5X49.8 | Roller - 4.5X49.8 |
| 12 | 91249-P02-003 | Seal - POWER STEERING PUMP | Seal - POWER STEERING PUMP |
| 13 | 91317-P02-003 | O-ring - 5.8X1.9 (NOK) | O-ring - 5.8X1.9 (NOK) |
| 14 | 91345-PY3-000 | O-ring - 13.0X1.9 | O-ring - 13.0X1.9 |
| 15 | 91346-PY3-000 | O-ring - 22.1X1.9 | O-ring - 22.1X1.9 |
| 16 | 91347-PY3-000 | O-ring - 16.8X1.9 | O-ring - 16.8X1.9 |
| 17 | 91348-PY3-000 | O-ring - 54.0X1.9 | O-ring - 54.0X1.9 |
| 18 | 91349-PY3-000 | O-ring - 68.5X1.9 | O-ring - 68.5X1.9 |
P.s. pump bracket 3 / 5
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 3 | 56996-P01-000 | Bolt - POWER STEERING PUMP ADJUSTING WING | Bolt - POWER STEERING PUMP ADJUSTING WING |
| 6 | 90004-P30-000 | Bolt - SPECIAL, 8MM | Bolt - SPECIAL, 8MM |
| 7 | 90601-P01-003 | Clip - ADJUST BOLT | Clip - ADJUST BOLT |
Parking brake 9 / 13
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 3 | 47142-659-310 | Knob - PARKING BRAKE PUSH ROD | Knob - PARKING BRAKE PUSH ROD |
| 4 | 47143-SD4-300 | Spring - PUSH ROD | Spring - PUSH ROD |
| 5 | 47342-SM4-000 | Switch - PARKING BRAKE | Switch - PARKING BRAKE |
| 6 | 47360-SB2-000 | Equalizer | Equalizer |
| 7 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 10 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 12 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 15 | 47572-SR3-010 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 17 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Pedal (LH) 19 / 24
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 17800-SR3-000 | Pedal comp - ACCELERATOR | Pedal comp - ACCELERATOR |
| 3 | 17812-SA7-010 | Washer - ACCELERATOR PEDAL | Washer - ACCELERATOR PEDAL |
| 4 | 17814-SR3-000 | Spring - ACCELERATOR RETURN | Spring - ACCELERATOR RETURN |
| 5 | 17816-SK7-000 | Cover - ACCELERATOR PEDAL | Cover - ACCELERATOR PEDAL |
| 8 | 17921-SA4-730 | Seal - THROTTLE CABLE | Seal - THROTTLE CABLE |
| 14 | 35350-SE0-A03 | Switch assy - STOP (TEC) | Switch assy - STOP (TEC) |
| 18 | 46504-ST5-300 | Bush - PEDAL | Bush - PEDAL |
| 19 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 20 | 46530-SR3-000 | Spring assy - PEDAL RETURN | Spring assy - PEDAL RETURN |
| 21 | 46535-SM4-000 | Collar - PEDAL | Collar - PEDAL |
| 23 | 46545-SH3-000 | Cover - PEDAL | Cover - PEDAL |
| 25 | 46904-SM4-300 | Pad - ACCELERATOR STOPPER | Pad - ACCELERATOR STOPPER |
| 26 | 46905-SK7-000 | Stopper - CLUTCH PEDAL | Stopper - CLUTCH PEDAL |
| 28 | 46907-SR3-000 | Spring - CLUTCH ASSISTANT | Spring - CLUTCH ASSISTANT |
| 29 | 46910-SR3-J00 | Pedal comp - CLUTCH | Pedal comp - CLUTCH |
| 30 | 46911-SD4-930 | Bush - PEDAL PIN | Bush - PEDAL PIN |
| 31 | 46981-SR3-930 | Bush a - CLUTCH ASSISTANT | Bush a - CLUTCH ASSISTANT |
| 32 | 46982-SR3-930 | Bush b - CLUTCH ASSISTANT | Bush b - CLUTCH ASSISTANT |
| 33 | 46990-SR3-000 | Bracket - CLUTCH PEDAL | Bracket - CLUTCH PEDAL |
Pillar garnish 3 / 3
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 9 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 10 | 90668-SR3-003 | Clip - TRIM | Clip - TRIM |
| 11 | 90669-SH4-003 | Clip - CENTER PILLAR LINING | Clip - CENTER PILLAR LINING |
Piston/crankshaft 1 / 52
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 17 | 90704-634-000 | Key - 4.5X11.0 | Key - 4.5X11.0 |
Radiator (DENSO) 14 / 15
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 4 | 19014-PK1-003 | Clip - HARNESS | Clip - HARNESS |
| 5 | 19015-P08-013 | Shroud comp - DENSO | Shroud comp - DENSO |
| 8 | 19020-P08-003 | Fan, COOLING (DENSO) | Fan, COOLING (DENSO) |
| 9 | 19030-P08-013 | Motor - COOLING FAN (DENSO) | Motor - COOLING FAN (DENSO) |
| 10 | 19033-P08-003 | Stay - COUPLER (DENSO) | Stay - COUPLER (DENSO) |
| 12 | 19045-P08-013 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 12 | 19045-PAA-A01 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 13 | 19046-PV1-000 | Seal - CAP | Seal - CAP |
| 14 | 90041-P08-003 | Screw-washer - 4X11 | Screw-washer - 4X11 |
| 15 | 90042-PH2-003 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 15 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 16 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
Radiator hose 9 / 16
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 19101-P08-J00 | Tank - RESERVE | Tank - RESERVE |
| 2 | 19102-PM5-A00 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 3 | 19104-PZ3-010 | Tube a - RESERVE TANK (220MM) | Tube a - RESERVE TANK (220MM) |
| 4 | 19104-P08-000 | Tube - RESERVE TANK | Tube - RESERVE TANK |
| 8 | 19115-P08-000 | Bracket - RESERVE TANK | Bracket - RESERVE TANK |
| 20 | 74172-SR3-000 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 21 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 22 | 74176-SR3-000 | Bracket - RADIATOR MOUNT UPPER | Bracket - RADIATOR MOUNT UPPER |
| 23 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
Radio antenna/speaker 6 / 8
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 39112-SH3-000 | Bracket - FR. SPEAKER SEAL (12CM) | Bracket - FR. SPEAKER SEAL (12CM) |
| 2 | 39120-SM4-901 | Speaker assy - 120MM DUAL) (PIONEER | Speaker assy - 120MM DUAL) (PIONEER |
| 12 | 90105-SB6-003 | Screw - PAN, 4X12 | Screw - PAN, 4X12 |
| 13 | 90502-SA0-003 | Washer - WATER PROOF | Washer - WATER PROOF |
| 14 | 90670-SG0-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 15 | 90683-SB3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
Rear brake (DISK) 9 / 46
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 3 | 42324-SB2-020 | Washer - HUB UNIT | Washer - HUB UNIT |
| 4 | 42326-SB2-000 | Cap - HUB UNIT | Cap - HUB UNIT |
| 4 | 42326-SFA-000 | Cap - HUB UNIT | Cap - HUB UNIT |
| 42 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 43 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 46 | 90113-SA0-023 | Bolt - WHEEL (TOKAI TRW) | Bolt - WHEEL (TOKAI TRW) |
| 46 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 46 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 47 | 90305-692-010 | Nut | Nut |
Rear console 5 / 7
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 66418-SA5-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 9 | 90137-SH3-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 10 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 11 | 90665-SM4-003 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 13 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Rear door lining 10 / 10
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 3 | 72835-SR4-003 | Weatherstrip - RR. DOOR INNER | Weatherstrip - RR. DOOR INNER |
| 4 | 72940-SR4-003 | Garnish - R. RR. DOOR | Garnish - R. RR. DOOR |
| 5 | 72980-SR4-003 | Garnish - L. RR. DOOR | Garnish - L. RR. DOOR |
| 8 | 83508-SR3-000 | Bracket assy - PULL POCKET | Bracket assy - PULL POCKET |
| 11 | 90310-SR4-000 | Nut - PUSH, 8MM | Nut - PUSH, 8MM |
| 12 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 13 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 14 | 90668-SR4-003 | Clip - LOCK KNOB COVER | Clip - LOCK KNOB COVER |
| 15 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 15 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Rear door locks 26 / 28
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 4 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 5 | 72135-SR3-003 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 6 | 75411-634-000 | Joint | Joint |
| 8 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 9 | 72149-SR4-000 | Snap - R. | Snap - R. |
| 11 | 72175-SH3-901 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 12 | 72189-SR4-000 | Snap - L. | Snap - L. |
| 13 | 72610-SR4-J02 | Lock assy - R. RR. POWER DOOR (###) | Lock assy - R. RR. POWER DOOR (###) |
| 14 | 72610-SR4-004 | Lock assy - R. RR. DOOR | Lock assy - R. RR. DOOR |
| 15 | 72615-SR4-J02 | Actuator assy - R. RR. DOOR LOCK | Actuator assy - R. RR. DOOR LOCK |
| 16 | 72616-SM4-003 | Snap - NATURAL | Snap - NATURAL |
| 18 | 72630-SE3-003 | Crank assy - R. RR. DOOR LOCK | Crank assy - R. RR. DOOR LOCK |
| 19 | 72631-SR4-004 | Rod - R. RR. INSIDE HANDLE | Rod - R. RR. INSIDE HANDLE |
| 20 | 72632-SR4-004 | Rod - R. RR. DOOR LOCK | Rod - R. RR. DOOR LOCK |
| 21 | 72633-SR4-004 | Rod - RR. DOOR LOCK KNOB | Rod - RR. DOOR LOCK KNOB |
| 23 | 72650-SR4-J02 | Lock assy - L. RR. POWER DOOR (###) | Lock assy - L. RR. POWER DOOR (###) |
| 24 | 72650-SR4-004 | Lock assy - L. RR. DOOR | Lock assy - L. RR. DOOR |
| 25 | 72655-SR4-J02 | Actuator assy - L. RR. DOOR LOCK | Actuator assy - L. RR. DOOR LOCK |
| 27 | 72670-SE3-003 | Crank assy, L. RR. DOOR LOCK | Crank assy, L. RR. DOOR LOCK |
| 28 | 72671-SR4-004 | Rod - L. RR. INSIDE HANDLE | Rod - L. RR. INSIDE HANDLE |
| 29 | 72672-SR4-004 | Rod - L. RR. DOOR LOCK | Rod - L. RR. DOOR LOCK |
| 31 | 75513-SB4-000 | Cushion - LOCK ROD (15MMX40MM) | Cushion - LOCK ROD (15MMX40MM) |
| 32 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 33 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 34 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 35 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Rear door panels 17 / 17
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 15 | 72810-SR4-003 | Weatherstrip - R. RR. DOOR | Weatherstrip - R. RR. DOOR |
| 16 | 72821-SR4-A10 | Seal - R. RR. DOOR HOLE | Seal - R. RR. DOOR HOLE |
| 17 | 72825-SR4-014 | Sub seal - R. RR. DOOR | Sub seal - R. RR. DOOR |
| 17 | 72825-SR4-004 | Sub seal - R. RR. DOOR | Sub seal - R. RR. DOOR |
| 18 | 72840-SR4-003 | Checker comp. - RR. DOOR | Checker comp. - RR. DOOR |
| 19 | 72850-SR4-003 | Weatherstrip - L. RR. DOOR | Weatherstrip - L. RR. DOOR |
| 20 | 72861-SR4-A10 | Seal - L. RR. DOOR HOLE | Seal - L. RR. DOOR HOLE |
| 21 | 72865-SR4-014 | Sub seal - L. RR. DOOR | Sub seal - L. RR. DOOR |
| 21 | 72865-SR4-004 | Sub seal - L. RR. DOOR | Sub seal - L. RR. DOOR |
| 22 | 75760-SB2-003 | Pin - DOOR CHECKER | Pin - DOOR CHECKER |
| 23 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 24 | 90001-SD2-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 25 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 26 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 27 | 90755-SB2-000 | E-ring - 6MM | E-ring - 6MM |
| 28 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 29 | 91534-SR3-003 | Clip - DOOR SUB SEAL | Clip - DOOR SUB SEAL |
Rear door windows 9 / 11
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 72710-SR4-J01 | Regulator assy - R. RR. DOOR POWER | Regulator assy - R. RR. DOOR POWER |
| 3 | 72731-SR4-003 | Sash - R. RR. DOOR LOWER | Sash - R. RR. DOOR LOWER |
| 4 | 72735-SR4-014 | Runchannel - R. RR. DOOR | Runchannel - R. RR. DOOR |
| 5 | 72737-SR4-000 | Collar a - RR. DOOR PANEL LOWER | Collar a - RR. DOOR PANEL LOWER |
| 6 | 72750-SR4-J01 | Regulator assy - L. RR. DOOR POWER | Regulator assy - L. RR. DOOR POWER |
| 8 | 72771-SR4-003 | Sash - L. RR. DOOR LOWER | Sash - L. RR. DOOR LOWER |
| 9 | 72775-SR4-014 | Runchannel - L. RR. DOOR | Runchannel - L. RR. DOOR |
| 15 | 90112-SR4-000 | Bolt - FLANGE, 6X14 | Bolt - FLANGE, 6X14 |
| 16 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Rear seat (DOHC) 4 / 10
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 6 | 82127-SH4-003 | Collar - RR. SEATBACK SETTING | Collar - RR. SEATBACK SETTING |
| 17 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
Rear shock absorber 12 / 18
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 51621-SB0-003 | Washer - SHOCK ABSORBER MOUNTING (TOKICO) | Washer - SHOCK ABSORBER MOUNTING (TOKICO) |
| 2 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 3 | 51728-SB0-003 | Collar - SHOCK ABSORBER MOUNTING(TOKICO) | Collar - SHOCK ABSORBER MOUNTING(TOKICO) |
| 7 | 52675-SH3-024 | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 8 | 52686-SR3-003 | Rubber - RR. SPRING MOUNTING (SHOWA) | Rubber - RR. SPRING MOUNTING (SHOWA) |
| 9 | 52687-SR3-003 | Cover - RR. DUST (SHOWA) | Cover - RR. DUST (SHOWA) |
| 10 | 52688-SR3-003 | End - RR. DUST COVER (SHOWA) | End - RR. DUST COVER (SHOWA) |
| 11 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 12 | 52722-SR3-003 | Rubber - RR. BUMP STOPPER (SHOWA) | Rubber - RR. BUMP STOPPER (SHOWA) |
| 13 | 52725-SJ4-000 | Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 16 | 90304-SR3-014 | Nut - FLANGE, 10MM (OHASHI) | Nut - FLANGE, 10MM (OHASHI) |
| 17 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Rear stabilizer/rear lower arm 15 / 38
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 14 | 52341-SR3-000 | Arm comp - RR. COMPENSATOR | Arm comp - RR. COMPENSATOR |
| 15 | 52343-SK7-003 | Bush - COMPENSATOR (HOKUSHIN) | Bush - COMPENSATOR (HOKUSHIN) |
| 15 | 52343-SR3-004 | Bush - COMPENSATOR (YAMASHITA) | Bush - COMPENSATOR (YAMASHITA) |
| 23 | 52390-SR3-000 | Arm comp | Arm comp |
| 24 | 52393-SR3-004 | Bush - UPPER ARM INNER (YAMASHITA) | Bush - UPPER ARM INNER (YAMASHITA) |
| 25 | 52395-SH3-004 | Bush - RR. UPPER ARM (YAMASHITA) | Bush - RR. UPPER ARM (YAMASHITA) |
| 26 | 52400-SR3-000 | Arm comp | Arm comp |
| 32 | 90117-SH3-004 | Bolt - UPPER ARM, 10X30 | Bolt - UPPER ARM, 10X30 |
| 33 | 90120-SB0-003 | Bolt - SHOCK ABSORBER LOCK, 10X42 | Bolt - SHOCK ABSORBER LOCK, 10X42 |
| 35 | 90171-SR3-003 | Bolt - TORQUE COMPENSATOR, 10X59 | Bolt - TORQUE COMPENSATOR, 10X59 |
| 36 | 90172-SK7-003 | Bolt - UPPER ARM, 10X68 | Bolt - UPPER ARM, 10X68 |
| 36 | 90172-S04-003 | Bolt - FLANGE, 10X68 | Bolt - FLANGE, 10X68 |
| 37 | 90173-SR3-003 | Bolt - LOWER ARM, 10X80 | Bolt - LOWER ARM, 10X80 |
| 38 | 90174-SJ4-003 | Bolt - TRAILING ARM BUSH, 12X60 | Bolt - TRAILING ARM BUSH, 12X60 |
| 40 | 90551-SH3-000 | Washer - 24X10X2.3 | Washer - 24X10X2.3 |
Rear tray/trunk side garnish 5 / 5
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 33505-SR4-000 | Cover - R. TAILLIGHT | Cover - R. TAILLIGHT |
| 2 | 33555-SR4-000 | Cover - L. TAILLIGHT | Cover - L. TAILLIGHT |
| 8 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 11 | 90668-SJ4-003 | Clip - RR. TRAY | Clip - RR. TRAY |
| 12 | 90669-SR4-003 | Clip - RR. TRAY | Clip - RR. TRAY |
Rear windshield 9 / 11
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 2 | 73210-SR4-003 | Molding - RR. WINDSHIELD | Molding - RR. WINDSHIELD |
| 3 | 73220-SR4-003 | Cover - RR. WINDSHIELD LOWER | Cover - RR. WINDSHIELD LOWER |
| 4 | 73221-SR4-000 | Spacer - RR. WINDSHIELD | Spacer - RR. WINDSHIELD |
| 5 | 73222-SR4-000 | Spacer b - RR. WINDSHIELD | Spacer b - RR. WINDSHIELD |
| 7 | 90675-SR4-003 | Grommet - RR. WINDSHIELD MOLDING | Grommet - RR. WINDSHIELD MOLDING |
| 8 | 90676-SR4-003 | Pin - RR. WINDSHIELD MOLDING | Pin - RR. WINDSHIELD MOLDING |
| 11 | 91514-SR4-000 | Fastener d - RR. WINDSHIELD | Fastener d - RR. WINDSHIELD |
| 12 | 91533-SR4-000 | Fastener d - WINDSHIELD GLASS | Fastener d - WINDSHIELD GLASS |
| 13 | 91536-SS0-000 | Fastener a - WINDSHIELD | Fastener a - WINDSHIELD |
Roof lining 7 / 8
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 4 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 15 | 83242-SR4-000 | Bracket - R. RR. GRAB RAIL (SUNROOF) | Bracket - R. RR. GRAB RAIL (SUNROOF) |
| 16 | 83243-SK8-A40 | Cover - GRAB RAIL | Cover - GRAB RAIL |
| 17 | 83248-SG0-003 | Spacer - GRAB RAIL | Spacer - GRAB RAIL |
| 24 | 83292-SR4-000 | Bracket - L. RR. GRAB RAIL (SUNROOF) | Bracket - L. RR. GRAB RAIL (SUNROOF) |
| 29 | 90131-SH3-A12 | Screw - PAN, 5X16 | Screw - PAN, 5X16 |
| 30 | 90195-SA0-000 | Screw-washer - 6X20 | Screw-washer - 6X20 |
Seatbelt 3 / 3
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 9 | 82490-SR3-000 | Bag - PROTECTOR | Bag - PROTECTOR |
| 11 | 90344-692-003 | Nut - CLIP, 6MM | Nut - CLIP, 6MM |
| 12 | 90688-SR3-003 | Clip - BAG PROTECTOR | Clip - BAG PROTECTOR |
Shift fork (DOHC; 1051163-) 1 / 6
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 6 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
Shift lever 18 / 24
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 24313-PF5-000 | Clip - CHANGE JOINT PIN | Clip - CHANGE JOINT PIN |
| 1 | 54113-611-505 | CLIP, SHIFT JOINT | CLIP, SHIFT JOINT |
| 2 | 54101-SH3-010 | Lever - CHANGE | Lever - CHANGE |
| 4 | 54105-692-010 | Washer - THRUST | Washer - THRUST |
| 5 | 54107-SA0-010 | Bush, RR. JOINT | Bush, RR. JOINT |
| 7 | 54109-SA7-000 | Seal A, CHANGE LEVER DUST | Seal A, CHANGE LEVER DUST |
| 8 | 54110-SH3-003 | Seat - CHANGE LEVER BALL | Seat - CHANGE LEVER BALL |
| 9 | 54111-SH3-000 | Holder - CHANGE BALL | Holder - CHANGE BALL |
| 10 | 54114-SB2-000 | Collar - PIPE MOUNTING | Collar - PIPE MOUNTING |
| 11 | 54115-SH3-000 | Dust seal B, Change | Dust seal B, Change |
| 12 | 54117-SH3-000 | Collar - RR. JOINT | Collar - RR. JOINT |
| 19 | 54306-SH3-000 | Rubber, EXTENSION MOUNTING | Rubber, EXTENSION MOUNTING |
| 20 | 54307-SH3-010 | Stopper - EXTENSION MOUNTING | Stopper - EXTENSION MOUNTING |
| 21 | 54308-SH3-000 | Bolt - EXTENSION | Bolt - EXTENSION |
| 23 | 90114-SA0-000 | Nut - SELF-LOCK, 6MM | Nut - SELF-LOCK, 6MM |
| 24 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 26 | 91301-671-671 | O-ring - 1.9X11 | O-ring - 1.9X11 |
| 26 | 91303-HA0-004 | O-ring, 11x1.9 (nok) | O-ring, 11x1.9 (nok) |
Shift rod/shift holder (DOHC) 4 / 20
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 9 | 24452-P20-000 | Spring - BALL SETTING | Spring - BALL SETTING |
| 11 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 12 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 16 | 90412-679-000 | Washer - CONICAL SPRING, 8MM | Washer - CONICAL SPRING, 8MM |
Side protector 45 / 56
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 71800-SR4-000 | Garnish assy - R. SIDE SILL | Garnish assy - R. SIDE SILL |
| 2 | 71850-SR4-000 | Garnish assy - L. SIDE SILL | Garnish assy - L. SIDE SILL |
| 2 | 71850-SR4-305 | Garnish assy | Garnish assy |
| 3 | 72410-SR4-003 | Molding assy. - R. FR. DOOR | Molding assy. - R. FR. DOOR |
| 4 | 72430-SR4-003 | Garnish - R. FR. DOOR SASH | Garnish - R. FR. DOOR SASH |
| 5 | 72450-SR4-003 | Molding assy. - L. FR. DOOR | Molding assy. - L. FR. DOOR |
| 6 | 72470-SR4-003 | Garnish - L. FR. DOOR SASH | Garnish - L. FR. DOOR SASH |
| 7 | 72910-SR4-003 | MOLDING ASSY., R. RR. DOOR | MOLDING ASSY., R. RR. DOOR |
| 8 | 72930-SR4-003 | Garnish - R. RR. DOOR SASH | Garnish - R. RR. DOOR SASH |
| 9 | 72950-SR4-003 | MOLDING ASSY., L. RR. DOOR | MOLDING ASSY., L. RR. DOOR |
| 10 | 72970-SR4-003 | Garnish - L. RR. DOOR SASH | Garnish - L. RR. DOOR SASH |
| 11 | 73430-SR4-003 | Molding assy. - R. DRIP | Molding assy. - R. DRIP |
| 12 | 73480-SR4-003 | Molding assy. - L. DRIP | Molding assy. - L. DRIP |
| 13 | 73821-SR4-003 | Clip A - R. RR. PILLAR GARNISH | Clip A - R. RR. PILLAR GARNISH |
| 14 | 73822-SR4-003 | Clip b - R. RR. PILLAR GARNISH | Clip b - R. RR. PILLAR GARNISH |
| 15 | 73871-SR4-003 | Clip A - L. RR. PILLAR GARNISH | Clip A - L. RR. PILLAR GARNISH |
| 16 | 73872-SR4-003 | Clip b - L. RR. PILLAR GARNISH | Clip b - L. RR. PILLAR GARNISH |
| 17 | 74306-SR4-003 | Molding assy. - R. ROOF | Molding assy. - R. ROOF |
| 18 | 74307-SR3-003 | Clip - ROOF MOLDING | Clip - ROOF MOLDING |
| 19 | 74316-SR4-003 | Molding assy. - L. ROOF | Molding assy. - L. ROOF |
| 23 | 75301-SR4-003 | Protector comp - R. FR. FENDER | Protector comp - R. FR. FENDER |
| 24 | 75302-SR4-003 | Protector comp - R. FR. DOOR | Protector comp - R. FR. DOOR |
| 25 | 75303-SR4-003 | Protector comp - R. RR. DOOR | Protector comp - R. RR. DOOR |
| 26 | 75305-SM4-A01 | Clip assy. - FENDER | Clip assy. - FENDER |
| 27 | 75321-SR4-003 | Protector comp - L. FR. FENDER | Protector comp - L. FR. FENDER |
| 28 | 75322-SR4-003 | Protector comp - L. FR. DOOR | Protector comp - L. FR. DOOR |
| 29 | 75323-SR4-003 | Protector comp - L. RR. DOOR | Protector comp - L. RR. DOOR |
| 30 | 75328-SR3-003 | Clip - SIDE PROTECTOR | Clip - SIDE PROTECTOR |
| 32 | 75807-671-010 | Nut - SIDE PROTECTOR (BLACK) | Nut - SIDE PROTECTOR (BLACK) |
| 36 | 76721-SR4-013 | Cover - R. RR. DOOR | Cover - R. RR. DOOR |
| 37 | 76771-SR4-013 | Cover - L. RR. DOOR | Cover - L. RR. DOOR |
| 39 | 90116-SE3-000 | Screw-washer - 4X12 | Screw-washer - 4X12 |
| 40 | 90119-SR3-000 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 40 | 90116-SE0-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 41 | 90121-SM4-003 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 45 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 47 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 48 | 90688-SB0-013 | Clip b | Clip b |
| 48 | 90668-SC5-003 | Clip A - AIRSCOOP GRILLE | Clip A - AIRSCOOP GRILLE |
| 49 | 91509-SR4-003 | Clip - DOOR SASH GARNISH (BLUE) | Clip - DOOR SASH GARNISH (BLUE) |
| 51 | 91510-SR3-003 | Clip - DOOR MOLDING (NATURAL) | Clip - DOOR MOLDING (NATURAL) |
| 52 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
| 53 | 91515-SR4-003 | Clip b - DOOR SASH GARNISH (RED) | Clip b - DOOR SASH GARNISH (RED) |
| 55 | 91528-SR4-003 | Clip - DRIP MOLDING | Clip - DRIP MOLDING |
| 56 | 91536-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Sliding roof (FRAME) 14 / 14
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 15707-634-000 | Clip - OIL DRAIN TUBE | Clip - OIL DRAIN TUBE |
| 2 | 70052-SH3-000 | Valve - FR. DRAIN (SUNROOF) | Valve - FR. DRAIN (SUNROOF) |
| 3 | 70060-SR4-000 | Tube - RR. DRAIN VINYL (SUNROOF) | Tube - RR. DRAIN VINYL (SUNROOF) |
| 4 | 70062-SH3-000 | Valve - RR. DRAIN (SUNROOF) | Valve - RR. DRAIN (SUNROOF) |
| 5 | 70080-SR4-003 | Seal - SUNROOF FRAME | Seal - SUNROOF FRAME |
| 6 | 70095-SR4-003 | Rubber - FR. SUNSHADE STOPPER | Rubber - FR. SUNSHADE STOPPER |
| 7 | 70100-SR4-003 | Frame comp - SUNROOF | Frame comp - SUNROOF |
| 8 | 70200-SR4-003 | Glass assy - ROOF | Glass assy - ROOF |
| 9 | 70620-SR4-003 | Cover - R. STAY | Cover - R. STAY |
| 10 | 70625-SR4-003 | Cover - L. STAY | Cover - L. STAY |
| 11 | 71986-692-920 | Cap - STAY COVER | Cap - STAY COVER |
| 15 | 90130-693-000 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 16 | 18534-634-670 | Clip - AIR HOSE, 16MM | Clip - AIR HOSE, 16MM |
| 17 | 91504-SE3-920 | Clip - SLIDE ROOF DRAIN TUBE | Clip - SLIDE ROOF DRAIN TUBE |
Sliding roof (MOTOR) 32 / 32
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 70090-SM4-003 | Stopper - SUNSHADE | Stopper - SUNSHADE |
| 2 | 70241-SR4-003 | Channel - DRAIN | Channel - DRAIN |
| 3 | 70242-SR4-003 | Rod - R. DRAIN CHANNEL | Rod - R. DRAIN CHANNEL |
| 4 | 70245-SP0-003 | Shaft - FR. STAY | Shaft - FR. STAY |
| 5 | 70247-SR4-003 | Rod - L. DRAIN CHANNEL | Rod - L. DRAIN CHANNEL |
| 6 | 70251-SP0-003 | Stopper - DRAIN CHANNEL | Stopper - DRAIN CHANNEL |
| 7 | 70310-SR4-003 | Rail - R. GUIDE | Rail - R. GUIDE |
| 8 | 70312-SP0-003 | Holder - R. GUIDE RAIL | Holder - R. GUIDE RAIL |
| 9 | 70315-SR4-003 | Rail - L. GUIDE | Rail - L. GUIDE |
| 10 | 70317-SP0-003 | Holder - L. GUIDE RAIL | Holder - L. GUIDE RAIL |
| 11 | 70331-SR4-003 | Stay - R. ROOF | Stay - R. ROOF |
| 12 | 70333-SP0-003 | Slider - SUNSHADE | Slider - SUNSHADE |
| 13 | 70334-SP0-003 | Stopper - GLASS STAY | Stopper - GLASS STAY |
| 14 | 70336-SR4-003 | Stay - L. ROOF | Stay - L. ROOF |
| 15 | 70351-SP0-003 | Plate - R. GUIDE | Plate - R. GUIDE |
| 16 | 70352-SR4-003 | Stopper - SLIDE | Stopper - SLIDE |
| 17 | 70356-SP0-003 | Plate - L. GUIDE | Plate - L. GUIDE |
| 18 | 70360-SP0-003 | Link a - TILT | Link a - TILT |
| 19 | 70361-SP0-003 | Link - R. TILT | Link - R. TILT |
| 20 | 70366-SP0-003 | Link - L. TILT | Link - L. TILT |
| 21 | 70380-SP0-003 | Collar - TILT UP LINK | Collar - TILT UP LINK |
| 22 | 70381-SP0-003 | Link - WASHER | Link - WASHER |
| 23 | 70382-SP0-003 | Rubber - STOPPER | Rubber - STOPPER |
| 24 | 70383-SP0-003 | Washer - GLASS STAY | Washer - GLASS STAY |
| 25 | 70400-SR4-003 | Cable assy - SUNROOF | Cable assy - SUNROOF |
| 26 | 70450-SR4-003 | Motor assy. - SUNROOF | Motor assy. - SUNROOF |
| 27 | 70500-SR4-003 | Deflector comp. | Deflector comp. |
| 28 | 70630-SR4-003 | Cover - R. RAIL | Cover - R. RAIL |
| 30 | 70635-SR4-003 | Cover - L. RAIL | Cover - L. RAIL |
| 32 | 71998-692-920 | Shim - STAY (2.0MM) | Shim - STAY (2.0MM) |
| 32 | 71997-692-920 | Shim - STAY (1.0MM) | Shim - STAY (1.0MM) |
| 33 | 90110-SP0-003 | Screw - PAN, 5X10 | Screw - PAN, 5X10 |
Speed sensor 4 / 4
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 3 | 78410-SR3-004 | Sensor assy - SPEED (NS) | Sensor assy - SPEED (NS) |
| 3 | 78410-SV4-003 | Sensor assy - SPEED (MATSUSHITA) | Sensor assy - SPEED (MATSUSHITA) |
| 5 | 78411-SM4-003 | Joint - SPEED SENSOR (MATSUSHITA) | Joint - SPEED SENSOR (MATSUSHITA) |
| 7 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
Srs unit (LH) 2 / 11
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 10 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 12 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
Steering column 9 / 18
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 4 | 53216-SR3-000 | Holder b - STEERING COLUMN | Holder b - STEERING COLUMN |
| 5 | 53217-SR3-000 | Collar - STEERING RETAINER | Collar - STEERING RETAINER |
| 8 | 53323-SM4-013 | Joint comp. b - STEERING | Joint comp. b - STEERING |
| 9 | 53325-SH3-000 | Clip A - JOINT COVER | Clip A - JOINT COVER |
| 10 | 53326-SB0-000 | Clip b - JOINT COVER | Clip b - JOINT COVER |
| 18 | 90135-SB0-003 | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) |
| 19 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 20 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 21 | 90654-SR3-003 | Clip - STEERING JOINT COVER | Clip - STEERING JOINT COVER |
Switch (LH) 6 / 8
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 35145-SR3-901 | Frame - TWO KEY | Frame - TWO KEY |
| 2 | 35145-SR3-911 | Frame - THREE KEY | Frame - THREE KEY |
| 10 | 35510-SR3-003 | Switch assy - HAZARD | Switch assy - HAZARD |
| 13 | 35851-SM4-003 | Bulb - NEO WEDGE (14V 60MA) (TEC) | Bulb - NEO WEDGE (14V 60MA) (TEC) |
| 15 | 39700-SR3-004 | Clock assy - DIGITAL (JECO) | Clock assy - DIGITAL (JECO) |
| 15 | 39700-SR3-003 | Clock assy - DIGITAL (NS) | Clock assy - DIGITAL (NS) |
Taillight 12 / 28
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 5 | 33503-SR4-A01 | Gasket - BASE | Gasket - BASE |
| 9 | 34701-SR4-A01 | Seal - PACKING | Seal - PACKING |
| 19 | 34153-SR4-A01 | Gasket - R. BASE | Gasket - R. BASE |
| 20 | 34154-SR4-A01 | Seal - PACKING | Seal - PACKING |
| 24 | 34158-SR4-A01 | Gasket - L. BASE | Gasket - L. BASE |
| 25 | 34159-SR4-A01 | Screw - TAPPING (M4X16) | Screw - TAPPING (M4X16) |
| 26 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 27 | 34911-634-611 | Bulb - 12V 21/5W) (ECE) (STANLEY | Bulb - 12V 21/5W) (ECE) (STANLEY |
| 28 | 75525-SD4-013 | Clip - RR. PANEL GARNISH | Clip - RR. PANEL GARNISH |
| 29 | 90301-SE0-902 | Nut - SPECIAL, 5MM | Nut - SPECIAL, 5MM |
| 30 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Tire/wheel disk 15 / 52
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 7 | 42753-SH3-003 | Valve - RIM (US PACIFIC) | Valve - RIM (US PACIFIC) |
| 7 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 11 | 44722-SF1-A01 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 11 | 44721-SF1-A01 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 11 | 44727-SF1-A01 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 11 | 44726-SF1-A01 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 11 | 44730-SF1-A01 | Weight - BALANCE (45G) (YAMATE) | Weight - BALANCE (45G) (YAMATE) |
| 11 | 44724-SF1-A01 | Weight - BALANCE (40G) (YAMATE) | Weight - BALANCE (40G) (YAMATE) |
| 11 | 44729-SF1-A01 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 11 | 44723-SF1-A01 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 11 | 44728-SF1-A01 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 26 | 44738-SB6-801 | Retainer - ALUMINIUM CENTER CAP | Retainer - ALUMINIUM CENTER CAP |
| 29 | 83850-SH3-000 | Plate - ANCHOR BOLT | Plate - ANCHOR BOLT |
| 30 | 83853-SA7-980 | Bolt - ANCHOR (79MM) | Bolt - ANCHOR (79MM) |
| 33 | 90381-SL5-901 | Nut - WHEEL(FUSE RASHI) | Nut - WHEEL(FUSE RASHI) |
Tools/jack 7 / 9
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 71969-SA7-890 | Wrench - SUNROOF | Wrench - SUNROOF |
| 3 | 89101-SH3-000 | Bag - TOOL | Bag - TOOL |
| 3 | 89101-SW5-003 | Bag - TOOL | Bag - TOOL |
| 4 | 89211-SE3-003 | Wrench - WHEEL | Wrench - WHEEL |
| 7 | 89310-SE3-013 | Jack assy - PANTOGRAPH | Jack assy - PANTOGRAPH |
| 8 | 89320-SE3-003 | Bar - JACK | Bar - JACK |
| 8 | 89320-S50-003 | Bar - JACK | Bar - JACK |
Transmission housing (DOHC) 4 / 59
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 5 | 21396-P20-000 | Cap - BREATHER | Cap - BREATHER |
| 8 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 12 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 17 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |
Trunk lid 20 / 22
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 4 | 73219-693-951 | Seal - FUEL LID OPENER (GREEN) | Seal - FUEL LID OPENER (GREEN) |
| 6 | 74812-SH3-043 | Cylinder - TAILGATE | Cylinder - TAILGATE |
| 7 | 74815-SK7-000 | Grommet - KEY CYLINDER | Grommet - KEY CYLINDER |
| 8 | 74820-SR4-003 | Stay assy - TRUNK OPENER | Stay assy - TRUNK OPENER |
| 9 | 74826-SE0-000 | Cover - OPEN STAY UPPER | Cover - OPEN STAY UPPER |
| 10 | 63511-SA5-003 | Cushion - HOOD | Cushion - HOOD |
| 11 | 74829-SR4-030 | Stopper - TRUNK HINGE | Stopper - TRUNK HINGE |
| 12 | 74851-SR4-023 | Lock - TRUNK | Lock - TRUNK |
| 13 | 74862-SR4-003 | Striker - TRUNK | Striker - TRUNK |
| 14 | 74863-SR4-003 | Rod - TRUNK LOCK | Rod - TRUNK LOCK |
| 15 | 74865-SR4-000 | Weatherstrip - TRUNK LID | Weatherstrip - TRUNK LID |
| 19 | 83307-SD2-900 | Shim - TAILGATE STRIKER (1.0) | Shim - TAILGATE STRIKER (1.0) |
| 19 | 83307-SD2-000 | Shim - TAILGATE STRIKER (2.0) | Shim - TAILGATE STRIKER (2.0) |
| 20 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 23 | 90344-SF4-003 | Nut - SELF-LOCK CAP | Nut - SELF-LOCK CAP |
| 24 | 90501-SH3-003 | Packing - SEAT | Packing - SEAT |
| 25 | 90691-SC5-003 | Clip A - OPENER CABLE | Clip A - OPENER CABLE |
| 26 | 90692-SK8-003 | Clip - TRUNK OPENER CABLE | Clip - TRUNK OPENER CABLE |
| 27 | 90755-SB2-000 | E-ring - 6MM | E-ring - 6MM |
| 28 | 90856-SK7-003 | Snap - TAILGATE LOCK | Snap - TAILGATE LOCK |
Water hose (5) 1 / 10
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 8 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
Water pump 6 / 15
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 5 | 19301-PAA-306 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 5 | 19301-P08-316 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 6 | 19305-PT0-000 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 6 | 19305-PLC-A00 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 13 | 19500-PE0-000 | Joint, Tube | Joint, Tube |
| 16 | 19516-PC1-000 | Bolt - BREATHING WATER | Bolt - BREATHING WATER |
Water valve 5 / 9
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 4 | 79722-SR3-000 | Hose b, WATER IN. | Hose b, WATER IN. |
| 6 | 79731-SR3-000 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 7 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 7 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 10 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Windshield washer/ headlight washer 9 / 35
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 1 | 38511-SD2-003 | Adapter - NOZZLE (MITSUBA) | Adapter - NOZZLE (MITSUBA) |
| 2 | 38512-SB0-922 | Motor - WASHER (MITSUBA) | Motor - WASHER (MITSUBA) |
| 4 | 38516-SA5-671 | Packing - T-TYPE) (MITSUBA | Packing - T-TYPE) (MITSUBA |
| 5 | 38562-SA0-003 | Joint l - WASHER TUBE(MITSUBA) | Joint l - WASHER TUBE(MITSUBA) |
| 12 | 76810-SR3-003 | Nozzle assy. - R. FR. WASHER | Nozzle assy. - R. FR. WASHER |
| 13 | 76815-SR3-003 | Nozzle assy. - L. FR. WASHER | Nozzle assy. - L. FR. WASHER |
| 32 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 33 | 91504-SR3-003 | Clip - WASHER TUBE | Clip - WASHER TUBE |
| 34 | 91506-SR3-003 | Clip - TUBE WASHER (NATURAL) | Clip - TUBE WASHER (NATURAL) |
Wire harness (LH) 27 / 47
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 5 | 32114-SR3-000 | Bracket - RADIO EARTH | Bracket - RADIO EARTH |
| 8 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 9 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 10 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 13 | 32601-SR3-003 | Cable assy - MISSION EARTH (SUMITOMO) | Cable assy - MISSION EARTH (SUMITOMO) |
| 16 | 32752-SR4-911 | Harness - PASSENGER DOOR WIRE (R.C. MIRROR) | Harness - PASSENGER DOOR WIRE (R.C. MIRROR) |
| 17 | 32755-SR4-902 | Harness - RR. DOOR WIRE | Harness - RR. DOOR WIRE |
| 19 | 72327-SD5-000 | Seal b - FR. DOOR HOLE (30X50) | Seal b - FR. DOOR HOLE (30X50) |
| 21 | 90153-SB6-003 | Bolt - EARTH, 6X12(ZN) | Bolt - EARTH, 6X12(ZN) |
| 22 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 23 | 90154-SD4-003 | Bolt - EARTH, 6X20 | Bolt - EARTH, 6X20 |
| 25 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 27 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 28 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 30 | 91550-SH5-003 | Band - HARNESS (NATURAL) (90.4MM)(WITH SEAL) | Band - HARNESS (NATURAL) (90.4MM)(WITH SEAL) |
| 31 | 91550-SM4-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 32 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 33 | 91552-SR3-003 | Clip - WIRE HARNESS (SEAL) (BULE) | Clip - WIRE HARNESS (SEAL) (BULE) |
| 34 | 91554-SH3-003 | Band - WIRE HARNESS (NATURAL) (100.5MM) | Band - WIRE HARNESS (NATURAL) (100.5MM) |
| 36 | 91557-SR3-003 | Clip - WIRE HARNESS PROTECTOR (RED) | Clip - WIRE HARNESS PROTECTOR (RED) |
| 40 | 91570-SH3-003 | Band - WIRE HARNESS (NATURAL) | Band - WIRE HARNESS (NATURAL) |
| 41 | 91571-SR3-004 | Holder - COUPLER | Holder - COUPLER |
| 44 | 91626-SR3-003 | Ring - WIRE HARNESS | Ring - WIRE HARNESS |
| 45 | 91637-SF1-003 | Cap - 090 2P | Cap - 090 2P |
| 46 | 91763-SH3-003 | Bar - JOINT (6P) | Bar - JOINT (6P) |
| 47 | 91786-SR3-003 | Bar - JOINT (10P) | Bar - JOINT (10P) |
| 48 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
| # | OEM | EG9 | EH8 |
|---|---|---|---|
| 3 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 1 | 04762-SR3-J11 | Mirror sub assy. - R. REMOTE CONTROL | Mirror sub assy. - R. REMOTE CONTROL |
| 32 | 04763-SR3-000 | Actuator set - R. DOOR MIRROR | Actuator set - R. DOOR MIRROR |
| 2 | 04764-SR3-J11 | Mirror sub assy. - L. REMOTE CONTROL | Mirror sub assy. - L. REMOTE CONTROL |
| 33 | 04766-SR3-000 | Actuator set - L. DOOR MIRROR | Actuator set - L. DOOR MIRROR |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 10 | 15400-PR3-003 | Cartridge - OIL FILTER (TSUCHIYA) | Cartridge - OIL FILTER (TSUCHIYA) |
| 10 | 15400-PR3-004 | Cartridge - OIL FILTER (TOYO ROKI) | Cartridge - OIL FILTER (TOYO ROKI) |
| 11 | 15400-PR3-305 | Cartridge set - OIL FILTER (TOYO ROKI) | Cartridge set - OIL FILTER (TOYO ROKI) |
| 10 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 10 | 15610-PC6-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 11 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 1 | 15707-634-000 | Clip - OIL DRAIN TUBE | Clip - OIL DRAIN TUBE |
| 5 | 16913-SR3-000 | Cover - FR. FUEL PIPE | Cover - FR. FUEL PIPE |
| 6 | 16914-SR4-000 | Cover - RR. FUEL PIPE | Cover - RR. FUEL PIPE |
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 4 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 5 | 17372-SR3-010 | Cover - TWO WAY VALVE | Cover - TWO WAY VALVE |
| 7 | 17521-SR3-000 | Band assy. - R. FUEL TANK MOUNTING | Band assy. - R. FUEL TANK MOUNTING |
| 8 | 17522-SR3-000 | Band assy. - L. FUEL TANK MOUNTING | Band assy. - L. FUEL TANK MOUNTING |
| 9 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 10 | 17525-SR3-000 | Bolt - FUEL TANK MOUNTING | Bolt - FUEL TANK MOUNTING |
| 10 | 17525-SR3-305 | Bolt | Bolt |
| 12 | 17651-SR3-000 | Tube - FILLER NECK | Tube - FILLER NECK |
| 13 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 14 | 17653-SH7-000 | Tube - BREATHER | Tube - BREATHER |
| 15 | 17656-SR3-003 | Bolt - FILLER PIPE MOUNTING | Bolt - FILLER PIPE MOUNTING |
| 17 | 17662-SR3-000 | Packing - FUEL FILLER | Packing - FUEL FILLER |
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 25 | 17733-SR3-010 | Protector - FUEL FILLER PIPE | Protector - FUEL FILLER PIPE |
| 30 | 17761-SR3-010 | Stay a - FUEL PIPE | Stay a - FUEL PIPE |
| 31 | 17762-SR3-J00 | Stay b - FUEL PIPE | Stay b - FUEL PIPE |
| 32 | 17763-SR3-000 | Stay c - FUEL PIPE | Stay c - FUEL PIPE |
| 33 | 17764-SR3-J00 | Stay d - FUEL PIPE | Stay d - FUEL PIPE |
| 35 | 17765-SM4-000 | Stay e - FUEL PIPE | Stay e - FUEL PIPE |
| 1 | 17800-SR3-000 | Pedal comp - ACCELERATOR | Pedal comp - ACCELERATOR |
| 3 | 17812-SA7-010 | Washer - ACCELERATOR PEDAL | Washer - ACCELERATOR PEDAL |
| 4 | 17814-SR3-000 | Spring - ACCELERATOR RETURN | Spring - ACCELERATOR RETURN |
| 5 | 17816-SK7-000 | Cover - ACCELERATOR PEDAL | Cover - ACCELERATOR PEDAL |
| 8 | 17921-SA4-730 | Seal - THROTTLE CABLE | Seal - THROTTLE CABLE |
| 23 | 18215-671-000 | Rubber - SILENCER MOUNTING (74X53X22) | Rubber - SILENCER MOUNTING (74X53X22) |
| 21 | 18215-SH3-J01 | Rubber - EX. MOUNTING (70X55X30) | Rubber - EX. MOUNTING (70X55X30) |
| 22 | 18215-SR3-000 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 27 | 18229-SH3-X30 | Gasket - EX. FLEXIBLE (50.8MM-64MM) | Gasket - EX. FLEXIBLE (50.8MM-64MM) |
| 30 | 18230-SA0-930 | Spring - FLEXIBLE JOINT | Spring - FLEXIBLE JOINT |
| 31 | 18231-SR3-A22 | Bolt b - FLEXIBLE JOINT | Bolt b - FLEXIBLE JOINT |
| 32 | 18231-SR3-J01 | Bolt a - FLEXIBLE JOINT | Bolt a - FLEXIBLE JOINT |
| 16 | 18534-634-670 | Clip - AIR HOSE, 16MM | Clip - AIR HOSE, 16MM |
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 4 | 19014-PK1-003 | Clip - HARNESS | Clip - HARNESS |
| 5 | 19015-P08-013 | Shroud comp - DENSO | Shroud comp - DENSO |
| 8 | 19020-P08-003 | Fan, COOLING (DENSO) | Fan, COOLING (DENSO) |
| 9 | 19030-P08-013 | Motor - COOLING FAN (DENSO) | Motor - COOLING FAN (DENSO) |
| 10 | 19033-P08-003 | Stay - COUPLER (DENSO) | Stay - COUPLER (DENSO) |
| 2 | 19043-P01-E01 | Label - COOLANT CAUTION | Label - COOLANT CAUTION |
| 12 | 19045-P08-013 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 12 | 19045-PAA-A01 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 13 | 19046-PV1-000 | Seal - CAP | Seal - CAP |
| 1 | 19101-P08-J00 | Tank - RESERVE | Tank - RESERVE |
| 2 | 19102-PM5-A00 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 4 | 19104-P08-000 | Tube - RESERVE TANK | Tube - RESERVE TANK |
| 3 | 19104-PZ3-010 | Tube a - RESERVE TANK (220MM) | Tube a - RESERVE TANK (220MM) |
| 8 | 19115-P08-000 | Bracket - RESERVE TANK | Bracket - RESERVE TANK |
| 5 | 19301-P08-316 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 5 | 19301-PAA-306 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 6 | 19305-PLC-A00 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 6 | 19305-PT0-000 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 13 | 19500-PE0-000 | Joint, Tube | Joint, Tube |
| 8 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 16 | 19516-PC1-000 | Bolt - BREATHING WATER | Bolt - BREATHING WATER |
| 5 | 21120-PG2-003 | Magnet - TRANSMISSION | Magnet - TRANSMISSION |
| 5 | 21396-P20-000 | Cap - BREATHER | Cap - BREATHER |
| 6 | 22841-P20-000 | Boot - RELEASE FORK | Boot - RELEASE FORK |
| 7 | 23811-P36-000 | Holder comp - SPEEDOMETER GEAR | Holder comp - SPEEDOMETER GEAR |
| 1 | 24313-PF5-000 | Clip - CHANGE JOINT PIN | Clip - CHANGE JOINT PIN |
| 9 | 24452-P20-000 | Spring - BALL SETTING | Spring - BALL SETTING |
| 11 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 14 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 16 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 17 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 2 | 31512-SR3-000 | Plate - BATTERY SETTING | Plate - BATTERY SETTING |
| 3 | 31513-SR3-000 | Bolt - BATTERY SETTING | Bolt - BATTERY SETTING |
| 4 | 31521-SR3-000 | Box assy - BATTERY | Box assy - BATTERY |
| 5 | 31542-SA5-664 | Plug - VENT (MF) (YUASA) | Plug - VENT (MF) (YUASA) |
| 5 | 31542-SA5-665 | Plug - VENT (MF) (PANASONIC) | Plug - VENT (MF) (PANASONIC) |
| 6 | 32113-P01-000 | Stay comp - R. COUPLER | Stay comp - R. COUPLER |
| 5 | 32114-SR3-000 | Bracket - RADIO EARTH | Bracket - RADIO EARTH |
| 8 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 1 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 10 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 1 | 32147-SF1-003 | Connector - DIODE(3P) | Connector - DIODE(3P) |
| 2 | 32148-SF1-003 | Rubber - SEAL | Rubber - SEAL |
| 3 | 32257-SR3-000 | Sub cord b - HEATER | Sub cord b - HEATER |
| 8 | 32414-SR3-000 | Clamp a - STARTER CABLE | Clamp a - STARTER CABLE |
| 11 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 13 | 32601-SR3-003 | Cable assy - MISSION EARTH (SUMITOMO) | Cable assy - MISSION EARTH (SUMITOMO) |
| 12 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 9 | 32741-P01-000 | Clamp a - ENGINE HARNESS (GREEN) | Clamp a - ENGINE HARNESS (GREEN) |
| 10 | 32744-P01-000 | Clamp d - ENGINE HARNESS (GREEN) | Clamp d - ENGINE HARNESS (GREEN) |
| 14 | 32752-P01-000 | Stay b - ENGINE WIRE HARNESS | Stay b - ENGINE WIRE HARNESS |
| 16 | 32752-SR4-911 | Harness - PASSENGER DOOR WIRE (R.C. MIRROR) | Harness - PASSENGER DOOR WIRE (R.C. MIRROR) |
| 17 | 32755-SR4-902 | Harness - RR. DOOR WIRE | Harness - RR. DOOR WIRE |
| 6 | 32763-PM3-000 | Clamp c - HIGH TENSION CORD | Clamp c - HIGH TENSION CORD |
| 4 | 33102-SR3-G01 | Plate - R. | Plate - R. |
| 5 | 33104-SR3-G01 | Nut - SPECIAL (3) | Nut - SPECIAL (3) |
| 6 | 33109-SR3-A01 | Nut e - SPECIAL | Nut e - SPECIAL |
| 7 | 33115-SM3-003 | Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY) | Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY) |
| 7 | 33115-SM4-003 | Bulb | Bulb |
| 7 | 33115-SV4-G01 | Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) | Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) |
| 8 | 33126-SH3-003 | Cover - RUBBER | Cover - RUBBER |
| 11 | 33152-SR3-G01 | Plate - L. | Plate - L. |
| 12 | 33300-SR4-013 | Light assy - R. FR. TURN | Light assy - R. FR. TURN |
| 13 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 14 | 33301-SR4-013 | Lamp unit - R. | Lamp unit - R. |
| 15 | 33305-SH3-A01 | Socket comp - GRAY | Socket comp - GRAY |
| 16 | 33350-SR4-013 | Light assy - L. FR. TURN | Light assy - L. FR. TURN |
| 17 | 33351-SR4-013 | Lamp unit - L. | Lamp unit - L. |
| 5 | 33503-SR4-A01 | Gasket - BASE | Gasket - BASE |
| 1 | 33505-SR4-000 | Cover - R. TAILLIGHT | Cover - R. TAILLIGHT |
| 2 | 33555-SR4-000 | Cover - L. TAILLIGHT | Cover - L. TAILLIGHT |
| 18 | 33800-SR3-G01 | Light assy - R. SIDE TURN | Light assy - R. SIDE TURN |
| 19 | 33801-SR3-G01 | Housing comp - R. | Housing comp - R. |
| 20 | 33802-SR3-G01 | Housing comp - L. | Housing comp - L. |
| 21 | 33850-SR3-G01 | Light assy - L. SIDE TURN | Light assy - L. SIDE TURN |
| 19 | 34153-SR4-A01 | Gasket - R. BASE | Gasket - R. BASE |
| 20 | 34154-SR4-A01 | Seal - PACKING | Seal - PACKING |
| 24 | 34158-SR4-A01 | Gasket - L. BASE | Gasket - L. BASE |
| 25 | 34159-SR4-A01 | Screw - TAPPING (M4X16) | Screw - TAPPING (M4X16) |
| 2 | 34252-692-003 | Lens - DAIICHI) (SUNROOF | Lens - DAIICHI) (SUNROOF |
| 3 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 5 | 34260-SM4-013 | Light assy - TRUNK ROOM | Light assy - TRUNK ROOM |
| 7 | 34295-SA5-003 | Bulb - 12V 3.4W) (DAIICHI | Bulb - 12V 3.4W) (DAIICHI |
| 22 | 34303-SS1-003 | Socket comp - 2P | Socket comp - 2P |
| 23 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 9 | 34701-SR4-A01 | Seal - PACKING | Seal - PACKING |
| 24 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 27 | 34911-634-611 | Bulb - 12V 21/5W) (ECE) (STANLEY | Bulb - 12V 21/5W) (ECE) (STANLEY |
| 4 | 35102-SG0-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 5 | 35103-SE3-003 | Screw - RECESSED, 3X8 | Screw - RECESSED, 3X8 |
| 6 | 35113-SH3-G02 | Key - BLANK (MAIN) (MOLD=BLACK) | Key - BLANK (MAIN) (MOLD=BLACK) |
| 1 | 35145-SR3-901 | Frame - TWO KEY | Frame - TWO KEY |
| 2 | 35145-SR3-911 | Frame - THREE KEY | Frame - THREE KEY |
| 9 | 35251-SR3-003 | Body - SWITCH | Body - SWITCH |
| 14 | 35350-SE0-A03 | Switch assy - STOP (TEC) | Switch assy - STOP (TEC) |
| 14 | 35400-SL4-003 | Switch assy - DOOR | Switch assy - DOOR |
| 15 | 35401-SL4-003 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 16 | 35409-692-013 | Screw - FLANGE, 4X12 | Screw - FLANGE, 4X12 |
| 2 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 10 | 35510-SR3-003 | Switch assy - HAZARD | Switch assy - HAZARD |
| 13 | 35851-SM4-003 | Bulb - NEO WEDGE (14V 60MA) (TEC) | Bulb - NEO WEDGE (14V 60MA) (TEC) |
| 4 | 37106-SJ4-J00 | Knob - TRIP | Knob - TRIP |
| 5 | 37238-SD2-A00 | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN |
| 15 | 37240-PT0-004 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 15 | 37240-PT0-013 | Switch - OIL PRESSURE (DENSO) | Switch - OIL PRESSURE (DENSO) |
| 16 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 17 | 37760-P00-003 | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) |
| 17 | 37760-P00-004 | Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT) | Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT) |
| 28 | 37802-SD2-000 | Retainer - FUEL UNIT | Retainer - FUEL UNIT |
| 6 | 38211-SM4-003 | Fuse - BLOCK (30A) | Fuse - BLOCK (30A) |
| 7 | 38212-SM4-003 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 8 | 38213-SM4-003 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 9 | 38216-SM4-003 | Fuse - BLOCK (80A) | Fuse - BLOCK (80A) |
| 15 | 38235-SA5-003 | Puller - FUSE (SUMITOMO) | Puller - FUSE (SUMITOMO) |
| 16 | 38252-SR3-003 | Cover - LOWER | Cover - LOWER |
| 16 | 38300-SE3-003 | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) |
| 16 | 38300-SE3-004 | Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO) | Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO) |
| 18 | 38380-SR3-003 | Control unit - AUTO DOOR LOCK (MITSUBA) | Control unit - AUTO DOOR LOCK (MITSUBA) |
| 1 | 38472-SB2-003 | Rubber - BLADE (450MM) | Rubber - BLADE (450MM) |
| 1 | 38511-SD2-003 | Adapter - NOZZLE (MITSUBA) | Adapter - NOZZLE (MITSUBA) |
| 2 | 38512-SB0-922 | Motor - WASHER (MITSUBA) | Motor - WASHER (MITSUBA) |
| 4 | 38516-SA5-671 | Packing - T-TYPE) (MITSUBA | Packing - T-TYPE) (MITSUBA |
| 5 | 38562-SA0-003 | Joint l - WASHER TUBE(MITSUBA) | Joint l - WASHER TUBE(MITSUBA) |
| 1 | 39112-SH3-000 | Bracket - FR. SPEAKER SEAL (12CM) | Bracket - FR. SPEAKER SEAL (12CM) |
| 2 | 39120-SM4-901 | Speaker assy - 120MM DUAL) (PIONEER | Speaker assy - 120MM DUAL) (PIONEER |
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 40 | 39600-SW3-305 | Lighter unit - CIGARETTE | Lighter unit - CIGARETTE |
| 40 | 39600-SW3-505 | LIGHTER ASSYCIGA | LIGHTER ASSYCIGA |
| 41 | 39628-S04-305 | Cord assy | Cord assy |
| 15 | 39700-SR3-003 | Clock assy - DIGITAL (NS) | Clock assy - DIGITAL (NS) |
| 15 | 39700-SR3-004 | Clock assy - DIGITAL (JECO) | Clock assy - DIGITAL (JECO) |
| 24 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 24 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 3 | 39795-SB2-003 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 3 | 42324-SB2-020 | Washer - HUB UNIT | Washer - HUB UNIT |
| 4 | 42326-SB2-000 | Cap - HUB UNIT | Cap - HUB UNIT |
| 4 | 42326-SFA-000 | Cap - HUB UNIT | Cap - HUB UNIT |
| 7 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 7 | 42753-SH3-003 | Valve - RIM (US PACIFIC) | Valve - RIM (US PACIFIC) |
| 1 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 10 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 8 | 44329-SB0-300 | Band - DRIVESHAFT BOOT | Band - DRIVESHAFT BOOT |
| 28 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 13 | 44347-SF1-003 | Ring - OUTBOARD | Ring - OUTBOARD |
| 1 | 44348-SR3-000 | Ring - FR. KNUCKLE | Ring - FR. KNUCKLE |
| 8 | 44352-SA2-300 | Band - DAMPER WEIGHT | Band - DAMPER WEIGHT |
| 11 | 44721-SF1-A01 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 11 | 44722-SF1-A01 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 11 | 44723-SF1-A01 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 11 | 44724-SF1-A01 | Weight - BALANCE (40G) (YAMATE) | Weight - BALANCE (40G) (YAMATE) |
| 11 | 44726-SF1-A01 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 11 | 44727-SF1-A01 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 11 | 44728-SF1-A01 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 11 | 44729-SF1-A01 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 11 | 44730-SF1-A01 | Weight - BALANCE (45G) (YAMATE) | Weight - BALANCE (45G) (YAMATE) |
| 26 | 44738-SB6-801 | Retainer - ALUMINIUM CENTER CAP | Retainer - ALUMINIUM CENTER CAP |
| 16 | 45235-SR3-003 | Pin a | Pin a |
| 17 | 45237-SR3-003 | Retainer a | Retainer a |
| 18 | 45238-SR3-003 | Retainer b | Retainer b |
| 19 | 45240-SA7-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 24 | 45262-SR3-003 | Pin b | Pin b |
| 4 | 46138-SM4-003 | Packing | Packing |
| 3 | 46151-SA5-003 | Yoke comp. - NISSIN | Yoke comp. - NISSIN |
| 5 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 4 | 46164-632-000 | Float | Float |
| 5 | 46182-500-013 | Circlip | Circlip |
| 6 | 46184-611-000 | Dust seal - MASTER CYLINDER | Dust seal - MASTER CYLINDER |
| 6 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 7 | 46191-634-000 | Gasket - MASTER CYLINDER BRACKET | Gasket - MASTER CYLINDER BRACKET |
| 7 | 46330-ST0-000 | Pipe comp. c - BRAKE | Pipe comp. c - BRAKE |
| 9 | 46340-ST0-000 | Pipe comp. d - BRAKE | Pipe comp. d - BRAKE |
| 17 | 46380-SH3-000 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 22 | 46391-SR3-931 | Clip d - BRAKE PIPE | Clip d - BRAKE PIPE |
| 19 | 46391-SR3-J00 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 20 | 46391-SR3-J10 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 24 | 46392-SR3-000 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 26 | 46392-SR3-931 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 9 | 46403-SE0-003 | Valve comp. - CHECK (NISSIN) | Valve comp. - CHECK (NISSIN) |
| 15 | 46406-SR3-000 | Stay - MASTER POWER TUBE | Stay - MASTER POWER TUBE |
| 1 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 2 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 18 | 46504-ST5-300 | Bush - PEDAL | Bush - PEDAL |
| 19 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 17 | 46512-SB2-000 | Pin - PEDAL | Pin - PEDAL |
| 20 | 46530-SR3-000 | Spring assy - PEDAL RETURN | Spring assy - PEDAL RETURN |
| 21 | 46535-SM4-000 | Collar - PEDAL | Collar - PEDAL |
| 23 | 46545-SH3-000 | Cover - PEDAL | Cover - PEDAL |
| 20 | 46665-ST5-003 | Band - RESERVE TANK | Band - RESERVE TANK |
| 25 | 46904-SM4-300 | Pad - ACCELERATOR STOPPER | Pad - ACCELERATOR STOPPER |
| 26 | 46905-SK7-000 | Stopper - CLUTCH PEDAL | Stopper - CLUTCH PEDAL |
| 28 | 46907-SR3-000 | Spring - CLUTCH ASSISTANT | Spring - CLUTCH ASSISTANT |
| 29 | 46910-SR3-J00 | Pedal comp - CLUTCH | Pedal comp - CLUTCH |
| 30 | 46911-SD4-930 | Bush - PEDAL PIN | Bush - PEDAL PIN |
| 7 | 46912-SD4-000 | Pin - CLUTCH PEDAL | Pin - CLUTCH PEDAL |
| 9 | 46918-ST7-000 | Clamp - TUBE (D10.5) | Clamp - TUBE (D10.5) |
| 12 | 46926-SF1-003 | Piston assy. | Piston assy. |
| 13 | 46928-SF1-000 | Seal - CLUTCH MASTER CYLINDER | Seal - CLUTCH MASTER CYLINDER |
| 14 | 46930-SR3-013 | Cylinder assy. - SLAVE | Cylinder assy. - SLAVE |
| 15 | 46932-SD4-003 | Piston - SLAVE CYLINDER | Piston - SLAVE CYLINDER |
| 16 | 46933-SD4-013 | Cup a - PISTON | Cup a - PISTON |
| 17 | 46934-SD4-003 | Cup b - PISTON | Cup b - PISTON |
| 18 | 46935-SP0-000 | Spring - SLAVE CYLINDER | Spring - SLAVE CYLINDER |
| 19 | 46937-SR3-003 | Boot - SLAVE CYLINDER | Boot - SLAVE CYLINDER |
| 20 | 46938-SD4-003 | Rod - PUSH | Rod - PUSH |
| 22 | 46950-SL4-003 | Rod assy - PUSH | Rod assy - PUSH |
| 23 | 46952-SD4-003 | Joint - TUBE | Joint - TUBE |
| 24 | 46953-SD4-003 | Packing | Packing |
| 30 | 46972-SD4-003 | Tank - CLUTCH FLUID | Tank - CLUTCH FLUID |
| 31 | 46973-SD4-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 32 | 46975-SD4-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 31 | 46981-SR3-930 | Bush a - CLUTCH ASSISTANT | Bush a - CLUTCH ASSISTANT |
| 32 | 46982-SR3-930 | Bush b - CLUTCH ASSISTANT | Bush b - CLUTCH ASSISTANT |
| 33 | 46990-SR3-000 | Bracket - CLUTCH PEDAL | Bracket - CLUTCH PEDAL |
| 35 | 46996-SR3-000 | Bracket b - CLUTCH PIPE | Bracket b - CLUTCH PIPE |
| 3 | 47142-659-310 | Knob - PARKING BRAKE PUSH ROD | Knob - PARKING BRAKE PUSH ROD |
| 4 | 47143-SD4-300 | Spring - PUSH ROD | Spring - PUSH ROD |
| 5 | 47342-SM4-000 | Switch - PARKING BRAKE | Switch - PARKING BRAKE |
| 6 | 47360-SB2-000 | Equalizer | Equalizer |
| 7 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 10 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 12 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 15 | 47572-SR3-010 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 3 | 50203-SR3-010 | Collar - RR. BEAM | Collar - RR. BEAM |
| 8 | 50810-SR3-030 | Rubber - RR. ENGINE MOUNTING INSULATOR (MT) | Rubber - RR. ENGINE MOUNTING INSULATOR (MT) |
| 9 | 50820-SR3-J11 | RUBBER ASSY., ENGINE SIDE MOUNTING (HYDRO) | RUBBER ASSY., ENGINE SIDE MOUNTING (HYDRO) |
| 4 | 51220-SR3-003 | Joint comp - LOWER BALL (MUSASHI) | Joint comp - LOWER BALL (MUSASHI) |
| 5 | 51225-SR3-003 | Boot - LOWER BALL DUST (MUSASHI) | Boot - LOWER BALL DUST (MUSASHI) |
| 3 | 51308-SR3-000 | Holder - R. FR. STABILIZER | Holder - R. FR. STABILIZER |
| 5 | 51350-SR3-020 | Arm assy. - R. FR. LOWER | Arm assy. - R. FR. LOWER |
| 6 | 51360-SR3-020 | Arm assy. - L. FR. LOWER | Arm assy. - L. FR. LOWER |
| 7 | 51392-SR3-024 | Bush - FR. LOWER ARM | Bush - FR. LOWER ARM |
| 8 | 51395-SR3-N03 | Bush comp - R. FR. COMPLIANCE (YAMASHITA) | Bush comp - R. FR. COMPLIANCE (YAMASHITA) |
| 9 | 51396-SR3-N03 | Bush comp - L. FR. COMPLIANCE (YAMASHITA) | Bush comp - L. FR. COMPLIANCE (YAMASHITA) |
| 10 | 51398-SR3-000 | Washer b - FR. RADIUS ARM (14MM) | Washer b - FR. RADIUS ARM (14MM) |
| 11 | 51399-SR3-010 | Washer a - FR. RADIUS ARM (18MM) | Washer a - FR. RADIUS ARM (18MM) |
| 1 | 51401-SR3-N01 | Spring - FR. (SHOWA) | Spring - FR. (SHOWA) |
| 1 | 51401-SR3-N02 | Spring - FR. (MITSUBISHI) | Spring - FR. (MITSUBISHI) |
| 6 | 51450-SR3-013 | Arm assy. - R. FR. UPPER | Arm assy. - R. FR. UPPER |
| 7 | 51455-SR3-003 | Bush - FR. UPPER ARM (YAMASHITA) | Bush - FR. UPPER ARM (YAMASHITA) |
| 7 | 51455-SR3-004 | Bush - FR. UPPER ARM (SUMITOMO) | Bush - FR. UPPER ARM (SUMITOMO) |
| 8 | 51460-SR3-013 | Arm assy. - L. FR. UPPER | Arm assy. - L. FR. UPPER |
| 9 | 51464-SK7-003 | Boot - UPPER BALL JOINT | Boot - UPPER BALL JOINT |
| 6 | 51621-SB0-003 | Washer - SHOCK ABSORBER MOUNTING (TOKICO) | Washer - SHOCK ABSORBER MOUNTING (TOKICO) |
| 6 | 51621-SB0-004 | Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA) | Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 7 | 51631-S7S-J01 | RUBBER DAMPER M | RUBBER DAMPER M |
| 7 | 51631-SB0-003 | Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.) | Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.) |
| 7 | 51631-SB0-004 | Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA) | Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA) |
| 8 | 51675-SH3-024 | Base - SHOCK ABSORBER MOUNTING (SHOWA) | Base - SHOCK ABSORBER MOUNTING (SHOWA) |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 10 | 51686-SR3-003 | Rubber - SPRING MOUNTING (SHOWA) | Rubber - SPRING MOUNTING (SHOWA) |
| 11 | 51687-SR3-003 | Cover - FR. SLEEVE DUST (SHOWA) | Cover - FR. SLEEVE DUST (SHOWA) |
| 3 | 51728-SB0-003 | Collar - SHOCK ABSORBER MOUNTING(TOKICO) | Collar - SHOCK ABSORBER MOUNTING(TOKICO) |
| 12 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 12 | 51810-SH3-003 | Bush - SHOCK ABSORBER FORK (HOKUSHIN) | Bush - SHOCK ABSORBER FORK (HOKUSHIN) |
| 12 | 51810-SH3-004 | Bush - SHOCK ABSORBER FORK (YAMASHITA) | Bush - SHOCK ABSORBER FORK (YAMASHITA) |
| 12 | 51810-SK7-004 | Bush - SHOCK ABSORBER FORK | Bush - SHOCK ABSORBER FORK |
| 13 | 51811-SR3-010 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 14 | 51821-SR3-010 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 10 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 14 | 52341-SR3-000 | Arm comp - RR. COMPENSATOR | Arm comp - RR. COMPENSATOR |
| 15 | 52343-SK7-003 | Bush - COMPENSATOR (HOKUSHIN) | Bush - COMPENSATOR (HOKUSHIN) |
| 15 | 52343-SR3-004 | Bush - COMPENSATOR (YAMASHITA) | Bush - COMPENSATOR (YAMASHITA) |
| 23 | 52390-SR3-000 | Arm comp | Arm comp |
| 24 | 52393-SR3-004 | Bush - UPPER ARM INNER (YAMASHITA) | Bush - UPPER ARM INNER (YAMASHITA) |
| 25 | 52395-SH3-004 | Bush - RR. UPPER ARM (YAMASHITA) | Bush - RR. UPPER ARM (YAMASHITA) |
| 26 | 52400-SR3-000 | Arm comp | Arm comp |
| 7 | 52675-SH3-024 | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 8 | 52686-SR3-003 | Rubber - RR. SPRING MOUNTING (SHOWA) | Rubber - RR. SPRING MOUNTING (SHOWA) |
| 9 | 52687-SR3-003 | Cover - RR. DUST (SHOWA) | Cover - RR. DUST (SHOWA) |
| 10 | 52688-SR3-003 | End - RR. DUST COVER (SHOWA) | End - RR. DUST COVER (SHOWA) |
| 13 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 14 | 52722-SE0-006 | Rubber - BUMP STOPPER (POLYURETHAN KASEI) | Rubber - BUMP STOPPER (POLYURETHAN KASEI) |
| 12 | 52722-SR3-003 | Rubber - RR. BUMP STOPPER (SHOWA) | Rubber - RR. BUMP STOPPER (SHOWA) |
| 13 | 52725-SJ4-000 | Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 1 | 53010-SR3-010 | End set - RACK | End set - RACK |
| 4 | 53216-SR3-000 | Holder b - STEERING COLUMN | Holder b - STEERING COLUMN |
| 5 | 53217-SR3-000 | Collar - STEERING RETAINER | Collar - STEERING RETAINER |
| 17 | 53271-SR3-000 | Cam - TURN SIGNAL SWITCH CANCEL | Cam - TURN SIGNAL SWITCH CANCEL |
| 8 | 53323-SM4-013 | Joint comp. b - STEERING | Joint comp. b - STEERING |
| 9 | 53325-SH3-000 | Clip A - JOINT COVER | Clip A - JOINT COVER |
| 10 | 53326-SB0-000 | Clip b - JOINT COVER | Clip b - JOINT COVER |
| 3 | 53434-S04-J51 | CLIP, TIE ROD | CLIP, TIE ROD |
| 3 | 53434-SD9-000 | Clip - TIE ROD | Clip - TIE ROD |
| 4 | 53436-SH3-950 | Cushion b - POWER STEERING GEAR BOX | Cushion b - POWER STEERING GEAR BOX |
| 9 | 53449-S04-J51 | Band b - BELLOWS | Band b - BELLOWS |
| 9 | 53449-SL0-A00 | Band b - BELLOWS | Band b - BELLOWS |
| 12 | 53501-SR3-000 | Grommet a - STEERING | Grommet a - STEERING |
| 15 | 53534-SR3-N52 | Dust seal comp. - TIE ROD | Dust seal comp. - TIE ROD |
| 16 | 53536-SR3-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 17 | 53540-SR3-003 | End comp - R. TIE ROD | End comp - R. TIE ROD |
| 18 | 53546-SA0-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 19 | 53548-SL0-A01 | Circlip - TIE ROD | Circlip - TIE ROD |
| 20 | 53560-SR3-003 | End comp - L. TIE ROD | End comp - L. TIE ROD |
| 22 | 53685-SH3-000 | Bush - STEERING GEAR BOX MOUNTING | Bush - STEERING GEAR BOX MOUNTING |
| 23 | 53686-SH3-010 | Collar - STEERING GEAR BOX MOUNTING | Collar - STEERING GEAR BOX MOUNTING |
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 3 | 53711-SR3-951 | Bracket assy - OIL TANK | Bracket assy - OIL TANK |
| 23 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 15 | 53735-SR3-960 | Hose - OIL COOLER RETURN | Hose - OIL COOLER RETURN |
| 16 | 53736-SR3-950 | Holder - POWER STEERING PIPE | Holder - POWER STEERING PIPE |
| 2 | 54101-SH3-010 | Lever - CHANGE | Lever - CHANGE |
| 4 | 54105-692-010 | Washer - THRUST | Washer - THRUST |
| 5 | 54107-SA0-010 | Bush, RR. JOINT | Bush, RR. JOINT |
| 7 | 54109-SA7-000 | Seal A, CHANGE LEVER DUST | Seal A, CHANGE LEVER DUST |
| 8 | 54110-SH3-003 | Seat - CHANGE LEVER BALL | Seat - CHANGE LEVER BALL |
| 9 | 54111-SH3-000 | Holder - CHANGE BALL | Holder - CHANGE BALL |
| 1 | 54113-611-505 | CLIP, SHIFT JOINT | CLIP, SHIFT JOINT |
| 10 | 54114-SB2-000 | Collar - PIPE MOUNTING | Collar - PIPE MOUNTING |
| 11 | 54115-SH3-000 | Dust seal B, Change | Dust seal B, Change |
| 12 | 54117-SH3-000 | Collar - RR. JOINT | Collar - RR. JOINT |
| 19 | 54306-SH3-000 | Rubber, EXTENSION MOUNTING | Rubber, EXTENSION MOUNTING |
| 20 | 54307-SH3-010 | Stopper - EXTENSION MOUNTING | Stopper - EXTENSION MOUNTING |
| 21 | 54308-SH3-000 | Bolt - EXTENSION | Bolt - EXTENSION |
| 2 | 56123-P30-000 | Joint comp - IN. (###) | Joint comp - IN. (###) |
| 3 | 56141-P02-000 | Shaft - POWER STEERING PUMP DRIVE | Shaft - POWER STEERING PUMP DRIVE |
| 4 | 56167-PY3-000 | Spacer - PUMP SEAL | Spacer - PUMP SEAL |
| 3 | 56996-P01-000 | Bolt - POWER STEERING PUMP ADJUSTING WING | Bolt - POWER STEERING PUMP ADJUSTING WING |
| 24 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
| 29 | 57562-SF1-003 | Circlip | Circlip |
| 10 | 63511-SA5-003 | Cushion - HOOD | Cushion - HOOD |
| 1 | 64436-692-000 | Clip - GUIDE | Clip - GUIDE |
| 7 | 66405-SD4-000 | Stay - GLOVE BOX HINGE | Stay - GLOVE BOX HINGE |
| 8 | 66417-SB3-670 | Rubber - GLOVE BOX STOPPER | Rubber - GLOVE BOX STOPPER |
| 9 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 1 | 66418-SA5-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 2 | 70052-SH3-000 | Valve - FR. DRAIN (SUNROOF) | Valve - FR. DRAIN (SUNROOF) |
| 3 | 70060-SR4-000 | Tube - RR. DRAIN VINYL (SUNROOF) | Tube - RR. DRAIN VINYL (SUNROOF) |
| 4 | 70062-SH3-000 | Valve - RR. DRAIN (SUNROOF) | Valve - RR. DRAIN (SUNROOF) |
| 5 | 70080-SR4-003 | Seal - SUNROOF FRAME | Seal - SUNROOF FRAME |
| 1 | 70090-SM4-003 | Stopper - SUNSHADE | Stopper - SUNSHADE |
| 6 | 70095-SR4-003 | Rubber - FR. SUNSHADE STOPPER | Rubber - FR. SUNSHADE STOPPER |
| 7 | 70100-SR4-003 | Frame comp - SUNROOF | Frame comp - SUNROOF |
| 8 | 70200-SR4-003 | Glass assy - ROOF | Glass assy - ROOF |
| 2 | 70241-SR4-003 | Channel - DRAIN | Channel - DRAIN |
| 3 | 70242-SR4-003 | Rod - R. DRAIN CHANNEL | Rod - R. DRAIN CHANNEL |
| 4 | 70245-SP0-003 | Shaft - FR. STAY | Shaft - FR. STAY |
| 5 | 70247-SR4-003 | Rod - L. DRAIN CHANNEL | Rod - L. DRAIN CHANNEL |
| 6 | 70251-SP0-003 | Stopper - DRAIN CHANNEL | Stopper - DRAIN CHANNEL |
| 7 | 70310-SR4-003 | Rail - R. GUIDE | Rail - R. GUIDE |
| 8 | 70312-SP0-003 | Holder - R. GUIDE RAIL | Holder - R. GUIDE RAIL |
| 9 | 70315-SR4-003 | Rail - L. GUIDE | Rail - L. GUIDE |
| 10 | 70317-SP0-003 | Holder - L. GUIDE RAIL | Holder - L. GUIDE RAIL |
| 11 | 70331-SR4-003 | Stay - R. ROOF | Stay - R. ROOF |
| 12 | 70333-SP0-003 | Slider - SUNSHADE | Slider - SUNSHADE |
| 13 | 70334-SP0-003 | Stopper - GLASS STAY | Stopper - GLASS STAY |
| 14 | 70336-SR4-003 | Stay - L. ROOF | Stay - L. ROOF |
| 15 | 70351-SP0-003 | Plate - R. GUIDE | Plate - R. GUIDE |
| 16 | 70352-SR4-003 | Stopper - SLIDE | Stopper - SLIDE |
| 17 | 70356-SP0-003 | Plate - L. GUIDE | Plate - L. GUIDE |
| 18 | 70360-SP0-003 | Link a - TILT | Link a - TILT |
| 19 | 70361-SP0-003 | Link - R. TILT | Link - R. TILT |
| 20 | 70366-SP0-003 | Link - L. TILT | Link - L. TILT |
| 21 | 70380-SP0-003 | Collar - TILT UP LINK | Collar - TILT UP LINK |
| 22 | 70381-SP0-003 | Link - WASHER | Link - WASHER |
| 23 | 70382-SP0-003 | Rubber - STOPPER | Rubber - STOPPER |
| 24 | 70383-SP0-003 | Washer - GLASS STAY | Washer - GLASS STAY |
| 25 | 70400-SR4-003 | Cable assy - SUNROOF | Cable assy - SUNROOF |
| 26 | 70450-SR4-003 | Motor assy. - SUNROOF | Motor assy. - SUNROOF |
| 26 | 70494-SE0-000 | Spring - FUEL LID OPENER | Spring - FUEL LID OPENER |
| 27 | 70500-SR4-003 | Deflector comp. | Deflector comp. |
| 9 | 70620-SR4-003 | Cover - R. STAY | Cover - R. STAY |
| 10 | 70625-SR4-003 | Cover - L. STAY | Cover - L. STAY |
| 28 | 70630-SR4-003 | Cover - R. RAIL | Cover - R. RAIL |
| 30 | 70635-SR4-003 | Cover - L. RAIL | Cover - L. RAIL |
| 3 | 71144-SR3-013 | Grommet - BUMPER SIDE | Grommet - BUMPER SIDE |
| 8 | 71598-SR4-000 | Spacer assy. - RR. BUMPER SIDE | Spacer assy. - RR. BUMPER SIDE |
| 1 | 71800-SR4-000 | Garnish assy - R. SIDE SILL | Garnish assy - R. SIDE SILL |
| 2 | 71850-SR4-000 | Garnish assy - L. SIDE SILL | Garnish assy - L. SIDE SILL |
| 2 | 71850-SR4-305 | Garnish assy | Garnish assy |
| 1 | 71969-SA7-890 | Wrench - SUNROOF | Wrench - SUNROOF |
| 11 | 71986-692-920 | Cap - STAY COVER | Cap - STAY COVER |
| 32 | 71997-692-920 | Shim - STAY (1.0MM) | Shim - STAY (1.0MM) |
| 32 | 71998-692-920 | Shim - STAY (2.0MM) | Shim - STAY (2.0MM) |
| 3 | 72112-SR4-004 | Snap - BROWN | Snap - BROWN |
| 4 | 72113-SR4-004 | Snap - BLACK | Snap - BLACK |
| 8 | 72123-SR0-003 | Ring - OUTSIDE HANDLE | Ring - OUTSIDE HANDLE |
| 10 | 72131-SR4-004 | Rod - R. FR. INSIDE | Rod - R. FR. INSIDE |
| 11 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 12 | 72135-SR3-003 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 15 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 17 | 72145-SR3-003 | Cylinder - R. DOOR | Cylinder - R. DOOR |
| 18 | 72146-SR3-003 | Cylinder - L. DOOR | Cylinder - L. DOOR |
| 19 | 72149-SR4-000 | Snap - R. | Snap - R. |
| 26 | 72171-SR4-004 | Rod - L. FR. INSIDE | Rod - L. FR. INSIDE |
| 27 | 72175-SH3-003 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 11 | 72175-SH3-901 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 29 | 72189-SR4-000 | Snap - L. | Snap - L. |
| 1 | 72207-SB2-000 | Cap - FLOOR HOLE, 24MM | Cap - FLOOR HOLE, 24MM |
| 2 | 72211-SR4-J01 | Regulator - R. FR. DOOR POWER | Regulator - R. FR. DOOR POWER |
| 6 | 72231-SR4-003 | Sash - R. FR. DOOR CENTER LOWER | Sash - R. FR. DOOR CENTER LOWER |
| 7 | 72235-SR4-014 | Runchannel - R. FR. DOOR | Runchannel - R. FR. DOOR |
| 8 | 72246-SR3-003 | Stopper - DOOR GLASS | Stopper - DOOR GLASS |
| 10 | 72251-SR4-J01 | Regulator - L. FR. DOOR POWER | Regulator - L. FR. DOOR POWER |
| 12 | 72271-SR4-003 | Sash - L. FR. DOOR CENTER LOWER | Sash - L. FR. DOOR CENTER LOWER |
| 13 | 72275-SR4-014 | Runchannel - L. FR. DOOR | Runchannel - L. FR. DOOR |
| 13 | 72310-SR4-003 | Weatherstrip - R. FR. DOOR | Weatherstrip - R. FR. DOOR |
| 15 | 72325-SR4-014 | Sub seal - R. FR. DOOR | Sub seal - R. FR. DOOR |
| 15 | 72325-SR4-024 | Sub seal - R. FR. DOOR | Sub seal - R. FR. DOOR |
| 19 | 72327-SD5-000 | Seal b - FR. DOOR HOLE (30X50) | Seal b - FR. DOOR HOLE (30X50) |
| 5 | 72335-SR4-003 | Weatherstrip - FR. DOOR INNER | Weatherstrip - FR. DOOR INNER |
| 16 | 72350-SR4-003 | Weatherstrip - L. FR. DOOR | Weatherstrip - L. FR. DOOR |
| 18 | 72365-SR4-014 | Sub seal - L. FR. DOOR | Sub seal - L. FR. DOOR |
| 18 | 72365-SR4-024 | Sub seal - L. FR. DOOR | Sub seal - L. FR. DOOR |
| 3 | 72410-SR4-003 | Molding assy. - R. FR. DOOR | Molding assy. - R. FR. DOOR |
| 4 | 72430-SR4-003 | Garnish - R. FR. DOOR SASH | Garnish - R. FR. DOOR SASH |
| 5 | 72450-SR4-003 | Molding assy. - L. FR. DOOR | Molding assy. - L. FR. DOOR |
| 6 | 72470-SR4-003 | Garnish - L. FR. DOOR SASH | Garnish - L. FR. DOOR SASH |
| 14 | 72610-SR4-004 | Lock assy - R. RR. DOOR | Lock assy - R. RR. DOOR |
| 13 | 72610-SR4-J02 | Lock assy - R. RR. POWER DOOR (###) | Lock assy - R. RR. POWER DOOR (###) |
| 15 | 72615-SR4-J02 | Actuator assy - R. RR. DOOR LOCK | Actuator assy - R. RR. DOOR LOCK |
| 30 | 72616-SM4-003 | Snap - NATURAL | Snap - NATURAL |
| 18 | 72630-SE3-003 | Crank assy - R. RR. DOOR LOCK | Crank assy - R. RR. DOOR LOCK |
| 19 | 72631-SR4-004 | Rod - R. RR. INSIDE HANDLE | Rod - R. RR. INSIDE HANDLE |
| 20 | 72632-SR4-004 | Rod - R. RR. DOOR LOCK | Rod - R. RR. DOOR LOCK |
| 21 | 72633-SR4-004 | Rod - RR. DOOR LOCK KNOB | Rod - RR. DOOR LOCK KNOB |
| 24 | 72650-SR4-004 | Lock assy - L. RR. DOOR | Lock assy - L. RR. DOOR |
| 23 | 72650-SR4-J02 | Lock assy - L. RR. POWER DOOR (###) | Lock assy - L. RR. POWER DOOR (###) |
| 25 | 72655-SR4-J02 | Actuator assy - L. RR. DOOR LOCK | Actuator assy - L. RR. DOOR LOCK |
| 27 | 72670-SE3-003 | Crank assy, L. RR. DOOR LOCK | Crank assy, L. RR. DOOR LOCK |
| 28 | 72671-SR4-004 | Rod - L. RR. INSIDE HANDLE | Rod - L. RR. INSIDE HANDLE |
| 29 | 72672-SR4-004 | Rod - L. RR. DOOR LOCK | Rod - L. RR. DOOR LOCK |
| 1 | 72710-SR4-J01 | Regulator assy - R. RR. DOOR POWER | Regulator assy - R. RR. DOOR POWER |
| 3 | 72731-SR4-003 | Sash - R. RR. DOOR LOWER | Sash - R. RR. DOOR LOWER |
| 4 | 72735-SR4-014 | Runchannel - R. RR. DOOR | Runchannel - R. RR. DOOR |
| 5 | 72737-SR4-000 | Collar a - RR. DOOR PANEL LOWER | Collar a - RR. DOOR PANEL LOWER |
| 6 | 72750-SR4-J01 | Regulator assy - L. RR. DOOR POWER | Regulator assy - L. RR. DOOR POWER |
| 8 | 72771-SR4-003 | Sash - L. RR. DOOR LOWER | Sash - L. RR. DOOR LOWER |
| 9 | 72775-SR4-014 | Runchannel - L. RR. DOOR | Runchannel - L. RR. DOOR |
| 15 | 72810-SR4-003 | Weatherstrip - R. RR. DOOR | Weatherstrip - R. RR. DOOR |
| 16 | 72821-SR4-A10 | Seal - R. RR. DOOR HOLE | Seal - R. RR. DOOR HOLE |
| 17 | 72825-SR4-004 | Sub seal - R. RR. DOOR | Sub seal - R. RR. DOOR |
| 17 | 72825-SR4-014 | Sub seal - R. RR. DOOR | Sub seal - R. RR. DOOR |
| 3 | 72835-SR4-003 | Weatherstrip - RR. DOOR INNER | Weatherstrip - RR. DOOR INNER |
| 18 | 72840-SR4-003 | Checker comp. - RR. DOOR | Checker comp. - RR. DOOR |
| 19 | 72850-SR4-003 | Weatherstrip - L. RR. DOOR | Weatherstrip - L. RR. DOOR |
| 20 | 72861-SR4-A10 | Seal - L. RR. DOOR HOLE | Seal - L. RR. DOOR HOLE |
| 21 | 72865-SR4-004 | Sub seal - L. RR. DOOR | Sub seal - L. RR. DOOR |
| 21 | 72865-SR4-014 | Sub seal - L. RR. DOOR | Sub seal - L. RR. DOOR |
| 7 | 72910-SR4-003 | MOLDING ASSY., R. RR. DOOR | MOLDING ASSY., R. RR. DOOR |
| 8 | 72930-SR4-003 | Garnish - R. RR. DOOR SASH | Garnish - R. RR. DOOR SASH |
| 4 | 72940-SR4-003 | Garnish - R. RR. DOOR | Garnish - R. RR. DOOR |
| 9 | 72950-SR4-003 | MOLDING ASSY., L. RR. DOOR | MOLDING ASSY., L. RR. DOOR |
| 10 | 72970-SR4-003 | Garnish - L. RR. DOOR SASH | Garnish - L. RR. DOOR SASH |
| 5 | 72980-SR4-003 | Garnish - L. RR. DOOR | Garnish - L. RR. DOOR |
| 2 | 73125-SR3-000 | Rubber a - FR. WINDSHIELD DAM | Rubber a - FR. WINDSHIELD DAM |
| 3 | 73126-SR3-000 | Rubber b - FR. WINDSHIELD DAM | Rubber b - FR. WINDSHIELD DAM |
| 4 | 73127-SR3-003 | Holder - FR. WINDSHIELD GLASS | Holder - FR. WINDSHIELD GLASS |
| 5 | 73151-SR3-013 | Molding - FR. WINDSHIELD UPPER | Molding - FR. WINDSHIELD UPPER |
| 6 | 73152-SR4-003 | Molding assy. - R. FR. WINDSHIELD SIDE | Molding assy. - R. FR. WINDSHIELD SIDE |
| 7 | 73162-SR4-003 | Molding assy. - L. FR. WINDSHIELD SIDE | Molding assy. - L. FR. WINDSHIELD SIDE |
| 2 | 73210-SR4-003 | Molding - RR. WINDSHIELD | Molding - RR. WINDSHIELD |
| 4 | 73219-693-951 | Seal - FUEL LID OPENER (GREEN) | Seal - FUEL LID OPENER (GREEN) |
| 3 | 73220-SR4-003 | Cover - RR. WINDSHIELD LOWER | Cover - RR. WINDSHIELD LOWER |
| 4 | 73221-SR4-000 | Spacer - RR. WINDSHIELD | Spacer - RR. WINDSHIELD |
| 5 | 73222-SR4-000 | Spacer b - RR. WINDSHIELD | Spacer b - RR. WINDSHIELD |
| 11 | 73430-SR4-003 | Molding assy. - R. DRIP | Molding assy. - R. DRIP |
| 12 | 73480-SR4-003 | Molding assy. - L. DRIP | Molding assy. - L. DRIP |
| 13 | 73821-SR4-003 | Clip A - R. RR. PILLAR GARNISH | Clip A - R. RR. PILLAR GARNISH |
| 14 | 73822-SR4-003 | Clip b - R. RR. PILLAR GARNISH | Clip b - R. RR. PILLAR GARNISH |
| 15 | 73871-SR4-003 | Clip A - L. RR. PILLAR GARNISH | Clip A - L. RR. PILLAR GARNISH |
| 16 | 73872-SR4-003 | Clip b - L. RR. PILLAR GARNISH | Clip b - L. RR. PILLAR GARNISH |
| 5 | 74101-SR3-000 | RH FR. INNER Fender | RH FR. INNER Fender |
| 6 | 74120-SR3-A01 | Lock assy - HOOD | Lock assy - HOOD |
| 10 | 74134-SH3-003 | Grommet - HOOD WIRE | Grommet - HOOD WIRE |
| 12 | 74142-SR3-010 | Rubber - HOOD SEAL | Rubber - HOOD SEAL |
| 13 | 74143-SR3-000 | Rubber - RR. HOOD SEAL | Rubber - RR. HOOD SEAL |
| 19 | 74144-SR3-000 | Cushion - HOOD | Cushion - HOOD |
| 14 | 74145-SR3-000 | Stay - HOOD OPENER | Stay - HOOD OPENER |
| 15 | 74149-SR3-000 | Cover - CONDENSER | Cover - CONDENSER |
| 8 | 74151-SR3-000 | LH FR. INNER Fender | LH FR. INNER Fender |
| 20 | 74172-SR3-000 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 21 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 22 | 74176-SR3-000 | Bracket - RADIATOR MOUNT UPPER | Bracket - RADIATOR MOUNT UPPER |
| 19 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 17 | 74213-SR4-300 | Cover - R. HOOD HINGE | Cover - R. HOOD HINGE |
| 18 | 74214-SR4-300 | Cover - L. HOOD HINGE | Cover - L. HOOD HINGE |
| 17 | 74306-SR4-003 | Molding assy. - R. ROOF | Molding assy. - R. ROOF |
| 18 | 74307-SR3-003 | Clip - ROOF MOLDING | Clip - ROOF MOLDING |
| 19 | 74316-SR4-003 | Molding assy. - L. ROOF | Molding assy. - L. ROOF |
| 27 | 74422-SH3-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 29 | 74559-SR3-010 | Cover - FUEL FILLER PIPE | Cover - FUEL FILLER PIPE |
| 37 | 74651-SR3-000 | Plate - FUEL TANK BAFFLE | Plate - FUEL TANK BAFFLE |
| 30 | 74661-SR3-000 | Cap - FLOOR MAINTENANCE HOLE | Cap - FLOOR MAINTENANCE HOLE |
| 31 | 74662-SR3-000 | Rubber - SEAL | Rubber - SEAL |
| 6 | 74812-SH3-043 | Cylinder - TAILGATE | Cylinder - TAILGATE |
| 7 | 74815-SK7-000 | Grommet - KEY CYLINDER | Grommet - KEY CYLINDER |
| 8 | 74820-SR4-003 | Stay assy - TRUNK OPENER | Stay assy - TRUNK OPENER |
| 9 | 74826-SE0-000 | Cover - OPEN STAY UPPER | Cover - OPEN STAY UPPER |
| 11 | 74829-SR4-030 | Stopper - TRUNK HINGE | Stopper - TRUNK HINGE |
| 12 | 74851-SR4-023 | Lock - TRUNK | Lock - TRUNK |
| 13 | 74862-SR4-003 | Striker - TRUNK | Striker - TRUNK |
| 14 | 74863-SR4-003 | Rod - TRUNK LOCK | Rod - TRUNK LOCK |
| 15 | 74865-SR4-000 | Weatherstrip - TRUNK LID | Weatherstrip - TRUNK LID |
| 23 | 75301-SR4-003 | Protector comp - R. FR. FENDER | Protector comp - R. FR. FENDER |
| 24 | 75302-SR4-003 | Protector comp - R. FR. DOOR | Protector comp - R. FR. DOOR |
| 25 | 75303-SR4-003 | Protector comp - R. RR. DOOR | Protector comp - R. RR. DOOR |
| 26 | 75305-SM4-A01 | Clip assy. - FENDER | Clip assy. - FENDER |
| 27 | 75321-SR4-003 | Protector comp - L. FR. FENDER | Protector comp - L. FR. FENDER |
| 28 | 75322-SR4-003 | Protector comp - L. FR. DOOR | Protector comp - L. FR. DOOR |
| 29 | 75323-SR4-003 | Protector comp - L. RR. DOOR | Protector comp - L. RR. DOOR |
| 30 | 75328-SR3-003 | Clip - SIDE PROTECTOR | Clip - SIDE PROTECTOR |
| 21 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 13 | 75411-634-000 | Joint | Joint |
| 28 | 75450-SM4-000 | Outlet assy - RR. AIR | Outlet assy - RR. AIR |
| 31 | 75513-SB2-000 | Cushion - LOCK ROD (35MMX58MM) | Cushion - LOCK ROD (35MMX58MM) |
| 31 | 75513-SB4-000 | Cushion - LOCK ROD (15MMX40MM) | Cushion - LOCK ROD (15MMX40MM) |
| 3 | 75513-SR3-000 | Cushion - SIDE | Cushion - SIDE |
| 28 | 75525-SD4-013 | Clip - RR. PANEL GARNISH | Clip - RR. PANEL GARNISH |
| 6 | 75700-SR3-000 | Emblem - CENTER (H) | Emblem - CENTER (H) |
| 7 | 75701-SR4-000 | Emblem - RR. CENTER (H) | Emblem - RR. CENTER (H) |
| 20 | 75750-SE7-003 | Checker comp. - FR. DOOR | Checker comp. - FR. DOOR |
| 21 | 75760-SB2-003 | Pin - DOOR CHECKER | Pin - DOOR CHECKER |
| 32 | 75807-671-010 | Nut - SIDE PROTECTOR (BLACK) | Nut - SIDE PROTECTOR (BLACK) |
| 2 | 75826-605-300 | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) |
| 22 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 11 | 76213-SR3-003 | Pin - STOPPER | Pin - STOPPER |
| 13 | 76220-SR4-900 | Sub garnish - R. DOOR MIRROR | Sub garnish - R. DOOR MIRROR |
| 20 | 76270-SR4-900 | Garnish - L. DOOR MIRROR SUB | Garnish - L. DOOR MIRROR SUB |
| 27 | 76290-SR3-003 | Screw - TAPPING, 4X10 (TRUSS) (###) | Screw - TAPPING, 4X10 (TRUSS) (###) |
| 28 | 76291-SR3-003 | Screw - TAPPING, 4X16 (TRUSS) | Screw - TAPPING, 4X16 (TRUSS) |
| 23 | 76409-SL0-003 | Washer - TOOTHED | Washer - TOOTHED |
| 24 | 76410-SL4-003 | Bolt - LOCK | Bolt - LOCK |
| 25 | 76419-SL4-003 | Spring - HOLDER | Spring - HOLDER |
| 26 | 76420-SL4-003 | Plate - HOOK | Plate - HOOK |
| 20 | 76501-SA1-600 | Plate, RR. DOOR LOCK CAUTION | Plate, RR. DOOR LOCK CAUTION |
| 3 | 76515-SR3-003 | Seal a | Seal a |
| 4 | 76516-SE0-003 | Rubber - BRACKETLESS MOUNTING | Rubber - BRACKETLESS MOUNTING |
| 5 | 76516-SR3-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 6 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 7 | 76517-SM4-003 | Collar | Collar |
| 9 | 76524-SD4-003 | Dust seal | Dust seal |
| 10 | 76524-SE0-013 | Dust seal | Dust seal |
| 12 | 76540-SR3-003 | Rod unit a | Rod unit a |
| 13 | 76550-SM4-003 | Rod unit b | Rod unit b |
| 14 | 76561-SD4-003 | Cap - PIVOT | Cap - PIVOT |
| 1 | 76632-S5H-T01 | Rubber - BLADE (450MM) | Rubber - BLADE (450MM) |
| 36 | 76721-SR4-013 | Cover - R. RR. DOOR | Cover - R. RR. DOOR |
| 37 | 76771-SR4-013 | Cover - L. RR. DOOR | Cover - L. RR. DOOR |
| 12 | 76810-SR3-003 | Nozzle assy. - R. FR. WASHER | Nozzle assy. - R. FR. WASHER |
| 13 | 76815-SR3-003 | Nozzle assy. - L. FR. WASHER | Nozzle assy. - L. FR. WASHER |
| 2 | 77180-SR3-000 | Bracket - INSTRUMENT CENTER LOWER | Bracket - INSTRUMENT CENTER LOWER |
| 3 | 77189-SR3-000 | Cover - CENTER LOWER BRACKET | Cover - CENTER LOWER BRACKET |
| 2 | 77208-SA5-003 | Bush - NYLON (TS TECH) | Bush - NYLON (TS TECH) |
| 3 | 77209-SB0-003 | Washer - NYLON | Washer - NYLON |
| 12 | 77212-SR3-003 | Blind - COLUMN | Blind - COLUMN |
| 20 | 77466-SR3-000 | Seal - FR. INSTRUMENT | Seal - FR. INSTRUMENT |
| 15 | 77509-SR3-000 | Stopper - GLOVE BOX | Stopper - GLOVE BOX |
| 17 | 77542-SR3-000 | Striker - GLOVE BOX | Striker - GLOVE BOX |
| 25 | 77623-SR3-000 | Bush - UPPER VENT KNOB | Bush - UPPER VENT KNOB |
| 21 | 77730-SR3-003 | Holder comp - FR. ASHTRAY | Holder comp - FR. ASHTRAY |
| 22 | 77755-SH3-010 | Spring - COIN POCKET | Spring - COIN POCKET |
| 6 | 78108-SR3-G01 | Panel - PRINT | Panel - PRINT |
| 7 | 78110-SR3-J03 | Case assy. | Case assy. |
| 3 | 78410-SR3-004 | Sensor assy - SPEED (NS) | Sensor assy - SPEED (NS) |
| 3 | 78410-SV4-003 | Sensor assy - SPEED (MATSUSHITA) | Sensor assy - SPEED (MATSUSHITA) |
| 5 | 78411-SM4-003 | Joint - SPEED SENSOR (MATSUSHITA) | Joint - SPEED SENSOR (MATSUSHITA) |
| 2 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 6 | 79195-SF1-003 | Holder - ROD | Holder - ROD |
| 5 | 79512-SR3-003 | Lever | Lever |
| 6 | 79514-SR3-003 | Slider | Slider |
| 7 | 79529-SR3-003 | Stopper - CONTROL LEVER | Stopper - CONTROL LEVER |
| 9 | 79550-SR3-013 | Garnish | Garnish |
| 10 | 79551-SR3-013 | Display - MODE CONTROL | Display - MODE CONTROL |
| 11 | 79570-SR3-003 | Switch assy - HEATER FAN | Switch assy - HEATER FAN |
| 12 | 79601-SR3-013 | Knob a | Knob a |
| 13 | 79602-SR3-013 | Knob b | Knob b |
| 14 | 79603-SR3-013 | Knob c | Knob c |
| 15 | 79604-SR3-013 | Knob d | Knob d |
| 16 | 79612-SR3-013 | Lid - AIR CONDITIONER SWITCH | Lid - AIR CONDITIONER SWITCH |
| 17 | 79629-SR3-003 | Bulb assy - BLUE) (14V 14W | Bulb assy - BLUE) (14V 14W |
| 4 | 79722-SR3-000 | Hose b, WATER IN. | Hose b, WATER IN. |
| 6 | 79731-SR3-000 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 5 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 2 | 80107-SR3-000 | Bracket - CONDENSER UPPER | Bracket - CONDENSER UPPER |
| 3 | 80110-SR3-023 | Condenser comp. - SAK | Condenser comp. - SAK |
| 4 | 80115-SR3-000 | Seal - UPPER CONDENSER | Seal - UPPER CONDENSER |
| 5 | 80116-SR3-000 | Seal - R. CONDENSER | Seal - R. CONDENSER |
| 6 | 80117-SR3-000 | Seal - L. CONDENSER | Seal - L. CONDENSER |
| 7 | 80151-SR3-013 | Motor - COOLING FAN | Motor - COOLING FAN |
| 8 | 80152-SR3-013 | Fan comp - COOLING (MITSUBA) | Fan comp - COOLING (MITSUBA) |
| 9 | 80161-SR3-000 | Shroud comp. - CONDENSER FAN | Shroud comp. - CONDENSER FAN |
| 10 | 80162-SR3-000 | Protector - FAN MOTOR | Protector - FAN MOTOR |
| 11 | 80174-SR3-000 | Mount - R. CONDENSER | Mount - R. CONDENSER |
| 12 | 80175-SR3-000 | Mount - L. CONDENSER | Mount - L. CONDENSER |
| 13 | 80176-SR3-000 | Rubber - CONDENSER MOUNTING | Rubber - CONDENSER MOUNTING |
| 14 | 80177-SR3-003 | Mount - CONDENSER LOWER | Mount - CONDENSER LOWER |
| 9 | 80214-SL5-A01 | Insulator - EXPANSION | Insulator - EXPANSION |
| 11 | 80220-ST7-A02 | Valve assy. - EXPANSION (10N) (FUJI KOKI) | Valve assy. - EXPANSION (10N) (FUJI KOKI) |
| 12 | 80223-ST7-A01 | O-ring - FUJI KOKI | O-ring - FUJI KOKI |
| 13 | 80225-SR3-000 | Clamp | Clamp |
| 15 | 80272-SF4-000 | Grommet - DRAIN HOSE | Grommet - DRAIN HOSE |
| 17 | 80286-SR3-000 | Seal - EVAPORATOR INNER | Seal - EVAPORATOR INNER |
| 18 | 80287-SR3-000 | Seal - EVAPORATOR OUTER | Seal - EVAPORATOR OUTER |
| 19 | 80288-SR3-000 | Seal - EVAPORATOR JOINT | Seal - EVAPORATOR JOINT |
| 10 | 80331-SR3-013 | Pipe - CONDENSER (SAK) | Pipe - CONDENSER (SAK) |
| 14 | 80351-ST7-003 | Receiver comp | Receiver comp |
| 15 | 80352-SR3-000 | Bracket - LIQUID TANK | Bracket - LIQUID TANK |
| 15 | 80373-SR3-000 | Bracket - DISCHARGE HOSE | Bracket - DISCHARGE HOSE |
| 20 | 80411-SR3-013 | Knob - AIR CONDITIONER SWITCH | Knob - AIR CONDITIONER SWITCH |
| 16 | 80440-SK3-901 | Switch - DUAL PRESSURE (SAGINOMIYA) | Switch - DUAL PRESSURE (SAGINOMIYA) |
| 16 | 80440-SS0-901 | Switch - DUAL PRESSURE (FUJI) | Switch - DUAL PRESSURE (FUJI) |
| 24 | 80464-SR3-000 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 25 | 80491-SR3-000 | Bracket - AIR CONDITIONER RELAY | Bracket - AIR CONDITIONER RELAY |
| 26 | 80566-SR3-003 | Clip - EVAPORATOR SENSOR | Clip - EVAPORATOR SENSOR |
| 27 | 80865-ST0-003 | Cap h - VALVE (NICHIRIN) | Cap h - VALVE (NICHIRIN) |
| 4 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 25 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 24 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 4 | 81230-SR3-J03 | Adjuster - R. RECLINING | Adjuster - R. RECLINING |
| 6 | 81260-SR4-J02 | Adjuster - OUTER SLIDE | Adjuster - OUTER SLIDE |
| 7 | 81261-SH4-A21 | Cap - END | Cap - END |
| 8 | 81270-SR4-J01 | Adjuster - R. INNER SLIDE | Adjuster - R. INNER SLIDE |
| 9 | 81630-SR3-A03 | Adjuster - L. RECLINING | Adjuster - L. RECLINING |
| 11 | 81670-SR4-J01 | Adjuster - L. INNER SLIDE | Adjuster - L. INNER SLIDE |
| 6 | 82127-SH4-003 | Collar - RR. SEATBACK SETTING | Collar - RR. SEATBACK SETTING |
| 9 | 82490-SR3-000 | Bag - PROTECTOR | Bag - PROTECTOR |
| 4 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 5 | 83107-ST7-000 | Insulator - DASHBOARD WINDSHIELD LOWER | Insulator - DASHBOARD WINDSHIELD LOWER |
| 6 | 83108-ST7-000 | Insulator - DASHBOARD UPPER CENTER | Insulator - DASHBOARD UPPER CENTER |
| 15 | 83242-SR4-000 | Bracket - R. RR. GRAB RAIL (SUNROOF) | Bracket - R. RR. GRAB RAIL (SUNROOF) |
| 16 | 83243-SK8-A40 | Cover - GRAB RAIL | Cover - GRAB RAIL |
| 17 | 83248-SG0-003 | Spacer - GRAB RAIL | Spacer - GRAB RAIL |
| 24 | 83292-SR4-000 | Bracket - L. RR. GRAB RAIL (SUNROOF) | Bracket - L. RR. GRAB RAIL (SUNROOF) |
| 19 | 83307-SD2-000 | Shim - TAILGATE STRIKER (2.0) | Shim - TAILGATE STRIKER (2.0) |
| 19 | 83307-SD2-900 | Shim - TAILGATE STRIKER (1.0) | Shim - TAILGATE STRIKER (1.0) |
| 6 | 83407-SR4-J00 | Lock - ARMREST LID | Lock - ARMREST LID |
| 11 | 83418-SR4-J00 | Cover - PARKING BRAKE | Cover - PARKING BRAKE |
| 5 | 83431-SA4-000 | Cushion - FR. TRUNK | Cushion - FR. TRUNK |
| 16 | 83443-SR4-J00 | Box | Box |
| 17 | 83445-SR4-J00 | Bracket - RR. CONSOLE | Bracket - RR. CONSOLE |
| 9 | 83508-SR3-000 | Bracket assy - PULL POCKET | Bracket assy - PULL POCKET |
| 29 | 83850-SH3-000 | Plate - ANCHOR BOLT | Plate - ANCHOR BOLT |
| 30 | 83853-SA7-980 | Bolt - ANCHOR (79MM) | Bolt - ANCHOR (79MM) |
| 6 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 20 | 88324-SB3-950 | Cover - RR. ASHTRAY | Cover - RR. ASHTRAY |
| 3 | 89101-SH3-000 | Bag - TOOL | Bag - TOOL |
| 3 | 89101-SW5-003 | Bag - TOOL | Bag - TOOL |
| 4 | 89211-SE3-003 | Wrench - WHEEL | Wrench - WHEEL |
| 7 | 89310-SE3-013 | Jack assy - PANTOGRAPH | Jack assy - PANTOGRAPH |
| 8 | 89320-S50-003 | Bar - JACK | Bar - JACK |
| 8 | 89320-SE3-003 | Bar - JACK | Bar - JACK |
| 22 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 16 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 23 | 90001-SD2-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 21 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
| 9 | 90003-P03-000 | Bolt-washer - 6X26 | Bolt-washer - 6X26 |
| 6 | 90004-P30-000 | Bolt - SPECIAL, 8MM | Bolt - SPECIAL, 8MM |
| 17 | 90007-679-000 | Bolt a - TIMING BELT COVER | Bolt a - TIMING BELT COVER |
| 20 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 6 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 19 | 90011-896-000 | Bolt - FLANGE, 6X8 | Bolt - FLANGE, 6X8 |
| 17 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 7 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 8 | 90022-PE0-000 | Bolt - FLANGE, 8X10 | Bolt - FLANGE, 8X10 |
| 21 | 90026-PE0-000 | Bolt - STUD, 8X37 | Bolt - STUD, 8X37 |
| 21 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
| 6 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 10 | 90034-689-000 | Bolt - TWELVE POINT, 8MM (TOKAI TRW) | Bolt - TWELVE POINT, 8MM (TOKAI TRW) |
| 22 | 90041-P01-000 | Bolt - STUD, 12X40 | Bolt - STUD, 12X40 |
| 14 | 90041-P08-003 | Screw-washer - 4X11 | Screw-washer - 4X11 |
| 18 | 90041-PD2-004 | Nut - SPECIAL, 5MM (MITSUBA) | Nut - SPECIAL, 5MM (MITSUBA) |
| 15 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 15 | 90042-PH2-003 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 23 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 16 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 20 | 90050-PG7-000 | Bolt - FLANGE, 12X65 | Bolt - FLANGE, 12X65 |
| 22 | 90057-PG7-003 | Bolt - ALTERNATOR | Bolt - ALTERNATOR |
| 9 | 90065-PG6-000 | Bolt, STUD, 10X24 | Bolt, STUD, 10X24 |
| 19 | 90078-PR3-000 | Screw - PAN, 4X8 | Screw - PAN, 4X8 |
| 12 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 9 | 90101-SE0-010 | Bolt assy. b - BUMPER | Bolt assy. b - BUMPER |
| 33 | 90101-SR4-003 | Screw - 3X10 | Screw - 3X10 |
| 39 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
| 12 | 90105-SB6-003 | Screw - PAN, 4X12 | Screw - PAN, 4X12 |
| 31 | 90106-SD2-000 | Nut - SPRING | Nut - SPRING |
| 25 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 24 | 90108-SR3-951 | Bolt - GEAR BOX MOUNTING (10X65) | Bolt - GEAR BOX MOUNTING (10X65) |
| 10 | 90109-SE0-003 | Bolt b - BUMPER | Bolt b - BUMPER |
| 40 | 90110-679-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 33 | 90110-SP0-003 | Screw - PAN, 5X10 | Screw - PAN, 5X10 |
| 16 | 90112-SE0-000 | Bolt - FR. STABILIZER | Bolt - FR. STABILIZER |
| 12 | 90112-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 15 | 90112-SR4-000 | Bolt - FLANGE, 6X14 | Bolt - FLANGE, 6X14 |
| 26 | 90113-SA0-023 | Bolt - WHEEL (TOKAI TRW) | Bolt - WHEEL (TOKAI TRW) |
| 26 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 26 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 23 | 90114-SA0-000 | Nut - SELF-LOCK, 6MM | Nut - SELF-LOCK, 6MM |
| 24 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 20 | 90115-SG0-003 | Bolt - FLANGE, 6MM | Bolt - FLANGE, 6MM |
| 40 | 90116-SE0-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 39 | 90116-SE3-000 | Screw-washer - 4X12 | Screw-washer - 4X12 |
| 45 | 90117-SB2-000 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 32 | 90117-SH3-004 | Bolt - UPPER ARM, 10X30 | Bolt - UPPER ARM, 10X30 |
| 17 | 90118-SR3-003 | Bolt - SELF-LOCK, 12X76 | Bolt - SELF-LOCK, 12X76 |
| 40 | 90119-SR3-000 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 18 | 90120-SB0-003 | Bolt - SHOCK ABSORBER LOCK, 10X42 | Bolt - SHOCK ABSORBER LOCK, 10X42 |
| 21 | 90120-SE3-003 | Bolt - FLANGE, 6X12 | Bolt - FLANGE, 6X12 |
| 34 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 32 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 14 | 90121-SA7-000 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 41 | 90121-SM4-003 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 9 | 90121-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 8 | 90122-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 10 | 90123-SR3-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 9 | 90125-SR3-003 | Screw - TAPPING, 5X15 | Screw - TAPPING, 5X15 |
| 20 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 9 | 90126-SR4-000 | Screw-washer - 5X16 | Screw-washer - 5X16 |
| 20 | 90127-SA0-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 32 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 12 | 90128-SR4-003 | Bolt-washer - 8X19 | Bolt-washer - 8X19 |
| 19 | 90129-SP0-000 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 15 | 90130-693-000 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 15 | 90130-SB0-010 | Bolt assy - BUMPER | Bolt assy - BUMPER |
| 13 | 90130-SR3-003 | Bolt - 5X13 | Bolt - 5X13 |
| 13 | 90131-SE3-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 15 | 90131-SF4-003 | Screw-washer - 3X16 (NS) | Screw-washer - 3X16 (NS) |
| 29 | 90131-SH3-A12 | Screw - PAN, 5X16 | Screw - PAN, 5X16 |
| 16 | 90131-ST7-000 | Bolt - L. FR. STOPPER | Bolt - L. FR. STOPPER |
| 16 | 90132-SM4-003 | Screw-washer - 3X16 | Screw-washer - 3X16 |
| 11 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 12 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 17 | 90133-SR3-010 | Bolt - R. FR. STOPPER | Bolt - R. FR. STOPPER |
| 20 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 18 | 90135-SB0-003 | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) |
| 14 | 90135-SK7-A01 | Bolt-washer - 10X27 | Bolt-washer - 10X27 |
| 21 | 90137-SH3-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 24 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 15 | 90143-SR3-000 | Bolt-washer - 10X22 | Bolt-washer - 10X22 |
| 17 | 90143-SR3-900 | Bolt-washer - 10X22 | Bolt-washer - 10X22 |
| 22 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 10 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 29 | 90147-634-003 | Bolt - FENDER, 6X18 | Bolt - FENDER, 6X18 |
| 23 | 90153-SB6-003 | Bolt - EARTH, 6X12(ZN) | Bolt - EARTH, 6X12(ZN) |
| 30 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 23 | 90154-SD4-003 | Bolt - EARTH, 6X20 | Bolt - EARTH, 6X20 |
| 31 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 16 | 90155-SH3-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 32 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 24 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 21 | 90161-SB4-003 | Screw - FLAT, 4X16 | Screw - FLAT, 4X16 |
| 18 | 90161-SR3-000 | Bolt - FLANGE, 14X107 | Bolt - FLANGE, 14X107 |
| 19 | 90162-SR3-000 | Bolt - FLANGE, 14X60 | Bolt - FLANGE, 14X60 |
| 20 | 90164-SR3-013 | Bolt - SELF-LOCK, 14X34 | Bolt - SELF-LOCK, 14X34 |
| 20 | 90165-SM4-020 | Bolt - FLANGE, 12X101 | Bolt - FLANGE, 12X101 |
| 21 | 90166-SR3-000 | Bolt - FLANGE, 10X30 | Bolt - FLANGE, 10X30 |
| 22 | 90167-SR3-000 | Bolt - FLANGE, 14X120 | Bolt - FLANGE, 14X120 |
| 23 | 90168-SR3-000 | Bolt - FLANGE, 14X35 | Bolt - FLANGE, 14X35 |
| 35 | 90171-SR3-003 | Bolt - TORQUE COMPENSATOR, 10X59 | Bolt - TORQUE COMPENSATOR, 10X59 |
| 36 | 90172-S04-003 | Bolt - FLANGE, 10X68 | Bolt - FLANGE, 10X68 |
| 36 | 90172-SK7-003 | Bolt - UPPER ARM, 10X68 | Bolt - UPPER ARM, 10X68 |
| 37 | 90173-SR3-003 | Bolt - LOWER ARM, 10X80 | Bolt - LOWER ARM, 10X80 |
| 38 | 90174-SJ4-003 | Bolt - TRAILING ARM BUSH, 12X60 | Bolt - TRAILING ARM BUSH, 12X60 |
| 22 | 90175-SH3-005 | Bolt - SHOCK ABSORBER FORK | Bolt - SHOCK ABSORBER FORK |
| 24 | 90176-SK7-013 | Bolt - FLANGE, 10X31 | Bolt - FLANGE, 10X31 |
| 25 | 90182-SR3-000 | Bolt - FLANGE, 12X112 | Bolt - FLANGE, 12X112 |
| 26 | 90183-SR3-000 | Bolt - FLANGE, 12X100 | Bolt - FLANGE, 12X100 |
| 15 | 90185-SR3-013 | Bolt - FR. ARM UPPER (10X58) | Bolt - FR. ARM UPPER (10X58) |
| 29 | 90188-SR3-010 | Bolt - FLANGE, 14X67 | Bolt - FLANGE, 14X67 |
| 30 | 90190-SR3-000 | Bolt - FLANGE, 12X64 | Bolt - FLANGE, 12X64 |
| 30 | 90195-SA0-000 | Screw-washer - 6X20 | Screw-washer - 6X20 |
| 21 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
| 10 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 10 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 46 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 20 | 90213-PH3-000 | Nut - CAP, 6MM | Nut - CAP, 6MM |
| 23 | 90213-SR3-013 | Nut - SELF-LOCK, 14MM | Nut - SELF-LOCK, 14MM |
| 24 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 30 | 90222-SB4-000 | Nut-washer - 6MM | Nut-washer - 6MM |
| 24 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |
| 29 | 90301-SE0-902 | Nut - SPECIAL, 5MM | Nut - SPECIAL, 5MM |
| 34 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 15 | 90304-SR3-014 | Nut - FLANGE, 10MM (OHASHI) | Nut - FLANGE, 10MM (OHASHI) |
| 21 | 90305-692-010 | Nut | Nut |
| 28 | 90305-SA0-000 | Nut - FLOATING, 4MM | Nut - FLOATING, 4MM |
| 17 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 14 | 90310-SR4-000 | Nut - PUSH, 8MM | Nut - PUSH, 8MM |
| 18 | 90311-MB6-003 | Nut toothed 5mm | Nut toothed 5mm |
| 25 | 90320-SF1-000 | Nut - CASTLE, 10MM | Nut - CASTLE, 10MM |
| 18 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 33 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 26 | 90325-SM4-J00 | Washer - PLAIN, 10MM | Washer - PLAIN, 10MM |
| 45 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 11 | 90344-692-003 | Nut - CLIP, 6MM | Nut - CLIP, 6MM |
| 23 | 90344-SF4-003 | Nut - SELF-LOCK CAP | Nut - SELF-LOCK CAP |
| 19 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 10 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 25 | 90362-SF1-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 19 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
| 31 | 90371-SR3-000 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 32 | 90372-SR3-003 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 33 | 90380-SR3-000 | Bolt - STUD, 12X57.6 | Bolt - STUD, 12X57.6 |
| 33 | 90381-SL5-901 | Nut - WHEEL(FUSE RASHI) | Nut - WHEEL(FUSE RASHI) |
| 25 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 20 | 90403-PM3-004 | Washer - PLAIN, 7MM | Washer - PLAIN, 7MM |
| 16 | 90412-679-000 | Washer - CONICAL SPRING, 8MM | Washer - CONICAL SPRING, 8MM |
| 11 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
| 24 | 90501-SH3-003 | Packing - SEAT | Packing - SEAT |
| 13 | 90502-SA0-003 | Washer - WATER PROOF | Washer - WATER PROOF |
| 34 | 90504-SR3-010 | Washer - FR. STOPPER | Washer - FR. STOPPER |
| 35 | 90505-SB2-000 | Washer - SIDE MOUNTING | Washer - SIDE MOUNTING |
| 36 | 90505-SR3-000 | Washer - RR. BRACKET, 14MM | Washer - RR. BRACKET, 14MM |
| 20 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 18 | 90540-SA7-000 | Washer - BUMPER | Washer - BUMPER |
| 40 | 90551-SH3-000 | Washer - 24X10X2.3 | Washer - 24X10X2.3 |
| 7 | 90601-P01-003 | Clip - ADJUST BOLT | Clip - ADJUST BOLT |
| 37 | 90602-SA7-931 | Clamp - FUEL HOSE, 18.5MM | Clamp - FUEL HOSE, 18.5MM |
| 12 | 90603-PL3-000 | Ring - SNAP, 52MM | Ring - SNAP, 52MM |
| 9 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 29 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 7 | 90615-SR3-000 | Cap - WELD HOLE, 51X77 | Cap - WELD HOLE, 51X77 |
| 24 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 24 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 10 | 90638-689-000 | Clip - SPEEDOMETER GEAR | Clip - SPEEDOMETER GEAR |
| 41 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 24 | 90651-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 32 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 21 | 90654-SR3-003 | Clip - STEERING JOINT COVER | Clip - STEERING JOINT COVER |
| 38 | 90657-SA5-003 | Clip - SIDE APRON MOLDING | Clip - SIDE APRON MOLDING |
| 39 | 90657-SH3-013 | Clip - TWO WAY VALVE COVER | Clip - TWO WAY VALVE COVER |
| 34 | 90659-692-000 | Clamp - CASE | Clamp - CASE |
| 21 | 90659-PG6-000 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 15 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 31 | 90664-SB3-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 29 | 90665-SM4-003 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 25 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 48 | 90668-SC5-003 | Clip A - AIRSCOOP GRILLE | Clip A - AIRSCOOP GRILLE |
| 16 | 90668-SH3-003 | Clip - SIDE LINING | Clip - SIDE LINING |
| 11 | 90668-SJ4-003 | Clip - RR. TRAY | Clip - RR. TRAY |
| 10 | 90668-SR3-003 | Clip - TRIM | Clip - TRIM |
| 16 | 90668-SR4-003 | Clip - LOCK KNOB COVER | Clip - LOCK KNOB COVER |
| 11 | 90669-SH4-003 | Clip - CENTER PILLAR LINING | Clip - CENTER PILLAR LINING |
| 12 | 90669-SR4-003 | Clip - RR. TRAY | Clip - RR. TRAY |
| 28 | 90670-SG0-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 22 | 90672-SJ4-013 | Holder - ROD | Holder - ROD |
| 7 | 90675-SR4-003 | Grommet - RR. WINDSHIELD MOLDING | Grommet - RR. WINDSHIELD MOLDING |
| 8 | 90676-SR4-003 | Pin - RR. WINDSHIELD MOLDING | Pin - RR. WINDSHIELD MOLDING |
| 17 | 90678-SK7-003 | Clip - SPEAKER | Clip - SPEAKER |
| 11 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 15 | 90683-SB3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 25 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 48 | 90688-SB0-013 | Clip b | Clip b |
| 12 | 90688-SR3-003 | Clip - BAG PROTECTOR | Clip - BAG PROTECTOR |
| 25 | 90691-SC5-003 | Clip A - OPENER CABLE | Clip A - OPENER CABLE |
| 26 | 90692-SK8-003 | Clip - TRUNK OPENER CABLE | Clip - TRUNK OPENER CABLE |
| 17 | 90704-634-000 | Key - 4.5X11.0 | Key - 4.5X11.0 |
| 26 | 90755-SB2-000 | E-ring - 6MM | E-ring - 6MM |
| 9 | 90850-SH4-K00 | Cap - OUTSIDE HOLE | Cap - OUTSIDE HOLE |
| 31 | 90852-671-003 | Plug - HOLE | Plug - HOLE |
| 13 | 90855-SA0-000 | Plug - VENTILATION HOLE, 20MM | Plug - VENTILATION HOLE, 20MM |
| 28 | 90856-SK7-003 | Snap - TAILGATE LOCK | Snap - TAILGATE LOCK |
| 16 | 90860-SA5-003 | Plug - HOLE, 16MM | Plug - HOLE, 16MM |
| 35 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 12 | 91006-634-008 | Bearing - CLUTCH PILOT (NTN) | Bearing - CLUTCH PILOT (NTN) |
| 9 | 91048-PY3-003 | Bearing - RADIAL BALL, 15X38X12 | Bearing - RADIAL BALL, 15X38X12 |
| 10 | 91148-PY3-003 | Roller - 5X26.8 | Roller - 5X26.8 |
| 11 | 91149-PY3-003 | Roller - 4.5X49.8 | Roller - 4.5X49.8 |
| 14 | 91205-PL3-A01 | Oil seal - 35X56X8 (ARAI) | Oil seal - 35X56X8 (ARAI) |
| 14 | 91205-PL3-A02 | Oil seal - 35X56X8(NOK) | Oil seal - 35X56X8(NOK) |
| 28 | 91214-PLE-003 | Oil seal | Oil seal |
| 12 | 91249-P02-003 | Seal - POWER STEERING PUMP | Seal - POWER STEERING PUMP |
| 26 | 91301-671-671 | O-ring - 1.9X11 | O-ring - 1.9X11 |
| 26 | 91303-HA0-004 | O-ring, 11x1.9 (nok) | O-ring, 11x1.9 (nok) |
| 11 | 91304-PT0-000 | O-ring - 14.8X1.9 | O-ring - 14.8X1.9 |
| 27 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 27 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 16 | 91308-PK1-003 | O-ring - 26.2X2.4 (NOK) | O-ring - 26.2X2.4 (NOK) |
| 12 | 91313-611-010 | O-ring - 23.5X2 | O-ring - 23.5X2 |
| 13 | 91317-P02-003 | O-ring - 5.8X1.9 (NOK) | O-ring - 5.8X1.9 (NOK) |
| 14 | 91345-PY3-000 | O-ring - 13.0X1.9 | O-ring - 13.0X1.9 |
| 15 | 91346-PY3-000 | O-ring - 22.1X1.9 | O-ring - 22.1X1.9 |
| 16 | 91347-PY3-000 | O-ring - 16.8X1.9 | O-ring - 16.8X1.9 |
| 17 | 91348-PY3-000 | O-ring - 54.0X1.9 | O-ring - 54.0X1.9 |
| 18 | 91349-PY3-000 | O-ring - 68.5X1.9 | O-ring - 68.5X1.9 |
| 26 | 91370-SM4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 26 | 91370-SM4-004 | O-ring - 11X1.9 (ARAI) | O-ring - 11X1.9 (ARAI) |
| 27 | 91405-PE0-003 | Clamp - TUBE (D20) | Clamp - TUBE (D20) |
| 7 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 27 | 91417-SZ3-003 | Clamp - FUEL TUBE (D20) (CHUO HATSUJO) | Clamp - FUEL TUBE (D20) (CHUO HATSUJO) |
| 17 | 91504-SE3-920 | Clip - SLIDE ROOF DRAIN TUBE | Clip - SLIDE ROOF DRAIN TUBE |
| 33 | 91504-SR3-003 | Clip - WASHER TUBE | Clip - WASHER TUBE |
| 28 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
| 34 | 91506-SR3-003 | Clip - TUBE WASHER (NATURAL) | Clip - TUBE WASHER (NATURAL) |
| 29 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |
| 24 | 91508-SR3-000 | Clip - COWL TOP (BLACK) | Clip - COWL TOP (BLACK) |
| 24 | 91508-SX8-003 | Clip - COWL TOP | Clip - COWL TOP |
| 49 | 91509-SR4-003 | Clip - DOOR SASH GARNISH (BLUE) | Clip - DOOR SASH GARNISH (BLUE) |
| 51 | 91510-SR3-003 | Clip - DOOR MOLDING (NATURAL) | Clip - DOOR MOLDING (NATURAL) |
| 8 | 91511-SR3-003 | Clip d - FR. WINDSHIELD SIDE MOLDING (ORANGE) | Clip d - FR. WINDSHIELD SIDE MOLDING (ORANGE) |
| 12 | 91512-SM4-003 | Clip - INNER FENDER | Clip - INNER FENDER |
| 25 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
| 52 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
| 11 | 91514-SR4-000 | Fastener d - RR. WINDSHIELD | Fastener d - RR. WINDSHIELD |
| 26 | 91515-SR3-000 | Clip - RR. HOOD | Clip - RR. HOOD |
| 53 | 91515-SR4-003 | Clip b - DOOR SASH GARNISH (RED) | Clip b - DOOR SASH GARNISH (RED) |
| 13 | 91516-SK7-013 | Clip - UNDER COVER | Clip - UNDER COVER |
| 9 | 91518-SR4-003 | Clip A - FR. WINDSHIELD MOLDING SIDE | Clip A - FR. WINDSHIELD MOLDING SIDE |
| 10 | 91519-SR4-003 | Clip b - FR. WINDSHIELD MOLDING SIDE | Clip b - FR. WINDSHIELD MOLDING SIDE |
| 27 | 91520-SM4-C01 | Clip - HOOD SEAL RUBBER | Clip - HOOD SEAL RUBBER |
| 11 | 91520-SR3-003 | Clip c - FR. WINDSHIELD SIDE MOLDING (RED) | Clip c - FR. WINDSHIELD SIDE MOLDING (RED) |
| 55 | 91528-SR4-003 | Clip - DRIP MOLDING | Clip - DRIP MOLDING |
| 27 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 18 | 91533-SR3-003 | Clip - INSULATOR (NATURAL) | Clip - INSULATOR (NATURAL) |
| 12 | 91533-SR4-000 | Fastener d - WINDSHIELD GLASS | Fastener d - WINDSHIELD GLASS |
| 28 | 91534-SR3-003 | Clip - DOOR SUB SEAL | Clip - DOOR SUB SEAL |
| 12 | 91534-ST0-003 | Clip c - FR. WINDSHIELD SIDE MOLDING (BLUE) | Clip c - FR. WINDSHIELD SIDE MOLDING (BLUE) |
| 19 | 91535-SR3-003 | Clip - DASHBOARD INSULATOR LOCK (BLACK) | Clip - DASHBOARD INSULATOR LOCK (BLACK) |
| 56 | 91536-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 13 | 91536-SS0-000 | Fastener a - WINDSHIELD | Fastener a - WINDSHIELD |
| 30 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 35 | 91546-SR3-003 | Clamp - 16.5 | Clamp - 16.5 |
| 36 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 28 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 17 | 91547-SR3-003 | Clamp - WIRE HARNESS | Clamp - WIRE HARNESS |
| 30 | 91550-SH5-003 | Band - HARNESS (NATURAL) (90.4MM)(WITH SEAL) | Band - HARNESS (NATURAL) (90.4MM)(WITH SEAL) |
| 31 | 91550-SM4-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 16 | 91551-SE0-003 | Bolt - FLANGE, 5X7 | Bolt - FLANGE, 5X7 |
| 18 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 33 | 91552-SR3-003 | Clip - WIRE HARNESS (SEAL) (BULE) | Clip - WIRE HARNESS (SEAL) (BULE) |
| 34 | 91554-SH3-003 | Band - WIRE HARNESS (NATURAL) (100.5MM) | Band - WIRE HARNESS (NATURAL) (100.5MM) |
| 22 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 22 | 91556-SR3-003 | Clip - COUPLER | Clip - COUPLER |
| 36 | 91557-SR3-003 | Clip - WIRE HARNESS PROTECTOR (RED) | Clip - WIRE HARNESS PROTECTOR (RED) |
| 19 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 19 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 40 | 91570-SH3-003 | Band - WIRE HARNESS (NATURAL) | Band - WIRE HARNESS (NATURAL) |
| 41 | 91571-SR3-004 | Holder - COUPLER | Holder - COUPLER |
| 37 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 46 | 91591-SR3-010 | Clip A - BRAKE | Clip A - BRAKE |
| 51 | 91595-SR3-003 | Clamp a - FUEL PIPE | Clamp a - FUEL PIPE |
| 54 | 91597-SR3-003 | Clamp c - FUEL PIPE | Clamp c - FUEL PIPE |
| 41 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
| 28 | 91604-SD2-013 | Grommet - HOOD STAY | Grommet - HOOD STAY |
| 20 | 91610-SB2-003 | Plug - HOLE, 16.7MM (BLACK) | Plug - HOLE, 16.7MM (BLACK) |
| 21 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 22 | 91616-SR3-000 | Seal - FR. INNER LOWER (110X110) (BLACK) | Seal - FR. INNER LOWER (110X110) (BLACK) |
| 23 | 91617-SB6-000 | Grommet - WASHER HOSE, 32MM | Grommet - WASHER HOSE, 32MM |
| 25 | 91617-SH3-000 | Seal - HOLE | Seal - HOLE |
| 38 | 91619-SA5-000 | Grommet - SCREW, 6MM | Grommet - SCREW, 6MM |
| 44 | 91626-SR3-003 | Ring - WIRE HARNESS | Ring - WIRE HARNESS |
| 26 | 91631-SR3-000 | Plug - AIR CONDITIONER HOLE | Plug - AIR CONDITIONER HOLE |
| 45 | 91637-SF1-003 | Cap - 090 2P | Cap - 090 2P |
| 32 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 22 | 91641-SH3-013 | Grommet assy, GARNISH | Grommet assy, GARNISH |
| 22 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 26 | 91647-SH3-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 46 | 91763-SH3-003 | Bar - JOINT (6P) | Bar - JOINT (6P) |
| 47 | 91786-SR3-003 | Bar - JOINT (10P) | Bar - JOINT (10P) |
| 29 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
