Accelerator pedal (LH) 4 / 16

#	OEM	ED9	EH6
3	17812-SA7-010	Washer - ACCELERATOR PEDAL	Washer - ACCELERATOR PEDAL
5	17816-SK7-000	Cover - ACCELERATOR PEDAL	Cover - ACCELERATOR PEDAL
10	17921-SA4-730	Seal - THROTTLE CABLE	Seal - THROTTLE CABLE
19	35350-SE0-A03	Switch assy - STOP (TEC)	Switch assy - STOP (TEC)

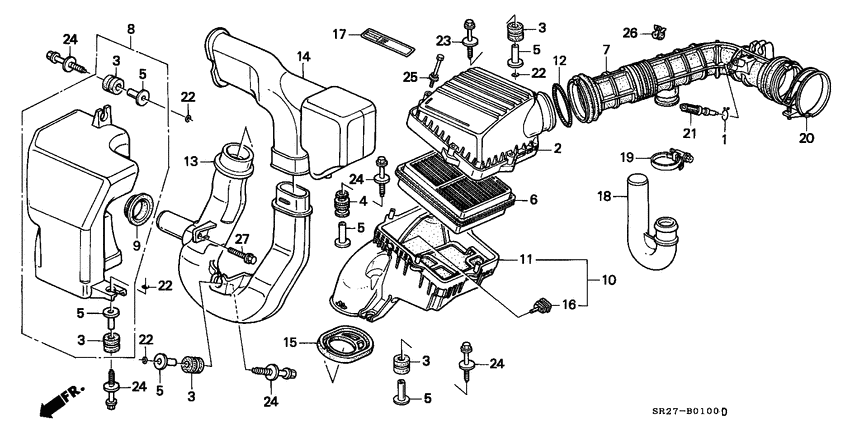

Air cleaner (PGM-FI) 6 / 26

#	OEM	ED9	EH6
2	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
7	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
9	17243-PD1-000	Spring - AIR INTAKE TUBE	Spring - AIR INTAKE TUBE
21	17316-PH3-003	Clamp - AIR FLOW TUBE (70)	Clamp - AIR FLOW TUBE (70)
26	91405-PG7-003	Clip - HOSE (D13)	Clip - HOSE (D13)

Air conditioner (CONDENSER) 6 / 23

#	OEM	ED9	EH6
1	90659-PG6-000	Clip - WIRE HARNESS	Clip - WIRE HARNESS
23	90041-PD2-004	Nut - SPECIAL, 5MM (MITSUBA)	Nut - SPECIAL, 5MM (MITSUBA)
23	90311-MB6-003	Nut toothed 5mm	Nut toothed 5mm
24	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)
25	90403-PM3-004	Washer - PLAIN, 7MM	Washer - PLAIN, 7MM
28	90078-PR3-000	Screw - PAN, 4X8	Screw - PAN, 4X8

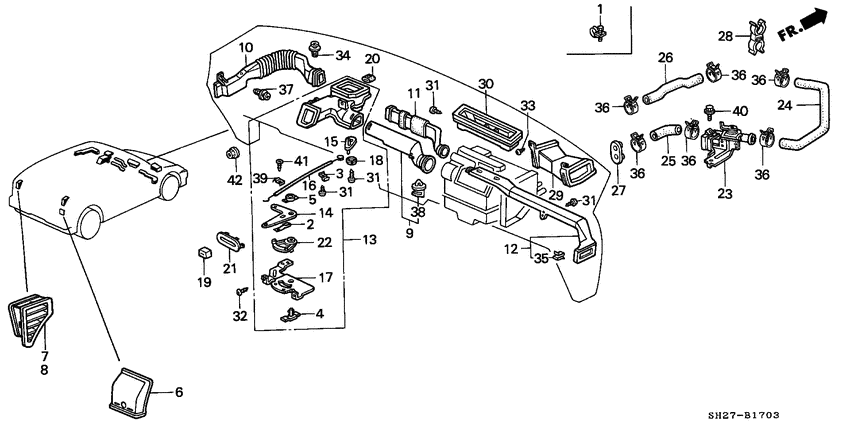

Air conditioner (UNIT; LH) 8 / 40

#	OEM	ED9	EH6
11	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
24	80272-SF4-000	Grommet - DRAIN HOSE	Grommet - DRAIN HOSE
35	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24
37	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
39	90659-692-000	Clamp - CASE	Clamp - CASE
40	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)	Band - WIRE HARNESS (BLUE) (123.5MM)
42	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
43	91570-SH3-003	Band - WIRE HARNESS (NATURAL)	Band - WIRE HARNESS (NATURAL)

Antenna 1 / 10

#	OEM	ED9	EH6
1	39112-SH3-000	Bracket - FR. SPEAKER SEAL (12CM)	Bracket - FR. SPEAKER SEAL (12CM)

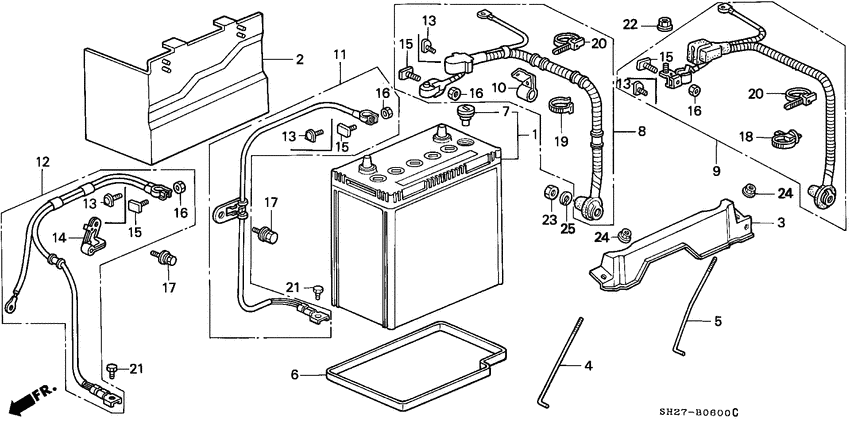

Battery 4 / 22

#	OEM	ED9	EH6
7	31542-SA5-664	Plug - VENT (MF) (YUASA)	Plug - VENT (MF) (YUASA)
7	31542-SA5-665	Plug - VENT (MF) (PANASONIC)	Plug - VENT (MF) (PANASONIC)
15	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
16	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL

Body structure components (FRONT BULKHEAD) 1 / 2

#	OEM	ED9	EH6
30	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)

Body structure components (OUTER PANEL) 2 / 2

#	OEM	ED9	EH6
26	90304-SB0-000	Nut - FIXED TORQUE	Nut - FIXED TORQUE
27	90661-SC7-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Brake line (LH) 5 / 34

#	OEM	ED9	EH6
12	46380-SH3-000	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
23	46394-SH3-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
29	46462-SE0-000	Bolt - OIL	Bolt - OIL
30	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
33	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder 8 / 15

#	OEM	ED9	EH6
1	46100-SR3-913	Cylinder assy. - MASTER	Cylinder assy. - MASTER
4	46135-SE0-013	Guide assy - PISTON	Guide assy - PISTON
7	57562-SF1-003	Circlip	Circlip
8	46185-SE0-003	Seal - ROD	Seal - ROD
10	46662-SK7-J01	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
12	46666-SE0-003	Filter - MASTER CYLINDER	Filter - MASTER CYLINDER
13	46669-692-003	Seal - RESERVE TANK	Seal - RESERVE TANK
14	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR

Brake pedal/clutch pedal (LH) 3 / 21

#	OEM	ED9	EH6
14	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
17	46545-SH3-000	Cover - PEDAL	Cover - PEDAL
27	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Breather chamber 2 / 17

#	OEM	ED9	EH6
18	91324-PC6-000	O-ring - 20.6X2.6	O-ring - 20.6X2.6
20	91405-PH7-003	Clamp - TUBE (D15)	Clamp - TUBE (D15)

Bumper (1) 10 / 38

#	OEM	ED9	EH6
15	71148-SG9-600	Nut	Nut
31	90101-SE0-010	Bolt assy. b - BUMPER	Bolt assy. b - BUMPER
35	90109-SE0-003	Bolt b - BUMPER	Bolt b - BUMPER
38	90130-SB0-010	Bolt assy - BUMPER	Bolt assy - BUMPER
39	90130-SH3-010	Bolt assy - BUMPER	Bolt assy - BUMPER
40	90112-SM4-003	Bolt - BUMPER	Bolt - BUMPER
41	71544-SR2-000	Seal - RR. UPPER BEAM	Seal - RR. UPPER BEAM
46	90540-SA7-000	Washer - BUMPER	Washer - BUMPER
47	90540-SE0-000	Washer - BUMPER	Washer - BUMPER
56	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)

Bumper (3) 7 / 33

#	OEM	ED9	EH6
22	90101-SE0-010	Bolt assy. b - BUMPER	Bolt assy. b - BUMPER
27	90130-SB0-010	Bolt assy - BUMPER	Bolt assy - BUMPER
28	90130-SH3-010	Bolt assy - BUMPER	Bolt assy - BUMPER
29	90112-SM4-003	Bolt - BUMPER	Bolt - BUMPER
30	71544-SR2-000	Seal - RR. UPPER BEAM	Seal - RR. UPPER BEAM
34	90540-SA7-000	Washer - BUMPER	Washer - BUMPER
35	90540-SE0-000	Washer - BUMPER	Washer - BUMPER

Camshaft/timing belt (DOHC) 4 / 28

#	OEM	ED9	EH6
2	11812-PE0-300	Grommet - TIMING BELT COVER HOLE	Grommet - TIMING BELT COVER HOLE
16	14513-PE0-015	Bolt - TENSIONER (M6)	Bolt - TENSIONER (M6)
18	14517-PG6-000	Bolt a - TENSIONER	Bolt a - TENSIONER
19	90011-PG6-004	Bolt - TIMING BELT ADJUSTER SPRING	Bolt - TIMING BELT ADJUSTER SPRING

Camshaft/timing belt (SOHC) 5 / 23

#	OEM	ED9	EH6
2	11812-PE0-300	Grommet - TIMING BELT COVER HOLE	Grommet - TIMING BELT COVER HOLE
14	14513-PE0-015	Bolt - TENSIONER (M6)	Bolt - TENSIONER (M6)
16	14517-PG6-000	Bolt a - TENSIONER	Bolt a - TENSIONER
17	90011-PG6-004	Bolt - TIMING BELT ADJUSTER SPRING	Bolt - TIMING BELT ADJUSTER SPRING
20	91213-P2F-A01	Oil seal - 29X45X8 (ARAI)	Oil seal - 29X45X8 (ARAI)

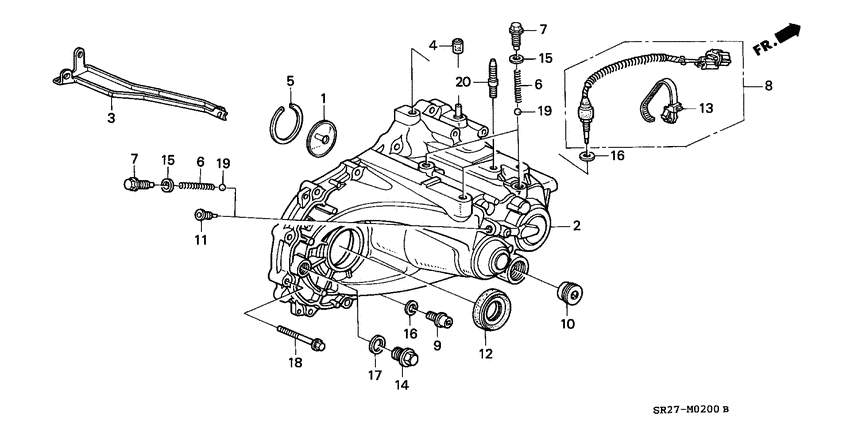

Clutch housing 27 / 51

#	OEM	ED9	EH6
2	21103-PL3-B00	Plate c - OIL GUIDE	Plate c - OIL GUIDE
3	21120-PG2-003	Magnet - TRANSMISSION	Magnet - TRANSMISSION
5	41233-PL3-A00	Gear - FINAL DRIVEN	Gear - FINAL DRIVEN
7	41312-PL3-B00	Gear - SPEEDOMETER DRIVE	Gear - SPEEDOMETER DRIVE
12	41451-PL3-B00	Shim l - 80MM(1.15)	Shim l - 80MM(1.15)
12	41446-PL3-B00	Shim f - 80MM(1.5)	Shim f - 80MM(1.5)
12	41457-PL3-B00	Shim s - 80MM(1.75)	Shim s - 80MM(1.75)
12	41441-PL3-B00	Shim a - 80MM(1.0)	Shim a - 80MM(1.0)
12	41452-PL3-B00	Shim m - 80MM(1.25)	Shim m - 80MM(1.25)
12	41447-PL3-B00	Shim g - 80MM(1.6)	Shim g - 80MM(1.6)
12	41442-PL3-B00	Shim b - 80MM(1.1)	Shim b - 80MM(1.1)
12	41453-PL3-B00	Shim n - 80MM(1.35)	Shim n - 80MM(1.35)
12	41448-PL3-B00	Shim h - 80MM(1.7)	Shim h - 80MM(1.7)
12	41443-PL3-B00	Shim c - 80MM(1.2)	Shim c - 80MM(1.2)
12	41454-PL3-B00	Shim p - 80MM(1.45)	Shim p - 80MM(1.45)
12	41449-PL3-B00	Shim j - 80MM(1.8)	Shim j - 80MM(1.8)
12	41444-PL3-B00	Shim d - 80MM(1.3)	Shim d - 80MM(1.3)
12	41455-PL3-B00	Shim q - 80MM(1.55)	Shim q - 80MM(1.55)
12	41450-PL3-B00	Shim k - 80MM(1.05)	Shim k - 80MM(1.05)
12	41445-PL3-B00	Shim e - 80MM(1.4)	Shim e - 80MM(1.4)
12	41456-PL3-B00	Shim r - 80MM(1.65)	Shim r - 80MM(1.65)
13	90015-634-010	Bolt - FLANGE, 10MM	Bolt - FLANGE, 10MM
15	91002-PS0-003	Bearing - BALL, 26X58X15 (NTN)	Bearing - BALL, 26X58X15 (NTN)
17	91101-PL3-B03	Bearing - NEEDLE, 30X55X21 (NTN)	Bearing - NEEDLE, 30X55X21 (NTN)
20	91215-PL3-003	Oil seal - 14X25X15 (ARAI)	Oil seal - 14X25X15 (ARAI)
20	91215-PL3-005	Oil seal - 14X25X15 (NOK)	Oil seal - 14X25X15 (NOK)
21	91216-PL3-005	Oil seal - 26X42X7 (NOK)	Oil seal - 26X42X7 (NOK)

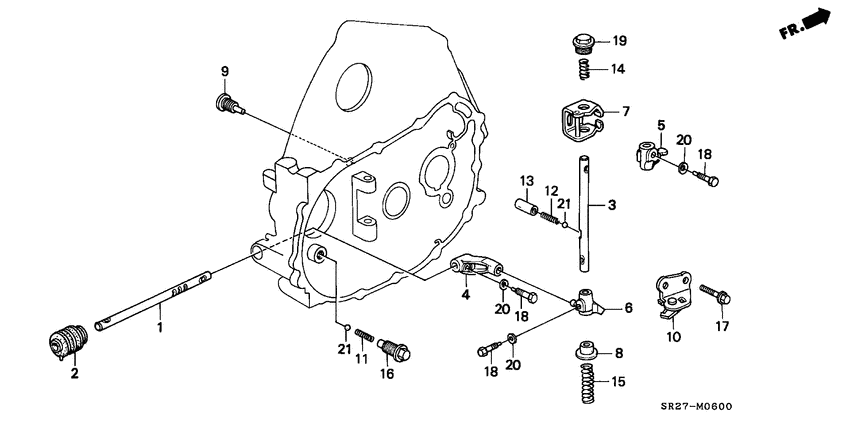

Clutch release 4 / 17

#	OEM	ED9	EH6
12	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM
13	90637-689-000	Clip - SPEEDOMETER CABLE	Clip - SPEEDOMETER CABLE
14	90638-689-000	Clip - SPEEDOMETER GEAR	Clip - SPEEDOMETER GEAR
15	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2

Clutch/torque converter 3 / 8

#	OEM	ED9	EH6
8	90011-PM0-000	Bolt - 12MM	Bolt - 12MM
10	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
12	91006-634-008	Bearing - CLUTCH PILOT (NTN)	Bearing - CLUTCH PILOT (NTN)

Combination switch 2 / 25

#	OEM	ED9	EH6
5	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
16	35409-692-013	Screw - FLANGE, 4X12	Screw - FLANGE, 4X12

Compressor 1 / 34

#	OEM	ED9	EH6
19	38946-P01-000	Bolt - IDLE PULLEY	Bolt - IDLE PULLEY

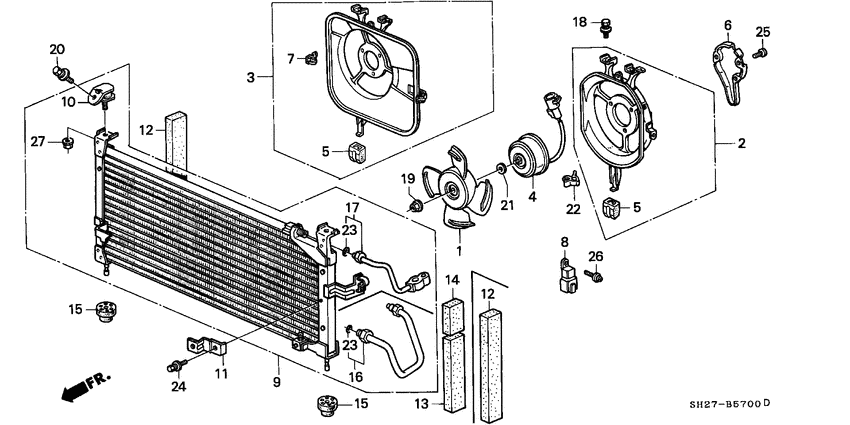

Condenser 6 / 24

#	OEM	ED9	EH6
19	90041-PD2-004	Nut - SPECIAL, 5MM (MITSUBA)	Nut - SPECIAL, 5MM (MITSUBA)
19	90311-MB6-003	Nut toothed 5mm	Nut toothed 5mm
20	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)
21	90403-PM3-004	Washer - PLAIN, 7MM	Washer - PLAIN, 7MM
22	90659-PG6-000	Clip - WIRE HARNESS	Clip - WIRE HARNESS
25	90078-PR3-000	Screw - PAN, 4X8	Screw - PAN, 4X8

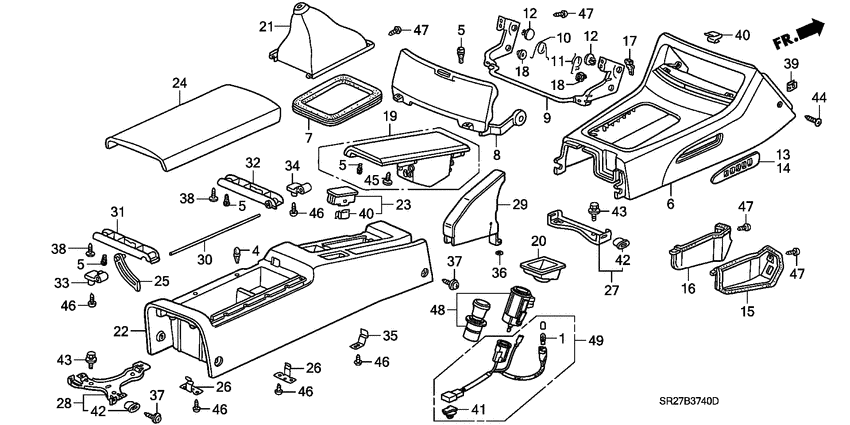

Console 4 / 13

#	OEM	ED9	EH6
1	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
17	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
18	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
26	39600-SW3-505	LIGHTER ASSYCIGA	LIGHTER ASSYCIGA

Countershaft/gear 5 / 23

#	OEM	ED9	EH6
9	23926-PB6-010	Washer - SPRING, 22MM	Washer - SPRING, 22MM
10	90202-PB6-010	Nut - FLANGE, 22MM	Nut - FLANGE, 22MM
11	90603-PL3-000	Ring - SNAP, 52MM	Ring - SNAP, 52MM
16	91211-PL3-T01	Damper - FRICTION (LOW)	Damper - FRICTION (LOW)
17	91212-P20-008	Damper - FRICTION (SECOND)	Damper - FRICTION (SECOND)

Cylinder block/oil pan 12 / 32

#	OEM	ED9	EH6
2	11106-PE0-300	Bolt - SEALING, 14MM	Bolt - SEALING, 14MM
4	11126-PK1-003	Bolt - SEALING, 22MM	Bolt - SEALING, 22MM
12	15140-PM3-000	Orifice assy - OIL PATH	Orifice assy - OIL PATH
14	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
15	90007-PM6-003	Bolt-washer - 11X116	Bolt-washer - 11X116
16	90008-PM3-000	Bolt - MOUNTING BRACKET, 10X32.5	Bolt - MOUNTING BRACKET, 10X32.5
17	90008-PM6-003	Bolt-washer - 11X131	Bolt-washer - 11X131
18	90009-PH1-000	Bolt - DRAIN PLUG, 14MM	Bolt - DRAIN PLUG, 14MM
23	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
24	90715-PC6-000	Dowel pin - 13X20	Dowel pin - 13X20
26	91303-KE7-003	O-ring - 7.2X1.7 (ARAI)	O-ring - 7.2X1.7 (ARAI)
26	91312-107-000	O-ring (7x1.7)	O-ring (7x1.7)

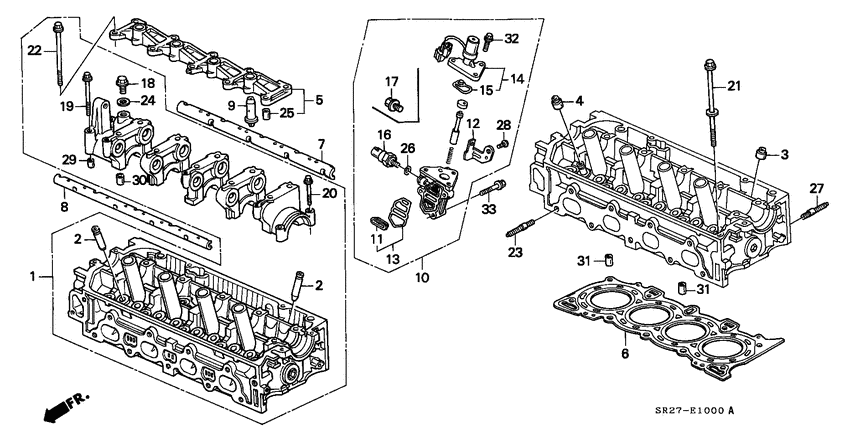

Cylinder head (DOHC) 2 / 15

#	OEM	ED9	EH6
13	90026-PE0-000	Bolt - STUD, 8X37	Bolt - STUD, 8X37
13	90026-PT0-000	Bolt - STUD, 8X38	Bolt - STUD, 8X38

Cylinder head (SOHC) 3 / 24

#	OEM	ED9	EH6
2	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
16	90026-PE0-000	Bolt - STUD, 8X37	Bolt - STUD, 8X37
16	90026-PT0-000	Bolt - STUD, 8X38	Bolt - STUD, 8X38

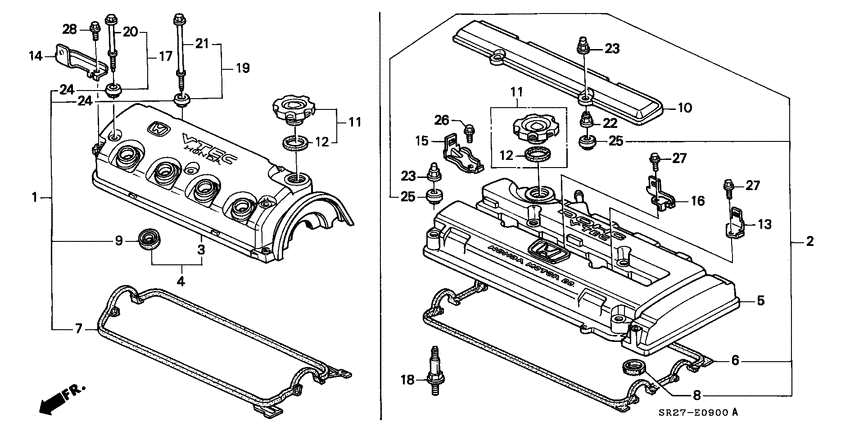

Cylinder head cover 1 / 17

#	OEM	ED9	EH6
11	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

Cylinder sensor 1 / 12

#	OEM	ED9	EH6
1	30110-PA1-732	O-ring - 26.4X3.1 (TEC)	O-ring - 26.4X3.1 (TEC)

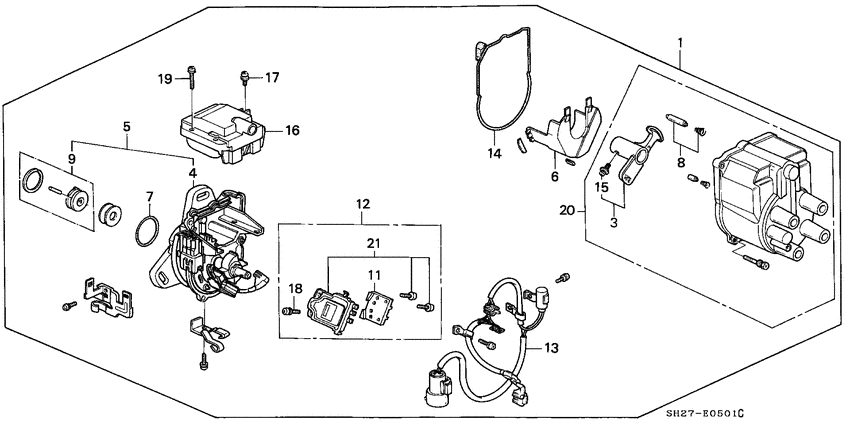

Distributor (TEC) 1 / 24

#	OEM	ED9	EH6
7	30110-PA1-732	O-ring - 26.4X3.1 (TEC)	O-ring - 26.4X3.1 (TEC)

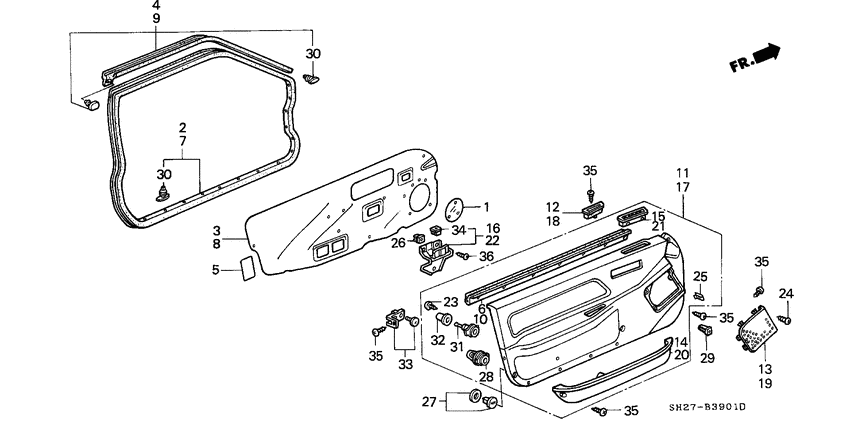

Door lining 4 / 26

#	OEM	ED9	EH6
24	90137-SH3-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
25	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
26	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
29	90670-SG0-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Door locks 3 / 24

#	OEM	ED9	EH6
18	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT	Bush - OUTSIDE HANDLE JOINT
34	72175-SH3-901	Holder - DOOR LOCK ROD	Holder - DOOR LOCK ROD
40	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Door panels 4 / 6

#	OEM	ED9	EH6
13	75760-SB2-003	Pin - DOOR CHECKER	Pin - DOOR CHECKER
15	90001-SD2-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
16	90157-SA0-000	Bolt-washer - 8X25	Bolt-washer - 8X25
17	90755-SB2-000	E-ring - 6MM	E-ring - 6MM

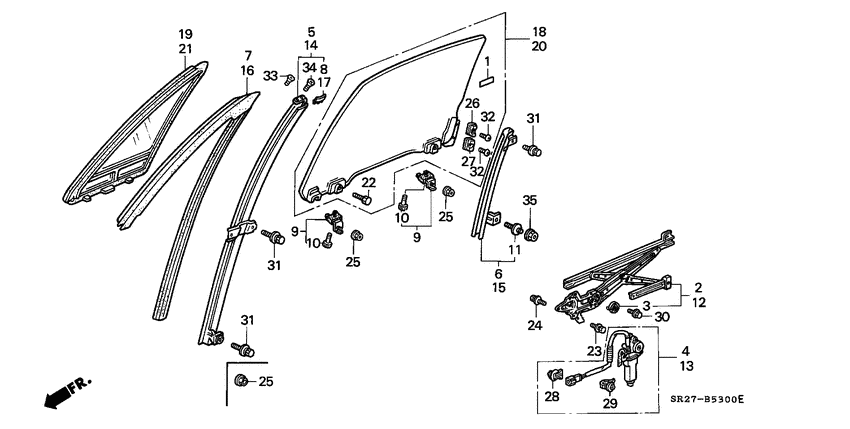

Door window 3 / 22

#	OEM	ED9	EH6
22	90011-896-000	Bolt - FLANGE, 6X8	Bolt - FLANGE, 6X8
23	90120-SE3-003	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
27	90115-SG0-003	Bolt - FLANGE, 6MM	Bolt - FLANGE, 6MM

Driveshaft/half shaft 3 / 46

#	OEM	ED9	EH6
9	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
30	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
32	90305-692-010	Nut	Nut

Emblem 1 / 11

#	OEM	ED9	EH6
14	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

Engine mounts 1 / 27

#	OEM	ED9	EH6
27	91771-SH3-000	Washer - PLAIN, 10MM	Washer - PLAIN, 10MM

Engine sub cord/clamp 9 / 33

#	OEM	ED9	EH6
18	37750-PH2-014	Thermo unit - DENSO	Thermo unit - DENSO
20	37870-PJ7-003	Sensor assy, WATER TEMP (TW5) (MATSUSHITA)	Sensor assy, WATER TEMP (TW5) (MATSUSHITA)
21	90050-PG7-000	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65
23	90057-PG7-003	Bolt - ALTERNATOR	Bolt - ALTERNATOR
24	90430-657-000	Washer - 23X8.3X3.2	Washer - 23X8.3X3.2
25	91307-PJ7-003	O-ring - 9.5X1.5 (MATSUSHITA)	O-ring - 9.5X1.5 (MATSUSHITA)
25	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)	O-ring - 9.5X1.5(HONDA KIKAKI)
28	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)	Band - WIRE HARNESS(WHITE) (93.5MM)
28	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)	Band - WIRE HARNESS (BLUE) (123.5MM)

Exhaust manifold (1.6L) 4 / 16

#	OEM	ED9	EH6
8	90010-PE2-900	Bolt - SPECIAL, 10X22	Bolt - SPECIAL, 10X22
9	90015-PT0-J00	Bolt-washer - 8X14	Bolt-washer - 8X14
11	90065-PG6-000	Bolt, STUD, 10X24	Bolt, STUD, 10X24
13	90451-PE2-000	Washer - SPECIAL, 11X28	Washer - SPECIAL, 11X28

Exhaust manifold (1.6L; SENSOR) 4 / 15

#	OEM	ED9	EH6
9	90010-PE2-900	Bolt - SPECIAL, 10X22	Bolt - SPECIAL, 10X22
10	90015-PT0-J00	Bolt-washer - 8X14	Bolt-washer - 8X14
12	90065-PG6-000	Bolt, STUD, 10X24	Bolt, STUD, 10X24
14	90451-PE2-000	Washer - SPECIAL, 11X28	Washer - SPECIAL, 11X28

Exhaust pipe 10 / 38

#	OEM	ED9	EH6
12	18212-SB2-961	Gasket - EX. PIPE (ISHINO)	Gasket - EX. PIPE (ISHINO)
19	18215-SH3-J01	Rubber - EX. MOUNTING (70X55X30)	Rubber - EX. MOUNTING (70X55X30)
20	18215-SR3-000	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
21	18215-671-000	Rubber - SILENCER MOUNTING (74X53X22)	Rubber - SILENCER MOUNTING (74X53X22)
25	18229-SB2-003	Gasket - EX. FLEXIBLE (45MM-59MM)	Gasket - EX. FLEXIBLE (45MM-59MM)
28	18230-SA0-930	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
35	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
40	90117-SB2-000	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
41	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
54	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)

Floor mat 2 / 9

#	OEM	ED9	EH6
1	64436-692-000	Clip - GUIDE	Clip - GUIDE
17	91641-SH3-013	Grommet assy, GARNISH	Grommet assy, GARNISH

Front brake caliper (1) 1 / 22

#	OEM	ED9	EH6
2	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW

Front combination light 4 / 27

#	OEM	ED9	EH6
3	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
9	33305-SH3-A01	Socket comp - GRAY	Socket comp - GRAY
15	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY
24	34304-SH3-A01	Socket comp.	Socket comp.

Front fenders 5 / 15

#	OEM	ED9	EH6
15	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)
17	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
18	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
20	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER
21	91516-SK7-013	Clip - UNDER COVER	Clip - UNDER COVER

Front seat 2 / 4

#	OEM	ED9	EH6
21	90201-SB2-003	Bolt - PIVOT	Bolt - PIVOT
22	90202-SB2-003	Bush - NYLON	Bush - NYLON

Front seat components 1 / 9

#	OEM	ED9	EH6
18	90155-SH3-000	Bolt-washer - 8X25	Bolt-washer - 8X25

Front shock absorber 9 / 26

#	OEM	ED9	EH6
8	51621-SB0-004	Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA)	Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA)
8	51621-SB0-003	Washer - SHOCK ABSORBER MOUNTING (TOKICO)	Washer - SHOCK ABSORBER MOUNTING (TOKICO)
9	51631-SB0-004	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)
9	51631-S7S-J01	RUBBER DAMPER M	RUBBER DAMPER M
9	51631-SB0-003	Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.)	Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.)
10	51675-SH3-024	Base - SHOCK ABSORBER MOUNTING (SHOWA)	Base - SHOCK ABSORBER MOUNTING (SHOWA)
11	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
16	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

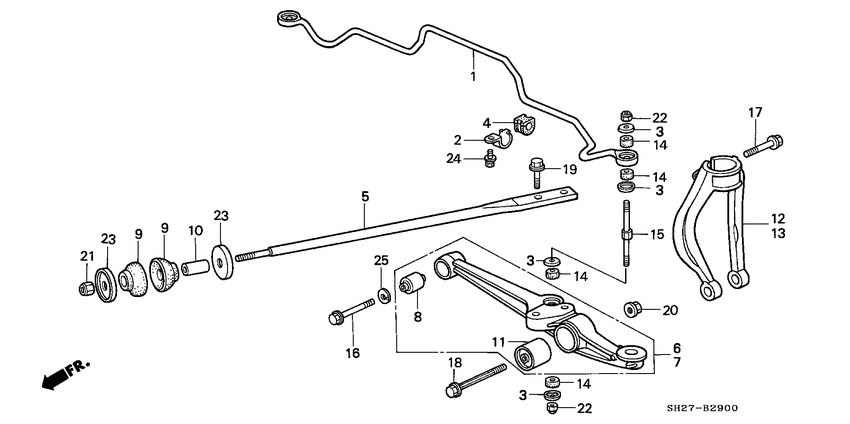

Front stabilizer/ front lower arm (1) 7 / 26

#	OEM	ED9	EH6
11	51810-SH3-004	Bush - SHOCK ABSORBER FORK (YAMASHITA)	Bush - SHOCK ABSORBER FORK (YAMASHITA)
11	51810-SK7-004	Bush - SHOCK ABSORBER FORK	Bush - SHOCK ABSORBER FORK
11	51810-SH3-003	Bush - SHOCK ABSORBER FORK (HOKUSHIN)	Bush - SHOCK ABSORBER FORK (HOKUSHIN)
17	90120-SB0-003	Bolt - SHOCK ABSORBER LOCK, 10X42	Bolt - SHOCK ABSORBER LOCK, 10X42
18	90175-SH3-005	Bolt - SHOCK ABSORBER FORK	Bolt - SHOCK ABSORBER FORK
20	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
22	90362-SF1-003	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM

Front windshield wiper (LH) 7 / 27

#	OEM	ED9	EH6
1	76622-SF4-003	Rubber - BLADE (500MM)	Rubber - BLADE (500MM)
1	76632-S6M-003	Rubber - BLADE (500MM)	Rubber - BLADE (500MM)
1	38472-SB2-003	Rubber - BLADE (450MM)	Rubber - BLADE (450MM)
1	76632-S5H-T01	Rubber - BLADE (450MM)	Rubber - BLADE (450MM)
8	76524-SD4-003	Dust seal	Dust seal
9	76524-SE0-013	Dust seal	Dust seal
18	76620-SH2-A02	Blade - WINDSHIELD WIPER (500MM) (DRIVER SIDE)	Blade - WINDSHIELD WIPER (500MM) (DRIVER SIDE)

Fuel pipe (PGM-FI) 4 / 41

#	OEM	ED9	EH6
2	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
31	90020-PD6-000	Bolt - SEALING, 12MM	Bolt - SEALING, 12MM
32	90164-SD4-000	Bolt-washer - 6X16	Bolt-washer - 6X16
47	91597-SH3-Y01	Clamp - VENT TUBE (BLACK)	Clamp - VENT TUBE (BLACK)

Fuel pump/two way valve 7 / 24

#	OEM	ED9	EH6
6	17574-SE0-000	Packing - BASE	Packing - BASE
22	90020-PD6-000	Bolt - SEALING, 12MM	Bolt - SEALING, 12MM
25	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
26	90657-SH3-013	Clip - TWO WAY VALVE COVER	Clip - TWO WAY VALVE COVER
28	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)	Bolt - FR. FENDER (DACRO COATING)
35	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)
38	90164-SD4-000	Bolt-washer - 6X16	Bolt-washer - 6X16

Fuel tank 6 / 24

#	OEM	ED9	EH6
7	17652-SA5-000	Clip - FILLER TUBE	Clip - FILLER TUBE
17	37802-SD2-000	Retainer - FUEL UNIT	Retainer - FUEL UNIT
20	70494-SE0-000	Spring - FUEL LID OPENER	Spring - FUEL LID OPENER
21	74422-SH3-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID
23	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18
25	90602-SA7-931	Clamp - FUEL HOSE, 18.5MM	Clamp - FUEL HOSE, 18.5MM

Glove box 5 / 8

#	OEM	ED9	EH6
1	66405-SD4-000	Stay - GLOVE BOX HINGE	Stay - GLOVE BOX HINGE
2	66417-SB3-670	Rubber - GLOVE BOX STOPPER	Rubber - GLOVE BOX STOPPER
3	66418-SB2-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
9	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
10	90305-SA0-000	Nut - FLOATING, 4MM	Nut - FLOATING, 4MM

Grommet 8 / 18

#	OEM	ED9	EH6
3	72207-SB2-000	Cap - FLOOR HOLE, 24MM	Cap - FLOOR HOLE, 24MM
5	75826-605-300	Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)	Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)
6	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
7	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
10	90852-671-003	Plug - HOLE	Plug - HOLE
13	91610-SB2-003	Plug - HOLE, 16.7MM (BLACK)	Plug - HOLE, 16.7MM (BLACK)
15	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
17	91617-SB6-000	Grommet - WASHER HOSE, 32MM	Grommet - WASHER HOSE, 32MM

Headlight ('90-) 2 / 11

#	OEM	ED9	EH6
4	33126-SH3-003	Cover - RUBBER	Cover - RUBBER
12	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)

Heater blower 2 / 13

#	OEM	ED9	EH6
2	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
12	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24

Heater control 1 / 39

#	OEM	ED9	EH6
31	90107-SA5-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12

Heater unit 1 / 13

#	OEM	ED9	EH6
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD

High tension cord/ spark plug 1 / 22

#	OEM	ED9	EH6
21	32777-695-000	Clamp - HIGH TENSION CORD	Clamp - HIGH TENSION CORD

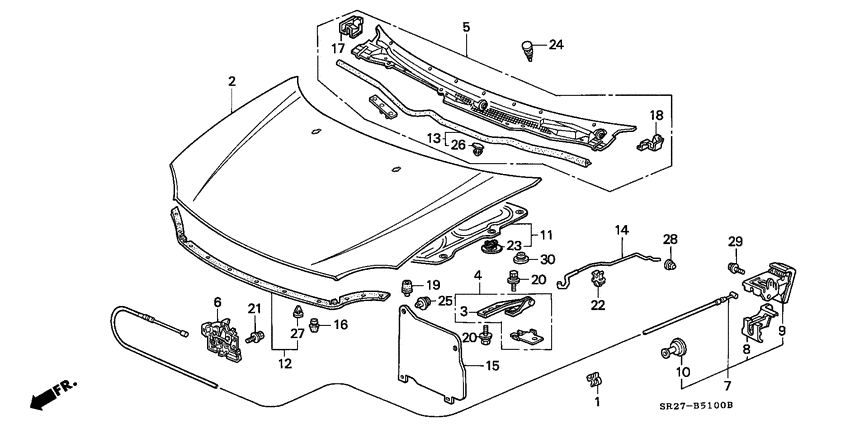

Hood 7 / 46

#	OEM	ED9	EH6
14	74134-SH3-003	Grommet - HOOD WIRE	Grommet - HOOD WIRE
18	74131-SH3-A01	Cover - HOOD WIRE	Cover - HOOD WIRE
24	74177-SD4-000	Cushion a - HOOD	Cushion a - HOOD
30	90127-SA0-000	Bolt-washer - 6X16	Bolt-washer - 6X16
31	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)
36	90700-SJ4-000	Clip - ENGINE HOOD INSULATOR	Clip - ENGINE HOOD INSULATOR
42	91604-SD2-013	Grommet - HOOD STAY	Grommet - HOOD STAY

Instrument panel (LH) 9 / 33

#	OEM	ED9	EH6
6	66418-579-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
7	66849-SH3-G00	Bracket - RADIO	Bracket - RADIO
44	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)
45	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25
47	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
48	90310-SB2-003	Nut - SPEED	Nut - SPEED
50	90650-SE3-000	Clip - RADIO PANEL	Clip - RADIO PANEL
54	90666-SD4-003	Clip - FITTING	Clip - FITTING
56	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

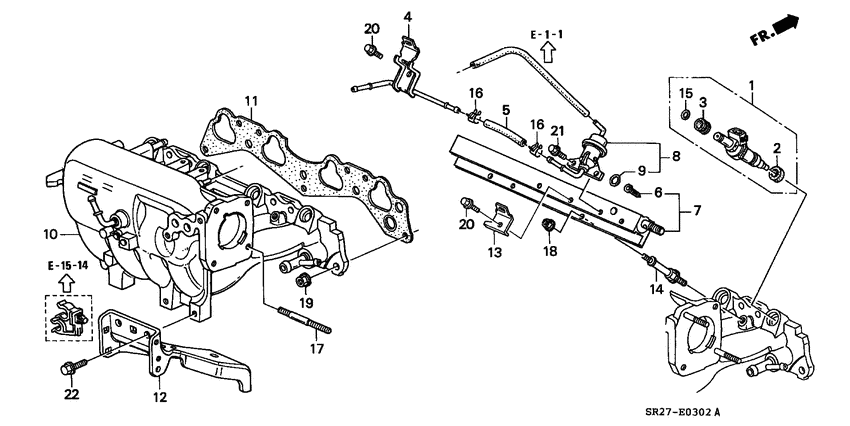

Intake manifold (PGM-FI) 4 / 35

#	OEM	ED9	EH6
4	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)	Cushion ring - INJECTOR (OTSUKA)
4	16473-P10-A01	Cushion ring - INJECTOR (NOK)	Cushion ring - INJECTOR (NOK)
20	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)	O-ring - 7.3X2.2 (NOK)
22	16741-PG7-005	O-ring - PRESSURE REGULATOR	O-ring - PRESSURE REGULATOR

Interior light/switch 6 / 15

#	OEM	ED9	EH6
2	34252-SB2-003	Lens - DAIICHI	Lens - DAIICHI
5	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
6	34295-538-003	Bulb - 12V 5W) (DAIICHI	Bulb - 12V 5W) (DAIICHI
6	34295-SD4-003	Bulb - 12V 5W.K	Bulb - 12V 5W.K
17	35409-SD2-003	Screw - EARTH, 4X12 (ZN)	Screw - EARTH, 4X12 (ZN)
27	35851-SM4-003	Bulb - NEO WEDGE (14V 60MA) (TEC)	Bulb - NEO WEDGE (14V 60MA) (TEC)

Knuckle 7 / 36

#	OEM	ED9	EH6
17	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
17	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
20	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
21	90305-692-010	Nut	Nut
22	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
23	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM
24	90363-SF1-000	Nut - CASTLE, 12MM	Nut - CASTLE, 12MM

Mainshaft/gears 7 / 19

#	OEM	ED9	EH6
2	23261-PL3-000	Shaft - REVERSE GEAR	Shaft - REVERSE GEAR
10	23927-PL3-000	Washer - SPRING, 36MM	Washer - SPRING, 36MM
11	23928-PL3-000	Washer - 26MM	Washer - 26MM
12	91004-PL3-B03	Bearing - ANGULAR BALL, 22X70X17.5 (NTN)	Bearing - ANGULAR BALL, 22X70X17.5 (NTN)
13	91106-PL3-008	Bearing - NEEDLE, 34X39X23	Bearing - NEEDLE, 34X39X23
14	91107-PL3-018	Bearing - NEEDLE, 34X39X27.5	Bearing - NEEDLE, 34X39X27.5
15	91108-PL3-008	Bearing - NEEDLE, 32X37X23.5 (NTN)	Bearing - NEEDLE, 32X37X23.5 (NTN)

Master power (1) 4 / 15

#	OEM	ED9	EH6
2	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
3	46191-634-000	Gasket - MASTER CYLINDER BRACKET	Gasket - MASTER CYLINDER BRACKET
19	46512-SB2-000	Pin - PEDAL	Pin - PEDAL
20	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Mirror/sunvisor 1 / 26

#	OEM	ED9	EH6
33	90131-SH3-A12	Screw - PAN, 5X16	Screw - PAN, 5X16

Oil pump 7 / 33

#	OEM	ED9	EH6
2	11311-PM3-000	Cover - BREATHING PORT	Cover - BREATHING PORT
10	15231-PM3-000	Valve - RELIEF	Valve - RELIEF
11	15232-PM3-000	Spring - RELIEF VALVE	Spring - RELIEF VALVE
14	15302-PE0-300	Washer - SEALING, 14MM	Washer - SEALING, 14MM
15	15400-PR3-003	Cartridge - OIL FILTER (TSUCHIYA)	Cartridge - OIL FILTER (TSUCHIYA)
15	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
19	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER

Parking brake 4 / 14

#	OEM	ED9	EH6
1	43471-SD2-930	Pin - BRAKE WIRE END	Pin - BRAKE WIRE END
16	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)
17	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE
18	90705-SD2-931	Pin - SNAP, 6MM	Pin - SNAP, 6MM

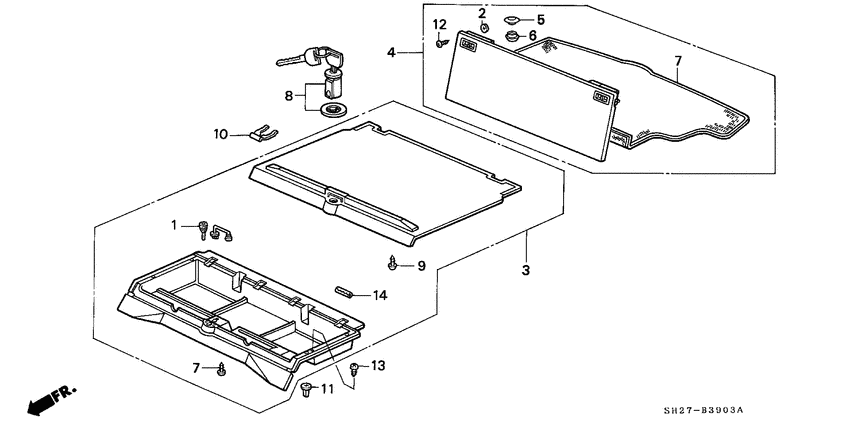

Personal trunk 2 / 7

#	OEM	ED9	EH6
1	66418-SA5-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
11	90674-SB0-000	Grommet - TAPPING SCREW	Grommet - TAPPING SCREW

Piston/crankshaft 20 / 86

#	OEM	ED9	EH6
3	13112-PE0-000	Pin - PISTON	Pin - PISTON
4	13204-PE1-003	Bolt	Bolt
5	13205-634-010	Nut	Nut
6	13210-PM6-000	Rod comp	Rod comp
7	13212-PG6-003	Bearing b, CONNECTING ROD (BLACK) (DAIDO)	Bearing b, CONNECTING ROD (BLACK) (DAIDO)
7	13215-PG6-004	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
7	13213-PG6-003	Bearing c, CONNECTING ROD (BROWN) (DAIDO)	Bearing c, CONNECTING ROD (BROWN) (DAIDO)
7	13216-PG6-004	Bearing f - CONNECTING ROD (PINK) (TAIHO)	Bearing f - CONNECTING ROD (PINK) (TAIHO)
7	13211-PG6-004	BEARING A - CONNECTING ROD (BLUE) (TAIHO)	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
7	13214-PG6-003	Bearing d - CONNECTING ROD (GREEN) (DAIDO)	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
7	13217-PG6-004	Bearing g, CONNECTING ROD (RED) (TAIHO)	Bearing g, CONNECTING ROD (RED) (TAIHO)
7	13217-PG6-003	Bearing g, CONNECTING ROD (RED) (DAIDO)	Bearing g, CONNECTING ROD (RED) (DAIDO)
7	13215-PG6-003	Bearing e, CONNECTING ROD (YELLOW) (DAIDO)	Bearing e, CONNECTING ROD (YELLOW) (DAIDO)
7	13212-PG6-004	Bearing b, CONNECTING ROD (BLACK) (TAIHO)	Bearing b, CONNECTING ROD (BLACK) (TAIHO)
7	13216-PG6-003	Bearing f - CONNECTING ROD (PINK) (DAIDO)	Bearing f - CONNECTING ROD (PINK) (DAIDO)
7	13211-PG6-003	BEARING A - CONNECTING ROD (BLUE) (DAIDO)	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
7	13213-PG6-004	Bearing c - CONNECTING ROD (BROWN) (TAIHO)	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
7	13214-PG6-004	Bearing d - CONNECTING ROD (GREEN) (TAIHO)	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
13	13621-PM3-013	Pulley - TIMING BELT DRIVE (HITACHI)	Pulley - TIMING BELT DRIVE (HITACHI)
19	90704-634-000	Key - 4.5X11.0	Key - 4.5X11.0

Radiator (TOYO) 9 / 17

#	OEM	ED9	EH6
2	19011-PH2-004	Cock - DRAIN (T.RAD)	Cock - DRAIN (T.RAD)
3	19012-PD2-004	Packing - DRAIN (T.RAD)	Packing - DRAIN (T.RAD)
6	19017-PK1-004	Clip - HARNESS(T.RAD)	Clip - HARNESS(T.RAD)
11	19032-PM3-004	Grommet - TOYO	Grommet - TOYO
15	90041-PG6-004	Nut - HEX., 5MM(MITSUBA)	Nut - HEX., 5MM(MITSUBA)
17	90042-PM3-004	Bolt-washer - 6X20 (TOYO)	Bolt-washer - 6X20 (TOYO)
17	90042-PZ1-004	Bolt-washer - 6X20	Bolt-washer - 6X20
18	90050-PK1-004	Screw-washer - 4X12(T.RAD)	Screw-washer - 4X12(T.RAD)
19	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)	Washer - PLAIN, 7MM (MITSUBA)

Radiator hose 4 / 18

#	OEM	ED9	EH6
6	19106-PA0-020	Joint - RESERVE TANK	Joint - RESERVE TANK
14	19511-PA6-003	Clip - WATER HOSE(CHUO SPRING)	Clip - WATER HOSE(CHUO SPRING)
14	19511-P08-003	Clip - WATER HOSE (CHUO SPRING)	Clip - WATER HOSE (CHUO SPRING)
32	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)

Rear brake caliper 21 / 44

#	OEM	ED9	EH6
4	43215-SH3-931	Piston assy.	Piston assy.
6	43223-SD2-932	BEARING A	BEARING A
7	43224-SD2-931	Spring b - ADJUSTING	Spring b - ADJUSTING
8	43227-SF1-003	Spring - PAD	Spring - PAD
9	43228-SD2-933	Shaft a	Shaft a
10	43229-SD2-931	Rod	Rod
15	43235-SD2-931	Pin a	Pin a
16	43236-S04-003	Spacer	Spacer
17	43238-SD2-931	Ring - RETAINING	Ring - RETAINING
18	43241-SD2-931	Guide - SPRING	Guide - SPRING
20	43243-SD2-931	Nut - PARKING	Nut - PARKING
21	43244-SD2-931	Retainer	Retainer
22	43245-SH3-931	Lever - R.	Lever - R.
23	43246-SD2-931	Spring - R. RETURN	Spring - R. RETURN
24	43247-SH3-931	Arm - R.	Arm - R.
25	43248-SD2-933	Shaft b	Shaft b
28	43265-SH3-931	Lever - L.	Lever - L.
29	43266-SD2-931	Spring - L. RETURN	Spring - L. RETURN
30	43267-SH3-931	Arm - L.	Arm - L.
32	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
34	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Rear brake disk 6 / 17

#	OEM	ED9	EH6
2	42324-SB2-020	Washer - HUB UNIT	Washer - HUB UNIT
3	42326-SB2-000	Cap - HUB UNIT	Cap - HUB UNIT
3	42326-SFA-000	Cap - HUB UNIT	Cap - HUB UNIT
13	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
13	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
14	90305-692-010	Nut	Nut

Rear seat 1 / 6

#	OEM	ED9	EH6
13	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25

Rear shock absorber 11 / 29

#	OEM	ED9	EH6
1	51621-SB0-003	Washer - SHOCK ABSORBER MOUNTING (TOKICO)	Washer - SHOCK ABSORBER MOUNTING (TOKICO)
2	51631-SB0-004	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)	Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA)
2	51631-S7S-J01	RUBBER DAMPER M	RUBBER DAMPER M
2	51631-SB0-003	Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.)	Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.)
3	52675-SH3-024	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA)	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA)
4	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
7	51728-SB0-003	Collar - SHOCK ABSORBER MOUNTING(TOKICO)	Collar - SHOCK ABSORBER MOUNTING(TOKICO)
22	90172-SK7-003	Bolt - UPPER ARM, 10X68	Bolt - UPPER ARM, 10X68
22	90172-S04-003	Bolt - FLANGE, 10X68	Bolt - FLANGE, 10X68
22	90172-SK7-A01	Bolt - SHOCK ABSORBER LOWER (10X84)	Bolt - SHOCK ABSORBER LOWER (10X84)
24	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear side lining 1 / 26

#	OEM	ED9	EH6
1	66418-579-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID

Rear stabilizer/rear lower arm 8 / 50

#	OEM	ED9	EH6
14	52343-SR3-004	Bush - COMPENSATOR (YAMASHITA)	Bush - COMPENSATOR (YAMASHITA)
27	52395-SH3-004	Bush - RR. UPPER ARM (YAMASHITA)	Bush - RR. UPPER ARM (YAMASHITA)
32	90117-SH3-004	Bolt - UPPER ARM, 10X30	Bolt - UPPER ARM, 10X30
33	90120-SB0-003	Bolt - SHOCK ABSORBER LOCK, 10X42	Bolt - SHOCK ABSORBER LOCK, 10X42
35	90172-SK7-003	Bolt - UPPER ARM, 10X68	Bolt - UPPER ARM, 10X68
35	90172-S04-003	Bolt - FLANGE, 10X68	Bolt - FLANGE, 10X68
37	90174-SJ4-003	Bolt - TRAILING ARM BUSH, 12X60	Bolt - TRAILING ARM BUSH, 12X60
40	90551-SH3-000	Washer - 24X10X2.3	Washer - 24X10X2.3

Rear wiper 2 / 14

#	OEM	ED9	EH6
5	38472-SB2-003	Rubber - BLADE (450MM)	Rubber - BLADE (450MM)
5	76632-S5H-T01	Rubber - BLADE (450MM)	Rubber - BLADE (450MM)

Relay/horn/fuse box 5 / 30

#	OEM	ED9	EH6
18	38235-SA5-003	Puller - FUSE (SUMITOMO)	Puller - FUSE (SUMITOMO)
26	38600-SH3-G11	Control unit - INTEGRATED (LIGHTING ALARM)	Control unit - INTEGRATED (LIGHTING ALARM)
29	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)	Relay assy - POWER(4P)(DENSO) (056700-7250)
30	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
30	39797-SE0-003	Relay assy - POWER (4P) (DENSO) (056700-7330)	Relay assy - POWER (4P) (DENSO) (056700-7330)

Seatbelt 2 / 2

#	OEM	ED9	EH6
3	81490-SH3-A02	Bag - R. PROTECTOR (TAKATA)	Bag - R. PROTECTOR (TAKATA)
6	81890-SH3-A02	Bag - L. PROTECTOR (TAKATA)	Bag - L. PROTECTOR (TAKATA)

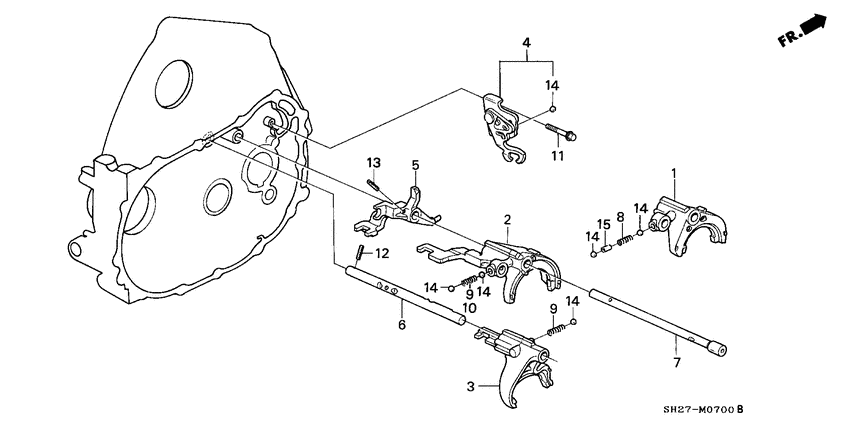

Shift fork/fork shaft 1 / 12

#	OEM	ED9	EH6
11	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5

Shift lever 16 / 27

#	OEM	ED9	EH6
7	54109-SA7-000	Seal A, CHANGE LEVER DUST	Seal A, CHANGE LEVER DUST
8	54110-SH3-003	Seat - CHANGE LEVER BALL	Seat - CHANGE LEVER BALL
9	54111-SH3-000	Holder - CHANGE BALL	Holder - CHANGE BALL
10	24313-PF5-000	Clip - CHANGE JOINT PIN	Clip - CHANGE JOINT PIN
10	54113-611-505	CLIP, SHIFT JOINT	CLIP, SHIFT JOINT
11	54114-SB2-000	Collar - PIPE MOUNTING	Collar - PIPE MOUNTING
13	54117-SH3-000	Collar - RR. JOINT	Collar - RR. JOINT
17	54304-SH3-020	Bracket - EXTENSION	Bracket - EXTENSION
20	54306-SH3-000	Rubber, EXTENSION MOUNTING	Rubber, EXTENSION MOUNTING
21	54307-SH3-010	Stopper - EXTENSION MOUNTING	Stopper - EXTENSION MOUNTING
22	54308-SH3-000	Bolt - EXTENSION	Bolt - EXTENSION
23	54309-SH3-000	Collar - EXTENSION END	Collar - EXTENSION END
24	90114-SA0-000	Nut - SELF-LOCK, 6MM	Nut - SELF-LOCK, 6MM
25	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
27	91301-671-671	O-ring - 1.9X11	O-ring - 1.9X11
27	91303-HA0-004	O-ring, 11x1.9 (nok)	O-ring, 11x1.9 (nok)

Shift rod/shift holder 18 / 26

#	OEM	ED9	EH6
1	24311-PL3-020	Rod - SHIFT	Rod - SHIFT
2	24316-P20-000	Boot - SHIFT ROD	Boot - SHIFT ROD
4	24411-P20-000	Arm a - SHIFT	Arm a - SHIFT
5	24421-PL3-000	Arm b - SHIFT	Arm b - SHIFT
6	24422-PL3-000	Arm c - SHIFT	Arm c - SHIFT
7	24430-PL3-010	Interlock comp.	Interlock comp.
8	24432-PL3-010	Retainer - REVERSE SELECT	Retainer - REVERSE SELECT
9	24433-P20-000	Bolt - INTERLOCK	Bolt - INTERLOCK
10	24440-PL3-000	Cam comp - REVERSE LOCK	Cam comp - REVERSE LOCK
12	24456-P20-000	Spring - SELECT SET BALL	Spring - SELECT SET BALL
13	24461-PB6-000	Collar - SPRING	Collar - SPRING
14	24464-PL3-010	Spring - FIRST-SECOND SELECT	Spring - FIRST-SECOND SELECT
15	24465-P20-000	Spring - REVERSE SELECT	Spring - REVERSE SELECT
16	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
17	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5
18	90029-PL3-010	Bolt - SPECIAL, 8MM	Bolt - SPECIAL, 8MM
19	90082-PL3-000	Plug - 28MM	Plug - 28MM
20	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM

Side protector 4 / 42

#	OEM	ED9	EH6
35	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
36	90540-SA7-000	Washer - BUMPER	Washer - BUMPER
39	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
42	91507-SH3-003	PIN, CLIP, 8MM	PIN, CLIP, 8MM

Speedometer component (NS) 1 / 27

#	OEM	ED9	EH6
2	35506-SA5-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W

Starter motor (MITSUBA) 3 / 15

#	OEM	ED9	EH6
10	31211-PC2-006	Ring - SQUARE (MITSUBA)	Ring - SQUARE (MITSUBA)
13	31217-PC2-006	Screw-washer - 4X28 (MITSUBA)	Screw-washer - 4X28 (MITSUBA)
16	31251-PJ7-904	Tube - LABYRINTH (###)	Tube - LABYRINTH (###)

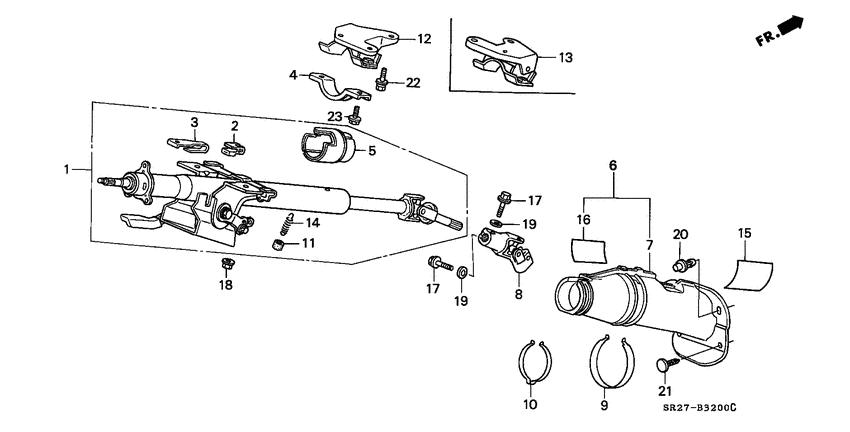

Steering column (TILT; LH) 6 / 38

#	OEM	ED9	EH6
14	53325-SH3-000	Clip A - JOINT COVER	Clip A - JOINT COVER
15	53326-SB0-000	Clip b - JOINT COVER	Clip b - JOINT COVER
26	53371-SB3-000	Spring - COLUMN HANGER	Spring - COLUMN HANGER
35	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
36	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
38	90654-SA5-003	Clip - JOINT COVER	Clip - JOINT COVER

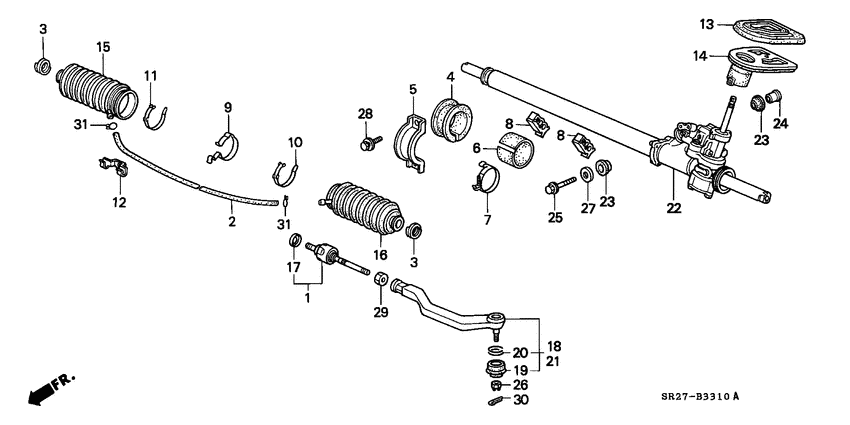

Steering gear box (LH) 6 / 33

#	OEM	ED9	EH6
10	53434-SD9-000	Clip - TIE ROD	Clip - TIE ROD
10	53434-S04-J51	CLIP, TIE ROD	CLIP, TIE ROD
25	53546-SA0-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)
27	53685-SH3-000	Bush - STEERING GEAR BOX MOUNTING	Bush - STEERING GEAR BOX MOUNTING
28	53686-SH3-010	Collar - STEERING GEAR BOX MOUNTING	Collar - STEERING GEAR BOX MOUNTING
30	90320-SF1-000	Nut - CASTLE, 10MM	Nut - CASTLE, 10MM

Steering wheel (1) 1 / 7

#	OEM	ED9	EH6
11	90380-SB2-003	Nut - SELF-LOCK (OHASHI)	Nut - SELF-LOCK (OHASHI)

Tailgate 4 / 40

#	OEM	ED9	EH6
7	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
29	83307-SD2-000	Shim - TAILGATE STRIKER (2.0)	Shim - TAILGATE STRIKER (2.0)
29	83307-SD2-900	Shim - TAILGATE STRIKER (1.0)	Shim - TAILGATE STRIKER (1.0)
40	90654-SA4-003	Clip - WIRE HARNESS, 6MM (WHITE)	Clip - WIRE HARNESS, 6MM (WHITE)

Tailgate lining 2 / 7

#	OEM	ED9	EH6
9	90609-SG0-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH
10	90664-SB3-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Taillight 3 / 22

#	OEM	ED9	EH6
5	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY
23	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
25	34911-634-611	Bulb - 12V 21/5W) (ECE) (STANLEY	Bulb - 12V 21/5W) (ECE) (STANLEY

Throttle body (PGM-FI) 1 / 15

#	OEM	ED9	EH6
12	36455-PT3-A01	Packing, ELECTRONIC AIR CONTROL VALVE (DENSO)	Packing, ELECTRONIC AIR CONTROL VALVE (DENSO)

Tire/wheel disk 10 / 55

#	OEM	ED9	EH6
8	42751-SB2-F04	Tire - 185/60R14 82H) (BRIDGESTONE	Tire - 185/60R14 82H) (BRIDGESTONE
8	42751-SH3-F66	Tire - 185/60R14 82H) (DUNLOP	Tire - 185/60R14 82H) (DUNLOP
10	42753-SH3-003	Valve - RIM (US PACIFIC)	Valve - RIM (US PACIFIC)
10	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
11	42767-SB0-600	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)	Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH)
22	44736-SA0-981	Nut - WHEEL (FUSE RASHI)	Nut - WHEEL (FUSE RASHI)
23	44737-SA0-981	Washer - WHEEL NUT (FUSE RASHI)	Washer - WHEEL NUT (FUSE RASHI)
25	83850-SH3-000	Plate - ANCHOR BOLT	Plate - ANCHOR BOLT
26	83853-SA7-980	Bolt - ANCHOR (79MM)	Bolt - ANCHOR (79MM)
27	90304-SA0-981	Nut comp. - WHEEL (FUSE RASHI)	Nut comp. - WHEEL (FUSE RASHI)

Tools/jack 5 / 10

#	OEM	ED9	EH6
5	89101-SW5-003	Bag - TOOL	Bag - TOOL
6	89211-SE3-003	Wrench - WHEEL	Wrench - WHEEL
9	89310-SE3-013	Jack assy - PANTOGRAPH	Jack assy - PANTOGRAPH
10	89320-SE3-003	Bar - JACK	Bar - JACK
10	89320-S50-003	Bar - JACK	Bar - JACK

Transmission housing 43 / 51

#	OEM	ED9	EH6
5	23952-PL3-B00	Shim v - 70MM (1.23)	Shim v - 70MM (1.23)
5	23960-PL3-B00	Shim ad - 70MM (1.47)	Shim ad - 70MM (1.47)
5	23951-PL3-B00	Shim u - 70MM (1.20)	Shim u - 70MM (1.20)
5	23950-PL3-B00	Shim t - 70MM (1.17)	Shim t - 70MM (1.17)
5	23944-PL3-B00	Shim n - 70MM (0.99)	Shim n - 70MM (0.99)
5	23966-PL3-B00	Shim aj - 70MM (1.65)	Shim aj - 70MM (1.65)
5	23949-PL3-B00	Shim s - 70MM (1.14)	Shim s - 70MM (1.14)
5	23943-PL3-B00	Shim m - 70MM (0.96)	Shim m - 70MM (0.96)
5	23948-PL3-B00	Shim r - 70MM (1.11)	Shim r - 70MM (1.11)
5	23942-PL3-B00	Shim l - 70MM (0.93)	Shim l - 70MM (0.93)
5	23947-PL3-B00	Shim q - 70MM (1.08)	Shim q - 70MM (1.08)
5	23941-PL3-B00	Shim k - 70MM (0.90)	Shim k - 70MM (0.90)
5	23970-PL3-B00	Shim an - 70MM (1.77)	Shim an - 70MM (1.77)
5	23946-PL3-B00	Shim p - 70MM (1.05)	Shim p - 70MM (1.05)
5	23940-PL3-B00	Shim j - 70MM (0.87)	Shim j - 70MM (0.87)
5	23945-PL3-B00	Shim o - 70MM (1.02)	Shim o - 70MM (1.02)
5	23939-PL3-B00	Shim i - 70MM (0.84)	Shim i - 70MM (0.84)
5	23959-PL3-B00	Shim ac - 70MM (1.44)	Shim ac - 70MM (1.44)
5	23938-PL3-B00	Shim h - 70MM (0.81)	Shim h - 70MM (0.81)
5	23965-PL3-B00	Shim ai - 70MM (1.62)	Shim ai - 70MM (1.62)
5	23937-PL3-B00	Shim g - 70MM (0.78)	Shim g - 70MM (0.78)
5	23936-PL3-B00	Shim f - 70MM (0.75)	Shim f - 70MM (0.75)
5	23935-PL3-B00	Shim e - 70MM (0.72)	Shim e - 70MM (0.72)
5	23934-PL3-B00	Shim d - 70MM (0.69)	Shim d - 70MM (0.69)
5	23969-PL3-B00	Shim am - 70MM (1.74)	Shim am - 70MM (1.74)
5	23933-PL3-B00	Shim c - 70MM (0.66)	Shim c - 70MM (0.66)
5	23932-PL3-B00	Shim b - 70MM (0.63)	Shim b - 70MM (0.63)
5	23958-PL3-B00	Shim ab - 70MM (1.41)	Shim ab - 70MM (1.41)
5	23931-PL3-B00	Shim a - 70MM (0.60)	Shim a - 70MM (0.60)
5	23964-PL3-B00	Shim ah - 70MM (1.59)	Shim ah - 70MM (1.59)
5	23968-PL3-B00	Shim al - 70MM (1.71)	Shim al - 70MM (1.71)
5	23957-PL3-B00	Shim aa - 70MM (1.38)	Shim aa - 70MM (1.38)
5	23963-PL3-B00	Shim ag - 70MM (1.56)	Shim ag - 70MM (1.56)
5	23961-PL3-B00	Shim ae - 70MM (1.50)	Shim ae - 70MM (1.50)
5	23967-PL3-B00	Shim ak - 70MM (1.68)	Shim ak - 70MM (1.68)
5	23956-PL3-B00	Shim z - 70MM (1.35)	Shim z - 70MM (1.35)
5	23955-PL3-B00	Shim y - 70MM (1.32)	Shim y - 70MM (1.32)
5	23954-PL3-B00	Shim x - 70MM (1.29)	Shim x - 70MM (1.29)
5	23962-PL3-B00	Shim af - 70MM (1.53)	Shim af - 70MM (1.53)
5	23953-PL3-B00	Shim w - 70MM (1.26)	Shim w - 70MM (1.26)
5	23971-PL3-B00	Shim ao - 70MM (1.80)	Shim ao - 70MM (1.80)
7	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
8	90081-PL3-000	Screw - SEALING, 32MM	Screw - SEALING, 32MM

Unit (LH) 8 / 38

#	OEM	ED9	EH6
10	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
23	80272-SF4-000	Grommet - DRAIN HOSE	Grommet - DRAIN HOSE
31	90156-SH3-000	Bolt-washer - 6X24	Bolt-washer - 6X24
33	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
35	90659-692-000	Clamp - CASE	Clamp - CASE
36	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)	Band - WIRE HARNESS (BLUE) (123.5MM)
38	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
39	91570-SH3-003	Band - WIRE HARNESS (NATURAL)	Band - WIRE HARNESS (NATURAL)

Valve/rocker arm (SOHC) 1 / 18

#	OEM	ED9	EH6
15	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)

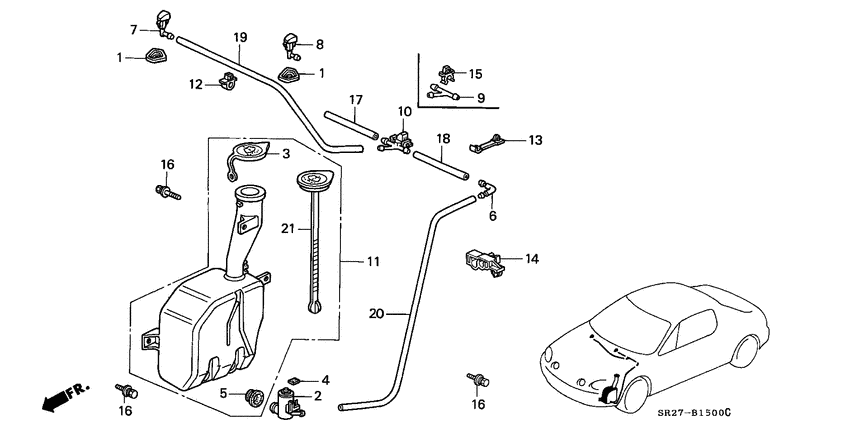

Washer tank 3 / 14

#	OEM	ED9	EH6
1	38512-SB0-922	Motor - WASHER (MITSUBA)	Motor - WASHER (MITSUBA)
4	38516-SA5-671	Packing - T-TYPE) (MITSUBA	Packing - T-TYPE) (MITSUBA
6	38519-SB0-003	Bush - WASHER TANK (MITSUBA)	Bush - WASHER TANK (MITSUBA)

Washer tube 4 / 13

#	OEM	ED9	EH6
2	38511-SD2-003	Adapter - NOZZLE (MITSUBA)	Adapter - NOZZLE (MITSUBA)
9	76810-SR3-003	Nozzle assy. - R. FR. WASHER	Nozzle assy. - R. FR. WASHER
25	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
27	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)

Water hose 1 / 12

#	OEM	ED9	EH6
11	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Water pump 2 / 18

#	OEM	ED9	EH6
16	19500-PE0-000	Joint, Tube	Joint, Tube
24	91314-634-000	O-ring	O-ring

Water valve/duct 4 / 39

#	OEM	ED9	EH6
33	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
36	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
36	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
37	91501-S04-003	Clip - INNER FENDER	Clip - INNER FENDER

Wire harness 9 / 40

#	OEM	ED9	EH6
18	90153-SB6-003	Bolt - EARTH, 6X12(ZN)	Bolt - EARTH, 6X12(ZN)
19	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
27	91547-SF4-003	Band - WIRE HARNESS (BLUE) (123.5MM)	Band - WIRE HARNESS (BLUE) (123.5MM)
28	91547-SH3-003	Clip - BAND(NATURAL)(160MM)	Clip - BAND(NATURAL)(160MM)
32	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
36	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)	Clip - WIRE HARNESS (WHITE) (55MM)
37	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)	Band - WIRE HARNESS(WHITE) (93.5MM)
41	91763-SH3-003	Bar - JOINT (6P)	Bar - JOINT (6P)
42	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
