ED7 × ES5

共通 174 / 合計 4,552 · Jaccard 3.8%
ED7 Honda CIVIC — 2,544 中 174 共有
ES5 Honda CIVIC — 2,182 中 174 共有
174 件
Accelerator pedal (LH) 2 / 16
ED7 Accelerator pedal (LH)
ES5 Pedal (LH)
# OEM ED7 ES5
10 17921-SA4-730 Seal - THROTTLE CABLE Seal - THROTTLE CABLE
23 46505-SA7-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER

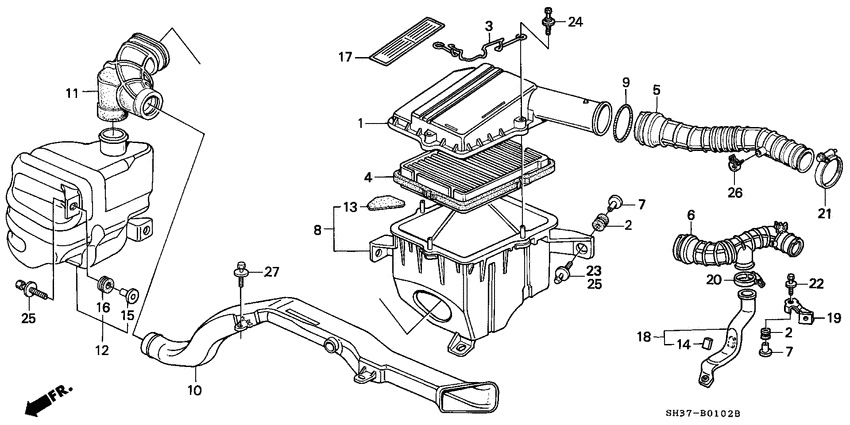

Air cleaner (3) 5 / 30
ED7 Air cleaner (3)
ES5 Resonator chamber
# OEM ED7 ES5
2 17212-PN3-000 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
2 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
7 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
16 17256-PD6-000 Rubber - RESONATOR MOUNTING Rubber - RESONATOR MOUNTING
25 90006-PN4-000 Bolt-washer - SPECIAL, 6X25 Bolt-washer - SPECIAL, 6X25
Air conditioner (CONDENSER) 1 / 23
ED7 Air conditioner (CONDENSER)
ES5 Air conditioner (CONDENSER)
# OEM ED7 ES5
32 80175-SE0-000 Mount - CONDENSER Mount - CONDENSER
Air conditioner (UNIT; LH) 3 / 39
ED7 Air conditioner (UNIT; LH)
ES5 Engine wire harness (LH)
# OEM ED7 ES5
33 90153-SE0-003 Bolt - EARTH, 6X12 Bolt - EARTH, 6X12
35 90659-692-000 Clamp - CASE Clamp - CASE
38 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
Battery 3 / 19
ED7 Battery
ES5 Battery
# OEM ED7 ES5
8 31542-SA5-665 Plug - VENT (MF) (PANASONIC) Plug - VENT (MF) (PANASONIC)
16 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
17 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
Body structure components 1 / 3
ED7 Body structure components
ES5 Front bulkhead
# OEM ED7 ES5
30 90105-634-000 Bolt-washer (8x20) Bolt-washer (8x20)
Brake line (LH) 4 / 34
ED7 Brake line (LH)
ES5 Brake lines (ABS; LH; 1)
# OEM ED7 ES5
12 46380-SH3-000 Grommet a - BRAKE PIPE Grommet a - BRAKE PIPE
29 46462-SE0-000 Bolt - OIL Bolt - OIL
30 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
33 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Brake master cylinder 3 / 15
ED7 Brake master cylinder
ES5 Brake master cylinder/ master power (LH)
# OEM ED7 ES5
7 57562-SF1-003 Circlip Circlip
8 46185-SE0-003 Seal - ROD Seal - ROD
14 57173-SB0-801 O-ring - CONNECTOR O-ring - CONNECTOR
Brake pedal/clutch pedal (LH) 2 / 21
ED7 Brake pedal/clutch pedal (LH)
ES5 Pedal (LH)
# OEM ED7 ES5
18 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
33 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Bumper (1) 3 / 38
ED7 Bumper (1)
ES5 Front fenders
# OEM ED7 ES5
45 90308-SB2-013 Nut - SUSPENSION, 5MM Nut - SUSPENSION, 5MM
46 90305-SH3-000 Nut - AIR SPOILER CLIP Nut - AIR SPOILER CLIP
49 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Camshaft/timing belt (DOHC) 1 / 26
ED7 Camshaft/timing belt (DOHC)
ES5 Camshaft/timing belt
# OEM ED7 ES5
19 90011-PG6-004 Bolt - TIMING BELT ADJUSTER SPRING Bolt - TIMING BELT ADJUSTER SPRING
Camshaft/timing belt (SOHC) 1 / 23
ED7 Camshaft/timing belt (SOHC)
ES5 Camshaft/timing belt
# OEM ED7 ES5
17 90011-PG6-004 Bolt - TIMING BELT ADJUSTER SPRING Bolt - TIMING BELT ADJUSTER SPRING
Clutch housing (1) 20 / 71
ED7 Clutch housing (1)
ES5 Differential
# OEM ED7 ES5
12 41452-PL3-B00 Shim m - 80MM(1.25) Shim m - 80MM(1.25)
12 41447-PL3-B00 Shim g - 80MM(1.6) Shim g - 80MM(1.6)
12 41442-PL3-B00 Shim b - 80MM(1.1) Shim b - 80MM(1.1)
12 41453-PL3-B00 Shim n - 80MM(1.35) Shim n - 80MM(1.35)
12 41448-PL3-B00 Shim h - 80MM(1.7) Shim h - 80MM(1.7)
12 41443-PL3-B00 Shim c - 80MM(1.2) Shim c - 80MM(1.2)
12 41454-PL3-B00 Shim p - 80MM(1.45) Shim p - 80MM(1.45)
12 41449-PL3-B00 Shim j - 80MM(1.8) Shim j - 80MM(1.8)
12 41444-PL3-B00 Shim d - 80MM(1.3) Shim d - 80MM(1.3)
12 41455-PL3-B00 Shim q - 80MM(1.55) Shim q - 80MM(1.55)
12 41450-PL3-B00 Shim k - 80MM(1.05) Shim k - 80MM(1.05)
12 41445-PL3-B00 Shim e - 80MM(1.4) Shim e - 80MM(1.4)
12 41456-PL3-B00 Shim r - 80MM(1.65) Shim r - 80MM(1.65)
12 41451-PL3-B00 Shim l - 80MM(1.15) Shim l - 80MM(1.15)
12 41446-PL3-B00 Shim f - 80MM(1.5) Shim f - 80MM(1.5)
12 41457-PL3-B00 Shim s - 80MM(1.75) Shim s - 80MM(1.75)
12 41441-PL3-B00 Shim a - 80MM(1.0) Shim a - 80MM(1.0)
13 90015-634-010 Bolt - FLANGE, 10MM Bolt - FLANGE, 10MM
15 91002-PS0-003 Bearing - BALL, 26X58X15 (NTN) Bearing - BALL, 26X58X15 (NTN)
21 91216-PL3-005 Oil seal - 26X42X7 (NOK) Oil seal - 26X42X7 (NOK)
Clutch/torque converter 3 / 8
ED7 Clutch/torque converter
ES5 Clutch/torque converter
# OEM ED7 ES5
9 90011-PM0-000 Bolt - 12MM Bolt - 12MM
11 90034-689-000 Bolt - TWELVE POINT, 8MM (TOKAI TRW) Bolt - TWELVE POINT, 8MM (TOKAI TRW)
13 91006-634-008 Bearing - CLUTCH PILOT (NTN) Bearing - CLUTCH PILOT (NTN)
Combination switch 1 / 19
ED7 Combination switch
ES5 Combination switch (LH)
# OEM ED7 ES5
5 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
Console 2 / 15
ED7 Console
ES5 Select lever
# OEM ED7 ES5
2 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
24 88324-SB3-950 Cover - RR. ASHTRAY Cover - RR. ASHTRAY
Countershaft/gear (1) 3 / 24
ED7 Countershaft/gear (1)
ES5 Countershaft
# OEM ED7 ES5
9 23926-PB6-010 Washer - SPRING, 22MM Washer - SPRING, 22MM
10 90202-PB6-010 Nut - FLANGE, 22MM Nut - FLANGE, 22MM
11 90603-PL3-000 Ring - SNAP, 52MM Ring - SNAP, 52MM
Cylinder block/oil pan 12 / 33
ED7 Cylinder block/oil pan
ES5 Cylinder block/oil pan
# OEM ED7 ES5
2 11106-PE0-300 Bolt - SEALING, 14MM Bolt - SEALING, 14MM
4 11126-PK1-003 Bolt - SEALING, 22MM Bolt - SEALING, 22MM
12 15140-PM3-000 Orifice assy - OIL PATH Orifice assy - OIL PATH
14 90001-PM3-003 Bolt - DRAIN PLUG, 28MM Bolt - DRAIN PLUG, 28MM
15 90007-PM6-003 Bolt-washer - 11X116 Bolt-washer - 11X116
16 90008-PM6-003 Bolt-washer - 11X131 Bolt-washer - 11X131
18 90009-PH1-000 Bolt - DRAIN PLUG, 14MM Bolt - DRAIN PLUG, 14MM
22 90715-PC6-000 Dowel pin - 13X20 Dowel pin - 13X20
23 90703-PE0-000 Dowel pin - 18X22 Dowel pin - 18X22
24 91214-PLE-003 Oil seal Oil seal
25 91303-KE7-003 O-ring - 7.2X1.7 (ARAI) O-ring - 7.2X1.7 (ARAI)
25 91312-107-000 O-ring (7x1.7) O-ring (7x1.7)

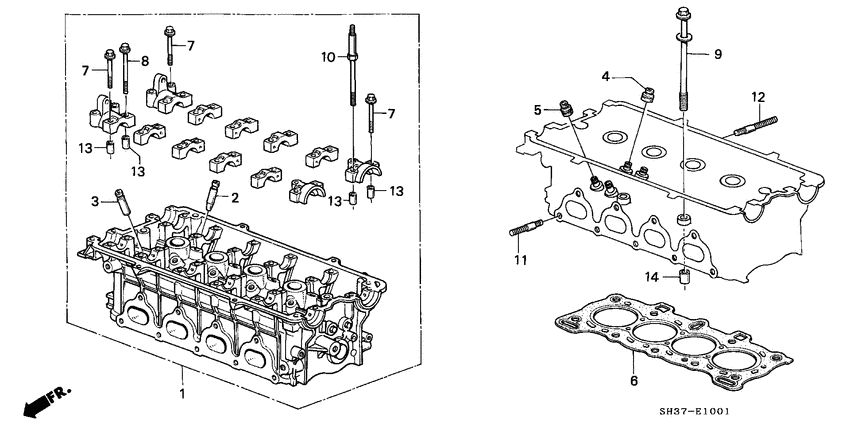

Cylinder head (DOHC) 2 / 15
ED7 Cylinder head (DOHC)
ES5 Cylinder head (SOHC; VTE C)
# OEM ED7 ES5
11 90026-PE0-000 Bolt - STUD, 8X37 Bolt - STUD, 8X37
11 90026-PT0-000 Bolt - STUD, 8X38 Bolt - STUD, 8X38
Cylinder head (SOHC) 4 / 24
ED7 Cylinder head (SOHC)
ES5 Cylinder head (SOHC; VTE C)
# OEM ED7 ES5
3 12204-PJ7-305 Guide - IN. VALVE (OS) Guide - IN. VALVE (OS)
14 90005-PM3-003 Bolt-washer - 10X140 (SAGA) Bolt-washer - 10X140 (SAGA)
16 90026-PE0-000 Bolt - STUD, 8X37 Bolt - STUD, 8X37
16 90026-PT0-000 Bolt - STUD, 8X38 Bolt - STUD, 8X38
Cylinder head cover 1 / 17
ED7 Cylinder head cover
ES5 Cylinder head cover
# OEM ED7 ES5
8 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
Door lining 2 / 23
ED7 Door lining
ES5 Instrument panel garnish (DRIVER SIDE; LH)
# OEM ED7 ES5
25 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
26 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Door locks 3 / 25
ED7 Door locks
ES5 Rear door locks
# OEM ED7 ES5
34 72175-SH3-901 Holder - DOOR LOCK ROD Holder - DOOR LOCK ROD
35 72175-SH3-003 Holder - DOOR LOCK ROD Holder - DOOR LOCK ROD
40 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Door panels 2 / 6
ED7 Door panels
ES5 Rear door panels
# OEM ED7 ES5
12 75891-SA7-000 Stopper - DOOR Stopper - DOOR
14 90157-SA0-000 Bolt-washer - 8X25 Bolt-washer - 8X25
Driveshaft/half shaft 3 / 51
ED7 Driveshaft/half shaft
ES5 Front driveshaft/ half shaft
# OEM ED7 ES5
7 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
28 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
30 90305-692-010 Nut Nut
Emblem 1 / 9
ED7 Emblem
ES5 Emblems/caution labels
# OEM ED7 ES5
15 91512-SR3-004 Clip - TUBULAR Clip - TUBULAR
Engine sub cord/clamp (1) 1 / 32
ED7 Engine sub cord/clamp (1)
ES5 Engine mounting bracket
# OEM ED7 ES5
25 90050-PG7-000 Bolt - FLANGE, 12X65 Bolt - FLANGE, 12X65
Exhaust pipe (1) 2 / 33
ED7 Exhaust pipe (1)
ES5 Exhaust pipe/silencer
# OEM ED7 ES5
35 18393-SH3-S00 Gasket - PRE-CHAMBER (52.5MM-53.5MM) Gasket - PRE-CHAMBER (52.5MM-53.5MM)
40 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Floor mat 1 / 8
ED7 Floor mat
ES5 Floor mat
# OEM ED7 ES5
12 90676-SB2-003 Clip - DASHBOARD INSULATOR Clip - DASHBOARD INSULATOR

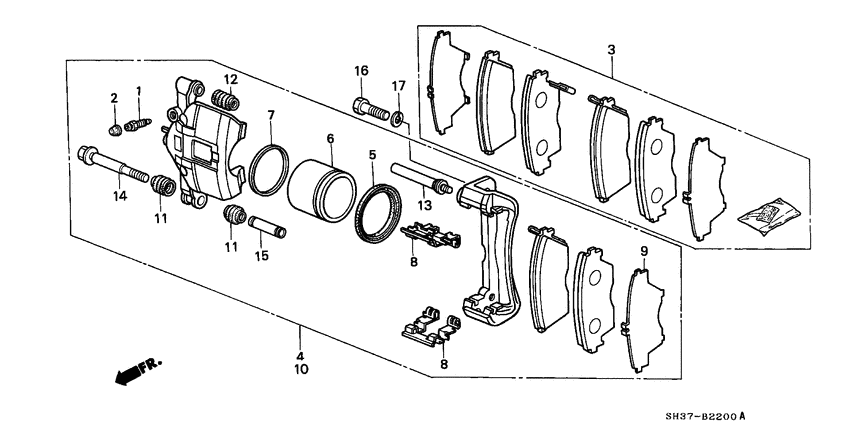

Front brake caliper (1) 1 / 17
ED7 Front brake caliper (1)
ES5 Clutch master cylinder (LH)
# OEM ED7 ES5
2 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
Front combination light 2 / 24
ED7 Front combination light
ES5 Headlight
# OEM ED7 ES5
3 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
3 34351-657-921 Bulb - 12V/5W) (STANLEY Bulb - 12V/5W) (STANLEY
Front fenders 3 / 19
ED7 Front fenders
ES5 Front fenders
# OEM ED7 ES5
17 90308-SB2-013 Nut - SUSPENSION, 5MM Nut - SUSPENSION, 5MM
18 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
19 91501-S04-003 Clip - INNER FENDER Clip - INNER FENDER
Front shock absorber 2 / 26
ED7 Front shock absorber
ES5 Rear shock absorber
# OEM ED7 ES5
14 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
16 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Front windshield wiper (1) 5 / 22
ED7 Front windshield wiper (1)
ES5 Front windshield wiper (L H)
# OEM ED7 ES5
1 76632-S5H-T01 Rubber - BLADE (450MM) Rubber - BLADE (450MM)
5 76516-SE0-003 Rubber - BRACKETLESS MOUNTING Rubber - BRACKETLESS MOUNTING
6 76517-SE0-003 Collar - BRACKETLESS Collar - BRACKETLESS
8 76524-SD4-003 Dust seal Dust seal
9 76524-SE0-013 Dust seal Dust seal
Fuel pipe/two way valve 1 / 30
ED7 Fuel pipe/two way valve
ES5 Fuel tank (2)
# OEM ED7 ES5
35 91601-SH3-013 Grommet - SCREW, 5MM (BLACK) Grommet - SCREW, 5MM (BLACK)
Fuel tank 1 / 24
ED7 Fuel tank
ES5 Outer panels
# OEM ED7 ES5
23 90147-634-003 Bolt - FENDER, 6X18 Bolt - FENDER, 6X18
Glove box 2 / 8
ED7 Glove box
ES5 Instrument panel garnish (PASSENGER SIDE; LH)
# OEM ED7 ES5
3 66418-SB2-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
9 90140-SH3-003 Bolt-washer - 5X18 Bolt-washer - 5X18
Grommet 5 / 22
ED7 Grommet
ES5 Grommet (FRONT)
# OEM ED7 ES5
5 91615-SH3-000 Cap - FLOOR HOLE, 49MM Cap - FLOOR HOLE, 49MM
7 72207-SB2-000 Cap - FLOOR HOLE, 24MM Cap - FLOOR HOLE, 24MM
11 75826-634-300 Seal - INSIDE PANEL, 15MM Seal - INSIDE PANEL, 15MM
12 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
22 91604-SD2-013 Grommet - HOOD STAY Grommet - HOOD STAY
Heater control 1 / 34
ED7 Heater control
ES5 Select lever
# OEM ED7 ES5
1 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
Heater unit 1 / 12
ED7 Heater unit
ES5 Heater unit (LH)
# OEM ED7 ES5
2 39248-692-003 Packing - HEATER Packing - HEATER
Hood 3 / 42
ED7 Hood
ES5 Grommet (FRONT)
# OEM ED7 ES5
14 74134-SH3-003 Grommet - HOOD WIRE Grommet - HOOD WIRE
24 74177-SD4-000 Cushion a - HOOD Cushion a - HOOD
43 91604-SD2-013 Grommet - HOOD STAY Grommet - HOOD STAY
Instrument panel (LH) 5 / 34
ED7 Instrument panel (LH)
ES5 Instrument panel garnish (DRIVER SIDE; LH)
# OEM ED7 ES5
6 66418-579-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
45 90105-634-000 Bolt-washer (8x20) Bolt-washer (8x20)
46 90128-SA7-000 Bolt-washer - 6X25 Bolt-washer - 6X25
48 90157-SA0-000 Bolt-washer - 8X25 Bolt-washer - 8X25
49 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM

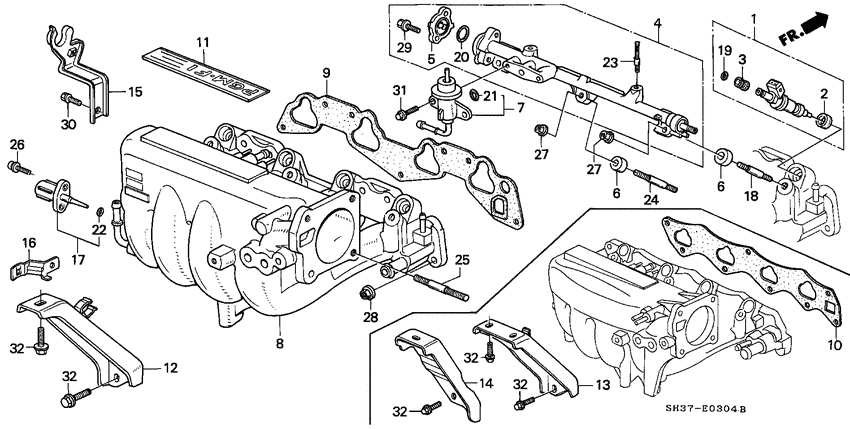

Intake manifold (5) 1 / 30
ED7 Intake manifold (5)
ES5 Intake manifold
# OEM ED7 ES5
6 16638-PH3-S00 Insulator - FUEL PIPE Insulator - FUEL PIPE
Interior light/switch 2 / 19
ED7 Interior light/switch
ES5 Interior light
# OEM ED7 ES5
5 34253-671-003 Bulb - 12V 8W)(DAIICHI Bulb - 12V 8W)(DAIICHI
5 04110-SWA-305 BULB T10X318W BULB T10X318W
Knuckle 4 / 34
ED7 Knuckle
ES5 Rear brake (DISK)
# OEM ED7 ES5
17 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
17 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
21 90305-692-010 Nut Nut
22 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Mainshaft/gears (1) 3 / 19
ED7 Mainshaft/gears (1)
ES5 Mainshaft
# OEM ED7 ES5
2 23261-PL3-000 Shaft - REVERSE GEAR Shaft - REVERSE GEAR
10 23927-PL3-000 Washer - SPRING, 36MM Washer - SPRING, 36MM
11 23928-PL3-000 Washer - 26MM Washer - 26MM
Master power 2 / 15
ED7 Master power
ES5 Brake master cylinder/ master power (LH)
# OEM ED7 ES5
2 46151-SB2-003 Yoke - PUSH ROD (NISSIN) Yoke - PUSH ROD (NISSIN)
27 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Mirror/sunvisor 1 / 21
ED7 Mirror/sunvisor
ES5 Resonator chamber
# OEM ED7 ES5
6 75353-671-000 Lock - SCREW Lock - SCREW
Oil pump 5 / 35
ED7 Oil pump
ES5 Oil pump/oil strainer
# OEM ED7 ES5
10 15231-PM3-000 Valve - RELIEF Valve - RELIEF
11 15232-PM3-000 Spring - RELIEF VALVE Spring - RELIEF VALVE
14 15302-PE0-300 Washer - SEALING, 14MM Washer - SEALING, 14MM
15 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)
19 90015-PH1-013 Holder - OIL FILTER Holder - OIL FILTER
Parking brake 2 / 16
ED7 Parking brake
ES5 Brake lines (ABS; LH; 1)
# OEM ED7 ES5
18 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
24 90105-634-000 Bolt-washer (8x20) Bolt-washer (8x20)
Piston/crankshaft 4 / 90
ED7 Piston/crankshaft
ES5 Piston/crankshaft
# OEM ED7 ES5
3 13112-PE0-000 Pin - PISTON Pin - PISTON
4 13204-PE1-003 Bolt Bolt
5 13205-634-010 Nut Nut
17 90704-634-000 Key - 4.5X11.0 Key - 4.5X11.0
Radiator (DENSO) 3 / 16
ED7 Radiator (DENSO)
ES5 Radiator (DENSO)
# OEM ED7 ES5
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
16 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose 2 / 17
ED7 Radiator hose
ES5 Fuel tank (2)
# OEM ED7 ES5
8 19108-PM0-003 Clamp - RESERVE TANK TUBE (BLACK) Clamp - RESERVE TANK TUBE (BLACK)
14 19511-PA6-003 Clip - WATER HOSE(CHUO SPRING) Clip - WATER HOSE(CHUO SPRING)
Rear brake caliper 12 / 38
ED7 Rear brake caliper
ES5 Rear brake (DISK)
# OEM ED7 ES5
6 43223-SD2-932 BEARING A BEARING A
7 43224-SD2-931 Spring b - ADJUSTING Spring b - ADJUSTING
9 43228-SD2-933 Shaft a Shaft a
10 43229-SD2-931 Rod Rod
16 43236-S04-003 Spacer Spacer
20 43243-SD2-931 Nut - PARKING Nut - PARKING
23 43246-SD2-931 Spring - R. RETURN Spring - R. RETURN
25 43248-SD2-933 Shaft b Shaft b
27 43262-S84-A51 Pin b Pin b
29 43266-SD2-931 Spring - L. RETURN Spring - L. RETURN
32 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
34 45240-SC2-003 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
Rear brake disk 3 / 17
ED7 Rear brake disk
ES5 Rear brake (DISK)
# OEM ED7 ES5
13 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
13 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
14 90305-692-010 Nut Nut
Rear seat 1 / 7
ED7 Rear seat
ES5 Rear seat (1)
# OEM ED7 ES5
21 90128-SA7-000 Bolt-washer - 6X25 Bolt-washer - 6X25
Rear shelf 1 / 8
ED7 Rear shelf
ES5 Resonator chamber
# OEM ED7 ES5
1 75353-671-000 Lock - SCREW Lock - SCREW
Rear shock absorber 1 / 23
ED7 Rear shock absorber
ES5 Rear shock absorber
# OEM ED7 ES5
22 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Relay/horn/fuse box 1 / 34
ED7 Relay/horn/fuse box
ES5 Control unit (ENGINE ROOM)
# OEM ED7 ES5
29 39794-SE0-003 Relay assy - POWER(4P)(DENSO) (056700-7250) Relay assy - POWER(4P)(DENSO) (056700-7250)
Shift fork/fork shaft (1) 1 / 12
ED7 Shift fork/fork shaft (1)
ES5 Shift fork/shift holder
# OEM ED7 ES5
11 90028-PB6-010 Bolt - SPECIAL, 6X22.5 Bolt - SPECIAL, 6X22.5
Shift rod/shift holder (1) 3 / 20
ED7 Shift rod/shift holder (1)
ES5 Shift fork/shift holder
# OEM ED7 ES5
16 24519-PB6-000 Screw - BALL SPRING SETTING Screw - BALL SPRING SETTING
17 90028-PB6-010 Bolt - SPECIAL, 6X22.5 Bolt - SPECIAL, 6X22.5
20 90412-679-000 Washer - CONICAL SPRING, 8MM Washer - CONICAL SPRING, 8MM
Side protector 1 / 27
ED7 Side protector
ES5 Bumpers
# OEM ED7 ES5
32 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Speedometer component (NS) 1 / 22
ED7 Speedometer component (NS)
ES5 Meter components (NS; 2)
# OEM ED7 ES5
5 37115-SA0-601 Packing - NS Packing - NS
Steering column (TILT; LH) 2 / 36
ED7 Steering column (TILT; LH)
ES5 Steering column
# OEM ED7 ES5
35 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
39 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR
Tailgate 1 / 35
ED7 Tailgate
ES5 Trunk lid
# OEM ED7 ES5
9 73219-693-951 Seal - FUEL LID OPENER (GREEN) Seal - FUEL LID OPENER (GREEN)
Taillight (2) 1 / 25
ED7 Taillight (2)
ES5 Headlight
# OEM ED7 ES5
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
Tire/wheel disk 6 / 55
ED7 Tire/wheel disk
ES5 Tire/wheel disks
# OEM ED7 ES5
12 42753-SH3-003 Valve - RIM (US PACIFIC) Valve - RIM (US PACIFIC)
12 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
12 42753-SE0-A02 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
12 42753-671-003 Valve - RIM (TAIHEIYO) Valve - RIM (TAIHEIYO)
26 83850-SH3-000 Plate - ANCHOR BOLT Plate - ANCHOR BOLT
29 90304-SA5-013 Nut - WHEEL (CHROME PLATED) (FUSE RASHI) Nut - WHEEL (CHROME PLATED) (FUSE RASHI)
Tools/jack 1 / 9
ED7 Tools/jack
ES5 Tools/jack
# OEM ED7 ES5
5 89101-SW5-003 Bag - TOOL Bag - TOOL
Transmission housing (1) 1 / 94
ED7 Transmission housing (1)
ES5 Transmission case
# OEM ED7 ES5
7 90081-PB6-000 Bolt - PLUG, 14MM Bolt - PLUG, 14MM
Valve/rocker arm (SOHC) 1 / 18
ED7 Valve/rocker arm (SOHC)
ES5 Valve/rocker arm (SOHC; VTEC; 2)
# OEM ED7 ES5
15 14781-PJ7-003 Cotter - VALVE (FUJI VALVE) Cotter - VALVE (FUJI VALVE)
Washer tank 3 / 26
ED7 Washer tank
ES5 Windshield washer (1)
# OEM ED7 ES5
3 38516-SA5-671 Packing - T-TYPE) (MITSUBA Packing - T-TYPE) (MITSUBA
5 38519-SB0-003 Bush - WASHER TANK (MITSUBA) Bush - WASHER TANK (MITSUBA)
23 76809-SE0-003 Grommet - WASHER TANK Grommet - WASHER TANK
Washer tube 2 / 34
ED7 Washer tube
ES5 Windshield washer (1)
# OEM ED7 ES5
27 90652-SB2-023 Clip - TUBE, 7MM Clip - TUBE, 7MM
31 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
Water pump 1 / 20
ED7 Water pump
ES5 Water pump/sensor
# OEM ED7 ES5
25 91314-634-000 O-ring O-ring
Water valve/duct 1 / 38
ED7 Water valve/duct
ES5 Front door locks
# OEM ED7 ES5
39 91501-S04-003 Clip - INNER FENDER Clip - INNER FENDER
Wire harness 5 / 39
ED7 Wire harness
ES5 Harness band/bracket (LH)
# OEM ED7 ES5
21 90153-SE0-003 Bolt - EARTH, 6X12 Bolt - EARTH, 6X12
31 91547-SH3-003 Clip - BAND(NATURAL)(160MM) Clip - BAND(NATURAL)(160MM)
36 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
42 91567-SE0-003 Band - WIRE HARNESS(WHITE) (93.5MM) Band - WIRE HARNESS(WHITE) (93.5MM)
45 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
