検索 › 比較 › ED5 × ED7
ED5
Honda CIVIC — 2,464 中 1,156 共有
ED7
Honda CIVIC — 2,544 中 1,156 共有
Accelerator pedal (2) 5 / 19
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 3 | 17812-SA7-010 | Washer - ACCELERATOR PEDAL | Washer - ACCELERATOR PEDAL |
| 5 | 17816-SK7-000 | Cover - ACCELERATOR PEDAL | Cover - ACCELERATOR PEDAL |
| 11 | 17921-SA4-730 | Seal - THROTTLE CABLE | Seal - THROTTLE CABLE |
| 17 | 46505-SA7-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 19 | 90503-SA0-000 | Washer - PLAIN, 9MM | Washer - PLAIN, 9MM |
Air cleaner (1) 1 / 36
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 38 | 91405-PH7-003 | Clamp - TUBE (D15) | Clamp - TUBE (D15) |
Air conditioner (CARBURETOR COMPONENTS) 3 / 9
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 4 | 36024-PM1-G01 | Clamp - TUBE, 7.5X2 | Clamp - TUBE, 7.5X2 |
| 5 | 36138-PM1-G01 | Filter assy - SOLENOID VALVE | Filter assy - SOLENOID VALVE |
| 12 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
Air conditioner (COMPRESSOR) 25 / 25
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 38773-PR3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 2 | 38810-PM3-056 | Compressor - MATSUSHITA | Compressor - MATSUSHITA |
| 3 | 38811-PM3-016 | Clutch set - COIL | Clutch set - COIL |
| 4 | 38885-PM3-000 | Insulator - HEAT | Insulator - HEAT |
| 5 | 38886-PK1-004 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
| 6 | 38900-PM3-036 | Clutch set - ROTOR ARMATURE | Clutch set - ROTOR ARMATURE |
| 7 | 38905-PK1-004 | O-ring | O-ring |
| 8 | 38908-PR5-004 | Protector set - THERMAL | Protector set - THERMAL |
| 9 | 38912-PM3-006 | Shim set | Shim set |
| 10 | 38914-PK1-004 | Circlip - INTERNAL, 24MM | Circlip - INTERNAL, 24MM |
| 11 | 38918-PM3-006 | Seal set - SHAFT | Seal set - SHAFT |
| 12 | 38920-PM3-003 | Belt - COMPRESSOR (BANDO) | Belt - COMPRESSOR (BANDO) |
| 12 | 38920-PM3-023 | Belt | Belt |
| 12 | 38920-PM3-014 | Belt - COMPRESSOR (MITSUBOSHI) | Belt - COMPRESSOR (MITSUBOSHI) |
| 13 | 38926-PM3-000 | Stay - IDLE PULLEY | Stay - IDLE PULLEY |
| 14 | 38930-PM3-000 | Bracket - COMPRESSOR | Bracket - COMPRESSOR |
| 15 | 38942-PM3-000 | Pulley comp - IDLE | Pulley comp - IDLE |
| 16 | 38944-PM3-000 | Collar - IDLE PULLEY (10X17X15.5) | Collar - IDLE PULLEY (10X17X15.5) |
| 17 | 38945-PM3-000 | Cover - BEARING | Cover - BEARING |
| 18 | 38946-PM3-000 | Bolt - IDLE PULLEY (10X39) | Bolt - IDLE PULLEY (10X39) |
| 19 | 90017-PE0-000 | Washer - 10MM | Washer - 10MM |
| 20 | 90021-PM3-000 | Bolt - FLANGE, 8X85 | Bolt - FLANGE, 8X85 |
| 21 | 90022-PM3-000 | Bolt - FLANGE, 8X120 | Bolt - FLANGE, 8X120 |
| 22 | 90023-PM3-000 | Bolt - FLANGE, 8X105 | Bolt - FLANGE, 8X105 |
| 23 | 90058-PG6-000 | Nut-washer - 10MM | Nut-washer - 10MM |
Air conditioner (CONDENSER) 18 / 21
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 90659-PG6-000 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 2 | 38611-PM3-004 | Fan comp - COOLING | Fan comp - COOLING |
| 6 | 38618-PM3-000 | Mount - SHROUD | Mount - SHROUD |
| 19 | 39139-SB3-003 | Suppressor - NOISE (MITSUBA) (RZ-0062) | Suppressor - NOISE (MITSUBA) (RZ-0062) |
| 20 | 80100-SH3-023 | Condenser assy - SAK | Condenser assy - SAK |
| 21 | 80107-SH3-000 | Mount - CONDENSER UPPER | Mount - CONDENSER UPPER |
| 23 | 80109-SH3-010 | Seal - CONDENSER | Seal - CONDENSER |
| 24 | 80110-SH3-000 | Seal a - CONDENSER | Seal a - CONDENSER |
| 25 | 80111-SH3-000 | Seal b - CONDENSER | Seal b - CONDENSER |
| 26 | 80175-SE0-000 | Mount - CONDENSER | Mount - CONDENSER |
| 28 | 80326-SH3-000 | Inlet pipe - DISCHARGE | Inlet pipe - DISCHARGE |
| 29 | 90003-PG7-660 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 31 | 90041-PD2-004 | Nut - SPECIAL, 5MM (MITSUBA) | Nut - SPECIAL, 5MM (MITSUBA) |
| 31 | 90311-MB6-003 | Nut toothed 5mm | Nut toothed 5mm |
| 32 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 33 | 90403-PM3-004 | Washer - PLAIN, 7MM | Washer - PLAIN, 7MM |
| 34 | 91315-SE0-000 | O-ring - 1/2" | O-ring - 1/2" |
| 36 | 90078-PR3-000 | Screw - PAN, 4X8 | Screw - PAN, 4X8 |
Air conditioner (HOSES/PIPES; 4) 11 / 25
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 38642-692-013 | Plug - FUSIBLE (SAK) | Plug - FUSIBLE (SAK) |
| 2 | 38646-692-660 | O-ring - 3/8" | O-ring - 3/8" |
| 2 | 80874-SL0-900 | O-ring - 3/8" | O-ring - 3/8" |
| 3 | 38648-692-660 | O-ring - 5/8" | O-ring - 5/8" |
| 8 | 80315-SH3-033 | Hose comp. - DISCHARGE (NICHIRIN) | Hose comp. - DISCHARGE (NICHIRIN) |
| 15 | 80352-SH3-010 | Bracket - LIQUID TANK | Bracket - LIQUID TANK |
| 23 | 80371-SH3-J00 | Clamp - DISCHARGE HOSE | Clamp - DISCHARGE HOSE |
| 25 | 80375-SH3-J00 | Rubber - MOUNTING | Rubber - MOUNTING |
| 27 | 80440-SE0-003 | Switch - DUAL PRESSURE | Switch - DUAL PRESSURE |
| 28 | 91315-SE0-000 | O-ring - 1/2" | O-ring - 1/2" |
| 29 | 91638-SF1-003 | Cap - VALVE (SAK) | Cap - VALVE (SAK) |
Air conditioner (UNIT; 2) 27 / 40
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 32146-SD2-013 | Diode - 3P | Diode - 3P |
| 3 | 35851-SB2-003 | Bulb - NEO WEDGE (14V 65MA) | Bulb - NEO WEDGE (14V 65MA) |
| 4 | 38625-SB2-000 | Holder - EVAPORATOR PIPE | Holder - EVAPORATOR PIPE |
| 5 | 38625-692-000 | Grommet - TUBE | Grommet - TUBE |
| 6 | 38646-692-660 | O-ring - 3/8" | O-ring - 3/8" |
| 6 | 80874-SL0-900 | O-ring - 3/8" | O-ring - 3/8" |
| 7 | 38647-692-660 | O-ring - 1/2" | O-ring - 1/2" |
| 10 | 39792-SH7-000 | Bracket b - RELAY | Bracket b - RELAY |
| 11 | 39795-SB2-003 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 21 | 80265-SH3-000 | Band b - AIR CONDITIONER | Band b - AIR CONDITIONER |
| 22 | 80271-SH3-000 | Hose - DRAIN | Hose - DRAIN |
| 23 | 80272-SF4-000 | Grommet - DRAIN HOSE | Grommet - DRAIN HOSE |
| 24 | 80286-SH3-000 | Seal - EVAPORATOR INNER | Seal - EVAPORATOR INNER |
| 26 | 80388-SH3-003 | Clamp - AIR CONDITIONER HARNESS (NIFCO) | Clamp - AIR CONDITIONER HARNESS (NIFCO) |
| 27 | 80410-SH3-013 | Switch assy - AIR CONDITIONER (DENSO) | Switch assy - AIR CONDITIONER (DENSO) |
| 28 | 80411-SH3-003 | Panel - AIR CONDITIONER SWITCH | Panel - AIR CONDITIONER SWITCH |
| 29 | 80430-SF1-003 | Thermostat - AIR CONDITIONER | Thermostat - AIR CONDITIONER |
| 31 | 90101-SA4-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 32 | 90102-SA4-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 33 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 34 | 90136-SH3-000 | Bolt-washer - 6X10 | Bolt-washer - 6X10 |
| 35 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 36 | 90222-SB4-000 | Nut-washer - 6MM | Nut-washer - 6MM |
| 37 | 90659-692-000 | Clamp - CASE | Clamp - CASE |
| 38 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 39 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 41 | 91570-SH3-003 | Band - WIRE HARNESS (NATURAL) | Band - WIRE HARNESS (NATURAL) |
Antenna 4 / 9
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 39112-SH3-000 | Bracket - FR. SPEAKER SEAL (12CM) | Bracket - FR. SPEAKER SEAL (12CM) |
| 8 | 90105-SB6-003 | Screw - PAN, 4X12 | Screw - PAN, 4X12 |
| 9 | 90502-SA0-003 | Washer - WATER PROOF | Washer - WATER PROOF |
| 10 | 90662-693-003 | Grommet - SCREW, 4MM (BLUE) | Grommet - SCREW, 4MM (BLUE) |

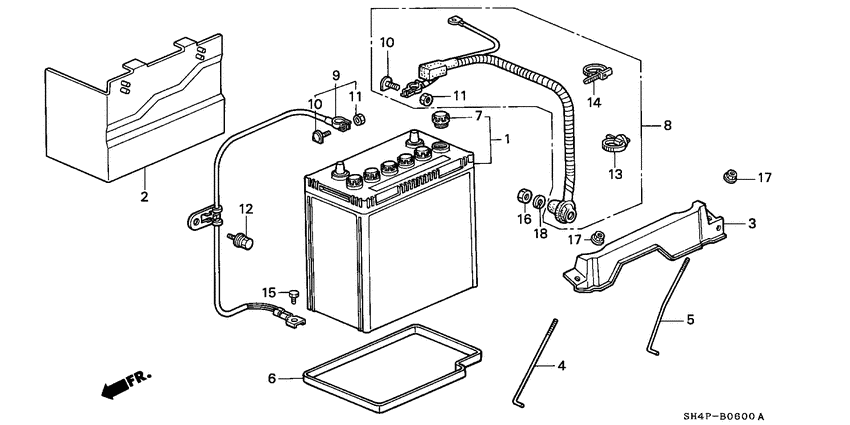

Battery 14 / 20
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 31510-SH3-A10 | Shield box - BATTERY | Shield box - BATTERY |
| 3 | 31512-SH3-010 | Plate - BATTERY SETTING | Plate - BATTERY SETTING |
| 4 | 31513-SA5-670 | Bolt - BATTERY SETTING, 225MM | Bolt - BATTERY SETTING, 225MM |
| 5 | 31513-SH3-000 | Bolt - BATTERY SETTING, 227MM | Bolt - BATTERY SETTING, 227MM |
| 6 | 31521-SH3-N00 | Box assy - BATTERY | Box assy - BATTERY |
| 7 | 31542-SA5-666 | Plug - VENT (MF) (FURUKAWA) | Plug - VENT (MF) (FURUKAWA) |
| 7 | 31542-SA5-664 | Plug - VENT (MF) (YUASA) | Plug - VENT (MF) (YUASA) |
| 7 | 31542-SA5-665 | Plug - VENT (MF) (PANASONIC) | Plug - VENT (MF) (PANASONIC) |
| 9 | 32600-SH3-A11 | Cable assy - EARTH | Cable assy - EARTH |
| 10 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 11 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 12 | 90150-SB2-003 | Bolt - EARTH, 8X20 (SN) | Bolt - EARTH, 8X20 (SN) |
| 13 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 14 | 91568-SH3-003 | Strap - WIRE HARNESS (BLACK) (101MM) | Strap - WIRE HARNESS (BLACK) (101MM) |

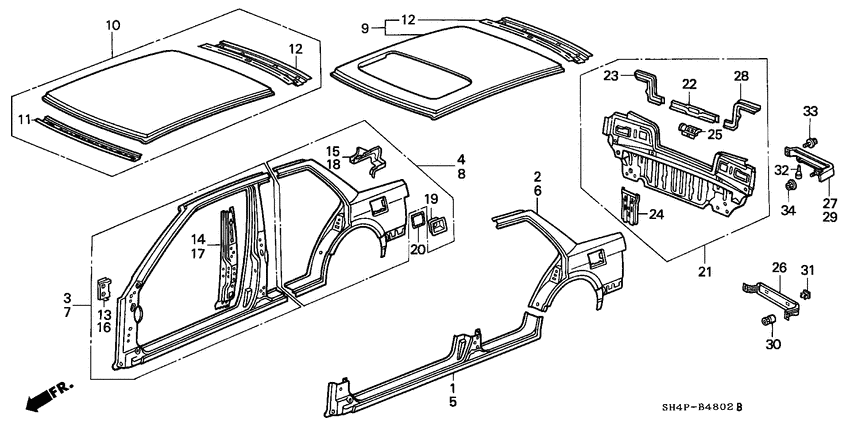

Body structure components (1) 3 / 3
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 24 | 60821-SH3-000 | Hook - TIE DOWN | Hook - TIE DOWN |
| 30 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
| 33 | 91504-SH3-000 | Cushion - BUMPER | Cushion - BUMPER |
Body structure components (3) 4 / 5
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 30 | 90304-SB0-000 | Nut - FIXED TORQUE | Nut - FIXED TORQUE |
| 31 | 90661-SC7-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 32 | 91504-SH3-000 | Cushion - BUMPER | Cushion - BUMPER |
| 34 | 90222-SB4-000 | Nut-washer - 6MM | Nut-washer - 6MM |
Brake lines (2) 20 / 32
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 17712-SA0-000 | Grommet - FUEL PIPE | Grommet - FUEL PIPE |
| 3 | 46310-SH3-000 | Pipe comp. a - BRAKE | Pipe comp. a - BRAKE |
| 6 | 46330-SH3-050 | Pipe comp. c - BRAKE | Pipe comp. c - BRAKE |
| 8 | 46340-SH3-040 | Pipe comp. d - BRAKE | Pipe comp. d - BRAKE |
| 12 | 46380-SH3-000 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 13 | 46382-SH3-300 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 16 | 46391-SK7-013 | Clip s - BRAKE PIPE | Clip s - BRAKE PIPE |
| 17 | 46392-SB0-010 | Clip d - BRAKE PIPE (BLACK) | Clip d - BRAKE PIPE (BLACK) |
| 18 | 46392-SB2-014 | Clip b - BRAKE PIPE | Clip b - BRAKE PIPE |
| 20 | 46392-692-003 | Clip d - BRAKE PIPE (WHITE) | Clip d - BRAKE PIPE (WHITE) |
| 21 | 46410-SH3-043 | Hose - R. FR. BRAKE (NICHIRIN) | Hose - R. FR. BRAKE (NICHIRIN) |
| 21 | 46410-SH3-J02 | Hose - R. FR. BRAKE (MEIJI) | Hose - R. FR. BRAKE (MEIJI) |
| 22 | 46411-SH3-043 | Hose - L. FR. BRAKE (NICHIRIN) | Hose - L. FR. BRAKE (NICHIRIN) |
| 22 | 46411-SH3-J02 | Hose - L. FR. BRAKE (MEIJI) | Hose - L. FR. BRAKE (MEIJI) |
| 24 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 25 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 26 | 90105-SB0-003 | Bolt-washer - 8X16 | Bolt-washer - 8X16 |
| 27 | 90105-SD9-003 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 28 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 29 | 90677-SH3-003 | Clip - PIPE PROTECTOR | Clip - PIPE PROTECTOR |
Brake master cylinder 7 / 14
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 5 | 46138-568-671 | Packing | Packing |
| 6 | 46139-632-000 | Bolt - STOPPER | Bolt - STOPPER |
| 7 | 57562-SF1-003 | Circlip | Circlip |
| 8 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 11 | 46665-671-651 | Band - RESERVE TANK | Band - RESERVE TANK |
| 13 | 46669-692-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 14 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
Brake pedal/clutch pedal (2) 8 / 16
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 17927-SH3-A01 | Clamp - CLUTCH WIRE | Clamp - CLUTCH WIRE |
| 5 | 46504-679-300 | Bush - PEDAL | Bush - PEDAL |
| 6 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 7 | 46530-SH3-000 | Spring - PEDAL RETURN | Spring - PEDAL RETURN |
| 9 | 46535-692-000 | Collar - PEDAL | Collar - PEDAL |
| 10 | 46545-SH3-000 | Cover - PEDAL | Cover - PEDAL |
| 17 | 75891-611-000 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 18 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
Bumpers (1) 23 / 33
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 9 | 71190-SH3-000 | Slide assy. - R. FR. BUMPER | Slide assy. - R. FR. BUMPER |
| 10 | 71193-SH3-000 | Clip - BUMPER CORNER | Clip - BUMPER CORNER |
| 11 | 71193-SH4-000 | Clip - BUMPER CORNER | Clip - BUMPER CORNER |
| 12 | 71195-SH3-000 | Slide assy. - L. FR. BUMPER | Slide assy. - L. FR. BUMPER |
| 18 | 71591-SH3-010 | Slide - R. RR. BUMPER CORNER | Slide - R. RR. BUMPER CORNER |
| 19 | 71592-SH3-010 | Slide - L. RR. BUMPER CORNER | Slide - L. RR. BUMPER CORNER |
| 20 | 71598-SH4-000 | Spacer - RR. BUMPER SIDE | Spacer - RR. BUMPER SIDE |
| 24 | 90102-SA7-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 25 | 90104-SD4-000 | Bolt - CORNER SLIDE | Bolt - CORNER SLIDE |
| 26 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
| 27 | 90107-SA0-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 27 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 29 | 90109-SH3-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 30 | 90105-SF1-000 | Screw - CORNER SLIDE TAPPING | Screw - CORNER SLIDE TAPPING |
| 31 | 90130-SB0-010 | Bolt assy - BUMPER | Bolt assy - BUMPER |
| 32 | 90130-SH3-010 | Bolt assy - BUMPER | Bolt assy - BUMPER |
| 33 | 90112-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 34 | 90142-SH3-000 | Seal - RR. BUMPER BEAM | Seal - RR. BUMPER BEAM |
| 34 | 71544-SR2-000 | Seal - RR. UPPER BEAM | Seal - RR. UPPER BEAM |
| 35 | 90301-SF1-000 | Nut - WASHER CAP, 8MM | Nut - WASHER CAP, 8MM |
| 36 | 90303-SA5-003 | Nut - FR. COMBINATION LIGHT | Nut - FR. COMBINATION LIGHT |
| 38 | 90540-SA7-000 | Washer - BUMPER | Washer - BUMPER |
| 39 | 90540-SE0-000 | Washer - BUMPER | Washer - BUMPER |
Camshaft/timing belt 19 / 23
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 11810-PM3-000 | Cover comp. - TIMING BELT LOWER | Cover comp. - TIMING BELT LOWER |
| 2 | 11812-PE0-300 | Grommet - TIMING BELT COVER HOLE | Grommet - TIMING BELT COVER HOLE |
| 4 | 11831-PM3-000 | Rubber - LOWER SEAL | Rubber - LOWER SEAL |
| 6 | 11833-PM3-000 | Rubber - L. BACK SEAL | Rubber - L. BACK SEAL |
| 7 | 11840-PM3-000 | Cover comp. - TIMING BELT BACK | Cover comp. - TIMING BELT BACK |
| 7 | 11840-PM3-010 | Cover comp. TIMING BELT BACK | Cover comp. TIMING BELT BACK |
| 8 | 11925-PM3-000 | Rubber a - ENGINE MOUNTING BRACKET SEAL | Rubber a - ENGINE MOUNTING BRACKET SEAL |
| 9 | 11926-PM3-000 | Rubber b - ENGINE MOUNTING BRACKET SEAL | Rubber b - ENGINE MOUNTING BRACKET SEAL |
| 11 | 14210-PM3-000 | Pulley comp - TIMING BELT DRIVEN | Pulley comp - TIMING BELT DRIVEN |
| 13 | 14510-PM7-003 | Tensioner comp - TIMING BELT (KOYO SEIKO) | Tensioner comp - TIMING BELT (KOYO SEIKO) |
| 13 | 14510-PM7-004 | Tensioner comp - TIMING BELT (NIPPON SEIKO) | Tensioner comp - TIMING BELT (NIPPON SEIKO) |
| 14 | 14513-PE0-015 | Bolt - TENSIONER (M6) | Bolt - TENSIONER (M6) |
| 15 | 14516-PM3-010 | Spring comp - TIMING BELT ADJUSTER | Spring comp - TIMING BELT ADJUSTER |
| 16 | 14517-PG6-000 | Bolt a - TENSIONER | Bolt a - TENSIONER |
| 17 | 90011-PG6-004 | Bolt - TIMING BELT ADJUSTER SPRING | Bolt - TIMING BELT ADJUSTER SPRING |
| 18 | 90031-PC6-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 19 | 90435-611-000 | Washer - SPECIAL, 28X8.5X4.0 | Washer - SPECIAL, 28X8.5X4.0 |
| 20 | 91213-PE1-721 | Oil seal - 29X45X8 (NOK) | Oil seal - 29X45X8 (NOK) |
| 20 | 91213-P2F-A01 | Oil seal - 29X45X8 (ARAI) | Oil seal - 29X45X8 (ARAI) |
Clutch housing 41 / 49
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 21103-PL3-A00 | Plate c - OIL GUIDE | Plate c - OIL GUIDE |
| 3 | 21120-PG2-003 | Magnet - TRANSMISSION | Magnet - TRANSMISSION |
| 4 | 41221-PL3-A02 | Gear - DRIVE PINION | Gear - DRIVE PINION |
| 6 | 41311-PL3-A02 | Case - DIFFERENTIAL | Case - DIFFERENTIAL |
| 7 | 41312-PL3-A00 | Gear - SPEEDOMETER DRIVE | Gear - SPEEDOMETER DRIVE |
| 8 | 41313-PL3-000 | Roller - 4X28 | Roller - 4X28 |
| 9 | 41321-PE6-030 | Shaft - PINION | Shaft - PINION |
| 10 | 41341-PC9-000 | Gear - DIFFERENTIAL PINION | Gear - DIFFERENTIAL PINION |
| 10 | 41341-PC9-010 | Gear - DIFFERENTIAL PINION | Gear - DIFFERENTIAL PINION |
| 11 | 41354-689-000 | Washer d - DIFFERENTIAL PINION (1.0MM) | Washer d - DIFFERENTIAL PINION (1.0MM) |
| 11 | 41356-PC8-000 | Washer f - DIFFERENTIAL PINION (0.85MM) | Washer f - DIFFERENTIAL PINION (0.85MM) |
| 11 | 41351-689-000 | Washer a - DIFFERENTIAL PINION (0.7MM) | Washer a - DIFFERENTIAL PINION (0.7MM) |
| 11 | 41353-689-000 | Washer c - DIFFERENTIAL PINION (0.9MM) | Washer c - DIFFERENTIAL PINION (0.9MM) |
| 11 | 41355-PC8-000 | Washer e - DIFFERENTIAL PINION (0.75MM) | Washer e - DIFFERENTIAL PINION (0.75MM) |
| 11 | 41357-PC8-000 | Washer g - DIFFERENTIAL PINION (0.95MM) | Washer g - DIFFERENTIAL PINION (0.95MM) |
| 11 | 41352-689-000 | Washer b - DIFFERENTIAL PINION (0.8MM) | Washer b - DIFFERENTIAL PINION (0.8MM) |
| 12 | 41442-PL3-A00 | Shim b - 72MM(1.1) | Shim b - 72MM(1.1) |
| 12 | 41454-PL3-A00 | Shim p - 72MM(1.45) | Shim p - 72MM(1.45) |
| 12 | 41449-PL3-A00 | Shim j - 72MM(1.8) | Shim j - 72MM(1.8) |
| 12 | 41444-PL3-A00 | Shim d - 72MM(1.3) | Shim d - 72MM(1.3) |
| 12 | 41456-PL3-A00 | Shim r - 72MM(1.65) | Shim r - 72MM(1.65) |
| 12 | 41451-PL3-A00 | Shim l - 72MM(1.15) | Shim l - 72MM(1.15) |
| 12 | 41446-PL3-A00 | Shim f - 72MM(1.5) | Shim f - 72MM(1.5) |
| 12 | 41441-PL3-A00 | Shim a - 72MM(1.0) | Shim a - 72MM(1.0) |
| 12 | 41453-PL3-A00 | Shim n - 72MM(1.35) | Shim n - 72MM(1.35) |
| 12 | 41448-PL3-A00 | Shim h - 72MM(1.7) | Shim h - 72MM(1.7) |
| 12 | 41443-PL3-A00 | Shim c - 72MM(1.2) | Shim c - 72MM(1.2) |
| 12 | 41455-PL3-A00 | Shim q - 72MM(1.55) | Shim q - 72MM(1.55) |
| 12 | 41450-PL3-A00 | Shim k - 72MM(1.05) | Shim k - 72MM(1.05) |
| 12 | 41445-PL3-A00 | Shim e - 72MM(1.4) | Shim e - 72MM(1.4) |
| 12 | 41457-PL3-A00 | Shim s - 72MM(1.75) | Shim s - 72MM(1.75) |
| 12 | 41452-PL3-A00 | Shim m - 72MM(1.25) | Shim m - 72MM(1.25) |
| 12 | 41447-PL3-A00 | Shim g - 72MM(1.6) | Shim g - 72MM(1.6) |
| 13 | 90015-634-010 | Bolt - FLANGE, 10MM | Bolt - FLANGE, 10MM |
| 14 | 90425-PL3-010 | Washer - THRUST, 34X48X1.5 | Washer - THRUST, 34X48X1.5 |
| 19 | 91208-PB6-003 | Dust seal - 16X21X4 (ARAI) | Dust seal - 16X21X4 (ARAI) |
| 19 | 91208-PB6-005 | Dust seal - 16X21X4 (NOK) | Dust seal - 16X21X4 (NOK) |
| 20 | 91215-PL3-005 | Oil seal - 14X25X15 (NOK) | Oil seal - 14X25X15 (NOK) |
| 20 | 91215-PL3-003 | Oil seal - 14X25X15 (ARAI) | Oil seal - 14X25X15 (ARAI) |
| 21 | 91216-PL3-005 | Oil seal - 26X42X7 (NOK) | Oil seal - 26X42X7 (NOK) |
| 21 | 91216-PL3-003 | Oil seal - 26X42X7 (ARAI) | Oil seal - 26X42X7 (ARAI) |
Clutch release 17 / 17
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 22810-PL3-003 | Bearing - CLUTCH RELEASE (FUJIKOSHI) | Bearing - CLUTCH RELEASE (FUJIKOSHI) |
| 1 | 22810-PL3-005 | Bearing - CLUTCH RELEASE (KOYO SEIKO) | Bearing - CLUTCH RELEASE (KOYO SEIKO) |
| 2 | 22821-PL3-000 | Fork - CLUTCH RELEASE | Fork - CLUTCH RELEASE |
| 3 | 22830-PL3-C00 | Shaft comp. - RELEASE | Shaft comp. - RELEASE |
| 4 | 22840-PL3-000 | Damper - RELEASE ARM | Damper - RELEASE ARM |
| 5 | 22851-PB6-910 | Spring - RELEASE ARM | Spring - RELEASE ARM |
| 6 | 22871-PL3-050 | Stay comp - CLUTCH WIRE | Stay comp - CLUTCH WIRE |
| 7 | 23811-PC1-000 | Holder comp - SPEEDOMETER GEAR | Holder comp - SPEEDOMETER GEAR |
| 8 | 23813-689-000 | Plate - SPEEDOMETER GEAR HOLDER | Plate - SPEEDOMETER GEAR HOLDER |
| 9 | 23814-PM0-000 | Seal - GEAR HOLDER | Seal - GEAR HOLDER |
| 10 | 23820-PM1-000 | Gear comp - SPEEDOMETER | Gear comp - SPEEDOMETER |
| 11 | 90029-PB6-911 | Bolt - SPECIAL, 8X24 | Bolt - SPECIAL, 8X24 |
| 12 | 90412-679-000 | Washer - CONICAL SPRING, 8MM | Washer - CONICAL SPRING, 8MM |
| 13 | 90637-689-000 | Clip - SPEEDOMETER CABLE | Clip - SPEEDOMETER CABLE |
| 14 | 90638-689-000 | Clip - SPEEDOMETER GEAR | Clip - SPEEDOMETER GEAR |
| 15 | 91313-611-010 | O-ring - 23.5X2 | O-ring - 23.5X2 |
| 18 | 90018-PF5-000 | Bolt - FLANGE, 6X12 | Bolt - FLANGE, 6X12 |
Clutch/torque converter 5 / 14
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 21350-PR1-030 | Cover - CLUTCH CASE | Cover - CLUTCH CASE |
| 9 | 90011-PM0-000 | Bolt - 12MM | Bolt - 12MM |
| 11 | 90034-689-000 | Bolt - TWELVE POINT, 8MM (TOKAI TRW) | Bolt - TWELVE POINT, 8MM (TOKAI TRW) |
| 13 | 91006-634-008 | Bearing - CLUTCH PILOT (NTN) | Bearing - CLUTCH PILOT (NTN) |
| 13 | 91006-634-004 | Bearing - CLUTCH PILOT (KOYO) | Bearing - CLUTCH PILOT (KOYO) |

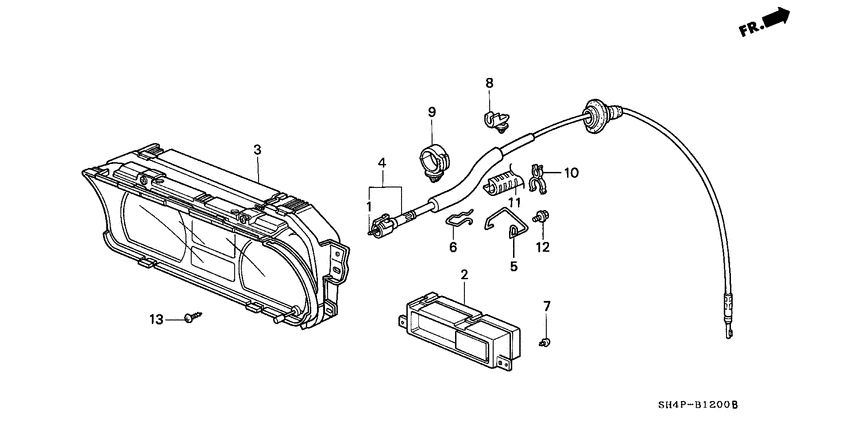

Combination meter 1 / 7
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 8 | 90683-SH3-023 | Clip - CABLE | Clip - CABLE |
Combination meter components (NS) 15 / 22
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 3 | 37106-SB2-003 | Knob - TRIP (NS) | Knob - TRIP (NS) |
| 4 | 37114-671-005 | Grommet - TRIP KNOB (NS) | Grommet - TRIP KNOB (NS) |
| 5 | 37115-SA0-601 | Packing - NS | Packing - NS |
| 6 | 37116-SB3-003 | Rubber - SPEEDOMETER (NS) | Rubber - SPEEDOMETER (NS) |
| 7 | 37237-SJ4-J00 | Bulb - 3W T6.5 CAP) (NS | Bulb - 3W T6.5 CAP) (NS |
| 8 | 37238-SD2-A00 | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN |
| 12 | 78108-SH3-B04 | Panel - PRINT (NS) | Panel - PRINT (NS) |
| 13 | 78110-SH3-901 | Case assy - NS | Case assy - NS |
| 18 | 78130-SH3-901 | Meter assy - FUEL & TEMPERATURE (NS) | Meter assy - FUEL & TEMPERATURE (NS) |
| 23 | 78166-SH3-J01 | Illumination assy. - NS | Illumination assy. - NS |
| 27 | 90131-SD2-003 | Screw-washer - 4X12 (NS) | Screw-washer - 4X12 (NS) |
| 28 | 90131-SF4-003 | Screw-washer - 3X16 (NS) | Screw-washer - 3X16 (NS) |
| 29 | 90136-SK7-003 | Screw-washer - 3X20 | Screw-washer - 3X20 |
Combination switch 8 / 21
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 4 | 35101-SH3-003 | Cover - HOLDER | Cover - HOLDER |
| 5 | 35102-SA5-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 5 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 6 | 35103-SE3-003 | Screw - RECESSED, 3X8 | Screw - RECESSED, 3X8 |
| 15 | 35400-692-033 | Switch assy - DOOR | Switch assy - DOOR |
| 16 | 35409-692-013 | Screw - FLANGE, 4X12 | Screw - FLANGE, 4X12 |
| 17 | 35410-692-003 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 19 | 53271-SF1-003 | Cam - TURN SIGNAL SWITCH CANCEL | Cam - TURN SIGNAL SWITCH CANCEL |
Console 11 / 13
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 39628-SH3-306 | Cord assy | Cord assy |
| 10 | 77730-SH3-901 | Holder comp - FR. ASHTRAY | Holder comp - FR. ASHTRAY |
| 13 | 83413-SH3-010 | Plate - BOOT SET | Plate - BOOT SET |
| 18 | 83454-SH3-010 | Bracket - FR. CONSOLE | Bracket - FR. CONSOLE |
| 20 | 88324-SB3-950 | Cover - RR. ASHTRAY | Cover - RR. ASHTRAY |
| 21 | 90102-SA4-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 22 | 90130-693-000 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 23 | 90138-SH3-960 | Screw - TAPPING, 4X38 | Screw - TAPPING, 4X38 |
| 24 | 91647-SH3-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 27 | 39600-S84-G01 | Lighter assy - CIGARETTE | Lighter assy - CIGARETTE |
| 27 | 39600-SW3-505 | LIGHTER ASSYCIGA | LIGHTER ASSYCIGA |
Control wire 3 / 26
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 24 | 90637-689-000 | Clip - SPEEDOMETER CABLE | Clip - SPEEDOMETER CABLE |
| 25 | 90638-689-000 | Clip - SPEEDOMETER GEAR | Clip - SPEEDOMETER GEAR |
| 26 | 91313-611-010 | O-ring - 23.5X2 | O-ring - 23.5X2 |
Countershaft/gear 16 / 17
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 23421-PL3-010 | Gear - COUNTERSHAFT LOW | Gear - COUNTERSHAFT LOW |
| 3 | 23431-PL3-901 | Gear - COUNTERSHAFT SECOND | Gear - COUNTERSHAFT SECOND |
| 4 | 23461-PL3-901 | Gear - COUNTERSHAFT FIFTH | Gear - COUNTERSHAFT FIFTH |
| 5 | 23471-PL3-900 | Gear - COUNTERSHAFT THIRD | Gear - COUNTERSHAFT THIRD |
| 6 | 23481-PL3-900 | Gear - COUNTERSHAFT FOURTH | Gear - COUNTERSHAFT FOURTH |
| 7 | 23521-PL3-335 | Sleeve set - SYNCHRONIZER (1-2) | Sleeve set - SYNCHRONIZER (1-2) |
| 8 | 23912-PL3-000 | Collar - DISTANCE, 33X39X30 | Collar - DISTANCE, 33X39X30 |
| 9 | 23926-PB6-010 | Washer - SPRING, 22MM | Washer - SPRING, 22MM |
| 10 | 90202-PB6-010 | Nut - FLANGE, 22MM | Nut - FLANGE, 22MM |
| 11 | 90603-PL3-000 | Ring - SNAP, 52MM | Ring - SNAP, 52MM |
| 12 | 91003-PL3-B04 | Bearing - BALL, 25X52X14/15 (TOYO) | Bearing - BALL, 25X52X14/15 (TOYO) |
| 13 | 91006-PL3-A03 | Bearing - BALL, 25X52X15 (6205UC/25) (NTN) | Bearing - BALL, 25X52X15 (6205UC/25) (NTN) |
| 14 | 91104-PL3-018 | Bearing - NEEDLE, 36X41X24 | Bearing - NEEDLE, 36X41X24 |
| 15 | 91105-PL3-018 | Bearing - NEEDLE, 39X44X25 | Bearing - NEEDLE, 39X44X25 |
| 16 | 91211-PL3-T01 | Damper - FRICTION (LOW) | Damper - FRICTION (LOW) |
| 17 | 91212-PL3-T01 | Damper - FRICTION (SECOND) | Damper - FRICTION (SECOND) |
Cylinder block/oil pan 23 / 26
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 11106-PE0-300 | Bolt - SEALING, 14MM | Bolt - SEALING, 14MM |
| 3 | 11111-PM3-300 | Pipe - OIL LEVEL | Pipe - OIL LEVEL |
| 4 | 11126-PK1-003 | Bolt - SEALING, 22MM | Bolt - SEALING, 22MM |
| 5 | 11200-PM3-010 | Pan comp - OIL | Pan comp - OIL |
| 6 | 11251-PE2-004 | Gasket - OIL PAN (OTSUKA) | Gasket - OIL PAN (OTSUKA) |
| 6 | 11251-PE2-003 | Gasket - OIL PAN (KOKOKU) | Gasket - OIL PAN (KOKOKU) |
| 6 | 11251-P01-004 | Packing - OIL PAN (OTSUKA) | Packing - OIL PAN (OTSUKA) |
| 7 | 11301-PE0-040 | Cover - R. SIDE | Cover - R. SIDE |
| 8 | 11910-PM3-700 | Bracket - ENGINE MOUNTING | Bracket - ENGINE MOUNTING |
| 9 | 11911-PM4-000 | Stay - ENGINE MOUNTING BRACKET | Stay - ENGINE MOUNTING BRACKET |
| 10 | 15140-PM3-000 | Orifice assy - OIL PATH | Orifice assy - OIL PATH |
| 11 | 15650-PM6-000 | Gauge comp. - OIL LEVEL | Gauge comp. - OIL LEVEL |
| 12 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 14 | 90008-PM3-000 | Bolt - MOUNTING BRACKET, 10X32.5 | Bolt - MOUNTING BRACKET, 10X32.5 |
| 15 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 16 | 90041-PA5-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 17 | 90041-PM3-000 | Bolt - STUD, 12X44 | Bolt - STUD, 12X44 |
| 18 | 90401-PM3-000 | Washer - DRAIN PLUG, 28MM | Washer - DRAIN PLUG, 28MM |
| 20 | 90703-PE0-000 | Dowel pin - 18X22 | Dowel pin - 18X22 |
| 21 | 91214-PE1-721 | Oil seal - 80X100X10 (NOK) | Oil seal - 80X100X10 (NOK) |
| 21 | 91214-PLE-003 | Oil seal | Oil seal |
| 22 | 91303-KE7-003 | O-ring - 7.2X1.7 (ARAI) | O-ring - 7.2X1.7 (ARAI) |
| 22 | 91312-107-000 | O-ring (7x1.7) | O-ring (7x1.7) |
Cylinder head 22 / 26
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 3 | 12204-PJ7-305 | Guide - IN. VALVE (OS) | Guide - IN. VALVE (OS) |
| 4 | 12205-PJ7-305 | Guide - EX. VALVE (OS) | Guide - EX. VALVE (OS) |
| 5 | 12210-PJ7-004 | Seal a - VALVE STEM (NOK) | Seal a - VALVE STEM (NOK) |
| 5 | 12210-PJ7-003 | Seal a - VALVE STEM (ARAI) | Seal a - VALVE STEM (ARAI) |
| 6 | 12211-PJ7-004 | Seal b - VALVE STEM (NOK) | Seal b - VALVE STEM (NOK) |
| 6 | 12211-PJ7-013 | Seal b - VALVE STEM (ARAI) | Seal b - VALVE STEM (ARAI) |
| 8 | 14631-PJ7-J00 | Shaft a - VALVE ROCKER ARM | Shaft a - VALVE ROCKER ARM |
| 9 | 14632-PJ7-J00 | Shaft b - VALVE ROCKER ARM | Shaft b - VALVE ROCKER ARM |
| 10 | 14633-PJ7-000 | Shaft - EX. VALVE ROCKER ARM | Shaft - EX. VALVE ROCKER ARM |
| 11 | 90002-PM3-000 | Bolt - FLANGE, 8X72 | Bolt - FLANGE, 8X72 |
| 11 | 90010-PY3-000 | Bolt - FLANGE, 8X72 | Bolt - FLANGE, 8X72 |
| 12 | 90003-PM0-B00 | Bolt - FLANGE, 6X65 | Bolt - FLANGE, 6X65 |
| 13 | 90003-PM3-000 | Bolt - FLANGE, 8X62 | Bolt - FLANGE, 8X62 |
| 13 | 90002-PZ1-000 | Bolt,flange,8x62 | Bolt,flange,8x62 |
| 14 | 90005-PM3-004 | Bolt-washer - 10X140(TOKAI TRW) | Bolt-washer - 10X140(TOKAI TRW) |
| 14 | 90005-PM3-003 | Bolt-washer - 10X140 (SAGA) | Bolt-washer - 10X140 (SAGA) |
| 15 | 90014-PM3-000 | Bolt a - CYLINDER HEAD COVER | Bolt a - CYLINDER HEAD COVER |
| 16 | 90026-PE0-000 | Bolt - STUD, 8X37 | Bolt - STUD, 8X37 |
| 16 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
| 17 | 91301-PJ7-000 | O-ring - 31X2.5 | O-ring - 31X2.5 |
| 18 | 91302-PJ7-003 | O-ring - (NO.4 CAM HOLDER) (ARAI) | O-ring - (NO.4 CAM HOLDER) (ARAI) |
| 18 | 91302-PJ7-004 | O-ring - (NO.4 CAM HOLDER) (NOK) | O-ring - (NO.4 CAM HOLDER) (NOK) |

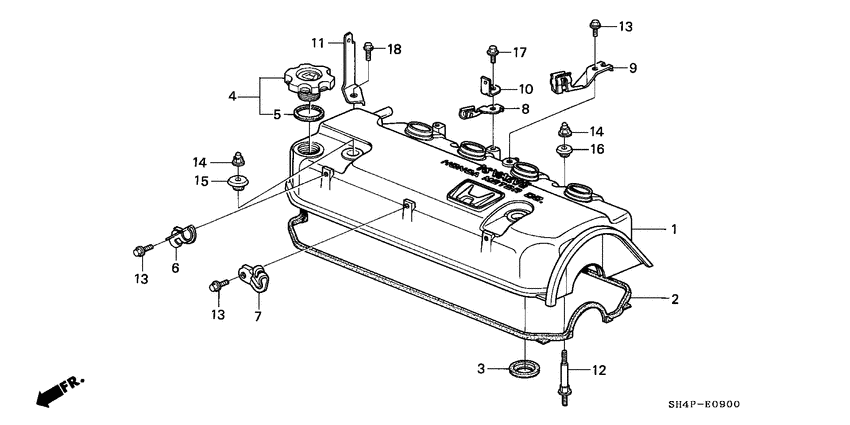

Cylinder head cover 10 / 15
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 12341-PM6-000 | Packing - CYLINDER HEAD COVER | Packing - CYLINDER HEAD COVER |
| 2 | 12341-PM6-010 | Packing - CYLINDER HEAD COVER | Packing - CYLINDER HEAD COVER |
| 3 | 12342-PJ7-000 | Packing b - HEAD COVER | Packing b - HEAD COVER |
| 4 | 15610-PC6-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 5 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 10 | 32761-PM3-000 | Stay a - HIGH TENSION CORD CLAMP | Stay a - HIGH TENSION CORD CLAMP |
| 12 | 90013-PM3-000 | Bolt b - CYLINDER HEAD COVER | Bolt b - CYLINDER HEAD COVER |
| 14 | 90213-PH3-000 | Nut - CAP, 6MM | Nut - CAP, 6MM |
| 15 | 90441-PN4-000 | Washer - HEAD COVER | Washer - HEAD COVER |
| 16 | 90441-PK2-000 | Washer - HEAD COVER | Washer - HEAD COVER |
Door trim 2 / 3
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 11 | 90609-SB6-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 13 | 90683-693-000 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Driveshaft 3 / 19
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 9 | 44317-SA2-300 | Band b - BOOT | Band b - BOOT |
| 14 | 44319-SA2-000 | Set ring - 26X1.8 | Set ring - 26X1.8 |
| 20 | 44347-SB2-003 | Ring - OUTBOARD | Ring - OUTBOARD |
Emblems 3 / 12
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 17277-PM3-Y00 | Label - SERVICE INFORMATION | Label - SERVICE INFORMATION |
| 13 | 87351-SA0-003 | Clip - TUBULAR | Clip - TUBULAR |
| 13 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
Engine mounts 25 / 33
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 50250-SH3-060 | Beam - FR. | Beam - FR. |
| 2 | 50250-SH9-030 | Beam - FR. | Beam - FR. |
| 3 | 50805-SH3-040 | Rubber - TRANSMISSION MOUNTING (MT) | Rubber - TRANSMISSION MOUNTING (MT) |
| 5 | 50810-SH3-040 | Rubber assy. - ENGINE RR. MOUNTING (MT) | Rubber assy. - ENGINE RR. MOUNTING (MT) |
| 6 | 50821-SH3-040 | Rubber - ENGINE SIDE MOUNTING | Rubber - ENGINE SIDE MOUNTING |
| 7 | 50825-SH3-050 | Bracket - TRANSMISSION MOUNTING (MT) | Bracket - TRANSMISSION MOUNTING (MT) |
| 9 | 50827-SH3-030 | Bracket - RR. ENGINE MOUNTING (MT) | Bracket - RR. ENGINE MOUNTING (MT) |
| 11 | 50829-SK7-J00 | Mass - RR. ENGINE MOUNTING | Mass - RR. ENGINE MOUNTING |
| 12 | 50839-SK7-000 | Nut - YOKE, 12MM | Nut - YOKE, 12MM |
| 12 | 50839-SH3-000 | Nut - YOKE, 12MM | Nut - YOKE, 12MM |
| 13 | 50840-SH3-000 | Mounting assy. - FR. STOPPER (MT) | Mounting assy. - FR. STOPPER (MT) |
| 15 | 90182-SK7-000 | Bolt - FLANGE, 12X100 | Bolt - FLANGE, 12X100 |
| 16 | 91770-SH3-000 | Bolt - FLANGE, 10X23 | Bolt - FLANGE, 10X23 |
| 17 | 90161-SH3-040 | Bolt - HEX., 12X113 | Bolt - HEX., 12X113 |
| 19 | 90164-SH3-010 | Bolt - FLANGE, 12X90 | Bolt - FLANGE, 12X90 |
| 21 | 90170-SH3-010 | Bolt - FLANGE, 12X60 | Bolt - FLANGE, 12X60 |
| 22 | 90180-SH3-000 | Bolt-washer - SPECIAL, 10X22 | Bolt-washer - SPECIAL, 10X22 |
| 23 | 90181-SH3-000 | Bolt - SPECIAL FLANGE, 12X25 | Bolt - SPECIAL FLANGE, 12X25 |
| 24 | 90371-SH3-020 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 25 | 90504-SB0-000 | Washer - PLAIN, 12MM | Washer - PLAIN, 12MM |
| 26 | 90504-SH3-000 | Washer - PLAIN, 12MM | Washer - PLAIN, 12MM |
| 27 | 91771-SH3-000 | Washer - PLAIN, 10MM | Washer - PLAIN, 10MM |
| 28 | 90509-SH3-000 | Washer - FR. BEAM | Washer - FR. BEAM |
| 29 | 91613-SE0-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 33 | 90183-SH3-000 | Bolt - FLANGE, 12X115 | Bolt - FLANGE, 12X115 |
Engine wire harness/clamp 18 / 26
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 4 | 31110-PM3-003 | Belt - ALTERNATOR (BANDO) | Belt - ALTERNATOR (BANDO) |
| 4 | 31110-PM3-506 | Belt | Belt |
| 4 | 31110-PM3-014 | Belt - ALTERNATOR (MITSUBOSHI) | Belt - ALTERNATOR (MITSUBOSHI) |
| 5 | 31112-PM3-000 | Bracket comp. - ALTERNATOR | Bracket comp. - ALTERNATOR |
| 6 | 31113-PM3-000 | Stay - ALTERNATOR | Stay - ALTERNATOR |
| 7 | 31117-PM5-A00 | Plate - CAUTION | Plate - CAUTION |
| 12 | 32743-PM3-010 | Clamp b - ENGINE WIRE HARNESS | Clamp b - ENGINE WIRE HARNESS |
| 16 | 32750-PM3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 19 | 37240-PD2-003 | Switch - OIL PRESSURE (DENSO) | Switch - OIL PRESSURE (DENSO) |
| 19 | 37240-PD2-004 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 20 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 21 | 37760-PM3-003 | Switch assy - THERMOSTAT (A-93) (NIPPON THERMOSTAT) | Switch assy - THERMOSTAT (A-93) (NIPPON THERMOSTAT) |
| 23 | 90050-PG7-000 | Bolt - FLANGE, 12X65 | Bolt - FLANGE, 12X65 |
| 25 | 90057-PG7-003 | Bolt - ALTERNATOR | Bolt - ALTERNATOR |
| 26 | 90430-657-000 | Washer - 23X8.3X3.2 | Washer - 23X8.3X3.2 |
| 28 | 91307-611-000 | O-ring (13.5X1.4) | O-ring (13.5X1.4) |
| 28 | 91307-PH7-660 | O-ring (13.5X1.4) | O-ring (13.5X1.4) |
| 29 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
Exhaust manifold (1) 8 / 15
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 5 | 18115-PM3-003 | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) |
| 8 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 9 | 90015-PH7-000 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 9 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 10 | 90065-PG6-000 | Bolt, STUD, 10X24 | Bolt, STUD, 10X24 |
| 11 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 11 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 12 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
Exhaust pipe 12 / 19
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 15 | 18215-671-000 | Rubber - SILENCER MOUNTING (74X53X22) | Rubber - SILENCER MOUNTING (74X53X22) |
| 16 | 18215-SH3-J01 | Rubber - EX. MOUNTING (70X55X30) | Rubber - EX. MOUNTING (70X55X30) |
| 17 | 18215-SH3-J80 | Rubber - EX. MOUNTING (60X50X20) | Rubber - EX. MOUNTING (60X50X20) |
| 17 | 18215-SR3-000 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 21 | 18229-SB2-003 | Gasket - EX. FLEXIBLE (45MM-59MM) | Gasket - EX. FLEXIBLE (45MM-59MM) |
| 23 | 18230-SA0-930 | Spring - FLEXIBLE JOINT | Spring - FLEXIBLE JOINT |
| 24 | 18231-SB2-000 | Bolt - FLEXIBLE JOINT | Bolt - FLEXIBLE JOINT |
| 25 | 18231-SH3-J31 | Bolt - FLEXIBLE JOINT | Bolt - FLEXIBLE JOINT |
| 32 | 74651-SH3-000 | Plate - FUEL TANK BAFFLE | Plate - FUEL TANK BAFFLE |
| 33 | 90115-SB2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 35 | 90117-SB2-000 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 36 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
Floor mat 3 / 7
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 64436-692-000 | Clip - GUIDE | Clip - GUIDE |
| 13 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 16 | 91641-SH3-013 | Grommet assy, GARNISH | Grommet assy, GARNISH |
Front brake caliper (2) 5 / 19
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 43352-692-003 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-SA0-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 2 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 15 | 45240-SC2-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 18 | 90107-663-670 | Bolt - CALIPER MOUNTING | Bolt - CALIPER MOUNTING |
Front combination light 19 / 23
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 33300-SH4-023 | Light assy - R. FR. TURN SIGNAL | Light assy - R. FR. TURN SIGNAL |
| 1 | 33300-SH4-013 | Light assy - R. FR. TURN SIGNAL | Light assy - R. FR. TURN SIGNAL |
| 2 | 33301-SH4-003 | Lens - R. | Lens - R. |
| 3 | 33302-SH4-003 | Housing - R. | Housing - R. |
| 4 | 33303-SH4-003 | Packing | Packing |
| 6 | 33305-SH3-A01 | Socket comp - GRAY | Socket comp - GRAY |
| 7 | 33350-SH4-023 | Light assy - L. FR. TURN SIGNAL | Light assy - L. FR. TURN SIGNAL |
| 7 | 33350-SH4-013 | Light assy - L. FR. TURN SIGNAL | Light assy - L. FR. TURN SIGNAL |
| 8 | 33351-SH4-003 | Lens - L. | Lens - L. |
| 9 | 33352-SH4-003 | Housing - L. | Housing - L. |
| 10 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 11 | 33800-SH3-G01 | Light assy - SIDE TURN SIGNAL (###) | Light assy - SIDE TURN SIGNAL (###) |
| 12 | 33801-SH3-G01 | Lens | Lens |
| 13 | 33802-SH3-G01 | Cord comp | Cord comp |
| 19 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 24 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 26 | 90140-SD4-013 | Screw - TAPPING, 4X40 | Screw - TAPPING, 4X40 |
| 27 | 90303-SA5-003 | Nut - FR. COMBINATION LIGHT | Nut - FR. COMBINATION LIGHT |
| 28 | 91580-SH3-003 | Holder - FR. POSITION (BLACK) | Holder - FR. POSITION (BLACK) |
Front door lining 11 / 21
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 5 | 39121-SB2-013 | Seal - SPEAKER HOLE | Seal - SPEAKER HOLE |
| 9 | 72327-SD5-000 | Seal b - FR. DOOR HOLE (30X50) | Seal b - FR. DOOR HOLE (30X50) |
| 27 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 28 | 90662-693-003 | Grommet - SCREW, 4MM (BLUE) | Grommet - SCREW, 4MM (BLUE) |
| 29 | 91560-SD5-003 | Clip - LINING | Clip - LINING |
| 31 | 91530-SE0-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 31 | 90664-671-003 | Clip - CANOE | Clip - CANOE |
| 33 | 91556-SH3-003 | Clip - DRIVE PIN | Clip - DRIVE PIN |
| 34 | 91558-SH3-003 | Cap - LINING MOUNTING | Cap - LINING MOUNTING |
| 35 | 91642-SH3-013 | Grommet - DOOR LINING | Grommet - DOOR LINING |
| 36 | 91660-SH4-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Front door locks 10 / 16
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 11 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 13 | 72140-SH3-004 | Handle assy - R. OUTSIDE (HONDA LOCK) | Handle assy - R. OUTSIDE (HONDA LOCK) |
| 14 | 72145-SH3-023 | Cylinder - R. DOOR (HONDA LOCK) | Cylinder - R. DOOR (HONDA LOCK) |
| 15 | 72146-SH3-023 | Cylinder - L. DOOR (HONDA LOCK) | Cylinder - L. DOOR (HONDA LOCK) |
| 26 | 72180-SH3-004 | Handle assy - L. OUTSIDE (HONDA LOCK) | Handle assy - L. OUTSIDE (HONDA LOCK) |
| 32 | 72175-SH3-003 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 33 | 72105-SF1-003 | Striker - DOOR LOCK | Striker - DOOR LOCK |
| 34 | 75556-605-010 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 35 | 90111-SA0-000 | Screw - TAPPING, 4X8 | Screw - TAPPING, 4X8 |
| 36 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Front door panels 5 / 6
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 13 | 75760-SB2-003 | Pin - DOOR CHECKER | Pin - DOOR CHECKER |
| 14 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 15 | 90001-SD2-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 16 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 17 | 90755-SB2-000 | E-ring - 6MM | E-ring - 6MM |
Front door windows 3 / 15
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 10 | 72246-SH3-003 | Stopper - DOOR GLASS | Stopper - DOOR GLASS |
| 22 | 90011-896-000 | Bolt - FLANGE, 6X8 | Bolt - FLANGE, 6X8 |
| 27 | 90115-SG0-003 | Bolt - FLANGE, 6MM | Bolt - FLANGE, 6MM |
Front fenders 14 / 18
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 5 | 61815-SA5-013 | Clip - FR. MUDGUARD | Clip - FR. MUDGUARD |
| 7 | 74111-SH3-010 | Shield - R. FR. SPLASH | Shield - R. FR. SPLASH |
| 8 | 74115-SH3-010 | Guard | Guard |
| 10 | 74161-SH3-010 | Shield - L. FR. SPLASH | Shield - L. FR. SPLASH |
| 11 | 74165-SH3-000 | Guard | Guard |
| 14 | 90126-SA7-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 14 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 16 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 18 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 19 | 90850-SA7-000 | Plug - FUSE LID | Plug - FUSE LID |
| 20 | 91504-SF4-003 | Clip - FR. COWL | Clip - FR. COWL |
| 20 | 91501-S04-003 | Clip - INNER FENDER | Clip - INNER FENDER |
| 21 | 91516-SH3-003 | Clip - UNDER COVER | Clip - UNDER COVER |
| 21 | 91516-SK7-013 | Clip - UNDER COVER | Clip - UNDER COVER |
Front seat 4 / 6
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 81115-SH3-003 | Cover - R. CENTER | Cover - R. CENTER |
| 9 | 81515-SH3-003 | Cover - L. CENTER | Cover - L. CENTER |
| 16 | 90131-SH3-003 | Bolt - TORX, 8X17 | Bolt - TORX, 8X17 |
| 17 | 90609-SB6-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
Front seat components 1 / 8
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 13 | 90155-SH3-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
Front shock absorber 16 / 22
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 6 | 51621-SB0-004 | Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA) | Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 6 | 51621-SB0-003 | Washer - SHOCK ABSORBER MOUNTING (TOKICO) | Washer - SHOCK ABSORBER MOUNTING (TOKICO) |
| 7 | 51631-SB0-004 | Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA) | Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA) |
| 7 | 51631-S7S-J01 | RUBBER DAMPER M | RUBBER DAMPER M |
| 7 | 51631-SB0-003 | Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.) | Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.) |
| 8 | 51675-SH3-024 | Base - SHOCK ABSORBER MOUNTING (SHOWA) | Base - SHOCK ABSORBER MOUNTING (SHOWA) |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 10 | 51686-SH3-014 | Rubber - FR. SPRING MOUNTING (SHOWA) | Rubber - FR. SPRING MOUNTING (SHOWA) |
| 11 | 51687-SH3-014 | Cover - FR. SLEEVE DUST | Cover - FR. SLEEVE DUST |
| 12 | 51689-SH3-004 | Plate - BUMP STOP (SHOWA) | Plate - BUMP STOP (SHOWA) |
| 13 | 51722-SE0-004 | Rubber - BUMP STOPPER (POLYURETHAN KASEI) | Rubber - BUMP STOPPER (POLYURETHAN KASEI) |
| 13 | 51722-SE0-003 | Rubber - BUMP STOPPER (NIPPON MEKTRON) | Rubber - BUMP STOPPER (NIPPON MEKTRON) |
| 14 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 15 | 90304-SH3-004 | Nut-washer - 10MM | Nut-washer - 10MM |
| 15 | 90304-SH3-505 | New Genuine Part | New Genuine Part |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |

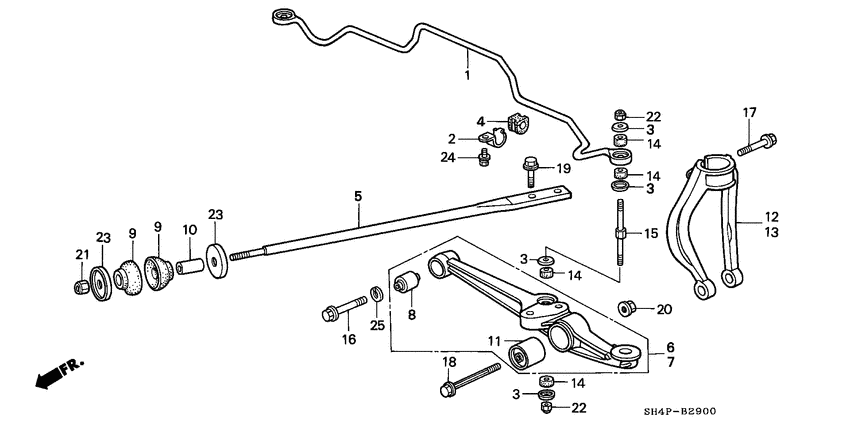

Front stabilizer/front lower arm 24 / 26
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 51308-SH3-010 | Holder - FR. STABILIZER | Holder - FR. STABILIZER |
| 3 | 51313-SF1-000 | Washer a | Washer a |
| 5 | 51352-SH3-000 | Rod - FR. RADIUS | Rod - FR. RADIUS |
| 6 | 51355-SH3-020 | Arm comp - R. FR. LOWER | Arm comp - R. FR. LOWER |
| 7 | 51365-SH3-020 | Arm comp - L. FR. LOWER | Arm comp - L. FR. LOWER |
| 8 | 51393-SH3-003 | Bush - FR. LOWER ARM (HOKUSHIN) | Bush - FR. LOWER ARM (HOKUSHIN) |
| 9 | 51395-SH3-003 | Bush - FR. RADIUS ROD (HOKUSHIN) | Bush - FR. RADIUS ROD (HOKUSHIN) |
| 9 | 51395-SH3-004 | Bush - FR. RADIUS ROD (YAMASHITA) | Bush - FR. RADIUS ROD (YAMASHITA) |
| 10 | 51398-SA5-000 | Collar - RADIUS ROD | Collar - RADIUS ROD |
| 11 | 51810-SH3-004 | Bush - SHOCK ABSORBER FORK (YAMASHITA) | Bush - SHOCK ABSORBER FORK (YAMASHITA) |
| 11 | 51810-SK7-004 | Bush - SHOCK ABSORBER FORK | Bush - SHOCK ABSORBER FORK |
| 11 | 51810-SH3-003 | Bush - SHOCK ABSORBER FORK (HOKUSHIN) | Bush - SHOCK ABSORBER FORK (HOKUSHIN) |
| 12 | 51811-SH3-010 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 13 | 51821-SH3-010 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 14 | 52316-692-010 | Rubber a - STABILIZER | Rubber a - STABILIZER |
| 15 | 90112-SK7-000 | Bolt - FR. STABILIZER | Bolt - FR. STABILIZER |
| 16 | 90118-SK7-003 | Bolt - LOWER ARM, 10X80 (JYUJI) | Bolt - LOWER ARM, 10X80 (JYUJI) |
| 17 | 90120-SB0-003 | Bolt - SHOCK ABSORBER LOCK, 10X42 | Bolt - SHOCK ABSORBER LOCK, 10X42 |
| 18 | 90175-SH3-005 | Bolt - SHOCK ABSORBER FORK | Bolt - SHOCK ABSORBER FORK |
| 19 | 90178-SK7-013 | Bolt - FR. RADIUS ROD (12X30) | Bolt - FR. RADIUS ROD (12X30) |
| 20 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 21 | 90303-SF1-003 | Nut - SELF-LOCK, 12MM | Nut - SELF-LOCK, 12MM |
| 22 | 90362-SF1-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 23 | 90501-692-000 | Washer - FR. RADIUS ROD | Washer - FR. RADIUS ROD |
Front windshield wiper (1) 11 / 21
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 38472-SB2-003 | Rubber - BLADE (450MM) | Rubber - BLADE (450MM) |
| 1 | 76632-S5H-T01 | Rubber - BLADE (450MM) | Rubber - BLADE (450MM) |
| 2 | 38472-SB3-003 | Rubber - BLADE (475MM) | Rubber - BLADE (475MM) |
| 4 | 76515-SH3-003 | Seal a | Seal a |
| 5 | 76516-SE0-003 | Rubber - BRACKETLESS MOUNTING | Rubber - BRACKETLESS MOUNTING |
| 6 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 7 | 76520-SH3-003 | Link unit a | Link unit a |
| 8 | 76524-SD4-003 | Dust seal | Dust seal |
| 9 | 76524-SE0-013 | Dust seal | Dust seal |
| 14 | 76561-SH3-003 | Cap - PIVOT | Cap - PIVOT |
| 20 | 90308-SE0-000 | Nut - CAP, 8MM | Nut - CAP, 8MM |
Front windshield/rear windshield 4 / 28
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 3 | 73126-SH3-000 | Rubber - FR. WINDSHIELD DAM | Rubber - FR. WINDSHIELD DAM |
| 4 | 73127-SH3-013 | Holder - FR. WINDSHIELD GLASS | Holder - FR. WINDSHIELD GLASS |
| 5 | 73128-SH3-000 | Rubber - FR. WINDSHIELD DAM | Rubber - FR. WINDSHIELD DAM |
| 5 | 73125-SD5-000 | Rubber - FR. WINDSHIELD DAM | Rubber - FR. WINDSHIELD DAM |
Fuel hose/two way valve 7 / 18
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 5 | 17371-SF1-003 | Valve - TWO WAY | Valve - TWO WAY |
| 11 | 17728-SG0-E01 | Chamber - FUEL VENT AIR | Chamber - FUEL VENT AIR |
| 12 | 17729-SD4-E00 | Stay - FUEL VENT AIR CHAMBER | Stay - FUEL VENT AIR CHAMBER |
| 15 | 90347-SF4-000 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 16 | 90657-SH3-013 | Clip - TWO WAY VALVE COVER | Clip - TWO WAY VALVE COVER |
| 17 | 90671-SB2-000 | Bolt - FR. FENDER (DACRO COATING) | Bolt - FR. FENDER (DACRO COATING) |
| 22 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |

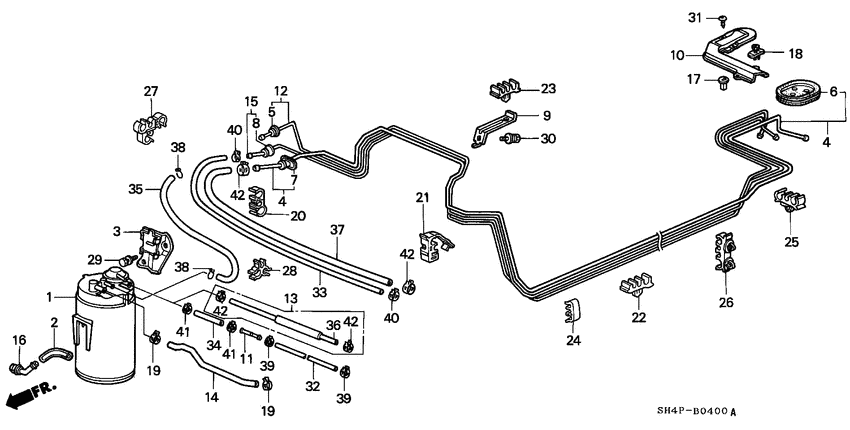

Fuel pipe 5 / 14
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 7 | 17711-SH3-000 | Grommet - FUEL PIPE | Grommet - FUEL PIPE |
| 8 | 17712-SA0-000 | Grommet - FUEL PIPE | Grommet - FUEL PIPE |
| 10 | 17715-SH3-020 | Protector - PIPE | Protector - PIPE |
| 17 | 90664-SH3-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 18 | 90675-SA7-003 | Clip - FR. COWL | Clip - FR. COWL |
Fuel tank 20 / 32
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 17521-SH3-030 | Band - R. FUEL TANK MOUNTING | Band - R. FUEL TANK MOUNTING |
| 3 | 17522-SH3-020 | Band - L. FUEL TANK MOUNTING | Band - L. FUEL TANK MOUNTING |
| 4 | 17525-SH3-010 | Bolt - FUEL TANK MOUNTING | Bolt - FUEL TANK MOUNTING |
| 5 | 17526-SB3-023 | Valve - FILLER NECK | Valve - FILLER NECK |
| 7 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 10 | 17662-SB2-010 | Packing - FUEL FILLER | Packing - FUEL FILLER |
| 13 | 17670-SA5-013 | Cap comp. - FUEL FILLER | Cap comp. - FUEL FILLER |
| 14 | 17682-679-013 | Packing - FUEL FILLER CAP | Packing - FUEL FILLER CAP |
| 15 | 37800-SH3-003 | Meter unit - FUEL (NS) | Meter unit - FUEL (NS) |
| 15 | 37800-SH3-004 | Meter unit - FUEL (DENSO) | Meter unit - FUEL (DENSO) |
| 16 | 37801-689-000 | Packing - BASE | Packing - BASE |
| 17 | 37802-SD2-000 | Retainer - FUEL UNIT | Retainer - FUEL UNIT |
| 20 | 70494-SE0-000 | Spring - FUEL LID OPENER | Spring - FUEL LID OPENER |
| 21 | 74422-SH3-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 24 | 90103-SB0-010 | Nut - FLANGE, 5MM | Nut - FLANGE, 5MM |
| 25 | 90126-SA7-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 25 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 27 | 90147-634-003 | Bolt - FENDER, 6X18 | Bolt - FENDER, 6X18 |
| 28 | 90602-SA7-931 | Clamp - FUEL HOSE, 18.5MM | Clamp - FUEL HOSE, 18.5MM |
| 29 | 90657-SA5-003 | Clip - SIDE APRON MOLDING | Clip - SIDE APRON MOLDING |
Gasket kit/engine assy./ transmission assy. 1 / 6
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 06111-PM3-000 | Gasket kit - CYLINDER BLOCK | Gasket kit - CYLINDER BLOCK |
Glove box 7 / 8
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 66405-SD4-000 | Stay - GLOVE BOX HINGE | Stay - GLOVE BOX HINGE |
| 2 | 66417-SB3-670 | Rubber - GLOVE BOX STOPPER | Rubber - GLOVE BOX STOPPER |
| 3 | 66418-SB2-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 4 | 66430-SB2-000 | Striker assy - GLOVE BOX | Striker assy - GLOVE BOX |
| 8 | 90133-SH3-000 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 9 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 10 | 90305-SA0-000 | Nut - FLOATING, 4MM | Nut - FLOATING, 4MM |
Grommet 19 / 21
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 38565-671-000 | Grommet - WASHER HOSE | Grommet - WASHER HOSE |
| 1 | 91617-SB6-000 | Grommet - WASHER HOSE, 32MM | Grommet - WASHER HOSE, 32MM |
| 3 | 91614-SA5-000 | Grommet - HEATER LEVER HOLE (20MM) | Grommet - HEATER LEVER HOLE (20MM) |
| 6 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 7 | 72206-SH3-000 | Cap - FLOOR HOLE | Cap - FLOOR HOLE |
| 8 | 72207-SB2-000 | Cap - FLOOR HOLE, 24MM | Cap - FLOOR HOLE, 24MM |
| 9 | 72207-SH3-000 | Cap - FLOOR HOLE | Cap - FLOOR HOLE |
| 10 | 75826-605-300 | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) |
| 12 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 14 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 15 | 90851-SB2-000 | Plug - AIR CONDITIONER HOLE | Plug - AIR CONDITIONER HOLE |
| 16 | 90852-SA5-000 | Plug - HOLE, 10MM | Plug - HOLE, 10MM |
| 17 | 90852-671-003 | Plug - HOLE | Plug - HOLE |
| 19 | 91518-SH3-003 | Plug - HOLE, 7MM | Plug - HOLE, 7MM |
| 20 | 91604-SD2-013 | Grommet - HOOD STAY | Grommet - HOOD STAY |
| 22 | 91610-SB2-003 | Plug - HOLE, 16.7MM (BLACK) | Plug - HOLE, 16.7MM (BLACK) |
| 23 | 91616-SH3-000 | Seal - FR. PILLAR INNER LOWER (110X110) | Seal - FR. PILLAR INNER LOWER (110X110) |
| 25 | 91617-SH3-000 | Seal - HOLE | Seal - HOLE |
| 26 | 91629-SE0-003 | Plug - BLIND, 14MM | Plug - BLIND, 14MM |
Headlight (2) 7 / 11
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 3 | 33115-692-741 | Bulb - HEADLIGHT (12V 60/55W) (PHILIPS) (HALOGEN) | Bulb - HEADLIGHT (12V 60/55W) (PHILIPS) (HALOGEN) |
| 4 | 33126-SH3-003 | Cover - RUBBER | Cover - RUBBER |
| 5 | 33140-SH3-A00 | Bracket - R. HEADLIGHT ADJUSTER | Bracket - R. HEADLIGHT ADJUSTER |
| 6 | 33143-SH3-003 | Plate - R. | Plate - R. |
| 9 | 33190-SH3-A00 | Bracket - L. HEADLIGHT ADJUSTER | Bracket - L. HEADLIGHT ADJUSTER |
| 10 | 33193-SH3-003 | Plate - L. | Plate - L. |
| 11 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
Heater blower 5 / 8
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 5 | 79330-SH3-003 | Resistor - BLOWER | Resistor - BLOWER |
| 6 | 90307-SA0-003 | Nut - FLANGE, 5MM | Nut - FLANGE, 5MM |
| 7 | 90501-671-003 | Washer - SPECIAL | Washer - SPECIAL |
| 8 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
Heater control 23 / 30
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 2 | 90689-SD2-000 | Grommet - WATER VALVE CABLE | Grommet - WATER VALVE CABLE |
| 3 | 77671-SE3-003 | Washer - LINK | Washer - LINK |
| 5 | 79511-SH3-000 | Base - HEATER CONTROL | Base - HEATER CONTROL |
| 6 | 79514-SH3-000 | Plate - HEATER CONTROL SETTING | Plate - HEATER CONTROL SETTING |
| 7 | 79516-SH3-000 | Plate - TEMPERATURE CLICK | Plate - TEMPERATURE CLICK |
| 8 | 79517-SD4-000 | Mount - CONTROL SHAFT | Mount - CONTROL SHAFT |
| 9 | 79519-SH3-010 | Gear - CONTROL SHAFT | Gear - CONTROL SHAFT |
| 11 | 79522-SD4-000 | Roller - LEVER | Roller - LEVER |
| 12 | 79522-SH3-000 | Lever - TEMPERATURE CONTROL | Lever - TEMPERATURE CONTROL |
| 14 | 79524-SD4-000 | Collar - CONTROL SHAFT | Collar - CONTROL SHAFT |
| 15 | 79525-SH3-010 | Link - TEMP CONTROL | Link - TEMP CONTROL |
| 16 | 79526-SD4-000 | Shaft comp. - CONTROL | Shaft comp. - CONTROL |
| 17 | 79529-SH3-000 | Stopper - CONTROL LEVER | Stopper - CONTROL LEVER |
| 18 | 79535-SF4-000 | Spring - HEATER CONTROL | Spring - HEATER CONTROL |
| 23 | 79550-SH3-A02 | Illumination assy. - HEATER | Illumination assy. - HEATER |
| 24 | 79552-SH3-013 | Lid - AIR CONDITIONER SWITCH | Lid - AIR CONDITIONER SWITCH |
| 25 | 79570-SH3-003 | Switch assy - HEATER FAN (ALPS) | Switch assy - HEATER FAN (ALPS) |
| 25 | 79570-SH3-004 | Switch assy - HEATER FAN (TEC) | Switch assy - HEATER FAN (TEC) |
| 26 | 79581-SH3-G00 | Knob - HEATER CONTROL | Knob - HEATER CONTROL |
| 27 | 79582-SH3-000 | Knob - TEMPERATURE CONTROL | Knob - TEMPERATURE CONTROL |
| 28 | 90102-SA4-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 29 | 90107-SA5-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
Heater unit 5 / 11
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 10 | 79183-SH3-003 | Lever c - MODE | Lever c - MODE |
| 12 | 79188-SH3-003 | Lever b - AIR MODE | Lever b - AIR MODE |
| 14 | 80789-SH3-003 | Holder - ROD | Holder - ROD |
| 15 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
High tension cord/plug 6 / 12
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 7 | 32763-PM3-000 | Clamp c - HIGH TENSION CORD | Clamp c - HIGH TENSION CORD |
| 8 | 32764-PM3-000 | Clamp d - HIGH TENSION CORD | Clamp d - HIGH TENSION CORD |
| 9 | 32765-PM3-000 | Clamp a - HIGH TENSION CORD | Clamp a - HIGH TENSION CORD |
| 10 | 32766-PM3-000 | Clamp b - HIGH TENSION CORD | Clamp b - HIGH TENSION CORD |
| 11 | 32777-695-000 | Clamp - HIGH TENSION CORD | Clamp - HIGH TENSION CORD |
| 12 | 90003-PJ7-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
Hood 19 / 42
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 6 | 60658-SB3-000 | Cap - AIRSCOOP | Cap - AIRSCOOP |
| 6 | 60658-SD2-000 | Cap - AIRSCOOP GARNISH | Cap - AIRSCOOP GARNISH |
| 14 | 74134-SH3-003 | Grommet - HOOD WIRE | Grommet - HOOD WIRE |
| 21 | 74144-SE0-000 | Cushion - HOOD | Cushion - HOOD |
| 24 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 27 | 74232-SH3-003 | Cap - WATER GUIDE | Cap - WATER GUIDE |
| 30 | 90102-SB3-000 | Bolt - HINGE STOPPER | Bolt - HINGE STOPPER |
| 31 | 90127-SA0-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 33 | 90307-SD2-A00 | Nut - CAP, 6MM | Nut - CAP, 6MM |
| 36 | 90671-SH3-003 | Holder - HOOD OPENER STAY | Holder - HOOD OPENER STAY |
| 37 | 90107-SM4-003 | Clip - HOOD SEAL | Clip - HOOD SEAL |
| 38 | 91513-SD2-003 | Clip - HOOD WIRE | Clip - HOOD WIRE |
| 39 | 91513-SH3-000 | Clip c - HOOD | Clip c - HOOD |
| 39 | 91513-SH3-003 | Clip c - HOOD | Clip c - HOOD |
| 40 | 91514-SH3-013 | Clip - FRESH AIR GUIDE | Clip - FRESH AIR GUIDE |
| 41 | 91515-SH3-003 | Clip - WATER GUIDE | Clip - WATER GUIDE |
| 42 | 91517-SH3-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 43 | 91604-SD2-013 | Grommet - HOOD STAY | Grommet - HOOD STAY |
| 46 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
Instrument panel (2) 22 / 37
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 4 | 66161-SB2-000 | Label - COIN | Label - COIN |
| 7 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 8 | 75522-611-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 11 | 77105-SH3-010 | Blind - INSTRUMENT | Blind - INSTRUMENT |
| 19 | 77142-SH3-000 | Pipe - INSTRUMENT SIDE | Pipe - INSTRUMENT SIDE |
| 29 | 77186-SH3-000 | Cushion - INSTRUMENT PANEL | Cushion - INSTRUMENT PANEL |
| 35 | 77230-SE3-A02 | Lid assy - AUDIO HOLE | Lid assy - AUDIO HOLE |
| 36 | 77233-SH3-A01 | Panel - RADIO | Panel - RADIO |
| 49 | 77762-SD4-000 | Label - FUSE | Label - FUSE |
| 50 | 90102-SA4-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 52 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
| 53 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 54 | 90139-SH3-003 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 55 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 56 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 57 | 90310-SB2-003 | Nut - SPEED | Nut - SPEED |
| 58 | 90334-SH3-000 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 59 | 90650-SE3-000 | Clip - RADIO PANEL | Clip - RADIO PANEL |
| 61 | 90659-SA5-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 63 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 64 | 90669-SH3-000 | Clip - LOWER COVER | Clip - LOWER COVER |
| 65 | 90681-693-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Intake manifold (1) 6 / 25
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 11854-PM3-000 | Joint - BREATHER CHAMBER | Joint - BREATHER CHAMBER |
| 3 | 11855-PC6-000 | Grommet - PCV VALVE | Grommet - PCV VALVE |
| 17 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 18 | 91324-PC6-000 | O-ring - 20.6X2.6 | O-ring - 20.6X2.6 |
| 19 | 91405-679-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
| 19 | 91405-PM5-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
Interior light/switch 9 / 12
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 3 | 34252-SB2-003 | Lens - DAIICHI | Lens - DAIICHI |
| 6 | 34260-SH3-004 | Light assy - TRUNK ROOM | Light assy - TRUNK ROOM |
| 7 | 34262-SH3-004 | Lens | Lens |
| 8 | 34295-SA5-003 | Bulb - 12V 3.4W) (DAIICHI | Bulb - 12V 3.4W) (DAIICHI |
| 9 | 34295-538-003 | Bulb - 12V 5W) (DAIICHI | Bulb - 12V 5W) (DAIICHI |
| 9 | 34295-SD4-003 | Bulb - 12V 5W.K | Bulb - 12V 5W.K |
| 18 | 35409-SD2-003 | Screw - EARTH, 4X12 (ZN) | Screw - EARTH, 4X12 (ZN) |
| 19 | 35500-SH3-013 | Switch assy - RR. DEFOGGER | Switch assy - RR. DEFOGGER |
| 25 | 35851-SB2-003 | Bulb - NEO WEDGE (14V 65MA) | Bulb - NEO WEDGE (14V 65MA) |
Knuckle 29 / 33
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 44300-SB2-966 | Bearing assy - FR. HUB (TOYO SEIKO) | Bearing assy - FR. HUB (TOYO SEIKO) |
| 1 | 44300-SB2-962 | Bearing assy - FR. HUB (FUJIKOSHI) | Bearing assy - FR. HUB (FUJIKOSHI) |
| 1 | 44300-SB2-963 | Bearing assy - FR. HUB (KOYO SEIKO) | Bearing assy - FR. HUB (KOYO SEIKO) |
| 1 | 44300-SX8-004 | Bearing assy - HUB | Bearing assy - HUB |
| 2 | 44348-SH3-000 | Ring - FR. KNUCKLE | Ring - FR. KNUCKLE |
| 5 | 45255-SH3-030 | Guard - FR. BRAKE SPLASH | Guard - FR. BRAKE SPLASH |
| 5 | 45255-SH3-040 | Guard - FR. BRAKE SPLASH | Guard - FR. BRAKE SPLASH |
| 6 | 51210-SH3-030 | Knuckle comp - R. FR. | Knuckle comp - R. FR. |
| 7 | 51213-SE0-000 | Protector - KNUCKLE | Protector - KNUCKLE |
| 8 | 51215-SH3-030 | Knuckle comp - L. FR. | Knuckle comp - L. FR. |
| 9 | 51220-SK7-003 | Joint comp - LOWER BALL (MUSASHI) | Joint comp - LOWER BALL (MUSASHI) |
| 9 | 51220-SH0-A01 | Joint comp - LOWER BALL (TECHNICAL AUTO PARTS) | Joint comp - LOWER BALL (TECHNICAL AUTO PARTS) |
| 10 | 51225-SH0-A01 | Boot - LOWER BALL DUST (TECHNICAL AUTO PARTS) | Boot - LOWER BALL DUST (TECHNICAL AUTO PARTS) |
| 10 | 51225-SB0-003 | Boot - LOWER BALL DUST (MUSASHI) | Boot - LOWER BALL DUST (MUSASHI) |
| 12 | 51455-SH3-005 | Bush - FR. UPPER ARM | Bush - FR. UPPER ARM |
| 14 | 51464-SK7-003 | Boot - UPPER BALL JOINT | Boot - UPPER BALL JOINT |
| 15 | 51467-SH3-003 | Circlip - UPPER BALL JOINT | Circlip - UPPER BALL JOINT |
| 16 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 16 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 16 | 90113-SA0-023 | Bolt - WHEEL (TOKAI TRW) | Bolt - WHEEL (TOKAI TRW) |
| 17 | 90114-SB0-000 | Bolt-washer - 6X12 | Bolt-washer - 6X12 |
| 18 | 90185-SH3-000 | Bolt - UPPER ARM | Bolt - UPPER ARM |
| 19 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 20 | 90305-692-010 | Nut | Nut |
| 21 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 22 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 23 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 24 | 90653-SB0-000 | Circlip - EXTERNAL, 40MM | Circlip - EXTERNAL, 40MM |
| 25 | 91055-SB2-960 | Circlip - INTERNAL, 72MM | Circlip - INTERNAL, 72MM |
Mainshaft/gear 14 / 15
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 23210-PL3-C00 | Mainshaft comp. | Mainshaft comp. |
| 2 | 23261-PL3-000 | Shaft - REVERSE GEAR | Shaft - REVERSE GEAR |
| 3 | 23441-PL3-900 | Gear - MAINSHAFT THIRD | Gear - MAINSHAFT THIRD |
| 4 | 23451-PL3-901 | Gear - MAINSHAFT FOURTH | Gear - MAINSHAFT FOURTH |
| 5 | 23540-PL3-000 | Gear comp - REVERSE IDLE | Gear comp - REVERSE IDLE |
| 6 | 23581-PL3-901 | Gear - MAINSHAFT FIFTH | Gear - MAINSHAFT FIFTH |
| 7 | 23623-PL3-305 | Sleeve set - SYNCHRONIZER (3-4) | Sleeve set - SYNCHRONIZER (3-4) |
| 8 | 23626-PL3-315 | Sleeve set - SYNCHRONIZER (5) | Sleeve set - SYNCHRONIZER (5) |
| 9 | 23915-PL3-A00 | Collar - DISTANCE, 27X34X32X55 | Collar - DISTANCE, 27X34X32X55 |
| 10 | 23927-PL3-000 | Washer - SPRING, 36MM | Washer - SPRING, 36MM |
| 11 | 23928-PL3-000 | Washer - 26MM | Washer - 26MM |
| 13 | 91106-PL3-008 | Bearing - NEEDLE, 34X39X23 | Bearing - NEEDLE, 34X39X23 |
| 14 | 91107-PL3-018 | Bearing - NEEDLE, 34X39X27.5 | Bearing - NEEDLE, 34X39X27.5 |
| 15 | 91108-PL3-008 | Bearing - NEEDLE, 32X37X23.5 (NTN) | Bearing - NEEDLE, 32X37X23.5 (NTN) |
Master power 10 / 16
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 3 | 46191-634-000 | Gasket - MASTER CYLINDER BRACKET | Gasket - MASTER CYLINDER BRACKET |
| 6 | 46403-SE0-003 | Valve comp. - CHECK (NISSIN) | Valve comp. - CHECK (NISSIN) |
| 12 | 46406-SH3-J02 | Stay - MASTER POWER TUBE | Stay - MASTER POWER TUBE |
| 15 | 46431-692-003 | Spring - VALVE | Spring - VALVE |
| 16 | 46432-SA0-003 | Spring - POPPET | Spring - POPPET |
| 17 | 46433-SB2-003 | Rod comp - PUSH | Rod comp - PUSH |
| 18 | 46443-692-003 | Adjuster - PUSH ROD | Adjuster - PUSH ROD |
| 19 | 46512-SB2-000 | Pin - PEDAL | Pin - PEDAL |
| 20 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
Mirror/sunvisor 6 / 16
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 20 | 76401-SH3-901 | Base - STAY (MATSUYAMA) | Base - STAY (MATSUYAMA) |
| 34 | 88147-SA5-003 | Washer - TOOTHED (MATSUYAMA) | Washer - TOOTHED (MATSUYAMA) |
| 35 | 88148-SE0-003 | Bolt - LOCK, 6X7 (MATSUYAMA) | Bolt - LOCK, 6X7 (MATSUYAMA) |
| 41 | 90131-SH3-A12 | Screw - PAN, 5X16 | Screw - PAN, 5X16 |
| 44 | 91610-SH3-003 | Grommet - MIRROR GARNISH | Grommet - MIRROR GARNISH |
| 47 | 90145-SH3-003 | Screw-washer - 5X12 | Screw-washer - 5X12 |
Oil pump 24 / 25
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 04151-PR3-305 | Tool - CAP | Tool - CAP |
| 2 | 11311-PM3-000 | Cover - BREATHING PORT | Cover - BREATHING PORT |
| 3 | 15100-PM3-010 | Pump assy. - OIL | Pump assy. - OIL |
| 4 | 15110-PM3-010 | Body - OIL PUMP | Body - OIL PUMP |
| 5 | 15112-PM3-000 | Cover - OIL PUMP | Cover - OIL PUMP |
| 6 | 15131-PM3-010 | Rotor - PUMP INNER | Rotor - PUMP INNER |
| 6 | 15131-PM3-004 | Rotor - PUMP INNER (YAMADA) | Rotor - PUMP INNER (YAMADA) |
| 7 | 15132-PE0-004 | Rotor - PUMP OUTER (YAMADA) | Rotor - PUMP OUTER (YAMADA) |
| 7 | 15132-PE0-003 | Rotor - PUMP OUTER (SUMITOMO) | Rotor - PUMP OUTER (SUMITOMO) |
| 8 | 15220-PM3-000 | Strainer comp. - OIL | Strainer comp. - OIL |
| 9 | 15221-PM3-000 | Gasket - OIL STRAINER | Gasket - OIL STRAINER |
| 10 | 15231-PM3-000 | Valve - RELIEF | Valve - RELIEF |
| 11 | 15232-PM3-000 | Spring - RELIEF VALVE | Spring - RELIEF VALVE |
| 12 | 15233-PM7-000 | Bolt - SEALING, 14MM | Bolt - SEALING, 14MM |
| 13 | 15301-PE0-300 | Bolt - SEALING, 14MM | Bolt - SEALING, 14MM |
| 14 | 15302-PE0-300 | Washer - SEALING, 14MM | Washer - SEALING, 14MM |
| 15 | 15400-PR3-004 | Cartridge - OIL FILTER (TOYO ROKI) | Cartridge - OIL FILTER (TOYO ROKI) |
| 15 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 16 | 15400-PR3-305 | Cartridge set - OIL FILTER (TOYO ROKI) | Cartridge set - OIL FILTER (TOYO ROKI) |
| 17 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 18 | 90020-PE0-000 | Bolt - STUD, 8X28 | Bolt - STUD, 8X28 |
| 19 | 90041-PA5-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 20 | 91212-PE1-721 | Oil seal - 31X46X8 | Oil seal - 31X46X8 |
| 21 | 91307-PE0-010 | O-ring - 25X2.4 | O-ring - 25X2.4 |
Parking brake 11 / 13
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 47142-659-310 | Knob - PARKING BRAKE PUSH ROD | Knob - PARKING BRAKE PUSH ROD |
| 3 | 47143-671-310 | Spring - PUSH ROD | Spring - PUSH ROD |
| 4 | 47342-SA5-013 | Switch - PARKING BRAKE | Switch - PARKING BRAKE |
| 5 | 47360-SB2-000 | Equalizer | Equalizer |
| 6 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 8 | 47511-SH3-300 | Bracket - BOOT BASE | Bracket - BOOT BASE |
| 9 | 47513-SH3-300 | Boot - BRACKET WIRE | Boot - BRACKET WIRE |
| 10 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 11 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 13 | 47572-SH3-000 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 17 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
Piston/crankshaft 8 / 50
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 3 | 13112-PE0-000 | Pin - PISTON | Pin - PISTON |
| 4 | 13204-PE1-003 | Bolt | Bolt |
| 5 | 13205-689-004 | Nut - CONNECTING ROD (NAGOYA RASHI) | Nut - CONNECTING ROD (NAGOYA RASHI) |
| 5 | 13205-634-010 | Nut | Nut |
| 11 | 13621-PM3-013 | Pulley - TIMING BELT DRIVE (HITACHI) | Pulley - TIMING BELT DRIVE (HITACHI) |
| 12 | 13622-PM3-010 | Plate - TIMING BELT GUIDE | Plate - TIMING BELT GUIDE |
| 16 | 90017-PJ7-003 | Bolt-washer - 14X29 | Bolt-washer - 14X29 |
| 18 | 90704-634-000 | Key - 4.5X11.0 | Key - 4.5X11.0 |
Radiator (ND) 14 / 18
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 4 | 19014-PM3-003 | Nut - PLATE (DENSO) | Nut - PLATE (DENSO) |
| 5 | 19015-PM3-003 | Shroud comp - DENSO | Shroud comp - DENSO |
| 7 | 19020-PE0-003 | Fan - COOLING (DENSO) | Fan - COOLING (DENSO) |
| 9 | 19014-PK1-003 | Clip - HARNESS | Clip - HARNESS |
| 10 | 19032-PM3-003 | Grommet - SHROUD MOUNTING (DENSO) | Grommet - SHROUD MOUNTING (DENSO) |
| 11 | 19033-PM3-003 | Stay - COUPLER (DENSO) | Stay - COUPLER (DENSO) |
| 12 | 19045-PM3-003 | Cap comp - DENSO | Cap comp - DENSO |
| 12 | 19045-PR3-004 | Cap comp - TOYO | Cap comp - TOYO |
| 13 | 90041-PH2-003 | Screw-washer - 4X10 (DENSO) | Screw-washer - 4X10 (DENSO) |
| 14 | 90042-PM3-003 | Bolt-washer - 6X20 (DENSO) | Bolt-washer - 6X20 (DENSO) |
| 15 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 16 | 90201-PM3-003 | Nut - SQUARE (DENSO) | Nut - SQUARE (DENSO) |
Radiator (TOYO) 15 / 19
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 19011-PH2-004 | Cock - DRAIN (T.RAD) | Cock - DRAIN (T.RAD) |
| 3 | 19012-PD2-004 | Packing - DRAIN (T.RAD) | Packing - DRAIN (T.RAD) |
| 4 | 19014-PM3-004 | Nut - SET (M6) | Nut - SET (M6) |
| 5 | 19015-PM3-014 | Shroud comp - TOYO | Shroud comp - TOYO |
| 6 | 19017-PK1-004 | Clip - HARNESS(T.RAD) | Clip - HARNESS(T.RAD) |
| 8 | 19020-PM3-004 | Fan comp - COOLING (MITSUBA) | Fan comp - COOLING (MITSUBA) |
| 10 | 19032-PM3-004 | Grommet - TOYO | Grommet - TOYO |
| 11 | 19033-PM3-004 | Stay - COUPLER (TOYO) | Stay - COUPLER (TOYO) |
| 12 | 19045-PM3-004 | Cap comp - TOYO | Cap comp - TOYO |
| 13 | 90041-PG6-004 | Nut - HEX., 5MM(MITSUBA) | Nut - HEX., 5MM(MITSUBA) |
| 14 | 90041-PM3-004 | Screw-washer - 4X12 | Screw-washer - 4X12 |
| 15 | 90042-PM3-004 | Bolt-washer - 6X20 (TOYO) | Bolt-washer - 6X20 (TOYO) |
| 15 | 90042-PZ1-004 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 16 | 90050-PK1-004 | Screw-washer - 4X12(T.RAD) | Screw-washer - 4X12(T.RAD) |
| 17 | 90403-PA0-004 | Washer - PLAIN, 7MM (MITSUBA) | Washer - PLAIN, 7MM (MITSUBA) |
Radiator hose 14 / 26
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 19101-PM3-010 | Tank - RESERVE | Tank - RESERVE |
| 2 | 19102-PM3-000 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 3 | 19103-PM3-000 | Hose - RESERVE TANK | Hose - RESERVE TANK |
| 4 | 19104-PM3-020 | Tube - RESERVE TANK | Tube - RESERVE TANK |
| 6 | 19106-PA0-020 | Joint - RESERVE TANK | Joint - RESERVE TANK |
| 7 | 19107-PA0-000 | Clip - RESERVE TANK JOINT | Clip - RESERVE TANK JOINT |
| 8 | 19108-PM0-003 | Clamp - RESERVE TANK TUBE (BLACK) | Clamp - RESERVE TANK TUBE (BLACK) |
| 10 | 19110-PM3-003 | Clamp - RESERVE TANK TUBE | Clamp - RESERVE TANK TUBE |
| 11 | 19501-PM3-000 | Hose - WATER UPPER | Hose - WATER UPPER |
| 12 | 19502-PM3-000 | Hose - WATER LOWER | Hose - WATER LOWER |
| 13 | 19511-PA6-003 | Clip - WATER HOSE(CHUO SPRING) | Clip - WATER HOSE(CHUO SPRING) |
| 14 | 19519-PM1-003 | Clamp - WATER HOSE | Clamp - WATER HOSE |
| 22 | 74171-SH3-010 | Bracket - R. RADIATOR MOUNTING UPPER | Bracket - R. RADIATOR MOUNTING UPPER |
| 30 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
Rear brake drum 9 / 47
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 42324-SB2-020 | Washer - HUB UNIT | Washer - HUB UNIT |
| 3 | 42326-SB2-000 | Cap - HUB UNIT | Cap - HUB UNIT |
| 3 | 42326-SFA-000 | Cap - HUB UNIT | Cap - HUB UNIT |
| 4 | 42412-SB2-020 | Ring - SPINDLE | Ring - SPINDLE |
| 38 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 38 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 38 | 90113-SA0-023 | Bolt - WHEEL (TOKAI TRW) | Bolt - WHEEL (TOKAI TRW) |
| 39 | 90305-692-010 | Nut | Nut |
| 40 | 91252-SB2-013 | Seal - HUB UNIT (NOK) | Seal - HUB UNIT (NOK) |
Rear door lining 7 / 19
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 17 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 18 | 91560-SD5-003 | Clip - LINING | Clip - LINING |
| 19 | 91530-SE0-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 19 | 90664-671-003 | Clip - CANOE | Clip - CANOE |
| 21 | 91556-SH3-003 | Clip - DRIVE PIN | Clip - DRIVE PIN |
| 22 | 91642-SH3-013 | Grommet - DOOR LINING | Grommet - DOOR LINING |
| 23 | 91660-SH4-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Rear door locks 7 / 19
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 6 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 31 | 72175-SH3-901 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 32 | 72175-SH3-003 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 33 | 72105-SF1-003 | Striker - DOOR LOCK | Striker - DOOR LOCK |
| 34 | 75556-605-010 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 35 | 90111-SA0-000 | Screw - TAPPING, 4X8 | Screw - TAPPING, 4X8 |
| 36 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Rear door panels 6 / 8
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 15 | 75760-SB2-003 | Pin - DOOR CHECKER | Pin - DOOR CHECKER |
| 16 | 75826-605-300 | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) |
| 17 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 18 | 90001-SD2-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 19 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 20 | 90755-SB2-000 | E-ring - 6MM | E-ring - 6MM |
Rear lower arm 12 / 23
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 4 | 52343-SH3-004 | Bush - COMPENSATOR | Bush - COMPENSATOR |
| 4 | 52343-SR3-004 | Bush - COMPENSATOR (YAMASHITA) | Bush - COMPENSATOR (YAMASHITA) |
| 16 | 52393-SH3-005 | Bush - UPPER ARM INNER (SUMITOMO) | Bush - UPPER ARM INNER (SUMITOMO) |
| 16 | 52393-SH3-004 | Bush - UPPER ARM INNER (YAMASHITA) | Bush - UPPER ARM INNER (YAMASHITA) |
| 17 | 52395-SH3-005 | Bush - RR. UPPER ARM (SUMITOMO) | Bush - RR. UPPER ARM (SUMITOMO) |
| 17 | 52395-SH3-004 | Bush - RR. UPPER ARM (YAMASHITA) | Bush - RR. UPPER ARM (YAMASHITA) |
| 21 | 90117-SH3-004 | Bolt - UPPER ARM, 10X30 | Bolt - UPPER ARM, 10X30 |
| 22 | 90171-SH3-003 | Bolt - COMPENSATOR, 10X59 | Bolt - COMPENSATOR, 10X59 |
| 23 | 90172-SK7-003 | Bolt - UPPER ARM, 10X68 | Bolt - UPPER ARM, 10X68 |
| 23 | 90172-S04-003 | Bolt - FLANGE, 10X68 | Bolt - FLANGE, 10X68 |
| 24 | 90174-SK7-003 | Bolt - LOWER ARM, 10X80 | Bolt - LOWER ARM, 10X80 |
| 27 | 90551-SH3-000 | Washer - 24X10X2.3 | Washer - 24X10X2.3 |
Rear seat (1) 1 / 2
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 9 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
Rear shock absorber 20 / 28
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 51621-SB0-003 | Washer - SHOCK ABSORBER MOUNTING (TOKICO) | Washer - SHOCK ABSORBER MOUNTING (TOKICO) |
| 2 | 51631-SB0-004 | Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA) | Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA) |
| 2 | 51631-S7S-J01 | RUBBER DAMPER M | RUBBER DAMPER M |
| 2 | 51631-SB0-003 | Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.) | Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.) |
| 3 | 52675-SH3-024 | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 5 | 51689-SH3-004 | Plate - BUMP STOP (SHOWA) | Plate - BUMP STOP (SHOWA) |
| 6 | 51722-SE0-003 | Rubber - BUMP STOPPER (NIPPON MEKTRON) | Rubber - BUMP STOPPER (NIPPON MEKTRON) |
| 6 | 51722-SE0-004 | Rubber - BUMP STOPPER (POLYURETHAN KASEI) | Rubber - BUMP STOPPER (POLYURETHAN KASEI) |
| 7 | 51728-SB0-003 | Collar - SHOCK ABSORBER MOUNTING(TOKICO) | Collar - SHOCK ABSORBER MOUNTING(TOKICO) |
| 10 | 52442-SH3-000 | Tube | Tube |
| 15 | 52686-SH3-004 | Rubber - RR. SPRING MOUNTING (SHOWA) | Rubber - RR. SPRING MOUNTING (SHOWA) |
| 16 | 52687-SH3-014 | Cover - RR. SLEEVE DUST (SHOWA) | Cover - RR. SLEEVE DUST (SHOWA) |
| 18 | 52688-SH3-004 | End - RR. DUST COVER (SHOWA) | End - RR. DUST COVER (SHOWA) |
| 20 | 52748-SH3-004 | Rubber - RR. SPRING SEAT LOWER | Rubber - RR. SPRING SEAT LOWER |
| 21 | 74671-SH3-010 | Cap - RR. SHOCK ABSORBER | Cap - RR. SHOCK ABSORBER |
| 22 | 90172-SK7-003 | Bolt - UPPER ARM, 10X68 | Bolt - UPPER ARM, 10X68 |
| 22 | 90172-S04-003 | Bolt - FLANGE, 10X68 | Bolt - FLANGE, 10X68 |
| 23 | 90304-SH3-004 | Nut-washer - 10MM | Nut-washer - 10MM |
| 23 | 90304-SH3-505 | New Genuine Part | New Genuine Part |
| 24 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Relay/horn/fuse box 12 / 15
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 3 | 38100-SH3-003 | Horn assy - LOW (MITSUBA) | Horn assy - LOW (MITSUBA) |
| 7 | 38212-SE0-000 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 8 | 38213-SD4-000 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 9 | 38214-SH3-000 | Fuse - BLOCK (60A) | Fuse - BLOCK (60A) |
| 10 | 38235-SA5-003 | Puller - FUSE (SUMITOMO) | Puller - FUSE (SUMITOMO) |
| 11 | 38250-SH3-Q02 | Box assy - MAIN FUSE | Box assy - MAIN FUSE |
| 13 | 38300-SE3-004 | Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO) | Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO) |
| 13 | 38300-SE3-003 | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) |
| 16 | 39794-SE0-004 | Relay assy - POWER (4P) (MITSUBA) (RC-2203) | Relay assy - POWER (4P) (MITSUBA) (RC-2203) |
| 16 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 18 | 39797-SH2-003 | Relay assy - POWER (4P) (DENSO) | Relay assy - POWER (4P) (DENSO) |
| 19 | 90153-SH3-003 | Bolt - 5X11 | Bolt - 5X11 |
Roof lining 3 / 5
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 4 | 74308-SH3-003 | Clip A - ROOF MOLDING (BLACK) | Clip A - ROOF MOLDING (BLACK) |
| 6 | 74318-SH3-003 | Clip b - ROOF MOLDING (BLUE) | Clip b - ROOF MOLDING (BLUE) |
| 12 | 91561-SH3-003 | Clip - LINING | Clip - LINING |
Seatbelts 2 / 2
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 3 | 81491-SH3-A02 | Bag - PROTECTOR (TAKATA) | Bag - PROTECTOR (TAKATA) |
| 9 | 90680-SH3-003 | Plug - SEATBELT ANCHOR | Plug - SEATBELT ANCHOR |
Select lever (2) 3 / 35
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 35 | 90114-SA0-000 | Nut - SELF-LOCK, 6MM | Nut - SELF-LOCK, 6MM |
| 37 | 91647-SH3-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Shift fork/fork shaft 12 / 12
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 24200-PL3-010 | Fork - FIFTH GEARSHIFT | Fork - FIFTH GEARSHIFT |
| 2 | 24210-PL3-601 | Fork comp - GEARSHIFT (3-4) | Fork comp - GEARSHIFT (3-4) |
| 2 | 24210-PL3-040 | Fork comp - GEARSHIFT (3-4) | Fork comp - GEARSHIFT (3-4) |
| 3 | 24220-PL3-601 | Fork comp - GEARSHIFT (1-2) | Fork comp - GEARSHIFT (1-2) |
| 4 | 24230-PL3-000 | Holder comp - REVERSE SHIFT | Holder comp - REVERSE SHIFT |
| 5 | 24243-PL3-010 | Piece - FIFTH & REVERSE SHIFT | Piece - FIFTH & REVERSE SHIFT |
| 6 | 24261-PL3-600 | Shaft - SHIFT FORK (1-2) | Shaft - SHIFT FORK (1-2) |
| 7 | 24271-PL3-010 | Shaft - SHIFT FORK (5-R) | Shaft - SHIFT FORK (5-R) |
| 8 | 24455-PG1-300 | Spring - SHIFT FORK SETTING | Spring - SHIFT FORK SETTING |
| 9 | 24455-PG2-A10 | Spring - FORK SET BALL | Spring - FORK SET BALL |
| 9 | 24455-PL3-300 | Spring - SHIFT FORK SETTING | Spring - SHIFT FORK SETTING |
| 11 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
Shift lever 26 / 26
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 54101-SH3-010 | Lever - CHANGE | Lever - CHANGE |
| 4 | 54105-SH3-010 | Washer a - THRUST | Washer a - THRUST |
| 5 | 54106-SH3-003 | Washer b - THRUST | Washer b - THRUST |
| 6 | 54107-SH3-003 | Bush - RR. JOINT | Bush - RR. JOINT |
| 8 | 54108-SB2-000 | Boot - CHANGE LEVER | Boot - CHANGE LEVER |
| 9 | 54109-SA7-000 | Seal A, CHANGE LEVER DUST | Seal A, CHANGE LEVER DUST |
| 10 | 54110-SH3-003 | Seat - CHANGE LEVER BALL | Seat - CHANGE LEVER BALL |
| 11 | 54111-SH3-000 | Holder - CHANGE BALL | Holder - CHANGE BALL |
| 12 | 24313-PF5-000 | Clip - CHANGE JOINT PIN | Clip - CHANGE JOINT PIN |
| 12 | 54113-611-505 | CLIP, SHIFT JOINT | CLIP, SHIFT JOINT |
| 13 | 54114-SB2-000 | Collar - PIPE MOUNTING | Collar - PIPE MOUNTING |
| 14 | 54115-SH3-000 | Dust seal B, Change | Dust seal B, Change |
| 15 | 54117-SH3-000 | Collar - RR. JOINT | Collar - RR. JOINT |
| 16 | 54201-SH3-A04 | Rod comp - CHANGE | Rod comp - CHANGE |
| 17 | 54301-SH3-A02 | Extension - CHANGE | Extension - CHANGE |
| 18 | 54303-SF4-000 | Rubber - EXTENSION END | Rubber - EXTENSION END |
| 19 | 54304-SH3-020 | Bracket - EXTENSION | Bracket - EXTENSION |
| 20 | 54306-SH3-000 | Rubber, EXTENSION MOUNTING | Rubber, EXTENSION MOUNTING |
| 21 | 54307-SH3-010 | Stopper - EXTENSION MOUNTING | Stopper - EXTENSION MOUNTING |
| 22 | 54308-SH3-000 | Bolt - EXTENSION | Bolt - EXTENSION |
| 23 | 54309-SH3-000 | Collar - EXTENSION END | Collar - EXTENSION END |
| 24 | 90114-SA0-000 | Nut - SELF-LOCK, 6MM | Nut - SELF-LOCK, 6MM |
| 25 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 26 | 90117-HA7-670 | Bolt - FLANGE, 8X18 | Bolt - FLANGE, 8X18 |
| 28 | 91301-671-671 | O-ring - 1.9X11 | O-ring - 1.9X11 |
| 28 | 91303-HA0-004 | O-ring, 11x1.9 (nok) | O-ring, 11x1.9 (nok) |
Shift rod/shift holder 20 / 20
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 24311-PL3-020 | Rod - SHIFT | Rod - SHIFT |
| 2 | 24316-PL3-030 | Boot - SHIFT ROD | Boot - SHIFT ROD |
| 3 | 24351-PL3-010 | Shaft - SHIFT ARM B | Shaft - SHIFT ARM B |
| 4 | 24411-PL3-000 | Arm a - SHIFT | Arm a - SHIFT |
| 5 | 24421-PL3-000 | Arm b - SHIFT | Arm b - SHIFT |
| 6 | 24422-PL3-000 | Arm c - SHIFT | Arm c - SHIFT |
| 7 | 24430-PL3-010 | Interlock comp. | Interlock comp. |
| 8 | 24432-PL3-010 | Retainer - REVERSE SELECT | Retainer - REVERSE SELECT |
| 9 | 24433-PL3-000 | Bolt - INTERLOCK | Bolt - INTERLOCK |
| 10 | 24440-PL3-000 | Cam comp - REVERSE LOCK | Cam comp - REVERSE LOCK |
| 11 | 24452-PA0-000 | Spring - BALL SETTING | Spring - BALL SETTING |
| 12 | 24456-PL3-010 | Spring - SELECT SET BALL | Spring - SELECT SET BALL |
| 13 | 24461-PB6-000 | Collar - SPRING | Collar - SPRING |
| 14 | 24464-PL3-010 | Spring - FIRST-SECOND SELECT | Spring - FIRST-SECOND SELECT |
| 15 | 24465-PL3-020 | Spring - REVERSE SELECT | Spring - REVERSE SELECT |
| 16 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 17 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 18 | 90029-PL3-010 | Bolt - SPECIAL, 8MM | Bolt - SPECIAL, 8MM |
| 19 | 90082-PL3-000 | Plug - 28MM | Plug - 28MM |
| 20 | 90412-679-000 | Washer - CONICAL SPRING, 8MM | Washer - CONICAL SPRING, 8MM |
Side protectors 3 / 9
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 24 | 90116-SE0-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 25 | 90601-SH3-014 | Clip - DOOR MOLDING | Clip - DOOR MOLDING |
| 31 | 91611-SH2-003 | Grommet - SCREW ADJUSTER | Grommet - SCREW ADJUSTER |
Steering column (3) 24 / 29
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 53211-SH3-010 | Holder - COLUMN UPPER | Holder - COLUMN UPPER |
| 3 | 53212-SH3-010 | Plate comp - BENDING | Plate comp - BENDING |
| 4 | 53216-SH3-020 | Holder b - STEERING COLUMN | Holder b - STEERING COLUMN |
| 5 | 53217-SD2-000 | Collar - STEERING RETAINER | Collar - STEERING RETAINER |
| 6 | 53218-SH3-010 | Spring - BENDING PLATE | Spring - BENDING PLATE |
| 7 | 53231-SB2-000 | Label - IGNITION SWITCH | Label - IGNITION SWITCH |
| 8 | 53235-SA5-010 | Ring - COLUMN COVER | Ring - COLUMN COVER |
| 9 | 53239-SB2-000 | Clip - COLUMN COVER | Clip - COLUMN COVER |
| 13 | 53311-692-000 | Washer - STEERING SHAFT | Washer - STEERING SHAFT |
| 16 | 53323-SF4-003 | Joint comp. b - STEERING | Joint comp. b - STEERING |
| 17 | 53325-SH3-000 | Clip A - JOINT COVER | Clip A - JOINT COVER |
| 18 | 53326-SB0-000 | Clip b - JOINT COVER | Clip b - JOINT COVER |
| 22 | 53364-SA0-960 | Collar - PIVOT | Collar - PIVOT |
| 23 | 53365-SA0-961 | Bush - PIVOT | Bush - PIVOT |
| 24 | 53368-SH3-020 | Guide - BENDING PLATE | Guide - BENDING PLATE |
| 25 | 53369-SH3-010 | Guide - RAIL | Guide - RAIL |
| 30 | 90130-SB3-003 | Bolt - PIVOT | Bolt - PIVOT |
| 31 | 90132-SH3-000 | Bolt - STEERING HANGER | Bolt - STEERING HANGER |
| 32 | 90135-SB0-003 | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) |
| 33 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 34 | 90551-SE0-000 | Washer - SPRING, 24X18 | Washer - SPRING, 24X18 |
| 35 | 90654-SA5-003 | Clip - JOINT COVER | Clip - JOINT COVER |
| 36 | 90661-SE0-003 | Circlip - EXTERNAL, 18MM | Circlip - EXTERNAL, 18MM |
| 37 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
Steering gear box (2) 24 / 34
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 10 | 53430-SH3-000 | Bush - RACK END | Bush - RACK END |
| 11 | 53434-SD9-000 | Clip - TIE ROD | Clip - TIE ROD |
| 11 | 53434-S04-J51 | CLIP, TIE ROD | CLIP, TIE ROD |
| 12 | 53436-SH3-000 | Cushion b - STEERING GEAR BOX | Cushion b - STEERING GEAR BOX |
| 13 | 53438-SH3-000 | Bracket - STEERING GEAR BOX | Bracket - STEERING GEAR BOX |
| 14 | 53449-SH3-J00 | Band b - BELLOWS | Band b - BELLOWS |
| 15 | 53449-SH3-000 | Band - BELLOWS | Band - BELLOWS |
| 17 | 53501-SH3-000 | Grommet a - STEERING | Grommet a - STEERING |
| 18 | 53502-SH3-010 | Grommet b - STEERING | Grommet b - STEERING |
| 19 | 53503-SH3-000 | Spacer - STEERING GROMMET | Spacer - STEERING GROMMET |
| 20 | 53521-SH3-003 | End comp - RACK | End comp - RACK |
| 21 | 53535-SH3-000 | Washer - TIE ROD STOPPER | Washer - TIE ROD STOPPER |
| 22 | 53536-SB2-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 23 | 53537-SH3-J00 | Dust seal b - TIE ROD | Dust seal b - TIE ROD |
| 24 | 53537-SH3-000 | Dust seal a - TIE ROD | Dust seal a - TIE ROD |
| 25 | 53540-SH3-013 | End comp - R. TIE ROD | End comp - R. TIE ROD |
| 26 | 53546-SA0-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 27 | 53560-SH3-013 | End comp - L. TIE ROD | End comp - L. TIE ROD |
| 28 | 53685-SH3-000 | Bush - STEERING GEAR BOX MOUNTING | Bush - STEERING GEAR BOX MOUNTING |
| 29 | 53686-SH3-010 | Collar - STEERING GEAR BOX MOUNTING | Collar - STEERING GEAR BOX MOUNTING |
| 30 | 90108-SH3-003 | Bolt - GEAR BOX MOUNTING (10X55) | Bolt - GEAR BOX MOUNTING (10X55) |
| 31 | 90320-SF4-000 | Nut - CASTLE, 10MM | Nut - CASTLE, 10MM |
| 31 | 90320-SF1-000 | Nut - CASTLE, 10MM | Nut - CASTLE, 10MM |
| 32 | 90683-SF1-003 | Circlip - FR. UPPER (MUSASHI) | Circlip - FR. UPPER (MUSASHI) |
Steering wheel (2) 7 / 7
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 53124-SA5-004 | Ring - SLIP (TS TECH) | Ring - SLIP (TS TECH) |
| 5 | 78517-SH3-003 | Plate - HORN (TS TECH) | Plate - HORN (TS TECH) |
| 7 | 78519-SH3-003 | Spring - COIL (TS TECH) | Spring - COIL (TS TECH) |
| 9 | 90102-SA4-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 10 | 90135-SH3-003 | Screw - SLIDE | Screw - SLIDE |
| 11 | 90380-SB2-003 | Nut - SELF-LOCK (OHASHI) | Nut - SELF-LOCK (OHASHI) |
| 12 | 90522-SH3-003 | Washer - SILENCER | Washer - SILENCER |
Taillight (2) 11 / 26
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 15 | 34100-SH3-G01 | Light assy - LICENSE | Light assy - LICENSE |
| 16 | 34101-SH3-G01 | Lens | Lens |
| 17 | 34102-SH3-A01 | Housing | Housing |
| 18 | 34103-SH3-A01 | Packing | Packing |
| 19 | 34104-SH3-A01 | Socket & cord comp. | Socket & cord comp. |
| 25 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 27 | 34911-634-611 | Bulb - 12V 21/5W) (ECE) (STANLEY | Bulb - 12V 21/5W) (ECE) (STANLEY |
| 28 | 75525-SD4-013 | Clip - RR. PANEL GARNISH | Clip - RR. PANEL GARNISH |
| 29 | 75528-SD4-003 | Packing - SEAL (G) | Packing - SEAL (G) |
| 30 | 90102-SA7-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
Tire/wheel disk 20 / 37
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 9 | 42753-SE0-A02 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 9 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 9 | 42753-SH3-003 | Valve - RIM (US PACIFIC) | Valve - RIM (US PACIFIC) |
| 9 | 42753-671-003 | Valve - RIM (TAIHEIYO) | Valve - RIM (TAIHEIYO) |
| 10 | 42767-SB0-600 | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) |
| 11 | 44726-SB2-003 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 11 | 44723-SB2-003 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 11 | 44727-SB2-003 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 11 | 44724-SB2-003 | Weight - BALANCE (40G) (YAMATE) | Weight - BALANCE (40G) (YAMATE) |
| 11 | 44728-SB2-003 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 11 | 44725-SB2-003 | Weight - BALANCE (50G) (YAMATE) | Weight - BALANCE (50G) (YAMATE) |
| 11 | 44729-SB2-003 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 11 | 44721-SB2-003 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 11 | 44730-SB2-013 | Weight - BALANCE (45G) (YAMATE) | Weight - BALANCE (45G) (YAMATE) |
| 11 | 44722-SB2-003 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 13 | 44732-SB2-000 | Cap - WHEEL CENTER (56MM) (BLACK) | Cap - WHEEL CENTER (56MM) (BLACK) |
| 19 | 83850-SH3-000 | Plate - ANCHOR BOLT | Plate - ANCHOR BOLT |
| 20 | 83853-SA7-000 | Bolt - ANCHOR (72MM) | Bolt - ANCHOR (72MM) |
| 20 | 83853-SA0-700 | Bolt - ANCHOR (67MM) | Bolt - ANCHOR (67MM) |
| 22 | 90304-SA5-013 | Nut - WHEEL (CHROME PLATED) (FUSE RASHI) | Nut - WHEEL (CHROME PLATED) (FUSE RASHI) |
Tools/jack 7 / 7
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 89000-SH3-000 | Tool set | Tool set |
| 3 | 89101-SW5-003 | Bag - TOOL | Bag - TOOL |
| 4 | 89211-SE3-003 | Wrench - WHEEL | Wrench - WHEEL |
| 5 | 89216-SF4-000 | Wrench - PLUG | Wrench - PLUG |
| 6 | 89310-SE3-013 | Jack assy - PANTOGRAPH | Jack assy - PANTOGRAPH |
| 7 | 89320-SE3-003 | Bar - JACK | Bar - JACK |
| 7 | 89320-S50-003 | Bar - JACK | Bar - JACK |
Torque converter housing 9 / 37
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 13 | 41341-PC9-000 | Gear - DIFFERENTIAL PINION | Gear - DIFFERENTIAL PINION |
| 13 | 41341-PC9-010 | Gear - DIFFERENTIAL PINION | Gear - DIFFERENTIAL PINION |
| 14 | 41355-PC8-000 | Washer e - DIFFERENTIAL PINION (0.75MM) | Washer e - DIFFERENTIAL PINION (0.75MM) |
| 14 | 41357-PC8-000 | Washer g - DIFFERENTIAL PINION (0.95MM) | Washer g - DIFFERENTIAL PINION (0.95MM) |
| 14 | 41352-689-000 | Washer b - DIFFERENTIAL PINION (0.8MM) | Washer b - DIFFERENTIAL PINION (0.8MM) |
| 14 | 41354-689-000 | Washer d - DIFFERENTIAL PINION (1.0MM) | Washer d - DIFFERENTIAL PINION (1.0MM) |
| 14 | 41356-PC8-000 | Washer f - DIFFERENTIAL PINION (0.85MM) | Washer f - DIFFERENTIAL PINION (0.85MM) |
| 14 | 41351-689-000 | Washer a - DIFFERENTIAL PINION (0.7MM) | Washer a - DIFFERENTIAL PINION (0.7MM) |
| 14 | 41353-689-000 | Washer c - DIFFERENTIAL PINION (0.9MM) | Washer c - DIFFERENTIAL PINION (0.9MM) |
Transmission housing 49 / 82
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 3 | 21321-689-000 | Plug - BREATHER TUBE | Plug - BREATHER TUBE |
| 4 | 21390-PL3-000 | Clamp comp - BREATHER | Clamp comp - BREATHER |
| 5 | 23960-PL3-A10 | Shim ad - 65MM (1.47) | Shim ad - 65MM (1.47) |
| 5 | 23942-PL3-A10 | Shim l - 65MM (0.93) | Shim l - 65MM (0.93) |
| 5 | 23934-PL3-A10 | Shim d - 65MM (0.69) | Shim d - 65MM (0.69) |
| 5 | 23971-PL3-A10 | Shim ao - 65MM (1.80) | Shim ao - 65MM (1.80) |
| 5 | 23955-PL3-A10 | Shim y - 65MM (1.32) | Shim y - 65MM (1.32) |
| 5 | 23966-PL3-A10 | Shim aj - 65MM (1.65) | Shim aj - 65MM (1.65) |
| 5 | 23945-PL3-A10 | Shim o - 65MM (1.02) | Shim o - 65MM (1.02) |
| 5 | 23937-PL3-A10 | Shim g - 65MM (0.78) | Shim g - 65MM (0.78) |
| 5 | 23961-PL3-A10 | Shim ae - 65MM (1.50) | Shim ae - 65MM (1.50) |
| 5 | 23950-PL3-A10 | Shim t - 65MM (1.17) | Shim t - 65MM (1.17) |
| 5 | 23940-PL3-A10 | Shim j - 65MM (0.87) | Shim j - 65MM (0.87) |
| 5 | 23932-PL3-A10 | Shim b - 65MM (0.63) | Shim b - 65MM (0.63) |
| 5 | 23956-PL3-A10 | Shim z - 65MM (1.35) | Shim z - 65MM (1.35) |
| 5 | 23967-PL3-A10 | Shim ak - 65MM (1.68) | Shim ak - 65MM (1.68) |
| 5 | 23953-PL3-A10 | Shim w - 65MM (1.26) | Shim w - 65MM (1.26) |
| 5 | 23962-PL3-A10 | Shim af - 65MM (1.53) | Shim af - 65MM (1.53) |
| 5 | 23943-PL3-A10 | Shim m - 65MM (0.96) | Shim m - 65MM (0.96) |
| 5 | 23935-PL3-A10 | Shim e - 65MM (0.72) | Shim e - 65MM (0.72) |
| 5 | 23948-PL3-A10 | Shim r - 65MM (1.11) | Shim r - 65MM (1.11) |
| 5 | 23957-PL3-A10 | Shim aa - 65MM (1.38) | Shim aa - 65MM (1.38) |
| 5 | 23968-PL3-A10 | Shim al - 65MM (1.71) | Shim al - 65MM (1.71) |
| 5 | 23946-PL3-A10 | Shim p - 65MM (1.05) | Shim p - 65MM (1.05) |
| 5 | 23938-PL3-A10 | Shim h - 65MM (0.81) | Shim h - 65MM (0.81) |
| 5 | 23963-PL3-A10 | Shim ag - 65MM (1.56) | Shim ag - 65MM (1.56) |
| 5 | 23951-PL3-A10 | Shim u - 65MM (1.20) | Shim u - 65MM (1.20) |
| 5 | 23941-PL3-A10 | Shim k - 65MM (0.90) | Shim k - 65MM (0.90) |
| 5 | 23933-PL3-A10 | Shim c - 65MM (0.66) | Shim c - 65MM (0.66) |
| 5 | 23958-PL3-A10 | Shim ab - 65MM (1.41) | Shim ab - 65MM (1.41) |
| 5 | 23969-PL3-A10 | Shim am - 65MM (1.74) | Shim am - 65MM (1.74) |
| 5 | 23954-PL3-A10 | Shim x - 65MM (1.29) | Shim x - 65MM (1.29) |
| 5 | 23964-PL3-A10 | Shim ah - 65MM (1.59) | Shim ah - 65MM (1.59) |
| 5 | 23944-PL3-A10 | Shim n - 65MM (0.99) | Shim n - 65MM (0.99) |
| 5 | 23936-PL3-A10 | Shim f - 65MM (0.75) | Shim f - 65MM (0.75) |
| 5 | 23959-PL3-A10 | Shim ac - 65MM (1.44) | Shim ac - 65MM (1.44) |
| 5 | 23949-PL3-A10 | Shim s - 65MM (1.14) | Shim s - 65MM (1.14) |
| 5 | 23931-PL3-A10 | Shim a - 65MM (0.60) | Shim a - 65MM (0.60) |
| 5 | 23970-PL3-A10 | Shim an - 65MM (1.77) | Shim an - 65MM (1.77) |
| 5 | 23947-PL3-A10 | Shim q - 65MM (1.08) | Shim q - 65MM (1.08) |
| 5 | 23939-PL3-A10 | Shim i - 65MM (0.84) | Shim i - 65MM (0.84) |
| 5 | 23965-PL3-A10 | Shim ai - 65MM (1.62) | Shim ai - 65MM (1.62) |
| 5 | 23952-PL3-A10 | Shim v - 65MM (1.23) | Shim v - 65MM (1.23) |
| 6 | 35600-PL3-013 | Switch assy - BACK UP LIGHT | Switch assy - BACK UP LIGHT |
| 7 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 8 | 90081-PL3-000 | Screw - SEALING, 32MM | Screw - SEALING, 32MM |
| 9 | 90083-PL3-000 | Bolt - SEALING, 10MM | Bolt - SEALING, 10MM |
| 10 | 91206-PL3-A02 | Oil seal - 35X62X8 (NOK) | Oil seal - 35X62X8 (NOK) |
| 10 | 91206-PL3-A01 | Oil seal - 35X62X8 (ARAI) | Oil seal - 35X62X8 (ARAI) |
Trunk lid 5 / 26
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 63511-SA5-003 | Cushion - HOOD | Cushion - HOOD |
| 6 | 73219-693-951 | Seal - FUEL LID OPENER (GREEN) | Seal - FUEL LID OPENER (GREEN) |
| 27 | 75826-634-300 | Seal - INSIDE PANEL, 15MM | Seal - INSIDE PANEL, 15MM |
| 37 | 90654-SA4-003 | Clip - WIRE HARNESS, 6MM (WHITE) | Clip - WIRE HARNESS, 6MM (WHITE) |
| 41 | 91506-SH3-003 | Clip - OPENER CABLE SIDE | Clip - OPENER CABLE SIDE |
Valve/rocker arm 16 / 18
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 14621-PM3-010 | Arm a - IN. ROCKER | Arm a - IN. ROCKER |
| 2 | 14622-PM3-010 | Arm b - IN. ROCKER | Arm b - IN. ROCKER |
| 3 | 14623-PM3-010 | Arm a - EX. ROCKER | Arm a - EX. ROCKER |
| 4 | 14624-PM3-010 | Arm b - EX. ROCKER | Arm b - EX. ROCKER |
| 5 | 14645-PN4-003 | Spring a - VALVE ROCKER ARM (SANKO) | Spring a - VALVE ROCKER ARM (SANKO) |
| 6 | 14646-PN4-003 | Spring b - VALVE ROCKER ARM (SANKO) | Spring b - VALVE ROCKER ARM (SANKO) |
| 7 | 14647-PJ7-000 | Washer - WAVE | Washer - WAVE |
| 8 | 14711-PM3-000 | Valve - IN. | Valve - IN. |
| 9 | 14721-PM3-000 | Valve - EX. | Valve - EX. |
| 10 | 14744-PM3-000 | Screw - TAPPET ADJUSTING | Screw - TAPPET ADJUSTING |
| 12 | 14762-PM3-014 | Spring - EX. VALVE (BROWN) (CHUO SPRING) | Spring - EX. VALVE (BROWN) (CHUO SPRING) |
| 12 | 14762-PM3-013 | Spring - EX. VALVE (BROWN) (NIPPON HATSUJO) | Spring - EX. VALVE (BROWN) (NIPPON HATSUJO) |
| 13 | 14765-PJ7-000 | Retainer - VALVE SPRING | Retainer - VALVE SPRING |
| 14 | 14775-PM3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 15 | 14781-PJ7-003 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 16 | 90206-PM3-003 | Nut - TAPPET ADJUSTING (SATO RASHI) | Nut - TAPPET ADJUSTING (SATO RASHI) |
Water pump 15 / 16
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 19200-PM3-014 | Pump comp, WATER (YAMADA) | Pump comp, WATER (YAMADA) |
| 1 | 19200-P01-004 | Pump comp, WATER (YAMADA) | Pump comp, WATER (YAMADA) |
| 1 | 19200-PM3-013 | Pump comp - WATER (KEIHIN) | Pump comp - WATER (KEIHIN) |
| 1 | 19200-P01-003 | Pump comp - WATER (KEIHIN) | Pump comp - WATER (KEIHIN) |
| 2 | 19222-PG6-000 | Packing - WATER PUMP | Packing - WATER PUMP |
| 3 | 19300-PM3-004 | Thermostat - NIPPON THERMOSTAT | Thermostat - NIPPON THERMOSTAT |
| 3 | 19300-PM3-003 | Thermostat - FUJI SEIKO | Thermostat - FUJI SEIKO |
| 4 | 19305-PJ7-000 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 5 | 19311-PM3-000 | Cover - THERMOSTAT | Cover - THERMOSTAT |
| 6 | 19315-PM3-000 | Cover - WATER OUTLET | Cover - WATER OUTLET |
| 7 | 19320-PM3-010 | Case comp. - THERMOSTAT | Case comp. - THERMOSTAT |
| 9 | 19500-PE0-000 | Joint, Tube | Joint, Tube |
| 13 | 19516-PC1-000 | Bolt - BREATHING WATER | Bolt - BREATHING WATER |
| 16 | 90007-PA9-000 | Bolt - FLANGE, 6X30 | Bolt - FLANGE, 6X30 |
| 17 | 91314-634-000 | O-ring | O-ring |
Water valve/duct 24 / 37
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 2 | 39356-SA7-010 | Spring - HEATER CONTROL | Spring - HEATER CONTROL |
| 3 | 39383-SA5-000 | Clamp - CONTROL CABLE | Clamp - CONTROL CABLE |
| 4 | 39384-SB0-000 | Shaft - CONTROL LEVER | Shaft - CONTROL LEVER |
| 5 | 39385-SA5-000 | Stopper - CONTROL LEVER | Stopper - CONTROL LEVER |
| 14 | 77666-SH3-000 | Link b - VENT | Link b - VENT |
| 15 | 77668-SH3-000 | Cable - VENT CONTROL | Cable - VENT CONTROL |
| 17 | 77671-SE3-003 | Washer - LINK | Washer - LINK |
| 19 | 77673-SE3-000 | Rubber - VENT CASE | Rubber - VENT CASE |
| 21 | 77678-SH3-000 | Collar - VENTILATION | Collar - VENTILATION |
| 23 | 79721-SH3-000 | Hose a - WATER IN. | Hose a - WATER IN. |
| 24 | 79722-SH3-000 | Hose b - WATER IN. | Hose b - WATER IN. |
| 26 | 79731-SH3-000 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 27 | 79755-SH3-003 | Clamp - WATER HOSE | Clamp - WATER HOSE |
| 29 | 79821-SH3-000 | Duct - DEFROSTER | Duct - DEFROSTER |
| 30 | 90102-SA4-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 31 | 90144-SH3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 32 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 35 | 90699-SA5-000 | Clip - DUCT | Clip - DUCT |
| 36 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 36 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 37 | 91504-SF4-003 | Clip - FR. COWL | Clip - FR. COWL |
| 37 | 91501-S04-003 | Clip - INNER FENDER | Clip - INNER FENDER |
| 38 | 91567-SH3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 39 | 91573-SH3-000 | Clamp - CONTROL CABLE | Clamp - CONTROL CABLE |
Windshield washer 12 / 13
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 38511-SD2-003 | Adapter - NOZZLE (MITSUBA) | Adapter - NOZZLE (MITSUBA) |
| 2 | 38513-SB0-961 | Cap - WASHER MOUTH(MITSUBA) | Cap - WASHER MOUTH(MITSUBA) |
| 2 | 76802-SS0-003 | Cap - MOUTH | Cap - MOUTH |
| 3 | 38516-SA5-671 | Packing - T-TYPE) (MITSUBA | Packing - T-TYPE) (MITSUBA |
| 4 | 38519-SB0-003 | Bush - WASHER TANK (MITSUBA) | Bush - WASHER TANK (MITSUBA) |
| 5 | 76830-SH3-003 | Joint y - TUBE (MITSUBA) | Joint y - TUBE (MITSUBA) |
| 7 | 38512-SB0-922 | Motor - WASHER (MITSUBA) | Motor - WASHER (MITSUBA) |
| 8 | 76810-SH3-003 | Nozzle assy. - WASHER (DUAL) | Nozzle assy. - WASHER (DUAL) |
| 8 | 76810-SR3-003 | Nozzle assy. - R. FR. WASHER | Nozzle assy. - R. FR. WASHER |
| 9 | 76815-SH3-003 | Nozzle assy. - WASHER (SINGLE) | Nozzle assy. - WASHER (SINGLE) |
| 9 | 76810-S50-003 | Nozzle assy wshld | Nozzle assy wshld |
| 10 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
Wire harness 20 / 34
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 3 | 32112-PM3-000 | Stay - ENGINE WIRE HARNESS | Stay - ENGINE WIRE HARNESS |
| 9 | 32610-SH3-000 | Cable - SUB EARTH | Cable - SUB EARTH |
| 15 | 90153-SB6-003 | Bolt - EARTH, 6X12(ZN) | Bolt - EARTH, 6X12(ZN) |
| 16 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 19 | 90654-SA4-003 | Clip - WIRE HARNESS, 6MM (WHITE) | Clip - WIRE HARNESS, 6MM (WHITE) |
| 20 | 90660-SB2-000 | Clip - CORD | Clip - CORD |
| 26 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 27 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 28 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 29 | 91548-SH2-003 | Band - WIRE HARNESS(GRAY) | Band - WIRE HARNESS(GRAY) |
| 30 | 91549-SD2-003 | Clip - WIRE HARNESS (BLACK) | Clip - WIRE HARNESS (BLACK) |
| 31 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 33 | 91553-SH3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 34 | 91554-SH3-003 | Band - WIRE HARNESS (NATURAL) (100.5MM) | Band - WIRE HARNESS (NATURAL) (100.5MM) |
| 36 | 91559-SE3-003 | Clip - WIRE HARNESS (WHITE) (55MM) | Clip - WIRE HARNESS (WHITE) (55MM) |
| 37 | 91567-SE0-003 | Band - WIRE HARNESS(WHITE) (93.5MM) | Band - WIRE HARNESS(WHITE) (93.5MM) |
| 38 | 91581-SH3-013 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 39 | 91637-SF1-003 | Cap - 090 2P | Cap - 090 2P |
| 40 | 91763-SH3-003 | Bar - JOINT (6P) | Bar - JOINT (6P) |
| 41 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
| # | OEM | ED5 | ED7 |
|---|---|---|---|
| 1 | 04151-PR3-305 | Tool - CAP | Tool - CAP |
| 2 | 06111-PM3-000 | Gasket kit - CYLINDER BLOCK | Gasket kit - CYLINDER BLOCK |
| 2 | 11106-PE0-300 | Bolt - SEALING, 14MM | Bolt - SEALING, 14MM |
| 3 | 11111-PM3-300 | Pipe - OIL LEVEL | Pipe - OIL LEVEL |
| 4 | 11126-PK1-003 | Bolt - SEALING, 22MM | Bolt - SEALING, 22MM |
| 5 | 11200-PM3-010 | Pan comp - OIL | Pan comp - OIL |
| 6 | 11251-P01-004 | Packing - OIL PAN (OTSUKA) | Packing - OIL PAN (OTSUKA) |
| 6 | 11251-PE2-003 | Gasket - OIL PAN (KOKOKU) | Gasket - OIL PAN (KOKOKU) |
| 6 | 11251-PE2-004 | Gasket - OIL PAN (OTSUKA) | Gasket - OIL PAN (OTSUKA) |
| 7 | 11301-PE0-040 | Cover - R. SIDE | Cover - R. SIDE |
| 2 | 11311-PM3-000 | Cover - BREATHING PORT | Cover - BREATHING PORT |
| 1 | 11810-PM3-000 | Cover comp. - TIMING BELT LOWER | Cover comp. - TIMING BELT LOWER |
| 2 | 11812-PE0-300 | Grommet - TIMING BELT COVER HOLE | Grommet - TIMING BELT COVER HOLE |
| 4 | 11831-PM3-000 | Rubber - LOWER SEAL | Rubber - LOWER SEAL |
| 6 | 11833-PM3-000 | Rubber - L. BACK SEAL | Rubber - L. BACK SEAL |
| 7 | 11840-PM3-000 | Cover comp. - TIMING BELT BACK | Cover comp. - TIMING BELT BACK |
| 7 | 11840-PM3-010 | Cover comp. TIMING BELT BACK | Cover comp. TIMING BELT BACK |
| 2 | 11854-PM3-000 | Joint - BREATHER CHAMBER | Joint - BREATHER CHAMBER |
| 3 | 11855-PC6-000 | Grommet - PCV VALVE | Grommet - PCV VALVE |
| 8 | 11910-PM3-700 | Bracket - ENGINE MOUNTING | Bracket - ENGINE MOUNTING |
| 9 | 11911-PM4-000 | Stay - ENGINE MOUNTING BRACKET | Stay - ENGINE MOUNTING BRACKET |
| 8 | 11925-PM3-000 | Rubber a - ENGINE MOUNTING BRACKET SEAL | Rubber a - ENGINE MOUNTING BRACKET SEAL |
| 9 | 11926-PM3-000 | Rubber b - ENGINE MOUNTING BRACKET SEAL | Rubber b - ENGINE MOUNTING BRACKET SEAL |
| 3 | 12204-PJ7-305 | Guide - IN. VALVE (OS) | Guide - IN. VALVE (OS) |
| 4 | 12205-PJ7-305 | Guide - EX. VALVE (OS) | Guide - EX. VALVE (OS) |
| 5 | 12210-PJ7-003 | Seal a - VALVE STEM (ARAI) | Seal a - VALVE STEM (ARAI) |
| 5 | 12210-PJ7-004 | Seal a - VALVE STEM (NOK) | Seal a - VALVE STEM (NOK) |
| 6 | 12211-PJ7-004 | Seal b - VALVE STEM (NOK) | Seal b - VALVE STEM (NOK) |
| 6 | 12211-PJ7-013 | Seal b - VALVE STEM (ARAI) | Seal b - VALVE STEM (ARAI) |
| 2 | 12341-PM6-000 | Packing - CYLINDER HEAD COVER | Packing - CYLINDER HEAD COVER |
| 2 | 12341-PM6-010 | Packing - CYLINDER HEAD COVER | Packing - CYLINDER HEAD COVER |
| 3 | 12342-PJ7-000 | Packing b - HEAD COVER | Packing b - HEAD COVER |
| 3 | 13112-PE0-000 | Pin - PISTON | Pin - PISTON |
| 4 | 13204-PE1-003 | Bolt | Bolt |
| 5 | 13205-634-010 | Nut | Nut |
| 5 | 13205-689-004 | Nut - CONNECTING ROD (NAGOYA RASHI) | Nut - CONNECTING ROD (NAGOYA RASHI) |
| 11 | 13621-PM3-013 | Pulley - TIMING BELT DRIVE (HITACHI) | Pulley - TIMING BELT DRIVE (HITACHI) |
| 12 | 13622-PM3-010 | Plate - TIMING BELT GUIDE | Plate - TIMING BELT GUIDE |
| 11 | 14210-PM3-000 | Pulley comp - TIMING BELT DRIVEN | Pulley comp - TIMING BELT DRIVEN |
| 13 | 14510-PM7-003 | Tensioner comp - TIMING BELT (KOYO SEIKO) | Tensioner comp - TIMING BELT (KOYO SEIKO) |
| 13 | 14510-PM7-004 | Tensioner comp - TIMING BELT (NIPPON SEIKO) | Tensioner comp - TIMING BELT (NIPPON SEIKO) |
| 14 | 14513-PE0-015 | Bolt - TENSIONER (M6) | Bolt - TENSIONER (M6) |
| 15 | 14516-PM3-010 | Spring comp - TIMING BELT ADJUSTER | Spring comp - TIMING BELT ADJUSTER |
| 16 | 14517-PG6-000 | Bolt a - TENSIONER | Bolt a - TENSIONER |
| 1 | 14621-PM3-010 | Arm a - IN. ROCKER | Arm a - IN. ROCKER |
| 2 | 14622-PM3-010 | Arm b - IN. ROCKER | Arm b - IN. ROCKER |
| 3 | 14623-PM3-010 | Arm a - EX. ROCKER | Arm a - EX. ROCKER |
| 4 | 14624-PM3-010 | Arm b - EX. ROCKER | Arm b - EX. ROCKER |
| 8 | 14631-PJ7-J00 | Shaft a - VALVE ROCKER ARM | Shaft a - VALVE ROCKER ARM |
| 9 | 14632-PJ7-J00 | Shaft b - VALVE ROCKER ARM | Shaft b - VALVE ROCKER ARM |
| 10 | 14633-PJ7-000 | Shaft - EX. VALVE ROCKER ARM | Shaft - EX. VALVE ROCKER ARM |
| 5 | 14645-PN4-003 | Spring a - VALVE ROCKER ARM (SANKO) | Spring a - VALVE ROCKER ARM (SANKO) |
| 6 | 14646-PN4-003 | Spring b - VALVE ROCKER ARM (SANKO) | Spring b - VALVE ROCKER ARM (SANKO) |
| 7 | 14647-PJ7-000 | Washer - WAVE | Washer - WAVE |
| 8 | 14711-PM3-000 | Valve - IN. | Valve - IN. |
| 9 | 14721-PM3-000 | Valve - EX. | Valve - EX. |
| 10 | 14744-PM3-000 | Screw - TAPPET ADJUSTING | Screw - TAPPET ADJUSTING |
| 12 | 14762-PM3-013 | Spring - EX. VALVE (BROWN) (NIPPON HATSUJO) | Spring - EX. VALVE (BROWN) (NIPPON HATSUJO) |
| 12 | 14762-PM3-014 | Spring - EX. VALVE (BROWN) (CHUO SPRING) | Spring - EX. VALVE (BROWN) (CHUO SPRING) |
| 13 | 14765-PJ7-000 | Retainer - VALVE SPRING | Retainer - VALVE SPRING |
| 14 | 14775-PM3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 15 | 14781-PJ7-003 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 3 | 15100-PM3-010 | Pump assy. - OIL | Pump assy. - OIL |
| 4 | 15110-PM3-010 | Body - OIL PUMP | Body - OIL PUMP |
| 5 | 15112-PM3-000 | Cover - OIL PUMP | Cover - OIL PUMP |
| 6 | 15131-PM3-004 | Rotor - PUMP INNER (YAMADA) | Rotor - PUMP INNER (YAMADA) |
| 6 | 15131-PM3-010 | Rotor - PUMP INNER | Rotor - PUMP INNER |
| 7 | 15132-PE0-003 | Rotor - PUMP OUTER (SUMITOMO) | Rotor - PUMP OUTER (SUMITOMO) |
| 7 | 15132-PE0-004 | Rotor - PUMP OUTER (YAMADA) | Rotor - PUMP OUTER (YAMADA) |
| 10 | 15140-PM3-000 | Orifice assy - OIL PATH | Orifice assy - OIL PATH |
| 8 | 15220-PM3-000 | Strainer comp. - OIL | Strainer comp. - OIL |
| 9 | 15221-PM3-000 | Gasket - OIL STRAINER | Gasket - OIL STRAINER |
| 10 | 15231-PM3-000 | Valve - RELIEF | Valve - RELIEF |
| 11 | 15232-PM3-000 | Spring - RELIEF VALVE | Spring - RELIEF VALVE |
| 12 | 15233-PM7-000 | Bolt - SEALING, 14MM | Bolt - SEALING, 14MM |
| 13 | 15301-PE0-300 | Bolt - SEALING, 14MM | Bolt - SEALING, 14MM |
| 14 | 15302-PE0-300 | Washer - SEALING, 14MM | Washer - SEALING, 14MM |
| 15 | 15400-PR3-004 | Cartridge - OIL FILTER (TOYO ROKI) | Cartridge - OIL FILTER (TOYO ROKI) |
| 16 | 15400-PR3-305 | Cartridge set - OIL FILTER (TOYO ROKI) | Cartridge set - OIL FILTER (TOYO ROKI) |
| 15 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 4 | 15610-PC6-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 5 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 11 | 15650-PM6-000 | Gauge comp. - OIL LEVEL | Gauge comp. - OIL LEVEL |
| 1 | 17277-PM3-Y00 | Label - SERVICE INFORMATION | Label - SERVICE INFORMATION |
| 5 | 17371-SF1-003 | Valve - TWO WAY | Valve - TWO WAY |
| 2 | 17521-SH3-030 | Band - R. FUEL TANK MOUNTING | Band - R. FUEL TANK MOUNTING |
| 3 | 17522-SH3-020 | Band - L. FUEL TANK MOUNTING | Band - L. FUEL TANK MOUNTING |
| 4 | 17525-SH3-010 | Bolt - FUEL TANK MOUNTING | Bolt - FUEL TANK MOUNTING |
| 5 | 17526-SB3-023 | Valve - FILLER NECK | Valve - FILLER NECK |
| 7 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 10 | 17662-SB2-010 | Packing - FUEL FILLER | Packing - FUEL FILLER |
| 13 | 17670-SA5-013 | Cap comp. - FUEL FILLER | Cap comp. - FUEL FILLER |
| 14 | 17682-679-013 | Packing - FUEL FILLER CAP | Packing - FUEL FILLER CAP |
| 7 | 17711-SH3-000 | Grommet - FUEL PIPE | Grommet - FUEL PIPE |
| 1 | 17712-SA0-000 | Grommet - FUEL PIPE | Grommet - FUEL PIPE |
| 10 | 17715-SH3-020 | Protector - PIPE | Protector - PIPE |
| 11 | 17728-SG0-E01 | Chamber - FUEL VENT AIR | Chamber - FUEL VENT AIR |
| 12 | 17729-SD4-E00 | Stay - FUEL VENT AIR CHAMBER | Stay - FUEL VENT AIR CHAMBER |
| 3 | 17812-SA7-010 | Washer - ACCELERATOR PEDAL | Washer - ACCELERATOR PEDAL |
| 5 | 17816-SK7-000 | Cover - ACCELERATOR PEDAL | Cover - ACCELERATOR PEDAL |
| 11 | 17921-SA4-730 | Seal - THROTTLE CABLE | Seal - THROTTLE CABLE |
| 1 | 17927-SH3-A01 | Clamp - CLUTCH WIRE | Clamp - CLUTCH WIRE |
| 5 | 18115-PM3-003 | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) |
| 15 | 18215-671-000 | Rubber - SILENCER MOUNTING (74X53X22) | Rubber - SILENCER MOUNTING (74X53X22) |
| 16 | 18215-SH3-J01 | Rubber - EX. MOUNTING (70X55X30) | Rubber - EX. MOUNTING (70X55X30) |
| 17 | 18215-SH3-J80 | Rubber - EX. MOUNTING (60X50X20) | Rubber - EX. MOUNTING (60X50X20) |
| 17 | 18215-SR3-000 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 21 | 18229-SB2-003 | Gasket - EX. FLEXIBLE (45MM-59MM) | Gasket - EX. FLEXIBLE (45MM-59MM) |
| 23 | 18230-SA0-930 | Spring - FLEXIBLE JOINT | Spring - FLEXIBLE JOINT |
| 24 | 18231-SB2-000 | Bolt - FLEXIBLE JOINT | Bolt - FLEXIBLE JOINT |
| 25 | 18231-SH3-J31 | Bolt - FLEXIBLE JOINT | Bolt - FLEXIBLE JOINT |
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 2 | 19011-PH2-004 | Cock - DRAIN (T.RAD) | Cock - DRAIN (T.RAD) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 3 | 19012-PD2-004 | Packing - DRAIN (T.RAD) | Packing - DRAIN (T.RAD) |
| 9 | 19014-PK1-003 | Clip - HARNESS | Clip - HARNESS |
| 4 | 19014-PM3-003 | Nut - PLATE (DENSO) | Nut - PLATE (DENSO) |
| 4 | 19014-PM3-004 | Nut - SET (M6) | Nut - SET (M6) |
| 5 | 19015-PM3-003 | Shroud comp - DENSO | Shroud comp - DENSO |
| 5 | 19015-PM3-014 | Shroud comp - TOYO | Shroud comp - TOYO |
| 6 | 19017-PK1-004 | Clip - HARNESS(T.RAD) | Clip - HARNESS(T.RAD) |
| 7 | 19020-PE0-003 | Fan - COOLING (DENSO) | Fan - COOLING (DENSO) |
| 8 | 19020-PM3-004 | Fan comp - COOLING (MITSUBA) | Fan comp - COOLING (MITSUBA) |
| 10 | 19032-PM3-003 | Grommet - SHROUD MOUNTING (DENSO) | Grommet - SHROUD MOUNTING (DENSO) |
| 10 | 19032-PM3-004 | Grommet - TOYO | Grommet - TOYO |
| 11 | 19033-PM3-003 | Stay - COUPLER (DENSO) | Stay - COUPLER (DENSO) |
| 11 | 19033-PM3-004 | Stay - COUPLER (TOYO) | Stay - COUPLER (TOYO) |
| 12 | 19045-PM3-003 | Cap comp - DENSO | Cap comp - DENSO |
| 12 | 19045-PM3-004 | Cap comp - TOYO | Cap comp - TOYO |
| 12 | 19045-PR3-004 | Cap comp - TOYO | Cap comp - TOYO |
| 1 | 19101-PM3-010 | Tank - RESERVE | Tank - RESERVE |
| 2 | 19102-PM3-000 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 3 | 19103-PM3-000 | Hose - RESERVE TANK | Hose - RESERVE TANK |
| 4 | 19104-PM3-020 | Tube - RESERVE TANK | Tube - RESERVE TANK |
| 6 | 19106-PA0-020 | Joint - RESERVE TANK | Joint - RESERVE TANK |
| 7 | 19107-PA0-000 | Clip - RESERVE TANK JOINT | Clip - RESERVE TANK JOINT |
| 8 | 19108-PM0-003 | Clamp - RESERVE TANK TUBE (BLACK) | Clamp - RESERVE TANK TUBE (BLACK) |
| 10 | 19110-PM3-003 | Clamp - RESERVE TANK TUBE | Clamp - RESERVE TANK TUBE |
| 1 | 19200-P01-003 | Pump comp - WATER (KEIHIN) | Pump comp - WATER (KEIHIN) |
| 1 | 19200-P01-004 | Pump comp, WATER (YAMADA) | Pump comp, WATER (YAMADA) |
| 1 | 19200-PM3-013 | Pump comp - WATER (KEIHIN) | Pump comp - WATER (KEIHIN) |
| 1 | 19200-PM3-014 | Pump comp, WATER (YAMADA) | Pump comp, WATER (YAMADA) |
| 2 | 19222-PG6-000 | Packing - WATER PUMP | Packing - WATER PUMP |
| 3 | 19300-PM3-003 | Thermostat - FUJI SEIKO | Thermostat - FUJI SEIKO |
| 3 | 19300-PM3-004 | Thermostat - NIPPON THERMOSTAT | Thermostat - NIPPON THERMOSTAT |
| 4 | 19305-PJ7-000 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 5 | 19311-PM3-000 | Cover - THERMOSTAT | Cover - THERMOSTAT |
| 6 | 19315-PM3-000 | Cover - WATER OUTLET | Cover - WATER OUTLET |
| 7 | 19320-PM3-010 | Case comp. - THERMOSTAT | Case comp. - THERMOSTAT |
| 9 | 19500-PE0-000 | Joint, Tube | Joint, Tube |
| 11 | 19501-PM3-000 | Hose - WATER UPPER | Hose - WATER UPPER |
| 12 | 19502-PM3-000 | Hose - WATER LOWER | Hose - WATER LOWER |
| 13 | 19511-PA6-003 | Clip - WATER HOSE(CHUO SPRING) | Clip - WATER HOSE(CHUO SPRING) |
| 17 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 13 | 19516-PC1-000 | Bolt - BREATHING WATER | Bolt - BREATHING WATER |
| 14 | 19519-PM1-003 | Clamp - WATER HOSE | Clamp - WATER HOSE |
| 2 | 21103-PL3-A00 | Plate c - OIL GUIDE | Plate c - OIL GUIDE |
| 3 | 21120-PG2-003 | Magnet - TRANSMISSION | Magnet - TRANSMISSION |
| 3 | 21321-689-000 | Plug - BREATHER TUBE | Plug - BREATHER TUBE |
| 1 | 21350-PR1-030 | Cover - CLUTCH CASE | Cover - CLUTCH CASE |
| 4 | 21390-PL3-000 | Clamp comp - BREATHER | Clamp comp - BREATHER |
| 1 | 22810-PL3-003 | Bearing - CLUTCH RELEASE (FUJIKOSHI) | Bearing - CLUTCH RELEASE (FUJIKOSHI) |
| 1 | 22810-PL3-005 | Bearing - CLUTCH RELEASE (KOYO SEIKO) | Bearing - CLUTCH RELEASE (KOYO SEIKO) |
| 2 | 22821-PL3-000 | Fork - CLUTCH RELEASE | Fork - CLUTCH RELEASE |
| 3 | 22830-PL3-C00 | Shaft comp. - RELEASE | Shaft comp. - RELEASE |
| 4 | 22840-PL3-000 | Damper - RELEASE ARM | Damper - RELEASE ARM |
| 5 | 22851-PB6-910 | Spring - RELEASE ARM | Spring - RELEASE ARM |
| 6 | 22871-PL3-050 | Stay comp - CLUTCH WIRE | Stay comp - CLUTCH WIRE |
| 1 | 23210-PL3-C00 | Mainshaft comp. | Mainshaft comp. |
| 2 | 23261-PL3-000 | Shaft - REVERSE GEAR | Shaft - REVERSE GEAR |
| 2 | 23421-PL3-010 | Gear - COUNTERSHAFT LOW | Gear - COUNTERSHAFT LOW |
| 3 | 23431-PL3-901 | Gear - COUNTERSHAFT SECOND | Gear - COUNTERSHAFT SECOND |
| 3 | 23441-PL3-900 | Gear - MAINSHAFT THIRD | Gear - MAINSHAFT THIRD |
| 4 | 23451-PL3-901 | Gear - MAINSHAFT FOURTH | Gear - MAINSHAFT FOURTH |
| 4 | 23461-PL3-901 | Gear - COUNTERSHAFT FIFTH | Gear - COUNTERSHAFT FIFTH |
| 5 | 23471-PL3-900 | Gear - COUNTERSHAFT THIRD | Gear - COUNTERSHAFT THIRD |
| 6 | 23481-PL3-900 | Gear - COUNTERSHAFT FOURTH | Gear - COUNTERSHAFT FOURTH |
| 7 | 23521-PL3-335 | Sleeve set - SYNCHRONIZER (1-2) | Sleeve set - SYNCHRONIZER (1-2) |
| 5 | 23540-PL3-000 | Gear comp - REVERSE IDLE | Gear comp - REVERSE IDLE |
| 6 | 23581-PL3-901 | Gear - MAINSHAFT FIFTH | Gear - MAINSHAFT FIFTH |
| 7 | 23623-PL3-305 | Sleeve set - SYNCHRONIZER (3-4) | Sleeve set - SYNCHRONIZER (3-4) |
| 8 | 23626-PL3-315 | Sleeve set - SYNCHRONIZER (5) | Sleeve set - SYNCHRONIZER (5) |
| 7 | 23811-PC1-000 | Holder comp - SPEEDOMETER GEAR | Holder comp - SPEEDOMETER GEAR |
| 8 | 23813-689-000 | Plate - SPEEDOMETER GEAR HOLDER | Plate - SPEEDOMETER GEAR HOLDER |
| 9 | 23814-PM0-000 | Seal - GEAR HOLDER | Seal - GEAR HOLDER |
| 10 | 23820-PM1-000 | Gear comp - SPEEDOMETER | Gear comp - SPEEDOMETER |
| 8 | 23912-PL3-000 | Collar - DISTANCE, 33X39X30 | Collar - DISTANCE, 33X39X30 |
| 9 | 23915-PL3-A00 | Collar - DISTANCE, 27X34X32X55 | Collar - DISTANCE, 27X34X32X55 |
| 9 | 23926-PB6-010 | Washer - SPRING, 22MM | Washer - SPRING, 22MM |
| 10 | 23927-PL3-000 | Washer - SPRING, 36MM | Washer - SPRING, 36MM |
| 11 | 23928-PL3-000 | Washer - 26MM | Washer - 26MM |
| 5 | 23931-PL3-A10 | Shim a - 65MM (0.60) | Shim a - 65MM (0.60) |
| 5 | 23932-PL3-A10 | Shim b - 65MM (0.63) | Shim b - 65MM (0.63) |
| 5 | 23933-PL3-A10 | Shim c - 65MM (0.66) | Shim c - 65MM (0.66) |
| 5 | 23934-PL3-A10 | Shim d - 65MM (0.69) | Shim d - 65MM (0.69) |
| 5 | 23935-PL3-A10 | Shim e - 65MM (0.72) | Shim e - 65MM (0.72) |
| 5 | 23936-PL3-A10 | Shim f - 65MM (0.75) | Shim f - 65MM (0.75) |
| 5 | 23937-PL3-A10 | Shim g - 65MM (0.78) | Shim g - 65MM (0.78) |
| 5 | 23938-PL3-A10 | Shim h - 65MM (0.81) | Shim h - 65MM (0.81) |
| 5 | 23939-PL3-A10 | Shim i - 65MM (0.84) | Shim i - 65MM (0.84) |
| 5 | 23940-PL3-A10 | Shim j - 65MM (0.87) | Shim j - 65MM (0.87) |
| 5 | 23941-PL3-A10 | Shim k - 65MM (0.90) | Shim k - 65MM (0.90) |
| 5 | 23942-PL3-A10 | Shim l - 65MM (0.93) | Shim l - 65MM (0.93) |
| 5 | 23943-PL3-A10 | Shim m - 65MM (0.96) | Shim m - 65MM (0.96) |
| 5 | 23944-PL3-A10 | Shim n - 65MM (0.99) | Shim n - 65MM (0.99) |
| 5 | 23945-PL3-A10 | Shim o - 65MM (1.02) | Shim o - 65MM (1.02) |
| 5 | 23946-PL3-A10 | Shim p - 65MM (1.05) | Shim p - 65MM (1.05) |
| 5 | 23947-PL3-A10 | Shim q - 65MM (1.08) | Shim q - 65MM (1.08) |
| 5 | 23948-PL3-A10 | Shim r - 65MM (1.11) | Shim r - 65MM (1.11) |
| 5 | 23949-PL3-A10 | Shim s - 65MM (1.14) | Shim s - 65MM (1.14) |
| 5 | 23950-PL3-A10 | Shim t - 65MM (1.17) | Shim t - 65MM (1.17) |
| 5 | 23951-PL3-A10 | Shim u - 65MM (1.20) | Shim u - 65MM (1.20) |
| 5 | 23952-PL3-A10 | Shim v - 65MM (1.23) | Shim v - 65MM (1.23) |
| 5 | 23953-PL3-A10 | Shim w - 65MM (1.26) | Shim w - 65MM (1.26) |
| 5 | 23954-PL3-A10 | Shim x - 65MM (1.29) | Shim x - 65MM (1.29) |
| 5 | 23955-PL3-A10 | Shim y - 65MM (1.32) | Shim y - 65MM (1.32) |
| 5 | 23956-PL3-A10 | Shim z - 65MM (1.35) | Shim z - 65MM (1.35) |
| 5 | 23957-PL3-A10 | Shim aa - 65MM (1.38) | Shim aa - 65MM (1.38) |
| 5 | 23958-PL3-A10 | Shim ab - 65MM (1.41) | Shim ab - 65MM (1.41) |
| 5 | 23959-PL3-A10 | Shim ac - 65MM (1.44) | Shim ac - 65MM (1.44) |
| 5 | 23960-PL3-A10 | Shim ad - 65MM (1.47) | Shim ad - 65MM (1.47) |
| 5 | 23961-PL3-A10 | Shim ae - 65MM (1.50) | Shim ae - 65MM (1.50) |
| 5 | 23962-PL3-A10 | Shim af - 65MM (1.53) | Shim af - 65MM (1.53) |
| 5 | 23963-PL3-A10 | Shim ag - 65MM (1.56) | Shim ag - 65MM (1.56) |
| 5 | 23964-PL3-A10 | Shim ah - 65MM (1.59) | Shim ah - 65MM (1.59) |
| 5 | 23965-PL3-A10 | Shim ai - 65MM (1.62) | Shim ai - 65MM (1.62) |
| 5 | 23966-PL3-A10 | Shim aj - 65MM (1.65) | Shim aj - 65MM (1.65) |
| 5 | 23967-PL3-A10 | Shim ak - 65MM (1.68) | Shim ak - 65MM (1.68) |
| 5 | 23968-PL3-A10 | Shim al - 65MM (1.71) | Shim al - 65MM (1.71) |
| 5 | 23969-PL3-A10 | Shim am - 65MM (1.74) | Shim am - 65MM (1.74) |
| 5 | 23970-PL3-A10 | Shim an - 65MM (1.77) | Shim an - 65MM (1.77) |
| 5 | 23971-PL3-A10 | Shim ao - 65MM (1.80) | Shim ao - 65MM (1.80) |
| 1 | 24200-PL3-010 | Fork - FIFTH GEARSHIFT | Fork - FIFTH GEARSHIFT |
| 2 | 24210-PL3-040 | Fork comp - GEARSHIFT (3-4) | Fork comp - GEARSHIFT (3-4) |
| 2 | 24210-PL3-601 | Fork comp - GEARSHIFT (3-4) | Fork comp - GEARSHIFT (3-4) |
| 3 | 24220-PL3-601 | Fork comp - GEARSHIFT (1-2) | Fork comp - GEARSHIFT (1-2) |
| 4 | 24230-PL3-000 | Holder comp - REVERSE SHIFT | Holder comp - REVERSE SHIFT |
| 5 | 24243-PL3-010 | Piece - FIFTH & REVERSE SHIFT | Piece - FIFTH & REVERSE SHIFT |
| 6 | 24261-PL3-600 | Shaft - SHIFT FORK (1-2) | Shaft - SHIFT FORK (1-2) |
| 7 | 24271-PL3-010 | Shaft - SHIFT FORK (5-R) | Shaft - SHIFT FORK (5-R) |
| 1 | 24311-PL3-020 | Rod - SHIFT | Rod - SHIFT |
| 12 | 24313-PF5-000 | Clip - CHANGE JOINT PIN | Clip - CHANGE JOINT PIN |
| 2 | 24316-PL3-030 | Boot - SHIFT ROD | Boot - SHIFT ROD |
| 3 | 24351-PL3-010 | Shaft - SHIFT ARM B | Shaft - SHIFT ARM B |
| 4 | 24411-PL3-000 | Arm a - SHIFT | Arm a - SHIFT |
| 5 | 24421-PL3-000 | Arm b - SHIFT | Arm b - SHIFT |
| 6 | 24422-PL3-000 | Arm c - SHIFT | Arm c - SHIFT |
| 7 | 24430-PL3-010 | Interlock comp. | Interlock comp. |
| 8 | 24432-PL3-010 | Retainer - REVERSE SELECT | Retainer - REVERSE SELECT |
| 9 | 24433-PL3-000 | Bolt - INTERLOCK | Bolt - INTERLOCK |
| 10 | 24440-PL3-000 | Cam comp - REVERSE LOCK | Cam comp - REVERSE LOCK |
| 11 | 24452-PA0-000 | Spring - BALL SETTING | Spring - BALL SETTING |
| 8 | 24455-PG1-300 | Spring - SHIFT FORK SETTING | Spring - SHIFT FORK SETTING |
| 9 | 24455-PG2-A10 | Spring - FORK SET BALL | Spring - FORK SET BALL |
| 9 | 24455-PL3-300 | Spring - SHIFT FORK SETTING | Spring - SHIFT FORK SETTING |
| 12 | 24456-PL3-010 | Spring - SELECT SET BALL | Spring - SELECT SET BALL |
| 13 | 24461-PB6-000 | Collar - SPRING | Collar - SPRING |
| 14 | 24464-PL3-010 | Spring - FIRST-SECOND SELECT | Spring - FIRST-SECOND SELECT |
| 15 | 24465-PL3-020 | Spring - REVERSE SELECT | Spring - REVERSE SELECT |
| 16 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 4 | 31110-PM3-003 | Belt - ALTERNATOR (BANDO) | Belt - ALTERNATOR (BANDO) |
| 4 | 31110-PM3-014 | Belt - ALTERNATOR (MITSUBOSHI) | Belt - ALTERNATOR (MITSUBOSHI) |
| 4 | 31110-PM3-506 | Belt | Belt |
| 5 | 31112-PM3-000 | Bracket comp. - ALTERNATOR | Bracket comp. - ALTERNATOR |
| 6 | 31113-PM3-000 | Stay - ALTERNATOR | Stay - ALTERNATOR |
| 7 | 31117-PM5-A00 | Plate - CAUTION | Plate - CAUTION |
| 2 | 31510-SH3-A10 | Shield box - BATTERY | Shield box - BATTERY |
| 3 | 31512-SH3-010 | Plate - BATTERY SETTING | Plate - BATTERY SETTING |
| 4 | 31513-SA5-670 | Bolt - BATTERY SETTING, 225MM | Bolt - BATTERY SETTING, 225MM |
| 5 | 31513-SH3-000 | Bolt - BATTERY SETTING, 227MM | Bolt - BATTERY SETTING, 227MM |
| 6 | 31521-SH3-N00 | Box assy - BATTERY | Box assy - BATTERY |
| 7 | 31542-SA5-664 | Plug - VENT (MF) (YUASA) | Plug - VENT (MF) (YUASA) |
| 7 | 31542-SA5-665 | Plug - VENT (MF) (PANASONIC) | Plug - VENT (MF) (PANASONIC) |
| 7 | 31542-SA5-666 | Plug - VENT (MF) (FURUKAWA) | Plug - VENT (MF) (FURUKAWA) |
| 3 | 32112-PM3-000 | Stay - ENGINE WIRE HARNESS | Stay - ENGINE WIRE HARNESS |
| 1 | 32146-SD2-013 | Diode - 3P | Diode - 3P |
| 9 | 32600-SH3-A11 | Cable assy - EARTH | Cable assy - EARTH |
| 10 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 11 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 9 | 32610-SH3-000 | Cable - SUB EARTH | Cable - SUB EARTH |
| 12 | 32743-PM3-010 | Clamp b - ENGINE WIRE HARNESS | Clamp b - ENGINE WIRE HARNESS |
| 16 | 32750-PM3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 10 | 32761-PM3-000 | Stay a - HIGH TENSION CORD CLAMP | Stay a - HIGH TENSION CORD CLAMP |
| 7 | 32763-PM3-000 | Clamp c - HIGH TENSION CORD | Clamp c - HIGH TENSION CORD |
| 8 | 32764-PM3-000 | Clamp d - HIGH TENSION CORD | Clamp d - HIGH TENSION CORD |
| 9 | 32765-PM3-000 | Clamp a - HIGH TENSION CORD | Clamp a - HIGH TENSION CORD |
| 10 | 32766-PM3-000 | Clamp b - HIGH TENSION CORD | Clamp b - HIGH TENSION CORD |
| 11 | 32777-695-000 | Clamp - HIGH TENSION CORD | Clamp - HIGH TENSION CORD |
| 3 | 33115-692-741 | Bulb - HEADLIGHT (12V 60/55W) (PHILIPS) (HALOGEN) | Bulb - HEADLIGHT (12V 60/55W) (PHILIPS) (HALOGEN) |
| 4 | 33126-SH3-003 | Cover - RUBBER | Cover - RUBBER |
| 5 | 33140-SH3-A00 | Bracket - R. HEADLIGHT ADJUSTER | Bracket - R. HEADLIGHT ADJUSTER |
| 6 | 33143-SH3-003 | Plate - R. | Plate - R. |
| 9 | 33190-SH3-A00 | Bracket - L. HEADLIGHT ADJUSTER | Bracket - L. HEADLIGHT ADJUSTER |
| 10 | 33193-SH3-003 | Plate - L. | Plate - L. |
| 1 | 33300-SH4-013 | Light assy - R. FR. TURN SIGNAL | Light assy - R. FR. TURN SIGNAL |
| 1 | 33300-SH4-023 | Light assy - R. FR. TURN SIGNAL | Light assy - R. FR. TURN SIGNAL |
| 24 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 2 | 33301-SH4-003 | Lens - R. | Lens - R. |
| 3 | 33302-SH4-003 | Housing - R. | Housing - R. |
| 4 | 33303-SH4-003 | Packing | Packing |
| 6 | 33305-SH3-A01 | Socket comp - GRAY | Socket comp - GRAY |
| 7 | 33350-SH4-013 | Light assy - L. FR. TURN SIGNAL | Light assy - L. FR. TURN SIGNAL |
| 7 | 33350-SH4-023 | Light assy - L. FR. TURN SIGNAL | Light assy - L. FR. TURN SIGNAL |
| 8 | 33351-SH4-003 | Lens - L. | Lens - L. |
| 9 | 33352-SH4-003 | Housing - L. | Housing - L. |
| 11 | 33800-SH3-G01 | Light assy - SIDE TURN SIGNAL (###) | Light assy - SIDE TURN SIGNAL (###) |
| 12 | 33801-SH3-G01 | Lens | Lens |
| 13 | 33802-SH3-G01 | Cord comp | Cord comp |
| 15 | 34100-SH3-G01 | Light assy - LICENSE | Light assy - LICENSE |
| 16 | 34101-SH3-G01 | Lens | Lens |
| 17 | 34102-SH3-A01 | Housing | Housing |
| 18 | 34103-SH3-A01 | Packing | Packing |
| 19 | 34104-SH3-A01 | Socket & cord comp. | Socket & cord comp. |
| 3 | 34252-SB2-003 | Lens - DAIICHI | Lens - DAIICHI |
| 6 | 34260-SH3-004 | Light assy - TRUNK ROOM | Light assy - TRUNK ROOM |
| 7 | 34262-SH3-004 | Lens | Lens |
| 9 | 34295-538-003 | Bulb - 12V 5W) (DAIICHI | Bulb - 12V 5W) (DAIICHI |
| 8 | 34295-SA5-003 | Bulb - 12V 3.4W) (DAIICHI | Bulb - 12V 3.4W) (DAIICHI |
| 9 | 34295-SD4-003 | Bulb - 12V 5W.K | Bulb - 12V 5W.K |
| 19 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 10 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 27 | 34911-634-611 | Bulb - 12V 21/5W) (ECE) (STANLEY | Bulb - 12V 21/5W) (ECE) (STANLEY |
| 4 | 35101-SH3-003 | Cover - HOLDER | Cover - HOLDER |
| 5 | 35102-SA5-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 5 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 6 | 35103-SE3-003 | Screw - RECESSED, 3X8 | Screw - RECESSED, 3X8 |
| 15 | 35400-692-033 | Switch assy - DOOR | Switch assy - DOOR |
| 16 | 35409-692-013 | Screw - FLANGE, 4X12 | Screw - FLANGE, 4X12 |
| 18 | 35409-SD2-003 | Screw - EARTH, 4X12 (ZN) | Screw - EARTH, 4X12 (ZN) |
| 17 | 35410-692-003 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 19 | 35500-SH3-013 | Switch assy - RR. DEFOGGER | Switch assy - RR. DEFOGGER |
| 1 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 6 | 35600-PL3-013 | Switch assy - BACK UP LIGHT | Switch assy - BACK UP LIGHT |
| 3 | 35851-SB2-003 | Bulb - NEO WEDGE (14V 65MA) | Bulb - NEO WEDGE (14V 65MA) |
| 4 | 36024-PM1-G01 | Clamp - TUBE, 7.5X2 | Clamp - TUBE, 7.5X2 |
| 5 | 36138-PM1-G01 | Filter assy - SOLENOID VALVE | Filter assy - SOLENOID VALVE |
| 3 | 37106-SB2-003 | Knob - TRIP (NS) | Knob - TRIP (NS) |
| 4 | 37114-671-005 | Grommet - TRIP KNOB (NS) | Grommet - TRIP KNOB (NS) |
| 5 | 37115-SA0-601 | Packing - NS | Packing - NS |
| 6 | 37116-SB3-003 | Rubber - SPEEDOMETER (NS) | Rubber - SPEEDOMETER (NS) |
| 7 | 37237-SJ4-J00 | Bulb - 3W T6.5 CAP) (NS | Bulb - 3W T6.5 CAP) (NS |
| 8 | 37238-SD2-A00 | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN |
| 19 | 37240-PD2-003 | Switch - OIL PRESSURE (DENSO) | Switch - OIL PRESSURE (DENSO) |
| 19 | 37240-PD2-004 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 20 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 21 | 37760-PM3-003 | Switch assy - THERMOSTAT (A-93) (NIPPON THERMOSTAT) | Switch assy - THERMOSTAT (A-93) (NIPPON THERMOSTAT) |
| 15 | 37800-SH3-003 | Meter unit - FUEL (NS) | Meter unit - FUEL (NS) |
| 15 | 37800-SH3-004 | Meter unit - FUEL (DENSO) | Meter unit - FUEL (DENSO) |
| 16 | 37801-689-000 | Packing - BASE | Packing - BASE |
| 17 | 37802-SD2-000 | Retainer - FUEL UNIT | Retainer - FUEL UNIT |
| 3 | 38100-SH3-003 | Horn assy - LOW (MITSUBA) | Horn assy - LOW (MITSUBA) |
| 7 | 38212-SE0-000 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 8 | 38213-SD4-000 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 9 | 38214-SH3-000 | Fuse - BLOCK (60A) | Fuse - BLOCK (60A) |
| 10 | 38235-SA5-003 | Puller - FUSE (SUMITOMO) | Puller - FUSE (SUMITOMO) |
| 11 | 38250-SH3-Q02 | Box assy - MAIN FUSE | Box assy - MAIN FUSE |
| 13 | 38300-SE3-003 | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) |
| 13 | 38300-SE3-004 | Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO) | Relay assy - TURN SIGNAL & HAZARD (166500-0060) (DENSO) |
| 1 | 38472-SB2-003 | Rubber - BLADE (450MM) | Rubber - BLADE (450MM) |
| 2 | 38472-SB3-003 | Rubber - BLADE (475MM) | Rubber - BLADE (475MM) |
| 1 | 38511-SD2-003 | Adapter - NOZZLE (MITSUBA) | Adapter - NOZZLE (MITSUBA) |
| 7 | 38512-SB0-922 | Motor - WASHER (MITSUBA) | Motor - WASHER (MITSUBA) |
| 2 | 38513-SB0-961 | Cap - WASHER MOUTH(MITSUBA) | Cap - WASHER MOUTH(MITSUBA) |
| 3 | 38516-SA5-671 | Packing - T-TYPE) (MITSUBA | Packing - T-TYPE) (MITSUBA |
| 4 | 38519-SB0-003 | Bush - WASHER TANK (MITSUBA) | Bush - WASHER TANK (MITSUBA) |
| 1 | 38565-671-000 | Grommet - WASHER HOSE | Grommet - WASHER HOSE |
| 2 | 38611-PM3-004 | Fan comp - COOLING | Fan comp - COOLING |
| 6 | 38618-PM3-000 | Mount - SHROUD | Mount - SHROUD |
| 5 | 38625-692-000 | Grommet - TUBE | Grommet - TUBE |
| 4 | 38625-SB2-000 | Holder - EVAPORATOR PIPE | Holder - EVAPORATOR PIPE |
| 1 | 38642-692-013 | Plug - FUSIBLE (SAK) | Plug - FUSIBLE (SAK) |
| 2 | 38646-692-660 | O-ring - 3/8" | O-ring - 3/8" |
| 7 | 38647-692-660 | O-ring - 1/2" | O-ring - 1/2" |
| 3 | 38648-692-660 | O-ring - 5/8" | O-ring - 5/8" |
| 1 | 38773-PR3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 2 | 38810-PM3-056 | Compressor - MATSUSHITA | Compressor - MATSUSHITA |
| 3 | 38811-PM3-016 | Clutch set - COIL | Clutch set - COIL |
| 4 | 38885-PM3-000 | Insulator - HEAT | Insulator - HEAT |
| 5 | 38886-PK1-004 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
| 6 | 38900-PM3-036 | Clutch set - ROTOR ARMATURE | Clutch set - ROTOR ARMATURE |
| 7 | 38905-PK1-004 | O-ring | O-ring |
| 8 | 38908-PR5-004 | Protector set - THERMAL | Protector set - THERMAL |
| 9 | 38912-PM3-006 | Shim set | Shim set |
| 10 | 38914-PK1-004 | Circlip - INTERNAL, 24MM | Circlip - INTERNAL, 24MM |
| 11 | 38918-PM3-006 | Seal set - SHAFT | Seal set - SHAFT |
| 12 | 38920-PM3-003 | Belt - COMPRESSOR (BANDO) | Belt - COMPRESSOR (BANDO) |
| 12 | 38920-PM3-014 | Belt - COMPRESSOR (MITSUBOSHI) | Belt - COMPRESSOR (MITSUBOSHI) |
| 12 | 38920-PM3-023 | Belt | Belt |
| 13 | 38926-PM3-000 | Stay - IDLE PULLEY | Stay - IDLE PULLEY |
| 14 | 38930-PM3-000 | Bracket - COMPRESSOR | Bracket - COMPRESSOR |
| 15 | 38942-PM3-000 | Pulley comp - IDLE | Pulley comp - IDLE |
| 16 | 38944-PM3-000 | Collar - IDLE PULLEY (10X17X15.5) | Collar - IDLE PULLEY (10X17X15.5) |
| 17 | 38945-PM3-000 | Cover - BEARING | Cover - BEARING |
| 18 | 38946-PM3-000 | Bolt - IDLE PULLEY (10X39) | Bolt - IDLE PULLEY (10X39) |
| 1 | 39112-SH3-000 | Bracket - FR. SPEAKER SEAL (12CM) | Bracket - FR. SPEAKER SEAL (12CM) |
| 5 | 39121-SB2-013 | Seal - SPEAKER HOLE | Seal - SPEAKER HOLE |
| 19 | 39139-SB3-003 | Suppressor - NOISE (MITSUBA) (RZ-0062) | Suppressor - NOISE (MITSUBA) (RZ-0062) |
| 2 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 2 | 39356-SA7-010 | Spring - HEATER CONTROL | Spring - HEATER CONTROL |
| 3 | 39383-SA5-000 | Clamp - CONTROL CABLE | Clamp - CONTROL CABLE |
| 4 | 39384-SB0-000 | Shaft - CONTROL LEVER | Shaft - CONTROL LEVER |
| 5 | 39385-SA5-000 | Stopper - CONTROL LEVER | Stopper - CONTROL LEVER |
| 27 | 39600-S84-G01 | Lighter assy - CIGARETTE | Lighter assy - CIGARETTE |
| 27 | 39600-SW3-505 | LIGHTER ASSYCIGA | LIGHTER ASSYCIGA |
| 2 | 39628-SH3-306 | Cord assy | Cord assy |
| 10 | 39792-SH7-000 | Bracket b - RELAY | Bracket b - RELAY |
| 16 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 16 | 39794-SE0-004 | Relay assy - POWER (4P) (MITSUBA) (RC-2203) | Relay assy - POWER (4P) (MITSUBA) (RC-2203) |
| 11 | 39795-SB2-003 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 18 | 39797-SH2-003 | Relay assy - POWER (4P) (DENSO) | Relay assy - POWER (4P) (DENSO) |
| 4 | 41221-PL3-A02 | Gear - DRIVE PINION | Gear - DRIVE PINION |
| 6 | 41311-PL3-A02 | Case - DIFFERENTIAL | Case - DIFFERENTIAL |
| 7 | 41312-PL3-A00 | Gear - SPEEDOMETER DRIVE | Gear - SPEEDOMETER DRIVE |
| 8 | 41313-PL3-000 | Roller - 4X28 | Roller - 4X28 |
| 9 | 41321-PE6-030 | Shaft - PINION | Shaft - PINION |
| 10 | 41341-PC9-000 | Gear - DIFFERENTIAL PINION | Gear - DIFFERENTIAL PINION |
| 10 | 41341-PC9-010 | Gear - DIFFERENTIAL PINION | Gear - DIFFERENTIAL PINION |
| 11 | 41351-689-000 | Washer a - DIFFERENTIAL PINION (0.7MM) | Washer a - DIFFERENTIAL PINION (0.7MM) |
| 11 | 41352-689-000 | Washer b - DIFFERENTIAL PINION (0.8MM) | Washer b - DIFFERENTIAL PINION (0.8MM) |
| 11 | 41353-689-000 | Washer c - DIFFERENTIAL PINION (0.9MM) | Washer c - DIFFERENTIAL PINION (0.9MM) |
| 11 | 41354-689-000 | Washer d - DIFFERENTIAL PINION (1.0MM) | Washer d - DIFFERENTIAL PINION (1.0MM) |
| 11 | 41355-PC8-000 | Washer e - DIFFERENTIAL PINION (0.75MM) | Washer e - DIFFERENTIAL PINION (0.75MM) |
| 11 | 41356-PC8-000 | Washer f - DIFFERENTIAL PINION (0.85MM) | Washer f - DIFFERENTIAL PINION (0.85MM) |
| 11 | 41357-PC8-000 | Washer g - DIFFERENTIAL PINION (0.95MM) | Washer g - DIFFERENTIAL PINION (0.95MM) |
| 12 | 41441-PL3-A00 | Shim a - 72MM(1.0) | Shim a - 72MM(1.0) |
| 12 | 41442-PL3-A00 | Shim b - 72MM(1.1) | Shim b - 72MM(1.1) |
| 12 | 41443-PL3-A00 | Shim c - 72MM(1.2) | Shim c - 72MM(1.2) |
| 12 | 41444-PL3-A00 | Shim d - 72MM(1.3) | Shim d - 72MM(1.3) |
| 12 | 41445-PL3-A00 | Shim e - 72MM(1.4) | Shim e - 72MM(1.4) |
| 12 | 41446-PL3-A00 | Shim f - 72MM(1.5) | Shim f - 72MM(1.5) |
| 12 | 41447-PL3-A00 | Shim g - 72MM(1.6) | Shim g - 72MM(1.6) |
| 12 | 41448-PL3-A00 | Shim h - 72MM(1.7) | Shim h - 72MM(1.7) |
| 12 | 41449-PL3-A00 | Shim j - 72MM(1.8) | Shim j - 72MM(1.8) |
| 12 | 41450-PL3-A00 | Shim k - 72MM(1.05) | Shim k - 72MM(1.05) |
| 12 | 41451-PL3-A00 | Shim l - 72MM(1.15) | Shim l - 72MM(1.15) |
| 12 | 41452-PL3-A00 | Shim m - 72MM(1.25) | Shim m - 72MM(1.25) |
| 12 | 41453-PL3-A00 | Shim n - 72MM(1.35) | Shim n - 72MM(1.35) |
| 12 | 41454-PL3-A00 | Shim p - 72MM(1.45) | Shim p - 72MM(1.45) |
| 12 | 41455-PL3-A00 | Shim q - 72MM(1.55) | Shim q - 72MM(1.55) |
| 12 | 41456-PL3-A00 | Shim r - 72MM(1.65) | Shim r - 72MM(1.65) |
| 12 | 41457-PL3-A00 | Shim s - 72MM(1.75) | Shim s - 72MM(1.75) |
| 2 | 42324-SB2-020 | Washer - HUB UNIT | Washer - HUB UNIT |
| 3 | 42326-SB2-000 | Cap - HUB UNIT | Cap - HUB UNIT |
| 3 | 42326-SFA-000 | Cap - HUB UNIT | Cap - HUB UNIT |
| 4 | 42412-SB2-020 | Ring - SPINDLE | Ring - SPINDLE |
| 9 | 42753-671-003 | Valve - RIM (TAIHEIYO) | Valve - RIM (TAIHEIYO) |
| 9 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 9 | 42753-SE0-A02 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 9 | 42753-SH3-003 | Valve - RIM (US PACIFIC) | Valve - RIM (US PACIFIC) |
| 10 | 42767-SB0-600 | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) |
| 1 | 43352-692-003 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-SA0-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 2 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 1 | 44300-SB2-962 | Bearing assy - FR. HUB (FUJIKOSHI) | Bearing assy - FR. HUB (FUJIKOSHI) |
| 1 | 44300-SB2-963 | Bearing assy - FR. HUB (KOYO SEIKO) | Bearing assy - FR. HUB (KOYO SEIKO) |
| 1 | 44300-SB2-966 | Bearing assy - FR. HUB (TOYO SEIKO) | Bearing assy - FR. HUB (TOYO SEIKO) |
| 1 | 44300-SX8-004 | Bearing assy - HUB | Bearing assy - HUB |
| 9 | 44317-SA2-300 | Band b - BOOT | Band b - BOOT |
| 14 | 44319-SA2-000 | Set ring - 26X1.8 | Set ring - 26X1.8 |
| 20 | 44347-SB2-003 | Ring - OUTBOARD | Ring - OUTBOARD |
| 2 | 44348-SH3-000 | Ring - FR. KNUCKLE | Ring - FR. KNUCKLE |
| 11 | 44721-SB2-003 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 11 | 44722-SB2-003 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 11 | 44723-SB2-003 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 11 | 44724-SB2-003 | Weight - BALANCE (40G) (YAMATE) | Weight - BALANCE (40G) (YAMATE) |
| 11 | 44725-SB2-003 | Weight - BALANCE (50G) (YAMATE) | Weight - BALANCE (50G) (YAMATE) |
| 11 | 44726-SB2-003 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 11 | 44727-SB2-003 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 11 | 44728-SB2-003 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 11 | 44729-SB2-003 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 11 | 44730-SB2-013 | Weight - BALANCE (45G) (YAMATE) | Weight - BALANCE (45G) (YAMATE) |
| 13 | 44732-SB2-000 | Cap - WHEEL CENTER (56MM) (BLACK) | Cap - WHEEL CENTER (56MM) (BLACK) |
| 15 | 45240-SC2-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 5 | 45255-SH3-030 | Guard - FR. BRAKE SPLASH | Guard - FR. BRAKE SPLASH |
| 5 | 45255-SH3-040 | Guard - FR. BRAKE SPLASH | Guard - FR. BRAKE SPLASH |
| 5 | 46138-568-671 | Packing | Packing |
| 6 | 46139-632-000 | Bolt - STOPPER | Bolt - STOPPER |
| 2 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 8 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 3 | 46191-634-000 | Gasket - MASTER CYLINDER BRACKET | Gasket - MASTER CYLINDER BRACKET |
| 3 | 46310-SH3-000 | Pipe comp. a - BRAKE | Pipe comp. a - BRAKE |
| 6 | 46330-SH3-050 | Pipe comp. c - BRAKE | Pipe comp. c - BRAKE |
| 8 | 46340-SH3-040 | Pipe comp. d - BRAKE | Pipe comp. d - BRAKE |
| 12 | 46380-SH3-000 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 13 | 46382-SH3-300 | Grommet a - BRAKE PIPE | Grommet a - BRAKE PIPE |
| 16 | 46391-SK7-013 | Clip s - BRAKE PIPE | Clip s - BRAKE PIPE |
| 20 | 46392-692-003 | Clip d - BRAKE PIPE (WHITE) | Clip d - BRAKE PIPE (WHITE) |
| 17 | 46392-SB0-010 | Clip d - BRAKE PIPE (BLACK) | Clip d - BRAKE PIPE (BLACK) |
| 18 | 46392-SB2-014 | Clip b - BRAKE PIPE | Clip b - BRAKE PIPE |
| 6 | 46403-SE0-003 | Valve comp. - CHECK (NISSIN) | Valve comp. - CHECK (NISSIN) |
| 12 | 46406-SH3-J02 | Stay - MASTER POWER TUBE | Stay - MASTER POWER TUBE |
| 21 | 46410-SH3-043 | Hose - R. FR. BRAKE (NICHIRIN) | Hose - R. FR. BRAKE (NICHIRIN) |
| 21 | 46410-SH3-J02 | Hose - R. FR. BRAKE (MEIJI) | Hose - R. FR. BRAKE (MEIJI) |
| 22 | 46411-SH3-043 | Hose - L. FR. BRAKE (NICHIRIN) | Hose - L. FR. BRAKE (NICHIRIN) |
| 22 | 46411-SH3-J02 | Hose - L. FR. BRAKE (MEIJI) | Hose - L. FR. BRAKE (MEIJI) |
| 15 | 46431-692-003 | Spring - VALVE | Spring - VALVE |
| 16 | 46432-SA0-003 | Spring - POPPET | Spring - POPPET |
| 17 | 46433-SB2-003 | Rod comp - PUSH | Rod comp - PUSH |
| 18 | 46443-692-003 | Adjuster - PUSH ROD | Adjuster - PUSH ROD |
| 24 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 25 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 5 | 46504-679-300 | Bush - PEDAL | Bush - PEDAL |
| 6 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 17 | 46505-SA7-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 19 | 46512-SB2-000 | Pin - PEDAL | Pin - PEDAL |
| 7 | 46530-SH3-000 | Spring - PEDAL RETURN | Spring - PEDAL RETURN |
| 9 | 46535-692-000 | Collar - PEDAL | Collar - PEDAL |
| 10 | 46545-SH3-000 | Cover - PEDAL | Cover - PEDAL |
| 11 | 46665-671-651 | Band - RESERVE TANK | Band - RESERVE TANK |
| 13 | 46669-692-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 2 | 47142-659-310 | Knob - PARKING BRAKE PUSH ROD | Knob - PARKING BRAKE PUSH ROD |
| 3 | 47143-671-310 | Spring - PUSH ROD | Spring - PUSH ROD |
| 4 | 47342-SA5-013 | Switch - PARKING BRAKE | Switch - PARKING BRAKE |
| 5 | 47360-SB2-000 | Equalizer | Equalizer |
| 6 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 8 | 47511-SH3-300 | Bracket - BOOT BASE | Bracket - BOOT BASE |
| 9 | 47513-SH3-300 | Boot - BRACKET WIRE | Boot - BRACKET WIRE |
| 10 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 11 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 13 | 47572-SH3-000 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 2 | 50250-SH3-060 | Beam - FR. | Beam - FR. |
| 2 | 50250-SH9-030 | Beam - FR. | Beam - FR. |
| 3 | 50805-SH3-040 | Rubber - TRANSMISSION MOUNTING (MT) | Rubber - TRANSMISSION MOUNTING (MT) |
| 5 | 50810-SH3-040 | Rubber assy. - ENGINE RR. MOUNTING (MT) | Rubber assy. - ENGINE RR. MOUNTING (MT) |
| 6 | 50821-SH3-040 | Rubber - ENGINE SIDE MOUNTING | Rubber - ENGINE SIDE MOUNTING |
| 7 | 50825-SH3-050 | Bracket - TRANSMISSION MOUNTING (MT) | Bracket - TRANSMISSION MOUNTING (MT) |
| 9 | 50827-SH3-030 | Bracket - RR. ENGINE MOUNTING (MT) | Bracket - RR. ENGINE MOUNTING (MT) |
| 11 | 50829-SK7-J00 | Mass - RR. ENGINE MOUNTING | Mass - RR. ENGINE MOUNTING |
| 12 | 50839-SH3-000 | Nut - YOKE, 12MM | Nut - YOKE, 12MM |
| 12 | 50839-SK7-000 | Nut - YOKE, 12MM | Nut - YOKE, 12MM |
| 13 | 50840-SH3-000 | Mounting assy. - FR. STOPPER (MT) | Mounting assy. - FR. STOPPER (MT) |
| 6 | 51210-SH3-030 | Knuckle comp - R. FR. | Knuckle comp - R. FR. |
| 7 | 51213-SE0-000 | Protector - KNUCKLE | Protector - KNUCKLE |
| 8 | 51215-SH3-030 | Knuckle comp - L. FR. | Knuckle comp - L. FR. |
| 9 | 51220-SH0-A01 | Joint comp - LOWER BALL (TECHNICAL AUTO PARTS) | Joint comp - LOWER BALL (TECHNICAL AUTO PARTS) |
| 9 | 51220-SK7-003 | Joint comp - LOWER BALL (MUSASHI) | Joint comp - LOWER BALL (MUSASHI) |
| 10 | 51225-SB0-003 | Boot - LOWER BALL DUST (MUSASHI) | Boot - LOWER BALL DUST (MUSASHI) |
| 10 | 51225-SH0-A01 | Boot - LOWER BALL DUST (TECHNICAL AUTO PARTS) | Boot - LOWER BALL DUST (TECHNICAL AUTO PARTS) |
| 2 | 51308-SH3-010 | Holder - FR. STABILIZER | Holder - FR. STABILIZER |
| 3 | 51313-SF1-000 | Washer a | Washer a |
| 5 | 51352-SH3-000 | Rod - FR. RADIUS | Rod - FR. RADIUS |
| 6 | 51355-SH3-020 | Arm comp - R. FR. LOWER | Arm comp - R. FR. LOWER |
| 7 | 51365-SH3-020 | Arm comp - L. FR. LOWER | Arm comp - L. FR. LOWER |
| 8 | 51393-SH3-003 | Bush - FR. LOWER ARM (HOKUSHIN) | Bush - FR. LOWER ARM (HOKUSHIN) |
| 9 | 51395-SH3-003 | Bush - FR. RADIUS ROD (HOKUSHIN) | Bush - FR. RADIUS ROD (HOKUSHIN) |
| 9 | 51395-SH3-004 | Bush - FR. RADIUS ROD (YAMASHITA) | Bush - FR. RADIUS ROD (YAMASHITA) |
| 10 | 51398-SA5-000 | Collar - RADIUS ROD | Collar - RADIUS ROD |
| 12 | 51455-SH3-005 | Bush - FR. UPPER ARM | Bush - FR. UPPER ARM |
| 14 | 51464-SK7-003 | Boot - UPPER BALL JOINT | Boot - UPPER BALL JOINT |
| 15 | 51467-SH3-003 | Circlip - UPPER BALL JOINT | Circlip - UPPER BALL JOINT |
| 6 | 51621-SB0-003 | Washer - SHOCK ABSORBER MOUNTING (TOKICO) | Washer - SHOCK ABSORBER MOUNTING (TOKICO) |
| 6 | 51621-SB0-004 | Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA) | Washer - FR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 7 | 51631-S7S-J01 | RUBBER DAMPER M | RUBBER DAMPER M |
| 7 | 51631-SB0-003 | Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.) | Rubber - SHOCK ABSORBER MOUNTING (INOUE M.T.P.) |
| 7 | 51631-SB0-004 | Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA) | Rubber - SHOCK ABSORBER MOUNTING (YAMASHITA) |
| 8 | 51675-SH3-024 | Base - SHOCK ABSORBER MOUNTING (SHOWA) | Base - SHOCK ABSORBER MOUNTING (SHOWA) |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 10 | 51686-SH3-014 | Rubber - FR. SPRING MOUNTING (SHOWA) | Rubber - FR. SPRING MOUNTING (SHOWA) |
| 11 | 51687-SH3-014 | Cover - FR. SLEEVE DUST | Cover - FR. SLEEVE DUST |
| 12 | 51689-SH3-004 | Plate - BUMP STOP (SHOWA) | Plate - BUMP STOP (SHOWA) |
| 13 | 51722-SE0-003 | Rubber - BUMP STOPPER (NIPPON MEKTRON) | Rubber - BUMP STOPPER (NIPPON MEKTRON) |
| 13 | 51722-SE0-004 | Rubber - BUMP STOPPER (POLYURETHAN KASEI) | Rubber - BUMP STOPPER (POLYURETHAN KASEI) |
| 7 | 51728-SB0-003 | Collar - SHOCK ABSORBER MOUNTING(TOKICO) | Collar - SHOCK ABSORBER MOUNTING(TOKICO) |
| 14 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 11 | 51810-SH3-003 | Bush - SHOCK ABSORBER FORK (HOKUSHIN) | Bush - SHOCK ABSORBER FORK (HOKUSHIN) |
| 11 | 51810-SH3-004 | Bush - SHOCK ABSORBER FORK (YAMASHITA) | Bush - SHOCK ABSORBER FORK (YAMASHITA) |
| 11 | 51810-SK7-004 | Bush - SHOCK ABSORBER FORK | Bush - SHOCK ABSORBER FORK |
| 12 | 51811-SH3-010 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 13 | 51821-SH3-010 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 14 | 52316-692-010 | Rubber a - STABILIZER | Rubber a - STABILIZER |
| 4 | 52343-SH3-004 | Bush - COMPENSATOR | Bush - COMPENSATOR |
| 4 | 52343-SR3-004 | Bush - COMPENSATOR (YAMASHITA) | Bush - COMPENSATOR (YAMASHITA) |
| 16 | 52393-SH3-004 | Bush - UPPER ARM INNER (YAMASHITA) | Bush - UPPER ARM INNER (YAMASHITA) |
| 16 | 52393-SH3-005 | Bush - UPPER ARM INNER (SUMITOMO) | Bush - UPPER ARM INNER (SUMITOMO) |
| 17 | 52395-SH3-004 | Bush - RR. UPPER ARM (YAMASHITA) | Bush - RR. UPPER ARM (YAMASHITA) |
| 17 | 52395-SH3-005 | Bush - RR. UPPER ARM (SUMITOMO) | Bush - RR. UPPER ARM (SUMITOMO) |
| 10 | 52442-SH3-000 | Tube | Tube |
| 3 | 52675-SH3-024 | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 15 | 52686-SH3-004 | Rubber - RR. SPRING MOUNTING (SHOWA) | Rubber - RR. SPRING MOUNTING (SHOWA) |
| 16 | 52687-SH3-014 | Cover - RR. SLEEVE DUST (SHOWA) | Cover - RR. SLEEVE DUST (SHOWA) |
| 18 | 52688-SH3-004 | End - RR. DUST COVER (SHOWA) | End - RR. DUST COVER (SHOWA) |
| 20 | 52748-SH3-004 | Rubber - RR. SPRING SEAT LOWER | Rubber - RR. SPRING SEAT LOWER |
| 1 | 53124-SA5-004 | Ring - SLIP (TS TECH) | Ring - SLIP (TS TECH) |
| 2 | 53211-SH3-010 | Holder - COLUMN UPPER | Holder - COLUMN UPPER |
| 3 | 53212-SH3-010 | Plate comp - BENDING | Plate comp - BENDING |
| 4 | 53216-SH3-020 | Holder b - STEERING COLUMN | Holder b - STEERING COLUMN |
| 5 | 53217-SD2-000 | Collar - STEERING RETAINER | Collar - STEERING RETAINER |
| 6 | 53218-SH3-010 | Spring - BENDING PLATE | Spring - BENDING PLATE |
| 7 | 53231-SB2-000 | Label - IGNITION SWITCH | Label - IGNITION SWITCH |
| 8 | 53235-SA5-010 | Ring - COLUMN COVER | Ring - COLUMN COVER |
| 9 | 53239-SB2-000 | Clip - COLUMN COVER | Clip - COLUMN COVER |
| 19 | 53271-SF1-003 | Cam - TURN SIGNAL SWITCH CANCEL | Cam - TURN SIGNAL SWITCH CANCEL |
| 13 | 53311-692-000 | Washer - STEERING SHAFT | Washer - STEERING SHAFT |
| 16 | 53323-SF4-003 | Joint comp. b - STEERING | Joint comp. b - STEERING |
| 17 | 53325-SH3-000 | Clip A - JOINT COVER | Clip A - JOINT COVER |
| 18 | 53326-SB0-000 | Clip b - JOINT COVER | Clip b - JOINT COVER |
| 22 | 53364-SA0-960 | Collar - PIVOT | Collar - PIVOT |
| 23 | 53365-SA0-961 | Bush - PIVOT | Bush - PIVOT |
| 24 | 53368-SH3-020 | Guide - BENDING PLATE | Guide - BENDING PLATE |
| 25 | 53369-SH3-010 | Guide - RAIL | Guide - RAIL |
| 10 | 53430-SH3-000 | Bush - RACK END | Bush - RACK END |
| 11 | 53434-S04-J51 | CLIP, TIE ROD | CLIP, TIE ROD |
| 11 | 53434-SD9-000 | Clip - TIE ROD | Clip - TIE ROD |
| 12 | 53436-SH3-000 | Cushion b - STEERING GEAR BOX | Cushion b - STEERING GEAR BOX |
| 13 | 53438-SH3-000 | Bracket - STEERING GEAR BOX | Bracket - STEERING GEAR BOX |
| 15 | 53449-SH3-000 | Band - BELLOWS | Band - BELLOWS |
| 14 | 53449-SH3-J00 | Band b - BELLOWS | Band b - BELLOWS |
| 17 | 53501-SH3-000 | Grommet a - STEERING | Grommet a - STEERING |
| 18 | 53502-SH3-010 | Grommet b - STEERING | Grommet b - STEERING |
| 19 | 53503-SH3-000 | Spacer - STEERING GROMMET | Spacer - STEERING GROMMET |
| 20 | 53521-SH3-003 | End comp - RACK | End comp - RACK |
| 21 | 53535-SH3-000 | Washer - TIE ROD STOPPER | Washer - TIE ROD STOPPER |
| 22 | 53536-SB2-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 24 | 53537-SH3-000 | Dust seal a - TIE ROD | Dust seal a - TIE ROD |
| 23 | 53537-SH3-J00 | Dust seal b - TIE ROD | Dust seal b - TIE ROD |
| 25 | 53540-SH3-013 | End comp - R. TIE ROD | End comp - R. TIE ROD |
| 26 | 53546-SA0-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 27 | 53560-SH3-013 | End comp - L. TIE ROD | End comp - L. TIE ROD |
| 28 | 53685-SH3-000 | Bush - STEERING GEAR BOX MOUNTING | Bush - STEERING GEAR BOX MOUNTING |
| 29 | 53686-SH3-010 | Collar - STEERING GEAR BOX MOUNTING | Collar - STEERING GEAR BOX MOUNTING |
| 20 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 1 | 54101-SH3-010 | Lever - CHANGE | Lever - CHANGE |
| 4 | 54105-SH3-010 | Washer a - THRUST | Washer a - THRUST |
| 5 | 54106-SH3-003 | Washer b - THRUST | Washer b - THRUST |
| 6 | 54107-SH3-003 | Bush - RR. JOINT | Bush - RR. JOINT |
| 8 | 54108-SB2-000 | Boot - CHANGE LEVER | Boot - CHANGE LEVER |
| 9 | 54109-SA7-000 | Seal A, CHANGE LEVER DUST | Seal A, CHANGE LEVER DUST |
| 10 | 54110-SH3-003 | Seat - CHANGE LEVER BALL | Seat - CHANGE LEVER BALL |
| 11 | 54111-SH3-000 | Holder - CHANGE BALL | Holder - CHANGE BALL |
| 12 | 54113-611-505 | CLIP, SHIFT JOINT | CLIP, SHIFT JOINT |
| 13 | 54114-SB2-000 | Collar - PIPE MOUNTING | Collar - PIPE MOUNTING |
| 14 | 54115-SH3-000 | Dust seal B, Change | Dust seal B, Change |
| 15 | 54117-SH3-000 | Collar - RR. JOINT | Collar - RR. JOINT |
| 16 | 54201-SH3-A04 | Rod comp - CHANGE | Rod comp - CHANGE |
| 17 | 54301-SH3-A02 | Extension - CHANGE | Extension - CHANGE |
| 18 | 54303-SF4-000 | Rubber - EXTENSION END | Rubber - EXTENSION END |
| 19 | 54304-SH3-020 | Bracket - EXTENSION | Bracket - EXTENSION |
| 20 | 54306-SH3-000 | Rubber, EXTENSION MOUNTING | Rubber, EXTENSION MOUNTING |
| 21 | 54307-SH3-010 | Stopper - EXTENSION MOUNTING | Stopper - EXTENSION MOUNTING |
| 22 | 54308-SH3-000 | Bolt - EXTENSION | Bolt - EXTENSION |
| 23 | 54309-SH3-000 | Collar - EXTENSION END | Collar - EXTENSION END |
| 14 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
| 7 | 57562-SF1-003 | Circlip | Circlip |
| 6 | 60658-SB3-000 | Cap - AIRSCOOP | Cap - AIRSCOOP |
| 6 | 60658-SD2-000 | Cap - AIRSCOOP GARNISH | Cap - AIRSCOOP GARNISH |
| 24 | 60821-SH3-000 | Hook - TIE DOWN | Hook - TIE DOWN |
| 5 | 61815-SA5-013 | Clip - FR. MUDGUARD | Clip - FR. MUDGUARD |
| 2 | 63511-SA5-003 | Cushion - HOOD | Cushion - HOOD |
| 1 | 64436-692-000 | Clip - GUIDE | Clip - GUIDE |
| 4 | 66161-SB2-000 | Label - COIN | Label - COIN |
| 1 | 66405-SD4-000 | Stay - GLOVE BOX HINGE | Stay - GLOVE BOX HINGE |
| 2 | 66417-SB3-670 | Rubber - GLOVE BOX STOPPER | Rubber - GLOVE BOX STOPPER |
| 7 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 3 | 66418-SB2-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 4 | 66430-SB2-000 | Striker assy - GLOVE BOX | Striker assy - GLOVE BOX |
| 20 | 70494-SE0-000 | Spring - FUEL LID OPENER | Spring - FUEL LID OPENER |
| 9 | 71190-SH3-000 | Slide assy. - R. FR. BUMPER | Slide assy. - R. FR. BUMPER |
| 10 | 71193-SH3-000 | Clip - BUMPER CORNER | Clip - BUMPER CORNER |
| 11 | 71193-SH4-000 | Clip - BUMPER CORNER | Clip - BUMPER CORNER |
| 12 | 71195-SH3-000 | Slide assy. - L. FR. BUMPER | Slide assy. - L. FR. BUMPER |
| 34 | 71544-SR2-000 | Seal - RR. UPPER BEAM | Seal - RR. UPPER BEAM |
| 18 | 71591-SH3-010 | Slide - R. RR. BUMPER CORNER | Slide - R. RR. BUMPER CORNER |
| 19 | 71592-SH3-010 | Slide - L. RR. BUMPER CORNER | Slide - L. RR. BUMPER CORNER |
| 20 | 71598-SH4-000 | Spacer - RR. BUMPER SIDE | Spacer - RR. BUMPER SIDE |
| 33 | 72105-SF1-003 | Striker - DOOR LOCK | Striker - DOOR LOCK |
| 11 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 13 | 72140-SH3-004 | Handle assy - R. OUTSIDE (HONDA LOCK) | Handle assy - R. OUTSIDE (HONDA LOCK) |
| 14 | 72145-SH3-023 | Cylinder - R. DOOR (HONDA LOCK) | Cylinder - R. DOOR (HONDA LOCK) |
| 15 | 72146-SH3-023 | Cylinder - L. DOOR (HONDA LOCK) | Cylinder - L. DOOR (HONDA LOCK) |
| 32 | 72175-SH3-003 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 31 | 72175-SH3-901 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 26 | 72180-SH3-004 | Handle assy - L. OUTSIDE (HONDA LOCK) | Handle assy - L. OUTSIDE (HONDA LOCK) |
| 7 | 72206-SH3-000 | Cap - FLOOR HOLE | Cap - FLOOR HOLE |
| 8 | 72207-SB2-000 | Cap - FLOOR HOLE, 24MM | Cap - FLOOR HOLE, 24MM |
| 9 | 72207-SH3-000 | Cap - FLOOR HOLE | Cap - FLOOR HOLE |
| 10 | 72246-SH3-003 | Stopper - DOOR GLASS | Stopper - DOOR GLASS |
| 9 | 72327-SD5-000 | Seal b - FR. DOOR HOLE (30X50) | Seal b - FR. DOOR HOLE (30X50) |
| 5 | 73125-SD5-000 | Rubber - FR. WINDSHIELD DAM | Rubber - FR. WINDSHIELD DAM |
| 3 | 73126-SH3-000 | Rubber - FR. WINDSHIELD DAM | Rubber - FR. WINDSHIELD DAM |
| 4 | 73127-SH3-013 | Holder - FR. WINDSHIELD GLASS | Holder - FR. WINDSHIELD GLASS |
| 5 | 73128-SH3-000 | Rubber - FR. WINDSHIELD DAM | Rubber - FR. WINDSHIELD DAM |
| 6 | 73219-693-951 | Seal - FUEL LID OPENER (GREEN) | Seal - FUEL LID OPENER (GREEN) |
| 7 | 74111-SH3-010 | Shield - R. FR. SPLASH | Shield - R. FR. SPLASH |
| 8 | 74115-SH3-010 | Guard | Guard |
| 14 | 74134-SH3-003 | Grommet - HOOD WIRE | Grommet - HOOD WIRE |
| 21 | 74144-SE0-000 | Cushion - HOOD | Cushion - HOOD |
| 10 | 74161-SH3-010 | Shield - L. FR. SPLASH | Shield - L. FR. SPLASH |
| 11 | 74165-SH3-000 | Guard | Guard |
| 22 | 74171-SH3-010 | Bracket - R. RADIATOR MOUNTING UPPER | Bracket - R. RADIATOR MOUNTING UPPER |
| 24 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 27 | 74232-SH3-003 | Cap - WATER GUIDE | Cap - WATER GUIDE |
| 4 | 74308-SH3-003 | Clip A - ROOF MOLDING (BLACK) | Clip A - ROOF MOLDING (BLACK) |
| 6 | 74318-SH3-003 | Clip b - ROOF MOLDING (BLUE) | Clip b - ROOF MOLDING (BLUE) |
| 21 | 74422-SH3-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 32 | 74651-SH3-000 | Plate - FUEL TANK BAFFLE | Plate - FUEL TANK BAFFLE |
| 21 | 74671-SH3-010 | Cap - RR. SHOCK ABSORBER | Cap - RR. SHOCK ABSORBER |
| 8 | 75522-611-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 28 | 75525-SD4-013 | Clip - RR. PANEL GARNISH | Clip - RR. PANEL GARNISH |
| 29 | 75528-SD4-003 | Packing - SEAL (G) | Packing - SEAL (G) |
| 34 | 75556-605-010 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 13 | 75760-SB2-003 | Pin - DOOR CHECKER | Pin - DOOR CHECKER |
| 10 | 75826-605-300 | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) | Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK) |
| 27 | 75826-634-300 | Seal - INSIDE PANEL, 15MM | Seal - INSIDE PANEL, 15MM |
| 17 | 75891-611-000 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 14 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 20 | 76401-SH3-901 | Base - STAY (MATSUYAMA) | Base - STAY (MATSUYAMA) |
| 4 | 76515-SH3-003 | Seal a | Seal a |
| 5 | 76516-SE0-003 | Rubber - BRACKETLESS MOUNTING | Rubber - BRACKETLESS MOUNTING |
| 6 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 7 | 76520-SH3-003 | Link unit a | Link unit a |
| 8 | 76524-SD4-003 | Dust seal | Dust seal |
| 9 | 76524-SE0-013 | Dust seal | Dust seal |
| 14 | 76561-SH3-003 | Cap - PIVOT | Cap - PIVOT |
| 1 | 76632-S5H-T01 | Rubber - BLADE (450MM) | Rubber - BLADE (450MM) |
| 2 | 76802-SS0-003 | Cap - MOUTH | Cap - MOUTH |
| 9 | 76810-S50-003 | Nozzle assy wshld | Nozzle assy wshld |
| 8 | 76810-SH3-003 | Nozzle assy. - WASHER (DUAL) | Nozzle assy. - WASHER (DUAL) |
| 8 | 76810-SR3-003 | Nozzle assy. - R. FR. WASHER | Nozzle assy. - R. FR. WASHER |
| 9 | 76815-SH3-003 | Nozzle assy. - WASHER (SINGLE) | Nozzle assy. - WASHER (SINGLE) |
| 5 | 76830-SH3-003 | Joint y - TUBE (MITSUBA) | Joint y - TUBE (MITSUBA) |
| 11 | 77105-SH3-010 | Blind - INSTRUMENT | Blind - INSTRUMENT |
| 19 | 77142-SH3-000 | Pipe - INSTRUMENT SIDE | Pipe - INSTRUMENT SIDE |
| 29 | 77186-SH3-000 | Cushion - INSTRUMENT PANEL | Cushion - INSTRUMENT PANEL |
| 35 | 77230-SE3-A02 | Lid assy - AUDIO HOLE | Lid assy - AUDIO HOLE |
| 36 | 77233-SH3-A01 | Panel - RADIO | Panel - RADIO |
| 14 | 77666-SH3-000 | Link b - VENT | Link b - VENT |
| 15 | 77668-SH3-000 | Cable - VENT CONTROL | Cable - VENT CONTROL |
| 3 | 77671-SE3-003 | Washer - LINK | Washer - LINK |
| 19 | 77673-SE3-000 | Rubber - VENT CASE | Rubber - VENT CASE |
| 21 | 77678-SH3-000 | Collar - VENTILATION | Collar - VENTILATION |
| 10 | 77730-SH3-901 | Holder comp - FR. ASHTRAY | Holder comp - FR. ASHTRAY |
| 49 | 77762-SD4-000 | Label - FUSE | Label - FUSE |
| 12 | 78108-SH3-B04 | Panel - PRINT (NS) | Panel - PRINT (NS) |
| 13 | 78110-SH3-901 | Case assy - NS | Case assy - NS |
| 18 | 78130-SH3-901 | Meter assy - FUEL & TEMPERATURE (NS) | Meter assy - FUEL & TEMPERATURE (NS) |
| 23 | 78166-SH3-J01 | Illumination assy. - NS | Illumination assy. - NS |
| 5 | 78517-SH3-003 | Plate - HORN (TS TECH) | Plate - HORN (TS TECH) |
| 7 | 78519-SH3-003 | Spring - COIL (TS TECH) | Spring - COIL (TS TECH) |
| 10 | 79183-SH3-003 | Lever c - MODE | Lever c - MODE |
| 12 | 79188-SH3-003 | Lever b - AIR MODE | Lever b - AIR MODE |
| 5 | 79330-SH3-003 | Resistor - BLOWER | Resistor - BLOWER |
| 5 | 79511-SH3-000 | Base - HEATER CONTROL | Base - HEATER CONTROL |
| 6 | 79514-SH3-000 | Plate - HEATER CONTROL SETTING | Plate - HEATER CONTROL SETTING |
| 7 | 79516-SH3-000 | Plate - TEMPERATURE CLICK | Plate - TEMPERATURE CLICK |
| 8 | 79517-SD4-000 | Mount - CONTROL SHAFT | Mount - CONTROL SHAFT |
| 9 | 79519-SH3-010 | Gear - CONTROL SHAFT | Gear - CONTROL SHAFT |
| 11 | 79522-SD4-000 | Roller - LEVER | Roller - LEVER |
| 12 | 79522-SH3-000 | Lever - TEMPERATURE CONTROL | Lever - TEMPERATURE CONTROL |
| 14 | 79524-SD4-000 | Collar - CONTROL SHAFT | Collar - CONTROL SHAFT |
| 15 | 79525-SH3-010 | Link - TEMP CONTROL | Link - TEMP CONTROL |
| 16 | 79526-SD4-000 | Shaft comp. - CONTROL | Shaft comp. - CONTROL |
| 17 | 79529-SH3-000 | Stopper - CONTROL LEVER | Stopper - CONTROL LEVER |
| 18 | 79535-SF4-000 | Spring - HEATER CONTROL | Spring - HEATER CONTROL |
| 23 | 79550-SH3-A02 | Illumination assy. - HEATER | Illumination assy. - HEATER |
| 24 | 79552-SH3-013 | Lid - AIR CONDITIONER SWITCH | Lid - AIR CONDITIONER SWITCH |
| 25 | 79570-SH3-003 | Switch assy - HEATER FAN (ALPS) | Switch assy - HEATER FAN (ALPS) |
| 25 | 79570-SH3-004 | Switch assy - HEATER FAN (TEC) | Switch assy - HEATER FAN (TEC) |
| 26 | 79581-SH3-G00 | Knob - HEATER CONTROL | Knob - HEATER CONTROL |
| 27 | 79582-SH3-000 | Knob - TEMPERATURE CONTROL | Knob - TEMPERATURE CONTROL |
| 23 | 79721-SH3-000 | Hose a - WATER IN. | Hose a - WATER IN. |
| 24 | 79722-SH3-000 | Hose b - WATER IN. | Hose b - WATER IN. |
| 26 | 79731-SH3-000 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 27 | 79755-SH3-003 | Clamp - WATER HOSE | Clamp - WATER HOSE |
| 29 | 79821-SH3-000 | Duct - DEFROSTER | Duct - DEFROSTER |
| 20 | 80100-SH3-023 | Condenser assy - SAK | Condenser assy - SAK |
| 21 | 80107-SH3-000 | Mount - CONDENSER UPPER | Mount - CONDENSER UPPER |
| 23 | 80109-SH3-010 | Seal - CONDENSER | Seal - CONDENSER |
| 24 | 80110-SH3-000 | Seal a - CONDENSER | Seal a - CONDENSER |
| 25 | 80111-SH3-000 | Seal b - CONDENSER | Seal b - CONDENSER |
| 26 | 80175-SE0-000 | Mount - CONDENSER | Mount - CONDENSER |
| 21 | 80265-SH3-000 | Band b - AIR CONDITIONER | Band b - AIR CONDITIONER |
| 22 | 80271-SH3-000 | Hose - DRAIN | Hose - DRAIN |
| 23 | 80272-SF4-000 | Grommet - DRAIN HOSE | Grommet - DRAIN HOSE |
| 24 | 80286-SH3-000 | Seal - EVAPORATOR INNER | Seal - EVAPORATOR INNER |
| 8 | 80315-SH3-033 | Hose comp. - DISCHARGE (NICHIRIN) | Hose comp. - DISCHARGE (NICHIRIN) |
| 28 | 80326-SH3-000 | Inlet pipe - DISCHARGE | Inlet pipe - DISCHARGE |
| 15 | 80352-SH3-010 | Bracket - LIQUID TANK | Bracket - LIQUID TANK |
| 23 | 80371-SH3-J00 | Clamp - DISCHARGE HOSE | Clamp - DISCHARGE HOSE |
| 25 | 80375-SH3-J00 | Rubber - MOUNTING | Rubber - MOUNTING |
| 26 | 80388-SH3-003 | Clamp - AIR CONDITIONER HARNESS (NIFCO) | Clamp - AIR CONDITIONER HARNESS (NIFCO) |
| 27 | 80410-SH3-013 | Switch assy - AIR CONDITIONER (DENSO) | Switch assy - AIR CONDITIONER (DENSO) |
| 28 | 80411-SH3-003 | Panel - AIR CONDITIONER SWITCH | Panel - AIR CONDITIONER SWITCH |
| 29 | 80430-SF1-003 | Thermostat - AIR CONDITIONER | Thermostat - AIR CONDITIONER |
| 27 | 80440-SE0-003 | Switch - DUAL PRESSURE | Switch - DUAL PRESSURE |
| 14 | 80789-SH3-003 | Holder - ROD | Holder - ROD |
| 2 | 80874-SL0-900 | O-ring - 3/8" | O-ring - 3/8" |
| 1 | 81115-SH3-003 | Cover - R. CENTER | Cover - R. CENTER |
| 3 | 81491-SH3-A02 | Bag - PROTECTOR (TAKATA) | Bag - PROTECTOR (TAKATA) |
| 9 | 81515-SH3-003 | Cover - L. CENTER | Cover - L. CENTER |
| 12 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 13 | 83413-SH3-010 | Plate - BOOT SET | Plate - BOOT SET |
| 18 | 83454-SH3-010 | Bracket - FR. CONSOLE | Bracket - FR. CONSOLE |
| 19 | 83850-SH3-000 | Plate - ANCHOR BOLT | Plate - ANCHOR BOLT |
| 20 | 83853-SA0-700 | Bolt - ANCHOR (67MM) | Bolt - ANCHOR (67MM) |
| 20 | 83853-SA7-000 | Bolt - ANCHOR (72MM) | Bolt - ANCHOR (72MM) |
| 14 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 13 | 87351-SA0-003 | Clip - TUBULAR | Clip - TUBULAR |
| 34 | 88147-SA5-003 | Washer - TOOTHED (MATSUYAMA) | Washer - TOOTHED (MATSUYAMA) |
| 35 | 88148-SE0-003 | Bolt - LOCK, 6X7 (MATSUYAMA) | Bolt - LOCK, 6X7 (MATSUYAMA) |
| 20 | 88324-SB3-950 | Cover - RR. ASHTRAY | Cover - RR. ASHTRAY |
| 2 | 89000-SH3-000 | Tool set | Tool set |
| 3 | 89101-SW5-003 | Bag - TOOL | Bag - TOOL |
| 4 | 89211-SE3-003 | Wrench - WHEEL | Wrench - WHEEL |
| 5 | 89216-SF4-000 | Wrench - PLUG | Wrench - PLUG |
| 6 | 89310-SE3-013 | Jack assy - PANTOGRAPH | Jack assy - PANTOGRAPH |
| 7 | 89320-S50-003 | Bar - JACK | Bar - JACK |
| 7 | 89320-SE3-003 | Bar - JACK | Bar - JACK |
| 12 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 15 | 90001-SD2-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 11 | 90002-PM3-000 | Bolt - FLANGE, 8X72 | Bolt - FLANGE, 8X72 |
| 13 | 90002-PZ1-000 | Bolt,flange,8x62 | Bolt,flange,8x62 |
| 29 | 90003-PG7-660 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 12 | 90003-PJ7-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
| 12 | 90003-PM0-B00 | Bolt - FLANGE, 6X65 | Bolt - FLANGE, 6X65 |
| 13 | 90003-PM3-000 | Bolt - FLANGE, 8X62 | Bolt - FLANGE, 8X62 |
| 14 | 90005-PM3-003 | Bolt-washer - 10X140 (SAGA) | Bolt-washer - 10X140 (SAGA) |
| 14 | 90005-PM3-004 | Bolt-washer - 10X140(TOKAI TRW) | Bolt-washer - 10X140(TOKAI TRW) |
| 16 | 90007-PA9-000 | Bolt - FLANGE, 6X30 | Bolt - FLANGE, 6X30 |
| 14 | 90008-PM3-000 | Bolt - MOUNTING BRACKET, 10X32.5 | Bolt - MOUNTING BRACKET, 10X32.5 |
| 15 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 8 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 11 | 90010-PY3-000 | Bolt - FLANGE, 8X72 | Bolt - FLANGE, 8X72 |
| 22 | 90011-896-000 | Bolt - FLANGE, 6X8 | Bolt - FLANGE, 6X8 |
| 17 | 90011-PG6-004 | Bolt - TIMING BELT ADJUSTER SPRING | Bolt - TIMING BELT ADJUSTER SPRING |
| 9 | 90011-PM0-000 | Bolt - 12MM | Bolt - 12MM |
| 12 | 90013-PM3-000 | Bolt b - CYLINDER HEAD COVER | Bolt b - CYLINDER HEAD COVER |
| 15 | 90014-PM3-000 | Bolt a - CYLINDER HEAD COVER | Bolt a - CYLINDER HEAD COVER |
| 13 | 90015-634-010 | Bolt - FLANGE, 10MM | Bolt - FLANGE, 10MM |
| 17 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 9 | 90015-PH7-000 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 9 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 19 | 90017-PE0-000 | Washer - 10MM | Washer - 10MM |
| 16 | 90017-PJ7-003 | Bolt-washer - 14X29 | Bolt-washer - 14X29 |
| 18 | 90018-PF5-000 | Bolt - FLANGE, 6X12 | Bolt - FLANGE, 6X12 |
| 18 | 90020-PE0-000 | Bolt - STUD, 8X28 | Bolt - STUD, 8X28 |
| 20 | 90021-PM3-000 | Bolt - FLANGE, 8X85 | Bolt - FLANGE, 8X85 |
| 21 | 90022-PM3-000 | Bolt - FLANGE, 8X120 | Bolt - FLANGE, 8X120 |
| 22 | 90023-PM3-000 | Bolt - FLANGE, 8X105 | Bolt - FLANGE, 8X105 |
| 16 | 90026-PE0-000 | Bolt - STUD, 8X37 | Bolt - STUD, 8X37 |
| 16 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
| 11 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 11 | 90029-PB6-911 | Bolt - SPECIAL, 8X24 | Bolt - SPECIAL, 8X24 |
| 18 | 90029-PL3-010 | Bolt - SPECIAL, 8MM | Bolt - SPECIAL, 8MM |
| 18 | 90031-PC6-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 11 | 90034-689-000 | Bolt - TWELVE POINT, 8MM (TOKAI TRW) | Bolt - TWELVE POINT, 8MM (TOKAI TRW) |
| 16 | 90041-PA5-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 31 | 90041-PD2-004 | Nut - SPECIAL, 5MM (MITSUBA) | Nut - SPECIAL, 5MM (MITSUBA) |
| 13 | 90041-PG6-004 | Nut - HEX., 5MM(MITSUBA) | Nut - HEX., 5MM(MITSUBA) |
| 13 | 90041-PH2-003 | Screw-washer - 4X10 (DENSO) | Screw-washer - 4X10 (DENSO) |
| 17 | 90041-PM3-000 | Bolt - STUD, 12X44 | Bolt - STUD, 12X44 |
| 14 | 90041-PM3-004 | Screw-washer - 4X12 | Screw-washer - 4X12 |
| 14 | 90042-PM3-003 | Bolt-washer - 6X20 (DENSO) | Bolt-washer - 6X20 (DENSO) |
| 15 | 90042-PM3-004 | Bolt-washer - 6X20 (TOYO) | Bolt-washer - 6X20 (TOYO) |
| 15 | 90042-PZ1-004 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 15 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 23 | 90050-PG7-000 | Bolt - FLANGE, 12X65 | Bolt - FLANGE, 12X65 |
| 16 | 90050-PK1-004 | Screw-washer - 4X12(T.RAD) | Screw-washer - 4X12(T.RAD) |
| 25 | 90057-PG7-003 | Bolt - ALTERNATOR | Bolt - ALTERNATOR |
| 23 | 90058-PG6-000 | Nut-washer - 10MM | Nut-washer - 10MM |
| 10 | 90065-PG6-000 | Bolt, STUD, 10X24 | Bolt, STUD, 10X24 |
| 36 | 90078-PR3-000 | Screw - PAN, 4X8 | Screw - PAN, 4X8 |
| 7 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 8 | 90081-PL3-000 | Screw - SEALING, 32MM | Screw - SEALING, 32MM |
| 19 | 90082-PL3-000 | Plug - 28MM | Plug - 28MM |
| 9 | 90083-PL3-000 | Bolt - SEALING, 10MM | Bolt - SEALING, 10MM |
| 31 | 90101-SA4-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 32 | 90102-SA4-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 24 | 90102-SA7-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 30 | 90102-SB3-000 | Bolt - HINGE STOPPER | Bolt - HINGE STOPPER |
| 24 | 90103-SB0-010 | Nut - FLANGE, 5MM | Nut - FLANGE, 5MM |
| 25 | 90104-SD4-000 | Bolt - CORNER SLIDE | Bolt - CORNER SLIDE |
| 30 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
| 26 | 90105-SB0-003 | Bolt-washer - 8X16 | Bolt-washer - 8X16 |
| 8 | 90105-SB6-003 | Screw - PAN, 4X12 | Screw - PAN, 4X12 |
| 27 | 90105-SD9-003 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 30 | 90105-SF1-000 | Screw - CORNER SLIDE TAPPING | Screw - CORNER SLIDE TAPPING |
| 18 | 90107-663-670 | Bolt - CALIPER MOUNTING | Bolt - CALIPER MOUNTING |
| 27 | 90107-SA0-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 29 | 90107-SA5-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 37 | 90107-SM4-003 | Clip - HOOD SEAL | Clip - HOOD SEAL |
| 30 | 90108-SH3-003 | Bolt - GEAR BOX MOUNTING (10X55) | Bolt - GEAR BOX MOUNTING (10X55) |
| 29 | 90109-SH3-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 35 | 90111-SA0-000 | Screw - TAPPING, 4X8 | Screw - TAPPING, 4X8 |
| 15 | 90112-SK7-000 | Bolt - FR. STABILIZER | Bolt - FR. STABILIZER |
| 33 | 90112-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 16 | 90113-SA0-023 | Bolt - WHEEL (TOKAI TRW) | Bolt - WHEEL (TOKAI TRW) |
| 16 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 16 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 35 | 90114-SA0-000 | Nut - SELF-LOCK, 6MM | Nut - SELF-LOCK, 6MM |
| 17 | 90114-SB0-000 | Bolt-washer - 6X12 | Bolt-washer - 6X12 |
| 27 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 25 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 33 | 90115-SB2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 27 | 90115-SG0-003 | Bolt - FLANGE, 6MM | Bolt - FLANGE, 6MM |
| 24 | 90116-SE0-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 26 | 90117-HA7-670 | Bolt - FLANGE, 8X18 | Bolt - FLANGE, 8X18 |
| 35 | 90117-SB2-000 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 21 | 90117-SH3-004 | Bolt - UPPER ARM, 10X30 | Bolt - UPPER ARM, 10X30 |
| 16 | 90118-SK7-003 | Bolt - LOWER ARM, 10X80 (JYUJI) | Bolt - LOWER ARM, 10X80 (JYUJI) |
| 17 | 90120-SB0-003 | Bolt - SHOCK ABSORBER LOCK, 10X42 | Bolt - SHOCK ABSORBER LOCK, 10X42 |
| 14 | 90126-SA7-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 31 | 90127-SA0-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 53 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 22 | 90130-693-000 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 31 | 90130-SB0-010 | Bolt assy - BUMPER | Bolt assy - BUMPER |
| 30 | 90130-SB3-003 | Bolt - PIVOT | Bolt - PIVOT |
| 32 | 90130-SH3-010 | Bolt assy - BUMPER | Bolt assy - BUMPER |
| 27 | 90131-SD2-003 | Screw-washer - 4X12 (NS) | Screw-washer - 4X12 (NS) |
| 28 | 90131-SF4-003 | Screw-washer - 3X16 (NS) | Screw-washer - 3X16 (NS) |
| 16 | 90131-SH3-003 | Bolt - TORX, 8X17 | Bolt - TORX, 8X17 |
| 41 | 90131-SH3-A12 | Screw - PAN, 5X16 | Screw - PAN, 5X16 |
| 31 | 90132-SH3-000 | Bolt - STEERING HANGER | Bolt - STEERING HANGER |
| 8 | 90133-SH3-000 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 32 | 90135-SB0-003 | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) |
| 10 | 90135-SH3-003 | Screw - SLIDE | Screw - SLIDE |
| 34 | 90136-SH3-000 | Bolt-washer - 6X10 | Bolt-washer - 6X10 |
| 29 | 90136-SK7-003 | Screw-washer - 3X20 | Screw-washer - 3X20 |
| 23 | 90138-SH3-960 | Screw - TAPPING, 4X38 | Screw - TAPPING, 4X38 |
| 54 | 90139-SH3-003 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 26 | 90140-SD4-013 | Screw - TAPPING, 4X40 | Screw - TAPPING, 4X40 |
| 9 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 34 | 90142-SH3-000 | Seal - RR. BUMPER BEAM | Seal - RR. BUMPER BEAM |
| 31 | 90144-SH3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 47 | 90145-SH3-003 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 32 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 27 | 90147-634-003 | Bolt - FENDER, 6X18 | Bolt - FENDER, 6X18 |
| 12 | 90150-SB2-003 | Bolt - EARTH, 8X20 (SN) | Bolt - EARTH, 8X20 (SN) |
| 15 | 90153-SB6-003 | Bolt - EARTH, 6X12(ZN) | Bolt - EARTH, 6X12(ZN) |
| 12 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 19 | 90153-SH3-003 | Bolt - 5X11 | Bolt - 5X11 |
| 32 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 13 | 90155-SH3-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 33 | 90156-SH3-000 | Bolt-washer - 6X24 | Bolt-washer - 6X24 |
| 16 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 17 | 90161-SH3-040 | Bolt - HEX., 12X113 | Bolt - HEX., 12X113 |
| 19 | 90164-SH3-010 | Bolt - FLANGE, 12X90 | Bolt - FLANGE, 12X90 |
| 21 | 90170-SH3-010 | Bolt - FLANGE, 12X60 | Bolt - FLANGE, 12X60 |
| 22 | 90171-SH3-003 | Bolt - COMPENSATOR, 10X59 | Bolt - COMPENSATOR, 10X59 |
| 23 | 90172-S04-003 | Bolt - FLANGE, 10X68 | Bolt - FLANGE, 10X68 |
| 23 | 90172-SK7-003 | Bolt - UPPER ARM, 10X68 | Bolt - UPPER ARM, 10X68 |
| 24 | 90174-SK7-003 | Bolt - LOWER ARM, 10X80 | Bolt - LOWER ARM, 10X80 |
| 18 | 90175-SH3-005 | Bolt - SHOCK ABSORBER FORK | Bolt - SHOCK ABSORBER FORK |
| 19 | 90178-SK7-013 | Bolt - FR. RADIUS ROD (12X30) | Bolt - FR. RADIUS ROD (12X30) |
| 22 | 90180-SH3-000 | Bolt-washer - SPECIAL, 10X22 | Bolt-washer - SPECIAL, 10X22 |
| 23 | 90181-SH3-000 | Bolt - SPECIAL FLANGE, 12X25 | Bolt - SPECIAL FLANGE, 12X25 |
| 15 | 90182-SK7-000 | Bolt - FLANGE, 12X100 | Bolt - FLANGE, 12X100 |
| 33 | 90183-SH3-000 | Bolt - FLANGE, 12X115 | Bolt - FLANGE, 12X115 |
| 18 | 90185-SH3-000 | Bolt - UPPER ARM | Bolt - UPPER ARM |
| 16 | 90201-PM3-003 | Nut - SQUARE (DENSO) | Nut - SQUARE (DENSO) |
| 10 | 90202-PB6-010 | Nut - FLANGE, 22MM | Nut - FLANGE, 22MM |
| 16 | 90206-PM3-003 | Nut - TAPPET ADJUSTING (SATO RASHI) | Nut - TAPPET ADJUSTING (SATO RASHI) |
| 11 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 11 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 18 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 14 | 90213-PH3-000 | Nut - CAP, 6MM | Nut - CAP, 6MM |
| 20 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 36 | 90222-SB4-000 | Nut-washer - 6MM | Nut-washer - 6MM |
| 35 | 90301-SF1-000 | Nut - WASHER CAP, 8MM | Nut - WASHER CAP, 8MM |
| 56 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 36 | 90303-SA5-003 | Nut - FR. COMBINATION LIGHT | Nut - FR. COMBINATION LIGHT |
| 21 | 90303-SF1-003 | Nut - SELF-LOCK, 12MM | Nut - SELF-LOCK, 12MM |
| 22 | 90304-SA5-013 | Nut - WHEEL (CHROME PLATED) (FUSE RASHI) | Nut - WHEEL (CHROME PLATED) (FUSE RASHI) |
| 30 | 90304-SB0-000 | Nut - FIXED TORQUE | Nut - FIXED TORQUE |
| 15 | 90304-SH3-004 | Nut-washer - 10MM | Nut-washer - 10MM |
| 15 | 90304-SH3-505 | New Genuine Part | New Genuine Part |
| 20 | 90305-692-010 | Nut | Nut |
| 10 | 90305-SA0-000 | Nut - FLOATING, 4MM | Nut - FLOATING, 4MM |
| 21 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 6 | 90307-SA0-003 | Nut - FLANGE, 5MM | Nut - FLANGE, 5MM |
| 33 | 90307-SD2-A00 | Nut - CAP, 6MM | Nut - CAP, 6MM |
| 20 | 90308-SE0-000 | Nut - CAP, 8MM | Nut - CAP, 8MM |
| 57 | 90310-SB2-003 | Nut - SPEED | Nut - SPEED |
| 31 | 90311-MB6-003 | Nut toothed 5mm | Nut toothed 5mm |
| 31 | 90320-SF1-000 | Nut - CASTLE, 10MM | Nut - CASTLE, 10MM |
| 31 | 90320-SF4-000 | Nut - CASTLE, 10MM | Nut - CASTLE, 10MM |
| 22 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 58 | 90334-SH3-000 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 15 | 90347-SF4-000 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 22 | 90362-SF1-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 23 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
| 24 | 90371-SH3-020 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 11 | 90380-SB2-003 | Nut - SELF-LOCK (OHASHI) | Nut - SELF-LOCK (OHASHI) |
| 18 | 90401-PM3-000 | Washer - DRAIN PLUG, 28MM | Washer - DRAIN PLUG, 28MM |
| 17 | 90403-PA0-004 | Washer - PLAIN, 7MM (MITSUBA) | Washer - PLAIN, 7MM (MITSUBA) |
| 33 | 90403-PM3-004 | Washer - PLAIN, 7MM | Washer - PLAIN, 7MM |
| 12 | 90412-679-000 | Washer - CONICAL SPRING, 8MM | Washer - CONICAL SPRING, 8MM |
| 14 | 90425-PL3-010 | Washer - THRUST, 34X48X1.5 | Washer - THRUST, 34X48X1.5 |
| 26 | 90430-657-000 | Washer - 23X8.3X3.2 | Washer - 23X8.3X3.2 |
| 19 | 90435-611-000 | Washer - SPECIAL, 28X8.5X4.0 | Washer - SPECIAL, 28X8.5X4.0 |
| 16 | 90441-PK2-000 | Washer - HEAD COVER | Washer - HEAD COVER |
| 15 | 90441-PN4-000 | Washer - HEAD COVER | Washer - HEAD COVER |
| 12 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
| 7 | 90501-671-003 | Washer - SPECIAL | Washer - SPECIAL |
| 23 | 90501-692-000 | Washer - FR. RADIUS ROD | Washer - FR. RADIUS ROD |
| 9 | 90502-SA0-003 | Washer - WATER PROOF | Washer - WATER PROOF |
| 19 | 90503-SA0-000 | Washer - PLAIN, 9MM | Washer - PLAIN, 9MM |
| 25 | 90504-SB0-000 | Washer - PLAIN, 12MM | Washer - PLAIN, 12MM |
| 26 | 90504-SH3-000 | Washer - PLAIN, 12MM | Washer - PLAIN, 12MM |
| 28 | 90509-SH3-000 | Washer - FR. BEAM | Washer - FR. BEAM |
| 33 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 12 | 90522-SH3-003 | Washer - SILENCER | Washer - SILENCER |
| 38 | 90540-SA7-000 | Washer - BUMPER | Washer - BUMPER |
| 39 | 90540-SE0-000 | Washer - BUMPER | Washer - BUMPER |
| 34 | 90551-SE0-000 | Washer - SPRING, 24X18 | Washer - SPRING, 24X18 |
| 27 | 90551-SH3-000 | Washer - 24X10X2.3 | Washer - 24X10X2.3 |
| 25 | 90601-SH3-014 | Clip - DOOR MOLDING | Clip - DOOR MOLDING |
| 28 | 90602-SA7-931 | Clamp - FUEL HOSE, 18.5MM | Clamp - FUEL HOSE, 18.5MM |
| 11 | 90603-PL3-000 | Ring - SNAP, 52MM | Ring - SNAP, 52MM |
| 11 | 90609-SB6-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 13 | 90637-689-000 | Clip - SPEEDOMETER CABLE | Clip - SPEEDOMETER CABLE |
| 14 | 90638-689-000 | Clip - SPEEDOMETER GEAR | Clip - SPEEDOMETER GEAR |
| 59 | 90650-SE3-000 | Clip - RADIO PANEL | Clip - RADIO PANEL |
| 28 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 10 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 24 | 90653-SB0-000 | Circlip - EXTERNAL, 40MM | Circlip - EXTERNAL, 40MM |
| 37 | 90654-SA4-003 | Clip - WIRE HARNESS, 6MM (WHITE) | Clip - WIRE HARNESS, 6MM (WHITE) |
| 35 | 90654-SA5-003 | Clip - JOINT COVER | Clip - JOINT COVER |
| 29 | 90657-SA5-003 | Clip - SIDE APRON MOLDING | Clip - SIDE APRON MOLDING |
| 16 | 90657-SH3-013 | Clip - TWO WAY VALVE COVER | Clip - TWO WAY VALVE COVER |
| 37 | 90659-692-000 | Clamp - CASE | Clamp - CASE |
| 1 | 90659-PG6-000 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 61 | 90659-SA5-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 20 | 90660-SB2-000 | Clip - CORD | Clip - CORD |
| 31 | 90661-SC7-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 36 | 90661-SE0-003 | Circlip - EXTERNAL, 18MM | Circlip - EXTERNAL, 18MM |
| 10 | 90662-693-003 | Grommet - SCREW, 4MM (BLUE) | Grommet - SCREW, 4MM (BLUE) |
| 27 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 31 | 90664-671-003 | Clip - CANOE | Clip - CANOE |
| 17 | 90664-SH3-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 63 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 64 | 90669-SH3-000 | Clip - LOWER COVER | Clip - LOWER COVER |
| 17 | 90671-SB2-000 | Bolt - FR. FENDER (DACRO COATING) | Bolt - FR. FENDER (DACRO COATING) |
| 36 | 90671-SH3-003 | Holder - HOOD OPENER STAY | Holder - HOOD OPENER STAY |
| 18 | 90675-SA7-003 | Clip - FR. COWL | Clip - FR. COWL |
| 13 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 29 | 90677-SH3-003 | Clip - PIPE PROTECTOR | Clip - PIPE PROTECTOR |
| 9 | 90680-SH3-003 | Plug - SEATBELT ANCHOR | Plug - SEATBELT ANCHOR |
| 65 | 90681-693-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 18 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 13 | 90683-693-000 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 32 | 90683-SF1-003 | Circlip - FR. UPPER (MUSASHI) | Circlip - FR. UPPER (MUSASHI) |
| 8 | 90683-SH3-023 | Clip - CABLE | Clip - CABLE |
| 2 | 90689-SD2-000 | Grommet - WATER VALVE CABLE | Grommet - WATER VALVE CABLE |
| 35 | 90699-SA5-000 | Clip - DUCT | Clip - DUCT |
| 20 | 90703-PE0-000 | Dowel pin - 18X22 | Dowel pin - 18X22 |
| 18 | 90704-634-000 | Key - 4.5X11.0 | Key - 4.5X11.0 |
| 17 | 90755-SB2-000 | E-ring - 6MM | E-ring - 6MM |
| 19 | 90850-SA7-000 | Plug - FUSE LID | Plug - FUSE LID |
| 15 | 90851-SB2-000 | Plug - AIR CONDITIONER HOLE | Plug - AIR CONDITIONER HOLE |
| 17 | 90852-671-003 | Plug - HOLE | Plug - HOLE |
| 16 | 90852-SA5-000 | Plug - HOLE, 10MM | Plug - HOLE, 10MM |
| 12 | 91003-PL3-B04 | Bearing - BALL, 25X52X14/15 (TOYO) | Bearing - BALL, 25X52X14/15 (TOYO) |
| 13 | 91006-634-004 | Bearing - CLUTCH PILOT (KOYO) | Bearing - CLUTCH PILOT (KOYO) |
| 13 | 91006-634-008 | Bearing - CLUTCH PILOT (NTN) | Bearing - CLUTCH PILOT (NTN) |
| 13 | 91006-PL3-A03 | Bearing - BALL, 25X52X15 (6205UC/25) (NTN) | Bearing - BALL, 25X52X15 (6205UC/25) (NTN) |
| 25 | 91055-SB2-960 | Circlip - INTERNAL, 72MM | Circlip - INTERNAL, 72MM |
| 14 | 91104-PL3-018 | Bearing - NEEDLE, 36X41X24 | Bearing - NEEDLE, 36X41X24 |
| 15 | 91105-PL3-018 | Bearing - NEEDLE, 39X44X25 | Bearing - NEEDLE, 39X44X25 |
| 13 | 91106-PL3-008 | Bearing - NEEDLE, 34X39X23 | Bearing - NEEDLE, 34X39X23 |
| 14 | 91107-PL3-018 | Bearing - NEEDLE, 34X39X27.5 | Bearing - NEEDLE, 34X39X27.5 |
| 15 | 91108-PL3-008 | Bearing - NEEDLE, 32X37X23.5 (NTN) | Bearing - NEEDLE, 32X37X23.5 (NTN) |
| 10 | 91206-PL3-A01 | Oil seal - 35X62X8 (ARAI) | Oil seal - 35X62X8 (ARAI) |
| 10 | 91206-PL3-A02 | Oil seal - 35X62X8 (NOK) | Oil seal - 35X62X8 (NOK) |
| 19 | 91208-PB6-003 | Dust seal - 16X21X4 (ARAI) | Dust seal - 16X21X4 (ARAI) |
| 19 | 91208-PB6-005 | Dust seal - 16X21X4 (NOK) | Dust seal - 16X21X4 (NOK) |
| 16 | 91211-PL3-T01 | Damper - FRICTION (LOW) | Damper - FRICTION (LOW) |
| 20 | 91212-PE1-721 | Oil seal - 31X46X8 | Oil seal - 31X46X8 |
| 17 | 91212-PL3-T01 | Damper - FRICTION (SECOND) | Damper - FRICTION (SECOND) |
| 20 | 91213-P2F-A01 | Oil seal - 29X45X8 (ARAI) | Oil seal - 29X45X8 (ARAI) |
| 20 | 91213-PE1-721 | Oil seal - 29X45X8 (NOK) | Oil seal - 29X45X8 (NOK) |
| 21 | 91214-PE1-721 | Oil seal - 80X100X10 (NOK) | Oil seal - 80X100X10 (NOK) |
| 21 | 91214-PLE-003 | Oil seal | Oil seal |
| 20 | 91215-PL3-003 | Oil seal - 14X25X15 (ARAI) | Oil seal - 14X25X15 (ARAI) |
| 20 | 91215-PL3-005 | Oil seal - 14X25X15 (NOK) | Oil seal - 14X25X15 (NOK) |
| 21 | 91216-PL3-003 | Oil seal - 26X42X7 (ARAI) | Oil seal - 26X42X7 (ARAI) |
| 21 | 91216-PL3-005 | Oil seal - 26X42X7 (NOK) | Oil seal - 26X42X7 (NOK) |
| 40 | 91252-SB2-013 | Seal - HUB UNIT (NOK) | Seal - HUB UNIT (NOK) |
| 28 | 91301-671-671 | O-ring - 1.9X11 | O-ring - 1.9X11 |
| 17 | 91301-PJ7-000 | O-ring - 31X2.5 | O-ring - 31X2.5 |
| 18 | 91302-PJ7-003 | O-ring - (NO.4 CAM HOLDER) (ARAI) | O-ring - (NO.4 CAM HOLDER) (ARAI) |
| 18 | 91302-PJ7-004 | O-ring - (NO.4 CAM HOLDER) (NOK) | O-ring - (NO.4 CAM HOLDER) (NOK) |
| 28 | 91303-HA0-004 | O-ring, 11x1.9 (nok) | O-ring, 11x1.9 (nok) |
| 22 | 91303-KE7-003 | O-ring - 7.2X1.7 (ARAI) | O-ring - 7.2X1.7 (ARAI) |
| 28 | 91307-611-000 | O-ring (13.5X1.4) | O-ring (13.5X1.4) |
| 21 | 91307-PE0-010 | O-ring - 25X2.4 | O-ring - 25X2.4 |
| 28 | 91307-PH7-660 | O-ring (13.5X1.4) | O-ring (13.5X1.4) |
| 22 | 91312-107-000 | O-ring (7x1.7) | O-ring (7x1.7) |
| 15 | 91313-611-010 | O-ring - 23.5X2 | O-ring - 23.5X2 |
| 17 | 91314-634-000 | O-ring | O-ring |
| 34 | 91315-SE0-000 | O-ring - 1/2" | O-ring - 1/2" |
| 18 | 91324-PC6-000 | O-ring - 20.6X2.6 | O-ring - 20.6X2.6 |
| 19 | 91405-679-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
| 38 | 91405-PH7-003 | Clamp - TUBE (D15) | Clamp - TUBE (D15) |
| 36 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 19 | 91405-PM5-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
| 20 | 91501-S04-003 | Clip - INNER FENDER | Clip - INNER FENDER |
| 20 | 91504-SF4-003 | Clip - FR. COWL | Clip - FR. COWL |
| 33 | 91504-SH3-000 | Cushion - BUMPER | Cushion - BUMPER |
| 41 | 91506-SH3-003 | Clip - OPENER CABLE SIDE | Clip - OPENER CABLE SIDE |
| 26 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 13 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
| 38 | 91513-SD2-003 | Clip - HOOD WIRE | Clip - HOOD WIRE |
| 39 | 91513-SH3-000 | Clip c - HOOD | Clip c - HOOD |
| 39 | 91513-SH3-003 | Clip c - HOOD | Clip c - HOOD |
| 40 | 91514-SH3-013 | Clip - FRESH AIR GUIDE | Clip - FRESH AIR GUIDE |
| 41 | 91515-SH3-003 | Clip - WATER GUIDE | Clip - WATER GUIDE |
| 21 | 91516-SH3-003 | Clip - UNDER COVER | Clip - UNDER COVER |
| 21 | 91516-SK7-013 | Clip - UNDER COVER | Clip - UNDER COVER |
| 37 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
| 42 | 91517-SH3-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 19 | 91518-SH3-003 | Plug - HOLE, 7MM | Plug - HOLE, 7MM |
| 31 | 91530-SE0-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 38 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 28 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 29 | 91548-SH2-003 | Band - WIRE HARNESS(GRAY) | Band - WIRE HARNESS(GRAY) |
| 30 | 91549-SD2-003 | Clip - WIRE HARNESS (BLACK) | Clip - WIRE HARNESS (BLACK) |
| 39 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 33 | 91553-SH3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 34 | 91554-SH3-003 | Band - WIRE HARNESS (NATURAL) (100.5MM) | Band - WIRE HARNESS (NATURAL) (100.5MM) |
| 33 | 91556-SH3-003 | Clip - DRIVE PIN | Clip - DRIVE PIN |
| 34 | 91558-SH3-003 | Cap - LINING MOUNTING | Cap - LINING MOUNTING |
| 36 | 91559-SE3-003 | Clip - WIRE HARNESS (WHITE) (55MM) | Clip - WIRE HARNESS (WHITE) (55MM) |
| 29 | 91560-SD5-003 | Clip - LINING | Clip - LINING |
| 12 | 91561-SH3-003 | Clip - LINING | Clip - LINING |
| 37 | 91567-SE0-003 | Band - WIRE HARNESS(WHITE) (93.5MM) | Band - WIRE HARNESS(WHITE) (93.5MM) |
| 38 | 91567-SH3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 14 | 91568-SH3-003 | Strap - WIRE HARNESS (BLACK) (101MM) | Strap - WIRE HARNESS (BLACK) (101MM) |
| 41 | 91570-SH3-003 | Band - WIRE HARNESS (NATURAL) | Band - WIRE HARNESS (NATURAL) |
| 39 | 91573-SH3-000 | Clamp - CONTROL CABLE | Clamp - CONTROL CABLE |
| 28 | 91580-SH3-003 | Holder - FR. POSITION (BLACK) | Holder - FR. POSITION (BLACK) |
| 38 | 91581-SH3-013 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 22 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
| 20 | 91604-SD2-013 | Grommet - HOOD STAY | Grommet - HOOD STAY |
| 22 | 91610-SB2-003 | Plug - HOLE, 16.7MM (BLACK) | Plug - HOLE, 16.7MM (BLACK) |
| 44 | 91610-SH3-003 | Grommet - MIRROR GARNISH | Grommet - MIRROR GARNISH |
| 31 | 91611-SH2-003 | Grommet - SCREW ADJUSTER | Grommet - SCREW ADJUSTER |
| 29 | 91613-SE0-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 3 | 91614-SA5-000 | Grommet - HEATER LEVER HOLE (20MM) | Grommet - HEATER LEVER HOLE (20MM) |
| 6 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 23 | 91616-SH3-000 | Seal - FR. PILLAR INNER LOWER (110X110) | Seal - FR. PILLAR INNER LOWER (110X110) |
| 1 | 91617-SB6-000 | Grommet - WASHER HOSE, 32MM | Grommet - WASHER HOSE, 32MM |
| 25 | 91617-SH3-000 | Seal - HOLE | Seal - HOLE |
| 26 | 91629-SE0-003 | Plug - BLIND, 14MM | Plug - BLIND, 14MM |
| 39 | 91637-SF1-003 | Cap - 090 2P | Cap - 090 2P |
| 29 | 91638-SF1-003 | Cap - VALVE (SAK) | Cap - VALVE (SAK) |
| 16 | 91641-SH3-013 | Grommet assy, GARNISH | Grommet assy, GARNISH |
| 35 | 91642-SH3-013 | Grommet - DOOR LINING | Grommet - DOOR LINING |
| 24 | 91647-SH3-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 36 | 91660-SH4-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 40 | 91763-SH3-003 | Bar - JOINT (6P) | Bar - JOINT (6P) |
| 16 | 91770-SH3-000 | Bolt - FLANGE, 10X23 | Bolt - FLANGE, 10X23 |
| 27 | 91771-SH3-000 | Washer - PLAIN, 10MM | Washer - PLAIN, 10MM |
| 41 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
