検索 › 比較 › ED1 × EU7

ED1 × EU7

共通 137 / 合計 4,384 · Jaccard 3.1%
ED1 Honda CIVIC — 2,706 中 137 共有
EU7 Honda CIVIC — 1,815 中 137 共有
137 件
Accelerator pedal (2) 2 / 19
ED1 Accelerator pedal (2)
EU7 Pedal (LH)
# OEM ED1 EU7
11 17921-SA4-730 Seal - THROTTLE CABLE Seal - THROTTLE CABLE
17 46505-SA7-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
Air conditioner (CARBURETOR COMPONENTS) 1 / 9
ED1 Air conditioner (CARBURETOR COMPONENTS)
EU7 Air conditioner (COOLING UNIT; LH)
# OEM ED1 EU7
12 90153-SE0-003 Bolt - EARTH, 6X12 Bolt - EARTH, 6X12
Air conditioner (UNIT; 2) 3 / 40
ED1 Air conditioner (UNIT; 2)
EU7 Engine wire harness (LH; 1.4L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
33 90156-SH3-000 Bolt-washer - 6X24 Bolt-washer - 6X24
35 90153-SE0-003 Bolt - EARTH, 6X12 Bolt - EARTH, 6X12
39 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
Alternator (MITSUBISHI) 1 / 25
ED1 Alternator (MITSUBISHI)
EU7 Alternator (MITSUBISHI; 1.4L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
20 31146-PE0-004 Screw Screw
Battery 2 / 20
ED1 Battery
EU7 Battery (1.4L/1.5L/1.6L/1 .7L)
# OEM ED1 EU7
10 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
11 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
Body structure components (1) 1 / 3
ED1 Body structure components (1)
EU7 Bumpers
# OEM ED1 EU7
30 90105-634-000 Bolt-washer (8x20) Bolt-washer (8x20)
Body structure components (3) 1 / 5
ED1 Body structure components (3)
EU7 Tailgate
# OEM ED1 EU7
31 90661-SC7-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Brake lines (2) 4 / 32
ED1 Brake lines (2)
EU7 Brake lines (ABS; LH; 1 .4L/1.6L)
# OEM ED1 EU7
12 46380-SH3-000 Grommet a - BRAKE PIPE Grommet a - BRAKE PIPE
24 46462-SE0-000 Bolt - OIL Bolt - OIL
25 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
28 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Brake master cylinder 3 / 14
ED1 Brake master cylinder
EU7 Brake master cylinder/ master power (LH)
# OEM ED1 EU7
7 57562-SF1-003 Circlip Circlip
8 46185-SE0-003 Seal - ROD Seal - ROD
14 57173-SB0-801 O-ring - CONNECTOR O-ring - CONNECTOR
Brake pedal/clutch pedal (2) 2 / 16
ED1 Brake pedal/clutch pedal (2)
EU7 Pedal (LH)
# OEM ED1 EU7
6 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
18 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Bumpers (1) 3 / 39
ED1 Bumpers (1)
EU7 Bumpers
# OEM ED1 EU7
26 90105-634-000 Bolt-washer (8x20) Bolt-washer (8x20)
37 90308-SB2-013 Nut - SUSPENSION, 5MM Nut - SUSPENSION, 5MM
40 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Camshaft/timing belt 1 / 23
ED1 Camshaft/timing belt
EU7 Camshaft/timing belt (1.4 L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
17 90011-PG6-004 Bolt - TIMING BELT ADJUSTER SPRING Bolt - TIMING BELT ADJUSTER SPRING
Clutch housing 22 / 49
ED1 Clutch housing
EU7 Differential (1.4L)
# OEM ED1 EU7
7 41312-PL3-A00 Gear - SPEEDOMETER DRIVE Gear - SPEEDOMETER DRIVE
12 41442-PL3-A00 Shim b - 72MM(1.1) Shim b - 72MM(1.1)
12 41454-PL3-A00 Shim p - 72MM(1.45) Shim p - 72MM(1.45)
12 41449-PL3-A00 Shim j - 72MM(1.8) Shim j - 72MM(1.8)
12 41444-PL3-A00 Shim d - 72MM(1.3) Shim d - 72MM(1.3)
12 41456-PL3-A00 Shim r - 72MM(1.65) Shim r - 72MM(1.65)
12 41451-PL3-A00 Shim l - 72MM(1.15) Shim l - 72MM(1.15)
12 41446-PL3-A00 Shim f - 72MM(1.5) Shim f - 72MM(1.5)
12 41441-PL3-A00 Shim a - 72MM(1.0) Shim a - 72MM(1.0)
12 41453-PL3-A00 Shim n - 72MM(1.35) Shim n - 72MM(1.35)
12 41448-PL3-A00 Shim h - 72MM(1.7) Shim h - 72MM(1.7)
12 41443-PL3-A00 Shim c - 72MM(1.2) Shim c - 72MM(1.2)
12 41455-PL3-A00 Shim q - 72MM(1.55) Shim q - 72MM(1.55)
12 41450-PL3-A00 Shim k - 72MM(1.05) Shim k - 72MM(1.05)
12 41445-PL3-A00 Shim e - 72MM(1.4) Shim e - 72MM(1.4)
12 41457-PL3-A00 Shim s - 72MM(1.75) Shim s - 72MM(1.75)
12 41452-PL3-A00 Shim m - 72MM(1.25) Shim m - 72MM(1.25)
12 41447-PL3-A00 Shim g - 72MM(1.6) Shim g - 72MM(1.6)
13 90015-634-010 Bolt - FLANGE, 10MM Bolt - FLANGE, 10MM
18 91205-PL3-A01 Oil seal - 35X56X8 (ARAI) Oil seal - 35X56X8 (ARAI)
18 91205-PL3-A02 Oil seal - 35X56X8(NOK) Oil seal - 35X56X8(NOK)
21 91216-PL3-005 Oil seal - 26X42X7 (NOK) Oil seal - 26X42X7 (NOK)
Clutch release 1 / 17
ED1 Clutch release
EU7 Shift arm/shift lever (1.4L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
12 90412-679-000 Washer - CONICAL SPRING, 8MM Washer - CONICAL SPRING, 8MM
Clutch/torque converter 3 / 14
ED1 Clutch/torque converter
EU7 Clutch/torque converter (1.4L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
9 90011-PM0-000 Bolt - 12MM Bolt - 12MM
11 90034-689-000 Bolt - TWELVE POINT, 8MM (TOKAI TRW) Bolt - TWELVE POINT, 8MM (TOKAI TRW)
13 91006-634-008 Bearing - CLUTCH PILOT (NTN) Bearing - CLUTCH PILOT (NTN)
Combination meter components (NS) 2 / 21
ED1 Combination meter components (NS)
EU7 Meter components (NS; 1)
# OEM ED1 EU7
1 35505-SA5-003 Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
5 37115-SA0-601 Packing - NS Packing - NS
Combination switch 1 / 20
ED1 Combination switch
EU7 Combination switch
# OEM ED1 EU7
5 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
Countershaft/gear 3 / 17
ED1 Countershaft/gear
EU7 Countershaft (1.4L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
9 23926-PB6-010 Washer - SPRING, 22MM Washer - SPRING, 22MM
10 90202-PB6-010 Nut - FLANGE, 22MM Nut - FLANGE, 22MM
11 90603-PL3-000 Ring - SNAP, 52MM Ring - SNAP, 52MM
Cylinder block/oil pan 8 / 26
ED1 Cylinder block/oil pan
EU7 Cylinder block/oil pan (1.4L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
2 11106-PE0-300 Bolt - SEALING, 14MM Bolt - SEALING, 14MM
4 11126-PK1-003 Bolt - SEALING, 22MM Bolt - SEALING, 22MM
12 90001-PM3-003 Bolt - DRAIN PLUG, 28MM Bolt - DRAIN PLUG, 28MM
13 90008-PM0-003 Bolt-washer - 10X112 Bolt-washer - 10X112
15 90009-PH1-000 Bolt - DRAIN PLUG, 14MM Bolt - DRAIN PLUG, 14MM
19 90702-PE0-000 Dowel pin - 12X18 Dowel pin - 12X18
20 90703-PE0-000 Dowel pin - 18X22 Dowel pin - 18X22
21 91214-PLE-003 Oil seal Oil seal
Cylinder head 3 / 25
ED1 Cylinder head
EU7 Cylinder head (SOHC)
# OEM ED1 EU7
3 12204-PJ7-305 Guide - IN. VALVE (OS) Guide - IN. VALVE (OS)
14 90005-PM3-003 Bolt-washer - 10X140 (SAGA) Bolt-washer - 10X140 (SAGA)
16 90026-PT0-000 Bolt - STUD, 8X38 Bolt - STUD, 8X38
Engine wire harness/clamp 1 / 26
ED1 Engine wire harness/clamp
EU7 Engine mounting bracket (1.4L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
23 90050-PG7-000 Bolt - FLANGE, 12X65 Bolt - FLANGE, 12X65
Exhaust pipe 1 / 19
ED1 Exhaust pipe
EU7 Exhaust pipe (1.4L/1.5L/1 .6L/1.7L)
# OEM ED1 EU7
36 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Floor mat 1 / 6
ED1 Floor mat
EU7 Floor mat
# OEM ED1 EU7
13 90676-SB2-003 Clip - DASHBOARD INSULATOR Clip - DASHBOARD INSULATOR
Front brake caliper (2) 1 / 19
ED1 Front brake caliper (2)
EU7 Clutch master cylinder (LH; 1.4L/1.6L)
# OEM ED1 EU7
2 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
Front combination light 1 / 23
ED1 Front combination light
EU7 Headlight (1)
# OEM ED1 EU7
24 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
Front door lining 1 / 26
ED1 Front door lining
EU7 Front door lining (LH)
# OEM ED1 EU7
27 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Front door locks 2 / 22
ED1 Front door locks
EU7 Front door locks/outer ha ndle
# OEM ED1 EU7
32 72175-SH3-003 Holder - DOOR LOCK ROD Holder - DOOR LOCK ROD
36 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Front door panels 2 / 6
ED1 Front door panels
EU7 Front door panels
# OEM ED1 EU7
14 75891-SA7-000 Stopper - DOOR Stopper - DOOR
16 90157-SA0-000 Bolt-washer - 8X25 Bolt-washer - 8X25
Front fenders 2 / 18
ED1 Front fenders
EU7 Front fenders
# OEM ED1 EU7
18 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
20 91501-S04-003 Clip - INNER FENDER Clip - INNER FENDER
Front shock absorber 2 / 26
ED1 Front shock absorber
EU7 Rear shock absorber
# OEM ED1 EU7
14 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
16 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Fuel hose/two way valve 1 / 18
ED1 Fuel hose/two way valve
EU7 Fuel tank
# OEM ED1 EU7
22 91601-SH3-013 Grommet - SCREW, 5MM (BLACK) Grommet - SCREW, 5MM (BLACK)
Fuel tank 1 / 32
ED1 Fuel tank
EU7 Fuel tank
# OEM ED1 EU7
29 90657-SA5-003 Clip - SIDE APRON MOLDING Clip - SIDE APRON MOLDING
Glove box 2 / 8
ED1 Glove box
EU7 Instrument panel garnish (LH; PASSENGER SIDE)
# OEM ED1 EU7
2 66417-SB3-670 Rubber - GLOVE BOX STOPPER Rubber - GLOVE BOX STOPPER
9 90140-SH3-003 Bolt-washer - 5X18 Bolt-washer - 5X18
Grommet 4 / 21
ED1 Grommet
EU7 Grommet (FRONT)
# OEM ED1 EU7
6 91615-SH3-000 Cap - FLOOR HOLE, 49MM Cap - FLOOR HOLE, 49MM
8 72207-SB2-000 Cap - FLOOR HOLE, 24MM Cap - FLOOR HOLE, 24MM
14 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
16 90852-SA5-000 Plug - HOLE, 10MM Plug - HOLE, 10MM
Heater blower 1 / 8
ED1 Heater blower
EU7 Heater blower (LH)
# OEM ED1 EU7
8 90156-SH3-000 Bolt-washer - 6X24 Bolt-washer - 6X24
Heater control 1 / 30
ED1 Heater control
EU7 Wire harness (LH)
# OEM ED1 EU7
1 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
Heater unit 1 / 11
ED1 Heater unit
EU7 Heater blower (LH)
# OEM ED1 EU7
15 90156-SH3-000 Bolt-washer - 6X24 Bolt-washer - 6X24
Hood 1 / 42
ED1 Hood
EU7 Grommet (FRONT)
# OEM ED1 EU7
24 74177-SD4-000 Cushion a - HOOD Cushion a - HOOD
Instrument panel (2) 3 / 35
ED1 Instrument panel (2)
EU7 Bumpers
# OEM ED1 EU7
52 90105-634-000 Bolt-washer (8x20) Bolt-washer (8x20)
55 90157-SA0-000 Bolt-washer - 8X25 Bolt-washer - 8X25
56 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
Intake manifold (1) 1 / 24
ED1 Intake manifold (1)
EU7 Water valve (LH; 1.4L/1.6L)
# OEM ED1 EU7
17 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Interior light/switch 2 / 18
ED1 Interior light/switch
EU7 Interior light
# OEM ED1 EU7
5 34253-671-003 Bulb - 12V 8W)(DAIICHI Bulb - 12V 8W)(DAIICHI
5 04110-SWA-305 BULB T10X318W BULB T10X318W
Knuckle 3 / 33
ED1 Knuckle
EU7 Front brake (2)
# OEM ED1 EU7
16 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
16 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
21 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Mainshaft/gear 3 / 15
ED1 Mainshaft/gear
EU7 Mainshaft (1.4L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
2 23261-PL3-000 Shaft - REVERSE GEAR Shaft - REVERSE GEAR
10 23927-PL3-000 Washer - SPRING, 36MM Washer - SPRING, 36MM
11 23928-PL3-000 Washer - 26MM Washer - 26MM
Master power 2 / 16
ED1 Master power
EU7 Brake master cylinder/ master power (LH)
# OEM ED1 EU7
2 46151-SB2-003 Yoke - PUSH ROD (NISSIN) Yoke - PUSH ROD (NISSIN)
20 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Mirror/sunvisor 2 / 31
ED1 Mirror/sunvisor
EU7 Resonator chamber (1.4L/1 .5L/1.6L/1.7L)
# OEM ED1 EU7
6 75353-671-000 Lock - SCREW Lock - SCREW
41 90131-SH3-A12 Screw - PAN, 5X16 Screw - PAN, 5X16
Oil pump 5 / 25
ED1 Oil pump
EU7 Oil pump/oil strainer (1.4L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
10 15231-PM3-000 Valve - RELIEF Valve - RELIEF
11 15232-PM3-000 Spring - RELIEF VALVE Spring - RELIEF VALVE
14 15302-PE0-300 Washer - SEALING, 14MM Washer - SEALING, 14MM
15 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)
17 90015-PH1-013 Holder - OIL FILTER Holder - OIL FILTER
Parking brake 1 / 13
ED1 Parking brake
EU7 Bumpers
# OEM ED1 EU7
17 90105-634-000 Bolt-washer (8x20) Bolt-washer (8x20)
Piston/crankshaft 4 / 51
ED1 Piston/crankshaft
EU7 Piston/crankshaft (1.4L/1 .5L/1.6L/1.7L)
# OEM ED1 EU7
3 13112-PE0-000 Pin - PISTON Pin - PISTON
4 13204-PE1-003 Bolt Bolt
5 13205-634-010 Nut Nut
18 90704-634-000 Key - 4.5X11.0 Key - 4.5X11.0
Power steering lines (2) 1 / 29
ED1 Power steering lines (2)
EU7 Brake master cylinder/ master power (LH)
# OEM ED1 EU7
12 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Radiator hose 1 / 26
ED1 Radiator hose
EU7 Radiator hose (1.4L/1.5L/ 1.6L/1.7L)
# OEM ED1 EU7
13 19511-PA6-003 Clip - WATER HOSE(CHUO SPRING) Clip - WATER HOSE(CHUO SPRING)
Rear brake drum 7 / 47
ED1 Rear brake drum
EU7 Rear brake (DRUM)
# OEM ED1 EU7
18 43323-663-003 Spring - RR. WHEEL CYLINDER Spring - RR. WHEEL CYLINDER
20 43352-568-003 SCREW, BLEEDER (NISSIN) SCREW, BLEEDER (NISSIN)
32 43375-SA0-003 U-clip U-clip
37 45175-SA0-013 Pin - TENSIONER Pin - TENSIONER
38 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
38 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
41 90001-SH3-000 Bolt - FLANGE, 10X13 Bolt - FLANGE, 10X13
Rear door lining 1 / 21
ED1 Rear door lining
EU7 Front door lining (LH)
# OEM ED1 EU7
17 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Rear door locks 3 / 25
ED1 Rear door locks
EU7 Rear door locks/outer han dle
# OEM ED1 EU7
31 72175-SH3-901 Holder - DOOR LOCK ROD Holder - DOOR LOCK ROD
32 72175-SH3-003 Holder - DOOR LOCK ROD Holder - DOOR LOCK ROD
36 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Rear door panels 2 / 8
ED1 Rear door panels
EU7 Front door panels
# OEM ED1 EU7
17 75891-SA7-000 Stopper - DOOR Stopper - DOOR
19 90157-SA0-000 Bolt-washer - 8X25 Bolt-washer - 8X25
Rear shock absorber 1 / 26
ED1 Rear shock absorber
EU7 Rear shock absorber
# OEM ED1 EU7
24 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Relay/horn/fuse box 1 / 20
ED1 Relay/horn/fuse box
EU7 Control unit (ENGINE ROOM; 1.4L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
16 39794-SE0-003 Relay assy - POWER(4P)(DENSO) (056700-7250) Relay assy - POWER(4P)(DENSO) (056700-7250)
Select lever (2) 1 / 35
ED1 Select lever (2)
EU7 Wire harness (LH)
# OEM ED1 EU7
2 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
Shift fork/fork shaft 1 / 12
ED1 Shift fork/fork shaft
EU7 Shift fork/shift holder (1.4L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
11 90028-PB6-010 Bolt - SPECIAL, 6X22.5 Bolt - SPECIAL, 6X22.5
Shift rod/shift holder 3 / 20
ED1 Shift rod/shift holder
EU7 Shift fork/shift holder (1.4L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
16 24519-PB6-000 Screw - BALL SPRING SETTING Screw - BALL SPRING SETTING
17 90028-PB6-010 Bolt - SPECIAL, 6X22.5 Bolt - SPECIAL, 6X22.5
20 90412-679-000 Washer - CONICAL SPRING, 8MM Washer - CONICAL SPRING, 8MM

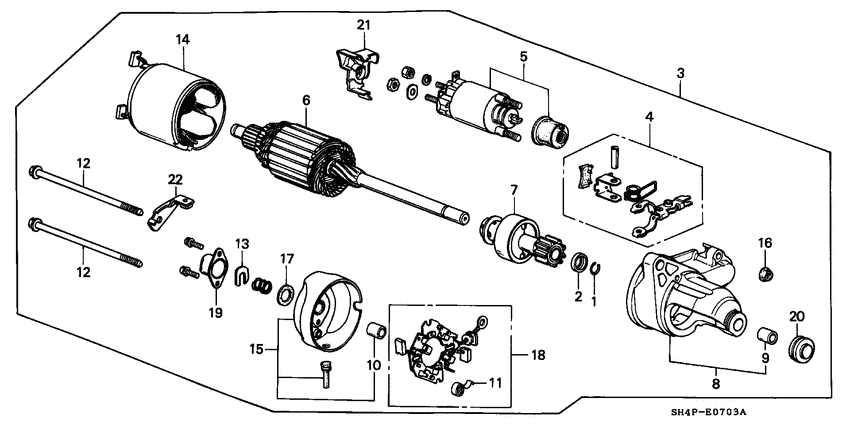

Starter motor (ND; 2) 1 / 22
ED1 Starter motor (ND; 2)
EU7 Starter motor (DENSO; 2)
# OEM ED1 EU7
16 31223-PA0-006 Nut - HEX. Nut - HEX.
Steering column (3) 2 / 29
ED1 Steering column (3)
EU7 Steering column
# OEM ED1 EU7
33 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
37 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR
Taillight (2) 1 / 26
ED1 Taillight (2)
EU7 Headlight (1)
# OEM ED1 EU7
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
Tire/wheel disk 3 / 38
ED1 Tire/wheel disk
# OEM ED1 EU7
9 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
9 42753-SH3-003 Valve - RIM (US PACIFIC) Valve - RIM (US PACIFIC)
19 83850-SH3-000 Plate - ANCHOR BOLT Plate - ANCHOR BOLT
Torque converter housing 2 / 37
ED1 Torque converter housing
EU7 Clutch case (1.4L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
23 91205-PL3-A02 Oil seal - 35X56X8(NOK) Oil seal - 35X56X8(NOK)
23 91205-PL3-A01 Oil seal - 35X56X8 (ARAI) Oil seal - 35X56X8 (ARAI)
Transmission housing 1 / 82
ED1 Transmission housing
EU7 Transmission case (1.4L/1.5L/1.6L/1.7L)
# OEM ED1 EU7
7 90081-PB6-000 Bolt - PLUG, 14MM Bolt - PLUG, 14MM
Trunk lid 2 / 26
ED1 Trunk lid
EU7 Outer panels/roof panel
# OEM ED1 EU7
6 73219-693-951 Seal - FUEL LID OPENER (GREEN) Seal - FUEL LID OPENER (GREEN)
38 90684-SD4-003 Clip - FUEL LID OPENER Clip - FUEL LID OPENER
Valve/rocker arm 2 / 18
ED1 Valve/rocker arm
EU7 Valve/rocker arm (SOHC)
# OEM ED1 EU7
10 14744-PM3-000 Screw - TAPPET ADJUSTING Screw - TAPPET ADJUSTING
15 14781-PJ7-003 Cotter - VALVE (FUJI VALVE) Cotter - VALVE (FUJI VALVE)
Water pump 1 / 16
ED1 Water pump
EU7 Water pump/sensor (1.4L/1 .5L/1.6L/1.7L)
# OEM ED1 EU7
17 91314-634-000 O-ring O-ring
Water valve/duct 3 / 37
ED1 Water valve/duct
EU7 Water valve (LH; 1.4L/1.6L)
# OEM ED1 EU7
36 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
36 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
37 91501-S04-003 Clip - INNER FENDER Clip - INNER FENDER
Windshield washer 1 / 13
ED1 Windshield washer
EU7 Windshield washer (3)
# OEM ED1 EU7
10 90652-SB2-023 Clip - TUBE, 7MM Clip - TUBE, 7MM
Wire harness 6 / 44
ED1 Wire harness
EU7 Harness band/bracket (LH)
# OEM ED1 EU7
16 90153-SE0-003 Bolt - EARTH, 6X12 Bolt - EARTH, 6X12
18 90627-SA5-003 Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
26 91507-693-003 Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
28 91547-SH3-003 Clip - BAND(NATURAL)(160MM) Clip - BAND(NATURAL)(160MM)
31 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
41 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
