Air cleaner (2.4L) 19 / 19

#	OEM	CU2	CW2
1	17201-RL5-A00	Case set - AIR CLEANER	Case set - AIR CLEANER
2	17210-RL5-A00	Cover comp. - AIR CLEANER	Cover comp. - AIR CLEANER
3	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
3	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
5	17217-P2J-300	Clip - AIR CLEANER	Clip - AIR CLEANER
6	17220-RL5-A00	Element assy. - AIR CLEANER	Element assy. - AIR CLEANER
7	17228-RL6-E00	Tube - AIR FLOW	Tube - AIR FLOW
8	17229-RL6-E00	Chamber - AIR FLOW	Chamber - AIR FLOW
9	17261-R60-U00	Stay comp - AIR CLEANER	Stay comp - AIR CLEANER
10	17314-R40-003	Clamp - AIR FLOW(89)	Clamp - AIR FLOW(89)
11	17315-R40-003	Clamp - AIR FLOW (80)	Clamp - AIR FLOW (80)
12	17652-SL0-003	Clip - FILLER TUBE	Clip - FILLER TUBE
12	17652-T0A-003	CLIP, FILLER TUBE	CLIP, FILLER TUBE
13	37980-R40-A01	Meter assy - AIR FLOW	Meter assy - AIR FLOW
14	37985-RTA-003	O-ring	O-ring
15	75353-671-000	Lock - SCREW	Lock - SCREW
16	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
17	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE

Air conditioner (COMPRESSOR; 2.4L) 3 / 12

#	OEM	CU2	CW2
10	38930-PNA-000	Bracket - COMPRESSOR	Bracket - COMPRESSOR
11	90023-PNA-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
12	90024-PNA-000	Bolt - FLANGE, 8X65	Bolt - FLANGE, 8X65

Air conditioner (CONDENSER) 7 / 7

#	OEM	CU2	CW2
1	80100-TL2-A01	Condenser assy	Condenser assy
2	80101-S9A-013	Filter sub assy.	Filter sub assy.
3	80111-TL1-G01	Bracket comp. - L. UPPER	Bracket comp. - L. UPPER
4	80112-TL1-G01	Bracket comp. - R. UPPER	Bracket comp. - R. UPPER
5	80113-TL1-G01	Bracket comp. - LOWER	Bracket comp. - LOWER
6	80192-TL1-G02	Bolt - FLANGE	Bolt - FLANGE
7	90121-TL1-G00	Bolt-washer - 6X12	Bolt-washer - 6X12

Air conditioner (HOSES/PIPES; 2.4L; LH) 17 / 17

#	OEM	CU2	CW2
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
2	80311-TL2-A01	Hose comp. - SUCTION	Hose comp. - SUCTION
3	80315-TL2-A01	Hose comp. - DISCHARGE	Hose comp. - DISCHARGE
4	80321-TL1-G01	Pipe comp - AIR CONDITIONER	Pipe comp - AIR CONDITIONER
4	80321-TL1-G11	Pipe comp - AIR CONDITIONER	Pipe comp - AIR CONDITIONER
5	80341-TL1-G01	Pipe comp - RECEIVER	Pipe comp - RECEIVER
6	80360-TL1-G00	Clamp - SUCTION PIPE	Clamp - SUCTION PIPE
7	80450-SFE-003	Sensor assy - PRESSURE	Sensor assy - PRESSURE
8	80865-SL0-003	Cap - VALVE (H)	Cap - VALVE (H)
9	80866-SL0-003	Cap - VALVE(L)	Cap - VALVE(L)
10	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
11	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
12	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
13	90001-SDA-A00	Bolt - FLANGE, 6X38(GUIDE)	Bolt - FLANGE, 6X38(GUIDE)
14	91548-S3N-003	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE
15	91548-S5A-003	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE
16	91548-TA0-A01	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE

Air conditioner/heater (SENSOR) 4 / 4

#	OEM	CU2	CW2
1	80510-S0A-941	Sensor - SUN BEAM	Sensor - SUN BEAM
2	80525-S30-941	Sensor assy - AMBIENT	Sensor assy - AMBIENT
3	80530-TL1-G01	Sensor assy - IN CAR	Sensor assy - IN CAR
4	80541-TL1-G01	Hose a - ASPIRATOR	Hose a - ASPIRATOR

Alternator (DENSO; 2.4L) 15 / 15

#	OEM	CU2	CW2
1	31100-R40-A01	Alternator assy. - CSF89)(DENSO	Alternator assy. - CSF89)(DENSO
2	31101-RTA-003	Rotor assy.	Rotor assy.
3	31105-RAA-A01	Holder assy. - BRUSH	Holder assy. - BRUSH
4	31108-R40-A01	Frame assy - RR. STATOR	Frame assy - RR. STATOR
5	31111-PT0-003	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
6	31114-PGK-A01	Bearing - FR.	Bearing - FR.
7	31119-R40-A01	Bush - INSULATION	Bush - INSULATION
8	31135-R40-A01	Cover - RR. END	Cover - RR. END
9	31138-PD1-004	Cover - BEARING	Cover - BEARING
10	31141-RAA-A01	Pulley	Pulley
11	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
12	31145-PGK-A01	Bolt	Bolt
13	31146-PE9-941	Screw-washer	Screw-washer
14	31147-PT0-003	Screw-washer	Screw-washer
15	90231-PGK-A01	Nut - HEX., 5MM	Nut - HEX., 5MM

Atf cooler 1 / 6

#	OEM	CU2	CW2
4	90121-TL1-G00	Bolt-washer - 6X12	Bolt-washer - 6X12

Audio unit 16 / 16

#	OEM	CU2	CW2
2	39104-SWA-A11	Screw - 2.6X6	Screw - 2.6X6
3	39104-TL0-G01	Button - SELECT	Button - SELECT
4	39104-TL0-G11	Button - VOLUME	Button - VOLUME
5	39104-TL0-G21	Screw - BIND, 2.6X8	Screw - BIND, 2.6X8
6	39105-TL0-G01	Knob assy - SELECT	Knob assy - SELECT
7	39105-TL0-G11	Knob assy - VOLUME	Knob assy - VOLUME
9	39107-TL0-G21	Chassis assy - MATSUSHITA	Chassis assy - MATSUSHITA
11	39111-TL0-000	Bracket - R. RADIO	Bracket - R. RADIO
12	39161-TL0-000	Bracket - L. RADIO	Bracket - L. RADIO
13	39710-TL0-G11	Display assy - CENTER (STANLEY)	Display assy - CENTER (STANLEY)
14	39712-TP1-A01	Case set	Case set
15	77955-TL0-E01	Indicator assy. - PASSENGER SRS OFF	Indicator assy. - PASSENGER SRS OFF
16	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
17	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
18	90666-TL0-G01	Clip - SNAP FITTING(YELLOW)	Clip - SNAP FITTING(YELLOW)
19	91551-SE0-003	Bolt - FLANGE, 5X7	Bolt - FLANGE, 5X7

Battery 12 / 12

#	OEM	CU2	CW2
1	31500-S3N-G51	Battery assy - 55B24L<S>-MF) (PANASONIC	Battery assy - 55B24L<S>-MF) (PANASONIC
1	31500-S3N-G52	Battery assy - 55B24L<S>-MF) (FURUKAWA	Battery assy - 55B24L<S>-MF) (FURUKAWA
2	31512-TA2-900	Plate - BATTERY SETTING	Plate - BATTERY SETTING
3	31513-SDA-A00	Bolt - BATTERY SETTING (195MM)	Bolt - BATTERY SETTING (195MM)
4	31521-TA2-900	Box - BATTERY(55B)	Box - BATTERY(55B)
5	31531-SEA-010	Cover - BATTERY	Cover - BATTERY
6	31542-SA5-666	Plug - VENT (MF) (FURUKAWA)	Plug - VENT (MF) (FURUKAWA)
6	31542-SA5-665	Plug - VENT (MF) (PANASONIC)	Plug - VENT (MF) (PANASONIC)
7	32600-TP1-A00	Cable assy - BATTERY EARTH	Cable assy - BATTERY EARTH
8	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
9	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
10	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Brake lines (VSA; LH) 26 / 26

#	OEM	CU2	CW2
1	01464-TL1-G00	Hose set - R. FR. BRAKE	Hose set - R. FR. BRAKE
2	01465-TL1-G00	Hose set - L. FR. BRAKE	Hose set - L. FR. BRAKE
3	01466-TL0-G50	Hose set - R. RR. BRAKE	Hose set - R. RR. BRAKE
4	01468-TL0-G50	Hose set - L. RR. BRAKE	Hose set - L. RR. BRAKE
5	46330-TL1-G10	Pipe comp. c - BRAKE	Pipe comp. c - BRAKE
6	46340-TL1-G00	Pipe comp. d - BRAKE	Pipe comp. d - BRAKE
7	46374-TL1-G00	Pipe comp. u - BRAKE	Pipe comp. u - BRAKE
8	46375-TL1-G00	Pipe comp. v - BRAKE	Pipe comp. v - BRAKE
9	46376-TL1-E00	Pipe comp. w - BRAKE	Pipe comp. w - BRAKE
10	46377-TL1-G00	Pipe comp. x - BRAKE	Pipe comp. x - BRAKE
11	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)	Grommet a - BRAKE PIPE (BLACK)
12	46391-STK-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
13	46391-S5A-Z01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
14	46391-TA1-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
15	46392-TA1-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
16	46393-SFA-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
17	46393-TA1-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
18	46428-TA0-A00	Bracket - R. FR. BRAKE HOSE	Bracket - R. FR. BRAKE HOSE
19	46429-TA0-A00	Bracket - L. FR. BRAKE HOSE	Bracket - L. FR. BRAKE HOSE
20	46435-TA0-A00	Bracket a - R. RR. BRAKE HOSE	Bracket a - R. RR. BRAKE HOSE
21	46436-TA0-A00	Bracket a - L. RR. BRAKE HOSE	Bracket a - L. RR. BRAKE HOSE
22	46438-TA0-A00	Bracket b - R. RR. BRAKE HOSE	Bracket b - R. RR. BRAKE HOSE
23	46439-TA0-A00	Bracket b - L. RR. BRAKE HOSE	Bracket b - L. RR. BRAKE HOSE
24	46462-SE0-000	Bolt - OIL	Bolt - OIL
25	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
26	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power (LH) 23 / 23

#	OEM	CU2	CW2
1	01462-SWA-A00	Cylinder set - MASTER	Cylinder set - MASTER
1	01462-SWA-A02	CYLINDER SET, MASTER	CYLINDER SET, MASTER
2	01469-TL1-G00	Power set, MASTER (10")	Power set, MASTER (10")
3	46100-TL1-G01	Cylinder assy., Master	Cylinder assy., Master
4	46135-SDA-A01	Guide assy - PISTON	Guide assy - PISTON
5	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
6	46185-SE0-003	Seal - ROD	Seal - ROD
7	46191-SDA-A00	Gasket - MASTER POWER	Gasket - MASTER POWER
10	46402-TL2-G01	Tube assy - MASTER POWER	Tube assy - MASTER POWER
12	46407-STK-A01	Clamp - TUBE	Clamp - TUBE
13	46512-S70-000	Pin - PEDAL	Pin - PEDAL
14	46661-SDA-A01	Reservoir set	Reservoir set
15	46662-S9A-003	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
16	46665-S04-J01	Grommet	Grommet
17	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
18	46669-S5A-003	Diaphragm	Diaphragm
19	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
20	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
21	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR
22	57515-S30-003	Pin - STOP	Pin - STOP
23	57520-SWA-A01	Piston assy. - PRIMARY	Piston assy. - PRIMARY
24	57540-SWA-A01	Piston assy. - SECONDARY	Piston assy. - SECONDARY
25	57562-SF1-003	Circlip	Circlip

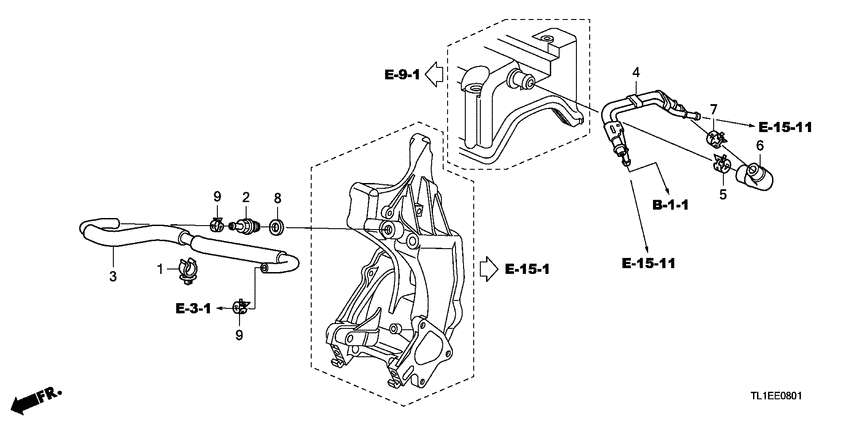

Breather tube (2.4L) 7 / 7

#	OEM	CU2	CW2
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
2	17130-RBB-A01	Valve assy. - PCV	Valve assy. - PCV
3	17131-R40-A00	Tube comp - PCV	Tube comp - PCV
4	17137-RL5-A00	Pipe comp - BREATHER	Pipe comp - BREATHER
5	17138-RL5-A01	Clip - HOSE(D19.1)	Clip - HOSE(D19.1)
6	17152-RL5-A00	Tube comp - BREATHER	Tube comp - BREATHER
7	91405-PE9-003	Clip - HOSE(D17)	Clip - HOSE(D17)

Camshaft/cam chain (2.4L) 17 / 17

#	OEM	CU2	CW2
1	14110-RL5-000	Camshaft comp. - IN.	Camshaft comp. - IN.
2	14113-PNA-003	Plate - CAM PULSE	Plate - CAM PULSE
3	14114-R40-A01	Plate - TDC PULSE	Plate - TDC PULSE
4	14115-PNA-000	Bolt - SEALING, 14MM	Bolt - SEALING, 14MM
5	14120-RL5-000	Camshaft comp. - EX.	Camshaft comp. - EX.
6	14210-PNA-000	Sprocket - CAM CHAIN DRIVEN (46T)	Sprocket - CAM CHAIN DRIVEN (46T)
7	14310-R40-A01	Actuator assy - VTC(46T)	Actuator assy - VTC(46T)
8	14401-R40-A01	Chain - 176L	Chain - 176L
9	14510-R40-A01	Tensioner comp - CAM CHAIN	Tensioner comp - CAM CHAIN
10	14511-PNA-003	Stopper - TOOL	Stopper - TOOL
11	14520-RAH-H01	Arm comp - CAM CHAIN TENSIONER	Arm comp - CAM CHAIN TENSIONER
12	14530-PPA-003	Guide comp - CAM CHAIN	Guide comp - CAM CHAIN
13	14540-RWC-A02	Guide comp. b - CAM CHAIN	Guide comp. b - CAM CHAIN
14	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
15	90032-PNA-000	Bolt - FLANGE, 12X47	Bolt - FLANGE, 12X47
16	90042-PNA-003	Bolt - FLANGE, 10X32	Bolt - FLANGE, 10X32
17	90703-PNA-300	Dowel pin - 4.2X10.3	Dowel pin - 4.2X10.3

Canister 13 / 13

#	OEM	CU2	CW2
1	17300-SNA-013	Canister assy	Canister assy
1	17300-SNA-023	Canister assy	Canister assy
2	17358-TA0-G00	Bracket - CANISTER	Bracket - CANISTER
3	17371-SLJ-003	Valve - TWO WAY	Valve - TWO WAY
4	17372-TA0-G00	Tube - DRAIN	Tube - DRAIN
5	17378-TA0-A00	Stay - DRAIN BOX	Stay - DRAIN BOX
6	17723-TA0-G00	Tube c - FUEL VENT	Tube c - FUEL VENT
7	17724-TA0-G00	Tube assy - FUEL PURGE	Tube assy - FUEL PURGE
8	17743-TA0-G01	Box - FUEL DRAIN	Box - FUEL DRAIN
9	90150-TL0-003	Bolt-washer - 6X18	Bolt-washer - 6X18
10	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
11	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)
12	91591-SMA-931	Clamp - TUBE (D11)	Clamp - TUBE (D11)

Chain case (2.4L) 6 / 6

#	OEM	CU2	CW2
1	11410-R40-A00	Case assy. - CHAIN	Case assy. - CHAIN
2	11412-R40-A00	Cover - CHAIN CASE	Cover - CHAIN CASE
3	90021-PNA-000	Bolt - SPECIAL, 6X31	Bolt - SPECIAL, 6X31
4	91212-RTA-003	Oil seal - 43X58X7 (NOK)	Oil seal - 43X58X7 (NOK)
4	91212-RNA-A01	Oil seal - 43X58X7(ARAI)	Oil seal - 43X58X7(ARAI)
5	91302-PNA-004	O-ring - CHAIN CASE	O-ring - CHAIN CASE

Clutch case 11 / 11

#	OEM	CU2	CW2
1	21000-RAP-010	Case comp. - CLUTCH	Case comp. - CLUTCH
2	21101-PPP-000	Plate - NEEDLE SET	Plate - NEEDLE SET
3	21103-PPP-000	Plate c - OIL GUIDE	Plate c - OIL GUIDE
4	21120-PWL-000	Magnet comp. - TRANSMISSION	Magnet comp. - TRANSMISSION
5	21212-RZF-000	Plate - BAFFLE	Plate - BAFFLE
6	28700-PWL-013	Switch assy - BACK LIGHT (U-SHIN)(BLACK)	Switch assy - BACK LIGHT (U-SHIN)(BLACK)
8	90705-PG2-000	Dowel pin - 14X20	Dowel pin - 14X20
9	91001-PPP-005	Bearing - BALL, 28X64X15	Bearing - BALL, 28X64X15
10	91003-PPS-003	Bearing - NEEDLE, 35X68X20	Bearing - NEEDLE, 35X68X20
11	91206-RCT-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)
12	91216-PG1-005	Oil seal - 28X43X7 (NOK)	Oil seal - 28X43X7 (NOK)

Clutch master cylinder (LH) 33 / 33

#	OEM	CU2	CW2
1	43352-567-000	Screw - BLEEDER	Screw - BLEEDER
2	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
3	46151-S5A-A01	Yoke	Yoke
4	46182-500-013	Circlip	Circlip
5	46391-STK-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
6	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
7	46912-S84-A00	Pin - CLUTCH PEDAL	Pin - CLUTCH PEDAL
9	46921-SMG-X01	Plate - STOPPER	Plate - STOPPER
10	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER	Piston comp - CLUTCH MASTER CYLINDER
11	46928-S5A-A01	Seal - MASTER CYLINDER	Seal - MASTER CYLINDER
12	46930-SWA-G01	Cylinder assy. - CLUTCH SLAVE	Cylinder assy. - CLUTCH SLAVE
13	46931-S5A-003	Pin - SPRING	Pin - SPRING
14	46932-S5A-003	Piston - SLAVE CYLINDER	Piston - SLAVE CYLINDER
15	46937-SS1-003	Boot - SLAVE CYLINDER	Boot - SLAVE CYLINDER
16	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER	Connector - CLUTCH MASTER CYLINDER
17	46942-S5A-003	Pin - SNAP	Pin - SNAP
18	46943-S5A-003	Seal - RING	Seal - RING
19	46944-S5A-J01	Connector	Connector
20	46945-S5A-003	O-ring	O-ring
21	46946-S5A-003	Screw-washer - 4X12	Screw-washer - 4X12
22	46947-S5A-003	Rod - PUSH	Rod - PUSH
23	46948-S5A-003	Rod - PUSH	Rod - PUSH
24	46949-S5A-003	Seal - RING	Seal - RING
25	46960-TA0-A02	Pipe comp. a - CLUTCH	Pipe comp. a - CLUTCH
26	46961-TA0-A01	Hose - CLUTCH	Hose - CLUTCH
27	46965-TA0-A02	Tank assy. - CLUTCH	Tank assy. - CLUTCH
28	46968-SEF-E01	Bracket b - CLUTCH PIPE	Bracket b - CLUTCH PIPE
29	46970-TA0-A01	Pipe comp. b - CLUTCH	Pipe comp. b - CLUTCH
30	46971-TA0-A01	Tube - CLUTCH FLUID	Tube - CLUTCH FLUID
31	46995-TA0-A01	Bracket a - CLUTCH PIPE	Bracket a - CLUTCH PIPE
32	90106-S7A-E00	Bolt - FLANGE, 8X30	Bolt - FLANGE, 8X30
33	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE
39	46925-TA0-A01	Cylinder assy. - CLUTCH MASTER	Cylinder assy. - CLUTCH MASTER

Clutch release 5 / 5

#	OEM	CU2	CW2
1	22810-RPN-003	Bearing, CLUTCH RELEASE	Bearing, CLUTCH RELEASE
2	22821-PPP-000	Fork, CLUTCH RELEASE	Fork, CLUTCH RELEASE
3	22825-P0S-000	Bolt - RELEASE FORK	Bolt - RELEASE FORK
4	22835-P0S-000	Spring - RELEASE FORK SETTING	Spring - RELEASE FORK SETTING
5	22841-PPP-000	Boot - RELEASE FORK	Boot - RELEASE FORK

Clutch/torque converter 7 / 12

#	OEM	CU2	CW2
1	21350-PRB-000	Cover - CLUTCH CASE	Cover - CLUTCH CASE
3	22100-R40-003	Flywheel comp.	Flywheel comp.
4	22103-PNA-003	Bush - 21X24X8	Bush - 21X24X8
5	22200-R40-003	Disk comp - FRICTION	Disk comp - FRICTION
6	22300-R40-013	Disk comp - PRESSURE	Disk comp - PRESSURE
9	90011-PNA-B00	Bolt - 12MM	Bolt - 12MM
11	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)

Combination switch 4 / 5

#	OEM	CU2	CW2
1	35251-TA0-B11	Sensor assy - STEERING & BODY SWITCH	Sensor assy - STEERING & BODY SWITCH
2	35255-TA0-H41	Switch assy - LIGHTING & TURN SIGNAL	Switch assy - LIGHTING & TURN SIGNAL
4	35400-S6A-003	Switch assy - DOOR (DAIICHI)	Switch assy - DOOR (DAIICHI)
5	90132-SFE-003	Screw - EARTH, 5X18	Screw - EARTH, 5X18

Console (LH) 25 / 25

#	OEM	CU2	CW2
1	39112-TA0-003	Jack assy - AUX IN.	Jack assy - AUX IN.
2	39114-TL0-G01	Cord assy - USB	Cord assy - USB
3	39114-TL0-003	Cord assy - USB-A	Cord assy - USB-A
4	39115-TL0-G01	Holder assy. - USB CORD	Holder assy. - USB CORD
5	39620-TA0-003	Cap assy.	Cap assy.
6	39624-SZ3-L01	Socket assy	Socket assy
15	83404-TL0-G01	Box comp - CONSOLE	Box comp - CONSOLE
16	83405-TL0-G01	Rail - R. BOX	Rail - R. BOX
17	83406-TL0-G01	Rail - L. BOX	Rail - L. BOX
19	83408-TL0-G01	Garnish - CUP HOLDER	Garnish - CUP HOLDER
20	83409-TL0-G21	Lid - INNER BOX	Lid - INNER BOX
23	83413-TL0-G01	Mat - CONSOLE	Mat - CONSOLE
27	83422-TL0-G01	Pocket assy - DRIVER SIDE	Pocket assy - DRIVER SIDE
28	83425-TA0-A00	Bracket comp. - CENTER CONSOLE	Bracket comp. - CENTER CONSOLE
29	83426-TL0-G00	Bracket - RR. CENTER CONSOLE	Bracket - RR. CENTER CONSOLE
30	83427-TL0-G01	Pocket assy - PASSENGER SIDE	Pocket assy - PASSENGER SIDE
35	90123-SJA-000	Bolt-washer - 6X16	Bolt-washer - 6X16
36	90144-TA0-A01	Screw - TAPPING, 4X12 (PO)	Screw - TAPPING, 4X12 (PO)
37	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
38	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
39	90666-TA0-A21	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
40	90669-SHJ-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
41	90669-SWA-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
42	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
43	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)

Control unit (CABIN; 1; LH) 21 / 25

#	OEM	CU2	CW2
1	33136-TA0-003	Sensor assy - HEADLIGHT ADJUSTER FR.	Sensor assy - HEADLIGHT ADJUSTER FR.
2	33137-TL0-G01	Leveling unit - AUTO	Leveling unit - AUTO
3	33143-S1A-G01	Nut - SPECIAL, 6MM	Nut - SPECIAL, 6MM
4	33146-TA0-003	Sensor assy - HEADLIGHT ADJUSTER RR.	Sensor assy - HEADLIGHT ADJUSTER RR.
5	33147-TA0-000	Bracket - RR. LEVELING SENSOR	Bracket - RR. LEVELING SENSOR
6	38141-TL0-G00	Bracket - RELAY BLOCK	Bracket - RELAY BLOCK
10	38211-SNA-A11	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
11	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
12	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
13	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
14	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
15	38970-TL0-G01	Sensor assy - RAIN & LIGHT	Sensor assy - RAIN & LIGHT
17	38980-TL0-G01	Cover - RAIN SENSOR	Cover - RAIN SENSOR
18	39113-TL0-G01	Adapter unit - USB(H-TYPE)	Adapter unit - USB(H-TYPE)
20	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
20	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
24	39961-TL0-000	Bracket - YAW & G SENSOR	Bracket - YAW & G SENSOR
25	39970-TL0-G01	Sensor - YAW & G	Sensor - YAW & G
26	39980-TL3-G04	Eps unit	Eps unit
29	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
30	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

Control unit (CABIN; 2) 4 / 4

#	OEM	CU2	CW2
2	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
2	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
3	39794-SDA-004	RELAY ASSY., FUEL PUMP (DENSO)	RELAY ASSY., FUEL PUMP (DENSO)
3	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)

Control unit (ENGINE ROOM; 1) 24 / 26

#	OEM	CU2	CW2
2	37821-RL5-A00	Bracket comp. - ENGINE CONTROL MODULE	Bracket comp. - ENGINE CONTROL MODULE
3	37823-R60-U00	Cover - ENGINE CONTROL MODULE	Cover - ENGINE CONTROL MODULE
4	38100-TL0-G01	Horn assy - LOW	Horn assy - LOW
5	38150-TL0-G01	Horn assy - HIGH	Horn assy - HIGH
6	38211-SNA-A01	Fuse - BLOCK (20A)	Fuse - BLOCK (20A)
7	38211-SNA-A21	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
8	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
9	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
10	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
11	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
12	38221-SNA-A81	Fuse - BLADE(30A)	Fuse - BLADE(30A)
13	38231-SEP-A01	Fuse a - MULTI BLOCK (100A/40A)	Fuse a - MULTI BLOCK (100A/40A)
14	38232-TA0-A11	Fuse - MULTI BLOCK(D-2)	Fuse - MULTI BLOCK(D-2)
15	38233-TA0-A01	Fuse e - MULTI BLOCK	Fuse e - MULTI BLOCK
16	38235-TA0-A01	Puller - FUSE	Puller - FUSE
17	38251-TL1-G00	Bracket - RELAY BOX	Bracket - RELAY BOX
18	38254-TA0-003	Relay unit	Relay unit
19	38255-SNA-003	Detector unit - ELECTRONIC LOAD	Detector unit - ELECTRONIC LOAD
20	38256-TL1-G01	Cover - RELAY BOX(UPPER)	Cover - RELAY BOX(UPPER)
21	38257-TA0-A01	Cover - LOWER	Cover - LOWER
22	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
23	90129-TA0-000	Bolt-washer - 5X16	Bolt-washer - 5X16
24	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16
25	90301-S7A-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Control unit (ENGINE ROOM; 2) 5 / 5

#	OEM	CU2	CW2
1	39792-SDA-A01	Relay assy - MICRO ISO	Relay assy - MICRO ISO
3	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
3	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
8	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
8	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)	Relay assy, ENGINE CONTROL MODULE (DENSO)

Converter (2.4L) 16 / 16

#	OEM	CU2	CW2
1	11941-R40-A00	Stay - CONVERTER	Stay - CONVERTER
2	18115-R40-A01	Gasket - PRIMARY CONVERTER (NIPPON LEAKLESS)	Gasket - PRIMARY CONVERTER (NIPPON LEAKLESS)
3	18120-R40-A00	Cover comp. - CHAMBER	Cover comp. - CHAMBER
4	18121-R49-Z00	Cover comp. - PRIMARY CONVERTER	Cover comp. - PRIMARY CONVERTER
5	18190-R40-J00	Converter comp. - PRIMARY	Converter comp. - PRIMARY
6	32742-R40-A00	Stay - ENGINE HARNESS	Stay - ENGINE HARNESS
7	36531-R40-A01	Sensor - AIR FUEL RATIO	Sensor - AIR FUEL RATIO
8	36532-R40-A01	Sensor - OXYGEN	Sensor - OXYGEN
9	36536-RL6-G00	Stay - SENSOR	Stay - SENSOR
10	90005-P0A-000	Bolt-washer - 10X22	Bolt-washer - 10X22
11	90010-PE2-900	Bolt - SPECIAL, 10X22	Bolt - SPECIAL, 10X22
12	90015-PT0-J00	Bolt-washer - 8X14	Bolt-washer - 8X14
13	90023-PK1-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
13	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
14	90212-RCA-A01	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
15	90451-PE2-000	Washer - SPECIAL, 11X28	Washer - SPECIAL, 11X28

Countershaft 44 / 66

#	OEM	CU2	CW2
1	23221-PZF-020	Countershaft	Countershaft
2	23421-R88-000	Gear - COUNTERSHAFT LOW	Gear - COUNTERSHAFT LOW
3	23431-RM3-000	Gear - COUNTERSHAFT SECOND	Gear - COUNTERSHAFT SECOND
4	23461-RM3-000	Gear - COUNTERSHAFT FIFTH	Gear - COUNTERSHAFT FIFTH
5	23471-RM5-A00	Gear - COUNTERSHAFT THIRD	Gear - COUNTERSHAFT THIRD
6	23481-RM3-000	Gear - COUNTERSHAFT FOURTH	Gear - COUNTERSHAFT FOURTH
7	23491-RM5-A00	Gear - COUNTERSHAFT SIXTH	Gear - COUNTERSHAFT SIXTH
8	23521-PPS-305	Sleeve set - SYNCHRONIZER (1-2)	Sleeve set - SYNCHRONIZER (1-2)
9	23914-RZF-000	Collar - DISTANCE, 40X47X27.5	Collar - DISTANCE, 40X47X27.5
10	23917-PPP-000	Collar - DISTANCE, 40X47X28	Collar - DISTANCE, 40X47X28
11	23984-PPP-000	Shim d - 35MM (1.11)	Shim d - 35MM (1.11)
11	23981-PPP-900	Shim aa - 35MM (0.91)	Shim aa - 35MM (0.91)
11	23995-PPP-000	Shim q - 35MM (1.99)	Shim q - 35MM (1.99)
11	23992-PPP-900	Shim am - 35MM (1.79)	Shim am - 35MM (1.79)
11	23990-PPP-000	Shim k - 35MM (1.59)	Shim k - 35MM (1.59)
11	23987-PPP-900	Shim ag - 35MM (1.39)	Shim ag - 35MM (1.39)
11	23985-PPP-000	Shim e - 35MM (1.19)	Shim e - 35MM (1.19)
11	23982-PPP-900	Shim ab - 35MM (0.99)	Shim ab - 35MM (0.99)
11	23993-PPP-900	Shim an - 35MM (1.87)	Shim an - 35MM (1.87)
11	23991-PPP-000	Shim l - 35MM (1.67)	Shim l - 35MM (1.67)
11	23988-PPP-900	Shim ah - 35MM (1.47)	Shim ah - 35MM (1.47)
11	23986-PPP-000	Shim f - 35MM (1.27)	Shim f - 35MM (1.27)
11	23983-PPP-900	Shim ac - 35MM (1.07)	Shim ac - 35MM (1.07)
11	23981-PPP-000	Shim a - 35MM (0.87)	Shim a - 35MM (0.87)
11	23994-PPP-900	Shim ap - 35MM (1.95)	Shim ap - 35MM (1.95)
11	23992-PPP-000	Shim m - 35MM (1.75)	Shim m - 35MM (1.75)
11	23989-PPP-900	Shim aj - 35MM (1.55)	Shim aj - 35MM (1.55)
11	23987-PPP-000	Shim g - 35MM (1.35)	Shim g - 35MM (1.35)
11	23984-PPP-900	Shim ad - 35MM (1.15)	Shim ad - 35MM (1.15)
11	23982-PPP-000	Shim b - 35MM (0.95)	Shim b - 35MM (0.95)
11	23993-PPP-000	Shim n - 35MM (1.83)	Shim n - 35MM (1.83)
11	23990-PPP-900	Shim ak - 35MM (1.63)	Shim ak - 35MM (1.63)
11	23988-PPP-000	Shim h - 35MM (1.43)	Shim h - 35MM (1.43)
11	23985-PPP-900	Shim ae - 35MM (1.23)	Shim ae - 35MM (1.23)
11	23983-PPP-000	Shim c - 35MM (1.03)	Shim c - 35MM (1.03)
11	23994-PPP-000	Shim p - 35MM (1.91)	Shim p - 35MM (1.91)
11	23991-PPP-900	Shim al - 35MM (1.71)	Shim al - 35MM (1.71)
11	23989-PPP-000	Shim j - 35MM (1.51)	Shim j - 35MM (1.51)
11	23986-PPP-900	Shim af - 35MM (1.31)	Shim af - 35MM (1.31)
12	90011-PPP-000	Bolt - SPECIAL, 20X25	Bolt - SPECIAL, 20X25
13	90601-PPP-000	Ring - SNAP, 72MM	Ring - SNAP, 72MM
14	91004-PPP-014	Bearing - BALL, 30X72X17	Bearing - BALL, 30X72X17
15	91101-PPP-003	Bearing - NEEDLE, 47X52X23	Bearing - NEEDLE, 47X52X23
16	91212-PPP-004	Damper - FRICTION (SECOND)	Damper - FRICTION (SECOND)

Crankshaft/piston 38 / 38

#	OEM	CU2	CW2
1	13030-RL5-A00	Piston set - OS 0.25	Piston set - OS 0.25
1	13020-RL5-A00	Piston set b - STD.	Piston set b - STD.
1	13010-RL5-A00	Piston set a - STD.	Piston set a - STD.
2	13021-RL5-A01	Ring set - PISTON (OS 0.25) (RIKEN)	Ring set - PISTON (OS 0.25) (RIKEN)
2	13011-RL5-A01	Ring set - PISTON (STD.) (RIKEN)	Ring set - PISTON (STD.) (RIKEN)
2	13021-RL5-A02	Ring set - PISTON (OS 0.25) (NIPPON PISTON RING)	Ring set - PISTON (OS 0.25) (NIPPON PISTON RING)
2	13011-RL5-A02	Ring set - PISTON (STD.) (NIPPON PISTON RING)	Ring set - PISTON (STD.) (NIPPON PISTON RING)
3	13111-PNA-010	Pin - PISTON	Pin - PISTON
4	13115-PRB-A00	Clip - PISTON PIN	Clip - PISTON PIN
5	13204-RBB-004	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
6	13210-R40-A00	Rod comp - CONNECTING	Rod comp - CONNECTING
7	13212-RL6-G01	Bearing b - CONNECTING ROD (BLACK)(DAIDO)	Bearing b - CONNECTING ROD (BLACK)(DAIDO)
7	13213-RL6-G01	Bearing c - CONNECTING ROD (BROWN)(DAIDO)	Bearing c - CONNECTING ROD (BROWN)(DAIDO)
7	13214-RL6-G01	Bearing d - CONNECTING ROD (GREEN)(DAIDO)	Bearing d - CONNECTING ROD (GREEN)(DAIDO)
7	13215-RL6-G01	Bearing e - CONNECTING ROD (YELLOW)(DAIDO)	Bearing e - CONNECTING ROD (YELLOW)(DAIDO)
7	13216-RL6-G01	Bearing f - CONNECTING ROD (PINK)(DAIDO)	Bearing f - CONNECTING ROD (PINK)(DAIDO)
7	13217-RL6-G01	Bearing g - CONNECTING ROD (RED) (DAIDO)	Bearing g - CONNECTING ROD (RED) (DAIDO)
8	13310-R40-A00	Crankshaft comp.	Crankshaft comp.
9	13326-RL6-G01	Bearing f - MAIN UPPER(PINK) (DAIDO)	Bearing f - MAIN UPPER(PINK) (DAIDO)
9	13327-RL6-G01	Bearing g - MAIN UPPER (RED) (DAIDO)	Bearing g - MAIN UPPER (RED) (DAIDO)
9	13322-RL6-G01	Bearing b - MAIN UPPER(BLACK) (DAIDO)	Bearing b - MAIN UPPER(BLACK) (DAIDO)
9	13323-RL6-G01	Bearing c - MAIN UPPER(BROWN) (DAIDO)	Bearing c - MAIN UPPER(BROWN) (DAIDO)
9	13324-RL6-G01	Bearing d - MAIN UPPER(GREEN) (DAIDO)	Bearing d - MAIN UPPER(GREEN) (DAIDO)
9	13325-RL6-G01	Bearing e - MAIN UPPER(YELLOW) (DAIDO)	Bearing e - MAIN UPPER(YELLOW) (DAIDO)
10	13331-PNA-004	Washer - THRUST(TAIHO)	Washer - THRUST(TAIHO)
11	13342-RL6-G01	Bearing b - MAIN LOWER(BLACK) (DAIDO)	Bearing b - MAIN LOWER(BLACK) (DAIDO)
11	13343-RL6-G01	Bearing c - MAIN LOWER(BROWN) (DAIDO)	Bearing c - MAIN LOWER(BROWN) (DAIDO)
11	13344-RL6-G01	Bearing d - MAIN LOWER(GREEN) (DAIDO)	Bearing d - MAIN LOWER(GREEN) (DAIDO)
11	13345-RL6-G01	Bearing e - MAIN LOWER(YELLOW) (DAIDO)	Bearing e - MAIN LOWER(YELLOW) (DAIDO)
11	13346-RL6-G01	Bearing f - MAIN LOWER(PINK) (DAIDO)	Bearing f - MAIN LOWER(PINK) (DAIDO)
11	13347-RL6-G01	Bearing g - MAIN LOWER (RED) (DAIDO)	Bearing g - MAIN LOWER (RED) (DAIDO)
12	13620-RAA-A02	Sprocket comp - CHAIN DRIVE	Sprocket comp - CHAIN DRIVE
13	13622-R40-A00	Plate - CRANK PULSER	Plate - CRANK PULSER
15	13623-R40-A01	Spacer a	Spacer a
16	13810-R40-A02	Pulley comp - CRANKSHAFT	Pulley comp - CRANKSHAFT
18	90013-R70-A01	Bolt - SPECIAL, 8X11	Bolt - SPECIAL, 8X11
19	90017-RWC-A01	Bolt-washer - 16X49	Bolt-washer - 16X49
20	90704-PNA-000	Key - 4.5X21	Key - 4.5X21

Cylinder block/oil pan (2.4L) 45 / 45

#	OEM	CU2	CW2
1	11000-RL6-G00	Block assy - CYLINDER	Block assy - CYLINDER
2	11103-R40-A01	Plate - PARTITION	Plate - PARTITION
3	11106-PNA-300	Bolt - SEALING, 20MM	Bolt - SEALING, 20MM
4	11107-RL6-G00	Joint comp - OIL COOLER	Joint comp - OIL COOLER
5	11135-RAA-A00	Orifice assy - LOWER BLOCK	Orifice assy - LOWER BLOCK
6	11200-RL6-G00	Pan assy - OIL	Pan assy - OIL
7	11221-RL6-G00	Plate a - BAFFLE	Plate a - BAFFLE
8	11230-RL6-G00	Baffle comp. - OIL LEVEL SENSOR	Baffle comp. - OIL LEVEL SENSOR
9	11500-R40-A00	Cap comp. - OIL GALLERY	Cap comp. - OIL GALLERY
10	11550-RL6-G00	Bolt comp - GALLERY CAP	Bolt comp - GALLERY CAP
11	12208-P8C-A01	Bolt - SEALING, 28MM	Bolt - SEALING, 28MM
12	15280-R40-A01	Body comp - OIL JET	Body comp - OIL JET
13	15290-R40-A01	Bolt comp - OIL JET	Bolt comp - OIL JET
14	15500-RL6-G02	Cooler - ENGINE OIL	Cooler - ENGINE OIL
15	30530-RL5-A01	Sensor comp - KNOCK	Sensor comp - KNOCK
16	32112-RL6-G00	Sub cord - OIL LEVEL SENSOR	Sub cord - OIL LEVEL SENSOR
17	32113-RL5-A00	Sub cord - CRANK SENSOR	Sub cord - CRANK SENSOR
18	32122-RL6-G00	Holder a - OIL LEVEL SUB CORD	Holder a - OIL LEVEL SUB CORD
19	32124-RL6-G00	Holder b - OIL LEVEL SUB CORD	Holder b - OIL LEVEL SUB CORD
20	32129-RL5-A00	Holder - CRANK SUB CORD	Holder - CRANK SUB CORD
21	32747-RL6-G00	Stay a - OIL LEVEL SUB CORD	Stay a - OIL LEVEL SUB CORD
22	32750-RL6-G00	Stay b - OIL LEVEL SUB CORD	Stay b - OIL LEVEL SUB CORD
23	37241-RNA-A01	Switch assy, OIL PRESSURE	Switch assy, OIL PRESSURE
24	37310-RSA-G02	Sensor assy - OIL LEVEL	Sensor assy - OIL LEVEL
25	37311-RL6-G00	Cover - OIL LEVEL SENSOR	Cover - OIL LEVEL SENSOR
26	37312-RSA-G02	Packing - OIL LEVEL SENSOR	Packing - OIL LEVEL SENSOR
27	37500-R40-A01	Sensor assy - CRANK	Sensor assy - CRANK
28	37503-RL5-A00	Cover - CRANK SENSOR	Cover - CRANK SENSOR
29	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
30	90006-PNA-003	Bolt-washer - 11X95	Bolt-washer - 11X95
31	90009-PY3-000	DRAIN PLUG BOLT, 14MM	DRAIN PLUG BOLT, 14MM
32	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
33	90051-RGA-003	Bolt - SPECIAL, 6X20.8	Bolt - SPECIAL, 6X20.8
34	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
35	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
36	90715-PC6-000	Dowel pin - 13X20	Dowel pin - 13X20
37	90715-PNA-000	Dowel pin - 13X14	Dowel pin - 13X14
38	91214-PWA-Y01	Oil seal - 80X98X10 (NOK)	Oil seal - 80X98X10 (NOK)
38	91214-RZA-004	Oil seal - 80X98X10 (ARAI)	Oil seal - 80X98X10 (ARAI)
39	91304-RZA-000	O-ring - 32X2.4	O-ring - 32X2.4
40	91306-PJ4-000	O-ring - 6.8X1.9	O-ring - 6.8X1.9
41	91311-PRB-A00	O-ring - 13.5X3.5	O-ring - 13.5X3.5
42	91316-PE7-730	O-ring - 62.4X3.1	O-ring - 62.4X3.1
43	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9
44	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)

Cylinder head (2.4L) 10 / 10

#	OEM	CU2	CW2
1	12100-R40-A02	Head assy - CYLINDER	Head assy - CYLINDER
2	12204-PNA-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PNA-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
4	14631-R40-A00	Shaft - ROCKER	Shaft - ROCKER
5	14633-R40-A00	Shaft - EX. ROCKER	Shaft - EX. ROCKER
6	37510-R40-A01	Sensor assy - TDC	Sensor assy - TDC
7	90011-PNA-003	Bolt A, Head Cover	Bolt A, Head Cover
8	90012-PNA-003	Bolt b - HEAD COVER	Bolt b - HEAD COVER
9	90083-PNA-000	Bolt - SEALING, 10MM	Bolt - SEALING, 10MM
10	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

Cylinder head cover (2.4L) 12 / 12

#	OEM	CU2	CW2
1	12030-R44-A00	Packing set - HEAD COVER	Packing set - HEAD COVER
2	12310-R40-A00	Cover comp. CYLINDER HEAD	Cover comp. CYLINDER HEAD
3	12341-R40-A00	Packing - HEAD COVER	Packing - HEAD COVER
4	12342-P08-004	Seal	Seal
4	12342-RYE-004	Seal,spark plug t	Seal,spark plug t
5	12500-R40-A00	Cover - PLUG HOLE COIL	Cover - PLUG HOLE COIL
6	15610-RGA-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
7	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
8	15650-RL6-G01	Gauge comp. - OIL LEVEL	Gauge comp. - OIL LEVEL
9	90014-R40-A00	Bolt b - PLUG HOLE COIL COVER	Bolt b - PLUG HOLE COIL COVER
10	90213-PH3-000	Nut - CAP, 6MM	Nut - CAP, 6MM
11	90441-PNA-010	Washer - HEAD COVER	Washer - HEAD COVER

Differential 21 / 90

#	OEM	CU2	CW2
1	41100-RM5-000	Differential assy	Differential assy
4	41233-RM5-A00	Gear - FINAL DRIVEN	Gear - FINAL DRIVEN
5	41457-PL3-B00	Shim s - 80MM(1.75)	Shim s - 80MM(1.75)
5	41452-PL3-B00	Shim m - 80MM(1.25)	Shim m - 80MM(1.25)
5	41447-PL3-B00	Shim g - 80MM(1.6)	Shim g - 80MM(1.6)
5	41442-PL3-B00	Shim b - 80MM(1.1)	Shim b - 80MM(1.1)
5	41454-PL3-B00	Shim p - 80MM(1.45)	Shim p - 80MM(1.45)
5	41449-PL3-B00	Shim j - 80MM(1.8)	Shim j - 80MM(1.8)
5	41444-PL3-B00	Shim d - 80MM(1.3)	Shim d - 80MM(1.3)
5	41456-PL3-B00	Shim r - 80MM(1.65)	Shim r - 80MM(1.65)
5	41451-PL3-B00	Shim l - 80MM(1.15)	Shim l - 80MM(1.15)
5	41446-PL3-B00	Shim f - 80MM(1.5)	Shim f - 80MM(1.5)
5	41441-PL3-B00	Shim a - 80MM(1.0)	Shim a - 80MM(1.0)
5	41453-PL3-B00	Shim n - 80MM(1.35)	Shim n - 80MM(1.35)
5	41448-PL3-B00	Shim h - 80MM(1.7)	Shim h - 80MM(1.7)
5	41443-PL3-B00	Shim c - 80MM(1.2)	Shim c - 80MM(1.2)
5	41455-PL3-B00	Shim q - 80MM(1.55)	Shim q - 80MM(1.55)
5	41450-PL3-B00	Shim k - 80MM(1.05)	Shim k - 80MM(1.05)
5	41445-PL3-B00	Shim e - 80MM(1.4)	Shim e - 80MM(1.4)
7	90017-RM5-000	Bolt - SPECIAL, 11MM	Bolt - SPECIAL, 11MM
8	91005-RM5-003	Bearing - BALL, 40X80X18 (NTN)	Bearing - BALL, 40X80X18 (NTN)

Duct (LH) 7 / 7

#	OEM	CU2	CW2
1	77400-TL0-G01	Duct assy - INSTRUMENT AIR CONDITIONER	Duct assy - INSTRUMENT AIR CONDITIONER
2	77430-TL0-G01	Duct a - INSTRUMENT PASSENGER AIR CONDITIONER	Duct a - INSTRUMENT PASSENGER AIR CONDITIONER
3	77435-TL0-G01	Duct b - INSTRUMENT PASSENGER AIR CONDITIONER	Duct b - INSTRUMENT PASSENGER AIR CONDITIONER
4	77460-TL0-G01	Duct assy - FR. DEFROSTER	Duct assy - FR. DEFROSTER
6	83332-TA0-A01	Duct assy - R. RR. HEATER JOINT	Duct assy - R. RR. HEATER JOINT
7	83335-TA0-A00	Bracket assy - RR. HEATER DUCT	Bracket assy - RR. HEATER DUCT
9	83382-TA0-A01	Duct assy - L. RR. HEATER JOINT	Duct assy - L. RR. HEATER JOINT

Emblems/caution labels 4 / 9

#	OEM	CU2	CW2
2	17669-SS0-X30	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
3	19043-PLA-E00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION
9	78031-SDA-G80	Label - SIDE AIRBAG CAUTION	Label - SIDE AIRBAG CAUTION
11	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

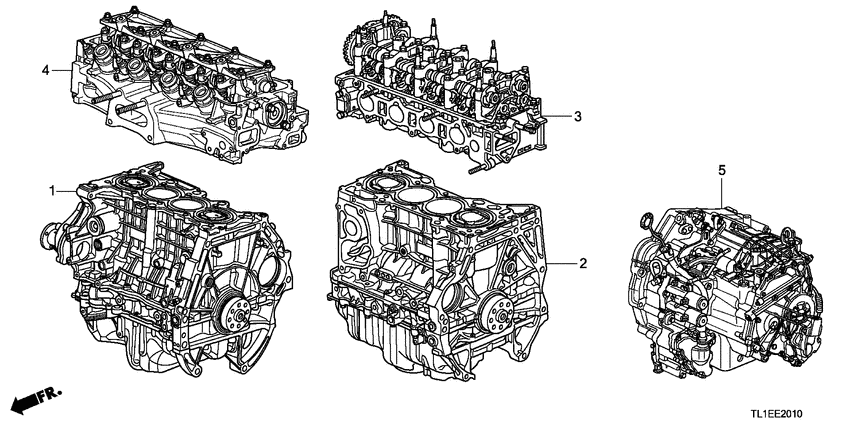

Engine assy./ transmission assy. 3 / 4

#	OEM	CU2	CW2
2	10002-RL6-E01	General assy. - CYLINDER BLOCK	General assy. - CYLINDER BLOCK
3	10003-RL5-A00	General assy. - CYLINDER HEAD	General assy. - CYLINDER HEAD
5	20011-RM5-A30	Transmission assy.	Transmission assy.

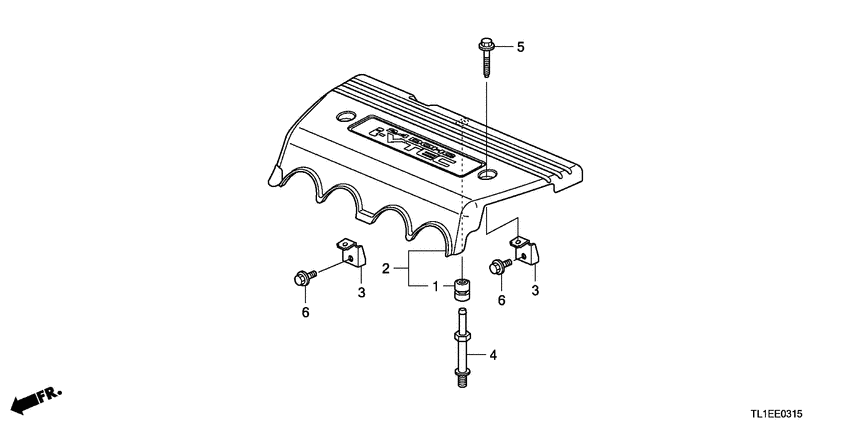

Engine cover (2.4L) 5 / 5

#	OEM	CU2	CW2
1	16628-RWC-A00	Rubber - FUEL PIPE COVER MOUNTING	Rubber - FUEL PIPE COVER MOUNTING
2	17121-R42-A00	Cover assy. - ENGINE	Cover assy. - ENGINE
3	17122-R41-L50	Stay comp - ENGINE COVER	Stay comp - ENGINE COVER
4	90015-RBC-J00	Bolt - ENGINE COVER STUD	Bolt - ENGINE COVER STUD
5	90102-R41-L50	Bolt - SPECIAL FLANGE, 6X38	Bolt - SPECIAL FLANGE, 6X38

Engine hood (LH) 29 / 29

#	OEM	CU2	CW2
4	74120-TL0-G01	Lock assy - HOOD (SECURITY SWITCH)	Lock assy - HOOD (SECURITY SWITCH)
6	74125-TL0-G00	Cover - HOOD LOCK	Cover - HOOD LOCK
7	74130-TL0-G01	Wire assy. - HOOD	Wire assy. - HOOD
8	74134-SM4-000	Grommet - HOOD WIRE	Grommet - HOOD WIRE
10	74141-TL3-G00	Insulator - HOOD	Insulator - HOOD
11	74143-TL0-G01	Rubber - RR. HOOD SEAL	Rubber - RR. HOOD SEAL
11	74143-TL0-G00	Rubber - RR. HOOD SEAL	Rubber - RR. HOOD SEAL
12	74145-TL0-G00	Stay - HOOD OPENER	Stay - HOOD OPENER
13	74208-TL0-G02	Cowl top set - FR.	Cowl top set - FR.
13	74208-TL0-G01	Cowl top set - FR.	Cowl top set - FR.
14	74212-TL0-G00	Cover - R. HOOD HINGE	Cover - R. HOOD HINGE
15	74222-TL0-G00	Cover - L. HOOD HINGE	Cover - L. HOOD HINGE
16	74225-TL0-G00	Umbrella - AIR CONDITIONER HOLE	Umbrella - AIR CONDITIONER HOLE
17	76810-TL0-003	Nozzle assy. - WINDSHIELD	Nozzle assy. - WINDSHIELD
18	76827-SFE-003	Tube - 420MM	Tube - 420MM
19	76830-SL0-003	Joint y - TUBE (MITSUBA)	Joint y - TUBE (MITSUBA)
20	76833-SMA-003	Tube - 80MM	Tube - 80MM
21	76837-SJA-003	Tube - 600MM	Tube - 600MM
22	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
23	90112-SEA-000	Bolt - FLANGE, 6X12(DACRO)	Bolt - FLANGE, 6X12(DACRO)
24	90123-TA0-A00	Bolt-washer - 6X18	Bolt-washer - 6X18
25	90601-S84-A01	Grommet - HOOD OPEN STAY	Grommet - HOOD OPEN STAY
26	90602-SX0-003	Clip - COWL TOP	Clip - COWL TOP
27	90602-TA0-003	Clip - COWL TOP	Clip - COWL TOP
28	90603-SX0-003	Grommet - COWL TOP	Grommet - COWL TOP
29	90603-TL0-003	Grommet - COWL TOP	Grommet - COWL TOP
30	91501-STK-003	Clip - ENGINE HOOD INSULATOR	Clip - ENGINE HOOD INSULATOR
31	91504-SDA-003	Clip - HOOD OPEN WIRE	Clip - HOOD OPEN WIRE
32	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Engine mounting bracket (2.4L) 14 / 14

#	OEM	CU2	CW2
1	11910-R40-A00	Bracket - ENGINE SIDE MOUNTING	Bracket - ENGINE SIDE MOUNTING
2	31110-RL5-A02	Belt - ALTERNATOR (MITSUBOSHI)	Belt - ALTERNATOR (MITSUBOSHI)
2	31110-RL5-A01	Belt - ALTERNATOR(BANDO)	Belt - ALTERNATOR(BANDO)
3	31140-RL5-A01	Idler assy	Idler assy
4	31170-RLF-J01	Tensioner Assy - AUTO	Tensioner Assy - AUTO
5	31180-PNA-J01	Pulley comp., IDLER	Pulley comp., IDLER
6	31185-PCX-003	Cover - BEARING	Cover - BEARING
7	31185-PNA-003	Cover - BEARING	Cover - BEARING
8	31190-RL5-A00	Pulley comp., IDLE	Pulley comp., IDLE
9	90001-R40-A00	Bolt-washer - SPECIAL, 10X47	Bolt-washer - SPECIAL, 10X47
10	90002-R40-000	Bolt - SPECIAL, 10X30	Bolt - SPECIAL, 10X30
11	90008-PNA-000	Bolt - 10X75	Bolt - 10X75
12	90008-RAA-A00	Bolt - MOUNTING BRACKET, 10X95	Bolt - MOUNTING BRACKET, 10X95
13	90027-PND-A00	Bolt - SPECIAL, 10X50	Bolt - SPECIAL, 10X50

Engine mounts (2.4L; AT) 26 / 40

#	OEM	CU2	CW2
2	50620-TA0-A00	Bracket - ENGINE SIDE MOUNTING	Bracket - ENGINE SIDE MOUNTING
11	50931-SDA-A01	Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID	Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID
12	50932-TA0-A01	Stay - ELECTRONIC CONTROL MOUNT SOLENOID VALVE	Stay - ELECTRONIC CONTROL MOUNT SOLENOID VALVE
13	50933-SZ3-003	Clip - ACCUMULATOR PIPE	Clip - ACCUMULATOR PIPE
14	50933-TL2-E00	Tube a - ELECTRONIC CONTROL MOUNT SOLENOID	Tube a - ELECTRONIC CONTROL MOUNT SOLENOID
15	50934-SW5-A80	Clip - ACCUMULATOR TUBE	Clip - ACCUMULATOR TUBE
16	50934-TA0-A01	Tube b - ELECTRONIC CONTROL MOUNT SOLENOID	Tube b - ELECTRONIC CONTROL MOUNT SOLENOID
17	50935-TA0-A01	Clamp - ELECTRONIC CONTROL MOUNT SOLENOID	Clamp - ELECTRONIC CONTROL MOUNT SOLENOID
18	50941-TL2-E00	Pipe assy. - ELECTRONIC CONTROL MOUNT SOLENOID	Pipe assy. - ELECTRONIC CONTROL MOUNT SOLENOID
19	50944-TA0-A01	Clamp - ELECTRONIC CONTROL MOUNT SOLENOID	Clamp - ELECTRONIC CONTROL MOUNT SOLENOID
20	50946-TL2-E00	Stay d - ELECTRONIC CONTROL MOUNT SOLENOID	Stay d - ELECTRONIC CONTROL MOUNT SOLENOID
21	50949-TA0-A00	Stay c - ELECTRONIC CONTROL MOUNT PIPE	Stay c - ELECTRONIC CONTROL MOUNT PIPE
22	90161-SDA-A01	Bolt - FLANGE, 12X45	Bolt - FLANGE, 12X45
23	90161-TA0-A01	Bolt - FLANGE, 10X25	Bolt - FLANGE, 10X25
24	90162-TA0-A00	Bolt - FLANGE, 12X50	Bolt - FLANGE, 12X50
25	90163-SDA-A01	Bolt - FLANGE, 10X35	Bolt - FLANGE, 10X35
26	90164-SAA-000	Bolt - FLANGE, 12X100	Bolt - FLANGE, 12X100
27	90164-S5A-010	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
28	90165-SDA-A00	Bolt - FLANGE, 12X45	Bolt - FLANGE, 12X45
29	90167-SAA-010	Bolt - FLANGE, 10X25	Bolt - FLANGE, 10X25
31	90168-TA0-A00	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65
33	90176-SKN-000	Bolt - FLANGE, 12X30	Bolt - FLANGE, 12X30
34	90176-S5A-000	Bolt - FLANGE, 10X30	Bolt - FLANGE, 10X30
35	90176-TA0-A01	Bolt - FLANGE, 12X139	Bolt - FLANGE, 12X139
36	90371-SEF-000	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM
37	90371-S87-A00	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM

Engine mounts (2.4L; MT) 41 / 41

#	OEM	CU2	CW2
1	50610-TA0-A10	Bracket - RR. ENGINE MOUNTING	Bracket - RR. ENGINE MOUNTING
2	50620-TA0-A00	Bracket - ENGINE SIDE MOUNTING	Bracket - ENGINE SIDE MOUNTING
3	50630-TA0-A10	Bracket - FR. ENGINE MOUNTING	Bracket - FR. ENGINE MOUNTING
4	50650-TA0-A12	Bracket - TRANSMISSION LOWER MOUNTING	Bracket - TRANSMISSION LOWER MOUNTING
5	50675-TA0-A10	Bracket - TRANSMISSION UPPER MOUNTING BASE	Bracket - TRANSMISSION UPPER MOUNTING BASE
6	50810-TA0-A11	Rubber assy. - RR. ENGINE MOUNTING	Rubber assy. - RR. ENGINE MOUNTING
6	50810-TA0-A12	Rubber assy. RR. ENGINE MOUNTING	Rubber assy. RR. ENGINE MOUNTING
7	50820-TA0-A11	Rubber assy. ENGINE SIDE MOUNTING	Rubber assy. ENGINE SIDE MOUNTING
8	50830-TA0-A11	Rubber assy. - FR. ENGINE MOUNTING	Rubber assy. - FR. ENGINE MOUNTING
9	50835-TA0-A12	Stopper - FR. ENGINE MOUNT	Stopper - FR. ENGINE MOUNT
10	50851-TA0-A11	Rubber - TRANSMISSION LOWER MOUNTING INSULATOR	Rubber - TRANSMISSION LOWER MOUNTING INSULATOR
11	50870-TA0-A13	Rubber assy. - TRANSMISSION UPPER MOUNTING	Rubber assy. - TRANSMISSION UPPER MOUNTING
12	50931-SDA-A01	Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID	Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID
13	50932-TA0-A01	Stay - ELECTRONIC CONTROL MOUNT SOLENOID VALVE	Stay - ELECTRONIC CONTROL MOUNT SOLENOID VALVE
14	50933-SZ3-003	Clip - ACCUMULATOR PIPE	Clip - ACCUMULATOR PIPE
15	50933-TL2-E00	Tube a - ELECTRONIC CONTROL MOUNT SOLENOID	Tube a - ELECTRONIC CONTROL MOUNT SOLENOID
16	50934-SW5-A80	Clip - ACCUMULATOR TUBE	Clip - ACCUMULATOR TUBE
17	50934-TA0-A01	Tube b - ELECTRONIC CONTROL MOUNT SOLENOID	Tube b - ELECTRONIC CONTROL MOUNT SOLENOID
18	50935-TA0-A01	Clamp - ELECTRONIC CONTROL MOUNT SOLENOID	Clamp - ELECTRONIC CONTROL MOUNT SOLENOID
19	50941-TL2-E00	Pipe assy. - ELECTRONIC CONTROL MOUNT SOLENOID	Pipe assy. - ELECTRONIC CONTROL MOUNT SOLENOID
20	50944-TA0-A01	Clamp - ELECTRONIC CONTROL MOUNT SOLENOID	Clamp - ELECTRONIC CONTROL MOUNT SOLENOID
21	50946-TL2-E00	Stay d - ELECTRONIC CONTROL MOUNT SOLENOID	Stay d - ELECTRONIC CONTROL MOUNT SOLENOID
22	50949-TA0-A00	Stay c - ELECTRONIC CONTROL MOUNT PIPE	Stay c - ELECTRONIC CONTROL MOUNT PIPE
23	90161-SDA-A01	Bolt - FLANGE, 12X45	Bolt - FLANGE, 12X45
24	90161-TA0-A01	Bolt - FLANGE, 10X25	Bolt - FLANGE, 10X25
25	90162-TA0-A00	Bolt - FLANGE, 12X50	Bolt - FLANGE, 12X50
26	90163-SDA-A01	Bolt - FLANGE, 10X35	Bolt - FLANGE, 10X35
27	90163-S5A-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20
28	90163-TA0-A00	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75
29	90164-SAA-000	Bolt - FLANGE, 12X100	Bolt - FLANGE, 12X100
30	90164-S5A-010	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
31	90165-SDA-A00	Bolt - FLANGE, 12X45	Bolt - FLANGE, 12X45
32	90166-SDA-A00	Bolt - FLANGE, 12X80	Bolt - FLANGE, 12X80
33	90167-SAA-010	Bolt - FLANGE, 10X25	Bolt - FLANGE, 10X25
34	90167-TA0-A00	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
35	90168-TA0-A00	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65
36	90176-SKN-000	Bolt - FLANGE, 12X30	Bolt - FLANGE, 12X30
37	90176-S5A-000	Bolt - FLANGE, 10X30	Bolt - FLANGE, 10X30
38	90176-TA0-A01	Bolt - FLANGE, 12X139	Bolt - FLANGE, 12X139
39	90371-SEF-000	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM
40	90371-S87-A00	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM

Engine wire harness (2.4L) 27 / 32

#	OEM	CU2	CW2
1	32110-RL6-G00	Harness - ENGINE WIRE	Harness - ENGINE WIRE
2	32111-RL5-A00	Sub cord - STARTER	Sub cord - STARTER
3	32112-S2K-003	Band - CABLE (90MM)	Band - CABLE (90MM)
4	32116-R40-003	Holder - CORRUGATED(DARK BROWN) (17MM)	Holder - CORRUGATED(DARK BROWN) (17MM)
5	32117-R40-003	Holder - CORRUGATED(DARK BROWN) (17U)	Holder - CORRUGATED(DARK BROWN) (17U)
6	32118-R40-A01	Holder - STARTER CABLE	Holder - STARTER CABLE
8	32121-R40-A00	Holder - ENGINE HARNESS PLUG HOLE COIL	Holder - ENGINE HARNESS PLUG HOLE COIL
9	32123-R40-A00	Holder - ENGINE HARNESS INJECTOR	Holder - ENGINE HARNESS INJECTOR
10	32125-RBA-000	Holder e - ENGINE HARNESS	Holder e - ENGINE HARNESS
11	32125-RL5-A00	Holder - ENGINE HARNESS	Holder - ENGINE HARNESS
12	32126-R40-A00	Holder - ENGINE HARNESS MAIN	Holder - ENGINE HARNESS MAIN
13	32127-R40-A00	Cover - ENGINE HARNESS MAIN HOLDER	Cover - ENGINE HARNESS MAIN HOLDER
14	32128-RRC-300	Holder - ENGINE HARNESS MISSION	Holder - ENGINE HARNESS MISSION
15	32130-R40-A00	Holder - ENGINE HARNESS MISSION	Holder - ENGINE HARNESS MISSION
17	32134-R40-A00	Holder - ENGINE HARNESS SPOOL	Holder - ENGINE HARNESS SPOOL
18	32135-R40-Y00	Cover - ENGINE HARNESS SPOOL HOLDER	Cover - ENGINE HARNESS SPOOL HOLDER
19	32418-PND-300	Cover - BATTERY TERMINAL	Cover - BATTERY TERMINAL
20	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
21	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
24	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
25	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
26	91509-RRA-003	Clip d - WIRE HARNESS (BLACK) (135.4MM)	Clip d - WIRE HARNESS (BLACK) (135.4MM)
27	91510-RAA-A01	Clip e - HARNESS BAND (DARK GRAY) (179.4MM)	Clip e - HARNESS BAND (DARK GRAY) (179.4MM)
28	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
29	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
30	91551-PNA-003	Band - WIRE HARNESS (BLACK) (172MM)	Band - WIRE HARNESS (BLACK) (172MM)
31	91705-RB0-000	Cover - ENGINE CONTROL MODULE COUPLER	Cover - ENGINE CONTROL MODULE COUPLER

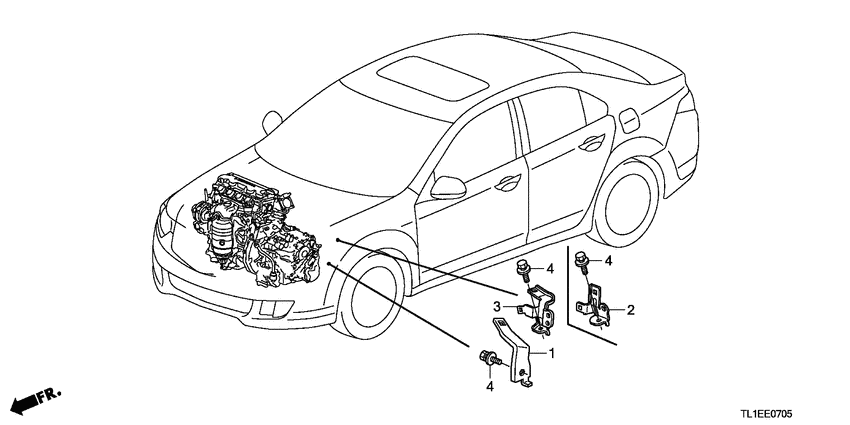

Engine wire harness stay 1 / 1

#	OEM	CU2	CW2
2	32752-RL5-A00	Stay - ENGINE HARNESS	Stay - ENGINE HARNESS

Exhaust pipe (2.4L) 21 / 22

#	OEM	CU2	CW2
1	18150-R41-L00	Converter comp.	Converter comp.
2	18176-PT0-003	Bolt - CONVERTER	Bolt - CONVERTER
3	18176-P08-003	Bolt - CONVERTER	Bolt - CONVERTER
4	18210-TA0-A12	Pipe a - EX.	Pipe a - EX.
5	18215-S2A-000	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
6	18215-S84-A20	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
7	18215-TA0-A01	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
8	18215-TL2-A01	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
9	18229-SEA-013	Gasket - EX. FLEXIBLE	Gasket - EX. FLEXIBLE
10	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
11	18231-SNA-A00	Bolt b - FLEXIBLE JOINT	Bolt b - FLEXIBLE JOINT
12	18302-SP0-003	Gasket - EX. PIPE	Gasket - EX. PIPE
13	18303-SM4-020	Gasket - SILENCER	Gasket - SILENCER
14	18305-TL2-A02	Silencer comp - L. EX.	Silencer comp - L. EX.
15	18307-TL2-A02	Silencer comp - R. EX.	Silencer comp - R. EX.
16	18310-SJK-013	Finisher - EX. PIPE	Finisher - EX. PIPE
17	74601-TA0-A00	Plate a - FR. FLOOR HEAT BAFFLE	Plate a - FR. FLOOR HEAT BAFFLE
18	74602-TL0-G00	Plate b - FR. FLOOR HEAT BAFFLE	Plate b - FR. FLOOR HEAT BAFFLE
19	74654-TA1-A00	Plate - R. SILENCER BAFFLE	Plate - R. SILENCER BAFFLE
20	74694-TA1-A00	Plate - L. SILENCER BAFFLE	Plate - L. SILENCER BAFFLE
21	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Floor mat 6 / 6

#	OEM	CU2	CW2
1	74251-TA0-A00	Insulator - DASHBOARD OUTER	Insulator - DASHBOARD OUTER
2	74260-TL0-G00	Insulator - DASHBOARD	Insulator - DASHBOARD
13	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR
14	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
15	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)
16	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Floor/inner panels 2 / 3

#	OEM	CU2	CW2
7	64322-TL0-G01	Separator - RR. WHEEL ARCH	Separator - RR. WHEEL ARCH
43	90101-SFE-000	Bolt-washer - 8MM	Bolt-washer - 8MM

Fog light 5 / 5

#	OEM	CU2	CW2
1	33165-S5A-003	Bulb - H11) (12V 55W) (STANLEY	Bulb - H11) (12V 55W) (STANLEY
1	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO	Bulb - H11) (12V 55W) (KOITO
2	33900-TL0-G01	Light assy - R. FR. FOG	Light assy - R. FR. FOG
3	33950-TL0-G01	Light assy - L. FR. FOG	Light assy - L. FR. FOG
4	90113-SJA-A00	Screw - TAPPING, 5X14	Screw - TAPPING, 5X14

Front brake (2) 25 / 25

#	OEM	CU2	CW2
1	01463-TL0-G50	Caliper set - FR.	Caliper set - FR.
2	06455-TL0-G50	Shim set - FR.	Shim set - FR.
3	44300-TA0-A51	Bearing assy - FR. HUB	Bearing assy - FR. HUB
4	44600-TA0-A00	Hub assy - FR.	Hub assy - FR.
5	45018-TL0-G50	Caliper sub assy. - R. FR.	Caliper sub assy. - R. FR.
6	45019-TL0-G50	Caliper sub assy. - L. FR.	Caliper sub assy. - L. FR.
7	45022-TL0-G51	Pad set - FR.	Pad set - FR.
8	45213-TL0-G51	Piston	Piston
9	45215-671-672	Screw - BLEEDER	Screw - BLEEDER
10	45216-TL0-G51	Piston	Piston
11	45219-671-672	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
12	45233-S04-A01	Bush	Bush
13	45235-S9A-A01	Pin a	Pin a
14	45236-S9A-A01	Pin b	Pin b
15	45237-TL0-G51	Clip A - PAD	Clip A - PAD
16	45238-TL0-G51	Clip b - PAD	Clip b - PAD
17	45240-S01-A01	Bolt	Bolt
18	45251-TL0-G50	Disk - FR. BRAKE	Disk - FR. BRAKE
19	45255-TL0-G50	Guard - FR. SPLASH	Guard - FR. SPLASH
20	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
21	90113-SD4-901	Bolt - WHEEL (MEIRA)	Bolt - WHEEL (MEIRA)
21	90113-SD4-902	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
21	90113-SJK-901	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
21	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
22	90681-SJK-000	Circlip - INTERNAL, 91MM	Circlip - INTERNAL, 91MM

Front bulkhead/dashboard 4 / 4

#	OEM	CU2	CW2
39	74250-SJA-A00	Cover - VIN PLATE	Cover - VIN PLATE
40	90105-SV1-000	Bolt-washer - 8X20	Bolt-washer - 8X20
41	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
42	90671-SHJ-A02	Rivet - VIN PLATE	Rivet - VIN PLATE

Front bumper 31 / 31

#	OEM	CU2	CW2
2	71103-TL0-G01	Cover - R. FR. FOG LIGHT	Cover - R. FR. FOG LIGHT
4	71104-TL0-G00	Plate - R. INDUCTION	Plate - R. INDUCTION
5	71105-TL0-G10	Plate - INDUCTION CENTER	Plate - INDUCTION CENTER
6	71106-TL0-G00	Plate a - INDUCTION	Plate a - INDUCTION
7	71107-TL0-G00	Grille - FR. BUMPER LOWER	Grille - FR. BUMPER LOWER
8	71108-TL0-G01	Cover - L. FR. FOG LIGHT	Cover - L. FR. FOG LIGHT
10	71109-TL0-G00	Plate - L. INDUCTION	Plate - L. INDUCTION
11	71110-TL0-G00	Spoiler - FR. BUMPER AIR	Spoiler - FR. BUMPER AIR
14	71140-TL0-G01	Beam - R. FR. BUMPER UPPER	Beam - R. FR. BUMPER UPPER
14	25214-P72-305	Beam	Beam
15	71145-TL0-G00	Base - FR. LICENSE PLATE	Base - FR. LICENSE PLATE
16	71190-TL0-G01	Beam - L. FR. BUMPER UPPER	Beam - L. FR. BUMPER UPPER
17	71193-TL0-G00	Spacer - R. FR. BUMPER	Spacer - R. FR. BUMPER
18	71198-TL0-G00	Spacer - L. FR. BUMPER	Spacer - L. FR. BUMPER
19	90047-PH7-000	Bolt-washer - 6X22	Bolt-washer - 6X22
20	90102-SFE-000	Bolt-washer - 8X23	Bolt-washer - 8X23
21	90103-SJ6-000	Bolt - BUMPER	Bolt - BUMPER
22	90103-TA0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
23	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
24	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)	Bolt - BUMPER SETTING (6X15) (BLACK)
24	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
25	90156-S0K-000	Grommet - FR. LICENSE BASE	Grommet - FR. LICENSE BASE
26	90192-SG0-003	Bolt - BUMPER CORNER	Bolt - BUMPER CORNER
27	90308-SB2-013	Nut - SUSPENSION, 5MM	Nut - SUSPENSION, 5MM
28	90323-SE0-000	Nut - CLIP, 6MM	Nut - CLIP, 6MM
28	90305-SH3-000	Nut - AIR SPOILER CLIP	Nut - AIR SPOILER CLIP
29	90673-SB2-000	Nut - CLIP, 6MM	Nut - CLIP, 6MM
30	91105-S5A-000	Bolt - BUMPER	Bolt - BUMPER
31	91503-SZ3-003	Clip A	Clip A
32	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
33	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER

Front door glass/ regulator 14 / 14

#	OEM	CU2	CW2
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY	Label - IMMOBILIZER & SECURITY
2	72210-TL0-003	Regulator assy - R. FR. DOOR POWER	Regulator assy - R. FR. DOOR POWER
3	72230-TL0-003	Sash - R. FR. DOOR FR. LOWER	Sash - R. FR. DOOR FR. LOWER
4	72231-TL0-003	Sash - R. FR. DOOR CENTER LOWER	Sash - R. FR. DOOR CENTER LOWER
5	72235-TL0-003	Runchannel - R. FR. DOOR	Runchannel - R. FR. DOOR
6	72237-TL0-G01	Clip - DOOR GLASS GUIDE	Clip - DOOR GLASS GUIDE
7	72250-TL0-003	Regulator assy - L. FR. DOOR POWER	Regulator assy - L. FR. DOOR POWER
8	72270-TL0-003	Sash - L. FR. DOOR FR. LOWER	Sash - L. FR. DOOR FR. LOWER
9	72271-TL0-003	Sash - L. FR. DOOR CENTER LOWER	Sash - L. FR. DOOR CENTER LOWER
10	72275-TL0-003	Runchannel - L. FR. DOOR	Runchannel - L. FR. DOOR
11	73300-TL0-E20	Glass assy - R. FR. DOOR (GREEN) (ASAHI)	Glass assy - R. FR. DOOR (GREEN) (ASAHI)
12	73350-TL0-E20	Glass assy - L. FR. DOOR (GREEN) (ASAHI)	Glass assy - L. FR. DOOR (GREEN) (ASAHI)
13	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
14	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)	Bolt - FLANGE, 6X16(GUIDE)

Front door lining (LH) 26 / 27

#	OEM	CU2	CW2
1	32755-TL0-G00	Sub cord - COURTESY LIGHT	Sub cord - COURTESY LIGHT
2	32757-TL0-G00	Sub cord - DRIVER DOOR	Sub cord - DRIVER DOOR
3	33301-S70-003	Bulb - 12V 3.8W 2CP	Bulb - 12V 3.8W 2CP
4	34261-TL0-003	Lens	Lens
5	35190-TA0-003	Switch assy - REMOTE CONTROL MIRROR	Switch assy - REMOTE CONTROL MIRROR
6	35750-TL0-G11	Switch assy - POWER WINDOW MASTER	Switch assy - POWER WINDOW MASTER
7	35760-TL0-E01	Switch assy - POWER WINDOW ASSISTANT	Switch assy - POWER WINDOW ASSISTANT
10	72335-TL0-G01	Weatherstrip - R. FR. DOOR INNER	Weatherstrip - R. FR. DOOR INNER
11	72375-TL0-G01	Weatherstrip - L. FR. DOOR INNER	Weatherstrip - L. FR. DOOR INNER
16	83503-TL0-G01	Bracket a - R. FR. GRIP	Bracket a - R. FR. GRIP
17	83504-TL0-G01	Bracket b - R. FR. GRIP	Bracket b - R. FR. GRIP
20	83508-TL0-G00	Bracket - R. PULL POCKET	Bracket - R. PULL POCKET
30	83553-TL0-G01	Bracket a - L. FR. GRIP	Bracket a - L. FR. GRIP
31	83554-TL0-G01	Bracket b - L. FR. GRIP	Bracket b - L. FR. GRIP
34	83558-TL0-G00	Bracket - L. PULL POCKET	Bracket - L. PULL POCKET
43	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
44	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
45	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
46	90678-SK7-003	Clip - SPEAKER	Clip - SPEAKER
47	91533-STK-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
49	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
50	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)
50	91560-S7A-901	Clip - RR. SIDE LINING (DARK BROWN)	Clip - RR. SIDE LINING (DARK BROWN)
52	91560-TL0-G01	Clip - DOOR END GARNISH (LIGHT BROWN)	Clip - DOOR END GARNISH (LIGHT BROWN)
53	91560-TL0-G21	Clip - DOOR END GARNISH (LIGHT BROWN)(SEAL)	Clip - DOOR END GARNISH (LIGHT BROWN)(SEAL)
54	91561-S5P-A01	Screw - GROMMET, 5.23	Screw - GROMMET, 5.23

Front door locks/ outer handle 37 / 37

#	OEM	CU2	CW2
2	72110-TL0-G01	Latch assy - R. FR. DOOR POWER	Latch assy - R. FR. DOOR POWER
2	72110-TL0-G02	Latch assy - R. FR. DOOR POWER	Latch assy - R. FR. DOOR POWER
3	72112-SJK-003	Protector - R. DOOR LATCH	Protector - R. DOOR LATCH
5	72117-TL0-003	Seal	Seal
6	72118-TL0-003	Seal	Seal
7	72119-TL0-003	Seal	Seal
10	72131-TL0-G01	Cable - FR. INSIDE HANDLE	Cable - FR. INSIDE HANDLE
11	72133-TL0-G01	Cable - FR. DOOR LOCK	Cable - FR. DOOR LOCK
12	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
12	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
13	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
14	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
15	72141-TL0-E01	R. Handle comp.	R. Handle comp.
16	72142-TL0-E01	Base comp. - R.	Base comp. - R.
17	72143-S04-003	Packing	Packing
18	72143-TL0-G01	Cover comp. - R.	Cover comp. - R.
19	72144-SJD-003	Retainer	Retainer
20	72144-TA0-A11	Holder comp	Holder comp
22	72146-TL0-A61	Collar	Collar
23	72148-TL0-E01	Seat a - R.	Seat a - R.
24	72149-SAA-003	Snap - R.	Snap - R.
25	72149-TL0-E01	Seat b - R.	Seat b - R.
27	72150-TL0-G02	Latch assy - L. FR. DOOR POWER	Latch assy - L. FR. DOOR POWER
27	72150-TL0-G01	Latch assy - L. FR. DOOR POWER	Latch assy - L. FR. DOOR POWER
28	72152-SJK-003	Protector - L. DOOR LATCH	Protector - L. DOOR LATCH
33	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
34	72181-TL0-E01	L. Handle comp	L. Handle comp
35	72182-TL0-E01	Base comp. - L.	Base comp. - L.
36	72183-TL0-G01	Cover comp. - L.	Cover comp. - L.
37	72185-TL0-G01	Cylinder - L. DOOR	Cylinder - L. DOOR
38	72188-TL0-E01	Seat a - L.	Seat a - L.
39	72189-SAA-003	Snap - L.	Snap - L.
40	72189-TL0-E01	Seat b - L.	Seat b - L.
41	74387-S3C-003	Fastener	Fastener
42	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
43	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
44	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front door panels 15 / 15

#	OEM	CU2	CW2
9	72142-S10-000	Stopper - DOOR	Stopper - DOOR
10	72310-TL0-003	Weatherstrip - R. FR. DOOR	Weatherstrip - R. FR. DOOR
11	72321-TL0-003	Seal - R. FR. DOOR HOLE	Seal - R. FR. DOOR HOLE
12	72340-TL0-003	Checker comp. - R. FR. DOOR	Checker comp. - R. FR. DOOR
13	72350-TL0-003	Weatherstrip - L. FR. DOOR	Weatherstrip - L. FR. DOOR
14	72361-TL0-003	Seal - L. FR. DOOR HOLE	Seal - L. FR. DOOR HOLE
15	72380-TL0-003	Checker comp. - L. FR. DOOR	Checker comp. - L. FR. DOOR
16	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
17	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
18	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
18	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
19	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
20	90651-S4N-003	Clip	Clip
21	91568-SJA-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
22	91657-SP0-000	Seal c - DOOR PANEL HOLE (25MM)	Seal c - DOOR PANEL HOLE (25MM)

Front driveshaft/half sha ft (2.4L) 26 / 44

#	OEM	CU2	CW2
1	44014-TL1-E51	Joint set - OUTBOARD	Joint set - OUTBOARD
2	44017-TL1-E50	Boot set - INBOARD	Boot set - INBOARD
2	44017-TL1-E51	Boot set	Boot set
3	44018-TL1-E51	Boot set - OUTBOARD	Boot set - OUTBOARD
4	44305-TL2-E50	Driveshaft assy. R.	Driveshaft assy. R.
6	44310-SEA-E00	Joint comp - INBOARD	Joint comp - INBOARD
7	44310-TL1-306	Joint set - INBOARD	Joint set - INBOARD
8	44319-SE0-000	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
9	44319-S0A-300	Set ring - 28X2.0	Set ring - 28X2.0
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)	Band - OUTBOARD BOOT (NIPPON HATSUJO)
12	44329-SEF-E01	Band c - DRIVESHAFT (NIPPON HATSUJO)	Band c - DRIVESHAFT (NIPPON HATSUJO)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
14	44337-SD4-300	Ring b - STOPPER	Ring b - STOPPER
15	44338-SD4-300	Circlip - 28MM	Circlip - 28MM
17	44351-TL0-G01	Damper - DYNAMIC	Damper - DYNAMIC
18	44500-TA0-A10	Shaft assy - HALF	Shaft assy - HALF
19	44517-SED-000	Cover - HEAT	Cover - HEAT
20	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
21	90165-SE0-000	Bolt - FLANGE, 10X37	Bolt - FLANGE, 10X37
22	90305-S3V-A11	Nut - SPINDLE	Nut - SPINDLE
23	90681-SR3-000	Circlip - EXTERNAL, 33MM	Circlip - EXTERNAL, 33MM
24	91057-SR3-008	Bearing - HALF SHAFT(NTN)	Bearing - HALF SHAFT(NTN)
25	91260-SR3-004	Seal - HALF SHAFT OUTER (ARAI)	Seal - HALF SHAFT OUTER (ARAI)
25	91260-SR3-003	Seal - HALF SHAFT OUTER(NOK)	Seal - HALF SHAFT OUTER(NOK)

Front fenders 17 / 17

#	OEM	CU2	CW2
8	74100-TL0-G00	Fender assy - R. FR. INNER	Fender assy - R. FR. INNER
9	74105-TL0-G00	Enclosure - R. FR. FENDER	Enclosure - R. FR. FENDER
10	74110-TL2-A00	Cover assy. ENGINE UNDER	Cover assy. ENGINE UNDER
11	74150-TL0-G00	Fender assy - L. FR. INNER	Fender assy - L. FR. INNER
12	74155-TL0-G00	Enclosure - L. FR. FENDER	Enclosure - L. FR. FENDER
13	74206-TL0-G00	Garnish - R. FR. FENDER	Garnish - R. FR. FENDER
14	74207-TL0-G00	Garnish - L. FR. FENDER	Garnish - L. FR. FENDER
15	90108-SF1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
16	90141-TL0-000	Bolt - BUMPER	Bolt - BUMPER
17	90305-SM4-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
18	90682-SEA-003	Clip - TAPPING SCREW, 5MM	Clip - TAPPING SCREW, 5MM
19	90853-SJA-A00	Rivet - 4.8MM	Rivet - 4.8MM
20	91501-SEA-003	Clip - FR. COWL	Clip - FR. COWL
21	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
22	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
23	91533-SG0-000	Clip b - FAIRING	Clip b - FAIRING
24	91545-SE0-003	Clip assy. - 8MM	Clip assy. - 8MM

Front grille 13 / 13

#	OEM	CU2	CW2
1	71121-TL0-G02	BASE, FR. GRILLE	BASE, FR. GRILLE
4	71123-TL0-G11	Molding - FR. GRILLE UPPER	Molding - FR. GRILLE UPPER
5	71124-TL0-G11	Molding - R. FR. GRILLE CENTER	Molding - R. FR. GRILLE CENTER
6	71125-TL0-G11	Molding - L. FR. GRILLE CENTER	Molding - L. FR. GRILLE CENTER
7	71126-TL0-G11	Molding - FR. GRILLE LOWER	Molding - FR. GRILLE LOWER
10	71129-TL0-G01	COVER, FR. GRILLE	COVER, FR. GRILLE
11	71194-TL0-G00	Bracket - FR. GRILLE	Bracket - FR. GRILLE
12	74147-TL0-G00	Seal - CENTER HOOD	Seal - CENTER HOOD
13	74175-SJA-000	Cushion - HOOD	Cushion - HOOD
14	75700-S9A-G00	Front Honda Emblem - (H)	Front Honda Emblem - (H)
15	90301-ST0-003	push nut, 3mm	push nut, 3mm
17	91503-SZ3-003	Clip A	Clip A
18	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front knuckle 16 / 16

#	OEM	CU2	CW2
1	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
2	44348-TA0-A00	Ring - FR. KNUCKLE	Ring - FR. KNUCKLE
3	51210-TA0-020	Knuckle comp - R. FR.	Knuckle comp - R. FR.
4	51215-TA0-020	Knuckle comp - L. FR.	Knuckle comp - L. FR.
5	51220-TA0-A02	Joint comp - FR. LOWER BALL	Joint comp - FR. LOWER BALL
6	51225-TA0-A01	Boot - FR. LOWER BALL DUST	Boot - FR. LOWER BALL DUST
7	51226-TA0-A01	Circlip - LOWER BALL(FR.)	Circlip - LOWER BALL(FR.)
8	51464-S04-013	Boot, UPPER BALL JOINT	Boot, UPPER BALL JOINT
9	51510-TA0-A03	F/UPPER ARM RH - R. FR. UPPER	F/UPPER ARM RH - R. FR. UPPER
10	51520-TA0-A03	F/UPPER ARM LH - L. FR. UPPER	F/UPPER ARM LH - L. FR. UPPER
11	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
12	57450-TA0-A01	Sensor assy - R. FR.	Sensor assy - R. FR.
13	57455-TA0-A01	Sensor assy - L. FR.	Sensor assy - L. FR.
14	90172-SDA-A00	Bolt - FLANGE, 10X78	Bolt - FLANGE, 10X78
15	90309-SJA-000	Nut - CASTLE, 14MM	Nut - CASTLE, 14MM
16	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM

Front seat (L.; LH) 13 / 13

#	OEM	CU2	CW2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
3	78055-TL0-G71	Module assy. - L. SIDE	Module assy. - L. SIDE
8	81217-TL0-G01	Wire b - AIRBAG	Wire b - AIRBAG
11	81524-TL0-G31	Heater comp. - L. FR. SEATBACK	Heater comp. - L. FR. SEATBACK
12	81527-TL0-G31	Pad comp - L. FR. SEATBACK	Pad comp - L. FR. SEATBACK
14	81534-TL0-G31	Heater comp. - L. FR. SEAT CUSHION	Heater comp. - L. FR. SEAT CUSHION
15	81537-TL0-G31	Pad comp - L. FR. SEAT CUSHION	Pad comp - L. FR. SEAT CUSHION
16	81616-TL0-G01	Wire a - L. AIRBAG	Wire a - L. AIRBAG
23	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
24	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
25	90610-S10-003	Clip - GARNISH	Clip - GARNISH
26	91533-S82-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
28	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)

Front seat (R.; LH) 13 / 13

#	OEM	CU2	CW2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
3	78050-TL0-G71	Module assy. - R. SIDE	Module assy. - R. SIDE
5	81124-TL0-G31	Heater comp. - R. FR. SEATBACK	Heater comp. - R. FR. SEATBACK
6	81127-TL0-G31	Pad comp - R. FR. SEATBACK	Pad comp - R. FR. SEATBACK
9	81134-TL0-G31	Heater comp. - R. FR. SEAT CUSHION	Heater comp. - R. FR. SEAT CUSHION
10	81137-TL0-G31	Pad comp - R. FR. SEAT CUSHION (WITH SITTING SWITCH)	Pad comp - R. FR. SEAT CUSHION (WITH SITTING SWITCH)
14	81216-TL0-G01	Wire a - R. AIRBAG	Wire a - R. AIRBAG
15	81217-TL0-G01	Wire b - AIRBAG	Wire b - AIRBAG
22	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
23	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
24	90610-S10-003	Clip - GARNISH	Clip - GARNISH
25	91533-S82-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
26	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)

Front seat components (L.; MANUAL HEIGHT) 20 / 20

#	OEM	CU2	CW2
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
2	39794-SNB-E01	Relay assy - POWER(5P) (MICRO ISO)	Relay assy - POWER(5P) (MICRO ISO)
4	81190-TL0-G11	Wire - R. FR. SEATBACK LUMBAR	Wire - R. FR. SEATBACK LUMBAR
5	81190-TL0-G21	Spring - FR. SEATBACK LUMBAR	Spring - FR. SEATBACK LUMBAR
7	81261-TA0-A01	Cap - RAIL END UPPER	Cap - RAIL END UPPER
8	81271-TA0-A01	Protector - LOWER	Protector - LOWER
10	81322-SP0-003	Clip - LUMBAR SUPPORT	Clip - LUMBAR SUPPORT
11	81526-TL0-G11	Frame comp - L. FR. SEAT	Frame comp - L. FR. SEAT
14	81590-TL0-G01	Lumbar comp. - L. FR. SEATBACK	Lumbar comp. - L. FR. SEATBACK
15	81590-TL0-G11	Wire - L. FR. SEATBACK LUMBAR	Wire - L. FR. SEATBACK LUMBAR
16	81609-TL0-G31	Cord - L. SEAT SUB	Cord - L. SEAT SUB
22	81675-TA0-A01	Holder - SPRING	Holder - SPRING
23	81677-TA0-A01	Spring - HANDLE(L.)	Spring - HANDLE(L.)
24	90101-SDA-000	Screw - FLAT, 4X30	Screw - FLAT, 4X30
25	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
26	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25
27	90650-S6M-J01	Clip - RATCHET, 10MM	Clip - RATCHET, 10MM
29	91533-S82-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
30	91535-TA0-003	Clip - COUPLER (DARK BROWN)	Clip - COUPLER (DARK BROWN)
31	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Front seat components (R.; MANUAL SEAT) 13 / 13

#	OEM	CU2	CW2
1	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
2	39794-SNB-E01	Relay assy - POWER(5P) (MICRO ISO)	Relay assy - POWER(5P) (MICRO ISO)
4	81126-TL0-G11	Frame comp - R. FR. SEAT	Frame comp - R. FR. SEAT
5	81209-TL0-G31	Cord - R. SEAT SUB	Cord - R. SEAT SUB
9	81261-TA0-A01	Cap - RAIL END UPPER	Cap - RAIL END UPPER
10	81271-TA0-A01	Protector - LOWER	Protector - LOWER
12	81675-TA0-A01	Holder - SPRING	Holder - SPRING
13	81676-TA0-A01	Spring - HANDLE(R.)	Spring - HANDLE(R.)
14	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25
15	90650-S6M-J01	Clip - RATCHET, 10MM	Clip - RATCHET, 10MM
16	91533-S82-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
17	91535-TA0-003	Clip - COUPLER (DARK BROWN)	Clip - COUPLER (DARK BROWN)
18	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Front shock absorber 16 / 25

#	OEM	CU2	CW2
4	51611-TL3-E01	Absorber unit - R. FR. SHOCK	Absorber unit - R. FR. SHOCK
6	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
7	51621-TL3-E01	Absorber unit - L. FR. SHOCK	Absorber unit - L. FR. SHOCK
8	51631-SV7-004	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
9	51675-TA0-A02	Base - R. FR. SHOCK ABSORBER MOUNTING	Base - R. FR. SHOCK ABSORBER MOUNTING
10	51676-TA0-A02	Base - L. FR. SHOCK ABSORBER MOUNTING	Base - L. FR. SHOCK ABSORBER MOUNTING
11	51684-SDA-A02	Mount - FR. DUST COVER LOWER	Mount - FR. DUST COVER LOWER
12	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
13	51686-TA0-A01	Rubber - FR. SPRING MOUNT	Rubber - FR. SPRING MOUNT
14	51688-SDA-A01	Sleeve - FR. DUST COVER	Sleeve - FR. DUST COVER
15	51689-SDA-A01	Cover - FR. END DUST	Cover - FR. END DUST
16	51689-SH9-003	Plate - BUMP STOP(SHOWA)	Plate - BUMP STOP(SHOWA)
17	51722-SS0-004	Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)	Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)
18	51728-SB0-003	Collar - SHOCK ABSORBER MOUNTING(TOKICO)	Collar - SHOCK ABSORBER MOUNTING(TOKICO)
19	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
20	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front stabilizer/ front lower arm 21 / 21

#	OEM	CU2	CW2
1	51271-TA0-A01	Fork - R. FR. SHOCK ABSORBER	Fork - R. FR. SHOCK ABSORBER
2	51281-TA0-A01	Fork - L. FR. SHOCK ABSORBER	Fork - L. FR. SHOCK ABSORBER
3	51300-TA1-A01	Spring - FR. STABILIZER	Spring - FR. STABILIZER
4	51306-TL0-G01	Bush - R. FR. STABILIZER HOLDER	Bush - R. FR. STABILIZER HOLDER
5	51307-TL0-G01	Bush - L. FR. STABILIZER HOLDER	Bush - L. FR. STABILIZER HOLDER
6	51308-TL0-G00	Holder - FR. STABILIZER	Holder - FR. STABILIZER
7	51320-TA0-A01	Link comp - R. FR. STABILIZER	Link comp - R. FR. STABILIZER
8	51325-TA0-A01	Link comp - L. FR. STABILIZER	Link comp - L. FR. STABILIZER
9	51350-TA0-A00	Arm comp - R. FR. LOWER	Arm comp - R. FR. LOWER
10	51360-TA0-000	Arm comp - L. FR. LOWER	Arm comp - L. FR. LOWER
11	51391-TA0-A01	Bush - FR. COMPLIANCE	Bush - FR. COMPLIANCE
12	51393-SDA-A02	BUSH, FR. ARM (LOWER)	BUSH, FR. ARM (LOWER)
13	51810-TA0-A01	Bush - SHOCK ABSORBER FORK	Bush - SHOCK ABSORBER FORK
14	74180-TL3-G00	Bar comp - FR. TOWER	Bar comp - FR. TOWER
15	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
16	90117-S0A-000	Bolt - DAMPER LOCK(10X44)	Bolt - DAMPER LOCK(10X44)
17	90118-TA0-A10	Bolt-washer - 12X92	Bolt-washer - 12X92
18	90119-SFE-000	Bolt - FLANGE, 14X100	Bolt - FLANGE, 14X100
19	90121-S0A-000	Bolt - DAMPER FORK(12X98)	Bolt - DAMPER FORK(12X98)
20	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
21	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Front sub frame/rear beam 25 / 25

#	OEM	CU2	CW2
1	50200-TL3-E21	Sub frame comp. - FR.	Sub frame comp. - FR.
2	50260-TA0-A01	Rubber - FR. SUB FRAME MOUNTING	Rubber - FR. SUB FRAME MOUNTING
3	50261-TA0-A01	Rubber - FR. SUB FRAME STOPPER	Rubber - FR. SUB FRAME STOPPER
4	50265-TA0-A00	Stay - R. FR. SUB FRAME MOUNTING(FR.)	Stay - R. FR. SUB FRAME MOUNTING(FR.)
5	50266-TA0-A00	Stay - L. FR. SUB FRAME MOUNTING(FR.)	Stay - L. FR. SUB FRAME MOUNTING(FR.)
6	50275-TA0-A00	Stay - FR. SUB FRAME MOUNTING (RR.)	Stay - FR. SUB FRAME MOUNTING (RR.)
7	50280-SDA-A01	Rubber - R. FR. SUB FRAME MIDDLE MOUNTING	Rubber - R. FR. SUB FRAME MIDDLE MOUNTING
8	50285-SDA-A01	Rubber - L. FR. SUB FRAME MIDDLE MOUNTING	Rubber - L. FR. SUB FRAME MIDDLE MOUNTING
9	50300-TL0-E81	Sub frame assy. - RR. SUSPENSION	Sub frame assy. - RR. SUSPENSION
10	50360-TA0-A01	Rubber - RR. SUB FRAME FR. MOUNTING	Rubber - RR. SUB FRAME FR. MOUNTING
11	50365-TA0-A00	Stay - RR. SUB FRAME MOUNTING (FR.)	Stay - RR. SUB FRAME MOUNTING (FR.)
12	50370-TA0-A01	Rubber - RR. SUB FRAME RR. MOUNTING	Rubber - RR. SUB FRAME RR. MOUNTING
13	50375-TL0-E00	Stay - R. RR. SUB FRAME MOUNTING(RR.)	Stay - R. RR. SUB FRAME MOUNTING(RR.)
14	50376-TL0-E00	Stay - L. RR. SUB FRAME MOUNTING(RR.)	Stay - L. RR. SUB FRAME MOUNTING(RR.)
16	50451-TL1-E00	Mass - RR. BASE BRACKET	Mass - RR. BASE BRACKET
17	50680-TL1-E00	Bracket - RR. ENGINE MOUNTING BASE	Bracket - RR. ENGINE MOUNTING BASE
18	90101-SWA-A00	Bolt-washer - 8X16	Bolt-washer - 8X16
19	90166-TA0-A00	Bolt - FLANGE, 8X16	Bolt - FLANGE, 8X16
20	90167-TA0-A00	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
21	90170-SDC-A00	Bolt - FLANGE, 10X34	Bolt - FLANGE, 10X34
22	90175-TA0-A00	Bolt - FLANGE, 14X100	Bolt - FLANGE, 14X100
23	90176-SDA-A00	Bolt - FLANGE, 14X135	Bolt - FLANGE, 14X135
24	90177-SDA-A00	Bolt - FLANGE, 14X150	Bolt - FLANGE, 14X150
25	90186-SDA-A00	Bolt - FLANGE, 12X33	Bolt - FLANGE, 12X33
26	90396-S5A-010	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75

Front windshield 14 / 14

#	OEM	CU2	CW2
2	38981-TL0-G01	Base - RAIN SENSOR COVER	Base - RAIN SENSOR COVER
3	73111-TL0-G20	Glass set - FR. WINDSHIELD (GREEN) (ASAHI)	Glass set - FR. WINDSHIELD (GREEN) (ASAHI)
4	73125-TL0-000	Seal - FR. WINDSHIELD UPPER	Seal - FR. WINDSHIELD UPPER
5	73126-TL0-000	Rubber a - FR. WINDSHIELD DAM	Rubber a - FR. WINDSHIELD DAM
6	73127-TL0-000	Rubber b - FR. WINDSHIELD DAM	Rubber b - FR. WINDSHIELD DAM
7	73150-TL0-G01	Molding - FR. WINDSHIELD	Molding - FR. WINDSHIELD
9	73153-TL0-E01	Clip - R. FR. WINDSHIELD SIDE GARNISH	Clip - R. FR. WINDSHIELD SIDE GARNISH
11	73163-TL0-E01	Clip - L. FR. WINDSHIELD SIDE GARNISH	Clip - L. FR. WINDSHIELD SIDE GARNISH
13	77466-TL0-000	Seal a - FR. INSTRUMENT	Seal a - FR. INSTRUMENT
14	91568-TA0-A00	Clip, FR. Windshield (Upper)	Clip, FR. Windshield (Upper)
15	91573-TL0-E01	Clip A - FR. SIDE GARNISH	Clip A - FR. SIDE GARNISH
15	91573-TL0-305	CLIP A FR SIDE GAR	CLIP A FR SIDE GAR
16	91574-TL0-E01	Clip b - FR. SIDE GARNISH	Clip b - FR. SIDE GARNISH
16	91574-TL0-305	CLIP B FR SIDE GAR	CLIP B FR SIDE GAR

Front windshield wiper (LH) 25 / 25

#	OEM	CU2	CW2
1	76505-TA0-A02	Motor comp - FR. WIPER	Motor comp - FR. WIPER
2	76516-SDA-A01	Rubber - MOUNTING	Rubber - MOUNTING
3	76516-SJK-003	Rubber - MOUNTING	Rubber - MOUNTING
4	76516-SM4-003	Rubber - MOUNTING	Rubber - MOUNTING
5	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
6	76517-SJK-003	Collar	Collar
7	76517-SM4-003	Collar	Collar
8	76520-TA0-A01	Link assy. a	Link assy. a
9	76524-SD4-003	Dust seal	Dust seal
10	76524-SL0-A01	Dust seal	Dust seal
11	76530-TL0-G02	Link comp - FR. WIPER	Link comp - FR. WIPER
12	76540-TL0-G01	Rod unit a	Rod unit a
13	76550-TL0-G01	Rod unit b	Rod unit b
14	76561-SEA-003	Cap - PIVOT	Cap - PIVOT
15	76600-TL0-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE)	Arm - WINDSHIELD WIPER (DRIVER SIDE)
16	76602-TL0-G01	Cover - ARM	Cover - ARM
17	76610-TL0-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
18	76620-TL0-G01	Blade - WINDSHIELD WIPER (DRIVER SIDE)(600MM)	Blade - WINDSHIELD WIPER (DRIVER SIDE)(600MM)
19	76622-SLN-A11	Rubber - BLADE(600MM)	Rubber - BLADE(600MM)
19	76622-SLN-A12	RUBBER, BLADE 600MM	RUBBER, BLADE 600MM
20	76630-TL0-G01	Blade - WINDSHIELD WIPER (PASSENGER SIDE)(550MM)	Blade - WINDSHIELD WIPER (PASSENGER SIDE)(550MM)
21	76632-SHJ-A11	Rubber, BLADE(550MM)	Rubber, BLADE(550MM)
21	76632-SHJ-A12	BLADE RUBBER	BLADE RUBBER
22	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
23	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)	Cap - FR. WIPER ARM (12MM)

Fuel injector (2.4L) 13 / 13

#	OEM	CU2	CW2
1	16450-R40-Y01	Injector assy - FUEL	Injector assy - FUEL
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
3	16620-R40-A01	Pipe comp - FUEL	Pipe comp - FUEL
4	16638-PNA-000	Insulator - FUEL PIPE	Insulator - FUEL PIPE
5	16722-R40-A01	Hose comp. - FUEL FEED	Hose comp. - FUEL FEED
6	16726-R40-A00	Holder b - FUEL CONNECTOR (LIGHT GRAY)	Holder b - FUEL CONNECTOR (LIGHT GRAY)
7	16727-PND-004	Clamp - FUEL HOSE (BLACK)	Clamp - FUEL HOSE (BLACK)
8	17050-R40-A00	Base comp. - INJECTOR	Base comp. - INJECTOR
9	17055-R40-A01	Gasket - INJECTOR BASE	Gasket - INJECTOR BASE
10	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
11	17711-S0X-931	Retainer - BLUE GREEN) (TOKAI	Retainer - BLUE GREEN) (TOKAI
12	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
13	91302-R40-A01	O-ring - 11.33X2.8	O-ring - 11.33X2.8

Fuel pipe 21 / 21

#	OEM	CU2	CW2
1	16723-R42-A00	Stay assy - FUEL FEED HOSE	Stay assy - FUEL FEED HOSE
2	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)	Clamp - FUEL HOSE (NATURAL)
3	16725-R40-A00	Holder a - FUEL CONNECTOR (BEIGE)	Holder a - FUEL CONNECTOR (BEIGE)
4	17700-TL1-G01	Pipe comp - FUEL FEED	Pipe comp - FUEL FEED
5	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
6	17717-TA0-G00	Hose assy - FUEL PURGE	Hose assy - FUEL PURGE
8	17720-TL1-G01	Pipe - FUEL PURGE	Pipe - FUEL PURGE
9	17761-TA0-A00	Stay a - FUEL PIPE	Stay a - FUEL PIPE
11	17762-TA0-A00	Stay b - FUEL PIPE	Stay b - FUEL PIPE
12	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
13	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
14	91407-SDB-000	Clamp - TUBE (D12.5)	Clamp - TUBE (D12.5)
15	91515-SDA-A01	Clip - HOOD LOCK COVER	Clip - HOOD LOCK COVER
16	91591-TA0-A01	Clamp a - FUEL PIPE(BLACK)	Clamp a - FUEL PIPE(BLACK)
17	91592-TA0-G01	Clamp - FUEL PIPE	Clamp - FUEL PIPE
18	91594-TA0-G00	Rubber a - FUEL PIPE INSULATOR	Rubber a - FUEL PIPE INSULATOR
19	91595-TA0-G00	Rubber b - FUEL PIPE INSULATOR	Rubber b - FUEL PIPE INSULATOR
20	91596-TA0-G01	Clamp c - FUEL PIPE	Clamp c - FUEL PIPE
21	91597-TA0-G01	Clamp d - FUEL PIPE	Clamp d - FUEL PIPE
22	91598-TA0-G01	Clamp e - FUEL PIPE	Clamp e - FUEL PIPE
23	91599-TA0-G01	Clamp f - FUEL PIPE	Clamp f - FUEL PIPE

Fuel tank 24 / 27

#	OEM	CU2	CW2
1	17044-TL1-G01	Tank set - FUEL	Tank set - FUEL
2	17046-SWE-T00	Nut & packing set - FUEL LOCK	Nut & packing set - FUEL LOCK
3	17508-TA0-G01	Clip - FUEL VENT	Clip - FUEL VENT
4	17512-TA0-A01	Cushion - FUEL TANK	Cushion - FUEL TANK
5	17513-TA0-A00	Circlip - PROTECTOR	Circlip - PROTECTOR
6	17518-TA0-A00	Protector - FUEL TANK	Protector - FUEL TANK
7	17521-TA0-A00	Band - R. FUEL TANK MOUNTING	Band - R. FUEL TANK MOUNTING
8	17522-TA0-A00	Band - L. FUEL TANK MOUNTING	Band - L. FUEL TANK MOUNTING
9	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
10	17651-TC0-E02	Tube - FILLER NECK	Tube - FILLER NECK
11	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
12	17652-SEL-003	Clip - FILLER TUBE (39MM)	Clip - FILLER TUBE (39MM)
13	17653-TA0-G01	Tube assy - BREATHER	Tube assy - BREATHER
17	17670-SJA-013	Cap comp. FUEL FILLER	Cap comp. FUEL FILLER
17	17670-T3W-003	CAP, FUEL FILLER	CAP, FUEL FILLER
18	17710-TA0-G00	Tube assy - FUEL VENT	Tube assy - FUEL VENT
19	74660-TA0-A00	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
20	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
21	90361-TA0-A00	Nut - CAP, 6MM	Nut - CAP, 6MM
22	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)
23	91462-SDA-003	Clamp - FUEL TUBE (D18)	Clamp - FUEL TUBE (D18)
24	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
25	91593-TA0-G01	Clamp - BREATHER TUBE(BLACK)	Clamp - BREATHER TUBE(BLACK)
26	91601-TA0-003	Clip - FUEL MAINTENANCE HOLE CAP	Clip - FUEL MAINTENANCE HOLE CAP

Fuel tank set short parts 4 / 4

#	OEM	CU2	CW2
2	17045-TL3-G00	Module set - FUEL PUMP	Module set - FUEL PUMP
4	17047-TL1-G00	Meter set	Meter set
5	17048-TA0-000	Strainer set - FUEL	Strainer set - FUEL
6	17052-TA0-000	Regulator set - PRESSURE	Regulator set - PRESSURE

Gasket kit (2.4L) 3 / 4

#	OEM	CU2	CW2
1	06110-R44-A00	Gasket kit - CYLINDER HEAD	Gasket kit - CYLINDER HEAD
3	06114-R40-J00	Gasket kit, CHAIN CASE	Gasket kit, CHAIN CASE
3	06114-R40-J02	GASKET KIT, CHAIN CASE	GASKET KIT, CHAIN CASE

Grommet (FRONT) 12 / 12

#	OEM	CU2	CW2
1	74829-SR2-000	Stopper - TRUNK LID	Stopper - TRUNK LID
2	75826-634-300	Seal - INSIDE PANEL, 15MM	Seal - INSIDE PANEL, 15MM
3	77150-S2X-003	Holder - INSTRUMENT UPPER	Holder - INSTRUMENT UPPER
5	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
6	90826-SNA-003	Grommet - 25MM (BURRING)	Grommet - 25MM (BURRING)
8	90860-SA5-003	Plug - HOLE, 16MM	Plug - HOLE, 16MM
9	91611-TA0-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
10	91612-TA0-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
11	91613-SR3-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM
12	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
13	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
17	91903-SNA-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Grommet (LOWER) 4 / 4

#	OEM	CU2	CW2
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
3	90815-SNA-003	Grommet - 15MM	Grommet - 15MM
4	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM

Grommet (REAR) 6 / 8

#	OEM	CU2	CW2
1	74401-TL0-G00	Tape - R. SIDE SILL PROTECTION	Tape - R. SIDE SILL PROTECTION
3	74405-TL0-G00	Tape - L. SIDE SILL PROTECTION	Tape - L. SIDE SILL PROTECTION
4	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
5	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
6	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
7	90857-SDA-A00	Cap - WELD HOLE	Cap - WELD HOLE

Grommet (SIDE) 1 / 1

#	OEM	CU2	CW2
1	91616-S9A-000	Block - FR. PILLAR INNER LOWER	Block - FR. PILLAR INNER LOWER

Harness band/bracket (LH) 41 / 47

#	OEM	CU2	CW2
3	32112-S2K-003	Band - CABLE (90MM)	Band - CABLE (90MM)
4	32121-TA0-A00	Bracket - CABIN WIRE HARNESS	Bracket - CABIN WIRE HARNESS
5	32125-TL0-003	Holder - CORRUGATED(DARK BROWN) (28MM)	Holder - CORRUGATED(DARK BROWN) (28MM)
7	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
8	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
9	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
13	91501-R40-A00	Cover - ENGINE CONTROL MODULE COUPLER(A,B)	Cover - ENGINE CONTROL MODULE COUPLER(A,B)
15	91507-SNA-003	Clip - HARNESS BAND(BROWN) (164.5MM)	Clip - HARNESS BAND(BROWN) (164.5MM)
16	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
17	91508-STX-A00	Clip - HARNESS BAND(BLACK) (148MM)	Clip - HARNESS BAND(BLACK) (148MM)
18	91531-SCC-901	Clip - WIRE HARNESS (SEAL) (NATURAL) (44MM)	Clip - WIRE HARNESS (SEAL) (NATURAL) (44MM)
20	91531-SR3-003	Holder - COUPLER (NATURAL) (128.6MM)	Holder - COUPLER (NATURAL) (128.6MM)
21	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
22	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
23	91533-STK-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
24	91534-STK-003	Clip - COUPLER(NATURAL) (WITH SEAL)	Clip - COUPLER(NATURAL) (WITH SEAL)
25	91534-SWA-003	Clip - COUPLER(DARK GRAY)	Clip - COUPLER(DARK GRAY)
26	91535-STK-003	Clip - COUPLER (DARK BLUE)	Clip - COUPLER (DARK BLUE)
27	91535-TA0-003	Clip - COUPLER (DARK BROWN)	Clip - COUPLER (DARK BROWN)
28	91536-STK-003	Clip - RELAY HOLDER(NATURAL)	Clip - RELAY HOLDER(NATURAL)
29	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
30	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
31	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)
32	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)	Clip - HARNESS BAND(NATURAL) (100.1MM)
33	91541-SYP-003	Clip - HARNESS BAND (BLACK) (140MM)	Clip - HARNESS BAND (BLACK) (140MM)
34	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
35	91542-TF0-003	Band - HARNESS OFFSET(20) (DARK BLUE)(145MM)	Band - HARNESS OFFSET(20) (DARK BLUE)(145MM)
36	91545-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL)
37	91545-S30-003	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
38	91545-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)
39	91549-STK-003	Holder - HARNESS (NATURAL) (113MM)	Holder - HARNESS (NATURAL) (113MM)
40	91549-TA0-003	Clip - HARNESS BAND(BLACK) (140.3MM)	Clip - HARNESS BAND(BLACK) (140.3MM)
45	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)	Clip - HARNESS BAND OFFSET(30) (NATURAL)
46	91559-SX0-003	Clip - HARNESS BAND (NATURAL) (155MM)	Clip - HARNESS BAND (NATURAL) (155MM)
47	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
50	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
51	91661-TA0-003	Holder - HARNESS(BLACK)	Holder - HARNESS(BLACK)
52	91723-SNA-003	Coupler - WATER PROOF (23P 040 J/C) (BLACK)	Coupler - WATER PROOF (23P 040 J/C) (BLACK)
53	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
54	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)
55	91903-SNA-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Headlight (HID) 20 / 20

#	OEM	CU2	CW2
1	06100-TL0-G01	Leg kit a - R. HEADLIGHT MOUNTING	Leg kit a - R. HEADLIGHT MOUNTING
2	06150-TL0-G01	Leg kit a - L. HEADLIGHT MOUNTING	Leg kit a - L. HEADLIGHT MOUNTING
3	33101-TL0-G21	Headlight unit - R.	Headlight unit - R.
4	33108-SEA-J01	Screw - SPECIAL TAPPING (6X14)	Screw - SPECIAL TAPPING (6X14)
5	33109-S6A-J71	Gasket - SEAL	Gasket - SEAL
6	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
7	33116-SL0-003	Bulb - HEADLIGHT (HID) (D2S) (STANLEY)	Bulb - HEADLIGHT (HID) (D2S) (STANLEY)
8	33119-TA0-003	Control unit	Control unit
9	33121-TL0-G01	Gasket - SEAL(2)	Gasket - SEAL(2)
10	33126-SNA-A01	Cover - RUBBER	Cover - RUBBER
11	33127-TL0-G12	Cover comp.	Cover comp.
12	33129-TL0-G01	Igniter - HID	Igniter - HID
13	33130-SJK-J01	Adjuster unit - HEADLIGHT	Adjuster unit - HEADLIGHT
14	33151-TL0-G21	Headlight unit - L.	Headlight unit - L.
15	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
16	33301-SZ3-003	Bulb - TURN(AMBER)(12V 21W) (STANLEY)	Bulb - TURN(AMBER)(12V 21W) (STANLEY)
18	33303-S04-003	Socket comp. - GRAY	Socket comp. - GRAY
20	33305-S5A-003	Socket comp - T10	Socket comp - T10
21	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)	Bolt - BUMPER SETTING (6X15) (BLACK)
21	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER

Headlight washer 25 / 25

#	OEM	CU2	CW2
1	38514-692-731	Bush	Bush
2	38524-SB0-761	Hose d	Hose d
3	76803-SH2-S10	Clip - WASHER HOSE	Clip - WASHER HOSE
4	76803-SMG-S01	Clip - HEADLIGHT WASHER HOSE	Clip - HEADLIGHT WASHER HOSE
5	76803-TL0-S01	Clip - WASHER HOSE	Clip - WASHER HOSE
6	76806-SNB-S01	Pump - WASHER	Pump - WASHER
7	76828-SH3-S03	Joint l	Joint l
8	76828-SJD-S41	Joint	Joint
9	76828-S9A-S01	Joint i	Joint i
10	76829-SJD-S01	Joint	Joint
11	76845-SJD-S01	Bracket - WASHER MOTOR	Bracket - WASHER MOTOR
12	76880-TL0-S01	Nozzle assy. - R. HEADLIGHT WASHER	Nozzle assy. - R. HEADLIGHT WASHER
14	76885-TL0-S01	Nozzle assy. - L. HEADLIGHT WASHER	Nozzle assy. - L. HEADLIGHT WASHER
16	76891-SNB-S01	Hose	Hose
17	76891-S10-S02	Hose	Hose
18	76893-SE1-000	Hose c	Hose c
19	76893-SH2-S10	Hose c	Hose c
20	76893-SJD-S11	Cushion	Cushion
21	76893-SR3-S03	Hose c	Hose c
22	76894-SWA-S01	Hose	Hose
23	76895-TL0-S01	Joint assy.	Joint assy.
24	76896-SEA-S01	Cushion	Cushion
25	90118-SEA-S01	Bolt-washer - 6X20	Bolt-washer - 6X20
26	90132-SEA-003	Screw - PAN, 5X12	Screw - PAN, 5X12
27	90316-SM5-G03	Nut - HEX., 6MM	Nut - HEX., 6MM

Heater blower (LH) 11 / 11

#	OEM	CU2	CW2
1	79022-TA0-A01	Packing - AIR INTAKE	Packing - AIR INTAKE
2	79305-TL1-G01	Blower sub assy.	Blower sub assy.
3	79306-TA0-A01	Seal - BLOWER OUTER	Seal - BLOWER OUTER
4	79310-TA0-A01	Motor assy. - FAN	Motor assy. - FAN
5	79350-TA0-A11	Motor assy. - FRESH & RECIRCULAR	Motor assy. - FRESH & RECIRCULAR
6	80290-SDC-A01	Filter assy - AIR CONDITIONER	Filter assy - AIR CONDITIONER
7	80292-SDC-A01	Element - FILTER	Element - FILTER
8	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
9	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
10	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
11	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater control 1 / 1

#	OEM	CU2	CW2
6	79671-STK-A01	Bulb - NEO WEDGE(14V 0.05A)	Bulb - NEO WEDGE(14V 0.05A)

Heater unit (LH) 41 / 41

#	OEM	CU2	CW2
1	32123-TL0-G00	Bracket - CABIN WIRE HARNESS	Bracket - CABIN WIRE HARNESS
2	39248-692-003	Packing - HEATER	Packing - HEATER
4	77287-TA0-A00	Bracket - DRIVER INSTRUMENT CENTER LOWER COVER	Bracket - DRIVER INSTRUMENT CENTER LOWER COVER
5	77465-TL0-G02	Duct assy - DEFROSTER JOINT	Duct assy - DEFROSTER JOINT
6	79021-TA0-A01	Seal a	Seal a
7	79023-TL1-G01	Packing set	Packing set
8	79024-TA0-A01	Packing - RR. HEATER	Packing - RR. HEATER
10	79030-TA0-A01	Stay - HEATER PIPE	Stay - HEATER PIPE
11	79102-TA0-A01	Duct assy - PASSENGER HEATER	Duct assy - PASSENGER HEATER
12	79106-TL1-G02	Heater sub assy.	Heater sub assy.
13	79107-TA0-A01	Cover - HEATER CORE	Cover - HEATER CORE
14	79108-TC0-Z41	Plate - EVAPORATOR LOWER	Plate - EVAPORATOR LOWER
15	79109-TA0-A01	Insulator - EVAPORATOR LOWER	Insulator - EVAPORATOR LOWER
16	79115-TA0-A01	Core sub assy. - HEATER	Core sub assy. - HEATER
17	79140-TA0-A21	Motor assy. - MODE	Motor assy. - MODE
18	79160-TA0-A21	Motor assy. - AIR MIX (DRIVER SIDE)	Motor assy. - AIR MIX (DRIVER SIDE)
19	79170-TA0-A21	Motor assy. - AIR MIX (PASSENGER SIDE)	Motor assy. - AIR MIX (PASSENGER SIDE)
20	79330-SNA-A01	Transistor - POWER	Transistor - POWER
21	79731-S5A-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
22	80211-TC0-P41	Evaporator comp.	Evaporator comp.
23	80221-TC0-Z41	Valve assy. - EXPANSION	Valve assy. - EXPANSION
24	80222-TA0-A01	Seal - EXPANSION VALVE	Seal - EXPANSION VALVE
25	80271-TA0-A00	Hose - DRAIN	Hose - DRAIN
26	80534-S84-A41	Aspirator	Aspirator
27	80542-TA0-A01	Hose b - ASPIRATOR	Hose b - ASPIRATOR
28	80560-TC0-Z41	Thermistor - AIR CONDITIONER	Thermistor - AIR CONDITIONER
29	80566-SVA-A01	Clip - EVAPORATOR SENSOR	Clip - EVAPORATOR SENSOR
30	80650-TA0-A20	Sub cord - AIR CONDITIONER	Sub cord - AIR CONDITIONER
31	80871-S5A-003	O-ring - 5/8"	O-ring - 5/8"
32	80872-S5A-003	O-ring - 1/2"	O-ring - 1/2"
33	90122-TA0-A01	Screw - TAPPING, 4X14(PO)	Screw - TAPPING, 4X14(PO)
34	90126-S5A-003	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40
35	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
36	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
37	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
38	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
39	90661-S2A-003	Clip - DRAIN HOSE	Clip - DRAIN HOSE
40	91533-STK-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
41	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
42	91549-TA0-003	Clip - HARNESS BAND(BLACK) (140.3MM)	Clip - HARNESS BAND(BLACK) (140.3MM)
43	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)

Install pipe/tubing (2.4L) 12 / 12

#	OEM	CU2	CW2
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
2	17400-R40-A00	Pipe comp - INSTALL	Pipe comp - INSTALL
3	36161-R40-A00	Stay comp - PURGE CONTROL SOLENOID	Stay comp - PURGE CONTROL SOLENOID
4	36162-RRA-A01	Valve assy. - PURGE CONTROL SOLENOID	Valve assy. - PURGE CONTROL SOLENOID
5	36164-R40-A00	Tube a - PURGE CONTROL SOLENOID IN.	Tube a - PURGE CONTROL SOLENOID IN.
6	36165-R40-A00	Tube b - PURGE CONTROL SOLENOID IN.	Tube b - PURGE CONTROL SOLENOID IN.
7	36166-R40-A01	Joint - PURGE	Joint - PURGE
8	36167-R40-A00	Tube - PURGE CONTROL SOLENOID OUTLET	Tube - PURGE CONTROL SOLENOID OUTLET
9	36169-R40-A00	Tube - PURGE	Tube - PURGE
10	46408-TC0-T00	Tube i - MASTER POWER	Tube i - MASTER POWER
11	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
12	91402-SDC-000	Clip - TUBE(B12)	Clip - TUBE(B12)

Instrument panel (LH) 27 / 27

#	OEM	CU2	CW2
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
4	77102-TL0-G01	Insulator g	Insulator g
6	77104-TL0-G01	Cushion a	Cushion a
7	77105-TL0-G02	Frame comp - CENTER POCKET	Frame comp - CENTER POCKET
8	77106-TL0-G01	Stay assy - INSTRUMENT CENTER	Stay assy - INSTRUMENT CENTER
9	77107-TL0-G01	Cushion b	Cushion b
10	77108-TL0-G01	Stay - R. FR. INSTRUMENT	Stay - R. FR. INSTRUMENT
11	77109-TL0-G01	Stay - L. FR. INSTRUMENT	Stay - L. FR. INSTRUMENT
12	77113-TA0-A00	Bracket - CENTER JOINT	Bracket - CENTER JOINT
20	77466-TL0-G01	Seal, FR. Instrument	Seal, FR. Instrument
21	77467-TL0-G01	Seal - INSTRUMENT DASHBOARD	Seal - INSTRUMENT DASHBOARD
24	77820-TL0-G81	Module assy. - PASSENGER	Module assy. - PASSENGER
25	77854-TL0-E81	Nut - LOCK(M6)	Nut - LOCK(M6)
26	77857-TL0-E81	Hook - BRACKET	Hook - BRACKET
27	78033-TL0-G80	Label - PASSENGER CUT OFF SWITCH WARNING	Label - PASSENGER CUT OFF SWITCH WARNING
28	90101-S6A-000	Bolt-washer - 8MM	Bolt-washer - 8MM
29	90106-TA0-A00	Bolt-washer - 8X40	Bolt-washer - 8X40
30	90107-S7S-000	Bolt-washer - 8X50	Bolt-washer - 8X50
31	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
32	90111-TA0-A00	Bolt-washer - 8X68	Bolt-washer - 8X68
33	90134-SFA-N81	Bolt - FLANGE, 6X20 (ADHESIVE)	Bolt - FLANGE, 6X20 (ADHESIVE)
34	90140-SDA-A00	Bolt-washer - 5X19	Bolt-washer - 5X19
35	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
36	90666-SD4-003	Clip - FITTING	Clip - FITTING
37	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
38	90666-TA0-A11	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
39	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (DRIVER SIDE; LH) 10 / 10

#	OEM	CU2	CW2
1	34760-TL0-G01	Light assy - AMBIENT(RED)	Light assy - AMBIENT(RED)
2	77259-SLJ-003	Cushion - CLIP	Cushion - CLIP
5	77303-TL0-G01	Damper	Damper
7	77321-TL0-G01	Cover assy. - DRIVER UNDER	Cover assy. - DRIVER UNDER
8	77322-TA6-A00	Cap - DRIVER UNDER COVER STAY	Cap - DRIVER UNDER COVER STAY
13	90101-S2K-000	Screw - TAPPING, 4X16(IT)	Screw - TAPPING, 4X16(IT)
14	90146-SMG-E10	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
15	90666-SD4-003	Clip - FITTING	Clip - FITTING
16	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
17	90666-TA0-A21	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)

Instrument panel garnish (PASSENGER SIDE; LH) 24 / 25

#	OEM	CU2	CW2
1	34760-TL0-G01	Light assy - AMBIENT(RED)	Light assy - AMBIENT(RED)
2	34760-TL0-G11	Light assy - AMBIENT(AMBER)	Light assy - AMBIENT(AMBER)
3	39610-S2H-G01	Knob assy	Knob assy
4	39620-S0X-003	Socket assy	Socket assy
5	39630-SFE-003	Ring assy - TYPE INCLUDING BULB	Ring assy - TYPE INCLUDING BULB
6	66418-SA5-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
7	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
9	77288-TL0-G01	Label - PUSH UP	Label - PUSH UP
10	77296-TL0-G01	Latch	Latch
12	77299-TL0-G01	Cover - CIGARETTE LIGHTER	Cover - CIGARETTE LIGHTER
13	77346-TL0-G01	Cover assy. - PASSENGER UNDER	Cover assy. - PASSENGER UNDER
14	77501-TL0-G02	Separator	Separator
15	77502-TL0-G01	Lid - MAINTENANCE	Lid - MAINTENANCE
16	77504-TL0-G01	Arm	Arm
18	77506-TL0-G01	Stopper assy - GLOVE BOX	Stopper assy - GLOVE BOX
20	77520-SDA-A01	Cylinder - GLOVE BOX	Cylinder - GLOVE BOX
21	77530-TL0-G01	Damper assy. - GLOVE BOX(A)	Damper assy. - GLOVE BOX(A)
24	77545-TL0-G01	Cap - DRIVER SIDE LOCK	Cap - DRIVER SIDE LOCK
25	77546-TL0-G01	Cap - PASSENGER SIDE LOCK	Cap - PASSENGER SIDE LOCK
29	77700-TL0-G01	Ashtray assy. - FR.	Ashtray assy. - FR.
31	90140-SDA-A00	Bolt-washer - 5X19	Bolt-washer - 5X19
32	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
33	90666-TA0-A11	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
34	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Intake manifold (2.4L) 8 / 8

#	OEM	CU2	CW2
1	17100-R40-A00	Manifold comp - INTAKE	Manifold comp - INTAKE
2	17107-R40-A01	Packing - THROTTLE BODY	Packing - THROTTLE BODY
3	17115-R40-A01	Packing a - INTAKE MANIFOLD	Packing a - INTAKE MANIFOLD
4	17116-R40-A00	Plate comp - THROTTLE FLANGE	Plate comp - THROTTLE FLANGE
5	17132-RL5-A00	Stay comp - INTAKE MANIFOLD	Stay comp - INTAKE MANIFOLD
6	32746-RL6-G00	Stay comp - ENGINE HARNESS	Stay comp - ENGINE HARNESS
7	37830-RNA-A01	Sensor assy - MAP	Sensor assy - MAP
8	37835-PGK-A01	O-ring	O-ring

Interior light (1) 15 / 16

#	OEM	CU2	CW2
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W
5	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI	Bulb - 12V 5W) (DAIICHI
5	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
7	34401-SDA-A21	Lens - R.	Lens - R.
9	34402-SDA-A21	Lens - L.	Lens - L.
11	34404-SDA-A22	Base comp.	Base comp.
19	83251-TA0-A01	Bush	Bush
20	83252-TA0-A01	Spring	Spring
21	83253-TA0-A01	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
22	83254-TA0-A01	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
23	83255-TA0-A01	Screw - TAPPING(3X8)	Screw - TAPPING(3X8)
24	90148-S6A-013	Bolt - EARTH, 5X14	Bolt - EARTH, 5X14
25	91560-TA0-A01	Clip - MAP LIGHT	Clip - MAP LIGHT

Key cylinder components 11 / 13

#	OEM	CU2	CW2
1	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
2	35103-S04-003	Screw - RECESSED	Screw - RECESSED
3	35108-S30-003	Holder - COLUMN	Holder - COLUMN
5	35117-STK-A11	Screw - FLAT	Screw - FLAT
6	35118-SNB-A00	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)
7	35118-STX-H11	Cover comp. - MODULE	Cover comp. - MODULE
8	35119-TL0-305	Bottom comp. - TRANSMITTER KEY CASE (BLANK)	Bottom comp. - TRANSMITTER KEY CASE (BLANK)
9	35130-TA0-901	Switch comp - STEERING	Switch comp - STEERING
10	39730-TL0-G01	Immobilizer & keyless unit	Immobilizer & keyless unit
11	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
13	72148-S0A-000	Battery CR1616	Battery CR1616

Key cylinder set 1 / 4

#	OEM	CU2	CW2
2	06351-TE0-A01	Lock assy - STEERING	Lock assy - STEERING

L. side cover 1 / 40

#	OEM	CU2	CW2
37	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)

Mainshaft 18 / 49

#	OEM	CU2	CW2
1	23210-RM3-000	Mainshaft comp.	Mainshaft comp.
2	23261-PPP-000	Shaft - REVERSE GEAR	Shaft - REVERSE GEAR
3	23440-RM5-A00	Gear comp - MAINSHAFT THIRD	Gear comp - MAINSHAFT THIRD
4	23450-RM5-A00	Gear comp - MAINSHAFT FOURTH	Gear comp - MAINSHAFT FOURTH
5	23540-PPS-000	Gear comp - REVERSE IDLE	Gear comp - REVERSE IDLE
6	23580-RM3-000	Gear comp - MAINSHAFT FIFTH	Gear comp - MAINSHAFT FIFTH
7	23590-RM5-A00	Gear comp - MAINSHAFT SIXTH	Gear comp - MAINSHAFT SIXTH
8	23623-PNS-326	Sleeve set - SYNCHRONIZER (3-4)	Sleeve set - SYNCHRONIZER (3-4)
8	23623-PNS-336	Synchronizer (3-4) Sleeve Set	Synchronizer (3-4) Sleeve Set
10	23626-PNS-315	Sleeve set - SYNCHRONIZER (5-6)	Sleeve set - SYNCHRONIZER (5-6)
11	23915-PPP-000	Collar - DISTANCE, 32X39X52	Collar - DISTANCE, 32X39X52
12	23916-PNS-000	Collar - DISTANCE, 28X35X24	Collar - DISTANCE, 28X35X24
13	23927-PG2-A00	Washer - SPRING, 28MM	Washer - SPRING, 28MM
14	23928-PS1-000	Washer - 28MM	Washer - 28MM
15	90401-PG1-000	Washer - DRAIN PLUG, 10MM	Washer - DRAIN PLUG, 10MM
16	91002-RAS-003	Bearing - BALL, 28X72X18	Bearing - BALL, 28X72X18
17	91102-RZF-006	Bearing - NEEDLE, 39X44X24	Bearing - NEEDLE, 39X44X24
18	91103-RAS-003	Bearing - NEEDLE, 35X41X24	Bearing - NEEDLE, 35X41X24

Meter 6 / 7

#	OEM	CU2	CW2
1	78100-TL3-T32	Meter assy - COMBINATION	Meter assy - COMBINATION
2	78113-TL0-A01	Knob	Knob
3	78117-S6M-901	Screw - TAPPING, 3X12	Screw - TAPPING, 3X12
4	78159-TL0-G01	Lens comp	Lens comp
5	90140-TL0-000	Bolt-washer - 5X25	Bolt-washer - 5X25
6	90306-SA0-000	Nut - FLOATING, 5MM	Nut - FLOATING, 5MM

Mirror 19 / 19

#	OEM	CU2	CW2
1	34300-TL0-G01	Light assy - R. SIDE TURN	Light assy - R. SIDE TURN
2	34350-TL0-G01	Light assy - L. SIDE TURN	Light assy - L. SIDE TURN
6	76201-TL0-E21	Tube e	Tube e
7	76202-TL0-E21	Cover - R. BASE	Cover - R. BASE
8	76203-TL0-E21	Mirror sub assy. - R. (R1400) (HEATED)	Mirror sub assy. - R. (R1400) (HEATED)
9	76204-TL0-G22	Turn set - R. AUTO	Turn set - R. AUTO
11	76210-TL0-E21	Actuator set - R.(AUTO TURN) (R1400)	Actuator set - R.(AUTO TURN) (R1400)
12	76215-TL0-E21	Actuator set - L.(AUTO TURN) (R1400)	Actuator set - L.(AUTO TURN) (R1400)
14	76252-TL0-E21	Cover - L. BASE	Cover - L. BASE
15	76253-TL0-E21	Mirror sub assy. - L. (R1400) (HEATED)	Mirror sub assy. - L. (R1400) (HEATED)
16	76254-TL0-G22	Turn set - L. AUTO	Turn set - L. AUTO
19	76400-SEC-A12	Mirror assy - RR. VIEW (DAY/NIGHT)	Mirror assy - RR. VIEW (DAY/NIGHT)
20	76406-SEC-A01	Screw - TORX, (#10 X 3/8)	Screw - TORX, (#10 X 3/8)
22	90109-SDF-003	Screw - TAPPING, 4X14	Screw - TAPPING, 4X14
23	90109-SEA-003	Screw - TAPPING, 4X20 (TRUSS)	Screw - TAPPING, 4X20 (TRUSS)
24	90109-TA0-003	Screw-washer - 5X12	Screw-washer - 5X12
25	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)	Screw - TAPPING, 4X16 (TRUSS)
26	90615-SK7-003	Clip - MIRROR GARNISH	Clip - MIRROR GARNISH
27	91565-SEA-003	Clamp - HARNESS	Clamp - HARNESS

Molding 10 / 18

#	OEM	CU2	CW2
1	72410-TL0-003	Molding assy. R. FR. DOOR	Molding assy. R. FR. DOOR
2	72425-TL0-003	Molding assy. R. FR. DOOR SASH	Molding assy. R. FR. DOOR SASH
3	72430-TL0-003	Garnish - R. FR. DOOR CENTER PILLAR	Garnish - R. FR. DOOR CENTER PILLAR
4	72450-TL0-003	Molding assy. L. FR. DOOR	Molding assy. L. FR. DOOR
5	72465-TL0-003	Molding assy. - L. FR. DOOR SASH	Molding assy. - L. FR. DOOR SASH
6	72470-TL0-003	Garnish - L. FR. DOOR CENTER PILLAR	Garnish - L. FR. DOOR CENTER PILLAR
9	72930-TL0-003	Garnish - R. RR. DOOR CENTER PILLAR	Garnish - R. RR. DOOR CENTER PILLAR
12	72970-TL0-003	Garnish - L. RR. DOOR CENTER PILLAR	Garnish - L. RR. DOOR CENTER PILLAR
15	90142-SWA-000	Screw - TAPPING, 4X10(PO)	Screw - TAPPING, 4X10(PO)
16	91503-STK-A01	Clip - DOOR MOLDING	Clip - DOOR MOLDING

Oil pump (2.4L) 23 / 23

#	OEM	CU2	CW2
1	11222-R40-A00	Plate b - BAFFLE	Plate b - BAFFLE
2	11223-RSP-000	Plate c - BAFFLE	Plate c - BAFFLE
5	13432-PNA-000	Sprocket - DRIVEN(17T)	Sprocket - DRIVEN(17T)
6	13441-R40-A01	Chain - 62L	Chain - 62L
7	13450-REZ-A01	Tensioner comp - BALANCER SHAFT CHAIN	Tensioner comp - BALANCER SHAFT CHAIN
8	13460-PNA-004	Guide comp - BALANCER SHAFT CHAIN	Guide comp - BALANCER SHAFT CHAIN
10	15115-R40-A01	Metal - BALANCER SHAFT(DAIDO)	Metal - BALANCER SHAFT(DAIDO)
11	15123-PCX-003	Dowel pin - 18X13	Dowel pin - 18X13
12	15231-PE0-000	Valve - RELIEF	Valve - RELIEF
13	15232-RAA-A01	Spring - RELIEF VALVE	Spring - RELIEF VALVE
14	15233-R40-000	Bolt - SEALING, 18MM	Bolt - SEALING, 18MM
15	15310-R40-A00	Base comp. - OIL FILTER	Base comp. - OIL FILTER
16	15312-R40-A01	O-ring - OIL FILTER BASE(A)	O-ring - OIL FILTER BASE(A)
17	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
17	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
17	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
18	90004-PNA-000	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
19	90009-PNA-000	Bolt - FLANGE, 8X55	Bolt - FLANGE, 8X55
20	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
21	90031-PNA-004	Bolt-washer - 10X30	Bolt-washer - 10X30
22	91301-R40-A01	O-ring	O-ring
23	91326-PL5-003	O-ring - 26X2.4(NOK)	O-ring - 26X2.4(NOK)
37	15100-RL6-G02	Pump assy. - OIL	Pump assy. - OIL

Outer panels/rear panel 6 / 9

#	OEM	CU2	CW2
12	63136-TL0-G01	Separator - FR. PILLAR INSIDE	Separator - FR. PILLAR INSIDE
13	63138-TL0-G01	Separator - FR. PILLAR OUTSIDE	Separator - FR. PILLAR OUTSIDE
15	63217-TL0-G01	Separator - CENTER PILLAR OUTSIDE	Separator - CENTER PILLAR OUTSIDE
17	63229-TL0-G01	Separator - CENTER PILLAR INSIDE	Separator - CENTER PILLAR INSIDE
27	74486-TF0-013	Lifter - FUEL LID PUSH	Lifter - FUEL LID PUSH
30	75450-SDE-T00	Outlet assy - RR. AIR	Outlet assy - RR. AIR

P.s. gear box (EPS; LH) 36 / 36

#	OEM	CU2	CW2
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)
2	53100-TL1-G01	SENSOR COMP., TORQUE	SENSOR COMP., TORQUE
3	53106-S0A-003	O-ring - 54.4X3.1	O-ring - 54.4X3.1
4	53413-S04-G51	Spring - RACK GUIDE PRESSURE	Spring - RACK GUIDE PRESSURE
5	53414-S84-A01	Screw - RACK GUIDE	Screw - RACK GUIDE
6	53416-TL0-G01	Guide comp - STEERING RACK	Guide comp - STEERING RACK
7	53434-TA0-A02	Clip - STEERING TIE ROD	Clip - STEERING TIE ROD
8	53449-SJK-003	Band - BELLOWS	Band - BELLOWS
9	53458-S84-A01	Nut - LOCK	Nut - LOCK
10	53502-TL0-G01	Grommet - STEERING	Grommet - STEERING
11	53536-SDA-A02	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
12	53537-S3N-003	Rubber - STOPPER	Rubber - STOPPER
13	53537-S84-A01	Rubber - STOPPER	Rubber - STOPPER
14	53537-TL1-G01	Dust seal set - TIE ROD	Dust seal set - TIE ROD
15	53540-TA0-A01	End comp - R. TIE ROD	End comp - R. TIE ROD
16	53560-TA0-A01	End comp - L. TIE ROD	End comp - L. TIE ROD
17	53601-TL3-G13	Box comp - STEERING GEAR	Box comp - STEERING GEAR
17	53601-TL1-G03	Box comp - STEERING GEAR	Box comp - STEERING GEAR
18	53610-TL1-G01	End comp - RACK	End comp - RACK
19	53682-TL1-G00	Harness comp. - EPS	Harness comp. - EPS
20	53685-TL0-G01	Bush - STEERING GEAR BOX MOUNTING	Bush - STEERING GEAR BOX MOUNTING
21	53685-TL0-G11	Bush - STEERING GEAR BOX MOUNTING	Bush - STEERING GEAR BOX MOUNTING
22	53685-TL0-G21	Bush - STEERING GEAR BOX MOUNTING	Bush - STEERING GEAR BOX MOUNTING
23	53692-TL1-G00	Baffle - EPS HEAT	Baffle - EPS HEAT
24	53751-TL0-G00	Stay - HARNESS	Stay - HARNESS
25	53752-TL0-G00	Stay - COUPLER HOLD	Stay - COUPLER HOLD
26	53753-TL0-G01	Case comp. - HARNESS HOLD	Case comp. - HARNESS HOLD
27	90103-S0A-N01	Screw - PAN, 5X8	Screw - PAN, 5X8
28	90108-TL0-G00	Bolt - GEAR BOX MOUNTING	Bolt - GEAR BOX MOUNTING
29	90108-TL1-G00	Bolt - GEAR BOX MOUNTING	Bolt - GEAR BOX MOUNTING
30	90428-S0A-003	Washer - DRAIN	Washer - DRAIN
31	90506-TL0-G00	Washer - PLAIN, 2.6MM	Washer - PLAIN, 2.6MM
32	91251-SEA-003	Circlip	Circlip
33	91411-S84-A01	Nut - HEX., 14MM	Nut - HEX., 14MM
34	91507-SAA-003	Clip - WIRE HARNESS(NATURAL) (70MM)	Clip - WIRE HARNESS(NATURAL) (70MM)
35	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)

Parking brake (LH) 9 / 9

#	OEM	CU2	CW2
2	47342-STX-A01	Switch - PARKING BRAKE	Switch - PARKING BRAKE
3	47360-TL0-G01	Equalizer	Equalizer
4	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
6	47510-TL2-G52	Wire - R. PARKING BRAKE	Wire - R. PARKING BRAKE
7	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
8	47537-SDG-003	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD
9	47560-TL0-G52	Wire - L. PARKING BRAKE	Wire - L. PARKING BRAKE
11	47572-ST0-000	Base - WIRE GUIDE	Base - WIRE GUIDE
12	90104-TA0-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Parking brake shoe 10 / 10

#	OEM	CU2	CW2
1	43053-TL0-G50	Shoe set - RR. BRAKE	Shoe set - RR. BRAKE
2	43110-TL0-G51	Plate comp - R. BACK	Plate comp - R. BACK
3	43120-TL0-G51	Plate comp - L. BACK	Plate comp - L. BACK
4	43172-SJA-003	Spring - RETURN	Spring - RETURN
5	43300-SJA-003	Bolt comp - ANCHOR	Bolt comp - ANCHOR
6	43360-SJA-003	Lever assy. - PARKING BRAKE	Lever assy. - PARKING BRAKE
7	43366-SJA-003	Adjuster assy	Adjuster assy
8	45172-SJA-003	Spring - SHOE CLAMP	Spring - SHOE CLAMP
9	45175-SJA-003	Pin - TENSION	Pin - TENSION
10	90382-SJA-000	Nut - FLANGE, 14MM	Nut - FLANGE, 14MM

Pedal (LH) 23 / 26

#	OEM	CU2	CW2
2	17800-TL0-R05	Pedal assy - ACCELERATOR	Pedal assy - ACCELERATOR
3	17818-TL0-G01	Stopper comp - ACCELERATOR	Stopper comp - ACCELERATOR
4	17820-TL0-G02	Clip - ACCELERATOR PEDAL	Clip - ACCELERATOR PEDAL
5	36750-SMA-003	Switch assy - STOP & CRUISE (PANASONIC)	Switch assy - STOP & CRUISE (PANASONIC)
5	36750-SDA-A02	Switch assy - STOP & CRUISE (TOYO)	Switch assy - STOP & CRUISE (TOYO)
6	36760-PT0-004	Switch assy - CLUTCH	Switch assy - CLUTCH
7	36760-SM4-003	Switch assy - CLUTCH	Switch assy - CLUTCH
8	46505-SAA-J00	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
9	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
10	46530-TL0-E02	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
13	46545-SNW-J21	Cover set, Pedal	Cover set, Pedal
15	46590-TA0-A00	Stay - PEDAL STIFFENER	Stay - PEDAL STIFFENER
16	46600-TL0-R02	Pedal assy - BRAKE	Pedal assy - BRAKE
18	46910-TL1-R01	Pedal comp - CLUTCH	Pedal comp - CLUTCH
19	46911-SD4-930	Bush - PEDAL PIN	Bush - PEDAL PIN
20	46982-TA0-A81	Bush - RETURN SPRING	Bush - RETURN SPRING
21	46991-TL0-G00	Bracket - FOOTREST	Bracket - FOOTREST
23	46992-TL0-R01	Plate comp - FOOTREST	Plate comp - FOOTREST
24	75891-611-000	Cover - DOOR SWITCH	Cover - DOOR SWITCH
25	90104-SFE-003	Bolt - FLANGE, 8X23	Bolt - FLANGE, 8X23
26	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
27	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
28	90361-S3C-003	Nut - PAINT CUTTING, 8MM	Nut - PAINT CUTTING, 8MM

Pillar garnish (LH) 5 / 6

#	OEM	CU2	CW2
1	38205-TL0-G00	Label - DRIVER FUSE	Label - DRIVER FUSE
2	38215-TL0-G00	Label - PASSENGER FUSE	Label - PASSENGER FUSE
18	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
19	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)
20	91561-TA0-A01	Clip - FR. PILLAR GARNISH	Clip - FR. PILLAR GARNISH

Plug hole coil/plug (2.4L) 3 / 3

#	OEM	CU2	CW2
1	12290-RL6-G01	Plug - SPARK (ILZKR7B 11GS)	Plug - SPARK (ILZKR7B 11GS)
2	30520-RL5-A01	Coil assy - PLUG HOLE	Coil assy - PLUG HOLE
3	30522-RGA-004	Seal - RUBBER	Seal - RUBBER

Radiator (2.4L) 17 / 18

#	OEM	CU2	CW2
1	19010-RL6-R01	Radiator comp - DENSO	Radiator comp - DENSO
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
4	19014-RL2-G01	Seal - LOWER	Seal - LOWER
5	19015-RL5-A01	Shroud comp.	Shroud comp.
6	19020-RCJ-A01	Fan - COOLING	Fan - COOLING
7	19030-R74-003	Motor - COOLING FAN (DENSO)	Motor - COOLING FAN (DENSO)
8	19045-RAA-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
10	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
11	37870-RTA-005	Sensor assy - WATER TEMP (DENSO)	Sensor assy - WATER TEMP (DENSO)
12	38611-R40-A01	Fan - COOLING	Fan - COOLING
13	38615-R40-A01	Shroud comp.	Shroud comp.
14	38616-R40-A01	Motor - COOLING FAN(DENSO)	Motor - COOLING FAN(DENSO)
15	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
16	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
17	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)
18	91307-RTA-005	O-ring - DENSO	O-ring - DENSO

Radiator hose/reserve tan k (2.4L) 22 / 32

#	OEM	CU2	CW2
1	19025-RL2-G00	Seal - R. RADIATOR SIDE	Seal - R. RADIATOR SIDE
2	19026-RL2-G00	Seal - L. RADIATOR SIDE	Seal - L. RADIATOR SIDE
4	19101-RL2-G00	Tank - RESERVE	Tank - RESERVE
5	19102-PM5-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
6	19103-RL2-G00	Hose - RESERVE TANK	Hose - RESERVE TANK
7	19104-RL2-G00	Tube - RESERVE TANK	Tube - RESERVE TANK
8	19106-RSA-G00	Joint - RESERVE TANK	Joint - RESERVE TANK
9	19115-RL2-G00	Bracket - RESERVE TANK	Bracket - RESERVE TANK
10	19501-RL5-A01	Hose - WATER UPPER	Hose - WATER UPPER
11	19503-RAA-A01	Connector - QUICK WATER	Connector - QUICK WATER
12	19506-RAA-A01	Wire	Wire
13	19506-RL5-A01	Hose - WATER LOWER	Hose - WATER LOWER
14	19507-RAA-A01	O-ring	O-ring
15	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
15	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
20	74171-TL1-G00	Bracket - R. RADIATOR UPPER MOUNTING	Bracket - R. RADIATOR UPPER MOUNTING
21	74172-SM4-970	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
22	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER
23	74176-TL1-G00	Bracket - L. RADIATOR UPPER MOUNTING	Bracket - L. RADIATOR UPPER MOUNTING
25	91503-SZ3-003	Clip A	Clip A
26	91503-TL0-003	Holder - ROD(BLACK)	Holder - ROD(BLACK)
27	91512-SND-003	Clip - TRUNK SPOILER	Clip - TRUNK SPOILER

Radio antenna/speaker (LH) 16 / 23

#	OEM	CU2	CW2
1	39120-TL0-G01	Speaker assy - 17CM ND SINGLE) (ELS)(PANASONIC	Speaker assy - 17CM ND SINGLE) (ELS)(PANASONIC
2	39120-TL0-G11	Speaker assy - TWEETER(ELS) (PANASONIC)	Speaker assy - TWEETER(ELS) (PANASONIC)
4	39120-TL0-G31	Speaker assy - SINGLE(8CM) (ELS)(PANASONIC)	Speaker assy - SINGLE(8CM) (ELS)(PANASONIC)
8	39156-TL0-G11	Sub feeder	Sub feeder
17	90109-SLJ-003	Screw - 5X40	Screw - 5X40
19	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
20	90309-SLJ-003	Nut assy. - SPEAKER	Nut assy. - SPEAKER
21	91507-SAA-003	Clip - WIRE HARNESS(NATURAL) (70MM)	Clip - WIRE HARNESS(NATURAL) (70MM)
22	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
23	91533-STK-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
24	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
25	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)
26	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
27	91551-SE0-003	Bolt - FLANGE, 5X7	Bolt - FLANGE, 5X7
28	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
29	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)

Rear brake (2) 24 / 26

#	OEM	CU2	CW2
1	01473-SZ3-A00	Caliper set - RR.	Caliper set - RR.
1	01473-SZ3-A01	SET, RR CALIPER	SET, RR CALIPER
2	06435-S84-J00	Shim set - RR.	Shim set - RR.
3	42200-TL0-G51	Bearing assy - RR. HUB UNIT	Bearing assy - RR. HUB UNIT
4	42510-TL0-G50	Disk - RR. BRAKE DRUM IN	Disk - RR. BRAKE DRUM IN
5	42511-SP0-000	Cap - MAINTENANCE HOLE	Cap - MAINTENANCE HOLE
6	43018-SWA-A10	Caliper sub assy. - R. RR.	Caliper sub assy. - R. RR.
7	43019-SWA-A10	Caliper sub assy. - L. RR.	Caliper sub assy. - L. RR.
8	43022-TL0-G51	Pad set - RR.	Pad set - RR.
9	43215-S9A-003	Piston	Piston
10	43227-S9A-E01	Spring - PAD	Spring - PAD
11	43235-S84-A51	Pin a	Pin a
12	43244-SG0-003	Retainer	Retainer
13	43244-S9A-003	Retainer a	Retainer a
14	43262-S84-A51	Pin b	Pin b
15	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
16	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
17	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
18	90103-SJK-000	Bolt - CALIPER MOUNTING	Bolt - CALIPER MOUNTING
19	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
19	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
19	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
20	90160-TA0-A00	Bolt-washer - 12X44	Bolt-washer - 12X44
21	91352-TL0-G51	O-ring - 71X2.4	O-ring - 71X2.4

Rear bumper 7 / 16

#	OEM	CU2	CW2
16	90103-TA0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
18	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
19	90114-SZ3-000	Screw-washer - 5X20	Screw-washer - 5X20
20	90501-SM4-003	Bolt - FENDER	Bolt - FENDER
22	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
23	90682-SJA-A01	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
24	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER

Rear door glass/regulator 4 / 14

#	OEM	CU2	CW2
1	72710-TL0-Q02	Regulator assy - R. RR. DOOR POWER	Regulator assy - R. RR. DOOR POWER
4	72750-TL0-Q02	Regulator assy - L. RR. DOOR POWER	Regulator assy - L. RR. DOOR POWER
13	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
14	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)	Bolt - FLANGE, 6X16(GUIDE)

Rear door lining 17 / 19

#	OEM	CU2	CW2
1	33301-S70-003	Bulb - 12V 3.8W 2CP	Bulb - 12V 3.8W 2CP
2	34261-TL0-003	Lens	Lens
5	72835-TL0-G01	Weatherstrip - R. RR. DOOR INNER	Weatherstrip - R. RR. DOOR INNER
6	72875-TL0-G01	Weatherstrip - L. RR. DOOR INNER	Weatherstrip - L. RR. DOOR INNER
9	83508-TL0-G00	Bracket - R. PULL POCKET	Bracket - R. PULL POCKET
10	83558-TL0-G00	Bracket - L. PULL POCKET	Bracket - L. PULL POCKET
13	83703-TL0-G01	Bracket a - R. RR. GRIP	Bracket a - R. RR. GRIP
14	83704-TL0-G01	Bracket b - R. RR. GRIP	Bracket b - R. RR. GRIP
25	83753-TL0-G01	Bracket a - L. RR. GRIP	Bracket a - L. RR. GRIP
26	83754-TL0-G01	Bracket b - L. RR. GRIP	Bracket b - L. RR. GRIP
34	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
35	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
36	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
37	90678-SK7-003	Clip - SPEAKER	Clip - SPEAKER
38	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
39	91560-TL0-G21	Clip - DOOR END GARNISH (LIGHT BROWN)(SEAL)	Clip - DOOR END GARNISH (LIGHT BROWN)(SEAL)
40	91562-S0X-A01	Clip - ROOF LINING (BLACK)	Clip - ROOF LINING (BLACK)

Rear door locks/ outer handle 37 / 37

#	OEM	CU2	CW2
1	72112-SJK-003	Protector - R. DOOR LATCH	Protector - R. DOOR LATCH
3	72119-TL0-003	Seal	Seal
5	72134-SHJ-003	Clip s - CABLE END (NATURAL)	Clip s - CABLE END (NATURAL)
5	72174-SHJ-003	Clip t - CABLE END (BLACK)	Clip t - CABLE END (BLACK)
6	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
7	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
8	72141-TL0-E01	R. Handle comp.	R. Handle comp.
9	72142-TL0-E01	Base comp. - R.	Base comp. - R.
10	72143-S04-003	Packing	Packing
11	72143-TL0-G01	Cover comp. - R.	Cover comp. - R.
12	72144-TA0-A11	Holder comp	Holder comp
13	72146-TL0-A61	Collar	Collar
14	72148-TL0-E01	Seat a - R.	Seat a - R.
15	72149-SAA-003	Snap - R.	Snap - R.
16	72149-TL0-E01	Seat b - R.	Seat b - R.
17	72152-SJK-003	Protector - L. DOOR LATCH	Protector - L. DOOR LATCH
21	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
22	72181-TL0-E01	L. Handle comp	L. Handle comp
23	72182-TL0-E01	Base comp. - L.	Base comp. - L.
24	72183-TL0-E01	LH handle cover comp	LH handle cover comp
25	72188-TL0-E01	Seat a - L.	Seat a - L.
26	72189-SAA-003	Snap - L.	Snap - L.
27	72189-TL0-E01	Seat b - L.	Seat b - L.
29	72610-TL0-J02	Latch assy - R. RR. DOOR POWER	Latch assy - R. RR. DOOR POWER
29	72610-TL0-J01	Latch assy - R. RR. DOOR POWER	Latch assy - R. RR. DOOR POWER
30	72612-SFA-000	Cap - CHILD LOCK	Cap - CHILD LOCK
31	72613-SNA-003	Seal	Seal
32	72617-TL0-003	Seal	Seal
33	72618-TL0-003	Seal	Seal
35	72631-TL0-G01	Cable - RR. INSIDE HANDLE	Cable - RR. INSIDE HANDLE
36	72633-TL0-G01	Cable - RR. DOOR LOCK	Cable - RR. DOOR LOCK
38	72650-TL0-J01	Latch assy - L. RR. DOOR POWER	Latch assy - L. RR. DOOR POWER
38	72650-TL0-J02	Latch assy - L. RR. DOOR POWER	Latch assy - L. RR. DOOR POWER
40	74387-S3C-003	Fastener	Fastener
41	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
42	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
43	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Rear door panels 12 / 14

#	OEM	CU2	CW2
9	72142-S10-000	Stopper - DOOR	Stopper - DOOR
11	72821-TL0-003	Seal - R. RR. DOOR HOLE	Seal - R. RR. DOOR HOLE
12	72840-TL0-003	Checker comp. - R. RR. DOOR	Checker comp. - R. RR. DOOR
14	72861-TL0-003	Seal - L. RR. DOOR HOLE	Seal - L. RR. DOOR HOLE
15	72880-TL0-003	Checker comp. - L. RR. DOOR	Checker comp. - L. RR. DOOR
16	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
17	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
17	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
18	90103-SLA-000	Bolt - FLANGE, 8X22 (TORX)	Bolt - FLANGE, 8X22 (TORX)
19	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
20	90651-S4N-003	Clip	Clip
21	91568-SJA-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP

Rear knuckle 35 / 37

#	OEM	CU2	CW2
1	42518-TL1-G00	Bracket - RR. ABS SENSOR	Bracket - RR. ABS SENSOR
2	42528-TA0-A01	Clip - COUPLER	Clip - COUPLER
3	51226-SL0-003	Circlip - LOWER BALL	Circlip - LOWER BALL
4	52210-TL0-G50	Knuckle comp - R. RR.	Knuckle comp - R. RR.
5	52215-TL0-G50	Knuckle comp - L. RR.	Knuckle comp - L. RR.
8	52308-TA0-A00	Bracket - RR. STABILIZER HOLDER	Bracket - RR. STABILIZER HOLDER
9	52320-TA0-A01	Link comp - R. RR. STABILIZER	Link comp - R. RR. STABILIZER
10	52325-TA0-A01	Link comp - L. RR. STABILIZER	Link comp - L. RR. STABILIZER
11	52340-TA0-A00	Arm comp - R. RR. CONTROL	Arm comp - R. RR. CONTROL
12	52345-TA0-A00	Arm comp - L. RR. CONTROL	Arm comp - L. RR. CONTROL
13	52350-TA0-A00	Arm comp. b - RR. LOWER	Arm comp. b - RR. LOWER
14	52355-TA0-J00	Arm comp. b - L. RR. LOWER	Arm comp. b - L. RR. LOWER
15	52363-SJK-010	Washer - LOWER ARM	Washer - LOWER ARM
16	52370-TL0-E00	Arm comp. a - R. RR. LOWER	Arm comp. a - R. RR. LOWER
17	52375-TL0-E00	Arm comp. a - L. RR. LOWER	Arm comp. a - L. RR. LOWER
18	52387-SJA-010	Plate - CAM(M12)	Plate - CAM(M12)
19	52510-TL0-E01	Arm comp - R. RR. UPPER	Arm comp - R. RR. UPPER
20	52514-TA0-A01	Boot - RR. UPPER BALL	Boot - RR. UPPER BALL
21	52520-TL0-E01	Arm comp - L. RR. UPPER	Arm comp - L. RR. UPPER
22	57470-TL1-G02	Sensor assy - RR.	Sensor assy - RR.
22	57470-TL1-G01	Sensor assy - RR.	Sensor assy - RR.
23	90002-TA0-A00	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
24	90100-SHJ-A00	Bolt - FLANGE, 6X16.5	Bolt - FLANGE, 6X16.5
25	90118-SNA-000	Bolt - FLANGE, 12X84	Bolt - FLANGE, 12X84
26	90118-TA0-A00	Bolt - FLANGE, 12X90	Bolt - FLANGE, 12X90
27	90166-TA0-A00	Bolt - FLANGE, 8X16	Bolt - FLANGE, 8X16
28	90178-TA0-A00	Bolt - RR. CONTROL ARM ADJUST	Bolt - RR. CONTROL ARM ADJUST
29	90181-S84-A00	Bolt - TRAILING ARM, 12X68	Bolt - TRAILING ARM, 12X68
30	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
31	90362-SJA-000	Nut - SELF-LOCK, 12MM (NYLON)	Nut - SELF-LOCK, 12MM (NYLON)
32	90365-TA0-A00	Nut - CASTLE, 14MM	Nut - CASTLE, 14MM
33	90370-SJA-000	Nut - SELF-LOCK, 12MM(CLINCH)	Nut - SELF-LOCK, 12MM(CLINCH)
34	90651-SWA-000	Washer - RR. KNUCKLE	Washer - RR. KNUCKLE
35	90701-SKC-003	Pin - SPLIT(M14)	Pin - SPLIT(M14)
37	57477-TA0-305	Seal - LIP(BLACK)	Seal - LIP(BLACK)

Rear seat 13 / 26

#	OEM	CU2	CW2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
2	78182-SA0-000	Clip - RR. SEAT PIN	Clip - RR. SEAT PIN
3	81388-SLJ-J01	Bolt - ARMREST	Bolt - ARMREST
7	82129-TL4-G00	Collar c	Collar c
9	82132-TL0-G01	Pad & frame comp. - RR. SEAT CUSHION	Pad & frame comp. - RR. SEAT CUSHION
10	82137-SDA-003	Clip - RR. SEAT CUSHION	Clip - RR. SEAT CUSHION
22	82291-S04-000	Cover - RR. CENTER PIVOT	Cover - RR. CENTER PIVOT
23	82292-TL4-000	Collar - RR. CENTER SEAT PIVOT	Collar - RR. CENTER SEAT PIVOT
35	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
36	90123-SJA-000	Bolt-washer - 6X16	Bolt-washer - 6X16
37	90139-S6A-003	Bolt - FLANGE, 8X35	Bolt - FLANGE, 8X35
38	90140-SA5-000	Bolt - SPLASH GUARD	Bolt - SPLASH GUARD
39	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER

Rear shock absorber 11 / 20

#	OEM	CU2	CW2
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
2	51631-SV7-004	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
3	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
4	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
11	52686-SDA-A01	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
12	52687-TA0-A01	Cover comp. - DUST	Cover comp. - DUST
13	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP
14	52722-SJA-003	Rubber - RR. BUMP STOPPER	Rubber - RR. BUMP STOPPER
15	52748-S0A-004	Cover - RR. LOWER MOUNT DUST	Cover - RR. LOWER MOUNT DUST
16	90182-TA0-A00	Bolt - FLANGE, 12X80	Bolt - FLANGE, 12X80
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear tray/side lining 8 / 12

#	OEM	CU2	CW2
1	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
2	33513-S50-003	Socket - T20W S2	Socket - T20W S2
4	74641-TL0-G00	Insulator - R. RR. WHEELHOUSE	Insulator - R. RR. WHEELHOUSE
5	74691-TL0-G00	Insulator - L. RR. WHEELHOUSE	Insulator - L. RR. WHEELHOUSE
6	75353-671-000	Lock - SCREW	Lock - SCREW
31	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
36	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE
37	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)

Rear windshield 4 / 8

#	OEM	CU2	CW2
5	75717-SNB-E01	Sticker - I-VTEC	Sticker - I-VTEC
7	91563-SV4-003	Fastener a - RR. WINDSHIELD	Fastener a - RR. WINDSHIELD
8	91568-SV4-003	Fastener b - RR. WINDSHIELD	Fastener b - RR. WINDSHIELD
9	91568-TA0-A00	Clip, FR. Windshield (Upper)	Clip, FR. Windshield (Upper)

Resonator chamber (2.4L) 19 / 19

#	OEM	CU2	CW2
1	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
2	17212-PLC-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
3	17213-PD1-000	Rubber - AIR CLEANER CASE MOUNTING	Rubber - AIR CLEANER CASE MOUNTING
4	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
5	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
6	17230-RL6-E00	Chamber assy - RESONATOR	Chamber assy - RESONATOR
7	17250-RL6-E00	Tube set b - AIR INTAKE	Tube set b - AIR INTAKE
8	17251-RL5-A00	Tube - AIR CLEANER CONNECTING	Tube - AIR CLEANER CONNECTING
9	17254-RL5-A00	Tube c - AIR INTAKE	Tube c - AIR INTAKE
10	17255-RL5-A00	Cover assy. - AIR INTAKE	Cover assy. - AIR INTAKE
11	17256-RL5-A00	Stay comp. a - AIR INTAKE	Stay comp. a - AIR INTAKE
12	17257-RL2-G00	Shield - AIR INTAKE	Shield - AIR INTAKE
13	17258-RL5-A00	Ring - SEAL	Ring - SEAL
14	17263-P0A-000	Rubber - AIR CLEANER STAY	Rubber - AIR CLEANER STAY
15	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
16	90001-P7J-000	Bolt - SPECIAL, 6X25	Bolt - SPECIAL, 6X25
17	90120-PZA-000	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
18	90601-R60-U01	Clip - AIR INTAKE COVER	Clip - AIR INTAKE COVER
19	91503-SZ3-003	Clip A	Clip A

Roof lining 5 / 5

#	OEM	CU2	CW2
4	83231-TA0-A91	Bulb	Bulb
5	83232-TA0-A91	Lens a	Lens a
6	83233-TA0-A91	Lens b	Lens b
11	83247-SNA-A01	Clip - GRAB RAIL	Clip - GRAB RAIL
14	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)

Seatbelts 19 / 20

#	OEM	CU2	CW2
3	81441-S2G-N51	Collar - 5H	Collar - 5H
4	81441-S50-J22	Collar - 2H	Collar - 2H
5	81441-S50-N22	Collar - 2H	Collar - 2H
6	81441-TA0-A01	Collar - 10H	Collar - 10H
7	81441-TL0-G21	Collar - 3H	Collar - 3H
10	81460-SNA-A01	Adjuster - SHOULDER SLIDE	Adjuster - SHOULDER SLIDE
20	90123-S04-J30	Washer - WAVE	Washer - WAVE
21	90142-SED-J01	Bolt-washer - 7/16"X28	Bolt-washer - 7/16"X28
22	90142-SFE-J01	Bolt - 7/16"X44	Bolt - 7/16"X44
23	90142-SJA-A31	Bolt - 7/16"X36	Bolt - 7/16"X36
24	90142-SNA-A41	Bolt-washer - 8X25	Bolt-washer - 8X25
25	90142-SNA-004	Bolt - 7/16"X24	Bolt - 7/16"X24
26	90142-S04-J32	Bolt - 7/16"X23.4	Bolt - 7/16"X23.4
27	90142-TA0-004	Bolt - FLANGE, 7/16"X28	Bolt - FLANGE, 7/16"X28
28	90142-TL0-004	Bolt - 7/16"X34	Bolt - 7/16"X34
29	90543-S50-004	Washer - SPRING	Washer - SPRING
30	90543-S50-902	Washer - SPRING	Washer - SPRING
31	91534-SWA-003	Clip - COUPLER(DARK GRAY)	Clip - COUPLER(DARK GRAY)
32	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)

Shift arm 23 / 23

#	OEM	CU2	CW2
1	21396-P20-000	Cap - BREATHER	Cap - BREATHER
2	21520-RAS-000	Cover comp. - SHIFT ARM	Cover comp. - SHIFT ARM
3	24411-PPP-010	Arm - SHIFT	Arm - SHIFT
4	24412-PNS-000	Arm - MAINSHAFT BRAKE SYSTEM	Arm - MAINSHAFT BRAKE SYSTEM
5	24413-PNS-000	Spring - MAINSHAFT BRAKE SYSTEM RETURN	Spring - MAINSHAFT BRAKE SYSTEM RETURN
6	24430-PNS-000	Interlock comp.	Interlock comp.
7	24433-PH8-000	Bolt - INTERLOCK	Bolt - INTERLOCK
8	24460-RPW-000	Lever comp - SELECT	Lever comp - SELECT
9	24464-PPP-000	Spring - FIRST-SECOND SELECT	Spring - FIRST-SECOND SELECT
10	24466-PPP-000	Spring - FIFTH-SIXTH SELECT	Spring - FIFTH-SIXTH SELECT
11	24467-PPP-000	Plate - SELECT STOPPER	Plate - SELECT STOPPER
12	24470-R88-000	Lever comp - SHIFT	Lever comp - SHIFT
13	24474-RAP-000	Cover - DUST	Cover - DUST
14	24479-PPP-000	Cover - SHIFT LEVER	Cover - SHIFT LEVER
15	24521-PNS-000	Cam a - SELECT LOCK	Cam a - SELECT LOCK
16	24522-PNS-000	Cam b - SELECT LOCK	Cam b - SELECT LOCK
17	24524-PNS-000	Spring - SELECT LOCK RETURN	Spring - SELECT LOCK RETURN
18	28251-RAS-003	Solenoid sub assy.	Solenoid sub assy.
19	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
20	90402-R88-000	Washer - PLAIN, 14MM	Washer - PLAIN, 14MM
21	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM
22	91207-PPP-003	Dust seal - 18X24X5	Dust seal - 18X24X5
23	91208-PPP-003	Dust seal - 14X20X4	Dust seal - 14X20X4

Shift fork 8 / 22

#	OEM	CU2	CW2
1	24201-RAS-000	Fork comp - GEARSHIFT (5-6)	Fork comp - GEARSHIFT (5-6)
2	24210-RAS-000	Fork comp - GEARSHIFT (3-4)	Fork comp - GEARSHIFT (3-4)
3	24220-RAP-000	Fork comp - GEARSHIFT (1-2)	Fork comp - GEARSHIFT (1-2)
4	24230-PPP-000	Holder comp - REVERSE SHIFT	Holder comp - REVERSE SHIFT
5	24240-PNS-000	Piece comp. - REVERSE SHIFT	Piece comp. - REVERSE SHIFT
6	24455-PHR-000	Spring - BALL SETTING	Spring - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5

Shift lever 14 / 14

#	OEM	CU2	CW2
1	54100-TL1-G01	Lever sub assy. - CHANGE	Lever sub assy. - CHANGE
2	54102-S2A-040	Knob comp. - CHANGE LEVER	Knob comp. - CHANGE LEVER
4	54103-TL0-G00	Spacer a	Spacer a
5	54117-SNA-A01	Rubber - FLOATING	Rubber - FLOATING
6	54118-S10-000	Washer assy. - WIRE	Washer assy. - WIRE
7	54119-SNA-A02	Collar - FLOATING	Collar - FLOATING
8	54310-TL1-G01	Wire comp - CHANGE	Wire comp - CHANGE
9	54322-SWA-T01	Washer - SELECT	Washer - SELECT
10	54323-SWA-T01	Bush - SHIFT	Bush - SHIFT
11	54324-SWA-T01	Washer - SHIFT	Washer - SHIFT
12	54325-SWA-T01	Bush - SELECT	Bush - SELECT
13	54357-SF1-003	Plate - CHANGE WIRE	Plate - CHANGE WIRE
14	90161-SP0-931	Bolt-washer - 6X18	Bolt-washer - 6X18
15	90175-SEL-T81	Pin - LOCK, 8MM	Pin - LOCK, 8MM

Side sill garnish/ under cover 17 / 19

#	OEM	CU2	CW2
3	74510-TL0-G00	Cover assy. - R. MIDDLE FLOOR UNDER	Cover assy. - R. MIDDLE FLOOR UNDER
4	74512-TL0-G00	Strake - R. RR.	Strake - R. RR.
5	74550-TA1-000	Cover - RR. UNDER	Cover - RR. UNDER
8	74561-TA0-A00	Cover - L. MIDDLE FLOOR UNDER	Cover - L. MIDDLE FLOOR UNDER
9	74562-TL0-G00	Strake - L. RR.	Strake - L. RR.
11	90103-TA0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
12	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
13	90144-SEA-000	Bolt - BUMPER	Bolt - BUMPER
14	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
15	90207-RAA-A10	Nut - HEX. CAP, 6MM	Nut - HEX. CAP, 6MM
16	90331-S3Y-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
17	90682-SDA-A01	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
18	91503-SZ3-003	Clip A	Clip A
19	91503-S7A-003	Clip - FR. GRILLE	Clip - FR. GRILLE
21	91513-SMG-E01	Clip - RR. WHEEL ARCH GARNISH	Clip - RR. WHEEL ARCH GARNISH
22	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH	Clip - SIDE SILL UPPER GARNISH
23	91513-TL0-E11	Clip - SIDE SILL GARNISH	Clip - SIDE SILL GARNISH

Solenoid 1 / 17

#	OEM	CU2	CW2
16	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

Srs unit (LH) 23 / 29

#	OEM	CU2	CW2
1	77900-TL0-G21	Reel assy - CABLE (FURUKAWA)	Reel assy - CABLE (FURUKAWA)
2	77930-TC0-H11	Sensor assy - FR. CRASH(TRW)	Sensor assy - FR. CRASH(TRW)
3	77930-TC0-H21	Sensor assy - FR. CRASH(TRW)	Sensor assy - FR. CRASH(TRW)
4	77960-TL0-G92	Srs unit - TRW) (REWRITABLE	Srs unit - TRW) (REWRITABLE
6	77970-TC0-A11	Sensor assy - SIDE IMPACT(TRW)	Sensor assy - SIDE IMPACT(TRW)
7	78819-STK-A81	Clip - SIDE CURTAIN AIRBAG (8.5MM)	Clip - SIDE CURTAIN AIRBAG (8.5MM)
8	78848-TL0-G81	Bolt - SIDE CURTAIN AIRBAG (5X13)	Bolt - SIDE CURTAIN AIRBAG (5X13)
11	83247-TL0-G00	Bracket set - R. FR. GRAB RAIL	Bracket set - R. FR. GRAB RAIL
13	83297-TL0-G00	Bracket set - L. FR. GRAB RAIL	Bracket set - L. FR. GRAB RAIL
15	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
16	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
17	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
18	90178-SNA-003	Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)	Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)
19	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
20	91533-STK-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
21	91534-SWA-003	Clip - COUPLER(DARK GRAY)	Clip - COUPLER(DARK GRAY)
22	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)	Clip - HARNESS BAND(NATURAL) (100.1MM)
23	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
24	91545-SJA-003	Clip - WIRE HARNESS(SEAL) (125MM)	Clip - WIRE HARNESS(SEAL) (125MM)
26	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)	Clip - HARNESS BAND OFFSET(30) (NATURAL)
27	91559-ST5-901	Clip - WIRE HARNESS (32.5MM)	Clip - WIRE HARNESS (32.5MM)
28	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
29	91903-SNA-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Starter motor (MITSUBA; 2.4L) 13 / 13

#	OEM	CU2	CW2
1	31200-R40-A01	Motor assy. - STARTER (SM-73002) (MITSUBA)	Motor assy. - STARTER (SM-73002) (MITSUBA)
2	31201-RAA-A62	Cover set - GEAR	Cover set - GEAR
3	31202-RRA-A51	Bolt	Bolt
4	31206-RRA-A51	Yoke assy.	Yoke assy.
5	31207-R40-A01	Armature assy.	Armature assy.
6	31209-RNA-A51	Bracket unit - RR.	Bracket unit - RR.
7	31210-RRA-A51	Holder set - BRUSH	Holder set - BRUSH
7	31210-RRA-A52	HOLDER SET BRUSH	HOLDER SET BRUSH
8	31211-RNA-A51	Cover - SWITCH	Cover - SWITCH
9	31213-PHM-004	Spring - BRUSH	Spring - BRUSH
10	31220-R40-A01	Gear set - REDUCTION	Gear set - REDUCTION
11	31230-RNA-A61	Plunger set	Plunger set
13	31292-RRA-A52	Stay - ENGINE HARNESS	Stay - ENGINE HARNESS

Steering column 8 / 8

#	OEM	CU2	CW2
1	53200-TL0-G03	Column assy - STEERING	Column assy - STEERING
2	53320-TA0-T01	Cover - STEERING JOINT	Cover - STEERING JOINT
4	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
5	90135-SDA-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
5	90135-SZT-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
6	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
7	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
10	53320-TA0-L01	Cover - STEERING JOINT	Cover - STEERING JOINT

Steering wheel (SRS) 11 / 12

#	OEM	CU2	CW2
3	35880-TL0-E01	Switch assy - AUDIO REMOTE	Switch assy - AUDIO REMOTE
6	36770-TL0-E01	Switch assy - CRUISE	Switch assy - CRUISE
8	77901-TL0-E30	Sub cord - CABLE REEL	Sub cord - CABLE REEL
10	78503-TL0-A81	Plate comp - HORN	Plate comp - HORN
13	78516-TL0-A41	Plate - R. SWITCH SET	Plate - R. SWITCH SET
16	78520-TA0-A81	Damper comp - STEERING	Damper comp - STEERING
17	78523-TA0-A81	Spring - HORN	Spring - HORN
18	78524-TA0-A81	Bolt - TORX, (M5X8)	Bolt - TORX, (M5X8)
19	78525-TA0-A81	Plate - HOOK	Plate - HOOK
24	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
25	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Switch (LH) 10 / 11

#	OEM	CU2	CW2
2	35300-SMA-003	Switch assy - VSA OFF	Switch assy - VSA OFF
4	35460-TA0-003	Switch assy - HEADLIGHT WASHER	Switch assy - HEADLIGHT WASHER
5	35510-TL0-E02	Switch assy - HAZARD	Switch assy - HAZARD
6	35600-TL0-003	Switch assy - R. HEATED SEAT	Switch assy - R. HEATED SEAT
7	35650-TL0-003	Switch assy - L. HEATED SEAT	Switch assy - L. HEATED SEAT
14	35853-SMA-003	Bulb comp. - 14V 40MA	Bulb comp. - 14V 40MA
15	35856-SYY-003	Bulb comp. - 14V 80MA	Bulb comp. - 14V 80MA
16	35900-TL0-G01	Switch assy - AIRBAG	Switch assy - AIRBAG
17	35910-S04-G01	Switch assy - INERTIA	Switch assy - INERTIA
24	35855-SMA-003	Bulb comp. - 14V 80MA	Bulb comp. - 14V 80MA

Taillight/license light 8 / 20

#	OEM	CU2	CW2
1	33301-SNA-003	Bulb - 12V 5W) (STANLEY	Bulb - 12V 5W) (STANLEY
2	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
3	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
7	33514-S50-003	Socket - T20W S3	Socket - T20W S3
10	34103-SNB-003	Gasket - BASE	Gasket - BASE
12	34106-SNB-013	Lens comp	Lens comp
16	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY	Bulb - 12V 21W/5W) (STANLEY
20	91560-S5H-003	Clip - SIDE GARNISH (NATURAL) (SEAL:BLACK)	Clip - SIDE GARNISH (NATURAL) (SEAL:BLACK)

Throttle body (2.4L) 4 / 4

#	OEM	CU2	CW2
1	16400-RLG-J01	Throttle body - ELECTRONIC CONTROL (GME1A)	Throttle body - ELECTRONIC CONTROL (GME1A)
2	16430-RTA-J01	Case comp. - LOWER	Case comp. - LOWER
3	16431-RTA-J01	Gasket - LOWER CASE	Gasket - LOWER CASE
4	32745-R40-A00	Stay - ENGINE HARNESS	Stay - ENGINE HARNESS

Tire/wheel disks 57 / 57

#	OEM	CU2	CW2
2	42700-TL0-G51	Disk - WHEEL (17X4T) (RING TECHS)	Disk - WHEEL (17X4T) (RING TECHS)
4	42700-TL0-G71	Disk - ALUMINIUM WHEEL (18X8J) (HITACHI)	Disk - ALUMINIUM WHEEL (18X8J) (HITACHI)
5	42700-TL0-G81	Disk - ALUMINIUM WHEEL (17X7 1/2J) (ENKEI)	Disk - ALUMINIUM WHEEL (17X7 1/2J) (ENKEI)
5	42700-TL0-G82	Disk - ALUMINIUM WHEEL (17X7 1/2J) (KOSEI)	Disk - ALUMINIUM WHEEL (17X7 1/2J) (KOSEI)
7	42751-SJA-912	Tire - T145/80R17 107M) (CONTINENTAL	Tire - T145/80R17 107M) (CONTINENTAL
8	42751-TL0-G41	Tire - 225/50R17 98V) (BRIDGESTONE	Tire - 225/50R17 98V) (BRIDGESTONE
8	42751-TL0-G43	Tire - 225/50R17 98V) (YOKOHAMA	Tire - 225/50R17 98V) (YOKOHAMA
8	42751-TE1-Y42	Tire - 235/45R18 98W) (MICHELIN	Tire - 235/45R18 98W) (MICHELIN
9	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
9	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
11	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)	Plate - SPARE TIRE CAUTION (T-TYPE)
12	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
12	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
12	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
12	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
12	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
12	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
12	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
12	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
12	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
12	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
12	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
12	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
12	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
12	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
13	44730-SEA-N01	Weight - BALANCE (45G) (TOHO)	Weight - BALANCE (45G) (TOHO)
13	44729-SEA-N02	Weight - BALANCE (35G) (TOHO ZINC)	Weight - BALANCE (35G) (TOHO ZINC)
13	44724-SEA-N01	Weight - BALANCE (40G) (TOHO)	Weight - BALANCE (40G) (TOHO)
13	44723-SEA-N02	Weight - BALANCE (30G) (TOHO ZINC)	Weight - BALANCE (30G) (TOHO ZINC)
13	44730-SEA-N02	Weight - BALANCE (45G) (TOHO ZINC)	Weight - BALANCE (45G) (TOHO ZINC)
13	44726-SEA-N01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
13	44721-TP6-A01	WEIGHT, BALANCE (5G)	WEIGHT, BALANCE (5G)
13	44728-SEA-N01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
13	44725-TP6-A01	WEIGHT (25G)	WEIGHT (25G)
13	44724-SEA-N02	Weight - BALANCE (40G) (TOHO ZINC)	Weight - BALANCE (40G) (TOHO ZINC)
13	44722-SEA-N01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
13	44724-TP6-A01	WEIGHT (20G)	WEIGHT (20G)
13	44726-SEA-N02	Weight - BALANCE (5G) (TOHO ZINC)	Weight - BALANCE (5G) (TOHO ZINC)
13	44728-SEA-N02	Weight - BALANCE (25G) (TOHO ZINC)	Weight - BALANCE (25G) (TOHO ZINC)
13	44725-SEA-N01	Weight - BALANCE (50G) (TOHO)	Weight - BALANCE (50G) (TOHO)
13	44722-SEA-N02	Weight - BALANCE (20G) (TOHO ZINC)	Weight - BALANCE (20G) (TOHO ZINC)
13	44725-SEA-N02	Weight - BALANCE (50G) (TOHO ZINC)	Weight - BALANCE (50G) (TOHO ZINC)
13	44721-SEA-N01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
13	44721-S5A-A20	Weight - BALANCE (10G)	Weight - BALANCE (10G)
13	44727-SEA-N01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
13	44723-TP6-A01	WEIGHT (15G)	WEIGHT (15G)
13	44729-SEA-N01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
13	44727-TP6-A01	WEIGHT (35G)	WEIGHT (35G)
13	44721-SEA-N02	Weight - BALANCE (10G) (TOHO ZINC)	Weight - BALANCE (10G) (TOHO ZINC)
13	44727-SEA-N02	Weight - BALANCE (15G) (TOHO ZINC)	Weight - BALANCE (15G) (TOHO ZINC)
13	44723-SEA-N01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
13	44726-TP6-A01	WEIGHT (30G)	WEIGHT (30G)
15	44732-TL0-G00	Cap assy. - ALUMINIUM WHEEL CENTER	Cap assy. - ALUMINIUM WHEEL CENTER
15	44732-S7S-J02	Cap - ALUMINIUM WHEEL CENTER	Cap - ALUMINIUM WHEEL CENTER
18	74651-S2X-003	Adapter - SPARE TIRE	Adapter - SPARE TIRE
19	74652-SDA-003	Bolt - SPARE TIRE	Bolt - SPARE TIRE
21	90304-SF0-751	Nut - WHEEL (FUSE RASHI)	Nut - WHEEL (FUSE RASHI)

Tools/jack 4 / 5

#	OEM	CU2	CW2
6	89211-SYP-003	Wrench - WHEEL	Wrench - WHEEL
7	89310-SFE-003	Jack assy - PANTOGRAPH	Jack assy - PANTOGRAPH
8	89311-SFE-003	Plate - JACK CAUTION	Plate - JACK CAUTION
9	89320-S05-003	Bar - JACK	Bar - JACK

Torque converter case 1 / 19

#	OEM	CU2	CW2
16	91206-RCT-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)

Transmission case 71 / 89

#	OEM	CU2	CW2
1	21104-PPP-000	Plate m - OIL GUIDE	Plate m - OIL GUIDE
2	21200-RPW-000	Case comp. - TRANSMISSION	Case comp. - TRANSMISSION
3	21211-RZF-000	Plate - OIL GUTTER	Plate - OIL GUTTER
4	21220-RPN-000	Hanger comp. a - TRANSMISSION	Hanger comp. a - TRANSMISSION
5	21222-R88-000	Hanger comp. - TRANSMISSION	Hanger comp. - TRANSMISSION
6	21223-RZF-000	Hanger comp. b - TRANSMISSION	Hanger comp. b - TRANSMISSION
7	21225-RAP-000	Stay b - HARNESS	Stay b - HARNESS
8	23976-PPP-J00	Shim at - 72MM (1.95)	Shim at - 72MM (1.95)
8	23944-P21-000	Shim n - 72MM(0.99)	Shim n - 72MM(0.99)
8	23971-P21-000	Shim ao - 72MM(1.80)	Shim ao - 72MM(1.80)
8	23939-P21-000	Shim i - 72MM(0.84)	Shim i - 72MM(0.84)
8	23966-P21-000	Shim aj - 72MM(1.65)	Shim aj - 72MM(1.65)
8	23934-P21-000	Shim d - 72MM(0.69)	Shim d - 72MM(0.69)
8	23961-P21-000	Shim ae - 72MM(1.50)	Shim ae - 72MM(1.50)
8	23956-P21-000	Shim z - 72MM(1.35)	Shim z - 72MM(1.35)
8	23983-PPP-J00	Shim bb - 72MM (2.16)	Shim bb - 72MM (2.16)
8	23951-P21-000	Shim u - 72MM(1.20)	Shim u - 72MM(1.20)
8	23978-PPP-J00	Shim aw - 72MM (2.01)	Shim aw - 72MM (2.01)
8	23946-P21-000	Shim p - 72MM(1.05)	Shim p - 72MM(1.05)
8	23973-PPP-J00	Shim aq - 72MM (1.86)	Shim aq - 72MM (1.86)
8	23941-P21-000	Shim k - 72MM(0.90)	Shim k - 72MM(0.90)
8	23968-P21-000	Shim al - 72MM(1.71)	Shim al - 72MM(1.71)
8	23936-P21-000	Shim f - 72MM(0.75)	Shim f - 72MM(0.75)
8	23931-P21-000	Shim a - 72MM(0.60)	Shim a - 72MM(0.60)
8	23963-P21-000	Shim ag - 72MM(1.56)	Shim ag - 72MM(1.56)
8	23958-P21-000	Shim ab - 72MM(1.41)	Shim ab - 72MM(1.41)
8	23985-PPP-J00	Shim bd - 72MM (2.22)	Shim bd - 72MM (2.22)
8	23953-P21-000	Shim w - 72MM(1.26)	Shim w - 72MM(1.26)
8	23980-PPP-J00	Shim ay - 72MM (2.07)	Shim ay - 72MM (2.07)
8	23948-P21-000	Shim r - 72MM(1.11)	Shim r - 72MM(1.11)
8	23975-PPP-J00	Shim as - 72MM (1.92)	Shim as - 72MM (1.92)
8	23943-P21-000	Shim m - 72MM(0.96)	Shim m - 72MM(0.96)
8	23970-P21-000	Shim an - 72MM(1.77)	Shim an - 72MM(1.77)
8	23938-P21-000	Shim h - 72MM(0.81)	Shim h - 72MM(0.81)
8	23965-P21-000	Shim ai - 72MM(1.62)	Shim ai - 72MM(1.62)
8	23933-P21-000	Shim c - 72MM(0.66)	Shim c - 72MM(0.66)
8	23960-P21-000	Shim ad - 72MM(1.47)	Shim ad - 72MM(1.47)
8	23955-P21-000	Shim y - 72MM(1.32)	Shim y - 72MM(1.32)
8	23982-PPP-J00	Shim ba - 72MM (2.13)	Shim ba - 72MM (2.13)
8	23950-P21-000	Shim t - 72MM(1.17)	Shim t - 72MM(1.17)
8	23977-PPP-J00	Shim av - 72MM (1.98)	Shim av - 72MM (1.98)
8	23945-P21-000	Shim o - 72MM(1.02)	Shim o - 72MM(1.02)
8	23972-PPP-J00	Shim ap - 72MM (1.83)	Shim ap - 72MM (1.83)
8	23940-P21-000	Shim j - 72MM(0.87)	Shim j - 72MM(0.87)
8	23967-P21-000	Shim ak - 72MM(1.68)	Shim ak - 72MM(1.68)
8	23935-P21-000	Shim e - 72MM(0.72)	Shim e - 72MM(0.72)
8	23962-P21-000	Shim af - 72MM(1.53)	Shim af - 72MM(1.53)
8	23957-P21-000	Shim aa - 72MM(1.38)	Shim aa - 72MM(1.38)
8	23984-PPP-J00	Shim bc - 72MM (2.19)	Shim bc - 72MM (2.19)
8	23952-P21-000	Shim v - 72MM(1.23)	Shim v - 72MM(1.23)
8	23979-PPP-J00	Shim ax - 72MM (2.04)	Shim ax - 72MM (2.04)
8	23947-P21-000	Shim q - 72MM(1.08)	Shim q - 72MM(1.08)
8	23974-PPP-J00	Shim ar - 72MM (1.89)	Shim ar - 72MM (1.89)
8	23942-P21-000	Shim l - 72MM(0.93)	Shim l - 72MM(0.93)
8	23969-P21-000	Shim am - 72MM(1.74)	Shim am - 72MM(1.74)
8	23937-P21-000	Shim g - 72MM(0.78)	Shim g - 72MM(0.78)
8	23932-P21-000	Shim b - 72MM(0.63)	Shim b - 72MM(0.63)
8	23964-P21-000	Shim ah - 72MM(1.59)	Shim ah - 72MM(1.59)
8	23959-P21-000	Shim ac - 72MM(1.44)	Shim ac - 72MM(1.44)
8	23986-PPP-J00	Shim be - 72MM (2.25)	Shim be - 72MM (2.25)
8	23954-P21-000	Shim x - 72MM(1.29)	Shim x - 72MM(1.29)
8	23981-PPP-J00	Shim az - 72MM (2.10)	Shim az - 72MM (2.10)
8	23949-P21-000	Shim s - 72MM(1.14)	Shim s - 72MM(1.14)
9	24601-RPW-000	Stay - CHANGE WIRE	Stay - CHANGE WIRE
10	28820-PWR-013	Pick up assy. MATSUSHITA	Pick up assy. MATSUSHITA
12	32748-R40-A00	Stay comp - ENGINE HARNESS	Stay comp - ENGINE HARNESS
13	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
14	90081-RPF-000	Bolt - SEALING, 32MM	Bolt - SEALING, 32MM
15	90401-RM5-A00	Washer - PLAIN, 1.4MM	Washer - PLAIN, 1.4MM
16	91205-PL3-B01	Oil seal - 40X56X8(ARAI)	Oil seal - 40X56X8(ARAI)
17	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

Trunk lid 3 / 29

#	OEM	CU2	CW2
1	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
31	90108-SF1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
36	90856-SDA-A01	Plug - TRUNK DRAIN	Plug - TRUNK DRAIN

Valve/rocker arm (2.4L) 17 / 17

#	OEM	CU2	CW2
1	14620-R40-A00	Arm assy. - ROCKER	Arm assy. - ROCKER
1	14620-R40-A01	ARM ASSY, ROCKER	ARM ASSY, ROCKER
2	14624-R40-A01	Arm assy. EX. ROCKER	Arm assy. EX. ROCKER
3	14647-RAA-A00	Washer - THRUST	Washer - THRUST
4	14711-R40-A00	Valve - IN.	Valve - IN.
5	14721-R40-A00	Valve - EX.	Valve - EX.
6	14744-R40-A01	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
7	14761-R40-A02	Spring - IN. VALVE(BLUE) (CHUO SPRING)	Spring - IN. VALVE(BLUE) (CHUO SPRING)
7	14761-R40-A01	Spring - IN. VALVE(BLUE) (NIPPON HATSUJO)	Spring - IN. VALVE(BLUE) (NIPPON HATSUJO)
8	14762-R40-A02	Spring - EX. VALVE(ORANGE) (CHUO SPRING)	Spring - EX. VALVE(ORANGE) (CHUO SPRING)
8	14762-R40-A01	Spring - EX. VALVE(ORANGE) (NIPPON HATSUJO)	Spring - EX. VALVE(ORANGE) (NIPPON HATSUJO)
9	14765-R40-A00	Retainer - VALVE SPRING	Retainer - VALVE SPRING
10	14775-PCX-000	Seat - VALVE SPRING	Seat - VALVE SPRING
11	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
12	14820-PNA-003	Motion comp - LOST	Motion comp - LOST
12	14820-PNA-013	MOTION,	MOTION,
13	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)	Nut - TAPPET ADJUSTING (TOKAI TRW)

Vsa modulator 4 / 6

#	OEM	CU2	CW2
1	57101-SLJ-003	Rubber - MOUNT	Rubber - MOUNT
2	57110-TL2-G02	Modulator assy - VSA (REWRITABLE)	Modulator assy - VSA (REWRITABLE)
4	57115-TL1-G01	Bracket - MODULATOR	Bracket - MODULATOR
5	57376-SNA-A00	Bolt - MOUNTING	Bolt - MOUNTING

Vtc oil control valve (2.4L) 19 / 19

#	OEM	CU2	CW2
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
3	12251-R40-A01	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
4	15811-R40-003	Valve sub assy. - SPOOL	Valve sub assy. - SPOOL
5	15815-R40-A01	Filter assy - SPOOL VALVE	Filter assy - SPOOL VALVE
6	15830-RBB-003	VTC OIL CONTROL VALVE ASSY	VTC OIL CONTROL VALVE ASSY
7	15832-PNA-003	O-ring	O-ring
7	15832-PNA-023	ORING	ORING
8	15835-PNA-003	Bolt - VTC SOLENOID	Bolt - VTC SOLENOID
9	15840-RAA-A00	Strainer assy - VTC	Strainer assy - VTC
10	15845-RAA-A01	Filter assy - VTC	Filter assy - VTC
11	32743-R40-A00	Stay comp - ENGINE HARNESS	Stay comp - ENGINE HARNESS
12	37241-R40-A00	Stay comp - ENGINE HARNESS	Stay comp - ENGINE HARNESS
13	90001-P70-000	Bolt - FLANGE, 10X10.5	Bolt - FLANGE, 10X10.5
14	90005-RNA-A01	Bolt-washer - 11X176	Bolt-washer - 11X176
15	90026-P8A-A00	Bolt - STUD, 8X41	Bolt - STUD, 8X41
16	91319-PAA-A01	O-ring - 13X1.5	O-ring - 13X1.5

Water hose (2.4L) 10 / 11

#	OEM	CU2	CW2
1	19422-RL6-G01	Hose - OIL COOLER IN.	Hose - OIL COOLER IN.
2	19423-RL6-G02	Hose - OIL COOLER OUTLET	Hose - OIL COOLER OUTLET
3	19504-RAA-A00	Hose - BYPASS IN.	Hose - BYPASS IN.
4	19508-R40-A01	Hose - THROTTLE BODY IN.	Hose - THROTTLE BODY IN.
5	19509-R40-A01	Hose - THROTTLE BODY OUTLET	Hose - THROTTLE BODY OUTLET
6	19510-R40-A00	Pipe comp - HEATER	Pipe comp - HEATER
7	19512-PK2-003	Clip - HOSE, 18.7MM	Clip - HOSE, 18.7MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
9	19514-R40-A00	Hose a - BREATHER HEAT	Hose a - BREATHER HEAT
10	91315-PNA-003	O-ring - 19.3X3.8	O-ring - 19.3X3.8

Water hose (2.4L; LH) 7 / 7

#	OEM	CU2	CW2
1	79721-TA0-A00	Hose - WATER IN.	Hose - WATER IN.
2	79725-TA0-A00	Hose - WATER OUTLET	Hose - WATER OUTLET
3	79746-S6F-G01	Clamp - HEATER HOSE (BLACK)	Clamp - HEATER HOSE (BLACK)
4	90661-SL5-003	Clip, WATER HOSE	Clip, WATER HOSE
5	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
5	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
6	91551-SD5-003	Clamp - HEATER	Clamp - HEATER

Water pump (2.4L) 26 / 26

#	OEM	CU2	CW2
1	19200-RL6-G01	Pump comp - WATER	Pump comp - WATER
2	19222-RL6-G01	Packing - WATER PUMP	Packing - WATER PUMP
3	19224-R40-A01	Pulley - WATER PUMP	Pulley - WATER PUMP
4	19301-R40-A02	Thermostat assy - NIPPON THERMOSTAT	Thermostat assy - NIPPON THERMOSTAT
4	19301-R40-A01	Thermostat assy - FUJI SEIKO	Thermostat assy - FUJI SEIKO
5	19305-PNA-003	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)
5	19305-RAA-A01	Seal - THERMOSTAT COVER (FUJI SEIKO)	Seal - THERMOSTAT COVER (FUJI SEIKO)
6	19320-RAA-A01	Case comp. - THERMOSTAT (FUJI SEIKO)	Case comp. - THERMOSTAT (FUJI SEIKO)
6	19320-R40-A01	Case comp. - THERMOSTAT (NIPPON THERMOSTAT)	Case comp. - THERMOSTAT (NIPPON THERMOSTAT)
7	19322-PCX-003	O-ring - 43.8X3.1	O-ring - 43.8X3.1
8	19322-PNA-003	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)
8	19322-RAA-A01	Seal - THERMOSTAT CASE (FUJI SEIKO)	Seal - THERMOSTAT CASE (FUJI SEIKO)
9	19350-R40-A00	Outlet assy - WATER	Outlet assy - WATER
10	19352-R40-A01	Seal - WATER OUTLET	Seal - WATER OUTLET
11	19410-RL6-G00	Passage - WATER	Passage - WATER
12	19425-RL6-G00	Joint - OIL COOLER	Joint - OIL COOLER
13	37870-RWC-A01	Water Temp Sensor assy - (PANASONIC)	Water Temp Sensor assy - (PANASONIC)
14	90003-R40-A01	Bolt - STUD, 8X35	Bolt - STUD, 8X35
15	90013-PCX-000	Bolt - SPECIAL, 6X12	Bolt - SPECIAL, 6X12
16	90022-PRB-A01	Bolt - SPECIAL, 10X105	Bolt - SPECIAL, 10X105
17	90050-PNA-003	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)
17	90050-RAA-A01	Bolt - SPECIAL, 6X22 (FUJI SEIKO)	Bolt - SPECIAL, 6X22 (FUJI SEIKO)
18	90051-PNA-000	Bolt - SPECIAL, 6X28	Bolt - SPECIAL, 6X28
19	90204-PH7-000	Nut - SPECIAL	Nut - SPECIAL
20	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)	O-ring - 9.5X1.9 (MATSUSHITA)
21	91311-PRB-A00	O-ring - 13.5X3.5	O-ring - 13.5X3.5

Windshield washer 9 / 11

#	OEM	CU2	CW2
1	38562-SA0-003	Joint l - WASHER TUBE(MITSUBA)	Joint l - WASHER TUBE(MITSUBA)
2	76802-SEF-S01	Cap unit - MOUTH	Cap unit - MOUTH
3	76805-TL0-G02	Hose	Hose
6	76809-SE0-003	Grommet - WASHER TANK	Grommet - WASHER TANK
8	76841-TA1-M01	Tank - WASHER (5.0L FR.)	Tank - WASHER (5.0L FR.)
10	76842-S2K-J11	Bush - WASHER TANK	Bush - WASHER TANK
12	76864-TL0-G01	Tube - 1280MM	Tube - 1280MM
13	91511-TA0-A01	Clip - WASHER TUBE & OPEN WIRE	Clip - WASHER TUBE & OPEN WIRE
14	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Wire harness (1; LH) 10 / 14

#	OEM	CU2	CW2
1	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)	Holder - CORRUGATED (DARK BLUE) (10MM)
2	32120-TL3-G70	Harness - L. CABIN WIRE	Harness - L. CABIN WIRE
3	32127-TL0-G00	Harness - L. CABIN SUB WIRE	Harness - L. CABIN SUB WIRE
5	32601-TL2-A00	Cable assy - MISSION EARTH	Cable assy - MISSION EARTH
7	32602-TL0-G10	Cable assy - EPS EARTH	Cable assy - EPS EARTH
9	32610-TL2-A00	Cable assy - SUB EARTH	Cable assy - SUB EARTH
11	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
12	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
13	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
14	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)

Wire harness (2; LH) 3 / 7

#	OEM	CU2	CW2
5	35506-SMA-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
6	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
7	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (3; LH) 10 / 12

#	OEM	CU2	CW2
1	32100-TL1-G50	Harness - R. CABIN WIRE	Harness - R. CABIN WIRE
2	32116-TL0-G20	Harness - SWITCH SUB WIRE	Harness - SWITCH SUB WIRE
3	32118-TL0-G50	Harness - AUDIO SUB WIRE	Harness - AUDIO SUB WIRE
5	32155-TL0-G00	Cord - INTERIOR	Cord - INTERIOR
8	32161-TA0-000	Cord - RR. LEVELING SENSOR	Cord - RR. LEVELING SENSOR
11	32752-TL0-G00	Harness - DOOR WIRE (PASSENGER SIDE)	Harness - DOOR WIRE (PASSENGER SIDE)
12	32753-TL0-G20	Harness - R. RR. DOOR WIRE	Harness - R. RR. DOOR WIRE
13	32754-TL0-G20	Harness - L. RR. DOOR WIRE	Harness - L. RR. DOOR WIRE
14	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
15	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
