CS1A × CS9A

共通 1,886 / 合計 3,802 · Jaccard 49.6%
CS1A Mitsubishi LANCER — 2,807 中 1,886 共有
CS9A Mitsubishi LANCER — 2,881 中 1,886 共有
1,886 件
A/c condenser, piping (COMPRESSOR) 2 / 6
CS1A A/c condenser, piping (COMPRESSOR)
CS9A A/c condenser, piping (COMPRESSOR)
# OEM CS1A CS9A
87180 MR315936 CLUTCH KIT, A/C COMPRESSOR SERVICE CLUTCH KIT, A/C COMPRESSOR SERVICE
87228 MR460110 SWITCH, A/C COMPRESSOR REFRIGERANT TEMPERATURE SWITCH, A/C COMPRESSOR REFRIGERANT TEMPERATURE
A/c condenser, piping (COMPRESSOR,BRACKET) 3 / 7
CS1A A/c condenser, piping (COMPRESSOR,BRACKET)
CS9A A/c condenser, piping (COMPRESSOR,BRACKET)
# OEM CS1A CS9A
87684 MF140245 BOLT, VALVE GEAR TRAIN - Flange,8x100 BOLT, VALVE GEAR TRAIN - Flange,8x100
87684 MF244870 BOLT, A/C COMPRESSOR - Washer assembled,8x100 BOLT, A/C COMPRESSOR - Washer assembled,8x100
87684 MF140260 BOLT, ROCKER COVER - Flange,10x25 BOLT, ROCKER COVER - Flange,10x25
A/c condenser, piping (CONDENSER) 8 / 9
CS1A A/c condenser, piping (CONDENSER)
CS9A A/c condenser, piping (CONDENSER)
# OEM CS1A CS9A
87016 MN151100 CONDENSER ASSY, A/C REFRIGERANT CONDENSER ASSY, A/C REFRIGERANT
87065 MR500065 RECEIVER ASSY, A/C RECEIVER ASSY, A/C
87501 MR500042 NUT, A/C CONDENSER NUT, A/C CONDENSER
87504 MS240144 BOLT, FUEL LINE - Washer assembled,6x30 BOLT, FUEL LINE - Washer assembled,6x30
87504 MF243624 BOLT - Washer assembled,6x16 BOLT - Washer assembled,6x16
87504 MF243628 BOLT, CONNROD - Washer assembled,6x25 BOLT, CONNROD - Washer assembled,6x25
87590 MR568513 CLAMP, A/C CONDENSER CLAMP, A/C CONDENSER
87668 MB946604 O-RING, RR A/C O-RING, RR A/C
A/c condenser, piping (CONTROL) 1 / 1
CS1A A/c condenser, piping (CONTROL)
CS9A A/c condenser, piping (CONTROL)
# OEM CS1A CS9A
87542 MR538851 RELAY, A/T FAIL SAFE CONTROL RELAY, A/T FAIL SAFE CONTROL
A/c condenser, piping (PIPING..LHD) 21 / 23
CS1A A/c condenser, piping (PIPING..LHD)
CS9A A/c condenser, piping (PIPING..LHD)
# OEM CS1A CS9A
87040 MR460296 COVER, A/C EVAPORATOR COVER, A/C EVAPORATOR
87051 MN124567 PIPE, A/C CONDENSER OUTLET PIPE, A/C CONDENSER OUTLET
87051 MN124693 PIPE, A/C CONDENSER OUTLET PIPE, A/C CONDENSER OUTLET
87051 MN124564 PIPE,A/C CONDENSER OUTLET PIPE,A/C CONDENSER OUTLET
87076 MR250683 SWITCH, A/C REFRIGERANT PRESSURE SWITCH, A/C REFRIGERANT PRESSURE
87076 MR996148 SWITCH, A/C REFRIGERANT PRESSURE SWITCH, A/C REFRIGERANT PRESSURE
87582 MS440502 NUT, FUEL TANK - Washer assembled,6 NUT, FUEL TANK - Washer assembled,6
87585 MR568306 CLIP, A/C PIPING CLIP, A/C PIPING
87585 MU000342 CLIP, A/C PIPING CLIP, A/C PIPING
87585 MR460448 CLIP,A/C PIPING CLIP,A/C PIPING
87586 MU000351 CLAMP, A/C PIPING CLAMP, A/C PIPING
87587 MN184096 BRACKET, A/C PIPING BRACKET, A/C PIPING
87588 MF140203 BOLT, ACCEL CABLE SUPPORT - Flange,6x12 BOLT, ACCEL CABLE SUPPORT - Flange,6x12
87588 MF243628 BOLT, CONNROD - Washer assembled,6x25 BOLT, CONNROD - Washer assembled,6x25
87588 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
87588 MF140230 BOLT, T/M CONNECTING - Flange,8x32 BOLT, T/M CONNECTING - Flange,8x32
87588 MF245455 BOLT, A/C PIPING - Washer assembled,8x30 BOLT, A/C PIPING - Washer assembled,8x30
87668 MB946605 O-RING, RR A/C - 1/2 O-RING, RR A/C - 1/2
87668 MR146634 O-RING, A/C PIPING - 5/8 O-RING, A/C PIPING - 5/8
87668 MB946604 O-RING, RR A/C O-RING, RR A/C
87668 MR117263 O-RING, A/C PIPING - 3/4 O-RING, A/C PIPING - 3/4
A/c condenser, piping (PIPING..RHD) 21 / 24
CS1A A/c condenser, piping (PIPING..RHD)
CS9A A/c condenser, piping (PIPING..RHD)
# OEM CS1A CS9A
87040 MR460296 COVER, A/C EVAPORATOR COVER, A/C EVAPORATOR
87051 MN124567 PIPE, A/C CONDENSER OUTLET PIPE, A/C CONDENSER OUTLET
87051 MN124693 PIPE, A/C CONDENSER OUTLET PIPE, A/C CONDENSER OUTLET
87051 MN124694 PIPE, A/C CONDENSER OUTLET PIPE, A/C CONDENSER OUTLET
87076 MR250683 SWITCH, A/C REFRIGERANT PRESSURE SWITCH, A/C REFRIGERANT PRESSURE
87076 MR996148 SWITCH, A/C REFRIGERANT PRESSURE SWITCH, A/C REFRIGERANT PRESSURE
87582 MS440502 NUT, FUEL TANK - Washer assembled,6 NUT, FUEL TANK - Washer assembled,6
87585 MR568306 CLIP, A/C PIPING CLIP, A/C PIPING
87585 MU000342 CLIP, A/C PIPING CLIP, A/C PIPING
87586 MU000351 CLAMP, A/C PIPING CLAMP, A/C PIPING
87586 MR568629 CLAMP, A/C PIPING CLAMP, A/C PIPING
87587 MN184096 BRACKET, A/C PIPING BRACKET, A/C PIPING
87588 MF140203 BOLT, ACCEL CABLE SUPPORT - Flange,6x12 BOLT, ACCEL CABLE SUPPORT - Flange,6x12
87588 MF243628 BOLT, CONNROD - Washer assembled,6x25 BOLT, CONNROD - Washer assembled,6x25
87588 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
87588 MF140230 BOLT, T/M CONNECTING - Flange,8x32 BOLT, T/M CONNECTING - Flange,8x32
87588 MF245455 BOLT, A/C PIPING - Washer assembled,8x30 BOLT, A/C PIPING - Washer assembled,8x30
87668 MB946605 O-RING, RR A/C - 1/2 O-RING, RR A/C - 1/2
87668 MR146634 O-RING, A/C PIPING - 5/8 O-RING, A/C PIPING - 5/8
87668 MB946604 O-RING, RR A/C O-RING, RR A/C
87668 MR117263 O-RING, A/C PIPING - 3/4 O-RING, A/C PIPING - 3/4
Air cleaner (ALL) 13 / 21
CS1A Air cleaner (ALL)
CS9A Air cleaner (ALL)
# OEM CS1A CS9A
11020 MR552951 ELEMENT, AIR CLEANER - Non woven ELEMENT, AIR CLEANER - Non woven
11089 MN135194 DUCT, AIR CLEANER INTAKE DUCT, AIR CLEANER INTAKE
11089 MN180186 DUCT, AIR CLEANER INTAKE DUCT, AIR CLEANER INTAKE
11092 MR450097 INSULATOR, AIR CLEANER SUPPORT INSULATOR, AIR CLEANER SUPPORT
11285 MB345544 CLIP, RADIATOR GRILLE - 6.5-7.5 CLIP, RADIATOR GRILLE - 6.5-7.5
11285 MB476821 CLIP, SPLASH SHIELD CLIP, SPLASH SHIELD
11294 MR312769 COLLAR, AIR CLEANER COLLAR, AIR CLEANER
11296 MR481796 CLAMP, AIR CLEANER INR CLAMP, AIR CLEANER INR
11297 MF661137 CLAMP, AIR CLEANER - 80 CLAMP, AIR CLEANER - 80
11297 MF661142 CLAMP, AIR CLEANER INR - 93 CLAMP, AIR CLEANER INR - 93
11299 MD305640 BOLT, AIR CLEANER - Washer assembled,6x35 BOLT, AIR CLEANER - Washer assembled,6x35
11299 MS240085 BOLT, ENG OIL LINE - Washer assembled,8x20 BOLT, ENG OIL LINE - Washer assembled,8x20
11299 MS240125 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
Alternator & vacuum pump (ALL) 11 / 23
CS1A Alternator & vacuum pump (ALL)
CS9A Alternator & vacuum pump (ALL)
# OEM CS1A CS9A
14205 MD611928 BEARING, ALTERNATOR ROTOR BEARING, ALTERNATOR ROTOR
14220 MD618689 BRUSH, ALTERNATOR BRUSH, ALTERNATOR
14266 MD618927 NUT KIT, ALTERNATOR PULLEY NUT KIT, ALTERNATOR PULLEY
14297 MD619997 REGULATOR, ALTERNATOR REGULATOR, ALTERNATOR
14307 MD611556 SCREW SET, ALTERNATOR INR SCREW SET, ALTERNATOR INR
14307 MD611558 SCREW SET, ALTERNATOR INR SCREW SET, ALTERNATOR INR
14384 MF450006 WASHER, CYLINDER HEAD - Plain,10 WASHER, CYLINDER HEAD - Plain,10
14384 MF450406 WASHER - Spring,10 WASHER - Spring,10
14788 MF430122 NUT, ENG RR MOUNTING - 10 NUT, ENG RR MOUNTING - 10
14799 MF140233 BOLT, ENG FR CASE - Flange,8x40 BOLT, ENG FR CASE - Flange,8x40
14799 MD335229 BOLT, ALTERNATOR - 10x111 BOLT, ALTERNATOR - 10x111
Antenna & condenser (ANTENNA) 5 / 5
CS1A Antenna & condenser (ANTENNA)
CS9A Antenna & condenser (ANTENNA)
# OEM CS1A CS9A
85004 MN134979 BASE,ANTENNA BASE,ANTENNA
85014 MR551259 FEEDER, ANTENNA FEEDER, ANTENNA
85014 MR587131 FEEDER,ANTENNA FEEDER,ANTENNA
85021 MR973541 MAST,ANTENNA MAST,ANTENNA
85088 MR583214 NUT, ANTENNA NUT, ANTENNA
Antenna & condenser (CABLE) 3 / 4
CS1A Antenna & condenser (CABLE)
CS9A Antenna & condenser (CABLE)
# OEM CS1A CS9A
85989 MB133273 BOLT, FUEL LINE - Washer assembled,6x16 BOLT, FUEL LINE - Washer assembled,6x16
85989 MF915000 BOLT, ROOM LAMP - Flange,6x16 BOLT, ROOM LAMP - Flange,6x16
85989 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
Anti-skid brake sensor (ALL) 17 / 17
CS1A Anti-skid brake sensor (ALL)
CS9A Anti-skid brake sensor (ALL)
# OEM CS1A CS9A
55969 MR569781 SENSOR, RR ABS, LH SENSOR, RR ABS, LH
55969 MR407821 SENSOR, RR ABS, RH SENSOR, RR ABS, RH
55981 MR527311 SENSOR, FR ABS, LH SENSOR, FR ABS, LH
55981 MR527312 SENSOR, FR ABS, RH SENSOR, FR ABS, RH
55991 MS450241 SCREW, T/M CONTROL UNIT - Tapping,6x16 SCREW, T/M CONTROL UNIT - Tapping,6x16
55993 MS440503 NUT - Washer assembled,8 NUT - Washer assembled,8
55998 MR407893 CLIP, ABS EQUIP CLIP, ABS EQUIP
55998 MR407894 CLIP, ABS EQUIP CLIP, ABS EQUIP
55998 MR390306 CLIP, ABS EQUIP CLIP, ABS EQUIP
55998 MR390305 CLIP, ABS EQUIP CLIP, ABS EQUIP
55998 MU800001 BAND, WIRING BAND, WIRING
55998 MU802644 CLIP, GEARSHIFT LINK CLIP, GEARSHIFT LINK
55998 MR569783 CLIP, ABS EQUIP CLIP, ABS EQUIP
55998 MR249994 CLIP, ABS EQUIP CLIP, ABS EQUIP
55998 MR449115 CLIP, ABS EQUIP CLIP, ABS EQUIP
55998 MR449116 CLIP, ABS EQUIP CLIP, ABS EQUIP
55999 MS240085 BOLT, ENG OIL LINE - Washer assembled,8x20 BOLT, ENG OIL LINE - Washer assembled,8x20
Baggage room trim (REAR SHELF TRIM,ETC.) 14 / 29
CS1A Baggage room trim (REAR SHELF TRIM,ETC.)
CS9A Baggage room trim (REAR SHELF TRIM,ETC.)
# OEM CS1A CS9A
72233 MR633504 TRIM,RR SHELF TRIM,RR SHELF
72255 MR633501 COVER,RR SHELF UNDER COVER,RR SHELF UNDER
72268 MR633512 COVER,TRUNK ROOM SHELF,FR COVER,TRUNK ROOM SHELF,FR
72291 MS452413 SCREW, RR SHELF TRIM - Tapping,4x25 SCREW, RR SHELF TRIM - Tapping,4x25
72291 MS450155 SCREW, RR END PANEL GARNISH - Tapping,5x10 SCREW, RR END PANEL GARNISH - Tapping,5x10
72296 MR962621 CLIP, HEADLINING CLIP, HEADLINING
72296 MR417196 CLIP, RR SHELF TRIM CLIP, RR SHELF TRIM
72296 MR975151 CLIP, RR SHELF TRIM CLIP, RR SHELF TRIM
72296 MU481245 CLIP, GATE PILLAR TRIM - 18x13.2 CLIP, GATE PILLAR TRIM - 18x13.2
72328 MR633513 TRIM,RR SEAT BACK BRACE,LH TRIM,RR SEAT BACK BRACE,LH
72328 MR633514 TRIM,RR SEAT BACK BRACE,RH TRIM,RR SEAT BACK BRACE,RH
72858 MR572500 CLIP, TRUNK ROOM TRIM CLIP, TRUNK ROOM TRIM
85511 MR631995 GARNISH, RR SHELF SPEAKER, LH GARNISH, RR SHELF SPEAKER, LH
85511 MR631996 GARNISH, RR SHELF SPEAKER, RH GARNISH, RR SHELF SPEAKER, RH
Baggage room trim (TRUNK ROOM TRIM) 10 / 10
CS1A Baggage room trim (TRUNK ROOM TRIM)
CS9A Baggage room trim (TRUNK ROOM TRIM)
# OEM CS1A CS9A
65104 MN134679 BOARD,TRUNK ROOM FLOOR BOARD,TRUNK ROOM FLOOR
65104 MR444322 BOARD, TRUNK ROOM FLOOR BOARD, TRUNK ROOM FLOOR
72320 MR444263 TRIM,TRUNK ROOM SIDE,LH TRIM,TRUNK ROOM SIDE,LH
72320 MR444264 TRIM,TRUNK ROOM SIDE,RH TRIM,TRUNK ROOM SIDE,RH
72335 MR444269 TRIM, TRUNK ROOM RR END TRIM, TRUNK ROOM RR END
72858 MB963300 CLIP, HEADLINING CLIP, HEADLINING
72858 MR201972 CLIP, RR END TRIM CLIP, RR END TRIM
72858 MR572500 CLIP, TRUNK ROOM TRIM CLIP, TRUNK ROOM TRIM
72883 MB608104 CLIP, FR DOOR TRIM - 18x18.5 CLIP, FR DOOR TRIM - 18x18.5
72883 MU481245 CLIP, GATE PILLAR TRIM - 18x13.2 CLIP, GATE PILLAR TRIM - 18x13.2
Battery cable & bracket (ALL) 14 / 20
CS1A Battery cable & bracket (ALL)
CS9A Battery cable & bracket (ALL)
# OEM CS1A CS9A
83569 MS440503 NUT - Washer assembled,8 NUT - Washer assembled,8
83577 MB133273 BOLT, FUEL LINE - Washer assembled,6x16 BOLT, FUEL LINE - Washer assembled,6x16
83577 MF915000 BOLT, ROOM LAMP - Flange,6x16 BOLT, ROOM LAMP - Flange,6x16
83799 MN164187 FUSIBLE LINK - 100a FUSIBLE LINK - 100a
85100 MR359126 BATTERY - 55d23l BATTERY - 55d23l
85100 MR405879 BATTERY - 75d23l BATTERY - 75d23l
85124 MN164207 CAP, BATTERY TERMINAL CAP, BATTERY TERMINAL
85133 MR238277 HOLDER, BATTERY - 175 HOLDER, BATTERY - 175
85141 MR325261 L-BOLT KIT, BATTERY - 6x229 L-BOLT KIT, BATTERY - 6x229
85141 MR465831 L-BOLT KIT, BATTERY - 6x247 L-BOLT KIT, BATTERY - 6x247
85173 MK413790 TERMINAL, BATTERY - Nut position lh TERMINAL, BATTERY - Nut position lh
85173 MU001365 TERMINAL, BATTERY - Nut position lh TERMINAL, BATTERY - Nut position lh
85173 MU800890 TERMINAL, BATTERY - Nut position lh TERMINAL, BATTERY - Nut position lh
85175 MR479854 TRAY, BATTERY TRAY, BATTERY
Brake & clutch pedal (LHD) 13 / 15
CS1A Brake & clutch pedal (LHD)
CS9A Brake & clutch pedal (RHD)
# OEM CS1A CS9A
20000 MR493821 PEDAL ASSY,CLUTCH PEDAL ASSY,CLUTCH
20010 MB193884 PAD, BRAKE PEDAL - 62x58-40 PAD, BRAKE PEDAL - 62x58-40
20014 MB555171 BUSHING, CLUTCH PEDAL - 10x8 BUSHING, CLUTCH PEDAL - 10x8
53012 MR955822 PEDAL ASSY,BRAKE PEDAL ASSY,BRAKE
53035 MR235515 STOPPER, CLUTCH PEDAL STOPPER, CLUTCH PEDAL
53094 MR172162 CLIP, BRAKE PEDAL CLIP, BRAKE PEDAL
53098 MS240125 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
66802 MR417180 FOOTREST FOOTREST
66806 MR417198 CLIP, FOOTREST CLIP, FOOTREST
66893 MR206570 PLUG, FOOTREST PLUG, FOOTREST
66897 MU431014 NUT, RR SEAT - 8 NUT, RR SEAT - 8
66897 MU431508 NUT, HEATER - 8 NUT, HEATER - 8
82110 MR228924 SWITCH, STOP LAMP SWITCH, STOP LAMP
Brake & clutch pedal (RHD) 13 / 13
CS1A Brake & clutch pedal (RHD)
CS9A Brake & clutch pedal (RHD)
# OEM CS1A CS9A
20000 MR493807 PEDAL ASSY,CLUTCH PEDAL ASSY,CLUTCH
20010 MB193884 PAD, BRAKE PEDAL - 62x58-40 PAD, BRAKE PEDAL - 62x58-40
20014 MB555171 BUSHING, CLUTCH PEDAL - 10x8 BUSHING, CLUTCH PEDAL - 10x8
20045 MR235515 STOPPER, CLUTCH PEDAL STOPPER, CLUTCH PEDAL
53012 MR493801 PEDAL ASSY, BRAKE PEDAL ASSY, BRAKE
53094 MR172162 CLIP, BRAKE PEDAL CLIP, BRAKE PEDAL
53098 MS240125 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
66802 MR417199 FOOTREST FOOTREST
66806 MR417198 CLIP, FOOTREST CLIP, FOOTREST
66893 MR206570 PLUG, FOOTREST PLUG, FOOTREST
66897 MU431014 NUT, RR SEAT - 8 NUT, RR SEAT - 8
66897 MU431508 NUT, HEATER - 8 NUT, HEATER - 8
82110 MR228924 SWITCH, STOP LAMP SWITCH, STOP LAMP
Brake line (FRONT..LHD) 22 / 22
CS1A Brake line (FRONT..LHD)
CS9A Brake line (FRONT..LHD)
# OEM CS1A CS9A
54900 MR407889 HOSE, FR BRAKE - 300+257 HOSE, FR BRAKE - 300+257
54985 MS440503 NUT - Washer assembled,8 NUT - Washer assembled,8
54985 MU431508 NUT, HEATER - 8 NUT, HEATER - 8
54988 MB316561 GROMMET, FRAME BRAKE FLUID LINE - 24.5 GROMMET, FRAME BRAKE FLUID LINE - 24.5
54989 MA111832 GASKET, CLUTCH M/CYL - 10.2 GASKET, CLUTCH M/CYL - 10.2
54990 MR510683 JOINT, BRAKE FLUID LINE JOINT, BRAKE FLUID LINE
54992 MA431825 CLIP, BRAKE FLUID LINE - 13 CLIP, BRAKE FLUID LINE - 13
54992 MB895797 CLIP, BRAKE FLUID LINE - 4.8-4.8 CLIP, BRAKE FLUID LINE - 4.8-4.8
54992 MR129462 CLIP, RR AXLE BRAKE TUBE - 4.8 CLIP, RR AXLE BRAKE TUBE - 4.8
54992 MR129463 CLIP, BRAKE FLUID LINE - 4.76-4.76-4.76-4.76-4.76 CLIP, BRAKE FLUID LINE - 4.76-4.76-4.76-4.76-4.76
54992 MB344693 CLIP, BRAKE FLUID LINE - 4.8-4.8-4.8 CLIP, BRAKE FLUID LINE - 4.8-4.8-4.8
54992 MB668684 CLIP, BRAKE FLUID LINE - 4.7-4.7-4.7 CLIP, BRAKE FLUID LINE - 4.7-4.7-4.7
54996 MR249625 EYEBOLT, BRAKE FLUID LINE - 10x21 EYEBOLT, BRAKE FLUID LINE - 10x21
54996 MU001458 EYEBOLT, RR AXLE BRAKE TUBE EYEBOLT, RR AXLE BRAKE TUBE
56202 MR407890 BRACKET, BRAKE HOSE, LH BRACKET, BRAKE HOSE, LH
56202 MR407891 BRACKET, BRAKE HOSE, RH BRACKET, BRAKE HOSE, RH
56255 MR493305 TUBE,BRAKE M/CYL PRIMARY TUBE,BRAKE M/CYL PRIMARY
56256 MR493306 TUBE,BRAKE M/CYL SECONDARY TUBE,BRAKE M/CYL SECONDARY
56263 MR493289 TUBE,BRAKE MAIN,FR LH TUBE,BRAKE MAIN,FR LH
56263 MR493290 TUBE,BRAKE MAIN,FR RH TUBE,BRAKE MAIN,FR RH
56267 MR493307 TUBE,FR BRAKE,LH TUBE,FR BRAKE,LH
56267 MR493288 TUBE,FR BRAKE,RH TUBE,FR BRAKE,RH
Brake line (FRONT..RHD) 24 / 24
CS1A Brake line (FRONT..RHD)
CS9A Brake line (FRONT..RHD)
# OEM CS1A CS9A
54900 MR407889 HOSE, FR BRAKE - 300+257 HOSE, FR BRAKE - 300+257
54985 MS440503 NUT - Washer assembled,8 NUT - Washer assembled,8
54985 MU431508 NUT, HEATER - 8 NUT, HEATER - 8
54988 MB316561 GROMMET, FRAME BRAKE FLUID LINE - 24.5 GROMMET, FRAME BRAKE FLUID LINE - 24.5
54989 MA111832 GASKET, CLUTCH M/CYL - 10.2 GASKET, CLUTCH M/CYL - 10.2
54990 MR510683 JOINT, BRAKE FLUID LINE JOINT, BRAKE FLUID LINE
54992 MA431825 CLIP, BRAKE FLUID LINE - 13 CLIP, BRAKE FLUID LINE - 13
54992 MB895797 CLIP, BRAKE FLUID LINE - 4.8-4.8 CLIP, BRAKE FLUID LINE - 4.8-4.8
54992 MR129462 CLIP, RR AXLE BRAKE TUBE - 4.8 CLIP, RR AXLE BRAKE TUBE - 4.8
54992 MR128780 CLIP, BRAKE FLUID LINE - 4.8-4.8-4.8 CLIP, BRAKE FLUID LINE - 4.8-4.8-4.8
54992 MR205046 CLIP, BRAKE FLUID LINE - 4.8-4.8-4.8-4.8 CLIP, BRAKE FLUID LINE - 4.8-4.8-4.8-4.8
54992 MB344693 CLIP, BRAKE FLUID LINE - 4.8-4.8-4.8 CLIP, BRAKE FLUID LINE - 4.8-4.8-4.8
54992 MB668684 CLIP, BRAKE FLUID LINE - 4.7-4.7-4.7 CLIP, BRAKE FLUID LINE - 4.7-4.7-4.7
54992 MR493270 CLIP, BRAKE FLUID LINE CLIP, BRAKE FLUID LINE
54996 MR249625 EYEBOLT, BRAKE FLUID LINE - 10x21 EYEBOLT, BRAKE FLUID LINE - 10x21
54996 MU001458 EYEBOLT, RR AXLE BRAKE TUBE EYEBOLT, RR AXLE BRAKE TUBE
56202 MR407890 BRACKET, BRAKE HOSE, LH BRACKET, BRAKE HOSE, LH
56202 MR407891 BRACKET, BRAKE HOSE, RH BRACKET, BRAKE HOSE, RH
56255 MR493295 TUBE, BRAKE M/CYL PRIMARY TUBE, BRAKE M/CYL PRIMARY
56256 MR493296 TUBE, BRAKE M/CYL SECONDARY TUBE, BRAKE M/CYL SECONDARY
56263 MR493279 TUBE, BRAKE MAIN, FR LH TUBE, BRAKE MAIN, FR LH
56263 MR493280 TUBE, BRAKE MAIN, FR RH TUBE, BRAKE MAIN, FR RH
56267 MR493277 TUBE, FR BRAKE, LH TUBE, FR BRAKE, LH
56267 MR493278 TUBE, FR BRAKE, RH TUBE, FR BRAKE, RH
Brake line (REAR) 7 / 7
CS1A Brake line (REAR)
CS9A Brake line (REAR)
# OEM CS1A CS9A
52901 MR449101 HOSE, RR BRAKE BODY SIDE - 280 HOSE, RR BRAKE BODY SIDE - 280
52902 MR493450 HOSE, RR BRAKE WHEEL SIDE - 245 HOSE, RR BRAKE WHEEL SIDE - 245
52991 MR493468 TUBE, RR AXLE BRAKE, LH TUBE, RR AXLE BRAKE, LH
52991 MR493469 TUBE, RR AXLE BRAKE, RH TUBE, RR AXLE BRAKE, RH
52997 MA431825 CLIP, BRAKE FLUID LINE - 13 CLIP, BRAKE FLUID LINE - 13
54992 MB344587 CLIP, RR AXLE BRAKE TUBE - 4.76 CLIP, RR AXLE BRAKE TUBE - 4.76
54997 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16

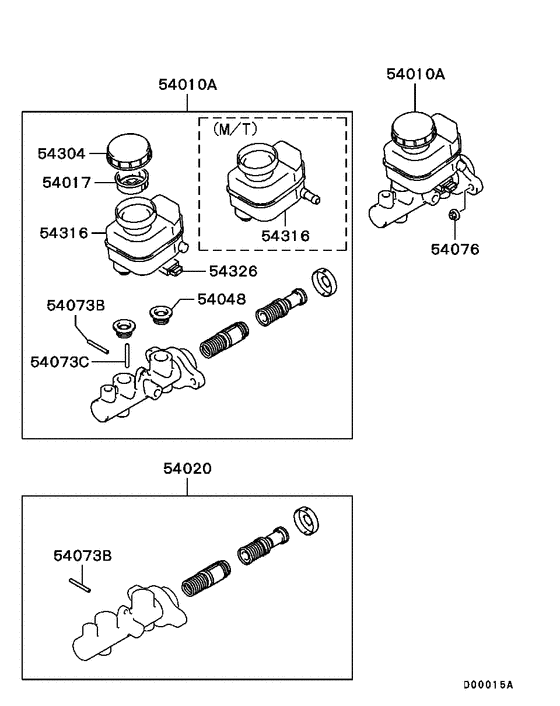

Brake master cylinder (LHD) 11 / 11
CS1A Brake master cylinder (LHD)
CS9A Brake master cylinder (LHD)
# OEM CS1A CS9A
54010 MR527631 CYLINDER ASSY,BRAKE MASTER CYLINDER ASSY,BRAKE MASTER
54017 MR569000 FILTER, BRAKE FLUID RESERVOIR FILTER, BRAKE FLUID RESERVOIR
54020 MN116985 CYLINDER KIT, BRAKE MASTER - 1; CYLINDER KIT, BRAKE MASTER - 1;
54020 MR334073 CYLINDER KIT, BRAKE MASTER - 1; CYLINDER KIT, BRAKE MASTER - 1;
54048 MR244929 SEAL, CLUTCH M/CYL SEAL, CLUTCH M/CYL
54073 MR334065 PIN, BRAKE M/CYL - Spring PIN, BRAKE M/CYL - Spring
54073 MR334068 PIN, BRAKE M/CYL PIN, BRAKE M/CYL
54076 MR129264 NUT, BRAKE M/CYL - Washer assembled,8 NUT, BRAKE M/CYL - Washer assembled,8
54304 MR475354 CAP, BRAKE FLUID RESERVOIR CAP, BRAKE FLUID RESERVOIR
54316 MR569039 RESERVOIR, BRAKE FLUID RESERVOIR, BRAKE FLUID
54326 MR334064 SWITCH, BRAKE FLUID LEVEL INDICATOR SWITCH, BRAKE FLUID LEVEL INDICATOR
Brake master cylinder (RHD) 10 / 11
CS1A Brake master cylinder (RHD)
CS9A Brake master cylinder (LHD)
# OEM CS1A CS9A
54017 MR569000 FILTER, BRAKE FLUID RESERVOIR FILTER, BRAKE FLUID RESERVOIR
54020 MN116985 CYLINDER KIT, BRAKE MASTER - 1; CYLINDER KIT, BRAKE MASTER - 1;
54020 MR334073 CYLINDER KIT, BRAKE MASTER - 1; CYLINDER KIT, BRAKE MASTER - 1;
54048 MR244929 SEAL, CLUTCH M/CYL SEAL, CLUTCH M/CYL
54073 MR334065 PIN, BRAKE M/CYL - Spring PIN, BRAKE M/CYL - Spring
54073 MR334068 PIN, BRAKE M/CYL PIN, BRAKE M/CYL
54076 MR129264 NUT, BRAKE M/CYL - Washer assembled,8 NUT, BRAKE M/CYL - Washer assembled,8
54304 MR475354 CAP, BRAKE FLUID RESERVOIR CAP, BRAKE FLUID RESERVOIR
54316 MR569039 RESERVOIR, BRAKE FLUID RESERVOIR, BRAKE FLUID
54326 MR334064 SWITCH, BRAKE FLUID LEVEL INDICATOR SWITCH, BRAKE FLUID LEVEL INDICATOR

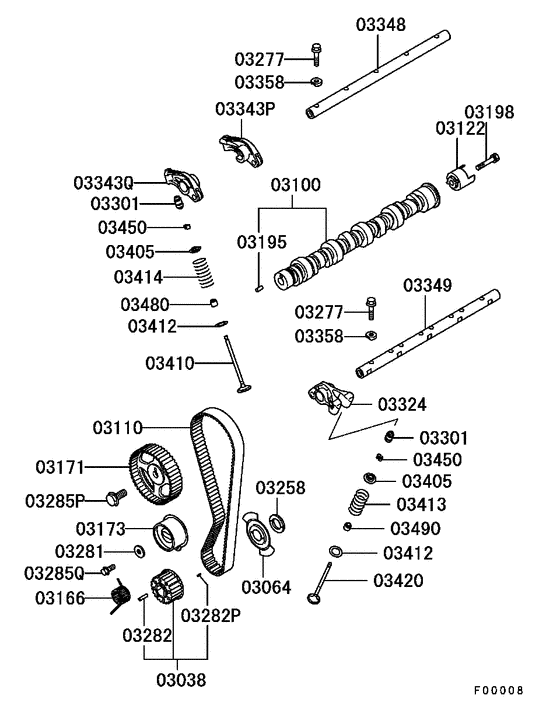

Camshaft & valve (ALL) 3 / 33
CS1A Camshaft & valve (ALL)
CS9A Camshaft & valve (ALL)
# OEM CS1A CS9A
3195 MD158443 PIN, CAMSHAFT - Dowel,6x14 PIN, CAMSHAFT - Dowel,6x14
3281 MF450154 WASHER, ENG FR MOUNTING - Plain,8 WASHER, ENG FR MOUNTING - Plain,8
3285 MF140285 BOLT, ENG RR PLATE - Flange,12x30 BOLT, ENG RR PLATE - Flange,12x30
Clutch & clutch release (ALL) 26 / 28
CS1A Clutch & clutch release (ALL)
CS9A Clutch & clutch release (ALL)
# OEM CS1A CS9A
20027 MD724003 INSULATOR, CLUTCH FLUID TUBE BRACKET INSULATOR, CLUTCH FLUID TUBE BRACKET
20400 MR980563 Cylinder Assy, Clutch Release Cylinder Assy, Clutch Release
20403 MD621006 BOOT, CLUTCH RELEASE CYLINDER BOOT, CLUTCH RELEASE CYLINDER
20404 MD747413 BOOT, CLUTCH RELEASE FORK BOOT, CLUTCH RELEASE FORK
20410 MD978907 CYLINDER KIT, CLUTCH RELEASE CYLINDER KIT, CLUTCH RELEASE
20412 MD701140 CAP, CLUTCH RELEASE CYLINDER BLEEDER SCREW CAP, CLUTCH RELEASE CYLINDER BLEEDER SCREW
20415 MD706185 CLIP, CLUTCH RELEASE BEARING RETURN CLIP, CLUTCH RELEASE BEARING RETURN
20418 MD603695 GASKET, CLUTCH RELEASE CYLINDER GASKET, CLUTCH RELEASE CYLINDER
20422 MD747524 FORK, CLUTCH RELEASE FORK, CLUTCH RELEASE
20423 MD719602 FULCRUM, CLUTCH RELEASE FORK FULCRUM, CLUTCH RELEASE FORK
20430 MD722744 BEARING, CLUTCH RELEASE - Ball,65.6 BEARING, CLUTCH RELEASE - Ball,65.6
20430 MD749998 BEARING, CLUTCH RELEASE - Ball,62.2 BEARING, CLUTCH RELEASE - Ball,62.2
20445 MD621009 PUSH ROD, CLUTCH RELEASE CYLINDER PUSH ROD, CLUTCH RELEASE CYLINDER
20453 MD621008 SPRING, CLUTCH RELEASE CYLINDER PISTON RETURN SPRING, CLUTCH RELEASE CYLINDER PISTON RETURN
20464 MD749397 TUBE, CLUTCH RELEASE CYLINDER TUBE, CLUTCH RELEASE CYLINDER
20896 MD621015 EYEBOLT, M/T CLUTCH CONTROL EQUIP EYEBOLT, M/T CLUTCH CONTROL EQUIP
20896 MR232418 EYEBOLT, M/T CLUTCH CONTROL EQUIP EYEBOLT, M/T CLUTCH CONTROL EQUIP
20896 MR453155 EYEBOLT, M/T CLUTCH CONTROL EQUIP EYEBOLT, M/T CLUTCH CONTROL EQUIP
20959 MD704268 PLUG, M/T CLUTCH CONTROL EQUIP PLUG, M/T CLUTCH CONTROL EQUIP
20961 MF241255 BOLT, CYLINDER HEAD - Washer assembled,8x25 BOLT, CYLINDER HEAD - Washer assembled,8x25
20961 MF244852 BOLT, A/T CASE - Washer assembled,8x22 BOLT, A/T CASE - Washer assembled,8x22
20961 MF140203 BOLT, ACCEL CABLE SUPPORT - Flange,6x12 BOLT, ACCEL CABLE SUPPORT - Flange,6x12
20965 MD724004 WASHER, M/T CLUTCH CONTROL EQUIP - 8.4 WASHER, M/T CLUTCH CONTROL EQUIP - 8.4
20966 MD621013 UNION, M/T CLUTCH CONTROL EQUIP UNION, M/T CLUTCH CONTROL EQUIP
20985 MD748037 BRACKET, M/T CLUTCH CONTROL EQUIP BRACKET, M/T CLUTCH CONTROL EQUIP
21132 MD747279 RETAINER, M/T CASE FR BEARING RETAINER, M/T CASE FR BEARING
Clutch control (LHD) 16 / 19
CS1A Clutch control (LHD)
CS9A Clutch control (RHD)
# OEM CS1A CS9A
20025 MR491896 HOSE,CLUTCH FLUID RESERVOIR HOSE,CLUTCH FLUID RESERVOIR
20110 MR403052 CYLINDER KIT, CLUTCH MASTER CYLINDER KIT, CLUTCH MASTER
20137 MB891411 PUSH ROD, CLUTCH M/CYL PUSH ROD, CLUTCH M/CYL
20144 MB555016 SEAL, CLUTCH M/CYL SEAL, CLUTCH M/CYL
20144 MR244929 SEAL, CLUTCH M/CYL SEAL, CLUTCH M/CYL
20178 MF451105 WASHER, BACK DOOR LOCKING - Wave,10 WASHER, BACK DOOR LOCKING - Wave,10
20186 MS440503 NUT - Washer assembled,8 NUT - Washer assembled,8
20187 MR448318 NIPPLE, CLUTCH M/CYL NIPPLE, CLUTCH M/CYL
20189 MF660063 GASKET, CYLINDER HEAD PLUG - D=10 GASKET, CYLINDER HEAD PLUG - D=10
20193 MB858800 PIN, BRAKE BOOSTER - Snap,10 PIN, BRAKE BOOSTER - Snap,10
20193 MF473492 PIN, CLUTCH M/CYL - Clevis,10x23 PIN, CLUTCH M/CYL - Clevis,10x23
20193 MR244930 PIN, CLUTCH M/CYL PIN, CLUTCH M/CYL
20194 MB058362 CLIP, FUEL VAPOR CONTROL LINE - 13.2 CLIP, FUEL VAPOR CONTROL LINE - 13.2
20425 MR519379 HOSE,CLUTCH RELEASE CYLINDER HOSE,CLUTCH RELEASE CYLINDER
20920 MF520005 O-RING, ENG OIL FILLER - D=10 O-RING, ENG OIL FILLER - D=10
20957 MA431825 CLIP, BRAKE FLUID LINE - 13 CLIP, BRAKE FLUID LINE - 13
Clutch control (RHD) 16 / 17
CS1A Clutch control (RHD)
CS9A Clutch control (RHD)
# OEM CS1A CS9A
20025 MB851043 HOSE, BRAKE M/CYL FLUID RESERVOIR - 9x185 HOSE, BRAKE M/CYL FLUID RESERVOIR - 9x185
20110 MR403052 CYLINDER KIT, CLUTCH MASTER CYLINDER KIT, CLUTCH MASTER
20137 MB891411 PUSH ROD, CLUTCH M/CYL PUSH ROD, CLUTCH M/CYL
20144 MB555016 SEAL, CLUTCH M/CYL SEAL, CLUTCH M/CYL
20144 MR244929 SEAL, CLUTCH M/CYL SEAL, CLUTCH M/CYL
20157 MR491913 TUBE, CLUTCH M/CYL TUBE, CLUTCH M/CYL
20178 MF451105 WASHER, BACK DOOR LOCKING - Wave,10 WASHER, BACK DOOR LOCKING - Wave,10
20186 MS440503 NUT - Washer assembled,8 NUT - Washer assembled,8
20187 MR448318 NIPPLE, CLUTCH M/CYL NIPPLE, CLUTCH M/CYL
20193 MB858800 PIN, BRAKE BOOSTER - Snap,10 PIN, BRAKE BOOSTER - Snap,10
20193 MF473492 PIN, CLUTCH M/CYL - Clevis,10x23 PIN, CLUTCH M/CYL - Clevis,10x23
20193 MR244930 PIN, CLUTCH M/CYL PIN, CLUTCH M/CYL
20194 MB058362 CLIP, FUEL VAPOR CONTROL LINE - 13.2 CLIP, FUEL VAPOR CONTROL LINE - 13.2
20425 MR554734 HOSE, CLUTCH RELEASE CYLINDER HOSE, CLUTCH RELEASE CYLINDER
20920 MF520005 O-RING, ENG OIL FILLER - D=10 O-RING, ENG OIL FILLER - D=10
20957 MA431825 CLIP, BRAKE FLUID LINE - 13 CLIP, BRAKE FLUID LINE - 13
Console (LHD -0506.3) 45 / 72
CS1A Console (LHD -0506.3)
CS9A Console (LHD -0506.3)
# OEM CS1A CS9A
65983 MN124264 PAD, FLOOR PAD, FLOOR
65983 MN162740 PAD,FLOOR - RH PAD,FLOOR - RH
65983 MN124265 PAD, FLOOR PAD, FLOOR
65983 MN162738 PAD, FLOOR PAD, FLOOR
73005 MR646881 ASHTRAY, INSTRUMENT PANEL ASHTRAY, INSTRUMENT PANEL
73618 MR626765 HOLDER, INSTRUMENT PANEL CONSOLE CUP HOLDER, INSTRUMENT PANEL CONSOLE CUP
73618 MR630444 HOLDER, INSTRUMENT PANEL CONSOLE CUP HOLDER, INSTRUMENT PANEL CONSOLE CUP
73694 MB918617 BULB, INSTRUMENT PANEL WIRING - 14v-1.4w BULB, INSTRUMENT PANEL WIRING - 14v-1.4w
73694 MS820083 BULB, GEARSHIFT LINK BULB, GEARSHIFT LINK
74002 MR789154 ASHTRAY, FLOOR CONSOLE ASHTRAY, FLOOR CONSOLE
74006 MR626771 BOX, FLOOR CONSOLE, INR BOX, FLOOR CONSOLE, INR
74016 MR532717 BRACKET,FLOOR CONSOLE - LHD BRACKET,FLOOR CONSOLE - LHD
74022 MR951419 BRACKET,FLOOR CONSOLE,FR BRACKET,FLOOR CONSOLE,FR
74023 MR506535 BRACKET, FLOOR CONSOLE, RR BRACKET, FLOOR CONSOLE, RR
74030 MR626770 CONSOLE, FLOOR, RR CONSOLE, FLOOR, RR
74041 MR633547 CONSOLE,FLOOR,FR CONSOLE,FLOOR,FR
74054 MR623872 COVER,FLOOR CONSOLE SIDE,LH COVER,FLOOR CONSOLE SIDE,LH
74054 MR623873 COVER,FLOOR CONSOLE SIDE,RH COVER,FLOOR CONSOLE SIDE,RH
74061 MB604673 CUSHION, FLOOR CONSOLE CUSHION, FLOOR CONSOLE
74065 MR233569 LEVER, ACCESSORY BOX LEVER, ACCESSORY BOX
74066 MR626773 LID, FLOOR CONSOLE LID, FLOOR CONSOLE
74066 MR654774 LID, FLOOR CONSOLE LID, FLOOR CONSOLE
74069 MR512709 HINGE, FLOOR CONSOLE BOX LID HINGE, FLOOR CONSOLE BOX LID
74069 MR572987 HINGE, FLOOR CONSOLE BOX LID HINGE, FLOOR CONSOLE BOX LID
74089 MR626793 STRIKER, FLOOR RR CONSOLE STRIKER, FLOOR RR CONSOLE
74089 MR626792 LOCK, FLOOR CONSOLE LOCK, FLOOR CONSOLE
74094 MB604627 SPRING, INSTRUMENT PANEL ASHTRAY HOLD SPRING, INSTRUMENT PANEL ASHTRAY HOLD
74182 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16 SCREW, TAPPING, 5x16 - Tapping,5x16
74182 MF453273 SCREW, SCUFF PLATE - Tapping,5x16 SCREW, SCUFF PLATE - Tapping,5x16
74182 MB409435 SCREW, INSTRUMENT PANEL - Tapping,4x10 SCREW, INSTRUMENT PANEL - Tapping,4x10
74182 MF453782 SCREW, QTR TRIM - Tapping,3x10 SCREW, QTR TRIM - Tapping,3x10
74182 MF453031 SCREW 5x12 - Tapping,5x12 SCREW 5x12 - Tapping,5x12
74182 MB409437 SCREW, STEERING COLUMN COVER - Tapping,5x12 SCREW, STEERING COLUMN COVER - Tapping,5x12
74182 MF351012 SCREW, RADIATOR GRILLE - Washer assembled,5x20 SCREW, RADIATOR GRILLE - Washer assembled,5x20
74182 MF351312 SCREW, INSTRUMENT PANEL UNDER TRIM - 5x20 SCREW, INSTRUMENT PANEL UNDER TRIM - 5x20
74182 MR381143 SCREW, FLOOR CONSOLE - Tapping,4x14 SCREW, FLOOR CONSOLE - Tapping,4x14
74186 MB135995 NUT, FUEL FILLER LID LOCKING - Spring,5 NUT, FUEL FILLER LID LOCKING - Spring,5
74188 MR402859 CLIP, FLOOR CONSOLE CLIP, FLOOR CONSOLE
74188 MB566720 CLIP, RR VIEW MIRROR - 9x14.6 CLIP, RR VIEW MIRROR - 9x14.6
74188 MR633536 CLIP,INSTRUMENT PANEL CONSOLE CLIP,INSTRUMENT PANEL CONSOLE
74192 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
74192 MS240125 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
82829 MN121271 CIGAR LIGHTER, INSTRUMENT PANEL CIGAR LIGHTER, INSTRUMENT PANEL
82829 MR233903 CIGAR LIGHTER, INSTRUMENT PANEL CIGAR LIGHTER, INSTRUMENT PANEL
83092 MR572112 HARNESS, INSTRUMENT PANEL CTR CONSOLE LAMP HARNESS, INSTRUMENT PANEL CTR CONSOLE LAMP
Console (LHD 0507.1-) 43 / 70
CS1A Console (LHD 0507.1-)
CS9A Console (LHD -0506.3)
# OEM CS1A CS9A
65983 MN124264 PAD, FLOOR PAD, FLOOR
65983 MN162740 PAD,FLOOR - RH PAD,FLOOR - RH
65983 MN124265 PAD, FLOOR PAD, FLOOR
65983 MN162738 PAD, FLOOR PAD, FLOOR
73005 MR646881 ASHTRAY, INSTRUMENT PANEL ASHTRAY, INSTRUMENT PANEL
73618 MR626765 HOLDER, INSTRUMENT PANEL CONSOLE CUP HOLDER, INSTRUMENT PANEL CONSOLE CUP
73618 MR630444 HOLDER, INSTRUMENT PANEL CONSOLE CUP HOLDER, INSTRUMENT PANEL CONSOLE CUP
73694 MB918617 BULB, INSTRUMENT PANEL WIRING - 14v-1.4w BULB, INSTRUMENT PANEL WIRING - 14v-1.4w
73694 MS820083 BULB, GEARSHIFT LINK BULB, GEARSHIFT LINK
74002 MR789154 ASHTRAY, FLOOR CONSOLE ASHTRAY, FLOOR CONSOLE
74006 MR626771 BOX, FLOOR CONSOLE, INR BOX, FLOOR CONSOLE, INR
74016 MR532717 BRACKET,FLOOR CONSOLE - LHD BRACKET,FLOOR CONSOLE - LHD
74022 MR951419 BRACKET,FLOOR CONSOLE,FR BRACKET,FLOOR CONSOLE,FR
74023 MR506535 BRACKET, FLOOR CONSOLE, RR BRACKET, FLOOR CONSOLE, RR
74030 MR626770 CONSOLE, FLOOR, RR CONSOLE, FLOOR, RR
74041 MR633547 CONSOLE,FLOOR,FR CONSOLE,FLOOR,FR
74054 MR623872 COVER,FLOOR CONSOLE SIDE,LH COVER,FLOOR CONSOLE SIDE,LH
74054 MR623873 COVER,FLOOR CONSOLE SIDE,RH COVER,FLOOR CONSOLE SIDE,RH
74061 MB604673 CUSHION, FLOOR CONSOLE CUSHION, FLOOR CONSOLE
74066 MR626773 LID, FLOOR CONSOLE LID, FLOOR CONSOLE
74066 MR654774 LID, FLOOR CONSOLE LID, FLOOR CONSOLE
74069 MR512709 HINGE, FLOOR CONSOLE BOX LID HINGE, FLOOR CONSOLE BOX LID
74069 MR572987 HINGE, FLOOR CONSOLE BOX LID HINGE, FLOOR CONSOLE BOX LID
74089 MR626793 STRIKER, FLOOR RR CONSOLE STRIKER, FLOOR RR CONSOLE
74089 MR626792 LOCK, FLOOR CONSOLE LOCK, FLOOR CONSOLE
74094 MB604627 SPRING, INSTRUMENT PANEL ASHTRAY HOLD SPRING, INSTRUMENT PANEL ASHTRAY HOLD
74182 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16 SCREW, TAPPING, 5x16 - Tapping,5x16
74182 MF453273 SCREW, SCUFF PLATE - Tapping,5x16 SCREW, SCUFF PLATE - Tapping,5x16
74182 MB409435 SCREW, INSTRUMENT PANEL - Tapping,4x10 SCREW, INSTRUMENT PANEL - Tapping,4x10
74182 MF453782 SCREW, QTR TRIM - Tapping,3x10 SCREW, QTR TRIM - Tapping,3x10
74182 MF453031 SCREW 5x12 - Tapping,5x12 SCREW 5x12 - Tapping,5x12
74182 MB409437 SCREW, STEERING COLUMN COVER - Tapping,5x12 SCREW, STEERING COLUMN COVER - Tapping,5x12
74182 MF351012 SCREW, RADIATOR GRILLE - Washer assembled,5x20 SCREW, RADIATOR GRILLE - Washer assembled,5x20
74182 MF351312 SCREW, INSTRUMENT PANEL UNDER TRIM - 5x20 SCREW, INSTRUMENT PANEL UNDER TRIM - 5x20
74186 MB135995 NUT, FUEL FILLER LID LOCKING - Spring,5 NUT, FUEL FILLER LID LOCKING - Spring,5
74188 MR402859 CLIP, FLOOR CONSOLE CLIP, FLOOR CONSOLE
74188 MB566720 CLIP, RR VIEW MIRROR - 9x14.6 CLIP, RR VIEW MIRROR - 9x14.6
74188 MR633536 CLIP,INSTRUMENT PANEL CONSOLE CLIP,INSTRUMENT PANEL CONSOLE
74192 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
74192 MS240125 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
82829 MN121271 CIGAR LIGHTER, INSTRUMENT PANEL CIGAR LIGHTER, INSTRUMENT PANEL
82829 MR233903 CIGAR LIGHTER, INSTRUMENT PANEL CIGAR LIGHTER, INSTRUMENT PANEL
83092 MR572112 HARNESS, INSTRUMENT PANEL CTR CONSOLE LAMP HARNESS, INSTRUMENT PANEL CTR CONSOLE LAMP
Console (RHD -0506.3) 42 / 65
CS1A Console (RHD -0506.3)
CS9A Console (RHD -0506.3)
# OEM CS1A CS9A
65983 MN124263 PAD, FLOOR PAD, FLOOR
65983 MN124264 PAD, FLOOR PAD, FLOOR
65983 MN124265 PAD, FLOOR PAD, FLOOR
65983 MN162738 PAD, FLOOR PAD, FLOOR
73005 MR646881 ASHTRAY, INSTRUMENT PANEL ASHTRAY, INSTRUMENT PANEL
73618 MR626765 HOLDER, INSTRUMENT PANEL CONSOLE CUP HOLDER, INSTRUMENT PANEL CONSOLE CUP
73694 MB918617 BULB, INSTRUMENT PANEL WIRING - 14v-1.4w BULB, INSTRUMENT PANEL WIRING - 14v-1.4w
73694 MS820083 BULB, GEARSHIFT LINK BULB, GEARSHIFT LINK
74002 MR789154 ASHTRAY, FLOOR CONSOLE ASHTRAY, FLOOR CONSOLE
74006 MR626771 BOX, FLOOR CONSOLE, INR BOX, FLOOR CONSOLE, INR
74016 MR962933 BRACKET, FLOOR CONSOLE BRACKET, FLOOR CONSOLE
74022 MR951418 BRACKET, FLOOR CONSOLE, FR BRACKET, FLOOR CONSOLE, FR
74023 MR506535 BRACKET, FLOOR CONSOLE, RR BRACKET, FLOOR CONSOLE, RR
74030 MR626770 CONSOLE, FLOOR, RR CONSOLE, FLOOR, RR
74041 MR626763 CONSOLE, FLOOR, FR CONSOLE, FLOOR, FR
74054 MR550408 COVER, FLOOR CONSOLE SIDE COVER, FLOOR CONSOLE SIDE
74061 MB604673 CUSHION, FLOOR CONSOLE CUSHION, FLOOR CONSOLE
74065 MR233569 LEVER, ACCESSORY BOX LEVER, ACCESSORY BOX
74066 MR626773 LID, FLOOR CONSOLE LID, FLOOR CONSOLE
74066 MR654774 LID, FLOOR CONSOLE LID, FLOOR CONSOLE
74069 MR512709 HINGE, FLOOR CONSOLE BOX LID HINGE, FLOOR CONSOLE BOX LID
74069 MR572987 HINGE, FLOOR CONSOLE BOX LID HINGE, FLOOR CONSOLE BOX LID
74089 MR626793 STRIKER, FLOOR RR CONSOLE STRIKER, FLOOR RR CONSOLE
74089 MR626792 LOCK, FLOOR CONSOLE LOCK, FLOOR CONSOLE
74094 MB604627 SPRING, INSTRUMENT PANEL ASHTRAY HOLD SPRING, INSTRUMENT PANEL ASHTRAY HOLD
74182 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16 SCREW, TAPPING, 5x16 - Tapping,5x16
74182 MF453273 SCREW, SCUFF PLATE - Tapping,5x16 SCREW, SCUFF PLATE - Tapping,5x16
74182 MB409435 SCREW, INSTRUMENT PANEL - Tapping,4x10 SCREW, INSTRUMENT PANEL - Tapping,4x10
74182 MF453782 SCREW, QTR TRIM - Tapping,3x10 SCREW, QTR TRIM - Tapping,3x10
74182 MF453031 SCREW 5x12 - Tapping,5x12 SCREW 5x12 - Tapping,5x12
74182 MB409437 SCREW, STEERING COLUMN COVER - Tapping,5x12 SCREW, STEERING COLUMN COVER - Tapping,5x12
74182 MF351012 SCREW, RADIATOR GRILLE - Washer assembled,5x20 SCREW, RADIATOR GRILLE - Washer assembled,5x20
74182 MF351312 SCREW, INSTRUMENT PANEL UNDER TRIM - 5x20 SCREW, INSTRUMENT PANEL UNDER TRIM - 5x20
74182 MR381143 SCREW, FLOOR CONSOLE - Tapping,4x14 SCREW, FLOOR CONSOLE - Tapping,4x14
74186 MB135995 NUT, FUEL FILLER LID LOCKING - Spring,5 NUT, FUEL FILLER LID LOCKING - Spring,5
74188 MR402859 CLIP, FLOOR CONSOLE CLIP, FLOOR CONSOLE
74188 MB566720 CLIP, RR VIEW MIRROR - 9x14.6 CLIP, RR VIEW MIRROR - 9x14.6
74192 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
74192 MS240125 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
82829 MN121271 CIGAR LIGHTER, INSTRUMENT PANEL CIGAR LIGHTER, INSTRUMENT PANEL
82829 MR233903 CIGAR LIGHTER, INSTRUMENT PANEL CIGAR LIGHTER, INSTRUMENT PANEL
83092 MR572112 HARNESS, INSTRUMENT PANEL CTR CONSOLE LAMP HARNESS, INSTRUMENT PANEL CTR CONSOLE LAMP
Console (RHD 0507.1-) 40 / 63
CS1A Console (RHD 0507.1-)
CS9A Console (RHD -0506.3)
# OEM CS1A CS9A
65983 MN124263 PAD, FLOOR PAD, FLOOR
65983 MN124264 PAD, FLOOR PAD, FLOOR
65983 MN124265 PAD, FLOOR PAD, FLOOR
65983 MN162738 PAD, FLOOR PAD, FLOOR
73005 MR646881 ASHTRAY, INSTRUMENT PANEL ASHTRAY, INSTRUMENT PANEL
73618 MR626765 HOLDER, INSTRUMENT PANEL CONSOLE CUP HOLDER, INSTRUMENT PANEL CONSOLE CUP
73694 MB918617 BULB, INSTRUMENT PANEL WIRING - 14v-1.4w BULB, INSTRUMENT PANEL WIRING - 14v-1.4w
73694 MS820083 BULB, GEARSHIFT LINK BULB, GEARSHIFT LINK
74002 MR789154 ASHTRAY, FLOOR CONSOLE ASHTRAY, FLOOR CONSOLE
74006 MR626771 BOX, FLOOR CONSOLE, INR BOX, FLOOR CONSOLE, INR
74016 MR962933 BRACKET, FLOOR CONSOLE BRACKET, FLOOR CONSOLE
74022 MR951418 BRACKET, FLOOR CONSOLE, FR BRACKET, FLOOR CONSOLE, FR
74023 MR506535 BRACKET, FLOOR CONSOLE, RR BRACKET, FLOOR CONSOLE, RR
74030 MR626770 CONSOLE, FLOOR, RR CONSOLE, FLOOR, RR
74041 MR626763 CONSOLE, FLOOR, FR CONSOLE, FLOOR, FR
74054 MR550408 COVER, FLOOR CONSOLE SIDE COVER, FLOOR CONSOLE SIDE
74061 MB604673 CUSHION, FLOOR CONSOLE CUSHION, FLOOR CONSOLE
74066 MR626773 LID, FLOOR CONSOLE LID, FLOOR CONSOLE
74066 MR654774 LID, FLOOR CONSOLE LID, FLOOR CONSOLE
74069 MR512709 HINGE, FLOOR CONSOLE BOX LID HINGE, FLOOR CONSOLE BOX LID
74069 MR572987 HINGE, FLOOR CONSOLE BOX LID HINGE, FLOOR CONSOLE BOX LID
74089 MR626793 STRIKER, FLOOR RR CONSOLE STRIKER, FLOOR RR CONSOLE
74089 MR626792 LOCK, FLOOR CONSOLE LOCK, FLOOR CONSOLE
74094 MB604627 SPRING, INSTRUMENT PANEL ASHTRAY HOLD SPRING, INSTRUMENT PANEL ASHTRAY HOLD
74182 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16 SCREW, TAPPING, 5x16 - Tapping,5x16
74182 MF453273 SCREW, SCUFF PLATE - Tapping,5x16 SCREW, SCUFF PLATE - Tapping,5x16
74182 MB409435 SCREW, INSTRUMENT PANEL - Tapping,4x10 SCREW, INSTRUMENT PANEL - Tapping,4x10
74182 MF453782 SCREW, QTR TRIM - Tapping,3x10 SCREW, QTR TRIM - Tapping,3x10
74182 MF453031 SCREW 5x12 - Tapping,5x12 SCREW 5x12 - Tapping,5x12
74182 MB409437 SCREW, STEERING COLUMN COVER - Tapping,5x12 SCREW, STEERING COLUMN COVER - Tapping,5x12
74182 MF351012 SCREW, RADIATOR GRILLE - Washer assembled,5x20 SCREW, RADIATOR GRILLE - Washer assembled,5x20
74182 MF351312 SCREW, INSTRUMENT PANEL UNDER TRIM - 5x20 SCREW, INSTRUMENT PANEL UNDER TRIM - 5x20
74186 MB135995 NUT, FUEL FILLER LID LOCKING - Spring,5 NUT, FUEL FILLER LID LOCKING - Spring,5
74188 MR402859 CLIP, FLOOR CONSOLE CLIP, FLOOR CONSOLE
74188 MB566720 CLIP, RR VIEW MIRROR - 9x14.6 CLIP, RR VIEW MIRROR - 9x14.6
74192 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
74192 MS240125 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
82829 MN121271 CIGAR LIGHTER, INSTRUMENT PANEL CIGAR LIGHTER, INSTRUMENT PANEL
82829 MR233903 CIGAR LIGHTER, INSTRUMENT PANEL CIGAR LIGHTER, INSTRUMENT PANEL
83092 MR572112 HARNESS, INSTRUMENT PANEL CTR CONSOLE LAMP HARNESS, INSTRUMENT PANEL CTR CONSOLE LAMP
Cover,rear plate & oil pan (ALL (REAR PLATE & OIL PAN)) 7 / 19
CS1A Cover,rear plate & oil pan (ALL (REAR PLATE & OIL PAN))
CS9A Cover,rear plate & oil pan (ALL (REAR PLATE & OIL PAN))
# OEM CS1A CS9A
1512 MD050316 PLUG, ENG OIL PAN... PLUG, ENG OIL PAN...
1521 MD050317 GASKET, ENG OIL PAN DRAIN PLUG - D=14 GASKET, ENG OIL PAN DRAIN PLUG - D=14
1597 MD097012 BOLT, ENG OIL PAN - Flange,6x10 BOLT, ENG OIL PAN - Flange,6x10
2199 MF140202 BOLT, FLANGE (6x10) - Flange,6x10 BOLT, FLANGE (6x10) - Flange,6x10
2199 MF140233 BOLT, ENG FR CASE - Flange,8x40 BOLT, ENG FR CASE - Flange,8x40
2199 MF244879 BOLT, RR SEAT - Washer assembled,10x22 BOLT, RR SEAT - Washer assembled,10x22
4178 MS241071 BOLT, OIL STRAINER - Washer assembled,8x20 BOLT, OIL STRAINER - Washer assembled,8x20
Cover,rear plate & oil pan (ALL (TIMING BELT COVER)) 1 / 12
CS1A Cover,rear plate & oil pan (ALL (TIMING BELT COVER))
CS9A Cover,rear plate & oil pan (ALL (TIMING BELT COVER))
# OEM CS1A CS9A
2994 MF140206 BOLT, CYLINDER HEAD - Flange,6x18 BOLT, CYLINDER HEAD - Flange,6x18
Cylinder block (ALL) 8 / 17
CS1A Cylinder block (ALL)
CS9A Cylinder block (ALL)
# OEM CS1A CS9A
1387 MF472403 PIN, CYLINDER BLOCK - Dowel,6x14 PIN, CYLINDER BLOCK - Dowel,6x14
1395 MF665541 CAP, CYLINDER BLOCK (HEAD) - Sealing,35 CAP, CYLINDER BLOCK (HEAD) - Sealing,35
1396 MD020260 BUSHING, CYLINDER BLOCK - 10.5x19.3 BUSHING, CYLINDER BLOCK - 10.5x19.3
1396 MS471104 BUSHING, CYLINDER HEAD - 8x9 BUSHING, CYLINDER HEAD - 8x9
1397 MF140207 BOLT, ROCKER COVER - Flange,6x20 BOLT, ROCKER COVER - Flange,6x20
4956 MF140221 BOLT, ROCKER COVER - Flange,8x12 BOLT, ROCKER COVER - Flange,8x12
4999 MD075834 O-RING, ENG OIL FILLER - 9 O-RING, ENG OIL FILLER - 9
4999 MD317089 O-RING, ENG OIL FILLER O-RING, ENG OIL FILLER
Cylinder head (ALL) 6 / 24
CS1A Cylinder head (ALL)
CS9A Cylinder head (ALL)
# OEM CS1A CS9A
1282 MD146938 STUD, CYLINDER HEAD - 10x28 STUD, CYLINDER HEAD - 10x28
1282 MD005317 STUD, CYLINDER HEAD - 8x28 STUD, CYLINDER HEAD - 8x28
1296 MF665541 CAP, CYLINDER BLOCK (HEAD) - Sealing,35 CAP, CYLINDER BLOCK (HEAD) - Sealing,35
1298 MF140025 BOLT, RESISTOR - Flange,8x20 BOLT, RESISTOR - Flange,8x20
3130 MD153103 OIL SEAL, CAMSHAFT OIL SEAL, CAMSHAFT
3130 MD372536 OIL SEAL, CAMSHAFT OIL SEAL, CAMSHAFT
Defroster nozzle & duct 7 / 7
CS1A Defroster nozzle & duct
CS9A Defroster nozzle & duct
# OEM CS1A CS9A
86506 MR398204 DUCT, SIDE DEFROSTER, LH DUCT, SIDE DEFROSTER, LH
86506 MR398203 DUCT, SIDE DEFROSTER, RH DUCT, SIDE DEFROSTER, RH
86506 MR513035 DUCT,SIDE DEFROSTER,LH DUCT,SIDE DEFROSTER,LH
86506 MR513036 DUCT,SIDE DEFROSTER,RH DUCT,SIDE DEFROSTER,RH
86527 MR398199 NOZZLE, DEFROSTER NOZZLE, DEFROSTER
86587 MB409437 SCREW, STEERING COLUMN COVER - Tapping,5x12 SCREW, STEERING COLUMN COVER - Tapping,5x12
86587 MB409438 SCREW, STEERING COLUMN COVER - Tapping,5x16 SCREW, STEERING COLUMN COVER - Tapping,5x16

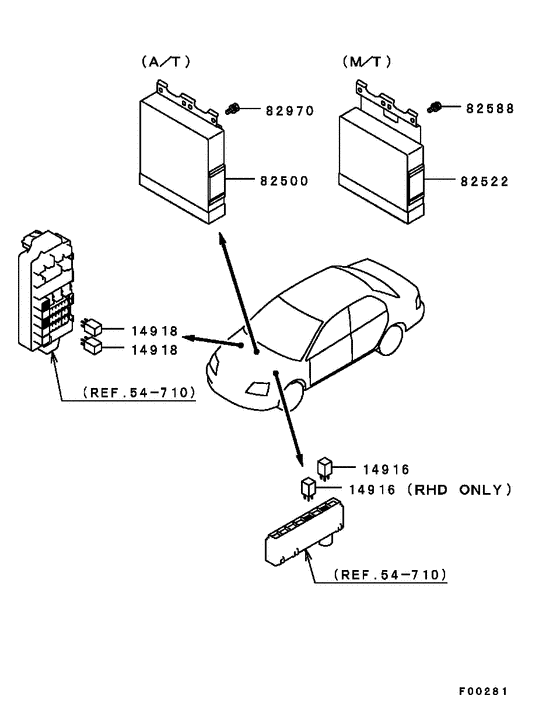

Electrical control (ALL (CONTROL UNIT ETC.)) 3 / 4
CS1A Electrical control (ALL (CONTROL UNIT ETC.))
CS9A Electrical control (ALL (CONTROL UNIT ETC.))
# OEM CS1A CS9A
14916 MR538851 RELAY, A/T FAIL SAFE CONTROL RELAY, A/T FAIL SAFE CONTROL
82588 MF140202 BOLT, FLANGE (6x10) - Flange,6x10 BOLT, FLANGE (6x10) - Flange,6x10
82588 MF245422 BOLT, AIR CLEANER - Washer assembled,6x12 BOLT, AIR CLEANER - Washer assembled,6x12
Electrical control (ALL (CRANK ANGLE SENSOR ETC.)) 4 / 10
CS1A Electrical control (ALL (CRANK ANGLE SENSOR ETC.))
CS9A Electrical control (ALL (CRANK ANGLE SENSOR ETC.))
# OEM CS1A CS9A
14834 MD622021 O-RING, A/T CASE O-RING, A/T CASE
14846 MD327107 SENSOR, CAMSHAFT POSITION SENSOR, CAMSHAFT POSITION
14886 MF241225 BOLT, ROCKER COVER - Washer assembled,6x16 BOLT, ROCKER COVER - Washer assembled,6x16
14886 MF140205 BOLT, CYLINDER BLOCK - Flange,6x16 BOLT, CYLINDER BLOCK - Flange,6x16
Emission control (ALL) 3 / 13
CS1A Emission control (ALL)
CS9A Emission control (ALL)
# OEM CS1A CS9A
12978 MF241224 BOLT, CYLINDER HEAD - Washer assembled,6x14 BOLT, CYLINDER HEAD - Washer assembled,6x14
12988 MF241263 BOLT, BALANCER BELT TRAIN - Washer assembled,8x50 BOLT, BALANCER BELT TRAIN - Washer assembled,8x50
12994 MF434103 NUT, ENG OIL PAN - Flange,6 NUT, ENG OIL PAN - Flange,6
Engine control (LHD) 8 / 10
CS1A Engine control (LHD)
CS9A Engine control (LHD)
# OEM CS1A CS9A
8006 MR527487 BRACKET,ACCEL PEDAL ARM BRACKET,ACCEL PEDAL ARM
8037 MR527869 SPRING,ACCEL PEDAL ARM RETURN SPRING,ACCEL PEDAL ARM RETURN
8042 MR235515 STOPPER, CLUTCH PEDAL STOPPER, CLUTCH PEDAL
8042 MR527100 STOPPER, ACCEL PEDAL ARM STOPPER, ACCEL PEDAL ARM
8962 MR307081 BUSHING, ACCEL CONTROL EQUIP BUSHING, ACCEL CONTROL EQUIP
8975 MR307082 SNAP RING, ACCEL CONTROL EQUIP SNAP RING, ACCEL CONTROL EQUIP
8975 MS440503 NUT - Washer assembled,8 NUT - Washer assembled,8
8978 MF243624 BOLT - Washer assembled,6x16 BOLT - Washer assembled,6x16
Engine control (RHD) 10 / 14
CS1A Engine control (RHD)
CS9A Engine control (RHD)
# OEM CS1A CS9A
8000 MR493832 PEDAL, ACCEL PEDAL, ACCEL
8006 MR527866 BRACKET, ACCEL PEDAL ARM BRACKET, ACCEL PEDAL ARM
8037 MR510980 SPRING, ACCEL PEDAL ARM RETURN SPRING, ACCEL PEDAL ARM RETURN
8042 MR235515 STOPPER, CLUTCH PEDAL STOPPER, CLUTCH PEDAL
8042 MR527100 STOPPER, ACCEL PEDAL ARM STOPPER, ACCEL PEDAL ARM
8962 MR307081 BUSHING, ACCEL CONTROL EQUIP BUSHING, ACCEL CONTROL EQUIP
8975 MR307082 SNAP RING, ACCEL CONTROL EQUIP SNAP RING, ACCEL CONTROL EQUIP
8975 MS440503 NUT - Washer assembled,8 NUT - Washer assembled,8
8977 MB084256 CLIP, WIRING - 8.5 CLIP, WIRING - 8.5
8978 MF243624 BOLT - Washer assembled,6x16 BOLT - Washer assembled,6x16
Engine mounting & support (ALL) 19 / 27
CS1A Engine mounting & support (ALL)
CS9A Engine mounting & support (ALL)
# OEM CS1A CS9A
2883 MF434105 NUT, CYLINDER BLOCK - Flange,10 NUT, CYLINDER BLOCK - Flange,10
2886 MF140273 BOLT, ENG SUPPORT ROD - Flange,10x75 BOLT, ENG SUPPORT ROD - Flange,10x75
2886 MR235604 BOLT, ENG SUPPORT ROD - Flange,10x94 BOLT, ENG SUPPORT ROD - Flange,10x94
2886 MF241280 BOLT, RR SEAT - Washer assembled,10x20 BOLT, RR SEAT - Washer assembled,10x20
2886 MU000343 BOLT, FR SUSP STABILIZER - Flange,10x25 BOLT, FR SUSP STABILIZER - Flange,10x25
2887 MF450406 WASHER - Spring,10 WASHER - Spring,10
2887 MF450006 WASHER, CYLINDER HEAD - Plain,10 WASHER, CYLINDER HEAD - Plain,10
2890 MB288462 NUT, ENG SUPPORT ROD - Flange self locking,10 NUT, ENG SUPPORT ROD - Flange self locking,10
2890 MF430122 NUT, ENG RR MOUNTING - 10 NUT, ENG RR MOUNTING - 10
2891 MS240295 BOLT, RR SUSP STABILIZER - Washer assembled,10x25 BOLT, RR SUSP STABILIZER - Washer assembled,10x25
2891 MS240592 BOLT, RR SUSP STABILIZER - Washer assembled,10x25 BOLT, RR SUSP STABILIZER - Washer assembled,10x25
2891 MF244884 BOLT, ENG RR MOUNTING - Washer assembled,10x35 BOLT, ENG RR MOUNTING - Washer assembled,10x35
2891 MF241252 BOLT, CARB - Washer assembled,8x18 BOLT, CARB - Washer assembled,8x18
21807 MF104928 BOLT, T/M MOUNTING - 12x110 BOLT, T/M MOUNTING - 12x110
21809 MR197613 STOPPER, T/M MOUNTING STOPPER, T/M MOUNTING
21809 MR197612 STOPPER, T/M MOUNTING STOPPER, T/M MOUNTING
21831 MR491557 BRACKET, T/M MOUNTING BODY SIDE BRACKET, T/M MOUNTING BODY SIDE
21831 MR961062 BRACKET, T/M MOUNTING BODY SIDE BRACKET, T/M MOUNTING BODY SIDE
21896 MF434106 NUT, ENG RR MOUNTING - Flange,12 NUT, ENG RR MOUNTING - Flange,12
Exhaust manifold (ALL) 5 / 13
CS1A Exhaust manifold (ALL)
CS9A Exhaust manifold (ALL (MANIFOLD))
# OEM CS1A CS9A
12088 MF450006 WASHER, CYLINDER HEAD - Plain,10 WASHER, CYLINDER HEAD - Plain,10
12088 MS450036 WASHER, EXHAUST MANIFOLD - Plain,10 WASHER, EXHAUST MANIFOLD - Plain,10
12089 MR497545 STUD, CATALYTIC CONVERTER - 12x32 STUD, CATALYTIC CONVERTER - 12x32
12099 MD067956 BOLT, EXHAUST MANIFOLD - Flange,8x12 BOLT, EXHAUST MANIFOLD - Flange,8x12
12099 MF244879 BOLT, RR SEAT - Washer assembled,10x22 BOLT, RR SEAT - Washer assembled,10x22
Exhaust pipe & muffler (ALL) 16 / 20
CS1A Exhaust pipe & muffler (ALL)
CS9A Exhaust pipe & muffler (A/T)
# OEM CS1A CS9A
13010 MR529712 GASKET, EXHAUST PIPE GASKET, EXHAUST PIPE
13010 MB687012 GASKET, EXHAUST PIPE GASKET, EXHAUST PIPE
13012 MB514690 COLLAR, EXHAUST PIPE COLLAR, EXHAUST PIPE
13012 MB611937 COLLAR, EXHAUST PIPE COLLAR, EXHAUST PIPE
13096 MB059359 NUT, CATALYTIC CONVERTER - Self locking,6t,12 NUT, CATALYTIC CONVERTER - Self locking,6t,12
13096 MR571083 NUT, EXHAUST PIPE NUT, EXHAUST PIPE
13099 MU000444 BOLT, EXHAUST PIPE - Washer assembled,10x38 BOLT, EXHAUST PIPE - Washer assembled,10x38
13099 MF243659 BOLT, INTER COOLER - Washer assembled,8x40 BOLT, INTER COOLER - Washer assembled,8x40
13099 MF244859 BOLT, A/C COMPRESSOR - Washer assembled,8x40 BOLT, A/C COMPRESSOR - Washer assembled,8x40
13099 MF243662 BOLT, RADIATOR - Washer assembled,8x55 BOLT, RADIATOR - Washer assembled,8x55
13524 MR514734 HANGER, EXHAUST MUFFLER HANGER, EXHAUST MUFFLER
13524 MR281816 HANGER, EXHAUST MUFFLER HANGER, EXHAUST MUFFLER
13524 MR529673 HANGER, EXHAUST MUFFLER HANGER, EXHAUST MUFFLER
65036 MR435187 PROTECTOR, UNDER FR FLOOR HEAT PROTECTOR, UNDER FR FLOOR HEAT
65036 MR516129 PROTECTOR,UNDER FR FLOOR HEAT PROTECTOR,UNDER FR FLOOR HEAT
65998 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
Fender & front end cover (ALL) 5 / 7
CS1A Fender & front end cover (ALL)
CS9A Fender & front end cover (ALL)
# OEM CS1A CS9A
61110 MN150625 FENDER, FR LH FENDER, FR LH
61110 MN150626 FENDER, FR RH FENDER, FR RH
61299 MS100222 BOLT, RESISTOR - Flange,6x14 BOLT, RESISTOR - Flange,6x14
61299 MS100224 BOLT, FR FENDER - Flange,6x20 BOLT, FR FENDER - Flange,6x20
61299 MS100221 BOLT, RADIATOR SHROUD - Flange,6x12 BOLT, RADIATOR SHROUD - Flange,6x12
Floor (ALL) 33 / 33
CS1A Floor (ALL)
CS9A Floor (ALL)
# OEM CS1A CS9A
32705 MR465768 BRACKET, SPARE TIRE BRACKET, SPARE TIRE
63645 MR547329 SIDE SILL, FR FLOOR, INR LH SIDE SILL, FR FLOOR, INR LH
63645 MN186362 SIDE SILL,FR FLOOR,INR RH SIDE SILL,FR FLOOR,INR RH
63645 MN186361 SIDE SILL,FR FLOOR,INR LH SIDE SILL,FR FLOOR,INR LH
63645 MR547330 SIDE SILL, FR FLOOR, INR RH SIDE SILL, FR FLOOR, INR RH
65016 MR547327 CROSSMEMBER, FR FLOOR, RR LH CROSSMEMBER, FR FLOOR, RR LH
65016 MR547328 CROSSMEMBER, FR FLOOR, RR RH CROSSMEMBER, FR FLOOR, RR RH
65023 MR547324 FLOOR, FR FLOOR, FR
65039 MR547333 REINFORCEMENT, FR FLOOR BACKBONE REINFORCEMENT, FR FLOOR BACKBONE
65054 MR547331 SIDEMEMBER, FR FLOOR, LH SIDEMEMBER, FR FLOOR, LH
65054 MR990417 SIDEMEMBER, FR FLOOR, RH SIDEMEMBER, FR FLOOR, RH
65054 MR586509 SIDEMEMBER,FR FLOOR,LH SIDEMEMBER,FR FLOOR,LH
65054 MR547332 SIDEMEMBER, FR FLOOR, RH SIDEMEMBER, FR FLOOR, RH
65073 MR981397 CROSSMEMBER, FR FLOOR, FR LH CROSSMEMBER, FR FLOOR, FR LH
65073 MR981398 CROSSMEMBER, FR FLOOR, FR RH CROSSMEMBER, FR FLOOR, FR RH
65124 MR586703 CROSSMEMBER,RR FLOOR,UPR CROSSMEMBER,RR FLOOR,UPR
65131 MR586699 EXTENSION,RR FLOOR SIDEMEMBER,LH EXTENSION,RR FLOOR SIDEMEMBER,LH
65131 MR586700 EXTENSION,RR FLOOR SIDEMEMBER,RH EXTENSION,RR FLOOR SIDEMEMBER,RH
65134 MR547336 FLOOR, RR FLOOR, RR
65138 MR990847 EXTENSION, RR FLOOR EXTENSION, RR FLOOR
65157 MN186367 SIDEMEMBER,RR FLOOR,LH SIDEMEMBER,RR FLOOR,LH
65157 MN186368 SIDEMEMBER,RR FLOOR,RH SIDEMEMBER,RR FLOOR,RH
65174 MR555515 BRACKET, CHILD RESTRAINT, LH BRACKET, CHILD RESTRAINT, LH
65174 MR555516 BRACKET, CHILD RESTRAINT, RH BRACKET, CHILD RESTRAINT, RH
65191 MR547346 REINFORCEMENT, RR FLOOR, RR REINFORCEMENT, RR FLOOR, RR
65198 MR547345 CROSSMEMBER, RR FLOOR, LWR CROSSMEMBER, RR FLOOR, LWR
65875 MS240089 BOLT, FUEL LINE - Washer assembled,10x20 BOLT, FUEL LINE - Washer assembled,10x20
65969 MS240139 BOLT, STEERING COLUMN - Washer assembled,8x20 BOLT, STEERING COLUMN - Washer assembled,8x20
73127 MR547335 REINFORCEMENT, INSTRUMENT PANEL, CTR REINFORCEMENT, INSTRUMENT PANEL, CTR
76061 MR547347 REINFORCEMENT, RR SEAT CATCH, LH REINFORCEMENT, RR SEAT CATCH, LH
76061 MR547348 REINFORCEMENT, RR SEAT CATCH, RH REINFORCEMENT, RR SEAT CATCH, RH
76062 MR547350 REINFORCEMENT, RR SEAT BELT REINFORCEMENT, RR SEAT BELT
99202 MR566048 BRACKET, JACK BRACKET, JACK
Floor mat 6 / 7
CS1A Floor mat
CS9A Floor mat
# OEM CS1A CS9A
74526 MR489171 HOOK, FR FLOOR CARPET HOOK, FR FLOOR CARPET
74526 MB768473 HOOK, FR FLOOR CARPET HOOK, FR FLOOR CARPET
74597 MB147332 CLIP, GUARD BAR - 5.9 CLIP, GUARD BAR - 5.9
74622 MR417010 MAT, TRUNK ROOM MAT, TRUNK ROOM
74622 MR417013 MAT, TRUNK ROOM MAT, TRUNK ROOM
74622 MR951543 MAT, TRUNK ROOM MAT, TRUNK ROOM

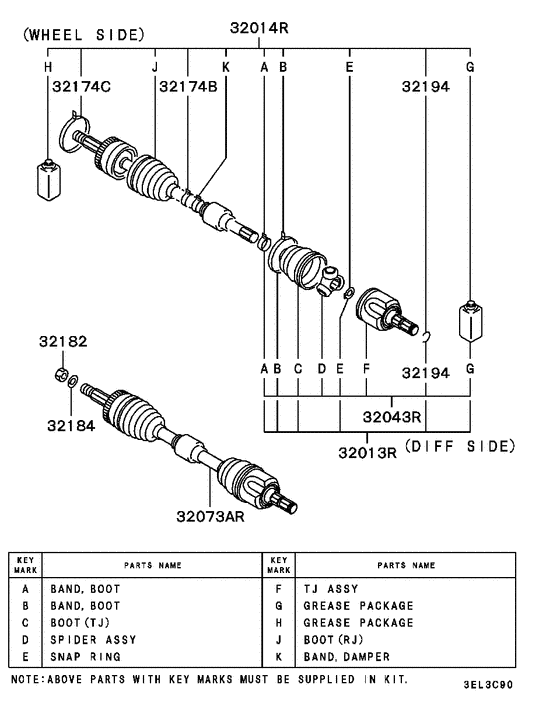

Front axle drive shaft (LH) 9 / 11
CS1A Front axle drive shaft (LH)
CS9A Front axle drive shaft (LH)
# OEM CS1A CS9A
32013 MN147161 BOOT KIT, FR AXLE JOINT, LH - D-green ntn BOOT KIT, FR AXLE JOINT, LH - D-green ntn
32014 MN147170 BOOT KIT, FR AXLE SHAFT, LH - D-green ntn BOOT KIT, FR AXLE SHAFT, LH - D-green ntn
32043 MN147159 JOINT KIT, FR AXLE SHAFT, LH - D-green ntn JOINT KIT, FR AXLE SHAFT, LH - D-green ntn
32073 MR953745 SHAFT ASSY, FR AXLE DRIVE, LH - Bj-tj SHAFT ASSY, FR AXLE DRIVE, LH - Bj-tj
32174 MR263382 BAND, FR AXLE - Ntn BAND, FR AXLE - Ntn
32174 MR263381 BAND, FR AXLE - Ntn BAND, FR AXLE - Ntn
32182 MU000679 NUT, FR AXLE NUT, FR AXLE
32184 MB109025 WASHER, FR AXLE - Lock,22.4 WASHER, FR AXLE - Lock,22.4
32194 MB160387 CLIP, FR AXLE - 27 CLIP, FR AXLE - 27
Front axle drive shaft (RH) 5 / 11
CS1A Front axle drive shaft (RH)
CS9A Front axle drive shaft (LH)
# OEM CS1A CS9A
32174 MR263382 BAND, FR AXLE - Ntn BAND, FR AXLE - Ntn
32174 MR263381 BAND, FR AXLE - Ntn BAND, FR AXLE - Ntn
32182 MU000679 NUT, FR AXLE NUT, FR AXLE
32184 MB109025 WASHER, FR AXLE - Lock,22.4 WASHER, FR AXLE - Lock,22.4
32194 MB160387 CLIP, FR AXLE - 27 CLIP, FR AXLE - 27
Front axle hub & drum (ALL) 9 / 13
CS1A Front axle hub & drum (ALL)
CS9A Front axle hub & drum (ALL)
# OEM CS1A CS9A
32300 MR491321 KNUCKLE, LH KNUCKLE, LH
32300 MR491322 KNUCKLE, RH KNUCKLE, RH
32502 MB911495 BOLT, FR WHEEL HUB - 12x43 BOLT, FR WHEEL HUB - 12x43
32502 MU140067 BOLT, FR WHEEL HUB - Flange,14x63 BOLT, FR WHEEL HUB - Flange,14x63
32510 MR491449 BEARING, FR WHEEL HUB - Ball,80x40-40 BEARING, FR WHEEL HUB - Ball,80x40-40
32596 MB303868 SNAP RING, FR WHEEL HUB - 73.5 SNAP RING, FR WHEEL HUB - 73.5
32598 MD090875 NUT, INJECTION PUMP - Flange,14 NUT, INJECTION PUMP - Flange,14
51121 MR493411 COVER, FR BRAKE DISC, LH COVER, FR BRAKE DISC, LH
51121 MR493412 COVER, FR BRAKE DISC, RH COVER, FR BRAKE DISC, RH
Front bumper & support (-0506.3) 25 / 27
CS1A Front bumper & support (-0506.3)
CS9A Front bumper & support (-0506.3)
# OEM CS1A CS9A
62022 MB271999 CLIP, FR BUMPER - 12.8 CLIP, FR BUMPER - 12.8
62022 MR520337 CLIP, FR BUMPER - 10 CLIP, FR BUMPER - 10
62022 MR200300 CLIP, FR BUMPER CLIP, FR BUMPER
62022 MU488006 CLIP, ENG ROOM COVER - 8 CLIP, ENG ROOM COVER - 8
62022 MR288150 CLIP, RR BUMPER CLIP, RR BUMPER
62046 MN126460 PLATE, FR BUMPER, UPR LH PLATE, FR BUMPER, UPR LH
62046 MN126461 PLATE, FR BUMPER, UPR RH PLATE, FR BUMPER, UPR RH
62049 MN126459 GRILLE, FR BUMPER GRILLE, FR BUMPER
62054 MN175831 REINFORCEMENT,FR BUMPER REINFORCEMENT,FR BUMPER
62815 MN126465 GARNISH,FR LICENSE PLATE GARNISH,FR LICENSE PLATE
62964 MR473000 RIVET, FR BUMPER - 4.2 RIVET, FR BUMPER - 4.2
62986 MB409437 SCREW, STEERING COLUMN COVER - Tapping,5x12 SCREW, STEERING COLUMN COVER - Tapping,5x12
62986 MS452393 SCREW, OVERFENDER - Washer assembled,6x20 SCREW, OVERFENDER - Washer assembled,6x20
62989 MR971002 NUT, FR BUMPER - 6 NUT, FR BUMPER - 6
62991 MR393386 GROMMET, FR BUMPER - 6 GROMMET, FR BUMPER - 6
62994 MS100242 BOLT, FR FENDER - Flange,6x14 BOLT, FR FENDER - Flange,6x14
62994 MF244822 BOLT, ACCEL CABLE SUPPORT - Washer assembled,6x12 BOLT, ACCEL CABLE SUPPORT - Washer assembled,6x12
62994 MS240028 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x12 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x12
62994 MS240041 BOLT, ENG OIL COOLER LINE - Washer assembled,6x16 BOLT, ENG OIL COOLER LINE - Washer assembled,6x16
62994 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
62994 MS240140 BOLT, ENG MOUNTING - Washer assembled,8x25 BOLT, ENG MOUNTING - Washer assembled,8x25
62994 MS240616 BOLT, BODY LOOSE PANEL - Washer assembled,8x25 BOLT, BODY LOOSE PANEL - Washer assembled,8x25
62994 MU140017 BOLT, FR DOOR HINGE - Flange,8x20 BOLT, FR DOOR HINGE - Flange,8x20
80294 MN150931 BEZEL,FR FOG LAMP,LH BEZEL,FR FOG LAMP,LH
80294 MN150932 BEZEL, FR FOG LAMP, RH BEZEL, FR FOG LAMP, RH
Front bumper & support (0507.1-) 28 / 30
CS1A Front bumper & support (0507.1-)
CS9A Front bumper & support (0507.1-)
# OEM CS1A CS9A
62022 MB271999 CLIP, FR BUMPER - 12.8 CLIP, FR BUMPER - 12.8
62022 MR520337 CLIP, FR BUMPER - 10 CLIP, FR BUMPER - 10
62022 MR200300 CLIP, FR BUMPER CLIP, FR BUMPER
62022 MU488006 CLIP, ENG ROOM COVER - 8 CLIP, ENG ROOM COVER - 8
62022 MR288150 CLIP, RR BUMPER CLIP, RR BUMPER
62046 MN126460 PLATE, FR BUMPER, UPR LH PLATE, FR BUMPER, UPR LH
62046 MN126461 PLATE, FR BUMPER, UPR RH PLATE, FR BUMPER, UPR RH
62049 MN126459 GRILLE, FR BUMPER GRILLE, FR BUMPER
62054 MN175831 REINFORCEMENT,FR BUMPER REINFORCEMENT,FR BUMPER
62815 MN126465 GARNISH,FR LICENSE PLATE GARNISH,FR LICENSE PLATE
62964 MR473000 RIVET, FR BUMPER - 4.2 RIVET, FR BUMPER - 4.2
62986 MB409437 SCREW, STEERING COLUMN COVER - Tapping,5x12 SCREW, STEERING COLUMN COVER - Tapping,5x12
62986 MS452393 SCREW, OVERFENDER - Washer assembled,6x20 SCREW, OVERFENDER - Washer assembled,6x20
62986 MS450156 SCREW, CRUISE CONTROL ELECTRICALS - Tapping(flange head),5x12 SCREW, CRUISE CONTROL ELECTRICALS - Tapping(flange head),5x12
62986 MS350014 SCREW, FR BUMPER - Washer assembled,6x30 SCREW, FR BUMPER - Washer assembled,6x30
62989 MU435004 NUT, FR BUMPER - Rubber nut,6 NUT, FR BUMPER - Rubber nut,6
62991 MR393386 GROMMET, FR BUMPER - 6 GROMMET, FR BUMPER - 6
62994 MF244822 BOLT, ACCEL CABLE SUPPORT - Washer assembled,6x12 BOLT, ACCEL CABLE SUPPORT - Washer assembled,6x12
62994 MS240028 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x12 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x12
62994 MS240041 BOLT, ENG OIL COOLER LINE - Washer assembled,6x16 BOLT, ENG OIL COOLER LINE - Washer assembled,6x16
62994 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
62994 MS240140 BOLT, ENG MOUNTING - Washer assembled,8x25 BOLT, ENG MOUNTING - Washer assembled,8x25
62994 MS240616 BOLT, BODY LOOSE PANEL - Washer assembled,8x25 BOLT, BODY LOOSE PANEL - Washer assembled,8x25
62994 MU140017 BOLT, FR DOOR HINGE - Flange,8x20 BOLT, FR DOOR HINGE - Flange,8x20
80205 MN190067 BRACKET, FR FOG LAMP BRACKET, FR FOG LAMP
80205 MN190068 BRACKET, FR FOG LAMP BRACKET, FR FOG LAMP
80294 MN150931 BEZEL,FR FOG LAMP,LH BEZEL,FR FOG LAMP,LH
80294 MN150932 BEZEL, FR FOG LAMP, RH BEZEL, FR FOG LAMP, RH
Front deck & insulator (LHD) 11 / 11
CS1A Front deck & insulator (LHD)
CS9A Front deck & insulator (LHD)
# OEM CS1A CS9A
60148 MR548945 EXTENSION, UPR FRAME, OTR LH EXTENSION, UPR FRAME, OTR LH
60148 MR548946 EXTENSION, UPR FRAME, OTR RH EXTENSION, UPR FRAME, OTR RH
62311 MN175048 INSULATOR,COWL TOP INSULATOR,COWL TOP
62318 MN186614 PANEL, COWL TOP PANEL, COWL TOP
62504 MR479855 INSULATOR,DASH PANEL INSULATOR,DASH PANEL
62511 MR981488 DASH PANEL DASH PANEL
62511 MR566799 DASH PANEL DASH PANEL
62515 MR566801 REINFORCEMENT,DASH PANEL REINFORCEMENT,DASH PANEL
62515 MN133151 REINFORCEMENT,DASH PANEL REINFORCEMENT,DASH PANEL
62516 MR479321 SILENCER,DASH PANEL SILENCER,DASH PANEL
66994 MB157530 CLIP, GEARSHIFT LINK - M6 CLIP, GEARSHIFT LINK - M6
Front deck & insulator (RHD) 11 / 12
CS1A Front deck & insulator (RHD)
CS9A Front deck & insulator (RHD)
# OEM CS1A CS9A
60148 MR548945 EXTENSION, UPR FRAME, OTR LH EXTENSION, UPR FRAME, OTR LH
60148 MR548946 EXTENSION, UPR FRAME, OTR RH EXTENSION, UPR FRAME, OTR RH
62311 MN175047 INSULATOR,COWL TOP INSULATOR,COWL TOP
62504 MR479587 INSULATOR, DASH PANEL INSULATOR, DASH PANEL
62511 MR990420 DASH PANEL DASH PANEL
62511 MR566793 DASH PANEL DASH PANEL
62515 MR548490 REINFORCEMENT, DASH PANEL REINFORCEMENT, DASH PANEL
62516 MR584150 SILENCER, DASH PANEL SILENCER, DASH PANEL
62516 MR468209 SILENCER, DASH PANEL SILENCER, DASH PANEL
62516 MR479620 SILENCER, DASH PANEL SILENCER, DASH PANEL
66994 MB157530 CLIP, GEARSHIFT LINK - M6 CLIP, GEARSHIFT LINK - M6
Front door locking (ALL) 60 / 74
CS1A Front door locking (ALL)
CS9A Front door locking (ALL)
# OEM CS1A CS9A
67003 MR526777 CHECK, FR DOOR CHECK, FR DOOR
67308 MR573539 CAP, FR DOOR INSIDE HANDLE COVER, LH - D-GRAY CAP, FR DOOR INSIDE HANDLE COVER, LH - D-GRAY
67308 MR655775 CAP, FR DOOR INSIDE HANDLE COVER, LH - BLACK CAP, FR DOOR INSIDE HANDLE COVER, LH - BLACK
67308 MR573544 CAP, FR DOOR INSIDE HANDLE COVER, RH CAP, FR DOOR INSIDE HANDLE COVER, RH
67308 MR655776 CAP, FR DOOR INSIDE HANDLE COVER, RH CAP, FR DOOR INSIDE HANDLE COVER, RH
67311 MR627178 COVER, FR DOOR INSIDE HANDLE, LH COVER, FR DOOR INSIDE HANDLE, LH
67311 MR656175 COVER, FR DOOR INSIDE HANDLE, LH COVER, FR DOOR INSIDE HANDLE, LH
67311 MR627179 COVER, FR DOOR INSIDE HANDLE, RH COVER, FR DOOR INSIDE HANDLE, RH
67311 MR656176 COVER, FR DOOR INSIDE HANDLE, RH COVER, FR DOOR INSIDE HANDLE, RH
67322 MR645429 HANDLE, FR DOOR OUTSIDE, LH HANDLE, FR DOOR OUTSIDE, LH
67322 MR646802 HANDLE, FR DOOR OUTSIDE, LH HANDLE, FR DOOR OUTSIDE, LH
67322 MR652306 HANDLE, FR DOOR OUTSIDE, LH HANDLE, FR DOOR OUTSIDE, LH
67322 MR654027 HANDLE, FR DOOR OUTSIDE, LH HANDLE, FR DOOR OUTSIDE, LH
67322 MR654685 HANDLE, FR DOOR OUTSIDE, LH HANDLE, FR DOOR OUTSIDE, LH
67322 MR970229 HANDLE, FR DOOR OUTSIDE, LH HANDLE, FR DOOR OUTSIDE, LH
67322 MR970236 HANDLE, FR DOOR OUTSIDE, LH HANDLE, FR DOOR OUTSIDE, LH
67322 MR970239 HANDLE, FR DOOR OUTSIDE, LH HANDLE, FR DOOR OUTSIDE, LH
67322 MR970244 HANDLE, FR DOOR OUTSIDE, LH HANDLE, FR DOOR OUTSIDE, LH
67322 MR645430 HANDLE, FR DOOR OUTSIDE, RH HANDLE, FR DOOR OUTSIDE, RH
67322 MR646803 HANDLE, FR DOOR OUTSIDE, RH HANDLE, FR DOOR OUTSIDE, RH
67322 MR652307 HANDLE, FR DOOR OUTSIDE, RH HANDLE, FR DOOR OUTSIDE, RH
67322 MR654028 HANDLE, FR DOOR OUTSIDE, RH HANDLE, FR DOOR OUTSIDE, RH
67322 MR654686 HANDLE, FR DOOR OUTSIDE, RH HANDLE, FR DOOR OUTSIDE, RH
67322 MR970248 HANDLE, FR DOOR OUTSIDE, RH HANDLE, FR DOOR OUTSIDE, RH
67322 MR970255 HANDLE, FR DOOR OUTSIDE, RH HANDLE, FR DOOR OUTSIDE, RH
67322 MR970258 HANDLE, FR DOOR OUTSIDE, RH HANDLE, FR DOOR OUTSIDE, RH
67322 MR970263 HANDLE, FR DOOR OUTSIDE, RH HANDLE, FR DOOR OUTSIDE, RH
67330 MN159617 CABLE, FR DOOR INSIDE LOCK, LH CABLE, FR DOOR INSIDE LOCK, LH
67330 MN159618 CABLE, FR DOOR INSIDE LOCK, RH CABLE, FR DOOR INSIDE LOCK, RH
67342 MN159615 ROD, FR DOOR INSIDE HANDLE, LH ROD, FR DOOR INSIDE HANDLE, LH
67342 MN159616 ROD, FR DOOR INSIDE HANDLE, RH ROD, FR DOOR INSIDE HANDLE, RH
67352 MB888461 SHIM, FR DOOR LATCH STRIKER - T=1.6 SHIM, FR DOOR LATCH STRIKER - T=1.6
67356 MN127079 STRIKER, FR DOOR LATCH STRIKER, FR DOOR LATCH
67361 MN159621 LATCH, FR DOOR, LH LATCH, FR DOOR, LH
67361 MN159930 LATCH, FR DOOR, RH LATCH, FR DOOR, RH
67361 MN159929 LATCH,FR DOOR,LH LATCH,FR DOOR,LH
67361 MN159934 LATCH,FR DOOR,RH LATCH,FR DOOR,RH
67374 MN159613 ROD, FR DOOR OUTSIDE HANDLE, LH ROD, FR DOOR OUTSIDE HANDLE, LH
67374 MN159614 ROD, FR DOOR OUTSIDE HANDLE, RH ROD, FR DOOR OUTSIDE HANDLE, RH
67392 MU481091 SNAP, FR DOOR LOCKING SNAP, FR DOOR LOCKING
67392 MU481090 SNAP, FR DOOR LOCKING SNAP, FR DOOR LOCKING
67394 MU000314 GROMMET, FR DOOR LOCKING - Screw GROMMET, FR DOOR LOCKING - Screw
67395 MU481194 CLIP, FR DOOR LOCKING - 6 CLIP, FR DOOR LOCKING - 6
67395 MU481193 CLIP, FR DOOR LOCKING - 6 CLIP, FR DOOR LOCKING - 6
67395 MU481211 CLIP, FR DOOR LOCKING - 6.9 CLIP, FR DOOR LOCKING - 6.9
67395 MS470433 CLIP, PTO GEARSHIFT LINK - 4.2 CLIP, PTO GEARSHIFT LINK - 4.2
67395 MU001481 CLIP, FR DOOR LOCKING - 4.2 CLIP, FR DOOR LOCKING - 4.2
67395 MS470434 CLIP, FR DOOR LOCKING - 4.2 CLIP, FR DOOR LOCKING - 4.2
67395 MU001482 CLIP, FR DOOR LOCKING - 4.2 CLIP, FR DOOR LOCKING - 4.2
67395 MN145859 CLIP, FR DOOR LOCKING CLIP, FR DOOR LOCKING
67397 MU000957 SCREW, FR DOOR LOCKING - Machine(torx),6x12 SCREW, FR DOOR LOCKING - Machine(torx),6x12
67397 MU200079 SCREW, FR DOOR LOCKING - Machine(plus),6x18 SCREW, FR DOOR LOCKING - Machine(plus),6x18
67397 MU000623 SCREW, FR DOOR LOCKING - Machine(plus),8x22.5 SCREW, FR DOOR LOCKING - Machine(plus),8x22.5
67397 MU000959 SCREW, FR DOOR LOCKING - Machine(torx),8x22.5 SCREW, FR DOOR LOCKING - Machine(torx),8x22.5
67397 MF453019 SCREW, STEERING COLUMN COVER - Tapping,4x16 SCREW, STEERING COLUMN COVER - Tapping,4x16
67397 MF453020 SCREW, FR END GARNISH - Tapping,4x20 SCREW, FR END GARNISH - Tapping,4x20
67398 MS240041 BOLT, ENG OIL COOLER LINE - Washer assembled,6x16 BOLT, ENG OIL COOLER LINE - Washer assembled,6x16
67398 MS240593 BOLT, FR DOOR LOCKING - Washer assembled,6x20 BOLT, FR DOOR LOCKING - Washer assembled,6x20
67398 MU240162 BOLT, TAILGATE GAS SPRING - Washer assembled,6x12 BOLT, TAILGATE GAS SPRING - Washer assembled,6x12
67398 MF240022 BOLT, ROCKER COVER - Washer assembled,6x10 BOLT, ROCKER COVER - Washer assembled,6x10
Front door panel & glass 37 / 38
CS1A Front door panel & glass
CS9A Front door panel & glass
# OEM CS1A CS9A
67019 MU140017 BOLT, FR DOOR HINGE - Flange,8x20 BOLT, FR DOOR HINGE - Flange,8x20
67019 MU240121 BOLT, FR DOOR HINGE - Washer assembled,8t,8x28 BOLT, FR DOOR HINGE - Washer assembled,8t,8x28
67020 MN150435 PANEL ASSY, FR DOOR, LH PANEL ASSY, FR DOOR, LH
67020 MN150436 PANEL ASSY, FR DOOR, RH PANEL ASSY, FR DOOR, RH
67026 MR525513 SASH, FR DOOR WINDOW, RR LWR LH SASH, FR DOOR WINDOW, RR LWR LH
67026 MR525514 SASH, FR DOOR WINDOW, RR LWR RH SASH, FR DOOR WINDOW, RR LWR RH
67026 MR523671 SASH,FR DOOR WINDOW,RR LWR RH SASH,FR DOOR WINDOW,RR LWR RH
67030 MR555055 PANEL, FR DOOR, OTR LH PANEL, FR DOOR, OTR LH
67030 MR555056 PANEL, FR DOOR, OTR RH PANEL, FR DOOR, OTR RH
67040 MR302271 HINGE, FR DOOR, LWR LH HINGE, FR DOOR, LWR LH
67040 MR302270 HINGE, FR DOOR, LWR RH HINGE, FR DOOR, LWR RH
67059 MR970863 CORE, FR DOOR PANEL, LH CORE, FR DOOR PANEL, LH
67059 MR970864 CORE, FR DOOR PANEL, RH CORE, FR DOOR PANEL, RH
67083 MS240141 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16
67093 MF453076 SCREW, GEARSHIFT LINK - Tapping,4x10 SCREW, GEARSHIFT LINK - Tapping,4x10
67097 MU000255 CLIP, FR DOOR CLIP, FR DOOR
67097 MU000614 CLIP, FR DOOR CLIP, FR DOOR
67097 MR487965 CLIP, FR DOOR - 3.0 CLIP, FR DOOR - 3.0
67110 MR525731 GLASS, FR DOOR WINDOW, LH GLASS, FR DOOR WINDOW, LH
67110 MR525732 GLASS, FR DOOR WINDOW, RH GLASS, FR DOOR WINDOW, RH
67111 MR523996 HOLDER, FR DOOR WINDOW GLASS HOLDER, FR DOOR WINDOW GLASS
67124 MR526475 RUNCHANNEL,FR DOOR WINDOW GLASS,LH RUNCHANNEL,FR DOOR WINDOW GLASS,LH
67124 MR526476 RUNCHANNEL,FR DOOR WINDOW GLASS,RH RUNCHANNEL,FR DOOR WINDOW GLASS,RH
67299 MU000439 BOLT, FR DOOR WINDOW - 6x16 BOLT, FR DOOR WINDOW - 6x16
67436 MR526251 WEATHERSTRIP, FR DOOR BELT, INR LH WEATHERSTRIP, FR DOOR BELT, INR LH
67436 MR526252 WEATHERSTRIP, FR DOOR BELT, INR RH WEATHERSTRIP, FR DOOR BELT, INR RH
67442 MN169651 WEATHERSTRIP, FR DOOR OPENING, INR LH WEATHERSTRIP, FR DOOR OPENING, INR LH
67442 MN169652 WEATHERSTRIP, FR DOOR OPENING, INR RH WEATHERSTRIP, FR DOOR OPENING, INR RH
67443 MR525759 WEATHERSTRIP, FR DOOR OPENING, OTR LH WEATHERSTRIP, FR DOOR OPENING, OTR LH
67443 MR525760 WEATHERSTRIP, FR DOOR OPENING, OTR RH WEATHERSTRIP, FR DOOR OPENING, OTR RH
67443 MR525761 WEATHERSTRIP, FR DOOR OPENING, OTR LH WEATHERSTRIP, FR DOOR OPENING, OTR LH
67443 MR525762 WEATHERSTRIP, FR DOOR OPENING, OTR RH WEATHERSTRIP, FR DOOR OPENING, OTR RH
67906 MB019730 CUSHION, FR DOOR CUSHION, FR DOOR
67908 MN169845 FILM,FR DOOR WATERPROOF,LH FILM,FR DOOR WATERPROOF,LH
67908 MN169846 FILM,FR DOOR WATERPROOF,RH FILM,FR DOOR WATERPROOF,RH
71046 MR525755 MOULDING, FR DOOR WINDOW BELT LINE, LH MOULDING, FR DOOR WINDOW BELT LINE, LH
71046 MR525756 MOULDING, FR DOOR WINDOW BELT LINE, RH MOULDING, FR DOOR WINDOW BELT LINE, RH
Front door trim & pull handle 21 / 29
CS1A Front door trim & pull handle
CS9A Front door trim & pull handle
# OEM CS1A CS9A
67048 MR962955 CORE, FR DOOR PANEL, INR LH CORE, FR DOOR PANEL, INR LH
67048 MR962956 CORE, FR DOOR PANEL, INR RH CORE, FR DOOR PANEL, INR RH
67304 MR417133 BRACKET, FR DOOR PULL HANDLE BRACKET, FR DOOR PULL HANDLE
67408 MR627152 BOX, FR DOOR TRIM, LH BOX, FR DOOR TRIM, LH
67408 MR627153 BOX, FR DOOR TRIM, RH BOX, FR DOOR TRIM, RH
67436 MR970987 WEATHERSTRIP, FR DOOR BELT, INR WEATHERSTRIP, FR DOOR BELT, INR
67436 MR970988 WEATHERSTRIP, FR DOOR BELT, INR WEATHERSTRIP, FR DOOR BELT, INR
67488 MR602020 SCREW, FR DOOR TRIM SCREW, FR DOOR TRIM
67488 MR654342 SCREW, FR DOOR TRIM SCREW, FR DOOR TRIM
67495 MB692947 GROMMET, FR DOOR TRIM GROMMET, FR DOOR TRIM
67496 MU481245 CLIP, GATE PILLAR TRIM - 18x13.2 CLIP, GATE PILLAR TRIM - 18x13.2
67496 MU000409 CLIP, FR DOOR TRIM CLIP, FR DOOR TRIM
67496 MU000609 CLIP, FR DOOR TRIM CLIP, FR DOOR TRIM
67506 MR655240 CAP, FR DOOR ARMREST CAP, FR DOOR ARMREST
67506 MR794191 CAP, FR DOOR TRIM SCREW CAP, FR DOOR TRIM SCREW
67596 MF453046 SCREW, FUEL LINE - Tapping,6x14 SCREW, FUEL LINE - Tapping,6x14
67596 MF453016 SCREW, GEARSHIFT LINK - Tapping,4x10 SCREW, GEARSHIFT LINK - Tapping,4x10
67596 MF453036 SCREW, SCUFF PLATE - Tapping,5x30 SCREW, SCUFF PLATE - Tapping,5x30
67596 MF455271 SCREW, GUARD BAR - Tapping,5x12 SCREW, GUARD BAR - Tapping,5x12
67598 MS480003 GROMMET, FUEL FILLER LID PANEL - Screw,6 GROMMET, FUEL FILLER LID PANEL - Screw,6
91086 MR444361 TUBE, DOOR ENG TUBE, DOOR ENG
Front door window regulator 12 / 12
CS1A Front door window regulator
CS9A Front door window regulator
# OEM CS1A CS9A
67201 MN126160 CLIP, FR DOOR WINDOW REGULATOR CLIP, FR DOOR WINDOW REGULATOR
67207 MR991831 MOTOR, FR DOOR POWER WINDOW REGULATOR, LH MOTOR, FR DOOR POWER WINDOW REGULATOR, LH
67207 MR991832 MOTOR, FR DOOR POWER WINDOW REGULATOR, RH MOTOR, FR DOOR POWER WINDOW REGULATOR, RH
67214 MR991321 REGULATOR, FR DOOR WINDOW, LH REGULATOR, FR DOOR WINDOW, LH
67214 MR991322 REGULATOR, FR DOOR WINDOW, RH REGULATOR, FR DOOR WINDOW, RH
67287 MR264577 SCREW, FR DOOR WINDOW REGULATOR SCREW, FR DOOR WINDOW REGULATOR
67291 MB321590 Bolt - Washer assembled,6x10 Bolt - Washer assembled,6x10
67291 MU240087 BOLT - Washer assembled,6x10 BOLT - Washer assembled,6x10
67291 MF140202 BOLT, FLANGE (6x10) - Flange,6x10 BOLT, FLANGE (6x10) - Flange,6x10
67291 MS240028 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x12 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x12
67291 MB258979 BOLT, FR DOOR - Washer assembled,4t,6x8 BOLT, FR DOOR - Washer assembled,4t,6x8
67291 MS240002 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x16 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x16
Front end panel (ALL) 28 / 33
CS1A Front end panel (ALL)
CS9A Front end panel (ALL)
# OEM CS1A CS9A
2864 MR586582 REINFORCEMENT, ENG FR MOUNTING, RH REINFORCEMENT, ENG FR MOUNTING, RH
60147 MR548494 EXTENSION, UPR FRAME, INR EXTENSION, UPR FRAME, INR
60147 MR548493 EXTENSION, UPR FRAME, INR EXTENSION, UPR FRAME, INR
61303 MN186442 FENDER SHIELD,FR RH FENDER SHIELD,FR RH
61312 MN150552 PLATE, FENDER SHIELD, RH PLATE, FENDER SHIELD, RH
61319 MN150549 FRAME, FENDER SHIELD, UPR INR LH FRAME, FENDER SHIELD, UPR INR LH
61319 MN150550 FRAME, FENDER SHIELD, UPR INR RH FRAME, FENDER SHIELD, UPR INR RH
61399 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
61815 MN186434 WHEELHOUSE, FR INR RH WHEELHOUSE, FR INR RH
61818 MR439983 SIDEMEMBER, FR OTR LH SIDEMEMBER, FR OTR LH
61818 MR439984 SIDEMEMBER, FR OTR RH SIDEMEMBER, FR OTR RH
61819 MR439985 SIDEMEMBER, FR INR LH SIDEMEMBER, FR INR LH
61819 MR439986 SIDEMEMBER, FR INR RH SIDEMEMBER, FR INR RH
61819 MR586687 SIDEMEMBER,FR INR LH SIDEMEMBER,FR INR LH
61986 MN150602 STAY, FR END STRUCTURE STAY, FR END STRUCTURE
61989 MU140017 BOLT, FR DOOR HINGE - Flange,8x20 BOLT, FR DOOR HINGE - Flange,8x20
62610 MN150614 SUPPORT ASSY,HEADLAMP SUPPORT ASSY,HEADLAMP
62610 MN150609 SUPPORT, HEADLAMP, LH SUPPORT, HEADLAMP, LH
62610 MN150610 SUPPORT, HEADLAMP, RH SUPPORT, HEADLAMP, RH
62630 MN150553 PANEL, HEADLAMP SUPPORT, LH PANEL, HEADLAMP SUPPORT, LH
62630 MN150554 PANEL, HEADLAMP SUPPORT, RH PANEL, HEADLAMP SUPPORT, RH
62639 MN150617 CROSSMEMBER,HEADLAMP SUPPORT CROSSMEMBER,HEADLAMP SUPPORT
62640 MN150586 PANEL, HEADLAMP SUPPORT, UPR PANEL, HEADLAMP SUPPORT, UPR
62650 MR566904 PANEL, HEADLAMP SUPPORT, LWR PANEL, HEADLAMP SUPPORT, LWR
65009 MR548501 SIDEMEMBER ASSY, FR LH SIDEMEMBER ASSY, FR LH
65009 MR990414 SIDEMEMBER ASSY, FR RH SIDEMEMBER ASSY, FR RH
65009 MN186437 SIDEMEMBER ASSY,FR LH SIDEMEMBER ASSY,FR LH
65009 MR586750 SIDEMEMBER ASSY,FR RH SIDEMEMBER ASSY,FR RH
Front exterior lamp (ALL) 10 / 10
CS1A Front exterior lamp (ALL)
CS9A Front exterior lamp (ALL)
# OEM CS1A CS9A
80164 MU805818 SOCKET, RR LAMP SOCKET, RR LAMP
80189 MS820077 BULB, FR LAMP - 12v-5w BULB, FR LAMP - 12v-5w
80219 MN161021 LAMP KIT, FOG, FR LH - 12v-55w LAMP KIT, FOG, FR LH - 12v-55w
80219 MN161022 LAMP KIT, FOG, FR RH - 12v-55w LAMP KIT, FOG, FR RH - 12v-55w
80222 MN126007 GASKET, FR SIDE TURN SIGNAL LAMP GASKET, FR SIDE TURN SIGNAL LAMP
80230 MR991187 LAMP ASSY, SIDE TURN SIGNAL, FR - 12v-5w LAMP ASSY, SIDE TURN SIGNAL, FR - 12v-5w
80249 MN154901 LAMP UNIT, FOG, FR LH LAMP UNIT, FOG, FR LH
80249 MN154902 LAMP UNIT, FOG, FR RH LAMP UNIT, FOG, FR RH
80877 MB409437 SCREW, STEERING COLUMN COVER - Tapping,5x12 SCREW, STEERING COLUMN COVER - Tapping,5x12
80884 MS820964 BULB, HEADLAMP - 12v-55w,h3 BULB, HEADLAMP - 12v-55w,h3
Front garnish & moulding (ALL) 7 / 7
CS1A Front garnish & moulding (ALL)
CS9A Front garnish & moulding (ALL)
# OEM CS1A CS9A
60212 MB893066 GARNISH, FR DECK, LH GARNISH, FR DECK, LH
60212 MB893069 GARNISH, FR DECK, RH GARNISH, FR DECK, RH
60212 MR533285 GARNISH,FR DECK,LH GARNISH,FR DECK,LH
60212 MR533286 GARNISH,FR DECK,RH GARNISH,FR DECK,RH
62314 MR574170 PAD, COWL SIDE PAD, COWL SIDE
70598 MR533923 CLIP, AIR INLET GRILLE CLIP, AIR INLET GRILLE
70598 MR777365 CLIP, TRUNK ROOM TRIM CLIP, TRUNK ROOM TRIM
Front seat (LH..HEIGHT(COVER&PAD ADHESIVE TYPE)) 19 / 43
CS1A Front seat (LH..HEIGHT(COVER&PAD ADHESIVE TYPE))
CS9A Front seat (LH..HEIGHT(EXC.COVER&PAD ADHESIVE TYPE))
# OEM CS1A CS9A
75026 MR524258 FRAME, FR SEAT CUSHION, LH FRAME, FR SEAT CUSHION, LH
75082 MB916447 SNAP RING, FR SEAT SNAP RING, FR SEAT
75087 MU431010 NUT, FR SEAT - Cap,washer assembled NUT, FR SEAT - Cap,washer assembled
75099 MR562118 SCREW, FR SEAT SCREW, FR SEAT
75111 MS240188 BOLT, FR BUMPER - Washer assembled,10x30 BOLT, FR BUMPER - Washer assembled,10x30
75111 MF243649 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16
75111 MF241281 BOLT, CYLINDER BLOCK - Washer assembled,10x22 BOLT, CYLINDER BLOCK - Washer assembled,10x22
75151 MR629132 COVER, FR SEAT HINGE, LH COVER, FR SEAT HINGE, LH
75153 MR629130 COVER, FR SEAT SIDE SHIELD, LH COVER, FR SEAT SIDE SHIELD, LH
75175 MR753562 GUIDE, FR SEAT HEADREST - W/lock GUIDE, FR SEAT HEADREST - W/lock
75175 MR753563 GUIDE, FR SEAT HEADREST - W/o lock GUIDE, FR SEAT HEADREST - W/o lock
75177 MR648863 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75177 MR656240 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75199 MR628222 COVER, FR SEAT ANCHOR COVER, FR SEAT ANCHOR
75602 MN177959 ADJUSTER,FR SEAT HEIGHT,LH ADJUSTER,FR SEAT HEIGHT,LH
75626 MR501771 LEVER, FR SEAT SLIDE ADJUSTER, LH LEVER, FR SEAT SLIDE ADJUSTER, LH
75637 MR632497 LEVER, FR SEAT RECLINING ADJUSTER, LH LEVER, FR SEAT RECLINING ADJUSTER, LH
75641 MR787784 KNOB, FR SEAT HEIGHT ADJUSTER KNOB, FR SEAT HEIGHT ADJUSTER
75644 MR562566 CAP, FR SEAT SLIDE ADJUSTER CAP, FR SEAT SLIDE ADJUSTER
Front seat (LH..HEIGHT(EXC.COVER&PAD ADHESIVE TYPE)) 20 / 49
CS1A Front seat (LH..HEIGHT(EXC.COVER&PAD ADHESIVE TYPE))
CS9A Front seat (LH..HEIGHT(EXC.COVER&PAD ADHESIVE TYPE))
# OEM CS1A CS9A
75026 MR524258 FRAME, FR SEAT CUSHION, LH FRAME, FR SEAT CUSHION, LH
75082 MB916447 SNAP RING, FR SEAT SNAP RING, FR SEAT
75087 MU431010 NUT, FR SEAT - Cap,washer assembled NUT, FR SEAT - Cap,washer assembled
75099 MR562118 SCREW, FR SEAT SCREW, FR SEAT
75111 MS240188 BOLT, FR BUMPER - Washer assembled,10x30 BOLT, FR BUMPER - Washer assembled,10x30
75111 MF243649 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16
75111 MF241281 BOLT, CYLINDER BLOCK - Washer assembled,10x22 BOLT, CYLINDER BLOCK - Washer assembled,10x22
75151 MR629132 COVER, FR SEAT HINGE, LH COVER, FR SEAT HINGE, LH
75153 MR629130 COVER, FR SEAT SIDE SHIELD, LH COVER, FR SEAT SIDE SHIELD, LH
75175 MR753562 GUIDE, FR SEAT HEADREST - W/lock GUIDE, FR SEAT HEADREST - W/lock
75175 MR753563 GUIDE, FR SEAT HEADREST - W/o lock GUIDE, FR SEAT HEADREST - W/o lock
75177 MR648863 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75177 MR656240 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75199 MR628222 COVER, FR SEAT ANCHOR COVER, FR SEAT ANCHOR
75602 MN177959 ADJUSTER,FR SEAT HEIGHT,LH ADJUSTER,FR SEAT HEIGHT,LH
75626 MR501771 LEVER, FR SEAT SLIDE ADJUSTER, LH LEVER, FR SEAT SLIDE ADJUSTER, LH
75637 MR632497 LEVER, FR SEAT RECLINING ADJUSTER, LH LEVER, FR SEAT RECLINING ADJUSTER, LH
75641 MR787784 KNOB, FR SEAT HEIGHT ADJUSTER KNOB, FR SEAT HEIGHT ADJUSTER
75644 MR562566 CAP, FR SEAT SLIDE ADJUSTER CAP, FR SEAT SLIDE ADJUSTER
75648 MR524747 HEATER,FR SEAT BACK,LH HEATER,FR SEAT BACK,LH
Front seat (LH..NORMAL(COVER&PAD ADHESIVE TYPE)) 21 / 42
CS1A Front seat (LH..NORMAL(COVER&PAD ADHESIVE TYPE))
CS9A Front seat (LH..NORMAL(EXC.COVER&PAD ADHESIVE TYPE))
# OEM CS1A CS9A
75026 MR524258 FRAME, FR SEAT CUSHION, LH FRAME, FR SEAT CUSHION, LH
75087 MU431010 NUT, FR SEAT - Cap,washer assembled NUT, FR SEAT - Cap,washer assembled
75099 MR562118 SCREW, FR SEAT SCREW, FR SEAT
75111 MS240188 BOLT, FR BUMPER - Washer assembled,10x30 BOLT, FR BUMPER - Washer assembled,10x30
75111 MF243649 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16
75111 MF241281 BOLT, CYLINDER BLOCK - Washer assembled,10x22 BOLT, CYLINDER BLOCK - Washer assembled,10x22
75111 MR474788 BOLT, FR SEAT - 10x9 BOLT, FR SEAT - 10x9
75151 MR629132 COVER, FR SEAT HINGE, LH COVER, FR SEAT HINGE, LH
75153 MR629130 COVER, FR SEAT SIDE SHIELD, LH COVER, FR SEAT SIDE SHIELD, LH
75175 MR753562 GUIDE, FR SEAT HEADREST - W/lock GUIDE, FR SEAT HEADREST - W/lock
75175 MR753563 GUIDE, FR SEAT HEADREST - W/o lock GUIDE, FR SEAT HEADREST - W/o lock
75177 MR648863 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75177 MR656240 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75199 MR628222 COVER, FR SEAT ANCHOR COVER, FR SEAT ANCHOR
75237 MR501772 SHAFT, FR SEAT SUSP SHAFT, FR SEAT SUSP
75237 MB941941 SHAFT, FR SEAT SUSP SHAFT, FR SEAT SUSP
75604 MN177955 ADJUSTER, FR SEAT SLIDE ADJUSTER, FR SEAT SLIDE
75604 MN177967 ADJUSTER, FR SEAT SLIDE ADJUSTER, FR SEAT SLIDE
75626 MR501771 LEVER, FR SEAT SLIDE ADJUSTER, LH LEVER, FR SEAT SLIDE ADJUSTER, LH
75637 MR632497 LEVER, FR SEAT RECLINING ADJUSTER, LH LEVER, FR SEAT RECLINING ADJUSTER, LH
75644 MR562566 CAP, FR SEAT SLIDE ADJUSTER CAP, FR SEAT SLIDE ADJUSTER
Front seat (LH..NORMAL(EXC.COVER&PAD ADHESIVE TYPE)) 21 / 46
CS1A Front seat (LH..NORMAL(EXC.COVER&PAD ADHESIVE TYPE))
CS9A Front seat (LH..NORMAL(EXC.COVER&PAD ADHESIVE TYPE))
# OEM CS1A CS9A
75026 MR524258 FRAME, FR SEAT CUSHION, LH FRAME, FR SEAT CUSHION, LH
75087 MU431010 NUT, FR SEAT - Cap,washer assembled NUT, FR SEAT - Cap,washer assembled
75099 MR562118 SCREW, FR SEAT SCREW, FR SEAT
75111 MS240188 BOLT, FR BUMPER - Washer assembled,10x30 BOLT, FR BUMPER - Washer assembled,10x30
75111 MF243649 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16
75111 MF241281 BOLT, CYLINDER BLOCK - Washer assembled,10x22 BOLT, CYLINDER BLOCK - Washer assembled,10x22
75111 MR474788 BOLT, FR SEAT - 10x9 BOLT, FR SEAT - 10x9
75151 MR629132 COVER, FR SEAT HINGE, LH COVER, FR SEAT HINGE, LH
75153 MR629130 COVER, FR SEAT SIDE SHIELD, LH COVER, FR SEAT SIDE SHIELD, LH
75175 MR753562 GUIDE, FR SEAT HEADREST - W/lock GUIDE, FR SEAT HEADREST - W/lock
75175 MR753563 GUIDE, FR SEAT HEADREST - W/o lock GUIDE, FR SEAT HEADREST - W/o lock
75177 MR648863 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75177 MR656240 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75199 MR628222 COVER, FR SEAT ANCHOR COVER, FR SEAT ANCHOR
75237 MR501772 SHAFT, FR SEAT SUSP SHAFT, FR SEAT SUSP
75237 MB941941 SHAFT, FR SEAT SUSP SHAFT, FR SEAT SUSP
75604 MN177955 ADJUSTER, FR SEAT SLIDE ADJUSTER, FR SEAT SLIDE
75604 MN177967 ADJUSTER, FR SEAT SLIDE ADJUSTER, FR SEAT SLIDE
75626 MR501771 LEVER, FR SEAT SLIDE ADJUSTER, LH LEVER, FR SEAT SLIDE ADJUSTER, LH
75637 MR632497 LEVER, FR SEAT RECLINING ADJUSTER, LH LEVER, FR SEAT RECLINING ADJUSTER, LH
75644 MR562566 CAP, FR SEAT SLIDE ADJUSTER CAP, FR SEAT SLIDE ADJUSTER
Front seat (RH..HEIGHT(COVER&PAD ADHESIVE TYPE)) 19 / 42
CS1A Front seat (RH..HEIGHT(COVER&PAD ADHESIVE TYPE))
CS9A Front seat (RH..HEIGHT(EXC.COVER&PAD ADHESIVE TYPE))
# OEM CS1A CS9A
75026 MR524258 FRAME, FR SEAT CUSHION, LH FRAME, FR SEAT CUSHION, LH
75082 MB916447 SNAP RING, FR SEAT SNAP RING, FR SEAT
75087 MU431010 NUT, FR SEAT - Cap,washer assembled NUT, FR SEAT - Cap,washer assembled
75099 MR562118 SCREW, FR SEAT SCREW, FR SEAT
75111 MS240188 BOLT, FR BUMPER - Washer assembled,10x30 BOLT, FR BUMPER - Washer assembled,10x30
75111 MF243649 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16
75111 MF241281 BOLT, CYLINDER BLOCK - Washer assembled,10x22 BOLT, CYLINDER BLOCK - Washer assembled,10x22
75151 MR629133 COVER, FR SEAT HINGE, RH COVER, FR SEAT HINGE, RH
75153 MR629131 COVER, FR SEAT SIDE SHIELD, RH COVER, FR SEAT SIDE SHIELD, RH
75175 MR753562 GUIDE, FR SEAT HEADREST - W/lock GUIDE, FR SEAT HEADREST - W/lock
75175 MR753563 GUIDE, FR SEAT HEADREST - W/o lock GUIDE, FR SEAT HEADREST - W/o lock
75177 MR648863 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75177 MR656240 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75199 MR628222 COVER, FR SEAT ANCHOR COVER, FR SEAT ANCHOR
75602 MN177966 ADJUSTER,FR SEAT HEIGHT,RH ADJUSTER,FR SEAT HEIGHT,RH
75626 MR501771 LEVER, FR SEAT SLIDE ADJUSTER, LH LEVER, FR SEAT SLIDE ADJUSTER, LH
75637 MR632499 LEVER, FR SEAT RECLINING ADJUSTER, RH LEVER, FR SEAT RECLINING ADJUSTER, RH
75641 MR787784 KNOB, FR SEAT HEIGHT ADJUSTER KNOB, FR SEAT HEIGHT ADJUSTER
75644 MR562566 CAP, FR SEAT SLIDE ADJUSTER CAP, FR SEAT SLIDE ADJUSTER
Front seat (RH..HEIGHT(EXC.COVER&PAD ADHESIVE TYPE)) 19 / 46
CS1A Front seat (RH..HEIGHT(EXC.COVER&PAD ADHESIVE TYPE))
CS9A Front seat (RH..HEIGHT(EXC.COVER&PAD ADHESIVE TYPE))
# OEM CS1A CS9A
75026 MR524258 FRAME, FR SEAT CUSHION, LH FRAME, FR SEAT CUSHION, LH
75082 MB916447 SNAP RING, FR SEAT SNAP RING, FR SEAT
75087 MU431010 NUT, FR SEAT - Cap,washer assembled NUT, FR SEAT - Cap,washer assembled
75099 MR562118 SCREW, FR SEAT SCREW, FR SEAT
75111 MS240188 BOLT, FR BUMPER - Washer assembled,10x30 BOLT, FR BUMPER - Washer assembled,10x30
75111 MF243649 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16
75111 MF241281 BOLT, CYLINDER BLOCK - Washer assembled,10x22 BOLT, CYLINDER BLOCK - Washer assembled,10x22
75151 MR629133 COVER, FR SEAT HINGE, RH COVER, FR SEAT HINGE, RH
75153 MR629131 COVER, FR SEAT SIDE SHIELD, RH COVER, FR SEAT SIDE SHIELD, RH
75175 MR753562 GUIDE, FR SEAT HEADREST - W/lock GUIDE, FR SEAT HEADREST - W/lock
75175 MR753563 GUIDE, FR SEAT HEADREST - W/o lock GUIDE, FR SEAT HEADREST - W/o lock
75177 MR648863 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75177 MR656240 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75199 MR628222 COVER, FR SEAT ANCHOR COVER, FR SEAT ANCHOR
75602 MN177966 ADJUSTER,FR SEAT HEIGHT,RH ADJUSTER,FR SEAT HEIGHT,RH
75626 MR501771 LEVER, FR SEAT SLIDE ADJUSTER, LH LEVER, FR SEAT SLIDE ADJUSTER, LH
75637 MR632499 LEVER, FR SEAT RECLINING ADJUSTER, RH LEVER, FR SEAT RECLINING ADJUSTER, RH
75641 MR787784 KNOB, FR SEAT HEIGHT ADJUSTER KNOB, FR SEAT HEIGHT ADJUSTER
75644 MR562566 CAP, FR SEAT SLIDE ADJUSTER CAP, FR SEAT SLIDE ADJUSTER
Front seat (RH..NORMAL(COVER&PAD ADHESIVE TYPE)) 22 / 43
CS1A Front seat (RH..NORMAL(COVER&PAD ADHESIVE TYPE))
CS9A Front seat (RH..NORMAL(EXC.COVER&PAD ADHESIVE TYPE))
# OEM CS1A CS9A
75026 MR524258 FRAME, FR SEAT CUSHION, LH FRAME, FR SEAT CUSHION, LH
75087 MU431010 NUT, FR SEAT - Cap,washer assembled NUT, FR SEAT - Cap,washer assembled
75099 MR562118 SCREW, FR SEAT SCREW, FR SEAT
75111 MS240188 BOLT, FR BUMPER - Washer assembled,10x30 BOLT, FR BUMPER - Washer assembled,10x30
75111 MF243649 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16
75111 MF241281 BOLT, CYLINDER BLOCK - Washer assembled,10x22 BOLT, CYLINDER BLOCK - Washer assembled,10x22
75111 MR474788 BOLT, FR SEAT - 10x9 BOLT, FR SEAT - 10x9
75151 MR629133 COVER, FR SEAT HINGE, RH COVER, FR SEAT HINGE, RH
75153 MR629131 COVER, FR SEAT SIDE SHIELD, RH COVER, FR SEAT SIDE SHIELD, RH
75175 MR753562 GUIDE, FR SEAT HEADREST - W/lock GUIDE, FR SEAT HEADREST - W/lock
75175 MR753563 GUIDE, FR SEAT HEADREST - W/o lock GUIDE, FR SEAT HEADREST - W/o lock
75177 MR648863 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75177 MR656240 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75199 MR628222 COVER, FR SEAT ANCHOR COVER, FR SEAT ANCHOR
75237 MR501772 SHAFT, FR SEAT SUSP SHAFT, FR SEAT SUSP
75237 MB941941 SHAFT, FR SEAT SUSP SHAFT, FR SEAT SUSP
75604 MN177962 ADJUSTER,FR SEAT SLIDE ADJUSTER,FR SEAT SLIDE
75604 MN177968 ADJUSTER, FR SEAT SLIDE ADJUSTER, FR SEAT SLIDE
75604 MN177964 ADJUSTER,FR SEAT SLIDE ADJUSTER,FR SEAT SLIDE
75626 MR501771 LEVER, FR SEAT SLIDE ADJUSTER, LH LEVER, FR SEAT SLIDE ADJUSTER, LH
75637 MR632499 LEVER, FR SEAT RECLINING ADJUSTER, RH LEVER, FR SEAT RECLINING ADJUSTER, RH
75644 MR562566 CAP, FR SEAT SLIDE ADJUSTER CAP, FR SEAT SLIDE ADJUSTER
Front seat (RH..NORMAL(EXC.COVER&PAD ADHESIVE TYPE)) 23 / 49
CS1A Front seat (RH..NORMAL(EXC.COVER&PAD ADHESIVE TYPE))
CS9A Front seat (RH..NORMAL(EXC.COVER&PAD ADHESIVE TYPE))
# OEM CS1A CS9A
75026 MR524258 FRAME, FR SEAT CUSHION, LH FRAME, FR SEAT CUSHION, LH
75087 MU431010 NUT, FR SEAT - Cap,washer assembled NUT, FR SEAT - Cap,washer assembled
75099 MR562118 SCREW, FR SEAT SCREW, FR SEAT
75111 MS240188 BOLT, FR BUMPER - Washer assembled,10x30 BOLT, FR BUMPER - Washer assembled,10x30
75111 MF243649 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 BOLT, FLYWHEEL HOUSING - Washer assembled,8x16
75111 MF241281 BOLT, CYLINDER BLOCK - Washer assembled,10x22 BOLT, CYLINDER BLOCK - Washer assembled,10x22
75111 MR474788 BOLT, FR SEAT - 10x9 BOLT, FR SEAT - 10x9
75151 MR629133 COVER, FR SEAT HINGE, RH COVER, FR SEAT HINGE, RH
75153 MR629131 COVER, FR SEAT SIDE SHIELD, RH COVER, FR SEAT SIDE SHIELD, RH
75175 MR753562 GUIDE, FR SEAT HEADREST - W/lock GUIDE, FR SEAT HEADREST - W/lock
75175 MR753563 GUIDE, FR SEAT HEADREST - W/o lock GUIDE, FR SEAT HEADREST - W/o lock
75177 MR648863 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75177 MR656240 HEADREST, RR SEAT - See through type HEADREST, RR SEAT - See through type
75199 MR628222 COVER, FR SEAT ANCHOR COVER, FR SEAT ANCHOR
75237 MR501772 SHAFT, FR SEAT SUSP SHAFT, FR SEAT SUSP
75237 MB941941 SHAFT, FR SEAT SUSP SHAFT, FR SEAT SUSP
75604 MN177962 ADJUSTER,FR SEAT SLIDE ADJUSTER,FR SEAT SLIDE
75604 MN177968 ADJUSTER, FR SEAT SLIDE ADJUSTER, FR SEAT SLIDE
75604 MN177964 ADJUSTER,FR SEAT SLIDE ADJUSTER,FR SEAT SLIDE
75626 MR501771 LEVER, FR SEAT SLIDE ADJUSTER, LH LEVER, FR SEAT SLIDE ADJUSTER, LH
75637 MR632499 LEVER, FR SEAT RECLINING ADJUSTER, RH LEVER, FR SEAT RECLINING ADJUSTER, RH
75644 MR562566 CAP, FR SEAT SLIDE ADJUSTER CAP, FR SEAT SLIDE ADJUSTER
75648 MN162420 HEATER,FR SEAT BACK,RH HEATER,FR SEAT BACK,RH
Front susp arm & member (ALL) 18 / 18
CS1A Front susp arm & member (ALL)
CS9A Front susp arm & member (ALL)
# OEM CS1A CS9A
32162 MR403173 CROSSMEMBER, FR AXLE, NO.1 CROSSMEMBER, FR AXLE, NO.1
32162 MR510285 CROSSMEMBER, FR AXLE, NO.1 CROSSMEMBER, FR AXLE, NO.1
32166 MF140456 BOLT, AIR CLEANER - Flange,10x16 BOLT, AIR CLEANER - Flange,10x16
32166 MF911630 BOLT, ENG FR MOUNTING - Flange,10x16 BOLT, ENG FR MOUNTING - Flange,10x16
32168 MD090875 NUT, INJECTION PUMP - Flange,14 NUT, INJECTION PUMP - Flange,14
40026 MR455094 MEMBER, FR SUSP, CTR MEMBER, FR SUSP, CTR
40099 MU140080 BOLT, FR SUSP CTR MEMBER - Flange,12x56 BOLT, FR SUSP CTR MEMBER - Flange,12x56
40099 MU000468 BOLT, FR SUSP CTR MEMBER BOLT, FR SUSP CTR MEMBER
40317 MR455070 COVER, FR SUSP LWR ARM BALL JOINT COVER, FR SUSP LWR ARM BALL JOINT
40320 MR403419 ARM ASSY, FR SUSP, LWR LH ARM ASSY, FR SUSP, LWR LH
40320 MR403420 ARM ASSY, FR SUSP, LWR RH ARM ASSY, FR SUSP, LWR RH
40381 MU000382 WASHER, FR SUSP LWR ARM WASHER, FR SUSP LWR ARM
40387 MU431006 NUT, ENG MOUNTING NUT, ENG MOUNTING
40388 MU000467 BOLT, KNUCKLE - Flange,12x60 BOLT, KNUCKLE - Flange,12x60
40388 MU140029 BOLT, FR SUSP LWR ARM BOLT, FR SUSP LWR ARM
40388 MU140081 BOLT, FR SUSP LWR ARM BOLT, FR SUSP LWR ARM
40388 MU000302 BOLT, FR SUSP LWR ARM BOLT, FR SUSP LWR ARM
40399 MR403441 BUSHING, FR SUSP LWR ARM BUSHING, FR SUSP LWR ARM
Front susp strut & spring (ALL) 17 / 20
CS1A Front susp strut & spring (ALL)
CS9A Front susp strut & spring (ALL)
# OEM CS1A CS9A
40002 MR272946 BEARING, FR SUSP STRUT BEARING, FR SUSP STRUT
40017 MR961189 DAMPER,FR SUSP STRUT DAMPER,FR SUSP STRUT
40021 MB303070 COVER, FR SUSP STRUT COVER, FR SUSP STRUT
40025 MR589877 INSULATOR, FR SUSP STRUT INSULATOR, FR SUSP STRUT
40025 MR554860 INSULATOR, FR SUSP STRUT INSULATOR, FR SUSP STRUT
40089 MF434105 NUT, CYLINDER BLOCK - Flange,10 NUT, CYLINDER BLOCK - Flange,10
40089 MB288463 NUT, FR WHEEL HUB - Flange self locking,12 NUT, FR WHEEL HUB - Flange self locking,12
40145 MR244220 PAD, FR SUSP SPRING, LWR PAD, FR SUSP SPRING, LWR
40162 MR491447 SEAT, FR SUSP SPRING, UPR SEAT, FR SUSP SPRING, UPR
40603 MN101581 BAR, FR SUSP STABILIZER BAR, FR SUSP STABILIZER
40603 MR519878 BAR, FR SUSP STABILIZER - 25 BAR, FR SUSP STABILIZER - 25
40611 MR403646 BRACKET, FR SUSP STABILIZER BAR BRACKET, FR SUSP STABILIZER BAR
40632 MR954887 LINK KIT, FR SUSP STABILIZER LINK KIT, FR SUSP STABILIZER
40698 MB142761 BOLT, FR SUSP STABILIZER - Washer assembled,8x25 BOLT, FR SUSP STABILIZER - Washer assembled,8x25
40698 MU140017 BOLT, FR DOOR HINGE - Flange,8x20 BOLT, FR DOOR HINGE - Flange,8x20
40699 MN100250 BUSHING, FR SUSP STABILIZER BUSHING, FR SUSP STABILIZER
40699 MR519880 BUSHING, FR SUSP STABILIZER - 25 BUSHING, FR SUSP STABILIZER - 25
Front wheel brake (ALL) 16 / 16
CS1A Front wheel brake (ALL)
CS9A Front wheel brake (ALL)
# OEM CS1A CS9A
51002 MB928290 BLEEDER, FR BRAKE CALIPER BLEEDER, FR BRAKE CALIPER
51016 MB699264 BUSHING, FR BRAKE BUSHING, FR BRAKE
51020 MR527672 SEAL KIT, FR BRAKE CALIPER SEAL KIT, FR BRAKE CALIPER
51023 MR955063 CALIPER KIT, FR BRAKE, LH CALIPER KIT, FR BRAKE, LH
51023 MR955064 CALIPER KIT, FR BRAKE, RH CALIPER KIT, FR BRAKE, RH
51026 MV026287 CAP, GEARSHIFT LINK CAP, GEARSHIFT LINK
51037 MR527609 PISTON, FR BRAKE CALIPER PISTON, FR BRAKE CALIPER
51054 MR569361 SUPPORT, FR BRAKE CALIPER SUPPORT, FR BRAKE CALIPER
51120 MR527675 PAD SET,FR BRAKE PAD SET,FR BRAKE
51140 MR527673 CLIP SET, FR BRAKE CLIP SET, FR BRAKE
51150 MR527676 SHIM SET, FR BRAKE SHIM SET, FR BRAKE
51984 MR527611 CLIP, FR BRAKE CLIP, FR BRAKE
51986 MR407742 PIN, FR BRAKE - Lock PIN, FR BRAKE - Lock
51986 MR407741 PIN, FR BRAKE - Guide PIN, FR BRAKE - Guide
51987 MR205902 BOLT, FR BRAKE - Flange,12x25.5 BOLT, FR BRAKE - Flange,12x25.5
51987 MR407743 BOLT, FR BRAKE - M8 BOLT, FR BRAKE - M8
Fuel filler lid & lock (ALL) 5 / 6
CS1A Fuel filler lid & lock (ALL)
CS9A Fuel filler lid & lock (ALL)
# OEM CS1A CS9A
5012 MR303200 HOOK, FUEL FILLER LID HOOK, FUEL FILLER LID
5087 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
5087 MU240008 BOLT, HOOD LOCKING - Washer assembled,6x16 BOLT, HOOD LOCKING - Washer assembled,6x16
5087 MU240093 BOLT, HOOD LOCKING - Washer assembled,6x16 BOLT, HOOD LOCKING - Washer assembled,6x16
5096 MR970563 CLIP, FUEL FILLER LID LOCKING CLIP, FUEL FILLER LID LOCKING
Fuel line & vapor gas control (FRONT) 32 / 38
CS1A Fuel line & vapor gas control (FRONT)
CS9A Fuel line & vapor gas control (FRONT)
# OEM CS1A CS9A
5429 MR431545 PIPE, FUEL RETURN PIPE, FUEL RETURN
5449 MN163458 PIPE, FUEL LINE PIPE, FUEL LINE
5455 MB221305 CUSHION, FUEL LINE CUSHION, FUEL LINE
5456 MB554317 O-RING, FUEL LINE - 11.8 O-RING, FUEL LINE - 11.8
5457 MB845609 COLLAR, FUEL LINE COLLAR, FUEL LINE
5470 MB249339 BAND, ENG BREATHER - L=169.5 BAND, ENG BREATHER - L=169.5
5473 MB329606 CLIP, FUEL RETURN LINE CLIP, FUEL RETURN LINE
5488 MS440502 NUT, FUEL TANK - Washer assembled,6 NUT, FUEL TANK - Washer assembled,6
5493 MR450757 CLIP, FUEL LINE CLIP, FUEL LINE
5493 MR450758 CLIP, FUEL LINE CLIP, FUEL LINE
5493 MR450760 CLIP, FUEL LINE CLIP, FUEL LINE
5493 MR571225 CLIP, FUEL LINE CLIP, FUEL LINE
5493 MR597047 CLIP, FUEL LINE CLIP, FUEL LINE
5493 MB595895 CLIP, FUEL RETURN LINE - 6 CLIP, FUEL RETURN LINE - 6
5494 MR464931 CLAMP, FUEL LINE CLAMP, FUEL LINE
5494 MR464934 CLAMP, FUEL LINE CLAMP, FUEL LINE
5494 MR450824 CLAMP, FUEL LINE CLAMP, FUEL LINE
5494 MR450951 CLAMP, FUEL LINE CLAMP, FUEL LINE
5494 MR497758 CLAMP, FUEL LINE CLAMP, FUEL LINE
5496 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
5496 MU240020 BOLT, FUEL LINE - Washer assembled,6x20 BOLT, FUEL LINE - Washer assembled,6x20
5605 MR431571 BRACKET, FUEL VAPOR CANISTER BRACKET, FUEL VAPOR CANISTER
5607 MR464469 CANISTER, FUEL VAPOR CANISTER, FUEL VAPOR
5611 MR497568 JOINT, FUEL VAPOR CONTROL LINE JOINT, FUEL VAPOR CONTROL LINE
5622 MR431547 PIPE, FUEL VAPOR PIPE, FUEL VAPOR
5963 MR497567 HOSE, FUEL VAPOR CONTROL LINE HOSE, FUEL VAPOR CONTROL LINE
5963 MN153457 HOSE, FUEL VAPOR CONTROL LINE HOSE, FUEL VAPOR CONTROL LINE
5966 MS660169 CLIP, FUEL TANK - D=10 CLIP, FUEL TANK - D=10
5967 MN153456 CLAMP, FUEL VAPOR CONTROL LINE CLAMP, FUEL VAPOR CONTROL LINE
5971 MF240050 BOLT, ROCKER COVER - Washer assembled,8x14 BOLT, ROCKER COVER - Washer assembled,8x14
56257 MR493311 TUBE, BRAKE MAIN, LH TUBE, BRAKE MAIN, LH
56257 MR493312 TUBE, BRAKE MAIN, RH TUBE, BRAKE MAIN, RH
Fuel line & vapor gas control (REAR -0704.1) 13 / 13
CS1A Fuel line & vapor gas control (REAR -0704.1)
CS9A Fuel line & vapor gas control (REAR -0704.1)
# OEM CS1A CS9A
5429 MR431545 PIPE, FUEL RETURN PIPE, FUEL RETURN
5449 MN163458 PIPE, FUEL LINE PIPE, FUEL LINE
5493 MR450759 CLIP, FUEL LINE CLIP, FUEL LINE
5493 MR450757 CLIP, FUEL LINE CLIP, FUEL LINE
5493 MR450758 CLIP, FUEL LINE CLIP, FUEL LINE
5493 MR497783 CLIP, FUEL LINE CLIP, FUEL LINE
5494 MR450765 CLAMP, FUEL LINE CLAMP, FUEL LINE
5494 MR464932 CLAMP, FUEL LINE CLAMP, FUEL LINE
5494 MR497753 CLAMP, FUEL LINE CLAMP, FUEL LINE
5496 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
5622 MR431547 PIPE, FUEL VAPOR PIPE, FUEL VAPOR
56257 MR493311 TUBE, BRAKE MAIN, LH TUBE, BRAKE MAIN, LH
56257 MR493312 TUBE, BRAKE MAIN, RH TUBE, BRAKE MAIN, RH
Fuel line & vapor gas control (REAR 0704.2-) 14 / 14
CS1A Fuel line & vapor gas control (REAR 0704.2-)
CS9A Fuel line & vapor gas control (REAR 0704.2-)
# OEM CS1A CS9A
5429 MR431545 PIPE, FUEL RETURN PIPE, FUEL RETURN
5449 MN163458 PIPE, FUEL LINE PIPE, FUEL LINE
5493 MR450759 CLIP, FUEL LINE CLIP, FUEL LINE
5493 MR450757 CLIP, FUEL LINE CLIP, FUEL LINE
5493 MN135768 CLIP, FUEL LINE CLIP, FUEL LINE
5493 MN135769 CLIP, FUEL LINE CLIP, FUEL LINE
5493 MR497783 CLIP, FUEL LINE CLIP, FUEL LINE
5494 MR450765 CLAMP, FUEL LINE CLAMP, FUEL LINE
5494 MR464932 CLAMP, FUEL LINE CLAMP, FUEL LINE
5494 MR497753 CLAMP, FUEL LINE CLAMP, FUEL LINE
5496 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
5622 MR431547 PIPE, FUEL VAPOR PIPE, FUEL VAPOR
56257 MR493311 TUBE, BRAKE MAIN, LH TUBE, BRAKE MAIN, LH
56257 MR493312 TUBE, BRAKE MAIN, RH TUBE, BRAKE MAIN, RH
Fuel tank (FUEL FILLER PIPE) 14 / 14
CS1A Fuel tank (FUEL FILLER PIPE)
CS9A Fuel tank (FUEL FILLER PIPE)
# OEM CS1A CS9A
5007 MB554982 GASKET, FUEL FILLER NECK GASKET, FUEL FILLER NECK
5014 MR503900 HOSE, FUEL FILLER HOSE, FUEL FILLER
5014 MR503902 HOSE, FUEL FILLER HOSE, FUEL FILLER
5015 MR503905 HOSE, FUEL FILLER NECK BREATHER HOSE, FUEL FILLER NECK BREATHER
5016 MR503893 NECK,FUEL FILLER NECK,FUEL FILLER
5076 MS660173 CLIP, FUEL TANK - D=18.5 CLIP, FUEL TANK - D=18.5
5078 MS240198 BOLT, FR SEAT BELT - Washer assembled,6x20 BOLT, FR SEAT BELT - Washer assembled,6x20
5079 MS660271 CLAMP, FUEL TANK - 45 CLAMP, FUEL TANK - 45
5079 MS660272 CLAMP, FUEL FILLER PIPE - 48 CLAMP, FUEL FILLER PIPE - 48
5081 MB400510 SCREW, FUEL TANK - Washer assembled,6x16 SCREW, FUEL TANK - Washer assembled,6x16
5081 MU340019 SCREW, FUEL TANK - Washer assembled,6x16 SCREW, FUEL TANK - Washer assembled,6x16
5081 MU340031 SCREW, FUEL TANK - Washer assembled,6x16 SCREW, FUEL TANK - Washer assembled,6x16
5114 MN120699 CAP, FUEL TANK CAP, FUEL TANK
5188 MR135439 VALVE, FUEL FILLER NECK VALVE, FUEL FILLER NECK
Fuel tank (FUEL TANK) 35 / 36
CS1A Fuel tank (FUEL TANK)
CS9A Fuel tank (FUEL TANK)
# OEM CS1A CS9A
5100 MN106272 FUEL TANK FUEL TANK
5145 MR503462 GAUGE UNIT, FUEL TANK GAUGE UNIT, FUEL TANK
5149 MR497143 PUMP, FUEL TANK PUMP, FUEL TANK
5186 MR342160 VALVE, FUEL FILLER NECK VALVE, FUEL FILLER NECK
5191 MN120764 VALVE, FUEL TANK SAFETY VALVE, FUEL TANK SAFETY
5210 MR552781 FILTER ASSY, FUEL TANK FILTER ASSY, FUEL TANK
5213 MR552785 CUSHION, FUEL TANK PUMP CUSHION, FUEL TANK PUMP
5259 MB382513 GASKET, FUEL TANK GAUGE GASKET, FUEL TANK GAUGE
5261 MN106046 GASKET, FUEL TANK PUMP GASKET, FUEL TANK PUMP
5265 MR503803 HOSE, FUEL TANK HOSE, FUEL TANK
5265 MR503807 HOSE, FUEL TANK HOSE, FUEL TANK
5265 MU602845 HOSE, FUEL TANK - 6x450 HOSE, FUEL TANK - 6x450
5265 MR503808 HOSE, FUEL TANK HOSE, FUEL TANK
5265 MR503809 HOSE, FUEL TANK HOSE, FUEL TANK
5287 MR431119 O-RING, FUEL TANK O-RING, FUEL TANK
5288 MR431121 GROMMET, FUEL TANK GROMMET, FUEL TANK
5289 MS440501 NUT, FUEL TANK - Washer assembled,5 NUT, FUEL TANK - Washer assembled,5
5289 MS440504 NUT - Washer assembled,10 NUT - Washer assembled,10
5291 MS660163 CLIP, ROCKER COVER - D=11.6 CLIP, ROCKER COVER - D=11.6
5291 MR342642 CLIP, FUEL TANK - 10 CLIP, FUEL TANK - 10
5291 MR342643 CLIP, FUEL TANK - 6 CLIP, FUEL TANK - 6
5291 MS660169 CLIP, FUEL TANK - D=10 CLIP, FUEL TANK - D=10
5291 MR161694 CLIP, FUEL LINE CLIP, FUEL LINE
5291 MS470475 CLIP, FUEL VAPOR CONTROL LINE - 6-10 CLIP, FUEL VAPOR CONTROL LINE - 6-10
5296 MS240129 BOLT, FUEL TANK - Washer assembled,10x25 BOLT, FUEL TANK - Washer assembled,10x25
5296 MS240589 BOLT, RR SEAT - 10x25 BOLT, RR SEAT - 10x25
5412 MR503827 HOSE, FUEL HIGH PRESSURE HOSE, FUEL HIGH PRESSURE
5500 MR566825 FUEL PUMP ASSY FUEL PUMP ASSY
5501 MR552783 BRACKET, FUEL PUMP BRACKET, FUEL PUMP
5531 MR497130 TUBE, FUEL PUMP RETURN TUBE, FUEL PUMP RETURN
5583 MR497144 CAP, FUEL PUMP CAP, FUEL PUMP
5586 MR271158 PLATE, FUEL PUMP BRACKET PLATE, FUEL PUMP BRACKET
5622 MN139965 PIPE, FUEL VAPOR PIPE, FUEL VAPOR
5622 MN139966 PIPE, FUEL VAPOR PIPE, FUEL VAPOR
83023 MR431120 HARNESS, FUEL PUMP HARNESS, FUEL PUMP
Headlamp (ALL) 15 / 24
CS1A Headlamp (ALL)
CS9A Headlamp (ALL)
# OEM CS1A CS9A
80025 MR275296 COVER, HEADLAMP BULB SOCKET COVER, HEADLAMP BULB SOCKET
80054 MN159165 SEAL, HEADLAMP, LH SEAL, HEADLAMP, LH
80054 MN159166 SEAL, HEADLAMP, RH SEAL, HEADLAMP, RH
80162 MS820090 BULB (12V, 5W) - 12v-5w BULB (12V, 5W) - 12v-5w
80162 MS820968 BULB, HEADLAMP - 12v-60/55w,h4(hb2) BULB, HEADLAMP - 12v-60/55w,h4(hb2)
80162 MS820026 BULB, TAIL LAMP - 12v-21w BULB, TAIL LAMP - 12v-21w
80193 MU000230 SOCKET, BACKUP LAMP SOCKET, BACKUP LAMP
80194 MS450973 SCREW, RR BUMPER - Washer assembled,6x20 SCREW, RR BUMPER - Washer assembled,6x20
80194 MS452397 SCREW, FR MUD GUARD - Tapping,6x20 SCREW, FR MUD GUARD - Tapping,6x20
80194 MU000716 SCREW, HEADLAMP - Tapping,6x20 SCREW, HEADLAMP - Tapping,6x20
80196 MR393386 GROMMET, FR BUMPER - 6 GROMMET, FR BUMPER - 6
80196 MN167828 GROMMET, HEADLAMP GROMMET, HEADLAMP
80196 MR361004 GROMMET, HEADLAMP GROMMET, HEADLAMP
80198 MS240142 BOLT, FUEL TANK - Washer assembled,6x20 BOLT, FUEL TANK - Washer assembled,6x20
80198 MS241187 BOLT, HEADLAMP - Washer assembled,6x20 BOLT, HEADLAMP - Washer assembled,6x20
Headlamp wiper & washer 2 / 7
CS1A Headlamp wiper & washer
CS9A Headlamp wiper & washer
# OEM CS1A CS9A
84598 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
84598 MS240122 BOLT, ENG FR MOUNTING - Washer assembled,6x20 BOLT, ENG FR MOUNTING - Washer assembled,6x20
Headlining (ALL) 7 / 16
CS1A Headlining (ALL)
CS9A Headlining (ALL)
# OEM CS1A CS9A
72612 MR619781 HEADLINING HEADLINING
72612 MR632934 HEADLINING HEADLINING
72695 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
72695 MS240187 BOLT, HOOD LOCKING - Washer assembled,6x16 BOLT, HOOD LOCKING - Washer assembled,6x16
72699 MB817060 CLIP, HEADLINING CLIP, HEADLINING
72699 MR652808 CLIP, HEADLINING CLIP, HEADLINING
72699 MR796078 CLIP, HEADLINING CLIP, HEADLINING
Heater control (AUTO) 14 / 17
CS1A Heater control (AUTO)
CS9A Heater control (AUTO)
# OEM CS1A CS9A
71330 MR500934 LABEL, HEATER CONTROL LABEL, HEATER CONTROL
71330 MR500932 LABEL, HEATER CONTROL LABEL, HEATER CONTROL
71330 MR500933 LABEL, HEATER CONTROL LABEL, HEATER CONTROL
71330 MR568314 LABEL, HEATER CONTROL LABEL, HEATER CONTROL
82842 MR500655 SENSOR, PHOTO SENSOR, PHOTO
86314 MR958203 KNOB, HEATER CONTROL LEVER KNOB, HEATER CONTROL LEVER
86314 MR958204 KNOB, HEATER CONTROL LEVER KNOB, HEATER CONTROL LEVER
86327 MR633495 PANEL,HEATER CONTROL PANEL,HEATER CONTROL
86353 MN134419 SENSOR, HEATER AIR INTAKE DUCT SENSOR, HEATER AIR INTAKE DUCT
86963 MR460120 BULB, INSTRUMENT PANEL BULB, INSTRUMENT PANEL
86969 MU000263 SCREW, HEATER CONTROL EQUIP - Tapping,5x55 SCREW, HEATER CONTROL EQUIP - Tapping,5x55
86997 MR975812 CLIP, INSTRUMENT PANEL CONSOLE CLIP, INSTRUMENT PANEL CONSOLE
87311 MR513323 SUPPORT, A/C CONTROLLER SUPPORT, A/C CONTROLLER
87406 MR283903 SENSOR, A/C CONDENSER TEMPERATURE SENSOR, A/C CONDENSER TEMPERATURE
Heater control (MANUAL) 21 / 25
CS1A Heater control (MANUAL)
CS9A Heater control (MANUAL)
# OEM CS1A CS9A
71330 MR500934 LABEL, HEATER CONTROL LABEL, HEATER CONTROL
71330 MR500932 LABEL, HEATER CONTROL LABEL, HEATER CONTROL
71330 MR500933 LABEL, HEATER CONTROL LABEL, HEATER CONTROL
71330 MR568314 LABEL, HEATER CONTROL LABEL, HEATER CONTROL
82006 MR513316 SWITCH ASSY, HEATER BLOWER SWITCH ASSY, HEATER BLOWER
86232 MN185056 CONTROLLER, HEATER UNIT DAMPER CONTROLLER, HEATER UNIT DAMPER
86232 MN185055 CONTROLLER,HEATER UNIT DAMPER CONTROLLER,HEATER UNIT DAMPER
86314 MR500925 KNOB, HEATER CONTROL LEVER KNOB, HEATER CONTROL LEVER
86314 MR500929 KNOB, HEATER CONTROL LEVER KNOB, HEATER CONTROL LEVER
86314 MR500928 KNOB, HEATER CONTROL LEVER KNOB, HEATER CONTROL LEVER
86314 MR500927 KNOB, HEATER CONTROL LEVER KNOB, HEATER CONTROL LEVER
86327 MR633495 PANEL,HEATER CONTROL PANEL,HEATER CONTROL
86394 MR500926 KNOB, HEATER BLOWER KNOB, HEATER BLOWER
86963 MR568787 BULB, HEATER CONTROL EQUIP - W/blue cap BULB, HEATER CONTROL EQUIP - W/blue cap
86967 MR513107 WIRE, HEATER CONTROL EQUIP - Temp WIRE, HEATER CONTROL EQUIP - Temp
86967 MR513108 WIRE, HEATER CONTROL EQUIP - Mode WIRE, HEATER CONTROL EQUIP - Mode
86967 MR513272 WIRE,HEATER CONTROL EQUIP WIRE,HEATER CONTROL EQUIP
86967 MR513273 WIRE,HEATER CONTROL EQUIP WIRE,HEATER CONTROL EQUIP
86972 MR398773 PLUG, HEATER CONTROL EQUIP PLUG, HEATER CONTROL EQUIP
86978 MB298639 CLIP, FR CTR VENTILATION - 5.2 CLIP, FR CTR VENTILATION - 5.2
86997 MR975812 CLIP, INSTRUMENT PANEL CONSOLE CLIP, INSTRUMENT PANEL CONSOLE
Heater unit & piping (LHD..BLOWER DISASSEMBLED PARTS) 14 / 16
CS1A Heater unit & piping (LHD..BLOWER DISASSEMBLED PARTS)
CS9A Heater unit & piping (LHD..BLOWER DISASSEMBLED PARTS)
# OEM CS1A CS9A
86206 MR513028 BLOWER ASSY,HEATER BLOWER ASSY,HEATER
86218 MR568592 FAN & MOTOR KIT,HEATER FAN & MOTOR KIT,HEATER
86218 MR568593 FAN & MOTOR KIT,HEATER FAN & MOTOR KIT,HEATER
86249 MR568804 HOSE,HEATER WATER VALVE HOSE,HEATER WATER VALVE
86322 MR568912 MOTOR,HEATER CONTROL MOTOR,HEATER CONTROL
86347 MR568591 RESISTOR, HEATER RESISTOR, HEATER
86435 MR460952 SCREW, HEATER SCREW, HEATER
86435 MR460953 SCREW, HEATER SCREW, HEATER
86435 MR460954 SCREW, HEATER SCREW, HEATER
86435 MF453032 SCREW, STEERING WHEEL - Tapping,5x14 SCREW, STEERING WHEEL - Tapping,5x14
86439 MR460955 NUT, HEATER NUT, HEATER
86443 MR460951 HOLDER, HEATER HOLDER, HEATER
87210 MN185231 AIR REFRESHER ASSY AIR REFRESHER ASSY
87210 MR398288 AIR REFRESHER ASSY AIR REFRESHER ASSY
Heater unit & piping (LHD..HEATER DISASSEMBLED PARTS) 25 / 27
CS1A Heater unit & piping (LHD..HEATER DISASSEMBLED PARTS)
CS9A Heater unit & piping (LHD..HEATER DISASSEMBLED PARTS)
# OEM CS1A CS9A
83928 MR568601 HARNESS,HEATER HARNESS,HEATER
83928 MR568604 HARNESS,HEATER - W/SENSOR HARNESS,HEATER - W/SENSOR
86200 MN124235 HEATER ASSY HEATER ASSY
86200 MR513018 HEATER ASSY HEATER ASSY
86245 MR568599 CORE,HEATER CORE,HEATER
86318 MR568605 ASPIRATOR,HEATER CONTROL VACUUM ASPIRATOR,HEATER CONTROL VACUUM
86322 MR568607 MOTOR,HEATER CONTROL MOTOR,HEATER CONTROL
86322 MR568606 MOTOR,HEATER CONTROL MOTOR,HEATER CONTROL
86354 MR568828 SENSOR,HEATER WATER TEMPERATURE SENSOR,HEATER WATER TEMPERATURE
86435 MF205024 SCREW, INSTRUMENT PANEL TRIM PLATE - Machine cone point,5x12 SCREW, INSTRUMENT PANEL TRIM PLATE - Machine cone point,5x12
86435 MF455016 SCREW, STEERING WHEEL - Tapping,4x10 SCREW, STEERING WHEEL - Tapping,4x10
86435 MF455377 SCREW, FR DOOR ARMREST - Tapping,4x12 SCREW, FR DOOR ARMREST - Tapping,4x12
86435 MR568867 SCREW,HEATER SCREW,HEATER
86435 MR568868 SCREW,HEATER SCREW,HEATER
86441 MR958396 JOINT,HEATER JOINT,HEATER
86443 MB365999 HOLDER, HEATER HOLDER, HEATER
86446 MB568980 CLAMP, A/C CONTROL EQUIP CLAMP, A/C CONTROL EQUIP
86446 MR568609 CLIP,HEATER CLIP,HEATER
86452 MR460368 BOLT, HEATER - 5x35 BOLT, HEATER - 5x35
86452 MR568830 BOLT,HEATER BOLT,HEATER
87086 MR568829 VALVE,A/C EXPANSION VALVE,A/C EXPANSION
87105 MR958417 EVAPORATOR,A/C EVAPORATOR,A/C
87127 MR568831 THERMISTOR,A/C THERMISTOR,A/C
87695 MB946605 O-RING, RR A/C - 1/2 O-RING, RR A/C - 1/2
87695 MR146634 O-RING, A/C PIPING - 5/8 O-RING, A/C PIPING - 5/8
Heater unit & piping (LHD..INSTALLING PARTS) 9 / 11
CS1A Heater unit & piping (LHD..INSTALLING PARTS)
CS9A Heater unit & piping (LHD..INSTALLING PARTS)
# OEM CS1A CS9A
86200 MN124235 HEATER ASSY HEATER ASSY
86200 MR513018 HEATER ASSY HEATER ASSY
86206 MR513028 BLOWER ASSY,HEATER BLOWER ASSY,HEATER
86282 MR513056 DUCT,HEATER AIR INTAKE DUCT,HEATER AIR INTAKE
86435 MF453031 SCREW 5x12 - Tapping,5x12 SCREW 5x12 - Tapping,5x12
86439 MU431014 NUT, RR SEAT - 8 NUT, RR SEAT - 8
86446 MB476821 CLIP, SPLASH SHIELD CLIP, SPLASH SHIELD
86953 MU470040 CLAMP, HEATER PIPING - 21.7 CLAMP, HEATER PIPING - 21.7
87037 MN124137 HOSE, A/C EVAPORATOR DRAIN HOSE, A/C EVAPORATOR DRAIN
Heater unit & piping (RHD..BLOWER DISASSEMBLED PARTS) 12 / 15
CS1A Heater unit & piping (RHD..BLOWER DISASSEMBLED PARTS)
CS9A Heater unit & piping (RHD..BLOWER DISASSEMBLED PARTS)
# OEM CS1A CS9A
86218 MR460944 FAN & MOTOR KIT, HEATER FAN & MOTOR KIT, HEATER
86249 MR460950 HOSE, HEATER WATER VALVE HOSE, HEATER WATER VALVE
86322 MR460946 MOTOR, HEATER CONTROL - Outside-inside MOTOR, HEATER CONTROL - Outside-inside
86347 MR568591 RESISTOR, HEATER RESISTOR, HEATER
86435 MR460952 SCREW, HEATER SCREW, HEATER
86435 MR460953 SCREW, HEATER SCREW, HEATER
86435 MR460954 SCREW, HEATER SCREW, HEATER
86435 MF453032 SCREW, STEERING WHEEL - Tapping,5x14 SCREW, STEERING WHEEL - Tapping,5x14
86439 MR460955 NUT, HEATER NUT, HEATER
86443 MR460951 HOLDER, HEATER HOLDER, HEATER
87210 MN185231 AIR REFRESHER ASSY AIR REFRESHER ASSY
87210 MR398288 AIR REFRESHER ASSY AIR REFRESHER ASSY
Heater unit & piping (RHD..HEATER DISASSEMBLED PARTS) 18 / 20
CS1A Heater unit & piping (RHD..HEATER DISASSEMBLED PARTS)
CS9A Heater unit & piping (RHD..HEATER DISASSEMBLED PARTS)
# OEM CS1A CS9A
86200 MR979799 HEATER ASSY HEATER ASSY
86245 MR979528 CORE, HEATER CORE, HEATER
86435 MF205024 SCREW, INSTRUMENT PANEL TRIM PLATE - Machine cone point,5x12 SCREW, INSTRUMENT PANEL TRIM PLATE - Machine cone point,5x12
86435 MF455016 SCREW, STEERING WHEEL - Tapping,4x10 SCREW, STEERING WHEEL - Tapping,4x10
86435 MF455377 SCREW, FR DOOR ARMREST - Tapping,4x12 SCREW, FR DOOR ARMREST - Tapping,4x12
86435 MR568867 SCREW,HEATER SCREW,HEATER
86435 MR568868 SCREW,HEATER SCREW,HEATER
86446 MR270770 CLIP, RR HEATER CLIP, RR HEATER
86446 MR460370 CLIP, HEATER CLIP, HEATER
86446 MR283297 CLIP, A/C CLIP, A/C
86452 MR460368 BOLT, HEATER - 5x35 BOLT, HEATER - 5x35
86452 MR568830 BOLT,HEATER BOLT,HEATER
87086 MR460369 VALVE, A/C EXPANSION VALVE, A/C EXPANSION
87105 MR958416 EVAPORATOR, A/C EVAPORATOR, A/C
87105 MR513160 PROTECTOR, A/C SUB CONDENSER PROTECTOR, A/C SUB CONDENSER
87127 MR568827 THERMISTOR, A/C THERMISTOR, A/C
87695 MB946605 O-RING, RR A/C - 1/2 O-RING, RR A/C - 1/2
87695 MR146634 O-RING, A/C PIPING - 5/8 O-RING, A/C PIPING - 5/8
Heater unit & piping (RHD..INSTALLING PARTS) 7 / 10
CS1A Heater unit & piping (RHD..INSTALLING PARTS)
CS9A Heater unit & piping (RHD..INSTALLING PARTS)
# OEM CS1A CS9A
86200 MR979799 HEATER ASSY HEATER ASSY
86282 MR500437 DUCT, HEATER AIR INTAKE DUCT, HEATER AIR INTAKE
86435 MF453031 SCREW 5x12 - Tapping,5x12 SCREW 5x12 - Tapping,5x12
86439 MU431014 NUT, RR SEAT - 8 NUT, RR SEAT - 8
86446 MB476821 CLIP, SPLASH SHIELD CLIP, SPLASH SHIELD
86953 MU470040 CLAMP, HEATER PIPING - 21.7 CLAMP, HEATER PIPING - 21.7
87037 MN124137 HOSE, A/C EVAPORATOR DRAIN HOSE, A/C EVAPORATOR DRAIN
Hood & lock (ALL) 28 / 32
CS1A Hood & lock (ALL)
CS9A Hood & lock (ALL)
# OEM CS1A CS9A
61400 MN150618 HOOD HOOD
61414 MN181175 CABLE, HOOD LOCK RELEASE CABLE, HOOD LOCK RELEASE
61421 MU481187 CLIP, HOOD INSULATOR CLIP, HOOD INSULATOR
61427 MR473003 DAMPER, HOOD DAMPER, HOOD
61427 MR473471 DAMPER, HOOD - ** DAMPER, HOOD - **
61427 MR288769 DAMPER, HOOD DAMPER, HOOD
61445 MR627218 HANDLE, HOOD LOCK RELEASE HANDLE, HOOD LOCK RELEASE
61445 MR654344 HANDLE, HOOD LOCK RELEASE HANDLE, HOOD LOCK RELEASE
61446 MN126933 HINGE, HOOD, LH HINGE, HOOD, LH
61446 MN126934 HINGE, HOOD, RH HINGE, HOOD, RH
61468 MN126643 INSULATOR, HOOD INSULATOR, HOOD
61498 MB142761 BOLT, FR SUSP STABILIZER - Washer assembled,8x25 BOLT, FR SUSP STABILIZER - Washer assembled,8x25
61498 MU140017 BOLT, FR DOOR HINGE - Flange,8x20 BOLT, FR DOOR HINGE - Flange,8x20
61498 MU240002 BOLT, HOOD HINGE - Washer assembled,8x20 BOLT, HOOD HINGE - Washer assembled,8x20
61501 MR526083 ROD, HOOD SUPPORT ROD, HOOD SUPPORT
61526 MR525054 WEATHERSTRIP, HOOD WEATHERSTRIP, HOOD
61533 MN126736 WEATHERSTRIP, HOOD, FR WEATHERSTRIP, HOOD, FR
61534 MR525377 WEATHERSTRIP, HOOD, RR WEATHERSTRIP, HOOD, RR
61539 MN167634 COVER, HOOD LATCH COVER, HOOD LATCH
61566 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16 SCREW, TAPPING, 5x16 - Tapping,5x16
61578 MS440503 NUT - Washer assembled,8 NUT - Washer assembled,8
61586 MU481027 CLIP, HOOD - 5.3 CLIP, HOOD - 5.3
61586 MU487004 CLIP, HOOD CLIP, HOOD
61595 MR523786 GROMMET, HOOD LOCKING GROMMET, HOOD LOCKING
61597 MS240198 BOLT, FR SEAT BELT - Washer assembled,6x20 BOLT, FR SEAT BELT - Washer assembled,6x20
61597 MS240684 BOLT, HOOD LOCKING - Washer assembled,6x20 BOLT, HOOD LOCKING - Washer assembled,6x20
61599 MR523317 CLIP, HOOD LOCKING CLIP, HOOD LOCKING
61599 MU481269 CLIP, HOOD LOCKING CLIP, HOOD LOCKING
Horn & buzzer 4 / 5
CS1A Horn & buzzer
CS9A Horn & buzzer
# OEM CS1A CS9A
84633 MR495995 HORN - High tone HORN - High tone
84633 MR558257 HORN - Low tone HORN - Low tone
84998 MB133472 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
84998 MU240147 BOLT, ABS EQUIP - Washer assembled,8x20 BOLT, ABS EQUIP - Washer assembled,8x20
I/panel & related parts (LHD..AIR OUTLET,BRACKET,ETC.) 19 / 30
CS1A I/panel & related parts (LHD..AIR OUTLET,BRACKET,ETC.)
CS9A I/panel & related parts (LHD..AIR OUTLET,BRACKET,ETC.)
# OEM CS1A CS9A
73012 MR512588 BRACKET, INSTRUMENT PANEL BACKBONE BRACKET, INSTRUMENT PANEL BACKBONE
73024 MR512587 BRACKET, INSTRUMENT PANEL BRACKET, INSTRUMENT PANEL
73024 MR550047 BRACKET, INSTRUMENT PANEL, LH BRACKET, INSTRUMENT PANEL, LH
73024 MR550048 BRACKET, INSTRUMENT PANEL, RH BRACKET, INSTRUMENT PANEL, RH
73065 MR512583 BRACKET, INSTRUMENT PANEL DRIVER SIDE, UPR BRACKET, INSTRUMENT PANEL DRIVER SIDE, UPR
73287 MS240141 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16
73287 MF240023 BOLT, FUEL TANK - Washer assembled,6x12 BOLT, FUEL TANK - Washer assembled,6x12
73297 MB409437 SCREW, STEERING COLUMN COVER - Tapping,5x12 SCREW, STEERING COLUMN COVER - Tapping,5x12
73297 MB409438 SCREW, STEERING COLUMN COVER - Tapping,5x16 SCREW, STEERING COLUMN COVER - Tapping,5x16
73507 MB562195 CUSHION, GLOVEBOX CUSHION, GLOVEBOX
73507 MR147231 CUSHION, GLOVEBOX CUSHION, GLOVEBOX
73543 MR512586 STRIKER, GLOVEBOX STRIKER, GLOVEBOX
73602 MR532892 BRACKET, INSTRUMENT PANEL CONSOLE BRACKET, INSTRUMENT PANEL CONSOLE
73698 MR975812 CLIP, INSTRUMENT PANEL CONSOLE CLIP, INSTRUMENT PANEL CONSOLE
73699 MB409435 SCREW, INSTRUMENT PANEL - Tapping,4x10 SCREW, INSTRUMENT PANEL - Tapping,4x10
73965 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16 SCREW, TAPPING, 5x16 - Tapping,5x16
73968 MR402859 CLIP, FLOOR CONSOLE CLIP, FLOOR CONSOLE
86521 MR633543 GRILLE,SIDE DEFROSTER,LH GRILLE,SIDE DEFROSTER,LH
86521 MR633544 GRILLE,SIDE DEFROSTER,RH GRILLE,SIDE DEFROSTER,RH
I/panel & related parts (LHD..I/PANEL PAD,GLOVEBOX,ETC.) 38 / 59
CS1A I/panel & related parts (LHD..I/PANEL PAD,GLOVEBOX,ETC.)
CS9A I/panel & related parts (LHD..I/PANEL PAD,GLOVEBOX,ETC.)
# OEM CS1A CS9A
71724 MR588018 LABEL, FUSE LABEL, FUSE
73000 MR633550 PANEL,INSTRUMENT PANEL,INSTRUMENT
73007 MR975089 BOX, INSTRUMENT PANEL PARCEL BOX, INSTRUMENT PANEL PARCEL
73035 MR626744 COVER, INSTRUMENT PANEL SIDE, LH COVER, INSTRUMENT PANEL SIDE, LH
73035 MR626745 COVER, INSTRUMENT PANEL SIDE, RH COVER, INSTRUMENT PANEL SIDE, RH
73048 MR512554 BRACKET, INSTRUMENT PANEL SIDE, UPR BRACKET, INSTRUMENT PANEL SIDE, UPR
73048 MR532891 BRACKET, INSTRUMENT PANEL SIDE, UPR BRACKET, INSTRUMENT PANEL SIDE, UPR
73094 MR633898 PAD,INSTRUMENT PANEL PAD,INSTRUMENT PANEL
73108 MR626799 PANEL, INSTRUMENT, LWR CTR PANEL, INSTRUMENT, LWR CTR
73109 MR633551 PANEL,INSTRUMENT,LWR PANEL,INSTRUMENT,LWR
73250 MN185261 MODULE,PASSENGER AIR BAG MODULE,PASSENGER AIR BAG
73274 MS240141 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16
73297 MB409437 SCREW, STEERING COLUMN COVER - Tapping,5x12 SCREW, STEERING COLUMN COVER - Tapping,5x12
73297 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16 SCREW, TAPPING, 5x16 - Tapping,5x16
73297 MB409438 SCREW, STEERING COLUMN COVER - Tapping,5x16 SCREW, STEERING COLUMN COVER - Tapping,5x16
73507 MR147231 CUSHION, GLOVEBOX CUSHION, GLOVEBOX
73507 MR402762 CUSHION, GLOVEBOX CUSHION, GLOVEBOX
73508 MR633537 GLOVEBOX GLOVEBOX
73527 MR633552 LOCK,GLOVEBOX LOCK,GLOVEBOX
73541 MB326033 STOPPER, GLOVEBOX STOPPER, GLOVEBOX
73592 MS452405 SCREW, REFLECTOR - (5x12) SCREW, REFLECTOR - (5x12)
73623 MR626784 PANEL, INSTRUMENT PANEL CONSOLE PANEL, INSTRUMENT PANEL CONSOLE
73698 MR402859 CLIP, FLOOR CONSOLE CLIP, FLOOR CONSOLE
73703 MR975303 SPRING, PARCEL BOX SPRING, PARCEL BOX
73931 MB135995 NUT, FUEL FILLER LID LOCKING - Spring,5 NUT, FUEL FILLER LID LOCKING - Spring,5
73935 MF453093 SCREW, FUEL FILLER LID LOCKING - Tapping,5x16 SCREW, FUEL FILLER LID LOCKING - Tapping,5x16
73935 MF453273 SCREW, SCUFF PLATE - Tapping,5x16 SCREW, SCUFF PLATE - Tapping,5x16
73974 MF453394 SCREW, SUNVISOR - Tapping,5x20 SCREW, SUNVISOR - Tapping,5x20
73974 MF453574 SCREW, SCUFF PLATE - Tapping,5x20 SCREW, SCUFF PLATE - Tapping,5x20
81101 MR506452 BEZEL,COMBINATION METER BEZEL,COMBINATION METER
82378 MR402645 HOLDER, INSTRUMENT PANEL SWITCH HOLDER, INSTRUMENT PANEL SWITCH
83201 MS810875 FUSE, SWITCH - Blade(mini) type,7.5a FUSE, SWITCH - Blade(mini) type,7.5a
83201 MS810876 FUSE, BODY WIRING - Blade(mini) type,10a FUSE, BODY WIRING - Blade(mini) type,10a
83201 MS810877 FUSE, SWITCH - Blade(mini) type,15a FUSE, SWITCH - Blade(mini) type,15a
83201 MS810878 FUSE, BODY WIRING - Blade(mini) type,20a FUSE, BODY WIRING - Blade(mini) type,20a
83201 MS810969 FUSE, CHASSIS WIRING - Blade type,30a FUSE, CHASSIS WIRING - Blade type,30a
83608 MR172647 PULLER, FUSE PULLER, FUSE
86515 MR626743 GARNISH, DEFROSTER GARNISH, DEFROSTER
I/panel & related parts (RHD..AIR OUTLET,BRACKET,ETC.) 19 / 30
CS1A I/panel & related parts (RHD..AIR OUTLET,BRACKET,ETC.)
CS9A I/panel & related parts (RHD..AIR OUTLET,BRACKET,ETC.)
# OEM CS1A CS9A
73012 MR512588 BRACKET, INSTRUMENT PANEL BACKBONE BRACKET, INSTRUMENT PANEL BACKBONE
73024 MR512587 BRACKET, INSTRUMENT PANEL BRACKET, INSTRUMENT PANEL
73024 MR550047 BRACKET, INSTRUMENT PANEL, LH BRACKET, INSTRUMENT PANEL, LH
73024 MR550048 BRACKET, INSTRUMENT PANEL, RH BRACKET, INSTRUMENT PANEL, RH
73065 MR512583 BRACKET, INSTRUMENT PANEL DRIVER SIDE, UPR BRACKET, INSTRUMENT PANEL DRIVER SIDE, UPR
73104 MR550058 TRIM, INSTRUMENT PANEL TRIM, INSTRUMENT PANEL
73287 MS240141 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16
73287 MF240023 BOLT, FUEL TANK - Washer assembled,6x12 BOLT, FUEL TANK - Washer assembled,6x12
73297 MB409437 SCREW, STEERING COLUMN COVER - Tapping,5x12 SCREW, STEERING COLUMN COVER - Tapping,5x12
73297 MB409438 SCREW, STEERING COLUMN COVER - Tapping,5x16 SCREW, STEERING COLUMN COVER - Tapping,5x16
73507 MR147231 CUSHION, GLOVEBOX CUSHION, GLOVEBOX
73507 MB562195 CUSHION, GLOVEBOX CUSHION, GLOVEBOX
73543 MR512586 STRIKER, GLOVEBOX STRIKER, GLOVEBOX
73602 MR532892 BRACKET, INSTRUMENT PANEL CONSOLE BRACKET, INSTRUMENT PANEL CONSOLE
73699 MB409435 SCREW, INSTRUMENT PANEL - Tapping,4x10 SCREW, INSTRUMENT PANEL - Tapping,4x10
73965 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16 SCREW, TAPPING, 5x16 - Tapping,5x16
73968 MR402859 CLIP, FLOOR CONSOLE CLIP, FLOOR CONSOLE
86521 MR626756 GRILLE, SIDE DEFROSTER, LH GRILLE, SIDE DEFROSTER, LH
86521 MR626757 GRILLE, SIDE DEFROSTER, RH GRILLE, SIDE DEFROSTER, RH
I/panel & related parts (RHD..I/PANEL PAD,GLOVEBOX,ETC.) 36 / 56
CS1A I/panel & related parts (RHD..I/PANEL PAD,GLOVEBOX,ETC.)
CS9A I/panel & related parts (RHD..I/PANEL PAD,GLOVEBOX,ETC.)
# OEM CS1A CS9A
71724 MR588018 LABEL, FUSE LABEL, FUSE
73000 MR590217 PANEL, INSTRUMENT PANEL, INSTRUMENT
73007 MR975089 BOX, INSTRUMENT PANEL PARCEL BOX, INSTRUMENT PANEL PARCEL
73035 MR626744 COVER, INSTRUMENT PANEL SIDE, LH COVER, INSTRUMENT PANEL SIDE, LH
73035 MR626745 COVER, INSTRUMENT PANEL SIDE, RH COVER, INSTRUMENT PANEL SIDE, RH
73048 MR512554 BRACKET, INSTRUMENT PANEL SIDE, UPR BRACKET, INSTRUMENT PANEL SIDE, UPR
73048 MR532891 BRACKET, INSTRUMENT PANEL SIDE, UPR BRACKET, INSTRUMENT PANEL SIDE, UPR
73094 MR647659 PAD,INSTRUMENT PANEL PAD,INSTRUMENT PANEL
73109 MR626778 PANEL, INSTRUMENT, LWR PANEL, INSTRUMENT, LWR
73250 MN185262 MODULE, PASSENGER AIR BAG - Pyro type MODULE, PASSENGER AIR BAG - Pyro type
73274 MS240141 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16
73297 MB409437 SCREW, STEERING COLUMN COVER - Tapping,5x12 SCREW, STEERING COLUMN COVER - Tapping,5x12
73297 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16 SCREW, TAPPING, 5x16 - Tapping,5x16
73297 MB409438 SCREW, STEERING COLUMN COVER - Tapping,5x16 SCREW, STEERING COLUMN COVER - Tapping,5x16
73507 MR402762 CUSHION, GLOVEBOX CUSHION, GLOVEBOX
73508 MR626741 GLOVEBOX GLOVEBOX
73527 MR626780 LOCK, GLOVEBOX LOCK, GLOVEBOX
73541 MB326033 STOPPER, GLOVEBOX STOPPER, GLOVEBOX
73592 MS452405 SCREW, REFLECTOR - (5x12) SCREW, REFLECTOR - (5x12)
73623 MR626784 PANEL, INSTRUMENT PANEL CONSOLE PANEL, INSTRUMENT PANEL CONSOLE
73698 MR402859 CLIP, FLOOR CONSOLE CLIP, FLOOR CONSOLE
73703 MR975303 SPRING, PARCEL BOX SPRING, PARCEL BOX
73931 MB135995 NUT, FUEL FILLER LID LOCKING - Spring,5 NUT, FUEL FILLER LID LOCKING - Spring,5
73935 MF453093 SCREW, FUEL FILLER LID LOCKING - Tapping,5x16 SCREW, FUEL FILLER LID LOCKING - Tapping,5x16
73935 MF453273 SCREW, SCUFF PLATE - Tapping,5x16 SCREW, SCUFF PLATE - Tapping,5x16
73974 MF453394 SCREW, SUNVISOR - Tapping,5x20 SCREW, SUNVISOR - Tapping,5x20
73974 MF453574 SCREW, SCUFF PLATE - Tapping,5x20 SCREW, SCUFF PLATE - Tapping,5x20
81101 MR506451 BEZEL, COMBINATION METER BEZEL, COMBINATION METER
82378 MR402645 HOLDER, INSTRUMENT PANEL SWITCH HOLDER, INSTRUMENT PANEL SWITCH
83201 MS810875 FUSE, SWITCH - Blade(mini) type,7.5a FUSE, SWITCH - Blade(mini) type,7.5a
83201 MS810876 FUSE, BODY WIRING - Blade(mini) type,10a FUSE, BODY WIRING - Blade(mini) type,10a
83201 MS810877 FUSE, SWITCH - Blade(mini) type,15a FUSE, SWITCH - Blade(mini) type,15a
83201 MS810878 FUSE, BODY WIRING - Blade(mini) type,20a FUSE, BODY WIRING - Blade(mini) type,20a
83201 MS810969 FUSE, CHASSIS WIRING - Blade type,30a FUSE, CHASSIS WIRING - Blade type,30a
83608 MR172647 PULLER, FUSE PULLER, FUSE
86515 MR626743 GARNISH, DEFROSTER GARNISH, DEFROSTER
Injector & throttle body (-0606.2 (INNER PARTS)) 2 / 18
CS1A Injector & throttle body (-0606.2 (INNER PARTS))
CS9A Injector & throttle body (ALL (INNER PARTS))
# OEM CS1A CS9A
7728 MD628313 O-RING, THROTTLE BODY IDLE SPEED CONTROL SERVO O-RING, THROTTLE BODY IDLE SPEED CONTROL SERVO
7792 MD628076 SCREW, THROTTLE BODY INR SCREW, THROTTLE BODY INR
Injector & throttle body (0606.3- (INNER PARTS)) 2 / 17
CS1A Injector & throttle body (0606.3- (INNER PARTS))
CS9A Injector & throttle body (ALL (INNER PARTS))
# OEM CS1A CS9A
7728 MD628313 O-RING, THROTTLE BODY IDLE SPEED CONTROL SERVO O-RING, THROTTLE BODY IDLE SPEED CONTROL SERVO
7792 MD628076 SCREW, THROTTLE BODY INR SCREW, THROTTLE BODY INR
Injector & throttle body (ALL (ASSEMBLY)) 7 / 17
CS1A Injector & throttle body (ALL (ASSEMBLY))
CS9A Injector & throttle body (ALL (ASSEMBLY))
# OEM CS1A CS9A
7798 MF241264 BOLT, ENG FR CASE - Washer assembled,8x55 BOLT, ENG FR CASE - Washer assembled,8x55
7798 MF140202 BOLT, FLANGE (6x10) - Flange,6x10 BOLT, FLANGE (6x10) - Flange,6x10
7802 MD087060 INSULATOR, FUEL INJECTOR INSULATOR, FUEL INJECTOR
7802 MD095402 INSULATOR, FUEL DELIVERY PIPE INSULATOR, FUEL DELIVERY PIPE
7807 MD604688 O-RING, FUEL REGULATOR O-RING, FUEL REGULATOR
7892 MD614813 O-RING, FUEL INJECTOR - 7.6 O-RING, FUEL INJECTOR - 7.6
7898 MF241223 BOLT, ROCKER COVER - Washer assembled,6x12 BOLT, ROCKER COVER - Washer assembled,6x12
Inlet manifold (ALL) 8 / 18
CS1A Inlet manifold (ALL)
CS9A Inlet manifold (ALL)
# OEM CS1A CS9A
2299 MF241251 BOLT, CYLINDER HEAD - Washer assembled,8x16 BOLT, CYLINDER HEAD - Washer assembled,8x16
11469 MF450405 WASHER, CYLINDER HEAD - Spring,8 WASHER, CYLINDER HEAD - Spring,8
11482 MF430005 NUT, ROCKER COVER - 8 NUT, ROCKER COVER - 8
11498 MF140056 BOLT, ENG BREATHER - Flange,10x16 BOLT, ENG BREATHER - Flange,10x16
11498 MF241254 BOLT, FLYWHEEL HOUSING - Washer assembled,8x22 BOLT, FLYWHEEL HOUSING - Washer assembled,8x22
11498 MF241256 BOLT, ENG OIL PAN - Washer assembled,8x28 BOLT, ENG OIL PAN - Washer assembled,8x28
11498 MF241252 BOLT, CARB - Washer assembled,8x18 BOLT, CARB - Washer assembled,8x18
11498 MF140202 BOLT, FLANGE (6x10) - Flange,6x10 BOLT, FLANGE (6x10) - Flange,6x10
Interior trim (ALL) 27 / 52
CS1A Interior trim (ALL)
CS9A Interior trim (ALL)
# OEM CS1A CS9A
63614 MR627154 SCUFF PLATE, FR LH SCUFF PLATE, FR LH
63614 MR627155 SCUFF PLATE, FR RH SCUFF PLATE, FR RH
63615 MR627156 SCUFF PLATE, RR LH SCUFF PLATE, RR LH
63615 MR627157 SCUFF PLATE, RR RH SCUFF PLATE, RR RH
63629 MB344789 CLIP, SIDE MOULDING CLIP, SIDE MOULDING
63629 MR181745 CLIP, SIDE AIR DAM - 8.2x13 CLIP, SIDE AIR DAM - 8.2x13
63629 MR417195 CLIP, SCUFF PLATE CLIP, SCUFF PLATE
72001 MR975239 BRACKET, CTR PILLAR TRIM, LH BRACKET, CTR PILLAR TRIM, LH
72001 MR975240 BRACKET, CTR PILLAR TRIM, RH BRACKET, CTR PILLAR TRIM, RH
72011 MF453031 SCREW 5x12 - Tapping,5x12 SCREW 5x12 - Tapping,5x12
72013 MR627160 TRIM, CTR PILLAR, LWR LH TRIM, CTR PILLAR, LWR LH
72013 MR627161 TRIM, CTR PILLAR, LWR RH TRIM, CTR PILLAR, LWR RH
72014 MR644582 TRIM, CTR PILLAR, UPR LH TRIM, CTR PILLAR, UPR LH
72014 MR644583 TRIM, CTR PILLAR, UPR RH TRIM, CTR PILLAR, UPR RH
72017 MR644580 TRIM, FR PILLAR, LH TRIM, FR PILLAR, LH
72017 MR644581 TRIM, FR PILLAR, RH TRIM, FR PILLAR, RH
72022 MR648678 TRIM, RR PILLAR, LH TRIM, RR PILLAR, LH
72022 MR648680 TRIM, RR PILLAR, RH TRIM, RR PILLAR, RH
72039 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
72089 MU481245 CLIP, GATE PILLAR TRIM - 18x13.2 CLIP, GATE PILLAR TRIM - 18x13.2
72089 MU470013 CLIP, TAILGATE TRIM CLIP, TAILGATE TRIM
72316 MR633500 TRIM,COWL SIDE,LH TRIM,COWL SIDE,LH
72316 MR627159 TRIM, COWL SIDE, RH TRIM, COWL SIDE, RH
72898 MR200275 CLIP, GRILLE GUARD CLIP, GRILLE GUARD
72898 MU488002 CLIP, FR DOOR TRIM CLIP, FR DOOR TRIM
72898 MB899664 CLIP, FLOOR TRIM CLIP, FLOOR TRIM
72898 MR627244 CLIP, HEADLINING CLIP, HEADLINING
Liquid gasket 4 / 4
CS1A Liquid gasket
CS9A Liquid gasket
# OEM CS1A CS9A
1090 MD970389 LIQUID GASKET, ENG - Tb1207f,100g LIQUID GASKET, ENG - Tb1207f,100g
1090 MZ100191 PACKING, SEAL PACKING, SEAL
21090 MD997740 LIQUID GASKET, M/T - Tb1216,120g LIQUID GASKET, M/T - Tb1216,120g
26090 MD974421 LIQUID GASKET, A/T - Tb1281b,150g LIQUID GASKET, A/T - Tb1281b,150g
Lock cylinder & key (ALL) 19 / 22
CS1A Lock cylinder & key (ALL)
CS9A Lock cylinder & key (ALL)
# OEM CS1A CS9A
45029 MB572857 BOLT, LOCK CYLINDER BOLT, LOCK CYLINDER
47996 MS200124 SCREW, LOCK CYLINDER - Tapping,4x20 SCREW, LOCK CYLINDER - Tapping,4x20
47996 MR182607 SCREW, STEERING LOCK - Tapping SCREW, STEERING LOCK - Tapping
82005 MN113754 SWITCH, ENG STARTING SWITCH, ENG STARTING
82005 MR449457 SWITCH, ENG STARTING SWITCH, ENG STARTING
82005 MR334282 SWITCH ASSY, ENG STARTING SWITCH ASSY, ENG STARTING
82040 MR449459 SWITCH, ENG STARTING SWITCH ATTACHING SWITCH, ENG STARTING SWITCH ATTACHING
82053 MR526932 SWITCH, DOOR LOCK, RH SWITCH, DOOR LOCK, RH
82604 MN161957 CYLINDER & KEY SET,LOCK CYLINDER & KEY SET,LOCK
82606 MR555355 CYLINDER, FR DOOR LOCK, LH CYLINDER, FR DOOR LOCK, LH
82606 MR555356 CYLINDER, FR DOOR LOCK, RH CYLINDER, FR DOOR LOCK, RH
82606 MR555358 CYLINDER,FR DOOR LOCK,RH CYLINDER,FR DOOR LOCK,RH
82612 MR954938 CYLINDER, STEERING LOCK CYLINDER, STEERING LOCK
82614 MN161530 CYLINDER,TRUNK LID LOCK CYLINDER,TRUNK LID LOCK
82648 MN141010 KEY,DOOR LOCK TRANSMITTER - BATTERY:CR1616 KEY,DOOR LOCK TRANSMITTER - BATTERY:CR1616
82694 MS440502 NUT, FUEL TANK - Washer assembled,6 NUT, FUEL TANK - Washer assembled,6
88576 MN141124 KEY, TRANSPONDER BLANK KEY, TRANSPONDER BLANK
88576 MN141307 KEY, TRANSPONDER BLANK - W/three-dia(silver) mark KEY, TRANSPONDER BLANK - W/three-dia(silver) mark
88576 MR587430 KEY, TRANSPONDER BLANK KEY, TRANSPONDER BLANK
Loose panel (ALL) 33 / 36
CS1A Loose panel (ALL)
CS9A Loose panel (ALL)
# OEM CS1A CS9A
60013 MR956995 DAMPER, CHASSIS FRAME DYNAMIC DAMPER, CHASSIS FRAME DYNAMIC
60209 MR548876 CROSSMEMBER, FR DECK CROSSMEMBER, FR DECK
60209 MR981794 CROSSMEMBER,FR DECK CROSSMEMBER,FR DECK
64474 MN181289 PLATE,RR END STRUCTURE,LH PLATE,RR END STRUCTURE,LH
64474 MN186605 PLATE,RR END STRUCTURE,LH PLATE,RR END STRUCTURE,LH
64474 MN181290 PLATE,RR END STRUCTURE,RH PLATE,RR END STRUCTURE,RH
64474 MN186606 PLATE,RR END STRUCTURE,RH PLATE,RR END STRUCTURE,RH
65174 MR647724 BRACKET,CHILD RESTRAINT BRACKET,CHILD RESTRAINT
66002 MR479170 COVER, ENG ROOM SIDE, LH COVER, ENG ROOM SIDE, LH
66021 MR539599 COVER, ENG ROOM UNDER, CTR COVER, ENG ROOM UNDER, CTR
66021 MR974002 COVER, ENG ROOM UNDER, CTR LH COVER, ENG ROOM UNDER, CTR LH
66022 MR557677 COVER, ENG ROOM UNDER, FR LH COVER, ENG ROOM UNDER, FR LH
66022 MR557679 COVER, ENG ROOM UNDER, FR LH COVER, ENG ROOM UNDER, FR LH
66022 MR557678 COVER, ENG ROOM UNDER, FR RH COVER, ENG ROOM UNDER, FR RH
66022 MR557680 COVER, ENG ROOM UNDER, FR RH COVER, ENG ROOM UNDER, FR RH
66032 MR591305 COVER, ENG ROOM UNDER, RR COVER, ENG ROOM UNDER, RR
66085 MR479372 LID, ENG INSPECTION LID, ENG INSPECTION
66945 MR328954 CLIP, SPLASH SHIELD - 8x22 CLIP, SPLASH SHIELD - 8x22
66945 MU000319 CLIP, ENG ROOM COVER CLIP, ENG ROOM COVER
66954 MU670027 PLUG, BODY - 50 PLUG, BODY - 50
66973 MF453031 SCREW 5x12 - Tapping,5x12 SCREW 5x12 - Tapping,5x12
66979 MB174347 GROMMET, FR END GARNISH - Screw,5 GROMMET, FR END GARNISH - Screw,5
66981 MR536080 CUSHION, BODY LOOSE PANEL CUSHION, BODY LOOSE PANEL
66985 MS240125 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
66985 MB330946 BOLT, FUEL LINE - Washer assembled,6x20 BOLT, FUEL LINE - Washer assembled,6x20
66985 MS240141 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16
66985 MF911671 BOLT, BODY LOOSE PANEL - Flange,10x50 BOLT, BODY LOOSE PANEL - Flange,10x50
66985 MR384300 BOLT, BODY LOOSE PANEL - Washer assembled,10x60 BOLT, BODY LOOSE PANEL - Washer assembled,10x60
66985 MS240140 BOLT, ENG MOUNTING - Washer assembled,8x25 BOLT, ENG MOUNTING - Washer assembled,8x25
66985 MS240146 BOLT, CRUISE CONTROL EQUIP - Washer assembled,8x25 BOLT, CRUISE CONTROL EQUIP - Washer assembled,8x25
66985 MU240002 BOLT, HOOD HINGE - Washer assembled,8x20 BOLT, HOOD HINGE - Washer assembled,8x20
74016 MR586104 BRACKET, FLOOR CONSOLE BRACKET, FLOOR CONSOLE
78086 MR974900 INSULATOR, ROOF - (400x300)x2 INSULATOR, ROOF - (400x300)x2
M/t case (ALL (CLUTCH HOUSING)) 14 / 22
CS1A M/t case (ALL (CLUTCH HOUSING))
CS9A M/t case (ALL (CLUTCH HOUSING))
# OEM CS1A CS9A
21197 MD746159 BUSHING, M/T CASE BUSHING, M/T CASE
21199 MF241255 BOLT, CYLINDER HEAD - Washer assembled,8x25 BOLT, CYLINDER HEAD - Washer assembled,8x25
21807 MF241308 BOLT, A/T CASE - Washer assembled,12x28 BOLT, A/T CASE - Washer assembled,12x28
21807 MF241313 BOLT, T/F CASE - Washer assembled,12x40 BOLT, T/F CASE - Washer assembled,12x40
21832 MD759723 BRACKET, T/M CASE ROLL STOPPER BRACKET, T/M CASE ROLL STOPPER
21832 MR567560 BRACKET, T/M CASE ROLL STOPPER BRACKET, T/M CASE ROLL STOPPER
22017 MD741818 OIL SEAL, M/T INPUT SHAFT OIL SEAL, M/T INPUT SHAFT
32268 MD755526 OIL SEAL,RR DIFF SIDE BEARING,RH OIL SEAL,RR DIFF SIDE BEARING,RH
32268 MD755904 OIL SEAL, T/M FR DIFF CASE OIL SEAL, T/M FR DIFF CASE
81320 MD622012 E-RING, SPEEDOMETER DRIVEN GEAR E-RING, SPEEDOMETER DRIVEN GEAR
81337 MD757532 GEAR, SPEEDOMETER DRIVEN - N=30,nylon GEAR, SPEEDOMETER DRIVEN - N=30,nylon
81362 MD622013 O-RING, SPEEDOMETER DRIVEN GEAR SLEEVE O-RING, SPEEDOMETER DRIVEN GEAR SLEEVE
81387 MD757541 SLEEVE, SPEEDOMETER DRIVEN GEAR SLEEVE, SPEEDOMETER DRIVEN GEAR
81931 MF240029 BOLT, ENG OIL LINE - Washer assembled,6x25 BOLT, ENG OIL LINE - Washer assembled,6x25
M/t case (ALL (CONNECTING PARTS)) 4 / 7
CS1A M/t case (ALL (CONNECTING PARTS))
CS9A M/t case (ALL (CONNECTING PARTS))
# OEM CS1A CS9A
20999 MF140268 BOLT, ENG SUPPORT ROD - Flange,10x50 BOLT, ENG SUPPORT ROD - Flange,10x50
20999 MF911668 BOLT, BALANCER - Flange,10x50 BOLT, BALANCER - Flange,10x50
20999 MF140270 BOLT, ENG SUPPORT ROD - Flange,10x60 BOLT, ENG SUPPORT ROD - Flange,10x60
20999 MF241251 BOLT, CYLINDER HEAD - Washer assembled,8x16 BOLT, CYLINDER HEAD - Washer assembled,8x16
M/t case (ALL (T/M CASE)) 21 / 26
CS1A M/t case (ALL (T/M CASE))
CS9A M/t case (ALL (T/M CASE))
# OEM CS1A CS9A
21107 MD733296 BREATHER, M/T CASE BREATHER, M/T CASE
21112 MD746156 COVER, M/T CASE BREATHER HOLE COVER, M/T CASE BREATHER HOLE
21128 MD748126 HOLDER, M/T CASE MAGNET HOLDER, M/T CASE MAGNET
21129 MD955485 MAGNET, M/T CASE MAGNET, M/T CASE
21134 MD000312 GASKET, PLUG - D=18.2 GASKET, PLUG - D=18.2
21134 MF660036 GASKET, ACCEL CONTROL EQUIP - D=16 GASKET, ACCEL CONTROL EQUIP - D=16
21148 MD712913 BEARING, M/T GEARSHIFT SHAFT - Needle,20 BEARING, M/T GEARSHIFT SHAFT - Needle,20
21148 MD747209 BEARING, M/T GEARSHIFT SHAFT - Needle,20 BEARING, M/T GEARSHIFT SHAFT - Needle,20
21182 MD751929 STUD, A/T CASE - 12x29.5 STUD, A/T CASE - 12x29.5
21185 MD701850 PLUG, M/T CASE - 16 PLUG, M/T CASE - 16
21185 MD728088 PLUG, M/T CASE - 18 PLUG, M/T CASE - 18
21186 MF472402 PIN, CAMSHAFT - Dowel,5x12 PIN, CAMSHAFT - Dowel,5x12
21186 MF472405 PIN, CYLINDER BLOCK - Dowel,10x20 PIN, CYLINDER BLOCK - Dowel,10x20
21189 MD748139 OIL GUIDE, M/T CASE OIL GUIDE, M/T CASE
21195 MD746157 CAP, M/T CASE SEAL CAP, M/T CASE SEAL
21197 MD746159 BUSHING, M/T CASE BUSHING, M/T CASE
21198 MN168453 BRACKET, M/T CASE BRACKET, M/T CASE
21199 MF140266 BOLT, TIMING BELT TRAIN - Flange,10x40 BOLT, TIMING BELT TRAIN - Flange,10x40
21199 MF241250 BOLT, ELECTRIC FUEL PUMP - Washer assembled,8x14 BOLT, ELECTRIC FUEL PUMP - Washer assembled,8x14
32268 MD755526 OIL SEAL,RR DIFF SIDE BEARING,RH OIL SEAL,RR DIFF SIDE BEARING,RH
32268 MD755904 OIL SEAL, T/M FR DIFF CASE OIL SEAL, T/M FR DIFF CASE
M/t floor shift linkage (ALL) 33 / 35
CS1A M/t floor shift linkage (ALL)
CS9A M/t floor shift linkage (ALL)
# OEM CS1A CS9A
24000 MR553288 LEVER, GEARSHIFT LEVER, GEARSHIFT
24000 MR553289 LEVER,GEARSHIFT LEVER,GEARSHIFT
24007 MR246297 BRACKET, GEARSHIFT LEVER BRACKET, GEARSHIFT LEVER
24048 MR534025 KNOB, GEARSHIFT LEVER - 5m/t,leather KNOB, GEARSHIFT LEVER - 5m/t,leather
24048 MR656746 KNOB, GEARSHIFT LEVER KNOB, GEARSHIFT LEVER
24048 MR656138 KNOB, GEARSHIFT LEVER KNOB, GEARSHIFT LEVER
24055 MB870573 PIECE, GEARSHIFT LEVER BRACKET DISTANCE PIECE, GEARSHIFT LEVER BRACKET DISTANCE
24067 MR246296 RETAINER, GEARSHIFT LEVER RETAINER, GEARSHIFT LEVER
24093 MR246300 SPRING, GEARSHIFT LEVER SPRING, GEARSHIFT LEVER
24200 MR246298 LEVER, GEARSHIFT SELECT LEVER, GEARSHIFT SELECT
24565 MR246301 COLLAR, GEARSHIFT LINK COLLAR, GEARSHIFT LINK
24577 MR399496 SPACER, GEARSHIFT LINK SPACER, GEARSHIFT LINK
24579 MF472304 PIN, CARB - Snap,8x22.7 PIN, CARB - Snap,8x22.7
24579 MB844379 PIN, GEARSHIFT LINK - Snap,8 PIN, GEARSHIFT LINK - Snap,8
24582 MB347410 NUT, FR SEAT - Self locking,6 NUT, FR SEAT - Self locking,6
24582 MF445004 NUT, RADIATOR SUPPORT - Self locking,8 NUT, RADIATOR SUPPORT - Self locking,8
24588 MB175244 WASHER, GEARSHIFT LINK - Plain,9.5 WASHER, GEARSHIFT LINK - Plain,9.5
24588 MF450153 WASHER, TIMING POWER TRAIN CASE - Plain,6 WASHER, TIMING POWER TRAIN CASE - Plain,6
24588 MF450404 WASHER, ENG OIL PAN - Spring,6 WASHER, ENG OIL PAN - Spring,6
24588 MF450154 WASHER, ENG FR MOUNTING - Plain,8 WASHER, ENG FR MOUNTING - Plain,8
24588 MF450405 WASHER, CYLINDER HEAD - Spring,8 WASHER, CYLINDER HEAD - Spring,8
24588 MF451107 WASHER, FUEL FILLER LID LOCKING - Wave,14 WASHER, FUEL FILLER LID LOCKING - Wave,14
24588 MB180001 WASHER, GEARSHIFT LINK - Plain,13.5 WASHER, GEARSHIFT LINK - Plain,13.5
24589 MR453669 CLIP, GEARSHIFT LINK CLIP, GEARSHIFT LINK
24594 MB580086 BUSHING, GEARSHIFT LINK BUSHING, GEARSHIFT LINK
24594 MR103559 BUSHING, GEARSHIFT LINK BUSHING, GEARSHIFT LINK
24594 MR232147 BUSHING, GEARSHIFT LINK BUSHING, GEARSHIFT LINK
24594 MB829013 BUSHING, GEARSHIFT LINK - 14 BUSHING, GEARSHIFT LINK - 14
24597 MS240148 BOLT, A/C CONDENSER - Washer assembled,8x35 BOLT, A/C CONDENSER - Washer assembled,8x35
24597 MU241033 BOLT, GEARSHIFT LINK BOLT, GEARSHIFT LINK
24597 MS240085 BOLT, ENG OIL LINE - Washer assembled,8x20 BOLT, ENG OIL LINE - Washer assembled,8x20
24597 MF103142 BOLT, GEARSHIFT LINK - 6x65 BOLT, GEARSHIFT LINK - 6x65
24597 MR246299 BOLT, GEARSHIFT LINK BOLT, GEARSHIFT LINK
M/t gear (ALL (DIFF CASE)) 9 / 25
CS1A M/t gear (ALL (DIFF CASE))
CS9A M/t gear (ALL (DIFF CASE))
# OEM CS1A CS9A
22615 MD700270 SPACER, M/T DIFF - 1.13 SPACER, M/T DIFF - 1.13
22615 MD700271 SPACER, M/T DIFF - 1.22 SPACER, M/T DIFF - 1.22
22615 MD720938 SPACER, M/T DIFF - 0.86 SPACER, M/T DIFF - 0.86
22615 MD720941 SPACER, M/T DIFF - 0.95 SPACER, M/T DIFF - 0.95
22615 MD720944 SPACER, M/T DIFF - 1.04 SPACER, M/T DIFF - 1.04
22615 MD754476 SPACER, A/T POWER TRAIN - 0.77 SPACER, A/T POWER TRAIN - 0.77
22997 MD720603 GASKET, M/T POWER TRAIN GASKET, M/T POWER TRAIN
22998 MD749478 BOLT, M/T POWER TRAIN - 10x46 BOLT, M/T POWER TRAIN - 10x46
22998 MD040557 BOLT, CRANKSHAFT - Flange,12x22.5 BOLT, CRANKSHAFT - Flange,12x22.5
M/t gear (ALL (IN/SHAFT,O/SHAFT)) 29 / 79
CS1A M/t gear (ALL (IN/SHAFT,O/SHAFT))
CS9A M/t gear (ALL (IN/SHAFT,O/SHAFT))
# OEM CS1A CS9A
22008 MD744538 BEARING, M/T OUTPUT SHAFT - Needle,49 BEARING, M/T OUTPUT SHAFT - Needle,49
22008 MD744537 BEARING, M/T OUTPUT SHAFT - Needle,54 BEARING, M/T OUTPUT SHAFT - Needle,54
22018 MD746516 OIL SEAL, M/T INPUT SHAFT RR END OIL SEAL, M/T INPUT SHAFT RR END
22515 MD747004 HUB, M/T 3RD & 4TH SYNCH HUB, M/T 3RD & 4TH SYNCH
22562 MD746484 SLEEVE, M/T 3RD & 4TH SYNCH SLEEVE, M/T 3RD & 4TH SYNCH
22562 MR581381 SLEEVE, M/T 3RD & 4TH SYNCH SLEEVE, M/T 3RD & 4TH SYNCH
22595 MD747926 SPRING, M/T SYNCH KEY SPRING, M/T SYNCH KEY
22595 MR581383 SPRING, M/T SYNCH KEY SPRING, M/T SYNCH KEY
22596 MD748348 RING, M/T HIGH SPEED GEAR SYNCH RING, M/T HIGH SPEED GEAR SYNCH
22596 MR581382 RING, M/T SYNCH RING, M/T SYNCH
22596 MD747300 RING, M/T SYNCH RING, M/T SYNCH
22596 MN168937 RING, M/T SYNCH RING, M/T SYNCH
22989 MD706537 SNAP RING, M/T POWER TRAIN - 2.24 SNAP RING, M/T POWER TRAIN - 2.24
22989 MD706538 SNAP RING, M/T POWER TRAIN - 2.31 SNAP RING, M/T POWER TRAIN - 2.31
22989 MD706539 SNAP RING, M/T POWER TRAIN - 2.38 SNAP RING, M/T POWER TRAIN - 2.38
22989 MD746561 SNAP RING, M/T POWER TRAIN - 2.35 SNAP RING, M/T POWER TRAIN - 2.35
22989 MD746562 SNAP RING, M/T POWER TRAIN - 2.39 SNAP RING, M/T POWER TRAIN - 2.39
22989 MD746563 SNAP RING, M/T POWER TRAIN - 2.43 SNAP RING, M/T POWER TRAIN - 2.43
22989 MD746564 SNAP RING, M/T POWER TRAIN - 2.47 SNAP RING, M/T POWER TRAIN - 2.47
22989 MD746565 SNAP RING, M/T POWER TRAIN - 2.51 SNAP RING, M/T POWER TRAIN - 2.51
22989 MD746566 SNAP RING, M/T POWER TRAIN - 2.55 SNAP RING, M/T POWER TRAIN - 2.55
22989 MD746567 SNAP RING, M/T POWER TRAIN - 2.59 SNAP RING, M/T POWER TRAIN - 2.59
22989 MD746568 SNAP RING, M/T POWER TRAIN - 2.63 SNAP RING, M/T POWER TRAIN - 2.63
22989 MD746569 SNAP RING, M/T POWER TRAIN - 2.67 SNAP RING, M/T POWER TRAIN - 2.67
22989 MD746570 SNAP RING, M/T POWER TRAIN - 2.71 SNAP RING, M/T POWER TRAIN - 2.71
22989 MD747149 SNAP RING, M/T POWER TRAIN - 2.31 SNAP RING, M/T POWER TRAIN - 2.31
22989 MD746708 SNAP RING, M/T POWER TRAIN - 1.43 SNAP RING, M/T POWER TRAIN - 1.43
22989 MD746709 SNAP RING, M/T POWER TRAIN - 1.51 SNAP RING, M/T POWER TRAIN - 1.51
22989 MD746710 SNAP RING, M/T POWER TRAIN - 1.59 SNAP RING, M/T POWER TRAIN - 1.59
M/t gearshift control (ALL (FORK & RAIL)) 5 / 16
CS1A M/t gearshift control (ALL (FORK & RAIL))
CS9A M/t gearshift control (ALL)
# OEM CS1A CS9A
23103 MD749435 BALL UNIT, M/T GEARSHIFT EQUIP BALL UNIT, M/T GEARSHIFT EQUIP
23145 MD746221 FORK, M/T GEARSHIFT 3RD & 4TH FORK, M/T GEARSHIFT 3RD & 4TH
23201 MD748816 RAIL, M/T GEARSHIFT 1ST & 2ND RAIL, M/T GEARSHIFT 1ST & 2ND
23986 MF472574 PIN, M/T GEARSHIFT EQUIP - Spring,5x28 PIN, M/T GEARSHIFT EQUIP - Spring,5x28
23991 MF660035 GASKET, ENG OIL PAN DRAIN PLUG - D=14 GASKET, ENG OIL PAN DRAIN PLUG - D=14
M/t gearshift control (ALL (SHIFT CONTROL)) 31 / 33
CS1A M/t gearshift control (ALL (SHIFT CONTROL))
CS9A M/t gearshift control (ALL)
# OEM CS1A CS9A
23016 MR534360 HOUSING,M/T GEARSHIFT HOUSING,M/T GEARSHIFT
23024 MD730979 SWITCH, M/T GEARSHIFT BACKUP LAMP SWITCH, M/T GEARSHIFT BACKUP LAMP
23105 MD712913 BEARING, M/T GEARSHIFT SHAFT - Needle,20 BEARING, M/T GEARSHIFT SHAFT - Needle,20
23105 MD747209 BEARING, M/T GEARSHIFT SHAFT - Needle,20 BEARING, M/T GEARSHIFT SHAFT - Needle,20
23106 MD718557 BOOT, M/T GEARSHIFT SHAFT BOOT, M/T GEARSHIFT SHAFT
23112 MR470009 BRACKET,M/T GEARSHIFT LEVER STOPPER BRACKET,M/T GEARSHIFT LEVER STOPPER
23133 MD748351 COVER, M/T SELECT SHAFT COVER, M/T SELECT SHAFT
23133 MD748353 COVER, M/T SELECT SHAFT COVER, M/T SELECT SHAFT
23172 MD746246 LEVER, M/T SELECT SHAFT LEVER, M/T SELECT SHAFT
23177 MD747660 OIL SEAL, M/T GEARSHIFT SHAFT OIL SEAL, M/T GEARSHIFT SHAFT
23226 MR410806 SHAFT KIT,M/T GEARSHIFT SHAFT KIT,M/T GEARSHIFT
23235 MD745788 SHAFT, M/T SELECT LEVER SHAFT, M/T SELECT LEVER
23241 MD771824 SHOE, M/T SELECT LEVER SHOE, M/T SELECT LEVER
23921 MR581228 PLATE,M/T GEARSHIFT INTERLOCK PLATE,M/T GEARSHIFT INTERLOCK
23952 MR410807 STOPPER,M/T GEARSHIFT INTERLOCK PLATE STOPPER,M/T GEARSHIFT INTERLOCK PLATE
23957 MD771413 SPRING, M/T GEARSHIFT NEUTRAL RETURN SPRING, M/T GEARSHIFT NEUTRAL RETURN
23957 MD747587 SPRING, M/T GEARSHIFT NEUTRAL RETURN SPRING, M/T GEARSHIFT NEUTRAL RETURN
23957 MD770438 SPRING, M/T GEARSHIFT NEUTRAL RETURN SPRING, M/T GEARSHIFT NEUTRAL RETURN
23978 MF450405 WASHER, CYLINDER HEAD - Spring,8 WASHER, CYLINDER HEAD - Spring,8
23978 MF450204 WASHER, AIR CLEANER - Plain,8 WASHER, AIR CLEANER - Plain,8
23986 MD705490 PIN, M/T GEARSHIFT EQUIP - Lock,5x22 PIN, M/T GEARSHIFT EQUIP - Lock,5x22
23986 MF472572 SPRING PIN, M/T CLUTCH CONTROL EQUIP - 5x22 SPRING PIN, M/T CLUTCH CONTROL EQUIP - 5x22
23989 MF430005 NUT, ROCKER COVER - 8 NUT, ROCKER COVER - 8
23991 MF660035 GASKET, ENG OIL PAN DRAIN PLUG - D=14 GASKET, ENG OIL PAN DRAIN PLUG - D=14
23991 MD720603 GASKET, M/T POWER TRAIN GASKET, M/T POWER TRAIN
23995 MD748352 BUSHING, M/T GEARSHIFT EQUIP BUSHING, M/T GEARSHIFT EQUIP
23995 MD748350 BUSHING, M/T GEARSHIFT EQUIP BUSHING, M/T GEARSHIFT EQUIP
23998 MF241252 BOLT, CARB - Washer assembled,8x18 BOLT, CARB - Washer assembled,8x18
23998 MF140227 BOLT, ROCKER COVER - Flange,8x25 BOLT, ROCKER COVER - Flange,8x25
23998 MD717883 BOLT, M/T CLUTCH CONTROL EQUIP - Reamer,8x22.5 BOLT, M/T CLUTCH CONTROL EQUIP - Reamer,8x22.5
23998 MD744628 BOLT, M/T GEARSHIFT EQUIP - 10x19 BOLT, M/T GEARSHIFT EQUIP - 10x19
Meter,gauge & clock (BULB INSTALLATION..EXC SPORTS) 3 / 5
CS1A Meter,gauge & clock (BULB INSTALLATION..EXC SPORTS)
CS9A Meter,gauge & clock (COMBINATION METER..SPECIAL)
# OEM CS1A CS9A
81274 MR366428 SCREW, INSTRUMENT PANEL METER SCREW, INSTRUMENT PANEL METER
81299 MR444536 BULB, INSTRUMENT PANEL METER BULB, INSTRUMENT PANEL METER
81299 MN134601 BULB, INSTRUMENT PANEL METER - 12v,1.12w,t5 BULB, INSTRUMENT PANEL METER - 12v,1.12w,t5
Meter,gauge & clock (BULB INSTALLATION..SPORTS) 3 / 4
CS1A Meter,gauge & clock (BULB INSTALLATION..SPORTS)
CS9A Meter,gauge & clock (BULB INSTALLATION..SPORTS)
# OEM CS1A CS9A
81299 MR444536 BULB, INSTRUMENT PANEL METER BULB, INSTRUMENT PANEL METER
81299 MN134601 BULB, INSTRUMENT PANEL METER - 12v,1.12w,t5 BULB, INSTRUMENT PANEL METER - 12v,1.12w,t5
81299 MR975280 BULB, INSTRUMENT PANEL METER - 14v-3w BULB, INSTRUMENT PANEL METER - 14v-3w
Meter,gauge & clock (COMBINATION METER..EXC SPORTS) 11 / 23
CS1A Meter,gauge & clock (COMBINATION METER..EXC SPORTS)
CS9A Meter,gauge & clock (COMBINATION METER..SPECIAL)
# OEM CS1A CS9A
81116 MN162606 COVER, COMBINATION METER HOOD COVER, COMBINATION METER HOOD
81116 MR975778 COVER, COMBINATION METER HOOD COVER, COMBINATION METER HOOD
81133 MR951468 GLASS, COMBINATION METER GLASS, COMBINATION METER
81143 MR951472 LENS, COMBINATION METER INDICATOR, LH LENS, COMBINATION METER INDICATOR, LH
81143 MR951471 LENS, COMBINATION METER INDICATOR, RH LENS, COMBINATION METER INDICATOR, RH
81156 MR951469 PLATE, COMBINATION METER WINDOW PLATE, COMBINATION METER WINDOW
81274 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16 SCREW, TAPPING, 5x16 - Tapping,5x16
81274 MR366428 SCREW, INSTRUMENT PANEL METER SCREW, INSTRUMENT PANEL METER
81299 MR444536 BULB, INSTRUMENT PANEL METER BULB, INSTRUMENT PANEL METER
81299 MN134601 BULB, INSTRUMENT PANEL METER - 12v,1.12w,t5 BULB, INSTRUMENT PANEL METER - 12v,1.12w,t5
81602 MR962799 CLOCK, DIGITAL CLOCK, DIGITAL
Meter,gauge & clock (COMBINATION METER..SPORTS) 13 / 24
CS1A Meter,gauge & clock (COMBINATION METER..SPORTS)
CS9A Meter,gauge & clock (COMBINATION METER..SPORTS)
# OEM CS1A CS9A
81116 MN162606 COVER, COMBINATION METER HOOD COVER, COMBINATION METER HOOD
81116 MR975778 COVER, COMBINATION METER HOOD COVER, COMBINATION METER HOOD
81133 MR951468 GLASS, COMBINATION METER GLASS, COMBINATION METER
81143 MN134853 LENS,COMBINATION METER INDICATOR LENS,COMBINATION METER INDICATOR
81143 MR951472 LENS, COMBINATION METER INDICATOR, LH LENS, COMBINATION METER INDICATOR, LH
81143 MR951471 LENS, COMBINATION METER INDICATOR, RH LENS, COMBINATION METER INDICATOR, RH
81156 MR951469 PLATE, COMBINATION METER WINDOW PLATE, COMBINATION METER WINDOW
81274 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16 SCREW, TAPPING, 5x16 - Tapping,5x16
81274 MR366428 SCREW, INSTRUMENT PANEL METER SCREW, INSTRUMENT PANEL METER
81299 MR444536 BULB, INSTRUMENT PANEL METER BULB, INSTRUMENT PANEL METER
81299 MN134601 BULB, INSTRUMENT PANEL METER - 12v,1.12w,t5 BULB, INSTRUMENT PANEL METER - 12v,1.12w,t5
81299 MR975280 BULB, INSTRUMENT PANEL METER - 14v-3w BULB, INSTRUMENT PANEL METER - 14v-3w
81602 MR962799 CLOCK, DIGITAL CLOCK, DIGITAL
Mirror,grips & sunvisor 11 / 21
CS1A Mirror,grips & sunvisor
CS9A Mirror,grips & sunvisor
# OEM CS1A CS9A
63275 MR471069 PLUG, ASSIST GRIP PLUG, ASSIST GRIP
63279 MR975728 BOLT, ASSIST GRIP - 5x18 BOLT, ASSIST GRIP - 5x18
63279 MU240161 BOLT, ASSIST GRIP - 5x27.5 BOLT, ASSIST GRIP - 5x27.5
63279 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
74311 MR480057 HOLDER, SUNVISOR HOLDER, SUNVISOR
74311 MR654343 HOLDER, SUNVISOR HOLDER, SUNVISOR
74312 MN124448 MIRROR ASSY, ROOM MIRROR ASSY, ROOM
74395 MF205654 SCREW, ROOF LID - Machine cone point,5x16 SCREW, ROOF LID - Machine cone point,5x16
78325 MR330017 GRIP, ROOF INSIDE ASSIST GRIP, ROOF INSIDE ASSIST
78325 MR330021 GRIP, ROOF INSIDE ASSIST GRIP, ROOF INSIDE ASSIST
78325 MR330019 GRIP, ROOF INSIDE ASSIST GRIP, ROOF INSIDE ASSIST
Modulator (LHD) 9 / 9
CS1A Modulator (LHD)
CS9A Modulator (LHD)
# OEM CS1A CS9A
55814 MR475119 BRACKET,BRAKE HYDRAULIC UNIT BRACKET,BRAKE HYDRAULIC UNIT
55831 MN116261 HYDRAULIC UNIT,BRAKE MODULATOR HYDRAULIC UNIT,BRAKE MODULATOR
55832 MR493375 INSULATOR, BRAKE HYDRAULIC UNIT BRACKET INSULATOR, BRAKE HYDRAULIC UNIT BRACKET
55993 MU000310 NUT, AIR BAG CONTROL EQUIP - 8 NUT, AIR BAG CONTROL EQUIP - 8
55993 MU431508 NUT, HEATER - 8 NUT, HEATER - 8
55993 MS440502 NUT, FUEL TANK - Washer assembled,6 NUT, FUEL TANK - Washer assembled,6
55999 MF241251 BOLT, CYLINDER HEAD - Washer assembled,8x16 BOLT, CYLINDER HEAD - Washer assembled,8x16
55999 MS240095 BOLT, ENG OIL COOLER LINE - Washer assembled,8x16 BOLT, ENG OIL COOLER LINE - Washer assembled,8x16
55999 MR493376 BOLT, ABS EQUIP BOLT, ABS EQUIP
Modulator (RHD) 8 / 8
CS1A Modulator (RHD)
CS9A Modulator (RHD)
# OEM CS1A CS9A
55814 MR407860 BRACKET, BRAKE HYDRAULIC UNIT BRACKET, BRAKE HYDRAULIC UNIT
55831 MN116261 HYDRAULIC UNIT,BRAKE MODULATOR HYDRAULIC UNIT,BRAKE MODULATOR
55832 MR493375 INSULATOR, BRAKE HYDRAULIC UNIT BRACKET INSULATOR, BRAKE HYDRAULIC UNIT BRACKET
55993 MU431508 NUT, HEATER - 8 NUT, HEATER - 8
55993 MS440502 NUT, FUEL TANK - Washer assembled,6 NUT, FUEL TANK - Washer assembled,6
55999 MF241251 BOLT, CYLINDER HEAD - Washer assembled,8x16 BOLT, CYLINDER HEAD - Washer assembled,8x16
55999 MS240095 BOLT, ENG OIL COOLER LINE - Washer assembled,8x16 BOLT, ENG OIL COOLER LINE - Washer assembled,8x16
55999 MR493376 BOLT, ABS EQUIP BOLT, ABS EQUIP
Mud guard,shield & stone guard 3 / 8
CS1A Mud guard,shield & stone guard
CS9A Mud guard,shield & stone guard
# OEM CS1A CS9A
70287 MU440009 NUT, RR BUMPER - Spring,6 NUT, RR BUMPER - Spring,6
70292 MF244226 BOLT, A/C PIPING - Washer assembled,6x20 BOLT, A/C PIPING - Washer assembled,6x20
70296 MS452348 SCREW, STEERING COLUMN SCREW, STEERING COLUMN
Oil press switch or gauge unit 1 / 1
CS1A Oil press switch or gauge unit
CS9A Oil press switch or gauge unit
# OEM CS1A CS9A
4226 MD138993 SWITCH, ENG OIL PRESSURE SWITCH, ENG OIL PRESSURE
Oil pump & oil filter (ALL) 5 / 19
CS1A Oil pump & oil filter (ALL)
CS9A Oil pump & oil filter (ALL)
# OEM CS1A CS9A
2097 MF140025 BOLT, RESISTOR - Flange,8x20 BOLT, RESISTOR - Flange,8x20
2097 MF140027 BOLT, RESISTOR - Flange,8x25 BOLT, RESISTOR - Flange,8x25
4082 MD141302 SCREW, ENG OIL PUMP INR SCREW, ENG OIL PUMP INR
4085 MD145018 PLUG, OIL FILTER INR - Taper,3/8 PLUG, OIL FILTER INR - Taper,3/8
4085 MD001404 PLUG, CYLINDER HEAD - Screw,d=18 PLUG, CYLINDER HEAD - Screw,d=18
Ornament,mark & emblem (ALL) 2 / 2
CS1A Ornament,mark & emblem (ALL)
CS9A Ornament,mark & emblem (ALL)
# OEM CS1A CS9A
97088 MN154914 MARK, LANCER MARK, LANCER
97162 MN126477 MARK, THREE-DIA MARK, THREE-DIA
Outside rear view mirror 13 / 21
CS1A Outside rear view mirror
CS9A Outside rear view mirror
# OEM CS1A CS9A
67937 MR441633 COVER, FR DOOR DELTA, INR COVER, FR DOOR DELTA, INR
67937 MR441634 COVER, FR DOOR DELTA, INR COVER, FR DOOR DELTA, INR
67937 MR441631 COVER, FR DOOR DELTA, INR LH COVER, FR DOOR DELTA, INR LH
67937 MR441632 COVER, FR DOOR DELTA, INR RH COVER, FR DOOR DELTA, INR RH
70020 MN154601 MIRROR & HOLDER, DOOR, LH - Convex(heat) MIRROR & HOLDER, DOOR, LH - Convex(heat)
70020 MN175016 MIRROR & HOLDER,DOOR,RH MIRROR & HOLDER,DOOR,RH
70020 MN175015 MIRROR & HOLDER,DOOR,LH MIRROR & HOLDER,DOOR,LH
70020 MN154602 MIRROR & HOLDER, DOOR, RH - Convex(heat) MIRROR & HOLDER, DOOR, RH - Convex(heat)
70093 MS440502 NUT, FUEL TANK - Washer assembled,6 NUT, FUEL TANK - Washer assembled,6
70094 MU480032 GROMMET, SIDE AIR DAM - 5 GROMMET, SIDE AIR DAM - 5
70095 MR959913 CLIP, RR VIEW MIRROR CLIP, RR VIEW MIRROR
70099 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16 SCREW, TAPPING, 5x16 - Tapping,5x16
70099 MF455392 SCREW, HEADLAMP - Tapping,5x14 SCREW, HEADLAMP - Tapping,5x14
Parking brake control (ALL) 15 / 16
CS1A Parking brake control (ALL)
CS9A Parking brake control (ALL)
# OEM CS1A CS9A
50265 MN102171 CABLE, PARKING BRAKE, RR LH CABLE, PARKING BRAKE, RR LH
50265 MN102172 CABLE, PARKING BRAKE, RR RH CABLE, PARKING BRAKE, RR RH
50275 MB520849 CLIP, PARKING BRAKE CABLE CLIP, PARKING BRAKE CABLE
50275 MR961235 CLIP, PARKING BRAKE CABLE CLIP, PARKING BRAKE CABLE
50275 MB256379 CLAMP, PARKING BRAKE CABLE CLAMP, PARKING BRAKE CABLE
50275 MB950992 CLIP, PARKING BRAKE CABLE CLIP, PARKING BRAKE CABLE
50298 MR205455 CLAMP, PARKING BRAKE CABLE CLAMP, PARKING BRAKE CABLE
50457 MR527085 SWITCH, PARKING BRAKE SWITCH, PARKING BRAKE
50908 MF520002 O-RING, RADIATOR - 7 O-RING, RADIATOR - 7
50971 MR955683 GROMMET, PARKING BRAKE CABLE GROMMET, PARKING BRAKE CABLE
50976 MS240125 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
50976 MS240085 BOLT, ENG OIL LINE - Washer assembled,8x20 BOLT, ENG OIL LINE - Washer assembled,8x20
50989 MS240115 BOLT, BRAKE PEDAL - Washer assembled,8x20 BOLT, BRAKE PEDAL - Washer assembled,8x20
50989 MS240140 BOLT, ENG MOUNTING - Washer assembled,8x25 BOLT, ENG MOUNTING - Washer assembled,8x25
50989 MF240001 BOLT, PARKING BRAKE LEVER - Washer assembled,5x10 BOLT, PARKING BRAKE LEVER - Washer assembled,5x10
Plate & label 7 / 9
CS1A Plate & label
CS9A Plate & label
# OEM CS1A CS9A
71213 MN185343 LABEL,A/C FILTER CAUTION LABEL,A/C FILTER CAUTION
71520 MR283528 LABEL, AIR BAG CAUTION LABEL, AIR BAG CAUTION
71546 MR460466 LABEL, DANGER CAUTION LABEL, DANGER CAUTION
71673 MD120439 LABEL,FUEL TANK LABEL,FUEL TANK
71674 MD114225 LABEL,FUEL UNLEADED LABEL,FUEL UNLEADED
71831 MR958646 LABEL,A/C REFRIGERANT CAUTION LABEL,A/C REFRIGERANT CAUTION
71940 MB892713 LABEL,SPARE TIRE CAUTION - MAX 80 KM/H LABEL,SPARE TIRE CAUTION - MAX 80 KM/H
Plugs,covers & shield (PLUG) 13 / 14
CS1A Plugs,covers & shield (PLUG)
CS9A Plugs,covers & shield (PLUG)
# OEM CS1A CS9A
60999 MB406988 PLUG, FLOOR - Rubber,39 PLUG, FLOOR - Rubber,39
60999 MU670023 PLUG,CHASSIS FRAME - Rubber,20 PLUG,CHASSIS FRAME - Rubber,20
60999 MU670024 PLUG, BODY - 25 PLUG, BODY - 25
60999 MR467035 PLUG, BODY - 215x20 PLUG, BODY - 215x20
60999 MU670021 PLUG, FLOOR - Rubber,12 PLUG, FLOOR - Rubber,12
65974 MB575310 PLUG, FLOOR - 70 PLUG, FLOOR - 70
65974 MT406751 PLUG, BODY - 60.5 PLUG, BODY - 60.5
65974 MU670025 PLUG, BODY - 30 PLUG, BODY - 30
65974 MU670033 PLUG, BODY - 20 PLUG, BODY - 20
65974 MU670035 PLUG, BODY - 30 PLUG, BODY - 30
65974 MB015890 PLUG, BODY - 79 PLUG, BODY - 79
65974 MT134301 PLUG, BODY - 24.1 PLUG, BODY - 24.1
65985 MU480022 GROMMET, QTR TRIM - 5 GROMMET, QTR TRIM - 5
Plugs,covers & shield (SPLASH SHIELD) 16 / 21
CS1A Plugs,covers & shield (SPLASH SHIELD)
CS9A Plugs,covers & shield (SPLASH SHIELD)
# OEM CS1A CS9A
63965 MS452348 SCREW, STEERING COLUMN SCREW, STEERING COLUMN
63965 MS452393 SCREW, OVERFENDER - Washer assembled,6x20 SCREW, OVERFENDER - Washer assembled,6x20
63968 MS480003 GROMMET, FUEL FILLER LID PANEL - Screw,6 GROMMET, FUEL FILLER LID PANEL - Screw,6
63979 MB253964 CLIP, FR BUMPER CLIP, FR BUMPER
63979 MR288150 CLIP, RR BUMPER CLIP, RR BUMPER
63979 MU488006 CLIP, ENG ROOM COVER - 8 CLIP, ENG ROOM COVER - 8
63979 MR971764 CLIP, SPLASH SHIELD - 9 CLIP, SPLASH SHIELD - 9
63981 MS100222 BOLT, RESISTOR - Flange,6x14 BOLT, RESISTOR - Flange,6x14
63981 MS100238 BOLT, HOOD LOCKING - Flange,6x14 BOLT, HOOD LOCKING - Flange,6x14
63981 MS240141 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16
70319 MN161155 SHIELD KIT, SPLASH, RR LH SHIELD KIT, SPLASH, RR LH
70319 MN126829 SHIELD, REAR WHEELHOUSE SPLASH, LH SHIELD, REAR WHEELHOUSE SPLASH, LH
70319 MN161160 SHIELD KIT, SPLASH, RR RH SHIELD KIT, SPLASH, RR RH
70319 MN154054 SHIELD, RR WHEELHOUSE SPLASH, RH SHIELD, RR WHEELHOUSE SPLASH, RH
70328 MN150569 SHIELD KIT, SPLASH, FR LH SHIELD KIT, SPLASH, FR LH
70328 MN150570 SHIELD KIT, SPLASH, FR RH SHIELD KIT, SPLASH, FR RH
Power brake booster (LHD) 8 / 9
CS1A Power brake booster (LHD)
CS9A Power brake booster (LHD)
# OEM CS1A CS9A
54107 MR527618 BOOSTER ASSY,BRAKE BOOSTER ASSY,BRAKE
54239 MB928711 SEAL, BRAKE BOOSTER BODY SEAL, BRAKE BOOSTER BODY
54274 MF451105 WASHER, BACK DOOR LOCKING - Wave,10 WASHER, BACK DOOR LOCKING - Wave,10
54281 MF473492 PIN, CLUTCH M/CYL - Clevis,10x23 PIN, CLUTCH M/CYL - Clevis,10x23
54281 MB858800 PIN, BRAKE BOOSTER - Snap,10 PIN, BRAKE BOOSTER - Snap,10
54282 MF520005 O-RING, ENG OIL FILLER - D=10 O-RING, ENG OIL FILLER - D=10
54284 MS440503 NUT - Washer assembled,8 NUT - Washer assembled,8
54291 MB058859 CLIP, BRAKE BOOSTER - 15 CLIP, BRAKE BOOSTER - 15
Power brake booster (RHD) 8 / 9
CS1A Power brake booster (RHD)
CS9A Power brake booster (RHD)
# OEM CS1A CS9A
54107 MR527619 BOOSTER ASSY,BRAKE BOOSTER ASSY,BRAKE
54239 MB928711 SEAL, BRAKE BOOSTER BODY SEAL, BRAKE BOOSTER BODY
54274 MF451105 WASHER, BACK DOOR LOCKING - Wave,10 WASHER, BACK DOOR LOCKING - Wave,10
54281 MF473492 PIN, CLUTCH M/CYL - Clevis,10x23 PIN, CLUTCH M/CYL - Clevis,10x23
54281 MB858800 PIN, BRAKE BOOSTER - Snap,10 PIN, BRAKE BOOSTER - Snap,10
54282 MF520005 O-RING, ENG OIL FILLER - D=10 O-RING, ENG OIL FILLER - D=10
54284 MS440503 NUT - Washer assembled,8 NUT - Washer assembled,8
54291 MB058859 CLIP, BRAKE BOOSTER - 15 CLIP, BRAKE BOOSTER - 15
Power steering oil line (LHD) 16 / 18
CS1A Power steering oil line (LHD)
CS9A Power steering oil line (LHD)
# OEM CS1A CS9A
48827 MN100326 HOSE, P/S OIL RETURN HOSE, P/S OIL RETURN
48827 MR510415 HOSE,P/S OIL RETURN HOSE,P/S OIL RETURN
48861 MR403661 TUBE, P/S OIL RETURN TUBE, P/S OIL RETURN
48861 MR510416 TUBE,P/S OIL RETURN TUBE,P/S OIL RETURN
48983 MF660066 GASKET, PLUG - D=16 GASKET, PLUG - D=16
48987 MS452332 SCREW, FUEL VAPOR CONTROL LINE - Tapping washer assembled,6x16 SCREW, FUEL VAPOR CONTROL LINE - Tapping washer assembled,6x16
48992 MR133826 CLIP, P/S OIL LINE - 18.1 CLIP, P/S OIL LINE - 18.1
48992 MR171197 CLIP, P/S OIL LINE CLIP, P/S OIL LINE
48992 MS660171 CLAMP, P/S OIL PUMP - D=20.8 CLAMP, P/S OIL PUMP - D=20.8
48992 MB699896 CLIP, BRAKE BOOSTER CLIP, BRAKE BOOSTER
48992 MU484008 CLIP, P/S OIL LINE CLIP, P/S OIL LINE
48995 MR491471 EYEBOLT, P/S OIL LINE EYEBOLT, P/S OIL LINE
48995 MR554636 EYEBOLT, P/S OIL LINE EYEBOLT, P/S OIL LINE
48996 MS240085 BOLT, ENG OIL LINE - Washer assembled,8x20 BOLT, ENG OIL LINE - Washer assembled,8x20
48999 MB166042 O-RING, STEERING GEAR INR O-RING, STEERING GEAR INR
48999 MB950259 O-RING, STEERING GEAR INR O-RING, STEERING GEAR INR
Power steering oil line (RHD) 12 / 14
CS1A Power steering oil line (RHD)
CS9A Power steering oil line (LHD)
# OEM CS1A CS9A
48827 MN100326 HOSE, P/S OIL RETURN HOSE, P/S OIL RETURN
48861 MR403661 TUBE, P/S OIL RETURN TUBE, P/S OIL RETURN
48983 MF660066 GASKET, PLUG - D=16 GASKET, PLUG - D=16
48992 MR133826 CLIP, P/S OIL LINE - 18.1 CLIP, P/S OIL LINE - 18.1
48992 MR171197 CLIP, P/S OIL LINE CLIP, P/S OIL LINE
48992 MS660171 CLAMP, P/S OIL PUMP - D=20.8 CLAMP, P/S OIL PUMP - D=20.8
48992 MU484008 CLIP, P/S OIL LINE CLIP, P/S OIL LINE
48995 MR491471 EYEBOLT, P/S OIL LINE EYEBOLT, P/S OIL LINE
48995 MR554636 EYEBOLT, P/S OIL LINE EYEBOLT, P/S OIL LINE
48996 MS240085 BOLT, ENG OIL LINE - Washer assembled,8x20 BOLT, ENG OIL LINE - Washer assembled,8x20
48999 MB166042 O-RING, STEERING GEAR INR O-RING, STEERING GEAR INR
48999 MB950259 O-RING, STEERING GEAR INR O-RING, STEERING GEAR INR
Power steering oil pump (DISASSEMBLED PARTS) 7 / 15
CS1A Power steering oil pump (DISASSEMBLED PARTS)
CS9A Power steering oil pump (DISASSEMBLED PARTS)
# OEM CS1A CS9A
48057 MR403237 OIL SEAL, P/S OIL PUMP SHAFT OIL SEAL, P/S OIL PUMP SHAFT
48096 MN103274 SEAL KIT, P/S OIL PUMP SEAL KIT, P/S OIL PUMP
48111 MR403236 SPRING, P/S OIL PUMP FLOW CONTROL SPRING, P/S OIL PUMP FLOW CONTROL
48942 MB351258 SNAP RING, RR STEERING SNAP RING, RR STEERING
48943 MR448381 PLUG, P/S OIL PUMP INR PLUG, P/S OIL PUMP INR
48958 MR403240 BOLT, P/S OIL PUMP INR BOLT, P/S OIL PUMP INR
48958 MR403239 BOLT, P/S OIL PUMP INR BOLT, P/S OIL PUMP INR
Power steering oil pump (INSTALLING PARTS) 8 / 18
CS1A Power steering oil pump (INSTALLING PARTS)
CS9A Power steering oil pump (INSTALLING PARTS)
# OEM CS1A CS9A
48707 MR369155 CAP, P/S OIL RESERVOIR CAP, P/S OIL RESERVOIR
48736 MN101937 RESERVOIR ASSY, P/S OIL RESERVOIR ASSY, P/S OIL
48736 MR403657 RESERVOIR ASSY, P/S OIL RESERVOIR ASSY, P/S OIL
48959 MF140030 BOLT, CYLINDER BLOCK - Flange,8x32 BOLT, CYLINDER BLOCK - Flange,8x32
48959 MS240148 BOLT, A/C CONDENSER - Washer assembled,8x35 BOLT, A/C CONDENSER - Washer assembled,8x35
48959 MF140264 BOLT, ENG RR PLATE - Flange,10x35 BOLT, ENG RR PLATE - Flange,10x35
48959 MF241280 BOLT, RR SEAT - Washer assembled,10x20 BOLT, RR SEAT - Washer assembled,10x20
48970 MB076376 O-RING, P/S OIL RESERVOIR O-RING, P/S OIL RESERVOIR
Radiator grille,headlamp bezel (-0506.3) 4 / 4
CS1A Radiator grille,headlamp bezel (-0506.3)
CS9A Radiator grille,headlamp bezel (-0506.3)
# OEM CS1A CS9A
62211 MR288150 CLIP, RR BUMPER CLIP, RR BUMPER
62232 MN161113 GRILLE, RADIATOR, LH - CHROME PLATING/D-WARM GRAY GRILLE, RADIATOR, LH - CHROME PLATING/D-WARM GRAY
62232 MN161114 GRILLE, RADIATOR, RH - CHROME PLATING/D-WARM GRAY GRILLE, RADIATOR, RH - CHROME PLATING/D-WARM GRAY
97162 MN126476 MARK, THREE-DIA - CHROME MARK, THREE-DIA - CHROME
Radiator grille,headlamp bezel (0507.1-) 5 / 5
CS1A Radiator grille,headlamp bezel (0507.1-)
CS9A Radiator grille,headlamp bezel (0507.1-)
# OEM CS1A CS9A
62211 MR288150 CLIP, RR BUMPER CLIP, RR BUMPER
62232 MN161113 GRILLE, RADIATOR, LH - CHROME PLATING/D-WARM GRAY GRILLE, RADIATOR, LH - CHROME PLATING/D-WARM GRAY
62232 MN161114 GRILLE, RADIATOR, RH - CHROME PLATING/D-WARM GRAY GRILLE, RADIATOR, RH - CHROME PLATING/D-WARM GRAY
62284 MF453031 SCREW 5x12 - Tapping,5x12 SCREW 5x12 - Tapping,5x12
97162 MN126476 MARK, THREE-DIA - CHROME MARK, THREE-DIA - CHROME
Radiator,hose & condenser tank (1 FAN) 18 / 28
CS1A Radiator,hose & condenser tank (1 FAN)
CS9A Radiator,hose & condenser tank (ALL)
# OEM CS1A CS9A
10210 MR481252 CAP, RADIATOR CAP, RADIATOR
10220 MR312077 CAP, RADIATOR CONDENSER TANK CAP, RADIATOR CONDENSER TANK
10271 MS600623 HOSE, RADIATOR CONDENSER TANK - 7x2000 HOSE, RADIATOR CONDENSER TANK - 7x2000
10288 MR464628 INSULATOR, RADIATOR SUPPORT, UPR INSULATOR, RADIATOR SUPPORT, UPR
10289 MB356979 INSULATOR, RADIATOR SUPPORT, LWR INSULATOR, RADIATOR SUPPORT, LWR
10321 MR179933 PLUG ASSY, RADIATOR PLUG ASSY, RADIATOR
10371 MR450237 TANK ASSY, RADIATOR CONDENSER TANK ASSY, RADIATOR CONDENSER
10449 MN180658 BOLT, RADIATOR BOLT, RADIATOR
10449 MR314800 SCREW, RADIATOR SCREW, RADIATOR
10456 MB605081 NUT, RADIATOR - Flange NUT, RADIATOR - Flange
10457 MR212315 O-RING, RADIATOR O-RING, RADIATOR
10480 MS240125 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
10485 MB890474 SCREW, RADIATOR SCREW, RADIATOR
10500 MR464708 FAN, COOLING FAN, COOLING
10593 MR497555 PROTECTOR, COOLING FAN PROTECTOR, COOLING FAN
10978 MS660205 CLIP, RADIATOR PIPING - D=11.5 CLIP, RADIATOR PIPING - D=11.5
10993 MR404538 CLIP, RADIATOR PIPING - D=37 CLIP, RADIATOR PIPING - D=37
82730 MR497751 CONTROL UNIT, COOLING FAN MOTOR DRIVE CONTROL UNIT, COOLING FAN MOTOR DRIVE
Radiator,hose & condenser tank (2 FAN) 18 / 31
CS1A Radiator,hose & condenser tank (2 FAN)
CS9A Radiator,hose & condenser tank (ALL)
# OEM CS1A CS9A
10210 MR481252 CAP, RADIATOR CAP, RADIATOR
10220 MR312077 CAP, RADIATOR CONDENSER TANK CAP, RADIATOR CONDENSER TANK
10271 MS600623 HOSE, RADIATOR CONDENSER TANK - 7x2000 HOSE, RADIATOR CONDENSER TANK - 7x2000
10288 MR464628 INSULATOR, RADIATOR SUPPORT, UPR INSULATOR, RADIATOR SUPPORT, UPR
10289 MB356979 INSULATOR, RADIATOR SUPPORT, LWR INSULATOR, RADIATOR SUPPORT, LWR
10321 MR179933 PLUG ASSY, RADIATOR PLUG ASSY, RADIATOR
10371 MR450237 TANK ASSY, RADIATOR CONDENSER TANK ASSY, RADIATOR CONDENSER
10449 MN180658 BOLT, RADIATOR BOLT, RADIATOR
10449 MR314800 SCREW, RADIATOR SCREW, RADIATOR
10456 MB605081 NUT, RADIATOR - Flange NUT, RADIATOR - Flange
10457 MR212315 O-RING, RADIATOR O-RING, RADIATOR
10480 MS240125 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
10485 MB890474 SCREW, RADIATOR SCREW, RADIATOR
10500 MR464708 FAN, COOLING FAN, COOLING
10593 MR497555 PROTECTOR, COOLING FAN PROTECTOR, COOLING FAN
10978 MS660205 CLIP, RADIATOR PIPING - D=11.5 CLIP, RADIATOR PIPING - D=11.5
10993 MR404538 CLIP, RADIATOR PIPING - D=37 CLIP, RADIATOR PIPING - D=37
82730 MR497751 CONTROL UNIT, COOLING FAN MOTOR DRIVE CONTROL UNIT, COOLING FAN MOTOR DRIVE
Radio & audio accessories 2 / 2
CS1A Radio & audio accessories
CS9A Radio & audio accessories
# OEM CS1A CS9A
85966 MR532893 BRACKET,AUDIO EQUIP BRACKET,AUDIO EQUIP
85983 MF453032 SCREW, STEERING WHEEL - Tapping,5x14 SCREW, STEERING WHEEL - Tapping,5x14
Rear axle hub & drum (ALL) 4 / 6
CS1A Rear axle hub & drum (ALL)
CS9A Rear axle hub & drum (ALL)
# OEM CS1A CS9A
33302 MB911495 BOLT, FR WHEEL HUB - 12x43 BOLT, FR WHEEL HUB - 12x43
33303 MB515405 CAP, RR WHEEL HUB CAP, RR WHEEL HUB
33313 MB584600 NUT, RR WHEEL HUB - Self locking,20 NUT, RR WHEEL HUB - Self locking,20
33326 MB407635 PLUG, RR WHEEL HUB - Rubber PLUG, RR WHEEL HUB - Rubber
Rear bumper & support (ALL) 18 / 18
CS1A Rear bumper & support (ALL)
CS9A Rear bumper & support (ALL)
# OEM CS1A CS9A
64001 MR520343 REINFORCEMENT, RR BUMPER REINFORCEMENT, RR BUMPER
64001 MR520344 REINFORCEMENT, RR BUMPER REINFORCEMENT, RR BUMPER
64012 MU488006 CLIP, ENG ROOM COVER - 8 CLIP, ENG ROOM COVER - 8
64012 MB253964 CLIP, FR BUMPER CLIP, FR BUMPER
64026 MB480177 66977 66977
64026 MR396855 GASKET, RR BUMPER GASKET, RR BUMPER
64026 MA156028 GASKET, FR BUMPER - 25 GASKET, FR BUMPER - 25
64044 MN126674 PLATE, RR BUMPER, UPR LH PLATE, RR BUMPER, UPR LH
64044 MN126675 PLATE, RR BUMPER, UPR RH PLATE, RR BUMPER, UPR RH
64992 MS452393 SCREW, OVERFENDER - Washer assembled,6x20 SCREW, OVERFENDER - Washer assembled,6x20
64992 MF455390 SCREW, FUEL LINE - Tapping,5x10 SCREW, FUEL LINE - Tapping,5x10
64994 MS440522 NUT, FUEL TANK - Washer assembled,6 NUT, FUEL TANK - Washer assembled,6
64997 MR473000 RIVET, FR BUMPER - 4.2 RIVET, FR BUMPER - 4.2
64998 MF243622 BOLT, ROCKER COVER - Washer assembled,6x12 BOLT, ROCKER COVER - Washer assembled,6x12
64998 MS240028 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x12 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x12
64998 MS240141 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16
64998 MB612553 BOLT, RR BUMPER - Washer assembled,6x16 BOLT, RR BUMPER - Washer assembled,6x16
64999 MR393386 GROMMET, FR BUMPER - 6 GROMMET, FR BUMPER - 6
Rear door locking (ALL) 57 / 61
CS1A Rear door locking (ALL)
CS9A Rear door locking (ALL)
# OEM CS1A CS9A
68107 MR627178 COVER, FR DOOR INSIDE HANDLE, LH COVER, FR DOOR INSIDE HANDLE, LH
68107 MR656175 COVER, FR DOOR INSIDE HANDLE, LH COVER, FR DOOR INSIDE HANDLE, LH
68107 MR627179 COVER, FR DOOR INSIDE HANDLE, RH COVER, FR DOOR INSIDE HANDLE, RH
68107 MR656176 COVER, FR DOOR INSIDE HANDLE, RH COVER, FR DOOR INSIDE HANDLE, RH
68116 MR646804 HANDLE, RR DOOR OUTSIDE, LH HANDLE, RR DOOR OUTSIDE, LH
68116 MR647067 HANDLE, RR DOOR OUTSIDE, LH HANDLE, RR DOOR OUTSIDE, LH
68116 MR652308 HANDLE, RR DOOR OUTSIDE, LH HANDLE, RR DOOR OUTSIDE, LH
68116 MR654030 HANDLE, RR DOOR OUTSIDE, LH HANDLE, RR DOOR OUTSIDE, LH
68116 MR654687 HANDLE,RR DOOR OUTSIDE,LH HANDLE,RR DOOR OUTSIDE,LH
68116 MR970269 HANDLE, RR DOOR OUTSIDE, RH HANDLE, RR DOOR OUTSIDE, RH
68116 MR970276 HANDLE, RR DOOR OUTSIDE, RH HANDLE, RR DOOR OUTSIDE, RH
68116 MR970279 HANDLE, RR DOOR OUTSIDE, RH HANDLE, RR DOOR OUTSIDE, RH
68116 MR970284 HANDLE, RR DOOR OUTSIDE, RH HANDLE, RR DOOR OUTSIDE, RH
68116 MR646805 HANDLE, RR DOOR OUTSIDE, RH HANDLE, RR DOOR OUTSIDE, RH
68116 MR647068 HANDLE, RR DOOR OUTSIDE, RH HANDLE, RR DOOR OUTSIDE, RH
68116 MR652309 HANDLE, RR DOOR OUTSIDE, RH HANDLE, RR DOOR OUTSIDE, RH
68116 MR654032 HANDLE, RR DOOR OUTSIDE, RH HANDLE, RR DOOR OUTSIDE, RH
68116 MR654688 HANDLE,RR DOOR OUTSIDE,RH HANDLE,RR DOOR OUTSIDE,RH
68116 MR970288 HANDLE, RR DOOR OUTSIDE, RH HANDLE, RR DOOR OUTSIDE, RH
68116 MR970295 HANDLE, RR DOOR OUTSIDE, RH HANDLE, RR DOOR OUTSIDE, RH
68116 MR970298 HANDLE, RR DOOR OUTSIDE, RH HANDLE, RR DOOR OUTSIDE, RH
68116 MR970303 HANDLE, RR DOOR OUTSIDE, RH HANDLE, RR DOOR OUTSIDE, RH
68124 MN159631 LATCH, RR DOOR, LH LATCH, RR DOOR, LH
68124 MN159632 LATCH, RR DOOR, RH LATCH, RR DOOR, RH
68131 MN159625 ROD, RR DOOR INSIDE HANDLE, LH ROD, RR DOOR INSIDE HANDLE, LH
68131 MN159626 ROD, RR DOOR INSIDE HANDLE, RH ROD, RR DOOR INSIDE HANDLE, RH
68132 MN159627 ROD, RR DOOR INSIDE LOCK, LH ROD, RR DOOR INSIDE LOCK, LH
68132 MN159628 ROD, RR DOOR INSIDE LOCK, RH ROD, RR DOOR INSIDE LOCK, RH
68134 MN159623 ROD, RR DOOR OUTSIDE HANDLE, LH ROD, RR DOOR OUTSIDE HANDLE, LH
68134 MN159624 ROD, RR DOOR OUTSIDE HANDLE, RH ROD, RR DOOR OUTSIDE HANDLE, RH
68137 MB888461 SHIM, FR DOOR LATCH STRIKER - T=1.6 SHIM, FR DOOR LATCH STRIKER - T=1.6
68142 MN127079 STRIKER, FR DOOR LATCH STRIKER, FR DOOR LATCH
68149 MR573539 CAP, FR DOOR INSIDE HANDLE COVER, LH - D-GRAY CAP, FR DOOR INSIDE HANDLE COVER, LH - D-GRAY
68149 MR655775 CAP, FR DOOR INSIDE HANDLE COVER, LH - BLACK CAP, FR DOOR INSIDE HANDLE COVER, LH - BLACK
68149 MR573544 CAP, FR DOOR INSIDE HANDLE COVER, RH CAP, FR DOOR INSIDE HANDLE COVER, RH
68149 MR655776 CAP, FR DOOR INSIDE HANDLE COVER, RH CAP, FR DOOR INSIDE HANDLE COVER, RH
68193 MU481091 SNAP, FR DOOR LOCKING SNAP, FR DOOR LOCKING
68193 MU481090 SNAP, FR DOOR LOCKING SNAP, FR DOOR LOCKING
68194 MU000957 SCREW, FR DOOR LOCKING - Machine(torx),6x12 SCREW, FR DOOR LOCKING - Machine(torx),6x12
68194 MU200079 SCREW, FR DOOR LOCKING - Machine(plus),6x18 SCREW, FR DOOR LOCKING - Machine(plus),6x18
68194 MU000623 SCREW, FR DOOR LOCKING - Machine(plus),8x22.5 SCREW, FR DOOR LOCKING - Machine(plus),8x22.5
68194 MU000959 SCREW, FR DOOR LOCKING - Machine(torx),8x22.5 SCREW, FR DOOR LOCKING - Machine(torx),8x22.5
68194 MF453019 SCREW, STEERING COLUMN COVER - Tapping,4x16 SCREW, STEERING COLUMN COVER - Tapping,4x16
68194 MF453020 SCREW, FR END GARNISH - Tapping,4x20 SCREW, FR END GARNISH - Tapping,4x20
68196 MU000314 GROMMET, FR DOOR LOCKING - Screw GROMMET, FR DOOR LOCKING - Screw
68197 MU481194 CLIP, FR DOOR LOCKING - 6 CLIP, FR DOOR LOCKING - 6
68197 MU481193 CLIP, FR DOOR LOCKING - 6 CLIP, FR DOOR LOCKING - 6
68197 MN145859 CLIP, FR DOOR LOCKING CLIP, FR DOOR LOCKING
68197 MS470433 CLIP, PTO GEARSHIFT LINK - 4.2 CLIP, PTO GEARSHIFT LINK - 4.2
68197 MU001481 CLIP, FR DOOR LOCKING - 4.2 CLIP, FR DOOR LOCKING - 4.2
68197 MS470434 CLIP, FR DOOR LOCKING - 4.2 CLIP, FR DOOR LOCKING - 4.2
68197 MU001482 CLIP, FR DOOR LOCKING - 4.2 CLIP, FR DOOR LOCKING - 4.2
68197 MU481262 CLIP, FR DOOR LOCKING CLIP, FR DOOR LOCKING
68199 MS240041 BOLT, ENG OIL COOLER LINE - Washer assembled,6x16 BOLT, ENG OIL COOLER LINE - Washer assembled,6x16
68199 MS240593 BOLT, FR DOOR LOCKING - Washer assembled,6x20 BOLT, FR DOOR LOCKING - Washer assembled,6x20
68199 MF240022 BOLT, ROCKER COVER - Washer assembled,6x10 BOLT, ROCKER COVER - Washer assembled,6x10
68212 MR473583 CHECK, RR DOOR CHECK, RR DOOR
Rear door panel & glass (ALL) 43 / 43
CS1A Rear door panel & glass (ALL)
CS9A Rear door panel & glass (ALL)
# OEM CS1A CS9A
68013 MR503879 HOLDER, RR DOOR WINDOW GLASS HOLDER, RR DOOR WINDOW GLASS
68019 MU140017 BOLT, FR DOOR HINGE - Flange,8x20 BOLT, FR DOOR HINGE - Flange,8x20
68019 MU240121 BOLT, FR DOOR HINGE - Washer assembled,8t,8x28 BOLT, FR DOOR HINGE - Washer assembled,8t,8x28
68020 MN150439 PANEL ASSY, RR DOOR, LH PANEL ASSY, RR DOOR, LH
68020 MN150440 PANEL ASSY, RR DOOR, RH PANEL ASSY, RR DOOR, RH
68028 MR523431 RETAINER, RR DOOR W/STRIP RETAINER, RR DOOR W/STRIP
68030 MR555063 PANEL, RR DOOR, OTR LH PANEL, RR DOOR, OTR LH
68030 MR555064 PANEL, RR DOOR, OTR RH PANEL, RR DOOR, OTR RH
68033 MR526477 RUNCHANNEL, RR DOOR WINDOW GLASS, LH RUNCHANNEL, RR DOOR WINDOW GLASS, LH
68033 MR526478 RUNCHANNEL, RR DOOR WINDOW GLASS, RH RUNCHANNEL, RR DOOR WINDOW GLASS, RH
68040 MR302271 HINGE, FR DOOR, LWR LH HINGE, FR DOOR, LWR LH
68040 MR302270 HINGE, FR DOOR, LWR RH HINGE, FR DOOR, LWR RH
68050 MR313665 HINGE, RR DOOR, UPR LH HINGE, RR DOOR, UPR LH
68050 MR313666 HINGE, RR DOOR, UPR RH HINGE, RR DOOR, UPR RH
68072 MF453076 SCREW, GEARSHIFT LINK - Tapping,4x10 SCREW, GEARSHIFT LINK - Tapping,4x10
68076 MU000255 CLIP, FR DOOR CLIP, FR DOOR
68076 MU000614 CLIP, FR DOOR CLIP, FR DOOR
68077 MS240041 BOLT, ENG OIL COOLER LINE - Washer assembled,6x16 BOLT, ENG OIL COOLER LINE - Washer assembled,6x16
68095 MF201546 SCREW, RR BODY - Machine,5x8 SCREW, RR BODY - Machine,5x8
68110 MR525741 GLASS, RR DOOR WINDOW, LH GLASS, RR DOOR WINDOW, LH
68110 MR525742 GLASS, RR DOOR WINDOW, RH GLASS, RR DOOR WINDOW, RH
68120 MR525825 GLASS, RR DOOR STATIONARY WINDOW, LH GLASS, RR DOOR STATIONARY WINDOW, LH
68120 MR525826 GLASS, RR DOOR STATIONARY WINDOW, RH GLASS, RR DOOR STATIONARY WINDOW, RH
68143 MR526253 WEATHERSTRIP, RR DOOR BELT, INR LH WEATHERSTRIP, RR DOOR BELT, INR LH
68143 MR526254 WEATHERSTRIP, RR DOOR BELT, INR RH WEATHERSTRIP, RR DOOR BELT, INR RH
68147 MR525833 WEATHERSTRIP, RR DOOR STATIONARY WINDOW, LH WEATHERSTRIP, RR DOOR STATIONARY WINDOW, LH
68147 MR525834 WEATHERSTRIP, RR DOOR STATIONARY WINDOW, RH WEATHERSTRIP, RR DOOR STATIONARY WINDOW, RH
68215 MB019730 CUSHION, FR DOOR CUSHION, FR DOOR
68228 MN169847 FILM,RR DOOR WATERPROOF,LH FILM,RR DOOR WATERPROOF,LH
68228 MR512013 FILM, RR DOOR WATERPROOF, LH FILM, RR DOOR WATERPROOF, LH
68228 MN169848 FILM,RR DOOR WATERPROOF,RH FILM,RR DOOR WATERPROOF,RH
68233 MR525721 SASH, RR DOOR WINDOW, CTR LH SASH, RR DOOR WINDOW, CTR LH
68233 MR525722 SASH, RR DOOR WINDOW, CTR RH SASH, RR DOOR WINDOW, CTR RH
68252 MN169653 WEATHERSTRIP, RR DOOR OPENING, INR LH WEATHERSTRIP, RR DOOR OPENING, INR LH
68252 MN169654 WEATHERSTRIP, RR DOOR OPENING, INR RH WEATHERSTRIP, RR DOOR OPENING, INR RH
68253 MR525835 WEATHERSTRIP, RR DOOR OPENING, OTR LH WEATHERSTRIP, RR DOOR OPENING, OTR LH
68253 MR525836 WEATHERSTRIP, RR DOOR OPENING, OTR RH WEATHERSTRIP, RR DOOR OPENING, OTR RH
68253 MR525837 WEATHERSTRIP, RR DOOR OPENING, OTR LH WEATHERSTRIP, RR DOOR OPENING, OTR LH
68253 MR525838 WEATHERSTRIP, RR DOOR OPENING, OTR RH WEATHERSTRIP, RR DOOR OPENING, OTR RH
68255 MR523429 GARNISH, RR DOOR, LH GARNISH, RR DOOR, LH
68255 MR523430 GARNISH, RR DOOR, RH GARNISH, RR DOOR, RH
71076 MR525757 MOULDING, RR DOOR WINDOW BELT LINE, LH MOULDING, RR DOOR WINDOW BELT LINE, LH
71076 MR525758 MOULDING, RR DOOR WINDOW BELT LINE, RH MOULDING, RR DOOR WINDOW BELT LINE, RH
Rear door trim & pull handle 18 / 26
CS1A Rear door trim & pull handle
CS9A Rear door trim & pull handle
# OEM CS1A CS9A
68135 MR417135 BRACKET, RR DOOR PULL HANDLE, LH BRACKET, RR DOOR PULL HANDLE, LH
68135 MR417136 BRACKET, RR DOOR PULL HANDLE, RH BRACKET, RR DOOR PULL HANDLE, RH
68265 MR655240 CAP, FR DOOR ARMREST CAP, FR DOOR ARMREST
68265 MR794191 CAP, FR DOOR TRIM SCREW CAP, FR DOOR TRIM SCREW
68284 MF453016 SCREW, GEARSHIFT LINK - Tapping,4x10 SCREW, GEARSHIFT LINK - Tapping,4x10
68284 MF453046 SCREW, FUEL LINE - Tapping,6x14 SCREW, FUEL LINE - Tapping,6x14
68284 MR602020 SCREW, FR DOOR TRIM SCREW, FR DOOR TRIM
68284 MR654342 SCREW, FR DOOR TRIM SCREW, FR DOOR TRIM
68284 MF453093 SCREW, FUEL FILLER LID LOCKING - Tapping,5x16 SCREW, FUEL FILLER LID LOCKING - Tapping,5x16
68284 MF453273 SCREW, SCUFF PLATE - Tapping,5x16 SCREW, SCUFF PLATE - Tapping,5x16
68284 MR572768 SCREW, RR DOOR TRIM SCREW, RR DOOR TRIM
68284 MR655244 SCREW, RR DOOR TRIM SCREW, RR DOOR TRIM
68287 MS480003 GROMMET, FUEL FILLER LID PANEL - Screw,6 GROMMET, FUEL FILLER LID PANEL - Screw,6
68287 MR444250 GROMMET, RR DOOR TRIM GROMMET, RR DOOR TRIM
68289 MU481245 CLIP, GATE PILLAR TRIM - 18x13.2 CLIP, GATE PILLAR TRIM - 18x13.2
68289 MU488002 CLIP, FR DOOR TRIM CLIP, FR DOOR TRIM
68289 MU000609 CLIP, FR DOOR TRIM CLIP, FR DOOR TRIM
68304 MR627149 BOX, FR DOOR TRIM BOX, FR DOOR TRIM
Rear door window regulator 12 / 12
CS1A Rear door window regulator
CS9A Rear door window regulator
# OEM CS1A CS9A
68022 MR991831 MOTOR, FR DOOR POWER WINDOW REGULATOR, LH MOTOR, FR DOOR POWER WINDOW REGULATOR, LH
68022 MR991832 MOTOR, FR DOOR POWER WINDOW REGULATOR, RH MOTOR, FR DOOR POWER WINDOW REGULATOR, RH
68032 MR991329 REGULATOR, RR DOOR WINDOW, LH REGULATOR, RR DOOR WINDOW, LH
68032 MR991330 REGULATOR, RR DOOR WINDOW, RH REGULATOR, RR DOOR WINDOW, RH
68088 MR264577 SCREW, FR DOOR WINDOW REGULATOR SCREW, FR DOOR WINDOW REGULATOR
68092 MN126160 CLIP, FR DOOR WINDOW REGULATOR CLIP, FR DOOR WINDOW REGULATOR
68093 MB321590 Bolt - Washer assembled,6x10 Bolt - Washer assembled,6x10
68093 MU240087 BOLT - Washer assembled,6x10 BOLT - Washer assembled,6x10
68093 MF140202 BOLT, FLANGE (6x10) - Flange,6x10 BOLT, FLANGE (6x10) - Flange,6x10
68093 MS240028 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x12 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x12
68093 MB258979 BOLT, FR DOOR - Washer assembled,4t,6x8 BOLT, FR DOOR - Washer assembled,4t,6x8
68093 MS240002 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x16 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x16
Rear end structure (ALL) 2 / 3
CS1A Rear end structure (ALL)
CS9A Rear end structure (ALL)
# OEM CS1A CS9A
64002 MR548870 BRACKET, RR END PANEL BRACKET, RR END PANEL
64434 MN186602 PANEL,RR END PANEL,RR END
Rear exterior lamp (REAR COMBINATION,LICENSE PLATE LAMP) 16 / 20
CS1A Rear exterior lamp (REAR COMBINATION,LICENSE PLATE LAMP)
CS9A Rear exterior lamp (REAR COMBINATION,LICENSE PLATE LAMP)
# OEM CS1A CS9A
80317 MR583461 GASKET, RR COMBINATION LAMP GASKET, RR COMBINATION LAMP
80381 MF453273 SCREW, SCUFF PLATE - Tapping,5x16 SCREW, SCUFF PLATE - Tapping,5x16
80384 MR551466 GROMMET, TAIL LAMP GROMMET, TAIL LAMP
80384 MU810528 GROMMET, TAIL LAMP GROMMET, TAIL LAMP
80384 MU480022 GROMMET, QTR TRIM - 5 GROMMET, QTR TRIM - 5
80399 MS820027 BULB, TAIL LAMP - 12v-21/5w BULB, TAIL LAMP - 12v-21/5w
80399 MS820078 BULB, STOP LAMP - 12v-16w(w16w) BULB, STOP LAMP - 12v-16w(w16w)
80399 MS820090 BULB (12V, 5W) - 12v-5w BULB (12V, 5W) - 12v-5w
80399 MS820050 BULB, HEADLAMP - 12v-21w BULB, HEADLAMP - 12v-21w
80520 MR322869 LAMP UNIT, LICENSE PLATE LAMP UNIT, LICENSE PLATE
80522 MR300009 GASKET, LICENSE PLATE LAMP BASE GASKET, LICENSE PLATE LAMP BASE
80540 MR485699 LAMP KIT, LICENSE PLATE - 12v-5w LAMP KIT, LICENSE PLATE - 12v-5w
80844 MU805818 SOCKET, RR LAMP SOCKET, RR LAMP
80863 MR221703 SCREW, LICENSE PLATE LAMP - Tapping,4x14 SCREW, LICENSE PLATE LAMP - Tapping,4x14
80865 MB106212 GROMMET, BODY - Screw,4 GROMMET, BODY - Screw,4
80865 MB132008 GROMMET, EXTERIOR MARK - 4 GROMMET, EXTERIOR MARK - 4
Rear exterior lamp (REAR FOG,HIGH MOUNTED STOP LAMP) 14 / 15
CS1A Rear exterior lamp (REAR FOG,HIGH MOUNTED STOP LAMP)
CS9A Rear exterior lamp (REAR FOG,HIGH MOUNTED STOP LAMP)
# OEM CS1A CS9A
80304 MR379311 BRACKET,RR FOG LAMP,LH BRACKET,RR FOG LAMP,LH
80304 MR379312 BRACKET,RR FOG LAMP,RH BRACKET,RR FOG LAMP,RH
80327 MN186327 LAMP KIT,FOG,RR LH - DUMMY LAMP KIT,FOG,RR LH - DUMMY
80327 MN161678 LAMP KIT,FOG,RR RH LAMP KIT,FOG,RR RH
80327 MN161677 LAMP KIT,FOG,RR LH LAMP KIT,FOG,RR LH
80327 MN186328 LAMP KIT,FOG,RR RH - DUMMY LAMP KIT,FOG,RR RH - DUMMY
80330 MN190014 LAMP UNIT,FOG,RR RH LAMP UNIT,FOG,RR RH
80330 MN190013 LAMP UNIT,FOG,RR LH LAMP UNIT,FOG,RR LH
80356 MR522039 LAMP ASSY, HIGH MOUNTED STOP - Led LAMP ASSY, HIGH MOUNTED STOP - Led
80372 MS440502 NUT, FUEL TANK - Washer assembled,6 NUT, FUEL TANK - Washer assembled,6
80375 MS820026 BULB, TAIL LAMP - 12v-21w BULB, TAIL LAMP - 12v-21w
80432 MN190015 SOCKET, RR FOG LAMP SOCKET, RR FOG LAMP
80464 MF453031 SCREW 5x12 - Tapping,5x12 SCREW 5x12 - Tapping,5x12
80499 MF350768 SCREW, FUEL FILLER LID PANEL - Washer assembled,5x12 SCREW, FUEL FILLER LID PANEL - Washer assembled,5x12
Rear garnish & moulding (ALL) 10 / 11
CS1A Rear garnish & moulding (ALL)
CS9A Rear garnish & moulding (ALL)
# OEM CS1A CS9A
64412 MS440502 NUT, FUEL TANK - Washer assembled,6 NUT, FUEL TANK - Washer assembled,6
64412 MS440522 NUT, FUEL TANK - Washer assembled,6 NUT, FUEL TANK - Washer assembled,6
64459 MR573229 GROMMET,BACK DOOR GROMMET,BACK DOOR
64461 MR322000 CLIP, RR END PANEL GARNISH - 8.2x13 CLIP, RR END PANEL GARNISH - 8.2x13
64461 MR533775 CLIP, TAILGATE GARNISH - 8.2x12.5 CLIP, TAILGATE GARNISH - 8.2x12.5
70414 MN175793 GASKET, AIR SPOILER SIDE, LH GASKET, AIR SPOILER SIDE, LH
70414 MN175794 GASKET, AIR SPOILER SIDE, RH GASKET, AIR SPOILER SIDE, RH
70496 MB645307 GROMMET, AIR SPOILER GROMMET, AIR SPOILER
70498 MB646885 BOLT, RR END PANEL GARNISH - 10 BOLT, RR END PANEL GARNISH - 10
70499 MS240028 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x12 BOLT, CRUISE CONTROL EQUIP - Washer assembled,6x12
Rear seat (SPLIT) 35 / 75
CS1A Rear seat (SPLIT)
CS9A Rear seat (SPLIT)
# OEM CS1A CS9A
76005 MR654631 BACK ASSY,RR SEAT SIDE,LH BACK ASSY,RR SEAT SIDE,LH
76005 MR654634 BACK ASSY,RR SEAT SIDE,RH BACK ASSY,RR SEAT SIDE,RH
76026 MR654658 COVER,RR SEAT SIDE BACK,LH COVER,RR SEAT SIDE BACK,LH
76026 MR654661 COVER,RR SEAT SIDE BACK,RH COVER,RR SEAT SIDE BACK,RH
76037 MR640351 GARNISH, RR SEAT FOLDING KNOB GARNISH, RR SEAT FOLDING KNOB
76044 MR654150 HEADREST,RR SEAT HEADREST,RR SEAT
76044 MR656232 HEADREST,RR SEAT HEADREST,RR SEAT
76045 MR524529 BRACKET,RR SEAT HINGE,CTR BRACKET,RR SEAT HINGE,CTR
76045 MR524530 BRACKET,RR SEAT HINGE,CTR BRACKET,RR SEAT HINGE,CTR
76047 MN162537 HOOK, RR SEAT HOOK, RR SEAT
76047 MR501840 HOOK, RR SEAT HOOK, RR SEAT
76051 MR640350 KNOB, RR SEAT FOLDING KNOB, RR SEAT FOLDING
76075 MR979534 STRIKER, RR SEAT STRIKER, RR SEAT
76084 MR753562 GUIDE, FR SEAT HEADREST - W/lock GUIDE, FR SEAT HEADREST - W/lock
76084 MR753563 GUIDE, FR SEAT HEADREST - W/o lock GUIDE, FR SEAT HEADREST - W/o lock
76095 MR524527 BRACKET,RR SEAT HINGE SIDE,LH BRACKET,RR SEAT HINGE SIDE,LH
76095 MR524528 BRACKET,RR SEAT HINGE SIDE,RH BRACKET,RR SEAT HINGE SIDE,RH
76153 MN151441 PAD,RR SEAT BACK,LH PAD,RR SEAT BACK,LH
76153 MR524724 PAD,RR SEAT BACK,RH PAD,RR SEAT BACK,RH
76154 MN151443 FRAME,RR SEAT BACK,LH FRAME,RR SEAT BACK,LH
76154 MR524726 FRAME,RR SEAT BACK,RH FRAME,RR SEAT BACK,RH
76157 MR501804 PAD, RR SEAT CUSHION PAD, RR SEAT CUSHION
76158 MR524523 PAD,RR SEAT SIDE BACK,LH PAD,RR SEAT SIDE BACK,LH
76158 MR524524 PAD,RR SEAT SIDE BACK,RH PAD,RR SEAT SIDE BACK,RH
76181 MS440504 NUT - Washer assembled,10 NUT - Washer assembled,10
76183 MB768471 CLIP, RR SEAT CLIP, RR SEAT
76183 MN185585 CLIP, RR SEAT CLIP, RR SEAT
76186 MR513997 BUSHING, RR SEAT BUSHING, RR SEAT
76191 MS240616 BOLT, BODY LOOSE PANEL - Washer assembled,8x25 BOLT, BODY LOOSE PANEL - Washer assembled,8x25
76191 MU240146 BOLT, RR SEAT - Washer assembled,8x25 BOLT, RR SEAT - Washer assembled,8x25
76191 MS240188 BOLT, FR BUMPER - Washer assembled,10x30 BOLT, FR BUMPER - Washer assembled,10x30
76191 MU001251 BOLT, RR SEAT - M10x37 BOLT, RR SEAT - M10x37
76191 MU241027 BOLT, FR SEAT - Washer assembled,10x37 BOLT, FR SEAT - Washer assembled,10x37
76191 MF247891 BOLT, ENG FR MOUNTING - Washer assembled,8x20 BOLT, ENG FR MOUNTING - Washer assembled,8x20
76463 MA167873 RING, FR SEAT SLIDE ADJUSTER WIRE RING, FR SEAT SLIDE ADJUSTER WIRE
Rear susp (SHOCK ABSORBER & STABILIZER,ETC.) 29 / 30
CS1A Rear susp (SHOCK ABSORBER & STABILIZER,ETC.)
CS9A Rear susp (SHOCK ABSORBER & STABILIZER,ETC.)
# OEM CS1A CS9A
41136 MR510446 PAD, RR SUSP SPRING, LWR PAD, RR SUSP SPRING, LWR
41137 MB809280 PAD, RR SUSP SPRING, UPR PAD, RR SUSP SPRING, UPR
41176 MR491950 STOPPER, RR SUSP SPRING CLIP STOPPER, RR SUSP SPRING CLIP
41197 MR594980 SPRING,RR SUSP COIL SPRING,RR SUSP COIL
41406 MR554369 BUSHING, RR SUSP COIL SPRING BUSHING, RR SUSP COIL SPRING
41406 MR594612 BUSHING, RR SUSP COIL SPRING BUSHING, RR SUSP COIL SPRING
41406 MR554370 BUSHING, RR SUSP COIL SPRING BUSHING, RR SUSP COIL SPRING
41406 MR594613 BUSHING, RR SUSP COIL SPRING BUSHING, RR SUSP COIL SPRING
41421 MR510002 DAMPER, RR SHOCK ABSORBER DAMPER, RR SHOCK ABSORBER
41433 MR491946 INSULATOR, RR SHOCK ABSORBER INSULATOR, RR SHOCK ABSORBER
41601 MR589635 BAR, RR SUSP STABILIZER BAR, RR SUSP STABILIZER
41603 MR403773 BRACKET, RR SUSP STABILIZER BAR BRACKET, RR SUSP STABILIZER BAR
41603 MR403777 BRACKET, RR SUSP STABILIZER BAR BRACKET, RR SUSP STABILIZER BAR
41618 MR403771 LINK ASSY, RR SUSP STABILIZER BAR LINK ASSY, RR SUSP STABILIZER BAR
41631 MR476595 LINK KIT, SUSP STABILIZER BAR SIDE LINK KIT, SUSP STABILIZER BAR SIDE
41632 MB892989 RING, SUSP STABILIZER LINK DUST COVER RING, SUSP STABILIZER LINK DUST COVER
41635 MB518785 COVER, FR SUSP STABILIZER LINK BALL JOINT DUST COVER, FR SUSP STABILIZER LINK BALL JOINT DUST
41697 MS440504 NUT - Washer assembled,10 NUT - Washer assembled,10
41697 MF434104 NUT, ROCKER COVER - Flange,8 NUT, ROCKER COVER - Flange,8
41698 MF240080 BOLT, ENG RR MOUNTING - Washer assembled,10x20 BOLT, ENG RR MOUNTING - Washer assembled,10x20
41698 MF913302 BOLT, ENG WIRING - Washer assembled,10x20 BOLT, ENG WIRING - Washer assembled,10x20
41699 MR589637 BUSHING, RR SUSP STABILIZER BUSHING, RR SUSP STABILIZER
41971 MR554373 COLLAR, RR SUSP COIL SPRING COLLAR, RR SUSP COIL SPRING
41993 MB242360 WASHER, RR SUSP COIL SPRING - 10.2 WASHER, RR SUSP COIL SPRING - 10.2
41997 MU431006 NUT, ENG MOUNTING NUT, ENG MOUNTING
41997 MF434105 NUT, CYLINDER BLOCK - Flange,10 NUT, CYLINDER BLOCK - Flange,10
41997 MS440002 NUT, ENG RR MOUNTING - Self locking,10 NUT, ENG RR MOUNTING - Self locking,10
41999 MU001123 BOLT, RR SUSP COIL SPRING BOLT, RR SUSP COIL SPRING
41999 MU140035 BOLT, RR SUSP LWR ARM BOLT, RR SUSP LWR ARM
Rear susp (SUSPENSION ARM,ETC.) 12 / 17
CS1A Rear susp (SUSPENSION ARM,ETC.)
CS9A Rear susp (SUSPENSION ARM,ETC.)
# OEM CS1A CS9A
41300 MN101444 ARM ASSY, RR SUSP, LWR ARM ASSY, RR SUSP, LWR
41306 MU000390 BOLT, RR SUSP UPR ARM BOLT, RR SUSP UPR ARM
41306 MB809335 BOLT, RR SUSP LWR ARM - 12x85 BOLT, RR SUSP LWR ARM - 12x85
41325 MR171026 PLATE, RR SUSP LWR ARM PLATE, RR SUSP LWR ARM
41350 MR519133 ARM ASSY, RR SUSP TRAILING, LH ARM ASSY, RR SUSP TRAILING, LH
41350 MR519134 ARM ASSY, RR SUSP TRAILING, RH ARM ASSY, RR SUSP TRAILING, RH
41383 MU000363 WASHER, INDEPENDENT RR SUSP ARM WASHER, INDEPENDENT RR SUSP ARM
41388 MU000463 BOLT, INDEPENDENT RR SUSP ARM BOLT, INDEPENDENT RR SUSP ARM
41391 MU431006 NUT, ENG MOUNTING NUT, ENG MOUNTING
41393 MU140035 BOLT, RR SUSP LWR ARM BOLT, RR SUSP LWR ARM
41399 MN100110 BUSHING, RR SUSP LWR ARM BUSHING, RR SUSP LWR ARM
41399 MR197915 BUSHING, RR SUSP LWR ARM BUSHING, RR SUSP LWR ARM
Rear wheel brake (CALIPER DISASSEMBLED PARTS 0708.1-) 17 / 17
CS1A Rear wheel brake (CALIPER DISASSEMBLED PARTS 0708.1-)
CS9A Rear wheel brake (CALIPER DISASSEMBLED PARTS 0708.1-)
# OEM CS1A CS9A
52005 MB699264 BUSHING, FR BRAKE BUSHING, FR BRAKE
52008 MR955065 CALIPER KIT, RR BRAKE, LH CALIPER KIT, RR BRAKE, LH
52008 MR955066 CALIPER KIT, RR BRAKE, RH CALIPER KIT, RR BRAKE, RH
52010 MR955067 SEAL KIT, RR BRAKE CALIPER SEAL KIT, RR BRAKE CALIPER
52018 MB928290 BLEEDER, FR BRAKE CALIPER BLEEDER, FR BRAKE CALIPER
52022 MB857613 PISTON, RR BRAKE CALIPER PISTON, RR BRAKE CALIPER
52036 MR569368 SUPPORT, RR BRAKE CALIPER SUPPORT, RR BRAKE CALIPER
52120 MR955068 PAD SET, RR BRAKE PAD SET, RR BRAKE
52140 MR510545 CLIP SET, RR BRAKE CLIP SET, RR BRAKE
52140 MR493177 CLIP SET, FR BRAKE CLIP SET, FR BRAKE
52150 MN102873 SHIM SET, RR BRAKE SHIM SET, RR BRAKE
52964 MR569369 PIN, RR BRAKE - Guide PIN, RR BRAKE - Guide
52964 MR569370 PIN, RR BRAKE - Lock PIN, RR BRAKE - Lock
52972 MR493150 CLIP, FR BRAKE CLIP, FR BRAKE
52975 MR249200 BOLT, RR BRAKE - Flange,10x16.5 BOLT, RR BRAKE - Flange,10x16.5
52975 MU000335 BOLT, RR BRAKE - Flange,10x16.5 BOLT, RR BRAKE - Flange,10x16.5
52977 MV026287 CAP, GEARSHIFT LINK CAP, GEARSHIFT LINK
Rear wheel brake (PARKING BRAKE) 25 / 25
CS1A Rear wheel brake (PARKING BRAKE)
CS9A Rear wheel brake (PARKING BRAKE)
# OEM CS1A CS9A
50314 MR129877 LEVER, PARKING BRAKE OPERATING, LH LEVER, PARKING BRAKE OPERATING, LH
50314 MR129878 LEVER, PARKING BRAKE OPERATING, RH LEVER, PARKING BRAKE OPERATING, RH
50454 MB858934 STRUT, PARKING BRAKE OPERATING LEVER, LH STRUT, PARKING BRAKE OPERATING LEVER, LH
50454 MB858935 STRUT, PARKING BRAKE OPERATING LEVER, RH STRUT, PARKING BRAKE OPERATING LEVER, RH
52301 MB520459 ADJUSTER, RR BRAKE SHOE SLACK ADJUSTER, RR BRAKE SHOE SLACK
52321 MB857302 CUP, RR BRAKE SHOE SPRING CUP, RR BRAKE SHOE SPRING
52330 MR129854 SHOE ASSY, RR BRAKE PRIMARY, LH SHOE ASSY, RR BRAKE PRIMARY, LH
52330 MB668906 SHOE ASSY, RR BRAKE PRIMARY, LH SHOE ASSY, RR BRAKE PRIMARY, LH
52340 MR129855 SHOE ASSY, RR BRAKE SECONDARY, LH SHOE ASSY, RR BRAKE SECONDARY, LH
52340 MB668907 SHOE ASSY, RR BRAKE SECONDARY, LH SHOE ASSY, RR BRAKE SECONDARY, LH
52340 MR129856 SHOE ASSY, RR BRAKE SECONDARY, RH SHOE ASSY, RR BRAKE SECONDARY, RH
52350 MR391631 SHOE SET, RR BRAKE SHOE SET, RR BRAKE
52350 MB950212 SHOE SET, RR BRAKE SHOE SET, RR BRAKE
52353 MB520472 PLATE, RR BRAKE SHOE GUIDE PLATE, RR BRAKE SHOE GUIDE
52375 MB928874 SPRING, RR BRAKE SHOE AUTO ADJUSTER SPRING, RR BRAKE SHOE AUTO ADJUSTER
52376 MB520470 SPRING, RR BRAKE SHOE HOLD-DOWN SPRING, RR BRAKE SHOE HOLD-DOWN
52381 MB857298 SPRING, RR BRAKE SHOE RETURN SPRING, RR BRAKE SHOE RETURN
52381 MB857299 SPRING, RR BRAKE SHOE RETURN SPRING, RR BRAKE SHOE RETURN
52385 MB520465 SPRING, RR BRAKE SHOE TO STRUT SPRING, RR BRAKE SHOE TO STRUT
52502 MA151648 RETAINER, RR BRAKE CHAMBER RETAINER, RR BRAKE CHAMBER
52823 MR569389 PLATE, RR BRAKE BACKING, LH PLATE, RR BRAKE BACKING, LH
52823 MR569384 PLATE, RR BRAKE BACKING, RH PLATE, RR BRAKE BACKING, RH
52957 MA151647 WASHER, RR BRAKE - Wave,8.4 WASHER, RR BRAKE - Wave,8.4
52964 MB520471 PIN, RR BRAKE - Hold,3x33.5 PIN, RR BRAKE - Hold,3x33.5
52975 MR205904 BOLT, RR BRAKE - Flange,10x11 BOLT, RR BRAKE - Flange,10x11
Rear window glass & moulding (-0502.3) 9 / 9
CS1A Rear window glass & moulding (-0502.3)
CS9A Rear window glass & moulding (-0502.3)
# OEM CS1A CS9A
64210 MR520282 GLASS, RR WINDOW - Hot wire GLASS, RR WINDOW - Hot wire
64223 MR520530 STOPPER, WINDSHIELD GLASS STOPPER, WINDSHIELD GLASS
64299 MB292508 DAM, WINDSHIELD (L=5000 mm) DAM, WINDSHIELD (L=5000 mm)
71092 MR520295 MOULDING, RR WINDOW, LWR MOULDING, RR WINDOW, LWR
71093 MR520294 MOULDING, RR WINDOW, UPR MOULDING, RR WINDOW, UPR
71957 MB645307 GROMMET, AIR SPOILER GROMMET, AIR SPOILER
71957 MR245808 GROMMET, RR WINDOW MOULDING GROMMET, RR WINDOW MOULDING
71959 MB814176 CLIP, RR WINDOW MOULDING CLIP, RR WINDOW MOULDING
71959 MB814155 CLIP, RR WINDOW MOULDING CLIP, RR WINDOW MOULDING
Rear window glass & moulding (0503.1-) 9 / 9
CS1A Rear window glass & moulding (0503.1-)
CS9A Rear window glass & moulding (-0502.3)
# OEM CS1A CS9A
64210 MR520282 GLASS, RR WINDOW - Hot wire GLASS, RR WINDOW - Hot wire
64223 MR520530 STOPPER, WINDSHIELD GLASS STOPPER, WINDSHIELD GLASS
64299 MB292508 DAM, WINDSHIELD (L=5000 mm) DAM, WINDSHIELD (L=5000 mm)
71092 MR520295 MOULDING, RR WINDOW, LWR MOULDING, RR WINDOW, LWR
71093 MR520294 MOULDING, RR WINDOW, UPR MOULDING, RR WINDOW, UPR
71957 MB645307 GROMMET, AIR SPOILER GROMMET, AIR SPOILER
71957 MR245808 GROMMET, RR WINDOW MOULDING GROMMET, RR WINDOW MOULDING
71959 MB814176 CLIP, RR WINDOW MOULDING CLIP, RR WINDOW MOULDING
71959 MB814155 CLIP, RR WINDOW MOULDING CLIP, RR WINDOW MOULDING
Relay,flasher & sensor (AIR BAG CONTROL UNIT,ETC.) 16 / 20
CS1A Relay,flasher & sensor (AIR BAG CONTROL UNIT,ETC.)
CS9A Relay,flasher & sensor (AIR BAG CONTROL UNIT,ETC.)
# OEM CS1A CS9A
82643 MR583930 SPRING, AIR BAG SENSOR SPRING, AIR BAG SENSOR
82811 MN141473 CONTROL UNIT,SRS DIAGNOSIS CONTROL UNIT,SRS DIAGNOSIS
82817 MN141002 BRACKET, AIR BAG CONTROL UNIT BRACKET, AIR BAG CONTROL UNIT
82954 MS350266 SCREW, A/SUSP - Washer assembled,4x10 SCREW, A/SUSP - Washer assembled,4x10
82960 MR587312 CONTROL UNIT, THEFTPROOF CONTROL UNIT, THEFTPROOF
82960 MR587993 CONTROL UNIT, THEFTPROOF CONTROL UNIT, THEFTPROOF
83150 MR203491 HARNESS, SRS AIR BAG ADAPTER HARNESS, SRS AIR BAG ADAPTER
83150 MR372530 HARNESS, SRS AIR BAG ADAPTER HARNESS, SRS AIR BAG ADAPTER
85921 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
85921 MS240113 BOLT, RR SEAT - Washer assembled,6x40 BOLT, RR SEAT - Washer assembled,6x40
85924 MF456086 SCREW, SWITCH - Tapping,3x14 SCREW, SWITCH - Tapping,3x14
85924 MF456805 SCREW, CONSOLE METER - Tapping,3x12 SCREW, CONSOLE METER - Tapping,3x12
85982 MS440502 NUT, FUEL TANK - Washer assembled,6 NUT, FUEL TANK - Washer assembled,6
85982 MS440133 NUT, FUEL TANK - Flange,6 NUT, FUEL TANK - Flange,6
88575 MN141003 SENSOR, SIDE AIR BAG, RH SENSOR, SIDE AIR BAG, RH
88575 MR587494 SENSOR, SIDE AIR BAG, LH SENSOR, SIDE AIR BAG, LH
Relay,flasher & sensor (RELAY INSTALLATION TABLE) 4 / 5
CS1A Relay,flasher & sensor (RELAY INSTALLATION TABLE)
CS9A Relay,flasher & sensor (RELAY INSTALLATION TABLE)
# OEM CS1A CS9A
82641 MR515500 CONTROL UNIT, RELAY CONTROL UNIT, RELAY
82748 MR588567 RELAY (ACV31212 M07) RELAY (ACV31212 M07)
82792 MR538851 RELAY, A/T FAIL SAFE CONTROL RELAY, A/T FAIL SAFE CONTROL
82799 MR301978 RELAY - Acb82201 m09 RELAY - Acb82201 m09
Relay,flasher & sensor (RELAY,ETC..ENGINE ROOM) 3 / 4
CS1A Relay,flasher & sensor (RELAY,ETC..ENGINE ROOM)
CS9A Relay,flasher & sensor (RELAY INSTALLATION TABLE)
# OEM CS1A CS9A
82641 MR515500 CONTROL UNIT, RELAY CONTROL UNIT, RELAY
82792 MR538851 RELAY, A/T FAIL SAFE CONTROL RELAY, A/T FAIL SAFE CONTROL
82799 MR301978 RELAY - Acb82201 m09 RELAY - Acb82201 m09
Relay,flasher & sensor (RELAY,ETC..INTERIOR) 4 / 5
CS1A Relay,flasher & sensor (RELAY,ETC..INTERIOR)
CS9A Relay,flasher & sensor (RELAY,ETC..INTERIOR)
# OEM CS1A CS9A
82542 MR587873 CONTROL UNIT,TIME & ALARM CONTROL UNIT,TIME & ALARM
82542 MR587875 CONTROL UNIT,TIME & ALARM CONTROL UNIT,TIME & ALARM
82748 MR588567 RELAY (ACV31212 M07) RELAY (ACV31212 M07)
82792 MR538851 RELAY, A/T FAIL SAFE CONTROL RELAY, A/T FAIL SAFE CONTROL
Rocker cover (LHD) 3 / 13
CS1A Rocker cover (LHD)
CS9A Rocker cover (ALL)
# OEM CS1A CS9A
1129 MD179909 GASKET, PCV VALVE GASKET, PCV VALVE
1181 MF140202 BOLT, FLANGE (6x10) - Flange,6x10 BOLT, FLANGE (6x10) - Flange,6x10
4907 MD311638 GASKET, ENG OIL FILLER CAP GASKET, ENG OIL FILLER CAP
Rocker cover (RHD) 3 / 14
CS1A Rocker cover (RHD)
CS9A Rocker cover (ALL)
# OEM CS1A CS9A
1129 MD179909 GASKET, PCV VALVE GASKET, PCV VALVE
1181 MF140202 BOLT, FLANGE (6x10) - Flange,6x10 BOLT, FLANGE (6x10) - Flange,6x10
4907 MD311638 GASKET, ENG OIL FILLER CAP GASKET, ENG OIL FILLER CAP
Roof & lid (ALL) 5 / 5
CS1A Roof & lid (ALL)
CS9A Roof & lid (ALL)
# OEM CS1A CS9A
78035 MR548949 PANEL, ROOF PANEL, ROOF
78227 MR548864 BOW, ROOF BOW, ROOF
78227 MR548953 BOW, ROOF BOW, ROOF
78366 MR548951 RAIL, ROOF, FR RAIL, ROOF, FR
78367 MR548862 RAIL, ROOF, RR RAIL, ROOF, RR
Room lamp (ALL) 12 / 15
CS1A Room lamp (ALL)
CS9A Room lamp (ALL)
# OEM CS1A CS9A
80640 MR654340 LAMP ASSY, ROOM, CTR - 12v-8w LAMP ASSY, ROOM, CTR - 12v-8w
80640 MR748283 LAMP ASSY, ROOM, CTR - 12v-8w LAMP ASSY, ROOM, CTR - 12v-8w
80643 MR330803 LAMP ASSY, ROOM, FR - 12v-7.5w LAMP ASSY, ROOM, FR - 12v-7.5w
80646 MB529091 LAMP ASSY, FOOT - 12v-5w LAMP ASSY, FOOT - 12v-5w
80670 MR250712 LENS, CTR ROOM LAMP LENS, CTR ROOM LAMP
80684 MB877458 BULB, ROOM LAMP - 12v-7.5w BULB, ROOM LAMP - 12v-7.5w
80684 MF820513 BULB, ROOM LAMP BULB, ROOM LAMP
80697 MR308939 LENS, FR ROOM LAMP LENS, FR ROOM LAMP
80952 MS820071 BULB, ROOM LAMP - 12v-5w BULB, ROOM LAMP - 12v-5w
80973 MF453152 SCREW, ROOM LAMP - Tapping,5x14 SCREW, ROOM LAMP - Tapping,5x14
80982 MB133273 BOLT, FUEL LINE - Washer assembled,6x16 BOLT, FUEL LINE - Washer assembled,6x16
80982 MF915000 BOLT, ROOM LAMP - Flange,6x16 BOLT, ROOM LAMP - Flange,6x16
Seat belt (REAR) 4 / 8
CS1A Seat belt (REAR)
CS9A Seat belt (REAR)
# OEM CS1A CS9A
76330 MR633477 SEAT BELT,RR SEAT,INR LH SEAT BELT,RR SEAT,INR LH
76330 MR638797 SEAT BELT, 2ND SEAT, INR RH - Buckle x 2 SEAT BELT, 2ND SEAT, INR RH - Buckle x 2
76415 MF453031 SCREW 5x12 - Tapping,5x12 SCREW 5x12 - Tapping,5x12
76417 MB268795 BOLT, FLOOR CONSOLE - Washer assembled,7/16x25 BOLT, FLOOR CONSOLE - Washer assembled,7/16x25
Side garnish & moulding (ALL) 19 / 20
CS1A Side garnish & moulding (ALL)
CS9A Side garnish & moulding (ALL)
# OEM CS1A CS9A
63143 MR462051 GARNISH, FR PILLAR, LH GARNISH, FR PILLAR, LH
63143 MR462052 GARNISH, FR PILLAR, RH GARNISH, FR PILLAR, RH
63971 MS450154 SCREW, STEERING WHEEL - Tapping,4x16 SCREW, STEERING WHEEL - Tapping,4x16
63974 MB361578 GROMMET, SIDE AIR DAM - 10 GROMMET, SIDE AIR DAM - 10
63974 MR280579 GROMMET, SIDE AIR DAM - 10 GROMMET, SIDE AIR DAM - 10
63976 MR432939 CLIP, OVERFENDER - 8.2x12.5 CLIP, OVERFENDER - 8.2x12.5
63976 MU000573 CLIP, QTR TRIM - 8.2x10 CLIP, QTR TRIM - 8.2x10
63979 MU488006 CLIP, ENG ROOM COVER - 8 CLIP, ENG ROOM COVER - 8
71145 MR520287 MOULDING, DRIP, LH MOULDING, DRIP, LH
71145 MR520288 MOULDING, DRIP, RH MOULDING, DRIP, RH
71963 MR432245 CLIP, DRIP MOULDING CLIP, DRIP MOULDING
71963 MR520849 CLIP, DRIP MOULDING CLIP, DRIP MOULDING
71963 MR520850 CLIP, DRIP MOULDING CLIP, DRIP MOULDING
71963 MR520851 CLIP, DRIP MOULDING CLIP, DRIP MOULDING
71963 MU000219 CLIP, DRIP MOULDING CLIP, DRIP MOULDING
71963 MU000217 CLIP, DRIP MOULDING CLIP, DRIP MOULDING
71963 MU000218 CLIP, DRIP MOULDING CLIP, DRIP MOULDING
71975 MR533108 CLIP, SIDE AIR DAM CLIP, SIDE AIR DAM
71975 MB696120 CLIP, AIR INLET GRILLE - 8.9x9 CLIP, AIR INLET GRILLE - 8.9x9
Side structure (ALL) 38 / 57
CS1A Side structure (ALL)
CS9A Side structure (ALL)
# OEM CS1A CS9A
63126 MR981635 PILLAR,CTR OTR LH PILLAR,CTR OTR LH
63126 MN186636 PILLAR,CTR OTR RH PILLAR,CTR OTR RH
63126 MR981636 PILLAR,CTR OTR RH PILLAR,CTR OTR RH
63151 MN161001 PILLAR, FR LWR INR LH PILLAR, FR LWR INR LH
63151 MR548704 PILLAR, FR LWR INR RH PILLAR, FR LWR INR RH
63151 MR586919 PILLAR,FR LWR INR LH PILLAR,FR LWR INR LH
63151 MN161002 PILLAR,FR LWR INR RH PILLAR,FR LWR INR RH
63153 MN186623 PILLAR,FR OTR LH PILLAR,FR OTR LH
63153 MN186635 PILLAR,FR OTR RH PILLAR,FR OTR RH
63153 MN186624 PILLAR,FR OTR RH PILLAR,FR OTR RH
63154 MN150997 PILLAR, FR UPR INR LH PILLAR, FR UPR INR LH
63154 MN161174 PILLAR, FR UPR INR RH PILLAR, FR UPR INR RH
63154 MN186613 PILLAR,FR UPR INR LH PILLAR,FR UPR INR LH
63154 MR548702 PILLAR, FR UPR INR RH PILLAR, FR UPR INR RH
63210 MR981637 PANEL,QTR,OTR LH PANEL,QTR,OTR LH
63210 MN186637 PANEL,QTR,OTR RH PANEL,QTR,OTR RH
63210 MR981638 PANEL,QTR,OTR RH PANEL,QTR,OTR RH
63220 MR548715 PANEL, QTR CORNER, LH PANEL, QTR CORNER, LH
63220 MR548716 PANEL, QTR CORNER, RH PANEL, QTR CORNER, RH
63227 MR548711 PANEL, QTR, INR LH PANEL, QTR, INR LH
63227 MR548712 PANEL, QTR, INR RH PANEL, QTR, INR RH
63251 MR548713 EXTENSION, QTR PANEL, LWR OTR LH EXTENSION, QTR PANEL, LWR OTR LH
63251 MR548714 EXTENSION, QTR PANEL, LWR OTR RH EXTENSION, QTR PANEL, LWR OTR RH
63465 MR466399 PROTECTOR, RR PILLAR SILENCER, LH PROTECTOR, RR PILLAR SILENCER, LH
63465 MR466400 PROTECTOR, RR PILLAR SILENCER, RH PROTECTOR, RR PILLAR SILENCER, RH
63634 MR548723 PLATE, SIDE SILL RR END, LH PLATE, SIDE SILL RR END, LH
63634 MR548724 PLATE, SIDE SILL RR END, RH PLATE, SIDE SILL RR END, RH
63646 MN186625 SIDE SILL,FR FLOOR,OTR LH SIDE SILL,FR FLOOR,OTR LH
63646 MN186638 SIDE SILL,FR FLOOR,OTR RH SIDE SILL,FR FLOOR,OTR RH
63646 MN186626 SIDE SILL,FR FLOOR,OTR RH SIDE SILL,FR FLOOR,OTR RH
64444 MR548717 PANEL, RR COMBINATION LAMP HOUSING, LH PANEL, RR COMBINATION LAMP HOUSING, LH
64444 MR548718 PANEL, RR COMBINATION LAMP HOUSING, RH PANEL, RR COMBINATION LAMP HOUSING, RH
65107 MR548719 BRACE, RR FLOOR SIDE, LH BRACE, RR FLOOR SIDE, LH
65107 MR548720 BRACE, RR FLOOR SIDE, RH BRACE, RR FLOOR SIDE, RH
72202 MR592309 BRACE,RR SHELF,LH BRACE,RR SHELF,LH
72202 MR592310 BRACE,RR SHELF,RH BRACE,RR SHELF,RH
78357 MR990511 RAIL, ROOF SIDE, INR LH RAIL, ROOF SIDE, INR LH
78357 MR990512 RAIL, ROOF SIDE, INR RH RAIL, ROOF SIDE, INR RH
Silencer (ALL) 10 / 10
CS1A Silencer (ALL)
CS9A Silencer (ALL)
# OEM CS1A CS9A
62506 MR979891 PAD, DASH PANEL PAD, DASH PANEL
62506 MR979892 PAD,DASH PANEL PAD,DASH PANEL
62598 MN124502 PAD, SILENCER PAD, SILENCER
62598 MN162475 PAD, DASH PANEL SILENCER PAD, DASH PANEL SILENCER
63145 MN169358 PAD, FR PILLAR PAD, FR PILLAR
65866 MB241600 PAD, SILENCER - 910x910x8.0 PAD, SILENCER - 910x910x8.0
65866 MB241601 PAD, SILENCER - 1000x1000x4.7 PAD, SILENCER - 1000x1000x4.7
65983 MB104993 SILENCER, FLOOR - 500x500x1.6 SILENCER, FLOOR - 500x500x1.6
65983 MB566215 SILENCER, FLOOR - 500x500x2.0 SILENCER, FLOOR - 500x500x2.0
72221 MR417050 PAD, RR SHELF TRIM PAD, RR SHELF TRIM
Spark plug,cable & coil (ALL) 1 / 12
CS1A Spark plug,cable & coil (ALL)
CS9A A/t case (ALL (T/M CASE))
# OEM CS1A CS9A
14699 MF140207 BOLT, ROCKER COVER - Flange,6x20 BOLT, ROCKER COVER - Flange,6x20
Speaker (ALL) 6 / 9
CS1A Speaker (ALL)
CS9A Speaker (ALL)
# OEM CS1A CS9A
85515 MR301667 SPEAKER, FR DOOR - 15w,16cm SPEAKER, FR DOOR - 15w,16cm
85515 MR306819 SPEAKER, FR - 15w,16cm SPEAKER, FR - 15w,16cm
85592 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16 SCREW, TAPPING, 5x16 - Tapping,5x16
85592 MB189330 SCREW, STEP - Tapping,5x12 SCREW, STEP - Tapping,5x12
85592 MF453031 SCREW 5x12 - Tapping,5x12 SCREW 5x12 - Tapping,5x12
85595 MU480032 GROMMET, SIDE AIR DAM - 5 GROMMET, SIDE AIR DAM - 5
Standard tool (ALL) 5 / 7
CS1A Standard tool (ALL)
CS9A Standard tool (ALL)
# OEM CS1A CS9A
99010 MR519516 TOOL SET,STD TOOL SET,STD
99101 MB149464 BAG, TOOL BAG, TOOL
99201 MR297379 BAR, JACK HANDLE EXTENSION BAR, JACK HANDLE EXTENSION
99211 MR403843 JACK JACK
99327 MB621148 WRENCH, WHEEL NUT SOCKET WRENCH, WHEEL NUT SOCKET
Starter (ALL) 13 / 21
CS1A Starter (ALL)
CS9A Starter (ALL)
# OEM CS1A CS9A
14004 MD619872 BEARING, STARTER ARMATURE, FR BEARING, STARTER ARMATURE, FR
14005 MD618334 BEARING, STARTER ARMATURE, RR BEARING, STARTER ARMATURE, RR
14017 MD619967 BRACKET, STARTER, RR BRACKET, STARTER, RR
14024 MD619964 CLUTCH KIT, STARTER PINION & REDUCTION CLUTCH KIT, STARTER PINION & REDUCTION
14025 MD619865 CLUTCH, STARTER OVERRUNNING CLUTCH, STARTER OVERRUNNING
14037 MD619862 GEAR, STARTER REDUCTION GEAR, STARTER REDUCTION
14038 MD619863 GEAR, STARTER REDUCTION INTERNAL GEAR, STARTER REDUCTION INTERNAL
14039 MD619864 GEAR, STARTER REDUCTION PINION GEAR, STARTER REDUCTION PINION
14046 MD619874 LEVER KIT, STARTER PINION SHIFT LEVER KIT, STARTER PINION SHIFT
14061 MD607887 SCREW SET, STARTER INR SCREW SET, STARTER INR
14077 MD619866 STOPPER KIT, STARTER PINION STOPPER KIT, STARTER PINION
14199 MF140268 BOLT, ENG SUPPORT ROD - Flange,10x50 BOLT, ENG SUPPORT ROD - Flange,10x50
14199 MF911668 BOLT, BALANCER - Flange,10x50 BOLT, BALANCER - Flange,10x50
Steering column & cover 15 / 17
CS1A Steering column & cover
CS9A Steering column & cover
# OEM CS1A CS9A
45127 MR955712 COLUMN ASSY, STEERING COLUMN ASSY, STEERING
45127 MR510963 COLUMN ASSY,STEERING COLUMN ASSY,STEERING
45135 MR527565 COVER, STEERING COLUMN COVER, STEERING COLUMN
45135 MR527666 COVER,STEERING COLUMN COVER,STEERING COLUMN
45136 MR493829 COVER, STEERING COLUMN DASH PANEL COVER, STEERING COLUMN DASH PANEL
45136 MR493830 COVER,STEERING COLUMN DASH PANEL COVER,STEERING COLUMN DASH PANEL
45142 MR590394 COVER, STEERING COLUMN, LWR COVER, STEERING COLUMN, LWR
45143 MR633538 COVER,STEERING COLUMN,UPR COVER,STEERING COLUMN,UPR
45266 MR449901 GROMMET, STEERING COLUMN GROMMET, STEERING COLUMN
45272 MS240127 BOLT, STEERING COLUMN - Washer assembled,8x30 BOLT, STEERING COLUMN - Washer assembled,8x30
45272 MB532373 BOLT, STEERING COLUMN - 8x28 BOLT, STEERING COLUMN - 8x28
45272 MU000418 BOLT, STEERING COLUMN - Washer assembled(18),6x20 BOLT, STEERING COLUMN - Washer assembled(18),6x20
45274 MF450405 WASHER, CYLINDER HEAD - Spring,8 WASHER, CYLINDER HEAD - Spring,8
45292 MB409439 SCREW, STEERING COLUMN COVER - Tapping,5x20 SCREW, STEERING COLUMN COVER - Tapping,5x20
45295 MB522123 GROMMET, STEERING COLUMN COVER - 48 GROMMET, STEERING COLUMN COVER - 48
Steering gear (LHD..DISASSEMBLED PARTS) 12 / 29
CS1A Steering gear (LHD..DISASSEMBLED PARTS)
CS9A Steering gear (LHD..DISASSEMBLED PARTS)
# OEM CS1A CS9A
46009 MB815379 BEARING, STEERING GEAR PINION SHAFT, UPR BEARING, STEERING GEAR PINION SHAFT, UPR
46039 MB870071 BEARING, STEERING GEAR PINION BEARING, STEERING GEAR PINION
46043 MR403503 BUSHING, STEERING GEAR BUSHING, STEERING GEAR
46127 MB243336 PLUG, STEERING GEAR PLUG, STEERING GEAR
46281 MR223827 CLIP, STEERING GEAR INR CLIP, STEERING GEAR INR
46284 MB266164 WASHER, STEERING GEAR WASHER, STEERING GEAR
46289 MB910963 O-RING, STEERING GEAR INR O-RING, STEERING GEAR INR
46289 MB844980 O-RING, STEERING GEAR INR O-RING, STEERING GEAR INR
46290 MB243335 NUT, STEERING GEAR NUT, STEERING GEAR
46296 MF140425 BOLT, ENG MOUNTING - Flange,8x20 BOLT, ENG MOUNTING - Flange,8x20
47342 MR491358 TIE ROD, STEERING TIE ROD, STEERING
48756 MR589007 VALVE KIT,P/S GEAR CONTROL VALVE KIT,P/S GEAR CONTROL
Steering gear (LHD..INSTALLING PARTS) 7 / 9
CS1A Steering gear (LHD..INSTALLING PARTS)
CS9A Steering gear (LHD..INSTALLING PARTS)
# OEM CS1A CS9A
46291 MF430123 NUT, ENG RR MOUNTING - 12 NUT, ENG RR MOUNTING - 12
46291 MS440002 NUT, ENG RR MOUNTING - Self locking,10 NUT, ENG RR MOUNTING - Self locking,10
46297 MB532399 BOLT, STEERING GEAR - Washer assembled,12x50 BOLT, STEERING GEAR - Washer assembled,12x50
46297 MU000895 BOLT, STEERING GEAR BOLT, STEERING GEAR
46297 MU241042 BOLT, STEERING GEAR - Washer assembled,12x30 BOLT, STEERING GEAR - Washer assembled,12x30
47310 MR476457 END ASSY, TIE ROD END ASSY, TIE ROD
47312 MB616023 COVER, TIE ROD END COVER, TIE ROD END
Steering gear (RHD..DISASSEMBLED PARTS) 11 / 30
CS1A Steering gear (RHD..DISASSEMBLED PARTS)
CS9A Steering gear (LHD..DISASSEMBLED PARTS)
# OEM CS1A CS9A
46009 MB815379 BEARING, STEERING GEAR PINION SHAFT, UPR BEARING, STEERING GEAR PINION SHAFT, UPR
46039 MB870071 BEARING, STEERING GEAR PINION BEARING, STEERING GEAR PINION
46043 MR403503 BUSHING, STEERING GEAR BUSHING, STEERING GEAR
46127 MB243336 PLUG, STEERING GEAR PLUG, STEERING GEAR
46281 MR223827 CLIP, STEERING GEAR INR CLIP, STEERING GEAR INR
46284 MB266164 WASHER, STEERING GEAR WASHER, STEERING GEAR
46289 MB910963 O-RING, STEERING GEAR INR O-RING, STEERING GEAR INR
46289 MB844980 O-RING, STEERING GEAR INR O-RING, STEERING GEAR INR
46290 MB243335 NUT, STEERING GEAR NUT, STEERING GEAR
46296 MF140425 BOLT, ENG MOUNTING - Flange,8x20 BOLT, ENG MOUNTING - Flange,8x20
47342 MR491358 TIE ROD, STEERING TIE ROD, STEERING
Steering gear (RHD..INSTALLING PARTS) 8 / 9
CS1A Steering gear (RHD..INSTALLING PARTS)
CS9A Steering gear (RHD..INSTALLING PARTS)
# OEM CS1A CS9A
46036 MR403502 BRACKET, STEERING GEAR MOUNTING ROD SIDE BRACKET, STEERING GEAR MOUNTING ROD SIDE
46291 MF430123 NUT, ENG RR MOUNTING - 12 NUT, ENG RR MOUNTING - 12
46291 MS440002 NUT, ENG RR MOUNTING - Self locking,10 NUT, ENG RR MOUNTING - Self locking,10
46297 MB532399 BOLT, STEERING GEAR - Washer assembled,12x50 BOLT, STEERING GEAR - Washer assembled,12x50
46297 MU000895 BOLT, STEERING GEAR BOLT, STEERING GEAR
46297 MU241042 BOLT, STEERING GEAR - Washer assembled,12x30 BOLT, STEERING GEAR - Washer assembled,12x30
47310 MR476457 END ASSY, TIE ROD END ASSY, TIE ROD
47312 MB616023 COVER, TIE ROD END COVER, TIE ROD END
Steering wheel (3 SPOKE..W/O MOMO) 2 / 6
CS1A Steering wheel (3 SPOKE..W/O MOMO)
CS9A Front susp strut & spring (ALL)
# OEM CS1A CS9A
45096 MB288463 NUT, FR WHEEL HUB - Flange self locking,12 NUT, FR WHEEL HUB - Flange self locking,12
45096 MF434106 NUT, ENG RR MOUNTING - Flange,12 NUT, ENG RR MOUNTING - Flange,12
Steering wheel (4 SPOKE) 2 / 6
CS1A Steering wheel (4 SPOKE)
CS9A Front susp strut & spring (ALL)
# OEM CS1A CS9A
45096 MB288463 NUT, FR WHEEL HUB - Flange self locking,12 NUT, FR WHEEL HUB - Flange self locking,12
45096 MF434106 NUT, ENG RR MOUNTING - Flange,12 NUT, ENG RR MOUNTING - Flange,12
Switch & cigar lighter (SWITCH..AROUND INSTRUMENT PANEL) 8 / 9
CS1A Switch & cigar lighter (SWITCH..AROUND INSTRUMENT PANEL)
CS9A Switch & cigar lighter (SWITCH..AROUND INSTRUMENT PANEL)
# OEM CS1A CS9A
81707 MR190954 RHEOSTAT, INSTRUMENT PANEL RHEOSTAT, INSTRUMENT PANEL
82012 MR417977 SWITCH, REMOTE CONTROL MIRROR SWITCH, REMOTE CONTROL MIRROR
82046 MR506482 SWITCH, HEADLAMP LEVELING SWITCH, HEADLAMP LEVELING
82067 MR190953 SWITCH, FOG LAMP (FR and RR FOG) - FR & RR FOG SWITCH, FOG LAMP (FR and RR FOG) - FR & RR FOG
82076 MR406456 SWITCH, HAZARD WARNING LAMP SWITCH, HAZARD WARNING LAMP
82081 MB803872 SWITCH, SEAT HEATER SWITCH, SEAT HEATER
82279 MR532433 BULB, INSTRUMENT PANEL SWITCH - 12v-0.7w BULB, INSTRUMENT PANEL SWITCH - 12v-0.7w
83283 MR572769 BULB, HAZARD LAMP WIRING - 12v-0.36w BULB, HAZARD LAMP WIRING - 12v-0.36w
Switch & cigar lighter (SWITCH..COLUMN,P/W,DOOR LAMP,ETC.) 11 / 17
CS1A Switch & cigar lighter (SWITCH..COLUMN,P/W,DOOR LAMP,ETC.)
CS9A Switch & cigar lighter (SWITCH..COLUMN,P/W,DOOR LAMP,ETC.)
# OEM CS1A CS9A
82015 MR570115 SWITCH,WINDSHIELD WIPER & WINDSHIELD WASHER SWITCH,WINDSHIELD WIPER & WINDSHIELD WASHER
82038 MR587878 SWITCH ASSY,FR DOOR POWER WINDOW DRIVER SIDE SWITCH ASSY,FR DOOR POWER WINDOW DRIVER SIDE
82039 MR587851 SWITCH ASSY, FR DOOR POWER WINDOW ASSISTANT SIDE SWITCH ASSY, FR DOOR POWER WINDOW ASSISTANT SIDE
82041 MN134589 SWITCH,STEERING COLUMN SWITCH,STEERING COLUMN
82052 MR342155 SWITCH, DOOR LAMP SWITCH, DOOR LAMP
82119 MR587880 SWITCH ASSY, RR DOOR POWER WINDOW, LH SWITCH ASSY, RR DOOR POWER WINDOW, LH
82119 MR587879 SWITCH ASSY, RR DOOR POWER WINDOW, RH SWITCH ASSY, RR DOOR POWER WINDOW, RH
82207 MS350047 SCREW, STEERING COLUMN COVER - Washer assembled,5x25 SCREW, STEERING COLUMN COVER - Washer assembled,5x25
82213 MB249338 BAND, ROCKER COVER - L=129.5 BAND, ROCKER COVER - L=129.5
82221 MN106321 SCREW, DOOR LAMP SWITCH - Flang tapping,5x13.5 SCREW, DOOR LAMP SWITCH - Flang tapping,5x13.5
82762 MR588567 RELAY (ACV31212 M07) RELAY (ACV31212 M07)
Trunk lid & lock (ALL) 33 / 37
CS1A Trunk lid & lock (ALL)
CS9A Trunk lid & lock (ALL)
# OEM CS1A CS9A
5002 MR525705 CABLE, FUEL FILLER LID LOCK RELEASE - L=3686,BLACK/GREEN LINE CABLE, FUEL FILLER LID LOCK RELEASE - L=3686,BLACK/GREEN LINE
5002 MR525707 CABLE,FUEL FILLER LID LOCK RELEASE - L=2475,BLACK/GREEN LINE CABLE,FUEL FILLER LID LOCK RELEASE - L=2475,BLACK/GREEN LINE
5011 MB402130 HANDLE, FUEL FILLER LID LOCK RELEASE HANDLE, FUEL FILLER LID LOCK RELEASE
5011 MB402131 HANDLE,TRUNK LID LOCK RELEASE HANDLE,TRUNK LID LOCK RELEASE
64302 MR525704 CABLE, TRUNK LID LOCK RELEASE - L=3470,GRAY/GREEN LINE CABLE, TRUNK LID LOCK RELEASE - L=3470,GRAY/GREEN LINE
64302 MR525706 CABLE,TRUNK LID LOCK RELEASE - L=3765,GRAY/GREEN LINE CABLE,TRUNK LID LOCK RELEASE - L=3765,GRAY/GREEN LINE
64308 MB402316 KNOB, TRUNK LID LOCK RELEASE HANDLE KNOB, TRUNK LID LOCK RELEASE HANDLE
64308 MB402317 KNOB,TRUNK LID LOCK RELEASE HANDLE KNOB,TRUNK LID LOCK RELEASE HANDLE
64310 MN186647 PANEL,TRUNK LID PANEL,TRUNK LID
64311 MR573816 DAMPER, TRUNK LID DAMPER, TRUNK LID
64311 MB402060 DAMPER, TRUNK LID DAMPER, TRUNK LID
64311 MR335268 DAMPER, TAILGATE DAMPER, TAILGATE
64311 MR447748 DAMPER, TRUNK LID DAMPER, TRUNK LID
64315 MR954153 HINGE, TRUNK LID, LH HINGE, TRUNK LID, LH
64315 MR954154 HINGE, TRUNK LID, RH HINGE, TRUNK LID, RH
64323 MR379216 LATCH, TRUNK LID LATCH, TRUNK LID
64336 MB197499 STRIKER, TRUNK LID LATCH STRIKER, TRUNK LID LATCH
64337 MR526268 WEATHERSTRIP, TRUNK LID WEATHERSTRIP, TRUNK LID
64337 MR526269 WEATHERSTRIP, TRUNK LID WEATHERSTRIP, TRUNK LID
64341 MN159483 TORSION BAR, TRUNK LID, LH TORSION BAR, TRUNK LID, LH
64341 MN159484 TORSION BAR, TRUNK LID, RH TORSION BAR, TRUNK LID, RH
64341 MN159485 TORSION BAR, TRUNK LID, LH TORSION BAR, TRUNK LID, LH
64341 MN159486 TORSION BAR, TRUNK LID, RH TORSION BAR, TRUNK LID, RH
64369 MN190216 CLIP, TRUNK LID HINGE CLIP, TRUNK LID HINGE
64381 MS240202 BOLT, A/SUSP - Washer assembled,6x40 BOLT, A/SUSP - Washer assembled,6x40
64381 MS240143 BOLT (6x25) - Washer assembled,6x25 BOLT (6x25) - Washer assembled,6x25
64381 MS240303 BOLT, TRUNK LID HINGE - Washer assembled,6x25 BOLT, TRUNK LID HINGE - Washer assembled,6x25
64384 MB118900 PLUG, BODY - 10 PLUG, BODY - 10
64384 MU670031 PLUG, FR DOOR - Plastic,10 PLUG, FR DOOR - Plastic,10
64384 MU670003 PLUG, FLOOR - Pvc,25 PLUG, FLOOR - Pvc,25
64384 MU670022 PLUG, ANTENNA - Rubber,d=16 PLUG, ANTENNA - Rubber,d=16
64396 MB270319 CLIP, HOOD LOCKING - 5 CLIP, HOOD LOCKING - 5
64398 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
Ventilation & duct (FRONT) 20 / 20
CS1A Ventilation & duct (FRONT)
CS9A Ventilation & duct (FRONT)
# OEM CS1A CS9A
86258 MN124779 COVER,HEATER UNDER COVER,HEATER UNDER
86275 MR398222 DUCT, FOOT HEATER, LH DUCT, FOOT HEATER, LH
86275 MR398223 DUCT, FOOT HEATER, RH DUCT, FOOT HEATER, RH
86275 MR513039 DUCT,FOOT HEATER,LH DUCT,FOOT HEATER,LH
86275 MR513041 DUCT,FOOT HEATER,RH DUCT,FOOT HEATER,RH
86292 MR398228 DUCT, RR HEATER, FR LH DUCT, RR HEATER, FR LH
86292 MR398229 DUCT, RR HEATER, FR RH DUCT, RR HEATER, FR RH
86292 MR513060 DUCT,RR HEATER,FR LH DUCT,RR HEATER,FR LH
86292 MR513061 DUCT,RR HEATER,FR RH DUCT,RR HEATER,FR RH
86293 MR958615 DUCT, RR HEATER, RR LH DUCT, RR HEATER, RR LH
86293 MR958616 DUCT, RR HEATER, RR RH DUCT, RR HEATER, RR RH
86454 MF453031 SCREW 5x12 - Tapping,5x12 SCREW 5x12 - Tapping,5x12
86454 MF453032 SCREW, STEERING WHEEL - Tapping,5x14 SCREW, STEERING WHEEL - Tapping,5x14
86461 MB476821 CLIP, SPLASH SHIELD CLIP, SPLASH SHIELD
86461 MR288150 CLIP, RR BUMPER CLIP, RR BUMPER
86641 MR500440 DUCT, VENTILATOR, CTR DUCT, VENTILATOR, CTR
86642 MR398215 DUCT, VENTILATOR AIR DISTRIBUTION DUCT, VENTILATOR AIR DISTRIBUTION
86642 MR513037 DUCT,VENTILATOR AIR DISTRIBUTION DUCT,VENTILATOR AIR DISTRIBUTION
86761 MB409437 SCREW, STEERING COLUMN COVER - Tapping,5x12 SCREW, STEERING COLUMN COVER - Tapping,5x12
86761 MB409438 SCREW, STEERING COLUMN COVER - Tapping,5x16 SCREW, STEERING COLUMN COVER - Tapping,5x16
Ventilation & duct (REAR) 1 / 1
CS1A Ventilation & duct (REAR)
CS9A Ventilation & duct (REAR)
# OEM CS1A CS9A
86621 MR460484 DUCT, RR VENTILATOR DUCT, RR VENTILATOR
Water pipe & thermostat (ALL) 7 / 16
CS1A Water pipe & thermostat (ALL)
CS9A Water pipe & thermostat (ALL)
# OEM CS1A CS9A
10193 MS660240 CLIP, ROCKER COVER - D=13.1 CLIP, ROCKER COVER - D=13.1
10198 MF140021 BOLT, ACCEL CABLE SUPPORT - Flange,8x12 BOLT, ACCEL CABLE SUPPORT - Flange,8x12
10198 MF241255 BOLT, CYLINDER HEAD - Washer assembled,8x25 BOLT, CYLINDER HEAD - Washer assembled,8x25
10198 MF140227 BOLT, ROCKER COVER - Flange,8x25 BOLT, ROCKER COVER - Flange,8x25
10198 MF140233 BOLT, ENG FR CASE - Flange,8x40 BOLT, ENG FR CASE - Flange,8x40
10801 MD091056 GAUGE UNIT, WATER TEMPERATURE GAUGE UNIT, WATER TEMPERATURE
10803 MD177572 SENSOR UNIT, WATER TEMPERATURE SENSOR UNIT, WATER TEMPERATURE
Water pump (ALL) 3 / 9
CS1A Water pump (ALL)
CS9A Water pump (ALL)
# OEM CS1A CS9A
10088 MF140027 BOLT, RESISTOR - Flange,8x25 BOLT, RESISTOR - Flange,8x25
10088 MF140235 BOLT, TIMING GEAR CASE - Flange,8x50 BOLT, TIMING GEAR CASE - Flange,8x50
10592 MF241223 BOLT, ROCKER COVER - Washer assembled,6x12 BOLT, ROCKER COVER - Washer assembled,6x12
Wheel,tire & cover (SPARE TIRE,WHEEL,ETC.) 3 / 6
CS1A Wheel,tire & cover (SPARE TIRE,WHEEL,ETC.)
CS9A Wheel,tire & cover (SPARE TIRE,WHEEL,ETC.)
# OEM CS1A CS9A
32715 MR403723 CLAMP, SPARE TIRE CARRIER CLAMP, SPARE TIRE CARRIER
32715 MR519590 CLAMP,SPARE TIRE CARRIER CLAMP,SPARE TIRE CARRIER
32847 MB370677 TIRE - T125/70d16 TIRE - T125/70d16
Wheel,tire & cover (TIRE,WHEEL,ETC.) 1 / 6
CS1A Wheel,tire & cover (TIRE,WHEEL,ETC.)
CS9A Wheel,tire & cover (SPARE TIRE,WHEEL,ETC.)
# OEM CS1A CS9A
32847 MB370677 TIRE - T125/70d16 TIRE - T125/70d16
Wheel,tire & cover (WHEEL CAP,ETC.) 1 / 3
CS1A Wheel,tire & cover (WHEEL CAP,ETC.)
CS9A Wheel,tire & cover (WHEEL CAP,ETC.)
# OEM CS1A CS9A
32808 MR554097 CAP, DISC WHEEL, CTR - Type vg CAP, DISC WHEEL, CTR - Type vg
Windshield glass & moulding 10 / 10
CS1A Windshield glass & moulding
CS9A Windshield glass & moulding
# OEM CS1A CS9A
61707 MR306799 BUTTON, WINDSHIELD GLASS BUTTON, WINDSHIELD GLASS
61710 MR991630 GLASS, WINDSHIELD GLASS, WINDSHIELD
61710 MR991631 GLASS,WINDSHIELD - LHD GLASS,WINDSHIELD - LHD
61711 MR520530 STOPPER, WINDSHIELD GLASS STOPPER, WINDSHIELD GLASS
61793 MR108290 SPACER, WINDSHIELD - L=1500 SPACER, WINDSHIELD - L=1500
61793 MB419223 SPACER, WINDSHIELD - 2800 SPACER, WINDSHIELD - 2800
61793 MR108999 SPACER, QTR WINDOW SPACER, QTR WINDOW
61799 MB023714 DAM, WINDOW - L=650 DAM, WINDOW - L=650
61799 MB292508 DAM, WINDSHIELD (L=5000 mm) DAM, WINDSHIELD (L=5000 mm)
71122 MR520285 MOULDING, WINDSHIELD, UPR MOULDING, WINDSHIELD, UPR
Windshield wiper & washer (WASHER..W/HEADLAMP WASHER) 22 / 31
CS1A Windshield wiper & washer (WASHER..W/HEADLAMP WASHER)
CS9A Windshield wiper & washer (WASHER..W/HEADLAMP WASHER)
# OEM CS1A CS9A
84204 MR192438 CAP, WINDSHIELD WASHER TANK FILLER CAP, WINDSHIELD WASHER TANK FILLER
84218 MR570439 FLOAT, WINDSHIELD WASHER TANK FLOAT, WINDSHIELD WASHER TANK
84224 MB286961 MOTOR, WINDSHIELD WASHER MOTOR, WINDSHIELD WASHER
84224 MR245368 MOTOR, WINDSHIELD WASHER MOTOR, WINDSHIELD WASHER
84225 MN169828 NOZZLE, WINDSHIELD WASHER NOZZLE, WINDSHIELD WASHER
84225 MN169829 NOZZLE,WINDSHIELD WASHER NOZZLE,WINDSHIELD WASHER
84233 MB617937 GASKET, RR WINDOW WASHER TANK GASKET, RR WINDOW WASHER TANK
84233 MC845482 GASKET, WINDSHIELD WASHER MOTOR GASKET, WINDSHIELD WASHER MOTOR
84242 MR570436 TANK, WINDSHIELD WASHER TANK, WINDSHIELD WASHER
84247 MB084759 TUBE, WINDSHIELD WASHER MOTOR SIDE - Rubber,4x2000 TUBE, WINDSHIELD WASHER MOTOR SIDE - Rubber,4x2000
84247 MR570438 TUBE, WINDSHIELD WASHER MOTOR SIDE - Soft vinyl,4x7x550 TUBE, WINDSHIELD WASHER MOTOR SIDE - Soft vinyl,4x7x550
84291 MU670023 PLUG,CHASSIS FRAME - Rubber,20 PLUG,CHASSIS FRAME - Rubber,20
84292 MU431508 NUT, HEATER - 8 NUT, HEATER - 8
84295 MB084419 JOINT, CHASSIS WIRING JOINT, CHASSIS WIRING
84295 MB330645 JOINT, HOOD LOCK JOINT, HOOD LOCK
84295 MB083730 JOINT, RR WINDOW WASHER JOINT, RR WINDOW WASHER
84296 MU484003 CLIP, WINDSHIELD WASHER - 7 CLIP, WINDSHIELD WASHER - 7
84296 MU481043 CLIP, CRUISE CONTROL EQUIP - 7 CLIP, CRUISE CONTROL EQUIP - 7
84298 MS240125 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
84596 MU800001 BAND, WIRING BAND, WIRING
84598 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
84598 MS240122 BOLT, ENG FR MOUNTING - Washer assembled,6x20 BOLT, ENG FR MOUNTING - Washer assembled,6x20
Windshield wiper & washer (WASHER..W/O HEADLAMP WASHER) 19 / 19
CS1A Windshield wiper & washer (WASHER..W/O HEADLAMP WASHER)
CS9A Windshield wiper & washer (WASHER..W/HEADLAMP WASHER)
# OEM CS1A CS9A
84204 MR192438 CAP, WINDSHIELD WASHER TANK FILLER CAP, WINDSHIELD WASHER TANK FILLER
84218 MR570439 FLOAT, WINDSHIELD WASHER TANK FLOAT, WINDSHIELD WASHER TANK
84224 MB286961 MOTOR, WINDSHIELD WASHER MOTOR, WINDSHIELD WASHER
84224 MR245368 MOTOR, WINDSHIELD WASHER MOTOR, WINDSHIELD WASHER
84225 MN169828 NOZZLE, WINDSHIELD WASHER NOZZLE, WINDSHIELD WASHER
84225 MN169829 NOZZLE,WINDSHIELD WASHER NOZZLE,WINDSHIELD WASHER
84233 MB617937 GASKET, RR WINDOW WASHER TANK GASKET, RR WINDOW WASHER TANK
84233 MC845482 GASKET, WINDSHIELD WASHER MOTOR GASKET, WINDSHIELD WASHER MOTOR
84242 MR570436 TANK, WINDSHIELD WASHER TANK, WINDSHIELD WASHER
84247 MB084759 TUBE, WINDSHIELD WASHER MOTOR SIDE - Rubber,4x2000 TUBE, WINDSHIELD WASHER MOTOR SIDE - Rubber,4x2000
84247 MR570438 TUBE, WINDSHIELD WASHER MOTOR SIDE - Soft vinyl,4x7x550 TUBE, WINDSHIELD WASHER MOTOR SIDE - Soft vinyl,4x7x550
84291 MU670023 PLUG,CHASSIS FRAME - Rubber,20 PLUG,CHASSIS FRAME - Rubber,20
84292 MU431508 NUT, HEATER - 8 NUT, HEATER - 8
84295 MB084419 JOINT, CHASSIS WIRING JOINT, CHASSIS WIRING
84295 MB330645 JOINT, HOOD LOCK JOINT, HOOD LOCK
84295 MB083730 JOINT, RR WINDOW WASHER JOINT, RR WINDOW WASHER
84296 MU484003 CLIP, WINDSHIELD WASHER - 7 CLIP, WINDSHIELD WASHER - 7
84296 MU481043 CLIP, CRUISE CONTROL EQUIP - 7 CLIP, CRUISE CONTROL EQUIP - 7
84298 MS240125 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
Windshield wiper & washer (WIPER) 22 / 26
CS1A Windshield wiper & washer (WIPER)
CS9A Windshield wiper & washer (WIPER)
# OEM CS1A CS9A
84106 MN190168 ARM ASSY,WINDSHIELD WIPER ARM ASSY,WINDSHIELD WIPER
84106 MR570432 ARM ASSY, WINDSHIELD WIPER - Pass. ARM ASSY, WINDSHIELD WIPER - Pass.
84106 MN190167 ARM ASSY,WINDSHIELD WIPER ARM ASSY,WINDSHIELD WIPER
84106 MR971004 ARM ASSY,WINDSHIELD WIPER ARM ASSY,WINDSHIELD WIPER
84110 MR300304 BLADE, WINDSHIELD WIPER - 450 BLADE, WINDSHIELD WIPER - 450
84110 MR275300 BLADE, WINDSHIELD WIPER - 450 BLADE, WINDSHIELD WIPER - 450
84110 MR574655 BLADE, WINDSHIELD WIPER - 600 BLADE, WINDSHIELD WIPER - 600
84110 MN181424 BLADE ASSY,WINDSHIELD WIPER - W/FIN BLADE ASSY,WINDSHIELD WIPER - W/FIN
84110 MR574652 BLADE ASSY, WINDSHIELD WIPER - 450 BLADE ASSY, WINDSHIELD WIPER - 450
84110 MN181423 BLADE ASSY,WINDSHIELD WIPER - W/FIN BLADE ASSY,WINDSHIELD WIPER - W/FIN
84110 MR300302 BLADE ASSY,WINDSHIELD WIPER BLADE ASSY,WINDSHIELD WIPER
84112 MN154877 CAP, WINDSHIELD WIPER PIVOT CAP, WINDSHIELD WIPER PIVOT
84112 MN154878 CAP, WINDSHIELD WIPER PIVOT CAP, WINDSHIELD WIPER PIVOT
84116 MB881494 COVER, WINDSHIELD WIPER ARM HEAD COVER, WINDSHIELD WIPER ARM HEAD
84120 MR592314 BLADE SET, WINDSHIELD WIPER BLADE SET, WINDSHIELD WIPER
84124 MN181420 LINK,WINDSHIELD WIPER LINK,WINDSHIELD WIPER
84124 MN181419 LINK,WINDSHIELD WIPER LINK,WINDSHIELD WIPER
84129 MR598757 MOTOR, WINDSHIELD WIPER MOTOR, WINDSHIELD WIPER
84129 MR957879 MOTOR,WINDSHIELD WIPER MOTOR,WINDSHIELD WIPER
84193 MF430726 NUT, FLYWHEEL HOUSING - Jam,10 NUT, FLYWHEEL HOUSING - Jam,10
84198 MS240142 BOLT, FUEL TANK - Washer assembled,6x20 BOLT, FUEL TANK - Washer assembled,6x20
84198 MS240199 BOLT, FR SEAT BELT - Washer assembled,6x20 BOLT, FR SEAT BELT - Washer assembled,6x20
Wiring & attaching parts (BRACKET,ATTACHING PARTS) 16 / 16
CS1A Wiring & attaching parts (BRACKET,ATTACHING PARTS)
CS9A Wiring & attaching parts (BRACKET,ATTACHING PARTS)
# OEM CS1A CS9A
83271 MB249338 BAND, ROCKER COVER - L=129.5 BAND, ROCKER COVER - L=129.5
83271 MB249339 BAND, ENG BREATHER - L=169.5 BAND, ENG BREATHER - L=169.5
83272 MS240085 BOLT, ENG OIL LINE - Washer assembled,8x20 BOLT, ENG OIL LINE - Washer assembled,8x20
83272 MS240125 BOLT, FUEL TANK - Washer assembled,8x20 BOLT, FUEL TANK - Washer assembled,8x20
83272 MS240142 BOLT, FUEL TANK - Washer assembled,6x20 BOLT, FUEL TANK - Washer assembled,6x20
83275 MF434104 NUT, ROCKER COVER - Flange,8 NUT, ROCKER COVER - Flange,8
83275 MS440503 NUT - Washer assembled,8 NUT - Washer assembled,8
83275 MS440502 NUT, FUEL TANK - Washer assembled,6 NUT, FUEL TANK - Washer assembled,6
83348 MF453031 SCREW 5x12 - Tapping,5x12 SCREW 5x12 - Tapping,5x12
83348 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16 SCREW, TAPPING, 5x16 - Tapping,5x16
83391 MR583216 BRACKET, ENG WIRING BRACKET, ENG WIRING
83499 MB133273 BOLT, FUEL LINE - Washer assembled,6x16 BOLT, FUEL LINE - Washer assembled,6x16
83499 MF915000 BOLT, ROOM LAMP - Flange,6x16 BOLT, ROOM LAMP - Flange,6x16
83499 MF915001 BOLT, BATTERY WIRING - Flange(earth)tapere,6x20 BOLT, BATTERY WIRING - Flange(earth)tapere,6x20
83499 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
83499 MU241003 BOLT, EMISSION SOLENOID VALVE - Washer assembled,6x20 BOLT, EMISSION SOLENOID VALVE - Washer assembled,6x20
Wiring & attaching parts (WIRING HARNESS..AROUND DOOR,ROOF) 11 / 21
CS1A Wiring & attaching parts (WIRING HARNESS..AROUND DOOR,ROOF)
CS9A Wiring & attaching parts (WIRING HARNESS..AROUND DOOR,ROOF)
# OEM CS1A CS9A
82904 MR522127 CABLE, DEFOGGER CABLE, DEFOGGER
83065 MN124788 HARNESS, FR DOOR - Driver side HARNESS, FR DOOR - Driver side
83065 MN124798 HARNESS, FR DOOR - Passenger side HARNESS, FR DOOR - Passenger side
83065 MN151095 HARNESS,FR DOOR HARNESS,FR DOOR
83065 MN151097 HARNESS,FR DOOR HARNESS,FR DOOR
83111 MN124805 HARNESS, RR DOOR - Lh HARNESS, RR DOOR - Lh
83111 MN124810 HARNESS, RR DOOR - Rh HARNESS, RR DOOR - Rh
83129 MR522415 HARNESS, ROOF HARNESS, ROOF
83129 MR549377 HARNESS,ROOF HARNESS,ROOF
83345 MR252154 GROMMET, DOOR WIRING - 62x33(body)-58x38(door) GROMMET, DOOR WIRING - 62x33(body)-58x38(door)
83345 MR337852 GROMMET, DOOR WIRING - Rubber,26x42(body)-24x52(door) GROMMET, DOOR WIRING - Rubber,26x42(body)-24x52(door)
Wiring & attaching parts (WIRING HARNESS..AROUND ENGINE ROOM) 19 / 22
CS1A Wiring & attaching parts (WIRING HARNESS..AROUND ENGINE ROOM)
CS9A Wiring & attaching parts (WIRING HARNESS..AROUND ENGINE ROOM)
# OEM CS1A CS9A
82703 MR502415 BOX, RELAY BOX, RELAY
82703 MR965734 BOX ASSY, RELAY BOX ASSY, RELAY
82725 MN162364 COVER,RELAY BOX COVER,RELAY BOX
82725 MR502417 COVER, RELAY BOX COVER, RELAY BOX
83036 MN151060 HARNESS,CHASSIS,FR HARNESS,CHASSIS,FR
83036 MR979720 HARNESS, CHASSIS, FR HARNESS, CHASSIS, FR
83036 MN151059 HARNESS,CHASSIS,FR HARNESS,CHASSIS,FR
83036 MN124837 HARNESS,CHASSIS,FR HARNESS,CHASSIS,FR
83072 MN124940 HARNESS, FOG LAMP HARNESS, FOG LAMP
83272 MS240121 BOLT, CONNROD - Washer assembled,6x16 BOLT, CONNROD - Washer assembled,6x16
83299 MS810875 FUSE, SWITCH - Blade(mini) type,7.5a FUSE, SWITCH - Blade(mini) type,7.5a
83299 MS810876 FUSE, BODY WIRING - Blade(mini) type,10a FUSE, BODY WIRING - Blade(mini) type,10a
83299 MS810877 FUSE, SWITCH - Blade(mini) type,15a FUSE, SWITCH - Blade(mini) type,15a
83299 MS810878 FUSE, BODY WIRING - Blade(mini) type,20a FUSE, BODY WIRING - Blade(mini) type,20a
83799 MU000431 FUSIBLE LINK - 30a,conn(mini jt) type FUSIBLE LINK - 30a,conn(mini jt) type
83799 MU000432 FUSIBLE LINK - 40a,conn(mini jt) type FUSIBLE LINK - 40a,conn(mini jt) type
83799 MU840028 FUSIBLE LINK - 50a,conn type FUSIBLE LINK - 50a,conn type
83799 MU000277 FUSIBLE LINK - 60a bolt/c1 type FUSIBLE LINK - 60a bolt/c1 type
83799 MU840018 FUSIBLE LINK - 60a,conn type FUSIBLE LINK - 60a,conn type
Wiring & attaching parts (WIRING HARNESS..AROUND FLOOR) 11 / 15
CS1A Wiring & attaching parts (WIRING HARNESS..AROUND FLOOR)
CS9A Wiring & attaching parts (WIRING HARNESS..AROUND FLOOR)
# OEM CS1A CS9A
83082 MR979832 HARNESS, FUEL GAUGE UNIT HARNESS, FUEL GAUGE UNIT
83127 MN124941 HARNESS,RR BUMPER HARNESS,RR BUMPER
83127 MN124942 HARNESS,RR BUMPER HARNESS,RR BUMPER
83225 MN124228 CLIP, BODY WIRING CLIP, BODY WIRING
83225 MR517997 CLIP, BODY WIRING CLIP, BODY WIRING
83821 MR517995 CONNECTOR, JUNCTION BLOCK, LH CONNECTOR, JUNCTION BLOCK, LH
83821 MR517996 CONNECTOR, JUNCTION BLOCK, RH CONNECTOR, JUNCTION BLOCK, RH
83902 MN124920 HARNESS, FLOOR HARNESS, FLOOR
83902 MN151121 HARNESS,FLOOR HARNESS,FLOOR
83902 MN151117 HARNESS,FLOOR HARNESS,FLOOR
83902 MN151119 HARNESS,FLOOR HARNESS,FLOOR
Wiring & attaching parts (WIRING HARNESS..AROUND INSTRUMENT PANEL) 15 / 18
CS1A Wiring & attaching parts (WIRING HARNESS..AROUND INSTRUMENT PANEL)
CS9A Wiring & attaching parts (WIRING HARNESS..AROUND INSTRUMENT PANEL)
# OEM CS1A CS9A
73149 MR438948 PROTECTOR, INSTRUMENT PANEL HARNESS PROTECTOR, INSTRUMENT PANEL HARNESS
73149 MR522543 PROTECTOR, INSTRUMENT PANEL HARNESS PROTECTOR, INSTRUMENT PANEL HARNESS
73149 MR549458 PROTECTOR,INSTRUMENT PANEL HARNESS - DRIVER SIDE PROTECTOR,INSTRUMENT PANEL HARNESS - DRIVER SIDE
73149 MR549379 PROTECTOR,INSTRUMENT PANEL HARNESS - PASSENGER SIDE PROTECTOR,INSTRUMENT PANEL HARNESS - PASSENGER SIDE
83096 MN151067 HARNESS,INSTRUMENT PANEL HARNESS,INSTRUMENT PANEL
83201 MS810875 FUSE, SWITCH - Blade(mini) type,7.5a FUSE, SWITCH - Blade(mini) type,7.5a
83201 MS810876 FUSE, BODY WIRING - Blade(mini) type,10a FUSE, BODY WIRING - Blade(mini) type,10a
83201 MS810877 FUSE, SWITCH - Blade(mini) type,15a FUSE, SWITCH - Blade(mini) type,15a
83201 MS810878 FUSE, BODY WIRING - Blade(mini) type,20a FUSE, BODY WIRING - Blade(mini) type,20a
83201 MS810969 FUSE, CHASSIS WIRING - Blade type,30a FUSE, CHASSIS WIRING - Blade type,30a
83301 MR952263 BLOCK, CHASSIS HARNESS JUNCTION BLOCK, CHASSIS HARNESS JUNCTION
83499 MB133273 BOLT, FUEL LINE - Washer assembled,6x16 BOLT, FUEL LINE - Washer assembled,6x16
83499 MF243628 BOLT, CONNROD - Washer assembled,6x25 BOLT, CONNROD - Washer assembled,6x25
83499 MF915000 BOLT, ROOM LAMP - Flange,6x16 BOLT, ROOM LAMP - Flange,6x16
83819 MR452515 COVER, HARNESS CONNECTOR COVER, HARNESS CONNECTOR
