検索 › 比較 › CS1 × CW3
CS1
Honda ACCORD — 2,227 中 567 共有
CW3
Honda ACCORD — 3,171 中 567 共有

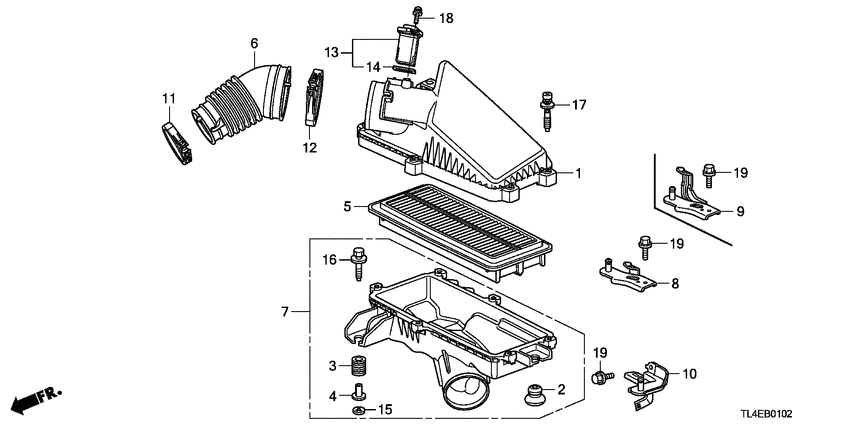

Air cleaner (L4) 2 / 16
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 5 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 14 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |

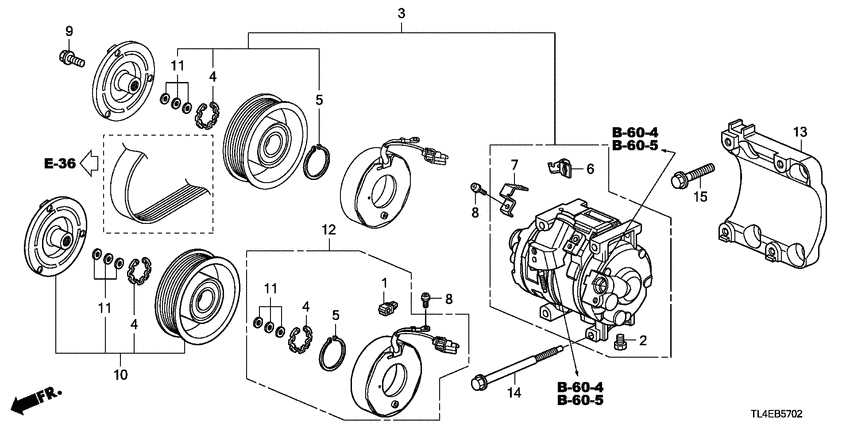

Air conditioner (COMPRESSOR; L4) 7 / 15
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 38773-PR3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 2 | 38801-P9K-E01 | Valve sub assy. - SAFETY | Valve sub assy. - SAFETY |
| 4 | 38812-PH1-003 | Ring b - SNAP | Ring b - SNAP |
| 5 | 38812-671-003 | Ring a - SNAP | Ring a - SNAP |
| 8 | 38827-PH7-003 | Screw-washer - 5X8 | Screw-washer - 5X8 |
| 9 | 38829-PR3-003 | Bolt - WASHER HEAD | Bolt - WASHER HEAD |
| 11 | 38912-PH1-N01 | Plate set - WASHER | Plate set - WASHER |
Air conditioner (CONDENSER) 1 / 9
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 9 | 91505-S9A-003 | Clip A - BUMPER | Clip A - BUMPER |

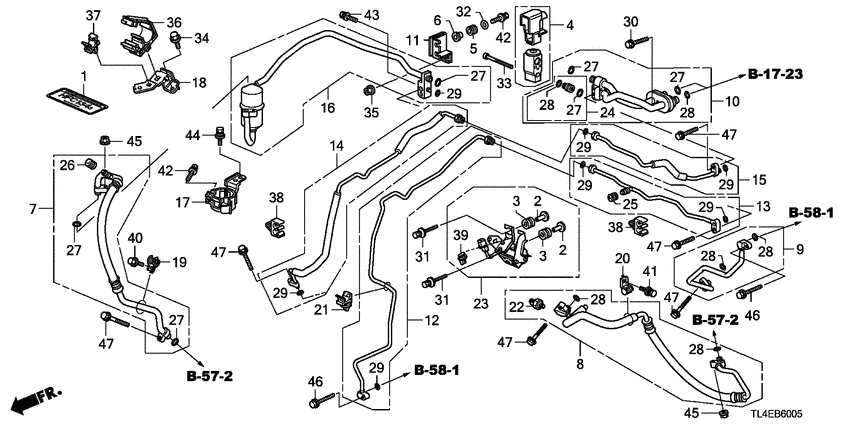

Air conditioner (HOSES/PIPES; L4) 3 / 17
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 6 | 80362-TA0-A00 | Clamp b - AIR CONDITIONER PIPE | Clamp b - AIR CONDITIONER PIPE |
| 14 | 90001-SDA-A00 | Bolt - FLANGE, 6X38(GUIDE) | Bolt - FLANGE, 6X38(GUIDE) |
Air conditioner (SENSOR) 2 / 6
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 80510-S0A-941 | Sensor - SUN BEAM | Sensor - SUN BEAM |
| 3 | 80525-S30-941 | Sensor assy - AMBIENT | Sensor assy - AMBIENT |
Alternator (DENSO; L4) 8 / 15
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 2 | 31101-RTA-003 | Rotor assy. | Rotor assy. |
| 5 | 31111-PT0-003 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 6 | 31114-PGK-A01 | Bearing - FR. | Bearing - FR. |
| 9 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 12 | 31145-PGK-A01 | Bolt | Bolt |
| 13 | 31146-PE9-941 | Screw-washer | Screw-washer |
| 14 | 31147-PT0-003 | Screw-washer | Screw-washer |
| 15 | 90231-PGK-A01 | Nut - HEX., 5MM | Nut - HEX., 5MM |
Audio unit 1 / 13
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 12 | 90140-SDA-A00 | Bolt-washer - 5X19 | Bolt-washer - 5X19 |

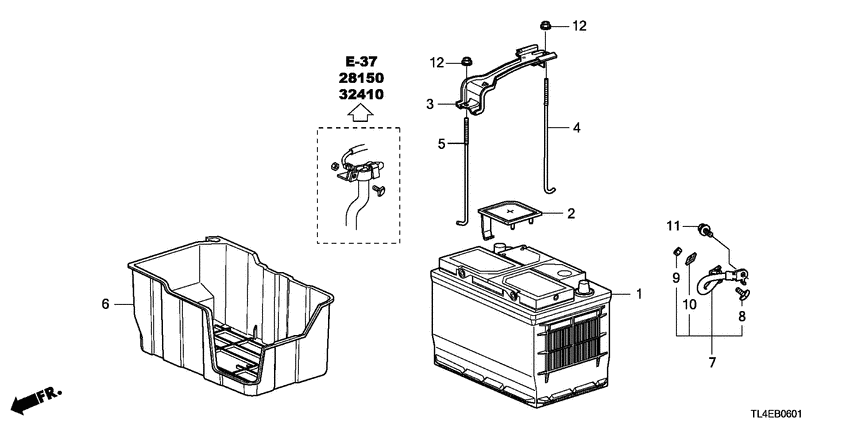

Battery (L4) 3 / 10
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 8 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 9 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 10 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |

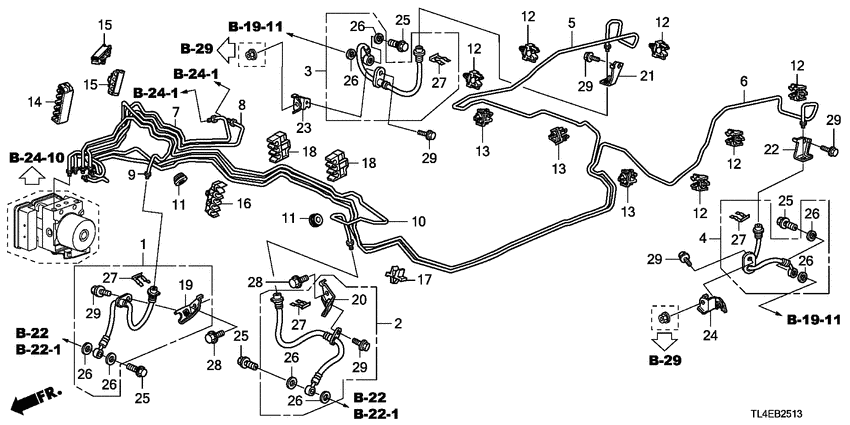

Brake lines (VSA) 12 / 26
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 12 | 46391-STK-A01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 13 | 46391-S5A-Z01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 15 | 46392-TA1-A01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 16 | 46393-SFA-003 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 18 | 46428-TA0-A00 | Bracket - R. FR. BRAKE HOSE | Bracket - R. FR. BRAKE HOSE |
| 19 | 46429-TA0-A00 | Bracket - L. FR. BRAKE HOSE | Bracket - L. FR. BRAKE HOSE |
| 20 | 46435-TA0-A00 | Bracket a - R. RR. BRAKE HOSE | Bracket a - R. RR. BRAKE HOSE |
| 21 | 46436-TA0-A00 | Bracket a - L. RR. BRAKE HOSE | Bracket a - L. RR. BRAKE HOSE |
| 22 | 46438-TA0-A00 | Bracket b - R. RR. BRAKE HOSE | Bracket b - R. RR. BRAKE HOSE |
| 23 | 46439-TA0-A00 | Bracket b - L. RR. BRAKE HOSE | Bracket b - L. RR. BRAKE HOSE |
| 24 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 25 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
Brake master cylinder/ master power 16 / 24
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 4 | 46135-SDA-A01 | Guide assy - PISTON | Guide assy - PISTON |
| 5 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 6 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 7 | 46191-SDA-A00 | Gasket - MASTER POWER | Gasket - MASTER POWER |
| 10 | 46407-STK-A01 | Clamp - TUBE | Clamp - TUBE |
| 11 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 12 | 46661-SDA-A01 | Reservoir set | Reservoir set |
| 13 | 46662-S9A-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 14 | 46665-S04-J01 | Grommet | Grommet |
| 15 | 46666-S2K-003 | Filter - BRAKE RESERVOIR | Filter - BRAKE RESERVOIR |
| 16 | 46669-S5A-003 | Diaphragm | Diaphragm |
| 17 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 18 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 19 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
| 20 | 57515-S30-003 | Pin - STOP | Pin - STOP |
| 23 | 57562-SF1-003 | Circlip | Circlip |
Bumpers 10 / 30
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 23 | 90103-TA0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 24 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 25 | 90102-SFE-000 | Bolt-washer - 8X23 | Bolt-washer - 8X23 |
| 26 | 90111-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 30 | 90144-SA0-020 | Bolt - BUMPER SETTING (6X15) (BLACK) | Bolt - BUMPER SETTING (6X15) (BLACK) |
| 31 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 34 | 90501-SM4-003 | Bolt - FENDER | Bolt - FENDER |
| 37 | 91505-S9A-003 | Clip A - BUMPER | Clip A - BUMPER |
| 38 | 91506-S9A-003 | Clip b - BUMPER | Clip b - BUMPER |
| 39 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |

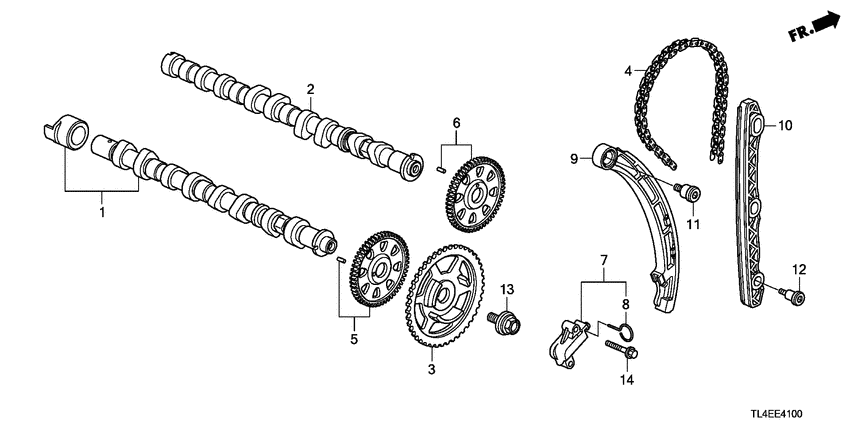

Camshaft/cam chain (L4) 1 / 18
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 14 | 90003-PNA-000 | Bolt - TENSIONER PIVOT | Bolt - TENSIONER PIVOT |
Canister 1 / 12
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 10 | 91404-TA0-G01 | Clamp - FUEL TUBE (D10) | Clamp - FUEL TUBE (D10) |

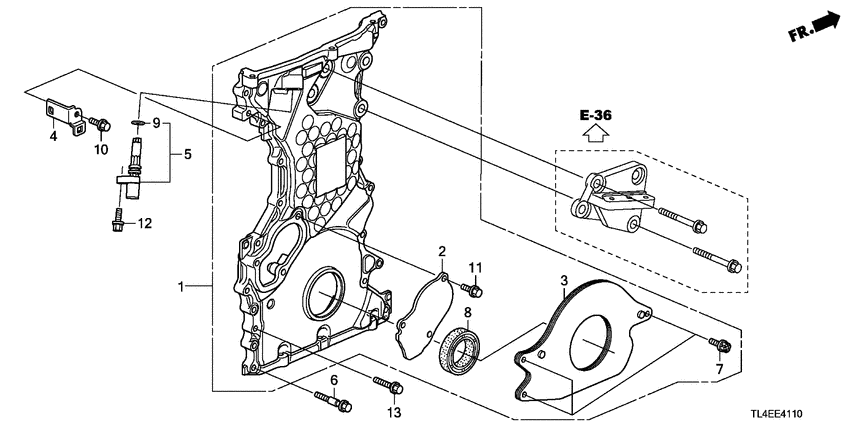

Chain case (L4) 1 / 5
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 3 | 90021-PNA-000 | Bolt - SPECIAL, 6X31 | Bolt - SPECIAL, 6X31 |

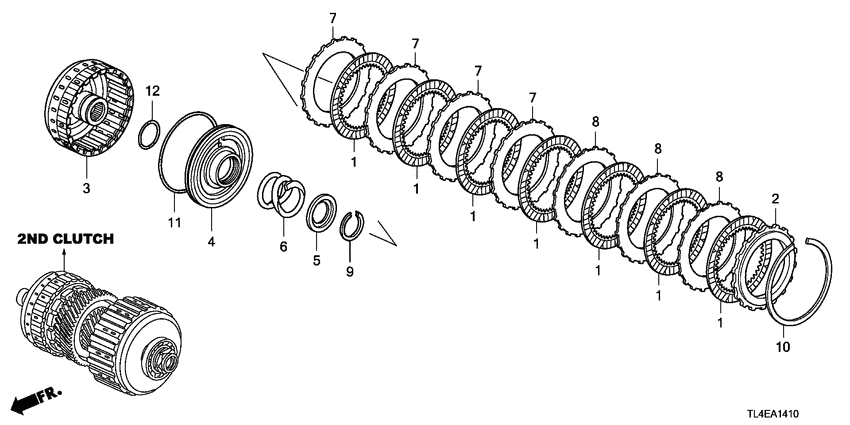

Clutch (2ND; L4) 1 / 22
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 13 | 91303-PX4-004 | O-ring - 114X2.2 (NOK) | O-ring - 114X2.2 (NOK) |
Clutch (4TH-5TH; L4) 1 / 21
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 13 | 91303-PX4-004 | O-ring - 114X2.2 (NOK) | O-ring - 114X2.2 (NOK) |
Clutch (LOW-3RD; L4) 1 / 36
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 18 | 91303-PX4-004 | O-ring - 114X2.2 (NOK) | O-ring - 114X2.2 (NOK) |

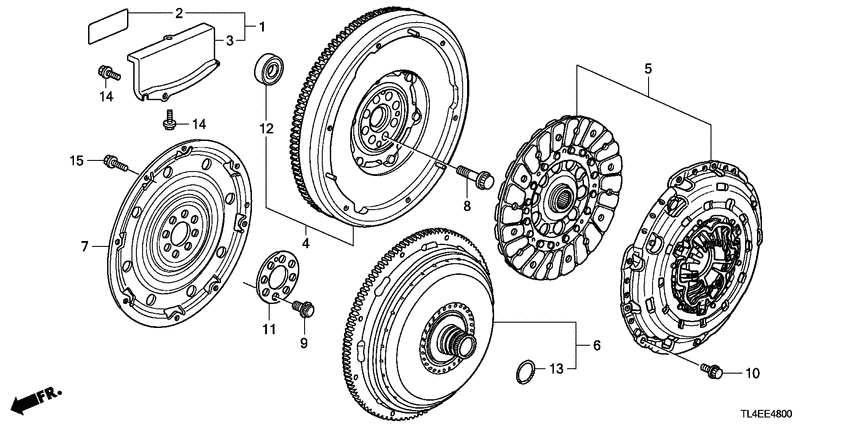

Clutch/torque converter (L4) 2 / 6
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 4 | 90023-PA9-000 | Bolt - SPECIAL | Bolt - SPECIAL |
| 5 | 90429-PC6-900 | Washer - 40X86X2 | Washer - 40X86X2 |
Combination switch 10 / 25
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 2 | 06351-TE0-A11 | Lock assy - STEERING | Lock assy - STEERING |
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 5 | 35108-S30-003 | Holder - COLUMN | Holder - COLUMN |
| 8 | 35118-SNB-A00 | Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK) | Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK) |
| 14 | 35130-TA0-901 | Switch comp - STEERING | Switch comp - STEERING |
| 15 | 35251-TA0-B11 | Sensor assy - STEERING & BODY SWITCH | Sensor assy - STEERING & BODY SWITCH |
| 20 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
| 22 | 72148-S0A-000 | Battery CR1616 | Battery CR1616 |
| 23 | 90132-SFE-003 | Screw - EARTH, 5X18 | Screw - EARTH, 5X18 |
Console 14 / 31
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 2 | 39610-S2H-G01 | Knob assy | Knob assy |
| 3 | 39620-S0X-003 | Socket assy | Socket assy |
| 4 | 39620-TA0-003 | Cap assy. | Cap assy. |
| 5 | 39624-SZ3-L01 | Socket assy | Socket assy |
| 6 | 39630-SFE-003 | Ring assy - TYPE INCLUDING BULB | Ring assy - TYPE INCLUDING BULB |
| 24 | 83425-TA0-A00 | Bracket comp. - CENTER CONSOLE | Bracket comp. - CENTER CONSOLE |
| 28 | 90123-SJA-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 29 | 90144-TA0-A01 | Screw - TAPPING, 4X12 (PO) | Screw - TAPPING, 4X12 (PO) |
| 30 | 90666-TA0-A01 | Clip - SNAP FITTING (PO) (ORANGE) | Clip - SNAP FITTING (PO) (ORANGE) |
| 31 | 90666-TA0-A11 | Clip - SNAP FITTING (PO) (ORANGE) | Clip - SNAP FITTING (PO) (ORANGE) |
| 32 | 90666-TA0-A21 | Clip - SNAP FITTING (PO) (ORANGE) | Clip - SNAP FITTING (PO) (ORANGE) |
| 33 | 90669-SHJ-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 35 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 54 | 91534-SWA-003 | Clip - COUPLER(DARK GRAY) | Clip - COUPLER(DARK GRAY) |
Control unit (CABIN; 1) 4 / 9
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 3 | 38221-SNA-A31 | Fuse - BLADE(7.5A) | Fuse - BLADE(7.5A) |
| 4 | 38221-SNA-A41 | Fuse - BLADE(10A) | Fuse - BLADE(10A) |
| 5 | 38221-SNA-A51 | Fuse - BLADE(15A) | Fuse - BLADE(15A) |
| 6 | 38221-SNA-A61 | Fuse - BLADE(20A) | Fuse - BLADE(20A) |
Control unit (CABIN; 2) 1 / 2
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 3 | 39794-SDA-003 | Relay assy - FUEL PUMP (MITSUBA) | Relay assy - FUEL PUMP (MITSUBA) |

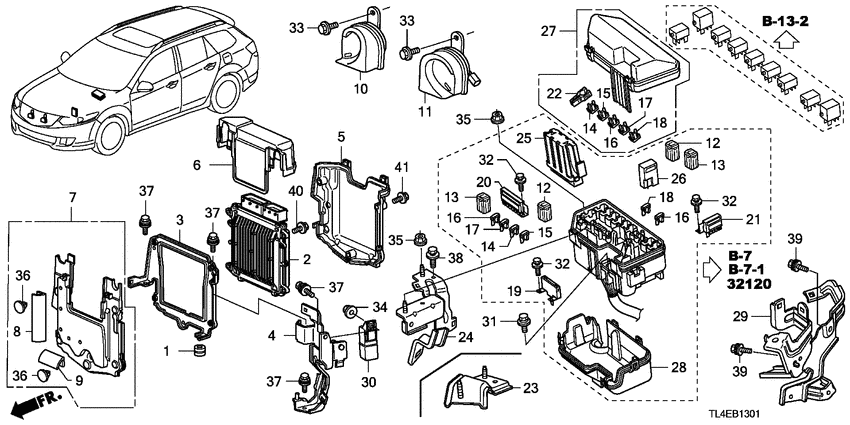

Control unit (ENGINE ROOM; 1; L4) 15 / 26
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 6 | 38211-SNA-A01 | Fuse - BLOCK (20A) | Fuse - BLOCK (20A) |
| 7 | 38211-SNA-A21 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 8 | 38221-SNA-A31 | Fuse - BLADE(7.5A) | Fuse - BLADE(7.5A) |
| 9 | 38221-SNA-A41 | Fuse - BLADE(10A) | Fuse - BLADE(10A) |
| 10 | 38221-SNA-A51 | Fuse - BLADE(15A) | Fuse - BLADE(15A) |
| 11 | 38221-SNA-A61 | Fuse - BLADE(20A) | Fuse - BLADE(20A) |
| 12 | 38221-SNA-A81 | Fuse - BLADE(30A) | Fuse - BLADE(30A) |
| 13 | 38231-SEP-A01 | Fuse a - MULTI BLOCK (100A/40A) | Fuse a - MULTI BLOCK (100A/40A) |
| 14 | 38232-TA0-A11 | Fuse - MULTI BLOCK(D-2) | Fuse - MULTI BLOCK(D-2) |
| 16 | 38235-TA0-A01 | Puller - FUSE | Puller - FUSE |
| 19 | 38255-SNA-003 | Detector unit - ELECTRONIC LOAD | Detector unit - ELECTRONIC LOAD |
| 23 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 24 | 90129-TA0-000 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 25 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |
| 26 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Control unit (ENGINE ROOM; 2) 3 / 4
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 39792-SDA-A01 | Relay assy - MICRO ISO | Relay assy - MICRO ISO |
| 8 | 39794-SDA-901 | Relay assy, ENGINE CONTROL MODULE (MITSUBA) | Relay assy, ENGINE CONTROL MODULE (MITSUBA) |
| 8 | 39794-SDA-902 | Relay assy, ENGINE CONTROL MODULE (DENSO) | Relay assy, ENGINE CONTROL MODULE (DENSO) |

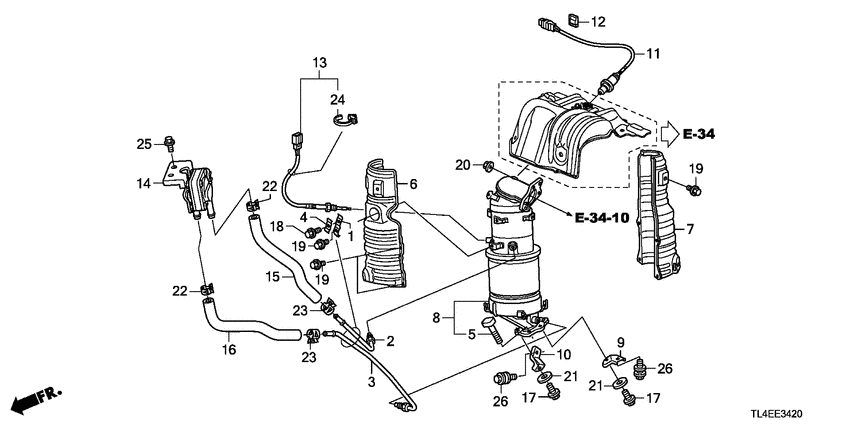

Converter (L4) 4 / 16
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 11 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 12 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 13 | 90023-PR7-A01 | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) |
| 15 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |

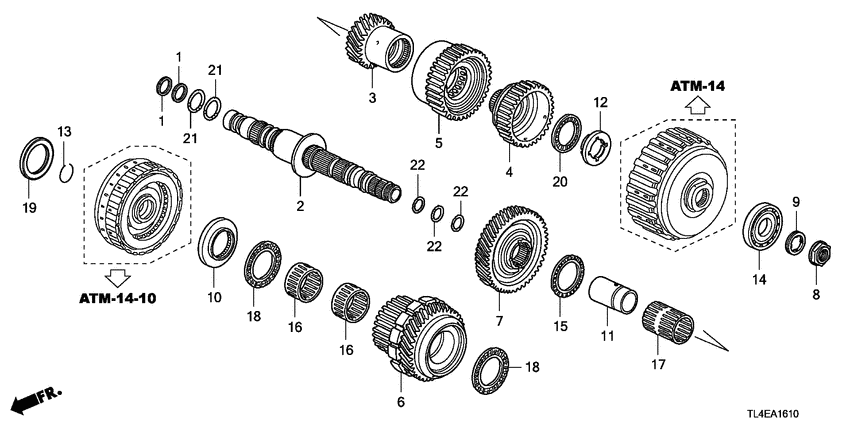

Countershaft (L4) 3 / 23
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 14 | 90201-PRP-000 | Nut - FLANGE, 24MM (LEFT HAND THREAD) | Nut - FLANGE, 24MM (LEFT HAND THREAD) |
| 15 | 90402-P0Z-000 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 20 | 91024-PAX-006 | Bearing - NEEDLE, 40X46X14.5 (TORRINGTON) | Bearing - NEEDLE, 40X46X14.5 (TORRINGTON) |
Crankshaft/piston (L4) 1 / 36
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 16 | 90013-R70-A01 | Bolt - SPECIAL, 8X11 | Bolt - SPECIAL, 8X11 |

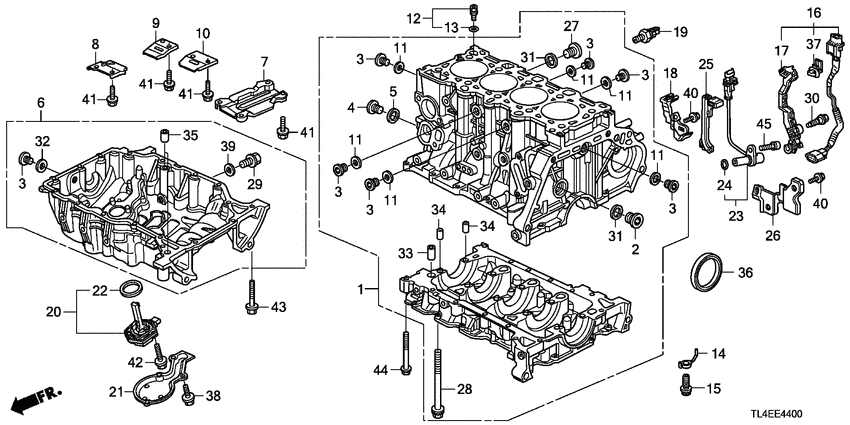

Cylinder block/oil pan (L4) 9 / 31
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 4 | 11106-PR4-013 | Bolt - SEALING, 28MM | Bolt - SEALING, 28MM |
| 16 | 37241-RNA-A01 | Switch assy, OIL PRESSURE | Switch assy, OIL PRESSURE |
| 20 | 90009-PY3-000 | DRAIN PLUG BOLT, 14MM | DRAIN PLUG BOLT, 14MM |
| 22 | 90051-RGA-003 | Bolt - SPECIAL, 6X20.8 | Bolt - SPECIAL, 6X20.8 |
| 23 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 24 | 90703-PE0-000 | Dowel pin - 18X22 | Dowel pin - 18X22 |
| 25 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
| 26 | 90715-PNA-000 | Dowel pin - 13X14 | Dowel pin - 13X14 |
| 31 | 91333-PNA-003 | O-ring - 15X1.9 | O-ring - 15X1.9 |

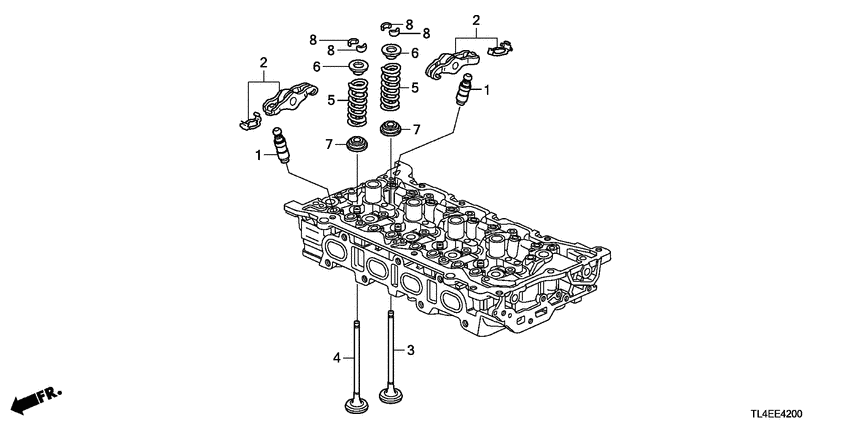

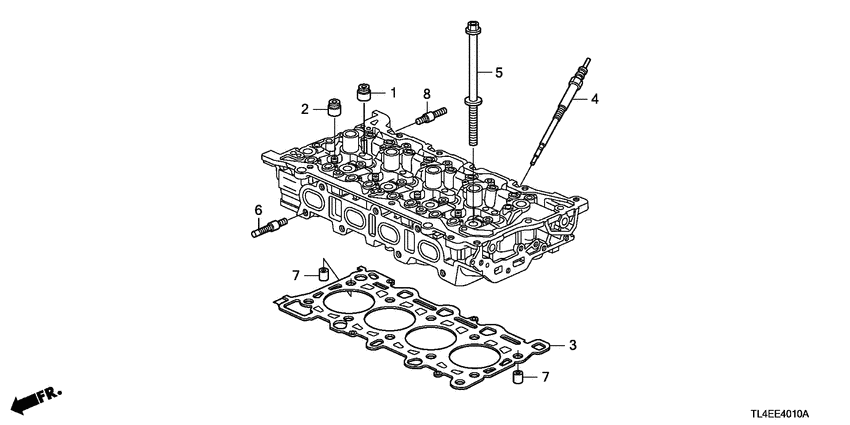

Cylinder head (L4) 1 / 10
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 10 | 91333-PNA-003 | O-ring - 15X1.9 | O-ring - 15X1.9 |
Cylinder head cover (L4) 1 / 13
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 7 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
Door glass/regulator 2 / 12
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 39885-S5A-G11 | Label - IMMOBILIZER & SECURITY | Label - IMMOBILIZER & SECURITY |
| 12 | 90021-SFA-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
Door lining 4 / 17
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 31 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 32 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 33 | 91560-SLJ-J01 | Clip - DOOR LINING (LIGHT GRAY) | Clip - DOOR LINING (LIGHT GRAY) |
| 34 | 91561-S5P-A01 | Screw - GROMMET, 5.23 | Screw - GROMMET, 5.23 |
Door locks/outer handle 7 / 34
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 10 | 72135-SDA-A01 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 16 | 72144-SJD-003 | Retainer | Retainer |
| 39 | 74387-S3C-003 | Fastener | Fastener |
| 40 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 41 | 90141-SDA-000 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 42 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 52 | 72118-TL0-003 | Seal | Seal |
Door panels 6 / 18
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 15 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 16 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Bolt - FLANGE, 8X22 (8.5MM) |
| 17 | 90102-S3N-003 | Bolt - FLANGE, 8X24.5 (10.5MM) | Bolt - FLANGE, 8X24.5 (10.5MM) |
| 17 | 90102-SFA-305 | Bolt - FLANGE, 8X18 (SERVICE) | Bolt - FLANGE, 8X18 (SERVICE) |
| 18 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 19 | 90651-S4N-003 | Clip | Clip |
Duct 1 / 4
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 4 | 83335-TA0-A00 | Bracket assy - RR. HEATER DUCT | Bracket assy - RR. HEATER DUCT |
Emblems/caution labels 2 / 7
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 8 | 78031-SDA-G80 | Label - SIDE AIRBAG CAUTION | Label - SIDE AIRBAG CAUTION |
| 9 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
Engine hood 7 / 22
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 20 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 21 | 90123-TA0-A00 | Bolt-washer - 6X18 | Bolt-washer - 6X18 |
| 22 | 90602-SX0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 24 | 90602-TA0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 25 | 90603-SX0-003 | Grommet - COWL TOP | Grommet - COWL TOP |
| 28 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 29 | 91518-S10-003 | Clip - MOLDING | Clip - MOLDING |
Engine mounting bracket (L4) 1 / 8
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 8 | 90027-PND-A00 | Bolt - SPECIAL, 10X50 | Bolt - SPECIAL, 10X50 |

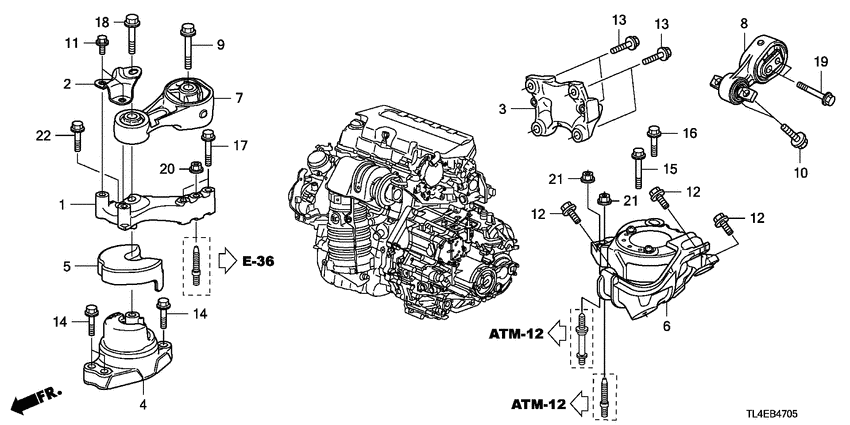

Engine mounts (L4) 2 / 38
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 27 | 90165-SDA-A00 | Bolt - FLANGE, 12X45 | Bolt - FLANGE, 12X45 |
| 34 | 90371-SEF-000 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |

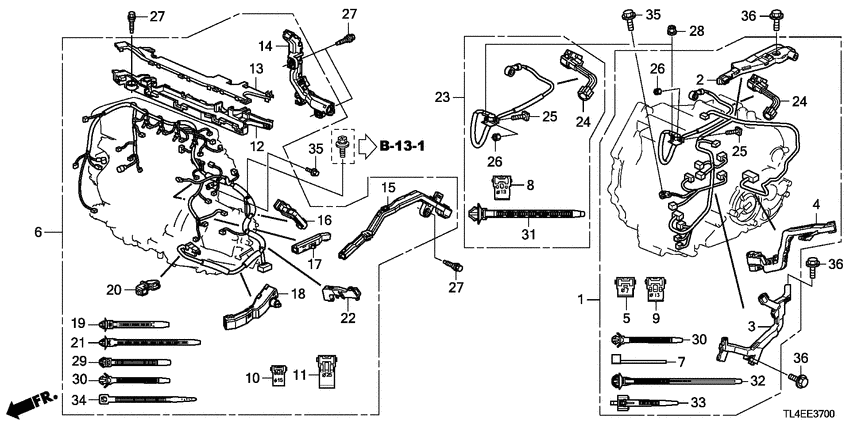

Engine wire harness (L4) 6 / 31
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 3 | 32112-S2K-003 | Band - CABLE (90MM) | Band - CABLE (90MM) |
| 19 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 20 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 26 | 91506-RTA-003 | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) |
| 29 | 91540-STK-003 | Clip - HARNESS BAND (BLACK) (155.3MM) | Clip - HARNESS BAND (BLACK) (155.3MM) |
| 30 | 91542-SNA-003 | Clip - HARNESS BAND(DARK BLUE) (164.5MM) | Clip - HARNESS BAND(DARK BLUE) (164.5MM) |

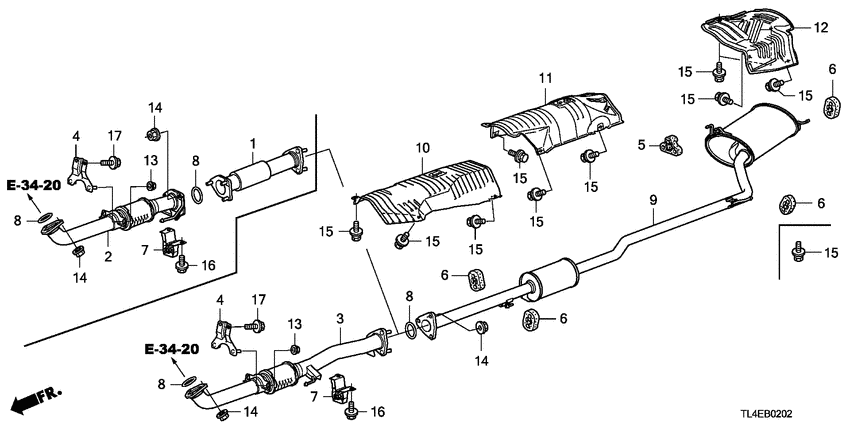

Exhaust pipe (L4) 6 / 17
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 2 | 18176-PT0-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 5 | 18215-S84-A20 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 11 | 18302-SP0-003 | Gasket - EX. PIPE | Gasket - EX. PIPE |
| 14 | 74601-TA0-A00 | Plate a - FR. FLOOR HEAT BAFFLE | Plate a - FR. FLOOR HEAT BAFFLE |
| 16 | 74654-TA1-A00 | Plate - R. SILENCER BAFFLE | Plate - R. SILENCER BAFFLE |
| 17 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
Floor mat 2 / 8
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 17 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
| 18 | 91560-S6A-003 | Clip - DOOR LINING(ORANGE) | Clip - DOOR LINING(ORANGE) |
Floor/inner panels 2 / 4
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 41 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 42 | 90101-SFE-000 | Bolt-washer - 8MM | Bolt-washer - 8MM |
Fog light 3 / 5
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 33165-S5A-003 | Bulb - H11) (12V 55W) (STANLEY | Bulb - H11) (12V 55W) (STANLEY |
| 1 | 33165-SAA-003 | Bulb - H11) (12V 55W) (KOITO | Bulb - H11) (12V 55W) (KOITO |
| 4 | 90113-SJA-A00 | Screw - TAPPING, 5X14 | Screw - TAPPING, 5X14 |
Front brake 11 / 22
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 3 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 4 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 5 | 44300-TA0-A51 | Bearing assy - FR. HUB | Bearing assy - FR. HUB |
| 6 | 44600-TA0-A00 | Hub assy - FR. | Hub assy - FR. |
| 15 | 45255-TA0-A00 | Guard - FR. SPLASH | Guard - FR. SPLASH |
| 17 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 18 | 90113-S84-901 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 18 | 90113-SD4-901 | Bolt - WHEEL (MEIRA) | Bolt - WHEEL (MEIRA) |
| 18 | 90113-SD4-902 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 18 | 90113-SJK-901 | Bolt - WHEEL (THAI MEIRA) | Bolt - WHEEL (THAI MEIRA) |
| 19 | 90681-SJK-000 | Circlip - INTERNAL, 91MM | Circlip - INTERNAL, 91MM |
Front bulkhead/dashboard 3 / 3
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 29 | 74250-SJA-A00 | Cover - VIN PLATE | Cover - VIN PLATE |
| 30 | 90105-SV1-000 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 31 | 90671-SHJ-A02 | Rivet - VIN PLATE | Rivet - VIN PLATE |

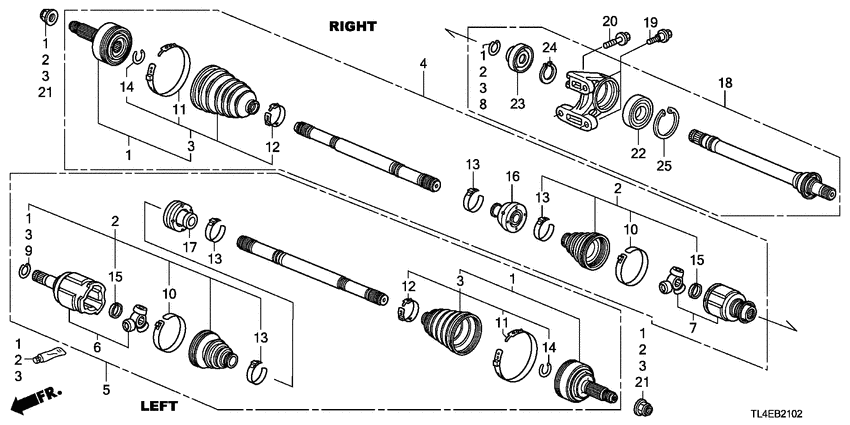

Front driveshaft/ half shaft (L4) 5 / 28
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 11 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 13 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 20 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 21 | 90165-SE0-000 | Bolt - FLANGE, 10X37 | Bolt - FLANGE, 10X37 |
| 22 | 90305-S3V-A11 | Nut - SPINDLE | Nut - SPINDLE |
Front fenders 5 / 12
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 11 | 90682-SEA-003 | Clip - TAPPING SCREW, 5MM | Clip - TAPPING SCREW, 5MM |
| 12 | 91505-S9A-003 | Clip A - BUMPER | Clip A - BUMPER |
| 13 | 91506-S9A-003 | Clip b - BUMPER | Clip b - BUMPER |
| 14 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 15 | 91533-SG0-000 | Clip b - FAIRING | Clip b - FAIRING |
Front grille 5 / 9
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 4 | 74175-SJA-000 | Cushion - HOOD | Cushion - HOOD |
| 6 | 90301-ST0-003 | push nut, 3mm | push nut, 3mm |
| 7 | 91505-S9A-003 | Clip A - BUMPER | Clip A - BUMPER |
| 8 | 91506-S9A-003 | Clip b - BUMPER | Clip b - BUMPER |
| 9 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Front knuckle 14 / 16
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 42524-SNA-003 | Clip - COUPLER (BLACK) | Clip - COUPLER (BLACK) |
| 2 | 44348-TA0-A00 | Ring - FR. KNUCKLE | Ring - FR. KNUCKLE |
| 5 | 51220-TA0-A02 | Joint comp - FR. LOWER BALL | Joint comp - FR. LOWER BALL |
| 6 | 51225-TA0-A01 | Boot - FR. LOWER BALL DUST | Boot - FR. LOWER BALL DUST |
| 7 | 51226-TA0-A01 | Circlip - LOWER BALL(FR.) | Circlip - LOWER BALL(FR.) |
| 8 | 51464-S04-013 | Boot, UPPER BALL JOINT | Boot, UPPER BALL JOINT |
| 9 | 51510-TA0-A03 | F/UPPER ARM RH - R. FR. UPPER | F/UPPER ARM RH - R. FR. UPPER |
| 10 | 51520-TA0-A03 | F/UPPER ARM LH - L. FR. UPPER | F/UPPER ARM LH - L. FR. UPPER |
| 11 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 12 | 57450-TA0-A01 | Sensor assy - R. FR. | Sensor assy - R. FR. |
| 13 | 57455-TA0-A01 | Sensor assy - L. FR. | Sensor assy - L. FR. |
| 14 | 90172-SDA-A00 | Bolt - FLANGE, 10X78 | Bolt - FLANGE, 10X78 |
| 15 | 90309-SJA-000 | Nut - CASTLE, 14MM | Nut - CASTLE, 14MM |
| 16 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
Front lower arm 16 / 20
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 51271-TA0-A01 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 2 | 51281-TA0-A01 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 4 | 51306-TA0-A01 | Bush - FR. STABILIZER HOLDER | Bush - FR. STABILIZER HOLDER |
| 5 | 51308-SDA-A00 | Bracket - FR. STABILIZER | Bracket - FR. STABILIZER |
| 6 | 51320-TA0-A01 | Link comp - R. FR. STABILIZER | Link comp - R. FR. STABILIZER |
| 7 | 51325-TA0-A01 | Link comp - L. FR. STABILIZER | Link comp - L. FR. STABILIZER |
| 8 | 51350-TA0-A00 | Arm comp - R. FR. LOWER | Arm comp - R. FR. LOWER |
| 9 | 51360-TA0-A00 | Arm comp - L. FR. LOWER | Arm comp - L. FR. LOWER |
| 10 | 51391-TA0-A01 | Bush - FR. COMPLIANCE | Bush - FR. COMPLIANCE |
| 11 | 51393-SDA-A02 | BUSH, FR. ARM (LOWER) | BUSH, FR. ARM (LOWER) |
| 12 | 51810-TA0-A01 | Bush - SHOCK ABSORBER FORK | Bush - SHOCK ABSORBER FORK |
| 14 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 16 | 90118-TA0-A10 | Bolt-washer - 12X92 | Bolt-washer - 12X92 |
| 17 | 90119-SFE-000 | Bolt - FLANGE, 14X100 | Bolt - FLANGE, 14X100 |
| 19 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 20 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
Front seat (L.) 3 / 11
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 29 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 30 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
Front seat (R.) 8 / 19
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 23 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 24 | 90160-S5A-003 | Screw - TRUSS, 6X12 | Screw - TRUSS, 6X12 |
| 25 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 26 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
| 27 | 91533-S82-003 | Clip - COUPLER(BLACK) | Clip - COUPLER(BLACK) |
| 28 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 30 | 91542-SNA-003 | Clip - HARNESS BAND(DARK BLUE) (164.5MM) | Clip - HARNESS BAND(DARK BLUE) (164.5MM) |
Front seat components (L.; POWER HEIGHT) 7 / 39
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 24 | 81653-SDB-A71 | Switch assy - L. (8WAY) | Switch assy - L. (8WAY) |
| 29 | 90135-S7A-J51 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
| 30 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
| 32 | 90650-S6M-J01 | Clip - RATCHET, 10MM | Clip - RATCHET, 10MM |
| 35 | 91533-S82-003 | Clip - COUPLER(BLACK) | Clip - COUPLER(BLACK) |
| 36 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 37 | 91542-SNA-003 | Clip - HARNESS BAND(DARK BLUE) (164.5MM) | Clip - HARNESS BAND(DARK BLUE) (164.5MM) |
Front seat components (R.) 2 / 14
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 16 | 90135-S7A-J51 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
| 17 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
Front shock absorber 12 / 22
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 5 | 51621-S84-A01 | Washer - SHOCK ABSORBER MOUNTING | Washer - SHOCK ABSORBER MOUNTING |
| 8 | 51675-TA0-A02 | Base - R. FR. SHOCK ABSORBER MOUNTING | Base - R. FR. SHOCK ABSORBER MOUNTING |
| 9 | 51676-TA0-A02 | Base - L. FR. SHOCK ABSORBER MOUNTING | Base - L. FR. SHOCK ABSORBER MOUNTING |
| 10 | 51684-SDA-A02 | Mount - FR. DUST COVER LOWER | Mount - FR. DUST COVER LOWER |
| 11 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 12 | 51686-TA0-A01 | Rubber - FR. SPRING MOUNT | Rubber - FR. SPRING MOUNT |
| 13 | 51688-SDA-A01 | Sleeve - FR. DUST COVER | Sleeve - FR. DUST COVER |
| 14 | 51689-SDA-A01 | Cover - FR. END DUST | Cover - FR. END DUST |
| 16 | 51722-SS0-004 | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) |
| 17 | 51728-SB0-003 | Collar - SHOCK ABSORBER MOUNTING(TOKICO) | Collar - SHOCK ABSORBER MOUNTING(TOKICO) |
| 18 | 90300-S84-A00 | Nut - SHOCK ABSORBER FLANGE (10MM) | Nut - SHOCK ABSORBER FLANGE (10MM) |
| 19 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Front sub frame/rear beam 15 / 27
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 4 | 50260-TA0-A01 | Rubber - FR. SUB FRAME MOUNTING | Rubber - FR. SUB FRAME MOUNTING |
| 5 | 50261-TA0-A01 | Rubber - FR. SUB FRAME STOPPER | Rubber - FR. SUB FRAME STOPPER |
| 6 | 50265-TA0-A00 | Stay - R. FR. SUB FRAME MOUNTING(FR.) | Stay - R. FR. SUB FRAME MOUNTING(FR.) |
| 7 | 50266-TA0-A00 | Stay - L. FR. SUB FRAME MOUNTING(FR.) | Stay - L. FR. SUB FRAME MOUNTING(FR.) |
| 9 | 50280-SDA-A01 | Rubber - R. FR. SUB FRAME MIDDLE MOUNTING | Rubber - R. FR. SUB FRAME MIDDLE MOUNTING |
| 10 | 50285-SDA-A01 | Rubber - L. FR. SUB FRAME MIDDLE MOUNTING | Rubber - L. FR. SUB FRAME MIDDLE MOUNTING |
| 12 | 50360-TA0-A01 | Rubber - RR. SUB FRAME FR. MOUNTING | Rubber - RR. SUB FRAME FR. MOUNTING |
| 13 | 50365-TA0-A00 | Stay - RR. SUB FRAME MOUNTING (FR.) | Stay - RR. SUB FRAME MOUNTING (FR.) |
| 14 | 50370-TA0-A01 | Rubber - RR. SUB FRAME RR. MOUNTING | Rubber - RR. SUB FRAME RR. MOUNTING |
| 21 | 90166-TA0-A00 | Bolt - FLANGE, 8X16 | Bolt - FLANGE, 8X16 |
| 26 | 90175-TA0-A00 | Bolt - FLANGE, 14X100 | Bolt - FLANGE, 14X100 |
| 27 | 90176-SDA-A00 | Bolt - FLANGE, 14X135 | Bolt - FLANGE, 14X135 |
| 28 | 90177-SDA-A00 | Bolt - FLANGE, 14X150 | Bolt - FLANGE, 14X150 |
| 29 | 90186-SDA-A00 | Bolt - FLANGE, 12X33 | Bolt - FLANGE, 12X33 |
| 30 | 90396-S5A-010 | Bolt - FLANGE, 12X75 | Bolt - FLANGE, 12X75 |
Front windshield 1 / 7
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 7 | 91568-TA0-A00 | Clip, FR. Windshield (Upper) | Clip, FR. Windshield (Upper) |
Front windshield wiper 2 / 26
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 25 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 26 | 91611-SDA-A00 | Cap - FR. WIPER ARM (12MM) | Cap - FR. WIPER ARM (12MM) |

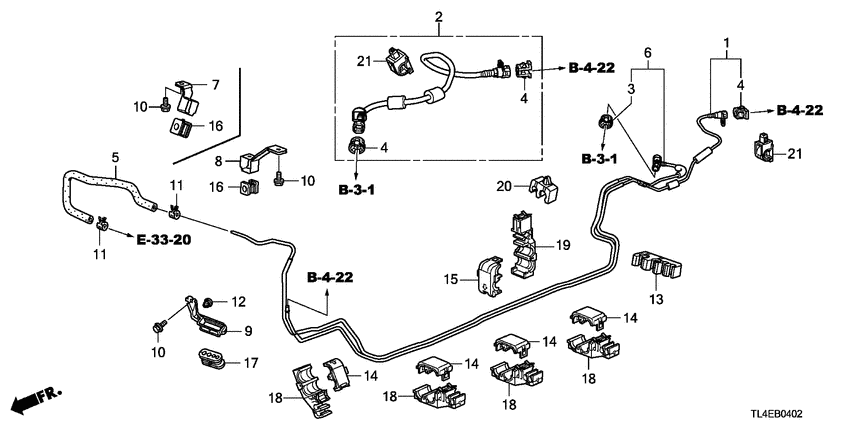

Fuel pipe (L4) 4 / 19
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 3 | 16725-RAC-003 | Clamp - FUEL HOSE (NATURAL) | Clamp - FUEL HOSE (NATURAL) |
| 5 | 17711-S84-004 | Retainer - WHITE)(SANOH | Retainer - WHITE)(SANOH |
| 8 | 17762-TA0-A00 | Stay b - FUEL PIPE | Stay b - FUEL PIPE |
| 9 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |

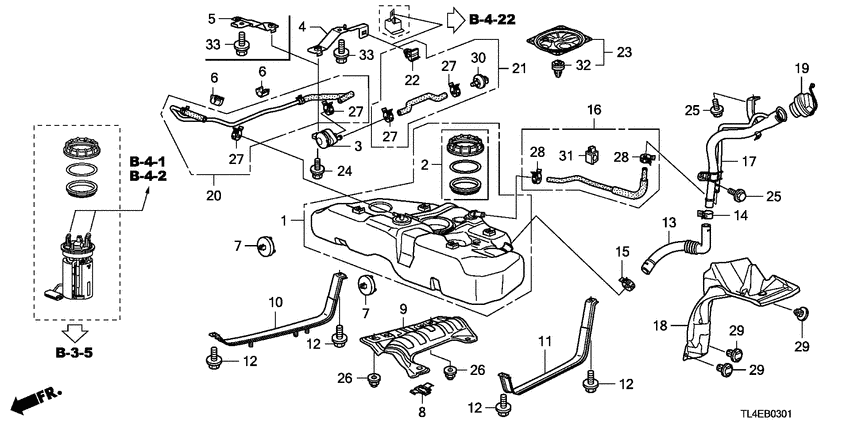

Fuel tank 19 / 31
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 3 | 17046-SWE-T00 | Nut & packing set - FUEL LOCK | Nut & packing set - FUEL LOCK |
| 7 | 17508-TA0-G01 | Clip - FUEL VENT | Clip - FUEL VENT |
| 8 | 17512-TA0-A01 | Cushion - FUEL TANK | Cushion - FUEL TANK |
| 9 | 17513-TA0-A00 | Circlip - PROTECTOR | Circlip - PROTECTOR |
| 10 | 17518-TA0-A00 | Protector - FUEL TANK | Protector - FUEL TANK |
| 11 | 17521-TA0-A00 | Band - R. FUEL TANK MOUNTING | Band - R. FUEL TANK MOUNTING |
| 12 | 17522-TA0-A00 | Band - L. FUEL TANK MOUNTING | Band - L. FUEL TANK MOUNTING |
| 13 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 14 | 17651-TA0-G01 | Tube comp - FILLER NECK | Tube comp - FILLER NECK |
| 15 | 17652-SDA-A31 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 16 | 17652-SEL-003 | Clip - FILLER TUBE (39MM) | Clip - FILLER TUBE (39MM) |
| 17 | 17653-TA0-G01 | Tube assy - BREATHER | Tube assy - BREATHER |
| 22 | 74660-TA0-A00 | Cap assy. - FLOOR MAINTENANCE HOLE | Cap assy. - FLOOR MAINTENANCE HOLE |
| 23 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 24 | 90361-TA0-A00 | Nut - CAP, 6MM | Nut - CAP, 6MM |
| 25 | 91404-TA0-G01 | Clamp - FUEL TUBE (D10) | Clamp - FUEL TUBE (D10) |
| 26 | 91462-SDA-003 | Clamp - FUEL TUBE (D18) | Clamp - FUEL TUBE (D18) |
| 27 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 29 | 91601-TA0-003 | Clip - FUEL MAINTENANCE HOLE CAP | Clip - FUEL MAINTENANCE HOLE CAP |
Grommet (FRONT) 9 / 15
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 2 | 75826-634-300 | Seal - INSIDE PANEL, 15MM | Seal - INSIDE PANEL, 15MM |
| 3 | 90615-S5A-003 | Plug - HOLE, 27X56 | Plug - HOLE, 27X56 |
| 6 | 90815-SNA-003 | Grommet - 15MM | Grommet - 15MM |
| 8 | 90826-SNA-003 | Grommet - 25MM (BURRING) | Grommet - 25MM (BURRING) |
| 11 | 91611-TA0-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 12 | 91612-TA0-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 13 | 91613-SR3-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 14 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 15 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
Grommet (LOWER) 4 / 6
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 2 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 3 | 90815-SNA-003 | Grommet - 15MM | Grommet - 15MM |
| 6 | 90826-SNA-003 | Grommet - 25MM (BURRING) | Grommet - 25MM (BURRING) |
Grommet (REAR) 4 / 6
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 2 | 90615-S5A-003 | Plug - HOLE, 27X56 | Plug - HOLE, 27X56 |
| 5 | 90826-SNA-003 | Grommet - 25MM (BURRING) | Grommet - 25MM (BURRING) |
| 6 | 90857-SDA-A00 | Cap - WELD HOLE | Cap - WELD HOLE |
Grommet (SIDE) 1 / 5
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 4 | 90815-SNA-003 | Grommet - 15MM | Grommet - 15MM |
Harness band/bracket 30 / 46
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 5 | 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
| 6 | 32133-SLA-003 | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) |
| 7 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 12 | 90627-SA5-003 | Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) | Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) |
| 15 | 91507-SNA-003 | Clip - HARNESS BAND(BROWN) (164.5MM) | Clip - HARNESS BAND(BROWN) (164.5MM) |
| 17 | 91508-STX-A00 | Clip - HARNESS BAND(BLACK) (148MM) | Clip - HARNESS BAND(BLACK) (148MM) |
| 18 | 91531-SR3-003 | Holder - COUPLER (NATURAL) (128.6MM) | Holder - COUPLER (NATURAL) (128.6MM) |
| 19 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 20 | 91531-S84-003 | Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL) | Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL) |
| 21 | 91533-STK-003 | Clip - COUPLER(NATURAL) | Clip - COUPLER(NATURAL) |
| 22 | 91534-SWA-003 | Clip - COUPLER(DARK GRAY) | Clip - COUPLER(DARK GRAY) |
| 23 | 91536-STK-003 | Clip - RELAY HOLDER(NATURAL) | Clip - RELAY HOLDER(NATURAL) |
| 24 | 91540-STK-003 | Clip - HARNESS BAND (BLACK) (155.3MM) | Clip - HARNESS BAND (BLACK) (155.3MM) |
| 26 | 91540-TA0-003 | Clip - HARNESS BAND(NATURAL) (100.1MM) | Clip - HARNESS BAND(NATURAL) (100.1MM) |
| 27 | 91542-SNA-003 | Clip - HARNESS BAND(DARK BLUE) (164.5MM) | Clip - HARNESS BAND(DARK BLUE) (164.5MM) |
| 28 | 91545-SJA-003 | Clip - WIRE HARNESS(SEAL) (125MM) | Clip - WIRE HARNESS(SEAL) (125MM) |
| 29 | 91545-SNA-003 | Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL) | Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL) |
| 32 | 91545-TA0-003 | Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL) | Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL) |
| 33 | 91549-STK-003 | Holder - HARNESS (NATURAL) (113MM) | Holder - HARNESS (NATURAL) (113MM) |
| 34 | 91549-TA0-003 | Clip - HARNESS BAND(BLACK) (140.3MM) | Clip - HARNESS BAND(BLACK) (140.3MM) |
| 35 | 91550-ST0-003 | Clip - WIRE HARNESS (NATURAL) (110MM) | Clip - WIRE HARNESS (NATURAL) (110MM) |
| 37 | 91558-SAA-003 | Clip - HARNESS BAND(30)(BLACK) (151.5MM) | Clip - HARNESS BAND(30)(BLACK) (151.5MM) |
| 39 | 91559-ST5-003 | Clip - HARNESS BAND OFFSET(30) (NATURAL) | Clip - HARNESS BAND OFFSET(30) (NATURAL) |
| 40 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 41 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
| 42 | 91661-TA0-003 | Holder - HARNESS(BLACK) | Holder - HARNESS(BLACK) |
| 45 | 91902-S2X-003 | Plaster - WIRE HARNESS(50X100) | Plaster - WIRE HARNESS(50X100) |
| 46 | 91902-S3N-003 | Plaster - WIRE HARNESS (50X50) | Plaster - WIRE HARNESS (50X50) |
| 51 | 91535-TA0-003 | Clip - COUPLER (DARK BROWN) | Clip - COUPLER (DARK BROWN) |
| 52 | 91542-TF0-003 | Band - HARNESS OFFSET(20) (DARK BLUE)(145MM) | Band - HARNESS OFFSET(20) (DARK BLUE)(145MM) |
Headlight 9 / 15
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 3 | 33115-S84-A11 | Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) | Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) |
| 4 | 33126-SNA-A01 | Cover - RUBBER | Cover - RUBBER |
| 5 | 33130-SJK-J01 | Adjuster unit - HEADLIGHT | Adjuster unit - HEADLIGHT |
| 7 | 33165-S5A-003 | Bulb - H11) (12V 55W) (STANLEY | Bulb - H11) (12V 55W) (STANLEY |
| 7 | 33165-SAA-003 | Bulb - H11) (12V 55W) (KOITO | Bulb - H11) (12V 55W) (KOITO |
| 8 | 33301-SNA-003 | Bulb - 12V 5W) (STANLEY | Bulb - 12V 5W) (STANLEY |
| 11 | 33305-S5A-003 | Socket comp - T10 | Socket comp - T10 |
| 12 | 90144-SA0-020 | Bolt - BUMPER SETTING (6X15) (BLACK) | Bolt - BUMPER SETTING (6X15) (BLACK) |
| 12 | 90111-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
Heater blower 7 / 15
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 79022-TA0-A01 | Packing - AIR INTAKE | Packing - AIR INTAKE |
| 3 | 79306-TA0-A01 | Seal - BLOWER OUTER | Seal - BLOWER OUTER |
| 9 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 10 | 90127-S84-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 11 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 12 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 13 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |

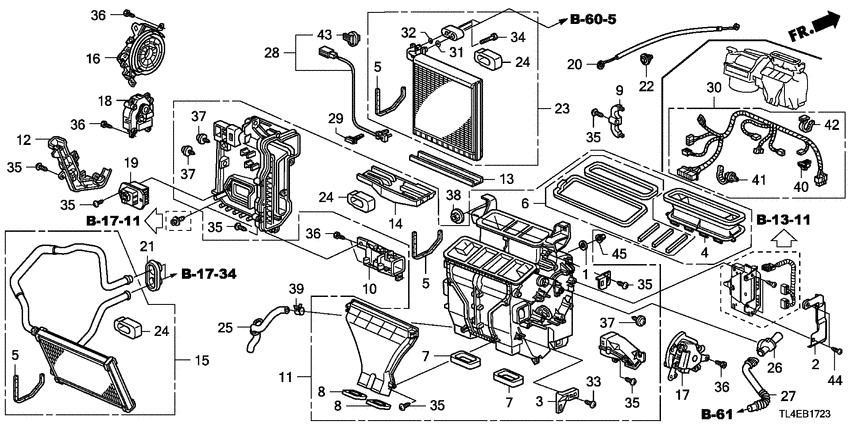

Heater unit 17 / 37
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 39248-692-003 | Packing - HEATER | Packing - HEATER |
| 3 | 79021-TA0-A01 | Seal a | Seal a |
| 5 | 79024-TA0-A01 | Packing - RR. HEATER | Packing - RR. HEATER |
| 6 | 79030-TA0-A01 | Stay - HEATER PIPE | Stay - HEATER PIPE |
| 15 | 79330-SNA-A01 | Transistor - POWER | Transistor - POWER |
| 16 | 79731-S5A-000 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 21 | 80534-S84-A41 | Aspirator | Aspirator |
| 28 | 90122-TA0-A01 | Screw - TAPPING, 4X14(PO) | Screw - TAPPING, 4X14(PO) |
| 29 | 90126-S5A-003 | Bolt - SOCKET, 5X40 | Bolt - SOCKET, 5X40 |
| 30 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 31 | 90127-S84-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 32 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 33 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 34 | 90661-S2A-003 | Clip - DRAIN HOSE | Clip - DRAIN HOSE |
| 35 | 91533-STK-003 | Clip - COUPLER(NATURAL) | Clip - COUPLER(NATURAL) |
| 36 | 91540-STK-003 | Clip - HARNESS BAND (BLACK) (155.3MM) | Clip - HARNESS BAND (BLACK) (155.3MM) |
| 37 | 91549-TA0-003 | Clip - HARNESS BAND(BLACK) (140.3MM) | Clip - HARNESS BAND(BLACK) (140.3MM) |
Install pipe (L4) 1 / 12
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 11 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
Instrument panel 9 / 11
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 2 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 8 | 77113-TA0-A00 | Bracket - CENTER JOINT | Bracket - CENTER JOINT |
| 17 | 90101-S6A-000 | Bolt-washer - 8MM | Bolt-washer - 8MM |
| 19 | 90110-S84-A00 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 20 | 90111-TA0-A00 | Bolt-washer - 8X68 | Bolt-washer - 8X68 |
| 21 | 90140-SDA-A00 | Bolt-washer - 5X19 | Bolt-washer - 5X19 |
| 22 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 23 | 90666-TA0-A01 | Clip - SNAP FITTING (PO) (ORANGE) | Clip - SNAP FITTING (PO) (ORANGE) |
| 24 | 90669-SWA-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
Instrument panel garnish (DRIVER SIDE) 5 / 7
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 12 | 90101-S2K-000 | Screw - TAPPING, 4X16(IT) | Screw - TAPPING, 4X16(IT) |
| 13 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 14 | 90666-TA0-A01 | Clip - SNAP FITTING (PO) (ORANGE) | Clip - SNAP FITTING (PO) (ORANGE) |
| 15 | 90666-TA0-A21 | Clip - SNAP FITTING (PO) (ORANGE) | Clip - SNAP FITTING (PO) (ORANGE) |
| 16 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (PASSENGER SIDE) 6 / 13
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 16 | 90133-SM4-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 17 | 90140-SDA-A00 | Bolt-washer - 5X19 | Bolt-washer - 5X19 |
| 18 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 20 | 90666-TA0-A11 | Clip - SNAP FITTING (PO) (ORANGE) | Clip - SNAP FITTING (PO) (ORANGE) |
| 21 | 90666-TA0-A21 | Clip - SNAP FITTING (PO) (ORANGE) | Clip - SNAP FITTING (PO) (ORANGE) |
| 22 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |

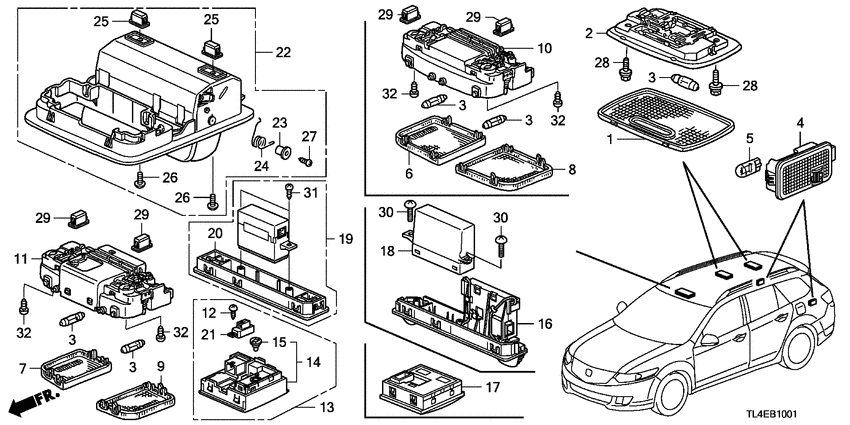

Interior light 12 / 17
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 34251-S5A-003 | Lens | Lens |
| 3 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 3 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 5 | 34295-SJ8-003 | Bulb - 12V 5W) (DAIICHI | Bulb - 12V 5W) (DAIICHI |
| 5 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
| 7 | 34401-SDA-A21 | Lens - R. | Lens - R. |
| 9 | 34402-SDA-A21 | Lens - L. | Lens - L. |
| 11 | 34404-SDA-A22 | Base comp. | Base comp. |
| 13 | 35831-SMA-003 | Bulb comp. - 14V 60MA | Bulb comp. - 14V 60MA |
| 19 | 83253-TA0-A01 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 20 | 83254-TA0-A01 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 22 | 90148-S6A-013 | Bolt - EARTH, 5X14 | Bolt - EARTH, 5X14 |
L. side cover (L4) 10 / 41
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 7 | 22713-PW4-000 | Guide a - FEED PIPE | Guide a - FEED PIPE |
| 11 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 24 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 25 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 26 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 29 | 91006-P1B-003 | Bearing - BALL, 9X20X6 | Bearing - BALL, 9X20X6 |
| 32 | 91301-PC9-003 | O-ring - 7.7X2.3 (ARAI) | O-ring - 7.7X2.3 (ARAI) |
| 33 | 91305-PC9-003 | O-ring - 34X1.9 (ARAI) | O-ring - 34X1.9 (ARAI) |
| 36 | 91314-PW4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 37 | 91506-RTA-003 | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) |

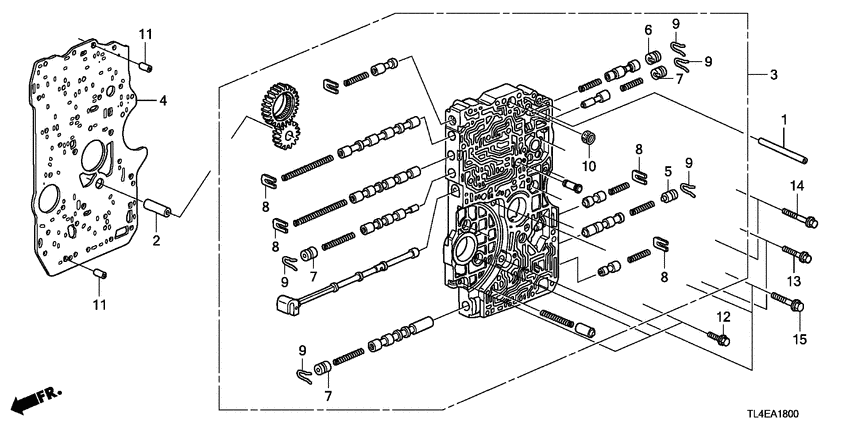

Main valve body (L4) 5 / 9
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 25145-PA9-010 | Shaft - OIL PUMP GEAR | Shaft - OIL PUMP GEAR |
| 4 | 27122-P6H-000 | Cap - 12MM | Cap - 12MM |
| 6 | 27142-P6H-000 | Cap - 15MM | Cap - 15MM |
| 7 | 27263-PX3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 8 | 27524-P6H-000 | Clip - CAP | Clip - CAP |

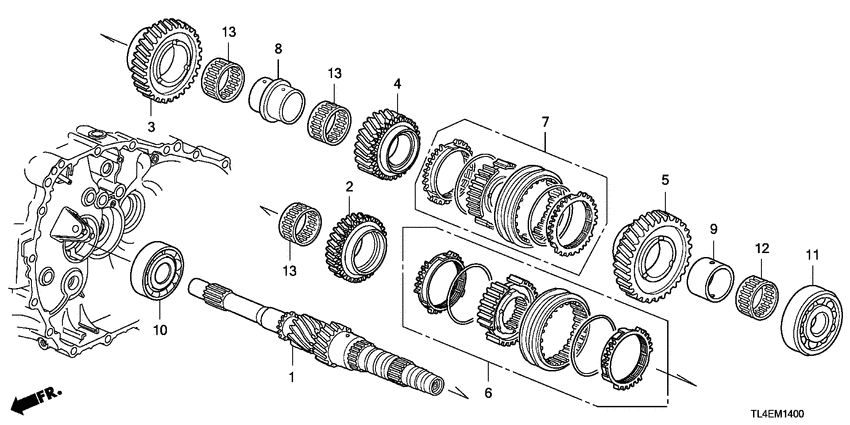

Mainshaft (L4) 4 / 31
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 22814-PRP-003 | Ring - SEALING, 29MM | Ring - SEALING, 29MM |
| 7 | 90402-P0Z-000 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 10 | 90603-P4R-000 | Set ring - 23MM | Set ring - 23MM |
| 17 | 91316-PR9-003 | O-ring - 33X1.9 (ARAI) | O-ring - 33X1.9 (ARAI) |
Meter components (NS) 1 / 4
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 4 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Mirror 1 / 21
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 16 | 90109-SDF-003 | Screw - TAPPING, 4X14 | Screw - TAPPING, 4X14 |
Molding 1 / 17
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 14 | 91503-STK-A01 | Clip - DOOR MOLDING | Clip - DOOR MOLDING |
Oil level gauge/ atf pipe (L4) 4 / 16
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 12 | 25951-RGR-000 | Bolt - JOINT | Bolt - JOINT |
| 14 | 90471-RGR-000 | Washer - DRAIN PLUG, 12MM | Washer - DRAIN PLUG, 12MM |
| 15 | 90635-PT0-802 | Clip, Oil Pipe | Clip, Oil Pipe |
| 15 | 90635-RV0-003 | CLIP, OIL PIPE | CLIP, OIL PIPE |

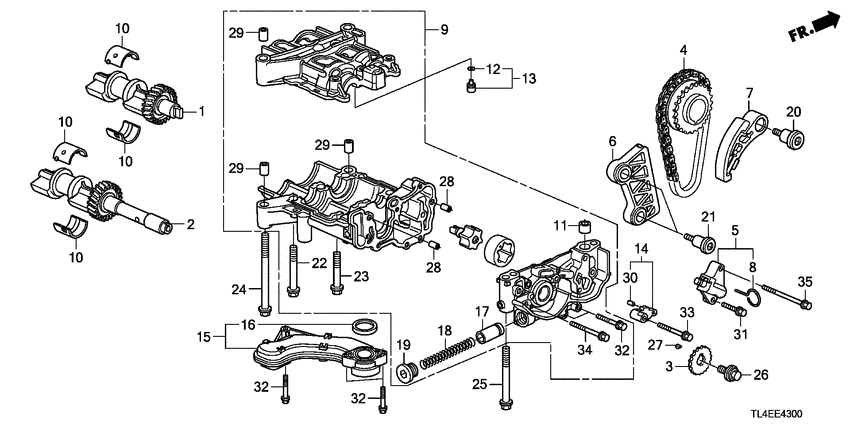

Oil pump (L4) 3 / 25
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 10 | 15115-R40-A01 | Metal - BALANCER SHAFT(DAIDO) | Metal - BALANCER SHAFT(DAIDO) |
| 11 | 15123-PCX-003 | Dowel pin - 18X13 | Dowel pin - 18X13 |
| 18 | 90004-PNA-000 | Bolt - CHAIN GUIDE | Bolt - CHAIN GUIDE |
Outer panels/rear panel 1 / 14
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 34 | 90671-SHJ-A02 | Rivet - VIN PLATE | Rivet - VIN PLATE |
P.s. gear box 5 / 20
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 52362-S30-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 3 | 53434-TA0-A02 | Clip - STEERING TIE ROD | Clip - STEERING TIE ROD |
| 10 | 53537-S3N-003 | Rubber - STOPPER | Rubber - STOPPER |
| 11 | 53540-TA0-A01 | End comp - R. TIE ROD | End comp - R. TIE ROD |
| 12 | 53560-TA0-A01 | End comp - L. TIE ROD | End comp - L. TIE ROD |

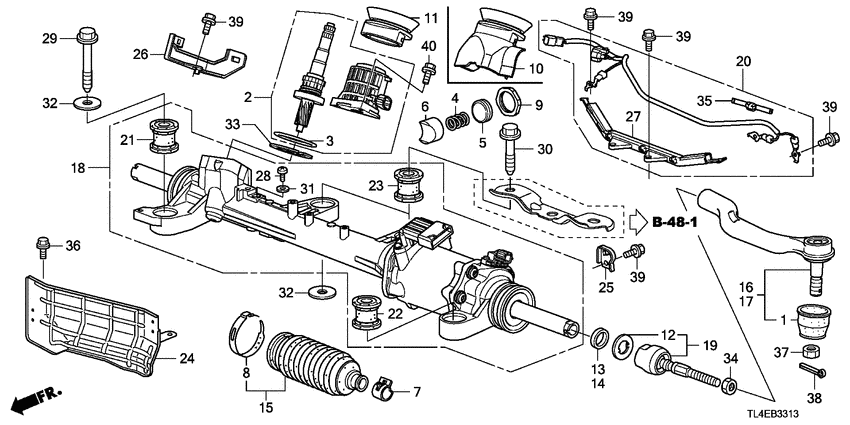

P.s. gear box components 2 / 23
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 6 | 53414-S84-A01 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 9 | 53458-S84-A01 | Nut - LOCK | Nut - LOCK |
P.s. lines (L4) 1 / 24
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 9 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
Parking brake 4 / 10
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 4 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 6 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 9 | 47572-ST0-000 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 12 | 90104-TA0-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
Pedal 7 / 13
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 2 | 36750-SMA-003 | Switch assy - STOP & CRUISE (PANASONIC) | Switch assy - STOP & CRUISE (PANASONIC) |
| 3 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 5 | 46545-S84-A81 | Cover - PEDAL | Cover - PEDAL |
| 8 | 46982-TA0-A81 | Bush - RETURN SPRING | Bush - RETURN SPRING |
| 11 | 90104-SFE-003 | Bolt - FLANGE, 8X23 | Bolt - FLANGE, 8X23 |
| 12 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 13 | 90361-S3C-003 | Nut - PAINT CUTTING, 8MM | Nut - PAINT CUTTING, 8MM |
Pillar garnish 3 / 12
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 23 | 91560-SLJ-J01 | Clip - DOOR LINING (LIGHT GRAY) | Clip - DOOR LINING (LIGHT GRAY) |
| 24 | 91560-SYA-J01 | Clip - PILLAR GARNISH (DARK GREEN) | Clip - PILLAR GARNISH (DARK GREEN) |
| 25 | 91561-TA0-A01 | Clip - FR. PILLAR GARNISH | Clip - FR. PILLAR GARNISH |
Radiator (L4) 8 / 18
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 7 | 19030-R40-A01 | Motor - COOLING FAN (DENSO) | Motor - COOLING FAN (DENSO) |
| 11 | 37870-RWC-A01 | Water Temp Sensor assy - (PANASONIC) | Water Temp Sensor assy - (PANASONIC) |
| 15 | 90041-P3G-003 | Screw-washer - 5X11 | Screw-washer - 5X11 |
| 16 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 17 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 18 | 91307-PLC-004 | O-ring - 9.5X1.9 (MATSUSHITA) | O-ring - 9.5X1.9 (MATSUSHITA) |

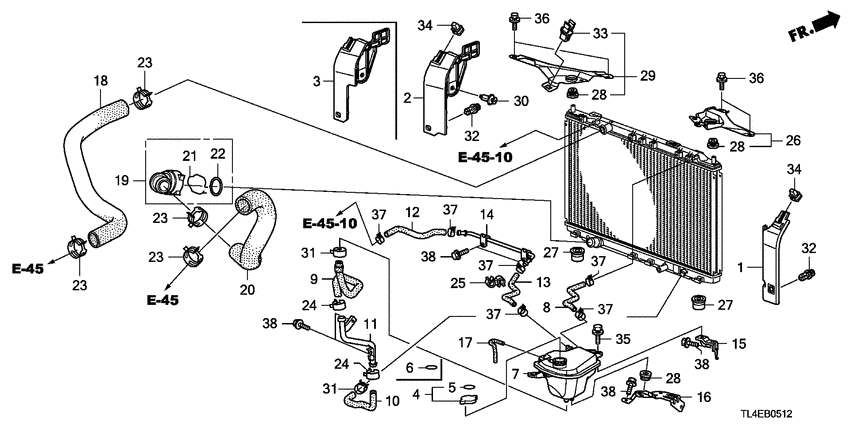

Radiator hose/reserve tan k (L4) 7 / 23
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 8 | 19503-RAA-A01 | Connector - QUICK WATER | Connector - QUICK WATER |
| 9 | 19506-RAA-A01 | Wire | Wire |
| 11 | 19507-RAA-A01 | O-ring | O-ring |
| 16 | 25216-P72-003 | Clip - ATF HOSE (BLACK) | Clip - ATF HOSE (BLACK) |
| 20 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 22 | 90635-PT0-802 | Clip, Oil Pipe | Clip, Oil Pipe |
| 22 | 90635-RV0-003 | CLIP, OIL PIPE | CLIP, OIL PIPE |
Radio antenna/speaker 7 / 12
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 11 | 90109-SLJ-003 | Screw - 5X40 | Screw - 5X40 |
| 12 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 13 | 90309-SLJ-003 | Nut assy. - SPEAKER | Nut assy. - SPEAKER |
| 14 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 15 | 91534-SWA-003 | Clip - COUPLER(DARK GRAY) | Clip - COUPLER(DARK GRAY) |
| 16 | 91902-S2X-003 | Plaster - WIRE HARNESS(50X100) | Plaster - WIRE HARNESS(50X100) |
| 17 | 91902-S3N-003 | Plaster - WIRE HARNESS (50X50) | Plaster - WIRE HARNESS (50X50) |
Rear brake 10 / 27
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 9 | 43235-S84-A51 | Pin a | Pin a |
| 13 | 43262-S84-A51 | Pin b | Pin b |
| 15 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 16 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 17 | 45240-SC2-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 18 | 90103-SJK-000 | Bolt - CALIPER MOUNTING | Bolt - CALIPER MOUNTING |
| 19 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 19 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 19 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 20 | 90160-TA0-A00 | Bolt-washer - 12X44 | Bolt-washer - 12X44 |
Rear lower arm 24 / 36
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 3 | 42528-TA0-A01 | Clip - COUPLER | Clip - COUPLER |
| 4 | 51226-SL0-003 | Circlip - LOWER BALL | Circlip - LOWER BALL |
| 9 | 52308-TA0-A00 | Bracket - RR. STABILIZER HOLDER | Bracket - RR. STABILIZER HOLDER |
| 10 | 52320-TA0-A01 | Link comp - R. RR. STABILIZER | Link comp - R. RR. STABILIZER |
| 11 | 52325-TA0-A01 | Link comp - L. RR. STABILIZER | Link comp - L. RR. STABILIZER |
| 12 | 52340-TA0-A00 | Arm comp - R. RR. CONTROL | Arm comp - R. RR. CONTROL |
| 13 | 52345-TA0-A00 | Arm comp - L. RR. CONTROL | Arm comp - L. RR. CONTROL |
| 14 | 52350-TA0-A00 | Arm comp. b - RR. LOWER | Arm comp. b - RR. LOWER |
| 18 | 52387-SJA-010 | Plate - CAM(M12) | Plate - CAM(M12) |
| 20 | 52514-TA0-A01 | Boot - RR. UPPER BALL | Boot - RR. UPPER BALL |
| 23 | 90100-SHJ-A00 | Bolt - FLANGE, 6X16.5 | Bolt - FLANGE, 6X16.5 |
| 24 | 90118-SNA-000 | Bolt - FLANGE, 12X84 | Bolt - FLANGE, 12X84 |
| 25 | 90118-TA0-A00 | Bolt - FLANGE, 12X90 | Bolt - FLANGE, 12X90 |
| 26 | 90166-TA0-A00 | Bolt - FLANGE, 8X16 | Bolt - FLANGE, 8X16 |
| 27 | 90178-TA0-A00 | Bolt - RR. CONTROL ARM ADJUST | Bolt - RR. CONTROL ARM ADJUST |
| 28 | 90181-S84-A00 | Bolt - TRAILING ARM, 12X68 | Bolt - TRAILING ARM, 12X68 |
| 29 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 30 | 90002-TA0-A00 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 31 | 90362-SJA-000 | Nut - SELF-LOCK, 12MM (NYLON) | Nut - SELF-LOCK, 12MM (NYLON) |
| 32 | 90365-TA0-A00 | Nut - CASTLE, 14MM | Nut - CASTLE, 14MM |
| 33 | 90370-SJA-000 | Nut - SELF-LOCK, 12MM(CLINCH) | Nut - SELF-LOCK, 12MM(CLINCH) |
| 34 | 90651-SWA-000 | Washer - RR. KNUCKLE | Washer - RR. KNUCKLE |
| 35 | 90701-SKC-003 | Pin - SPLIT(M14) | Pin - SPLIT(M14) |
| 37 | 57477-TA0-305 | Seal - LIP(BLACK) | Seal - LIP(BLACK) |
Rear seat 2 / 10
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 17 | 90123-SJA-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
Rear shock absorber 12 / 19
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 51621-S84-A01 | Washer - SHOCK ABSORBER MOUNTING | Washer - SHOCK ABSORBER MOUNTING |
| 3 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 4 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 9 | 52675-TA0-A01 | Base - RR. SHOCK ABSORBER MOUNTING | Base - RR. SHOCK ABSORBER MOUNTING |
| 10 | 52686-SDA-A01 | Rubber - RR. SPRING MOUNTING | Rubber - RR. SPRING MOUNTING |
| 11 | 52687-TA0-A01 | Cover comp. - DUST | Cover comp. - DUST |
| 12 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 13 | 52722-SJA-003 | Rubber - RR. BUMP STOPPER | Rubber - RR. BUMP STOPPER |
| 14 | 52748-S0A-004 | Cover - RR. LOWER MOUNT DUST | Cover - RR. LOWER MOUNT DUST |
| 15 | 90182-TA0-A00 | Bolt - FLANGE, 12X80 | Bolt - FLANGE, 12X80 |
| 16 | 90300-S84-A00 | Nut - SHOCK ABSORBER FLANGE (10MM) | Nut - SHOCK ABSORBER FLANGE (10MM) |
| 17 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Rear tray/ trunk side garnish 8 / 12
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
| 2 | 33513-S50-003 | Socket - T20W S2 | Socket - T20W S2 |
| 4 | 39210-TA0-A01 | Microphone assy - ANC | Microphone assy - ANC |
| 6 | 74641-TL0-G00 | Insulator - R. RR. WHEELHOUSE | Insulator - R. RR. WHEELHOUSE |
| 7 | 74691-TL0-G00 | Insulator - L. RR. WHEELHOUSE | Insulator - L. RR. WHEELHOUSE |
| 28 | 90676-SE0-003 | Clip - JOINT COVER PLATE | Clip - JOINT COVER PLATE |
| 29 | 91560-SLJ-J01 | Clip - DOOR LINING (LIGHT GRAY) | Clip - DOOR LINING (LIGHT GRAY) |
| 31 | 91902-SNA-003 | Plaster - WIRE HARNESS(50X50) | Plaster - WIRE HARNESS(50X50) |
Rear windshield/ quarter glass 1 / 20
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 20 | 91568-TA0-A00 | Clip, FR. Windshield (Upper) | Clip, FR. Windshield (Upper) |
Regulator body (L4) 5 / 23
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 10 | 27263-PX3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 11 | 27524-P6H-000 | Clip - CAP | Clip - CAP |
| 18 | 90001-PRP-000 | Bolt - FLANGE, 6X30 | Bolt - FLANGE, 6X30 |
| 19 | 90089-PK4-000 | Bolt - STOPPER, 6MM | Bolt - STOPPER, 6MM |
| 23 | 91331-PC9-003 | O-ring | O-ring |
Resonator chamber (L4) 3 / 13
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 2 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 12 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 13 | 91505-S9A-003 | Clip A - BUMPER | Clip A - BUMPER |
Roof lining 6 / 6
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 4 | 83231-TA0-A91 | Bulb | Bulb |
| 5 | 83232-TA0-A91 | Lens a | Lens a |
| 6 | 83233-TA0-A91 | Lens b | Lens b |
| 10 | 83247-SNA-A01 | Clip - GRAB RAIL | Clip - GRAB RAIL |
| 13 | 91560-SLJ-J01 | Clip - DOOR LINING (LIGHT GRAY) | Clip - DOOR LINING (LIGHT GRAY) |
| 14 | 91560-SYA-J01 | Clip - PILLAR GARNISH (DARK GREEN) | Clip - PILLAR GARNISH (DARK GREEN) |

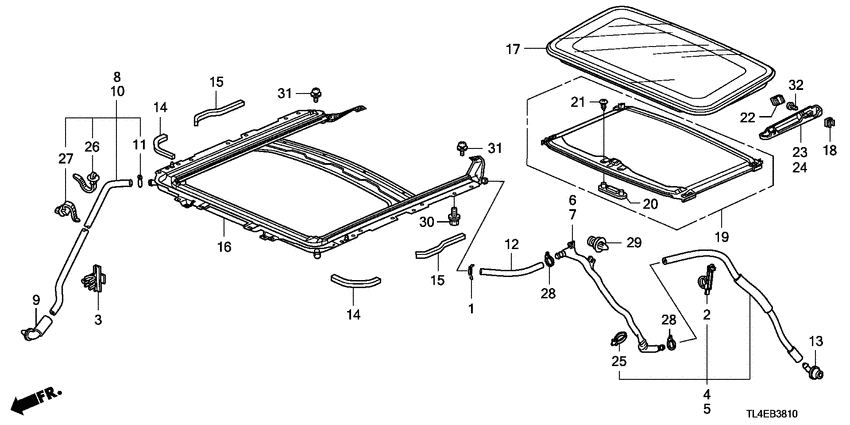

Roof slide components 1 / 10
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 2 | 70229-SDA-A01 | Bolt - SOCKET, 5X7 | Bolt - SOCKET, 5X7 |
Seatbelts 4 / 24
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 9 | 81441-S50-J22 | Collar - 2H | Collar - 2H |
| 18 | 90123-S04-J30 | Washer - WAVE | Washer - WAVE |
| 29 | 90543-S50-004 | Washer - SPRING | Washer - SPRING |
| 30 | 90543-S50-902 | Washer - SPRING | Washer - SPRING |
Secondary shaft (L4) 5 / 45
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 22814-PRP-003 | Ring - SEALING, 29MM | Ring - SEALING, 29MM |
| 7 | 90201-PRP-000 | Nut - FLANGE, 24MM (LEFT HAND THREAD) | Nut - FLANGE, 24MM (LEFT HAND THREAD) |
| 8 | 90402-P0Z-000 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 19 | 91316-PR9-003 | O-ring - 33X1.9 (ARAI) | O-ring - 33X1.9 (ARAI) |
| 20 | 91326-P4V-003 | O-ring - 26.7X1.9(NOK) | O-ring - 26.7X1.9(NOK) |
Select lever 2 / 13
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 17 | 90351-SB2-003 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 18 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
Servo body (L4) 6 / 26
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 5 | 27263-PX3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 19 | 90001-PRP-000 | Bolt - FLANGE, 6X30 | Bolt - FLANGE, 6X30 |
| 21 | 91301-P7Z-004 | O-ring - 7.6X1.9 (DENSO) | O-ring - 7.6X1.9 (DENSO) |
| 22 | 91302-P7Z-004 | O-ring - 9.6X1.9 (DENSO) | O-ring - 9.6X1.9 (DENSO) |
| 24 | 91331-PC9-003 | O-ring | O-ring |
| 26 | 91344-580-000 | O-ring - 31X2.7 (ARAI) | O-ring - 31X2.7 (ARAI) |
Shift fork (L4) 5 / 11
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 2 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 4 | 24634-PRP-060 | Spring - DETENT LEVER | Spring - DETENT LEVER |
| 9 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 10 | 91209-612-003 | Oil seal - 12X22X7 (ARAI) | Oil seal - 12X22X7 (ARAI) |
| 11 | 91308-PW4-003 | O-ring - 21.8X1.9 | O-ring - 21.8X1.9 |
Side lining 1 / 1
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 3 | 91560-SLJ-J01 | Clip - DOOR LINING (LIGHT GRAY) | Clip - DOOR LINING (LIGHT GRAY) |
Sliding roof 8 / 18
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 18534-634-670 | Clip - AIR HOSE, 16MM | Clip - AIR HOSE, 16MM |
| 4 | 70052-S6A-J00 | Valve - FR. DRAIN (SUNROOF) | Valve - FR. DRAIN (SUNROOF) |
| 5 | 70057-SNA-A00 | Clip - SUNROOF DRAIN TUBE | Clip - SUNROOF DRAIN TUBE |
| 7 | 70081-SDA-A01 | Seal a - FRAME | Seal a - FRAME |
| 12 | 70225-SDA-A01 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 15 | 70617-S5A-J01 | Screw - TAPPING, 4X7 (PO) | Screw - TAPPING, 4X7 (PO) |
| 16 | 70623-SM4-003 | Cap - STAY COVER | Cap - STAY COVER |
| 20 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
Solenoid (L4) 5 / 18
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 14 | 28820-R29-003 | Pick up assy. | Pick up assy. |
| 15 | 90471-PW7-A00 | PACKING, 10MM | PACKING, 10MM |
| 16 | 91301-PC9-003 | O-ring - 7.7X2.3 (ARAI) | O-ring - 7.7X2.3 (ARAI) |
| 17 | 91309-PX4-003 | O-ring - 16X2.1 (NOK) | O-ring - 16X2.1 (NOK) |
| 18 | 91329-PRP-003 | O-ring - 23.3X2.4 | O-ring - 23.3X2.4 |
Spool valve (L4) 1 / 16
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
Srs unit 16 / 29
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
| 9 | 77970-TC0-A11 | Sensor assy - SIDE IMPACT(TRW) | Sensor assy - SIDE IMPACT(TRW) |
| 11 | 78819-STK-A81 | Clip - SIDE CURTAIN AIRBAG (8.5MM) | Clip - SIDE CURTAIN AIRBAG (8.5MM) |
| 16 | 90133-SDC-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 17 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 19 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 20 | 90178-SNA-003 | Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG) | Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG) |
| 21 | 91533-STK-003 | Clip - COUPLER(NATURAL) | Clip - COUPLER(NATURAL) |
| 22 | 91540-STK-003 | Clip - HARNESS BAND (BLACK) (155.3MM) | Clip - HARNESS BAND (BLACK) (155.3MM) |
| 23 | 91540-TA0-003 | Clip - HARNESS BAND(NATURAL) (100.1MM) | Clip - HARNESS BAND(NATURAL) (100.1MM) |
| 24 | 91542-SNA-003 | Clip - HARNESS BAND(DARK BLUE) (164.5MM) | Clip - HARNESS BAND(DARK BLUE) (164.5MM) |
| 25 | 91545-SJA-003 | Clip - WIRE HARNESS(SEAL) (125MM) | Clip - WIRE HARNESS(SEAL) (125MM) |
| 26 | 91545-SNA-003 | Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL) | Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL) |
| 27 | 91559-ST5-003 | Clip - HARNESS BAND OFFSET(30) (NATURAL) | Clip - HARNESS BAND OFFSET(30) (NATURAL) |
| 28 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 29 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
Starter motor (DENSO; L4) 2 / 29
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 19 | 31218-P3F-003 | Washer a | Washer a |
| 21 | 31220-PH9-004 | Nut - HEX., 8MM | Nut - HEX., 8MM |
Steering column 5 / 7
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 3 | 77873-SDA-E80 | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) |
| 4 | 90135-SDA-000 | Bolt - STEERING JOINT YOKE | Bolt - STEERING JOINT YOKE |
| 4 | 90135-SZT-000 | Bolt - STEERING JOINT YOKE | Bolt - STEERING JOINT YOKE |
| 5 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 6 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
Steering wheel (SRS) 6 / 11
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 11 | 78520-TA0-A81 | Damper comp - STEERING | Damper comp - STEERING |
| 13 | 78523-TA0-A81 | Spring - HORN | Spring - HORN |
| 14 | 78524-TA0-A81 | Bolt - TORX, (M5X8) | Bolt - TORX, (M5X8) |
| 15 | 78525-TA0-A81 | Plate - HOOK | Plate - HOOK |
| 16 | 90134-S6A-A80 | Bolt - HEX., 6X23 | Bolt - HEX., 6X23 |
| 17 | 90161-SV4-003 | Bolt - STEERING HANDLE | Bolt - STEERING HANDLE |
Switch 2 / 7
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 35300-SMA-003 | Switch assy - VSA OFF | Switch assy - VSA OFF |
| 7 | 35855-SMA-003 | Bulb comp. - 14V 80MA | Bulb comp. - 14V 80MA |
Taillight/license light 4 / 14
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
| 5 | 33514-S50-003 | Socket - T20W S3 | Socket - T20W S3 |
| 10 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 12 | 34906-ST5-003 | Bulb - 12V 21W/5W) (STANLEY | Bulb - 12V 21W/5W) (STANLEY |
Tire/wheel disks 12 / 36
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 6 | 42753-671-003 | Valve - RIM (TAIHEIYO) | Valve - RIM (TAIHEIYO) |
| 6 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 10 | 44724-TP6-A01 | WEIGHT (20G) | WEIGHT (20G) |
| 10 | 44727-TP6-A01 | WEIGHT (35G) | WEIGHT (35G) |
| 10 | 44726-TP6-A01 | WEIGHT (30G) | WEIGHT (30G) |
| 10 | 44721-TP6-A01 | WEIGHT, BALANCE (5G) | WEIGHT, BALANCE (5G) |
| 10 | 44723-TP6-A01 | WEIGHT (15G) | WEIGHT (15G) |
| 10 | 44721-S5A-A20 | Weight - BALANCE (10G) | Weight - BALANCE (10G) |
| 10 | 44725-TP6-A01 | WEIGHT (25G) | WEIGHT (25G) |
| 11 | 44732-S9A-A00 | Cap - ALUMINIUM WHEEL CENTER | Cap - ALUMINIUM WHEEL CENTER |
| 12 | 74651-S2X-003 | Adapter - SPARE TIRE | Adapter - SPARE TIRE |
| 13 | 74652-SDA-003 | Bolt - SPARE TIRE | Bolt - SPARE TIRE |
Tools/jack 2 / 7
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 5 | 89310-SFE-003 | Jack assy - PANTOGRAPH | Jack assy - PANTOGRAPH |
| 6 | 89311-SFE-003 | Plate - JACK CAUTION | Plate - JACK CAUTION |
Torque converter case (L4) 8 / 19
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 1 | 21101-PRP-000 | Plate - BEARING SETTING | Plate - BEARING SETTING |
| 1 | 21101-RG0-A00 | Plate - BEARING SETTING | Plate - BEARING SETTING |
| 5 | 25422-PN6-801 | Magnet comp. - TRANSMISSION | Magnet comp. - TRANSMISSION |
| 6 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 7 | 90081-PX4-003 | Bolt - PLUG, 18MM | Bolt - PLUG, 18MM |
| 8 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 9 | 90471-PX4-000 | Washer - DRAIN PLUG, 18MM | Washer - DRAIN PLUG, 18MM |
| 10 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
Transmission case (L4) 2 / 18
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 13 | 90615-P0Z-000 | Ring - SNAP, 82MM | Ring - SNAP, 82MM |
| 18 | 91205-P0X-005 | Oil seal - 40X56X9 (NOK) | Oil seal - 40X56X9 (NOK) |
Trunk lid 1 / 21
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 29 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
Under cover 4 / 10
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 7 | 90103-TA0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 8 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 9 | 90207-RAA-A10 | Nut - HEX. CAP, 6MM | Nut - HEX. CAP, 6MM |
| 10 | 90682-SDA-A01 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Valve/rocker arm (L4) 1 / 14
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 11 | 14781-RGM-A01 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
Vsa modulator 1 / 4
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 4 | 57376-SNA-A00 | Bolt - MOUNTING | Bolt - MOUNTING |
Water hose (L4) 4 / 13
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 4 | 90661-SL5-003 | Clip, WATER HOSE | Clip, WATER HOSE |
| 5 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 5 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 6 | 91551-SD5-003 | Clamp - HEATER | Clamp - HEATER |
Water pump (L4) 2 / 17
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 12 | 37870-RWC-A01 | Water Temp Sensor assy - (PANASONIC) | Water Temp Sensor assy - (PANASONIC) |
| 17 | 91307-PLC-004 | O-ring - 9.5X1.9 (MATSUSHITA) | O-ring - 9.5X1.9 (MATSUSHITA) |
Windshield washer 2 / 19
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 15 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 18 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Wire harness (1) 2 / 7
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 6 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 7 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
Wire harness (2) 1 / 5
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 5 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
Wire harness (3) 2 / 9
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 11 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 12 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| # | OEM | CS1 | CW3 |
|---|---|---|---|
| 3 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 2 | 06351-TE0-A11 | Lock assy - STEERING | Lock assy - STEERING |
| 4 | 11106-PR4-013 | Bolt - SEALING, 28MM | Bolt - SEALING, 28MM |
| 1 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 11 | 14781-RGM-A01 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 10 | 15115-R40-A01 | Metal - BALANCER SHAFT(DAIDO) | Metal - BALANCER SHAFT(DAIDO) |
| 11 | 15123-PCX-003 | Dowel pin - 18X13 | Dowel pin - 18X13 |
| 7 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 3 | 16725-RAC-003 | Clamp - FUEL HOSE (NATURAL) | Clamp - FUEL HOSE (NATURAL) |
| 3 | 17046-SWE-T00 | Nut & packing set - FUEL LOCK | Nut & packing set - FUEL LOCK |
| 5 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 7 | 17508-TA0-G01 | Clip - FUEL VENT | Clip - FUEL VENT |
| 8 | 17512-TA0-A01 | Cushion - FUEL TANK | Cushion - FUEL TANK |
| 9 | 17513-TA0-A00 | Circlip - PROTECTOR | Circlip - PROTECTOR |
| 10 | 17518-TA0-A00 | Protector - FUEL TANK | Protector - FUEL TANK |
| 11 | 17521-TA0-A00 | Band - R. FUEL TANK MOUNTING | Band - R. FUEL TANK MOUNTING |
| 12 | 17522-TA0-A00 | Band - L. FUEL TANK MOUNTING | Band - L. FUEL TANK MOUNTING |
| 13 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 14 | 17651-TA0-G01 | Tube comp - FILLER NECK | Tube comp - FILLER NECK |
| 15 | 17652-SDA-A31 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 16 | 17652-SEL-003 | Clip - FILLER TUBE (39MM) | Clip - FILLER TUBE (39MM) |
| 17 | 17653-TA0-G01 | Tube assy - BREATHER | Tube assy - BREATHER |
| 5 | 17711-S84-004 | Retainer - WHITE)(SANOH | Retainer - WHITE)(SANOH |
| 8 | 17762-TA0-A00 | Stay b - FUEL PIPE | Stay b - FUEL PIPE |
| 2 | 18176-PT0-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 5 | 18215-S84-A20 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 11 | 18302-SP0-003 | Gasket - EX. PIPE | Gasket - EX. PIPE |
| 1 | 18534-634-670 | Clip - AIR HOSE, 16MM | Clip - AIR HOSE, 16MM |
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 7 | 19030-R40-A01 | Motor - COOLING FAN (DENSO) | Motor - COOLING FAN (DENSO) |
| 8 | 19503-RAA-A01 | Connector - QUICK WATER | Connector - QUICK WATER |
| 9 | 19506-RAA-A01 | Wire | Wire |
| 11 | 19507-RAA-A01 | O-ring | O-ring |
| 5 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 1 | 21101-PRP-000 | Plate - BEARING SETTING | Plate - BEARING SETTING |
| 1 | 21101-RG0-A00 | Plate - BEARING SETTING | Plate - BEARING SETTING |
| 7 | 22713-PW4-000 | Guide a - FEED PIPE | Guide a - FEED PIPE |
| 1 | 22814-PRP-003 | Ring - SEALING, 29MM | Ring - SEALING, 29MM |
| 11 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 4 | 24634-PRP-060 | Spring - DETENT LEVER | Spring - DETENT LEVER |
| 1 | 25145-PA9-010 | Shaft - OIL PUMP GEAR | Shaft - OIL PUMP GEAR |
| 16 | 25216-P72-003 | Clip - ATF HOSE (BLACK) | Clip - ATF HOSE (BLACK) |
| 5 | 25422-PN6-801 | Magnet comp. - TRANSMISSION | Magnet comp. - TRANSMISSION |
| 12 | 25951-RGR-000 | Bolt - JOINT | Bolt - JOINT |
| 4 | 27122-P6H-000 | Cap - 12MM | Cap - 12MM |
| 6 | 27142-P6H-000 | Cap - 15MM | Cap - 15MM |
| 7 | 27263-PX3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 8 | 27524-P6H-000 | Clip - CAP | Clip - CAP |
| 14 | 28820-R29-003 | Pick up assy. | Pick up assy. |
| 2 | 31101-RTA-003 | Rotor assy. | Rotor assy. |
| 5 | 31111-PT0-003 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 6 | 31114-PGK-A01 | Bearing - FR. | Bearing - FR. |
| 9 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 12 | 31145-PGK-A01 | Bolt | Bolt |
| 13 | 31146-PE9-941 | Screw-washer | Screw-washer |
| 14 | 31147-PT0-003 | Screw-washer | Screw-washer |
| 19 | 31218-P3F-003 | Washer a | Washer a |
| 21 | 31220-PH9-004 | Nut - HEX., 8MM | Nut - HEX., 8MM |
| 3 | 32112-S2K-003 | Band - CABLE (90MM) | Band - CABLE (90MM) |
| 5 | 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
| 6 | 32133-SLA-003 | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) |
| 7 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 8 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 9 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 3 | 33115-S84-A11 | Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) | Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) |
| 4 | 33126-SNA-A01 | Cover - RUBBER | Cover - RUBBER |
| 5 | 33130-SJK-J01 | Adjuster unit - HEADLIGHT | Adjuster unit - HEADLIGHT |
| 1 | 33165-S5A-003 | Bulb - H11) (12V 55W) (STANLEY | Bulb - H11) (12V 55W) (STANLEY |
| 1 | 33165-SAA-003 | Bulb - H11) (12V 55W) (KOITO | Bulb - H11) (12V 55W) (KOITO |
| 10 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 8 | 33301-SNA-003 | Bulb - 12V 5W) (STANLEY | Bulb - 12V 5W) (STANLEY |
| 1 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
| 11 | 33305-S5A-003 | Socket comp - T10 | Socket comp - T10 |
| 2 | 33513-S50-003 | Socket - T20W S2 | Socket - T20W S2 |
| 5 | 33514-S50-003 | Socket - T20W S3 | Socket - T20W S3 |
| 1 | 34251-S5A-003 | Lens | Lens |
| 3 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 5 | 34295-SJ8-003 | Bulb - 12V 5W) (DAIICHI | Bulb - 12V 5W) (DAIICHI |
| 5 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
| 7 | 34401-SDA-A21 | Lens - R. | Lens - R. |
| 9 | 34402-SDA-A21 | Lens - L. | Lens - L. |
| 11 | 34404-SDA-A22 | Base comp. | Base comp. |
| 12 | 34906-ST5-003 | Bulb - 12V 21W/5W) (STANLEY | Bulb - 12V 21W/5W) (STANLEY |
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 5 | 35108-S30-003 | Holder - COLUMN | Holder - COLUMN |
| 8 | 35118-SNB-A00 | Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK) | Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK) |
| 14 | 35130-TA0-901 | Switch comp - STEERING | Switch comp - STEERING |
| 15 | 35251-TA0-B11 | Sensor assy - STEERING & BODY SWITCH | Sensor assy - STEERING & BODY SWITCH |
| 1 | 35300-SMA-003 | Switch assy - VSA OFF | Switch assy - VSA OFF |
| 13 | 35831-SMA-003 | Bulb comp. - 14V 60MA | Bulb comp. - 14V 60MA |
| 7 | 35855-SMA-003 | Bulb comp. - 14V 80MA | Bulb comp. - 14V 80MA |
| 2 | 36750-SMA-003 | Switch assy - STOP & CRUISE (PANASONIC) | Switch assy - STOP & CRUISE (PANASONIC) |
| 16 | 37241-RNA-A01 | Switch assy, OIL PRESSURE | Switch assy, OIL PRESSURE |
| 11 | 37870-RWC-A01 | Water Temp Sensor assy - (PANASONIC) | Water Temp Sensor assy - (PANASONIC) |
| 6 | 38211-SNA-A01 | Fuse - BLOCK (20A) | Fuse - BLOCK (20A) |
| 7 | 38211-SNA-A21 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 3 | 38221-SNA-A31 | Fuse - BLADE(7.5A) | Fuse - BLADE(7.5A) |
| 4 | 38221-SNA-A41 | Fuse - BLADE(10A) | Fuse - BLADE(10A) |
| 5 | 38221-SNA-A51 | Fuse - BLADE(15A) | Fuse - BLADE(15A) |
| 6 | 38221-SNA-A61 | Fuse - BLADE(20A) | Fuse - BLADE(20A) |
| 12 | 38221-SNA-A81 | Fuse - BLADE(30A) | Fuse - BLADE(30A) |
| 13 | 38231-SEP-A01 | Fuse a - MULTI BLOCK (100A/40A) | Fuse a - MULTI BLOCK (100A/40A) |
| 14 | 38232-TA0-A11 | Fuse - MULTI BLOCK(D-2) | Fuse - MULTI BLOCK(D-2) |
| 16 | 38235-TA0-A01 | Puller - FUSE | Puller - FUSE |
| 19 | 38255-SNA-003 | Detector unit - ELECTRONIC LOAD | Detector unit - ELECTRONIC LOAD |
| 1 | 38773-PR3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 2 | 38801-P9K-E01 | Valve sub assy. - SAFETY | Valve sub assy. - SAFETY |
| 5 | 38812-671-003 | Ring a - SNAP | Ring a - SNAP |
| 4 | 38812-PH1-003 | Ring b - SNAP | Ring b - SNAP |
| 8 | 38827-PH7-003 | Screw-washer - 5X8 | Screw-washer - 5X8 |
| 9 | 38829-PR3-003 | Bolt - WASHER HEAD | Bolt - WASHER HEAD |
| 11 | 38912-PH1-N01 | Plate set - WASHER | Plate set - WASHER |
| 4 | 39210-TA0-A01 | Microphone assy - ANC | Microphone assy - ANC |
| 1 | 39248-692-003 | Packing - HEATER | Packing - HEATER |
| 2 | 39610-S2H-G01 | Knob assy | Knob assy |
| 3 | 39620-S0X-003 | Socket assy | Socket assy |
| 4 | 39620-TA0-003 | Cap assy. | Cap assy. |
| 5 | 39624-SZ3-L01 | Socket assy | Socket assy |
| 6 | 39630-SFE-003 | Ring assy - TYPE INCLUDING BULB | Ring assy - TYPE INCLUDING BULB |
| 1 | 39792-SDA-A01 | Relay assy - MICRO ISO | Relay assy - MICRO ISO |
| 3 | 39794-SDA-003 | Relay assy - FUEL PUMP (MITSUBA) | Relay assy - FUEL PUMP (MITSUBA) |
| 8 | 39794-SDA-901 | Relay assy, ENGINE CONTROL MODULE (MITSUBA) | Relay assy, ENGINE CONTROL MODULE (MITSUBA) |
| 8 | 39794-SDA-902 | Relay assy, ENGINE CONTROL MODULE (DENSO) | Relay assy, ENGINE CONTROL MODULE (DENSO) |
| 1 | 39885-S5A-G11 | Label - IMMOBILIZER & SECURITY | Label - IMMOBILIZER & SECURITY |
| 1 | 42524-SNA-003 | Clip - COUPLER (BLACK) | Clip - COUPLER (BLACK) |
| 3 | 42528-TA0-A01 | Clip - COUPLER | Clip - COUPLER |
| 6 | 42753-671-003 | Valve - RIM (TAIHEIYO) | Valve - RIM (TAIHEIYO) |
| 6 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 9 | 43235-S84-A51 | Pin a | Pin a |
| 13 | 43262-S84-A51 | Pin b | Pin b |
| 3 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 4 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 5 | 44300-TA0-A51 | Bearing assy - FR. HUB | Bearing assy - FR. HUB |
| 11 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 13 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 2 | 44348-TA0-A00 | Ring - FR. KNUCKLE | Ring - FR. KNUCKLE |
| 6 | 44600-TA0-A00 | Hub assy - FR. | Hub assy - FR. |
| 10 | 44721-S5A-A20 | Weight - BALANCE (10G) | Weight - BALANCE (10G) |
| 10 | 44721-TP6-A01 | WEIGHT, BALANCE (5G) | WEIGHT, BALANCE (5G) |
| 10 | 44723-TP6-A01 | WEIGHT (15G) | WEIGHT (15G) |
| 10 | 44724-TP6-A01 | WEIGHT (20G) | WEIGHT (20G) |
| 10 | 44725-TP6-A01 | WEIGHT (25G) | WEIGHT (25G) |
| 10 | 44726-TP6-A01 | WEIGHT (30G) | WEIGHT (30G) |
| 10 | 44727-TP6-A01 | WEIGHT (35G) | WEIGHT (35G) |
| 11 | 44732-S9A-A00 | Cap - ALUMINIUM WHEEL CENTER | Cap - ALUMINIUM WHEEL CENTER |
| 17 | 45240-SC2-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 15 | 45255-TA0-A00 | Guard - FR. SPLASH | Guard - FR. SPLASH |
| 4 | 46135-SDA-A01 | Guide assy - PISTON | Guide assy - PISTON |
| 5 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 6 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 7 | 46191-SDA-A00 | Gasket - MASTER POWER | Gasket - MASTER POWER |
| 13 | 46391-S5A-Z01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 12 | 46391-STK-A01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 15 | 46392-TA1-A01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 16 | 46393-SFA-003 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 10 | 46407-STK-A01 | Clamp - TUBE | Clamp - TUBE |
| 18 | 46428-TA0-A00 | Bracket - R. FR. BRAKE HOSE | Bracket - R. FR. BRAKE HOSE |
| 19 | 46429-TA0-A00 | Bracket - L. FR. BRAKE HOSE | Bracket - L. FR. BRAKE HOSE |
| 20 | 46435-TA0-A00 | Bracket a - R. RR. BRAKE HOSE | Bracket a - R. RR. BRAKE HOSE |
| 21 | 46436-TA0-A00 | Bracket a - L. RR. BRAKE HOSE | Bracket a - L. RR. BRAKE HOSE |
| 22 | 46438-TA0-A00 | Bracket b - R. RR. BRAKE HOSE | Bracket b - R. RR. BRAKE HOSE |
| 23 | 46439-TA0-A00 | Bracket b - L. RR. BRAKE HOSE | Bracket b - L. RR. BRAKE HOSE |
| 24 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 25 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 3 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 11 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 5 | 46545-S84-A81 | Cover - PEDAL | Cover - PEDAL |
| 12 | 46661-SDA-A01 | Reservoir set | Reservoir set |
| 13 | 46662-S9A-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 14 | 46665-S04-J01 | Grommet | Grommet |
| 15 | 46666-S2K-003 | Filter - BRAKE RESERVOIR | Filter - BRAKE RESERVOIR |
| 16 | 46669-S5A-003 | Diaphragm | Diaphragm |
| 17 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 8 | 46982-TA0-A81 | Bush - RETURN SPRING | Bush - RETURN SPRING |
| 4 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 6 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 9 | 47572-ST0-000 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 4 | 50260-TA0-A01 | Rubber - FR. SUB FRAME MOUNTING | Rubber - FR. SUB FRAME MOUNTING |
| 5 | 50261-TA0-A01 | Rubber - FR. SUB FRAME STOPPER | Rubber - FR. SUB FRAME STOPPER |
| 6 | 50265-TA0-A00 | Stay - R. FR. SUB FRAME MOUNTING(FR.) | Stay - R. FR. SUB FRAME MOUNTING(FR.) |
| 7 | 50266-TA0-A00 | Stay - L. FR. SUB FRAME MOUNTING(FR.) | Stay - L. FR. SUB FRAME MOUNTING(FR.) |
| 9 | 50280-SDA-A01 | Rubber - R. FR. SUB FRAME MIDDLE MOUNTING | Rubber - R. FR. SUB FRAME MIDDLE MOUNTING |
| 10 | 50285-SDA-A01 | Rubber - L. FR. SUB FRAME MIDDLE MOUNTING | Rubber - L. FR. SUB FRAME MIDDLE MOUNTING |
| 12 | 50360-TA0-A01 | Rubber - RR. SUB FRAME FR. MOUNTING | Rubber - RR. SUB FRAME FR. MOUNTING |
| 13 | 50365-TA0-A00 | Stay - RR. SUB FRAME MOUNTING (FR.) | Stay - RR. SUB FRAME MOUNTING (FR.) |
| 14 | 50370-TA0-A01 | Rubber - RR. SUB FRAME RR. MOUNTING | Rubber - RR. SUB FRAME RR. MOUNTING |
| 5 | 51220-TA0-A02 | Joint comp - FR. LOWER BALL | Joint comp - FR. LOWER BALL |
| 6 | 51225-TA0-A01 | Boot - FR. LOWER BALL DUST | Boot - FR. LOWER BALL DUST |
| 4 | 51226-SL0-003 | Circlip - LOWER BALL | Circlip - LOWER BALL |
| 7 | 51226-TA0-A01 | Circlip - LOWER BALL(FR.) | Circlip - LOWER BALL(FR.) |
| 1 | 51271-TA0-A01 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 2 | 51281-TA0-A01 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 4 | 51306-TA0-A01 | Bush - FR. STABILIZER HOLDER | Bush - FR. STABILIZER HOLDER |
| 5 | 51308-SDA-A00 | Bracket - FR. STABILIZER | Bracket - FR. STABILIZER |
| 6 | 51320-TA0-A01 | Link comp - R. FR. STABILIZER | Link comp - R. FR. STABILIZER |
| 7 | 51325-TA0-A01 | Link comp - L. FR. STABILIZER | Link comp - L. FR. STABILIZER |
| 8 | 51350-TA0-A00 | Arm comp - R. FR. LOWER | Arm comp - R. FR. LOWER |
| 9 | 51360-TA0-A00 | Arm comp - L. FR. LOWER | Arm comp - L. FR. LOWER |
| 10 | 51391-TA0-A01 | Bush - FR. COMPLIANCE | Bush - FR. COMPLIANCE |
| 11 | 51393-SDA-A02 | BUSH, FR. ARM (LOWER) | BUSH, FR. ARM (LOWER) |
| 8 | 51464-S04-013 | Boot, UPPER BALL JOINT | Boot, UPPER BALL JOINT |
| 9 | 51510-TA0-A03 | F/UPPER ARM RH - R. FR. UPPER | F/UPPER ARM RH - R. FR. UPPER |
| 10 | 51520-TA0-A03 | F/UPPER ARM LH - L. FR. UPPER | F/UPPER ARM LH - L. FR. UPPER |
| 5 | 51621-S84-A01 | Washer - SHOCK ABSORBER MOUNTING | Washer - SHOCK ABSORBER MOUNTING |
| 8 | 51675-TA0-A02 | Base - R. FR. SHOCK ABSORBER MOUNTING | Base - R. FR. SHOCK ABSORBER MOUNTING |
| 9 | 51676-TA0-A02 | Base - L. FR. SHOCK ABSORBER MOUNTING | Base - L. FR. SHOCK ABSORBER MOUNTING |
| 10 | 51684-SDA-A02 | Mount - FR. DUST COVER LOWER | Mount - FR. DUST COVER LOWER |
| 11 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 12 | 51686-TA0-A01 | Rubber - FR. SPRING MOUNT | Rubber - FR. SPRING MOUNT |
| 13 | 51688-SDA-A01 | Sleeve - FR. DUST COVER | Sleeve - FR. DUST COVER |
| 14 | 51689-SDA-A01 | Cover - FR. END DUST | Cover - FR. END DUST |
| 16 | 51722-SS0-004 | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) |
| 17 | 51728-SB0-003 | Collar - SHOCK ABSORBER MOUNTING(TOKICO) | Collar - SHOCK ABSORBER MOUNTING(TOKICO) |
| 4 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 12 | 51810-TA0-A01 | Bush - SHOCK ABSORBER FORK | Bush - SHOCK ABSORBER FORK |
| 9 | 52308-TA0-A00 | Bracket - RR. STABILIZER HOLDER | Bracket - RR. STABILIZER HOLDER |
| 10 | 52320-TA0-A01 | Link comp - R. RR. STABILIZER | Link comp - R. RR. STABILIZER |
| 11 | 52325-TA0-A01 | Link comp - L. RR. STABILIZER | Link comp - L. RR. STABILIZER |
| 11 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 12 | 52340-TA0-A00 | Arm comp - R. RR. CONTROL | Arm comp - R. RR. CONTROL |
| 13 | 52345-TA0-A00 | Arm comp - L. RR. CONTROL | Arm comp - L. RR. CONTROL |
| 14 | 52350-TA0-A00 | Arm comp. b - RR. LOWER | Arm comp. b - RR. LOWER |
| 1 | 52362-S30-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 18 | 52387-SJA-010 | Plate - CAM(M12) | Plate - CAM(M12) |
| 20 | 52514-TA0-A01 | Boot - RR. UPPER BALL | Boot - RR. UPPER BALL |
| 9 | 52675-TA0-A01 | Base - RR. SHOCK ABSORBER MOUNTING | Base - RR. SHOCK ABSORBER MOUNTING |
| 10 | 52686-SDA-A01 | Rubber - RR. SPRING MOUNTING | Rubber - RR. SPRING MOUNTING |
| 11 | 52687-TA0-A01 | Cover comp. - DUST | Cover comp. - DUST |
| 12 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 13 | 52722-SJA-003 | Rubber - RR. BUMP STOPPER | Rubber - RR. BUMP STOPPER |
| 14 | 52748-S0A-004 | Cover - RR. LOWER MOUNT DUST | Cover - RR. LOWER MOUNT DUST |
| 6 | 53414-S84-A01 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 3 | 53434-TA0-A02 | Clip - STEERING TIE ROD | Clip - STEERING TIE ROD |
| 9 | 53458-S84-A01 | Nut - LOCK | Nut - LOCK |
| 10 | 53537-S3N-003 | Rubber - STOPPER | Rubber - STOPPER |
| 11 | 53540-TA0-A01 | End comp - R. TIE ROD | End comp - R. TIE ROD |
| 12 | 53560-TA0-A01 | End comp - L. TIE ROD | End comp - L. TIE ROD |
| 18 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 19 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
| 4 | 57376-SNA-A00 | Bolt - MOUNTING | Bolt - MOUNTING |
| 12 | 57450-TA0-A01 | Sensor assy - R. FR. | Sensor assy - R. FR. |
| 13 | 57455-TA0-A01 | Sensor assy - L. FR. | Sensor assy - L. FR. |
| 37 | 57477-TA0-305 | Seal - LIP(BLACK) | Seal - LIP(BLACK) |
| 20 | 57515-S30-003 | Pin - STOP | Pin - STOP |
| 23 | 57562-SF1-003 | Circlip | Circlip |
| 2 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 4 | 70052-S6A-J00 | Valve - FR. DRAIN (SUNROOF) | Valve - FR. DRAIN (SUNROOF) |
| 5 | 70057-SNA-A00 | Clip - SUNROOF DRAIN TUBE | Clip - SUNROOF DRAIN TUBE |
| 7 | 70081-SDA-A01 | Seal a - FRAME | Seal a - FRAME |
| 12 | 70225-SDA-A01 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 2 | 70229-SDA-A01 | Bolt - SOCKET, 5X7 | Bolt - SOCKET, 5X7 |
| 15 | 70617-S5A-J01 | Screw - TAPPING, 4X7 (PO) | Screw - TAPPING, 4X7 (PO) |
| 16 | 70623-SM4-003 | Cap - STAY COVER | Cap - STAY COVER |
| 20 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
| 52 | 72118-TL0-003 | Seal | Seal |
| 10 | 72135-SDA-A01 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 16 | 72144-SJD-003 | Retainer | Retainer |
| 22 | 72148-S0A-000 | Battery CR1616 | Battery CR1616 |
| 20 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 4 | 74175-SJA-000 | Cushion - HOOD | Cushion - HOOD |
| 29 | 74250-SJA-A00 | Cover - VIN PLATE | Cover - VIN PLATE |
| 39 | 74387-S3C-003 | Fastener | Fastener |
| 14 | 74601-TA0-A00 | Plate a - FR. FLOOR HEAT BAFFLE | Plate a - FR. FLOOR HEAT BAFFLE |
| 6 | 74641-TL0-G00 | Insulator - R. RR. WHEELHOUSE | Insulator - R. RR. WHEELHOUSE |
| 12 | 74651-S2X-003 | Adapter - SPARE TIRE | Adapter - SPARE TIRE |
| 13 | 74652-SDA-003 | Bolt - SPARE TIRE | Bolt - SPARE TIRE |
| 16 | 74654-TA1-A00 | Plate - R. SILENCER BAFFLE | Plate - R. SILENCER BAFFLE |
| 22 | 74660-TA0-A00 | Cap assy. - FLOOR MAINTENANCE HOLE | Cap assy. - FLOOR MAINTENANCE HOLE |
| 7 | 74691-TL0-G00 | Insulator - L. RR. WHEELHOUSE | Insulator - L. RR. WHEELHOUSE |
| 41 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 2 | 75826-634-300 | Seal - INSIDE PANEL, 15MM | Seal - INSIDE PANEL, 15MM |
| 15 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 8 | 77113-TA0-A00 | Bracket - CENTER JOINT | Bracket - CENTER JOINT |
| 3 | 77873-SDA-E80 | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) |
| 9 | 77970-TC0-A11 | Sensor assy - SIDE IMPACT(TRW) | Sensor assy - SIDE IMPACT(TRW) |
| 8 | 78031-SDA-G80 | Label - SIDE AIRBAG CAUTION | Label - SIDE AIRBAG CAUTION |
| 11 | 78520-TA0-A81 | Damper comp - STEERING | Damper comp - STEERING |
| 13 | 78523-TA0-A81 | Spring - HORN | Spring - HORN |
| 14 | 78524-TA0-A81 | Bolt - TORX, (M5X8) | Bolt - TORX, (M5X8) |
| 15 | 78525-TA0-A81 | Plate - HOOK | Plate - HOOK |
| 11 | 78819-STK-A81 | Clip - SIDE CURTAIN AIRBAG (8.5MM) | Clip - SIDE CURTAIN AIRBAG (8.5MM) |
| 3 | 79021-TA0-A01 | Seal a | Seal a |
| 1 | 79022-TA0-A01 | Packing - AIR INTAKE | Packing - AIR INTAKE |
| 5 | 79024-TA0-A01 | Packing - RR. HEATER | Packing - RR. HEATER |
| 6 | 79030-TA0-A01 | Stay - HEATER PIPE | Stay - HEATER PIPE |
| 3 | 79306-TA0-A01 | Seal - BLOWER OUTER | Seal - BLOWER OUTER |
| 15 | 79330-SNA-A01 | Transistor - POWER | Transistor - POWER |
| 16 | 79731-S5A-000 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 6 | 80362-TA0-A00 | Clamp b - AIR CONDITIONER PIPE | Clamp b - AIR CONDITIONER PIPE |
| 1 | 80510-S0A-941 | Sensor - SUN BEAM | Sensor - SUN BEAM |
| 3 | 80525-S30-941 | Sensor assy - AMBIENT | Sensor assy - AMBIENT |
| 21 | 80534-S84-A41 | Aspirator | Aspirator |
| 9 | 81441-S50-J22 | Collar - 2H | Collar - 2H |
| 24 | 81653-SDB-A71 | Switch assy - L. (8WAY) | Switch assy - L. (8WAY) |
| 1 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 4 | 83231-TA0-A91 | Bulb | Bulb |
| 5 | 83232-TA0-A91 | Lens a | Lens a |
| 6 | 83233-TA0-A91 | Lens b | Lens b |
| 10 | 83247-SNA-A01 | Clip - GRAB RAIL | Clip - GRAB RAIL |
| 19 | 83253-TA0-A01 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 20 | 83254-TA0-A01 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 4 | 83335-TA0-A00 | Bracket assy - RR. HEATER DUCT | Bracket assy - RR. HEATER DUCT |
| 24 | 83425-TA0-A00 | Bracket comp. - CENTER CONSOLE | Bracket comp. - CENTER CONSOLE |
| 2 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 5 | 89310-SFE-003 | Jack assy - PANTOGRAPH | Jack assy - PANTOGRAPH |
| 6 | 89311-SFE-003 | Plate - JACK CAUTION | Plate - JACK CAUTION |
| 14 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 18 | 90001-PRP-000 | Bolt - FLANGE, 6X30 | Bolt - FLANGE, 6X30 |
| 14 | 90001-SDA-A00 | Bolt - FLANGE, 6X38(GUIDE) | Bolt - FLANGE, 6X38(GUIDE) |
| 14 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 30 | 90002-TA0-A00 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 14 | 90003-PNA-000 | Bolt - TENSIONER PIVOT | Bolt - TENSIONER PIVOT |
| 18 | 90004-PNA-000 | Bolt - CHAIN GUIDE | Bolt - CHAIN GUIDE |
| 20 | 90009-PY3-000 | DRAIN PLUG BOLT, 14MM | DRAIN PLUG BOLT, 14MM |
| 11 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 16 | 90013-R70-A01 | Bolt - SPECIAL, 8X11 | Bolt - SPECIAL, 8X11 |
| 12 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 3 | 90021-PNA-000 | Bolt - SPECIAL, 6X31 | Bolt - SPECIAL, 6X31 |
| 12 | 90021-SFA-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
| 4 | 90023-PA9-000 | Bolt - SPECIAL | Bolt - SPECIAL |
| 13 | 90023-PR7-A01 | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) |
| 24 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 8 | 90027-PND-A00 | Bolt - SPECIAL, 10X50 | Bolt - SPECIAL, 10X50 |
| 15 | 90041-P3G-003 | Screw-washer - 5X11 | Screw-washer - 5X11 |
| 16 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 17 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 22 | 90051-RGA-003 | Bolt - SPECIAL, 6X20.8 | Bolt - SPECIAL, 6X20.8 |
| 7 | 90081-PX4-003 | Bolt - PLUG, 18MM | Bolt - PLUG, 18MM |
| 19 | 90089-PK4-000 | Bolt - STOPPER, 6MM | Bolt - STOPPER, 6MM |
| 23 | 90100-SHJ-A00 | Bolt - FLANGE, 6X16.5 | Bolt - FLANGE, 6X16.5 |
| 12 | 90101-S2K-000 | Screw - TAPPING, 4X16(IT) | Screw - TAPPING, 4X16(IT) |
| 17 | 90101-S6A-000 | Bolt-washer - 8MM | Bolt-washer - 8MM |
| 42 | 90101-SFE-000 | Bolt-washer - 8MM | Bolt-washer - 8MM |
| 16 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Bolt - FLANGE, 8X22 (8.5MM) |
| 17 | 90102-S3N-003 | Bolt - FLANGE, 8X24.5 (10.5MM) | Bolt - FLANGE, 8X24.5 (10.5MM) |
| 20 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 17 | 90102-SFA-305 | Bolt - FLANGE, 8X18 (SERVICE) | Bolt - FLANGE, 8X18 (SERVICE) |
| 25 | 90102-SFE-000 | Bolt-washer - 8X23 | Bolt-washer - 8X23 |
| 18 | 90103-SJK-000 | Bolt - CALIPER MOUNTING | Bolt - CALIPER MOUNTING |
| 23 | 90103-TA0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 11 | 90104-SFE-003 | Bolt - FLANGE, 8X23 | Bolt - FLANGE, 8X23 |
| 12 | 90104-TA0-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 30 | 90105-SV1-000 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 17 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 24 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 16 | 90109-SDF-003 | Screw - TAPPING, 4X14 | Screw - TAPPING, 4X14 |
| 11 | 90109-SLJ-003 | Screw - 5X40 | Screw - 5X40 |
| 19 | 90110-S84-A00 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 26 | 90111-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 20 | 90111-TA0-A00 | Bolt-washer - 8X68 | Bolt-washer - 8X68 |
| 18 | 90113-S84-901 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 19 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 19 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 18 | 90113-SD4-901 | Bolt - WHEEL (MEIRA) | Bolt - WHEEL (MEIRA) |
| 18 | 90113-SD4-902 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 4 | 90113-SJA-A00 | Screw - TAPPING, 5X14 | Screw - TAPPING, 5X14 |
| 18 | 90113-SJK-901 | Bolt - WHEEL (THAI MEIRA) | Bolt - WHEEL (THAI MEIRA) |
| 19 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 23 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 24 | 90118-SNA-000 | Bolt - FLANGE, 12X84 | Bolt - FLANGE, 12X84 |
| 25 | 90118-TA0-A00 | Bolt - FLANGE, 12X90 | Bolt - FLANGE, 12X90 |
| 16 | 90118-TA0-A10 | Bolt-washer - 12X92 | Bolt-washer - 12X92 |
| 17 | 90119-SFE-000 | Bolt - FLANGE, 14X100 | Bolt - FLANGE, 14X100 |
| 40 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 28 | 90122-TA0-A01 | Screw - TAPPING, 4X14(PO) | Screw - TAPPING, 4X14(PO) |
| 18 | 90123-S04-J30 | Washer - WAVE | Washer - WAVE |
| 28 | 90123-SJA-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 21 | 90123-TA0-A00 | Bolt-washer - 6X18 | Bolt-washer - 6X18 |
| 29 | 90126-S5A-003 | Bolt - SOCKET, 5X40 | Bolt - SOCKET, 5X40 |
| 25 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 10 | 90127-S84-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 9 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 24 | 90129-TA0-000 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 23 | 90132-SFE-003 | Screw - EARTH, 5X18 | Screw - EARTH, 5X18 |
| 11 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 16 | 90133-SDC-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 16 | 90133-SM4-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 32 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 16 | 90134-S6A-A80 | Bolt - HEX., 6X23 | Bolt - HEX., 6X23 |
| 29 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 29 | 90135-S7A-J51 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
| 4 | 90135-SDA-000 | Bolt - STEERING JOINT YOKE | Bolt - STEERING JOINT YOKE |
| 4 | 90135-SZT-000 | Bolt - STEERING JOINT YOKE | Bolt - STEERING JOINT YOKE |
| 17 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 12 | 90140-SDA-A00 | Bolt-washer - 5X19 | Bolt-washer - 5X19 |
| 18 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 41 | 90141-SDA-000 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 30 | 90144-SA0-020 | Bolt - BUMPER SETTING (6X15) (BLACK) | Bolt - BUMPER SETTING (6X15) (BLACK) |
| 29 | 90144-TA0-A01 | Screw - TAPPING, 4X12 (PO) | Screw - TAPPING, 4X12 (PO) |
| 22 | 90148-S6A-013 | Bolt - EARTH, 5X14 | Bolt - EARTH, 5X14 |
| 12 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 31 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 10 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 9 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 25 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |
| 12 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 24 | 90160-S5A-003 | Screw - TRUSS, 6X12 | Screw - TRUSS, 6X12 |
| 20 | 90160-TA0-A00 | Bolt-washer - 12X44 | Bolt-washer - 12X44 |
| 17 | 90161-SV4-003 | Bolt - STEERING HANDLE | Bolt - STEERING HANDLE |
| 27 | 90165-SDA-A00 | Bolt - FLANGE, 12X45 | Bolt - FLANGE, 12X45 |
| 21 | 90165-SE0-000 | Bolt - FLANGE, 10X37 | Bolt - FLANGE, 10X37 |
| 21 | 90166-TA0-A00 | Bolt - FLANGE, 8X16 | Bolt - FLANGE, 8X16 |
| 14 | 90172-SDA-A00 | Bolt - FLANGE, 10X78 | Bolt - FLANGE, 10X78 |
| 26 | 90175-TA0-A00 | Bolt - FLANGE, 14X100 | Bolt - FLANGE, 14X100 |
| 27 | 90176-SDA-A00 | Bolt - FLANGE, 14X135 | Bolt - FLANGE, 14X135 |
| 28 | 90177-SDA-A00 | Bolt - FLANGE, 14X150 | Bolt - FLANGE, 14X150 |
| 20 | 90178-SNA-003 | Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG) | Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG) |
| 27 | 90178-TA0-A00 | Bolt - RR. CONTROL ARM ADJUST | Bolt - RR. CONTROL ARM ADJUST |
| 28 | 90181-S84-A00 | Bolt - TRAILING ARM, 12X68 | Bolt - TRAILING ARM, 12X68 |
| 15 | 90182-TA0-A00 | Bolt - FLANGE, 12X80 | Bolt - FLANGE, 12X80 |
| 29 | 90186-SDA-A00 | Bolt - FLANGE, 12X33 | Bolt - FLANGE, 12X33 |
| 14 | 90201-PRP-000 | Nut - FLANGE, 24MM (LEFT HAND THREAD) | Nut - FLANGE, 24MM (LEFT HAND THREAD) |
| 9 | 90207-RAA-A10 | Nut - HEX. CAP, 6MM | Nut - HEX. CAP, 6MM |
| 17 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 19 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 15 | 90231-PGK-A01 | Nut - HEX., 5MM | Nut - HEX., 5MM |
| 18 | 90300-S84-A00 | Nut - SHOCK ABSORBER FLANGE (10MM) | Nut - SHOCK ABSORBER FLANGE (10MM) |
| 26 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 6 | 90301-ST0-003 | push nut, 3mm | push nut, 3mm |
| 22 | 90305-S3V-A11 | Nut - SPINDLE | Nut - SPINDLE |
| 20 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 15 | 90309-SJA-000 | Nut - CASTLE, 14MM | Nut - CASTLE, 14MM |
| 13 | 90309-SLJ-003 | Nut assy. - SPEAKER | Nut assy. - SPEAKER |
| 16 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 30 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 13 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 17 | 90351-SB2-003 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 13 | 90361-S3C-003 | Nut - PAINT CUTTING, 8MM | Nut - PAINT CUTTING, 8MM |
| 5 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 12 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 24 | 90361-TA0-A00 | Nut - CAP, 6MM | Nut - CAP, 6MM |
| 31 | 90362-SJA-000 | Nut - SELF-LOCK, 12MM (NYLON) | Nut - SELF-LOCK, 12MM (NYLON) |
| 19 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
| 32 | 90365-TA0-A00 | Nut - CASTLE, 14MM | Nut - CASTLE, 14MM |
| 33 | 90370-SJA-000 | Nut - SELF-LOCK, 12MM(CLINCH) | Nut - SELF-LOCK, 12MM(CLINCH) |
| 34 | 90371-SEF-000 | Nut - FLANGE, 12MM | Nut - FLANGE, 12MM |
| 30 | 90396-S5A-010 | Bolt - FLANGE, 12X75 | Bolt - FLANGE, 12X75 |
| 23 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 15 | 90402-P0Z-000 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 5 | 90429-PC6-900 | Washer - 40X86X2 | Washer - 40X86X2 |
| 25 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 15 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
| 26 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 15 | 90471-PW7-A00 | PACKING, 10MM | PACKING, 10MM |
| 9 | 90471-PX4-000 | Washer - DRAIN PLUG, 18MM | Washer - DRAIN PLUG, 18MM |
| 14 | 90471-RGR-000 | Washer - DRAIN PLUG, 12MM | Washer - DRAIN PLUG, 12MM |
| 34 | 90501-SM4-003 | Bolt - FENDER | Bolt - FENDER |
| 6 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 29 | 90543-S50-004 | Washer - SPRING | Washer - SPRING |
| 30 | 90543-S50-902 | Washer - SPRING | Washer - SPRING |
| 22 | 90602-SX0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 24 | 90602-TA0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 10 | 90603-P4R-000 | Set ring - 23MM | Set ring - 23MM |
| 25 | 90603-SX0-003 | Grommet - COWL TOP | Grommet - COWL TOP |
| 26 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
| 13 | 90615-P0Z-000 | Ring - SNAP, 82MM | Ring - SNAP, 82MM |
| 3 | 90615-S5A-003 | Plug - HOLE, 27X56 | Plug - HOLE, 27X56 |
| 12 | 90627-SA5-003 | Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) | Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) |
| 15 | 90635-PT0-802 | Clip, Oil Pipe | Clip, Oil Pipe |
| 15 | 90635-RV0-003 | CLIP, OIL PIPE | CLIP, OIL PIPE |
| 32 | 90650-S6M-J01 | Clip - RATCHET, 10MM | Clip - RATCHET, 10MM |
| 19 | 90651-S4N-003 | Clip | Clip |
| 34 | 90651-SWA-000 | Washer - RR. KNUCKLE | Washer - RR. KNUCKLE |
| 15 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 34 | 90661-S2A-003 | Clip - DRAIN HOSE | Clip - DRAIN HOSE |
| 4 | 90661-SL5-003 | Clip, WATER HOSE | Clip, WATER HOSE |
| 31 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 13 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 32 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 30 | 90666-TA0-A01 | Clip - SNAP FITTING (PO) (ORANGE) | Clip - SNAP FITTING (PO) (ORANGE) |
| 31 | 90666-TA0-A11 | Clip - SNAP FITTING (PO) (ORANGE) | Clip - SNAP FITTING (PO) (ORANGE) |
| 32 | 90666-TA0-A21 | Clip - SNAP FITTING (PO) (ORANGE) | Clip - SNAP FITTING (PO) (ORANGE) |
| 33 | 90669-SHJ-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 24 | 90669-SWA-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 31 | 90671-SHJ-A02 | Rivet - VIN PLATE | Rivet - VIN PLATE |
| 28 | 90676-SE0-003 | Clip - JOINT COVER PLATE | Clip - JOINT COVER PLATE |
| 19 | 90681-SJK-000 | Circlip - INTERNAL, 91MM | Circlip - INTERNAL, 91MM |
| 10 | 90682-SDA-A01 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 11 | 90682-SEA-003 | Clip - TAPPING SCREW, 5MM | Clip - TAPPING SCREW, 5MM |
| 35 | 90701-SKC-003 | Pin - SPLIT(M14) | Pin - SPLIT(M14) |
| 24 | 90703-PE0-000 | Dowel pin - 18X22 | Dowel pin - 18X22 |
| 25 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
| 26 | 90715-PNA-000 | Dowel pin - 13X14 | Dowel pin - 13X14 |
| 6 | 90815-SNA-003 | Grommet - 15MM | Grommet - 15MM |
| 8 | 90826-SNA-003 | Grommet - 25MM (BURRING) | Grommet - 25MM (BURRING) |
| 6 | 90857-SDA-A00 | Cap - WELD HOLE | Cap - WELD HOLE |
| 29 | 91006-P1B-003 | Bearing - BALL, 9X20X6 | Bearing - BALL, 9X20X6 |
| 20 | 91024-PAX-006 | Bearing - NEEDLE, 40X46X14.5 (TORRINGTON) | Bearing - NEEDLE, 40X46X14.5 (TORRINGTON) |
| 18 | 91205-P0X-005 | Oil seal - 40X56X9 (NOK) | Oil seal - 40X56X9 (NOK) |
| 10 | 91209-612-003 | Oil seal - 12X22X7 (ARAI) | Oil seal - 12X22X7 (ARAI) |
| 21 | 91301-P7Z-004 | O-ring - 7.6X1.9 (DENSO) | O-ring - 7.6X1.9 (DENSO) |
| 32 | 91301-PC9-003 | O-ring - 7.7X2.3 (ARAI) | O-ring - 7.7X2.3 (ARAI) |
| 22 | 91302-P7Z-004 | O-ring - 9.6X1.9 (DENSO) | O-ring - 9.6X1.9 (DENSO) |
| 13 | 91303-PX4-004 | O-ring - 114X2.2 (NOK) | O-ring - 114X2.2 (NOK) |
| 33 | 91305-PC9-003 | O-ring - 34X1.9 (ARAI) | O-ring - 34X1.9 (ARAI) |
| 18 | 91307-PLC-004 | O-ring - 9.5X1.9 (MATSUSHITA) | O-ring - 9.5X1.9 (MATSUSHITA) |
| 11 | 91308-PW4-003 | O-ring - 21.8X1.9 | O-ring - 21.8X1.9 |
| 17 | 91309-PX4-003 | O-ring - 16X2.1 (NOK) | O-ring - 16X2.1 (NOK) |
| 36 | 91314-PW4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 17 | 91316-PR9-003 | O-ring - 33X1.9 (ARAI) | O-ring - 33X1.9 (ARAI) |
| 20 | 91326-P4V-003 | O-ring - 26.7X1.9(NOK) | O-ring - 26.7X1.9(NOK) |
| 18 | 91329-PRP-003 | O-ring - 23.3X2.4 | O-ring - 23.3X2.4 |
| 23 | 91331-PC9-003 | O-ring | O-ring |
| 31 | 91333-PNA-003 | O-ring - 15X1.9 | O-ring - 15X1.9 |
| 26 | 91344-580-000 | O-ring - 31X2.7 (ARAI) | O-ring - 31X2.7 (ARAI) |
| 10 | 91404-TA0-G01 | Clamp - FUEL TUBE (D10) | Clamp - FUEL TUBE (D10) |
| 5 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 26 | 91462-SDA-003 | Clamp - FUEL TUBE (D18) | Clamp - FUEL TUBE (D18) |
| 14 | 91503-STK-A01 | Clip - DOOR MOLDING | Clip - DOOR MOLDING |
| 9 | 91505-S9A-003 | Clip A - BUMPER | Clip A - BUMPER |
| 26 | 91506-RTA-003 | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) | Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) |
| 38 | 91506-S9A-003 | Clip b - BUMPER | Clip b - BUMPER |
| 15 | 91507-SNA-003 | Clip - HARNESS BAND(BROWN) (164.5MM) | Clip - HARNESS BAND(BROWN) (164.5MM) |
| 17 | 91508-STX-A00 | Clip - HARNESS BAND(BLACK) (148MM) | Clip - HARNESS BAND(BLACK) (148MM) |
| 9 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
| 39 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 17 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
| 29 | 91518-S10-003 | Clip - MOLDING | Clip - MOLDING |
| 19 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 20 | 91531-S84-003 | Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL) | Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL) |
| 18 | 91531-SR3-003 | Holder - COUPLER (NATURAL) (128.6MM) | Holder - COUPLER (NATURAL) (128.6MM) |
| 18 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 27 | 91533-S82-003 | Clip - COUPLER(BLACK) | Clip - COUPLER(BLACK) |
| 15 | 91533-SG0-000 | Clip b - FAIRING | Clip b - FAIRING |
| 21 | 91533-STK-003 | Clip - COUPLER(NATURAL) | Clip - COUPLER(NATURAL) |
| 54 | 91534-SWA-003 | Clip - COUPLER(DARK GRAY) | Clip - COUPLER(DARK GRAY) |
| 51 | 91535-TA0-003 | Clip - COUPLER (DARK BROWN) | Clip - COUPLER (DARK BROWN) |
| 23 | 91536-STK-003 | Clip - RELAY HOLDER(NATURAL) | Clip - RELAY HOLDER(NATURAL) |
| 28 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 20 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 29 | 91540-STK-003 | Clip - HARNESS BAND (BLACK) (155.3MM) | Clip - HARNESS BAND (BLACK) (155.3MM) |
| 26 | 91540-TA0-003 | Clip - HARNESS BAND(NATURAL) (100.1MM) | Clip - HARNESS BAND(NATURAL) (100.1MM) |
| 30 | 91542-SNA-003 | Clip - HARNESS BAND(DARK BLUE) (164.5MM) | Clip - HARNESS BAND(DARK BLUE) (164.5MM) |
| 52 | 91542-TF0-003 | Band - HARNESS OFFSET(20) (DARK BLUE)(145MM) | Band - HARNESS OFFSET(20) (DARK BLUE)(145MM) |
| 28 | 91545-SJA-003 | Clip - WIRE HARNESS(SEAL) (125MM) | Clip - WIRE HARNESS(SEAL) (125MM) |
| 29 | 91545-SNA-003 | Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL) | Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL) |
| 32 | 91545-TA0-003 | Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL) | Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL) |
| 33 | 91549-STK-003 | Holder - HARNESS (NATURAL) (113MM) | Holder - HARNESS (NATURAL) (113MM) |
| 34 | 91549-TA0-003 | Clip - HARNESS BAND(BLACK) (140.3MM) | Clip - HARNESS BAND(BLACK) (140.3MM) |
| 35 | 91550-ST0-003 | Clip - WIRE HARNESS (NATURAL) (110MM) | Clip - WIRE HARNESS (NATURAL) (110MM) |
| 6 | 91551-SD5-003 | Clamp - HEATER | Clamp - HEATER |
| 37 | 91558-SAA-003 | Clip - HARNESS BAND(30)(BLACK) (151.5MM) | Clip - HARNESS BAND(30)(BLACK) (151.5MM) |
| 40 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 39 | 91559-ST5-003 | Clip - HARNESS BAND OFFSET(30) (NATURAL) | Clip - HARNESS BAND OFFSET(30) (NATURAL) |
| 18 | 91560-S6A-003 | Clip - DOOR LINING(ORANGE) | Clip - DOOR LINING(ORANGE) |
| 33 | 91560-SLJ-J01 | Clip - DOOR LINING (LIGHT GRAY) | Clip - DOOR LINING (LIGHT GRAY) |
| 24 | 91560-SYA-J01 | Clip - PILLAR GARNISH (DARK GREEN) | Clip - PILLAR GARNISH (DARK GREEN) |
| 34 | 91561-S5P-A01 | Screw - GROMMET, 5.23 | Screw - GROMMET, 5.23 |
| 25 | 91561-TA0-A01 | Clip - FR. PILLAR GARNISH | Clip - FR. PILLAR GARNISH |
| 7 | 91568-TA0-A00 | Clip, FR. Windshield (Upper) | Clip, FR. Windshield (Upper) |
| 29 | 91601-TA0-003 | Clip - FUEL MAINTENANCE HOLE CAP | Clip - FUEL MAINTENANCE HOLE CAP |
| 26 | 91611-SDA-A00 | Cap - FR. WIPER ARM (12MM) | Cap - FR. WIPER ARM (12MM) |
| 11 | 91611-TA0-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 12 | 91612-TA0-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 13 | 91613-SR3-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 14 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 15 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
| 35 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 42 | 91661-TA0-003 | Holder - HARNESS(BLACK) | Holder - HARNESS(BLACK) |
| 45 | 91902-S2X-003 | Plaster - WIRE HARNESS(50X100) | Plaster - WIRE HARNESS(50X100) |
| 46 | 91902-S3N-003 | Plaster - WIRE HARNESS (50X50) | Plaster - WIRE HARNESS (50X50) |
| 29 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
| 31 | 91902-SNA-003 | Plaster - WIRE HARNESS(50X50) | Plaster - WIRE HARNESS(50X50) |
