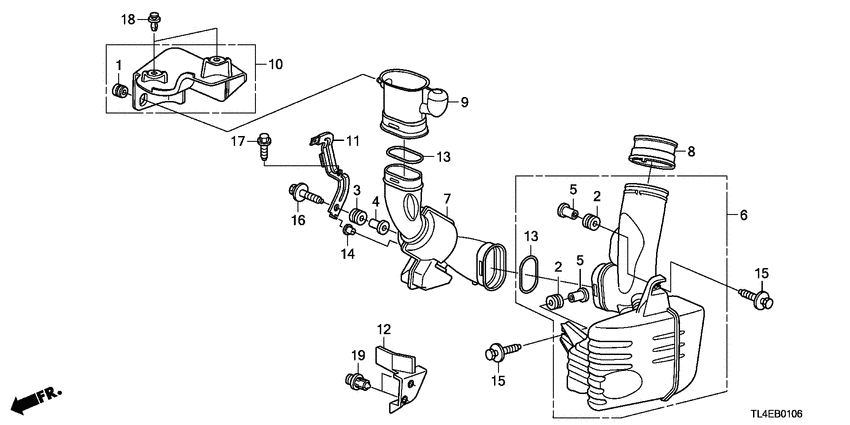

Air cleaner (L4) 10 / 16

#	OEM	CS1	CW2
3	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
3	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
5	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
6	17217-P2J-300	Clip - AIR CLEANER	Clip - AIR CLEANER
10	17314-R40-003	Clamp - AIR FLOW(89)	Clamp - AIR FLOW(89)
11	17315-R40-003	Clamp - AIR FLOW (80)	Clamp - AIR FLOW (80)
12	37980-R40-A01	Meter assy - AIR FLOW	Meter assy - AIR FLOW
13	37985-RTA-003	O-ring	O-ring
14	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
15	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE

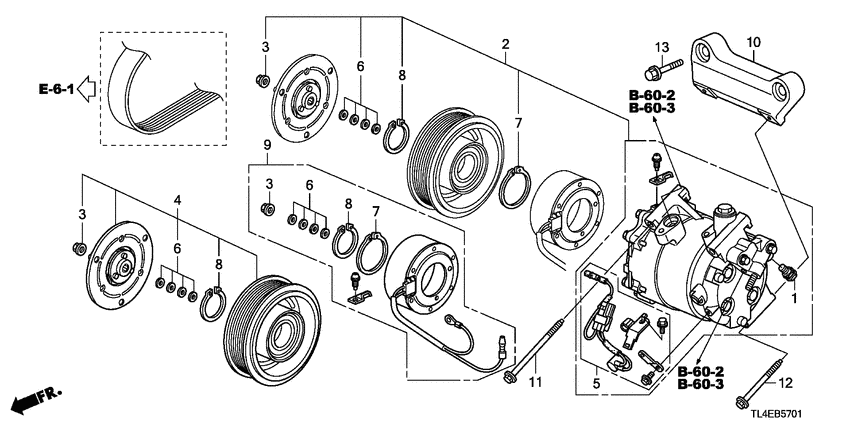

Air conditioner (COMPRESSOR; L4) 3 / 15

#	OEM	CS1	CW2
13	38930-PNA-000	Bracket - COMPRESSOR	Bracket - COMPRESSOR
14	90023-PNA-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
15	90024-PNA-000	Bolt - FLANGE, 8X65	Bolt - FLANGE, 8X65

Air conditioner (CONDENSER) 2 / 9

#	OEM	CS1	CW2
8	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
9	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER

Air conditioner (HOSES/PIPES; L4) 7 / 17

#	OEM	CS1	CW2
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
11	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
12	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
13	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
14	90001-SDA-A00	Bolt - FLANGE, 6X38(GUIDE)	Bolt - FLANGE, 6X38(GUIDE)
15	91548-S3N-003	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE
16	91548-TA0-A01	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE

Air conditioner (SENSOR) 2 / 6

#	OEM	CS1	CW2
1	80510-S0A-941	Sensor - SUN BEAM	Sensor - SUN BEAM
3	80525-S30-941	Sensor assy - AMBIENT	Sensor assy - AMBIENT

Alternator (DENSO; L4) 15 / 15

#	OEM	CS1	CW2
1	31100-R40-A01	Alternator assy. - CSF89)(DENSO	Alternator assy. - CSF89)(DENSO
2	31101-RTA-003	Rotor assy.	Rotor assy.
3	31105-RAA-A01	Holder assy. - BRUSH	Holder assy. - BRUSH
4	31108-R40-A01	Frame assy - RR. STATOR	Frame assy - RR. STATOR
5	31111-PT0-003	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
6	31114-PGK-A01	Bearing - FR.	Bearing - FR.
7	31119-R40-A01	Bush - INSULATION	Bush - INSULATION
8	31135-R40-A01	Cover - RR. END	Cover - RR. END
9	31138-PD1-004	Cover - BEARING	Cover - BEARING
10	31141-RAA-A01	Pulley	Pulley
11	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
12	31145-PGK-A01	Bolt	Bolt
13	31146-PE9-941	Screw-washer	Screw-washer
14	31147-PT0-003	Screw-washer	Screw-washer
15	90231-PGK-A01	Nut - HEX., 5MM	Nut - HEX., 5MM

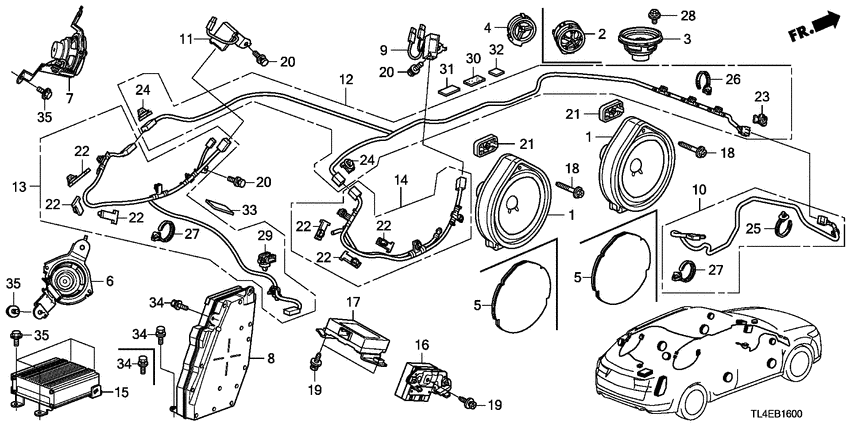

Audio unit 1 / 13

#	OEM	CS1	CW2
12	90140-SDA-A00	Bolt-washer - 5X19	Bolt-washer - 5X19

Battery (L4) 3 / 10

#	OEM	CS1	CW2
8	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
9	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
10	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Brake lines (VSA) 13 / 26

#	OEM	CS1	CW2
12	46391-STK-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
13	46391-S5A-Z01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
15	46392-TA1-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
16	46393-SFA-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
17	46393-TA1-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
18	46428-TA0-A00	Bracket - R. FR. BRAKE HOSE	Bracket - R. FR. BRAKE HOSE
19	46429-TA0-A00	Bracket - L. FR. BRAKE HOSE	Bracket - L. FR. BRAKE HOSE
20	46435-TA0-A00	Bracket a - R. RR. BRAKE HOSE	Bracket a - R. RR. BRAKE HOSE
21	46436-TA0-A00	Bracket a - L. RR. BRAKE HOSE	Bracket a - L. RR. BRAKE HOSE
22	46438-TA0-A00	Bracket b - R. RR. BRAKE HOSE	Bracket b - R. RR. BRAKE HOSE
23	46439-TA0-A00	Bracket b - L. RR. BRAKE HOSE	Bracket b - L. RR. BRAKE HOSE
24	46462-SE0-000	Bolt - OIL	Bolt - OIL
25	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT

Brake master cylinder/ master power 16 / 24

#	OEM	CS1	CW2
4	46135-SDA-A01	Guide assy - PISTON	Guide assy - PISTON
5	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
6	46185-SE0-003	Seal - ROD	Seal - ROD
7	46191-SDA-A00	Gasket - MASTER POWER	Gasket - MASTER POWER
10	46407-STK-A01	Clamp - TUBE	Clamp - TUBE
11	46512-S70-000	Pin - PEDAL	Pin - PEDAL
12	46661-SDA-A01	Reservoir set	Reservoir set
13	46662-S9A-003	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
14	46665-S04-J01	Grommet	Grommet
15	46666-S2K-003	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
16	46669-S5A-003	Diaphragm	Diaphragm
17	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
18	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
19	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR
20	57515-S30-003	Pin - STOP	Pin - STOP
23	57562-SF1-003	Circlip	Circlip

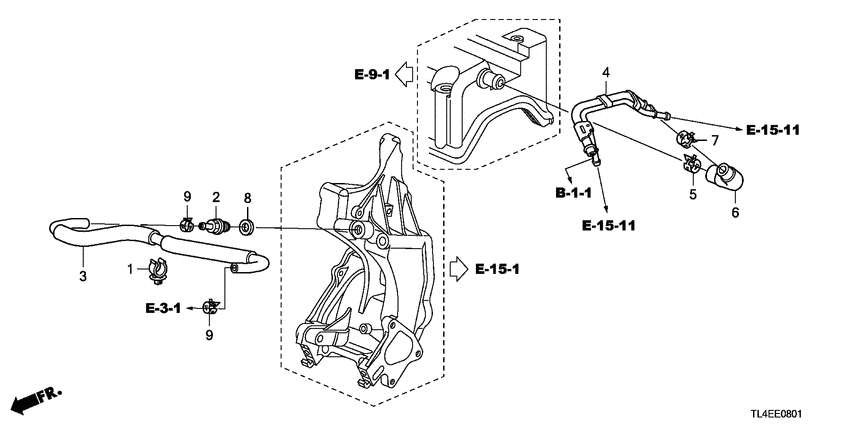

Breather pipe (L4) 3 / 8

#	OEM	CS1	CW2
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
2	17130-RBB-A01	Valve assy. - PCV	Valve assy. - PCV
3	17131-R40-A00	Tube comp - PCV	Tube comp - PCV

Bumpers 11 / 30

#	OEM	CS1	CW2
23	90103-TA0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
24	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
25	90102-SFE-000	Bolt-washer - 8X23	Bolt-washer - 8X23
26	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
28	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
30	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)	Bolt - BUMPER SETTING (6X15) (BLACK)
31	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
34	90501-SM4-003	Bolt - FENDER	Bolt - FENDER
37	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
38	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
39	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

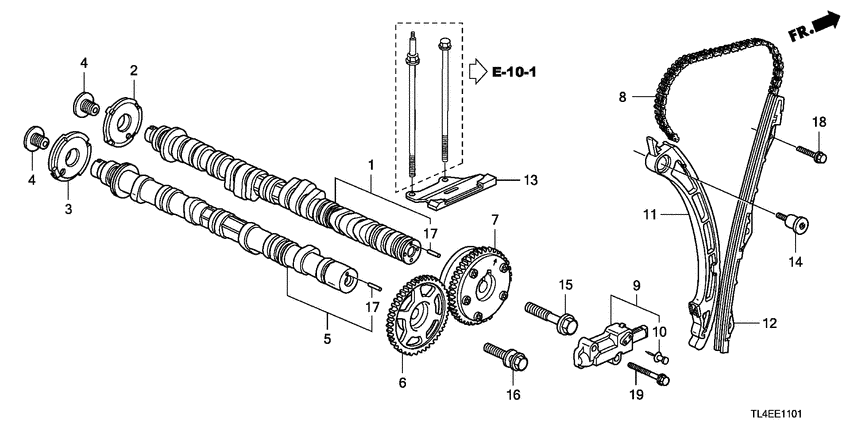

Camshaft/cam chain (L4) 13 / 18

#	OEM	CS1	CW2
2	14113-PNA-003	Plate - CAM PULSE	Plate - CAM PULSE
3	14114-R40-A01	Plate - TDC PULSE	Plate - TDC PULSE
4	14115-PNA-000	Bolt - SEALING, 14MM	Bolt - SEALING, 14MM
6	14210-PNA-000	Sprocket - CAM CHAIN DRIVEN (46T)	Sprocket - CAM CHAIN DRIVEN (46T)
8	14401-R40-A01	Chain - 176L	Chain - 176L
9	14510-R40-A01	Tensioner comp - CAM CHAIN	Tensioner comp - CAM CHAIN
10	14511-PNA-003	Stopper - TOOL	Stopper - TOOL
11	14520-RAH-H01	Arm comp - CAM CHAIN TENSIONER	Arm comp - CAM CHAIN TENSIONER
13	14540-RWC-A02	Guide comp. b - CAM CHAIN	Guide comp. b - CAM CHAIN
14	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
15	90032-PNA-000	Bolt - FLANGE, 12X47	Bolt - FLANGE, 12X47
16	90042-PNA-003	Bolt - FLANGE, 10X32	Bolt - FLANGE, 10X32
17	90703-PNA-300	Dowel pin - 4.2X10.3	Dowel pin - 4.2X10.3

Canister 12 / 12

#	OEM	CS1	CW2
1	17300-SNA-013	Canister assy	Canister assy
1	17300-SNA-023	Canister assy	Canister assy
2	17358-TA0-G00	Bracket - CANISTER	Bracket - CANISTER
3	17371-SLJ-003	Valve - TWO WAY	Valve - TWO WAY
4	17372-TA0-G00	Tube - DRAIN	Tube - DRAIN
5	17378-TA0-A00	Stay - DRAIN BOX	Stay - DRAIN BOX
6	17723-TA0-G00	Tube c - FUEL VENT	Tube c - FUEL VENT
7	17724-TA0-G00	Tube assy - FUEL PURGE	Tube assy - FUEL PURGE
8	17743-TA0-G01	Box - FUEL DRAIN	Box - FUEL DRAIN
9	91404-SDC-000	Clamp - TUBE (D10)	Clamp - TUBE (D10)
10	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)
11	91591-SMA-931	Clamp - TUBE (D11)	Clamp - TUBE (D11)

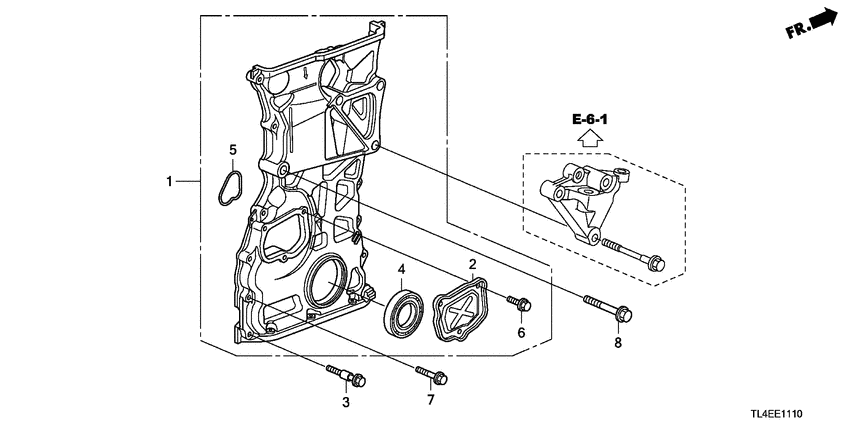

Chain case (L4) 4 / 5

#	OEM	CS1	CW2
1	11410-R40-A00	Case assy. - CHAIN	Case assy. - CHAIN
2	11412-R40-A00	Cover - CHAIN CASE	Cover - CHAIN CASE
3	90021-PNA-000	Bolt - SPECIAL, 6X31	Bolt - SPECIAL, 6X31
5	91302-PNA-004	O-ring - CHAIN CASE	O-ring - CHAIN CASE

Clutch/torque converter (L4) 1 / 6

#	OEM	CS1	CW2
1	21350-PRB-000	Cover - CLUTCH CASE	Cover - CLUTCH CASE

Combination switch 9 / 25

#	OEM	CS1	CW2
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
8	35118-SNB-A00	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)	Key comp. - IMMOBILIZER (MAIN) (BLANK)(BLACK)
14	35130-TA0-901	Switch comp - STEERING	Switch comp - STEERING
15	35251-TA0-B11	Sensor assy - STEERING & BODY SWITCH	Sensor assy - STEERING & BODY SWITCH
20	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
22	72148-S0A-000	Battery CR1616	Battery CR1616
23	90132-SFE-003	Screw - EARTH, 5X18	Screw - EARTH, 5X18

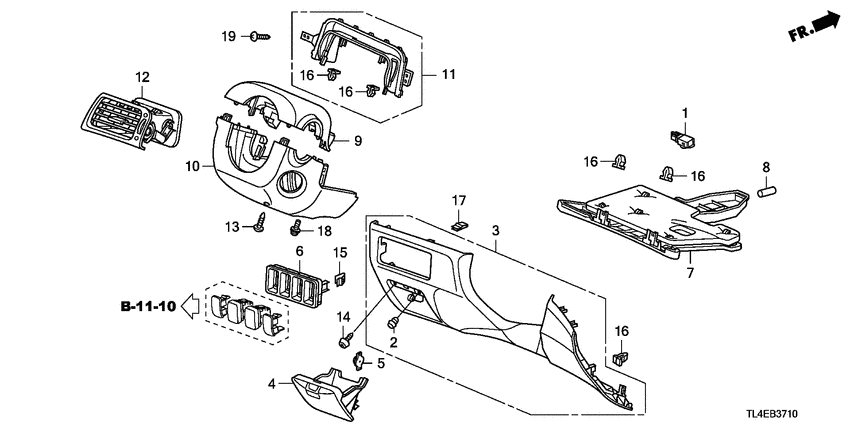

Console 14 / 31

#	OEM	CS1	CW2
2	39610-S2H-G01	Knob assy	Knob assy
3	39620-S0X-003	Socket assy	Socket assy
4	39620-TA0-003	Cap assy.	Cap assy.
5	39624-SZ3-L01	Socket assy	Socket assy
6	39630-SFE-003	Ring assy - TYPE INCLUDING BULB	Ring assy - TYPE INCLUDING BULB
24	83425-TA0-A00	Bracket comp. - CENTER CONSOLE	Bracket comp. - CENTER CONSOLE
28	90123-SJA-000	Bolt-washer - 6X16	Bolt-washer - 6X16
29	90144-TA0-A01	Screw - TAPPING, 4X12 (PO)	Screw - TAPPING, 4X12 (PO)
30	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
31	90666-TA0-A11	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
32	90666-TA0-A21	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
33	90669-SHJ-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
35	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
54	91534-SWA-003	Clip - COUPLER(DARK GRAY)	Clip - COUPLER(DARK GRAY)

Control unit (CABIN; 1) 4 / 9

#	OEM	CS1	CW2
3	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
4	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
5	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
6	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)

Control unit (CABIN; 2) 1 / 2

#	OEM	CS1	CW2
3	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)

Control unit (ENGINE ROOM; 1; L4) 17 / 26

#	OEM	CS1	CW2
6	38211-SNA-A01	Fuse - BLOCK (20A)	Fuse - BLOCK (20A)
7	38211-SNA-A21	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
8	38221-SNA-A31	Fuse - BLADE(7.5A)	Fuse - BLADE(7.5A)
9	38221-SNA-A41	Fuse - BLADE(10A)	Fuse - BLADE(10A)
10	38221-SNA-A51	Fuse - BLADE(15A)	Fuse - BLADE(15A)
11	38221-SNA-A61	Fuse - BLADE(20A)	Fuse - BLADE(20A)
12	38221-SNA-A81	Fuse - BLADE(30A)	Fuse - BLADE(30A)
13	38231-SEP-A01	Fuse a - MULTI BLOCK (100A/40A)	Fuse a - MULTI BLOCK (100A/40A)
14	38232-TA0-A11	Fuse - MULTI BLOCK(D-2)	Fuse - MULTI BLOCK(D-2)
15	38233-TA0-A01	Fuse e - MULTI BLOCK	Fuse e - MULTI BLOCK
16	38235-TA0-A01	Puller - FUSE	Puller - FUSE
19	38255-SNA-003	Detector unit - ELECTRONIC LOAD	Detector unit - ELECTRONIC LOAD
21	38257-TA0-A01	Cover - LOWER	Cover - LOWER
23	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
24	90129-TA0-000	Bolt-washer - 5X16	Bolt-washer - 5X16
25	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16
26	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Control unit (ENGINE ROOM; 2) 3 / 4

#	OEM	CS1	CW2
1	39792-SDA-A01	Relay assy - MICRO ISO	Relay assy - MICRO ISO
8	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
8	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)	Relay assy, ENGINE CONTROL MODULE (DENSO)

Converter (L4) 14 / 16

#	OEM	CS1	CW2
1	11941-R40-A00	Stay - CONVERTER	Stay - CONVERTER
2	18115-R40-A01	Gasket - PRIMARY CONVERTER (NIPPON LEAKLESS)	Gasket - PRIMARY CONVERTER (NIPPON LEAKLESS)
3	18120-R40-A00	Cover comp. - CHAMBER	Cover comp. - CHAMBER
4	18121-R49-Z00	Cover comp. - PRIMARY CONVERTER	Cover comp. - PRIMARY CONVERTER
6	32742-R40-A00	Stay - ENGINE HARNESS	Stay - ENGINE HARNESS
7	36531-R40-A01	Sensor - AIR FUEL RATIO	Sensor - AIR FUEL RATIO
8	36532-R40-A01	Sensor - OXYGEN	Sensor - OXYGEN
10	90005-P0A-000	Bolt-washer - 10X22	Bolt-washer - 10X22
11	90010-PE2-900	Bolt - SPECIAL, 10X22	Bolt - SPECIAL, 10X22
12	90015-PT0-J00	Bolt-washer - 8X14	Bolt-washer - 8X14
13	90023-PK1-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
13	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
14	90212-RCA-A01	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
15	90451-PE2-000	Washer - SPECIAL, 11X28	Washer - SPECIAL, 11X28

Crankshaft/piston (L4) 12 / 36

#	OEM	CS1	CW2
4	13115-PRB-A00	Clip - PISTON PIN	Clip - PISTON PIN
5	13204-RBB-004	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
6	13210-R40-A00	Rod comp - CONNECTING	Rod comp - CONNECTING
8	13310-R40-A00	Crankshaft comp.	Crankshaft comp.
10	13331-PNA-004	Washer - THRUST(TAIHO)	Washer - THRUST(TAIHO)
12	13620-RAA-A02	Sprocket comp - CHAIN DRIVE	Sprocket comp - CHAIN DRIVE
13	13622-R40-A00	Plate - CRANK PULSER	Plate - CRANK PULSER
14	13623-R40-A01	Spacer a	Spacer a
15	13810-R40-A02	Pulley comp - CRANKSHAFT	Pulley comp - CRANKSHAFT
16	90013-R70-A01	Bolt - SPECIAL, 8X11	Bolt - SPECIAL, 8X11
17	90017-RWC-A01	Bolt-washer - 16X49	Bolt-washer - 16X49
18	90704-PNA-000	Key - 4.5X21	Key - 4.5X21

Cylinder block/oil pan (L4) 20 / 31

#	OEM	CS1	CW2
2	11103-R40-A01	Plate - PARTITION	Plate - PARTITION
3	11106-PNA-300	Bolt - SEALING, 20MM	Bolt - SEALING, 20MM
6	11135-RAA-A00	Orifice assy - LOWER BLOCK	Orifice assy - LOWER BLOCK
9	11500-R40-A00	Cap comp. - OIL GALLERY	Cap comp. - OIL GALLERY
11	15280-R40-A01	Body comp - OIL JET	Body comp - OIL JET
12	15290-R40-A01	Bolt comp - OIL JET	Bolt comp - OIL JET
16	37241-RNA-A01	Switch assy, OIL PRESSURE	Switch assy, OIL PRESSURE
17	37500-R40-A01	Sensor assy - CRANK	Sensor assy - CRANK
19	90006-PNA-003	Bolt-washer - 11X95	Bolt-washer - 11X95
20	90009-PY3-000	DRAIN PLUG BOLT, 14MM	DRAIN PLUG BOLT, 14MM
21	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
22	90051-RGA-003	Bolt - SPECIAL, 6X20.8	Bolt - SPECIAL, 6X20.8
23	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
24	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
25	90715-PC6-000	Dowel pin - 13X20	Dowel pin - 13X20
26	90715-PNA-000	Dowel pin - 13X14	Dowel pin - 13X14
28	91304-RZA-000	O-ring - 32X2.4	O-ring - 32X2.4
29	91306-PJ4-000	O-ring - 6.8X1.9	O-ring - 6.8X1.9
30	91316-PE7-730	O-ring - 62.4X3.1	O-ring - 62.4X3.1
31	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

Cylinder head (L4) 10 / 10

#	OEM	CS1	CW2
1	12100-R40-A02	Head assy - CYLINDER	Head assy - CYLINDER
2	12204-PNA-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PNA-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
4	14631-R40-A00	Shaft - ROCKER	Shaft - ROCKER
5	14633-R40-A00	Shaft - EX. ROCKER	Shaft - EX. ROCKER
6	37510-R40-A01	Sensor assy - TDC	Sensor assy - TDC
7	90011-PNA-003	Bolt A, Head Cover	Bolt A, Head Cover
8	90012-PNA-003	Bolt b - HEAD COVER	Bolt b - HEAD COVER
9	90083-PNA-000	Bolt - SEALING, 10MM	Bolt - SEALING, 10MM
10	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

Cylinder head cover (L4) 9 / 13

#	OEM	CS1	CW2
1	12030-R44-A00	Packing set - HEAD COVER	Packing set - HEAD COVER
2	12310-R40-A00	Cover comp. CYLINDER HEAD	Cover comp. CYLINDER HEAD
3	12341-R40-A00	Packing - HEAD COVER	Packing - HEAD COVER
4	12342-P08-004	Seal	Seal
4	12342-RYE-004	Seal,spark plug t	Seal,spark plug t
6	15610-RGA-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
7	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
9	90014-R40-A00	Bolt b - PLUG HOLE COIL COVER	Bolt b - PLUG HOLE COIL COVER
10	90213-PH3-000	Nut - CAP, 6MM	Nut - CAP, 6MM

Door glass/regulator 2 / 12

#	OEM	CS1	CW2
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY	Label - IMMOBILIZER & SECURITY
12	90021-SFA-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10

Door lining 4 / 17

#	OEM	CS1	CW2
31	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
32	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
33	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
34	91561-S5P-A01	Screw - GROMMET, 5.23	Screw - GROMMET, 5.23

Door locks/outer handle 7 / 34

#	OEM	CS1	CW2
10	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
16	72144-SJD-003	Retainer	Retainer
39	74387-S3C-003	Fastener	Fastener
40	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
41	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
42	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
52	72118-TL0-003	Seal	Seal

Door panels 6 / 18

#	OEM	CS1	CW2
15	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
16	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
17	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
17	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
18	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
19	90651-S4N-003	Clip	Clip

Duct 1 / 4

#	OEM	CS1	CW2
4	83335-TA0-A00	Bracket assy - RR. HEATER DUCT	Bracket assy - RR. HEATER DUCT

Emblems/caution labels 3 / 7

#	OEM	CS1	CW2
2	19043-PLA-E00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION
8	78031-SDA-G80	Label - SIDE AIRBAG CAUTION	Label - SIDE AIRBAG CAUTION
9	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

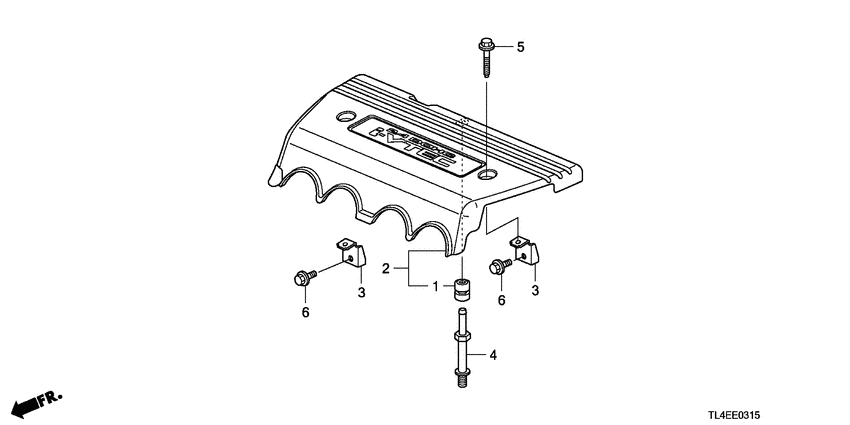

Engine cover (L4) 5 / 5

#	OEM	CS1	CW2
1	16628-RWC-A00	Rubber - FUEL PIPE COVER MOUNTING	Rubber - FUEL PIPE COVER MOUNTING
2	17121-R42-A00	Cover assy. - ENGINE	Cover assy. - ENGINE
3	17122-R41-L50	Stay comp - ENGINE COVER	Stay comp - ENGINE COVER
4	90015-RBC-J00	Bolt - ENGINE COVER STUD	Bolt - ENGINE COVER STUD
5	90102-R41-L50	Bolt - SPECIAL FLANGE, 6X38	Bolt - SPECIAL FLANGE, 6X38

Engine hood 7 / 22

#	OEM	CS1	CW2
20	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
21	90123-TA0-A00	Bolt-washer - 6X18	Bolt-washer - 6X18
22	90602-SX0-003	Clip - COWL TOP	Clip - COWL TOP
24	90602-TA0-003	Clip - COWL TOP	Clip - COWL TOP
25	90603-SX0-003	Grommet - COWL TOP	Grommet - COWL TOP
28	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
29	91518-S10-003	Clip - MOLDING	Clip - MOLDING

Engine mounting bracket (L4) 4 / 8

#	OEM	CS1	CW2
1	11910-R40-A00	Bracket - ENGINE SIDE MOUNTING	Bracket - ENGINE SIDE MOUNTING
6	90008-PNA-000	Bolt - 10X75	Bolt - 10X75
7	90008-RAA-A00	Bolt - MOUNTING BRACKET, 10X95	Bolt - MOUNTING BRACKET, 10X95
8	90027-PND-A00	Bolt - SPECIAL, 10X50	Bolt - SPECIAL, 10X50

Engine mounts (L4) 23 / 38

#	OEM	CS1	CW2
2	50620-TA0-A00	Bracket - ENGINE SIDE MOUNTING	Bracket - ENGINE SIDE MOUNTING
10	50931-SDA-A01	Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID	Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID
11	50932-TA0-A01	Stay - ELECTRONIC CONTROL MOUNT SOLENOID VALVE	Stay - ELECTRONIC CONTROL MOUNT SOLENOID VALVE
12	50933-SZ3-003	Clip - ACCUMULATOR PIPE	Clip - ACCUMULATOR PIPE
14	50934-SW5-A80	Clip - ACCUMULATOR TUBE	Clip - ACCUMULATOR TUBE
15	50934-TA0-A01	Tube b - ELECTRONIC CONTROL MOUNT SOLENOID	Tube b - ELECTRONIC CONTROL MOUNT SOLENOID
16	50935-TA0-A01	Clamp - ELECTRONIC CONTROL MOUNT SOLENOID	Clamp - ELECTRONIC CONTROL MOUNT SOLENOID
18	50944-TA0-A01	Clamp - ELECTRONIC CONTROL MOUNT SOLENOID	Clamp - ELECTRONIC CONTROL MOUNT SOLENOID
20	50949-TA0-A00	Stay c - ELECTRONIC CONTROL MOUNT PIPE	Stay c - ELECTRONIC CONTROL MOUNT PIPE
21	90161-SDA-A01	Bolt - FLANGE, 12X45	Bolt - FLANGE, 12X45
22	90161-TA0-A01	Bolt - FLANGE, 10X25	Bolt - FLANGE, 10X25
23	90162-TA0-A00	Bolt - FLANGE, 12X50	Bolt - FLANGE, 12X50
24	90163-SDA-A01	Bolt - FLANGE, 10X35	Bolt - FLANGE, 10X35
25	90164-SAA-000	Bolt - FLANGE, 12X100	Bolt - FLANGE, 12X100
26	90164-S5A-010	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
27	90165-SDA-A00	Bolt - FLANGE, 12X45	Bolt - FLANGE, 12X45
28	90167-SAA-010	Bolt - FLANGE, 10X25	Bolt - FLANGE, 10X25
29	90168-TA0-A00	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65
31	90176-SKN-000	Bolt - FLANGE, 12X30	Bolt - FLANGE, 12X30
32	90176-S5A-000	Bolt - FLANGE, 10X30	Bolt - FLANGE, 10X30
33	90176-TA0-A01	Bolt - FLANGE, 12X139	Bolt - FLANGE, 12X139
34	90371-SEF-000	Nut - FLANGE, 12MM	Nut - FLANGE, 12MM
35	90371-S87-A00	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM

Engine wire harness (L4) 19 / 31

#	OEM	CS1	CW2
3	32112-S2K-003	Band - CABLE (90MM)	Band - CABLE (90MM)
4	32116-R40-003	Holder - CORRUGATED(DARK BROWN) (17MM)	Holder - CORRUGATED(DARK BROWN) (17MM)
5	32117-R40-003	Holder - CORRUGATED(DARK BROWN) (17U)	Holder - CORRUGATED(DARK BROWN) (17U)
6	32118-R40-A01	Holder - STARTER CABLE	Holder - STARTER CABLE
8	32121-R40-A00	Holder - ENGINE HARNESS PLUG HOLE COIL	Holder - ENGINE HARNESS PLUG HOLE COIL
10	32123-R40-A00	Holder - ENGINE HARNESS INJECTOR	Holder - ENGINE HARNESS INJECTOR
12	32126-R40-A00	Holder - ENGINE HARNESS MAIN	Holder - ENGINE HARNESS MAIN
13	32127-R40-A00	Cover - ENGINE HARNESS MAIN HOLDER	Cover - ENGINE HARNESS MAIN HOLDER
14	32130-R40-A00	Holder - ENGINE HARNESS MISSION	Holder - ENGINE HARNESS MISSION
16	32134-R40-A00	Holder - ENGINE HARNESS SPOOL	Holder - ENGINE HARNESS SPOOL
17	32135-R40-Y00	Cover - ENGINE HARNESS SPOOL HOLDER	Cover - ENGINE HARNESS SPOOL HOLDER
19	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
20	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
21	91501-R40-A00	Cover - ENGINE CONTROL MODULE COUPLER(A,B)	Cover - ENGINE CONTROL MODULE COUPLER(A,B)
26	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
27	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
28	91509-RRA-003	Clip d - WIRE HARNESS (BLACK) (135.4MM)	Clip d - WIRE HARNESS (BLACK) (135.4MM)
29	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
30	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)

Exhaust pipe (L4) 11 / 17

#	OEM	CS1	CW2
2	18176-PT0-003	Bolt - CONVERTER	Bolt - CONVERTER
3	18176-P08-003	Bolt - CONVERTER	Bolt - CONVERTER
5	18215-S84-A20	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
6	18215-TA0-A01	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
8	18229-SEA-013	Gasket - EX. FLEXIBLE	Gasket - EX. FLEXIBLE
9	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
10	18231-SNA-A00	Bolt b - FLEXIBLE JOINT	Bolt b - FLEXIBLE JOINT
11	18302-SP0-003	Gasket - EX. PIPE	Gasket - EX. PIPE
14	74601-TA0-A00	Plate a - FR. FLOOR HEAT BAFFLE	Plate a - FR. FLOOR HEAT BAFFLE
16	74654-TA1-A00	Plate - R. SILENCER BAFFLE	Plate - R. SILENCER BAFFLE
17	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Floor mat 3 / 8

#	OEM	CS1	CW2
1	74251-TA0-A00	Insulator - DASHBOARD OUTER	Insulator - DASHBOARD OUTER
17	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR
18	91560-S6A-003	Clip - DOOR LINING(ORANGE)	Clip - DOOR LINING(ORANGE)

Floor/inner panels 2 / 4

#	OEM	CS1	CW2
41	75353-671-000	Lock - SCREW	Lock - SCREW
42	90101-SFE-000	Bolt-washer - 8MM	Bolt-washer - 8MM

Fog light 3 / 5

#	OEM	CS1	CW2
1	33165-S5A-003	Bulb - H11) (12V 55W) (STANLEY	Bulb - H11) (12V 55W) (STANLEY
1	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO	Bulb - H11) (12V 55W) (KOITO
4	90113-SJA-A00	Screw - TAPPING, 5X14	Screw - TAPPING, 5X14

Front brake 10 / 22

#	OEM	CS1	CW2
3	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
4	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
5	44300-TA0-A51	Bearing assy - FR. HUB	Bearing assy - FR. HUB
6	44600-TA0-A00	Hub assy - FR.	Hub assy - FR.
17	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
18	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
18	90113-SD4-901	Bolt - WHEEL (MEIRA)	Bolt - WHEEL (MEIRA)
18	90113-SD4-902	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
18	90113-SJK-901	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
19	90681-SJK-000	Circlip - INTERNAL, 91MM	Circlip - INTERNAL, 91MM

Front bulkhead/dashboard 3 / 3

#	OEM	CS1	CW2
29	74250-SJA-A00	Cover - VIN PLATE	Cover - VIN PLATE
30	90105-SV1-000	Bolt-washer - 8X20	Bolt-washer - 8X20
31	90671-SHJ-A02	Rivet - VIN PLATE	Rivet - VIN PLATE

Front driveshaft/ half shaft (L4) 10 / 28

#	OEM	CS1	CW2
8	44319-SE0-000	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
11	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
19	44517-SED-000	Cover - HEAT	Cover - HEAT
20	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
21	90165-SE0-000	Bolt - FLANGE, 10X37	Bolt - FLANGE, 10X37
22	90305-S3V-A11	Nut - SPINDLE	Nut - SPINDLE
23	90681-SR3-000	Circlip - EXTERNAL, 33MM	Circlip - EXTERNAL, 33MM
24	91057-SR3-008	Bearing - HALF SHAFT(NTN)	Bearing - HALF SHAFT(NTN)

Front fenders 5 / 12

#	OEM	CS1	CW2
11	90682-SEA-003	Clip - TAPPING SCREW, 5MM	Clip - TAPPING SCREW, 5MM
12	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
13	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
14	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
15	91533-SG0-000	Clip b - FAIRING	Clip b - FAIRING

Front grille 5 / 9

#	OEM	CS1	CW2
4	74175-SJA-000	Cushion - HOOD	Cushion - HOOD
6	90301-ST0-003	push nut, 3mm	push nut, 3mm
7	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER
8	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER
9	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front knuckle 14 / 16

#	OEM	CS1	CW2
1	42524-SNA-003	Clip - COUPLER (BLACK)	Clip - COUPLER (BLACK)
2	44348-TA0-A00	Ring - FR. KNUCKLE	Ring - FR. KNUCKLE
5	51220-TA0-A02	Joint comp - FR. LOWER BALL	Joint comp - FR. LOWER BALL
6	51225-TA0-A01	Boot - FR. LOWER BALL DUST	Boot - FR. LOWER BALL DUST
7	51226-TA0-A01	Circlip - LOWER BALL(FR.)	Circlip - LOWER BALL(FR.)
8	51464-S04-013	Boot, UPPER BALL JOINT	Boot, UPPER BALL JOINT
9	51510-TA0-A03	F/UPPER ARM RH - R. FR. UPPER	F/UPPER ARM RH - R. FR. UPPER
10	51520-TA0-A03	F/UPPER ARM LH - L. FR. UPPER	F/UPPER ARM LH - L. FR. UPPER
11	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
12	57450-TA0-A01	Sensor assy - R. FR.	Sensor assy - R. FR.
13	57455-TA0-A01	Sensor assy - L. FR.	Sensor assy - L. FR.
14	90172-SDA-A00	Bolt - FLANGE, 10X78	Bolt - FLANGE, 10X78
15	90309-SJA-000	Nut - CASTLE, 14MM	Nut - CASTLE, 14MM
16	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM

Front lower arm 13 / 20

#	OEM	CS1	CW2
1	51271-TA0-A01	Fork - R. FR. SHOCK ABSORBER	Fork - R. FR. SHOCK ABSORBER
2	51281-TA0-A01	Fork - L. FR. SHOCK ABSORBER	Fork - L. FR. SHOCK ABSORBER
6	51320-TA0-A01	Link comp - R. FR. STABILIZER	Link comp - R. FR. STABILIZER
7	51325-TA0-A01	Link comp - L. FR. STABILIZER	Link comp - L. FR. STABILIZER
8	51350-TA0-A00	Arm comp - R. FR. LOWER	Arm comp - R. FR. LOWER
10	51391-TA0-A01	Bush - FR. COMPLIANCE	Bush - FR. COMPLIANCE
11	51393-SDA-A02	BUSH, FR. ARM (LOWER)	BUSH, FR. ARM (LOWER)
12	51810-TA0-A01	Bush - SHOCK ABSORBER FORK	Bush - SHOCK ABSORBER FORK
14	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
16	90118-TA0-A10	Bolt-washer - 12X92	Bolt-washer - 12X92
17	90119-SFE-000	Bolt - FLANGE, 14X100	Bolt - FLANGE, 14X100
19	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
20	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Front seat (L.) 3 / 11

#	OEM	CS1	CW2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
29	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
30	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM

Front seat (R.) 7 / 19

#	OEM	CS1	CW2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
23	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
25	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
26	90610-S10-003	Clip - GARNISH	Clip - GARNISH
27	91533-S82-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
28	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
30	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)

Front seat components (L.; POWER HEIGHT) 6 / 39

#	OEM	CS1	CW2
29	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25
30	90610-S10-003	Clip - GARNISH	Clip - GARNISH
32	90650-S6M-J01	Clip - RATCHET, 10MM	Clip - RATCHET, 10MM
35	91533-S82-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
36	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
37	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)

Front seat components (R.) 5 / 14

#	OEM	CS1	CW2
7	81261-TA0-A01	Cap - RAIL END UPPER	Cap - RAIL END UPPER
13	81676-TA0-A01	Spring - HANDLE(R.)	Spring - HANDLE(R.)
14	81677-TA0-A01	Spring - HANDLE(L.)	Spring - HANDLE(L.)
16	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25
17	90610-S10-003	Clip - GARNISH	Clip - GARNISH

Front shock absorber 12 / 22

#	OEM	CS1	CW2
5	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
8	51675-TA0-A02	Base - R. FR. SHOCK ABSORBER MOUNTING	Base - R. FR. SHOCK ABSORBER MOUNTING
9	51676-TA0-A02	Base - L. FR. SHOCK ABSORBER MOUNTING	Base - L. FR. SHOCK ABSORBER MOUNTING
10	51684-SDA-A02	Mount - FR. DUST COVER LOWER	Mount - FR. DUST COVER LOWER
11	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
12	51686-TA0-A01	Rubber - FR. SPRING MOUNT	Rubber - FR. SPRING MOUNT
13	51688-SDA-A01	Sleeve - FR. DUST COVER	Sleeve - FR. DUST COVER
14	51689-SDA-A01	Cover - FR. END DUST	Cover - FR. END DUST
16	51722-SS0-004	Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)	Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)
17	51728-SB0-003	Collar - SHOCK ABSORBER MOUNTING(TOKICO)	Collar - SHOCK ABSORBER MOUNTING(TOKICO)
18	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
19	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front sub frame/rear beam 19 / 27

#	OEM	CS1	CW2
4	50260-TA0-A01	Rubber - FR. SUB FRAME MOUNTING	Rubber - FR. SUB FRAME MOUNTING
5	50261-TA0-A01	Rubber - FR. SUB FRAME STOPPER	Rubber - FR. SUB FRAME STOPPER
6	50265-TA0-A00	Stay - R. FR. SUB FRAME MOUNTING(FR.)	Stay - R. FR. SUB FRAME MOUNTING(FR.)
7	50266-TA0-A00	Stay - L. FR. SUB FRAME MOUNTING(FR.)	Stay - L. FR. SUB FRAME MOUNTING(FR.)
8	50275-TA0-A00	Stay - FR. SUB FRAME MOUNTING (RR.)	Stay - FR. SUB FRAME MOUNTING (RR.)
9	50280-SDA-A01	Rubber - R. FR. SUB FRAME MIDDLE MOUNTING	Rubber - R. FR. SUB FRAME MIDDLE MOUNTING
10	50285-SDA-A01	Rubber - L. FR. SUB FRAME MIDDLE MOUNTING	Rubber - L. FR. SUB FRAME MIDDLE MOUNTING
12	50360-TA0-A01	Rubber - RR. SUB FRAME FR. MOUNTING	Rubber - RR. SUB FRAME FR. MOUNTING
13	50365-TA0-A00	Stay - RR. SUB FRAME MOUNTING (FR.)	Stay - RR. SUB FRAME MOUNTING (FR.)
14	50370-TA0-A01	Rubber - RR. SUB FRAME RR. MOUNTING	Rubber - RR. SUB FRAME RR. MOUNTING
20	90176-S5A-000	Bolt - FLANGE, 10X30	Bolt - FLANGE, 10X30
21	90166-TA0-A00	Bolt - FLANGE, 8X16	Bolt - FLANGE, 8X16
22	90167-TA0-A00	Bolt - FLANGE, 12X40	Bolt - FLANGE, 12X40
23	90168-TA0-A00	Bolt - FLANGE, 12X65	Bolt - FLANGE, 12X65
26	90175-TA0-A00	Bolt - FLANGE, 14X100	Bolt - FLANGE, 14X100
27	90176-SDA-A00	Bolt - FLANGE, 14X135	Bolt - FLANGE, 14X135
28	90177-SDA-A00	Bolt - FLANGE, 14X150	Bolt - FLANGE, 14X150
29	90186-SDA-A00	Bolt - FLANGE, 12X33	Bolt - FLANGE, 12X33
30	90396-S5A-010	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75

Front windshield 1 / 7

#	OEM	CS1	CW2
7	91568-TA0-A00	Clip, FR. Windshield (Upper)	Clip, FR. Windshield (Upper)

Front windshield wiper 2 / 26

#	OEM	CS1	CW2
25	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
26	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)	Cap - FR. WIPER ARM (12MM)

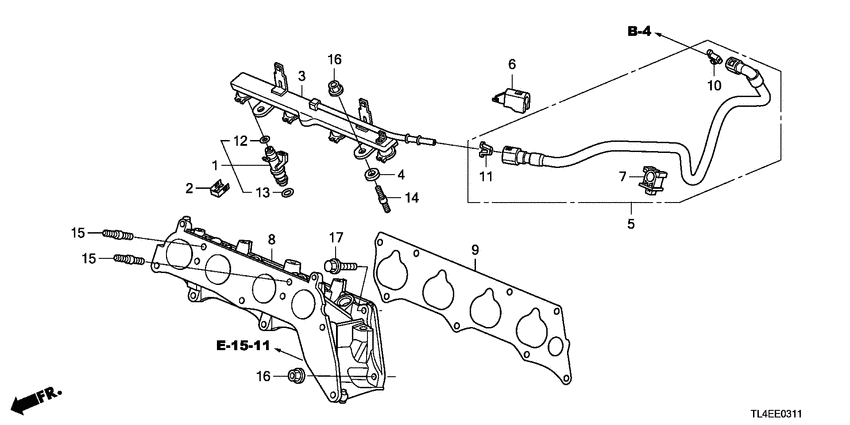

Fuel injector (L4) 13 / 14

#	OEM	CS1	CW2
1	16450-R40-Y01	Injector assy - FUEL	Injector assy - FUEL
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
3	16620-R40-A01	Pipe comp - FUEL	Pipe comp - FUEL
4	16638-PNA-000	Insulator - FUEL PIPE	Insulator - FUEL PIPE
5	16722-R40-A01	Hose comp. - FUEL FEED	Hose comp. - FUEL FEED
6	16726-R40-A00	Holder b - FUEL CONNECTOR (LIGHT GRAY)	Holder b - FUEL CONNECTOR (LIGHT GRAY)
7	16727-PND-004	Clamp - FUEL HOSE (BLACK)	Clamp - FUEL HOSE (BLACK)
8	17050-R40-A00	Base comp. - INJECTOR	Base comp. - INJECTOR
9	17055-R40-A01	Gasket - INJECTOR BASE	Gasket - INJECTOR BASE
10	17711-S0X-A31	Retainer - GREEN)(TOKAI	Retainer - GREEN)(TOKAI
11	17711-S0X-931	Retainer - BLUE GREEN) (TOKAI	Retainer - BLUE GREEN) (TOKAI
12	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
13	91302-R40-A01	O-ring - 11.33X2.8	O-ring - 11.33X2.8

Fuel pipe (L4) 18 / 19

#	OEM	CS1	CW2
2	16723-R42-A00	Stay assy - FUEL FEED HOSE	Stay assy - FUEL FEED HOSE
3	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)	Clamp - FUEL HOSE (NATURAL)
4	16725-R40-A00	Holder a - FUEL CONNECTOR (BEIGE)	Holder a - FUEL CONNECTOR (BEIGE)
5	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
6	17717-TA0-G00	Hose assy - FUEL PURGE	Hose assy - FUEL PURGE
7	17761-TA0-A00	Stay a - FUEL PIPE	Stay a - FUEL PIPE
8	17762-TA0-A00	Stay b - FUEL PIPE	Stay b - FUEL PIPE
9	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
10	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
11	91407-SDB-000	Clamp - TUBE (D12.5)	Clamp - TUBE (D12.5)
12	91591-TA0-A01	Clamp a - FUEL PIPE(BLACK)	Clamp a - FUEL PIPE(BLACK)
13	91592-TA0-G01	Clamp - FUEL PIPE	Clamp - FUEL PIPE
14	91594-TA0-G00	Rubber a - FUEL PIPE INSULATOR	Rubber a - FUEL PIPE INSULATOR
15	91595-TA0-G00	Rubber b - FUEL PIPE INSULATOR	Rubber b - FUEL PIPE INSULATOR
16	91596-TA0-G01	Clamp c - FUEL PIPE	Clamp c - FUEL PIPE
17	91597-TA0-G01	Clamp d - FUEL PIPE	Clamp d - FUEL PIPE
18	91598-TA0-G01	Clamp e - FUEL PIPE	Clamp e - FUEL PIPE
19	91599-TA0-G01	Clamp f - FUEL PIPE	Clamp f - FUEL PIPE

Fuel tank 23 / 31

#	OEM	CS1	CW2
3	17046-SWE-T00	Nut & packing set - FUEL LOCK	Nut & packing set - FUEL LOCK
5	17048-TA0-000	Strainer set - FUEL	Strainer set - FUEL
6	17052-TA0-000	Regulator set - PRESSURE	Regulator set - PRESSURE
7	17508-TA0-G01	Clip - FUEL VENT	Clip - FUEL VENT
8	17512-TA0-A01	Cushion - FUEL TANK	Cushion - FUEL TANK
9	17513-TA0-A00	Circlip - PROTECTOR	Circlip - PROTECTOR
10	17518-TA0-A00	Protector - FUEL TANK	Protector - FUEL TANK
11	17521-TA0-A00	Band - R. FUEL TANK MOUNTING	Band - R. FUEL TANK MOUNTING
12	17522-TA0-A00	Band - L. FUEL TANK MOUNTING	Band - L. FUEL TANK MOUNTING
13	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
15	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
16	17652-SEL-003	Clip - FILLER TUBE (39MM)	Clip - FILLER TUBE (39MM)
17	17653-TA0-G01	Tube assy - BREATHER	Tube assy - BREATHER
20	17670-SJA-013	Cap comp. FUEL FILLER	Cap comp. FUEL FILLER
20	17670-T3W-003	CAP, FUEL FILLER	CAP, FUEL FILLER
21	17710-TA0-G00	Tube assy - FUEL VENT	Tube assy - FUEL VENT
22	74660-TA0-A00	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
23	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
24	90361-TA0-A00	Nut - CAP, 6MM	Nut - CAP, 6MM
25	91404-TA0-G01	Clamp - FUEL TUBE (D10)	Clamp - FUEL TUBE (D10)
26	91462-SDA-003	Clamp - FUEL TUBE (D18)	Clamp - FUEL TUBE (D18)
27	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
29	91601-TA0-003	Clip - FUEL MAINTENANCE HOLE CAP	Clip - FUEL MAINTENANCE HOLE CAP

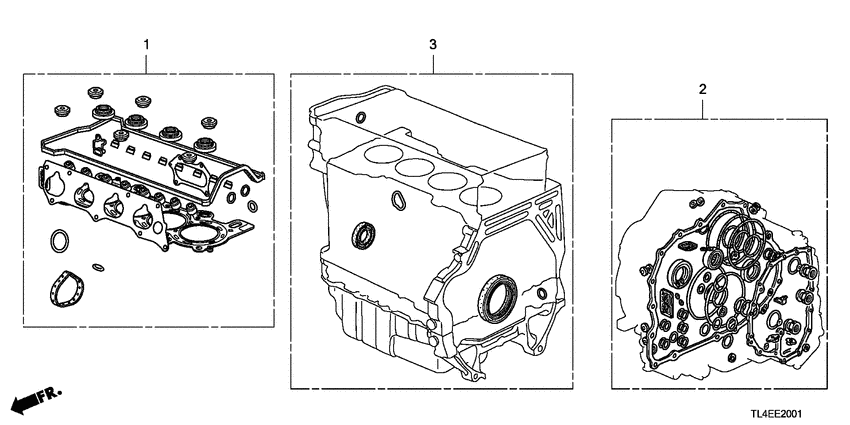

Gasket kit (L4) 1 / 3

#	OEM	CS1	CW2
1	06110-R44-A00	Gasket kit - CYLINDER HEAD	Gasket kit - CYLINDER HEAD

Grommet (FRONT) 10 / 15

#	OEM	CS1	CW2
2	75826-634-300	Seal - INSIDE PANEL, 15MM	Seal - INSIDE PANEL, 15MM
3	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
6	90815-SNA-003	Grommet - 15MM	Grommet - 15MM
8	90826-SNA-003	Grommet - 25MM (BURRING)	Grommet - 25MM (BURRING)
10	90860-SA5-003	Plug - HOLE, 16MM	Plug - HOLE, 16MM
11	91611-TA0-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
12	91612-TA0-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
13	91613-SR3-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM
14	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
15	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 4 / 6

#	OEM	CS1	CW2
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
3	90815-SNA-003	Grommet - 15MM	Grommet - 15MM
6	90826-SNA-003	Grommet - 25MM (BURRING)	Grommet - 25MM (BURRING)

Grommet (REAR) 4 / 6

#	OEM	CS1	CW2
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	90615-S5A-003	Plug - HOLE, 27X56	Plug - HOLE, 27X56
5	90826-SNA-003	Grommet - 25MM (BURRING)	Grommet - 25MM (BURRING)
6	90857-SDA-A00	Cap - WELD HOLE	Cap - WELD HOLE

Grommet (SIDE) 1 / 5

#	OEM	CS1	CW2
4	90815-SNA-003	Grommet - 15MM	Grommet - 15MM

Harness band/bracket 31 / 46

#	OEM	CS1	CW2
4	32121-TA0-A00	Bracket - CABIN WIRE HARNESS	Bracket - CABIN WIRE HARNESS
5	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
6	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
7	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
12	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
14	91501-R40-A00	Cover - ENGINE CONTROL MODULE COUPLER(A,B)	Cover - ENGINE CONTROL MODULE COUPLER(A,B)
15	91507-SNA-003	Clip - HARNESS BAND(BROWN) (164.5MM)	Clip - HARNESS BAND(BROWN) (164.5MM)
17	91508-STX-A00	Clip - HARNESS BAND(BLACK) (148MM)	Clip - HARNESS BAND(BLACK) (148MM)
18	91531-SR3-003	Holder - COUPLER (NATURAL) (128.6MM)	Holder - COUPLER (NATURAL) (128.6MM)
19	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
20	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
21	91533-STK-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
22	91534-SWA-003	Clip - COUPLER(DARK GRAY)	Clip - COUPLER(DARK GRAY)
23	91536-STK-003	Clip - RELAY HOLDER(NATURAL)	Clip - RELAY HOLDER(NATURAL)
24	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
26	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)	Clip - HARNESS BAND(NATURAL) (100.1MM)
27	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
28	91545-SJA-003	Clip - WIRE HARNESS(SEAL) (125MM)	Clip - WIRE HARNESS(SEAL) (125MM)
29	91545-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL)
32	91545-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)	Clip - HARNESS BAND(NATURAL) (100.1MM)(WITH SEAL)
33	91549-STK-003	Holder - HARNESS (NATURAL) (113MM)	Holder - HARNESS (NATURAL) (113MM)
34	91549-TA0-003	Clip - HARNESS BAND(BLACK) (140.3MM)	Clip - HARNESS BAND(BLACK) (140.3MM)
39	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)	Clip - HARNESS BAND OFFSET(30) (NATURAL)
40	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
41	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
42	91661-TA0-003	Holder - HARNESS(BLACK)	Holder - HARNESS(BLACK)
43	91723-SNA-003	Coupler - WATER PROOF (23P 040 J/C) (BLACK)	Coupler - WATER PROOF (23P 040 J/C) (BLACK)
45	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
46	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)
51	91535-TA0-003	Clip - COUPLER (DARK BROWN)	Clip - COUPLER (DARK BROWN)
52	91542-TF0-003	Band - HARNESS OFFSET(20) (DARK BLUE)(145MM)	Band - HARNESS OFFSET(20) (DARK BLUE)(145MM)

Headlight 9 / 15

#	OEM	CS1	CW2
3	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
4	33126-SNA-A01	Cover - RUBBER	Cover - RUBBER
5	33130-SJK-J01	Adjuster unit - HEADLIGHT	Adjuster unit - HEADLIGHT
7	33165-S5A-003	Bulb - H11) (12V 55W) (STANLEY	Bulb - H11) (12V 55W) (STANLEY
7	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO	Bulb - H11) (12V 55W) (KOITO
8	33301-SNA-003	Bulb - 12V 5W) (STANLEY	Bulb - 12V 5W) (STANLEY
11	33305-S5A-003	Socket comp - T10	Socket comp - T10
12	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)	Bolt - BUMPER SETTING (6X15) (BLACK)
12	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER

Heater blower 8 / 15

#	OEM	CS1	CW2
1	79022-TA0-A01	Packing - AIR INTAKE	Packing - AIR INTAKE
3	79306-TA0-A01	Seal - BLOWER OUTER	Seal - BLOWER OUTER
4	79310-TA0-A01	Motor assy. - FAN	Motor assy. - FAN
9	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
10	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
11	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
12	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
13	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater unit 27 / 37

#	OEM	CS1	CW2
1	39248-692-003	Packing - HEATER	Packing - HEATER
2	77287-TA0-A00	Bracket - DRIVER INSTRUMENT CENTER LOWER COVER	Bracket - DRIVER INSTRUMENT CENTER LOWER COVER
3	79021-TA0-A01	Seal a	Seal a
5	79024-TA0-A01	Packing - RR. HEATER	Packing - RR. HEATER
6	79030-TA0-A01	Stay - HEATER PIPE	Stay - HEATER PIPE
7	79102-TA0-A01	Duct assy - PASSENGER HEATER	Duct assy - PASSENGER HEATER
9	79107-TA0-A01	Cover - HEATER CORE	Cover - HEATER CORE
10	79109-TA0-A01	Insulator - EVAPORATOR LOWER	Insulator - EVAPORATOR LOWER
15	79330-SNA-A01	Transistor - POWER	Transistor - POWER
16	79731-S5A-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
19	80222-TA0-A01	Seal - EXPANSION VALVE	Seal - EXPANSION VALVE
20	80271-TA0-A00	Hose - DRAIN	Hose - DRAIN
21	80534-S84-A41	Aspirator	Aspirator
22	80542-TA0-A01	Hose b - ASPIRATOR	Hose b - ASPIRATOR
25	80650-TA0-A20	Sub cord - AIR CONDITIONER	Sub cord - AIR CONDITIONER
26	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
27	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
28	90122-TA0-A01	Screw - TAPPING, 4X14(PO)	Screw - TAPPING, 4X14(PO)
29	90126-S5A-003	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40
30	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
31	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
32	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
33	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
34	90661-S2A-003	Clip - DRAIN HOSE	Clip - DRAIN HOSE
35	91533-STK-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
36	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
37	91549-TA0-003	Clip - HARNESS BAND(BLACK) (140.3MM)	Clip - HARNESS BAND(BLACK) (140.3MM)

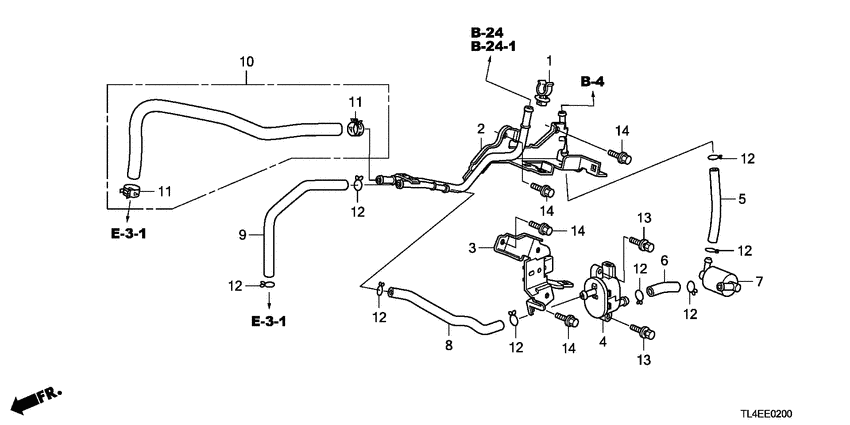

Install pipe (L4) 11 / 12

#	OEM	CS1	CW2
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
2	17400-R40-A00	Pipe comp - INSTALL	Pipe comp - INSTALL
3	36161-R40-A00	Stay comp - PURGE CONTROL SOLENOID	Stay comp - PURGE CONTROL SOLENOID
4	36162-RRA-A01	Valve assy. - PURGE CONTROL SOLENOID	Valve assy. - PURGE CONTROL SOLENOID
5	36164-R40-A00	Tube a - PURGE CONTROL SOLENOID IN.	Tube a - PURGE CONTROL SOLENOID IN.
6	36165-R40-A00	Tube b - PURGE CONTROL SOLENOID IN.	Tube b - PURGE CONTROL SOLENOID IN.
7	36166-R40-A01	Joint - PURGE	Joint - PURGE
8	36167-R40-A00	Tube - PURGE CONTROL SOLENOID OUTLET	Tube - PURGE CONTROL SOLENOID OUTLET
9	36169-R40-A00	Tube - PURGE	Tube - PURGE
11	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
12	91402-SDC-000	Clip - TUBE(B12)	Clip - TUBE(B12)

Instrument panel 9 / 11

#	OEM	CS1	CW2
2	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
8	77113-TA0-A00	Bracket - CENTER JOINT	Bracket - CENTER JOINT
17	90101-S6A-000	Bolt-washer - 8MM	Bolt-washer - 8MM
19	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
20	90111-TA0-A00	Bolt-washer - 8X68	Bolt-washer - 8X68
21	90140-SDA-A00	Bolt-washer - 5X19	Bolt-washer - 5X19
22	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
23	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
24	90669-SWA-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Instrument panel garnish (DRIVER SIDE) 5 / 7

#	OEM	CS1	CW2
12	90101-S2K-000	Screw - TAPPING, 4X16(IT)	Screw - TAPPING, 4X16(IT)
13	90666-SD4-003	Clip - FITTING	Clip - FITTING
14	90666-TA0-A01	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
15	90666-TA0-A21	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
16	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE) 6 / 13

#	OEM	CS1	CW2
16	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
17	90140-SDA-A00	Bolt-washer - 5X19	Bolt-washer - 5X19
18	90666-SD4-003	Clip - FITTING	Clip - FITTING
20	90666-TA0-A11	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
21	90666-TA0-A21	Clip - SNAP FITTING (PO) (ORANGE)	Clip - SNAP FITTING (PO) (ORANGE)
22	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

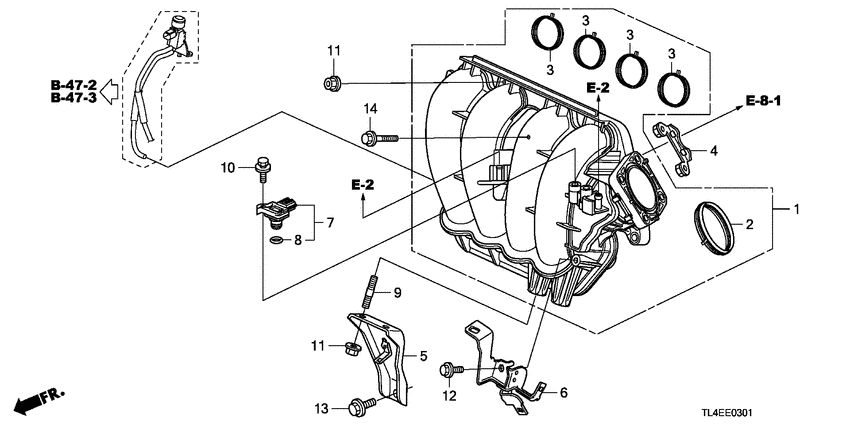

Intake manifold (L4) 6 / 8

#	OEM	CS1	CW2
1	17100-R40-A00	Manifold comp - INTAKE	Manifold comp - INTAKE
2	17107-R40-A01	Packing - THROTTLE BODY	Packing - THROTTLE BODY
3	17115-R40-A01	Packing a - INTAKE MANIFOLD	Packing a - INTAKE MANIFOLD
4	17116-R40-A00	Plate comp - THROTTLE FLANGE	Plate comp - THROTTLE FLANGE
7	37830-RNA-A01	Sensor assy - MAP	Sensor assy - MAP
8	37835-PGK-A01	O-ring	O-ring

Interior light 11 / 17

#	OEM	CS1	CW2
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W
5	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI	Bulb - 12V 5W) (DAIICHI
5	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
7	34401-SDA-A21	Lens - R.	Lens - R.
9	34402-SDA-A21	Lens - L.	Lens - L.
11	34404-SDA-A22	Base comp.	Base comp.
19	83253-TA0-A01	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
20	83254-TA0-A01	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
22	90148-S6A-013	Bolt - EARTH, 5X14	Bolt - EARTH, 5X14

L. side cover (L4) 1 / 41

#	OEM	CS1	CW2
37	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)

Meter components (NS) 1 / 4

#	OEM	CS1	CW2
4	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Mirror 1 / 21

#	OEM	CS1	CW2
16	90109-SDF-003	Screw - TAPPING, 4X14	Screw - TAPPING, 4X14

Molding 1 / 17

#	OEM	CS1	CW2
14	91503-STK-A01	Clip - DOOR MOLDING	Clip - DOOR MOLDING

Oil pump (L4) 22 / 25

#	OEM	CS1	CW2
1	11222-R40-A00	Plate b - BAFFLE	Plate b - BAFFLE
2	11223-RSP-000	Plate c - BAFFLE	Plate c - BAFFLE
5	13432-PNA-000	Sprocket - DRIVEN(17T)	Sprocket - DRIVEN(17T)
6	13441-R40-A01	Chain - 62L	Chain - 62L
7	13450-REZ-A01	Tensioner comp - BALANCER SHAFT CHAIN	Tensioner comp - BALANCER SHAFT CHAIN
8	13460-PNA-004	Guide comp - BALANCER SHAFT CHAIN	Guide comp - BALANCER SHAFT CHAIN
10	15115-R40-A01	Metal - BALANCER SHAFT(DAIDO)	Metal - BALANCER SHAFT(DAIDO)
11	15123-PCX-003	Dowel pin - 18X13	Dowel pin - 18X13
12	15231-PE0-000	Valve - RELIEF	Valve - RELIEF
13	15232-RAA-A01	Spring - RELIEF VALVE	Spring - RELIEF VALVE
14	15233-R40-000	Bolt - SEALING, 18MM	Bolt - SEALING, 18MM
15	15310-R40-A00	Base comp. - OIL FILTER	Base comp. - OIL FILTER
16	15312-R40-A01	O-ring - OIL FILTER BASE(A)	O-ring - OIL FILTER BASE(A)
17	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
17	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
17	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
18	90004-PNA-000	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
19	90009-PNA-000	Bolt - FLANGE, 8X55	Bolt - FLANGE, 8X55
20	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
21	90031-PNA-004	Bolt-washer - 10X30	Bolt-washer - 10X30
22	91301-R40-A01	O-ring	O-ring
23	91326-PL5-003	O-ring - 26X2.4(NOK)	O-ring - 26X2.4(NOK)

Outer panels/rear panel 1 / 14

#	OEM	CS1	CW2
34	90671-SHJ-A02	Rivet - VIN PLATE	Rivet - VIN PLATE

P.s. gear box 5 / 20

#	OEM	CS1	CW2
1	52362-S30-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)
3	53434-TA0-A02	Clip - STEERING TIE ROD	Clip - STEERING TIE ROD
10	53537-S3N-003	Rubber - STOPPER	Rubber - STOPPER
11	53540-TA0-A01	End comp - R. TIE ROD	End comp - R. TIE ROD
12	53560-TA0-A01	End comp - L. TIE ROD	End comp - L. TIE ROD

P.s. gear box components 2 / 23

#	OEM	CS1	CW2
6	53414-S84-A01	Screw - RACK GUIDE	Screw - RACK GUIDE
9	53458-S84-A01	Nut - LOCK	Nut - LOCK

P.s. lines (L4) 1 / 24

#	OEM	CS1	CW2
9	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Parking brake 4 / 10

#	OEM	CS1	CW2
4	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
6	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
9	47572-ST0-000	Base - WIRE GUIDE	Base - WIRE GUIDE
12	90104-TA0-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Pedal 7 / 13

#	OEM	CS1	CW2
2	36750-SMA-003	Switch assy - STOP & CRUISE (PANASONIC)	Switch assy - STOP & CRUISE (PANASONIC)
3	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
6	46590-TA0-A00	Stay - PEDAL STIFFENER	Stay - PEDAL STIFFENER
8	46982-TA0-A81	Bush - RETURN SPRING	Bush - RETURN SPRING
11	90104-SFE-003	Bolt - FLANGE, 8X23	Bolt - FLANGE, 8X23
12	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
13	90361-S3C-003	Nut - PAINT CUTTING, 8MM	Nut - PAINT CUTTING, 8MM

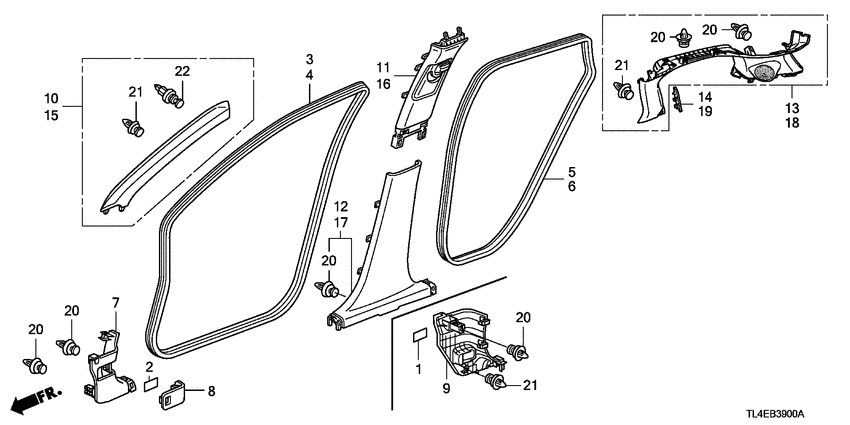

Pillar garnish 3 / 12

#	OEM	CS1	CW2
23	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
24	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)
25	91561-TA0-A01	Clip - FR. PILLAR GARNISH	Clip - FR. PILLAR GARNISH

Power steering pump (L4) 1 / 18

#	OEM	CS1	CW2
5	90001-R40-A00	Bolt-washer - SPECIAL, 10X47	Bolt-washer - SPECIAL, 10X47

Radiator (L4) 12 / 18

#	OEM	CS1	CW2
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
8	19045-RAA-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
10	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
11	37870-RWC-A01	Water Temp Sensor assy - (PANASONIC)	Water Temp Sensor assy - (PANASONIC)
12	38611-R40-A01	Fan - COOLING	Fan - COOLING
13	38615-R40-A01	Shroud comp.	Shroud comp.
14	38616-R40-A01	Motor - COOLING FAN(DENSO)	Motor - COOLING FAN(DENSO)
15	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
16	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
17	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)
18	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)	O-ring - 9.5X1.9 (MATSUSHITA)

Radiator hose/reserve tan k (L4) 6 / 23

#	OEM	CS1	CW2
2	19102-PM5-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
5	19106-RSA-G00	Joint - RESERVE TANK	Joint - RESERVE TANK
8	19503-RAA-A01	Connector - QUICK WATER	Connector - QUICK WATER
9	19506-RAA-A01	Wire	Wire
11	19507-RAA-A01	O-ring	O-ring
20	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER

Radio antenna/speaker 7 / 12

#	OEM	CS1	CW2
11	90109-SLJ-003	Screw - 5X40	Screw - 5X40
12	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
13	90309-SLJ-003	Nut assy. - SPEAKER	Nut assy. - SPEAKER
14	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
15	91534-SWA-003	Clip - COUPLER(DARK GRAY)	Clip - COUPLER(DARK GRAY)
16	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
17	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)

Rear brake 10 / 27

#	OEM	CS1	CW2
9	43235-S84-A51	Pin a	Pin a
13	43262-S84-A51	Pin b	Pin b
15	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
16	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
17	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
18	90103-SJK-000	Bolt - CALIPER MOUNTING	Bolt - CALIPER MOUNTING
19	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
19	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
19	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
20	90160-TA0-A00	Bolt-washer - 12X44	Bolt-washer - 12X44

Rear lower arm 24 / 36

#	OEM	CS1	CW2
3	42528-TA0-A01	Clip - COUPLER	Clip - COUPLER
4	51226-SL0-003	Circlip - LOWER BALL	Circlip - LOWER BALL
9	52308-TA0-A00	Bracket - RR. STABILIZER HOLDER	Bracket - RR. STABILIZER HOLDER
10	52320-TA0-A01	Link comp - R. RR. STABILIZER	Link comp - R. RR. STABILIZER
11	52325-TA0-A01	Link comp - L. RR. STABILIZER	Link comp - L. RR. STABILIZER
12	52340-TA0-A00	Arm comp - R. RR. CONTROL	Arm comp - R. RR. CONTROL
13	52345-TA0-A00	Arm comp - L. RR. CONTROL	Arm comp - L. RR. CONTROL
14	52350-TA0-A00	Arm comp. b - RR. LOWER	Arm comp. b - RR. LOWER
18	52387-SJA-010	Plate - CAM(M12)	Plate - CAM(M12)
20	52514-TA0-A01	Boot - RR. UPPER BALL	Boot - RR. UPPER BALL
23	90100-SHJ-A00	Bolt - FLANGE, 6X16.5	Bolt - FLANGE, 6X16.5
24	90118-SNA-000	Bolt - FLANGE, 12X84	Bolt - FLANGE, 12X84
25	90118-TA0-A00	Bolt - FLANGE, 12X90	Bolt - FLANGE, 12X90
26	90166-TA0-A00	Bolt - FLANGE, 8X16	Bolt - FLANGE, 8X16
27	90178-TA0-A00	Bolt - RR. CONTROL ARM ADJUST	Bolt - RR. CONTROL ARM ADJUST
28	90181-S84-A00	Bolt - TRAILING ARM, 12X68	Bolt - TRAILING ARM, 12X68
29	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
30	90002-TA0-A00	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
31	90362-SJA-000	Nut - SELF-LOCK, 12MM (NYLON)	Nut - SELF-LOCK, 12MM (NYLON)
32	90365-TA0-A00	Nut - CASTLE, 14MM	Nut - CASTLE, 14MM
33	90370-SJA-000	Nut - SELF-LOCK, 12MM(CLINCH)	Nut - SELF-LOCK, 12MM(CLINCH)
34	90651-SWA-000	Washer - RR. KNUCKLE	Washer - RR. KNUCKLE
35	90701-SKC-003	Pin - SPLIT(M14)	Pin - SPLIT(M14)
37	57477-TA0-305	Seal - LIP(BLACK)	Seal - LIP(BLACK)

Rear seat 2 / 10

#	OEM	CS1	CW2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
17	90123-SJA-000	Bolt-washer - 6X16	Bolt-washer - 6X16

Rear shock absorber 12 / 19

#	OEM	CS1	CW2
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
3	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
4	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
9	52675-TA0-A01	Base - RR. SHOCK ABSORBER MOUNTING	Base - RR. SHOCK ABSORBER MOUNTING
10	52686-SDA-A01	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
11	52687-TA0-A01	Cover comp. - DUST	Cover comp. - DUST
12	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP
13	52722-SJA-003	Rubber - RR. BUMP STOPPER	Rubber - RR. BUMP STOPPER
14	52748-S0A-004	Cover - RR. LOWER MOUNT DUST	Cover - RR. LOWER MOUNT DUST
15	90182-TA0-A00	Bolt - FLANGE, 12X80	Bolt - FLANGE, 12X80
16	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
17	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear tray/ trunk side garnish 7 / 12

#	OEM	CS1	CW2
1	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
2	33513-S50-003	Socket - T20W S2	Socket - T20W S2
6	74641-TL0-G00	Insulator - R. RR. WHEELHOUSE	Insulator - R. RR. WHEELHOUSE
7	74691-TL0-G00	Insulator - L. RR. WHEELHOUSE	Insulator - L. RR. WHEELHOUSE
28	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE
29	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
31	91902-SNA-003	Plaster - WIRE HARNESS(50X50)	Plaster - WIRE HARNESS(50X50)

Rear windshield/ quarter glass 1 / 20

#	OEM	CS1	CW2
20	91568-TA0-A00	Clip, FR. Windshield (Upper)	Clip, FR. Windshield (Upper)

Resonator chamber (L4) 4 / 13

#	OEM	CS1	CW2
1	17212-PLC-000	Rubber - AIR CLEANER MOUNTING	Rubber - AIR CLEANER MOUNTING
2	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
12	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
13	91505-S9A-003	Clip A - BUMPER	Clip A - BUMPER

Roof lining 6 / 6

#	OEM	CS1	CW2
4	83231-TA0-A91	Bulb	Bulb
5	83232-TA0-A91	Lens a	Lens a
6	83233-TA0-A91	Lens b	Lens b
10	83247-SNA-A01	Clip - GRAB RAIL	Clip - GRAB RAIL
13	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)
14	91560-SYA-J01	Clip - PILLAR GARNISH (DARK GREEN)	Clip - PILLAR GARNISH (DARK GREEN)

Seatbelts 4 / 24

#	OEM	CS1	CW2
9	81441-S50-J22	Collar - 2H	Collar - 2H
18	90123-S04-J30	Washer - WAVE	Washer - WAVE
29	90543-S50-004	Washer - SPRING	Washer - SPRING
30	90543-S50-902	Washer - SPRING	Washer - SPRING

Side lining 1 / 1

#	OEM	CS1	CW2
3	91560-SLJ-J01	Clip - DOOR LINING (LIGHT GRAY)	Clip - DOOR LINING (LIGHT GRAY)

Sliding roof 1 / 18

#	OEM	CS1	CW2
20	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Solenoid (L4) 1 / 18

#	OEM	CS1	CW2
17	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

Spool valve (L4) 13 / 16

#	OEM	CS1	CW2
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
3	12251-R40-A01	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
4	15811-R40-003	Valve sub assy. - SPOOL	Valve sub assy. - SPOOL
5	15815-R40-A01	Filter assy - SPOOL VALVE	Filter assy - SPOOL VALVE
8	15835-PNA-003	Bolt - VTC SOLENOID	Bolt - VTC SOLENOID
9	15840-RAA-A00	Strainer assy - VTC	Strainer assy - VTC
10	15845-RAA-A01	Filter assy - VTC	Filter assy - VTC
11	32743-R40-A00	Stay comp - ENGINE HARNESS	Stay comp - ENGINE HARNESS
12	37241-R40-A00	Stay comp - ENGINE HARNESS	Stay comp - ENGINE HARNESS
13	90001-P70-000	Bolt - FLANGE, 10X10.5	Bolt - FLANGE, 10X10.5
14	90005-RNA-A01	Bolt-washer - 11X176	Bolt-washer - 11X176
16	91319-PAA-A01	O-ring - 13X1.5	O-ring - 13X1.5

Srs unit 15 / 29

#	OEM	CS1	CW2
1	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
9	77970-TC0-A11	Sensor assy - SIDE IMPACT(TRW)	Sensor assy - SIDE IMPACT(TRW)
11	78819-STK-A81	Clip - SIDE CURTAIN AIRBAG (8.5MM)	Clip - SIDE CURTAIN AIRBAG (8.5MM)
16	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
17	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
19	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
20	90178-SNA-003	Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)	Bolt-washer - 6X19 (SIDE CURTAIN AIRBAG)
21	91533-STK-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)
22	91540-STK-003	Clip - HARNESS BAND (BLACK) (155.3MM)	Clip - HARNESS BAND (BLACK) (155.3MM)
23	91540-TA0-003	Clip - HARNESS BAND(NATURAL) (100.1MM)	Clip - HARNESS BAND(NATURAL) (100.1MM)
24	91542-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)
25	91545-SJA-003	Clip - WIRE HARNESS(SEAL) (125MM)	Clip - WIRE HARNESS(SEAL) (125MM)
26	91545-SNA-003	Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL)	Clip - HARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL)
27	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)	Clip - HARNESS BAND OFFSET(30) (NATURAL)
28	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)

Steering column 6 / 7

#	OEM	CS1	CW2
2	53320-TA0-T01	Cover - STEERING JOINT	Cover - STEERING JOINT
3	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
4	90135-SDA-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
4	90135-SZT-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
5	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
6	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Steering wheel (SRS) 6 / 11

#	OEM	CS1	CW2
11	78520-TA0-A81	Damper comp - STEERING	Damper comp - STEERING
13	78523-TA0-A81	Spring - HORN	Spring - HORN
14	78524-TA0-A81	Bolt - TORX, (M5X8)	Bolt - TORX, (M5X8)
15	78525-TA0-A81	Plate - HOOK	Plate - HOOK
16	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
17	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Switch 2 / 7

#	OEM	CS1	CW2
1	35300-SMA-003	Switch assy - VSA OFF	Switch assy - VSA OFF
7	35855-SMA-003	Bulb comp. - 14V 80MA	Bulb comp. - 14V 80MA

Taillight/license light 4 / 14

#	OEM	CS1	CW2
1	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
5	33514-S50-003	Socket - T20W S3	Socket - T20W S3
10	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
12	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY	Bulb - 12V 21W/5W) (STANLEY

Throttle body (L4) 3 / 4

#	OEM	CS1	CW2
2	16430-RTA-J01	Case comp. - LOWER	Case comp. - LOWER
3	16431-RTA-J01	Gasket - LOWER CASE	Gasket - LOWER CASE
4	32745-R40-A00	Stay - ENGINE HARNESS	Stay - ENGINE HARNESS

Tire/wheel disks 12 / 36

#	OEM	CS1	CW2
6	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
6	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
8	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)	Plate - SPARE TIRE CAUTION (T-TYPE)
10	44724-TP6-A01	WEIGHT (20G)	WEIGHT (20G)
10	44727-TP6-A01	WEIGHT (35G)	WEIGHT (35G)
10	44726-TP6-A01	WEIGHT (30G)	WEIGHT (30G)
10	44721-TP6-A01	WEIGHT, BALANCE (5G)	WEIGHT, BALANCE (5G)
10	44723-TP6-A01	WEIGHT (15G)	WEIGHT (15G)
10	44721-S5A-A20	Weight - BALANCE (10G)	Weight - BALANCE (10G)
10	44725-TP6-A01	WEIGHT (25G)	WEIGHT (25G)
12	74651-S2X-003	Adapter - SPARE TIRE	Adapter - SPARE TIRE
13	74652-SDA-003	Bolt - SPARE TIRE	Bolt - SPARE TIRE

Tools/jack 2 / 7

#	OEM	CS1	CW2
5	89310-SFE-003	Jack assy - PANTOGRAPH	Jack assy - PANTOGRAPH
6	89311-SFE-003	Plate - JACK CAUTION	Plate - JACK CAUTION

Torque converter case (L4) 1 / 19

#	OEM	CS1	CW2
15	91206-RCT-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)

Under cover 4 / 10

#	OEM	CS1	CW2
7	90103-TA0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
8	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
9	90207-RAA-A10	Nut - HEX. CAP, 6MM	Nut - HEX. CAP, 6MM
10	90682-SDA-A01	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Valve/rocker arm (L4) 9 / 14

#	OEM	CS1	CW2
2	14624-R40-A01	Arm assy. EX. ROCKER	Arm assy. EX. ROCKER
3	14647-RAA-A00	Washer - THRUST	Washer - THRUST
6	14744-R40-A01	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
9	14765-R40-A00	Retainer - VALVE SPRING	Retainer - VALVE SPRING
10	14775-PCX-000	Seat - VALVE SPRING	Seat - VALVE SPRING
11	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
12	14820-PNA-003	Motion comp - LOST	Motion comp - LOST
12	14820-PNA-013	MOTION,	MOTION,
13	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)	Nut - TAPPET ADJUSTING (TOKAI TRW)

Vsa modulator 1 / 4

#	OEM	CS1	CW2
4	57376-SNA-A00	Bolt - MOUNTING	Bolt - MOUNTING

Water hose (L4) 10 / 13

#	OEM	CS1	CW2
1	19504-RAA-A00	Hose - BYPASS IN.	Hose - BYPASS IN.
2	19508-R40-A01	Hose - THROTTLE BODY IN.	Hose - THROTTLE BODY IN.
3	79746-S6F-G01	Clamp - HEATER HOSE (BLACK)	Clamp - HEATER HOSE (BLACK)
3	19509-R40-A01	Hose - THROTTLE BODY OUTLET	Hose - THROTTLE BODY OUTLET
4	90661-SL5-003	Clip, WATER HOSE	Clip, WATER HOSE
5	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
5	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
6	91551-SD5-003	Clamp - HEATER	Clamp - HEATER
6	19514-R40-A00	Hose a - BREATHER HEAT	Hose a - BREATHER HEAT
7	91315-PNA-003	O-ring - 19.3X3.8	O-ring - 19.3X3.8

Water pump (L4) 14 / 17

#	OEM	CS1	CW2
3	19224-R40-A01	Pulley - WATER PUMP	Pulley - WATER PUMP
4	19301-R40-A02	Thermostat assy - NIPPON THERMOSTAT	Thermostat assy - NIPPON THERMOSTAT
5	19305-PNA-003	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)
6	19320-R40-A01	Case comp. - THERMOSTAT (NIPPON THERMOSTAT)	Case comp. - THERMOSTAT (NIPPON THERMOSTAT)
7	19322-PCX-003	O-ring - 43.8X3.1	O-ring - 43.8X3.1
8	19322-PNA-003	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)
9	19350-R40-A00	Outlet assy - WATER	Outlet assy - WATER
10	19352-R40-A01	Seal - WATER OUTLET	Seal - WATER OUTLET
12	37870-RWC-A01	Water Temp Sensor assy - (PANASONIC)	Water Temp Sensor assy - (PANASONIC)
13	90013-PCX-000	Bolt - SPECIAL, 6X12	Bolt - SPECIAL, 6X12
14	90050-PNA-003	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)
15	90051-PNA-000	Bolt - SPECIAL, 6X28	Bolt - SPECIAL, 6X28
16	90204-PH7-000	Nut - SPECIAL	Nut - SPECIAL
17	91307-PLC-004	O-ring - 9.5X1.9 (MATSUSHITA)	O-ring - 9.5X1.9 (MATSUSHITA)

Windshield washer 2 / 19

#	OEM	CS1	CW2
15	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
18	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Wire harness (1) 2 / 7

#	OEM	CS1	CW2
6	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
7	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Wire harness (2) 1 / 5

#	OEM	CS1	CW2
5	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Wire harness (3) 2 / 9

#	OEM	CS1	CW2
11	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
12	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
