CM6 × CU2

共通 411 / 合計 4,892 · Jaccard 8.4%
CM6 Honda ACCORD — 2,605 中 411 共有
CU2 Honda ACCORD — 2,698 中 411 共有
411 件
Accumulator body (V6) 3 / 16
CM6 Accumulator body (V6)
CU2 Regulator body
# OEM CM6 CU2
3 27524-P6H-000 Clip - CAP Clip - CAP
15 91331-PC9-003 O-ring O-ring
16 91344-580-000 O-ring - 31X2.7 (ARAI) O-ring - 31X2.7 (ARAI)

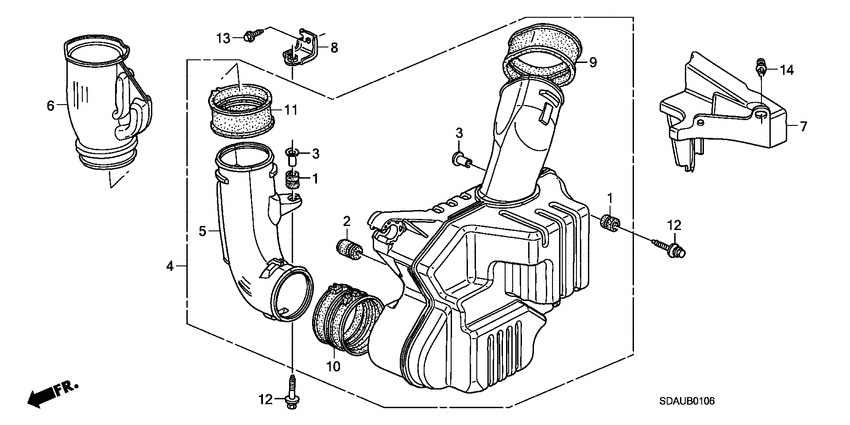

Air cleaner (V6) 4 / 14
CM6 Air cleaner (V6)
CU2 Air cleaner (2.4L)
# OEM CM6 CU2
2 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
4 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
11 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
13 90700-SB0-003 Clip - AIR BLEED TUBE Clip - AIR BLEED TUBE
Air conditioner (CONDENSER) 1 / 10
CM6 Air conditioner (CONDENSER)
CU2 Air conditioner (HOSES/PIPES; 2.4L; LH)
# OEM CM6 CU2
10 80873-ST7-000 O-ring - 8MM O-ring - 8MM
Air conditioner (HOSES/PIPES; LH) 7 / 18
CM6 Air conditioner (HOSES/PIPES; LH)
CU2 Air conditioner (HOSES/PIPES; 2.4L; LH)
# OEM CM6 CU2
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
12 80865-SL0-003 Cap - VALVE (H) Cap - VALVE (H)
13 80866-SL0-003 Cap - VALVE(L) Cap - VALVE(L)
14 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
15 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
16 80873-ST7-000 O-ring - 8MM O-ring - 8MM
17 90001-SDA-A00 Bolt - FLANGE, 6X38(GUIDE) Bolt - FLANGE, 6X38(GUIDE)
Air conditioner (HOSES/PIPES; RH) 5 / 20
CM6 Air conditioner (HOSES/PIPES; RH)
CU2 Air conditioner (HOSES/PIPES; 2.4L; LH)
# OEM CM6 CU2
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
16 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
17 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
18 80873-ST7-000 O-ring - 8MM O-ring - 8MM
19 90001-SDA-A00 Bolt - FLANGE, 6X38(GUIDE) Bolt - FLANGE, 6X38(GUIDE)
Air conditioner (SENSOR) 1 / 7
CM6 Air conditioner (SENSOR)
CU2 Air conditioner/heater (SENSOR)
# OEM CM6 CU2
3 80525-S30-941 Sensor assy - AMBIENT Sensor assy - AMBIENT
Alternator (DENSO; V6) 9 / 16
CM6 Alternator (DENSO; V6)
CU2 Alternator (DENSO; 2.4L)
# OEM CM6 CU2
3 31105-RAA-A01 Holder assy. - BRUSH Holder assy. - BRUSH
5 31111-PT0-003 Bearing - RR. GENERATOR Bearing - RR. GENERATOR
6 31114-PGK-A01 Bearing - FR. Bearing - FR.
9 31138-PD1-004 Cover - BEARING Cover - BEARING
11 31142-PD1-004 Nut - PULLEY LOCK Nut - PULLEY LOCK
12 31145-PGK-A01 Bolt Bolt
13 31146-PE9-941 Screw-washer Screw-washer
15 31147-PT0-003 Screw-washer Screw-washer
16 90231-PGK-A01 Nut - HEX., 5MM Nut - HEX., 5MM
Battery (V6) 4 / 17
CM6 Battery (V6)
CU2 Battery
# OEM CM6 CU2
7 31542-SA5-666 Plug - VENT (MF) (FURUKAWA) Plug - VENT (MF) (FURUKAWA)
14 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
15 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
16 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
Brake lines (VSA; LH) 5 / 28
CM6 Brake lines (VSA; LH)
CU2 Brake lines (VSA; LH)
# OEM CM6 CU2
13 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
24 46462-SE0-000 Bolt - OIL Bolt - OIL
26 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
27 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
28 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Brake lines (VSA; RH) 5 / 28
CM6 Brake lines (VSA; RH)
CU2 Brake lines (VSA; LH)
# OEM CM6 CU2
14 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
24 46462-SE0-000 Bolt - OIL Bolt - OIL
26 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
27 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
28 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE

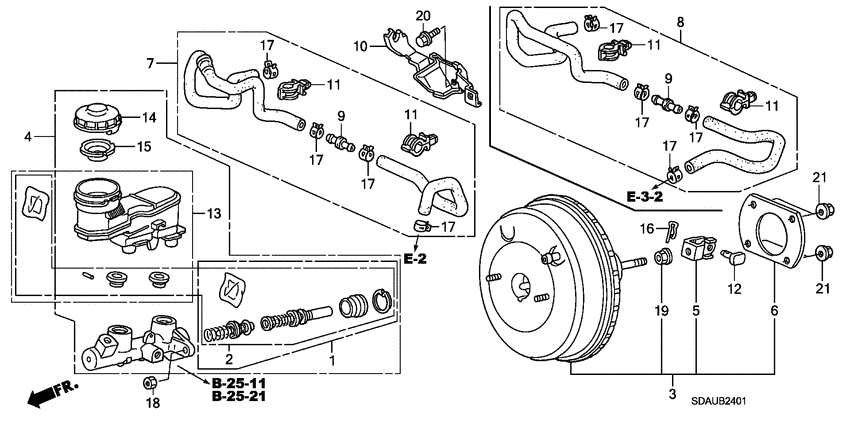

Brake master cylinder/ master power (LH) 4 / 17
CM6 Brake master cylinder/ master power (LH)
CU2 Brake master cylinder/ master power (LH)
# OEM CM6 CU2
6 46191-SDA-A00 Gasket - MASTER POWER Gasket - MASTER POWER
11 46512-S70-000 Pin - PEDAL Pin - PEDAL
15 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
16 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Brake master cylinder/ master power (RH) 4 / 18
CM6 Brake master cylinder/ master power (RH)
CU2 Brake master cylinder/ master power (LH)
# OEM CM6 CU2
6 46191-SDA-A00 Gasket - MASTER POWER Gasket - MASTER POWER
12 46512-S70-000 Pin - PEDAL Pin - PEDAL
16 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
17 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Bumpers 8 / 29
CM6 Bumpers
CU2 Front bumper
# OEM CM6 CU2
27 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
28 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
29 90111-SM4-003 Bolt - BUMPER Bolt - BUMPER
30 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
31 90149-SA0-003 Bolt - BUMPER Bolt - BUMPER
32 90156-S0K-000 Grommet - FR. LICENSE BASE Grommet - FR. LICENSE BASE
37 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
38 91503-SZ3-003 Clip A Clip A
Canister 1 / 26
CM6 Canister
CU2 Install pipe/tubing (2.4L)
# OEM CM6 CU2
24 91402-SDC-000 Clip - TUBE(B12) Clip - TUBE(B12)
Center module (STANLEY; AUTO AIR CONDITIONER) 3 / 11
CM6 Center module (STANLEY; AUTO AIR CONDITIONER)
CU2 Audio unit
# OEM CM6 CU2
11 90133-SM4-003 Bolt-washer - 5X16 Bolt-washer - 5X16
14 91551-SE0-003 Bolt - FLANGE, 5X7 Bolt - FLANGE, 5X7
15 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Clutch (1ST-2ND; V6) 2 / 45
CM6 Clutch (1ST-2ND; V6)
CU2 Clutch (4TH-5TH)
# OEM CM6 CU2
20 90603-PX4-000 Circlip - EXTERNAL, 47MM Circlip - EXTERNAL, 47MM
24 91302-PX4-004 O-ring - 46.8X2.2 (NOK) O-ring - 46.8X2.2 (NOK)

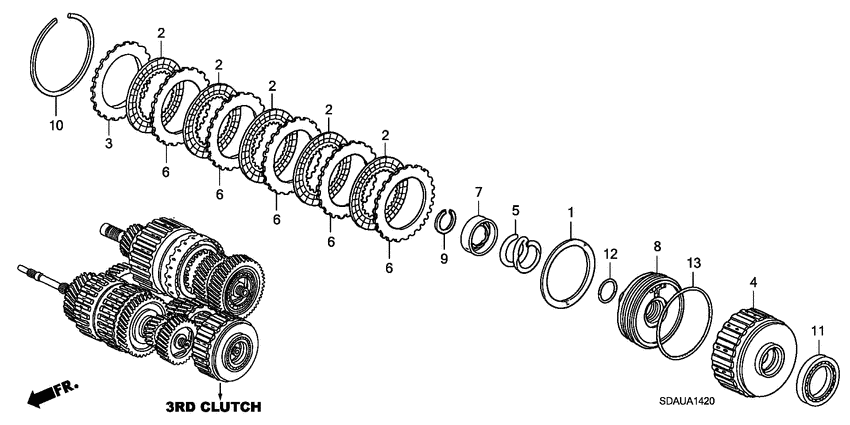

Clutch (3RD; V6) 2 / 24
CM6 Clutch (3RD; V6)
CU2 Clutch (4TH-5TH)
# OEM CM6 CU2
10 90605-P7T-003 Ring - SNAP, 133MM Ring - SNAP, 133MM
13 91303-PX4-004 O-ring - 114X2.2 (NOK) O-ring - 114X2.2 (NOK)
Clutch (4TH-5TH; V6) 3 / 22
CM6 Clutch (4TH-5TH; V6)
CU2 Clutch (4TH-5TH)
# OEM CM6 CU2
2 22533-PX4-010 Seat - RETURN SPRING Seat - RETURN SPRING
11 90603-PX4-000 Circlip - EXTERNAL, 47MM Circlip - EXTERNAL, 47MM
13 91302-PX4-004 O-ring - 46.8X2.2 (NOK) O-ring - 46.8X2.2 (NOK)
Combination switch (LH) 6 / 24
CM6 Combination switch (LH)
CU2 Key cylinder components
# OEM CM6 CU2
3 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
4 35103-S04-003 Screw - RECESSED Screw - RECESSED
5 35108-S30-003 Holder - COLUMN Holder - COLUMN
18 35400-S6A-003 Switch assy - DOOR (DAIICHI) Switch assy - DOOR (DAIICHI)
20 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
22 72148-S0A-000 Battery CR1616 Battery CR1616
Combination switch (RH) 6 / 24
CM6 Combination switch (RH)
CU2 Key cylinder components
# OEM CM6 CU2
3 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
4 35103-S04-003 Screw - RECESSED Screw - RECESSED
5 35108-S30-003 Holder - COLUMN Holder - COLUMN
18 35400-S6A-003 Switch assy - DOOR (DAIICHI) Switch assy - DOOR (DAIICHI)
20 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
22 72148-S0A-000 Battery CR1616 Battery CR1616
Console 3 / 17
CM6 Console
CU2 Console (LH)
# OEM CM6 CU2
2 39624-SZ3-L01 Socket assy Socket assy
34 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
36 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM

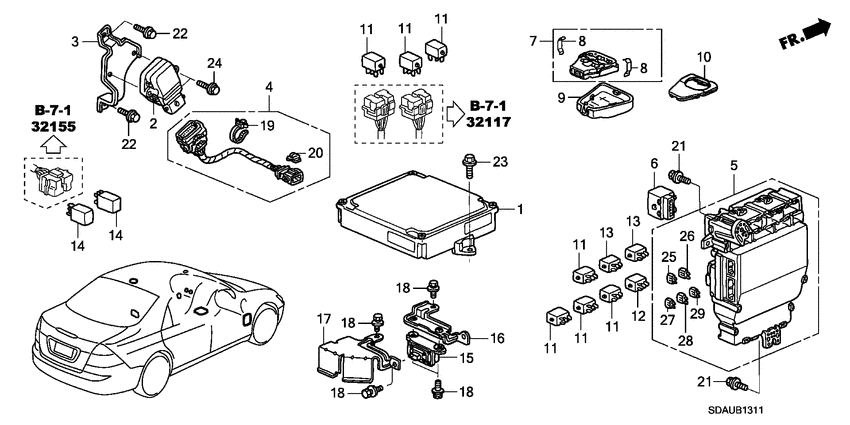

Control unit (CABIN; LH) 8 / 21
CM6 Control unit (CABIN; LH)
CU2 Control unit (CABIN; 2)
# OEM CM6 CU2
12 39794-SDA-A05 Relay assy - POWER(MICRO ISO) (MITSUBA) Relay assy - POWER(MICRO ISO) (MITSUBA)
12 39794-SDA-A02 Relay assy - POWER(MICRO ISO) (DENSO) Relay assy - POWER(MICRO ISO) (DENSO)
13 39794-SDA-004 RELAY ASSY., FUEL PUMP (DENSO) RELAY ASSY., FUEL PUMP (DENSO)
13 39794-SDA-003 Relay assy - FUEL PUMP (MITSUBA) Relay assy - FUEL PUMP (MITSUBA)
14 39794-SDA-902 Relay assy, ENGINE CONTROL MODULE (DENSO) Relay assy, ENGINE CONTROL MODULE (DENSO)
14 39794-SDA-901 Relay assy, ENGINE CONTROL MODULE (MITSUBA) Relay assy, ENGINE CONTROL MODULE (MITSUBA)
19 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
21 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
Control unit (CABIN; RH) 8 / 23
CM6 Control unit (CABIN; RH)
CU2 Control unit (CABIN; 2)
# OEM CM6 CU2
11 39794-SDA-A02 Relay assy - POWER(MICRO ISO) (DENSO) Relay assy - POWER(MICRO ISO) (DENSO)
11 39794-SDA-A05 Relay assy - POWER(MICRO ISO) (MITSUBA) Relay assy - POWER(MICRO ISO) (MITSUBA)
12 39794-SDA-004 RELAY ASSY., FUEL PUMP (DENSO) RELAY ASSY., FUEL PUMP (DENSO)
12 39794-SDA-003 Relay assy - FUEL PUMP (MITSUBA) Relay assy - FUEL PUMP (MITSUBA)
13 39794-SDA-902 Relay assy, ENGINE CONTROL MODULE (DENSO) Relay assy, ENGINE CONTROL MODULE (DENSO)
13 39794-SDA-901 Relay assy, ENGINE CONTROL MODULE (MITSUBA) Relay assy, ENGINE CONTROL MODULE (MITSUBA)
18 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
20 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
Control unit (ENGINE ROOM) 5 / 19
CM6 Control unit (ENGINE ROOM)
CU2 Control unit (ENGINE ROOM; 2)
# OEM CM6 CU2
14 39792-SDA-A01 Relay assy - MICRO ISO Relay assy - MICRO ISO
15 39794-SDA-A05 Relay assy - POWER(MICRO ISO) (MITSUBA) Relay assy - POWER(MICRO ISO) (MITSUBA)
15 39794-SDA-A02 Relay assy - POWER(MICRO ISO) (DENSO) Relay assy - POWER(MICRO ISO) (DENSO)
17 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
19 90150-S84-003 Bolt - EARTH, 8X16 Bolt - EARTH, 8X16
Converter (V6) 2 / 20
CM6 Converter (V6)
CU2 Converter (2.4L)
# OEM CM6 CU2
15 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
17 90212-RCA-A01 Nut - SELF-LOCK, 8MM Nut - SELF-LOCK, 8MM

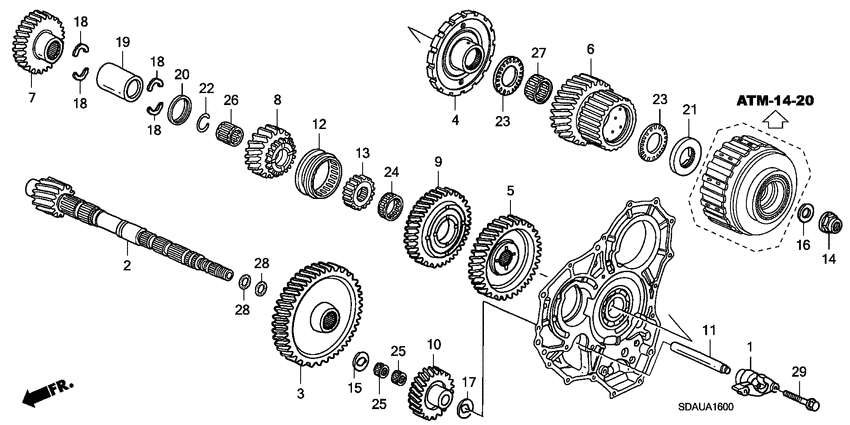

Countershaft (V6) 4 / 31
CM6 Countershaft (V6)
CU2 Countershaft
# OEM CM6 CU2
16 90402-P0Z-000 Washer - SPRING, 24MM Washer - SPRING, 24MM
18 90431-P6H-000 Cotter - 31MM Cotter - 31MM
26 91028-P0Z-013 Bearing - NEEDLE, 35X41X25.8 (NTN) Bearing - NEEDLE, 35X41X25.8 (NTN)
28 91308-PW4-003 O-ring - 21.8X1.9 O-ring - 21.8X1.9
Crankshaft/piston (V6) 1 / 34
CM6 Crankshaft/piston (V6)
CU2 Crankshaft/piston
# OEM CM6 CU2
4 13115-PRB-A00 Clip - PISTON PIN Clip - PISTON PIN
Cylinder block/oil pan (V6) 3 / 23
CM6 Cylinder block/oil pan (V6)
CU2 Cylinder block/oil pan (2.4L)
# OEM CM6 CU2
9 90001-PM3-003 Bolt - DRAIN PLUG, 28MM Bolt - DRAIN PLUG, 28MM
12 90009-PY3-000 DRAIN PLUG BOLT, 14MM DRAIN PLUG BOLT, 14MM
18 90401-PR4-000 Washer - SEALING, 28MM Washer - SEALING, 28MM
Cylinder head cover (V6) 4 / 21
CM6 Cylinder head cover (V6)
CU2 Cylinder head cover (2.4L)
# OEM CM6 CU2
5 12342-P08-004 Seal Seal
5 12342-RYE-004 Seal,spark plug t Seal,spark plug t
6 15610-RGA-000 Cap assy. - OIL FILLER Cap assy. - OIL FILLER
7 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
Emblems/caution labels 3 / 15
CM6 Emblems/caution labels
CU2 Emblems/caution labels
# OEM CM6 CU2
3 19043-PLA-E00 Label - COOLANT INFORMATION Label - COOLANT INFORMATION
16 78031-SDA-G80 Label - SIDE AIRBAG CAUTION Label - SIDE AIRBAG CAUTION
17 91512-SR3-004 Clip - TUBULAR Clip - TUBULAR

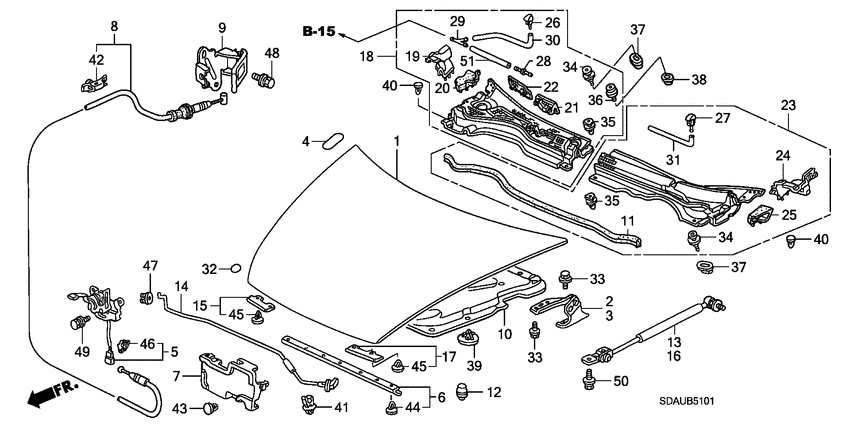

Engine hood (LH) 8 / 42
CM6 Engine hood (LH)
CU2 Engine hood (LH)
# OEM CM6 CU2
32 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
33 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
34 90602-SX0-003 Clip - COWL TOP Clip - COWL TOP
37 90603-SX0-003 Grommet - COWL TOP Grommet - COWL TOP
39 91501-STK-003 Clip - ENGINE HOOD INSULATOR Clip - ENGINE HOOD INSULATOR
42 91504-SDA-003 Clip - HOOD OPEN WIRE Clip - HOOD OPEN WIRE
43 91515-SDA-A01 Clip - HOOD LOCK COVER Clip - HOOD LOCK COVER
48 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
Engine hood (RH) 7 / 41
CM6 Engine hood (RH)
CU2 Engine hood (LH)
# OEM CM6 CU2
32 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
33 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
34 90602-SX0-003 Clip - COWL TOP Clip - COWL TOP
37 90603-SX0-003 Grommet - COWL TOP Grommet - COWL TOP
39 91501-STK-003 Clip - ENGINE HOOD INSULATOR Clip - ENGINE HOOD INSULATOR
42 91504-SDA-003 Clip - HOOD OPEN WIRE Clip - HOOD OPEN WIRE
43 91515-SDA-A01 Clip - HOOD LOCK COVER Clip - HOOD LOCK COVER
Engine mounts (V6) 5 / 35
CM6 Engine mounts (V6)
CU2 Engine mounts (2.4L; MT)
# OEM CM6 CU2
23 50933-SZ3-003 Clip - ACCUMULATOR PIPE Clip - ACCUMULATOR PIPE
27 90161-SDA-A01 Bolt - FLANGE, 12X45 Bolt - FLANGE, 12X45
29 90163-SDA-A01 Bolt - FLANGE, 10X35 Bolt - FLANGE, 10X35
31 90163-S5A-000 Bolt - FLANGE, 10X20 Bolt - FLANGE, 10X20
35 90371-S87-A00 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
Engine wire harness (V6; LH) 2 / 16
CM6 Engine wire harness (V6; LH)
CU2 Wire harness (1; LH)
# OEM CM6 CU2
3 32115-P64-003 Holder - CORRUGATED (DARK BLUE) (10MM) Holder - CORRUGATED (DARK BLUE) (10MM)
12 91506-RTA-003 Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
Engine wire harness (V6; RH) 3 / 22
CM6 Engine wire harness (V6; RH)
CU2 Wire harness (1; LH)
# OEM CM6 CU2
5 32115-P64-003 Holder - CORRUGATED (DARK BLUE) (10MM) Holder - CORRUGATED (DARK BLUE) (10MM)
15 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
16 91506-RTA-003 Clip A - HARNESS BAND (DARK VIOLET)(129.4MM) Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
Exhaust pipe (V6) 8 / 25
CM6 Exhaust pipe (V6)
CU2 Exhaust pipe (2.4L)
# OEM CM6 CU2
4 18176-PT0-003 Bolt - CONVERTER Bolt - CONVERTER
5 18176-P08-003 Bolt - CONVERTER Bolt - CONVERTER
11 18215-S2A-000 Rubber - EX. MOUNTING Rubber - EX. MOUNTING
12 18215-S84-A20 Rubber - EX. MOUNTING Rubber - EX. MOUNTING
13 18302-SP0-003 Gasket - EX. PIPE Gasket - EX. PIPE
23 90023-PK1-000 Bolt - FLANGE, 6X10 Bolt - FLANGE, 6X10
23 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
24 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Floor mat 3 / 9
CM6 Floor mat
CU2 Floor mat
# OEM CM6 CU2
26 90676-SE0-003 Clip - JOINT COVER PLATE Clip - JOINT COVER PLATE
27 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR
28 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front brake (V6) 6 / 22
CM6 Front brake (V6)
CU2 Rear brake (2)
# OEM CM6 CU2
3 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
4 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
17 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)
18 90113-SA0-006 Bolt - WHEEL (SAGA) Bolt - WHEEL (SAGA)
18 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
18 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
Front bulkhead/dashboard 1 / 2
CM6 Front bulkhead/dashboard
CU2 Front bulkhead/dashboard
# OEM CM6 CU2
30 90105-SV1-000 Bolt-washer - 8X20 Bolt-washer - 8X20
Front cylinder head (V6) 6 / 17
CM6 Front cylinder head (V6)
CU2 Vtc oil control valve (2.4L)
# OEM CM6 CU2
4 12210-PZ1-003 Seal a - VALVE STEM(ARAI) Seal a - VALVE STEM(ARAI)
4 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
5 12211-PZ1-003 Seal b - VALVE STEM(ARAI) Seal b - VALVE STEM(ARAI)
5 12211-PZ1-004 Seal b - VALVE STEM(NOK) Seal b - VALVE STEM(NOK)
10 90026-P8A-A00 Bolt - STUD, 8X41 Bolt - STUD, 8X41
20 12208-P8C-A01 Bolt - SEALING, 28MM Bolt - SEALING, 28MM
Front door glass/ regulator 1 / 17
CM6 Front door glass/ regulator
CU2 Front door glass/ regulator
# OEM CM6 CU2
1 39885-S5A-G11 Label - IMMOBILIZER & SECURITY Label - IMMOBILIZER & SECURITY
Front door lining (LH) 6 / 15
CM6 Front door lining (LH)
CU2 Front door lining (LH)
# OEM CM6 CU2
1 33301-S70-003 Bulb - 12V 3.8W 2CP Bulb - 12V 3.8W 2CP
25 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)
26 90141-SDA-000 Screw - TAPPING, 5X12 Screw - TAPPING, 5X12
27 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
28 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
29 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front door lining (RH) 6 / 15
CM6 Front door lining (RH)
CU2 Front door lining (LH)
# OEM CM6 CU2
1 33301-S70-003 Bulb - 12V 3.8W 2CP Bulb - 12V 3.8W 2CP
25 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)
26 90141-SDA-000 Screw - TAPPING, 5X12 Screw - TAPPING, 5X12
27 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
28 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
29 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front door locks/ outer handle 7 / 41
CM6 Front door locks/ outer handle
CU2 Front door locks/ outer handle
# OEM CM6 CU2
7 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
12 72135-SDA-A01 Striker assy - DOOR LOCK Striker assy - DOOR LOCK
19 72141-SD4-004 Bush - R. JOINT Bush - R. JOINT
21 72143-S04-003 Packing Packing
32 72181-SD4-004 Bush - L. JOINT Bush - L. JOINT
35 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
39 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Front door panels 5 / 19
CM6 Front door panels
CU2 Front door panels
# OEM CM6 CU2
20 75891-SA7-000 Stopper - DOOR Stopper - DOOR
21 90101-SZ3-000 Bolt - FLANGE, 8X22 (8.5MM) Bolt - FLANGE, 8X22 (8.5MM)
22 90102-SFA-305 Bolt - FLANGE, 8X18 (SERVICE) Bolt - FLANGE, 8X18 (SERVICE)
22 90102-S3N-003 Bolt - FLANGE, 8X24.5 (10.5MM) Bolt - FLANGE, 8X24.5 (10.5MM)
23 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
Front driveshaft/half sha ft (V6) 13 / 35
CM6 Front driveshaft/half sha ft (V6)
CU2 Front driveshaft/half sha ft (2.4L)
# OEM CM6 CU2
8 44319-SE0-000 Set ring - 28X2.0 Set ring - 28X2.0
8 44319-S84-300 Set ring - 28X2.0 Set ring - 28X2.0
10 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
11 44327-SX0-C02 Band - OUTBOARD BOOT (NIPPON HATSUJO) Band - OUTBOARD BOOT (NIPPON HATSUJO)
12 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
13 44329-SX0-C02 Band - DRIVESHAFT (NIPPON HATSUJO) Band - DRIVESHAFT (NIPPON HATSUJO)
14 44337-SB0-300 Ring b - STOPPER Ring b - STOPPER
15 44338-SB0-300 Circlip - 26MM Circlip - 26MM
20 90102-SF1-000 Bolt - HEX., 10X1.25 Bolt - HEX., 10X1.25
21 90165-SE0-000 Bolt - FLANGE, 10X37 Bolt - FLANGE, 10X37
24 90681-SR3-000 Circlip - EXTERNAL, 33MM Circlip - EXTERNAL, 33MM
25 91057-SR3-008 Bearing - HALF SHAFT(NTN) Bearing - HALF SHAFT(NTN)
26 91260-SDB-A01 Seal - HALF SHAFT OUTER(NOK) Seal - HALF SHAFT OUTER(NOK)
Front fenders 8 / 17
CM6 Front fenders
CU2 Front fenders
# OEM CM6 CU2
16 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
17 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
18 90305-SM4-003 Nut - CLIP, 6MM Nut - CLIP, 6MM
20 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
21 91503-SZ3-003 Clip A Clip A
22 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
23 91533-SG0-000 Clip b - FAIRING Clip b - FAIRING
24 91545-SE0-003 Clip assy. - 8MM Clip assy. - 8MM
Front grille 4 / 8
CM6 Front grille
CU2 Front grille
# OEM CM6 CU2
5 75700-S9A-G00 Front Honda Emblem - (H) Front Honda Emblem - (H)
6 90301-ST0-003 push nut, 3mm push nut, 3mm
8 91503-SZ3-003 Clip A Clip A
9 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Front lower arm 6 / 23
CM6 Front lower arm
CU2 Front stabilizer/ front lower arm
# OEM CM6 CU2
9 51393-SDA-A02 BUSH, FR. ARM (LOWER) BUSH, FR. ARM (LOWER)
15 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
16 90117-S0A-000 Bolt - DAMPER LOCK(10X44) Bolt - DAMPER LOCK(10X44)
19 90121-S0A-000 Bolt - DAMPER FORK(12X98) Bolt - DAMPER FORK(12X98)
20 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
21 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Front seat (L.; LH) 7 / 34
CM6 Front seat (L.; LH)
CU2 Front seat (L.; LH)
# OEM CM6 CU2
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
38 90101-SDA-000 Screw - FLAT, 4X30 Screw - FLAT, 4X30
41 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
42 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
47 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
48 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
49 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Front seat (L.; RH) 4 / 19
CM6 Front seat (L.; RH)
CU2 Front seat (L.; LH)
# OEM CM6 CU2
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
22 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
23 90610-S10-003 Clip - GARNISH Clip - GARNISH
26 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Front seat (R.; LH) 6 / 30
CM6 Front seat (R.; LH)
CU2 Front seat (L.; LH)
# OEM CM6 CU2
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
34 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
36 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
40 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
41 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
42 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Front seat (R.; RH) 6 / 30
CM6 Front seat (R.; RH)
CU2 Front seat (L.; LH)
# OEM CM6 CU2
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
36 90101-SDA-000 Screw - FLAT, 4X30 Screw - FLAT, 4X30
39 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
40 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
45 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
46 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Front seat components (L.; FULL POWER SEAT) 4 / 15
CM6 Front seat components (L.; FULL POWER SEAT)
CU2 Front seat components (L.; MANUAL HEIGHT)
# OEM CM6 CU2
14 90135-S7A-J51 Bolt-washer - 10X25 Bolt-washer - 10X25
18 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
19 91533-S82-003 Clip - COUPLER(BLACK) Clip - COUPLER(BLACK)
20 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
Front seat components (L.; MANUAL SEAT) 1 / 8
CM6 Front seat components (L.; MANUAL SEAT)
CU2 Front seat components (L.; MANUAL HEIGHT)
# OEM CM6 CU2
7 90135-S7A-J51 Bolt-washer - 10X25 Bolt-washer - 10X25
Front seat components (R.; 4WAY POWER SEAT) 4 / 11
CM6 Front seat components (R.; 4WAY POWER SEAT)
CU2 Front seat components (L.; MANUAL HEIGHT)
# OEM CM6 CU2
10 90135-S7A-J51 Bolt-washer - 10X25 Bolt-washer - 10X25
13 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
14 91533-S82-003 Clip - COUPLER(BLACK) Clip - COUPLER(BLACK)
15 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
Front seat components (R.; FULL POWER SEAT) 4 / 14
CM6 Front seat components (R.; FULL POWER SEAT)
CU2 Front seat components (L.; MANUAL HEIGHT)
# OEM CM6 CU2
14 90135-S7A-J51 Bolt-washer - 10X25 Bolt-washer - 10X25
18 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
19 91533-S82-003 Clip - COUPLER(BLACK) Clip - COUPLER(BLACK)
20 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
Front shock absorber 10 / 22
CM6 Front shock absorber
CU2 Front shock absorber
# OEM CM6 CU2
5 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
6 51631-SV7-004 Rubber - SHOCK ABSORBER MOUNTING(SHOWA) Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
8 51684-SDA-A02 Mount - FR. DUST COVER LOWER Mount - FR. DUST COVER LOWER
9 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
11 51688-SDA-A01 Sleeve - FR. DUST COVER Sleeve - FR. DUST COVER
12 51689-SDA-A01 Cover - FR. END DUST Cover - FR. END DUST
14 51722-SS0-004 Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)
15 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
16 90300-S84-A00 Nut - SHOCK ABSORBER FLANGE (10MM) Nut - SHOCK ABSORBER FLANGE (10MM)
17 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Front sub frame/rear beam 7 / 39
CM6 Front sub frame/rear beam
CU2 Front sub frame/rear beam
# OEM CM6 CU2
12 50280-SDA-A01 Rubber - R. FR. SUB FRAME MIDDLE MOUNTING Rubber - R. FR. SUB FRAME MIDDLE MOUNTING
13 50285-SDA-A01 Rubber - L. FR. SUB FRAME MIDDLE MOUNTING Rubber - L. FR. SUB FRAME MIDDLE MOUNTING
29 90170-SDC-A00 Bolt - FLANGE, 10X34 Bolt - FLANGE, 10X34
32 90176-SDA-A00 Bolt - FLANGE, 14X135 Bolt - FLANGE, 14X135
33 90177-SDA-A00 Bolt - FLANGE, 14X150 Bolt - FLANGE, 14X150
36 90186-SDA-A00 Bolt - FLANGE, 12X33 Bolt - FLANGE, 12X33
38 90396-S5A-010 Bolt - FLANGE, 12X75 Bolt - FLANGE, 12X75
Front windshield wiper (LH) 7 / 23
CM6 Front windshield wiper (LH)
CU2 Front windshield wiper (LH)
# OEM CM6 CU2
2 76516-SDA-A01 Rubber - MOUNTING Rubber - MOUNTING
3 76516-SM4-003 Rubber - MOUNTING Rubber - MOUNTING
4 76517-SE0-003 Collar - BRACKETLESS Collar - BRACKETLESS
5 76517-SM4-003 Collar Collar
7 76524-SD4-003 Dust seal Dust seal
22 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
23 91611-SDA-A00 Cap - FR. WIPER ARM (12MM) Cap - FR. WIPER ARM (12MM)
Front windshield wiper (RH) 7 / 23
CM6 Front windshield wiper (RH)
CU2 Front windshield wiper (LH)
# OEM CM6 CU2
2 76516-SDA-A01 Rubber - MOUNTING Rubber - MOUNTING
3 76516-SM4-003 Rubber - MOUNTING Rubber - MOUNTING
4 76517-SE0-003 Collar - BRACKETLESS Collar - BRACKETLESS
5 76517-SM4-003 Collar Collar
7 76524-SD4-003 Dust seal Dust seal
22 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
23 91611-SDA-A00 Cap - FR. WIPER ARM (12MM) Cap - FR. WIPER ARM (12MM)
Fuel injector (V6) 3 / 20
CM6 Fuel injector (V6)
CU2 Fuel injector (2.4L)
# OEM CM6 CU2
8 16727-PND-004 Clamp - FUEL HOSE (BLACK) Clamp - FUEL HOSE (BLACK)
14 17711-S0X-931 Retainer - BLUE GREEN) (TOKAI Retainer - BLUE GREEN) (TOKAI
16 91301-PLC-000 O-ring - 7.47X3.6 O-ring - 7.47X3.6
Fuel pipe 6 / 47
CM6 Fuel pipe
CU2 Fuel pipe
# OEM CM6 CU2
9 16725-RAC-003 Clamp - FUEL HOSE (NATURAL) Clamp - FUEL HOSE (NATURAL)
20 17711-S0X-931 Retainer - BLUE GREEN) (TOKAI Retainer - BLUE GREEN) (TOKAI
35 75353-671-000 Lock - SCREW Lock - SCREW
37 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
39 91405-SDA-000 Clamp - TUBE(D10.5) Clamp - TUBE(D10.5)
41 91407-SDB-000 Clamp - TUBE (D12.5) Clamp - TUBE (D12.5)
Fuel tank (1) 4 / 43
CM6 Fuel tank (1)
CU2 Fuel tank
# OEM CM6 CU2
14 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
30 17711-S0X-931 Retainer - BLUE GREEN) (TOKAI Retainer - BLUE GREEN) (TOKAI
36 90150-S04-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
41 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Fuel tank (2) 5 / 37
CM6 Fuel tank (2)
CU2 Fuel tank
# OEM CM6 CU2
16 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
20 17652-SDA-A31 Clip - FILLER TUBE Clip - FILLER TUBE
27 17711-S0X-931 Retainer - BLUE GREEN) (TOKAI Retainer - BLUE GREEN) (TOKAI
31 90150-S04-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
33 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Grommet (FRONT) 4 / 8
CM6 Grommet (FRONT)
CU2 Grommet (FRONT)
# OEM CM6 CU2
2 75826-634-300 Seal - INSIDE PANEL, 15MM Seal - INSIDE PANEL, 15MM
6 91613-SR3-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM
7 91615-SH3-000 Cap - FLOOR HOLE, 49MM Cap - FLOOR HOLE, 49MM
8 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
Grommet (LOWER) 3 / 4
CM6 Grommet (LOWER)
CU2 Grommet (LOWER)
# OEM CM6 CU2
1 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
2 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
4 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
Grommet (REAR) 4 / 5
CM6 Grommet (REAR)
CU2 Grommet (REAR)
# OEM CM6 CU2
1 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
2 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
3 90857-SDA-A00 Cap - WELD HOLE Cap - WELD HOLE
4 91610-SD4-000 Plug - HOLE, 28MM Plug - HOLE, 28MM
Grommet (SIDE) 1 / 6
CM6 Grommet (SIDE)
CU2 Grommet (FRONT)
# OEM CM6 CU2
6 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
Harness band/bracket (LH) 11 / 53
CM6 Harness band/bracket (LH)
CU2 Harness band/bracket (LH)
# OEM CM6 CU2
1 32112-S2K-003 Band - CABLE (90MM) Band - CABLE (90MM)
7 32132-S6A-003 Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
8 32133-SLA-003 Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
10 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
28 91507-693-003 Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
31 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
33 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
35 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
46 91556-SM4-003 Clip - BAND (BLACK) (100MM) Clip - BAND (BLACK) (100MM)
52 91559-S47-003 Clip - HARNESS BAND(NATURAL) (167MM) Clip - HARNESS BAND(NATURAL) (167MM)
57 91902-S2X-003 Plaster - WIRE HARNESS(50X100) Plaster - WIRE HARNESS(50X100)
Harness band/bracket (RH) 12 / 43
CM6 Harness band/bracket (RH)
CU2 Harness band/bracket (LH)
# OEM CM6 CU2
1 32112-S2K-003 Band - CABLE (90MM) Band - CABLE (90MM)
3 32132-S6A-003 Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
4 32133-SLA-003 Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
6 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
19 91507-693-003 Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
23 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
25 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
27 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
28 91540-S7S-003 Clip - HARNESS BAND(BLACK) (157.7MM) Clip - HARNESS BAND(BLACK) (157.7MM)
36 91556-SM4-003 Clip - BAND (BLACK) (100MM) Clip - BAND (BLACK) (100MM)
39 91559-S47-003 Clip - HARNESS BAND(NATURAL) (167MM) Clip - HARNESS BAND(NATURAL) (167MM)
43 91902-S2X-003 Plaster - WIRE HARNESS(50X100) Plaster - WIRE HARNESS(50X100)
Headlight 4 / 19
CM6 Headlight
CU2 Headlight (HID)
# OEM CM6 CU2
4 33115-S84-A11 Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
8 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
12 33303-S2R-003 Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
15 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
Heater blower (LH) 4 / 11
CM6 Heater blower (LH)
CU2 Heater unit (LH)
# OEM CM6 CU2
8 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
9 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
10 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
11 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater blower (RH) 4 / 9
CM6 Heater blower (RH)
CU2 Heater unit (LH)
# OEM CM6 CU2
6 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
7 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
8 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
9 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater unit (LH) 11 / 32
CM6 Heater unit (LH)
CU2 Heater unit (LH)
# OEM CM6 CU2
1 39248-692-003 Packing - HEATER Packing - HEATER
18 80534-S84-A41 Aspirator Aspirator
22 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
23 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
24 90126-S5A-003 Bolt - SOCKET, 5X40 Bolt - SOCKET, 5X40
25 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
26 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
27 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
28 90661-S2A-003 Clip - DRAIN HOSE Clip - DRAIN HOSE
30 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
32 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Heater unit (RH) 10 / 32
CM6 Heater unit (RH)
CU2 Heater unit (LH)
# OEM CM6 CU2
1 39248-692-003 Packing - HEATER Packing - HEATER
19 80534-S84-A41 Aspirator Aspirator
23 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
24 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
25 90126-S5A-003 Bolt - SOCKET, 5X40 Bolt - SOCKET, 5X40
26 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
27 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
28 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
30 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
32 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Instrument panel (LH) 4 / 11
CM6 Instrument panel (LH)
CU2 Instrument panel (LH)
# OEM CM6 CU2
3 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
15 90110-S84-A00 Bolt-washer - 8X20 Bolt-washer - 8X20
16 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
17 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
Instrument panel (RH) 4 / 11
CM6 Instrument panel (RH)
CU2 Instrument panel (LH)
# OEM CM6 CU2
3 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
15 90110-S84-A00 Bolt-washer - 8X20 Bolt-washer - 8X20
16 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
17 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
Instrument panel garnish (DRIVER SIDE; LH) 5 / 11
CM6 Instrument panel garnish (DRIVER SIDE; LH)
CU2 Instrument panel (LH)
# OEM CM6 CU2
3 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
18 90101-S2K-000 Screw - TAPPING, 4X16(IT) Screw - TAPPING, 4X16(IT)
20 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
21 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
24 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Instrument panel garnish (DRIVER SIDE; RH) 5 / 12
CM6 Instrument panel garnish (DRIVER SIDE; RH)
CU2 Instrument panel (LH)
# OEM CM6 CU2
2 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
15 90101-S2K-000 Screw - TAPPING, 4X16(IT) Screw - TAPPING, 4X16(IT)
17 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
19 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
21 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Instrument panel garnish (PASSENGER SIDE; LH) 9 / 28
CM6 Instrument panel garnish (PASSENGER SIDE; LH)
CU2 Instrument panel garnish (PASSENGER SIDE; LH)
# OEM CM6 CU2
1 33301-S70-003 Bulb - 12V 3.8W 2CP Bulb - 12V 3.8W 2CP
3 39610-S2H-G01 Knob assy Knob assy
4 39620-S0X-003 Socket assy Socket assy
7 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
21 77520-SDA-A01 Cylinder - GLOVE BOX Cylinder - GLOVE BOX
33 90140-SDA-A00 Bolt-washer - 5X19 Bolt-washer - 5X19
34 90306-SA0-000 Nut - FLOATING, 5MM Nut - FLOATING, 5MM
35 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
38 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Instrument panel garnish (PASSENGER SIDE; RH) 9 / 25
CM6 Instrument panel garnish (PASSENGER SIDE; RH)
CU2 Instrument panel garnish (PASSENGER SIDE; LH)
# OEM CM6 CU2
1 33301-S70-003 Bulb - 12V 3.8W 2CP Bulb - 12V 3.8W 2CP
2 39610-S2H-G01 Knob assy Knob assy
3 39620-S0X-003 Socket assy Socket assy
6 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
20 77520-SDA-A01 Cylinder - GLOVE BOX Cylinder - GLOVE BOX
31 90140-SDA-A00 Bolt-washer - 5X19 Bolt-washer - 5X19
32 90306-SA0-000 Nut - FLOATING, 5MM Nut - FLOATING, 5MM
33 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
35 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Interior light 8 / 15
CM6 Interior light
CU2 Interior light (1)
# OEM CM6 CU2
1 34251-S5A-003 Lens Lens
3 34253-671-003 Bulb - 12V 8W)(DAIICHI Bulb - 12V 8W)(DAIICHI
3 04110-SWA-305 BULB T10X318W BULB T10X318W
4 34261-S5A-003 Lens comp Lens comp
5 34295-SJ8-003 Bulb - 12V 5W) (DAIICHI Bulb - 12V 5W) (DAIICHI
5 34351-657-921 Bulb - 12V/5W) (STANLEY Bulb - 12V/5W) (STANLEY
7 34401-SDA-A21 Lens - R. Lens - R.
9 34402-SDA-A21 Lens - L. Lens - L.
Knuckle 4 / 20
CM6 Knuckle
CU2 Front knuckle
# OEM CM6 CU2
7 51464-S04-013 Boot, UPPER BALL JOINT Boot, UPPER BALL JOINT
9 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
12 90172-SDA-A00 Bolt - FLANGE, 10X78 Bolt - FLANGE, 10X78
13 90321-SE0-000 Nut - UPPER BALL PIN, 10MM Nut - UPPER BALL PIN, 10MM
L. side cover (V6) 22 / 46
CM6 L. side cover (V6)
CU2 L. side cover
# OEM CM6 CU2
10 22713-PW4-000 Guide a - FEED PIPE Guide a - FEED PIPE
11 22713-PX4-000 Guide a - FEED PIPE Guide a - FEED PIPE
13 22725-P6H-000 Pipe comp. b - FEED Pipe comp. b - FEED
14 24282-634-000 Bolt - SHAFT FORK SETTING Bolt - SHAFT FORK SETTING
15 24532-PX4-000 Lever - PARKING BRAKE Lever - PARKING BRAKE
17 24538-PA9-003 Stopper - PARKING BRAKE (2) Stopper - PARKING BRAKE (2)
17 24537-PA9-003 Stopper - PARKING BRAKE (1) Stopper - PARKING BRAKE (1)
17 24539-PA9-003 Stopper - PARKING BRAKE (3) Stopper - PARKING BRAKE (3)
19 24553-PN6-000 Roller - PARKING BRAKE Roller - PARKING BRAKE
20 24555-PN6-000 Pin - ROLLER, 6MM Pin - ROLLER, 6MM
28 90024-612-000 Bolt - SEALING, 8MM Bolt - SEALING, 8MM
29 90433-639-000 Washer - LOCK, 6MM Washer - LOCK, 6MM
30 90471-580-000 Packing - 8MM Packing - 8MM
31 90602-PX4-000 Circlip b - INTERNAL, 47MM Circlip b - INTERNAL, 47MM
34 91006-P1B-003 Bearing - BALL, 9X20X6 Bearing - BALL, 9X20X6
35 91201-PA9-004 Oil seal - 9X18X7 (ARAI) Oil seal - 9X18X7 (ARAI)
36 91301-PC9-003 O-ring - 7.7X2.3 (ARAI) O-ring - 7.7X2.3 (ARAI)
37 91305-PC9-003 O-ring - 34X1.9 (ARAI) O-ring - 34X1.9 (ARAI)
38 91305-PX4-003 O-ring - 40X1.9 (NOK) O-ring - 40X1.9 (NOK)
39 91311-PA9-004 O-ring - 7.7X1.9 (NOK) O-ring - 7.7X1.9 (NOK)
41 91314-PW4-003 O-ring - 11X1.9 (NOK) O-ring - 11X1.9 (NOK)
42 91331-PC9-003 O-ring O-ring
Main valve body (V6) 4 / 10
CM6 Main valve body (V6)
CU2 Main valve body
# OEM CM6 CU2
3 25145-PA9-010 Shaft - OIL PUMP GEAR Shaft - OIL PUMP GEAR
6 27122-P6H-000 Cap - 12MM Cap - 12MM
7 27132-P6H-000 Cap - 14MM Cap - 14MM
9 27524-P6H-000 Clip - CAP Clip - CAP
Mainshaft (V6) 4 / 24
CM6 Mainshaft (V6)
CU2 Mainshaft
# OEM CM6 CU2
8 90402-P0Z-000 Washer - SPRING, 24MM Washer - SPRING, 24MM
12 90603-P0X-000 Set ring - 23MM Set ring - 23MM
15 91018-PW7-A02 Bearing - THRUST NEEDLE, 34X46X2 Bearing - THRUST NEEDLE, 34X46X2
19 91316-PR9-003 O-ring - 33X1.9 (ARAI) O-ring - 33X1.9 (ARAI)
Meter components (NS) 1 / 7
CM6 Meter components (NS)
CU2 Instrument panel (LH)
# OEM CM6 CU2
6 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
Mirror (1) 2 / 14
CM6 Mirror (1)
CU2 Mirror
# OEM CM6 CU2
14 90109-S70-003 Screw - TAPPING, 4X16 (TRUSS) Screw - TAPPING, 4X16 (TRUSS)
17 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
Mirror (2) 4 / 20
CM6 Mirror (2)
CU2 Mirror
# OEM CM6 CU2
21 90109-SEA-003 Screw - TAPPING, 4X20 (TRUSS) Screw - TAPPING, 4X20 (TRUSS)
22 90109-S70-003 Screw - TAPPING, 4X16 (TRUSS) Screw - TAPPING, 4X16 (TRUSS)
23 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
24 91565-SEA-003 Clamp - HARNESS Clamp - HARNESS
Oil level gauge/ atf pipe (V6) 5 / 26
CM6 Oil level gauge/ atf pipe (V6)
CU2 Oil level gauge/atf pipe
# OEM CM6 CU2
15 25951-RGR-000 Bolt - JOINT Bolt - JOINT
18 90001-PA9-000 Bolt - HEX., 6MM Bolt - HEX., 6MM
20 90471-RGR-000 Washer - DRAIN PLUG, 12MM Washer - DRAIN PLUG, 12MM
21 90635-PT0-802 Clip, Oil Pipe Clip, Oil Pipe
21 90635-RV0-003 CLIP, OIL PIPE CLIP, OIL PIPE
Oil pump (V6) 5 / 32
CM6 Oil pump (V6)
CU2 Oil pump (2.4L)
# OEM CM6 CU2
6 15231-PE0-000 Valve - RELIEF Valve - RELIEF
9 15400-RTA-004 Cartridge - OIL FILTER (TOYO ROKI) Cartridge - OIL FILTER (TOYO ROKI)
9 15400-PLM-A02 OIL FILTER (HONEYWELL) OIL FILTER (HONEYWELL)
9 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)
19 90015-PH1-013 Holder - OIL FILTER Holder - OIL FILTER
P.s. gear box (LH) 3 / 17
CM6 P.s. gear box (LH)
CU2 P.s. gear box (EPS; LH)
# OEM CM6 CU2
8 53536-SDA-A02 Washer - TIE ROD LOCK Washer - TIE ROD LOCK
9 53537-S84-A01 Rubber - STOPPER Rubber - STOPPER
18 91411-S84-A01 Nut - HEX., 14MM Nut - HEX., 14MM
P.s. gear box (RH) 3 / 17
CM6 P.s. gear box (RH)
CU2 P.s. gear box (EPS; LH)
# OEM CM6 CU2
8 53536-SDA-A02 Washer - TIE ROD LOCK Washer - TIE ROD LOCK
9 53537-S84-A01 Rubber - STOPPER Rubber - STOPPER
18 91411-S84-A01 Nut - HEX., 14MM Nut - HEX., 14MM
P.s. gear box components (LH) 4 / 23
CM6 P.s. gear box components (LH)
CU2 P.s. gear box (EPS; LH)
# OEM CM6 CU2
6 53414-S84-A01 Screw - RACK GUIDE Screw - RACK GUIDE
9 53458-S84-A01 Nut - LOCK Nut - LOCK
10 53536-SDA-A02 Washer - TIE ROD LOCK Washer - TIE ROD LOCK
11 53537-S84-A01 Rubber - STOPPER Rubber - STOPPER
P.s. gear box components (RH) 4 / 23
CM6 P.s. gear box components (RH)
CU2 P.s. gear box (EPS; LH)
# OEM CM6 CU2
6 53414-S84-A01 Screw - RACK GUIDE Screw - RACK GUIDE
9 53458-S84-A01 Nut - LOCK Nut - LOCK
10 53536-SDA-A02 Washer - TIE ROD LOCK Washer - TIE ROD LOCK
11 53537-S84-A01 Rubber - STOPPER Rubber - STOPPER
P.s. lines (LH; V6) 1 / 28
CM6 P.s. lines (LH; V6)
CU2 Brake master cylinder/ master power (LH)
# OEM CM6 CU2
9 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
P.s. lines (RH) 1 / 21
CM6 P.s. lines (RH)
CU2 Brake master cylinder/ master power (LH)
# OEM CM6 CU2
9 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Parking brake (LH) 4 / 9
CM6 Parking brake (LH)
CU2 Parking brake (LH)
# OEM CM6 CU2
4 47365-538-000 Pin - EQUALIZER Pin - EQUALIZER
6 47522-594-000 Nut - PARKING BRAKE ADJUSTING Nut - PARKING BRAKE ADJUSTING
9 47572-ST0-000 Base - WIRE GUIDE Base - WIRE GUIDE
10 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Parking brake (RH) 4 / 9
CM6 Parking brake (RH)
CU2 Parking brake (LH)
# OEM CM6 CU2
4 47365-538-000 Pin - EQUALIZER Pin - EQUALIZER
6 47522-594-000 Nut - PARKING BRAKE ADJUSTING Nut - PARKING BRAKE ADJUSTING
9 47572-ST0-000 Base - WIRE GUIDE Base - WIRE GUIDE
10 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Pedal (LH) 3 / 17
CM6 Pedal (LH)
CU2 Pedal (LH)
# OEM CM6 CU2
9 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
26 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
27 90361-S3C-003 Nut - PAINT CUTTING, 8MM Nut - PAINT CUTTING, 8MM
Pedal (RH) 3 / 18
CM6 Pedal (RH)
CU2 Pedal (LH)
# OEM CM6 CU2
9 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
18 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
19 90361-S3C-003 Nut - PAINT CUTTING, 8MM Nut - PAINT CUTTING, 8MM
Pillar garnish (LH) 1 / 7
CM6 Pillar garnish (LH)
CU2 Floor mat
# OEM CM6 CU2
25 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Pillar garnish (RH) 1 / 4
CM6 Pillar garnish (RH)
CU2 Floor mat
# OEM CM6 CU2
17 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Protector/ side sill garnish 5 / 14
CM6 Protector/ side sill garnish
CU2 Front bumper
# OEM CM6 CU2
13 90144-SA0-020 Bolt - BUMPER SETTING (6X15) (BLACK) Bolt - BUMPER SETTING (6X15) (BLACK)
13 90111-SM4-003 Bolt - BUMPER Bolt - BUMPER
15 90682-SDA-A01 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
16 91503-SZ3-003 Clip A Clip A
18 91513-SM4-000 Clip - SIDE SILL UPPER GARNISH Clip - SIDE SILL UPPER GARNISH
Radiator (V6) 7 / 21
CM6 Radiator (V6)
CU2 Radiator (2.4L)
# OEM CM6 CU2
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
7 19045-RAA-003 Cap comp. - RADIATOR (DENSO) Cap comp. - RADIATOR (DENSO)
8 19046-RAA-A00 Label - RADIATOR CAP Label - RADIATOR CAP
17 90041-P3G-003 Screw-washer - 5X11 Screw-washer - 5X11
18 90042-PAA-A01 Bolt-washer - 6X16 (DENSO) Bolt-washer - 6X16 (DENSO)
19 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose (V6) 5 / 17
CM6 Radiator hose (V6)
CU2 Radiator hose/reserve tan k (2.4L)
# OEM CM6 CU2
2 19102-PM5-A00 Cap - RESERVE TANK Cap - RESERVE TANK
10 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN) Clip - WATER HOSE (36.5MM) (KEIHIN)
10 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
15 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
16 91503-S7A-003 Clip - FR. GRILLE Clip - FR. GRILLE
Radio antenna/speaker 4 / 13
CM6 Radio antenna/speaker
CU2 Radio antenna/speaker (LH)
# OEM CM6 CU2
11 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
12 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
13 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
15 91902-S2X-003 Plaster - WIRE HARNESS(50X100) Plaster - WIRE HARNESS(50X100)
Rear brake 10 / 43
CM6 Rear brake
CU2 Rear brake (2)
# OEM CM6 CU2
2 06435-S84-J00 Shim set - RR. Shim set - RR.
16 43235-S84-A51 Pin a Pin a
21 43244-SG0-003 Retainer Retainer
28 43262-S84-A51 Pin b Pin b
31 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
32 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
33 45240-SC2-003 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
35 90113-SA0-006 Bolt - WHEEL (SAGA) Bolt - WHEEL (SAGA)
35 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
35 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
Rear cylinder head (V6) 6 / 20
CM6 Rear cylinder head (V6)
CU2 Vtc oil control valve (2.4L)
# OEM CM6 CU2
3 12210-PZ1-003 Seal a - VALVE STEM(ARAI) Seal a - VALVE STEM(ARAI)
3 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
4 12211-PZ1-003 Seal b - VALVE STEM(ARAI) Seal b - VALVE STEM(ARAI)
4 12211-PZ1-004 Seal b - VALVE STEM(NOK) Seal b - VALVE STEM(NOK)
11 90026-P8A-A00 Bolt - STUD, 8X41 Bolt - STUD, 8X41
24 12208-P8C-A01 Bolt - SEALING, 28MM Bolt - SEALING, 28MM
Rear door lining 6 / 16
CM6 Rear door lining
CU2 Front door lining (LH)
# OEM CM6 CU2
1 33301-S70-003 Bulb - 12V 3.8W 2CP Bulb - 12V 3.8W 2CP
23 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)
24 90141-SDA-000 Screw - TAPPING, 5X12 Screw - TAPPING, 5X12
25 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
26 90666-SDA-A01 Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
27 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door locks/ outer handle 3 / 26
CM6 Rear door locks/ outer handle
CU2 Front door locks/ outer handle
# OEM CM6 CU2
2 72135-SDA-A01 Striker assy - DOOR LOCK Striker assy - DOOR LOCK
5 72143-S04-003 Packing Packing
26 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
Rear door panels 6 / 21
CM6 Rear door panels
CU2 Front door panels
# OEM CM6 CU2
21 75891-SA7-000 Stopper - DOOR Stopper - DOOR
22 90102-SFA-305 Bolt - FLANGE, 8X18 (SERVICE) Bolt - FLANGE, 8X18 (SERVICE)
22 90102-S3N-003 Bolt - FLANGE, 8X24.5 (10.5MM) Bolt - FLANGE, 8X24.5 (10.5MM)
23 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
25 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
29 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Rear lower arm 6 / 36
CM6 Rear lower arm
CU2 Rear knuckle
# OEM CM6 CU2
8 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
13 52363-SJK-010 Washer - LOWER ARM Washer - LOWER ARM
25 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
28 90181-S84-A00 Bolt - TRAILING ARM, 12X68 Bolt - TRAILING ARM, 12X68
29 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
31 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Rear seat 4 / 22
CM6 Rear seat
CU2 Rear seat
# OEM CM6 CU2
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
3 78182-SA0-000 Clip - RR. SEAT PIN Clip - RR. SEAT PIN
11 82137-SDA-003 Clip - RR. SEAT CUSHION Clip - RR. SEAT CUSHION
36 90140-SA5-000 Bolt - SPLASH GUARD Bolt - SPLASH GUARD
Rear shock absorber 9 / 20
CM6 Rear shock absorber
CU2 Rear shock absorber
# OEM CM6 CU2
1 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
2 51631-SV7-004 Rubber - SHOCK ABSORBER MOUNTING(SHOWA) Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
3 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
4 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
10 52686-SDA-A01 Rubber - RR. SPRING MOUNTING Rubber - RR. SPRING MOUNTING
13 52690-SG0-000 Plate - BUMP STOP Plate - BUMP STOP
15 52748-S0A-004 Cover - RR. LOWER MOUNT DUST Cover - RR. LOWER MOUNT DUST
17 90300-S84-A00 Nut - SHOCK ABSORBER FLANGE (10MM) Nut - SHOCK ABSORBER FLANGE (10MM)
18 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Rear tray/side lining 4 / 10
CM6 Rear tray/side lining
CU2 Rear tray/side lining
# OEM CM6 CU2
3 75353-671-000 Lock - SCREW Lock - SCREW
25 90676-SE0-003 Clip - JOINT COVER PLATE Clip - JOINT COVER PLATE
27 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
28 91562-S0X-A01 Clip - ROOF LINING (BLACK) Clip - ROOF LINING (BLACK)
Rear windshield 2 / 5
CM6 Rear windshield
CU2 Rear windshield
# OEM CM6 CU2
3 91563-SV4-003 Fastener a - RR. WINDSHIELD Fastener a - RR. WINDSHIELD
5 91568-SV4-003 Fastener b - RR. WINDSHIELD Fastener b - RR. WINDSHIELD
Regulator (V6) 7 / 13
CM6 Regulator (V6)
CU2 Regulator body
# OEM CM6 CU2
1 22741-P7Z-000 Pipe - 8X198 Pipe - 8X198
5 27142-P6H-000 Cap - 15MM Cap - 15MM
8 27246-PN6-800 Cap - REGULATOR SPRING Cap - REGULATOR SPRING
9 27524-P6H-000 Clip - CAP Clip - CAP
11 90089-PK4-000 Bolt - STOPPER, 6MM Bolt - STOPPER, 6MM
12 90701-PK4-000 Dowel pin - 8X80 Dowel pin - 8X80
13 91316-PF4-003 O-ring - 31X1.7 (ARAI) O-ring - 31X1.7 (ARAI)
Resonator chamber (V6) 4 / 14
CM6 Resonator chamber (V6)
CU2 Air cleaner (2.4L)
# OEM CM6 CU2
1 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
3 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
12 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
13 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
Roof lining 2 / 14
CM6 Roof lining
CU2 Srs unit (LH)
# OEM CM6 CU2
23 90133-SDC-003 Bolt-washer - 5X16 Bolt-washer - 5X16
26 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Seatbelts 1 / 7
CM6 Seatbelts
CU2 Engine wire harness (2.4L)
# OEM CM6 CU2
16 91507-SL9-003 Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
Secondary shaft (V6) 2 / 30
CM6 Secondary shaft (V6)
CU2 Mainshaft
# OEM CM6 CU2
9 90402-P0Z-000 Washer - SPRING, 24MM Washer - SPRING, 24MM
19 91316-PR9-003 O-ring - 33X1.9 (ARAI) O-ring - 33X1.9 (ARAI)
Select lever (LH) 3 / 17
CM6 Select lever (LH)
CU2 Select lever (LH)
# OEM CM6 CU2
18 90351-SB2-003 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
19 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
20 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Select lever (RH) 3 / 17
CM6 Select lever (RH)
CU2 Select lever (LH)
# OEM CM6 CU2
18 90351-SB2-003 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
19 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
20 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Sensor/solenoid (V6) 5 / 32
CM6 Sensor/solenoid (V6)
CU2 Solenoid
# OEM CM6 CU2
17 90471-PW7-A00 PACKING, 10MM PACKING, 10MM
18 91301-PC9-003 O-ring - 7.7X2.3 (ARAI) O-ring - 7.7X2.3 (ARAI)
19 91301-P7Z-004 O-ring - 7.6X1.9 (DENSO) O-ring - 7.6X1.9 (DENSO)
20 91302-P7Z-004 O-ring - 9.6X1.9 (DENSO) O-ring - 9.6X1.9 (DENSO)
23 91309-PX4-003 O-ring - 16X2.1 (NOK) O-ring - 16X2.1 (NOK)
Servo body (V6) 4 / 8
CM6 Servo body (V6)
CU2 Servo body
# OEM CM6 CU2
1 22748-P24-J00 Pipe - 8X220 Pipe - 8X220
3 27122-P6H-000 Cap - 12MM Cap - 12MM
7 27524-P6H-000 Clip - CAP Clip - CAP
8 91344-580-000 O-ring - 31X2.7 (ARAI) O-ring - 31X2.7 (ARAI)
Shift fork (V6) 3 / 10
CM6 Shift fork (V6)
CU2 Shift fork
# OEM CM6 CU2
2 24282-634-000 Bolt - SHAFT FORK SETTING Bolt - SHAFT FORK SETTING
8 90433-639-000 Washer - LOCK, 6MM Washer - LOCK, 6MM
9 91209-612-003 Oil seal - 12X22X7 (ARAI) Oil seal - 12X22X7 (ARAI)
Srs unit (LH) 9 / 25
CM6 Srs unit (LH)
CU2 Srs unit (LH)
# OEM CM6 CU2
14 90133-SDC-003 Bolt-washer - 5X16 Bolt-washer - 5X16
15 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
17 91507-693-003 Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
18 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
19 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
20 91540-S0A-003 Clip - HARNESS BAND(NATURAL) (96.9MM) Clip - HARNESS BAND(NATURAL) (96.9MM)
22 91559-ST5-003 Clip - HARNESS BAND OFFSET(30) (NATURAL) Clip - HARNESS BAND OFFSET(30) (NATURAL)
24 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
25 91902-S2X-003 Plaster - WIRE HARNESS(50X100) Plaster - WIRE HARNESS(50X100)
Srs unit (RH) 2 / 6
CM6 Srs unit (RH)
CU2 Srs unit (LH)
# OEM CM6 CU2
5 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
6 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
Steering column 6 / 16
CM6 Steering column
CU2 Steering column
# OEM CM6 CU2
8 77873-SDA-E80 Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
9 90135-SDA-000 Bolt - STEERING JOINT YOKE Bolt - STEERING JOINT YOKE
9 90135-SZT-000 Bolt - STEERING JOINT YOKE Bolt - STEERING JOINT YOKE
10 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
11 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
12 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
Steering wheel (SRS; V6) 2 / 6
CM6 Steering wheel (SRS; V6)
CU2 Steering wheel (SRS)
# OEM CM6 CU2
10 90134-S6A-A80 Bolt - HEX., 6X23 Bolt - HEX., 6X23
12 90161-SV4-003 Bolt - STEERING HANDLE Bolt - STEERING HANDLE
Taillight/license light 5 / 30
CM6 Taillight/license light
CU2 Taillight/license light
# OEM CM6 CU2
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
2 33303-SL4-003 Bulb - WEDGE (12V 21W) (STANLEY) Bulb - WEDGE (12V 21W) (STANLEY)
3 33303-S2R-003 Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
7 33513-S50-003 Socket - T20W S2 Socket - T20W S2
8 33514-S2R-003 Socket - T20W SY Socket - T20W SY
Throttle body (V6) 1 / 4
CM6 Throttle body (V6)
CU2 Intake manifold (2.4L)
# OEM CM6 CU2
4 37835-PGK-A01 O-ring O-ring
Tire/wheel disks 20 / 27
CM6 Tire/wheel disks
CU2 Tire/wheel disks
# OEM CM6 CU2
7 42753-671-003 Valve - RIM (TAIHEIYO) Valve - RIM (TAIHEIYO)
7 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
9 44728-SEA-J02 Weight - BALANCE (25G) (YAMATE) Weight - BALANCE (25G) (YAMATE)
9 44723-SEA-J01 Weight - BALANCE (30G) (TOHO) Weight - BALANCE (30G) (TOHO)
9 44722-SEA-J01 Weight - BALANCE (20G) (TOHO) Weight - BALANCE (20G) (TOHO)
9 44721-SEA-J01 Weight - BALANCE (10G) (TOHO) Weight - BALANCE (10G) (TOHO)
9 44723-SEA-J02 Weight - BALANCE (30G) (YAMATE) Weight - BALANCE (30G) (YAMATE)
9 44722-SEA-J02 Weight - BALANCE (20G) (YAMATE) Weight - BALANCE (20G) (YAMATE)
9 44721-SEA-J02 Weight - BALANCE (10G) (YAMATE) Weight - BALANCE (10G) (YAMATE)
9 44728-SEA-J01 Weight - BALANCE (25G) (TOHO) Weight - BALANCE (25G) (TOHO)
9 44727-SEA-J01 Weight - BALANCE (15G) (TOHO) Weight - BALANCE (15G) (TOHO)
9 44729-SEA-J01 Weight - BALANCE (35G) (TOHO) Weight - BALANCE (35G) (TOHO)
9 44726-SEA-J01 Weight - BALANCE (5G) (TOHO) Weight - BALANCE (5G) (TOHO)
9 44727-SEA-J02 Weight - BALANCE (15G) (YAMATE) Weight - BALANCE (15G) (YAMATE)
9 44729-SEA-J02 Weight - BALANCE (35G) (YAMATE) Weight - BALANCE (35G) (YAMATE)
9 44726-SEA-J02 Weight - BALANCE (5G) (YAMATE) Weight - BALANCE (5G) (YAMATE)
12 44732-S7S-J02 Cap - ALUMINIUM WHEEL CENTER Cap - ALUMINIUM WHEEL CENTER
15 74651-S2X-003 Adapter - SPARE TIRE Adapter - SPARE TIRE
16 74652-SDA-003 Bolt - SPARE TIRE Bolt - SPARE TIRE
18 90304-SF0-751 Nut - WHEEL (FUSE RASHI) Nut - WHEEL (FUSE RASHI)
Tools/jack 1 / 11
CM6 Tools/jack
CU2 Tools/jack
# OEM CM6 CU2
11 89320-S05-003 Bar - JACK Bar - JACK
Top accumulator body (V6) 5 / 20
CM6 Top accumulator body (V6)
CU2 Regulator body
# OEM CM6 CU2
3 27122-P6H-000 Cap - 12MM Cap - 12MM
5 27524-P6H-000 Clip - CAP Clip - CAP
17 91321-PF4-004 O-ring - 18.3X2.4(NOK) O-ring - 18.3X2.4(NOK)
18 91331-PC9-003 O-ring O-ring
19 91331-PL5-J00 O-ring - 20.2X2.4 (NOK) O-ring - 20.2X2.4 (NOK)
Torque converter (V6) 2 / 6
CM6 Torque converter (V6)
CU2 Clutch/torque converter
# OEM CM6 CU2
4 90023-PA9-000 Bolt - SPECIAL Bolt - SPECIAL
5 90429-PC6-900 Washer - 40X86X2 Washer - 40X86X2
Torque converter case (V6) 4 / 13
CM6 Torque converter case (V6)
CU2 Torque converter case
# OEM CM6 CU2
4 90024-612-000 Bolt - SEALING, 8MM Bolt - SEALING, 8MM
5 90471-580-000 Packing - 8MM Packing - 8MM
6 90705-PA9-000 Dowel pin - 14X25 Dowel pin - 14X25
12 91207-P7Z-003 Oil seal - 44X68X8 (NOK) Oil seal - 44X68X8 (NOK)
Transmission case (V6) 5 / 22
CM6 Transmission case (V6)
CU2 Torque converter case
# OEM CM6 CU2
7 25422-PN6-801 Magnet comp. - TRANSMISSION Magnet comp. - TRANSMISSION
11 90081-PX4-003 Bolt - PLUG, 18MM Bolt - PLUG, 18MM
13 90471-PX4-000 Washer - DRAIN PLUG, 18MM Washer - DRAIN PLUG, 18MM
14 90615-P0Z-000 Ring - SNAP, 82MM Ring - SNAP, 82MM
20 91205-P0X-005 Oil seal - 40X56X9 (NOK) Oil seal - 40X56X9 (NOK)
Trunk lid 5 / 24
CM6 Trunk lid
CU2 Trunk lid
# OEM CM6 CU2
6 74822-SW5-003 Cushion - TRUNK HINGE Cushion - TRUNK HINGE
21 75353-671-000 Lock - SCREW Lock - SCREW
22 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
23 90109-SM4-000 Bolt - SPECIAL, 6X35 Bolt - SPECIAL, 6X35
25 91507-S5A-003 Clip - TRUNK OPENER CABLE Clip - TRUNK OPENER CABLE
Valve/rocker arm (FRONT; V6) 1 / 19
CM6 Valve/rocker arm (FRONT; V6)
CU2 Valve/rocker arm (2.4L)
# OEM CM6 CU2
14 14781-RGM-A01 Cotter - VALVE (FUJI VALVE) Cotter - VALVE (FUJI VALVE)
Valve/rocker arm (REAR; V6) 1 / 19
CM6 Valve/rocker arm (REAR; V6)
CU2 Valve/rocker arm (2.4L)
# OEM CM6 CU2
14 14781-RGM-A01 Cotter - VALVE (FUJI VALVE) Cotter - VALVE (FUJI VALVE)
Water valve (LH) 3 / 11
CM6 Water valve (LH)
CU2 Water hose (2.4L; LH)
# OEM CM6 CU2
7 90661-SL5-003 Clip, WATER HOSE Clip, WATER HOSE
8 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
8 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Water valve (RH) 3 / 10
CM6 Water valve (RH)
CU2 Water hose (2.4L; LH)
# OEM CM6 CU2
7 90661-SL5-003 Clip, WATER HOSE Clip, WATER HOSE
8 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
8 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Windshield washer (1) 1 / 9
CM6 Windshield washer (1)
CU2 Engine hood (LH)
# OEM CM6 CU2
9 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Windshield washer (2) 1 / 9
CM6 Windshield washer (2)
CU2 Engine hood (LH)
# OEM CM6 CU2
9 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Wire harness (LH) 3 / 18
CM6 Wire harness (LH)
CU2 Wire harness (1; LH)
# OEM CM6 CU2
15 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
16 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
17 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
Wire harness (RH) 3 / 17
CM6 Wire harness (RH)
CU2 Wire harness (1; LH)
# OEM CM6 CU2
14 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
15 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
16 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
