Accumulator body (V6) 5 / 16

#	OEM	CM6	CS2
3	27524-P6H-000	Clip - CAP	Clip - CAP
4	27561-PAX-000	Piston - LOW ACCUMULATOR	Piston - LOW ACCUMULATOR
13	90607-P6H-000	Ring - SNAP, 26MM	Ring - SNAP, 26MM
15	91331-PC9-003	O-ring	O-ring
16	91344-580-000	O-ring - 31X2.7 (ARAI)	O-ring - 31X2.7 (ARAI)

Air cleaner (V6) 6 / 14

#	OEM	CM6	CS2
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
3	17213-PV0-000	Rubber - AIR CLEANER CASE MOUNTING	Rubber - AIR CLEANER CASE MOUNTING
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
11	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
12	90091-RAA-A00	Bolt-washer - 5X28	Bolt-washer - 5X28
13	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE

Air conditioner (COMPRESSOR; V6) 7 / 15

#	OEM	CM6	CS2
2	38801-P9K-E01	Valve sub assy. - SAFETY	Valve sub assy. - SAFETY
4	38812-PH1-003	Ring b - SNAP	Ring b - SNAP
5	38812-671-003	Ring a - SNAP	Ring a - SNAP
7	38827-PH7-003	Screw-washer - 5X8	Screw-washer - 5X8
8	38829-PR3-003	Bolt - WASHER HEAD	Bolt - WASHER HEAD
10	38912-PH1-N01	Plate set - WASHER	Plate set - WASHER
15	90023-P8A-A00	Bolt - FLANGE, 8X85	Bolt - FLANGE, 8X85

Air conditioner (CONDENSER) 4 / 10

#	OEM	CM6	CS2
6	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER
7	80351-SDC-A01	Receiver comp	Receiver comp
8	80352-SDA-A01	Clamp	Clamp
10	80873-ST7-000	O-ring - 8MM	O-ring - 8MM

Air conditioner (HOSES/PIPES; LH) 5 / 18

#	OEM	CM6	CS2
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
14	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
15	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
16	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
17	90001-SDA-A00	Bolt - FLANGE, 6X38(GUIDE)	Bolt - FLANGE, 6X38(GUIDE)

Air conditioner (HOSES/PIPES; RH) 5 / 20

#	OEM	CM6	CS2
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
16	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
17	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
18	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
19	90001-SDA-A00	Bolt - FLANGE, 6X38(GUIDE)	Bolt - FLANGE, 6X38(GUIDE)

Air conditioner (SENSOR) 3 / 7

#	OEM	CM6	CS2
2	80521-SDA-A40	Bracket - AMBIENT SENSOR	Bracket - AMBIENT SENSOR
3	80525-S30-941	Sensor assy - AMBIENT	Sensor assy - AMBIENT
6	91517-SDA-A01	Clip - 8.5MM	Clip - 8.5MM

Alternator (DENSO; V6) 10 / 16

#	OEM	CM6	CS2
2	31101-RCB-Y01	Rotor assy.	Rotor assy.
3	31105-RAA-A01	Holder assy. - BRUSH	Holder assy. - BRUSH
5	31111-PT0-003	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
6	31114-PGK-A01	Bearing - FR.	Bearing - FR.
9	31138-PD1-004	Cover - BEARING	Cover - BEARING
11	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
12	31145-PGK-A01	Bolt	Bolt
13	31146-PE9-941	Screw-washer	Screw-washer
15	31147-PT0-003	Screw-washer	Screw-washer
16	90231-PGK-A01	Nut - HEX., 5MM	Nut - HEX., 5MM

Alternator stay (V6) 1 / 12

#	OEM	CM6	CS2
8	90051-PE0-000	Bolt - FLANGE, 12X70	Bolt - FLANGE, 12X70

Battery (V6) 5 / 17

#	OEM	CM6	CS2
8	32116-P64-003	Holder - CORRUGATED (DARK GREEN) (13MM)	Holder - CORRUGATED (DARK GREEN) (13MM)
12	32418-PLA-300	Cover - BATTERY TERMINAL	Cover - BATTERY TERMINAL
14	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
15	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
16	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Brake lines (VSA; LH) 3 / 28

#	OEM	CM6	CS2
24	46462-SE0-000	Bolt - OIL	Bolt - OIL
26	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
27	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Brake lines (VSA; RH) 3 / 28

#	OEM	CM6	CS2
24	46462-SE0-000	Bolt - OIL	Bolt - OIL
26	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
27	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Brake master cylinder/ master power (LH) 4 / 17

#	OEM	CM6	CS2
6	46191-SDA-A00	Gasket - MASTER POWER	Gasket - MASTER POWER
11	46512-S70-000	Pin - PEDAL	Pin - PEDAL
15	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
16	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Brake master cylinder/ master power (RH) 4 / 18

#	OEM	CM6	CS2
6	46191-SDA-A00	Gasket - MASTER POWER	Gasket - MASTER POWER
12	46512-S70-000	Pin - PEDAL	Pin - PEDAL
16	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
17	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Breather tube (V6) 2 / 4

#	OEM	CM6	CS2
3	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
3	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)

Bumpers 4 / 29

#	OEM	CM6	CS2
27	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
29	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
31	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
36	90675-SA5-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM

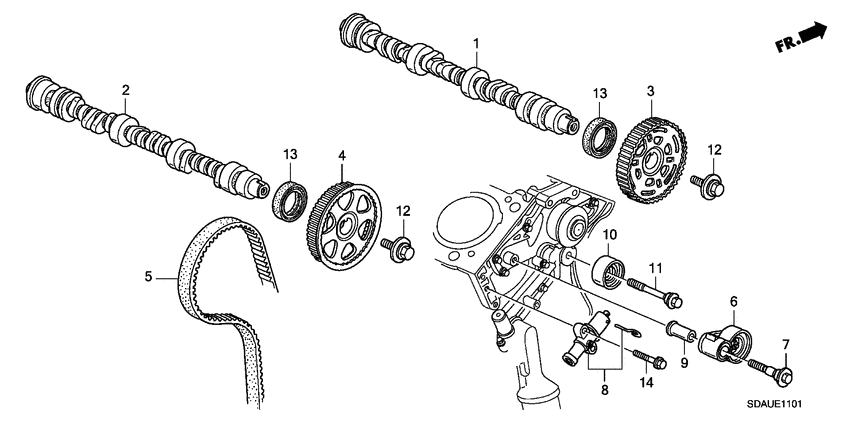

Camshaft/timing belt (V6) 9 / 16

#	OEM	CM6	CS2
4	14270-RCA-A01	Pulley - RR. TIMING BELT DRIVEN	Pulley - RR. TIMING BELT DRIVEN
5	14400-RCA-A01	TIMING BELT (197YU20 VE-501) (UNITTA)	TIMING BELT (197YU20 VE-501) (UNITTA)
6	14510-RCA-A01	TIMING BELT Adjuster comp.	TIMING BELT Adjuster comp.
7	14513-RCA-A01	Bolt - TIMING BELT ADJUSTER	Bolt - TIMING BELT ADJUSTER
8	14520-RCA-A01	Timing Belt Auto Tensioner comp.	Timing Belt Auto Tensioner comp.
9	14530-P13-000	Collar - AUTO ADJUSTER	Collar - AUTO ADJUSTER
10	14550-RCA-A01	IDLER, TIMING BELT (KOYO SEIKO)	IDLER, TIMING BELT (KOYO SEIKO)
11	14551-RCA-A01	Bolt - TIMING BELT IDLER	Bolt - TIMING BELT IDLER
12	90031-P8A-A01	Bolt-washer - 12X35	Bolt-washer - 12X35

Center module (STANLEY; AUTO AIR CONDITIONER) 2 / 11

#	OEM	CM6	CS2
11	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
15	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Clutch (1ST-2ND; V6) 12 / 45

#	OEM	CM6	CS2
3	22533-P7W-003	Seat - RETURN SPRING	Seat - RETURN SPRING
4	22537-P0Z-003	Spring - CLUTCH DISK	Spring - CLUTCH DISK
5	22542-P7W-003	Spring - CLUTCH RETURN	Spring - CLUTCH RETURN
18	22673-P7W-003	Plate - CLUTCH (L-H)	Plate - CLUTCH (L-H)
21	90603-P0Z-000	Circlip - EXTERNAL, 44MM	Circlip - EXTERNAL, 44MM
22	90605-PY4-000	Ring - SNAP, 137MM	Ring - SNAP, 137MM
23	90605-P0Z-000	Ring - SNAP, 141MM	Ring - SNAP, 141MM
25	91302-P0Z-003	O-ring - 44.1X2.2(NOK)	O-ring - 44.1X2.2(NOK)
26	91303-PF4-004	O-ring - 110X2.2 (NOK)	O-ring - 110X2.2 (NOK)
27	91303-PY4-004	O-ring - 119.1X2.3 (NOK)	O-ring - 119.1X2.3 (NOK)
28	91303-P0Z-003	O-ring - 45.1X2.2 (NOK)	O-ring - 45.1X2.2 (NOK)
29	91304-P0Z-003	O-ring - 52.1X2.2 (NOK)	O-ring - 52.1X2.2 (NOK)

Clutch (3RD; V6) 6 / 24

#	OEM	CM6	CS2
5	22652-P7W-003	Spring - CLUTCH RETURN	Spring - CLUTCH RETURN
7	22654-P7W-003	Seat - RETURN SPRING	Seat - RETURN SPRING
9	90603-P24-A11	Circlip - EXTERNAL, 42MM (F.C.C.)	Circlip - EXTERNAL, 42MM (F.C.C.)
9	90603-PL4-000	Circlip - EXTERNAL, 42MM	Circlip - EXTERNAL, 42MM
12	91302-PL4-003	O-ring - 41.8X2.2 (NOK)	O-ring - 41.8X2.2 (NOK)
13	91303-PX4-004	O-ring - 114X2.2 (NOK)	O-ring - 114X2.2 (NOK)

Clutch (4TH-5TH; V6) 2 / 22

#	OEM	CM6	CS2
12	90605-PY4-000	Ring - SNAP, 137MM	Ring - SNAP, 137MM
14	91303-P7T-003	O-ring - 116.7X2.2 (F.C.C)	O-ring - 116.7X2.2 (F.C.C)

Combination switch (LH) 6 / 24

#	OEM	CM6	CS2
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
11	35116-SDA-A11	Screw - FLAT	Screw - FLAT
20	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
22	72148-S0A-000	Battery CR1616	Battery CR1616

Combination switch (RH) 6 / 24

#	OEM	CM6	CS2
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
11	35116-SDA-A11	Screw - FLAT	Screw - FLAT
20	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
22	72148-S0A-000	Battery CR1616	Battery CR1616

Console 3 / 17

#	OEM	CM6	CS2
2	39624-SZ3-L01	Socket assy	Socket assy
34	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
36	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Control unit (CABIN; LH) 5 / 21

#	OEM	CM6	CS2
13	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)
14	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)	Relay assy, ENGINE CONTROL MODULE (DENSO)
14	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
19	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
21	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Control unit (CABIN; RH) 5 / 23

#	OEM	CM6	CS2
12	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)
13	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)	Relay assy, ENGINE CONTROL MODULE (DENSO)
13	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
18	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
20	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Control unit (ENGINE ROOM) 4 / 19

#	OEM	CM6	CS2
1	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
14	39792-SDA-A01	Relay assy - MICRO ISO	Relay assy - MICRO ISO
17	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
19	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

Converter (V6) 6 / 20

#	OEM	CM6	CS2
1	11941-RCA-A00	Stay - CONVERTER	Stay - CONVERTER
12	36538-RDM-A01	Clip - WIRE HARNESS	Clip - WIRE HARNESS
14	90004-RCA-A00	Bolt-washer - 8X16	Bolt-washer - 8X16
15	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
16	90065-PG6-000	Bolt, STUD, 10X24	Bolt, STUD, 10X24
17	90212-RCA-A01	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM

Countershaft (V6) 4 / 31

#	OEM	CM6	CS2
16	90402-P0Z-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
17	90408-PY4-000	Washer - THRUST, 14X30X1	Washer - THRUST, 14X30X1
24	91024-PAX-006	Bearing - NEEDLE, 40X46X14.5 (TORRINGTON)	Bearing - NEEDLE, 40X46X14.5 (TORRINGTON)
28	91308-PW4-003	O-ring - 21.8X1.9	O-ring - 21.8X1.9

Crankshaft/piston (V6) 7 / 34

#	OEM	CM6	CS2
4	13115-PRB-A00	Clip - PISTON PIN	Clip - PISTON PIN
5	13204-P8A-A01	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
10	13331-P8A-A01	Washer - THRUST	Washer - THRUST
12	13621-RCA-A11	Pulley - TIMING BELT DRIVE	Pulley - TIMING BELT DRIVE
13	13622-RJA-000	Plate - TIMING BELT GUIDE	Plate - TIMING BELT GUIDE
15	90017-RJA-003	Bolt-washer - 16X49	Bolt-washer - 16X49
16	90704-RCA-A00	Key - 4.5X24	Key - 4.5X24

Cylinder block/oil pan (V6) 15 / 23

#	OEM	CM6	CS2
6	15140-P8A-A00	Orifice assy - OIL CONTROL	Orifice assy - OIL CONTROL
7	15142-P8A-A00	O-ring - 8.8X2.4	O-ring - 8.8X2.4
9	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
10	90006-P8A-A01	Bolt-washer - 10X109	Bolt-washer - 10X109
11	90008-P8A-A01	Bolt-washer - 10X60	Bolt-washer - 10X60
12	90009-PY3-000	DRAIN PLUG BOLT, 14MM	DRAIN PLUG BOLT, 14MM
13	90009-P8A-A01	Bolt-washer - 10X80	Bolt-washer - 10X80
14	90014-RCA-A01	Bolt-washer - 11X105	Bolt-washer - 11X105
15	90030-PH7-000	Bolt - BREATHING	Bolt - BREATHING
16	90040-P8A-A01	Bolt - DRAIN PLUG	Bolt - DRAIN PLUG
17	90052-PH7-000	Bolt - FLANGE, 6X22	Bolt - FLANGE, 6X22
18	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
19	90401-P8A-A00	Washer - DRAIN, 18MM	Washer - DRAIN, 18MM
20	90715-PH7-000	Dowel pin - 13X37	Dowel pin - 13X37
22	91308-PK1-003	O-ring - 26.2X2.4 (NOK)	O-ring - 26.2X2.4 (NOK)

Cylinder head cover (V6) 11 / 21

#	OEM	CM6	CS2
5	12342-P08-004	Seal	Seal
5	12342-RYE-004	Seal,spark plug t	Seal,spark plug t
6	15610-RGA-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
7	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
9	17130-RCA-A02	Valve assy. - PCV	Valve assy. - PCV
10	90007-679-000	Bolt a - TIMING BELT COVER	Bolt a - TIMING BELT COVER
11	90010-P8A-A00	Bolt a - HEAD COVER	Bolt a - HEAD COVER
12	90012-P8A-A00	Bolt b - HEAD COVER	Bolt b - HEAD COVER
13	90442-P8A-A00	Washer - HEAD COVER	Washer - HEAD COVER
14	91307-RCA-A01	O-ring - 10.2X1.8	O-ring - 10.2X1.8
15	91308-RCA-A01	O-ring - 14.8X1.8	O-ring - 14.8X1.8

Emblems/caution labels 3 / 15

#	OEM	CM6	CS2
3	19043-PLA-E00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION
16	78031-SDA-G80	Label - SIDE AIRBAG CAUTION	Label - SIDE AIRBAG CAUTION
17	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

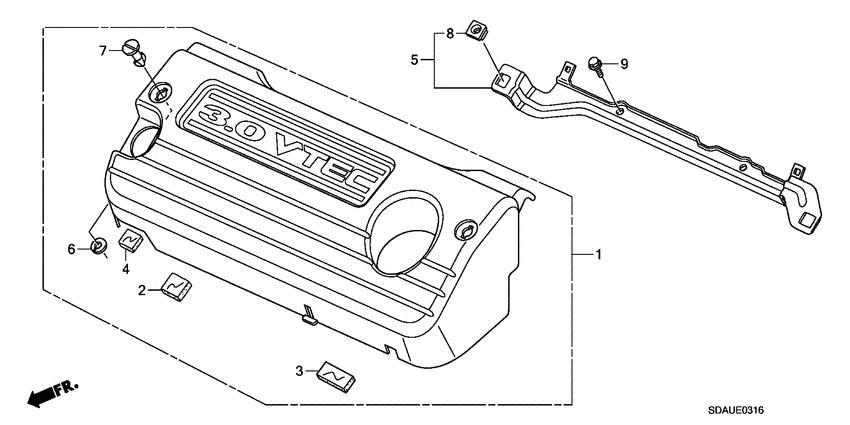

Engine cover (V6) 3 / 8

#	OEM	CM6	CS2
6	90501-SS8-A01	Retainer	Retainer
7	91501-SS8-A01	Stud	Stud
8	91601-SS8-A01	Receptacle - 1.0	Receptacle - 1.0

Engine hood (LH) 9 / 42

#	OEM	CM6	CS2
4	70256-SB2-000	Seal - RR. FLOOR HOLE	Seal - RR. FLOOR HOLE
32	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
33	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
34	90602-SX0-003	Clip - COWL TOP	Clip - COWL TOP
35	90602-S5A-003	Clip - COWL TOP	Clip - COWL TOP
37	90603-SX0-003	Grommet - COWL TOP	Grommet - COWL TOP
39	91501-STK-003	Clip - ENGINE HOOD INSULATOR	Clip - ENGINE HOOD INSULATOR
45	91518-S10-003	Clip - MOLDING	Clip - MOLDING
48	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Engine hood (RH) 8 / 41

#	OEM	CM6	CS2
4	70256-SB2-000	Seal - RR. FLOOR HOLE	Seal - RR. FLOOR HOLE
32	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
33	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
34	90602-SX0-003	Clip - COWL TOP	Clip - COWL TOP
35	90602-S5A-003	Clip - COWL TOP	Clip - COWL TOP
37	90603-SX0-003	Grommet - COWL TOP	Grommet - COWL TOP
39	91501-STK-003	Clip - ENGINE HOOD INSULATOR	Clip - ENGINE HOOD INSULATOR
45	91518-S10-003	Clip - MOLDING	Clip - MOLDING

Engine mounts (V6) 5 / 35

#	OEM	CM6	CS2
27	90161-SDA-A01	Bolt - FLANGE, 12X45	Bolt - FLANGE, 12X45
29	90163-SDA-A01	Bolt - FLANGE, 10X35	Bolt - FLANGE, 10X35
30	90163-SDB-A00	Bolt - FLANGE, 10X30	Bolt - FLANGE, 10X30
31	90163-S5A-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20
35	90371-S87-A00	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM

Engine wire harness (V6; LH) 3 / 16

#	OEM	CM6	CS2
12	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
13	91507-RTA-003	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
14	91558-P8C-A01	Clip - HARNESS BAND (VIOLET) (150MM)	Clip - HARNESS BAND (VIOLET) (150MM)

Engine wire harness (V6; RH) 4 / 22

#	OEM	CM6	CS2
15	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
16	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
17	91507-RTA-003	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
19	91558-P8C-A01	Clip - HARNESS BAND (VIOLET) (150MM)	Clip - HARNESS BAND (VIOLET) (150MM)

Exhaust pipe (V6) 8 / 25

#	OEM	CM6	CS2
4	18176-PT0-003	Bolt - CONVERTER	Bolt - CONVERTER
5	18176-P08-003	Bolt - CONVERTER	Bolt - CONVERTER
9	18212-SA7-003	Gasket - EX. PIPE (ISHINO)	Gasket - EX. PIPE (ISHINO)
12	18215-S84-A20	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
16	18393-SDB-A00	Gasket - PRE-CHAMBER	Gasket - PRE-CHAMBER
23	90023-PK1-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
23	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
24	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Floor mat 2 / 9

#	OEM	CM6	CS2
26	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE
27	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR

Front brake (V6) 10 / 22

#	OEM	CM6	CS2
1	01463-S87-A00	Front Caliper Seal Set	Front Caliper Seal Set
3	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
4	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
11	45235-S0K-A01	Pin a	Pin a
13	45240-SM4-003	Bolt - FLANGE, 10X24	Bolt - FLANGE, 10X24
16	45262-S0K-A01	Pin b	Pin b
17	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
18	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
18	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
18	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)

Front bulkhead/dashboard 1 / 2

#	OEM	CM6	CS2
30	90105-SV1-000	Bolt-washer - 8X20	Bolt-washer - 8X20

Front cylinder head (V6) 12 / 17

#	OEM	CM6	CS2
2	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
4	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
4	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
5	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
6	12230-P8A-A00	Cover assy. - FR. CAMSHAFT THRUST	Cover assy. - FR. CAMSHAFT THRUST
9	90005-PAA-A01	Bolt-washer - 12X163	Bolt-washer - 12X163
10	90026-P8A-A00	Bolt - STUD, 8X41	Bolt - STUD, 8X41
12	90705-PT0-000	Dowel pin - 16X22	Dowel pin - 16X22
13	91301-P8A-A00	O-ring - 48.5X2.4	O-ring - 48.5X2.4
19	12207-634-300	Washer - SEALING BOLT	Washer - SEALING BOLT
20	12208-P8C-A01	Bolt - SEALING, 28MM	Bolt - SEALING, 28MM

Front door glass/ regulator 1 / 17

#	OEM	CM6	CS2
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY	Label - IMMOBILIZER & SECURITY

Front door lining (LH) 5 / 15

#	OEM	CM6	CS2
8	72134-S2X-003	Snap - R. (NATURAL)	Snap - R. (NATURAL)
11	72174-S2X-003	Snap - L. (BLACK)	Snap - L. (BLACK)
26	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
27	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
28	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Front door lining (RH) 5 / 15

#	OEM	CM6	CS2
8	72134-S2X-003	Snap - R. (NATURAL)	Snap - R. (NATURAL)
11	72174-S2X-003	Snap - L. (BLACK)	Snap - L. (BLACK)
26	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
27	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
28	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Front door locks/ outer handle 5 / 41

#	OEM	CM6	CS2
7	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
12	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
35	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
39	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
40	91591-SJ6-013	Clip s - FUEL PIPE	Clip s - FUEL PIPE

Front door panels 5 / 19

#	OEM	CM6	CS2
20	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
21	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
22	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
22	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
23	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Front driveshaft/half sha ft (V6) 12 / 35

#	OEM	CM6	CS2
8	44319-SE0-000	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
9	44319-S1K-300	Set ring - 30X2.2	Set ring - 30X2.2
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
19	44517-SDB-A00	Cover comp. - HEAT	Cover comp. - HEAT
20	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
21	90165-SE0-000	Bolt - FLANGE, 10X37	Bolt - FLANGE, 10X37
22	90165-S5B-003	Bolt - FLANGE, 8X24	Bolt - FLANGE, 8X24
24	90681-SR3-000	Circlip - EXTERNAL, 33MM	Circlip - EXTERNAL, 33MM
25	91057-SR3-008	Bearing - HALF SHAFT(NTN)	Bearing - HALF SHAFT(NTN)
26	91260-SDB-A01	Seal - HALF SHAFT OUTER(NOK)	Seal - HALF SHAFT OUTER(NOK)

Front fenders 3 / 17

#	OEM	CM6	CS2
16	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
22	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
23	91533-SG0-000	Clip b - FAIRING	Clip b - FAIRING

Front grille 2 / 8

#	OEM	CM6	CS2
6	90301-ST0-003	push nut, 3mm	push nut, 3mm
9	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front lower arm 4 / 23

#	OEM	CM6	CS2
3	51308-SDA-A00	Bracket - FR. STABILIZER	Bracket - FR. STABILIZER
15	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
20	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
21	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Front seat (L.; LH) 7 / 34

#	OEM	CM6	CS2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
16	81236-SDB-A71	Nut - PUSH	Nut - PUSH
41	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
42	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
47	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
48	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
49	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front seat (L.; RH) 5 / 19

#	OEM	CM6	CS2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
21	90160-S5A-003	Screw - TRUSS, 6X12	Screw - TRUSS, 6X12
22	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
23	90610-S10-003	Clip - GARNISH	Clip - GARNISH
26	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front seat (R.; LH) 8 / 30

#	OEM	CM6	CS2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
24	81236-SDB-A71	Nut - PUSH	Nut - PUSH
34	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
35	90160-S5A-003	Screw - TRUSS, 6X12	Screw - TRUSS, 6X12
36	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
40	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
41	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
42	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front seat (R.; RH) 6 / 30

#	OEM	CM6	CS2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
26	81236-SDB-A71	Nut - PUSH	Nut - PUSH
39	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
40	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
45	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
46	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front seat components (L.; FULL POWER SEAT) 6 / 15

#	OEM	CM6	CS2
12	81653-SDB-A71	Switch assy - L. (8WAY)	Switch assy - L. (8WAY)
14	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25
17	90610-SDA-003	Clip - GARNISH	Clip - GARNISH
18	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
19	91533-S82-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
20	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Front seat components (L.; MANUAL SEAT) 1 / 8

#	OEM	CM6	CS2
7	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25

Front seat components (R.; 4WAY POWER SEAT) 4 / 11

#	OEM	CM6	CS2
10	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25
13	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
14	91533-S82-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
15	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Front seat components (R.; FULL POWER SEAT) 5 / 14

#	OEM	CM6	CS2
14	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25
17	90610-SDA-003	Clip - GARNISH	Clip - GARNISH
18	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
19	91533-S82-003	Clip - COUPLER(BLACK)	Clip - COUPLER(BLACK)
20	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Front shock absorber 12 / 22

#	OEM	CM6	CS2
5	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
8	51684-SDA-A02	Mount - FR. DUST COVER LOWER	Mount - FR. DUST COVER LOWER
9	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
9	51685-SR0-004	Plate - DUST COVER (A.S.I. SHOWA)	Plate - DUST COVER (A.S.I. SHOWA)
11	51688-SDA-A01	Sleeve - FR. DUST COVER	Sleeve - FR. DUST COVER
12	51689-SDA-A01	Cover - FR. END DUST	Cover - FR. END DUST
13	51689-SH3-004	Plate - BUMP STOP (SHOWA)	Plate - BUMP STOP (SHOWA)
14	51722-SS0-004	Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)	Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)
15	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
15	51728-SR0-003	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)
16	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
17	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front sub frame/rear beam 6 / 39

#	OEM	CM6	CS2
12	50280-SDA-A01	Rubber - R. FR. SUB FRAME MIDDLE MOUNTING	Rubber - R. FR. SUB FRAME MIDDLE MOUNTING
13	50285-SDA-A01	Rubber - L. FR. SUB FRAME MIDDLE MOUNTING	Rubber - L. FR. SUB FRAME MIDDLE MOUNTING
32	90176-SDA-A00	Bolt - FLANGE, 14X135	Bolt - FLANGE, 14X135
33	90177-SDA-A00	Bolt - FLANGE, 14X150	Bolt - FLANGE, 14X150
36	90186-SDA-A00	Bolt - FLANGE, 12X33	Bolt - FLANGE, 12X33
38	90396-S5A-010	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75

Front windshield 1 / 7

#	OEM	CM6	CS2
5	76441-S84-A01	Spring	Spring

Front windshield wiper (LH) 2 / 23

#	OEM	CM6	CS2
22	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
23	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)	Cap - FR. WIPER ARM (12MM)

Front windshield wiper (RH) 2 / 23

#	OEM	CM6	CS2
22	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
23	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)	Cap - FR. WIPER ARM (12MM)

Fuel injector (V6) 2 / 20

#	OEM	CM6	CS2
14	17711-S0X-931	Retainer - BLUE GREEN) (TOKAI	Retainer - BLUE GREEN) (TOKAI
16	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6

Fuel pipe 9 / 47

#	OEM	CM6	CS2
9	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)	Clamp - FUEL HOSE (NATURAL)
15	17259-PE0-661	Collar - MOUNTING	Collar - MOUNTING
16	17260-PE0-670	Rubber - MOUNTING	Rubber - MOUNTING
20	17711-S0X-931	Retainer - BLUE GREEN) (TOKAI	Retainer - BLUE GREEN) (TOKAI
35	75353-671-000	Lock - SCREW	Lock - SCREW
37	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
39	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
40	91406-SAA-000	Clamp - TUBE (D12)	Clamp - TUBE (D12)
41	91407-SDB-000	Clamp - TUBE (D12.5)	Clamp - TUBE (D12.5)

Fuel tank (1) 4 / 43

#	OEM	CM6	CS2
14	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
30	17711-S0X-931	Retainer - BLUE GREEN) (TOKAI	Retainer - BLUE GREEN) (TOKAI
36	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
41	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Fuel tank (2) 5 / 37

#	OEM	CM6	CS2
16	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
20	17652-SDA-A31	Clip - FILLER TUBE	Clip - FILLER TUBE
27	17711-S0X-931	Retainer - BLUE GREEN) (TOKAI	Retainer - BLUE GREEN) (TOKAI
31	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
33	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Grommet (FRONT) 5 / 8

#	OEM	CM6	CS2
1	70256-SB2-000	Seal - RR. FLOOR HOLE	Seal - RR. FLOOR HOLE
2	75826-634-300	Seal - INSIDE PANEL, 15MM	Seal - INSIDE PANEL, 15MM
6	91613-SR3-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM
7	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
8	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 2 / 4

#	OEM	CM6	CS2
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)

Grommet (REAR) 3 / 5

#	OEM	CM6	CS2
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
3	90857-SDA-A00	Cap - WELD HOLE	Cap - WELD HOLE

Grommet (SIDE) 1 / 6

#	OEM	CM6	CS2
6	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Harness band/bracket (LH) 16 / 53

#	OEM	CM6	CS2
7	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
8	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
10	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
12	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
22	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
24	91476-SB6-003	Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM)	Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM)
28	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
31	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
33	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
34	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
35	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
38	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
46	91556-SM4-003	Clip - BAND (BLACK) (100MM)	Clip - BAND (BLACK) (100MM)
52	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
55	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
57	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Harness band/bracket (RH) 18 / 43

#	OEM	CM6	CS2
3	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
4	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
6	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
8	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
13	90627-SA5-003	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)	Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
15	91476-SB6-003	Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM)	Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM)
17	91506-SA5-000	Clip - WIRE HARNESS (BLACK) (WITH SEAL)	Clip - WIRE HARNESS (BLACK) (WITH SEAL)
19	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
23	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
25	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
26	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
27	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
31	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
33	91550-ST0-003	Clip - WIRE HARNESS (NATURAL) (110MM)	Clip - WIRE HARNESS (NATURAL) (110MM)
36	91556-SM4-003	Clip - BAND (BLACK) (100MM)	Clip - BAND (BLACK) (100MM)
39	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
42	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
43	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Headlight 7 / 19

#	OEM	CM6	CS2
3	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
4	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
4	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
8	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
9	33302-SR3-A01	Socket comp - GRAY	Socket comp - GRAY
11	33303-SD4-671	Bulb - FR. TURN (12V 2CP) (AMBER)	Bulb - FR. TURN (12V 2CP) (AMBER)
15	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Heater blower (LH) 4 / 11

#	OEM	CM6	CS2
8	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
9	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
10	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
11	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater blower (RH) 4 / 9

#	OEM	CM6	CS2
6	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
7	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
8	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
9	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater unit (LH) 10 / 32

#	OEM	CM6	CS2
1	39248-692-003	Packing - HEATER	Packing - HEATER
18	80534-S84-A41	Aspirator	Aspirator
22	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
23	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
24	90126-S5A-003	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40
25	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
26	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
27	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
28	90661-S2A-003	Clip - DRAIN HOSE	Clip - DRAIN HOSE
30	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Heater unit (RH) 9 / 32

#	OEM	CM6	CS2
1	39248-692-003	Packing - HEATER	Packing - HEATER
19	80534-S84-A41	Aspirator	Aspirator
23	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
24	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
25	90126-S5A-003	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40
26	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
27	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
28	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
30	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Instrument panel (LH) 5 / 11

#	OEM	CM6	CS2
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
13	90106-S84-A00	Bolt-washer - 8X40	Bolt-washer - 8X40
15	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
17	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
19	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel (RH) 5 / 11

#	OEM	CM6	CS2
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
13	90106-S84-A00	Bolt-washer - 8X40	Bolt-washer - 8X40
15	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
17	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
19	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (DRIVER SIDE; LH) 4 / 11

#	OEM	CM6	CS2
3	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
18	90101-S2K-000	Screw - TAPPING, 4X16(IT)	Screw - TAPPING, 4X16(IT)
21	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
24	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (DRIVER SIDE; RH) 4 / 12

#	OEM	CM6	CS2
2	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
15	90101-S2K-000	Screw - TAPPING, 4X16(IT)	Screw - TAPPING, 4X16(IT)
19	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
21	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE; LH) 7 / 28

#	OEM	CM6	CS2
3	39610-S2H-G01	Knob assy	Knob assy
4	39620-S0X-003	Socket assy	Socket assy
6	66418-SB2-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
7	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
33	90140-SDA-A00	Bolt-washer - 5X19	Bolt-washer - 5X19
35	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
38	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE; RH) 7 / 25

#	OEM	CM6	CS2
2	39610-S2H-G01	Knob assy	Knob assy
3	39620-S0X-003	Socket assy	Socket assy
5	66418-SB2-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
6	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
31	90140-SDA-A00	Bolt-washer - 5X19	Bolt-washer - 5X19
33	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
35	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Interior light 8 / 15

#	OEM	CM6	CS2
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W
4	34261-S5A-003	Lens comp	Lens comp
5	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI	Bulb - 12V 5W) (DAIICHI
5	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
7	34401-SDA-A21	Lens - R.	Lens - R.
9	34402-SDA-A21	Lens - L.	Lens - L.

Knuckle 4 / 20

#	OEM	CM6	CS2
7	51464-S04-013	Boot, UPPER BALL JOINT	Boot, UPPER BALL JOINT
9	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
12	90172-SDA-A00	Bolt - FLANGE, 10X78	Bolt - FLANGE, 10X78
13	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM

L. side cover (V6) 11 / 46

#	OEM	CM6	CS2
10	22713-PW4-000	Guide a - FEED PIPE	Guide a - FEED PIPE
14	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
28	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
29	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
30	90471-580-000	Packing - 8MM	Packing - 8MM
32	90607-P6H-000	Ring - SNAP, 26MM	Ring - SNAP, 26MM
36	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
37	91305-PC9-003	O-ring - 34X1.9 (ARAI)	O-ring - 34X1.9 (ARAI)
40	91314-PC9-004	O-ring - 8.5X1.9 (NOK)	O-ring - 8.5X1.9 (NOK)
41	91314-PW4-003	O-ring - 11X1.9 (NOK)	O-ring - 11X1.9 (NOK)
42	91331-PC9-003	O-ring	O-ring

Main valve body (V6) 4 / 10

#	OEM	CM6	CS2
3	25145-PA9-010	Shaft - OIL PUMP GEAR	Shaft - OIL PUMP GEAR
6	27122-P6H-000	Cap - 12MM	Cap - 12MM
9	27524-P6H-000	Clip - CAP	Clip - CAP
10	27750-PL5-J01	Filter - SECONDARY BODY	Filter - SECONDARY BODY

Mainshaft (V6) 2 / 24

#	OEM	CM6	CS2
8	90402-P0Z-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
19	91316-PR9-003	O-ring - 33X1.9 (ARAI)	O-ring - 33X1.9 (ARAI)

Meter components (NS) 1 / 7

#	OEM	CM6	CS2
1	37115-SA0-601	Packing - NS	Packing - NS

Mirror (1) 2 / 14

#	OEM	CM6	CS2
11	76400-SDA-A03	Mirror assy - RR. VIEW (DAY/NIGHT)	Mirror assy - RR. VIEW (DAY/NIGHT)
15	90144-S04-006	Screw - TAPPING PAN, 3X14	Screw - TAPPING PAN, 3X14

Mirror (2) 1 / 20

#	OEM	CM6	CS2
15	76400-SDA-A03	Mirror assy - RR. VIEW (DAY/NIGHT)	Mirror assy - RR. VIEW (DAY/NIGHT)

Molding 1 / 25

#	OEM	CM6	CS2
23	91572-SDA-A01	Clip - ROOF MOLDING	Clip - ROOF MOLDING

Oil level gauge/ atf pipe (V6) 5 / 26

#	OEM	CM6	CS2
15	25951-RGR-000	Bolt - JOINT	Bolt - JOINT
20	90471-RGR-000	Washer - DRAIN PLUG, 12MM	Washer - DRAIN PLUG, 12MM
21	90635-PT0-802	Clip, Oil Pipe	Clip, Oil Pipe
21	90635-RV0-003	CLIP, OIL PIPE	CLIP, OIL PIPE
24	91314-PC9-004	O-ring - 8.5X1.9 (NOK)	O-ring - 8.5X1.9 (NOK)

Oil pump (V6) 4 / 32

#	OEM	CM6	CS2
9	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
9	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
19	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
21	90051-P8A-A00	Bolt - FLANGE, 6X35 (SEAL)	Bolt - FLANGE, 6X35 (SEAL)

Outer panels/rear panel 2 / 7

#	OEM	CM6	CS2
25	75450-SDA-A01	Outlet assy - RR. AIR	Outlet assy - RR. AIR
27	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18

P.s. gear box (LH) 1 / 17

#	OEM	CM6	CS2
5	53449-S84-A01	Band - BELLOWS	Band - BELLOWS

P.s. gear box (RH) 1 / 17

#	OEM	CM6	CS2
5	53449-S84-A01	Band - BELLOWS	Band - BELLOWS

P.s. gear box components (LH) 10 / 23

#	OEM	CM6	CS2
2	06532-S50-003	Oil seal set - ROTARY VALVE	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
6	53414-S84-A01	Screw - RACK GUIDE	Screw - RACK GUIDE
8	53449-S84-A01	Band - BELLOWS	Band - BELLOWS
9	53458-S84-A01	Nut - LOCK	Nut - LOCK
17	53656-S84-A01	Circlip - EXTERNAL, 20MM	Circlip - EXTERNAL, 20MM
18	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)	Oil seal - 27X38X5.5 (SHOWA)
20	53666-S50-003	O-ring - 41.5X2 (SHOWA)	O-ring - 41.5X2 (SHOWA)
23	90105-S50-003	Bolt - FLANGE, 8X28	Bolt - FLANGE, 8X28

P.s. gear box components (RH) 10 / 23

#	OEM	CM6	CS2
2	06532-S50-003	Oil seal set - ROTARY VALVE	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
6	53414-S84-A01	Screw - RACK GUIDE	Screw - RACK GUIDE
8	53449-S84-A01	Band - BELLOWS	Band - BELLOWS
9	53458-S84-A01	Nut - LOCK	Nut - LOCK
17	53656-S84-A01	Circlip - EXTERNAL, 20MM	Circlip - EXTERNAL, 20MM
18	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)	Oil seal - 27X38X5.5 (SHOWA)
20	53666-S50-003	O-ring - 41.5X2 (SHOWA)	O-ring - 41.5X2 (SHOWA)
23	90105-S50-003	Bolt - FLANGE, 8X28	Bolt - FLANGE, 8X28

P.s. lines (LH; V6) 7 / 28

#	OEM	CM6	CS2
1	53697-SB3-952	Cap - OIL TANK	Cap - OIL TANK
6	53728-SDB-A01	Clip - RETURN PIPE	Clip - RETURN PIPE
7	53728-S0X-A01	Clip - RETURN PIPE	Clip - RETURN PIPE
9	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
16	53736-SH3-950	Holder b - POWER STEERING PIPE	Holder b - POWER STEERING PIPE
21	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
24	91405-SS0-003	Clamp - TUBE (D21)	Clamp - TUBE (D21)

P.s. lines (RH) 5 / 21

#	OEM	CM6	CS2
2	53697-SB3-952	Cap - OIL TANK	Cap - OIL TANK
7	53728-SDB-A01	Clip - RETURN PIPE	Clip - RETURN PIPE
9	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
21	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
24	91405-SS0-003	Clamp - TUBE (D21)	Clamp - TUBE (D21)

Parking brake (LH) 5 / 9

#	OEM	CM6	CS2
3	47360-SB2-000	Equalizer	Equalizer
4	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
6	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
7	47537-671-670	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD
9	47572-ST0-000	Base - WIRE GUIDE	Base - WIRE GUIDE

Parking brake (RH) 5 / 9

#	OEM	CM6	CS2
3	47360-SB2-000	Equalizer	Equalizer
4	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
6	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
7	47537-671-670	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD
9	47572-ST0-000	Base - WIRE GUIDE	Base - WIRE GUIDE

Pedal (LH) 4 / 17

#	OEM	CM6	CS2
9	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
12	46545-S84-A81	Cover - PEDAL	Cover - PEDAL
26	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
27	90361-S3C-003	Nut - PAINT CUTTING, 8MM	Nut - PAINT CUTTING, 8MM

Pedal (RH) 4 / 18

#	OEM	CM6	CS2
9	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
11	46545-S84-A81	Cover - PEDAL	Cover - PEDAL
18	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
19	90361-S3C-003	Nut - PAINT CUTTING, 8MM	Nut - PAINT CUTTING, 8MM

Power steering pump/ bracket (V6) 16 / 21

#	OEM	CM6	CS2
1	32115-RCA-A00	Stay - KNOCK SENSOR COUPLER	Stay - KNOCK SENSOR COUPLER
4	56141-PAA-A01	Shaft - POWER STEERING PUMP DRIVE	Shaft - POWER STEERING PUMP DRIVE
6	56950-RCA-A01	Bracket - FR. POWER STEERING PUMP	Bracket - FR. POWER STEERING PUMP
7	56961-RCA-A00	Bracket - RR. POWER STEERING PUMP	Bracket - RR. POWER STEERING PUMP
8	56965-RCA-A02	Plate comp - ENGINE HANGER	Plate comp - ENGINE HANGER
9	90105-S50-003	Bolt - FLANGE, 8X28	Bolt - FLANGE, 8X28
10	90305-PAA-A01	Nut - POWER STEERING PULLEY	Nut - POWER STEERING PULLEY
11	90693-PAA-A01	Circlip - INTERNAL, 40MM	Circlip - INTERNAL, 40MM
11	90693-P2A-003	Circlip - INTERNAL, 40MM	Circlip - INTERNAL, 40MM
12	91048-P2A-003	Bearing - RADIAL BALL, 17X40X12	Bearing - RADIAL BALL, 17X40X12
13	91249-PNC-003	Seal - POWER STEERING PUMP	Seal - POWER STEERING PUMP
15	91347-PAA-A01	O-ring - 16.7X1.8	O-ring - 16.7X1.8
16	91347-P2A-003	O-ring - 15.2X2.4	O-ring - 15.2X2.4
17	91348-P2A-003	O-ring - 51.0X2.4	O-ring - 51.0X2.4
18	91349-P2A-003	Seal - POWER STEERING PUMP COVER	Seal - POWER STEERING PUMP COVER
19	91350-P8C-A01	Bolt - FLANGE, 6X20	Bolt - FLANGE, 6X20

Protector/ side sill garnish 3 / 14

#	OEM	CM6	CS2
13	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)	Bolt - BUMPER SETTING (6X15) (BLACK)
13	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
15	90682-SDA-A01	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Radiator (V6) 7 / 21

#	OEM	CM6	CS2
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
7	19045-RAA-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
8	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
17	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
18	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
19	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator hose (V6) 3 / 17

#	OEM	CM6	CS2
2	19102-PM5-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
14	74172-S87-A00	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
15	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER

Radio antenna/speaker 5 / 13

#	OEM	CM6	CS2
11	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
12	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
13	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
14	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
15	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Rear brake 8 / 43

#	OEM	CM6	CS2
16	43235-S84-A51	Pin a	Pin a
28	43262-S84-A51	Pin b	Pin b
31	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
32	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
33	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
35	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
35	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
35	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)

Rear cylinder head (V6) 13 / 20

#	OEM	CM6	CS2
1	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
2	12205-PJ7-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
3	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
3	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
4	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
10	90005-PAA-A01	Bolt-washer - 12X163	Bolt-washer - 12X163
11	90026-P8A-A00	Bolt - STUD, 8X41	Bolt - STUD, 8X41
13	90705-PT0-000	Dowel pin - 16X22	Dowel pin - 16X22
14	91301-P8A-A00	O-ring - 48.5X2.4	O-ring - 48.5X2.4
22	12207-PC6-300	Washer - SEALING, 16MM	Washer - SEALING, 16MM
23	12207-634-300	Washer - SEALING BOLT	Washer - SEALING BOLT
24	12208-P8C-A01	Bolt - SEALING, 28MM	Bolt - SEALING, 28MM
25	90083-PG1-000	Bolt - SEALING, 16MM	Bolt - SEALING, 16MM

Rear door lining 5 / 16

#	OEM	CM6	CS2
4	72134-S2X-003	Snap - R. (NATURAL)	Snap - R. (NATURAL)
5	72174-S2X-003	Snap - L. (BLACK)	Snap - L. (BLACK)
24	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
25	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
26	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)

Rear door locks/ outer handle 3 / 26

#	OEM	CM6	CS2
2	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
26	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
29	91591-SJ6-013	Clip s - FUEL PIPE	Clip s - FUEL PIPE

Rear door panels 5 / 21

#	OEM	CM6	CS2
21	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
22	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
22	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
23	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
25	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM

Rear lower arm 5 / 36

#	OEM	CM6	CS2
8	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
25	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
28	90181-S84-A00	Bolt - TRAILING ARM, 12X68	Bolt - TRAILING ARM, 12X68
29	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
31	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Rear seat 1 / 22

#	OEM	CM6	CS2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)

Rear shock absorber 10 / 20

#	OEM	CM6	CS2
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
3	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
3	51685-SR0-004	Plate - DUST COVER (A.S.I. SHOWA)	Plate - DUST COVER (A.S.I. SHOWA)
4	51728-SR0-003	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)
4	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
10	52686-SDA-A01	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
13	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP
15	52748-S0A-004	Cover - RR. LOWER MOUNT DUST	Cover - RR. LOWER MOUNT DUST
17	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear tray/side lining 2 / 10

#	OEM	CM6	CS2
3	75353-671-000	Lock - SCREW	Lock - SCREW
25	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE

Regulator (V6) 6 / 13

#	OEM	CM6	CS2
2	22748-P7Z-000	Pipe - 8X85	Pipe - 8X85
4	27122-P6H-A00	Cap - 12MM	Cap - 12MM
5	27142-P6H-000	Cap - 15MM	Cap - 15MM
9	27524-P6H-000	Clip - CAP	Clip - CAP
10	27750-PL5-J01	Filter - SECONDARY BODY	Filter - SECONDARY BODY
11	90089-PK4-000	Bolt - STOPPER, 6MM	Bolt - STOPPER, 6MM

Resonator chamber (V6) 4 / 14

#	OEM	CM6	CS2
1	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
3	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
12	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
13	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Roof lining 1 / 14

#	OEM	CM6	CS2
23	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16

Roof slide components 2 / 13

#	OEM	CM6	CS2
1	70142-S84-A01	Bracket a - CABLE	Bracket a - CABLE
2	70229-SDA-A01	Bolt - SOCKET, 5X7	Bolt - SOCKET, 5X7

Seatbelts 1 / 7

#	OEM	CM6	CS2
16	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)

Secondary shaft (V6) 3 / 30

#	OEM	CM6	CS2
1	22816-P6H-003	Ring - SEAL (35MM)	Ring - SEAL (35MM)
9	90402-P0Z-000	Washer - SPRING, 24MM	Washer - SPRING, 24MM
19	91316-PR9-003	O-ring - 33X1.9 (ARAI)	O-ring - 33X1.9 (ARAI)

Select lever (LH) 3 / 17

#	OEM	CM6	CS2
18	90351-SB2-003	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
19	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
20	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Select lever (RH) 3 / 17

#	OEM	CM6	CS2
18	90351-SB2-003	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
19	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
20	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Sensor/solenoid (V6) 10 / 32

#	OEM	CM6	CS2
3	22743-PW4-000	Pipe - 8X40	Pipe - 8X40
17	90471-PW7-A00	PACKING, 10MM	PACKING, 10MM
18	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
19	91301-P6H-003	O-ring - 7.6X1.9 (KEIHIN)	O-ring - 7.6X1.9 (KEIHIN)
19	91301-P7Z-004	O-ring - 7.6X1.9 (DENSO)	O-ring - 7.6X1.9 (DENSO)
20	91302-P6H-003	O-ring - 9.6X1.9 (KEIHIN)	O-ring - 9.6X1.9 (KEIHIN)
20	91302-P7W-A00	O-ring - 9.6X1.9	O-ring - 9.6X1.9
20	91302-P7Z-004	O-ring - 9.6X1.9 (DENSO)	O-ring - 9.6X1.9 (DENSO)
22	91303-RAY-003	O-ring - 12X2.4 (NOK)	O-ring - 12X2.4 (NOK)
23	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

Servo body (V6) 3 / 8

#	OEM	CM6	CS2
3	27122-P6H-000	Cap - 12MM	Cap - 12MM
7	27524-P6H-000	Clip - CAP	Clip - CAP
8	91344-580-000	O-ring - 31X2.7 (ARAI)	O-ring - 31X2.7 (ARAI)

Shift fork (V6) 3 / 10

#	OEM	CM6	CS2
2	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
8	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
9	91209-612-003	Oil seal - 12X22X7 (ARAI)	Oil seal - 12X22X7 (ARAI)

Sliding roof 7 / 16

#	OEM	CM6	CS2
1	18534-634-670	Clip - AIR HOSE, 16MM	Clip - AIR HOSE, 16MM
3	70052-S6A-J00	Valve - FR. DRAIN (SUNROOF)	Valve - FR. DRAIN (SUNROOF)
4	70057-SNA-A00	Clip - SUNROOF DRAIN TUBE	Clip - SUNROOF DRAIN TUBE
7	70081-SDA-A01	Seal a - FRAME	Seal a - FRAME
12	70225-SDA-A01	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
15	70617-S5A-J01	Screw - TAPPING, 4X7 (PO)	Screw - TAPPING, 4X7 (PO)
16	70623-SM4-003	Cap - STAY COVER	Cap - STAY COVER

Srs unit (LH) 9 / 25

#	OEM	CM6	CS2
14	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
15	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
17	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
18	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
19	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
20	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
21	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
22	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)	Clip - HARNESS BAND OFFSET(30) (NATURAL)
25	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)

Srs unit (RH) 2 / 6

#	OEM	CM6	CS2
5	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
6	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Steering column 6 / 16

#	OEM	CM6	CS2
8	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
9	90135-SDA-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
9	90135-SZT-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
10	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
11	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
12	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Steering wheel (SRS; V6) 2 / 6

#	OEM	CM6	CS2
10	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
12	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Taillight/license light 3 / 30

#	OEM	CM6	CS2
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
7	33513-S50-003	Socket - T20W S2	Socket - T20W S2

Throttle body (V6) 2 / 4

#	OEM	CM6	CS2
1	16176-RCA-A02	Gasket - THROTTLE BODY	Gasket - THROTTLE BODY
4	37835-PGK-A01	O-ring	O-ring

Timing belt cover (V6) 13 / 17

#	OEM	CM6	CS2
1	11810-RCA-A01	Cover assy. - TIMING BELT LOWER	Cover assy. - TIMING BELT LOWER
2	11812-P8A-A00	Grommet - TIMING BELT COVER	Grommet - TIMING BELT COVER
3	11813-RCA-A00	Packing a - TIMING BELT LOWER COVER	Packing a - TIMING BELT LOWER COVER
4	11814-P8A-A00	Packing b - TIMING BELT LOWER COVER	Packing b - TIMING BELT LOWER COVER
5	11820-RCA-A00	Cover assy. - FR. TIMING BELT UPPER	Cover assy. - FR. TIMING BELT UPPER
6	11822-RCA-A00	Packing - FR. TIMING BELT UPPER	Packing - FR. TIMING BELT UPPER
7	11823-P8A-A00	Label - TIMING BELT ADJUSTER INFORMATION	Label - TIMING BELT ADJUSTER INFORMATION
9	11832-RCA-A00	Packing - RR. TIMING BELT UPPER	Packing - RR. TIMING BELT UPPER
11	11862-RCA-A00	Packing - FR. TIMING BELT BACK	Packing - FR. TIMING BELT BACK
12	11870-RCA-A00	Plate assy. - RR. TIMING BELT BACK COVER	Plate assy. - RR. TIMING BELT BACK COVER
13	11872-RCA-A00	Packing - RR. TIMING BELT BACK	Packing - RR. TIMING BELT BACK
15	90007-679-000	Bolt a - TIMING BELT COVER	Bolt a - TIMING BELT COVER
16	90017-P8A-A01	Bolt - SPECIAL, 8X29	Bolt - SPECIAL, 8X29

Tire/wheel disks 4 / 27

#	OEM	CM6	CS2
7	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
7	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
15	74651-S2X-003	Adapter - SPARE TIRE	Adapter - SPARE TIRE
16	74652-SDA-003	Bolt - SPARE TIRE	Bolt - SPARE TIRE

Tools/jack 1 / 11

#	OEM	CM6	CS2
8	89216-SF4-000	Wrench - PLUG	Wrench - PLUG

Top accumulator body (V6) 5 / 20

#	OEM	CM6	CS2
2	22748-PW4-000	Pipe - 8X62	Pipe - 8X62
3	27122-P6H-000	Cap - 12MM	Cap - 12MM
5	27524-P6H-000	Clip - CAP	Clip - CAP
16	90607-P6H-000	Ring - SNAP, 26MM	Ring - SNAP, 26MM
18	91331-PC9-003	O-ring	O-ring

Torque converter (V6) 3 / 6

#	OEM	CM6	CS2
4	90023-PA9-000	Bolt - SPECIAL	Bolt - SPECIAL
5	90429-PC6-900	Washer - 40X86X2	Washer - 40X86X2
6	91302-PGK-003	O-ring - 35.5X1.9	O-ring - 35.5X1.9

Torque converter case (V6) 4 / 13

#	OEM	CM6	CS2
4	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
5	90471-580-000	Packing - 8MM	Packing - 8MM
7	90705-PF4-000	Dowel pin - 14X20	Dowel pin - 14X20
11	91206-P0Z-005	Oil seal - 35X54X8 (NOK)	Oil seal - 35X54X8 (NOK)

Transmission case (V6) 8 / 22

#	OEM	CM6	CS2
7	25422-PN6-801	Magnet comp. - TRANSMISSION	Magnet comp. - TRANSMISSION
8	25614-PK4-000	Bolt - FILLER (ATF)	Bolt - FILLER (ATF)
11	90081-PX4-003	Bolt - PLUG, 18MM	Bolt - PLUG, 18MM
12	90441-PK4-000	Washer - SEALING, 24MM	Washer - SEALING, 24MM
13	90471-PX4-000	Washer - DRAIN PLUG, 18MM	Washer - DRAIN PLUG, 18MM
14	90615-P0Z-000	Ring - SNAP, 82MM	Ring - SNAP, 82MM
20	91205-P0X-005	Oil seal - 40X56X9 (NOK)	Oil seal - 40X56X9 (NOK)
21	91302-P7W-A00	O-ring - 9.6X1.9	O-ring - 9.6X1.9

Trunk lid 8 / 24

#	OEM	CM6	CS2
6	74822-SW5-003	Cushion - TRUNK HINGE	Cushion - TRUNK HINGE
19	74886-SDA-A01	Cylinder - TRUNK REMOTE CONTROL	Cylinder - TRUNK REMOTE CONTROL
20	74899-S84-A01	Damper - TRUNK DYNAMIC	Damper - TRUNK DYNAMIC
21	75353-671-000	Lock - SCREW	Lock - SCREW
22	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
23	90109-SM4-000	Bolt - SPECIAL, 6X35	Bolt - SPECIAL, 6X35
24	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
26	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)

Tubing (V6) 2 / 5

#	OEM	CM6	CS2
2	36167-RDV-J00	Tube a - PURGE	Tube a - PURGE
5	91406-SAA-000	Clamp - TUBE (D12)	Clamp - TUBE (D12)

Valve/rocker arm (FRONT; V6) 4 / 19

#	OEM	CM6	CS2
12	14765-RDV-J00	Retainer - VALVE SPRING	Retainer - VALVE SPRING
13	14775-PM3-000	Seat - VALVE SPRING	Seat - VALVE SPRING
14	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
18	90206-PT0-004	Nut - TAPPET ADJUSTING	Nut - TAPPET ADJUSTING

Valve/rocker arm (REAR; V6) 4 / 19

#	OEM	CM6	CS2
12	14765-RDV-J00	Retainer - VALVE SPRING	Retainer - VALVE SPRING
13	14775-PM3-000	Seat - VALVE SPRING	Seat - VALVE SPRING
14	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
18	90206-PT0-004	Nut - TAPPET ADJUSTING	Nut - TAPPET ADJUSTING

Water pump (V6) 6 / 14

#	OEM	CM6	CS2
2	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)
5	19301-P8E-A10	Thermostat assy - NIPPON THERMOSTAT	Thermostat assy - NIPPON THERMOSTAT
6	19305-PR7-A00	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
9	19411-P8A-A03	Gasket - FR. WATER PASSAGE (NIPPON LEAKLESS)	Gasket - FR. WATER PASSAGE (NIPPON LEAKLESS)
10	19412-P8A-A02	Gasket - RR. WATER PASSAGE (NIPPON LEAKLESS)	Gasket - RR. WATER PASSAGE (NIPPON LEAKLESS)
14	91314-PH7-003	O-ring 31.2X4.1 (NOK)	O-ring 31.2X4.1 (NOK)

Water valve (LH) 3 / 11

#	OEM	CM6	CS2
7	90661-SL5-003	Clip, WATER HOSE	Clip, WATER HOSE
8	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Water valve (RH) 3 / 10

#	OEM	CM6	CS2
7	90661-SL5-003	Clip, WATER HOSE	Clip, WATER HOSE
8	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Windshield washer (1) 1 / 9

#	OEM	CM6	CS2
9	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Windshield washer (2) 1 / 9

#	OEM	CM6	CS2
9	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Wire harness (LH) 2 / 18

#	OEM	CM6	CS2
16	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
17	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Wire harness (RH) 2 / 17

#	OEM	CM6	CS2
15	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
16	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
