検索 › 比較 › CM6 × CN1
CM6
Honda ACCORD — 2,605 中 635 共有
CN1
Honda ACCORD — 2,244 中 635 共有

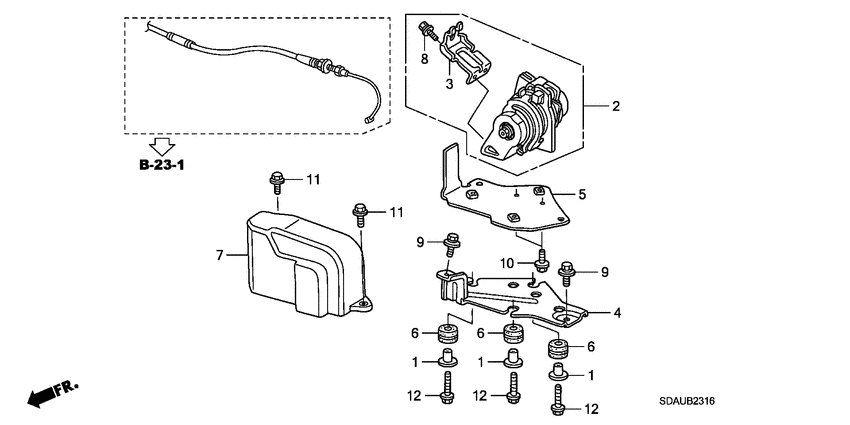

Accelerator sensor (LH) 5 / 7
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 36641-PY3-000 | Collar - ACTUATOR MOUNT | Collar - ACTUATOR MOUNT |
| 3 | 37972-RCA-A01 | Stay - THROTTLE WIRE | Stay - THROTTLE WIRE |
| 5 | 37977-RCA-A00 | Stay comp - ACCELERATOR PEDAL SENSOR | Stay comp - ACCELERATOR PEDAL SENSOR |
| 6 | 37978-RCA-A00 | Rubber - MOUNT | Rubber - MOUNT |
| 7 | 37996-RCA-A00 | Cover comp. - ACCELERATOR PEDAL SENSOR | Cover comp. - ACCELERATOR PEDAL SENSOR |
Accelerator sensor (RH) 5 / 7
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 36641-PY3-000 | Collar - ACTUATOR MOUNT | Collar - ACTUATOR MOUNT |
| 3 | 37972-RCA-A01 | Stay - THROTTLE WIRE | Stay - THROTTLE WIRE |
| 5 | 37977-RCA-A00 | Stay comp - ACCELERATOR PEDAL SENSOR | Stay comp - ACCELERATOR PEDAL SENSOR |
| 6 | 37978-RCA-A00 | Rubber - MOUNT | Rubber - MOUNT |
| 7 | 37996-RCA-A00 | Cover comp. - ACCELERATOR PEDAL SENSOR | Cover comp. - ACCELERATOR PEDAL SENSOR |
Air cleaner (V6) 2 / 14
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 17213-PV0-000 | Rubber - AIR CLEANER CASE MOUNTING | Rubber - AIR CLEANER CASE MOUNTING |
| 11 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
Air conditioner (COMPRESSOR; V6) 8 / 15
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 38773-PR3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 2 | 38801-P9K-E01 | Valve sub assy. - SAFETY | Valve sub assy. - SAFETY |
| 4 | 38812-PH1-003 | Ring b - SNAP | Ring b - SNAP |
| 5 | 38812-671-003 | Ring a - SNAP | Ring a - SNAP |
| 6 | 38816-RCA-A01 | Stay - LEAD WIRE | Stay - LEAD WIRE |
| 7 | 38827-PH7-003 | Screw-washer - 5X8 | Screw-washer - 5X8 |
| 8 | 38829-PR3-003 | Bolt - WASHER HEAD | Bolt - WASHER HEAD |
| 10 | 38912-PH1-N01 | Plate set - WASHER | Plate set - WASHER |
Air conditioner (HOSES/PIPES; LH) 3 / 18
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 17 | 90001-SDA-A00 | Bolt - FLANGE, 6X38(GUIDE) | Bolt - FLANGE, 6X38(GUIDE) |
| 18 | 91548-SR3-003 | Clip - 8MM | Clip - 8MM |
Air conditioner (HOSES/PIPES; RH) 3 / 20
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 19 | 90001-SDA-A00 | Bolt - FLANGE, 6X38(GUIDE) | Bolt - FLANGE, 6X38(GUIDE) |
| 20 | 91548-SR3-003 | Clip - 8MM | Clip - 8MM |
Air conditioner (SENSOR) 5 / 7
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 80510-SDA-A41 | Sensor assy - SUN BEAM | Sensor assy - SUN BEAM |
| 3 | 80525-S30-941 | Sensor assy - AMBIENT | Sensor assy - AMBIENT |
| 4 | 80530-SDA-A41 | Sensor assy - IN CAR | Sensor assy - IN CAR |
| 5 | 80541-SDA-A41 | Hose a - ASPIRATOR | Hose a - ASPIRATOR |
| 6 | 91517-SDA-A01 | Clip - 8.5MM | Clip - 8.5MM |
Alternator (DENSO; V6) 9 / 16
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 31105-RAA-A01 | Holder assy. - BRUSH | Holder assy. - BRUSH |
| 5 | 31111-PT0-003 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 6 | 31114-PGK-A01 | Bearing - FR. | Bearing - FR. |
| 9 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 12 | 31145-PGK-A01 | Bolt | Bolt |
| 13 | 31146-PE9-941 | Screw-washer | Screw-washer |
| 14 | 31147-PGK-A01 | Screw | Screw |
| 15 | 31147-PT0-003 | Screw-washer | Screw-washer |
| 16 | 90231-PGK-A01 | Nut - HEX., 5MM | Nut - HEX., 5MM |
Battery (V6) 4 / 17
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 14 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 15 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 16 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 17 | 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) | Clip - HARNESS BAND(BLACK) (145MM) |
Brake lines (VSA; LH) 12 / 28
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 13 | 46380-SB0-000 | Grommet a - BRAKE PIPE (BLACK) | Grommet a - BRAKE PIPE (BLACK) |
| 14 | 46391-SDA-A01 | Clip g - BRAKE PIPE | Clip g - BRAKE PIPE |
| 18 | 46393-S84-A00 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 19 | 46394-SDA-003 | Clip d - BRAKE PIPE | Clip d - BRAKE PIPE |
| 21 | 46395-SDA-A00 | Clip e - BRAKE PIPE | Clip e - BRAKE PIPE |
| 22 | 46396-SDA-003 | Clip f - BRAKE PIPE | Clip f - BRAKE PIPE |
| 23 | 46435-S84-A00 | Bracket - RR. BRAKE HOSE | Bracket - RR. BRAKE HOSE |
| 24 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 25 | 46470-S5T-E01 | Joint - FOUR WAY | Joint - FOUR WAY |
| 26 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 27 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 28 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Brake lines (VSA; RH) 12 / 28
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 14 | 46380-SB0-000 | Grommet a - BRAKE PIPE (BLACK) | Grommet a - BRAKE PIPE (BLACK) |
| 15 | 46391-SDA-A01 | Clip g - BRAKE PIPE | Clip g - BRAKE PIPE |
| 18 | 46393-S84-A00 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 20 | 46394-SDA-003 | Clip d - BRAKE PIPE | Clip d - BRAKE PIPE |
| 21 | 46395-SDA-A00 | Clip e - BRAKE PIPE | Clip e - BRAKE PIPE |
| 22 | 46396-SDA-003 | Clip f - BRAKE PIPE | Clip f - BRAKE PIPE |
| 23 | 46435-S84-A00 | Bracket - RR. BRAKE HOSE | Bracket - RR. BRAKE HOSE |
| 24 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 25 | 46470-S5T-E01 | Joint - FOUR WAY | Joint - FOUR WAY |
| 26 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 27 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 28 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Brake master cylinder/ master power (LH) 13 / 17
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 2 | 01462-SDD-A02 | Piston set - MASTER CYLINDER | Piston set - MASTER CYLINDER |
| 4 | 46101-SDD-G51 | Cylinder set - MASTER | Cylinder set - MASTER |
| 5 | 46151-SA7-951 | Yoke comp - NISSIN | Yoke comp - NISSIN |
| 6 | 46191-SDA-A00 | Gasket - MASTER POWER | Gasket - MASTER POWER |
| 10 | 46407-S84-A01 | Clamp - TUBE | Clamp - TUBE |
| 11 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 12 | 46661-SDC-A02 | Reservoir set - OIL | Reservoir set - OIL |
| 13 | 46662-SDC-A02 | Cap comp. - RESERVOIR | Cap comp. - RESERVOIR |
| 14 | 46666-SDC-A01 | Filter | Filter |
| 15 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 16 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 17 | 90301-SDC-013 | Nut - HEX., 8MM | Nut - HEX., 8MM |
| 18 | 90301-SEF-013 | Nut - 10MM | Nut - 10MM |
Brake master cylinder/ master power (RH) 11 / 18
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 2 | 01462-SDD-A02 | Piston set - MASTER CYLINDER | Piston set - MASTER CYLINDER |
| 5 | 46151-SA7-951 | Yoke comp - NISSIN | Yoke comp - NISSIN |
| 6 | 46191-SDA-A00 | Gasket - MASTER POWER | Gasket - MASTER POWER |
| 11 | 46407-S84-A01 | Clamp - TUBE | Clamp - TUBE |
| 12 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 14 | 46662-SDC-A02 | Cap comp. - RESERVOIR | Cap comp. - RESERVOIR |
| 15 | 46666-SDC-A01 | Filter | Filter |
| 16 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 17 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 18 | 90301-SDC-013 | Nut - HEX., 8MM | Nut - HEX., 8MM |
| 19 | 90301-SEF-013 | Nut - 10MM | Nut - 10MM |
Bumpers 11 / 29
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 60854-SB2-000 | Clip - FR. SPOILER | Clip - FR. SPOILER |
| 18 | 71505-SDA-A00 | Bracket - R. RR. BUMPER SIDE | Bracket - R. RR. BUMPER SIDE |
| 21 | 71555-SDA-A00 | Bracket - L. RR. BUMPER SIDE | Bracket - L. RR. BUMPER SIDE |
| 25 | 90103-SDA-A00 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 27 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 28 | 90110-SE7-000 | Bolt-washer - 8X21 | Bolt-washer - 8X21 |
| 29 | 90111-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 30 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 31 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 37 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 38 | 91503-SZ3-003 | Clip A | Clip A |
Canister 1 / 26
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 23 | 91401-SDC-000 | Clip - TUBE(B10) | Clip - TUBE(B10) |
Center module (STANLEY; AUTO AIR CONDITIONER) 4 / 11
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 11 | 90133-SM4-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 12 | 90666-SM4-003 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 13 | 90666-S84-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 15 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Combination switch (LH) 11 / 24
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 5 | 35108-S30-003 | Holder - COLUMN | Holder - COLUMN |
| 11 | 35116-SDA-A11 | Screw - FLAT | Screw - FLAT |
| 14 | 35130-SAA-J51 | Switch comp - STEERING | Switch comp - STEERING |
| 15 | 35251-SDA-A21 | Sensor assy - STEERING & BODY SWITCH | Sensor assy - STEERING & BODY SWITCH |
| 18 | 35400-S6A-003 | Switch assy - DOOR (DAIICHI) | Switch assy - DOOR (DAIICHI) |
| 20 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
| 22 | 72148-S0A-000 | Battery CR1616 | Battery CR1616 |
| 23 | 90132-S2H-G11 | Screw - ET, 5.5X18 | Screw - ET, 5.5X18 |
| 23 | 90132-S2H-G01 | Screw - ET, 5X18 | Screw - ET, 5X18 |
Combination switch (RH) 11 / 24
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 5 | 35108-S30-003 | Holder - COLUMN | Holder - COLUMN |
| 11 | 35116-SDA-A11 | Screw - FLAT | Screw - FLAT |
| 14 | 35130-SAA-J51 | Switch comp - STEERING | Switch comp - STEERING |
| 15 | 35251-SDA-A21 | Sensor assy - STEERING & BODY SWITCH | Sensor assy - STEERING & BODY SWITCH |
| 18 | 35400-S6A-003 | Switch assy - DOOR (DAIICHI) | Switch assy - DOOR (DAIICHI) |
| 20 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
| 22 | 72148-S0A-000 | Battery CR1616 | Battery CR1616 |
| 23 | 90132-S2H-G11 | Screw - ET, 5.5X18 | Screw - ET, 5.5X18 |
| 23 | 90132-S2H-G01 | Screw - ET, 5X18 | Screw - ET, 5X18 |
Console 15 / 17
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 39620-SZ3-003 | Cap assy. | Cap assy. |
| 2 | 39624-SZ3-L01 | Socket assy | Socket assy |
| 3 | 66418-SD4-900 | Stopper - CONSOLE LOCK | Stopper - CONSOLE LOCK |
| 4 | 77205-S0X-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 17 | 83409-SDA-A02 | Hinge comp - ARMREST | Hinge comp - ARMREST |
| 20 | 83412-SDA-A01 | Stopper - ARMREST | Stopper - ARMREST |
| 21 | 83413-SDA-A01 | Mat - CONSOLE BOX | Mat - CONSOLE BOX |
| 25 | 83418-SDA-A01 | Lock - ARMREST | Lock - ARMREST |
| 26 | 83419-SDA-A01 | Lock - TRAY | Lock - TRAY |
| 31 | 88326-SDC-Y01 | Holder comp - RR. ASHTRAY | Holder comp - RR. ASHTRAY |
| 32 | 90144-SDA-A01 | Screw - TAPPING, 4X16(PO) | Screw - TAPPING, 4X16(PO) |
| 33 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 34 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 35 | 90666-S84-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 36 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Control unit (CABIN; LH) 9 / 21
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 10 | 38300-SHJ-A04 | Relay assy - TURN SIGNAL & HAZARD (MITSUBA) | Relay assy - TURN SIGNAL & HAZARD (MITSUBA) |
| 10 | 38300-SDC-A02 | Relay assy - TURN SIGNAL & HAZARD (DENSO) | Relay assy - TURN SIGNAL & HAZARD (DENSO) |
| 12 | 39794-SDA-A05 | Relay assy - POWER(MICRO ISO) (MITSUBA) | Relay assy - POWER(MICRO ISO) (MITSUBA) |
| 12 | 39794-SDA-A02 | Relay assy - POWER(MICRO ISO) (DENSO) | Relay assy - POWER(MICRO ISO) (DENSO) |
| 14 | 39794-SDA-902 | Relay assy, ENGINE CONTROL MODULE (DENSO) | Relay assy, ENGINE CONTROL MODULE (DENSO) |
| 14 | 39794-SDA-901 | Relay assy, ENGINE CONTROL MODULE (MITSUBA) | Relay assy, ENGINE CONTROL MODULE (MITSUBA) |
| 15 | 39794-S10-003 | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) |
| 19 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 21 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
Control unit (CABIN; RH) 11 / 23
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 6 | 38300-SHJ-A04 | Relay assy - TURN SIGNAL & HAZARD (MITSUBA) | Relay assy - TURN SIGNAL & HAZARD (MITSUBA) |
| 6 | 38300-SDC-A02 | Relay assy - TURN SIGNAL & HAZARD (DENSO) | Relay assy - TURN SIGNAL & HAZARD (DENSO) |
| 7 | 38970-SJA-003 | Sensor assy - RAIN | Sensor assy - RAIN |
| 8 | 38971-S3V-A01 | Clip - SPRING | Clip - SPRING |
| 11 | 39794-SDA-A02 | Relay assy - POWER(MICRO ISO) (DENSO) | Relay assy - POWER(MICRO ISO) (DENSO) |
| 11 | 39794-SDA-A05 | Relay assy - POWER(MICRO ISO) (MITSUBA) | Relay assy - POWER(MICRO ISO) (MITSUBA) |
| 13 | 39794-SDA-902 | Relay assy, ENGINE CONTROL MODULE (DENSO) | Relay assy, ENGINE CONTROL MODULE (DENSO) |
| 13 | 39794-SDA-901 | Relay assy, ENGINE CONTROL MODULE (MITSUBA) | Relay assy, ENGINE CONTROL MODULE (MITSUBA) |
| 14 | 39794-S10-003 | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) |
| 18 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 20 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
Control unit (ENGINE ROOM) 16 / 19
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 32146-SH3-003 | Connector - DIODE(2P) | Connector - DIODE(2P) |
| 2 | 38100-SDB-A02 | Horn assy - LOW (MITSUBA) | Horn assy - LOW (MITSUBA) |
| 3 | 38150-SDB-A02 | Horn assy - HIGH (MITSUBA) | Horn assy - HIGH (MITSUBA) |
| 4 | 38182-SDA-003 | Cover - RELAY BLOCK UPPER(2P) | Cover - RELAY BLOCK UPPER(2P) |
| 5 | 38231-SDA-A01 | Fuse a - MULTI BLOCK (100A/70A) | Fuse a - MULTI BLOCK (100A/70A) |
| 6 | 38231-S04-003 | Fuse - BLOCK (30A) | Fuse - BLOCK (30A) |
| 7 | 38231-S04-961 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 9 | 38232-SDA-A11 | Fuse b - MULTI BLOCK (50A/50A) | Fuse b - MULTI BLOCK (50A/50A) |
| 10 | 38235-SDA-A01 | Puller - MINI FUSE | Puller - MINI FUSE |
| 14 | 39792-SDA-A01 | Relay assy - MICRO ISO | Relay assy - MICRO ISO |
| 15 | 39794-SDA-A05 | Relay assy - POWER(MICRO ISO) (MITSUBA) | Relay assy - POWER(MICRO ISO) (MITSUBA) |
| 15 | 39794-SDA-A02 | Relay assy - POWER(MICRO ISO) (DENSO) | Relay assy - POWER(MICRO ISO) (DENSO) |
| 16 | 39794-S10-003 | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) |
| 17 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 18 | 90129-SDA-000 | Screw-washer - 5X16 | Screw-washer - 5X16 |
| 19 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |
Converter (V6) 1 / 20
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 15 | 90023-PR7-A01 | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) |
Crankshaft/piston (V6) 1 / 34
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 5 | 13204-P8A-A01 | Bolt - CONNECTING ROD | Bolt - CONNECTING ROD |
Cylinder block/oil pan (V6) 3 / 23
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 7 | 15142-P8A-A00 | O-ring - 8.8X2.4 | O-ring - 8.8X2.4 |
| 12 | 90009-PY3-000 | DRAIN PLUG BOLT, 14MM | DRAIN PLUG BOLT, 14MM |
| 18 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
Cylinder head cover (V6) 1 / 21
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 7 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
Differential (V6) 1 / 48
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 41381-P7T-000 | Spacer - 46X80X1 | Spacer - 46X80X1 |
Duct 4 / 4
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 83331-SDA-A00 | Duct - R. RR. HEATER | Duct - R. RR. HEATER |
| 2 | 83332-SDA-A00 | Duct - R. RR. HEATER JOINT | Duct - R. RR. HEATER JOINT |
| 3 | 83381-SDA-A00 | Duct - L. RR. HEATER | Duct - L. RR. HEATER |
| 4 | 83382-SDA-A00 | Duct - L. RR. HEATER JOINT | Duct - L. RR. HEATER JOINT |
Emblems/caution labels 3 / 15
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 15 | 77875-SDA-G80 | Label - SRS CAUTION | Label - SRS CAUTION |
| 16 | 78031-SDA-G80 | Label - SIDE AIRBAG CAUTION | Label - SIDE AIRBAG CAUTION |
| 17 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
Engine hood (LH) 12 / 42
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 11 | 74143-SDA-A00 | Rubber - RR. HOOD SEAL | Rubber - RR. HOOD SEAL |
| 32 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 33 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 34 | 90602-SX0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 35 | 90602-S5A-003 | Clip - COWL TOP | Clip - COWL TOP |
| 37 | 90603-SX0-003 | Grommet - COWL TOP | Grommet - COWL TOP |
| 39 | 91501-S1K-003 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 39 | 91501-STK-003 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 42 | 91504-SDA-003 | Clip - HOOD OPEN WIRE | Clip - HOOD OPEN WIRE |
| 44 | 91518-SM4-003 | Clip - TRUNK MOLDING | Clip - TRUNK MOLDING |
| 46 | 91565-SD5-003 | Clip - COUPLER(NATURAL) | Clip - COUPLER(NATURAL) |
| 48 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
Engine hood (RH) 11 / 41
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 11 | 74143-SDA-A00 | Rubber - RR. HOOD SEAL | Rubber - RR. HOOD SEAL |
| 32 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 33 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 34 | 90602-SX0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 35 | 90602-S5A-003 | Clip - COWL TOP | Clip - COWL TOP |
| 37 | 90603-SX0-003 | Grommet - COWL TOP | Grommet - COWL TOP |
| 39 | 91501-STK-003 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 39 | 91501-S1K-003 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 42 | 91504-SDA-003 | Clip - HOOD OPEN WIRE | Clip - HOOD OPEN WIRE |
| 44 | 91518-SM4-003 | Clip - TRUNK MOLDING | Clip - TRUNK MOLDING |
| 46 | 91565-SD5-003 | Clip - COUPLER(NATURAL) | Clip - COUPLER(NATURAL) |
Engine mounts (V6) 1 / 35
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 17205-PC6-000 | Clamp - TUBE, 7.5X2 | Clamp - TUBE, 7.5X2 |
Engine wire harness (V6; LH) 5 / 16
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 32115-P64-003 | Holder - CORRUGATED (DARK BLUE) (10MM) | Holder - CORRUGATED (DARK BLUE) (10MM) |
| 4 | 32118-P72-003 | Holder - CORRUGATED(DARK GREEN) (19MM) | Holder - CORRUGATED(DARK GREEN) (19MM) |
| 14 | 91558-P8C-A01 | Clip - HARNESS BAND (VIOLET) (150MM) | Clip - HARNESS BAND (VIOLET) (150MM) |
| 15 | 91559-SP0-003 | Clip - NUT, 6MM | Clip - NUT, 6MM |
| 16 | 91577-SS0-003 | Clip - WIRE HARNESS (BLUE) (122.5MM) | Clip - WIRE HARNESS (BLUE) (122.5MM) |
Engine wire harness (V6; RH) 6 / 22
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 5 | 32115-P64-003 | Holder - CORRUGATED (DARK BLUE) (10MM) | Holder - CORRUGATED (DARK BLUE) (10MM) |
| 6 | 32118-P72-003 | Holder - CORRUGATED(DARK GREEN) (19MM) | Holder - CORRUGATED(DARK GREEN) (19MM) |
| 15 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 19 | 91558-P8C-A01 | Clip - HARNESS BAND (VIOLET) (150MM) | Clip - HARNESS BAND (VIOLET) (150MM) |
| 21 | 91559-SP0-003 | Clip - NUT, 6MM | Clip - NUT, 6MM |
| 22 | 91577-SS0-003 | Clip - WIRE HARNESS (BLUE) (122.5MM) | Clip - WIRE HARNESS (BLUE) (122.5MM) |
Exhaust pipe (V6) 10 / 25
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 4 | 18176-PT0-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 5 | 18176-P08-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 12 | 18215-S84-A20 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 13 | 18302-SP0-003 | Gasket - EX. PIPE | Gasket - EX. PIPE |
| 17 | 36533-RAA-A10 | Grommet - 31X41 | Grommet - 31X41 |
| 18 | 74601-SDC-A01 | Plate - FLOOR HEAT BAFFLE | Plate - FLOOR HEAT BAFFLE |
| 19 | 74651-SDA-A00 | Plate - TANK BAFFLE | Plate - TANK BAFFLE |
| 20 | 74653-SDC-A00 | Plate - PRE SILENCER BAFFLE | Plate - PRE SILENCER BAFFLE |
| 23 | 90023-PR7-A01 | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) |
| 24 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
Floor mat 3 / 9
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 26 | 90676-SE0-003 | Clip - JOINT COVER PLATE | Clip - JOINT COVER PLATE |
| 27 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
| 28 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front brake (V6) 8 / 22
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 5 | 44300-SDA-A51 | Bearing assy - FR. HUB (NTN) | Bearing assy - FR. HUB (NTN) |
| 6 | 44600-SDA-A10 | Hub assy, FR. | Hub assy, FR. |
| 17 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 18 | 90113-S5H-005 | Bolt - WHEEL (THAI MEIRA) | Bolt - WHEEL (THAI MEIRA) |
| 18 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 18 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 18 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 19 | 90681-SDA-A00 | Circlip - SPECIAL INTERNAL, 86MM | Circlip - SPECIAL INTERNAL, 86MM |
Front bulkhead/dashboard 1 / 2
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 30 | 90105-SV1-000 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
Front cylinder head (V6) 3 / 17
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
Front door glass/ regulator 2 / 17
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 39885-S5A-G11 | Label - IMMOBILIZER & SECURITY | Label - IMMOBILIZER & SECURITY |
| 12 | 90132-SD4-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
Front door lining (LH) 11 / 15
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 33301-S70-003 | Bulb - 12V 3.8W 2CP | Bulb - 12V 3.8W 2CP |
| 2 | 34261-SDA-A01 | Lens | Lens |
| 3 | 35190-SDA-F51 | Switch assy - REMOTE CONTROL MIRROR | Switch assy - REMOTE CONTROL MIRROR |
| 8 | 72134-S2X-003 | Snap - R. (NATURAL) | Snap - R. (NATURAL) |
| 11 | 72174-S2X-003 | Snap - L. (BLACK) | Snap - L. (BLACK) |
| 24 | 90101-S03-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 25 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 26 | 90141-SDA-000 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 27 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 28 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 29 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front door lining (RH) 11 / 15
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 33301-S70-003 | Bulb - 12V 3.8W 2CP | Bulb - 12V 3.8W 2CP |
| 2 | 34261-SDA-A01 | Lens | Lens |
| 5 | 35770-SDA-A21 | Switch assy - RR. POWER WINDOW | Switch assy - RR. POWER WINDOW |
| 8 | 72134-S2X-003 | Snap - R. (NATURAL) | Snap - R. (NATURAL) |
| 11 | 72174-S2X-003 | Snap - L. (BLACK) | Snap - L. (BLACK) |
| 24 | 90101-S03-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 25 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 26 | 90141-SDA-000 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 27 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 28 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 29 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front door locks/ outer handle 20 / 41
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 72113-SR4-004 | Snap - BLACK | Snap - BLACK |
| 4 | 72115-SDA-A01 | Actuator assy - R. FR. DOOR LOCK | Actuator assy - R. FR. DOOR LOCK |
| 7 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
| 8 | 72119-SDA-A01 | Holder - R. ROD | Holder - R. ROD |
| 12 | 72135-SDA-A01 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 14 | 72139-SDA-A00 | Protector - R. FR. DOOR KNOB | Protector - R. FR. DOOR KNOB |
| 15 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 16 | 72139-S0A-003 | Snap - PINK | Snap - PINK |
| 19 | 72141-SD4-004 | Bush - R. JOINT | Bush - R. JOINT |
| 21 | 72143-S04-003 | Packing | Packing |
| 22 | 72146-S9A-003 | Spacer - DOOR OUTSIDE HANDLE | Spacer - DOOR OUTSIDE HANDLE |
| 24 | 72155-SDA-A01 | Actuator assy, Lh - L. FR. DOOR LOCK | Actuator assy, Lh - L. FR. DOOR LOCK |
| 29 | 72179-SDA-A00 | Protector - L. FR. DOOR KNOB | Protector - L. FR. DOOR KNOB |
| 32 | 72181-SD4-004 | Bush - L. JOINT | Bush - L. JOINT |
| 34 | 90103-S7S-003 | Screw - FLAT, 6X18.5 | Screw - FLAT, 6X18.5 |
| 35 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 36 | 90141-S84-003 | Screw - 3X10 | Screw - 3X10 |
| 38 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 39 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 40 | 91591-SJ6-013 | Clip s - FUEL PIPE | Clip s - FUEL PIPE |
Front door panels 11 / 19
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 13 | 72142-SM4-000 | Stopper - DOOR | Stopper - DOOR |
| 20 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 21 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Bolt - FLANGE, 8X22 (8.5MM) |
| 22 | 90102-SFA-305 | Bolt - FLANGE, 8X18 (SERVICE) | Bolt - FLANGE, 8X18 (SERVICE) |
| 22 | 90102-S3N-003 | Bolt - FLANGE, 8X24.5 (10.5MM) | Bolt - FLANGE, 8X24.5 (10.5MM) |
| 23 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 24 | 90341-SDA-000 | Nut - FLANGE, 6MM | Nut - FLANGE, 6MM |
| 25 | 90563-SDA-003 | Clip - R. SUB SEAL B DOOR | Clip - R. SUB SEAL B DOOR |
| 26 | 90564-SDA-003 | Clip - L. SUB SEAL B DOOR | Clip - L. SUB SEAL B DOOR |
| 27 | 91568-SR2-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 27 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
Front driveshaft/half sha ft (V6) 7 / 35
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 9 | 44319-S1K-300 | Set ring - 30X2.2 | Set ring - 30X2.2 |
| 10 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 11 | 44327-SX0-C02 | Band - OUTBOARD BOOT (NIPPON HATSUJO) | Band - OUTBOARD BOOT (NIPPON HATSUJO) |
| 12 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 20 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 21 | 90165-SE0-000 | Bolt - FLANGE, 10X37 | Bolt - FLANGE, 10X37 |
| 23 | 90305-SD4-003 | Nut - SPINDLE (24MM) | Nut - SPINDLE (24MM) |
Front fenders 8 / 17
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 16 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 17 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 18 | 90305-SM4-003 | Nut - CLIP, 6MM | Nut - CLIP, 6MM |
| 20 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 21 | 91503-SZ3-003 | Clip A | Clip A |
| 22 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 23 | 91533-SG0-000 | Clip b - FAIRING | Clip b - FAIRING |
| 24 | 91545-SE0-003 | Clip assy. - 8MM | Clip assy. - 8MM |
Front grille 4 / 8
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 5 | 75700-S9A-G00 | Front Honda Emblem - (H) | Front Honda Emblem - (H) |
| 6 | 90301-ST0-003 | push nut, 3mm | push nut, 3mm |
| 8 | 91503-SZ3-003 | Clip A | Clip A |
| 9 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Front lower arm 10 / 23
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 51308-SDA-A00 | Bracket - FR. STABILIZER | Bracket - FR. STABILIZER |
| 8 | 51391-SDB-A01 | Bush - FR. COMPLIANCE | Bush - FR. COMPLIANCE |
| 10 | 51810-SDA-A01 | BUSH, FR. SHOCK ABSORBER | BUSH, FR. SHOCK ABSORBER |
| 15 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 16 | 90117-S0A-000 | Bolt - DAMPER LOCK(10X44) | Bolt - DAMPER LOCK(10X44) |
| 17 | 90118-SDA-A00 | Bolt - FLANGE, 12X87 | Bolt - FLANGE, 12X87 |
| 18 | 90119-SDA-A00 | Bolt - FLANGE, 14X94 | Bolt - FLANGE, 14X94 |
| 19 | 90121-S0A-000 | Bolt - DAMPER FORK(12X98) | Bolt - DAMPER FORK(12X98) |
| 20 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 21 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
Front seat (L.; LH) 12 / 34
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 12 | 81216-SDA-A42 | Patch | Patch |
| 14 | 81217-SDA-A42 | Band - WIRE | Band - WIRE |
| 32 | 81610-SDA-A42 | Lumbar comp. - L. FR. SEAT | Lumbar comp. - L. FR. SEAT |
| 38 | 90101-SDA-000 | Screw - FLAT, 4X30 | Screw - FLAT, 4X30 |
| 41 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 42 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 47 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 48 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 49 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 50 | 91566-SP0-003 | Clip - BACK COVER (NATURAL) | Clip - BACK COVER (NATURAL) |
Front seat (L.; RH) 7 / 19
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 22 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 23 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
| 26 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 27 | 91565-S0X-003 | Clip - COUPLER (DARK GREEN) | Clip - COUPLER (DARK GREEN) |
| 28 | 91566-SP0-003 | Clip - BACK COVER (NATURAL) | Clip - BACK COVER (NATURAL) |
Front seat (R.; LH) 9 / 30
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 34 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 36 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 40 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 41 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 42 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 43 | 91565-S0X-003 | Clip - COUPLER (DARK GREEN) | Clip - COUPLER (DARK GREEN) |
| 44 | 91566-SP0-003 | Clip - BACK COVER (NATURAL) | Clip - BACK COVER (NATURAL) |
Front seat (R.; RH) 10 / 30
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 21 | 81216-SDA-A42 | Patch | Patch |
| 23 | 81217-SDA-A42 | Band - WIRE | Band - WIRE |
| 36 | 90101-SDA-000 | Screw - FLAT, 4X30 | Screw - FLAT, 4X30 |
| 39 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 40 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 45 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 46 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 47 | 91566-SP0-003 | Clip - BACK COVER (NATURAL) | Clip - BACK COVER (NATURAL) |
Front seat components (L.; FULL POWER SEAT) 3 / 15
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 14 | 90135-S7A-J51 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
| 18 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 20 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
Front seat components (L.; MANUAL SEAT) 1 / 8
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 7 | 90135-S7A-J51 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
Front seat components (R.; 4WAY POWER SEAT) 3 / 11
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 10 | 90135-S7A-J51 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
| 13 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 15 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
Front seat components (R.; FULL POWER SEAT) 3 / 14
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 14 | 90135-S7A-J51 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
| 18 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 20 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
Front shock absorber 13 / 22
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 5 | 51621-S84-A01 | Washer - SHOCK ABSORBER MOUNTING | Washer - SHOCK ABSORBER MOUNTING |
| 6 | 51631-SV7-004 | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) |
| 7 | 51675-SDA-A01 | Base - FR. SHOCK ABSORBER MOUNTING | Base - FR. SHOCK ABSORBER MOUNTING |
| 8 | 51684-SDA-A02 | Mount - FR. DUST COVER LOWER | Mount - FR. DUST COVER LOWER |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 10 | 51686-SDA-A01 | Rubber - FR. SPRING MOUNTING | Rubber - FR. SPRING MOUNTING |
| 11 | 51688-SDA-A01 | Sleeve - FR. DUST COVER | Sleeve - FR. DUST COVER |
| 12 | 51689-SDA-A01 | Cover - FR. END DUST | Cover - FR. END DUST |
| 13 | 51689-SH3-004 | Plate - BUMP STOP (SHOWA) | Plate - BUMP STOP (SHOWA) |
| 14 | 51722-SS0-004 | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) |
| 15 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 16 | 90300-S84-A00 | Nut - SHOCK ABSORBER FLANGE (10MM) | Nut - SHOCK ABSORBER FLANGE (10MM) |
| 17 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Front sub frame/rear beam 9 / 39
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 2 | 50220-SDA-A00 | Stiffener - STEERING GEAR BOX | Stiffener - STEERING GEAR BOX |
| 5 | 50261-SDA-A02 | Rubber, FR. SUB FRAME FR. STOPPER | Rubber, FR. SUB FRAME FR. STOPPER |
| 10 | 50275-SDA-A00 | Stay - R. RR. SUB FRAME MOUNTING | Stay - R. RR. SUB FRAME MOUNTING |
| 11 | 50276-SDA-A00 | Stay - L. RR. SUB FRAME MOUNTING | Stay - L. RR. SUB FRAME MOUNTING |
| 29 | 90170-SDC-A00 | Bolt - FLANGE, 10X34 | Bolt - FLANGE, 10X34 |
| 30 | 90171-S3Y-000 | Bolt - FLANGE, 10X35 | Bolt - FLANGE, 10X35 |
| 34 | 90179-SDA-A00 | Bolt - FLANGE, 14X90 | Bolt - FLANGE, 14X90 |
| 38 | 90396-S5A-010 | Bolt - FLANGE, 12X75 | Bolt - FLANGE, 12X75 |
| 39 | 91613-SE0-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
Front windshield 2 / 7
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 73126-SDA-A00 | Seal - FR. WINDSHIELD UPPER | Seal - FR. WINDSHIELD UPPER |
| 6 | 91568-SDA-A01 | Clip - WINDSHIELD UPPER | Clip - WINDSHIELD UPPER |
Front windshield wiper (LH) 9 / 23
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 2 | 76516-SDA-A01 | Rubber - MOUNTING | Rubber - MOUNTING |
| 3 | 76516-SM4-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 4 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 5 | 76517-SM4-003 | Collar | Collar |
| 7 | 76524-SD4-003 | Dust seal | Dust seal |
| 8 | 76524-SE0-013 | Dust seal | Dust seal |
| 12 | 76561-SDA-A01 | Cap - PIVOT | Cap - PIVOT |
| 22 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 23 | 91611-SDA-A00 | Cap - FR. WIPER ARM (12MM) | Cap - FR. WIPER ARM (12MM) |
Front windshield wiper (RH) 9 / 23
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 2 | 76516-SDA-A01 | Rubber - MOUNTING | Rubber - MOUNTING |
| 3 | 76516-SM4-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 4 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 5 | 76517-SM4-003 | Collar | Collar |
| 7 | 76524-SD4-003 | Dust seal | Dust seal |
| 8 | 76524-SE0-013 | Dust seal | Dust seal |
| 12 | 76561-SDA-A01 | Cap - PIVOT | Cap - PIVOT |
| 22 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 23 | 91611-SDA-A00 | Cap - FR. WIPER ARM (12MM) | Cap - FR. WIPER ARM (12MM) |
Fuel pipe 11 / 47
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 9 | 16725-RAC-003 | Clamp - FUEL HOSE (NATURAL) | Clamp - FUEL HOSE (NATURAL) |
| 28 | 17762-SDA-A00 | Stay b - FUEL PIPE | Stay b - FUEL PIPE |
| 29 | 17763-SDA-A01 | Stay c - FUEL PIPE | Stay c - FUEL PIPE |
| 30 | 17764-SDA-A01 | Stay d - FUEL PIPE | Stay d - FUEL PIPE |
| 35 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 37 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 41 | 91407-SDB-000 | Clamp - TUBE (D12.5) | Clamp - TUBE (D12.5) |
| 42 | 91594-SDB-A00 | Rubber a - FUEL PIPE INSULATOR | Rubber a - FUEL PIPE INSULATOR |
| 43 | 91595-SDB-A00 | Rubber b - FUEL PIPE INSULATOR | Rubber b - FUEL PIPE INSULATOR |
| 44 | 91597-SDB-A01 | Clamp d - FUEL PIPE | Clamp d - FUEL PIPE |
| 47 | 91596-SDB-A01 | Clamp c - FUEL PIPE | Clamp c - FUEL PIPE |
Fuel tank (1) 9 / 43
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 14 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 15 | 17551-S84-A01 | Packing | Packing |
| 21 | 17652-SDA-T01 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 34 | 74660-SDA-A00 | Cap assy. - FLOOR MAINTENANCE HOLE | Cap assy. - FLOOR MAINTENANCE HOLE |
| 35 | 90101-S84-000 | Bolt-washer - 5X10 | Bolt-washer - 5X10 |
| 36 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 39 | 91401-SDC-000 | Clip - TUBE(B10) | Clip - TUBE(B10) |
| 41 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 43 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
Fuel tank (2) 7 / 37
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 16 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 23 | 17662-SDA-A01 | Packing - FUEL FILLER | Packing - FUEL FILLER |
| 30 | 74660-SDA-A00 | Cap assy. - FLOOR MAINTENANCE HOLE | Cap assy. - FLOOR MAINTENANCE HOLE |
| 31 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 33 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 35 | 91594-S1A-E01 | Clip - FUEL FILLER CAP | Clip - FUEL FILLER CAP |
| 36 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
Grommet (FRONT) 7 / 8
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 2 | 75826-634-300 | Seal - INSIDE PANEL, 15MM | Seal - INSIDE PANEL, 15MM |
| 3 | 90615-SR3-000 | Cap - WELD HOLE, 51X77 | Cap - WELD HOLE, 51X77 |
| 4 | 91611-SM4-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 5 | 91611-SS0-003 | Plug - HOLE, 25MM | Plug - HOLE, 25MM |
| 6 | 91613-SR3-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 7 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 8 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
Grommet (LOWER) 4 / 4
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 2 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 3 | 91602-SV4-003 | Plug - HOLE, 15MM | Plug - HOLE, 15MM |
| 4 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
Grommet (REAR) 4 / 5
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 2 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 3 | 90857-SDA-A00 | Cap - WELD HOLE | Cap - WELD HOLE |
| 4 | 91610-SD4-000 | Plug - HOLE, 28MM | Plug - HOLE, 28MM |
Grommet (SIDE) 3 / 6
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 4 | 91618-SE3-010 | Seal - RR. PILLAR UPPER | Seal - RR. PILLAR UPPER |
| 5 | 91618-S5A-000 | Seal - HOLE, 30X90 | Seal - HOLE, 30X90 |
| 6 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
Harness band/bracket (LH) 36 / 53
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 32112-S2K-003 | Band - CABLE (90MM) | Band - CABLE (90MM) |
| 6 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 7 | 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
| 8 | 32133-SLA-003 | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) |
| 10 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 11 | 32141-SDA-A00 | Protector - FLOOR HARNESS | Protector - FLOOR HARNESS |
| 12 | 32146-SH3-003 | Connector - DIODE(2P) | Connector - DIODE(2P) |
| 14 | 32177-SDA-003 | Clip - FR. WIPER(BLACK) | Clip - FR. WIPER(BLACK) |
| 17 | 32746-RAA-A01 | Stay c - ENGINE HARNESS | Stay c - ENGINE HARNESS |
| 24 | 91476-SB6-003 | Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM) | Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM) |
| 25 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
| 28 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 29 | 91510-SA5-003 | Clip - OFFSET(10)(BROWN)(50MM) | Clip - OFFSET(10)(BROWN)(50MM) |
| 30 | 91531-SDA-003 | Clip - HARNESS BAND (NATURAL) (145MM) | Clip - HARNESS BAND (NATURAL) (145MM) |
| 31 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 32 | 91533-SDA-003 | Clip - COUPLER (BEIGE) | Clip - COUPLER (BEIGE) |
| 33 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 34 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 35 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 36 | 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) | Clip - HARNESS BAND(BLACK) (145MM) |
| 37 | 91541-S6M-003 | Clip - HARNESS BAND (BLACK) (140MM) | Clip - HARNESS BAND (BLACK) (140MM) |
| 38 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 39 | 91545-S2A-003 | Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL) | Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL) |
| 41 | 91551-SW5-003 | Clip - HARNESS BAND (BROWN) (151MM) | Clip - HARNESS BAND (BROWN) (151MM) |
| 43 | 91555-SE0-003 | Clip - WIRE HARNESS(BLACK) | Clip - WIRE HARNESS(BLACK) |
| 44 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 46 | 91556-SM4-003 | Clip - BAND (BLACK) (100MM) | Clip - BAND (BLACK) (100MM) |
| 47 | 91556-SP0-003 | Clip - COUPLER(BROWN) | Clip - COUPLER(BROWN) |
| 48 | 91559-PAA-A01 | Clip - HARNESS BAND(GRAY) (150MM) | Clip - HARNESS BAND(GRAY) (150MM) |
| 52 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 53 | 91565-S0X-003 | Clip - COUPLER (DARK GREEN) | Clip - COUPLER (DARK GREEN) |
| 54 | 91577-SS0-003 | Clip - WIRE HARNESS (BLUE) (122.5MM) | Clip - WIRE HARNESS (BLUE) (122.5MM) |
| 55 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
| 57 | 91902-S2X-003 | Plaster - WIRE HARNESS(50X100) | Plaster - WIRE HARNESS(50X100) |
| 61 | 91726-SDA-300 | Ring a - GROMMET | Ring a - GROMMET |
| 62 | 91727-SDA-300 | Ring c - GROMMET | Ring c - GROMMET |
Harness band/bracket (RH) 32 / 43
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 32112-S2K-003 | Band - CABLE (90MM) | Band - CABLE (90MM) |
| 2 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 3 | 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
| 4 | 32133-SLA-003 | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) |
| 6 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 7 | 32141-SDA-A00 | Protector - FLOOR HARNESS | Protector - FLOOR HARNESS |
| 8 | 32146-SH3-003 | Connector - DIODE(2P) | Connector - DIODE(2P) |
| 9 | 32177-SDA-003 | Clip - FR. WIPER(BLACK) | Clip - FR. WIPER(BLACK) |
| 15 | 91476-SB6-003 | Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM) | Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM) |
| 16 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
| 19 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 20 | 91510-SA5-003 | Clip - OFFSET(10)(BROWN)(50MM) | Clip - OFFSET(10)(BROWN)(50MM) |
| 21 | 91531-SDA-003 | Clip - HARNESS BAND (NATURAL) (145MM) | Clip - HARNESS BAND (NATURAL) (145MM) |
| 23 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 24 | 91533-SDA-003 | Clip - COUPLER (BEIGE) | Clip - COUPLER (BEIGE) |
| 25 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 26 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 27 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 28 | 91540-S7S-003 | Clip - HARNESS BAND(BLACK) (157.7MM) | Clip - HARNESS BAND(BLACK) (157.7MM) |
| 29 | 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) | Clip - HARNESS BAND(BLACK) (145MM) |
| 30 | 91541-S6M-003 | Clip - HARNESS BAND (BLACK) (140MM) | Clip - HARNESS BAND (BLACK) (140MM) |
| 31 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 32 | 91545-S2A-003 | Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL) | Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL) |
| 34 | 91551-SW5-003 | Clip - HARNESS BAND (BROWN) (151MM) | Clip - HARNESS BAND (BROWN) (151MM) |
| 35 | 91555-SE0-003 | Clip - WIRE HARNESS(BLACK) | Clip - WIRE HARNESS(BLACK) |
| 36 | 91556-SM4-003 | Clip - BAND (BLACK) (100MM) | Clip - BAND (BLACK) (100MM) |
| 37 | 91556-SP0-003 | Clip - COUPLER(BROWN) | Clip - COUPLER(BROWN) |
| 39 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 40 | 91565-S0X-003 | Clip - COUPLER (DARK GREEN) | Clip - COUPLER (DARK GREEN) |
| 42 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
| 43 | 91902-S2X-003 | Plaster - WIRE HARNESS(50X100) | Plaster - WIRE HARNESS(50X100) |
| 46 | 91727-SDA-300 | Ring c - GROMMET | Ring c - GROMMET |
Headlight 5 / 19
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 33105-S5N-C01 | Nut - SPECIAL | Nut - SPECIAL |
| 8 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 10 | 33303-SAA-003 | Socket comp - T20 S) (AMBER | Socket comp - T20 S) (AMBER |
| 12 | 33303-S2R-003 | Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) | Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) |
| 15 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
Heater blower (LH) 6 / 11
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 2 | 79308-SDA-A01 | Seal - BLOWER OUTER | Seal - BLOWER OUTER |
| 4 | 79350-SDC-A01 | Motor assy. - FRESH & RECIRCULAR | Motor assy. - FRESH & RECIRCULAR |
| 8 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 9 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 10 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 11 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Heater blower (RH) 5 / 9
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 2 | 79308-SDA-A01 | Seal - BLOWER OUTER | Seal - BLOWER OUTER |
| 6 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 7 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 8 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 9 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Heater unit (LH) 20 / 32
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 39248-692-003 | Packing - HEATER | Packing - HEATER |
| 2 | 79021-SDA-A01 | Seal a | Seal a |
| 3 | 79021-SEA-941 | Packing - LINK | Packing - LINK |
| 6 | 79140-SDA-A01 | Motor assy. - MODE | Motor assy. - MODE |
| 7 | 79160-SDC-A41 | Motor assy. - TEMPERATURE DRIVER | Motor assy. - TEMPERATURE DRIVER |
| 8 | 79170-SDC-A41 | Motor assy. - TEMPERATURE PASSENGER | Motor assy. - TEMPERATURE PASSENGER |
| 9 | 79191-SZ3-A01 | Nut - HOLDER | Nut - HOLDER |
| 10 | 79330-SDR-A01 | Transistor - POWER | Transistor - POWER |
| 12 | 79731-SDA-A00 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 13 | 79770-SE0-000 | Grommet - WATER VALVE CABLE | Grommet - WATER VALVE CABLE |
| 18 | 80534-S84-A41 | Aspirator | Aspirator |
| 19 | 80542-SDA-A41 | Hose b - ASPIRATOR | Hose b - ASPIRATOR |
| 25 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 26 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 27 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 28 | 90661-S2A-003 | Clip - DRAIN HOSE | Clip - DRAIN HOSE |
| 29 | 91533-SDA-003 | Clip - COUPLER (BEIGE) | Clip - COUPLER (BEIGE) |
| 30 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 31 | 91541-S6M-003 | Clip - HARNESS BAND (BLACK) (140MM) | Clip - HARNESS BAND (BLACK) (140MM) |
| 32 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Heater unit (RH) 16 / 32
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 39248-692-003 | Packing - HEATER | Packing - HEATER |
| 2 | 79021-SDA-A01 | Seal a | Seal a |
| 3 | 79021-SEA-941 | Packing - LINK | Packing - LINK |
| 10 | 79191-SZ3-A01 | Nut - HOLDER | Nut - HOLDER |
| 11 | 79330-SDR-A01 | Transistor - POWER | Transistor - POWER |
| 13 | 79731-SDA-A00 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 14 | 79770-SE0-000 | Grommet - WATER VALVE CABLE | Grommet - WATER VALVE CABLE |
| 19 | 80534-S84-A41 | Aspirator | Aspirator |
| 20 | 80542-SDA-A41 | Hose b - ASPIRATOR | Hose b - ASPIRATOR |
| 26 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 27 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 28 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 29 | 91533-SDA-003 | Clip - COUPLER (BEIGE) | Clip - COUPLER (BEIGE) |
| 30 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 31 | 91541-S6M-003 | Clip - HARNESS BAND (BLACK) (140MM) | Clip - HARNESS BAND (BLACK) (140MM) |
| 32 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Instrument panel (LH) 9 / 11
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 11 | 90001-S10-010 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 12 | 90104-SV4-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 13 | 90106-S84-A00 | Bolt-washer - 8X40 | Bolt-washer - 8X40 |
| 14 | 90108-S84-A00 | Bolt-washer - 8MM(SRS) | Bolt-washer - 8MM(SRS) |
| 15 | 90110-S84-A00 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 16 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 17 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 19 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel (RH) 9 / 11
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 11 | 90001-S10-010 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 12 | 90104-SV4-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 13 | 90106-S84-A00 | Bolt-washer - 8X40 | Bolt-washer - 8X40 |
| 14 | 90108-S84-A00 | Bolt-washer - 8MM(SRS) | Bolt-washer - 8MM(SRS) |
| 15 | 90110-S84-A00 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 16 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 17 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 19 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (DRIVER SIDE; LH) 8 / 11
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 18 | 90101-S2K-000 | Screw - TAPPING, 4X16(IT) | Screw - TAPPING, 4X16(IT) |
| 19 | 90111-SDA-003 | Screw - TAPPING, 3X10 | Screw - TAPPING, 3X10 |
| 20 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 21 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 22 | 90666-S84-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 23 | 91533-SDA-003 | Clip - COUPLER (BEIGE) | Clip - COUPLER (BEIGE) |
| 24 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (DRIVER SIDE; RH) 8 / 12
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 2 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 15 | 90101-S2K-000 | Screw - TAPPING, 4X16(IT) | Screw - TAPPING, 4X16(IT) |
| 16 | 90111-SDA-003 | Screw - TAPPING, 3X10 | Screw - TAPPING, 3X10 |
| 17 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 19 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 20 | 90666-S84-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 21 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (PASSENGER SIDE; LH) 14 / 28
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 33301-S70-003 | Bulb - 12V 3.8W 2CP | Bulb - 12V 3.8W 2CP |
| 5 | 39630-S0X-003 | Ring assy - TYPE INCLUDING BULB | Ring assy - TYPE INCLUDING BULB |
| 6 | 66418-SB2-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 7 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 9 | 77205-S0X-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 21 | 77520-SDA-A01 | Cylinder - GLOVE BOX | Cylinder - GLOVE BOX |
| 26 | 77700-SDC-Y01 | Ashtray assy. - FR. | Ashtray assy. - FR. |
| 27 | 77711-SDC-Y30 | Holder comp - FR. ASHTRAY | Holder comp - FR. ASHTRAY |
| 30 | 77715-SDA-K11 | Spring - FR. ASHTRAY (LH) | Spring - FR. ASHTRAY (LH) |
| 33 | 90140-SDA-A00 | Bolt-washer - 5X19 | Bolt-washer - 5X19 |
| 34 | 90306-SA0-000 | Nut - FLOATING, 5MM | Nut - FLOATING, 5MM |
| 35 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 37 | 91533-SDA-003 | Clip - COUPLER (BEIGE) | Clip - COUPLER (BEIGE) |
| 38 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (PASSENGER SIDE; RH) 11 / 25
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 33301-S70-003 | Bulb - 12V 3.8W 2CP | Bulb - 12V 3.8W 2CP |
| 4 | 39630-S0X-003 | Ring assy - TYPE INCLUDING BULB | Ring assy - TYPE INCLUDING BULB |
| 5 | 66418-SB2-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 6 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 8 | 77205-S0X-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 20 | 77520-SDA-A01 | Cylinder - GLOVE BOX | Cylinder - GLOVE BOX |
| 21 | 77530-SDA-K02 | Damper assy. - GLOVE BOX | Damper assy. - GLOVE BOX |
| 31 | 90140-SDA-A00 | Bolt-washer - 5X19 | Bolt-washer - 5X19 |
| 32 | 90306-SA0-000 | Nut - FLOATING, 5MM | Nut - FLOATING, 5MM |
| 33 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 35 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Interior light 14 / 15
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 34251-S5A-003 | Lens | Lens |
| 3 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 3 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 4 | 34261-S5A-003 | Lens comp | Lens comp |
| 5 | 34295-SJ8-003 | Bulb - 12V 5W) (DAIICHI | Bulb - 12V 5W) (DAIICHI |
| 5 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
| 7 | 34401-SDA-A21 | Lens - R. | Lens - R. |
| 9 | 34402-SDA-A21 | Lens - L. | Lens - L. |
| 11 | 34404-SDA-A21 | Base comp. | Base comp. |
| 15 | 83251-SDC-A01 | Bush | Bush |
| 16 | 83252-SDC-A01 | Spring | Spring |
| 17 | 83253-SDC-A01 | Screw - TAPPING, 3X10 | Screw - TAPPING, 3X10 |
| 18 | 83254-SDC-A02 | Cam set - LOCK | Cam set - LOCK |
| 19 | 90148-S6A-003 | Bolt - EARTH, 5X14 | Bolt - EARTH, 5X14 |
Knuckle 11 / 20
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 44348-SDA-A00 | Ring - FR. KNUCKLE | Ring - FR. KNUCKLE |
| 2 | 51210-SDA-A02 | Knuckle comp - R. FR. | Knuckle comp - R. FR. |
| 3 | 51215-SDA-A02 | Knuckle comp - L. FR. | Knuckle comp - L. FR. |
| 4 | 51225-SL5-003 | Boot - LOWER BALL DUST | Boot - LOWER BALL DUST |
| 7 | 51464-S04-013 | Boot, UPPER BALL JOINT | Boot, UPPER BALL JOINT |
| 8 | 52226-SL0-003 | Circlip - LOWER BALL(MUSASHI) | Circlip - LOWER BALL(MUSASHI) |
| 9 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 10 | 57450-SDH-003 | Sensor assy - R. FR. | Sensor assy - R. FR. |
| 12 | 90172-SDA-A00 | Bolt - FLANGE, 10X78 | Bolt - FLANGE, 10X78 |
| 14 | 90363-SDA-A03 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 15 | 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) | Clip - HARNESS BAND(BLACK) (145MM) |
L. side cover (V6) 1 / 46
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 43 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
Meter components (NS) 5 / 7
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 37115-SA0-601 | Packing - NS | Packing - NS |
| 3 | 78155-SDA-H01 | Visor | Visor |
| 4 | 78156-SDA-U01 | Lens - METER | Lens - METER |
| 5 | 78171-SDA-H01 | Visor - UNDER | Visor - UNDER |
| 6 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
Mirror (1) 3 / 14
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 12 | 90106-S70-003 | Screw - TAPPING, 4X12 (TRUSS) | Screw - TAPPING, 4X12 (TRUSS) |
| 14 | 90109-S70-003 | Screw - TAPPING, 4X16 (TRUSS) | Screw - TAPPING, 4X16 (TRUSS) |
| 17 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
Mirror (2) 9 / 20
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 34300-SEA-013 | Light assy - R. SIDE TURN | Light assy - R. SIDE TURN |
| 2 | 34350-SEA-013 | Light assy - L. SIDE TURN | Light assy - L. SIDE TURN |
| 5 | 76208-SEA-003 | Sticker | Sticker |
| 11 | 76239-S6M-003 | Screw - PAN, 5X10 | Screw - PAN, 5X10 |
| 20 | 90106-S70-003 | Screw - TAPPING, 4X12 (TRUSS) | Screw - TAPPING, 4X12 (TRUSS) |
| 21 | 90109-SEA-003 | Screw - TAPPING, 4X20 (TRUSS) | Screw - TAPPING, 4X20 (TRUSS) |
| 22 | 90109-S70-003 | Screw - TAPPING, 4X16 (TRUSS) | Screw - TAPPING, 4X16 (TRUSS) |
| 23 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 24 | 91565-SEA-003 | Clamp - HARNESS | Clamp - HARNESS |
Molding 2 / 25
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 19 | 90148-SDA-000 | Screw - TAPPING, 4X12(PO) | Screw - TAPPING, 4X12(PO) |
| 23 | 91572-SDA-A01 | Clip - ROOF MOLDING | Clip - ROOF MOLDING |
Outer panels/rear panel 3 / 7
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 22 | 70495-692-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 25 | 75450-SDA-A01 | Outlet assy - RR. AIR | Outlet assy - RR. AIR |
| 27 | 90147-634-003 | Bolt - FENDER, 6X18 | Bolt - FENDER, 6X18 |
P.s. gear box (LH) 14 / 17
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 53010-SDA-A01 | End set - RACK | End set - RACK |
| 2 | 53434-S84-A01 | Clip - STEERING TIE ROD | Clip - STEERING TIE ROD |
| 3 | 53436-SDA-A01 | Cushion b - GEAR BOX | Cushion b - GEAR BOX |
| 4 | 53438-SDA-A00 | Bracket b - STEERING | Bracket b - STEERING |
| 5 | 53449-S84-A01 | Band - BELLOWS | Band - BELLOWS |
| 6 | 53502-SDA-A00 | Grommet b - STEERING | Grommet b - STEERING |
| 8 | 53536-SDA-A02 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 9 | 53537-S84-A01 | Rubber - STOPPER | Rubber - STOPPER |
| 10 | 53540-SDA-A01 | TIE ROD END OUTER RH - R. TIE ROD | TIE ROD END OUTER RH - R. TIE ROD |
| 11 | 53546-S84-003 | Boot - TIE ROD END (NOK) | Boot - TIE ROD END (NOK) |
| 12 | 53560-SDA-A01 | TIE ROD END OUTER LH - L. TIE ROD | TIE ROD END OUTER LH - L. TIE ROD |
| 14 | 53685-SDA-A01 | Bush - GEAR BOX MOUNTING | Bush - GEAR BOX MOUNTING |
| 17 | 90108-SDA-003 | Bolt - GEAR BOX MOUNTING | Bolt - GEAR BOX MOUNTING |
| 18 | 91411-S84-A01 | Nut - HEX., 14MM | Nut - HEX., 14MM |
P.s. gear box (RH) 13 / 17
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 53010-SDA-A01 | End set - RACK | End set - RACK |
| 2 | 53434-S84-A01 | Clip - STEERING TIE ROD | Clip - STEERING TIE ROD |
| 3 | 53436-SDA-A01 | Cushion b - GEAR BOX | Cushion b - GEAR BOX |
| 5 | 53449-S84-A01 | Band - BELLOWS | Band - BELLOWS |
| 6 | 53502-SDA-A00 | Grommet b - STEERING | Grommet b - STEERING |
| 8 | 53536-SDA-A02 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 9 | 53537-S84-A01 | Rubber - STOPPER | Rubber - STOPPER |
| 10 | 53540-SDA-A01 | TIE ROD END OUTER RH - R. TIE ROD | TIE ROD END OUTER RH - R. TIE ROD |
| 11 | 53546-S84-003 | Boot - TIE ROD END (NOK) | Boot - TIE ROD END (NOK) |
| 12 | 53560-SDA-A01 | TIE ROD END OUTER LH - L. TIE ROD | TIE ROD END OUTER LH - L. TIE ROD |
| 14 | 53685-SDA-A01 | Bush - GEAR BOX MOUNTING | Bush - GEAR BOX MOUNTING |
| 17 | 90108-SDA-003 | Bolt - GEAR BOX MOUNTING | Bolt - GEAR BOX MOUNTING |
| 18 | 91411-S84-A01 | Nut - HEX., 14MM | Nut - HEX., 14MM |
P.s. gear box components (LH) 18 / 23
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 06531-SDA-A01 | Seal kit a - POWER STEERING (ROTARY VALVE) | Seal kit a - POWER STEERING (ROTARY VALVE) |
| 2 | 06532-S50-003 | Oil seal set - ROTARY VALVE | Oil seal set - ROTARY VALVE |
| 3 | 06534-S84-A01 | Ring set - POWER STEERING SEAL (ROTARY VALVE) | Ring set - POWER STEERING SEAL (ROTARY VALVE) |
| 4 | 06535-S50-003 | Ring set - POWER STEERING SEAL (ROTARY VALVE) | Ring set - POWER STEERING SEAL (ROTARY VALVE) |
| 5 | 53413-S0K-A01 | Spring - RACK GUIDE PRESSURE | Spring - RACK GUIDE PRESSURE |
| 6 | 53414-S84-A01 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 7 | 53416-S3M-A01 | Guide - STEERING RACK | Guide - STEERING RACK |
| 8 | 53449-S84-A01 | Band - BELLOWS | Band - BELLOWS |
| 9 | 53458-S84-A01 | Nut - LOCK | Nut - LOCK |
| 10 | 53536-SDA-A02 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 11 | 53537-S84-A01 | Rubber - STOPPER | Rubber - STOPPER |
| 17 | 53656-S84-A01 | Circlip - EXTERNAL, 20MM | Circlip - EXTERNAL, 20MM |
| 18 | 53660-S50-003 | Oil seal - 27X38X5.5 (SHOWA) | Oil seal - 27X38X5.5 (SHOWA) |
| 19 | 53661-S84-A01 | Washer - WAVE (NOK) | Washer - WAVE (NOK) |
| 20 | 53666-S50-003 | O-ring - 41.5X2 (SHOWA) | O-ring - 41.5X2 (SHOWA) |
| 21 | 53670-SDA-A01 | Pipe comp. a - CYLINDER | Pipe comp. a - CYLINDER |
| 22 | 53671-SDA-A01 | Pipe comp. b - CYLINDER | Pipe comp. b - CYLINDER |
| 23 | 90105-S50-003 | Bolt - FLANGE, 8X28 | Bolt - FLANGE, 8X28 |
P.s. gear box components (RH) 16 / 23
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 06531-SDA-A01 | Seal kit a - POWER STEERING (ROTARY VALVE) | Seal kit a - POWER STEERING (ROTARY VALVE) |
| 2 | 06532-S50-003 | Oil seal set - ROTARY VALVE | Oil seal set - ROTARY VALVE |
| 3 | 06534-S84-A01 | Ring set - POWER STEERING SEAL (ROTARY VALVE) | Ring set - POWER STEERING SEAL (ROTARY VALVE) |
| 4 | 06535-S50-003 | Ring set - POWER STEERING SEAL (ROTARY VALVE) | Ring set - POWER STEERING SEAL (ROTARY VALVE) |
| 5 | 53413-S0K-A01 | Spring - RACK GUIDE PRESSURE | Spring - RACK GUIDE PRESSURE |
| 6 | 53414-S84-A01 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 7 | 53416-S3M-A01 | Guide - STEERING RACK | Guide - STEERING RACK |
| 8 | 53449-S84-A01 | Band - BELLOWS | Band - BELLOWS |
| 9 | 53458-S84-A01 | Nut - LOCK | Nut - LOCK |
| 10 | 53536-SDA-A02 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 11 | 53537-S84-A01 | Rubber - STOPPER | Rubber - STOPPER |
| 17 | 53656-S84-A01 | Circlip - EXTERNAL, 20MM | Circlip - EXTERNAL, 20MM |
| 18 | 53660-S50-003 | Oil seal - 27X38X5.5 (SHOWA) | Oil seal - 27X38X5.5 (SHOWA) |
| 19 | 53661-S84-A01 | Washer - WAVE (NOK) | Washer - WAVE (NOK) |
| 20 | 53666-S50-003 | O-ring - 41.5X2 (SHOWA) | O-ring - 41.5X2 (SHOWA) |
| 23 | 90105-S50-003 | Bolt - FLANGE, 8X28 | Bolt - FLANGE, 8X28 |
P.s. lines (LH; V6) 11 / 28
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 2 | 53701-SDA-A01 | Tank comp. - POWER STEERING OIL | Tank comp. - POWER STEERING OIL |
| 6 | 53728-SDB-A01 | Clip - RETURN PIPE | Clip - RETURN PIPE |
| 8 | 53729-S0X-A01 | Clip - RETURN HOSE(BLACK) | Clip - RETURN HOSE(BLACK) |
| 9 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 15 | 53736-SDA-A01 | Holder - POWER STEERING PIPE | Holder - POWER STEERING PIPE |
| 16 | 53736-SH3-950 | Holder b - POWER STEERING PIPE | Holder b - POWER STEERING PIPE |
| 17 | 53740-SDA-A00 | Rubber - POWER STEERING PIPE HOLDER INSULATOR | Rubber - POWER STEERING PIPE HOLDER INSULATOR |
| 21 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 23 | 91370-SV4-000 | O-ring - 14.4X1.9 | O-ring - 14.4X1.9 |
| 24 | 91405-SS0-003 | Clamp - TUBE (D21) | Clamp - TUBE (D21) |
P.s. lines (RH) 8 / 21
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 2 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 3 | 53701-SDA-A01 | Tank comp. - POWER STEERING OIL | Tank comp. - POWER STEERING OIL |
| 7 | 53728-SDB-A01 | Clip - RETURN PIPE | Clip - RETURN PIPE |
| 8 | 53729-S0X-A01 | Clip - RETURN HOSE(BLACK) | Clip - RETURN HOSE(BLACK) |
| 9 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 21 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 23 | 91370-SV4-000 | O-ring - 14.4X1.9 | O-ring - 14.4X1.9 |
| 24 | 91405-SS0-003 | Clamp - TUBE (D21) | Clamp - TUBE (D21) |
Parking brake (LH) 7 / 9
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 2 | 47342-SZ3-003 | Switch - PARKING BRAKE | Switch - PARKING BRAKE |
| 3 | 47360-SB2-000 | Equalizer | Equalizer |
| 4 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 6 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 7 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 9 | 47572-ST0-000 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 10 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Parking brake (RH) 6 / 9
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 47360-SB2-000 | Equalizer | Equalizer |
| 4 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 6 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 7 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 9 | 47572-ST0-000 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 10 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Pedal (LH) 7 / 17
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 9 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 10 | 46505-SA7-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 15 | 46598-SDA-A00 | Stay assy. b - PEDAL | Stay assy. b - PEDAL |
| 22 | 46991-SDA-G00 | Bracket - FOOTREST | Bracket - FOOTREST |
| 23 | 46992-SDA-A02 | Plate - FOOTREST | Plate - FOOTREST |
| 26 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 27 | 90361-S3C-003 | Nut - PAINT CUTTING, 8MM | Nut - PAINT CUTTING, 8MM |
Pedal (RH) 4 / 18
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 9 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 10 | 46505-SA7-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 18 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 19 | 90361-S3C-003 | Nut - PAINT CUTTING, 8MM | Nut - PAINT CUTTING, 8MM |
Pillar garnish (LH) 6 / 7
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 24 | 91560-SED-003 | Clip - PILLAR GARNISH (PINK) | Clip - PILLAR GARNISH (PINK) |
| 25 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 26 | 91560-S84-A11 | Clip - PILLAR GARNISH(BLACK) | Clip - PILLAR GARNISH(BLACK) |
| 27 | 91560-S9A-A01 | Clip - DOOR LINING (LIGHT BLUE) | Clip - DOOR LINING (LIGHT BLUE) |
| 28 | 91560-S9A-A11 | Clip - PILLAR GARNISH (LIGHT GREEN) | Clip - PILLAR GARNISH (LIGHT GREEN) |
| 29 | 91561-SDB-A02 | Grommet - PILLAR GARNISH | Grommet - PILLAR GARNISH |
Pillar garnish (RH) 3 / 4
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 17 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 18 | 91560-S84-A11 | Clip - PILLAR GARNISH(BLACK) | Clip - PILLAR GARNISH(BLACK) |
| 19 | 91560-S9A-A01 | Clip - DOOR LINING (LIGHT BLUE) | Clip - DOOR LINING (LIGHT BLUE) |
Power steering pump/ bracket (V6) 11 / 21
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 9 | 90105-S50-003 | Bolt - FLANGE, 8X28 | Bolt - FLANGE, 8X28 |
| 10 | 90305-PAA-A01 | Nut - POWER STEERING PULLEY | Nut - POWER STEERING PULLEY |
| 11 | 90693-PAA-A01 | Circlip - INTERNAL, 40MM | Circlip - INTERNAL, 40MM |
| 11 | 90693-P2A-003 | Circlip - INTERNAL, 40MM | Circlip - INTERNAL, 40MM |
| 12 | 91048-P2A-003 | Bearing - RADIAL BALL, 17X40X12 | Bearing - RADIAL BALL, 17X40X12 |
| 13 | 91249-PNC-003 | Seal - POWER STEERING PUMP | Seal - POWER STEERING PUMP |
| 14 | 91345-PAA-A01 | O-ring - 13.0X1.9 | O-ring - 13.0X1.9 |
| 14 | 91345-PY3-000 | O-ring - 13.0X1.9 | O-ring - 13.0X1.9 |
| 15 | 91347-PAA-A01 | O-ring - 16.7X1.8 | O-ring - 16.7X1.8 |
| 17 | 91348-P2A-003 | O-ring - 51.0X2.4 | O-ring - 51.0X2.4 |
| 19 | 91350-P8C-A01 | Bolt - FLANGE, 6X20 | Bolt - FLANGE, 6X20 |
Protector/ side sill garnish 8 / 14
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 12 | 90103-SDA-A00 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 13 | 90144-SA0-020 | Bolt - BUMPER SETTING (6X15) (BLACK) | Bolt - BUMPER SETTING (6X15) (BLACK) |
| 13 | 90111-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 15 | 90682-SDA-A01 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 16 | 91503-SZ3-003 | Clip A | Clip A |
| 17 | 91503-SZ5-003 | Clip - BUMPER FACE | Clip - BUMPER FACE |
| 18 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
| 19 | 91653-SEP-003 | Clip - UNDER COVER | Clip - UNDER COVER |
Radiator (V6) 5 / 21
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 17 | 90041-P3G-003 | Screw-washer - 5X11 | Screw-washer - 5X11 |
| 18 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 19 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
Radiator hose (V6) 3 / 17
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 10 | 19511-PT0-004 | Clip - WATER HOSE (36.5MM) (KEIHIN) | Clip - WATER HOSE (36.5MM) (KEIHIN) |
| 10 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 15 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
Radio antenna/speaker 8 / 13
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 5 | 39157-SDA-A01 | Coil assy - ANTENNA EARTH | Coil assy - ANTENNA EARTH |
| 9 | 77205-S0X-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 10 | 90132-SV4-003 | Screw - ET, 5X16 | Screw - ET, 5X16 |
| 11 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 12 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 13 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 14 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 15 | 91902-S2X-003 | Plaster - WIRE HARNESS(50X100) | Plaster - WIRE HARNESS(50X100) |
Rear brake 5 / 43
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 34 | 90103-SV4-013 | Bolt - FLANGE, 10X30 | Bolt - FLANGE, 10X30 |
| 35 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 35 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 35 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 35 | 90113-S5H-005 | Bolt - WHEEL (THAI MEIRA) | Bolt - WHEEL (THAI MEIRA) |
Rear cylinder head (V6) 4 / 20
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 3 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 4 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 22 | 12207-PC6-300 | Washer - SEALING, 16MM | Washer - SEALING, 16MM |
Rear door glass/regulator 1 / 16
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 15 | 90150-SDA-000 | Screw - PAN, 4X8 | Screw - PAN, 4X8 |
Rear door lining 11 / 16
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 33301-S70-003 | Bulb - 12V 3.8W 2CP | Bulb - 12V 3.8W 2CP |
| 2 | 34261-SDA-A01 | Lens | Lens |
| 3 | 35770-SDA-A21 | Switch assy - RR. POWER WINDOW | Switch assy - RR. POWER WINDOW |
| 4 | 72134-S2X-003 | Snap - R. (NATURAL) | Snap - R. (NATURAL) |
| 5 | 72174-S2X-003 | Snap - L. (BLACK) | Snap - L. (BLACK) |
| 22 | 90101-S03-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 23 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 24 | 90141-SDA-000 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 25 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 26 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 27 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Rear door locks/ outer handle 13 / 26
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 72115-SDA-A01 | Actuator assy - R. FR. DOOR LOCK | Actuator assy - R. FR. DOOR LOCK |
| 2 | 72135-SDA-A01 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 3 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 4 | 72139-S0A-003 | Snap - PINK | Snap - PINK |
| 5 | 72143-S04-003 | Packing | Packing |
| 6 | 72155-SDA-A01 | Actuator assy, Lh - L. FR. DOOR LOCK | Actuator assy, Lh - L. FR. DOOR LOCK |
| 7 | 72612-SDA-A00 | Cap - R. CHILD LOCK | Cap - R. CHILD LOCK |
| 17 | 72652-SDA-A00 | Cap - L. CHILD LOCK | Cap - L. CHILD LOCK |
| 25 | 90103-S7S-003 | Screw - FLAT, 6X18.5 | Screw - FLAT, 6X18.5 |
| 26 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 27 | 90141-S84-003 | Screw - 3X10 | Screw - 3X10 |
| 28 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 29 | 91591-SJ6-013 | Clip s - FUEL PIPE | Clip s - FUEL PIPE |
Rear door panels 9 / 21
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 21 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 22 | 90102-SFA-305 | Bolt - FLANGE, 8X18 (SERVICE) | Bolt - FLANGE, 8X18 (SERVICE) |
| 22 | 90102-S3N-003 | Bolt - FLANGE, 8X24.5 (10.5MM) | Bolt - FLANGE, 8X24.5 (10.5MM) |
| 23 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 24 | 90341-SDA-000 | Nut - FLANGE, 6MM | Nut - FLANGE, 6MM |
| 25 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 26 | 90565-SDA-003 | Clip - DOOR SUB SEAL | Clip - DOOR SUB SEAL |
| 27 | 91568-SR2-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 27 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
Rear lower arm 16 / 36
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 5 | 52308-SZ5-000 | Holder - STABILIZER BUSH | Holder - STABILIZER BUSH |
| 8 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 13 | 52363-SJK-010 | Washer - LOWER ARM | Washer - LOWER ARM |
| 18 | 52387-SDA-A00 | Bolt | Bolt |
| 19 | 52388-SDA-A00 | Plate | Plate |
| 21 | 52454-S84-A01 | Boot - UPPER DUST | Boot - UPPER DUST |
| 21 | 06511-TY2-A01 | Boot | Boot |
| 22 | 57452-S84-A50 | Bracket - RR. COUPLER | Bracket - RR. COUPLER |
| 25 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 27 | 90173-S84-A00 | Bolt - RR. UPPER ARM | Bolt - RR. UPPER ARM |
| 28 | 90181-S84-A00 | Bolt - TRAILING ARM, 12X68 | Bolt - TRAILING ARM, 12X68 |
| 29 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 30 | 90216-SE0-010 | Nut | Nut |
| 30 | 90216-SE0-305 | NUT, LWR ARM | NUT, LWR ARM |
| 31 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 33 | 90701-SX0-003 | Clip - UPPER ARM | Clip - UPPER ARM |
Rear seat 8 / 22
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 3 | 78182-SA0-000 | Clip - RR. SEAT PIN | Clip - RR. SEAT PIN |
| 9 | 82129-SM4-A00 | Collar c | Collar c |
| 31 | 82290-SDA-A01 | Bracket comp. - R. SEAT PIVOT | Bracket comp. - R. SEAT PIVOT |
| 34 | 82690-SDA-A01 | Bracket comp. - L. SEAT PIVOT | Bracket comp. - L. SEAT PIVOT |
| 35 | 90003-692-000 | Bolt - FLANGE, 6X16 | Bolt - FLANGE, 6X16 |
| 36 | 90140-SA5-000 | Bolt - SPLASH GUARD | Bolt - SPLASH GUARD |
Rear shock absorber 13 / 20
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 51621-S84-A01 | Washer - SHOCK ABSORBER MOUNTING | Washer - SHOCK ABSORBER MOUNTING |
| 2 | 51631-SV7-004 | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) |
| 3 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 4 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 9 | 52675-S84-A01 | Base - RR. SHOCK ABSORBER MOUNTING (A.S.I. SHOWA) | Base - RR. SHOCK ABSORBER MOUNTING (A.S.I. SHOWA) |
| 10 | 52686-SDA-A01 | Rubber - RR. SPRING MOUNTING | Rubber - RR. SPRING MOUNTING |
| 11 | 52688-S0A-004 | Sleeve - RR. DUST COVER | Sleeve - RR. DUST COVER |
| 12 | 52689-SG0-014 | End - DUST COVER | End - DUST COVER |
| 13 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 14 | 52722-SDA-A01 | Rubber - RR. BUMP STOPPER | Rubber - RR. BUMP STOPPER |
| 15 | 52748-S0A-004 | Cover - RR. LOWER MOUNT DUST | Cover - RR. LOWER MOUNT DUST |
| 17 | 90300-S84-A00 | Nut - SHOCK ABSORBER FLANGE (10MM) | Nut - SHOCK ABSORBER FLANGE (10MM) |
| 18 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Rear tray/side lining 4 / 10
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 25 | 90676-SE0-003 | Clip - JOINT COVER PLATE | Clip - JOINT COVER PLATE |
| 26 | 91560-S04-003 | Clip - SIDE GARNISH (NATURAL) | Clip - SIDE GARNISH (NATURAL) |
| 27 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Rear windshield 3 / 5
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 91563-SV4-003 | Fastener a - RR. WINDSHIELD | Fastener a - RR. WINDSHIELD |
| 4 | 91568-SDA-A01 | Clip - WINDSHIELD UPPER | Clip - WINDSHIELD UPPER |
| 5 | 91568-SV4-003 | Fastener b - RR. WINDSHIELD | Fastener b - RR. WINDSHIELD |
Resonator chamber (V6) 3 / 14
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 12 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 13 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 14 | 91549-P1E-003 | Clip - AIR INTAKE COVER | Clip - AIR INTAKE COVER |
Roof lining 6 / 14
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 23 | 90133-SDC-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 24 | 90136-SDA-003 | Screw - ET, 5X24 | Screw - ET, 5X24 |
| 24 | 90137-S0A-003 | Screw - ET, 6X28 | Screw - ET, 6X28 |
| 25 | 90136-S30-003 | Screw - ET, 5X18 | Screw - ET, 5X18 |
| 25 | 90137-S30-003 | Screw - ET, 6X18 | Screw - ET, 6X18 |
| 26 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Seatbelts 3 / 7
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 15 | 90101-S84-A00 | Screw - ET, 6X16 | Screw - ET, 6X16 |
| 15 | 90133-SZ4-003 | Screw - ET, 7X16 | Screw - ET, 7X16 |
| 17 | 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) | Clip - HARNESS BAND(BLACK) (145MM) |
Select lever (LH) 2 / 17
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 19 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 20 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Select lever (RH) 2 / 17
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 19 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 20 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Sensor/solenoid (V6) 2 / 32
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 23 | 91309-PX4-003 | O-ring - 16X2.1 (NOK) | O-ring - 16X2.1 (NOK) |
| 24 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
Sliding roof 1 / 16
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 6 | 70062-SDA-A00 | Valve - RR. DRAIN(SUNROOF) | Valve - RR. DRAIN(SUNROOF) |
Srs unit (LH) 11 / 25
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 10 | 78827-SDB-A81 | Bolt - 5X12 | Bolt - 5X12 |
| 14 | 90133-SDC-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 15 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 17 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 18 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 19 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 20 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 21 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 24 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 25 | 91902-S2X-003 | Plaster - WIRE HARNESS(50X100) | Plaster - WIRE HARNESS(50X100) |
Srs unit (RH) 2 / 6
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 5 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 6 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
Steering column 8 / 16
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 4 | 53331-SDA-A02 | Cover comp. - STEERING JOINT | Cover comp. - STEERING JOINT |
| 6 | 53333-SDA-A00 | Sponge - SEALING | Sponge - SEALING |
| 8 | 77873-SDA-E80 | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) |
| 9 | 90135-SDA-000 | Bolt - STEERING JOINT YOKE | Bolt - STEERING JOINT YOKE |
| 9 | 90135-SZT-000 | Bolt - STEERING JOINT YOKE | Bolt - STEERING JOINT YOKE |
| 10 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 11 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 12 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
Steering wheel (SRS; V6) 4 / 6
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 9 | 78520-SDB-A81 | Damper comp - STEERING | Damper comp - STEERING |
| 10 | 90134-S6A-A80 | Bolt - HEX., 6X23 | Bolt - HEX., 6X23 |
| 11 | 90136-SF1-A02 | Screw - TAPPING, 4X18 (NIPPON PURASUTO) | Screw - TAPPING, 4X18 (NIPPON PURASUTO) |
| 12 | 90161-SV4-003 | Bolt - STEERING HANDLE | Bolt - STEERING HANDLE |
Switch (LH) 6 / 12
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 3 | 35600-SDA-A01 | Switch assy - R. HEATED SEAT | Switch assy - R. HEATED SEAT |
| 4 | 35650-SDA-A01 | Switch assy - L. HEATED SEAT | Switch assy - L. HEATED SEAT |
| 5 | 35651-SDA-A01 | Tape | Tape |
| 9 | 35852-SDA-A01 | Bulb comp. - 14V 40MA | Bulb comp. - 14V 40MA |
| 9 | 35850-SDA-L01 | Bulb (14V 80MA) | Bulb (14V 80MA) |
| 10 | 35852-SDA-A11 | Bulb comp. b - 14V 70MA | Bulb comp. b - 14V 70MA |
Taillight/license light 8 / 30
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 2 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
| 3 | 33303-S2R-003 | Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) | Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) |
| 7 | 33513-S50-003 | Socket - T20W S2 | Socket - T20W S2 |
| 11 | 34100-S0A-013 | Light assy - LICENSE | Light assy - LICENSE |
| 12 | 34102-S0A-003 | Housing comp | Housing comp |
| 13 | 34103-S0A-003 | Gasket | Gasket |
| 14 | 34104-S0A-013 | Lens comp | Lens comp |
Tire/wheel disks 19 / 27
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 7 | 42753-671-003 | Valve - RIM (TAIHEIYO) | Valve - RIM (TAIHEIYO) |
| 7 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 8 | 42767-SB0-600 | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) |
| 9 | 44728-SEA-J02 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 9 | 44723-SEA-J01 | Weight - BALANCE (30G) (TOHO) | Weight - BALANCE (30G) (TOHO) |
| 9 | 44722-SEA-J01 | Weight - BALANCE (20G) (TOHO) | Weight - BALANCE (20G) (TOHO) |
| 9 | 44721-SEA-J01 | Weight - BALANCE (10G) (TOHO) | Weight - BALANCE (10G) (TOHO) |
| 9 | 44723-SEA-J02 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 9 | 44722-SEA-J02 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 9 | 44721-SEA-J02 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 9 | 44728-SEA-J01 | Weight - BALANCE (25G) (TOHO) | Weight - BALANCE (25G) (TOHO) |
| 9 | 44727-SEA-J01 | Weight - BALANCE (15G) (TOHO) | Weight - BALANCE (15G) (TOHO) |
| 9 | 44729-SEA-J01 | Weight - BALANCE (35G) (TOHO) | Weight - BALANCE (35G) (TOHO) |
| 9 | 44726-SEA-J01 | Weight - BALANCE (5G) (TOHO) | Weight - BALANCE (5G) (TOHO) |
| 9 | 44727-SEA-J02 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 9 | 44729-SEA-J02 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 9 | 44726-SEA-J02 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 15 | 74651-S2X-003 | Adapter - SPARE TIRE | Adapter - SPARE TIRE |
| 16 | 74652-SDA-003 | Bolt - SPARE TIRE | Bolt - SPARE TIRE |
Tools/jack 4 / 11
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 7 | 89211-S05-003 | Wrench - WHEEL | Wrench - WHEEL |
| 9 | 89310-S5A-013 | Jack assy - PANTOGRAPH | Jack assy - PANTOGRAPH |
| 10 | 89311-S5A-003 | Plate - JACK CAUTION | Plate - JACK CAUTION |
| 11 | 89320-S05-003 | Bar - JACK | Bar - JACK |
Torque converter case (V6) 1 / 13
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 11 | 91206-P0Z-005 | Oil seal - 35X54X8 (NOK) | Oil seal - 35X54X8 (NOK) |
Transmission case (V6) 1 / 22
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 20 | 91205-P0X-005 | Oil seal - 40X56X9 (NOK) | Oil seal - 40X56X9 (NOK) |
Trunk lid 12 / 24
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 5 | 73219-693-951 | Seal - FUEL LID OPENER (GREEN) | Seal - FUEL LID OPENER (GREEN) |
| 6 | 74822-SW5-003 | Cushion - TRUNK HINGE | Cushion - TRUNK HINGE |
| 9 | 74851-SDC-Y02 | Lock - TRUNK (POWER+SWITCH) | Lock - TRUNK (POWER+SWITCH) |
| 11 | 74864-S30-003 | Cover | Cover |
| 15 | 74873-SM4-003 | Clip - TRUNK OPENER SPRING | Clip - TRUNK OPENER SPRING |
| 19 | 74886-SDA-A01 | Cylinder - TRUNK REMOTE CONTROL | Cylinder - TRUNK REMOTE CONTROL |
| 21 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 22 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 23 | 90109-SM4-000 | Bolt - SPECIAL, 6X35 | Bolt - SPECIAL, 6X35 |
| 24 | 90684-SD4-003 | Clip - FUEL LID OPENER | Clip - FUEL LID OPENER |
| 26 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
Water valve (LH) 6 / 11
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 79710-SDC-A01 | Valve assy. - WATER | Valve assy. - WATER |
| 4 | 79722-SDA-A00 | Hose b - WATER IN. | Hose b - WATER IN. |
| 7 | 90661-SL5-003 | Clip, WATER HOSE | Clip, WATER HOSE |
| 8 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 8 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 12 | 91557-S87-A01 | Clamp - HEATER | Clamp - HEATER |
Water valve (RH) 3 / 10
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 7 | 90661-SL5-003 | Clip, WATER HOSE | Clip, WATER HOSE |
| 8 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 8 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
Windshield washer (1) 4 / 9
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 38516-SA5-671 | Packing - T-TYPE) (MITSUBA | Packing - T-TYPE) (MITSUBA |
| 2 | 38519-SB0-003 | Bush - WASHER TANK (MITSUBA) | Bush - WASHER TANK (MITSUBA) |
| 4 | 76806-SL0-E11 | Motor - WASHER (HIGH) (MITSUBA) | Motor - WASHER (HIGH) (MITSUBA) |
| 9 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Windshield washer (2) 4 / 9
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 1 | 38516-SA5-671 | Packing - T-TYPE) (MITSUBA | Packing - T-TYPE) (MITSUBA |
| 2 | 38519-SB0-003 | Bush - WASHER TANK (MITSUBA) | Bush - WASHER TANK (MITSUBA) |
| 4 | 76806-SL0-E11 | Motor - WASHER (HIGH) (MITSUBA) | Motor - WASHER (HIGH) (MITSUBA) |
| 9 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Wire harness (LH) 4 / 18
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 15 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 16 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 17 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 18 | 90149-SE0-902 | Bolt - EARTH, 6X24(SN) | Bolt - EARTH, 6X24(SN) |
Wire harness (RH) 4 / 17
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 14 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 15 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 16 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 17 | 90149-SE0-902 | Bolt - EARTH, 6X24(SN) | Bolt - EARTH, 6X24(SN) |
| # | OEM | CM6 | CN1 |
|---|---|---|---|
| 2 | 01462-SDD-A02 | Piston set - MASTER CYLINDER | Piston set - MASTER CYLINDER |
| 3 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 21 | 06511-TY2-A01 | Boot | Boot |
| 1 | 06531-SDA-A01 | Seal kit a - POWER STEERING (ROTARY VALVE) | Seal kit a - POWER STEERING (ROTARY VALVE) |
| 2 | 06532-S50-003 | Oil seal set - ROTARY VALVE | Oil seal set - ROTARY VALVE |
| 3 | 06534-S84-A01 | Ring set - POWER STEERING SEAL (ROTARY VALVE) | Ring set - POWER STEERING SEAL (ROTARY VALVE) |
| 4 | 06535-S50-003 | Ring set - POWER STEERING SEAL (ROTARY VALVE) | Ring set - POWER STEERING SEAL (ROTARY VALVE) |
| 22 | 12207-PC6-300 | Washer - SEALING, 16MM | Washer - SEALING, 16MM |
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 5 | 13204-P8A-A01 | Bolt - CONNECTING ROD | Bolt - CONNECTING ROD |
| 7 | 15142-P8A-A00 | O-ring - 8.8X2.4 | O-ring - 8.8X2.4 |
| 7 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 9 | 16725-RAC-003 | Clamp - FUEL HOSE (NATURAL) | Clamp - FUEL HOSE (NATURAL) |
| 1 | 17205-PC6-000 | Clamp - TUBE, 7.5X2 | Clamp - TUBE, 7.5X2 |
| 3 | 17213-PV0-000 | Rubber - AIR CLEANER CASE MOUNTING | Rubber - AIR CLEANER CASE MOUNTING |
| 14 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 15 | 17551-S84-A01 | Packing | Packing |
| 21 | 17652-SDA-T01 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 23 | 17662-SDA-A01 | Packing - FUEL FILLER | Packing - FUEL FILLER |
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 28 | 17762-SDA-A00 | Stay b - FUEL PIPE | Stay b - FUEL PIPE |
| 29 | 17763-SDA-A01 | Stay c - FUEL PIPE | Stay c - FUEL PIPE |
| 30 | 17764-SDA-A01 | Stay d - FUEL PIPE | Stay d - FUEL PIPE |
| 5 | 18176-P08-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 4 | 18176-PT0-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 12 | 18215-S84-A20 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 13 | 18302-SP0-003 | Gasket - EX. PIPE | Gasket - EX. PIPE |
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 10 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 10 | 19511-PT0-004 | Clip - WATER HOSE (36.5MM) (KEIHIN) | Clip - WATER HOSE (36.5MM) (KEIHIN) |
| 8 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 3 | 31105-RAA-A01 | Holder assy. - BRUSH | Holder assy. - BRUSH |
| 5 | 31111-PT0-003 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 6 | 31114-PGK-A01 | Bearing - FR. | Bearing - FR. |
| 9 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 12 | 31145-PGK-A01 | Bolt | Bolt |
| 13 | 31146-PE9-941 | Screw-washer | Screw-washer |
| 14 | 31147-PGK-A01 | Screw | Screw |
| 15 | 31147-PT0-003 | Screw-washer | Screw-washer |
| 1 | 32112-S2K-003 | Band - CABLE (90MM) | Band - CABLE (90MM) |
| 3 | 32115-P64-003 | Holder - CORRUGATED (DARK BLUE) (10MM) | Holder - CORRUGATED (DARK BLUE) (10MM) |
| 4 | 32118-P72-003 | Holder - CORRUGATED(DARK GREEN) (19MM) | Holder - CORRUGATED(DARK GREEN) (19MM) |
| 7 | 32132-S6A-003 | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) | Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
| 6 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 8 | 32133-SLA-003 | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) | Band - HARNESS OFFSET(30) (DARK GRAY)(145MM) |
| 10 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 11 | 32141-SDA-A00 | Protector - FLOOR HARNESS | Protector - FLOOR HARNESS |
| 1 | 32146-SH3-003 | Connector - DIODE(2P) | Connector - DIODE(2P) |
| 14 | 32177-SDA-003 | Clip - FR. WIPER(BLACK) | Clip - FR. WIPER(BLACK) |
| 14 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 15 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 17 | 32746-RAA-A01 | Stay c - ENGINE HARNESS | Stay c - ENGINE HARNESS |
| 3 | 33105-S5N-C01 | Nut - SPECIAL | Nut - SPECIAL |
| 1 | 33301-S70-003 | Bulb - 12V 3.8W 2CP | Bulb - 12V 3.8W 2CP |
| 8 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 12 | 33303-S2R-003 | Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) | Bulb - WEDGE (12V 21W) (STANLEY) (AMBER) |
| 10 | 33303-SAA-003 | Socket comp - T20 S) (AMBER | Socket comp - T20 S) (AMBER |
| 2 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
| 7 | 33513-S50-003 | Socket - T20W S2 | Socket - T20W S2 |
| 11 | 34100-S0A-013 | Light assy - LICENSE | Light assy - LICENSE |
| 12 | 34102-S0A-003 | Housing comp | Housing comp |
| 13 | 34103-S0A-003 | Gasket | Gasket |
| 14 | 34104-S0A-013 | Lens comp | Lens comp |
| 1 | 34251-S5A-003 | Lens | Lens |
| 3 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 4 | 34261-S5A-003 | Lens comp | Lens comp |
| 2 | 34261-SDA-A01 | Lens | Lens |
| 5 | 34295-SJ8-003 | Bulb - 12V 5W) (DAIICHI | Bulb - 12V 5W) (DAIICHI |
| 1 | 34300-SEA-013 | Light assy - R. SIDE TURN | Light assy - R. SIDE TURN |
| 2 | 34350-SEA-013 | Light assy - L. SIDE TURN | Light assy - L. SIDE TURN |
| 5 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
| 7 | 34401-SDA-A21 | Lens - R. | Lens - R. |
| 9 | 34402-SDA-A21 | Lens - L. | Lens - L. |
| 11 | 34404-SDA-A21 | Base comp. | Base comp. |
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 5 | 35108-S30-003 | Holder - COLUMN | Holder - COLUMN |
| 11 | 35116-SDA-A11 | Screw - FLAT | Screw - FLAT |
| 14 | 35130-SAA-J51 | Switch comp - STEERING | Switch comp - STEERING |
| 3 | 35190-SDA-F51 | Switch assy - REMOTE CONTROL MIRROR | Switch assy - REMOTE CONTROL MIRROR |
| 15 | 35251-SDA-A21 | Sensor assy - STEERING & BODY SWITCH | Sensor assy - STEERING & BODY SWITCH |
| 18 | 35400-S6A-003 | Switch assy - DOOR (DAIICHI) | Switch assy - DOOR (DAIICHI) |
| 15 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 3 | 35600-SDA-A01 | Switch assy - R. HEATED SEAT | Switch assy - R. HEATED SEAT |
| 4 | 35650-SDA-A01 | Switch assy - L. HEATED SEAT | Switch assy - L. HEATED SEAT |
| 5 | 35651-SDA-A01 | Tape | Tape |
| 5 | 35770-SDA-A21 | Switch assy - RR. POWER WINDOW | Switch assy - RR. POWER WINDOW |
| 9 | 35850-SDA-L01 | Bulb (14V 80MA) | Bulb (14V 80MA) |
| 9 | 35852-SDA-A01 | Bulb comp. - 14V 40MA | Bulb comp. - 14V 40MA |
| 10 | 35852-SDA-A11 | Bulb comp. b - 14V 70MA | Bulb comp. b - 14V 70MA |
| 17 | 36533-RAA-A10 | Grommet - 31X41 | Grommet - 31X41 |
| 1 | 36641-PY3-000 | Collar - ACTUATOR MOUNT | Collar - ACTUATOR MOUNT |
| 1 | 37115-SA0-601 | Packing - NS | Packing - NS |
| 3 | 37972-RCA-A01 | Stay - THROTTLE WIRE | Stay - THROTTLE WIRE |
| 5 | 37977-RCA-A00 | Stay comp - ACCELERATOR PEDAL SENSOR | Stay comp - ACCELERATOR PEDAL SENSOR |
| 6 | 37978-RCA-A00 | Rubber - MOUNT | Rubber - MOUNT |
| 7 | 37996-RCA-A00 | Cover comp. - ACCELERATOR PEDAL SENSOR | Cover comp. - ACCELERATOR PEDAL SENSOR |
| 2 | 38100-SDB-A02 | Horn assy - LOW (MITSUBA) | Horn assy - LOW (MITSUBA) |
| 3 | 38150-SDB-A02 | Horn assy - HIGH (MITSUBA) | Horn assy - HIGH (MITSUBA) |
| 4 | 38182-SDA-003 | Cover - RELAY BLOCK UPPER(2P) | Cover - RELAY BLOCK UPPER(2P) |
| 6 | 38231-S04-003 | Fuse - BLOCK (30A) | Fuse - BLOCK (30A) |
| 7 | 38231-S04-961 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 5 | 38231-SDA-A01 | Fuse a - MULTI BLOCK (100A/70A) | Fuse a - MULTI BLOCK (100A/70A) |
| 9 | 38232-SDA-A11 | Fuse b - MULTI BLOCK (50A/50A) | Fuse b - MULTI BLOCK (50A/50A) |
| 10 | 38235-SDA-A01 | Puller - MINI FUSE | Puller - MINI FUSE |
| 10 | 38300-SDC-A02 | Relay assy - TURN SIGNAL & HAZARD (DENSO) | Relay assy - TURN SIGNAL & HAZARD (DENSO) |
| 10 | 38300-SHJ-A04 | Relay assy - TURN SIGNAL & HAZARD (MITSUBA) | Relay assy - TURN SIGNAL & HAZARD (MITSUBA) |
| 1 | 38516-SA5-671 | Packing - T-TYPE) (MITSUBA | Packing - T-TYPE) (MITSUBA |
| 2 | 38519-SB0-003 | Bush - WASHER TANK (MITSUBA) | Bush - WASHER TANK (MITSUBA) |
| 1 | 38773-PR3-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 2 | 38801-P9K-E01 | Valve sub assy. - SAFETY | Valve sub assy. - SAFETY |
| 5 | 38812-671-003 | Ring a - SNAP | Ring a - SNAP |
| 4 | 38812-PH1-003 | Ring b - SNAP | Ring b - SNAP |
| 6 | 38816-RCA-A01 | Stay - LEAD WIRE | Stay - LEAD WIRE |
| 7 | 38827-PH7-003 | Screw-washer - 5X8 | Screw-washer - 5X8 |
| 8 | 38829-PR3-003 | Bolt - WASHER HEAD | Bolt - WASHER HEAD |
| 10 | 38912-PH1-N01 | Plate set - WASHER | Plate set - WASHER |
| 7 | 38970-SJA-003 | Sensor assy - RAIN | Sensor assy - RAIN |
| 8 | 38971-S3V-A01 | Clip - SPRING | Clip - SPRING |
| 5 | 39157-SDA-A01 | Coil assy - ANTENNA EARTH | Coil assy - ANTENNA EARTH |
| 1 | 39248-692-003 | Packing - HEATER | Packing - HEATER |
| 1 | 39620-SZ3-003 | Cap assy. | Cap assy. |
| 2 | 39624-SZ3-L01 | Socket assy | Socket assy |
| 5 | 39630-S0X-003 | Ring assy - TYPE INCLUDING BULB | Ring assy - TYPE INCLUDING BULB |
| 14 | 39792-SDA-A01 | Relay assy - MICRO ISO | Relay assy - MICRO ISO |
| 15 | 39794-S10-003 | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) | Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) |
| 14 | 39794-SDA-901 | Relay assy, ENGINE CONTROL MODULE (MITSUBA) | Relay assy, ENGINE CONTROL MODULE (MITSUBA) |
| 14 | 39794-SDA-902 | Relay assy, ENGINE CONTROL MODULE (DENSO) | Relay assy, ENGINE CONTROL MODULE (DENSO) |
| 12 | 39794-SDA-A02 | Relay assy - POWER(MICRO ISO) (DENSO) | Relay assy - POWER(MICRO ISO) (DENSO) |
| 12 | 39794-SDA-A05 | Relay assy - POWER(MICRO ISO) (MITSUBA) | Relay assy - POWER(MICRO ISO) (MITSUBA) |
| 1 | 39885-S5A-G11 | Label - IMMOBILIZER & SECURITY | Label - IMMOBILIZER & SECURITY |
| 3 | 41381-P7T-000 | Spacer - 46X80X1 | Spacer - 46X80X1 |
| 7 | 42753-671-003 | Valve - RIM (TAIHEIYO) | Valve - RIM (TAIHEIYO) |
| 7 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 8 | 42767-SB0-600 | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) | Plate - SPARE TIRE CAUTION (T-TYPE) (ENGLISH) |
| 5 | 44300-SDA-A51 | Bearing assy - FR. HUB (NTN) | Bearing assy - FR. HUB (NTN) |
| 9 | 44319-S1K-300 | Set ring - 30X2.2 | Set ring - 30X2.2 |
| 10 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 11 | 44327-SX0-C02 | Band - OUTBOARD BOOT (NIPPON HATSUJO) | Band - OUTBOARD BOOT (NIPPON HATSUJO) |
| 12 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 1 | 44348-SDA-A00 | Ring - FR. KNUCKLE | Ring - FR. KNUCKLE |
| 6 | 44600-SDA-A10 | Hub assy, FR. | Hub assy, FR. |
| 9 | 44721-SEA-J01 | Weight - BALANCE (10G) (TOHO) | Weight - BALANCE (10G) (TOHO) |
| 9 | 44721-SEA-J02 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 9 | 44722-SEA-J01 | Weight - BALANCE (20G) (TOHO) | Weight - BALANCE (20G) (TOHO) |
| 9 | 44722-SEA-J02 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 9 | 44723-SEA-J01 | Weight - BALANCE (30G) (TOHO) | Weight - BALANCE (30G) (TOHO) |
| 9 | 44723-SEA-J02 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 9 | 44726-SEA-J01 | Weight - BALANCE (5G) (TOHO) | Weight - BALANCE (5G) (TOHO) |
| 9 | 44726-SEA-J02 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 9 | 44727-SEA-J01 | Weight - BALANCE (15G) (TOHO) | Weight - BALANCE (15G) (TOHO) |
| 9 | 44727-SEA-J02 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 9 | 44728-SEA-J01 | Weight - BALANCE (25G) (TOHO) | Weight - BALANCE (25G) (TOHO) |
| 9 | 44728-SEA-J02 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 9 | 44729-SEA-J01 | Weight - BALANCE (35G) (TOHO) | Weight - BALANCE (35G) (TOHO) |
| 9 | 44729-SEA-J02 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 4 | 46101-SDD-G51 | Cylinder set - MASTER | Cylinder set - MASTER |
| 5 | 46151-SA7-951 | Yoke comp - NISSIN | Yoke comp - NISSIN |
| 6 | 46191-SDA-A00 | Gasket - MASTER POWER | Gasket - MASTER POWER |
| 13 | 46380-SB0-000 | Grommet a - BRAKE PIPE (BLACK) | Grommet a - BRAKE PIPE (BLACK) |
| 14 | 46391-SDA-A01 | Clip g - BRAKE PIPE | Clip g - BRAKE PIPE |
| 18 | 46393-S84-A00 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 19 | 46394-SDA-003 | Clip d - BRAKE PIPE | Clip d - BRAKE PIPE |
| 21 | 46395-SDA-A00 | Clip e - BRAKE PIPE | Clip e - BRAKE PIPE |
| 22 | 46396-SDA-003 | Clip f - BRAKE PIPE | Clip f - BRAKE PIPE |
| 10 | 46407-S84-A01 | Clamp - TUBE | Clamp - TUBE |
| 23 | 46435-S84-A00 | Bracket - RR. BRAKE HOSE | Bracket - RR. BRAKE HOSE |
| 24 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 25 | 46470-S5T-E01 | Joint - FOUR WAY | Joint - FOUR WAY |
| 26 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 9 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 10 | 46505-SA7-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 11 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 15 | 46598-SDA-A00 | Stay assy. b - PEDAL | Stay assy. b - PEDAL |
| 12 | 46661-SDC-A02 | Reservoir set - OIL | Reservoir set - OIL |
| 13 | 46662-SDC-A02 | Cap comp. - RESERVOIR | Cap comp. - RESERVOIR |
| 14 | 46666-SDC-A01 | Filter | Filter |
| 15 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 22 | 46991-SDA-G00 | Bracket - FOOTREST | Bracket - FOOTREST |
| 23 | 46992-SDA-A02 | Plate - FOOTREST | Plate - FOOTREST |
| 2 | 47342-SZ3-003 | Switch - PARKING BRAKE | Switch - PARKING BRAKE |
| 3 | 47360-SB2-000 | Equalizer | Equalizer |
| 4 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 6 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 7 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 9 | 47572-ST0-000 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 2 | 50220-SDA-A00 | Stiffener - STEERING GEAR BOX | Stiffener - STEERING GEAR BOX |
| 5 | 50261-SDA-A02 | Rubber, FR. SUB FRAME FR. STOPPER | Rubber, FR. SUB FRAME FR. STOPPER |
| 10 | 50275-SDA-A00 | Stay - R. RR. SUB FRAME MOUNTING | Stay - R. RR. SUB FRAME MOUNTING |
| 11 | 50276-SDA-A00 | Stay - L. RR. SUB FRAME MOUNTING | Stay - L. RR. SUB FRAME MOUNTING |
| 2 | 51210-SDA-A02 | Knuckle comp - R. FR. | Knuckle comp - R. FR. |
| 3 | 51215-SDA-A02 | Knuckle comp - L. FR. | Knuckle comp - L. FR. |
| 4 | 51225-SL5-003 | Boot - LOWER BALL DUST | Boot - LOWER BALL DUST |
| 3 | 51308-SDA-A00 | Bracket - FR. STABILIZER | Bracket - FR. STABILIZER |
| 8 | 51391-SDB-A01 | Bush - FR. COMPLIANCE | Bush - FR. COMPLIANCE |
| 7 | 51464-S04-013 | Boot, UPPER BALL JOINT | Boot, UPPER BALL JOINT |
| 5 | 51621-S84-A01 | Washer - SHOCK ABSORBER MOUNTING | Washer - SHOCK ABSORBER MOUNTING |
| 6 | 51631-SV7-004 | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) |
| 7 | 51675-SDA-A01 | Base - FR. SHOCK ABSORBER MOUNTING | Base - FR. SHOCK ABSORBER MOUNTING |
| 8 | 51684-SDA-A02 | Mount - FR. DUST COVER LOWER | Mount - FR. DUST COVER LOWER |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 10 | 51686-SDA-A01 | Rubber - FR. SPRING MOUNTING | Rubber - FR. SPRING MOUNTING |
| 11 | 51688-SDA-A01 | Sleeve - FR. DUST COVER | Sleeve - FR. DUST COVER |
| 12 | 51689-SDA-A01 | Cover - FR. END DUST | Cover - FR. END DUST |
| 13 | 51689-SH3-004 | Plate - BUMP STOP (SHOWA) | Plate - BUMP STOP (SHOWA) |
| 14 | 51722-SS0-004 | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) |
| 15 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 10 | 51810-SDA-A01 | BUSH, FR. SHOCK ABSORBER | BUSH, FR. SHOCK ABSORBER |
| 8 | 52226-SL0-003 | Circlip - LOWER BALL(MUSASHI) | Circlip - LOWER BALL(MUSASHI) |
| 5 | 52308-SZ5-000 | Holder - STABILIZER BUSH | Holder - STABILIZER BUSH |
| 9 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 13 | 52363-SJK-010 | Washer - LOWER ARM | Washer - LOWER ARM |
| 18 | 52387-SDA-A00 | Bolt | Bolt |
| 19 | 52388-SDA-A00 | Plate | Plate |
| 21 | 52454-S84-A01 | Boot - UPPER DUST | Boot - UPPER DUST |
| 9 | 52675-S84-A01 | Base - RR. SHOCK ABSORBER MOUNTING (A.S.I. SHOWA) | Base - RR. SHOCK ABSORBER MOUNTING (A.S.I. SHOWA) |
| 10 | 52686-SDA-A01 | Rubber - RR. SPRING MOUNTING | Rubber - RR. SPRING MOUNTING |
| 11 | 52688-S0A-004 | Sleeve - RR. DUST COVER | Sleeve - RR. DUST COVER |
| 12 | 52689-SG0-014 | End - DUST COVER | End - DUST COVER |
| 13 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 14 | 52722-SDA-A01 | Rubber - RR. BUMP STOPPER | Rubber - RR. BUMP STOPPER |
| 15 | 52748-S0A-004 | Cover - RR. LOWER MOUNT DUST | Cover - RR. LOWER MOUNT DUST |
| 1 | 53010-SDA-A01 | End set - RACK | End set - RACK |
| 4 | 53331-SDA-A02 | Cover comp. - STEERING JOINT | Cover comp. - STEERING JOINT |
| 6 | 53333-SDA-A00 | Sponge - SEALING | Sponge - SEALING |
| 5 | 53413-S0K-A01 | Spring - RACK GUIDE PRESSURE | Spring - RACK GUIDE PRESSURE |
| 6 | 53414-S84-A01 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 7 | 53416-S3M-A01 | Guide - STEERING RACK | Guide - STEERING RACK |
| 2 | 53434-S84-A01 | Clip - STEERING TIE ROD | Clip - STEERING TIE ROD |
| 3 | 53436-SDA-A01 | Cushion b - GEAR BOX | Cushion b - GEAR BOX |
| 4 | 53438-SDA-A00 | Bracket b - STEERING | Bracket b - STEERING |
| 5 | 53449-S84-A01 | Band - BELLOWS | Band - BELLOWS |
| 9 | 53458-S84-A01 | Nut - LOCK | Nut - LOCK |
| 6 | 53502-SDA-A00 | Grommet b - STEERING | Grommet b - STEERING |
| 8 | 53536-SDA-A02 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 9 | 53537-S84-A01 | Rubber - STOPPER | Rubber - STOPPER |
| 10 | 53540-SDA-A01 | TIE ROD END OUTER RH - R. TIE ROD | TIE ROD END OUTER RH - R. TIE ROD |
| 11 | 53546-S84-003 | Boot - TIE ROD END (NOK) | Boot - TIE ROD END (NOK) |
| 12 | 53560-SDA-A01 | TIE ROD END OUTER LH - L. TIE ROD | TIE ROD END OUTER LH - L. TIE ROD |
| 17 | 53656-S84-A01 | Circlip - EXTERNAL, 20MM | Circlip - EXTERNAL, 20MM |
| 18 | 53660-S50-003 | Oil seal - 27X38X5.5 (SHOWA) | Oil seal - 27X38X5.5 (SHOWA) |
| 19 | 53661-S84-A01 | Washer - WAVE (NOK) | Washer - WAVE (NOK) |
| 20 | 53666-S50-003 | O-ring - 41.5X2 (SHOWA) | O-ring - 41.5X2 (SHOWA) |
| 21 | 53670-SDA-A01 | Pipe comp. a - CYLINDER | Pipe comp. a - CYLINDER |
| 22 | 53671-SDA-A01 | Pipe comp. b - CYLINDER | Pipe comp. b - CYLINDER |
| 14 | 53685-SDA-A01 | Bush - GEAR BOX MOUNTING | Bush - GEAR BOX MOUNTING |
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 2 | 53701-SDA-A01 | Tank comp. - POWER STEERING OIL | Tank comp. - POWER STEERING OIL |
| 6 | 53728-SDB-A01 | Clip - RETURN PIPE | Clip - RETURN PIPE |
| 16 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 8 | 53729-S0X-A01 | Clip - RETURN HOSE(BLACK) | Clip - RETURN HOSE(BLACK) |
| 15 | 53736-SDA-A01 | Holder - POWER STEERING PIPE | Holder - POWER STEERING PIPE |
| 16 | 53736-SH3-950 | Holder b - POWER STEERING PIPE | Holder b - POWER STEERING PIPE |
| 17 | 53740-SDA-A00 | Rubber - POWER STEERING PIPE HOLDER INSULATOR | Rubber - POWER STEERING PIPE HOLDER INSULATOR |
| 10 | 57450-SDH-003 | Sensor assy - R. FR. | Sensor assy - R. FR. |
| 22 | 57452-S84-A50 | Bracket - RR. COUPLER | Bracket - RR. COUPLER |
| 1 | 60854-SB2-000 | Clip - FR. SPOILER | Clip - FR. SPOILER |
| 1 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 6 | 66418-SB2-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 3 | 66418-SD4-900 | Stopper - CONSOLE LOCK | Stopper - CONSOLE LOCK |
| 3 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 6 | 70062-SDA-A00 | Valve - RR. DRAIN(SUNROOF) | Valve - RR. DRAIN(SUNROOF) |
| 22 | 70495-692-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 18 | 71505-SDA-A00 | Bracket - R. RR. BUMPER SIDE | Bracket - R. RR. BUMPER SIDE |
| 21 | 71555-SDA-A00 | Bracket - L. RR. BUMPER SIDE | Bracket - L. RR. BUMPER SIDE |
| 3 | 72113-SR4-004 | Snap - BLACK | Snap - BLACK |
| 4 | 72115-SDA-A01 | Actuator assy - R. FR. DOOR LOCK | Actuator assy - R. FR. DOOR LOCK |
| 20 | 72118-ST7-003 | Screw - TAPPING, 3X5 | Screw - TAPPING, 3X5 |
| 8 | 72119-SDA-A01 | Holder - R. ROD | Holder - R. ROD |
| 8 | 72134-S2X-003 | Snap - R. (NATURAL) | Snap - R. (NATURAL) |
| 12 | 72135-SDA-A01 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 16 | 72139-S0A-003 | Snap - PINK | Snap - PINK |
| 14 | 72139-SDA-A00 | Protector - R. FR. DOOR KNOB | Protector - R. FR. DOOR KNOB |
| 15 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 19 | 72141-SD4-004 | Bush - R. JOINT | Bush - R. JOINT |
| 13 | 72142-SM4-000 | Stopper - DOOR | Stopper - DOOR |
| 21 | 72143-S04-003 | Packing | Packing |
| 22 | 72146-S9A-003 | Spacer - DOOR OUTSIDE HANDLE | Spacer - DOOR OUTSIDE HANDLE |
| 22 | 72148-S0A-000 | Battery CR1616 | Battery CR1616 |
| 24 | 72155-SDA-A01 | Actuator assy, Lh - L. FR. DOOR LOCK | Actuator assy, Lh - L. FR. DOOR LOCK |
| 11 | 72174-S2X-003 | Snap - L. (BLACK) | Snap - L. (BLACK) |
| 29 | 72179-SDA-A00 | Protector - L. FR. DOOR KNOB | Protector - L. FR. DOOR KNOB |
| 32 | 72181-SD4-004 | Bush - L. JOINT | Bush - L. JOINT |
| 7 | 72612-SDA-A00 | Cap - R. CHILD LOCK | Cap - R. CHILD LOCK |
| 17 | 72652-SDA-A00 | Cap - L. CHILD LOCK | Cap - L. CHILD LOCK |
| 3 | 73126-SDA-A00 | Seal - FR. WINDSHIELD UPPER | Seal - FR. WINDSHIELD UPPER |
| 5 | 73219-693-951 | Seal - FUEL LID OPENER (GREEN) | Seal - FUEL LID OPENER (GREEN) |
| 11 | 74143-SDA-A00 | Rubber - RR. HOOD SEAL | Rubber - RR. HOOD SEAL |
| 15 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 18 | 74601-SDC-A01 | Plate - FLOOR HEAT BAFFLE | Plate - FLOOR HEAT BAFFLE |
| 15 | 74651-S2X-003 | Adapter - SPARE TIRE | Adapter - SPARE TIRE |
| 19 | 74651-SDA-A00 | Plate - TANK BAFFLE | Plate - TANK BAFFLE |
| 16 | 74652-SDA-003 | Bolt - SPARE TIRE | Bolt - SPARE TIRE |
| 20 | 74653-SDC-A00 | Plate - PRE SILENCER BAFFLE | Plate - PRE SILENCER BAFFLE |
| 34 | 74660-SDA-A00 | Cap assy. - FLOOR MAINTENANCE HOLE | Cap assy. - FLOOR MAINTENANCE HOLE |
| 6 | 74822-SW5-003 | Cushion - TRUNK HINGE | Cushion - TRUNK HINGE |
| 9 | 74851-SDC-Y02 | Lock - TRUNK (POWER+SWITCH) | Lock - TRUNK (POWER+SWITCH) |
| 11 | 74864-S30-003 | Cover | Cover |
| 15 | 74873-SM4-003 | Clip - TRUNK OPENER SPRING | Clip - TRUNK OPENER SPRING |
| 19 | 74886-SDA-A01 | Cylinder - TRUNK REMOTE CONTROL | Cylinder - TRUNK REMOTE CONTROL |
| 35 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 25 | 75450-SDA-A01 | Outlet assy - RR. AIR | Outlet assy - RR. AIR |
| 5 | 75700-S9A-G00 | Front Honda Emblem - (H) | Front Honda Emblem - (H) |
| 2 | 75826-634-300 | Seal - INSIDE PANEL, 15MM | Seal - INSIDE PANEL, 15MM |
| 20 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 5 | 76208-SEA-003 | Sticker | Sticker |
| 11 | 76239-S6M-003 | Screw - PAN, 5X10 | Screw - PAN, 5X10 |
| 2 | 76516-SDA-A01 | Rubber - MOUNTING | Rubber - MOUNTING |
| 3 | 76516-SM4-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 4 | 76517-SE0-003 | Collar - BRACKETLESS | Collar - BRACKETLESS |
| 5 | 76517-SM4-003 | Collar | Collar |
| 7 | 76524-SD4-003 | Dust seal | Dust seal |
| 8 | 76524-SE0-013 | Dust seal | Dust seal |
| 12 | 76561-SDA-A01 | Cap - PIVOT | Cap - PIVOT |
| 4 | 76806-SL0-E11 | Motor - WASHER (HIGH) (MITSUBA) | Motor - WASHER (HIGH) (MITSUBA) |
| 4 | 77205-S0X-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 21 | 77520-SDA-A01 | Cylinder - GLOVE BOX | Cylinder - GLOVE BOX |
| 21 | 77530-SDA-K02 | Damper assy. - GLOVE BOX | Damper assy. - GLOVE BOX |
| 26 | 77700-SDC-Y01 | Ashtray assy. - FR. | Ashtray assy. - FR. |
| 27 | 77711-SDC-Y30 | Holder comp - FR. ASHTRAY | Holder comp - FR. ASHTRAY |
| 30 | 77715-SDA-K11 | Spring - FR. ASHTRAY (LH) | Spring - FR. ASHTRAY (LH) |
| 8 | 77873-SDA-E80 | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) |
| 15 | 77875-SDA-G80 | Label - SRS CAUTION | Label - SRS CAUTION |
| 16 | 78031-SDA-G80 | Label - SIDE AIRBAG CAUTION | Label - SIDE AIRBAG CAUTION |
| 3 | 78155-SDA-H01 | Visor | Visor |
| 4 | 78156-SDA-U01 | Lens - METER | Lens - METER |
| 5 | 78171-SDA-H01 | Visor - UNDER | Visor - UNDER |
| 3 | 78182-SA0-000 | Clip - RR. SEAT PIN | Clip - RR. SEAT PIN |
| 9 | 78520-SDB-A81 | Damper comp - STEERING | Damper comp - STEERING |
| 10 | 78827-SDB-A81 | Bolt - 5X12 | Bolt - 5X12 |
| 2 | 79021-SDA-A01 | Seal a | Seal a |
| 3 | 79021-SEA-941 | Packing - LINK | Packing - LINK |
| 6 | 79140-SDA-A01 | Motor assy. - MODE | Motor assy. - MODE |
| 7 | 79160-SDC-A41 | Motor assy. - TEMPERATURE DRIVER | Motor assy. - TEMPERATURE DRIVER |
| 8 | 79170-SDC-A41 | Motor assy. - TEMPERATURE PASSENGER | Motor assy. - TEMPERATURE PASSENGER |
| 9 | 79191-SZ3-A01 | Nut - HOLDER | Nut - HOLDER |
| 2 | 79308-SDA-A01 | Seal - BLOWER OUTER | Seal - BLOWER OUTER |
| 10 | 79330-SDR-A01 | Transistor - POWER | Transistor - POWER |
| 4 | 79350-SDC-A01 | Motor assy. - FRESH & RECIRCULAR | Motor assy. - FRESH & RECIRCULAR |
| 1 | 79710-SDC-A01 | Valve assy. - WATER | Valve assy. - WATER |
| 4 | 79722-SDA-A00 | Hose b - WATER IN. | Hose b - WATER IN. |
| 12 | 79731-SDA-A00 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 13 | 79770-SE0-000 | Grommet - WATER VALVE CABLE | Grommet - WATER VALVE CABLE |
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 1 | 80510-SDA-A41 | Sensor assy - SUN BEAM | Sensor assy - SUN BEAM |
| 3 | 80525-S30-941 | Sensor assy - AMBIENT | Sensor assy - AMBIENT |
| 4 | 80530-SDA-A41 | Sensor assy - IN CAR | Sensor assy - IN CAR |
| 18 | 80534-S84-A41 | Aspirator | Aspirator |
| 5 | 80541-SDA-A41 | Hose a - ASPIRATOR | Hose a - ASPIRATOR |
| 19 | 80542-SDA-A41 | Hose b - ASPIRATOR | Hose b - ASPIRATOR |
| 12 | 81216-SDA-A42 | Patch | Patch |
| 14 | 81217-SDA-A42 | Band - WIRE | Band - WIRE |
| 32 | 81610-SDA-A42 | Lumbar comp. - L. FR. SEAT | Lumbar comp. - L. FR. SEAT |
| 9 | 82129-SM4-A00 | Collar c | Collar c |
| 31 | 82290-SDA-A01 | Bracket comp. - R. SEAT PIVOT | Bracket comp. - R. SEAT PIVOT |
| 34 | 82690-SDA-A01 | Bracket comp. - L. SEAT PIVOT | Bracket comp. - L. SEAT PIVOT |
| 1 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 15 | 83251-SDC-A01 | Bush | Bush |
| 16 | 83252-SDC-A01 | Spring | Spring |
| 17 | 83253-SDC-A01 | Screw - TAPPING, 3X10 | Screw - TAPPING, 3X10 |
| 18 | 83254-SDC-A02 | Cam set - LOCK | Cam set - LOCK |
| 1 | 83331-SDA-A00 | Duct - R. RR. HEATER | Duct - R. RR. HEATER |
| 2 | 83332-SDA-A00 | Duct - R. RR. HEATER JOINT | Duct - R. RR. HEATER JOINT |
| 3 | 83381-SDA-A00 | Duct - L. RR. HEATER | Duct - L. RR. HEATER |
| 4 | 83382-SDA-A00 | Duct - L. RR. HEATER JOINT | Duct - L. RR. HEATER JOINT |
| 17 | 83409-SDA-A02 | Hinge comp - ARMREST | Hinge comp - ARMREST |
| 20 | 83412-SDA-A01 | Stopper - ARMREST | Stopper - ARMREST |
| 21 | 83413-SDA-A01 | Mat - CONSOLE BOX | Mat - CONSOLE BOX |
| 25 | 83418-SDA-A01 | Lock - ARMREST | Lock - ARMREST |
| 26 | 83419-SDA-A01 | Lock - TRAY | Lock - TRAY |
| 32 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 31 | 88326-SDC-Y01 | Holder comp - RR. ASHTRAY | Holder comp - RR. ASHTRAY |
| 7 | 89211-S05-003 | Wrench - WHEEL | Wrench - WHEEL |
| 9 | 89310-S5A-013 | Jack assy - PANTOGRAPH | Jack assy - PANTOGRAPH |
| 10 | 89311-S5A-003 | Plate - JACK CAUTION | Plate - JACK CAUTION |
| 11 | 89320-S05-003 | Bar - JACK | Bar - JACK |
| 11 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 11 | 90001-S10-010 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 17 | 90001-SDA-A00 | Bolt - FLANGE, 6X38(GUIDE) | Bolt - FLANGE, 6X38(GUIDE) |
| 15 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 35 | 90003-692-000 | Bolt - FLANGE, 6X16 | Bolt - FLANGE, 6X16 |
| 12 | 90009-PY3-000 | DRAIN PLUG BOLT, 14MM | DRAIN PLUG BOLT, 14MM |
| 15 | 90023-PR7-A01 | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) |
| 17 | 90041-P3G-003 | Screw-washer - 5X11 | Screw-washer - 5X11 |
| 18 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 19 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 24 | 90101-S03-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 18 | 90101-S2K-000 | Screw - TAPPING, 4X16(IT) | Screw - TAPPING, 4X16(IT) |
| 35 | 90101-S84-000 | Bolt-washer - 5X10 | Bolt-washer - 5X10 |
| 15 | 90101-S84-A00 | Screw - ET, 6X16 | Screw - ET, 6X16 |
| 38 | 90101-SDA-000 | Screw - FLAT, 4X30 | Screw - FLAT, 4X30 |
| 21 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Bolt - FLANGE, 8X22 (8.5MM) |
| 22 | 90102-S3N-003 | Bolt - FLANGE, 8X24.5 (10.5MM) | Bolt - FLANGE, 8X24.5 (10.5MM) |
| 20 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 22 | 90102-SFA-305 | Bolt - FLANGE, 8X18 (SERVICE) | Bolt - FLANGE, 8X18 (SERVICE) |
| 34 | 90103-S7S-003 | Screw - FLAT, 6X18.5 | Screw - FLAT, 6X18.5 |
| 25 | 90103-SDA-A00 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 34 | 90103-SV4-013 | Bolt - FLANGE, 10X30 | Bolt - FLANGE, 10X30 |
| 12 | 90104-SV4-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 23 | 90105-S50-003 | Bolt - FLANGE, 8X28 | Bolt - FLANGE, 8X28 |
| 30 | 90105-SV1-000 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 12 | 90106-S70-003 | Screw - TAPPING, 4X12 (TRUSS) | Screw - TAPPING, 4X12 (TRUSS) |
| 13 | 90106-S84-A00 | Bolt-washer - 8X40 | Bolt-washer - 8X40 |
| 17 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 27 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 14 | 90108-S84-A00 | Bolt-washer - 8MM(SRS) | Bolt-washer - 8MM(SRS) |
| 17 | 90108-SDA-003 | Bolt - GEAR BOX MOUNTING | Bolt - GEAR BOX MOUNTING |
| 14 | 90109-S70-003 | Screw - TAPPING, 4X16 (TRUSS) | Screw - TAPPING, 4X16 (TRUSS) |
| 21 | 90109-SEA-003 | Screw - TAPPING, 4X20 (TRUSS) | Screw - TAPPING, 4X20 (TRUSS) |
| 23 | 90109-SM4-000 | Bolt - SPECIAL, 6X35 | Bolt - SPECIAL, 6X35 |
| 15 | 90110-S84-A00 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 28 | 90110-SE7-000 | Bolt-washer - 8X21 | Bolt-washer - 8X21 |
| 19 | 90111-SDA-003 | Screw - TAPPING, 3X10 | Screw - TAPPING, 3X10 |
| 29 | 90111-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 18 | 90113-S5H-005 | Bolt - WHEEL (THAI MEIRA) | Bolt - WHEEL (THAI MEIRA) |
| 18 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 18 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 18 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 17 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 30 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 16 | 90117-S0A-000 | Bolt - DAMPER LOCK(10X44) | Bolt - DAMPER LOCK(10X44) |
| 17 | 90118-SDA-A00 | Bolt - FLANGE, 12X87 | Bolt - FLANGE, 12X87 |
| 18 | 90119-SDA-A00 | Bolt - FLANGE, 14X94 | Bolt - FLANGE, 14X94 |
| 35 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 19 | 90121-S0A-000 | Bolt - DAMPER FORK(12X98) | Bolt - DAMPER FORK(12X98) |
| 22 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 8 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 18 | 90129-SDA-000 | Screw-washer - 5X16 | Screw-washer - 5X16 |
| 23 | 90132-S2H-G01 | Screw - ET, 5X18 | Screw - ET, 5X18 |
| 23 | 90132-S2H-G11 | Screw - ET, 5.5X18 | Screw - ET, 5.5X18 |
| 12 | 90132-SD4-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 9 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 25 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 10 | 90132-SV4-003 | Screw - ET, 5X16 | Screw - ET, 5X16 |
| 23 | 90133-SDC-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 11 | 90133-SM4-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 10 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 15 | 90133-SZ4-003 | Screw - ET, 7X16 | Screw - ET, 7X16 |
| 10 | 90134-S6A-A80 | Bolt - HEX., 6X23 | Bolt - HEX., 6X23 |
| 41 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 14 | 90135-S7A-J51 | Bolt-washer - 10X25 | Bolt-washer - 10X25 |
| 9 | 90135-SDA-000 | Bolt - STEERING JOINT YOKE | Bolt - STEERING JOINT YOKE |
| 9 | 90135-SZT-000 | Bolt - STEERING JOINT YOKE | Bolt - STEERING JOINT YOKE |
| 25 | 90136-S30-003 | Screw - ET, 5X18 | Screw - ET, 5X18 |
| 24 | 90136-SDA-003 | Screw - ET, 5X24 | Screw - ET, 5X24 |
| 11 | 90136-SF1-A02 | Screw - TAPPING, 4X18 (NIPPON PURASUTO) | Screw - TAPPING, 4X18 (NIPPON PURASUTO) |
| 24 | 90137-S0A-003 | Screw - ET, 6X28 | Screw - ET, 6X28 |
| 25 | 90137-S30-003 | Screw - ET, 6X18 | Screw - ET, 6X18 |
| 15 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 36 | 90140-SA5-000 | Bolt - SPLASH GUARD | Bolt - SPLASH GUARD |
| 33 | 90140-SDA-A00 | Bolt-washer - 5X19 | Bolt-washer - 5X19 |
| 23 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 36 | 90141-S84-003 | Screw - 3X10 | Screw - 3X10 |
| 26 | 90141-SDA-000 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 13 | 90144-SA0-020 | Bolt - BUMPER SETTING (6X15) (BLACK) | Bolt - BUMPER SETTING (6X15) (BLACK) |
| 32 | 90144-SDA-A01 | Screw - TAPPING, 4X16(PO) | Screw - TAPPING, 4X16(PO) |
| 33 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 27 | 90147-634-003 | Bolt - FENDER, 6X18 | Bolt - FENDER, 6X18 |
| 19 | 90148-S6A-003 | Bolt - EARTH, 5X14 | Bolt - EARTH, 5X14 |
| 19 | 90148-SDA-000 | Screw - TAPPING, 4X12(PO) | Screw - TAPPING, 4X12(PO) |
| 19 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 31 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 16 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 18 | 90149-SE0-902 | Bolt - EARTH, 6X24(SN) | Bolt - EARTH, 6X24(SN) |
| 36 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 19 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |
| 15 | 90150-SDA-000 | Screw - PAN, 4X8 | Screw - PAN, 4X8 |
| 12 | 90161-SV4-003 | Bolt - STEERING HANDLE | Bolt - STEERING HANDLE |
| 21 | 90165-SE0-000 | Bolt - FLANGE, 10X37 | Bolt - FLANGE, 10X37 |
| 29 | 90170-SDC-A00 | Bolt - FLANGE, 10X34 | Bolt - FLANGE, 10X34 |
| 30 | 90171-S3Y-000 | Bolt - FLANGE, 10X35 | Bolt - FLANGE, 10X35 |
| 12 | 90172-SDA-A00 | Bolt - FLANGE, 10X78 | Bolt - FLANGE, 10X78 |
| 27 | 90173-S84-A00 | Bolt - RR. UPPER ARM | Bolt - RR. UPPER ARM |
| 34 | 90179-SDA-A00 | Bolt - FLANGE, 14X90 | Bolt - FLANGE, 14X90 |
| 28 | 90181-S84-A00 | Bolt - TRAILING ARM, 12X68 | Bolt - TRAILING ARM, 12X68 |
| 24 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 20 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 30 | 90216-SE0-010 | Nut | Nut |
| 30 | 90216-SE0-305 | NUT, LWR ARM | NUT, LWR ARM |
| 16 | 90231-PGK-A01 | Nut - HEX., 5MM | Nut - HEX., 5MM |
| 16 | 90300-S84-A00 | Nut - SHOCK ABSORBER FLANGE (10MM) | Nut - SHOCK ABSORBER FLANGE (10MM) |
| 17 | 90301-SDC-013 | Nut - HEX., 8MM | Nut - HEX., 8MM |
| 18 | 90301-SEF-013 | Nut - 10MM | Nut - 10MM |
| 6 | 90301-ST0-003 | push nut, 3mm | push nut, 3mm |
| 16 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 10 | 90305-PAA-A01 | Nut - POWER STEERING PULLEY | Nut - POWER STEERING PULLEY |
| 23 | 90305-SD4-003 | Nut - SPINDLE (24MM) | Nut - SPINDLE (24MM) |
| 18 | 90305-SM4-003 | Nut - CLIP, 6MM | Nut - CLIP, 6MM |
| 34 | 90306-SA0-000 | Nut - FLOATING, 5MM | Nut - FLOATING, 5MM |
| 21 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 42 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 11 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 24 | 90341-SDA-000 | Nut - FLANGE, 6MM | Nut - FLANGE, 6MM |
| 27 | 90361-S3C-003 | Nut - PAINT CUTTING, 8MM | Nut - PAINT CUTTING, 8MM |
| 25 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 27 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 14 | 90363-SDA-A03 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 17 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
| 38 | 90396-S5A-010 | Bolt - FLANGE, 12X75 | Bolt - FLANGE, 12X75 |
| 18 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 12 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 25 | 90563-SDA-003 | Clip - R. SUB SEAL B DOOR | Clip - R. SUB SEAL B DOOR |
| 26 | 90564-SDA-003 | Clip - L. SUB SEAL B DOOR | Clip - L. SUB SEAL B DOOR |
| 26 | 90565-SDA-003 | Clip - DOOR SUB SEAL | Clip - DOOR SUB SEAL |
| 35 | 90602-S5A-003 | Clip - COWL TOP | Clip - COWL TOP |
| 34 | 90602-SX0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 37 | 90603-SX0-003 | Grommet - COWL TOP | Grommet - COWL TOP |
| 23 | 90610-S10-003 | Clip - GARNISH | Clip - GARNISH |
| 17 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 3 | 90615-SR3-000 | Cap - WELD HOLE, 51X77 | Cap - WELD HOLE, 51X77 |
| 21 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 28 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 28 | 90661-S2A-003 | Clip - DRAIN HOSE | Clip - DRAIN HOSE |
| 7 | 90661-SL5-003 | Clip, WATER HOSE | Clip, WATER HOSE |
| 27 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 13 | 90666-S84-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 34 | 90666-SDA-A01 | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) | Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL) |
| 12 | 90666-SM4-003 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 26 | 90676-SE0-003 | Clip - JOINT COVER PLATE | Clip - JOINT COVER PLATE |
| 19 | 90681-SDA-A00 | Circlip - SPECIAL INTERNAL, 86MM | Circlip - SPECIAL INTERNAL, 86MM |
| 37 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 15 | 90682-SDA-A01 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 24 | 90684-SD4-003 | Clip - FUEL LID OPENER | Clip - FUEL LID OPENER |
| 11 | 90693-P2A-003 | Circlip - INTERNAL, 40MM | Circlip - INTERNAL, 40MM |
| 11 | 90693-PAA-A01 | Circlip - INTERNAL, 40MM | Circlip - INTERNAL, 40MM |
| 33 | 90701-SX0-003 | Clip - UPPER ARM | Clip - UPPER ARM |
| 3 | 90857-SDA-A00 | Cap - WELD HOLE | Cap - WELD HOLE |
| 38 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 12 | 91048-P2A-003 | Bearing - RADIAL BALL, 17X40X12 | Bearing - RADIAL BALL, 17X40X12 |
| 20 | 91205-P0X-005 | Oil seal - 40X56X9 (NOK) | Oil seal - 40X56X9 (NOK) |
| 11 | 91206-P0Z-005 | Oil seal - 35X54X8 (NOK) | Oil seal - 35X54X8 (NOK) |
| 13 | 91249-PNC-003 | Seal - POWER STEERING PUMP | Seal - POWER STEERING PUMP |
| 23 | 91309-PX4-003 | O-ring - 16X2.1 (NOK) | O-ring - 16X2.1 (NOK) |
| 14 | 91345-PAA-A01 | O-ring - 13.0X1.9 | O-ring - 13.0X1.9 |
| 14 | 91345-PY3-000 | O-ring - 13.0X1.9 | O-ring - 13.0X1.9 |
| 15 | 91347-PAA-A01 | O-ring - 16.7X1.8 | O-ring - 16.7X1.8 |
| 17 | 91348-P2A-003 | O-ring - 51.0X2.4 | O-ring - 51.0X2.4 |
| 19 | 91350-P8C-A01 | Bolt - FLANGE, 6X20 | Bolt - FLANGE, 6X20 |
| 23 | 91370-SV4-000 | O-ring - 14.4X1.9 | O-ring - 14.4X1.9 |
| 23 | 91401-SDC-000 | Clip - TUBE(B10) | Clip - TUBE(B10) |
| 8 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 24 | 91405-SS0-003 | Clamp - TUBE (D21) | Clamp - TUBE (D21) |
| 41 | 91407-SDB-000 | Clamp - TUBE (D12.5) | Clamp - TUBE (D12.5) |
| 18 | 91411-S84-A01 | Nut - HEX., 14MM | Nut - HEX., 14MM |
| 24 | 91476-SB6-003 | Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM) | Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM) |
| 39 | 91501-S1K-003 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 39 | 91501-STK-003 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 38 | 91503-SZ3-003 | Clip A | Clip A |
| 17 | 91503-SZ5-003 | Clip - BUMPER FACE | Clip - BUMPER FACE |
| 42 | 91504-SDA-003 | Clip - HOOD OPEN WIRE | Clip - HOOD OPEN WIRE |
| 25 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
| 28 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 29 | 91510-SA5-003 | Clip - OFFSET(10)(BROWN)(50MM) | Clip - OFFSET(10)(BROWN)(50MM) |
| 17 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
| 22 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 18 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
| 6 | 91517-SDA-A01 | Clip - 8.5MM | Clip - 8.5MM |
| 27 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
| 44 | 91518-SM4-003 | Clip - TRUNK MOLDING | Clip - TRUNK MOLDING |
| 27 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 31 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 30 | 91531-SDA-003 | Clip - HARNESS BAND (NATURAL) (145MM) | Clip - HARNESS BAND (NATURAL) (145MM) |
| 21 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 32 | 91533-SDA-003 | Clip - COUPLER (BEIGE) | Clip - COUPLER (BEIGE) |
| 23 | 91533-SG0-000 | Clip b - FAIRING | Clip b - FAIRING |
| 48 | 91540-S0A-003 | Clip - HARNESS BAND(NATURAL) (96.9MM) | Clip - HARNESS BAND(NATURAL) (96.9MM) |
| 39 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 28 | 91540-S7S-003 | Clip - HARNESS BAND(BLACK) (157.7MM) | Clip - HARNESS BAND(BLACK) (157.7MM) |
| 34 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 17 | 91541-S0A-003 | Clip - HARNESS BAND(BLACK) (145MM) | Clip - HARNESS BAND(BLACK) (145MM) |
| 37 | 91541-S6M-003 | Clip - HARNESS BAND (BLACK) (140MM) | Clip - HARNESS BAND (BLACK) (140MM) |
| 39 | 91545-S2A-003 | Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL) | Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL) |
| 24 | 91545-SE0-003 | Clip assy. - 8MM | Clip assy. - 8MM |
| 38 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 18 | 91548-SR3-003 | Clip - 8MM | Clip - 8MM |
| 14 | 91549-P1E-003 | Clip - AIR INTAKE COVER | Clip - AIR INTAKE COVER |
| 41 | 91551-SW5-003 | Clip - HARNESS BAND (BROWN) (151MM) | Clip - HARNESS BAND (BROWN) (151MM) |
| 43 | 91555-SE0-003 | Clip - WIRE HARNESS(BLACK) | Clip - WIRE HARNESS(BLACK) |
| 44 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 46 | 91556-SM4-003 | Clip - BAND (BLACK) (100MM) | Clip - BAND (BLACK) (100MM) |
| 47 | 91556-SP0-003 | Clip - COUPLER(BROWN) | Clip - COUPLER(BROWN) |
| 12 | 91557-S87-A01 | Clamp - HEATER | Clamp - HEATER |
| 14 | 91558-P8C-A01 | Clip - HARNESS BAND (VIOLET) (150MM) | Clip - HARNESS BAND (VIOLET) (150MM) |
| 48 | 91559-PAA-A01 | Clip - HARNESS BAND(GRAY) (150MM) | Clip - HARNESS BAND(GRAY) (150MM) |
| 52 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 15 | 91559-SP0-003 | Clip - NUT, 6MM | Clip - NUT, 6MM |
| 26 | 91560-S04-003 | Clip - SIDE GARNISH (NATURAL) | Clip - SIDE GARNISH (NATURAL) |
| 28 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 26 | 91560-S84-A11 | Clip - PILLAR GARNISH(BLACK) | Clip - PILLAR GARNISH(BLACK) |
| 27 | 91560-S9A-A01 | Clip - DOOR LINING (LIGHT BLUE) | Clip - DOOR LINING (LIGHT BLUE) |
| 28 | 91560-S9A-A11 | Clip - PILLAR GARNISH (LIGHT GREEN) | Clip - PILLAR GARNISH (LIGHT GREEN) |
| 24 | 91560-SED-003 | Clip - PILLAR GARNISH (PINK) | Clip - PILLAR GARNISH (PINK) |
| 29 | 91561-SDB-A02 | Grommet - PILLAR GARNISH | Grommet - PILLAR GARNISH |
| 3 | 91563-SV4-003 | Fastener a - RR. WINDSHIELD | Fastener a - RR. WINDSHIELD |
| 27 | 91565-S0X-003 | Clip - COUPLER (DARK GREEN) | Clip - COUPLER (DARK GREEN) |
| 46 | 91565-SD5-003 | Clip - COUPLER(NATURAL) | Clip - COUPLER(NATURAL) |
| 24 | 91565-SEA-003 | Clamp - HARNESS | Clamp - HARNESS |
| 50 | 91566-SP0-003 | Clip - BACK COVER (NATURAL) | Clip - BACK COVER (NATURAL) |
| 6 | 91568-SDA-A01 | Clip - WINDSHIELD UPPER | Clip - WINDSHIELD UPPER |
| 27 | 91568-SR2-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 5 | 91568-SV4-003 | Fastener b - RR. WINDSHIELD | Fastener b - RR. WINDSHIELD |
| 23 | 91572-SDA-A01 | Clip - ROOF MOLDING | Clip - ROOF MOLDING |
| 16 | 91577-SS0-003 | Clip - WIRE HARNESS (BLUE) (122.5MM) | Clip - WIRE HARNESS (BLUE) (122.5MM) |
| 32 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 40 | 91591-SJ6-013 | Clip s - FUEL PIPE | Clip s - FUEL PIPE |
| 35 | 91594-S1A-E01 | Clip - FUEL FILLER CAP | Clip - FUEL FILLER CAP |
| 42 | 91594-SDB-A00 | Rubber a - FUEL PIPE INSULATOR | Rubber a - FUEL PIPE INSULATOR |
| 43 | 91595-SDB-A00 | Rubber b - FUEL PIPE INSULATOR | Rubber b - FUEL PIPE INSULATOR |
| 47 | 91596-SDB-A01 | Clamp c - FUEL PIPE | Clamp c - FUEL PIPE |
| 44 | 91597-SDB-A01 | Clamp d - FUEL PIPE | Clamp d - FUEL PIPE |
| 43 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
| 3 | 91602-SV4-003 | Plug - HOLE, 15MM | Plug - HOLE, 15MM |
| 4 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
| 4 | 91610-SD4-000 | Plug - HOLE, 28MM | Plug - HOLE, 28MM |
| 23 | 91611-SDA-A00 | Cap - FR. WIPER ARM (12MM) | Cap - FR. WIPER ARM (12MM) |
| 4 | 91611-SM4-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 5 | 91611-SS0-003 | Plug - HOLE, 25MM | Plug - HOLE, 25MM |
| 39 | 91613-SE0-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 6 | 91613-SR3-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 7 | 91615-SH3-000 | Cap - FLOOR HOLE, 49MM | Cap - FLOOR HOLE, 49MM |
| 5 | 91618-S5A-000 | Seal - HOLE, 30X90 | Seal - HOLE, 30X90 |
| 4 | 91618-SE3-010 | Seal - RR. PILLAR UPPER | Seal - RR. PILLAR UPPER |
| 48 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
| 15 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 19 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 19 | 91653-SEP-003 | Clip - UNDER COVER | Clip - UNDER COVER |
| 61 | 91726-SDA-300 | Ring a - GROMMET | Ring a - GROMMET |
| 62 | 91727-SDA-300 | Ring c - GROMMET | Ring c - GROMMET |
| 57 | 91902-S2X-003 | Plaster - WIRE HARNESS(50X100) | Plaster - WIRE HARNESS(50X100) |
| 55 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
