Air cleaner 4 / 21

#	OEM	CL9	CU2
6	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
8	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
16	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
19	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE

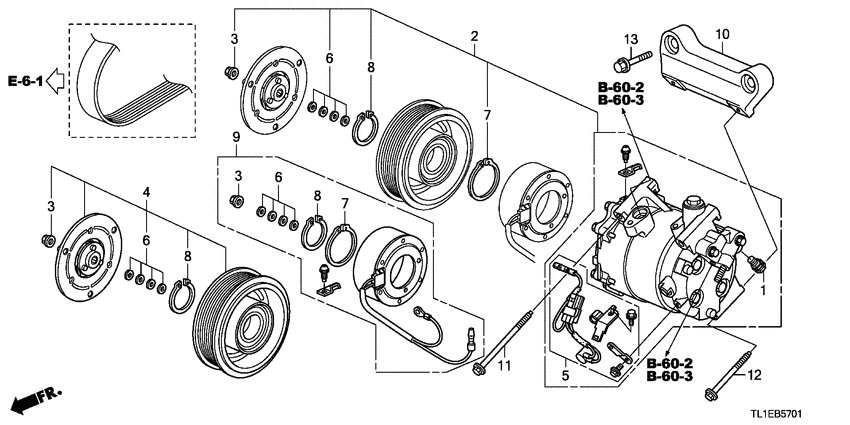

Air conditioner (COMPRESS OR) 3 / 12

#	OEM	CL9	CU2
10	38930-PNA-000	Bracket - COMPRESSOR	Bracket - COMPRESSOR
11	90023-PNA-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
12	90024-PNA-000	Bolt - FLANGE, 8X65	Bolt - FLANGE, 8X65

Air conditioner (CONDENSE R) 1 / 5

#	OEM	CL9	CU2
1	80101-S9A-013	Filter sub assy.	Filter sub assy.

Air conditioner (HOSES/PI PES; LH) 6 / 19

#	OEM	CL9	CU2
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
14	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
15	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
16	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
17	90001-SDA-A00	Bolt - FLANGE, 6X38(GUIDE)	Bolt - FLANGE, 6X38(GUIDE)
18	91548-S3N-003	Clip - RECEIVER PIPE	Clip - RECEIVER PIPE

Air conditioner (SENSOR) 1 / 6

#	OEM	CL9	CU2
3	80525-S30-941	Sensor assy - AMBIENT	Sensor assy - AMBIENT

Alternator (DENSO) 10 / 16

#	OEM	CL9	CU2
3	31105-RAA-A01	Holder assy. - BRUSH	Holder assy. - BRUSH
5	31111-PT0-003	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
6	31114-PGK-A01	Bearing - FR.	Bearing - FR.
9	31138-PD1-004	Cover - BEARING	Cover - BEARING
10	31141-RAA-A01	Pulley	Pulley
11	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
12	31145-PGK-A01	Bolt	Bolt
13	31146-PE9-941	Screw-washer	Screw-washer
15	31147-PT0-003	Screw-washer	Screw-washer
16	90231-PGK-A01	Nut - HEX., 5MM	Nut - HEX., 5MM

Battery 6 / 13

#	OEM	CL9	CU2
3	31513-SDA-A00	Bolt - BATTERY SETTING (195MM)	Bolt - BATTERY SETTING (195MM)
7	31531-SEA-010	Cover - BATTERY	Cover - BATTERY
8	31542-SA5-665	Plug - VENT (MF) (PANASONIC)	Plug - VENT (MF) (PANASONIC)
11	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
12	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
13	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Brake lines (VSA; LH; 1) 5 / 29

#	OEM	CL9	CU2
13	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)	Grommet a - BRAKE PIPE (BLACK)
25	46462-SE0-000	Bolt - OIL	Bolt - OIL
27	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
28	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
29	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power (LH) 4 / 15

#	OEM	CL9	CU2
6	46191-SDA-A00	Gasket - MASTER POWER	Gasket - MASTER POWER
10	46512-S70-000	Pin - PEDAL	Pin - PEDAL
14	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
15	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Bumpers 9 / 37

#	OEM	CL9	CU2
48	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
49	90114-SZ3-000	Screw-washer - 5X20	Screw-washer - 5X20
54	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
57	90308-SB2-013	Nut - SUSPENSION, 5MM	Nut - SUSPENSION, 5MM
59	90501-SM4-003	Bolt - FENDER	Bolt - FENDER
61	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
62	91105-S5A-000	Bolt - BUMPER	Bolt - BUMPER
63	91503-SZ3-003	Clip A	Clip A
66	91506-S9A-003	Clip b - BUMPER	Clip b - BUMPER

Camshaft/cam chain 9 / 17

#	OEM	CL9	CU2
2	14113-PNA-003	Plate - CAM PULSE	Plate - CAM PULSE
4	14115-PNA-000	Bolt - SEALING, 14MM	Bolt - SEALING, 14MM
10	14511-PNA-003	Stopper - TOOL	Stopper - TOOL
12	14530-PPA-003	Guide comp - CAM CHAIN	Guide comp - CAM CHAIN
13	14540-RWC-A02	Guide comp. b - CAM CHAIN	Guide comp. b - CAM CHAIN
14	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
15	90032-PNA-000	Bolt - FLANGE, 12X47	Bolt - FLANGE, 12X47
16	90042-PNA-003	Bolt - FLANGE, 10X32	Bolt - FLANGE, 10X32
17	90703-PNA-300	Dowel pin - 4.2X10.3	Dowel pin - 4.2X10.3

Canister 1 / 8

#	OEM	CL9	CU2
6	91402-SDC-000	Clip - TUBE(B12)	Clip - TUBE(B12)

Center module 2 / 12

#	OEM	CL9	CU2
15	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
18	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Center module (NAVI) 2 / 13

#	OEM	CL9	CU2
14	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
17	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Chain case 5 / 9

#	OEM	CL9	CU2
4	90021-PNA-000	Bolt - SPECIAL, 6X31	Bolt - SPECIAL, 6X31
5	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
6	91212-RTA-003	Oil seal - 43X58X7 (NOK)	Oil seal - 43X58X7 (NOK)
6	91212-RNA-A01	Oil seal - 43X58X7(ARAI)	Oil seal - 43X58X7(ARAI)
7	91302-PNA-004	O-ring - CHAIN CASE	O-ring - CHAIN CASE

Clutch case 7 / 10

#	OEM	CL9	CU2
2	21101-PPP-000	Plate - NEEDLE SET	Plate - NEEDLE SET
3	21103-PPP-000	Plate c - OIL GUIDE	Plate c - OIL GUIDE
4	21120-PWL-000	Magnet comp. - TRANSMISSION	Magnet comp. - TRANSMISSION
6	90705-PG2-000	Dowel pin - 14X20	Dowel pin - 14X20
7	91001-PPP-005	Bearing - BALL, 28X64X15	Bearing - BALL, 28X64X15
9	91206-RCT-003	Oil seal - 35X58X8 (NOK)	Oil seal - 35X58X8 (NOK)
10	91216-PG1-005	Oil seal - 28X43X7 (NOK)	Oil seal - 28X43X7 (NOK)

Clutch master cylinder (LH) 23 / 41

#	OEM	CL9	CU2
3	43352-567-000	Screw - BLEEDER	Screw - BLEEDER
4	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
5	46151-S5A-A01	Yoke	Yoke
6	46182-500-013	Circlip	Circlip
8	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
9	46912-S84-A00	Pin - CLUTCH PEDAL	Pin - CLUTCH PEDAL
12	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER	Piston comp - CLUTCH MASTER CYLINDER
13	46928-S5A-A01	Seal - MASTER CYLINDER	Seal - MASTER CYLINDER
15	46931-S5A-003	Pin - SPRING	Pin - SPRING
16	46932-S5A-003	Piston - SLAVE CYLINDER	Piston - SLAVE CYLINDER
17	46937-SS1-003	Boot - SLAVE CYLINDER	Boot - SLAVE CYLINDER
18	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER	Connector - CLUTCH MASTER CYLINDER
19	46942-S5A-003	Pin - SNAP	Pin - SNAP
20	46943-S5A-003	Seal - RING	Seal - RING
21	46944-S5A-J01	Connector	Connector
22	46945-S5A-003	O-ring	O-ring
23	46946-S5A-003	Screw-washer - 4X12	Screw-washer - 4X12
24	46947-S5A-003	Rod - PUSH	Rod - PUSH
25	46948-S5A-003	Rod - PUSH	Rod - PUSH
26	46949-S5A-003	Seal - RING	Seal - RING
38	90001-P7J-000	Bolt - SPECIAL, 6X25	Bolt - SPECIAL, 6X25
39	90106-S7A-E00	Bolt - FLANGE, 8X30	Bolt - FLANGE, 8X30
40	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Clutch release 5 / 6

#	OEM	CL9	CU2
1	22810-RPN-003	Bearing, CLUTCH RELEASE	Bearing, CLUTCH RELEASE
2	22821-PPP-000	Fork, CLUTCH RELEASE	Fork, CLUTCH RELEASE
3	22825-P0S-000	Bolt - RELEASE FORK	Bolt - RELEASE FORK
4	22835-P0S-000	Spring - RELEASE FORK SETTING	Spring - RELEASE FORK SETTING
5	22841-PPP-000	Boot - RELEASE FORK	Boot - RELEASE FORK

Clutch/torque converter 3 / 6

#	OEM	CL9	CU2
3	22103-PNA-003	Bush - 21X24X8	Bush - 21X24X8
8	90011-PNA-B00	Bolt - 12MM	Bolt - 12MM
10	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)

Combination switch (LH) 6 / 23

#	OEM	CL9	CU2
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
15	35400-S6A-003	Switch assy - DOOR (DAIICHI)	Switch assy - DOOR (DAIICHI)
17	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
19	72148-S0A-000	Battery CR1616	Battery CR1616

Console 3 / 16

#	OEM	CL9	CU2
2	39624-SZ3-L01	Socket assy	Socket assy
32	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
34	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Control unit (CABIN; LH) 10 / 34

#	OEM	CL9	CU2
3	33143-S1A-G01	Nut - SPECIAL, 6MM	Nut - SPECIAL, 6MM
20	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
20	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
21	39794-SDA-004	RELAY ASSY., FUEL PUMP (DENSO)	RELAY ASSY., FUEL PUMP (DENSO)
21	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)
22	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
22	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)	Relay assy, ENGINE CONTROL MODULE (DENSO)
29	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
31	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
33	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Control unit (ENGINE ROOM) 5 / 20

#	OEM	CL9	CU2
22	39792-SDA-A01	Relay assy - MICRO ISO	Relay assy - MICRO ISO
23	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
23	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
25	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
27	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

Countershaft (2.4L; 6MT) 36 / 45

#	OEM	CL9	CU2
8	23521-PPS-305	Sleeve set - SYNCHRONIZER (1-2)	Sleeve set - SYNCHRONIZER (1-2)
10	23917-PPP-000	Collar - DISTANCE, 40X47X28	Collar - DISTANCE, 40X47X28
11	23986-PPP-000	Shim f - 35MM (1.27)	Shim f - 35MM (1.27)
11	23983-PPP-900	Shim ac - 35MM (1.07)	Shim ac - 35MM (1.07)
11	23981-PPP-000	Shim a - 35MM (0.87)	Shim a - 35MM (0.87)
11	23994-PPP-900	Shim ap - 35MM (1.95)	Shim ap - 35MM (1.95)
11	23992-PPP-000	Shim m - 35MM (1.75)	Shim m - 35MM (1.75)
11	23989-PPP-900	Shim aj - 35MM (1.55)	Shim aj - 35MM (1.55)
11	23987-PPP-000	Shim g - 35MM (1.35)	Shim g - 35MM (1.35)
11	23984-PPP-900	Shim ad - 35MM (1.15)	Shim ad - 35MM (1.15)
11	23982-PPP-000	Shim b - 35MM (0.95)	Shim b - 35MM (0.95)
11	23993-PPP-000	Shim n - 35MM (1.83)	Shim n - 35MM (1.83)
11	23990-PPP-900	Shim ak - 35MM (1.63)	Shim ak - 35MM (1.63)
11	23988-PPP-000	Shim h - 35MM (1.43)	Shim h - 35MM (1.43)
11	23985-PPP-900	Shim ae - 35MM (1.23)	Shim ae - 35MM (1.23)
11	23983-PPP-000	Shim c - 35MM (1.03)	Shim c - 35MM (1.03)
11	23994-PPP-000	Shim p - 35MM (1.91)	Shim p - 35MM (1.91)
11	23991-PPP-900	Shim al - 35MM (1.71)	Shim al - 35MM (1.71)
11	23989-PPP-000	Shim j - 35MM (1.51)	Shim j - 35MM (1.51)
11	23986-PPP-900	Shim af - 35MM (1.31)	Shim af - 35MM (1.31)
11	23984-PPP-000	Shim d - 35MM (1.11)	Shim d - 35MM (1.11)
11	23981-PPP-900	Shim aa - 35MM (0.91)	Shim aa - 35MM (0.91)
11	23995-PPP-000	Shim q - 35MM (1.99)	Shim q - 35MM (1.99)
11	23992-PPP-900	Shim am - 35MM (1.79)	Shim am - 35MM (1.79)
11	23990-PPP-000	Shim k - 35MM (1.59)	Shim k - 35MM (1.59)
11	23987-PPP-900	Shim ag - 35MM (1.39)	Shim ag - 35MM (1.39)
11	23985-PPP-000	Shim e - 35MM (1.19)	Shim e - 35MM (1.19)
11	23982-PPP-900	Shim ab - 35MM (0.99)	Shim ab - 35MM (0.99)
11	23993-PPP-900	Shim an - 35MM (1.87)	Shim an - 35MM (1.87)
11	23991-PPP-000	Shim l - 35MM (1.67)	Shim l - 35MM (1.67)
11	23988-PPP-900	Shim ah - 35MM (1.47)	Shim ah - 35MM (1.47)
12	90011-PPP-000	Bolt - SPECIAL, 20X25	Bolt - SPECIAL, 20X25
13	90601-PPP-000	Ring - SNAP, 72MM	Ring - SNAP, 72MM
14	91004-PPP-014	Bearing - BALL, 30X72X17	Bearing - BALL, 30X72X17
15	91101-PPP-003	Bearing - NEEDLE, 47X52X23	Bearing - NEEDLE, 47X52X23
16	91212-PPP-004	Damper - FRICTION (SECOND)	Damper - FRICTION (SECOND)

Crankshaft/piston 6 / 37

#	OEM	CL9	CU2
3	13111-PNA-010	Pin - PISTON	Pin - PISTON
4	13115-PRB-A00	Clip - PISTON PIN	Clip - PISTON PIN
5	13204-RBB-004	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
10	13331-PNA-004	Washer - THRUST(TAIHO)	Washer - THRUST(TAIHO)
12	13620-RAA-A02	Sprocket comp - CHAIN DRIVE	Sprocket comp - CHAIN DRIVE
17	90704-PNA-000	Key - 4.5X21	Key - 4.5X21

Cylinder block/oil pan 11 / 29

#	OEM	CL9	CU2
3	11106-PNA-300	Bolt - SEALING, 20MM	Bolt - SEALING, 20MM
6	11135-RAA-A00	Orifice assy - LOWER BLOCK	Orifice assy - LOWER BLOCK
11	12208-P8C-A01	Bolt - SEALING, 28MM	Bolt - SEALING, 28MM
17	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
18	90006-PNA-003	Bolt-washer - 11X95	Bolt-washer - 11X95
21	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
23	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
24	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
25	90715-PNA-000	Dowel pin - 13X14	Dowel pin - 13X14
27	91306-PJ4-000	O-ring - 6.8X1.9	O-ring - 6.8X1.9
28	91311-PRB-A00	O-ring - 13.5X3.5	O-ring - 13.5X3.5

Cylinder head 6 / 10

#	OEM	CL9	CU2
2	12204-PNA-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PNA-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
8	90011-PNA-003	Bolt A, Head Cover	Bolt A, Head Cover
9	90012-PNA-003	Bolt b - HEAD COVER	Bolt b - HEAD COVER
10	90083-PNA-000	Bolt - SEALING, 10MM	Bolt - SEALING, 10MM
11	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

Cylinder head cover 6 / 19

#	OEM	CL9	CU2
6	15610-RGA-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
7	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
12	90014-R40-A00	Bolt b - PLUG HOLE COIL COVER	Bolt b - PLUG HOLE COIL COVER
13	90207-RAA-A10	Nut - HEX. CAP, 6MM	Nut - HEX. CAP, 6MM
14	90213-PH3-000	Nut - CAP, 6MM	Nut - CAP, 6MM
15	90441-PNA-010	Washer - HEAD COVER	Washer - HEAD COVER

Differential 17 / 21

#	OEM	CL9	CU2
3	41457-PL3-B00	Shim s - 80MM(1.75)	Shim s - 80MM(1.75)
3	41452-PL3-B00	Shim m - 80MM(1.25)	Shim m - 80MM(1.25)
3	41447-PL3-B00	Shim g - 80MM(1.6)	Shim g - 80MM(1.6)
3	41442-PL3-B00	Shim b - 80MM(1.1)	Shim b - 80MM(1.1)
3	41454-PL3-B00	Shim p - 80MM(1.45)	Shim p - 80MM(1.45)
3	41449-PL3-B00	Shim j - 80MM(1.8)	Shim j - 80MM(1.8)
3	41444-PL3-B00	Shim d - 80MM(1.3)	Shim d - 80MM(1.3)
3	41456-PL3-B00	Shim r - 80MM(1.65)	Shim r - 80MM(1.65)
3	41451-PL3-B00	Shim l - 80MM(1.15)	Shim l - 80MM(1.15)
3	41446-PL3-B00	Shim f - 80MM(1.5)	Shim f - 80MM(1.5)
3	41441-PL3-B00	Shim a - 80MM(1.0)	Shim a - 80MM(1.0)
3	41453-PL3-B00	Shim n - 80MM(1.35)	Shim n - 80MM(1.35)
3	41448-PL3-B00	Shim h - 80MM(1.7)	Shim h - 80MM(1.7)
3	41443-PL3-B00	Shim c - 80MM(1.2)	Shim c - 80MM(1.2)
3	41455-PL3-B00	Shim q - 80MM(1.55)	Shim q - 80MM(1.55)
3	41450-PL3-B00	Shim k - 80MM(1.05)	Shim k - 80MM(1.05)
3	41445-PL3-B00	Shim e - 80MM(1.4)	Shim e - 80MM(1.4)

Emblems/caution labels 4 / 10

#	OEM	CL9	CU2
2	17669-SS0-X30	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)	Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
3	19043-PLA-E00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION
11	78031-SDA-G80	Label - SIDE AIRBAG CAUTION	Label - SIDE AIRBAG CAUTION
13	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

Engine hood (LH) 8 / 34

#	OEM	CL9	CU2
22	76830-SL0-003	Joint y - TUBE (MITSUBA)	Joint y - TUBE (MITSUBA)
27	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
28	90112-SEA-000	Bolt - FLANGE, 6X12(DACRO)	Bolt - FLANGE, 6X12(DACRO)
29	90601-S84-A01	Grommet - HOOD OPEN STAY	Grommet - HOOD OPEN STAY
30	90602-SX0-003	Clip - COWL TOP	Clip - COWL TOP
32	90603-SX0-003	Grommet - COWL TOP	Grommet - COWL TOP
34	91501-STK-003	Clip - ENGINE HOOD INSULATOR	Clip - ENGINE HOOD INSULATOR
36	91504-SDA-003	Clip - HOOD OPEN WIRE	Clip - HOOD OPEN WIRE

Engine mounting bracket 5 / 11

#	OEM	CL9	CU2
5	31180-PNA-J01	Pulley comp., IDLER	Pulley comp., IDLER
7	31185-PNA-003	Cover - BEARING	Cover - BEARING
10	90008-PNA-000	Bolt - 10X75	Bolt - 10X75
11	90008-RAA-A00	Bolt - MOUNTING BRACKET, 10X95	Bolt - MOUNTING BRACKET, 10X95
13	90027-PND-A00	Bolt - SPECIAL, 10X50	Bolt - SPECIAL, 10X50

Engine mounts (MT) 7 / 30

#	OEM	CL9	CU2
15	50933-SZ3-003	Clip - ACCUMULATOR PIPE	Clip - ACCUMULATOR PIPE
20	90161-SDA-A01	Bolt - FLANGE, 12X45	Bolt - FLANGE, 12X45
22	90163-SDA-A01	Bolt - FLANGE, 10X35	Bolt - FLANGE, 10X35
23	90163-S5A-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20
24	90165-SDA-A00	Bolt - FLANGE, 12X45	Bolt - FLANGE, 12X45
25	90166-SDA-A00	Bolt - FLANGE, 12X80	Bolt - FLANGE, 12X80
30	90371-S87-A00	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM

Engine wire harness (LH) 7 / 31

#	OEM	CL9	CU2
11	32125-RBA-000	Holder e - ENGINE HARNESS	Holder e - ENGINE HARNESS
13	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
14	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
20	90051-PNA-000	Bolt - SPECIAL, 6X28	Bolt - SPECIAL, 6X28
22	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
24	91509-RRA-003	Clip d - WIRE HARNESS (BLACK) (135.4MM)	Clip d - WIRE HARNESS (BLACK) (135.4MM)
25	91551-PNA-003	Band - WIRE HARNESS (BLACK) (172MM)	Band - WIRE HARNESS (BLACK) (172MM)

Exhaust manifold (2.4L) 4 / 9

#	OEM	CL9	CU2
5	90005-P0A-000	Bolt-washer - 10X22	Bolt-washer - 10X22
6	90010-PE2-900	Bolt - SPECIAL, 10X22	Bolt - SPECIAL, 10X22
7	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
8	90451-PE2-000	Washer - SPECIAL, 11X28	Washer - SPECIAL, 11X28

Exhaust pipe (2.4L) 9 / 34

#	OEM	CL9	CU2
4	18176-PT0-003	Bolt - CONVERTER	Bolt - CONVERTER
5	18176-P08-003	Bolt - CONVERTER	Bolt - CONVERTER
11	18215-S84-A20	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
12	18229-SEA-013	Gasket - EX. FLEXIBLE	Gasket - EX. FLEXIBLE
13	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
15	18302-SP0-003	Gasket - EX. PIPE	Gasket - EX. PIPE
32	90023-PK1-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
32	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
33	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Floor mat 3 / 6

#	OEM	CL9	CU2
18	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE
19	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR
20	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Fog light 3 / 5

#	OEM	CL9	CU2
1	33165-S5A-003	Bulb - H11) (12V 55W) (STANLEY	Bulb - H11) (12V 55W) (STANLEY
1	33165-SAA-003	Bulb - H11) (12V 55W) (KOITO	Bulb - H11) (12V 55W) (KOITO
4	90113-SJA-A00	Screw - TAPPING, 5X14	Screw - TAPPING, 5X14

Front beam/rear beam 7 / 24

#	OEM	CL9	CU2
12	50280-SDA-A01	Rubber - R. FR. SUB FRAME MIDDLE MOUNTING	Rubber - R. FR. SUB FRAME MIDDLE MOUNTING
13	50285-SDA-A01	Rubber - L. FR. SUB FRAME MIDDLE MOUNTING	Rubber - L. FR. SUB FRAME MIDDLE MOUNTING
17	90186-SDA-A00	Bolt - FLANGE, 12X33	Bolt - FLANGE, 12X33
18	90170-SDC-A00	Bolt - FLANGE, 10X34	Bolt - FLANGE, 10X34
20	90176-SDA-A00	Bolt - FLANGE, 14X135	Bolt - FLANGE, 14X135
21	90177-SDA-A00	Bolt - FLANGE, 14X150	Bolt - FLANGE, 14X150
24	90396-S5A-010	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75

Front brake 4 / 21

#	OEM	CL9	CU2
14	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
15	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
15	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
15	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)

Front bulkhead/dashboard 2 / 2

#	OEM	CL9	CU2
36	90105-SV1-000	Bolt-washer - 8X20	Bolt-washer - 8X20
37	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Front door glass/door reg ulator 2 / 14

#	OEM	CL9	CU2
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY	Label - IMMOBILIZER & SECURITY
16	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)	Bolt - FLANGE, 6X16(GUIDE)

Front door lining (LH) 6 / 15

#	OEM	CL9	CU2
1	33301-S70-003	Bulb - 12V 3.8W 2CP	Bulb - 12V 3.8W 2CP
28	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
29	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
30	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
31	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
32	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Front door locks/outer ha ndle 7 / 37

#	OEM	CL9	CU2
7	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
12	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
18	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
22	72143-S04-003	Packing	Packing
32	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
39	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
41	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front door panels 5 / 18

#	OEM	CL9	CU2
19	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
20	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
21	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
21	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
22	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Front driveshaft/ half shaft 16 / 29

#	OEM	CL9	CU2
6	44310-SMT-G00	Joint comp - INBOARD	Joint comp - INBOARD
8	44319-SE0-000	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
9	44319-S0A-300	Set ring - 28X2.0	Set ring - 28X2.0
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)	Band - OUTBOARD BOOT (NIPPON HATSUJO)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
13	44329-SX0-C02	Band - DRIVESHAFT (NIPPON HATSUJO)	Band - DRIVESHAFT (NIPPON HATSUJO)
14	44337-SB0-300	Ring b - STOPPER	Ring b - STOPPER
15	44338-SB0-300	Circlip - 26MM	Circlip - 26MM
19	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
20	90165-SE0-000	Bolt - FLANGE, 10X37	Bolt - FLANGE, 10X37
22	90681-SR3-000	Circlip - EXTERNAL, 33MM	Circlip - EXTERNAL, 33MM
23	91057-SR3-008	Bearing - HALF SHAFT(NTN)	Bearing - HALF SHAFT(NTN)
24	91260-SR3-004	Seal - HALF SHAFT OUTER (ARAI)	Seal - HALF SHAFT OUTER (ARAI)
24	91260-SR3-003	Seal - HALF SHAFT OUTER(NOK)	Seal - HALF SHAFT OUTER(NOK)

Front fenders 11 / 27

#	OEM	CL9	CU2
13	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
15	90114-SZ3-000	Screw-washer - 5X20	Screw-washer - 5X20
16	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)	Bolt - BUMPER SETTING (6X15) (BLACK)
16	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
17	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
20	90305-SM4-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
22	90682-SEA-003	Clip - TAPPING SCREW, 5MM	Clip - TAPPING SCREW, 5MM
23	91503-SZ3-003	Clip A	Clip A
24	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
25	91533-SG0-000	Clip b - FAIRING	Clip b - FAIRING
26	91545-SE0-003	Clip assy. - 8MM	Clip assy. - 8MM

Front grille (1) 4 / 9

#	OEM	CL9	CU2
7	75700-S9A-G00	Front Honda Emblem - (H)	Front Honda Emblem - (H)
8	90301-ST0-003	push nut, 3mm	push nut, 3mm
9	91503-SZ3-003	Clip A	Clip A
10	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front knuckle/upper arm 3 / 16

#	OEM	CL9	CU2
7	51464-S04-013	Boot, UPPER BALL JOINT	Boot, UPPER BALL JOINT
9	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
12	90172-SDA-A00	Bolt - FLANGE, 10X78	Bolt - FLANGE, 10X78

Front seat (L.; LH; 1) 6 / 15

#	OEM	CL9	CU2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
12	81322-SP0-003	Clip - LUMBAR SUPPORT	Clip - LUMBAR SUPPORT
21	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
22	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
23	90610-S10-003	Clip - GARNISH	Clip - GARNISH
27	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front seat (R.; LH; 1) 4 / 12

#	OEM	CL9	CU2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
18	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
19	90610-S10-003	Clip - GARNISH	Clip - GARNISH
23	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front seat components (L.; MANUAL HEIGHT) 3 / 12

#	OEM	CL9	CU2
15	90101-SDA-000	Screw - FLAT, 4X30	Screw - FLAT, 4X30
16	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
17	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25

Front seat components (R.; MANUAL SEAT) 1 / 3

#	OEM	CL9	CU2
4	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25

Front shock absorber 10 / 19

#	OEM	CL9	CU2
6	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
7	51631-SV7-004	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
9	51684-SDA-A02	Mount - FR. DUST COVER LOWER	Mount - FR. DUST COVER LOWER
10	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
12	51688-SDA-A01	Sleeve - FR. DUST COVER	Sleeve - FR. DUST COVER
13	51689-SDA-A01	Cover - FR. END DUST	Cover - FR. END DUST
15	51722-SS0-004	Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)	Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)
16	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
17	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front stabilizer/ front lower arm 5 / 21

#	OEM	CL9	CU2
16	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
17	90117-S0A-000	Bolt - DAMPER LOCK(10X44)	Bolt - DAMPER LOCK(10X44)
20	90121-S0A-000	Bolt - DAMPER FORK(12X98)	Bolt - DAMPER FORK(12X98)
21	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
22	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Front windshield wiper (LH) 8 / 22

#	OEM	CL9	CU2
2	76516-SDA-A01	Rubber - MOUNTING	Rubber - MOUNTING
3	76516-SM4-003	Rubber - MOUNTING	Rubber - MOUNTING
4	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
5	76517-SM4-003	Collar	Collar
7	76524-SD4-003	Dust seal	Dust seal
13	76561-SEA-003	Cap - PIVOT	Cap - PIVOT
21	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
22	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)	Cap - FR. WIPER ARM (12MM)

Fuel injector 3 / 20

#	OEM	CL9	CU2
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
4	16638-PNA-000	Insulator - FUEL PIPE	Insulator - FUEL PIPE
16	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6

Fuel pipe 5 / 23

#	OEM	CL9	CU2
6	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)	Clamp - FUEL HOSE (NATURAL)
9	16727-PND-004	Clamp - FUEL HOSE (BLACK)	Clamp - FUEL HOSE (BLACK)
21	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
22	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
23	91407-SDB-000	Clamp - TUBE (D12.5)	Clamp - TUBE (D12.5)

Fuel tank 4 / 43

#	OEM	CL9	CU2
15	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
31	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
36	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
40	91462-SDA-003	Clamp - FUEL TUBE (D18)	Clamp - FUEL TUBE (D18)

Grommet (FRONT) 5 / 10

#	OEM	CL9	CU2
1	75826-634-300	Seal - INSIDE PANEL, 15MM	Seal - INSIDE PANEL, 15MM
3	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
8	91613-SR3-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM
9	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
10	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 3 / 4

#	OEM	CL9	CU2
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
4	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM

Grommet (REAR) 4 / 5

#	OEM	CL9	CU2
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
3	90857-SDA-A00	Cap - WELD HOLE	Cap - WELD HOLE
4	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM

Grommet (SIDE) 1 / 4

#	OEM	CL9	CU2
5	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Harness band/bracket (LH) 14 / 45

#	OEM	CL9	CU2
1	32112-S2K-003	Band - CABLE (90MM)	Band - CABLE (90MM)
8	32132-S6A-003	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)	Band - WIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM)
9	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
11	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
27	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
30	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
32	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
34	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
36	91540-S7S-003	Clip - HARNESS BAND(BLACK) (157.7MM)	Clip - HARNESS BAND(BLACK) (157.7MM)
46	91556-SM4-003	Clip - BAND (BLACK) (100MM)	Clip - BAND (BLACK) (100MM)
51	91559-SX0-003	Clip - HARNESS BAND (NATURAL) (155MM)	Clip - HARNESS BAND (NATURAL) (155MM)
52	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
61	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
62	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)

Headlight 7 / 25

#	OEM	CL9	CU2
3	33108-SEA-J01	Screw - SPECIAL TAPPING (6X14)	Screw - SPECIAL TAPPING (6X14)
6	33116-SL0-003	Bulb - HEADLIGHT (HID) (D2S) (STANLEY)	Bulb - HEADLIGHT (HID) (D2S) (STANLEY)
14	33109-S6A-J71	Gasket - SEAL	Gasket - SEAL
17	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
19	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
20	33305-S5A-003	Socket comp - T10	Socket comp - T10
23	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Heater blower (LH) 6 / 10

#	OEM	CL9	CU2
5	80290-SDC-A01	Filter assy - AIR CONDITIONER	Filter assy - AIR CONDITIONER
6	80292-SDC-A01	Element - FILTER	Element - FILTER
7	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
8	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
9	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
10	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater unit (LH) 8 / 29

#	OEM	CL9	CU2
1	39248-692-003	Packing - HEATER	Packing - HEATER
18	80534-S84-A41	Aspirator	Aspirator
22	90126-S5A-003	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40
23	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
24	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
25	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
28	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
30	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)

Install pipe/tubing 3 / 10

#	OEM	CL9	CU2
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
9	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
10	91402-SDC-000	Clip - TUBE(B12)	Clip - TUBE(B12)

Instrument panel (LH) 4 / 14

#	OEM	CL9	CU2
6	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
19	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
20	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
21	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM

Instrument panel garnish (DRIVER SIDE; LH) 4 / 11

#	OEM	CL9	CU2
18	90101-S2K-000	Screw - TAPPING, 4X16(IT)	Screw - TAPPING, 4X16(IT)
20	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
21	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
23	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE; LH) 5 / 23

#	OEM	CL9	CU2
1	33301-S70-003	Bulb - 12V 3.8W 2CP	Bulb - 12V 3.8W 2CP
28	77520-SDA-A01	Cylinder - GLOVE BOX	Cylinder - GLOVE BOX
40	90140-SDA-A00	Bolt-washer - 5X19	Bolt-washer - 5X19
41	90306-SA0-000	Nut - FLOATING, 5MM	Nut - FLOATING, 5MM
45	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Intake manifold (2.4L) 3 / 14

#	OEM	CL9	CU2
6	37835-PGK-A01	O-ring	O-ring
8	50931-SDA-A01	Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID	Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID
12	50934-SW5-A80	Clip - ACCUMULATOR TUBE	Clip - ACCUMULATOR TUBE

Interior light 9 / 18

#	OEM	CL9	CU2
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W
4	34261-S5A-003	Lens comp	Lens comp
5	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI	Bulb - 12V 5W) (DAIICHI
5	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
7	34401-SDA-A21	Lens - R.	Lens - R.
9	34402-SDA-A21	Lens - L.	Lens - L.
25	90148-S6A-013	Bolt - EARTH, 5X14	Bolt - EARTH, 5X14

Mainshaft (2.4L; 6MT) 11 / 17

#	OEM	CL9	CU2
2	23261-PPP-000	Shaft - REVERSE GEAR	Shaft - REVERSE GEAR
5	23540-PPS-000	Gear comp - REVERSE IDLE	Gear comp - REVERSE IDLE
9	23626-PNS-315	Sleeve set - SYNCHRONIZER (5-6)	Sleeve set - SYNCHRONIZER (5-6)
10	23915-PPP-000	Collar - DISTANCE, 32X39X52	Collar - DISTANCE, 32X39X52
11	23916-PNS-000	Collar - DISTANCE, 28X35X24	Collar - DISTANCE, 28X35X24
12	23927-PG2-A00	Washer - SPRING, 28MM	Washer - SPRING, 28MM
13	23928-PS1-000	Washer - 28MM	Washer - 28MM
14	90401-PG1-000	Washer - DRAIN PLUG, 10MM	Washer - DRAIN PLUG, 10MM
15	91002-RAS-003	Bearing - BALL, 28X72X18	Bearing - BALL, 28X72X18
16	91102-RZF-006	Bearing - NEEDLE, 39X44X24	Bearing - NEEDLE, 39X44X24
17	91103-RAS-003	Bearing - NEEDLE, 35X41X24	Bearing - NEEDLE, 35X41X24

Meter components (NS) 1 / 6

#	OEM	CL9	CU2
6	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Mirror 8 / 21

#	OEM	CL9	CU2
16	76400-SEC-A12	Mirror assy - RR. VIEW (DAY/NIGHT)	Mirror assy - RR. VIEW (DAY/NIGHT)
17	76406-SEC-A01	Screw - TORX, (#10 X 3/8)	Screw - TORX, (#10 X 3/8)
21	90109-SDF-003	Screw - TAPPING, 4X14	Screw - TAPPING, 4X14
22	90109-SEA-003	Screw - TAPPING, 4X20 (TRUSS)	Screw - TAPPING, 4X20 (TRUSS)
23	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)	Screw - TAPPING, 4X16 (TRUSS)
24	90615-SK7-003	Clip - MIRROR GARNISH	Clip - MIRROR GARNISH
25	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
26	91565-SEA-003	Clamp - HARNESS	Clamp - HARNESS

Navigation system 3 / 13

#	OEM	CL9	CU2
8	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
9	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
10	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)

Oil pump (2.4L) 13 / 23

#	OEM	CL9	CU2
3	13432-PNA-000	Sprocket - DRIVEN(17T)	Sprocket - DRIVEN(17T)
6	13460-PNA-004	Guide comp - BALANCER SHAFT CHAIN	Guide comp - BALANCER SHAFT CHAIN
8	15115-R40-A01	Metal - BALANCER SHAFT(DAIDO)	Metal - BALANCER SHAFT(DAIDO)
9	15123-PCX-003	Dowel pin - 18X13	Dowel pin - 18X13
10	15231-PE0-000	Valve - RELIEF	Valve - RELIEF
11	15232-RAA-A01	Spring - RELIEF VALVE	Spring - RELIEF VALVE
13	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
13	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
13	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
16	90004-PNA-000	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
17	90009-PNA-000	Bolt - FLANGE, 8X55	Bolt - FLANGE, 8X55
18	90031-PNA-004	Bolt-washer - 10X30	Bolt-washer - 10X30
19	91316-PE7-730	O-ring - 62.4X3.1	O-ring - 62.4X3.1

P.s. gear box (LH) 3 / 17

#	OEM	CL9	CU2
8	53536-SDA-A02	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
9	53537-S84-A01	Rubber - STOPPER	Rubber - STOPPER
17	91411-S84-A01	Nut - HEX., 14MM	Nut - HEX., 14MM

P.s. gear box components (LH) 4 / 23

#	OEM	CL9	CU2
6	53414-S84-A01	Screw - RACK GUIDE	Screw - RACK GUIDE
9	53458-S84-A01	Nut - LOCK	Nut - LOCK
10	53536-SDA-A02	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
11	53537-S84-A01	Rubber - STOPPER	Rubber - STOPPER

P.s. lines (LH) 1 / 24

#	OEM	CL9	CU2
9	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Parking brake (LH) 4 / 9

#	OEM	CL9	CU2
4	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
6	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
9	47572-ST0-000	Base - WIRE GUIDE	Base - WIRE GUIDE
10	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Pedal (LH) 9 / 24

#	OEM	CL9	CU2
6	36750-SMA-003	Switch assy - STOP & CRUISE (PANASONIC)	Switch assy - STOP & CRUISE (PANASONIC)
6	36750-SDA-A02	Switch assy - STOP & CRUISE (TOYO)	Switch assy - STOP & CRUISE (TOYO)
8	36760-SM4-003	Switch assy - CLUTCH	Switch assy - CLUTCH
9	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
18	46911-SD4-930	Bush - PEDAL PIN	Bush - PEDAL PIN
23	75891-611-000	Cover - DOOR SWITCH	Cover - DOOR SWITCH
24	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
25	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
26	90361-S3C-003	Nut - PAINT CUTTING, 8MM	Nut - PAINT CUTTING, 8MM

Pillar garnish (LH) 1 / 6

#	OEM	CL9	CU2
26	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Radiator (2.4L) 7 / 20

#	OEM	CL9	CU2
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
7	19045-RAA-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
9	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
15	90041-P3G-003	Screw-washer - 5X11	Screw-washer - 5X11
17	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
18	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator hose/reserve tan k 9 / 19

#	OEM	CL9	CU2
2	19102-PM5-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
7	19503-RAA-A01	Connector - QUICK WATER	Connector - QUICK WATER
9	19506-RAA-A01	Wire	Wire
10	19507-RAA-A01	O-ring	O-ring
11	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
11	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
24	74172-SM4-970	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
25	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER
28	91503-S7A-003	Clip - FR. GRILLE	Clip - FR. GRILLE

Radio antenna/speaker 1 / 9

#	OEM	CL9	CU2
14	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Rear brake 3 / 20

#	OEM	CL9	CU2
17	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
17	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
17	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)

Rear door glass/door regu lator 1 / 16

#	OEM	CL9	CU2
15	90139-S2R-000	Bolt - FLANGE, 6X16(GUIDE)	Bolt - FLANGE, 6X16(GUIDE)

Rear door lining 5 / 11

#	OEM	CL9	CU2
20	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
21	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
22	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
23	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
25	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Rear door locks/outer han dle 5 / 25

#	OEM	CL9	CU2
1	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
5	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
6	72143-S04-003	Packing	Packing
8	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
29	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER

Rear door panels 5 / 16

#	OEM	CL9	CU2
20	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
21	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
21	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
22	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
24	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM

Rear lower arm 5 / 40

#	OEM	CL9	CU2
8	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
14	52363-SJK-010	Washer - LOWER ARM	Washer - LOWER ARM
25	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
29	90181-S84-A00	Bolt - TRAILING ARM, 12X68	Bolt - TRAILING ARM, 12X68
32	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Rear seat 5 / 22

#	OEM	CL9	CU2
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
2	78182-SA0-000	Clip - RR. SEAT PIN	Clip - RR. SEAT PIN
21	82291-S04-000	Cover - RR. CENTER PIVOT	Cover - RR. CENTER PIVOT
33	90139-S6A-003	Bolt - FLANGE, 8X35	Bolt - FLANGE, 8X35
34	90140-SA5-000	Bolt - SPLASH GUARD	Bolt - SPLASH GUARD

Rear shock absorber 9 / 18

#	OEM	CL9	CU2
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
2	51631-SV7-004	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
3	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
4	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
10	52686-SDA-A01	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
13	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP
15	52748-S0A-004	Cover - RR. LOWER MOUNT DUST	Cover - RR. LOWER MOUNT DUST
17	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear tray/side lining 7 / 14

#	OEM	CL9	CU2
3	75353-671-000	Lock - SCREW	Lock - SCREW
16	84614-SEA-E00	Hook assy - TIE DOWN	Hook assy - TIE DOWN
23	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
24	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)
25	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
28	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE
29	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Rear windshield 2 / 5

#	OEM	CL9	CU2
4	91563-SV4-003	Fastener a - RR. WINDSHIELD	Fastener a - RR. WINDSHIELD
6	91568-SV4-003	Fastener b - RR. WINDSHIELD	Fastener b - RR. WINDSHIELD

Resonator chamber 6 / 17

#	OEM	CL9	CU2
1	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
2	17213-PD1-000	Rubber - AIR CLEANER CASE MOUNTING	Rubber - AIR CLEANER CASE MOUNTING
4	17216-PE2-003	Collar - AIR CLEANER(TOYO ROKI)	Collar - AIR CLEANER(TOYO ROKI)
5	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
15	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
16	90001-P7J-000	Bolt - SPECIAL, 6X25	Bolt - SPECIAL, 6X25

Roof lining 1 / 7

#	OEM	CL9	CU2
26	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Seatbelts 2 / 7

#	OEM	CL9	CU2
16	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
17	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Shift arm (2.4L; 6MT) 21 / 25

#	OEM	CL9	CU2
2	21396-P20-000	Cap - BREATHER	Cap - BREATHER
3	21520-RAS-000	Cover comp. - SHIFT ARM	Cover comp. - SHIFT ARM
4	24411-PPP-010	Arm - SHIFT	Arm - SHIFT
5	24412-PNS-000	Arm - MAINSHAFT BRAKE SYSTEM	Arm - MAINSHAFT BRAKE SYSTEM
6	24413-PNS-000	Spring - MAINSHAFT BRAKE SYSTEM RETURN	Spring - MAINSHAFT BRAKE SYSTEM RETURN
7	24430-PNS-000	Interlock comp.	Interlock comp.
8	24433-PH8-000	Bolt - INTERLOCK	Bolt - INTERLOCK
10	24464-PPP-000	Spring - FIRST-SECOND SELECT	Spring - FIRST-SECOND SELECT
11	24466-PPP-000	Spring - FIFTH-SIXTH SELECT	Spring - FIFTH-SIXTH SELECT
12	24467-PPP-000	Plate - SELECT STOPPER	Plate - SELECT STOPPER
14	24474-RAP-000	Cover - DUST	Cover - DUST
15	24479-PPP-000	Cover - SHIFT LEVER	Cover - SHIFT LEVER
16	24521-PNS-000	Cam a - SELECT LOCK	Cam a - SELECT LOCK
17	24522-PNS-000	Cam b - SELECT LOCK	Cam b - SELECT LOCK
18	24524-PNS-000	Spring - SELECT LOCK RETURN	Spring - SELECT LOCK RETURN
19	28251-RAS-003	Solenoid sub assy.	Solenoid sub assy.
20	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
21	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM
22	91207-PPP-003	Dust seal - 18X24X5	Dust seal - 18X24X5
23	91208-PPP-003	Dust seal - 14X20X4	Dust seal - 14X20X4
24	90402-R88-000	Washer - PLAIN, 14MM	Washer - PLAIN, 14MM

Shift fork (2.4L; 6MT) 8 / 8

#	OEM	CL9	CU2
1	24201-RAS-000	Fork comp - GEARSHIFT (5-6)	Fork comp - GEARSHIFT (5-6)
2	24210-RAS-000	Fork comp - GEARSHIFT (3-4)	Fork comp - GEARSHIFT (3-4)
3	24220-RAP-000	Fork comp - GEARSHIFT (1-2)	Fork comp - GEARSHIFT (1-2)
4	24230-PPP-000	Holder comp - REVERSE SHIFT	Holder comp - REVERSE SHIFT
5	24240-PNS-000	Piece comp. - REVERSE SHIFT	Piece comp. - REVERSE SHIFT
6	24455-PHR-000	Spring - BALL SETTING	Spring - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5

Shift lever (LH) 2 / 13

#	OEM	CL9	CU2
8	54118-S10-000	Washer assy. - WIRE	Washer assy. - WIRE
11	54357-SF1-003	Plate - CHANGE WIRE	Plate - CHANGE WIRE

Side sill garnish 11 / 21

#	OEM	CL9	CU2
13	90114-SZ3-000	Screw-washer - 5X20	Screw-washer - 5X20
14	90144-SA0-020	Bolt - BUMPER SETTING (6X15) (BLACK)	Bolt - BUMPER SETTING (6X15) (BLACK)
14	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
15	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
17	90331-S3Y-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
18	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
19	90682-SDA-A01	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
20	90682-SEA-003	Clip - TAPPING SCREW, 5MM	Clip - TAPPING SCREW, 5MM
21	91503-SZ3-003	Clip A	Clip A
25	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
26	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH	Clip - SIDE SILL UPPER GARNISH

Srs unit (LH) 8 / 25

#	OEM	CL9	CU2
14	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
15	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
17	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
18	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
19	91531-S84-003	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)	Clip - WIRE HARNESS(NATURAL) (44MM)(WITH SEAL)
20	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
21	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
24	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Steering column 6 / 10

#	OEM	CL9	CU2
8	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
9	90135-SDA-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
9	90135-SZT-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
10	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
11	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
12	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Steering wheel (SRS; 2) 2 / 14

#	OEM	CL9	CU2
14	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
16	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Switch (LH) 2 / 9

#	OEM	CL9	CU2
13	35910-S04-G01	Switch assy - INERTIA	Switch assy - INERTIA
15	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Taillight/license light 8 / 20

#	OEM	CL9	CU2
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
7	33513-S50-003	Socket - T20W S2	Socket - T20W S2
8	33514-S50-003	Socket - T20W S3	Socket - T20W S3
9	33515-S50-003	Socket - T20W W	Socket - T20W W
18	34906-ST5-003	Bulb - 12V 21W/5W) (STANLEY	Bulb - 12V 21W/5W) (STANLEY
20	90321-S06-000	Nut - HEX. CAP, 5MM	Nut - HEX. CAP, 5MM
22	91560-S5H-003	Clip - SIDE GARNISH (NATURAL) (SEAL:BLACK)	Clip - SIDE GARNISH (NATURAL) (SEAL:BLACK)

Tire/wheel disks 46 / 54

#	OEM	CL9	CU2
10	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
10	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
12	42767-SH3-E00	Plate - SPARE TIRE CAUTION (T-TYPE)	Plate - SPARE TIRE CAUTION (T-TYPE)
13	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
13	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
13	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
13	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
13	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
13	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
13	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
13	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
13	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
13	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
13	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
13	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
13	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
13	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
14	44722-SEA-N02	Weight - BALANCE (20G) (TOHO ZINC)	Weight - BALANCE (20G) (TOHO ZINC)
14	44730-SEA-N01	Weight - BALANCE (45G) (TOHO)	Weight - BALANCE (45G) (TOHO)
14	44721-SEA-N02	Weight - BALANCE (10G) (TOHO ZINC)	Weight - BALANCE (10G) (TOHO ZINC)
14	44730-SEA-N02	Weight - BALANCE (45G) (TOHO ZINC)	Weight - BALANCE (45G) (TOHO ZINC)
14	44724-SEA-N01	Weight - BALANCE (40G) (TOHO)	Weight - BALANCE (40G) (TOHO)
14	44729-SEA-N01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
14	44727-TP6-A01	WEIGHT (35G)	WEIGHT (35G)
14	44726-SEA-N01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
14	44721-TP6-A01	WEIGHT, BALANCE (5G)	WEIGHT, BALANCE (5G)
14	44728-SEA-N01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
14	44725-TP6-A01	WEIGHT (25G)	WEIGHT (25G)
14	44724-SEA-N02	Weight - BALANCE (40G) (TOHO ZINC)	Weight - BALANCE (40G) (TOHO ZINC)
14	44727-SEA-N01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
14	44723-TP6-A01	WEIGHT (15G)	WEIGHT (15G)
14	44729-SEA-N02	Weight - BALANCE (35G) (TOHO ZINC)	Weight - BALANCE (35G) (TOHO ZINC)
14	44726-SEA-N02	Weight - BALANCE (5G) (TOHO ZINC)	Weight - BALANCE (5G) (TOHO ZINC)
14	44728-SEA-N02	Weight - BALANCE (25G) (TOHO ZINC)	Weight - BALANCE (25G) (TOHO ZINC)
14	44725-SEA-N01	Weight - BALANCE (50G) (TOHO)	Weight - BALANCE (50G) (TOHO)
14	44727-SEA-N02	Weight - BALANCE (15G) (TOHO ZINC)	Weight - BALANCE (15G) (TOHO ZINC)
14	44723-SEA-N01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
14	44726-TP6-A01	WEIGHT (30G)	WEIGHT (30G)
14	44722-SEA-N01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
14	44724-TP6-A01	WEIGHT (20G)	WEIGHT (20G)
14	44725-SEA-N02	Weight - BALANCE (50G) (TOHO ZINC)	Weight - BALANCE (50G) (TOHO ZINC)
14	44721-SEA-N01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
14	44721-S5A-A20	Weight - BALANCE (10G)	Weight - BALANCE (10G)
14	44723-SEA-N02	Weight - BALANCE (30G) (TOHO ZINC)	Weight - BALANCE (30G) (TOHO ZINC)
21	74651-S2X-003	Adapter - SPARE TIRE	Adapter - SPARE TIRE
22	74652-SDA-003	Bolt - SPARE TIRE	Bolt - SPARE TIRE

Tools/jack 1 / 5

#	OEM	CL9	CU2
6	89320-S05-003	Bar - JACK	Bar - JACK

Transmission case 63 / 69

#	OEM	CL9	CU2
1	21104-PPP-000	Plate m - OIL GUIDE	Plate m - OIL GUIDE
6	21223-RZF-000	Hanger comp. b - TRANSMISSION	Hanger comp. b - TRANSMISSION
7	21225-RAP-000	Stay b - HARNESS	Stay b - HARNESS
8	23976-PPP-J00	Shim at - 72MM (1.95)	Shim at - 72MM (1.95)
8	23944-P21-000	Shim n - 72MM(0.99)	Shim n - 72MM(0.99)
8	23971-P21-000	Shim ao - 72MM(1.80)	Shim ao - 72MM(1.80)
8	23939-P21-000	Shim i - 72MM(0.84)	Shim i - 72MM(0.84)
8	23966-P21-000	Shim aj - 72MM(1.65)	Shim aj - 72MM(1.65)
8	23934-P21-000	Shim d - 72MM(0.69)	Shim d - 72MM(0.69)
8	23961-P21-000	Shim ae - 72MM(1.50)	Shim ae - 72MM(1.50)
8	23956-P21-000	Shim z - 72MM(1.35)	Shim z - 72MM(1.35)
8	23983-PPP-J00	Shim bb - 72MM (2.16)	Shim bb - 72MM (2.16)
8	23951-P21-000	Shim u - 72MM(1.20)	Shim u - 72MM(1.20)
8	23978-PPP-J00	Shim aw - 72MM (2.01)	Shim aw - 72MM (2.01)
8	23946-P21-000	Shim p - 72MM(1.05)	Shim p - 72MM(1.05)
8	23973-PPP-J00	Shim aq - 72MM (1.86)	Shim aq - 72MM (1.86)
8	23941-P21-000	Shim k - 72MM(0.90)	Shim k - 72MM(0.90)
8	23968-P21-000	Shim al - 72MM(1.71)	Shim al - 72MM(1.71)
8	23936-P21-000	Shim f - 72MM(0.75)	Shim f - 72MM(0.75)
8	23931-P21-000	Shim a - 72MM(0.60)	Shim a - 72MM(0.60)
8	23963-P21-000	Shim ag - 72MM(1.56)	Shim ag - 72MM(1.56)
8	23958-P21-000	Shim ab - 72MM(1.41)	Shim ab - 72MM(1.41)
8	23985-PPP-J00	Shim bd - 72MM (2.22)	Shim bd - 72MM (2.22)
8	23953-P21-000	Shim w - 72MM(1.26)	Shim w - 72MM(1.26)
8	23980-PPP-J00	Shim ay - 72MM (2.07)	Shim ay - 72MM (2.07)
8	23948-P21-000	Shim r - 72MM(1.11)	Shim r - 72MM(1.11)
8	23975-PPP-J00	Shim as - 72MM (1.92)	Shim as - 72MM (1.92)
8	23943-P21-000	Shim m - 72MM(0.96)	Shim m - 72MM(0.96)
8	23970-P21-000	Shim an - 72MM(1.77)	Shim an - 72MM(1.77)
8	23938-P21-000	Shim h - 72MM(0.81)	Shim h - 72MM(0.81)
8	23965-P21-000	Shim ai - 72MM(1.62)	Shim ai - 72MM(1.62)
8	23933-P21-000	Shim c - 72MM(0.66)	Shim c - 72MM(0.66)
8	23960-P21-000	Shim ad - 72MM(1.47)	Shim ad - 72MM(1.47)
8	23955-P21-000	Shim y - 72MM(1.32)	Shim y - 72MM(1.32)
8	23982-PPP-J00	Shim ba - 72MM (2.13)	Shim ba - 72MM (2.13)
8	23950-P21-000	Shim t - 72MM(1.17)	Shim t - 72MM(1.17)
8	23977-PPP-J00	Shim av - 72MM (1.98)	Shim av - 72MM (1.98)
8	23945-P21-000	Shim o - 72MM(1.02)	Shim o - 72MM(1.02)
8	23972-PPP-J00	Shim ap - 72MM (1.83)	Shim ap - 72MM (1.83)
8	23940-P21-000	Shim j - 72MM(0.87)	Shim j - 72MM(0.87)
8	23967-P21-000	Shim ak - 72MM(1.68)	Shim ak - 72MM(1.68)
8	23935-P21-000	Shim e - 72MM(0.72)	Shim e - 72MM(0.72)
8	23962-P21-000	Shim af - 72MM(1.53)	Shim af - 72MM(1.53)
8	23957-P21-000	Shim aa - 72MM(1.38)	Shim aa - 72MM(1.38)
8	23984-PPP-J00	Shim bc - 72MM (2.19)	Shim bc - 72MM (2.19)
8	23952-P21-000	Shim v - 72MM(1.23)	Shim v - 72MM(1.23)
8	23979-PPP-J00	Shim ax - 72MM (2.04)	Shim ax - 72MM (2.04)
8	23947-P21-000	Shim q - 72MM(1.08)	Shim q - 72MM(1.08)
8	23974-PPP-J00	Shim ar - 72MM (1.89)	Shim ar - 72MM (1.89)
8	23942-P21-000	Shim l - 72MM(0.93)	Shim l - 72MM(0.93)
8	23969-P21-000	Shim am - 72MM(1.74)	Shim am - 72MM(1.74)
8	23937-P21-000	Shim g - 72MM(0.78)	Shim g - 72MM(0.78)
8	23932-P21-000	Shim b - 72MM(0.63)	Shim b - 72MM(0.63)
8	23964-P21-000	Shim ah - 72MM(1.59)	Shim ah - 72MM(1.59)
8	23959-P21-000	Shim ac - 72MM(1.44)	Shim ac - 72MM(1.44)
8	23986-PPP-J00	Shim be - 72MM (2.25)	Shim be - 72MM (2.25)
8	23954-P21-000	Shim x - 72MM(1.29)	Shim x - 72MM(1.29)
8	23981-PPP-J00	Shim az - 72MM (2.10)	Shim az - 72MM (2.10)
8	23949-P21-000	Shim s - 72MM(1.14)	Shim s - 72MM(1.14)
9	28820-PWR-013	Pick up assy. MATSUSHITA	Pick up assy. MATSUSHITA
10	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
13	91205-PL3-B01	Oil seal - 40X56X8(ARAI)	Oil seal - 40X56X8(ARAI)
14	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

Trunk lid 7 / 26

#	OEM	CL9	CU2
5	71704-SL3-000	Seal - GASKET	Seal - GASKET
9	74822-SW5-003	Cushion - TRUNK HINGE	Cushion - TRUNK HINGE
10	74829-SDN-A00	Stopper - TRUNK LID	Stopper - TRUNK LID
26	75353-671-000	Lock - SCREW	Lock - SCREW
28	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
29	90109-SM4-000	Bolt - SPECIAL, 6X35	Bolt - SPECIAL, 6X35
35	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE

Valve/rocker arm (2.4L) 3 / 11

#	OEM	CL9	CU2
8	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
9	14820-PNA-003	Motion comp - LOST	Motion comp - LOST
9	14820-PNA-013	MOTION,	MOTION,

Vtc oil control valve 11 / 18

#	OEM	CL9	CU2
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
7	15830-RBB-003	VTC OIL CONTROL VALVE ASSY	VTC OIL CONTROL VALVE ASSY
8	15832-PNA-003	O-ring	O-ring
8	15832-PNA-023	ORING	ORING
9	15835-PNA-003	Bolt - VTC SOLENOID	Bolt - VTC SOLENOID
10	15840-RAA-A00	Strainer assy - VTC	Strainer assy - VTC
11	15845-RAA-A01	Filter assy - VTC	Filter assy - VTC
15	91319-PAA-A01	O-ring - 13X1.5	O-ring - 13X1.5

Water hose (2.4L) 4 / 11

#	OEM	CL9	CU2
4	19504-RAA-A00	Hose - BYPASS IN.	Hose - BYPASS IN.
8	19512-PK2-003	Clip - HOSE, 18.7MM	Clip - HOSE, 18.7MM
9	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
11	91315-PNA-003	O-ring - 19.3X3.8	O-ring - 19.3X3.8

Water pump (2.4L) 11 / 23

#	OEM	CL9	CU2
6	19305-RAA-A01	Seal - THERMOSTAT COVER (FUJI SEIKO)	Seal - THERMOSTAT COVER (FUJI SEIKO)
6	19305-PNA-003	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)
7	19320-RAA-A01	Case comp. - THERMOSTAT (FUJI SEIKO)	Case comp. - THERMOSTAT (FUJI SEIKO)
8	19322-PCX-003	O-ring - 43.8X3.1	O-ring - 43.8X3.1
9	19322-RAA-A01	Seal - THERMOSTAT CASE (FUJI SEIKO)	Seal - THERMOSTAT CASE (FUJI SEIKO)
9	19322-PNA-003	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)
14	90050-PNA-003	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)
14	90050-RAA-A01	Bolt - SPECIAL, 6X22 (FUJI SEIKO)	Bolt - SPECIAL, 6X22 (FUJI SEIKO)
15	90051-PNA-000	Bolt - SPECIAL, 6X28	Bolt - SPECIAL, 6X28
16	90204-PH7-000	Nut - SPECIAL	Nut - SPECIAL
18	91311-PRB-A00	O-ring - 13.5X3.5	O-ring - 13.5X3.5

Water valve (LH) 3 / 8

#	OEM	CL9	CU2
7	90661-SL5-003	Clip, WATER HOSE	Clip, WATER HOSE
8	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Windshield washer (1) 1 / 12

#	OEM	CL9	CU2
6	76809-SE0-003	Grommet - WASHER TANK	Grommet - WASHER TANK

Windshield washer (HEADLIGHT WASHER; 1) 9 / 36

#	OEM	CL9	CU2
1	38514-692-731	Bush	Bush
4	38524-SB0-761	Hose d	Hose d
5	76802-SEF-S01	Cap unit - MOUTH	Cap unit - MOUTH
7	76803-SH2-S10	Clip - WASHER HOSE	Clip - WASHER HOSE
12	76809-SE0-003	Grommet - WASHER TANK	Grommet - WASHER TANK
34	76896-SEA-S01	Cushion	Cushion
38	90118-SEA-S01	Bolt-washer - 6X20	Bolt-washer - 6X20
39	90132-SEA-003	Screw - PAN, 5X12	Screw - PAN, 5X12
41	90316-SM5-G03	Nut - HEX., 6MM	Nut - HEX., 6MM

Wire harness (LH) 3 / 24

#	OEM	CL9	CU2
17	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
18	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
19	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
