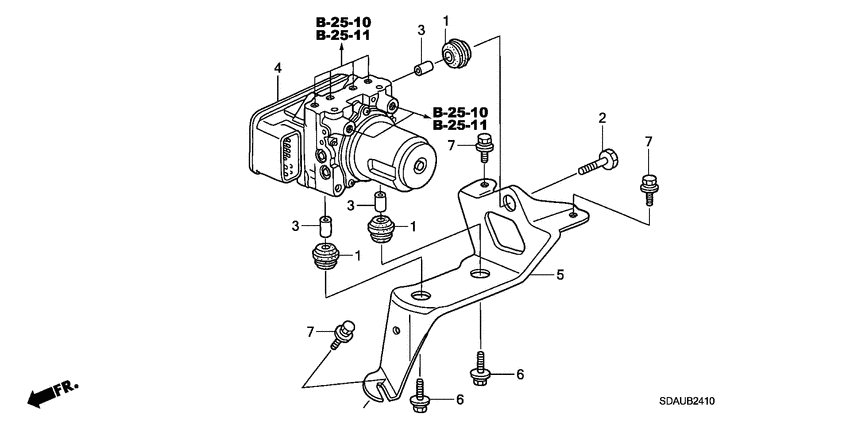

Abs modulator/ vsa modulator 3 / 5

#	OEM	CL7	CM4
1	57101-SJK-000	Rubber - MOUNT	Rubber - MOUNT
2	57102-SDA-003	Bolt - MOUNTING	Bolt - MOUNTING
3	57103-SDA-003	Collar	Collar

Air cleaner 14 / 21

#	OEM	CL7	CM4
1	15772-551-000	Clip - BREATHER TUBE	Clip - BREATHER TUBE
2	17138-RAA-A00	Chamber comp - AIR FLOW	Chamber comp - AIR FLOW
3	17152-RAA-A00	Rubber - BREATHER JOINT	Rubber - BREATHER JOINT
6	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
7	17213-PV0-000	Rubber - AIR CLEANER CASE MOUNTING	Rubber - AIR CLEANER CASE MOUNTING
8	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
9	17220-RAA-Y01	Element assy. - AIR CLEANER (WHITE)	Element assy. - AIR CLEANER (WHITE)
14	17315-RAA-A00	Clamp - AIR FLOW (74)	Clamp - AIR FLOW (74)
15	37880-PLC-004	Sensor assy - AIR TEMP (MATSUSHITA DENSHI)	Sensor assy - AIR TEMP (MATSUSHITA DENSHI)
16	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
17	90005-RGA-000	Bolt - CLAMP, 4X25	Bolt - CLAMP, 4X25
18	90091-RAA-A00	Bolt-washer - 5X28	Bolt-washer - 5X28
19	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE
20	91405-RAA-A01	Clip - TUBE (D34)	Clip - TUBE (D34)

Air conditioner (COMPRESS OR) 3 / 12

#	OEM	CL7	CM4
10	38930-PNA-000	Bracket - COMPRESSOR	Bracket - COMPRESSOR
11	90023-PNA-000	Bolt - FLANGE, 8X80	Bolt - FLANGE, 8X80
12	90024-PNA-000	Bolt - FLANGE, 8X65	Bolt - FLANGE, 8X65

Air conditioner (CONDENSE R) 1 / 5

#	OEM	CL7	CM4
5	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER

Air conditioner (HOSES/PI PES; LH) 10 / 19

#	OEM	CL7	CM4
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
4	80325-SDA-A00	Seal - FLANGE	Seal - FLANGE
9	80384-SM4-A01	Clip - RECEIVER PIPE(B)	Clip - RECEIVER PIPE(B)
10	80440-SW5-003	Switch - DUAL PRESSURE (HADSYS)	Switch - DUAL PRESSURE (HADSYS)
10	80440-SW5-A01	Switch - DUAL PRESSURE(KEIHIN)	Switch - DUAL PRESSURE(KEIHIN)
11	80465-SDA-A00	Rubber - SUCTION PIPE	Rubber - SUCTION PIPE
14	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
15	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
16	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
17	90001-SDA-A00	Bolt - FLANGE, 6X38(GUIDE)	Bolt - FLANGE, 6X38(GUIDE)

Alternator (DENSO) 13 / 16

#	OEM	CL7	CM4
3	31105-RAA-A01	Holder assy. - BRUSH	Holder assy. - BRUSH
5	31111-PT0-003	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
6	31114-PGK-A01	Bearing - FR.	Bearing - FR.
7	31119-RAA-A01	Bush - INSULATION	Bush - INSULATION
8	31135-RFE-003	Cover - RR. END	Cover - RR. END
9	31138-PD1-004	Cover - BEARING	Cover - BEARING
10	31141-RAA-A01	Pulley	Pulley
11	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
12	31145-PGK-A01	Bolt	Bolt
13	31146-PE9-941	Screw-washer	Screw-washer
14	31147-PGK-A01	Screw	Screw
15	31147-PT0-003	Screw-washer	Screw-washer
16	90231-PGK-A01	Nut - HEX., 5MM	Nut - HEX., 5MM

Battery 6 / 13

#	OEM	CL7	CM4
3	31513-SDA-A00	Bolt - BATTERY SETTING (195MM)	Bolt - BATTERY SETTING (195MM)
5	31514-SDA-A01	Rubber - SHEET	Rubber - SHEET
9	32412-SDA-A00	Stay - STARTER CABLE	Stay - STARTER CABLE
11	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
12	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
13	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Brake lines (VSA; LH; 1) 12 / 29

#	OEM	CL7	CM4
13	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)	Grommet a - BRAKE PIPE (BLACK)
14	46391-SDA-A01	Clip g - BRAKE PIPE	Clip g - BRAKE PIPE
18	46393-S84-A00	Clamp - BRAKE PIPE	Clamp - BRAKE PIPE
19	46394-SDA-003	Clip d - BRAKE PIPE	Clip d - BRAKE PIPE
22	46395-SDA-A00	Clip e - BRAKE PIPE	Clip e - BRAKE PIPE
23	46396-SDA-003	Clip f - BRAKE PIPE	Clip f - BRAKE PIPE
24	46435-S84-A00	Bracket - RR. BRAKE HOSE	Bracket - RR. BRAKE HOSE
25	46462-SE0-000	Bolt - OIL	Bolt - OIL
26	46470-S5T-E01	Joint - FOUR WAY	Joint - FOUR WAY
27	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
28	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
29	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power (LH) 11 / 15

#	OEM	CL7	CM4
5	46151-SA7-951	Yoke comp - NISSIN	Yoke comp - NISSIN
6	46191-SDA-A00	Gasket - MASTER POWER	Gasket - MASTER POWER
9	46407-S84-A01	Clamp - TUBE	Clamp - TUBE
10	46512-S70-000	Pin - PEDAL	Pin - PEDAL
11	46661-SDC-A02	Reservoir set - OIL	Reservoir set - OIL
12	46662-SDC-A02	Cap comp. - RESERVOIR	Cap comp. - RESERVOIR
13	46666-SDC-A01	Filter	Filter
14	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
15	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
16	90301-SDC-013	Nut - HEX., 8MM	Nut - HEX., 8MM
17	90301-SEF-013	Nut - 10MM	Nut - 10MM

Bumpers 8 / 34

#	OEM	CL7	CM4
5	60854-SB2-000	Clip - FR. SPOILER	Clip - FR. SPOILER
31	71505-SDA-A00	Bracket - R. RR. BUMPER SIDE	Bracket - R. RR. BUMPER SIDE
42	71555-SDA-A00	Bracket - L. RR. BUMPER SIDE	Bracket - L. RR. BUMPER SIDE
45	90103-SDA-A00	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
48	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
49	90114-SZ3-000	Screw-washer - 5X20	Screw-washer - 5X20
61	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
63	91503-SZ3-003	Clip A	Clip A

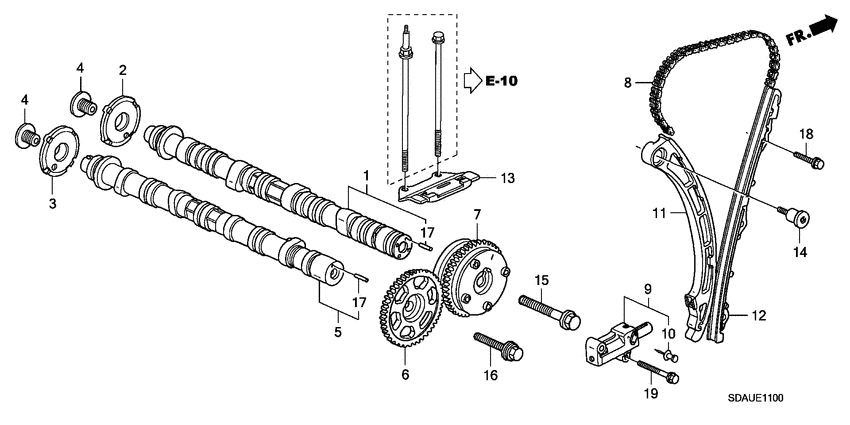

Camshaft/cam chain 16 / 18

#	OEM	CL7	CM4
2	14113-PNA-003	Plate - CAM PULSE	Plate - CAM PULSE
3	14114-PNA-003	Plate - TDC PULSE	Plate - TDC PULSE
4	14115-PNA-000	Bolt - SEALING, 14MM	Bolt - SEALING, 14MM
6	14210-PNA-000	Sprocket - CAM CHAIN DRIVEN (46T)	Sprocket - CAM CHAIN DRIVEN (46T)
7	14310-RBB-003	Actuator assy, VTC (46T)	Actuator assy, VTC (46T)
8	14401-PNA-004	CHAIN (170L) (BORG WARNER)	CHAIN (170L) (BORG WARNER)
9	14510-PNA-003	Tensioner Assy, CAM CHAIN	Tensioner Assy, CAM CHAIN
9	14510-PRB-A01	Tensioner Assy, Cam Chain	Tensioner Assy, Cam Chain
10	14511-PNA-003	Stopper - TOOL	Stopper - TOOL
11	14520-PNA-003	ARM, CAM CHAIN TENSIONER	ARM, CAM CHAIN TENSIONER
12	14530-PNA-003	GUIDE, CAM CHAIN	GUIDE, CAM CHAIN
13	14540-RWC-A02	Guide comp. b - CAM CHAIN	Guide comp. b - CAM CHAIN
14	90003-PNA-000	Bolt - TENSIONER PIVOT	Bolt - TENSIONER PIVOT
15	90032-PNA-000	Bolt - FLANGE, 12X47	Bolt - FLANGE, 12X47
16	90042-PNA-003	Bolt - FLANGE, 10X32	Bolt - FLANGE, 10X32
17	90703-PNA-300	Dowel pin - 4.2X10.3	Dowel pin - 4.2X10.3

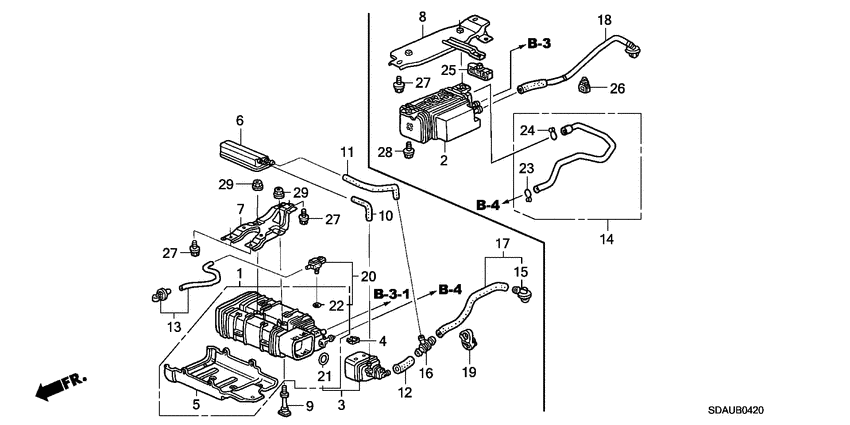

Canister 8 / 8

#	OEM	CL7	CM4
1	17300-S7S-003	Canister assy	Canister assy
2	17358-SDC-E00	Bracket - CANISTER	Bracket - CANISTER
3	17724-SDC-E00	Tube assy - PURGE	Tube assy - PURGE
4	17744-SDC-E01	Tube comp - CANISTER DRAIN	Tube comp - CANISTER DRAIN
5	91401-SDC-000	Clip - TUBE(B10)	Clip - TUBE(B10)
6	91402-SDC-000	Clip - TUBE(B12)	Clip - TUBE(B12)
7	91591-SDC-E01	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
8	91593-SDC-E01	Clip - DRAIN TUBE	Clip - DRAIN TUBE

Center module 8 / 12

#	OEM	CL7	CM4
2	39061-SDA-A01	Screw - M2.6X8) (P	Screw - M2.6X8) (P
3	39062-SDA-A01	Screw - M2.6X10) (P	Screw - M2.6X10) (P
4	39064-SDA-A01	Screw - M4X12	Screw - M4X12
5	39069-SDA-A01	Screw - M5X8	Screw - M5X8
15	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
16	90666-SM4-003	Clip - SNAP FITTING	Clip - SNAP FITTING
17	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
18	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Center module (NAVI) 7 / 13

#	OEM	CL7	CM4
2	39062-SDA-A01	Screw - M2.6X10) (P	Screw - M2.6X10) (P
3	39064-SDA-A01	Screw - M4X12	Screw - M4X12
6	39069-SDA-A01	Screw - M5X8	Screw - M5X8
14	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16
15	90666-SM4-003	Clip - SNAP FITTING	Clip - SNAP FITTING
16	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
17	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

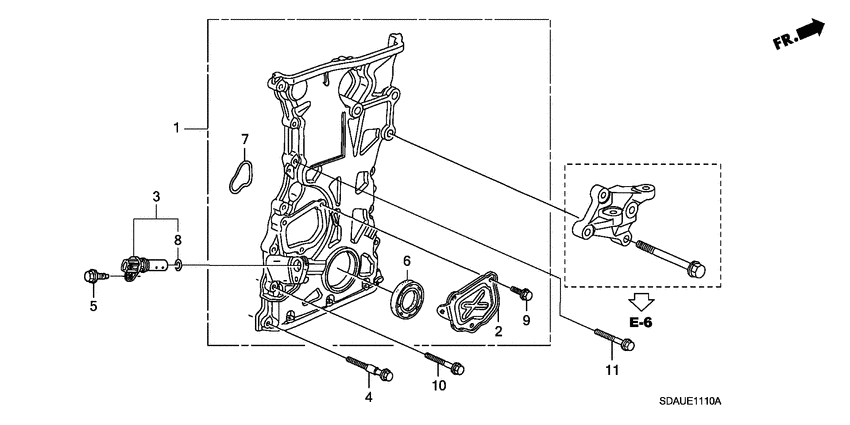

Chain case 9 / 9

#	OEM	CL7	CM4
1	11410-RRA-A00	Case assy. - CHAIN	Case assy. - CHAIN
2	11412-PNA-000	Cover - CHAIN CASE	Cover - CHAIN CASE
3	37500-RAA-A01	Sensor assy - CRANK	Sensor assy - CRANK
4	90021-PNA-000	Bolt - SPECIAL, 6X31	Bolt - SPECIAL, 6X31
5	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
6	91212-RTA-003	Oil seal - 43X58X7 (NOK)	Oil seal - 43X58X7 (NOK)
6	91212-RNA-A01	Oil seal - 43X58X7(ARAI)	Oil seal - 43X58X7(ARAI)
7	91302-PNA-004	O-ring - CHAIN CASE	O-ring - CHAIN CASE
8	91333-PNC-006	O-ring	O-ring

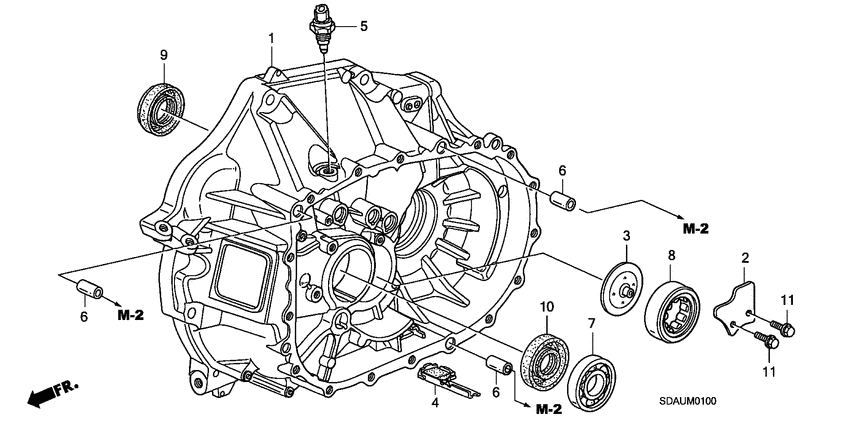

Clutch case 9 / 10

#	OEM	CL7	CM4
1	21000-RAP-000	Case comp. - CLUTCH	Case comp. - CLUTCH
2	21101-PPP-000	Plate - NEEDLE SET	Plate - NEEDLE SET
3	21103-PPP-000	Plate c - OIL GUIDE	Plate c - OIL GUIDE
4	21120-PWL-000	Magnet comp. - TRANSMISSION	Magnet comp. - TRANSMISSION
5	28700-PWL-003	Switch assy - BACK LIGHT (U-SHIN)(BLACK)	Switch assy - BACK LIGHT (U-SHIN)(BLACK)
6	90705-PG2-000	Dowel pin - 14X20	Dowel pin - 14X20
7	91001-PPP-005	Bearing - BALL, 28X64X15	Bearing - BALL, 28X64X15
8	91003-PPT-004	Bearing - NEEDLE, 40X68X20	Bearing - NEEDLE, 40X68X20
10	91216-PG1-005	Oil seal - 28X43X7 (NOK)	Oil seal - 28X43X7 (NOK)

Clutch master cylinder (LH) 40 / 41

#	OEM	CL7	CM4
1	17116-PWA-000	Collar - ENGINE COVER	Collar - ENGINE COVER
2	21724-RAY-000	Rubber - POSITION SENSOR COVER	Rubber - POSITION SENSOR COVER
3	43352-567-000	Screw - BLEEDER	Screw - BLEEDER
4	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
5	46151-S5A-A01	Yoke	Yoke
6	46182-500-013	Circlip	Circlip
7	46393-SM4-951	Clip c	Clip c
8	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)
9	46912-S84-A00	Pin - CLUTCH PEDAL	Pin - CLUTCH PEDAL
10	46920-S7A-A03	Cylinder assy. - CLUTCH MASTER	Cylinder assy. - CLUTCH MASTER
11	46921-S5A-003	Plate - STOPPER	Plate - STOPPER
12	46926-S5A-013	Piston comp - CLUTCH MASTER CYLINDER	Piston comp - CLUTCH MASTER CYLINDER
13	46928-S5A-A01	Seal - MASTER CYLINDER	Seal - MASTER CYLINDER
14	46930-S7C-E02	Cylinder assy. - CLUTCH SLAVE	Cylinder assy. - CLUTCH SLAVE
15	46931-S5A-003	Pin - SPRING	Pin - SPRING
16	46932-S5A-003	Piston - SLAVE CYLINDER	Piston - SLAVE CYLINDER
17	46937-SS1-003	Boot - SLAVE CYLINDER	Boot - SLAVE CYLINDER
18	46941-S5A-003	Connector - CLUTCH MASTER CYLINDER	Connector - CLUTCH MASTER CYLINDER
19	46942-S5A-003	Pin - SNAP	Pin - SNAP
20	46943-S5A-003	Seal - RING	Seal - RING
21	46944-S5A-J01	Connector	Connector
22	46945-S5A-003	O-ring	O-ring
23	46946-S5A-003	Screw-washer - 4X12	Screw-washer - 4X12
24	46947-S5A-003	Rod - PUSH	Rod - PUSH
25	46948-S5A-003	Rod - PUSH	Rod - PUSH
26	46949-S5A-003	Seal - RING	Seal - RING
28	46961-SDA-A02	Hose - CLUTCH	Hose - CLUTCH
29	46962-SDA-A01	Rubber - PIPE	Rubber - PIPE
30	46964-SDA-A00	Clamp - CLUTCH PIPE	Clamp - CLUTCH PIPE
31	46965-S6A-013	Tank assy. - CLUTCH FLUID	Tank assy. - CLUTCH FLUID
32	46966-SDA-A02	Holder - TANK	Holder - TANK
33	46968-SDP-A04	Bracket b - CLUTCH PIPE	Bracket b - CLUTCH PIPE
34	46970-SDA-A01	Pipe comp. b - CLUTCH	Pipe comp. b - CLUTCH
35	46971-SDA-A01	Tube - CLUTCH FLUID	Tube - CLUTCH FLUID
36	46972-S6F-E01	Clamp - TUBE (D12)	Clamp - TUBE (D12)
37	46995-SDA-A02	Bracket a - CLUTCH PIPE	Bracket a - CLUTCH PIPE
38	90001-P7J-000	Bolt - SPECIAL, 6X25	Bolt - SPECIAL, 6X25
39	90106-S7A-E00	Bolt - FLANGE, 8X30	Bolt - FLANGE, 8X30
40	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE
41	90658-759-003	Clip - TUBE, 12MM	Clip - TUBE, 12MM

Clutch release 5 / 6

#	OEM	CL7	CM4
1	22810-PPT-003	Bearing - CLUTCH RELEASE	Bearing - CLUTCH RELEASE
2	22821-PPP-000	Fork, CLUTCH RELEASE	Fork, CLUTCH RELEASE
3	22825-P0S-000	Bolt - RELEASE FORK	Bolt - RELEASE FORK
4	22835-P0S-000	Spring - RELEASE FORK SETTING	Spring - RELEASE FORK SETTING
5	22841-PPP-000	Boot - RELEASE FORK	Boot - RELEASE FORK

Clutch/torque converter 4 / 7

#	OEM	CL7	CM4
1	21351-PNA-000	Cover - TORQUE CONVERTER CASE	Cover - TORQUE CONVERTER CASE
3	22103-PNA-003	Bush - 21X24X8	Bush - 21X24X8
8	90011-PNA-B00	Bolt - 12MM	Bolt - 12MM
10	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)

Combination switch (LH) 10 / 23

#	OEM	CL7	CM4
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
10	35116-SDA-A11	Screw - FLAT	Screw - FLAT
11	35130-SAA-J51	Switch comp - STEERING	Switch comp - STEERING
15	35400-S6A-003	Switch assy - DOOR (DAIICHI)	Switch assy - DOOR (DAIICHI)
17	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
19	72148-S0A-000	Battery CR1616	Battery CR1616
20	90132-S2H-G11	Screw - ET, 5.5X18	Screw - ET, 5.5X18
20	90132-S2H-G01	Screw - ET, 5X18	Screw - ET, 5X18

Console 16 / 16

#	OEM	CL7	CM4
1	39620-SZ3-003	Cap assy.	Cap assy.
2	39624-SZ3-L01	Socket assy	Socket assy
3	66418-SD4-900	Stopper - CONSOLE LOCK	Stopper - CONSOLE LOCK
4	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
17	83409-SDA-A02	Hinge comp - ARMREST	Hinge comp - ARMREST
19	83412-SDA-A01	Stopper - ARMREST	Stopper - ARMREST
20	83413-SDA-A01	Mat - CONSOLE BOX	Mat - CONSOLE BOX
23	83418-SDA-A01	Lock - ARMREST	Lock - ARMREST
24	83419-SDA-A01	Lock - TRAY	Lock - TRAY
29	88326-SDC-Y01	Holder comp - RR. ASHTRAY	Holder comp - RR. ASHTRAY
30	90144-SDA-A01	Screw - TAPPING, 4X16(PO)	Screw - TAPPING, 4X16(PO)
31	90144-SP0-000	Screw - TAPPING, 4X16 (PO)	Screw - TAPPING, 4X16 (PO)
32	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
33	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
34	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
35	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Control unit (CABIN; LH) 13 / 36

#	OEM	CL7	CM4
12	38300-SHJ-A04	Relay assy - TURN SIGNAL & HAZARD (MITSUBA)	Relay assy - TURN SIGNAL & HAZARD (MITSUBA)
12	38300-SDC-A02	Relay assy - TURN SIGNAL & HAZARD (DENSO)	Relay assy - TURN SIGNAL & HAZARD (DENSO)
20	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
20	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
21	39794-SDA-004	RELAY ASSY., FUEL PUMP (DENSO)	RELAY ASSY., FUEL PUMP (DENSO)
21	39794-SDA-003	Relay assy - FUEL PUMP (MITSUBA)	Relay assy - FUEL PUMP (MITSUBA)
22	39794-SDA-901	Relay assy, ENGINE CONTROL MODULE (MITSUBA)	Relay assy, ENGINE CONTROL MODULE (MITSUBA)
22	39794-SDA-902	Relay assy, ENGINE CONTROL MODULE (DENSO)	Relay assy, ENGINE CONTROL MODULE (DENSO)
29	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
30	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
31	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
32	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
33	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Control unit (ENGINE ROOM) 13 / 21

#	OEM	CL7	CM4
1	38100-SDB-A02	Horn assy - LOW (MITSUBA)	Horn assy - LOW (MITSUBA)
5	38150-SDB-A02	Horn assy - HIGH (MITSUBA)	Horn assy - HIGH (MITSUBA)
13	38231-SDA-A01	Fuse a - MULTI BLOCK (100A/70A)	Fuse a - MULTI BLOCK (100A/70A)
14	38231-S04-003	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
15	38231-S04-961	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
18	38235-SDA-A01	Puller - MINI FUSE	Puller - MINI FUSE
20	38252-SDA-A01	Cover - LOWER	Cover - LOWER
22	39792-SDA-A01	Relay assy - MICRO ISO	Relay assy - MICRO ISO
23	39794-SDA-A02	Relay assy - POWER(MICRO ISO) (DENSO)	Relay assy - POWER(MICRO ISO) (DENSO)
23	39794-SDA-A05	Relay assy - POWER(MICRO ISO) (MITSUBA)	Relay assy - POWER(MICRO ISO) (MITSUBA)
25	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
26	90129-SDA-000	Screw-washer - 5X16	Screw-washer - 5X16
27	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16

Countershaft (2.0L; 5MT) 41 / 44

#	OEM	CL7	CM4
1	23221-PPT-000	Countershaft	Countershaft
2	23421-PPP-000	Gear - COUNTERSHAFT LOW	Gear - COUNTERSHAFT LOW
3	23431-PPP-000	Gear - COUNTERSHAFT SECOND	Gear - COUNTERSHAFT SECOND
7	23521-PPS-305	Sleeve set - SYNCHRONIZER (1-2)	Sleeve set - SYNCHRONIZER (1-2)
8	23914-PPP-000	Collar - DISTANCE, 40X47X27.5	Collar - DISTANCE, 40X47X27.5
9	23917-PPP-000	Collar - DISTANCE, 40X47X28	Collar - DISTANCE, 40X47X28
10	23918-PPP-000	Collar - DISTANCE, 37X44X32.5	Collar - DISTANCE, 37X44X32.5
11	23985-PPP-900	Shim ae - 35MM (1.23)	Shim ae - 35MM (1.23)
11	23983-PPP-000	Shim c - 35MM (1.03)	Shim c - 35MM (1.03)
11	23994-PPP-000	Shim p - 35MM (1.91)	Shim p - 35MM (1.91)
11	23991-PPP-900	Shim al - 35MM (1.71)	Shim al - 35MM (1.71)
11	23989-PPP-000	Shim j - 35MM (1.51)	Shim j - 35MM (1.51)
11	23986-PPP-900	Shim af - 35MM (1.31)	Shim af - 35MM (1.31)
11	23984-PPP-000	Shim d - 35MM (1.11)	Shim d - 35MM (1.11)
11	23981-PPP-900	Shim aa - 35MM (0.91)	Shim aa - 35MM (0.91)
11	23995-PPP-000	Shim q - 35MM (1.99)	Shim q - 35MM (1.99)
11	23992-PPP-900	Shim am - 35MM (1.79)	Shim am - 35MM (1.79)
11	23990-PPP-000	Shim k - 35MM (1.59)	Shim k - 35MM (1.59)
11	23987-PPP-900	Shim ag - 35MM (1.39)	Shim ag - 35MM (1.39)
11	23985-PPP-000	Shim e - 35MM (1.19)	Shim e - 35MM (1.19)
11	23982-PPP-900	Shim ab - 35MM (0.99)	Shim ab - 35MM (0.99)
11	23993-PPP-900	Shim an - 35MM (1.87)	Shim an - 35MM (1.87)
11	23991-PPP-000	Shim l - 35MM (1.67)	Shim l - 35MM (1.67)
11	23988-PPP-900	Shim ah - 35MM (1.47)	Shim ah - 35MM (1.47)
11	23986-PPP-000	Shim f - 35MM (1.27)	Shim f - 35MM (1.27)
11	23983-PPP-900	Shim ac - 35MM (1.07)	Shim ac - 35MM (1.07)
11	23981-PPP-000	Shim a - 35MM (0.87)	Shim a - 35MM (0.87)
11	23994-PPP-900	Shim ap - 35MM (1.95)	Shim ap - 35MM (1.95)
11	23992-PPP-000	Shim m - 35MM (1.75)	Shim m - 35MM (1.75)
11	23989-PPP-900	Shim aj - 35MM (1.55)	Shim aj - 35MM (1.55)
11	23987-PPP-000	Shim g - 35MM (1.35)	Shim g - 35MM (1.35)
11	23984-PPP-900	Shim ad - 35MM (1.15)	Shim ad - 35MM (1.15)
11	23982-PPP-000	Shim b - 35MM (0.95)	Shim b - 35MM (0.95)
11	23993-PPP-000	Shim n - 35MM (1.83)	Shim n - 35MM (1.83)
11	23990-PPP-900	Shim ak - 35MM (1.63)	Shim ak - 35MM (1.63)
11	23988-PPP-000	Shim h - 35MM (1.43)	Shim h - 35MM (1.43)
12	90011-PPP-000	Bolt - SPECIAL, 20X25	Bolt - SPECIAL, 20X25
13	90601-PPP-000	Ring - SNAP, 72MM	Ring - SNAP, 72MM
14	91004-PPP-004	Bearing - BALL, 30X72X17	Bearing - BALL, 30X72X17
15	91101-PPP-003	Bearing - NEEDLE, 47X52X23	Bearing - NEEDLE, 47X52X23
16	91212-PPP-004	Damper - FRICTION (SECOND)	Damper - FRICTION (SECOND)

Crankshaft/piston 23 / 44

#	OEM	CL7	CM4
3	13111-PNA-010	Pin - PISTON	Pin - PISTON
4	13115-PRB-A00	Clip - PISTON PIN	Clip - PISTON PIN
5	13204-P8A-A01	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
6	13210-PNA-000	Rod comp - CONNECTING	Rod comp - CONNECTING
8	13310-PNA-000	Crankshaft comp.	Crankshaft comp.
9	13326-PNA-003	Bearing f - MAIN UPPER (PINK) (DAIDO)	Bearing f - MAIN UPPER (PINK) (DAIDO)
9	13322-PNA-003	Bearing b - MAIN UPPER (BLACK) (DAIDO)	Bearing b - MAIN UPPER (BLACK) (DAIDO)
9	13323-PNA-003	Bearing c - MAIN UPPER (BROWN) (DAIDO)	Bearing c - MAIN UPPER (BROWN) (DAIDO)
9	13324-PNA-003	Bearing d - MAIN UPPER (GREEN) (DAIDO)	Bearing d - MAIN UPPER (GREEN) (DAIDO)
9	13321-PNA-003	BEARING A - MAIN UPPER (BLUE) (DAIDO)	BEARING A - MAIN UPPER (BLUE) (DAIDO)
9	13325-PNA-003	Bearing e - MAIN UPPER (YELLOW) (DAIDO)	Bearing e - MAIN UPPER (YELLOW) (DAIDO)
10	13331-PNA-004	Washer - THRUST(TAIHO)	Washer - THRUST(TAIHO)
11	13342-PNA-003	Bearing b - MAIN LOWER (BLACK) (DAIDO)	Bearing b - MAIN LOWER (BLACK) (DAIDO)
11	13343-PNA-003	Bearing c - MAIN LOWER (BROWN) (DAIDO)	Bearing c - MAIN LOWER (BROWN) (DAIDO)
11	13344-PNA-003	Bearing d - MAIN LOWER (GREEN) (DAIDO)	Bearing d - MAIN LOWER (GREEN) (DAIDO)
11	13341-PNA-003	BEARING A - MAIN LOWER (BLUE) (DAIDO)	BEARING A - MAIN LOWER (BLUE) (DAIDO)
11	13345-PNA-003	Bearing e - MAIN LOWER (YELLOW) (DAIDO)	Bearing e - MAIN LOWER (YELLOW) (DAIDO)
11	13346-PNA-003	Bearing f - MAIN LOWER (PINK) (DAIDO)	Bearing f - MAIN LOWER (PINK) (DAIDO)
12	13620-RAA-A02	Sprocket comp - CHAIN DRIVE	Sprocket comp - CHAIN DRIVE
13	13622-PNA-003	Plate - CRANK PULSER	Plate - CRANK PULSER
14	13810-PNA-013	Pulley comp - CRANKSHAFT	Pulley comp - CRANKSHAFT
15	90017-PCX-013	Bolt-washer - 16X49	Bolt-washer - 16X49
17	90704-PNA-000	Key - 4.5X21	Key - 4.5X21

Cylinder block/oil pan 23 / 27

#	OEM	CL7	CM4
1	11000-RRA-A00	Block assy - CYLINDER	Block assy - CYLINDER
2	11103-RAC-003	Plate, PARTITION	Plate, PARTITION
3	11106-PNA-300	Bolt - SEALING, 20MM	Bolt - SEALING, 20MM
5	11108-PT0-003	Bolt - SEALING, 18MM	Bolt - SEALING, 18MM
6	11135-RAA-A00	Orifice assy - LOWER BLOCK	Orifice assy - LOWER BLOCK
7	11200-PNA-000	Pan comp - OIL	Pan comp - OIL
8	11221-RAA-A00	Plate a - BAFFLE	Plate a - BAFFLE
9	11222-RAA-A00	Plate b - BAFFLE	Plate b - BAFFLE
10	11223-RAA-A00	Plate c - BAFFLE	Plate c - BAFFLE
12	11224-RAA-A00	Baffle - OIL FILTER HEAT	Baffle - OIL FILTER HEAT
15	30530-PNA-003	Knock Sensor - 30530-PNA-003	Knock Sensor - 30530-PNA-003
15	30530-PPL-A01	Knock Sensor	Knock Sensor
16	37240-PT0-023	Switch - OIL PRESSURE(DENSO)	Switch - OIL PRESSURE(DENSO)
16	37240-PT0-014	Switch - OIL PRESSURE (TEC)	Switch - OIL PRESSURE (TEC)
18	90006-PNA-003	Bolt-washer - 11X95	Bolt-washer - 11X95
19	90009-PH1-000	Bolt - DRAIN PLUG, 14MM	Bolt - DRAIN PLUG, 14MM
20	90016-RAA-A00	Bolt-washer - 8X19	Bolt-washer - 8X19
21	90028-PNB-003	Bolt - SPECIAL, 6X20.5(GUIDE)	Bolt - SPECIAL, 6X20.5(GUIDE)
22	90041-PA5-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
23	90401-PR4-000	Washer - SEALING, 28MM	Washer - SEALING, 28MM
24	90703-PE0-000	Dowel pin - 18X22	Dowel pin - 18X22
25	90715-PNA-000	Dowel pin - 13X14	Dowel pin - 13X14
27	91306-PJ4-000	O-ring - 6.8X1.9	O-ring - 6.8X1.9

Cylinder head 10 / 11

#	OEM	CL7	CM4
2	12204-PNA-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PNA-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
4	14631-PNE-000	Shaft - IN. ROCKER	Shaft - IN. ROCKER
5	14633-PNA-000	Shaft - EX. ROCKER	Shaft - EX. ROCKER
6	37510-PNB-003	Sensor assy - TDC	Sensor assy - TDC
7	37510-RAA-A01	Sensor assy - TDC	Sensor assy - TDC
8	90011-PNA-003	Bolt A, Head Cover	Bolt A, Head Cover
9	90012-PNA-003	Bolt b - HEAD COVER	Bolt b - HEAD COVER
10	90083-PNA-000	Bolt - SEALING, 10MM	Bolt - SEALING, 10MM
11	91333-PNA-003	O-ring - 15X1.9	O-ring - 15X1.9

Cylinder head cover 19 / 19

#	OEM	CL7	CM4
1	12030-RTA-000	Packing set - HEAD COVER	Packing set - HEAD COVER
2	12310-RAA-A00	Cover, CYLINDER HEAD	Cover, CYLINDER HEAD
3	12341-RTA-000	Packing, CYLINDER HEAD COVER	Packing, CYLINDER HEAD COVER
4	12342-PCX-004	Seal - SPARK PLUG TUBE (NOK)	Seal - SPARK PLUG TUBE (NOK)
5	12500-PNC-020	Cover comp. - PLUG HOLE COIL	Cover comp. - PLUG HOLE COIL
6	15610-P5G-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
6	15610-RGA-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
7	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler
8	15650-PNA-014	Gauge comp. - OIL LEVEL	Gauge comp. - OIL LEVEL
9	17153-RAA-A02	Tube - BREATHER	Tube - BREATHER
10	19512-PC6-003	Clip - HOSE, 18.7MM	Clip - HOSE, 18.7MM
11	90013-PNC-010	Bolt a - PLUG HOLE COIL COVER	Bolt a - PLUG HOLE COIL COVER
12	90014-R40-A00	Bolt b - PLUG HOLE COIL COVER	Bolt b - PLUG HOLE COIL COVER
12	90014-RAA-A00	Bolt b - PLUG HOLE COIL COVER	Bolt b - PLUG HOLE COIL COVER
13	90207-RAA-A10	Nut - HEX. CAP, 6MM	Nut - HEX. CAP, 6MM
14	90213-PH3-000	Nut - CAP, 6MM	Nut - CAP, 6MM
15	90441-PNA-010	Washer - HEAD COVER	Washer - HEAD COVER
16	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
16	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)

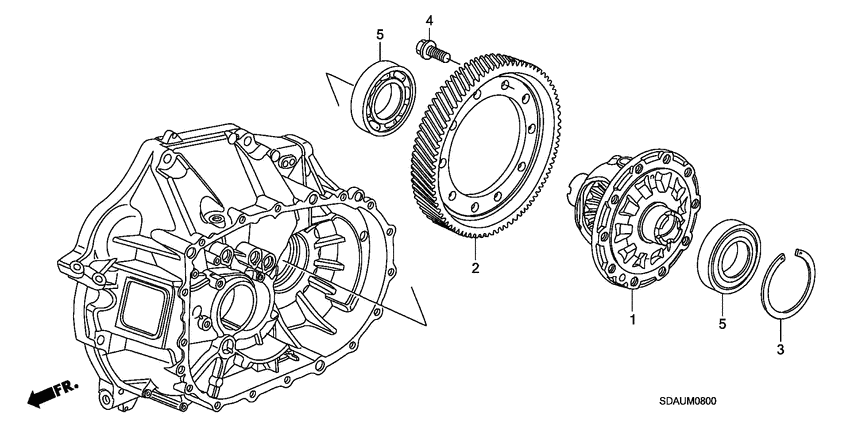

Differential 20 / 21

#	OEM	CL7	CM4
2	41233-PPT-000	Gear - FINAL DRIVEN	Gear - FINAL DRIVEN
3	41457-PL3-B00	Shim s - 80MM(1.75)	Shim s - 80MM(1.75)
3	41452-PL3-B00	Shim m - 80MM(1.25)	Shim m - 80MM(1.25)
3	41447-PL3-B00	Shim g - 80MM(1.6)	Shim g - 80MM(1.6)
3	41442-PL3-B00	Shim b - 80MM(1.1)	Shim b - 80MM(1.1)
3	41454-PL3-B00	Shim p - 80MM(1.45)	Shim p - 80MM(1.45)
3	41449-PL3-B00	Shim j - 80MM(1.8)	Shim j - 80MM(1.8)
3	41444-PL3-B00	Shim d - 80MM(1.3)	Shim d - 80MM(1.3)
3	41456-PL3-B00	Shim r - 80MM(1.65)	Shim r - 80MM(1.65)
3	41451-PL3-B00	Shim l - 80MM(1.15)	Shim l - 80MM(1.15)
3	41446-PL3-B00	Shim f - 80MM(1.5)	Shim f - 80MM(1.5)
3	41441-PL3-B00	Shim a - 80MM(1.0)	Shim a - 80MM(1.0)
3	41453-PL3-B00	Shim n - 80MM(1.35)	Shim n - 80MM(1.35)
3	41448-PL3-B00	Shim h - 80MM(1.7)	Shim h - 80MM(1.7)
3	41443-PL3-B00	Shim c - 80MM(1.2)	Shim c - 80MM(1.2)
3	41455-PL3-B00	Shim q - 80MM(1.55)	Shim q - 80MM(1.55)
3	41450-PL3-B00	Shim k - 80MM(1.05)	Shim k - 80MM(1.05)
3	41445-PL3-B00	Shim e - 80MM(1.4)	Shim e - 80MM(1.4)
4	90017-PPP-000	Bolt - SPECIAL, 11MM	Bolt - SPECIAL, 11MM
5	91005-PPS-003	Bearing - BALL, 40X80X18(NTN)	Bearing - BALL, 40X80X18(NTN)

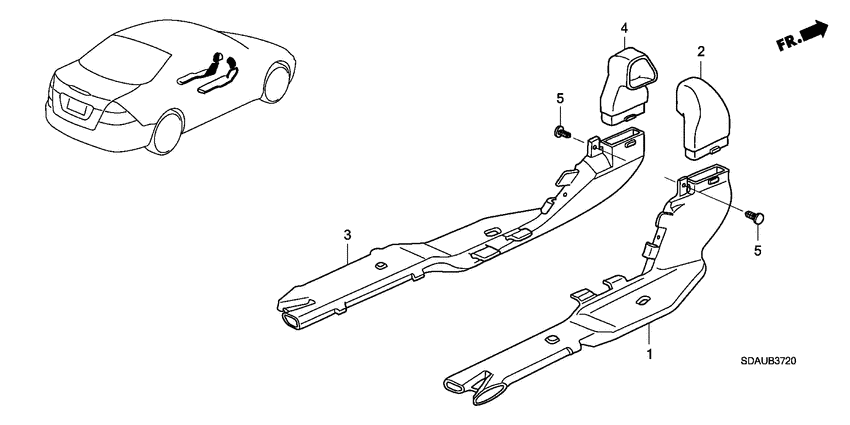

Duct 4 / 4

#	OEM	CL7	CM4
1	83331-SDA-A00	Duct - R. RR. HEATER	Duct - R. RR. HEATER
2	83332-SDA-A00	Duct - R. RR. HEATER JOINT	Duct - R. RR. HEATER JOINT
3	83381-SDA-A00	Duct - L. RR. HEATER	Duct - L. RR. HEATER
4	83382-SDA-A00	Duct - L. RR. HEATER JOINT	Duct - L. RR. HEATER JOINT

Emblems/caution labels 3 / 11

#	OEM	CL7	CM4
3	19043-PLA-E00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION
10	77875-SDA-G80	Label - SRS CAUTION	Label - SRS CAUTION
13	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

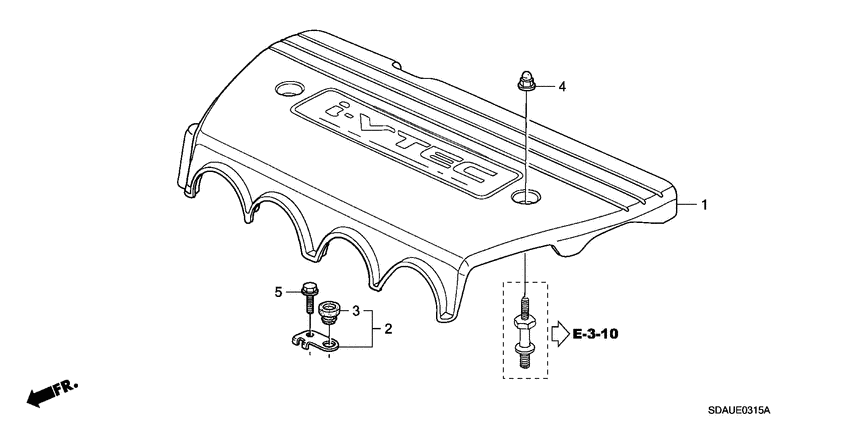

Engine cover 4 / 4

#	OEM	CL7	CM4
1	17121-RAC-U00	Cover assy. - ENGINE	Cover assy. - ENGINE
2	17123-RAA-A00	Stay assy. a - ENGINE COVER	Stay assy. a - ENGINE COVER
3	17213-P8A-A00	Rubber - INTAKE MANIFOLD COVER MOUNTING	Rubber - INTAKE MANIFOLD COVER MOUNTING
4	90207-RAA-A00	Nut - HEX. CAP, 6MM	Nut - HEX. CAP, 6MM

Engine hood (LH) 12 / 34

#	OEM	CL7	CM4
1	17706-SC3-003	Clip - FUEL PIPE	Clip - FUEL PIPE
13	74143-SDA-A00	Rubber - RR. HOOD SEAL	Rubber - RR. HOOD SEAL
27	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
30	90602-SX0-003	Clip - COWL TOP	Clip - COWL TOP
31	90602-S5A-003	Clip - COWL TOP	Clip - COWL TOP
32	90603-SX0-003	Grommet - COWL TOP	Grommet - COWL TOP
34	91501-STK-003	Clip - ENGINE HOOD INSULATOR	Clip - ENGINE HOOD INSULATOR
34	91501-S1K-003	Clip - ENGINE HOOD INSULATOR	Clip - ENGINE HOOD INSULATOR
36	91504-SDA-003	Clip - HOOD OPEN WIRE	Clip - HOOD OPEN WIRE
37	91518-SM4-003	Clip - TRUNK MOLDING	Clip - TRUNK MOLDING
38	91549-P1E-003	Clip - AIR INTAKE COVER	Clip - AIR INTAKE COVER
41	91565-SD5-003	Clip - COUPLER(NATURAL)	Clip - COUPLER(NATURAL)

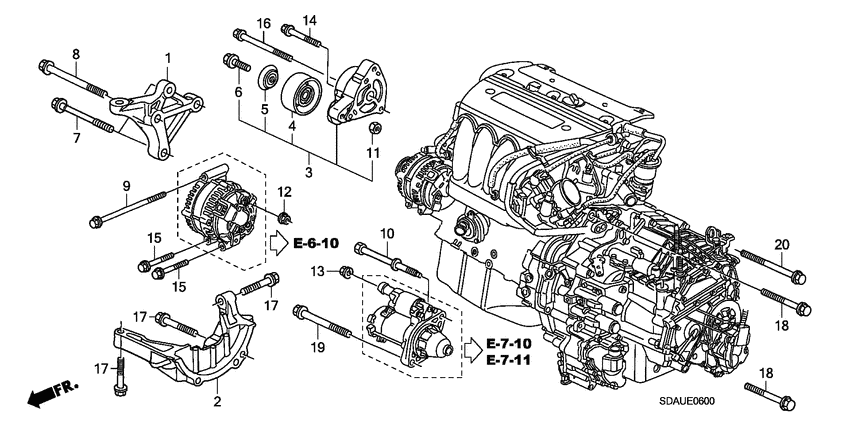

Engine mounting bracket 10 / 10

#	OEM	CL7	CM4
1	11910-RAC-000	Bracket - ENGINE SIDE MOUNTING	Bracket - ENGINE SIDE MOUNTING
3	31170-PNA-023	Tensioner assy, Auto	Tensioner assy, Auto
5	31180-PNA-J01	Pulley comp., IDLER	Pulley comp., IDLER
7	31185-PNA-003	Cover - BEARING	Cover - BEARING
9	90002-PNA-000	Bolt - SPECIAL, 10X28	Bolt - SPECIAL, 10X28
10	90008-PNA-000	Bolt - 10X75	Bolt - 10X75
11	90008-RAA-A00	Bolt - MOUNTING BRACKET, 10X95	Bolt - MOUNTING BRACKET, 10X95
12	90025-PNA-000	Bolt - SPECIAL, 8X105	Bolt - SPECIAL, 8X105
13	90027-PND-A00	Bolt - SPECIAL, 10X50	Bolt - SPECIAL, 10X50
15	90202-PNA-003	Nut - 10MM	Nut - 10MM

Engine mounts (MT) 22 / 30

#	OEM	CL7	CM4
2	50610-SDA-A01	Bracket - RR. ENGINE MOUNTING	Bracket - RR. ENGINE MOUNTING
3	50620-SDA-A01	Bracket - SIDE ENGINE MOUNTING	Bracket - SIDE ENGINE MOUNTING
4	50630-SDA-A02	Bracket - FR. ENGINE MOUNTING	Bracket - FR. ENGINE MOUNTING
6	50810-SDA-E11	Rubber, ENGINE RR. MOUNTING (MT)	Rubber, ENGINE RR. MOUNTING (MT)
7	50815-SDA-A01	Stopper - ENGINE RR. MOUNTING	Stopper - ENGINE RR. MOUNTING
10	50835-SDA-A12	Stopper - ENGINE FR. MOUNT (MT)	Stopper - ENGINE FR. MOUNT (MT)
11	50850-SDA-A10	Rubber - FR. TRANSMISSION LOWER MOUNTING (MT)	Rubber - FR. TRANSMISSION LOWER MOUNTING (MT)
12	50860-SDA-A12	Rubber - RR. TRANSMISSION LOWER MOUNTING (MT)	Rubber - RR. TRANSMISSION LOWER MOUNTING (MT)
14	50875-SDA-A11	Plate - TRANSMISSION UPPER MOUNT STOPPER	Plate - TRANSMISSION UPPER MOUNT STOPPER
15	50933-SZ3-003	Clip - ACCUMULATOR PIPE	Clip - ACCUMULATOR PIPE
19	50947-SDA-A01	Stay a - ELECTRONIC CONTROL MOUNT TUBE	Stay a - ELECTRONIC CONTROL MOUNT TUBE
20	90161-SDA-A01	Bolt - FLANGE, 12X45	Bolt - FLANGE, 12X45
21	90162-SDA-A00	Bolt - SPECIAL, 10X34	Bolt - SPECIAL, 10X34
22	90163-SDA-A01	Bolt - FLANGE, 10X35	Bolt - FLANGE, 10X35
23	90163-S5A-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20
24	90165-SDA-A00	Bolt - FLANGE, 12X45	Bolt - FLANGE, 12X45
25	90166-SDA-A00	Bolt - FLANGE, 12X80	Bolt - FLANGE, 12X80
26	90167-SDA-A00	Bolt - FLANGE, 12X85	Bolt - FLANGE, 12X85
27	90168-SDA-A00	Bolt - FLANGE, 12X125	Bolt - FLANGE, 12X125
28	90169-SDA-A01	Bolt - FLANGE, 10X62	Bolt - FLANGE, 10X62
29	90171-SDA-A10	Bolt - FLANGE, 12X71	Bolt - FLANGE, 12X71
30	90371-S87-A00	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM

Engine wire harness (LH) 24 / 31

#	OEM	CL7	CM4
3	32113-PLD-003	Collar - HARNESS GROMMET	Collar - HARNESS GROMMET
4	32117-P65-003	Holder - CORRUGATED(DARK BLUE) (15MM)	Holder - CORRUGATED(DARK BLUE) (15MM)
6	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)	Holder - CORRUGATED(DARK GREEN) (19MM)
7	32121-RAA-A00	Holder a - ENGINE HARNESS	Holder a - ENGINE HARNESS
8	32122-RAA-A00	Holder b - ENGINE HARNESS	Holder b - ENGINE HARNESS
9	32123-RAA-A00	Holder c - ENGINE HARNESS	Holder c - ENGINE HARNESS
10	32124-RAA-A01	Holder d - ENGINE HARNESS	Holder d - ENGINE HARNESS
11	32125-RBA-000	Holder e - ENGINE HARNESS	Holder e - ENGINE HARNESS
13	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
14	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
15	32741-RAA-A00	Stay e - ENGINE HARNESS	Stay e - ENGINE HARNESS
16	32745-RAA-A00	Stay l - ENGINE HARNESS	Stay l - ENGINE HARNESS
17	32746-RAA-A01	Stay c - ENGINE HARNESS	Stay c - ENGINE HARNESS
19	90028-RAA-003	Bolt - SPECIAL, 6X18.2	Bolt - SPECIAL, 6X18.2
20	90051-PNA-000	Bolt - SPECIAL, 6X28	Bolt - SPECIAL, 6X28
22	91506-RTA-003	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)	Clip A - HARNESS BAND (DARK VIOLET)(129.4MM)
23	91507-RTA-003	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)	Clip b - HARNESS BAND (DARK GREEN) (129.4MM)
24	91509-RRA-003	Clip d - WIRE HARNESS (BLACK) (135.4MM)	Clip d - WIRE HARNESS (BLACK) (135.4MM)
25	91551-PNA-003	Band - WIRE HARNESS (BLACK) (172MM)	Band - WIRE HARNESS (BLACK) (172MM)
27	91556-PDF-E01	Band - CLAMP(NATURAL)(143.2MM)	Band - CLAMP(NATURAL)(143.2MM)
28	91558-P8C-A01	Clip - HARNESS BAND (VIOLET) (150MM)	Clip - HARNESS BAND (VIOLET) (150MM)
29	91558-ST5-003	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)	Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
30	91559-PAA-A01	Clip - HARNESS BAND(GRAY) (150MM)	Clip - HARNESS BAND(GRAY) (150MM)
31	91559-RCA-A01	Clip - HARNESS BAND(DARK GRAY) (150MM)	Clip - HARNESS BAND(DARK GRAY) (150MM)

Exhaust manifold (2.0L) 9 / 9

#	OEM	CL7	CM4
1	11942-RAA-A00	Stay - EX. MANIFOLD	Stay - EX. MANIFOLD
2	18100-RAC-U00	Manifold comp - EX.	Manifold comp - EX.
3	18115-PNB-003	Gasket - EX. MANIFOLD (ISHINO GASKET)	Gasket - EX. MANIFOLD (ISHINO GASKET)
3	18115-PRB-A01	Gasket comp - EX. MANIFOLD (NIPPON LEAKLESS)	Gasket comp - EX. MANIFOLD (NIPPON LEAKLESS)
4	18120-RAC-U00	Cover comp. - EX. MANIFOLD	Cover comp. - EX. MANIFOLD
5	90005-P0A-000	Bolt-washer - 10X22	Bolt-washer - 10X22
6	90010-PE2-900	Bolt - SPECIAL, 10X22	Bolt - SPECIAL, 10X22
7	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
8	90451-PE2-000	Washer - SPECIAL, 11X28	Washer - SPECIAL, 11X28

Exhaust pipe (2.0L) 13 / 31

#	OEM	CL7	CM4
3	18176-PT0-003	Bolt - CONVERTER	Bolt - CONVERTER
4	18176-P08-003	Bolt - CONVERTER	Bolt - CONVERTER
8	18215-SDA-A22	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
10	18215-S84-A20	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
12	18230-SV4-000	Spring - FLEXIBLE JOINT	Spring - FLEXIBLE JOINT
13	18231-SR3-A22	Bolt b - FLEXIBLE JOINT	Bolt b - FLEXIBLE JOINT
14	18302-SP0-003	Gasket - EX. PIPE	Gasket - EX. PIPE
16	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
19	36533-RAA-A10	Grommet - 31X41	Grommet - 31X41
25	74601-SDC-A01	Plate - FLOOR HEAT BAFFLE	Plate - FLOOR HEAT BAFFLE
26	74651-SDA-A00	Plate - TANK BAFFLE	Plate - TANK BAFFLE
27	74653-SDC-A00	Plate - PRE SILENCER BAFFLE	Plate - PRE SILENCER BAFFLE
30	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Floor mat 3 / 6

#	OEM	CL7	CM4
18	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE
19	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR
20	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Front beam/rear beam 17 / 24

#	OEM	CL7	CM4
2	50220-SDA-A00	Stiffener - STEERING GEAR BOX	Stiffener - STEERING GEAR BOX
5	50261-SDA-A02	Rubber, FR. SUB FRAME FR. STOPPER	Rubber, FR. SUB FRAME FR. STOPPER
9	50271-SDA-A01	Rubber, FR. SUB FRAME RR. STOPPER	Rubber, FR. SUB FRAME RR. STOPPER
10	50275-SDA-A00	Stay - R. RR. SUB FRAME MOUNTING	Stay - R. RR. SUB FRAME MOUNTING
11	50276-SDA-A00	Stay - L. RR. SUB FRAME MOUNTING	Stay - L. RR. SUB FRAME MOUNTING
12	50280-SDA-A01	Rubber - R. FR. SUB FRAME MIDDLE MOUNTING	Rubber - R. FR. SUB FRAME MIDDLE MOUNTING
13	50285-SDA-A01	Rubber - L. FR. SUB FRAME MIDDLE MOUNTING	Rubber - L. FR. SUB FRAME MIDDLE MOUNTING
16	50680-SDA-A00	Base - RR. ENGINE MOUNTING	Base - RR. ENGINE MOUNTING
17	90186-SDA-A00	Bolt - FLANGE, 12X33	Bolt - FLANGE, 12X33
18	90170-SDC-A00	Bolt - FLANGE, 10X34	Bolt - FLANGE, 10X34
19	90171-S3Y-000	Bolt - FLANGE, 10X35	Bolt - FLANGE, 10X35
20	90176-SDA-A00	Bolt - FLANGE, 14X135	Bolt - FLANGE, 14X135
21	90177-SDA-A00	Bolt - FLANGE, 14X150	Bolt - FLANGE, 14X150
22	90179-SDA-A00	Bolt - FLANGE, 14X90	Bolt - FLANGE, 14X90
23	90180-SDA-A00	Bolt - FLANGE, 14X125	Bolt - FLANGE, 14X125
24	90396-S5A-010	Bolt - FLANGE, 12X75	Bolt - FLANGE, 12X75
25	91613-SE0-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM

Front brake 9 / 21

#	OEM	CL7	CM4
1	44300-SDA-A52	Bearing assy - FR. HUB(NSK)	Bearing assy - FR. HUB(NSK)
1	44300-SDA-A53	Bearing assy	Bearing assy
2	44600-SDA-A10	Hub assy, FR.	Hub assy, FR.
14	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
15	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
15	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
15	90113-S5H-005	Bolt - WHEEL (THAI MEIRA)	Bolt - WHEEL (THAI MEIRA)
15	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
16	90681-SDA-A00	Circlip - SPECIAL INTERNAL, 86MM	Circlip - SPECIAL INTERNAL, 86MM

Front bulkhead/dashboard 2 / 2

#	OEM	CL7	CM4
36	90105-SV1-000	Bolt-washer - 8X20	Bolt-washer - 8X20
37	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Front door glass/door reg ulator 2 / 14

#	OEM	CL7	CM4
1	39885-S5A-G11	Label - IMMOBILIZER & SECURITY	Label - IMMOBILIZER & SECURITY
15	90132-SD4-000	Bolt-washer - 6X16	Bolt-washer - 6X16

Front door lining (LH) 10 / 15

#	OEM	CL7	CM4
1	33301-S70-003	Bulb - 12V 3.8W 2CP	Bulb - 12V 3.8W 2CP
2	34261-SDA-A01	Lens	Lens
8	72134-S2X-003	Snap - R. (NATURAL)	Snap - R. (NATURAL)
11	72174-S2X-003	Snap - L. (BLACK)	Snap - L. (BLACK)
27	90101-S03-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
28	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
29	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
30	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
31	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
32	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Front door locks/outer ha ndle 19 / 37

#	OEM	CL7	CM4
3	72113-SR4-004	Snap - BLACK	Snap - BLACK
4	72115-SDA-A01	Actuator assy - R. FR. DOOR LOCK	Actuator assy - R. FR. DOOR LOCK
7	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
12	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
14	72139-SDA-A00	Protector - R. FR. DOOR KNOB	Protector - R. FR. DOOR KNOB
15	72139-SR0-A01	Snap - VIOLET	Snap - VIOLET
16	72139-S0A-003	Snap - PINK	Snap - PINK
18	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
22	72143-S04-003	Packing	Packing
23	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
25	72155-SDA-A01	Actuator assy, Lh - L. FR. DOOR LOCK	Actuator assy, Lh - L. FR. DOOR LOCK
30	72179-SDA-A00	Protector - L. FR. DOOR KNOB	Protector - L. FR. DOOR KNOB
32	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
37	90103-S7S-003	Screw - FLAT, 6X18.5	Screw - FLAT, 6X18.5
38	90141-S84-003	Screw - 3X10	Screw - 3X10
39	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
40	90866-SA0-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
41	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
42	91591-SJ6-013	Clip s - FUEL PIPE	Clip s - FUEL PIPE

Front door panels 10 / 18

#	OEM	CL7	CM4
19	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
20	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
21	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
21	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
22	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
23	90341-SDA-000	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
24	90563-SDA-003	Clip - R. SUB SEAL B DOOR	Clip - R. SUB SEAL B DOOR
25	90564-SDA-003	Clip - L. SUB SEAL B DOOR	Clip - L. SUB SEAL B DOOR
27	91568-SR2-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
27	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP

Front driveshaft/ half shaft 14 / 26

#	OEM	CL7	CM4
8	44319-SE0-000	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
9	44319-S0A-300	Set ring - 28X2.0	Set ring - 28X2.0
10	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
11	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)	Band - OUTBOARD BOOT (NIPPON HATSUJO)
12	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
18	44500-SDA-A00	Shaft assy - HALF	Shaft assy - HALF
19	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
20	90165-SE0-000	Bolt - FLANGE, 10X37	Bolt - FLANGE, 10X37
21	90305-SD4-003	Nut - SPINDLE (24MM)	Nut - SPINDLE (24MM)
22	90681-SR3-000	Circlip - EXTERNAL, 33MM	Circlip - EXTERNAL, 33MM
23	91057-SR3-008	Bearing - HALF SHAFT(NTN)	Bearing - HALF SHAFT(NTN)
24	91260-SR3-004	Seal - HALF SHAFT OUTER (ARAI)	Seal - HALF SHAFT OUTER (ARAI)
24	91260-SR3-003	Seal - HALF SHAFT OUTER(NOK)	Seal - HALF SHAFT OUTER(NOK)

Front fenders 9 / 25

#	OEM	CL7	CM4
13	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
15	90114-SZ3-000	Screw-washer - 5X20	Screw-washer - 5X20
17	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
20	90305-SM4-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
23	91503-SZ3-003	Clip A	Clip A
24	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
25	91533-SG0-000	Clip b - FAIRING	Clip b - FAIRING
26	91545-SE0-003	Clip assy. - 8MM	Clip assy. - 8MM
27	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)

Front grille (1) 4 / 9

#	OEM	CL7	CM4
7	75700-S9A-G00	Front Honda Emblem - (H)	Front Honda Emblem - (H)
8	90301-ST0-003	push nut, 3mm	push nut, 3mm
9	91503-SZ3-003	Clip A	Clip A
10	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front knuckle/upper arm 13 / 16

#	OEM	CL7	CM4
1	44348-SDA-A00	Ring - FR. KNUCKLE	Ring - FR. KNUCKLE
2	51210-SDA-A02	Knuckle comp - R. FR.	Knuckle comp - R. FR.
3	51215-SDA-A02	Knuckle comp - L. FR.	Knuckle comp - L. FR.
4	51225-SL5-003	Boot - LOWER BALL DUST	Boot - LOWER BALL DUST
7	51464-S04-013	Boot, UPPER BALL JOINT	Boot, UPPER BALL JOINT
8	52226-SL0-003	Circlip - LOWER BALL(MUSASHI)	Circlip - LOWER BALL(MUSASHI)
9	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
10	57450-SDH-003	Sensor assy - R. FR.	Sensor assy - R. FR.
11	57455-SDH-003	Sensor assy - L. FR.	Sensor assy - L. FR.
12	90172-SDA-A00	Bolt - FLANGE, 10X78	Bolt - FLANGE, 10X78
14	90363-SDA-A03	Nut - CASTLE, 12MM	Nut - CASTLE, 12MM
15	90701-SX0-003	Clip - UPPER ARM	Clip - UPPER ARM
16	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)

Front seat (L.; LH; 1) 8 / 19

#	OEM	CL7	CM4
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
21	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
22	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
23	90610-S10-003	Clip - GARNISH	Clip - GARNISH
25	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
26	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
27	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front seat (R.; LH; 1) 7 / 16

#	OEM	CL7	CM4
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
18	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
19	90610-S10-003	Clip - GARNISH	Clip - GARNISH
21	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
22	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
23	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Front seat components (L.; MANUAL HEIGHT) 2 / 12

#	OEM	CL7	CM4
16	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
17	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25

Front seat components (R.; MANUAL SEAT) 1 / 3

#	OEM	CL7	CM4
4	90135-S7A-J51	Bolt-washer - 10X25	Bolt-washer - 10X25

Front shock absorber 13 / 19

#	OEM	CL7	CM4
6	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
7	51631-SV7-004	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
8	51675-SDA-A01	Base - FR. SHOCK ABSORBER MOUNTING	Base - FR. SHOCK ABSORBER MOUNTING
9	51684-SDA-A02	Mount - FR. DUST COVER LOWER	Mount - FR. DUST COVER LOWER
10	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
11	51686-SDA-A01	Rubber - FR. SPRING MOUNTING	Rubber - FR. SPRING MOUNTING
12	51688-SDA-A01	Sleeve - FR. DUST COVER	Sleeve - FR. DUST COVER
13	51689-SDA-A01	Cover - FR. END DUST	Cover - FR. END DUST
14	51689-SH3-004	Plate - BUMP STOP (SHOWA)	Plate - BUMP STOP (SHOWA)
15	51722-SS0-004	Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)	Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI)
16	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
17	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front stabilizer/ front lower arm 9 / 21

#	OEM	CL7	CM4
3	51308-SDA-A00	Bracket - FR. STABILIZER	Bracket - FR. STABILIZER
10	51810-SDA-A01	BUSH, FR. SHOCK ABSORBER	BUSH, FR. SHOCK ABSORBER
16	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
17	90117-S0A-000	Bolt - DAMPER LOCK(10X44)	Bolt - DAMPER LOCK(10X44)
18	90118-SDA-A00	Bolt - FLANGE, 12X87	Bolt - FLANGE, 12X87
19	90119-SDA-A00	Bolt - FLANGE, 14X94	Bolt - FLANGE, 14X94
20	90121-S0A-000	Bolt - DAMPER FORK(12X98)	Bolt - DAMPER FORK(12X98)
21	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
22	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Front windshield 2 / 6

#	OEM	CL7	CM4
3	73126-SDA-A00	Seal - FR. WINDSHIELD UPPER	Seal - FR. WINDSHIELD UPPER
8	91568-SDA-A01	Clip - WINDSHIELD UPPER	Clip - WINDSHIELD UPPER

Front windshield wiper (LH) 9 / 22

#	OEM	CL7	CM4
2	76516-SDA-A01	Rubber - MOUNTING	Rubber - MOUNTING
3	76516-SM4-003	Rubber - MOUNTING	Rubber - MOUNTING
4	76517-SE0-003	Collar - BRACKETLESS	Collar - BRACKETLESS
5	76517-SM4-003	Collar	Collar
7	76524-SD4-003	Dust seal	Dust seal
8	76524-SE0-013	Dust seal	Dust seal
12	76561-SDA-A01	Cap - PIVOT	Cap - PIVOT
21	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
22	91611-SDA-A00	Cap - FR. WIPER ARM (12MM)	Cap - FR. WIPER ARM (12MM)

Fuel injector 9 / 20

#	OEM	CL7	CM4
2	16451-PLC-000	Clip - INJECTOR	Clip - INJECTOR
3	16620-RAA-A01	Pipe comp - FUEL	Pipe comp - FUEL
4	16638-PNA-000	Insulator - FUEL PIPE	Insulator - FUEL PIPE
8	17105-RAA-A01	Gasket - INJECTOR BASE	Gasket - INJECTOR BASE
9	17145-RAA-A00	Chamber comp - EGR	Chamber comp - EGR
10	17146-RAA-A01	Gasket - EGR CHAMBER	Gasket - EGR CHAMBER
15	90015-RAA-A00	Bolt a - ENGINE COVER	Bolt a - ENGINE COVER
16	91301-PLC-000	O-ring - 7.47X3.6	O-ring - 7.47X3.6
18	91302-PNA-003	O-ring - 7.45X3.61(NOK)	O-ring - 7.45X3.61(NOK)

Fuel pipe 16 / 23

#	OEM	CL7	CM4
6	16725-RAC-003	Clamp - FUEL HOSE (NATURAL)	Clamp - FUEL HOSE (NATURAL)
9	16727-PND-004	Clamp - FUEL HOSE (BLACK)	Clamp - FUEL HOSE (BLACK)
12	17717-SDA-G03	Hose assy - FUEL PURGE	Hose assy - FUEL PURGE
17	17762-SDA-A00	Stay b - FUEL PIPE	Stay b - FUEL PIPE
18	17763-SDA-A01	Stay c - FUEL PIPE	Stay c - FUEL PIPE
19	17764-SDA-A01	Stay d - FUEL PIPE	Stay d - FUEL PIPE
20	36166-PAA-A01	Joint - PURGE	Joint - PURGE
21	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
22	91405-SDA-000	Clamp - TUBE(D10.5)	Clamp - TUBE(D10.5)
23	91407-SDB-000	Clamp - TUBE (D12.5)	Clamp - TUBE (D12.5)
24	91594-SDC-E00	Rubber a - FUEL PIPE INSULATOR	Rubber a - FUEL PIPE INSULATOR
25	91595-SDC-E00	Rubber b - FUEL PIPE INSULATOR	Rubber b - FUEL PIPE INSULATOR
26	91595-S7A-931	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE
27	91599-SDC-E00	Rubber e - FUEL PIPE INSULATOR	Rubber e - FUEL PIPE INSULATOR
28	91599-S7A-931	Clamp b - FUEL PIPE	Clamp b - FUEL PIPE
32	17761-SDA-A00	Stay a - FUEL PIPE	Stay a - FUEL PIPE

Fuel tank 26 / 43

#	OEM	CL7	CM4
4	16017-S9E-T00	Pipe set - JOINT (A)	Pipe set - JOINT (A)
5	16019-SDC-E00	Housing assy.	Housing assy.
6	16711-S5H-T31	Rubber - FUEL PUMP INSULATOR	Rubber - FUEL PUMP INSULATOR
8	17043-S5H-T30	O-ring	O-ring
9	17044-SDC-E01	Bracket c	Bracket c
10	17371-SR3-A01	Valve - TWO WAY	Valve - TWO WAY
12	17516-SDC-E00	Filter comp - FUEL PUMP	Filter comp - FUEL PUMP
15	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
16	17551-S84-A01	Packing	Packing
17	17570-S84-G01	Valve - FUEL CUT	Valve - FUEL CUT
18	17574-S84-A01	Packing - BASE	Packing - BASE
19	17579-SDC-E01	Plate - SETTING	Plate - SETTING
20	17630-SDC-E01	Meter comp	Meter comp
22	17652-SDA-T01	Clip - FILLER TUBE	Clip - FILLER TUBE
27	17705-S0X-A01	Grommet	Grommet
29	17710-SDC-E01	Tube comp - FUEL VENT	Tube comp - FUEL VENT
32	17712-S84-A01	Clamp - FUEL TUBE	Clamp - FUEL TUBE
33	17716-SDC-E00	Tube - VENT	Tube - VENT
34	74660-SDA-A00	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
35	90101-S84-000	Bolt-washer - 5X10	Bolt-washer - 5X10
36	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
37	90301-SE0-J00	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
38	91401-SDC-000	Clip - TUBE(B10)	Clip - TUBE(B10)
39	91401-VA7-003	Clamp - TUBE	Clamp - TUBE
41	91592-SDC-E01	Clamp b - FUEL PIPE	Clamp b - FUEL PIPE
43	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Grommet (FRONT) 8 / 10

#	OEM	CL7	CM4
1	75826-634-300	Seal - INSIDE PANEL, 15MM	Seal - INSIDE PANEL, 15MM
2	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
3	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
6	91611-SM4-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
7	91611-SS0-003	Plug - HOLE, 25MM	Plug - HOLE, 25MM
8	91613-SR3-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM
9	91615-SH3-000	Cap - FLOOR HOLE, 49MM	Cap - FLOOR HOLE, 49MM
10	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Grommet (LOWER) 4 / 4

#	OEM	CL7	CM4
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
3	91602-SV4-003	Plug - HOLE, 15MM	Plug - HOLE, 15MM
4	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM

Grommet (REAR) 4 / 5

#	OEM	CL7	CM4
1	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
2	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
3	90857-SDA-A00	Cap - WELD HOLE	Cap - WELD HOLE
4	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM

Grommet (SIDE) 3 / 4

#	OEM	CL7	CM4
3	91618-SE3-010	Seal - RR. PILLAR UPPER	Seal - RR. PILLAR UPPER
4	91618-S5A-000	Seal - HOLE, 30X90	Seal - HOLE, 30X90
5	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Harness band/bracket (LH) 36 / 45

#	OEM	CL7	CM4
1	32112-S2K-003	Band - CABLE (90MM)	Band - CABLE (90MM)
7	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
9	32133-SLA-003	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)	Band - HARNESS OFFSET(30) (DARK GRAY)(145MM)
11	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
12	32141-SDA-A00	Protector - FLOOR HARNESS	Protector - FLOOR HARNESS
14	32177-SDA-003	Clip - FR. WIPER(BLACK)	Clip - FR. WIPER(BLACK)
16	32747-RAA-A00	Stay d - ENGINE HARNESS	Stay d - ENGINE HARNESS
22	90667-SB2-003	Clip - WIRE HARNESS (GRAY) (HARNESS TAPING) (50MM)	Clip - WIRE HARNESS (GRAY) (HARNESS TAPING) (50MM)
25	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
26	91507-S3Y-003	Clip - INSULATOR	Clip - INSULATOR
27	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
28	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
29	91531-SDA-003	Clip - HARNESS BAND (NATURAL) (145MM)	Clip - HARNESS BAND (NATURAL) (145MM)
30	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
31	91533-SDA-003	Clip - COUPLER (BEIGE)	Clip - COUPLER (BEIGE)
32	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
33	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
34	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
37	91541-S0A-003	Clip - HARNESS BAND(BLACK) (145MM)	Clip - HARNESS BAND(BLACK) (145MM)
38	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)	Clip - HARNESS BAND (BLACK) (140MM)
39	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
40	91545-S2A-003	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)	Clip - HARNESS BAND (BROWN) (151MM) (WITH SEAL)
42	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)	Clip - HARNESS BAND (BROWN) (151MM)
43	91555-SE0-003	Clip - WIRE HARNESS(BLACK)	Clip - WIRE HARNESS(BLACK)
44	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)
46	91556-SM4-003	Clip - BAND (BLACK) (100MM)	Clip - BAND (BLACK) (100MM)
47	91556-SP0-003	Clip - COUPLER(BROWN)	Clip - COUPLER(BROWN)
51	91559-SX0-003	Clip - HARNESS BAND (NATURAL) (155MM)	Clip - HARNESS BAND (NATURAL) (155MM)
52	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
55	91565-S0X-003	Clip - COUPLER (DARK GREEN)	Clip - COUPLER (DARK GREEN)
56	91577-SS0-003	Clip - WIRE HARNESS (BLUE) (122.5MM)	Clip - WIRE HARNESS (BLUE) (122.5MM)
57	91726-SDA-300	Ring a - GROMMET	Ring a - GROMMET
58	91727-SDA-300	Ring c - GROMMET	Ring c - GROMMET
59	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
61	91902-S2X-003	Plaster - WIRE HARNESS(50X100)	Plaster - WIRE HARNESS(50X100)
62	91902-S3N-003	Plaster - WIRE HARNESS (50X50)	Plaster - WIRE HARNESS (50X50)

Headlight 5 / 25

#	OEM	CL7	CM4
2	33105-S5N-C01	Nut - SPECIAL	Nut - SPECIAL
17	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
18	33303-SAA-003	Socket comp - T20 S) (AMBER	Socket comp - T20 S) (AMBER
19	33303-S2R-003	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)	Bulb - WEDGE (12V 21W) (STANLEY) (AMBER)
23	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Heater blower (LH) 7 / 10

#	OEM	CL7	CM4
1	79305-SDA-A01	Blower sub assy.	Blower sub assy.
2	79308-SDA-A01	Seal - BLOWER OUTER	Seal - BLOWER OUTER
4	79350-SDC-A01	Motor assy. - FRESH & RECIRCULAR	Motor assy. - FRESH & RECIRCULAR
7	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
8	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
9	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
10	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater unit (LH) 17 / 29

#	OEM	CL7	CM4
1	39248-692-003	Packing - HEATER	Packing - HEATER
2	79021-SDA-A01	Seal a	Seal a
3	79021-SEA-941	Packing - LINK	Packing - LINK
6	79140-SDA-A01	Motor assy. - MODE	Motor assy. - MODE
9	79191-SZ3-A01	Nut - HOLDER	Nut - HOLDER
10	79330-SDR-A01	Transistor - POWER	Transistor - POWER
11	79544-SDA-A11	Cable - WATER VALVE CONTROL	Cable - WATER VALVE CONTROL
12	79731-SDA-A00	Grommet - HEATER PIPE	Grommet - HEATER PIPE
13	79770-SE0-000	Grommet - WATER VALVE CABLE	Grommet - WATER VALVE CABLE
22	90126-S5A-003	Bolt - SOCKET, 5X40	Bolt - SOCKET, 5X40
23	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
24	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
25	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
27	91533-SDA-003	Clip - COUPLER (BEIGE)	Clip - COUPLER (BEIGE)
28	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
29	91541-S6M-003	Clip - HARNESS BAND (BLACK) (140MM)	Clip - HARNESS BAND (BLACK) (140MM)
30	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)

Install pipe/tubing 10 / 10

#	OEM	CL7	CM4
1	16725-PNA-003	Clamp a - FUEL HOSE	Clamp a - FUEL HOSE
2	17400-RAA-A00	Pipe - INSTALL	Pipe - INSTALL
3	36161-RAA-A00	Stay comp - PURGE CONTROL SOLENOID	Stay comp - PURGE CONTROL SOLENOID
4	36162-RAA-K01	Valve assy. - PURGE CONTROL SOLENOID	Valve assy. - PURGE CONTROL SOLENOID
5	36165-RAA-A00	Tube - PURGE	Tube - PURGE
6	36167-RAA-A00	Tube - PURGE CONTROL SOLENOID	Tube - PURGE CONTROL SOLENOID
7	36168-RAD-L10	Clip - PURGE	Clip - PURGE
8	46408-SDA-A02	Tube a - MASTER POWER	Tube a - MASTER POWER
9	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
10	91402-SDC-000	Clip - TUBE(B12)	Clip - TUBE(B12)

Instrument panel (LH) 9 / 14

#	OEM	CL7	CM4
6	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
15	90001-S10-010	Bolt-washer - 5X16	Bolt-washer - 5X16
16	90104-SV4-000	Bolt-washer - 8X25	Bolt-washer - 8X25
17	90106-S84-A00	Bolt-washer - 8X40	Bolt-washer - 8X40
18	90108-S84-A00	Bolt-washer - 8MM(SRS)	Bolt-washer - 8MM(SRS)
19	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
20	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
21	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
24	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (DRIVER SIDE; LH) 8 / 11

#	OEM	CL7	CM4
1	37115-SA0-601	Packing - NS	Packing - NS
3	66418-579-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
17	77752-SDC-Y01	Spring	Spring
18	90101-S2K-000	Screw - TAPPING, 4X16(IT)	Screw - TAPPING, 4X16(IT)
20	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
21	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
22	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
23	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (PASSENGER SIDE; LH) 12 / 23

#	OEM	CL7	CM4
1	33301-S70-003	Bulb - 12V 3.8W 2CP	Bulb - 12V 3.8W 2CP
8	39630-S0X-003	Ring assy - TYPE INCLUDING BULB	Ring assy - TYPE INCLUDING BULB
9	66418-SB2-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
12	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
28	77520-SDA-A01	Cylinder - GLOVE BOX	Cylinder - GLOVE BOX
29	77530-SDA-K02	Damper assy. - GLOVE BOX	Damper assy. - GLOVE BOX
32	77700-SDC-Y01	Ashtray assy. - FR.	Ashtray assy. - FR.
36	77715-SDA-K11	Spring - FR. ASHTRAY (LH)	Spring - FR. ASHTRAY (LH)
40	90140-SDA-A00	Bolt-washer - 5X19	Bolt-washer - 5X19
41	90306-SA0-000	Nut - FLOATING, 5MM	Nut - FLOATING, 5MM
43	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
45	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Intake manifold (2.0L) 9 / 19

#	OEM	CL7	CM4
2	17115-RAA-A01	Gasket - INTAKE MANIFOLD	Gasket - INTAKE MANIFOLD
3	17132-RAC-U00	Stay comp - INTAKE MANIFOLD	Stay comp - INTAKE MANIFOLD
6	17205-PC6-000	Clamp - TUBE, 7.5X2	Clamp - TUBE, 7.5X2
7	17212-PE2-000	Rubber a - AIR CLEANER CASE MOUNTING	Rubber a - AIR CLEANER CASE MOUNTING
9	37830-PNC-003	Map Sensor assy	Map Sensor assy
10	37835-PGK-A01	O-ring	O-ring
12	50931-SDA-A01	Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID	Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID
13	50932-SDA-A01	Stay - ELECTRONIC CONTROL MOUNT SOLENOID VALVE	Stay - ELECTRONIC CONTROL MOUNT SOLENOID VALVE
17	50934-SW5-A80	Clip - ACCUMULATOR TUBE	Clip - ACCUMULATOR TUBE

Interior light 14 / 18

#	OEM	CL7	CM4
1	34251-S5A-003	Lens	Lens
3	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
3	04110-SWA-305	BULB T10X318W	BULB T10X318W
4	34261-S5A-003	Lens comp	Lens comp
5	34295-SJ8-003	Bulb - 12V 5W) (DAIICHI	Bulb - 12V 5W) (DAIICHI
5	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
6	34401-SDA-A01	Lens - R.	Lens - R.
8	34402-SDA-A01	Lens - L.	Lens - L.
10	34404-SDA-A01	Base comp.	Base comp.
21	83251-SDC-A01	Bush	Bush
22	83252-SDC-A01	Spring	Spring
23	83253-SDC-A01	Screw - TAPPING, 3X10	Screw - TAPPING, 3X10
24	83254-SDC-A02	Cam set - LOCK	Cam set - LOCK
25	90148-S6A-003	Bolt - EARTH, 5X14	Bolt - EARTH, 5X14

Mainshaft (2.0L; 5MT) 12 / 18

#	OEM	CL7	CM4
1	23210-RAP-000	Mainshaft comp.	Mainshaft comp.
2	23261-PPP-000	Shaft - REVERSE GEAR	Shaft - REVERSE GEAR
5	23540-PPS-000	Gear comp - REVERSE IDLE	Gear comp - REVERSE IDLE
9	23641-PPP-000	Ring - BLOCKING, 66SZ	Ring - BLOCKING, 66SZ
10	23647-PPP-000	Ring - TAPER CONE	Ring - TAPER CONE
11	23651-PG1-000	Spring - SYNCHRONIZER (66)	Spring - SYNCHRONIZER (66)
12	23915-PPP-000	Collar - DISTANCE, 32X39X52	Collar - DISTANCE, 32X39X52
13	23916-PPP-000	Collar - DISTANCE, 28X35X24	Collar - DISTANCE, 28X35X24
14	23927-PG2-A00	Washer - SPRING, 28MM	Washer - SPRING, 28MM
15	23928-PS1-000	Washer - 28MM	Washer - 28MM
16	90401-PG1-000	Washer - DRAIN PLUG, 10MM	Washer - DRAIN PLUG, 10MM
17	91002-RAS-003	Bearing - BALL, 28X72X18	Bearing - BALL, 28X72X18

Meter components (NS) 5 / 6

#	OEM	CL7	CM4
1	37115-SA0-601	Packing - NS	Packing - NS
3	78155-SDA-H01	Visor	Visor
4	78156-SDA-U01	Lens - METER	Lens - METER
5	78171-SDA-H01	Visor - UNDER	Visor - UNDER
6	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Mirror 10 / 21

#	OEM	CL7	CM4
1	34300-SEA-013	Light assy - R. SIDE TURN	Light assy - R. SIDE TURN
2	34350-SEA-013	Light assy - L. SIDE TURN	Light assy - L. SIDE TURN
5	76208-SEA-003	Sticker	Sticker
11	76239-S6M-003	Screw - PAN, 5X10	Screw - PAN, 5X10
20	90106-S70-003	Screw - TAPPING, 4X12 (TRUSS)	Screw - TAPPING, 4X12 (TRUSS)
22	90109-SEA-003	Screw - TAPPING, 4X20 (TRUSS)	Screw - TAPPING, 4X20 (TRUSS)
23	90109-S70-003	Screw - TAPPING, 4X16 (TRUSS)	Screw - TAPPING, 4X16 (TRUSS)
24	90615-SK7-003	Clip - MIRROR GARNISH	Clip - MIRROR GARNISH
25	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
26	91565-SEA-003	Clamp - HARNESS	Clamp - HARNESS

Molding 2 / 24

#	OEM	CL7	CM4
21	90148-SDA-000	Screw - TAPPING, 4X12(PO)	Screw - TAPPING, 4X12(PO)
24	91572-SDA-A01	Clip - ROOF MOLDING	Clip - ROOF MOLDING

Navigation system 5 / 13

#	OEM	CL7	CM4
8	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
9	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
10	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
11	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)
12	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)

Oil pump (2.0L) 19 / 21

#	OEM	CL7	CM4
3	13432-PNA-000	Sprocket - DRIVEN(17T)	Sprocket - DRIVEN(17T)
4	13441-PNA-004	Chain - 62L	Chain - 62L
5	13450-PNA-004	Tensioner comp - BALANCER SHAFT CHAIN	Tensioner comp - BALANCER SHAFT CHAIN
6	13460-PNA-004	Guide comp - BALANCER SHAFT CHAIN	Guide comp - BALANCER SHAFT CHAIN
8	15115-R40-A01	Metal - BALANCER SHAFT(DAIDO)	Metal - BALANCER SHAFT(DAIDO)
9	15123-RAC-000	Pin - STRAIGHT	Pin - STRAIGHT
10	15124-RAC-000	Pin - STRAIGHT	Pin - STRAIGHT
11	15125-RAC-000	Pin - OIL PUMP DOWEL	Pin - OIL PUMP DOWEL
12	15231-RAC-000	Valve - OIL PUMP REGULATOR	Valve - OIL PUMP REGULATOR
13	15232-RAC-000	Spring - OIL PUMP REGULATOR	Spring - OIL PUMP REGULATOR
14	15233-RAC-000	Plug - OIL PUMP REGULATOR	Plug - OIL PUMP REGULATOR
15	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
15	15400-PLM-A02	OIL FILTER (HONEYWELL)	OIL FILTER (HONEYWELL)
15	15400-RTA-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
16	90004-PNA-000	Bolt - CHAIN GUIDE	Bolt - CHAIN GUIDE
17	90009-PNA-000	Bolt - FLANGE, 8X55	Bolt - FLANGE, 8X55
18	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER
19	90031-PNA-004	Bolt-washer - 10X30	Bolt-washer - 10X30
27	15100-RAC-006	Pump assy. - OIL	Pump assy. - OIL

Outer panels/rear panel 3 / 4

#	OEM	CL7	CM4
19	70495-692-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID
21	75450-SDA-A01	Outlet assy - RR. AIR	Outlet assy - RR. AIR
22	90147-634-003	Bolt - FENDER, 6X18	Bolt - FENDER, 6X18

P.s. gear box (LH) 13 / 17

#	OEM	CL7	CM4
1	53010-SDA-A01	End set - RACK	End set - RACK
2	53434-S84-A01	Clip - STEERING TIE ROD	Clip - STEERING TIE ROD
4	53438-SDA-A00	Bracket b - STEERING	Bracket b - STEERING
6	53502-SDA-A00	Grommet b - STEERING	Grommet b - STEERING
8	53536-SDA-A02	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
9	53537-S84-A01	Rubber - STOPPER	Rubber - STOPPER
10	53540-SDA-A01	TIE ROD END OUTER RH - R. TIE ROD	TIE ROD END OUTER RH - R. TIE ROD
11	53546-S84-003	Boot - TIE ROD END (NOK)	Boot - TIE ROD END (NOK)
12	53560-SDA-A01	TIE ROD END OUTER LH - L. TIE ROD	TIE ROD END OUTER LH - L. TIE ROD
14	53685-SDA-A01	Bush - GEAR BOX MOUNTING	Bush - GEAR BOX MOUNTING
15	53692-SDA-A00	Plate - POWER STEERING HEAT BAFFLE	Plate - POWER STEERING HEAT BAFFLE
16	90108-SDA-003	Bolt - GEAR BOX MOUNTING	Bolt - GEAR BOX MOUNTING
17	91411-S84-A01	Nut - HEX., 14MM	Nut - HEX., 14MM

P.s. gear box components (LH) 16 / 23

#	OEM	CL7	CM4
2	06532-S50-003	Oil seal set - ROTARY VALVE	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
5	53413-S0K-A01	Spring - RACK GUIDE PRESSURE	Spring - RACK GUIDE PRESSURE
6	53414-S84-A01	Screw - RACK GUIDE	Screw - RACK GUIDE
7	53416-S3M-A01	Guide - STEERING RACK	Guide - STEERING RACK
9	53458-S84-A01	Nut - LOCK	Nut - LOCK
10	53536-SDA-A02	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
11	53537-S84-A01	Rubber - STOPPER	Rubber - STOPPER
17	53656-S84-A01	Circlip - EXTERNAL, 20MM	Circlip - EXTERNAL, 20MM
18	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)	Oil seal - 27X38X5.5 (SHOWA)
19	53661-S84-A01	Washer - WAVE (NOK)	Washer - WAVE (NOK)
20	53666-S50-003	O-ring - 41.5X2 (SHOWA)	O-ring - 41.5X2 (SHOWA)
21	53670-SDA-A01	Pipe comp. a - CYLINDER	Pipe comp. a - CYLINDER
22	53671-SDA-A01	Pipe comp. b - CYLINDER	Pipe comp. b - CYLINDER
23	90105-S50-003	Bolt - FLANGE, 8X28	Bolt - FLANGE, 8X28

P.s. lines (LH) 18 / 24

#	OEM	CL7	CM4
1	53697-SB3-952	Cap - OIL TANK	Cap - OIL TANK
2	53701-SDA-A01	Tank comp. - POWER STEERING OIL	Tank comp. - POWER STEERING OIL
3	53711-SDA-A90	Bracket - OIL TANK	Bracket - OIL TANK
5	53720-SDA-A00	Pipe comp. a - RETURN, 10MM	Pipe comp. a - RETURN, 10MM
6	53728-SDB-A01	Clip - RETURN PIPE	Clip - RETURN PIPE
7	53728-S0X-A01	Clip - RETURN PIPE	Clip - RETURN PIPE
8	53729-S0X-A01	Clip - RETURN HOSE(BLACK)	Clip - RETURN HOSE(BLACK)
9	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
10	53730-SDA-A00	Clamp - FEED HOSE	Clamp - FEED HOSE
14	53734-SDA-A01	Hose - POWER STEERING RETURN	Hose - POWER STEERING RETURN
15	53736-SDA-A01	Holder - POWER STEERING PIPE	Holder - POWER STEERING PIPE
16	53736-SH3-950	Holder b - POWER STEERING PIPE	Holder b - POWER STEERING PIPE
17	53740-SDA-A00	Rubber - POWER STEERING PIPE HOLDER INSULATOR	Rubber - POWER STEERING PIPE HOLDER INSULATOR
20	56490-PNA-003	Switch assy - POWER STEERING PRESSURE	Switch assy - POWER STEERING PRESSURE
21	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
22	91304-PA6-003	O-ring - 7.8X1.9	O-ring - 7.8X1.9
23	91370-SV4-000	O-ring - 14.4X1.9	O-ring - 14.4X1.9
24	91405-SS0-003	Clamp - TUBE (D21)	Clamp - TUBE (D21)

Parking brake (LH) 7 / 9

#	OEM	CL7	CM4
2	47342-SZ3-003	Switch - PARKING BRAKE	Switch - PARKING BRAKE
3	47360-SB2-000	Equalizer	Equalizer
4	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
6	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
7	47537-671-670	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD
9	47572-ST0-000	Base - WIRE GUIDE	Base - WIRE GUIDE
10	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Pcv tube 4 / 4

#	OEM	CL7	CM4
1	17130-PNA-003	Valve assy. - PCV	Valve assy. - PCV
2	17131-RAC-U00	Tube comp - PCV	Tube comp - PCV
3	17136-PNA-000	Joint - PCV VALVE	Joint - PCV VALVE
4	17139-PK1-000	Grommet - PCV VALVE	Grommet - PCV VALVE

Pedal (LH) 14 / 24

#	OEM	CL7	CM4
9	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
10	46505-SA7-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
11	46545-SA5-000	Cover, Pedal	Cover, Pedal
13	46591-SEA-G00	Stay assy - PEDAL	Stay assy - PEDAL
14	46598-SDA-A00	Stay assy. b - PEDAL	Stay assy. b - PEDAL
16	46907-SDA-A01	Spring - CLUTCH ASSISTANT	Spring - CLUTCH ASSISTANT
18	46911-SD4-930	Bush - PEDAL PIN	Bush - PEDAL PIN
19	46981-S2A-003	Bush a - CLUTCH ASSISTANT	Bush a - CLUTCH ASSISTANT
20	46982-S2A-003	Bush b - ASSISTANT	Bush b - ASSISTANT
21	46991-SDA-G00	Bracket - FOOTREST	Bracket - FOOTREST
22	46992-SDA-A02	Plate - FOOTREST	Plate - FOOTREST
23	75891-611-000	Cover - DOOR SWITCH	Cover - DOOR SWITCH
25	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
26	90361-S3C-003	Nut - PAINT CUTTING, 8MM	Nut - PAINT CUTTING, 8MM

Pillar garnish (LH) 3 / 6

#	OEM	CL7	CM4
26	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
27	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)
28	91560-S9A-A01	Clip - DOOR LINING (LIGHT BLUE)	Clip - DOOR LINING (LIGHT BLUE)

Power steering pump 20 / 22

#	OEM	CL7	CM4
3	56141-PNC-003	Shaft - POWER STEERING PUMP DRIVE	Shaft - POWER STEERING PUMP DRIVE
4	56483-PNC-004	Pulley - POWER STEERING PUMP	Pulley - POWER STEERING PUMP
5	90305-PAA-A01	Nut - POWER STEERING PULLEY	Nut - POWER STEERING PULLEY
6	90693-P2A-003	Circlip - INTERNAL, 40MM	Circlip - INTERNAL, 40MM
6	90693-PAA-A01	Circlip - INTERNAL, 40MM	Circlip - INTERNAL, 40MM
7	91048-P2A-003	Bearing - RADIAL BALL, 17X40X12	Bearing - RADIAL BALL, 17X40X12
8	91249-PNC-003	Seal - POWER STEERING PUMP	Seal - POWER STEERING PUMP
9	91343-PNC-003	Seal - RUBBER	Seal - RUBBER
10	91344-PNC-003	Seal - SLIPPER	Seal - SLIPPER
11	91345-PAA-A01	O-ring - 13.0X1.9	O-ring - 13.0X1.9
11	91345-PY3-000	O-ring - 13.0X1.9	O-ring - 13.0X1.9
12	91345-RJL-003	O-ring - 13.0X1.9	O-ring - 13.0X1.9
13	91346-PLA-003	O-ring - 23.8X2.4	O-ring - 23.8X2.4
14	91347-PAA-A01	O-ring - 16.7X1.8	O-ring - 16.7X1.8
15	91347-PLA-003	O-ring - 12.7X1.8	O-ring - 12.7X1.8
16	91348-P2A-003	O-ring - 51.0X2.4	O-ring - 51.0X2.4
17	91349-PNC-J01	Seal - PUMP COVER	Seal - PUMP COVER
18	91349-PNC-003	Seal b - PUMP COVER	Seal b - PUMP COVER
19	91350-PLA-003	Bolt - FLANGE, 8X35	Bolt - FLANGE, 8X35
20	91350-P8C-A01	Bolt - FLANGE, 6X20	Bolt - FLANGE, 6X20

Radiator (2.0L) 5 / 23

#	OEM	CL7	CM4
10	19046-RAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
11	37760-P00-004	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)	Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)
11	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
21	91307-PN4-000	O-ring - 17.5X1.4	O-ring - 17.5X1.4
21	91307-PN3-000	O-ring,17.8x1.4	O-ring,17.8x1.4

Radiator hose/reserve tan k 11 / 19

#	OEM	CL7	CM4
2	19102-PM5-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
5	19106-PA0-020	Joint - RESERVE TANK	Joint - RESERVE TANK
7	19503-RAA-A01	Connector - QUICK WATER	Connector - QUICK WATER
9	19506-RAA-A01	Wire	Wire
10	19507-RAA-A01	O-ring	O-ring
11	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
11	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
24	74172-SM4-970	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
25	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER
27	91503-SS0-003	Holder - ROD	Holder - ROD
28	91503-S7A-003	Clip - FR. GRILLE	Clip - FR. GRILLE

Radio antenna/speaker 4 / 9

#	OEM	CL7	CM4
7	39157-SDA-A01	Coil assy - ANTENNA EARTH	Coil assy - ANTENNA EARTH
12	77205-S0X-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
13	90132-SV4-003	Screw - ET, 5X16	Screw - ET, 5X16
14	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)

Rear brake 4 / 20

#	OEM	CL7	CM4
16	90103-SV4-013	Bolt - FLANGE, 10X30	Bolt - FLANGE, 10X30
17	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
17	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
17	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)

Rear door glass/door regu lator 1 / 16

#	OEM	CL7	CM4
16	90150-SDA-000	Screw - PAN, 4X8	Screw - PAN, 4X8

Rear door lining 7 / 11

#	OEM	CL7	CM4
4	72134-S2X-003	Snap - R. (NATURAL)	Snap - R. (NATURAL)
7	72174-S2X-003	Snap - L. (BLACK)	Snap - L. (BLACK)
20	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
21	90141-SDA-000	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
22	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
23	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
25	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Rear door locks/outer han dle 13 / 25

#	OEM	CL7	CM4
1	72135-SDA-A01	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
3	72139-SR0-A01	Snap - VIOLET	Snap - VIOLET
4	72139-S0A-003	Snap - PINK	Snap - PINK
5	72141-SD4-004	Bush - R. JOINT	Bush - R. JOINT
6	72143-S04-003	Packing	Packing
7	72146-S9A-003	Spacer - DOOR OUTSIDE HANDLE	Spacer - DOOR OUTSIDE HANDLE
8	72181-SD4-004	Bush - L. JOINT	Bush - L. JOINT
10	72612-SDA-A00	Cap - R. CHILD LOCK	Cap - R. CHILD LOCK
19	72652-SDA-A00	Cap - L. CHILD LOCK	Cap - L. CHILD LOCK
27	90103-S7S-003	Screw - FLAT, 6X18.5	Screw - FLAT, 6X18.5
28	90141-S84-003	Screw - 3X10	Screw - 3X10
29	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
30	91591-SJ6-013	Clip s - FUEL PIPE	Clip s - FUEL PIPE

Rear door panels 10 / 16

#	OEM	CL7	CM4
13	72142-SM4-000	Stopper - DOOR	Stopper - DOOR
20	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
21	90102-SFA-305	Bolt - FLANGE, 8X18 (SERVICE)	Bolt - FLANGE, 8X18 (SERVICE)
21	90102-S3N-003	Bolt - FLANGE, 8X24.5 (10.5MM)	Bolt - FLANGE, 8X24.5 (10.5MM)
22	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
23	90341-SDA-000	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
24	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
25	90565-SDA-003	Clip - DOOR SUB SEAL	Clip - DOOR SUB SEAL
26	91568-SR2-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
26	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP

Rear lower arm 17 / 40

#	OEM	CL7	CM4
5	52308-SZ5-000	Holder - STABILIZER BUSH	Holder - STABILIZER BUSH
6	52320-SDA-A01	Link comp - R. RR. STABILIZER	Link comp - R. RR. STABILIZER
7	52325-SDA-A01	Link comp - L. RR. STABILIZER	Link comp - L. RR. STABILIZER
8	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
14	52363-SJK-010	Washer - LOWER ARM	Washer - LOWER ARM
18	52387-SDA-A00	Bolt	Bolt
19	52388-SDA-A00	Plate	Plate
21	52454-S84-A01	Boot - UPPER DUST	Boot - UPPER DUST
21	06511-TY2-A01	Boot	Boot
22	57452-S84-A50	Bracket - RR. COUPLER	Bracket - RR. COUPLER
25	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
28	90173-S84-A00	Bolt - RR. UPPER ARM	Bolt - RR. UPPER ARM
29	90181-S84-A00	Bolt - TRAILING ARM, 12X68	Bolt - TRAILING ARM, 12X68
31	90216-SE0-010	Nut	Nut
31	90216-SE0-305	NUT, LWR ARM	NUT, LWR ARM
32	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
35	90701-SX0-003	Clip - UPPER ARM	Clip - UPPER ARM

Rear seat 8 / 22

#	OEM	CL7	CM4
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
2	78182-SA0-000	Clip - RR. SEAT PIN	Clip - RR. SEAT PIN
7	82129-SM4-A00	Collar c	Collar c
20	82290-SDA-A01	Bracket comp. - R. SEAT PIVOT	Bracket comp. - R. SEAT PIVOT
31	82690-SDA-A01	Bracket comp. - L. SEAT PIVOT	Bracket comp. - L. SEAT PIVOT
32	90003-692-000	Bolt - FLANGE, 6X16	Bolt - FLANGE, 6X16
34	90140-SA5-000	Bolt - SPLASH GUARD	Bolt - SPLASH GUARD

Rear shock absorber 12 / 18

#	OEM	CL7	CM4
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
2	51631-SV7-004	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
3	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
4	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
9	52675-S84-A01	Base - RR. SHOCK ABSORBER MOUNTING (A.S.I. SHOWA)	Base - RR. SHOCK ABSORBER MOUNTING (A.S.I. SHOWA)
10	52686-SDA-A01	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
11	52688-S0A-004	Sleeve - RR. DUST COVER	Sleeve - RR. DUST COVER
12	52689-SG0-014	End - DUST COVER	End - DUST COVER
14	52722-SDA-A01	Rubber - RR. BUMP STOPPER	Rubber - RR. BUMP STOPPER
15	52748-S0A-004	Cover - RR. LOWER MOUNT DUST	Cover - RR. LOWER MOUNT DUST
17	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
18	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear tray/side lining 5 / 14

#	OEM	CL7	CM4
3	75353-671-000	Lock - SCREW	Lock - SCREW
23	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
25	90666-SDA-A01	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)	Clip, Snap Fitting - SNAP FITTING(PO) (NATURAL)
28	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE
29	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Rear windshield 3 / 5

#	OEM	CL7	CM4
4	91563-SV4-003	Fastener a - RR. WINDSHIELD	Fastener a - RR. WINDSHIELD
5	91568-SDA-A01	Clip - WINDSHIELD UPPER	Clip - WINDSHIELD UPPER
6	91568-SV4-003	Fastener b - RR. WINDSHIELD	Fastener b - RR. WINDSHIELD

Resonator chamber 4 / 17

#	OEM	CL7	CM4
1	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
5	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
15	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35
16	90001-P7J-000	Bolt - SPECIAL, 6X25	Bolt - SPECIAL, 6X25

Roof lining 5 / 7

#	OEM	CL7	CM4
24	90136-SDA-003	Screw - ET, 5X24	Screw - ET, 5X24
24	90137-S0A-003	Screw - ET, 6X28	Screw - ET, 6X28
25	90137-S30-003	Screw - ET, 6X18	Screw - ET, 6X18
25	90136-S30-003	Screw - ET, 5X18	Screw - ET, 5X18
26	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Seatbelts 2 / 7

#	OEM	CL7	CM4
16	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
17	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Shift arm (2.0L; 5MT) 18 / 18

#	OEM	CL7	CM4
1	21224-RAP-000	Stay a - HARNESS	Stay a - HARNESS
2	21396-P20-000	Cap - BREATHER	Cap - BREATHER
3	21520-RAP-000	Cover comp. - SHIFT ARM	Cover comp. - SHIFT ARM
4	24411-PPP-010	Arm - SHIFT	Arm - SHIFT
5	24412-PPP-000	Striker - REVERSE LOCK CAM	Striker - REVERSE LOCK CAM
6	24430-PPP-010	Interlock comp.	Interlock comp.
7	24433-PH8-000	Bolt - INTERLOCK	Bolt - INTERLOCK
8	24460-RAP-000	Lever comp - SELECT	Lever comp - SELECT
9	24464-PPP-000	Spring - FIRST-SECOND SELECT	Spring - FIRST-SECOND SELECT
10	24466-PPP-000	Spring - FIFTH-SIXTH SELECT	Spring - FIFTH-SIXTH SELECT
11	24467-PPP-000	Plate - SELECT STOPPER	Plate - SELECT STOPPER
12	24470-RAP-000	Lever comp - SHIFT	Lever comp - SHIFT
13	24474-RAP-000	Cover - DUST	Cover - DUST
14	24479-PPP-000	Cover - SHIFT LEVER	Cover - SHIFT LEVER
15	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
16	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM
17	91207-PPP-003	Dust seal - 18X24X5	Dust seal - 18X24X5
18	91208-PPP-003	Dust seal - 14X20X4	Dust seal - 14X20X4

Shift fork (2.0L; 5MT) 8 / 8

#	OEM	CL7	CM4
1	24201-RAP-000	Fork comp - FIFTH-REVERSE GEARSHIFT	Fork comp - FIFTH-REVERSE GEARSHIFT
2	24210-RAP-000	Fork comp - GEARSHIFT (3-4)	Fork comp - GEARSHIFT (3-4)
3	24220-RAP-000	Fork comp - GEARSHIFT (1-2)	Fork comp - GEARSHIFT (1-2)
4	24230-PPP-000	Holder comp - REVERSE SHIFT	Holder comp - REVERSE SHIFT
5	24440-PLW-000	Cam comp - REVERSE LOCK	Cam comp - REVERSE LOCK
6	24455-PHR-000	Spring - BALL SETTING	Spring - BALL SETTING
7	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5

Shift lever (LH) 12 / 13

#	OEM	CL7	CM4
1	24601-RAP-010	Stay - CHANGE WIRE	Stay - CHANGE WIRE
2	54100-SDA-A01	Lever sub assy. - CHANGE	Lever sub assy. - CHANGE
3	54103-SDA-003	Ring	Ring
7	54117-SDA-A01	Rubber - FLOATING	Rubber - FLOATING
8	54118-S10-000	Washer assy. - WIRE	Washer assy. - WIRE
9	54119-SDA-A01	Collar - FLOATING	Collar - FLOATING
10	54310-SDA-L02	Wire comp - CHANGE	Wire comp - CHANGE
11	54357-SF1-003	Plate - CHANGE WIRE	Plate - CHANGE WIRE
12	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)	Washer a - SHIFT WIRE(1.6MM)
13	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)	Washer b - SHIFT WIRE (0.5MM)
14	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)	Washer a - SELECT WIRE (1.6MM)
15	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)	Washer b - SELECT WIRE (0.5MM)

Side sill garnish 8 / 21

#	OEM	CL7	CM4
12	90103-SDA-A00	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
13	90114-SZ3-000	Screw-washer - 5X20	Screw-washer - 5X20
15	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
18	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
19	90682-SDA-A01	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
21	91503-SZ3-003	Clip A	Clip A
25	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
27	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH	Clip - SIDE SILL UPPER GARNISH

Srs unit (LH) 9 / 25

#	OEM	CL7	CM4
1	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
14	90133-SDC-003	Bolt-washer - 5X16	Bolt-washer - 5X16
15	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
17	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
18	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
20	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
21	91540-S0A-003	Clip - HARNESS BAND(NATURAL) (96.9MM)	Clip - HARNESS BAND(NATURAL) (96.9MM)
22	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
24	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Starter motor (DENSO) 19 / 26

#	OEM	CL7	CM4
1	30201-PH9-004	Ring - SNAP (DENSO)	Ring - SNAP (DENSO)
2	30202-P3F-003	Collar - CLUTCH STOP	Collar - CLUTCH STOP
7	31203-P3F-003	Lever - PINION DRIVE	Lever - PINION DRIVE
11	31207-PNA-003	Clutch comp. - OVERRUNNING	Clutch comp. - OVERRUNNING
12	31208-P3F-003	Screw - PAN, 4MM	Screw - PAN, 4MM
13	31213-PNA-003	Shaft - DRIVE	Shaft - DRIVE
14	31213-P64-N01	Cover	Cover
15	31214-P3F-003	Gear assy. - INTERNAL	Gear assy. - INTERNAL
16	31215-P3F-003	Gear comp - PLANETARY	Gear comp - PLANETARY
17	31216-RAA-003	Absorber comp - SHOCK	Absorber comp - SHOCK
18	31217-P3F-003	Plate - SEAL	Plate - SEAL
19	31218-P3F-003	Washer a	Washer a
20	31219-P3F-003	Washer b	Washer b
21	31220-PH9-004	Nut - HEX., 8MM	Nut - HEX., 8MM
22	31220-P3F-003	Washer c	Washer c
23	31223-PA0-006	Nut - HEX.	Nut - HEX.
24	31231-P3F-003	Plate comp - BRUSH HOLDER	Plate comp - BRUSH HOLDER
25	31291-RAD-003	Stay - ENGINE WIRE HARNESS	Stay - ENGINE WIRE HARNESS
26	31292-PLR-A01	Bolt-washer	Bolt-washer

Steering column 9 / 10

#	OEM	CL7	CM4
3	53320-SDA-G01	Cover - STEERING JOINT	Cover - STEERING JOINT
4	53331-SDA-A02	Cover comp. - STEERING JOINT	Cover comp. - STEERING JOINT
6	53333-SDA-A00	Sponge - SEALING	Sponge - SEALING
8	77873-SDA-E80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
9	90135-SDA-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
9	90135-SZT-000	Bolt - STEERING JOINT YOKE	Bolt - STEERING JOINT YOKE
10	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
11	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
12	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Steering wheel (SRS; 2) 2 / 14

#	OEM	CL7	CM4
14	90134-S6A-A80	Bolt - HEX., 6X23	Bolt - HEX., 6X23
16	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Switch (LH) 1 / 15

#	OEM	CL7	CM4
15	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)

Taillight/license light 7 / 20

#	OEM	CL7	CM4
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
7	33513-S50-003	Socket - T20W S2	Socket - T20W S2
10	34100-S0A-013	Light assy - LICENSE	Light assy - LICENSE
11	34102-S0A-003	Housing comp	Housing comp
12	34103-S0A-003	Gasket	Gasket
13	34104-S0A-013	Lens comp	Lens comp

Tire/wheel disks 18 / 55

#	OEM	CL7	CM4
10	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
10	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
13	44729-SEA-J01	Weight - BALANCE (35G) (TOHO)	Weight - BALANCE (35G) (TOHO)
13	44726-SEA-J01	Weight - BALANCE (5G) (TOHO)	Weight - BALANCE (5G) (TOHO)
13	44728-SEA-J01	Weight - BALANCE (25G) (TOHO)	Weight - BALANCE (25G) (TOHO)
13	44727-SEA-J01	Weight - BALANCE (15G) (TOHO)	Weight - BALANCE (15G) (TOHO)
13	44729-SEA-J02	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
13	44726-SEA-J02	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
13	44728-SEA-J02	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
13	44727-SEA-J02	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
13	44723-SEA-J01	Weight - BALANCE (30G) (TOHO)	Weight - BALANCE (30G) (TOHO)
13	44722-SEA-J01	Weight - BALANCE (20G) (TOHO)	Weight - BALANCE (20G) (TOHO)
13	44721-SEA-J01	Weight - BALANCE (10G) (TOHO)	Weight - BALANCE (10G) (TOHO)
13	44723-SEA-J02	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
13	44722-SEA-J02	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
13	44721-SEA-J02	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
21	74651-S2X-003	Adapter - SPARE TIRE	Adapter - SPARE TIRE
22	74652-SDA-003	Bolt - SPARE TIRE	Bolt - SPARE TIRE

Tools/jack 4 / 5

#	OEM	CL7	CM4
3	89211-S05-003	Wrench - WHEEL	Wrench - WHEEL
4	89310-S5A-013	Jack assy - PANTOGRAPH	Jack assy - PANTOGRAPH
5	89311-S5A-003	Plate - JACK CAUTION	Plate - JACK CAUTION
6	89320-S05-003	Bar - JACK	Bar - JACK

Transmission case 67 / 69

#	OEM	CL7	CM4
1	21104-PPP-000	Plate m - OIL GUIDE	Plate m - OIL GUIDE
2	21200-RAP-000	Case comp. - TRANSMISSION	Case comp. - TRANSMISSION
3	21211-RAP-000	Plate - OIL GUTTER	Plate - OIL GUTTER
4	21220-RAP-000	Hanger a - TRANSMISSION	Hanger a - TRANSMISSION
5	21222-PPP-000	Hanger - TRANSMISSION	Hanger - TRANSMISSION
7	21225-RAP-000	Stay b - HARNESS	Stay b - HARNESS
8	23976-PPP-J00	Shim at - 72MM (1.95)	Shim at - 72MM (1.95)
8	23944-P21-000	Shim n - 72MM(0.99)	Shim n - 72MM(0.99)
8	23971-P21-000	Shim ao - 72MM(1.80)	Shim ao - 72MM(1.80)
8	23939-P21-000	Shim i - 72MM(0.84)	Shim i - 72MM(0.84)
8	23966-P21-000	Shim aj - 72MM(1.65)	Shim aj - 72MM(1.65)
8	23934-P21-000	Shim d - 72MM(0.69)	Shim d - 72MM(0.69)
8	23961-P21-000	Shim ae - 72MM(1.50)	Shim ae - 72MM(1.50)
8	23956-P21-000	Shim z - 72MM(1.35)	Shim z - 72MM(1.35)
8	23983-PPP-J00	Shim bb - 72MM (2.16)	Shim bb - 72MM (2.16)
8	23951-P21-000	Shim u - 72MM(1.20)	Shim u - 72MM(1.20)
8	23978-PPP-J00	Shim aw - 72MM (2.01)	Shim aw - 72MM (2.01)
8	23946-P21-000	Shim p - 72MM(1.05)	Shim p - 72MM(1.05)
8	23973-PPP-J00	Shim aq - 72MM (1.86)	Shim aq - 72MM (1.86)
8	23941-P21-000	Shim k - 72MM(0.90)	Shim k - 72MM(0.90)
8	23968-P21-000	Shim al - 72MM(1.71)	Shim al - 72MM(1.71)
8	23936-P21-000	Shim f - 72MM(0.75)	Shim f - 72MM(0.75)
8	23931-P21-000	Shim a - 72MM(0.60)	Shim a - 72MM(0.60)
8	23963-P21-000	Shim ag - 72MM(1.56)	Shim ag - 72MM(1.56)
8	23958-P21-000	Shim ab - 72MM(1.41)	Shim ab - 72MM(1.41)
8	23985-PPP-J00	Shim bd - 72MM (2.22)	Shim bd - 72MM (2.22)
8	23953-P21-000	Shim w - 72MM(1.26)	Shim w - 72MM(1.26)
8	23980-PPP-J00	Shim ay - 72MM (2.07)	Shim ay - 72MM (2.07)
8	23948-P21-000	Shim r - 72MM(1.11)	Shim r - 72MM(1.11)
8	23975-PPP-J00	Shim as - 72MM (1.92)	Shim as - 72MM (1.92)
8	23943-P21-000	Shim m - 72MM(0.96)	Shim m - 72MM(0.96)
8	23970-P21-000	Shim an - 72MM(1.77)	Shim an - 72MM(1.77)
8	23938-P21-000	Shim h - 72MM(0.81)	Shim h - 72MM(0.81)
8	23965-P21-000	Shim ai - 72MM(1.62)	Shim ai - 72MM(1.62)
8	23933-P21-000	Shim c - 72MM(0.66)	Shim c - 72MM(0.66)
8	23960-P21-000	Shim ad - 72MM(1.47)	Shim ad - 72MM(1.47)
8	23955-P21-000	Shim y - 72MM(1.32)	Shim y - 72MM(1.32)
8	23982-PPP-J00	Shim ba - 72MM (2.13)	Shim ba - 72MM (2.13)
8	23950-P21-000	Shim t - 72MM(1.17)	Shim t - 72MM(1.17)
8	23977-PPP-J00	Shim av - 72MM (1.98)	Shim av - 72MM (1.98)
8	23945-P21-000	Shim o - 72MM(1.02)	Shim o - 72MM(1.02)
8	23972-PPP-J00	Shim ap - 72MM (1.83)	Shim ap - 72MM (1.83)
8	23940-P21-000	Shim j - 72MM(0.87)	Shim j - 72MM(0.87)
8	23967-P21-000	Shim ak - 72MM(1.68)	Shim ak - 72MM(1.68)
8	23935-P21-000	Shim e - 72MM(0.72)	Shim e - 72MM(0.72)
8	23962-P21-000	Shim af - 72MM(1.53)	Shim af - 72MM(1.53)
8	23957-P21-000	Shim aa - 72MM(1.38)	Shim aa - 72MM(1.38)
8	23984-PPP-J00	Shim bc - 72MM (2.19)	Shim bc - 72MM (2.19)
8	23952-P21-000	Shim v - 72MM(1.23)	Shim v - 72MM(1.23)
8	23979-PPP-J00	Shim ax - 72MM (2.04)	Shim ax - 72MM (2.04)
8	23947-P21-000	Shim q - 72MM(1.08)	Shim q - 72MM(1.08)
8	23974-PPP-J00	Shim ar - 72MM (1.89)	Shim ar - 72MM (1.89)
8	23942-P21-000	Shim l - 72MM(0.93)	Shim l - 72MM(0.93)
8	23969-P21-000	Shim am - 72MM(1.74)	Shim am - 72MM(1.74)
8	23937-P21-000	Shim g - 72MM(0.78)	Shim g - 72MM(0.78)
8	23932-P21-000	Shim b - 72MM(0.63)	Shim b - 72MM(0.63)
8	23964-P21-000	Shim ah - 72MM(1.59)	Shim ah - 72MM(1.59)
8	23959-P21-000	Shim ac - 72MM(1.44)	Shim ac - 72MM(1.44)
8	23986-PPP-J00	Shim be - 72MM (2.25)	Shim be - 72MM (2.25)
8	23954-P21-000	Shim x - 72MM(1.29)	Shim x - 72MM(1.29)
8	23981-PPP-J00	Shim az - 72MM (2.10)	Shim az - 72MM (2.10)
8	23949-P21-000	Shim s - 72MM(1.14)	Shim s - 72MM(1.14)
9	28820-PWR-013	Pick up assy. MATSUSHITA	Pick up assy. MATSUSHITA
10	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
11	90081-PPP-000	Bolt - SEALING, 32MM	Bolt - SEALING, 32MM
13	91205-PL3-B01	Oil seal - 40X56X8(ARAI)	Oil seal - 40X56X8(ARAI)
14	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)

Trunk lid 11 / 26

#	OEM	CL7	CM4
6	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
9	74822-SW5-003	Cushion - TRUNK HINGE	Cushion - TRUNK HINGE
12	74851-SDC-Y02	Lock - TRUNK (POWER+SWITCH)	Lock - TRUNK (POWER+SWITCH)
15	74864-S30-003	Cover	Cover
19	74873-SM4-003	Clip - TRUNK OPENER SPRING	Clip - TRUNK OPENER SPRING
23	74886-SDA-A01	Cylinder - TRUNK REMOTE CONTROL	Cylinder - TRUNK REMOTE CONTROL
26	75353-671-000	Lock - SCREW	Lock - SCREW
28	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
29	90109-SM4-000	Bolt - SPECIAL, 6X35	Bolt - SPECIAL, 6X35
32	90684-SD4-003	Clip - FUEL LID OPENER	Clip - FUEL LID OPENER
36	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)

Valve/rocker arm (2.0L) 13 / 16

#	OEM	CL7	CM4
1	14620-RAA-A00	Arm assy. - ROCKER	Arm assy. - ROCKER
2	14624-RAA-A00	Arm assy. - EX. ROCKER	Arm assy. - EX. ROCKER
3	14647-RAA-A00	Washer - THRUST	Washer - THRUST
4	14711-PNA-000	Valve - IN.	Valve - IN.
6	14744-PNA-004	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
7	14744-PT0-004	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
9	14762-PNA-004	Spring - EX. VALVE (GRAY) (CHUO SPRING)	Spring - EX. VALVE (GRAY) (CHUO SPRING)
9	14762-PNA-003	Spring - EX. VALVE (GRAY) (NIPPON HATSUJO)	Spring - EX. VALVE (GRAY) (NIPPON HATSUJO)
10	14765-RAA-A00	Retainer - VALVE SPRING	Retainer - VALVE SPRING
11	14775-PT0-000	Seat - VALVE SPRING	Seat - VALVE SPRING
12	14781-RGM-A01	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
13	90206-PM3-004	Nut - TAPPET ADJUSTING (TOKAI TRW)	Nut - TAPPET ADJUSTING (TOKAI TRW)
14	90206-PT0-004	Nut - TAPPET ADJUSTING	Nut - TAPPET ADJUSTING

Vtc oil control valve 17 / 19

#	OEM	CL7	CM4
1	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
1	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
2	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
2	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
3	12251-RAC-004	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)	Gasket comp - CYLINDER HEAD (NIPPON LEAKLESS)
3	12251-RAC-003	Gasket comp - CYLINDER HEAD (ISHINO GASKET)	Gasket comp - CYLINDER HEAD (ISHINO GASKET)
5	15815-RAA-A02	Filter assy, SPOOL VALVE	Filter assy, SPOOL VALVE
6	15816-PNA-013	Cover - VTEC SPOOL VALVE	Cover - VTEC SPOOL VALVE
7	15830-RBB-003	VTC OIL CONTROL VALVE ASSY	VTC OIL CONTROL VALVE ASSY
8	15832-PNA-003	O-ring	O-ring
8	15832-PNA-023	ORING	ORING
9	15835-PNA-003	Bolt - VTC SOLENOID	Bolt - VTC SOLENOID
10	15840-RAA-A00	Strainer assy - VTC	Strainer assy - VTC
11	15845-RAA-A01	Filter assy - VTC	Filter assy - VTC
13	90005-PNA-003	Bolt-washer - 11X155	Bolt-washer - 11X155
14	90026-PNA-003	Bolt - STUD, 10X39.5	Bolt - STUD, 10X39.5
15	91319-PAA-A01	O-ring - 13X1.5	O-ring - 13X1.5

Water hose (2.0L) 5 / 8

#	OEM	CL7	CM4
1	17137-RAC-U01	Pipe comp - BREATHER	Pipe comp - BREATHER
2	19504-RAC-U00	Hose - BYPASS IN.	Hose - BYPASS IN.
6	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
7	19514-RAA-A00	Hose a - BREATHER HEAT	Hose a - BREATHER HEAT
8	91315-PNA-003	O-ring - 19.3X3.8	O-ring - 19.3X3.8

Water pump (2.0L) 17 / 22

#	OEM	CL7	CM4
3	18714-RAA-A01	Gasket - EGR PASSAGE	Gasket - EGR PASSAGE
5	19200-RFE-003	Water Pump	Water Pump
6	19222-RAD-003	Packing - WATER PUMP	Packing - WATER PUMP
8	19305-RAA-A01	Seal - THERMOSTAT COVER (FUJI SEIKO)	Seal - THERMOSTAT COVER (FUJI SEIKO)
8	19305-PNA-003	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)	Seal - THERMOSTAT COVER (NIPPON THERMOSTAT)
9	19320-RAA-A01	Case comp. - THERMOSTAT (FUJI SEIKO)	Case comp. - THERMOSTAT (FUJI SEIKO)
9	19320-RAA-A02	Case comp. - THERMOSTAT (NIPPON THERMOSTAT)	Case comp. - THERMOSTAT (NIPPON THERMOSTAT)
10	19322-PCX-003	O-ring - 43.8X3.1	O-ring - 43.8X3.1
11	19322-RAA-A01	Seal - THERMOSTAT CASE (FUJI SEIKO)	Seal - THERMOSTAT CASE (FUJI SEIKO)
11	19322-PNA-003	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)	Seal - THERMOSTAT CASE (NIPPON THERMOSTAT)
12	19410-RAA-A00	Passage - WATER	Passage - WATER
13	37870-PNA-003	Sensor assy - WATER TEMP (KEIHIN)	Sensor assy - WATER TEMP (KEIHIN)
14	90050-PNA-003	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)	Bolt - SPECIAL, 6X19 (NIPPON THERMOSTAT)
14	90050-RAA-A01	Bolt - SPECIAL, 6X22 (FUJI SEIKO)	Bolt - SPECIAL, 6X22 (FUJI SEIKO)
15	90051-PNA-000	Bolt - SPECIAL, 6X28	Bolt - SPECIAL, 6X28
16	90204-PH7-000	Nut - SPECIAL	Nut - SPECIAL
17	91307-PNA-003	O-ring - 9.5X1.9	O-ring - 9.5X1.9

Water valve (LH) 8 / 8

#	OEM	CL7	CM4
1	79710-SDC-A01	Valve assy. - WATER	Valve assy. - WATER
2	79721-SDA-A00	Hose a - WATER IN.	Hose a - WATER IN.
4	79722-SDA-A00	Hose b - WATER IN.	Hose b - WATER IN.
5	79725-SDA-A00	Hose - WATER OUTLET	Hose - WATER OUTLET
7	90661-SL5-003	Clip, WATER HOSE	Clip, WATER HOSE
8	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
8	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
9	91557-S87-A01	Clamp - HEATER	Clamp - HEATER

Windshield washer (1) 3 / 12

#	OEM	CL7	CM4
1	38516-SA5-671	Packing - T-TYPE) (MITSUBA	Packing - T-TYPE) (MITSUBA
2	38519-SB0-003	Bush - WASHER TANK (MITSUBA)	Bush - WASHER TANK (MITSUBA)
5	76806-SL0-E11	Motor - WASHER (HIGH) (MITSUBA)	Motor - WASHER (HIGH) (MITSUBA)

Windshield washer (HEADLIGHT WASHER; 1) 3 / 38

#	OEM	CL7	CM4
2	38516-SA5-671	Packing - T-TYPE) (MITSUBA	Packing - T-TYPE) (MITSUBA
3	38519-SB0-003	Bush - WASHER TANK (MITSUBA)	Bush - WASHER TANK (MITSUBA)
9	76806-SL0-E11	Motor - WASHER (HIGH) (MITSUBA)	Motor - WASHER (HIGH) (MITSUBA)

Wire harness (LH) 4 / 28

#	OEM	CL7	CM4
17	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
18	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
19	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
20	90149-SE0-902	Bolt - EARTH, 6X24(SN)	Bolt - EARTH, 6X24(SN)
