Abs modulator 2 / 2

#	OEM	CH6	CH8
1	57110-S1A-E01	Modulator assy - ABS	Modulator assy - ABS
2	57115-S1A-E00	Bracket - MODULATOR	Bracket - MODULATOR

Air conditioner (CONDENSER) 1 / 12

#	OEM	CH6	CH8
10	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER

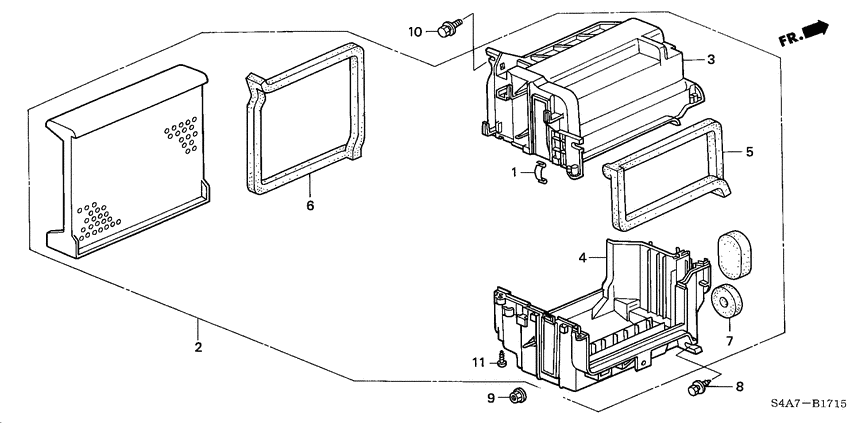

Air conditioner (COOLING UNIT; LH) 20 / 25

#	OEM	CH6	CH8
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
2	39794-S01-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
3	79370-S1A-G01	Filter assy	Filter assy
4	80201-S1A-G01	Case - EVAPORATOR UPPER	Case - EVAPORATOR UPPER
5	80202-S1A-G01	Case - EVAPORATOR LOWER	Case - EVAPORATOR LOWER
7	80205-S1A-G01	Insulator - EVAPORATOR UPPER	Insulator - EVAPORATOR UPPER
8	80206-S1A-G01	Insulator - EVAPORATOR LOWER	Insulator - EVAPORATOR LOWER
9	80208-S1A-G01	Holder - PIPE	Holder - PIPE
10	80210-S1A-G01	Evaporator comp.	Evaporator comp.
13	80270-S1A-G01	Packing a	Packing a
14	80286-S1A-G01	Packing - INNER	Packing - INNER
15	80287-S1A-G01	Packing - OUTER	Packing - OUTER
16	80288-S1A-G01	Packing b	Packing b
17	80411-S1A-G01	Button	Button
20	80566-SW5-003	Clamp - EVAPORATOR SENSOR	Clamp - EVAPORATOR SENSOR
21	80871-SN7-003	O-ring - 5/8"	O-ring - 5/8"
22	80872-SN7-003	O-ring - 1/2"	O-ring - 1/2"
23	90121-S1A-G01	Bolt - FLANGE	Bolt - FLANGE
24	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
25	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Air conditioner (HOSES/PIPES; LH) 7 / 18

#	OEM	CH6	CH8
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
11	80381-SV7-A01	Clamp - RECEIVER PIPE	Clamp - RECEIVER PIPE
13	80865-SS0-A11	Cap h - VALVE(PARKER)	Cap h - VALVE(PARKER)
14	80866-ST7-A11	Cap l - VALVE (PARKER)	Cap l - VALVE (PARKER)
15	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
16	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
17	80873-ST7-000	O-ring - 8MM	O-ring - 8MM

Alloy wheel 15 x 7jj 1 / 1

#	OEM	CH6	CH8
3	42753-SK3-000	Valve - RIM(A.R.G.)	Valve - RIM(A.R.G.)

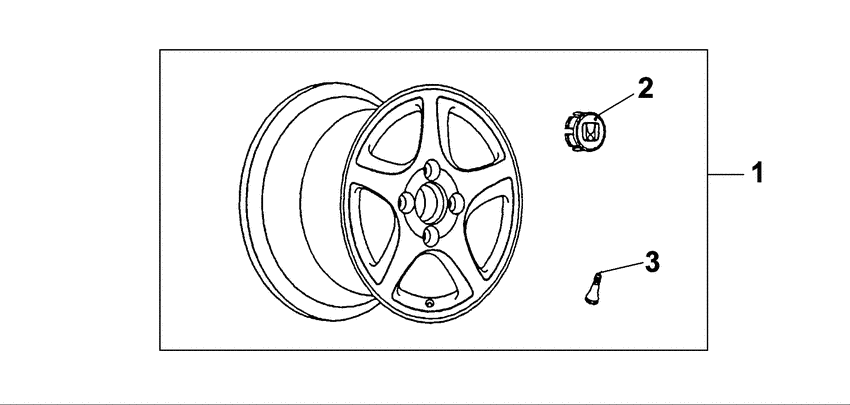

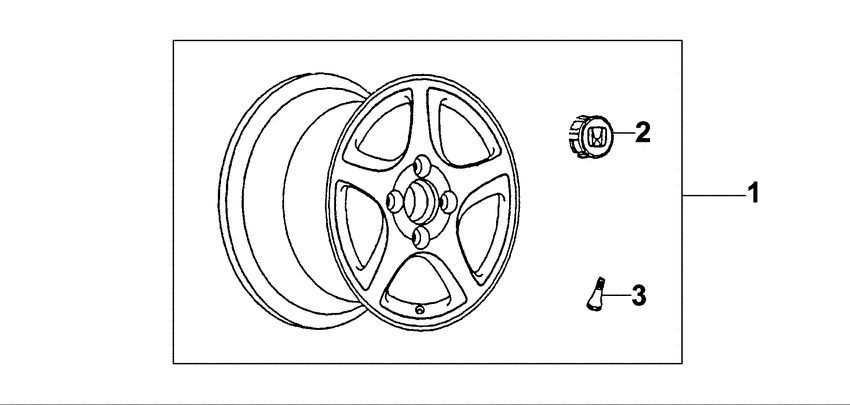

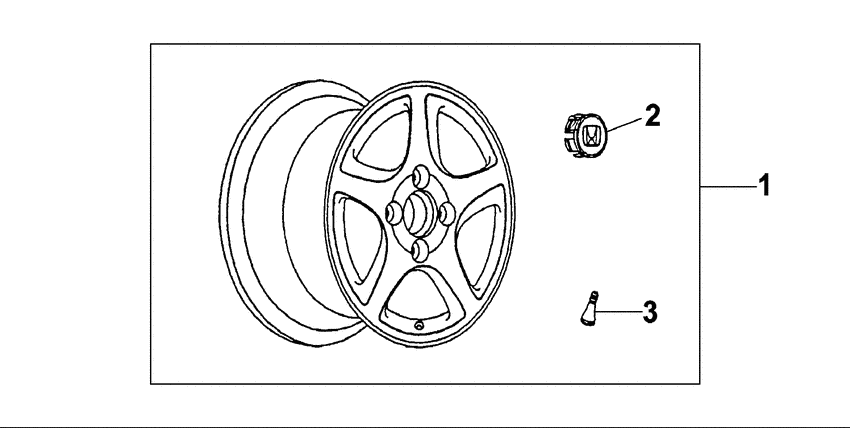

Alloy wheel 15x6j 5-spoke 2 / 2

#	OEM	CH6	CH8
3	42753-SH3-003	Valve - RIM (US PACIFIC)	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)

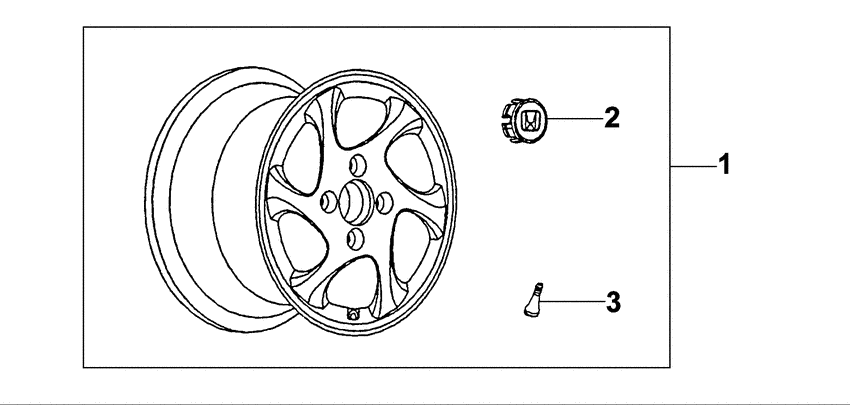

Alloy wheel 15x6j 7-spoke 1 / 1

#	OEM	CH6	CH8
3	42753-SK3-000	Valve - RIM(A.R.G.)	Valve - RIM(A.R.G.)

Alloy wheel 15x7j 5-spoke 1 / 1

#	OEM	CH6	CH8
3	42753-SK3-000	Valve - RIM(A.R.G.)	Valve - RIM(A.R.G.)

Alloy wheel 15x7j 7-spoke 1 / 1

#	OEM	CH6	CH8
3	42753-SK3-000	Valve - RIM(A.R.G.)	Valve - RIM(A.R.G.)

Alloy wheel 16x6,5j 5 double spoke 1 / 1

#	OEM	CH6	CH8
3	42753-SK3-000	Valve - RIM(A.R.G.)	Valve - RIM(A.R.G.)

Alloy wheel 16x6.5j 6-spoke twisted 2 / 2

#	OEM	CH6	CH8
3	42753-SH3-003	Valve - RIM (US PACIFIC)	Valve - RIM (US PACIFIC)
3	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)

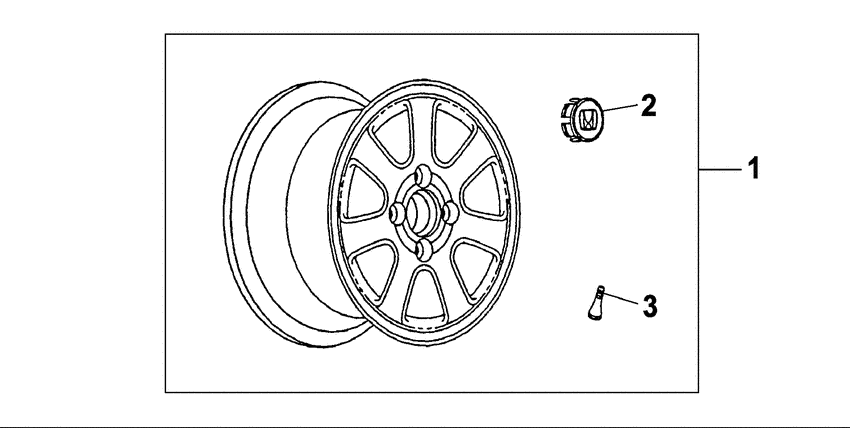

Alloy wheel 16x7j 7-spoke 1 / 1

#	OEM	CH6	CH8
3	42753-SK3-000	Valve - RIM(A.R.G.)	Valve - RIM(A.R.G.)

Alloy wheel 16x7j 9 double spoke 1 / 1

#	OEM	CH6	CH8
3	42753-SK3-000	Valve - RIM(A.R.G.)	Valve - RIM(A.R.G.)

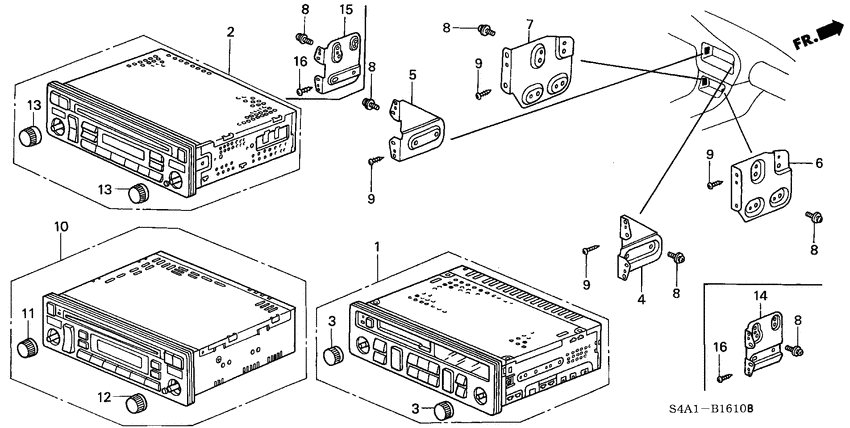

Auto radio 2 / 3

#	OEM	CH6	CH8
4	39105-S1A-G00	Bracket - R. RADIO	Bracket - R. RADIO
5	39106-S1A-G00	Bracket - L. RADIO	Bracket - L. RADIO

Battery 6 / 16

#	OEM	CH6	CH8
8	32115-P64-003	Holder - CORRUGATED (DARK BLUE) (10MM)	Holder - CORRUGATED (DARK BLUE) (10MM)
13	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
14	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
15	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
16	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
18	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Brake lines (ABS; LH) 18 / 28

#	OEM	CH6	CH8
1	46330-S1A-E01	Pipe comp. c - BRAKE	Pipe comp. c - BRAKE
3	46340-S1A-E01	Pipe comp. d - BRAKE	Pipe comp. d - BRAKE
8	46377-S1A-E01	Pipe comp. x - BRAKE	Pipe comp. x - BRAKE
11	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)	Grommet a - BRAKE PIPE (BLACK)
12	46391-SX8-T01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
13	46391-S84-A51	Clip - BRAKE PIPE	Clip - BRAKE PIPE
16	46393-S1A-E00	Clamp - BRAKE PIPE	Clamp - BRAKE PIPE
17	46394-S04-003	Clip A	Clip A
18	46395-SM4-951	Clip - BRAKE PIPE	Clip - BRAKE PIPE
20	46396-S84-A01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
21	46410-S1A-E01	Hose - R. FR. BRAKE	Hose - R. FR. BRAKE
22	46411-S1A-E01	Hose - L. FR. BRAKE	Hose - L. FR. BRAKE
23	46430-S1A-E01	Hose - R. RR. BRAKE (DISK)	Hose - R. RR. BRAKE (DISK)
25	46431-S1A-E01	Hose - L. RR. BRAKE (DISK)	Hose - L. RR. BRAKE (DISK)
29	46462-SE0-000	Bolt - OIL	Bolt - OIL
30	46470-S1A-E01	Joint - 4WAY	Joint - 4WAY
31	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
32	90651-SN7-003	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power 12 / 20

#	OEM	CH6	CH8
2	46070-SL0-G01	Plate - SYMBOL MARK	Plate - SYMBOL MARK
4	46120-S84-A51	Piston assy. - PRIMARY	Piston assy. - PRIMARY
5	46122-S84-A51	Piston assy. - SECONDARY	Piston assy. - SECONDARY
6	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
7	46182-S84-A51	Circlip	Circlip
8	46185-S04-J01	Seal - ROD	Seal - ROD
9	46191-S50-003	Packing - MASTER POWER	Packing - MASTER POWER
14	46407-S84-A01	Clamp - TUBE	Clamp - TUBE
15	46512-SB2-000	Pin - PEDAL	Pin - PEDAL
18	46665-S04-J01	Grommet	Grommet
21	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
22	57515-S30-003	Pin - STOP	Pin - STOP

Bumpers 11 / 14

#	OEM	CH6	CH8
8	71598-S30-013	Spacer assy. - RR. BUMPER SIDE	Spacer assy. - RR. BUMPER SIDE
9	90102-S1A-E00	Bolt - BUMPER BEAM UPPER	Bolt - BUMPER BEAM UPPER
10	90106-SW3-003	Grommet - BUMPER SETTING	Grommet - BUMPER SETTING
12	90108-SW3-003	Clip - BUMPER SETTING	Clip - BUMPER SETTING
13	90109-SS0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
14	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
15	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
16	90302-SD2-003	Nut-washer - 8MM	Nut-washer - 8MM
17	90305-SM4-000	Nut - AIR SPOILER CLIP	Nut - AIR SPOILER CLIP
18	91503-SZ3-003	Clip A	Clip A
19	91503-SZ5-003	Clip - BUMPER FACE	Clip - BUMPER FACE

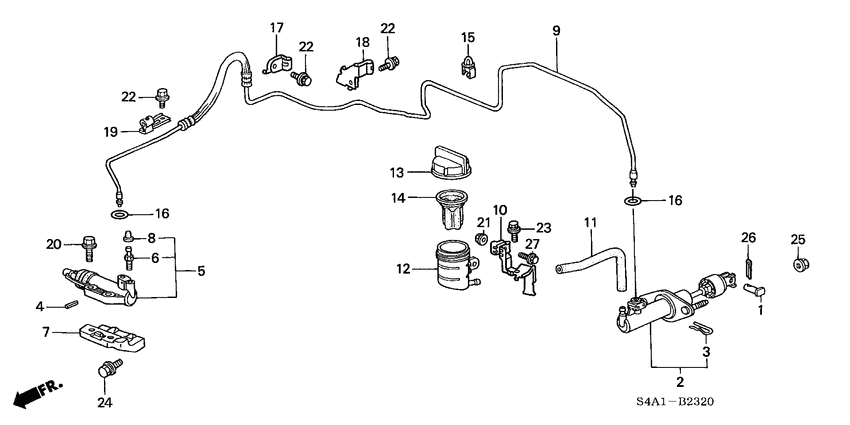

Clutch master cylinder (LH) 1 / 20

#	OEM	CH6	CH8
1	46912-SD4-000	Pin - CLUTCH PEDAL	Pin - CLUTCH PEDAL

Combination meter components 12 / 17

#	OEM	CH6	CH8
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35505-SJ4-003	Socket assy - BULB (14V 3W)	Socket assy - BULB (14V 3W)
3	37115-SA0-601	Packing - NS	Packing - NS
4	78110-S1A-E01	Case assy.	Case assy.
8	78145-S1A-003	Knob - ILLUMINATION CONTROL	Knob - ILLUMINATION CONTROL
11	78150-S1A-E01	Shaft - TRIP RESET	Shaft - TRIP RESET
12	78151-S1A-E01	Pipe - SHAFT	Pipe - SHAFT
13	78155-S1A-E01	Visor	Visor
14	78166-S1A-E01	Cover	Cover
15	78170-S1A-E01	Lens - METER	Lens - METER
17	78181-SS0-003	Socket assy - BULB (14V 1.12W)	Socket assy - BULB (14V 1.12W)
18	78181-S1A-E01	Socket assy - BULB (9.5V)	Socket assy - BULB (9.5V)

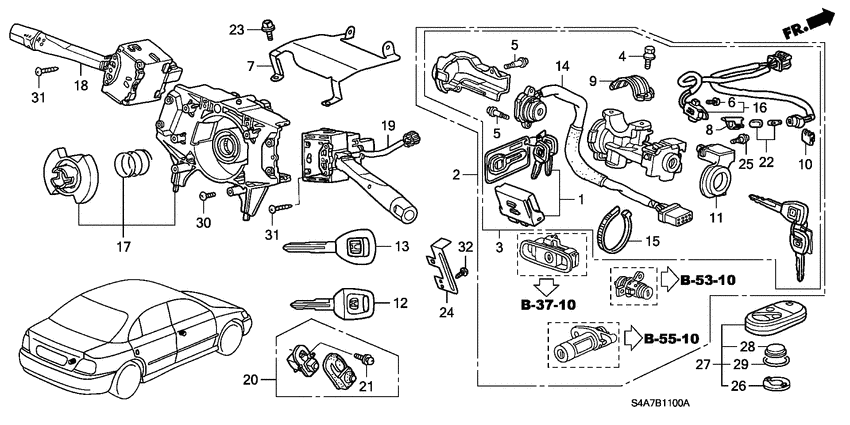

Combination switch 6 / 21

#	OEM	CH6	CH8
11	35256-S1C-G11	Switch assy - WIPER	Switch assy - WIPER
12	35400-S0A-003	Switch assy - DOOR	Switch assy - DOOR
13	35409-S0A-003	Screw - FLANGE, 4X12	Screw - FLANGE, 4X12
18	72148-S10-003	Battery - CR2025	Battery - CR2025
18	72148-S84-A10	Battery - CR2025	Battery - CR2025
19	72149-S10-003	O-ring	O-ring

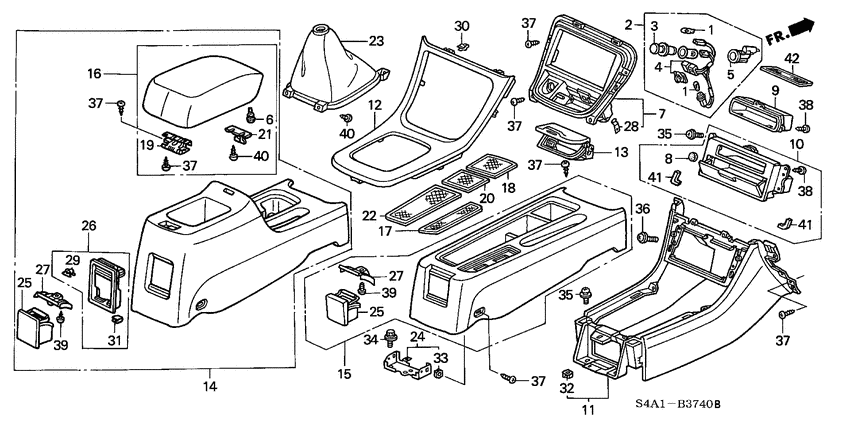

Console 17 / 22

#	OEM	CH6	CH8
1	35505-ST3-E01	Bulb - T5 1.2W	Bulb - T5 1.2W
2	39600-S1A-E01	Lighter assy - CIGARETTE	Lighter assy - CIGARETTE
3	39610-ST3-E01	Knob comp. - CIGARETTE LIGHTER	Knob comp. - CIGARETTE LIGHTER
4	39613-S1A-E01	Harness comp.	Harness comp.
5	39614-S1A-E01	Ring assy - ILLUMINATION	Ring assy - ILLUMINATION
8	77287-S1A-E01	Stopper - CLOSE	Stopper - CLOSE
18	83406-S1A-E00	Mat - CUP HOLDER TRAY (1)	Mat - CUP HOLDER TRAY (1)
19	83407-SN7-E00	Hinge assy - RR. CONSOLE	Hinge assy - RR. CONSOLE
20	83407-S1A-E00	Mat - CUP HOLDER TRAY (2)	Mat - CUP HOLDER TRAY (2)
21	83408-SN7-E00	Lock	Lock
22	83408-S1A-E00	Mat - TRAY BOX	Mat - TRAY BOX
27	88324-ST3-E00	Cover - RR. ASHTRAY	Cover - RR. ASHTRAY
28	90606-SN7-E00	Spring - FR. ASHTRAY	Spring - FR. ASHTRAY
30	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
32	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
33	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
41	77286-S1A-E21	Fabric - NON WOVEN	Fabric - NON WOVEN

Control unit (CABIN; LH) 9 / 17

#	OEM	CH6	CH8
1	30505-SL5-003	Condenser comp. - TEC) (N-1691/250-0.47	Condenser comp. - TEC) (N-1691/250-0.47
5	38140-S1C-E01	Wiper unit - INTERMITTENT	Wiper unit - INTERMITTENT
6	38200-S1C-G01	Box assy - FUSE (DRIVER SIDE)	Box assy - FUSE (DRIVER SIDE)
8	38211-S1A-G00	Bracket - FUSE BOX (AS)	Bracket - FUSE BOX (AS)
9	38300-SK3-G01	Relay assy - TURN SIGNAL & HAZARD	Relay assy - TURN SIGNAL & HAZARD
16	39792-SM4-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-49H)	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-49H)
17	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)
17	39794-S01-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
20	91755-SX0-010	Bracket - RELAY BLOCK (ISO)	Bracket - RELAY BLOCK (ISO)

Control unit (ENGINE ROOM; LH) 14 / 19

#	OEM	CH6	CH8
6	38213-SM4-003	Fuse - BLOCK (50A)	Fuse - BLOCK (50A)
7	38218-SM4-003	Fuse - BLOCK (100A)	Fuse - BLOCK (100A)
8	38231-S04-003	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
9	38231-S04-961	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
14	38252-S1A-G01	Cover - LOWER	Cover - LOWER
16	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
16	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)	Relay assy - POWER(4P)(DENSO) (056700-7410)
17	39793-SV4-003	Relay assy - POWER (5P) (MITSUBA)	Relay assy - POWER (5P) (MITSUBA)
18	39794-S1A-G01	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)	Relay assy - POWER (4P) (MICRO ISO) (BOSCH)
18	39794-S01-A01	Relay assy - POWER (4P) (MICRO ISO) (OMRON)	Relay assy - POWER (4P) (MICRO ISO) (OMRON)
20	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
21	90129-S84-000	Screw-washer - 5X14	Screw-washer - 5X14
22	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16
23	91551-SV4-003	Clip - BRACKET	Clip - BRACKET

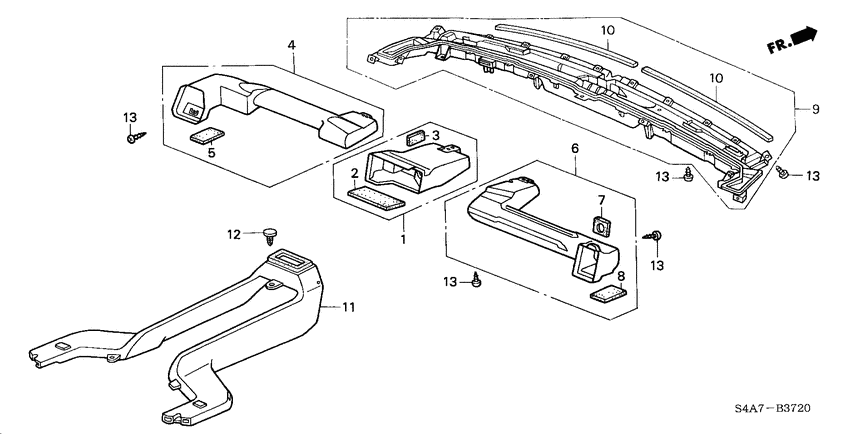

Duct (LH) 11 / 11

#	OEM	CH6	CH8
1	77410-S1A-G01	Duct assy - AIR CONDITIONER CENTER (LH)	Duct assy - AIR CONDITIONER CENTER (LH)
2	77412-S1A-E01	Seal a	Seal a
3	77413-S1A-E01	Seal b	Seal b
4	77420-S1A-G01	Duct assy - DRIVER SIDE AIR CONDITIONER (LH)	Duct assy - DRIVER SIDE AIR CONDITIONER (LH)
5	77422-S1A-E01	Seal a	Seal a
6	77430-S1A-G01	Duct assy - PASSENGER SIDE AIR CONDITIONER (LH)	Duct assy - PASSENGER SIDE AIR CONDITIONER (LH)
7	77432-S1A-E01	Seal a	Seal a
8	77433-S1A-E01	Seal b	Seal b
10	77468-S1A-E01	Seal	Seal
11	83331-S1A-E00	Duct - RR. HEATER	Duct - RR. HEATER
12	91560-SK3-E00	Clip - ROOF LINING, 8MM	Clip - ROOF LINING, 8MM

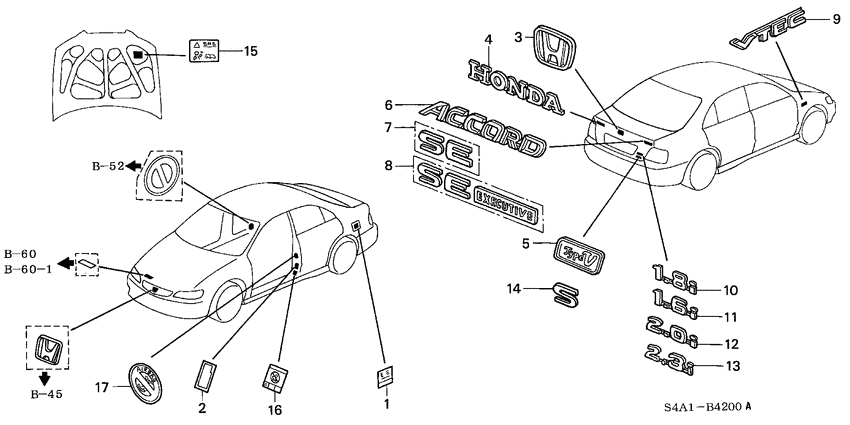

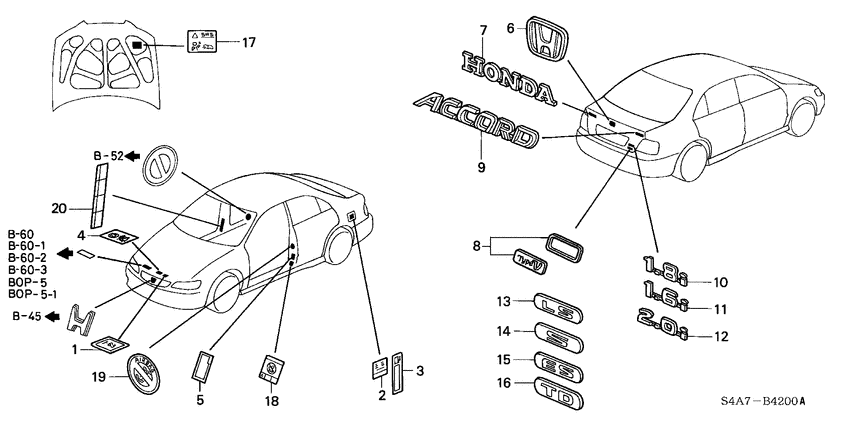

Emblems 5 / 9

#	OEM	CH6	CH8
4	75711-S1A-E00	Emblem - RR. (HONDA)	Emblem - RR. (HONDA)
6	75722-S1A-E00	Emblem - RR. (ACCORD)	Emblem - RR. (ACCORD)
15	77875-S84-G80	Label - SRS CAUTION	Label - SRS CAUTION
16	78031-S1A-E80	Label - SIDE AIRBAG CAUTION	Label - SIDE AIRBAG CAUTION
17	78527-S04-G80	Label - SRS CAUTION (CHILD SEAT)	Label - SRS CAUTION (CHILD SEAT)

Engine wire harness (LH) 7 / 19

#	OEM	CH6	CH8
2	32118-P72-003	Holder - CORRUGATED(DARK GREEN) (19MM)	Holder - CORRUGATED(DARK GREEN) (19MM)
4	32121-PAA-A01	Plate - WIRE HARNESS GROMMET	Plate - WIRE HARNESS GROMMET
9	32741-PDA-G00	Clamp a - ENGINE WIRE HARNESS	Clamp a - ENGINE WIRE HARNESS
15	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
16	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
17	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
25	91559-PAA-A01	Clip - HARNESS BAND(GRAY) (150MM)	Clip - HARNESS BAND(GRAY) (150MM)

Exhaust pipe 8 / 29

#	OEM	CH6	CH8
14	18215-S84-A20	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
16	18303-SM4-020	Gasket - SILENCER	Gasket - SILENCER
24	74651-S1A-E00	Plate - FUEL TANK BAFFLE	Plate - FUEL TANK BAFFLE
26	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
28	90212-671-005	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
29	90301-SV7-000	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
30	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
34	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Floor mat 9 / 11

#	OEM	CH6	CH8
1	46992-SV4-003	Clip - FOOTREST	Clip - FOOTREST
3	74255-S1A-G00	Stopper - FOOTREST	Stopper - FOOTREST
4	74256-S1A-G00	Stopper - TOE	Stopper - TOE
14	90121-SJ6-003	Bolt - FLANGE, 6X14	Bolt - FLANGE, 6X14
17	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR
18	90676-SE0-003	Clip - JOINT COVER PLATE	Clip - JOINT COVER PLATE
19	91546-SM4-003	Plug - DASHBOARD INSULATOR BLIND (12MM)	Plug - DASHBOARD INSULATOR BLIND (12MM)
20	91547-SM4-003	Cap - INSULATOR	Cap - INSULATOR
21	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)

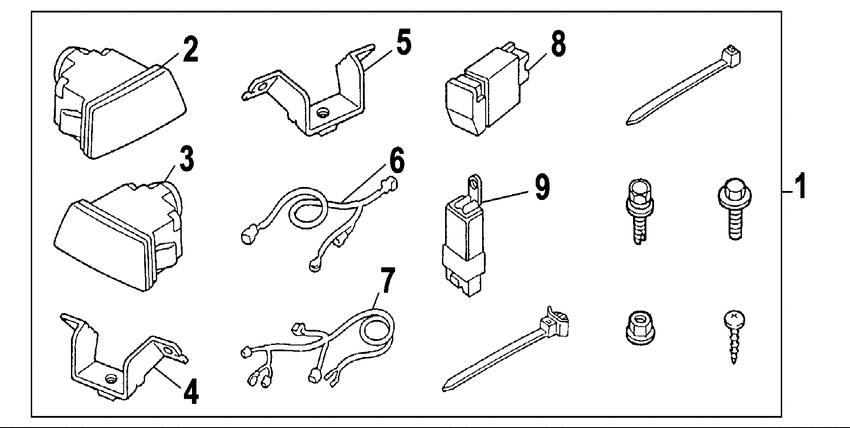

Fr fog light 1 / 5

#	OEM	CH6	CH8
4	35180-S1A-E01	Switch assy - FR. FOG	Switch assy - FR. FOG

Front brake 21 / 21

#	OEM	CH6	CH8
1	01463-S1A-E02	Caliper set - FR. (LUCAS57MM)	Caliper set - FR. (LUCAS57MM)
2	44300-S1A-E01	Bearing assy - FR. HUB	Bearing assy - FR. HUB
3	44600-S1A-E00	Hub assy - FR.	Hub assy - FR.
5	45010-S1A-E01	Pin set - FR.	Pin set - FR.
6	45012-S1A-E01	Body set - R. FR. CALIPER	Body set - R. FR. CALIPER
7	45013-S1A-E01	Body set - L. FR. CALIPER	Body set - L. FR. CALIPER
8	45014-S1A-E02	Bracket comp. - R. FR. CALIPER	Bracket comp. - R. FR. CALIPER
9	45015-S1A-E02	Bracket comp. - L. FR. CALIPER	Bracket comp. - L. FR. CALIPER
10	45017-S1A-E01	Boot set - FR. PIN	Boot set - FR. PIN
11	45022-S1A-E50	Pad set - FR. (LUCAS,J632)	Pad set - FR. (LUCAS,J632)
12	45216-S1A-E01	Piston	Piston
13	45240-SK3-E00	Bolt	Bolt
15	45251-S1A-G00	Disk - FR. BRAKE (15")	Disk - FR. BRAKE (15")
16	45255-S1A-E00	Guard - R. FR. BRAKE SPLASH (15")	Guard - R. FR. BRAKE SPLASH (15")
17	45256-S1A-E00	Guard - L. FR. BRAKE SPLASH (15")	Guard - L. FR. BRAKE SPLASH (15")
18	45352-SN7-G41	Screw - BLEEDER	Screw - BLEEDER
19	45353-SN7-G41	Cap - BLEEDER	Cap - BLEEDER
20	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
21	90113-SD4-901	Bolt - WHEEL (MEIRA)	Bolt - WHEEL (MEIRA)
21	90113-SD4-902	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
22	90681-SG0-000	Circlip - INTERNAL, 84MM	Circlip - INTERNAL, 84MM

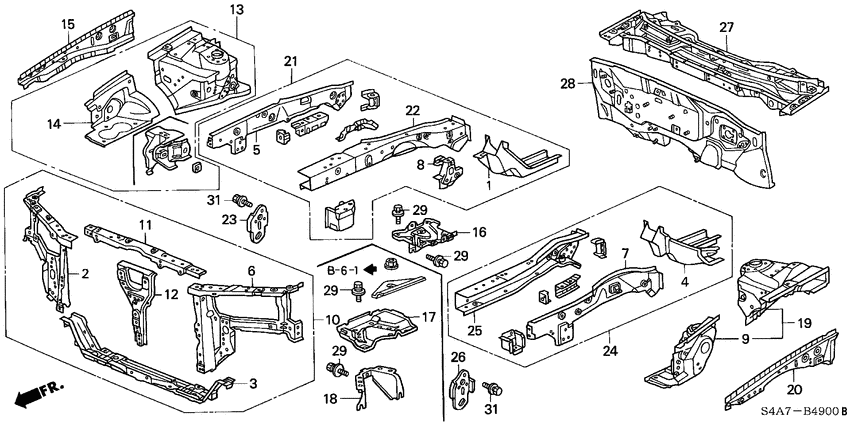

Front bulkhead 1 / 1

#	OEM	CH6	CH8
28	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)

Front combination light 4 / 10

#	OEM	CH6	CH8
2	33802-S1A-E01	Housing comp - R.	Housing comp - R.
3	33852-S1A-E01	Housing comp - L.	Housing comp - L.
8	34304-SH3-A01	Socket comp.	Socket comp.
9	34351-S1A-G01	Bulb - WEDGE (12V 5W)	Bulb - WEDGE (12V 5W)

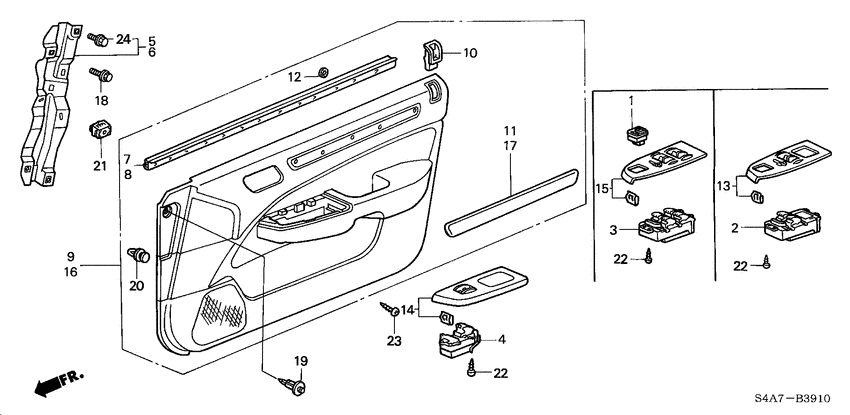

Front door lining 8 / 11

#	OEM	CH6	CH8
5	72225-S1A-E00	Bracket assy - R. FR. DOOR LINING	Bracket assy - R. FR. DOOR LINING
6	72265-S1A-E00	Bracket assy - L. FR. DOOR LINING	Bracket assy - L. FR. DOOR LINING
7	72335-S1A-E00	Weatherstrip - R. FR. DOOR INNER	Weatherstrip - R. FR. DOOR INNER
8	72375-S1A-E00	Weatherstrip - L. FR. DOOR INNER	Weatherstrip - L. FR. DOOR INNER
12	83512-S1A-E00	Nut - SPEED, 5MM	Nut - SPEED, 5MM
18	90116-ST3-E00	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
20	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
21	91626-SP0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front door locks 35 / 41

#	OEM	CH6	CH8
1	72112-S1A-G01	Lock assy - R. FR. DOOR	Lock assy - R. FR. DOOR
1	72152-S1A-G11	Lock assy - R. FR. DOOR	Lock assy - R. FR. DOOR
2	72112-SR4-004	Snap - BROWN	Snap - BROWN
3	72113-SR4-004	Snap - BLACK	Snap - BLACK
6	72116-SM4-003	Snap d - VIOLET	Snap d - VIOLET
7	72116-SV4-003	Snap - ORANGE	Snap - ORANGE
8	72116-S04-003	Holder - ROD(SKY BLUE)	Holder - ROD(SKY BLUE)
9	72117-S04-003	Holder - ROD (YELLOW)	Holder - ROD (YELLOW)
13	72119-S1A-E01	Stopper	Stopper
16	72123-S1A-E01	Clip - R. DOOR KEY CYLINDER	Clip - R. DOOR KEY CYLINDER
18	72130-S1A-E02	Protector - R. FR. DOOR HANDLE	Protector - R. FR. DOOR HANDLE
20	72131-S1A-E01	Rod - R. FR. INSIDE HANDLE	Rod - R. FR. INSIDE HANDLE
21	72134-SN7-G01	Bush - JOINT	Bush - JOINT
22	72134-SM4-003	Snap - R. (VIOLET)	Snap - R. (VIOLET)
23	72135-SR3-003	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
24	72136-SM4-003	Holder - ROD, 4MM	Holder - ROD, 4MM
26	72138-S1A-E00	Protector - R. FR. DOOR KEY ROD	Protector - R. FR. DOOR KEY ROD
27	72139-S1A-E00	Protector - R. FR. DOOR KNOB ROD	Protector - R. FR. DOOR KNOB ROD
28	72140-S1A-E22	Handle assy - R. FR. OUTSIDE	Handle assy - R. FR. OUTSIDE
28	72140-S1A-E32	Handle assy - R. FR. OUTSIDE	Handle assy - R. FR. OUTSIDE
34	72152-S1A-E11	Lock assy - L. FR. DOOR	Lock assy - L. FR. DOOR
40	72163-S1A-E01	Clip - L. DOOR KEY CYLINDER	Clip - L. DOOR KEY CYLINDER
41	72170-S1A-E02	Protector - L. FR. DOOR OUTER HANDLE	Protector - L. FR. DOOR OUTER HANDLE
43	72171-S1A-E01	Rod - L. FR. INSIDE HANDLE	Rod - L. FR. INSIDE HANDLE
44	72174-SM4-003	Snap - L. (YELLOW)	Snap - L. (YELLOW)
45	72178-S1A-E00	Protector - L. FR. DOOR KEY ROD	Protector - L. FR. DOOR KEY ROD
46	72179-S1A-E00	Protector - L. FR. DOOR KNOB ROD	Protector - L. FR. DOOR KNOB ROD
47	72180-S1A-E22	Handle assy - L. FR. OUTSIDE	Handle assy - L. FR. OUTSIDE
49	75411-634-000	Joint	Joint
50	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
51	90120-SM4-000	Screw - TAPPING	Screw - TAPPING
52	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
53	90141-S84-003	Screw - 3X10	Screw - 3X10
54	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
55	90866-SA0-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Front door panels 24 / 26

#	OEM	CH6	CH8
5	67325-S1A-E01	Tape - R. FR. DOOR LOWER INNER	Tape - R. FR. DOOR LOWER INNER
6	67326-S1A-E01	Tape - R. FR. DOOR UPPER INNER	Tape - R. FR. DOOR UPPER INNER
7	67327-S1A-E01	Tape - R. FR. DOOR CENTER INNER	Tape - R. FR. DOOR CENTER INNER
8	67365-S1A-E01	Tape - L. FR. DOOR LOWER INNER	Tape - L. FR. DOOR LOWER INNER
9	67366-S1A-E01	Tape - L. FR. DOOR UPPER INNER	Tape - L. FR. DOOR UPPER INNER
10	67367-S1A-E01	Tape - L. FR. DOOR CENTER INNER	Tape - L. FR. DOOR CENTER INNER
15	72142-SM4-000	Stopper - DOOR	Stopper - DOOR
16	72310-S1A-E01	Weatherstrip - R. FR. DOOR	Weatherstrip - R. FR. DOOR
17	72321-S1A-E00	Seal - R. FR. DOOR HOLE	Seal - R. FR. DOOR HOLE
19	72326-S1A-E01	Weatherstrip - FR. LOWER	Weatherstrip - FR. LOWER
20	72340-S1A-E00	Checker comp. - R. FR. DOOR	Checker comp. - R. FR. DOOR
21	72350-S1A-E01	Weatherstrip - L. FR. DOOR	Weatherstrip - L. FR. DOOR
22	72361-S1A-E00	Seal - L. FR. DOOR HOLE	Seal - L. FR. DOOR HOLE
24	72380-S1A-E00	Checker comp. - L. FR. DOOR	Checker comp. - L. FR. DOOR
25	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
26	90102-SZ3-000	Bolt - FLANGE, 8X22 (10.5MM)	Bolt - FLANGE, 8X22 (10.5MM)
26	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
27	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
28	90686-692-003	Cap - LINING MOUNT	Cap - LINING MOUNT
29	91530-SH4-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
30	91530-S0A-003	Clip - SUB SEAL	Clip - SUB SEAL
31	91568-SR2-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
31	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
32	91657-SP0-000	Seal c - DOOR PANEL HOLE (25MM)	Seal c - DOOR PANEL HOLE (25MM)

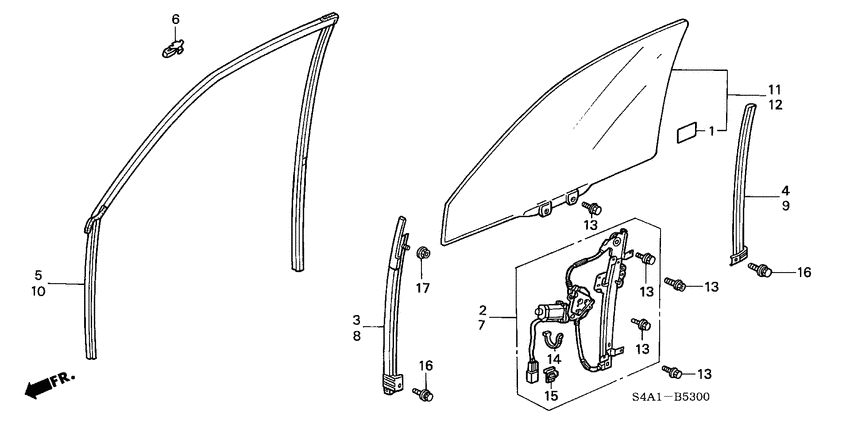

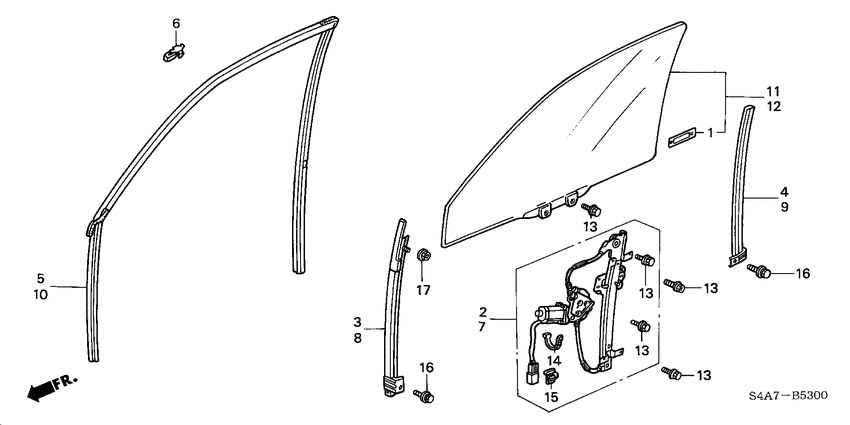

Front door windows 10 / 15

#	OEM	CH6	CH8
2	72210-S1A-G01	Regulator assy - R. FR. DOOR (POWER)	Regulator assy - R. FR. DOOR (POWER)
3	72230-S1A-E00	Sash - R. FR. DOOR FR. LOWER	Sash - R. FR. DOOR FR. LOWER
4	72231-S1A-E00	Sash - R. FR. DOOR CENTER LOWER	Sash - R. FR. DOOR CENTER LOWER
6	72237-S84-G01	Clip - FR. DOOR GLASS GUIDE	Clip - FR. DOOR GLASS GUIDE
7	72250-S1A-G21	Regulator assy - L. FR. DOOR (ANTI TRAP)	Regulator assy - L. FR. DOOR (ANTI TRAP)
8	72270-S1A-E00	Sash - L. FR. DOOR FR. LOWER	Sash - L. FR. DOOR FR. LOWER
9	72271-S1A-E00	Sash - L. FR. DOOR CENTER LOWER	Sash - L. FR. DOOR CENTER LOWER
13	90116-ST3-E00	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
14	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
15	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)

Front driveshaft/ half shaft 7 / 23

#	OEM	CH6	CH8
8	44318-S1A-E01	Band r - BOOT (GKN)	Band r - BOOT (GKN)
11	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
12	44327-S1A-E01	Band - OUTBOARD BOOT (GKN)	Band - OUTBOARD BOOT (GKN)
13	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
14	44337-S1A-E01	Ring b - STOPPER	Ring b - STOPPER
15	44338-S1A-E01	Circlip	Circlip
22	90305-SD4-003	Nut - SPINDLE (24MM)	Nut - SPINDLE (24MM)

Front fenders 10 / 11

#	OEM	CH6	CH8
3	74101-S1A-E00	Fender - R. FR. INNER	Fender - R. FR. INNER
5	74151-S1A-E00	Fender - L. FR. INNER	Fender - L. FR. INNER
6	90102-SK3-E00	Screw-washer - TAPPING, 5X20	Screw-washer - TAPPING, 5X20
7	90106-SE1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
8	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
9	90657-SB0-003	Clip, SPLASH SHIELD	Clip, SPLASH SHIELD
10	90673-SG4-U01	Nut - CLIP, 6MM	Nut - CLIP, 6MM
11	90676-SA7-003	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)
12	91503-SZ5-003	Clip - BUMPER FACE	Clip - BUMPER FACE
13	91512-SM4-003	Clip - INNER FENDER	Clip - INNER FENDER

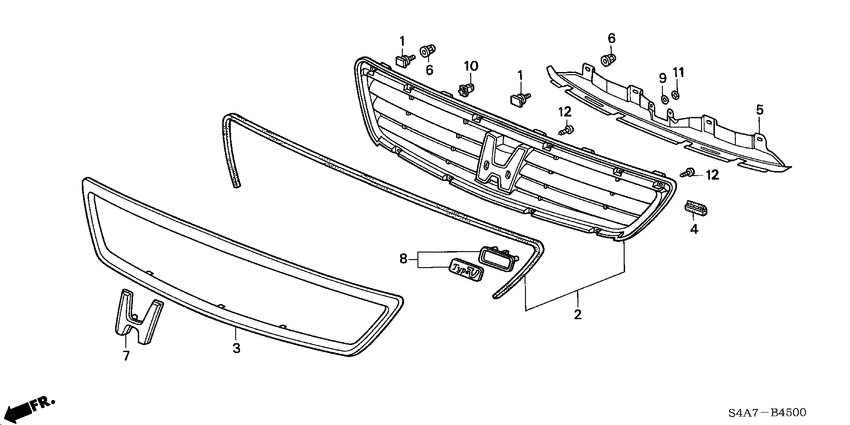

Front grille 4 / 8

#	OEM	CH6	CH8
3	75105-ST3-000	Bolt - SPECIAL	Bolt - SPECIAL
5	75133-S1A-E00	Stopper - FR. GRILLE	Stopper - FR. GRILLE
7	75307-SN7-000	Nut - SIDE PROTECTOR	Nut - SIDE PROTECTOR
10	90157-SP0-901	Clip - FR. GRILLE	Clip - FR. GRILLE

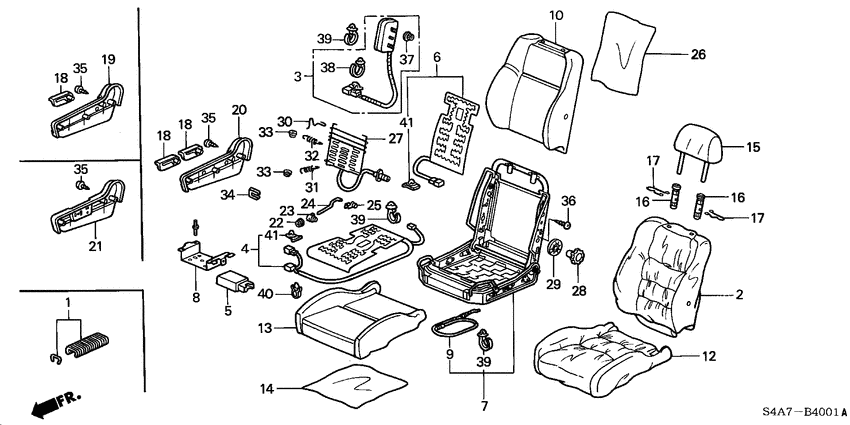

Front seat (L.) 23 / 36

#	OEM	CH6	CH8
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
3	06788-S1A-E80	Module kit - L. SIDE AIRBAG	Module kit - L. SIDE AIRBAG
8	81118-S1A-E01	Cable - HEIGHT ADJUSTER	Cable - HEIGHT ADJUSTER
9	81133-S1A-E01	Cushion - ANTI NOISE FABRIC	Cushion - ANTI NOISE FABRIC
11	81144-SN7-E02	Guide - HEADREST	Guide - HEADREST
12	81146-SN7-E01	Lock - SPRING	Lock - SPRING
13	81241-S1A-E01	Nut - 4MM	Nut - 4MM
14	81242-S1A-E01	Clip - LOCK	Clip - LOCK
15	81243-S1A-E01	Rod - CONNECTING	Rod - CONNECTING
16	81244-S1A-E01	Clip - ROD HOLDER	Clip - ROD HOLDER
17	81245-S1A-E01	Back - ANTI NOISE FABRIC	Back - ANTI NOISE FABRIC
18	81323-S1A-E01	Spring a	Spring a
19	81324-S1A-E01	Spring b	Spring b
20	81325-S1A-E01	Spring c	Spring c
21	81326-S1A-E01	Absorber - NOISE	Absorber - NOISE
30	81639-S1A-E11	Clip - HEIGHT CABLE	Clip - HEIGHT CABLE
33	90184-SN7-003	Screw - 4.2X9.5	Screw - 4.2X9.5
35	90321-S84-000	Nut-washer - 8MM	Nut-washer - 8MM
36	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
37	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
38	91551-S1A-E01	Clip - CABLE	Clip - CABLE
39	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

Front seat (R.) 17 / 27

#	OEM	CH6	CH8
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
3	06783-S1A-E80	Module kit - R. SIDE AIRBAG	Module kit - R. SIDE AIRBAG
13	81133-S1A-E01	Cushion - ANTI NOISE FABRIC	Cushion - ANTI NOISE FABRIC
15	81144-SN7-E02	Guide - HEADREST	Guide - HEADREST
16	81146-SN7-E01	Lock - SPRING	Lock - SPRING
21	81241-S1A-E01	Nut - 4MM	Nut - 4MM
22	81242-S1A-E01	Clip - LOCK	Clip - LOCK
23	81243-S1A-E01	Rod - CONNECTING	Rod - CONNECTING
24	81244-S1A-E01	Clip - ROD HOLDER	Clip - ROD HOLDER
25	81245-S1A-E01	Back - ANTI NOISE FABRIC	Back - ANTI NOISE FABRIC
33	90184-SN7-003	Screw - 4.2X9.5	Screw - 4.2X9.5
35	90321-S84-000	Nut-washer - 8MM	Nut-washer - 8MM
36	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
37	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
38	91551-S1A-E01	Clip - CABLE	Clip - CABLE
39	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

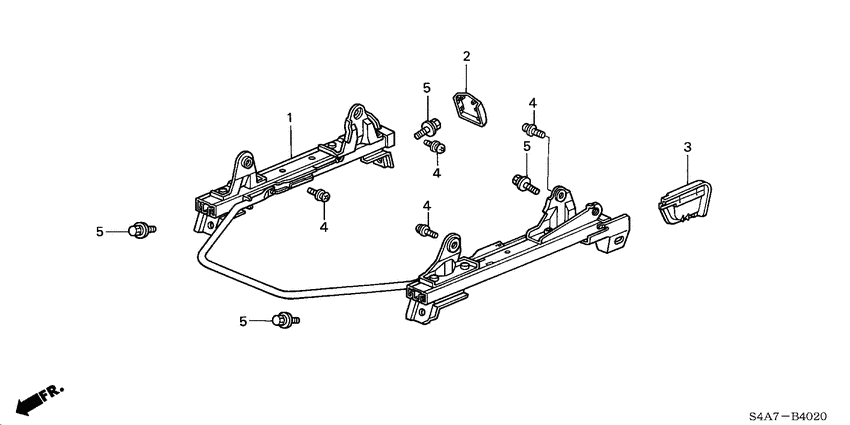

Front seat components (L.; 2) 2 / 3

#	OEM	CH6	CH8
4	81637-S1A-E11	Bushing	Bushing
5	90183-S1A-003	Bolt - TORX, 8X11	Bolt - TORX, 8X11

Front seat components (R.; 1) 1 / 2

#	OEM	CH6	CH8
4	90182-SN7-013	Bolt - TORX, 8X16	Bolt - TORX, 8X16

Front shock absorber 14 / 16

#	OEM	CH6	CH8
2	51605-S1A-E03	Absorber unit - R. FR. SHOCK	Absorber unit - R. FR. SHOCK
3	51606-S1A-E02	Absorber unit - L. FR. SHOCK	Absorber unit - L. FR. SHOCK
4	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
5	51631-SV7-004	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
6	51675-S1A-E01	Base - DAMPER MOUNT	Base - DAMPER MOUNT
7	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
8	51686-S0A-003	Rubber - SPRING MOUNTING	Rubber - SPRING MOUNTING
9	51689-SH3-004	Plate - BUMP STOP (SHOWA)	Plate - BUMP STOP (SHOWA)
10	51689-SP0-004	Cover - DUST (SHOWA)	Cover - DUST (SHOWA)
11	51722-S0A-004	Rubber - FR. BUMP STOPPER	Rubber - FR. BUMP STOPPER
12	51728-SR0-003	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)
12	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
13	90304-S1A-E00	Nut - FR. SHOCK ABSORBER FLANGE	Nut - FR. SHOCK ABSORBER FLANGE
14	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front stabilizer/ front lower arm 22 / 28

#	OEM	CH6	CH8
3	51308-S1A-E00	Bracket - FR. STABILIZER	Bracket - FR. STABILIZER
4	51320-S84-A01	Link comp - R. FR. STABILIZER	Link comp - R. FR. STABILIZER
5	51321-S84-A01	Link comp - L. FR. STABILIZER	Link comp - L. FR. STABILIZER
6	51352-S1A-E00	Rod - FR. RADIUS	Rod - FR. RADIUS
7	51355-S1A-E00	Arm comp - R. FR. LOWER	Arm comp - R. FR. LOWER
8	51362-S1A-E00	Rod - L. FR. RADIUS	Rod - L. FR. RADIUS
9	51365-S1A-E00	Arm comp - L. FR. LOWER	Arm comp - L. FR. LOWER
10	51381-S1A-E01	Bush - FR. RADIUS ROD (RR.)	Bush - FR. RADIUS ROD (RR.)
11	51391-S1A-E01	Bush - FR. RADIUS ROD (FR.)	Bush - FR. RADIUS ROD (FR.)
12	51393-S1A-E01	Bush - FR. LOWER ARM	Bush - FR. LOWER ARM
13	51394-S84-000	Washer - CASTER ADJUSTER	Washer - CASTER ADJUSTER
14	51398-SM4-000	Collar - RADIUS ROD	Collar - RADIUS ROD
15	51399-S0A-000	Washer - FR. RADIUS ROD	Washer - FR. RADIUS ROD
16	51810-S1A-E01	Bush - SHOCK ABSORBER FORK	Bush - SHOCK ABSORBER FORK
21	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
22	90117-S0A-000	Bolt - DAMPER LOCK(10X44)	Bolt - DAMPER LOCK(10X44)
23	90118-S0A-000	Bolt - FR. LOWER ARM (12X84)	Bolt - FR. LOWER ARM (12X84)
24	90121-S0A-000	Bolt - DAMPER FORK(12X98)	Bolt - DAMPER FORK(12X98)
25	90178-S84-A00	Bolt - FR. RADIUS ROD (14X37)	Bolt - FR. RADIUS ROD (14X37)
26	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
27	90303-SF1-003	Nut - SELF-LOCK, 12MM	Nut - SELF-LOCK, 12MM
28	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

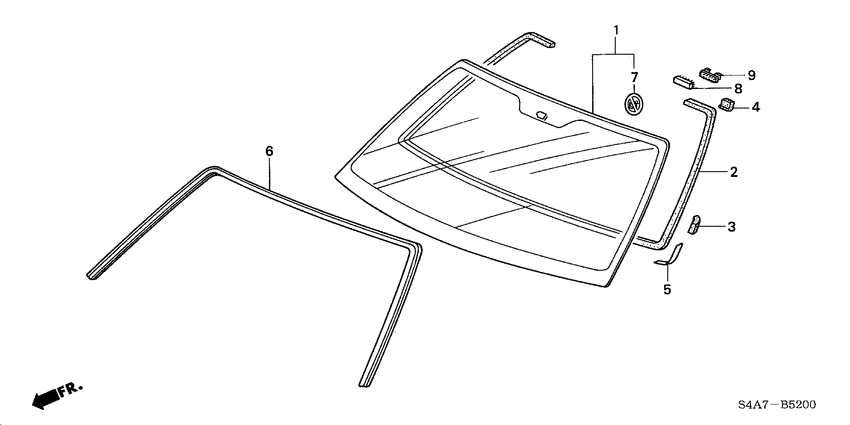

Front windshield 10 / 10

#	OEM	CH6	CH8
1	73111-S1A-E30	Glass set - FR. WINDSHIELD (GREEN)(SPLINTEX)	Glass set - FR. WINDSHIELD (GREEN)(SPLINTEX)
1	73111-S1C-E20	Glass set - FR. WINDSHIELD (GREEN)(SPLINTEX)	Glass set - FR. WINDSHIELD (GREEN)(SPLINTEX)
2	73125-S1A-E00	Rubber - FR. WINDSHIELD DAM	Rubber - FR. WINDSHIELD DAM
3	73127-S1A-000	Seal - FR. WINDSHIELD	Seal - FR. WINDSHIELD
4	73128-S1A-000	Seal - FR. WINDSHIELD	Seal - FR. WINDSHIELD
5	73129-S1A-000	Fabric - NON WOVEN	Fabric - NON WOVEN
6	73150-S1A-E01	Molding - FR. WINDSHIELD	Molding - FR. WINDSHIELD
7	78527-S04-E80	Label - SRS CAUTION (CHILD SEAT)	Label - SRS CAUTION (CHILD SEAT)
8	91568-SX0-003	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD
9	91569-SZ3-013	Fastener b - WINDSHIELD	Fastener b - WINDSHIELD

Front windshield wiper (LH) 26 / 26

#	OEM	CH6	CH8
1	76505-S1A-G01	Motor comp - FR. WIPER (LH)	Motor comp - FR. WIPER (LH)
2	76506-SN7-G05	Cover - MOTOR	Cover - MOTOR
3	76510-SN7-E05	Rubber - MOUNTING	Rubber - MOUNTING
4	76515-SN7-E05	Seal a	Seal a
5	76516-SN7-E05	Rubber - MOUNTING	Rubber - MOUNTING
6	76517-SN7-E05	Collar	Collar
7	76520-SN7-E05	Link unit a	Link unit a
8	76522-S1A-G01	Rubber - BLADE (550MM)	Rubber - BLADE (550MM)
9	76524-SN7-E05	Dust seal	Dust seal
10	76530-S1A-G11	Link comp - FR. WIPER	Link comp - FR. WIPER
11	76532-S1A-G01	Rubber - BLADE (475MM)	Rubber - BLADE (475MM)
12	76540-S1A-G01	Rod unit a	Rod unit a
13	76550-S1A-G01	Rod unit b	Rod unit b
14	76558-S1A-G01	Cap - PIVOT (PASSENGER SIDE)	Cap - PIVOT (PASSENGER SIDE)
15	76561-S1A-G01	Cap - PIVOT (DRIVER SIDE)	Cap - PIVOT (DRIVER SIDE)
16	76600-S1A-G01	Arm - WINDSHIELD WIPER (DRIVER SIDE)	Arm - WINDSHIELD WIPER (DRIVER SIDE)
17	76610-S1A-G01	Arm - WINDSHIELD WIPER (PASSENGER SIDE)	Arm - WINDSHIELD WIPER (PASSENGER SIDE)
18	76620-S1A-G01	Blade - WINDSHIELD WIPER (550MM) (DRIVER SIDE)	Blade - WINDSHIELD WIPER (550MM) (DRIVER SIDE)
19	76630-S1A-G01	Blade - WINDSHIELD WIPER (475MM) (PASSENGER SIDE)	Blade - WINDSHIELD WIPER (475MM) (PASSENGER SIDE)
20	90116-SN7-E05	Bolt - 6X15	Bolt - 6X15
21	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
22	90166-SN7-E05	Screw - SELF-TAPPING, 3X10	Screw - SELF-TAPPING, 3X10
23	90201-SK7-000	Nut - HEX. CAP, 10MM	Nut - HEX. CAP, 10MM
24	90317-SN7-E05	Nut - HEX., 8MM	Nut - HEX., 8MM
25	90545-SN7-E05	Washer - SPRING, 8MM	Washer - SPRING, 8MM
26	91555-SL0-A01	Clip - COUPLER	Clip - COUPLER

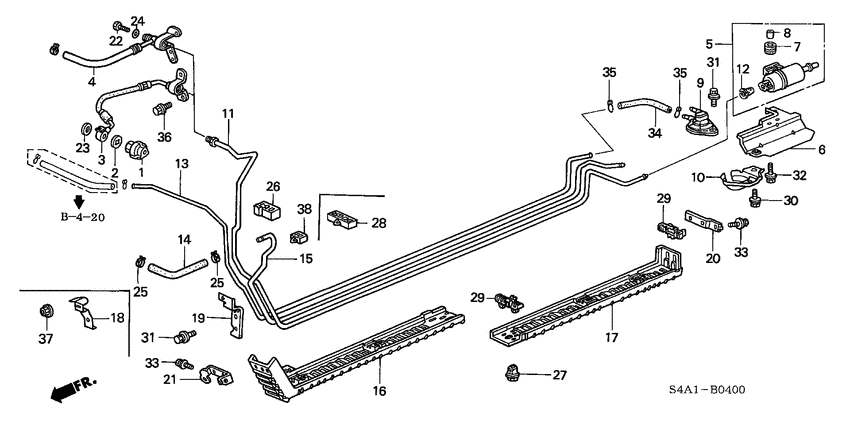

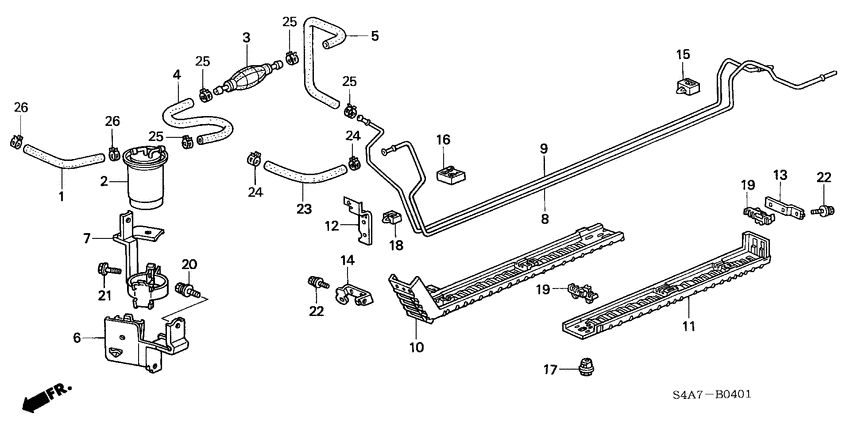

Fuel pipe 9 / 26

#	OEM	CH6	CH8
15	17740-S1A-G00	Pipe - FUEL RETURN	Pipe - FUEL RETURN
16	17752-S1A-E01	Cover - FR. FUEL PIPE	Cover - FR. FUEL PIPE
17	17753-S1A-E01	Cover - RR. FUEL PIPE	Cover - RR. FUEL PIPE
19	17761-S1A-G00	Bracket - CLIP A	Bracket - CLIP A
20	17762-S0A-000	Stay b - FUEL PIPE	Stay b - FUEL PIPE
21	17762-S1A-E00	Stay a - FUEL PIPE	Stay a - FUEL PIPE
27	91598-S84-A01	Clip - FUEL PIPE	Clip - FUEL PIPE
29	91599-S0A-003	Clamp - FUEL PIPE	Clamp - FUEL PIPE
38	91599-ST3-E31	Clamp e - FUEL PIPE	Clamp e - FUEL PIPE

Fuel tank 26 / 32

#	OEM	CH6	CH8
2	17500-S1A-E01	Tank comp. - FUEL	Tank comp. - FUEL
3	17521-S1A-E00	Band - R. FUEL TANK MOUNTING	Band - R. FUEL TANK MOUNTING
4	17522-S1A-E00	Band - L. FUEL TANK MOUNTING	Band - L. FUEL TANK MOUNTING
5	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
6	17574-S1A-E01	Packing - BASE	Packing - BASE
6	17574-S0X-A01	Packing - BASE	Packing - BASE
7	17630-S1A-E00	Meter comp - FUEL	Meter comp - FUEL
8	17651-S1A-E11	Tube - FILLER NECK	Tube - FILLER NECK
9	17652-SN7-000	Clip - FILLER TUBE	Clip - FILLER TUBE
10	17652-S0E-003	Clip - FILLER TUBE	Clip - FILLER TUBE
13	17662-S1A-E01	Packing - FUEL FILLER	Packing - FUEL FILLER
14	17668-S1A-E01	Cover - FUEL FILLER PIPE	Cover - FUEL FILLER PIPE
18	17711-ST0-003	Retainer - YELLOW) (TOKAI	Retainer - YELLOW) (TOKAI
19	17711-S84-003	Retainer - YELLOW) (TOKAI	Retainer - YELLOW) (TOKAI
20	17713-S1A-E01	Tube comp - RETURN	Tube comp - RETURN
21	17718-S1A-E00	Stay - FUEL TUBE CLAMP	Stay - FUEL TUBE CLAMP
22	17719-S1A-E01	Nut - FUEL PUMP MODULE LOCK	Nut - FUEL PUMP MODULE LOCK
23	74660-S1C-E00	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
24	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
25	91462-SA5-950	Clamp d - 19MM	Clamp d - 19MM
26	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
27	91591-S1A-E01	Cap - FUEL PIPE CLAMP	Cap - FUEL PIPE CLAMP
28	91592-S1A-E01	Clamp - FUEL PIPE	Clamp - FUEL PIPE
29	91594-S1A-E01	Clip - FUEL FILLER CAP	Clip - FUEL FILLER CAP
30	91594-S84-G01	Clip - JOINT TUBE	Clip - JOINT TUBE
31	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Grommet 18 / 18

#	OEM	CH6	CH8
2	72206-SA5-000	Cap - FLOOR HOLE, 53MM	Cap - FLOOR HOLE, 53MM
3	74416-SF1-000	Insulator - PILLAR LOWER	Insulator - PILLAR LOWER
4	75826-634-300	Seal - INSIDE PANEL, 15MM	Seal - INSIDE PANEL, 15MM
5	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
6	85268-SN7-000	Protection - TAILGATE	Protection - TAILGATE
7	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
10	90651-S0A-003	Cap - BOLT, 8MM	Cap - BOLT, 8MM
11	90852-671-003	Plug - HOLE	Plug - HOLE
12	91606-SE0-000	Seal - 20X20	Seal - 20X20
13	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM
14	91609-SE0-A00	Protection - CUSHION	Protection - CUSHION
15	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM
16	91611-SM4-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
17	91613-SR3-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM
18	91615-SA5-000	Grommet - HOLE, 25MM	Grommet - HOLE, 25MM
19	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
20	91634-SE3-000	Grommet - 6MM	Grommet - 6MM
24	74175-SD4-000	Cushion - HOOD	Cushion - HOOD

Harness band/bracket 13 / 21

#	OEM	CH6	CH8
2	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
3	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
5	32312-SM4-013	Holder - COUPLER	Holder - COUPLER
7	32756-S1A-G00	Guide - FR. DOOR WIRE HARNESS (GRAY)	Guide - FR. DOOR WIRE HARNESS (GRAY)
8	77963-SV4-A01	Clip - SRS HARNESS (BLUE) (153MM)	Clip - SRS HARNESS (BLUE) (153MM)
9	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
10	91534-S03-003	Clip - COUPLER (NATURAL) (SEAL)	Clip - COUPLER (NATURAL) (SEAL)
11	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
12	91545-S30-003	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
14	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)	Clip - WIRE HARNESS (WHITE) (55MM)
15	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)	Clip - WIRE HARNESS (NATURAL) (130MM)
19	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
20	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Headlight 9 / 10

#	OEM	CH6	CH8
1	33101-S1A-G01	Headlight unit - R.	Headlight unit - R.
3	33121-S1A-G01	Cover - LOW	Cover - LOW
4	33121-S1A-G11	Cover - HIGH	Cover - HIGH
5	33130-S1A-G11	Motor unit - HEADLIGHT LEVELING	Motor unit - HEADLIGHT LEVELING
6	33151-S1A-G01	Headlight unit - L.	Headlight unit - L.
7	33305-S1A-G01	Socket - TURN BULB (PY 21W)	Socket - TURN BULB (PY 21W)
8	34351-SN7-G00	Bulb - POSITION (12V 5W)	Bulb - POSITION (12V 5W)
9	34901-SN7-G00	Bulb - HEADLIGHT (HI) (12V 55W)	Bulb - HEADLIGHT (HI) (12V 55W)
10	34903-SN7-G10	Bulb - 12V 21W) (AMBER	Bulb - 12V 21W) (AMBER

Heater blower (LH) 9 / 11

#	OEM	CH6	CH8
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
2	79191-SZ3-A01	Nut - HOLDER	Nut - HOLDER
3	79192-SR3-003	Bush - LINK	Bush - LINK
7	79330-S1A-G01	Resistor - BLOWER	Resistor - BLOWER
8	79350-S1A-G01	Motor assy. - FRESH & RECIRCULAR	Motor assy. - FRESH & RECIRCULAR
9	90121-SR3-003	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
11	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
12	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
13	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater control 12 / 13

#	OEM	CH6	CH8
2	79541-S1A-G00	Cable - MODE CONTROL	Cable - MODE CONTROL
3	79542-S1A-G00	Cable - TEMPERATURE CONTROL	Cable - TEMPERATURE CONTROL
4	79555-S1A-G01	Clip - CABLE	Clip - CABLE
5	79558-S1A-G01	Bulb	Bulb
6	79570-ST3-G01	Switch assy - HEATER FAN	Switch assy - HEATER FAN
7	79581-S1A-G01	Knob - HEATER CONTROL	Knob - HEATER CONTROL
8	79582-S1A-G01	Knob - MODE SELECT	Knob - MODE SELECT
9	79583-S1A-G01	Knob	Knob
10	79584-S1A-G01	Button	Button
11	79585-S1A-G01	Button	Button
13	79691-SN7-E01	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
14	80411-S1A-G01	Button	Button

Heater duct (LH) 6 / 9

#	OEM	CH6	CH8
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
5	80286-S1A-G01	Packing - INNER	Packing - INNER
6	80287-S1A-G01	Packing - OUTER	Packing - OUTER
7	80288-S1A-G01	Packing b	Packing b
8	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
9	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater unit (LH) 7 / 9

#	OEM	CH6	CH8
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
6	79191-SZ3-A01	Nut - HOLDER	Nut - HOLDER
7	79544-S1A-G00	Cable - WATER VALVE CONTROL	Cable - WATER VALVE CONTROL
8	79770-SE0-000	Grommet - WATER VALVE CABLE	Grommet - WATER VALVE CABLE
11	90122-SR3-003	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
12	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
13	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Hood (LH) 32 / 35

#	OEM	CH6	CH8
4	73862-672-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
7	74125-S1A-E00	Cover - HOOD LOCK	Cover - HOOD LOCK
8	74130-S1A-G00	Wire assy. - HOOD	Wire assy. - HOOD
9	74134-SM4-000	Grommet - HOOD WIRE	Grommet - HOOD WIRE
12	74142-S1A-E00	Rubber - R. HOOD SEAL	Rubber - R. HOOD SEAL
13	74143-S1A-E00	Rubber - RR. HOOD SEAL	Rubber - RR. HOOD SEAL
15	74146-S1A-E00	Rubber - HOOD CENTER SEAL	Rubber - HOOD CENTER SEAL
16	74192-S1A-E00	Rubber - L. HOOD SEAL	Rubber - L. HOOD SEAL
17	74200-S1A-G00	Cowl top assy.	Cowl top assy.
18	74202-S1A-G00	Lid - DRIVER COWL TOP	Lid - DRIVER COWL TOP
19	74207-S1A-G00	Lid - PASSENGER COWL TOP	Lid - PASSENGER COWL TOP
20	74208-S1A-E00	Rubber - COWL TOP SIDE	Rubber - COWL TOP SIDE
21	74231-S1A-E00	Valve - DRAIN	Valve - DRAIN
22	90106-SE1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
23	90107-S84-A00	Bolt - FLANGE, 6X18	Bolt - FLANGE, 6X18
24	90112-SS0-000	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
25	90601-S1A-E00	Grommet - HOOD OPEN STAY	Grommet - HOOD OPEN STAY
26	90652-S1A-E01	Clip - COWL TOP	Clip - COWL TOP
27	90851-SD2-000	Plug - HOLE, 8MM	Plug - HOLE, 8MM
28	91501-SF1-003	Clip - HOOD INSULATOR	Clip - HOOD INSULATOR
28	90700-SB2-003	Clip - HOOD INSULATOR	Clip - HOOD INSULATOR
29	91502-S84-A01	Clip - SEAL RUBBER (ORANGE)	Clip - SEAL RUBBER (ORANGE)
29	91502-S84-A11	Clip - SEAL RUBBER (BLACK)	Clip - SEAL RUBBER (BLACK)
31	91503-SS0-003	Holder - ROD	Holder - ROD
32	91504-SL0-003	Clip - HOOD OPEN WIRE	Clip - HOOD OPEN WIRE
33	91512-SM4-003	Clip - INNER FENDER	Clip - INNER FENDER
34	91522-SM4-003	Clip - TUBE & INSULATOR	Clip - TUBE & INSULATOR
35	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
36	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE
37	91564-SP0-003	Clip - DOOR CHECKER COVER	Clip - DOOR CHECKER COVER
40	91602-SZ5-000	Cushion - HOOD (11.6MM)	Cushion - HOOD (11.6MM)
41	91603-SZ5-000	Cushion - HOOD (25MM)	Cushion - HOOD (25MM)

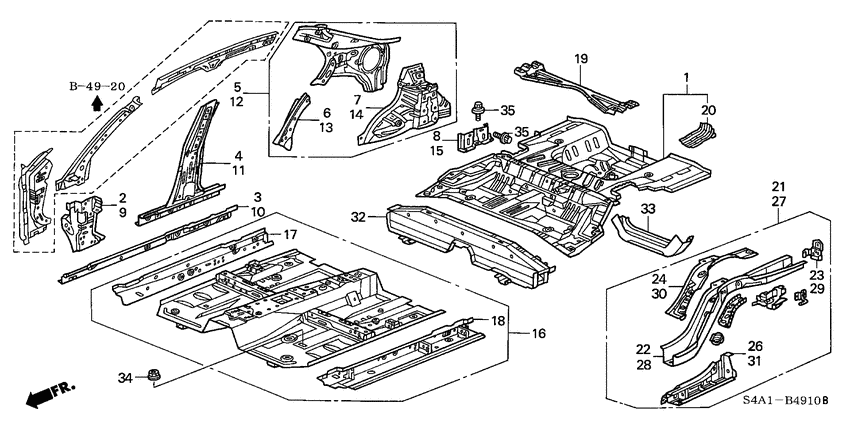

Inner panels 1 / 1

#	OEM	CH6	CH8
34	90302-SD2-003	Nut-washer - 8MM	Nut-washer - 8MM

Instrument panel (LH) 19 / 20

#	OEM	CH6	CH8
4	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
19	77222-S1A-E01	Seal	Seal
20	77223-S1A-E01	Felt	Felt
22	77463-S1A-E01	Seal a	Seal a
23	77464-S1A-E01	Seal b	Seal b
24	77466-S1A-E01	Seal c	Seal c
25	77467-S1A-E01	Seal d	Seal d
31	77982-S04-N81	Holder - COUPLER (2P)	Holder - COUPLER (2P)
32	90104-SV4-000	Bolt-washer - 8X25	Bolt-washer - 8X25
33	90106-S84-A00	Bolt-washer - 8X40	Bolt-washer - 8X40
34	90108-S84-A00	Bolt-washer - 8MM(SRS)	Bolt-washer - 8MM(SRS)
35	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
36	90302-SN7-E00	Nut - SPRING, 4MM	Nut - SPRING, 4MM
37	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
38	90651-S0A-003	Cap - BOLT, 8MM	Cap - BOLT, 8MM
39	90666-SD4-003	Clip - FITTING	Clip - FITTING
40	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
41	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
42	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (LH) 17 / 20

#	OEM	CH6	CH8
2	66417-SA0-000	Rubber - GLOVE BOX STOPPER	Rubber - GLOVE BOX STOPPER
16	77371-S1A-E00	Ring - COLUMN COVER	Ring - COLUMN COVER
18	77503-S1A-G01	Cover - GLOVE BOX LID	Cover - GLOVE BOX LID
19	77504-S1A-G01	Arm a - GLOVE BOX	Arm a - GLOVE BOX
20	77505-S1A-G01	Arm b - GLOVE BOX	Arm b - GLOVE BOX
21	77506-SM4-900	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
23	77510-S1A-E01	Hinge comp - GLOVE BOX	Hinge comp - GLOVE BOX
24	77520-S1A-E01	Cover - LAMP	Cover - LAMP
27	77542-S1A-E01	Striker - GLOVE BOX	Striker - GLOVE BOX
35	77755-S1A-E01	Spring - POCKET	Spring - POCKET
36	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
37	90151-SM4-003	Bolt-washer - 5X12	Bolt-washer - 5X12
38	90302-SN7-E00	Nut - SPRING, 4MM	Nut - SPRING, 4MM
39	90601-SW3-003	Washer - CONSOLE PUSH	Washer - CONSOLE PUSH
40	90666-SD4-003	Clip - FITTING	Clip - FITTING
41	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
42	91637-SD4-000	Stopper - CASSETTE BOX	Stopper - CASSETTE BOX

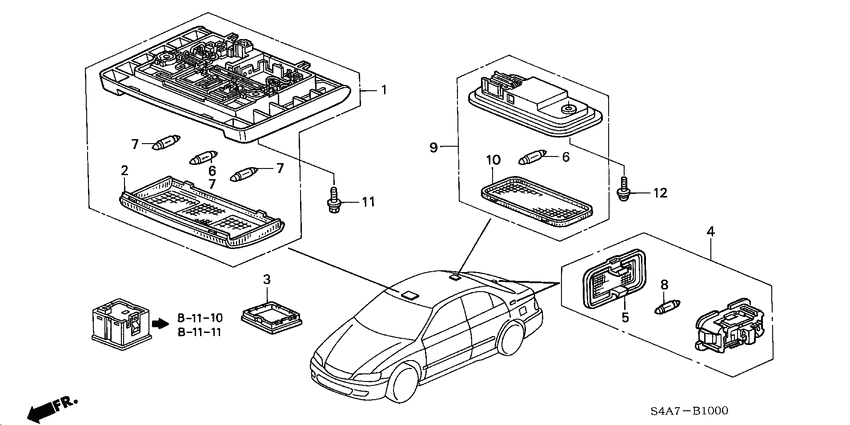

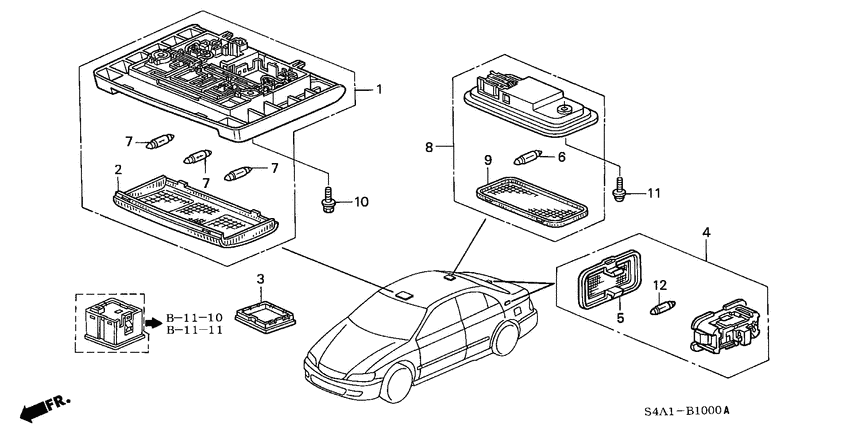

Interior light 7 / 7

#	OEM	CH6	CH8
2	34251-SN7-G01	Lens	Lens
3	34252-SN7-G00	Lid - INTERIOR LIGHT	Lid - INTERIOR LIGHT
4	34260-ST3-E01	Light assy - TRUNK ROOM	Light assy - TRUNK ROOM
5	34261-SN7-G01	Lens	Lens
7	34295-SN7-G01	Bulb - 12V 5W	Bulb - 12V 5W
10	90134-S30-003	Screw - EARTH, 5X18	Screw - EARTH, 5X18
12	34296-SN7-G01	Bulb - 12V 5W	Bulb - 12V 5W

Keyless entry (lh 1 / 3

#	OEM	CH6	CH8
3	38385-S84-G01	Keyless unit	Keyless unit

Knuckle 15 / 17

#	OEM	CH6	CH8
3	51225-S84-A01	Boot - LOWER BALL DUST	Boot - LOWER BALL DUST
4	51450-S1A-E01	Arm assy. - R. FR. UPPER	Arm assy. - R. FR. UPPER
5	51460-S1A-E01	Arm assy. - L. FR. UPPER	Arm assy. - L. FR. UPPER
6	51464-S1A-E01	Boot - UPPER BALL JOINT	Boot - UPPER BALL JOINT
7	52226-SL0-003	Circlip - LOWER BALL(MUSASHI)	Circlip - LOWER BALL(MUSASHI)
8	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
9	57450-S1A-E02	Sensor assy - R. FR.	Sensor assy - R. FR.
10	57451-SM4-950	Bracket - COUPLER (L.)	Bracket - COUPLER (L.)
11	57451-S1A-E00	Bracket - COUPLER	Bracket - COUPLER
12	57455-S1A-E02	Sensor assy - L. FR.	Sensor assy - L. FR.
13	90114-SB0-000	Bolt-washer - 6X12	Bolt-washer - 6X12
14	90172-S0A-000	Bolt - FLANGE, 10X68	Bolt - FLANGE, 10X68
15	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM
16	90363-SF1-000	Nut - CASTLE, 12MM	Nut - CASTLE, 12MM
17	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Mirror 3 / 9

#	OEM	CH6	CH8
9	76400-SN7-G10	Mirror assy - RR. VIEW	Mirror assy - RR. VIEW
10	90615-SK7-003	Clip - MIRROR GARNISH	Clip - MIRROR GARNISH
11	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

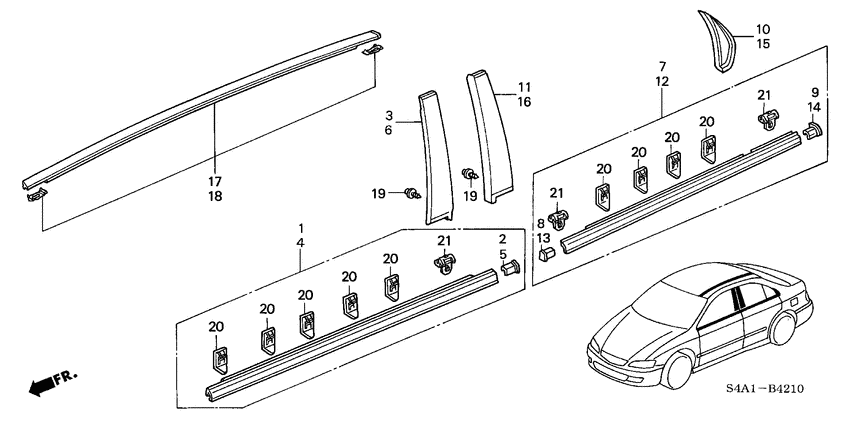

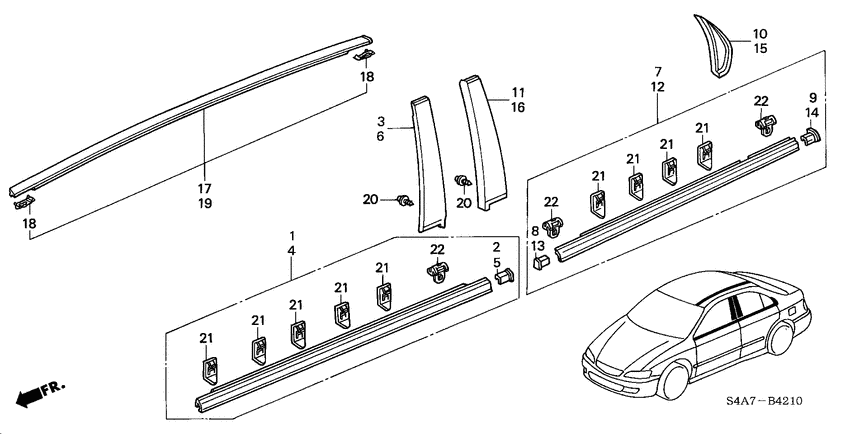

Molding 21 / 21

#	OEM	CH6	CH8
1	72410-S1A-E01	Molding assy. - R. FR. DOOR	Molding assy. - R. FR. DOOR
2	72411-S1A-E01	Cap - R. FR. DOOR END	Cap - R. FR. DOOR END
3	72430-S1A-E00	Garnish - R. FR. DOOR SASH	Garnish - R. FR. DOOR SASH
4	72450-S1A-E01	Molding assy. - L. FR. DOOR	Molding assy. - L. FR. DOOR
5	72451-S1A-E01	Cap - L. FR. DOOR END	Cap - L. FR. DOOR END
6	72470-S1A-E00	Garnish - L. FR. DOOR SASH	Garnish - L. FR. DOOR SASH
7	72910-S1A-E01	Molding assy. - R. RR. DOOR	Molding assy. - R. RR. DOOR
8	72913-S1A-E01	Cap - R. RR. DOOR MOLDING CENTER END	Cap - R. RR. DOOR MOLDING CENTER END
9	72914-S1A-E01	Cap - R. RR. DOOR MOLDING END	Cap - R. RR. DOOR MOLDING END
10	72920-S1C-E01	Molding assy. - R. RR. PILLAR	Molding assy. - R. RR. PILLAR
11	72930-S1A-E00	Garnish - R. RR. DOOR SASH	Garnish - R. RR. DOOR SASH
12	72950-S1A-E01	Molding assy. - L. RR. DOOR	Molding assy. - L. RR. DOOR
13	72953-S1A-E01	Cap - L. RR. DOOR MOLDING CENTER END	Cap - L. RR. DOOR MOLDING CENTER END
14	72954-S1A-E01	Cap - L. RR. DOOR MOLDING END	Cap - L. RR. DOOR MOLDING END
15	72960-S1C-E01	Molding assy. - L. RR. PILLAR	Molding assy. - L. RR. PILLAR
16	72970-S1A-E00	Garnish - L. RR. DOOR SASH	Garnish - L. RR. DOOR SASH
17	74306-S1C-E01	Molding assy. - R. ROOF	Molding assy. - R. ROOF
18	74316-S1C-E01	Molding assy. - L. ROOF	Molding assy. - L. ROOF
19	90142-S04-000	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10
20	91588-S1A-E01	Clip - DOOR MOLDING	Clip - DOOR MOLDING
21	91589-S1A-E01	Clip - CAP END	Clip - CAP END

Oil pump/oil strainer (1.8L/2.0L/2.3L) 1 / 32

#	OEM	CH6	CH8
29	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)

Outer panels 12 / 12

#	OEM	CH6	CH8
28	70494-SE0-000	Spring - FUEL LID OPENER	Spring - FUEL LID OPENER
29	70495-692-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID
30	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
31	74411-S1A-G00	Cable - FUEL LID OPENER	Cable - FUEL LID OPENER
34	75450-SN7-000	Outlet assy - RR. AIR	Outlet assy - RR. AIR
35	90103-SM4-010	Bolt - FLANGE, 6X18	Bolt - FLANGE, 6X18
36	90106-SE1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
37	90664-SB3-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
38	90691-SF1-003	Clip c - OPENER CABLE	Clip c - OPENER CABLE
39	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE
40	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
47	74423-S1A-E01	Holder - FUEL CAP	Holder - FUEL CAP

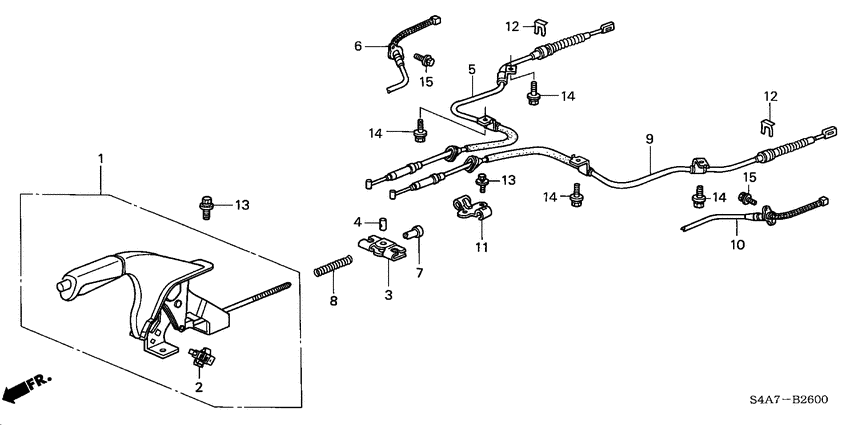

Parking brake 7 / 9

#	OEM	CH6	CH8
2	47342-SN7-003	Switch assy - BRAKE LEVER	Switch assy - BRAKE LEVER
3	47360-S1A-E01	Equalizer	Equalizer
4	47365-SN7-003	Pin - EQUALIZER	Pin - EQUALIZER
7	47522-SN7-003	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
8	47537-S1A-E01	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD
11	47572-SN7-000	Base - WIRE GUIDE	Base - WIRE GUIDE
12	90651-SN7-003	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Pedal (LH) 20 / 25

#	OEM	CH6	CH8
1	17800-S1A-E01	Pedal comp - ACCELERATOR	Pedal comp - ACCELERATOR
2	17805-SK3-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
11	46504-679-300	Bush - PEDAL	Bush - PEDAL
12	46505-SK3-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
13	46530-S1A-E01	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
14	46535-S1A-000	Collar - PEDAL	Collar - PEDAL
15	46545-SA5-000	Cover, Pedal	Cover, Pedal
16	46545-SK3-000	Cover - PEDAL	Cover - PEDAL
18	46600-S1A-G72	Pedal assy - BRAKE	Pedal assy - BRAKE
19	46907-SR3-010	Spring - CLUTCH ASSISTANT	Spring - CLUTCH ASSISTANT
20	46910-S1A-E01	Pedal comp - CLUTCH	Pedal comp - CLUTCH
21	46911-SN7-000	Bush - PEDAL PIN	Bush - PEDAL PIN
22	46981-ST3-E00	Bush a - CLUTCH ASSISTANT	Bush a - CLUTCH ASSISTANT
23	46982-ST3-E00	Bush b - CLUTCH ASSISTANT	Bush b - CLUTCH ASSISTANT
24	46990-S1A-E01	Bracket - CLUTCH PEDAL	Bracket - CLUTCH PEDAL
25	46991-S1A-G00	Bracket - FOOTREST	Bracket - FOOTREST
26	46992-S1A-E00	Plate - FOOTREST BRACKET	Plate - FOOTREST BRACKET
27	75891-611-000	Cover - DOOR SWITCH	Cover - DOOR SWITCH
28	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
29	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Pillar garnish 4 / 4

#	OEM	CH6	CH8
17	91560-SP0-003	Clip - DOOR LINING (GRAY)	Clip - DOOR LINING (GRAY)
17	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
18	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)
19	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)

Power steering gear box (LH) 13 / 14

#	OEM	CH6	CH8
1	53415-S1A-E01	Yoke set	Yoke set
2	53436-S1A-E01	Cushion b - GEAR BOX	Cushion b - GEAR BOX
3	53438-S84-A00	Bracket b - GEAR BOX	Bracket b - GEAR BOX
4	53501-S84-A00	Grommet a - STEERING	Grommet a - STEERING
5	53502-S1A-E00	Grommet b - STEERING	Grommet b - STEERING
6	53535-S1A-E01	Tube - BELLOW	Tube - BELLOW
7	53536-S1A-E01	Housing - BELLOW	Housing - BELLOW
8	53540-S1A-E01	End comp - R. TIE ROD	End comp - R. TIE ROD
9	53546-S84-003	Boot - TIE ROD END (NOK)	Boot - TIE ROD END (NOK)
10	53560-S1A-E01	End comp - L. TIE ROD	End comp - L. TIE ROD
12	53669-S1A-G01	Pipe set	Pipe set
13	53685-S1A-E01	Bush - FOOT MOUNTING	Bush - FOOT MOUNTING
14	90108-SH3-003	Bolt - GEAR BOX MOUNTING (10X55)	Bolt - GEAR BOX MOUNTING (10X55)

Power steering lines (LH) 11 / 27

#	OEM	CH6	CH8
1	53697-SK3-E01	Cap - OIL TANK	Cap - OIL TANK
2	53701-S1A-E00	Tank comp. - POWER STEERING OIL	Tank comp. - POWER STEERING OIL
7	53729-SN7-000	Clamp - D15.5	Clamp - D15.5
8	53729-SS0-003	Clip - RETURN HOSE	Clip - RETURN HOSE
9	53729-ST3-E01	Clip - RETURN PIPE, 10MM	Clip - RETURN PIPE, 10MM
10	53729-S1A-003	Clip - RETURN HOSE (NATURAL)	Clip - RETURN HOSE (NATURAL)
17	53736-SH3-950	Holder b - POWER STEERING PIPE	Holder b - POWER STEERING PIPE
20	53748-S1A-E60	Clamp - RETURN PIPE	Clamp - RETURN PIPE
25	90635-SM4-A01	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
25	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
28	91405-SS0-003	Clamp - TUBE (D21)	Clamp - TUBE (D21)

Protector 14 / 14

#	OEM	CH6	CH8
1	71800-S1A-E00	Garnish assy - R. SIDE SILL	Garnish assy - R. SIDE SILL
2	71850-S1A-E00	Garnish assy - L. SIDE SILL	Garnish assy - L. SIDE SILL
3	74430-S1A-E01	Protector - RR. WHEEL ARCH	Protector - RR. WHEEL ARCH
4	75301-S1A-E01	Protector comp - R. FR. FENDER	Protector comp - R. FR. FENDER
5	75302-S1A-E01	Protector comp - R. FR. DOOR	Protector comp - R. FR. DOOR
6	75303-S1A-E01	Protector comp - R. RR. DOOR	Protector comp - R. RR. DOOR
7	75305-S1A-E00	Clip - FR. FENDER PROTECTOR	Clip - FR. FENDER PROTECTOR
8	75313-ST3-E00	Clip - SIDE PROTECTOR	Clip - SIDE PROTECTOR
9	75321-S1A-E01	Protector comp - L. FR. FENDER	Protector comp - L. FR. FENDER
10	75322-S1A-E01	Protector comp - L. FR. DOOR	Protector comp - L. FR. DOOR
11	75323-S1A-E01	Protector comp - L. RR. DOOR	Protector comp - L. RR. DOOR
12	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
13	91503-SZ3-003	Clip A	Clip A
14	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH	Clip - SIDE SILL UPPER GARNISH

Radiator hose 3 / 16

#	OEM	CH6	CH8
11	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
12	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
24	74173-SK3-E00	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER

Radio antenna 3 / 9

#	OEM	CH6	CH8
16	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
17	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
21	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)	Clip - WIRE HARNESS (WHITE) (55MM)

Rear beam/cross beam 7 / 19

#	OEM	CH6	CH8
3	50210-S84-A00	Stiffener - RR. BEAM	Stiffener - RR. BEAM
4	50220-S1A-G00	Stiffener - STEERING GEAR BOX	Stiffener - STEERING GEAR BOX
15	90161-S84-A00	Bolt - FLANGE, 14X125	Bolt - FLANGE, 14X125
16	90162-S84-A00	Bolt - FLANGE, 14X90	Bolt - FLANGE, 14X90
18	90164-S1A-E00	Bolt - FLANGE, 12X30	Bolt - FLANGE, 12X30
19	91613-SE0-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM
20	91613-S84-A01	Grommet - RR. SUB FRAME	Grommet - RR. SUB FRAME

Rear brake (DISK) 21 / 21

#	OEM	CH6	CH8
1	42200-S1A-E02	Bearing assy - RR. HUB UNIT	Bearing assy - RR. HUB UNIT
3	42326-SG0-000	Cap - HUB UNIT	Cap - HUB UNIT
4	42510-S1A-E10	Disk - RR. BRAKE (CLEAR)	Disk - RR. BRAKE (CLEAR)
6	43010-S1A-E00	Pin set - RR.	Pin set - RR.
7	43012-S1A-E01	Body set - R. RR. CALIPER	Body set - R. RR. CALIPER
8	43013-S1A-E01	Body set - L. RR. CALIPER	Body set - L. RR. CALIPER
9	43014-S1A-E01	Bracket set - R. RR. CALIPER	Bracket set - R. RR. CALIPER
10	43015-S1A-E01	Bracket set - L. RR. CALIPER	Bracket set - L. RR. CALIPER
11	43017-S1A-E00	Boot set - RR. PIN	Boot set - RR. PIN
12	43018-S1A-E01	Excluder set - RR	Excluder set - RR
13	43022-S1A-E50	Pad set - RR. (LUCAS,D6272)	Pad set - RR. (LUCAS,D6272)
14	43249-S1A-E01	Bolt	Bolt
15	43253-S1A-E00	Guard - R. RR. SPLASH	Guard - R. RR. SPLASH
16	43254-S1A-E00	Guard - L. RR. SPLASH	Guard - L. RR. SPLASH
17	45352-SN7-G41	Screw - BLEEDER	Screw - BLEEDER
18	45353-SN7-G41	Cap - BLEEDER	Cap - BLEEDER
19	90103-SV4-003	Bolt - FLANGE, 10X30	Bolt - FLANGE, 10X30
20	90113-SA0-006	Bolt - WHEEL (SAGA)	Bolt - WHEEL (SAGA)
20	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
20	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
21	90305-S30-003	Nut - SPINDLE	Nut - SPINDLE

Rear door lining 5 / 6

#	OEM	CH6	CH8
2	72835-S1A-E00	Weatherstrip - R. RR. DOOR INNER	Weatherstrip - R. RR. DOOR INNER
3	72875-S1A-E00	Weatherstrip - L. RR. DOOR INNER	Weatherstrip - L. RR. DOOR INNER
6	83512-S1A-E00	Nut - SPEED, 5MM	Nut - SPEED, 5MM
12	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
13	91626-SP0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Rear door locks 28 / 32

#	OEM	CH6	CH8
1	72119-S1A-E01	Stopper	Stopper
3	72135-SR3-003	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
5	72139-SR0-A01	Snap - VIOLET	Snap - VIOLET
6	72139-S0A-003	Snap - PINK	Snap - PINK
7	72149-SR4-000	Snap - R.	Snap - R.
8	72175-SH3-901	Holder - DOOR LOCK ROD	Holder - DOOR LOCK ROD
9	72189-SR4-000	Snap - L.	Snap - L.
10	72610-S84-A01	Lock assy - R. RR. DOOR	Lock assy - R. RR. DOOR
11	72612-S84-A00	Cap - R. CHILD LOCK	Cap - R. CHILD LOCK
14	72616-SM4-003	Snap - NATURAL	Snap - NATURAL
17	72630-S84-A01	Crank assy - LOCK ROD	Crank assy - LOCK ROD
18	72631-S1A-E01	Rod - R. RR. INSIDE HANDLE	Rod - R. RR. INSIDE HANDLE
20	72633-S1A-E01	Rod - RR. DOOR LOCK KNOB	Rod - RR. DOOR LOCK KNOB
21	72634-S1A-E01	Rod - RR. DOOR LOCK	Rod - RR. DOOR LOCK
22	72638-S1A-E00	Protector - R. RR. DOOR ROD	Protector - R. RR. DOOR ROD
23	72640-S1A-E12	Handle assy - R. RR. DOOR OUTSIDE	Handle assy - R. RR. DOOR OUTSIDE
24	72645-S1A-E00	Protector - R. RR. DOOR OUTSIDE HANDLE	Protector - R. RR. DOOR OUTSIDE HANDLE
25	72650-S84-A01	Lock assy - L. RR. DOOR	Lock assy - L. RR. DOOR
26	72652-S84-A00	Cap - L. CHILD LOCK	Cap - L. CHILD LOCK
31	72671-S1A-E01	Rod - L. RR. INSIDE HANDLE	Rod - L. RR. INSIDE HANDLE
33	72678-S1A-E00	Protector - L. RR. DOOR ROD	Protector - L. RR. DOOR ROD
34	72680-S1A-E12	Handle assy - L. RR. OUTSIDE	Handle assy - L. RR. OUTSIDE
35	72685-S1A-E00	Protector - L. RR. DOOR OUTSIDE HANDLE	Protector - L. RR. DOOR OUTSIDE HANDLE
36	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
37	90120-SM4-000	Screw - TAPPING	Screw - TAPPING
38	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
40	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
41	90866-SA0-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Rear door panels 21 / 23

#	OEM	CH6	CH8
5	67825-S1C-E01	Tape - R. RR. DOOR UPPER INNER	Tape - R. RR. DOOR UPPER INNER
7	67827-S1A-E01	Tape - R. RR. DOOR CENTER INNER	Tape - R. RR. DOOR CENTER INNER
8	67865-S1C-E01	Tape - L. RR. DOOR UPPER INNER	Tape - L. RR. DOOR UPPER INNER
10	67867-S1A-E01	Tape - L. RR. DOOR CENTER INNER	Tape - L. RR. DOOR CENTER INNER
15	72810-S1C-E01	Weatherstrip - R. RR. DOOR	Weatherstrip - R. RR. DOOR
16	72821-S1A-E00	Seal - RR. DOOR HOLE	Seal - RR. DOOR HOLE
16	72821-S1C-E10	Seal - R. RR. DOOR HOLE	Seal - R. RR. DOOR HOLE
18	72826-S1A-E01	Weatherstrip - RR. LOWER	Weatherstrip - RR. LOWER
19	72840-S1A-E00	Checker comp. - R. RR. DOOR	Checker comp. - R. RR. DOOR
20	72850-S1C-E01	Weatherstrip - L. RR. DOOR	Weatherstrip - L. RR. DOOR
21	72861-S1C-E10	Seal - L. RR. DOOR HOLE	Seal - L. RR. DOOR HOLE
23	72880-S1A-E00	Checker comp. - L. RR. DOOR	Checker comp. - L. RR. DOOR
24	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
25	90102-SZ3-000	Bolt - FLANGE, 8X22 (10.5MM)	Bolt - FLANGE, 8X22 (10.5MM)
25	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
26	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
27	90686-692-003	Cap - LINING MOUNT	Cap - LINING MOUNT
28	91530-SH4-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
29	91568-SR2-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
29	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
30	91657-SP0-000	Seal c - DOOR PANEL HOLE (25MM)	Seal c - DOOR PANEL HOLE (25MM)

Rear door windows 17 / 19

#	OEM	CH6	CH8
1	72220-SN7-G00	Handle assy - REGULATOR	Handle assy - REGULATOR
2	72222-SN7-G00	Pin - REGULATOR HANDLE	Pin - REGULATOR HANDLE
4	72710-S1A-E11	Regulator assy - R. RR. DOOR (MANUAL)	Regulator assy - R. RR. DOOR (MANUAL)
5	72730-S1A-E00	Sash - R. RR. DOOR FR. LOWER	Sash - R. RR. DOOR FR. LOWER
6	72731-S1C-E00	Sash - R. RR. DOOR CENTER	Sash - R. RR. DOOR CENTER
7	72735-S1C-E01	Runchannel - R. RR. DOOR	Runchannel - R. RR. DOOR
8	72737-SR4-000	Collar a - RR. DOOR PANEL LOWER	Collar a - RR. DOOR PANEL LOWER
10	72750-S1A-E11	Regulator - L. RR. DOOR (MANUAL)	Regulator - L. RR. DOOR (MANUAL)
11	72770-S1A-E00	Sash - L. RR. DOOR FR. LOWER	Sash - L. RR. DOOR FR. LOWER
12	72771-S1C-E00	Sash - L. RR. DOOR CENTER	Sash - L. RR. DOOR CENTER
13	72775-S1C-E01	Runchannel - L. RR. DOOR	Runchannel - L. RR. DOOR
14	73400-S1C-E00	Glass assy - R. RR. DOOR (GREEN)(SPLINTEX)	Glass assy - R. RR. DOOR (GREEN)(SPLINTEX)
15	73410-S1C-E01	Glass assy - R. RR. DOOR QUARTER (GREEN)(SPLINTEX)	Glass assy - R. RR. DOOR QUARTER (GREEN)(SPLINTEX)
16	73450-S1C-E00	Glass assy - L. RR. DOOR (GREEN)(SPLINTEX)	Glass assy - L. RR. DOOR (GREEN)(SPLINTEX)
17	73460-S1C-E01	Glass assy - L. RR. DOOR QUARTER (GREEN)(SPLINTEX)	Glass assy - L. RR. DOOR QUARTER (GREEN)(SPLINTEX)
19	90116-ST3-E00	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12
20	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)

Rear seat 18 / 21

#	OEM	CH6	CH8
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
4	82126-S1C-E01	Frame comp - R. RR. SEAT	Frame comp - R. RR. SEAT
7	82132-S1C-E01	Pad & frame comp. - RR. SEAT CUSHION	Pad & frame comp. - RR. SEAT CUSHION
8	82137-S84-A01	Clip - RR. SEAT CUSHION	Clip - RR. SEAT CUSHION
17	82187-S1C-E01	Panel - ARMREST	Panel - ARMREST
18	82221-S1C-E21	Screw	Screw
21	82226-S1C-003	Screw - 6X10	Screw - 6X10
24	82292-S1C-E00	Plate - PIVOT	Plate - PIVOT
25	82293-S1C-E01	Bush - CENTER PIVOT	Bush - CENTER PIVOT
26	82293-S1C-E21	Nut - 10MM	Nut - 10MM
27	82294-S1C-E21	Bushing	Bushing
30	82522-S1C-E01	Pad comp - L. RR. SEATBACK	Pad comp - L. RR. SEATBACK
31	82526-S1C-E01	Frame comp - L. RR. SEATBACK	Frame comp - L. RR. SEATBACK
38	90003-692-000	Bolt - FLANGE, 6X16	Bolt - FLANGE, 6X16
39	90135-S1C-000	Bolt-washer - 8X16	Bolt-washer - 8X16
40	90184-SN7-003	Screw - 4.2X9.5	Screw - 4.2X9.5
43	90667-SJ4-003	Clip - SEAT SIDE GARNISH	Clip - SEAT SIDE GARNISH

Rear shock absorber 15 / 16

#	OEM	CH6	CH8
1	51631-SV7-004	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
2	51728-SR0-003	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)
2	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
3	52441-S1C-E02	Spring - RR. (SHOWA)	Spring - RR. (SHOWA)
5	52622-S84-A01	Bush - RR. SHOCK ABSORBER LOWER	Bush - RR. SHOCK ABSORBER LOWER
6	52675-S0A-003	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA)	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA)
7	52686-S84-A01	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
8	52688-S0A-004	Sleeve - RR. DUST COVER	Sleeve - RR. DUST COVER
9	52689-SG0-014	End - DUST COVER	End - DUST COVER
10	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP
11	52722-SM4-013	Rubber - BUMPER STOPPER (POLYURETHAN KASEI)	Rubber - BUMPER STOPPER (POLYURETHAN KASEI)
12	52748-S0A-004	Cover - RR. LOWER MOUNT DUST	Cover - RR. LOWER MOUNT DUST
13	90182-S84-A00	Bolt - RR. DAMPER, (10X81)	Bolt - RR. DAMPER, (10X81)
14	90304-SR3-014	Nut - FLANGE, 10MM (OHASHI)	Nut - FLANGE, 10MM (OHASHI)
15	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear stabilizer/ rear lower arm 33 / 34

#	OEM	CH6	CH8
1	52113-S1A-E01	Bush - RR. KNUCKLE	Bush - RR. KNUCKLE
2	52210-S1A-E50	Knuckle comp - R. RR. (DISK)	Knuckle comp - R. RR. (DISK)
3	52215-S1A-E50	Knuckle comp - L. RR. (DISK)	Knuckle comp - L. RR. (DISK)
4	52300-S1A-E00	Spring - RR. STABILIZER	Spring - RR. STABILIZER
5	52306-S0A-015	RR. STABILIZER HOLDER Bush	RR. STABILIZER HOLDER Bush
6	52308-SZ5-000	Holder - STABILIZER BUSH	Holder - STABILIZER BUSH
7	52320-S84-A01	Link comp - R. RR. STABILIZER	Link comp - R. RR. STABILIZER
8	52325-S84-A01	Link comp - L. RR. STABILIZER	Link comp - L. RR. STABILIZER
9	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
10	52340-S1A-E00	Bracket - R. RR. LINK STABILIZER	Bracket - R. RR. LINK STABILIZER
11	52345-S1A-E00	Bracket - L. RR. LINK STABILIZER	Bracket - L. RR. LINK STABILIZER
12	52350-S1A-E00	Arm comp - RR. LOWER	Arm comp - RR. LOWER
13	52360-S1A-E00	Arm comp - RR. CONTROL	Arm comp - RR. CONTROL
14	52364-634-020	Washer - LOWER ARM	Washer - LOWER ARM
15	52370-S1A-E00	Arm comp - R. RR. TRAILING (200)	Arm comp - R. RR. TRAILING (200)
16	52375-S1A-E00	Arm comp - L. RR. TRAILING (200)	Arm comp - L. RR. TRAILING (200)
18	52387-S84-A00	Bolt - CONTROL ADJUSTING	Bolt - CONTROL ADJUSTING
19	52388-S84-A00	Plate - CAM	Plate - CAM
20	52390-S1A-E01	Arm comp - RR. UPPER (900)	Arm comp - RR. UPPER (900)
21	52454-S1A-E01	Boot - RR. UPPER DUST	Boot - RR. UPPER DUST
22	57452-S84-A50	Bracket - RR. COUPLER	Bracket - RR. COUPLER
23	57470-S1A-E02	Sensor assy - R. RR.	Sensor assy - R. RR.
24	57475-S1A-E02	Sensor assy - L. RR.	Sensor assy - L. RR.
25	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
26	90114-SB0-000	Bolt-washer - 6X12	Bolt-washer - 6X12
27	90121-S0A-000	Bolt - DAMPER FORK(12X98)	Bolt - DAMPER FORK(12X98)
28	90173-S84-A00	Bolt - RR. UPPER ARM	Bolt - RR. UPPER ARM
29	90181-S84-A00	Bolt - TRAILING ARM, 12X68	Bolt - TRAILING ARM, 12X68
30	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
31	90216-SE0-010	Nut	Nut
31	90216-SE0-305	NUT, LWR ARM	NUT, LWR ARM
32	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
33	90363-SF1-000	Nut - CASTLE, 12MM	Nut - CASTLE, 12MM

Rear windshield 7 / 7

#	OEM	CH6	CH8
1	73211-S1C-E01	Glass set - RR. WINDSHIELD (GREEN)(SPLINTEX)	Glass set - RR. WINDSHIELD (GREEN)(SPLINTEX)
2	73226-S1C-E00	Rubber - RR. WINDSHIELD DAM	Rubber - RR. WINDSHIELD DAM
3	73229-S1C-E00	Seal - RR. WINDSHIELD UPPER	Seal - RR. WINDSHIELD UPPER
4	76707-S1C-E00	Seal a	Seal a
5	90617-SK7-010	Fastener a - RR. WINDSHIELD UPPER	Fastener a - RR. WINDSHIELD UPPER
6	91501-S70-003	Fastener b - WINDSHIELD	Fastener b - WINDSHIELD
7	91536-SS0-J01	Fastener a - WINDSHIELD	Fastener a - WINDSHIELD

Rear wiper 11 / 11

#	OEM	CH6	CH8
1	76700-S1C-G01	Motor assy. - RR. WINDSHIELD WIPER	Motor assy. - RR. WINDSHIELD WIPER
2	76701-ST3-E11	Rubber - MOUNTING	Rubber - MOUNTING
3	76702-ST3-E11	Collar	Collar
4	76706-S1C-E01	Washer a - SPECIAL	Washer a - SPECIAL
5	76708-S1C-E01	Washer b - SPECIAL	Washer b - SPECIAL
6	76709-S1C-E01	Nut - M16	Nut - M16
7	76711-S1C-E01	Cap - PIVOT	Cap - PIVOT
8	76716-S1C-E01	Bracket - RR. WIPER MOTOR	Bracket - RR. WIPER MOTOR
9	76720-S1C-E01	Arm - RR. WIPER	Arm - RR. WIPER
10	76730-S1C-E01	Blade - RR. WINDSHIELD WIPER	Blade - RR. WINDSHIELD WIPER
11	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

Roof lining 6 / 6

#	OEM	CH6	CH8
10	90136-S1A-E01	Screw - ET, 5X18	Screw - ET, 5X18
10	90137-S1A-E01	Screw - ET, 6X18	Screw - ET, 6X18
11	90136-S30-003	Screw - ET, 5X18	Screw - ET, 5X18
11	90137-S30-003	Screw - ET, 6X18	Screw - ET, 6X18
12	90673-SE0-003	Clip - ROOF LINING	Clip - ROOF LINING
13	91560-S1C-E01	Clip - ROOF LINING (NATURAL)	Clip - ROOF LINING (NATURAL)

Seatbelts 5 / 5

#	OEM	CH6	CH8
5	81491-S1A-010	Protector - R. FR. SEATBELT	Protector - R. FR. SEATBELT
7	81891-S1A-010	Protector - L. FR. SEATBELT	Protector - L. FR. SEATBELT
8	82129-ST3-E01	Cover - RR. CENTER	Cover - RR. CENTER
14	90101-S84-A00	Screw - ET, 6X16	Screw - ET, 6X16
15	82226-S1C-003	Screw - 6X10	Screw - 6X10

Side lining 16 / 17

#	OEM	CH6	CH8
1	39630-S10-003	Socket assy - ACCESSORY	Socket assy - ACCESSORY
2	39636-S10-003	Cap - ACCESSORY SOCKET	Cap - ACCESSORY SOCKET
4	75353-671-000	Lock - SCREW	Lock - SCREW
8	84522-S1C-E00	Hook - TIRE LID	Hook - TIRE LID
9	84523-S1C-E00	Insulator - RR. FLOOR	Insulator - RR. FLOOR
12	84527-S1C-E00	Spacer - R. TRUNK SIDE	Spacer - R. TRUNK SIDE
13	84577-S1C-E00	Spacer - L. TRUNK SIDE	Spacer - L. TRUNK SIDE
14	84579-S1C-E00	Spacer - L. RR. TRUNK SIDE	Spacer - L. RR. TRUNK SIDE
25	90101-S1A-E00	Bolt - TORX, 8X16	Bolt - TORX, 8X16
26	90126-SA7-000	Screw-washer - 5X20	Screw-washer - 5X20
26	90114-SZ3-000	Screw-washer - 5X20	Screw-washer - 5X20
27	90132-S47-003	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
28	90318-SE0-003	Nut - CLIP, 5MM	Nut - CLIP, 5MM
29	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)
30	90662-671-003	Grommet - SCREW, 5MM (WHITE)	Grommet - SCREW, 5MM (WHITE)
32	90683-693-000	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Speaker 2 / 3

#	OEM	CH6	CH8
1	39112-S0A-000	Bracket - DOOR SPEAKER SEAL	Bracket - DOOR SPEAKER SEAL
5	90670-SG0-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Srs unit (LH) 9 / 12

#	OEM	CH6	CH8
1	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
2	77900-S1A-E01	Reel assy - CABLE	Reel assy - CABLE
3	77907-S04-003	Holder - CONNECTOR (2P)	Holder - CONNECTOR (2P)
5	77961-S1A-G80	Harness - SRS MAIN	Harness - SRS MAIN
8	77971-S1A-G90	Protector - SIDE IMPACT SENSOR	Protector - SIDE IMPACT SENSOR
9	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
10	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
11	91507-SL9-003	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)	Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
12	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Steering column 12 / 12

#	OEM	CH6	CH8
1	53200-S1A-G04	Column assy - STEERING (LH)	Column assy - STEERING (LH)
2	53216-ST3-E00	Holder b - STEERING COLUMN	Holder b - STEERING COLUMN
3	53320-S1A-G00	Cover - STEERING JOINT (LH)	Cover - STEERING JOINT (LH)
4	53323-ST3-E01	Joint comp. b - STEERING	Joint comp. b - STEERING
5	53325-SV4-000	Clip A - JOINT COVER	Clip A - JOINT COVER
6	53326-SN7-000	Clip b - JOINT COVER	Clip b - JOINT COVER
7	77873-S04-G80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
8	90135-SF1-000	Bolt - CENTER SHAFT YOKE	Bolt - CENTER SHAFT YOKE
9	90361-SM4-003	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
9	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
10	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
11	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR

Steering wheel (SRS; 1) 6 / 6

#	OEM	CH6	CH8
5	78502-S1A-E61	Sleeve assy	Sleeve assy
9	78520-S1A-E61	Damper - STEERING DYNAMIC	Damper - STEERING DYNAMIC
10	78521-S1A-E81	Button - L. HORN	Button - L. HORN
11	78522-S1A-E81	Button - R. HORN	Button - R. HORN
12	90140-S1A-E61	Screw - SCHRAUBE TAPPING (M5)	Screw - SCHRAUBE TAPPING (M5)
13	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Switch (LH) 9 / 14

#	OEM	CH6	CH8
1	35170-S1A-E01	Switch assy - RR. FOG	Switch assy - RR. FOG
2	35180-S1A-E01	Switch assy - FR. FOG	Switch assy - FR. FOG
5	35510-S1A-E01	Switch assy - HAZARD	Switch assy - HAZARD
6	35820-S1A-E01	Switch assy - HEADLIGHT ADJUSTER	Switch assy - HEADLIGHT ADJUSTER
8	35851-S1A-E02	Bulb comp. - 14V 40MA	Bulb comp. - 14V 40MA
10	35852-S1A-E02	Bulb comp. - 14V 60MA	Bulb comp. - 14V 60MA
13	35871-S84-T01	Bulb - NEO WEDGE (T3) (14V 60MA) (TOYO)	Bulb - NEO WEDGE (T3) (14V 60MA) (TOYO)
14	35910-S04-G01	Switch assy - INERTIA	Switch assy - INERTIA
20	90666-SD4-003	Clip - FITTING	Clip - FITTING

Tailgate 21 / 26

#	OEM	CH6	CH8
3	68217-S1C-E00	Seal - TAILGATE HINGE	Seal - TAILGATE HINGE
4	72116-SM4-003	Snap d - VIOLET	Snap d - VIOLET
5	74440-S1C-E01	Weatherstrip - TAILGATE	Weatherstrip - TAILGATE
7	74801-S1C-E11	Lock - TAILGATE	Lock - TAILGATE
8	74810-S1C-E01	Handle assy - TAILGATE	Handle assy - TAILGATE
9	74813-S05-003	Striker assy - TAILGATE	Striker assy - TAILGATE
10	74815-S1A-305	Garnish - TRUNK CYLINDER (CHROME PLATED)	Garnish - TRUNK CYLINDER (CHROME PLATED)
11	74817-S1C-E01	Handle - TAILGATE	Handle - TAILGATE
12	74820-S1C-E01	Stay assy - TAILGATE OPEN	Stay assy - TAILGATE OPEN
14	74830-S1C-003	Cable - TAILGATE OPENER	Cable - TAILGATE OPENER
17	74896-S1C-E11	Actuator assy - TAILGATE	Actuator assy - TAILGATE
18	74899-S1C-E00	Damper - TAILGATE DYNAMIC	Damper - TAILGATE DYNAMIC
19	90101-S50-003	Screw-washer - 3X22	Screw-washer - 3X22
20	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)
21	90107-S2G-003	Bolt - TAILGATE LOCK	Bolt - TAILGATE LOCK
22	90111-SK3-E00	Stud-ball - TAILGATE	Stud-ball - TAILGATE
23	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
24	90301-SS0-000	Nut - CLIP, 6MM	Nut - CLIP, 6MM
25	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
26	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE
27	91580-SM4-003	Clip - COUPLER(ORANGE)	Clip - COUPLER(ORANGE)

Tailgate lining 14 / 14

#	OEM	CH6	CH8
1	74828-S1C-E00	Sub stopper - TAILGATE	Sub stopper - TAILGATE
4	84405-S1C-E01	Retractor - STRAP	Retractor - STRAP
14	84433-S1C-E00	Seal - TAILGATE LINING	Seal - TAILGATE LINING
17	84436-S1C-E00	Pin - SHELF STRAP	Pin - SHELF STRAP
20	84439-S1C-E01	Rubber - END	Rubber - END
27	90136-S1A-E01	Screw - ET, 5X18	Screw - ET, 5X18
28	90144-SP0-000	Screw - TAPPING, 4X16 (PO)	Screw - TAPPING, 4X16 (PO)
29	90302-SN7-E00	Nut - SPRING, 4MM	Nut - SPRING, 4MM
32	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
34	91530-S0A-003	Clip - SUB SEAL	Clip - SUB SEAL
35	91560-SP0-003	Clip - DOOR LINING (GRAY)	Clip - DOOR LINING (GRAY)
35	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
40	84402-S1C-E01	Tube	Tube
42	84404-S1C-E01	Case b	Case b

Taillight 15 / 17

#	OEM	CH6	CH8
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
3	33503-S1A-G01	Socket comp - RR. FOG SIDE	Socket comp - RR. FOG SIDE
4	33504-S1A-G01	Socket comp.	Socket comp.
6	34100-S84-G01	Light assy - LICENSE	Light assy - LICENSE
7	34102-S60-003	Housing comp	Housing comp
8	34102-S84-A01	Lens comp	Lens comp
10	34351-SN7-G00	Bulb - POSITION (12V 5W)	Bulb - POSITION (12V 5W)
11	34903-SN7-G10	Bulb - 12V 21W) (AMBER	Bulb - 12V 21W) (AMBER
12	34906-SN7-G00	Bulb - 12V 21W/5W	Bulb - 12V 21W/5W
14	74892-S1A-E00	Molding - RR. LICENSE	Molding - RR. LICENSE
15	90102-ST5-000	Bolt - LICENSE GARNISH	Bolt - LICENSE GARNISH
16	90501-SL9-003	Clip - LICENSE GARNISH	Clip - LICENSE GARNISH
17	90650-SL9-003	Grommet - R. RR. COMBINATION (WHITE)	Grommet - R. RR. COMBINATION (WHITE)
18	90655-SL9-003	Grommet - L. RR. COMBINATION (GRAY)	Grommet - L. RR. COMBINATION (GRAY)
19	91524-SE0-003	Clip - COWL TOP	Clip - COWL TOP

Tire/wheel disk 31 / 39

#	OEM	CH6	CH8
2	42700-S1A-E01	Disk - WHEEL (15X6J) (DUNLOP)	Disk - WHEEL (15X6J) (DUNLOP)
6	42751-S1A-E02	Tire - 195/60R15 88V) (BRIDGESTONE	Tire - 195/60R15 88V) (BRIDGESTONE
7	42753-SH3-003	Valve - RIM (US PACIFIC)	Valve - RIM (US PACIFIC)
7	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
7	42753-SN8-E00	Valve - RIM	Valve - RIM
7	42753-SK3-000	Valve - RIM(A.R.G.)	Valve - RIM(A.R.G.)
7	42753-SE0-A02	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
11	44729-SN7-003	Weight - BALANCE (35G)	Weight - BALANCE (35G)
11	44722-SN7-003	Weight - BALANCE (20G)	Weight - BALANCE (20G)
11	44725-SN7-004	Weight - BALANCE (50G)	Weight - BALANCE (50G)
11	44721-SN7-003	Weight - BALANCE (10G)	Weight - BALANCE (10G)
11	44728-SN7-004	Weight - BALANCE (25G)	Weight - BALANCE (25G)
11	44727-SN7-003	Weight - BALANCE (15G)	Weight - BALANCE (15G)
11	44730-SN7-003	Weight - BALANCE (45G)	Weight - BALANCE (45G)
11	44726-SN7-003	Weight - BALANCE (5G)	Weight - BALANCE (5G)
11	44725-SN7-003	Weight - BALANCE (50G)	Weight - BALANCE (50G)
11	44724-SN7-004	Weight - BALANCE (40G)	Weight - BALANCE (40G)
11	44723-SN7-004	Weight - BALANCE (30G)	Weight - BALANCE (30G)
11	44729-SN7-004	Weight - BALANCE (35G)	Weight - BALANCE (35G)
11	44722-SN7-004	Weight - BALANCE (20G)	Weight - BALANCE (20G)
11	44721-SN7-004	Weight - BALANCE (10G)	Weight - BALANCE (10G)
11	44728-SN7-003	Weight - BALANCE (25G)	Weight - BALANCE (25G)
11	44724-SN7-003	Weight - BALANCE (40G)	Weight - BALANCE (40G)
11	44727-SN7-004	Weight - BALANCE (15G)	Weight - BALANCE (15G)
11	44730-SN7-004	Weight - BALANCE (45G)	Weight - BALANCE (45G)
11	44723-SN7-003	Weight - BALANCE (30G)	Weight - BALANCE (30G)
11	44726-SN7-004	Weight - BALANCE (5G)	Weight - BALANCE (5G)
13	44733-S1A-E00	Trim - WHEEL (15")	Trim - WHEEL (15")
16	83853-S84-A00	Bolt - ANCHOR	Bolt - ANCHOR
17	74666-SX0-000	Adapter - ANCHOR BOLT	Adapter - ANCHOR BOLT
18	90381-SV1-981	Nut comp. - WHEEL (SATO RASHI)	Nut comp. - WHEEL (SATO RASHI)

Tools/jack 3 / 3

#	OEM	CH6	CH8
2	89101-S1C-E00	Box - TOOL	Box - TOOL
3	89104-SG9-000	Wrench - WHEEL NUT	Wrench - WHEEL NUT
4	89310-S1A-E00	Jack assy - PANTOGRAPH	Jack assy - PANTOGRAPH

Trailer harness -7 pin with dir indicat 1 / 1

#	OEM	CH6	CH8
4	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)	Relay assy - POWER (4P) (MITSUBA) (RC-2201)

Water valve (LH) 6 / 9

#	OEM	CH6	CH8
1	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
2	79710-S1A-G01	Valve assy. - WATER	Valve assy. - WATER
4	79722-S1B-G30	Hose b - WATER IN.	Hose b - WATER IN.
8	79760-SE0-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
9	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
10	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM

Windshield washer 15 / 34

#	OEM	CH6	CH8
2	76806-ST3-E01	Motor - FR. WASHER	Motor - FR. WASHER
4	76806-S1C-E01	Motor - RR. WASHER	Motor - RR. WASHER
5	76810-S1A-E01	Nozzle assy. - R. WINDSHIELD WASHER	Nozzle assy. - R. WINDSHIELD WASHER
6	76812-ST3-E01	Cap assy. - MOUTH	Cap assy. - MOUTH
9	76815-S1A-E01	Nozzle assy. - L. WINDSHIELD WASHER	Nozzle assy. - L. WINDSHIELD WASHER
10	76820-S1A-E01	Grommet - TUBE WASHER	Grommet - TUBE WASHER
11	76826-ST3-E01	Valve - ONE WAY	Valve - ONE WAY
12	76828-ST3-E01	Joint l - WASHER	Joint l - WASHER
14	76829-ST3-E01	Joint - RR. WASHER TUBE	Joint - RR. WASHER TUBE
15	76830-SN7-G05	Joint y - WASHER	Joint y - WASHER
22	76851-S1A-E01	Bellows - FR. WASHER	Bellows - FR. WASHER
23	76851-S1C-E01	Grommet - WASHER TUBE	Grommet - WASHER TUBE
31	90652-SN7-G00	Clip - TUBE, 7MM	Clip - TUBE, 7MM
32	91511-SJ8-003	Clip - WASHER TUBE	Clip - WASHER TUBE
33	91539-S1A-E01	Clip - TUBE WASHER	Clip - TUBE WASHER

Wire harness (LH) 6 / 20

#	OEM	CH6	CH8
2	32109-S1C-G00	Harness - TAILGATE WIRE	Harness - TAILGATE WIRE
7	32155-S1A-G30	Cord assy - INTERIOR	Cord assy - INTERIOR
12	32755-S1C-G20	Harness - RR. DOOR WIRE	Harness - RR. DOOR WIRE
14	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
15	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
16	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
