CH4 × CM1

共通 272 / 合計 4,426 · Jaccard 6.1%
CH4 Honda ACCORD — 2,424 中 272 共有
CM1 Honda ACCORD — 2,274 中 272 共有
272 件
Air cleaner (V6) 7 / 24
CH4 Air cleaner (V6)
CM1 Air cleaner
# OEM CH4 CM1
2 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
3 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
14 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
16 91405-679-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
16 91405-PM5-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
17 17213-P8A-A00 Rubber - INTAKE MANIFOLD COVER MOUNTING Rubber - INTAKE MANIFOLD COVER MOUNTING
20 91549-P1E-003 Clip - AIR INTAKE COVER Clip - AIR INTAKE COVER
Air conditioner (CONDENSER) 3 / 12
CH4 Air conditioner (CONDENSER)
CM1 Air conditioner (CONDENSE R)
# OEM CH4 CM1
6 80107-SS0-000 Mount - CONDENSER UPPER Mount - CONDENSER UPPER
8 80175-SE0-000 Mount - CONDENSER Mount - CONDENSER
10 90041-PAA-A01 Nut - TOOTHED, 5MM Nut - TOOTHED, 5MM
Air conditioner (COOLING UNIT; LH) 4 / 30
CH4 Air conditioner (COOLING UNIT; LH)
CM1 Air conditioner (HOSES/PI PES; LH)
# OEM CH4 CM1
25 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
26 80873-ST7-000 O-ring - 8MM O-ring - 8MM
28 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
29 91556-SP0-003 Clip - COUPLER(BROWN) Clip - COUPLER(BROWN)
Air conditioner (HOSES/PIPES; V6; LH) 4 / 21
CH4 Air conditioner (HOSES/PIPES; V6; LH)
CM1 Air conditioner (HOSES/PI PES; LH)
# OEM CH4 CM1
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
16 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
17 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
18 80873-ST7-000 O-ring - 8MM O-ring - 8MM
Alternator (DENSO; V6) 4 / 32
CH4 Alternator (DENSO; V6)
CM1 Alternator (DENSO)
# OEM CH4 CM1
4 31111-PT0-003 Bearing - RR. GENERATOR Bearing - RR. GENERATOR
10 31138-PD1-004 Cover - BEARING Cover - BEARING
12 31142-PD1-004 Nut - PULLEY LOCK Nut - PULLEY LOCK
15 31147-PT0-003 Screw-washer Screw-washer
Auto radio 1 / 8
CH4 Auto radio
CM1 Center module
# OEM CH4 CM1
6 90133-SM4-003 Bolt-washer - 5X16 Bolt-washer - 5X16
Battery (V6) 5 / 16
CH4 Battery (V6)
CM1 Battery
# OEM CH4 CM1
11 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
12 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
13 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
14 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
16 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Brake lines (V6; ABS; LH) 6 / 32
CH4 Brake lines (V6; ABS; LH)
CM1 Brake lines (VSA; LH; 1)
# OEM CH4 CM1
14 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
18 46393-SM4-951 Clip c Clip c
19 46393-S84-A00 Clamp - BRAKE PIPE Clamp - BRAKE PIPE
24 46462-SE0-000 Bolt - OIL Bolt - OIL
25 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
26 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Brake master cylinder/ master power 4 / 20
CH4 Brake master cylinder/ master power
CM1 Brake master cylinder/ master power (LH)
# OEM CH4 CM1
13 46407-S84-A01 Clamp - TUBE Clamp - TUBE
14 46512-S70-000 Pin - PEDAL Pin - PEDAL
20 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
29 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
Breather tube (V6) 3 / 9
CH4 Breather tube (V6)
CM1 Cylinder head cover
# OEM CH4 CM1
4 17139-PK1-000 Grommet - PCV VALVE Grommet - PCV VALVE
5 91405-679-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
5 91405-PM5-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
Bumpers ('01-) 5 / 22
CH4 Bumpers ('01-)
CM1 Bumpers
# OEM CH4 CM1
23 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
25 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
28 90302-SD2-003 Nut-washer - 8MM Nut-washer - 8MM
30 91503-SZ3-003 Clip A Clip A
31 91503-SZ5-003 Clip - BUMPER FACE Clip - BUMPER FACE
Bumpers (-'00) 5 / 21
CH4 Bumpers (-'00)
CM1 Bumpers
# OEM CH4 CM1
28 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
29 90149-SA0-003 Bolt - BUMPER Bolt - BUMPER
30 90302-SD2-003 Nut-washer - 8MM Nut-washer - 8MM
33 91503-SZ3-003 Clip A Clip A
34 91503-SZ5-003 Clip - BUMPER FACE Clip - BUMPER FACE
Combination switch (LH) 4 / 28
CH4 Combination switch (LH)
CM1 Combination switch (LH)
# OEM CH4 CM1
3 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
4 35103-S04-003 Screw - RECESSED Screw - RECESSED
5 35108-S30-003 Holder - COLUMN Holder - COLUMN
18 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
Console 5 / 16
CH4 Console
CM1 Console
# OEM CH4 CM1
6 66418-579-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
27 90144-SP0-000 Screw - TAPPING, 4X16 (PO) Screw - TAPPING, 4X16 (PO)
30 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
31 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
37 90666-S84-A01 Clip - SNAP FITTING Clip - SNAP FITTING
Control unit (CABIN; LH) 1 / 23
CH4 Control unit (CABIN; LH)
CM1 Control unit (CABIN; LH)
# OEM CH4 CM1
18 39794-S10-003 Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
Control unit (ENGINE ROOM; LH) 4 / 24
CH4 Control unit (ENGINE ROOM; LH)
CM1 Control unit (ENGINE ROOM)
# OEM CH4 CM1
7 38231-S04-003 Fuse - BLOCK (30A) Fuse - BLOCK (30A)
8 38231-S04-961 Fuse - BLOCK (40A) Fuse - BLOCK (40A)
20 90150-S84-003 Bolt - EARTH, 8X16 Bolt - EARTH, 8X16
29 38231-S10-003 Fuse - BLOCK (20A) Fuse - BLOCK (20A)
Crankshaft/piston (V6) 1 / 41
CH4 Crankshaft/piston (V6)
CM1 Crankshaft/piston
# OEM CH4 CM1
6 13204-P8A-A01 Bolt - CONNECTING ROD Bolt - CONNECTING ROD
Cylinder head cover (V6) 3 / 14
CH4 Cylinder head cover (V6)
CM1 Cylinder head cover
# OEM CH4 CM1
6 15610-P5G-000 Cap assy. - OIL FILLER Cap assy. - OIL FILLER
6 15610-RGA-000 Cap assy. - OIL FILLER Cap assy. - OIL FILLER
7 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
Duct (LH) 1 / 7
CH4 Duct (LH)
CM1 Front fenders
# OEM CH4 CM1
8 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Emblems/caution labels 3 / 13
CH4 Emblems/caution labels
CM1 Emblems/caution labels
# OEM CH4 CM1
1 17669-SS0-X30 Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY) Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
18 78527-S04-G80 Label - SRS CAUTION (CHILD SEAT) Label - SRS CAUTION (CHILD SEAT)
19 91512-SR3-004 Clip - TUBULAR Clip - TUBULAR
Engine hood (LH) 5 / 30
CH4 Engine hood (LH)
CM1 Engine hood (LH)
# OEM CH4 CM1
24 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
28 91501-S1K-003 Clip - ENGINE HOOD INSULATOR Clip - ENGINE HOOD INSULATOR
34 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
36 91602-SZ5-000 Cushion - HOOD (11.6MM) Cushion - HOOD (11.6MM)
37 91603-SZ5-000 Cushion - HOOD (25MM) Cushion - HOOD (25MM)
Engine mounts (V6) 3 / 26
CH4 Engine mounts (V6)
CM1 Engine mounts (MT)
# OEM CH4 CM1
19 50933-SZ3-003 Clip - ACCUMULATOR PIPE Clip - ACCUMULATOR PIPE
20 50934-SW5-A80 Clip - ACCUMULATOR TUBE Clip - ACCUMULATOR TUBE
25 90371-S87-A00 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
Engine wire harness (V6; LH) 7 / 25
CH4 Engine wire harness (V6; LH)
CM1 Engine wire harness (LH)
# OEM CH4 CM1
2 32117-P65-003 Holder - CORRUGATED(DARK BLUE) (15MM) Holder - CORRUGATED(DARK BLUE) (15MM)
14 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
16 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
18 91507-P01-003 Clip b - HARNESS BAND (DARK BROWN) (129.4MM) Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
19 91558-P8C-A01 Clip - HARNESS BAND (VIOLET) (150MM) Clip - HARNESS BAND (VIOLET) (150MM)
20 91559-PAA-A01 Clip - HARNESS BAND(GRAY) (150MM) Clip - HARNESS BAND(GRAY) (150MM)
21 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
Exhaust pipe (V6) 9 / 34
CH4 Exhaust pipe (V6)
CM1 Exhaust pipe (2.0L)
# OEM CH4 CM1
4 18176-PT0-003 Bolt - CONVERTER Bolt - CONVERTER
5 18176-P08-003 Bolt - CONVERTER Bolt - CONVERTER
11 18215-S84-A20 Rubber - EX. MOUNTING Rubber - EX. MOUNTING
15 18393-SH3-S00 Gasket - PRE-CHAMBER (52.5MM-53.5MM) Gasket - PRE-CHAMBER (52.5MM-53.5MM)
24 90023-PK1-000 Bolt - FLANGE, 6X10 Bolt - FLANGE, 6X10
24 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
26 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
27 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
31 17706-SC3-003 Clip - FUEL PIPE Clip - FUEL PIPE
Floor mat 4 / 11
CH4 Floor mat
CM1 Floor mat
# OEM CH4 CM1
9 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
11 90676-SE0-003 Clip - JOINT COVER PLATE Clip - JOINT COVER PLATE
14 91560-S04-003 Clip - SIDE GARNISH (NATURAL) Clip - SIDE GARNISH (NATURAL)
18 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR
Front brake (3) 3 / 26
CH4 Front brake (3)
CM1 Rear brake
# OEM CH4 CM1
2 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
3 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
21 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)
Front bulkhead 1 / 2
CH4 Front bulkhead
CM1 Front bulkhead/dashboard
# OEM CH4 CM1
33 90105-SV1-000 Bolt-washer - 8X20 Bolt-washer - 8X20

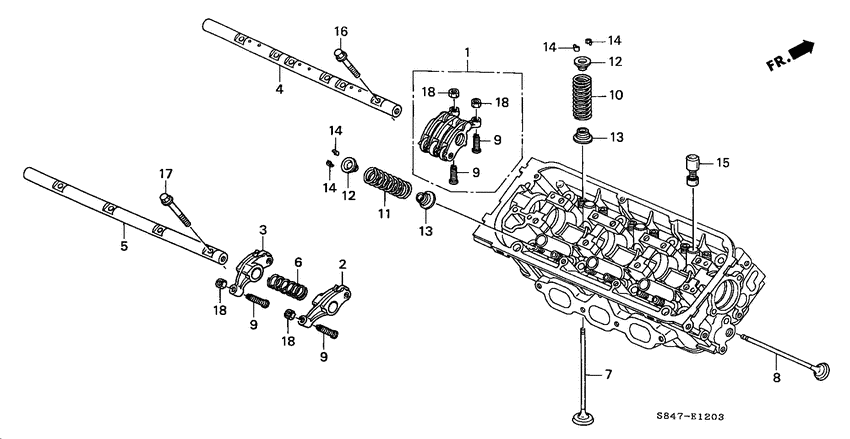

Front cylinder head (V6) 3 / 19
CH4 Front cylinder head (V6)
CM1 Vtc oil control valve
# OEM CH4 CM1
4 12210-PZ1-003 Seal a - VALVE STEM(ARAI) Seal a - VALVE STEM(ARAI)
4 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
5 12211-PZ1-003 Seal b - VALVE STEM(ARAI) Seal b - VALVE STEM(ARAI)
Front door lining (LH) 4 / 10
CH4 Front door lining (LH)
CM1 Front door lining (LH)
# OEM CH4 CM1
19 90101-S03-000 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
20 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)
21 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
22 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front door locks 5 / 38
CH4 Front door locks
CM1 Front door locks/outer ha ndle
# OEM CH4 CM1
3 72113-SR4-004 Snap - BLACK Snap - BLACK
17 72139-SR0-A01 Snap - VIOLET Snap - VIOLET
37 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
38 90141-S84-003 Screw - 3X10 Screw - 3X10
40 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Front door panels 7 / 30
CH4 Front door panels
CM1 Front door panels
# OEM CH4 CM1
15 75891-SA7-000 Stopper - DOOR Stopper - DOOR
16 90102-SZ3-000 Bolt - FLANGE, 8X22 (10.5MM) Bolt - FLANGE, 8X22 (10.5MM)
16 90101-SZ3-000 Bolt - FLANGE, 8X22 (8.5MM) Bolt - FLANGE, 8X22 (8.5MM)
17 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
22 91568-SR2-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
22 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
23 91651-S84-A00 Seal - DOOR PANEL HOLE Seal - DOOR PANEL HOLE
Front door windows 2 / 17
CH4 Front door windows
CM1 Harness band/bracket (LH)
# OEM CH4 CM1
14 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
15 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Front driveshaft/ half shaft (V6; '99-) 8 / 37
CH4 Front driveshaft/ half shaft (V6; '99-)
CM1 Front driveshaft/half sha ft (1)
# OEM CH4 CM1
8 44319-S0A-300 Set ring - 28X2.0 Set ring - 28X2.0
8 44319-S84-300 Set ring - 28X2.0 Set ring - 28X2.0
9 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
10 44327-SX0-C02 Band - OUTBOARD BOOT (NIPPON HATSUJO) Band - OUTBOARD BOOT (NIPPON HATSUJO)
11 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
17 90102-SF1-000 Bolt - HEX., 10X1.25 Bolt - HEX., 10X1.25
18 90165-SE0-000 Bolt - FLANGE, 10X37 Bolt - FLANGE, 10X37
19 90305-SD4-003 Nut - SPINDLE (24MM) Nut - SPINDLE (24MM)
Front fenders 8 / 11
CH4 Front fenders
CM1 Front fenders
# OEM CH4 CM1
7 90501-SM4-003 Bolt - FENDER Bolt - FENDER
8 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
9 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
10 90305-SM4-003 Nut - CLIP, 6MM Nut - CLIP, 6MM
11 90657-SB0-003 Clip, SPLASH SHIELD Clip, SPLASH SHIELD
12 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
13 91503-SZ5-003 Clip - BUMPER FACE Clip - BUMPER FACE
14 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Front grille 1 / 7
CH4 Front grille
CM1 Bumpers
# OEM CH4 CM1
7 91503-SZ3-003 Clip A Clip A
Front lower arm 5 / 29
CH4 Front lower arm
CM1 Front stabilizer/ front lower arm
# OEM CH4 CM1
21 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
22 90117-S0A-000 Bolt - DAMPER LOCK(10X44) Bolt - DAMPER LOCK(10X44)
24 90121-S0A-000 Bolt - DAMPER FORK(12X98) Bolt - DAMPER FORK(12X98)
26 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
28 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Front seat (L.; 2) 7 / 20
CH4 Front seat (L.; 2)
CM1 Front seat (L.; LH; 1)
# OEM CH4 CM1
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
23 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
28 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
29 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
30 91566-SP0-003 Clip - BACK COVER (NATURAL) Clip - BACK COVER (NATURAL)
32 81322-SP0-003 Clip - LUMBAR SUPPORT Clip - LUMBAR SUPPORT
Front seat (R.; 2) 7 / 24
CH4 Front seat (R.; 2)
CM1 Front seat (L.; LH; 1)
# OEM CH4 CM1
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
22 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
27 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
28 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
29 91565-S0X-003 Clip - COUPLER (DARK GREEN) Clip - COUPLER (DARK GREEN)
30 91556-SP0-003 Clip - COUPLER(BROWN) Clip - COUPLER(BROWN)
Front seat components (L.; 3) 2 / 13
CH4 Front seat components (L.; 3)
CM1 Front seat (L.; LH; 1)
# OEM CH4 CM1
17 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
18 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Front shock absorber 6 / 18
CH4 Front shock absorber
CM1 Front shock absorber
# OEM CH4 CM1
5 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
8 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
10 51689-SH3-004 Plate - BUMP STOP (SHOWA) Plate - BUMP STOP (SHOWA)
13 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
14 90300-S84-A00 Nut - SHOCK ABSORBER FLANGE (10MM) Nut - SHOCK ABSORBER FLANGE (10MM)
15 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Front windshield 1 / 9
CH4 Front windshield
CM1 Front windshield
# OEM CH4 CM1
13 78527-S04-E80 Label - SRS CAUTION (CHILD SEAT) Label - SRS CAUTION (CHILD SEAT)
Front windshield wiper (LH) 4 / 19
CH4 Front windshield wiper (LH)
CM1 Front windshield wiper (LH)
# OEM CH4 CM1
4 76517-SM4-003 Collar Collar
6 76524-SD4-003 Dust seal Dust seal
7 76524-SE0-013 Dust seal Dust seal
18 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
Fuel pipe (1) 1 / 41
CH4 Fuel pipe (1)
CM1 Brake lines (VSA; LH; 1)
# OEM CH4 CM1
28 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Fuel tank 9 / 40
CH4 Fuel tank
CM1 Fuel tank
# OEM CH4 CM1
8 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
9 17551-S84-A01 Packing Packing
11 17574-S84-A01 Packing - BASE Packing - BASE
26 17711-S84-004 Retainer - WHITE)(SANOH Retainer - WHITE)(SANOH
33 74660-S84-A00 Cap assy. - FLOOR MAINTENANCE HOLE Cap assy. - FLOOR MAINTENANCE HOLE
34 90101-S84-000 Bolt-washer - 5X10 Bolt-washer - 5X10
36 90700-SB0-003 Clip - AIR BLEED TUBE Clip - AIR BLEED TUBE
39 91601-SH3-013 Grommet - SCREW, 5MM (BLACK) Grommet - SCREW, 5MM (BLACK)
41 90150-S04-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
Grommet 9 / 13
CH4 Grommet
CM1 Grommet (FRONT)
# OEM CH4 CM1
2 91611-SS0-003 Plug - HOLE, 25MM Plug - HOLE, 25MM
3 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
4 90615-SR3-000 Cap - WELD HOLE, 51X77 Cap - WELD HOLE, 51X77
7 91602-SV4-003 Plug - HOLE, 15MM Plug - HOLE, 15MM
8 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
9 91611-SM4-003 Plug - FLOOR HOLE, 25MM Plug - FLOOR HOLE, 25MM
11 91613-SR3-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM
12 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
21 91610-SD4-000 Plug - HOLE, 28MM Plug - HOLE, 28MM
Harness band/bracket 9 / 24
CH4 Harness band/bracket
CM1 Harness band/bracket (LH)
# OEM CH4 CM1
4 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
5 32146-SH3-003 Connector - DIODE(2P) Connector - DIODE(2P)
8 90627-SA5-003 Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
13 91550-ST0-003 Clip - WIRE HARNESS (NATURAL) (110MM) Clip - WIRE HARNESS (NATURAL) (110MM)
17 91559-S47-003 Clip - HARNESS BAND(NATURAL) (167MM) Clip - HARNESS BAND(NATURAL) (167MM)
22 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
24 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
25 91545-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
26 91510-SA5-003 Clip - OFFSET(10)(BROWN)(50MM) Clip - OFFSET(10)(BROWN)(50MM)
Headlight 1 / 19
CH4 Headlight
CM1 Headlight
# OEM CH4 CM1
6 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
Heater blower (LH) 5 / 16
CH4 Heater blower (LH)
CM1 Heater unit (LH)
# OEM CH4 CM1
2 79191-SZ3-A01 Nut - HOLDER Nut - HOLDER
13 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
14 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
15 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
16 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater unit (LH) 4 / 16
CH4 Heater unit (LH)
CM1 Heater unit (LH)
# OEM CH4 CM1
2 39248-692-003 Packing - HEATER Packing - HEATER
12 80534-S84-A41 Aspirator Aspirator
14 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
16 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
Instrument panel (LH) 9 / 18
CH4 Instrument panel (LH)
CM1 Instrument panel (LH)
# OEM CH4 CM1
5 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
31 90104-SV4-000 Bolt-washer - 8X25 Bolt-washer - 8X25
32 90106-S84-A00 Bolt-washer - 8X40 Bolt-washer - 8X40
33 90108-S84-A00 Bolt-washer - 8MM(SRS) Bolt-washer - 8MM(SRS)
35 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
37 90666-S84-A01 Clip - SNAP FITTING Clip - SNAP FITTING
38 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
39 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
43 90110-S84-A00 Bolt-washer - 8X20 Bolt-washer - 8X20
Instrument panel garnish (LH) 3 / 17
CH4 Instrument panel garnish (LH)
CM1 Instrument panel garnish (DRIVER SIDE; LH)
# OEM CH4 CM1
36 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
37 90666-S84-A01 Clip - SNAP FITTING Clip - SNAP FITTING
38 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Intake manifold (V6) 1 / 15
CH4 Intake manifold (V6)
CM1 Engine cover
# OEM CH4 CM1
13 17213-P8A-A00 Rubber - INTAKE MANIFOLD COVER MOUNTING Rubber - INTAKE MANIFOLD COVER MOUNTING
Knuckle 4 / 17
CH4 Knuckle
CM1 Front knuckle/upper arm
# OEM CH4 CM1
6 51464-S04-013 Boot, UPPER BALL JOINT Boot, UPPER BALL JOINT
7 52226-SL0-003 Circlip - LOWER BALL(MUSASHI) Circlip - LOWER BALL(MUSASHI)
8 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
17 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Mirror (2) 3 / 10
CH4 Mirror (2)
CM1 Mirror
# OEM CH4 CM1
11 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
12 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
12 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Oil pump/oil strainer (V6) 4 / 32
CH4 Oil pump/oil strainer (V6)
CM1 Oil pump (2.0L)
# OEM CH4 CM1
9 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)
16 37240-PT0-023 Switch - OIL PRESSURE(DENSO) Switch - OIL PRESSURE(DENSO)
16 37240-PT0-014 Switch - OIL PRESSURE (TEC) Switch - OIL PRESSURE (TEC)
21 90015-PH1-013 Holder - OIL FILTER Holder - OIL FILTER
Outer panels 1 / 8
CH4 Outer panels
CM1 Outer panels/rear panel
# OEM CH4 CM1
27 70495-692-000 Cushion - FUEL FILLER LID Cushion - FUEL FILLER LID
Parking brake 4 / 10
CH4 Parking brake
CM1 Parking brake (LH)
# OEM CH4 CM1
5 47360-SB2-000 Equalizer Equalizer
6 47365-538-000 Pin - EQUALIZER Pin - EQUALIZER
9 47522-594-000 Nut - PARKING BRAKE ADJUSTING Nut - PARKING BRAKE ADJUSTING
10 47537-671-670 Spring - PARKING BRAKE ROD Spring - PARKING BRAKE ROD
Pedal (LH) 4 / 13
CH4 Pedal (LH)
CM1 Pedal (LH)
# OEM CH4 CM1
7 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
8 46505-SA7-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
24 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
25 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Pillar garnish (LH) 3 / 4
CH4 Pillar garnish (LH)
CM1 Pillar garnish (LH)
# OEM CH4 CM1
15 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
16 91560-S84-A11 Clip - PILLAR GARNISH(BLACK) Clip - PILLAR GARNISH(BLACK)
17 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Power steering gear box (V6; LH) 1 / 18
CH4 Power steering gear box (V6; LH)
CM1 P.s. gear box (LH)
# OEM CH4 CM1
12 53546-S84-003 Boot - TIE ROD END (NOK) Boot - TIE ROD END (NOK)
Power steering lines (V6; LH) 6 / 25
CH4 Power steering lines (V6; LH)
CM1 P.s. lines (LH)
# OEM CH4 CM1
1 53697-SB3-952 Cap - OIL TANK Cap - OIL TANK
9 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
15 53736-SH3-950 Holder b - POWER STEERING PIPE Holder b - POWER STEERING PIPE
20 90635-SM4-A02 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
22 91370-SV4-000 O-ring - 14.4X1.9 O-ring - 14.4X1.9
23 91405-SS0-003 Clamp - TUBE (D21) Clamp - TUBE (D21)
Power steering pump/ bracket (V6) 9 / 24
CH4 Power steering pump/ bracket (V6)
CM1 Power steering pump
# OEM CH4 CM1
10 90105-S50-003 Bolt - FLANGE, 8X28 Bolt - FLANGE, 8X28
11 90305-PAA-A01 Nut - POWER STEERING PULLEY Nut - POWER STEERING PULLEY
12 90693-P2A-003 Circlip - INTERNAL, 40MM Circlip - INTERNAL, 40MM
13 91048-P2A-003 Bearing - RADIAL BALL, 17X40X12 Bearing - RADIAL BALL, 17X40X12
16 91345-PAA-A01 O-ring - 13.0X1.9 O-ring - 13.0X1.9
16 91345-PY3-000 O-ring - 13.0X1.9 O-ring - 13.0X1.9
17 91347-PAA-A01 O-ring - 16.7X1.8 O-ring - 16.7X1.8
19 91348-P2A-003 O-ring - 51.0X2.4 O-ring - 51.0X2.4
21 91350-P8C-A01 Bolt - FLANGE, 6X20 Bolt - FLANGE, 6X20
Protector 1 / 5
CH4 Protector
CM1 Side sill garnish
# OEM CH4 CM1
10 91513-SM4-000 Clip - SIDE SILL UPPER GARNISH Clip - SIDE SILL UPPER GARNISH
Radiator hose (V6) 4 / 22
CH4 Radiator hose (V6)
CM1 Radiator hose/reserve tan k
# OEM CH4 CM1
2 19102-PM5-A00 Cap - RESERVE TANK Cap - RESERVE TANK
8 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN) Clip - WATER HOSE (36.5MM) (KEIHIN)
8 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
17 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
Radio antenna/speaker 1 / 16
CH4 Radio antenna/speaker
CM1 Front door locks/outer ha ndle
# OEM CH4 CM1
13 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Rear brake (DISK; V6) 11 / 46
CH4 Rear brake (DISK; V6)
CM1 Rear brake
# OEM CH4 CM1
3 42326-SLJ-000 Cap, Hub unit Cap, Hub unit
12 43227-SG0-013 Spring - PAD Spring - PAD
16 43235-S84-A51 Pin a Pin a
21 43244-SG0-003 Retainer Retainer
29 43262-S84-A51 Pin b Pin b
33 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
34 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
35 45240-SC2-003 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
37 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
37 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
37 90113-SA0-006 Bolt - WHEEL (SAGA) Bolt - WHEEL (SAGA)
Rear cylinder head (V6) 3 / 17
CH4 Rear cylinder head (V6)
CM1 Vtc oil control valve
# OEM CH4 CM1
5 12210-PZ1-003 Seal a - VALVE STEM(ARAI) Seal a - VALVE STEM(ARAI)
5 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
6 12211-PZ1-003 Seal b - VALVE STEM(ARAI) Seal b - VALVE STEM(ARAI)
Rear door lining 4 / 9
CH4 Rear door lining
CM1 Front door lining (LH)
# OEM CH4 CM1
18 90101-S03-000 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
19 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)
20 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
21 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door locks 5 / 35
CH4 Rear door locks
CM1 Front door locks/outer ha ndle
# OEM CH4 CM1
5 72139-SR0-A01 Snap - VIOLET Snap - VIOLET
10 72139-S0A-003 Snap - PINK Snap - PINK
36 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
37 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
38 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Rear door panels 5 / 30
CH4 Rear door panels
CM1 Front door panels
# OEM CH4 CM1
19 75891-SA7-000 Stopper - DOOR Stopper - DOOR
20 90102-SZ3-000 Bolt - FLANGE, 8X22 (10.5MM) Bolt - FLANGE, 8X22 (10.5MM)
21 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
25 91568-SR2-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
25 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
Rear door windows 1 / 22
CH4 Rear door windows
CM1 Heater unit (LH)
# OEM CH4 CM1
21 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Rear lower arm 6 / 36
CH4 Rear lower arm
CM1 Rear lower arm
# OEM CH4 CM1
8 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
25 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
26 90121-S0A-000 Bolt - DAMPER FORK(12X98) Bolt - DAMPER FORK(12X98)
29 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
31 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
36 90701-SX0-003 Clip - UPPER ARM Clip - UPPER ARM
Rear seat 3 / 22
CH4 Rear seat
CM1 Rear seat (L.)
# OEM CH4 CM1
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
3 78182-SA0-000 Clip - RR. SEAT PIN Clip - RR. SEAT PIN
Rear shock absorber 5 / 23
CH4 Rear shock absorber
CM1 Front shock absorber
# OEM CH4 CM1
1 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
2 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
3 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
16 90300-S84-A00 Nut - SHOCK ABSORBER FLANGE (10MM) Nut - SHOCK ABSORBER FLANGE (10MM)
17 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Rear tray/side garnish 1 / 6
CH4 Rear tray/side garnish
CM1 Front fenders
# OEM CH4 CM1
21 91560-S04-003 Clip - SIDE GARNISH (NATURAL) Clip - SIDE GARNISH (NATURAL)
Resonator chamber (V6) 5 / 9
CH4 Resonator chamber (V6)
CM1 Resonator chamber
# OEM CH4 CM1
1 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
3 17213-P8C-A00 Rubber b - RESONATOR MOUNTING Rubber b - RESONATOR MOUNTING
4 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
7 75353-671-000 Lock - SCREW Lock - SCREW
8 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Roof lining 2 / 6
CH4 Roof lining
CM1 Roof lining
# OEM CH4 CM1
16 90136-S30-003 Screw - ET, 5X18 Screw - ET, 5X18
16 90137-S30-003 Screw - ET, 6X18 Screw - ET, 6X18
Seatbelt 1 / 8
CH4 Seatbelt
CM1 Front door locks/outer ha ndle
# OEM CH4 CM1
18 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Sensor/solenoid (V6) 1 / 20
CH4 Sensor/solenoid (V6)
CM1 Transmission case
# OEM CH4 CM1
19 91309-PX4-003 O-ring - 16X2.1 (NOK) O-ring - 16X2.1 (NOK)
Srs unit (SIDE SRS; LH) 6 / 20
CH4 Srs unit (SIDE SRS; LH)
CM1 Harness band/bracket (LH)
# OEM CH4 CM1
1 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
9 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
10 91507-693-003 Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
11 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
13 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
14 91545-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
Steering column 2 / 12
CH4 Steering column
CM1 Steering column
# OEM CH4 CM1
9 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
10 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
Steering wheel (SRS; V6) 1 / 10
CH4 Steering wheel (SRS; V6)
CM1 Steering wheel (SRS; 2)
# OEM CH4 CM1
13 90161-SV4-003 Bolt - STEERING HANDLE Bolt - STEERING HANDLE
Taillight 5 / 19
CH4 Taillight
CM1 Taillight/license light
# OEM CH4 CM1
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
2 33303-SL4-003 Bulb - WEDGE (12V 21W) (STANLEY) Bulb - WEDGE (12V 21W) (STANLEY)
6 33514-S50-003 Socket - T20W S3 Socket - T20W S3
16 34906-ST5-003 Bulb - 12V 21W/5W) (STANLEY Bulb - 12V 21W/5W) (STANLEY
18 90321-S06-000 Nut - HEX. CAP, 5MM Nut - HEX. CAP, 5MM
Tire/wheel disks 2 / 18
CH4 Tire/wheel disks
CM1 Tire/wheel disks
# OEM CH4 CM1
5 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
17 90381-S4L-003 Nut - WHEEL(FUSE RASHI) Nut - WHEEL(FUSE RASHI)
Tools/jack 2 / 7
CH4 Tools/jack
CM1 Tools/jack
# OEM CH4 CM1
4 89211-S05-003 Wrench - WHEEL Wrench - WHEEL
7 89320-S05-003 Bar - JACK Bar - JACK
Trunk lid (LH) 3 / 24
CH4 Trunk lid (LH)
CM1 Outer panels/rear panel
# OEM CH4 CM1
26 75353-671-000 Lock - SCREW Lock - SCREW
27 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
33 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
Valve/rocker arm (FRONT; V6) 2 / 24
CH4 Valve/rocker arm (FRONT; V6)
CM1 Valve/rocker arm (2.0L)
# OEM CH4 CM1
9 14744-PT0-004 Screw - TAPPET ADJUSTING Screw - TAPPET ADJUSTING
18 90206-PT0-004 Nut - TAPPET ADJUSTING Nut - TAPPET ADJUSTING
Valve/rocker arm (REAR; V6) 2 / 24
CH4 Valve/rocker arm (REAR; V6)
CM1 Valve/rocker arm (2.0L)
# OEM CH4 CM1
9 14744-PT0-004 Screw - TAPPET ADJUSTING Screw - TAPPET ADJUSTING
18 90206-PT0-004 Nut - TAPPET ADJUSTING Nut - TAPPET ADJUSTING
Water pump/sensor (V6) 5 / 26
CH4 Water pump/sensor (V6)
CM1 Radiator (2.0L)
# OEM CH4 CM1
2 18715-PB2-000 GASKET, EGR VALVE (ISHINO GASKET) GASKET, EGR VALVE (ISHINO GASKET)
14 37760-P00-004 Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT) Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)
14 37760-P00-003 Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
17 91307-PN4-000 O-ring - 17.5X1.4 O-ring - 17.5X1.4
17 91307-PN3-000 O-ring,17.8x1.4 O-ring,17.8x1.4
Water valve (V6; LH) 5 / 11
CH4 Water valve (V6; LH)
CM1 Water valve (LH)
# OEM CH4 CM1
5 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
6 90661-SL5-003 Clip, WATER HOSE Clip, WATER HOSE
7 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
7 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
8 91557-S87-A01 Clamp - HEATER Clamp - HEATER
Windshield washer (V6) 1 / 14
CH4 Windshield washer (V6)
CM1 Windshield washer (1)
# OEM CH4 CM1
12 90652-SB2-023 Clip - TUBE, 7MM Clip - TUBE, 7MM
Wire harness (LH) 3 / 25
CH4 Wire harness (LH)
CM1 Wire harness (LH)
# OEM CH4 CM1
15 33301-S70-003 Bulb - 12V 3.8W 2CP Bulb - 12V 3.8W 2CP
16 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
17 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
