CH3 × CU1

共通 219 / 合計 4,407 · Jaccard 5%
CH3 Honda ACCORD — 1,950 中 219 共有
CU1 Honda ACCORD — 2,676 中 219 共有
219 件
Air cleaner (L4) 5 / 12
CH3 Air cleaner (L4)
CU1 Air cleaner (2.0L)
# OEM CH3 CU1
3 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
4 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
5 17217-P2J-300 Clip - AIR CLEANER Clip - AIR CLEANER
9 17316-P1E-000 Clamp - AIR FLOW TUBE (70) Clamp - AIR FLOW TUBE (70)
10 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Air conditioner (COOLING UNIT; LH) 4 / 30
CH3 Air conditioner (COOLING UNIT; LH)
CU1 Air conditioner (HOSES/PIPES; 2.0L; LH)
# OEM CH3 CU1
25 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
26 80873-ST7-000 O-ring - 8MM O-ring - 8MM
27 90155-SE0-003 Screw - TAPPING, 6X20 Screw - TAPPING, 6X20
28 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Air conditioner (HOSES/PIPES; L4; LH) 4 / 19
CH3 Air conditioner (HOSES/PIPES; L4; LH)
CU1 Air conditioner (HOSES/PIPES; 2.0L; LH)
# OEM CH3 CU1
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
15 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
16 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
17 80873-ST7-000 O-ring - 8MM O-ring - 8MM
Alternator (DENSO; L4) 4 / 22
CH3 Alternator (DENSO; L4)
CU1 Alternator (DENSO; 2.0L)
# OEM CH3 CU1
4 31111-PT0-003 Bearing - RR. GENERATOR Bearing - RR. GENERATOR
10 31138-PD1-004 Cover - BEARING Cover - BEARING
12 31142-PD1-004 Nut - PULLEY LOCK Nut - PULLEY LOCK
15 31147-PT0-003 Screw-washer Screw-washer
Auto radio 1 / 7
CH3 Auto radio
CU1 Audio unit
# OEM CH3 CU1
6 90133-SM4-003 Bolt-washer - 5X16 Bolt-washer - 5X16
Battery (L4) 8 / 19
CH3 Battery (L4)
CU1 Battery
# OEM CH3 CU1
11 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
12 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
13 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
14 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
15 91507-SL9-003 Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
16 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
20 31542-SA5-665 Plug - VENT (MF) (PANASONIC) Plug - VENT (MF) (PANASONIC)
20 31542-SA5-666 Plug - VENT (MF) (FURUKAWA) Plug - VENT (MF) (FURUKAWA)
Brake lines (L4; ABS; LH) 3 / 25
CH3 Brake lines (L4; ABS; LH)
CU1 Brake lines (VSA; LH)
# OEM CH3 CU1
14 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
23 46462-SE0-000 Bolt - OIL Bolt - OIL
24 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
Brake lines (L4; LH) 3 / 21
CH3 Brake lines (L4; LH)
CU1 Brake lines (VSA; LH)
# OEM CH3 CU1
15 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
24 46462-SE0-000 Bolt - OIL Bolt - OIL
25 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
Brake master cylinder/ master power 6 / 25
CH3 Brake master cylinder/ master power
CU1 Brake master cylinder/ master power (LH)
# OEM CH3 CU1
5 46151-SB2-003 Yoke - PUSH ROD (NISSIN) Yoke - PUSH ROD (NISSIN)
14 46512-S70-000 Pin - PEDAL Pin - PEDAL
17 46665-S04-J01 Grommet Grommet
20 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
21 57515-S30-003 Pin - STOP Pin - STOP
29 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
Bumpers ('01-) 5 / 25
CH3 Bumpers ('01-)
CU1 Front bumper
# OEM CH3 CU1
23 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
25 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
26 90149-SA0-003 Bolt - BUMPER Bolt - BUMPER
27 90156-S0K-000 Grommet - FR. LICENSE BASE Grommet - FR. LICENSE BASE
30 91503-SZ3-003 Clip A Clip A
Clutch housing 1 / 13
CH3 Clutch housing
CU1 Clutch case
# OEM CH3 CU1
7 90705-PG2-000 Dowel pin - 14X20 Dowel pin - 14X20
Clutch master cylinder (LH) 2 / 21
CH3 Clutch master cylinder (LH)
CU1 Clutch master cylinder (LH)
# OEM CH3 CU1
1 46912-S84-A00 Pin - CLUTCH PEDAL Pin - CLUTCH PEDAL
25 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
Clutch release 2 / 10
CH3 Clutch release
CU1 Clutch release
# OEM CH3 CU1
3 22825-P0S-000 Bolt - RELEASE FORK Bolt - RELEASE FORK
4 22835-P0S-000 Spring - RELEASE FORK SETTING Spring - RELEASE FORK SETTING
Clutch/torque converter (L4) 1 / 5
CH3 Clutch/torque converter (L4)
CU1 Clutch/torque converter
# OEM CH3 CU1
8 90034-689-000 Bolt - TWELVE POINT, 8MM (TOKAI TRW) Bolt - TWELVE POINT, 8MM (TOKAI TRW)
Combination switch (LH) 4 / 21
CH3 Combination switch (LH)
CU1 Key cylinder components
# OEM CH3 CU1
3 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
4 35103-S04-003 Screw - RECESSED Screw - RECESSED
5 35108-S30-003 Holder - COLUMN Holder - COLUMN
18 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
Console 3 / 16
CH3 Console
CU1 Instrument panel garnish (PASSENGER SIDE; LH)
# OEM CH3 CU1
5 66418-SA5-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
29 90666-SD4-003 Clip - FITTING Clip - FITTING
30 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Control unit (ENGINE ROOM; LH) 1 / 23
CH3 Control unit (ENGINE ROOM; LH)
CU1 Control unit (CABIN; 1; LH)
# OEM CH3 CU1
20 90150-S84-003 Bolt - EARTH, 8X16 Bolt - EARTH, 8X16
Cylinder block/oil pan (L4) 2 / 33
CH3 Cylinder block/oil pan (L4)
CU1 Cylinder block/oil pan (2.0L)
# OEM CH3 CU1
16 90001-PM3-003 Bolt - DRAIN PLUG, 28MM Bolt - DRAIN PLUG, 28MM
27 90401-PR4-000 Washer - SEALING, 28MM Washer - SEALING, 28MM

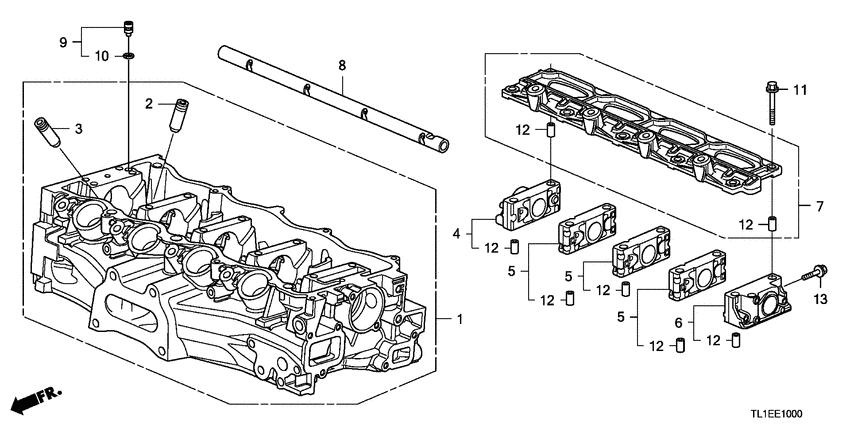

Cylinder head (L4) 7 / 21
CH3 Cylinder head (L4)
CU1 Spool valve (2.0L)
# OEM CH3 CU1
2 12204-PJ7-305 Guide - IN. VALVE (OS) Guide - IN. VALVE (OS)
3 12205-PJ7-305 Guide - EX. VALVE (OS) Guide - EX. VALVE (OS)
4 12210-PZ1-003 Seal a - VALVE STEM(ARAI) Seal a - VALVE STEM(ARAI)
4 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
5 12211-PZ1-003 Seal b - VALVE STEM(ARAI) Seal b - VALVE STEM(ARAI)
5 12211-PZ1-004 Seal b - VALVE STEM(NOK) Seal b - VALVE STEM(NOK)
20 91319-PAA-A01 O-ring - 13X1.5 O-ring - 13X1.5
Cylinder head cover (L4) 1 / 12
CH3 Cylinder head cover (L4)
CU1 Cylinder head cover (2.0L)
# OEM CH3 CU1
6 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
Duct (LH) 1 / 7
CH3 Duct (LH)
CU1 Engine hood (LH)
# OEM CH3 CU1
8 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Emblems/caution labels 2 / 10
CH3 Emblems/caution labels
CU1 Emblems/caution labels
# OEM CH3 CU1
1 17669-SS0-X30 Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY) Label - FUEL FILLER CAUTION (UNLEADED FUEL ONLY)
19 91512-SR3-004 Clip - TUBULAR Clip - TUBULAR
Engine hood (LH) 4 / 30
CH3 Engine hood (LH)
CU1 Engine hood (LH)
# OEM CH3 CU1
8 74134-SM4-000 Grommet - HOOD WIRE Grommet - HOOD WIRE
24 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
26 90601-S84-A01 Grommet - HOOD OPEN STAY Grommet - HOOD OPEN STAY
35 91558-SE3-003 Clip - HOOD WIRE Clip - HOOD WIRE
Engine wire harness (L4; LH) 4 / 18
CH3 Engine wire harness (L4; LH)
CU1 Control unit (ENGINE ROOM; 1)
# OEM CH3 CU1
11 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
12 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
13 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
17 91558-SM4-003 Clip - TUBE(BLACK)(135MM) Clip - TUBE(BLACK)(135MM)
Exhaust pipe (L4) 4 / 25
CH3 Exhaust pipe (L4)
CU1 Exhaust pipe (2.0L)
# OEM CH3 CU1
18 18393-SS0-J30 Gasket - PRE-CHAMBER (57.5MM-58.5MM) Gasket - PRE-CHAMBER (57.5MM-58.5MM)
24 90115-659-003 Nut - SELF-LOCK, 8MM (CLINCH) Nut - SELF-LOCK, 8MM (CLINCH)
25 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
26 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Floor mat 3 / 10
CH3 Floor mat
CU1 Rear tray/side lining
# OEM CH3 CU1
9 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
11 90676-SE0-003 Clip - JOINT COVER PLATE Clip - JOINT COVER PLATE
18 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR
Front brake (2) 6 / 25
CH3 Front brake (2)
CU1 Front brake (1)
# OEM CH3 CU1
2 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
3 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
20 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)
21 90113-SD4-901 Bolt - WHEEL (MEIRA) Bolt - WHEEL (MEIRA)
21 90113-SD4-902 Bolt - WHEEL (SAGA) Bolt - WHEEL (SAGA)
21 90113-S84-901 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
Front bulkhead 1 / 2
CH3 Front bulkhead
CU1 Front bulkhead/dashboard
# OEM CH3 CU1
33 90105-SV1-000 Bolt-washer - 8X20 Bolt-washer - 8X20
Front door lining (LH) 2 / 8
CH3 Front door lining (LH)
CU1 Front door lining (LH)
# OEM CH3 CU1
21 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
22 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front door locks 1 / 36
CH3 Front door locks
CU1 Front door locks/ outer handle
# OEM CH3 CU1
37 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
Front door panels 4 / 27
CH3 Front door panels
CU1 Front door panels
# OEM CH3 CU1
15 75891-SA7-000 Stopper - DOOR Stopper - DOOR
16 90101-SZ3-000 Bolt - FLANGE, 8X22 (8.5MM) Bolt - FLANGE, 8X22 (8.5MM)
17 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
24 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Front door windows 2 / 15
CH3 Front door windows
CU1 Heater unit (LH)
# OEM CH3 CU1
15 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
26 39885-S5A-G01 Label - IMMOBILIZER Label - IMMOBILIZER
Front driveshaft/ half shaft (L4; '99-) 6 / 29
CH3 Front driveshaft/ half shaft (L4; '99-)
CU1 Front driveshaft/half sha ft (2.0L)
# OEM CH3 CU1
8 44319-S0A-300 Set ring - 28X2.0 Set ring - 28X2.0
8 44319-S84-300 Set ring - 28X2.0 Set ring - 28X2.0
9 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
10 44327-SX0-C02 Band - OUTBOARD BOOT (NIPPON HATSUJO) Band - OUTBOARD BOOT (NIPPON HATSUJO)
11 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
17 90102-SF1-000 Bolt - HEX., 10X1.25 Bolt - HEX., 10X1.25
Front fenders 6 / 11
CH3 Front fenders
CU1 Rear bumper
# OEM CH3 CU1
7 90501-SM4-003 Bolt - FENDER Bolt - FENDER
8 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
9 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
10 90305-SM4-003 Nut - CLIP, 6MM Nut - CLIP, 6MM
12 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
14 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Front lower arm 5 / 29
CH3 Front lower arm
CU1 Front stabilizer/ front lower arm
# OEM CH3 CU1
21 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
22 90117-S0A-000 Bolt - DAMPER LOCK(10X44) Bolt - DAMPER LOCK(10X44)
24 90121-S0A-000 Bolt - DAMPER FORK(12X98) Bolt - DAMPER FORK(12X98)
26 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
28 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Front seat (1) 3 / 14
CH3 Front seat (1)
CU1 Front seat (L.; LH)
# OEM CH3 CU1
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
26 81322-SP0-003 Clip - LUMBAR SUPPORT Clip - LUMBAR SUPPORT
43 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
Front shock absorber 7 / 18
CH3 Front shock absorber
CU1 Front shock absorber
# OEM CH3 CU1
5 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
6 51631-SV7-004 Rubber - SHOCK ABSORBER MOUNTING(SHOWA) Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
8 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
10 51689-SH3-004 Plate - BUMP STOP (SHOWA) Plate - BUMP STOP (SHOWA)
13 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
14 90300-S84-A00 Nut - SHOCK ABSORBER FLANGE (10MM) Nut - SHOCK ABSORBER FLANGE (10MM)
15 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Front windshield wiper (LH) 3 / 19
CH3 Front windshield wiper (LH)
CU1 Front windshield wiper (LH)
# OEM CH3 CU1
4 76517-SM4-003 Collar Collar
6 76524-SD4-003 Dust seal Dust seal
18 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
Fuel pipe (2) 2 / 46
CH3 Fuel pipe (2)
CU1 Intake manifold (2.0L)
# OEM CH3 CU1
34 90001-PGM-000 Bolt-washer - SPECIAL, 6X30 Bolt-washer - SPECIAL, 6X30
36 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Fuel tank 4 / 36
CH3 Fuel tank
CU1 Fuel tank
# OEM CH3 CU1
8 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
26 17711-S84-004 Retainer - WHITE)(SANOH Retainer - WHITE)(SANOH
36 90700-SB0-003 Clip - AIR BLEED TUBE Clip - AIR BLEED TUBE
41 90150-S04-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
Grommet 6 / 13
CH3 Grommet
CU1 Grommet (LOWER)
# OEM CH3 CU1
3 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
8 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
11 91613-SR3-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM
12 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
21 91610-SD4-000 Plug - HOLE, 28MM Plug - HOLE, 28MM
22 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
Harness band/bracket 6 / 21
CH3 Harness band/bracket
CU1 Harness band/bracket (LH)
# OEM CH3 CU1
4 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
15 91556-SM4-003 Clip - BAND (BLACK) (100MM) Clip - BAND (BLACK) (100MM)
16 91559-ST5-003 Clip - HARNESS BAND OFFSET(30) (NATURAL) Clip - HARNESS BAND OFFSET(30) (NATURAL)
17 91559-S47-003 Clip - HARNESS BAND(NATURAL) (167MM) Clip - HARNESS BAND(NATURAL) (167MM)
19 91571-S10-003 Clip - WIRE HARNESS (NATURAL) (130MM) Clip - WIRE HARNESS (NATURAL) (130MM)
24 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
Headlight 2 / 17
CH3 Headlight
CU1 Headlight
# OEM CH3 CU1
2 33115-S84-A11 Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
6 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
Heater blower (LH) 4 / 12
CH3 Heater blower (LH)
CU1 Heater unit (LH)
# OEM CH3 CU1
13 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
14 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
15 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
16 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater unit (LH) 4 / 15
CH3 Heater unit (LH)
CU1 Heater unit (LH)
# OEM CH3 CU1
2 39248-692-003 Packing - HEATER Packing - HEATER
14 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
15 90127-S84-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
16 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
Instrument panel (LH) 5 / 18
CH3 Instrument panel (LH)
CU1 Instrument panel (LH)
# OEM CH3 CU1
5 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
35 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
36 90666-SD4-003 Clip - FITTING Clip - FITTING
38 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
43 90110-S84-A00 Bolt-washer - 8X20 Bolt-washer - 8X20
Instrument panel garnish (LH) 3 / 17
CH3 Instrument panel garnish (LH)
CU1 Instrument panel garnish (PASSENGER SIDE; LH)
# OEM CH3 CU1
8 66418-SA5-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
36 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
38 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Intake manifold (L4) 1 / 24
CH3 Intake manifold (L4)
CU1 Water pump (2.0L)
# OEM CH3 CU1
14 18715-PB2-000 GASKET, EGR VALVE (ISHINO GASKET) GASKET, EGR VALVE (ISHINO GASKET)
Interior light 2 / 6
CH3 Interior light
CU1 Interior light (1)
# OEM CH3 CU1
5 34295-SJ8-003 Bulb - 12V 5W) (DAIICHI Bulb - 12V 5W) (DAIICHI
5 34351-657-921 Bulb - 12V/5W) (STANLEY Bulb - 12V/5W) (STANLEY
Knuckle 5 / 18
CH3 Knuckle
CU1 Front knuckle
# OEM CH3 CU1
6 51464-S04-013 Boot, UPPER BALL JOINT Boot, UPPER BALL JOINT
8 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
15 90321-SE0-000 Nut - UPPER BALL PIN, 10MM Nut - UPPER BALL PIN, 10MM
17 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
22 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
Mainshaft 3 / 21
CH3 Mainshaft
CU1 Mainshaft
# OEM CH3 CU1
14 23927-PG2-A00 Washer - SPRING, 28MM Washer - SPRING, 28MM
15 23928-PS1-000 Washer - 28MM Washer - 28MM
16 90401-PG1-000 Washer - DRAIN PLUG, 10MM Washer - DRAIN PLUG, 10MM
Mirror (2) 1 / 9
CH3 Mirror (2)
CU1 Mirror
# OEM CH3 CU1
11 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
Oil pump/oil strainer (L4) 2 / 30
CH3 Oil pump/oil strainer (L4)
CU1 Oil pump (2.0L)
# OEM CH3 CU1
14 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)
19 90015-PH1-013 Holder - OIL FILTER Holder - OIL FILTER
Parking brake 2 / 10
CH3 Parking brake
CU1 Parking brake (LH)
# OEM CH3 CU1
6 47365-538-000 Pin - EQUALIZER Pin - EQUALIZER
9 47522-594-000 Nut - PARKING BRAKE ADJUSTING Nut - PARKING BRAKE ADJUSTING
Pedal (LH) 6 / 23
CH3 Pedal (LH)
CU1 Pedal (LH)
# OEM CH3 CU1
7 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
11 46545-SA5-000 Cover, Pedal Cover, Pedal
17 46911-SD4-930 Bush - PEDAL PIN Bush - PEDAL PIN
23 75891-611-000 Cover - DOOR SWITCH Cover - DOOR SWITCH
24 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
25 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Pillar garnish (LH) 2 / 4
CH3 Pillar garnish (LH)
CU1 Rear tray/side lining
# OEM CH3 CU1
15 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
17 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Power steering gear box (L4; LH) 2 / 17
CH3 Power steering gear box (L4; LH)
CU1 P.s. gear box (EPS; LH)
# OEM CH3 CU1
10 53537-S84-A01 Rubber - STOPPER Rubber - STOPPER
17 91411-S84-A01 Nut - HEX., 14MM Nut - HEX., 14MM
Power steering gear box components (L4; LH) 3 / 23
CH3 Power steering gear box components (L4; LH)
CU1 P.s. gear box (EPS; LH)
# OEM CH3 CU1
5 53414-S84-A01 Screw - RACK GUIDE Screw - RACK GUIDE
8 53458-S84-A01 Nut - LOCK Nut - LOCK
10 53537-S84-A01 Rubber - STOPPER Rubber - STOPPER
Power steering lines (L4; LH) 1 / 23
CH3 Power steering lines (L4; LH)
CU1 Brake master cylinder/ master power (LH)
# OEM CH3 CU1
8 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Purge control solenoid valve (L4) 1 / 6
CH3 Purge control solenoid valve (L4)
CU1 Engine mounts (2.0L; AT)
# OEM CH3 CU1
5 50917-SV7-A00 Rubber - MOUNTING Rubber - MOUNTING
Radiator (L4) 4 / 13
CH3 Radiator (L4)
CU1 Radiator (2.0L)
# OEM CH3 CU1
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
12 90042-PAA-A01 Bolt-washer - 6X16 (DENSO) Bolt-washer - 6X16 (DENSO)
13 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose (L4) 5 / 12
CH3 Radiator hose (L4)
CU1 Radiator hose/reserve tan k (2.0L)
# OEM CH3 CU1
2 19102-PM5-A00 Cap - RESERVE TANK Cap - RESERVE TANK
8 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN) Clip - WATER HOSE (36.5MM) (KEIHIN)
8 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
17 74172-SM4-970 Cushion - RADIATOR MOUNTING LOWER Cushion - RADIATOR MOUNTING LOWER
18 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
Radio antenna/speaker 2 / 11
CH3 Radio antenna/speaker
CU1 Harness band/bracket (LH)
# OEM CH3 CU1
13 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
14 91545-S30-003 Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
Rear brake (DISK; L4) 3 / 41
CH3 Rear brake (DISK; L4)
CU1 Rear brake (1)
# OEM CH3 CU1
33 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
33 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
33 90113-SA0-006 Bolt - WHEEL (SAGA) Bolt - WHEEL (SAGA)
Rear door lining 2 / 7
CH3 Rear door lining
CU1 Front door lining (LH)
# OEM CH3 CU1
20 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
21 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door locks 2 / 33
CH3 Rear door locks
CU1 Front door locks/ outer handle
# OEM CH3 CU1
36 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
37 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Rear door panels 3 / 27
CH3 Rear door panels
CU1 Front door panels
# OEM CH3 CU1
19 75891-SA7-000 Stopper - DOOR Stopper - DOOR
21 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
26 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Rear door windows 1 / 22
CH3 Rear door windows
CU1 Heater unit (LH)
# OEM CH3 CU1
21 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Rear lower arm 6 / 36
CH3 Rear lower arm
CU1 Front stabilizer/ front lower arm
# OEM CH3 CU1
8 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
25 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
26 90121-S0A-000 Bolt - DAMPER FORK(12X98) Bolt - DAMPER FORK(12X98)
28 90181-S84-A00 Bolt - TRAILING ARM, 12X68 Bolt - TRAILING ARM, 12X68
29 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
31 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Rear seat 3 / 21
CH3 Rear seat
CU1 Rear seat
# OEM CH3 CU1
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
3 78182-SA0-000 Clip - RR. SEAT PIN Clip - RR. SEAT PIN
31 90140-SA5-000 Bolt - SPLASH GUARD Bolt - SPLASH GUARD
Rear shock absorber 6 / 21
CH3 Rear shock absorber
CU1 Rear shock absorber
# OEM CH3 CU1
1 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
2 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
3 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
12 52690-SG0-000 Plate - BUMP STOP Plate - BUMP STOP
16 90300-S84-A00 Nut - SHOCK ABSORBER FLANGE (10MM) Nut - SHOCK ABSORBER FLANGE (10MM)
17 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Resonator chamber (L4) 3 / 8
CH3 Resonator chamber (L4)
CU1 Air cleaner (2.0L)
# OEM CH3 CU1
1 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
3 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
8 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Seatbelt 1 / 6
CH3 Seatbelt
CU1 Harness band/bracket (LH)
# OEM CH3 CU1
18 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Shift arm 1 / 16
CH3 Shift arm
CU1 Shift fork
# OEM CH3 CU1
11 90028-PB6-010 Bolt - SPECIAL, 6X22.5 Bolt - SPECIAL, 6X22.5
Shift fork 2 / 8
CH3 Shift fork
CU1 Shift fork
# OEM CH3 CU1
7 24519-PB6-000 Screw - BALL SPRING SETTING Screw - BALL SPRING SETTING
8 90028-PB6-010 Bolt - SPECIAL, 6X22.5 Bolt - SPECIAL, 6X22.5
Shift lever 1 / 12
CH3 Shift lever
CU1 Shift lever
# OEM CH3 CU1
7 54357-SF1-003 Plate - CHANGE WIRE Plate - CHANGE WIRE
Srs unit (LH) 2 / 6
CH3 Srs unit (LH)
CU1 Srs unit (LH)
# OEM CH3 CU1
5 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
6 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Starter motor (DENSO; L4) 1 / 15
CH3 Starter motor (DENSO; L4)
CU1 Starter motor (DENSO; 2.0L)
# OEM CH3 CU1
9 31208-P3F-003 Screw - PAN, 4MM Screw - PAN, 4MM
Steering column 2 / 11
CH3 Steering column
CU1 Steering column
# OEM CH3 CU1
9 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
10 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
Steering wheel (SRS; L4) 1 / 4
CH3 Steering wheel (SRS; L4)
CU1 Steering wheel (SRS)
# OEM CH3 CU1
12 90161-SV4-003 Bolt - STEERING HANDLE Bolt - STEERING HANDLE
Taillight 7 / 19
CH3 Taillight
CU1 Taillight/license light
# OEM CH3 CU1
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
2 33303-SL4-003 Bulb - WEDGE (12V 21W) (STANLEY) Bulb - WEDGE (12V 21W) (STANLEY)
5 33513-S50-003 Socket - T20W S2 Socket - T20W S2
6 33514-S50-003 Socket - T20W S3 Socket - T20W S3
7 33515-S50-003 Socket - T20W W Socket - T20W W
16 34906-ST5-003 Bulb - 12V 21W/5W) (STANLEY Bulb - 12V 21W/5W) (STANLEY
18 90321-S06-000 Nut - HEX. CAP, 5MM Nut - HEX. CAP, 5MM
Tire/wheel disks 3 / 20
CH3 Tire/wheel disks
CU1 Tire/wheel disks
# OEM CH3 CU1
5 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
19 44737-SA0-981 Washer - WHEEL NUT (FUSE RASHI) Washer - WHEEL NUT (FUSE RASHI)
20 90304-SA0-981 Nut comp. - WHEEL (FUSE RASHI) Nut comp. - WHEEL (FUSE RASHI)
Tools/jack 1 / 6
CH3 Tools/jack
CU1 Tools/jack
# OEM CH3 CU1
7 89320-S05-003 Bar - JACK Bar - JACK
Transmission housing 2 / 53
CH3 Transmission housing
CU1 Shift arm
# OEM CH3 CU1
6 21396-P20-000 Cap - BREATHER Cap - BREATHER
12 90081-PB6-000 Bolt - PLUG, 14MM Bolt - PLUG, 14MM
Trunk lid (LH) 4 / 24
CH3 Trunk lid (LH)
CU1 Trunk lid
# OEM CH3 CU1
6 74822-SW5-003 Cushion - TRUNK HINGE Cushion - TRUNK HINGE
26 75353-671-000 Lock - SCREW Lock - SCREW
27 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
28 90109-SM4-000 Bolt - SPECIAL, 6X35 Bolt - SPECIAL, 6X35
Valve/rocker arm (VTEC; L4) 2 / 20
CH3 Valve/rocker arm (VTEC; L4)
CU1 Cylinder head (2.0L)
# OEM CH3 CU1
16 15140-P0A-000 Orifice assy - CAM JOURNAL Orifice assy - CAM JOURNAL
17 15142-PE0-000 O-ring - 4.8X1.9 O-ring - 4.8X1.9
Water pump/sensor (L4) 2 / 26
CH3 Water pump/sensor (L4)
CU1 Water pump (2.0L)
# OEM CH3 CU1
5 19305-PLC-A00 Rubber - THERMOSTAT MOUNTING Rubber - THERMOSTAT MOUNTING
23 91314-PH7-003 O-ring 31.2X4.1 (NOK) O-ring 31.2X4.1 (NOK)
Water valve (L4; LH) 3 / 7
CH3 Water valve (L4; LH)
CU1 Water hose (2.0L; LH)
# OEM CH3 CU1
5 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
6 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
6 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Wire harness (LH) 3 / 21
CH3 Wire harness (LH)
CU1 Wire harness (1; LH)
# OEM CH3 CU1
15 33301-S70-003 Bulb - 12V 3.8W 2CP Bulb - 12V 3.8W 2CP
16 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
17 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
