CG5 × CN1

共通 283 / 合計 4,076 · Jaccard 6.9%
CG5 Honda ACCORD — 2,115 中 283 共有
CN1 Honda ACCORD — 2,244 中 283 共有
283 件
Air cleaner (L4) 1 / 12
CG5 Air cleaner (L4)
CN1 Resonator chamber (DIESEL)
# OEM CG5 CN1
10 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Air conditioner (COMPRESSOR; L4) 6 / 15
CG5 Air conditioner (COMPRESSOR; L4)
CN1 Air conditioner (COMPRESS OR; DIESEL)
# OEM CG5 CN1
1 38801-P9K-E01 Valve sub assy. - SAFETY Valve sub assy. - SAFETY
3 38812-PH1-003 Ring b - SNAP Ring b - SNAP
4 38812-671-003 Ring a - SNAP Ring a - SNAP
5 38827-PH7-003 Screw-washer - 5X8 Screw-washer - 5X8
6 38829-PR3-003 Bolt - WASHER HEAD Bolt - WASHER HEAD
11 38912-PH1-N01 Plate set - WASHER Plate set - WASHER
Air conditioner (COOLING UNIT; RH) 2 / 26
CG5 Air conditioner (COOLING UNIT; RH)
CN1 Heater blower (LH)
# OEM CG5 CN1
26 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
27 91556-SP0-003 Clip - COUPLER(BROWN) Clip - COUPLER(BROWN)
Air conditioner (HOSES/PIPES; L4; RH) 1 / 18
CG5 Air conditioner (HOSES/PIPES; L4; RH)
CN1 Air conditioner (HOSES/PI PES; LH; DIESEL)
# OEM CG5 CN1
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
Alternator (DENSO; L4) 3 / 22
CG5 Alternator (DENSO; L4)
CN1 Alternator (DENSO; DIESEL)
# OEM CG5 CN1
4 31111-PT0-003 Bearing - RR. GENERATOR Bearing - RR. GENERATOR
10 31138-PD1-004 Cover - BEARING Cover - BEARING
15 31147-PT0-003 Screw-washer Screw-washer
Auto radio 1 / 6
CG5 Auto radio
CN1 Center module
# OEM CG5 CN1
6 90133-SM4-003 Bolt-washer - 5X16 Bolt-washer - 5X16
Battery (L4) 5 / 17
CG5 Battery (L4)
CN1 Battery (DIESEL)
# OEM CG5 CN1
11 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
12 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
13 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
14 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
16 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Brake lines (ABS; L4; RH) 5 / 26
CG5 Brake lines (ABS; L4; RH)
CN1 Brake lines (VSA; DIESEL; LH)
# OEM CG5 CN1
14 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
19 46393-S84-A00 Clamp - BRAKE PIPE Clamp - BRAKE PIPE
23 46435-S84-A00 Bracket - RR. BRAKE HOSE Bracket - RR. BRAKE HOSE
24 46462-SE0-000 Bolt - OIL Bolt - OIL
25 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
Brake master cylinder/ master power 4 / 19
CG5 Brake master cylinder/ master power
CN1 Brake master cylinder/ master power (LH)
# OEM CG5 CN1
13 46407-S84-A01 Clamp - TUBE Clamp - TUBE
14 46512-S70-000 Pin - PEDAL Pin - PEDAL
20 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
28 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)
Bumpers (2) 5 / 21
CG5 Bumpers (2)
CN1 Bumpers
# OEM CG5 CN1
25 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
26 90149-SA0-003 Bolt - BUMPER Bolt - BUMPER
30 91503-SZ3-003 Clip A Clip A
31 91503-SZ5-003 Clip - BUMPER FACE Clip - BUMPER FACE
33 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
Combination meter (NS) 1 / 20
CG5 Combination meter (NS)
CN1 Instrument panel garnish (DRIVER SIDE; LH)
# OEM CG5 CN1
6 37115-SA0-601 Packing - NS Packing - NS
Combination switch (RH) 4 / 23
CG5 Combination switch (RH)
CN1 Combination switch (LH)
# OEM CG5 CN1
3 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
4 35103-S04-003 Screw - RECESSED Screw - RECESSED
5 35108-S30-003 Holder - COLUMN Holder - COLUMN
18 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
Console 5 / 16
CG5 Console
CN1 Console
# OEM CG5 CN1
6 66418-579-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
27 90144-SP0-000 Screw - TAPPING, 4X16 (PO) Screw - TAPPING, 4X16 (PO)
30 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
31 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
37 90666-S84-A01 Clip - SNAP FITTING Clip - SNAP FITTING
Control unit (CABIN; RH) 1 / 17
CG5 Control unit (CABIN; RH)
CN1 Control unit (CABIN; DIESEL; LH)
# OEM CG5 CN1
20 39794-S10-003 Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)

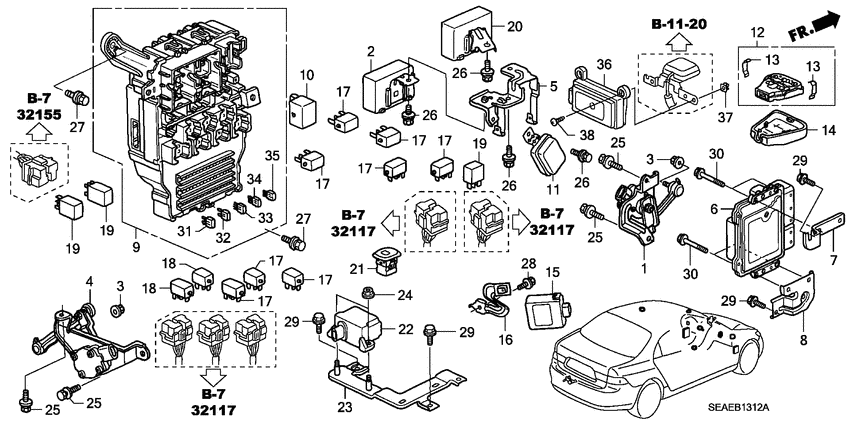

Control unit (ENGINE ROOM; RH) 3 / 23
CG5 Control unit (ENGINE ROOM; RH)
CN1 Control unit (ENGINE ROOM; DIESEL)
# OEM CG5 CN1
7 38231-S04-003 Fuse - BLOCK (30A) Fuse - BLOCK (30A)
8 38231-S04-961 Fuse - BLOCK (40A) Fuse - BLOCK (40A)
21 90150-S84-003 Bolt - EARTH, 8X16 Bolt - EARTH, 8X16
Crankshaft/piston (L4) 2 / 60
CG5 Crankshaft/piston (L4)
CN1 Crankshaft/piston (DIESEL)
# OEM CG5 CN1
7 13204-P8A-A01 Bolt - CONNECTING ROD Bolt - CONNECTING ROD
21 90704-PT0-000 Key - 4.5X38.5 Key - 4.5X38.5
Cylinder block/oil pan (L4) 5 / 33
CG5 Cylinder block/oil pan (L4)
CN1 Cylinder block/oil pan (DIESEL)
# OEM CG5 CN1
2 11106-PT0-300 Bolt - SEALING, 16MM Bolt - SEALING, 16MM
9 12207-PC6-300 Washer - SEALING, 16MM Washer - SEALING, 16MM
21 90009-P0A-000 Bolt b - MOUNTING BRACKET, 10X56.2 Bolt b - MOUNTING BRACKET, 10X56.2
27 90401-PR4-000 Washer - SEALING, 28MM Washer - SEALING, 28MM
29 90715-PC6-000 Dowel pin - 13X20 Dowel pin - 13X20
Cylinder head (L4) 3 / 22
CG5 Cylinder head (L4)
CN1 Valve stem seal/glow plug (DIESEL)
# OEM CG5 CN1
4 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
4 12210-PZ1-003 Seal a - VALVE STEM(ARAI) Seal a - VALVE STEM(ARAI)
5 12211-PZ1-003 Seal b - VALVE STEM(ARAI) Seal b - VALVE STEM(ARAI)
Cylinder head cover (L4) 1 / 12
CG5 Cylinder head cover (L4)
CN1 Cylinder head cover (DIESEL)
# OEM CG5 CN1
6 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
Duct (RH) 1 / 7
CG5 Duct (RH)
CN1 Front fenders (DIESEL)
# OEM CG5 CN1
8 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Emblems/caution labels 1 / 10
CG5 Emblems/caution labels
CN1 Emblems/caution labels
# OEM CG5 CN1
19 91512-SR3-004 Clip - TUBULAR Clip - TUBULAR

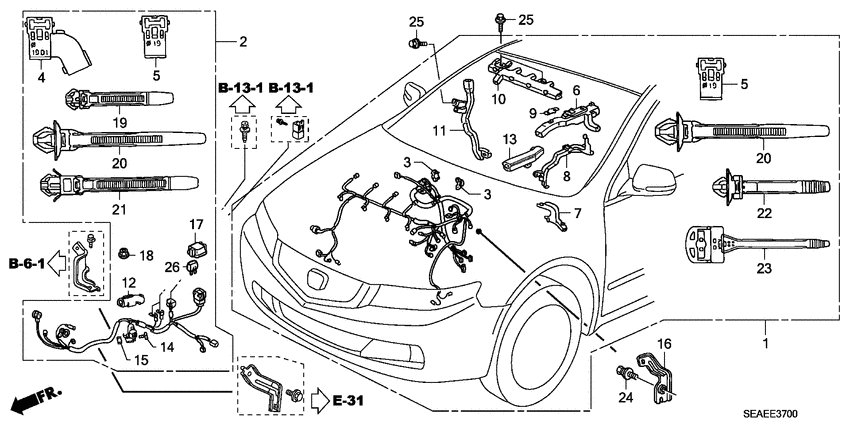

Engine wire harness (L4; RH) 5 / 17
CG5 Engine wire harness (L4; RH)
CN1 Harness band/bracket (LH)
# OEM CG5 CN1
10 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
11 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
12 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
14 91506-P01-003 Clip A - HARNESS BAND (DARK GRAY) (129.4MM) Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
18 91559-PAA-A01 Clip - HARNESS BAND(GRAY) (150MM) Clip - HARNESS BAND(GRAY) (150MM)
Exhaust manifold (L4; 1) 3 / 14
CG5 Exhaust manifold (L4; 1)
CN1 Converter (DIESEL)
# OEM CG5 CN1
8 90010-PE2-900 Bolt - SPECIAL, 10X22 Bolt - SPECIAL, 10X22
9 90015-PT0-J00 Bolt-washer - 8X14 Bolt-washer - 8X14
12 90451-PE2-000 Washer - SPECIAL, 11X28 Washer - SPECIAL, 11X28
Exhaust pipe (L4) 6 / 24
CG5 Exhaust pipe (L4)
CN1 Exhaust pipe (DIESEL)
# OEM CG5 CN1
4 18176-PT0-003 Bolt - CONVERTER Bolt - CONVERTER
5 18176-P08-003 Bolt - CONVERTER Bolt - CONVERTER
18 18393-SS0-J30 Gasket - PRE-CHAMBER (57.5MM-58.5MM) Gasket - PRE-CHAMBER (57.5MM-58.5MM)
23 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
25 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
26 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Floor mat 4 / 11
CG5 Floor mat
CN1 Rear tray/side lining
# OEM CG5 CN1
9 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
11 90676-SE0-003 Clip - JOINT COVER PLATE Clip - JOINT COVER PLATE
14 91560-S04-003 Clip - SIDE GARNISH (NATURAL) Clip - SIDE GARNISH (NATURAL)
17 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR
Front brake (L4) 1 / 22
CG5 Front brake (L4)
CN1 Front brake
# OEM CG5 CN1
19 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)
Front bulkhead 1 / 2
CG5 Front bulkhead
CN1 Front bulkhead/dashboard
# OEM CG5 CN1
29 90105-SV1-000 Bolt-washer - 8X20 Bolt-washer - 8X20
Front door lining (RH) 4 / 9
CG5 Front door lining (RH)
CN1 Front door lining (LH)
# OEM CG5 CN1
19 90101-S03-000 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
20 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)
21 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
22 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front door locks 5 / 36
CG5 Front door locks
CN1 Front door locks/outer ha ndle
# OEM CG5 CN1
4 72113-SR4-004 Snap - BLACK Snap - BLACK
20 72139-SR0-A01 Snap - VIOLET Snap - VIOLET
45 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
46 90141-S84-003 Screw - 3X10 Screw - 3X10
48 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Front door panels 6 / 26
CG5 Front door panels
CN1 Front door panels
# OEM CG5 CN1
15 75891-SA7-000 Stopper - DOOR Stopper - DOOR
16 90101-SZ3-000 Bolt - FLANGE, 8X22 (8.5MM) Bolt - FLANGE, 8X22 (8.5MM)
17 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
22 91568-SR2-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
22 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
24 91651-S84-A00 Seal - DOOR PANEL HOLE Seal - DOOR PANEL HOLE
Front door windows 2 / 15
CG5 Front door windows
CN1 Harness band/bracket (LH)
# OEM CG5 CN1
15 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
16 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Front driveshaft (L4; 2) 4 / 21
CG5 Front driveshaft (L4; 2)
CN1 Front driveshaft/ half shaft
# OEM CG5 CN1
9 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
10 44327-SX0-C02 Band - OUTBOARD BOOT (NIPPON HATSUJO) Band - OUTBOARD BOOT (NIPPON HATSUJO)
11 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
19 90305-SD4-003 Nut - SPINDLE (24MM) Nut - SPINDLE (24MM)

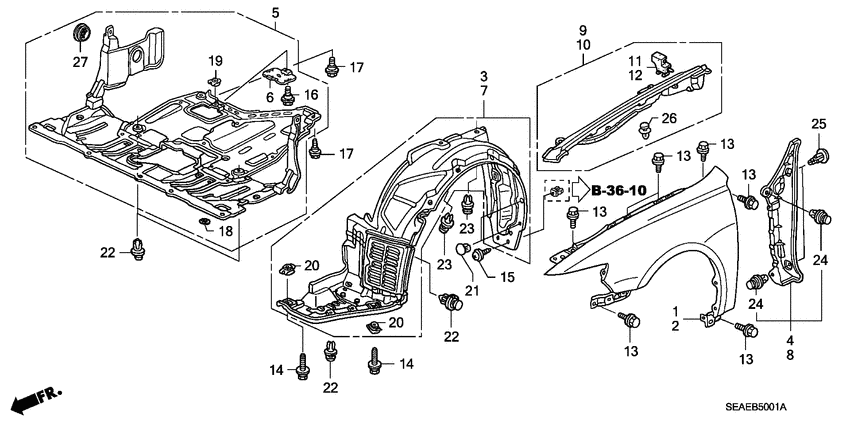

Front fenders 7 / 11
CG5 Front fenders
CN1 Bumpers
# OEM CG5 CN1
7 90501-SM4-003 Bolt - FENDER Bolt - FENDER
8 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
9 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
10 90305-SM4-003 Nut - CLIP, 6MM Nut - CLIP, 6MM
12 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
13 91503-SZ5-003 Clip - BUMPER FACE Clip - BUMPER FACE
14 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Front grille (2) 2 / 6
CG5 Front grille (2)
CN1 Front grille (1)
# OEM CG5 CN1
5 90301-ST0-003 push nut, 3mm push nut, 3mm
6 91503-SZ3-003 Clip A Clip A
Front lower arm 5 / 29
CG5 Front lower arm
CN1 Front stabilizer/ front lower arm
# OEM CG5 CN1
21 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
22 90117-S0A-000 Bolt - DAMPER LOCK(10X44) Bolt - DAMPER LOCK(10X44)
24 90121-S0A-000 Bolt - DAMPER FORK(12X98) Bolt - DAMPER FORK(12X98)
26 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
28 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Front seat 4 / 18
CG5 Front seat
CN1 Front seat (L.; LH; 1)
# OEM CG5 CN1
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
25 81322-SP0-003 Clip - LUMBAR SUPPORT Clip - LUMBAR SUPPORT
40 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
Front shock absorber 7 / 18
CG5 Front shock absorber
CN1 Front shock absorber
# OEM CG5 CN1
5 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
6 51631-SV7-004 Rubber - SHOCK ABSORBER MOUNTING(SHOWA) Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
8 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
10 51689-SH3-004 Plate - BUMP STOP (SHOWA) Plate - BUMP STOP (SHOWA)
13 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
14 90300-S84-A00 Nut - SHOCK ABSORBER FLANGE (10MM) Nut - SHOCK ABSORBER FLANGE (10MM)
15 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Front windshield wiper (RH) 4 / 19
CG5 Front windshield wiper (RH)
CN1 Front windshield wiper (LH)
# OEM CG5 CN1
4 76517-SM4-003 Collar Collar
6 76524-SD4-003 Dust seal Dust seal
7 76524-SE0-013 Dust seal Dust seal
18 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
Fuel pipe (1) 1 / 34
CG5 Fuel pipe (1)
CN1 Air conditioner (HOSES/PI PES; LH; DIESEL)
# OEM CG5 CN1
28 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Fuel tank 6 / 37
CG5 Fuel tank
CN1 Fuel tank (DIESEL)
# OEM CG5 CN1
8 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
9 17551-S84-A01 Packing Packing
26 17711-S84-004 Retainer - WHITE)(SANOH Retainer - WHITE)(SANOH
33 90101-S84-000 Bolt-washer - 5X10 Bolt-washer - 5X10
38 91601-SH3-013 Grommet - SCREW, 5MM (BLACK) Grommet - SCREW, 5MM (BLACK)
40 90150-S04-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
Grommet 10 / 13
CG5 Grommet
CN1 Grommet (FRONT)
# OEM CG5 CN1
2 91611-SS0-003 Plug - HOLE, 25MM Plug - HOLE, 25MM
3 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
4 90615-SR3-000 Cap - WELD HOLE, 51X77 Cap - WELD HOLE, 51X77
7 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
8 91611-SM4-003 Plug - FLOOR HOLE, 25MM Plug - FLOOR HOLE, 25MM
10 91613-SR3-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM
11 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
20 91602-SV4-003 Plug - HOLE, 15MM Plug - HOLE, 15MM
21 91610-SD4-000 Plug - HOLE, 28MM Plug - HOLE, 28MM
22 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
Harness band/bracket 15 / 29
CG5 Harness band/bracket
CN1 Harness band/bracket (LH)
# OEM CG5 CN1
4 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
5 32146-SH3-003 Connector - DIODE(2P) Connector - DIODE(2P)
14 91551-SW5-003 Clip - HARNESS BAND (BROWN) (151MM) Clip - HARNESS BAND (BROWN) (151MM)
17 91559-S47-003 Clip - HARNESS BAND(NATURAL) (167MM) Clip - HARNESS BAND(NATURAL) (167MM)
22 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
25 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
26 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
27 91510-SA5-003 Clip - OFFSET(10)(BROWN)(50MM) Clip - OFFSET(10)(BROWN)(50MM)
32 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
33 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
34 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
35 91545-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
37 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
38 91556-SP0-003 Clip - COUPLER(BROWN) Clip - COUPLER(BROWN)
39 91577-SS0-003 Clip - WIRE HARNESS (BLUE) (122.5MM) Clip - WIRE HARNESS (BLUE) (122.5MM)
Headlight 1 / 17
CG5 Headlight
CN1 Headlight
# OEM CG5 CN1
6 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
Heater blower (RH) 5 / 15
CG5 Heater blower (RH)
CN1 Heater unit (LH)
# OEM CG5 CN1
2 79191-SZ3-A01 Nut - HOLDER Nut - HOLDER
13 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
14 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
15 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
16 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater unit (RH) 5 / 18
CG5 Heater unit (RH)
CN1 Heater unit (LH)
# OEM CG5 CN1
2 39248-692-003 Packing - HEATER Packing - HEATER
12 79770-SE0-000 Grommet - WATER VALVE CABLE Grommet - WATER VALVE CABLE
13 80534-S84-A41 Aspirator Aspirator
15 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
17 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
Hood (RH) 7 / 29
CG5 Hood (RH)
CN1 Engine hood (LH)
# OEM CG5 CN1
24 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
26 90601-S84-A01 Grommet - HOOD OPEN STAY Grommet - HOOD OPEN STAY
28 91501-S1K-003 Clip - ENGINE HOOD INSULATOR Clip - ENGINE HOOD INSULATOR
34 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
35 91558-SE3-003 Clip - HOOD WIRE Clip - HOOD WIRE
38 91602-SZ5-000 Cushion - HOOD (11.6MM) Cushion - HOOD (11.6MM)
39 91603-SZ5-000 Cushion - HOOD (25MM) Cushion - HOOD (25MM)
Install pipe/tubing (L4) 1 / 3
CG5 Install pipe/tubing (L4)
CN1 Install pipe/vacuum pump (DIESEL)
# OEM CG5 CN1
3 90634-PA0-000 Cap - SEALING Cap - SEALING
Instrument panel (RH) 9 / 16
CG5 Instrument panel (RH)
CN1 Instrument panel (LH)
# OEM CG5 CN1
4 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
30 90104-SV4-000 Bolt-washer - 8X25 Bolt-washer - 8X25
31 90106-S84-A00 Bolt-washer - 8X40 Bolt-washer - 8X40
32 90108-S84-A00 Bolt-washer - 8MM(SRS) Bolt-washer - 8MM(SRS)
34 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
36 90666-S84-A01 Clip - SNAP FITTING Clip - SNAP FITTING
37 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
38 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
42 90110-S84-A00 Bolt-washer - 8X20 Bolt-washer - 8X20
Instrument panel garnish (RH) 3 / 16
CG5 Instrument panel garnish (RH)
CN1 Instrument panel garnish (DRIVER SIDE; LH)
# OEM CG5 CN1
36 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
37 90666-S84-A01 Clip - SNAP FITTING Clip - SNAP FITTING
38 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Interior light 2 / 10
CG5 Interior light
CN1 Interior light
# OEM CG5 CN1
5 34295-SJ8-003 Bulb - 12V 5W) (DAIICHI Bulb - 12V 5W) (DAIICHI
5 34351-657-921 Bulb - 12V/5W) (STANLEY Bulb - 12V/5W) (STANLEY
Knuckle 4 / 16
CG5 Knuckle
CN1 Front knuckle/upper arm
# OEM CG5 CN1
6 51464-S04-013 Boot, UPPER BALL JOINT Boot, UPPER BALL JOINT
7 52226-SL0-003 Circlip - LOWER BALL(MUSASHI) Circlip - LOWER BALL(MUSASHI)
8 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
17 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Mirror (2) 2 / 9
CG5 Mirror (2)
CN1 Mirror
# OEM CG5 CN1
11 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
12 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Oil level gauge (L4) 1 / 8
CG5 Oil level gauge (L4)
CN1 Turbocharger (DIESEL)
# OEM CG5 CN1
6 25951-639-000 Bolt - JOINT Bolt - JOINT
Outer panels 1 / 7
CG5 Outer panels
CN1 Outer panels/rear panel
# OEM CG5 CN1
27 70495-692-000 Cushion - FUEL FILLER LID Cushion - FUEL FILLER LID
P.s. pump/bracket (L4) 6 / 18
CG5 P.s. pump/bracket (L4)
CN1 Power steering pump (DIESEL)
# OEM CG5 CN1
8 90105-S50-003 Bolt - FLANGE, 8X28 Bolt - FLANGE, 8X28
9 90305-PAA-A01 Nut - POWER STEERING PULLEY Nut - POWER STEERING PULLEY
10 90693-P2A-003 Circlip - INTERNAL, 40MM Circlip - INTERNAL, 40MM
11 91048-P2A-003 Bearing - RADIAL BALL, 17X40X12 Bearing - RADIAL BALL, 17X40X12
13 91347-PAA-A01 O-ring - 16.7X1.8 O-ring - 16.7X1.8
15 91348-P2A-003 O-ring - 51.0X2.4 O-ring - 51.0X2.4
Parking brake 6 / 10
CG5 Parking brake
CN1 Parking brake (LH)
# OEM CG5 CN1
4 47342-SZ3-003 Switch - PARKING BRAKE Switch - PARKING BRAKE
5 47360-SB2-000 Equalizer Equalizer
6 47365-538-000 Pin - EQUALIZER Pin - EQUALIZER
9 47522-594-000 Nut - PARKING BRAKE ADJUSTING Nut - PARKING BRAKE ADJUSTING
10 47537-671-670 Spring - PARKING BRAKE ROD Spring - PARKING BRAKE ROD
13 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Pedal (RH) 4 / 14
CG5 Pedal (RH)
CN1 Pedal (LH)
# OEM CG5 CN1
9 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
10 46505-SA7-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
25 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
26 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Pillar garnish (RH) 3 / 4
CG5 Pillar garnish (RH)
CN1 Rear tray/side lining
# OEM CG5 CN1
15 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
16 91560-S84-A11 Clip - PILLAR GARNISH(BLACK) Clip - PILLAR GARNISH(BLACK)
17 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Power steering gear box (RH) 5 / 17
CG5 Power steering gear box (RH)
CN1 P.s. gear box (LH)
# OEM CG5 CN1
2 53434-S84-A01 Clip - STEERING TIE ROD Clip - STEERING TIE ROD
5 53449-S84-A01 Band - BELLOWS Band - BELLOWS
10 53537-S84-A01 Rubber - STOPPER Rubber - STOPPER
12 53546-S84-003 Boot - TIE ROD END (NOK) Boot - TIE ROD END (NOK)
17 91411-S84-A01 Nut - HEX., 14MM Nut - HEX., 14MM
Power steering gear box components (RH) 10 / 23
CG5 Power steering gear box components (RH)
CN1 P.s. gear box components (LH)
# OEM CG5 CN1
3 06534-S84-A01 Ring set - POWER STEERING SEAL (ROTARY VALVE) Ring set - POWER STEERING SEAL (ROTARY VALVE)
4 53413-S0K-A01 Spring - RACK GUIDE PRESSURE Spring - RACK GUIDE PRESSURE
5 53414-S84-A01 Screw - RACK GUIDE Screw - RACK GUIDE
7 53449-S84-A01 Band - BELLOWS Band - BELLOWS
8 53458-S84-A01 Nut - LOCK Nut - LOCK
10 53537-S84-A01 Rubber - STOPPER Rubber - STOPPER
16 53660-S50-003 Oil seal - 27X38X5.5 (SHOWA) Oil seal - 27X38X5.5 (SHOWA)
18 06535-S50-003 Ring set - POWER STEERING SEAL (ROTARY VALVE) Ring set - POWER STEERING SEAL (ROTARY VALVE)
19 53666-S50-003 O-ring - 41.5X2 (SHOWA) O-ring - 41.5X2 (SHOWA)
22 90105-S50-003 Bolt - FLANGE, 8X28 Bolt - FLANGE, 8X28
Power steering lines (L4; RH) 6 / 22
CG5 Power steering lines (L4; RH)
CN1 P.s. lines (DIESEL; LH)
# OEM CG5 CN1
1 53697-SB3-952 Cap - OIL TANK Cap - OIL TANK
8 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
14 53736-SH3-950 Holder b - POWER STEERING PIPE Holder b - POWER STEERING PIPE
18 90635-SM4-A02 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
20 91370-SV4-000 O-ring - 14.4X1.9 O-ring - 14.4X1.9
21 91405-SS0-003 Clamp - TUBE (D21) Clamp - TUBE (D21)
Protector 2 / 12
CG5 Protector
CN1 Side sill garnish
# OEM CG5 CN1
16 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
17 91513-SM4-000 Clip - SIDE SILL UPPER GARNISH Clip - SIDE SILL UPPER GARNISH
R. side cover (L4) 1 / 34
CG5 R. side cover (L4)
CN1 Engine wire harness (LH; DIESEL)
# OEM CG5 CN1
31 91506-P01-003 Clip A - HARNESS BAND (DARK GRAY) (129.4MM) Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
Radiator (L4) 5 / 13
CG5 Radiator (L4)
CN1 Radiator (DIESEL)
# OEM CG5 CN1
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
11 90041-P5A-003 Screw-washer - 4X11 Screw-washer - 4X11
12 90042-PAA-A01 Bolt-washer - 6X16 (DENSO) Bolt-washer - 6X16 (DENSO)
13 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose (L4) 3 / 23
CG5 Radiator hose (L4)
CN1 Radiator hose/reserve tan k (DIESEL)
# OEM CG5 CN1
8 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN) Clip - WATER HOSE (36.5MM) (KEIHIN)
8 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
18 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
Radio antenna/speaker 2 / 13
CG5 Radio antenna/speaker
CN1 Radio antenna/speaker
# OEM CG5 CN1
10 90132-SV4-003 Screw - ET, 5X16 Screw - ET, 5X16
13 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Rear beam/cross beam 2 / 12
CG5 Rear beam/cross beam
CN1 Front beam/rear beam (DIESEL)
# OEM CG5 CN1
27 91613-SE0-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM
28 91613-S84-A01 Grommet - RR. SUB FRAME Grommet - RR. SUB FRAME
Rear brake (DISK; L4) 1 / 36
CG5 Rear brake (DISK; L4)
CN1 Front brake
# OEM CG5 CN1
33 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
Rear door lining 4 / 8
CG5 Rear door lining
CN1 Front door lining (LH)
# OEM CG5 CN1
18 90101-S03-000 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
19 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)
20 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
21 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door locks 5 / 33
CG5 Rear door locks
CN1 Front door locks/outer ha ndle
# OEM CG5 CN1
5 72139-SR0-A01 Snap - VIOLET Snap - VIOLET
10 72139-S0A-003 Snap - PINK Snap - PINK
36 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
37 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
38 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Rear door panels 5 / 28
CG5 Rear door panels
CN1 Front door panels
# OEM CG5 CN1
19 75891-SA7-000 Stopper - DOOR Stopper - DOOR
20 90101-SZ3-000 Bolt - FLANGE, 8X22 (8.5MM) Bolt - FLANGE, 8X22 (8.5MM)
21 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
25 91568-SR2-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
25 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
Rear door windows 1 / 22
CG5 Rear door windows
CN1 Heater unit (LH)
# OEM CG5 CN1
21 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Rear lower arm 14 / 36
CG5 Rear lower arm
CN1 Rear lower arm
# OEM CG5 CN1
5 52308-SZ5-000 Holder - STABILIZER BUSH Holder - STABILIZER BUSH
8 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
21 52454-S84-A01 Boot - UPPER DUST Boot - UPPER DUST
21 06511-TY2-A01 Boot Boot
22 57452-S84-A50 Bracket - RR. COUPLER Bracket - RR. COUPLER
25 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
26 90121-S0A-000 Bolt - DAMPER FORK(12X98) Bolt - DAMPER FORK(12X98)
27 90173-S84-A00 Bolt - RR. UPPER ARM Bolt - RR. UPPER ARM
28 90181-S84-A00 Bolt - TRAILING ARM, 12X68 Bolt - TRAILING ARM, 12X68
29 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
30 90216-SE0-010 Nut Nut
30 90216-SE0-305 NUT, LWR ARM NUT, LWR ARM
31 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
36 90701-SX0-003 Clip - UPPER ARM Clip - UPPER ARM
Rear seat 7 / 26
CG5 Rear seat
CN1 Rear seat
# OEM CG5 CN1
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
3 78182-SA0-000 Clip - RR. SEAT PIN Clip - RR. SEAT PIN
9 82129-SM4-A00 Collar c Collar c
12 82137-S84-A01 Clip - RR. SEAT CUSHION Clip - RR. SEAT CUSHION
30 90003-692-000 Bolt - FLANGE, 6X16 Bolt - FLANGE, 6X16
31 90140-SA5-000 Bolt - SPLASH GUARD Bolt - SPLASH GUARD
Rear shock absorber 8 / 21
CG5 Rear shock absorber
CN1 Rear shock absorber
# OEM CG5 CN1
1 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
2 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
3 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
9 52675-S84-A01 Base - RR. SHOCK ABSORBER MOUNTING (A.S.I. SHOWA) Base - RR. SHOCK ABSORBER MOUNTING (A.S.I. SHOWA)
12 52690-SG0-000 Plate - BUMP STOP Plate - BUMP STOP
16 90300-S84-A00 Nut - SHOCK ABSORBER FLANGE (10MM) Nut - SHOCK ABSORBER FLANGE (10MM)
17 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
18 52689-SG0-014 End - DUST COVER End - DUST COVER
Rear tray/side lining 2 / 7
CG5 Rear tray/side lining
CN1 Front fenders (DIESEL)
# OEM CG5 CN1
22 91560-S04-003 Clip - SIDE GARNISH (NATURAL) Clip - SIDE GARNISH (NATURAL)
27 75353-671-000 Lock - SCREW Lock - SCREW
Rear windshield 2 / 8
CG5 Rear windshield
CN1 Rear windshield
# OEM CG5 CN1
6 91563-SV4-003 Fastener a - RR. WINDSHIELD Fastener a - RR. WINDSHIELD
7 91568-SV4-003 Fastener b - RR. WINDSHIELD Fastener b - RR. WINDSHIELD
Resonator chamber (L4) 2 / 8
CG5 Resonator chamber (L4)
CN1 Resonator chamber (DIESEL)
# OEM CG5 CN1
2 17213-PV0-000 Rubber - AIR CLEANER CASE MOUNTING Rubber - AIR CLEANER CASE MOUNTING
8 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Roof lining 2 / 6
CG5 Roof lining
CN1 Roof lining
# OEM CG5 CN1
14 90137-S30-003 Screw - ET, 6X18 Screw - ET, 6X18
14 90136-S30-003 Screw - ET, 5X18 Screw - ET, 5X18
Seatbelt 2 / 5
CG5 Seatbelt
CN1 Seatbelts
# OEM CG5 CN1
16 90133-SZ4-003 Screw - ET, 7X16 Screw - ET, 7X16
16 90101-S84-A00 Screw - ET, 6X16 Screw - ET, 6X16
Sensor/solenoid (L4) 1 / 29
CG5 Sensor/solenoid (L4)
CN1 Transmission case (DIESEL)
# OEM CG5 CN1
20 91309-PX4-003 O-ring - 16X2.1 (NOK) O-ring - 16X2.1 (NOK)
Srs unit (RH; 2) 4 / 9
CG5 Srs unit (RH; 2)
CN1 Srs unit (LH)
# OEM CG5 CN1
1 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
9 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
10 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
11 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Steering column 2 / 11
CG5 Steering column
CN1 Steering column
# OEM CG5 CN1
9 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
10 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
Steering wheel (SRS; L4) 1 / 4
CG5 Steering wheel (SRS; L4)
CN1 Steering wheel (SRS; 2)
# OEM CG5 CN1
12 90161-SV4-003 Bolt - STEERING HANDLE Bolt - STEERING HANDLE
Taillight 7 / 19
CG5 Taillight
CN1 Taillight/license light
# OEM CG5 CN1
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
2 33303-SL4-003 Bulb - WEDGE (12V 21W) (STANLEY) Bulb - WEDGE (12V 21W) (STANLEY)
5 33513-S50-003 Socket - T20W S2 Socket - T20W S2
6 33514-S50-003 Socket - T20W S3 Socket - T20W S3
7 33515-S50-003 Socket - T20W W Socket - T20W W
16 34906-ST5-003 Bulb - 12V 21W/5W) (STANLEY Bulb - 12V 21W/5W) (STANLEY
21 90321-S06-000 Nut - HEX. CAP, 5MM Nut - HEX. CAP, 5MM
Tire/wheel disks 2 / 17
CG5 Tire/wheel disks
CN1 Tire/wheel disks
# OEM CG5 CN1
5 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
17 90381-S4L-003 Nut - WHEEL(FUSE RASHI) Nut - WHEEL(FUSE RASHI)
Tools/jack 2 / 8
CG5 Tools/jack
CN1 Tools/jack
# OEM CG5 CN1
4 89211-S05-003 Wrench - WHEEL Wrench - WHEEL
8 89320-S05-003 Bar - JACK Bar - JACK
Torque converter housing (L4) 1 / 13
CG5 Torque converter housing (L4)
CN1 Transmission case (DIESEL)
# OEM CG5 CN1
11 91205-P0X-005 Oil seal - 40X56X9 (NOK) Oil seal - 40X56X9 (NOK)
Trunk lid (RH) 9 / 26
CG5 Trunk lid (RH)
CN1 Trunk lid
# OEM CG5 CN1
1 17706-SC3-003 Clip - FUEL PIPE Clip - FUEL PIPE
6 73219-693-951 Seal - FUEL LID OPENER (GREEN) Seal - FUEL LID OPENER (GREEN)
7 74822-SW5-003 Cushion - TRUNK HINGE Cushion - TRUNK HINGE
16 74864-S30-003 Cover Cover
21 74873-SM4-003 Clip - TRUNK OPENER SPRING Clip - TRUNK OPENER SPRING
27 75353-671-000 Lock - SCREW Lock - SCREW
28 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
29 90109-SM4-000 Bolt - SPECIAL, 6X35 Bolt - SPECIAL, 6X35
35 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
Valve/rocker arm (VTEC; L4) 1 / 20
CG5 Valve/rocker arm (VTEC; L4)
CN1 Oil pump (DIESEL)
# OEM CG5 CN1
17 15142-PE0-000 O-ring - 4.8X1.9 O-ring - 4.8X1.9
Water pump/sensor (L4) 4 / 26
CG5 Water pump/sensor (L4)
CN1 Radiator (DIESEL)
# OEM CG5 CN1
12 19516-PC1-000 Bolt - BREATHING WATER Bolt - BREATHING WATER
15 37760-P00-003 Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
21 91307-PN4-000 O-ring - 17.5X1.4 O-ring - 17.5X1.4
21 91307-PN3-000 O-ring,17.8x1.4 O-ring,17.8x1.4
Water valve (L4; RH) 3 / 8
CG5 Water valve (L4; RH)
CN1 Radiator hose/reserve tan k (DIESEL)
# OEM CG5 CN1
6 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
7 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
7 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Wire harness (RH) 3 / 17
CG5 Wire harness (RH)
CN1 Wire harness (LH)
# OEM CG5 CN1
15 33301-S70-003 Bulb - 12V 3.8W 2CP Bulb - 12V 3.8W 2CP
16 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
17 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
