CG5 × CL3

共通 559 / 合計 3,596 · Jaccard 15.5%
CG5 Honda ACCORD — 2,115 中 559 共有
CL3 Honda ACCORD — 2,040 中 559 共有
559 件
Air cleaner (L4) 1 / 12
CG5 Air cleaner (L4)
CL3 Air cleaner
# OEM CG5 CL3
10 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Air conditioner (COMPRESSOR; L4) 8 / 15
CG5 Air conditioner (COMPRESSOR; L4)
CL3 Air conditioner (COMPRESSOR; 2)
# OEM CG5 CL3
1 38801-P9K-E01 Valve sub assy. - SAFETY Valve sub assy. - SAFETY
3 38812-PH1-003 Ring b - SNAP Ring b - SNAP
4 38812-671-003 Ring a - SNAP Ring a - SNAP
5 38827-PH7-003 Screw-washer - 5X8 Screw-washer - 5X8
6 38829-PR3-003 Bolt - WASHER HEAD Bolt - WASHER HEAD
11 38912-PH1-N01 Plate set - WASHER Plate set - WASHER
14 38930-PAA-A00 Bracket - COMPRESSOR Bracket - COMPRESSOR
15 90023-P8A-A00 Bolt - FLANGE, 8X85 Bolt - FLANGE, 8X85
Air conditioner (CONDENSER) 1 / 12
CG5 Air conditioner (CONDENSER)
CL3 Air conditioner (CONDENSER)
# OEM CG5 CL3
8 80175-SE0-000 Mount - CONDENSER Mount - CONDENSER
Air conditioner (COOLING UNIT; RH) 5 / 26
CG5 Air conditioner (COOLING UNIT; RH)
CL3 Air conditioner (HOSES/PIPES; LH)
# OEM CG5 CL3
23 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
24 80873-ST7-000 O-ring - 8MM O-ring - 8MM
25 90155-SE0-003 Screw - TAPPING, 6X20 Screw - TAPPING, 6X20
26 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
27 91556-SP0-003 Clip - COUPLER(BROWN) Clip - COUPLER(BROWN)
Air conditioner (HOSES/PIPES; L4; RH) 7 / 18
CG5 Air conditioner (HOSES/PIPES; L4; RH)
CL3 Air conditioner (HOSES/PIPES; LH)
# OEM CG5 CL3
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
11 80381-SV7-A01 Clamp - RECEIVER PIPE Clamp - RECEIVER PIPE
13 80440-SS0-901 Switch - DUAL PRESSURE (FUJI) Switch - DUAL PRESSURE (FUJI)
15 80866-ST7-A11 Cap l - VALVE (PARKER) Cap l - VALVE (PARKER)
16 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
17 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
18 80873-ST7-000 O-ring - 8MM O-ring - 8MM

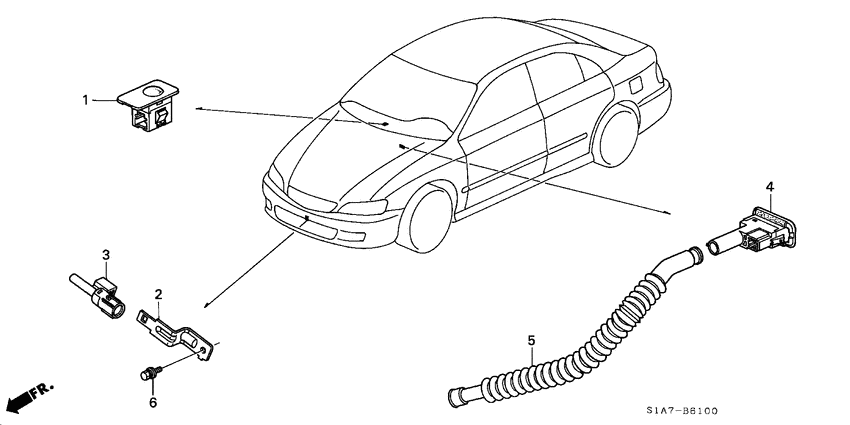

Air conditioner (SENSOR) 2 / 5
CG5 Air conditioner (SENSOR)
CL3 Air conditioner (SENSOR)
# OEM CG5 CL3
3 80525-SS0-942 Sensor - AMBIENT Sensor - AMBIENT
6 90666-SD4-003 Clip - FITTING Clip - FITTING
Alternator bracket (L4) 3 / 7
CG5 Alternator bracket (L4)
CL3 Alternator bracket (1.8L/2.0L/2.2L/2.3L)
# OEM CG5 CL3
1 11950-PAA-A00 Stiffener - ENGINE Stiffener - ENGINE
7 90313-PT0-000 Bolt - SPECIAL, 10X90 Bolt - SPECIAL, 10X90
16 90051-PE0-000 Bolt - FLANGE, 12X70 Bolt - FLANGE, 12X70
Battery (L4) 7 / 17
CG5 Battery (L4)
CL3 Battery
# OEM CG5 CL3
8 32412-S84-A00 Bracket - STARTER CABLE Bracket - STARTER CABLE
11 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
12 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
13 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
14 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
15 91507-SL9-003 Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
16 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Brake lines (ABS; L4; RH) 4 / 26
CG5 Brake lines (ABS; L4; RH)
CL3 Brake lines (ABS; LH)
# OEM CG5 CL3
14 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
15 46391-SX8-T01 Clip - BRAKE PIPE Clip - BRAKE PIPE
24 46462-SE0-000 Bolt - OIL Bolt - OIL
25 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
Brake master cylinder/ master power 11 / 19
CG5 Brake master cylinder/ master power
CL3 Brake master cylinder/ master power
# OEM CG5 CL3
3 46120-S84-A51 Piston assy. - PRIMARY Piston assy. - PRIMARY
4 46122-S84-A51 Piston assy. - SECONDARY Piston assy. - SECONDARY
5 46151-SB2-003 Yoke - PUSH ROD (NISSIN) Yoke - PUSH ROD (NISSIN)
6 46182-S84-A51 Circlip Circlip
7 46185-S04-J01 Seal - ROD Seal - ROD
13 46407-S84-A01 Clamp - TUBE Clamp - TUBE
17 46665-S04-J01 Grommet Grommet
18 46666-S04-J01 Filter - BRAKE RESERVOIR Filter - BRAKE RESERVOIR
19 46669-692-003 Seal - RESERVE TANK Seal - RESERVE TANK
20 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
21 57515-S30-003 Pin - STOP Pin - STOP
Breather tube (L4) 2 / 5
CG5 Breather tube (L4)
CL3 Breather tube (1.8L/2.0L/2.2L/2.3L)
# OEM CG5 CL3
4 17138-P0A-000 Tube - BREATHER Tube - BREATHER
5 17139-PK1-000 Grommet - PCV VALVE Grommet - PCV VALVE
Bumpers (2) 7 / 21
CG5 Bumpers (2)
CL3 Bumpers
# OEM CG5 CL3
20 71598-S30-013 Spacer assy. - RR. BUMPER SIDE Spacer assy. - RR. BUMPER SIDE
21 90106-SW3-003 Grommet - BUMPER SETTING Grommet - BUMPER SETTING
22 90107-S0X-A01 Grommet - BUMPER END Grommet - BUMPER END
23 90108-SW3-003 Clip - BUMPER SETTING Clip - BUMPER SETTING
24 90109-SS0-000 Screw - TAPPING, 5X20 Screw - TAPPING, 5X20
30 91503-SZ3-003 Clip A Clip A
31 91503-SZ5-003 Clip - BUMPER FACE Clip - BUMPER FACE
Camshaft/timing belt (L4) 13 / 25
CG5 Camshaft/timing belt (L4)
CL3 Camshaft/timing belt (1.8L/2.0L/2.3L)
# OEM CG5 CL3
8 13405-PAA-A02 Belt - BALANCER TIMING (UNITTA) (70RU16 B-333) Belt - BALANCER TIMING (UNITTA) (70RU16 B-333)
9 13407-P0A-000 Spring - BELT ADJUSTER Spring - BELT ADJUSTER
10 13415-P0A-000 Bracket - BALANCER BELT ADJUSTER Bracket - BALANCER BELT ADJUSTER
15 14516-P0A-000 Spring comp - TIMING BELT ADJUSTER Spring comp - TIMING BELT ADJUSTER
16 90007-679-000 Bolt a - TIMING BELT COVER Bolt a - TIMING BELT COVER
17 90015-PT0-000 Bolt - TIMING BELT ADJUSTER SPRING Bolt - TIMING BELT ADJUSTER SPRING
19 90031-PV0-003 Bolt-washer - 10X30 Bolt-washer - 10X30
19 90031-PV0-305 Bolt-washer (10x30) Bolt-washer (10x30)
20 90051-PT0-000 Bolt - SUB BELT ADJUSTER SPRING Bolt - SUB BELT ADJUSTER SPRING
21 90216-PAA-A00 Nut - 10MM Nut - 10MM
22 90401-PAA-A00 Rubber - TIMING BELT ADJUSTING BOLT Rubber - TIMING BELT ADJUSTING BOLT
23 90501-MB7-610 Washer - 10.3X25 Washer - 10.3X25
24 91213-PT0-003 Oil seal - 28X42X8 (ARAI) Oil seal - 28X42X8 (ARAI)
Combination meter (NS) 4 / 20
CG5 Combination meter (NS)
CL3 Combination meter components
# OEM CG5 CL3
1 35505-SA5-003 Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2 35505-SJ4-003 Socket assy - BULB (14V 3W) Socket assy - BULB (14V 3W)
6 37115-SA0-601 Packing - NS Packing - NS
20 78181-SS0-003 Socket assy - BULB (14V 1.12W) Socket assy - BULB (14V 1.12W)
Combination switch (RH) 6 / 23
CG5 Combination switch (RH)
CL3 Combination switch
# OEM CG5 CL3
14 35400-S0A-003 Switch assy - DOOR Switch assy - DOOR
16 35409-S0A-003 Screw - FLANGE, 4X12 Screw - FLANGE, 4X12
18 72118-ST7-003 Screw - TAPPING, 3X5 Screw - TAPPING, 3X5
21 72148-S10-003 Battery - CR2025 Battery - CR2025
21 72148-S84-A10 Battery - CR2025 Battery - CR2025
22 72149-S10-003 O-ring O-ring
Console 4 / 16
CG5 Console
CL3 Console (2)
# OEM CG5 CL3
29 90666-SD4-003 Clip - FITTING Clip - FITTING
30 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
31 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
37 90666-S84-A01 Clip - SNAP FITTING Clip - SNAP FITTING
Control unit (CABIN; RH) 2 / 17
CG5 Control unit (CABIN; RH)
CL3 Control unit (CABIN; LH)
# OEM CG5 CL3
20 39794-S10-003 Relay assy - POWER(5P) (MICRO ISO)(MITSUBA) Relay assy - POWER(5P) (MICRO ISO)(MITSUBA)
22 91755-SX0-010 Bracket - RELAY BLOCK (ISO) Bracket - RELAY BLOCK (ISO)
Control unit (ENGINE ROOM; RH) 9 / 23
CG5 Control unit (ENGINE ROOM; RH)
CL3 Control unit (ENGINE ROOM; LH)
# OEM CG5 CL3
5 38213-SM4-003 Fuse - BLOCK (50A) Fuse - BLOCK (50A)
6 38218-SM4-003 Fuse - BLOCK (100A) Fuse - BLOCK (100A)
7 38231-S04-003 Fuse - BLOCK (30A) Fuse - BLOCK (30A)
8 38231-S04-961 Fuse - BLOCK (40A) Fuse - BLOCK (40A)
15 39792-SE0-003 Relay assy - POWER(4P)(DENSO) (056700-7410) Relay assy - POWER(4P)(DENSO) (056700-7410)
17 39793-SV4-003 Relay assy - POWER (5P) (MITSUBA) Relay assy - POWER (5P) (MITSUBA)
20 90129-S84-000 Screw-washer - 5X14 Screw-washer - 5X14
21 90150-S84-003 Bolt - EARTH, 8X16 Bolt - EARTH, 8X16
23 91551-SV4-003 Clip - BRACKET Clip - BRACKET
Crankshaft/piston (L4) 36 / 60
CG5 Crankshaft/piston (L4)
CL3 Piston/crankshaft (1.8L/2.0L/2.2L/2.3L)
# OEM CG5 CL3
3 13014-PAA-810 Washer set - THRUST (TAIHO) Washer set - THRUST (TAIHO)
3 13014-PAA-800 Washer set - THRUST (DAIDO) Washer set - THRUST (DAIDO)
6 13115-P5A-000 Clip - PISTON PIN Clip - PISTON PIN
7 13204-P8A-A01 Bolt - CONNECTING ROD Bolt - CONNECTING ROD
8 13210-PAA-A00 Rod comp - CONNECTING Rod comp - CONNECTING
9 13310-PEA-000 Crankshaft comp. Crankshaft comp.
10 13324-PCA-003 Bearing d - MAIN (GREEN) (DAIDO) Bearing d - MAIN (GREEN) (DAIDO)
10 13324-PCA-004 Bearing d - MAIN (GREEN) (TAIHO) Bearing d - MAIN (GREEN) (TAIHO)
10 13323-PCA-004 Bearing c - MAIN (BROWN) (TAIHO) Bearing c - MAIN (BROWN) (TAIHO)
10 13322-PCA-003 Bearing b - MAIN (BLACK) (DAIDO) Bearing b - MAIN (BLACK) (DAIDO)
10 13322-PCA-004 Bearing b - MAIN (BLACK) (TAIHO) Bearing b - MAIN (BLACK) (TAIHO)
10 13325-PCA-003 Bearing e - MAIN (YELLOW) (DAIDO) Bearing e - MAIN (YELLOW) (DAIDO)
10 13325-PCA-004 Bearing e - MAIN (YELLOW) (TAIHO) Bearing e - MAIN (YELLOW) (TAIHO)
10 13323-PCA-003 Bearing c - MAIN (BROWN) (DAIDO) Bearing c - MAIN (BROWN) (DAIDO)
10 13326-PCA-003 Bearing f - MAIN (PINK) (DAIDO) Bearing f - MAIN (PINK) (DAIDO)
10 13321-PCA-003 BEARING A - MAIN (BLUE) (DAIDO) BEARING A - MAIN (BLUE) (DAIDO)
11 13400-P5K-000 Shaft comp. - RR. BALANCER Shaft comp. - RR. BALANCER
11 13400-PT3-010 Shaft comp. - RR. BALANCER Shaft comp. - RR. BALANCER
12 13401-P5K-000 Shaft - FR. BALANCER Shaft - FR. BALANCER
12 13401-P5M-000 Shaft - FR. BALANCER Shaft - FR. BALANCER
14 13406-PT0-003 Metal f - THRUST BALANCER SHAFT Metal f - THRUST BALANCER SHAFT
16 13621-P0A-A01 Pulley - TIMING BELT DRIVE Pulley - TIMING BELT DRIVE
18 90017-PY3-003 Bolt-washer - 16X49 Bolt-washer - 16X49
18 90017-RJA-003 Bolt-washer - 16X49 Bolt-washer - 16X49
19 90019-PT0-000 Bolt - FLANGE, 6X18 Bolt - FLANGE, 6X18
20 90031-PT0-003 Bolt-washer - 8X22 Bolt-washer - 8X22
20 90032-ZW5-003 Bolt-washer, 8x22 Bolt-washer, 8x22
21 90704-PT0-000 Key - 4.5X38.5 Key - 4.5X38.5
23 13215-PAH-T01 Bearing e - CONNECTING ROD (YELLOW)(DAIDO) Bearing e - CONNECTING ROD (YELLOW)(DAIDO)
23 13215-PAA-A01 Bearing e - CONNECTING ROD (YELLOW) (GLACIER VANDERVELL) Bearing e - CONNECTING ROD (YELLOW) (GLACIER VANDERVELL)
23 13214-PAH-T01 Bearing d - CONNECTING ROD (GREEN)(DAIDO) Bearing d - CONNECTING ROD (GREEN)(DAIDO)
23 13213-PAH-T01 Bearing c - CONNECTING ROD (BROWN)(DAIDO) Bearing c - CONNECTING ROD (BROWN)(DAIDO)
23 13211-PAH-T01 BEARING A - CONNECTING ROD (BLUE)(DAIDO) BEARING A - CONNECTING ROD (BLUE)(DAIDO)
23 13217-PAH-T01 Bearing g - CONNECTING ROD (RED) (DAIDO) Bearing g - CONNECTING ROD (RED) (DAIDO)
23 13212-PAH-T01 Bearing b - CONNECTING ROD (BLACK)(DAIDO) Bearing b - CONNECTING ROD (BLACK)(DAIDO)
23 13216-PAH-T01 Bearing f - CONNECTING ROD (PINK)(DAIDO) Bearing f - CONNECTING ROD (PINK)(DAIDO)
Cylinder block/oil pan (L4) 27 / 33
CG5 Cylinder block/oil pan (L4)
CL3 Cylinder block/oil pan (1.8L/2.0L/2.3L)
# OEM CG5 CL3
2 11106-PT0-300 Bolt - SEALING, 16MM Bolt - SEALING, 16MM
3 11107-PT0-000 Bolt - SEALING, 16MM Bolt - SEALING, 16MM
4 11126-PK1-003 Bolt - SEALING, 22MM Bolt - SEALING, 22MM
6 11221-PAA-A00 Plate - BAFFLE Plate - BAFFLE
7 11300-PAA-A01 Cover assy. - R. SIDE Cover assy. - R. SIDE
8 11910-P0A-010 Bracket - ENGINE MOUNTING Bracket - ENGINE MOUNTING
9 12207-PC6-300 Washer - SEALING, 16MM Washer - SEALING, 16MM
10 13421-PT0-003 Metal - BALANCER SHAFT (NO.1) (DAIDO) Metal - BALANCER SHAFT (NO.1) (DAIDO)
11 13422-PT0-013 Metal - BALANCER SHAFT (NO.2) (DAIDO) Metal - BALANCER SHAFT (NO.2) (DAIDO)
12 13423-PT0-003 Metal - BALANCER SHAFT (NO.3) (DAIDO) Metal - BALANCER SHAFT (NO.3) (DAIDO)
13 15233-PK1-000 Bolt - SEALING, 20MM Bolt - SEALING, 20MM
14 30530-P5M-013 Knock sensor assy Knock sensor assy
16 90001-PM3-003 Bolt - DRAIN PLUG, 28MM Bolt - DRAIN PLUG, 28MM
17 90007-PAA-T01 Bolt-washer - 11X121 Bolt-washer - 11X121
18 90008-PM3-000 Bolt - MOUNTING BRACKET, 10X32.5 Bolt - MOUNTING BRACKET, 10X32.5
19 90008-P0A-000 Bolt - MOUNTING BRACKET, 10X53 Bolt - MOUNTING BRACKET, 10X53
20 90009-PH1-000 Bolt - DRAIN PLUG, 14MM Bolt - DRAIN PLUG, 14MM
21 90009-P0A-000 Bolt b - MOUNTING BRACKET, 10X56.2 Bolt b - MOUNTING BRACKET, 10X56.2
22 90030-PT0-000 Bolt - STUD, 10X35 Bolt - STUD, 10X35
23 90041-PAA-A00 Bolt - STUD, 12X101 Bolt - STUD, 12X101
25 90051-PH7-000 Bolt - FLANGE, 6X18 Bolt - FLANGE, 6X18
26 90061-PT0-000 Bolt - DRAIN PLUG, 12MM Bolt - DRAIN PLUG, 12MM
27 90401-PR4-000 Washer - SEALING, 28MM Washer - SEALING, 28MM
28 90705-PT0-000 Dowel pin - 16X22 Dowel pin - 16X22
29 90715-PC6-000 Dowel pin - 13X20 Dowel pin - 13X20
30 91214-PH1-004 Oil seal - 80X100X10 (ARAI) Oil seal - 80X100X10 (ARAI)
30 91214-PLE-003 Oil seal Oil seal
Cylinder head (L4) 15 / 22
CG5 Cylinder head (L4)
CL3 Cylinder head (1.8L/2.0L/2.3L)
# OEM CG5 CL3
2 12204-PJ7-305 Guide - IN. VALVE (OS) Guide - IN. VALVE (OS)
3 12205-PJ7-305 Guide - EX. VALVE (OS) Guide - EX. VALVE (OS)
6 12251-PAA-A01 Gasket - CYLINDER HEAD (ISHINO GASKET) Gasket - CYLINDER HEAD (ISHINO GASKET)
6 12251-PAA-A02 Gasket - CYLINDER HEAD (NIPPON LEAKLESS) Gasket - CYLINDER HEAD (NIPPON LEAKLESS)
9 14631-P0A-000 Shaft - IN. ROCKER ARM Shaft - IN. ROCKER ARM
10 14633-P0A-000 Shaft - EX. ROCKER ARM Shaft - EX. ROCKER ARM
12 15816-PAA-A00 Stay - COUPLER HOLD Stay - COUPLER HOLD
13 15825-P0A-005 Filter assy - SPOOL VALVE Filter assy - SPOOL VALVE
13 15825-P0A-015 Filter, spool valve Filter, spool valve
15 90002-P0A-000 Bolt - FLANGE, 8X76 Bolt - FLANGE, 8X76
16 90004-P2J-000 Bolt - SEALING, 10MM Bolt - SEALING, 10MM
17 90005-PAA-A01 Bolt-washer - 12X163 Bolt-washer - 12X163
18 90006-PAA-A01 Bolt-washer - 12X199 Bolt-washer - 12X199
19 90026-PT0-000 Bolt - STUD, 8X38 Bolt - STUD, 8X38
20 91319-PAA-A01 O-ring - 13X1.5 O-ring - 13X1.5
Cylinder head cover (L4) 10 / 12
CG5 Cylinder head cover (L4)
CL3 Cylinder head cover (1.8L/2.0L/2.2L/2.3L)
# OEM CG5 CL3
1 12030-P0A-000 Packing set - HEAD COVER Packing set - HEAD COVER
4 12342-P2F-A01 Seal - SPARK PLUG TUBE (NOK) Seal - SPARK PLUG TUBE (NOK)
4 12342-P08-004 Seal Seal
4 12342-RYE-004 Seal,spark plug t Seal,spark plug t
5 15610-P2A-000 Cap assy. - OIL FILLER Cap assy. - OIL FILLER
6 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
7 32762-PAA-A00 Stay b - HIGH TENSION CORD CLAMP Stay b - HIGH TENSION CORD CLAMP
8 90013-P0A-000 Bolt a - HEAD COVER Bolt a - HEAD COVER
9 90014-P08-000 Bolt b - HEAD COVER Bolt b - HEAD COVER
10 90442-P0A-000 Washer - HEAD COVER Washer - HEAD COVER
Distributor (HITACHI; L4) 8 / 10
CG5 Distributor (HITACHI; L4)
CL3 Distributor (HITACHI)
# OEM CG5 CL3
2 30102-PAA-A01 Cap assy. Cap assy.
3 30103-PAA-A01 Head - ROTOR Head - ROTOR
4 30105-PAA-L01 Housing comp - DISTRIBUTOR Housing comp - DISTRIBUTOR
5 30110-PC6-005 O-ring O-ring
6 30120-P06-005 Igniter unit - HITACHI Igniter unit - HITACHI
7 30132-PAA-A01 Packing Packing
8 30135-P0A-A01 Bolt-washer - 5X14 Bolt-washer - 5X14
9 30136-P0A-A01 Bolt-washer - 6X30 Bolt-washer - 6X30
Duct (RH) 1 / 7
CG5 Duct (RH)
CL3 Fuel tank
# OEM CG5 CL3
8 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Emblems/caution labels 2 / 10
CG5 Emblems/caution labels
CL3 Emblems
# OEM CG5 CL3
21 75725-S04-T00 Emblem - RR. (VTEC) Emblem - RR. (VTEC)
22 77875-S84-G80 Label - SRS CAUTION Label - SRS CAUTION
Engine mounts (L4; AT; 2) 9 / 29
CG5 Engine mounts (L4; AT; 2)
CL3 Engine mounts (MT; 1.8L/2.0L/2.2L/2.3L)
# OEM CG5 CL3
17 90163-SC2-000 Bolt - FLANGE, 12X25 Bolt - FLANGE, 12X25
18 90163-SZ3-000 Bolt - FLANGE, 10X45 Bolt - FLANGE, 10X45
20 90168-S2A-000 Bolt - FLANGE, 10X35 Bolt - FLANGE, 10X35
21 90170-S84-A00 Bolt - FLANGE, 12X70 Bolt - FLANGE, 12X70
23 90170-S5A-000 Bolt - FLANGE, 12X60 Bolt - FLANGE, 12X60
24 90174-SM4-000 Bolt - FLANGE, 10X22 Bolt - FLANGE, 10X22
26 90185-S84-000 Bolt - FLANGE, 12X123 Bolt - FLANGE, 12X123
27 90371-SM4-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
28 90552-SV4-000 Washer - FR. BRACKET Washer - FR. BRACKET
Engine wire harness (L4; RH) 12 / 17
CG5 Engine wire harness (L4; RH)
CL3 Engine wire harness (LH)
# OEM CG5 CL3
5 32121-PAA-A01 Plate - WIRE HARNESS GROMMET Plate - WIRE HARNESS GROMMET
6 32127-PAA-A00 Holder a - HARNESS Holder a - HARNESS
7 32129-PAA-A00 Holder c - HARNESS Holder c - HARNESS
9 32750-PAA-A00 Clamp b - ENGINE HARNESS Clamp b - ENGINE HARNESS
10 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
11 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
12 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
13 91506-P0A-A01 Clip - ALTERNATOR CORD Clip - ALTERNATOR CORD
15 91507-P01-003 Clip b - HARNESS BAND (DARK BROWN) (129.4MM) Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
16 91558-SM4-003 Clip - TUBE(BLACK)(135MM) Clip - TUBE(BLACK)(135MM)
17 91558-ST5-003 Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE)
18 91559-PAA-A01 Clip - HARNESS BAND(GRAY) (150MM) Clip - HARNESS BAND(GRAY) (150MM)
Exhaust manifold (L4; 1) 5 / 14
CG5 Exhaust manifold (L4; 1)
CL3 Exhaust manifold (2.3L)
# OEM CG5 CL3
8 90010-PE2-900 Bolt - SPECIAL, 10X22 Bolt - SPECIAL, 10X22
9 90015-PT0-J00 Bolt-washer - 8X14 Bolt-washer - 8X14
10 90065-PC1-300 Bolt - STUD, 10X34.5 Bolt - STUD, 10X34.5
11 90212-PD2-003 Nut - SELF-LOCK, 8MM Nut - SELF-LOCK, 8MM
11 90212-RCA-A01 Nut - SELF-LOCK, 8MM Nut - SELF-LOCK, 8MM
Exhaust pipe (L4) 10 / 24
CG5 Exhaust pipe (L4)
CL3 Exhaust pipe (1.6L/1.8L/2.0L/2.3L)
# OEM CG5 CL3
4 18176-PT0-003 Bolt - CONVERTER Bolt - CONVERTER
5 18176-P08-003 Bolt - CONVERTER Bolt - CONVERTER
16 18303-SM4-020 Gasket - SILENCER Gasket - SILENCER
17 18393-SH3-S00 Gasket - PRE-CHAMBER (52.5MM-53.5MM) Gasket - PRE-CHAMBER (52.5MM-53.5MM)
18 18393-SS0-J30 Gasket - PRE-CHAMBER (57.5MM-58.5MM) Gasket - PRE-CHAMBER (57.5MM-58.5MM)
23 90023-PK1-000 Bolt - FLANGE, 6X10 Bolt - FLANGE, 6X10
23 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
24 90115-659-003 Nut - SELF-LOCK, 8MM (CLINCH) Nut - SELF-LOCK, 8MM (CLINCH)
25 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
26 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Floor mat 4 / 11
CG5 Floor mat
CL3 Floor mat
# OEM CG5 CL3
8 90121-SJ6-003 Bolt - FLANGE, 6X14 Bolt - FLANGE, 6X14
9 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
11 90676-SE0-003 Clip - JOINT COVER PLATE Clip - JOINT COVER PLATE
14 91560-S04-003 Clip - SIDE GARNISH (NATURAL) Clip - SIDE GARNISH (NATURAL)
Front brake (L4) 2 / 22
CG5 Front brake (L4)
CL3 Front brake
# OEM CG5 CL3
19 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)
21 90681-SG0-000 Circlip - INTERNAL, 84MM Circlip - INTERNAL, 84MM
Front door lining (RH) 2 / 9
CG5 Front door lining (RH)
CL3 Control unit (CABIN; LH)
# OEM CG5 CL3
21 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
22 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front door locks 10 / 36
CG5 Front door locks
CL3 Front door locks
# OEM CG5 CL3
4 72113-SR4-004 Snap - BLACK Snap - BLACK
7 72117-S04-003 Holder - ROD (YELLOW) Holder - ROD (YELLOW)
18 72135-SR3-003 Striker assy - DOOR LOCK Striker assy - DOOR LOCK
20 72139-SR0-A01 Snap - VIOLET Snap - VIOLET
38 72616-SM4-003 Snap - NATURAL Snap - NATURAL
43 75411-634-000 Joint Joint
44 90120-SM4-000 Screw - TAPPING Screw - TAPPING
45 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
46 90141-S84-003 Screw - 3X10 Screw - 3X10
48 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Front door panels 8 / 26
CG5 Front door panels
CL3 Front door panels
# OEM CG5 CL3
15 75891-SA7-000 Stopper - DOOR Stopper - DOOR
16 90101-SZ3-000 Bolt - FLANGE, 8X22 (8.5MM) Bolt - FLANGE, 8X22 (8.5MM)
17 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
19 90686-692-003 Cap - LINING MOUNT Cap - LINING MOUNT
20 91530-SH4-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
22 91568-SR2-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
22 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
23 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Front door windows 2 / 15
CG5 Front door windows
CL3 Front door locks
# OEM CG5 CL3
15 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
16 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Front driveshaft (L4; 2) 11 / 21
CG5 Front driveshaft (L4; 2)
CL3 Front driveshaft/ half shaft
# OEM CG5 CL3
8 44319-S84-300 Set ring - 28X2.0 Set ring - 28X2.0
8 44319-S0A-300 Set ring - 28X2.0 Set ring - 28X2.0
9 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
10 44327-SX0-C02 Band - OUTBOARD BOOT (NIPPON HATSUJO) Band - OUTBOARD BOOT (NIPPON HATSUJO)
10 44327-S0K-C01 Band - OUTBOARD BOOT (OETIKER LIMITED) Band - OUTBOARD BOOT (OETIKER LIMITED)
11 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
12 44329-S0K-C01 Band - DRIVESHAFT (OETIKER LIMITED) Band - DRIVESHAFT (OETIKER LIMITED)
12 44329-SX0-C02 Band - DRIVESHAFT (NIPPON HATSUJO) Band - DRIVESHAFT (NIPPON HATSUJO)
13 44337-SB0-300 Ring b - STOPPER Ring b - STOPPER
14 44338-SB0-300 Circlip - 26MM Circlip - 26MM
19 90305-SD4-003 Nut - SPINDLE (24MM) Nut - SPINDLE (24MM)
Front fenders 4 / 11
CG5 Front fenders
CL3 Front fenders
# OEM CG5 CL3
9 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
11 90657-SB0-003 Clip, SPLASH SHIELD Clip, SPLASH SHIELD
13 91503-SZ5-003 Clip - BUMPER FACE Clip - BUMPER FACE
14 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Front grille (2) 1 / 6
CG5 Front grille (2)
CL3 Bumpers
# OEM CG5 CL3
6 91503-SZ3-003 Clip A Clip A
Front lower arm 13 / 29
CG5 Front lower arm
CL3 Front stabilizer/ front lower arm
# OEM CG5 CL3
4 51320-S84-A01 Link comp - R. FR. STABILIZER Link comp - R. FR. STABILIZER
5 51321-S84-A01 Link comp - L. FR. STABILIZER Link comp - L. FR. STABILIZER
13 51394-S84-000 Washer - CASTER ADJUSTER Washer - CASTER ADJUSTER
14 51398-SM4-000 Collar - RADIUS ROD Collar - RADIUS ROD
15 51399-S0A-000 Washer - FR. RADIUS ROD Washer - FR. RADIUS ROD
21 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
22 90117-S0A-000 Bolt - DAMPER LOCK(10X44) Bolt - DAMPER LOCK(10X44)
23 90118-S0A-000 Bolt - FR. LOWER ARM (12X84) Bolt - FR. LOWER ARM (12X84)
24 90121-S0A-000 Bolt - DAMPER FORK(12X98) Bolt - DAMPER FORK(12X98)
25 90178-S84-A00 Bolt - FR. RADIUS ROD (14X37) Bolt - FR. RADIUS ROD (14X37)
26 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
27 90303-SF1-003 Nut - SELF-LOCK, 12MM Nut - SELF-LOCK, 12MM
28 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Front seat 2 / 18
CG5 Front seat
CL3 Front seat (L.)
# OEM CG5 CL3
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
Front shock absorber 8 / 18
CG5 Front shock absorber
CL3 Front shock absorber
# OEM CG5 CL3
5 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
6 51631-SV7-004 Rubber - SHOCK ABSORBER MOUNTING(SHOWA) Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
8 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
10 51689-SH3-004 Plate - BUMP STOP (SHOWA) Plate - BUMP STOP (SHOWA)
11 51689-SP0-004 Cover - DUST (SHOWA) Cover - DUST (SHOWA)
13 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
13 51728-SR0-003 Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS) Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)
15 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Front windshield 1 / 8
CG5 Front windshield
CL3 Front windshield
# OEM CG5 CL3
8 91568-SX0-003 Fastener a - WINDSHIELD Fastener a - WINDSHIELD
Front windshield wiper (RH) 2 / 19
CG5 Front windshield wiper (RH)
CL3 Front windshield wiper (LH)
# OEM CG5 CL3
18 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
19 90201-SK7-000 Nut - HEX. CAP, 10MM Nut - HEX. CAP, 10MM
Fuel pipe (1) 12 / 34
CG5 Fuel pipe (1)
CL3 Fuel pipe
# OEM CG5 CL3
1 16680-PE7-661 Damper assy. - PULSATION Damper assy. - PULSATION
1 16680-PCX-003 Damper assy. - PULSATION Damper assy. - PULSATION
2 16705-PD1-003 Gasket - SILENCER Gasket - SILENCER
4 16900-S84-G01 Strainer comp. - FUEL Strainer comp. - FUEL
6 16922-S84-G01 Rubber - MOUNTING Rubber - MOUNTING
7 16923-S84-G01 Collar Collar
13 17711-S84-005 Retainer - NATURAL Retainer - NATURAL
20 17743-SM4-003 Cap - DRAIN TUBE Cap - DRAIN TUBE
28 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
29 90428-PD6-003 Washer - SEALING, 12MM Washer - SEALING, 12MM
30 90652-HC4-003 Clamp - HARNESS Clamp - HARNESS
36 91598-S84-A01 Clip - FUEL PIPE Clip - FUEL PIPE
Fuel tank 7 / 37
CG5 Fuel tank
CL3 Fuel tank
# OEM CG5 CL3
4 17371-SR3-A01 Valve - TWO WAY Valve - TWO WAY
8 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
24 17711-ST0-003 Retainer - YELLOW) (TOKAI Retainer - YELLOW) (TOKAI
25 17711-S84-003 Retainer - YELLOW) (TOKAI Retainer - YELLOW) (TOKAI
37 91594-S84-G01 Clip - JOINT TUBE Clip - JOINT TUBE
38 91601-SH3-013 Grommet - SCREW, 5MM (BLACK) Grommet - SCREW, 5MM (BLACK)
40 90150-S04-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
Grommet 9 / 13
CG5 Grommet
CL3 Grommet
# OEM CG5 CL3
1 72206-SA5-000 Cap - FLOOR HOLE, 53MM Cap - FLOOR HOLE, 53MM
4 90615-SR3-000 Cap - WELD HOLE, 51X77 Cap - WELD HOLE, 51X77
7 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
8 91611-SM4-003 Plug - FLOOR HOLE, 25MM Plug - FLOOR HOLE, 25MM
10 91613-SR3-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM
11 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
13 91634-SE3-000 Grommet - 6MM Grommet - 6MM
21 91610-SD4-000 Plug - HOLE, 28MM Plug - HOLE, 28MM
22 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
Harness band/bracket 20 / 29
CG5 Harness band/bracket
CL3 Harness band/bracket
# OEM CG5 CL3
3 32133-SM4-003 Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
5 32146-SH3-003 Connector - DIODE(2P) Connector - DIODE(2P)
7 32312-SM4-013 Holder - COUPLER Holder - COUPLER
8 90627-SA5-003 Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
12 91548-S84-003 Clip - HARNESS BAND (GRAY) (128MM) Clip - HARNESS BAND (GRAY) (128MM)
13 91550-ST0-003 Clip - WIRE HARNESS (NATURAL) (110MM) Clip - WIRE HARNESS (NATURAL) (110MM)
14 91551-SW5-003 Clip - HARNESS BAND (BROWN) (151MM) Clip - HARNESS BAND (BROWN) (151MM)
16 91559-ST5-003 Clip - HARNESS BAND OFFSET(30) (NATURAL) Clip - HARNESS BAND OFFSET(30) (NATURAL)
19 91571-S10-003 Clip - WIRE HARNESS (NATURAL) (130MM) Clip - WIRE HARNESS (NATURAL) (130MM)
22 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
25 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
26 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
27 91510-SA5-003 Clip - OFFSET(10)(BROWN)(50MM) Clip - OFFSET(10)(BROWN)(50MM)
32 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
33 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
34 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
35 91545-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
36 91545-S30-003 Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
37 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
38 91556-SP0-003 Clip - COUPLER(BROWN) Clip - COUPLER(BROWN)
Headlight 2 / 17
CG5 Headlight
CL3 Taillight
# OEM CG5 CL3
6 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
12 34304-SH3-A01 Socket comp. Socket comp.
Heater blower (RH) 8 / 15
CG5 Heater blower (RH)
CL3 Heater blower (LH)
# OEM CG5 CL3
1 39246-671-003 Clamp - CASE HOLD Clamp - CASE HOLD
2 79191-SZ3-A01 Nut - HOLDER Nut - HOLDER
3 79192-SR3-003 Bush - LINK Bush - LINK
11 90121-SR3-003 Screw - TAPPING, 5X12 Screw - TAPPING, 5X12
12 90122-SR3-003 Screw - TAPPING, 5X12 Screw - TAPPING, 5X12
14 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
15 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
16 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater unit (RH) 7 / 18
CG5 Heater unit (RH)
CL3 Heater unit (LH)
# OEM CG5 CL3
1 39246-671-003 Clamp - CASE HOLD Clamp - CASE HOLD
7 79192-SR3-003 Bush - LINK Bush - LINK
11 79760-SE0-000 Grommet - HEATER PIPE Grommet - HEATER PIPE
12 79770-SE0-000 Grommet - WATER VALVE CABLE Grommet - WATER VALVE CABLE
13 80534-S84-A41 Aspirator Aspirator
14 90122-SR3-003 Screw - TAPPING, 5X12 Screw - TAPPING, 5X12
17 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
High tension cord/plug (L4) 1 / 10
CG5 High tension cord/plug (L4)
CL3 High tension cord/plug (1.8L/2.0L/2.2L/2.3L)
# OEM CG5 CL3
10 90003-P01-000 Bolt-washer - 8X28 Bolt-washer - 8X28
Hood (RH) 8 / 29
CG5 Hood (RH)
CL3 Hood (LH)
# OEM CG5 CL3
8 74134-SM4-000 Grommet - HOOD WIRE Grommet - HOOD WIRE
25 90106-SE1-000 Bolt-washer - 6X15 Bolt-washer - 6X15
29 91502-S84-A11 Clip - SEAL RUBBER (BLACK) Clip - SEAL RUBBER (BLACK)
30 91504-SL0-003 Clip - HOOD OPEN WIRE Clip - HOOD OPEN WIRE
34 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
35 91558-SE3-003 Clip - HOOD WIRE Clip - HOOD WIRE
38 91602-SZ5-000 Cushion - HOOD (11.6MM) Cushion - HOOD (11.6MM)
39 91603-SZ5-000 Cushion - HOOD (25MM) Cushion - HOOD (25MM)
Install pipe/tubing (L4) 1 / 3
CG5 Install pipe/tubing (L4)
CL3 Vacuum tank/tubing (1.8L/2.0L/2.3L)
# OEM CG5 CL3
3 90634-PA0-000 Cap - SEALING Cap - SEALING
Instrument panel (RH) 11 / 16
CG5 Instrument panel (RH)
CL3 Instrument panel (LH)
# OEM CG5 CL3
4 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
30 90104-SV4-000 Bolt-washer - 8X25 Bolt-washer - 8X25
31 90106-S84-A00 Bolt-washer - 8X40 Bolt-washer - 8X40
32 90108-S84-A00 Bolt-washer - 8MM(SRS) Bolt-washer - 8MM(SRS)
33 90140-SH3-003 Bolt-washer - 5X18 Bolt-washer - 5X18
34 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
35 90666-SD4-003 Clip - FITTING Clip - FITTING
36 90666-S84-A01 Clip - SNAP FITTING Clip - SNAP FITTING
37 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
38 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
42 90110-S84-A00 Bolt-washer - 8X20 Bolt-washer - 8X20
Instrument panel garnish (RH) 3 / 16
CG5 Instrument panel garnish (RH)
CL3 Instrument panel garnish (LH)
# OEM CG5 CL3
8 66417-SA0-000 Rubber - GLOVE BOX STOPPER Rubber - GLOVE BOX STOPPER
37 90666-S84-A01 Clip - SNAP FITTING Clip - SNAP FITTING
38 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Intake manifold (L4) 14 / 25
CG5 Intake manifold (L4)
CL3 Intake manifold (1.8L/2.0L/2.3L)
# OEM CG5 CL3
2 16472-PH7-003 Seal ring - INJECTOR (OTSUKA) Seal ring - INJECTOR (OTSUKA)
2 16472-P0H-A01 Seal ring - INJECTOR (NOK) Seal ring - INJECTOR (NOK)
3 16473-P10-A01 Cushion ring - INJECTOR (NOK) Cushion ring - INJECTOR (NOK)
3 16473-PD6-000 Cushion ring - INJECTOR (OTSUKA) Cushion ring - INJECTOR (OTSUKA)
6 16741-PG7-005 O-ring - PRESSURE REGULATOR O-ring - PRESSURE REGULATOR
12 18011-PAA-A00 Valve set - EGR Valve set - EGR
14 18715-PB2-000 GASKET, EGR VALVE (ISHINO GASKET) GASKET, EGR VALVE (ISHINO GASKET)
18 32753-PAA-A00 Stay e - ENGINE HARNESS Stay e - ENGINE HARNESS
19 32759-P0A-A00 Stay j - ENGINE WIRE HARNESS Stay j - ENGINE WIRE HARNESS
20 90027-P0A-003 Bolt a - FUEL PIPE Bolt a - FUEL PIPE
20 90027-P0A-305 Bolt a Bolt a
21 91301-PM7-003 O-ring - 7.3X2.2 (ARAI) O-ring - 7.3X2.2 (ARAI)
21 91301-P2F-A01 O-ring - 7.3X2.2 (NOK) O-ring - 7.3X2.2 (NOK)
21 16074-ZY3-000 O-ring O-ring
Knuckle 7 / 16
CG5 Knuckle
CL3 Knuckle
# OEM CG5 CL3
3 51225-S84-A01 Boot - LOWER BALL DUST Boot - LOWER BALL DUST
6 51464-S04-013 Boot, UPPER BALL JOINT Boot, UPPER BALL JOINT
7 52226-SL0-003 Circlip - LOWER BALL(MUSASHI) Circlip - LOWER BALL(MUSASHI)
8 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
15 90321-SE0-000 Nut - UPPER BALL PIN, 10MM Nut - UPPER BALL PIN, 10MM
16 90363-SF1-000 Nut - CASTLE, 12MM Nut - CASTLE, 12MM
17 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Mirror (2) 2 / 9
CG5 Mirror (2)
CL3 Mirror
# OEM CG5 CL3
11 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
12 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Molding 1 / 21
CG5 Molding
CL3 Molding
# OEM CG5 CL3
17 90142-S04-000 Screw - TAPPING, 4X10 Screw - TAPPING, 4X10
Oil pump/oil strainer (L4) 25 / 31
CG5 Oil pump/oil strainer (L4)
CL3 Oil pump/oil strainer (1.8L/2.0L/2.2L/2.3L)
# OEM CG5 CL3
1 13500-PAA-A00 Case comp. - GEAR Case comp. - GEAR
2 13511-PT0-020 Gear b - DRIVEN Gear b - DRIVEN
3 13512-PT0-020 Washer - THRUST Washer - THRUST
4 14535-P0A-A00 Plate - TIMING BELT STOPPER Plate - TIMING BELT STOPPER
6 15113-PT0-003 Packing a - OIL PUMP (ARAI) Packing a - OIL PUMP (ARAI)
7 15114-PT0-003 Packing b - OIL PUMP (ARAI) Packing b - OIL PUMP (ARAI)
8 15200-P0A-000 Pipe comp - OIL LEVEL Pipe comp - OIL LEVEL
9 15220-PAA-A00 Strainer comp. - OIL Strainer comp. - OIL
10 15221-PT0-000 Packing - OIL STRAINER Packing - OIL STRAINER
10 15221-P5K-004 Packing - OIL STRAINER Packing - OIL STRAINER
11 15231-PE0-000 Valve - RELIEF Valve - RELIEF
12 15232-PG6-000 Spring - RELIEF VALVE Spring - RELIEF VALVE
13 15233-PC6-000 Bolt - SEALING, 18MM Bolt - SEALING, 18MM
17 32114-P0A-A00 Stay - SENSOR COUPLER Stay - SENSOR COUPLER
19 90015-PH1-013 Holder - OIL FILTER Holder - OIL FILTER
20 90018-PT0-010 Bolt - BALANCER BELT ADJUSTER Bolt - BALANCER BELT ADJUSTER
21 90023-PT0-003 Bolt-washer - 8X33 Bolt-washer - 8X33
22 90052-PK1-000 Bolt - FLANGE, 6X25 Bolt - FLANGE, 6X25
23 90063-PC6-000 Bolt - STUD, 6X25 Bolt - STUD, 6X25
24 90703-PT0-000 Dowel pin - 49X10 Dowel pin - 49X10
25 91212-PAA-A02 Oil seal - 40X52X7 (ARAI) Oil seal - 40X52X7 (ARAI)
25 91212-PAA-A01 Oil seal - 40X52X7 (NOK) Oil seal - 40X52X7 (NOK)
26 91233-PT0-003 Oil seal - 27X40X8 (NOK) Oil seal - 27X40X8 (NOK)
27 91309-PJ7-010 O-ring - 11.5X3.5 O-ring - 11.5X3.5
28 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
Outer panels 3 / 7
CG5 Outer panels
CL3 Outer panels
# OEM CG5 CL3
27 70495-692-000 Cushion - FUEL FILLER LID Cushion - FUEL FILLER LID
32 90103-SM4-010 Bolt - FLANGE, 6X18 Bolt - FLANGE, 6X18
33 90664-SB3-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
P.s. pump/bracket (L4) 8 / 18
CG5 P.s. pump/bracket (L4)
CL3 P.s. pump/bracket (1.8L/2.0L/2.2L/2.3L)
# OEM CG5 CL3
1 11911-P0A-000 Hanger - ENGINE Hanger - ENGINE
3 56167-P2A-003 Spacer - PUMP SEAL Spacer - PUMP SEAL
4 56483-P2A-003 Pulley comp - POWER STEERING PUMP Pulley comp - POWER STEERING PUMP
7 90004-P30-000 Bolt - SPECIAL, 8MM Bolt - SPECIAL, 8MM
9 90305-PAA-A01 Nut - POWER STEERING PULLEY Nut - POWER STEERING PULLEY
12 91249-P2A-003 Seal - POWER STEERING PUMP Seal - POWER STEERING PUMP
15 91348-P2A-003 O-ring - 51.0X2.4 O-ring - 51.0X2.4
16 91349-P2A-003 Seal - POWER STEERING PUMP COVER Seal - POWER STEERING PUMP COVER
Pedal (RH) 3 / 14
CG5 Pedal (RH)
CL3 Pedal (LH)
# OEM CG5 CL3
5 17931-SM4-A00 Stay - THROTTLE WIRE Stay - THROTTLE WIRE
25 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
26 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Pillar garnish (RH) 4 / 4
CG5 Pillar garnish (RH)
CL3 Pillar garnish (LH)
# OEM CG5 CL3
15 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
16 91560-S84-A11 Clip - PILLAR GARNISH(BLACK) Clip - PILLAR GARNISH(BLACK)
17 91560-SP0-003 Clip - DOOR LINING (GRAY) Clip - DOOR LINING (GRAY)
17 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Power steering gear box (RH) 3 / 17
CG5 Power steering gear box (RH)
CL3 Power steering gear box (LH)
# OEM CG5 CL3
4 53438-S84-A00 Bracket b - GEAR BOX Bracket b - GEAR BOX
6 53501-S84-A00 Grommet a - STEERING Grommet a - STEERING
12 53546-S84-003 Boot - TIE ROD END (NOK) Boot - TIE ROD END (NOK)
Power steering lines (L4; RH) 8 / 22
CG5 Power steering lines (L4; RH)
CL3 Power steering lines (LH)
# OEM CG5 CL3
7 53729-SS0-003 Clip - RETURN HOSE Clip - RETURN HOSE
8 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
9 53730-SV4-020 Clamp - FEED HOSE Clamp - FEED HOSE
14 53736-SH3-950 Holder b - POWER STEERING PIPE Holder b - POWER STEERING PIPE
18 90635-SM4-A01 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
18 90635-SM4-A02 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
20 91370-SV4-000 O-ring - 14.4X1.9 O-ring - 14.4X1.9
21 91405-SS0-003 Clamp - TUBE (D21) Clamp - TUBE (D21)
Protector 2 / 12
CG5 Protector
CL3 Protector
# OEM CG5 CL3
13 90331-SD5-003 Nut - SPRING, 5MM Nut - SPRING, 5MM
17 91513-SM4-000 Clip - SIDE SILL UPPER GARNISH Clip - SIDE SILL UPPER GARNISH
Radiator (L4) 8 / 13
CG5 Radiator (L4)
CL3 Radiator
# OEM CG5 CL3
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
7 19030-PAA-A01 Motor - COOLING FAN (DENSO) Motor - COOLING FAN (DENSO)
8 19033-PAA-A01 Clip - COUPLER (DENSO) Clip - COUPLER (DENSO)
9 19045-PAA-A01 Cap comp. - RADIATOR (DENSO) Cap comp. - RADIATOR (DENSO)
10 19046-PAA-A00 Label - RADIATOR CAP Label - RADIATOR CAP
11 90041-P5A-003 Screw-washer - 4X11 Screw-washer - 4X11
13 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose (L4) 3 / 23
CG5 Radiator hose (L4)
CL3 Radiator hose
# OEM CG5 CL3
8 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN) Clip - WATER HOSE (36.5MM) (KEIHIN)
8 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
17 74172-SM4-000 Cushion - RADIATOR MOUNTING LOWER Cushion - RADIATOR MOUNTING LOWER
Radio antenna/speaker 4 / 13
CG5 Radio antenna/speaker
CL3 Harness band/bracket
# OEM CG5 CL3
9 90131-S30-003 Screw-washer - ET, 6X16 Screw-washer - ET, 6X16
12 90666-SD4-003 Clip - FITTING Clip - FITTING
13 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
14 91545-S30-003 Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
Rear beam/cross beam 6 / 12
CG5 Rear beam/cross beam
CL3 Cross beam
# OEM CG5 CL3
22 90162-S84-A00 Bolt - FLANGE, 14X90 Bolt - FLANGE, 14X90
23 90161-S84-A00 Bolt - FLANGE, 14X125 Bolt - FLANGE, 14X125
25 90164-S1A-E00 Bolt - FLANGE, 12X30 Bolt - FLANGE, 12X30
27 91613-SE0-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM
28 91613-S84-A01 Grommet - RR. SUB FRAME Grommet - RR. SUB FRAME
32 90163-S0A-000 Bolt - FLANGE, 14X107 Bolt - FLANGE, 14X107
Rear brake (DISK; L4) 3 / 36
CG5 Rear brake (DISK; L4)
CL3 Rear brake (DISK)
# OEM CG5 CL3
32 90103-SV4-003 Bolt - FLANGE, 10X30 Bolt - FLANGE, 10X30
33 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
34 90305-S30-003 Nut - SPINDLE Nut - SPINDLE
Rear door lining 2 / 8
CG5 Rear door lining
CL3 Control unit (CABIN; LH)
# OEM CG5 CL3
20 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
21 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door locks 9 / 33
CG5 Rear door locks
CL3 Rear door locks
# OEM CG5 CL3
3 72135-SR3-003 Striker assy - DOOR LOCK Striker assy - DOOR LOCK
5 72139-SR0-A01 Snap - VIOLET Snap - VIOLET
6 72175-SH3-901 Holder - DOOR LOCK ROD Holder - DOOR LOCK ROD
8 72612-S84-A00 Cap - R. CHILD LOCK Cap - R. CHILD LOCK
24 72652-S84-A00 Cap - L. CHILD LOCK Cap - L. CHILD LOCK
35 90120-SM4-000 Screw - TAPPING Screw - TAPPING
36 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
37 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
38 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Rear door panels 9 / 28
CG5 Rear door panels
CL3 Front door panels
# OEM CG5 CL3
19 75891-SA7-000 Stopper - DOOR Stopper - DOOR
20 90101-SZ3-000 Bolt - FLANGE, 8X22 (8.5MM) Bolt - FLANGE, 8X22 (8.5MM)
21 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
22 90102-SZ3-000 Bolt - FLANGE, 8X22 (10.5MM) Bolt - FLANGE, 8X22 (10.5MM)
23 90686-692-003 Cap - LINING MOUNT Cap - LINING MOUNT
24 91530-SH4-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
25 91568-SR2-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
25 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
26 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Rear door windows 2 / 22
CG5 Rear door windows
CL3 Rear door windows
# OEM CG5 CL3
6 72737-SR4-000 Collar a - RR. DOOR PANEL LOWER Collar a - RR. DOOR PANEL LOWER
21 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Rear lower arm 18 / 36
CG5 Rear lower arm
CL3 Rear stabilizer/ rear lower arm
# OEM CG5 CL3
5 52308-SZ5-000 Holder - STABILIZER BUSH Holder - STABILIZER BUSH
6 52320-S84-A01 Link comp - R. RR. STABILIZER Link comp - R. RR. STABILIZER
7 52325-S84-A01 Link comp - L. RR. STABILIZER Link comp - L. RR. STABILIZER
8 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
13 52364-634-020 Washer - LOWER ARM Washer - LOWER ARM
18 52387-S84-A00 Bolt - CONTROL ADJUSTING Bolt - CONTROL ADJUSTING
19 52388-S84-A00 Plate - CAM Plate - CAM
21 52454-S84-A01 Boot - UPPER DUST Boot - UPPER DUST
21 06511-TY2-A01 Boot Boot
22 57452-S84-A50 Bracket - RR. COUPLER Bracket - RR. COUPLER
25 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
26 90121-S0A-000 Bolt - DAMPER FORK(12X98) Bolt - DAMPER FORK(12X98)
27 90173-S84-A00 Bolt - RR. UPPER ARM Bolt - RR. UPPER ARM
28 90181-S84-A00 Bolt - TRAILING ARM, 12X68 Bolt - TRAILING ARM, 12X68
29 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
30 90216-SE0-010 Nut Nut
30 90216-SE0-305 NUT, LWR ARM NUT, LWR ARM
31 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Rear seat 4 / 26
CG5 Rear seat
CL3 Rear seat
# OEM CG5 CL3
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
12 82137-S84-A01 Clip - RR. SEAT CUSHION Clip - RR. SEAT CUSHION
30 90003-692-000 Bolt - FLANGE, 6X16 Bolt - FLANGE, 6X16
Rear shock absorber 11 / 21
CG5 Rear shock absorber
CL3 Rear shock absorber
# OEM CG5 CL3
1 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
2 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
3 51728-SR0-003 Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS) Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)
3 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
7 52622-S84-A01 Bush - RR. SHOCK ABSORBER LOWER Bush - RR. SHOCK ABSORBER LOWER
10 52686-S84-A01 Rubber - RR. SPRING MOUNTING Rubber - RR. SPRING MOUNTING
12 52690-SG0-000 Plate - BUMP STOP Plate - BUMP STOP
13 52722-SM4-013 Rubber - BUMPER STOPPER (POLYURETHAN KASEI) Rubber - BUMPER STOPPER (POLYURETHAN KASEI)
15 90182-S84-A00 Bolt - RR. DAMPER, (10X81) Bolt - RR. DAMPER, (10X81)
17 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
18 52689-SG0-014 End - DUST COVER End - DUST COVER
Rear tray/side lining 1 / 7
CG5 Rear tray/side lining
CL3 Floor mat
# OEM CG5 CL3
22 91560-S04-003 Clip - SIDE GARNISH (NATURAL) Clip - SIDE GARNISH (NATURAL)
Rear windshield 3 / 8
CG5 Rear windshield
CL3 Rear windshield
# OEM CG5 CL3
6 91563-SV4-003 Fastener a - RR. WINDSHIELD Fastener a - RR. WINDSHIELD
7 91568-SV4-003 Fastener b - RR. WINDSHIELD Fastener b - RR. WINDSHIELD
8 91568-SX0-003 Fastener a - WINDSHIELD Fastener a - WINDSHIELD
Resonator chamber (L4) 1 / 8
CG5 Resonator chamber (L4)
CL3 Air cleaner
# OEM CG5 CL3
8 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Roof lining 3 / 6
CG5 Roof lining
CL3 Roof lining
# OEM CG5 CL3
5 83202-SZ3-000 Clip - ROOF LINING Clip - ROOF LINING
14 90137-S30-003 Screw - ET, 6X18 Screw - ET, 6X18
14 90136-S30-003 Screw - ET, 5X18 Screw - ET, 5X18
Seatbelt 1 / 5
CG5 Seatbelt
CL3 Seatbelts
# OEM CG5 CL3
16 90101-S84-A00 Screw - ET, 6X16 Screw - ET, 6X16
Sliding roof 7 / 15
CG5 Sliding roof
CL3 Sliding roof
# OEM CG5 CL3
1 15707-634-000 Clip - OIL DRAIN TUBE Clip - OIL DRAIN TUBE
2 18534-634-670 Clip - AIR HOSE, 16MM Clip - AIR HOSE, 16MM
4 70052-S30-000 Valve - FR. DRAIN (SUNROOF) Valve - FR. DRAIN (SUNROOF)
6 70062-SH3-000 Valve - RR. DRAIN (SUNROOF) Valve - RR. DRAIN (SUNROOF)
7 70081-S84-A01 Seal a - FRAME Seal a - FRAME
15 70623-SM4-003 Cap - STAY COVER Cap - STAY COVER
21 70623-S84-A01 Cushion - STAY COVER Cushion - STAY COVER
Sliding roof components 6 / 11
CG5 Sliding roof components
CL3 Roof slide components
# OEM CG5 CL3
1 70091-S84-A01 Shim Shim
2 70142-S84-A01 Bracket a - CABLE Bracket a - CABLE
4 70243-S84-A01 Hook - DRAIN CHANNEL Hook - DRAIN CHANNEL
5 70244-S84-A01 Spring - DRAIN CHANNEL Spring - DRAIN CHANNEL
10 70373-S84-A01 Stopper - SLIDE Stopper - SLIDE
11 70450-S84-A01 Motor assy. - SUNROOF Motor assy. - SUNROOF
Srs unit (RH; 2) 4 / 9
CG5 Srs unit (RH; 2)
CL3 Srs unit (LH)
# OEM CG5 CL3
1 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
9 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
10 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
11 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Steering column 4 / 11
CG5 Steering column
CL3 Steering column
# OEM CG5 CL3
7 77873-S04-G80 Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
9 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
10 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
11 90676-SB2-003 Clip - DASHBOARD INSULATOR Clip - DASHBOARD INSULATOR
Steering wheel (SRS; L4) 1 / 4
CG5 Steering wheel (SRS; L4)
CL3 Steering wheel (SRS)
# OEM CG5 CL3
12 90161-SV4-003 Bolt - STEERING HANDLE Bolt - STEERING HANDLE
Taillight 4 / 19
CG5 Taillight
CL3 Taillight
# OEM CG5 CL3
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
9 34100-S84-G01 Light assy - LICENSE Light assy - LICENSE
10 34102-S60-003 Housing comp Housing comp
11 34102-S84-A01 Lens comp Lens comp
Throttle body (L4) 5 / 12
CG5 Throttle body (L4)
CL3 Throttle body (1.8L/2.0L/2.3L)
# OEM CG5 CL3
2 16075-P07-000 O-ring O-ring
3 16080-P07-000 Screw-washer - 4X16 Screw-washer - 4X16
10 36461-PAA-A01 Packing - ROTARY AIR CONTROL VALVE Packing - ROTARY AIR CONTROL VALVE
11 37830-PAA-S00 Sensor set - MAP Sensor set - MAP
14 91303-P0A-A02 O-ring O-ring
Tire/wheel disks 5 / 17
CG5 Tire/wheel disks
CL3 Tire/wheel disk
# OEM CG5 CL3
5 42753-SE0-A02 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
5 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
13 74666-SX0-000 Adapter - ANCHOR BOLT Adapter - ANCHOR BOLT
14 83853-S84-A00 Bolt - ANCHOR Bolt - ANCHOR
17 90381-S4L-003 Nut - WHEEL(FUSE RASHI) Nut - WHEEL(FUSE RASHI)
Trunk lid (RH) 10 / 26
CG5 Trunk lid (RH)
CL3 Trunk lid
# OEM CG5 CL3
5 72134-SM4-003 Snap - R. (VIOLET) Snap - R. (VIOLET)
6 73219-693-951 Seal - FUEL LID OPENER (GREEN) Seal - FUEL LID OPENER (GREEN)
8 74826-S84-A00 Protector - RR. COMBINATION Protector - RR. COMBINATION
16 74864-S30-003 Cover Cover
21 74873-SM4-003 Clip - TRUNK OPENER SPRING Clip - TRUNK OPENER SPRING
29 90109-SM4-000 Bolt - SPECIAL, 6X35 Bolt - SPECIAL, 6X35
31 90691-SF1-003 Clip c - OPENER CABLE Clip c - OPENER CABLE
32 91504-SL0-003 Clip - HOOD OPEN WIRE Clip - HOOD OPEN WIRE
33 91516-SM4-013 Clip - RR. COMBINATION PROTECTOR Clip - RR. COMBINATION PROTECTOR
35 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
Valve/rocker arm (VTEC; L4) 14 / 20
CG5 Valve/rocker arm (VTEC; L4)
CL3 Valve/rocker arm (1.8L/2.0L/2.3L)
# OEM CG5 CL3
1 14620-P0A-000 Arm assy. - INTAKE ROCKER Arm assy. - INTAKE ROCKER
2 14624-P0A-000 Arm comp. a - EX. ROCKER Arm comp. a - EX. ROCKER
3 14625-P0A-000 Arm comp. b - EX. ROCKER Arm comp. b - EX. ROCKER
4 14646-P0A-000 Spring - EX. ROCKER ARM Spring - EX. ROCKER ARM
7 14744-PT0-004 Screw - TAPPET ADJUSTING Screw - TAPPET ADJUSTING
10 14765-PJ7-000 Retainer - VALVE SPRING Retainer - VALVE SPRING
11 14775-PM3-000 Seat - VALVE SPRING Seat - VALVE SPRING
12 14781-PJ7-003 Cotter - VALVE (FUJI VALVE) Cotter - VALVE (FUJI VALVE)
13 14811-P0A-000 Plate - TIMING Plate - TIMING
14 14812-P0A-000 Spring - TIMING PLATE Spring - TIMING PLATE
15 14820-PAA-A01 Motion assy. - LOST Motion assy. - LOST
16 15140-P0A-000 Orifice assy - CAM JOURNAL Orifice assy - CAM JOURNAL
17 15142-PE0-000 O-ring - 4.8X1.9 O-ring - 4.8X1.9
18 90206-PT0-004 Nut - TAPPET ADJUSTING Nut - TAPPET ADJUSTING
Water pump/sensor (L4) 9 / 26
CG5 Water pump/sensor (L4)
CL3 Water pump/sensor (1.8L/2.0L/2.3L)
# OEM CG5 CL3
2 19222-PT0-300 Packing - WATER PUMP Packing - WATER PUMP
3 19223-PT0-000 Rubber - WATER PUMP SEAL Rubber - WATER PUMP SEAL
7 19313-PT0-000 Packing - THERMOSTAT CASE Packing - THERMOSTAT CASE
10 19500-PT0-000 Joint - TUBE Joint - TUBE
13 32751-P0A-A00 Stay c - ENGINE HARNESS Stay c - ENGINE HARNESS
14 37750-PH2-014 Thermo unit - DENSO Thermo unit - DENSO
18 79746-S84-A00 Clamp - HEATER HOSE Clamp - HEATER HOSE
20 91307-PK2-005 O-ring - 9.5X1.5(HONDA KIKAKI) O-ring - 9.5X1.5(HONDA KIKAKI)
23 91314-PH7-003 O-ring 31.2X4.1 (NOK) O-ring 31.2X4.1 (NOK)
Water valve (L4; RH) 3 / 8
CG5 Water valve (L4; RH)
CL3 Water valve (LH)
# OEM CG5 CL3
6 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
7 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
7 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Windshield washer (L4) 1 / 14
CG5 Windshield washer (L4)
CL3 Hood (LH)
# OEM CG5 CL3
14 91522-SM4-003 Clip - TUBE & INSULATOR Clip - TUBE & INSULATOR
Wire harness (RH) 2 / 17
CG5 Wire harness (RH)
CL3 Wire harness (LH)
# OEM CG5 CL3
16 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
17 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
