CF9 × CW2

共通 198 / 合計 4,202 · Jaccard 4.7%
CF9 Honda ACCORD — 2,098 中 198 共有
CW2 Honda ACCORD — 2,302 中 198 共有
198 件
Air cleaner (L4) 4 / 12
CF9 Air cleaner (L4)
CW2 Air cleaner (2.4L)
# OEM CF9 CW2
3 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
4 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
5 17217-P2J-300 Clip - AIR CLEANER Clip - AIR CLEANER
10 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Air conditioner (COOLING UNIT; RH) 4 / 26
CF9 Air conditioner (COOLING UNIT; RH)
CW2 Air conditioner (HOSES/PIPES; 2.4L; LH)
# OEM CF9 CW2
23 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
24 80873-ST7-000 O-ring - 8MM O-ring - 8MM
25 90155-SE0-003 Screw - TAPPING, 6X20 Screw - TAPPING, 6X20
26 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)

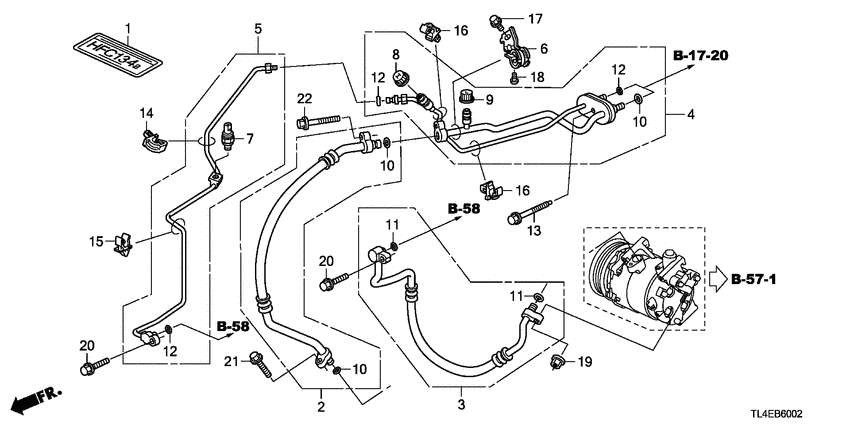

Air conditioner (HOSES/PIPES; L4; RH) 4 / 18
CF9 Air conditioner (HOSES/PIPES; L4; RH)
CW2 Air conditioner (HOSES/PIPES; 2.4L; LH)
# OEM CF9 CW2
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
16 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
17 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"
18 80873-ST7-000 O-ring - 8MM O-ring - 8MM
Air conditioner (SENSOR) 1 / 5
CF9 Air conditioner (SENSOR)
CW2 Instrument panel (LH)
# OEM CF9 CW2
6 90666-SD4-003 Clip - FITTING Clip - FITTING

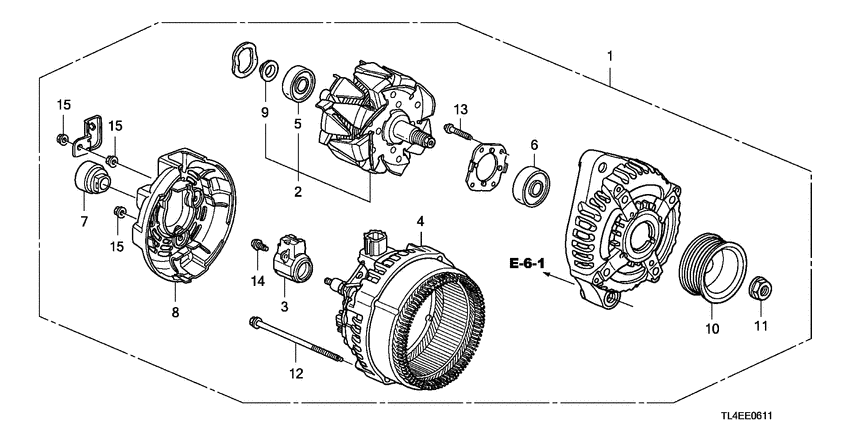

Alternator (DENSO; L4) 4 / 22
CF9 Alternator (DENSO; L4)
CW2 Alternator (DENSO; 2.4L)
# OEM CF9 CW2
4 31111-PT0-003 Bearing - RR. GENERATOR Bearing - RR. GENERATOR
10 31138-PD1-004 Cover - BEARING Cover - BEARING
12 31142-PD1-004 Nut - PULLEY LOCK Nut - PULLEY LOCK
15 31147-PT0-003 Screw-washer Screw-washer
Auto radio 1 / 8
CF9 Auto radio
CW2 Audio unit
# OEM CF9 CW2
6 90133-SM4-003 Bolt-washer - 5X16 Bolt-washer - 5X16

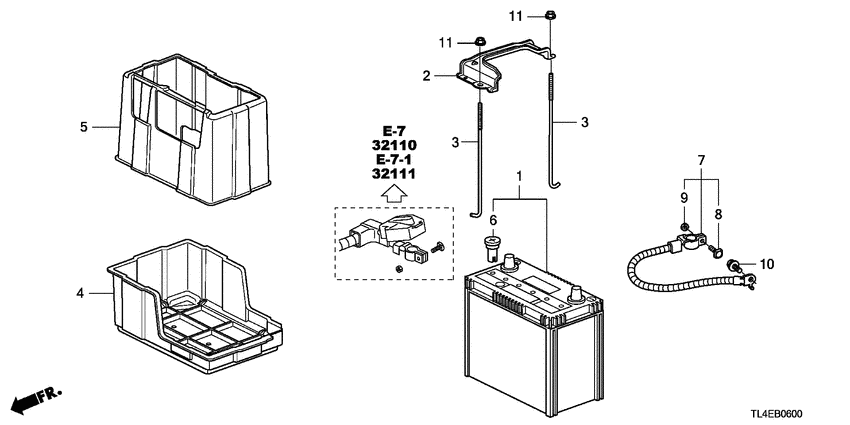

Battery (L4) 7 / 17
CF9 Battery (L4)
CW2 Battery
# OEM CF9 CW2
11 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
12 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
13 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
14 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
15 91507-SL9-003 Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE)
16 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
20 31542-SA5-665 Plug - VENT (MF) (PANASONIC) Plug - VENT (MF) (PANASONIC)

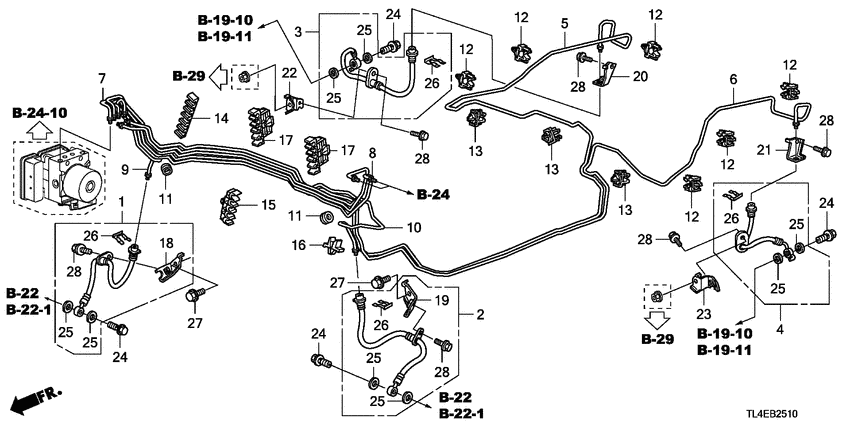

Brake lines (ABS; L4; RH) 3 / 26
CF9 Brake lines (ABS; L4; RH)
CW2 Brake lines (VSA; LH)
# OEM CF9 CW2
14 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
24 46462-SE0-000 Bolt - OIL Bolt - OIL
25 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT

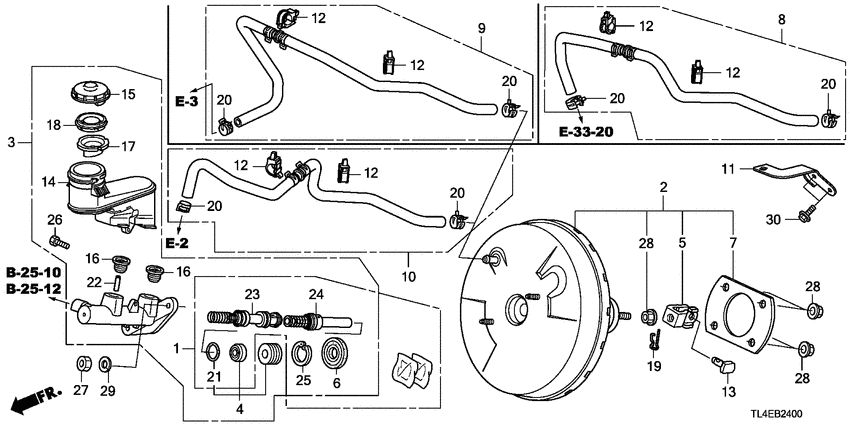

Brake master cylinder/ master power 6 / 19
CF9 Brake master cylinder/ master power
CW2 Brake master cylinder/ master power (LH)
# OEM CF9 CW2
5 46151-SB2-003 Yoke - PUSH ROD (NISSIN) Yoke - PUSH ROD (NISSIN)
14 46512-S70-000 Pin - PEDAL Pin - PEDAL
17 46665-S04-J01 Grommet Grommet
20 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
21 57515-S30-003 Pin - STOP Pin - STOP
28 46911-S70-003 Pin, LOCK(8MM) Pin, LOCK(8MM)

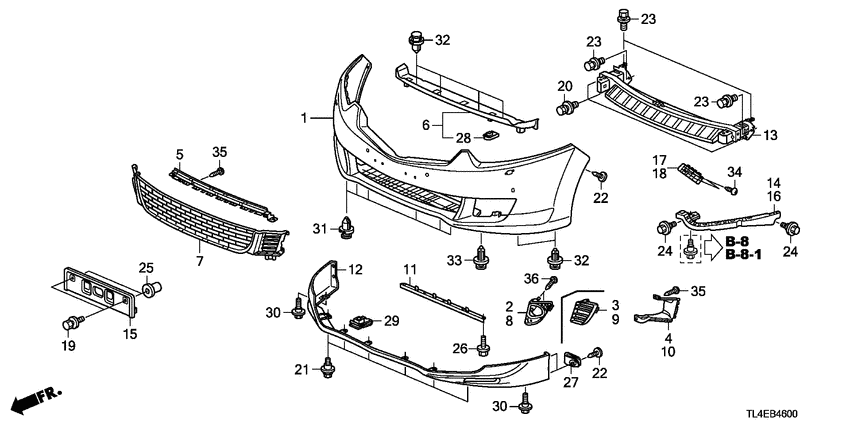

Bumpers (2) 4 / 21
CF9 Bumpers (2)
CW2 Front bumper
# OEM CF9 CW2
25 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
26 90149-SA0-003 Bolt - BUMPER Bolt - BUMPER
30 91503-SZ3-003 Clip A Clip A
33 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15

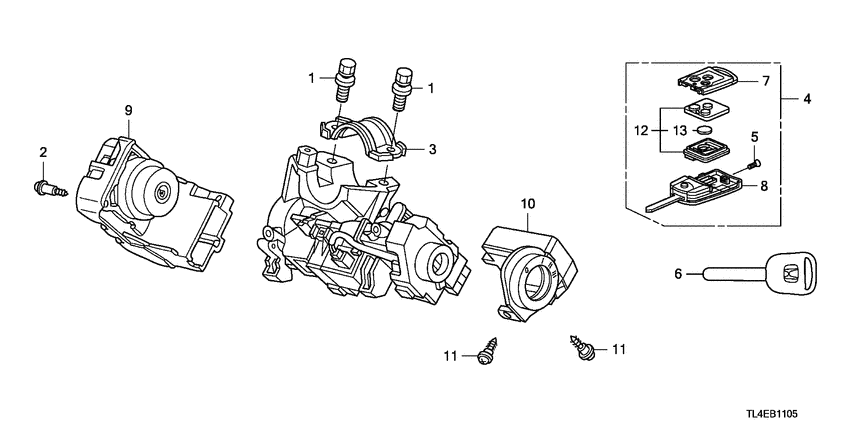

Combination switch (RH) 3 / 19
CF9 Combination switch (RH)
CW2 Key cylinder components
# OEM CF9 CW2
3 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
4 35103-S04-003 Screw - RECESSED Screw - RECESSED
5 35108-S30-003 Holder - COLUMN Holder - COLUMN

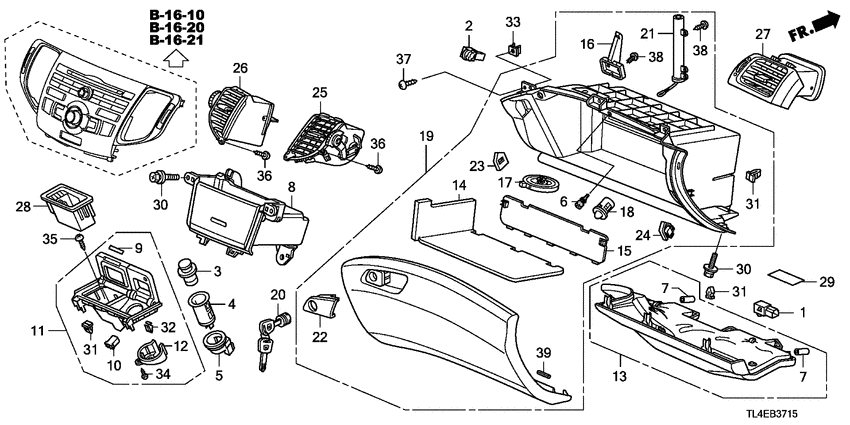

Console 4 / 16
CF9 Console
CW2 Instrument panel garnish (PASSENGER SIDE; LH)
# OEM CF9 CW2
5 66418-SA5-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
28 90146-SP0-000 Screw - TAPPING, 4X12 (PO) Screw - TAPPING, 4X12 (PO)
29 90666-SD4-003 Clip - FITTING Clip - FITTING
30 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Control unit (ENGINE ROOM; RH) 1 / 23
CF9 Control unit (ENGINE ROOM; RH)
CW2 Control unit (CABIN; 1; LH)
# OEM CF9 CW2
21 90150-S84-003 Bolt - EARTH, 8X16 Bolt - EARTH, 8X16

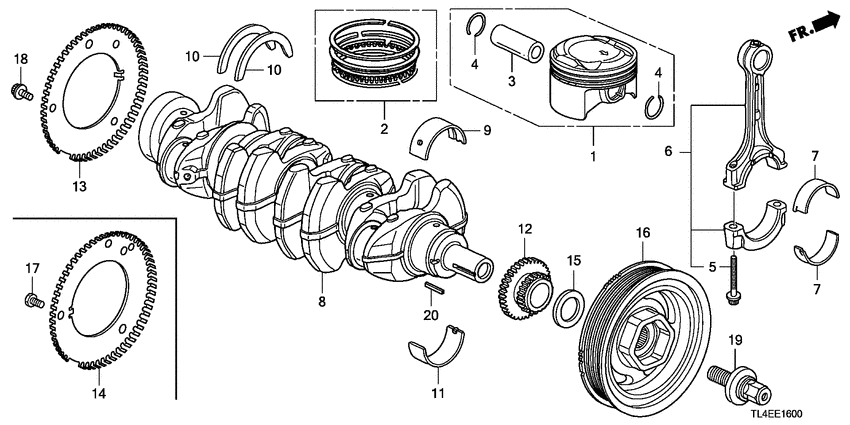

Crankshaft/piston (L4) 1 / 49
CF9 Crankshaft/piston (L4)
CW2 Crankshaft/piston
# OEM CF9 CW2
6 13115-PRB-A00 Clip - PISTON PIN Clip - PISTON PIN

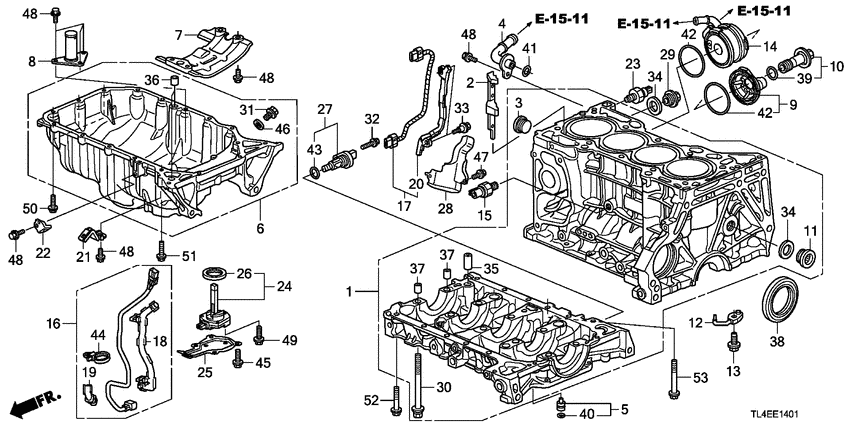

Cylinder block/oil pan (L4) 3 / 32
CF9 Cylinder block/oil pan (L4)
CW2 Cylinder block/oil pan (2.4L)
# OEM CF9 CW2
16 90001-PM3-003 Bolt - DRAIN PLUG, 28MM Bolt - DRAIN PLUG, 28MM
27 90401-PR4-000 Washer - SEALING, 28MM Washer - SEALING, 28MM
29 90715-PC6-000 Dowel pin - 13X20 Dowel pin - 13X20

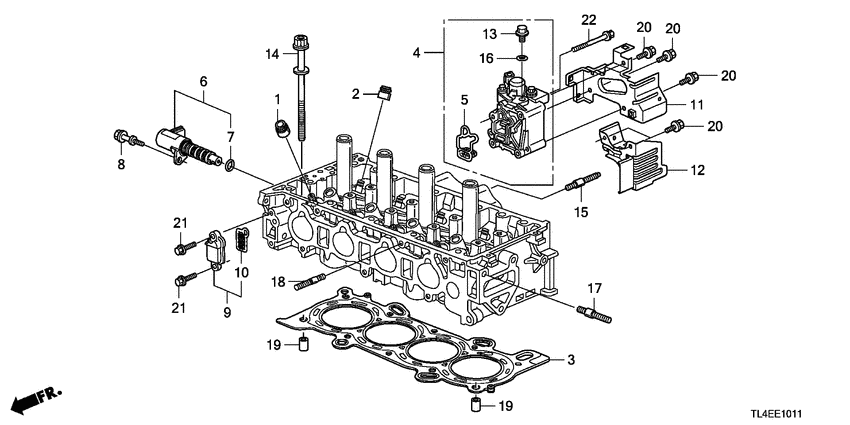

Cylinder head (L4) 6 / 21
CF9 Cylinder head (L4)
CW2 Vtc oil control valve (2.4L)
# OEM CF9 CW2
4 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
4 12210-PZ1-003 Seal a - VALVE STEM(ARAI) Seal a - VALVE STEM(ARAI)
5 12211-PZ1-004 Seal b - VALVE STEM(NOK) Seal b - VALVE STEM(NOK)
5 12211-PZ1-003 Seal b - VALVE STEM(ARAI) Seal b - VALVE STEM(ARAI)
14 90001-P70-000 Bolt - FLANGE, 10X10.5 Bolt - FLANGE, 10X10.5
20 91319-PAA-A01 O-ring - 13X1.5 O-ring - 13X1.5

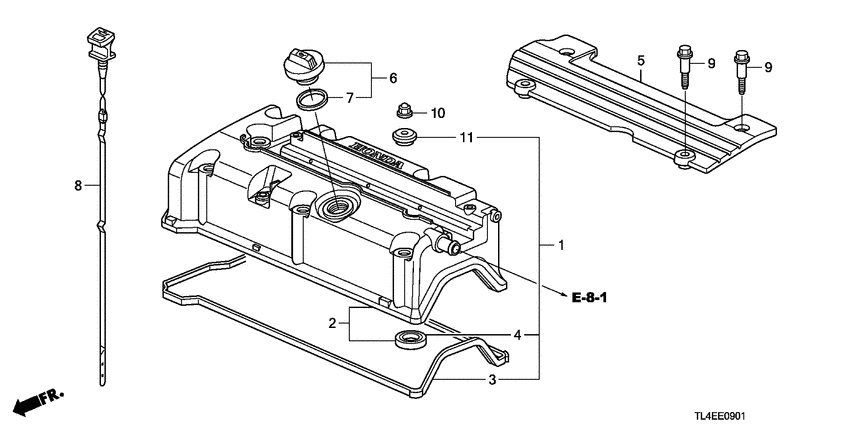

Cylinder head cover (L4) 3 / 12
CF9 Cylinder head cover (L4)
CW2 Cylinder head cover (2.4L)
# OEM CF9 CW2
4 12342-P08-004 Seal Seal
4 12342-RYE-004 Seal,spark plug t Seal,spark plug t
6 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
Duct (RH) 1 / 7
CF9 Duct (RH)
CW2 Engine hood (LH)
# OEM CF9 CW2
8 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP

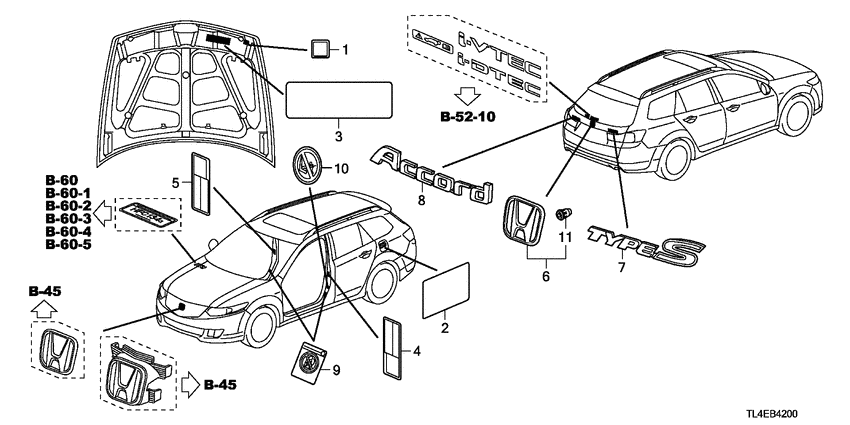

Emblems/caution labels 1 / 8
CF9 Emblems/caution labels
CW2 Emblems/caution labels
# OEM CF9 CW2
19 91512-SR3-004 Clip - TUBULAR Clip - TUBULAR

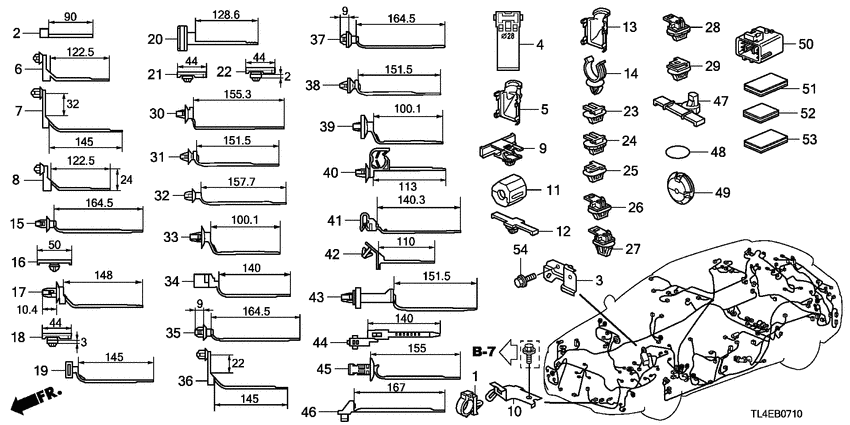

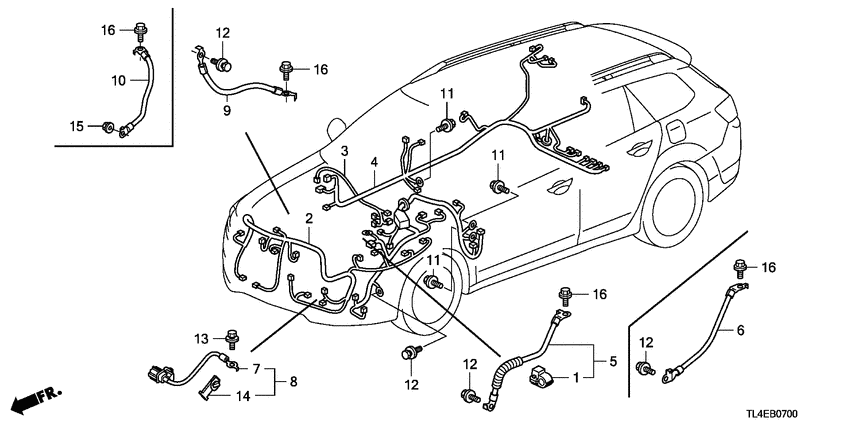

Engine wire harness (L4; RH) 3 / 17
CF9 Engine wire harness (L4; RH)
CW2 Control unit (ENGINE ROOM; 1)
# OEM CF9 CW2
10 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
11 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
12 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM

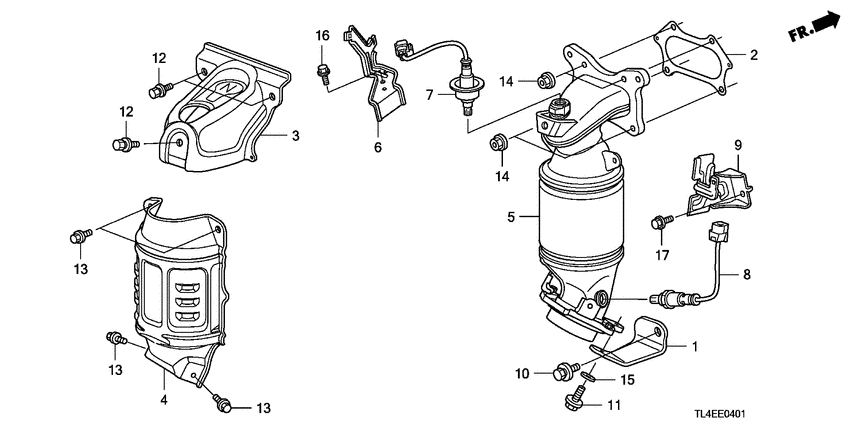

Exhaust manifold (L4; 2) 5 / 12
CF9 Exhaust manifold (L4; 2)
CW2 Converter (2.4L)
# OEM CF9 CW2
5 90005-P0A-000 Bolt-washer - 10X22 Bolt-washer - 10X22
6 90010-PE2-900 Bolt - SPECIAL, 10X22 Bolt - SPECIAL, 10X22
7 90015-PT0-J00 Bolt-washer - 8X14 Bolt-washer - 8X14
9 90212-RCA-A01 Nut - SELF-LOCK, 8MM Nut - SELF-LOCK, 8MM
10 90451-PE2-000 Washer - SPECIAL, 11X28 Washer - SPECIAL, 11X28

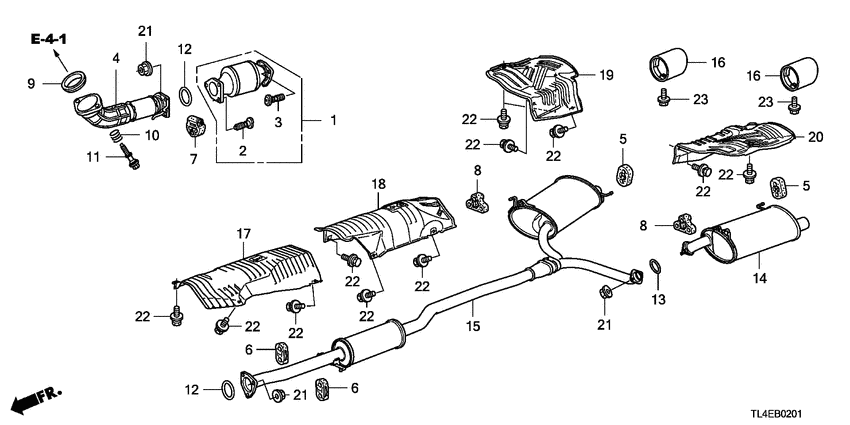

Exhaust pipe (L4) 7 / 25
CF9 Exhaust pipe (L4)
CW2 Exhaust pipe (2.4L)
# OEM CF9 CW2
4 18176-PT0-003 Bolt - CONVERTER Bolt - CONVERTER
5 18176-P08-003 Bolt - CONVERTER Bolt - CONVERTER
16 18303-SM4-020 Gasket - SILENCER Gasket - SILENCER
23 90023-PK1-000 Bolt - FLANGE, 6X10 Bolt - FLANGE, 6X10
23 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
25 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
26 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Floor mat 2 / 11
CF9 Floor mat
CW2 Side lining
# OEM CF9 CW2
11 90676-SE0-003 Clip - JOINT COVER PLATE Clip - JOINT COVER PLATE
17 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR

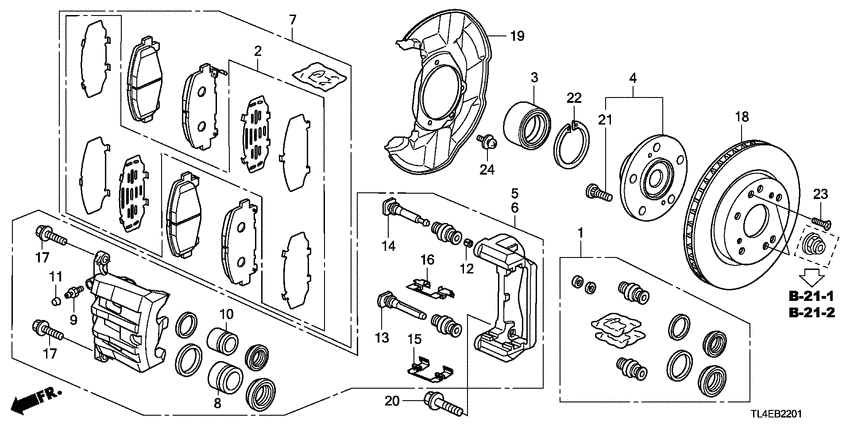

Front brake (L4) 3 / 22
CF9 Front brake (L4)
CW2 Front brake (2)
# OEM CF9 CW2
7 45215-671-672 Screw - BLEEDER Screw - BLEEDER
19 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)
20 90113-S84-901 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)

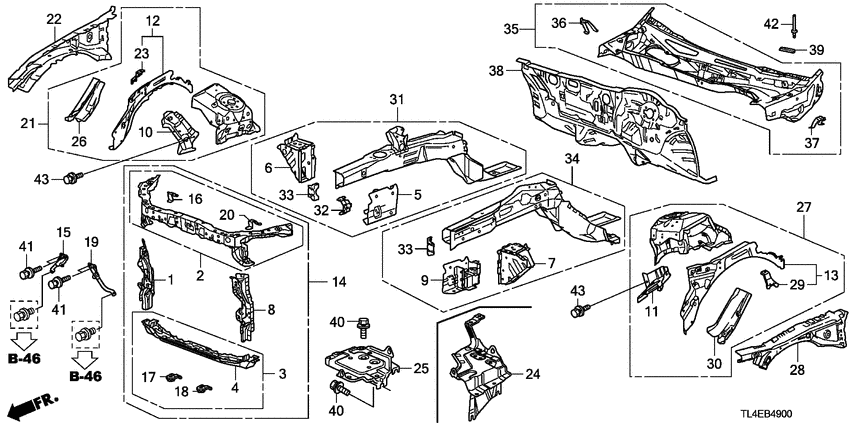

Front bulkhead 1 / 2
CF9 Front bulkhead
CW2 Front bulkhead/dashboard
# OEM CF9 CW2
29 90105-SV1-000 Bolt-washer - 8X20 Bolt-washer - 8X20
Front door lining (RH) 3 / 9
CF9 Front door lining (RH)
CW2 Front door lining (LH)
# OEM CF9 CW2
20 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)
21 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
22 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front door locks 1 / 36
CF9 Front door locks
CW2 Front door locks/ outer handle
# OEM CF9 CW2
45 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER

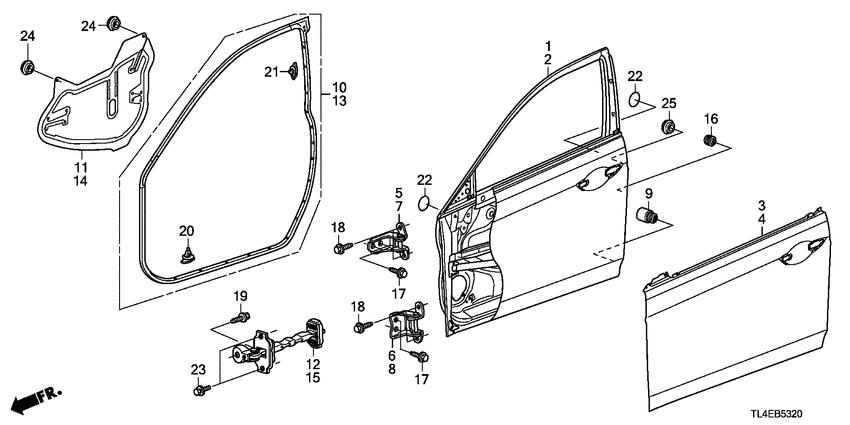

Front door panels 4 / 26
CF9 Front door panels
CW2 Front door panels
# OEM CF9 CW2
15 75891-SA7-000 Stopper - DOOR Stopper - DOOR
16 90101-SZ3-000 Bolt - FLANGE, 8X22 (8.5MM) Bolt - FLANGE, 8X22 (8.5MM)
17 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
23 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Front door windows 1 / 14
CF9 Front door windows
CW2 Heater unit (LH)
# OEM CF9 CW2
16 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Front driveshaft (L4; 2) 5 / 21
CF9 Front driveshaft (L4; 2)
CW2 Front driveshaft/half sha ft (2.4L)
# OEM CF9 CW2
8 44319-S84-300 Set ring - 28X2.0 Set ring - 28X2.0
8 44319-S0A-300 Set ring - 28X2.0 Set ring - 28X2.0
9 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
10 44327-SX0-C02 Band - OUTBOARD BOOT (NIPPON HATSUJO) Band - OUTBOARD BOOT (NIPPON HATSUJO)
11 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
Front fenders 6 / 11
CF9 Front fenders
CW2 Rear bumper
# OEM CF9 CW2
7 90501-SM4-003 Bolt - FENDER Bolt - FENDER
8 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
9 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
10 90305-SM4-003 Nut - CLIP, 6MM Nut - CLIP, 6MM
12 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
14 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP

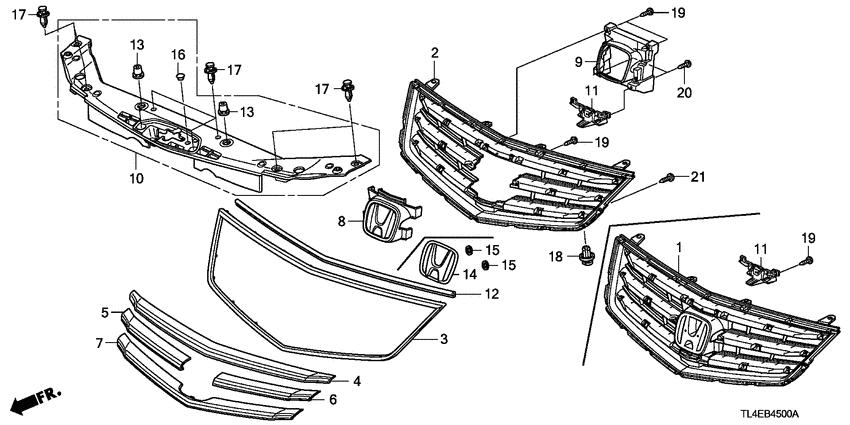

Front grille (2) 2 / 6
CF9 Front grille (2)
CW2 Front grille
# OEM CF9 CW2
5 90301-ST0-003 push nut, 3mm push nut, 3mm
6 91503-SZ3-003 Clip A Clip A

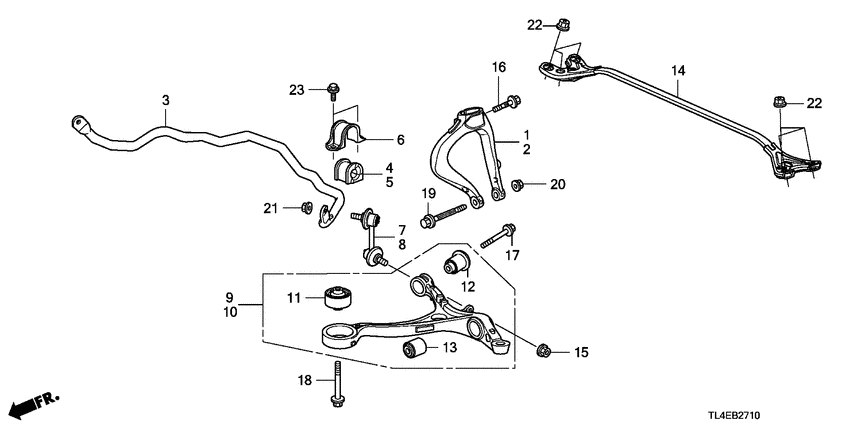

Front lower arm 5 / 29
CF9 Front lower arm
CW2 Front stabilizer/ front lower arm
# OEM CF9 CW2
21 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
22 90117-S0A-000 Bolt - DAMPER LOCK(10X44) Bolt - DAMPER LOCK(10X44)
24 90121-S0A-000 Bolt - DAMPER FORK(12X98) Bolt - DAMPER FORK(12X98)
26 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
28 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)

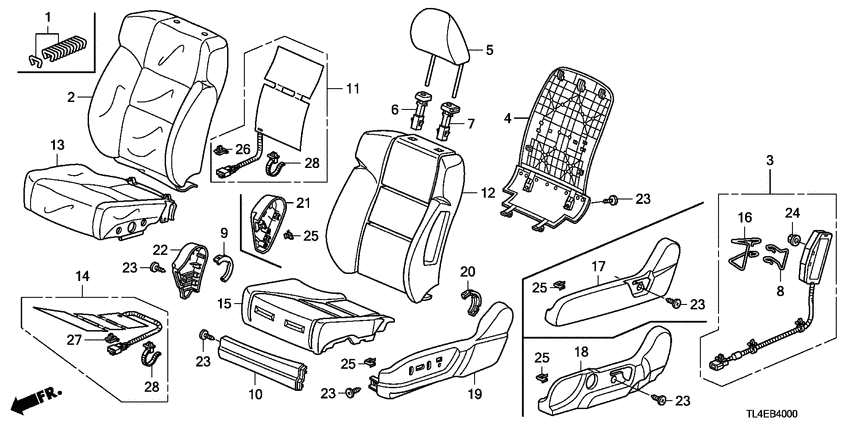

Front seat 3 / 18
CF9 Front seat
CW2 Front seat (L.; LH)
# OEM CF9 CW2
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
25 81322-SP0-003 Clip - LUMBAR SUPPORT Clip - LUMBAR SUPPORT
40 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
Front shock absorber 6 / 18
CF9 Front shock absorber
CW2 Rear shock absorber
# OEM CF9 CW2
5 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
6 51631-SV7-004 Rubber - SHOCK ABSORBER MOUNTING(SHOWA) Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
8 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
13 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
14 90300-S84-A00 Nut - SHOCK ABSORBER FLANGE (10MM) Nut - SHOCK ABSORBER FLANGE (10MM)
15 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

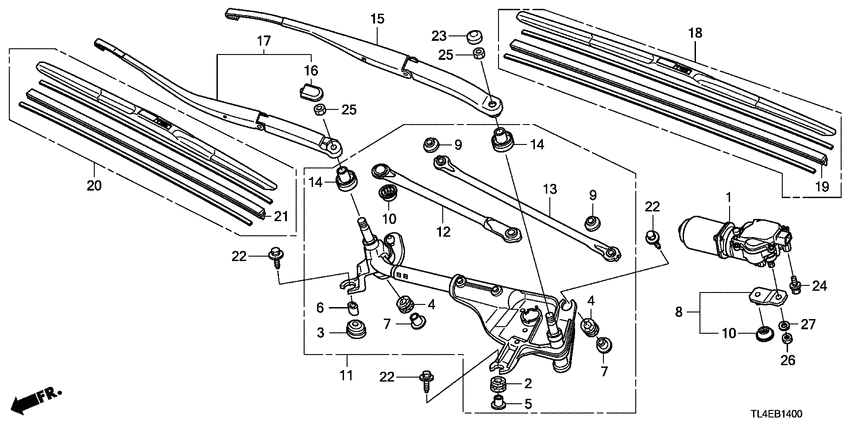

Front windshield wiper (RH) 3 / 19
CF9 Front windshield wiper (RH)
CW2 Front windshield wiper (LH)
# OEM CF9 CW2
4 76517-SM4-003 Collar Collar
6 76524-SD4-003 Dust seal Dust seal
18 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
Fuel pipe (1) 1 / 34
CF9 Fuel pipe (1)
CW2 Pedal (LH)
# OEM CF9 CW2
28 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM

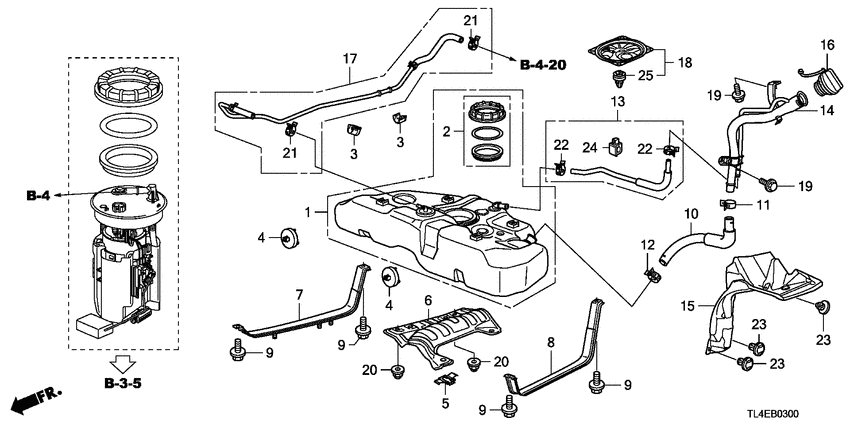

Fuel tank 4 / 37
CF9 Fuel tank
CW2 Fuel tank
# OEM CF9 CW2
8 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
26 17711-S84-004 Retainer - WHITE)(SANOH Retainer - WHITE)(SANOH
35 90700-SB0-003 Clip - AIR BLEED TUBE Clip - AIR BLEED TUBE
40 90150-S04-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16

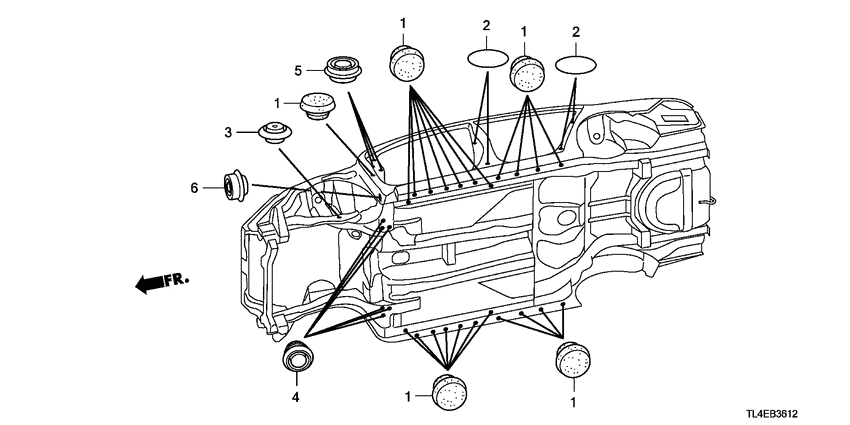

Grommet 5 / 13
CF9 Grommet
CW2 Grommet (LOWER)
# OEM CF9 CW2
3 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
7 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
10 91613-SR3-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM
11 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
22 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
Harness band/bracket 7 / 29
CF9 Harness band/bracket
CW2 Harness band/bracket (LH)
# OEM CF9 CW2
4 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
8 90627-SA5-003 Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
16 91559-ST5-003 Clip - HARNESS BAND OFFSET(30) (NATURAL) Clip - HARNESS BAND OFFSET(30) (NATURAL)
17 91559-S47-003 Clip - HARNESS BAND(NATURAL) (167MM) Clip - HARNESS BAND(NATURAL) (167MM)
25 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
34 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
36 91545-S30-003 Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
Headlight 3 / 17
CF9 Headlight
CW2 Headlight (HID)
# OEM CF9 CW2
2 33115-S84-A11 Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
6 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
8 33303-S04-003 Socket comp. - GRAY Socket comp. - GRAY
Heater blower (RH) 4 / 15
CF9 Heater blower (RH)
CW2 Heater unit (LH)
# OEM CF9 CW2
13 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
14 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
15 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
16 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater unit (RH) 5 / 18
CF9 Heater unit (RH)
CW2 Heater unit (LH)
# OEM CF9 CW2
2 39248-692-003 Packing - HEATER Packing - HEATER
13 80534-S84-A41 Aspirator Aspirator
15 90127-SX0-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
16 90127-S84-003 Screw - TAPPING, 4X16 Screw - TAPPING, 4X16
17 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
Hood (RH) 3 / 29
CF9 Hood (RH)
CW2 Engine hood (LH)
# OEM CF9 CW2
8 74134-SM4-000 Grommet - HOOD WIRE Grommet - HOOD WIRE
24 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
26 90601-S84-A01 Grommet - HOOD OPEN STAY Grommet - HOOD OPEN STAY
Instrument panel (RH) 5 / 16
CF9 Instrument panel (RH)
CW2 Instrument panel (LH)
# OEM CF9 CW2
4 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
34 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
35 90666-SD4-003 Clip - FITTING Clip - FITTING
37 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
42 90110-S84-A00 Bolt-washer - 8X20 Bolt-washer - 8X20
Instrument panel garnish (RH) 3 / 16
CF9 Instrument panel garnish (RH)
CW2 Instrument panel garnish (PASSENGER SIDE; LH)
# OEM CF9 CW2
7 66418-SA5-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
36 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
38 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Interior light 2 / 10
CF9 Interior light
CW2 Interior light (1)
# OEM CF9 CW2
5 34295-SJ8-003 Bulb - 12V 5W) (DAIICHI Bulb - 12V 5W) (DAIICHI
5 34351-657-921 Bulb - 12V/5W) (STANLEY Bulb - 12V/5W) (STANLEY
Knuckle 4 / 16
CF9 Knuckle
CW2 Front knuckle
# OEM CF9 CW2
6 51464-S04-013 Boot, UPPER BALL JOINT Boot, UPPER BALL JOINT
8 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
15 90321-SE0-000 Nut - UPPER BALL PIN, 10MM Nut - UPPER BALL PIN, 10MM
17 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Mirror (2) 1 / 9
CF9 Mirror (2)
CW2 Mirror
# OEM CF9 CW2
11 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
Oil pump/oil strainer (L4) 3 / 31
CF9 Oil pump/oil strainer (L4)
CW2 Oil pump (2.4L)
# OEM CF9 CW2
11 15231-PE0-000 Valve - RELIEF Valve - RELIEF
14 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)
19 90015-PH1-013 Holder - OIL FILTER Holder - OIL FILTER
Parking brake 3 / 10
CF9 Parking brake
CW2 Parking brake (LH)
# OEM CF9 CW2
6 47365-538-000 Pin - EQUALIZER Pin - EQUALIZER
9 47522-594-000 Nut - PARKING BRAKE ADJUSTING Nut - PARKING BRAKE ADJUSTING
13 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Pedal (RH) 3 / 14
CF9 Pedal (RH)
CW2 Pedal (LH)
# OEM CF9 CW2
9 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
25 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
26 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Pillar garnish (RH) 1 / 4
CF9 Pillar garnish (RH)
CW2 Floor mat
# OEM CF9 CW2
17 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Power steering gear box (RH) 2 / 17
CF9 Power steering gear box (RH)
CW2 P.s. gear box (EPS; LH)
# OEM CF9 CW2
10 53537-S84-A01 Rubber - STOPPER Rubber - STOPPER
17 91411-S84-A01 Nut - HEX., 14MM Nut - HEX., 14MM
Power steering gear box components (RH) 3 / 23
CF9 Power steering gear box components (RH)
CW2 P.s. gear box (EPS; LH)
# OEM CF9 CW2
5 53414-S84-A01 Screw - RACK GUIDE Screw - RACK GUIDE
8 53458-S84-A01 Nut - LOCK Nut - LOCK
10 53537-S84-A01 Rubber - STOPPER Rubber - STOPPER
Power steering lines (L4; RH) 1 / 22
CF9 Power steering lines (L4; RH)
CW2 Brake master cylinder/ master power (LH)
# OEM CF9 CW2
8 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Protector 4 / 12
CF9 Protector
CW2 Side sill garnish/ under cover
# OEM CF9 CW2
12 90114-SE0-000 Screw - TAPPING, 5X20 Screw - TAPPING, 5X20
14 90345-S04-000 Nut - SUSPENSION, 5MM Nut - SUSPENSION, 5MM
16 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
17 91513-SM4-000 Clip - SIDE SILL UPPER GARNISH Clip - SIDE SILL UPPER GARNISH
Radiator (L4) 4 / 13
CF9 Radiator (L4)
CW2 Radiator (2.4L)
# OEM CF9 CW2
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
12 90042-PAA-A01 Bolt-washer - 6X16 (DENSO) Bolt-washer - 6X16 (DENSO)
13 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose (L4) 4 / 23
CF9 Radiator hose (L4)
CW2 Radiator hose/reserve tan k (2.4L)
# OEM CF9 CW2
2 19102-PM5-A00 Cap - RESERVE TANK Cap - RESERVE TANK
8 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN) Clip - WATER HOSE (36.5MM) (KEIHIN)
8 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
18 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
Radio antenna/speaker 3 / 13
CF9 Radio antenna/speaker
CW2 Harness band/bracket (LH)
# OEM CF9 CW2
12 90666-SD4-003 Clip - FITTING Clip - FITTING
13 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
14 91545-S30-003 Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
Rear brake (DISK; L4) 4 / 36
CF9 Rear brake (DISK; L4)
CW2 Front brake (2)
# OEM CF9 CW2
26 45215-671-672 Screw - BLEEDER Screw - BLEEDER
28 45233-S04-A01 Bush Bush
30 45240-S01-A01 Bolt Bolt
33 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
Rear door lining 3 / 8
CF9 Rear door lining
CW2 Front door lining (LH)
# OEM CF9 CW2
19 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)
20 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
21 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door locks 2 / 33
CF9 Rear door locks
CW2 Front door locks/ outer handle
# OEM CF9 CW2
36 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
37 90662-SB2-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Rear door panels 4 / 28
CF9 Rear door panels
CW2 Front door panels
# OEM CF9 CW2
19 75891-SA7-000 Stopper - DOOR Stopper - DOOR
20 90101-SZ3-000 Bolt - FLANGE, 8X22 (8.5MM) Bolt - FLANGE, 8X22 (8.5MM)
21 90141-S04-000 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
26 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Rear door windows 1 / 22
CF9 Rear door windows
CW2 Heater unit (LH)
# OEM CF9 CW2
21 91580-SM4-003 Clip - COUPLER(ORANGE) Clip - COUPLER(ORANGE)
Rear lower arm 6 / 36
CF9 Rear lower arm
CW2 Front stabilizer/ front lower arm
# OEM CF9 CW2
8 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
25 90002-S10-000 Nut - FLANGE, 10MM Nut - FLANGE, 10MM
26 90121-S0A-000 Bolt - DAMPER FORK(12X98) Bolt - DAMPER FORK(12X98)
28 90181-S84-A00 Bolt - TRAILING ARM, 12X68 Bolt - TRAILING ARM, 12X68
29 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
31 90306-SB2-013 Nut - SELF-LOCK, 10MM (CLINCH) Nut - SELF-LOCK, 10MM (CLINCH)
Rear seat 3 / 26
CF9 Rear seat
CW2 Rear seat
# OEM CF9 CW2
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
3 78182-SA0-000 Clip - RR. SEAT PIN Clip - RR. SEAT PIN
31 90140-SA5-000 Bolt - SPLASH GUARD Bolt - SPLASH GUARD
Rear shock absorber 6 / 21
CF9 Rear shock absorber
CW2 Rear shock absorber
# OEM CF9 CW2
1 51621-S84-A01 Washer - SHOCK ABSORBER MOUNTING Washer - SHOCK ABSORBER MOUNTING
2 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
3 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
12 52690-SG0-000 Plate - BUMP STOP Plate - BUMP STOP
16 90300-S84-A00 Nut - SHOCK ABSORBER FLANGE (10MM) Nut - SHOCK ABSORBER FLANGE (10MM)
17 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Rear tray/side lining 1 / 7
CF9 Rear tray/side lining
CW2 Air cleaner (2.4L)
# OEM CF9 CW2
27 75353-671-000 Lock - SCREW Lock - SCREW
Rear windshield 2 / 8
CF9 Rear windshield
CW2 Rear windshield/ quarter glass
# OEM CF9 CW2
6 91563-SV4-003 Fastener a - RR. WINDSHIELD Fastener a - RR. WINDSHIELD
7 91568-SV4-003 Fastener b - RR. WINDSHIELD Fastener b - RR. WINDSHIELD
Resonator chamber (L4) 3 / 8
CF9 Resonator chamber (L4)
CW2 Air cleaner (2.4L)
# OEM CF9 CW2
1 17212-P2J-J00 Rubber, AIR CLEANER MOUNTING Rubber, AIR CLEANER MOUNTING
3 17216-PN3-000 Collar - AIR CLEANER MOUNTING Collar - AIR CLEANER MOUNTING
8 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Sensor/solenoid (L4) 1 / 29
CF9 Sensor/solenoid (L4)
CW2 Transmission case
# OEM CF9 CW2
20 91309-PX4-003 O-ring - 16X2.1 (NOK) O-ring - 16X2.1 (NOK)
Srs unit (RH; 2) 3 / 9
CF9 Srs unit (RH; 2)
CW2 Srs unit (LH)
# OEM CF9 CW2
9 90137-S84-A01 Bolt - TORX EARTH, 6X20 Bolt - TORX EARTH, 6X20
10 91531-S04-003 Clip - WIRE HARNESS(NATURAL) (44MM) Clip - WIRE HARNESS(NATURAL) (44MM)
11 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
Steering column 2 / 11
CF9 Steering column
CW2 Steering column
# OEM CF9 CW2
9 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
10 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
Steering wheel (SRS; L4) 1 / 4
CF9 Steering wheel (SRS; L4)
CW2 Steering wheel (SRS)
# OEM CF9 CW2
12 90161-SV4-003 Bolt - STEERING HANDLE Bolt - STEERING HANDLE
Taillight 5 / 19
CF9 Taillight
CW2 Taillight/license light
# OEM CF9 CW2
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
2 33303-SL4-003 Bulb - WEDGE (12V 21W) (STANLEY) Bulb - WEDGE (12V 21W) (STANLEY)
5 33513-S50-003 Socket - T20W S2 Socket - T20W S2
6 33514-S50-003 Socket - T20W S3 Socket - T20W S3
16 34906-ST5-003 Bulb - 12V 21W/5W) (STANLEY Bulb - 12V 21W/5W) (STANLEY
Tire/wheel disks 1 / 17
CF9 Tire/wheel disks
CW2 Tire/wheel disks
# OEM CF9 CW2
5 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
Tools/jack 1 / 9
CF9 Tools/jack
CW2 Tools/jack
# OEM CF9 CW2
8 89320-S05-003 Bar - JACK Bar - JACK
Trunk lid (RH) 3 / 26
CF9 Trunk lid (RH)
CW2 Air cleaner (2.4L)
# OEM CF9 CW2
27 75353-671-000 Lock - SCREW Lock - SCREW
28 90108-S0A-003 Bolt - FLANGE, 6X15 Bolt - FLANGE, 6X15
34 91609-SE0-A00 Protection - CUSHION Protection - CUSHION
Water valve (L4; RH) 3 / 8
CF9 Water valve (L4; RH)
CW2 Water hose (2.4L; LH)
# OEM CF9 CW2
6 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
7 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
7 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Windshield washer (L4) 1 / 14
CF9 Windshield washer (L4)
CW2 Windshield washer
# OEM CF9 CW2
12 90652-SB2-023 Clip - TUBE, 7MM Clip - TUBE, 7MM
Wire harness (RH) 3 / 18
CF9 Wire harness (RH)
CW2 Wire harness (1; LH)
# OEM CF9 CW2
15 33301-S70-003 Bulb - 12V 3.8W 2CP Bulb - 12V 3.8W 2CP
16 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
17 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
