検索 › 比較 › CF9 × CH3
CF9
Honda ACCORD — 2,098 中 1,362 共有
CH3
Honda ACCORD — 1,950 中 1,362 共有

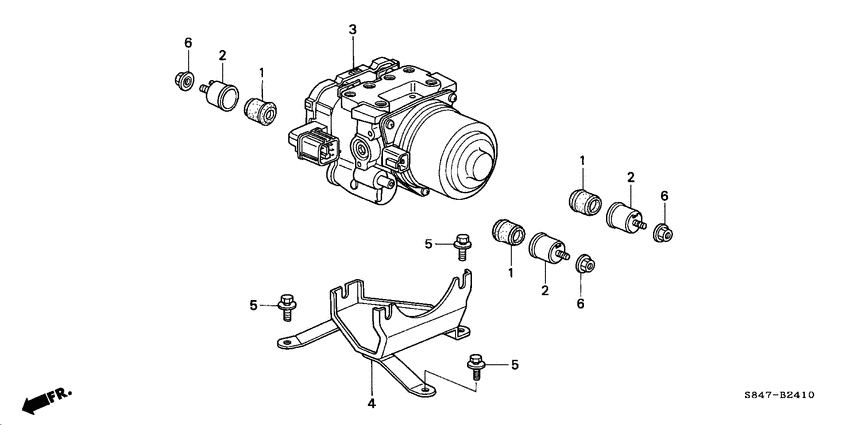

Abs modulator (L4) 4 / 4
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 57101-S30-003 | Rubber - ABS MOUNTING | Rubber - ABS MOUNTING |
| 2 | 57102-S30-003 | Holder - ABS | Holder - ABS |
| 3 | 57110-S4K-A51 | Modulator assy - ABS | Modulator assy - ABS |
| 4 | 57115-S84-A50 | Bracket - MODULATOR | Bracket - MODULATOR |
Air cleaner (L4) 10 / 12
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 17201-PAA-000 | Case set - AIR CLEANER | Case set - AIR CLEANER |
| 2 | 17211-PAA-A00 | Cover - AIR CLEANER | Cover - AIR CLEANER |
| 3 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 4 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 5 | 17217-P2J-300 | Clip - AIR CLEANER | Clip - AIR CLEANER |
| 8 | 17249-PS4-000 | Spring - AIR FLOW TUBE | Spring - AIR FLOW TUBE |
| 9 | 17316-P1E-000 | Clamp - AIR FLOW TUBE (70) | Clamp - AIR FLOW TUBE (70) |
| 10 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 12 | 17281-PAA-A00 | Tube - SIDE BRANCH | Tube - SIDE BRANCH |
| 13 | 17316-P0G-A01 | Clamp - AIR FLOW TUBE (55) | Clamp - AIR FLOW TUBE (55) |
Air conditioner (COMPRESSOR; L4) 15 / 15
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 38801-P9K-E01 | Valve sub assy. - SAFETY | Valve sub assy. - SAFETY |
| 2 | 38810-P3G-003 | Compressor comp. - DENSO | Compressor comp. - DENSO |
| 3 | 38812-PH1-003 | Ring b - SNAP | Ring b - SNAP |
| 4 | 38812-671-003 | Ring a - SNAP | Ring a - SNAP |
| 5 | 38827-PH7-003 | Screw-washer - 5X8 | Screw-washer - 5X8 |
| 6 | 38829-PR3-003 | Bolt - WASHER HEAD | Bolt - WASHER HEAD |
| 7 | 38838-PAA-A01 | Valve - SUCTION SERVICE | Valve - SUCTION SERVICE |
| 8 | 38839-PR7-A01 | O-ring | O-ring |
| 9 | 38840-PC1-003 | Bolt b | Bolt b |
| 10 | 38900-PAA-A01 | Clutch set | Clutch set |
| 11 | 38912-PH1-N01 | Plate set - WASHER | Plate set - WASHER |
| 12 | 38920-PAA-A02 | Belt - COMPRESSOR (MITSUBOSHI) | Belt - COMPRESSOR (MITSUBOSHI) |
| 13 | 38924-PAA-A01 | Stator set | Stator set |
| 14 | 38930-PAA-A00 | Bracket - COMPRESSOR | Bracket - COMPRESSOR |
| 15 | 90023-P8A-A00 | Bolt - FLANGE, 8X85 | Bolt - FLANGE, 8X85 |
Air conditioner (CONDENSER) 12 / 12
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 32175-647-920 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 1 | 30701-883-000 | Clip, high tension cord (8mm) | Clip, high tension cord (8mm) |
| 2 | 38611-PAA-A01 | Fan comp - COOLING (MITSUBA) | Fan comp - COOLING (MITSUBA) |
| 3 | 38615-PAA-A00 | Shroud comp. - AIR CONDITIONER | Shroud comp. - AIR CONDITIONER |
| 4 | 38616-PAA-A01 | Motor - COOLING FAN (MITSUBA) | Motor - COOLING FAN (MITSUBA) |
| 5 | 80100-S84-A00 | Condenser assy - SHOWA | Condenser assy - SHOWA |
| 6 | 80107-SS0-000 | Mount - CONDENSER UPPER | Mount - CONDENSER UPPER |
| 7 | 80111-S84-A00 | Bracket - CONDENSER MOUNT UPPER | Bracket - CONDENSER MOUNT UPPER |
| 8 | 80175-SE0-000 | Mount - CONDENSER | Mount - CONDENSER |
| 9 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 10 | 90041-PAA-A01 | Nut - TOOTHED, 5MM | Nut - TOOTHED, 5MM |
| 11 | 90430-PAA-A01 | Washer - PLAIN, 8MM | Washer - PLAIN, 8MM |
Air conditioner (COOLING UNIT; RH) 20 / 26
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 39794-S04-004 | Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA) | Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA) |
| 6 | 80203-S84-A00 | Lid - EVAPORATOR UPPER CASE | Lid - EVAPORATOR UPPER CASE |
| 7 | 80204-S84-A00 | Holder - EVAPORATOR | Holder - EVAPORATOR |
| 10 | 80207-S84-A00 | Insulator | Insulator |
| 11 | 80214-SL5-A01 | Insulator - EXPANSION | Insulator - EXPANSION |
| 13 | 80216-S84-A01 | Pipe - LIQUID | Pipe - LIQUID |
| 14 | 80220-S84-A02 | Valve assy. - EXPANSION (10N) (FUJI KOKI AMERICA) | Valve assy. - EXPANSION (10N) (FUJI KOKI AMERICA) |
| 15 | 80223-ST7-A11 | O-ring - FUJI KOKI AMERICA | O-ring - FUJI KOKI AMERICA |
| 16 | 80225-SR3-010 | Clamp | Clamp |
| 17 | 80286-S84-A00 | Seal - EVAPORATOR INNER | Seal - EVAPORATOR INNER |
| 18 | 80287-S84-A00 | Seal - EVAPORATOR OUTER | Seal - EVAPORATOR OUTER |
| 19 | 80288-S84-A00 | Seal - EVAPORATOR PIPE | Seal - EVAPORATOR PIPE |
| 20 | 80289-S84-A00 | Seal - DRAIN | Seal - DRAIN |
| 21 | 80560-SV4-A41 | Sensor - EVAPORATOR | Sensor - EVAPORATOR |
| 22 | 80566-SR3-003 | Clip - EVAPORATOR SENSOR | Clip - EVAPORATOR SENSOR |
| 23 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 24 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 25 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 26 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 27 | 91556-SP0-003 | Clip - COUPLER(BROWN) | Clip - COUPLER(BROWN) |
Air conditioner (HOSES/PIPES; L4; RH) 12 / 18
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 3 | 80315-S84-A01 | Hose comp. - DISCHARGE (PARKER) | Hose comp. - DISCHARGE (PARKER) |
| 6 | 80351-S84-E01 | Receiver comp | Receiver comp |
| 7 | 80352-S84-A00 | Bracket - LIQUID TANK | Bracket - LIQUID TANK |
| 9 | 80365-S84-A00 | Clamp - SUCTION PIPE | Clamp - SUCTION PIPE |
| 11 | 80381-SV7-A01 | Clamp - RECEIVER PIPE | Clamp - RECEIVER PIPE |
| 13 | 80440-SS0-901 | Switch - DUAL PRESSURE (FUJI) | Switch - DUAL PRESSURE (FUJI) |
| 14 | 80865-S84-003 | Cap h - VALVE | Cap h - VALVE |
| 15 | 80866-ST7-A11 | Cap l - VALVE (PARKER) | Cap l - VALVE (PARKER) |
| 16 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 17 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 18 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
Air conditioner (SENSOR) 1 / 5
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 6 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
Alternator (DENSO; L4) 21 / 22
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 31101-PAA-A01 | Rotor assy. | Rotor assy. |
| 3 | 31105-PR7-A01 | Holder assy. - BRUSH | Holder assy. - BRUSH |
| 4 | 31111-PT0-003 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 5 | 31114-PT0-013 | Bearing - FR. GENERATOR | Bearing - FR. GENERATOR |
| 6 | 31118-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 7 | 31119-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 8 | 31127-PT2-013 | Rectifier assy. | Rectifier assy. |
| 9 | 31135-P2C-003 | Cover - RR. END | Cover - RR. END |
| 9 | 31135-P3G-J01 | Cover | Cover |
| 10 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 11 | 31141-P1E-003 | Pulley | Pulley |
| 12 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 13 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 14 | 31146-PT0-003 | Screw | Screw |
| 15 | 31147-PT0-003 | Screw-washer | Screw-washer |
| 16 | 31147-P13-003 | Screw | Screw |
| 17 | 31148-PT0-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 18 | 31148-P13-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 19 | 31150-P5A-003 | Regulator assy | Regulator assy |
| 20 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |
| 21 | 90232-PT0-003 | Nut - HEX., 6MM | Nut - HEX., 6MM |
Alternator bracket (L4) 7 / 7
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 11950-PAA-A00 | Stiffener - ENGINE | Stiffener - ENGINE |
| 3 | 31112-PAA-A00 | Bracket comp. - ALTERNATOR | Bracket comp. - ALTERNATOR |
| 4 | 31113-P0A-A00 | Stay - ALTERNATOR | Stay - ALTERNATOR |
| 5 | 56995-PV0-000 | Bolt - TENSIONER | Bolt - TENSIONER |
| 6 | 90311-PT0-000 | Bolt - ADJUSTER SPECIAL | Bolt - ADJUSTER SPECIAL |
| 7 | 90313-PT0-000 | Bolt - SPECIAL, 10X90 | Bolt - SPECIAL, 10X90 |
| 16 | 90051-PE0-000 | Bolt - FLANGE, 12X70 | Bolt - FLANGE, 12X70 |
Auto radio 4 / 8
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 39100-S82-Y02 | Tuner assy - AUTO RADIO (CLARION) (20WX4) | Tuner assy - AUTO RADIO (CLARION) (20WX4) |
| 2 | 39103-S82-A41 | Knob - CLARION | Knob - CLARION |
| 3 | 39104-S82-A41 | Knob - BASS TREBLE (CLARION) | Knob - BASS TREBLE (CLARION) |
| 6 | 90133-SM4-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
Battery (L4) 15 / 17
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 31500-SS0-G71 | Battery assy - 70D23L-MF) (PANASONIC | Battery assy - 70D23L-MF) (PANASONIC |
| 1 | 31500-SS0-G73 | Battery assy - 70D23L-MF) (FURUKAWA | Battery assy - 70D23L-MF) (FURUKAWA |
| 2 | 31512-SS0-000 | Plate - BATTERY SETTING (70D/80D) | Plate - BATTERY SETTING (70D/80D) |
| 3 | 31513-SM4-000 | Bolt - BATTERY SETTING(195MM) | Bolt - BATTERY SETTING(195MM) |
| 4 | 31513-SP0-010 | Bolt - BATTERY SETTING (210MM) | Bolt - BATTERY SETTING (210MM) |
| 5 | 31521-S84-A10 | Box - BATTERY | Box - BATTERY |
| 6 | 32116-P64-003 | Holder - CORRUGATED (DARK GREEN) (13MM) | Holder - CORRUGATED (DARK GREEN) (13MM) |
| 8 | 32412-S84-A00 | Bracket - STARTER CABLE | Bracket - STARTER CABLE |
| 11 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 12 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 13 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 14 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 15 | 91507-SL9-003 | Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) | Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) |
| 16 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 20 | 31542-SA5-665 | Plug - VENT (MF) (PANASONIC) | Plug - VENT (MF) (PANASONIC) |
Brake lines (ABS; L4; RH) 19 / 26
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 01464-S84-A01 | Hose set, R. FR. BRAKE | Hose set, R. FR. BRAKE |
| 2 | 01465-S84-A01 | Hose set, L. FR. BRAKE | Hose set, L. FR. BRAKE |
| 3 | 01466-S84-A51 | Hose set - R. RR. BRAKE | Hose set - R. RR. BRAKE |
| 4 | 01468-S84-A51 | Hose set - L. RR. BRAKE | Hose set - L. RR. BRAKE |
| 6 | 46330-S84-A00 | Pipe comp. c - BRAKE | Pipe comp. c - BRAKE |
| 11 | 46377-S84-A50 | Pipe comp. x - BRAKE | Pipe comp. x - BRAKE |
| 12 | 46378-S84-A50 | Pipe comp. y - BRAKE | Pipe comp. y - BRAKE |
| 13 | 46379-S84-A50 | Pipe comp. z - BRAKE | Pipe comp. z - BRAKE |
| 14 | 46380-SB0-000 | Grommet a - BRAKE PIPE (BLACK) | Grommet a - BRAKE PIPE (BLACK) |
| 15 | 46391-SX8-T01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 16 | 46391-S84-A51 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 17 | 46392-S84-A50 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 18 | 46393-SM4-951 | Clip c | Clip c |
| 19 | 46393-S84-A00 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 21 | 46395-S84-A00 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 23 | 46435-S84-A00 | Bracket - RR. BRAKE HOSE | Bracket - RR. BRAKE HOSE |
| 24 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 25 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 26 | 90651-SV1-A01 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Brake master cylinder/ master power 14 / 19
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 3 | 46120-S84-A51 | Piston assy. - PRIMARY | Piston assy. - PRIMARY |
| 4 | 46122-S84-A51 | Piston assy. - SECONDARY | Piston assy. - SECONDARY |
| 5 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 6 | 46182-S84-A51 | Circlip | Circlip |
| 7 | 46185-S04-J01 | Seal - ROD | Seal - ROD |
| 8 | 46191-634-000 | Gasket - MASTER CYLINDER BRACKET | Gasket - MASTER CYLINDER BRACKET |
| 14 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 16 | 46662-S04-J01 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 17 | 46665-S04-J01 | Grommet | Grommet |
| 18 | 46666-S04-J01 | Filter - BRAKE RESERVOIR | Filter - BRAKE RESERVOIR |
| 19 | 46669-692-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 20 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 21 | 57515-S30-003 | Pin - STOP | Pin - STOP |
| 28 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
Breather tube (L4) 5 / 5
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 11856-PAA-A00 | Tube - PCV | Tube - PCV |
| 2 | 17130-PK1-003 | Valve assy. - PCV | Valve assy. - PCV |
| 3 | 17137-PAA-A00 | Pipe comp - BREATHER | Pipe comp - BREATHER |
| 4 | 17138-P0A-000 | Tube - BREATHER | Tube - BREATHER |
| 5 | 17139-PK1-000 | Grommet - PCV VALVE | Grommet - PCV VALVE |
Bumpers (2) 19 / 21
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 71105-S84-A00 | Weight - FR. BUMPER | Weight - FR. BUMPER |
| 6 | 71143-S84-A00 | Beam comp - R. FR. BUMPER CORNER UPPER | Beam comp - R. FR. BUMPER CORNER UPPER |
| 7 | 71144-SR3-013 | Grommet - BUMPER SIDE | Grommet - BUMPER SIDE |
| 9 | 71148-S84-A00 | Beam comp - L. FR. BUMPER CORNER UPPER | Beam comp - L. FR. BUMPER CORNER UPPER |
| 10 | 71170-S86-K00 | Absorber - FR. BUMPER | Absorber - FR. BUMPER |
| 11 | 71172-S84-A00 | Box - BUMPER BEAM ABSORBER | Box - BUMPER BEAM ABSORBER |
| 19 | 71598-SL4-013 | Spacer - BUMPER SIDE | Spacer - BUMPER SIDE |
| 20 | 71598-S30-013 | Spacer assy. - RR. BUMPER SIDE | Spacer assy. - RR. BUMPER SIDE |
| 21 | 90106-SW3-003 | Grommet - BUMPER SETTING | Grommet - BUMPER SETTING |
| 22 | 90107-S0X-A01 | Grommet - BUMPER END | Grommet - BUMPER END |
| 23 | 90108-SW3-003 | Clip - BUMPER SETTING | Clip - BUMPER SETTING |
| 24 | 90109-SS0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 25 | 90110-SE7-000 | Bolt-washer - 8X21 | Bolt-washer - 8X21 |
| 26 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 30 | 91503-SZ3-003 | Clip A | Clip A |
| 31 | 91503-SZ5-003 | Clip - BUMPER FACE | Clip - BUMPER FACE |
| 33 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 37 | 71187-S84-A00 | Bracket comp. - FR BUMPER DAMPER | Bracket comp. - FR BUMPER DAMPER |
| 38 | 90373-SP0-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
Camshaft/timing belt (L4) 25 / 25
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 11810-PAA-800 | Cover set - TIMING BELT LOWER | Cover set - TIMING BELT LOWER |
| 2 | 11812-PAA-800 | Seal - TIMING BELT COVER (CUT BEFORE USE) | Seal - TIMING BELT COVER (CUT BEFORE USE) |
| 3 | 11820-P0A-000 | Cover - TIMING BELT UPPER | Cover - TIMING BELT UPPER |
| 4 | 11830-PAA-800 | Cover set - TIMING BELT BACK | Cover set - TIMING BELT BACK |
| 5 | 11925-PAA-A00 | Rubber a - ENGINE MOUNTING BRACKET SEAL | Rubber a - ENGINE MOUNTING BRACKET SEAL |
| 6 | 11926-P0A-000 | Rubber b - ENGINE MOUNTING BRACKET SEAL | Rubber b - ENGINE MOUNTING BRACKET SEAL |
| 7 | 13404-PT0-003 | Adjuster comp - BALANCER BELT (KOYO) | Adjuster comp - BALANCER BELT (KOYO) |
| 8 | 13405-PAA-A02 | Belt - BALANCER TIMING (UNITTA) (70RU16 B-333) | Belt - BALANCER TIMING (UNITTA) (70RU16 B-333) |
| 9 | 13407-P0A-000 | Spring - BELT ADJUSTER | Spring - BELT ADJUSTER |
| 10 | 13415-P0A-000 | Bracket - BALANCER BELT ADJUSTER | Bracket - BALANCER BELT ADJUSTER |
| 11 | 14111-PAD-G00 | Camshaft | Camshaft |
| 12 | 14210-PAA-A01 | Pulley - TIMING BELT DRIVEN | Pulley - TIMING BELT DRIVEN |
| 13 | 14400-PAA-A02 | Belt - TIMING (112RU24 A-555) | Belt - TIMING (112RU24 A-555) |
| 14 | 14510-PT0-003 | Adjuster comp - TIMING BELT (KOYO) | Adjuster comp - TIMING BELT (KOYO) |
| 15 | 14516-P0A-000 | Spring comp - TIMING BELT ADJUSTER | Spring comp - TIMING BELT ADJUSTER |
| 16 | 90007-679-000 | Bolt a - TIMING BELT COVER | Bolt a - TIMING BELT COVER |
| 17 | 90015-PT0-000 | Bolt - TIMING BELT ADJUSTER SPRING | Bolt - TIMING BELT ADJUSTER SPRING |
| 18 | 90016-P0A-000 | Bolt - TIMING BELT ADJUSTER | Bolt - TIMING BELT ADJUSTER |
| 19 | 90031-PV0-003 | Bolt-washer - 10X30 | Bolt-washer - 10X30 |
| 19 | 90031-PV0-305 | Bolt-washer (10x30) | Bolt-washer (10x30) |
| 20 | 90051-PT0-000 | Bolt - SUB BELT ADJUSTER SPRING | Bolt - SUB BELT ADJUSTER SPRING |
| 21 | 90216-PAA-A00 | Nut - 10MM | Nut - 10MM |
| 22 | 90401-PAA-A00 | Rubber - TIMING BELT ADJUSTING BOLT | Rubber - TIMING BELT ADJUSTING BOLT |
| 23 | 90501-MB7-610 | Washer - 10.3X25 | Washer - 10.3X25 |
| 24 | 91213-PT0-003 | Oil seal - 28X42X8 (ARAI) | Oil seal - 28X42X8 (ARAI) |
Combination meter (NS) 16 / 20
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35505-SJ4-003 | Socket assy - BULB (14V 3W) | Socket assy - BULB (14V 3W) |
| 3 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 4 | 37102-SA5-003 | Socket assy - BULB (14V 3.4W) (NS) (BASE:BLACK) | Socket assy - BULB (14V 3.4W) (NS) (BASE:BLACK) |
| 6 | 37115-SA0-601 | Packing - NS | Packing - NS |
| 7 | 37237-SA5-003 | Bulb - 14V 3.4W) (NS | Bulb - 14V 3.4W) (NS |
| 8 | 78105-S84-003 | Socket assy - BULB | Socket assy - BULB |
| 9 | 78110-S84-A01 | Case - NS | Case - NS |
| 10 | 78120-S84-G01 | Speedometer assy | Speedometer assy |
| 11 | 78125-S84-G01 | Tachometer assy. | Tachometer assy. |
| 14 | 78150-S84-A01 | Knob - TRIP | Knob - TRIP |
| 15 | 78151-S84-A01 | Knob - ILLUMINATION CONTROL | Knob - ILLUMINATION CONTROL |
| 16 | 78155-S84-A01 | Visor - METER | Visor - METER |
| 17 | 78166-S84-A01 | Cover | Cover |
| 18 | 78170-S84-A01 | Lens - METER | Lens - METER |
| 21 | 78190-S02-J51 | Panel - CARBURETOR PRINT | Panel - CARBURETOR PRINT |
Combination switch (RH) 11 / 19
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 5 | 35108-S30-003 | Holder - COLUMN | Holder - COLUMN |
| 11 | 35251-S84-A02 | Body comp - SWITCH | Body comp - SWITCH |
| 14 | 35400-S0A-003 | Switch assy - DOOR | Switch assy - DOOR |
| 16 | 35409-S0A-003 | Screw - FLANGE, 4X12 | Screw - FLANGE, 4X12 |
| 19 | 72146-S10-003 | Cover - BATTERY | Cover - BATTERY |
| 21 | 72148-S10-003 | Battery - CR2025 | Battery - CR2025 |
| 21 | 72148-S84-A10 | Battery - CR2025 | Battery - CR2025 |
| 22 | 72149-S10-003 | O-ring | O-ring |
| 24 | 90690-SA0-003 | Strap - WIRE HARNESS, 25MM (BLACK) | Strap - WIRE HARNESS, 25MM (BLACK) |
Console 16 / 16
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 39620-S01-A01 | Socket - ACCESSORY | Socket - ACCESSORY |
| 2 | 39621-S01-A01 | Cover - SOCKET | Cover - SOCKET |
| 5 | 66418-SA5-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 6 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 8 | 77234-SV4-003 | Clip | Clip |
| 9 | 77235-S84-A01 | Latch - G-SENSOR | Latch - G-SENSOR |
| 15 | 83402-S84-G01 | Bracket comp. - CENTER CONSOLE | Bracket comp. - CENTER CONSOLE |
| 20 | 83408-SS0-J00 | Lock - ARMREST | Lock - ARMREST |
| 21 | 83410-S84-A01 | Hinge comp - ARMREST | Hinge comp - ARMREST |
| 25 | 88324-SB3-950 | Cover - RR. ASHTRAY | Cover - RR. ASHTRAY |
| 27 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 28 | 90146-SP0-000 | Screw - TAPPING, 4X12 (PO) | Screw - TAPPING, 4X12 (PO) |
| 29 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 30 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 31 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 37 | 90666-S84-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
Control unit (CABIN; RH) 6 / 17
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 7 | 38200-S84-A01 | Box assy - FUSE | Box assy - FUSE |
| 8 | 38210-S84-G51 | Box assy - FUSE (PASSENGER SIDE) | Box assy - FUSE (PASSENGER SIDE) |
| 13 | 38800-S84-G14 | System unit - MULTIPLEX CONTROL (DRIVER SIDE) (OKI) | System unit - MULTIPLEX CONTROL (DRIVER SIDE) (OKI) |
| 15 | 39400-S84-003 | Relay assy - MAIN (MITSUBA) | Relay assy - MAIN (MITSUBA) |
| 18 | 39792-SM4-013 | Relay assy - POWER (4P NO.305) (DENSO) | Relay assy - POWER (4P NO.305) (DENSO) |
| 19 | 39794-S04-004 | Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA) | Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA) |
Control unit (ENGINE ROOM; RH) 19 / 23
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 38100-S84-A51 | Horn assy - LOW | Horn assy - LOW |
| 2 | 38150-S84-A51 | Horn assy - HIGH | Horn assy - HIGH |
| 3 | 38182-S84-A01 | Cover - MULTI RELAY | Cover - MULTI RELAY |
| 5 | 38213-SM4-003 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 6 | 38218-SM4-003 | Fuse - BLOCK (100A) | Fuse - BLOCK (100A) |
| 7 | 38231-S04-003 | Fuse - BLOCK (30A) | Fuse - BLOCK (30A) |
| 8 | 38231-S04-961 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 9 | 38235-S04-003 | Puller - MINI FUSE (SUMITOMO) | Puller - MINI FUSE (SUMITOMO) |
| 11 | 38251-S84-A00 | Bracket - RELAY BOX | Bracket - RELAY BOX |
| 12 | 38252-S84-A01 | Cover - LOWER | Cover - LOWER |
| 15 | 39792-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7410) | Relay assy - POWER(4P)(DENSO) (056700-7410) |
| 16 | 39792-SP0-014 | Relay assy - POWER (4P) (MITSUBA) (12V NO) | Relay assy - POWER (4P) (MITSUBA) (12V NO) |
| 17 | 39793-SV4-003 | Relay assy - POWER (5P) (MITSUBA) | Relay assy - POWER (5P) (MITSUBA) |
| 18 | 39793-S84-A00 | Bracket - WIPER RELAY | Bracket - WIPER RELAY |
| 19 | 39794-S04-004 | Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA) | Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA) |
| 20 | 90129-S84-000 | Screw-washer - 5X14 | Screw-washer - 5X14 |
| 21 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |
| 22 | 90182-SB6-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 23 | 91551-SV4-003 | Clip - BRACKET | Clip - BRACKET |
Crankshaft/piston (L4) 39 / 49
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 13011-P0C-G04 | Ring set - PISTON (STD.) (RIKEN) | Ring set - PISTON (STD.) (RIKEN) |
| 3 | 13014-PAA-810 | Washer set - THRUST (TAIHO) | Washer set - THRUST (TAIHO) |
| 3 | 13014-PAA-800 | Washer set - THRUST (DAIDO) | Washer set - THRUST (DAIDO) |
| 5 | 13111-P5A-000 | Pin - PISTON | Pin - PISTON |
| 6 | 13115-P5A-000 | Clip - PISTON PIN | Clip - PISTON PIN |
| 7 | 13204-P8A-A01 | Bolt - CONNECTING ROD | Bolt - CONNECTING ROD |
| 8 | 13210-PAD-G00 | Rod comp - CONNECTING | Rod comp - CONNECTING |
| 9 | 13310-PAD-G00 | Crankshaft comp. | Crankshaft comp. |
| 10 | 13324-PCA-003 | Bearing d - MAIN (GREEN) (DAIDO) | Bearing d - MAIN (GREEN) (DAIDO) |
| 10 | 13324-PCA-004 | Bearing d - MAIN (GREEN) (TAIHO) | Bearing d - MAIN (GREEN) (TAIHO) |
| 10 | 13323-PCA-004 | Bearing c - MAIN (BROWN) (TAIHO) | Bearing c - MAIN (BROWN) (TAIHO) |
| 10 | 13322-PCA-003 | Bearing b - MAIN (BLACK) (DAIDO) | Bearing b - MAIN (BLACK) (DAIDO) |
| 10 | 13322-PCA-004 | Bearing b - MAIN (BLACK) (TAIHO) | Bearing b - MAIN (BLACK) (TAIHO) |
| 10 | 13326-PCA-004 | Bearing f - MAIN (PINK) (TAIHO) | Bearing f - MAIN (PINK) (TAIHO) |
| 10 | 13325-PCA-003 | Bearing e - MAIN (YELLOW) (DAIDO) | Bearing e - MAIN (YELLOW) (DAIDO) |
| 10 | 13325-PCA-004 | Bearing e - MAIN (YELLOW) (TAIHO) | Bearing e - MAIN (YELLOW) (TAIHO) |
| 10 | 13321-PCA-004 | BEARING A - MAIN (BLUE) (TAIHO) | BEARING A - MAIN (BLUE) (TAIHO) |
| 10 | 13323-PCA-003 | Bearing c - MAIN (BROWN) (DAIDO) | Bearing c - MAIN (BROWN) (DAIDO) |
| 10 | 13326-PCA-003 | Bearing f - MAIN (PINK) (DAIDO) | Bearing f - MAIN (PINK) (DAIDO) |
| 10 | 13321-PCA-003 | BEARING A - MAIN (BLUE) (DAIDO) | BEARING A - MAIN (BLUE) (DAIDO) |
| 11 | 13400-P5N-G00 | Shaft comp. - RR. BALANCER | Shaft comp. - RR. BALANCER |
| 12 | 13401-P5N-G00 | Shaft - FR. BALANCER | Shaft - FR. BALANCER |
| 13 | 13402-PT0-000 | Pulley b - FR. TIMING BELT DRIVEN | Pulley b - FR. TIMING BELT DRIVEN |
| 14 | 13406-PT0-003 | Metal f - THRUST BALANCER SHAFT | Metal f - THRUST BALANCER SHAFT |
| 15 | 13408-P0A-A01 | Pulley - BALANCER BELT DRIVE | Pulley - BALANCER BELT DRIVE |
| 16 | 13621-P0A-A01 | Pulley - TIMING BELT DRIVE | Pulley - TIMING BELT DRIVE |
| 18 | 90017-PY3-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 18 | 90017-RJA-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 19 | 90019-PT0-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 20 | 90031-PT0-003 | Bolt-washer - 8X22 | Bolt-washer - 8X22 |
| 20 | 90032-ZW5-003 | Bolt-washer, 8x22 | Bolt-washer, 8x22 |
| 21 | 90704-PT0-000 | Key - 4.5X38.5 | Key - 4.5X38.5 |
| 23 | 13213-PD2-004 | Bearing c - CONNECTING ROD (BROWN) (TAIHO) | Bearing c - CONNECTING ROD (BROWN) (TAIHO) |
| 23 | 13217-PD2-004 | Bearing g - CONNECTING ROD (RED) (TAIHO) | Bearing g - CONNECTING ROD (RED) (TAIHO) |
| 23 | 13212-PD2-004 | Bearing b - CONNECTING ROD (BLACK) (TAIHO) | Bearing b - CONNECTING ROD (BLACK) (TAIHO) |
| 23 | 13216-PD2-004 | Bearing f - CONNECTING ROD (PINK) (TAIHO) | Bearing f - CONNECTING ROD (PINK) (TAIHO) |
| 23 | 13211-PD2-004 | BEARING A - CONNECTING ROD (BLUE) (TAIHO) | BEARING A - CONNECTING ROD (BLUE) (TAIHO) |
| 23 | 13215-PD2-004 | Bearing e - CONNECTING ROD (YELLOW) (TAIHO) | Bearing e - CONNECTING ROD (YELLOW) (TAIHO) |
| 23 | 13214-PD2-004 | Bearing d - CONNECTING ROD (GREEN) (TAIHO) | Bearing d - CONNECTING ROD (GREEN) (TAIHO) |
Cylinder block/oil pan (L4) 32 / 32
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 11000-PCA-030 | Block assy - CYLINDER | Block assy - CYLINDER |
| 2 | 11106-PT0-300 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 3 | 11107-PT0-000 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 4 | 11126-PK1-003 | Bolt - SEALING, 22MM | Bolt - SEALING, 22MM |
| 5 | 11200-PAA-A00 | Pan comp - OIL | Pan comp - OIL |
| 7 | 11300-PAA-A01 | Cover assy. - R. SIDE | Cover assy. - R. SIDE |
| 8 | 11910-P0A-010 | Bracket - ENGINE MOUNTING | Bracket - ENGINE MOUNTING |
| 9 | 12207-PC6-300 | Washer - SEALING, 16MM | Washer - SEALING, 16MM |
| 10 | 13421-PT0-003 | Metal - BALANCER SHAFT (NO.1) (DAIDO) | Metal - BALANCER SHAFT (NO.1) (DAIDO) |
| 11 | 13422-PT0-013 | Metal - BALANCER SHAFT (NO.2) (DAIDO) | Metal - BALANCER SHAFT (NO.2) (DAIDO) |
| 12 | 13423-PT0-003 | Metal - BALANCER SHAFT (NO.3) (DAIDO) | Metal - BALANCER SHAFT (NO.3) (DAIDO) |
| 13 | 15233-PK1-000 | Bolt - SEALING, 20MM | Bolt - SEALING, 20MM |
| 14 | 30530-P5M-013 | Knock sensor assy | Knock sensor assy |
| 15 | 37240-PT0-014 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 15 | 37240-PT0-023 | Switch - OIL PRESSURE(DENSO) | Switch - OIL PRESSURE(DENSO) |
| 16 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 17 | 90007-PAA-T01 | Bolt-washer - 11X121 | Bolt-washer - 11X121 |
| 18 | 90008-PM3-000 | Bolt - MOUNTING BRACKET, 10X32.5 | Bolt - MOUNTING BRACKET, 10X32.5 |
| 19 | 90008-P0A-000 | Bolt - MOUNTING BRACKET, 10X53 | Bolt - MOUNTING BRACKET, 10X53 |
| 20 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 21 | 90009-P0A-000 | Bolt b - MOUNTING BRACKET, 10X56.2 | Bolt b - MOUNTING BRACKET, 10X56.2 |
| 22 | 90030-PT0-000 | Bolt - STUD, 10X35 | Bolt - STUD, 10X35 |
| 23 | 90041-PAA-A00 | Bolt - STUD, 12X101 | Bolt - STUD, 12X101 |
| 24 | 90041-PCA-000 | Bolt - STUD, 6X32 | Bolt - STUD, 6X32 |
| 25 | 90051-PH7-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 26 | 90061-PT0-000 | Bolt - DRAIN PLUG, 12MM | Bolt - DRAIN PLUG, 12MM |
| 27 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 28 | 90705-PT0-000 | Dowel pin - 16X22 | Dowel pin - 16X22 |
| 29 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
| 30 | 91214-PH1-004 | Oil seal - 80X100X10 (ARAI) | Oil seal - 80X100X10 (ARAI) |
| 30 | 91214-PLE-003 | Oil seal | Oil seal |
| 41 | 11108-PT0-003 | Bolt - SEALING, 18MM | Bolt - SEALING, 18MM |
Cylinder head (L4) 19 / 21
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 12100-PAD-G00 | Head assy - CYLINDER | Head assy - CYLINDER |
| 2 | 12204-PJ7-305 | Guide - IN. VALVE (OS) | Guide - IN. VALVE (OS) |
| 3 | 12205-PJ7-305 | Guide - EX. VALVE (OS) | Guide - EX. VALVE (OS) |
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 6 | 12251-P0A-004 | Gasket - CYLINDER HEAD (NIPPON LEAKLESS) | Gasket - CYLINDER HEAD (NIPPON LEAKLESS) |
| 9 | 14631-P0A-000 | Shaft - IN. ROCKER ARM | Shaft - IN. ROCKER ARM |
| 10 | 14633-P0A-000 | Shaft - EX. ROCKER ARM | Shaft - EX. ROCKER ARM |
| 12 | 15816-PAA-A00 | Stay - COUPLER HOLD | Stay - COUPLER HOLD |
| 13 | 15825-P0A-005 | Filter assy - SPOOL VALVE | Filter assy - SPOOL VALVE |
| 13 | 15825-P0A-015 | Filter, spool valve | Filter, spool valve |
| 15 | 90002-P0A-000 | Bolt - FLANGE, 8X76 | Bolt - FLANGE, 8X76 |
| 16 | 90004-P2J-000 | Bolt - SEALING, 10MM | Bolt - SEALING, 10MM |
| 17 | 90005-PAA-A01 | Bolt-washer - 12X163 | Bolt-washer - 12X163 |
| 18 | 90006-PAA-A01 | Bolt-washer - 12X199 | Bolt-washer - 12X199 |
| 19 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
| 20 | 91319-PAA-A01 | O-ring - 13X1.5 | O-ring - 13X1.5 |
Cylinder head cover (L4) 12 / 12
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 12030-P0A-000 | Packing set - HEAD COVER | Packing set - HEAD COVER |
| 2 | 12310-PAA-A00 | Cover - CYLINDER HEAD | Cover - CYLINDER HEAD |
| 3 | 12341-P0A-000 | Packing - CYLINDER HEAD COVER | Packing - CYLINDER HEAD COVER |
| 4 | 12342-P2F-A01 | Seal - SPARK PLUG TUBE (NOK) | Seal - SPARK PLUG TUBE (NOK) |
| 4 | 12342-P08-004 | Seal | Seal |
| 4 | 12342-RYE-004 | Seal,spark plug t | Seal,spark plug t |
| 5 | 15610-P2A-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 6 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 7 | 32762-PAA-A00 | Stay b - HIGH TENSION CORD CLAMP | Stay b - HIGH TENSION CORD CLAMP |
| 8 | 90013-P0A-000 | Bolt a - HEAD COVER | Bolt a - HEAD COVER |
| 9 | 90014-P08-000 | Bolt b - HEAD COVER | Bolt b - HEAD COVER |
| 10 | 90442-P0A-000 | Washer - HEAD COVER | Washer - HEAD COVER |

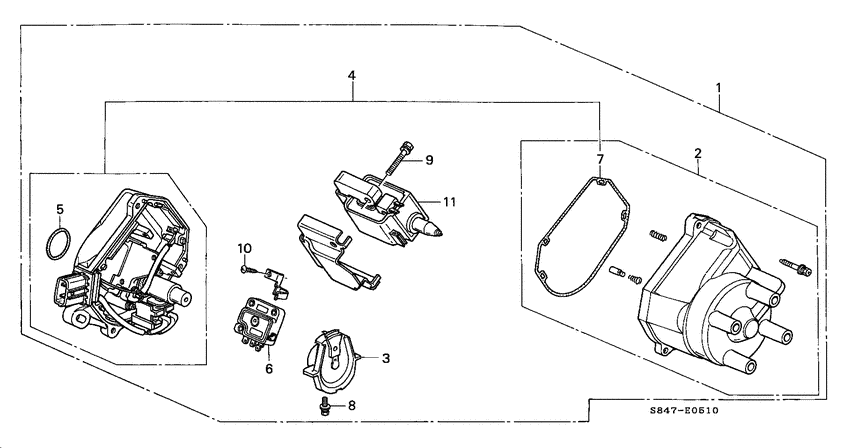

Distributor (HITACHI; L4) 10 / 10
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 30100-PAA-A02 | Distributor assy - D4T97-03) (HITACHI | Distributor assy - D4T97-03) (HITACHI |
| 2 | 30102-PAA-A01 | Cap assy. | Cap assy. |
| 3 | 30103-PAA-A01 | Head - ROTOR | Head - ROTOR |
| 4 | 30105-PAA-L01 | Housing comp - DISTRIBUTOR | Housing comp - DISTRIBUTOR |
| 5 | 30110-PC6-005 | O-ring | O-ring |
| 6 | 30120-P06-005 | Igniter unit - HITACHI | Igniter unit - HITACHI |
| 7 | 30132-PAA-A01 | Packing | Packing |
| 8 | 30135-P0A-A01 | Bolt-washer - 5X14 | Bolt-washer - 5X14 |
| 9 | 30136-P0A-A01 | Bolt-washer - 6X30 | Bolt-washer - 6X30 |
| 11 | 30500-PAA-A01 | Coil - IGNITION | Coil - IGNITION |
Duct (RH) 4 / 7
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 4 | 77460-S84-A01 | Duct assy - FR. DEFROSTER | Duct assy - FR. DEFROSTER |
| 5 | 83331-S84-A00 | Duct - RR. HEATER | Duct - RR. HEATER |
| 7 | 91606-SE3-003 | Plug - HOLE, 8MM | Plug - HOLE, 8MM |
| 8 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Emblems/caution labels 6 / 8
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 3 | 19043-PAD-G00 | Label - COOLANT INFORMATION | Label - COOLANT INFORMATION |
| 4 | 42760-S84-T10 | Plate - TIRE PRESSURE CAUTION | Plate - TIRE PRESSURE CAUTION |
| 5 | 75701-S84-A01 | Emblem - RR. CENTER (H) | Emblem - RR. CENTER (H) |
| 8 | 75722-S84-A00 | Emblem - RR. (ACCORD) | Emblem - RR. (ACCORD) |
| 19 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
| 22 | 77875-S84-G80 | Label - SRS CAUTION | Label - SRS CAUTION |

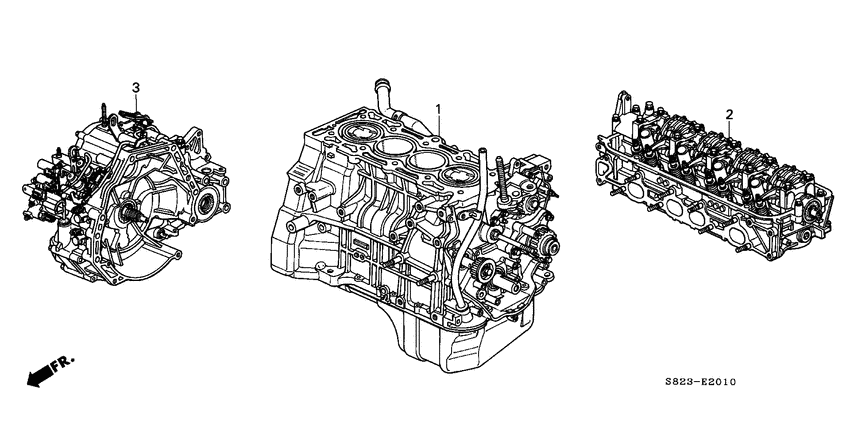

Engine assy./ transmission assy. (L4) 1 / 3
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 10003-PAD-G00 | General assy. - CYLINDER HEAD | General assy. - CYLINDER HEAD |
Engine mounts (L4; AT; 2) 11 / 29
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 5 | 50821-S84-A01 | Rubber, ENGINE SIDE MOUNTING | Rubber, ENGINE SIDE MOUNTING |
| 6 | 50822-S84-A01 | Damper - SIDE ENGINE MOUNT DYNAMIC | Damper - SIDE ENGINE MOUNT DYNAMIC |
| 7 | 50824-S84-A01 | Bracket - SIDE ENGINE MOUNTING | Bracket - SIDE ENGINE MOUNTING |
| 12 | 50829-S0A-000 | Bracket - STOPPER SIDE MOUNTING | Bracket - STOPPER SIDE MOUNTING |
| 17 | 90163-SC2-000 | Bolt - FLANGE, 12X25 | Bolt - FLANGE, 12X25 |
| 21 | 90170-S84-A00 | Bolt - FLANGE, 12X70 | Bolt - FLANGE, 12X70 |
| 22 | 90171-S84-A00 | Bolt - FLANGE, 10X54 | Bolt - FLANGE, 10X54 |
| 23 | 90170-S5A-000 | Bolt - FLANGE, 12X60 | Bolt - FLANGE, 12X60 |
| 24 | 90174-SM4-000 | Bolt - FLANGE, 10X22 | Bolt - FLANGE, 10X22 |
| 27 | 90371-SM4-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 28 | 90552-SV4-000 | Washer - FR. BRACKET | Washer - FR. BRACKET |
Engine wire harness (L4; RH) 14 / 17
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 5 | 32121-PAA-A01 | Plate - WIRE HARNESS GROMMET | Plate - WIRE HARNESS GROMMET |
| 6 | 32127-PAA-A00 | Holder a - HARNESS | Holder a - HARNESS |
| 7 | 32129-PAA-A00 | Holder c - HARNESS | Holder c - HARNESS |
| 8 | 32610-S84-A00 | Cable - SUB EARTH | Cable - SUB EARTH |
| 9 | 32750-PAA-A00 | Clamp b - ENGINE HARNESS | Clamp b - ENGINE HARNESS |
| 10 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 11 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 12 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 13 | 91506-P0A-A01 | Clip - ALTERNATOR CORD | Clip - ALTERNATOR CORD |
| 14 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
| 15 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |
| 16 | 91558-SM4-003 | Clip - TUBE(BLACK)(135MM) | Clip - TUBE(BLACK)(135MM) |
| 17 | 91558-ST5-003 | Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) | Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
| 18 | 91559-PAA-A01 | Clip - HARNESS BAND(GRAY) (150MM) | Clip - HARNESS BAND(GRAY) (150MM) |
Exhaust manifold (L4; 2) 11 / 12
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 11942-P0A-000 | Stay - L. EX. MANIFOLD | Stay - L. EX. MANIFOLD |
| 2 | 18000-P0A-010 | Manifold assy - EX. | Manifold assy - EX. |
| 3 | 18115-P0A-003 | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) |
| 4 | 18120-P0A-A00 | Cover comp. a - EX. MANIFOLD | Cover comp. a - EX. MANIFOLD |
| 5 | 90005-P0A-000 | Bolt-washer - 10X22 | Bolt-washer - 10X22 |
| 6 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 7 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 8 | 90065-PC1-300 | Bolt - STUD, 10X34.5 | Bolt - STUD, 10X34.5 |
| 9 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 9 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 10 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
Exhaust pipe (L4) 20 / 25
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 4 | 18176-PT0-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 5 | 18176-P08-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 6 | 18181-PAA-A00 | Cover - LOWER | Cover - LOWER |
| 7 | 18182-PAA-A00 | Cover - UPPER | Cover - UPPER |
| 10 | 18212-SB2-961 | Gasket - EX. PIPE (ISHINO) | Gasket - EX. PIPE (ISHINO) |
| 12 | 18213-S84-A00 | Stay - EX. PIPE | Stay - EX. PIPE |
| 13 | 18215-S84-A30 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 15 | 18220-S84-A01 | Pipe b - EX. | Pipe b - EX. |
| 16 | 18303-SM4-020 | Gasket - SILENCER | Gasket - SILENCER |
| 17 | 18393-SH3-S00 | Gasket - PRE-CHAMBER (52.5MM-53.5MM) | Gasket - PRE-CHAMBER (52.5MM-53.5MM) |
| 18 | 18393-SS0-J30 | Gasket - PRE-CHAMBER (57.5MM-58.5MM) | Gasket - PRE-CHAMBER (57.5MM-58.5MM) |
| 20 | 74601-S4K-A01 | Plate - FLOOR HEAT BAFFLE | Plate - FLOOR HEAT BAFFLE |
| 21 | 74651-S4K-A00 | Plate - TANK BAFFLE | Plate - TANK BAFFLE |
| 22 | 74653-S4K-A00 | Plate - SILENCER BAFFLE | Plate - SILENCER BAFFLE |
| 23 | 90023-PK1-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
| 23 | 90023-PR7-A01 | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) |
| 24 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 25 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 26 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 30 | 18215-SL5-A00 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
Floor mat 8 / 11
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 8 | 90121-SJ6-003 | Bolt - FLANGE, 6X14 | Bolt - FLANGE, 6X14 |
| 9 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
| 11 | 90676-SE0-003 | Clip - JOINT COVER PLATE | Clip - JOINT COVER PLATE |
| 12 | 91501-S84-A01 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 13 | 91547-S84-A01 | Cap - INSULATOR SEAL CLIP | Cap - INSULATOR SEAL CLIP |
| 14 | 91560-S04-003 | Clip - SIDE GARNISH (NATURAL) | Clip - SIDE GARNISH (NATURAL) |
| 17 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
| 18 | 91546-S84-A02 | Clip - DASHBOARD INSULATOR SEAL | Clip - DASHBOARD INSULATOR SEAL |
Front brake (L4) 9 / 22
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 44300-S47-008 | Bearing assy - HUB (NTN) | Bearing assy - HUB (NTN) |
| 2 | 44300-S47-305 | Bearing assy | Bearing assy |
| 2 | 44300-S0A-003 | Bearing assy - FR. HUB (NISSIN) | Bearing assy - FR. HUB (NISSIN) |
| 3 | 44600-S84-A00 | Hub assy - FR. | Hub assy - FR. |
| 7 | 45215-671-672 | Screw - BLEEDER | Screw - BLEEDER |
| 9 | 45219-S84-A01 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 19 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 20 | 90113-S84-901 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 21 | 90681-SG0-000 | Circlip - INTERNAL, 84MM | Circlip - INTERNAL, 84MM |
Front bulkhead 2 / 2
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 29 | 90105-SV1-000 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 30 | 90163-SE0-930 | Bolt - SIDE MOUNTING, 10MM | Bolt - SIDE MOUNTING, 10MM |
Front door lining (RH) 8 / 9
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 34261-SV1-A01 | Lens - DONNELLY | Lens - DONNELLY |
| 6 | 72335-S84-A01 | Weatherstrip - R. FR. DOOR INNER | Weatherstrip - R. FR. DOOR INNER |
| 7 | 72375-S84-A01 | Weatherstrip - L. FR. DOOR INNER | Weatherstrip - L. FR. DOOR INNER |
| 9 | 83508-S03-000 | Bracket - PULL POCKET | Bracket - PULL POCKET |
| 19 | 90101-S03-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 21 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 22 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 24 | 91562-S84-A11 | Grommet - DOOR LINING | Grommet - DOOR LINING |
Front door locks 32 / 36
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 3 | 72112-SR4-004 | Snap - BROWN | Snap - BROWN |
| 4 | 72113-SR4-004 | Snap - BLACK | Snap - BLACK |
| 6 | 72116-S04-003 | Holder - ROD(SKY BLUE) | Holder - ROD(SKY BLUE) |
| 7 | 72117-S04-003 | Holder - ROD (YELLOW) | Holder - ROD (YELLOW) |
| 8 | 72117-S84-A01 | Protector - R. FR. DOOR LOCK | Protector - R. FR. DOOR LOCK |
| 10 | 72118-S84-A00 | Protector - R. FR. DOOR LOCK (POWER) | Protector - R. FR. DOOR LOCK (POWER) |
| 11 | 72119-SM1-003 | Stopper a - OUTSIDE HANDLE | Stopper a - OUTSIDE HANDLE |
| 12 | 72123-SR0-003 | Ring - OUTSIDE HANDLE | Ring - OUTSIDE HANDLE |
| 15 | 72130-S84-A00 | Protector - R. FR. DOOR OUTER HANDLE | Protector - R. FR. DOOR OUTER HANDLE |
| 16 | 72131-S84-A01 | Rod - R. FR. INSIDE HANDLE | Rod - R. FR. INSIDE HANDLE |
| 17 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 18 | 72135-SR3-003 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 20 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 21 | 72139-SV4-A01 | Tube - PROTECTOR | Tube - PROTECTOR |
| 24 | 72145-S73-003 | Cylinder - R. DOOR | Cylinder - R. DOOR |
| 26 | 72146-S73-003 | Cylinder - L. DOOR | Cylinder - L. DOOR |
| 29 | 72157-S84-A01 | Protector - L. FR. DOOR LOCK | Protector - L. FR. DOOR LOCK |
| 30 | 72158-S84-A00 | Protector - L. FR. DOOR LOCK (POWER) | Protector - L. FR. DOOR LOCK (POWER) |
| 32 | 72170-S84-A00 | Protector - L. FR. DOOR OUTER HANDLE | Protector - L. FR. DOOR OUTER HANDLE |
| 33 | 72171-S84-A01 | Rod - L. FR. INSIDE HANDLE | Rod - L. FR. INSIDE HANDLE |
| 34 | 72175-SH3-003 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 38 | 72616-SM4-003 | Snap - NATURAL | Snap - NATURAL |
| 40 | 72634-SM4-003 | Snap - R. (BLUE) | Snap - R. (BLUE) |
| 42 | 72674-SM4-003 | Snap - L. (BROWN) | Snap - L. (BROWN) |
| 43 | 75411-634-000 | Joint | Joint |
| 44 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 45 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 46 | 90141-S84-003 | Screw - 3X10 | Screw - 3X10 |
| 47 | 90149-S84-A01 | Screw - PAN, 4X5 | Screw - PAN, 4X5 |
| 48 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 55 | 72114-S86-K01 | Seat - R. OUTSIDE HANDLE | Seat - R. OUTSIDE HANDLE |
| 56 | 72154-S86-K01 | Seat - L. OUTSIDE HANDLE | Seat - L. OUTSIDE HANDLE |
Front door panels 26 / 26
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 7 | 72310-S84-A01 | Weatherstrip - R. FR. DOOR | Weatherstrip - R. FR. DOOR |
| 8 | 72321-S4K-010 | Seal - R. FR. DOOR HOLE | Seal - R. FR. DOOR HOLE |
| 9 | 72325-S84-A01 | Sub seal - R. FR. DOOR | Sub seal - R. FR. DOOR |
| 10 | 72326-S84-A02 | Weatherstrip - FR. LOWER | Weatherstrip - FR. LOWER |
| 11 | 72340-S4K-003 | Checker comp. - R. FR. DOOR | Checker comp. - R. FR. DOOR |
| 12 | 72350-S84-A01 | Weatherstrip - L. FR. DOOR | Weatherstrip - L. FR. DOOR |
| 13 | 72365-S84-A01 | Sub seal - L. FR. DOOR | Sub seal - L. FR. DOOR |
| 14 | 72380-S4K-003 | Checker comp. - L. FR. DOOR | Checker comp. - L. FR. DOOR |
| 15 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 16 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Bolt - FLANGE, 8X22 (8.5MM) |
| 17 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 19 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 20 | 91530-SH4-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 21 | 91563-S84-A01 | Clip - R. DOOR WEATHERSTRIP | Clip - R. DOOR WEATHERSTRIP |
| 22 | 91568-SR2-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 22 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 23 | 91657-SP0-000 | Seal c - DOOR PANEL HOLE (25MM) | Seal c - DOOR PANEL HOLE (25MM) |
| 24 | 91651-S84-A00 | Seal - DOOR PANEL HOLE | Seal - DOOR PANEL HOLE |
| 28 | 91564-S84-A01 | Clip - L. DOOR WEATHERSTRIP | Clip - L. DOOR WEATHERSTRIP |
| 29 | 67325-S4K-013 | Tape - R. FR. DOOR UPPER INNER | Tape - R. FR. DOOR UPPER INNER |
| 31 | 67327-S4K-013 | Tape - R. FR. DOOR CENTER INNER | Tape - R. FR. DOOR CENTER INNER |
| 32 | 67365-S4K-013 | Tape - L. FR. DOOR UPPER INNER | Tape - L. FR. DOOR UPPER INNER |
| 34 | 67367-S4K-013 | Tape - L. FR. DOOR CENTER INNER | Tape - L. FR. DOOR CENTER INNER |
| 35 | 72361-S4K-010 | Seal - L. FR. DOOR HOLE | Seal - L. FR. DOOR HOLE |
| 36 | 67329-S4K-003 | Tape - R. FR. DOOR CENTER END INNER | Tape - R. FR. DOOR CENTER END INNER |
| 37 | 67369-S4K-003 | Tape - L. FR. DOOR CENTER END INNER | Tape - L. FR. DOOR CENTER END INNER |
Front door windows 10 / 14
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 4 | 72230-S84-A01 | Sash - R. FR. DOOR FR. LOWER | Sash - R. FR. DOOR FR. LOWER |
| 6 | 72235-S84-A01 | Runchannel - R. FR. DOOR | Runchannel - R. FR. DOOR |
| 9 | 72270-S84-A01 | Sash - L. FR. DOOR FR. LOWER | Sash - L. FR. DOOR FR. LOWER |
| 11 | 72275-S84-A01 | Runchannel - L. FR. DOOR | Runchannel - L. FR. DOOR |
| 14 | 90148-S84-A00 | Bolt - STUD, 6MM | Bolt - STUD, 6MM |
| 15 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 16 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 24 | 72231-S84-A01 | Sash - R. FR. DOOR CENTER LOWER | Sash - R. FR. DOOR CENTER LOWER |
| 25 | 72239-S84-A01 | Runchannel - FR. DOOR LOWER | Runchannel - FR. DOOR LOWER |
| 26 | 72271-S84-A01 | Sash - L. FR. DOOR CENTER LOWER | Sash - L. FR. DOOR CENTER LOWER |
Front driveshaft (L4; 2) 19 / 21
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 44014-S0K-C00 | Joint set - OUTBOARD | Joint set - OUTBOARD |
| 2 | 44017-S84-C00 | Boot set - INBOARD | Boot set - INBOARD |
| 3 | 44018-S0K-C21 | Boot set - OUTBOARD | Boot set - OUTBOARD |
| 4 | 44305-S4K-A52 | Driveshaft assy. - R. | Driveshaft assy. - R. |
| 6 | 44310-S9A-300 | Joint comp - INBOARD | Joint comp - INBOARD |
| 8 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 8 | 44319-S0A-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 9 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 10 | 44327-SX0-C02 | Band - OUTBOARD BOOT (NIPPON HATSUJO) | Band - OUTBOARD BOOT (NIPPON HATSUJO) |
| 10 | 44327-S0K-C01 | Band - OUTBOARD BOOT (OETIKER LIMITED) | Band - OUTBOARD BOOT (OETIKER LIMITED) |
| 11 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 12 | 44329-S0K-C01 | Band - DRIVESHAFT (OETIKER LIMITED) | Band - DRIVESHAFT (OETIKER LIMITED) |
| 12 | 44329-SX0-C02 | Band - DRIVESHAFT (NIPPON HATSUJO) | Band - DRIVESHAFT (NIPPON HATSUJO) |
| 13 | 44337-SM1-300 | Ring b - STOPPER | Ring b - STOPPER |
| 13 | 44337-SB0-300 | Ring b - STOPPER | Ring b - STOPPER |
| 14 | 44338-SM1-300 | Circlip - 26MM | Circlip - 26MM |
| 14 | 44338-SB0-300 | Circlip - 26MM | Circlip - 26MM |
| 19 | 90305-SD4-003 | Nut - SPINDLE (24MM) | Nut - SPINDLE (24MM) |
| 24 | 44351-S10-A01 | Damper - DYNAMIC (TOUKAI) | Damper - DYNAMIC (TOUKAI) |
Front fenders 11 / 11
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 4 | 74101-S84-A00 | Fender - R. FR. INNER | Fender - R. FR. INNER |
| 5 | 74111-S84-000 | Shield - FR. SPLASH | Shield - FR. SPLASH |
| 6 | 74151-S84-A00 | Fender - L. FR. INNER | Fender - L. FR. INNER |
| 7 | 90501-SM4-003 | Bolt - FENDER | Bolt - FENDER |
| 8 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 9 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 10 | 90305-SM4-003 | Nut - CLIP, 6MM | Nut - CLIP, 6MM |
| 11 | 90657-SB0-003 | Clip, SPLASH SHIELD | Clip, SPLASH SHIELD |
| 12 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 13 | 91503-SZ5-003 | Clip - BUMPER FACE | Clip - BUMPER FACE |
| 14 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Front grille (2) 1 / 6
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 6 | 91503-SZ3-003 | Clip A | Clip A |
Front lower arm 27 / 29
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 51300-S4K-A01 | Spring - FR. STABILIZER | Spring - FR. STABILIZER |
| 2 | 51306-S84-A01 | Bush - STABILIZER HOLDER | Bush - STABILIZER HOLDER |
| 3 | 51308-SW3-000 | Bracket - FR. STABILIZER | Bracket - FR. STABILIZER |
| 4 | 51320-S84-A01 | Link comp - R. FR. STABILIZER | Link comp - R. FR. STABILIZER |
| 5 | 51321-S84-A01 | Link comp - L. FR. STABILIZER | Link comp - L. FR. STABILIZER |
| 6 | 51352-S84-A01 | Rod - R. FR. RADIUS | Rod - R. FR. RADIUS |
| 7 | 51355-S84-A00 | Arm comp - R. FR. LOWER | Arm comp - R. FR. LOWER |
| 8 | 51362-S84-A01 | Rod - FR. RADIUS | Rod - FR. RADIUS |
| 9 | 51365-S84-A00 | Arm comp - L. FR. LOWER | Arm comp - L. FR. LOWER |
| 10 | 51381-S84-A01 | Bush - FR. RADIUS ROD (RR.) | Bush - FR. RADIUS ROD (RR.) |
| 11 | 51391-S84-A01 | Bush - RADIUS ROD (FR.) | Bush - RADIUS ROD (FR.) |
| 12 | 51393-SV1-A01 | Bush - FR. LOWER ARM | Bush - FR. LOWER ARM |
| 13 | 51394-S84-000 | Washer - CASTER ADJUSTER | Washer - CASTER ADJUSTER |
| 14 | 51398-SM4-000 | Collar - RADIUS ROD | Collar - RADIUS ROD |
| 15 | 51399-S0A-000 | Washer - FR. RADIUS ROD | Washer - FR. RADIUS ROD |
| 16 | 51810-SV4-003 | Bush - SHOCK ABSORBER FORK (HOKUSHIN) | Bush - SHOCK ABSORBER FORK (HOKUSHIN) |
| 16 | 51810-SV4-004 | Bush - SHOCK ABSORBER FORK (YAMASHITA) | Bush - SHOCK ABSORBER FORK (YAMASHITA) |
| 17 | 51811-S84-A00 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 18 | 51821-S84-A00 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 21 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 22 | 90117-S0A-000 | Bolt - DAMPER LOCK(10X44) | Bolt - DAMPER LOCK(10X44) |
| 23 | 90118-S0A-000 | Bolt - FR. LOWER ARM (12X84) | Bolt - FR. LOWER ARM (12X84) |
| 24 | 90121-S0A-000 | Bolt - DAMPER FORK(12X98) | Bolt - DAMPER FORK(12X98) |
| 25 | 90178-S84-A00 | Bolt - FR. RADIUS ROD (14X37) | Bolt - FR. RADIUS ROD (14X37) |
| 26 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 27 | 90303-SF1-003 | Nut - SELF-LOCK, 12MM | Nut - SELF-LOCK, 12MM |
| 28 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
Front seat 6 / 18
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 25 | 81322-SP0-003 | Clip - LUMBAR SUPPORT | Clip - LUMBAR SUPPORT |
| 40 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 41 | 90161-SB4-003 | Screw - FLAT, 4X16 | Screw - FLAT, 4X16 |
| 46 | 81136-S84-A03 | Frame comp - FR. SEAT CUSHION (TS TECH) | Frame comp - FR. SEAT CUSHION (TS TECH) |
Front seat components (L.; 1) 9 / 9
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 77517-SA5-014 | Cap - SLIDE ADJUSTER | Cap - SLIDE ADJUSTER |
| 2 | 77209-SB0-003 | Washer - NYLON | Washer - NYLON |
| 3 | 81117-S47-003 | Bush - NYLON(TS TECH) | Bush - NYLON(TS TECH) |
| 5 | 81262-S84-A01 | Cap - SLIDE ADJUSTER END | Cap - SLIDE ADJUSTER END |
| 6 | 81272-S84-A01 | Cap - SLIDE ADJUSTER UPPER END | Cap - SLIDE ADJUSTER UPPER END |
| 7 | 81550-S4K-A01 | Slide comp. - L. RECLINING OUTER | Slide comp. - L. RECLINING OUTER |
| 9 | 81670-S4K-A01 | Adjuster - L. INNER SLIDE | Adjuster - L. INNER SLIDE |
| 10 | 90143-SR3-900 | Bolt-washer - 10X22 | Bolt-washer - 10X22 |
| 11 | 90143-S04-000 | Bolt - FLANGE, 10X18 | Bolt - FLANGE, 10X18 |
Front seat components (R.; 3) 3 / 11
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 4 | 77209-SB0-003 | Washer - NYLON | Washer - NYLON |
| 5 | 81117-S47-003 | Bush - NYLON(TS TECH) | Bush - NYLON(TS TECH) |
| 17 | 90143-SR3-900 | Bolt-washer - 10X22 | Bolt-washer - 10X22 |
Front shock absorber 15 / 18
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 4 | 51606-S84-A03 | Absorber unit - L. FR. SHOCK | Absorber unit - L. FR. SHOCK |
| 4 | 51605-S84-A07 | Absorber unit - R. FR. SHOCK | Absorber unit - R. FR. SHOCK |
| 5 | 51621-S84-A01 | Washer - SHOCK ABSORBER MOUNTING | Washer - SHOCK ABSORBER MOUNTING |
| 6 | 51631-SV7-004 | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) |
| 7 | 51675-S84-A01 | Base - FR. SHOCK ABSORBER MOUNTING (SHOWA) | Base - FR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 8 | 51685-SR0-004 | Plate - DUST COVER (A.S.I. SHOWA) | Plate - DUST COVER (A.S.I. SHOWA) |
| 8 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 9 | 51686-S84-A01 | Rubber - FR. SPRING MOUNTING | Rubber - FR. SPRING MOUNTING |
| 10 | 51689-SH3-004 | Plate - BUMP STOP (SHOWA) | Plate - BUMP STOP (SHOWA) |
| 11 | 51689-SP0-004 | Cover - DUST (SHOWA) | Cover - DUST (SHOWA) |
| 12 | 51722-S84-A01 | Rubber - FR. BUMP STOPPER (A.S.I. SHOWA) | Rubber - FR. BUMP STOPPER (A.S.I. SHOWA) |
| 13 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 13 | 51728-SR0-003 | Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS) | Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS) |
| 14 | 90300-S84-A00 | Nut - SHOCK ABSORBER FLANGE (10MM) | Nut - SHOCK ABSORBER FLANGE (10MM) |
| 15 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Front windshield 5 / 8
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 5 | 73128-S84-A00 | Fabric - NON WOVEN | Fabric - NON WOVEN |
| 6 | 73150-S84-A02 | Molding - FR. WINDSHIELD | Molding - FR. WINDSHIELD |
| 7 | 77466-SV4-000 | Seal - FR. INSTRUMENT | Seal - FR. INSTRUMENT |
| 10 | 04731-S4K-J00 | Rubber set - FR. WINDSHIELD DAM | Rubber set - FR. WINDSHIELD DAM |
| 11 | 76441-S84-A01 | Spring | Spring |
Front windshield wiper (RH) 12 / 19
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 76516-SR3-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 3 | 76516-S84-A01 | Rubber - MOUNTING | Rubber - MOUNTING |
| 4 | 76517-SM4-003 | Collar | Collar |
| 5 | 76520-S84-A01 | Link assy | Link assy |
| 6 | 76524-SD4-003 | Dust seal | Dust seal |
| 7 | 76524-SE0-013 | Dust seal | Dust seal |
| 9 | 76540-S84-A01 | Rod unit a | Rod unit a |
| 11 | 76561-S84-A01 | Cap - PIVOT | Cap - PIVOT |
| 15 | 76622-S84-A01 | Rubber - BLADE (600MM) | Rubber - BLADE (600MM) |
| 17 | 76632-S84-A01 | Rubber - BLADE (475MM) | Rubber - BLADE (475MM) |
| 18 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 19 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
Fuel pipe (1) 17 / 34
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 16680-PE7-661 | Damper assy. - PULSATION | Damper assy. - PULSATION |
| 1 | 16680-PCX-003 | Damper assy. - PULSATION | Damper assy. - PULSATION |
| 2 | 16705-PD1-003 | Gasket - SILENCER | Gasket - SILENCER |
| 4 | 16900-S84-G01 | Strainer comp. - FUEL | Strainer comp. - FUEL |
| 6 | 16922-S84-G01 | Rubber - MOUNTING | Rubber - MOUNTING |
| 7 | 16923-S84-G01 | Collar | Collar |
| 13 | 17711-S84-005 | Retainer - NATURAL | Retainer - NATURAL |
| 15 | 17723-S84-A00 | Hose - PRESSURE REGULATOR RETURN | Hose - PRESSURE REGULATOR RETURN |
| 25 | 17761-S84-A00 | Stay a - FUEL PIPE | Stay a - FUEL PIPE |
| 26 | 17762-S84-A00 | Stay b - FUEL PIPE | Stay b - FUEL PIPE |
| 27 | 90101-S84-G00 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 28 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 29 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 31 | 91406-SL4-931 | Clamp - FUEL HOSE (D10.5) | Clamp - FUEL HOSE (D10.5) |
| 32 | 91591-S84-A00 | Bracket - CLIP B | Bracket - CLIP B |
| 36 | 91598-S84-A01 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 38 | 91614-S84-G01 | Grommet - SUB FRAME DRAIN HOLE | Grommet - SUB FRAME DRAIN HOLE |
Fuel tank 29 / 37
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 16010-S4K-G00 | Strainer set - FUEL | Strainer set - FUEL |
| 2 | 16711-S84-A01 | Rubber - FUEL PUMP INSULATOR | Rubber - FUEL PUMP INSULATOR |
| 3 | 17040-S84-A02 | Pump set - FUEL | Pump set - FUEL |
| 4 | 17371-SR3-A01 | Valve - TWO WAY | Valve - TWO WAY |
| 5 | 17500-S84-U00 | Tank comp. - FUEL | Tank comp. - FUEL |
| 6 | 17516-S84-A01 | Filter set - FUEL PUMP | Filter set - FUEL PUMP |
| 7 | 17521-S84-A00 | Band - FUEL TANK MOUNTING | Band - FUEL TANK MOUNTING |
| 8 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 9 | 17551-S84-A01 | Packing | Packing |
| 10 | 17570-S84-G01 | Valve - FUEL CUT | Valve - FUEL CUT |
| 11 | 17574-S84-A01 | Packing - BASE | Packing - BASE |
| 12 | 17579-S84-G02 | Plate - SETTING | Plate - SETTING |
| 13 | 17630-S84-A02 | Meter comp - FUEL | Meter comp - FUEL |
| 14 | 17651-S84-A01 | Tube - FILLER NECK | Tube - FILLER NECK |
| 15 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 17 | 17660-S84-G02 | Pipe comp - FUEL FILLER | Pipe comp - FUEL FILLER |
| 19 | 17668-S84-A01 | Cover - FUEL FILLER PIPE | Cover - FUEL FILLER PIPE |
| 24 | 17711-ST0-003 | Retainer - YELLOW) (TOKAI | Retainer - YELLOW) (TOKAI |
| 25 | 17711-S84-003 | Retainer - YELLOW) (TOKAI | Retainer - YELLOW) (TOKAI |
| 26 | 17711-S84-004 | Retainer - WHITE)(SANOH | Retainer - WHITE)(SANOH |
| 27 | 17712-S84-A01 | Clamp - FUEL TUBE | Clamp - FUEL TUBE |
| 28 | 17713-S84-A01 | Clamp - FUEL FEED PIPE | Clamp - FUEL FEED PIPE |
| 29 | 17716-S84-G00 | Tube - VENT | Tube - VENT |
| 32 | 74660-S84-A10 | Cap assy. - FLOOR MAINTENANCE HOLE | Cap assy. - FLOOR MAINTENANCE HOLE |
| 33 | 90101-S84-000 | Bolt-washer - 5X10 | Bolt-washer - 5X10 |
| 34 | 90301-SE0-J00 | Nut - FLANGE, 6MM | Nut - FLANGE, 6MM |
| 35 | 90700-SB0-003 | Clip - AIR BLEED TUBE | Clip - AIR BLEED TUBE |
| 38 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
| 40 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
Gasket kit (L4) 1 / 3
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 06111-PAA-A02 | Gasket kit - CYLINDER BLOCK | Gasket kit - CYLINDER BLOCK |
Grommet 13 / 13
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 72206-SA5-000 | Cap - FLOOR HOLE, 53MM | Cap - FLOOR HOLE, 53MM |
| 2 | 91611-SS0-003 | Plug - HOLE, 25MM | Plug - HOLE, 25MM |
| 3 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 4 | 90615-SR3-000 | Cap - WELD HOLE, 51X77 | Cap - WELD HOLE, 51X77 |
| 7 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
| 8 | 91611-SM4-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 10 | 91613-SR3-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 11 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
| 12 | 91623-SE0-003 | Plug - BLIND, 12MM | Plug - BLIND, 12MM |
| 13 | 91634-SE3-000 | Grommet - 6MM | Grommet - 6MM |
| 20 | 91602-SV4-003 | Plug - HOLE, 15MM | Plug - HOLE, 15MM |
| 21 | 91610-SD4-000 | Plug - HOLE, 28MM | Plug - HOLE, 28MM |
| 22 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
Harness band/bracket 21 / 29
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 32131-SV4-003 | Cap - COUPLER (CP 2P, 3P) | Cap - COUPLER (CP 2P, 3P) |
| 3 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 4 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 5 | 32146-SH3-003 | Connector - DIODE(2P) | Connector - DIODE(2P) |
| 7 | 32312-SM4-013 | Holder - COUPLER | Holder - COUPLER |
| 10 | 91546-S84-A02 | Clip - DASHBOARD INSULATOR SEAL | Clip - DASHBOARD INSULATOR SEAL |
| 12 | 91548-S84-003 | Clip - HARNESS BAND (GRAY) (128MM) | Clip - HARNESS BAND (GRAY) (128MM) |
| 13 | 91550-ST0-003 | Clip - WIRE HARNESS (NATURAL) (110MM) | Clip - WIRE HARNESS (NATURAL) (110MM) |
| 16 | 91559-ST5-003 | Clip - HARNESS BAND OFFSET(30) (NATURAL) | Clip - HARNESS BAND OFFSET(30) (NATURAL) |
| 17 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 18 | 91565-S84-A00 | Clip - DOOR HARNESS | Clip - DOOR HARNESS |
| 19 | 91571-S10-003 | Clip - WIRE HARNESS (NATURAL) (130MM) | Clip - WIRE HARNESS (NATURAL) (130MM) |
| 21 | 91644-SM4-003 | Grommet - WIRE HARNESS (32MM) | Grommet - WIRE HARNESS (32MM) |
| 22 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
| 25 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 27 | 91510-SA5-003 | Clip - OFFSET(10)(BROWN)(50MM) | Clip - OFFSET(10)(BROWN)(50MM) |
| 33 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 34 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 35 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 36 | 91545-S30-003 | Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) |
| 38 | 91556-SP0-003 | Clip - COUPLER(BROWN) | Clip - COUPLER(BROWN) |
Headlight 15 / 17
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 33115-S84-A11 | Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) | Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) |
| 2 | 33115-S84-A01 | Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA) | Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA) |
| 3 | 33116-S84-A01 | Bulb - HEADLIGHT (HB4) (12V 51W) (SYLVANIA) | Bulb - HEADLIGHT (HB4) (12V 51W) (SYLVANIA) |
| 3 | 33116-S84-A11 | Bulb - HEADLIGHT (HB4) (12V 51W) (STANLEY) | Bulb - HEADLIGHT (HB4) (12V 51W) (STANLEY) |
| 4 | 33126-S73-A01 | Cover - RUBBER | Cover - RUBBER |
| 6 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 7 | 33301-S04-004 | Bulb - FR. TURN(12V 21W) (STANLEY)(AMBER) | Bulb - FR. TURN(12V 21W) (STANLEY)(AMBER) |
| 7 | 33301-S04-003 | Bulb | Bulb |
| 8 | 33303-S04-003 | Socket comp. - GRAY | Socket comp. - GRAY |
| 9 | 33800-SV4-Q01 | Light assy - SIDE TURN | Light assy - SIDE TURN |
| 10 | 33802-SV4-Q01 | Lamp unit | Lamp unit |
| 11 | 34303-SS1-003 | Socket comp - 2P | Socket comp - 2P |
| 12 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 13 | 74190-S84-A00 | Bracket - R. FR. | Bracket - R. FR. |
| 14 | 74195-S84-A00 | Bracket - L. FR. | Bracket - L. FR. |
Heater blower (RH) 10 / 15
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 2 | 79191-SZ3-A01 | Nut - HOLDER | Nut - HOLDER |
| 3 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 6 | 79312-S84-A01 | Cover | Cover |
| 11 | 90121-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 12 | 90122-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 13 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 14 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 15 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 16 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Heater unit (RH) 9 / 18
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 2 | 39248-692-003 | Packing - HEATER | Packing - HEATER |
| 7 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 8 | 79195-S84-A01 | Holder - ROD | Holder - ROD |
| 11 | 79760-SE0-000 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 14 | 90122-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 15 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 16 | 90127-S84-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 17 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
High tension cord/plug (L4) 10 / 10
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 32700-P0A-A00 | Cord assy - HIGH TENSION (SUMITOMO) | Cord assy - HIGH TENSION (SUMITOMO) |
| 2 | 32701-P0A-A00 | Cord comp - RESISTANCE (NO.1) (SUMITOMO) | Cord comp - RESISTANCE (NO.1) (SUMITOMO) |
| 3 | 32702-P0A-A00 | Cord comp - RESISTANCE (NO.2) (SUMITOMO) | Cord comp - RESISTANCE (NO.2) (SUMITOMO) |
| 4 | 32703-P0A-A00 | Cord comp - RESISTANCE (NO.3) (SUMITOMO) | Cord comp - RESISTANCE (NO.3) (SUMITOMO) |
| 5 | 32704-P0A-A00 | Cord comp - RESISTANCE (NO.4) (SUMITOMO) | Cord comp - RESISTANCE (NO.4) (SUMITOMO) |
| 6 | 32766-P0A-A00 | Clamp c - HIGH TENSION CORD | Clamp c - HIGH TENSION CORD |
| 7 | 32766-PM3-000 | Clamp b - HIGH TENSION CORD | Clamp b - HIGH TENSION CORD |
| 8 | 32767-PT0-000 | Grommet - HIGH TENSION CORD | Grommet - HIGH TENSION CORD |
| 9 | 32767-P0A-A00 | Clamp a - HIGH TENSION CORD | Clamp a - HIGH TENSION CORD |
| 10 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
Hood (RH) 24 / 29
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 4 | 74120-S84-A01 | Lock assy - HOOD | Lock assy - HOOD |
| 5 | 74121-S84-A00 | Rubber - HOOD SEAL | Rubber - HOOD SEAL |
| 6 | 74125-S84-A00 | Cover - HOOD LOCK | Cover - HOOD LOCK |
| 8 | 74134-SM4-000 | Grommet - HOOD WIRE | Grommet - HOOD WIRE |
| 10 | 74141-S87-A00 | Insulator - HOOD | Insulator - HOOD |
| 12 | 74143-S84-A00 | Rubber - RR. HOOD SEAL | Rubber - RR. HOOD SEAL |
| 13 | 74145-S4K-A00 | Stay - HOOD OPENER | Stay - HOOD OPENER |
| 20 | 74214-S84-A00 | Cover - R. HOOD HINGE | Cover - R. HOOD HINGE |
| 21 | 74231-S84-A00 | Valve - DRAIN | Valve - DRAIN |
| 22 | 74264-S84-A00 | Cover - L. HOOD HINGE | Cover - L. HOOD HINGE |
| 24 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 25 | 90106-SE1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 26 | 90601-S84-A01 | Grommet - HOOD OPEN STAY | Grommet - HOOD OPEN STAY |
| 27 | 90602-S84-A01 | Holder - ROD | Holder - ROD |
| 28 | 91501-S1K-003 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 29 | 91502-S84-A11 | Clip - SEAL RUBBER (BLACK) | Clip - SEAL RUBBER (BLACK) |
| 30 | 91504-SL0-003 | Clip - HOOD OPEN WIRE | Clip - HOOD OPEN WIRE |
| 31 | 90652-S0A-003 | Clip - COWL TOP | Clip - COWL TOP |
| 32 | 91515-SM4-003 | Clip - ANCHOR | Clip - ANCHOR |
| 33 | 91520-SM4-C01 | Clip - HOOD SEAL RUBBER | Clip - HOOD SEAL RUBBER |
| 34 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 35 | 91558-SE3-003 | Clip - HOOD WIRE | Clip - HOOD WIRE |
| 38 | 91602-SZ5-000 | Cushion - HOOD (11.6MM) | Cushion - HOOD (11.6MM) |
| 39 | 91603-SZ5-000 | Cushion - HOOD (25MM) | Cushion - HOOD (25MM) |
Install pipe/tubing (L4) 2 / 3
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 17417-PAA-A00 | Tube - PRESSURE REGULATOR | Tube - PRESSURE REGULATOR |
| 3 | 90634-PA0-000 | Cap - SEALING | Cap - SEALING |
Instrument panel (RH) 15 / 16
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 4 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 8 | 77107-S84-A00 | Seal a | Seal a |
| 9 | 77108-S84-A00 | Seal b | Seal b |
| 30 | 90104-SV4-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 31 | 90106-S84-A00 | Bolt-washer - 8X40 | Bolt-washer - 8X40 |
| 32 | 90108-S84-A00 | Bolt-washer - 8MM(SRS) | Bolt-washer - 8MM(SRS) |
| 33 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 34 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 35 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 36 | 90666-S84-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 37 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 38 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 42 | 90110-S84-A00 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 43 | 77109-S84-A00 | Cushion - INSTRUMENT | Cushion - INSTRUMENT |
| 45 | 90109-S84-A00 | Bolt - FLANGE, 8X40 | Bolt - FLANGE, 8X40 |
Instrument panel garnish (RH) 15 / 16
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 34254-SL0-003 | Lamp assy. - GLOVE BOX | Lamp assy. - GLOVE BOX |
| 2 | 35505-S30-003 | Bulb - T5) (14V 1.4W | Bulb - T5) (14V 1.4W |
| 3 | 35505-S84-A01 | Bulb assy - WITH CAP) (BLUE | Bulb assy - WITH CAP) (BLUE |
| 6 | 39628-S84-A01 | Lamp assy. | Lamp assy. |
| 7 | 66418-SA5-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 8 | 66417-SA0-000 | Rubber - GLOVE BOX STOPPER | Rubber - GLOVE BOX STOPPER |
| 12 | 77251-S84-A01 | Seal | Seal |
| 20 | 77355-S84-A00 | Blind - COLUMN | Blind - COLUMN |
| 22 | 77371-SV4-000 | Ring - COLUMN COVER | Ring - COLUMN COVER |
| 23 | 77520-SL0-A01 | Cylinder - GLOVE BOX | Cylinder - GLOVE BOX |
| 32 | 77730-SR3-003 | Holder comp - FR. ASHTRAY | Holder comp - FR. ASHTRAY |
| 34 | 77754-S84-A01 | Holder assy. - COIN | Holder assy. - COIN |
| 36 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 37 | 90666-S84-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 38 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Intake manifold (L4) 19 / 25
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 16472-PH7-003 | Seal ring - INJECTOR (OTSUKA) | Seal ring - INJECTOR (OTSUKA) |
| 2 | 16472-P0H-A01 | Seal ring - INJECTOR (NOK) | Seal ring - INJECTOR (NOK) |
| 3 | 16473-P10-A01 | Cushion ring - INJECTOR (NOK) | Cushion ring - INJECTOR (NOK) |
| 3 | 16473-PD6-000 | Cushion ring - INJECTOR (OTSUKA) | Cushion ring - INJECTOR (OTSUKA) |
| 5 | 16740-PAA-A01 | Regulator assy - PRESSURE | Regulator assy - PRESSURE |
| 6 | 16741-PG7-005 | O-ring - PRESSURE REGULATOR | O-ring - PRESSURE REGULATOR |
| 10 | 17115-PCA-004 | Gasket b - INTAKE MANIFOLD (NIPPON LEAKLESS) | Gasket b - INTAKE MANIFOLD (NIPPON LEAKLESS) |
| 11 | 17125-PCA-000 | Stay comp - INTAKE MANIFOLD | Stay comp - INTAKE MANIFOLD |
| 12 | 18011-PAA-A00 | Valve set - EGR | Valve set - EGR |
| 14 | 18715-PB2-000 | GASKET, EGR VALVE (ISHINO GASKET) | GASKET, EGR VALVE (ISHINO GASKET) |
| 15 | 19517-P08-003 | Clamp - HOSE, 13MM | Clamp - HOSE, 13MM |
| 17 | 32743-PAA-A00 | Clamp c - ENGINE WIRE HARNESS | Clamp c - ENGINE WIRE HARNESS |
| 18 | 32753-PAA-A00 | Stay e - ENGINE HARNESS | Stay e - ENGINE HARNESS |
| 19 | 32759-P0A-A00 | Stay j - ENGINE WIRE HARNESS | Stay j - ENGINE WIRE HARNESS |
| 20 | 90027-P0A-003 | Bolt a - FUEL PIPE | Bolt a - FUEL PIPE |
| 20 | 90027-P0A-305 | Bolt a | Bolt a |
| 21 | 91301-PM7-003 | O-ring - 7.3X2.2 (ARAI) | O-ring - 7.3X2.2 (ARAI) |
| 21 | 91301-P2F-A01 | O-ring - 7.3X2.2 (NOK) | O-ring - 7.3X2.2 (NOK) |
| 21 | 16074-ZY3-000 | O-ring | O-ring |
Interior light 6 / 10
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 34251-SV1-A11 | Lens - DONNELLY | Lens - DONNELLY |
| 3 | 34252-SV1-A01 | Bulb - T-10) (12V 7W | Bulb - T-10) (12V 7W |
| 4 | 34260-SW5-003 | Light assy - TRUNK ROOM | Light assy - TRUNK ROOM |
| 5 | 34295-SJ8-003 | Bulb - 12V 5W) (DAIICHI | Bulb - 12V 5W) (DAIICHI |
| 5 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
| 12 | 90152-SE0-003 | Nut - EARTH, 5MM (ZN) | Nut - EARTH, 5MM (ZN) |
Knuckle 16 / 16
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 51210-S4K-A00 | Knuckle comp - R. FR. | Knuckle comp - R. FR. |
| 2 | 51215-S4K-A00 | Knuckle comp - L. FR. | Knuckle comp - L. FR. |
| 3 | 51225-S84-A01 | Boot - LOWER BALL DUST | Boot - LOWER BALL DUST |
| 4 | 51450-S84-A01 | Arm comp - R. FR. UPPER | Arm comp - R. FR. UPPER |
| 5 | 51460-S84-A01 | Arm comp - L. FR. UPPER | Arm comp - L. FR. UPPER |
| 6 | 51464-S04-013 | Boot, UPPER BALL JOINT | Boot, UPPER BALL JOINT |
| 7 | 52226-SL0-003 | Circlip - LOWER BALL(MUSASHI) | Circlip - LOWER BALL(MUSASHI) |
| 8 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 9 | 57450-S4K-A52 | Sensor assy - R. FR. | Sensor assy - R. FR. |
| 10 | 57451-S84-A50 | Bracket - L. COUPLER | Bracket - L. COUPLER |
| 12 | 57453-S84-A50 | Bracket - R. COUPLER | Bracket - R. COUPLER |
| 13 | 57455-S4K-A52 | Sensor assy - L. FR. | Sensor assy - L. FR. |
| 14 | 90172-S04-003 | Bolt - FLANGE, 10X68 | Bolt - FLANGE, 10X68 |
| 15 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 16 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 17 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
Mirror (2) 5 / 9
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 9 | 76400-S84-A01 | Mirror assy - RR. VIEW (DAY/NIGHT) | Mirror assy - RR. VIEW (DAY/NIGHT) |
| 10 | 90145-S04-006 | Screw - 3X16 | Screw - 3X16 |
| 11 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 12 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 13 | 91565-SW5-003 | Clamp - HARNESS | Clamp - HARNESS |
Molding 21 / 21
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 72410-S84-A01 | Molding assy. - R. FR. DOOR | Molding assy. - R. FR. DOOR |
| 2 | 72420-S84-A01 | Molding - R. DRIP ROOF | Molding - R. DRIP ROOF |
| 3 | 72430-S4K-000 | Garnish - R. FR. DOOR SASH | Garnish - R. FR. DOOR SASH |
| 4 | 72450-S84-A01 | Molding assy. - L. FR. DOOR | Molding assy. - L. FR. DOOR |
| 5 | 72460-S84-A01 | Molding - L. DRIP ROOF | Molding - L. DRIP ROOF |
| 6 | 72470-S4K-000 | Garnish - L. FR. DOOR SASH | Garnish - L. FR. DOOR SASH |
| 7 | 72910-S84-A01 | Molding assy. - R. RR. DOOR | Molding assy. - R. RR. DOOR |
| 8 | 72920-S84-A01 | Molding - R. RR. PILLAR | Molding - R. RR. PILLAR |
| 9 | 72930-S4K-000 | Garnish - R. RR. DOOR SASH | Garnish - R. RR. DOOR SASH |
| 10 | 72950-S84-A01 | Molding assy. - L. RR. DOOR | Molding assy. - L. RR. DOOR |
| 11 | 72960-S84-A01 | Molding - L. RR. PILLAR | Molding - L. RR. PILLAR |
| 12 | 72970-S4K-000 | Garnish - L. RR. DOOR SASH | Garnish - L. RR. DOOR SASH |
| 13 | 73821-S84-A01 | Clip A | Clip A |
| 14 | 74306-S84-003 | Molding assy. - R. ROOF | Molding assy. - R. ROOF |
| 15 | 74308-ST0-003 | Bracket - ROOF MOLDING | Bracket - ROOF MOLDING |
| 16 | 74316-S84-003 | Molding assy. - L. ROOF | Molding assy. - L. ROOF |
| 17 | 90142-S04-000 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 18 | 90147-S84-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 19 | 91528-SR4-003 | Clip - DRIP MOLDING | Clip - DRIP MOLDING |
| 20 | 91561-S84-A01 | Clip - DOOR MOLDING | Clip - DOOR MOLDING |
| 21 | 91562-S84-A01 | Clip - DOOR MOLDING END | Clip - DOOR MOLDING END |
Oil pump/oil strainer (L4) 30 / 31
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 13500-PAA-A00 | Case comp. - GEAR | Case comp. - GEAR |
| 2 | 13511-PT0-020 | Gear b - DRIVEN | Gear b - DRIVEN |
| 3 | 13512-PT0-020 | Washer - THRUST | Washer - THRUST |
| 4 | 14535-P0A-A00 | Plate - TIMING BELT STOPPER | Plate - TIMING BELT STOPPER |
| 5 | 15100-PAA-A01 | Pump assy. - OIL | Pump assy. - OIL |
| 6 | 15113-PT0-003 | Packing a - OIL PUMP (ARAI) | Packing a - OIL PUMP (ARAI) |
| 7 | 15114-PT0-003 | Packing b - OIL PUMP (ARAI) | Packing b - OIL PUMP (ARAI) |
| 8 | 15200-P0A-000 | Pipe comp - OIL LEVEL | Pipe comp - OIL LEVEL |
| 9 | 15220-PAD-G00 | Strainer comp. - OIL | Strainer comp. - OIL |
| 10 | 15221-PT0-000 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 10 | 15221-P5K-004 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 11 | 15231-PE0-000 | Valve - RELIEF | Valve - RELIEF |
| 12 | 15232-PG6-000 | Spring - RELIEF VALVE | Spring - RELIEF VALVE |
| 13 | 15233-PC6-000 | Bolt - SEALING, 18MM | Bolt - SEALING, 18MM |
| 14 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 14 | 15400-PR3-014 | OIL FILTER (TOYO ROKI) | OIL FILTER (TOYO ROKI) |
| 16 | 15650-P0A-013 | Gauge comp. - OIL LEVEL | Gauge comp. - OIL LEVEL |
| 17 | 32114-P0A-A00 | Stay - SENSOR COUPLER | Stay - SENSOR COUPLER |
| 18 | 37840-P0A-A01 | Sensor assy - CRANK-TDC | Sensor assy - CRANK-TDC |
| 19 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 20 | 90018-PT0-010 | Bolt - BALANCER BELT ADJUSTER | Bolt - BALANCER BELT ADJUSTER |
| 21 | 90023-PT0-003 | Bolt-washer - 8X33 | Bolt-washer - 8X33 |
| 22 | 90052-PK1-000 | Bolt - FLANGE, 6X25 | Bolt - FLANGE, 6X25 |
| 23 | 90063-PC6-000 | Bolt - STUD, 6X25 | Bolt - STUD, 6X25 |
| 24 | 90703-PT0-000 | Dowel pin - 49X10 | Dowel pin - 49X10 |
| 25 | 91212-PAA-A02 | Oil seal - 40X52X7 (ARAI) | Oil seal - 40X52X7 (ARAI) |
| 25 | 91212-PAA-A01 | Oil seal - 40X52X7 (NOK) | Oil seal - 40X52X7 (NOK) |
| 26 | 91233-PT0-003 | Oil seal - 27X40X8 (NOK) | Oil seal - 27X40X8 (NOK) |
| 27 | 91309-PJ7-010 | O-ring - 11.5X3.5 | O-ring - 11.5X3.5 |
| 28 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
Outer panels 6 / 7
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 27 | 70495-692-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 29 | 74494-S84-A10 | Spring - FUEL LID OPEN | Spring - FUEL LID OPEN |
| 30 | 75450-SF1-900 | Outlet assy - RR. AIR | Outlet assy - RR. AIR |
| 31 | 90104-S84-A00 | Bolt - RR. DOOR CATCHER, 8X20 | Bolt - RR. DOOR CATCHER, 8X20 |
| 32 | 90103-SM4-010 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 33 | 90664-SB3-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
P.s. pump/bracket (L4) 18 / 18
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 11911-P0A-000 | Hanger - ENGINE | Hanger - ENGINE |
| 2 | 56110-PAA-A01 | Pump sub assy - POWER STEERING | Pump sub assy - POWER STEERING |
| 3 | 56167-P2A-003 | Spacer - PUMP SEAL | Spacer - PUMP SEAL |
| 4 | 56483-P2A-003 | Pulley comp - POWER STEERING PUMP | Pulley comp - POWER STEERING PUMP |
| 4 | 56483-P2A-A51 | Pulley comp - POWER STEERING PUMP | Pulley comp - POWER STEERING PUMP |
| 5 | 56992-PAA-A01 | Belt - POWER STEERING PUMP (MITSUBOSHI) | Belt - POWER STEERING PUMP (MITSUBOSHI) |
| 5 | 56992-P0A-J01 | Belt - POWER STEERING PUMP (BANDO) | Belt - POWER STEERING PUMP (BANDO) |
| 6 | 56994-PAA-A00 | Bracket - POWER STEERING PUMP | Bracket - POWER STEERING PUMP |
| 7 | 90004-P30-000 | Bolt - SPECIAL, 8MM | Bolt - SPECIAL, 8MM |
| 8 | 90105-S50-003 | Bolt - FLANGE, 8X28 | Bolt - FLANGE, 8X28 |
| 9 | 90305-PAA-A01 | Nut - POWER STEERING PULLEY | Nut - POWER STEERING PULLEY |
| 10 | 90693-P2A-003 | Circlip - INTERNAL, 40MM | Circlip - INTERNAL, 40MM |
| 11 | 91048-P2A-003 | Bearing - RADIAL BALL, 17X40X12 | Bearing - RADIAL BALL, 17X40X12 |
| 12 | 91249-P2A-003 | Seal - POWER STEERING PUMP | Seal - POWER STEERING PUMP |
| 13 | 91347-PAA-A01 | O-ring - 16.7X1.8 | O-ring - 16.7X1.8 |
| 14 | 91347-P2A-003 | O-ring - 15.2X2.4 | O-ring - 15.2X2.4 |
| 15 | 91348-P2A-003 | O-ring - 51.0X2.4 | O-ring - 51.0X2.4 |
| 16 | 91349-P2A-003 | Seal - POWER STEERING PUMP COVER | Seal - POWER STEERING PUMP COVER |
Parking brake 8 / 10
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 47142-S84-A01 | Knob - PUSH ROD | Knob - PUSH ROD |
| 3 | 47143-SD4-300 | Spring - PUSH ROD | Spring - PUSH ROD |
| 5 | 47360-SB2-000 | Equalizer | Equalizer |
| 6 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 8 | 47510-S84-A63 | Wire - R. PARKING BRAKE | Wire - R. PARKING BRAKE |
| 9 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 10 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 12 | 47560-S84-A52 | Wire - L. PARKING BRAKE | Wire - L. PARKING BRAKE |
Pedal (RH) 7 / 14
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 17800-S84-A01 | Pedal assy - ACCELERATOR | Pedal assy - ACCELERATOR |
| 6 | 35350-S84-003 | Switch assy - STOP | Switch assy - STOP |
| 9 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 10 | 46505-SA7-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 11 | 46530-S84-A02 | Spring assy - PEDAL RETURN | Spring assy - PEDAL RETURN |
| 25 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 26 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Pillar garnish (RH) 4 / 4
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 15 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
| 16 | 91560-S84-A11 | Clip - PILLAR GARNISH(BLACK) | Clip - PILLAR GARNISH(BLACK) |
| 17 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 17 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Power steering gear box (RH) 16 / 17
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 53010-S84-A01 | End set - RACK | End set - RACK |
| 2 | 53434-S84-A01 | Clip - STEERING TIE ROD | Clip - STEERING TIE ROD |
| 3 | 53436-S84-A01 | Cushion b - GEAR BOX | Cushion b - GEAR BOX |
| 4 | 53438-S84-A00 | Bracket b - GEAR BOX | Bracket b - GEAR BOX |
| 5 | 53449-S84-A01 | Band - BELLOWS | Band - BELLOWS |
| 6 | 53501-S84-A00 | Grommet a - STEERING | Grommet a - STEERING |
| 7 | 53502-S84-A00 | Grommet b - STEERING | Grommet b - STEERING |
| 8 | 53534-S84-A01 | Dust seal - TIE ROD | Dust seal - TIE ROD |
| 9 | 53536-S84-A01 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 10 | 53537-S84-A01 | Rubber - STOPPER | Rubber - STOPPER |
| 11 | 53540-S84-A01 | End comp - R. TIE ROD | End comp - R. TIE ROD |
| 12 | 53546-S84-003 | Boot - TIE ROD END (NOK) | Boot - TIE ROD END (NOK) |
| 13 | 53560-S84-A01 | End comp - L. TIE ROD | End comp - L. TIE ROD |
| 15 | 53685-S84-A01 | Bush - STEERING GEAR BOX MOUNTING | Bush - STEERING GEAR BOX MOUNTING |
| 16 | 90108-S0A-J00 | Bolt - GEAR BOX MOUNTING | Bolt - GEAR BOX MOUNTING |
| 17 | 91411-S84-A01 | Nut - HEX., 14MM | Nut - HEX., 14MM |
Power steering gear box components (RH) 15 / 23
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 06531-S84-A01 | Seal kit a - POWER STEERING (ROTARY VALVE) | Seal kit a - POWER STEERING (ROTARY VALVE) |
| 2 | 06532-S84-A01 | Oil seal set - ROTARY VALVE | Oil seal set - ROTARY VALVE |
| 3 | 06534-S84-A01 | Ring set - POWER STEERING SEAL (ROTARY VALVE) | Ring set - POWER STEERING SEAL (ROTARY VALVE) |
| 4 | 53413-S0K-A01 | Spring - RACK GUIDE PRESSURE | Spring - RACK GUIDE PRESSURE |
| 5 | 53414-S84-A01 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 6 | 53416-S0K-A01 | Guide - STEERING RACK | Guide - STEERING RACK |
| 7 | 53449-S84-A01 | Band - BELLOWS | Band - BELLOWS |
| 8 | 53458-S84-A01 | Nut - LOCK | Nut - LOCK |
| 9 | 53536-S84-A01 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 10 | 53537-S84-A01 | Rubber - STOPPER | Rubber - STOPPER |
| 13 | 53630-S84-A01 | End comp - CYLINDER | End comp - CYLINDER |
| 16 | 53660-S50-003 | Oil seal - 27X38X5.5 (SHOWA) | Oil seal - 27X38X5.5 (SHOWA) |
| 18 | 06535-S50-003 | Ring set - POWER STEERING SEAL (ROTARY VALVE) | Ring set - POWER STEERING SEAL (ROTARY VALVE) |
| 19 | 53666-S50-003 | O-ring - 41.5X2 (SHOWA) | O-ring - 41.5X2 (SHOWA) |
| 22 | 90105-S50-003 | Bolt - FLANGE, 8X28 | Bolt - FLANGE, 8X28 |
Power steering lines (L4; RH) 19 / 22
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 2 | 53701-S84-A01 | Tank comp. - POWER STEERING OIL | Tank comp. - POWER STEERING OIL |
| 3 | 53711-S84-A00 | Bracket - OIL TANK | Bracket - OIL TANK |
| 6 | 53729-SL4-951 | Clip - RETURN PIPE, 10MM | Clip - RETURN PIPE, 10MM |
| 7 | 53729-SS0-003 | Clip - RETURN HOSE | Clip - RETURN HOSE |
| 8 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 9 | 53730-SV4-020 | Clamp - FEED HOSE | Clamp - FEED HOSE |
| 10 | 53731-S84-A00 | Tube - SUCTION | Tube - SUCTION |
| 11 | 53732-S84-A01 | Hose - OIL COOLER | Hose - OIL COOLER |
| 12 | 53733-S84-A01 | Hose - OIL TANK | Hose - OIL TANK |
| 14 | 53736-SH3-950 | Holder b - POWER STEERING PIPE | Holder b - POWER STEERING PIPE |
| 15 | 53765-S84-A01 | Cooler - POWER STEERING OIL | Cooler - POWER STEERING OIL |
| 16 | 53779-S86-K01 | Pipe comp. b - POWER STEERING RETURN (10MM) | Pipe comp. b - POWER STEERING RETURN (10MM) |
| 17 | 56490-P0H-013 | Switch assy - POWER STEERING PRESSURE (TEXAS) | Switch assy - POWER STEERING PRESSURE (TEXAS) |
| 18 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 18 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 19 | 91304-P0H-013 | O-ring - 7.8X1.9 | O-ring - 7.8X1.9 |
| 20 | 91370-SV4-000 | O-ring - 14.4X1.9 | O-ring - 14.4X1.9 |
| 21 | 91405-SS0-003 | Clamp - TUBE (D21) | Clamp - TUBE (D21) |
Protector 6 / 12
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 5 | 75306-SV1-A01 | Clip - SIDE PROTECTOR (B) | Clip - SIDE PROTECTOR (B) |
| 13 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 15 | 90505-SM4-003 | Clip - GARNISH | Clip - GARNISH |
| 15 | 90505-SX0-003 | Clip - GARNISH | Clip - GARNISH |
| 16 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 17 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
Purge control solenoid valve (L4) 5 / 5
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 36001-PAD-G00 | Stay - PURGE CUT SOLENOID VALVE | Stay - PURGE CUT SOLENOID VALVE |
| 2 | 36160-P5G-901 | Valve assy. - PURGE CONTROL SOLENOID | Valve assy. - PURGE CONTROL SOLENOID |
| 3 | 36164-PAD-G01 | Stay - PURGE CUT SOLENOID | Stay - PURGE CUT SOLENOID |
| 4 | 50917-SV7-A00 | Rubber - MOUNTING | Rubber - MOUNTING |
| 5 | 90041-PM5-A01 | Screw-washer - 5X8 | Screw-washer - 5X8 |
R. side cover (L4) 1 / 34
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 31 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
Radiator (L4) 12 / 13
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 4 | 19013-PAA-A01 | Seal - RADIATOR SIDE (DENSO) | Seal - RADIATOR SIDE (DENSO) |
| 5 | 19015-PAA-A01 | Shroud comp - DENSO | Shroud comp - DENSO |
| 7 | 19030-PAA-A01 | Motor - COOLING FAN (DENSO) | Motor - COOLING FAN (DENSO) |
| 8 | 19033-PAA-A01 | Clip - COUPLER (DENSO) | Clip - COUPLER (DENSO) |
| 9 | 19045-PAA-A01 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 10 | 19046-PAA-A00 | Label - RADIATOR CAP | Label - RADIATOR CAP |
| 11 | 90041-P5A-003 | Screw-washer - 4X11 | Screw-washer - 4X11 |
| 12 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 13 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 14 | 19020-PLC-003 | Fan - COOLING (DENSO) | Fan - COOLING (DENSO) |
Radiator hose (L4) 10 / 23
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 19101-PAA-A00 | Tank - RESERVE | Tank - RESERVE |
| 2 | 19102-PM5-A00 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 3 | 19103-PV1-A00 | Hose - RESERVE TANK | Hose - RESERVE TANK |
| 4 | 19103-P0A-000 | Hose - RESERVE TANK | Hose - RESERVE TANK |
| 5 | 19106-PM3-000 | Joint - RESERVE TANK | Joint - RESERVE TANK |
| 6 | 19501-PAA-A00 | Hose - WATER UPPER | Hose - WATER UPPER |
| 8 | 19511-PT0-004 | Clip - WATER HOSE (36.5MM) (KEIHIN) | Clip - WATER HOSE (36.5MM) (KEIHIN) |
| 8 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 16 | 74171-S84-A00 | Bracket - RADIATOR MOUNT UPPER | Bracket - RADIATOR MOUNT UPPER |
| 18 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
Radio antenna/speaker 8 / 13
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 39112-SM4-000 | Bracket - FR. SPEAKER SEAL | Bracket - FR. SPEAKER SEAL |
| 9 | 90131-S30-003 | Screw-washer - ET, 6X16 | Screw-washer - ET, 6X16 |
| 10 | 90132-SV4-003 | Screw - ET, 5X16 | Screw - ET, 5X16 |
| 11 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 12 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 13 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 14 | 91545-S30-003 | Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) |
| 15 | 91655-SP0-010 | Seal a - DOOR PANEL HOLE (60X30) | Seal a - DOOR PANEL HOLE (60X30) |
Rear beam/cross beam 9 / 12
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 10 | 50250-S4K-000 | Beam - FR. | Beam - FR. |
| 11 | 50255-S84-A00 | Damper - FR. BEAM | Damper - FR. BEAM |
| 14 | 50310-S4K-000 | Beam - RR. SUSPENSION CROSS | Beam - RR. SUSPENSION CROSS |
| 22 | 90162-S84-A00 | Bolt - FLANGE, 14X90 | Bolt - FLANGE, 14X90 |
| 23 | 90161-S84-A00 | Bolt - FLANGE, 14X125 | Bolt - FLANGE, 14X125 |
| 25 | 90164-S84-A00 | Bolt - FLANGE, 12X30 | Bolt - FLANGE, 12X30 |
| 25 | 90164-S1A-E00 | Bolt - FLANGE, 12X30 | Bolt - FLANGE, 12X30 |
| 27 | 91613-SE0-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 28 | 91613-S84-A01 | Grommet - RR. SUB FRAME | Grommet - RR. SUB FRAME |
Rear brake (DISK; L4) 36 / 36
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 01473-SY8-010 | Caliper set - RR. | Caliper set - RR. |
| 2 | 42200-S84-C51 | Bearing assy - RR. HUB UNIT | Bearing assy - RR. HUB UNIT |
| 3 | 42326-ST7-Z00 | Cap - HUB UNIT | Cap - HUB UNIT |
| 3 | 42326-SLJ-000 | Cap, Hub unit | Cap, Hub unit |
| 4 | 42510-S84-A50 | Disk - RR. BRAKE | Disk - RR. BRAKE |
| 5 | 43018-S84-A11 | Caliper sub assy. - R. RR. | Caliper sub assy. - R. RR. |
| 6 | 43019-S84-A11 | Caliper sub assy. - L. RR. | Caliper sub assy. - L. RR. |
| 7 | 43022-SY8-A01 | Pad set - RR. | Pad set - RR. |
| 8 | 43215-SY8-A01 | Piston assy. | Piston assy. |
| 9 | 43217-SY8-A01 | Sleeve | Sleeve |
| 11 | 43227-SY8-A01 | Spring - PAD | Spring - PAD |
| 12 | 43228-S84-A13 | Lever - R. | Lever - R. |
| 13 | 43229-SY8-A02 | Rod | Rod |
| 14 | 43233-SY8-A01 | Connector | Connector |
| 15 | 43237-SY8-A01 | Spring a - ADJUSTER | Spring a - ADJUSTER |
| 16 | 43238-SY8-A01 | Ring - RETAINING | Ring - RETAINING |
| 17 | 43241-SY8-A01 | Guide - SPRING | Guide - SPRING |
| 18 | 43244-SY8-A01 | Retainer | Retainer |
| 19 | 43246-S84-A12 | Spring - R. RETURN | Spring - R. RETURN |
| 20 | 43247-S84-A13 | Arm - R. | Arm - R. |
| 21 | 43248-S84-A13 | Lever - L. | Lever - L. |
| 22 | 43253-S0A-000 | Guard - R. RR. SPLASH | Guard - R. RR. SPLASH |
| 23 | 43254-S0A-000 | Guard - L. RR. SPLASH | Guard - L. RR. SPLASH |
| 24 | 43266-S84-A12 | Spring - L. LEVER RETURN | Spring - L. LEVER RETURN |
| 25 | 43267-S84-A13 | Arm - L. | Arm - L. |
| 26 | 45215-671-672 | Screw - BLEEDER | Screw - BLEEDER |
| 27 | 45219-S84-A01 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 28 | 45233-S04-A01 | Bush | Bush |
| 29 | 45235-S01-A01 | Pin a | Pin a |
| 30 | 45240-S01-A01 | Bolt | Bolt |
| 31 | 45262-S01-A01 | Pin b | Pin b |
| 32 | 90103-SV4-003 | Bolt - FLANGE, 10X30 | Bolt - FLANGE, 10X30 |
| 33 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 34 | 90305-S30-003 | Nut - SPINDLE | Nut - SPINDLE |
| 38 | 06430-S84-A00 | Pad set - RR. (WITHOUT SHIM) (###) | Pad set - RR. (WITHOUT SHIM) (###) |
| 39 | 06435-S84-A00 | Shim set - RR. | Shim set - RR. |
Rear door lining 7 / 8
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 34261-SV1-A01 | Lens - DONNELLY | Lens - DONNELLY |
| 4 | 72835-S84-A01 | Weatherstrip - R. RR. DOOR INNER | Weatherstrip - R. RR. DOOR INNER |
| 5 | 72875-S84-A01 | Weatherstrip - L. RR. DOOR INNER | Weatherstrip - L. RR. DOOR INNER |
| 7 | 83508-S03-000 | Bracket - PULL POCKET | Bracket - PULL POCKET |
| 18 | 90101-S03-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 20 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 21 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Rear door locks 33 / 33
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 72119-SM1-003 | Stopper a - OUTSIDE HANDLE | Stopper a - OUTSIDE HANDLE |
| 3 | 72135-SR3-003 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 5 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 6 | 72175-SH3-901 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 7 | 72610-S84-A01 | Lock assy - R. RR. DOOR | Lock assy - R. RR. DOOR |
| 8 | 72612-S84-A00 | Cap - R. CHILD LOCK | Cap - R. CHILD LOCK |
| 9 | 72615-S84-A01 | R. RR. DOOR LOCK ACTUATOR ASSY | R. RR. DOOR LOCK ACTUATOR ASSY |
| 10 | 72139-S0A-003 | Snap - PINK | Snap - PINK |
| 12 | 72617-S84-A01 | Protector - R. RR. DOOR LOCK | Protector - R. RR. DOOR LOCK |
| 14 | 72630-S0A-003 | Crank assy - LOCK ROD | Crank assy - LOCK ROD |
| 15 | 72631-S84-A01 | Rod - R. RR. INSIDE HANDLE | Rod - R. RR. INSIDE HANDLE |
| 16 | 72632-S84-A01 | Rod - R. RR. DOOR LOCK | Rod - R. RR. DOOR LOCK |
| 17 | 72633-S84-A01 | Rod - RR. DOOR LOCK KNOB | Rod - RR. DOOR LOCK KNOB |
| 18 | 72634-SM4-003 | Snap - R. (BLUE) | Snap - R. (BLUE) |
| 19 | 72634-S84-A01 | Rod - R. RR. DOOR ACTUATOR | Rod - R. RR. DOOR ACTUATOR |
| 20 | 72639-S84-A01 | Protector - R. RR. DOOR ROD | Protector - R. RR. DOOR ROD |
| 22 | 72645-S84-A00 | Protector - R. RR. DOOR OUTSIDE HANDLE | Protector - R. RR. DOOR OUTSIDE HANDLE |
| 23 | 72650-S84-A01 | Lock assy - L. RR. DOOR | Lock assy - L. RR. DOOR |
| 24 | 72652-S84-A00 | Cap - L. CHILD LOCK | Cap - L. CHILD LOCK |
| 25 | 72655-S84-A01 | L. RR. DOOR LOCK ACTUATOR ASSY | L. RR. DOOR LOCK ACTUATOR ASSY |
| 26 | 72657-S84-A01 | Protector - L. RR. DOOR LOCK | Protector - L. RR. DOOR LOCK |
| 28 | 72671-S84-A01 | Rod - L. RR. INSIDE HANDLE | Rod - L. RR. INSIDE HANDLE |
| 29 | 72672-S84-A01 | Rod - L. RR. DOOR LOCK | Rod - L. RR. DOOR LOCK |
| 30 | 72674-SM4-003 | Snap - L. (BROWN) | Snap - L. (BROWN) |
| 31 | 72674-S84-A01 | Rod - L. RR. DOOR ACTUATOR | Rod - L. RR. DOOR ACTUATOR |
| 32 | 72679-S84-A01 | Protector - L. RR. DOOR ROD | Protector - L. RR. DOOR ROD |
| 34 | 72685-S84-A00 | Protector - L. RR. DOOR OUTSIDE HANDLE | Protector - L. RR. DOOR OUTSIDE HANDLE |
| 35 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 36 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 37 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 38 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 43 | 72114-S86-K01 | Seat - R. OUTSIDE HANDLE | Seat - R. OUTSIDE HANDLE |
| 44 | 72154-S86-K01 | Seat - L. OUTSIDE HANDLE | Seat - L. OUTSIDE HANDLE |
Rear door panels 28 / 28
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 9 | 72635-S84-A00 | Hook - DOOR PIN | Hook - DOOR PIN |
| 10 | 72810-S84-A01 | Weatherstrip - R. RR. DOOR | Weatherstrip - R. RR. DOOR |
| 11 | 72821-S4K-010 | Seal - R. RR. DOOR HOLE | Seal - R. RR. DOOR HOLE |
| 12 | 72825-S84-A01 | Sub seal - R. RR. DOOR | Sub seal - R. RR. DOOR |
| 13 | 72826-S84-A02 | Weatherstrip - RR. LOWER | Weatherstrip - RR. LOWER |
| 14 | 72840-S4K-003 | Checker comp. - R. DOOR | Checker comp. - R. DOOR |
| 15 | 72850-S84-A01 | Weatherstrip - L. RR. DOOR | Weatherstrip - L. RR. DOOR |
| 16 | 72865-S84-A01 | Sub seal - L. RR. DOOR | Sub seal - L. RR. DOOR |
| 17 | 72880-S4K-003 | Checker comp. - L. DOOR | Checker comp. - L. DOOR |
| 18 | 75513-S84-A00 | Cushion - LOCK ROD | Cushion - LOCK ROD |
| 19 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 20 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Bolt - FLANGE, 8X22 (8.5MM) |
| 21 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 22 | 90102-SZ3-000 | Bolt - FLANGE, 8X22 (10.5MM) | Bolt - FLANGE, 8X22 (10.5MM) |
| 23 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 24 | 91530-SH4-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 25 | 91568-SR2-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 25 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 26 | 91657-SP0-000 | Seal c - DOOR PANEL HOLE (25MM) | Seal c - DOOR PANEL HOLE (25MM) |
| 29 | 67825-S4K-013 | Tape - R. RR. DOOR UPPER INNER | Tape - R. RR. DOOR UPPER INNER |
| 31 | 67827-S4K-013 | Tape - R. RR. DOOR CENTER INNER | Tape - R. RR. DOOR CENTER INNER |
| 32 | 67865-S4K-013 | Tape - L. RR. DOOR UPPER INNER | Tape - L. RR. DOOR UPPER INNER |
| 34 | 67867-S4K-013 | Tape - L. RR. DOOR CENTER INNER | Tape - L. RR. DOOR CENTER INNER |
| 35 | 72861-S4K-010 | Seal - L. RR. DOOR HOLE | Seal - L. RR. DOOR HOLE |
| 36 | 67828-S4K-003 | Tape - R. RR. DOOR END INNER | Tape - R. RR. DOOR END INNER |
| 37 | 67829-S4K-003 | Tape - R. RR. DOOR CENTER END INNER | Tape - R. RR. DOOR CENTER END INNER |
| 38 | 67868-S4K-003 | Tape - L. RR. DOOR END INNER | Tape - L. RR. DOOR END INNER |
| 39 | 67869-S4K-003 | Tape - L. RR. DOOR CENTER END INNER | Tape - L. RR. DOOR CENTER END INNER |
Rear door windows 22 / 22
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 72711-S84-A01 | Regulator - R. RR. DOOR POWER | Regulator - R. RR. DOOR POWER |
| 2 | 72715-S84-A01 | Motor assy. - R. RR. WINDOW | Motor assy. - R. RR. WINDOW |
| 3 | 72731-S4K-003 | Sash - R. RR. DOOR CENTER | Sash - R. RR. DOOR CENTER |
| 5 | 72735-S84-A01 | Runchannel - R. RR. DOOR | Runchannel - R. RR. DOOR |
| 6 | 72737-SR4-000 | Collar a - RR. DOOR PANEL LOWER | Collar a - RR. DOOR PANEL LOWER |
| 7 | 72751-S84-A01 | Regulator - L. RR. DOOR POWER | Regulator - L. RR. DOOR POWER |
| 8 | 72755-S84-A01 | Motor assy. - L. RR. WINDOW | Motor assy. - L. RR. WINDOW |
| 9 | 72771-S4K-003 | Sash - L. RR. DOOR CENTER | Sash - L. RR. DOOR CENTER |
| 11 | 72775-S84-A01 | Runchannel - L. RR. DOOR | Runchannel - L. RR. DOOR |
| 12 | 73400-S4K-J00 | Glass assy - R. RR. DOOR (GREEN) (ASAHI) | Glass assy - R. RR. DOOR (GREEN) (ASAHI) |
| 13 | 73405-S4K-J00 | Glass - R. RR. DOOR QUARTER (GREEN) (ASAHI) | Glass - R. RR. DOOR QUARTER (GREEN) (ASAHI) |
| 14 | 73441-S84-A02 | Seal - R. RR. DOOR QUARTER | Seal - R. RR. DOOR QUARTER |
| 15 | 73450-S4K-J00 | Glass assy - L. RR. DOOR (GREEN) (ASAHI) | Glass assy - L. RR. DOOR (GREEN) (ASAHI) |
| 16 | 73455-S4K-J00 | Glass - L. RR. DOOR QUARTER (GREEN) (ASAHI) | Glass - L. RR. DOOR QUARTER (GREEN) (ASAHI) |
| 17 | 73491-S84-A01 | Seal - L. RR. DOOR QUARTER | Seal - L. RR. DOOR QUARTER |
| 18 | 90011-896-000 | Bolt - FLANGE, 6X8 | Bolt - FLANGE, 6X8 |
| 19 | 90145-S84-A01 | Bolt - FLANGE, | Bolt - FLANGE, |
| 20 | 90146-S84-A01 | Bolt - FLANGE, 6X12 | Bolt - FLANGE, 6X12 |
| 21 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 27 | 72730-S84-A01 | Sash - R. RR. DOOR FR. LOWER | Sash - R. RR. DOOR FR. LOWER |
| 28 | 72739-S84-A01 | Runchannel - RR. DOOR LOWER | Runchannel - RR. DOOR LOWER |
| 29 | 72770-S84-A01 | Sash - L. RR. DOOR FR. LOWER | Sash - L. RR. DOOR FR. LOWER |
Rear lower arm 36 / 36
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 52210-S0A-J51 | Knuckle comp - R. RR. | Knuckle comp - R. RR. |
| 2 | 52215-S0A-J51 | Knuckle comp - L. RR. | Knuckle comp - L. RR. |
| 3 | 52300-S4K-A01 | Spring - RR. STABILIZER | Spring - RR. STABILIZER |
| 4 | 52306-S84-A01 | Bush - RR. STABILIZER HOLDER | Bush - RR. STABILIZER HOLDER |
| 5 | 52308-SZ5-000 | Holder - STABILIZER BUSH | Holder - STABILIZER BUSH |
| 6 | 52320-S84-A01 | Link comp - R. RR. STABILIZER | Link comp - R. RR. STABILIZER |
| 7 | 52325-S84-A01 | Link comp - L. RR. STABILIZER | Link comp - L. RR. STABILIZER |
| 8 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 9 | 52340-S84-A01 | Bracket - R. RR. LINK STABILIZER | Bracket - R. RR. LINK STABILIZER |
| 10 | 52345-S84-A01 | Bracket - L. RR. LINK STABILIZER | Bracket - L. RR. LINK STABILIZER |
| 11 | 52350-S84-A01 | Arm comp - RR. LOWER | Arm comp - RR. LOWER |
| 12 | 52360-S84-A01 | Arm comp - RR. CONTROL | Arm comp - RR. CONTROL |
| 13 | 52364-634-020 | Washer - LOWER ARM | Washer - LOWER ARM |
| 14 | 52365-SM4-004 | Bush a - RR. LOWER ARM (YAMASHITA) | Bush a - RR. LOWER ARM (YAMASHITA) |
| 15 | 52370-S84-A51 | Arm comp - R. RR. TRAILING (DISK) | Arm comp - R. RR. TRAILING (DISK) |
| 16 | 52375-S84-A51 | Arm comp - L. RR. TRAILING (DISK) | Arm comp - L. RR. TRAILING (DISK) |
| 17 | 52380-S84-A01 | Arm comp - RR. LEADING | Arm comp - RR. LEADING |
| 18 | 52387-S84-A00 | Bolt - CONTROL ADJUSTING | Bolt - CONTROL ADJUSTING |
| 19 | 52388-S84-A00 | Plate - CAM | Plate - CAM |
| 20 | 52390-S84-A01 | Arm comp - RR. UPPER | Arm comp - RR. UPPER |
| 21 | 52454-S84-A01 | Boot - UPPER DUST | Boot - UPPER DUST |
| 21 | 06511-TY2-A01 | Boot | Boot |
| 22 | 57452-S84-A50 | Bracket - RR. COUPLER | Bracket - RR. COUPLER |
| 23 | 57470-S84-A53 | Sensor assy - R. RR. | Sensor assy - R. RR. |
| 24 | 57475-S84-A53 | Sensor assy - L. RR. | Sensor assy - L. RR. |
| 25 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 26 | 90121-S0A-000 | Bolt - DAMPER FORK(12X98) | Bolt - DAMPER FORK(12X98) |
| 27 | 90173-S84-A00 | Bolt - RR. UPPER ARM | Bolt - RR. UPPER ARM |
| 28 | 90181-S84-A00 | Bolt - TRAILING ARM, 12X68 | Bolt - TRAILING ARM, 12X68 |
| 29 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 30 | 90216-SE0-010 | Nut | Nut |
| 30 | 90216-SE0-305 | NUT, LWR ARM | NUT, LWR ARM |
| 31 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 32 | 90363-SZ3-003 | Nut - UPPER ARM, 12MM | Nut - UPPER ARM, 12MM |
| 32 | 90363-S0X-A00 | Nut - UPPER ARM, 12MM | Nut - UPPER ARM, 12MM |
| 36 | 90701-SX0-003 | Clip - UPPER ARM | Clip - UPPER ARM |
Rear seat 21 / 26
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 2 | 77520-SL9-003 | Cylinder - GLOVE BOX | Cylinder - GLOVE BOX |
| 3 | 78182-SA0-000 | Clip - RR. SEAT PIN | Clip - RR. SEAT PIN |
| 7 | 82122-S4K-B02 | Pad & frame comp. - RR. SEATBACK (TS TECH) | Pad & frame comp. - RR. SEATBACK (TS TECH) |
| 9 | 82129-SM4-A00 | Collar c | Collar c |
| 11 | 82132-S4K-A01 | Pad & frame comp. - RR. SEAT CUSHION (TS TECH) | Pad & frame comp. - RR. SEAT CUSHION (TS TECH) |
| 12 | 82137-S84-A01 | Clip - RR. SEAT CUSHION | Clip - RR. SEAT CUSHION |
| 15 | 82152-S4K-A11 | Pad & frame comp. - R. RR. SEATBACK SIDE (TS TECH) | Pad & frame comp. - R. RR. SEATBACK SIDE (TS TECH) |
| 17 | 82186-S4K-A12 | Lid assy - RR. ARMREST | Lid assy - RR. ARMREST |
| 19 | 82188-S4K-A12 | Lid assy | Lid assy |
| 20 | 82189-SV1-L32 | Damper | Damper |
| 21 | 82220-S84-A01 | Lock assy - RR. SEAT | Lock assy - RR. SEAT |
| 22 | 82225-S84-A01 | Bracket - RR. SEAT CYLINDER | Bracket - RR. SEAT CYLINDER |
| 23 | 82226-S84-A01 | Cylinder - RR. SEAT | Cylinder - RR. SEAT |
| 25 | 82290-S84-A02 | Bracket comp. - R. SEAT PIVOT | Bracket comp. - R. SEAT PIVOT |
| 28 | 82552-S4K-A11 | Pad & frame comp. - L. RR. SEATBACK SIDE (TS TECH) | Pad & frame comp. - L. RR. SEATBACK SIDE (TS TECH) |
| 29 | 82690-S84-A02 | Bracket comp. - L. SEAT PIVOT | Bracket comp. - L. SEAT PIVOT |
| 30 | 90003-692-000 | Bolt - FLANGE, 6X16 | Bolt - FLANGE, 6X16 |
| 31 | 90140-SA5-000 | Bolt - SPLASH GUARD | Bolt - SPLASH GUARD |
| 36 | 90161-SB4-003 | Screw - FLAT, 4X16 | Screw - FLAT, 4X16 |
Rear shock absorber 21 / 21
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 51621-S84-A01 | Washer - SHOCK ABSORBER MOUNTING | Washer - SHOCK ABSORBER MOUNTING |
| 2 | 51685-SR0-004 | Plate - DUST COVER (A.S.I. SHOWA) | Plate - DUST COVER (A.S.I. SHOWA) |
| 2 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 3 | 51728-SR0-003 | Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS) | Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS) |
| 3 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 4 | 52441-S84-A02 | Spring - RR. (SHOWA) | Spring - RR. (SHOWA) |
| 5 | 52610-S84-A06 | Absorber assy - RR. SHOCK (###) | Absorber assy - RR. SHOCK (###) |
| 6 | 52611-S84-A04 | Absorber unit - RR. SHOCK | Absorber unit - RR. SHOCK |
| 7 | 52622-S84-A01 | Bush - RR. SHOCK ABSORBER LOWER | Bush - RR. SHOCK ABSORBER LOWER |
| 8 | 52631-S84-A01 | Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 9 | 52675-S84-A01 | Base - RR. SHOCK ABSORBER MOUNTING (A.S.I. SHOWA) | Base - RR. SHOCK ABSORBER MOUNTING (A.S.I. SHOWA) |
| 10 | 52686-S84-A01 | Rubber - RR. SPRING MOUNTING | Rubber - RR. SPRING MOUNTING |
| 11 | 52688-S84-A02 | Sleeve - RR. DUST COVER | Sleeve - RR. DUST COVER |
| 12 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 13 | 52722-SM4-013 | Rubber - BUMPER STOPPER (POLYURETHAN KASEI) | Rubber - BUMPER STOPPER (POLYURETHAN KASEI) |
| 13 | 52722-SV1-A02 | Rubber - RR. BUMP STOPPER (SHOWA) | Rubber - RR. BUMP STOPPER (SHOWA) |
| 14 | 52748-S84-A02 | Cover - RR. LOWER MOUNT DUST | Cover - RR. LOWER MOUNT DUST |
| 15 | 90182-S84-A00 | Bolt - RR. DAMPER, (10X81) | Bolt - RR. DAMPER, (10X81) |
| 16 | 90300-S84-A00 | Nut - SHOCK ABSORBER FLANGE (10MM) | Nut - SHOCK ABSORBER FLANGE (10MM) |
| 17 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
| 18 | 52689-SG0-014 | End - DUST COVER | End - DUST COVER |
Rear tray/side lining 7 / 7
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 8 | 84525-S84-E00 | Spacer - R. TRUNK | Spacer - R. TRUNK |
| 10 | 84575-S84-E00 | Spacer - L. TRUNK | Spacer - L. TRUNK |
| 19 | 90132-SE3-003 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 21 | 90668-SV1-003 | Clip - RR. TRAY | Clip - RR. TRAY |
| 22 | 91560-S04-003 | Clip - SIDE GARNISH (NATURAL) | Clip - SIDE GARNISH (NATURAL) |
| 26 | 91562-S84-A11 | Grommet - DOOR LINING | Grommet - DOOR LINING |
| 27 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
Rear windshield 4 / 8
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 73129-S84-A00 | Fabric - NON WOVEN | Fabric - NON WOVEN |
| 2 | 73201-S4K-A00 | Glass set - RR. WINDSHIELD (GREEN) (ASAHI) | Glass set - RR. WINDSHIELD (GREEN) (ASAHI) |
| 4 | 73224-SW5-A01 | Base - TERMINAL COVER | Base - TERMINAL COVER |
| 5 | 73250-S84-A01 | Molding - RR. WINDSHIELD | Molding - RR. WINDSHIELD |
Resonator chamber (L4) 8 / 8
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17213-PV0-000 | Rubber - AIR CLEANER CASE MOUNTING | Rubber - AIR CLEANER CASE MOUNTING |
| 3 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 4 | 17230-PAA-A01 | Chamber assy - RESONATOR | Chamber assy - RESONATOR |
| 5 | 17243-PAA-A00 | Tube assy. b - AIR INTAKE | Tube assy. b - AIR INTAKE |
| 6 | 17244-PAA-A00 | Rubber - AIR CLEANER SEAL | Rubber - AIR CLEANER SEAL |
| 7 | 17246-P0A-A00 | Ring - SEAL | Ring - SEAL |
| 8 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
Roof lining 8 / 8
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 5 | 83202-SZ3-000 | Clip - ROOF LINING | Clip - ROOF LINING |
| 6 | 83203-S84-A01 | O-flex - R. SIDE ROOF | O-flex - R. SIDE ROOF |
| 10 | 83253-S84-A01 | O-flex - L. SIDE ROOF | O-flex - L. SIDE ROOF |
| 14 | 90137-S30-003 | Screw - ET, 6X18 | Screw - ET, 6X18 |
| 14 | 90136-S30-003 | Screw - ET, 5X18 | Screw - ET, 5X18 |
| 16 | 34273-S84-A01 | Bulb | Bulb |
| 17 | 83202-S84-A01 | O-flex - R. SIDE ROOF | O-flex - R. SIDE ROOF |
| 18 | 83252-S84-A01 | O-flex - L. SIDE ROOF | O-flex - L. SIDE ROOF |
Seatbelt 5 / 5
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 6 | 81491-S84-A10 | Protector - R. FR. SEATBELT | Protector - R. FR. SEATBELT |
| 9 | 81891-S84-A10 | Protector - L. FR. SEATBELT | Protector - L. FR. SEATBELT |
| 14 | 82456-S84-A00 | Protector - RR. CENTER SEATBELT | Protector - RR. CENTER SEATBELT |
| 16 | 90133-SZ4-003 | Screw - ET, 7X16 | Screw - ET, 7X16 |
| 16 | 90101-S84-A00 | Screw - ET, 6X16 | Screw - ET, 6X16 |
Srs unit (RH; 2) 5 / 9
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 3 | 77900-S84-X31 | Reel assy - CABLE (SUMITOMO) | Reel assy - CABLE (SUMITOMO) |
| 4 | 77907-S84-A01 | Holder - CONNECTOR (4P) | Holder - CONNECTOR (4P) |
| 9 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 10 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 11 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
Steering column 9 / 11
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 2 | 53216-S84-A00 | Hold b - STEERING COLUMN | Hold b - STEERING COLUMN |
| 4 | 53323-S04-003 | Joint comp. b - STEERING | Joint comp. b - STEERING |
| 5 | 53325-SH3-000 | Clip A - JOINT COVER | Clip A - JOINT COVER |
| 6 | 53326-SB0-000 | Clip b - JOINT COVER | Clip b - JOINT COVER |
| 7 | 77873-S04-G80 | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) |
| 8 | 90135-SB0-003 | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) |
| 9 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 10 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 11 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
Steering wheel (SRS; L4) 4 / 4
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 4 | 78516-S84-S61 | Plate - HOOK | Plate - HOOK |
| 10 | 78520-S84-S61 | Damper - DYNAMIC | Damper - DYNAMIC |
| 11 | 90134-S04-A81 | Bolt - HEX., 6X12 | Bolt - HEX., 6X12 |
| 12 | 90161-SV4-003 | Bolt - STEERING HANDLE | Bolt - STEERING HANDLE |
Switch (RH) 4 / 6
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 35505-S84-N01 | Bulb - NEO WEDGE (T3) (NS) (14V 50MA) | Bulb - NEO WEDGE (T3) (NS) (14V 50MA) |
| 2 | 35510-S84-A11 | Switch assy - HAZARD | Switch assy - HAZARD |
| 6 | 35871-S3N-901 | Bulb - NEO WEDGE (14V 60MA) (TOYO) | Bulb - NEO WEDGE (14V 60MA) (TOYO) |
| 8 | 39700-S84-A21 | Clock assy - DIGITAL (NS) | Clock assy - DIGITAL (NS) |
Taillight 18 / 19
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 2 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
| 3 | 33501-S84-G01 | Lamp unit - R. TAIL | Lamp unit - R. TAIL |
| 4 | 33502-S84-A01 | Gasket - BASE | Gasket - BASE |
| 5 | 33513-S50-003 | Socket - T20W S2 | Socket - T20W S2 |
| 6 | 33514-S50-003 | Socket - T20W S3 | Socket - T20W S3 |
| 7 | 33515-S50-003 | Socket - T20W W | Socket - T20W W |
| 8 | 33551-S84-G01 | Lamp unit - L. TAIL | Lamp unit - L. TAIL |
| 9 | 34100-S84-G01 | Light assy - LICENSE | Light assy - LICENSE |
| 10 | 34102-S60-003 | Housing comp | Housing comp |
| 11 | 34102-S84-A01 | Lens comp | Lens comp |
| 12 | 34151-S84-G01 | Lamp unit - R. LID | Lamp unit - R. LID |
| 13 | 31451-S84-A01 | Gasket - BASE | Gasket - BASE |
| 16 | 34906-ST5-003 | Bulb - 12V 21W/5W) (STANLEY | Bulb - 12V 21W/5W) (STANLEY |
| 17 | 37540-S84-A01 | Sensor - STOP LAMP FAILURE (2P) | Sensor - STOP LAMP FAILURE (2P) |
| 18 | 90650-SZ3-003 | Grommet - R. RR. COMBINATION LIGHT | Grommet - R. RR. COMBINATION LIGHT |
| 19 | 90655-SZ3-003 | Grommet - L. RR. COMBINATION LIGHT | Grommet - L. RR. COMBINATION LIGHT |
| 21 | 90321-S06-000 | Nut - HEX. CAP, 5MM | Nut - HEX. CAP, 5MM |
Throttle body (L4) 10 / 12
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 16016-P2M-A01 | Screw set | Screw set |
| 2 | 16075-P07-000 | O-ring | O-ring |
| 3 | 16080-P07-000 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 4 | 16176-PAA-A02 | Gasket - THROTTLE BODY (NIPPON LEAKLESS) | Gasket - THROTTLE BODY (NIPPON LEAKLESS) |
| 7 | 16411-PAA-000 | Stay - THROTTLE WIRE | Stay - THROTTLE WIRE |
| 9 | 36460-PAA-A01 | Valve assy. - ROTARY AIR CONTROL | Valve assy. - ROTARY AIR CONTROL |
| 10 | 36461-PAA-A01 | Packing - ROTARY AIR CONTROL VALVE | Packing - ROTARY AIR CONTROL VALVE |
| 11 | 37830-PAA-S00 | Sensor set - MAP | Sensor set - MAP |
| 12 | 37880-P0A-A02 | Sensor assy - AIR TEMP | Sensor assy - AIR TEMP |
| 14 | 91303-P0A-A02 | O-ring | O-ring |
Tire/wheel disks 5 / 17
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 4 | 42751-S82-G01 | Tire - 195/65R15 91V) (MICHELIN | Tire - 195/65R15 91V) (MICHELIN |
| 5 | 42753-SE0-A02 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 5 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 13 | 74666-SX0-000 | Adapter - ANCHOR BOLT | Adapter - ANCHOR BOLT |
| 14 | 83853-S84-A00 | Bolt - ANCHOR | Bolt - ANCHOR |
Tools/jack 5 / 9
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 3 | 89101-SW5-003 | Bag - TOOL | Bag - TOOL |
| 4 | 89211-S05-003 | Wrench - WHEEL | Wrench - WHEEL |
| 6 | 89310-S4K-003 | Jack assy - PANTOGRAPH | Jack assy - PANTOGRAPH |
| 7 | 89311-S4K-003 | Plate - JACK CAUTION | Plate - JACK CAUTION |
| 8 | 89320-S05-003 | Bar - JACK | Bar - JACK |
Trunk lid (RH) 25 / 26
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 5 | 72134-SM4-003 | Snap - R. (VIOLET) | Snap - R. (VIOLET) |
| 6 | 73219-693-951 | Seal - FUEL LID OPENER (GREEN) | Seal - FUEL LID OPENER (GREEN) |
| 7 | 74822-SW5-003 | Cushion - TRUNK HINGE | Cushion - TRUNK HINGE |
| 8 | 74826-S84-A00 | Protector - RR. COMBINATION | Protector - RR. COMBINATION |
| 10 | 74829-S84-A00 | Stopper - TRUNK LID | Stopper - TRUNK LID |
| 12 | 74851-S84-A61 | Lock - TRUNK LID | Lock - TRUNK LID |
| 13 | 74861-S84-A02 | Cylinder - TRUNK | Cylinder - TRUNK |
| 14 | 74862-S84-A01 | Striker assy - TRUNK | Striker assy - TRUNK |
| 15 | 74863-S84-G01 | Rod - TRUNK LOCK | Rod - TRUNK LOCK |
| 16 | 74864-S30-003 | Cover | Cover |
| 17 | 74865-S4K-000 | Weatherstrip - TRUNK LID | Weatherstrip - TRUNK LID |
| 18 | 74867-SW5-003 | Holder - ROD | Holder - ROD |
| 21 | 74873-SM4-003 | Clip - TRUNK OPENER SPRING | Clip - TRUNK OPENER SPRING |
| 24 | 74886-SH4-A03 | Cylinder - TRUNK REMOTE CONTROL | Cylinder - TRUNK REMOTE CONTROL |
| 25 | 74898-S84-A00 | Cover - TRUNK DYNAMIC DAMPER | Cover - TRUNK DYNAMIC DAMPER |
| 26 | 74899-S84-A01 | Damper - TRUNK DYNAMIC | Damper - TRUNK DYNAMIC |
| 27 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 28 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 29 | 90109-SM4-000 | Bolt - SPECIAL, 6X35 | Bolt - SPECIAL, 6X35 |
| 31 | 90691-SF1-003 | Clip c - OPENER CABLE | Clip c - OPENER CABLE |
| 32 | 91504-SL0-003 | Clip - HOOD OPEN WIRE | Clip - HOOD OPEN WIRE |
| 33 | 91516-SM4-013 | Clip - RR. COMBINATION PROTECTOR | Clip - RR. COMBINATION PROTECTOR |
| 34 | 91609-SE0-A00 | Protection - CUSHION | Protection - CUSHION |
| 35 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
Valve/rocker arm (VTEC; L4) 20 / 20
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 14620-P0A-000 | Arm assy. - INTAKE ROCKER | Arm assy. - INTAKE ROCKER |
| 2 | 14624-P0A-000 | Arm comp. a - EX. ROCKER | Arm comp. a - EX. ROCKER |
| 3 | 14625-P0A-000 | Arm comp. b - EX. ROCKER | Arm comp. b - EX. ROCKER |
| 4 | 14646-P0A-000 | Spring - EX. ROCKER ARM | Spring - EX. ROCKER ARM |
| 5 | 14711-P0A-000 | Valve - IN. (TMSS) | Valve - IN. (TMSS) |
| 6 | 14721-P0A-000 | Valve - EX. (TMSS) | Valve - EX. (TMSS) |
| 7 | 14744-PT0-004 | Screw - TAPPET ADJUSTING | Screw - TAPPET ADJUSTING |
| 8 | 14761-P0A-004 | Spring - IN. VALVE (WHITE) (CHUO SPRING) | Spring - IN. VALVE (WHITE) (CHUO SPRING) |
| 8 | 14761-P0A-003 | Spring - IN. VALVE (WHITE) (NIPPON HATSUJO) | Spring - IN. VALVE (WHITE) (NIPPON HATSUJO) |
| 9 | 14762-P0A-003 | Spring - EX. VALVE (VIOLET) (NIPPON HATSUJO) | Spring - EX. VALVE (VIOLET) (NIPPON HATSUJO) |
| 9 | 14762-P0A-004 | Spring - EX. VALVE (VIOLET) (CHUO SPRING) | Spring - EX. VALVE (VIOLET) (CHUO SPRING) |
| 10 | 14765-PJ7-000 | Retainer - VALVE SPRING | Retainer - VALVE SPRING |
| 11 | 14775-PM3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 12 | 14781-PJ7-003 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 13 | 14811-P0A-000 | Plate - TIMING | Plate - TIMING |
| 14 | 14812-P0A-000 | Spring - TIMING PLATE | Spring - TIMING PLATE |
| 15 | 14820-PAA-A01 | Motion assy. - LOST | Motion assy. - LOST |
| 16 | 15140-P0A-000 | Orifice assy - CAM JOURNAL | Orifice assy - CAM JOURNAL |
| 17 | 15142-PE0-000 | O-ring - 4.8X1.9 | O-ring - 4.8X1.9 |
| 18 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
Water hose (L4) 4 / 4
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 19509-PAA-A00 | Hose - ROTARY AIR CONTROL VALVE IN. | Hose - ROTARY AIR CONTROL VALVE IN. |
| 2 | 19510-PAA-A00 | Hose - ROTARY AIR CONTROL VALVE OUTLET | Hose - ROTARY AIR CONTROL VALVE OUTLET |
| 3 | 19514-PAA-A00 | Hose a - BREATHER HEATER | Hose a - BREATHER HEATER |
| 4 | 19515-PAA-A00 | Hose b - BREATHER HEATER | Hose b - BREATHER HEATER |
Water pump/sensor (L4) 26 / 26
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 19200-P0A-003 | Pump comp - WATER (YAMADA) | Pump comp - WATER (YAMADA) |
| 2 | 19222-PT0-300 | Packing - WATER PUMP | Packing - WATER PUMP |
| 3 | 19223-PT0-000 | Rubber - WATER PUMP SEAL | Rubber - WATER PUMP SEAL |
| 4 | 19301-P08-316 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 4 | 19301-PAA-306 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 4 | 19301-P08-315 | Thermostat assy - FUJI THOMSON | Thermostat assy - FUJI THOMSON |
| 5 | 19305-PT0-000 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 5 | 19305-PLC-A00 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 6 | 19311-P0A-010 | Cover - THERMOSTAT | Cover - THERMOSTAT |
| 7 | 19313-PT0-000 | Packing - THERMOSTAT CASE | Packing - THERMOSTAT CASE |
| 8 | 19320-P0A-010 | Case comp. - THERMOSTAT | Case comp. - THERMOSTAT |
| 9 | 19360-PAA-A00 | Cover - WATER OUTLET | Cover - WATER OUTLET |
| 10 | 19500-PT0-000 | Joint - TUBE | Joint - TUBE |
| 11 | 19505-PJK-000 | Pipe - CONNECTING | Pipe - CONNECTING |
| 12 | 19516-PC1-000 | Bolt - BREATHING WATER | Bolt - BREATHING WATER |
| 13 | 32751-P0A-A00 | Stay c - ENGINE HARNESS | Stay c - ENGINE HARNESS |
| 14 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 15 | 37760-P00-003 | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) |
| 17 | 37870-PK2-005 | Sensor assy - WATER TEMP (HADSYS) | Sensor assy - WATER TEMP (HADSYS) |
| 18 | 79746-S84-A00 | Clamp - HEATER HOSE | Clamp - HEATER HOSE |
| 19 | 90002-PD2-000 | Bolt - FLANGE, 8X16 | Bolt - FLANGE, 8X16 |
| 20 | 91307-PK2-005 | O-ring - 9.5X1.5(HONDA KIKAKI) | O-ring - 9.5X1.5(HONDA KIKAKI) |
| 21 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 21 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 22 | 91312-P0A-000 | Packing - THERMOSTAT CASE | Packing - THERMOSTAT CASE |
| 23 | 91314-PH7-003 | O-ring 31.2X4.1 (NOK) | O-ring 31.2X4.1 (NOK) |
Water valve (L4; RH) 3 / 8
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 6 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 7 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 7 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
Windshield washer (L4) 14 / 14
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 36062-671-000 | Clamp b - TUBE | Clamp b - TUBE |
| 2 | 38512-SC4-673 | Motor - WASHER (DENSO) | Motor - WASHER (DENSO) |
| 3 | 76802-SV1-004 | Cap unit - MOUTH | Cap unit - MOUTH |
| 4 | 76807-SE4-A02 | Packing - T-TYPE) (DENSO | Packing - T-TYPE) (DENSO |
| 6 | 76813-S84-A02 | Packing | Packing |
| 8 | 76828-SH0-A02 | Joint l, WASHER TUBE (DENSO) | Joint l, WASHER TUBE (DENSO) |
| 9 | 76830-SR0-004 | Joint y - TUBE (DENSO) | Joint y - TUBE (DENSO) |
| 10 | 76840-S84-E02 | Tank set - WASHER | Tank set - WASHER |
| 11 | 76842-SE4-A02 | Bush - WASHER TANK (DENSO) | Bush - WASHER TANK (DENSO) |
| 12 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 13 | 91504-SR3-003 | Clip - WASHER TUBE | Clip - WASHER TUBE |
| 14 | 91522-SM4-003 | Clip - TUBE & INSULATOR | Clip - TUBE & INSULATOR |
| 15 | 91570-S04-003 | Clip - WASHER TUBE | Clip - WASHER TUBE |
| 16 | 91576-S84-A01 | Clip - WASHER TUBE | Clip - WASHER TUBE |
Wire harness (RH) 5 / 18
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 13 | 32753-S84-A01 | Harness - R. RR. DOOR WIRE | Harness - R. RR. DOOR WIRE |
| 14 | 32754-S84-A01 | Harness - L. RR. DOOR WIRE | Harness - L. RR. DOOR WIRE |
| 15 | 33301-S70-003 | Bulb - 12V 3.8W 2CP | Bulb - 12V 3.8W 2CP |
| 16 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 17 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| # | OEM | CF9 | CH3 |
|---|---|---|---|
| 1 | 01464-S84-A01 | Hose set, R. FR. BRAKE | Hose set, R. FR. BRAKE |
| 2 | 01465-S84-A01 | Hose set, L. FR. BRAKE | Hose set, L. FR. BRAKE |
| 3 | 01466-S84-A51 | Hose set - R. RR. BRAKE | Hose set - R. RR. BRAKE |
| 4 | 01468-S84-A51 | Hose set - L. RR. BRAKE | Hose set - L. RR. BRAKE |
| 1 | 01473-SY8-010 | Caliper set - RR. | Caliper set - RR. |
| 10 | 04731-S4K-J00 | Rubber set - FR. WINDSHIELD DAM | Rubber set - FR. WINDSHIELD DAM |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 2 | 06111-PAA-A02 | Gasket kit - CYLINDER BLOCK | Gasket kit - CYLINDER BLOCK |
| 38 | 06430-S84-A00 | Pad set - RR. (WITHOUT SHIM) (###) | Pad set - RR. (WITHOUT SHIM) (###) |
| 39 | 06435-S84-A00 | Shim set - RR. | Shim set - RR. |
| 21 | 06511-TY2-A01 | Boot | Boot |
| 1 | 06531-S84-A01 | Seal kit a - POWER STEERING (ROTARY VALVE) | Seal kit a - POWER STEERING (ROTARY VALVE) |
| 2 | 06532-S84-A01 | Oil seal set - ROTARY VALVE | Oil seal set - ROTARY VALVE |
| 3 | 06534-S84-A01 | Ring set - POWER STEERING SEAL (ROTARY VALVE) | Ring set - POWER STEERING SEAL (ROTARY VALVE) |
| 18 | 06535-S50-003 | Ring set - POWER STEERING SEAL (ROTARY VALVE) | Ring set - POWER STEERING SEAL (ROTARY VALVE) |
| 2 | 10003-PAD-G00 | General assy. - CYLINDER HEAD | General assy. - CYLINDER HEAD |
| 1 | 11000-PCA-030 | Block assy - CYLINDER | Block assy - CYLINDER |
| 2 | 11106-PT0-300 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 3 | 11107-PT0-000 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 41 | 11108-PT0-003 | Bolt - SEALING, 18MM | Bolt - SEALING, 18MM |
| 4 | 11126-PK1-003 | Bolt - SEALING, 22MM | Bolt - SEALING, 22MM |
| 5 | 11200-PAA-A00 | Pan comp - OIL | Pan comp - OIL |
| 7 | 11300-PAA-A01 | Cover assy. - R. SIDE | Cover assy. - R. SIDE |
| 1 | 11810-PAA-800 | Cover set - TIMING BELT LOWER | Cover set - TIMING BELT LOWER |
| 2 | 11812-PAA-800 | Seal - TIMING BELT COVER (CUT BEFORE USE) | Seal - TIMING BELT COVER (CUT BEFORE USE) |
| 3 | 11820-P0A-000 | Cover - TIMING BELT UPPER | Cover - TIMING BELT UPPER |
| 4 | 11830-PAA-800 | Cover set - TIMING BELT BACK | Cover set - TIMING BELT BACK |
| 1 | 11856-PAA-A00 | Tube - PCV | Tube - PCV |
| 8 | 11910-P0A-010 | Bracket - ENGINE MOUNTING | Bracket - ENGINE MOUNTING |
| 1 | 11911-P0A-000 | Hanger - ENGINE | Hanger - ENGINE |
| 5 | 11925-PAA-A00 | Rubber a - ENGINE MOUNTING BRACKET SEAL | Rubber a - ENGINE MOUNTING BRACKET SEAL |
| 6 | 11926-P0A-000 | Rubber b - ENGINE MOUNTING BRACKET SEAL | Rubber b - ENGINE MOUNTING BRACKET SEAL |
| 1 | 11942-P0A-000 | Stay - L. EX. MANIFOLD | Stay - L. EX. MANIFOLD |
| 1 | 11950-PAA-A00 | Stiffener - ENGINE | Stiffener - ENGINE |
| 1 | 12030-P0A-000 | Packing set - HEAD COVER | Packing set - HEAD COVER |
| 1 | 12100-PAD-G00 | Head assy - CYLINDER | Head assy - CYLINDER |
| 2 | 12204-PJ7-305 | Guide - IN. VALVE (OS) | Guide - IN. VALVE (OS) |
| 3 | 12205-PJ7-305 | Guide - EX. VALVE (OS) | Guide - EX. VALVE (OS) |
| 9 | 12207-PC6-300 | Washer - SEALING, 16MM | Washer - SEALING, 16MM |
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 6 | 12251-P0A-004 | Gasket - CYLINDER HEAD (NIPPON LEAKLESS) | Gasket - CYLINDER HEAD (NIPPON LEAKLESS) |
| 2 | 12310-PAA-A00 | Cover - CYLINDER HEAD | Cover - CYLINDER HEAD |
| 3 | 12341-P0A-000 | Packing - CYLINDER HEAD COVER | Packing - CYLINDER HEAD COVER |
| 4 | 12342-P08-004 | Seal | Seal |
| 4 | 12342-P2F-A01 | Seal - SPARK PLUG TUBE (NOK) | Seal - SPARK PLUG TUBE (NOK) |
| 4 | 12342-RYE-004 | Seal,spark plug t | Seal,spark plug t |
| 2 | 13011-P0C-G04 | Ring set - PISTON (STD.) (RIKEN) | Ring set - PISTON (STD.) (RIKEN) |
| 3 | 13014-PAA-800 | Washer set - THRUST (DAIDO) | Washer set - THRUST (DAIDO) |
| 3 | 13014-PAA-810 | Washer set - THRUST (TAIHO) | Washer set - THRUST (TAIHO) |
| 5 | 13111-P5A-000 | Pin - PISTON | Pin - PISTON |
| 6 | 13115-P5A-000 | Clip - PISTON PIN | Clip - PISTON PIN |
| 7 | 13204-P8A-A01 | Bolt - CONNECTING ROD | Bolt - CONNECTING ROD |
| 8 | 13210-PAD-G00 | Rod comp - CONNECTING | Rod comp - CONNECTING |
| 23 | 13211-PD2-004 | BEARING A - CONNECTING ROD (BLUE) (TAIHO) | BEARING A - CONNECTING ROD (BLUE) (TAIHO) |
| 23 | 13212-PD2-004 | Bearing b - CONNECTING ROD (BLACK) (TAIHO) | Bearing b - CONNECTING ROD (BLACK) (TAIHO) |
| 23 | 13213-PD2-004 | Bearing c - CONNECTING ROD (BROWN) (TAIHO) | Bearing c - CONNECTING ROD (BROWN) (TAIHO) |
| 23 | 13214-PD2-004 | Bearing d - CONNECTING ROD (GREEN) (TAIHO) | Bearing d - CONNECTING ROD (GREEN) (TAIHO) |
| 23 | 13215-PD2-004 | Bearing e - CONNECTING ROD (YELLOW) (TAIHO) | Bearing e - CONNECTING ROD (YELLOW) (TAIHO) |
| 23 | 13216-PD2-004 | Bearing f - CONNECTING ROD (PINK) (TAIHO) | Bearing f - CONNECTING ROD (PINK) (TAIHO) |
| 23 | 13217-PD2-004 | Bearing g - CONNECTING ROD (RED) (TAIHO) | Bearing g - CONNECTING ROD (RED) (TAIHO) |
| 9 | 13310-PAD-G00 | Crankshaft comp. | Crankshaft comp. |
| 10 | 13321-PCA-003 | BEARING A - MAIN (BLUE) (DAIDO) | BEARING A - MAIN (BLUE) (DAIDO) |
| 10 | 13321-PCA-004 | BEARING A - MAIN (BLUE) (TAIHO) | BEARING A - MAIN (BLUE) (TAIHO) |
| 10 | 13322-PCA-003 | Bearing b - MAIN (BLACK) (DAIDO) | Bearing b - MAIN (BLACK) (DAIDO) |
| 10 | 13322-PCA-004 | Bearing b - MAIN (BLACK) (TAIHO) | Bearing b - MAIN (BLACK) (TAIHO) |
| 10 | 13323-PCA-003 | Bearing c - MAIN (BROWN) (DAIDO) | Bearing c - MAIN (BROWN) (DAIDO) |
| 10 | 13323-PCA-004 | Bearing c - MAIN (BROWN) (TAIHO) | Bearing c - MAIN (BROWN) (TAIHO) |
| 10 | 13324-PCA-003 | Bearing d - MAIN (GREEN) (DAIDO) | Bearing d - MAIN (GREEN) (DAIDO) |
| 10 | 13324-PCA-004 | Bearing d - MAIN (GREEN) (TAIHO) | Bearing d - MAIN (GREEN) (TAIHO) |
| 10 | 13325-PCA-003 | Bearing e - MAIN (YELLOW) (DAIDO) | Bearing e - MAIN (YELLOW) (DAIDO) |
| 10 | 13325-PCA-004 | Bearing e - MAIN (YELLOW) (TAIHO) | Bearing e - MAIN (YELLOW) (TAIHO) |
| 10 | 13326-PCA-003 | Bearing f - MAIN (PINK) (DAIDO) | Bearing f - MAIN (PINK) (DAIDO) |
| 10 | 13326-PCA-004 | Bearing f - MAIN (PINK) (TAIHO) | Bearing f - MAIN (PINK) (TAIHO) |
| 11 | 13400-P5N-G00 | Shaft comp. - RR. BALANCER | Shaft comp. - RR. BALANCER |
| 12 | 13401-P5N-G00 | Shaft - FR. BALANCER | Shaft - FR. BALANCER |
| 13 | 13402-PT0-000 | Pulley b - FR. TIMING BELT DRIVEN | Pulley b - FR. TIMING BELT DRIVEN |
| 7 | 13404-PT0-003 | Adjuster comp - BALANCER BELT (KOYO) | Adjuster comp - BALANCER BELT (KOYO) |
| 8 | 13405-PAA-A02 | Belt - BALANCER TIMING (UNITTA) (70RU16 B-333) | Belt - BALANCER TIMING (UNITTA) (70RU16 B-333) |
| 14 | 13406-PT0-003 | Metal f - THRUST BALANCER SHAFT | Metal f - THRUST BALANCER SHAFT |
| 9 | 13407-P0A-000 | Spring - BELT ADJUSTER | Spring - BELT ADJUSTER |
| 15 | 13408-P0A-A01 | Pulley - BALANCER BELT DRIVE | Pulley - BALANCER BELT DRIVE |
| 10 | 13415-P0A-000 | Bracket - BALANCER BELT ADJUSTER | Bracket - BALANCER BELT ADJUSTER |
| 10 | 13421-PT0-003 | Metal - BALANCER SHAFT (NO.1) (DAIDO) | Metal - BALANCER SHAFT (NO.1) (DAIDO) |
| 11 | 13422-PT0-013 | Metal - BALANCER SHAFT (NO.2) (DAIDO) | Metal - BALANCER SHAFT (NO.2) (DAIDO) |
| 12 | 13423-PT0-003 | Metal - BALANCER SHAFT (NO.3) (DAIDO) | Metal - BALANCER SHAFT (NO.3) (DAIDO) |
| 1 | 13500-PAA-A00 | Case comp. - GEAR | Case comp. - GEAR |
| 2 | 13511-PT0-020 | Gear b - DRIVEN | Gear b - DRIVEN |
| 3 | 13512-PT0-020 | Washer - THRUST | Washer - THRUST |
| 16 | 13621-P0A-A01 | Pulley - TIMING BELT DRIVE | Pulley - TIMING BELT DRIVE |
| 11 | 14111-PAD-G00 | Camshaft | Camshaft |
| 12 | 14210-PAA-A01 | Pulley - TIMING BELT DRIVEN | Pulley - TIMING BELT DRIVEN |
| 13 | 14400-PAA-A02 | Belt - TIMING (112RU24 A-555) | Belt - TIMING (112RU24 A-555) |
| 14 | 14510-PT0-003 | Adjuster comp - TIMING BELT (KOYO) | Adjuster comp - TIMING BELT (KOYO) |
| 15 | 14516-P0A-000 | Spring comp - TIMING BELT ADJUSTER | Spring comp - TIMING BELT ADJUSTER |
| 4 | 14535-P0A-A00 | Plate - TIMING BELT STOPPER | Plate - TIMING BELT STOPPER |
| 1 | 14620-P0A-000 | Arm assy. - INTAKE ROCKER | Arm assy. - INTAKE ROCKER |
| 2 | 14624-P0A-000 | Arm comp. a - EX. ROCKER | Arm comp. a - EX. ROCKER |
| 3 | 14625-P0A-000 | Arm comp. b - EX. ROCKER | Arm comp. b - EX. ROCKER |
| 9 | 14631-P0A-000 | Shaft - IN. ROCKER ARM | Shaft - IN. ROCKER ARM |
| 10 | 14633-P0A-000 | Shaft - EX. ROCKER ARM | Shaft - EX. ROCKER ARM |
| 4 | 14646-P0A-000 | Spring - EX. ROCKER ARM | Spring - EX. ROCKER ARM |
| 5 | 14711-P0A-000 | Valve - IN. (TMSS) | Valve - IN. (TMSS) |
| 6 | 14721-P0A-000 | Valve - EX. (TMSS) | Valve - EX. (TMSS) |
| 7 | 14744-PT0-004 | Screw - TAPPET ADJUSTING | Screw - TAPPET ADJUSTING |
| 8 | 14761-P0A-003 | Spring - IN. VALVE (WHITE) (NIPPON HATSUJO) | Spring - IN. VALVE (WHITE) (NIPPON HATSUJO) |
| 8 | 14761-P0A-004 | Spring - IN. VALVE (WHITE) (CHUO SPRING) | Spring - IN. VALVE (WHITE) (CHUO SPRING) |
| 9 | 14762-P0A-003 | Spring - EX. VALVE (VIOLET) (NIPPON HATSUJO) | Spring - EX. VALVE (VIOLET) (NIPPON HATSUJO) |
| 9 | 14762-P0A-004 | Spring - EX. VALVE (VIOLET) (CHUO SPRING) | Spring - EX. VALVE (VIOLET) (CHUO SPRING) |
| 10 | 14765-PJ7-000 | Retainer - VALVE SPRING | Retainer - VALVE SPRING |
| 11 | 14775-PM3-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 12 | 14781-PJ7-003 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 13 | 14811-P0A-000 | Plate - TIMING | Plate - TIMING |
| 14 | 14812-P0A-000 | Spring - TIMING PLATE | Spring - TIMING PLATE |
| 15 | 14820-PAA-A01 | Motion assy. - LOST | Motion assy. - LOST |
| 5 | 15100-PAA-A01 | Pump assy. - OIL | Pump assy. - OIL |
| 6 | 15113-PT0-003 | Packing a - OIL PUMP (ARAI) | Packing a - OIL PUMP (ARAI) |
| 7 | 15114-PT0-003 | Packing b - OIL PUMP (ARAI) | Packing b - OIL PUMP (ARAI) |
| 16 | 15140-P0A-000 | Orifice assy - CAM JOURNAL | Orifice assy - CAM JOURNAL |
| 17 | 15142-PE0-000 | O-ring - 4.8X1.9 | O-ring - 4.8X1.9 |
| 8 | 15200-P0A-000 | Pipe comp - OIL LEVEL | Pipe comp - OIL LEVEL |
| 9 | 15220-PAD-G00 | Strainer comp. - OIL | Strainer comp. - OIL |
| 10 | 15221-P5K-004 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 10 | 15221-PT0-000 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 11 | 15231-PE0-000 | Valve - RELIEF | Valve - RELIEF |
| 12 | 15232-PG6-000 | Spring - RELIEF VALVE | Spring - RELIEF VALVE |
| 13 | 15233-PC6-000 | Bolt - SEALING, 18MM | Bolt - SEALING, 18MM |
| 13 | 15233-PK1-000 | Bolt - SEALING, 20MM | Bolt - SEALING, 20MM |
| 14 | 15400-PR3-014 | OIL FILTER (TOYO ROKI) | OIL FILTER (TOYO ROKI) |
| 14 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 5 | 15610-P2A-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 6 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 16 | 15650-P0A-013 | Gauge comp. - OIL LEVEL | Gauge comp. - OIL LEVEL |
| 12 | 15816-PAA-A00 | Stay - COUPLER HOLD | Stay - COUPLER HOLD |
| 13 | 15825-P0A-005 | Filter assy - SPOOL VALVE | Filter assy - SPOOL VALVE |
| 13 | 15825-P0A-015 | Filter, spool valve | Filter, spool valve |
| 1 | 16010-S4K-G00 | Strainer set - FUEL | Strainer set - FUEL |
| 1 | 16016-P2M-A01 | Screw set | Screw set |
| 21 | 16074-ZY3-000 | O-ring | O-ring |
| 2 | 16075-P07-000 | O-ring | O-ring |
| 3 | 16080-P07-000 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 4 | 16176-PAA-A02 | Gasket - THROTTLE BODY (NIPPON LEAKLESS) | Gasket - THROTTLE BODY (NIPPON LEAKLESS) |
| 7 | 16411-PAA-000 | Stay - THROTTLE WIRE | Stay - THROTTLE WIRE |
| 2 | 16472-P0H-A01 | Seal ring - INJECTOR (NOK) | Seal ring - INJECTOR (NOK) |
| 2 | 16472-PH7-003 | Seal ring - INJECTOR (OTSUKA) | Seal ring - INJECTOR (OTSUKA) |
| 3 | 16473-P10-A01 | Cushion ring - INJECTOR (NOK) | Cushion ring - INJECTOR (NOK) |
| 3 | 16473-PD6-000 | Cushion ring - INJECTOR (OTSUKA) | Cushion ring - INJECTOR (OTSUKA) |
| 1 | 16680-PCX-003 | Damper assy. - PULSATION | Damper assy. - PULSATION |
| 1 | 16680-PE7-661 | Damper assy. - PULSATION | Damper assy. - PULSATION |
| 2 | 16705-PD1-003 | Gasket - SILENCER | Gasket - SILENCER |
| 2 | 16711-S84-A01 | Rubber - FUEL PUMP INSULATOR | Rubber - FUEL PUMP INSULATOR |
| 5 | 16740-PAA-A01 | Regulator assy - PRESSURE | Regulator assy - PRESSURE |
| 6 | 16741-PG7-005 | O-ring - PRESSURE REGULATOR | O-ring - PRESSURE REGULATOR |
| 4 | 16900-S84-G01 | Strainer comp. - FUEL | Strainer comp. - FUEL |
| 6 | 16922-S84-G01 | Rubber - MOUNTING | Rubber - MOUNTING |
| 7 | 16923-S84-G01 | Collar | Collar |
| 3 | 17040-S84-A02 | Pump set - FUEL | Pump set - FUEL |
| 10 | 17115-PCA-004 | Gasket b - INTAKE MANIFOLD (NIPPON LEAKLESS) | Gasket b - INTAKE MANIFOLD (NIPPON LEAKLESS) |
| 11 | 17125-PCA-000 | Stay comp - INTAKE MANIFOLD | Stay comp - INTAKE MANIFOLD |
| 2 | 17130-PK1-003 | Valve assy. - PCV | Valve assy. - PCV |
| 3 | 17137-PAA-A00 | Pipe comp - BREATHER | Pipe comp - BREATHER |
| 4 | 17138-P0A-000 | Tube - BREATHER | Tube - BREATHER |
| 5 | 17139-PK1-000 | Grommet - PCV VALVE | Grommet - PCV VALVE |
| 1 | 17201-PAA-000 | Case set - AIR CLEANER | Case set - AIR CLEANER |
| 2 | 17211-PAA-A00 | Cover - AIR CLEANER | Cover - AIR CLEANER |
| 3 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17213-PV0-000 | Rubber - AIR CLEANER CASE MOUNTING | Rubber - AIR CLEANER CASE MOUNTING |
| 4 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 5 | 17217-P2J-300 | Clip - AIR CLEANER | Clip - AIR CLEANER |
| 4 | 17230-PAA-A01 | Chamber assy - RESONATOR | Chamber assy - RESONATOR |
| 5 | 17243-PAA-A00 | Tube assy. b - AIR INTAKE | Tube assy. b - AIR INTAKE |
| 6 | 17244-PAA-A00 | Rubber - AIR CLEANER SEAL | Rubber - AIR CLEANER SEAL |
| 7 | 17246-P0A-A00 | Ring - SEAL | Ring - SEAL |
| 8 | 17249-PS4-000 | Spring - AIR FLOW TUBE | Spring - AIR FLOW TUBE |
| 12 | 17281-PAA-A00 | Tube - SIDE BRANCH | Tube - SIDE BRANCH |
| 13 | 17316-P0G-A01 | Clamp - AIR FLOW TUBE (55) | Clamp - AIR FLOW TUBE (55) |
| 9 | 17316-P1E-000 | Clamp - AIR FLOW TUBE (70) | Clamp - AIR FLOW TUBE (70) |
| 4 | 17371-SR3-A01 | Valve - TWO WAY | Valve - TWO WAY |
| 2 | 17417-PAA-A00 | Tube - PRESSURE REGULATOR | Tube - PRESSURE REGULATOR |
| 5 | 17500-S84-U00 | Tank comp. - FUEL | Tank comp. - FUEL |
| 6 | 17516-S84-A01 | Filter set - FUEL PUMP | Filter set - FUEL PUMP |
| 7 | 17521-S84-A00 | Band - FUEL TANK MOUNTING | Band - FUEL TANK MOUNTING |
| 8 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 9 | 17551-S84-A01 | Packing | Packing |
| 10 | 17570-S84-G01 | Valve - FUEL CUT | Valve - FUEL CUT |
| 11 | 17574-S84-A01 | Packing - BASE | Packing - BASE |
| 12 | 17579-S84-G02 | Plate - SETTING | Plate - SETTING |
| 13 | 17630-S84-A02 | Meter comp - FUEL | Meter comp - FUEL |
| 14 | 17651-S84-A01 | Tube - FILLER NECK | Tube - FILLER NECK |
| 15 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 17 | 17660-S84-G02 | Pipe comp - FUEL FILLER | Pipe comp - FUEL FILLER |
| 19 | 17668-S84-A01 | Cover - FUEL FILLER PIPE | Cover - FUEL FILLER PIPE |
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 25 | 17711-S84-003 | Retainer - YELLOW) (TOKAI | Retainer - YELLOW) (TOKAI |
| 26 | 17711-S84-004 | Retainer - WHITE)(SANOH | Retainer - WHITE)(SANOH |
| 13 | 17711-S84-005 | Retainer - NATURAL | Retainer - NATURAL |
| 24 | 17711-ST0-003 | Retainer - YELLOW) (TOKAI | Retainer - YELLOW) (TOKAI |
| 27 | 17712-S84-A01 | Clamp - FUEL TUBE | Clamp - FUEL TUBE |
| 28 | 17713-S84-A01 | Clamp - FUEL FEED PIPE | Clamp - FUEL FEED PIPE |
| 29 | 17716-S84-G00 | Tube - VENT | Tube - VENT |
| 15 | 17723-S84-A00 | Hose - PRESSURE REGULATOR RETURN | Hose - PRESSURE REGULATOR RETURN |
| 25 | 17761-S84-A00 | Stay a - FUEL PIPE | Stay a - FUEL PIPE |
| 26 | 17762-S84-A00 | Stay b - FUEL PIPE | Stay b - FUEL PIPE |
| 1 | 17800-S84-A01 | Pedal assy - ACCELERATOR | Pedal assy - ACCELERATOR |
| 2 | 18000-P0A-010 | Manifold assy - EX. | Manifold assy - EX. |
| 12 | 18011-PAA-A00 | Valve set - EGR | Valve set - EGR |
| 3 | 18115-P0A-003 | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) |
| 4 | 18120-P0A-A00 | Cover comp. a - EX. MANIFOLD | Cover comp. a - EX. MANIFOLD |
| 5 | 18176-P08-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 4 | 18176-PT0-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 6 | 18181-PAA-A00 | Cover - LOWER | Cover - LOWER |
| 7 | 18182-PAA-A00 | Cover - UPPER | Cover - UPPER |
| 10 | 18212-SB2-961 | Gasket - EX. PIPE (ISHINO) | Gasket - EX. PIPE (ISHINO) |
| 12 | 18213-S84-A00 | Stay - EX. PIPE | Stay - EX. PIPE |
| 13 | 18215-S84-A30 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 30 | 18215-SL5-A00 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 15 | 18220-S84-A01 | Pipe b - EX. | Pipe b - EX. |
| 16 | 18303-SM4-020 | Gasket - SILENCER | Gasket - SILENCER |
| 17 | 18393-SH3-S00 | Gasket - PRE-CHAMBER (52.5MM-53.5MM) | Gasket - PRE-CHAMBER (52.5MM-53.5MM) |
| 18 | 18393-SS0-J30 | Gasket - PRE-CHAMBER (57.5MM-58.5MM) | Gasket - PRE-CHAMBER (57.5MM-58.5MM) |
| 14 | 18715-PB2-000 | GASKET, EGR VALVE (ISHINO GASKET) | GASKET, EGR VALVE (ISHINO GASKET) |
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 4 | 19013-PAA-A01 | Seal - RADIATOR SIDE (DENSO) | Seal - RADIATOR SIDE (DENSO) |
| 5 | 19015-PAA-A01 | Shroud comp - DENSO | Shroud comp - DENSO |
| 14 | 19020-PLC-003 | Fan - COOLING (DENSO) | Fan - COOLING (DENSO) |
| 7 | 19030-PAA-A01 | Motor - COOLING FAN (DENSO) | Motor - COOLING FAN (DENSO) |
| 8 | 19033-PAA-A01 | Clip - COUPLER (DENSO) | Clip - COUPLER (DENSO) |
| 3 | 19043-PAD-G00 | Label - COOLANT INFORMATION | Label - COOLANT INFORMATION |
| 9 | 19045-PAA-A01 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 10 | 19046-PAA-A00 | Label - RADIATOR CAP | Label - RADIATOR CAP |
| 1 | 19101-PAA-A00 | Tank - RESERVE | Tank - RESERVE |
| 2 | 19102-PM5-A00 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 4 | 19103-P0A-000 | Hose - RESERVE TANK | Hose - RESERVE TANK |
| 3 | 19103-PV1-A00 | Hose - RESERVE TANK | Hose - RESERVE TANK |
| 5 | 19106-PM3-000 | Joint - RESERVE TANK | Joint - RESERVE TANK |
| 1 | 19200-P0A-003 | Pump comp - WATER (YAMADA) | Pump comp - WATER (YAMADA) |
| 2 | 19222-PT0-300 | Packing - WATER PUMP | Packing - WATER PUMP |
| 3 | 19223-PT0-000 | Rubber - WATER PUMP SEAL | Rubber - WATER PUMP SEAL |
| 4 | 19301-P08-315 | Thermostat assy - FUJI THOMSON | Thermostat assy - FUJI THOMSON |
| 4 | 19301-P08-316 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 4 | 19301-PAA-306 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 5 | 19305-PLC-A00 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 5 | 19305-PT0-000 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 6 | 19311-P0A-010 | Cover - THERMOSTAT | Cover - THERMOSTAT |
| 7 | 19313-PT0-000 | Packing - THERMOSTAT CASE | Packing - THERMOSTAT CASE |
| 8 | 19320-P0A-010 | Case comp. - THERMOSTAT | Case comp. - THERMOSTAT |
| 9 | 19360-PAA-A00 | Cover - WATER OUTLET | Cover - WATER OUTLET |
| 10 | 19500-PT0-000 | Joint - TUBE | Joint - TUBE |
| 6 | 19501-PAA-A00 | Hose - WATER UPPER | Hose - WATER UPPER |
| 11 | 19505-PJK-000 | Pipe - CONNECTING | Pipe - CONNECTING |
| 1 | 19509-PAA-A00 | Hose - ROTARY AIR CONTROL VALVE IN. | Hose - ROTARY AIR CONTROL VALVE IN. |
| 2 | 19510-PAA-A00 | Hose - ROTARY AIR CONTROL VALVE OUTLET | Hose - ROTARY AIR CONTROL VALVE OUTLET |
| 8 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 8 | 19511-PT0-004 | Clip - WATER HOSE (36.5MM) (KEIHIN) | Clip - WATER HOSE (36.5MM) (KEIHIN) |
| 7 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 3 | 19514-PAA-A00 | Hose a - BREATHER HEATER | Hose a - BREATHER HEATER |
| 4 | 19515-PAA-A00 | Hose b - BREATHER HEATER | Hose b - BREATHER HEATER |
| 12 | 19516-PC1-000 | Bolt - BREATHING WATER | Bolt - BREATHING WATER |
| 15 | 19517-P08-003 | Clamp - HOSE, 13MM | Clamp - HOSE, 13MM |
| 1 | 30100-PAA-A02 | Distributor assy - D4T97-03) (HITACHI | Distributor assy - D4T97-03) (HITACHI |
| 2 | 30102-PAA-A01 | Cap assy. | Cap assy. |
| 3 | 30103-PAA-A01 | Head - ROTOR | Head - ROTOR |
| 4 | 30105-PAA-L01 | Housing comp - DISTRIBUTOR | Housing comp - DISTRIBUTOR |
| 5 | 30110-PC6-005 | O-ring | O-ring |
| 6 | 30120-P06-005 | Igniter unit - HITACHI | Igniter unit - HITACHI |
| 7 | 30132-PAA-A01 | Packing | Packing |
| 8 | 30135-P0A-A01 | Bolt-washer - 5X14 | Bolt-washer - 5X14 |
| 9 | 30136-P0A-A01 | Bolt-washer - 6X30 | Bolt-washer - 6X30 |
| 11 | 30500-PAA-A01 | Coil - IGNITION | Coil - IGNITION |
| 14 | 30530-P5M-013 | Knock sensor assy | Knock sensor assy |
| 1 | 30701-883-000 | Clip, high tension cord (8mm) | Clip, high tension cord (8mm) |
| 2 | 31101-PAA-A01 | Rotor assy. | Rotor assy. |
| 3 | 31105-PR7-A01 | Holder assy. - BRUSH | Holder assy. - BRUSH |
| 4 | 31111-PT0-003 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 3 | 31112-PAA-A00 | Bracket comp. - ALTERNATOR | Bracket comp. - ALTERNATOR |
| 4 | 31113-P0A-A00 | Stay - ALTERNATOR | Stay - ALTERNATOR |
| 5 | 31114-PT0-013 | Bearing - FR. GENERATOR | Bearing - FR. GENERATOR |
| 6 | 31118-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 7 | 31119-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 8 | 31127-PT2-013 | Rectifier assy. | Rectifier assy. |
| 9 | 31135-P2C-003 | Cover - RR. END | Cover - RR. END |
| 9 | 31135-P3G-J01 | Cover | Cover |
| 10 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 11 | 31141-P1E-003 | Pulley | Pulley |
| 12 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 13 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 14 | 31146-PT0-003 | Screw | Screw |
| 16 | 31147-P13-003 | Screw | Screw |
| 15 | 31147-PT0-003 | Screw-washer | Screw-washer |
| 18 | 31148-P13-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 17 | 31148-PT0-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 19 | 31150-P5A-003 | Regulator assy | Regulator assy |
| 13 | 31451-S84-A01 | Gasket - BASE | Gasket - BASE |
| 1 | 31500-SS0-G71 | Battery assy - 70D23L-MF) (PANASONIC | Battery assy - 70D23L-MF) (PANASONIC |
| 1 | 31500-SS0-G73 | Battery assy - 70D23L-MF) (FURUKAWA | Battery assy - 70D23L-MF) (FURUKAWA |
| 2 | 31512-SS0-000 | Plate - BATTERY SETTING (70D/80D) | Plate - BATTERY SETTING (70D/80D) |
| 3 | 31513-SM4-000 | Bolt - BATTERY SETTING(195MM) | Bolt - BATTERY SETTING(195MM) |
| 4 | 31513-SP0-010 | Bolt - BATTERY SETTING (210MM) | Bolt - BATTERY SETTING (210MM) |
| 5 | 31521-S84-A10 | Box - BATTERY | Box - BATTERY |
| 20 | 31542-SA5-665 | Plug - VENT (MF) (PANASONIC) | Plug - VENT (MF) (PANASONIC) |
| 17 | 32114-P0A-A00 | Stay - SENSOR COUPLER | Stay - SENSOR COUPLER |
| 6 | 32116-P64-003 | Holder - CORRUGATED (DARK GREEN) (13MM) | Holder - CORRUGATED (DARK GREEN) (13MM) |
| 5 | 32121-PAA-A01 | Plate - WIRE HARNESS GROMMET | Plate - WIRE HARNESS GROMMET |
| 6 | 32127-PAA-A00 | Holder a - HARNESS | Holder a - HARNESS |
| 7 | 32129-PAA-A00 | Holder c - HARNESS | Holder c - HARNESS |
| 2 | 32131-SV4-003 | Cap - COUPLER (CP 2P, 3P) | Cap - COUPLER (CP 2P, 3P) |
| 3 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 4 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 5 | 32146-SH3-003 | Connector - DIODE(2P) | Connector - DIODE(2P) |
| 1 | 32175-647-920 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 7 | 32312-SM4-013 | Holder - COUPLER | Holder - COUPLER |
| 8 | 32412-S84-A00 | Bracket - STARTER CABLE | Bracket - STARTER CABLE |
| 11 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 12 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 8 | 32610-S84-A00 | Cable - SUB EARTH | Cable - SUB EARTH |
| 1 | 32700-P0A-A00 | Cord assy - HIGH TENSION (SUMITOMO) | Cord assy - HIGH TENSION (SUMITOMO) |
| 2 | 32701-P0A-A00 | Cord comp - RESISTANCE (NO.1) (SUMITOMO) | Cord comp - RESISTANCE (NO.1) (SUMITOMO) |
| 3 | 32702-P0A-A00 | Cord comp - RESISTANCE (NO.2) (SUMITOMO) | Cord comp - RESISTANCE (NO.2) (SUMITOMO) |
| 4 | 32703-P0A-A00 | Cord comp - RESISTANCE (NO.3) (SUMITOMO) | Cord comp - RESISTANCE (NO.3) (SUMITOMO) |
| 5 | 32704-P0A-A00 | Cord comp - RESISTANCE (NO.4) (SUMITOMO) | Cord comp - RESISTANCE (NO.4) (SUMITOMO) |
| 17 | 32743-PAA-A00 | Clamp c - ENGINE WIRE HARNESS | Clamp c - ENGINE WIRE HARNESS |
| 9 | 32750-PAA-A00 | Clamp b - ENGINE HARNESS | Clamp b - ENGINE HARNESS |
| 13 | 32751-P0A-A00 | Stay c - ENGINE HARNESS | Stay c - ENGINE HARNESS |
| 18 | 32753-PAA-A00 | Stay e - ENGINE HARNESS | Stay e - ENGINE HARNESS |
| 13 | 32753-S84-A01 | Harness - R. RR. DOOR WIRE | Harness - R. RR. DOOR WIRE |
| 14 | 32754-S84-A01 | Harness - L. RR. DOOR WIRE | Harness - L. RR. DOOR WIRE |
| 19 | 32759-P0A-A00 | Stay j - ENGINE WIRE HARNESS | Stay j - ENGINE WIRE HARNESS |
| 7 | 32762-PAA-A00 | Stay b - HIGH TENSION CORD CLAMP | Stay b - HIGH TENSION CORD CLAMP |
| 6 | 32766-P0A-A00 | Clamp c - HIGH TENSION CORD | Clamp c - HIGH TENSION CORD |
| 7 | 32766-PM3-000 | Clamp b - HIGH TENSION CORD | Clamp b - HIGH TENSION CORD |
| 9 | 32767-P0A-A00 | Clamp a - HIGH TENSION CORD | Clamp a - HIGH TENSION CORD |
| 8 | 32767-PT0-000 | Grommet - HIGH TENSION CORD | Grommet - HIGH TENSION CORD |
| 2 | 33115-S84-A01 | Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA) | Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA) |
| 2 | 33115-S84-A11 | Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) | Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY) |
| 3 | 33116-S84-A01 | Bulb - HEADLIGHT (HB4) (12V 51W) (SYLVANIA) | Bulb - HEADLIGHT (HB4) (12V 51W) (SYLVANIA) |
| 3 | 33116-S84-A11 | Bulb - HEADLIGHT (HB4) (12V 51W) (STANLEY) | Bulb - HEADLIGHT (HB4) (12V 51W) (STANLEY) |
| 4 | 33126-S73-A01 | Cover - RUBBER | Cover - RUBBER |
| 7 | 33301-S04-003 | Bulb | Bulb |
| 7 | 33301-S04-004 | Bulb - FR. TURN(12V 21W) (STANLEY)(AMBER) | Bulb - FR. TURN(12V 21W) (STANLEY)(AMBER) |
| 15 | 33301-S70-003 | Bulb - 12V 3.8W 2CP | Bulb - 12V 3.8W 2CP |
| 6 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 8 | 33303-S04-003 | Socket comp. - GRAY | Socket comp. - GRAY |
| 2 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
| 3 | 33501-S84-G01 | Lamp unit - R. TAIL | Lamp unit - R. TAIL |
| 4 | 33502-S84-A01 | Gasket - BASE | Gasket - BASE |
| 5 | 33513-S50-003 | Socket - T20W S2 | Socket - T20W S2 |
| 6 | 33514-S50-003 | Socket - T20W S3 | Socket - T20W S3 |
| 7 | 33515-S50-003 | Socket - T20W W | Socket - T20W W |
| 8 | 33551-S84-G01 | Lamp unit - L. TAIL | Lamp unit - L. TAIL |
| 9 | 33800-SV4-Q01 | Light assy - SIDE TURN | Light assy - SIDE TURN |
| 10 | 33802-SV4-Q01 | Lamp unit | Lamp unit |
| 9 | 34100-S84-G01 | Light assy - LICENSE | Light assy - LICENSE |
| 10 | 34102-S60-003 | Housing comp | Housing comp |
| 11 | 34102-S84-A01 | Lens comp | Lens comp |
| 12 | 34151-S84-G01 | Lamp unit - R. LID | Lamp unit - R. LID |
| 2 | 34251-SV1-A11 | Lens - DONNELLY | Lens - DONNELLY |
| 3 | 34252-SV1-A01 | Bulb - T-10) (12V 7W | Bulb - T-10) (12V 7W |
| 1 | 34254-SL0-003 | Lamp assy. - GLOVE BOX | Lamp assy. - GLOVE BOX |
| 4 | 34260-SW5-003 | Light assy - TRUNK ROOM | Light assy - TRUNK ROOM |
| 1 | 34261-SV1-A01 | Lens - DONNELLY | Lens - DONNELLY |
| 16 | 34273-S84-A01 | Bulb | Bulb |
| 5 | 34295-SJ8-003 | Bulb - 12V 5W) (DAIICHI | Bulb - 12V 5W) (DAIICHI |
| 11 | 34303-SS1-003 | Socket comp - 2P | Socket comp - 2P |
| 12 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 5 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
| 16 | 34906-ST5-003 | Bulb - 12V 21W/5W) (STANLEY | Bulb - 12V 21W/5W) (STANLEY |
| 3 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 4 | 35103-S04-003 | Screw - RECESSED | Screw - RECESSED |
| 5 | 35108-S30-003 | Holder - COLUMN | Holder - COLUMN |
| 11 | 35251-S84-A02 | Body comp - SWITCH | Body comp - SWITCH |
| 6 | 35350-S84-003 | Switch assy - STOP | Switch assy - STOP |
| 14 | 35400-S0A-003 | Switch assy - DOOR | Switch assy - DOOR |
| 16 | 35409-S0A-003 | Screw - FLANGE, 4X12 | Screw - FLANGE, 4X12 |
| 2 | 35505-S30-003 | Bulb - T5) (14V 1.4W | Bulb - T5) (14V 1.4W |
| 3 | 35505-S84-A01 | Bulb assy - WITH CAP) (BLUE | Bulb assy - WITH CAP) (BLUE |
| 1 | 35505-S84-N01 | Bulb - NEO WEDGE (T3) (NS) (14V 50MA) | Bulb - NEO WEDGE (T3) (NS) (14V 50MA) |
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35505-SJ4-003 | Socket assy - BULB (14V 3W) | Socket assy - BULB (14V 3W) |
| 3 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 2 | 35510-S84-A11 | Switch assy - HAZARD | Switch assy - HAZARD |
| 6 | 35871-S3N-901 | Bulb - NEO WEDGE (14V 60MA) (TOYO) | Bulb - NEO WEDGE (14V 60MA) (TOYO) |
| 1 | 36001-PAD-G00 | Stay - PURGE CUT SOLENOID VALVE | Stay - PURGE CUT SOLENOID VALVE |
| 1 | 36062-671-000 | Clamp b - TUBE | Clamp b - TUBE |
| 2 | 36160-P5G-901 | Valve assy. - PURGE CONTROL SOLENOID | Valve assy. - PURGE CONTROL SOLENOID |
| 3 | 36164-PAD-G01 | Stay - PURGE CUT SOLENOID | Stay - PURGE CUT SOLENOID |
| 9 | 36460-PAA-A01 | Valve assy. - ROTARY AIR CONTROL | Valve assy. - ROTARY AIR CONTROL |
| 10 | 36461-PAA-A01 | Packing - ROTARY AIR CONTROL VALVE | Packing - ROTARY AIR CONTROL VALVE |
| 4 | 37102-SA5-003 | Socket assy - BULB (14V 3.4W) (NS) (BASE:BLACK) | Socket assy - BULB (14V 3.4W) (NS) (BASE:BLACK) |
| 6 | 37115-SA0-601 | Packing - NS | Packing - NS |
| 7 | 37237-SA5-003 | Bulb - 14V 3.4W) (NS | Bulb - 14V 3.4W) (NS |
| 15 | 37240-PT0-014 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 15 | 37240-PT0-023 | Switch - OIL PRESSURE(DENSO) | Switch - OIL PRESSURE(DENSO) |
| 17 | 37540-S84-A01 | Sensor - STOP LAMP FAILURE (2P) | Sensor - STOP LAMP FAILURE (2P) |
| 14 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 15 | 37760-P00-003 | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) |
| 11 | 37830-PAA-S00 | Sensor set - MAP | Sensor set - MAP |
| 18 | 37840-P0A-A01 | Sensor assy - CRANK-TDC | Sensor assy - CRANK-TDC |
| 17 | 37870-PK2-005 | Sensor assy - WATER TEMP (HADSYS) | Sensor assy - WATER TEMP (HADSYS) |
| 12 | 37880-P0A-A02 | Sensor assy - AIR TEMP | Sensor assy - AIR TEMP |
| 1 | 38100-S84-A51 | Horn assy - LOW | Horn assy - LOW |
| 2 | 38150-S84-A51 | Horn assy - HIGH | Horn assy - HIGH |
| 3 | 38182-S84-A01 | Cover - MULTI RELAY | Cover - MULTI RELAY |
| 7 | 38200-S84-A01 | Box assy - FUSE | Box assy - FUSE |
| 8 | 38210-S84-G51 | Box assy - FUSE (PASSENGER SIDE) | Box assy - FUSE (PASSENGER SIDE) |
| 5 | 38213-SM4-003 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 6 | 38218-SM4-003 | Fuse - BLOCK (100A) | Fuse - BLOCK (100A) |
| 7 | 38231-S04-003 | Fuse - BLOCK (30A) | Fuse - BLOCK (30A) |
| 8 | 38231-S04-961 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 9 | 38235-S04-003 | Puller - MINI FUSE (SUMITOMO) | Puller - MINI FUSE (SUMITOMO) |
| 11 | 38251-S84-A00 | Bracket - RELAY BOX | Bracket - RELAY BOX |
| 12 | 38252-S84-A01 | Cover - LOWER | Cover - LOWER |
| 2 | 38512-SC4-673 | Motor - WASHER (DENSO) | Motor - WASHER (DENSO) |
| 2 | 38611-PAA-A01 | Fan comp - COOLING (MITSUBA) | Fan comp - COOLING (MITSUBA) |
| 3 | 38615-PAA-A00 | Shroud comp. - AIR CONDITIONER | Shroud comp. - AIR CONDITIONER |
| 4 | 38616-PAA-A01 | Motor - COOLING FAN (MITSUBA) | Motor - COOLING FAN (MITSUBA) |
| 13 | 38800-S84-G14 | System unit - MULTIPLEX CONTROL (DRIVER SIDE) (OKI) | System unit - MULTIPLEX CONTROL (DRIVER SIDE) (OKI) |
| 1 | 38801-P9K-E01 | Valve sub assy. - SAFETY | Valve sub assy. - SAFETY |
| 2 | 38810-P3G-003 | Compressor comp. - DENSO | Compressor comp. - DENSO |
| 4 | 38812-671-003 | Ring a - SNAP | Ring a - SNAP |
| 3 | 38812-PH1-003 | Ring b - SNAP | Ring b - SNAP |
| 5 | 38827-PH7-003 | Screw-washer - 5X8 | Screw-washer - 5X8 |
| 6 | 38829-PR3-003 | Bolt - WASHER HEAD | Bolt - WASHER HEAD |
| 7 | 38838-PAA-A01 | Valve - SUCTION SERVICE | Valve - SUCTION SERVICE |
| 8 | 38839-PR7-A01 | O-ring | O-ring |
| 9 | 38840-PC1-003 | Bolt b | Bolt b |
| 10 | 38900-PAA-A01 | Clutch set | Clutch set |
| 11 | 38912-PH1-N01 | Plate set - WASHER | Plate set - WASHER |
| 12 | 38920-PAA-A02 | Belt - COMPRESSOR (MITSUBOSHI) | Belt - COMPRESSOR (MITSUBOSHI) |
| 13 | 38924-PAA-A01 | Stator set | Stator set |
| 14 | 38930-PAA-A00 | Bracket - COMPRESSOR | Bracket - COMPRESSOR |
| 1 | 39100-S82-Y02 | Tuner assy - AUTO RADIO (CLARION) (20WX4) | Tuner assy - AUTO RADIO (CLARION) (20WX4) |
| 2 | 39103-S82-A41 | Knob - CLARION | Knob - CLARION |
| 3 | 39104-S82-A41 | Knob - BASS TREBLE (CLARION) | Knob - BASS TREBLE (CLARION) |
| 1 | 39112-SM4-000 | Bracket - FR. SPEAKER SEAL | Bracket - FR. SPEAKER SEAL |
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 2 | 39248-692-003 | Packing - HEATER | Packing - HEATER |
| 15 | 39400-S84-003 | Relay assy - MAIN (MITSUBA) | Relay assy - MAIN (MITSUBA) |
| 1 | 39620-S01-A01 | Socket - ACCESSORY | Socket - ACCESSORY |
| 2 | 39621-S01-A01 | Cover - SOCKET | Cover - SOCKET |
| 6 | 39628-S84-A01 | Lamp assy. | Lamp assy. |
| 8 | 39700-S84-A21 | Clock assy - DIGITAL (NS) | Clock assy - DIGITAL (NS) |
| 15 | 39792-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7410) | Relay assy - POWER(4P)(DENSO) (056700-7410) |
| 18 | 39792-SM4-013 | Relay assy - POWER (4P NO.305) (DENSO) | Relay assy - POWER (4P NO.305) (DENSO) |
| 16 | 39792-SP0-014 | Relay assy - POWER (4P) (MITSUBA) (12V NO) | Relay assy - POWER (4P) (MITSUBA) (12V NO) |
| 18 | 39793-S84-A00 | Bracket - WIPER RELAY | Bracket - WIPER RELAY |
| 17 | 39793-SV4-003 | Relay assy - POWER (5P) (MITSUBA) | Relay assy - POWER (5P) (MITSUBA) |
| 2 | 39794-S04-004 | Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA) | Relay assy - POWER (4P) (MICRO ISO) (MATSUSHITA) |
| 2 | 42200-S84-C51 | Bearing assy - RR. HUB UNIT | Bearing assy - RR. HUB UNIT |
| 3 | 42326-SLJ-000 | Cap, Hub unit | Cap, Hub unit |
| 3 | 42326-ST7-Z00 | Cap - HUB UNIT | Cap - HUB UNIT |
| 4 | 42510-S84-A50 | Disk - RR. BRAKE | Disk - RR. BRAKE |
| 4 | 42751-S82-G01 | Tire - 195/65R15 91V) (MICHELIN | Tire - 195/65R15 91V) (MICHELIN |
| 5 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 5 | 42753-SE0-A02 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 4 | 42760-S84-T10 | Plate - TIRE PRESSURE CAUTION | Plate - TIRE PRESSURE CAUTION |
| 5 | 43018-S84-A11 | Caliper sub assy. - R. RR. | Caliper sub assy. - R. RR. |
| 6 | 43019-S84-A11 | Caliper sub assy. - L. RR. | Caliper sub assy. - L. RR. |
| 7 | 43022-SY8-A01 | Pad set - RR. | Pad set - RR. |
| 8 | 43215-SY8-A01 | Piston assy. | Piston assy. |
| 9 | 43217-SY8-A01 | Sleeve | Sleeve |
| 11 | 43227-SY8-A01 | Spring - PAD | Spring - PAD |
| 12 | 43228-S84-A13 | Lever - R. | Lever - R. |
| 13 | 43229-SY8-A02 | Rod | Rod |
| 14 | 43233-SY8-A01 | Connector | Connector |
| 15 | 43237-SY8-A01 | Spring a - ADJUSTER | Spring a - ADJUSTER |
| 16 | 43238-SY8-A01 | Ring - RETAINING | Ring - RETAINING |
| 17 | 43241-SY8-A01 | Guide - SPRING | Guide - SPRING |
| 18 | 43244-SY8-A01 | Retainer | Retainer |
| 19 | 43246-S84-A12 | Spring - R. RETURN | Spring - R. RETURN |
| 20 | 43247-S84-A13 | Arm - R. | Arm - R. |
| 21 | 43248-S84-A13 | Lever - L. | Lever - L. |
| 22 | 43253-S0A-000 | Guard - R. RR. SPLASH | Guard - R. RR. SPLASH |
| 23 | 43254-S0A-000 | Guard - L. RR. SPLASH | Guard - L. RR. SPLASH |
| 24 | 43266-S84-A12 | Spring - L. LEVER RETURN | Spring - L. LEVER RETURN |
| 25 | 43267-S84-A13 | Arm - L. | Arm - L. |
| 1 | 44014-S0K-C00 | Joint set - OUTBOARD | Joint set - OUTBOARD |
| 2 | 44017-S84-C00 | Boot set - INBOARD | Boot set - INBOARD |
| 3 | 44018-S0K-C21 | Boot set - OUTBOARD | Boot set - OUTBOARD |
| 2 | 44300-S0A-003 | Bearing assy - FR. HUB (NISSIN) | Bearing assy - FR. HUB (NISSIN) |
| 2 | 44300-S47-008 | Bearing assy - HUB (NTN) | Bearing assy - HUB (NTN) |
| 2 | 44300-S47-305 | Bearing assy | Bearing assy |
| 4 | 44305-S4K-A52 | Driveshaft assy. - R. | Driveshaft assy. - R. |
| 6 | 44310-S9A-300 | Joint comp - INBOARD | Joint comp - INBOARD |
| 8 | 44319-S0A-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 8 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 10 | 44327-S0K-C01 | Band - OUTBOARD BOOT (OETIKER LIMITED) | Band - OUTBOARD BOOT (OETIKER LIMITED) |
| 9 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 10 | 44327-SX0-C02 | Band - OUTBOARD BOOT (NIPPON HATSUJO) | Band - OUTBOARD BOOT (NIPPON HATSUJO) |
| 12 | 44329-S0K-C01 | Band - DRIVESHAFT (OETIKER LIMITED) | Band - DRIVESHAFT (OETIKER LIMITED) |
| 11 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 12 | 44329-SX0-C02 | Band - DRIVESHAFT (NIPPON HATSUJO) | Band - DRIVESHAFT (NIPPON HATSUJO) |
| 13 | 44337-SB0-300 | Ring b - STOPPER | Ring b - STOPPER |
| 13 | 44337-SM1-300 | Ring b - STOPPER | Ring b - STOPPER |
| 14 | 44338-SB0-300 | Circlip - 26MM | Circlip - 26MM |
| 14 | 44338-SM1-300 | Circlip - 26MM | Circlip - 26MM |
| 24 | 44351-S10-A01 | Damper - DYNAMIC (TOUKAI) | Damper - DYNAMIC (TOUKAI) |
| 3 | 44600-S84-A00 | Hub assy - FR. | Hub assy - FR. |
| 7 | 45215-671-672 | Screw - BLEEDER | Screw - BLEEDER |
| 9 | 45219-S84-A01 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 28 | 45233-S04-A01 | Bush | Bush |
| 29 | 45235-S01-A01 | Pin a | Pin a |
| 30 | 45240-S01-A01 | Bolt | Bolt |
| 31 | 45262-S01-A01 | Pin b | Pin b |
| 3 | 46120-S84-A51 | Piston assy. - PRIMARY | Piston assy. - PRIMARY |
| 4 | 46122-S84-A51 | Piston assy. - SECONDARY | Piston assy. - SECONDARY |
| 5 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 6 | 46182-S84-A51 | Circlip | Circlip |
| 7 | 46185-S04-J01 | Seal - ROD | Seal - ROD |
| 8 | 46191-634-000 | Gasket - MASTER CYLINDER BRACKET | Gasket - MASTER CYLINDER BRACKET |
| 6 | 46330-S84-A00 | Pipe comp. c - BRAKE | Pipe comp. c - BRAKE |
| 11 | 46377-S84-A50 | Pipe comp. x - BRAKE | Pipe comp. x - BRAKE |
| 12 | 46378-S84-A50 | Pipe comp. y - BRAKE | Pipe comp. y - BRAKE |
| 13 | 46379-S84-A50 | Pipe comp. z - BRAKE | Pipe comp. z - BRAKE |
| 14 | 46380-SB0-000 | Grommet a - BRAKE PIPE (BLACK) | Grommet a - BRAKE PIPE (BLACK) |
| 16 | 46391-S84-A51 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 15 | 46391-SX8-T01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 17 | 46392-S84-A50 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 19 | 46393-S84-A00 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 18 | 46393-SM4-951 | Clip c | Clip c |
| 21 | 46395-S84-A00 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 23 | 46435-S84-A00 | Bracket - RR. BRAKE HOSE | Bracket - RR. BRAKE HOSE |
| 24 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 25 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 9 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 10 | 46505-SA7-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 14 | 46512-S70-000 | Pin - PEDAL | Pin - PEDAL |
| 11 | 46530-S84-A02 | Spring assy - PEDAL RETURN | Spring assy - PEDAL RETURN |
| 16 | 46662-S04-J01 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 17 | 46665-S04-J01 | Grommet | Grommet |
| 18 | 46666-S04-J01 | Filter - BRAKE RESERVOIR | Filter - BRAKE RESERVOIR |
| 19 | 46669-692-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 28 | 46911-S70-003 | Pin, LOCK(8MM) | Pin, LOCK(8MM) |
| 2 | 47142-S84-A01 | Knob - PUSH ROD | Knob - PUSH ROD |
| 3 | 47143-SD4-300 | Spring - PUSH ROD | Spring - PUSH ROD |
| 5 | 47360-SB2-000 | Equalizer | Equalizer |
| 6 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 8 | 47510-S84-A63 | Wire - R. PARKING BRAKE | Wire - R. PARKING BRAKE |
| 9 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 10 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 12 | 47560-S84-A52 | Wire - L. PARKING BRAKE | Wire - L. PARKING BRAKE |
| 10 | 50250-S4K-000 | Beam - FR. | Beam - FR. |
| 11 | 50255-S84-A00 | Damper - FR. BEAM | Damper - FR. BEAM |
| 14 | 50310-S4K-000 | Beam - RR. SUSPENSION CROSS | Beam - RR. SUSPENSION CROSS |
| 5 | 50821-S84-A01 | Rubber, ENGINE SIDE MOUNTING | Rubber, ENGINE SIDE MOUNTING |
| 6 | 50822-S84-A01 | Damper - SIDE ENGINE MOUNT DYNAMIC | Damper - SIDE ENGINE MOUNT DYNAMIC |
| 7 | 50824-S84-A01 | Bracket - SIDE ENGINE MOUNTING | Bracket - SIDE ENGINE MOUNTING |
| 12 | 50829-S0A-000 | Bracket - STOPPER SIDE MOUNTING | Bracket - STOPPER SIDE MOUNTING |
| 4 | 50917-SV7-A00 | Rubber - MOUNTING | Rubber - MOUNTING |
| 1 | 51210-S4K-A00 | Knuckle comp - R. FR. | Knuckle comp - R. FR. |
| 2 | 51215-S4K-A00 | Knuckle comp - L. FR. | Knuckle comp - L. FR. |
| 3 | 51225-S84-A01 | Boot - LOWER BALL DUST | Boot - LOWER BALL DUST |
| 1 | 51300-S4K-A01 | Spring - FR. STABILIZER | Spring - FR. STABILIZER |
| 2 | 51306-S84-A01 | Bush - STABILIZER HOLDER | Bush - STABILIZER HOLDER |
| 3 | 51308-SW3-000 | Bracket - FR. STABILIZER | Bracket - FR. STABILIZER |
| 4 | 51320-S84-A01 | Link comp - R. FR. STABILIZER | Link comp - R. FR. STABILIZER |
| 5 | 51321-S84-A01 | Link comp - L. FR. STABILIZER | Link comp - L. FR. STABILIZER |
| 6 | 51352-S84-A01 | Rod - R. FR. RADIUS | Rod - R. FR. RADIUS |
| 7 | 51355-S84-A00 | Arm comp - R. FR. LOWER | Arm comp - R. FR. LOWER |
| 8 | 51362-S84-A01 | Rod - FR. RADIUS | Rod - FR. RADIUS |
| 9 | 51365-S84-A00 | Arm comp - L. FR. LOWER | Arm comp - L. FR. LOWER |
| 10 | 51381-S84-A01 | Bush - FR. RADIUS ROD (RR.) | Bush - FR. RADIUS ROD (RR.) |
| 11 | 51391-S84-A01 | Bush - RADIUS ROD (FR.) | Bush - RADIUS ROD (FR.) |
| 12 | 51393-SV1-A01 | Bush - FR. LOWER ARM | Bush - FR. LOWER ARM |
| 13 | 51394-S84-000 | Washer - CASTER ADJUSTER | Washer - CASTER ADJUSTER |
| 14 | 51398-SM4-000 | Collar - RADIUS ROD | Collar - RADIUS ROD |
| 15 | 51399-S0A-000 | Washer - FR. RADIUS ROD | Washer - FR. RADIUS ROD |
| 4 | 51450-S84-A01 | Arm comp - R. FR. UPPER | Arm comp - R. FR. UPPER |
| 5 | 51460-S84-A01 | Arm comp - L. FR. UPPER | Arm comp - L. FR. UPPER |
| 6 | 51464-S04-013 | Boot, UPPER BALL JOINT | Boot, UPPER BALL JOINT |
| 4 | 51605-S84-A07 | Absorber unit - R. FR. SHOCK | Absorber unit - R. FR. SHOCK |
| 4 | 51606-S84-A03 | Absorber unit - L. FR. SHOCK | Absorber unit - L. FR. SHOCK |
| 5 | 51621-S84-A01 | Washer - SHOCK ABSORBER MOUNTING | Washer - SHOCK ABSORBER MOUNTING |
| 6 | 51631-SV7-004 | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) | Rubber - SHOCK ABSORBER MOUNTING(SHOWA) |
| 7 | 51675-S84-A01 | Base - FR. SHOCK ABSORBER MOUNTING (SHOWA) | Base - FR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 8 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 8 | 51685-SR0-004 | Plate - DUST COVER (A.S.I. SHOWA) | Plate - DUST COVER (A.S.I. SHOWA) |
| 9 | 51686-S84-A01 | Rubber - FR. SPRING MOUNTING | Rubber - FR. SPRING MOUNTING |
| 10 | 51689-SH3-004 | Plate - BUMP STOP (SHOWA) | Plate - BUMP STOP (SHOWA) |
| 11 | 51689-SP0-004 | Cover - DUST (SHOWA) | Cover - DUST (SHOWA) |
| 12 | 51722-S84-A01 | Rubber - FR. BUMP STOPPER (A.S.I. SHOWA) | Rubber - FR. BUMP STOPPER (A.S.I. SHOWA) |
| 13 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 13 | 51728-SR0-003 | Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS) | Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS) |
| 16 | 51810-SV4-003 | Bush - SHOCK ABSORBER FORK (HOKUSHIN) | Bush - SHOCK ABSORBER FORK (HOKUSHIN) |
| 16 | 51810-SV4-004 | Bush - SHOCK ABSORBER FORK (YAMASHITA) | Bush - SHOCK ABSORBER FORK (YAMASHITA) |
| 17 | 51811-S84-A00 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 18 | 51821-S84-A00 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 1 | 52210-S0A-J51 | Knuckle comp - R. RR. | Knuckle comp - R. RR. |
| 2 | 52215-S0A-J51 | Knuckle comp - L. RR. | Knuckle comp - L. RR. |
| 7 | 52226-SL0-003 | Circlip - LOWER BALL(MUSASHI) | Circlip - LOWER BALL(MUSASHI) |
| 3 | 52300-S4K-A01 | Spring - RR. STABILIZER | Spring - RR. STABILIZER |
| 4 | 52306-S84-A01 | Bush - RR. STABILIZER HOLDER | Bush - RR. STABILIZER HOLDER |
| 5 | 52308-SZ5-000 | Holder - STABILIZER BUSH | Holder - STABILIZER BUSH |
| 6 | 52320-S84-A01 | Link comp - R. RR. STABILIZER | Link comp - R. RR. STABILIZER |
| 7 | 52325-S84-A01 | Link comp - L. RR. STABILIZER | Link comp - L. RR. STABILIZER |
| 8 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 9 | 52340-S84-A01 | Bracket - R. RR. LINK STABILIZER | Bracket - R. RR. LINK STABILIZER |
| 10 | 52345-S84-A01 | Bracket - L. RR. LINK STABILIZER | Bracket - L. RR. LINK STABILIZER |
| 11 | 52350-S84-A01 | Arm comp - RR. LOWER | Arm comp - RR. LOWER |
| 12 | 52360-S84-A01 | Arm comp - RR. CONTROL | Arm comp - RR. CONTROL |
| 13 | 52364-634-020 | Washer - LOWER ARM | Washer - LOWER ARM |
| 14 | 52365-SM4-004 | Bush a - RR. LOWER ARM (YAMASHITA) | Bush a - RR. LOWER ARM (YAMASHITA) |
| 15 | 52370-S84-A51 | Arm comp - R. RR. TRAILING (DISK) | Arm comp - R. RR. TRAILING (DISK) |
| 16 | 52375-S84-A51 | Arm comp - L. RR. TRAILING (DISK) | Arm comp - L. RR. TRAILING (DISK) |
| 17 | 52380-S84-A01 | Arm comp - RR. LEADING | Arm comp - RR. LEADING |
| 18 | 52387-S84-A00 | Bolt - CONTROL ADJUSTING | Bolt - CONTROL ADJUSTING |
| 19 | 52388-S84-A00 | Plate - CAM | Plate - CAM |
| 20 | 52390-S84-A01 | Arm comp - RR. UPPER | Arm comp - RR. UPPER |
| 4 | 52441-S84-A02 | Spring - RR. (SHOWA) | Spring - RR. (SHOWA) |
| 21 | 52454-S84-A01 | Boot - UPPER DUST | Boot - UPPER DUST |
| 5 | 52610-S84-A06 | Absorber assy - RR. SHOCK (###) | Absorber assy - RR. SHOCK (###) |
| 6 | 52611-S84-A04 | Absorber unit - RR. SHOCK | Absorber unit - RR. SHOCK |
| 7 | 52622-S84-A01 | Bush - RR. SHOCK ABSORBER LOWER | Bush - RR. SHOCK ABSORBER LOWER |
| 8 | 52631-S84-A01 | Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 9 | 52675-S84-A01 | Base - RR. SHOCK ABSORBER MOUNTING (A.S.I. SHOWA) | Base - RR. SHOCK ABSORBER MOUNTING (A.S.I. SHOWA) |
| 10 | 52686-S84-A01 | Rubber - RR. SPRING MOUNTING | Rubber - RR. SPRING MOUNTING |
| 11 | 52688-S84-A02 | Sleeve - RR. DUST COVER | Sleeve - RR. DUST COVER |
| 18 | 52689-SG0-014 | End - DUST COVER | End - DUST COVER |
| 12 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 13 | 52722-SM4-013 | Rubber - BUMPER STOPPER (POLYURETHAN KASEI) | Rubber - BUMPER STOPPER (POLYURETHAN KASEI) |
| 13 | 52722-SV1-A02 | Rubber - RR. BUMP STOPPER (SHOWA) | Rubber - RR. BUMP STOPPER (SHOWA) |
| 14 | 52748-S84-A02 | Cover - RR. LOWER MOUNT DUST | Cover - RR. LOWER MOUNT DUST |
| 1 | 53010-S84-A01 | End set - RACK | End set - RACK |
| 2 | 53216-S84-A00 | Hold b - STEERING COLUMN | Hold b - STEERING COLUMN |
| 4 | 53323-S04-003 | Joint comp. b - STEERING | Joint comp. b - STEERING |
| 5 | 53325-SH3-000 | Clip A - JOINT COVER | Clip A - JOINT COVER |
| 6 | 53326-SB0-000 | Clip b - JOINT COVER | Clip b - JOINT COVER |
| 4 | 53413-S0K-A01 | Spring - RACK GUIDE PRESSURE | Spring - RACK GUIDE PRESSURE |
| 5 | 53414-S84-A01 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 6 | 53416-S0K-A01 | Guide - STEERING RACK | Guide - STEERING RACK |
| 2 | 53434-S84-A01 | Clip - STEERING TIE ROD | Clip - STEERING TIE ROD |
| 3 | 53436-S84-A01 | Cushion b - GEAR BOX | Cushion b - GEAR BOX |
| 4 | 53438-S84-A00 | Bracket b - GEAR BOX | Bracket b - GEAR BOX |
| 5 | 53449-S84-A01 | Band - BELLOWS | Band - BELLOWS |
| 8 | 53458-S84-A01 | Nut - LOCK | Nut - LOCK |
| 6 | 53501-S84-A00 | Grommet a - STEERING | Grommet a - STEERING |
| 7 | 53502-S84-A00 | Grommet b - STEERING | Grommet b - STEERING |
| 8 | 53534-S84-A01 | Dust seal - TIE ROD | Dust seal - TIE ROD |
| 9 | 53536-S84-A01 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 10 | 53537-S84-A01 | Rubber - STOPPER | Rubber - STOPPER |
| 11 | 53540-S84-A01 | End comp - R. TIE ROD | End comp - R. TIE ROD |
| 12 | 53546-S84-003 | Boot - TIE ROD END (NOK) | Boot - TIE ROD END (NOK) |
| 13 | 53560-S84-A01 | End comp - L. TIE ROD | End comp - L. TIE ROD |
| 13 | 53630-S84-A01 | End comp - CYLINDER | End comp - CYLINDER |
| 16 | 53660-S50-003 | Oil seal - 27X38X5.5 (SHOWA) | Oil seal - 27X38X5.5 (SHOWA) |
| 19 | 53666-S50-003 | O-ring - 41.5X2 (SHOWA) | O-ring - 41.5X2 (SHOWA) |
| 15 | 53685-S84-A01 | Bush - STEERING GEAR BOX MOUNTING | Bush - STEERING GEAR BOX MOUNTING |
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 2 | 53701-S84-A01 | Tank comp. - POWER STEERING OIL | Tank comp. - POWER STEERING OIL |
| 3 | 53711-S84-A00 | Bracket - OIL TANK | Bracket - OIL TANK |
| 20 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 6 | 53729-SL4-951 | Clip - RETURN PIPE, 10MM | Clip - RETURN PIPE, 10MM |
| 7 | 53729-SS0-003 | Clip - RETURN HOSE | Clip - RETURN HOSE |
| 9 | 53730-SV4-020 | Clamp - FEED HOSE | Clamp - FEED HOSE |
| 10 | 53731-S84-A00 | Tube - SUCTION | Tube - SUCTION |
| 11 | 53732-S84-A01 | Hose - OIL COOLER | Hose - OIL COOLER |
| 12 | 53733-S84-A01 | Hose - OIL TANK | Hose - OIL TANK |
| 14 | 53736-SH3-950 | Holder b - POWER STEERING PIPE | Holder b - POWER STEERING PIPE |
| 15 | 53765-S84-A01 | Cooler - POWER STEERING OIL | Cooler - POWER STEERING OIL |
| 16 | 53779-S86-K01 | Pipe comp. b - POWER STEERING RETURN (10MM) | Pipe comp. b - POWER STEERING RETURN (10MM) |
| 2 | 56110-PAA-A01 | Pump sub assy - POWER STEERING | Pump sub assy - POWER STEERING |
| 3 | 56167-P2A-003 | Spacer - PUMP SEAL | Spacer - PUMP SEAL |
| 4 | 56483-P2A-003 | Pulley comp - POWER STEERING PUMP | Pulley comp - POWER STEERING PUMP |
| 4 | 56483-P2A-A51 | Pulley comp - POWER STEERING PUMP | Pulley comp - POWER STEERING PUMP |
| 17 | 56490-P0H-013 | Switch assy - POWER STEERING PRESSURE (TEXAS) | Switch assy - POWER STEERING PRESSURE (TEXAS) |
| 5 | 56992-P0A-J01 | Belt - POWER STEERING PUMP (BANDO) | Belt - POWER STEERING PUMP (BANDO) |
| 5 | 56992-PAA-A01 | Belt - POWER STEERING PUMP (MITSUBOSHI) | Belt - POWER STEERING PUMP (MITSUBOSHI) |
| 6 | 56994-PAA-A00 | Bracket - POWER STEERING PUMP | Bracket - POWER STEERING PUMP |
| 5 | 56995-PV0-000 | Bolt - TENSIONER | Bolt - TENSIONER |
| 1 | 57101-S30-003 | Rubber - ABS MOUNTING | Rubber - ABS MOUNTING |
| 2 | 57102-S30-003 | Holder - ABS | Holder - ABS |
| 3 | 57110-S4K-A51 | Modulator assy - ABS | Modulator assy - ABS |
| 4 | 57115-S84-A50 | Bracket - MODULATOR | Bracket - MODULATOR |
| 9 | 57450-S4K-A52 | Sensor assy - R. FR. | Sensor assy - R. FR. |
| 10 | 57451-S84-A50 | Bracket - L. COUPLER | Bracket - L. COUPLER |
| 22 | 57452-S84-A50 | Bracket - RR. COUPLER | Bracket - RR. COUPLER |
| 12 | 57453-S84-A50 | Bracket - R. COUPLER | Bracket - R. COUPLER |
| 13 | 57455-S4K-A52 | Sensor assy - L. FR. | Sensor assy - L. FR. |
| 23 | 57470-S84-A53 | Sensor assy - R. RR. | Sensor assy - R. RR. |
| 24 | 57475-S84-A53 | Sensor assy - L. RR. | Sensor assy - L. RR. |
| 21 | 57515-S30-003 | Pin - STOP | Pin - STOP |
| 8 | 66417-SA0-000 | Rubber - GLOVE BOX STOPPER | Rubber - GLOVE BOX STOPPER |
| 6 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 5 | 66418-SA5-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 4 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 29 | 67325-S4K-013 | Tape - R. FR. DOOR UPPER INNER | Tape - R. FR. DOOR UPPER INNER |
| 31 | 67327-S4K-013 | Tape - R. FR. DOOR CENTER INNER | Tape - R. FR. DOOR CENTER INNER |
| 36 | 67329-S4K-003 | Tape - R. FR. DOOR CENTER END INNER | Tape - R. FR. DOOR CENTER END INNER |
| 32 | 67365-S4K-013 | Tape - L. FR. DOOR UPPER INNER | Tape - L. FR. DOOR UPPER INNER |
| 34 | 67367-S4K-013 | Tape - L. FR. DOOR CENTER INNER | Tape - L. FR. DOOR CENTER INNER |
| 37 | 67369-S4K-003 | Tape - L. FR. DOOR CENTER END INNER | Tape - L. FR. DOOR CENTER END INNER |
| 29 | 67825-S4K-013 | Tape - R. RR. DOOR UPPER INNER | Tape - R. RR. DOOR UPPER INNER |
| 31 | 67827-S4K-013 | Tape - R. RR. DOOR CENTER INNER | Tape - R. RR. DOOR CENTER INNER |
| 36 | 67828-S4K-003 | Tape - R. RR. DOOR END INNER | Tape - R. RR. DOOR END INNER |
| 37 | 67829-S4K-003 | Tape - R. RR. DOOR CENTER END INNER | Tape - R. RR. DOOR CENTER END INNER |
| 32 | 67865-S4K-013 | Tape - L. RR. DOOR UPPER INNER | Tape - L. RR. DOOR UPPER INNER |
| 34 | 67867-S4K-013 | Tape - L. RR. DOOR CENTER INNER | Tape - L. RR. DOOR CENTER INNER |
| 38 | 67868-S4K-003 | Tape - L. RR. DOOR END INNER | Tape - L. RR. DOOR END INNER |
| 39 | 67869-S4K-003 | Tape - L. RR. DOOR CENTER END INNER | Tape - L. RR. DOOR CENTER END INNER |
| 27 | 70495-692-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 2 | 71105-S84-A00 | Weight - FR. BUMPER | Weight - FR. BUMPER |
| 6 | 71143-S84-A00 | Beam comp - R. FR. BUMPER CORNER UPPER | Beam comp - R. FR. BUMPER CORNER UPPER |
| 7 | 71144-SR3-013 | Grommet - BUMPER SIDE | Grommet - BUMPER SIDE |
| 9 | 71148-S84-A00 | Beam comp - L. FR. BUMPER CORNER UPPER | Beam comp - L. FR. BUMPER CORNER UPPER |
| 10 | 71170-S86-K00 | Absorber - FR. BUMPER | Absorber - FR. BUMPER |
| 11 | 71172-S84-A00 | Box - BUMPER BEAM ABSORBER | Box - BUMPER BEAM ABSORBER |
| 37 | 71187-S84-A00 | Bracket comp. - FR BUMPER DAMPER | Bracket comp. - FR BUMPER DAMPER |
| 20 | 71598-S30-013 | Spacer assy. - RR. BUMPER SIDE | Spacer assy. - RR. BUMPER SIDE |
| 19 | 71598-SL4-013 | Spacer - BUMPER SIDE | Spacer - BUMPER SIDE |
| 3 | 72112-SR4-004 | Snap - BROWN | Snap - BROWN |
| 4 | 72113-SR4-004 | Snap - BLACK | Snap - BLACK |
| 55 | 72114-S86-K01 | Seat - R. OUTSIDE HANDLE | Seat - R. OUTSIDE HANDLE |
| 6 | 72116-S04-003 | Holder - ROD(SKY BLUE) | Holder - ROD(SKY BLUE) |
| 7 | 72117-S04-003 | Holder - ROD (YELLOW) | Holder - ROD (YELLOW) |
| 8 | 72117-S84-A01 | Protector - R. FR. DOOR LOCK | Protector - R. FR. DOOR LOCK |
| 10 | 72118-S84-A00 | Protector - R. FR. DOOR LOCK (POWER) | Protector - R. FR. DOOR LOCK (POWER) |
| 11 | 72119-SM1-003 | Stopper a - OUTSIDE HANDLE | Stopper a - OUTSIDE HANDLE |
| 12 | 72123-SR0-003 | Ring - OUTSIDE HANDLE | Ring - OUTSIDE HANDLE |
| 15 | 72130-S84-A00 | Protector - R. FR. DOOR OUTER HANDLE | Protector - R. FR. DOOR OUTER HANDLE |
| 16 | 72131-S84-A01 | Rod - R. FR. INSIDE HANDLE | Rod - R. FR. INSIDE HANDLE |
| 17 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 5 | 72134-SM4-003 | Snap - R. (VIOLET) | Snap - R. (VIOLET) |
| 18 | 72135-SR3-003 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 10 | 72139-S0A-003 | Snap - PINK | Snap - PINK |
| 20 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 21 | 72139-SV4-A01 | Tube - PROTECTOR | Tube - PROTECTOR |
| 24 | 72145-S73-003 | Cylinder - R. DOOR | Cylinder - R. DOOR |
| 19 | 72146-S10-003 | Cover - BATTERY | Cover - BATTERY |
| 26 | 72146-S73-003 | Cylinder - L. DOOR | Cylinder - L. DOOR |
| 21 | 72148-S10-003 | Battery - CR2025 | Battery - CR2025 |
| 21 | 72148-S84-A10 | Battery - CR2025 | Battery - CR2025 |
| 22 | 72149-S10-003 | O-ring | O-ring |
| 56 | 72154-S86-K01 | Seat - L. OUTSIDE HANDLE | Seat - L. OUTSIDE HANDLE |
| 29 | 72157-S84-A01 | Protector - L. FR. DOOR LOCK | Protector - L. FR. DOOR LOCK |
| 30 | 72158-S84-A00 | Protector - L. FR. DOOR LOCK (POWER) | Protector - L. FR. DOOR LOCK (POWER) |
| 32 | 72170-S84-A00 | Protector - L. FR. DOOR OUTER HANDLE | Protector - L. FR. DOOR OUTER HANDLE |
| 33 | 72171-S84-A01 | Rod - L. FR. INSIDE HANDLE | Rod - L. FR. INSIDE HANDLE |
| 34 | 72175-SH3-003 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 6 | 72175-SH3-901 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 1 | 72206-SA5-000 | Cap - FLOOR HOLE, 53MM | Cap - FLOOR HOLE, 53MM |
| 4 | 72230-S84-A01 | Sash - R. FR. DOOR FR. LOWER | Sash - R. FR. DOOR FR. LOWER |
| 24 | 72231-S84-A01 | Sash - R. FR. DOOR CENTER LOWER | Sash - R. FR. DOOR CENTER LOWER |
| 6 | 72235-S84-A01 | Runchannel - R. FR. DOOR | Runchannel - R. FR. DOOR |
| 25 | 72239-S84-A01 | Runchannel - FR. DOOR LOWER | Runchannel - FR. DOOR LOWER |
| 9 | 72270-S84-A01 | Sash - L. FR. DOOR FR. LOWER | Sash - L. FR. DOOR FR. LOWER |
| 26 | 72271-S84-A01 | Sash - L. FR. DOOR CENTER LOWER | Sash - L. FR. DOOR CENTER LOWER |
| 11 | 72275-S84-A01 | Runchannel - L. FR. DOOR | Runchannel - L. FR. DOOR |
| 7 | 72310-S84-A01 | Weatherstrip - R. FR. DOOR | Weatherstrip - R. FR. DOOR |
| 8 | 72321-S4K-010 | Seal - R. FR. DOOR HOLE | Seal - R. FR. DOOR HOLE |
| 9 | 72325-S84-A01 | Sub seal - R. FR. DOOR | Sub seal - R. FR. DOOR |
| 10 | 72326-S84-A02 | Weatherstrip - FR. LOWER | Weatherstrip - FR. LOWER |
| 6 | 72335-S84-A01 | Weatherstrip - R. FR. DOOR INNER | Weatherstrip - R. FR. DOOR INNER |
| 11 | 72340-S4K-003 | Checker comp. - R. FR. DOOR | Checker comp. - R. FR. DOOR |
| 12 | 72350-S84-A01 | Weatherstrip - L. FR. DOOR | Weatherstrip - L. FR. DOOR |
| 35 | 72361-S4K-010 | Seal - L. FR. DOOR HOLE | Seal - L. FR. DOOR HOLE |
| 13 | 72365-S84-A01 | Sub seal - L. FR. DOOR | Sub seal - L. FR. DOOR |
| 7 | 72375-S84-A01 | Weatherstrip - L. FR. DOOR INNER | Weatherstrip - L. FR. DOOR INNER |
| 14 | 72380-S4K-003 | Checker comp. - L. FR. DOOR | Checker comp. - L. FR. DOOR |
| 1 | 72410-S84-A01 | Molding assy. - R. FR. DOOR | Molding assy. - R. FR. DOOR |
| 2 | 72420-S84-A01 | Molding - R. DRIP ROOF | Molding - R. DRIP ROOF |
| 3 | 72430-S4K-000 | Garnish - R. FR. DOOR SASH | Garnish - R. FR. DOOR SASH |
| 4 | 72450-S84-A01 | Molding assy. - L. FR. DOOR | Molding assy. - L. FR. DOOR |
| 5 | 72460-S84-A01 | Molding - L. DRIP ROOF | Molding - L. DRIP ROOF |
| 6 | 72470-S4K-000 | Garnish - L. FR. DOOR SASH | Garnish - L. FR. DOOR SASH |
| 7 | 72610-S84-A01 | Lock assy - R. RR. DOOR | Lock assy - R. RR. DOOR |
| 8 | 72612-S84-A00 | Cap - R. CHILD LOCK | Cap - R. CHILD LOCK |
| 9 | 72615-S84-A01 | R. RR. DOOR LOCK ACTUATOR ASSY | R. RR. DOOR LOCK ACTUATOR ASSY |
| 38 | 72616-SM4-003 | Snap - NATURAL | Snap - NATURAL |
| 12 | 72617-S84-A01 | Protector - R. RR. DOOR LOCK | Protector - R. RR. DOOR LOCK |
| 14 | 72630-S0A-003 | Crank assy - LOCK ROD | Crank assy - LOCK ROD |
| 15 | 72631-S84-A01 | Rod - R. RR. INSIDE HANDLE | Rod - R. RR. INSIDE HANDLE |
| 16 | 72632-S84-A01 | Rod - R. RR. DOOR LOCK | Rod - R. RR. DOOR LOCK |
| 17 | 72633-S84-A01 | Rod - RR. DOOR LOCK KNOB | Rod - RR. DOOR LOCK KNOB |
| 19 | 72634-S84-A01 | Rod - R. RR. DOOR ACTUATOR | Rod - R. RR. DOOR ACTUATOR |
| 40 | 72634-SM4-003 | Snap - R. (BLUE) | Snap - R. (BLUE) |
| 9 | 72635-S84-A00 | Hook - DOOR PIN | Hook - DOOR PIN |
| 20 | 72639-S84-A01 | Protector - R. RR. DOOR ROD | Protector - R. RR. DOOR ROD |
| 22 | 72645-S84-A00 | Protector - R. RR. DOOR OUTSIDE HANDLE | Protector - R. RR. DOOR OUTSIDE HANDLE |
| 23 | 72650-S84-A01 | Lock assy - L. RR. DOOR | Lock assy - L. RR. DOOR |
| 24 | 72652-S84-A00 | Cap - L. CHILD LOCK | Cap - L. CHILD LOCK |
| 25 | 72655-S84-A01 | L. RR. DOOR LOCK ACTUATOR ASSY | L. RR. DOOR LOCK ACTUATOR ASSY |
| 26 | 72657-S84-A01 | Protector - L. RR. DOOR LOCK | Protector - L. RR. DOOR LOCK |
| 28 | 72671-S84-A01 | Rod - L. RR. INSIDE HANDLE | Rod - L. RR. INSIDE HANDLE |
| 29 | 72672-S84-A01 | Rod - L. RR. DOOR LOCK | Rod - L. RR. DOOR LOCK |
| 31 | 72674-S84-A01 | Rod - L. RR. DOOR ACTUATOR | Rod - L. RR. DOOR ACTUATOR |
| 42 | 72674-SM4-003 | Snap - L. (BROWN) | Snap - L. (BROWN) |
| 32 | 72679-S84-A01 | Protector - L. RR. DOOR ROD | Protector - L. RR. DOOR ROD |
| 34 | 72685-S84-A00 | Protector - L. RR. DOOR OUTSIDE HANDLE | Protector - L. RR. DOOR OUTSIDE HANDLE |
| 1 | 72711-S84-A01 | Regulator - R. RR. DOOR POWER | Regulator - R. RR. DOOR POWER |
| 2 | 72715-S84-A01 | Motor assy. - R. RR. WINDOW | Motor assy. - R. RR. WINDOW |
| 27 | 72730-S84-A01 | Sash - R. RR. DOOR FR. LOWER | Sash - R. RR. DOOR FR. LOWER |
| 3 | 72731-S4K-003 | Sash - R. RR. DOOR CENTER | Sash - R. RR. DOOR CENTER |
| 5 | 72735-S84-A01 | Runchannel - R. RR. DOOR | Runchannel - R. RR. DOOR |
| 6 | 72737-SR4-000 | Collar a - RR. DOOR PANEL LOWER | Collar a - RR. DOOR PANEL LOWER |
| 28 | 72739-S84-A01 | Runchannel - RR. DOOR LOWER | Runchannel - RR. DOOR LOWER |
| 7 | 72751-S84-A01 | Regulator - L. RR. DOOR POWER | Regulator - L. RR. DOOR POWER |
| 8 | 72755-S84-A01 | Motor assy. - L. RR. WINDOW | Motor assy. - L. RR. WINDOW |
| 29 | 72770-S84-A01 | Sash - L. RR. DOOR FR. LOWER | Sash - L. RR. DOOR FR. LOWER |
| 9 | 72771-S4K-003 | Sash - L. RR. DOOR CENTER | Sash - L. RR. DOOR CENTER |
| 11 | 72775-S84-A01 | Runchannel - L. RR. DOOR | Runchannel - L. RR. DOOR |
| 10 | 72810-S84-A01 | Weatherstrip - R. RR. DOOR | Weatherstrip - R. RR. DOOR |
| 11 | 72821-S4K-010 | Seal - R. RR. DOOR HOLE | Seal - R. RR. DOOR HOLE |
| 12 | 72825-S84-A01 | Sub seal - R. RR. DOOR | Sub seal - R. RR. DOOR |
| 13 | 72826-S84-A02 | Weatherstrip - RR. LOWER | Weatherstrip - RR. LOWER |
| 4 | 72835-S84-A01 | Weatherstrip - R. RR. DOOR INNER | Weatherstrip - R. RR. DOOR INNER |
| 14 | 72840-S4K-003 | Checker comp. - R. DOOR | Checker comp. - R. DOOR |
| 15 | 72850-S84-A01 | Weatherstrip - L. RR. DOOR | Weatherstrip - L. RR. DOOR |
| 35 | 72861-S4K-010 | Seal - L. RR. DOOR HOLE | Seal - L. RR. DOOR HOLE |
| 16 | 72865-S84-A01 | Sub seal - L. RR. DOOR | Sub seal - L. RR. DOOR |
| 5 | 72875-S84-A01 | Weatherstrip - L. RR. DOOR INNER | Weatherstrip - L. RR. DOOR INNER |
| 17 | 72880-S4K-003 | Checker comp. - L. DOOR | Checker comp. - L. DOOR |
| 7 | 72910-S84-A01 | Molding assy. - R. RR. DOOR | Molding assy. - R. RR. DOOR |
| 8 | 72920-S84-A01 | Molding - R. RR. PILLAR | Molding - R. RR. PILLAR |
| 9 | 72930-S4K-000 | Garnish - R. RR. DOOR SASH | Garnish - R. RR. DOOR SASH |
| 10 | 72950-S84-A01 | Molding assy. - L. RR. DOOR | Molding assy. - L. RR. DOOR |
| 11 | 72960-S84-A01 | Molding - L. RR. PILLAR | Molding - L. RR. PILLAR |
| 12 | 72970-S4K-000 | Garnish - L. RR. DOOR SASH | Garnish - L. RR. DOOR SASH |
| 5 | 73128-S84-A00 | Fabric - NON WOVEN | Fabric - NON WOVEN |
| 1 | 73129-S84-A00 | Fabric - NON WOVEN | Fabric - NON WOVEN |
| 6 | 73150-S84-A02 | Molding - FR. WINDSHIELD | Molding - FR. WINDSHIELD |
| 2 | 73201-S4K-A00 | Glass set - RR. WINDSHIELD (GREEN) (ASAHI) | Glass set - RR. WINDSHIELD (GREEN) (ASAHI) |
| 6 | 73219-693-951 | Seal - FUEL LID OPENER (GREEN) | Seal - FUEL LID OPENER (GREEN) |
| 4 | 73224-SW5-A01 | Base - TERMINAL COVER | Base - TERMINAL COVER |
| 5 | 73250-S84-A01 | Molding - RR. WINDSHIELD | Molding - RR. WINDSHIELD |
| 12 | 73400-S4K-J00 | Glass assy - R. RR. DOOR (GREEN) (ASAHI) | Glass assy - R. RR. DOOR (GREEN) (ASAHI) |
| 13 | 73405-S4K-J00 | Glass - R. RR. DOOR QUARTER (GREEN) (ASAHI) | Glass - R. RR. DOOR QUARTER (GREEN) (ASAHI) |
| 14 | 73441-S84-A02 | Seal - R. RR. DOOR QUARTER | Seal - R. RR. DOOR QUARTER |
| 15 | 73450-S4K-J00 | Glass assy - L. RR. DOOR (GREEN) (ASAHI) | Glass assy - L. RR. DOOR (GREEN) (ASAHI) |
| 16 | 73455-S4K-J00 | Glass - L. RR. DOOR QUARTER (GREEN) (ASAHI) | Glass - L. RR. DOOR QUARTER (GREEN) (ASAHI) |
| 17 | 73491-S84-A01 | Seal - L. RR. DOOR QUARTER | Seal - L. RR. DOOR QUARTER |
| 13 | 73821-S84-A01 | Clip A | Clip A |
| 4 | 74101-S84-A00 | Fender - R. FR. INNER | Fender - R. FR. INNER |
| 5 | 74111-S84-000 | Shield - FR. SPLASH | Shield - FR. SPLASH |
| 4 | 74120-S84-A01 | Lock assy - HOOD | Lock assy - HOOD |
| 5 | 74121-S84-A00 | Rubber - HOOD SEAL | Rubber - HOOD SEAL |
| 6 | 74125-S84-A00 | Cover - HOOD LOCK | Cover - HOOD LOCK |
| 8 | 74134-SM4-000 | Grommet - HOOD WIRE | Grommet - HOOD WIRE |
| 10 | 74141-S87-A00 | Insulator - HOOD | Insulator - HOOD |
| 12 | 74143-S84-A00 | Rubber - RR. HOOD SEAL | Rubber - RR. HOOD SEAL |
| 13 | 74145-S4K-A00 | Stay - HOOD OPENER | Stay - HOOD OPENER |
| 6 | 74151-S84-A00 | Fender - L. FR. INNER | Fender - L. FR. INNER |
| 16 | 74171-S84-A00 | Bracket - RADIATOR MOUNT UPPER | Bracket - RADIATOR MOUNT UPPER |
| 18 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 13 | 74190-S84-A00 | Bracket - R. FR. | Bracket - R. FR. |
| 14 | 74195-S84-A00 | Bracket - L. FR. | Bracket - L. FR. |
| 20 | 74214-S84-A00 | Cover - R. HOOD HINGE | Cover - R. HOOD HINGE |
| 21 | 74231-S84-A00 | Valve - DRAIN | Valve - DRAIN |
| 22 | 74264-S84-A00 | Cover - L. HOOD HINGE | Cover - L. HOOD HINGE |
| 14 | 74306-S84-003 | Molding assy. - R. ROOF | Molding assy. - R. ROOF |
| 15 | 74308-ST0-003 | Bracket - ROOF MOLDING | Bracket - ROOF MOLDING |
| 16 | 74316-S84-003 | Molding assy. - L. ROOF | Molding assy. - L. ROOF |
| 29 | 74494-S84-A10 | Spring - FUEL LID OPEN | Spring - FUEL LID OPEN |
| 20 | 74601-S4K-A01 | Plate - FLOOR HEAT BAFFLE | Plate - FLOOR HEAT BAFFLE |
| 21 | 74651-S4K-A00 | Plate - TANK BAFFLE | Plate - TANK BAFFLE |
| 22 | 74653-S4K-A00 | Plate - SILENCER BAFFLE | Plate - SILENCER BAFFLE |
| 32 | 74660-S84-A10 | Cap assy. - FLOOR MAINTENANCE HOLE | Cap assy. - FLOOR MAINTENANCE HOLE |
| 13 | 74666-SX0-000 | Adapter - ANCHOR BOLT | Adapter - ANCHOR BOLT |
| 7 | 74822-SW5-003 | Cushion - TRUNK HINGE | Cushion - TRUNK HINGE |
| 8 | 74826-S84-A00 | Protector - RR. COMBINATION | Protector - RR. COMBINATION |
| 10 | 74829-S84-A00 | Stopper - TRUNK LID | Stopper - TRUNK LID |
| 12 | 74851-S84-A61 | Lock - TRUNK LID | Lock - TRUNK LID |
| 13 | 74861-S84-A02 | Cylinder - TRUNK | Cylinder - TRUNK |
| 14 | 74862-S84-A01 | Striker assy - TRUNK | Striker assy - TRUNK |
| 15 | 74863-S84-G01 | Rod - TRUNK LOCK | Rod - TRUNK LOCK |
| 16 | 74864-S30-003 | Cover | Cover |
| 17 | 74865-S4K-000 | Weatherstrip - TRUNK LID | Weatherstrip - TRUNK LID |
| 18 | 74867-SW5-003 | Holder - ROD | Holder - ROD |
| 21 | 74873-SM4-003 | Clip - TRUNK OPENER SPRING | Clip - TRUNK OPENER SPRING |
| 24 | 74886-SH4-A03 | Cylinder - TRUNK REMOTE CONTROL | Cylinder - TRUNK REMOTE CONTROL |
| 25 | 74898-S84-A00 | Cover - TRUNK DYNAMIC DAMPER | Cover - TRUNK DYNAMIC DAMPER |
| 26 | 74899-S84-A01 | Damper - TRUNK DYNAMIC | Damper - TRUNK DYNAMIC |
| 5 | 75306-SV1-A01 | Clip - SIDE PROTECTOR (B) | Clip - SIDE PROTECTOR (B) |
| 27 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 43 | 75411-634-000 | Joint | Joint |
| 30 | 75450-SF1-900 | Outlet assy - RR. AIR | Outlet assy - RR. AIR |
| 18 | 75513-S84-A00 | Cushion - LOCK ROD | Cushion - LOCK ROD |
| 5 | 75701-S84-A01 | Emblem - RR. CENTER (H) | Emblem - RR. CENTER (H) |
| 8 | 75722-S84-A00 | Emblem - RR. (ACCORD) | Emblem - RR. (ACCORD) |
| 15 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 9 | 76400-S84-A01 | Mirror assy - RR. VIEW (DAY/NIGHT) | Mirror assy - RR. VIEW (DAY/NIGHT) |
| 11 | 76441-S84-A01 | Spring | Spring |
| 3 | 76516-S84-A01 | Rubber - MOUNTING | Rubber - MOUNTING |
| 2 | 76516-SR3-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 4 | 76517-SM4-003 | Collar | Collar |
| 5 | 76520-S84-A01 | Link assy | Link assy |
| 6 | 76524-SD4-003 | Dust seal | Dust seal |
| 7 | 76524-SE0-013 | Dust seal | Dust seal |
| 9 | 76540-S84-A01 | Rod unit a | Rod unit a |
| 11 | 76561-S84-A01 | Cap - PIVOT | Cap - PIVOT |
| 15 | 76622-S84-A01 | Rubber - BLADE (600MM) | Rubber - BLADE (600MM) |
| 17 | 76632-S84-A01 | Rubber - BLADE (475MM) | Rubber - BLADE (475MM) |
| 3 | 76802-SV1-004 | Cap unit - MOUTH | Cap unit - MOUTH |
| 4 | 76807-SE4-A02 | Packing - T-TYPE) (DENSO | Packing - T-TYPE) (DENSO |
| 6 | 76813-S84-A02 | Packing | Packing |
| 8 | 76828-SH0-A02 | Joint l, WASHER TUBE (DENSO) | Joint l, WASHER TUBE (DENSO) |
| 9 | 76830-SR0-004 | Joint y - TUBE (DENSO) | Joint y - TUBE (DENSO) |
| 10 | 76840-S84-E02 | Tank set - WASHER | Tank set - WASHER |
| 11 | 76842-SE4-A02 | Bush - WASHER TANK (DENSO) | Bush - WASHER TANK (DENSO) |
| 8 | 77107-S84-A00 | Seal a | Seal a |
| 9 | 77108-S84-A00 | Seal b | Seal b |
| 43 | 77109-S84-A00 | Cushion - INSTRUMENT | Cushion - INSTRUMENT |
| 2 | 77209-SB0-003 | Washer - NYLON | Washer - NYLON |
| 8 | 77234-SV4-003 | Clip | Clip |
| 9 | 77235-S84-A01 | Latch - G-SENSOR | Latch - G-SENSOR |
| 12 | 77251-S84-A01 | Seal | Seal |
| 20 | 77355-S84-A00 | Blind - COLUMN | Blind - COLUMN |
| 22 | 77371-SV4-000 | Ring - COLUMN COVER | Ring - COLUMN COVER |
| 4 | 77460-S84-A01 | Duct assy - FR. DEFROSTER | Duct assy - FR. DEFROSTER |
| 7 | 77466-SV4-000 | Seal - FR. INSTRUMENT | Seal - FR. INSTRUMENT |
| 1 | 77517-SA5-014 | Cap - SLIDE ADJUSTER | Cap - SLIDE ADJUSTER |
| 23 | 77520-SL0-A01 | Cylinder - GLOVE BOX | Cylinder - GLOVE BOX |
| 2 | 77520-SL9-003 | Cylinder - GLOVE BOX | Cylinder - GLOVE BOX |
| 32 | 77730-SR3-003 | Holder comp - FR. ASHTRAY | Holder comp - FR. ASHTRAY |
| 34 | 77754-S84-A01 | Holder assy. - COIN | Holder assy. - COIN |
| 7 | 77873-S04-G80 | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH) |
| 22 | 77875-S84-G80 | Label - SRS CAUTION | Label - SRS CAUTION |
| 3 | 77900-S84-X31 | Reel assy - CABLE (SUMITOMO) | Reel assy - CABLE (SUMITOMO) |
| 4 | 77907-S84-A01 | Holder - CONNECTOR (4P) | Holder - CONNECTOR (4P) |
| 8 | 78105-S84-003 | Socket assy - BULB | Socket assy - BULB |
| 9 | 78110-S84-A01 | Case - NS | Case - NS |
| 10 | 78120-S84-G01 | Speedometer assy | Speedometer assy |
| 11 | 78125-S84-G01 | Tachometer assy. | Tachometer assy. |
| 14 | 78150-S84-A01 | Knob - TRIP | Knob - TRIP |
| 15 | 78151-S84-A01 | Knob - ILLUMINATION CONTROL | Knob - ILLUMINATION CONTROL |
| 16 | 78155-S84-A01 | Visor - METER | Visor - METER |
| 17 | 78166-S84-A01 | Cover | Cover |
| 18 | 78170-S84-A01 | Lens - METER | Lens - METER |
| 3 | 78182-SA0-000 | Clip - RR. SEAT PIN | Clip - RR. SEAT PIN |
| 21 | 78190-S02-J51 | Panel - CARBURETOR PRINT | Panel - CARBURETOR PRINT |
| 4 | 78516-S84-S61 | Plate - HOOK | Plate - HOOK |
| 10 | 78520-S84-S61 | Damper - DYNAMIC | Damper - DYNAMIC |
| 2 | 79191-SZ3-A01 | Nut - HOLDER | Nut - HOLDER |
| 3 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 8 | 79195-S84-A01 | Holder - ROD | Holder - ROD |
| 6 | 79312-S84-A01 | Cover | Cover |
| 18 | 79746-S84-A00 | Clamp - HEATER HOSE | Clamp - HEATER HOSE |
| 11 | 79760-SE0-000 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 5 | 80100-S84-A00 | Condenser assy - SHOWA | Condenser assy - SHOWA |
| 6 | 80107-SS0-000 | Mount - CONDENSER UPPER | Mount - CONDENSER UPPER |
| 7 | 80111-S84-A00 | Bracket - CONDENSER MOUNT UPPER | Bracket - CONDENSER MOUNT UPPER |
| 8 | 80175-SE0-000 | Mount - CONDENSER | Mount - CONDENSER |
| 6 | 80203-S84-A00 | Lid - EVAPORATOR UPPER CASE | Lid - EVAPORATOR UPPER CASE |
| 7 | 80204-S84-A00 | Holder - EVAPORATOR | Holder - EVAPORATOR |
| 10 | 80207-S84-A00 | Insulator | Insulator |
| 11 | 80214-SL5-A01 | Insulator - EXPANSION | Insulator - EXPANSION |
| 13 | 80216-S84-A01 | Pipe - LIQUID | Pipe - LIQUID |
| 14 | 80220-S84-A02 | Valve assy. - EXPANSION (10N) (FUJI KOKI AMERICA) | Valve assy. - EXPANSION (10N) (FUJI KOKI AMERICA) |
| 15 | 80223-ST7-A11 | O-ring - FUJI KOKI AMERICA | O-ring - FUJI KOKI AMERICA |
| 16 | 80225-SR3-010 | Clamp | Clamp |
| 17 | 80286-S84-A00 | Seal - EVAPORATOR INNER | Seal - EVAPORATOR INNER |
| 18 | 80287-S84-A00 | Seal - EVAPORATOR OUTER | Seal - EVAPORATOR OUTER |
| 19 | 80288-S84-A00 | Seal - EVAPORATOR PIPE | Seal - EVAPORATOR PIPE |
| 20 | 80289-S84-A00 | Seal - DRAIN | Seal - DRAIN |
| 3 | 80315-S84-A01 | Hose comp. - DISCHARGE (PARKER) | Hose comp. - DISCHARGE (PARKER) |
| 6 | 80351-S84-E01 | Receiver comp | Receiver comp |
| 7 | 80352-S84-A00 | Bracket - LIQUID TANK | Bracket - LIQUID TANK |
| 9 | 80365-S84-A00 | Clamp - SUCTION PIPE | Clamp - SUCTION PIPE |
| 11 | 80381-SV7-A01 | Clamp - RECEIVER PIPE | Clamp - RECEIVER PIPE |
| 13 | 80440-SS0-901 | Switch - DUAL PRESSURE (FUJI) | Switch - DUAL PRESSURE (FUJI) |
| 21 | 80560-SV4-A41 | Sensor - EVAPORATOR | Sensor - EVAPORATOR |
| 22 | 80566-SR3-003 | Clip - EVAPORATOR SENSOR | Clip - EVAPORATOR SENSOR |
| 14 | 80865-S84-003 | Cap h - VALVE | Cap h - VALVE |
| 15 | 80866-ST7-A11 | Cap l - VALVE (PARKER) | Cap l - VALVE (PARKER) |
| 16 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 23 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 24 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 3 | 81117-S47-003 | Bush - NYLON(TS TECH) | Bush - NYLON(TS TECH) |
| 46 | 81136-S84-A03 | Frame comp - FR. SEAT CUSHION (TS TECH) | Frame comp - FR. SEAT CUSHION (TS TECH) |
| 5 | 81262-S84-A01 | Cap - SLIDE ADJUSTER END | Cap - SLIDE ADJUSTER END |
| 6 | 81272-S84-A01 | Cap - SLIDE ADJUSTER UPPER END | Cap - SLIDE ADJUSTER UPPER END |
| 25 | 81322-SP0-003 | Clip - LUMBAR SUPPORT | Clip - LUMBAR SUPPORT |
| 6 | 81491-S84-A10 | Protector - R. FR. SEATBELT | Protector - R. FR. SEATBELT |
| 7 | 81550-S4K-A01 | Slide comp. - L. RECLINING OUTER | Slide comp. - L. RECLINING OUTER |
| 9 | 81670-S4K-A01 | Adjuster - L. INNER SLIDE | Adjuster - L. INNER SLIDE |
| 9 | 81891-S84-A10 | Protector - L. FR. SEATBELT | Protector - L. FR. SEATBELT |
| 7 | 82122-S4K-B02 | Pad & frame comp. - RR. SEATBACK (TS TECH) | Pad & frame comp. - RR. SEATBACK (TS TECH) |
| 9 | 82129-SM4-A00 | Collar c | Collar c |
| 11 | 82132-S4K-A01 | Pad & frame comp. - RR. SEAT CUSHION (TS TECH) | Pad & frame comp. - RR. SEAT CUSHION (TS TECH) |
| 12 | 82137-S84-A01 | Clip - RR. SEAT CUSHION | Clip - RR. SEAT CUSHION |
| 15 | 82152-S4K-A11 | Pad & frame comp. - R. RR. SEATBACK SIDE (TS TECH) | Pad & frame comp. - R. RR. SEATBACK SIDE (TS TECH) |
| 17 | 82186-S4K-A12 | Lid assy - RR. ARMREST | Lid assy - RR. ARMREST |
| 19 | 82188-S4K-A12 | Lid assy | Lid assy |
| 20 | 82189-SV1-L32 | Damper | Damper |
| 21 | 82220-S84-A01 | Lock assy - RR. SEAT | Lock assy - RR. SEAT |
| 22 | 82225-S84-A01 | Bracket - RR. SEAT CYLINDER | Bracket - RR. SEAT CYLINDER |
| 23 | 82226-S84-A01 | Cylinder - RR. SEAT | Cylinder - RR. SEAT |
| 25 | 82290-S84-A02 | Bracket comp. - R. SEAT PIVOT | Bracket comp. - R. SEAT PIVOT |
| 14 | 82456-S84-A00 | Protector - RR. CENTER SEATBELT | Protector - RR. CENTER SEATBELT |
| 28 | 82552-S4K-A11 | Pad & frame comp. - L. RR. SEATBACK SIDE (TS TECH) | Pad & frame comp. - L. RR. SEATBACK SIDE (TS TECH) |
| 29 | 82690-S84-A02 | Bracket comp. - L. SEAT PIVOT | Bracket comp. - L. SEAT PIVOT |
| 22 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 17 | 83202-S84-A01 | O-flex - R. SIDE ROOF | O-flex - R. SIDE ROOF |
| 5 | 83202-SZ3-000 | Clip - ROOF LINING | Clip - ROOF LINING |
| 6 | 83203-S84-A01 | O-flex - R. SIDE ROOF | O-flex - R. SIDE ROOF |
| 18 | 83252-S84-A01 | O-flex - L. SIDE ROOF | O-flex - L. SIDE ROOF |
| 10 | 83253-S84-A01 | O-flex - L. SIDE ROOF | O-flex - L. SIDE ROOF |
| 5 | 83331-S84-A00 | Duct - RR. HEATER | Duct - RR. HEATER |
| 15 | 83402-S84-G01 | Bracket comp. - CENTER CONSOLE | Bracket comp. - CENTER CONSOLE |
| 20 | 83408-SS0-J00 | Lock - ARMREST | Lock - ARMREST |
| 21 | 83410-S84-A01 | Hinge comp - ARMREST | Hinge comp - ARMREST |
| 9 | 83508-S03-000 | Bracket - PULL POCKET | Bracket - PULL POCKET |
| 14 | 83853-S84-A00 | Bolt - ANCHOR | Bolt - ANCHOR |
| 8 | 84525-S84-E00 | Spacer - R. TRUNK | Spacer - R. TRUNK |
| 10 | 84575-S84-E00 | Spacer - L. TRUNK | Spacer - L. TRUNK |
| 3 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 25 | 88324-SB3-950 | Cover - RR. ASHTRAY | Cover - RR. ASHTRAY |
| 3 | 89101-SW5-003 | Bag - TOOL | Bag - TOOL |
| 4 | 89211-S05-003 | Wrench - WHEEL | Wrench - WHEEL |
| 6 | 89310-S4K-003 | Jack assy - PANTOGRAPH | Jack assy - PANTOGRAPH |
| 7 | 89311-S4K-003 | Plate - JACK CAUTION | Plate - JACK CAUTION |
| 8 | 89320-S05-003 | Bar - JACK | Bar - JACK |
| 10 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 16 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 15 | 90002-P0A-000 | Bolt - FLANGE, 8X76 | Bolt - FLANGE, 8X76 |
| 19 | 90002-PD2-000 | Bolt - FLANGE, 8X16 | Bolt - FLANGE, 8X16 |
| 21 | 90002-S10-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 30 | 90003-692-000 | Bolt - FLANGE, 6X16 | Bolt - FLANGE, 6X16 |
| 10 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
| 16 | 90004-P2J-000 | Bolt - SEALING, 10MM | Bolt - SEALING, 10MM |
| 7 | 90004-P30-000 | Bolt - SPECIAL, 8MM | Bolt - SPECIAL, 8MM |
| 5 | 90005-P0A-000 | Bolt-washer - 10X22 | Bolt-washer - 10X22 |
| 17 | 90005-PAA-A01 | Bolt-washer - 12X163 | Bolt-washer - 12X163 |
| 18 | 90006-PAA-A01 | Bolt-washer - 12X199 | Bolt-washer - 12X199 |
| 16 | 90007-679-000 | Bolt a - TIMING BELT COVER | Bolt a - TIMING BELT COVER |
| 17 | 90007-PAA-T01 | Bolt-washer - 11X121 | Bolt-washer - 11X121 |
| 19 | 90008-P0A-000 | Bolt - MOUNTING BRACKET, 10X53 | Bolt - MOUNTING BRACKET, 10X53 |
| 18 | 90008-PM3-000 | Bolt - MOUNTING BRACKET, 10X32.5 | Bolt - MOUNTING BRACKET, 10X32.5 |
| 21 | 90009-P0A-000 | Bolt b - MOUNTING BRACKET, 10X56.2 | Bolt b - MOUNTING BRACKET, 10X56.2 |
| 20 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 6 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 18 | 90011-896-000 | Bolt - FLANGE, 6X8 | Bolt - FLANGE, 6X8 |
| 9 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 8 | 90013-P0A-000 | Bolt a - HEAD COVER | Bolt a - HEAD COVER |
| 9 | 90014-P08-000 | Bolt b - HEAD COVER | Bolt b - HEAD COVER |
| 19 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 17 | 90015-PT0-000 | Bolt - TIMING BELT ADJUSTER SPRING | Bolt - TIMING BELT ADJUSTER SPRING |
| 7 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 18 | 90016-P0A-000 | Bolt - TIMING BELT ADJUSTER | Bolt - TIMING BELT ADJUSTER |
| 18 | 90017-PY3-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 18 | 90017-RJA-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 20 | 90018-PT0-010 | Bolt - BALANCER BELT ADJUSTER | Bolt - BALANCER BELT ADJUSTER |
| 19 | 90019-PT0-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 15 | 90023-P8A-A00 | Bolt - FLANGE, 8X85 | Bolt - FLANGE, 8X85 |
| 23 | 90023-PK1-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
| 23 | 90023-PR7-A01 | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) |
| 21 | 90023-PT0-003 | Bolt-washer - 8X33 | Bolt-washer - 8X33 |
| 19 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
| 20 | 90027-P0A-003 | Bolt a - FUEL PIPE | Bolt a - FUEL PIPE |
| 20 | 90027-P0A-305 | Bolt a | Bolt a |
| 22 | 90030-PT0-000 | Bolt - STUD, 10X35 | Bolt - STUD, 10X35 |
| 20 | 90031-PT0-003 | Bolt-washer - 8X22 | Bolt-washer - 8X22 |
| 19 | 90031-PV0-003 | Bolt-washer - 10X30 | Bolt-washer - 10X30 |
| 19 | 90031-PV0-305 | Bolt-washer (10x30) | Bolt-washer (10x30) |
| 20 | 90032-ZW5-003 | Bolt-washer, 8x22 | Bolt-washer, 8x22 |
| 11 | 90041-P5A-003 | Screw-washer - 4X11 | Screw-washer - 4X11 |
| 23 | 90041-PAA-A00 | Bolt - STUD, 12X101 | Bolt - STUD, 12X101 |
| 10 | 90041-PAA-A01 | Nut - TOOTHED, 5MM | Nut - TOOTHED, 5MM |
| 24 | 90041-PCA-000 | Bolt - STUD, 6X32 | Bolt - STUD, 6X32 |
| 5 | 90041-PM5-A01 | Screw-washer - 5X8 | Screw-washer - 5X8 |
| 12 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 13 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 16 | 90051-PE0-000 | Bolt - FLANGE, 12X70 | Bolt - FLANGE, 12X70 |
| 25 | 90051-PH7-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 20 | 90051-PT0-000 | Bolt - SUB BELT ADJUSTER SPRING | Bolt - SUB BELT ADJUSTER SPRING |
| 22 | 90052-PK1-000 | Bolt - FLANGE, 6X25 | Bolt - FLANGE, 6X25 |
| 26 | 90061-PT0-000 | Bolt - DRAIN PLUG, 12MM | Bolt - DRAIN PLUG, 12MM |
| 23 | 90063-PC6-000 | Bolt - STUD, 6X25 | Bolt - STUD, 6X25 |
| 8 | 90065-PC1-300 | Bolt - STUD, 10X34.5 | Bolt - STUD, 10X34.5 |
| 19 | 90101-S03-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 33 | 90101-S84-000 | Bolt-washer - 5X10 | Bolt-washer - 5X10 |
| 16 | 90101-S84-A00 | Screw - ET, 6X16 | Screw - ET, 6X16 |
| 27 | 90101-S84-G00 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 16 | 90101-SZ3-000 | Bolt - FLANGE, 8X22 (8.5MM) | Bolt - FLANGE, 8X22 (8.5MM) |
| 22 | 90102-SZ3-000 | Bolt - FLANGE, 8X22 (10.5MM) | Bolt - FLANGE, 8X22 (10.5MM) |
| 32 | 90103-SM4-010 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 32 | 90103-SV4-003 | Bolt - FLANGE, 10X30 | Bolt - FLANGE, 10X30 |
| 31 | 90104-S84-A00 | Bolt - RR. DOOR CATCHER, 8X20 | Bolt - RR. DOOR CATCHER, 8X20 |
| 30 | 90104-SV4-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 8 | 90105-S50-003 | Bolt - FLANGE, 8X28 | Bolt - FLANGE, 8X28 |
| 29 | 90105-SV1-000 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 31 | 90106-S84-A00 | Bolt-washer - 8X40 | Bolt-washer - 8X40 |
| 25 | 90106-SE1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 21 | 90106-SW3-003 | Grommet - BUMPER SETTING | Grommet - BUMPER SETTING |
| 22 | 90107-S0X-A01 | Grommet - BUMPER END | Grommet - BUMPER END |
| 19 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 33 | 90108-S0A-003 | Bolt - FLANGE, 6X15 | Bolt - FLANGE, 6X15 |
| 16 | 90108-S0A-J00 | Bolt - GEAR BOX MOUNTING | Bolt - GEAR BOX MOUNTING |
| 32 | 90108-S84-A00 | Bolt-washer - 8MM(SRS) | Bolt-washer - 8MM(SRS) |
| 23 | 90108-SW3-003 | Clip - BUMPER SETTING | Clip - BUMPER SETTING |
| 45 | 90109-S84-A00 | Bolt - FLANGE, 8X40 | Bolt - FLANGE, 8X40 |
| 29 | 90109-SM4-000 | Bolt - SPECIAL, 6X35 | Bolt - SPECIAL, 6X35 |
| 24 | 90109-SS0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 42 | 90110-S84-A00 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 25 | 90110-SE7-000 | Bolt-washer - 8X21 | Bolt-washer - 8X21 |
| 20 | 90113-S84-901 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 33 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 13 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 9 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 24 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 22 | 90117-S0A-000 | Bolt - DAMPER LOCK(10X44) | Bolt - DAMPER LOCK(10X44) |
| 23 | 90118-S0A-000 | Bolt - FR. LOWER ARM (12X84) | Bolt - FR. LOWER ARM (12X84) |
| 44 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 45 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 24 | 90121-S0A-000 | Bolt - DAMPER FORK(12X98) | Bolt - DAMPER FORK(12X98) |
| 8 | 90121-SJ6-003 | Bolt - FLANGE, 6X14 | Bolt - FLANGE, 6X14 |
| 11 | 90121-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 12 | 90122-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 18 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 16 | 90127-S84-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 13 | 90127-SX0-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 20 | 90129-S84-000 | Screw-washer - 5X14 | Screw-washer - 5X14 |
| 9 | 90131-S30-003 | Screw-washer - ET, 6X16 | Screw-washer - ET, 6X16 |
| 19 | 90132-SE3-003 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 14 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 10 | 90132-SV4-003 | Screw - ET, 5X16 | Screw - ET, 5X16 |
| 6 | 90133-SM4-003 | Bolt-washer - 5X16 | Bolt-washer - 5X16 |
| 15 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 16 | 90133-SZ4-003 | Screw - ET, 7X16 | Screw - ET, 7X16 |
| 11 | 90134-S04-A81 | Bolt - HEX., 6X12 | Bolt - HEX., 6X12 |
| 40 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 8 | 90135-SB0-003 | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) |
| 14 | 90136-S30-003 | Screw - ET, 5X18 | Screw - ET, 5X18 |
| 14 | 90137-S30-003 | Screw - ET, 6X18 | Screw - ET, 6X18 |
| 9 | 90137-S84-A01 | Bolt - TORX EARTH, 6X20 | Bolt - TORX EARTH, 6X20 |
| 31 | 90140-SA5-000 | Bolt - SPLASH GUARD | Bolt - SPLASH GUARD |
| 33 | 90140-SH3-003 | Bolt-washer - 5X18 | Bolt-washer - 5X18 |
| 17 | 90141-S04-000 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 46 | 90141-S84-003 | Screw - 3X10 | Screw - 3X10 |
| 17 | 90142-S04-000 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 11 | 90143-S04-000 | Bolt - FLANGE, 10X18 | Bolt - FLANGE, 10X18 |
| 10 | 90143-SR3-900 | Bolt-washer - 10X22 | Bolt-washer - 10X22 |
| 27 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 10 | 90145-S04-006 | Screw - 3X16 | Screw - 3X16 |
| 19 | 90145-S84-A01 | Bolt - FLANGE, | Bolt - FLANGE, |
| 20 | 90146-S84-A01 | Bolt - FLANGE, 6X12 | Bolt - FLANGE, 6X12 |
| 28 | 90146-SP0-000 | Screw - TAPPING, 4X12 (PO) | Screw - TAPPING, 4X12 (PO) |
| 18 | 90147-S84-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 14 | 90148-S84-A00 | Bolt - STUD, 6MM | Bolt - STUD, 6MM |
| 16 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 47 | 90149-S84-A01 | Screw - PAN, 4X5 | Screw - PAN, 4X5 |
| 26 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 14 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 40 | 90150-S04-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 21 | 90150-S84-003 | Bolt - EARTH, 8X16 | Bolt - EARTH, 8X16 |
| 12 | 90152-SE0-003 | Nut - EARTH, 5MM (ZN) | Nut - EARTH, 5MM (ZN) |
| 25 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 23 | 90161-S84-A00 | Bolt - FLANGE, 14X125 | Bolt - FLANGE, 14X125 |
| 41 | 90161-SB4-003 | Screw - FLAT, 4X16 | Screw - FLAT, 4X16 |
| 12 | 90161-SV4-003 | Bolt - STEERING HANDLE | Bolt - STEERING HANDLE |
| 22 | 90162-S84-A00 | Bolt - FLANGE, 14X90 | Bolt - FLANGE, 14X90 |
| 17 | 90163-SC2-000 | Bolt - FLANGE, 12X25 | Bolt - FLANGE, 12X25 |
| 30 | 90163-SE0-930 | Bolt - SIDE MOUNTING, 10MM | Bolt - SIDE MOUNTING, 10MM |
| 25 | 90164-S1A-E00 | Bolt - FLANGE, 12X30 | Bolt - FLANGE, 12X30 |
| 25 | 90164-S84-A00 | Bolt - FLANGE, 12X30 | Bolt - FLANGE, 12X30 |
| 23 | 90170-S5A-000 | Bolt - FLANGE, 12X60 | Bolt - FLANGE, 12X60 |
| 21 | 90170-S84-A00 | Bolt - FLANGE, 12X70 | Bolt - FLANGE, 12X70 |
| 22 | 90171-S84-A00 | Bolt - FLANGE, 10X54 | Bolt - FLANGE, 10X54 |
| 14 | 90172-S04-003 | Bolt - FLANGE, 10X68 | Bolt - FLANGE, 10X68 |
| 27 | 90173-S84-A00 | Bolt - RR. UPPER ARM | Bolt - RR. UPPER ARM |
| 24 | 90174-SM4-000 | Bolt - FLANGE, 10X22 | Bolt - FLANGE, 10X22 |
| 25 | 90178-S84-A00 | Bolt - FR. RADIUS ROD (14X37) | Bolt - FR. RADIUS ROD (14X37) |
| 28 | 90181-S84-A00 | Bolt - TRAILING ARM, 12X68 | Bolt - TRAILING ARM, 12X68 |
| 15 | 90182-S84-A00 | Bolt - RR. DAMPER, (10X81) | Bolt - RR. DAMPER, (10X81) |
| 22 | 90182-SB6-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 19 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
| 18 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
| 9 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 9 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 25 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 26 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 21 | 90216-PAA-A00 | Nut - 10MM | Nut - 10MM |
| 30 | 90216-SE0-010 | Nut | Nut |
| 30 | 90216-SE0-305 | NUT, LWR ARM | NUT, LWR ARM |
| 20 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |
| 21 | 90232-PT0-003 | Nut - HEX., 6MM | Nut - HEX., 6MM |
| 14 | 90300-S84-A00 | Nut - SHOCK ABSORBER FLANGE (10MM) | Nut - SHOCK ABSORBER FLANGE (10MM) |
| 34 | 90301-SE0-J00 | Nut - FLANGE, 6MM | Nut - FLANGE, 6MM |
| 26 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 36 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 27 | 90303-SF1-003 | Nut - SELF-LOCK, 12MM | Nut - SELF-LOCK, 12MM |
| 9 | 90305-PAA-A01 | Nut - POWER STEERING PULLEY | Nut - POWER STEERING PULLEY |
| 34 | 90305-S30-003 | Nut - SPINDLE | Nut - SPINDLE |
| 19 | 90305-SD4-003 | Nut - SPINDLE (24MM) | Nut - SPINDLE (24MM) |
| 10 | 90305-SM4-003 | Nut - CLIP, 6MM | Nut - CLIP, 6MM |
| 28 | 90306-SB2-013 | Nut - SELF-LOCK, 10MM (CLINCH) | Nut - SELF-LOCK, 10MM (CLINCH) |
| 6 | 90311-PT0-000 | Bolt - ADJUSTER SPECIAL | Bolt - ADJUSTER SPECIAL |
| 7 | 90313-PT0-000 | Bolt - SPECIAL, 10X90 | Bolt - SPECIAL, 10X90 |
| 21 | 90321-S06-000 | Nut - HEX. CAP, 5MM | Nut - HEX. CAP, 5MM |
| 15 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 34 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 26 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 13 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 9 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 12 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 32 | 90363-S0X-A00 | Nut - UPPER ARM, 12MM | Nut - UPPER ARM, 12MM |
| 16 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 32 | 90363-SZ3-003 | Nut - UPPER ARM, 12MM | Nut - UPPER ARM, 12MM |
| 15 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
| 27 | 90371-SM4-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 38 | 90373-SP0-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 22 | 90401-PAA-A00 | Rubber - TIMING BELT ADJUSTING BOLT | Rubber - TIMING BELT ADJUSTING BOLT |
| 27 | 90401-PR4-000 | Washer - SEALING, 28MM | Washer - SEALING, 28MM |
| 29 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 11 | 90430-PAA-A01 | Washer - PLAIN, 8MM | Washer - PLAIN, 8MM |
| 10 | 90442-P0A-000 | Washer - HEAD COVER | Washer - HEAD COVER |
| 10 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
| 23 | 90501-MB7-610 | Washer - 10.3X25 | Washer - 10.3X25 |
| 7 | 90501-SM4-003 | Bolt - FENDER | Bolt - FENDER |
| 15 | 90505-SM4-003 | Clip - GARNISH | Clip - GARNISH |
| 15 | 90505-SX0-003 | Clip - GARNISH | Clip - GARNISH |
| 10 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 28 | 90552-SV4-000 | Washer - FR. BRACKET | Washer - FR. BRACKET |
| 26 | 90601-S84-A01 | Grommet - HOOD OPEN STAY | Grommet - HOOD OPEN STAY |
| 27 | 90602-S84-A01 | Holder - ROD | Holder - ROD |
| 9 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
| 11 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 4 | 90615-SR3-000 | Cap - WELD HOLE, 51X77 | Cap - WELD HOLE, 51X77 |
| 3 | 90634-PA0-000 | Cap - SEALING | Cap - SEALING |
| 18 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 18 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 18 | 90650-SZ3-003 | Grommet - R. RR. COMBINATION LIGHT | Grommet - R. RR. COMBINATION LIGHT |
| 26 | 90651-SV1-A01 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 31 | 90652-S0A-003 | Clip - COWL TOP | Clip - COWL TOP |
| 12 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 19 | 90655-SZ3-003 | Grommet - L. RR. COMBINATION LIGHT | Grommet - L. RR. COMBINATION LIGHT |
| 11 | 90657-SB0-003 | Clip, SPLASH SHIELD | Clip, SPLASH SHIELD |
| 21 | 90662-SB2-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 33 | 90664-SB3-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 11 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 37 | 90666-S84-A01 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 6 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 21 | 90668-SV1-003 | Clip - RR. TRAY | Clip - RR. TRAY |
| 11 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 11 | 90676-SE0-003 | Clip - JOINT COVER PLATE | Clip - JOINT COVER PLATE |
| 21 | 90681-SG0-000 | Circlip - INTERNAL, 84MM | Circlip - INTERNAL, 84MM |
| 12 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 19 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 24 | 90690-SA0-003 | Strap - WIRE HARNESS, 25MM (BLACK) | Strap - WIRE HARNESS, 25MM (BLACK) |
| 31 | 90691-SF1-003 | Clip c - OPENER CABLE | Clip c - OPENER CABLE |
| 10 | 90693-P2A-003 | Circlip - INTERNAL, 40MM | Circlip - INTERNAL, 40MM |
| 35 | 90700-SB0-003 | Clip - AIR BLEED TUBE | Clip - AIR BLEED TUBE |
| 36 | 90701-SX0-003 | Clip - UPPER ARM | Clip - UPPER ARM |
| 24 | 90703-PT0-000 | Dowel pin - 49X10 | Dowel pin - 49X10 |
| 21 | 90704-PT0-000 | Key - 4.5X38.5 | Key - 4.5X38.5 |
| 28 | 90705-PT0-000 | Dowel pin - 16X22 | Dowel pin - 16X22 |
| 29 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
| 48 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 11 | 91048-P2A-003 | Bearing - RADIAL BALL, 17X40X12 | Bearing - RADIAL BALL, 17X40X12 |
| 25 | 91212-PAA-A01 | Oil seal - 40X52X7 (NOK) | Oil seal - 40X52X7 (NOK) |
| 25 | 91212-PAA-A02 | Oil seal - 40X52X7 (ARAI) | Oil seal - 40X52X7 (ARAI) |
| 24 | 91213-PT0-003 | Oil seal - 28X42X8 (ARAI) | Oil seal - 28X42X8 (ARAI) |
| 30 | 91214-PH1-004 | Oil seal - 80X100X10 (ARAI) | Oil seal - 80X100X10 (ARAI) |
| 30 | 91214-PLE-003 | Oil seal | Oil seal |
| 26 | 91233-PT0-003 | Oil seal - 27X40X8 (NOK) | Oil seal - 27X40X8 (NOK) |
| 12 | 91249-P2A-003 | Seal - POWER STEERING PUMP | Seal - POWER STEERING PUMP |
| 21 | 91301-P2F-A01 | O-ring - 7.3X2.2 (NOK) | O-ring - 7.3X2.2 (NOK) |
| 21 | 91301-PM7-003 | O-ring - 7.3X2.2 (ARAI) | O-ring - 7.3X2.2 (ARAI) |
| 14 | 91303-P0A-A02 | O-ring | O-ring |
| 19 | 91304-P0H-013 | O-ring - 7.8X1.9 | O-ring - 7.8X1.9 |
| 20 | 91307-PK2-005 | O-ring - 9.5X1.5(HONDA KIKAKI) | O-ring - 9.5X1.5(HONDA KIKAKI) |
| 21 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 21 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 27 | 91309-PJ7-010 | O-ring - 11.5X3.5 | O-ring - 11.5X3.5 |
| 22 | 91312-P0A-000 | Packing - THERMOSTAT CASE | Packing - THERMOSTAT CASE |
| 23 | 91314-PH7-003 | O-ring 31.2X4.1 (NOK) | O-ring 31.2X4.1 (NOK) |
| 20 | 91319-PAA-A01 | O-ring - 13X1.5 | O-ring - 13X1.5 |
| 14 | 91347-P2A-003 | O-ring - 15.2X2.4 | O-ring - 15.2X2.4 |
| 13 | 91347-PAA-A01 | O-ring - 16.7X1.8 | O-ring - 16.7X1.8 |
| 15 | 91348-P2A-003 | O-ring - 51.0X2.4 | O-ring - 51.0X2.4 |
| 16 | 91349-P2A-003 | Seal - POWER STEERING PUMP COVER | Seal - POWER STEERING PUMP COVER |
| 20 | 91370-SV4-000 | O-ring - 14.4X1.9 | O-ring - 14.4X1.9 |
| 7 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 21 | 91405-SS0-003 | Clamp - TUBE (D21) | Clamp - TUBE (D21) |
| 31 | 91406-SL4-931 | Clamp - FUEL HOSE (D10.5) | Clamp - FUEL HOSE (D10.5) |
| 17 | 91411-S84-A01 | Nut - HEX., 14MM | Nut - HEX., 14MM |
| 28 | 91501-S1K-003 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 12 | 91501-S84-A01 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 29 | 91502-S84-A11 | Clip - SEAL RUBBER (BLACK) | Clip - SEAL RUBBER (BLACK) |
| 30 | 91503-SZ3-003 | Clip A | Clip A |
| 31 | 91503-SZ5-003 | Clip - BUMPER FACE | Clip - BUMPER FACE |
| 30 | 91504-SL0-003 | Clip - HOOD OPEN WIRE | Clip - HOOD OPEN WIRE |
| 13 | 91504-SR3-003 | Clip - WASHER TUBE | Clip - WASHER TUBE |
| 14 | 91506-P01-003 | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) | Clip A - HARNESS BAND (DARK GRAY) (129.4MM) |
| 13 | 91506-P0A-A01 | Clip - ALTERNATOR CORD | Clip - ALTERNATOR CORD |
| 15 | 91507-P01-003 | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) | Clip b - HARNESS BAND (DARK BROWN) (129.4MM) |
| 15 | 91507-SL9-003 | Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) | Clip - WIRE HARNESS (GREEN) (110MM) (7MM HOLE) |
| 27 | 91510-SA5-003 | Clip - OFFSET(10)(BROWN)(50MM) | Clip - OFFSET(10)(BROWN)(50MM) |
| 19 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
| 8 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 17 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
| 32 | 91515-SM4-003 | Clip - ANCHOR | Clip - ANCHOR |
| 33 | 91516-SM4-013 | Clip - RR. COMBINATION PROTECTOR | Clip - RR. COMBINATION PROTECTOR |
| 17 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
| 33 | 91520-SM4-C01 | Clip - HOOD SEAL RUBBER | Clip - HOOD SEAL RUBBER |
| 14 | 91522-SM4-003 | Clip - TUBE & INSULATOR | Clip - TUBE & INSULATOR |
| 19 | 91528-SR4-003 | Clip - DRIP MOLDING | Clip - DRIP MOLDING |
| 20 | 91530-SH4-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 22 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 25 | 91531-S04-003 | Clip - WIRE HARNESS(NATURAL) (44MM) | Clip - WIRE HARNESS(NATURAL) (44MM) |
| 16 | 91540-S30-003 | Clip - HARNESS BAND(NATURAL) (151.5MM) | Clip - HARNESS BAND(NATURAL) (151.5MM) |
| 15 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 36 | 91545-S30-003 | Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL) |
| 35 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 18 | 91546-S84-A02 | Clip - DASHBOARD INSULATOR SEAL | Clip - DASHBOARD INSULATOR SEAL |
| 13 | 91547-S84-A01 | Cap - INSULATOR SEAL CLIP | Cap - INSULATOR SEAL CLIP |
| 12 | 91548-S84-003 | Clip - HARNESS BAND (GRAY) (128MM) | Clip - HARNESS BAND (GRAY) (128MM) |
| 13 | 91550-ST0-003 | Clip - WIRE HARNESS (NATURAL) (110MM) | Clip - WIRE HARNESS (NATURAL) (110MM) |
| 28 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 23 | 91551-SV4-003 | Clip - BRACKET | Clip - BRACKET |
| 27 | 91556-SP0-003 | Clip - COUPLER(BROWN) | Clip - COUPLER(BROWN) |
| 35 | 91558-SE3-003 | Clip - HOOD WIRE | Clip - HOOD WIRE |
| 16 | 91558-SM4-003 | Clip - TUBE(BLACK)(135MM) | Clip - TUBE(BLACK)(135MM) |
| 17 | 91558-ST5-003 | Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) | Clip - HARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
| 18 | 91559-PAA-A01 | Clip - HARNESS BAND(GRAY) (150MM) | Clip - HARNESS BAND(GRAY) (150MM) |
| 17 | 91559-S47-003 | Clip - HARNESS BAND(NATURAL) (167MM) | Clip - HARNESS BAND(NATURAL) (167MM) |
| 16 | 91559-ST5-003 | Clip - HARNESS BAND OFFSET(30) (NATURAL) | Clip - HARNESS BAND OFFSET(30) (NATURAL) |
| 14 | 91560-S04-003 | Clip - SIDE GARNISH (NATURAL) | Clip - SIDE GARNISH (NATURAL) |
| 22 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 16 | 91560-S84-A11 | Clip - PILLAR GARNISH(BLACK) | Clip - PILLAR GARNISH(BLACK) |
| 17 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 20 | 91561-S84-A01 | Clip - DOOR MOLDING | Clip - DOOR MOLDING |
| 21 | 91562-S84-A01 | Clip - DOOR MOLDING END | Clip - DOOR MOLDING END |
| 24 | 91562-S84-A11 | Grommet - DOOR LINING | Grommet - DOOR LINING |
| 21 | 91563-S84-A01 | Clip - R. DOOR WEATHERSTRIP | Clip - R. DOOR WEATHERSTRIP |
| 28 | 91564-S84-A01 | Clip - L. DOOR WEATHERSTRIP | Clip - L. DOOR WEATHERSTRIP |
| 18 | 91565-S84-A00 | Clip - DOOR HARNESS | Clip - DOOR HARNESS |
| 13 | 91565-SW5-003 | Clamp - HARNESS | Clamp - HARNESS |
| 22 | 91568-SR2-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 15 | 91570-S04-003 | Clip - WASHER TUBE | Clip - WASHER TUBE |
| 19 | 91571-S10-003 | Clip - WIRE HARNESS (NATURAL) (130MM) | Clip - WIRE HARNESS (NATURAL) (130MM) |
| 16 | 91576-S84-A01 | Clip - WASHER TUBE | Clip - WASHER TUBE |
| 16 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 32 | 91591-S84-A00 | Bracket - CLIP B | Bracket - CLIP B |
| 36 | 91598-S84-A01 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 38 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
| 20 | 91602-SV4-003 | Plug - HOLE, 15MM | Plug - HOLE, 15MM |
| 38 | 91602-SZ5-000 | Cushion - HOOD (11.6MM) | Cushion - HOOD (11.6MM) |
| 39 | 91603-SZ5-000 | Cushion - HOOD (25MM) | Cushion - HOOD (25MM) |
| 7 | 91606-SE3-003 | Plug - HOLE, 8MM | Plug - HOLE, 8MM |
| 7 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
| 34 | 91609-SE0-A00 | Protection - CUSHION | Protection - CUSHION |
| 21 | 91610-SD4-000 | Plug - HOLE, 28MM | Plug - HOLE, 28MM |
| 8 | 91611-SM4-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 2 | 91611-SS0-003 | Plug - HOLE, 25MM | Plug - HOLE, 25MM |
| 28 | 91613-S84-A01 | Grommet - RR. SUB FRAME | Grommet - RR. SUB FRAME |
| 27 | 91613-SE0-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 10 | 91613-SR3-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 38 | 91614-S84-G01 | Grommet - SUB FRAME DRAIN HOLE | Grommet - SUB FRAME DRAIN HOLE |
| 11 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
| 12 | 91623-SE0-003 | Plug - BLIND, 12MM | Plug - BLIND, 12MM |
| 13 | 91634-SE3-000 | Grommet - 6MM | Grommet - 6MM |
| 30 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 31 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 21 | 91644-SM4-003 | Grommet - WIRE HARNESS (32MM) | Grommet - WIRE HARNESS (32MM) |
| 24 | 91651-S84-A00 | Seal - DOOR PANEL HOLE | Seal - DOOR PANEL HOLE |
| 15 | 91655-SP0-010 | Seal a - DOOR PANEL HOLE (60X30) | Seal a - DOOR PANEL HOLE (60X30) |
| 23 | 91657-SP0-000 | Seal c - DOOR PANEL HOLE (25MM) | Seal c - DOOR PANEL HOLE (25MM) |
| 22 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
