Air cleaner (L4) 3 / 12

#	OEM	CF8	CG2
3	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
4	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
10	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35

Air conditioner (COMPRESSOR; L4) 7 / 15

#	OEM	CF8	CG2
1	38801-P9K-E01	Valve sub assy. - SAFETY	Valve sub assy. - SAFETY
3	38812-PH1-003	Ring b - SNAP	Ring b - SNAP
4	38812-671-003	Ring a - SNAP	Ring a - SNAP
5	38827-PH7-003	Screw-washer - 5X8	Screw-washer - 5X8
6	38829-PR3-003	Bolt - WASHER HEAD	Bolt - WASHER HEAD
11	38912-PH1-N01	Plate set - WASHER	Plate set - WASHER
15	90023-P8A-A00	Bolt - FLANGE, 8X85	Bolt - FLANGE, 8X85

Air conditioner (CONDENSER) 5 / 12

#	OEM	CF8	CG2
1	32175-647-920	Clip - WIRE HARNESS	Clip - WIRE HARNESS
1	30701-883-000	Clip, high tension cord (8mm)	Clip, high tension cord (8mm)
7	80111-S84-A00	Bracket - CONDENSER MOUNT UPPER	Bracket - CONDENSER MOUNT UPPER
9	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
10	90041-PAA-A01	Nut - TOOTHED, 5MM	Nut - TOOTHED, 5MM

Air conditioner (COOLING UNIT; LH) 25 / 28

#	OEM	CF8	CG2
1	32151-S84-A01	Bracket - COUPLER	Bracket - COUPLER
4	80201-S84-A00	Case - EVAPORATOR UPPER	Case - EVAPORATOR UPPER
5	80202-S84-A00	Case - EVAPORATOR LOWER	Case - EVAPORATOR LOWER
6	80203-S84-A00	Lid - EVAPORATOR UPPER CASE	Lid - EVAPORATOR UPPER CASE
7	80204-S84-A00	Holder - EVAPORATOR	Holder - EVAPORATOR
8	80205-S84-A00	Insulator - EVAPORATOR UPPER	Insulator - EVAPORATOR UPPER
9	80206-S84-A00	Insulator - EVAPORATOR LOWER	Insulator - EVAPORATOR LOWER
10	80207-S84-A00	Insulator	Insulator
11	80214-SL5-A01	Insulator - EXPANSION	Insulator - EXPANSION
12	80215-S84-A01	Evaporator comp.	Evaporator comp.
13	80216-S84-A01	Pipe - LIQUID	Pipe - LIQUID
14	80220-S84-A02	Valve assy. - EXPANSION (10N) (FUJI KOKI AMERICA)	Valve assy. - EXPANSION (10N) (FUJI KOKI AMERICA)
15	80223-ST7-A11	O-ring - FUJI KOKI AMERICA	O-ring - FUJI KOKI AMERICA
16	80225-SR3-010	Clamp	Clamp
17	80286-S84-A00	Seal - EVAPORATOR INNER	Seal - EVAPORATOR INNER
18	80287-S84-A00	Seal - EVAPORATOR OUTER	Seal - EVAPORATOR OUTER
19	80288-S84-A00	Seal - EVAPORATOR PIPE	Seal - EVAPORATOR PIPE
20	80289-S84-A00	Seal - DRAIN	Seal - DRAIN
23	80560-SV4-A41	Sensor - EVAPORATOR	Sensor - EVAPORATOR
24	80566-SR3-003	Clip - EVAPORATOR SENSOR	Clip - EVAPORATOR SENSOR
25	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
26	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
27	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
28	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
29	91556-SP0-003	Clip - COUPLER(BROWN)	Clip - COUPLER(BROWN)

Air conditioner (HOSES/PIPES; L4; LH) 12 / 19

#	OEM	CF8	CG2
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
4	80331-S84-A01	Pipe - CONDENSER	Pipe - CONDENSER
6	80351-S84-E01	Receiver comp	Receiver comp
7	80352-S84-A00	Bracket - LIQUID TANK	Bracket - LIQUID TANK
8	80363-S84-A00	Stay - SUCTION HOSE	Stay - SUCTION HOSE
10	80365-S84-A00	Clamp - SUCTION PIPE	Clamp - SUCTION PIPE
11	80381-SV7-A01	Clamp - RECEIVER PIPE	Clamp - RECEIVER PIPE
12	80440-SS0-901	Switch - DUAL PRESSURE (FUJI)	Switch - DUAL PRESSURE (FUJI)
13	80865-S84-003	Cap h - VALVE	Cap h - VALVE
15	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
16	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
17	80873-ST7-000	O-ring - 8MM	O-ring - 8MM

Alternator (DENSO; L4) 12 / 22

#	OEM	CF8	CG2
3	31105-PR7-A01	Holder assy. - BRUSH	Holder assy. - BRUSH
4	31111-PT0-003	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
5	31114-PT0-013	Bearing - FR. GENERATOR	Bearing - FR. GENERATOR
10	31138-PD1-004	Cover - BEARING	Cover - BEARING
12	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
13	31145-PD1-004	Bolt - STUD, 6X68	Bolt - STUD, 6X68
14	31146-PT0-003	Screw	Screw
15	31147-PT0-003	Screw-washer	Screw-washer
16	31147-P13-003	Screw	Screw
17	31148-PT0-003	Screw - WAVE WASHER	Screw - WAVE WASHER
18	31148-P13-003	Screw - WAVE WASHER	Screw - WAVE WASHER
20	90231-PD1-014	Nut-washer - 5MM	Nut-washer - 5MM

Alternator bracket (L4) 1 / 7

#	OEM	CF8	CG2
15	90051-PE0-000	Bolt - FLANGE, 12X70	Bolt - FLANGE, 12X70

Auto radio 1 / 6

#	OEM	CF8	CG2
6	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16

Battery (L4) 9 / 19

#	OEM	CF8	CG2
3	31513-SM4-000	Bolt - BATTERY SETTING(195MM)	Bolt - BATTERY SETTING(195MM)
4	31513-SP0-010	Bolt - BATTERY SETTING (210MM)	Bolt - BATTERY SETTING (210MM)
6	32116-P64-003	Holder - CORRUGATED (DARK GREEN) (13MM)	Holder - CORRUGATED (DARK GREEN) (13MM)
8	32412-S84-A00	Bracket - STARTER CABLE	Bracket - STARTER CABLE
11	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
12	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
13	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
14	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
16	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Brake lines (L4; LH) 9 / 24

#	OEM	CF8	CG2
1	01464-S84-A01	Hose set, R. FR. BRAKE	Hose set, R. FR. BRAKE
2	01465-S84-A01	Hose set, L. FR. BRAKE	Hose set, L. FR. BRAKE
16	46391-SX8-T01	Clip - BRAKE PIPE	Clip - BRAKE PIPE
17	46393-SM4-951	Clip c	Clip c
18	46393-S84-A00	Clamp - BRAKE PIPE	Clamp - BRAKE PIPE
21	46435-S84-A00	Bracket - RR. BRAKE HOSE	Bracket - RR. BRAKE HOSE
24	46462-SE0-000	Bolt - OIL	Bolt - OIL
25	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
26	90651-SV1-A01	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power 10 / 18

#	OEM	CF8	CG2
5	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
7	46185-S04-J01	Seal - ROD	Seal - ROD
8	46191-634-000	Gasket - MASTER CYLINDER BRACKET	Gasket - MASTER CYLINDER BRACKET
14	46512-S70-000	Pin - PEDAL	Pin - PEDAL
16	46662-S04-J01	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
17	46665-S04-J01	Grommet	Grommet
18	46666-S04-J01	Filter - BRAKE RESERVOIR	Filter - BRAKE RESERVOIR
19	46669-692-003	Seal - RESERVE TANK	Seal - RESERVE TANK
20	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
29	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)

Breather tube (L4) 1 / 5

#	OEM	CF8	CG2
5	17139-PK1-000	Grommet - PCV VALVE	Grommet - PCV VALVE

Bumpers ('01-) 14 / 25

#	OEM	CF8	CG2
5	71143-S84-A00	Beam comp - R. FR. BUMPER CORNER UPPER	Beam comp - R. FR. BUMPER CORNER UPPER
6	71144-SR3-013	Grommet - BUMPER SIDE	Grommet - BUMPER SIDE
8	71148-S84-A00	Beam comp - L. FR. BUMPER CORNER UPPER	Beam comp - L. FR. BUMPER CORNER UPPER
10	71172-S84-A00	Box - BUMPER BEAM ABSORBER	Box - BUMPER BEAM ABSORBER
20	90106-SW3-003	Grommet - BUMPER SETTING	Grommet - BUMPER SETTING
22	90108-SW3-003	Clip - BUMPER SETTING	Clip - BUMPER SETTING
23	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
24	90109-SS0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
25	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
26	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
27	90156-S0K-000	Grommet - FR. LICENSE BASE	Grommet - FR. LICENSE BASE
28	90302-SD2-003	Nut-washer - 8MM	Nut-washer - 8MM
30	91503-SZ3-003	Clip A	Clip A
31	91503-SZ5-003	Clip - BUMPER FACE	Clip - BUMPER FACE

Camshaft/timing belt (L4) 1 / 25

#	OEM	CF8	CG2
16	90007-679-000	Bolt a - TIMING BELT COVER	Bolt a - TIMING BELT COVER

Clutch master cylinder (LH) 1 / 21

#	OEM	CF8	CG2
25	46911-S70-003	Pin, LOCK(8MM)	Pin, LOCK(8MM)

Combination switch (LH) 15 / 20

#	OEM	CF8	CG2
2	35100-S84-G22	Lock assy - STEERING	Lock assy - STEERING
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
4	35103-S04-003	Screw - RECESSED	Screw - RECESSED
5	35108-S30-003	Holder - COLUMN	Holder - COLUMN
7	35113-S84-G01	Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)	Key - BLANK (MAIN) (BLACK) (IMMOBILIZER)
9	35114-S84-G01	Key - BLANK (SUB) (GRAY) (IMMOBILIZER)	Key - BLANK (SUB) (GRAY) (IMMOBILIZER)
10	35130-S84-A01	Switch comp - STEERING	Switch comp - STEERING
11	35251-S30-013	Body - SWITCH	Body - SWITCH
12	35255-S84-A01	Switch assy - LIGHTING	Switch assy - LIGHTING
13	35256-SM4-G81	Switch assy - WIPER	Switch assy - WIPER
14	35400-S0A-003	Switch assy - DOOR	Switch assy - DOOR
16	35409-S0A-003	Screw - FLANGE, 4X12	Screw - FLANGE, 4X12
17	39730-S84-A02	Immobilizer unit	Immobilizer unit
18	72118-ST7-003	Screw - TAPPING, 3X5	Screw - TAPPING, 3X5
24	90690-SA0-003	Strap - WIRE HARNESS, 25MM (BLACK)	Strap - WIRE HARNESS, 25MM (BLACK)

Console 16 / 16

#	OEM	CF8	CG2
1	39620-S01-A01	Socket - ACCESSORY	Socket - ACCESSORY
2	39621-S01-A01	Cover - SOCKET	Cover - SOCKET
5	66418-SA5-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
6	66418-579-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
8	77234-SV4-003	Clip	Clip
9	77235-S84-A01	Latch - G-SENSOR	Latch - G-SENSOR
15	83402-S84-G01	Bracket comp. - CENTER CONSOLE	Bracket comp. - CENTER CONSOLE
20	83408-SS0-J00	Lock - ARMREST	Lock - ARMREST
21	83410-S84-A01	Hinge comp - ARMREST	Hinge comp - ARMREST
25	88324-SB3-950	Cover - RR. ASHTRAY	Cover - RR. ASHTRAY
27	90144-SP0-000	Screw - TAPPING, 4X16 (PO)	Screw - TAPPING, 4X16 (PO)
28	90146-SP0-000	Screw - TAPPING, 4X12 (PO)	Screw - TAPPING, 4X12 (PO)
29	90666-SD4-003	Clip - FITTING	Clip - FITTING
30	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
31	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
37	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING

Control unit (CABIN; LH) 5 / 15

#	OEM	CF8	CG2
2	37740-P0A-A01	Timer - RADIATOR FAN (SHINDENGEN)	Timer - RADIATOR FAN (SHINDENGEN)
2	37740-P0H-A02	Timer - RADIATOR FAN (MOTOROLA)	Timer - RADIATOR FAN (MOTOROLA)
8	38210-S84-G51	Box assy - FUSE (PASSENGER SIDE)	Box assy - FUSE (PASSENGER SIDE)
14	39402-S84-A00	Bracket - MAIN RELAY	Bracket - MAIN RELAY
16	39792-SM4-013	Relay assy - POWER (4P NO.305) (DENSO)	Relay assy - POWER (4P NO.305) (DENSO)

Control unit (ENGINE ROOM; LH) 14 / 20

#	OEM	CF8	CG2
5	38213-SM4-003	Fuse - BLOCK (50A)	Fuse - BLOCK (50A)
6	38218-SM4-003	Fuse - BLOCK (100A)	Fuse - BLOCK (100A)
7	38231-S04-003	Fuse - BLOCK (30A)	Fuse - BLOCK (30A)
8	38231-S04-961	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
9	38235-S04-003	Puller - MINI FUSE (SUMITOMO)	Puller - MINI FUSE (SUMITOMO)
11	38251-S84-A00	Bracket - RELAY BOX	Bracket - RELAY BOX
13	38252-S84-A01	Cover - LOWER	Cover - LOWER
14	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)	Relay assy - POWER(4P)(DENSO) (056700-7410)
16	39793-SV4-003	Relay assy - POWER (5P) (MITSUBA)	Relay assy - POWER (5P) (MITSUBA)
17	39793-S84-A00	Bracket - WIPER RELAY	Bracket - WIPER RELAY
19	90129-S84-000	Screw-washer - 5X14	Screw-washer - 5X14
20	90150-S84-003	Bolt - EARTH, 8X16	Bolt - EARTH, 8X16
21	90182-SB6-000	Bolt-washer - 6X16	Bolt-washer - 6X16
22	91551-SV4-003	Clip - BRACKET	Clip - BRACKET

Crankshaft/piston (L4) 6 / 47

#	OEM	CF8	CG2
5	13111-P8A-A00	Pin - PISTON	Pin - PISTON
6	13115-P5A-000	Clip - PISTON PIN	Clip - PISTON PIN
7	13204-P8A-A01	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD
18	90017-PY3-003	Bolt-washer - 16X49	Bolt-washer - 16X49
18	90017-RJA-003	Bolt-washer - 16X49	Bolt-washer - 16X49
21	90704-PT0-000	Key - 4.5X38.5	Key - 4.5X38.5

Cylinder block/oil pan (L4) 5 / 33

#	OEM	CF8	CG2
15	37240-PT0-014	Switch - OIL PRESSURE (TEC)	Switch - OIL PRESSURE (TEC)
15	37240-PT0-023	Switch - OIL PRESSURE(DENSO)	Switch - OIL PRESSURE(DENSO)
16	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
24	90041-PCA-000	Bolt - STUD, 6X32	Bolt - STUD, 6X32
28	90705-PT0-000	Dowel pin - 16X22	Dowel pin - 16X22

Cylinder head (L4) 6 / 18

#	OEM	CF8	CG2
2	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
4	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
4	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
5	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
5	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)

Cylinder head cover (L4) 4 / 12

#	OEM	CF8	CG2
4	12342-P2F-A01	Seal - SPARK PLUG TUBE (NOK)	Seal - SPARK PLUG TUBE (NOK)
4	12342-P08-004	Seal	Seal
4	12342-RYE-004	Seal,spark plug t	Seal,spark plug t
6	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

Duct (LH) 7 / 7

#	OEM	CF8	CG2
1	77410-S84-A01	Duct assy - AIR CONDITIONER CENTER	Duct assy - AIR CONDITIONER CENTER
2	77420-S84-A01	Duct - AIR CONDITIONER DRIVER UPPER	Duct - AIR CONDITIONER DRIVER UPPER
3	77425-S84-A01	Duct - AIR CONDITIONER DRIVER LOWER	Duct - AIR CONDITIONER DRIVER LOWER
4	77460-S84-A01	Duct assy - FR. DEFROSTER	Duct assy - FR. DEFROSTER
5	83331-S84-A00	Duct - RR. HEATER	Duct - RR. HEATER
7	91606-SE3-003	Plug - HOLE, 8MM	Plug - HOLE, 8MM
8	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Emblems/caution labels 5 / 8

#	OEM	CF8	CG2
2	19043-PAD-G00	Label - COOLANT INFORMATION	Label - COOLANT INFORMATION
4	75701-S84-A01	Emblem - RR. CENTER (H)	Emblem - RR. CENTER (H)
7	75722-S84-A00	Emblem - RR. (ACCORD)	Emblem - RR. (ACCORD)
16	77875-S84-G80	Label - SRS CAUTION	Label - SRS CAUTION
19	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

Engine hood (LH) 18 / 30

#	OEM	CF8	CG2
5	74121-S84-A00	Rubber - HOOD SEAL	Rubber - HOOD SEAL
6	74125-S84-A00	Cover - HOOD LOCK	Cover - HOOD LOCK
10	74141-S87-A00	Insulator - HOOD	Insulator - HOOD
12	74143-S84-A00	Rubber - RR. HOOD SEAL	Rubber - RR. HOOD SEAL
18	74202-S84-A00	Lid - DRIVER COWL TOP	Lid - DRIVER COWL TOP
19	74207-S84-A00	Lid - PASSENGER COWL TOP	Lid - PASSENGER COWL TOP
20	74214-S84-A00	Cover - R. HOOD HINGE	Cover - R. HOOD HINGE
21	74231-S84-A00	Valve - DRAIN	Valve - DRAIN
22	74264-S84-A00	Cover - L. HOOD HINGE	Cover - L. HOOD HINGE
24	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
25	90106-SE1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
29	91502-S84-A11	Clip - SEAL RUBBER (BLACK)	Clip - SEAL RUBBER (BLACK)
30	91504-SL0-003	Clip - HOOD OPEN WIRE	Clip - HOOD OPEN WIRE
32	91515-SM4-003	Clip - ANCHOR	Clip - ANCHOR
34	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
35	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE
36	91602-SZ5-000	Cushion - HOOD (11.6MM)	Cushion - HOOD (11.6MM)
37	91603-SZ5-000	Cushion - HOOD (25MM)	Cushion - HOOD (25MM)

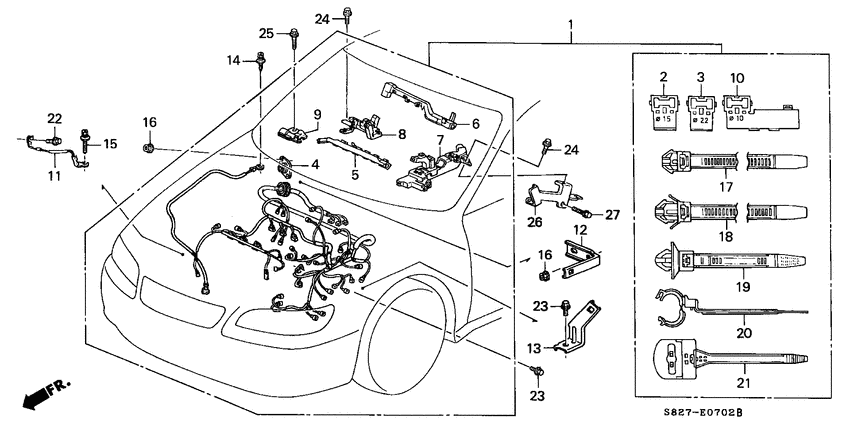

Engine wire harness (L4; LH) 8 / 18

#	OEM	CF8	CG2
3	32119-P2E-A01	Holder - CORRUGATED (DARK BLUE) (22MM)	Holder - CORRUGATED (DARK BLUE) (22MM)
5	32121-PAA-A01	Plate - WIRE HARNESS GROMMET	Plate - WIRE HARNESS GROMMET
11	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
12	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
13	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
15	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
16	91507-P01-003	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)	Clip b - HARNESS BAND (DARK BROWN) (129.4MM)
19	91559-PAA-A01	Clip - HARNESS BAND(GRAY) (150MM)	Clip - HARNESS BAND(GRAY) (150MM)

Exhaust manifold (L4; 1) 4 / 13

#	OEM	CF8	CG2
7	90015-PT0-J00	Bolt-washer - 8X14	Bolt-washer - 8X14
8	90065-PC1-300	Bolt - STUD, 10X34.5	Bolt - STUD, 10X34.5
9	90212-PD2-003	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
9	90212-RCA-A01	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM

Exhaust pipe (L4) 8 / 24

#	OEM	CF8	CG2
4	18176-PT0-003	Bolt - CONVERTER	Bolt - CONVERTER
5	18176-P08-003	Bolt - CONVERTER	Bolt - CONVERTER
17	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
18	18393-SS0-J30	Gasket - PRE-CHAMBER (57.5MM-58.5MM)	Gasket - PRE-CHAMBER (57.5MM-58.5MM)
23	90023-PK1-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
23	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
25	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
26	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Floor mat 8 / 10

#	OEM	CF8	CG2
1	74255-S84-A50	Stopper - FOOTREST	Stopper - FOOTREST
8	90121-SJ6-003	Bolt - FLANGE, 6X14	Bolt - FLANGE, 6X14
9	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)
12	91547-S84-A01	Cap - INSULATOR SEAL CLIP	Cap - INSULATOR SEAL CLIP
13	91546-S84-A02	Clip - DASHBOARD INSULATOR SEAL	Clip - DASHBOARD INSULATOR SEAL
14	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)
17	91501-S84-A01	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR
18	91517-SE0-003	Clip - LOWER OUTER DASHBOARD INSULATOR	Clip - LOWER OUTER DASHBOARD INSULATOR

Front brake (1) 5 / 24

#	OEM	CF8	CG2
7	45215-671-672	Screw - BLEEDER	Screw - BLEEDER
9	45219-S84-A01	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
19	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
20	90113-S84-901	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
21	90681-SG0-000	Circlip - INTERNAL, 84MM	Circlip - INTERNAL, 84MM

Front bulkhead 2 / 2

#	OEM	CF8	CG2
33	90105-SV1-000	Bolt-washer - 8X20	Bolt-washer - 8X20
34	90163-SE0-930	Bolt - SIDE MOUNTING, 10MM	Bolt - SIDE MOUNTING, 10MM

Front door lining (LH) 5 / 8

#	OEM	CF8	CG2
1	34261-SV1-A01	Lens - DONNELLY	Lens - DONNELLY
19	90101-S03-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
21	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
22	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
24	91562-S84-A11	Grommet - DOOR LINING	Grommet - DOOR LINING

Front door locks 20 / 38

#	OEM	CF8	CG2
2	72112-SR4-004	Snap - BROWN	Snap - BROWN
3	72113-SR4-004	Snap - BLACK	Snap - BLACK
5	72116-S04-003	Holder - ROD(SKY BLUE)	Holder - ROD(SKY BLUE)
6	72117-S04-003	Holder - ROD (YELLOW)	Holder - ROD (YELLOW)
7	72117-S84-A01	Protector - R. FR. DOOR LOCK	Protector - R. FR. DOOR LOCK
9	72119-SM1-003	Stopper a - OUTSIDE HANDLE	Stopper a - OUTSIDE HANDLE
10	72123-SR0-003	Ring - OUTSIDE HANDLE	Ring - OUTSIDE HANDLE
14	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT	Bush - OUTSIDE HANDLE JOINT
15	72135-SR3-003	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
17	72139-SR0-A01	Snap - VIOLET	Snap - VIOLET
24	72157-S84-A01	Protector - L. FR. DOOR LOCK	Protector - L. FR. DOOR LOCK
28	72175-SH3-003	Holder - DOOR LOCK ROD	Holder - DOOR LOCK ROD
30	72616-SM4-003	Snap - NATURAL	Snap - NATURAL
32	72634-SM4-003	Snap - R. (BLUE)	Snap - R. (BLUE)
34	72674-SM4-003	Snap - L. (BROWN)	Snap - L. (BROWN)
35	75411-634-000	Joint	Joint
36	90120-SM4-000	Screw - TAPPING	Screw - TAPPING
37	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
38	90141-S84-003	Screw - 3X10	Screw - 3X10
40	90866-SA0-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Front door panels 9 / 27

#	OEM	CF8	CG2
15	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
16	90101-SZ3-000	Bolt - FLANGE, 8X22 (8.5MM)	Bolt - FLANGE, 8X22 (8.5MM)
17	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
19	90686-692-003	Cap - LINING MOUNT	Cap - LINING MOUNT
20	91530-SH4-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
22	91568-SR2-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
22	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
23	91651-S84-A00	Seal - DOOR PANEL HOLE	Seal - DOOR PANEL HOLE
24	91657-SP0-000	Seal c - DOOR PANEL HOLE (25MM)	Seal c - DOOR PANEL HOLE (25MM)

Front door windows 1 / 17

#	OEM	CF8	CG2
14	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Front driveshaft/ half shaft (L4; '99-) 19 / 26

#	OEM	CF8	CG2
2	44017-S84-C00	Boot set - INBOARD	Boot set - INBOARD
3	44018-S0K-C21	Boot set - OUTBOARD	Boot set - OUTBOARD
8	44319-S0A-300	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
9	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
10	44327-S0K-C01	Band - OUTBOARD BOOT (OETIKER LIMITED)	Band - OUTBOARD BOOT (OETIKER LIMITED)
10	44327-SX0-C02	Band - OUTBOARD BOOT (NIPPON HATSUJO)	Band - OUTBOARD BOOT (NIPPON HATSUJO)
11	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
12	44329-S0K-C01	Band - DRIVESHAFT (OETIKER LIMITED)	Band - DRIVESHAFT (OETIKER LIMITED)
12	44329-SX0-C02	Band - DRIVESHAFT (NIPPON HATSUJO)	Band - DRIVESHAFT (NIPPON HATSUJO)
13	44337-SB0-300	Ring b - STOPPER	Ring b - STOPPER
13	44337-SM1-300	Ring b - STOPPER	Ring b - STOPPER
14	44338-SB0-300	Circlip - 26MM	Circlip - 26MM
14	44338-SM1-300	Circlip - 26MM	Circlip - 26MM
17	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
18	90165-SE0-000	Bolt - FLANGE, 10X37	Bolt - FLANGE, 10X37
19	90305-SD4-003	Nut - SPINDLE (24MM)	Nut - SPINDLE (24MM)
20	91057-SH3-008	Bearing - HALF SHAFT (NTN)	Bearing - HALF SHAFT (NTN)
21	91260-S84-A01	Seal - HALF SHAFT OUTER	Seal - HALF SHAFT OUTER

Front fenders 8 / 11

#	OEM	CF8	CG2
4	74101-S84-A00	Fender - R. FR. INNER	Fender - R. FR. INNER
6	74151-S84-A00	Fender - L. FR. INNER	Fender - L. FR. INNER
8	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
10	90305-SM4-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
11	90657-SB0-003	Clip, SPLASH SHIELD	Clip, SPLASH SHIELD
12	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
13	91503-SZ5-003	Clip - BUMPER FACE	Clip - BUMPER FACE
14	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front lower arm 22 / 29

#	OEM	CF8	CG2
3	51308-SW3-000	Bracket - FR. STABILIZER	Bracket - FR. STABILIZER
4	51320-S84-A01	Link comp - R. FR. STABILIZER	Link comp - R. FR. STABILIZER
5	51321-S84-A01	Link comp - L. FR. STABILIZER	Link comp - L. FR. STABILIZER
7	51355-S84-A00	Arm comp - R. FR. LOWER	Arm comp - R. FR. LOWER
8	51362-S84-A01	Rod - FR. RADIUS	Rod - FR. RADIUS
9	51365-S84-A00	Arm comp - L. FR. LOWER	Arm comp - L. FR. LOWER
10	51381-S84-A01	Bush - FR. RADIUS ROD (RR.)	Bush - FR. RADIUS ROD (RR.)
11	51391-S84-A01	Bush - RADIUS ROD (FR.)	Bush - RADIUS ROD (FR.)
12	51393-SV1-A01	Bush - FR. LOWER ARM	Bush - FR. LOWER ARM
13	51394-S84-000	Washer - CASTER ADJUSTER	Washer - CASTER ADJUSTER
14	51398-SM4-000	Collar - RADIUS ROD	Collar - RADIUS ROD
15	51399-S0A-000	Washer - FR. RADIUS ROD	Washer - FR. RADIUS ROD
16	51810-SV4-003	Bush - SHOCK ABSORBER FORK (HOKUSHIN)	Bush - SHOCK ABSORBER FORK (HOKUSHIN)
16	51810-SV4-004	Bush - SHOCK ABSORBER FORK (YAMASHITA)	Bush - SHOCK ABSORBER FORK (YAMASHITA)
17	51811-S84-A00	Fork - R. FR. SHOCK ABSORBER	Fork - R. FR. SHOCK ABSORBER
18	51821-S84-A00	Fork - L. FR. SHOCK ABSORBER	Fork - L. FR. SHOCK ABSORBER
19	74180-S84-A00	Bar comp - R. FR. STRUT	Bar comp - R. FR. STRUT
21	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
25	90178-S84-A00	Bolt - FR. RADIUS ROD (14X37)	Bolt - FR. RADIUS ROD (14X37)
26	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
27	90303-SF1-003	Nut - SELF-LOCK, 12MM	Nut - SELF-LOCK, 12MM
28	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)

Front seat (1) 4 / 11

#	OEM	CF8	CG2
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
43	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
44	90161-SB4-003	Screw - FLAT, 4X16	Screw - FLAT, 4X16

Front seat components (L.; 1) 6 / 9

#	OEM	CF8	CG2
1	77517-SA5-014	Cap - SLIDE ADJUSTER	Cap - SLIDE ADJUSTER
2	77209-SB0-003	Washer - NYLON	Washer - NYLON
5	81262-S84-A01	Cap - SLIDE ADJUSTER END	Cap - SLIDE ADJUSTER END
6	81272-S84-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
10	90143-SR3-900	Bolt-washer - 10X22	Bolt-washer - 10X22
11	90143-S04-000	Bolt - FLANGE, 10X18	Bolt - FLANGE, 10X18

Front seat components (R.; 1) 6 / 9

#	OEM	CF8	CG2
1	77517-SA5-014	Cap - SLIDE ADJUSTER	Cap - SLIDE ADJUSTER
2	77209-SB0-003	Washer - NYLON	Washer - NYLON
6	81262-S84-A01	Cap - SLIDE ADJUSTER END	Cap - SLIDE ADJUSTER END
8	81272-S84-A01	Cap - SLIDE ADJUSTER UPPER END	Cap - SLIDE ADJUSTER UPPER END
9	90143-SR3-900	Bolt-washer - 10X22	Bolt-washer - 10X22
10	90143-S04-000	Bolt - FLANGE, 10X18	Bolt - FLANGE, 10X18

Front shock absorber 13 / 21

#	OEM	CF8	CG2
5	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
6	51631-SV7-004	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)	Rubber - SHOCK ABSORBER MOUNTING(SHOWA)
7	51675-S84-A01	Base - FR. SHOCK ABSORBER MOUNTING (SHOWA)	Base - FR. SHOCK ABSORBER MOUNTING (SHOWA)
8	51685-SR0-004	Plate - DUST COVER (A.S.I. SHOWA)	Plate - DUST COVER (A.S.I. SHOWA)
8	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
9	51686-S84-A01	Rubber - FR. SPRING MOUNTING	Rubber - FR. SPRING MOUNTING
10	51689-SH3-004	Plate - BUMP STOP (SHOWA)	Plate - BUMP STOP (SHOWA)
11	51689-SP0-004	Cover - DUST (SHOWA)	Cover - DUST (SHOWA)
12	51722-S84-A01	Rubber - FR. BUMP STOPPER (A.S.I. SHOWA)	Rubber - FR. BUMP STOPPER (A.S.I. SHOWA)
13	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
13	51728-SR0-003	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)
14	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
15	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front windshield 2 / 6

#	OEM	CF8	CG2
7	77466-SV4-000	Seal - FR. INSTRUMENT	Seal - FR. INSTRUMENT
11	76441-S84-A01	Spring	Spring

Front windshield wiper (LH) 12 / 19

#	OEM	CF8	CG2
2	76516-SR3-003	Rubber - MOUNTING	Rubber - MOUNTING
3	76516-S84-A01	Rubber - MOUNTING	Rubber - MOUNTING
4	76517-SM4-003	Collar	Collar
5	76520-S84-A01	Link assy	Link assy
6	76524-SD4-003	Dust seal	Dust seal
7	76524-SE0-013	Dust seal	Dust seal
9	76540-S84-A01	Rod unit a	Rod unit a
10	76550-S84-A01	Rod unit b	Rod unit b
11	76561-S84-A01	Cap - PIVOT	Cap - PIVOT
12	76600-S84-A01	Arm - WINDSHIELD WIPER (DRIVER SIDE)	Arm - WINDSHIELD WIPER (DRIVER SIDE)
18	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
19	90201-SK7-000	Nut - HEX. CAP, 10MM	Nut - HEX. CAP, 10MM

Fuel pipe (1) 14 / 41

#	OEM	CF8	CG2
1	16680-PE7-661	Damper assy. - PULSATION	Damper assy. - PULSATION
1	16680-PCX-003	Damper assy. - PULSATION	Damper assy. - PULSATION
2	16705-PD1-003	Gasket - SILENCER	Gasket - SILENCER
4	16900-S84-G01	Strainer comp. - FUEL	Strainer comp. - FUEL
6	16922-S84-G01	Rubber - MOUNTING	Rubber - MOUNTING
7	16923-S84-G01	Collar	Collar
13	17711-S84-005	Retainer - NATURAL	Retainer - NATURAL
24	17761-S84-A00	Stay a - FUEL PIPE	Stay a - FUEL PIPE
25	17762-S84-A00	Stay b - FUEL PIPE	Stay b - FUEL PIPE
27	90101-S84-G00	Bolt-washer - 6X25	Bolt-washer - 6X25
28	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
29	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
31	91406-SL4-931	Clamp - FUEL HOSE (D10.5)	Clamp - FUEL HOSE (D10.5)
36	91598-S84-A01	Clip - FUEL PIPE	Clip - FUEL PIPE

Fuel tank 27 / 37

#	OEM	CF8	CG2
2	16711-S84-A01	Rubber - FUEL PUMP INSULATOR	Rubber - FUEL PUMP INSULATOR
3	17040-S84-A02	Pump set - FUEL	Pump set - FUEL
4	17371-SR3-A01	Valve - TWO WAY	Valve - TWO WAY
6	17516-S84-A01	Filter set - FUEL PUMP	Filter set - FUEL PUMP
7	17521-S84-A00	Band - FUEL TANK MOUNTING	Band - FUEL TANK MOUNTING
8	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
9	17551-S84-A01	Packing	Packing
10	17570-S84-G01	Valve - FUEL CUT	Valve - FUEL CUT
11	17574-S84-A01	Packing - BASE	Packing - BASE
12	17579-S84-G02	Plate - SETTING	Plate - SETTING
13	17630-S84-A02	Meter comp - FUEL	Meter comp - FUEL
14	17651-S84-A01	Tube - FILLER NECK	Tube - FILLER NECK
15	17652-SA5-000	Clip - FILLER TUBE	Clip - FILLER TUBE
17	17660-S84-G02	Pipe comp - FUEL FILLER	Pipe comp - FUEL FILLER
19	17668-S84-A01	Cover - FUEL FILLER PIPE	Cover - FUEL FILLER PIPE
24	17711-ST0-003	Retainer - YELLOW) (TOKAI	Retainer - YELLOW) (TOKAI
25	17711-S84-003	Retainer - YELLOW) (TOKAI	Retainer - YELLOW) (TOKAI
26	17711-S84-004	Retainer - WHITE)(SANOH	Retainer - WHITE)(SANOH
27	17712-S84-A01	Clamp - FUEL TUBE	Clamp - FUEL TUBE
28	17713-S84-A01	Clamp - FUEL FEED PIPE	Clamp - FUEL FEED PIPE
29	17716-S84-G00	Tube - VENT	Tube - VENT
33	74660-S84-A10	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
34	90101-S84-000	Bolt-washer - 5X10	Bolt-washer - 5X10
35	90301-SE0-J00	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
36	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE
39	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)
41	90150-S04-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Grommet 12 / 13

#	OEM	CF8	CG2
1	72206-SA5-000	Cap - FLOOR HOLE, 53MM	Cap - FLOOR HOLE, 53MM
2	91611-SS0-003	Plug - HOLE, 25MM	Plug - HOLE, 25MM
3	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
4	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
7	91602-SV4-003	Plug - HOLE, 15MM	Plug - HOLE, 15MM
8	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM
9	91611-SM4-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
11	91613-SR3-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM
12	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
13	91623-SE0-003	Plug - BLIND, 12MM	Plug - BLIND, 12MM
14	91634-SE3-000	Grommet - 6MM	Grommet - 6MM
22	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM

Harness band/bracket 13 / 19

#	OEM	CF8	CG2
4	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
5	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
7	32312-SM4-013	Holder - COUPLER	Holder - COUPLER
12	91548-S84-003	Clip - HARNESS BAND (GRAY) (128MM)	Clip - HARNESS BAND (GRAY) (128MM)
13	91550-ST0-003	Clip - WIRE HARNESS (NATURAL) (110MM)	Clip - WIRE HARNESS (NATURAL) (110MM)
15	91556-SM4-003	Clip - BAND (BLACK) (100MM)	Clip - BAND (BLACK) (100MM)
16	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)	Clip - HARNESS BAND OFFSET(30) (NATURAL)
17	91559-S47-003	Clip - HARNESS BAND(NATURAL) (167MM)	Clip - HARNESS BAND(NATURAL) (167MM)
21	91644-SM4-003	Grommet - WIRE HARNESS (32MM)	Grommet - WIRE HARNESS (32MM)
22	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)
24	91531-S04-003	Clip - WIRE HARNESS(NATURAL) (44MM)	Clip - WIRE HARNESS(NATURAL) (44MM)
26	91510-SA5-003	Clip - OFFSET(10)(BROWN)(50MM)	Clip - OFFSET(10)(BROWN)(50MM)
30	91540-SR3-003	Holder - COUPLER(YELLOW)	Holder - COUPLER(YELLOW)

Headlight 12 / 17

#	OEM	CF8	CG2
2	33115-S84-A01	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)	Bulb - HEADLIGHT (HB3) (12V 60W) (SYLVANIA)
2	33115-S84-A11	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)	Bulb - HEADLIGHT (HB3) (12V 60W) (STANLEY)
3	33116-S84-A11	Bulb - HEADLIGHT (HB4) (12V 51W) (STANLEY)	Bulb - HEADLIGHT (HB4) (12V 51W) (STANLEY)
3	33116-S84-A01	Bulb - HEADLIGHT (HB4) (12V 51W) (SYLVANIA)	Bulb - HEADLIGHT (HB4) (12V 51W) (SYLVANIA)
4	33126-S73-A01	Cover - RUBBER	Cover - RUBBER
6	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
7	33301-S04-004	Bulb - FR. TURN(12V 21W) (STANLEY)(AMBER)	Bulb - FR. TURN(12V 21W) (STANLEY)(AMBER)
7	33301-S04-003	Bulb	Bulb
8	33303-S04-003	Socket comp. - GRAY	Socket comp. - GRAY
11	34303-SS1-003	Socket comp - 2P	Socket comp - 2P
13	74190-S84-A00	Bracket - R. FR.	Bracket - R. FR.
14	74195-S84-A00	Bracket - L. FR.	Bracket - L. FR.

Heater blower (LH) 10 / 12

#	OEM	CF8	CG2
2	79191-SZ3-A01	Nut - HOLDER	Nut - HOLDER
3	79192-SR3-003	Bush - LINK	Bush - LINK
5	79310-S84-A01	Motor assy. - FAN	Motor assy. - FAN
6	79312-S84-A01	Cover	Cover
9	79350-S84-A01	Motor assy. - FRESH & RECIRCULAR	Motor assy. - FRESH & RECIRCULAR
11	90121-SR3-003	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
13	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
14	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
15	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
16	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater unit (LH) 13 / 15

#	OEM	CF8	CG2
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
2	39248-692-003	Packing - HEATER	Packing - HEATER
5	79140-S84-A01	Motor assy. - MODE	Motor assy. - MODE
6	79160-S84-A01	Motor assy. - AIR MIX	Motor assy. - AIR MIX
7	79192-SR3-003	Bush - LINK	Bush - LINK
8	79195-S84-A01	Holder - ROD	Holder - ROD
9	79544-S84-A01	Cable - WATER VALVE CONTROL	Cable - WATER VALVE CONTROL
10	79731-S84-A00	Grommet - HEATER PIPE	Grommet - HEATER PIPE
11	79760-SE0-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
13	90122-SR3-003	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
14	90127-SX0-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
15	90127-S84-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
16	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16

Instrument panel (LH) 18 / 19

#	OEM	CF8	CG2
3	38215-S84-G00	Label - FUSE (PASSENGER SIDE)	Label - FUSE (PASSENGER SIDE)
5	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
9	77107-S84-A00	Seal a	Seal a
10	77108-S84-A00	Seal b	Seal b
16	77145-SZ3-000	Tape - INSTRUMENT	Tape - INSTRUMENT
29	77982-S04-N81	Holder - COUPLER (2P)	Holder - COUPLER (2P)
31	90104-SV4-000	Bolt-washer - 8X25	Bolt-washer - 8X25
32	90106-S84-A00	Bolt-washer - 8X40	Bolt-washer - 8X40
33	90108-S84-A00	Bolt-washer - 8MM(SRS)	Bolt-washer - 8MM(SRS)
34	90140-SH3-003	Bolt-washer - 5X18	Bolt-washer - 5X18
35	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
36	90666-SD4-003	Clip - FITTING	Clip - FITTING
37	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
38	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
39	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
43	90110-S84-A00	Bolt-washer - 8X20	Bolt-washer - 8X20
44	77109-S84-A00	Cushion - INSTRUMENT	Cushion - INSTRUMENT
45	90109-S84-A00	Bolt - FLANGE, 8X40	Bolt - FLANGE, 8X40

Instrument panel garnish (LH) 15 / 16

#	OEM	CF8	CG2
1	34254-SL0-003	Lamp assy. - GLOVE BOX	Lamp assy. - GLOVE BOX
2	35505-S30-003	Bulb - T5) (14V 1.4W	Bulb - T5) (14V 1.4W
3	35505-S84-A01	Bulb assy - WITH CAP) (BLUE	Bulb assy - WITH CAP) (BLUE
6	39628-S84-A01	Lamp assy.	Lamp assy.
7	66417-SA0-000	Rubber - GLOVE BOX STOPPER	Rubber - GLOVE BOX STOPPER
8	66418-SA5-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
12	77251-S84-A01	Seal	Seal
20	77355-S84-A00	Blind - COLUMN	Blind - COLUMN
22	77371-SV4-000	Ring - COLUMN COVER	Ring - COLUMN COVER
23	77520-SL0-A01	Cylinder - GLOVE BOX	Cylinder - GLOVE BOX
32	77730-SR3-003	Holder comp - FR. ASHTRAY	Holder comp - FR. ASHTRAY
34	77754-S84-A01	Holder assy. - COIN	Holder assy. - COIN
36	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
37	90666-S84-A01	Clip - SNAP FITTING	Clip - SNAP FITTING
38	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Intake manifold (L4) 8 / 24

#	OEM	CF8	CG2
2	16472-PH7-003	Seal ring - INJECTOR (OTSUKA)	Seal ring - INJECTOR (OTSUKA)
2	16472-P0H-A01	Seal ring - INJECTOR (NOK)	Seal ring - INJECTOR (NOK)
3	16473-P10-A01	Cushion ring - INJECTOR (NOK)	Cushion ring - INJECTOR (NOK)
3	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)	Cushion ring - INJECTOR (OTSUKA)
14	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)
21	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)	O-ring - 7.3X2.2 (NOK)
21	16074-ZY3-000	O-ring	O-ring
21	91301-PM7-003	O-ring - 7.3X2.2 (ARAI)	O-ring - 7.3X2.2 (ARAI)

Interior light 3 / 6

#	OEM	CF8	CG2
2	34251-SV1-A11	Lens - DONNELLY	Lens - DONNELLY
3	34252-SV1-A01	Bulb - T-10) (12V 7W	Bulb - T-10) (12V 7W
9	90152-SE0-003	Nut - EARTH, 5MM (ZN)	Nut - EARTH, 5MM (ZN)

Knuckle 10 / 13

#	OEM	CF8	CG2
3	51225-S84-A01	Boot - LOWER BALL DUST	Boot - LOWER BALL DUST
4	51450-S84-A01	Arm comp - R. FR. UPPER	Arm comp - R. FR. UPPER
5	51460-S84-A01	Arm comp - L. FR. UPPER	Arm comp - L. FR. UPPER
6	51464-S04-013	Boot, UPPER BALL JOINT	Boot, UPPER BALL JOINT
7	52226-SL0-003	Circlip - LOWER BALL(MUSASHI)	Circlip - LOWER BALL(MUSASHI)
8	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
14	90172-S04-003	Bolt - FLANGE, 10X68	Bolt - FLANGE, 10X68
15	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM
16	90363-SF1-000	Nut - CASTLE, 12MM	Nut - CASTLE, 12MM
22	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM

Mirror (2) 3 / 15

#	OEM	CF8	CG2
9	76400-S84-A01	Mirror assy - RR. VIEW (DAY/NIGHT)	Mirror assy - RR. VIEW (DAY/NIGHT)
11	90615-SK7-003	Clip - MIRROR GARNISH	Clip - MIRROR GARNISH
12	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Molding 6 / 21

#	OEM	CF8	CG2
15	74308-ST0-003	Bracket - ROOF MOLDING	Bracket - ROOF MOLDING
17	90142-S04-000	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10
18	90147-S84-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
19	91528-SR4-003	Clip - DRIP MOLDING	Clip - DRIP MOLDING
20	91561-S84-A01	Clip - DOOR MOLDING	Clip - DOOR MOLDING
21	91562-S84-A01	Clip - DOOR MOLDING END	Clip - DOOR MOLDING END

Oil pump/oil strainer (L4) 6 / 30

#	OEM	CF8	CG2
11	15231-PE0-000	Valve - RELIEF	Valve - RELIEF
12	15232-PG6-000	Spring - RELIEF VALVE	Spring - RELIEF VALVE
13	15233-PC6-000	Bolt - SEALING, 18MM	Bolt - SEALING, 18MM
14	15400-PR3-014	OIL FILTER (TOYO ROKI)	OIL FILTER (TOYO ROKI)
14	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
19	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER

Outer panels 4 / 7

#	OEM	CF8	CG2
27	70495-692-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID
29	74494-S84-A10	Spring - FUEL LID OPEN	Spring - FUEL LID OPEN
30	75450-SF1-900	Outlet assy - RR. AIR	Outlet assy - RR. AIR
33	90664-SB3-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Parking brake 7 / 9

#	OEM	CF8	CG2
2	47142-S84-A01	Knob - PUSH ROD	Knob - PUSH ROD
3	47143-SD4-300	Spring - PUSH ROD	Spring - PUSH ROD
4	47342-S84-A01	Switch - PARKING BRAKE	Switch - PARKING BRAKE
5	47360-SB2-000	Equalizer	Equalizer
6	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
9	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
10	47537-671-670	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD

Pedal (LH) 9 / 22

#	OEM	CF8	CG2
1	17800-S84-A01	Pedal assy - ACCELERATOR	Pedal assy - ACCELERATOR
7	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
8	46505-SA7-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
9	46530-S84-A02	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
13	46597-S84-A00	Stay assy - PEDAL	Stay assy - PEDAL
21	46991-S84-A01	Bracket comp. - FOOTREST	Bracket comp. - FOOTREST
22	46992-S84-A01	Plate - FOOTREST BRACKET	Plate - FOOTREST BRACKET
24	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
25	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Pillar garnish (LH) 4 / 4

#	OEM	CF8	CG2
15	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)
16	91560-S84-A11	Clip - PILLAR GARNISH(BLACK)	Clip - PILLAR GARNISH(BLACK)
17	91560-SP0-003	Clip - DOOR LINING (GRAY)	Clip - DOOR LINING (GRAY)
17	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Power steering gear box (L4; LH) 15 / 17

#	OEM	CF8	CG2
1	53010-S84-A01	End set - RACK	End set - RACK
2	53434-S84-A01	Clip - STEERING TIE ROD	Clip - STEERING TIE ROD
3	53436-S84-A01	Cushion b - GEAR BOX	Cushion b - GEAR BOX
4	53438-S84-A00	Bracket b - GEAR BOX	Bracket b - GEAR BOX
5	53449-S84-A01	Band - BELLOWS	Band - BELLOWS
6	53501-S84-A00	Grommet a - STEERING	Grommet a - STEERING
7	53502-S84-A00	Grommet b - STEERING	Grommet b - STEERING
8	53534-S84-A01	Dust seal - TIE ROD	Dust seal - TIE ROD
9	53536-S84-A01	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
10	53537-S84-A01	Rubber - STOPPER	Rubber - STOPPER
11	53540-S84-A01	End comp - R. TIE ROD	End comp - R. TIE ROD
12	53546-S84-003	Boot - TIE ROD END (NOK)	Boot - TIE ROD END (NOK)
13	53560-S84-A01	End comp - L. TIE ROD	End comp - L. TIE ROD
15	53685-S84-A01	Bush - STEERING GEAR BOX MOUNTING	Bush - STEERING GEAR BOX MOUNTING
17	91411-S84-A01	Nut - HEX., 14MM	Nut - HEX., 14MM

Power steering gear box components (L4; LH) 22 / 23

#	OEM	CF8	CG2
1	06531-S84-A01	Seal kit a - POWER STEERING (ROTARY VALVE)	Seal kit a - POWER STEERING (ROTARY VALVE)
2	06532-S84-A01	Oil seal set - ROTARY VALVE	Oil seal set - ROTARY VALVE
3	06534-S84-A01	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
4	53413-S0K-A01	Spring - RACK GUIDE PRESSURE	Spring - RACK GUIDE PRESSURE
5	53414-S84-A01	Screw - RACK GUIDE	Screw - RACK GUIDE
6	53416-S0K-A01	Guide - STEERING RACK	Guide - STEERING RACK
7	53449-S84-A01	Band - BELLOWS	Band - BELLOWS
8	53458-S84-A01	Nut - LOCK	Nut - LOCK
9	53536-S84-A01	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
10	53537-S84-A01	Rubber - STOPPER	Rubber - STOPPER
11	53608-S84-A01	Housing sub assy. - STEERING GEAR BOX	Housing sub assy. - STEERING GEAR BOX
12	53626-S84-G01	Rack comp - STEERING	Rack comp - STEERING
13	53630-S84-A01	End comp - CYLINDER	End comp - CYLINDER
15	53645-S84-A01	Housing comp - VALVE	Housing comp - VALVE
16	53656-S84-A01	Circlip - EXTERNAL, 20MM	Circlip - EXTERNAL, 20MM
17	53660-S50-003	Oil seal - 27X38X5.5 (SHOWA)	Oil seal - 27X38X5.5 (SHOWA)
18	53661-S84-A01	Washer - WAVE (NOK)	Washer - WAVE (NOK)
19	06535-S50-003	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
20	53666-S50-003	O-ring - 41.5X2 (SHOWA)	O-ring - 41.5X2 (SHOWA)
21	53670-S84-A02	Pipe comp. a - CYLINDER	Pipe comp. a - CYLINDER
22	53671-S84-A01	Pipe comp. b - CYLINDER	Pipe comp. b - CYLINDER
23	90105-S50-003	Bolt - FLANGE, 8X28	Bolt - FLANGE, 8X28

Power steering lines (L4; LH) 12 / 23

#	OEM	CF8	CG2
1	53697-SB3-952	Cap - OIL TANK	Cap - OIL TANK
6	53729-SL4-951	Clip - RETURN PIPE, 10MM	Clip - RETURN PIPE, 10MM
7	53729-SS0-003	Clip - RETURN HOSE	Clip - RETURN HOSE
8	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
11	53732-S84-A01	Hose - OIL COOLER	Hose - OIL COOLER
14	53736-SH3-950	Holder b - POWER STEERING PIPE	Holder b - POWER STEERING PIPE
18	56490-P0H-013	Switch assy - POWER STEERING PRESSURE (TEXAS)	Switch assy - POWER STEERING PRESSURE (TEXAS)
19	90635-SM4-A01	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
19	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
20	91304-P0H-013	O-ring - 7.8X1.9	O-ring - 7.8X1.9
21	91370-SV4-000	O-ring - 14.4X1.9	O-ring - 14.4X1.9
22	91405-SS0-003	Clamp - TUBE (D21)	Clamp - TUBE (D21)

Power steering pump/ bracket (L4) 9 / 18

#	OEM	CF8	CG2
3	56167-P2A-003	Spacer - PUMP SEAL	Spacer - PUMP SEAL
8	90105-S50-003	Bolt - FLANGE, 8X28	Bolt - FLANGE, 8X28
9	90305-PAA-A01	Nut - POWER STEERING PULLEY	Nut - POWER STEERING PULLEY
10	90693-P2A-003	Circlip - INTERNAL, 40MM	Circlip - INTERNAL, 40MM
11	91048-P2A-003	Bearing - RADIAL BALL, 17X40X12	Bearing - RADIAL BALL, 17X40X12
13	91347-PAA-A01	O-ring - 16.7X1.8	O-ring - 16.7X1.8
14	91347-P2A-003	O-ring - 15.2X2.4	O-ring - 15.2X2.4
15	91348-P2A-003	O-ring - 51.0X2.4	O-ring - 51.0X2.4
16	91349-P2A-003	Seal - POWER STEERING PUMP COVER	Seal - POWER STEERING PUMP COVER

Protector 4 / 7

#	OEM	CF8	CG2
8	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
9	90505-SM4-003	Clip - GARNISH	Clip - GARNISH
9	90505-SX0-003	Clip - GARNISH	Clip - GARNISH
10	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH	Clip - SIDE SILL UPPER GARNISH

Radiator (L4) 8 / 14

#	OEM	CF8	CG2
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
8	19033-PAA-A01	Clip - COUPLER (DENSO)	Clip - COUPLER (DENSO)
9	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
10	19046-PAA-A00	Label - RADIATOR CAP	Label - RADIATOR CAP
11	90041-P5A-003	Screw-washer - 4X11	Screw-washer - 4X11
12	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
13	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator hose (L4) 7 / 12

#	OEM	CF8	CG2
1	19101-PAA-A00	Tank - RESERVE	Tank - RESERVE
2	19102-PM5-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
3	19103-PV1-A00	Hose - RESERVE TANK	Hose - RESERVE TANK
5	19106-PM3-000	Joint - RESERVE TANK	Joint - RESERVE TANK
8	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
8	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
18	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER

Radio antenna/speaker 7 / 11

#	OEM	CF8	CG2
1	39112-SM4-000	Bracket - FR. SPEAKER SEAL	Bracket - FR. SPEAKER SEAL
9	90131-S30-003	Screw-washer - ET, 6X16	Screw-washer - ET, 6X16
10	90132-SV4-003	Screw - ET, 5X16	Screw - ET, 5X16
11	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)	Grommet - SCREW, 4MM (YELLOW)
13	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
14	91545-S30-003	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (151.5MM) (WITH SEAL)
15	91655-SP0-010	Seal a - DOOR PANEL HOLE (60X30)	Seal a - DOOR PANEL HOLE (60X30)

Rear beam/cross beam 8 / 12

#	OEM	CF8	CG2
3	50210-S84-A00	Stiffener - RR. BEAM	Stiffener - RR. BEAM
5	50220-S84-A00	Stiffener - STEERING GEAR BOX	Stiffener - STEERING GEAR BOX
22	90161-S84-A00	Bolt - FLANGE, 14X125	Bolt - FLANGE, 14X125
24	90162-S84-A00	Bolt - FLANGE, 14X90	Bolt - FLANGE, 14X90
25	90164-S84-A00	Bolt - FLANGE, 12X30	Bolt - FLANGE, 12X30
25	90164-S1A-E00	Bolt - FLANGE, 12X30	Bolt - FLANGE, 12X30
27	91613-SE0-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM
28	91613-S84-A01	Grommet - RR. SUB FRAME	Grommet - RR. SUB FRAME

Rear brake (DRUM) 5 / 39

#	OEM	CF8	CG2
3	42326-ST7-Z00	Cap - HUB UNIT	Cap - HUB UNIT
3	42326-SLJ-000	Cap, Hub unit	Cap, Hub unit
18	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
35	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
36	90305-S30-003	Nut - SPINDLE	Nut - SPINDLE

Rear door lining 4 / 7

#	OEM	CF8	CG2
1	34261-SV1-A01	Lens - DONNELLY	Lens - DONNELLY
18	90101-S03-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
20	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
21	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Rear door locks 9 / 35

#	OEM	CF8	CG2
1	72119-SM1-003	Stopper a - OUTSIDE HANDLE	Stopper a - OUTSIDE HANDLE
3	72135-SR3-003	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
5	72139-SR0-A01	Snap - VIOLET	Snap - VIOLET
18	72634-SM4-003	Snap - R. (BLUE)	Snap - R. (BLUE)
30	72674-SM4-003	Snap - L. (BROWN)	Snap - L. (BROWN)
35	90120-SM4-000	Screw - TAPPING	Screw - TAPPING
36	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
37	90662-SB2-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
38	90866-SA0-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Rear door panels 7 / 27

#	OEM	CF8	CG2
19	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
21	90141-S04-000	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
23	90686-692-003	Cap - LINING MOUNT	Cap - LINING MOUNT
24	91530-SH4-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
25	91568-SR2-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
25	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
26	91657-SP0-000	Seal c - DOOR PANEL HOLE (25MM)	Seal c - DOOR PANEL HOLE (25MM)

Rear door windows 1 / 22

#	OEM	CF8	CG2
18	90011-896-000	Bolt - FLANGE, 6X8	Bolt - FLANGE, 6X8

Rear lower arm 26 / 33

#	OEM	CF8	CG2
5	52308-SZ5-000	Holder - STABILIZER BUSH	Holder - STABILIZER BUSH
6	52320-S84-A01	Link comp - R. RR. STABILIZER	Link comp - R. RR. STABILIZER
7	52325-S84-A01	Link comp - L. RR. STABILIZER	Link comp - L. RR. STABILIZER
8	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
9	52340-S84-A01	Bracket - R. RR. LINK STABILIZER	Bracket - R. RR. LINK STABILIZER
10	52345-S84-A01	Bracket - L. RR. LINK STABILIZER	Bracket - L. RR. LINK STABILIZER
11	52350-S84-A01	Arm comp - RR. LOWER	Arm comp - RR. LOWER
12	52360-S84-A01	Arm comp - RR. CONTROL	Arm comp - RR. CONTROL
13	52364-634-020	Washer - LOWER ARM	Washer - LOWER ARM
14	52365-SM4-004	Bush a - RR. LOWER ARM (YAMASHITA)	Bush a - RR. LOWER ARM (YAMASHITA)
17	52380-S84-A01	Arm comp - RR. LEADING	Arm comp - RR. LEADING
18	52387-S84-A00	Bolt - CONTROL ADJUSTING	Bolt - CONTROL ADJUSTING
19	52388-S84-A00	Plate - CAM	Plate - CAM
20	52390-S84-A01	Arm comp - RR. UPPER	Arm comp - RR. UPPER
21	52454-S84-A01	Boot - UPPER DUST	Boot - UPPER DUST
21	06511-TY2-A01	Boot	Boot
25	90002-S10-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
27	90173-S84-A00	Bolt - RR. UPPER ARM	Bolt - RR. UPPER ARM
28	90181-S84-A00	Bolt - TRAILING ARM, 12X68	Bolt - TRAILING ARM, 12X68
29	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
30	90216-SE0-010	Nut	Nut
30	90216-SE0-305	NUT, LWR ARM	NUT, LWR ARM
31	90306-SB2-013	Nut - SELF-LOCK, 10MM (CLINCH)	Nut - SELF-LOCK, 10MM (CLINCH)
32	90363-SZ3-003	Nut - UPPER ARM, 12MM	Nut - UPPER ARM, 12MM
32	90363-S0X-A00	Nut - UPPER ARM, 12MM	Nut - UPPER ARM, 12MM
36	90701-SX0-003	Clip - UPPER ARM	Clip - UPPER ARM

Rear seat 4 / 20

#	OEM	CF8	CG2
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
12	82137-S84-A01	Clip - RR. SEAT CUSHION	Clip - RR. SEAT CUSHION
30	90003-692-000	Bolt - FLANGE, 6X16	Bolt - FLANGE, 6X16

Rear shock absorber 19 / 23

#	OEM	CF8	CG2
1	51621-S84-A01	Washer - SHOCK ABSORBER MOUNTING	Washer - SHOCK ABSORBER MOUNTING
2	51685-SR0-004	Plate - DUST COVER (A.S.I. SHOWA)	Plate - DUST COVER (A.S.I. SHOWA)
2	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
3	51728-SR0-003	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)
3	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
4	52441-S84-A22	Spring - RR. (A.S.I. SHOWA)	Spring - RR. (A.S.I. SHOWA)
7	52622-S84-A01	Bush - RR. SHOCK ABSORBER LOWER	Bush - RR. SHOCK ABSORBER LOWER
8	52631-S84-A01	Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA)	Rubber - RR. SHOCK ABSORBER MOUNTING (SHOWA)
9	52675-S84-A01	Base - RR. SHOCK ABSORBER MOUNTING (A.S.I. SHOWA)	Base - RR. SHOCK ABSORBER MOUNTING (A.S.I. SHOWA)
10	52686-S84-A01	Rubber - RR. SPRING MOUNTING	Rubber - RR. SPRING MOUNTING
11	52688-S84-A02	Sleeve - RR. DUST COVER	Sleeve - RR. DUST COVER
12	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP
13	52722-SM4-013	Rubber - BUMPER STOPPER (POLYURETHAN KASEI)	Rubber - BUMPER STOPPER (POLYURETHAN KASEI)
13	52722-SV1-A02	Rubber - RR. BUMP STOPPER (SHOWA)	Rubber - RR. BUMP STOPPER (SHOWA)
14	52748-S84-A02	Cover - RR. LOWER MOUNT DUST	Cover - RR. LOWER MOUNT DUST
15	90182-S84-A00	Bolt - RR. DAMPER, (10X81)	Bolt - RR. DAMPER, (10X81)
16	90300-S84-A00	Nut - SHOCK ABSORBER FLANGE (10MM)	Nut - SHOCK ABSORBER FLANGE (10MM)
17	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
18	52689-SG0-014	End - DUST COVER	End - DUST COVER

Rear tray/side garnish 4 / 6

#	OEM	CF8	CG2
18	90132-SE3-003	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
20	90668-SV1-003	Clip - RR. TRAY	Clip - RR. TRAY
21	91560-S04-003	Clip - SIDE GARNISH (NATURAL)	Clip - SIDE GARNISH (NATURAL)
25	91562-S84-A11	Grommet - DOOR LINING	Grommet - DOOR LINING

Rear windshield 1 / 4

#	OEM	CF8	CG2
4	73224-SW5-A01	Base - TERMINAL COVER	Base - TERMINAL COVER

Resonator chamber (L4) 3 / 8

#	OEM	CF8	CG2
1	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
3	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
8	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35

Roof lining 2 / 7

#	OEM	CF8	CG2
5	83202-SZ3-000	Clip - ROOF LINING	Clip - ROOF LINING
16	90136-S30-003	Screw - ET, 5X18	Screw - ET, 5X18

Seatbelt 2 / 5

#	OEM	CF8	CG2
14	90101-S84-A00	Screw - ET, 6X16	Screw - ET, 6X16
18	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Srs unit (LH) 3 / 6

#	OEM	CF8	CG2
2	77907-S04-003	Holder - CONNECTOR (2P)	Holder - CONNECTOR (2P)
5	90137-S84-A01	Bolt - TORX EARTH, 6X20	Bolt - TORX EARTH, 6X20
6	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)

Steering column 9 / 12

#	OEM	CF8	CG2
2	53216-S84-A00	Hold b - STEERING COLUMN	Hold b - STEERING COLUMN
3	53320-S84-G00	Cover - STEERING JOINT	Cover - STEERING JOINT
5	53325-SH3-000	Clip A - JOINT COVER	Clip A - JOINT COVER
6	53326-SB0-000	Clip b - JOINT COVER	Clip b - JOINT COVER
7	77873-S04-G80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH/GERMAN/DUTCH)
8	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
9	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
10	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
11	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR

Steering wheel (SRS; L4) 3 / 4

#	OEM	CF8	CG2
4	78509-S84-A61	Plate - HOOK	Plate - HOOK
11	90134-S04-A81	Bolt - HEX., 6X12	Bolt - HEX., 6X12
12	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE

Switch (LH) 4 / 4

#	OEM	CF8	CG2
2	35505-S84-N01	Bulb - NEO WEDGE (T3) (NS) (14V 50MA)	Bulb - NEO WEDGE (T3) (NS) (14V 50MA)
3	35510-S84-A11	Switch assy - HAZARD	Switch assy - HAZARD
13	39700-S84-A21	Clock assy - DIGITAL (NS)	Clock assy - DIGITAL (NS)
15	35871-S3N-901	Bulb - NEO WEDGE (14V 60MA) (TOYO)	Bulb - NEO WEDGE (14V 60MA) (TOYO)

Taillight 4 / 19

#	OEM	CF8	CG2
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
2	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
5	33513-S50-003	Socket - T20W S2	Socket - T20W S2
18	90321-S06-000	Nut - HEX. CAP, 5MM	Nut - HEX. CAP, 5MM

Throttle body (L4) 5 / 12

#	OEM	CF8	CG2
1	16016-P2M-A01	Screw set	Screw set
2	16075-P07-000	O-ring	O-ring
3	16080-P07-000	Screw-washer - 4X16	Screw-washer - 4X16
12	37880-P0A-A02	Sensor assy - AIR TEMP	Sensor assy - AIR TEMP
14	91303-P0A-A02	O-ring	O-ring

Tire/wheel disks 4 / 21

#	OEM	CF8	CG2
5	42753-SE0-A02	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
5	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
13	74666-SX0-000	Adapter - ANCHOR BOLT	Adapter - ANCHOR BOLT
14	83853-S84-A00	Bolt - ANCHOR	Bolt - ANCHOR

Tools/jack 3 / 7

#	OEM	CF8	CG2
3	89101-SW5-003	Bag - TOOL	Bag - TOOL
4	89211-S05-003	Wrench - WHEEL	Wrench - WHEEL
7	89320-S05-003	Bar - JACK	Bar - JACK

Trunk lid (LH) 12 / 24

#	OEM	CF8	CG2
5	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
6	74822-SW5-003	Cushion - TRUNK HINGE	Cushion - TRUNK HINGE
9	74829-S84-A00	Stopper - TRUNK LID	Stopper - TRUNK LID
17	74867-SW5-003	Holder - ROD	Holder - ROD
20	74873-SM4-003	Clip - TRUNK OPENER SPRING	Clip - TRUNK OPENER SPRING
23	74886-SH4-A03	Cylinder - TRUNK REMOTE CONTROL	Cylinder - TRUNK REMOTE CONTROL
26	75353-671-000	Lock - SCREW	Lock - SCREW
27	90108-S0A-003	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15
28	90109-SM4-000	Bolt - SPECIAL, 6X35	Bolt - SPECIAL, 6X35
30	90691-SF1-003	Clip c - OPENER CABLE	Clip c - OPENER CABLE
32	91609-SE0-A00	Protection - CUSHION	Protection - CUSHION
33	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)

Valve/rocker arm (SOHC; L4) 5 / 19

#	OEM	CF8	CG2
10	14744-PT0-004	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
13	14765-PJ7-000	Retainer - VALVE SPRING	Retainer - VALVE SPRING
14	14775-PM3-000	Seat - VALVE SPRING	Seat - VALVE SPRING
15	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
18	90206-PT0-004	Nut - TAPPET ADJUSTING	Nut - TAPPET ADJUSTING

Water pump/sensor (L4) 7 / 27

#	OEM	CF8	CG2
14	37750-PH2-014	Thermo unit - DENSO	Thermo unit - DENSO
15	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
17	37870-PK2-005	Sensor assy - WATER TEMP (HADSYS)	Sensor assy - WATER TEMP (HADSYS)
20	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)	O-ring - 9.5X1.5(HONDA KIKAKI)
21	91307-PN4-000	O-ring - 17.5X1.4	O-ring - 17.5X1.4
21	91307-PN3-000	O-ring,17.8x1.4	O-ring,17.8x1.4
23	91314-PH7-003	O-ring 31.2X4.1 (NOK)	O-ring 31.2X4.1 (NOK)

Water valve (L4; LH) 3 / 7

#	OEM	CF8	CG2
5	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
6	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
6	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Windshield washer (L4) 11 / 14

#	OEM	CF8	CG2
1	36062-671-000	Clamp b - TUBE	Clamp b - TUBE
2	38512-SC4-673	Motor - WASHER (DENSO)	Motor - WASHER (DENSO)
4	76807-SE4-A02	Packing - T-TYPE) (DENSO	Packing - T-TYPE) (DENSO
6	76813-S84-A02	Packing	Packing
8	76828-SH0-A02	Joint l, WASHER TUBE (DENSO)	Joint l, WASHER TUBE (DENSO)
9	76830-SR0-004	Joint y - TUBE (DENSO)	Joint y - TUBE (DENSO)
11	76842-SE4-A02	Bush - WASHER TANK (DENSO)	Bush - WASHER TANK (DENSO)
12	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
14	91522-SM4-003	Clip - TUBE & INSULATOR	Clip - TUBE & INSULATOR
15	91570-S04-003	Clip - WASHER TUBE	Clip - WASHER TUBE
16	91576-S84-A01	Clip - WASHER TUBE	Clip - WASHER TUBE

Wire harness (LH) 3 / 18

#	OEM	CF8	CG2
15	33301-S70-003	Bulb - 12V 3.8W 2CP	Bulb - 12V 3.8W 2CP
16	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
17	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
