検索 › 比較 › CE1 × CG5
CE1
Honda ACCORD — 2,238 中 407 共有
CG5
Honda ACCORD — 2,115 中 407 共有
Air cleaner 4 / 21
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 4 | 17213-PV0-000 | Rubber - AIR CLEANER CASE MOUNTING | Rubber - AIR CLEANER CASE MOUNTING |
| 5 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 23 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
Air conditioner (COMPRESSOR; ND) 7 / 16
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 3 | 38812-PH1-003 | Ring b - SNAP | Ring b - SNAP |
| 4 | 38812-671-003 | Ring a - SNAP | Ring a - SNAP |
| 5 | 38827-PH7-003 | Screw-washer - 5X8 | Screw-washer - 5X8 |
| 6 | 38829-PR3-003 | Bolt - WASHER HEAD | Bolt - WASHER HEAD |
| 8 | 38839-PR7-A01 | O-ring | O-ring |
| 9 | 38840-PC1-003 | Bolt b | Bolt b |
| 11 | 38912-PH1-N01 | Plate set - WASHER | Plate set - WASHER |
Air conditioner (CONDENSER; LH) 4 / 14
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 7 | 80107-SS0-000 | Mount - CONDENSER UPPER | Mount - CONDENSER UPPER |
| 10 | 80175-SE0-000 | Mount - CONDENSER | Mount - CONDENSER |
| 12 | 90003-PG7-660 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 13 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
Air conditioner (HOSES/PIPES; LH) 5 / 22
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 2 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 15 | 80440-SS0-901 | Switch - DUAL PRESSURE (FUJI) | Switch - DUAL PRESSURE (FUJI) |
| 18 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 19 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 20 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
Air conditioner (UNIT; LH) 7 / 28
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 10 | 80214-SL5-A01 | Insulator - EXPANSION | Insulator - EXPANSION |
| 12 | 80223-ST7-A11 | O-ring - FUJI KOKI AMERICA | O-ring - FUJI KOKI AMERICA |
| 13 | 80225-SR3-010 | Clamp | Clamp |
| 21 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 22 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 24 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 25 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Alternator (DENSO) 16 / 21
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 3 | 31105-PR7-A01 | Holder assy. - BRUSH | Holder assy. - BRUSH |
| 4 | 31111-PT0-003 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 5 | 31114-PT0-013 | Bearing - FR. GENERATOR | Bearing - FR. GENERATOR |
| 6 | 31118-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 7 | 31119-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 8 | 31127-PT2-013 | Rectifier assy. | Rectifier assy. |
| 10 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 12 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 13 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 14 | 31146-PT0-003 | Screw | Screw |
| 15 | 31147-PT0-003 | Screw-washer | Screw-washer |
| 16 | 31147-P13-003 | Screw | Screw |
| 17 | 31148-PT0-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 18 | 31148-P13-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 20 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |
| 21 | 90232-PT0-003 | Nut - HEX., 6MM | Nut - HEX., 6MM |
Battery 6 / 16
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 2 | 31512-SS0-000 | Plate - BATTERY SETTING (70D/80D) | Plate - BATTERY SETTING (70D/80D) |
| 3 | 31513-SM4-000 | Bolt - BATTERY SETTING(195MM) | Bolt - BATTERY SETTING(195MM) |
| 4 | 31513-SP0-010 | Bolt - BATTERY SETTING (210MM) | Bolt - BATTERY SETTING (210MM) |
| 10 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 11 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 14 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
Brake lines (LH) 6 / 28
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 13 | 46380-SB0-000 | Grommet a - BRAKE PIPE (BLACK) | Grommet a - BRAKE PIPE (BLACK) |
| 19 | 46393-SM4-951 | Clip c | Clip c |
| 25 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 26 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 27 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 28 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Brake master cylinder/ master power 3 / 23
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 8 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 10 | 46191-634-000 | Gasket - MASTER CYLINDER BRACKET | Gasket - MASTER CYLINDER BRACKET |
| 26 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
Breather tube 2 / 7
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 17130-PK1-003 | Valve assy. - PCV | Valve assy. - PCV |
| 6 | 17139-PK1-000 | Grommet - PCV VALVE | Grommet - PCV VALVE |
Bumper (Q,Y) 3 / 29
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 16 | 71598-SL4-013 | Spacer - BUMPER SIDE | Spacer - BUMPER SIDE |
| 19 | 90109-SS0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 20 | 90110-SE7-000 | Bolt-washer - 8X21 | Bolt-washer - 8X21 |
Camshaft/timing belt 13 / 30
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 9 | 11926-P0A-000 | Rubber b - ENGINE MOUNTING BRACKET SEAL | Rubber b - ENGINE MOUNTING BRACKET SEAL |
| 10 | 13404-PT0-003 | Adjuster comp - BALANCER BELT (KOYO) | Adjuster comp - BALANCER BELT (KOYO) |
| 12 | 13407-P0A-000 | Spring - BELT ADJUSTER | Spring - BELT ADJUSTER |
| 13 | 13415-P0A-000 | Bracket - BALANCER BELT ADJUSTER | Bracket - BALANCER BELT ADJUSTER |
| 17 | 14510-PT0-003 | Adjuster comp - TIMING BELT (KOYO) | Adjuster comp - TIMING BELT (KOYO) |
| 18 | 14516-P0A-000 | Spring comp - TIMING BELT ADJUSTER | Spring comp - TIMING BELT ADJUSTER |
| 19 | 90007-679-000 | Bolt a - TIMING BELT COVER | Bolt a - TIMING BELT COVER |
| 20 | 90015-PT0-000 | Bolt - TIMING BELT ADJUSTER SPRING | Bolt - TIMING BELT ADJUSTER SPRING |
| 22 | 90031-PT0-003 | Bolt-washer - 8X22 | Bolt-washer - 8X22 |
| 22 | 90032-ZW5-003 | Bolt-washer, 8x22 | Bolt-washer, 8x22 |
| 23 | 90051-PT0-000 | Bolt - SUB BELT ADJUSTER SPRING | Bolt - SUB BELT ADJUSTER SPRING |
| 26 | 90501-MB7-610 | Washer - 10.3X25 | Washer - 10.3X25 |
| 28 | 91213-PT0-003 | Oil seal - 28X42X8 (ARAI) | Oil seal - 28X42X8 (ARAI) |
Clutch master cylinder (LH) 2 / 41
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 10 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 40 | 90651-SV1-A01 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Combination meter (COMPONENTS) 4 / 24
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 6 | 37115-SA0-601 | Packing - NS | Packing - NS |
| 24 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Combination switch (LH; '96-) 3 / 17
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 4 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 29 | 90690-SA0-003 | Strap - WIRE HARNESS, 25MM (BLACK) | Strap - WIRE HARNESS, 25MM (BLACK) |
| 30 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
Console (LH) 9 / 20
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 6 | 66418-SA5-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 7 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 9 | 77234-SV4-003 | Clip | Clip |
| 31 | 88324-SB3-950 | Cover - RR. ASHTRAY | Cover - RR. ASHTRAY |
| 33 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 35 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 37 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 38 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 45 | 39600-S84-A01 | Lighter assy - CIGARETTE | Lighter assy - CIGARETTE |
Control unit (CABIN; LH) 5 / 32
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 22 | 38300-SE3-003 | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) |
| 34 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 35 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 36 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 37 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Control unit (ENGINE ROOM) 4 / 28
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 21 | 39793-SV4-003 | Relay assy - POWER (5P) (MITSUBA) | Relay assy - POWER (5P) (MITSUBA) |
| 23 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 27 | 90182-SB6-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 28 | 91551-SV4-003 | Clip - BRACKET | Clip - BRACKET |
Crankshaft/piston 9 / 42
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 11 | 13400-PT3-010 | Shaft comp. - RR. BALANCER | Shaft comp. - RR. BALANCER |
| 12 | 13401-PT3-010 | Shaft - FR. BALANCER | Shaft - FR. BALANCER |
| 14 | 13406-PT0-003 | Metal f - THRUST BALANCER SHAFT | Metal f - THRUST BALANCER SHAFT |
| 19 | 90017-PY3-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 19 | 90017-RJA-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 20 | 90019-PT0-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 21 | 90031-PT0-003 | Bolt-washer - 8X22 | Bolt-washer - 8X22 |
| 21 | 90032-ZW5-003 | Bolt-washer, 8x22 | Bolt-washer, 8x22 |
| 22 | 90704-PT0-000 | Key - 4.5X38.5 | Key - 4.5X38.5 |
Cross beam 1 / 11
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 13 | 91613-SE0-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
Cylinder block/oil pan 17 / 30
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 3 | 11107-PT0-000 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 4 | 11126-PK1-003 | Bolt - SEALING, 22MM | Bolt - SEALING, 22MM |
| 10 | 11910-P0A-010 | Bracket - ENGINE MOUNTING | Bracket - ENGINE MOUNTING |
| 12 | 13421-PT0-003 | Metal - BALANCER SHAFT (NO.1) (DAIDO) | Metal - BALANCER SHAFT (NO.1) (DAIDO) |
| 13 | 13422-PT0-013 | Metal - BALANCER SHAFT (NO.2) (DAIDO) | Metal - BALANCER SHAFT (NO.2) (DAIDO) |
| 14 | 13423-PT0-003 | Metal - BALANCER SHAFT (NO.3) (DAIDO) | Metal - BALANCER SHAFT (NO.3) (DAIDO) |
| 17 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 18 | 90007-PAA-T01 | Bolt-washer - 11X121 | Bolt-washer - 11X121 |
| 19 | 90008-PM3-000 | Bolt - MOUNTING BRACKET, 10X32.5 | Bolt - MOUNTING BRACKET, 10X32.5 |
| 20 | 90008-P0A-000 | Bolt - MOUNTING BRACKET, 10X53 | Bolt - MOUNTING BRACKET, 10X53 |
| 21 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 22 | 90009-P0A-000 | Bolt b - MOUNTING BRACKET, 10X56.2 | Bolt b - MOUNTING BRACKET, 10X56.2 |
| 23 | 90030-PT0-000 | Bolt - STUD, 10X35 | Bolt - STUD, 10X35 |
| 27 | 90051-PH7-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 28 | 90061-PT0-000 | Bolt - DRAIN PLUG, 12MM | Bolt - DRAIN PLUG, 12MM |
| 29 | 90705-PT0-000 | Dowel pin - 16X22 | Dowel pin - 16X22 |
| 30 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
Cylinder head (SOHC) 8 / 21
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 2 | 12204-PJ7-305 | Guide - IN. VALVE (OS) | Guide - IN. VALVE (OS) |
| 3 | 12205-PJ7-305 | Guide - EX. VALVE (OS) | Guide - EX. VALVE (OS) |
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 10 | 90002-P0A-000 | Bolt - FLANGE, 8X76 | Bolt - FLANGE, 8X76 |
| 18 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
Cylinder head cover 2 / 9
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 9 | 15610-P2A-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 10 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
Driveshaft/half shaft 7 / 26
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 7 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 8 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 12 | 44338-SM1-300 | Circlip - 26MM | Circlip - 26MM |
| 12 | 44338-SB0-300 | Circlip - 26MM | Circlip - 26MM |
| 17 | 90305-SD4-003 | Nut - SPINDLE (24MM) | Nut - SPINDLE (24MM) |
| 25 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 26 | 44337-SB0-300 | Ring b - STOPPER | Ring b - STOPPER |
Emblem 1 / 10
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 24 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
Engine mounts (MT) 5 / 18
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 9 | 90163-SC2-000 | Bolt - FLANGE, 12X25 | Bolt - FLANGE, 12X25 |
| 13 | 90173-SM4-000 | Bolt - FLANGE, 12X60 | Bolt - FLANGE, 12X60 |
| 14 | 90174-SM4-000 | Bolt - FLANGE, 10X22 | Bolt - FLANGE, 10X22 |
| 16 | 90371-SM4-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 18 | 90552-SV4-000 | Washer - FR. BRACKET | Washer - FR. BRACKET |
Engine wire harness/clamp 9 / 22
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 3 | 31113-P0A-A00 | Stay - ALTERNATOR | Stay - ALTERNATOR |
| 14 | 37240-PT0-023 | Switch - OIL PRESSURE(DENSO) | Switch - OIL PRESSURE(DENSO) |
| 14 | 37240-PT0-014 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 15 | 56995-PV0-000 | Bolt - TENSIONER | Bolt - TENSIONER |
| 19 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 20 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 21 | 90311-PT0-000 | Bolt - ADJUSTER SPECIAL | Bolt - ADJUSTER SPECIAL |
| 22 | 90313-PT0-000 | Bolt - SPECIAL, 10X90 | Bolt - SPECIAL, 10X90 |
| 23 | 91506-P0A-A01 | Clip - ALTERNATOR CORD | Clip - ALTERNATOR CORD |
Exhaust manifold 8 / 12
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 3 | 18115-P0A-003 | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) |
| 5 | 90005-P0A-000 | Bolt-washer - 10X22 | Bolt-washer - 10X22 |
| 6 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 7 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 8 | 90065-PC1-300 | Bolt - STUD, 10X34.5 | Bolt - STUD, 10X34.5 |
| 9 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 9 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 10 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
Exhaust pipe (Q,Y) 5 / 22
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 17 | 18303-SM4-020 | Gasket - SILENCER | Gasket - SILENCER |
| 18 | 18393-SH3-S00 | Gasket - PRE-CHAMBER (52.5MM-53.5MM) | Gasket - PRE-CHAMBER (52.5MM-53.5MM) |
| 26 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 28 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 31 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |

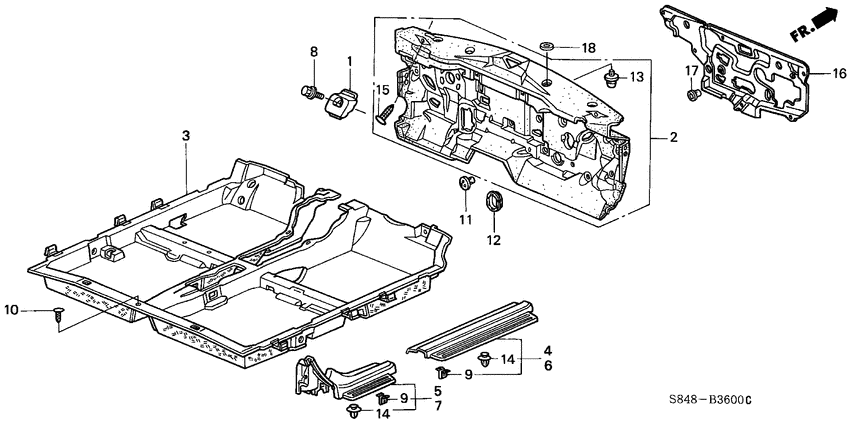

Floor mat 3 / 11
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 12 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 14 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
| 17 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
Front brake 1 / 24
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 22 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
Front bulkhead 1 / 2
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 32 | 90105-SV1-000 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
Front combination light 1 / 7
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 12 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
Front door lining (LH) 4 / 12
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 22 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 24 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 26 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 26 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front door locks 12 / 39
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 6 | 72112-SR4-004 | Snap - BROWN | Snap - BROWN |
| 6 | 72113-SR4-004 | Snap - BLACK | Snap - BLACK |
| 20 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 21 | 72134-SM4-003 | Snap - R. (VIOLET) | Snap - R. (VIOLET) |
| 23 | 72135-SR3-003 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 26 | 72139-SV4-A01 | Tube - PROTECTOR | Tube - PROTECTOR |
| 40 | 75411-634-000 | Joint | Joint |
| 41 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 43 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 44 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 47 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 48 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
Front door panels 5 / 20
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 17 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 19 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 22 | 91568-SR2-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 22 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 25 | 91657-SP0-000 | Seal c - DOOR PANEL HOLE (25MM) | Seal c - DOOR PANEL HOLE (25MM) |
Front door windows 1 / 11
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 11 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
Front fenders 4 / 10
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 9 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 11 | 90657-SB0-003 | Clip, SPLASH SHIELD | Clip, SPLASH SHIELD |
| 12 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 13 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Front grille 1 / 5
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 6 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
Front seat 3 / 8
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 24 | 81322-SP0-003 | Clip - LUMBAR SUPPORT | Clip - LUMBAR SUPPORT |
Front seat components (L.; POWER) 3 / 19
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 3 | 77517-SA5-014 | Cap - SLIDE ADJUSTER | Cap - SLIDE ADJUSTER |
| 22 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 23 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Front seat components (R.) 1 / 7
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 2 | 77517-SA5-014 | Cap - SLIDE ADJUSTER | Cap - SLIDE ADJUSTER |
Front shock absorber 4 / 18
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 9 | 51685-SR0-004 | Plate - DUST COVER (A.S.I. SHOWA) | Plate - DUST COVER (A.S.I. SHOWA) |
| 12 | 51689-SH3-004 | Plate - BUMP STOP (SHOWA) | Plate - BUMP STOP (SHOWA) |
| 14 | 51728-SR0-003 | Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS) | Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS) |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Front stabilizer/ front lower arm 5 / 27
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 14 | 51393-SV1-A01 | Bush - FR. LOWER ARM | Bush - FR. LOWER ARM |
| 16 | 51398-SM4-000 | Collar - RADIUS ROD | Collar - RADIUS ROD |
| 18 | 51810-SV4-004 | Bush - SHOCK ABSORBER FORK (YAMASHITA) | Bush - SHOCK ABSORBER FORK (YAMASHITA) |
| 26 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 27 | 90303-SF1-003 | Nut - SELF-LOCK, 12MM | Nut - SELF-LOCK, 12MM |
Front windshield wiper (LH) 5 / 24
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 6 | 76517-SM4-003 | Collar | Collar |
| 9 | 76524-SD4-003 | Dust seal | Dust seal |
| 10 | 76524-SE0-013 | Dust seal | Dust seal |
| 21 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 22 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
Fuel pipe (LH) 5 / 37
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 12 | 17743-SM4-003 | Cap - DRAIN TUBE | Cap - DRAIN TUBE |
| 13 | 17743-SV4-003 | Joint - CANISTER DRAIN BYPASS TUBE | Joint - CANISTER DRAIN BYPASS TUBE |
| 25 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 26 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 28 | 91406-SL4-931 | Clamp - FUEL HOSE (D10.5) | Clamp - FUEL HOSE (D10.5) |
Fuel tank 8 / 39
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 7 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 11 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 18 | 17670-S3N-003 | Cap comp. - FUEL FILLER (TOYODA) | Cap comp. - FUEL FILLER (TOYODA) |
| 24 | 17711-ST0-003 | Retainer - YELLOW) (TOKAI | Retainer - YELLOW) (TOKAI |
| 34 | 90301-SE0-J00 | Nut - FLANGE, 6MM | Nut - FLANGE, 6MM |
| 38 | 90700-SB0-003 | Clip - AIR BLEED TUBE | Clip - AIR BLEED TUBE |
| 39 | 91406-SL4-931 | Clamp - FUEL HOSE (D10.5) | Clamp - FUEL HOSE (D10.5) |
| 42 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
Grommet 9 / 13
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 72206-SA5-000 | Cap - FLOOR HOLE, 53MM | Cap - FLOOR HOLE, 53MM |
| 5 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 6 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 7 | 90615-SR3-000 | Cap - WELD HOLE, 51X77 | Cap - WELD HOLE, 51X77 |
| 9 | 91602-SV4-003 | Plug - HOLE, 15MM | Plug - HOLE, 15MM |
| 11 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
| 13 | 91611-SM4-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 14 | 91611-SS0-003 | Plug - HOLE, 25MM | Plug - HOLE, 25MM |
| 15 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
Headlight (Y) 2 / 33
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 26 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 30 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
Heater blower (LH) 7 / 12
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 2 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 3 | 79195-SF1-003 | Holder - ROD | Holder - ROD |
| 9 | 90121-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 11 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 12 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 14 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Heater unit (LH) 4 / 14
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 8 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 10 | 79770-SE0-000 | Grommet - WATER VALVE CABLE | Grommet - WATER VALVE CABLE |
| 11 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
High tension cord/ spark plug 2 / 9
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 9 | 32767-PT0-000 | Grommet - HIGH TENSION CORD | Grommet - HIGH TENSION CORD |
| 11 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
Hood 3 / 21
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 23 | 90106-SE1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 29 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 30 | 91558-SE3-003 | Clip - HOOD WIRE | Clip - HOOD WIRE |
Install pipe/tubing 1 / 5
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 6 | 90634-PA0-000 | Cap - SEALING | Cap - SEALING |
Instrument panel (LH) 6 / 17
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 6 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 25 | 90104-SV4-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 27 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 28 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 29 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 30 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (LH) 6 / 28
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 4 | 66417-SA0-000 | Rubber - GLOVE BOX STOPPER | Rubber - GLOVE BOX STOPPER |
| 5 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 15 | 77371-SV4-000 | Ring - COLUMN COVER | Ring - COLUMN COVER |
| 33 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 38 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 42 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Intake manifold 13 / 29
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 2 | 16472-P0H-A01 | Seal ring - INJECTOR (NOK) | Seal ring - INJECTOR (NOK) |
| 2 | 16472-PH7-003 | Seal ring - INJECTOR (OTSUKA) | Seal ring - INJECTOR (OTSUKA) |
| 3 | 16473-P10-A01 | Cushion ring - INJECTOR (NOK) | Cushion ring - INJECTOR (NOK) |
| 3 | 16473-PD6-000 | Cushion ring - INJECTOR (OTSUKA) | Cushion ring - INJECTOR (OTSUKA) |
| 10 | 16741-PG7-005 | O-ring - PRESSURE REGULATOR | O-ring - PRESSURE REGULATOR |
| 20 | 32759-P0A-A00 | Stay j - ENGINE WIRE HARNESS | Stay j - ENGINE WIRE HARNESS |
| 24 | 90027-P0A-003 | Bolt a - FUEL PIPE | Bolt a - FUEL PIPE |
| 24 | 90027-P0A-305 | Bolt a | Bolt a |
| 25 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 27 | 91301-PM7-003 | O-ring - 7.3X2.2 (ARAI) | O-ring - 7.3X2.2 (ARAI) |
| 27 | 91301-P2F-A01 | O-ring - 7.3X2.2 (NOK) | O-ring - 7.3X2.2 (NOK) |
| 27 | 16074-ZY3-000 | O-ring | O-ring |
| 28 | 91406-SL4-931 | Clamp - FUEL HOSE (D10.5) | Clamp - FUEL HOSE (D10.5) |
Interior light 2 / 9
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 2 | 34251-SV1-A11 | Lens - DONNELLY | Lens - DONNELLY |
| 11 | 90152-SE0-003 | Nut - EARTH, 5MM (ZN) | Nut - EARTH, 5MM (ZN) |
Knuckle 4 / 12
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 7 | 52226-SL0-003 | Circlip - LOWER BALL(MUSASHI) | Circlip - LOWER BALL(MUSASHI) |
| 14 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 15 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 16 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
Mirror 1 / 15
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 24 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
Molding 1 / 33
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 59 | 91528-SR4-003 | Clip - DRIP MOLDING | Clip - DRIP MOLDING |
Oil pump/oil strainer 20 / 27
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 4 | 15113-PT0-003 | Packing a - OIL PUMP (ARAI) | Packing a - OIL PUMP (ARAI) |
| 5 | 15114-PT0-003 | Packing b - OIL PUMP (ARAI) | Packing b - OIL PUMP (ARAI) |
| 6 | 15200-P0A-000 | Pipe comp - OIL LEVEL | Pipe comp - OIL LEVEL |
| 8 | 15221-PT0-000 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 8 | 15221-P5K-004 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 9 | 15231-PE0-000 | Valve - RELIEF | Valve - RELIEF |
| 10 | 15232-PG6-000 | Spring - RELIEF VALVE | Spring - RELIEF VALVE |
| 11 | 15233-PC6-000 | Bolt - SEALING, 18MM | Bolt - SEALING, 18MM |
| 12 | 15233-PK1-000 | Bolt - SEALING, 20MM | Bolt - SEALING, 20MM |
| 14 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 16 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 17 | 90018-PT0-010 | Bolt - BALANCER BELT ADJUSTER | Bolt - BALANCER BELT ADJUSTER |
| 18 | 90023-PT0-003 | Bolt-washer - 8X33 | Bolt-washer - 8X33 |
| 20 | 90052-PK1-000 | Bolt - FLANGE, 6X25 | Bolt - FLANGE, 6X25 |
| 21 | 90063-PC6-000 | Bolt - STUD, 6X25 | Bolt - STUD, 6X25 |
| 22 | 90703-PT0-000 | Dowel pin - 49X10 | Dowel pin - 49X10 |
| 23 | 91212-PAA-A02 | Oil seal - 40X52X7 (ARAI) | Oil seal - 40X52X7 (ARAI) |
| 23 | 91212-PAA-A01 | Oil seal - 40X52X7 (NOK) | Oil seal - 40X52X7 (NOK) |
| 24 | 91233-PT0-003 | Oil seal - 27X40X8 (NOK) | Oil seal - 27X40X8 (NOK) |
| 25 | 91309-PJ7-010 | O-ring - 11.5X3.5 | O-ring - 11.5X3.5 |
Outer panels 1 / 7
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 26 | 90103-SM4-010 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
P.s. line (LH) 10 / 24
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 7 | 53729-SS0-003 | Clip - RETURN HOSE | Clip - RETURN HOSE |
| 8 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 9 | 53730-SV4-020 | Clamp - FEED HOSE | Clamp - FEED HOSE |
| 18 | 56490-P0H-013 | Switch assy - POWER STEERING PRESSURE (TEXAS) | Switch assy - POWER STEERING PRESSURE (TEXAS) |
| 20 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 20 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 21 | 91304-P0H-013 | O-ring - 7.8X1.9 | O-ring - 7.8X1.9 |
| 22 | 91370-SV4-000 | O-ring - 14.4X1.9 | O-ring - 14.4X1.9 |
| 23 | 91405-SS0-003 | Clamp - TUBE (D21) | Clamp - TUBE (D21) |
P.s. pump/bracket 2 / 25
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 11911-P0A-000 | Hanger - ENGINE | Hanger - ENGINE |
| 6 | 56992-P0A-J01 | Belt - POWER STEERING PUMP (BANDO) | Belt - POWER STEERING PUMP (BANDO) |
Parking brake 6 / 14
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 4 | 47143-SD4-300 | Spring - PUSH ROD | Spring - PUSH ROD |
| 6 | 47360-SB2-000 | Equalizer | Equalizer |
| 7 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 9 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 10 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 14 | 90651-SV1-A01 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Pedal 2 / 30
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 19 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 20 | 46505-SA7-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
Pillar garnish 1 / 3
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 22 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
Protector 7 / 20
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 17 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 19 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 20 | 90505-SM4-003 | Clip - GARNISH | Clip - GARNISH |
| 20 | 90505-SX0-003 | Clip - GARNISH | Clip - GARNISH |
| 21 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 22 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
| 23 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Radiator 6 / 16
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 8 | 19045-PAA-A01 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 11 | 90003-PG7-660 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 13 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 14 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
Radiator hose 7 / 15
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 3 | 19102-PM5-A00 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 4 | 19103-P0A-000 | Hose - RESERVE TANK | Hose - RESERVE TANK |
| 6 | 19106-PM3-000 | Joint - RESERVE TANK | Joint - RESERVE TANK |
| 10 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 11 | 19511-PT0-004 | Clip - WATER HOSE (36.5MM) (KEIHIN) | Clip - WATER HOSE (36.5MM) (KEIHIN) |
| 22 | 74172-SM4-000 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 23 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
Radio antenna/speaker (1) 4 / 19
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 2 | 39112-SM4-000 | Bracket - FR. SPEAKER SEAL | Bracket - FR. SPEAKER SEAL |
| 20 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 21 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
Rear brake 2 / 41
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 41 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 42 | 90305-SD4-003 | Nut - SPINDLE (24MM) | Nut - SPINDLE (24MM) |
Rear door lining 5 / 15
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 18 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 20 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 21 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 23 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 23 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Rear door locks 11 / 31
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 7 | 72135-SR3-003 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 9 | 72616-SM4-003 | Snap - NATURAL | Snap - NATURAL |
| 9 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 11 | 72175-SH3-901 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 19 | 72634-SM4-003 | Snap - R. (BLUE) | Snap - R. (BLUE) |
| 27 | 72674-SM4-003 | Snap - L. (BROWN) | Snap - L. (BROWN) |
| 30 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 32 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 33 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 35 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
Rear door panels 5 / 17
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 22 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 24 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 25 | 91568-SR2-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 25 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 28 | 91657-SP0-000 | Seal c - DOOR PANEL HOLE (25MM) | Seal c - DOOR PANEL HOLE (25MM) |
Rear floor box 1 / 3
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
Rear seat (ARMREST) 3 / 20
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 33 | 90003-692-000 | Bolt - FLANGE, 6X16 | Bolt - FLANGE, 6X16 |
Rear shock absorber 3 / 18
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 10 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 11 | 52722-SV1-A02 | Rubber - RR. BUMP STOPPER (SHOWA) | Rubber - RR. BUMP STOPPER (SHOWA) |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Rear stabilizer/ rear lower arm 8 / 51
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 51464-S04-013 | Boot, UPPER BALL JOINT | Boot, UPPER BALL JOINT |
| 19 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 24 | 52364-634-020 | Washer - LOWER ARM | Washer - LOWER ARM |
| 45 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 49 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 50 | 90216-SE0-010 | Nut | Nut |
| 50 | 90216-SE0-305 | NUT, LWR ARM | NUT, LWR ARM |
| 53 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
Rear windshield 1 / 6
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 6 | 91568-SV4-003 | Fastener b - RR. WINDSHIELD | Fastener b - RR. WINDSHIELD |
Rear wiper 1 / 12
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 12 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Resonator chamber 5 / 11
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17213-PV0-000 | Rubber - AIR CLEANER CASE MOUNTING | Rubber - AIR CLEANER CASE MOUNTING |
| 3 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 8 | 17246-P0A-A00 | Ring - SEAL | Ring - SEAL |
| 10 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
Resonator chamber (B) 3 / 11
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 12 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
Roof lining 1 / 15
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 6 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
Roof slide component 1 / 26
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 27 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Seatbelt 1 / 7
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 22 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Side lining 2 / 11
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 2 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
Sliding roof 4 / 16
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 15707-634-000 | Clip - OIL DRAIN TUBE | Clip - OIL DRAIN TUBE |
| 2 | 18534-634-670 | Clip - AIR HOSE, 16MM | Clip - AIR HOSE, 16MM |
| 6 | 70062-SH3-000 | Valve - RR. DRAIN (SUNROOF) | Valve - RR. DRAIN (SUNROOF) |
| 12 | 70623-SM4-003 | Cap - STAY COVER | Cap - STAY COVER |
Srs unit ('96-; LH) 3 / 13
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 10 | 91551-SW5-003 | Clip - HARNESS BAND (BROWN) (151MM) | Clip - HARNESS BAND (BROWN) (151MM) |
| 10 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 12 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Steering column 4 / 11
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 7 | 53326-SB0-000 | Clip b - JOINT COVER | Clip b - JOINT COVER |
| 10 | 90135-SB0-003 | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) |
| 11 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 12 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
Steering wheel (SRS) 2 / 7
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 21 | 90134-S04-A81 | Bolt - HEX., 6X12 | Bolt - HEX., 6X12 |
| 22 | 90161-SV4-003 | Bolt - STEERING HANDLE | Bolt - STEERING HANDLE |
Switch (LH) 1 / 11
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 18 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
Tailgate 3 / 30
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 23 | 75411-634-000 | Joint | Joint |
| 31 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 32 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
Tailgate lining 1 / 6
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
Taillight 2 / 40
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 45 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 48 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Throttle body 5 / 23
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 3 | 16075-P07-000 | O-ring | O-ring |
| 7 | 16080-P07-000 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 22 | 37830-PAA-S00 | Sensor set - MAP | Sensor set - MAP |
| 24 | 37880-P0A-A02 | Sensor assy - AIR TEMP | Sensor assy - AIR TEMP |
| 25 | 91303-P0A-A02 | O-ring | O-ring |
Tire/wheel disk 1 / 17
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 5 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
Tools/jack 3 / 11
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 71969-SA7-890 | Wrench - SUNROOF | Wrench - SUNROOF |
| 2 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 4 | 89101-SW5-003 | Bag - TOOL | Bag - TOOL |
Valve/rocker arm (SOHC) 3 / 17
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 9 | 14744-PT0-004 | Screw - TAPPET ADJUSTING | Screw - TAPPET ADJUSTING |
| 14 | 14781-PJ7-003 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 15 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
Washer tank 5 / 10
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 38512-SC4-673 | Motor - WASHER (DENSO) | Motor - WASHER (DENSO) |
| 2 | 76802-SV1-004 | Cap unit - MOUTH | Cap unit - MOUTH |
| 8 | 76807-SE4-A02 | Packing - T-TYPE) (DENSO | Packing - T-TYPE) (DENSO |
| 15 | 76842-SE4-A02 | Bush - WASHER TANK (DENSO) | Bush - WASHER TANK (DENSO) |
| 21 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Washer tube 3 / 20
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 36062-671-000 | Clamp b - TUBE | Clamp b - TUBE |
| 12 | 76828-SH0-A02 | Joint l, WASHER TUBE (DENSO) | Joint l, WASHER TUBE (DENSO) |
| 30 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
Water hose ('95-) 1 / 6
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 5 | 19517-P08-003 | Clamp - HOSE, 13MM | Clamp - HOSE, 13MM |
Water pump/sensor 21 / 28
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 19200-P0A-003 | Pump comp - WATER (YAMADA) | Pump comp - WATER (YAMADA) |
| 2 | 19222-PT0-300 | Packing - WATER PUMP | Packing - WATER PUMP |
| 3 | 19223-PT0-000 | Rubber - WATER PUMP SEAL | Rubber - WATER PUMP SEAL |
| 4 | 19301-P08-316 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 4 | 19301-PAA-306 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 5 | 19305-PT0-000 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 5 | 19305-PLC-A00 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 6 | 19311-P0A-010 | Cover - THERMOSTAT | Cover - THERMOSTAT |
| 7 | 19313-PT0-000 | Packing - THERMOSTAT CASE | Packing - THERMOSTAT CASE |
| 8 | 19320-P0A-010 | Case comp. - THERMOSTAT | Case comp. - THERMOSTAT |
| 10 | 19500-PT0-000 | Joint - TUBE | Joint - TUBE |
| 12 | 19516-PC1-000 | Bolt - BREATHING WATER | Bolt - BREATHING WATER |
| 14 | 32751-P0A-A00 | Stay c - ENGINE HARNESS | Stay c - ENGINE HARNESS |
| 15 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 16 | 37760-P00-003 | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) |
| 21 | 90002-PD2-000 | Bolt - FLANGE, 8X16 | Bolt - FLANGE, 8X16 |
| 22 | 91307-PK2-005 | O-ring - 9.5X1.5(HONDA KIKAKI) | O-ring - 9.5X1.5(HONDA KIKAKI) |
| 23 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 23 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 25 | 91312-P0A-000 | Packing - THERMOSTAT CASE | Packing - THERMOSTAT CASE |
| 26 | 91314-PH7-003 | O-ring 31.2X4.1 (NOK) | O-ring 31.2X4.1 (NOK) |
Water valve 2 / 7
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 6 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 6 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
Wire harness (LH) 15 / 43
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 8 | 32131-SV4-003 | Cap - COUPLER (CP 2P, 3P) | Cap - COUPLER (CP 2P, 3P) |
| 9 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 10 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 12 | 32146-SH3-003 | Connector - DIODE(2P) | Connector - DIODE(2P) |
| 18 | 32312-SM4-013 | Holder - COUPLER | Holder - COUPLER |
| 25 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 26 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 29 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 30 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 35 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 36 | 91551-SW5-003 | Clip - HARNESS BAND (BROWN) (151MM) | Clip - HARNESS BAND (BROWN) (151MM) |
| 38 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 40 | 91559-ST5-003 | Clip - HARNESS BAND OFFSET(30) (NATURAL) | Clip - HARNESS BAND OFFSET(30) (NATURAL) |
| 43 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 48 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| # | OEM | CE1 | CG5 |
|---|---|---|---|
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 3 | 11107-PT0-000 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 4 | 11126-PK1-003 | Bolt - SEALING, 22MM | Bolt - SEALING, 22MM |
| 10 | 11910-P0A-010 | Bracket - ENGINE MOUNTING | Bracket - ENGINE MOUNTING |
| 1 | 11911-P0A-000 | Hanger - ENGINE | Hanger - ENGINE |
| 9 | 11926-P0A-000 | Rubber b - ENGINE MOUNTING BRACKET SEAL | Rubber b - ENGINE MOUNTING BRACKET SEAL |
| 2 | 12204-PJ7-305 | Guide - IN. VALVE (OS) | Guide - IN. VALVE (OS) |
| 3 | 12205-PJ7-305 | Guide - EX. VALVE (OS) | Guide - EX. VALVE (OS) |
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 11 | 13400-PT3-010 | Shaft comp. - RR. BALANCER | Shaft comp. - RR. BALANCER |
| 12 | 13401-PT3-010 | Shaft - FR. BALANCER | Shaft - FR. BALANCER |
| 10 | 13404-PT0-003 | Adjuster comp - BALANCER BELT (KOYO) | Adjuster comp - BALANCER BELT (KOYO) |
| 14 | 13406-PT0-003 | Metal f - THRUST BALANCER SHAFT | Metal f - THRUST BALANCER SHAFT |
| 12 | 13407-P0A-000 | Spring - BELT ADJUSTER | Spring - BELT ADJUSTER |
| 13 | 13415-P0A-000 | Bracket - BALANCER BELT ADJUSTER | Bracket - BALANCER BELT ADJUSTER |
| 12 | 13421-PT0-003 | Metal - BALANCER SHAFT (NO.1) (DAIDO) | Metal - BALANCER SHAFT (NO.1) (DAIDO) |
| 13 | 13422-PT0-013 | Metal - BALANCER SHAFT (NO.2) (DAIDO) | Metal - BALANCER SHAFT (NO.2) (DAIDO) |
| 14 | 13423-PT0-003 | Metal - BALANCER SHAFT (NO.3) (DAIDO) | Metal - BALANCER SHAFT (NO.3) (DAIDO) |
| 17 | 14510-PT0-003 | Adjuster comp - TIMING BELT (KOYO) | Adjuster comp - TIMING BELT (KOYO) |
| 18 | 14516-P0A-000 | Spring comp - TIMING BELT ADJUSTER | Spring comp - TIMING BELT ADJUSTER |
| 9 | 14744-PT0-004 | Screw - TAPPET ADJUSTING | Screw - TAPPET ADJUSTING |
| 14 | 14781-PJ7-003 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 4 | 15113-PT0-003 | Packing a - OIL PUMP (ARAI) | Packing a - OIL PUMP (ARAI) |
| 5 | 15114-PT0-003 | Packing b - OIL PUMP (ARAI) | Packing b - OIL PUMP (ARAI) |
| 6 | 15200-P0A-000 | Pipe comp - OIL LEVEL | Pipe comp - OIL LEVEL |
| 8 | 15221-P5K-004 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 8 | 15221-PT0-000 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 9 | 15231-PE0-000 | Valve - RELIEF | Valve - RELIEF |
| 10 | 15232-PG6-000 | Spring - RELIEF VALVE | Spring - RELIEF VALVE |
| 11 | 15233-PC6-000 | Bolt - SEALING, 18MM | Bolt - SEALING, 18MM |
| 12 | 15233-PK1-000 | Bolt - SEALING, 20MM | Bolt - SEALING, 20MM |
| 14 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 9 | 15610-P2A-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 10 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 1 | 15707-634-000 | Clip - OIL DRAIN TUBE | Clip - OIL DRAIN TUBE |
| 27 | 16074-ZY3-000 | O-ring | O-ring |
| 3 | 16075-P07-000 | O-ring | O-ring |
| 7 | 16080-P07-000 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 2 | 16472-P0H-A01 | Seal ring - INJECTOR (NOK) | Seal ring - INJECTOR (NOK) |
| 2 | 16472-PH7-003 | Seal ring - INJECTOR (OTSUKA) | Seal ring - INJECTOR (OTSUKA) |
| 3 | 16473-P10-A01 | Cushion ring - INJECTOR (NOK) | Cushion ring - INJECTOR (NOK) |
| 3 | 16473-PD6-000 | Cushion ring - INJECTOR (OTSUKA) | Cushion ring - INJECTOR (OTSUKA) |
| 10 | 16741-PG7-005 | O-ring - PRESSURE REGULATOR | O-ring - PRESSURE REGULATOR |
| 1 | 17130-PK1-003 | Valve assy. - PCV | Valve assy. - PCV |
| 6 | 17139-PK1-000 | Grommet - PCV VALVE | Grommet - PCV VALVE |
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 4 | 17213-PV0-000 | Rubber - AIR CLEANER CASE MOUNTING | Rubber - AIR CLEANER CASE MOUNTING |
| 5 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 8 | 17246-P0A-A00 | Ring - SEAL | Ring - SEAL |
| 7 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 11 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 18 | 17670-S3N-003 | Cap comp. - FUEL FILLER (TOYODA) | Cap comp. - FUEL FILLER (TOYODA) |
| 24 | 17711-ST0-003 | Retainer - YELLOW) (TOKAI | Retainer - YELLOW) (TOKAI |
| 12 | 17743-SM4-003 | Cap - DRAIN TUBE | Cap - DRAIN TUBE |
| 13 | 17743-SV4-003 | Joint - CANISTER DRAIN BYPASS TUBE | Joint - CANISTER DRAIN BYPASS TUBE |
| 3 | 18115-P0A-003 | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) |
| 17 | 18303-SM4-020 | Gasket - SILENCER | Gasket - SILENCER |
| 18 | 18393-SH3-S00 | Gasket - PRE-CHAMBER (52.5MM-53.5MM) | Gasket - PRE-CHAMBER (52.5MM-53.5MM) |
| 2 | 18534-634-670 | Clip - AIR HOSE, 16MM | Clip - AIR HOSE, 16MM |
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 8 | 19045-PAA-A01 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 3 | 19102-PM5-A00 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 4 | 19103-P0A-000 | Hose - RESERVE TANK | Hose - RESERVE TANK |
| 6 | 19106-PM3-000 | Joint - RESERVE TANK | Joint - RESERVE TANK |
| 1 | 19200-P0A-003 | Pump comp - WATER (YAMADA) | Pump comp - WATER (YAMADA) |
| 2 | 19222-PT0-300 | Packing - WATER PUMP | Packing - WATER PUMP |
| 3 | 19223-PT0-000 | Rubber - WATER PUMP SEAL | Rubber - WATER PUMP SEAL |
| 4 | 19301-P08-316 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 4 | 19301-PAA-306 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 5 | 19305-PLC-A00 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 5 | 19305-PT0-000 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 6 | 19311-P0A-010 | Cover - THERMOSTAT | Cover - THERMOSTAT |
| 7 | 19313-PT0-000 | Packing - THERMOSTAT CASE | Packing - THERMOSTAT CASE |
| 8 | 19320-P0A-010 | Case comp. - THERMOSTAT | Case comp. - THERMOSTAT |
| 10 | 19500-PT0-000 | Joint - TUBE | Joint - TUBE |
| 10 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 11 | 19511-PT0-004 | Clip - WATER HOSE (36.5MM) (KEIHIN) | Clip - WATER HOSE (36.5MM) (KEIHIN) |
| 6 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 12 | 19516-PC1-000 | Bolt - BREATHING WATER | Bolt - BREATHING WATER |
| 5 | 19517-P08-003 | Clamp - HOSE, 13MM | Clamp - HOSE, 13MM |
| 3 | 31105-PR7-A01 | Holder assy. - BRUSH | Holder assy. - BRUSH |
| 4 | 31111-PT0-003 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 3 | 31113-P0A-A00 | Stay - ALTERNATOR | Stay - ALTERNATOR |
| 5 | 31114-PT0-013 | Bearing - FR. GENERATOR | Bearing - FR. GENERATOR |
| 6 | 31118-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 7 | 31119-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 8 | 31127-PT2-013 | Rectifier assy. | Rectifier assy. |
| 10 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 12 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 13 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 14 | 31146-PT0-003 | Screw | Screw |
| 16 | 31147-P13-003 | Screw | Screw |
| 15 | 31147-PT0-003 | Screw-washer | Screw-washer |
| 18 | 31148-P13-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 17 | 31148-PT0-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 2 | 31512-SS0-000 | Plate - BATTERY SETTING (70D/80D) | Plate - BATTERY SETTING (70D/80D) |
| 3 | 31513-SM4-000 | Bolt - BATTERY SETTING(195MM) | Bolt - BATTERY SETTING(195MM) |
| 4 | 31513-SP0-010 | Bolt - BATTERY SETTING (210MM) | Bolt - BATTERY SETTING (210MM) |
| 8 | 32131-SV4-003 | Cap - COUPLER (CP 2P, 3P) | Cap - COUPLER (CP 2P, 3P) |
| 1 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 9 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 1 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 12 | 32146-SH3-003 | Connector - DIODE(2P) | Connector - DIODE(2P) |
| 18 | 32312-SM4-013 | Holder - COUPLER | Holder - COUPLER |
| 10 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 11 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 14 | 32751-P0A-A00 | Stay c - ENGINE HARNESS | Stay c - ENGINE HARNESS |
| 20 | 32759-P0A-A00 | Stay j - ENGINE WIRE HARNESS | Stay j - ENGINE WIRE HARNESS |
| 9 | 32767-PT0-000 | Grommet - HIGH TENSION CORD | Grommet - HIGH TENSION CORD |
| 12 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
| 2 | 34251-SV1-A11 | Lens - DONNELLY | Lens - DONNELLY |
| 26 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 30 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
| 4 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 1 | 36062-671-000 | Clamp b - TUBE | Clamp b - TUBE |
| 6 | 37115-SA0-601 | Packing - NS | Packing - NS |
| 14 | 37240-PT0-014 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 14 | 37240-PT0-023 | Switch - OIL PRESSURE(DENSO) | Switch - OIL PRESSURE(DENSO) |
| 15 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 16 | 37760-P00-003 | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) | Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) |
| 22 | 37830-PAA-S00 | Sensor set - MAP | Sensor set - MAP |
| 24 | 37880-P0A-A02 | Sensor assy - AIR TEMP | Sensor assy - AIR TEMP |
| 22 | 38300-SE3-003 | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) | Relay assy - TURN SIGNAL & HAZARD (FR-3309) (MITSUBA) |
| 1 | 38512-SC4-673 | Motor - WASHER (DENSO) | Motor - WASHER (DENSO) |
| 4 | 38812-671-003 | Ring a - SNAP | Ring a - SNAP |
| 3 | 38812-PH1-003 | Ring b - SNAP | Ring b - SNAP |
| 5 | 38827-PH7-003 | Screw-washer - 5X8 | Screw-washer - 5X8 |
| 6 | 38829-PR3-003 | Bolt - WASHER HEAD | Bolt - WASHER HEAD |
| 8 | 38839-PR7-A01 | O-ring | O-ring |
| 9 | 38840-PC1-003 | Bolt b | Bolt b |
| 11 | 38912-PH1-N01 | Plate set - WASHER | Plate set - WASHER |
| 2 | 39112-SM4-000 | Bracket - FR. SPEAKER SEAL | Bracket - FR. SPEAKER SEAL |
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 45 | 39600-S84-A01 | Lighter assy - CIGARETTE | Lighter assy - CIGARETTE |
| 21 | 39793-SV4-003 | Relay assy - POWER (5P) (MITSUBA) | Relay assy - POWER (5P) (MITSUBA) |
| 5 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 7 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 8 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 25 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 26 | 44337-SB0-300 | Ring b - STOPPER | Ring b - STOPPER |
| 12 | 44338-SB0-300 | Circlip - 26MM | Circlip - 26MM |
| 12 | 44338-SM1-300 | Circlip - 26MM | Circlip - 26MM |
| 8 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 10 | 46191-634-000 | Gasket - MASTER CYLINDER BRACKET | Gasket - MASTER CYLINDER BRACKET |
| 13 | 46380-SB0-000 | Grommet a - BRAKE PIPE (BLACK) | Grommet a - BRAKE PIPE (BLACK) |
| 19 | 46393-SM4-951 | Clip c | Clip c |
| 25 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 26 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 19 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 20 | 46505-SA7-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 4 | 47143-SD4-300 | Spring - PUSH ROD | Spring - PUSH ROD |
| 6 | 47360-SB2-000 | Equalizer | Equalizer |
| 7 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 9 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 10 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 14 | 51393-SV1-A01 | Bush - FR. LOWER ARM | Bush - FR. LOWER ARM |
| 16 | 51398-SM4-000 | Collar - RADIUS ROD | Collar - RADIUS ROD |
| 1 | 51464-S04-013 | Boot, UPPER BALL JOINT | Boot, UPPER BALL JOINT |
| 9 | 51685-SR0-004 | Plate - DUST COVER (A.S.I. SHOWA) | Plate - DUST COVER (A.S.I. SHOWA) |
| 12 | 51689-SH3-004 | Plate - BUMP STOP (SHOWA) | Plate - BUMP STOP (SHOWA) |
| 14 | 51728-SR0-003 | Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS) | Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS) |
| 18 | 51810-SV4-004 | Bush - SHOCK ABSORBER FORK (YAMASHITA) | Bush - SHOCK ABSORBER FORK (YAMASHITA) |
| 7 | 52226-SL0-003 | Circlip - LOWER BALL(MUSASHI) | Circlip - LOWER BALL(MUSASHI) |
| 19 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 24 | 52364-634-020 | Washer - LOWER ARM | Washer - LOWER ARM |
| 10 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 11 | 52722-SV1-A02 | Rubber - RR. BUMP STOPPER (SHOWA) | Rubber - RR. BUMP STOPPER (SHOWA) |
| 7 | 53326-SB0-000 | Clip b - JOINT COVER | Clip b - JOINT COVER |
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 26 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 7 | 53729-SS0-003 | Clip - RETURN HOSE | Clip - RETURN HOSE |
| 9 | 53730-SV4-020 | Clamp - FEED HOSE | Clamp - FEED HOSE |
| 18 | 56490-P0H-013 | Switch assy - POWER STEERING PRESSURE (TEXAS) | Switch assy - POWER STEERING PRESSURE (TEXAS) |
| 6 | 56992-P0A-J01 | Belt - POWER STEERING PUMP (BANDO) | Belt - POWER STEERING PUMP (BANDO) |
| 15 | 56995-PV0-000 | Bolt - TENSIONER | Bolt - TENSIONER |
| 4 | 66417-SA0-000 | Rubber - GLOVE BOX STOPPER | Rubber - GLOVE BOX STOPPER |
| 7 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 6 | 66418-SA5-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 6 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 6 | 70062-SH3-000 | Valve - RR. DRAIN (SUNROOF) | Valve - RR. DRAIN (SUNROOF) |
| 12 | 70623-SM4-003 | Cap - STAY COVER | Cap - STAY COVER |
| 16 | 71598-SL4-013 | Spacer - BUMPER SIDE | Spacer - BUMPER SIDE |
| 1 | 71969-SA7-890 | Wrench - SUNROOF | Wrench - SUNROOF |
| 6 | 72112-SR4-004 | Snap - BROWN | Snap - BROWN |
| 6 | 72113-SR4-004 | Snap - BLACK | Snap - BLACK |
| 20 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 21 | 72134-SM4-003 | Snap - R. (VIOLET) | Snap - R. (VIOLET) |
| 23 | 72135-SR3-003 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 9 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 26 | 72139-SV4-A01 | Tube - PROTECTOR | Tube - PROTECTOR |
| 11 | 72175-SH3-901 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 1 | 72206-SA5-000 | Cap - FLOOR HOLE, 53MM | Cap - FLOOR HOLE, 53MM |
| 9 | 72616-SM4-003 | Snap - NATURAL | Snap - NATURAL |
| 19 | 72634-SM4-003 | Snap - R. (BLUE) | Snap - R. (BLUE) |
| 27 | 72674-SM4-003 | Snap - L. (BROWN) | Snap - L. (BROWN) |
| 22 | 74172-SM4-000 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 23 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 6 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 40 | 75411-634-000 | Joint | Joint |
| 17 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 6 | 76517-SM4-003 | Collar | Collar |
| 9 | 76524-SD4-003 | Dust seal | Dust seal |
| 10 | 76524-SE0-013 | Dust seal | Dust seal |
| 2 | 76802-SV1-004 | Cap unit - MOUTH | Cap unit - MOUTH |
| 8 | 76807-SE4-A02 | Packing - T-TYPE) (DENSO | Packing - T-TYPE) (DENSO |
| 12 | 76828-SH0-A02 | Joint l, WASHER TUBE (DENSO) | Joint l, WASHER TUBE (DENSO) |
| 15 | 76842-SE4-A02 | Bush - WASHER TANK (DENSO) | Bush - WASHER TANK (DENSO) |
| 9 | 77234-SV4-003 | Clip | Clip |
| 15 | 77371-SV4-000 | Ring - COLUMN COVER | Ring - COLUMN COVER |
| 3 | 77517-SA5-014 | Cap - SLIDE ADJUSTER | Cap - SLIDE ADJUSTER |
| 2 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 3 | 79195-SF1-003 | Holder - ROD | Holder - ROD |
| 10 | 79770-SE0-000 | Grommet - WATER VALVE CABLE | Grommet - WATER VALVE CABLE |
| 2 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 7 | 80107-SS0-000 | Mount - CONDENSER UPPER | Mount - CONDENSER UPPER |
| 10 | 80175-SE0-000 | Mount - CONDENSER | Mount - CONDENSER |
| 10 | 80214-SL5-A01 | Insulator - EXPANSION | Insulator - EXPANSION |
| 12 | 80223-ST7-A11 | O-ring - FUJI KOKI AMERICA | O-ring - FUJI KOKI AMERICA |
| 13 | 80225-SR3-010 | Clamp | Clamp |
| 15 | 80440-SS0-901 | Switch - DUAL PRESSURE (FUJI) | Switch - DUAL PRESSURE (FUJI) |
| 18 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 19 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 20 | 80873-ST7-000 | O-ring - 8MM | O-ring - 8MM |
| 24 | 81322-SP0-003 | Clip - LUMBAR SUPPORT | Clip - LUMBAR SUPPORT |
| 5 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 6 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 31 | 88324-SB3-950 | Cover - RR. ASHTRAY | Cover - RR. ASHTRAY |
| 4 | 89101-SW5-003 | Bag - TOOL | Bag - TOOL |
| 23 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 17 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 10 | 90002-P0A-000 | Bolt - FLANGE, 8X76 | Bolt - FLANGE, 8X76 |
| 21 | 90002-PD2-000 | Bolt - FLANGE, 8X16 | Bolt - FLANGE, 8X16 |
| 33 | 90003-692-000 | Bolt - FLANGE, 6X16 | Bolt - FLANGE, 6X16 |
| 11 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
| 12 | 90003-PG7-660 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 5 | 90005-P0A-000 | Bolt-washer - 10X22 | Bolt-washer - 10X22 |
| 19 | 90007-679-000 | Bolt a - TIMING BELT COVER | Bolt a - TIMING BELT COVER |
| 18 | 90007-PAA-T01 | Bolt-washer - 11X121 | Bolt-washer - 11X121 |
| 20 | 90008-P0A-000 | Bolt - MOUNTING BRACKET, 10X53 | Bolt - MOUNTING BRACKET, 10X53 |
| 19 | 90008-PM3-000 | Bolt - MOUNTING BRACKET, 10X32.5 | Bolt - MOUNTING BRACKET, 10X32.5 |
| 22 | 90009-P0A-000 | Bolt b - MOUNTING BRACKET, 10X56.2 | Bolt b - MOUNTING BRACKET, 10X56.2 |
| 21 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 6 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 13 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 16 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 20 | 90015-PT0-000 | Bolt - TIMING BELT ADJUSTER SPRING | Bolt - TIMING BELT ADJUSTER SPRING |
| 7 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 19 | 90017-PY3-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 19 | 90017-RJA-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 17 | 90018-PT0-010 | Bolt - BALANCER BELT ADJUSTER | Bolt - BALANCER BELT ADJUSTER |
| 20 | 90019-PT0-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 18 | 90023-PT0-003 | Bolt-washer - 8X33 | Bolt-washer - 8X33 |
| 18 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
| 24 | 90027-P0A-003 | Bolt a - FUEL PIPE | Bolt a - FUEL PIPE |
| 24 | 90027-P0A-305 | Bolt a | Bolt a |
| 23 | 90030-PT0-000 | Bolt - STUD, 10X35 | Bolt - STUD, 10X35 |
| 22 | 90031-PT0-003 | Bolt-washer - 8X22 | Bolt-washer - 8X22 |
| 22 | 90032-ZW5-003 | Bolt-washer, 8x22 | Bolt-washer, 8x22 |
| 13 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 14 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 27 | 90051-PH7-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 23 | 90051-PT0-000 | Bolt - SUB BELT ADJUSTER SPRING | Bolt - SUB BELT ADJUSTER SPRING |
| 20 | 90052-PK1-000 | Bolt - FLANGE, 6X25 | Bolt - FLANGE, 6X25 |
| 28 | 90061-PT0-000 | Bolt - DRAIN PLUG, 12MM | Bolt - DRAIN PLUG, 12MM |
| 21 | 90063-PC6-000 | Bolt - STUD, 6X25 | Bolt - STUD, 6X25 |
| 8 | 90065-PC1-300 | Bolt - STUD, 10X34.5 | Bolt - STUD, 10X34.5 |
| 26 | 90103-SM4-010 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 25 | 90104-SV4-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 32 | 90105-SV1-000 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 23 | 90106-SE1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 22 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 19 | 90109-SS0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 20 | 90110-SE7-000 | Bolt-washer - 8X21 | Bolt-washer - 8X21 |
| 41 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 14 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 9 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 26 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 43 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 44 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 9 | 90121-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 21 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 11 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 22 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 12 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 21 | 90134-S04-A81 | Bolt - HEX., 6X12 | Bolt - HEX., 6X12 |
| 10 | 90135-SB0-003 | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) |
| 33 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 34 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 20 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 11 | 90152-SE0-003 | Nut - EARTH, 5MM (ZN) | Nut - EARTH, 5MM (ZN) |
| 24 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 22 | 90161-SV4-003 | Bolt - STEERING HANDLE | Bolt - STEERING HANDLE |
| 9 | 90163-SC2-000 | Bolt - FLANGE, 12X25 | Bolt - FLANGE, 12X25 |
| 13 | 90173-SM4-000 | Bolt - FLANGE, 12X60 | Bolt - FLANGE, 12X60 |
| 14 | 90174-SM4-000 | Bolt - FLANGE, 10X22 | Bolt - FLANGE, 10X22 |
| 27 | 90182-SB6-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 22 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
| 15 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
| 9 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 9 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 28 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 26 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 50 | 90216-SE0-010 | Nut | Nut |
| 50 | 90216-SE0-305 | NUT, LWR ARM | NUT, LWR ARM |
| 20 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |
| 21 | 90232-PT0-003 | Nut - HEX., 6MM | Nut - HEX., 6MM |
| 34 | 90301-SE0-J00 | Nut - FLANGE, 6MM | Nut - FLANGE, 6MM |
| 35 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 33 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 27 | 90303-SF1-003 | Nut - SELF-LOCK, 12MM | Nut - SELF-LOCK, 12MM |
| 17 | 90305-SD4-003 | Nut - SPINDLE (24MM) | Nut - SPINDLE (24MM) |
| 21 | 90311-PT0-000 | Bolt - ADJUSTER SPECIAL | Bolt - ADJUSTER SPECIAL |
| 22 | 90313-PT0-000 | Bolt - SPECIAL, 10X90 | Bolt - SPECIAL, 10X90 |
| 15 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 27 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 25 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 19 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 28 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 27 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 16 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
| 16 | 90371-SM4-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 26 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 10 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
| 26 | 90501-MB7-610 | Washer - 10.3X25 | Washer - 10.3X25 |
| 20 | 90505-SM4-003 | Clip - GARNISH | Clip - GARNISH |
| 20 | 90505-SX0-003 | Clip - GARNISH | Clip - GARNISH |
| 11 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 18 | 90552-SV4-000 | Washer - FR. BRACKET | Washer - FR. BRACKET |
| 14 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
| 24 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 7 | 90615-SR3-000 | Cap - WELD HOLE, 51X77 | Cap - WELD HOLE, 51X77 |
| 6 | 90634-PA0-000 | Cap - SEALING | Cap - SEALING |
| 20 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 20 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 28 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 40 | 90651-SV1-A01 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 30 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 11 | 90657-SB0-003 | Clip, SPLASH SHIELD | Clip, SPLASH SHIELD |
| 36 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 35 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 17 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 12 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 19 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 29 | 90690-SA0-003 | Strap - WIRE HARNESS, 25MM (BLACK) | Strap - WIRE HARNESS, 25MM (BLACK) |
| 38 | 90700-SB0-003 | Clip - AIR BLEED TUBE | Clip - AIR BLEED TUBE |
| 22 | 90703-PT0-000 | Dowel pin - 49X10 | Dowel pin - 49X10 |
| 22 | 90704-PT0-000 | Key - 4.5X38.5 | Key - 4.5X38.5 |
| 29 | 90705-PT0-000 | Dowel pin - 16X22 | Dowel pin - 16X22 |
| 30 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
| 41 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 23 | 91212-PAA-A01 | Oil seal - 40X52X7 (NOK) | Oil seal - 40X52X7 (NOK) |
| 23 | 91212-PAA-A02 | Oil seal - 40X52X7 (ARAI) | Oil seal - 40X52X7 (ARAI) |
| 28 | 91213-PT0-003 | Oil seal - 28X42X8 (ARAI) | Oil seal - 28X42X8 (ARAI) |
| 24 | 91233-PT0-003 | Oil seal - 27X40X8 (NOK) | Oil seal - 27X40X8 (NOK) |
| 27 | 91301-P2F-A01 | O-ring - 7.3X2.2 (NOK) | O-ring - 7.3X2.2 (NOK) |
| 27 | 91301-PM7-003 | O-ring - 7.3X2.2 (ARAI) | O-ring - 7.3X2.2 (ARAI) |
| 25 | 91303-P0A-A02 | O-ring | O-ring |
| 21 | 91304-P0H-013 | O-ring - 7.8X1.9 | O-ring - 7.8X1.9 |
| 22 | 91307-PK2-005 | O-ring - 9.5X1.5(HONDA KIKAKI) | O-ring - 9.5X1.5(HONDA KIKAKI) |
| 23 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 23 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 25 | 91309-PJ7-010 | O-ring - 11.5X3.5 | O-ring - 11.5X3.5 |
| 25 | 91312-P0A-000 | Packing - THERMOSTAT CASE | Packing - THERMOSTAT CASE |
| 26 | 91314-PH7-003 | O-ring 31.2X4.1 (NOK) | O-ring 31.2X4.1 (NOK) |
| 22 | 91370-SV4-000 | O-ring - 14.4X1.9 | O-ring - 14.4X1.9 |
| 6 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 23 | 91405-SS0-003 | Clamp - TUBE (D21) | Clamp - TUBE (D21) |
| 28 | 91406-SL4-931 | Clamp - FUEL HOSE (D10.5) | Clamp - FUEL HOSE (D10.5) |
| 23 | 91506-P0A-A01 | Clip - ALTERNATOR CORD | Clip - ALTERNATOR CORD |
| 24 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
| 13 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 22 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
| 31 | 91517-SE0-003 | Clip - LOWER OUTER DASHBOARD INSULATOR | Clip - LOWER OUTER DASHBOARD INSULATOR |
| 59 | 91528-SR4-003 | Clip - DRIP MOLDING | Clip - DRIP MOLDING |
| 22 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 48 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 47 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 35 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 30 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 28 | 91551-SV4-003 | Clip - BRACKET | Clip - BRACKET |
| 10 | 91551-SW5-003 | Clip - HARNESS BAND (BROWN) (151MM) | Clip - HARNESS BAND (BROWN) (151MM) |
| 37 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 30 | 91558-SE3-003 | Clip - HOOD WIRE | Clip - HOOD WIRE |
| 40 | 91559-ST5-003 | Clip - HARNESS BAND OFFSET(30) (NATURAL) | Clip - HARNESS BAND OFFSET(30) (NATURAL) |
| 26 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 26 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 22 | 91568-SR2-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 6 | 91568-SV4-003 | Fastener b - RR. WINDSHIELD | Fastener b - RR. WINDSHIELD |
| 32 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 42 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
| 9 | 91602-SV4-003 | Plug - HOLE, 15MM | Plug - HOLE, 15MM |
| 11 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
| 13 | 91611-SM4-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 14 | 91611-SS0-003 | Plug - HOLE, 25MM | Plug - HOLE, 25MM |
| 13 | 91613-SE0-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 15 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
| 24 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 38 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 25 | 91657-SP0-000 | Seal c - DOOR PANEL HOLE (25MM) | Seal c - DOOR PANEL HOLE (25MM) |
