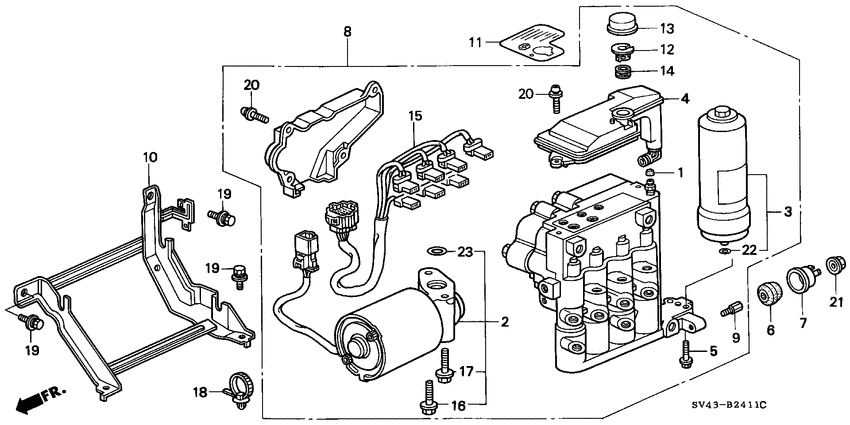

Abs modulator 15 / 18

#	OEM	CD9	CE6
1	57017-SV1-A01	Motor set - ABS (BOSCH)	Motor set - ABS (BOSCH)
1	57017-SV4-A02	Motor set - ABS	Motor set - ABS
2	57018-ST5-000	Accumulator set	Accumulator set
3	57019-ST5-000	Tank set - RESERVE	Tank set - RESERVE
4	57074-ST5-003	Bolt - FLANGE, 6X28	Bolt - FLANGE, 6X28
5	57101-ST7-000	Rubber - ABS MOUNTING	Rubber - ABS MOUNTING
6	57102-ST7-000	Holder - ABS	Holder - ABS
8	57112-ST5-010	Bolt - ABS MODULATOR	Bolt - ABS MODULATOR
12	57195-ST5-003	Cap - BASE	Cap - BASE
13	57196-ST5-003	Cap - RESERVE TANK	Cap - RESERVE TANK
14	57198-ST5-003	X-ring - 9.8X2.4	X-ring - 9.8X2.4
15	57205-ST5-013	Cord comp	Cord comp
16	57365-ST5-003	Bolt - FLANGE, 8X62	Bolt - FLANGE, 8X62
17	57365-SV1-A01	Bolt - FLANGE, 8X74	Bolt - FLANGE, 8X74
18	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)

Abs unit (LH) 9 / 9

#	OEM	CD9	CE6
1	38212-SM4-000	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
2	38230-SV4-003	Box assy - ABS FUSE	Box assy - ABS FUSE
3	38251-SV4-911	Cover	Cover
4	39790-SV4-A02	Abs unit	Abs unit
5	39792-SP0-014	Relay assy - POWER (4P) (MITSUBA) (12V NO)	Relay assy - POWER (4P) (MITSUBA) (12V NO)
6	39795-ST7-000	Label - ABS INFORMATION	Label - ABS INFORMATION
7	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
8	90114-SG0-003	Bolt - 5X13	Bolt - 5X13
9	90153-SA5-900	Screw-washer - 5X9	Screw-washer - 5X9

Air cleaner 6 / 17

#	OEM	CD9	CE6
2	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
5	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
20	17316-PH3-003	Clamp - AIR FLOW TUBE (70)	Clamp - AIR FLOW TUBE (70)
21	17316-PM8-A01	Clamp - AIR FLOW TUBE (60)	Clamp - AIR FLOW TUBE (60)
23	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35

Air conditioner (CONDENSER; LH) 6 / 16

#	OEM	CD9	CE6
6	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
7	80107-SS0-000	Mount - CONDENSER UPPER	Mount - CONDENSER UPPER
9	80111-SV4-A00	Bracket - CONDENSER MOUNT UPPER	Bracket - CONDENSER MOUNT UPPER
10	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER
13	90003-PG7-660	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)
14	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)

Air conditioner (HOSES/PIPES; LH) 7 / 23

#	OEM	CD9	CE6
15	80440-SS0-901	Switch - DUAL PRESSURE (FUJI)	Switch - DUAL PRESSURE (FUJI)
18	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
19	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
20	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
21	90199-SM4-000	Screw-washer - 5X25	Screw-washer - 5X25
26	91553-SD4-Z01	Clamp - SIDE, 7MM	Clamp - SIDE, 7MM
27	91555-SD4-Z01	Clamp - SIDE, 24MM	Clamp - SIDE, 24MM

Air conditioner (UNIT; LH) 28 / 30

#	OEM	CD9	CE6
1	37740-P0H-A02	Timer - RADIATOR FAN (MOTOROLA)	Timer - RADIATOR FAN (MOTOROLA)
2	38625-SB2-000	Holder - EVAPORATOR PIPE	Holder - EVAPORATOR PIPE
4	80201-SV4-A01	Case - EVAPORATOR UPPER	Case - EVAPORATOR UPPER
5	80202-SV4-A00	Case - EVAPORATOR LOWER	Case - EVAPORATOR LOWER
6	80205-SV4-A00	Insulator - EVAPORATOR UPPER	Insulator - EVAPORATOR UPPER
7	80206-SV4-A00	Insulator - EVAPORATOR LOWER	Insulator - EVAPORATOR LOWER
9	80212-SV1-A21	Pipe - LIQUID (SAM)	Pipe - LIQUID (SAM)
10	80214-SL5-A01	Insulator - EXPANSION	Insulator - EXPANSION
11	80220-SV1-A11	Valve assy. - EXPANSION	Valve assy. - EXPANSION
12	80223-ST7-A11	O-ring - FUJI KOKI AMERICA	O-ring - FUJI KOKI AMERICA
13	80225-SR3-010	Clamp	Clamp
14	80271-SV4-000	Hose - DRAIN	Hose - DRAIN
15	80272-SF4-000	Grommet - DRAIN HOSE	Grommet - DRAIN HOSE
16	80286-SV4-A00	Seal - EVAPORATOR INNER	Seal - EVAPORATOR INNER
17	80287-SV4-A00	Seal - EVAPORATOR OUTER	Seal - EVAPORATOR OUTER
18	80380-SM4-G00	Grommet - AIR CONDITIONER PIPE	Grommet - AIR CONDITIONER PIPE
18	80380-SF4-000	Grommet - AIR CONDITIONER PIPE	Grommet - AIR CONDITIONER PIPE
19	80411-SV4-A01	Knob - AIR CONDITIONER SWITCH	Knob - AIR CONDITIONER SWITCH
20	80430-SV1-A11	Thermostat - AIR CONDITIONER (RANCO)	Thermostat - AIR CONDITIONER (RANCO)
20	80430-SV4-003	Thermostat - AIR CONDITIONER (OMRON)	Thermostat - AIR CONDITIONER (OMRON)
21	80566-SF1-941	Clip - EVAPORATOR SENSOR	Clip - EVAPORATOR SENSOR
22	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"
23	80873-ST7-000	O-ring - 8MM	O-ring - 8MM
24	90139-SH3-003	Bolt-washer - 6X20	Bolt-washer - 6X20
25	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
26	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)
27	90659-692-000	Clamp - CASE	Clamp - CASE
29	80217-SH3-000	Seal	Seal

Auto radio ('96-) 1 / 4

#	OEM	CD9	CE6
14	90139-SM4-003	Bolt-washer - 5X20	Bolt-washer - 5X20

Battery 9 / 16

#	OEM	CD9	CE6
3	31513-SM4-000	Bolt - BATTERY SETTING(195MM)	Bolt - BATTERY SETTING(195MM)
4	31513-SP0-010	Bolt - BATTERY SETTING (210MM)	Bolt - BATTERY SETTING (210MM)
8	32414-SS0-010	Bracket b - CABLE	Bracket b - CABLE
10	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
11	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
13	90114-SG0-003	Bolt - 5X13	Bolt - 5X13
14	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
15	90153-SE0-003	Bolt - EARTH, 6X12	Bolt - EARTH, 6X12
17	91584-SM4-003	Clip - CABLE BAND (BLACK)	Clip - CABLE BAND (BLACK)

Brake line (KG) 20 / 33

#	OEM	CD9	CE6
1	01464-SV4-000	Hose set - R. FR. BRAKE	Hose set - R. FR. BRAKE
2	01465-SV4-000	Hose set - L. FR. BRAKE	Hose set - L. FR. BRAKE
3	01466-SW3-J00	Hose set - RR. BRAKE (DOT NCRN - JAPAN -)	Hose set - RR. BRAKE (DOT NCRN - JAPAN -)
5	46331-SV4-950	Pipe comp. e - R. BRAKE	Pipe comp. e - R. BRAKE
7	46361-SV4-950	Pipe comp. e - L. BRAKE	Pipe comp. e - L. BRAKE
14	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)	Grommet a - BRAKE PIPE (BLACK)
15	46391-SE0-931	Clamp - BRAKE PIPE	Clamp - BRAKE PIPE
16	46391-SH3-003	Clip - BRAKE PIPE	Clip - BRAKE PIPE
17	46391-SM4-J01	Clamp - BRAKE PIPE	Clamp - BRAKE PIPE
18	46391-SV4-000	Clip - BRAKE PIPE	Clip - BRAKE PIPE
23	46396-ST7-951	Clip A	Clip A
25	46435-SM4-000	Bracket - R. RR. BRAKE HOSE	Bracket - R. RR. BRAKE HOSE
26	46436-SM4-000	Bracket - L. RR. BRAKE HOSE	Bracket - L. RR. BRAKE HOSE
27	46438-SM4-000	Bracket - R. RR. BRAKE HOSE	Bracket - R. RR. BRAKE HOSE
28	46439-SM4-000	Bracket - L. RR. BRAKE HOSE	Bracket - L. RR. BRAKE HOSE
29	46460-SV1-A01	Joint assy. - FOUR WAY	Joint assy. - FOUR WAY
30	46462-SE0-000	Bolt - OIL	Bolt - OIL
32	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
33	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
34	90651-SV1-A01	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power (KE,KG) 11 / 24

#	OEM	CD9	CE6
2	46100-SM4-G54	Cylinder assy. - MASTER	Cylinder assy. - MASTER
4	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
5	46185-SE0-003	Seal - ROD	Seal - ROD
6	46191-634-000	Gasket - MASTER CYLINDER BRACKET	Gasket - MASTER CYLINDER BRACKET
8	46403-SE0-003	Valve comp. - CHECK (NISSIN)	Valve comp. - CHECK (NISSIN)
11	46405-SV4-A00	Tube b - MASTER POWER	Tube b - MASTER POWER
15	46407-SV4-A00	Clamp - CHECK VALVE	Clamp - CHECK VALVE
16	46512-SB2-000	Pin - PEDAL	Pin - PEDAL
18	46662-SM4-003	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
21	46669-SE3-003	Seal - RESERVE TANK	Seal - RESERVE TANK
22	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Breather tube 2 / 8

#	OEM	CD9	CE6
4	17139-PK1-000	Grommet - PCV VALVE	Grommet - PCV VALVE
5	91405-PH7-003	Clamp - TUBE (D15)	Clamp - TUBE (D15)

Bumper (KG) 21 / 31

#	OEM	CD9	CE6
4	71131-SV4-A00	Stopper - FR. BUMPER BEAM	Stopper - FR. BUMPER BEAM
6	71150-SV4-A00	Stay comp - FR. BUMPER	Stay comp - FR. BUMPER
7	71155-SV4-000	Plate - FR. BUMPER STAY	Plate - FR. BUMPER STAY
8	71170-SV4-A01	Absorber - FR. BUMPER	Absorber - FR. BUMPER
9	71172-SV4-A00	Box - BUMPER BEAM ABSORBER	Box - BUMPER BEAM ABSORBER
12	71502-SV4-010	Skirt - R. RR. BUMPER	Skirt - R. RR. BUMPER
15	71507-SV4-010	Skirt - L. RR. BUMPER	Skirt - L. RR. BUMPER
18	71541-SV4-010	Beam - RR. BUMPER UPPER	Beam - RR. BUMPER UPPER
20	71598-SL4-013	Spacer - BUMPER SIDE	Spacer - BUMPER SIDE
23	90106-SM4-A10	Bolt - BUMPER BEAM	Bolt - BUMPER BEAM
24	90109-SS0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
25	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
26	90110-SV4-000	Bolt-washer - 8X21	Bolt-washer - 8X21
27	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
28	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
29	90302-SD2-003	Nut-washer - 8MM	Nut-washer - 8MM
30	90303-SA5-003	Nut - FR. COMBINATION LIGHT	Nut - FR. COMBINATION LIGHT
31	90305-SM4-000	Nut - AIR SPOILER CLIP	Nut - AIR SPOILER CLIP
32	90651-SL9-013	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
35	91502-SP0-003	Clip - BUMPER FACE	Clip - BUMPER FACE
37	91513-SH3-003	Clip c - HOOD	Clip c - HOOD

Camshaft/timing belt 2 / 30

#	OEM	CD9	CE6
19	90007-679-000	Bolt a - TIMING BELT COVER	Bolt a - TIMING BELT COVER
26	90501-MB7-610	Washer - 10.3X25	Washer - 10.3X25

Clutch housing 3 / 24

#	OEM	CD9	CE6
15	90638-689-000	Clip - SPEEDOMETER GEAR	Clip - SPEEDOMETER GEAR
21	91304-PT0-000	O-ring - 14.8X1.9	O-ring - 14.8X1.9
22	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2

Clutch master cylinder (LH) 2 / 41

#	OEM	CD9	CE6
10	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
40	90651-SV1-A01	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Combination meter (COMPONENTS) 16 / 23

#	OEM	CD9	CE6
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
3	37102-SE3-003	Socket assy - BULB (T-10) (NS)	Socket assy - BULB (T-10) (NS)
4	37105-SE3-003	Socket assy - BULB (T-5) (BASE:BROWN)	Socket assy - BULB (T-5) (BASE:BROWN)
5	37106-SB2-003	Knob - TRIP (NS)	Knob - TRIP (NS)
6	37115-SA0-601	Packing - NS	Packing - NS
7	37237-SE3-003	Bulb - T-10) (BASE:BROWN	Bulb - T-10) (BASE:BROWN
9	78116-SV1-A01	Cover	Cover
12	78130-SV1-A01	Meter assy - FUEL	Meter assy - FUEL
13	78135-SV1-A01	Meter assy - TEMPERATURE	Meter assy - TEMPERATURE
17	78166-SV4-901	Illumination assy.	Illumination assy.
20	78182-SM4-003	Socket assy - BULB (14V-100MA) (BASE:BROWN)	Socket assy - BULB (14V-100MA) (BASE:BROWN)
21	78184-SM4-003	Socket assy - BULB (14V-60MA) (BASE:GRAY)	Socket assy - BULB (14V-60MA) (BASE:GRAY)
22	90132-SM4-003	Screw-washer - 3X16	Screw-washer - 3X16
23	90134-SM4-003	Screw-washer - 3X27	Screw-washer - 3X27
24	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Combination switch ('96-; KG,KY) 12 / 26

#	OEM	CD9	CE6
5	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
6	35103-SE3-003	Screw - RECESSED, 3X8	Screw - RECESSED, 3X8
7	35108-SV4-A01	Holder - COLUMN (SRS)	Holder - COLUMN (SRS)
14	35130-S30-003	Switch comp - STEERING	Switch comp - STEERING
15	35251-SW5-003	Body - SWITCH	Body - SWITCH
17	35255-SX0-G01	Switch assy - LIGHTING	Switch assy - LIGHTING
19	35400-SL4-013	Switch assy - DOOR	Switch assy - DOOR
20	35401-SL4-003	Cover - DOOR SWITCH	Cover - DOOR SWITCH
21	35409-692-013	Screw - FLANGE, 4X12	Screw - FLANGE, 4X12
28	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)	Grommet - SCREW, 4MM (YELLOW)
29	90690-SA0-003	Strap - WIRE HARNESS, 25MM (BLACK)	Strap - WIRE HARNESS, 25MM (BLACK)
30	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)

Console (LH) 15 / 22

#	OEM	CD9	CE6
1	35505-SV4-A01	Bulb assy	Bulb assy
4	66418-SA5-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
5	66418-579-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
8	77234-SV4-003	Clip	Clip
11	77292-SV4-010	Bracket - RADIO FIXING	Bracket - RADIO FIXING
14	77296-SV4-000	Bracket - FR. CONSOLE (A)	Bracket - FR. CONSOLE (A)
23	83408-SV4-A01	Bracket - RR. CONSOLE BOX	Bracket - RR. CONSOLE BOX
30	88324-SB3-950	Cover - RR. ASHTRAY	Cover - RR. ASHTRAY
31	90139-SM4-003	Bolt-washer - 5X20	Bolt-washer - 5X20
32	90144-SP0-000	Screw - TAPPING, 4X16 (PO)	Screw - TAPPING, 4X16 (PO)
33	90606-SS0-000	Spring - FR. ASHTRAY	Spring - FR. ASHTRAY
34	90666-SD4-003	Clip - FITTING	Clip - FITTING
35	90666-SP0-A00	Clip - SNAP FITTING	Clip - SNAP FITTING
37	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
38	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Control unit (CABIN; LH) 21 / 27

#	OEM	CD9	CE6
3	32121-SM4-003	Bracket a - FUSE BOX	Bracket a - FUSE BOX
4	32122-SM4-003	Bracket b - FUSE BOX	Bracket b - FUSE BOX
5	32123-SM4-003	Bracket c - FUSE BOX	Bracket c - FUSE BOX
6	32502-SM4-003	Fuse - F7.5) (LITTEL	Fuse - F7.5) (LITTEL
7	32503-SM4-003	Fuse - F10) (LITTEL	Fuse - F10) (LITTEL
8	32504-SM4-003	Fuse - F15)(LITTEL	Fuse - F15)(LITTEL
9	32505-SM4-003	Fuse - F20) (LITTEL	Fuse - F20) (LITTEL
10	32507-SM4-003	Fuse - F30) (LITTEL	Fuse - F30) (LITTEL
12	36704-SV4-010	Bracket - AUTO CRUISE	Bracket - AUTO CRUISE
14	37821-P0A-A00	Cover comp. - ELECTRONIC CONTROL UNIT	Cover comp. - ELECTRONIC CONTROL UNIT
19	38201-SV4-000	Bracket - FUSE BOX	Bracket - FUSE BOX
21	38235-SA5-003	Puller - FUSE (SUMITOMO)	Puller - FUSE (SUMITOMO)
25	39400-SV4-003	Relay assy - MAIN	Relay assy - MAIN
26	39405-SV4-A00	Bracket - UNIT	Bracket - UNIT
27	39792-SM1-A01	Relay assy - POWER (4P) (UNITED TECHNOLOGIES)	Relay assy - POWER (4P) (UNITED TECHNOLOGIES)
28	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
29	39797-SE0-004	Relay assy - POWER (4P) (MITSUBA) (RC-2201)	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
30	39797-SE3-003	Relay assy - POWER (4P) (DENSO) (056700-85700)	Relay assy - POWER (4P) (DENSO) (056700-85700)
32	90137-SF1-000	Bolt-washer - 6X25	Bolt-washer - 6X25
33	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
34	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Control unit (ENGINE ROOM) 18 / 26

#	OEM	CD9	CE6
2	32502-SM4-003	Fuse - F7.5) (LITTEL	Fuse - F7.5) (LITTEL
4	32504-SM4-003	Fuse - F15)(LITTEL	Fuse - F15)(LITTEL
5	32505-SM4-003	Fuse - F20) (LITTEL	Fuse - F20) (LITTEL
6	32507-SM4-003	Fuse - F30) (LITTEL	Fuse - F30) (LITTEL
9	38212-SM4-000	Fuse - BLOCK (40A)	Fuse - BLOCK (40A)
10	38213-SM4-000	Fuse - BLOCK (50A)	Fuse - BLOCK (50A)
14	38251-SV4-003	Cover - UPPER	Cover - UPPER
15	38252-SV4-003	Cover - LOWER	Cover - LOWER
17	39762-SG0-003	Relay assy - POWER (5P) (DENSO) (056700-8160)	Relay assy - POWER (5P) (DENSO) (056700-8160)
18	39792-SM1-A01	Relay assy - POWER (4P) (UNITED TECHNOLOGIES)	Relay assy - POWER (4P) (UNITED TECHNOLOGIES)
19	39793-SV4-003	Relay assy - POWER (5P) (MITSUBA)	Relay assy - POWER (5P) (MITSUBA)
20	39794-SL0-004	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)	Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK)
21	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
22	90122-SM4-003	Screw-washer - 5X12	Screw-washer - 5X12
23	90138-SM4-003	Bolt-washer - 8X14	Bolt-washer - 8X14
24	90103-SV1-A00	Screw - 5X11	Screw - 5X11
25	90182-SB6-000	Bolt-washer - 6X16	Bolt-washer - 6X16
26	91551-SV4-003	Clip - BRACKET	Clip - BRACKET

Crankshaft/piston 2 / 51

#	OEM	CD9	CE6
19	90017-PY3-003	Bolt-washer - 16X49	Bolt-washer - 16X49
19	90017-RJA-003	Bolt-washer - 16X49	Bolt-washer - 16X49

Cross beam 5 / 11

#	OEM	CD9	CE6
7	50300-SV4-G00	Beam - RR. SUSPENSION CROSS	Beam - RR. SUSPENSION CROSS
8	90166-SF1-010	Bolt-washer - 10X21	Bolt-washer - 10X21
10	90191-SM4-003	Bolt - FLANGE, 12X95	Bolt - FLANGE, 12X95
11	90192-SM4-003	Bolt - FLANGE, 12X139	Bolt - FLANGE, 12X139
13	91613-SE0-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM

Cylinder block/oil pan 5 / 30

#	OEM	CD9	CE6
3	11126-PK1-003	Bolt - SEALING, 22MM	Bolt - SEALING, 22MM
19	90009-PH1-000	Bolt - DRAIN PLUG, 14MM	Bolt - DRAIN PLUG, 14MM
22	90041-PA5-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
25	90051-PH7-000	Bolt - FLANGE, 6X18	Bolt - FLANGE, 6X18
30	91323-PH7-003	Packing - BEARING CAP BRIDGE (ARAI)	Packing - BEARING CAP BRIDGE (ARAI)

Cylinder head cover 1 / 9

#	OEM	CD9	CE6
6	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

Door lining (LH) 8 / 19

#	OEM	CD9	CE6
4	34295-SV1-A01	Bulb - 12V 5W) (DONNELLY	Bulb - 12V 5W) (DONNELLY
22	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
24	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)	Grommet - SCREW, 4MM (YELLOW)
26	90666-SD4-003	Clip - FITTING	Clip - FITTING
27	90668-SA5-003	Grommet - SCREW, 6MM	Grommet - SCREW, 6MM
29	91560-SP0-003	Clip - DOOR LINING (GRAY)	Clip - DOOR LINING (GRAY)
29	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)
31	91562-SM4-013	Grommet - DOOR LINING	Grommet - DOOR LINING

Door locks 20 / 38

#	OEM	CD9	CE6
4	72112-SR4-004	Snap - BROWN	Snap - BROWN
4	72113-SR4-004	Snap - BLACK	Snap - BLACK
7	72116-SM4-003	Snap d - VIOLET	Snap d - VIOLET
7	72116-SV4-003	Snap - ORANGE	Snap - ORANGE
10	72119-SV1-003	Stopper a	Stopper a
12	72123-SM1-003	Ring - OUTSIDE HANDLE	Ring - OUTSIDE HANDLE
16	72130-SV4-A01	Protector - R. DOOR CYLINDER	Protector - R. DOOR CYLINDER
20	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT	Bush - OUTSIDE HANDLE JOINT
21	72134-SM4-003	Snap - R. (VIOLET)	Snap - R. (VIOLET)
23	72135-SR3-003	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
24	72136-SM4-003	Holder - ROD, 4MM	Holder - ROD, 4MM
26	72143-SV1-003	Hook - OUTSIDE HANDLE	Hook - OUTSIDE HANDLE
27	72144-SV1-003	Cap - OUTSIDE HANDLE OUTER	Cap - OUTSIDE HANDLE OUTER
37	72170-SV4-A01	Protector - L. DOOR CYLINDER	Protector - L. DOOR CYLINDER
40	72174-SM4-003	Snap - L. (YELLOW)	Snap - L. (YELLOW)
43	75411-634-000	Joint	Joint
46	90101-SR4-003	Screw - 3X10	Screw - 3X10
48	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
51	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)	Grommet - SCREW, 4MM (YELLOW)
52	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Door panels 10 / 19

#	OEM	CD9	CE6
11	72367-SK8-000	Seal - OUTER HANDLE HOLE	Seal - OUTER HANDLE HOLE
16	75760-SB2-003	Pin - DOOR CHECKER	Pin - DOOR CHECKER
17	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
18	90101-SE3-003	Bolt-washer - 8X23.5	Bolt-washer - 8X23.5
19	90686-692-003	Cap - LINING MOUNT	Cap - LINING MOUNT
20	90755-SB2-000	E-ring - 6MM	E-ring - 6MM
21	91568-SR2-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
21	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
23	91590-SV4-003	Clip - SUB SEAL (A)	Clip - SUB SEAL (A)
24	91657-SP0-000	Seal c - DOOR PANEL HOLE (25MM)	Seal c - DOOR PANEL HOLE (25MM)

Door window 4 / 23

#	OEM	CD9	CE6
7	72237-SV1-000	Clip - FR. DOOR GLASS GUIDE	Clip - FR. DOOR GLASS GUIDE
20	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
21	91568-SR2-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
21	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP

Driveshaft 8 / 24

#	OEM	CD9	CE6
3	44017-SM4-A00	Boot set - INBOARD	Boot set - INBOARD
9	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
20	90305-SD4-003	Nut - SPINDLE (24MM)	Nut - SPINDLE (24MM)
21	91057-SH3-008	Bearing - HALF SHAFT (NTN)	Bearing - HALF SHAFT (NTN)
22	91260-SK7-013	Seal - HALF SHAFT OUTER (NOK)	Seal - HALF SHAFT OUTER (NOK)
22	91260-SK7-014	Seal - HALF SHAFT OUTER (ARAI)	Seal - HALF SHAFT OUTER (ARAI)
28	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
29	44337-SB0-300	Ring b - STOPPER	Ring b - STOPPER

Egr control device 2 / 6

#	OEM	CD9	CE6
1	17290-PY3-901	Valve assy. - VACUUM CONTROL	Valve assy. - VACUUM CONTROL
3	36194-PD2-661	Filter assy - AIR	Filter assy - AIR

Emblem 1 / 9

#	OEM	CD9	CE6
14	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

Engine mounts (MT) 3 / 18

#	OEM	CD9	CE6
14	90174-SM4-000	Bolt - FLANGE, 10X22	Bolt - FLANGE, 10X22
16	90371-SM4-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
17	90504-SB0-000	Washer - PLAIN, 12MM	Washer - PLAIN, 12MM

Engine wire harness/clamp 5 / 24

#	OEM	CD9	CE6
10	32741-P0A-A00	Clamp a - ENGINE HARNESS	Clamp a - ENGINE HARNESS
16	78410-SV4-003	Sensor assy - SPEED (MATSUSHITA)	Sensor assy - SPEED (MATSUSHITA)
17	78411-SM4-003	Joint - SPEED SENSOR (MATSUSHITA)	Joint - SPEED SENSOR (MATSUSHITA)
19	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
20	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Exhaust manifold 4 / 12

#	OEM	CD9	CE6
7	90015-PT0-J00	Bolt-washer - 8X14	Bolt-washer - 8X14
8	90065-PC1-300	Bolt - STUD, 10X34.5	Bolt - STUD, 10X34.5
9	90212-PD2-003	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
9	90212-RCA-A01	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM

Exhaust pipe (KE,KG) 13 / 44

#	OEM	CD9	CE6
3	18176-P08-003	Bolt - CONVERTER	Bolt - CONVERTER
10	18215-SV4-000	Rubber - EX. MOUNTING	Rubber - EX. MOUNTING
25	18310-SB0-023	Finisher - EX. PIPE	Finisher - EX. PIPE
26	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
30	74651-SV4-V50	Plate - TANK BAFFLE	Plate - TANK BAFFLE
31	74655-SV4-V50	Plate - SILENCER BAFFLE	Plate - SILENCER BAFFLE
32	90023-PK1-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
32	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
33	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
34	90126-SS0-000	Bolt-washer - 6X16	Bolt-washer - 6X16
36	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
37	90212-671-005	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
38	90301-SV7-000	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Floor mat 9 / 12

#	OEM	CD9	CE6
1	74015-SV4-010	Insulator - R. DASHBOARD UPPER	Insulator - R. DASHBOARD UPPER
2	74016-SV4-010	Insulator - L. DASHBOARD UPPER	Insulator - L. DASHBOARD UPPER
4	74672-SV4-000	Lid - FLOOR TUNNEL STIFFENER	Lid - FLOOR TUNNEL STIFFENER
13	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
15	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR
16	90700-SP0-A01	Clip - TRIM, 15MM	Clip - TRIM, 15MM
18	91546-SM4-003	Plug - DASHBOARD INSULATOR BLIND (12MM)	Plug - DASHBOARD INSULATOR BLIND (12MM)
19	91547-SM4-003	Cap - INSULATOR	Cap - INSULATOR
20	91641-SH3-013	Grommet assy, GARNISH	Grommet assy, GARNISH

Front brake (KE,KG) 20 / 24

#	OEM	CD9	CE6
1	01463-SV4-000	Caliper set - FR.	Caliper set - FR.
2	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
3	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
6	45018-SM5-000	Caliper sub assy. - R. FR.	Caliper sub assy. - R. FR.
7	45019-SM5-000	Caliper sub assy. - L. FR.	Caliper sub assy. - L. FR.
10	45216-SM4-003	Piston	Piston
11	45225-SL0-003	Shim a - INNER	Shim a - INNER
12	45226-SL0-003	Shim b - INNER	Shim b - INNER
13	45227-SM4-003	Spring - PAD	Spring - PAD
14	45228-SL0-003	Shim - OUTER PAD	Shim - OUTER PAD
16	45235-SL0-003	Pin a	Pin a
17	45237-SM5-A01	Retainer	Retainer
18	45240-SM4-003	Bolt - FLANGE, 10X24	Bolt - FLANGE, 10X24
19	45251-SM5-A00	Disk - FR. BRAKE (15")	Disk - FR. BRAKE (15")
20	45255-SM4-G03	Guard - FR. SPLASH (15")	Guard - FR. SPLASH (15")
21	45262-SL0-003	Pin b	Pin b
22	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)
23	90114-SM4-000	Bolt - FLANGE, 10X20	Bolt - FLANGE, 10X20
24	90163-SV1-A01	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
25	90164-SM4-013	Bolt - FR. HUB UNIT, 10X40	Bolt - FR. HUB UNIT, 10X40

Front bulkhead 2 / 2

#	OEM	CD9	CE6
23	60821-SM4-000	Hook - TIE DOWN	Hook - TIE DOWN
32	90105-SV1-000	Bolt-washer - 8X20	Bolt-washer - 8X20

Front combination light 6 / 11

#	OEM	CD9	CE6
3	33302-SV4-A02	Lamp unit, R.	Lamp unit, R.
5	33303-SM4-003	Holder	Holder
8	33305-SM4-A01	Tube	Tube
10	33352-SV4-A02	Lamp unit, L.	Lamp unit, L.
17	34304-SH3-A01	Socket comp.	Socket comp.
20	90303-SA5-003	Nut - FR. COMBINATION LIGHT	Nut - FR. COMBINATION LIGHT

Front fenders 9 / 10

#	OEM	CD9	CE6
4	74101-SV4-010	Fender - R. FR. INNER	Fender - R. FR. INNER
6	74151-SV4-010	Fender - L. FR. INNER	Fender - L. FR. INNER
7	90105-SL4-000	Bolt-washer - 6X20	Bolt-washer - 6X20
8	90108-SF1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
9	90114-SZ3-000	Screw-washer - 5X20	Screw-washer - 5X20
10	90119-SE0-000	Bolt - FLANGE, 6MM	Bolt - FLANGE, 6MM
11	90657-SB0-003	Clip, SPLASH SHIELD	Clip, SPLASH SHIELD
12	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
13	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front grille 4 / 7

#	OEM	CD9	CE6
6	90125-SM4-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
7	90399-SB3-003	Nut - PUSH, 2.8MM	Nut - PUSH, 2.8MM
8	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
9	91578-SV4-003	Clip - FR. GRILLE (B)	Clip - FR. GRILLE (B)

Front seat 3 / 13

#	OEM	CD9	CE6
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
38	91566-SP0-003	Clip - BACK COVER (NATURAL)	Clip - BACK COVER (NATURAL)

Front seat components (L.; POWER) 3 / 18

#	OEM	CD9	CE6
4	77517-SA5-014	Cap - SLIDE ADJUSTER	Cap - SLIDE ADJUSTER
7	81262-SM4-J32	Cap - RAIL END UPPER	Cap - RAIL END UPPER
20	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

Front seat components (R.; POWER) 2 / 8

#	OEM	CD9	CE6
3	77517-SA5-014	Cap - SLIDE ADJUSTER	Cap - SLIDE ADJUSTER
7	81262-SM4-J32	Cap - RAIL END UPPER	Cap - RAIL END UPPER

Front shock absorber 13 / 23

#	OEM	CD9	CE6
6	51621-SD4-004	Washer - SHOCK ABSORBER MOUNTING (SHOWA)	Washer - SHOCK ABSORBER MOUNTING (SHOWA)
6	51621-SR0-003	Washer - SHOCK ABSORBER MOUNTING (S&Z.ATLANTIC)	Washer - SHOCK ABSORBER MOUNTING (S&Z.ATLANTIC)
8	51675-SV1-A02	Base - SHOCK ABSORBER MOUNTING (SHOWA U.S.A.)	Base - SHOCK ABSORBER MOUNTING (SHOWA U.S.A.)
9	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
10	51686-SM4-004	Rubber - FR. SPRING SEAT (SHOWA)	Rubber - FR. SPRING SEAT (SHOWA)
10	51686-SM1-A02	Rubber - FR. SPRING MOUNTING (YUSA)	Rubber - FR. SPRING MOUNTING (YUSA)
11	51687-SV1-A02	Cover - FR. SLEEVE DUST (SHOWA U.S.A.)	Cover - FR. SLEEVE DUST (SHOWA U.S.A.)
13	51722-SV1-A02	Rubber - FR. BUMP STOPPER (SHOWA)	Rubber - FR. BUMP STOPPER (SHOWA)
13	51722-SV1-A03	Rubber - FR. BUMP STOPPER (NOK)	Rubber - FR. BUMP STOPPER (NOK)
14	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
14	51728-SR0-003	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)
15	90304-SM4-000	Nut - FR. SHOCK ABSORBER FLANGE (10MM)	Nut - FR. SHOCK ABSORBER FLANGE (10MM)
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front stabilizer/ front lower arm 19 / 27

#	OEM	CD9	CE6
3	51311-SM4-010	Collar a - STABILIZER END (7.6MM)	Collar a - STABILIZER END (7.6MM)
4	51312-SM4-000	Collar b - STABILIZER END (27.2MM)	Collar b - STABILIZER END (27.2MM)
5	51313-SM4-010	Washer - STABILIZER END	Washer - STABILIZER END
6	51314-SM4-020	Rubber - STABILIZER END	Rubber - STABILIZER END
14	51393-SV1-A01	Bush - FR. LOWER ARM	Bush - FR. LOWER ARM
15	51394-SM4-010	Washer - CASTER ADJUSTER	Washer - CASTER ADJUSTER
16	51398-SM4-000	Collar - RADIUS ROD	Collar - RADIUS ROD
17	51399-SM4-000	Washer - FR. RADIUS ROD	Washer - FR. RADIUS ROD
18	51810-SV4-004	Bush - SHOCK ABSORBER FORK (YAMASHITA)	Bush - SHOCK ABSORBER FORK (YAMASHITA)
19	51811-SV4-010	Fork - R. FR. SHOCK ABSORBER	Fork - R. FR. SHOCK ABSORBER
20	51821-SV4-010	Fork - L. FR. SHOCK ABSORBER	Fork - L. FR. SHOCK ABSORBER
21	90112-SM4-020	Bolt - STABILIZER LINK (8X95)	Bolt - STABILIZER LINK (8X95)
22	90117-SM4-003	Bolt - FR. SHOCK ABSORBER LOCK (10X44)	Bolt - FR. SHOCK ABSORBER LOCK (10X44)
23	90118-SL4-003	Bolt - SELF-LOCK, 12X84	Bolt - SELF-LOCK, 12X84
24	90121-SM4-010	Bolt - SHOCK ABSORBER FORK (12X98)	Bolt - SHOCK ABSORBER FORK (12X98)
25	90178-SM4-013	Bolt - FR. RADIUS ROD (12X31)	Bolt - FR. RADIUS ROD (12X31)
26	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
27	90303-SF1-003	Nut - SELF-LOCK, 12MM	Nut - SELF-LOCK, 12MM
28	90362-SF1-003	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM

Front windshield 10 / 16

#	OEM	CD9	CE6
2	73125-SV4-000	Rubber - FR. WINDSHIELD DAM	Rubber - FR. WINDSHIELD DAM
3	73126-SV4-000	Rubber b - FR. WINDSHIELD DAM	Rubber b - FR. WINDSHIELD DAM
4	73151-SV4-003	Molding - FR. WINDSHIELD UPPER	Molding - FR. WINDSHIELD UPPER
8	91511-SP0-003	Clip A - FR. WINDSHIELD SIDE (BLUE)	Clip A - FR. WINDSHIELD SIDE (BLUE)
9	91528-SP0-003	Clip d - FR. WINDSHIELD SIDE (YELLOW)	Clip d - FR. WINDSHIELD SIDE (YELLOW)
10	91542-SS0-003	Holder - FR. WINDSHIELD GLASS (NATURAL)	Holder - FR. WINDSHIELD GLASS (NATURAL)
11	91562-SV4-003	Clip e - FR. WINDSHIELD SIDE MOLDING (YELLOW)	Clip e - FR. WINDSHIELD SIDE MOLDING (YELLOW)
13	91573-SV4-003	Clip b - FR. WINDSHIELD SIDE MOLDING (LIGHT BLUE)	Clip b - FR. WINDSHIELD SIDE MOLDING (LIGHT BLUE)
15	91576-SV4-003	Clip - R. FR. CORNER (GREEN)	Clip - R. FR. CORNER (GREEN)
16	91577-SV4-003	Clip - L. FR. CORNER (RED)	Clip - L. FR. CORNER (RED)

Front windshield wiper (LH) 17 / 24

#	OEM	CD9	CE6
2	76505-SV4-A01	Motor comp - FR. WIPER	Motor comp - FR. WIPER
3	76515-SM4-013	Seal a	Seal a
4	76516-SL4-003	Rubber - MOUNTING	Rubber - MOUNTING
5	76516-SM4-003	Rubber - MOUNTING	Rubber - MOUNTING
6	76517-SM4-003	Collar	Collar
7	76518-SL5-A01	Cap - PIVOT (B)	Cap - PIVOT (B)
8	76520-SM4-003	Link unit a	Link unit a
9	76524-SD4-003	Dust seal	Dust seal
10	76524-SE0-013	Dust seal	Dust seal
11	76530-SV4-A01	Link comp - FR. WIPER	Link comp - FR. WIPER
12	76540-SV4-003	Rod unit a	Rod unit a
13	76550-SV4-003	Rod unit b	Rod unit b
14	76558-SS0-003	Cap - PIVOT	Cap - PIVOT
20	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
21	90201-SK7-000	Nut - HEX. CAP, 10MM	Nut - HEX. CAP, 10MM
22	91567-SE0-003	Band - WIRE HARNESS(WHITE) (93.5MM)	Band - WIRE HARNESS(WHITE) (93.5MM)
23	91620-SM4-003	Grommet - WIPER MOTOR (BLACK)	Grommet - WIPER MOTOR (BLACK)

Fuel pipe (LH) 21 / 35

#	OEM	CD9	CE6
1	16010-ST5-932	Strainer set - FUEL (TOYO ROKI)	Strainer set - FUEL (TOYO ROKI)
9	17723-SV1-A02	Hose - PRESSURE REGULATOR RETURN (PLUMLEY)	Hose - PRESSURE REGULATOR RETURN (PLUMLEY)
12	17743-SM4-003	Cap - DRAIN TUBE	Cap - DRAIN TUBE
13	17743-SV4-003	Joint - CANISTER DRAIN BYPASS TUBE	Joint - CANISTER DRAIN BYPASS TUBE
15	17752-SV4-000	Cover - FR. FUEL PIPE	Cover - FR. FUEL PIPE
16	17753-SV4-000	Cover - RR. FUEL PIPE	Cover - RR. FUEL PIPE
17	17761-SV4-000	Stay a - FUEL PIPE	Stay a - FUEL PIPE
18	17763-SV4-000	Stay c - FUEL PIPE	Stay c - FUEL PIPE
19	17764-SV4-000	Stay d - FUEL PIPE	Stay d - FUEL PIPE
20	17765-SV4-000	Stay e - FUEL PIPE	Stay e - FUEL PIPE
21	17766-SV4-000	Stay f - FUEL PIPE	Stay f - FUEL PIPE
22	17767-SV4-000	Stay g - FUEL PIPE	Stay g - FUEL PIPE
25	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
26	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
28	91406-SL4-931	Clamp - FUEL HOSE (D10.5)	Clamp - FUEL HOSE (D10.5)
29	91549-SE0-003	Holder - DRAIN HOSE	Holder - DRAIN HOSE
31	91592-SR3-J31	Clamp h - FUEL PIPE (NIFCO)	Clamp h - FUEL PIPE (NIFCO)
32	91594-SR3-J31	Clamp f - FUEL PIPE (NIFCO)	Clamp f - FUEL PIPE (NIFCO)
34	91598-SR3-J32	Clamp d - FUEL PIPE (SANOU)	Clamp d - FUEL PIPE (SANOU)
34	91598-SR3-J31	Clamp d - FUEL PIPE (NIFCO)	Clamp d - FUEL PIPE (NIFCO)
35	91599-SV4-003	Clamp a - FUEL PIPE	Clamp a - FUEL PIPE

Fuel tank 38 / 41

#	OEM	CD9	CE6
1	17040-SV1-A31	Pump set - FUEL	Pump set - FUEL
2	17371-SM4-A02	Valve - TWO WAY (TEC)	Valve - TWO WAY (TEC)
3	17500-SV4-A30	Tank comp. - FUEL	Tank comp. - FUEL
4	17511-SM4-000	Bracket - FUEL TANK BAND	Bracket - FUEL TANK BAND
5	17521-SV4-000	Band assy. - R. FUEL TANK MOUNTING	Band assy. - R. FUEL TANK MOUNTING
6	17522-SV4-000	Band assy. - L. FUEL TANK MOUNTING	Band assy. - L. FUEL TANK MOUNTING
7	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
8	17570-SL0-013	Valve - FUEL CUT	Valve - FUEL CUT
9	17574-SE0-000	Packing - BASE	Packing - BASE
10	17651-SM4-000	Tube - FILLER NECK	Tube - FILLER NECK
11	17652-SA5-000	Clip - FILLER TUBE	Clip - FILLER TUBE
12	17656-SM4-000	Bolt - FILLER PIPE MOUNTING	Bolt - FILLER PIPE MOUNTING
13	17658-SM4-000	Tube assy - BREATHER (260MM)	Tube assy - BREATHER (260MM)
14	17659-SM5-A00	Holder - FILLER PACKING	Holder - FILLER PACKING
15	17660-SV4-A00	Pipe comp - FUEL FILLER	Pipe comp - FUEL FILLER
16	17662-SL5-000	Packing - FUEL FILLER PIPE	Packing - FUEL FILLER PIPE
17	17663-SL5-A00	Band - FILLER PACKING	Band - FILLER PACKING
19	17702-SV1-A02	Hose - FUEL PIPE RETURN (PLUMLEY)	Hose - FUEL PIPE RETURN (PLUMLEY)
20	17704-SV1-A02	Hose - FUEL TANK RETURN (100MM) (PLUMLEY)	Hose - FUEL TANK RETURN (100MM) (PLUMLEY)
23	17707-SV4-A31	Tube comp - FUEL JOINT	Tube comp - FUEL JOINT
24	17711-ST0-003	Retainer - YELLOW) (TOKAI	Retainer - YELLOW) (TOKAI
25	17731-SV4-A30	Pipe comp - FUEL	Pipe comp - FUEL
26	17733-SM4-930	Protector - FUEL HOSE JOINT	Protector - FUEL HOSE JOINT
27	37800-SV4-A03	Fuel Meter Unit	Fuel Meter Unit
28	37801-SL0-003	Packing - BASE	Packing - BASE
28	37801-SV4-L01	Packing - BASE	Packing - BASE
29	74660-SV4-010	Cap assy. - FLOOR MAINTENANCE HOLE	Cap assy. - FLOOR MAINTENANCE HOLE
30	74661-SH5-023	Cap - FLOOR MAINTENANCE HOLE	Cap - FLOOR MAINTENANCE HOLE
32	90103-SB0-010	Nut - FLANGE, 5MM	Nut - FLANGE, 5MM
35	90301-SE0-J00	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
37	90657-SH3-013	Clip - TWO WAY VALVE COVER	Clip - TWO WAY VALVE COVER
38	90671-SB2-000	Bolt - FR. FENDER (DACRO COATING)	Bolt - FR. FENDER (DACRO COATING)
39	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE
40	91406-SL4-931	Clamp - FUEL HOSE (D10.5)	Clamp - FUEL HOSE (D10.5)
41	91593-SV4-003	Clip - FUEL PIPE (C)	Clip - FUEL PIPE (C)
42	91594-SV4-003	Clamp - FUEL VENT PIPE	Clamp - FUEL VENT PIPE
43	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)
44	91691-SE0-003	Clip - WIRE HARNESS	Clip - WIRE HARNESS

Grommet 14 / 15

#	OEM	CD9	CE6
1	72206-SA5-000	Cap - FLOOR HOLE, 53MM	Cap - FLOOR HOLE, 53MM
3	74011-ST7-000	Insulator a - RR. FENDER	Insulator a - RR. FENDER
4	74231-SV4-000	Valve - DRAIN	Valve - DRAIN
5	74416-SF1-000	Insulator - PILLAR LOWER	Insulator - PILLAR LOWER
6	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
7	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
8	90615-SR3-000	Cap - WELD HOLE, 51X77	Cap - WELD HOLE, 51X77
10	91601-SW3-000	Protection - RR. BUMPER	Protection - RR. BUMPER
11	91602-SV4-003	Plug - HOLE, 15MM	Plug - HOLE, 15MM
12	91606-SE0-000	Seal - 20X20	Seal - 20X20
13	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM
14	91611-SM4-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
15	91611-SS0-003	Plug - HOLE, 25MM	Plug - HOLE, 25MM
16	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Headlight (KE,KG) 3 / 21

#	OEM	CD9	CE6
5	33117-SM4-003	Clip - LENS HOLDER	Clip - LENS HOLDER
6	33122-SM4-003	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
15	34304-SH3-A01	Socket comp.	Socket comp.

Heater blower (LH) 12 / 14

#	OEM	CD9	CE6
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
2	79192-SR3-003	Bush - LINK	Bush - LINK
3	79195-SF1-003	Holder - ROD	Holder - ROD
4	79305-SV4-A01	Blower sub assy.	Blower sub assy.
5	79310-SR3-A01	Motor assy. - BLOWER (DENSO)	Motor assy. - BLOWER (DENSO)
6	79330-SV4-003	Resistor - BLOWER	Resistor - BLOWER
9	90121-SR3-003	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
10	90123-SV4-003	Screw - EVATITE, 4X12	Screw - EVATITE, 4X12
11	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
12	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
13	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
14	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater control 14 / 17

#	OEM	CD9	CE6
1	39356-SB6-000	Spring - HEATER CONTROL	Spring - HEATER CONTROL
2	39383-SA5-000	Clamp - CONTROL CABLE	Clamp - CONTROL CABLE
3	39397-SA5-003	Bulb - NEO WEDGE (14V 100MA)	Bulb - NEO WEDGE (14V 100MA)
4	79510-SM1-A10	Control comp. - TEMPERATURE	Control comp. - TEMPERATURE
5	79512-SM4-A00	Base - TEMPERATURE CONTROL LOWER	Base - TEMPERATURE CONTROL LOWER
6	79522-SM4-A00	Lever - TEMPERATURE CONTROL	Lever - TEMPERATURE CONTROL
7	79537-SM4-A00	Pin - CLICK	Pin - CLICK
8	79542-SV1-A13	Cable - TEMPERATURE CONTROL	Cable - TEMPERATURE CONTROL
9	79570-SM1-A11	Switch assy - FAN	Switch assy - FAN
11	79595-SM4-A00	Shaft - TEMPERATURE CONTROL	Shaft - TEMPERATURE CONTROL
12	79601-SV4-A01	Knob comp.	Knob comp.
15	79671-SV4-A01	Lamp - WEDGE BASE	Lamp - WEDGE BASE
17	90107-SA5-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
18	90651-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Heater duct (LH) 4 / 4

#	OEM	CD9	CE6
1	77410-SV4-A01	Duct assy - AIR CONDITIONER CENTER	Duct assy - AIR CONDITIONER CENTER
2	77420-SV4-A01	Duct assy - DRIVER SIDE AIR CONDITIONER	Duct assy - DRIVER SIDE AIR CONDITIONER
3	77430-SV4-A01	Duct assy - AIR CONDITIONER PASSENGER SIDE	Duct assy - AIR CONDITIONER PASSENGER SIDE
6	83331-SV4-000	Duct - RR. HEATER	Duct - RR. HEATER

Heater unit (LH) 13 / 14

#	OEM	CD9	CE6
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
2	79100-SV1-A12	Heater unit	Heater unit
3	79105-SV4-A01	Outlet - HEATER	Outlet - HEATER
4	79110-SV4-A01	Core comp - HEATER	Core comp - HEATER
5	79116-SV4-A01	Holder - PIPE	Holder - PIPE
6	79117-SV4-A01	Clamp - CORE	Clamp - CORE
7	79140-SV4-A01	Motor assy. - MODE	Motor assy. - MODE
8	79192-SR3-003	Bush - LINK	Bush - LINK
10	79770-SE0-000	Grommet - WATER VALVE CABLE	Grommet - WATER VALVE CABLE
11	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
12	90137-SF1-000	Bolt-washer - 6X25	Bolt-washer - 6X25
13	90139-SH3-003	Bolt-washer - 6X20	Bolt-washer - 6X20
14	90657-671-631	Clip - TRIM (BLACK)	Clip - TRIM (BLACK)

Hood 16 / 23

#	OEM	CD9	CE6
4	74120-SV4-A01	Lock assy - HOOD	Lock assy - HOOD
5	74121-SM4-000	Rubber - HOOD SEAL	Rubber - HOOD SEAL
7	74134-SH0-A01	Grommet - HOOD WIRE	Grommet - HOOD WIRE
10	74143-SV1-A00	Rubber - HOOD RR. SEAL	Rubber - HOOD RR. SEAL
11	74144-SE0-000	Cushion - HOOD	Cushion - HOOD
15	74177-SD4-000	Cushion a - HOOD	Cushion a - HOOD
17	74200-SV1-A00	Cowl top assy.	Cowl top assy.
18	74211-SV1-A00	Cover - R. HOOD HINGE	Cover - R. HOOD HINGE
19	74261-SV1-A00	Cover - L. HOOD HINGE	Cover - L. HOOD HINGE
21	90106-SE1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
22	90106-SE4-000	Bolt-washer - 6X18	Bolt-washer - 6X18
25	90700-SJ4-000	Clip - ENGINE HOOD INSULATOR	Clip - ENGINE HOOD INSULATOR
26	91501-SS0-003	Clip - COWL TOP	Clip - COWL TOP
27	91524-SE0-003	Clip - COWL TOP	Clip - COWL TOP
28	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
29	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE

Inner panels 4 / 4

#	OEM	CD9	CE6
36	74657-SM4-A00	Hook - L. TIE DOWN	Hook - L. TIE DOWN
37	74658-SM4-A01	Hook - R. TIE DOWN	Hook - R. TIE DOWN
38	90101-SM2-000	Bolt-washer - 6X15	Bolt-washer - 6X15
39	90127-SE0-000	Bolt-washer - 6X15	Bolt-washer - 6X15

Install pipe/tubing (KE,KG) 1 / 8

#	OEM	CD9	CE6
6	57451-SV4-950	Bracket - COUPLER	Bracket - COUPLER

Instrument panel (LH) 16 / 18

#	OEM	CD9	CE6
3	53216-SM4-010	Holder b - STEERING COLUMN	Holder b - STEERING COLUMN
6	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
8	77103-SV1-A00	Felt - INSTRUMENT PANEL	Felt - INSTRUMENT PANEL
17	77204-SV4-A00	Bracket - METER PANEL	Bracket - METER PANEL
20	77306-SV4-A00	Bracket - DRIVER LOWER COVER	Bracket - DRIVER LOWER COVER
21	77982-S04-N81	Holder - COUPLER (2P)	Holder - COUPLER (2P)
22	77869-SV4-A80	Plate - INSTRUMENT SUPPORT	Plate - INSTRUMENT SUPPORT
23	77895-SV4-A00	Bracket - PASSENGER KNEE BOLSTER	Bracket - PASSENGER KNEE BOLSTER
24	90104-SV4-000	Bolt-washer - 8X25	Bolt-washer - 8X25
25	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25
26	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
27	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
28	90361-SM4-003	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
28	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
29	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
30	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (LH) 28 / 29

#	OEM	CD9	CE6
1	34254-SV4-003	Lamp assy. - GLOVE BOX	Lamp assy. - GLOVE BOX
2	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
3	66406-SA0-000	Stopper - GLOVE BOX	Stopper - GLOVE BOX
4	66417-SA0-000	Rubber - GLOVE BOX STOPPER	Rubber - GLOVE BOX STOPPER
5	66418-579-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
6	77110-SV4-020	Frame - GLOVE BOX	Frame - GLOVE BOX
12	77355-SG0-A00	Label - IGNITION INFORMATION	Label - IGNITION INFORMATION
13	77355-SV4-000	Blind - COLUMN	Blind - COLUMN
15	77371-SV4-000	Ring - COLUMN COVER	Ring - COLUMN COVER
20	77506-SM4-900	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
21	77508-SX0-000	Arm - GLOVE BOX STOPPER	Arm - GLOVE BOX STOPPER
22	77509-SM4-A81	Damper - LOCK	Damper - LOCK
23	77510-SV4-000	Hinge - GLOVE BOX	Hinge - GLOVE BOX
26	77542-SV4-000	Striker - GLOVE BOX	Striker - GLOVE BOX
27	77543-SV4-A80	Bracket - STRIKER	Bracket - STRIKER
30	90107-SE3-000	Screw-washer - 4X12	Screw-washer - 4X12
31	90123-SM4-000	Screw - TAPPING, 4X12 (PO)	Screw - TAPPING, 4X12 (PO)
32	90139-SH3-003	Bolt-washer - 6X20	Bolt-washer - 6X20
33	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
34	90310-SB2-003	Nut - SPEED	Nut - SPEED
35	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
36	90609-SG0-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH
37	90609-SL9-900	Clip - INSTRUMENT LOWER	Clip - INSTRUMENT LOWER
38	90666-SD4-003	Clip - FITTING	Clip - FITTING
39	90666-SP0-A00	Clip - SNAP FITTING	Clip - SNAP FITTING
40	90667-SV4-003	Clip - CENTER OUTLET	Clip - CENTER OUTLET
41	90671-SV4-A00	Clip - COIN POCKET	Clip - COIN POCKET
42	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Intake manifold 13 / 28

#	OEM	CD9	CE6
1	06164-P0A-000	INJECTOR, FUEL	INJECTOR, FUEL
2	16472-P0H-A01	Seal ring - INJECTOR (NOK)	Seal ring - INJECTOR (NOK)
2	16472-PH7-003	Seal ring - INJECTOR (OTSUKA)	Seal ring - INJECTOR (OTSUKA)
3	16473-P10-A01	Cushion ring - INJECTOR (NOK)	Cushion ring - INJECTOR (NOK)
3	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)	Cushion ring - INJECTOR (OTSUKA)
10	16741-PG7-005	O-ring - PRESSURE REGULATOR	O-ring - PRESSURE REGULATOR
19	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)
24	90027-P0A-003	Bolt a - FUEL PIPE	Bolt a - FUEL PIPE
24	90027-P0A-305	Bolt a	Bolt a
27	91301-PM7-003	O-ring - 7.3X2.2 (ARAI)	O-ring - 7.3X2.2 (ARAI)
27	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)	O-ring - 7.3X2.2 (NOK)
27	16074-ZY3-000	O-ring	O-ring
28	91406-SL4-931	Clamp - FUEL HOSE (D10.5)	Clamp - FUEL HOSE (D10.5)

Interior light 2 / 10

#	OEM	CD9	CE6
5	34253-SV1-A01	Bulb - 12V 8W) (STANLEY	Bulb - 12V 8W) (STANLEY
8	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI

Knuckle 12 / 17

#	OEM	CD9	CE6
3	51220-SM1-A02	Joint comp - FR. LOWER BALL (MUSASHI)	Joint comp - FR. LOWER BALL (MUSASHI)
4	51450-SV4-000	Arm assy. - R. FR. UPPER	Arm assy. - R. FR. UPPER
5	51460-SV4-000	Arm assy. - L. FR. UPPER	Arm assy. - L. FR. UPPER
6	52225-SF1-013	Boot - LOWER BALL DUST	Boot - LOWER BALL DUST
7	52226-SL0-003	Circlip - LOWER BALL(MUSASHI)	Circlip - LOWER BALL(MUSASHI)
8	53546-SH0-A01	Boot - TIE ROD END (TECHNICAL AUTO PARTS)	Boot - TIE ROD END (TECHNICAL AUTO PARTS)
9	53548-SL0-A01	Circlip - TIE ROD	Circlip - TIE ROD
11	57451-SV4-950	Bracket - COUPLER	Bracket - COUPLER
12	57455-SV4-951	Sensor assy - L. FR.	Sensor assy - L. FR.
14	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
15	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM
16	90363-SF1-000	Nut - CASTLE, 12MM	Nut - CASTLE, 12MM

Mirror 9 / 13

#	OEM	CD9	CE6
7	76212-SW5-003	Holder - ACTUATOR	Holder - ACTUATOR
8	76213-SM4-003	Pin - STOPPER	Pin - STOPPER
19	76401-SH3-901	Base - STAY (MATSUYAMA)	Base - STAY (MATSUYAMA)
22	88147-SA5-003	Washer - TOOTHED (MATSUYAMA)	Washer - TOOTHED (MATSUYAMA)
23	88148-SE0-003	Bolt - LOCK, 6X7 (MATSUYAMA)	Bolt - LOCK, 6X7 (MATSUYAMA)
24	90144-SW5-003	Screw - PAN, 4X8	Screw - PAN, 4X8
25	90410-SM4-003	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
26	90416-SM4-003	Screw - TAPPING, 4X16 (PO)	Screw - TAPPING, 4X16 (PO)
27	90615-SK7-003	Clip - MIRROR GARNISH	Clip - MIRROR GARNISH

Molding 6 / 11

#	OEM	CD9	CE6
6	74308-ST0-003	Bracket - ROOF MOLDING	Bracket - ROOF MOLDING
7	90121-SM4-003	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10
8	90146-SV4-000	Screw - TAPPING, 4X11	Screw - TAPPING, 4X11
9	90668-SG0-003	Grommet - SCREW, 4MM(OVAL)	Grommet - SCREW, 4MM(OVAL)
10	91527-SM4-003	Clip - DOOR MOLDING	Clip - DOOR MOLDING
11	91528-SR4-003	Clip - DRIP MOLDING	Clip - DRIP MOLDING

Oil pump/oil strainer 4 / 29

#	OEM	CD9	CE6
13	15400-PR3-004	Cartridge - OIL FILTER (TOYO ROKI)	Cartridge - OIL FILTER (TOYO ROKI)
13	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
14	15400-PR3-305	Cartridge set - OIL FILTER (TOYO ROKI)	Cartridge set - OIL FILTER (TOYO ROKI)
16	90015-PH1-013	Holder - OIL FILTER	Holder - OIL FILTER

Outer panels 4 / 5

#	OEM	CD9	CE6
24	74422-SM4-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID
25	74494-SM4-010	Spring - FUEL LID OPENER	Spring - FUEL LID OPENER
27	75451-SP0-000	Clip - RR. AIR OUTLET	Clip - RR. AIR OUTLET
28	90103-SM4-010	Bolt - FLANGE, 6X18	Bolt - FLANGE, 6X18

P.s. gear box (LH) 22 / 26

#	OEM	CD9	CE6
1	53010-SV4-000	End set - RACK	End set - RACK
2	53411-SV4-000	Tube - AIR TRANSFER	Tube - AIR TRANSFER
3	53434-SD9-000	Clip - TIE ROD	Clip - TIE ROD
3	53434-S04-J51	CLIP, TIE ROD	CLIP, TIE ROD
4	53434-SV4-010	Bracket d - GEAR BOX	Bracket d - GEAR BOX
5	53436-SV4-010	Cushion b - GEAR BOX	Cushion b - GEAR BOX
6	53438-SV4-010	Bracket b - GEAR BOX	Bracket b - GEAR BOX
7	53447-ST0-003	Clip - TRANSFER TUBE (NIFCO)	Clip - TRANSFER TUBE (NIFCO)
8	53449-SL0-A00	Band b - BELLOWS	Band b - BELLOWS
8	53449-S04-J51	Band b - BELLOWS	Band b - BELLOWS
9	53501-SV4-000	Grommet a - STEERING	Grommet a - STEERING
10	53502-SV4-000	Grommet b - STEERING	Grommet b - STEERING
11	53534-SV4-N01	Dust seal comp. - TIE ROD	Dust seal comp. - TIE ROD
14	53536-SB2-000	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
15	53540-SV4-013	End comp - R. TIE ROD	End comp - R. TIE ROD
16	53546-SH0-A01	Boot - TIE ROD END (TECHNICAL AUTO PARTS)	Boot - TIE ROD END (TECHNICAL AUTO PARTS)
17	53560-SV4-013	End comp - L. TIE ROD	End comp - L. TIE ROD
19	53685-SV4-A00	Bush - STEERING GEAR BOX MOUNTING	Bush - STEERING GEAR BOX MOUNTING
20	53686-SL5-000	Collar - GEAR BOX MOUNTING	Collar - GEAR BOX MOUNTING
21	90108-SH3-003	Bolt - GEAR BOX MOUNTING (10X55)	Bolt - GEAR BOX MOUNTING (10X55)
22	90320-SF1-000	Nut - CASTLE, 10MM	Nut - CASTLE, 10MM
23	90683-SF1-003	Circlip - FR. UPPER (MUSASHI)	Circlip - FR. UPPER (MUSASHI)

P.s. gear box components (LH) 26 / 31

#	OEM	CD9	CE6
1	06531-SV4-000	Seal kit a - POWER STEERING (ROTARY VALVE)	Seal kit a - POWER STEERING (ROTARY VALVE)
2	06532-ST0-000	Oil seal set - ROTARY VALVE	Oil seal set - ROTARY VALVE
3	06534-ST0-010	Seal set - POWER STEERING VALVE (ROTARY VALVE)	Seal set - POWER STEERING VALVE (ROTARY VALVE)
4	06535-ST0-000	Ring set - POWER STEERING SEAL (ROTARY VALVE)	Ring set - POWER STEERING SEAL (ROTARY VALVE)
5	06536-ST0-000	Shim set - 32MM	Shim set - 32MM
6	53412-634-000	O-ring - RACK GUIDE (YAMADA)	O-ring - RACK GUIDE (YAMADA)
8	53414-634-010	Screw - RACK GUIDE	Screw - RACK GUIDE
9	53416-ST0-003	Guide - STEERING RACK	Guide - STEERING RACK
10	53449-SL0-A00	Band b - BELLOWS	Band b - BELLOWS
10	53449-S04-J51	Band b - BELLOWS	Band b - BELLOWS
11	53458-SE0-003	Nut - RACK SCREW LOCK	Nut - RACK SCREW LOCK
11	53458-S01-A51	Nut - LOCK	Nut - LOCK
12	53536-SB2-000	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
15	53630-SV4-000	End comp - CYLINDER	End comp - CYLINDER
17	53645-SV4-A00	Housing comp - VALVE	Housing comp - VALVE
18	53660-SV1-003	Oil seal - 27X38X5.5 (NOK)	Oil seal - 27X38X5.5 (NOK)
19	53661-ST0-000	Ring - BACK UP VALVE	Ring - BACK UP VALVE
20	53666-SV4-004	O-ring - 41.5X2 (ARAI)	O-ring - 41.5X2 (ARAI)
20	53666-ST0-003	O-ring - 41.5X2 (NOK)	O-ring - 41.5X2 (NOK)
21	53670-SV4-A00	Pipe a - CYLINDER	Pipe a - CYLINDER
22	53671-SV4-A00	Pipe b - CYLINDER	Pipe b - CYLINDER
23	53672-ST0-000	Shim a - 32MM (0.10MM)	Shim a - 32MM (0.10MM)
24	53673-ST0-000	Shim b - 32MM (0.15MM)	Shim b - 32MM (0.15MM)
25	53674-ST0-000	Shim c - 32MM (0.20MM)	Shim c - 32MM (0.20MM)
26	53675-ST0-000	Shim d - 32MM (0.25MM)	Shim d - 32MM (0.25MM)
27	90611-SV4-000	Circlip - EXTERNAL, 20MM (TOPY)	Circlip - EXTERNAL, 20MM (TOPY)

P.s. line (LH) 13 / 24

#	OEM	CD9	CE6
1	53697-SB3-952	Cap - OIL TANK	Cap - OIL TANK
2	53701-SV4-003	Tank comp. - POWER STEERING OIL	Tank comp. - POWER STEERING OIL
8	53729-SS0-003	Clip - RETURN HOSE	Clip - RETURN HOSE
9	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
12	53732-SV4-000	Hose - OIL COOLER	Hose - OIL COOLER
15	53736-SM4-010	Holder b - POWER STEERING PIPE	Holder b - POWER STEERING PIPE
19	56490-P0H-013	Switch assy - POWER STEERING PRESSURE (TEXAS)	Switch assy - POWER STEERING PRESSURE (TEXAS)
20	90188-SM4-000	Bolt - FLANGE, 6X12 (BLACK)	Bolt - FLANGE, 6X12 (BLACK)
21	90635-SM4-A01	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
21	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
22	91304-P0H-013	O-ring - 7.8X1.9	O-ring - 7.8X1.9
23	91370-SV4-000	O-ring - 14.4X1.9	O-ring - 14.4X1.9
24	91405-SS0-003	Clamp - TUBE (D21)	Clamp - TUBE (D21)

P.s. pump/bracket 15 / 26

#	OEM	CD9	CE6
4	56167-PY3-000	Spacer - PUMP SEAL	Spacer - PUMP SEAL
5	56483-P0A-003	Pulley comp - POWER STEERING PUMP	Pulley comp - POWER STEERING PUMP
9	56996-P0A-000	Bolt - SPECIAL, 8X62	Bolt - SPECIAL, 8X62
14	91021-148-004	Bearing - NEEDLE, 1010(NTN)	Bearing - NEEDLE, 1010(NTN)
15	91048-PY3-003	Bearing - RADIAL BALL, 15X38X12	Bearing - RADIAL BALL, 15X38X12
16	91148-PY3-003	Roller - 5X26.8	Roller - 5X26.8
17	91149-PY3-003	Roller - 4.5X49.8	Roller - 4.5X49.8
18	91249-PY3-003	Seal - POWER STEERING PUMP (NOK)	Seal - POWER STEERING PUMP (NOK)
18	91249-P02-003	Seal - POWER STEERING PUMP	Seal - POWER STEERING PUMP
19	91317-P02-003	O-ring - 5.8X1.9 (NOK)	O-ring - 5.8X1.9 (NOK)
20	91345-PY3-000	O-ring - 13.0X1.9	O-ring - 13.0X1.9
21	91346-PY3-000	O-ring - 22.1X1.9	O-ring - 22.1X1.9
22	91347-PY3-000	O-ring - 16.8X1.9	O-ring - 16.8X1.9
23	91348-PY3-000	O-ring - 54.0X1.9	O-ring - 54.0X1.9
24	91349-PY3-000	O-ring - 68.5X1.9	O-ring - 68.5X1.9

Parking brake 12 / 14

#	OEM	CD9	CE6
1	43471-SD2-930	Pin - BRAKE WIRE END	Pin - BRAKE WIRE END
3	47142-671-010	Knob - PARKING BRAKE PUSH ROD	Knob - PARKING BRAKE PUSH ROD
4	47143-SD4-300	Spring - PUSH ROD	Spring - PUSH ROD
5	47342-SV4-003	Switch - HAND BRAKE	Switch - HAND BRAKE
6	47360-SB2-000	Equalizer	Equalizer
7	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
9	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
10	47537-671-670	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD
12	47572-SE0-300	Base - WIRE GUIDE	Base - WIRE GUIDE
13	74656-SM4-010	Bracket - TANK BAFFLE PLATE	Bracket - TANK BAFFLE PLATE
14	90651-SV1-A01	Clip - BRAKE HOSE	Clip - BRAKE HOSE
15	90705-SD2-931	Pin - SNAP, 6MM	Pin - SNAP, 6MM

Pedal 12 / 27

#	OEM	CD9	CE6
3	17812-SA7-010	Washer - ACCELERATOR PEDAL	Washer - ACCELERATOR PEDAL
4	17814-SD4-670	Spring - ACCELERATOR PEDAL	Spring - ACCELERATOR PEDAL
5	17816-SK7-000	Cover - ACCELERATOR PEDAL	Cover - ACCELERATOR PEDAL
7	17921-SA4-730	Seal - THROTTLE CABLE	Seal - THROTTLE CABLE
18	46504-ST5-300	Bush - PEDAL	Bush - PEDAL
19	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
20	46505-SA7-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
21	46530-SM4-000	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
22	46535-SM4-000	Collar - PEDAL	Collar - PEDAL
25	46590-SV4-A00	Bracket - PEDAL	Bracket - PEDAL
34	46991-SV4-A01	Footrest comp	Footrest comp
35	46992-SV4-003	Clip - FOOTREST	Clip - FOOTREST

Pillar garnish 4 / 6

#	OEM	CD9	CE6
1	38205-SV4-A00	Label - FUSE	Label - FUSE
19	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)
20	90666-SM4-003	Clip - SNAP FITTING	Clip - SNAP FITTING
21	91580-SV1-003	Clip - COWL SIDE	Clip - COWL SIDE

Protector 13 / 16

#	OEM	CD9	CE6
3	74430-SM4-A00	Protector - RR. WHEEL ARCH	Protector - RR. WHEEL ARCH
4	74559-SV4-000	Cover - FUEL PIPE	Cover - FUEL PIPE
12	75329-SH4-013	Clip b - MOLDING	Clip b - MOLDING
13	75800-SV1-A00	Mudguard - R. FR.	Mudguard - R. FR.
14	75807-671-010	Nut - SIDE PROTECTOR (BLACK)	Nut - SIDE PROTECTOR (BLACK)
15	75810-SV1-A00	Mudguard - L. FR.	Mudguard - L. FR.
18	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
20	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
21	90505-SM4-003	Clip - GARNISH	Clip - GARNISH
21	90505-SX0-003	Clip - GARNISH	Clip - GARNISH
22	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
23	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
24	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH	Clip - SIDE SILL UPPER GARNISH

Radiator 10 / 16

#	OEM	CD9	CE6
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
6	19030-PT0-003	Motor - COOLING FAN (DENSO)	Motor - COOLING FAN (DENSO)
7	19033-P0A-003	Stay - COUPLER	Stay - COUPLER
8	19045-P08-013	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
8	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
9	19046-PV1-000	Seal - CAP	Seal - CAP
11	90003-PG7-660	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)
12	90041-P08-003	Screw-washer - 4X11	Screw-washer - 4X11
14	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator hose 5 / 15

#	OEM	CD9	CE6
3	19102-PM5-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
10	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
11	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
23	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER
26	91564-SP0-003	Clip - DOOR CHECKER COVER	Clip - DOOR CHECKER COVER

Radio antenna/speaker 6 / 20

#	OEM	CD9	CE6
1	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
22	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)	Grommet - SCREW, 4MM (YELLOW)
23	90666-SD4-003	Clip - FITTING	Clip - FITTING
24	91552-SF4-003	Band - WIRE HARNESS (BROWN) (110MM) (WITH SEAL)	Band - WIRE HARNESS (BROWN) (110MM) (WITH SEAL)
25	91570-SH3-003	Band - WIRE HARNESS (NATURAL)	Band - WIRE HARNESS (NATURAL)
27	90132-SV4-003	Screw - ET, 5X16	Screw - ET, 5X16

Rear brake 40 / 42

#	OEM	CD9	CE6
1	01473-SV4-000	Caliper set - RR.	Caliper set - RR.
1	01473-SV4-010	SET RR CALIPER	SET RR CALIPER
2	42200-SV2-N51	Bearing assy - RR. HUB UNIT	Bearing assy - RR. HUB UNIT
3	42324-SD4-020	Washer - RR. HUB	Washer - RR. HUB
4	42326-SG0-000	Cap - HUB UNIT	Cap - HUB UNIT
5	42510-SV1-A00	Disk - RR. BRAKE	Disk - RR. BRAKE
6	43018-SV4-A00	Caliper sub assy. - R. RR.	Caliper sub assy. - R. RR.
7	43019-SV4-A00	Caliper sub assy. - L. RR.	Caliper sub assy. - L. RR.
10	43215-SM4-951	Piston assy.	Piston assy.
11	43223-SD2-932	BEARING A	BEARING A
12	43224-SD2-931	Spring b - ADJUSTING	Spring b - ADJUSTING
13	43224-SP0-003	Shim - BRAKE PAD OUTER	Shim - BRAKE PAD OUTER
14	43227-SG0-013	Spring - PAD	Spring - PAD
15	43228-SD2-933	Shaft a	Shaft a
16	43229-SD2-931	Rod	Rod
18	43233-S04-003	Piston comp - SLEEVE	Piston comp - SLEEVE
19	43235-SD2-931	Pin a	Pin a
20	43236-S04-003	Spacer	Spacer
21	43238-SF1-003	Ring - RETAINING	Ring - RETAINING
22	43241-SF1-003	Guide - SPRING	Guide - SPRING
23	43243-SD2-931	Nut - PARKING	Nut - PARKING
24	43244-SG0-003	Retainer	Retainer
25	43245-SM4-950	Lever	Lever
26	43246-SE0-931	Spring - R. RETURN	Spring - R. RETURN
27	43247-SM4-951	Arm - R.	Arm - R.
28	43248-SD2-933	Shaft b	Shaft b
29	43249-S04-003	Bolt - ADJUSTER	Bolt - ADJUSTER
30	43253-SY8-950	Guard - R. RR. SPLASH	Guard - R. RR. SPLASH
30	43253-SY8-306	Splash guard r rr	Splash guard r rr
31	43254-SY8-950	Guard - L. RR. SPLASH	Guard - L. RR. SPLASH
32	43255-SM4-954	Protector - R. RR. CALIPER	Protector - R. RR. CALIPER
33	43256-SM4-954	Protector - L. RR. CALIPER	Protector - L. RR. CALIPER
34	43262-S04-003	Pin b	Pin b
35	43266-SE0-931	Spring - L. RETURN	Spring - L. RETURN
36	43267-SM4-951	Arm - L.	Arm - L.
37	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
38	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
39	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
40	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
41	90305-SD4-003	Nut - SPINDLE (24MM)	Nut - SPINDLE (24MM)

Rear seat 8 / 12

#	OEM	CD9	CE6
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
6	82137-SE3-004	Rubber - RR. CUSHION SETTING	Rubber - RR. CUSHION SETTING
7	82220-SM4-A01	Lock assy - RR. SEAT	Lock assy - RR. SEAT
8	82225-SV4-A01	Bracket - RR. SEAT CYLINDER	Bracket - RR. SEAT CYLINDER
9	82226-SM4-A02	Cylinder - RR. SEAT LOCK	Cylinder - RR. SEAT LOCK
14	90003-692-000	Bolt - FLANGE, 6X16	Bolt - FLANGE, 6X16
16	90668-SA5-003	Grommet - SCREW, 6MM	Grommet - SCREW, 6MM

Rear shock absorber 16 / 22

#	OEM	CD9	CE6
5	52621-SB2-004	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)	Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)
6	52675-SM4-004	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA)	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA)
6	52675-SM1-A02	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA U.S.A)	Base - RR. SHOCK ABSORBER MOUNTING (SHOWA U.S.A)
7	52686-SM4-004	Rubber - RR. SPRING SEAT (SHOWA)	Rubber - RR. SPRING SEAT (SHOWA)
7	52686-SM1-A02	Rubber - RR. SPRING SEAT (SHOWA U.S.A.)	Rubber - RR. SPRING SEAT (SHOWA U.S.A.)
8	52687-SM1-A02	Cover comp. - RR. SLEEVE DUST (SHOWA U.S.A.)	Cover comp. - RR. SLEEVE DUST (SHOWA U.S.A.)
8	52687-SM4-004	Cover comp. - RR. SLEEVE DUST (SHOWA)	Cover comp. - RR. SLEEVE DUST (SHOWA)
9	52688-SE0-003	Plate - RR. BUMP STOP	Plate - RR. BUMP STOP
10	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP
11	52722-SM4-013	Rubber - BUMPER STOPPER (POLYURETHAN KASEI)	Rubber - BUMPER STOPPER (POLYURETHAN KASEI)
11	52722-SV1-A02	Rubber - RR. BUMP STOPPER (SHOWA)	Rubber - RR. BUMP STOPPER (SHOWA)
13	52728-SM1-A02	Collar - RR. SHOCK ABSORBER MOUNTING (SHOWA)	Collar - RR. SHOCK ABSORBER MOUNTING (SHOWA)
13	52728-SB2-004	Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA)	Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA)
14	52748-SM4-014	Rubber - SPRING SEAT (SHOWA)	Rubber - SPRING SEAT (SHOWA)
15	90021-SM4-003	Bolt - SHOCK ABSORBER, 10X68	Bolt - SHOCK ABSORBER, 10X68
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear stabilizer/ rear lower arm 45 / 54

#	OEM	CD9	CE6
1	51464-S04-013	Boot, UPPER BALL JOINT	Boot, UPPER BALL JOINT
2	52111-SV4-J50	Knuckle comp - R. RR.	Knuckle comp - R. RR.
3	52116-SV4-J50	Knuckle comp - L. RR.	Knuckle comp - L. RR.
4	52212-SM4-910	Bracket a - R. RR. KNUCKLE (DISK)	Bracket a - R. RR. KNUCKLE (DISK)
5	52213-SM4-010	Protector - RR. KNUCKLE	Protector - RR. KNUCKLE
6	52214-SM4-000	Bracket b - RR. KNUCKLE	Bracket b - RR. KNUCKLE
7	52217-SM4-910	Bracket a - L. RR. KNUCKLE (DISK)	Bracket a - L. RR. KNUCKLE (DISK)
9	52306-SE0-A00	Link - RR. STABILIZER	Link - RR. STABILIZER
11	52309-SE0-000	Washer - RR. STABILIZER END	Washer - RR. STABILIZER END
12	52310-SE0-003	Shaft - STABILIZER LINK	Shaft - STABILIZER LINK
13	52312-SE0-000	Collar - STABILIZER INNER BUSH END	Collar - STABILIZER INNER BUSH END
15	52316-SA5-000	Bush - STABILIZER END	Bush - STABILIZER END
18	52319-SL5-010	Plate - RR. STABILIZER BRACKET	Plate - RR. STABILIZER BRACKET
19	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
20	52345-SV4-A00	Arm comp. a - R. RR. LOWER	Arm comp. a - R. RR. LOWER
21	52350-SV4-A00	Arm comp. a - L. RR. LOWER	Arm comp. a - L. RR. LOWER
22	52355-SV4-A10	Arm comp. b - R. RR. LOWER (ABS)	Arm comp. b - R. RR. LOWER (ABS)
23	52360-SV4-A10	Arm comp. b - L. RR. LOWER (ABS)	Arm comp. b - L. RR. LOWER (ABS)
24	52364-634-020	Washer - LOWER ARM	Washer - LOWER ARM
25	52366-SL4-003	Bolt - KNUCKLE (12X251)	Bolt - KNUCKLE (12X251)
28	52387-SE0-023	Bolt - LOWER ARM ADJUSTING	Bolt - LOWER ARM ADJUSTING
29	52388-SE0-030	Plate - CAM	Plate - CAM
30	52390-SM1-A04	Arm comp - R. RR. UPPER	Arm comp - R. RR. UPPER
31	52393-SM1-A02	Bush - RR. UPPER ARM (YUSA)	Bush - RR. UPPER ARM (YUSA)
32	52400-SM1-A04	Arm comp - L. RR. UPPER	Arm comp - L. RR. UPPER
33	52622-SM5-004	Bush - RR. SHOCK ABSORBER LOWER (YAMASHITA)	Bush - RR. SHOCK ABSORBER LOWER (YAMASHITA)
36	57452-SV4-950	Bracket - COUPLER	Bracket - COUPLER
37	57470-SV4-N00	Sensor assy - R. RR.	Sensor assy - R. RR.
38	57475-SV4-N00	Sensor assy - L. RR.	Sensor assy - L. RR.
39	90022-SM4-003	Bolt - TRAILING ARM BRACKET, 12X69	Bolt - TRAILING ARM BRACKET, 12X69
40	90023-SM4-003	Bolt - TRAILING ARM BRACKET, 12X55.5	Bolt - TRAILING ARM BRACKET, 12X55.5
41	90024-SM4-000	Bolt a - TRAILING ARM (10X57)	Bolt a - TRAILING ARM (10X57)
42	90026-SM4-000	Bolt b - TRAILING ARM (10X45)	Bolt b - TRAILING ARM (10X45)
43	90028-SM4-000	Bolt - TRAILING, 8X19	Bolt - TRAILING, 8X19
45	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
46	90118-SL4-003	Bolt - SELF-LOCK, 12X84	Bolt - SELF-LOCK, 12X84
47	90119-SV4-003	Bolt - RR. LOWER ARM, 12X66	Bolt - RR. LOWER ARM, 12X66
48	90212-SA7-010	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
49	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
50	90216-SE0-010	Nut	Nut
50	90216-SE0-305	NUT, LWR ARM	NUT, LWR ARM
51	90217-SM4-003	Nut - TRAILING ARM, 10MM	Nut - TRAILING ARM, 10MM
52	90230-SB0-950	Bolt-washer - 6X12 (GREEN)	Bolt-washer - 6X12 (GREEN)
53	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM
54	90438-SE0-000	Washer - TRAILING, 12MM	Washer - TRAILING, 12MM

Rear windshield 6 / 11

#	OEM	CD9	CE6
2	73220-SV4-013	Cover - RR. WINDSHIELD LOWER	Cover - RR. WINDSHIELD LOWER
3	73221-SR4-000	Spacer - RR. WINDSHIELD	Spacer - RR. WINDSHIELD
8	90675-SR4-003	Grommet - RR. WINDSHIELD MOLDING	Grommet - RR. WINDSHIELD MOLDING
9	90676-SR4-003	Pin - RR. WINDSHIELD MOLDING	Pin - RR. WINDSHIELD MOLDING
10	91563-SV4-003	Fastener a - RR. WINDSHIELD	Fastener a - RR. WINDSHIELD
11	91568-SV4-003	Fastener b - RR. WINDSHIELD	Fastener b - RR. WINDSHIELD

Resonator chamber 5 / 11

#	OEM	CD9	CE6
1	17212-PN3-000	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
1	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
3	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
8	17246-P0A-A00	Ring - SEAL	Ring - SEAL
10	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35

Roof lining (LH) 7 / 10

#	OEM	CD9	CE6
4	71835-SA5-933	Cover - GRAB RAIL	Cover - GRAB RAIL
15	83248-SG0-003	Spacer - GRAB RAIL	Spacer - GRAB RAIL
21	90132-SP0-003	Screw - PAN, 5X15	Screw - PAN, 5X15
22	90131-SV4-003	Screw - FLAT, 5X23	Screw - FLAT, 5X23
24	90133-SG0-003	Bolt-washer - 5X30	Bolt-washer - 5X30
27	90673-SE0-003	Clip - ROOF LINING	Clip - ROOF LINING
28	91550-SM4-003	Clip - WIRE HARNESS	Clip - WIRE HARNESS

Seatbelt 4 / 8

#	OEM	CD9	CE6
14	82491-SV4-000	Protector - R. RR. SEATBELT	Protector - R. RR. SEATBELT
17	82891-SV4-000	Protector - L. RR. SEATBELT	Protector - L. RR. SEATBELT
18	84136-SM4-A00	Seal - SEATBELT HOLE	Seal - SEATBELT HOLE
19	90301-SS0-000	Nut - CLIP, 6MM	Nut - CLIP, 6MM

Shift lever 2 / 27

#	OEM	CD9	CE6
24	90114-SA0-000	Nut - SELF-LOCK, 6MM	Nut - SELF-LOCK, 6MM
25	90156-SM4-000	Bolt-washer - 6X20	Bolt-washer - 6X20

Side lining 2 / 6

#	OEM	CD9	CE6
8	90609-SL9-900	Clip - INSTRUMENT LOWER	Clip - INSTRUMENT LOWER
9	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)

Sliding roof 1 / 43

#	OEM	CD9	CE6
27	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

Srs unit ('96-; KG,KY) 7 / 13

#	OEM	CD9	CE6
4	77907-SW5-003	Holder - CONNECTOR (2P)	Holder - CONNECTOR (2P)
6	77963-SV4-A01	Clip - SRS HARNESS (BLUE) (153MM)	Clip - SRS HARNESS (BLUE) (153MM)
7	77982-S04-N81	Holder - COUPLER (2P)	Holder - COUPLER (2P)
9	90137-SG0-A81	Bolt - TORX EARTH, 6X16	Bolt - TORX EARTH, 6X16
10	90138-SL0-A81	Bolt - TORX, 6X25	Bolt - TORX, 6X25
11	91551-SW5-003	Clip - HARNESS BAND (BROWN) (151MM)	Clip - HARNESS BAND (BROWN) (151MM)
13	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

Steering column 9 / 12

#	OEM	CD9	CE6
3	53217-SL4-N50	Collar - STEERING RETAINER	Collar - STEERING RETAINER
6	53323-SV1-A01	Joint comp. b - STEERING	Joint comp. b - STEERING
7	53325-SV4-000	Clip A - JOINT COVER	Clip A - JOINT COVER
8	53326-SB0-000	Clip b - JOINT COVER	Clip b - JOINT COVER
9	53371-SM4-013	Spring - COLUMN HANGER	Spring - COLUMN HANGER
11	77873-SP0-A80	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH)	Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH)
12	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
13	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
14	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR

Steering wheel (SRS) 7 / 9

#	OEM	CD9	CE6
9	78506-SM5-A81	Plate - CONTACT (A)	Plate - CONTACT (A)
10	78507-SM5-A81	Plate - CONTACT (B)	Plate - CONTACT (B)
11	78508-SM5-A81	Spring - HORN	Spring - HORN
15	78517-SM5-A81	Plate - CRUISE SWITCH SET	Plate - CRUISE SWITCH SET
21	90134-S04-A81	Bolt - HEX., 6X12	Bolt - HEX., 6X12
22	90161-SV4-003	Bolt - STEERING HANDLE	Bolt - STEERING HANDLE
25	90125-SR4-003	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16

Switch (LH) 5 / 11

#	OEM	CD9	CE6
1	35150-SV4-003	Controller - ILLUMINATION	Controller - ILLUMINATION
4	35510-SV1-A01	Switch assy - HAZARD	Switch assy - HAZARD
9	35850-SV4-981	Bulb comp. - 14V 60MA	Bulb comp. - 14V 60MA
10	35851-SB2-003	Bulb - NEO WEDGE (14V 65MA)	Bulb - NEO WEDGE (14V 65MA)
14	90666-SD4-003	Clip - FITTING	Clip - FITTING

Taillight ('96-) 9 / 27

#	OEM	CD9	CE6
8	33503-SV4-A02	Gasket - BASE	Gasket - BASE
12	34101-SS0-003	Lens	Lens
14	34103-SS0-003	Seal - PACKING	Seal - PACKING
15	34104-SE3-A01	Screw - TAPPING, 4X20	Screw - TAPPING, 4X20
18	34153-SV4-A01	Gasket - R. BASE	Gasket - R. BASE
20	34158-SV4-A01	Gasket - L. BASE	Gasket - L. BASE
32	90301-SE0-902	Nut - SPECIAL, 5MM	Nut - SPECIAL, 5MM
33	90521-SS0-003	Grommet - SPECIAL SCREW (M4) (YELLOW)	Grommet - SPECIAL SCREW (M4) (YELLOW)
34	90665-SS0-003	Grommet - RR. COMBINATION	Grommet - RR. COMBINATION

Throttle body 13 / 22

#	OEM	CD9	CE6
1	16016-PM6-005	Screw set	Screw set
2	16075-PE2-005	O-ring - 31.2X1.9	O-ring - 31.2X1.9
3	16075-P07-000	O-ring	O-ring
4	16076-P64-000	O-ring	O-ring
5	16077-P06-A00	O-ring	O-ring
6	16078-P06-A00	O-ring - 15.8X1.9	O-ring - 15.8X1.9
7	16080-P07-000	Screw-washer - 4X16	Screw-washer - 4X16
9	16176-P0A-004	Gasket - THROTTLE BODY (NIPPON LEAKLESS)	Gasket - THROTTLE BODY (NIPPON LEAKLESS)
21	36455-PT3-A01	Packing, ELECTRONIC AIR CONTROL VALVE (DENSO)	Packing, ELECTRONIC AIR CONTROL VALVE (DENSO)
22	37830-P0G-S00	Sensor set - MAP	Sensor set - MAP
22	37830-PAA-S00	Sensor set - MAP	Sensor set - MAP
23	37880-P0A-A02	Sensor assy - AIR TEMP	Sensor assy - AIR TEMP
24	91303-P0A-A02	O-ring	O-ring

Tire/wheel disk 13 / 44

#	OEM	CD9	CE6
6	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
8	44728-SB8-672	Weight - BALANCE (40G) (PERFECT EQUIPMENT CORP.)	Weight - BALANCE (40G) (PERFECT EQUIPMENT CORP.)
8	44722-SB8-672	Weight - BALANCE (10G) (PERFECT EQUIPMENT CORP.)	Weight - BALANCE (10G) (PERFECT EQUIPMENT CORP.)
8	44730-SB8-672	Weight - BALANCE (50G) (PERFECT EQUIPMENT CORP.)	Weight - BALANCE (50G) (PERFECT EQUIPMENT CORP.)
8	44724-SB8-672	Weight - BALANCE (20G) (PERFECT EQUIPMENT CORP.)	Weight - BALANCE (20G) (PERFECT EQUIPMENT CORP.)
8	44727-SB8-672	Weight - BALANCE (35G) (PERFECT EQUIPMENT CORP.)	Weight - BALANCE (35G) (PERFECT EQUIPMENT CORP.)
8	44721-SB8-672	Weight - BALANCE (5G) (PERFECT EQUIPMENT CORP.)	Weight - BALANCE (5G) (PERFECT EQUIPMENT CORP.)
8	44729-SB8-672	Weight - BALANCE (45G) (PERFECT EQUIPMENT CORP.)	Weight - BALANCE (45G) (PERFECT EQUIPMENT CORP.)
8	44723-SB8-672	Weight - BALANCE (15G) (PERFECT EQUIPMENT CORP.)	Weight - BALANCE (15G) (PERFECT EQUIPMENT CORP.)
8	44725-SB8-672	Weight - BALANCE (25G) (PERFECT EQUIPMENT CORP.)	Weight - BALANCE (25G) (PERFECT EQUIPMENT CORP.)
8	44726-SB8-672	Weight - BALANCE (30G) (PERFECT EQUIPMENT CORP.)	Weight - BALANCE (30G) (PERFECT EQUIPMENT CORP.)
16	74665-SM4-A00	Adapter - ANCHOR BOLT	Adapter - ANCHOR BOLT
18	90381-SV1-981	Nut comp. - WHEEL (SATO RASHI)	Nut comp. - WHEEL (SATO RASHI)

Tools/jack 1 / 7

#	OEM	CD9	CE6
6	89310-SM1-A02	Jack assy - PANTOGRAPH	Jack assy - PANTOGRAPH

Trunk lid ('96-) 29 / 31

#	OEM	CD9	CE6
1	17706-SC3-003	Clip - FUEL PIPE	Clip - FUEL PIPE
2	46394-SB0-682	Clip b	Clip b
8	72134-SM4-003	Snap - R. (VIOLET)	Snap - R. (VIOLET)
9	74411-SV1-003	Cable - FUEL LID OPENER	Cable - FUEL LID OPENER
10	74815-SL5-305	Garnish - TRUNK CYLINDER (CHROME PLATED)	Garnish - TRUNK CYLINDER (CHROME PLATED)
11	74822-SW5-003	Cushion - TRUNK HINGE	Cushion - TRUNK HINGE
12	74826-SV4-000	Protector - RR. COMBINATION	Protector - RR. COMBINATION
13	74827-SP0-000	Stopper - TRUNK LID	Stopper - TRUNK LID
14	74829-SP0-000	Stopper - TRUNK LOWER	Stopper - TRUNK LOWER
15	74851-SV1-003	Lock - TRUNK	Lock - TRUNK
16	74861-SS0-003	Cylinder - TRUNK	Cylinder - TRUNK
17	74862-SS0-003	Striker - TRUNK	Striker - TRUNK
18	74863-SV4-003	Rod - TRUNK LOCK	Rod - TRUNK LOCK
19	74864-SY8-A00	Cover - TRUNK LOCK	Cover - TRUNK LOCK
20	74865-SV4-010	Weatherstrip - TRUNK LID	Weatherstrip - TRUNK LID
21	74871-SV4-A00	Spring - R. TRUNK OPENER	Spring - R. TRUNK OPENER
22	74872-SV4-A00	Spring - L. TRUNK OPENER	Spring - L. TRUNK OPENER
23	74880-SV4-A01	Cable - TRUNK OPENER	Cable - TRUNK OPENER
28	74886-SH4-A03	Cylinder - TRUNK REMOTE CONTROL	Cylinder - TRUNK REMOTE CONTROL
31	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
32	90106-SE1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
33	90109-SM4-000	Bolt - SPECIAL, 6X35	Bolt - SPECIAL, 6X35
34	90301-693-000	Nut - OPEN STAY, 6MM	Nut - OPEN STAY, 6MM
35	90501-SS0-000	Packing - SEAT	Packing - SEAT
36	90521-SS0-003	Grommet - SPECIAL SCREW (M4) (YELLOW)	Grommet - SPECIAL SCREW (M4) (YELLOW)
38	90691-SF1-003	Clip c - OPENER CABLE	Clip c - OPENER CABLE
41	91516-SM4-013	Clip - RR. COMBINATION PROTECTOR	Clip - RR. COMBINATION PROTECTOR
50	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
51	90691-SC5-003	Clip A - OPENER CABLE	Clip A - OPENER CABLE

Trunk side garnish 5 / 7

#	OEM	CD9	CE6
16	90133-SJ6-020	Screw-washer - 4X12 (PO)	Screw-washer - 4X12 (PO)
17	90609-SL9-900	Clip - INSTRUMENT LOWER	Clip - INSTRUMENT LOWER
18	90609-SS0-000	Clip - ROOF LINING	Clip - ROOF LINING
19	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)
22	90668-SV1-003	Clip - RR. TRAY	Clip - RR. TRAY

Water pump/sensor 8 / 28

#	OEM	CD9	CE6
12	19516-PC1-000	Bolt - BREATHING WATER	Bolt - BREATHING WATER
15	37750-PH2-014	Thermo unit - DENSO	Thermo unit - DENSO
16	37760-P00-003	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)	Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
19	37870-PK2-005	Sensor assy - WATER TEMP (HADSYS)	Sensor assy - WATER TEMP (HADSYS)
22	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)	O-ring - 9.5X1.5(HONDA KIKAKI)
23	91307-PN4-000	O-ring - 17.5X1.4	O-ring - 17.5X1.4
23	91307-PN3-000	O-ring,17.8x1.4	O-ring,17.8x1.4
26	91314-PH7-003	O-ring 31.2X4.1 (NOK)	O-ring 31.2X4.1 (NOK)

Water valve 3 / 7

#	OEM	CD9	CE6
5	79731-SV4-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
6	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
6	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Windshield washer (LH) 10 / 19

#	OEM	CD9	CE6
1	36062-671-000	Clamp b - TUBE	Clamp b - TUBE
2	38512-SC4-673	Motor - WASHER (DENSO)	Motor - WASHER (DENSO)
5	76807-SE4-A02	Packing - T-TYPE) (DENSO	Packing - T-TYPE) (DENSO
10	76816-SE4-A02	Adapter - NOZZLE (DENSO)	Adapter - NOZZLE (DENSO)
10	38511-SD2-003	Adapter - NOZZLE (MITSUBA)	Adapter - NOZZLE (MITSUBA)
11	76820-SV1-004	Grommet - TUBE WASHER	Grommet - TUBE WASHER
12	76828-SH0-A02	Joint l, WASHER TUBE (DENSO)	Joint l, WASHER TUBE (DENSO)
15	76842-SE4-A02	Bush - WASHER TANK (DENSO)	Bush - WASHER TANK (DENSO)
16	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
17	91506-SS0-013	Clip - WIRE & WASHER TUBE	Clip - WIRE & WASHER TUBE

Wire harness (LH) 22 / 36

#	OEM	CD9	CE6
7	32131-SV4-003	Cap - COUPLER (CP 2P, 3P)	Cap - COUPLER (CP 2P, 3P)
8	32132-SM4-003	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)	Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
9	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
10	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
12	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
16	32170-SV4-000	Cord - FUEL UNIT	Cord - FUEL UNIT
18	32312-SM4-013	Holder - COUPLER	Holder - COUPLER
21	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
22	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
24	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
25	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
26	91545-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)	Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
27	91651-SV1-A00	Clip - CORD (15MM)	Clip - CORD (15MM)
29	91550-SM4-003	Clip - WIRE HARNESS	Clip - WIRE HARNESS
30	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
32	91552-SS0-003	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
33	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)
34	91556-SM4-003	Clip - BAND (BLACK) (100MM)	Clip - BAND (BLACK) (100MM)
35	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)	Clip - WIRE HARNESS (WHITE) (55MM)
36	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)	Clip - HARNESS BAND OFFSET(30) (NATURAL)
38	91587-SM4-003	Clip - COUPLER (GRAY)	Clip - COUPLER (GRAY)
39	91786-SR3-003	Bar - JOINT (10P)	Bar - JOINT (10P)
