Abs modulator 2 / 20

#	OEM	CD6	CG3
1	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
18	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)

Abs unit (2) 1 / 13

#	OEM	CD6	CG3
5	39792-SP0-014	Relay assy - POWER (4P) (MITSUBA) (12V NO)	Relay assy - POWER (4P) (MITSUBA) (12V NO)

Air cleaner 5 / 17

#	OEM	CD6	CG3
2	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
4	17213-PV0-000	Rubber - AIR CLEANER CASE MOUNTING	Rubber - AIR CLEANER CASE MOUNTING
5	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
22	17316-PH3-003	Clamp - AIR FLOW TUBE (70)	Clamp - AIR FLOW TUBE (70)
25	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35

Air conditioner (CONDENSER; RH) 5 / 19

#	OEM	CD6	CG3
2	32175-647-920	Clip - WIRE HARNESS	Clip - WIRE HARNESS
2	30701-883-000	Clip, high tension cord (8mm)	Clip, high tension cord (8mm)
17	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER
19	90003-PG7-660	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)
20	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)

Air conditioner (COOLING UNIT; RH) 4 / 21

#	OEM	CD6	CG3
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
18	90139-SH3-003	Bolt-washer - 6X20	Bolt-washer - 6X20
19	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
20	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Air conditioner (HOSES/PIPES; RH) 3 / 24

#	OEM	CD6	CG3
1	80050-SP0-000	Label - AIR CONDITIONER CAUTION (HFC134A)	Label - AIR CONDITIONER CAUTION (HFC134A)
20	80871-ST7-000	O-ring - 5/8"	O-ring - 5/8"
22	80872-ST7-000	O-ring - 1/2"	O-ring - 1/2"

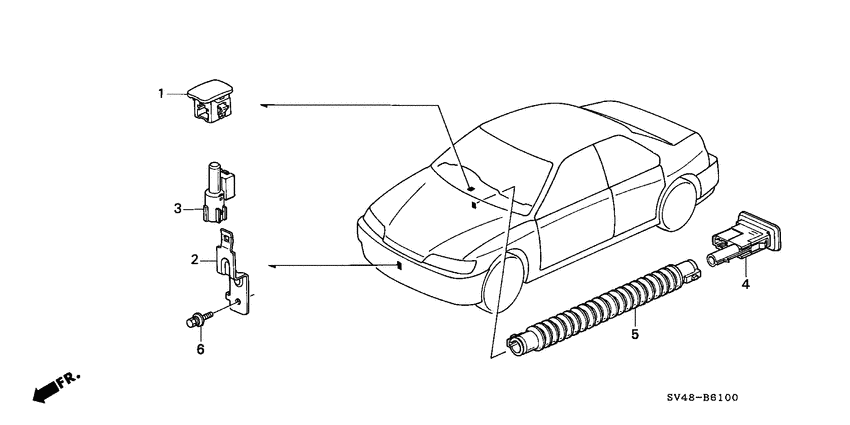

Air conditioner (SENSOR) 1 / 4

#	OEM	CD6	CG3
3	80525-SS0-942	Sensor - AMBIENT	Sensor - AMBIENT

Alternator (DENSO) 16 / 21

#	OEM	CD6	CG3
3	31105-PR7-A01	Holder assy. - BRUSH	Holder assy. - BRUSH
4	31111-PT0-003	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
5	31114-PT0-013	Bearing - FR. GENERATOR	Bearing - FR. GENERATOR
6	31118-PT0-003	Bush - INSULATION	Bush - INSULATION
7	31119-PT0-003	Bush - INSULATION	Bush - INSULATION
8	31127-PT2-013	Rectifier assy.	Rectifier assy.
10	31138-PD1-004	Cover - BEARING	Cover - BEARING
12	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
13	31145-PD1-004	Bolt - STUD, 6X68	Bolt - STUD, 6X68
14	31146-PT0-003	Screw	Screw
15	31147-PT0-003	Screw-washer	Screw-washer
16	31147-P13-003	Screw	Screw
17	31148-PT0-003	Screw - WAVE WASHER	Screw - WAVE WASHER
18	31148-P13-003	Screw - WAVE WASHER	Screw - WAVE WASHER
20	90231-PD1-014	Nut-washer - 5MM	Nut-washer - 5MM
21	90232-PT0-003	Nut - HEX., 6MM	Nut - HEX., 6MM

Battery 6 / 17

#	OEM	CD6	CG3
2	31512-SS0-000	Plate - BATTERY SETTING (70D/80D)	Plate - BATTERY SETTING (70D/80D)
3	31513-SM4-000	Bolt - BATTERY SETTING(195MM)	Bolt - BATTERY SETTING(195MM)
4	31513-SP0-010	Bolt - BATTERY SETTING (210MM)	Bolt - BATTERY SETTING (210MM)
12	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
13	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
16	90114-SM4-900	Bolt - 6X15	Bolt - 6X15

Brake lines (ABS; RH) 4 / 35

#	OEM	CD6	CG3
20	46393-SM4-951	Clip c	Clip c
30	46462-SE0-000	Bolt - OIL	Bolt - OIL
32	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
36	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Brake master cylinder/ master power 3 / 25

#	OEM	CD6	CG3
8	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
10	46191-634-000	Gasket - MASTER CYLINDER BRACKET	Gasket - MASTER CYLINDER BRACKET
26	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Breather tube (DOHC VTEC) 1 / 5

#	OEM	CD6	CG3
2	17130-PK1-003	Valve assy. - PCV	Valve assy. - PCV

Bumpers (2) 8 / 21

#	OEM	CD6	CG3
20	90109-SS0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
21	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
24	90111-SM4-003	Bolt - BUMPER	Bolt - BUMPER
25	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
28	90305-SM4-000	Nut - AIR SPOILER CLIP	Nut - AIR SPOILER CLIP
30	90675-SA5-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
32	91503-SZ5-003	Clip - BUMPER FACE	Clip - BUMPER FACE
33	91503-SZ3-003	Clip A	Clip A

Camshaft/timing belt (DOHC VTEC) 6 / 45

#	OEM	CD6	CG3
13	13415-P0A-000	Bracket - BALANCER BELT ADJUSTER	Bracket - BALANCER BELT ADJUSTER
27	90007-679-000	Bolt a - TIMING BELT COVER	Bolt a - TIMING BELT COVER
30	90031-PV0-003	Bolt-washer - 10X30	Bolt-washer - 10X30
30	90031-PV0-305	Bolt-washer (10x30)	Bolt-washer (10x30)
31	90051-PT0-000	Bolt - SUB BELT ADJUSTER SPRING	Bolt - SUB BELT ADJUSTER SPRING
35	90501-MB7-610	Washer - 10.3X25	Washer - 10.3X25

Clutch 14 / 29

#	OEM	CD6	CG3
3	22533-PX4-010	Seat - RETURN SPRING	Seat - RETURN SPRING
10	22554-PX4-003	Plate - CLUTCH END (4) (2.4MM)	Plate - CLUTCH END (4) (2.4MM)
10	22556-PX4-003	Plate - CLUTCH END (6) (2.6MM)	Plate - CLUTCH END (6) (2.6MM)
10	22551-PX4-003	Plate - CLUTCH END (1) (2.1MM)	Plate - CLUTCH END (1) (2.1MM)
10	22558-PX4-003	Plate - CLUTCH END (8) (2.8MM)	Plate - CLUTCH END (8) (2.8MM)
10	22553-PX4-003	Plate - CLUTCH END (3) (2.3MM)	Plate - CLUTCH END (3) (2.3MM)
10	22555-PX4-003	Plate - CLUTCH END (5) (2.5MM)	Plate - CLUTCH END (5) (2.5MM)
10	22557-PX4-003	Plate - CLUTCH END (7) (2.7MM)	Plate - CLUTCH END (7) (2.7MM)
10	22552-PX4-003	Plate - CLUTCH END (2) (2.2MM)	Plate - CLUTCH END (2) (2.2MM)
10	22559-PX4-003	Plate - CLUTCH END (9) (2.9MM)	Plate - CLUTCH END (9) (2.9MM)
19	90603-PX4-000	Circlip - EXTERNAL, 47MM	Circlip - EXTERNAL, 47MM
20	90605-PX4-000	Ring - SNAP, 129MM	Ring - SNAP, 129MM
21	91302-PX4-004	O-ring - 46.8X2.2 (NOK)	O-ring - 46.8X2.2 (NOK)
22	91303-PX4-004	O-ring - 114X2.2 (NOK)	O-ring - 114X2.2 (NOK)

Clutch/torque converter 2 / 7

#	OEM	CD6	CG3
9	90023-PA9-000	Bolt - SPECIAL	Bolt - SPECIAL
11	90429-PC6-900	Washer - 40X86X2	Washer - 40X86X2

Combination meter components 4 / 25

#	OEM	CD6	CG3
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
6	37115-SA0-601	Packing - NS	Packing - NS
27	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Combination switch (4) 4 / 22

#	OEM	CD6	CG3
5	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
24	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)	Grommet - SCREW, 4MM (YELLOW)
25	90690-SA0-003	Strap - WIRE HARNESS, 25MM (BLACK)	Strap - WIRE HARNESS, 25MM (BLACK)
26	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)

Console (RH) 8 / 21

#	OEM	CD6	CG3
5	66418-SA5-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
6	66418-579-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
12	77234-SV4-003	Clip	Clip
32	88324-SB3-950	Cover - RR. ASHTRAY	Cover - RR. ASHTRAY
34	90144-SP0-000	Screw - TAPPING, 4X16 (PO)	Screw - TAPPING, 4X16 (PO)
37	90666-SD4-003	Clip - FITTING	Clip - FITTING
40	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
41	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Control lever 5 / 19

#	OEM	CD6	CG3
11	25950-PX4-000	Bolt comp - JOINT	Bolt comp - JOINT
12	25951-639-000	Bolt - JOINT	Bolt - JOINT
15	90001-PA9-000	Bolt - HEX., 6MM	Bolt - HEX., 6MM
20	90638-689-000	Clip - SPEEDOMETER GEAR	Clip - SPEEDOMETER GEAR
22	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2

Control unit (CABIN; 2) 3 / 30

#	OEM	CD6	CG3
25	39792-SM4-013	Relay assy - POWER (4P NO.305) (DENSO)	Relay assy - POWER (4P NO.305) (DENSO)
30	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
31	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Control unit (ENGINE ROOM) 4 / 28

#	OEM	CD6	CG3
18	39793-SV4-003	Relay assy - POWER (5P) (MITSUBA)	Relay assy - POWER (5P) (MITSUBA)
20	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
24	90182-SB6-000	Bolt-washer - 6X16	Bolt-washer - 6X16
25	91551-SV4-003	Clip - BRACKET	Clip - BRACKET

Countershaft 1 / 28

#	OEM	CD6	CG3
11	23565-PX4-700	Selector - REVERSE GEAR	Selector - REVERSE GEAR

Cylinder block/oil pan (DOHC VTEC) 14 / 41

#	OEM	CD6	CG3
3	11106-PT0-300	Bolt - SEALING, 16MM	Bolt - SEALING, 16MM
20	13421-PT0-003	Metal - BALANCER SHAFT (NO.1) (DAIDO)	Metal - BALANCER SHAFT (NO.1) (DAIDO)
21	13422-PT0-013	Metal - BALANCER SHAFT (NO.2) (DAIDO)	Metal - BALANCER SHAFT (NO.2) (DAIDO)
22	13423-PT0-003	Metal - BALANCER SHAFT (NO.3) (DAIDO)	Metal - BALANCER SHAFT (NO.3) (DAIDO)
25	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
26	90007-PK1-003	Bolt-washer - 11X121	Bolt-washer - 11X121
27	90008-PM3-000	Bolt - MOUNTING BRACKET, 10X32.5	Bolt - MOUNTING BRACKET, 10X32.5
28	90009-PH1-000	Bolt - DRAIN PLUG, 14MM	Bolt - DRAIN PLUG, 14MM
29	90030-PT0-000	Bolt - STUD, 10X35	Bolt - STUD, 10X35
30	90041-PA5-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
33	90051-PH7-000	Bolt - FLANGE, 6X18	Bolt - FLANGE, 6X18
34	90061-PT0-000	Bolt - DRAIN PLUG, 12MM	Bolt - DRAIN PLUG, 12MM
35	90705-PT0-000	Dowel pin - 16X22	Dowel pin - 16X22
36	90715-PC6-000	Dowel pin - 13X20	Dowel pin - 13X20

Cylinder head (DOHC VTEC) 6 / 27

#	OEM	CD6	CG3
4	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
4	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
5	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
5	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
18	90001-P70-000	Bolt - FLANGE, 10X10.5	Bolt - FLANGE, 10X10.5
22	90026-PT0-000	Bolt - STUD, 8X38	Bolt - STUD, 8X38

Cylinder head cover (DOHC VTEC) 2 / 13

#	OEM	CD6	CG3
6	15610-P2A-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
7	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

Differential gear 19 / 23

#	OEM	CD6	CG3
3	41455-PK4-000	Shim o - 76MM (2.90)	Shim o - 76MM (2.90)
3	41450-PK4-000	Shim j - 76MM (2.65)	Shim j - 76MM (2.65)
3	41445-PK4-000	Shim e - 76MM (2.40)	Shim e - 76MM (2.40)
3	41457-PK4-000	Shim q - 76MM (3.00)	Shim q - 76MM (3.00)
3	41452-PK4-000	Shim l - 76MM (2.75)	Shim l - 76MM (2.75)
3	41447-PK4-000	Shim g - 76MM (2.50)	Shim g - 76MM (2.50)
3	41442-PK4-000	Shim b - 76MM (2.25)	Shim b - 76MM (2.25)
3	41454-PK4-000	Shim n - 76MM (2.85)	Shim n - 76MM (2.85)
3	41449-PK4-000	Shim i - 76MM (2.60)	Shim i - 76MM (2.60)
3	41444-PK4-000	Shim d - 76MM (2.35)	Shim d - 76MM (2.35)
3	41456-PK4-000	Shim p - 76MM (2.95)	Shim p - 76MM (2.95)
3	41451-PK4-000	Shim k - 76MM (2.70)	Shim k - 76MM (2.70)
3	41446-PK4-000	Shim f - 76MM (2.45)	Shim f - 76MM (2.45)
3	41441-PK4-000	Shim a - 76MM (2.20)	Shim a - 76MM (2.20)
3	41458-PK4-000	Shim r - 76MM (3.05)	Shim r - 76MM (3.05)
3	41453-PK4-000	Shim m - 76MM (2.80)	Shim m - 76MM (2.80)
3	41448-PK4-000	Shim h - 76MM (2.55)	Shim h - 76MM (2.55)
3	41443-PK4-000	Shim c - 76MM (2.30)	Shim c - 76MM (2.30)
4	90003-PA9-003	Bolt - FLANGE, 10MM	Bolt - FLANGE, 10MM

Emblems 1 / 11

#	OEM	CD6	CG3
28	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

Engine hood 4 / 23

#	OEM	CD6	CG3
22	90106-SE1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
24	90700-SJ4-000	Clip - ENGINE HOOD INSULATOR	Clip - ENGINE HOOD INSULATOR
26	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
29	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE

Engine mounts (6) 9 / 25

#	OEM	CD6	CG3
1	17205-PC6-000	Clamp - TUBE, 7.5X2	Clamp - TUBE, 7.5X2
15	90162-SV4-000	Bolt-washer - 10X30	Bolt-washer - 10X30
16	90163-SC2-000	Bolt - FLANGE, 12X25	Bolt - FLANGE, 12X25
18	90169-SM4-000	Bolt - FLANGE, 12X30	Bolt - FLANGE, 12X30
20	90173-SM4-000	Bolt - FLANGE, 12X60	Bolt - FLANGE, 12X60
21	90174-SM4-000	Bolt - FLANGE, 10X22	Bolt - FLANGE, 10X22
22	90176-SM4-000	Bolt - FLANGE, 12X95	Bolt - FLANGE, 12X95
23	90371-SM4-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
25	90552-SV4-000	Washer - FR. BRACKET	Washer - FR. BRACKET

Engine wire harness/clamp (DOHC VTEC) 7 / 42

#	OEM	CD6	CG3
23	78411-SM4-003	Joint - SPEED SENSOR (MATSUSHITA)	Joint - SPEED SENSOR (MATSUSHITA)
29	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
30	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
34	90313-PT0-000	Bolt - SPECIAL, 10X90	Bolt - SPECIAL, 10X90
36	91506-P0A-A01	Clip - ALTERNATOR CORD	Clip - ALTERNATOR CORD
37	91506-P01-003	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)	Clip A - HARNESS BAND (DARK GRAY) (129.4MM)
39	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Exhaust manifold (3) 6 / 14

#	OEM	CD6	CG3
7	90010-PE2-900	Bolt - SPECIAL, 10X22	Bolt - SPECIAL, 10X22
8	90015-PT0-J00	Bolt-washer - 8X14	Bolt-washer - 8X14
9	90065-PC1-300	Bolt - STUD, 10X34.5	Bolt - STUD, 10X34.5
10	90212-PD2-003	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
10	90212-RCA-A01	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
11	90451-PE2-000	Washer - SPECIAL, 11X28	Washer - SPECIAL, 11X28

Exhaust pipe (2) 7 / 30

#	OEM	CD6	CG3
5	18176-P08-003	Bolt - CONVERTER	Bolt - CONVERTER
20	18303-SM4-020	Gasket - SILENCER	Gasket - SILENCER
23	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
33	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
34	90126-SS0-000	Bolt-washer - 6X16	Bolt-washer - 6X16
35	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
37	90301-SV7-000	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM

Floor mat 3 / 12

#	OEM	CD6	CG3
15	90301-SP0-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
17	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)
20	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR

Front brake (15") 3 / 26

#	OEM	CD6	CG3
2	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
3	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
20	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)

Front bulkhead 1 / 2

#	OEM	CD6	CG3
32	90105-SV1-000	Bolt-washer - 8X20	Bolt-washer - 8X20

Front combination light 2 / 11

#	OEM	CD6	CG3
2	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
4	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)

Front door lining (RH) 4 / 13

#	OEM	CD6	CG3
22	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
24	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)	Grommet - SCREW, 4MM (YELLOW)
26	91560-SP0-003	Clip - DOOR LINING (GRAY)	Clip - DOOR LINING (GRAY)
26	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Front door locks 9 / 38

#	OEM	CD6	CG3
5	72112-SR4-004	Snap - BROWN	Snap - BROWN
5	72113-SR4-004	Snap - BLACK	Snap - BLACK
21	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT	Bush - OUTSIDE HANDLE JOINT
24	72135-SR3-003	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
45	75411-634-000	Joint	Joint
46	90866-SA0-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
47	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
49	90120-SM4-000	Screw - TAPPING	Screw - TAPPING
53	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Front door panels 5 / 20

#	OEM	CD6	CG3
23	90686-692-003	Cap - LINING MOUNT	Cap - LINING MOUNT
26	91568-SR2-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
26	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
28	91590-SV4-003	Clip - SUB SEAL (A)	Clip - SUB SEAL (A)
29	91657-SP0-000	Seal c - DOOR PANEL HOLE (25MM)	Seal c - DOOR PANEL HOLE (25MM)

Front door windows 1 / 13

#	OEM	CD6	CG3
1	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Front driveshaft 5 / 18

#	OEM	CD6	CG3
7	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
8	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
17	90305-SD4-003	Nut - SPINDLE (24MM)	Nut - SPINDLE (24MM)
25	44337-SB0-300	Ring b - STOPPER	Ring b - STOPPER
26	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)

Front fenders 5 / 11

#	OEM	CD6	CG3
7	90105-SL4-000	Bolt-washer - 6X20	Bolt-washer - 6X20
9	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
11	90657-SB0-003	Clip, SPLASH SHIELD	Clip, SPLASH SHIELD
12	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
13	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP

Front grille 1 / 4

#	OEM	CD6	CG3
6	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front seat 5 / 11

#	OEM	CD6	CG3
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
20	81322-SP0-003	Clip - LUMBAR SUPPORT	Clip - LUMBAR SUPPORT
31	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
35	91566-SP0-003	Clip - BACK COVER (NATURAL)	Clip - BACK COVER (NATURAL)

Front seat components (L.; 2) 2 / 13

#	OEM	CD6	CG3
1	77208-SA5-003	Bush - NYLON (TS TECH)	Bush - NYLON (TS TECH)
2	77209-SB0-003	Washer - NYLON	Washer - NYLON

Front seat components (R.; 4) 9 / 35

#	OEM	CD6	CG3
5	77208-SA5-003	Bush - NYLON (TS TECH)	Bush - NYLON (TS TECH)
6	77209-SB0-003	Washer - NYLON	Washer - NYLON
7	77517-SA5-014	Cap - SLIDE ADJUSTER	Cap - SLIDE ADJUSTER
23	90125-SP0-003	Bolt b	Bolt b
34	90519-SP0-003	Washer a	Washer a
36	90656-PB1-003	Band - OIL HOSE	Band - OIL HOSE
37	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
38	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
39	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

Front shock absorber 4 / 17

#	OEM	CD6	CG3
9	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
12	51689-SH3-004	Plate - BUMP STOP (SHOWA)	Plate - BUMP STOP (SHOWA)
14	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front stabilizer/ front lower arm 8 / 28

#	OEM	CD6	CG3
16	51398-SM4-000	Collar - RADIUS ROD	Collar - RADIUS ROD
18	51810-SV4-003	Bush - SHOCK ABSORBER FORK (HOKUSHIN)	Bush - SHOCK ABSORBER FORK (HOKUSHIN)
18	51810-SV4-004	Bush - SHOCK ABSORBER FORK (YAMASHITA)	Bush - SHOCK ABSORBER FORK (YAMASHITA)
22	90117-SM4-003	Bolt - FR. SHOCK ABSORBER LOCK (10X44)	Bolt - FR. SHOCK ABSORBER LOCK (10X44)
23	90118-SL4-003	Bolt - SELF-LOCK, 12X84	Bolt - SELF-LOCK, 12X84
24	90121-SM4-010	Bolt - SHOCK ABSORBER FORK (12X98)	Bolt - SHOCK ABSORBER FORK (12X98)
26	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
27	90303-SF1-003	Nut - SELF-LOCK, 12MM	Nut - SELF-LOCK, 12MM

Front windshield 1 / 15

#	OEM	CD6	CG3
6	77466-SV4-000	Seal - FR. INSTRUMENT	Seal - FR. INSTRUMENT

Front windshield wiper (2) 5 / 24

#	OEM	CD6	CG3
5	76517-SM4-003	Collar	Collar
8	76524-SD4-003	Dust seal	Dust seal
9	76524-SE0-013	Dust seal	Dust seal
20	90126-SR3-000	Bolt-washer - 6X32	Bolt-washer - 6X32
21	90201-SK7-000	Nut - HEX. CAP, 10MM	Nut - HEX. CAP, 10MM

Fuel pipe (5) 4 / 37

#	OEM	CD6	CG3
13	17743-SM4-003	Cap - DRAIN TUBE	Cap - DRAIN TUBE
28	90361-SV4-003	Nut - PAINT CUTTING, 6MM	Nut - PAINT CUTTING, 6MM
29	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
31	91406-SL4-931	Clamp - FUEL HOSE (D10.5)	Clamp - FUEL HOSE (D10.5)

Fuel tank (1) 9 / 45

#	OEM	CD6	CG3
8	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
12	17652-SA5-000	Clip - FILLER TUBE	Clip - FILLER TUBE
19	17670-SM1-A03	Cap comp. - FUEL FILLER (STANT)	Cap comp. - FUEL FILLER (STANT)
19	17670-S3N-003	Cap comp. - FUEL FILLER (TOYODA)	Cap comp. - FUEL FILLER (TOYODA)
25	17711-ST0-003	Retainer - YELLOW) (TOKAI	Retainer - YELLOW) (TOKAI
36	90301-SE0-J00	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM
40	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE
41	91406-SL4-931	Clamp - FUEL HOSE (D10.5)	Clamp - FUEL HOSE (D10.5)
44	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Grommet 8 / 17

#	OEM	CD6	CG3
1	72206-SA5-000	Cap - FLOOR HOLE, 53MM	Cap - FLOOR HOLE, 53MM
9	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
10	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
13	91602-SV4-003	Plug - HOLE, 15MM	Plug - HOLE, 15MM
16	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM
18	91611-SM4-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
19	91611-SS0-003	Plug - HOLE, 25MM	Plug - HOLE, 25MM
22	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)

Heater blower (2) 8 / 13

#	OEM	CD6	CG3
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
3	79195-SF1-003	Holder - ROD	Holder - ROD
10	90121-SR3-003	Screw - TAPPING, 5X12	Screw - TAPPING, 5X12
11	90123-SV4-003	Screw - EVATITE, 4X12	Screw - EVATITE, 4X12
12	90132-SR3-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
13	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
14	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
15	90321-SV4-003	Nut-washer - 6MM (PAINT CUTTING)	Nut-washer - 6MM (PAINT CUTTING)

Heater unit (2) 4 / 19

#	OEM	CD6	CG3
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
9	79192-SR3-003	Bush - LINK	Bush - LINK
15	90133-SR3-003	Screw-washer - 4X16	Screw-washer - 4X16
17	90139-SH3-003	Bolt-washer - 6X20	Bolt-washer - 6X20

High tension cord/plug 2 / 11

#	OEM	CD6	CG3
14	32767-PT0-000	Grommet - HIGH TENSION CORD	Grommet - HIGH TENSION CORD
16	90003-P01-000	Bolt-washer - 8X28	Bolt-washer - 8X28

Inner panels/floor panel 1 / 2

#	OEM	CD6	CG3
42	90106-SE1-000	Bolt-washer - 6X15	Bolt-washer - 6X15

Instrument panel (RH) 9 / 18

#	OEM	CD6	CG3
5	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
24	77982-S04-N81	Holder - COUPLER (2P)	Holder - COUPLER (2P)
25	90104-SV4-000	Bolt-washer - 8X25	Bolt-washer - 8X25
27	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
28	90321-SP0-A80	Nut-washer - 6MM	Nut-washer - 6MM
29	90361-SM4-003	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
29	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
31	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
32	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel garnish (RH) 8 / 31

#	OEM	CD6	CG3
6	66417-SA0-000	Rubber - GLOVE BOX STOPPER	Rubber - GLOVE BOX STOPPER
7	66418-SA5-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
8	66418-579-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
18	77371-SV4-000	Ring - COLUMN COVER	Ring - COLUMN COVER
37	90139-SH3-003	Bolt-washer - 6X20	Bolt-washer - 6X20
38	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
43	90666-SD4-003	Clip - FITTING	Clip - FITTING
46	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Intake manifold (DOHC VTEC) 9 / 35

#	OEM	CD6	CG3
2	16472-PH7-003	Seal ring - INJECTOR (OTSUKA)	Seal ring - INJECTOR (OTSUKA)
2	16472-P0H-A01	Seal ring - INJECTOR (NOK)	Seal ring - INJECTOR (NOK)
3	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)	Cushion ring - INJECTOR (OTSUKA)
3	16473-P10-A01	Cushion ring - INJECTOR (NOK)	Cushion ring - INJECTOR (NOK)
9	16741-PG7-005	O-ring - PRESSURE REGULATOR	O-ring - PRESSURE REGULATOR
18	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)
25	91301-PM7-003	O-ring - 7.3X2.2 (ARAI)	O-ring - 7.3X2.2 (ARAI)
25	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)	O-ring - 7.3X2.2 (NOK)
25	16074-ZY3-000	O-ring	O-ring

Interior light 1 / 11

#	OEM	CD6	CG3
18	90152-SE0-003	Nut - EARTH, 5MM (ZN)	Nut - EARTH, 5MM (ZN)

Knuckle 5 / 18

#	OEM	CD6	CG3
8	52226-SL0-003	Circlip - LOWER BALL(MUSASHI)	Circlip - LOWER BALL(MUSASHI)
15	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
17	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM
18	90363-SF1-000	Nut - CASTLE, 12MM	Nut - CASTLE, 12MM
20	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Main valve body (2) 3 / 14

#	OEM	CD6	CG3
4	25145-PA9-010	Shaft - OIL PUMP GEAR	Shaft - OIL PUMP GEAR
9	27263-PA9-000	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM
14	27750-PL5-J01	Filter - SECONDARY BODY	Filter - SECONDARY BODY

Mainshaft 2 / 22

#	OEM	CD6	CG3
2	22815-P4P-003	Ring - SEALING, 29MM	Ring - SEALING, 29MM
20	91305-PC9-003	O-ring - 34X1.9 (ARAI)	O-ring - 34X1.9 (ARAI)

Mirror 1 / 14

#	OEM	CD6	CG3
28	90615-SK7-003	Clip - MIRROR GARNISH	Clip - MIRROR GARNISH

Molding 2 / 28

#	OEM	CD6	CG3
18	74308-ST0-003	Bracket - ROOF MOLDING	Bracket - ROOF MOLDING
26	91528-SR4-003	Clip - DRIP MOLDING	Clip - DRIP MOLDING

Oil pump/oil strainer 16 / 37

#	OEM	CD6	CG3
4	15114-PT0-003	Packing b - OIL PUMP (ARAI)	Packing b - OIL PUMP (ARAI)
7	15221-PT0-000	Packing - OIL STRAINER	Packing - OIL STRAINER
7	15221-P5K-004	Packing - OIL STRAINER	Packing - OIL STRAINER
8	15231-PE0-000	Valve - RELIEF	Valve - RELIEF
9	15232-PG6-000	Spring - RELIEF VALVE	Spring - RELIEF VALVE
10	15233-PC6-000	Bolt - SEALING, 18MM	Bolt - SEALING, 18MM
12	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
18	90018-PT0-010	Bolt - BALANCER BELT ADJUSTER	Bolt - BALANCER BELT ADJUSTER
19	90023-PT0-003	Bolt-washer - 8X33	Bolt-washer - 8X33
21	90052-PK1-000	Bolt - FLANGE, 6X25	Bolt - FLANGE, 6X25
22	90063-PC6-000	Bolt - STUD, 6X25	Bolt - STUD, 6X25
23	90703-PT0-000	Dowel pin - 49X10	Dowel pin - 49X10
24	91212-PAA-A02	Oil seal - 40X52X7 (ARAI)	Oil seal - 40X52X7 (ARAI)
24	91212-PAA-A01	Oil seal - 40X52X7 (NOK)	Oil seal - 40X52X7 (NOK)
25	91233-PT0-003	Oil seal - 27X40X8 (NOK)	Oil seal - 27X40X8 (NOK)
26	91309-PJ7-010	O-ring - 11.5X3.5	O-ring - 11.5X3.5

Parking brake 5 / 14

#	OEM	CD6	CG3
4	47143-SD4-300	Spring - PUSH ROD	Spring - PUSH ROD
6	47360-SB2-000	Equalizer	Equalizer
7	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
10	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
11	47537-671-670	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD

Pedal 4 / 19

#	OEM	CD6	CG3
20	46504-ST5-300	Bush - PEDAL	Bush - PEDAL
21	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
22	46505-SA7-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
24	46535-SM4-000	Collar - PEDAL	Collar - PEDAL

Pillar garnish (RH) 2 / 4

#	OEM	CD6	CG3
22	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)
23	90666-SM4-003	Clip - SNAP FITTING	Clip - SNAP FITTING

Piston/crankshaft 7 / 46

#	OEM	CD6	CG3
11	13400-PT3-010	Shaft comp. - RR. BALANCER	Shaft comp. - RR. BALANCER
19	90017-PY3-003	Bolt-washer - 16X49	Bolt-washer - 16X49
19	90017-RJA-003	Bolt-washer - 16X49	Bolt-washer - 16X49
20	90019-PT0-000	Bolt - FLANGE, 6X18	Bolt - FLANGE, 6X18
21	90031-PT0-003	Bolt-washer - 8X22	Bolt-washer - 8X22
21	90032-ZW5-003	Bolt-washer, 8x22	Bolt-washer, 8x22
22	90704-PT0-000	Key - 4.5X38.5	Key - 4.5X38.5

Power steering gear box (RH) 1 / 29

#	OEM	CD6	CG3
22	90108-SH3-003	Bolt - GEAR BOX MOUNTING (10X55)	Bolt - GEAR BOX MOUNTING (10X55)

Power steering lines (RH) 10 / 25

#	OEM	CD6	CG3
1	53697-SB3-952	Cap - OIL TANK	Cap - OIL TANK
8	53729-SS0-003	Clip - RETURN HOSE	Clip - RETURN HOSE
11	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
17	53736-SH3-950	Holder b - POWER STEERING PIPE	Holder b - POWER STEERING PIPE
21	56490-P0H-013	Switch assy - POWER STEERING PRESSURE (TEXAS)	Switch assy - POWER STEERING PRESSURE (TEXAS)
23	90635-SM4-A01	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
23	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
24	91304-P0H-013	O-ring - 7.8X1.9	O-ring - 7.8X1.9
25	91370-SV4-000	O-ring - 14.4X1.9	O-ring - 14.4X1.9
26	91405-SS0-003	Clamp - TUBE (D21)	Clamp - TUBE (D21)

Protector 7 / 20

#	OEM	CD6	CG3
18	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
21	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
22	90505-SM4-003	Clip - GARNISH	Clip - GARNISH
22	90505-SX0-003	Clip - GARNISH	Clip - GARNISH
23	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
24	91512-SX0-003	Clip - INNER FENDER CLIP	Clip - INNER FENDER CLIP
25	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH	Clip - SIDE SILL UPPER GARNISH

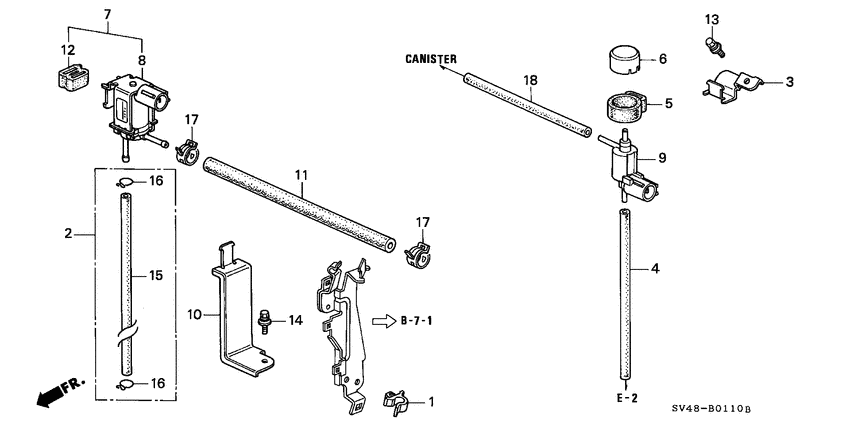

Purge control solenoid valve 1 / 5

#	OEM	CD6	CG3
12	36166-P0A-A01	Rubber - MOUNTING	Rubber - MOUNTING

R. side cover (2) 20 / 32

#	OEM	CD6	CG3
3	22713-PX4-000	Guide a - FEED PIPE	Guide a - FEED PIPE
4	22715-P0Z-000	Pipe comp. b - FEED	Pipe comp. b - FEED
6	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
7	24532-PX4-000	Lever - PARKING BRAKE	Lever - PARKING BRAKE
8	24535-P0X-000	Spring - PARKING BRAKE	Spring - PARKING BRAKE
9	24538-PA9-003	Stopper - PARKING BRAKE (2)	Stopper - PARKING BRAKE (2)
9	24537-PA9-003	Stopper - PARKING BRAKE (1)	Stopper - PARKING BRAKE (1)
9	24539-PA9-003	Stopper - PARKING BRAKE (3)	Stopper - PARKING BRAKE (3)
11	24553-PN6-000	Roller - PARKING BRAKE	Roller - PARKING BRAKE
12	24555-PN6-000	Pin - ROLLER, 6MM	Pin - ROLLER, 6MM
17	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
18	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
19	90471-580-000	Packing - 8MM	Packing - 8MM
20	90602-PX4-000	Circlip b - INTERNAL, 47MM	Circlip b - INTERNAL, 47MM
21	90701-639-000	Dowel pin - 8X55	Dowel pin - 8X55
22	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
23	91305-PX4-003	O-ring - 40X1.9 (NOK)	O-ring - 40X1.9 (NOK)
24	91309-PX4-003	O-ring - 16X2.1 (NOK)	O-ring - 16X2.1 (NOK)
25	91311-PA9-004	O-ring - 7.7X1.9 (NOK)	O-ring - 7.7X1.9 (NOK)
26	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE

Radiator (DENSO) 6 / 17

#	OEM	CD6	CG3
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
8	19045-PAA-A01	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
12	90003-PG7-660	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)
14	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
15	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator (TOYO) 1 / 19

#	OEM	CD6	CG3
13	90003-PG7-660	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)

Radiator hose 11 / 27

#	OEM	CD6	CG3
3	19102-PM5-A00	Cap - RESERVE TANK	Cap - RESERVE TANK
4	19103-P0A-000	Hose - RESERVE TANK	Hose - RESERVE TANK
6	19106-PM3-000	Joint - RESERVE TANK	Joint - RESERVE TANK
10	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
11	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
19	25216-PR3-000	Clamp - ATF HOSE (BLACK)	Clamp - ATF HOSE (BLACK)
22	74172-SM4-970	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
23	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER
24	90003-PG7-660	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)
25	90635-PT0-802	Clip, Oil Pipe	Clip, Oil Pipe
25	90635-RV0-003	CLIP, OIL PIPE	CLIP, OIL PIPE

Radio antenna/speaker 6 / 20

#	OEM	CD6	CG3
2	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
3	39112-SM4-000	Bracket - FR. SPEAKER SEAL	Bracket - FR. SPEAKER SEAL
23	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)	Grommet - SCREW, 4MM (YELLOW)
24	90666-SD4-003	Clip - FITTING	Clip - FITTING
27	91570-SH3-003	Band - WIRE HARNESS (NATURAL)	Band - WIRE HARNESS (NATURAL)
29	90132-SV4-003	Screw - ET, 5X16	Screw - ET, 5X16

Rear beam/cross beam 1 / 11

#	OEM	CD6	CG3
13	91613-SE0-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM

Rear brake (DISK) 20 / 49

#	OEM	CD6	CG3
1	01473-SV4-000	Caliper set - RR.	Caliper set - RR.
1	01473-SV4-010	SET RR CALIPER	SET RR CALIPER
10	43215-SM4-951	Piston assy.	Piston assy.
11	43223-SD2-932	BEARING A	BEARING A
12	43224-SD2-931	Spring b - ADJUSTING	Spring b - ADJUSTING
14	43227-SG0-013	Spring - PAD	Spring - PAD
15	43228-SD2-933	Shaft a	Shaft a
16	43229-SD2-931	Rod	Rod
20	43236-S04-003	Spacer	Spacer
21	43238-SF1-003	Ring - RETAINING	Ring - RETAINING
22	43241-SF1-003	Guide - SPRING	Guide - SPRING
23	43243-SD2-931	Nut - PARKING	Nut - PARKING
24	43244-SG0-003	Retainer	Retainer
28	43248-SD2-933	Shaft b	Shaft b
29	43249-S04-003	Bolt - ADJUSTER	Bolt - ADJUSTER
34	43262-S84-A51	Pin b	Pin b
37	43352-SM4-951	Screw - BLEEDER	Screw - BLEEDER
38	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
39	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
40	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)

Rear door lining 5 / 14

#	OEM	CD6	CG3
16	90132-SS0-000	Screw - TAPPING, 4X10 (PO)	Screw - TAPPING, 4X10 (PO)
18	90615-SK7-003	Clip - MIRROR GARNISH	Clip - MIRROR GARNISH
19	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)	Grommet - SCREW, 4MM (YELLOW)
21	91560-SP0-003	Clip - DOOR LINING (GRAY)	Clip - DOOR LINING (GRAY)
21	91560-S84-A01	CLIP, DOOR LINING (NATURAL)	CLIP, DOOR LINING (NATURAL)

Rear door locks 9 / 33

#	OEM	CD6	CG3
8	72135-SR3-003	Striker assy - DOOR LOCK	Striker assy - DOOR LOCK
11	72139-SR0-A01	Snap - VIOLET	Snap - VIOLET
11	72616-SM4-003	Snap - NATURAL	Snap - NATURAL
22	72634-SM4-003	Snap - R. (BLUE)	Snap - R. (BLUE)
30	72674-SM4-003	Snap - L. (BROWN)	Snap - L. (BROWN)
33	90866-SA0-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
34	90120-SV4-000	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
36	90120-SM4-000	Screw - TAPPING	Screw - TAPPING
37	90668-SA5-003	Grommet - SCREW, 6MM	Grommet - SCREW, 6MM

Rear door panels 6 / 17

#	OEM	CD6	CG3
22	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
24	90686-692-003	Cap - LINING MOUNT	Cap - LINING MOUNT
25	91568-SR2-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
25	91530-SP1-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
27	91590-SV4-003	Clip - SUB SEAL (A)	Clip - SUB SEAL (A)
28	91657-SP0-000	Seal c - DOOR PANEL HOLE (25MM)	Seal c - DOOR PANEL HOLE (25MM)

Rear seat (2) 3 / 10

#	OEM	CD6	CG3
1	04810-SB3-R00	C clip set - TRIM FASTENER (100 PIECES)	C clip set - TRIM FASTENER (100 PIECES)
1	04810-SB3-000	C clip set - TRIM FASTENER (30 PIECES)	C clip set - TRIM FASTENER (30 PIECES)
13	90003-692-000	Bolt - FLANGE, 6X16	Bolt - FLANGE, 6X16

Rear shock absorber 3 / 18

#	OEM	CD6	CG3
10	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP
11	52722-SM4-013	Rubber - BUMPER STOPPER (POLYURETHAN KASEI)	Rubber - BUMPER STOPPER (POLYURETHAN KASEI)
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Rear stabilizer/ rear lower arm 10 / 61

#	OEM	CD6	CG3
1	51464-S04-013	Boot, UPPER BALL JOINT	Boot, UPPER BALL JOINT
19	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
24	52364-634-020	Washer - LOWER ARM	Washer - LOWER ARM
39	90118-SL4-003	Bolt - SELF-LOCK, 12X84	Bolt - SELF-LOCK, 12X84
46	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
50	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
51	90216-SE0-010	Nut	Nut
51	90216-SE0-305	NUT, LWR ARM	NUT, LWR ARM
54	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM
56	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)

Rear tray/side lining 1 / 3

#	OEM	CD6	CG3
20	90610-SR3-003	Clip - GARNISH (KATO)	Clip - GARNISH (KATO)

Rear windshield 1 / 10

#	OEM	CD6	CG3
11	91568-SV4-003	Fastener b - RR. WINDSHIELD	Fastener b - RR. WINDSHIELD

Regulator 5 / 14

#	OEM	CD6	CG3
4	27246-PN6-800	Cap - REGULATOR SPRING	Cap - REGULATOR SPRING
9	27750-PL5-J01	Filter - SECONDARY BODY	Filter - SECONDARY BODY
12	90089-PK4-000	Bolt - STOPPER, 6MM	Bolt - STOPPER, 6MM
13	90701-PK4-000	Dowel pin - 8X80	Dowel pin - 8X80
15	91316-PF4-003	O-ring - 31X1.7 (ARAI)	O-ring - 31X1.7 (ARAI)

Resonator chamber 5 / 11

#	OEM	CD6	CG3
1	17212-P2J-J00	Rubber, AIR CLEANER MOUNTING	Rubber, AIR CLEANER MOUNTING
2	17213-PV0-000	Rubber - AIR CLEANER CASE MOUNTING	Rubber - AIR CLEANER CASE MOUNTING
3	17216-PN3-000	Collar - AIR CLEANER MOUNTING	Collar - AIR CLEANER MOUNTING
8	17246-P0A-A00	Ring - SEAL	Ring - SEAL
10	90001-P0A-000	Bolt-washer - SPECIAL, 6X35	Bolt-washer - SPECIAL, 6X35

Roof slide components 1 / 26

#	OEM	CD6	CG3
27	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

Seatbelts (3) 1 / 6

#	OEM	CD6	CG3
16	90301-SS0-000	Nut - CLIP, 6MM	Nut - CLIP, 6MM

Secondary body (2) 1 / 9

#	OEM	CD6	CG3
2	27263-PA9-000	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM

Secondary shaft 2 / 26

#	OEM	CD6	CG3
1	22814-P0X-003	Ring - SEALING, 32MM	Ring - SEALING, 32MM
17	91305-PC9-003	O-ring - 34X1.9 (ARAI)	O-ring - 34X1.9 (ARAI)

Select lever (RH) 4 / 35

#	OEM	CD6	CG3
17	54133-SA5-981	Spring - PUSH KNOB	Spring - PUSH KNOB
20	54141-SV4-980	Bush - KNOB SETTING	Bush - KNOB SETTING
32	90114-SA0-000	Nut - SELF-LOCK, 6MM	Nut - SELF-LOCK, 6MM
36	91556-SP0-003	Clip - COUPLER(BROWN)	Clip - COUPLER(BROWN)

Servo body (2) 2 / 27

#	OEM	CD6	CG3
25	91331-PC9-003	O-ring	O-ring
27	91344-580-000	O-ring - 31X2.7 (ARAI)	O-ring - 31X2.7 (ARAI)

Sliding roof 4 / 17

#	OEM	CD6	CG3
1	15707-634-000	Clip - OIL DRAIN TUBE	Clip - OIL DRAIN TUBE
2	18534-634-670	Clip - AIR HOSE, 16MM	Clip - AIR HOSE, 16MM
5	70060-SV4-J00	Tube - RR. DRAIN VINYL (SUNROOF)	Tube - RR. DRAIN VINYL (SUNROOF)
13	70623-SM4-003	Cap - STAY COVER	Cap - STAY COVER

Srs unit (6) 3 / 14

#	OEM	CD6	CG3
11	77982-S04-N81	Holder - COUPLER (2P)	Holder - COUPLER (2P)
15	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
16	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)

Starter motor (MITSUBA) 1 / 13

#	OEM	CD6	CG3
9	31217-PC2-006	Screw-washer - 4X28 (MITSUBA)	Screw-washer - 4X28 (MITSUBA)

Steering column 4 / 15

#	OEM	CD6	CG3
10	53326-SB0-000	Clip b - JOINT COVER	Clip b - JOINT COVER
13	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
15	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
16	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR

Steering wheel (SRS) 1 / 14

#	OEM	CD6	CG3
22	90134-S04-A81	Bolt - HEX., 6X12	Bolt - HEX., 6X12

Taillight (2) 3 / 26

#	OEM	CD6	CG3
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
3	33303-SL4-003	Bulb - WEDGE (12V 21W) (STANLEY)	Bulb - WEDGE (12V 21W) (STANLEY)
31	90665-SS0-003	Grommet - RR. COMBINATION	Grommet - RR. COMBINATION

Throttle body (DOHC VTEC) 3 / 19

#	OEM	CD6	CG3
3	16075-P07-000	O-ring	O-ring
7	16080-P07-000	Screw-washer - 4X16	Screw-washer - 4X16
18	37830-PAA-S00	Sensor set - MAP	Sensor set - MAP

Tire/wheel disk 10 / 21

#	OEM	CD6	CG3
10	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
12	44721-SF1-A01	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
12	44730-SF1-A01	Weight - BALANCE (45G) (YAMATE)	Weight - BALANCE (45G) (YAMATE)
12	44729-SF1-A01	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
12	44728-SF1-A01	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
12	44724-SF1-A01	Weight - BALANCE (40G) (YAMATE)	Weight - BALANCE (40G) (YAMATE)
12	44727-SF1-A01	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
12	44723-SF1-A01	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
12	44726-SF1-A01	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
12	44722-SF1-A01	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)

Tools/jack 5 / 14

#	OEM	CD6	CG3
1	71969-SA7-890	Wrench - SUNROOF	Wrench - SUNROOF
4	89101-SW5-003	Bag - TOOL	Bag - TOOL
5	89211-S05-003	Wrench - WHEEL	Wrench - WHEEL
6	89216-SF4-000	Wrench - PLUG	Wrench - PLUG
10	89320-S05-003	Bar - JACK	Bar - JACK

Torque converter housing 10 / 22

#	OEM	CD6	CG3
8	28300-PX4-003	Solenoid assy. - LOCK UP (KEIHIN)	Solenoid assy. - LOCK UP (KEIHIN)
8	28300-PX4-305	Solenoid assy.	Solenoid assy.
9	28320-PX4-010	Filter assy - LOCK UP SOLENOID (KEIHIN)	Filter assy - LOCK UP SOLENOID (KEIHIN)
10	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
11	90471-580-000	Packing - 8MM	Packing - 8MM
12	90705-PA9-000	Dowel pin - 14X25	Dowel pin - 14X25
13	91001-PX4-003	Bearing - BALL, 40X68X9 (NTN)	Bearing - BALL, 40X68X9 (NTN)
16	91205-P0X-005	Oil seal - 40X56X9 (NOK)	Oil seal - 40X56X9 (NOK)
17	91207-P0X-003	Oil seal - 44X68X8 (NOK)	Oil seal - 44X68X8 (NOK)
18	91209-612-003	Oil seal - 12X22X7 (ARAI)	Oil seal - 12X22X7 (ARAI)

Transmission housing (2) 9 / 32

#	OEM	CD6	CG3
11	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
19	90042-PX5-010	Bolt - STUD, 10X50	Bolt - STUD, 10X50
20	90081-PX4-003	Bolt - PLUG, 18MM	Bolt - PLUG, 18MM
21	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
22	90471-PX4-000	Washer - DRAIN PLUG, 18MM	Washer - DRAIN PLUG, 18MM
25	90615-PF4-000	Ring - SNAP, 75MM	Ring - SNAP, 75MM
30	91201-PA9-004	Oil seal - 9X18X7 (ARAI)	Oil seal - 9X18X7 (ARAI)
31	91206-PK4-003	Oil seal - 40X66X8 (NOK)	Oil seal - 40X66X8 (NOK)
32	91306-P0X-003	O-ring - 8.1X4 (NOK)	O-ring - 8.1X4 (NOK)

Trunk lid ('96/'97) 8 / 28

#	OEM	CD6	CG3
9	74822-SW5-003	Cushion - TRUNK HINGE	Cushion - TRUNK HINGE
12	74829-SP0-000	Stopper - TRUNK LOWER	Stopper - TRUNK LOWER
22	74873-SM4-003	Clip - TRUNK OPENER SPRING	Clip - TRUNK OPENER SPRING
28	74886-SH4-A03	Cylinder - TRUNK REMOTE CONTROL	Cylinder - TRUNK REMOTE CONTROL
30	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
31	90106-SE1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
32	90109-SM4-000	Bolt - SPECIAL, 6X35	Bolt - SPECIAL, 6X35
37	90691-SF1-003	Clip c - OPENER CABLE	Clip c - OPENER CABLE

Vacuum tank/tubing 1 / 14

#	OEM	CD6	CG3
1	17205-PC6-000	Clamp - TUBE, 7.5X2	Clamp - TUBE, 7.5X2

Valve/rocker arm (DOHC VTEC) 1 / 26

#	OEM	CD6	CG3
18	90206-PT0-004	Nut - TAPPET ADJUSTING	Nut - TAPPET ADJUSTING

Water hose (DOHC VTEC) 2 / 12

#	OEM	CD6	CG3
11	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
11	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Water pump/sensor (DOHC VTEC) 6 / 24

#	OEM	CD6	CG3
7	19313-PT0-000	Packing - THERMOSTAT CASE	Packing - THERMOSTAT CASE
10	19500-PT0-000	Joint - TUBE	Joint - TUBE
12	19516-PC1-000	Bolt - BREATHING WATER	Bolt - BREATHING WATER
14	37750-PH2-014	Thermo unit - DENSO	Thermo unit - DENSO
17	90002-PD2-000	Bolt - FLANGE, 8X16	Bolt - FLANGE, 8X16
18	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)	O-ring - 9.5X1.5(HONDA KIKAKI)

Water valve 2 / 8

#	OEM	CD6	CG3
6	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
6	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Windshield washer 3 / 18

#	OEM	CD6	CG3
1	36062-671-000	Clamp b - TUBE	Clamp b - TUBE
16	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
19	91522-SM4-003	Clip - TUBE & INSULATOR	Clip - TUBE & INSULATOR

Wire harness (2) 16 / 43

#	OEM	CD6	CG3
8	32131-SV4-003	Cap - COUPLER (CP 2P, 3P)	Cap - COUPLER (CP 2P, 3P)
10	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
12	32146-SH3-003	Connector - DIODE(2P)	Connector - DIODE(2P)
18	32312-SM4-013	Holder - COUPLER	Holder - COUPLER
23	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
24	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
27	91533-S04-003	Clip - COUPLER (NATURAL)	Clip - COUPLER (NATURAL)
28	91540-SV4-003	Clip - HARNESS BAND (NATURAL) (145.2MM)	Clip - HARNESS BAND (NATURAL) (145.2MM)
34	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
36	91552-SS0-003	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)	Clip - WIRE HARNESS (M5) (BROWN) (93.5MM)
38	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)
39	91556-SM4-003	Clip - BAND (BLACK) (100MM)	Clip - BAND (BLACK) (100MM)
40	91559-SE3-003	Clip - WIRE HARNESS (WHITE) (55MM)	Clip - WIRE HARNESS (WHITE) (55MM)
41	91559-ST5-003	Clip - HARNESS BAND OFFSET(30) (NATURAL)	Clip - HARNESS BAND OFFSET(30) (NATURAL)
43	91571-S10-003	Clip - WIRE HARNESS (NATURAL) (130MM)	Clip - WIRE HARNESS (NATURAL) (130MM)
48	91540-S30-003	Clip - HARNESS BAND(NATURAL) (151.5MM)	Clip - HARNESS BAND(NATURAL) (151.5MM)
