検索 › 比較 › CD6 × CE3
CD6
Honda ACCORD — 2,472 中 1,415 共有
CE3
Honda ACCORD — 2,602 中 1,415 共有
Abs modulator 16 / 20
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 2 | 57017-SV4-A02 | Motor set - ABS | Motor set - ABS |
| 3 | 57018-ST5-000 | Accumulator set | Accumulator set |
| 4 | 57019-ST5-000 | Tank set - RESERVE | Tank set - RESERVE |
| 5 | 57074-ST5-003 | Bolt - FLANGE, 6X28 | Bolt - FLANGE, 6X28 |
| 6 | 57101-ST7-000 | Rubber - ABS MOUNTING | Rubber - ABS MOUNTING |
| 7 | 57102-ST7-000 | Holder - ABS | Holder - ABS |
| 9 | 57112-ST5-010 | Bolt - ABS MODULATOR | Bolt - ABS MODULATOR |
| 10 | 57115-SV4-000 | Bracket - MODULATOR | Bracket - MODULATOR |
| 11 | 57119-SN7-003 | Mark - RESERVE TANK (ABS) | Mark - RESERVE TANK (ABS) |
| 13 | 57195-ST5-003 | Cap - BASE | Cap - BASE |
| 14 | 57196-ST5-003 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 15 | 57198-ST5-003 | X-ring - 9.8X2.4 | X-ring - 9.8X2.4 |
| 16 | 57205-ST5-013 | Cord comp | Cord comp |
| 17 | 57365-ST5-003 | Bolt - FLANGE, 8X62 | Bolt - FLANGE, 8X62 |
| 18 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
Abs unit (2) 8 / 13
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 38212-SM4-000 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 2 | 38230-SV4-003 | Box assy - ABS FUSE | Box assy - ABS FUSE |
| 3 | 38251-SV4-911 | Cover | Cover |
| 5 | 39792-SP0-014 | Relay assy - POWER (4P) (MITSUBA) (12V NO) | Relay assy - POWER (4P) (MITSUBA) (12V NO) |
| 6 | 39795-ST7-000 | Label - ABS INFORMATION | Label - ABS INFORMATION |
| 7 | 39797-SE0-004 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 10 | 90114-SG0-003 | Bolt - 5X13 | Bolt - 5X13 |
| 11 | 90153-SA5-900 | Screw-washer - 5X9 | Screw-washer - 5X9 |
Air cleaner 16 / 17
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 17211-P0A-000 | Cover comp. - AIR CLEANER | Cover comp. - AIR CLEANER |
| 2 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 3 | 17212-P0A-000 | Rubber - AIR CLEANER MOUNTING | Rubber - AIR CLEANER MOUNTING |
| 4 | 17213-PV0-000 | Rubber - AIR CLEANER CASE MOUNTING | Rubber - AIR CLEANER CASE MOUNTING |
| 5 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 6 | 17220-P0A-A00 | Element assy. - AIR CLEANER | Element assy. - AIR CLEANER |
| 7 | 17228-P0D-000 | Tube - AIR FLOW | Tube - AIR FLOW |
| 8 | 17241-P0A-000 | Case comp. - AIR CLEANER | Case comp. - AIR CLEANER |
| 13 | 17260-P0A-000 | Stay assy. a - AIR CLEANER | Stay assy. a - AIR CLEANER |
| 16 | 17262-P0B-A00 | Stay comp. b - AIR CLEANER | Stay comp. b - AIR CLEANER |
| 22 | 17316-PH3-003 | Clamp - AIR FLOW TUBE (70) | Clamp - AIR FLOW TUBE (70) |
| 23 | 17316-PM8-A01 | Clamp - AIR FLOW TUBE (60) | Clamp - AIR FLOW TUBE (60) |
| 24 | 24367-PX4-003 | Clamp - THROTTLE CABLE | Clamp - THROTTLE CABLE |
| 25 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 26 | 90091-P36-000 | Bolt-washer - 5X28 | Bolt-washer - 5X28 |
Air conditioner (CONDENSER; RH) 4 / 19
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 11 | 39795-SB2-003 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 17 | 80175-SE0-000 | Mount - CONDENSER | Mount - CONDENSER |
| 19 | 90003-PG7-660 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 20 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
Air conditioner (COOLING UNIT; RH) 8 / 21
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 9 | 80271-SV4-000 | Hose - DRAIN | Hose - DRAIN |
| 10 | 80272-SF4-000 | Grommet - DRAIN HOSE | Grommet - DRAIN HOSE |
| 13 | 80380-SM4-G00 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 13 | 80380-SF4-000 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 18 | 90139-SH3-003 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 19 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 20 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Air conditioner (HOSES/PIPES; RH) 4 / 24
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 10 | 80360-SL5-003 | Clamp - SUCTION HOSE | Clamp - SUCTION HOSE |
| 20 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 22 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
Alternator (DENSO) 17 / 21
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 31105-PR7-A01 | Holder assy. - BRUSH | Holder assy. - BRUSH |
| 4 | 31111-PT0-003 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 5 | 31114-PT0-013 | Bearing - FR. GENERATOR | Bearing - FR. GENERATOR |
| 6 | 31118-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 7 | 31119-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 8 | 31127-PT2-013 | Rectifier assy. | Rectifier assy. |
| 9 | 31135-PT0-013 | Cover - RR. END | Cover - RR. END |
| 10 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 12 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 13 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 14 | 31146-PT0-003 | Screw | Screw |
| 15 | 31147-PT0-003 | Screw-washer | Screw-washer |
| 16 | 31147-P13-003 | Screw | Screw |
| 17 | 31148-PT0-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 18 | 31148-P13-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 20 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |
| 21 | 90232-PT0-003 | Nut - HEX., 6MM | Nut - HEX., 6MM |
Battery 14 / 17
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 2 | 31512-SS0-000 | Plate - BATTERY SETTING (70D/80D) | Plate - BATTERY SETTING (70D/80D) |
| 3 | 31513-SM4-000 | Bolt - BATTERY SETTING(195MM) | Bolt - BATTERY SETTING(195MM) |
| 4 | 31513-SP0-010 | Bolt - BATTERY SETTING (210MM) | Bolt - BATTERY SETTING (210MM) |
| 5 | 31521-SD4-010 | Box assy - BATTERY | Box assy - BATTERY |
| 8 | 32412-SS0-010 | Bracket a - CABLE | Bracket a - CABLE |
| 9 | 32414-SS0-010 | Bracket b - CABLE | Bracket b - CABLE |
| 11 | 32600-SV4-900 | Cable assy - EARTH | Cable assy - EARTH |
| 12 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 13 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 14 | 32746-SM4-950 | Clamp - STARTER CABLE | Clamp - STARTER CABLE |
| 15 | 90114-SG0-003 | Bolt - 5X13 | Bolt - 5X13 |
| 16 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 17 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 19 | 91584-SM4-003 | Clip - CABLE BAND (BLACK) | Clip - CABLE BAND (BLACK) |
Brake lines (ABS; RH) 27 / 35
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 01464-SV4-000 | Hose set - R. FR. BRAKE | Hose set - R. FR. BRAKE |
| 2 | 01465-SV4-000 | Hose set - L. FR. BRAKE | Hose set - L. FR. BRAKE |
| 3 | 01466-SW3-J00 | Hose set - RR. BRAKE (DOT NCRN - JAPAN -) | Hose set - RR. BRAKE (DOT NCRN - JAPAN -) |
| 4 | 46330-SV4-000 | Pipe comp. c - BRAKE | Pipe comp. c - BRAKE |
| 5 | 46331-SV4-950 | Pipe comp. e - R. BRAKE | Pipe comp. e - R. BRAKE |
| 6 | 46340-SV4-000 | Pipe comp. d - BRAKE | Pipe comp. d - BRAKE |
| 7 | 46361-SV4-950 | Pipe comp. e - L. BRAKE | Pipe comp. e - L. BRAKE |
| 12 | 46378-SV4-A51 | Pipe comp. y - BRAKE | Pipe comp. y - BRAKE |
| 13 | 46379-SV4-A51 | Pipe comp. z - BRAKE | Pipe comp. z - BRAKE |
| 14 | 46380-SB0-000 | Grommet a - BRAKE PIPE (BLACK) | Grommet a - BRAKE PIPE (BLACK) |
| 15 | 46391-SE0-931 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 16 | 46391-SH3-003 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 17 | 46391-SM4-J01 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 18 | 46391-SV4-000 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 20 | 46393-SM4-951 | Clip c | Clip c |
| 21 | 46394-SH3-A01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 22 | 46395-SV4-950 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 23 | 46396-ST7-951 | Clip A | Clip A |
| 24 | 46396-SV4-951 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 25 | 46435-SM4-000 | Bracket - R. RR. BRAKE HOSE | Bracket - R. RR. BRAKE HOSE |
| 26 | 46436-SM4-000 | Bracket - L. RR. BRAKE HOSE | Bracket - L. RR. BRAKE HOSE |
| 27 | 46438-SM4-000 | Bracket - R. RR. BRAKE HOSE | Bracket - R. RR. BRAKE HOSE |
| 28 | 46439-SM4-000 | Bracket - L. RR. BRAKE HOSE | Bracket - L. RR. BRAKE HOSE |
| 30 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 32 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 36 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 37 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Brake master cylinder/ master power 9 / 25
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 8 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 9 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 10 | 46191-634-000 | Gasket - MASTER CYLINDER BRACKET | Gasket - MASTER CYLINDER BRACKET |
| 11 | 46400-SV4-A51 | Power assy. - MASTER (8"+9") | Power assy. - MASTER (8"+9") |
| 12 | 46403-SE0-003 | Valve comp. - CHECK (NISSIN) | Valve comp. - CHECK (NISSIN) |
| 20 | 46512-SB2-000 | Pin - PEDAL | Pin - PEDAL |
| 22 | 46662-SM4-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 25 | 46669-SE3-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 26 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
Breather tube (DOHC VTEC) 1 / 5
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 2 | 17130-PK1-003 | Valve assy. - PCV | Valve assy. - PCV |
Bumpers (2) 15 / 21
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 71110-SV4-010 | Spoiler - FR. AIR | Spoiler - FR. AIR |
| 8 | 71155-SV4-000 | Plate - FR. BUMPER STAY | Plate - FR. BUMPER STAY |
| 10 | 71502-SV4-010 | Skirt - R. RR. BUMPER | Skirt - R. RR. BUMPER |
| 13 | 71507-SV4-010 | Skirt - L. RR. BUMPER | Skirt - L. RR. BUMPER |
| 16 | 71541-SV4-010 | Beam - RR. BUMPER UPPER | Beam - RR. BUMPER UPPER |
| 17 | 71598-SL4-013 | Spacer - BUMPER SIDE | Spacer - BUMPER SIDE |
| 18 | 74136-SV4-000 | Plate - WATER SCREEN | Plate - WATER SCREEN |
| 20 | 90109-SS0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 21 | 90110-SE7-000 | Bolt-washer - 8X21 | Bolt-washer - 8X21 |
| 22 | 90110-SV4-000 | Bolt-washer - 8X21 | Bolt-washer - 8X21 |
| 24 | 90111-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 25 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 28 | 90305-SM4-000 | Nut - AIR SPOILER CLIP | Nut - AIR SPOILER CLIP |
| 29 | 90651-SL9-013 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 34 | 91513-SH3-003 | Clip c - HOOD | Clip c - HOOD |
Camshaft/timing belt (DOHC VTEC) 8 / 45
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 11 | 13405-PT0-004 | Belt - BALANCER TIMING (UNITTA) | Belt - BALANCER TIMING (UNITTA) |
| 13 | 13415-P0A-000 | Bracket - BALANCER BELT ADJUSTER | Bracket - BALANCER BELT ADJUSTER |
| 27 | 90007-679-000 | Bolt a - TIMING BELT COVER | Bolt a - TIMING BELT COVER |
| 31 | 90051-PT0-000 | Bolt - SUB BELT ADJUSTER SPRING | Bolt - SUB BELT ADJUSTER SPRING |
| 32 | 90216-P0A-000 | Nut - 10MM | Nut - 10MM |
| 33 | 90401-PT0-000 | Rubber - TIMING BELT ADJUSTER | Rubber - TIMING BELT ADJUSTER |
| 35 | 90501-MB7-610 | Washer - 10.3X25 | Washer - 10.3X25 |
| 36 | 90741-657-000 | Key - 25.4X13 | Key - 25.4X13 |

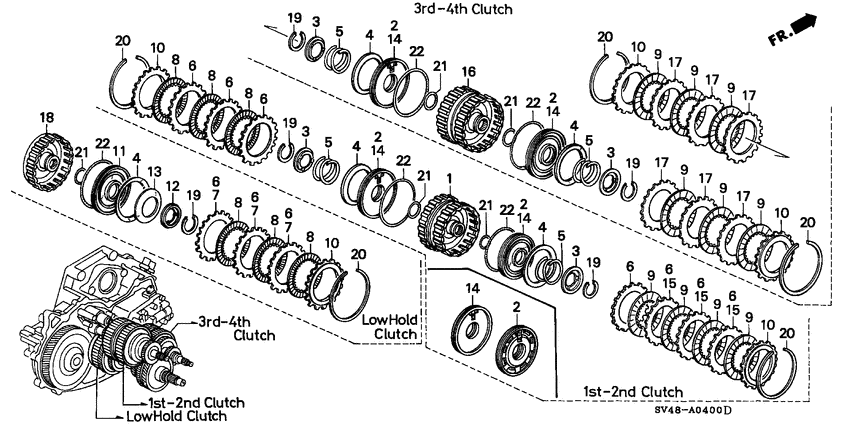

Clutch 25 / 29
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 2 | 22530-P0X-000 | Piston comp - CLUTCH (YUTAKA) | Piston comp - CLUTCH (YUTAKA) |
| 3 | 22533-PX4-010 | Seat - RETURN SPRING | Seat - RETURN SPRING |
| 6 | 22543-PX4-003 | Plate - LOW CLUTCH | Plate - LOW CLUTCH |
| 7 | 22543-P0X-003 | Plate - LOW CLUTCH | Plate - LOW CLUTCH |
| 8 | 22544-PX4-701 | Disk - CLUTCH | Disk - CLUTCH |
| 9 | 22544-P0X-003 | Disk - CLUTCH | Disk - CLUTCH |
| 10 | 22554-PX4-003 | Plate - CLUTCH END (4) (2.4MM) | Plate - CLUTCH END (4) (2.4MM) |
| 10 | 22556-PX4-003 | Plate - CLUTCH END (6) (2.6MM) | Plate - CLUTCH END (6) (2.6MM) |
| 10 | 22551-PX4-003 | Plate - CLUTCH END (1) (2.1MM) | Plate - CLUTCH END (1) (2.1MM) |
| 10 | 22558-PX4-003 | Plate - CLUTCH END (8) (2.8MM) | Plate - CLUTCH END (8) (2.8MM) |
| 10 | 22553-PX4-003 | Plate - CLUTCH END (3) (2.3MM) | Plate - CLUTCH END (3) (2.3MM) |
| 10 | 22555-PX4-003 | Plate - CLUTCH END (5) (2.5MM) | Plate - CLUTCH END (5) (2.5MM) |
| 10 | 22557-PX4-003 | Plate - CLUTCH END (7) (2.7MM) | Plate - CLUTCH END (7) (2.7MM) |
| 10 | 22552-PX4-003 | Plate - CLUTCH END (2) (2.2MM) | Plate - CLUTCH END (2) (2.2MM) |
| 10 | 22559-PX4-003 | Plate - CLUTCH END (9) (2.9MM) | Plate - CLUTCH END (9) (2.9MM) |
| 11 | 22570-PX4-000 | Piston comp - CLUTCH (L-H) | Piston comp - CLUTCH (L-H) |
| 12 | 22573-PX4-010 | Seat - RETURN SPRING (L-H) | Seat - RETURN SPRING (L-H) |
| 14 | 22620-PX4-010 | Piston comp - SECOND CLUTCH (MUSASHI) | Piston comp - SECOND CLUTCH (MUSASHI) |
| 16 | 22651-P0X-701 | Guide comp - CLUTCH (3-4) | Guide comp - CLUTCH (3-4) |
| 17 | 22653-PX4-003 | Plate - CLUTCH (2.3MM) | Plate - CLUTCH (2.3MM) |
| 18 | 22671-PX4-013 | Guide comp - CLUTCH (L-H) | Guide comp - CLUTCH (L-H) |
| 19 | 90603-PX4-000 | Circlip - EXTERNAL, 47MM | Circlip - EXTERNAL, 47MM |
| 20 | 90605-PX4-000 | Ring - SNAP, 129MM | Ring - SNAP, 129MM |
| 21 | 91302-PX4-004 | O-ring - 46.8X2.2 (NOK) | O-ring - 46.8X2.2 (NOK) |
| 22 | 91303-PX4-004 | O-ring - 114X2.2 (NOK) | O-ring - 114X2.2 (NOK) |
Clutch/torque converter 5 / 7
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 2 | 21351-PT0-901 | Cover - TORQUE CONVERTER CASE | Cover - TORQUE CONVERTER CASE |
| 6 | 26000-PX4-305 | Converter assy - TORQUE | Converter assy - TORQUE |
| 9 | 90023-PA9-000 | Bolt - SPECIAL | Bolt - SPECIAL |
| 11 | 90429-PC6-900 | Washer - 40X86X2 | Washer - 40X86X2 |
| 12 | 91302-639-000 | O-ring - 32X1.9 | O-ring - 32X1.9 |
Combination meter components 15 / 25
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 3 | 37102-SE3-003 | Socket assy - BULB (T-10) (NS) | Socket assy - BULB (T-10) (NS) |
| 4 | 37105-SE3-003 | Socket assy - BULB (T-5) (BASE:BROWN) | Socket assy - BULB (T-5) (BASE:BROWN) |
| 5 | 37106-SB2-003 | Knob - TRIP (NS) | Knob - TRIP (NS) |
| 6 | 37115-SA0-601 | Packing - NS | Packing - NS |
| 7 | 37237-SE3-003 | Bulb - T-10) (BASE:BROWN | Bulb - T-10) (BASE:BROWN |
| 14 | 78145-SV4-J01 | Panel - WARNING PRINT | Panel - WARNING PRINT |
| 18 | 78166-SV4-901 | Illumination assy. | Illumination assy. |
| 20 | 78181-SF1-612 | Bulb & socket assy. - NS) (14V 80MA) (BASE:BLACK | Bulb & socket assy. - NS) (14V 80MA) (BASE:BLACK |
| 21 | 78182-SM4-003 | Socket assy - BULB (14V-100MA) (BASE:BROWN) | Socket assy - BULB (14V-100MA) (BASE:BROWN) |
| 23 | 78184-SM4-003 | Socket assy - BULB (14V-60MA) (BASE:GRAY) | Socket assy - BULB (14V-60MA) (BASE:GRAY) |
| 24 | 90132-SM4-003 | Screw-washer - 3X16 | Screw-washer - 3X16 |
| 25 | 90134-SM4-003 | Screw-washer - 3X27 | Screw-washer - 3X27 |
| 27 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Combination switch (4) 10 / 22
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 5 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 6 | 35103-SE3-003 | Screw - RECESSED, 3X8 | Screw - RECESSED, 3X8 |
| 7 | 35108-SV4-A01 | Holder - COLUMN (SRS) | Holder - COLUMN (SRS) |
| 13 | 35130-S30-003 | Switch comp - STEERING | Switch comp - STEERING |
| 19 | 35400-SL4-013 | Switch assy - DOOR | Switch assy - DOOR |
| 20 | 35401-SL4-003 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 21 | 35409-692-013 | Screw - FLANGE, 4X12 | Screw - FLANGE, 4X12 |
| 24 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 25 | 90690-SA0-003 | Strap - WIRE HARNESS, 25MM (BLACK) | Strap - WIRE HARNESS, 25MM (BLACK) |
| 26 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
Console (RH) 15 / 21
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 35505-SV4-A01 | Bulb assy | Bulb assy |
| 2 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 5 | 66418-SA5-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 6 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 12 | 77234-SV4-003 | Clip | Clip |
| 15 | 77292-SV4-010 | Bracket - RADIO FIXING | Bracket - RADIO FIXING |
| 16 | 77296-SV4-000 | Bracket - FR. CONSOLE (A) | Bracket - FR. CONSOLE (A) |
| 32 | 88324-SB3-950 | Cover - RR. ASHTRAY | Cover - RR. ASHTRAY |
| 33 | 90139-SM4-003 | Bolt-washer - 5X20 | Bolt-washer - 5X20 |
| 34 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 35 | 90606-SS0-000 | Spring - FR. ASHTRAY | Spring - FR. ASHTRAY |
| 37 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 38 | 90666-SP0-A00 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 40 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 41 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Control lever 18 / 19
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 23815-P0A-000 | Holder comp, SPEEDOMETER GEAR | Holder comp, SPEEDOMETER GEAR |
| 2 | 23820-P0A-900 | Gear comp - SPEEDOMETER | Gear comp - SPEEDOMETER |
| 3 | 24360-P0A-003 | Cable comp - THROTTLE (AT) | Cable comp - THROTTLE (AT) |
| 7 | 24901-P0A-000 | Cover - CONTROL WIRE | Cover - CONTROL WIRE |
| 8 | 25610-PX4-003 | Gauge comp. - ATF | Gauge comp. - ATF |
| 10 | 25920-PX4-800 | Pipe comp - OIL HOSE (B) | Pipe comp - OIL HOSE (B) |
| 11 | 25950-PX4-000 | Bolt comp - JOINT | Bolt comp - JOINT |
| 12 | 25951-639-000 | Bolt - JOINT | Bolt - JOINT |
| 13 | 27494-PX4-020 | Lever - THROTTLE CONTROL | Lever - THROTTLE CONTROL |
| 14 | 27495-P0X-000 | Spring - THROTTLE LEVER | Spring - THROTTLE LEVER |
| 15 | 90001-PA9-000 | Bolt - HEX., 6MM | Bolt - HEX., 6MM |
| 16 | 90010-P24-J00 | Bolt - SPECIAL, 5X15 | Bolt - SPECIAL, 5X15 |
| 17 | 90011-PT0-000 | Bolt-washer - 8X26 | Bolt-washer - 8X26 |
| 18 | 90433-PT0-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 19 | 90436-PA9-000 | Washer - LOCK, 5MM | Washer - LOCK, 5MM |
| 20 | 90638-689-000 | Clip - SPEEDOMETER GEAR | Clip - SPEEDOMETER GEAR |
| 21 | 91304-PT0-000 | O-ring - 14.8X1.9 | O-ring - 14.8X1.9 |
| 22 | 91313-611-010 | O-ring - 23.5X2 | O-ring - 23.5X2 |
Control unit (CABIN; 2) 14 / 30
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 2 | 30505-SL5-003 | Condenser comp. - TEC) (N-1691/250-0.47 | Condenser comp. - TEC) (N-1691/250-0.47 |
| 3 | 32121-SM4-003 | Bracket a - FUSE BOX | Bracket a - FUSE BOX |
| 4 | 32122-SM4-003 | Bracket b - FUSE BOX | Bracket b - FUSE BOX |
| 5 | 32123-SM4-003 | Bracket c - FUSE BOX | Bracket c - FUSE BOX |
| 8 | 36704-SV4-010 | Bracket - AUTO CRUISE | Bracket - AUTO CRUISE |
| 11 | 37821-P0A-A00 | Cover comp. - ELECTRONIC CONTROL UNIT | Cover comp. - ELECTRONIC CONTROL UNIT |
| 16 | 38201-SV4-000 | Bracket - FUSE BOX | Bracket - FUSE BOX |
| 17 | 38235-SA5-003 | Puller - FUSE (SUMITOMO) | Puller - FUSE (SUMITOMO) |
| 22 | 39400-SV4-003 | Relay assy - MAIN | Relay assy - MAIN |
| 26 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 27 | 39797-SE0-004 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 29 | 90137-SF1-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 30 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 31 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Control unit (ENGINE ROOM) 20 / 28
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 2 | 32502-SM4-003 | Fuse - F7.5) (LITTEL | Fuse - F7.5) (LITTEL |
| 3 | 32504-SM4-003 | Fuse - F15)(LITTEL | Fuse - F15)(LITTEL |
| 4 | 32505-SM4-003 | Fuse - F20) (LITTEL | Fuse - F20) (LITTEL |
| 5 | 32507-SM4-003 | Fuse - F30) (LITTEL | Fuse - F30) (LITTEL |
| 8 | 38212-SM4-000 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 9 | 38213-SM4-000 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 12 | 38251-SV4-000 | Bracket - RELAY BOX | Bracket - RELAY BOX |
| 13 | 38251-SV4-003 | Cover - UPPER | Cover - UPPER |
| 14 | 38252-SV4-003 | Cover - LOWER | Cover - LOWER |
| 16 | 39762-SG0-003 | Relay assy - POWER (5P) (DENSO) (056700-8160) | Relay assy - POWER (5P) (DENSO) (056700-8160) |
| 17 | 39792-SM1-A01 | Relay assy - POWER (4P) (UNITED TECHNOLOGIES) | Relay assy - POWER (4P) (UNITED TECHNOLOGIES) |
| 18 | 39793-SV4-003 | Relay assy - POWER (5P) (MITSUBA) | Relay assy - POWER (5P) (MITSUBA) |
| 19 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 20 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 21 | 90122-SM4-003 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 22 | 90138-SM4-003 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 23 | 90103-SV1-A00 | Screw - 5X11 | Screw - 5X11 |
| 24 | 90182-SB6-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 25 | 91551-SV4-003 | Clip - BRACKET | Clip - BRACKET |
| 27 | 38254-SV5-003 | Cover set - UPPER | Cover set - UPPER |
Countershaft 18 / 28
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 23220-P0X-920 | Countershaft comp. | Countershaft comp. |
| 2 | 23421-P0X-000 | Gear - COUNTERSHAFT LOW | Gear - COUNTERSHAFT LOW |
| 4 | 23427-P0X-000 | Gear - PARKING | Gear - PARKING |
| 8 | 23491-P0X-000 | Gear - COUNTERSHAFT IDLE | Gear - COUNTERSHAFT IDLE |
| 9 | 23531-P0X-000 | Gear - COUNTERSHAFT REVERSE | Gear - COUNTERSHAFT REVERSE |
| 10 | 23541-P0X-000 | Gear - REVERSE IDLE | Gear - REVERSE IDLE |
| 11 | 23565-PX4-700 | Selector - REVERSE GEAR | Selector - REVERSE GEAR |
| 12 | 23566-PX4-010 | Hub - SELECTOR | Hub - SELECTOR |
| 13 | 23929-PX4-700 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 14 | 90203-PX4-010 | Nut - FLANGE, 24MM | Nut - FLANGE, 24MM |
| 15 | 90405-PX4-700 | Washer - SPLINE, 29X64X3.5 | Washer - SPLINE, 29X64X3.5 |
| 16 | 90407-PX4-000 | Washer - THRUST, 41X55X1.5 | Washer - THRUST, 41X55X1.5 |
| 17 | 90431-PX4-700 | Cotter - 29MM | Cotter - 29MM |
| 18 | 90441-PX4-700 | Collar - DISTANCE, 32MM | Collar - DISTANCE, 32MM |
| 19 | 90445-PX4-700 | Collar - 32X43X8 | Collar - 32X43X8 |
| 20 | 90518-PX4-000 | Collar - 35X41X31 | Collar - 35X41X31 |
| 21 | 90614-PX4-700 | Ring - SNAP, 32MM | Ring - SNAP, 32MM |
| 28 | 91307-PA9-003 | O-ring 31.2X1.9 (ARAI) | O-ring 31.2X1.9 (ARAI) |
Cylinder block/oil pan (DOHC VTEC) 24 / 41
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 11106-PT0-300 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 5 | 11107-PT0-000 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 7 | 11126-PK1-003 | Bolt - SEALING, 22MM | Bolt - SEALING, 22MM |
| 8 | 11130-PT0-010 | Bridge comp - BEARING CAP | Bridge comp - BEARING CAP |
| 9 | 11200-PT0-010 | Pan comp - OIL | Pan comp - OIL |
| 13 | 11251-P0A-000 | Packing comp. - OIL PAN | Packing comp. - OIL PAN |
| 19 | 12207-634-300 | Washer - SEALING BOLT | Washer - SEALING BOLT |
| 20 | 13421-PT0-003 | Metal - BALANCER SHAFT (NO.1) (DAIDO) | Metal - BALANCER SHAFT (NO.1) (DAIDO) |
| 21 | 13422-PT0-013 | Metal - BALANCER SHAFT (NO.2) (DAIDO) | Metal - BALANCER SHAFT (NO.2) (DAIDO) |
| 22 | 13423-PT0-003 | Metal - BALANCER SHAFT (NO.3) (DAIDO) | Metal - BALANCER SHAFT (NO.3) (DAIDO) |
| 25 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 26 | 90007-PAA-T01 | Bolt-washer - 11X121 | Bolt-washer - 11X121 |
| 27 | 90008-PM3-000 | Bolt - MOUNTING BRACKET, 10X32.5 | Bolt - MOUNTING BRACKET, 10X32.5 |
| 28 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 29 | 90030-PT0-000 | Bolt - STUD, 10X35 | Bolt - STUD, 10X35 |
| 30 | 90041-PA5-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 31 | 90041-PT0-000 | Bolt - STUD, 12X60 | Bolt - STUD, 12X60 |
| 32 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 33 | 90051-PH7-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 34 | 90061-PT0-000 | Bolt - DRAIN PLUG, 12MM | Bolt - DRAIN PLUG, 12MM |
| 35 | 90705-PT0-000 | Dowel pin - 16X22 | Dowel pin - 16X22 |
| 36 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
| 37 | 91214-PC6-013 | Oil seal - 80X100X10 (NOK) | Oil seal - 80X100X10 (NOK) |
| 38 | 91323-PH7-003 | Packing - BEARING CAP BRIDGE (ARAI) | Packing - BEARING CAP BRIDGE (ARAI) |
Cylinder head (DOHC VTEC) 6 / 27
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 11 | 15142-PH3-003 | O-ring - 10.8X2.4 (ARAI) | O-ring - 10.8X2.4 (ARAI) |
| 22 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
Cylinder head cover (DOHC VTEC) 3 / 13
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 6 | 15610-P2A-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 7 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 11 | 90213-PH3-000 | Nut - CAP, 6MM | Nut - CAP, 6MM |
Differential gear 23 / 23
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 41100-P0X-415 | Case comp. - DIFFERENTIAL | Case comp. - DIFFERENTIAL |
| 2 | 41233-P0X-920 | Gear - FINAL DRIVEN | Gear - FINAL DRIVEN |
| 3 | 41455-PK4-000 | Shim o - 76MM (2.90) | Shim o - 76MM (2.90) |
| 3 | 41450-PK4-000 | Shim j - 76MM (2.65) | Shim j - 76MM (2.65) |
| 3 | 41445-PK4-000 | Shim e - 76MM (2.40) | Shim e - 76MM (2.40) |
| 3 | 41457-PK4-000 | Shim q - 76MM (3.00) | Shim q - 76MM (3.00) |
| 3 | 41452-PK4-000 | Shim l - 76MM (2.75) | Shim l - 76MM (2.75) |
| 3 | 41447-PK4-000 | Shim g - 76MM (2.50) | Shim g - 76MM (2.50) |
| 3 | 41442-PK4-000 | Shim b - 76MM (2.25) | Shim b - 76MM (2.25) |
| 3 | 41454-PK4-000 | Shim n - 76MM (2.85) | Shim n - 76MM (2.85) |
| 3 | 41449-PK4-000 | Shim i - 76MM (2.60) | Shim i - 76MM (2.60) |
| 3 | 41444-PK4-000 | Shim d - 76MM (2.35) | Shim d - 76MM (2.35) |
| 3 | 41456-PK4-000 | Shim p - 76MM (2.95) | Shim p - 76MM (2.95) |
| 3 | 41451-PK4-000 | Shim k - 76MM (2.70) | Shim k - 76MM (2.70) |
| 3 | 41446-PK4-000 | Shim f - 76MM (2.45) | Shim f - 76MM (2.45) |
| 3 | 41441-PK4-000 | Shim a - 76MM (2.20) | Shim a - 76MM (2.20) |
| 3 | 41458-PK4-000 | Shim r - 76MM (3.05) | Shim r - 76MM (3.05) |
| 3 | 41453-PK4-000 | Shim m - 76MM (2.80) | Shim m - 76MM (2.80) |
| 3 | 41448-PK4-000 | Shim h - 76MM (2.55) | Shim h - 76MM (2.55) |
| 3 | 41443-PK4-000 | Shim c - 76MM (2.30) | Shim c - 76MM (2.30) |
| 4 | 90003-PA9-003 | Bolt - FLANGE, 10MM | Bolt - FLANGE, 10MM |
| 5 | 91006-PG4-003 | Bearing - SPECIAL TAPER, 40X80X19.75 | Bearing - SPECIAL TAPER, 40X80X19.75 |
| 6 | 91122-PK4-013 | Bearing - SPECIAL TAPER, 40X76.2X18 | Bearing - SPECIAL TAPER, 40X76.2X18 |
Distributor (TEC) 7 / 11
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 30103-P08-003 | Distributor Rotor Head Assembly | Distributor Rotor Head Assembly |
| 5 | 30107-P08-006 | Cover - LEAK | Cover - LEAK |
| 6 | 30110-PA1-732 | O-ring - 26.4X3.1 (TEC) | O-ring - 26.4X3.1 (TEC) |
| 8 | 30132-PT2-006 | Packing - CAP | Packing - CAP |
| 9 | 30135-P08-006 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 9 | 30135-P73-004 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 10 | 30510-PT2-006 | Ignition Coil | Ignition Coil |
Duct (RH) 1 / 4
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 6 | 83331-SV4-000 | Duct - RR. HEATER | Duct - RR. HEATER |
Egr control device 6 / 6
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 17290-PY3-901 | Valve assy. - VACUUM CONTROL | Valve assy. - VACUUM CONTROL |
| 2 | 36190-P13-003 | Valve assy. - FREQUENCY SOLENOID | Valve assy. - FREQUENCY SOLENOID |
| 3 | 36194-PD2-661 | Filter assy - AIR | Filter assy - AIR |
| 4 | 36201-P0B-A01 | Cover | Cover |
| 5 | 36233-P0B-A01 | Stay comp | Stay comp |
| 6 | 90023-PE0-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
Emblems 5 / 11
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 19043-PV1-G00 | Label - COOLANT INFORMATION | Label - COOLANT INFORMATION |
| 13 | 75722-SV4-000 | Emblem - RR. (ACCORD) | Emblem - RR. (ACCORD) |
| 25 | 77871-SM4-A70 | Label - SRS CAUTION | Label - SRS CAUTION |
| 27 | 90399-SB3-003 | Nut - PUSH, 2.8MM | Nut - PUSH, 2.8MM |
| 28 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
Engine hood 14 / 23
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 4 | 74120-SV4-A01 | Lock assy - HOOD | Lock assy - HOOD |
| 5 | 74121-SM4-000 | Rubber - HOOD SEAL | Rubber - HOOD SEAL |
| 11 | 74144-SE0-000 | Cushion - HOOD | Cushion - HOOD |
| 14 | 74148-SV4-000 | Rubber - FR. HOOD SEAL | Rubber - FR. HOOD SEAL |
| 15 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 20 | 85268-SA5-003 | Stopper - TAILGATE (BLACK) | Stopper - TAILGATE (BLACK) |
| 22 | 90106-SE1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 23 | 90677-SE0-003 | Holder - ROD | Holder - ROD |
| 24 | 90700-SJ4-000 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 25 | 91501-SS0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 26 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 27 | 91524-SE0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 29 | 91558-SE3-003 | Clip - HOOD WIRE | Clip - HOOD WIRE |
| 30 | 91604-SD2-013 | Grommet - HOOD STAY | Grommet - HOOD STAY |
Engine mounts (6) 22 / 25
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 17205-PC6-000 | Clamp - TUBE, 7.5X2 | Clamp - TUBE, 7.5X2 |
| 2 | 50806-SV4-981 | Rubber - TRANSMISSION MOUNTING (AT) | Rubber - TRANSMISSION MOUNTING (AT) |
| 3 | 50810-SV4-J82 | Rubber - ENGINE RR. INSULATOR (AT) | Rubber - ENGINE RR. INSULATOR (AT) |
| 5 | 50825-SM4-981 | Bracket - TRANSMISSION MOUNTING (AT) | Bracket - TRANSMISSION MOUNTING (AT) |
| 6 | 50826-SV4-000 | Bracket - FR. ENGINE MOUNTING | Bracket - FR. ENGINE MOUNTING |
| 7 | 50827-SM4-J83 | Bracket - ENGINE RR. MOUNTING (AT) | Bracket - ENGINE RR. MOUNTING (AT) |
| 8 | 50840-SV4-980 | Stopper - FR. ENGINE (AT) | Stopper - FR. ENGINE (AT) |
| 9 | 50913-SV7-A01 | Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID | Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID |
| 12 | 50916-SV4-J80 | Tube - ELECTRONIC CONTROL MOUNT SOLENOID | Tube - ELECTRONIC CONTROL MOUNT SOLENOID |
| 13 | 50917-SV7-A00 | Rubber - MOUNTING | Rubber - MOUNTING |
| 14 | 50919-SV7-A00 | Joint - TWO WAY, #115 | Joint - TWO WAY, #115 |
| 15 | 90162-SV4-000 | Bolt-washer - 10X30 | Bolt-washer - 10X30 |
| 16 | 90163-SC2-000 | Bolt - FLANGE, 12X25 | Bolt - FLANGE, 12X25 |
| 17 | 90167-SM4-000 | Bolt - FLANGE, 12X120 | Bolt - FLANGE, 12X120 |
| 18 | 90169-SM4-000 | Bolt - FLANGE, 12X30 | Bolt - FLANGE, 12X30 |
| 19 | 90170-SM4-000 | Bolt - FLANGE, 12X40 | Bolt - FLANGE, 12X40 |
| 20 | 90173-SM4-000 | Bolt - FLANGE, 12X60 | Bolt - FLANGE, 12X60 |
| 21 | 90174-SM4-000 | Bolt - FLANGE, 10X22 | Bolt - FLANGE, 10X22 |
| 22 | 90176-SM4-000 | Bolt - FLANGE, 12X95 | Bolt - FLANGE, 12X95 |
| 23 | 90371-SM4-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 24 | 90504-SB0-000 | Washer - PLAIN, 12MM | Washer - PLAIN, 12MM |
| 25 | 90552-SV4-000 | Washer - FR. BRACKET | Washer - FR. BRACKET |
Engine wire harness/clamp (DOHC VTEC) 12 / 42
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 15 | 32746-P0A-A00 | Clamp f - ENGINE WIRE HARNESS | Clamp f - ENGINE WIRE HARNESS |
| 16 | 32748-P13-000 | Stay - WIRE HARNESS CLAMP | Stay - WIRE HARNESS CLAMP |
| 22 | 78410-SV4-003 | Sensor assy - SPEED (MATSUSHITA) | Sensor assy - SPEED (MATSUSHITA) |
| 23 | 78411-SM4-003 | Joint - SPEED SENSOR (MATSUSHITA) | Joint - SPEED SENSOR (MATSUSHITA) |
| 28 | 90075-PD3-000 | Bolt - FLANGE, 10X43 | Bolt - FLANGE, 10X43 |
| 29 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 30 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 34 | 90313-PT0-000 | Bolt - SPECIAL, 10X90 | Bolt - SPECIAL, 10X90 |
| 36 | 91506-P0A-A01 | Clip - ALTERNATOR CORD | Clip - ALTERNATOR CORD |
| 38 | 91507-PT3-A01 | Band - WIRE HARNESS (BLACK) (90.4MM) | Band - WIRE HARNESS (BLACK) (90.4MM) |
| 39 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 40 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
Exhaust manifold (3) 6 / 14
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 7 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 8 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 9 | 90065-PC1-300 | Bolt - STUD, 10X34.5 | Bolt - STUD, 10X34.5 |
| 10 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 10 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 11 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
Exhaust pipe (2) 12 / 30
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 5 | 18176-P08-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 10 | 18212-SB2-961 | Gasket - EX. PIPE (ISHINO) | Gasket - EX. PIPE (ISHINO) |
| 17 | 18215-SV4-000 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 23 | 18393-SH3-S00 | Gasket - PRE-CHAMBER (52.5MM-53.5MM) | Gasket - PRE-CHAMBER (52.5MM-53.5MM) |
| 28 | 74601-SV4-A01 | Plate - FLOOR HEAT BAFFLE | Plate - FLOOR HEAT BAFFLE |
| 32 | 90023-PK1-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
| 32 | 90023-PR7-A01 | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) |
| 33 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 34 | 90126-SS0-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 35 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 36 | 90212-671-005 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 37 | 90301-SV7-000 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Floor mat 11 / 12
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 74015-SV4-010 | Insulator - R. DASHBOARD UPPER | Insulator - R. DASHBOARD UPPER |
| 2 | 74016-SV4-010 | Insulator - L. DASHBOARD UPPER | Insulator - L. DASHBOARD UPPER |
| 3 | 74672-SV4-000 | Lid - FLOOR TUNNEL STIFFENER | Lid - FLOOR TUNNEL STIFFENER |
| 15 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 16 | 90609-SL9-900 | Clip - INSTRUMENT LOWER | Clip - INSTRUMENT LOWER |
| 17 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
| 20 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 21 | 90700-SP0-A01 | Clip - TRIM, 15MM | Clip - TRIM, 15MM |
| 22 | 91546-SM4-003 | Plug - DASHBOARD INSULATOR BLIND (12MM) | Plug - DASHBOARD INSULATOR BLIND (12MM) |
| 23 | 91547-SM4-003 | Cap - INSULATOR | Cap - INSULATOR |
| 24 | 91641-SH3-013 | Grommet assy, GARNISH | Grommet assy, GARNISH |
Front brake (15") 21 / 26
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 01463-SV4-000 | Caliper set - FR. | Caliper set - FR. |
| 2 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 3 | 43353-SA0-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 3 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 5 | 44600-SM4-020 | Hub assy - FR. | Hub assy - FR. |
| 6 | 45018-SM5-000 | Caliper sub assy. - R. FR. | Caliper sub assy. - R. FR. |
| 7 | 45019-SM5-000 | Caliper sub assy. - L. FR. | Caliper sub assy. - L. FR. |
| 8 | 45022-SS0-G00 | Pad set - FR. | Pad set - FR. |
| 9 | 45216-SM4-003 | Piston | Piston |
| 10 | 45225-SL0-003 | Shim a - INNER | Shim a - INNER |
| 11 | 45226-SL0-003 | Shim b - INNER | Shim b - INNER |
| 12 | 45227-SM4-003 | Spring - PAD | Spring - PAD |
| 13 | 45228-SL0-003 | Shim - OUTER PAD | Shim - OUTER PAD |
| 14 | 45235-SL0-003 | Pin a | Pin a |
| 15 | 45237-SM5-A01 | Retainer | Retainer |
| 16 | 45240-SM4-003 | Bolt - FLANGE, 10X24 | Bolt - FLANGE, 10X24 |
| 18 | 45255-SM4-G03 | Guard - FR. SPLASH (15") | Guard - FR. SPLASH (15") |
| 19 | 45262-SL0-003 | Pin b | Pin b |
| 20 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 21 | 90114-SM4-000 | Bolt - FLANGE, 10X20 | Bolt - FLANGE, 10X20 |
| 23 | 90164-SM4-013 | Bolt - FR. HUB UNIT, 10X40 | Bolt - FR. HUB UNIT, 10X40 |
Front bulkhead 2 / 2
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 23 | 60821-SM4-000 | Hook - TIE DOWN | Hook - TIE DOWN |
| 32 | 90105-SV1-000 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
Front combination light 8 / 11
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 2 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 4 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
| 5 | 33303-SM4-003 | Holder | Holder |
| 8 | 33305-SM4-A01 | Tube | Tube |
| 15 | 33800-SV4-Q01 | Light assy - SIDE TURN | Light assy - SIDE TURN |
| 16 | 33802-SV4-Q01 | Lamp unit | Lamp unit |
| 17 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 20 | 90303-SA5-003 | Nut - FR. COMBINATION LIGHT | Nut - FR. COMBINATION LIGHT |
Front door lining (RH) 8 / 13
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 34295-SA5-003 | Bulb - 12V 3.4W) (DAIICHI | Bulb - 12V 3.4W) (DAIICHI |
| 6 | 72335-SV4-013 | Weatherstrip - R. FR. DOOR INNER | Weatherstrip - R. FR. DOOR INNER |
| 7 | 72375-SV4-003 | Weatherstrip - L. FR. DOOR INNER | Weatherstrip - L. FR. DOOR INNER |
| 22 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 24 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 26 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 26 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 28 | 91562-SM4-013 | Grommet - DOOR LINING | Grommet - DOOR LINING |
Front door locks 30 / 38
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 35765-SM3-003 | Switch assy - L. POWER WINDOW | Switch assy - L. POWER WINDOW |
| 5 | 72112-SR4-004 | Snap - BROWN | Snap - BROWN |
| 5 | 72113-SR4-004 | Snap - BLACK | Snap - BLACK |
| 8 | 72116-SV4-003 | Snap - ORANGE | Snap - ORANGE |
| 8 | 72116-SM4-003 | Snap d - VIOLET | Snap d - VIOLET |
| 10 | 72117-SV4-A01 | Protector - R. DOOR LOCK | Protector - R. DOOR LOCK |
| 13 | 72123-SM1-003 | Ring - OUTSIDE HANDLE | Ring - OUTSIDE HANDLE |
| 17 | 72127-SV4-003 | Mark - LOCK | Mark - LOCK |
| 18 | 72130-SV4-A01 | Protector - R. DOOR CYLINDER | Protector - R. DOOR CYLINDER |
| 19 | 72131-SV4-003 | Rod - R. INSIDE HANDLE | Rod - R. INSIDE HANDLE |
| 21 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 22 | 72134-SM4-003 | Snap - R. (VIOLET) | Snap - R. (VIOLET) |
| 24 | 72135-SR3-003 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 25 | 72136-SM4-003 | Holder - ROD, 4MM | Holder - ROD, 4MM |
| 27 | 72139-SV4-A01 | Tube - PROTECTOR | Tube - PROTECTOR |
| 30 | 72143-SV1-003 | Hook - OUTSIDE HANDLE | Hook - OUTSIDE HANDLE |
| 31 | 72144-SV1-003 | Cap - OUTSIDE HANDLE OUTER | Cap - OUTSIDE HANDLE OUTER |
| 32 | 72145-SM4-003 | Cylinder - R. DOOR | Cylinder - R. DOOR |
| 33 | 72146-SM4-003 | Cylinder - L. DOOR | Cylinder - L. DOOR |
| 38 | 72157-SV4-A01 | Protector - L. DOOR LOCK | Protector - L. DOOR LOCK |
| 40 | 72170-SV4-A01 | Protector - L. DOOR CYLINDER | Protector - L. DOOR CYLINDER |
| 41 | 72171-SV4-003 | Rod - L. FR. INSIDE HANDLE | Rod - L. FR. INSIDE HANDLE |
| 42 | 72174-SM4-003 | Snap - L. (YELLOW) | Snap - L. (YELLOW) |
| 45 | 75411-634-000 | Joint | Joint |
| 46 | 75522-634-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 46 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 47 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 48 | 90101-SR4-003 | Screw - 3X10 | Screw - 3X10 |
| 49 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 53 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
Front door panels 13 / 20
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 14 | 72326-SV4-003 | Weatherstrip - FR. LOWER | Weatherstrip - FR. LOWER |
| 15 | 72367-SK8-000 | Seal - OUTER HANDLE HOLE | Seal - OUTER HANDLE HOLE |
| 16 | 72340-SK7-003 | Checker comp. - DOOR | Checker comp. - DOOR |
| 20 | 75760-SB2-003 | Pin - DOOR CHECKER | Pin - DOOR CHECKER |
| 22 | 90101-SE3-003 | Bolt-washer - 8X23.5 | Bolt-washer - 8X23.5 |
| 23 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 24 | 90755-SB2-000 | E-ring - 6MM | E-ring - 6MM |
| 25 | 91562-SM4-013 | Grommet - DOOR LINING | Grommet - DOOR LINING |
| 26 | 91568-SR2-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 26 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 27 | 91588-SV4-004 | Clip - DOOR WEATHERSTRIP (B) | Clip - DOOR WEATHERSTRIP (B) |
| 28 | 91590-SV4-003 | Clip - SUB SEAL (A) | Clip - SUB SEAL (A) |
| 29 | 91657-SP0-000 | Seal c - DOOR PANEL HOLE (25MM) | Seal c - DOOR PANEL HOLE (25MM) |
Front door windows 7 / 13
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 4 | 72230-SV4-003 | Sash - R. FR. DOOR LOWER | Sash - R. FR. DOOR LOWER |
| 5 | 72231-SV4-003 | Sash - R. FR. DOOR CENTER LOWER | Sash - R. FR. DOOR CENTER LOWER |
| 6 | 72235-SV4-013 | Runchannel - R. FR. DOOR | Runchannel - R. FR. DOOR |
| 8 | 72270-SV4-003 | Sash - L. FR. DOOR LOWER | Sash - L. FR. DOOR LOWER |
| 9 | 72271-SV4-013 | Sash - L. FR. DOOR CENTER LOWER | Sash - L. FR. DOOR CENTER LOWER |
| 10 | 72275-SV4-013 | Runchannel - L. FR. DOOR | Runchannel - L. FR. DOOR |
Front driveshaft 9 / 18
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 44017-SM4-A00 | Boot set - INBOARD | Boot set - INBOARD |
| 7 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 8 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 11 | 44336-SB0-300 | Ring a - STOPPER | Ring a - STOPPER |
| 12 | 44338-SB0-300 | Circlip - 26MM | Circlip - 26MM |
| 13 | 44351-SM4-982 | Weight - DYNAMIC DAMPER (HOKUSHIN) | Weight - DYNAMIC DAMPER (HOKUSHIN) |
| 17 | 90305-SD4-003 | Nut - SPINDLE (24MM) | Nut - SPINDLE (24MM) |
| 25 | 44337-SB0-300 | Ring b - STOPPER | Ring b - STOPPER |
| 26 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
Front fenders 11 / 11
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 4 | 74101-SV4-010 | Fender - R. FR. INNER | Fender - R. FR. INNER |
| 5 | 74111-SV4-000 | Shield - FR. SPLASH | Shield - FR. SPLASH |
| 6 | 74151-SV4-010 | Fender - L. FR. INNER | Fender - L. FR. INNER |
| 7 | 90105-SL4-000 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 8 | 90108-SF1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 9 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 9 | 90114-SE0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 10 | 90119-SE0-000 | Bolt - FLANGE, 6MM | Bolt - FLANGE, 6MM |
| 11 | 90657-SB0-003 | Clip, SPLASH SHIELD | Clip, SPLASH SHIELD |
| 12 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 13 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Front grille 4 / 4
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 75101-SV4-902 | Grille - FR. | Grille - FR. |
| 5 | 90125-SM4-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 6 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 7 | 91578-SV4-003 | Clip - FR. GRILLE (B) | Clip - FR. GRILLE (B) |
Front seat 4 / 11
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 20 | 81322-SP0-003 | Clip - LUMBAR SUPPORT | Clip - LUMBAR SUPPORT |
| 35 | 91566-SP0-003 | Clip - BACK COVER (NATURAL) | Clip - BACK COVER (NATURAL) |
Front seat components (R.; 4) 9 / 35
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 7 | 77517-SA5-014 | Cap - SLIDE ADJUSTER | Cap - SLIDE ADJUSTER |
| 16 | 81261-SM4-J32 | Cap - RAIL END LOWER | Cap - RAIL END LOWER |
| 17 | 81262-SM4-J32 | Cap - RAIL END UPPER | Cap - RAIL END UPPER |
| 23 | 90125-SP0-003 | Bolt b | Bolt b |
| 34 | 90519-SP0-003 | Washer a | Washer a |
| 37 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 38 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 39 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Front shock absorber 7 / 17
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 6 | 51621-SD4-004 | Washer - SHOCK ABSORBER MOUNTING (SHOWA) | Washer - SHOCK ABSORBER MOUNTING (SHOWA) |
| 7 | 51631-SS0-004 | Rubber - SHOCK ABSORBER MOUNTING | Rubber - SHOCK ABSORBER MOUNTING |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 10 | 51686-SM4-004 | Rubber - FR. SPRING SEAT (SHOWA) | Rubber - FR. SPRING SEAT (SHOWA) |
| 14 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 15 | 90304-SM4-000 | Nut - FR. SHOCK ABSORBER FLANGE (10MM) | Nut - FR. SHOCK ABSORBER FLANGE (10MM) |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Front stabilizer/ front lower arm 22 / 28
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 51308-SG0-020 | Bracket - FR. STABILIZER | Bracket - FR. STABILIZER |
| 4 | 51311-SM4-010 | Collar a - STABILIZER END (7.6MM) | Collar a - STABILIZER END (7.6MM) |
| 5 | 51312-SM4-000 | Collar b - STABILIZER END (27.2MM) | Collar b - STABILIZER END (27.2MM) |
| 6 | 51313-SM4-010 | Washer - STABILIZER END | Washer - STABILIZER END |
| 7 | 51314-SM4-020 | Rubber - STABILIZER END | Rubber - STABILIZER END |
| 10 | 51355-SV4-000 | Arm comp - R. FR. LOWER | Arm comp - R. FR. LOWER |
| 11 | 51365-SV4-000 | Arm comp - L. FR. LOWER | Arm comp - L. FR. LOWER |
| 12 | 51381-SM4-013 | Bush - FR. RADIUS ROD (RR.) | Bush - FR. RADIUS ROD (RR.) |
| 13 | 51391-SM4-013 | Bush - FR. RADIUS ROD (FR.) | Bush - FR. RADIUS ROD (FR.) |
| 16 | 51398-SM4-000 | Collar - RADIUS ROD | Collar - RADIUS ROD |
| 17 | 51399-SM4-000 | Washer - FR. RADIUS ROD | Washer - FR. RADIUS ROD |
| 18 | 51810-SV4-004 | Bush - SHOCK ABSORBER FORK (YAMASHITA) | Bush - SHOCK ABSORBER FORK (YAMASHITA) |
| 19 | 51811-SV4-010 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 20 | 51821-SV4-010 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 21 | 90112-SM4-020 | Bolt - STABILIZER LINK (8X95) | Bolt - STABILIZER LINK (8X95) |
| 22 | 90117-SM4-003 | Bolt - FR. SHOCK ABSORBER LOCK (10X44) | Bolt - FR. SHOCK ABSORBER LOCK (10X44) |
| 23 | 90118-SL4-003 | Bolt - SELF-LOCK, 12X84 | Bolt - SELF-LOCK, 12X84 |
| 24 | 90121-SM4-010 | Bolt - SHOCK ABSORBER FORK (12X98) | Bolt - SHOCK ABSORBER FORK (12X98) |
| 25 | 90178-SM4-013 | Bolt - FR. RADIUS ROD (12X31) | Bolt - FR. RADIUS ROD (12X31) |
| 26 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 27 | 90303-SF1-003 | Nut - SELF-LOCK, 12MM | Nut - SELF-LOCK, 12MM |
| 28 | 90362-SF1-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
Front windshield 12 / 15
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 73151-SV4-003 | Molding - FR. WINDSHIELD UPPER | Molding - FR. WINDSHIELD UPPER |
| 4 | 73152-SV4-003 | MOLDING ASSY.,R. FRONT WINDSHIELD SIDE | MOLDING ASSY.,R. FRONT WINDSHIELD SIDE |
| 5 | 73162-SV4-003 | Molding assy. - L. FR. WINDSHIELD SIDE | Molding assy. - L. FR. WINDSHIELD SIDE |
| 7 | 91511-SP0-003 | Clip A - FR. WINDSHIELD SIDE (BLUE) | Clip A - FR. WINDSHIELD SIDE (BLUE) |
| 8 | 91528-SP0-003 | Clip d - FR. WINDSHIELD SIDE (YELLOW) | Clip d - FR. WINDSHIELD SIDE (YELLOW) |
| 9 | 91542-SS0-003 | Holder - FR. WINDSHIELD GLASS (NATURAL) | Holder - FR. WINDSHIELD GLASS (NATURAL) |
| 10 | 91562-SV4-003 | Clip e - FR. WINDSHIELD SIDE MOLDING (YELLOW) | Clip e - FR. WINDSHIELD SIDE MOLDING (YELLOW) |
| 11 | 91572-SV4-003 | Clip f - FR. WINDSHIELD SIDE MOLDING (PINK) | Clip f - FR. WINDSHIELD SIDE MOLDING (PINK) |
| 12 | 91573-SV4-003 | Clip b - FR. WINDSHIELD SIDE MOLDING (LIGHT BLUE) | Clip b - FR. WINDSHIELD SIDE MOLDING (LIGHT BLUE) |
| 13 | 91574-SV4-003 | Clip c - FR. WINDSHIELD SIDE MOLDING (NATURAL) | Clip c - FR. WINDSHIELD SIDE MOLDING (NATURAL) |
| 14 | 91576-SV4-003 | Clip - R. FR. CORNER (GREEN) | Clip - R. FR. CORNER (GREEN) |
| 15 | 91577-SV4-003 | Clip - L. FR. CORNER (RED) | Clip - L. FR. CORNER (RED) |
Front windshield wiper (2) 18 / 24
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 2 | 76515-SM4-013 | Seal a | Seal a |
| 3 | 76516-SL4-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 4 | 76516-SM4-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 5 | 76517-SM4-003 | Collar | Collar |
| 6 | 76518-SL5-A01 | Cap - PIVOT (B) | Cap - PIVOT (B) |
| 7 | 76520-SM4-003 | Link unit a | Link unit a |
| 8 | 76524-SD4-003 | Dust seal | Dust seal |
| 9 | 76524-SE0-013 | Dust seal | Dust seal |
| 11 | 76540-SV4-003 | Rod unit a | Rod unit a |
| 12 | 76550-SV4-003 | Rod unit b | Rod unit b |
| 13 | 76558-SS0-003 | Cap - PIVOT | Cap - PIVOT |
| 17 | 76622-SF4-003 | Rubber - BLADE (500MM) | Rubber - BLADE (500MM) |
| 17 | 76632-S6M-003 | Rubber - BLADE (500MM) | Rubber - BLADE (500MM) |
| 18 | 76622-SM4-003 | Rubber - BLADE (600MM) | Rubber - BLADE (600MM) |
| 20 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 21 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
| 22 | 91567-SE0-003 | Band - WIRE HARNESS(WHITE) (93.5MM) | Band - WIRE HARNESS(WHITE) (93.5MM) |
| 23 | 91620-SM4-003 | Grommet - WIPER MOTOR (BLACK) | Grommet - WIPER MOTOR (BLACK) |
Fuel pipe (5) 27 / 37
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 16010-ST5-932 | Strainer set - FUEL (TOYO ROKI) | Strainer set - FUEL (TOYO ROKI) |
| 6 | 17700-SV4-931 | Pipe comp - FUEL FEED | Pipe comp - FUEL FEED |
| 7 | 17701-SV4-000 | Rubber - FUEL PIPE INSULATOR | Rubber - FUEL PIPE INSULATOR |
| 8 | 17720-SV4-000 | Pipe comp - VENT | Pipe comp - VENT |
| 11 | 17740-SV4-930 | Pipe comp - RETURN | Pipe comp - RETURN |
| 13 | 17743-SM4-003 | Cap - DRAIN TUBE | Cap - DRAIN TUBE |
| 14 | 17743-SV4-003 | Joint - CANISTER DRAIN BYPASS TUBE | Joint - CANISTER DRAIN BYPASS TUBE |
| 16 | 17752-SV4-000 | Cover - FR. FUEL PIPE | Cover - FR. FUEL PIPE |
| 17 | 17753-SV4-000 | Cover - RR. FUEL PIPE | Cover - RR. FUEL PIPE |
| 18 | 17761-SV4-000 | Stay a - FUEL PIPE | Stay a - FUEL PIPE |
| 19 | 17763-SV4-000 | Stay c - FUEL PIPE | Stay c - FUEL PIPE |
| 20 | 17764-SV4-000 | Stay d - FUEL PIPE | Stay d - FUEL PIPE |
| 21 | 17765-SV4-000 | Stay e - FUEL PIPE | Stay e - FUEL PIPE |
| 22 | 17766-SV4-000 | Stay f - FUEL PIPE | Stay f - FUEL PIPE |
| 23 | 17767-SV4-000 | Stay g - FUEL PIPE | Stay g - FUEL PIPE |
| 26 | 90021-P0A-003 | Bolt - SEALING, 12MM | Bolt - SEALING, 12MM |
| 26 | 90020-PD6-000 | Bolt - SEALING, 12MM | Bolt - SEALING, 12MM |
| 28 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 29 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 31 | 91406-SL4-931 | Clamp - FUEL HOSE (D10.5) | Clamp - FUEL HOSE (D10.5) |
| 32 | 91549-SE0-003 | Holder - DRAIN HOSE | Holder - DRAIN HOSE |
| 33 | 91591-SV4-000 | Bracket - CLIP B | Bracket - CLIP B |
| 34 | 91592-SR3-J32 | Clamp h - FUEL PIPE (SANOU) | Clamp h - FUEL PIPE (SANOU) |
| 35 | 91594-SR3-J32 | Clamp f - FUEL PIPE (SANOU) | Clamp f - FUEL PIPE (SANOU) |
| 36 | 91598-SR3-J32 | Clamp d - FUEL PIPE (SANOU) | Clamp d - FUEL PIPE (SANOU) |
| 37 | 91599-SV4-003 | Clamp a - FUEL PIPE | Clamp a - FUEL PIPE |
| 47 | 90201-PD1-000 | Nut a - SEALING, 12MM | Nut a - SEALING, 12MM |
Fuel tank (1) 32 / 45
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 17371-SM4-A02 | Valve - TWO WAY (TEC) | Valve - TWO WAY (TEC) |
| 4 | 17500-SV4-931 | Tank comp. - FUEL | Tank comp. - FUEL |
| 5 | 17511-SM4-000 | Bracket - FUEL TANK BAND | Bracket - FUEL TANK BAND |
| 6 | 17521-SV4-000 | Band assy. - R. FUEL TANK MOUNTING | Band assy. - R. FUEL TANK MOUNTING |
| 7 | 17522-SV4-000 | Band assy. - L. FUEL TANK MOUNTING | Band assy. - L. FUEL TANK MOUNTING |
| 8 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 9 | 17570-SL0-013 | Valve - FUEL CUT | Valve - FUEL CUT |
| 10 | 17574-SE0-000 | Packing - BASE | Packing - BASE |
| 11 | 17651-SM4-000 | Tube - FILLER NECK | Tube - FILLER NECK |
| 12 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 13 | 17656-SM4-000 | Bolt - FILLER PIPE MOUNTING | Bolt - FILLER PIPE MOUNTING |
| 14 | 17658-SM4-000 | Tube assy - BREATHER (260MM) | Tube assy - BREATHER (260MM) |
| 15 | 17659-SM5-A00 | Holder - FILLER PACKING | Holder - FILLER PACKING |
| 16 | 17660-SV4-U00 | Pipe comp - FUEL FILLER | Pipe comp - FUEL FILLER |
| 17 | 17662-SL5-000 | Packing - FUEL FILLER PIPE | Packing - FUEL FILLER PIPE |
| 18 | 17663-SL5-A00 | Band - FILLER PACKING | Band - FILLER PACKING |
| 24 | 17707-SV4-A31 | Tube comp - FUEL JOINT | Tube comp - FUEL JOINT |
| 25 | 17711-ST0-003 | Retainer - YELLOW) (TOKAI | Retainer - YELLOW) (TOKAI |
| 26 | 17731-SV4-930 | Pipe comp - FUEL | Pipe comp - FUEL |
| 28 | 37800-SV4-A03 | Fuel Meter Unit | Fuel Meter Unit |
| 29 | 37801-SL0-003 | Packing - BASE | Packing - BASE |
| 29 | 37801-SV4-L01 | Packing - BASE | Packing - BASE |
| 30 | 74660-SV4-010 | Cap assy. - FLOOR MAINTENANCE HOLE | Cap assy. - FLOOR MAINTENANCE HOLE |
| 31 | 74661-SH5-023 | Cap - FLOOR MAINTENANCE HOLE | Cap - FLOOR MAINTENANCE HOLE |
| 33 | 90103-SB0-010 | Nut - FLANGE, 5MM | Nut - FLANGE, 5MM |
| 34 | 90161-SH4-000 | Bolt-washer - 6X12 | Bolt-washer - 6X12 |
| 36 | 90301-SE0-J00 | Nut - FLANGE, 6MM | Nut - FLANGE, 6MM |
| 40 | 90700-SB0-003 | Clip - AIR BLEED TUBE | Clip - AIR BLEED TUBE |
| 41 | 91406-SL4-931 | Clamp - FUEL HOSE (D10.5) | Clamp - FUEL HOSE (D10.5) |
| 43 | 91594-SV4-003 | Clamp - FUEL VENT PIPE | Clamp - FUEL VENT PIPE |
| 44 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
| 45 | 91691-SE0-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
Governor/accumulator body 12 / 14
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 9 | 27561-P0X-000 | Piston - LOW ACCUMULATOR | Piston - LOW ACCUMULATOR |
| 10 | 27562-P0X-000 | Spring a - LOW ACCUMULATOR | Spring a - LOW ACCUMULATOR |
| 11 | 27564-P0X-000 | Spring b - LOW ACCUMULATOR | Spring b - LOW ACCUMULATOR |
| 12 | 27572-P0X-000 | Piston - SECOND ACCUMULATOR | Piston - SECOND ACCUMULATOR |
| 14 | 27815-PX4-010 | Cover - ACCUMULATOR BODY | Cover - ACCUMULATOR BODY |
| 19 | 90604-PX4-000 | Circlip - INTERNAL, 31MM | Circlip - INTERNAL, 31MM |
| 20 | 90606-PX4-000 | Circlip - INTERNAL, 36MM | Circlip - INTERNAL, 36MM |
| 22 | 91321-PF4-004 | O-ring - 18.3X2.4(NOK) | O-ring - 18.3X2.4(NOK) |
| 23 | 91321-P0X-003 | O-ring - 25X2.4 (NOK) | O-ring - 25X2.4 (NOK) |
| 23 | 91321-P0X-004 | O-ring - 25X2.4 (ARAI) | O-ring - 25X2.4 (ARAI) |
| 24 | 91324-PF4-004 | O-ring - 28.3X2.4 (NOK) | O-ring - 28.3X2.4 (NOK) |
| 25 | 91344-PC9-004 | O-ring - 29X2.4 (NOK) | O-ring - 29X2.4 (NOK) |
Grommet 13 / 17
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 72206-SA5-000 | Cap - FLOOR HOLE, 53MM | Cap - FLOOR HOLE, 53MM |
| 3 | 74011-ST7-000 | Insulator a - RR. FENDER | Insulator a - RR. FENDER |
| 5 | 74231-SV4-000 | Valve - DRAIN | Valve - DRAIN |
| 6 | 74416-SF1-000 | Insulator - PILLAR LOWER | Insulator - PILLAR LOWER |
| 8 | 91601-SW3-000 | Protection - RR. BUMPER | Protection - RR. BUMPER |
| 9 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 10 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 13 | 91602-SV4-003 | Plug - HOLE, 15MM | Plug - HOLE, 15MM |
| 15 | 91606-SE0-000 | Seal - 20X20 | Seal - 20X20 |
| 16 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
| 18 | 91611-SM4-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 19 | 91611-SS0-003 | Plug - HOLE, 25MM | Plug - HOLE, 25MM |
| 22 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
Headlight (2) 10 / 19
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 33115-SM4-003 | Bulb | Bulb |
| 3 | 33115-SV4-G01 | Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) | Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) |
| 3 | 33115-SV4-003 | Bulb - HEADLIGHT (H4) (12V 60/55W) (TUNGSRAM) | Bulb - HEADLIGHT (H4) (12V 60/55W) (TUNGSRAM) |
| 3 | 33115-SM3-003 | Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY) | Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY) |
| 4 | 33116-SD4-961 | Socket - BULB (OSRAM) (HALOGEN) | Socket - BULB (OSRAM) (HALOGEN) |
| 5 | 33117-SM4-003 | Clip - LENS HOLDER | Clip - LENS HOLDER |
| 6 | 33122-SM4-003 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 7 | 33126-SV4-003 | Cover - RUBBER | Cover - RUBBER |
| 13 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 16 | 34901-671-631 | Bulb - HEADLIGHT (12V 55W H1) (OSRAM/PHILIPS) | Bulb - HEADLIGHT (12V 55W H1) (OSRAM/PHILIPS) |
Heater blower (2) 8 / 13
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 3 | 79195-SF1-003 | Holder - ROD | Holder - ROD |
| 10 | 90121-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 11 | 90123-SV4-003 | Screw - EVATITE, 4X12 | Screw - EVATITE, 4X12 |
| 12 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 13 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 14 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 15 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
Heater control (2) 1 / 5
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 5 | 90651-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Heater unit (2) 9 / 19
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 5 | 79116-SV4-A01 | Holder - PIPE | Holder - PIPE |
| 6 | 79117-SV4-A01 | Clamp - CORE | Clamp - CORE |
| 9 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 11 | 79770-SE0-000 | Grommet - WATER VALVE CABLE | Grommet - WATER VALVE CABLE |
| 15 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 16 | 90137-SF1-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 17 | 90139-SH3-003 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 18 | 90657-671-631 | Clip - TRIM (BLACK) | Clip - TRIM (BLACK) |
High tension cord/plug 2 / 11
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 14 | 32767-PT0-000 | Grommet - HIGH TENSION CORD | Grommet - HIGH TENSION CORD |
| 16 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
Inner panels/floor panel 2 / 2
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 42 | 90106-SE1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 42 | 90127-SE0-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
Instrument panel (RH) 12 / 18
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 53216-SM4-010 | Holder b - STEERING COLUMN | Holder b - STEERING COLUMN |
| 5 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 21 | 77869-SV4-A80 | Plate - INSTRUMENT SUPPORT | Plate - INSTRUMENT SUPPORT |
| 24 | 77982-S04-N81 | Holder - COUPLER (2P) | Holder - COUPLER (2P) |
| 25 | 90104-SV4-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 26 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 27 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 28 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 29 | 90361-SM4-003 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 29 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 31 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 32 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (RH) 26 / 31
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 34254-SV4-003 | Lamp assy. - GLOVE BOX | Lamp assy. - GLOVE BOX |
| 2 | 34295-SA5-003 | Bulb - 12V 3.4W) (DAIICHI | Bulb - 12V 3.4W) (DAIICHI |
| 5 | 66406-SA0-000 | Stopper - GLOVE BOX | Stopper - GLOVE BOX |
| 6 | 66417-SA0-000 | Rubber - GLOVE BOX STOPPER | Rubber - GLOVE BOX STOPPER |
| 7 | 66418-SA5-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 8 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 9 | 77110-SV4-020 | Frame - GLOVE BOX | Frame - GLOVE BOX |
| 15 | 77355-SG0-A00 | Label - IGNITION INFORMATION | Label - IGNITION INFORMATION |
| 16 | 77355-SV4-000 | Blind - COLUMN | Blind - COLUMN |
| 18 | 77371-SV4-000 | Ring - COLUMN COVER | Ring - COLUMN COVER |
| 23 | 77506-SM4-900 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 24 | 77508-SX0-000 | Arm - GLOVE BOX STOPPER | Arm - GLOVE BOX STOPPER |
| 25 | 77509-SM4-A81 | Damper - LOCK | Damper - LOCK |
| 26 | 77510-SV4-000 | Hinge - GLOVE BOX | Hinge - GLOVE BOX |
| 29 | 77542-SV4-000 | Striker - GLOVE BOX | Striker - GLOVE BOX |
| 35 | 90107-SE3-000 | Screw-washer - 4X12 | Screw-washer - 4X12 |
| 36 | 90123-SM4-000 | Screw - TAPPING, 4X12 (PO) | Screw - TAPPING, 4X12 (PO) |
| 37 | 90139-SH3-003 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 38 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 39 | 90310-SB2-003 | Nut - SPEED | Nut - SPEED |
| 41 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 42 | 90609-SL9-900 | Clip - INSTRUMENT LOWER | Clip - INSTRUMENT LOWER |
| 43 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 44 | 90666-SP0-A00 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 45 | 90667-SV4-003 | Clip - CENTER OUTLET | Clip - CENTER OUTLET |
| 46 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Intake manifold (DOHC VTEC) 9 / 35
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 2 | 16472-PH7-003 | Seal ring - INJECTOR (OTSUKA) | Seal ring - INJECTOR (OTSUKA) |
| 2 | 16472-P0H-A01 | Seal ring - INJECTOR (NOK) | Seal ring - INJECTOR (NOK) |
| 3 | 16473-PD6-000 | Cushion ring - INJECTOR (OTSUKA) | Cushion ring - INJECTOR (OTSUKA) |
| 3 | 16473-P10-A01 | Cushion ring - INJECTOR (NOK) | Cushion ring - INJECTOR (NOK) |
| 9 | 16741-PG7-005 | O-ring - PRESSURE REGULATOR | O-ring - PRESSURE REGULATOR |
| 18 | 18715-PB2-000 | GASKET, EGR VALVE (ISHINO GASKET) | GASKET, EGR VALVE (ISHINO GASKET) |
| 25 | 91301-PM7-003 | O-ring - 7.3X2.2 (ARAI) | O-ring - 7.3X2.2 (ARAI) |
| 25 | 91301-P2F-A01 | O-ring - 7.3X2.2 (NOK) | O-ring - 7.3X2.2 (NOK) |
| 25 | 16074-ZY3-000 | O-ring | O-ring |
Knuckle 13 / 18
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 4 | 51450-SV4-000 | Arm assy. - R. FR. UPPER | Arm assy. - R. FR. UPPER |
| 5 | 51460-SV4-000 | Arm assy. - L. FR. UPPER | Arm assy. - L. FR. UPPER |
| 7 | 52225-SF1-013 | Boot - LOWER BALL DUST | Boot - LOWER BALL DUST |
| 8 | 52226-SL0-003 | Circlip - LOWER BALL(MUSASHI) | Circlip - LOWER BALL(MUSASHI) |
| 9 | 53546-SA0-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 10 | 53548-SL0-A01 | Circlip - TIE ROD | Circlip - TIE ROD |
| 11 | 57450-SV4-950 | Sensor assy - R. FR. | Sensor assy - R. FR. |
| 12 | 57451-SV4-950 | Bracket - COUPLER | Bracket - COUPLER |
| 13 | 57455-SV4-951 | Sensor assy - L. FR. | Sensor assy - L. FR. |
| 15 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 17 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 18 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 20 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
Main valve body (2) 14 / 14
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 22741-PX4-000 | Pipe - LOW CLUTCH | Pipe - LOW CLUTCH |
| 2 | 24630-P0X-000 | Arm comp - CHANGE DETENT | Arm comp - CHANGE DETENT |
| 3 | 24635-PX4-700 | Shaft - CHANGE DETENT ARM | Shaft - CHANGE DETENT ARM |
| 4 | 25145-PA9-010 | Shaft - OIL PUMP GEAR | Shaft - OIL PUMP GEAR |
| 5 | 27000-P0X-020 | Body assy - MAIN VALVE | Body assy - MAIN VALVE |
| 6 | 27112-P0X-010 | Plate - MAIN SEPARATING | Plate - MAIN SEPARATING |
| 7 | 27122-PX4-000 | Cap - SHIFT VALVE (1-2) | Cap - SHIFT VALVE (1-2) |
| 8 | 27122-PY8-J10 | Cap - SHIFT VALVE | Cap - SHIFT VALVE |
| 9 | 27263-PA9-000 | Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM | Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM |
| 10 | 27544-PL5-Z01 | Seat - SHIFT (3-4) | Seat - SHIFT (3-4) |
| 12 | 27645-PL1-000 | Cap - LOCK UP CONTROL | Cap - LOCK UP CONTROL |
| 13 | 27728-PX3-700 | Cap - TIMING | Cap - TIMING |
| 14 | 27750-PL5-J01 | Filter - SECONDARY BODY | Filter - SECONDARY BODY |
| 15 | 91101-PF4-003 | Roller - 3.5X21.8 | Roller - 3.5X21.8 |
Mainshaft 13 / 22
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 22814-P4P-003 | Ring - SEALING, 35MM | Ring - SEALING, 35MM |
| 2 | 22815-P4P-003 | Ring - SEALING, 29MM | Ring - SEALING, 29MM |
| 3 | 23210-P0X-000 | Mainshaft comp. | Mainshaft comp. |
| 6 | 23481-P0X-000 | Gear - MAINSHAFT IDLE | Gear - MAINSHAFT IDLE |
| 7 | 23929-PX4-700 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 8 | 90201-PX4-010 | Nut - FLANGE, 24MM | Nut - FLANGE, 24MM |
| 9 | 90501-PX4-010 | Collar - 27X32X51 | Collar - 27X32X51 |
| 10 | 90512-PX4-701 | Collar - 39X46X23.5 | Collar - 39X46X23.5 |
| 11 | 90513-PX4-000 | Collar - 27X10.9 | Collar - 27X10.9 |
| 13 | 90613-PX4-000 | Ring - SNAP, 27MM | Ring - SNAP, 27MM |
| 15 | 91017-PK4-003 | Bearing - NEEDLE, 23X29X20 | Bearing - NEEDLE, 23X29X20 |
| 20 | 91305-PC9-003 | O-ring - 34X1.9 (ARAI) | O-ring - 34X1.9 (ARAI) |
| 21 | 91307-PA9-003 | O-ring 31.2X1.9 (ARAI) | O-ring 31.2X1.9 (ARAI) |
Mirror 8 / 14
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 11 | 76220-SV4-000 | Garnish - R. DOOR MIRROR (R.C.) | Garnish - R. DOOR MIRROR (R.C.) |
| 18 | 76270-SV4-000 | Garnish - L. DOOR MIRROR (R.C.) | Garnish - L. DOOR MIRROR (R.C.) |
| 19 | 76401-SH3-901 | Base - STAY (MATSUYAMA) | Base - STAY (MATSUYAMA) |
| 23 | 88147-SA5-003 | Washer - TOOTHED (MATSUYAMA) | Washer - TOOTHED (MATSUYAMA) |
| 24 | 88148-SE0-003 | Bolt - LOCK, 6X7 (MATSUYAMA) | Bolt - LOCK, 6X7 (MATSUYAMA) |
| 26 | 90410-SM4-003 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 27 | 90416-SM4-003 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 28 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
Molding 14 / 28
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 11 | 72921-SV4-003 | Joint - R. RR. PILLAR | Joint - R. RR. PILLAR |
| 15 | 72961-SV4-003 | Joint - L. RR. PILLAR | Joint - L. RR. PILLAR |
| 17 | 74306-SV4-003 | Molding assy. - R. ROOF | Molding assy. - R. ROOF |
| 18 | 74308-ST0-003 | Bracket - ROOF MOLDING | Bracket - ROOF MOLDING |
| 19 | 74316-SV4-003 | Molding assy. - L. ROOF | Molding assy. - L. ROOF |
| 20 | 90121-SM4-003 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 22 | 90146-SV4-000 | Screw - TAPPING, 4X11 | Screw - TAPPING, 4X11 |
| 23 | 90162-SA6-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 24 | 90668-SG0-003 | Grommet - SCREW, 4MM(OVAL) | Grommet - SCREW, 4MM(OVAL) |
| 25 | 91527-SM4-003 | Clip - DOOR MOLDING | Clip - DOOR MOLDING |
| 26 | 91528-SR4-003 | Clip - DRIP MOLDING | Clip - DRIP MOLDING |
| 27 | 91589-SV4-003 | Clip - CAP END | Clip - CAP END |
| 28 | 91619-SM4-003 | Grommet - CENTER PILLAR GARNISH (OVAL) | Grommet - CENTER PILLAR GARNISH (OVAL) |
| 29 | 91625-SM4-004 | Grommet - CENTER PILLAR GARNISH UPPER | Grommet - CENTER PILLAR GARNISH UPPER |
Oil pump/oil strainer 20 / 37
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 13500-PT0-J00 | Case set - GEAR | Case set - GEAR |
| 4 | 15114-PT0-003 | Packing b - OIL PUMP (ARAI) | Packing b - OIL PUMP (ARAI) |
| 7 | 15221-PT0-000 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 7 | 15221-P5K-004 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 8 | 15231-PE0-000 | Valve - RELIEF | Valve - RELIEF |
| 9 | 15232-PG6-000 | Spring - RELIEF VALVE | Spring - RELIEF VALVE |
| 10 | 15233-PC6-000 | Bolt - SEALING, 18MM | Bolt - SEALING, 18MM |
| 12 | 15400-PR3-405 | Cartridge - OIL FILTER (TOYO ROKI) | Cartridge - OIL FILTER (TOYO ROKI) |
| 12 | 15400-PR3-003 | Cartridge - OIL FILTER (TSUCHIYA) | Cartridge - OIL FILTER (TSUCHIYA) |
| 12 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 13 | 15400-PR3-406 | Cartridge set - OIL FILTER (TOYO ROKI) | Cartridge set - OIL FILTER (TOYO ROKI) |
| 18 | 90018-PT0-010 | Bolt - BALANCER BELT ADJUSTER | Bolt - BALANCER BELT ADJUSTER |
| 19 | 90023-PT0-003 | Bolt-washer - 8X33 | Bolt-washer - 8X33 |
| 20 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 21 | 90052-PK1-000 | Bolt - FLANGE, 6X25 | Bolt - FLANGE, 6X25 |
| 22 | 90063-PC6-000 | Bolt - STUD, 6X25 | Bolt - STUD, 6X25 |
| 23 | 90703-PT0-000 | Dowel pin - 49X10 | Dowel pin - 49X10 |
| 24 | 91212-PAA-A02 | Oil seal - 40X52X7 (ARAI) | Oil seal - 40X52X7 (ARAI) |
| 25 | 91233-PT0-003 | Oil seal - 27X40X8 (NOK) | Oil seal - 27X40X8 (NOK) |
| 26 | 91309-PJ7-010 | O-ring - 11.5X3.5 | O-ring - 11.5X3.5 |
Outer panels 5 / 5
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 24 | 74422-SM4-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 25 | 74494-SM4-010 | Spring - FUEL LID OPENER | Spring - FUEL LID OPENER |
| 26 | 75450-SS0-000 | Outlet assy - RR. AIR | Outlet assy - RR. AIR |
| 27 | 75451-SP0-000 | Clip - RR. AIR OUTLET | Clip - RR. AIR OUTLET |
| 28 | 90103-SM4-010 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
Parking brake 12 / 14
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 43471-SD2-930 | Pin - BRAKE WIRE END | Pin - BRAKE WIRE END |
| 3 | 47142-671-010 | Knob - PARKING BRAKE PUSH ROD | Knob - PARKING BRAKE PUSH ROD |
| 4 | 47143-SD4-300 | Spring - PUSH ROD | Spring - PUSH ROD |
| 5 | 47342-SV4-003 | Switch - HAND BRAKE | Switch - HAND BRAKE |
| 6 | 47360-SB2-000 | Equalizer | Equalizer |
| 7 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 10 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 11 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 14 | 47572-SE0-300 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 15 | 74656-SM4-010 | Bracket - TANK BAFFLE PLATE | Bracket - TANK BAFFLE PLATE |
| 17 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 18 | 90705-SD2-931 | Pin - SNAP, 6MM | Pin - SNAP, 6MM |
Pedal 12 / 19
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 2 | 17800-SV4-980 | Pedal comp - ACCELERATOR | Pedal comp - ACCELERATOR |
| 3 | 17812-SA7-010 | Washer - ACCELERATOR PEDAL | Washer - ACCELERATOR PEDAL |
| 4 | 17814-SD4-670 | Spring - ACCELERATOR PEDAL | Spring - ACCELERATOR PEDAL |
| 5 | 17816-SK7-000 | Cover - ACCELERATOR PEDAL | Cover - ACCELERATOR PEDAL |
| 7 | 17921-SA4-730 | Seal - THROTTLE CABLE | Seal - THROTTLE CABLE |
| 20 | 46504-ST5-300 | Bush - PEDAL | Bush - PEDAL |
| 21 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 22 | 46505-SA7-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 23 | 46530-SM4-000 | Spring assy - PEDAL RETURN | Spring assy - PEDAL RETURN |
| 24 | 46535-SM4-000 | Collar - PEDAL | Collar - PEDAL |
| 26 | 46545-SE0-980 | Cover - BRAKE PEDAL | Cover - BRAKE PEDAL |
| 37 | 46992-SV4-003 | Clip - FOOTREST | Clip - FOOTREST |
Pillar garnish (RH) 2 / 4
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 22 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
| 23 | 90666-SM4-003 | Clip - SNAP FITTING | Clip - SNAP FITTING |
Piston/crankshaft 9 / 46
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 13014-P11-800 | Washer set - THRUST (DAIDO) | Washer set - THRUST (DAIDO) |
| 3 | 13014-P11-810 | Washer set - THRUST (TAIHO) | Washer set - THRUST (TAIHO) |
| 5 | 13112-PT0-000 | Pin - PISTON | Pin - PISTON |
| 19 | 90017-PY3-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 19 | 90017-RJA-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 20 | 90019-PT0-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 21 | 90031-PT0-003 | Bolt-washer - 8X22 | Bolt-washer - 8X22 |
| 21 | 90032-ZW5-003 | Bolt-washer, 8x22 | Bolt-washer, 8x22 |
| 22 | 90704-PT0-000 | Key - 4.5X38.5 | Key - 4.5X38.5 |
Power steering gear box (RH) 22 / 29
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 2 | 53010-SV4-000 | End set - RACK | End set - RACK |
| 3 | 53411-SV4-000 | Tube - AIR TRANSFER | Tube - AIR TRANSFER |
| 4 | 53434-SD9-000 | Clip - TIE ROD | Clip - TIE ROD |
| 4 | 53434-S04-J51 | CLIP, TIE ROD | CLIP, TIE ROD |
| 5 | 53434-SV4-010 | Bracket d - GEAR BOX | Bracket d - GEAR BOX |
| 6 | 53436-SV4-010 | Cushion b - GEAR BOX | Cushion b - GEAR BOX |
| 7 | 53438-SV4-010 | Bracket b - GEAR BOX | Bracket b - GEAR BOX |
| 8 | 53447-ST0-003 | Clip - TRANSFER TUBE (NIFCO) | Clip - TRANSFER TUBE (NIFCO) |
| 9 | 53449-SL0-A00 | Band b - BELLOWS | Band b - BELLOWS |
| 9 | 53449-S04-J51 | Band b - BELLOWS | Band b - BELLOWS |
| 10 | 53501-SV4-000 | Grommet a - STEERING | Grommet a - STEERING |
| 11 | 53502-SV4-000 | Grommet b - STEERING | Grommet b - STEERING |
| 12 | 53534-SV4-N01 | Dust seal comp. - TIE ROD | Dust seal comp. - TIE ROD |
| 15 | 53536-SB2-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 16 | 53540-SV4-013 | End comp - R. TIE ROD | End comp - R. TIE ROD |
| 17 | 53546-SA0-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 18 | 53560-SV4-013 | End comp - L. TIE ROD | End comp - L. TIE ROD |
| 20 | 53685-SV4-A00 | Bush - STEERING GEAR BOX MOUNTING | Bush - STEERING GEAR BOX MOUNTING |
| 21 | 53686-SL5-000 | Collar - GEAR BOX MOUNTING | Collar - GEAR BOX MOUNTING |
| 22 | 90108-SH3-003 | Bolt - GEAR BOX MOUNTING (10X55) | Bolt - GEAR BOX MOUNTING (10X55) |
| 23 | 90320-SF1-000 | Nut - CASTLE, 10MM | Nut - CASTLE, 10MM |
| 24 | 90683-SF1-003 | Circlip - FR. UPPER (MUSASHI) | Circlip - FR. UPPER (MUSASHI) |
Power steering gear box components (RH) 21 / 30
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 06531-SV4-000 | Seal kit a - POWER STEERING (ROTARY VALVE) | Seal kit a - POWER STEERING (ROTARY VALVE) |
| 2 | 06532-ST0-000 | Oil seal set - ROTARY VALVE | Oil seal set - ROTARY VALVE |
| 3 | 06534-ST0-010 | Seal set - POWER STEERING VALVE (ROTARY VALVE) | Seal set - POWER STEERING VALVE (ROTARY VALVE) |
| 4 | 06535-ST0-000 | Ring set - POWER STEERING SEAL (ROTARY VALVE) | Ring set - POWER STEERING SEAL (ROTARY VALVE) |
| 5 | 06536-ST0-000 | Shim set - 32MM | Shim set - 32MM |
| 6 | 53412-634-000 | O-ring - RACK GUIDE (YAMADA) | O-ring - RACK GUIDE (YAMADA) |
| 8 | 53414-634-010 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 9 | 53416-ST0-003 | Guide - STEERING RACK | Guide - STEERING RACK |
| 10 | 53449-SL0-A00 | Band b - BELLOWS | Band b - BELLOWS |
| 10 | 53449-S04-J51 | Band b - BELLOWS | Band b - BELLOWS |
| 11 | 53458-SE0-003 | Nut - RACK SCREW LOCK | Nut - RACK SCREW LOCK |
| 11 | 53458-S01-A51 | Nut - LOCK | Nut - LOCK |
| 12 | 53536-SB2-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 15 | 53630-SV4-000 | End comp - CYLINDER | End comp - CYLINDER |
| 19 | 53661-ST0-000 | Ring - BACK UP VALVE | Ring - BACK UP VALVE |
| 20 | 53666-ST0-003 | O-ring - 41.5X2 (NOK) | O-ring - 41.5X2 (NOK) |
| 20 | 53666-SV4-004 | O-ring - 41.5X2 (ARAI) | O-ring - 41.5X2 (ARAI) |
| 23 | 53672-ST0-000 | Shim a - 32MM (0.10MM) | Shim a - 32MM (0.10MM) |
| 24 | 53673-ST0-000 | Shim b - 32MM (0.15MM) | Shim b - 32MM (0.15MM) |
| 25 | 53674-ST0-000 | Shim c - 32MM (0.20MM) | Shim c - 32MM (0.20MM) |
| 26 | 53675-ST0-000 | Shim d - 32MM (0.25MM) | Shim d - 32MM (0.25MM) |
Power steering lines (RH) 16 / 25
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 2 | 53701-SV4-003 | Tank comp. - POWER STEERING OIL | Tank comp. - POWER STEERING OIL |
| 3 | 53711-SV4-J60 | Bracket - OIL TANK | Bracket - OIL TANK |
| 8 | 53729-SS0-003 | Clip - RETURN HOSE | Clip - RETURN HOSE |
| 11 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 13 | 53731-SV4-000 | Tube - SUCTION | Tube - SUCTION |
| 14 | 53732-SV4-000 | Hose - OIL COOLER | Hose - OIL COOLER |
| 15 | 53733-SV4-000 | Hose - OIL TANK | Hose - OIL TANK |
| 18 | 53736-SM4-010 | Holder b - POWER STEERING PIPE | Holder b - POWER STEERING PIPE |
| 21 | 56490-P0H-013 | Switch assy - POWER STEERING PRESSURE (TEXAS) | Switch assy - POWER STEERING PRESSURE (TEXAS) |
| 22 | 90188-SM4-000 | Bolt - FLANGE, 6X12 (BLACK) | Bolt - FLANGE, 6X12 (BLACK) |
| 23 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 23 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 24 | 91304-P0H-013 | O-ring - 7.8X1.9 | O-ring - 7.8X1.9 |
| 25 | 91370-SV4-000 | O-ring - 14.4X1.9 | O-ring - 14.4X1.9 |
| 26 | 91405-SS0-003 | Clamp - TUBE (D21) | Clamp - TUBE (D21) |
Power steering pump 16 / 18
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 56110-P0A-013 | Pump sub assy - POWER STEERING | Pump sub assy - POWER STEERING |
| 2 | 56167-PY3-000 | Spacer - PUMP SEAL | Spacer - PUMP SEAL |
| 3 | 56483-P0A-003 | Pulley comp - POWER STEERING PUMP | Pulley comp - POWER STEERING PUMP |
| 5 | 90305-P0A-003 | Nut - POWER STEERING PULLEY | Nut - POWER STEERING PULLEY |
| 6 | 91021-148-004 | Bearing - NEEDLE, 1010(NTN) | Bearing - NEEDLE, 1010(NTN) |
| 7 | 91048-PY3-003 | Bearing - RADIAL BALL, 15X38X12 | Bearing - RADIAL BALL, 15X38X12 |
| 8 | 91148-PY3-003 | Roller - 5X26.8 | Roller - 5X26.8 |
| 9 | 91149-PY3-003 | Roller - 4.5X49.8 | Roller - 4.5X49.8 |
| 10 | 91249-PY3-003 | Seal - POWER STEERING PUMP (NOK) | Seal - POWER STEERING PUMP (NOK) |
| 10 | 91249-P02-003 | Seal - POWER STEERING PUMP | Seal - POWER STEERING PUMP |
| 11 | 91317-P02-003 | O-ring - 5.8X1.9 (NOK) | O-ring - 5.8X1.9 (NOK) |
| 12 | 91345-PY3-000 | O-ring - 13.0X1.9 | O-ring - 13.0X1.9 |
| 13 | 91346-PY3-000 | O-ring - 22.1X1.9 | O-ring - 22.1X1.9 |
| 14 | 91347-PY3-000 | O-ring - 16.8X1.9 | O-ring - 16.8X1.9 |
| 15 | 91348-PY3-000 | O-ring - 54.0X1.9 | O-ring - 54.0X1.9 |
| 16 | 91349-PY3-000 | O-ring - 68.5X1.9 | O-ring - 68.5X1.9 |
Power steering pump bracket 5 / 7
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 6 | 56995-P0A-000 | Bolt - POWER STEERING PUMP ADJUSTING | Bolt - POWER STEERING PUMP ADJUSTING |
| 7 | 56996-P0A-000 | Bolt - SPECIAL, 8X62 | Bolt - SPECIAL, 8X62 |
| 8 | 56998-P0A-000 | Stay - POWER STEERING PUMP ADJUSTER | Stay - POWER STEERING PUMP ADJUSTER |
| 9 | 90091-P0A-000 | Bolt - POWER STEERING PUMP ADJUSTING | Bolt - POWER STEERING PUMP ADJUSTING |
| 10 | 90202-P0A-A01 | Nut-washer - 8MM | Nut-washer - 8MM |
Protector 16 / 20
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 71800-SV4-000 | Garnish assy - R. SIDE SILL | Garnish assy - R. SIDE SILL |
| 1 | 71800-SV4-305 | GARN ASSY R SIDE | GARN ASSY R SIDE |
| 2 | 71850-SV4-000 | Garnish assy - L. SIDE SILL | Garnish assy - L. SIDE SILL |
| 2 | 71850-SV4-305 | Garnish assy | Garnish assy |
| 5 | 74559-SV4-000 | Cover - FUEL PIPE | Cover - FUEL PIPE |
| 12 | 75329-SH4-013 | Clip b - MOLDING | Clip b - MOLDING |
| 14 | 75807-671-010 | Nut - SIDE PROTECTOR (BLACK) | Nut - SIDE PROTECTOR (BLACK) |
| 18 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 18 | 90114-SE0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 19 | 90303-SA5-003 | Nut - FR. COMBINATION LIGHT | Nut - FR. COMBINATION LIGHT |
| 21 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 22 | 90505-SM4-003 | Clip - GARNISH | Clip - GARNISH |
| 22 | 90505-SX0-003 | Clip - GARNISH | Clip - GARNISH |
| 23 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 24 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 25 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
R. side cover (2) 26 / 32
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 21240-PX4-050 | Cover comp. - R. SIDE | Cover comp. - R. SIDE |
| 3 | 22713-PX4-000 | Guide a - FEED PIPE | Guide a - FEED PIPE |
| 4 | 22715-P0Z-000 | Pipe comp. b - FEED | Pipe comp. b - FEED |
| 5 | 22720-PX4-000 | Pipe comp. c - FEED | Pipe comp. c - FEED |
| 6 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 7 | 24532-PX4-000 | Lever - PARKING BRAKE | Lever - PARKING BRAKE |
| 8 | 24535-P0X-000 | Spring - PARKING BRAKE | Spring - PARKING BRAKE |
| 9 | 24538-PA9-003 | Stopper - PARKING BRAKE (2) | Stopper - PARKING BRAKE (2) |
| 9 | 24537-PA9-003 | Stopper - PARKING BRAKE (1) | Stopper - PARKING BRAKE (1) |
| 9 | 24539-PA9-003 | Stopper - PARKING BRAKE (3) | Stopper - PARKING BRAKE (3) |
| 10 | 24552-PX4-000 | Spring - PARKING PAWL | Spring - PARKING PAWL |
| 11 | 24553-PN6-000 | Roller - PARKING BRAKE | Roller - PARKING BRAKE |
| 12 | 24555-PN6-000 | Pin - ROLLER, 6MM | Pin - ROLLER, 6MM |
| 13 | 24561-P0X-000 | Pawl - PARKING BRAKE | Pawl - PARKING BRAKE |
| 14 | 24562-PX4-000 | Shaft - PARKING | Shaft - PARKING |
| 15 | 28810-P0X-004 | Pick up assy. - MAIN (TEC) | Pick up assy. - MAIN (TEC) |
| 17 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 18 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 19 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 20 | 90602-PX4-000 | Circlip b - INTERNAL, 47MM | Circlip b - INTERNAL, 47MM |
| 21 | 90701-639-000 | Dowel pin - 8X55 | Dowel pin - 8X55 |
| 22 | 91301-PC9-003 | O-ring - 7.7X2.3 (ARAI) | O-ring - 7.7X2.3 (ARAI) |
| 23 | 91305-PX4-003 | O-ring - 40X1.9 (NOK) | O-ring - 40X1.9 (NOK) |
| 24 | 91309-PX4-003 | O-ring - 16X2.1 (NOK) | O-ring - 16X2.1 (NOK) |
| 25 | 91311-PA9-004 | O-ring - 7.7X1.9 (NOK) | O-ring - 7.7X1.9 (NOK) |
| 26 | 91558-SE3-003 | Clip - HOOD WIRE | Clip - HOOD WIRE |
Radiator (DENSO) 15 / 17
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 4 | 19015-P0A-003 | Shroud comp - DENSO | Shroud comp - DENSO |
| 5 | 19020-PT0-003 | Fan - COOLING (DENSO) | Fan - COOLING (DENSO) |
| 6 | 19030-PT0-003 | Motor - COOLING FAN (DENSO) | Motor - COOLING FAN (DENSO) |
| 7 | 19033-P0A-003 | Stay - COUPLER | Stay - COUPLER |
| 8 | 19045-P08-013 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 8 | 19045-PAA-A01 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 10 | 19046-PV1-000 | Seal - CAP | Seal - CAP |
| 11 | 80491-SV4-A00 | Bracket - AIR CONDITIONER RELAY | Bracket - AIR CONDITIONER RELAY |
| 12 | 90003-PG7-660 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 13 | 90041-P08-003 | Screw-washer - 4X11 | Screw-washer - 4X11 |
| 14 | 90042-PH2-003 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 14 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 15 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
Radiator (TOYO) 3 / 19
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 11 | 19046-PV1-000 | Seal - CAP | Seal - CAP |
| 12 | 80491-SV4-A00 | Bracket - AIR CONDITIONER RELAY | Bracket - AIR CONDITIONER RELAY |
| 13 | 90003-PG7-660 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
Radiator hose 24 / 27
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 19025-P0A-000 | Seal - R. RADIATOR SIDE | Seal - R. RADIATOR SIDE |
| 2 | 19101-P0A-000 | Tank - RESERVE | Tank - RESERVE |
| 3 | 19102-PM5-A00 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 4 | 19103-P0A-000 | Hose - RESERVE TANK | Hose - RESERVE TANK |
| 5 | 19104-P0A-000 | Hose - OVERFLOW | Hose - OVERFLOW |
| 6 | 19106-PM3-000 | Joint - RESERVE TANK | Joint - RESERVE TANK |
| 8 | 19501-P0A-000 | Hose - WATER UPPER | Hose - WATER UPPER |
| 10 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 11 | 19511-PT0-004 | Clip - WATER HOSE (36.5MM) (KEIHIN) | Clip - WATER HOSE (36.5MM) (KEIHIN) |
| 13 | 19519-P0A-900 | Clamp - LOWER HOSE | Clamp - LOWER HOSE |
| 14 | 24366-P0A-000 | Stay - THROTTLE CABLE CLAMP | Stay - THROTTLE CABLE CLAMP |
| 15 | 25210-P0A-000 | Pipe comp. c - OIL HOSE | Pipe comp. c - OIL HOSE |
| 16 | 25213-PT0-603 | Hose - OIL COOLER, 140MM (BRIDGESTONE) | Hose - OIL COOLER, 140MM (BRIDGESTONE) |
| 16 | 25213-PT0-305 | Hose - OIL COOLER, 140MM (BRIDGESTONE) | Hose - OIL COOLER, 140MM (BRIDGESTONE) |
| 17 | 25214-P0A-003 | Hose - ATF, 290MM | Hose - ATF, 290MM |
| 17 | 25214-P0A-305 | Hose - ATF, 290MM | Hose - ATF, 290MM |
| 18 | 25215-P0A-003 | Hose - ATF, 290MM | Hose - ATF, 290MM |
| 19 | 25216-PR3-000 | Clamp - ATF HOSE (BLACK) | Clamp - ATF HOSE (BLACK) |
| 20 | 36615-PJ5-003 | Clamp - TUBE, 4.5(NATURAL) | Clamp - TUBE, 4.5(NATURAL) |
| 23 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 24 | 90003-PG7-660 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 25 | 90635-PT0-802 | Clip, Oil Pipe | Clip, Oil Pipe |
| 25 | 90635-RV0-003 | CLIP, OIL PIPE | CLIP, OIL PIPE |
| 26 | 91564-SP0-003 | Clip - DOOR CHECKER COVER | Clip - DOOR CHECKER COVER |
Radio antenna/speaker 11 / 20
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 2 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 3 | 39112-SM4-000 | Bracket - FR. SPEAKER SEAL | Bracket - FR. SPEAKER SEAL |
| 11 | 39151-SV4-003 | Bracket | Bracket |
| 15 | 39156-SV4-003 | Insulator | Insulator |
| 18 | 39168-SV4-A01 | Cylinder | Cylinder |
| 20 | 39179-SV4-A02 | Tube comp | Tube comp |
| 23 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 24 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 26 | 91552-SF4-003 | Band - WIRE HARNESS (BROWN) (110MM) (WITH SEAL) | Band - WIRE HARNESS (BROWN) (110MM) (WITH SEAL) |
| 27 | 91570-SH3-003 | Band - WIRE HARNESS (NATURAL) | Band - WIRE HARNESS (NATURAL) |
| 29 | 90132-SV4-003 | Screw - ET, 5X16 | Screw - ET, 5X16 |
Rear beam/cross beam 7 / 11
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 50100-SV4-010 | Beam - CENTER | Beam - CENTER |
| 8 | 90166-SF1-010 | Bolt-washer - 10X21 | Bolt-washer - 10X21 |
| 9 | 90190-SM4-003 | Bolt - FLANGE, 12X108 | Bolt - FLANGE, 12X108 |
| 10 | 90191-SM4-003 | Bolt - FLANGE, 12X95 | Bolt - FLANGE, 12X95 |
| 11 | 90192-SM4-003 | Bolt - FLANGE, 12X139 | Bolt - FLANGE, 12X139 |
| 12 | 90506-SE0-000 | Washer - PLAIN, 12MM | Washer - PLAIN, 12MM |
| 13 | 91613-SE0-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
Rear brake (DISK) 36 / 49
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 01473-SV4-000 | Caliper set - RR. | Caliper set - RR. |
| 1 | 01473-SV4-010 | SET RR CALIPER | SET RR CALIPER |
| 3 | 42324-SB2-020 | Washer - HUB UNIT | Washer - HUB UNIT |
| 4 | 42326-SG0-000 | Cap - HUB UNIT | Cap - HUB UNIT |
| 6 | 43018-SV4-A00 | Caliper sub assy. - R. RR. | Caliper sub assy. - R. RR. |
| 7 | 43019-SV4-A00 | Caliper sub assy. - L. RR. | Caliper sub assy. - L. RR. |
| 8 | 43022-SV4-G00 | Pad set - RR. | Pad set - RR. |
| 10 | 43215-SM4-951 | Piston assy. | Piston assy. |
| 11 | 43223-SD2-932 | BEARING A | BEARING A |
| 12 | 43224-SD2-931 | Spring b - ADJUSTING | Spring b - ADJUSTING |
| 13 | 43224-SP0-003 | Shim - BRAKE PAD OUTER | Shim - BRAKE PAD OUTER |
| 14 | 43227-SG0-013 | Spring - PAD | Spring - PAD |
| 15 | 43228-SD2-933 | Shaft a | Shaft a |
| 16 | 43229-SD2-931 | Rod | Rod |
| 19 | 43235-SD2-931 | Pin a | Pin a |
| 20 | 43236-S04-003 | Spacer | Spacer |
| 21 | 43238-SF1-003 | Ring - RETAINING | Ring - RETAINING |
| 22 | 43241-SF1-003 | Guide - SPRING | Guide - SPRING |
| 23 | 43243-SD2-931 | Nut - PARKING | Nut - PARKING |
| 24 | 43244-SG0-003 | Retainer | Retainer |
| 25 | 43245-SM4-950 | Lever | Lever |
| 26 | 43246-SE0-931 | Spring - R. RETURN | Spring - R. RETURN |
| 27 | 43247-SM4-951 | Arm - R. | Arm - R. |
| 28 | 43248-SD2-933 | Shaft b | Shaft b |
| 29 | 43249-S04-003 | Bolt - ADJUSTER | Bolt - ADJUSTER |
| 32 | 43255-SM4-954 | Protector - R. RR. CALIPER | Protector - R. RR. CALIPER |
| 33 | 43256-SM4-954 | Protector - L. RR. CALIPER | Protector - L. RR. CALIPER |
| 34 | 43262-S04-003 | Pin b | Pin b |
| 35 | 43266-SE0-931 | Spring - L. RETURN | Spring - L. RETURN |
| 36 | 43267-SM4-951 | Arm - L. | Arm - L. |
| 37 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 38 | 43353-SA0-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 38 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 39 | 45240-SC2-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 40 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 41 | 90305-692-010 | Nut | Nut |
Rear door lining 10 / 14
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 34295-SA5-003 | Bulb - 12V 3.4W) (DAIICHI | Bulb - 12V 3.4W) (DAIICHI |
| 4 | 72835-SV4-003 | Weatherstrip - R. RR. DOOR INNER | Weatherstrip - R. RR. DOOR INNER |
| 5 | 72875-SV4-003 | Weatherstrip - L. RR. DOOR INNER | Weatherstrip - L. RR. DOOR INNER |
| 13 | 83709-SV4-A00 | Protector - R. RR. DOOR | Protector - R. RR. DOOR |
| 15 | 83759-SV4-A00 | Protector - L. RR. DOOR | Protector - L. RR. DOOR |
| 16 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 18 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 19 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 21 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 21 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Rear door locks 29 / 33
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 3 | 35765-SM3-003 | Switch assy - L. POWER WINDOW | Switch assy - L. POWER WINDOW |
| 5 | 72117-SV4-A01 | Protector - R. DOOR LOCK | Protector - R. DOOR LOCK |
| 8 | 72135-SR3-003 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 11 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 11 | 72616-SM4-003 | Snap - NATURAL | Snap - NATURAL |
| 13 | 72157-SV4-A01 | Protector - L. DOOR LOCK | Protector - L. DOOR LOCK |
| 14 | 72175-SH3-901 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 15 | 72610-SV4-013 | Lock assy - R. RR. DOOR (###) | Lock assy - R. RR. DOOR (###) |
| 16 | 72615-SV4-013 | Actuator assy - R. RR. DOOR LOCK | Actuator assy - R. RR. DOOR LOCK |
| 18 | 72630-SM4-003 | Crank assy - RR. DOOR LOCK | Crank assy - RR. DOOR LOCK |
| 19 | 72631-SV4-003 | Rod - R. RR. INSIDE HANDLE | Rod - R. RR. INSIDE HANDLE |
| 20 | 72632-SV4-003 | Rod - R. RR. DOOR LOCK | Rod - R. RR. DOOR LOCK |
| 21 | 72633-SV4-003 | Rod - RR. DOOR LOCK KNOB | Rod - RR. DOOR LOCK KNOB |
| 22 | 72634-SM4-003 | Snap - R. (BLUE) | Snap - R. (BLUE) |
| 23 | 72639-SV4-A00 | Protector - R. RR. DOOR ROD | Protector - R. RR. DOOR ROD |
| 25 | 72650-SV4-013 | Lock assy - L. RR. DOOR | Lock assy - L. RR. DOOR |
| 26 | 72655-SV4-013 | Actuator assy - L. RR. DOOR LOCK | Actuator assy - L. RR. DOOR LOCK |
| 28 | 72671-SV4-003 | Rod - L. RR. INSIDE HANDLE | Rod - L. RR. INSIDE HANDLE |
| 29 | 72672-SV4-003 | Rod - L. RR. DOOR LOCK | Rod - L. RR. DOOR LOCK |
| 30 | 72674-SM4-003 | Snap - L. (BROWN) | Snap - L. (BROWN) |
| 31 | 72679-SV4-A00 | Protector - L. RR. DOOR ROD | Protector - L. RR. DOOR ROD |
| 33 | 75522-634-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 33 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 34 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 35 | 90101-SR4-003 | Screw - 3X10 | Screw - 3X10 |
| 36 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 37 | 90668-SA5-003 | Grommet - SCREW, 6MM | Grommet - SCREW, 6MM |
| 38 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
Rear door panels 14 / 17
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 13 | 70562-679-000 | Seal - BACK PANEL HOLE | Seal - BACK PANEL HOLE |
| 14 | 72810-SV4-013 | Weatherstrip - R. RR. DOOR (NISHIKAWA) | Weatherstrip - R. RR. DOOR (NISHIKAWA) |
| 16 | 72825-SV4-013 | Sub seal - R. RR. DOOR | Sub seal - R. RR. DOOR |
| 18 | 72850-SV4-013 | Weatherstrip - L. RR. DOOR (NISHIKAWA) | Weatherstrip - L. RR. DOOR (NISHIKAWA) |
| 20 | 72865-SV4-013 | Sub seal - L. RR. DOOR | Sub seal - L. RR. DOOR |
| 21 | 75760-SB2-003 | Pin - DOOR CHECKER | Pin - DOOR CHECKER |
| 22 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 23 | 90101-SE3-003 | Bolt-washer - 8X23.5 | Bolt-washer - 8X23.5 |
| 24 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 25 | 91568-SR2-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 25 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 26 | 91588-SV4-004 | Clip - DOOR WEATHERSTRIP (B) | Clip - DOOR WEATHERSTRIP (B) |
| 27 | 91590-SV4-003 | Clip - SUB SEAL (A) | Clip - SUB SEAL (A) |
| 28 | 91657-SP0-000 | Seal c - DOOR PANEL HOLE (25MM) | Seal c - DOOR PANEL HOLE (25MM) |
Rear door windows 9 / 13
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 72710-SV4-003 | Regulator assy - R. RR. DOOR POWER | Regulator assy - R. RR. DOOR POWER |
| 2 | 72730-SV4-003 | Sash - R. RR. DOOR CENTER LOWER | Sash - R. RR. DOOR CENTER LOWER |
| 3 | 72731-SV4-003 | Sash - R. RR. DOOR LOWER | Sash - R. RR. DOOR LOWER |
| 4 | 72735-SV4-013 | Runchannel - R. RR. DOOR | Runchannel - R. RR. DOOR |
| 5 | 72739-SV4-010 | Runchannel - RR. DOOR LOWER | Runchannel - RR. DOOR LOWER |
| 6 | 72750-SV4-003 | Regulator assy - L. RR. DOOR POWER | Regulator assy - L. RR. DOOR POWER |
| 7 | 72770-SV4-003 | Sash - L. RR. DOOR CENTER LOWER | Sash - L. RR. DOOR CENTER LOWER |
| 8 | 72771-SV4-003 | Sash - L. RR. DOOR LOWER | Sash - L. RR. DOOR LOWER |
| 9 | 72775-SV4-013 | Runchannel - L. RR. DOOR | Runchannel - L. RR. DOOR |
Rear seat (2) 3 / 10
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 13 | 90003-692-000 | Bolt - FLANGE, 6X16 | Bolt - FLANGE, 6X16 |
Rear shock absorber 12 / 18
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 5 | 52621-SB2-004 | Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 6 | 52675-SM4-004 | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 7 | 52686-SM4-004 | Rubber - RR. SPRING SEAT (SHOWA) | Rubber - RR. SPRING SEAT (SHOWA) |
| 8 | 52687-SM4-004 | Cover comp. - RR. SLEEVE DUST (SHOWA) | Cover comp. - RR. SLEEVE DUST (SHOWA) |
| 9 | 52688-SE0-003 | Plate - RR. BUMP STOP | Plate - RR. BUMP STOP |
| 10 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 11 | 52722-SM4-013 | Rubber - BUMPER STOPPER (POLYURETHAN KASEI) | Rubber - BUMPER STOPPER (POLYURETHAN KASEI) |
| 12 | 52725-SS0-004 | Rubber - RR. SHOCK ABSORBER | Rubber - RR. SHOCK ABSORBER |
| 13 | 52728-SB2-004 | Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA) | Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA) |
| 14 | 52748-SM4-014 | Rubber - SPRING SEAT (SHOWA) | Rubber - SPRING SEAT (SHOWA) |
| 15 | 90021-SM4-003 | Bolt - SHOCK ABSORBER, 10X68 | Bolt - SHOCK ABSORBER, 10X68 |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Rear stabilizer/ rear lower arm 42 / 61
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 51464-S04-013 | Boot, UPPER BALL JOINT | Boot, UPPER BALL JOINT |
| 2 | 52111-SV4-C90 | Knuckle comp - R. RR. (DISK) | Knuckle comp - R. RR. (DISK) |
| 3 | 52116-SV4-C90 | Knuckle comp - L. RR. (DISK) | Knuckle comp - L. RR. (DISK) |
| 4 | 52212-SM4-910 | Bracket a - R. RR. KNUCKLE (DISK) | Bracket a - R. RR. KNUCKLE (DISK) |
| 5 | 52213-SM4-010 | Protector - RR. KNUCKLE | Protector - RR. KNUCKLE |
| 6 | 52214-SM4-000 | Bracket b - RR. KNUCKLE | Bracket b - RR. KNUCKLE |
| 7 | 52217-SM4-910 | Bracket a - L. RR. KNUCKLE (DISK) | Bracket a - L. RR. KNUCKLE (DISK) |
| 11 | 52309-SE0-000 | Washer - RR. STABILIZER END | Washer - RR. STABILIZER END |
| 12 | 52310-SE0-003 | Shaft - STABILIZER LINK | Shaft - STABILIZER LINK |
| 13 | 52312-SE0-000 | Collar - STABILIZER INNER BUSH END | Collar - STABILIZER INNER BUSH END |
| 15 | 52316-SA5-000 | Bush - STABILIZER END | Bush - STABILIZER END |
| 18 | 52319-SL5-010 | Plate - RR. STABILIZER BRACKET | Plate - RR. STABILIZER BRACKET |
| 19 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 24 | 52364-634-020 | Washer - LOWER ARM | Washer - LOWER ARM |
| 25 | 52366-SL4-003 | Bolt - KNUCKLE (12X251) | Bolt - KNUCKLE (12X251) |
| 26 | 52371-SM4-A01 | Arm assy. - R. RR. TRAILING | Arm assy. - R. RR. TRAILING |
| 28 | 52387-SE0-023 | Bolt - LOWER ARM ADJUSTING | Bolt - LOWER ARM ADJUSTING |
| 29 | 52388-SE0-030 | Plate - CAM | Plate - CAM |
| 33 | 52622-SM4-003 | Bush - RR. SHOCK ABSORBER LOWER (HOKUSHIN) | Bush - RR. SHOCK ABSORBER LOWER (HOKUSHIN) |
| 33 | 52622-SM4-014 | Bush - RR. SHOCK ABSORBER LOWER (YAMASHITA) | Bush - RR. SHOCK ABSORBER LOWER (YAMASHITA) |
| 34 | 52677-SM4-000 | Bracket - R. RR. TRAILING ARM | Bracket - R. RR. TRAILING ARM |
| 35 | 52678-SM4-000 | Bracket - L. RR. TRAILING ARM | Bracket - L. RR. TRAILING ARM |
| 36 | 57452-SV4-950 | Bracket - COUPLER | Bracket - COUPLER |
| 37 | 57470-SV4-950 | Sensor assy - R. RR. | Sensor assy - R. RR. |
| 38 | 57475-SV4-950 | Sensor assy - L. RR. | Sensor assy - L. RR. |
| 39 | 90118-SL4-003 | Bolt - SELF-LOCK, 12X84 | Bolt - SELF-LOCK, 12X84 |
| 40 | 90022-SM4-003 | Bolt - TRAILING ARM BRACKET, 12X69 | Bolt - TRAILING ARM BRACKET, 12X69 |
| 41 | 90023-SM4-003 | Bolt - TRAILING ARM BRACKET, 12X55.5 | Bolt - TRAILING ARM BRACKET, 12X55.5 |
| 42 | 90024-SM4-000 | Bolt a - TRAILING ARM (10X57) | Bolt a - TRAILING ARM (10X57) |
| 44 | 90026-SM4-000 | Bolt b - TRAILING ARM (10X45) | Bolt b - TRAILING ARM (10X45) |
| 45 | 90028-SM4-000 | Bolt - TRAILING, 8X19 | Bolt - TRAILING, 8X19 |
| 46 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 47 | 90119-SV4-003 | Bolt - RR. LOWER ARM, 12X66 | Bolt - RR. LOWER ARM, 12X66 |
| 49 | 90212-SA7-010 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 50 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 51 | 90216-SE0-010 | Nut | Nut |
| 51 | 90216-SE0-305 | NUT, LWR ARM | NUT, LWR ARM |
| 52 | 90217-SM4-003 | Nut - TRAILING ARM, 10MM | Nut - TRAILING ARM, 10MM |
| 53 | 90230-SB0-950 | Bolt-washer - 6X12 (GREEN) | Bolt-washer - 6X12 (GREEN) |
| 54 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 55 | 90438-SE0-000 | Washer - TRAILING, 12MM | Washer - TRAILING, 12MM |
| 56 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
Rear tray/side lining 2 / 3
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 17 | 90133-SJ6-020 | Screw-washer - 4X12 (PO) | Screw-washer - 4X12 (PO) |
| 20 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
Rear windshield 8 / 10
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 2 | 73220-SV4-013 | Cover - RR. WINDSHIELD LOWER | Cover - RR. WINDSHIELD LOWER |
| 3 | 73221-SR4-000 | Spacer - RR. WINDSHIELD | Spacer - RR. WINDSHIELD |
| 4 | 73221-SV4-000 | Spacer - RR. WINDSHIELD | Spacer - RR. WINDSHIELD |
| 7 | 73250-SV4-023 | Molding - RR. WINDSHIELD | Molding - RR. WINDSHIELD |
| 8 | 90675-SR4-003 | Grommet - RR. WINDSHIELD MOLDING | Grommet - RR. WINDSHIELD MOLDING |
| 9 | 90676-SR4-003 | Pin - RR. WINDSHIELD MOLDING | Pin - RR. WINDSHIELD MOLDING |
| 10 | 91563-SV4-003 | Fastener a - RR. WINDSHIELD | Fastener a - RR. WINDSHIELD |
| 11 | 91568-SV4-003 | Fastener b - RR. WINDSHIELD | Fastener b - RR. WINDSHIELD |
Regulator 14 / 14
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 25155-PX4-000 | Shaft assy - STATOR | Shaft assy - STATOR |
| 2 | 27122-PX4-000 | Cap - SHIFT VALVE (1-2) | Cap - SHIFT VALVE (1-2) |
| 3 | 27200-P0X-900 | Regulator assy | Regulator assy |
| 4 | 27246-PN6-800 | Cap - REGULATOR SPRING | Cap - REGULATOR SPRING |
| 5 | 27263-PX4-000 | Seat - RELIEF VALVE | Seat - RELIEF VALVE |
| 6 | 27493-PX4-000 | Stopper - THROTTLE CAM | Stopper - THROTTLE CAM |
| 7 | 27600-P0X-000 | Throttle Body Assy | Throttle Body Assy |
| 8 | 27612-P0X-010 | Plate - THROTTLE SEPARATING | Plate - THROTTLE SEPARATING |
| 9 | 27750-PL5-J01 | Filter - SECONDARY BODY | Filter - SECONDARY BODY |
| 11 | 90004-415-000 | Bolt - FLANGE, 6X14 | Bolt - FLANGE, 6X14 |
| 12 | 90089-PK4-000 | Bolt - STOPPER, 6MM | Bolt - STOPPER, 6MM |
| 13 | 90701-PK4-000 | Dowel pin - 8X80 | Dowel pin - 8X80 |
| 14 | 91101-PF4-003 | Roller - 3.5X21.8 | Roller - 3.5X21.8 |
| 15 | 91316-PF4-003 | O-ring - 31X1.7 (ARAI) | O-ring - 31X1.7 (ARAI) |
Resonator chamber 8 / 11
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 1 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17213-PV0-000 | Rubber - AIR CLEANER CASE MOUNTING | Rubber - AIR CLEANER CASE MOUNTING |
| 3 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 6 | 17244-P0A-000 | Rubber - AIR CLEANER SEAL | Rubber - AIR CLEANER SEAL |
| 7 | 17245-P0A-000 | Cover - AIR INTAKE | Cover - AIR INTAKE |
| 8 | 17246-P0A-A00 | Ring - SEAL | Ring - SEAL |
| 10 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
Roof lining (RH) 8 / 10
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 6 | 83202-SV4-305 | Tape set - INTERIOR CORD PLASTER (10 PIECES) (SERVICE) | Tape set - INTERIOR CORD PLASTER (10 PIECES) (SERVICE) |
| 13 | 83248-SG0-003 | Spacer - GRAB RAIL | Spacer - GRAB RAIL |
| 19 | 90132-SP0-003 | Screw - PAN, 5X15 | Screw - PAN, 5X15 |
| 20 | 90131-SP0-003 | Screw - FLAT, 5X20 | Screw - FLAT, 5X20 |
| 21 | 90133-SG0-003 | Bolt-washer - 5X30 | Bolt-washer - 5X30 |
| 23 | 90609-SM4-003 | Clip - ROOF LINING | Clip - ROOF LINING |
| 25 | 90673-SE0-003 | Clip - ROOF LINING | Clip - ROOF LINING |
| 26 | 91550-SM4-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
Roof slide components 1 / 26
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 27 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Seatbelts (3) 6 / 6
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 5 | 81491-SV4-000 | Protector - R. FR. SEATBELT | Protector - R. FR. SEATBELT |
| 8 | 81891-SV4-000 | Protector - L. FR. SEATBELT | Protector - L. FR. SEATBELT |
| 11 | 82491-SV4-000 | Protector - R. RR. SEATBELT | Protector - R. RR. SEATBELT |
| 14 | 82891-SV4-000 | Protector - L. RR. SEATBELT | Protector - L. RR. SEATBELT |
| 15 | 84136-SM4-A00 | Seal - SEATBELT HOLE | Seal - SEATBELT HOLE |
| 16 | 90301-SS0-000 | Nut - CLIP, 6MM | Nut - CLIP, 6MM |
Secondary body (2) 8 / 9
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 27122-PX4-000 | Cap - SHIFT VALVE (1-2) | Cap - SHIFT VALVE (1-2) |
| 2 | 27263-PA9-000 | Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM | Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM |
| 3 | 27642-PX4-000 | Sleeve - 12MM | Sleeve - 12MM |
| 4 | 27653-PF4-000 | Cap - CLUTCH PRESSURE CONTROL VALVE | Cap - CLUTCH PRESSURE CONTROL VALVE |
| 5 | 27700-P0X-000 | Body assy - SECONDARY | Body assy - SECONDARY |
| 7 | 27724-PF4-010 | Cap - KICK DOWN VALVE | Cap - KICK DOWN VALVE |
| 8 | 91101-PF4-003 | Roller - 3.5X21.8 | Roller - 3.5X21.8 |
| 9 | 91704-PF4-000 | Dowel pin - 8X40 | Dowel pin - 8X40 |
Secondary shaft 22 / 26
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 22814-P0X-003 | Ring - SEALING, 32MM | Ring - SEALING, 32MM |
| 2 | 23230-P0X-000 | Shaft comp. - SECONDARY | Shaft comp. - SECONDARY |
| 3 | 23411-P0X-000 | Gear - SECONDARY SHAFT LOW | Gear - SECONDARY SHAFT LOW |
| 5 | 23495-P0X-000 | Gear - SECONDARY IDLE | Gear - SECONDARY IDLE |
| 6 | 23929-PX4-700 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 7 | 90203-PX4-010 | Nut - FLANGE, 24MM | Nut - FLANGE, 24MM |
| 8 | 90414-PX4-700 | Washer - THRUST, 37X55X4.45 | Washer - THRUST, 37X55X4.45 |
| 8 | 90409-PX4-700 | Washer - THRUST, 37X55X4.20 | Washer - THRUST, 37X55X4.20 |
| 8 | 90411-PX4-700 | Washer - THRUST, 37X55X4.30 | Washer - THRUST, 37X55X4.30 |
| 8 | 90406-PX4-700 | Washer - THRUST, 37X55X4.05 | Washer - THRUST, 37X55X4.05 |
| 8 | 90413-PX4-700 | Washer - THRUST, 37X55X4.40 | Washer - THRUST, 37X55X4.40 |
| 8 | 90408-PX4-700 | Washer - THRUST, 37X55X4.15 | Washer - THRUST, 37X55X4.15 |
| 8 | 90410-PX4-700 | Washer - THRUST, 37X55X4.25 | Washer - THRUST, 37X55X4.25 |
| 8 | 90412-PX4-700 | Washer - THRUST, 37X55X4.35 | Washer - THRUST, 37X55X4.35 |
| 8 | 90407-PX4-700 | Washer - THRUST, 37X55X4.10 | Washer - THRUST, 37X55X4.10 |
| 9 | 90422-PX4-700 | Washer - THRUST, 27X54X4.40 | Washer - THRUST, 27X54X4.40 |
| 10 | 90431-PX4-700 | Cotter - 29MM | Cotter - 29MM |
| 11 | 90432-PX4-000 | Retainer - COTTER | Retainer - COTTER |
| 12 | 90503-PX4-000 | Collar - DISTANCE, 5MM | Collar - DISTANCE, 5MM |
| 16 | 91105-P0X-003 | Bearing - NEEDLE, 32X36X26 | Bearing - NEEDLE, 32X36X26 |
| 17 | 91305-PC9-003 | O-ring - 34X1.9 (ARAI) | O-ring - 34X1.9 (ARAI) |
| 18 | 91307-PA9-003 | O-ring 31.2X1.9 (ARAI) | O-ring 31.2X1.9 (ARAI) |
Select lever (RH) 23 / 35
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 3 | 37700-SM4-013 | Lamp assy. - INDICATOR (AT) | Lamp assy. - INDICATOR (AT) |
| 5 | 54022-SM4-981 | Extension - SHIFT LOCK | Extension - SHIFT LOCK |
| 7 | 54024-SM4-980 | Pin - SOLENOID | Pin - SOLENOID |
| 9 | 54031-SE0-J81 | Spring - SHIFT LOCK | Spring - SHIFT LOCK |
| 11 | 54117-692-980 | Spring - LOCK PIN | Spring - LOCK PIN |
| 12 | 54119-SV4-980 | Pin - LOCK | Pin - LOCK |
| 13 | 54120-SV4-980 | Spring assy - SELECT | Spring assy - SELECT |
| 17 | 54133-SA5-981 | Spring - PUSH KNOB | Spring - PUSH KNOB |
| 18 | 54137-SV4-980 | Rod - LOCK PIN | Rod - LOCK PIN |
| 19 | 54140-SV4-980 | Cap - LOCK PIN | Cap - LOCK PIN |
| 20 | 54141-SV4-980 | Bush - KNOB SETTING | Bush - KNOB SETTING |
| 21 | 54142-SA5-980 | Bush - GUIDE | Bush - GUIDE |
| 25 | 54222-SV4-981 | Cover - SELECT LEVER | Cover - SELECT LEVER |
| 27 | 54315-SV4-983 | Wire - CONTROL | Wire - CONTROL |
| 28 | 54341-SA0-980 | Boot - CONTROL WIRE | Boot - CONTROL WIRE |
| 29 | 54361-SV4-980 | Pipe - CONTROL WIRE ADJUSTING | Pipe - CONTROL WIRE ADJUSTING |
| 30 | 54363-689-981 | Pin - CONTROL WIRE ADJUSTER | Pin - CONTROL WIRE ADJUSTER |
| 32 | 90114-SA0-000 | Nut - SELF-LOCK, 6MM | Nut - SELF-LOCK, 6MM |
| 33 | 90130-SV4-980 | Screw - TAPPING, 5X11 | Screw - TAPPING, 5X11 |
| 34 | 90156-SM4-000 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 35 | 90438-671-000 | Washer - SPECIAL, 6MM | Washer - SPECIAL, 6MM |
| 36 | 91556-SP0-003 | Clip - COUPLER(BROWN) | Clip - COUPLER(BROWN) |
Servo body (2) 26 / 27
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 22744-PX4-000 | Pipe - TOP CLUTCH | Pipe - TOP CLUTCH |
| 2 | 24271-PX4-000 | Shaft - SHIFT FORK | Shaft - SHIFT FORK |
| 3 | 24278-PX4-000 | Base - SERVO DETENT | Base - SERVO DETENT |
| 4 | 24530-PN1-000 | Sleeve comp. - SERVO DETENT | Sleeve comp. - SERVO DETENT |
| 5 | 25420-PX4-701 | Strainer - TRANSMISSION (ATF) | Strainer - TRANSMISSION (ATF) |
| 7 | 27410-P0X-A00 | Body comp - SERVO | Body comp - SERVO |
| 8 | 27412-P0X-000 | Plate - SERVO SEPARATING | Plate - SERVO SEPARATING |
| 9 | 27551-PX4-000 | Piston - LOW HOLD ACCUMULATOR | Piston - LOW HOLD ACCUMULATOR |
| 10 | 27552-PX4-000 | Spring - LOW HOLD ACCUMULATOR | Spring - LOW HOLD ACCUMULATOR |
| 11 | 27574-PX4-800 | Piston - THIRD ACCUMULATOR | Piston - THIRD ACCUMULATOR |
| 12 | 27576-PX4-800 | Piston - TOP ACCUMULATOR | Piston - TOP ACCUMULATOR |
| 13 | 27577-PX4-800 | Spring - TOP ACCUMULATOR | Spring - TOP ACCUMULATOR |
| 14 | 27580-P0X-000 | Cover - TOP ACCUMULATOR | Cover - TOP ACCUMULATOR |
| 15 | 27583-P0X-900 | Spring - THIRD ACCUMULATOR | Spring - THIRD ACCUMULATOR |
| 16 | 27588-PX4-000 | Pipe - 8X60 | Pipe - 8X60 |
| 17 | 90004-PC9-000 | Bolt - FLANGE, 6X90 | Bolt - FLANGE, 6X90 |
| 18 | 90004-P0X-000 | Bolt - SPECIAL, 6X157 | Bolt - SPECIAL, 6X157 |
| 19 | 90019-PF4-000 | Bolt - FLANGE, 6X152 | Bolt - FLANGE, 6X152 |
| 20 | 91302-PS5-003 | O-ring - 33.6X2.2 | O-ring - 33.6X2.2 |
| 21 | 91308-PH0-013 | O-ring - 17.8X1.9 (NOK) | O-ring - 17.8X1.9 (NOK) |
| 22 | 91310-PA9-004 | O-ring - 35.2X2.4 (NOK) | O-ring - 35.2X2.4 (NOK) |
| 23 | 91321-PF4-004 | O-ring - 18.3X2.4(NOK) | O-ring - 18.3X2.4(NOK) |
| 24 | 91324-PF4-004 | O-ring - 28.3X2.4 (NOK) | O-ring - 28.3X2.4 (NOK) |
| 25 | 91331-PC9-003 | O-ring | O-ring |
| 26 | 91344-PC9-004 | O-ring - 29X2.4 (NOK) | O-ring - 29X2.4 (NOK) |
| 27 | 91344-580-000 | O-ring - 31X2.7 (ARAI) | O-ring - 31X2.7 (ARAI) |
Srs unit (6) 7 / 14
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 10 | 77963-SV4-A01 | Clip - SRS HARNESS (BLUE) (153MM) | Clip - SRS HARNESS (BLUE) (153MM) |
| 11 | 77982-S04-N81 | Holder - COUPLER (2P) | Holder - COUPLER (2P) |
| 13 | 90137-SG0-A81 | Bolt - TORX EARTH, 6X16 | Bolt - TORX EARTH, 6X16 |
| 14 | 90138-SL0-A81 | Bolt - TORX, 6X25 | Bolt - TORX, 6X25 |
| 15 | 91551-SW5-003 | Clip - HARNESS BAND (BROWN) (151MM) | Clip - HARNESS BAND (BROWN) (151MM) |
| 16 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Starter motor (MITSUBA) 13 / 13
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 31200-P0A-004 | Motor assy. - STARTER (SM-42202) (MITSUBA) | Motor assy. - STARTER (SM-42202) (MITSUBA) |
| 2 | 31202-P0G-A01 | Bolt - SETTING | Bolt - SETTING |
| 3 | 31204-P0A-004 | Gear assy - ### | Gear assy - ### |
| 4 | 31206-P0A-004 | Yoke assy - ### | Yoke assy - ### |
| 5 | 31207-P0G-A01 | Armature assy. - ### | Armature assy. - ### |
| 6 | 31208-P0G-A01 | Stay assy - BRUSH | Stay assy - BRUSH |
| 7 | 31210-P0A-004 | Switch assy - MAGNET | Switch assy - MAGNET |
| 8 | 31211-PC2-006 | Ring - SQUARE (MITSUBA) | Ring - SQUARE (MITSUBA) |
| 9 | 31217-PC2-006 | Screw-washer - 4X28 (MITSUBA) | Screw-washer - 4X28 (MITSUBA) |
| 10 | 31235-P0G-A01 | Cover - TERMINAL (###) | Cover - TERMINAL (###) |
| 11 | 31251-PJ7-904 | Tube - LABYRINTH (###) | Tube - LABYRINTH (###) |
| 12 | 31252-PD2-006 | Rubber - BUSH (MITSUBA) | Rubber - BUSH (MITSUBA) |
| 13 | 31292-P0A-004 | Stay assy - ENGINE WIRE HARNESS (###) | Stay assy - ENGINE WIRE HARNESS (###) |
Steering column 8 / 15
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 5 | 53217-SL4-N50 | Collar - STEERING RETAINER | Collar - STEERING RETAINER |
| 9 | 53325-SV4-000 | Clip A - JOINT COVER | Clip A - JOINT COVER |
| 10 | 53326-SB0-000 | Clip b - JOINT COVER | Clip b - JOINT COVER |
| 11 | 53371-SM4-013 | Spring - COLUMN HANGER | Spring - COLUMN HANGER |
| 12 | 77873-SP0-A80 | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH) | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH) |
| 13 | 90135-SB0-003 | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) |
| 15 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 16 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
Steering wheel (SRS) 7 / 14
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 6 | 77804-SP0-A80 | Label - DRIVER MODULE WARNING | Label - DRIVER MODULE WARNING |
| 7 | 77894-SP0-A80 | Label - DRIVER MODULE DANGER | Label - DRIVER MODULE DANGER |
| 9 | 78506-SM5-A81 | Plate - CONTACT (A) | Plate - CONTACT (A) |
| 10 | 78507-SM5-A81 | Plate - CONTACT (B) | Plate - CONTACT (B) |
| 11 | 78508-SM5-A81 | Spring - HORN | Spring - HORN |
| 16 | 78517-SM5-A81 | Plate - CRUISE SWITCH SET | Plate - CRUISE SWITCH SET |
| 22 | 90134-S04-A81 | Bolt - HEX., 6X12 | Bolt - HEX., 6X12 |
Switch (2) 3 / 10
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 5 | 35511-SM4-000 | Bulb - T3) (TEC | Bulb - T3) (TEC |
| 10 | 35850-SV4-981 | Bulb comp. - 14V 60MA | Bulb comp. - 14V 60MA |
| 11 | 35851-SB2-003 | Bulb - NEO WEDGE (14V 65MA) | Bulb - NEO WEDGE (14V 65MA) |
Taillight (2) 26 / 26
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 2 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 3 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
| 6 | 33304-SV4-A01 | Socket comp. | Socket comp. |
| 7 | 33501-SV2-G02 | Lamp unit - R. | Lamp unit - R. |
| 8 | 33502-SV2-E02 | Socket comp. - R. | Socket comp. - R. |
| 9 | 33503-SV4-A02 | Gasket - BASE | Gasket - BASE |
| 10 | 33551-SV2-G02 | Lamp unit - L. | Lamp unit - L. |
| 11 | 33552-SV2-E02 | Socket comp. - L. | Socket comp. - L. |
| 12 | 34100-SS0-Q02 | Light assy - LICENSE (###) | Light assy - LICENSE (###) |
| 13 | 34101-SS0-003 | Lens | Lens |
| 14 | 34102-SS0-003 | Housing comp | Housing comp |
| 14 | 34102-SS0-Q01 | Housing comp | Housing comp |
| 15 | 34103-SS0-003 | Seal - PACKING | Seal - PACKING |
| 16 | 34104-SE3-A01 | Screw - TAPPING, 4X20 | Screw - TAPPING, 4X20 |
| 17 | 34151-SV2-G01 | Lamp comp - R. | Lamp comp - R. |
| 18 | 34152-SV2-G01 | Socket comp. | Socket comp. |
| 19 | 34153-SV4-A01 | Gasket - R. BASE | Gasket - R. BASE |
| 20 | 34156-SV2-G01 | Lamp comp - L. | Lamp comp - L. |
| 21 | 34158-SV4-A01 | Gasket - L. BASE | Gasket - L. BASE |
| 22 | 34271-SV4-A01 | Reflector comp. - HIGH MOUNT STOP LIGHT | Reflector comp. - HIGH MOUNT STOP LIGHT |
| 27 | 34911-634-611 | Bulb - 12V 21/5W) (ECE) (STANLEY | Bulb - 12V 21/5W) (ECE) (STANLEY |
| 28 | 37540-SM4-003 | Sensor - STOP LAMP FAILURE | Sensor - STOP LAMP FAILURE |
| 29 | 90301-SE0-902 | Nut - SPECIAL, 5MM | Nut - SPECIAL, 5MM |
| 30 | 90521-SS0-003 | Grommet - SPECIAL SCREW (M4) (YELLOW) | Grommet - SPECIAL SCREW (M4) (YELLOW) |
| 31 | 90665-SS0-003 | Grommet - RR. COMBINATION | Grommet - RR. COMBINATION |
Throttle body (DOHC VTEC) 12 / 19
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 16016-PM6-005 | Screw set | Screw set |
| 2 | 16075-PE2-005 | O-ring - 31.2X1.9 | O-ring - 31.2X1.9 |
| 3 | 16075-P07-000 | O-ring | O-ring |
| 4 | 16076-P64-000 | O-ring | O-ring |
| 5 | 16077-P06-A00 | O-ring | O-ring |
| 6 | 16078-P06-A00 | O-ring - 15.8X1.9 | O-ring - 15.8X1.9 |
| 7 | 16080-P07-000 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 8 | 16176-P0A-004 | Gasket - THROTTLE BODY (NIPPON LEAKLESS) | Gasket - THROTTLE BODY (NIPPON LEAKLESS) |
| 9 | 16179-P06-A00 | Binder | Binder |
| 12 | 16500-P0A-A51 | Valve assy. - FAST IDLE (AF42D) | Valve assy. - FAST IDLE (AF42D) |
| 18 | 37830-P0G-S00 | Sensor set - MAP | Sensor set - MAP |
| 18 | 37830-PAA-S00 | Sensor set - MAP | Sensor set - MAP |
Tire/wheel disk 2 / 21
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 10 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 11 | 42767-SV1-B00 | Plate - SPARE TIRE CAUTION (T-TYPE) | Plate - SPARE TIRE CAUTION (T-TYPE) |
Torque converter housing 15 / 22
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 3 | 21514-PX4-000 | Stay - SOLENOID HARNESS | Stay - SOLENOID HARNESS |
| 4 | 23225-PF0-850 | Plate - OIL GUIDE | Plate - OIL GUIDE |
| 5 | 23235-PX4-000 | Plate - OIL GUIDE | Plate - OIL GUIDE |
| 10 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 11 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 12 | 90705-PA9-000 | Dowel pin - 14X25 | Dowel pin - 14X25 |
| 13 | 91001-PX4-003 | Bearing - BALL, 40X68X9 (NTN) | Bearing - BALL, 40X68X9 (NTN) |
| 14 | 91101-P0Y-005 | Bearing - RADIAL BALL, 31X60X17 (NSK) | Bearing - RADIAL BALL, 31X60X17 (NSK) |
| 15 | 91102-P0X-003 | Bearing - NEEDLE, 38.5X67X19 | Bearing - NEEDLE, 38.5X67X19 |
| 16 | 91205-P0X-005 | Oil seal - 40X56X9 (NOK) | Oil seal - 40X56X9 (NOK) |
| 16 | 91206-PG2-005 | Oil seal - 40X56X9 (NOK) | Oil seal - 40X56X9 (NOK) |
| 17 | 91207-P0X-003 | Oil seal - 44X68X8 (NOK) | Oil seal - 44X68X8 (NOK) |
| 17 | 91207-P0X-004 | Oil seal - 44X68X8 (ARAI) | Oil seal - 44X68X8 (ARAI) |
| 18 | 91209-612-000 | Oil seal - 12X22X7 | Oil seal - 12X22X7 |
| 18 | 91209-612-003 | Oil seal - 12X22X7 (ARAI) | Oil seal - 12X22X7 (ARAI) |
Transmission housing (2) 26 / 32
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 19108-PM0-003 | Clamp - RESERVE TANK TUBE (BLACK) | Clamp - RESERVE TANK TUBE (BLACK) |
| 3 | 21215-P0X-000 | Holder - IDLE SHAFT | Holder - IDLE SHAFT |
| 4 | 21232-P0X-000 | Hanger comp. - TRANSMISSION | Hanger comp. - TRANSMISSION |
| 5 | 21234-P0X-000 | Stay - HARNESS | Stay - HARNESS |
| 7 | 21322-P15-000 | Tube - BREATHER | Tube - BREATHER |
| 9 | 23542-P0X-000 | Shaft - REVERSE IDLE GEAR | Shaft - REVERSE IDLE GEAR |
| 10 | 24111-PX4-000 | Fork - REVERSE SHIFT | Fork - REVERSE SHIFT |
| 11 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 12 | 24410-P0X-000 | Shaft comp. - CONTROL | Shaft comp. - CONTROL |
| 14 | 24634-P0X-000 | Spring - DETENT ARM | Spring - DETENT ARM |
| 15 | 27490-PX4-010 | Shaft comp. - THROTTLE VALVE | Shaft comp. - THROTTLE VALVE |
| 16 | 27490-P60-000 | Stay assy - THROTTLE CABLE | Stay assy - THROTTLE CABLE |
| 18 | 90041-P15-000 | Bolt - STUD, 10X22 | Bolt - STUD, 10X22 |
| 19 | 90042-PX5-010 | Bolt - STUD, 10X50 | Bolt - STUD, 10X50 |
| 20 | 90081-PX4-003 | Bolt - PLUG, 18MM | Bolt - PLUG, 18MM |
| 21 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 22 | 90471-PX4-000 | Washer - DRAIN PLUG, 18MM | Washer - DRAIN PLUG, 18MM |
| 23 | 90607-081-000 | Circlip - 7MM | Circlip - 7MM |
| 24 | 90609-PX4-000 | Ring - SNAP, 80MM | Ring - SNAP, 80MM |
| 25 | 90615-PF4-000 | Ring - SNAP, 75MM | Ring - SNAP, 75MM |
| 26 | 91006-PX4-003 | Bearing - BALL, 63/32-27 | Bearing - BALL, 63/32-27 |
| 27 | 91007-P0X-003 | Bearing - RADIAL BALL, 27X75X12.7 | Bearing - RADIAL BALL, 27X75X12.7 |
| 28 | 91008-P0Y-005 | Bearing - RADIAL BALL, 29X80X18/20 (NSK) | Bearing - RADIAL BALL, 29X80X18/20 (NSK) |
| 30 | 91201-PA9-004 | Oil seal - 9X18X7 (ARAI) | Oil seal - 9X18X7 (ARAI) |
| 31 | 91206-PK4-003 | Oil seal - 40X66X8 (NOK) | Oil seal - 40X66X8 (NOK) |
| 32 | 91306-P0X-003 | O-ring - 8.1X4 (NOK) | O-ring - 8.1X4 (NOK) |
Trunk lid ('96/'97) 19 / 28
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 8 | 74815-SL5-305 | Garnish - TRUNK CYLINDER (CHROME PLATED) | Garnish - TRUNK CYLINDER (CHROME PLATED) |
| 9 | 74822-SW5-003 | Cushion - TRUNK HINGE | Cushion - TRUNK HINGE |
| 10 | 74826-SV4-000 | Protector - RR. COMBINATION | Protector - RR. COMBINATION |
| 11 | 74827-SP0-000 | Stopper - TRUNK LID | Stopper - TRUNK LID |
| 12 | 74829-SP0-000 | Stopper - TRUNK LOWER | Stopper - TRUNK LOWER |
| 15 | 74861-SS0-003 | Cylinder - TRUNK | Cylinder - TRUNK |
| 16 | 74862-SS0-003 | Striker - TRUNK | Striker - TRUNK |
| 17 | 74863-SV4-003 | Rod - TRUNK LOCK | Rod - TRUNK LOCK |
| 19 | 74865-SV4-010 | Weatherstrip - TRUNK LID | Weatherstrip - TRUNK LID |
| 28 | 74886-SH4-A03 | Cylinder - TRUNK REMOTE CONTROL | Cylinder - TRUNK REMOTE CONTROL |
| 30 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 31 | 90106-SE1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 32 | 90109-SM4-000 | Bolt - SPECIAL, 6X35 | Bolt - SPECIAL, 6X35 |
| 33 | 90301-693-000 | Nut - OPEN STAY, 6MM | Nut - OPEN STAY, 6MM |
| 34 | 90501-SS0-000 | Packing - SEAT | Packing - SEAT |
| 35 | 90521-SS0-003 | Grommet - SPECIAL SCREW (M4) (YELLOW) | Grommet - SPECIAL SCREW (M4) (YELLOW) |
| 37 | 90691-SF1-003 | Clip c - OPENER CABLE | Clip c - OPENER CABLE |
| 40 | 91516-SM4-013 | Clip - RR. COMBINATION PROTECTOR | Clip - RR. COMBINATION PROTECTOR |
Vacuum tank/tubing 5 / 14
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 17205-PC6-000 | Clamp - TUBE, 7.5X2 | Clamp - TUBE, 7.5X2 |
| 3 | 17400-P0B-A00 | Pipe a - INSTALL | Pipe a - INSTALL |
| 5 | 36138-PM1-G01 | Filter assy - SOLENOID VALVE | Filter assy - SOLENOID VALVE |
| 12 | 36366-PT2-003 | Clamp - TUBE, 7.5 (BLACK) | Clamp - TUBE, 7.5 (BLACK) |
| 14 | 90634-PA0-000 | Cap - SEALING | Cap - SEALING |
Valve/rocker arm (DOHC VTEC) 1 / 26
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 18 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
Water hose (DOHC VTEC) 2 / 12
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 11 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 11 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
Water pump/sensor (DOHC VTEC) 7 / 24
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 7 | 19313-PT0-000 | Packing - THERMOSTAT CASE | Packing - THERMOSTAT CASE |
| 10 | 19500-PT0-000 | Joint - TUBE | Joint - TUBE |
| 12 | 19516-PC1-000 | Bolt - BREATHING WATER | Bolt - BREATHING WATER |
| 14 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 17 | 90002-PD2-000 | Bolt - FLANGE, 8X16 | Bolt - FLANGE, 8X16 |
| 18 | 91307-PJ7-003 | O-ring - 9.5X1.5 (MATSUSHITA) | O-ring - 9.5X1.5 (MATSUSHITA) |
| 18 | 91307-PK2-005 | O-ring - 9.5X1.5(HONDA KIKAKI) | O-ring - 9.5X1.5(HONDA KIKAKI) |
Water valve 5 / 8
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 79710-SV4-003 | Valve assy. - WATER | Valve assy. - WATER |
| 3 | 79722-SV4-000 | Hose b - WATER IN. | Hose b - WATER IN. |
| 5 | 79731-SV4-000 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 6 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 6 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
Windshield washer 7 / 18
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 36062-671-000 | Clamp b - TUBE | Clamp b - TUBE |
| 2 | 38511-SD2-003 | Adapter - NOZZLE (MITSUBA) | Adapter - NOZZLE (MITSUBA) |
| 13 | 76830-SM4-003 | Joint y - WASHER | Joint y - WASHER |
| 16 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 17 | 91506-SS0-013 | Clip - WIRE & WASHER TUBE | Clip - WIRE & WASHER TUBE |
| 18 | 91512-SE0-003 | Clip - WASHER TUBE | Clip - WASHER TUBE |
| 19 | 91522-SM4-003 | Clip - TUBE & INSULATOR | Clip - TUBE & INSULATOR |
Wire harness (2) 26 / 43
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 7 | 32120-SV4-P10 | Harness - L. CABIN WIRE | Harness - L. CABIN WIRE |
| 8 | 32131-SV4-003 | Cap - COUPLER (CP 2P, 3P) | Cap - COUPLER (CP 2P, 3P) |
| 10 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 12 | 32146-SH3-003 | Connector - DIODE(2P) | Connector - DIODE(2P) |
| 17 | 32202-SV4-000 | Cord - RR. DEFROSTER | Cord - RR. DEFROSTER |
| 18 | 32312-SM4-013 | Holder - COUPLER | Holder - COUPLER |
| 21 | 32753-SV4-010 | Harness - R. RR. DOOR WIRE | Harness - R. RR. DOOR WIRE |
| 22 | 32754-SV4-010 | Harness - L. RR. DOOR WIRE | Harness - L. RR. DOOR WIRE |
| 23 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 24 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 25 | 90649-SC2-003 | Band - WIRE HARNESS (NATURAL) (150MM) | Band - WIRE HARNESS (NATURAL) (150MM) |
| 26 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 27 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 28 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 29 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 33 | 91550-SM4-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 34 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 35 | 91551-SW5-003 | Clip - HARNESS BAND (BROWN) (151MM) | Clip - HARNESS BAND (BROWN) (151MM) |
| 36 | 91552-SS0-003 | Clip - WIRE HARNESS (M5) (BROWN) (93.5MM) | Clip - WIRE HARNESS (M5) (BROWN) (93.5MM) |
| 38 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 39 | 91556-SM4-003 | Clip - BAND (BLACK) (100MM) | Clip - BAND (BLACK) (100MM) |
| 40 | 91559-SE3-003 | Clip - WIRE HARNESS (WHITE) (55MM) | Clip - WIRE HARNESS (WHITE) (55MM) |
| 41 | 91559-ST5-003 | Clip - HARNESS BAND OFFSET(30) (NATURAL) | Clip - HARNESS BAND OFFSET(30) (NATURAL) |
| 43 | 91571-S10-003 | Clip - WIRE HARNESS (NATURAL) (130MM) | Clip - WIRE HARNESS (NATURAL) (130MM) |
| 45 | 91587-SM4-003 | Clip - COUPLER (GRAY) | Clip - COUPLER (GRAY) |
| 46 | 91786-SR3-003 | Bar - JOINT (10P) | Bar - JOINT (10P) |
| # | OEM | CD6 | CE3 |
|---|---|---|---|
| 1 | 01463-SV4-000 | Caliper set - FR. | Caliper set - FR. |
| 1 | 01464-SV4-000 | Hose set - R. FR. BRAKE | Hose set - R. FR. BRAKE |
| 2 | 01465-SV4-000 | Hose set - L. FR. BRAKE | Hose set - L. FR. BRAKE |
| 3 | 01466-SW3-J00 | Hose set - RR. BRAKE (DOT NCRN - JAPAN -) | Hose set - RR. BRAKE (DOT NCRN - JAPAN -) |
| 1 | 01473-SV4-000 | Caliper set - RR. | Caliper set - RR. |
| 1 | 01473-SV4-010 | SET RR CALIPER | SET RR CALIPER |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 06531-SV4-000 | Seal kit a - POWER STEERING (ROTARY VALVE) | Seal kit a - POWER STEERING (ROTARY VALVE) |
| 2 | 06532-ST0-000 | Oil seal set - ROTARY VALVE | Oil seal set - ROTARY VALVE |
| 3 | 06534-ST0-010 | Seal set - POWER STEERING VALVE (ROTARY VALVE) | Seal set - POWER STEERING VALVE (ROTARY VALVE) |
| 4 | 06535-ST0-000 | Ring set - POWER STEERING SEAL (ROTARY VALVE) | Ring set - POWER STEERING SEAL (ROTARY VALVE) |
| 5 | 06536-ST0-000 | Shim set - 32MM | Shim set - 32MM |
| 3 | 11106-PT0-300 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 5 | 11107-PT0-000 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 7 | 11126-PK1-003 | Bolt - SEALING, 22MM | Bolt - SEALING, 22MM |
| 8 | 11130-PT0-010 | Bridge comp - BEARING CAP | Bridge comp - BEARING CAP |
| 9 | 11200-PT0-010 | Pan comp - OIL | Pan comp - OIL |
| 13 | 11251-P0A-000 | Packing comp. - OIL PAN | Packing comp. - OIL PAN |
| 19 | 12207-634-300 | Washer - SEALING BOLT | Washer - SEALING BOLT |
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 3 | 13014-P11-800 | Washer set - THRUST (DAIDO) | Washer set - THRUST (DAIDO) |
| 3 | 13014-P11-810 | Washer set - THRUST (TAIHO) | Washer set - THRUST (TAIHO) |
| 5 | 13112-PT0-000 | Pin - PISTON | Pin - PISTON |
| 11 | 13405-PT0-004 | Belt - BALANCER TIMING (UNITTA) | Belt - BALANCER TIMING (UNITTA) |
| 13 | 13415-P0A-000 | Bracket - BALANCER BELT ADJUSTER | Bracket - BALANCER BELT ADJUSTER |
| 20 | 13421-PT0-003 | Metal - BALANCER SHAFT (NO.1) (DAIDO) | Metal - BALANCER SHAFT (NO.1) (DAIDO) |
| 21 | 13422-PT0-013 | Metal - BALANCER SHAFT (NO.2) (DAIDO) | Metal - BALANCER SHAFT (NO.2) (DAIDO) |
| 22 | 13423-PT0-003 | Metal - BALANCER SHAFT (NO.3) (DAIDO) | Metal - BALANCER SHAFT (NO.3) (DAIDO) |
| 1 | 13500-PT0-J00 | Case set - GEAR | Case set - GEAR |
| 4 | 15114-PT0-003 | Packing b - OIL PUMP (ARAI) | Packing b - OIL PUMP (ARAI) |
| 11 | 15142-PH3-003 | O-ring - 10.8X2.4 (ARAI) | O-ring - 10.8X2.4 (ARAI) |
| 7 | 15221-P5K-004 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 7 | 15221-PT0-000 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 8 | 15231-PE0-000 | Valve - RELIEF | Valve - RELIEF |
| 9 | 15232-PG6-000 | Spring - RELIEF VALVE | Spring - RELIEF VALVE |
| 10 | 15233-PC6-000 | Bolt - SEALING, 18MM | Bolt - SEALING, 18MM |
| 12 | 15400-PR3-003 | Cartridge - OIL FILTER (TSUCHIYA) | Cartridge - OIL FILTER (TSUCHIYA) |
| 12 | 15400-PR3-405 | Cartridge - OIL FILTER (TOYO ROKI) | Cartridge - OIL FILTER (TOYO ROKI) |
| 13 | 15400-PR3-406 | Cartridge set - OIL FILTER (TOYO ROKI) | Cartridge set - OIL FILTER (TOYO ROKI) |
| 12 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 6 | 15610-P2A-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 7 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 1 | 16010-ST5-932 | Strainer set - FUEL (TOYO ROKI) | Strainer set - FUEL (TOYO ROKI) |
| 1 | 16016-PM6-005 | Screw set | Screw set |
| 25 | 16074-ZY3-000 | O-ring | O-ring |
| 3 | 16075-P07-000 | O-ring | O-ring |
| 2 | 16075-PE2-005 | O-ring - 31.2X1.9 | O-ring - 31.2X1.9 |
| 4 | 16076-P64-000 | O-ring | O-ring |
| 5 | 16077-P06-A00 | O-ring | O-ring |
| 6 | 16078-P06-A00 | O-ring - 15.8X1.9 | O-ring - 15.8X1.9 |
| 7 | 16080-P07-000 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 8 | 16176-P0A-004 | Gasket - THROTTLE BODY (NIPPON LEAKLESS) | Gasket - THROTTLE BODY (NIPPON LEAKLESS) |
| 9 | 16179-P06-A00 | Binder | Binder |
| 2 | 16472-P0H-A01 | Seal ring - INJECTOR (NOK) | Seal ring - INJECTOR (NOK) |
| 2 | 16472-PH7-003 | Seal ring - INJECTOR (OTSUKA) | Seal ring - INJECTOR (OTSUKA) |
| 3 | 16473-P10-A01 | Cushion ring - INJECTOR (NOK) | Cushion ring - INJECTOR (NOK) |
| 3 | 16473-PD6-000 | Cushion ring - INJECTOR (OTSUKA) | Cushion ring - INJECTOR (OTSUKA) |
| 12 | 16500-P0A-A51 | Valve assy. - FAST IDLE (AF42D) | Valve assy. - FAST IDLE (AF42D) |
| 9 | 16741-PG7-005 | O-ring - PRESSURE REGULATOR | O-ring - PRESSURE REGULATOR |
| 2 | 17130-PK1-003 | Valve assy. - PCV | Valve assy. - PCV |
| 1 | 17205-PC6-000 | Clamp - TUBE, 7.5X2 | Clamp - TUBE, 7.5X2 |
| 1 | 17211-P0A-000 | Cover comp. - AIR CLEANER | Cover comp. - AIR CLEANER |
| 3 | 17212-P0A-000 | Rubber - AIR CLEANER MOUNTING | Rubber - AIR CLEANER MOUNTING |
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 4 | 17213-PV0-000 | Rubber - AIR CLEANER CASE MOUNTING | Rubber - AIR CLEANER CASE MOUNTING |
| 5 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 6 | 17220-P0A-A00 | Element assy. - AIR CLEANER | Element assy. - AIR CLEANER |
| 7 | 17228-P0D-000 | Tube - AIR FLOW | Tube - AIR FLOW |
| 8 | 17241-P0A-000 | Case comp. - AIR CLEANER | Case comp. - AIR CLEANER |
| 6 | 17244-P0A-000 | Rubber - AIR CLEANER SEAL | Rubber - AIR CLEANER SEAL |
| 7 | 17245-P0A-000 | Cover - AIR INTAKE | Cover - AIR INTAKE |
| 8 | 17246-P0A-A00 | Ring - SEAL | Ring - SEAL |
| 13 | 17260-P0A-000 | Stay assy. a - AIR CLEANER | Stay assy. a - AIR CLEANER |
| 16 | 17262-P0B-A00 | Stay comp. b - AIR CLEANER | Stay comp. b - AIR CLEANER |
| 1 | 17290-PY3-901 | Valve assy. - VACUUM CONTROL | Valve assy. - VACUUM CONTROL |
| 22 | 17316-PH3-003 | Clamp - AIR FLOW TUBE (70) | Clamp - AIR FLOW TUBE (70) |
| 23 | 17316-PM8-A01 | Clamp - AIR FLOW TUBE (60) | Clamp - AIR FLOW TUBE (60) |
| 3 | 17371-SM4-A02 | Valve - TWO WAY (TEC) | Valve - TWO WAY (TEC) |
| 3 | 17400-P0B-A00 | Pipe a - INSTALL | Pipe a - INSTALL |
| 4 | 17500-SV4-931 | Tank comp. - FUEL | Tank comp. - FUEL |
| 5 | 17511-SM4-000 | Bracket - FUEL TANK BAND | Bracket - FUEL TANK BAND |
| 6 | 17521-SV4-000 | Band assy. - R. FUEL TANK MOUNTING | Band assy. - R. FUEL TANK MOUNTING |
| 7 | 17522-SV4-000 | Band assy. - L. FUEL TANK MOUNTING | Band assy. - L. FUEL TANK MOUNTING |
| 8 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 9 | 17570-SL0-013 | Valve - FUEL CUT | Valve - FUEL CUT |
| 10 | 17574-SE0-000 | Packing - BASE | Packing - BASE |
| 11 | 17651-SM4-000 | Tube - FILLER NECK | Tube - FILLER NECK |
| 12 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 13 | 17656-SM4-000 | Bolt - FILLER PIPE MOUNTING | Bolt - FILLER PIPE MOUNTING |
| 14 | 17658-SM4-000 | Tube assy - BREATHER (260MM) | Tube assy - BREATHER (260MM) |
| 15 | 17659-SM5-A00 | Holder - FILLER PACKING | Holder - FILLER PACKING |
| 16 | 17660-SV4-U00 | Pipe comp - FUEL FILLER | Pipe comp - FUEL FILLER |
| 17 | 17662-SL5-000 | Packing - FUEL FILLER PIPE | Packing - FUEL FILLER PIPE |
| 18 | 17663-SL5-A00 | Band - FILLER PACKING | Band - FILLER PACKING |
| 6 | 17700-SV4-931 | Pipe comp - FUEL FEED | Pipe comp - FUEL FEED |
| 7 | 17701-SV4-000 | Rubber - FUEL PIPE INSULATOR | Rubber - FUEL PIPE INSULATOR |
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 24 | 17707-SV4-A31 | Tube comp - FUEL JOINT | Tube comp - FUEL JOINT |
| 25 | 17711-ST0-003 | Retainer - YELLOW) (TOKAI | Retainer - YELLOW) (TOKAI |
| 8 | 17720-SV4-000 | Pipe comp - VENT | Pipe comp - VENT |
| 26 | 17731-SV4-930 | Pipe comp - FUEL | Pipe comp - FUEL |
| 11 | 17740-SV4-930 | Pipe comp - RETURN | Pipe comp - RETURN |
| 13 | 17743-SM4-003 | Cap - DRAIN TUBE | Cap - DRAIN TUBE |
| 14 | 17743-SV4-003 | Joint - CANISTER DRAIN BYPASS TUBE | Joint - CANISTER DRAIN BYPASS TUBE |
| 16 | 17752-SV4-000 | Cover - FR. FUEL PIPE | Cover - FR. FUEL PIPE |
| 17 | 17753-SV4-000 | Cover - RR. FUEL PIPE | Cover - RR. FUEL PIPE |
| 18 | 17761-SV4-000 | Stay a - FUEL PIPE | Stay a - FUEL PIPE |
| 19 | 17763-SV4-000 | Stay c - FUEL PIPE | Stay c - FUEL PIPE |
| 20 | 17764-SV4-000 | Stay d - FUEL PIPE | Stay d - FUEL PIPE |
| 21 | 17765-SV4-000 | Stay e - FUEL PIPE | Stay e - FUEL PIPE |
| 22 | 17766-SV4-000 | Stay f - FUEL PIPE | Stay f - FUEL PIPE |
| 23 | 17767-SV4-000 | Stay g - FUEL PIPE | Stay g - FUEL PIPE |
| 2 | 17800-SV4-980 | Pedal comp - ACCELERATOR | Pedal comp - ACCELERATOR |
| 3 | 17812-SA7-010 | Washer - ACCELERATOR PEDAL | Washer - ACCELERATOR PEDAL |
| 4 | 17814-SD4-670 | Spring - ACCELERATOR PEDAL | Spring - ACCELERATOR PEDAL |
| 5 | 17816-SK7-000 | Cover - ACCELERATOR PEDAL | Cover - ACCELERATOR PEDAL |
| 7 | 17921-SA4-730 | Seal - THROTTLE CABLE | Seal - THROTTLE CABLE |
| 5 | 18176-P08-003 | Bolt - CONVERTER | Bolt - CONVERTER |
| 10 | 18212-SB2-961 | Gasket - EX. PIPE (ISHINO) | Gasket - EX. PIPE (ISHINO) |
| 17 | 18215-SV4-000 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 23 | 18393-SH3-S00 | Gasket - PRE-CHAMBER (52.5MM-53.5MM) | Gasket - PRE-CHAMBER (52.5MM-53.5MM) |
| 18 | 18715-PB2-000 | GASKET, EGR VALVE (ISHINO GASKET) | GASKET, EGR VALVE (ISHINO GASKET) |
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 4 | 19015-P0A-003 | Shroud comp - DENSO | Shroud comp - DENSO |
| 5 | 19020-PT0-003 | Fan - COOLING (DENSO) | Fan - COOLING (DENSO) |
| 1 | 19025-P0A-000 | Seal - R. RADIATOR SIDE | Seal - R. RADIATOR SIDE |
| 6 | 19030-PT0-003 | Motor - COOLING FAN (DENSO) | Motor - COOLING FAN (DENSO) |
| 7 | 19033-P0A-003 | Stay - COUPLER | Stay - COUPLER |
| 3 | 19043-PV1-G00 | Label - COOLANT INFORMATION | Label - COOLANT INFORMATION |
| 8 | 19045-P08-013 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 8 | 19045-PAA-A01 | Cap comp. - RADIATOR (DENSO) | Cap comp. - RADIATOR (DENSO) |
| 10 | 19046-PV1-000 | Seal - CAP | Seal - CAP |
| 2 | 19101-P0A-000 | Tank - RESERVE | Tank - RESERVE |
| 3 | 19102-PM5-A00 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 4 | 19103-P0A-000 | Hose - RESERVE TANK | Hose - RESERVE TANK |
| 5 | 19104-P0A-000 | Hose - OVERFLOW | Hose - OVERFLOW |
| 6 | 19106-PM3-000 | Joint - RESERVE TANK | Joint - RESERVE TANK |
| 1 | 19108-PM0-003 | Clamp - RESERVE TANK TUBE (BLACK) | Clamp - RESERVE TANK TUBE (BLACK) |
| 7 | 19313-PT0-000 | Packing - THERMOSTAT CASE | Packing - THERMOSTAT CASE |
| 10 | 19500-PT0-000 | Joint - TUBE | Joint - TUBE |
| 8 | 19501-P0A-000 | Hose - WATER UPPER | Hose - WATER UPPER |
| 10 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 11 | 19511-PT0-004 | Clip - WATER HOSE (36.5MM) (KEIHIN) | Clip - WATER HOSE (36.5MM) (KEIHIN) |
| 11 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 12 | 19516-PC1-000 | Bolt - BREATHING WATER | Bolt - BREATHING WATER |
| 13 | 19519-P0A-900 | Clamp - LOWER HOSE | Clamp - LOWER HOSE |
| 3 | 21215-P0X-000 | Holder - IDLE SHAFT | Holder - IDLE SHAFT |
| 4 | 21232-P0X-000 | Hanger comp. - TRANSMISSION | Hanger comp. - TRANSMISSION |
| 5 | 21234-P0X-000 | Stay - HARNESS | Stay - HARNESS |
| 1 | 21240-PX4-050 | Cover comp. - R. SIDE | Cover comp. - R. SIDE |
| 7 | 21322-P15-000 | Tube - BREATHER | Tube - BREATHER |
| 2 | 21351-PT0-901 | Cover - TORQUE CONVERTER CASE | Cover - TORQUE CONVERTER CASE |
| 3 | 21514-PX4-000 | Stay - SOLENOID HARNESS | Stay - SOLENOID HARNESS |
| 2 | 22530-P0X-000 | Piston comp - CLUTCH (YUTAKA) | Piston comp - CLUTCH (YUTAKA) |
| 3 | 22533-PX4-010 | Seat - RETURN SPRING | Seat - RETURN SPRING |
| 7 | 22543-P0X-003 | Plate - LOW CLUTCH | Plate - LOW CLUTCH |
| 6 | 22543-PX4-003 | Plate - LOW CLUTCH | Plate - LOW CLUTCH |
| 9 | 22544-P0X-003 | Disk - CLUTCH | Disk - CLUTCH |
| 8 | 22544-PX4-701 | Disk - CLUTCH | Disk - CLUTCH |
| 10 | 22551-PX4-003 | Plate - CLUTCH END (1) (2.1MM) | Plate - CLUTCH END (1) (2.1MM) |
| 10 | 22552-PX4-003 | Plate - CLUTCH END (2) (2.2MM) | Plate - CLUTCH END (2) (2.2MM) |
| 10 | 22553-PX4-003 | Plate - CLUTCH END (3) (2.3MM) | Plate - CLUTCH END (3) (2.3MM) |
| 10 | 22554-PX4-003 | Plate - CLUTCH END (4) (2.4MM) | Plate - CLUTCH END (4) (2.4MM) |
| 10 | 22555-PX4-003 | Plate - CLUTCH END (5) (2.5MM) | Plate - CLUTCH END (5) (2.5MM) |
| 10 | 22556-PX4-003 | Plate - CLUTCH END (6) (2.6MM) | Plate - CLUTCH END (6) (2.6MM) |
| 10 | 22557-PX4-003 | Plate - CLUTCH END (7) (2.7MM) | Plate - CLUTCH END (7) (2.7MM) |
| 10 | 22558-PX4-003 | Plate - CLUTCH END (8) (2.8MM) | Plate - CLUTCH END (8) (2.8MM) |
| 10 | 22559-PX4-003 | Plate - CLUTCH END (9) (2.9MM) | Plate - CLUTCH END (9) (2.9MM) |
| 11 | 22570-PX4-000 | Piston comp - CLUTCH (L-H) | Piston comp - CLUTCH (L-H) |
| 12 | 22573-PX4-010 | Seat - RETURN SPRING (L-H) | Seat - RETURN SPRING (L-H) |
| 14 | 22620-PX4-010 | Piston comp - SECOND CLUTCH (MUSASHI) | Piston comp - SECOND CLUTCH (MUSASHI) |
| 16 | 22651-P0X-701 | Guide comp - CLUTCH (3-4) | Guide comp - CLUTCH (3-4) |
| 17 | 22653-PX4-003 | Plate - CLUTCH (2.3MM) | Plate - CLUTCH (2.3MM) |
| 18 | 22671-PX4-013 | Guide comp - CLUTCH (L-H) | Guide comp - CLUTCH (L-H) |
| 3 | 22713-PX4-000 | Guide a - FEED PIPE | Guide a - FEED PIPE |
| 4 | 22715-P0Z-000 | Pipe comp. b - FEED | Pipe comp. b - FEED |
| 5 | 22720-PX4-000 | Pipe comp. c - FEED | Pipe comp. c - FEED |
| 1 | 22741-PX4-000 | Pipe - LOW CLUTCH | Pipe - LOW CLUTCH |
| 1 | 22744-PX4-000 | Pipe - TOP CLUTCH | Pipe - TOP CLUTCH |
| 1 | 22814-P0X-003 | Ring - SEALING, 32MM | Ring - SEALING, 32MM |
| 1 | 22814-P4P-003 | Ring - SEALING, 35MM | Ring - SEALING, 35MM |
| 2 | 22815-P4P-003 | Ring - SEALING, 29MM | Ring - SEALING, 29MM |
| 3 | 23210-P0X-000 | Mainshaft comp. | Mainshaft comp. |
| 1 | 23220-P0X-920 | Countershaft comp. | Countershaft comp. |
| 4 | 23225-PF0-850 | Plate - OIL GUIDE | Plate - OIL GUIDE |
| 2 | 23230-P0X-000 | Shaft comp. - SECONDARY | Shaft comp. - SECONDARY |
| 5 | 23235-PX4-000 | Plate - OIL GUIDE | Plate - OIL GUIDE |
| 3 | 23411-P0X-000 | Gear - SECONDARY SHAFT LOW | Gear - SECONDARY SHAFT LOW |
| 2 | 23421-P0X-000 | Gear - COUNTERSHAFT LOW | Gear - COUNTERSHAFT LOW |
| 4 | 23427-P0X-000 | Gear - PARKING | Gear - PARKING |
| 6 | 23481-P0X-000 | Gear - MAINSHAFT IDLE | Gear - MAINSHAFT IDLE |
| 8 | 23491-P0X-000 | Gear - COUNTERSHAFT IDLE | Gear - COUNTERSHAFT IDLE |
| 5 | 23495-P0X-000 | Gear - SECONDARY IDLE | Gear - SECONDARY IDLE |
| 9 | 23531-P0X-000 | Gear - COUNTERSHAFT REVERSE | Gear - COUNTERSHAFT REVERSE |
| 10 | 23541-P0X-000 | Gear - REVERSE IDLE | Gear - REVERSE IDLE |
| 9 | 23542-P0X-000 | Shaft - REVERSE IDLE GEAR | Shaft - REVERSE IDLE GEAR |
| 11 | 23565-PX4-700 | Selector - REVERSE GEAR | Selector - REVERSE GEAR |
| 12 | 23566-PX4-010 | Hub - SELECTOR | Hub - SELECTOR |
| 1 | 23815-P0A-000 | Holder comp, SPEEDOMETER GEAR | Holder comp, SPEEDOMETER GEAR |
| 2 | 23820-P0A-900 | Gear comp - SPEEDOMETER | Gear comp - SPEEDOMETER |
| 13 | 23929-PX4-700 | Washer - SPRING, 24MM | Washer - SPRING, 24MM |
| 10 | 24111-PX4-000 | Fork - REVERSE SHIFT | Fork - REVERSE SHIFT |
| 2 | 24271-PX4-000 | Shaft - SHIFT FORK | Shaft - SHIFT FORK |
| 3 | 24278-PX4-000 | Base - SERVO DETENT | Base - SERVO DETENT |
| 6 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 3 | 24360-P0A-003 | Cable comp - THROTTLE (AT) | Cable comp - THROTTLE (AT) |
| 14 | 24366-P0A-000 | Stay - THROTTLE CABLE CLAMP | Stay - THROTTLE CABLE CLAMP |
| 24 | 24367-PX4-003 | Clamp - THROTTLE CABLE | Clamp - THROTTLE CABLE |
| 12 | 24410-P0X-000 | Shaft comp. - CONTROL | Shaft comp. - CONTROL |
| 4 | 24530-PN1-000 | Sleeve comp. - SERVO DETENT | Sleeve comp. - SERVO DETENT |
| 7 | 24532-PX4-000 | Lever - PARKING BRAKE | Lever - PARKING BRAKE |
| 8 | 24535-P0X-000 | Spring - PARKING BRAKE | Spring - PARKING BRAKE |
| 9 | 24537-PA9-003 | Stopper - PARKING BRAKE (1) | Stopper - PARKING BRAKE (1) |
| 9 | 24538-PA9-003 | Stopper - PARKING BRAKE (2) | Stopper - PARKING BRAKE (2) |
| 9 | 24539-PA9-003 | Stopper - PARKING BRAKE (3) | Stopper - PARKING BRAKE (3) |
| 10 | 24552-PX4-000 | Spring - PARKING PAWL | Spring - PARKING PAWL |
| 11 | 24553-PN6-000 | Roller - PARKING BRAKE | Roller - PARKING BRAKE |
| 12 | 24555-PN6-000 | Pin - ROLLER, 6MM | Pin - ROLLER, 6MM |
| 13 | 24561-P0X-000 | Pawl - PARKING BRAKE | Pawl - PARKING BRAKE |
| 14 | 24562-PX4-000 | Shaft - PARKING | Shaft - PARKING |
| 2 | 24630-P0X-000 | Arm comp - CHANGE DETENT | Arm comp - CHANGE DETENT |
| 14 | 24634-P0X-000 | Spring - DETENT ARM | Spring - DETENT ARM |
| 3 | 24635-PX4-700 | Shaft - CHANGE DETENT ARM | Shaft - CHANGE DETENT ARM |
| 7 | 24901-P0A-000 | Cover - CONTROL WIRE | Cover - CONTROL WIRE |
| 4 | 25145-PA9-010 | Shaft - OIL PUMP GEAR | Shaft - OIL PUMP GEAR |
| 1 | 25155-PX4-000 | Shaft assy - STATOR | Shaft assy - STATOR |
| 15 | 25210-P0A-000 | Pipe comp. c - OIL HOSE | Pipe comp. c - OIL HOSE |
| 16 | 25213-PT0-305 | Hose - OIL COOLER, 140MM (BRIDGESTONE) | Hose - OIL COOLER, 140MM (BRIDGESTONE) |
| 16 | 25213-PT0-603 | Hose - OIL COOLER, 140MM (BRIDGESTONE) | Hose - OIL COOLER, 140MM (BRIDGESTONE) |
| 17 | 25214-P0A-003 | Hose - ATF, 290MM | Hose - ATF, 290MM |
| 17 | 25214-P0A-305 | Hose - ATF, 290MM | Hose - ATF, 290MM |
| 18 | 25215-P0A-003 | Hose - ATF, 290MM | Hose - ATF, 290MM |
| 19 | 25216-PR3-000 | Clamp - ATF HOSE (BLACK) | Clamp - ATF HOSE (BLACK) |
| 5 | 25420-PX4-701 | Strainer - TRANSMISSION (ATF) | Strainer - TRANSMISSION (ATF) |
| 8 | 25610-PX4-003 | Gauge comp. - ATF | Gauge comp. - ATF |
| 10 | 25920-PX4-800 | Pipe comp - OIL HOSE (B) | Pipe comp - OIL HOSE (B) |
| 11 | 25950-PX4-000 | Bolt comp - JOINT | Bolt comp - JOINT |
| 12 | 25951-639-000 | Bolt - JOINT | Bolt - JOINT |
| 6 | 26000-PX4-305 | Converter assy - TORQUE | Converter assy - TORQUE |
| 5 | 27000-P0X-020 | Body assy - MAIN VALVE | Body assy - MAIN VALVE |
| 6 | 27112-P0X-010 | Plate - MAIN SEPARATING | Plate - MAIN SEPARATING |
| 7 | 27122-PX4-000 | Cap - SHIFT VALVE (1-2) | Cap - SHIFT VALVE (1-2) |
| 8 | 27122-PY8-J10 | Cap - SHIFT VALVE | Cap - SHIFT VALVE |
| 3 | 27200-P0X-900 | Regulator assy | Regulator assy |
| 4 | 27246-PN6-800 | Cap - REGULATOR SPRING | Cap - REGULATOR SPRING |
| 9 | 27263-PA9-000 | Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM | Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM |
| 5 | 27263-PX4-000 | Seat - RELIEF VALVE | Seat - RELIEF VALVE |
| 7 | 27410-P0X-A00 | Body comp - SERVO | Body comp - SERVO |
| 8 | 27412-P0X-000 | Plate - SERVO SEPARATING | Plate - SERVO SEPARATING |
| 16 | 27490-P60-000 | Stay assy - THROTTLE CABLE | Stay assy - THROTTLE CABLE |
| 15 | 27490-PX4-010 | Shaft comp. - THROTTLE VALVE | Shaft comp. - THROTTLE VALVE |
| 6 | 27493-PX4-000 | Stopper - THROTTLE CAM | Stopper - THROTTLE CAM |
| 13 | 27494-PX4-020 | Lever - THROTTLE CONTROL | Lever - THROTTLE CONTROL |
| 14 | 27495-P0X-000 | Spring - THROTTLE LEVER | Spring - THROTTLE LEVER |
| 10 | 27544-PL5-Z01 | Seat - SHIFT (3-4) | Seat - SHIFT (3-4) |
| 9 | 27551-PX4-000 | Piston - LOW HOLD ACCUMULATOR | Piston - LOW HOLD ACCUMULATOR |
| 10 | 27552-PX4-000 | Spring - LOW HOLD ACCUMULATOR | Spring - LOW HOLD ACCUMULATOR |
| 9 | 27561-P0X-000 | Piston - LOW ACCUMULATOR | Piston - LOW ACCUMULATOR |
| 10 | 27562-P0X-000 | Spring a - LOW ACCUMULATOR | Spring a - LOW ACCUMULATOR |
| 11 | 27564-P0X-000 | Spring b - LOW ACCUMULATOR | Spring b - LOW ACCUMULATOR |
| 12 | 27572-P0X-000 | Piston - SECOND ACCUMULATOR | Piston - SECOND ACCUMULATOR |
| 11 | 27574-PX4-800 | Piston - THIRD ACCUMULATOR | Piston - THIRD ACCUMULATOR |
| 12 | 27576-PX4-800 | Piston - TOP ACCUMULATOR | Piston - TOP ACCUMULATOR |
| 13 | 27577-PX4-800 | Spring - TOP ACCUMULATOR | Spring - TOP ACCUMULATOR |
| 14 | 27580-P0X-000 | Cover - TOP ACCUMULATOR | Cover - TOP ACCUMULATOR |
| 15 | 27583-P0X-900 | Spring - THIRD ACCUMULATOR | Spring - THIRD ACCUMULATOR |
| 16 | 27588-PX4-000 | Pipe - 8X60 | Pipe - 8X60 |
| 7 | 27600-P0X-000 | Throttle Body Assy | Throttle Body Assy |
| 8 | 27612-P0X-010 | Plate - THROTTLE SEPARATING | Plate - THROTTLE SEPARATING |
| 3 | 27642-PX4-000 | Sleeve - 12MM | Sleeve - 12MM |
| 12 | 27645-PL1-000 | Cap - LOCK UP CONTROL | Cap - LOCK UP CONTROL |
| 4 | 27653-PF4-000 | Cap - CLUTCH PRESSURE CONTROL VALVE | Cap - CLUTCH PRESSURE CONTROL VALVE |
| 5 | 27700-P0X-000 | Body assy - SECONDARY | Body assy - SECONDARY |
| 7 | 27724-PF4-010 | Cap - KICK DOWN VALVE | Cap - KICK DOWN VALVE |
| 13 | 27728-PX3-700 | Cap - TIMING | Cap - TIMING |
| 14 | 27750-PL5-J01 | Filter - SECONDARY BODY | Filter - SECONDARY BODY |
| 14 | 27815-PX4-010 | Cover - ACCUMULATOR BODY | Cover - ACCUMULATOR BODY |
| 15 | 28810-P0X-004 | Pick up assy. - MAIN (TEC) | Pick up assy. - MAIN (TEC) |
| 3 | 30103-P08-003 | Distributor Rotor Head Assembly | Distributor Rotor Head Assembly |
| 5 | 30107-P08-006 | Cover - LEAK | Cover - LEAK |
| 6 | 30110-PA1-732 | O-ring - 26.4X3.1 (TEC) | O-ring - 26.4X3.1 (TEC) |
| 8 | 30132-PT2-006 | Packing - CAP | Packing - CAP |
| 9 | 30135-P08-006 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 9 | 30135-P73-004 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 2 | 30505-SL5-003 | Condenser comp. - TEC) (N-1691/250-0.47 | Condenser comp. - TEC) (N-1691/250-0.47 |
| 10 | 30510-PT2-006 | Ignition Coil | Ignition Coil |
| 3 | 31105-PR7-A01 | Holder assy. - BRUSH | Holder assy. - BRUSH |
| 4 | 31111-PT0-003 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 5 | 31114-PT0-013 | Bearing - FR. GENERATOR | Bearing - FR. GENERATOR |
| 6 | 31118-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 7 | 31119-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 8 | 31127-PT2-013 | Rectifier assy. | Rectifier assy. |
| 9 | 31135-PT0-013 | Cover - RR. END | Cover - RR. END |
| 10 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 12 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 13 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 14 | 31146-PT0-003 | Screw | Screw |
| 16 | 31147-P13-003 | Screw | Screw |
| 15 | 31147-PT0-003 | Screw-washer | Screw-washer |
| 18 | 31148-P13-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 17 | 31148-PT0-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 1 | 31200-P0A-004 | Motor assy. - STARTER (SM-42202) (MITSUBA) | Motor assy. - STARTER (SM-42202) (MITSUBA) |
| 2 | 31202-P0G-A01 | Bolt - SETTING | Bolt - SETTING |
| 3 | 31204-P0A-004 | Gear assy - ### | Gear assy - ### |
| 4 | 31206-P0A-004 | Yoke assy - ### | Yoke assy - ### |
| 5 | 31207-P0G-A01 | Armature assy. - ### | Armature assy. - ### |
| 6 | 31208-P0G-A01 | Stay assy - BRUSH | Stay assy - BRUSH |
| 7 | 31210-P0A-004 | Switch assy - MAGNET | Switch assy - MAGNET |
| 8 | 31211-PC2-006 | Ring - SQUARE (MITSUBA) | Ring - SQUARE (MITSUBA) |
| 9 | 31217-PC2-006 | Screw-washer - 4X28 (MITSUBA) | Screw-washer - 4X28 (MITSUBA) |
| 10 | 31235-P0G-A01 | Cover - TERMINAL (###) | Cover - TERMINAL (###) |
| 11 | 31251-PJ7-904 | Tube - LABYRINTH (###) | Tube - LABYRINTH (###) |
| 12 | 31252-PD2-006 | Rubber - BUSH (MITSUBA) | Rubber - BUSH (MITSUBA) |
| 13 | 31292-P0A-004 | Stay assy - ENGINE WIRE HARNESS (###) | Stay assy - ENGINE WIRE HARNESS (###) |
| 2 | 31512-SS0-000 | Plate - BATTERY SETTING (70D/80D) | Plate - BATTERY SETTING (70D/80D) |
| 3 | 31513-SM4-000 | Bolt - BATTERY SETTING(195MM) | Bolt - BATTERY SETTING(195MM) |
| 4 | 31513-SP0-010 | Bolt - BATTERY SETTING (210MM) | Bolt - BATTERY SETTING (210MM) |
| 5 | 31521-SD4-010 | Box assy - BATTERY | Box assy - BATTERY |
| 7 | 32120-SV4-P10 | Harness - L. CABIN WIRE | Harness - L. CABIN WIRE |
| 3 | 32121-SM4-003 | Bracket a - FUSE BOX | Bracket a - FUSE BOX |
| 4 | 32122-SM4-003 | Bracket b - FUSE BOX | Bracket b - FUSE BOX |
| 5 | 32123-SM4-003 | Bracket c - FUSE BOX | Bracket c - FUSE BOX |
| 8 | 32131-SV4-003 | Cap - COUPLER (CP 2P, 3P) | Cap - COUPLER (CP 2P, 3P) |
| 1 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 2 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 12 | 32146-SH3-003 | Connector - DIODE(2P) | Connector - DIODE(2P) |
| 17 | 32202-SV4-000 | Cord - RR. DEFROSTER | Cord - RR. DEFROSTER |
| 18 | 32312-SM4-013 | Holder - COUPLER | Holder - COUPLER |
| 8 | 32412-SS0-010 | Bracket a - CABLE | Bracket a - CABLE |
| 9 | 32414-SS0-010 | Bracket b - CABLE | Bracket b - CABLE |
| 2 | 32502-SM4-003 | Fuse - F7.5) (LITTEL | Fuse - F7.5) (LITTEL |
| 3 | 32504-SM4-003 | Fuse - F15)(LITTEL | Fuse - F15)(LITTEL |
| 4 | 32505-SM4-003 | Fuse - F20) (LITTEL | Fuse - F20) (LITTEL |
| 5 | 32507-SM4-003 | Fuse - F30) (LITTEL | Fuse - F30) (LITTEL |
| 11 | 32600-SV4-900 | Cable assy - EARTH | Cable assy - EARTH |
| 12 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 13 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 15 | 32746-P0A-A00 | Clamp f - ENGINE WIRE HARNESS | Clamp f - ENGINE WIRE HARNESS |
| 14 | 32746-SM4-950 | Clamp - STARTER CABLE | Clamp - STARTER CABLE |
| 16 | 32748-P13-000 | Stay - WIRE HARNESS CLAMP | Stay - WIRE HARNESS CLAMP |
| 21 | 32753-SV4-010 | Harness - R. RR. DOOR WIRE | Harness - R. RR. DOOR WIRE |
| 22 | 32754-SV4-010 | Harness - L. RR. DOOR WIRE | Harness - L. RR. DOOR WIRE |
| 14 | 32767-PT0-000 | Grommet - HIGH TENSION CORD | Grommet - HIGH TENSION CORD |
| 3 | 33115-SM3-003 | Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY) | Bulb - HEADLIGHT (H4) (12V 60/55W) (STANLEY) |
| 3 | 33115-SM4-003 | Bulb | Bulb |
| 3 | 33115-SV4-003 | Bulb - HEADLIGHT (H4) (12V 60/55W) (TUNGSRAM) | Bulb - HEADLIGHT (H4) (12V 60/55W) (TUNGSRAM) |
| 3 | 33115-SV4-G01 | Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) | Bulb - HEADLIGHT (H4/HB2) (12V 60/55W) (PHILIPS) |
| 4 | 33116-SD4-961 | Socket - BULB (OSRAM) (HALOGEN) | Socket - BULB (OSRAM) (HALOGEN) |
| 5 | 33117-SM4-003 | Clip - LENS HOLDER | Clip - LENS HOLDER |
| 6 | 33122-SM4-003 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 7 | 33126-SV4-003 | Cover - RUBBER | Cover - RUBBER |
| 2 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 4 | 33303-SL4-003 | Bulb - WEDGE (12V 21W) (STANLEY) | Bulb - WEDGE (12V 21W) (STANLEY) |
| 5 | 33303-SM4-003 | Holder | Holder |
| 6 | 33304-SV4-A01 | Socket comp. | Socket comp. |
| 8 | 33305-SM4-A01 | Tube | Tube |
| 7 | 33501-SV2-G02 | Lamp unit - R. | Lamp unit - R. |
| 8 | 33502-SV2-E02 | Socket comp. - R. | Socket comp. - R. |
| 9 | 33503-SV4-A02 | Gasket - BASE | Gasket - BASE |
| 10 | 33551-SV2-G02 | Lamp unit - L. | Lamp unit - L. |
| 11 | 33552-SV2-E02 | Socket comp. - L. | Socket comp. - L. |
| 15 | 33800-SV4-Q01 | Light assy - SIDE TURN | Light assy - SIDE TURN |
| 16 | 33802-SV4-Q01 | Lamp unit | Lamp unit |
| 12 | 34100-SS0-Q02 | Light assy - LICENSE (###) | Light assy - LICENSE (###) |
| 13 | 34101-SS0-003 | Lens | Lens |
| 14 | 34102-SS0-003 | Housing comp | Housing comp |
| 14 | 34102-SS0-Q01 | Housing comp | Housing comp |
| 15 | 34103-SS0-003 | Seal - PACKING | Seal - PACKING |
| 16 | 34104-SE3-A01 | Screw - TAPPING, 4X20 | Screw - TAPPING, 4X20 |
| 17 | 34151-SV2-G01 | Lamp comp - R. | Lamp comp - R. |
| 18 | 34152-SV2-G01 | Socket comp. | Socket comp. |
| 19 | 34153-SV4-A01 | Gasket - R. BASE | Gasket - R. BASE |
| 20 | 34156-SV2-G01 | Lamp comp - L. | Lamp comp - L. |
| 21 | 34158-SV4-A01 | Gasket - L. BASE | Gasket - L. BASE |
| 1 | 34254-SV4-003 | Lamp assy. - GLOVE BOX | Lamp assy. - GLOVE BOX |
| 22 | 34271-SV4-A01 | Reflector comp. - HIGH MOUNT STOP LIGHT | Reflector comp. - HIGH MOUNT STOP LIGHT |
| 3 | 34295-SA5-003 | Bulb - 12V 3.4W) (DAIICHI | Bulb - 12V 3.4W) (DAIICHI |
| 17 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 16 | 34901-671-631 | Bulb - HEADLIGHT (12V 55W H1) (OSRAM/PHILIPS) | Bulb - HEADLIGHT (12V 55W H1) (OSRAM/PHILIPS) |
| 2 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 27 | 34911-634-611 | Bulb - 12V 21/5W) (ECE) (STANLEY | Bulb - 12V 21/5W) (ECE) (STANLEY |
| 5 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 6 | 35103-SE3-003 | Screw - RECESSED, 3X8 | Screw - RECESSED, 3X8 |
| 7 | 35108-SV4-A01 | Holder - COLUMN (SRS) | Holder - COLUMN (SRS) |
| 13 | 35130-S30-003 | Switch comp - STEERING | Switch comp - STEERING |
| 19 | 35400-SL4-013 | Switch assy - DOOR | Switch assy - DOOR |
| 20 | 35401-SL4-003 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 21 | 35409-692-013 | Screw - FLANGE, 4X12 | Screw - FLANGE, 4X12 |
| 2 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 1 | 35505-SV4-A01 | Bulb assy | Bulb assy |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 5 | 35511-SM4-000 | Bulb - T3) (TEC | Bulb - T3) (TEC |
| 3 | 35765-SM3-003 | Switch assy - L. POWER WINDOW | Switch assy - L. POWER WINDOW |
| 10 | 35850-SV4-981 | Bulb comp. - 14V 60MA | Bulb comp. - 14V 60MA |
| 11 | 35851-SB2-003 | Bulb - NEO WEDGE (14V 65MA) | Bulb - NEO WEDGE (14V 65MA) |
| 1 | 36062-671-000 | Clamp b - TUBE | Clamp b - TUBE |
| 5 | 36138-PM1-G01 | Filter assy - SOLENOID VALVE | Filter assy - SOLENOID VALVE |
| 2 | 36190-P13-003 | Valve assy. - FREQUENCY SOLENOID | Valve assy. - FREQUENCY SOLENOID |
| 3 | 36194-PD2-661 | Filter assy - AIR | Filter assy - AIR |
| 4 | 36201-P0B-A01 | Cover | Cover |
| 5 | 36233-P0B-A01 | Stay comp | Stay comp |
| 12 | 36366-PT2-003 | Clamp - TUBE, 7.5 (BLACK) | Clamp - TUBE, 7.5 (BLACK) |
| 20 | 36615-PJ5-003 | Clamp - TUBE, 4.5(NATURAL) | Clamp - TUBE, 4.5(NATURAL) |
| 8 | 36704-SV4-010 | Bracket - AUTO CRUISE | Bracket - AUTO CRUISE |
| 3 | 37102-SE3-003 | Socket assy - BULB (T-10) (NS) | Socket assy - BULB (T-10) (NS) |
| 4 | 37105-SE3-003 | Socket assy - BULB (T-5) (BASE:BROWN) | Socket assy - BULB (T-5) (BASE:BROWN) |
| 5 | 37106-SB2-003 | Knob - TRIP (NS) | Knob - TRIP (NS) |
| 6 | 37115-SA0-601 | Packing - NS | Packing - NS |
| 7 | 37237-SE3-003 | Bulb - T-10) (BASE:BROWN | Bulb - T-10) (BASE:BROWN |
| 28 | 37540-SM4-003 | Sensor - STOP LAMP FAILURE | Sensor - STOP LAMP FAILURE |
| 3 | 37700-SM4-013 | Lamp assy. - INDICATOR (AT) | Lamp assy. - INDICATOR (AT) |
| 14 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 28 | 37800-SV4-A03 | Fuel Meter Unit | Fuel Meter Unit |
| 29 | 37801-SL0-003 | Packing - BASE | Packing - BASE |
| 29 | 37801-SV4-L01 | Packing - BASE | Packing - BASE |
| 11 | 37821-P0A-A00 | Cover comp. - ELECTRONIC CONTROL UNIT | Cover comp. - ELECTRONIC CONTROL UNIT |
| 18 | 37830-P0G-S00 | Sensor set - MAP | Sensor set - MAP |
| 18 | 37830-PAA-S00 | Sensor set - MAP | Sensor set - MAP |
| 16 | 38201-SV4-000 | Bracket - FUSE BOX | Bracket - FUSE BOX |
| 1 | 38212-SM4-000 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 9 | 38213-SM4-000 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 2 | 38230-SV4-003 | Box assy - ABS FUSE | Box assy - ABS FUSE |
| 17 | 38235-SA5-003 | Puller - FUSE (SUMITOMO) | Puller - FUSE (SUMITOMO) |
| 12 | 38251-SV4-000 | Bracket - RELAY BOX | Bracket - RELAY BOX |
| 13 | 38251-SV4-003 | Cover - UPPER | Cover - UPPER |
| 3 | 38251-SV4-911 | Cover | Cover |
| 14 | 38252-SV4-003 | Cover - LOWER | Cover - LOWER |
| 27 | 38254-SV5-003 | Cover set - UPPER | Cover set - UPPER |
| 2 | 38511-SD2-003 | Adapter - NOZZLE (MITSUBA) | Adapter - NOZZLE (MITSUBA) |
| 3 | 39112-SM4-000 | Bracket - FR. SPEAKER SEAL | Bracket - FR. SPEAKER SEAL |
| 11 | 39151-SV4-003 | Bracket | Bracket |
| 15 | 39156-SV4-003 | Insulator | Insulator |
| 18 | 39168-SV4-A01 | Cylinder | Cylinder |
| 20 | 39179-SV4-A02 | Tube comp | Tube comp |
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 22 | 39400-SV4-003 | Relay assy - MAIN | Relay assy - MAIN |
| 16 | 39762-SG0-003 | Relay assy - POWER (5P) (DENSO) (056700-8160) | Relay assy - POWER (5P) (DENSO) (056700-8160) |
| 17 | 39792-SM1-A01 | Relay assy - POWER (4P) (UNITED TECHNOLOGIES) | Relay assy - POWER (4P) (UNITED TECHNOLOGIES) |
| 5 | 39792-SP0-014 | Relay assy - POWER (4P) (MITSUBA) (12V NO) | Relay assy - POWER (4P) (MITSUBA) (12V NO) |
| 18 | 39793-SV4-003 | Relay assy - POWER (5P) (MITSUBA) | Relay assy - POWER (5P) (MITSUBA) |
| 26 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 11 | 39795-SB2-003 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 6 | 39795-ST7-000 | Label - ABS INFORMATION | Label - ABS INFORMATION |
| 7 | 39797-SE0-004 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 1 | 41100-P0X-415 | Case comp. - DIFFERENTIAL | Case comp. - DIFFERENTIAL |
| 2 | 41233-P0X-920 | Gear - FINAL DRIVEN | Gear - FINAL DRIVEN |
| 3 | 41441-PK4-000 | Shim a - 76MM (2.20) | Shim a - 76MM (2.20) |
| 3 | 41442-PK4-000 | Shim b - 76MM (2.25) | Shim b - 76MM (2.25) |
| 3 | 41443-PK4-000 | Shim c - 76MM (2.30) | Shim c - 76MM (2.30) |
| 3 | 41444-PK4-000 | Shim d - 76MM (2.35) | Shim d - 76MM (2.35) |
| 3 | 41445-PK4-000 | Shim e - 76MM (2.40) | Shim e - 76MM (2.40) |
| 3 | 41446-PK4-000 | Shim f - 76MM (2.45) | Shim f - 76MM (2.45) |
| 3 | 41447-PK4-000 | Shim g - 76MM (2.50) | Shim g - 76MM (2.50) |
| 3 | 41448-PK4-000 | Shim h - 76MM (2.55) | Shim h - 76MM (2.55) |
| 3 | 41449-PK4-000 | Shim i - 76MM (2.60) | Shim i - 76MM (2.60) |
| 3 | 41450-PK4-000 | Shim j - 76MM (2.65) | Shim j - 76MM (2.65) |
| 3 | 41451-PK4-000 | Shim k - 76MM (2.70) | Shim k - 76MM (2.70) |
| 3 | 41452-PK4-000 | Shim l - 76MM (2.75) | Shim l - 76MM (2.75) |
| 3 | 41453-PK4-000 | Shim m - 76MM (2.80) | Shim m - 76MM (2.80) |
| 3 | 41454-PK4-000 | Shim n - 76MM (2.85) | Shim n - 76MM (2.85) |
| 3 | 41455-PK4-000 | Shim o - 76MM (2.90) | Shim o - 76MM (2.90) |
| 3 | 41456-PK4-000 | Shim p - 76MM (2.95) | Shim p - 76MM (2.95) |
| 3 | 41457-PK4-000 | Shim q - 76MM (3.00) | Shim q - 76MM (3.00) |
| 3 | 41458-PK4-000 | Shim r - 76MM (3.05) | Shim r - 76MM (3.05) |
| 3 | 42324-SB2-020 | Washer - HUB UNIT | Washer - HUB UNIT |
| 4 | 42326-SG0-000 | Cap - HUB UNIT | Cap - HUB UNIT |
| 10 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 11 | 42767-SV1-B00 | Plate - SPARE TIRE CAUTION (T-TYPE) | Plate - SPARE TIRE CAUTION (T-TYPE) |
| 6 | 43018-SV4-A00 | Caliper sub assy. - R. RR. | Caliper sub assy. - R. RR. |
| 7 | 43019-SV4-A00 | Caliper sub assy. - L. RR. | Caliper sub assy. - L. RR. |
| 8 | 43022-SV4-G00 | Pad set - RR. | Pad set - RR. |
| 10 | 43215-SM4-951 | Piston assy. | Piston assy. |
| 11 | 43223-SD2-932 | BEARING A | BEARING A |
| 12 | 43224-SD2-931 | Spring b - ADJUSTING | Spring b - ADJUSTING |
| 13 | 43224-SP0-003 | Shim - BRAKE PAD OUTER | Shim - BRAKE PAD OUTER |
| 14 | 43227-SG0-013 | Spring - PAD | Spring - PAD |
| 15 | 43228-SD2-933 | Shaft a | Shaft a |
| 16 | 43229-SD2-931 | Rod | Rod |
| 19 | 43235-SD2-931 | Pin a | Pin a |
| 20 | 43236-S04-003 | Spacer | Spacer |
| 21 | 43238-SF1-003 | Ring - RETAINING | Ring - RETAINING |
| 22 | 43241-SF1-003 | Guide - SPRING | Guide - SPRING |
| 23 | 43243-SD2-931 | Nut - PARKING | Nut - PARKING |
| 24 | 43244-SG0-003 | Retainer | Retainer |
| 25 | 43245-SM4-950 | Lever | Lever |
| 26 | 43246-SE0-931 | Spring - R. RETURN | Spring - R. RETURN |
| 27 | 43247-SM4-951 | Arm - R. | Arm - R. |
| 28 | 43248-SD2-933 | Shaft b | Shaft b |
| 29 | 43249-S04-003 | Bolt - ADJUSTER | Bolt - ADJUSTER |
| 32 | 43255-SM4-954 | Protector - R. RR. CALIPER | Protector - R. RR. CALIPER |
| 33 | 43256-SM4-954 | Protector - L. RR. CALIPER | Protector - L. RR. CALIPER |
| 34 | 43262-S04-003 | Pin b | Pin b |
| 35 | 43266-SE0-931 | Spring - L. RETURN | Spring - L. RETURN |
| 36 | 43267-SM4-951 | Arm - L. | Arm - L. |
| 2 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 3 | 43353-SA0-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 1 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 1 | 43471-SD2-930 | Pin - BRAKE WIRE END | Pin - BRAKE WIRE END |
| 3 | 44017-SM4-A00 | Boot set - INBOARD | Boot set - INBOARD |
| 7 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 8 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 26 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 11 | 44336-SB0-300 | Ring a - STOPPER | Ring a - STOPPER |
| 25 | 44337-SB0-300 | Ring b - STOPPER | Ring b - STOPPER |
| 12 | 44338-SB0-300 | Circlip - 26MM | Circlip - 26MM |
| 13 | 44351-SM4-982 | Weight - DYNAMIC DAMPER (HOKUSHIN) | Weight - DYNAMIC DAMPER (HOKUSHIN) |
| 5 | 44600-SM4-020 | Hub assy - FR. | Hub assy - FR. |
| 6 | 45018-SM5-000 | Caliper sub assy. - R. FR. | Caliper sub assy. - R. FR. |
| 7 | 45019-SM5-000 | Caliper sub assy. - L. FR. | Caliper sub assy. - L. FR. |
| 8 | 45022-SS0-G00 | Pad set - FR. | Pad set - FR. |
| 9 | 45216-SM4-003 | Piston | Piston |
| 10 | 45225-SL0-003 | Shim a - INNER | Shim a - INNER |
| 11 | 45226-SL0-003 | Shim b - INNER | Shim b - INNER |
| 12 | 45227-SM4-003 | Spring - PAD | Spring - PAD |
| 13 | 45228-SL0-003 | Shim - OUTER PAD | Shim - OUTER PAD |
| 14 | 45235-SL0-003 | Pin a | Pin a |
| 15 | 45237-SM5-A01 | Retainer | Retainer |
| 39 | 45240-SC2-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 16 | 45240-SM4-003 | Bolt - FLANGE, 10X24 | Bolt - FLANGE, 10X24 |
| 18 | 45255-SM4-G03 | Guard - FR. SPLASH (15") | Guard - FR. SPLASH (15") |
| 19 | 45262-SL0-003 | Pin b | Pin b |
| 8 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 9 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 10 | 46191-634-000 | Gasket - MASTER CYLINDER BRACKET | Gasket - MASTER CYLINDER BRACKET |
| 4 | 46330-SV4-000 | Pipe comp. c - BRAKE | Pipe comp. c - BRAKE |
| 5 | 46331-SV4-950 | Pipe comp. e - R. BRAKE | Pipe comp. e - R. BRAKE |
| 6 | 46340-SV4-000 | Pipe comp. d - BRAKE | Pipe comp. d - BRAKE |
| 7 | 46361-SV4-950 | Pipe comp. e - L. BRAKE | Pipe comp. e - L. BRAKE |
| 12 | 46378-SV4-A51 | Pipe comp. y - BRAKE | Pipe comp. y - BRAKE |
| 13 | 46379-SV4-A51 | Pipe comp. z - BRAKE | Pipe comp. z - BRAKE |
| 14 | 46380-SB0-000 | Grommet a - BRAKE PIPE (BLACK) | Grommet a - BRAKE PIPE (BLACK) |
| 15 | 46391-SE0-931 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 16 | 46391-SH3-003 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 17 | 46391-SM4-J01 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 18 | 46391-SV4-000 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 20 | 46393-SM4-951 | Clip c | Clip c |
| 21 | 46394-SH3-A01 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 22 | 46395-SV4-950 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 23 | 46396-ST7-951 | Clip A | Clip A |
| 24 | 46396-SV4-951 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 11 | 46400-SV4-A51 | Power assy. - MASTER (8"+9") | Power assy. - MASTER (8"+9") |
| 12 | 46403-SE0-003 | Valve comp. - CHECK (NISSIN) | Valve comp. - CHECK (NISSIN) |
| 25 | 46435-SM4-000 | Bracket - R. RR. BRAKE HOSE | Bracket - R. RR. BRAKE HOSE |
| 26 | 46436-SM4-000 | Bracket - L. RR. BRAKE HOSE | Bracket - L. RR. BRAKE HOSE |
| 27 | 46438-SM4-000 | Bracket - R. RR. BRAKE HOSE | Bracket - R. RR. BRAKE HOSE |
| 28 | 46439-SM4-000 | Bracket - L. RR. BRAKE HOSE | Bracket - L. RR. BRAKE HOSE |
| 30 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 32 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 20 | 46504-ST5-300 | Bush - PEDAL | Bush - PEDAL |
| 21 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 22 | 46505-SA7-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 20 | 46512-SB2-000 | Pin - PEDAL | Pin - PEDAL |
| 23 | 46530-SM4-000 | Spring assy - PEDAL RETURN | Spring assy - PEDAL RETURN |
| 24 | 46535-SM4-000 | Collar - PEDAL | Collar - PEDAL |
| 26 | 46545-SE0-980 | Cover - BRAKE PEDAL | Cover - BRAKE PEDAL |
| 22 | 46662-SM4-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 25 | 46669-SE3-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 37 | 46992-SV4-003 | Clip - FOOTREST | Clip - FOOTREST |
| 3 | 47142-671-010 | Knob - PARKING BRAKE PUSH ROD | Knob - PARKING BRAKE PUSH ROD |
| 4 | 47143-SD4-300 | Spring - PUSH ROD | Spring - PUSH ROD |
| 5 | 47342-SV4-003 | Switch - HAND BRAKE | Switch - HAND BRAKE |
| 6 | 47360-SB2-000 | Equalizer | Equalizer |
| 7 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 10 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 11 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 14 | 47572-SE0-300 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 1 | 50100-SV4-010 | Beam - CENTER | Beam - CENTER |
| 2 | 50806-SV4-981 | Rubber - TRANSMISSION MOUNTING (AT) | Rubber - TRANSMISSION MOUNTING (AT) |
| 3 | 50810-SV4-J82 | Rubber - ENGINE RR. INSULATOR (AT) | Rubber - ENGINE RR. INSULATOR (AT) |
| 5 | 50825-SM4-981 | Bracket - TRANSMISSION MOUNTING (AT) | Bracket - TRANSMISSION MOUNTING (AT) |
| 6 | 50826-SV4-000 | Bracket - FR. ENGINE MOUNTING | Bracket - FR. ENGINE MOUNTING |
| 7 | 50827-SM4-J83 | Bracket - ENGINE RR. MOUNTING (AT) | Bracket - ENGINE RR. MOUNTING (AT) |
| 8 | 50840-SV4-980 | Stopper - FR. ENGINE (AT) | Stopper - FR. ENGINE (AT) |
| 9 | 50913-SV7-A01 | Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID | Valve assy. - ELECTRONIC CONTROL MOUNTING SOLENOID |
| 12 | 50916-SV4-J80 | Tube - ELECTRONIC CONTROL MOUNT SOLENOID | Tube - ELECTRONIC CONTROL MOUNT SOLENOID |
| 13 | 50917-SV7-A00 | Rubber - MOUNTING | Rubber - MOUNTING |
| 14 | 50919-SV7-A00 | Joint - TWO WAY, #115 | Joint - TWO WAY, #115 |
| 3 | 51308-SG0-020 | Bracket - FR. STABILIZER | Bracket - FR. STABILIZER |
| 4 | 51311-SM4-010 | Collar a - STABILIZER END (7.6MM) | Collar a - STABILIZER END (7.6MM) |
| 5 | 51312-SM4-000 | Collar b - STABILIZER END (27.2MM) | Collar b - STABILIZER END (27.2MM) |
| 6 | 51313-SM4-010 | Washer - STABILIZER END | Washer - STABILIZER END |
| 7 | 51314-SM4-020 | Rubber - STABILIZER END | Rubber - STABILIZER END |
| 10 | 51355-SV4-000 | Arm comp - R. FR. LOWER | Arm comp - R. FR. LOWER |
| 11 | 51365-SV4-000 | Arm comp - L. FR. LOWER | Arm comp - L. FR. LOWER |
| 12 | 51381-SM4-013 | Bush - FR. RADIUS ROD (RR.) | Bush - FR. RADIUS ROD (RR.) |
| 13 | 51391-SM4-013 | Bush - FR. RADIUS ROD (FR.) | Bush - FR. RADIUS ROD (FR.) |
| 16 | 51398-SM4-000 | Collar - RADIUS ROD | Collar - RADIUS ROD |
| 17 | 51399-SM4-000 | Washer - FR. RADIUS ROD | Washer - FR. RADIUS ROD |
| 4 | 51450-SV4-000 | Arm assy. - R. FR. UPPER | Arm assy. - R. FR. UPPER |
| 5 | 51460-SV4-000 | Arm assy. - L. FR. UPPER | Arm assy. - L. FR. UPPER |
| 1 | 51464-S04-013 | Boot, UPPER BALL JOINT | Boot, UPPER BALL JOINT |
| 6 | 51621-SD4-004 | Washer - SHOCK ABSORBER MOUNTING (SHOWA) | Washer - SHOCK ABSORBER MOUNTING (SHOWA) |
| 7 | 51631-SS0-004 | Rubber - SHOCK ABSORBER MOUNTING | Rubber - SHOCK ABSORBER MOUNTING |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 10 | 51686-SM4-004 | Rubber - FR. SPRING SEAT (SHOWA) | Rubber - FR. SPRING SEAT (SHOWA) |
| 14 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 18 | 51810-SV4-004 | Bush - SHOCK ABSORBER FORK (YAMASHITA) | Bush - SHOCK ABSORBER FORK (YAMASHITA) |
| 19 | 51811-SV4-010 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 20 | 51821-SV4-010 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 2 | 52111-SV4-C90 | Knuckle comp - R. RR. (DISK) | Knuckle comp - R. RR. (DISK) |
| 3 | 52116-SV4-C90 | Knuckle comp - L. RR. (DISK) | Knuckle comp - L. RR. (DISK) |
| 4 | 52212-SM4-910 | Bracket a - R. RR. KNUCKLE (DISK) | Bracket a - R. RR. KNUCKLE (DISK) |
| 5 | 52213-SM4-010 | Protector - RR. KNUCKLE | Protector - RR. KNUCKLE |
| 6 | 52214-SM4-000 | Bracket b - RR. KNUCKLE | Bracket b - RR. KNUCKLE |
| 7 | 52217-SM4-910 | Bracket a - L. RR. KNUCKLE (DISK) | Bracket a - L. RR. KNUCKLE (DISK) |
| 7 | 52225-SF1-013 | Boot - LOWER BALL DUST | Boot - LOWER BALL DUST |
| 8 | 52226-SL0-003 | Circlip - LOWER BALL(MUSASHI) | Circlip - LOWER BALL(MUSASHI) |
| 11 | 52309-SE0-000 | Washer - RR. STABILIZER END | Washer - RR. STABILIZER END |
| 12 | 52310-SE0-003 | Shaft - STABILIZER LINK | Shaft - STABILIZER LINK |
| 13 | 52312-SE0-000 | Collar - STABILIZER INNER BUSH END | Collar - STABILIZER INNER BUSH END |
| 15 | 52316-SA5-000 | Bush - STABILIZER END | Bush - STABILIZER END |
| 18 | 52319-SL5-010 | Plate - RR. STABILIZER BRACKET | Plate - RR. STABILIZER BRACKET |
| 19 | 52338-SL0-003 | Circlip - CONTROL ARM | Circlip - CONTROL ARM |
| 24 | 52364-634-020 | Washer - LOWER ARM | Washer - LOWER ARM |
| 25 | 52366-SL4-003 | Bolt - KNUCKLE (12X251) | Bolt - KNUCKLE (12X251) |
| 26 | 52371-SM4-A01 | Arm assy. - R. RR. TRAILING | Arm assy. - R. RR. TRAILING |
| 28 | 52387-SE0-023 | Bolt - LOWER ARM ADJUSTING | Bolt - LOWER ARM ADJUSTING |
| 29 | 52388-SE0-030 | Plate - CAM | Plate - CAM |
| 5 | 52621-SB2-004 | Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 33 | 52622-SM4-003 | Bush - RR. SHOCK ABSORBER LOWER (HOKUSHIN) | Bush - RR. SHOCK ABSORBER LOWER (HOKUSHIN) |
| 33 | 52622-SM4-014 | Bush - RR. SHOCK ABSORBER LOWER (YAMASHITA) | Bush - RR. SHOCK ABSORBER LOWER (YAMASHITA) |
| 6 | 52675-SM4-004 | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Base - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 34 | 52677-SM4-000 | Bracket - R. RR. TRAILING ARM | Bracket - R. RR. TRAILING ARM |
| 35 | 52678-SM4-000 | Bracket - L. RR. TRAILING ARM | Bracket - L. RR. TRAILING ARM |
| 7 | 52686-SM4-004 | Rubber - RR. SPRING SEAT (SHOWA) | Rubber - RR. SPRING SEAT (SHOWA) |
| 8 | 52687-SM4-004 | Cover comp. - RR. SLEEVE DUST (SHOWA) | Cover comp. - RR. SLEEVE DUST (SHOWA) |
| 9 | 52688-SE0-003 | Plate - RR. BUMP STOP | Plate - RR. BUMP STOP |
| 10 | 52690-SG0-000 | Plate - BUMP STOP | Plate - BUMP STOP |
| 11 | 52722-SM4-013 | Rubber - BUMPER STOPPER (POLYURETHAN KASEI) | Rubber - BUMPER STOPPER (POLYURETHAN KASEI) |
| 12 | 52725-SS0-004 | Rubber - RR. SHOCK ABSORBER | Rubber - RR. SHOCK ABSORBER |
| 13 | 52728-SB2-004 | Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA) | Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA) |
| 14 | 52748-SM4-014 | Rubber - SPRING SEAT (SHOWA) | Rubber - SPRING SEAT (SHOWA) |
| 2 | 53010-SV4-000 | End set - RACK | End set - RACK |
| 3 | 53216-SM4-010 | Holder b - STEERING COLUMN | Holder b - STEERING COLUMN |
| 5 | 53217-SL4-N50 | Collar - STEERING RETAINER | Collar - STEERING RETAINER |
| 9 | 53325-SV4-000 | Clip A - JOINT COVER | Clip A - JOINT COVER |
| 10 | 53326-SB0-000 | Clip b - JOINT COVER | Clip b - JOINT COVER |
| 11 | 53371-SM4-013 | Spring - COLUMN HANGER | Spring - COLUMN HANGER |
| 3 | 53411-SV4-000 | Tube - AIR TRANSFER | Tube - AIR TRANSFER |
| 6 | 53412-634-000 | O-ring - RACK GUIDE (YAMADA) | O-ring - RACK GUIDE (YAMADA) |
| 8 | 53414-634-010 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 9 | 53416-ST0-003 | Guide - STEERING RACK | Guide - STEERING RACK |
| 4 | 53434-S04-J51 | CLIP, TIE ROD | CLIP, TIE ROD |
| 4 | 53434-SD9-000 | Clip - TIE ROD | Clip - TIE ROD |
| 5 | 53434-SV4-010 | Bracket d - GEAR BOX | Bracket d - GEAR BOX |
| 6 | 53436-SV4-010 | Cushion b - GEAR BOX | Cushion b - GEAR BOX |
| 7 | 53438-SV4-010 | Bracket b - GEAR BOX | Bracket b - GEAR BOX |
| 8 | 53447-ST0-003 | Clip - TRANSFER TUBE (NIFCO) | Clip - TRANSFER TUBE (NIFCO) |
| 9 | 53449-S04-J51 | Band b - BELLOWS | Band b - BELLOWS |
| 9 | 53449-SL0-A00 | Band b - BELLOWS | Band b - BELLOWS |
| 11 | 53458-S01-A51 | Nut - LOCK | Nut - LOCK |
| 11 | 53458-SE0-003 | Nut - RACK SCREW LOCK | Nut - RACK SCREW LOCK |
| 10 | 53501-SV4-000 | Grommet a - STEERING | Grommet a - STEERING |
| 11 | 53502-SV4-000 | Grommet b - STEERING | Grommet b - STEERING |
| 12 | 53534-SV4-N01 | Dust seal comp. - TIE ROD | Dust seal comp. - TIE ROD |
| 15 | 53536-SB2-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 16 | 53540-SV4-013 | End comp - R. TIE ROD | End comp - R. TIE ROD |
| 9 | 53546-SA0-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 10 | 53548-SL0-A01 | Circlip - TIE ROD | Circlip - TIE ROD |
| 18 | 53560-SV4-013 | End comp - L. TIE ROD | End comp - L. TIE ROD |
| 15 | 53630-SV4-000 | End comp - CYLINDER | End comp - CYLINDER |
| 19 | 53661-ST0-000 | Ring - BACK UP VALVE | Ring - BACK UP VALVE |
| 20 | 53666-ST0-003 | O-ring - 41.5X2 (NOK) | O-ring - 41.5X2 (NOK) |
| 20 | 53666-SV4-004 | O-ring - 41.5X2 (ARAI) | O-ring - 41.5X2 (ARAI) |
| 23 | 53672-ST0-000 | Shim a - 32MM (0.10MM) | Shim a - 32MM (0.10MM) |
| 24 | 53673-ST0-000 | Shim b - 32MM (0.15MM) | Shim b - 32MM (0.15MM) |
| 25 | 53674-ST0-000 | Shim c - 32MM (0.20MM) | Shim c - 32MM (0.20MM) |
| 26 | 53675-ST0-000 | Shim d - 32MM (0.25MM) | Shim d - 32MM (0.25MM) |
| 20 | 53685-SV4-A00 | Bush - STEERING GEAR BOX MOUNTING | Bush - STEERING GEAR BOX MOUNTING |
| 21 | 53686-SL5-000 | Collar - GEAR BOX MOUNTING | Collar - GEAR BOX MOUNTING |
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 2 | 53701-SV4-003 | Tank comp. - POWER STEERING OIL | Tank comp. - POWER STEERING OIL |
| 3 | 53711-SV4-J60 | Bracket - OIL TANK | Bracket - OIL TANK |
| 26 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 8 | 53729-SS0-003 | Clip - RETURN HOSE | Clip - RETURN HOSE |
| 13 | 53731-SV4-000 | Tube - SUCTION | Tube - SUCTION |
| 14 | 53732-SV4-000 | Hose - OIL COOLER | Hose - OIL COOLER |
| 15 | 53733-SV4-000 | Hose - OIL TANK | Hose - OIL TANK |
| 18 | 53736-SM4-010 | Holder b - POWER STEERING PIPE | Holder b - POWER STEERING PIPE |
| 5 | 54022-SM4-981 | Extension - SHIFT LOCK | Extension - SHIFT LOCK |
| 7 | 54024-SM4-980 | Pin - SOLENOID | Pin - SOLENOID |
| 9 | 54031-SE0-J81 | Spring - SHIFT LOCK | Spring - SHIFT LOCK |
| 11 | 54117-692-980 | Spring - LOCK PIN | Spring - LOCK PIN |
| 12 | 54119-SV4-980 | Pin - LOCK | Pin - LOCK |
| 13 | 54120-SV4-980 | Spring assy - SELECT | Spring assy - SELECT |
| 17 | 54133-SA5-981 | Spring - PUSH KNOB | Spring - PUSH KNOB |
| 18 | 54137-SV4-980 | Rod - LOCK PIN | Rod - LOCK PIN |
| 19 | 54140-SV4-980 | Cap - LOCK PIN | Cap - LOCK PIN |
| 20 | 54141-SV4-980 | Bush - KNOB SETTING | Bush - KNOB SETTING |
| 21 | 54142-SA5-980 | Bush - GUIDE | Bush - GUIDE |
| 25 | 54222-SV4-981 | Cover - SELECT LEVER | Cover - SELECT LEVER |
| 27 | 54315-SV4-983 | Wire - CONTROL | Wire - CONTROL |
| 28 | 54341-SA0-980 | Boot - CONTROL WIRE | Boot - CONTROL WIRE |
| 29 | 54361-SV4-980 | Pipe - CONTROL WIRE ADJUSTING | Pipe - CONTROL WIRE ADJUSTING |
| 30 | 54363-689-981 | Pin - CONTROL WIRE ADJUSTER | Pin - CONTROL WIRE ADJUSTER |
| 1 | 56110-P0A-013 | Pump sub assy - POWER STEERING | Pump sub assy - POWER STEERING |
| 2 | 56167-PY3-000 | Spacer - PUMP SEAL | Spacer - PUMP SEAL |
| 3 | 56483-P0A-003 | Pulley comp - POWER STEERING PUMP | Pulley comp - POWER STEERING PUMP |
| 21 | 56490-P0H-013 | Switch assy - POWER STEERING PRESSURE (TEXAS) | Switch assy - POWER STEERING PRESSURE (TEXAS) |
| 6 | 56995-P0A-000 | Bolt - POWER STEERING PUMP ADJUSTING | Bolt - POWER STEERING PUMP ADJUSTING |
| 7 | 56996-P0A-000 | Bolt - SPECIAL, 8X62 | Bolt - SPECIAL, 8X62 |
| 8 | 56998-P0A-000 | Stay - POWER STEERING PUMP ADJUSTER | Stay - POWER STEERING PUMP ADJUSTER |
| 2 | 57017-SV4-A02 | Motor set - ABS | Motor set - ABS |
| 3 | 57018-ST5-000 | Accumulator set | Accumulator set |
| 4 | 57019-ST5-000 | Tank set - RESERVE | Tank set - RESERVE |
| 5 | 57074-ST5-003 | Bolt - FLANGE, 6X28 | Bolt - FLANGE, 6X28 |
| 6 | 57101-ST7-000 | Rubber - ABS MOUNTING | Rubber - ABS MOUNTING |
| 7 | 57102-ST7-000 | Holder - ABS | Holder - ABS |
| 9 | 57112-ST5-010 | Bolt - ABS MODULATOR | Bolt - ABS MODULATOR |
| 10 | 57115-SV4-000 | Bracket - MODULATOR | Bracket - MODULATOR |
| 11 | 57119-SN7-003 | Mark - RESERVE TANK (ABS) | Mark - RESERVE TANK (ABS) |
| 13 | 57195-ST5-003 | Cap - BASE | Cap - BASE |
| 14 | 57196-ST5-003 | Cap - RESERVE TANK | Cap - RESERVE TANK |
| 15 | 57198-ST5-003 | X-ring - 9.8X2.4 | X-ring - 9.8X2.4 |
| 16 | 57205-ST5-013 | Cord comp | Cord comp |
| 17 | 57365-ST5-003 | Bolt - FLANGE, 8X62 | Bolt - FLANGE, 8X62 |
| 11 | 57450-SV4-950 | Sensor assy - R. FR. | Sensor assy - R. FR. |
| 12 | 57451-SV4-950 | Bracket - COUPLER | Bracket - COUPLER |
| 36 | 57452-SV4-950 | Bracket - COUPLER | Bracket - COUPLER |
| 13 | 57455-SV4-951 | Sensor assy - L. FR. | Sensor assy - L. FR. |
| 37 | 57470-SV4-950 | Sensor assy - R. RR. | Sensor assy - R. RR. |
| 38 | 57475-SV4-950 | Sensor assy - L. RR. | Sensor assy - L. RR. |
| 23 | 60821-SM4-000 | Hook - TIE DOWN | Hook - TIE DOWN |
| 5 | 66406-SA0-000 | Stopper - GLOVE BOX | Stopper - GLOVE BOX |
| 6 | 66417-SA0-000 | Rubber - GLOVE BOX STOPPER | Rubber - GLOVE BOX STOPPER |
| 6 | 66418-579-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 5 | 66418-SA5-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 5 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 13 | 70562-679-000 | Seal - BACK PANEL HOLE | Seal - BACK PANEL HOLE |
| 3 | 71110-SV4-010 | Spoiler - FR. AIR | Spoiler - FR. AIR |
| 8 | 71155-SV4-000 | Plate - FR. BUMPER STAY | Plate - FR. BUMPER STAY |
| 10 | 71502-SV4-010 | Skirt - R. RR. BUMPER | Skirt - R. RR. BUMPER |
| 13 | 71507-SV4-010 | Skirt - L. RR. BUMPER | Skirt - L. RR. BUMPER |
| 16 | 71541-SV4-010 | Beam - RR. BUMPER UPPER | Beam - RR. BUMPER UPPER |
| 17 | 71598-SL4-013 | Spacer - BUMPER SIDE | Spacer - BUMPER SIDE |
| 1 | 71800-SV4-000 | Garnish assy - R. SIDE SILL | Garnish assy - R. SIDE SILL |
| 1 | 71800-SV4-305 | GARN ASSY R SIDE | GARN ASSY R SIDE |
| 2 | 71850-SV4-000 | Garnish assy - L. SIDE SILL | Garnish assy - L. SIDE SILL |
| 2 | 71850-SV4-305 | Garnish assy | Garnish assy |
| 5 | 72112-SR4-004 | Snap - BROWN | Snap - BROWN |
| 5 | 72113-SR4-004 | Snap - BLACK | Snap - BLACK |
| 8 | 72116-SM4-003 | Snap d - VIOLET | Snap d - VIOLET |
| 8 | 72116-SV4-003 | Snap - ORANGE | Snap - ORANGE |
| 10 | 72117-SV4-A01 | Protector - R. DOOR LOCK | Protector - R. DOOR LOCK |
| 13 | 72123-SM1-003 | Ring - OUTSIDE HANDLE | Ring - OUTSIDE HANDLE |
| 17 | 72127-SV4-003 | Mark - LOCK | Mark - LOCK |
| 18 | 72130-SV4-A01 | Protector - R. DOOR CYLINDER | Protector - R. DOOR CYLINDER |
| 19 | 72131-SV4-003 | Rod - R. INSIDE HANDLE | Rod - R. INSIDE HANDLE |
| 21 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 22 | 72134-SM4-003 | Snap - R. (VIOLET) | Snap - R. (VIOLET) |
| 24 | 72135-SR3-003 | Striker assy - DOOR LOCK | Striker assy - DOOR LOCK |
| 25 | 72136-SM4-003 | Holder - ROD, 4MM | Holder - ROD, 4MM |
| 11 | 72139-SR0-A01 | Snap - VIOLET | Snap - VIOLET |
| 27 | 72139-SV4-A01 | Tube - PROTECTOR | Tube - PROTECTOR |
| 30 | 72143-SV1-003 | Hook - OUTSIDE HANDLE | Hook - OUTSIDE HANDLE |
| 31 | 72144-SV1-003 | Cap - OUTSIDE HANDLE OUTER | Cap - OUTSIDE HANDLE OUTER |
| 32 | 72145-SM4-003 | Cylinder - R. DOOR | Cylinder - R. DOOR |
| 33 | 72146-SM4-003 | Cylinder - L. DOOR | Cylinder - L. DOOR |
| 38 | 72157-SV4-A01 | Protector - L. DOOR LOCK | Protector - L. DOOR LOCK |
| 40 | 72170-SV4-A01 | Protector - L. DOOR CYLINDER | Protector - L. DOOR CYLINDER |
| 41 | 72171-SV4-003 | Rod - L. FR. INSIDE HANDLE | Rod - L. FR. INSIDE HANDLE |
| 42 | 72174-SM4-003 | Snap - L. (YELLOW) | Snap - L. (YELLOW) |
| 14 | 72175-SH3-901 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 1 | 72206-SA5-000 | Cap - FLOOR HOLE, 53MM | Cap - FLOOR HOLE, 53MM |
| 4 | 72230-SV4-003 | Sash - R. FR. DOOR LOWER | Sash - R. FR. DOOR LOWER |
| 5 | 72231-SV4-003 | Sash - R. FR. DOOR CENTER LOWER | Sash - R. FR. DOOR CENTER LOWER |
| 6 | 72235-SV4-013 | Runchannel - R. FR. DOOR | Runchannel - R. FR. DOOR |
| 8 | 72270-SV4-003 | Sash - L. FR. DOOR LOWER | Sash - L. FR. DOOR LOWER |
| 9 | 72271-SV4-013 | Sash - L. FR. DOOR CENTER LOWER | Sash - L. FR. DOOR CENTER LOWER |
| 10 | 72275-SV4-013 | Runchannel - L. FR. DOOR | Runchannel - L. FR. DOOR |
| 14 | 72326-SV4-003 | Weatherstrip - FR. LOWER | Weatherstrip - FR. LOWER |
| 6 | 72335-SV4-013 | Weatherstrip - R. FR. DOOR INNER | Weatherstrip - R. FR. DOOR INNER |
| 16 | 72340-SK7-003 | Checker comp. - DOOR | Checker comp. - DOOR |
| 15 | 72367-SK8-000 | Seal - OUTER HANDLE HOLE | Seal - OUTER HANDLE HOLE |
| 7 | 72375-SV4-003 | Weatherstrip - L. FR. DOOR INNER | Weatherstrip - L. FR. DOOR INNER |
| 15 | 72610-SV4-013 | Lock assy - R. RR. DOOR (###) | Lock assy - R. RR. DOOR (###) |
| 16 | 72615-SV4-013 | Actuator assy - R. RR. DOOR LOCK | Actuator assy - R. RR. DOOR LOCK |
| 11 | 72616-SM4-003 | Snap - NATURAL | Snap - NATURAL |
| 18 | 72630-SM4-003 | Crank assy - RR. DOOR LOCK | Crank assy - RR. DOOR LOCK |
| 19 | 72631-SV4-003 | Rod - R. RR. INSIDE HANDLE | Rod - R. RR. INSIDE HANDLE |
| 20 | 72632-SV4-003 | Rod - R. RR. DOOR LOCK | Rod - R. RR. DOOR LOCK |
| 21 | 72633-SV4-003 | Rod - RR. DOOR LOCK KNOB | Rod - RR. DOOR LOCK KNOB |
| 22 | 72634-SM4-003 | Snap - R. (BLUE) | Snap - R. (BLUE) |
| 23 | 72639-SV4-A00 | Protector - R. RR. DOOR ROD | Protector - R. RR. DOOR ROD |
| 25 | 72650-SV4-013 | Lock assy - L. RR. DOOR | Lock assy - L. RR. DOOR |
| 26 | 72655-SV4-013 | Actuator assy - L. RR. DOOR LOCK | Actuator assy - L. RR. DOOR LOCK |
| 28 | 72671-SV4-003 | Rod - L. RR. INSIDE HANDLE | Rod - L. RR. INSIDE HANDLE |
| 29 | 72672-SV4-003 | Rod - L. RR. DOOR LOCK | Rod - L. RR. DOOR LOCK |
| 30 | 72674-SM4-003 | Snap - L. (BROWN) | Snap - L. (BROWN) |
| 31 | 72679-SV4-A00 | Protector - L. RR. DOOR ROD | Protector - L. RR. DOOR ROD |
| 1 | 72710-SV4-003 | Regulator assy - R. RR. DOOR POWER | Regulator assy - R. RR. DOOR POWER |
| 2 | 72730-SV4-003 | Sash - R. RR. DOOR CENTER LOWER | Sash - R. RR. DOOR CENTER LOWER |
| 3 | 72731-SV4-003 | Sash - R. RR. DOOR LOWER | Sash - R. RR. DOOR LOWER |
| 4 | 72735-SV4-013 | Runchannel - R. RR. DOOR | Runchannel - R. RR. DOOR |
| 5 | 72739-SV4-010 | Runchannel - RR. DOOR LOWER | Runchannel - RR. DOOR LOWER |
| 6 | 72750-SV4-003 | Regulator assy - L. RR. DOOR POWER | Regulator assy - L. RR. DOOR POWER |
| 7 | 72770-SV4-003 | Sash - L. RR. DOOR CENTER LOWER | Sash - L. RR. DOOR CENTER LOWER |
| 8 | 72771-SV4-003 | Sash - L. RR. DOOR LOWER | Sash - L. RR. DOOR LOWER |
| 9 | 72775-SV4-013 | Runchannel - L. RR. DOOR | Runchannel - L. RR. DOOR |
| 14 | 72810-SV4-013 | Weatherstrip - R. RR. DOOR (NISHIKAWA) | Weatherstrip - R. RR. DOOR (NISHIKAWA) |
| 16 | 72825-SV4-013 | Sub seal - R. RR. DOOR | Sub seal - R. RR. DOOR |
| 4 | 72835-SV4-003 | Weatherstrip - R. RR. DOOR INNER | Weatherstrip - R. RR. DOOR INNER |
| 18 | 72850-SV4-013 | Weatherstrip - L. RR. DOOR (NISHIKAWA) | Weatherstrip - L. RR. DOOR (NISHIKAWA) |
| 20 | 72865-SV4-013 | Sub seal - L. RR. DOOR | Sub seal - L. RR. DOOR |
| 5 | 72875-SV4-003 | Weatherstrip - L. RR. DOOR INNER | Weatherstrip - L. RR. DOOR INNER |
| 11 | 72921-SV4-003 | Joint - R. RR. PILLAR | Joint - R. RR. PILLAR |
| 15 | 72961-SV4-003 | Joint - L. RR. PILLAR | Joint - L. RR. PILLAR |
| 3 | 73151-SV4-003 | Molding - FR. WINDSHIELD UPPER | Molding - FR. WINDSHIELD UPPER |
| 4 | 73152-SV4-003 | MOLDING ASSY.,R. FRONT WINDSHIELD SIDE | MOLDING ASSY.,R. FRONT WINDSHIELD SIDE |
| 5 | 73162-SV4-003 | Molding assy. - L. FR. WINDSHIELD SIDE | Molding assy. - L. FR. WINDSHIELD SIDE |
| 2 | 73220-SV4-013 | Cover - RR. WINDSHIELD LOWER | Cover - RR. WINDSHIELD LOWER |
| 3 | 73221-SR4-000 | Spacer - RR. WINDSHIELD | Spacer - RR. WINDSHIELD |
| 4 | 73221-SV4-000 | Spacer - RR. WINDSHIELD | Spacer - RR. WINDSHIELD |
| 7 | 73250-SV4-023 | Molding - RR. WINDSHIELD | Molding - RR. WINDSHIELD |
| 3 | 74011-ST7-000 | Insulator a - RR. FENDER | Insulator a - RR. FENDER |
| 1 | 74015-SV4-010 | Insulator - R. DASHBOARD UPPER | Insulator - R. DASHBOARD UPPER |
| 2 | 74016-SV4-010 | Insulator - L. DASHBOARD UPPER | Insulator - L. DASHBOARD UPPER |
| 4 | 74101-SV4-010 | Fender - R. FR. INNER | Fender - R. FR. INNER |
| 5 | 74111-SV4-000 | Shield - FR. SPLASH | Shield - FR. SPLASH |
| 4 | 74120-SV4-A01 | Lock assy - HOOD | Lock assy - HOOD |
| 5 | 74121-SM4-000 | Rubber - HOOD SEAL | Rubber - HOOD SEAL |
| 18 | 74136-SV4-000 | Plate - WATER SCREEN | Plate - WATER SCREEN |
| 11 | 74144-SE0-000 | Cushion - HOOD | Cushion - HOOD |
| 14 | 74148-SV4-000 | Rubber - FR. HOOD SEAL | Rubber - FR. HOOD SEAL |
| 6 | 74151-SV4-010 | Fender - L. FR. INNER | Fender - L. FR. INNER |
| 23 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 15 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 5 | 74231-SV4-000 | Valve - DRAIN | Valve - DRAIN |
| 17 | 74306-SV4-003 | Molding assy. - R. ROOF | Molding assy. - R. ROOF |
| 18 | 74308-ST0-003 | Bracket - ROOF MOLDING | Bracket - ROOF MOLDING |
| 19 | 74316-SV4-003 | Molding assy. - L. ROOF | Molding assy. - L. ROOF |
| 6 | 74416-SF1-000 | Insulator - PILLAR LOWER | Insulator - PILLAR LOWER |
| 24 | 74422-SM4-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 25 | 74494-SM4-010 | Spring - FUEL LID OPENER | Spring - FUEL LID OPENER |
| 5 | 74559-SV4-000 | Cover - FUEL PIPE | Cover - FUEL PIPE |
| 28 | 74601-SV4-A01 | Plate - FLOOR HEAT BAFFLE | Plate - FLOOR HEAT BAFFLE |
| 15 | 74656-SM4-010 | Bracket - TANK BAFFLE PLATE | Bracket - TANK BAFFLE PLATE |
| 30 | 74660-SV4-010 | Cap assy. - FLOOR MAINTENANCE HOLE | Cap assy. - FLOOR MAINTENANCE HOLE |
| 31 | 74661-SH5-023 | Cap - FLOOR MAINTENANCE HOLE | Cap - FLOOR MAINTENANCE HOLE |
| 3 | 74672-SV4-000 | Lid - FLOOR TUNNEL STIFFENER | Lid - FLOOR TUNNEL STIFFENER |
| 8 | 74815-SL5-305 | Garnish - TRUNK CYLINDER (CHROME PLATED) | Garnish - TRUNK CYLINDER (CHROME PLATED) |
| 9 | 74822-SW5-003 | Cushion - TRUNK HINGE | Cushion - TRUNK HINGE |
| 10 | 74826-SV4-000 | Protector - RR. COMBINATION | Protector - RR. COMBINATION |
| 11 | 74827-SP0-000 | Stopper - TRUNK LID | Stopper - TRUNK LID |
| 12 | 74829-SP0-000 | Stopper - TRUNK LOWER | Stopper - TRUNK LOWER |
| 15 | 74861-SS0-003 | Cylinder - TRUNK | Cylinder - TRUNK |
| 16 | 74862-SS0-003 | Striker - TRUNK | Striker - TRUNK |
| 17 | 74863-SV4-003 | Rod - TRUNK LOCK | Rod - TRUNK LOCK |
| 19 | 74865-SV4-010 | Weatherstrip - TRUNK LID | Weatherstrip - TRUNK LID |
| 28 | 74886-SH4-A03 | Cylinder - TRUNK REMOTE CONTROL | Cylinder - TRUNK REMOTE CONTROL |
| 1 | 75101-SV4-902 | Grille - FR. | Grille - FR. |
| 12 | 75329-SH4-013 | Clip b - MOLDING | Clip b - MOLDING |
| 45 | 75411-634-000 | Joint | Joint |
| 26 | 75450-SS0-000 | Outlet assy - RR. AIR | Outlet assy - RR. AIR |
| 27 | 75451-SP0-000 | Clip - RR. AIR OUTLET | Clip - RR. AIR OUTLET |
| 46 | 75522-634-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 13 | 75722-SV4-000 | Emblem - RR. (ACCORD) | Emblem - RR. (ACCORD) |
| 20 | 75760-SB2-003 | Pin - DOOR CHECKER | Pin - DOOR CHECKER |
| 14 | 75807-671-010 | Nut - SIDE PROTECTOR (BLACK) | Nut - SIDE PROTECTOR (BLACK) |
| 22 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 11 | 76220-SV4-000 | Garnish - R. DOOR MIRROR (R.C.) | Garnish - R. DOOR MIRROR (R.C.) |
| 18 | 76270-SV4-000 | Garnish - L. DOOR MIRROR (R.C.) | Garnish - L. DOOR MIRROR (R.C.) |
| 19 | 76401-SH3-901 | Base - STAY (MATSUYAMA) | Base - STAY (MATSUYAMA) |
| 2 | 76515-SM4-013 | Seal a | Seal a |
| 3 | 76516-SL4-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 4 | 76516-SM4-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 5 | 76517-SM4-003 | Collar | Collar |
| 6 | 76518-SL5-A01 | Cap - PIVOT (B) | Cap - PIVOT (B) |
| 7 | 76520-SM4-003 | Link unit a | Link unit a |
| 8 | 76524-SD4-003 | Dust seal | Dust seal |
| 9 | 76524-SE0-013 | Dust seal | Dust seal |
| 11 | 76540-SV4-003 | Rod unit a | Rod unit a |
| 12 | 76550-SV4-003 | Rod unit b | Rod unit b |
| 13 | 76558-SS0-003 | Cap - PIVOT | Cap - PIVOT |
| 17 | 76622-SF4-003 | Rubber - BLADE (500MM) | Rubber - BLADE (500MM) |
| 18 | 76622-SM4-003 | Rubber - BLADE (600MM) | Rubber - BLADE (600MM) |
| 17 | 76632-S6M-003 | Rubber - BLADE (500MM) | Rubber - BLADE (500MM) |
| 13 | 76830-SM4-003 | Joint y - WASHER | Joint y - WASHER |
| 9 | 77110-SV4-020 | Frame - GLOVE BOX | Frame - GLOVE BOX |
| 12 | 77234-SV4-003 | Clip | Clip |
| 15 | 77292-SV4-010 | Bracket - RADIO FIXING | Bracket - RADIO FIXING |
| 16 | 77296-SV4-000 | Bracket - FR. CONSOLE (A) | Bracket - FR. CONSOLE (A) |
| 15 | 77355-SG0-A00 | Label - IGNITION INFORMATION | Label - IGNITION INFORMATION |
| 16 | 77355-SV4-000 | Blind - COLUMN | Blind - COLUMN |
| 18 | 77371-SV4-000 | Ring - COLUMN COVER | Ring - COLUMN COVER |
| 23 | 77506-SM4-900 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 24 | 77508-SX0-000 | Arm - GLOVE BOX STOPPER | Arm - GLOVE BOX STOPPER |
| 25 | 77509-SM4-A81 | Damper - LOCK | Damper - LOCK |
| 26 | 77510-SV4-000 | Hinge - GLOVE BOX | Hinge - GLOVE BOX |
| 7 | 77517-SA5-014 | Cap - SLIDE ADJUSTER | Cap - SLIDE ADJUSTER |
| 29 | 77542-SV4-000 | Striker - GLOVE BOX | Striker - GLOVE BOX |
| 6 | 77804-SP0-A80 | Label - DRIVER MODULE WARNING | Label - DRIVER MODULE WARNING |
| 21 | 77869-SV4-A80 | Plate - INSTRUMENT SUPPORT | Plate - INSTRUMENT SUPPORT |
| 25 | 77871-SM4-A70 | Label - SRS CAUTION | Label - SRS CAUTION |
| 12 | 77873-SP0-A80 | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH) | Label - STEERING COLUMN CAUTION (ENGLISH/FRENCH) |
| 7 | 77894-SP0-A80 | Label - DRIVER MODULE DANGER | Label - DRIVER MODULE DANGER |
| 10 | 77963-SV4-A01 | Clip - SRS HARNESS (BLUE) (153MM) | Clip - SRS HARNESS (BLUE) (153MM) |
| 24 | 77982-S04-N81 | Holder - COUPLER (2P) | Holder - COUPLER (2P) |
| 14 | 78145-SV4-J01 | Panel - WARNING PRINT | Panel - WARNING PRINT |
| 18 | 78166-SV4-901 | Illumination assy. | Illumination assy. |
| 20 | 78181-SF1-612 | Bulb & socket assy. - NS) (14V 80MA) (BASE:BLACK | Bulb & socket assy. - NS) (14V 80MA) (BASE:BLACK |
| 21 | 78182-SM4-003 | Socket assy - BULB (14V-100MA) (BASE:BROWN) | Socket assy - BULB (14V-100MA) (BASE:BROWN) |
| 23 | 78184-SM4-003 | Socket assy - BULB (14V-60MA) (BASE:GRAY) | Socket assy - BULB (14V-60MA) (BASE:GRAY) |
| 22 | 78410-SV4-003 | Sensor assy - SPEED (MATSUSHITA) | Sensor assy - SPEED (MATSUSHITA) |
| 23 | 78411-SM4-003 | Joint - SPEED SENSOR (MATSUSHITA) | Joint - SPEED SENSOR (MATSUSHITA) |
| 9 | 78506-SM5-A81 | Plate - CONTACT (A) | Plate - CONTACT (A) |
| 10 | 78507-SM5-A81 | Plate - CONTACT (B) | Plate - CONTACT (B) |
| 11 | 78508-SM5-A81 | Spring - HORN | Spring - HORN |
| 16 | 78517-SM5-A81 | Plate - CRUISE SWITCH SET | Plate - CRUISE SWITCH SET |
| 5 | 79116-SV4-A01 | Holder - PIPE | Holder - PIPE |
| 6 | 79117-SV4-A01 | Clamp - CORE | Clamp - CORE |
| 9 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 3 | 79195-SF1-003 | Holder - ROD | Holder - ROD |
| 1 | 79710-SV4-003 | Valve assy. - WATER | Valve assy. - WATER |
| 3 | 79722-SV4-000 | Hose b - WATER IN. | Hose b - WATER IN. |
| 5 | 79731-SV4-000 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 11 | 79770-SE0-000 | Grommet - WATER VALVE CABLE | Grommet - WATER VALVE CABLE |
| 1 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 17 | 80175-SE0-000 | Mount - CONDENSER | Mount - CONDENSER |
| 9 | 80271-SV4-000 | Hose - DRAIN | Hose - DRAIN |
| 10 | 80272-SF4-000 | Grommet - DRAIN HOSE | Grommet - DRAIN HOSE |
| 10 | 80360-SL5-003 | Clamp - SUCTION HOSE | Clamp - SUCTION HOSE |
| 13 | 80380-SF4-000 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 13 | 80380-SM4-G00 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 11 | 80491-SV4-A00 | Bracket - AIR CONDITIONER RELAY | Bracket - AIR CONDITIONER RELAY |
| 20 | 80871-ST7-000 | O-ring - 5/8" | O-ring - 5/8" |
| 22 | 80872-ST7-000 | O-ring - 1/2" | O-ring - 1/2" |
| 16 | 81261-SM4-J32 | Cap - RAIL END LOWER | Cap - RAIL END LOWER |
| 17 | 81262-SM4-J32 | Cap - RAIL END UPPER | Cap - RAIL END UPPER |
| 20 | 81322-SP0-003 | Clip - LUMBAR SUPPORT | Clip - LUMBAR SUPPORT |
| 5 | 81491-SV4-000 | Protector - R. FR. SEATBELT | Protector - R. FR. SEATBELT |
| 8 | 81891-SV4-000 | Protector - L. FR. SEATBELT | Protector - L. FR. SEATBELT |
| 11 | 82491-SV4-000 | Protector - R. RR. SEATBELT | Protector - R. RR. SEATBELT |
| 9 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 14 | 82891-SV4-000 | Protector - L. RR. SEATBELT | Protector - L. RR. SEATBELT |
| 6 | 83202-SV4-305 | Tape set - INTERIOR CORD PLASTER (10 PIECES) (SERVICE) | Tape set - INTERIOR CORD PLASTER (10 PIECES) (SERVICE) |
| 13 | 83248-SG0-003 | Spacer - GRAB RAIL | Spacer - GRAB RAIL |
| 6 | 83331-SV4-000 | Duct - RR. HEATER | Duct - RR. HEATER |
| 13 | 83709-SV4-A00 | Protector - R. RR. DOOR | Protector - R. RR. DOOR |
| 15 | 83759-SV4-A00 | Protector - L. RR. DOOR | Protector - L. RR. DOOR |
| 15 | 84136-SM4-A00 | Seal - SEATBELT HOLE | Seal - SEATBELT HOLE |
| 10 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 20 | 85268-SA5-003 | Stopper - TAILGATE (BLACK) | Stopper - TAILGATE (BLACK) |
| 23 | 88147-SA5-003 | Washer - TOOTHED (MATSUYAMA) | Washer - TOOTHED (MATSUYAMA) |
| 24 | 88148-SE0-003 | Bolt - LOCK, 6X7 (MATSUYAMA) | Bolt - LOCK, 6X7 (MATSUYAMA) |
| 32 | 88324-SB3-950 | Cover - RR. ASHTRAY | Cover - RR. ASHTRAY |
| 25 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 15 | 90001-PA9-000 | Bolt - HEX., 6MM | Bolt - HEX., 6MM |
| 25 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 17 | 90002-PD2-000 | Bolt - FLANGE, 8X16 | Bolt - FLANGE, 8X16 |
| 13 | 90003-692-000 | Bolt - FLANGE, 6X16 | Bolt - FLANGE, 6X16 |
| 16 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
| 4 | 90003-PA9-003 | Bolt - FLANGE, 10MM | Bolt - FLANGE, 10MM |
| 19 | 90003-PG7-660 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 11 | 90004-415-000 | Bolt - FLANGE, 6X14 | Bolt - FLANGE, 6X14 |
| 18 | 90004-P0X-000 | Bolt - SPECIAL, 6X157 | Bolt - SPECIAL, 6X157 |
| 17 | 90004-PC9-000 | Bolt - FLANGE, 6X90 | Bolt - FLANGE, 6X90 |
| 27 | 90007-679-000 | Bolt a - TIMING BELT COVER | Bolt a - TIMING BELT COVER |
| 26 | 90007-PAA-T01 | Bolt-washer - 11X121 | Bolt-washer - 11X121 |
| 27 | 90008-PM3-000 | Bolt - MOUNTING BRACKET, 10X32.5 | Bolt - MOUNTING BRACKET, 10X32.5 |
| 28 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 16 | 90010-P24-J00 | Bolt - SPECIAL, 5X15 | Bolt - SPECIAL, 5X15 |
| 7 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 17 | 90011-PT0-000 | Bolt-washer - 8X26 | Bolt-washer - 8X26 |
| 20 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 8 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 19 | 90017-PY3-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 19 | 90017-RJA-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 18 | 90018-PT0-010 | Bolt - BALANCER BELT ADJUSTER | Bolt - BALANCER BELT ADJUSTER |
| 19 | 90019-PF4-000 | Bolt - FLANGE, 6X152 | Bolt - FLANGE, 6X152 |
| 20 | 90019-PT0-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 26 | 90020-PD6-000 | Bolt - SEALING, 12MM | Bolt - SEALING, 12MM |
| 26 | 90021-P0A-003 | Bolt - SEALING, 12MM | Bolt - SEALING, 12MM |
| 15 | 90021-SM4-003 | Bolt - SHOCK ABSORBER, 10X68 | Bolt - SHOCK ABSORBER, 10X68 |
| 40 | 90022-SM4-003 | Bolt - TRAILING ARM BRACKET, 12X69 | Bolt - TRAILING ARM BRACKET, 12X69 |
| 9 | 90023-PA9-000 | Bolt - SPECIAL | Bolt - SPECIAL |
| 6 | 90023-PE0-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
| 32 | 90023-PK1-000 | Bolt - FLANGE, 6X10 | Bolt - FLANGE, 6X10 |
| 32 | 90023-PR7-A01 | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) | BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) |
| 19 | 90023-PT0-003 | Bolt-washer - 8X33 | Bolt-washer - 8X33 |
| 41 | 90023-SM4-003 | Bolt - TRAILING ARM BRACKET, 12X55.5 | Bolt - TRAILING ARM BRACKET, 12X55.5 |
| 17 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 42 | 90024-SM4-000 | Bolt a - TRAILING ARM (10X57) | Bolt a - TRAILING ARM (10X57) |
| 22 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
| 44 | 90026-SM4-000 | Bolt b - TRAILING ARM (10X45) | Bolt b - TRAILING ARM (10X45) |
| 45 | 90028-SM4-000 | Bolt - TRAILING, 8X19 | Bolt - TRAILING, 8X19 |
| 29 | 90030-PT0-000 | Bolt - STUD, 10X35 | Bolt - STUD, 10X35 |
| 21 | 90031-PT0-003 | Bolt-washer - 8X22 | Bolt-washer - 8X22 |
| 21 | 90032-ZW5-003 | Bolt-washer, 8x22 | Bolt-washer, 8x22 |
| 13 | 90041-P08-003 | Screw-washer - 4X11 | Screw-washer - 4X11 |
| 18 | 90041-P15-000 | Bolt - STUD, 10X22 | Bolt - STUD, 10X22 |
| 30 | 90041-PA5-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 31 | 90041-PT0-000 | Bolt - STUD, 12X60 | Bolt - STUD, 12X60 |
| 14 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 14 | 90042-PH2-003 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 32 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 19 | 90042-PX5-010 | Bolt - STUD, 10X50 | Bolt - STUD, 10X50 |
| 15 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 33 | 90051-PH7-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 31 | 90051-PT0-000 | Bolt - SUB BELT ADJUSTER SPRING | Bolt - SUB BELT ADJUSTER SPRING |
| 21 | 90052-PK1-000 | Bolt - FLANGE, 6X25 | Bolt - FLANGE, 6X25 |
| 34 | 90061-PT0-000 | Bolt - DRAIN PLUG, 12MM | Bolt - DRAIN PLUG, 12MM |
| 22 | 90063-PC6-000 | Bolt - STUD, 6X25 | Bolt - STUD, 6X25 |
| 9 | 90065-PC1-300 | Bolt - STUD, 10X34.5 | Bolt - STUD, 10X34.5 |
| 28 | 90075-PD3-000 | Bolt - FLANGE, 10X43 | Bolt - FLANGE, 10X43 |
| 20 | 90081-PX4-003 | Bolt - PLUG, 18MM | Bolt - PLUG, 18MM |
| 12 | 90089-PK4-000 | Bolt - STOPPER, 6MM | Bolt - STOPPER, 6MM |
| 9 | 90091-P0A-000 | Bolt - POWER STEERING PUMP ADJUSTING | Bolt - POWER STEERING PUMP ADJUSTING |
| 26 | 90091-P36-000 | Bolt-washer - 5X28 | Bolt-washer - 5X28 |
| 22 | 90101-SE3-003 | Bolt-washer - 8X23.5 | Bolt-washer - 8X23.5 |
| 48 | 90101-SR4-003 | Screw - 3X10 | Screw - 3X10 |
| 33 | 90103-SB0-010 | Nut - FLANGE, 5MM | Nut - FLANGE, 5MM |
| 28 | 90103-SM4-010 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 23 | 90103-SV1-A00 | Screw - 5X11 | Screw - 5X11 |
| 25 | 90104-SV4-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 7 | 90105-SL4-000 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 32 | 90105-SV1-000 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 22 | 90106-SE1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 35 | 90107-SE3-000 | Screw-washer - 4X12 | Screw-washer - 4X12 |
| 20 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 8 | 90108-SF1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 22 | 90108-SH3-003 | Bolt - GEAR BOX MOUNTING (10X55) | Bolt - GEAR BOX MOUNTING (10X55) |
| 32 | 90109-SM4-000 | Bolt - SPECIAL, 6X35 | Bolt - SPECIAL, 6X35 |
| 20 | 90109-SS0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 21 | 90110-SE7-000 | Bolt-washer - 8X21 | Bolt-washer - 8X21 |
| 22 | 90110-SV4-000 | Bolt-washer - 8X21 | Bolt-washer - 8X21 |
| 24 | 90111-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 21 | 90112-SM4-020 | Bolt - STABILIZER LINK (8X95) | Bolt - STABILIZER LINK (8X95) |
| 40 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 32 | 90114-SA0-000 | Nut - SELF-LOCK, 6MM | Nut - SELF-LOCK, 6MM |
| 9 | 90114-SE0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 10 | 90114-SG0-003 | Bolt - 5X13 | Bolt - 5X13 |
| 21 | 90114-SM4-000 | Bolt - FLANGE, 10X20 | Bolt - FLANGE, 10X20 |
| 16 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 9 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 33 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 22 | 90117-SM4-003 | Bolt - FR. SHOCK ABSORBER LOCK (10X44) | Bolt - FR. SHOCK ABSORBER LOCK (10X44) |
| 23 | 90118-SL4-003 | Bolt - SELF-LOCK, 12X84 | Bolt - SELF-LOCK, 12X84 |
| 10 | 90119-SE0-000 | Bolt - FLANGE, 6MM | Bolt - FLANGE, 6MM |
| 47 | 90119-SV4-003 | Bolt - RR. LOWER ARM, 12X66 | Bolt - RR. LOWER ARM, 12X66 |
| 49 | 90120-SM4-000 | Screw - TAPPING | Screw - TAPPING |
| 47 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 20 | 90121-SM4-003 | Screw - TAPPING, 4X10 | Screw - TAPPING, 4X10 |
| 24 | 90121-SM4-010 | Bolt - SHOCK ABSORBER FORK (12X98) | Bolt - SHOCK ABSORBER FORK (12X98) |
| 10 | 90121-SR3-003 | Screw - TAPPING, 5X12 | Screw - TAPPING, 5X12 |
| 21 | 90122-SM4-003 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 36 | 90123-SM4-000 | Screw - TAPPING, 4X12 (PO) | Screw - TAPPING, 4X12 (PO) |
| 11 | 90123-SV4-003 | Screw - EVATITE, 4X12 | Screw - EVATITE, 4X12 |
| 5 | 90125-SM4-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 23 | 90125-SP0-003 | Bolt b | Bolt b |
| 20 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 34 | 90126-SS0-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 42 | 90127-SE0-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 26 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 33 | 90130-SV4-980 | Screw - TAPPING, 5X11 | Screw - TAPPING, 5X11 |
| 20 | 90131-SP0-003 | Screw - FLAT, 5X20 | Screw - FLAT, 5X20 |
| 24 | 90132-SM4-003 | Screw-washer - 3X16 | Screw-washer - 3X16 |
| 19 | 90132-SP0-003 | Screw - PAN, 5X15 | Screw - PAN, 5X15 |
| 12 | 90132-SR3-003 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 22 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 29 | 90132-SV4-003 | Screw - ET, 5X16 | Screw - ET, 5X16 |
| 21 | 90133-SG0-003 | Bolt-washer - 5X30 | Bolt-washer - 5X30 |
| 17 | 90133-SJ6-020 | Screw-washer - 4X12 (PO) | Screw-washer - 4X12 (PO) |
| 13 | 90133-SR3-003 | Screw-washer - 4X16 | Screw-washer - 4X16 |
| 22 | 90134-S04-A81 | Bolt - HEX., 6X12 | Bolt - HEX., 6X12 |
| 25 | 90134-SM4-003 | Screw-washer - 3X27 | Screw-washer - 3X27 |
| 13 | 90135-SB0-003 | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) |
| 29 | 90137-SF1-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 13 | 90137-SG0-A81 | Bolt - TORX EARTH, 6X16 | Bolt - TORX EARTH, 6X16 |
| 14 | 90138-SL0-A81 | Bolt - TORX, 6X25 | Bolt - TORX, 6X25 |
| 22 | 90138-SM4-003 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 18 | 90139-SH3-003 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 33 | 90139-SM4-003 | Bolt-washer - 5X20 | Bolt-washer - 5X20 |
| 34 | 90144-SP0-000 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 22 | 90146-SV4-000 | Screw - TAPPING, 4X11 | Screw - TAPPING, 4X11 |
| 30 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 30 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 11 | 90153-SA5-900 | Screw-washer - 5X9 | Screw-washer - 5X9 |
| 17 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 19 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 34 | 90156-SM4-000 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 34 | 90161-SH4-000 | Bolt-washer - 6X12 | Bolt-washer - 6X12 |
| 23 | 90162-SA6-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 15 | 90162-SV4-000 | Bolt-washer - 10X30 | Bolt-washer - 10X30 |
| 16 | 90163-SC2-000 | Bolt - FLANGE, 12X25 | Bolt - FLANGE, 12X25 |
| 23 | 90164-SM4-013 | Bolt - FR. HUB UNIT, 10X40 | Bolt - FR. HUB UNIT, 10X40 |
| 8 | 90166-SF1-010 | Bolt-washer - 10X21 | Bolt-washer - 10X21 |
| 17 | 90167-SM4-000 | Bolt - FLANGE, 12X120 | Bolt - FLANGE, 12X120 |
| 18 | 90169-SM4-000 | Bolt - FLANGE, 12X30 | Bolt - FLANGE, 12X30 |
| 19 | 90170-SM4-000 | Bolt - FLANGE, 12X40 | Bolt - FLANGE, 12X40 |
| 20 | 90173-SM4-000 | Bolt - FLANGE, 12X60 | Bolt - FLANGE, 12X60 |
| 21 | 90174-SM4-000 | Bolt - FLANGE, 10X22 | Bolt - FLANGE, 10X22 |
| 22 | 90176-SM4-000 | Bolt - FLANGE, 12X95 | Bolt - FLANGE, 12X95 |
| 25 | 90178-SM4-013 | Bolt - FR. RADIUS ROD (12X31) | Bolt - FR. RADIUS ROD (12X31) |
| 24 | 90182-SB6-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 22 | 90188-SM4-000 | Bolt - FLANGE, 6X12 (BLACK) | Bolt - FLANGE, 6X12 (BLACK) |
| 9 | 90190-SM4-003 | Bolt - FLANGE, 12X108 | Bolt - FLANGE, 12X108 |
| 10 | 90191-SM4-003 | Bolt - FLANGE, 12X95 | Bolt - FLANGE, 12X95 |
| 11 | 90192-SM4-003 | Bolt - FLANGE, 12X139 | Bolt - FLANGE, 12X139 |
| 47 | 90201-PD1-000 | Nut a - SEALING, 12MM | Nut a - SEALING, 12MM |
| 8 | 90201-PX4-010 | Nut - FLANGE, 24MM | Nut - FLANGE, 24MM |
| 21 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
| 10 | 90202-P0A-A01 | Nut-washer - 8MM | Nut-washer - 8MM |
| 14 | 90203-PX4-010 | Nut - FLANGE, 24MM | Nut - FLANGE, 24MM |
| 18 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
| 36 | 90212-671-005 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 10 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 10 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 35 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 49 | 90212-SA7-010 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 11 | 90213-PH3-000 | Nut - CAP, 6MM | Nut - CAP, 6MM |
| 26 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 32 | 90216-P0A-000 | Nut - 10MM | Nut - 10MM |
| 51 | 90216-SE0-010 | Nut | Nut |
| 51 | 90216-SE0-305 | NUT, LWR ARM | NUT, LWR ARM |
| 52 | 90217-SM4-003 | Nut - TRAILING ARM, 10MM | Nut - TRAILING ARM, 10MM |
| 53 | 90230-SB0-950 | Bolt-washer - 6X12 (GREEN) | Bolt-washer - 6X12 (GREEN) |
| 20 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |
| 21 | 90232-PT0-003 | Nut - HEX., 6MM | Nut - HEX., 6MM |
| 33 | 90301-693-000 | Nut - OPEN STAY, 6MM | Nut - OPEN STAY, 6MM |
| 29 | 90301-SE0-902 | Nut - SPECIAL, 5MM | Nut - SPECIAL, 5MM |
| 36 | 90301-SE0-J00 | Nut - FLANGE, 6MM | Nut - FLANGE, 6MM |
| 25 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 16 | 90301-SS0-000 | Nut - CLIP, 6MM | Nut - CLIP, 6MM |
| 37 | 90301-SV7-000 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 27 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 20 | 90303-SA5-003 | Nut - FR. COMBINATION LIGHT | Nut - FR. COMBINATION LIGHT |
| 27 | 90303-SF1-003 | Nut - SELF-LOCK, 12MM | Nut - SELF-LOCK, 12MM |
| 15 | 90304-SM4-000 | Nut - FR. SHOCK ABSORBER FLANGE (10MM) | Nut - FR. SHOCK ABSORBER FLANGE (10MM) |
| 41 | 90305-692-010 | Nut | Nut |
| 5 | 90305-P0A-003 | Nut - POWER STEERING PULLEY | Nut - POWER STEERING PULLEY |
| 17 | 90305-SD4-003 | Nut - SPINDLE (24MM) | Nut - SPINDLE (24MM) |
| 28 | 90305-SM4-000 | Nut - AIR SPOILER CLIP | Nut - AIR SPOILER CLIP |
| 39 | 90310-SB2-003 | Nut - SPEED | Nut - SPEED |
| 34 | 90313-PT0-000 | Bolt - SPECIAL, 10X90 | Bolt - SPECIAL, 10X90 |
| 23 | 90320-SF1-000 | Nut - CASTLE, 10MM | Nut - CASTLE, 10MM |
| 17 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 28 | 90321-SP0-A80 | Nut-washer - 6MM | Nut-washer - 6MM |
| 20 | 90321-SV4-003 | Nut-washer - 6MM (PAINT CUTTING) | Nut-washer - 6MM (PAINT CUTTING) |
| 21 | 90331-SD5-003 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 29 | 90361-SM4-003 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 29 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 36 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 28 | 90362-SF1-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 18 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
| 23 | 90371-SM4-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 27 | 90399-SB3-003 | Nut - PUSH, 2.8MM | Nut - PUSH, 2.8MM |
| 33 | 90401-PT0-000 | Rubber - TIMING BELT ADJUSTER | Rubber - TIMING BELT ADJUSTER |
| 15 | 90405-PX4-700 | Washer - SPLINE, 29X64X3.5 | Washer - SPLINE, 29X64X3.5 |
| 8 | 90406-PX4-700 | Washer - THRUST, 37X55X4.05 | Washer - THRUST, 37X55X4.05 |
| 16 | 90407-PX4-000 | Washer - THRUST, 41X55X1.5 | Washer - THRUST, 41X55X1.5 |
| 8 | 90407-PX4-700 | Washer - THRUST, 37X55X4.10 | Washer - THRUST, 37X55X4.10 |
| 8 | 90408-PX4-700 | Washer - THRUST, 37X55X4.15 | Washer - THRUST, 37X55X4.15 |
| 8 | 90409-PX4-700 | Washer - THRUST, 37X55X4.20 | Washer - THRUST, 37X55X4.20 |
| 8 | 90410-PX4-700 | Washer - THRUST, 37X55X4.25 | Washer - THRUST, 37X55X4.25 |
| 26 | 90410-SM4-003 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 8 | 90411-PX4-700 | Washer - THRUST, 37X55X4.30 | Washer - THRUST, 37X55X4.30 |
| 8 | 90412-PX4-700 | Washer - THRUST, 37X55X4.35 | Washer - THRUST, 37X55X4.35 |
| 8 | 90413-PX4-700 | Washer - THRUST, 37X55X4.40 | Washer - THRUST, 37X55X4.40 |
| 8 | 90414-PX4-700 | Washer - THRUST, 37X55X4.45 | Washer - THRUST, 37X55X4.45 |
| 27 | 90416-SM4-003 | Screw - TAPPING, 4X16 (PO) | Screw - TAPPING, 4X16 (PO) |
| 9 | 90422-PX4-700 | Washer - THRUST, 27X54X4.40 | Washer - THRUST, 27X54X4.40 |
| 29 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 11 | 90429-PC6-900 | Washer - 40X86X2 | Washer - 40X86X2 |
| 17 | 90431-PX4-700 | Cotter - 29MM | Cotter - 29MM |
| 11 | 90432-PX4-000 | Retainer - COTTER | Retainer - COTTER |
| 18 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 18 | 90433-PT0-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 19 | 90436-PA9-000 | Washer - LOCK, 5MM | Washer - LOCK, 5MM |
| 35 | 90438-671-000 | Washer - SPECIAL, 6MM | Washer - SPECIAL, 6MM |
| 55 | 90438-SE0-000 | Washer - TRAILING, 12MM | Washer - TRAILING, 12MM |
| 18 | 90441-PX4-700 | Collar - DISTANCE, 32MM | Collar - DISTANCE, 32MM |
| 19 | 90445-PX4-700 | Collar - 32X43X8 | Collar - 32X43X8 |
| 11 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
| 19 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 22 | 90471-PX4-000 | Washer - DRAIN PLUG, 18MM | Washer - DRAIN PLUG, 18MM |
| 35 | 90501-MB7-610 | Washer - 10.3X25 | Washer - 10.3X25 |
| 9 | 90501-PX4-010 | Collar - 27X32X51 | Collar - 27X32X51 |
| 34 | 90501-SS0-000 | Packing - SEAT | Packing - SEAT |
| 12 | 90503-PX4-000 | Collar - DISTANCE, 5MM | Collar - DISTANCE, 5MM |
| 24 | 90504-SB0-000 | Washer - PLAIN, 12MM | Washer - PLAIN, 12MM |
| 22 | 90505-SM4-003 | Clip - GARNISH | Clip - GARNISH |
| 22 | 90505-SX0-003 | Clip - GARNISH | Clip - GARNISH |
| 12 | 90506-SE0-000 | Washer - PLAIN, 12MM | Washer - PLAIN, 12MM |
| 15 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 10 | 90512-PX4-701 | Collar - 39X46X23.5 | Collar - 39X46X23.5 |
| 11 | 90513-PX4-000 | Collar - 27X10.9 | Collar - 27X10.9 |
| 20 | 90518-PX4-000 | Collar - 35X41X31 | Collar - 35X41X31 |
| 34 | 90519-SP0-003 | Washer a | Washer a |
| 30 | 90521-SS0-003 | Grommet - SPECIAL SCREW (M4) (YELLOW) | Grommet - SPECIAL SCREW (M4) (YELLOW) |
| 25 | 90552-SV4-000 | Washer - FR. BRACKET | Washer - FR. BRACKET |
| 20 | 90602-PX4-000 | Circlip b - INTERNAL, 47MM | Circlip b - INTERNAL, 47MM |
| 19 | 90603-PX4-000 | Circlip - EXTERNAL, 47MM | Circlip - EXTERNAL, 47MM |
| 19 | 90604-PX4-000 | Circlip - INTERNAL, 31MM | Circlip - INTERNAL, 31MM |
| 20 | 90605-PX4-000 | Ring - SNAP, 129MM | Ring - SNAP, 129MM |
| 20 | 90606-PX4-000 | Circlip - INTERNAL, 36MM | Circlip - INTERNAL, 36MM |
| 35 | 90606-SS0-000 | Spring - FR. ASHTRAY | Spring - FR. ASHTRAY |
| 23 | 90607-081-000 | Circlip - 7MM | Circlip - 7MM |
| 24 | 90609-PX4-000 | Ring - SNAP, 80MM | Ring - SNAP, 80MM |
| 41 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 16 | 90609-SL9-900 | Clip - INSTRUMENT LOWER | Clip - INSTRUMENT LOWER |
| 23 | 90609-SM4-003 | Clip - ROOF LINING | Clip - ROOF LINING |
| 17 | 90610-SR3-003 | Clip - GARNISH (KATO) | Clip - GARNISH (KATO) |
| 13 | 90613-PX4-000 | Ring - SNAP, 27MM | Ring - SNAP, 27MM |
| 21 | 90614-PX4-700 | Ring - SNAP, 32MM | Ring - SNAP, 32MM |
| 25 | 90615-PF4-000 | Ring - SNAP, 75MM | Ring - SNAP, 75MM |
| 28 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 14 | 90634-PA0-000 | Cap - SEALING | Cap - SEALING |
| 25 | 90635-PT0-802 | Clip, Oil Pipe | Clip, Oil Pipe |
| 25 | 90635-RV0-003 | CLIP, OIL PIPE | CLIP, OIL PIPE |
| 23 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 23 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 20 | 90638-689-000 | Clip - SPEEDOMETER GEAR | Clip - SPEEDOMETER GEAR |
| 25 | 90649-SC2-003 | Band - WIRE HARNESS (NATURAL) (150MM) | Band - WIRE HARNESS (NATURAL) (150MM) |
| 37 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 29 | 90651-SL9-013 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 5 | 90651-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 16 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 18 | 90657-671-631 | Clip - TRIM (BLACK) | Clip - TRIM (BLACK) |
| 11 | 90657-SB0-003 | Clip, SPLASH SHIELD | Clip, SPLASH SHIELD |
| 24 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 31 | 90665-SS0-003 | Grommet - RR. COMBINATION | Grommet - RR. COMBINATION |
| 37 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 23 | 90666-SM4-003 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 38 | 90666-SP0-A00 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 45 | 90667-SV4-003 | Clip - CENTER OUTLET | Clip - CENTER OUTLET |
| 37 | 90668-SA5-003 | Grommet - SCREW, 6MM | Grommet - SCREW, 6MM |
| 24 | 90668-SG0-003 | Grommet - SCREW, 4MM(OVAL) | Grommet - SCREW, 4MM(OVAL) |
| 25 | 90673-SE0-003 | Clip - ROOF LINING | Clip - ROOF LINING |
| 8 | 90675-SR4-003 | Grommet - RR. WINDSHIELD MOLDING | Grommet - RR. WINDSHIELD MOLDING |
| 20 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 9 | 90676-SR4-003 | Pin - RR. WINDSHIELD MOLDING | Pin - RR. WINDSHIELD MOLDING |
| 23 | 90677-SE0-003 | Holder - ROD | Holder - ROD |
| 12 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 24 | 90683-SF1-003 | Circlip - FR. UPPER (MUSASHI) | Circlip - FR. UPPER (MUSASHI) |
| 23 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 25 | 90690-SA0-003 | Strap - WIRE HARNESS, 25MM (BLACK) | Strap - WIRE HARNESS, 25MM (BLACK) |
| 37 | 90691-SF1-003 | Clip c - OPENER CABLE | Clip c - OPENER CABLE |
| 40 | 90700-SB0-003 | Clip - AIR BLEED TUBE | Clip - AIR BLEED TUBE |
| 24 | 90700-SJ4-000 | Clip - ENGINE HOOD INSULATOR | Clip - ENGINE HOOD INSULATOR |
| 21 | 90700-SP0-A01 | Clip - TRIM, 15MM | Clip - TRIM, 15MM |
| 21 | 90701-639-000 | Dowel pin - 8X55 | Dowel pin - 8X55 |
| 13 | 90701-PK4-000 | Dowel pin - 8X80 | Dowel pin - 8X80 |
| 23 | 90703-PT0-000 | Dowel pin - 49X10 | Dowel pin - 49X10 |
| 22 | 90704-PT0-000 | Key - 4.5X38.5 | Key - 4.5X38.5 |
| 12 | 90705-PA9-000 | Dowel pin - 14X25 | Dowel pin - 14X25 |
| 35 | 90705-PT0-000 | Dowel pin - 16X22 | Dowel pin - 16X22 |
| 18 | 90705-SD2-931 | Pin - SNAP, 6MM | Pin - SNAP, 6MM |
| 36 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
| 36 | 90741-657-000 | Key - 25.4X13 | Key - 25.4X13 |
| 24 | 90755-SB2-000 | E-ring - 6MM | E-ring - 6MM |
| 46 | 90866-SA0-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 13 | 91001-PX4-003 | Bearing - BALL, 40X68X9 (NTN) | Bearing - BALL, 40X68X9 (NTN) |
| 5 | 91006-PG4-003 | Bearing - SPECIAL TAPER, 40X80X19.75 | Bearing - SPECIAL TAPER, 40X80X19.75 |
| 26 | 91006-PX4-003 | Bearing - BALL, 63/32-27 | Bearing - BALL, 63/32-27 |
| 27 | 91007-P0X-003 | Bearing - RADIAL BALL, 27X75X12.7 | Bearing - RADIAL BALL, 27X75X12.7 |
| 28 | 91008-P0Y-005 | Bearing - RADIAL BALL, 29X80X18/20 (NSK) | Bearing - RADIAL BALL, 29X80X18/20 (NSK) |
| 15 | 91017-PK4-003 | Bearing - NEEDLE, 23X29X20 | Bearing - NEEDLE, 23X29X20 |
| 6 | 91021-148-004 | Bearing - NEEDLE, 1010(NTN) | Bearing - NEEDLE, 1010(NTN) |
| 7 | 91048-PY3-003 | Bearing - RADIAL BALL, 15X38X12 | Bearing - RADIAL BALL, 15X38X12 |
| 14 | 91101-P0Y-005 | Bearing - RADIAL BALL, 31X60X17 (NSK) | Bearing - RADIAL BALL, 31X60X17 (NSK) |
| 15 | 91101-PF4-003 | Roller - 3.5X21.8 | Roller - 3.5X21.8 |
| 15 | 91102-P0X-003 | Bearing - NEEDLE, 38.5X67X19 | Bearing - NEEDLE, 38.5X67X19 |
| 16 | 91105-P0X-003 | Bearing - NEEDLE, 32X36X26 | Bearing - NEEDLE, 32X36X26 |
| 6 | 91122-PK4-013 | Bearing - SPECIAL TAPER, 40X76.2X18 | Bearing - SPECIAL TAPER, 40X76.2X18 |
| 8 | 91148-PY3-003 | Roller - 5X26.8 | Roller - 5X26.8 |
| 9 | 91149-PY3-003 | Roller - 4.5X49.8 | Roller - 4.5X49.8 |
| 30 | 91201-PA9-004 | Oil seal - 9X18X7 (ARAI) | Oil seal - 9X18X7 (ARAI) |
| 16 | 91205-P0X-005 | Oil seal - 40X56X9 (NOK) | Oil seal - 40X56X9 (NOK) |
| 16 | 91206-PG2-005 | Oil seal - 40X56X9 (NOK) | Oil seal - 40X56X9 (NOK) |
| 31 | 91206-PK4-003 | Oil seal - 40X66X8 (NOK) | Oil seal - 40X66X8 (NOK) |
| 17 | 91207-P0X-003 | Oil seal - 44X68X8 (NOK) | Oil seal - 44X68X8 (NOK) |
| 17 | 91207-P0X-004 | Oil seal - 44X68X8 (ARAI) | Oil seal - 44X68X8 (ARAI) |
| 18 | 91209-612-000 | Oil seal - 12X22X7 | Oil seal - 12X22X7 |
| 18 | 91209-612-003 | Oil seal - 12X22X7 (ARAI) | Oil seal - 12X22X7 (ARAI) |
| 24 | 91212-PAA-A02 | Oil seal - 40X52X7 (ARAI) | Oil seal - 40X52X7 (ARAI) |
| 37 | 91214-PC6-013 | Oil seal - 80X100X10 (NOK) | Oil seal - 80X100X10 (NOK) |
| 25 | 91233-PT0-003 | Oil seal - 27X40X8 (NOK) | Oil seal - 27X40X8 (NOK) |
| 10 | 91249-P02-003 | Seal - POWER STEERING PUMP | Seal - POWER STEERING PUMP |
| 10 | 91249-PY3-003 | Seal - POWER STEERING PUMP (NOK) | Seal - POWER STEERING PUMP (NOK) |
| 25 | 91301-P2F-A01 | O-ring - 7.3X2.2 (NOK) | O-ring - 7.3X2.2 (NOK) |
| 22 | 91301-PC9-003 | O-ring - 7.7X2.3 (ARAI) | O-ring - 7.7X2.3 (ARAI) |
| 25 | 91301-PM7-003 | O-ring - 7.3X2.2 (ARAI) | O-ring - 7.3X2.2 (ARAI) |
| 12 | 91302-639-000 | O-ring - 32X1.9 | O-ring - 32X1.9 |
| 20 | 91302-PS5-003 | O-ring - 33.6X2.2 | O-ring - 33.6X2.2 |
| 21 | 91302-PX4-004 | O-ring - 46.8X2.2 (NOK) | O-ring - 46.8X2.2 (NOK) |
| 22 | 91303-PX4-004 | O-ring - 114X2.2 (NOK) | O-ring - 114X2.2 (NOK) |
| 24 | 91304-P0H-013 | O-ring - 7.8X1.9 | O-ring - 7.8X1.9 |
| 21 | 91304-PT0-000 | O-ring - 14.8X1.9 | O-ring - 14.8X1.9 |
| 20 | 91305-PC9-003 | O-ring - 34X1.9 (ARAI) | O-ring - 34X1.9 (ARAI) |
| 23 | 91305-PX4-003 | O-ring - 40X1.9 (NOK) | O-ring - 40X1.9 (NOK) |
| 32 | 91306-P0X-003 | O-ring - 8.1X4 (NOK) | O-ring - 8.1X4 (NOK) |
| 28 | 91307-PA9-003 | O-ring 31.2X1.9 (ARAI) | O-ring 31.2X1.9 (ARAI) |
| 18 | 91307-PJ7-003 | O-ring - 9.5X1.5 (MATSUSHITA) | O-ring - 9.5X1.5 (MATSUSHITA) |
| 18 | 91307-PK2-005 | O-ring - 9.5X1.5(HONDA KIKAKI) | O-ring - 9.5X1.5(HONDA KIKAKI) |
| 21 | 91308-PH0-013 | O-ring - 17.8X1.9 (NOK) | O-ring - 17.8X1.9 (NOK) |
| 26 | 91309-PJ7-010 | O-ring - 11.5X3.5 | O-ring - 11.5X3.5 |
| 24 | 91309-PX4-003 | O-ring - 16X2.1 (NOK) | O-ring - 16X2.1 (NOK) |
| 22 | 91310-PA9-004 | O-ring - 35.2X2.4 (NOK) | O-ring - 35.2X2.4 (NOK) |
| 25 | 91311-PA9-004 | O-ring - 7.7X1.9 (NOK) | O-ring - 7.7X1.9 (NOK) |
| 22 | 91313-611-010 | O-ring - 23.5X2 | O-ring - 23.5X2 |
| 15 | 91316-PF4-003 | O-ring - 31X1.7 (ARAI) | O-ring - 31X1.7 (ARAI) |
| 11 | 91317-P02-003 | O-ring - 5.8X1.9 (NOK) | O-ring - 5.8X1.9 (NOK) |
| 23 | 91321-P0X-003 | O-ring - 25X2.4 (NOK) | O-ring - 25X2.4 (NOK) |
| 23 | 91321-P0X-004 | O-ring - 25X2.4 (ARAI) | O-ring - 25X2.4 (ARAI) |
| 22 | 91321-PF4-004 | O-ring - 18.3X2.4(NOK) | O-ring - 18.3X2.4(NOK) |
| 38 | 91323-PH7-003 | Packing - BEARING CAP BRIDGE (ARAI) | Packing - BEARING CAP BRIDGE (ARAI) |
| 24 | 91324-PF4-004 | O-ring - 28.3X2.4 (NOK) | O-ring - 28.3X2.4 (NOK) |
| 25 | 91331-PC9-003 | O-ring | O-ring |
| 27 | 91344-580-000 | O-ring - 31X2.7 (ARAI) | O-ring - 31X2.7 (ARAI) |
| 25 | 91344-PC9-004 | O-ring - 29X2.4 (NOK) | O-ring - 29X2.4 (NOK) |
| 12 | 91345-PY3-000 | O-ring - 13.0X1.9 | O-ring - 13.0X1.9 |
| 13 | 91346-PY3-000 | O-ring - 22.1X1.9 | O-ring - 22.1X1.9 |
| 14 | 91347-PY3-000 | O-ring - 16.8X1.9 | O-ring - 16.8X1.9 |
| 15 | 91348-PY3-000 | O-ring - 54.0X1.9 | O-ring - 54.0X1.9 |
| 16 | 91349-PY3-000 | O-ring - 68.5X1.9 | O-ring - 68.5X1.9 |
| 25 | 91370-SV4-000 | O-ring - 14.4X1.9 | O-ring - 14.4X1.9 |
| 11 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 26 | 91405-SS0-003 | Clamp - TUBE (D21) | Clamp - TUBE (D21) |
| 31 | 91406-SL4-931 | Clamp - FUEL HOSE (D10.5) | Clamp - FUEL HOSE (D10.5) |
| 25 | 91501-SS0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 36 | 91506-P0A-A01 | Clip - ALTERNATOR CORD | Clip - ALTERNATOR CORD |
| 17 | 91506-SS0-013 | Clip - WIRE & WASHER TUBE | Clip - WIRE & WASHER TUBE |
| 26 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 38 | 91507-PT3-A01 | Band - WIRE HARNESS (BLACK) (90.4MM) | Band - WIRE HARNESS (BLACK) (90.4MM) |
| 7 | 91511-SP0-003 | Clip A - FR. WINDSHIELD SIDE (BLUE) | Clip A - FR. WINDSHIELD SIDE (BLUE) |
| 18 | 91512-SE0-003 | Clip - WASHER TUBE | Clip - WASHER TUBE |
| 28 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
| 13 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 34 | 91513-SH3-003 | Clip c - HOOD | Clip c - HOOD |
| 25 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
| 40 | 91516-SM4-013 | Clip - RR. COMBINATION PROTECTOR | Clip - RR. COMBINATION PROTECTOR |
| 19 | 91522-SM4-003 | Clip - TUBE & INSULATOR | Clip - TUBE & INSULATOR |
| 27 | 91524-SE0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 25 | 91527-SM4-003 | Clip - DOOR MOLDING | Clip - DOOR MOLDING |
| 8 | 91528-SP0-003 | Clip d - FR. WINDSHIELD SIDE (YELLOW) | Clip d - FR. WINDSHIELD SIDE (YELLOW) |
| 26 | 91528-SR4-003 | Clip - DRIP MOLDING | Clip - DRIP MOLDING |
| 26 | 91530-SP1-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 27 | 91533-S04-003 | Clip - COUPLER (NATURAL) | Clip - COUPLER (NATURAL) |
| 39 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 9 | 91542-SS0-003 | Holder - FR. WINDSHIELD GLASS (NATURAL) | Holder - FR. WINDSHIELD GLASS (NATURAL) |
| 38 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 22 | 91546-SM4-003 | Plug - DASHBOARD INSULATOR BLIND (12MM) | Plug - DASHBOARD INSULATOR BLIND (12MM) |
| 40 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 23 | 91547-SM4-003 | Cap - INSULATOR | Cap - INSULATOR |
| 32 | 91549-SE0-003 | Holder - DRAIN HOSE | Holder - DRAIN HOSE |
| 26 | 91550-SM4-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 18 | 91551-SF4-003 | Band - WIRE HARNESS(BROWN) (110MM) | Band - WIRE HARNESS(BROWN) (110MM) |
| 25 | 91551-SV4-003 | Clip - BRACKET | Clip - BRACKET |
| 15 | 91551-SW5-003 | Clip - HARNESS BAND (BROWN) (151MM) | Clip - HARNESS BAND (BROWN) (151MM) |
| 26 | 91552-SF4-003 | Band - WIRE HARNESS (BROWN) (110MM) (WITH SEAL) | Band - WIRE HARNESS (BROWN) (110MM) (WITH SEAL) |
| 36 | 91552-SS0-003 | Clip - WIRE HARNESS (M5) (BROWN) (93.5MM) | Clip - WIRE HARNESS (M5) (BROWN) (93.5MM) |
| 39 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 39 | 91556-SM4-003 | Clip - BAND (BLACK) (100MM) | Clip - BAND (BLACK) (100MM) |
| 36 | 91556-SP0-003 | Clip - COUPLER(BROWN) | Clip - COUPLER(BROWN) |
| 29 | 91558-SE3-003 | Clip - HOOD WIRE | Clip - HOOD WIRE |
| 40 | 91559-SE3-003 | Clip - WIRE HARNESS (WHITE) (55MM) | Clip - WIRE HARNESS (WHITE) (55MM) |
| 41 | 91559-ST5-003 | Clip - HARNESS BAND OFFSET(30) (NATURAL) | Clip - HARNESS BAND OFFSET(30) (NATURAL) |
| 26 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 26 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 28 | 91562-SM4-013 | Grommet - DOOR LINING | Grommet - DOOR LINING |
| 10 | 91562-SV4-003 | Clip e - FR. WINDSHIELD SIDE MOLDING (YELLOW) | Clip e - FR. WINDSHIELD SIDE MOLDING (YELLOW) |
| 10 | 91563-SV4-003 | Fastener a - RR. WINDSHIELD | Fastener a - RR. WINDSHIELD |
| 26 | 91564-SP0-003 | Clip - DOOR CHECKER COVER | Clip - DOOR CHECKER COVER |
| 35 | 91566-SP0-003 | Clip - BACK COVER (NATURAL) | Clip - BACK COVER (NATURAL) |
| 22 | 91567-SE0-003 | Band - WIRE HARNESS(WHITE) (93.5MM) | Band - WIRE HARNESS(WHITE) (93.5MM) |
| 26 | 91568-SR2-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 11 | 91568-SV4-003 | Fastener b - RR. WINDSHIELD | Fastener b - RR. WINDSHIELD |
| 27 | 91570-SH3-003 | Band - WIRE HARNESS (NATURAL) | Band - WIRE HARNESS (NATURAL) |
| 43 | 91571-S10-003 | Clip - WIRE HARNESS (NATURAL) (130MM) | Clip - WIRE HARNESS (NATURAL) (130MM) |
| 11 | 91572-SV4-003 | Clip f - FR. WINDSHIELD SIDE MOLDING (PINK) | Clip f - FR. WINDSHIELD SIDE MOLDING (PINK) |
| 12 | 91573-SV4-003 | Clip b - FR. WINDSHIELD SIDE MOLDING (LIGHT BLUE) | Clip b - FR. WINDSHIELD SIDE MOLDING (LIGHT BLUE) |
| 13 | 91574-SV4-003 | Clip c - FR. WINDSHIELD SIDE MOLDING (NATURAL) | Clip c - FR. WINDSHIELD SIDE MOLDING (NATURAL) |
| 14 | 91576-SV4-003 | Clip - R. FR. CORNER (GREEN) | Clip - R. FR. CORNER (GREEN) |
| 15 | 91577-SV4-003 | Clip - L. FR. CORNER (RED) | Clip - L. FR. CORNER (RED) |
| 7 | 91578-SV4-003 | Clip - FR. GRILLE (B) | Clip - FR. GRILLE (B) |
| 19 | 91584-SM4-003 | Clip - CABLE BAND (BLACK) | Clip - CABLE BAND (BLACK) |
| 45 | 91587-SM4-003 | Clip - COUPLER (GRAY) | Clip - COUPLER (GRAY) |
| 27 | 91588-SV4-004 | Clip - DOOR WEATHERSTRIP (B) | Clip - DOOR WEATHERSTRIP (B) |
| 27 | 91589-SV4-003 | Clip - CAP END | Clip - CAP END |
| 28 | 91590-SV4-003 | Clip - SUB SEAL (A) | Clip - SUB SEAL (A) |
| 33 | 91591-SV4-000 | Bracket - CLIP B | Bracket - CLIP B |
| 34 | 91592-SR3-J32 | Clamp h - FUEL PIPE (SANOU) | Clamp h - FUEL PIPE (SANOU) |
| 35 | 91594-SR3-J32 | Clamp f - FUEL PIPE (SANOU) | Clamp f - FUEL PIPE (SANOU) |
| 43 | 91594-SV4-003 | Clamp - FUEL VENT PIPE | Clamp - FUEL VENT PIPE |
| 36 | 91598-SR3-J32 | Clamp d - FUEL PIPE (SANOU) | Clamp d - FUEL PIPE (SANOU) |
| 37 | 91599-SV4-003 | Clamp a - FUEL PIPE | Clamp a - FUEL PIPE |
| 44 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
| 8 | 91601-SW3-000 | Protection - RR. BUMPER | Protection - RR. BUMPER |
| 13 | 91602-SV4-003 | Plug - HOLE, 15MM | Plug - HOLE, 15MM |
| 30 | 91604-SD2-013 | Grommet - HOOD STAY | Grommet - HOOD STAY |
| 15 | 91606-SE0-000 | Seal - 20X20 | Seal - 20X20 |
| 16 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
| 18 | 91611-SM4-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 19 | 91611-SS0-003 | Plug - HOLE, 25MM | Plug - HOLE, 25MM |
| 13 | 91613-SE0-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 22 | 91619-SE0-000 | Seal - DOOR HOLE, 30MM(BLACK) | Seal - DOOR HOLE, 30MM(BLACK) |
| 28 | 91619-SM4-003 | Grommet - CENTER PILLAR GARNISH (OVAL) | Grommet - CENTER PILLAR GARNISH (OVAL) |
| 23 | 91620-SM4-003 | Grommet - WIPER MOTOR (BLACK) | Grommet - WIPER MOTOR (BLACK) |
| 29 | 91625-SM4-004 | Grommet - CENTER PILLAR GARNISH UPPER | Grommet - CENTER PILLAR GARNISH UPPER |
| 27 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 24 | 91641-SH3-013 | Grommet assy, GARNISH | Grommet assy, GARNISH |
| 41 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 29 | 91657-SP0-000 | Seal c - DOOR PANEL HOLE (25MM) | Seal c - DOOR PANEL HOLE (25MM) |
| 45 | 91691-SE0-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 9 | 91704-PF4-000 | Dowel pin - 8X40 | Dowel pin - 8X40 |
| 46 | 91786-SR3-003 | Bar - JOINT (10P) | Bar - JOINT (10P) |
