CD3 × CN1

共通 200 / 合計 4,194 · Jaccard 4.8%
CD3 Honda ACCORD — 2,150 中 200 共有
CN1 Honda ACCORD — 2,244 中 200 共有
200 件

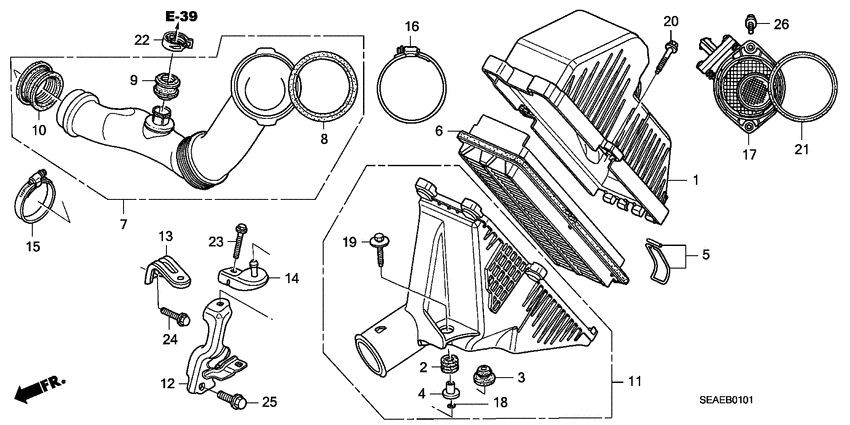

Air cleaner 3 / 17
CD3 Air cleaner

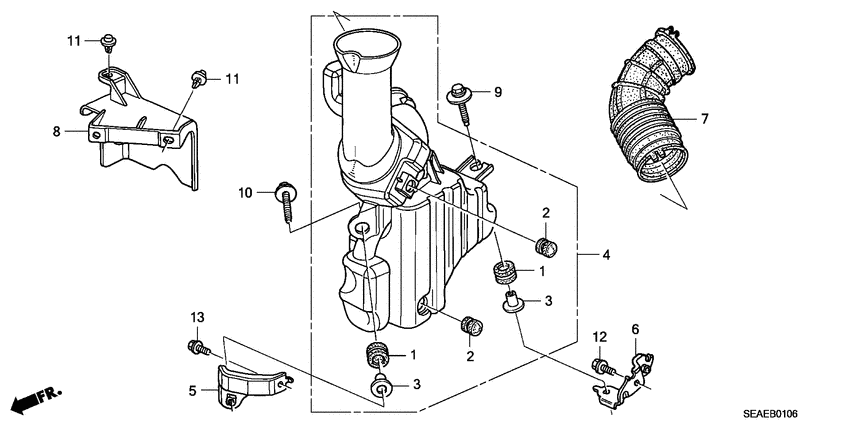

CN1 Resonator chamber (DIESEL)
# OEM CD3 CN1
4 17213-PV0-000 Rubber - AIR CLEANER CASE MOUNTING Rubber - AIR CLEANER CASE MOUNTING
25 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
26 90091-P36-000 Bolt-washer - 5X28 Bolt-washer - 5X28
Air conditioner (COMPRESSOR; DENSO) 5 / 16
CD3 Air conditioner (COMPRESSOR; DENSO)
CN1 Air conditioner (COMPRESS OR; DIESEL)
# OEM CD3 CN1
3 38812-PH1-003 Ring b - SNAP Ring b - SNAP
4 38812-671-003 Ring a - SNAP Ring a - SNAP
5 38827-PH7-003 Screw-washer - 5X8 Screw-washer - 5X8
6 38829-PR3-003 Bolt - WASHER HEAD Bolt - WASHER HEAD
11 38912-PH1-N01 Plate set - WASHER Plate set - WASHER
Air conditioner (COOLING UNIT; RH) 3 / 21
CD3 Air conditioner (COOLING UNIT; RH)
CN1 Air conditioner (HOSES/PI PES; LH; DIESEL)
# OEM CD3 CN1
15 80871-SN7-003 O-ring - 5/8" O-ring - 5/8"
16 80873-SN7-003 O-ring - 8MM O-ring - 8MM
20 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)

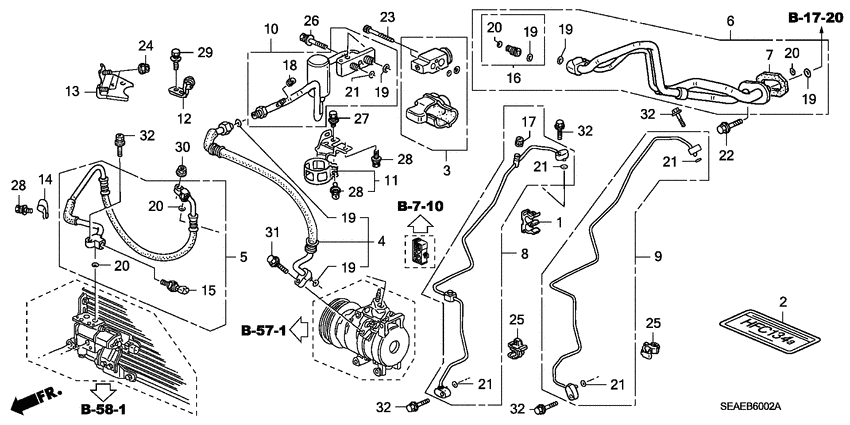

Air conditioner (HOSES/PIPES; RH) 5 / 24
CD3 Air conditioner (HOSES/PIPES; RH)
CN1 Air conditioner (HOSES/PI PES; LH; DIESEL)
# OEM CD3 CN1
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
17 80865-SN7-003 Cap h - VALVE Cap h - VALVE
19 80871-SN7-003 O-ring - 5/8" O-ring - 5/8"
21 80872-SN7-003 O-ring - 1/2" O-ring - 1/2"
23 80873-SN7-003 O-ring - 8MM O-ring - 8MM

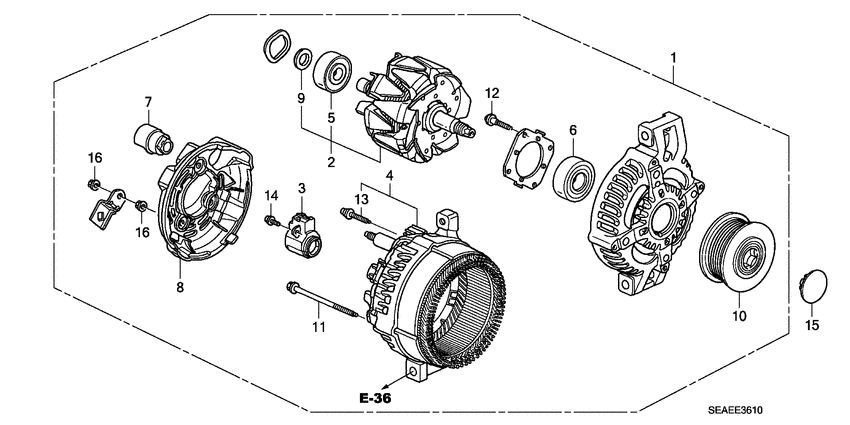

Alternator (DENSO) 3 / 21
CD3 Alternator (DENSO)
CN1 Alternator (DENSO; DIESEL)
# OEM CD3 CN1
4 31111-PT0-003 Bearing - RR. GENERATOR Bearing - RR. GENERATOR
10 31138-PD1-004 Cover - BEARING Cover - BEARING
15 31147-PT0-003 Screw-washer Screw-washer
Battery 3 / 19
CD3 Battery
CN1 Battery (DIESEL)
# OEM CD3 CN1
12 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
13 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
16 90114-SM4-900 Bolt - 6X15 Bolt - 6X15

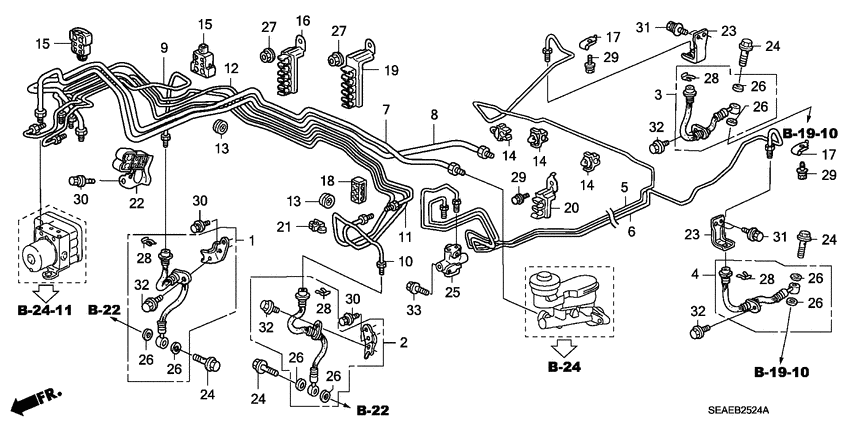

Brake lines (RH) 5 / 26
CD3 Brake lines (RH)
CN1 Brake lines (VSA; DIESEL; LH)
# OEM CD3 CN1
16 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
28 46462-SE0-000 Bolt - OIL Bolt - OIL
29 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
33 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
34 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Brake master cylinder/ master power 1 / 24
CD3 Brake master cylinder/ master power
CN1 Brake master cylinder/ master power (LH)
# OEM CD3 CN1
26 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Bumpers (2) 6 / 23
CD3 Bumpers (2)
CN1 Bumpers
# OEM CD3 CN1
21 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
24 90111-SM4-003 Bolt - BUMPER Bolt - BUMPER
25 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
28 90305-SM4-000 Nut - AIR SPOILER CLIP Nut - AIR SPOILER CLIP
32 91503-SZ5-003 Clip - BUMPER FACE Clip - BUMPER FACE
33 91503-SZ3-003 Clip A Clip A

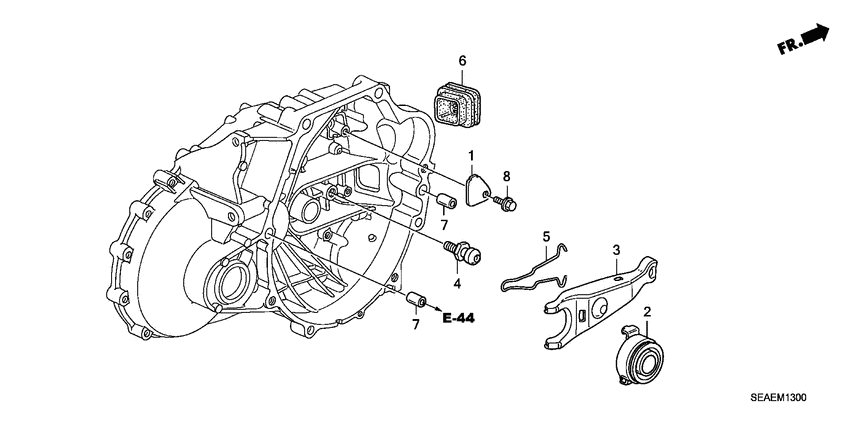

Clutch housing 3 / 24
CD3 Clutch housing
CN1 Clutch release (DIESEL)
# OEM CD3 CN1
7 22825-P0S-000 Bolt - RELEASE FORK Bolt - RELEASE FORK
8 22835-P0S-000 Spring - RELEASE FORK SETTING Spring - RELEASE FORK SETTING
16 90705-PG2-000 Dowel pin - 14X20 Dowel pin - 14X20

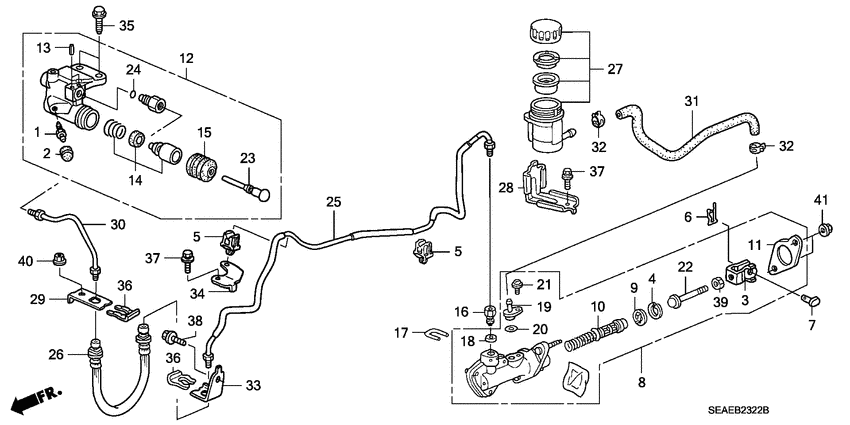

Clutch master cylinder (RH) 4 / 41
CD3 Clutch master cylinder (RH)
CN1 Clutch master cylinder (DIESEL; LH)
# OEM CD3 CN1
1 43352-567-000 Screw - BLEEDER Screw - BLEEDER
6 46182-500-013 Circlip Circlip
9 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
40 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Combination meter components 2 / 25
CD3 Combination meter components
CN1 Instrument panel garnish (DRIVER SIDE; LH)
# OEM CD3 CN1
6 37115-SA0-601 Packing - NS Packing - NS
27 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Combination switch (4) 1 / 18
CD3 Combination switch (4)
CN1 Combination switch (LH)
# OEM CD3 CN1
5 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
Console (RH) 5 / 19
CD3 Console (RH)
CN1 Console
# OEM CD3 CN1
2 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
6 66418-579-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
34 90144-SP0-000 Screw - TAPPING, 4X16 (PO) Screw - TAPPING, 4X16 (PO)
40 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
41 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Control unit (CABIN; 2) 3 / 31
CD3 Control unit (CABIN; 2)
CN1 Navigation system
# OEM CD3 CN1
30 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
31 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
33 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)

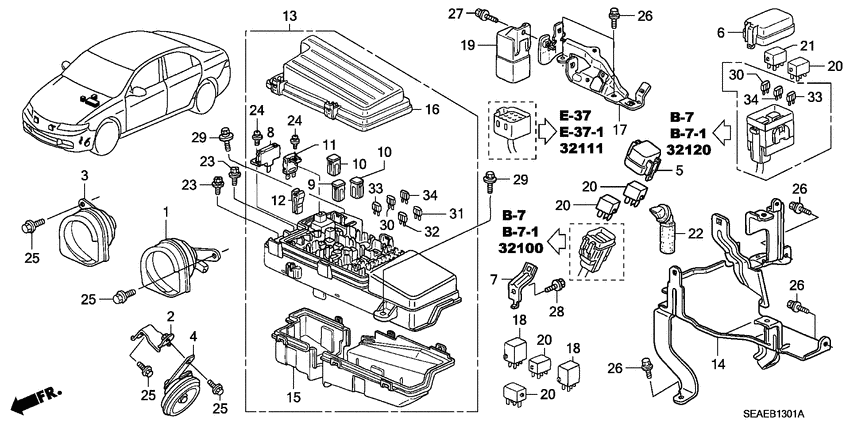

Control unit (ENGINE ROOM) 1 / 27
CD3 Control unit (ENGINE ROOM)
CN1 Control unit (ENGINE ROOM; DIESEL)
# OEM CD3 CN1
20 90114-SM4-900 Bolt - 6X15 Bolt - 6X15

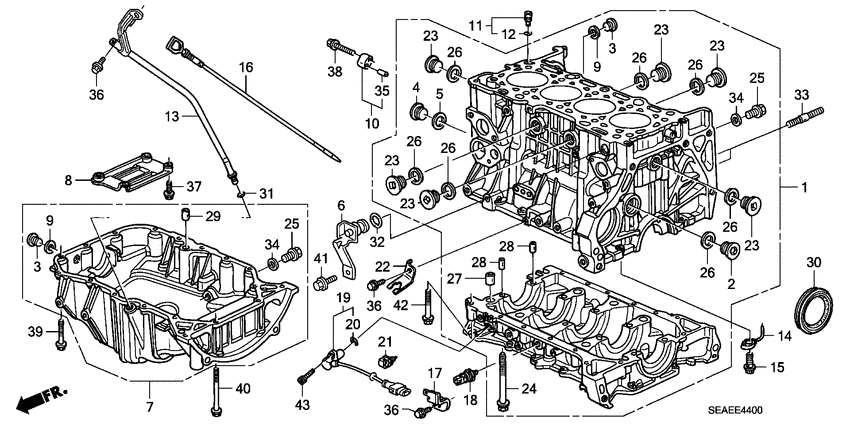

Cylinder block/oil pan (SOHC) 3 / 32
CD3 Cylinder block/oil pan (SOHC)
CN1 Cylinder block/oil pan (DIESEL)
# OEM CD3 CN1
2 11106-PT0-300 Bolt - SEALING, 16MM Bolt - SEALING, 16MM
22 90009-P0A-000 Bolt b - MOUNTING BRACKET, 10X56.2 Bolt b - MOUNTING BRACKET, 10X56.2
30 90715-PC6-000 Dowel pin - 13X20 Dowel pin - 13X20
Cylinder head (SOHC) 3 / 23
CD3 Cylinder head (SOHC)
CN1 Valve stem seal/glow plug (DIESEL)
# OEM CD3 CN1
4 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
4 12210-PZ1-003 Seal a - VALVE STEM(ARAI) Seal a - VALVE STEM(ARAI)
5 12211-PZ1-003 Seal b - VALVE STEM(ARAI) Seal b - VALVE STEM(ARAI)

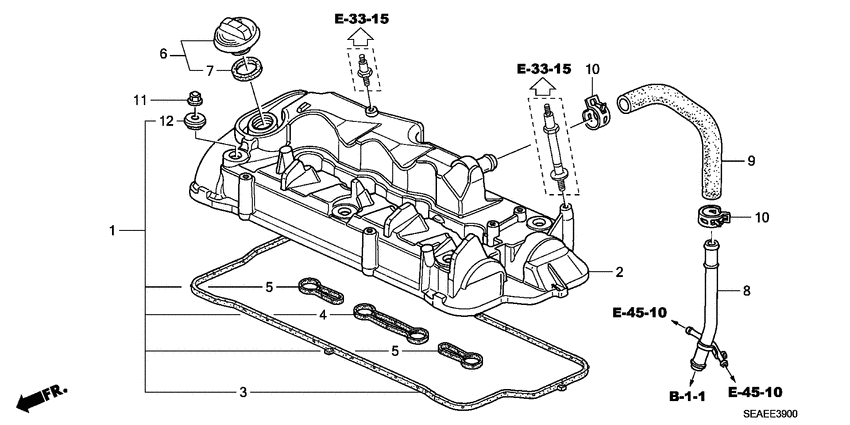

Cylinder head cover (SOHC) 2 / 9
CD3 Cylinder head cover (SOHC)
CN1 Cylinder head cover (DIESEL)
# OEM CD3 CN1
10 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
14 90213-PH3-000 Nut - CAP, 6MM Nut - CAP, 6MM
Emblems 1 / 10
CD3 Emblems
CN1 Emblems/caution labels
# OEM CD3 CN1
28 91512-SR3-004 Clip - TUBULAR Clip - TUBULAR
Engine hood 2 / 22
CD3 Engine hood
CN1 Front door panels
# OEM CD3 CN1
26 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
29 91558-SE3-003 Clip - HOOD WIRE Clip - HOOD WIRE
Engine wire harness/clamp (SOHC) 2 / 23
CD3 Engine wire harness/clamp (SOHC)
CN1 Control unit (ENGINE ROOM; DIESEL)
# OEM CD3 CN1
19 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
20 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16

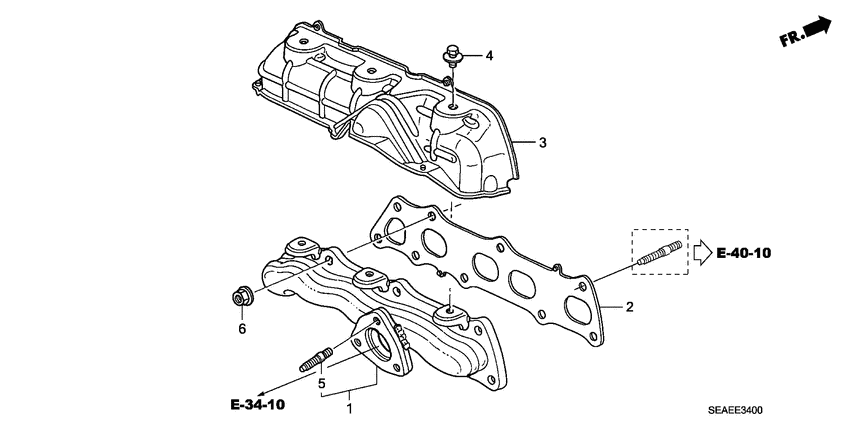

Exhaust manifold (1) 3 / 12
CD3 Exhaust manifold (1)

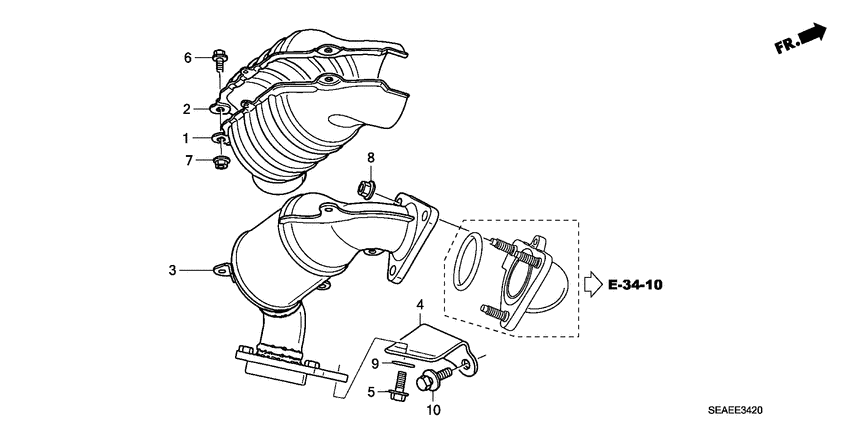

CN1 Converter (DIESEL)
# OEM CD3 CN1
9 90010-PE2-900 Bolt - SPECIAL, 10X22 Bolt - SPECIAL, 10X22
10 90015-PT0-J00 Bolt-washer - 8X14 Bolt-washer - 8X14
13 90451-PE2-000 Washer - SPECIAL, 11X28 Washer - SPECIAL, 11X28
Exhaust pipe (3) 2 / 23
CD3 Exhaust pipe (3)
CN1 Exhaust manifold (DIESEL)
# OEM CD3 CN1
27 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
30 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR
Floor mat 2 / 14
CD3 Floor mat
CN1 Bumpers
# OEM CD3 CN1
15 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
17 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
Front brake (14") 1 / 23
CD3 Front brake (14")
CN1 Front brake
# OEM CD3 CN1
21 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)
Front bulkhead 1 / 2
CD3 Front bulkhead
CN1 Front bulkhead/dashboard
# OEM CD3 CN1
32 90105-SV1-000 Bolt-washer - 8X20 Bolt-washer - 8X20
Front combination light 2 / 12
CD3 Front combination light
CN1 Taillight/license light
# OEM CD3 CN1
2 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
4 33303-SL4-003 Bulb - WEDGE (12V 21W) (STANLEY) Bulb - WEDGE (12V 21W) (STANLEY)
Front door lining (RH) 2 / 13
CD3 Front door lining (RH)
CN1 Front door lining (LH)
# OEM CD3 CN1
22 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)
26 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Front door locks 4 / 37
CD3 Front door locks
CN1 Front door locks/outer ha ndle
# OEM CD3 CN1
5 72113-SR4-004 Snap - BLACK Snap - BLACK
46 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
47 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
53 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Front door panels 2 / 20
CD3 Front door panels
CN1 Front door panels
# OEM CD3 CN1
26 91568-SR2-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
26 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
Front door windows 1 / 11
CD3 Front door windows
CN1 Harness band/bracket (LH)
# OEM CD3 CN1
1 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Front driveshaft 6 / 25
CD3 Front driveshaft
CN1 Front driveshaft/ half shaft
# OEM CD3 CN1
8 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
15 90102-SF1-000 Bolt - HEX., 10X1.25 Bolt - HEX., 10X1.25
16 90165-SE0-000 Bolt - FLANGE, 10X37 Bolt - FLANGE, 10X37
17 90305-SD4-003 Nut - SPINDLE (24MM) Nut - SPINDLE (24MM)
18 91057-SH3-008 Bearing - HALF SHAFT (NTN) Bearing - HALF SHAFT (NTN)
26 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
Front fenders 3 / 10
CD3 Front fenders
CN1 Side sill garnish
# OEM CD3 CN1
9 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
12 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
13 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Front grille 1 / 5
CD3 Front grille
CN1 Bumpers
# OEM CD3 CN1
6 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Front seat 5 / 10
CD3 Front seat
CN1 Front seat (L.; LH; 1)
# OEM CD3 CN1
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
20 81322-SP0-003 Clip - LUMBAR SUPPORT Clip - LUMBAR SUPPORT
31 90134-SE3-003 Screw - TAPPING, 5X10 Screw - TAPPING, 5X10
35 91566-SP0-003 Clip - BACK COVER (NATURAL) Clip - BACK COVER (NATURAL)
Front shock absorber 4 / 24
CD3 Front shock absorber
CN1 Front shock absorber
# OEM CD3 CN1
9 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
12 51689-SH3-004 Plate - BUMP STOP (SHOWA) Plate - BUMP STOP (SHOWA)
14 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
16 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Front stabilizer/ front lower arm 1 / 27
CD3 Front stabilizer/ front lower arm
CN1 Front stabilizer/ front lower arm
# OEM CD3 CN1
26 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
Front windshield wiper (2) 5 / 24
CD3 Front windshield wiper (2)
CN1 Front windshield wiper (LH)
# OEM CD3 CN1
4 76516-SM4-003 Rubber - MOUNTING Rubber - MOUNTING
5 76517-SM4-003 Collar Collar
8 76524-SD4-003 Dust seal Dust seal
9 76524-SE0-013 Dust seal Dust seal
20 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
Fuel pipe (4) 1 / 26
CD3 Fuel pipe (4)
CN1 Air conditioner (HOSES/PI PES; LH; DIESEL)
# OEM CD3 CN1
20 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
Fuel tank (2) 2 / 38
CD3 Fuel tank (2)
CN1 Fuel tank (DIESEL)
# OEM CD3 CN1
7 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
43 91601-SH3-013 Grommet - SCREW, 5MM (BLACK) Grommet - SCREW, 5MM (BLACK)
Grommet 7 / 17
CD3 Grommet
CN1 Grommet (LOWER)
# OEM CD3 CN1
9 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
10 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
13 91602-SV4-003 Plug - HOLE, 15MM Plug - HOLE, 15MM
16 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
18 91611-SM4-003 Plug - FLOOR HOLE, 25MM Plug - FLOOR HOLE, 25MM
19 91611-SS0-003 Plug - HOLE, 25MM Plug - HOLE, 25MM
22 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
Headlight (2) 2 / 19
CD3 Headlight (2)
CN1 Headlight
# OEM CD3 CN1
4 33116-SD4-961 Socket - BULB (OSRAM) (HALOGEN) Socket - BULB (OSRAM) (HALOGEN)
10 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
Heater blower (2) 3 / 13
CD3 Heater blower (2)
CN1 Heater blower (LH)
# OEM CD3 CN1
12 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
13 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
15 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater unit (2) 2 / 14
CD3 Heater unit (2)
CN1 Heater unit (LH)
# OEM CD3 CN1
11 79770-SE0-000 Grommet - WATER VALVE CABLE Grommet - WATER VALVE CABLE
15 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
Install pipe/tubing 1 / 3
CD3 Install pipe/tubing
CN1 Install pipe/vacuum pump (DIESEL)
# OEM CD3 CN1
7 90634-PA0-000 Cap - SEALING Cap - SEALING
Instrument panel (RH) 5 / 13
CD3 Instrument panel (RH)
CN1 Instrument panel (LH)
# OEM CD3 CN1
5 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
25 90104-SV4-000 Bolt-washer - 8X25 Bolt-washer - 8X25
29 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
31 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
32 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Instrument panel garnish (RH) 4 / 32
CD3 Instrument panel garnish (RH)
CN1 Instrument panel (LH)
# OEM CD3 CN1
8 66418-579-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
38 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
40 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
46 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Interior light 4 / 8
CD3 Interior light
CN1 Interior light
# OEM CD3 CN1
5 34253-671-003 Bulb - 12V 8W)(DAIICHI Bulb - 12V 8W)(DAIICHI
5 04110-SWA-305 BULB T10X318W BULB T10X318W
10 34295-SJ8-003 Bulb - 12V 5W) (DAIICHI Bulb - 12V 5W) (DAIICHI
10 34351-657-921 Bulb - 12V/5W) (STANLEY Bulb - 12V/5W) (STANLEY
Knuckle 2 / 12
CD3 Knuckle
CN1 Front knuckle/upper arm
# OEM CD3 CN1
8 52226-SL0-003 Circlip - LOWER BALL(MUSASHI) Circlip - LOWER BALL(MUSASHI)
15 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
Mirror 1 / 15
CD3 Mirror
CN1 Mirror
# OEM CD3 CN1
28 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
Parking brake 4 / 11
CD3 Parking brake
CN1 Parking brake (LH)
# OEM CD3 CN1
6 47360-SB2-000 Equalizer Equalizer
7 47365-538-000 Pin - EQUALIZER Pin - EQUALIZER
10 47522-594-000 Nut - PARKING BRAKE ADJUSTING Nut - PARKING BRAKE ADJUSTING
11 47537-671-670 Spring - PARKING BRAKE ROD Spring - PARKING BRAKE ROD
Pedal 5 / 28
CD3 Pedal
CN1 Pedal (LH)
# OEM CD3 CN1
21 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
22 46505-SA7-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
25 46545-SA5-000 Cover, Pedal Cover, Pedal
30 46911-SD4-930 Bush - PEDAL PIN Bush - PEDAL PIN
38 75891-611-000 Cover - DOOR SWITCH Cover - DOOR SWITCH
Pillar garnish (RH) 2 / 4
CD3 Pillar garnish (RH)
CN1 Rear tray/side lining
# OEM CD3 CN1
22 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
23 90666-SM4-003 Clip - SNAP FITTING Clip - SNAP FITTING
Piston/crankshaft 1 / 45
CD3 Piston/crankshaft
CN1 Crankshaft/piston (DIESEL)
# OEM CD3 CN1
22 90704-PT0-000 Key - 4.5X38.5 Key - 4.5X38.5
Power steering lines (RH) 6 / 26
CD3 Power steering lines (RH)
CN1 P.s. lines (DIESEL; LH)
# OEM CD3 CN1
1 53697-SB3-952 Cap - OIL TANK Cap - OIL TANK
11 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
17 53736-SH3-950 Holder b - POWER STEERING PIPE Holder b - POWER STEERING PIPE
23 90635-SM4-A02 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
25 91370-SV4-000 O-ring - 14.4X1.9 O-ring - 14.4X1.9
26 91405-SS0-003 Clamp - TUBE (D21) Clamp - TUBE (D21)
Power steering pump 1 / 18
CD3 Power steering pump
CN1 Power steering pump (DIESEL)
# OEM CD3 CN1
12 91345-PY3-000 O-ring - 13.0X1.9 O-ring - 13.0X1.9
Protector 4 / 19
CD3 Protector
CN1 Side sill garnish
# OEM CD3 CN1
18 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
23 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
24 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
25 91513-SM4-000 Clip - SIDE SILL UPPER GARNISH Clip - SIDE SILL UPPER GARNISH
Radiator (DENSO) 4 / 16
CD3 Radiator (DENSO)
CN1 Radiator (DIESEL)
# OEM CD3 CN1
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
14 90042-PAA-A01 Bolt-washer - 6X16 (DENSO) Bolt-washer - 6X16 (DENSO)
15 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)
Radiator hose 3 / 15
CD3 Radiator hose
CN1 Radiator hose/reserve tan k (DIESEL)
# OEM CD3 CN1
10 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
11 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN) Clip - WATER HOSE (36.5MM) (KEIHIN)
23 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
Radio antenna/speaker 2 / 18
CD3 Radio antenna/speaker
CN1 Harness band/bracket (LH)
# OEM CD3 CN1
2 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
29 90132-SV4-003 Screw - ET, 5X16 Screw - ET, 5X16
Rear beam/cross beam 1 / 11
CD3 Rear beam/cross beam
CN1 Front beam/rear beam (DIESEL)
# OEM CD3 CN1
13 91613-SE0-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM
Rear brake (DRUM) 2 / 39
CD3 Rear brake (DRUM)
CN1 Front brake
# OEM CD3 CN1
36 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
36 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
Rear door lining 3 / 14
CD3 Rear door lining
CN1 Front door lining (LH)
# OEM CD3 CN1
16 90132-SS0-000 Screw - TAPPING, 4X10 (PO) Screw - TAPPING, 4X10 (PO)
18 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
21 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door locks 5 / 33
CD3 Rear door locks
CN1 Front door locks/outer ha ndle
# OEM CD3 CN1
1 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
11 72139-SR0-A01 Snap - VIOLET Snap - VIOLET
33 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
34 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
38 91545-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
Rear door panels 3 / 17
CD3 Rear door panels
CN1 Front door panels
# OEM CD3 CN1
22 75891-SA7-000 Stopper - DOOR Stopper - DOOR
25 91568-SR2-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
25 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
Rear seat (2) 3 / 10
CD3 Rear seat (2)
CN1 Rear seat
# OEM CD3 CN1
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
13 90003-692-000 Bolt - FLANGE, 6X16 Bolt - FLANGE, 6X16
Rear shock absorber 2 / 23
CD3 Rear shock absorber
CN1 Rear shock absorber
# OEM CD3 CN1
10 52690-SG0-000 Plate - BUMP STOP Plate - BUMP STOP
16 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Rear stabilizer/ rear lower arm 5 / 55
CD3 Rear stabilizer/ rear lower arm
CN1 Rear lower arm
# OEM CD3 CN1
1 51464-S04-013 Boot, UPPER BALL JOINT Boot, UPPER BALL JOINT
19 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
50 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
51 90216-SE0-010 Nut Nut
51 90216-SE0-305 NUT, LWR ARM NUT, LWR ARM
Rear tray/side lining 1 / 3
CD3 Rear tray/side lining
CN1 Rear tray/side lining
# OEM CD3 CN1
20 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
Rear windshield 2 / 10
CD3 Rear windshield
CN1 Rear windshield
# OEM CD3 CN1
10 91563-SV4-003 Fastener a - RR. WINDSHIELD Fastener a - RR. WINDSHIELD
11 91568-SV4-003 Fastener b - RR. WINDSHIELD Fastener b - RR. WINDSHIELD
Resonator chamber 2 / 11
CD3 Resonator chamber
CN1 Resonator chamber (DIESEL)
# OEM CD3 CN1
2 17213-PV0-000 Rubber - AIR CLEANER CASE MOUNTING Rubber - AIR CLEANER CASE MOUNTING
10 90001-P0A-000 Bolt-washer - SPECIAL, 6X35 Bolt-washer - SPECIAL, 6X35
Roof lining (RH) 2 / 13
CD3 Roof lining (RH)
CN1 Air cleaner (DIESEL)
# OEM CD3 CN1
3 75353-671-000 Lock - SCREW Lock - SCREW
22 90133-SM4-003 Bolt-washer - 5X16 Bolt-washer - 5X16
Roof slide components 1 / 26
CD3 Roof slide components
CN1 Harness band/bracket (LH)
# OEM CD3 CN1
27 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
Shift arm/shift lever 2 / 17
CD3 Shift arm/shift lever
CN1 Shift arm (DIESEL)
# OEM CD3 CN1
15 91209-PE9-005 Dust seal - 16X23X5(NOK) Dust seal - 16X23X5(NOK)
15 91209-PE9-003 Dust seal - 16X23X5(ARAI) Dust seal - 16X23X5(ARAI)
Shift fork 2 / 8
CD3 Shift fork
CN1 Transmission case (DIESEL)
# OEM CD3 CN1
6 24452-P16-000 Spring a - BALL SETTING Spring a - BALL SETTING
7 24519-PB6-000 Screw - BALL SPRING SETTING Screw - BALL SPRING SETTING
Shift lever 5 / 27
CD3 Shift lever
CN1 Shift lever (DIESEL; LH)
# OEM CD3 CN1
22 54357-SF1-003 Plate - CHANGE WIRE Plate - CHANGE WIRE
27 90555-SF1-000 Washer a - SHIFT WIRE(1.6MM) Washer a - SHIFT WIRE(1.6MM)
28 90556-SF1-000 Washer b - SHIFT WIRE (0.5MM) Washer b - SHIFT WIRE (0.5MM)
29 90557-SF1-000 Washer a - SELECT WIRE (1.6MM) Washer a - SELECT WIRE (1.6MM)
30 90558-SF1-000 Washer b - SELECT WIRE (0.5MM) Washer b - SELECT WIRE (0.5MM)
Steering column 1 / 10
CD3 Steering column
CN1 Steering column
# OEM CD3 CN1
15 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
Taillight (2) 2 / 26
CD3 Taillight (2)
CN1 Taillight/license light
# OEM CD3 CN1
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
3 33303-SL4-003 Bulb - WEDGE (12V 21W) (STANLEY) Bulb - WEDGE (12V 21W) (STANLEY)
Tire/wheel disk 1 / 36
CD3 Tire/wheel disk
CN1 Tire/wheel disks
# OEM CD3 CN1
10 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
Tools/jack 2 / 10
CD3 Tools/jack
CN1 Tools/jack
# OEM CD3 CN1
5 89211-S05-003 Wrench - WHEEL Wrench - WHEEL
10 89320-S05-003 Bar - JACK Bar - JACK
Transmission housing 1 / 53
CD3 Transmission housing
CN1 Clutch case (DIESEL)
# OEM CD3 CN1
11 90081-PB6-000 Bolt - PLUG, 14MM Bolt - PLUG, 14MM
Trunk lid ('96/'97) 4 / 31
CD3 Trunk lid ('96/'97)
CN1 Trunk lid
# OEM CD3 CN1
1 17706-SC3-003 Clip - FUEL PIPE Clip - FUEL PIPE
9 74822-SW5-003 Cushion - TRUNK HINGE Cushion - TRUNK HINGE
30 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
32 90109-SM4-000 Bolt - SPECIAL, 6X35 Bolt - SPECIAL, 6X35
Water pump/sensor (SOHC) 5 / 30
CD3 Water pump/sensor (SOHC)
CN1 Radiator (DIESEL)
# OEM CD3 CN1
12 19516-PC1-000 Bolt - BREATHING WATER Bolt - BREATHING WATER
16 37760-P00-003 Switch assy, THERMO (A-93) (NIPPON THERMOSTAT) Switch assy, THERMO (A-93) (NIPPON THERMOSTAT)
16 37760-P00-004 Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT) Switch assy - THERMO (A-93) (UCHIYA THERMOSTAT)
23 91307-PN4-000 O-ring - 17.5X1.4 O-ring - 17.5X1.4
23 91307-PN3-000 O-ring,17.8x1.4 O-ring,17.8x1.4
Water valve 2 / 7
CD3 Water valve
CN1 Radiator hose/reserve tan k (DIESEL)
# OEM CD3 CN1
6 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
6 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Windshield washer 2 / 18
CD3 Windshield washer
CN1 Windshield washer (2)
# OEM CD3 CN1
8 76809-SE0-003 Grommet - WASHER TANK Grommet - WASHER TANK
15 38519-SB0-003 Bush - WASHER TANK (MITSUBA) Bush - WASHER TANK (MITSUBA)
Wire harness (2) 11 / 37
CD3 Wire harness (2)
CN1 Harness band/bracket (LH)
# OEM CD3 CN1
10 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
12 32146-SH3-003 Connector - DIODE(2P) Connector - DIODE(2P)
23 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
24 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
26 91507-693-003 Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
27 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
29 91545-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
35 91551-SW5-003 Clip - HARNESS BAND (BROWN) (151MM) Clip - HARNESS BAND (BROWN) (151MM)
38 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
39 91556-SM4-003 Clip - BAND (BLACK) (100MM) Clip - BAND (BLACK) (100MM)
48 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
