CD3 × CH8

共通 185 / 合計 3,827 · Jaccard 4.8%
CD3 Honda ACCORD — 2,150 中 185 共有
CH8 Honda ACCORD — 1,862 中 185 共有
185 件

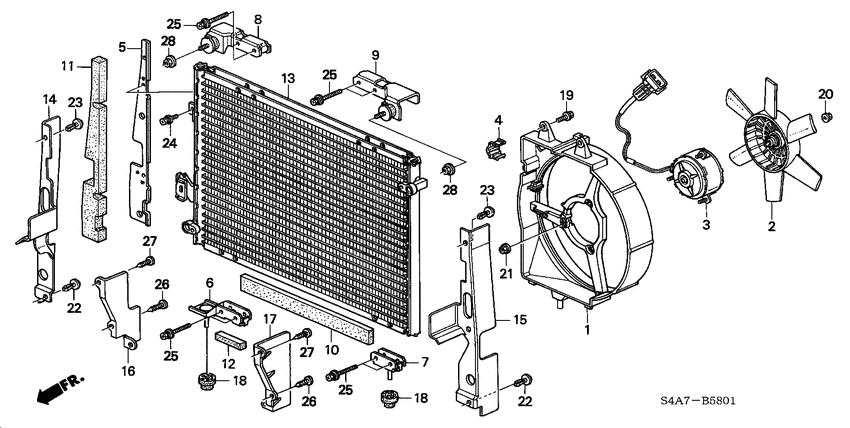

Air conditioner (CONDENSER; RH) 1 / 17
CD3 Air conditioner (CONDENSER; RH)
CH8 Air conditioner (CONDENSER; DIESEL)
# OEM CD3 CH8
17 80175-SE0-000 Mount - CONDENSER Mount - CONDENSER
Air conditioner (COOLING UNIT; RH) 4 / 21
CD3 Air conditioner (COOLING UNIT; RH)
CH8 Air conditioner (COOLING UNIT; LH)
# OEM CD3 CH8
1 39246-671-003 Clamp - CASE HOLD Clamp - CASE HOLD
15 80871-SN7-003 O-ring - 5/8" O-ring - 5/8"
19 90155-SE0-003 Screw - TAPPING, 6X20 Screw - TAPPING, 6X20
20 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)

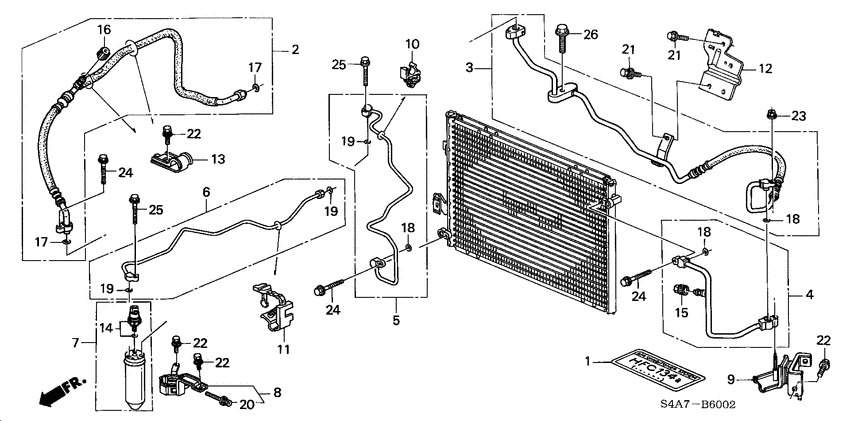

Air conditioner (HOSES/PIPES; RH) 5 / 24
CD3 Air conditioner (HOSES/PIPES; RH)
CH8 Air conditioner (DIESEL; HOSES/PIPES; LH)
# OEM CD3 CH8
1 80050-SP0-000 Label - AIR CONDITIONER CAUTION (HFC134A) Label - AIR CONDITIONER CAUTION (HFC134A)
19 80871-SN7-003 O-ring - 5/8" O-ring - 5/8"
20 80871-ST7-000 O-ring - 5/8" O-ring - 5/8"
21 80872-SN7-003 O-ring - 1/2" O-ring - 1/2"
22 80872-ST7-000 O-ring - 1/2" O-ring - 1/2"

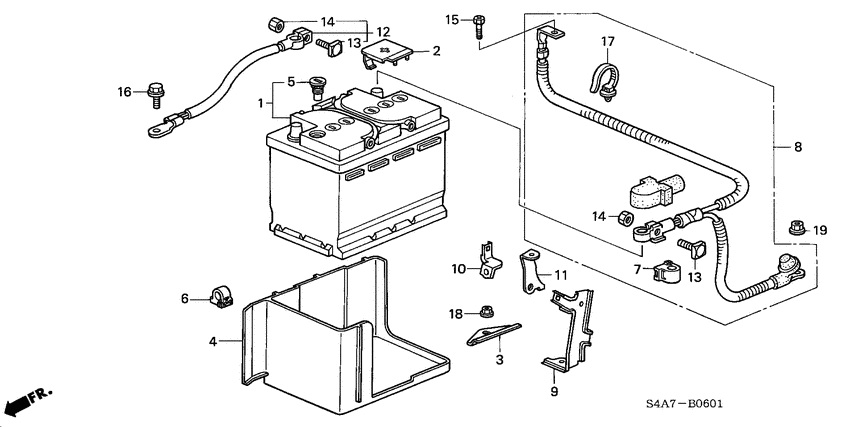

Battery 3 / 19
CD3 Battery
CH8 Battery (DIESEL)
# OEM CD3 CH8
12 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
13 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
16 90114-SM4-900 Bolt - 6X15 Bolt - 6X15

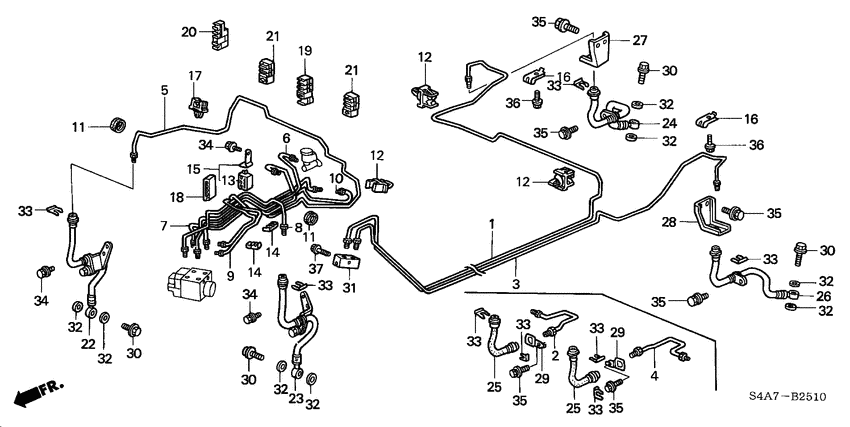

Brake lines (RH) 4 / 26
CD3 Brake lines (RH)
CH8 Brake lines (ABS; LH)
# OEM CD3 CH8
16 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
28 46462-SE0-000 Bolt - OIL Bolt - OIL
29 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
33 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM

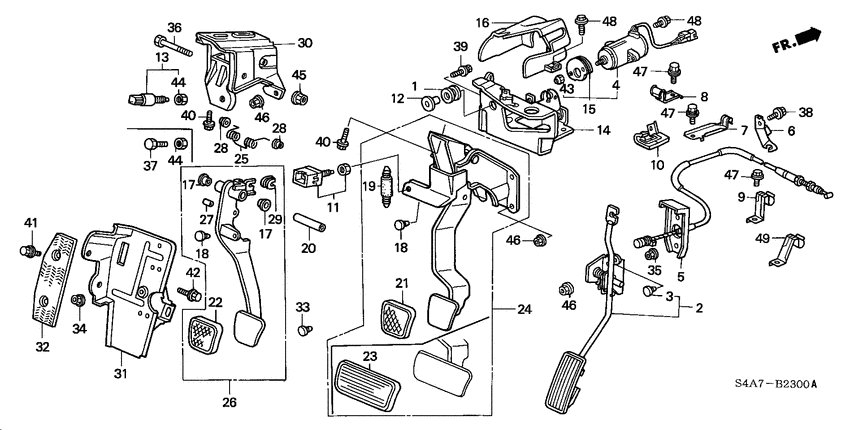

Brake master cylinder/ master power 5 / 24
CD3 Brake master cylinder/ master power
CH8 Brake master cylinder/ master power (DIESEL)
# OEM CD3 CH8
8 46151-SB2-003 Yoke - PUSH ROD (NISSIN) Yoke - PUSH ROD (NISSIN)
20 46512-SB2-000 Pin - PEDAL Pin - PEDAL
24 46666-SE3-013 Filter - MASTER CYLINDER Filter - MASTER CYLINDER
25 46669-SE3-003 Seal - RESERVE TANK Seal - RESERVE TANK
26 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Bumpers (2) 7 / 23
CD3 Bumpers (2)
CH8 Bumpers
# OEM CD3 CH8
17 71598-SL4-013 Spacer - BUMPER SIDE Spacer - BUMPER SIDE
20 90109-SS0-000 Screw - TAPPING, 5X20 Screw - TAPPING, 5X20
24 90111-SM4-003 Bolt - BUMPER Bolt - BUMPER
25 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
28 90305-SM4-000 Nut - AIR SPOILER CLIP Nut - AIR SPOILER CLIP
32 91503-SZ5-003 Clip - BUMPER FACE Clip - BUMPER FACE
33 91503-SZ3-003 Clip A Clip A
Clutch master cylinder (RH) 11 / 41
CD3 Clutch master cylinder (RH)
CH8 Clutch master cylinder (LH; DIESEL)
# OEM CD3 CH8
3 46151-SA5-003 Yoke comp. - NISSIN Yoke comp. - NISSIN
6 46182-500-013 Circlip Circlip
9 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
10 46912-SD4-000 Pin - CLUTCH PEDAL Pin - CLUTCH PEDAL
11 46918-SM4-020 Clip a13 - TUBE Clip a13 - TUBE
13 46926-SF1-003 Piston assy. Piston assy.
14 46928-SF1-000 Seal - CLUTCH MASTER CYLINDER Seal - CLUTCH MASTER CYLINDER
24 46952-SD4-003 Joint - TUBE Joint - TUBE
25 46953-SD4-003 Packing Packing
34 46972-SD4-003 Tank - CLUTCH FLUID Tank - CLUTCH FLUID
35 46973-SD4-003 Cap comp. - RESERVE TANK Cap comp. - RESERVE TANK
Combination meter components 3 / 25
CD3 Combination meter components
CH8 Meter components
# OEM CD3 CH8
1 35505-SA5-003 Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
6 37115-SA0-601 Packing - NS Packing - NS
27 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Combination switch (4) 1 / 18
CD3 Combination switch (4)
CH8 Front seat (L.)
# OEM CD3 CH8
26 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)

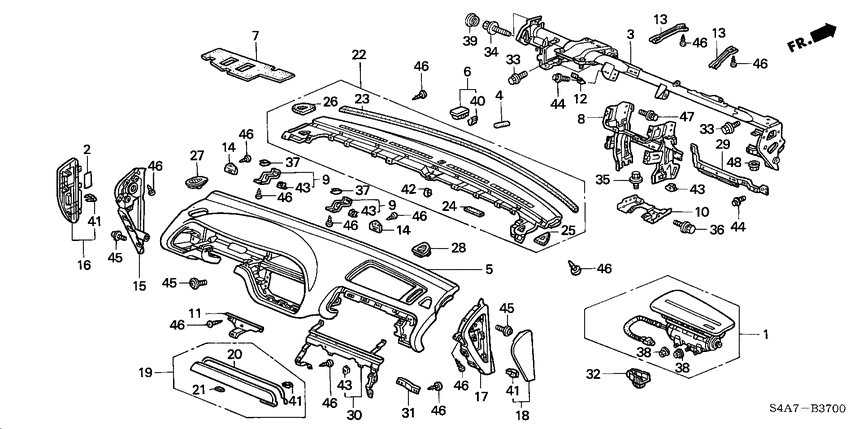

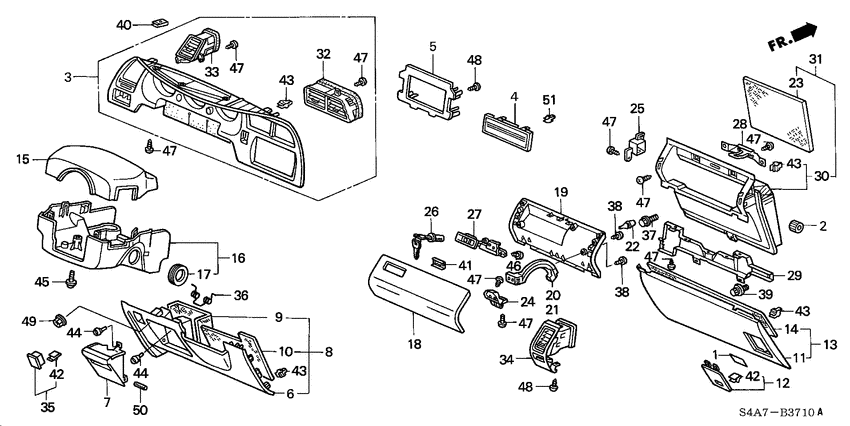

Console (RH) 5 / 19
CD3 Console (RH)
CH8 Instrument panel (LH)
# OEM CD3 CH8
2 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
34 90144-SP0-000 Screw - TAPPING, 4X16 (PO) Screw - TAPPING, 4X16 (PO)
37 90666-SD4-003 Clip - FITTING Clip - FITTING
40 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
41 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM

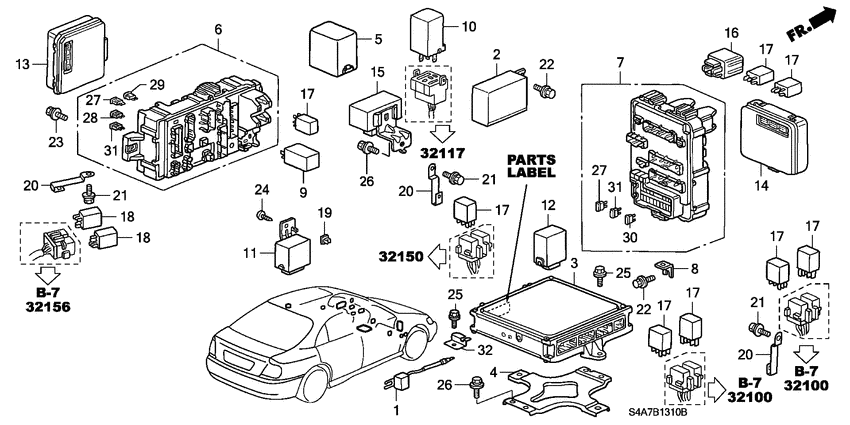

Control unit (CABIN; 2) 6 / 31
CD3 Control unit (CABIN; 2)
CH8 Control unit (CABIN; LH)
# OEM CD3 CH8
2 30505-SL5-003 Condenser comp. - TEC) (N-1691/250-0.47 Condenser comp. - TEC) (N-1691/250-0.47
25 39792-SM4-004 Relay assy - POWER (4P) (OMRON) (G4R-1A21T-49H) Relay assy - POWER (4P) (OMRON) (G4R-1A21T-49H)
27 39797-SE0-004 Relay assy - POWER (4P) (MITSUBA) (RC-2201) Relay assy - POWER (4P) (MITSUBA) (RC-2201)
30 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
31 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
33 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)

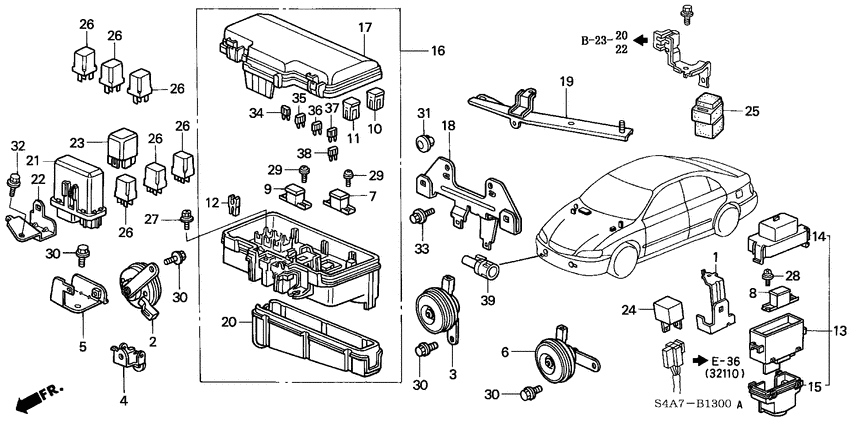

Control unit (ENGINE ROOM) 3 / 27
CD3 Control unit (ENGINE ROOM)
CH8 Control unit (ENGINE ROOM; LH)
# OEM CD3 CH8
18 39793-SV4-003 Relay assy - POWER (5P) (MITSUBA) Relay assy - POWER (5P) (MITSUBA)
20 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
25 91551-SV4-003 Clip - BRACKET Clip - BRACKET

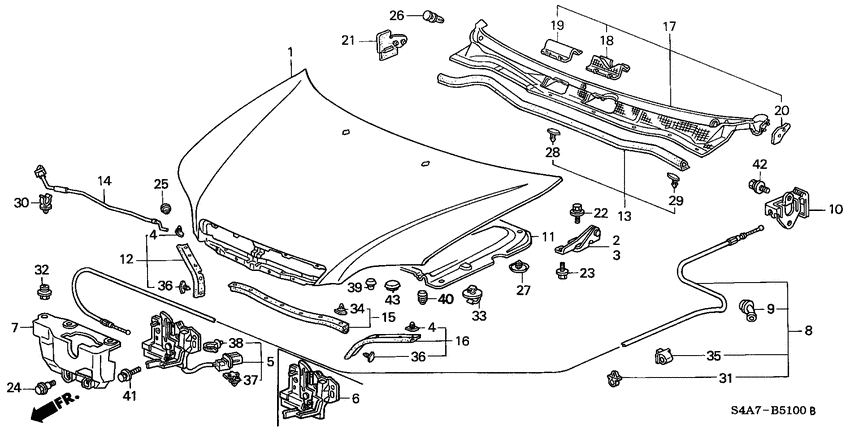

Engine hood 5 / 22
CD3 Engine hood
CH8 Hood (LH)
# OEM CD3 CH8
7 74134-SM4-000 Grommet - HOOD WIRE Grommet - HOOD WIRE
22 90106-SE1-000 Bolt-washer - 6X15 Bolt-washer - 6X15
26 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
27 91524-SE0-003 Clip - COWL TOP Clip - COWL TOP
29 91558-SE3-003 Clip - HOOD WIRE Clip - HOOD WIRE

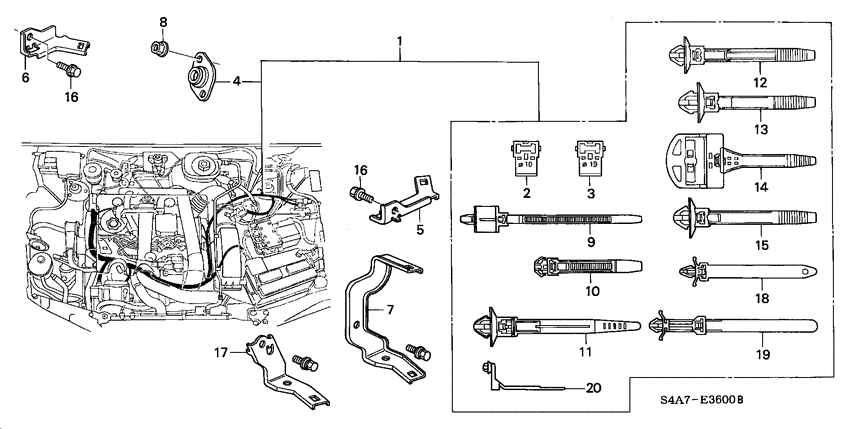

Engine wire harness/clamp (SOHC) 3 / 23
CD3 Engine wire harness/clamp (SOHC)
CH8 Battery (DIESEL)
# OEM CD3 CH8
19 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
20 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
26 91547-SF4-003 Band - WIRE HARNESS (BLUE) (123.5MM) Band - WIRE HARNESS (BLUE) (123.5MM)

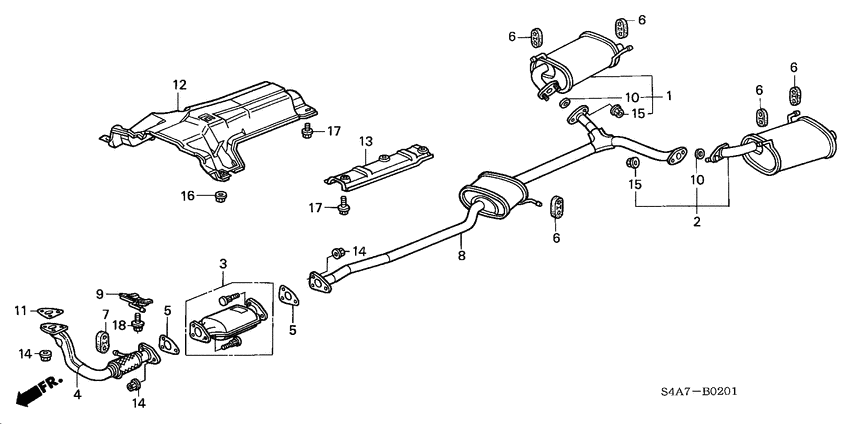

Exhaust pipe (3) 4 / 23
CD3 Exhaust pipe (3)
CH8 Exhaust pipe (DIESEL)
# OEM CD3 CH8
25 90115-659-003 Nut - SELF-LOCK, 8MM (CLINCH) Nut - SELF-LOCK, 8MM (CLINCH)
28 90212-671-005 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
29 90301-SV7-000 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
30 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR

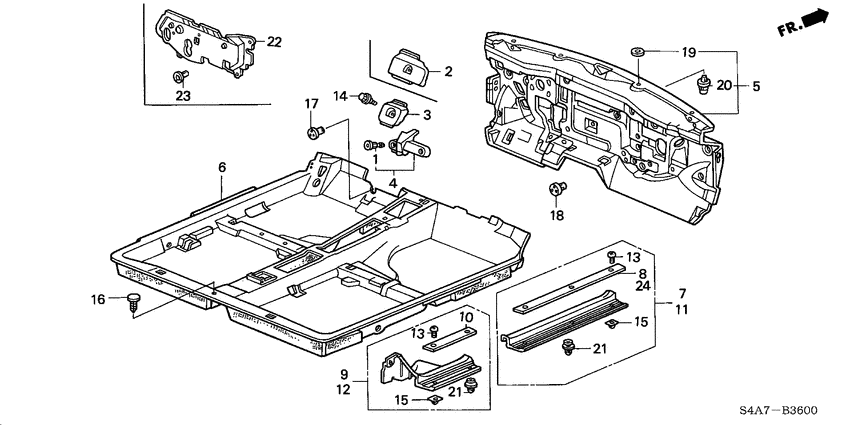

Floor mat 5 / 14
CD3 Floor mat
CH8 Floor mat
# OEM CD3 CH8
15 90301-SP0-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM
17 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
20 90676-SB2-003 Clip - DASHBOARD INSULATOR Clip - DASHBOARD INSULATOR
22 91546-SM4-003 Plug - DASHBOARD INSULATOR BLIND (12MM) Plug - DASHBOARD INSULATOR BLIND (12MM)
23 91547-SM4-003 Cap - INSULATOR Cap - INSULATOR
Front brake (14") 1 / 23
CD3 Front brake (14")
CH8 Front brake
# OEM CD3 CH8
21 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)
Front combination light 2 / 12
CD3 Front combination light
CH8 Taillight
# OEM CD3 CH8
2 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
17 34304-SH3-A01 Socket comp. Socket comp.
Front door lining (RH) 2 / 13
CD3 Front door lining (RH)
CH8 Pillar garnish
# OEM CD3 CH8
26 91560-SP0-003 Clip - DOOR LINING (GRAY) Clip - DOOR LINING (GRAY)
26 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)

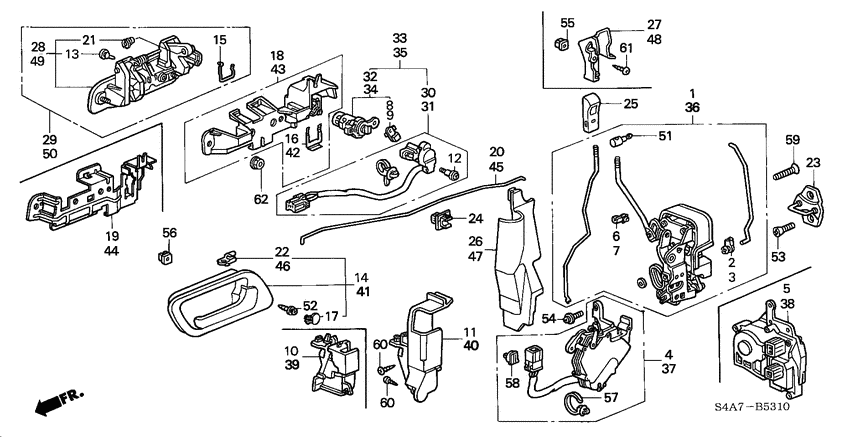

Front door locks 13 / 37
CD3 Front door locks
CH8 Front door locks/ outer handle
# OEM CD3 CH8
5 72112-SR4-004 Snap - BROWN Snap - BROWN
5 72113-SR4-004 Snap - BLACK Snap - BLACK
8 72116-SV4-003 Snap - ORANGE Snap - ORANGE
8 72116-SM4-003 Snap d - VIOLET Snap d - VIOLET
22 72134-SM4-003 Snap - R. (VIOLET) Snap - R. (VIOLET)
24 72135-SR3-003 Striker assy - DOOR LOCK Striker assy - DOOR LOCK
25 72136-SM4-003 Holder - ROD, 4MM Holder - ROD, 4MM
42 72174-SM4-003 Snap - L. (YELLOW) Snap - L. (YELLOW)
45 75411-634-000 Joint Joint
46 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
47 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
49 90120-SM4-000 Screw - TAPPING Screw - TAPPING
53 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)
Front door panels 4 / 20
CD3 Front door panels
CH8 Front door panels
# OEM CD3 CH8
23 90686-692-003 Cap - LINING MOUNT Cap - LINING MOUNT
26 91568-SR2-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
26 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
29 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Front door windows 1 / 11
CD3 Front door windows
CH8 Engine wire harness (DIESEL)
# OEM CD3 CH8
1 91540-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) Clip - HARNESS BAND (NATURAL) (145.2MM)

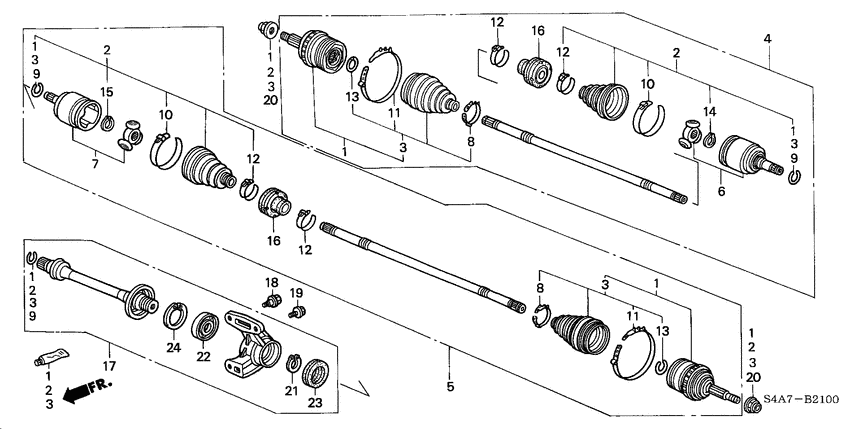

Front driveshaft 3 / 25
CD3 Front driveshaft
CH8 Front driveshaft/ half shaft
# OEM CD3 CH8
8 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
17 90305-SD4-003 Nut - SPINDLE (24MM) Nut - SPINDLE (24MM)
26 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)

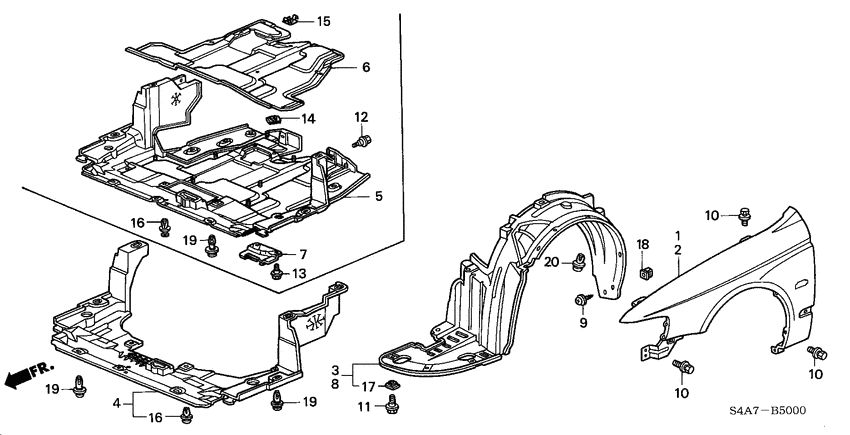

Front fenders 4 / 10
CD3 Front fenders
CH8 Side lining
# OEM CD3 CH8
9 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
11 90657-SB0-003 Clip, SPLASH SHIELD Clip, SPLASH SHIELD
12 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
13 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
Front grille 1 / 5
CD3 Front grille
CH8 Tailgate lining
# OEM CD3 CH8
6 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM

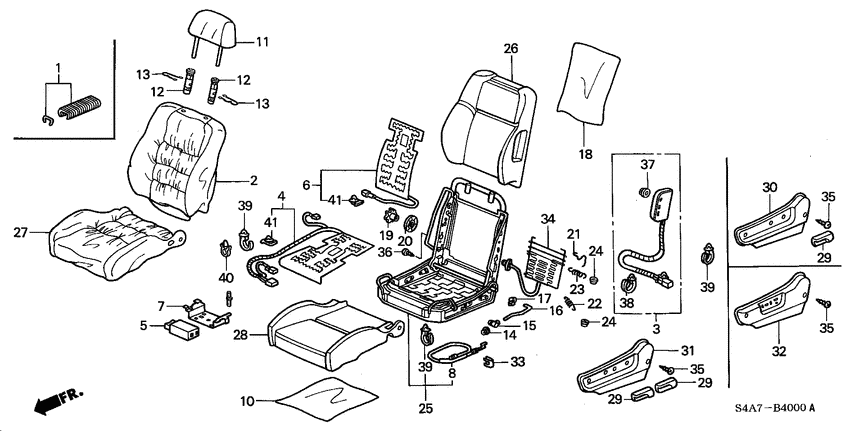

Front seat 2 / 10
CD3 Front seat
CH8 Front seat (L.)
# OEM CD3 CH8
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)

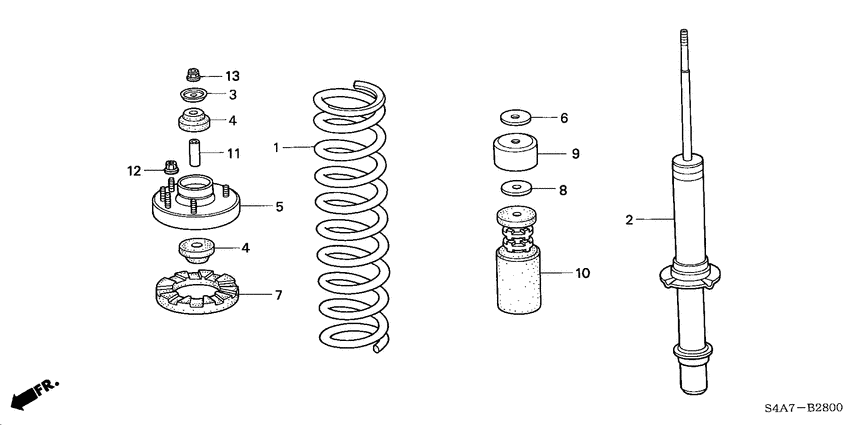

Front shock absorber 4 / 24
CD3 Front shock absorber
CH8 Front shock absorber
# OEM CD3 CH8
9 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
12 51689-SH3-004 Plate - BUMP STOP (SHOWA) Plate - BUMP STOP (SHOWA)
14 51728-SB0-004 Collar - SHOCK ABSORBER MOUNTING (SHOWA) Collar - SHOCK ABSORBER MOUNTING (SHOWA)
16 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Front stabilizer/ front lower arm 3 / 27
CD3 Front stabilizer/ front lower arm
CH8 Front stabilizer/ front lower arm
# OEM CD3 CH8
16 51398-SM4-000 Collar - RADIUS ROD Collar - RADIUS ROD
26 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
27 90303-SF1-003 Nut - SELF-LOCK, 12MM Nut - SELF-LOCK, 12MM
Front windshield wiper (2) 2 / 24
CD3 Front windshield wiper (2)
CH8 Front windshield wiper (LH)
# OEM CD3 CH8
20 90126-SR3-000 Bolt-washer - 6X32 Bolt-washer - 6X32
21 90201-SK7-000 Nut - HEX. CAP, 10MM Nut - HEX. CAP, 10MM
Fuel pipe (4) 1 / 26
CD3 Fuel pipe (4)
CH8 Engine wire harness (DIESEL)
# OEM CD3 CH8
20 90361-SV4-003 Nut - PAINT CUTTING, 6MM Nut - PAINT CUTTING, 6MM

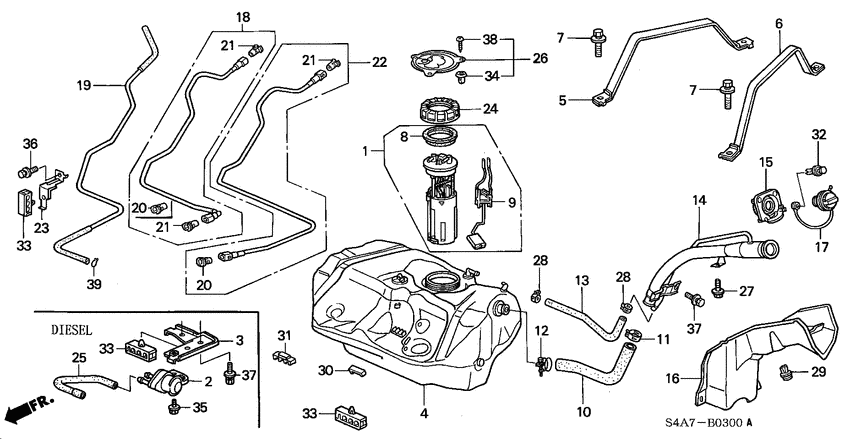

Fuel tank (2) 3 / 38
CD3 Fuel tank (2)
CH8 Fuel tank
# OEM CD3 CH8
7 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
24 17711-ST0-003 Retainer - YELLOW) (TOKAI Retainer - YELLOW) (TOKAI
43 91601-SH3-013 Grommet - SCREW, 5MM (BLACK) Grommet - SCREW, 5MM (BLACK)

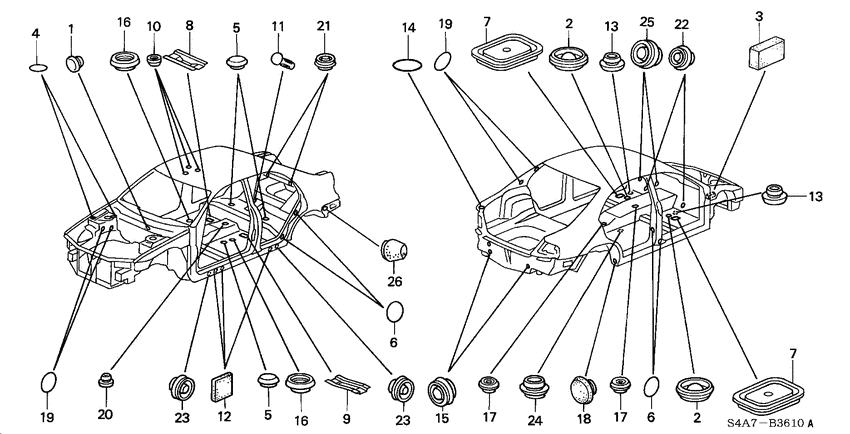

Grommet 8 / 17
CD3 Grommet
CH8 Grommet
# OEM CD3 CH8
1 72206-SA5-000 Cap - FLOOR HOLE, 53MM Cap - FLOOR HOLE, 53MM
6 74416-SF1-000 Insulator - PILLAR LOWER Insulator - PILLAR LOWER
9 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
15 91606-SE0-000 Seal - 20X20 Seal - 20X20
16 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
18 91611-SM4-003 Plug - FLOOR HOLE, 25MM Plug - FLOOR HOLE, 25MM
21 91615-SA5-000 Grommet - HOLE, 25MM Grommet - HOLE, 25MM
22 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
Headlight (2) 2 / 19
CD3 Headlight (2)
CH8 Taillight
# OEM CD3 CH8
10 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
13 34304-SH3-A01 Socket comp. Socket comp.
Heater blower (2) 6 / 13
CD3 Heater blower (2)
CH8 Heater blower (LH)
# OEM CD3 CH8
1 39246-671-003 Clamp - CASE HOLD Clamp - CASE HOLD
10 90121-SR3-003 Screw - TAPPING, 5X12 Screw - TAPPING, 5X12
12 90132-SR3-003 Screw - TAPPING, 5X16 Screw - TAPPING, 5X16
13 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
14 90155-SE0-003 Screw - TAPPING, 6X20 Screw - TAPPING, 6X20
15 90321-SV4-003 Nut-washer - 6MM (PAINT CUTTING) Nut-washer - 6MM (PAINT CUTTING)
Heater unit (2) 4 / 14
CD3 Heater unit (2)
CH8 Heater blower (LH)
# OEM CD3 CH8
1 39246-671-003 Clamp - CASE HOLD Clamp - CASE HOLD
9 79192-SR3-003 Bush - LINK Bush - LINK
11 79770-SE0-000 Grommet - WATER VALVE CABLE Grommet - WATER VALVE CABLE
15 90133-SR3-003 Screw-washer - 4X16 Screw-washer - 4X16
Inner panels/floor panel 1 / 1
CD3 Inner panels/floor panel
CH8 Front fenders
# OEM CD3 CH8
42 90106-SE1-000 Bolt-washer - 6X15 Bolt-washer - 6X15
Instrument panel (RH) 7 / 13
CD3 Instrument panel (RH)
CH8 Instrument panel (LH)
# OEM CD3 CH8
5 66844-SA7-000 Cap - INSTRUMENT PANEL STAY Cap - INSTRUMENT PANEL STAY
25 90104-SV4-000 Bolt-washer - 8X25 Bolt-washer - 8X25
29 90361-SM4-003 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
29 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
30 90666-SD4-003 Clip - FITTING Clip - FITTING
31 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
32 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Instrument panel garnish (RH) 5 / 32
CD3 Instrument panel garnish (RH)
CH8 Instrument panel garnish (LH)
# OEM CD3 CH8
6 66417-SA0-000 Rubber - GLOVE BOX STOPPER Rubber - GLOVE BOX STOPPER
23 77506-SM4-900 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
40 90321-SP0-A80 Nut-washer - 6MM Nut-washer - 6MM
43 90666-SD4-003 Clip - FITTING Clip - FITTING
46 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Knuckle 4 / 12
CD3 Knuckle
CH8 Knuckle
# OEM CD3 CH8
8 52226-SL0-003 Circlip - LOWER BALL(MUSASHI) Circlip - LOWER BALL(MUSASHI)
15 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
17 90321-SE0-000 Nut - UPPER BALL PIN, 10MM Nut - UPPER BALL PIN, 10MM
18 90363-SF1-000 Nut - CASTLE, 12MM Nut - CASTLE, 12MM
Mirror 1 / 15
CD3 Mirror
CH8 Mirror
# OEM CD3 CH8
28 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
Outer panels 1 / 5
CD3 Outer panels
CH8 Outer panels/roof panel
# OEM CD3 CH8
28 90103-SM4-010 Bolt - FLANGE, 6X18 Bolt - FLANGE, 6X18
Pedal 3 / 28
CD3 Pedal
CH8 Pedal (LH)
# OEM CD3 CH8
25 46545-SA5-000 Cover, Pedal Cover, Pedal
37 46992-SV4-003 Clip - FOOTREST Clip - FOOTREST
38 75891-611-000 Cover - DOOR SWITCH Cover - DOOR SWITCH
Pillar garnish (RH) 1 / 4
CD3 Pillar garnish (RH)
CH8 Side lining
# OEM CD3 CH8
22 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
Power steering gear box (RH) 1 / 23
CD3 Power steering gear box (RH)
CH8 P.s. gear box (LH)
# OEM CD3 CH8
22 90108-SH3-003 Bolt - GEAR BOX MOUNTING (10X55) Bolt - GEAR BOX MOUNTING (10X55)
Power steering lines (RH) 6 / 26
CD3 Power steering lines (RH)
CH8 P.s. line (LH; DIESEL)
# OEM CD3 CH8
8 53729-SS0-003 Clip - RETURN HOSE Clip - RETURN HOSE
11 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
17 53736-SH3-950 Holder b - POWER STEERING PIPE Holder b - POWER STEERING PIPE
23 90635-SM4-A01 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
23 90635-SM4-A02 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
26 91405-SS0-003 Clamp - TUBE (D21) Clamp - TUBE (D21)
Protector 5 / 19
CD3 Protector
CH8 Protector/ side sill garnish
# OEM CD3 CH8
18 90114-SZ3-000 Screw-washer - 5X20 Screw-washer - 5X20
21 90331-SD5-003 Nut - SPRING, 5MM Nut - SPRING, 5MM
23 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
24 91512-SX0-003 Clip - INNER FENDER CLIP Clip - INNER FENDER CLIP
25 91513-SM4-000 Clip - SIDE SILL UPPER GARNISH Clip - SIDE SILL UPPER GARNISH
Radiator hose 3 / 15
CD3 Radiator hose
CH8 Radiator hose (DIESEL)
# OEM CD3 CH8
10 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
11 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN) Clip - WATER HOSE (36.5MM) (KEIHIN)
26 91564-SP0-003 Clip - DOOR CHECKER COVER Clip - DOOR CHECKER COVER
Radio antenna/speaker 2 / 18
CD3 Radio antenna/speaker
CH8 Harness band/bracket
# OEM CD3 CH8
2 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
19 39170-SJ4-000 Valve - RR. MOTOR ANTENNA DRAIN Valve - RR. MOTOR ANTENNA DRAIN
Rear beam/cross beam 1 / 11
CD3 Rear beam/cross beam
CH8 Rear beam/cross beam
# OEM CD3 CH8
13 91613-SE0-003 Grommet - SUB FRAME, 15MM Grommet - SUB FRAME, 15MM
Rear brake (DRUM) 3 / 39
CD3 Rear brake (DRUM)
CH8 Rear brake (DISK)
# OEM CD3 CH8
4 42326-SG0-000 Cap - HUB UNIT Cap - HUB UNIT
36 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
36 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
Rear door lining 3 / 14
CD3 Rear door lining
CH8 Pillar garnish
# OEM CD3 CH8
18 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH
21 91560-SP0-003 Clip - DOOR LINING (GRAY) Clip - DOOR LINING (GRAY)
21 91560-S84-A01 CLIP, DOOR LINING (NATURAL) CLIP, DOOR LINING (NATURAL)
Rear door locks 9 / 33
CD3 Rear door locks
CH8 Rear door locks/ outer handle
# OEM CD3 CH8
1 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
8 72135-SR3-003 Striker assy - DOOR LOCK Striker assy - DOOR LOCK
11 72139-SR0-A01 Snap - VIOLET Snap - VIOLET
11 72616-SM4-003 Snap - NATURAL Snap - NATURAL
14 72175-SH3-901 Holder - DOOR LOCK ROD Holder - DOOR LOCK ROD
33 90866-SA0-000 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
34 90120-SV4-000 Bolt - LOCK STRIKER Bolt - LOCK STRIKER
36 90120-SM4-000 Screw - TAPPING Screw - TAPPING
38 91545-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
Rear door panels 5 / 17
CD3 Rear door panels
CH8 Front door panels
# OEM CD3 CH8
22 75891-SA7-000 Stopper - DOOR Stopper - DOOR
24 90686-692-003 Cap - LINING MOUNT Cap - LINING MOUNT
25 91568-SR2-003 Clip - DOOR WEATHERSTRIP Clip - DOOR WEATHERSTRIP
25 91530-SP1-003 Clip A - DOOR WEATHERSTRIP Clip A - DOOR WEATHERSTRIP
28 91657-SP0-000 Seal c - DOOR PANEL HOLE (25MM) Seal c - DOOR PANEL HOLE (25MM)
Rear seat (2) 3 / 10
CD3 Rear seat (2)
CH8 Rear seat
# OEM CD3 CH8
1 04810-SB3-R00 C clip set - TRIM FASTENER (100 PIECES) C clip set - TRIM FASTENER (100 PIECES)
1 04810-SB3-000 C clip set - TRIM FASTENER (30 PIECES) C clip set - TRIM FASTENER (30 PIECES)
13 90003-692-000 Bolt - FLANGE, 6X16 Bolt - FLANGE, 6X16
Rear shock absorber 3 / 23
CD3 Rear shock absorber
CH8 Rear shock absorber
# OEM CD3 CH8
10 52690-SG0-000 Plate - BUMP STOP Plate - BUMP STOP
11 52722-SM4-013 Rubber - BUMPER STOPPER (POLYURETHAN KASEI) Rubber - BUMPER STOPPER (POLYURETHAN KASEI)
16 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Rear stabilizer/ rear lower arm 7 / 55
CD3 Rear stabilizer/ rear lower arm
CH8 Rear stabilizer/ rear lower arm
# OEM CD3 CH8
19 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
24 52364-634-020 Washer - LOWER ARM Washer - LOWER ARM
46 90115-659-003 Nut - SELF-LOCK, 8MM (CLINCH) Nut - SELF-LOCK, 8MM (CLINCH)
50 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
51 90216-SE0-010 Nut Nut
51 90216-SE0-305 NUT, LWR ARM NUT, LWR ARM
54 90321-SE0-000 Nut - UPPER BALL PIN, 10MM Nut - UPPER BALL PIN, 10MM
Rear tray/side lining 1 / 3
CD3 Rear tray/side lining
CH8 Side lining
# OEM CD3 CH8
20 90610-SR3-003 Clip - GARNISH (KATO) Clip - GARNISH (KATO)
Roof lining (RH) 2 / 13
CD3 Roof lining (RH)
CH8 Side lining
# OEM CD3 CH8
3 75353-671-000 Lock - SCREW Lock - SCREW
25 90673-SE0-003 Clip - ROOF LINING Clip - ROOF LINING
Roof slide components 1 / 26
CD3 Roof slide components
CH8 Rear wiper
# OEM CD3 CH8
27 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
Seatbelts (3) 1 / 6
CD3 Seatbelts (3)
CH8 Tailgate
# OEM CD3 CH8
16 90301-SS0-000 Nut - CLIP, 6MM Nut - CLIP, 6MM
Steering column 3 / 10
CD3 Steering column
CH8 Steering column
# OEM CD3 CH8
9 53325-SV4-000 Clip A - JOINT COVER Clip A - JOINT COVER
15 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
16 90676-SB2-003 Clip - DASHBOARD INSULATOR Clip - DASHBOARD INSULATOR
Switch (2) 1 / 10
CD3 Switch (2)
CH8 Instrument panel (LH)
# OEM CD3 CH8
16 90666-SD4-003 Clip - FITTING Clip - FITTING
Taillight (2) 1 / 26
CD3 Taillight (2)
CH8 Taillight
# OEM CD3 CH8
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
Tire/wheel disk 2 / 36
CD3 Tire/wheel disk
CH8 Tire/wheel disk
# OEM CD3 CH8
10 42753-SE0-A02 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
10 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)
Trunk lid ('96/'97) 2 / 31
CD3 Trunk lid ('96/'97)
CH8 Outer panels/roof panel
# OEM CD3 CH8
31 90106-SE1-000 Bolt-washer - 6X15 Bolt-washer - 6X15
37 90691-SF1-003 Clip c - OPENER CABLE Clip c - OPENER CABLE
Water valve 2 / 7
CD3 Water valve
CH8 Water valve (LH; DIESEL)
# OEM CD3 CH8
6 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
6 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Windshield washer 1 / 18
CD3 Windshield washer
CH8 Hood (LH)
# OEM CD3 CH8
19 91522-SM4-003 Clip - TUBE & INSULATOR Clip - TUBE & INSULATOR
Wire harness (2) 12 / 37
CD3 Wire harness (2)
CH8 Harness band/bracket
# OEM CD3 CH8
10 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
12 32146-SH3-003 Connector - DIODE(2P) Connector - DIODE(2P)
18 32312-SM4-013 Holder - COUPLER Holder - COUPLER
23 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
24 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
27 91533-S04-003 Clip - COUPLER (NATURAL) Clip - COUPLER (NATURAL)
29 91545-SV4-003 Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL)
34 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
38 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
40 91559-SE3-003 Clip - WIRE HARNESS (WHITE) (55MM) Clip - WIRE HARNESS (WHITE) (55MM)
43 91571-S10-003 Clip - WIRE HARNESS (NATURAL) (130MM) Clip - WIRE HARNESS (NATURAL) (130MM)
48 91540-S30-003 Clip - HARNESS BAND(NATURAL) (151.5MM) Clip - HARNESS BAND(NATURAL) (151.5MM)
