Abs accumulator (2) 3 / 20

#	OEM	CD2	CF8
3	46462-SE0-000	Bolt - OIL	Bolt - OIL
4	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
5	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

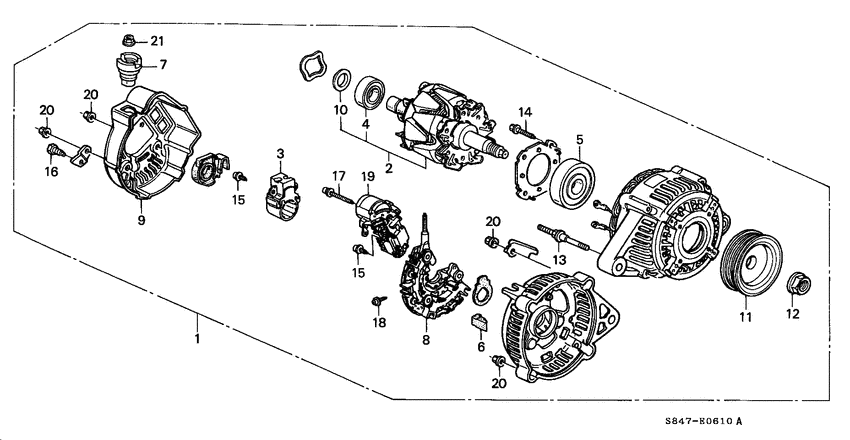

Alternator (ND) 14 / 29

#	OEM	CD2	CF8
5	31105-PR7-A01	Holder assy. - BRUSH	Holder assy. - BRUSH
7	31111-PT0-003	Bearing - RR. GENERATOR	Bearing - RR. GENERATOR
11	31118-PT0-003	Bush - INSULATION	Bush - INSULATION
12	31119-PT0-003	Bush - INSULATION	Bush - INSULATION
16	31138-PD1-004	Cover - BEARING	Cover - BEARING
18	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
19	31145-PD1-004	Bolt - STUD, 6X68	Bolt - STUD, 6X68
20	31146-PT0-003	Screw	Screw
21	31147-PT0-003	Screw-washer	Screw-washer
22	31147-P13-003	Screw	Screw
23	31148-PT0-003	Screw - WAVE WASHER	Screw - WAVE WASHER
24	31148-P13-003	Screw - WAVE WASHER	Screw - WAVE WASHER
26	90231-PD1-014	Nut-washer - 5MM	Nut-washer - 5MM
27	90232-PT0-003	Nut - HEX., 6MM	Nut - HEX., 6MM

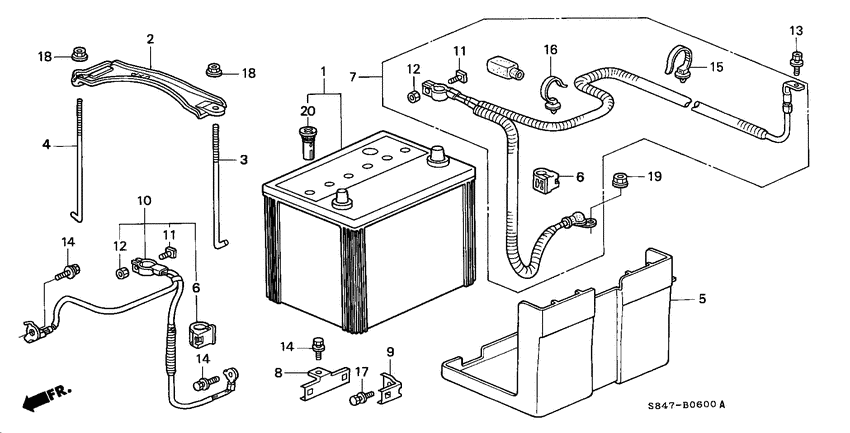

Battery 5 / 24

#	OEM	CD2	CF8
8	31513-SM4-000	Bolt - BATTERY SETTING(195MM)	Bolt - BATTERY SETTING(195MM)
15	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
16	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
20	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
22	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)

Brake lines (2) 3 / 38

#	OEM	CD2	CF8
18	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)	Grommet a - BRAKE PIPE (BLACK)
38	46462-SE0-000	Bolt - OIL	Bolt - OIL
40	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT

Brake master cylinder 2 / 15

#	OEM	CD2	CF8
5	46191-634-000	Gasket - MASTER CYLINDER BRACKET	Gasket - MASTER CYLINDER BRACKET
14	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

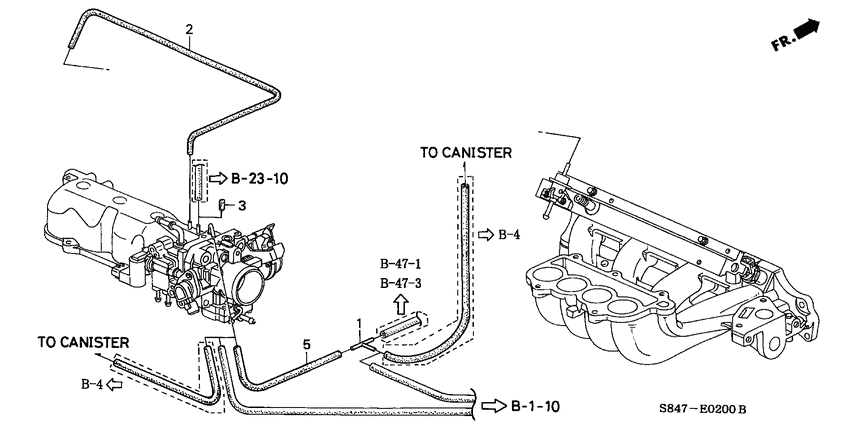

Breather tube 2 / 7

#	OEM	CD2	CF8
2	17130-PK1-003	Valve assy. - PCV	Valve assy. - PCV
5	17139-PK1-000	Grommet - PCV VALVE	Grommet - PCV VALVE

Bumpers 4 / 34

#	OEM	CD2	CF8
24	71598-SL4-013	Spacer - BUMPER SIDE	Spacer - BUMPER SIDE
30	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
33	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER
34	90302-SD2-003	Nut-washer - 8MM	Nut-washer - 8MM

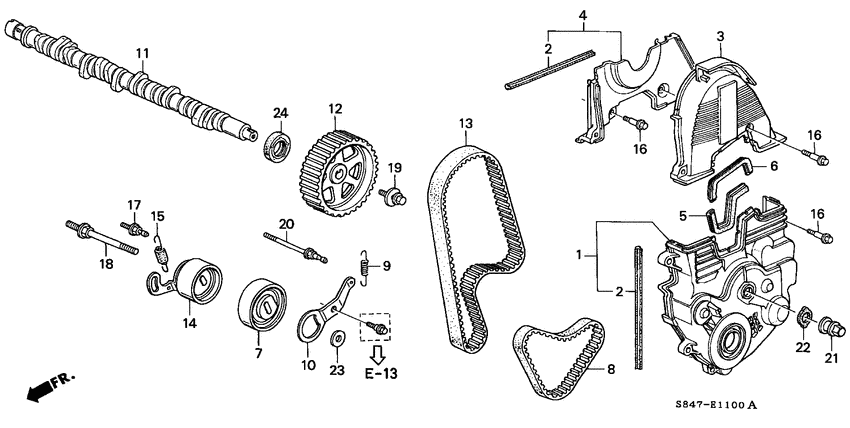

Camshaft/timing belt 11 / 35

#	OEM	CD2	CF8
10	13404-PT0-003	Adjuster comp - BALANCER BELT (KOYO)	Adjuster comp - BALANCER BELT (KOYO)
13	13415-P0A-000	Bracket - BALANCER BELT ADJUSTER	Bracket - BALANCER BELT ADJUSTER
17	14510-PT0-003	Adjuster comp - TIMING BELT (KOYO)	Adjuster comp - TIMING BELT (KOYO)
20	90007-679-000	Bolt a - TIMING BELT COVER	Bolt a - TIMING BELT COVER
21	90015-PT0-000	Bolt - TIMING BELT ADJUSTER SPRING	Bolt - TIMING BELT ADJUSTER SPRING
23	90018-PT0-010	Bolt - BALANCER BELT ADJUSTER	Bolt - BALANCER BELT ADJUSTER
24	90031-PT0-003	Bolt-washer - 8X22	Bolt-washer - 8X22
24	90032-ZW5-003	Bolt-washer, 8x22	Bolt-washer, 8x22
25	90051-PT0-000	Bolt - SUB BELT ADJUSTER SPRING	Bolt - SUB BELT ADJUSTER SPRING
28	90501-MB7-610	Washer - 10.3X25	Washer - 10.3X25
30	91213-PT0-003	Oil seal - 28X42X8 (ARAI)	Oil seal - 28X42X8 (ARAI)

Clutch housing 16 / 26

#	OEM	CD2	CF8
2	21101-PG2-000	Plate - NEEDLE BEARING SETTING	Plate - NEEDLE BEARING SETTING
3	21103-PX5-010	Plate c - OIL GUIDE	Plate c - OIL GUIDE
4	21120-PG2-003	Magnet - TRANSMISSION	Magnet - TRANSMISSION
5	22810-PX5-J02	Bearing - CLUTCH RELEASE (KOYO SEIKO)	Bearing - CLUTCH RELEASE (KOYO SEIKO)
6	22821-P0S-000	Fork - CLUTCH RELEASE	Fork - CLUTCH RELEASE
7	22825-P0S-000	Bolt - RELEASE FORK	Bolt - RELEASE FORK
8	22835-P0S-000	Spring - RELEASE FORK SETTING	Spring - RELEASE FORK SETTING
9	22841-PX5-000	Boot - RELEASE FORK	Boot - RELEASE FORK
10	24600-PX5-000	Stay - CHANGE WIRE	Stay - CHANGE WIRE
11	90030-PG2-000	Bolt - SPECIAL, 6MM	Bolt - SPECIAL, 6MM
12	90705-PG2-000	Dowel pin - 14X20	Dowel pin - 14X20
13	91002-PG1-018	Bearing - BALL, 63/28C (TOYO)	Bearing - BALL, 63/28C (TOYO)
15	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)	Oil seal - 35X56X8 (ARAI)
15	91205-PX5-005	Oil seal - 35X56X8 (NOK)	Oil seal - 35X56X8 (NOK)
16	91216-PH8-003	Oil seal - 28X41X7 (ARAI)	Oil seal - 28X41X7 (ARAI)
16	91216-PH8-005	Oil seal - 28X41X7 (NOK)	Oil seal - 28X41X7 (NOK)

Clutch master cylinder 1 / 29

#	OEM	CD2	CF8
5	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT

Clutch/torque converter 3 / 16

#	OEM	CD2	CF8
5	22300-PT7-023	Disk comp - PRESSURE	Disk comp - PRESSURE
8	90011-PH3-000	Bolt - FLANGE, 12MM	Bolt - FLANGE, 12MM
10	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)

Combination switch 2 / 23

#	OEM	CD2	CF8
3	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
24	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)

Compressor (1) 5 / 13

#	OEM	CD2	CF8
5	38812-PH1-003	Ring b - SNAP	Ring b - SNAP
6	38812-671-003	Ring a - SNAP	Ring a - SNAP
7	38912-PH1-N01	Plate set - WASHER	Plate set - WASHER
8	38827-PH7-003	Screw-washer - 5X8	Screw-washer - 5X8
9	38829-PR3-003	Bolt - WASHER HEAD	Bolt - WASHER HEAD

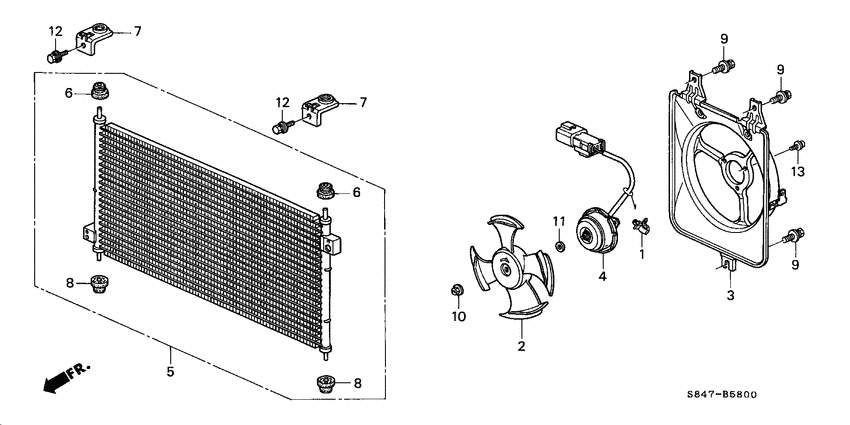

Condenser 2 / 11

#	OEM	CD2	CF8
13	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER
14	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)

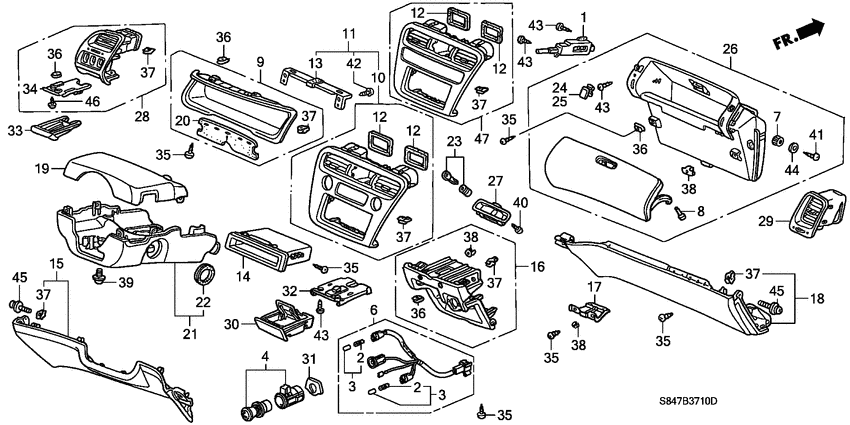

Console (2) 2 / 12

#	OEM	CD2	CF8
18	90666-SD4-003	Clip - FITTING	Clip - FITTING
19	91641-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Control unit (ABS) 1 / 11

#	OEM	CD2	CF8
2	38213-SM4-003	Fuse - BLOCK (50A)	Fuse - BLOCK (50A)

Cooling unit (1) 2 / 29

#	OEM	CD2	CF8
10	80214-SL5-A01	Insulator - EXPANSION	Insulator - EXPANSION
29	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20

Countershaft 11 / 56

#	OEM	CD2	CF8
9	23918-P21-010	Collar - DISTANCE, 36.5X42X29 (0.07-0.09)	Collar - DISTANCE, 36.5X42X29 (0.07-0.09)
10	23921-PG1-000	Washer a - 40X54X1.96	Washer a - 40X54X1.96
11	23926-PG1-010	Washer - SPRING, 23MM	Washer - SPRING, 23MM
12	90202-PH8-000	Nut - HEX., 23MM	Nut - HEX., 23MM
13	90602-PG1-770	Ring - SNAP, 56MM	Ring - SNAP, 56MM
14	91003-PG2-008	Bearing - SPECIAL BALL (NTN)	Bearing - SPECIAL BALL (NTN)
15	91102-PG2-008	Bearing - NEEDLE, 25X56.4X19	Bearing - NEEDLE, 25X56.4X19
16	91105-P16-008	Bearing - NEEDLE, 40X46X26.8 (NTN)	Bearing - NEEDLE, 40X46X26.8 (NTN)
17	91105-P21-003	Bearing - NEEDLE, 42X47X24	Bearing - NEEDLE, 42X47X24
18	91212-PX5-018	Damper - FRICTION (SECOND)	Damper - FRICTION (SECOND)
19	91211-PX5-008	Damper - FRICTION (LOW)	Damper - FRICTION (LOW)

Crankshaft/piston 7 / 55

#	OEM	CD2	CF8
11	13400-PT3-010	Shaft comp. - RR. BALANCER	Shaft comp. - RR. BALANCER
12	13401-PT3-010	Shaft - FR. BALANCER	Shaft - FR. BALANCER
14	13406-PT0-003	Metal f - THRUST BALANCER SHAFT	Metal f - THRUST BALANCER SHAFT
20	90031-PT0-003	Bolt-washer - 8X22	Bolt-washer - 8X22
20	90032-ZW5-003	Bolt-washer, 8x22	Bolt-washer, 8x22
21	90704-PT0-000	Key - 4.5X38.5	Key - 4.5X38.5
22	90019-PT0-000	Bolt - FLANGE, 6X18	Bolt - FLANGE, 6X18

Cross beam 1 / 10

#	OEM	CD2	CF8
10	91613-SE0-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM

Cylinder block/oil pan 13 / 34

#	OEM	CD2	CF8
3	11126-PK1-003	Bolt - SEALING, 22MM	Bolt - SEALING, 22MM
13	13421-PT0-003	Metal - BALANCER SHAFT (NO.1) (DAIDO)	Metal - BALANCER SHAFT (NO.1) (DAIDO)
14	13422-PT0-013	Metal - BALANCER SHAFT (NO.2) (DAIDO)	Metal - BALANCER SHAFT (NO.2) (DAIDO)
15	13423-PT0-003	Metal - BALANCER SHAFT (NO.3) (DAIDO)	Metal - BALANCER SHAFT (NO.3) (DAIDO)
20	90001-PM3-003	Bolt - DRAIN PLUG, 28MM	Bolt - DRAIN PLUG, 28MM
22	90008-PM3-000	Bolt - MOUNTING BRACKET, 10X32.5	Bolt - MOUNTING BRACKET, 10X32.5
23	90009-PH1-000	Bolt - DRAIN PLUG, 14MM	Bolt - DRAIN PLUG, 14MM
24	90030-PT0-000	Bolt - STUD, 10X35	Bolt - STUD, 10X35
28	90051-PH7-000	Bolt - FLANGE, 6X18	Bolt - FLANGE, 6X18
29	90061-PT0-000	Bolt - DRAIN PLUG, 12MM	Bolt - DRAIN PLUG, 12MM
30	90705-PT0-000	Dowel pin - 16X22	Dowel pin - 16X22
31	90715-PC6-000	Dowel pin - 13X20	Dowel pin - 13X20
33	91309-PJ7-010	O-ring - 11.5X3.5	O-ring - 11.5X3.5

Cylinder head 7 / 24

#	OEM	CD2	CF8
2	12204-PJ7-305	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
3	12205-PJ7-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
4	12210-PZ1-004	SEAL A, VALVE STEM (NOK)	SEAL A, VALVE STEM (NOK)
4	12210-PZ1-003	Seal a - VALVE STEM(ARAI)	Seal a - VALVE STEM(ARAI)
5	12211-PZ1-003	Seal b - VALVE STEM(ARAI)	Seal b - VALVE STEM(ARAI)
5	12211-PZ1-004	Seal b - VALVE STEM(NOK)	Seal b - VALVE STEM(NOK)
18	90026-PT0-000	Bolt - STUD, 8X38	Bolt - STUD, 8X38

Cylinder head cover 1 / 9

#	OEM	CD2	CF8
6	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

Differential gear 24 / 66

#	OEM	CD2	CF8
9	41380-PG2-A10	Shim - 75MM	Shim - 75MM
10	41383-PX5-000	Shim c - 68MM (1.96)	Shim c - 68MM (1.96)
10	41400-PX5-000	Shim t - 68MM (2.47)	Shim t - 68MM (2.47)
10	41395-PX5-000	Shim o - 68MM (2.32)	Shim o - 68MM (2.32)
10	41390-PX5-000	Shim j - 68MM (2.17)	Shim j - 68MM (2.17)
10	41385-PX5-000	Shim e - 68MM (2.02)	Shim e - 68MM (2.02)
10	41397-PX5-000	Shim q - 68MM (2.38)	Shim q - 68MM (2.38)
10	41392-PX5-000	Shim l - 68MM (2.23)	Shim l - 68MM (2.23)
10	41387-PX5-000	Shim g - 68MM (2.08)	Shim g - 68MM (2.08)
10	41382-PX5-000	Shim b - 68MM (1.93)	Shim b - 68MM (1.93)
10	41399-PX5-000	Shim s - 68MM (2.44)	Shim s - 68MM (2.44)
10	41394-PX5-000	Shim n - 68MM (2.29)	Shim n - 68MM (2.29)
10	41389-PX5-000	Shim i - 68MM (2.14)	Shim i - 68MM (2.14)
10	41384-PX5-000	Shim d - 68MM (1.99)	Shim d - 68MM (1.99)
10	41396-PX5-000	Shim p - 68MM (2.35)	Shim p - 68MM (2.35)
10	41391-PX5-000	Shim k - 68MM (2.20)	Shim k - 68MM (2.20)
10	41386-PX5-000	Shim f - 68MM (2.05)	Shim f - 68MM (2.05)
10	41381-PX5-000	Shim a - 68MM (1.90)	Shim a - 68MM (1.90)
10	41398-PX5-000	Shim r - 68MM (2.41)	Shim r - 68MM (2.41)
10	41393-PX5-000	Shim m - 68MM (2.26)	Shim m - 68MM (2.26)
10	41388-PX5-000	Shim h - 68MM (2.11)	Shim h - 68MM (2.11)
11	90017-689-000	Bolt - SPECIAL, 10MM	Bolt - SPECIAL, 10MM
12	91005-PG2-004	Bearing - TAPER, 40X75X21 (KOYO)	Bearing - TAPER, 40X75X21 (KOYO)
13	91006-PX5-008	Bearing - TAPER, 40X68X22 (NTN)	Bearing - TAPER, 40X68X22 (NTN)

Distributor (TEC; 1) 3 / 11

#	OEM	CD2	CF8
11	30110-PA1-732	O-ring - 26.4X3.1 (TEC)	O-ring - 26.4X3.1 (TEC)
15	30132-PT2-006	Packing - CAP	Packing - CAP
16	30510-PT2-006	Ignition Coil	Ignition Coil

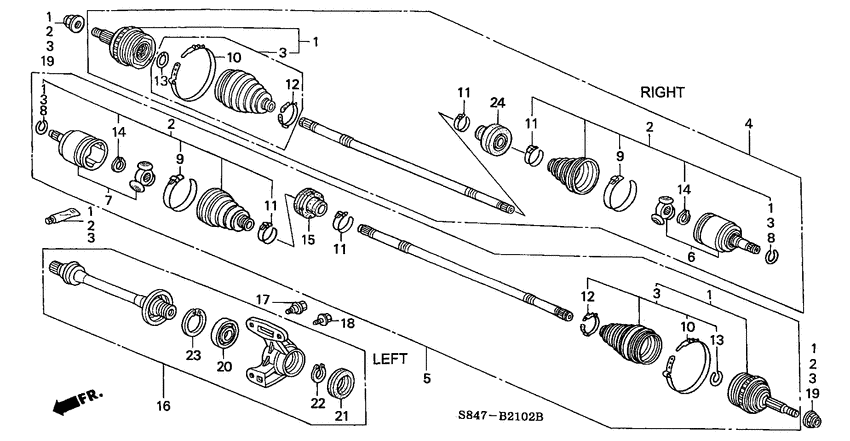

Driveshaft 8 / 31

#	OEM	CD2	CF8
11	44327-SV4-305	Band - JOINT BOOT (DOUBLE ROLLED BAND)	Band - JOINT BOOT (DOUBLE ROLLED BAND)
16	44338-SB0-300	Circlip - 26MM	Circlip - 26MM
21	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
22	90165-SE0-000	Bolt - FLANGE, 10X37	Bolt - FLANGE, 10X37
23	90305-SD4-003	Nut - SPINDLE (24MM)	Nut - SPINDLE (24MM)
24	91057-SH3-008	Bearing - HALF SHAFT (NTN)	Bearing - HALF SHAFT (NTN)
31	44329-SV4-305	Band - SHAFT BOOT (DOUBLE ROLLED BAND)	Band - SHAFT BOOT (DOUBLE ROLLED BAND)
32	44337-SB0-300	Ring b - STOPPER	Ring b - STOPPER

Emblems 1 / 13

#	OEM	CD2	CF8
26	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

Engine hood 3 / 24

#	OEM	CD2	CF8
19	90106-SE1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
26	91515-SM4-003	Clip - ANCHOR	Clip - ANCHOR
27	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE

Engine mounts 5 / 33

#	OEM	CD2	CF8
23	90165-SM4-020	Bolt - FLANGE, 12X101	Bolt - FLANGE, 12X101
25	90169-SM4-000	Bolt - FLANGE, 12X30	Bolt - FLANGE, 12X30
27	90173-SM4-000	Bolt - FLANGE, 12X60	Bolt - FLANGE, 12X60
28	90371-SM4-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
30	90174-SM4-000	Bolt - FLANGE, 10X22	Bolt - FLANGE, 10X22

Engine sub cord/clamp 4 / 35

#	OEM	CD2	CF8
23	37750-PH2-014	Thermo unit - DENSO	Thermo unit - DENSO
24	37870-PK2-005	Sensor assy - WATER TEMP (HADSYS)	Sensor assy - WATER TEMP (HADSYS)
32	90313-PT0-000	Bolt - SPECIAL, 10X90	Bolt - SPECIAL, 10X90
33	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)	O-ring - 9.5X1.5(HONDA KIKAKI)

Exhaust manifold (2) 6 / 14

#	OEM	CD2	CF8
8	90010-PE2-900	Bolt - SPECIAL, 10X22	Bolt - SPECIAL, 10X22
9	90015-PT0-J00	Bolt-washer - 8X14	Bolt-washer - 8X14
11	90065-PC1-300	Bolt - STUD, 10X34.5	Bolt - STUD, 10X34.5
12	90212-PD2-003	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
12	90212-RCA-A01	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
13	90451-PE2-000	Washer - SPECIAL, 11X28	Washer - SPECIAL, 11X28

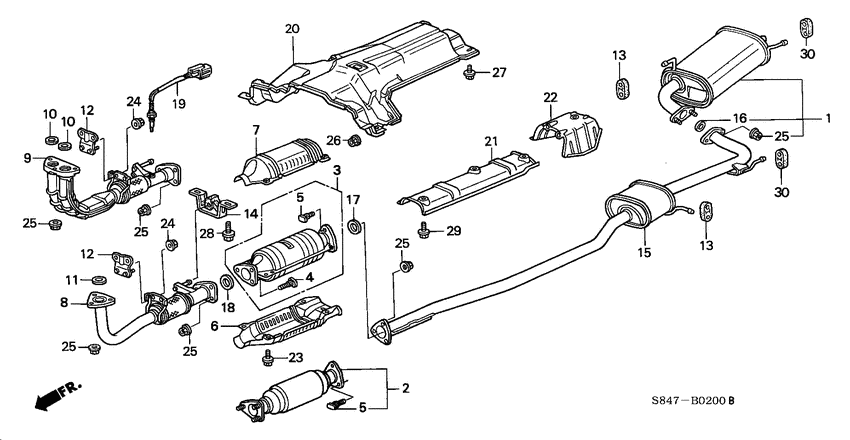

Exhaust system 6 / 30

#	OEM	CD2	CF8
21	18303-SM4-020	Gasket - SILENCER	Gasket - SILENCER
26	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
33	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
34	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
39	90023-PK1-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
39	90023-PR7-A01	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)	BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)

Floor mat 1 / 8

#	OEM	CD2	CF8
11	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR

Front brake (1) 3 / 29

#	OEM	CD2	CF8
6	45215-671-672	Screw - BLEEDER	Screw - BLEEDER
7	45216-SM4-A01	Piston	Piston
21	90107-SM4-000	Bolt - CALIPER MOUNTING (12X21)	Bolt - CALIPER MOUNTING (12X21)

Front door lining 1 / 21

#	OEM	CD2	CF8
32	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)	Grommet - SCREW, 4MM (YELLOW)

Front door locks 5 / 22

#	OEM	CD2	CF8
6	72119-SM1-003	Stopper a - OUTSIDE HANDLE	Stopper a - OUTSIDE HANDLE
14	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT	Bush - OUTSIDE HANDLE JOINT
15	72134-SM4-003	Snap - R. (VIOLET)	Snap - R. (VIOLET)
31	75411-634-000	Joint	Joint
33	90120-SM4-000	Screw - TAPPING	Screw - TAPPING

Front door panels 2 / 16

#	OEM	CD2	CF8
22	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
28	91530-SH4-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP

Front door windows 1 / 20

#	OEM	CD2	CF8
21	90011-896-000	Bolt - FLANGE, 6X8	Bolt - FLANGE, 6X8

Front fenders 2 / 9

#	OEM	CD2	CF8
14	90657-SB0-003	Clip, SPLASH SHIELD	Clip, SPLASH SHIELD
15	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front grille (2) 1 / 8

#	OEM	CD2	CF8
7	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front lower arm 3 / 30

#	OEM	CD2	CF8
17	51398-SM4-000	Collar - RADIUS ROD	Collar - RADIUS ROD
27	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
28	90303-SF1-003	Nut - SELF-LOCK, 12MM	Nut - SELF-LOCK, 12MM

Front seat 2 / 11

#	OEM	CD2	CF8
32	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10
33	90161-SB4-003	Screw - FLAT, 4X16	Screw - FLAT, 4X16

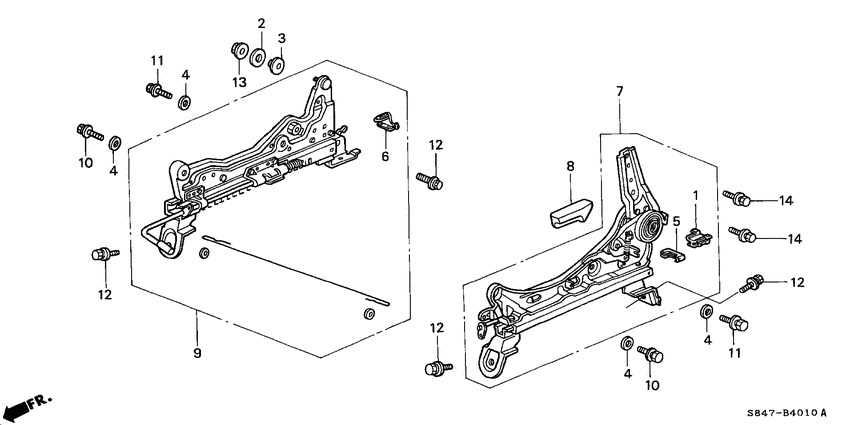

Front seat components (2) 3 / 21

#	OEM	CD2	CF8
3	77209-SB0-003	Washer - NYLON	Washer - NYLON
4	77517-SA5-014	Cap - SLIDE ADJUSTER	Cap - SLIDE ADJUSTER
11	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10

Front seat components (3) 1 / 8

#	OEM	CD2	CF8
2	77209-SB0-003	Washer - NYLON	Washer - NYLON

Front shock absorber 4 / 25

#	OEM	CD2	CF8
12	51728-SR0-003	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)	Collar - SHOCK ABSORBER MOUNTING(DUFFY STEEL PARTS)
13	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
14	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Front turn light 2 / 14

#	OEM	CD2	CF8
3	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
18	34304-SH3-A01	Socket comp.	Socket comp.

Front windshield wiper 4 / 25

#	OEM	CD2	CF8
7	76517-SM4-003	Collar	Collar
9	76524-SD4-003	Dust seal	Dust seal
10	76524-SE0-013	Dust seal	Dust seal
23	90201-SK7-000	Nut - HEX. CAP, 10MM	Nut - HEX. CAP, 10MM

Fuel pipe 2 / 44

#	OEM	CD2	CF8
17	17743-SM4-003	Cap - DRAIN TUBE	Cap - DRAIN TUBE
36	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM

Fuel tank 5 / 44

#	OEM	CD2	CF8
7	17525-SM4-000	Bolt-washer - 10X35	Bolt-washer - 10X35
12	17652-SA5-000	Clip - FILLER TUBE	Clip - FILLER TUBE
39	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
45	90700-SB0-003	Clip - AIR BLEED TUBE	Clip - AIR BLEED TUBE
47	91601-SH3-013	Grommet - SCREW, 5MM (BLACK)	Grommet - SCREW, 5MM (BLACK)

Fuse box/relay 3 / 59

#	OEM	CD2	CF8
47	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
51	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
53	90182-SB6-000	Bolt-washer - 6X16	Bolt-washer - 6X16

Grommet 10 / 24

#	OEM	CD2	CF8
1	72206-SA5-000	Cap - FLOOR HOLE, 53MM	Cap - FLOOR HOLE, 53MM
6	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
8	85268-SA0-000	Protection - TAILGATE, 20MM (CIRCLE)	Protection - TAILGATE, 20MM (CIRCLE)
10	90664-SB3-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
11	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
22	91606-SK7-003	Plug - BLIND, 25MM	Plug - BLIND, 25MM
23	91610-SD4-000	Plug - HOLE, 28MM	Plug - HOLE, 28MM
25	91611-SM4-003	Plug - FLOOR HOLE, 25MM	Plug - FLOOR HOLE, 25MM
34	91619-SE0-000	Seal - DOOR HOLE, 30MM(BLACK)	Seal - DOOR HOLE, 30MM(BLACK)
35	91623-SE0-003	Plug - BLIND, 12MM	Plug - BLIND, 12MM

Headlight (2) 2 / 18

#	OEM	CD2	CF8
11	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
14	34304-SH3-A01	Socket comp.	Socket comp.

Heater blower 1 / 11

#	OEM	CD2	CF8
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD

Heater unit 1 / 13

#	OEM	CD2	CF8
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD

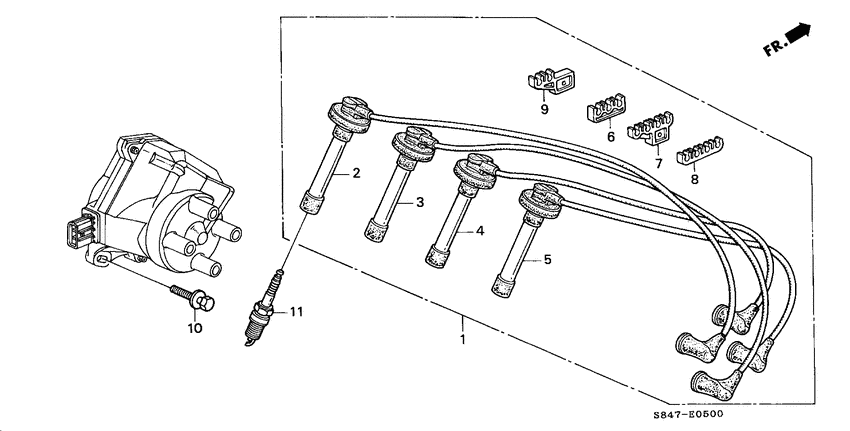

High tension cord/ spark plug 3 / 11

#	OEM	CD2	CF8
11	32766-PM3-000	Clamp b - HIGH TENSION CORD	Clamp b - HIGH TENSION CORD
12	32767-PT0-000	Grommet - HIGH TENSION CORD	Grommet - HIGH TENSION CORD
14	90003-P01-000	Bolt-washer - 8X28	Bolt-washer - 8X28

Hoses/pipes 1 / 45

#	OEM	CD2	CF8
36	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)

Instrument garnish 3 / 32

#	OEM	CD2	CF8
9	66417-SA0-000	Rubber - GLOVE BOX STOPPER	Rubber - GLOVE BOX STOPPER
52	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
54	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Instrument panel 2 / 21

#	OEM	CD2	CF8
38	90666-SD4-003	Clip - FITTING	Clip - FITTING
40	91640-SM4-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Intake manifold (2) 10 / 41

#	OEM	CD2	CF8
2	16472-PH7-003	Seal ring - INJECTOR (OTSUKA)	Seal ring - INJECTOR (OTSUKA)
2	16472-P0H-A01	Seal ring - INJECTOR (NOK)	Seal ring - INJECTOR (NOK)
3	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)	Cushion ring - INJECTOR (OTSUKA)
3	16473-P10-A01	Cushion ring - INJECTOR (NOK)	Cushion ring - INJECTOR (NOK)
9	16741-PG7-005	O-ring - PRESSURE REGULATOR	O-ring - PRESSURE REGULATOR
20	18715-PB2-000	GASKET, EGR VALVE (ISHINO GASKET)	GASKET, EGR VALVE (ISHINO GASKET)
31	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
33	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)	O-ring - 7.3X2.2 (NOK)
33	91301-PM7-003	O-ring - 7.3X2.2 (ARAI)	O-ring - 7.3X2.2 (ARAI)
33	16074-ZY3-000	O-ring	O-ring

Interior light 1 / 7

#	OEM	CD2	CF8
7	90152-SE0-003	Nut - EARTH, 5MM (ZN)	Nut - EARTH, 5MM (ZN)

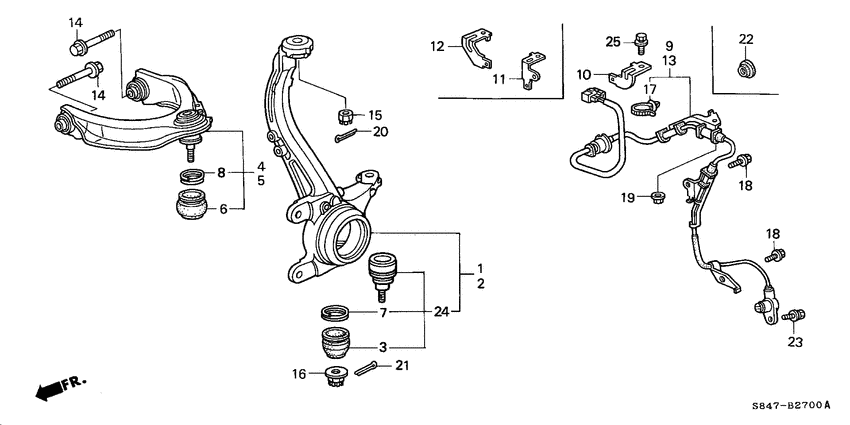

Knuckle 4 / 17

#	OEM	CD2	CF8
8	52226-SL0-003	Circlip - LOWER BALL(MUSASHI)	Circlip - LOWER BALL(MUSASHI)
14	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
17	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM
18	90363-SF1-000	Nut - CASTLE, 12MM	Nut - CASTLE, 12MM

Mainshaft 7 / 50

#	OEM	CD2	CF8
6	23540-P16-000	Gear comp - REVERSE IDLE	Gear comp - REVERSE IDLE
13	23652-PB6-000	Spring - SYNCHRONIZER (50MM)	Spring - SYNCHRONIZER (50MM)
15	23915-P21-000	Collar - DISTANCE, 31X38X56.5	Collar - DISTANCE, 31X38X56.5
16	23927-PG2-A00	Washer - SPRING, 28MM	Washer - SPRING, 28MM
17	23928-PS1-000	Washer - 28MM	Washer - 28MM
19	90401-PG1-000	Washer - DRAIN PLUG, 10MM	Washer - DRAIN PLUG, 10MM
20	91004-PX5-008	Bearing - BALL, 28X78X20	Bearing - BALL, 28X78X20

Meter components (NS) 3 / 29

#	OEM	CD2	CF8
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
17	37115-SA0-601	Packing - NS	Packing - NS

Mirror 1 / 13

#	OEM	CD2	CF8
32	90615-SK7-003	Clip - MIRROR GARNISH	Clip - MIRROR GARNISH

Oil pump/oil strainer 14 / 36

#	OEM	CD2	CF8
10	15113-PT0-003	Packing a - OIL PUMP (ARAI)	Packing a - OIL PUMP (ARAI)
11	15114-PT0-003	Packing b - OIL PUMP (ARAI)	Packing b - OIL PUMP (ARAI)
15	15221-PT0-000	Packing - OIL STRAINER	Packing - OIL STRAINER
15	15221-P5K-004	Packing - OIL STRAINER	Packing - OIL STRAINER
16	15231-PE0-000	Valve - RELIEF	Valve - RELIEF
17	15232-PG6-000	Spring - RELIEF VALVE	Spring - RELIEF VALVE
18	15233-PC6-000	Bolt - SEALING, 18MM	Bolt - SEALING, 18MM
19	15233-PK1-000	Bolt - SEALING, 20MM	Bolt - SEALING, 20MM
20	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
25	90023-PT0-003	Bolt-washer - 8X33	Bolt-washer - 8X33
27	90052-PK1-000	Bolt - FLANGE, 6X25	Bolt - FLANGE, 6X25
28	90063-PC6-000	Bolt - STUD, 6X25	Bolt - STUD, 6X25
29	90703-PT0-000	Dowel pin - 49X10	Dowel pin - 49X10
31	91233-PT0-003	Oil seal - 27X40X8 (NOK)	Oil seal - 27X40X8 (NOK)

Outer panels 2 / 5

#	OEM	CD2	CF8
27	90103-SM4-010	Bolt - FLANGE, 6X18	Bolt - FLANGE, 6X18
28	90664-SB3-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

P.s. hoses/pipes 4 / 42

#	OEM	CD2	CF8
1	53697-SB3-952	Cap - OIL TANK	Cap - OIL TANK
7	90635-SM4-A01	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
7	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
14	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

P.s. pump 2 / 37

#	OEM	CD2	CF8
17	90311-PT0-000	Bolt - ADJUSTER SPECIAL	Bolt - ADJUSTER SPECIAL
24	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2

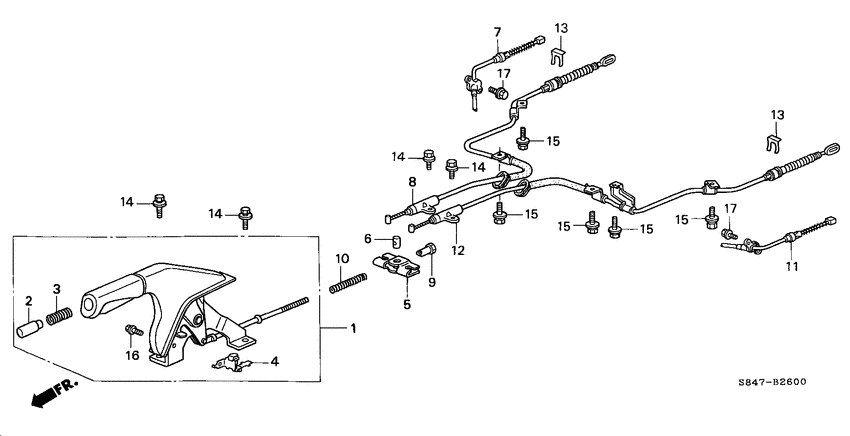

Parking brake 5 / 16

#	OEM	CD2	CF8
4	47143-SD4-300	Spring - PUSH ROD	Spring - PUSH ROD
6	47360-SB2-000	Equalizer	Equalizer
7	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
10	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
11	47537-671-670	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD

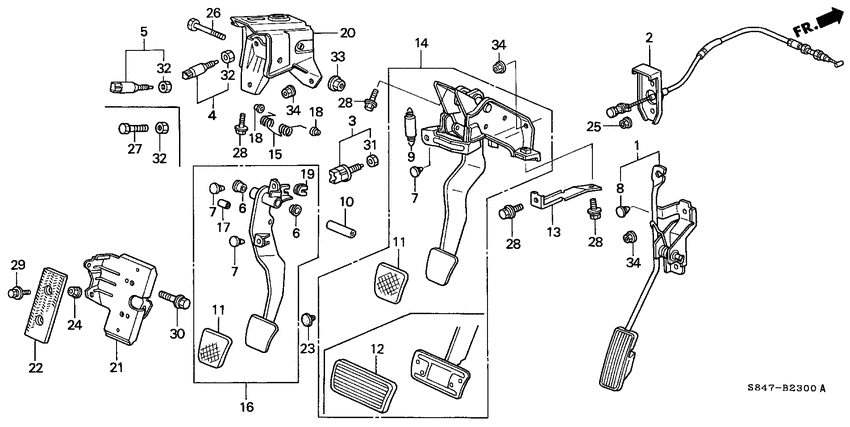

Pedal 4 / 47

#	OEM	CD2	CF8
25	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
27	46535-SM4-000	Collar - PEDAL	Collar - PEDAL
28	46545-SA5-000	Cover, Pedal	Cover, Pedal
42	75891-611-000	Cover - DOOR SWITCH	Cover - DOOR SWITCH

Pillar lining 1 / 13

#	OEM	CD2	CF8
30	90666-SD4-003	Clip - FITTING	Clip - FITTING

Protector 5 / 27

#	OEM	CD2	CF8
26	90331-SD5-003	Nut - SPRING, 5MM	Nut - SPRING, 5MM
27	90505-SM4-003	Clip - GARNISH	Clip - GARNISH
27	90505-SX0-003	Clip - GARNISH	Clip - GARNISH
29	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM
30	91513-SM4-000	Clip - SIDE SILL UPPER GARNISH	Clip - SIDE SILL UPPER GARNISH

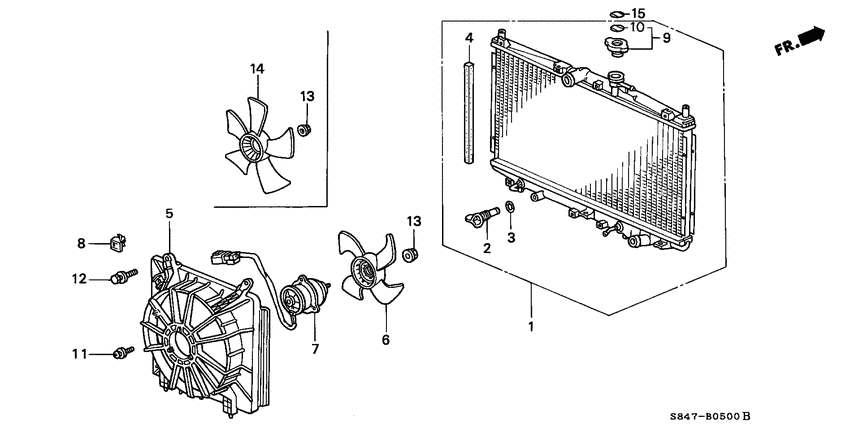

Radiator (ND) 4 / 17

#	OEM	CD2	CF8
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
13	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
14	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator hose 4 / 27

#	OEM	CD2	CF8
11	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
12	19511-PT0-004	Clip - WATER HOSE (36.5MM) (KEIHIN)	Clip - WATER HOSE (36.5MM) (KEIHIN)
20	74172-SM4-970	Cushion - RADIATOR MOUNTING LOWER	Cushion - RADIATOR MOUNTING LOWER
21	74173-SJ4-000	Cushion - RADIATOR MOUNTING UPPER	Cushion - RADIATOR MOUNTING UPPER

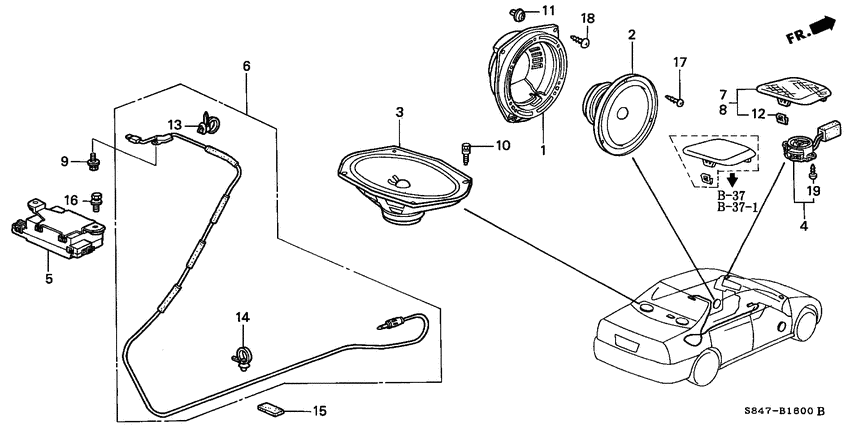

Radio antenna/speaker 3 / 18

#	OEM	CD2	CF8
35	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
38	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
40	91902-SB2-003	Cushion - WIRE HARNESS(50X100)	Cushion - WIRE HARNESS(50X100)

Rear brake (DISK) 3 / 53

#	OEM	CD2	CF8
41	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
44	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
44	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)

Rear door lining 1 / 18

#	OEM	CD2	CF8
20	90665-SM4-000	Grommet - SCREW, 4MM (YELLOW)	Grommet - SCREW, 4MM (YELLOW)

Rear door lock 8 / 22

#	OEM	CD2	CF8
1	72119-SM1-003	Stopper a - OUTSIDE HANDLE	Stopper a - OUTSIDE HANDLE
3	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT	Bush - OUTSIDE HANDLE JOINT
6	72175-SH3-901	Holder - DOOR LOCK ROD	Holder - DOOR LOCK ROD
10	72616-SM4-003	Snap - NATURAL	Snap - NATURAL
16	72634-SM4-003	Snap - R. (BLUE)	Snap - R. (BLUE)
24	72674-SM4-003	Snap - L. (BROWN)	Snap - L. (BROWN)
25	75411-634-000	Joint	Joint
27	90120-SM4-000	Screw - TAPPING	Screw - TAPPING

Rear door panel 2 / 11

#	OEM	CD2	CF8
20	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
26	91530-SH4-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP

Rear lower arm 8 / 66

#	OEM	CD2	CF8
2	52338-SL0-003	Circlip - CONTROL ARM	Circlip - CONTROL ARM
23	52364-634-020	Washer - LOWER ARM	Washer - LOWER ARM
24	52365-SM4-004	Bush a - RR. LOWER ARM (YAMASHITA)	Bush a - RR. LOWER ARM (YAMASHITA)
49	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
53	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
54	90216-SE0-010	Nut	Nut
54	90216-SE0-305	NUT, LWR ARM	NUT, LWR ARM
57	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM

Rear seat 2 / 13

#	OEM	CD2	CF8
2	78182-SA0-000	Clip - RR. SEAT PIN	Clip - RR. SEAT PIN
24	90003-692-000	Bolt - FLANGE, 6X16	Bolt - FLANGE, 6X16

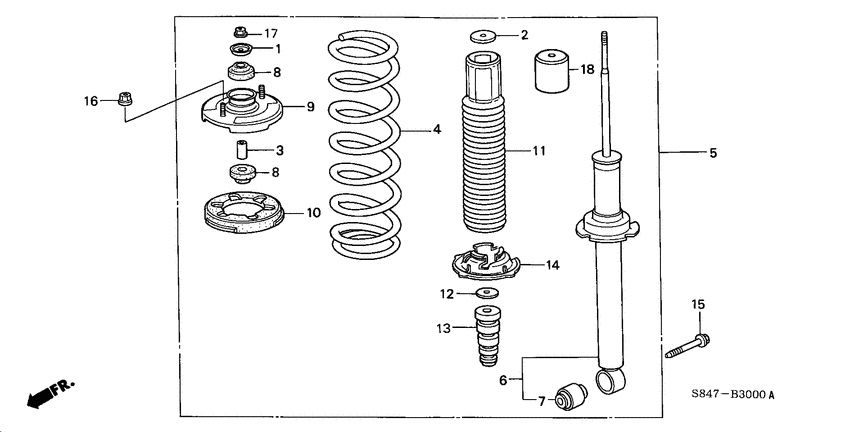

Rear shock absorber 2 / 19

#	OEM	CD2	CF8
10	52690-SG0-000	Plate - BUMP STOP	Plate - BUMP STOP
16	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)

Right side cover 1 / 36

#	OEM	CD2	CF8
27	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE

Select lever 2 / 35

#	OEM	CD2	CF8
40	90114-SA0-000	Nut - SELF-LOCK, 6MM	Nut - SELF-LOCK, 6MM
44	91556-SP0-003	Clip - COUPLER(BROWN)	Clip - COUPLER(BROWN)

Shift arm/shift lever 13 / 18

#	OEM	CD2	CF8
2	24431-PX5-000	Interlock comp.	Interlock comp.
3	24433-PX5-000	Bolt - INTERLOCK	Bolt - INTERLOCK
4	24440-PK5-000	Cam comp - REVERSE LOCK	Cam comp - REVERSE LOCK
5	24460-PX5-010	Lever comp - SELECT	Lever comp - SELECT
9	24470-PX5-000	Lever comp - SHIFT	Lever comp - SHIFT
10	24474-PK5-000	Boot - SHIFT LEVER	Boot - SHIFT LEVER
11	24480-PK5-000	Arm comp - SELECT	Arm comp - SELECT
12	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5
13	90029-PX5-010	Bolt - SPECIAL, 8X24	Bolt - SPECIAL, 8X24
14	90406-PX5-010	Washer - LOCK	Washer - LOCK
15	91209-PE9-005	Dust seal - 16X23X5(NOK)	Dust seal - 16X23X5(NOK)
15	91209-PE9-003	Dust seal - 16X23X5(ARAI)	Dust seal - 16X23X5(ARAI)
16	91215-PK5-000	Oil seal - 16X27X14	Oil seal - 16X27X14

Shift fork 5 / 10

#	OEM	CD2	CF8
3	24220-PX5-J01	Fork comp - GEARSHIFT (1-2)	Fork comp - GEARSHIFT (1-2)
4	24230-PX5-J00	Holder comp - REVERSE SHIFT	Holder comp - REVERSE SHIFT
5	24243-PX5-J00	Piece - FIFTH & REVERSE SHIFT	Piece - FIFTH & REVERSE SHIFT
7	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5

Shift lever 7 / 33

#	OEM	CD2	CF8
21	54357-SF1-003	Plate - CHANGE WIRE	Plate - CHANGE WIRE
23	90114-SA0-000	Nut - SELF-LOCK, 6MM	Nut - SELF-LOCK, 6MM
24	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
28	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)	Washer a - SHIFT WIRE(1.6MM)
29	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)	Washer b - SHIFT WIRE (0.5MM)
30	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)	Washer a - SELECT WIRE (1.6MM)
31	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)	Washer b - SELECT WIRE (0.5MM)

Speed sensor 1 / 3

#	OEM	CD2	CF8
3	78411-SM4-003	Joint - SPEED SENSOR (MATSUSHITA)	Joint - SPEED SENSOR (MATSUSHITA)

Steering column 4 / 15

#	OEM	CD2	CF8
16	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
17	90361-SR3-000	Nut - FLANGE, 8MM	Nut - FLANGE, 8MM
18	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
19	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR

Sunvisor/grab rail 2 / 10

#	OEM	CD2	CF8
2	75353-671-000	Lock - SCREW	Lock - SCREW
28	90133-SM4-003	Bolt-washer - 5X16	Bolt-washer - 5X16

Taillight (3) 1 / 30

#	OEM	CD2	CF8
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)

Throttle body 1 / 21

#	OEM	CD2	CF8
18	90634-PA0-000	Cap - SEALING	Cap - SEALING

Transmission housing 9 / 83

#	OEM	CD2	CF8
1	21104-PX5-010	Plate m - OIL GUIDE	Plate m - OIL GUIDE
3	21222-PX5-000	Hanger b - TRANSMISSION	Hanger b - TRANSMISSION
4	21223-PX5-000	Hanger a - TRANSMISSION	Hanger a - TRANSMISSION
7	23948-P16-000	Shim h - 78MM (1.41)	Shim h - 78MM (1.41)
8	35600-PK5-003	Switch assy - BACK UP LIGHT (TEC)	Switch assy - BACK UP LIGHT (TEC)
10	90042-PX5-010	Bolt - STUD, 10X50	Bolt - STUD, 10X50
11	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
12	90081-PX5-000	Screw - SEALING, 32MM	Screw - SEALING, 32MM
14	91206-PX5-005	Oil seal - 40X58X8(NOK)	Oil seal - 40X58X8(NOK)

Trunk lid 4 / 25

#	OEM	CD2	CF8
17	74873-SM4-003	Clip - TRUNK OPENER SPRING	Clip - TRUNK OPENER SPRING
23	74886-SH4-A03	Cylinder - TRUNK REMOTE CONTROL	Cylinder - TRUNK REMOTE CONTROL
29	90109-SM4-000	Bolt - SPECIAL, 6X35	Bolt - SPECIAL, 6X35
33	90691-SF1-003	Clip c - OPENER CABLE	Clip c - OPENER CABLE

Valve/rocker arm 3 / 17

#	OEM	CD2	CF8
9	14744-PT0-004	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
14	14781-PJ7-003	Cotter - VALVE (FUJI VALVE)	Cotter - VALVE (FUJI VALVE)
15	90206-PT0-004	Nut - TAPPET ADJUSTING	Nut - TAPPET ADJUSTING

Water hose 2 / 17

#	OEM	CD2	CF8
9	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
20	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM

Water pump 13 / 23

#	OEM	CD2	CF8
2	19222-PT0-300	Packing - WATER PUMP	Packing - WATER PUMP
3	19223-PT0-000	Rubber - WATER PUMP SEAL	Rubber - WATER PUMP SEAL
5	19301-PAA-306	Thermostat assy - NIPPON THERMOSTAT	Thermostat assy - NIPPON THERMOSTAT
6	19305-PT0-000	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
6	19305-PLC-A00	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
8	19313-PT0-000	Packing - THERMOSTAT CASE	Packing - THERMOSTAT CASE
11	19500-PT0-000	Joint - TUBE	Joint - TUBE
13	19516-PC1-000	Bolt - BREATHING WATER	Bolt - BREATHING WATER
15	37773-PT3-A01	Switch - THERMO (A-106) (UCHIYA)	Switch - THERMO (A-106) (UCHIYA)
16	90002-PD2-000	Bolt - FLANGE, 8X16	Bolt - FLANGE, 8X16
17	91307-PN4-000	O-ring - 17.5X1.4	O-ring - 17.5X1.4
17	91307-PN3-000	O-ring,17.8x1.4	O-ring,17.8x1.4
19	91314-PH7-003	O-ring 31.2X4.1 (NOK)	O-ring 31.2X4.1 (NOK)

Water valve 2 / 6

#	OEM	CD2	CF8
4	91405-PK1-003	Clip, WATER HOSE, 24MM	Clip, WATER HOSE, 24MM
4	19513-PE0-003	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)	Clamp - WATER HOSE (21.7MM) (CHUO SPRING)

Wheel disks 1 / 28

#	OEM	CD2	CF8
7	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)

Windshield washer 5 / 21

#	OEM	CD2	CF8
1	36062-671-000	Clamp b - TUBE	Clamp b - TUBE
3	38512-SC4-673	Motor - WASHER (DENSO)	Motor - WASHER (DENSO)
5	76828-SH0-A02	Joint l, WASHER TUBE (DENSO)	Joint l, WASHER TUBE (DENSO)
9	76807-SE4-A02	Packing - T-TYPE) (DENSO	Packing - T-TYPE) (DENSO
21	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM

Wire harness 8 / 52

#	OEM	CD2	CF8
10	32133-SM4-003	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)	Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
11	32134-SM4-003	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)	Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
19	32312-SM4-013	Holder - COUPLER	Holder - COUPLER
28	90148-SE0-003	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)	Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
29	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16
43	91551-SF4-003	Band - WIRE HARNESS(BROWN) (110MM)	Band - WIRE HARNESS(BROWN) (110MM)
48	91556-SM4-003	Clip - BAND (BLACK) (100MM)	Clip - BAND (BLACK) (100MM)
58	91644-SM4-003	Grommet - WIRE HARNESS (32MM)	Grommet - WIRE HARNESS (32MM)
