CB8 × CM2

共通 164 / 合計 4,853 · Jaccard 3.4%
CB8 Honda ACCORD — 2,708 中 164 共有
CM2 Honda ACCORD — 2,309 中 164 共有
164 件
Abs accumulator (KG) 3 / 20
CB8 Abs accumulator (KG)
CM2 Brake lines (VSA; LH; 1)
# OEM CB8 CM2
3 46462-SE0-000 Bolt - OIL Bolt - OIL
4 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
5 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Abs modulator (KG) 2 / 23
CB8 Abs modulator (KG)
CM2 Brake lines (VSA; LH; 1)
# OEM CB8 CM2
2 46462-SE0-000 Bolt - OIL Bolt - OIL
3 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT

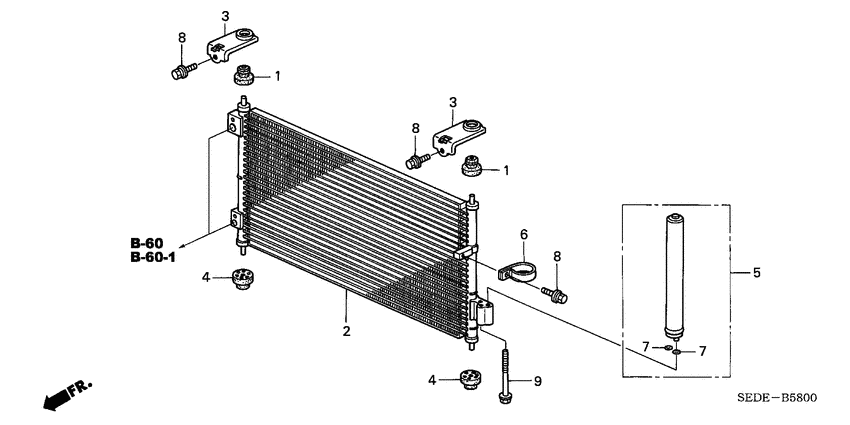

Air conditioner (CONDENSER) 1 / 11
CB8 Air conditioner (CONDENSER)
CM2 Air conditioner (CONDENSE R)
# OEM CB8 CM2
8 80175-SE0-000 Mount - CONDENSER Mount - CONDENSER
Air conditioner (HOSES/PIPES; LH) 1 / 42
CB8 Air conditioner (HOSES/PIPES; LH)
CM2 Air conditioner (HOSES/PI PES; LH)
# OEM CB8 CM2
25 80384-SM4-A01 Clip - RECEIVER PIPE(B) Clip - RECEIVER PIPE(B)

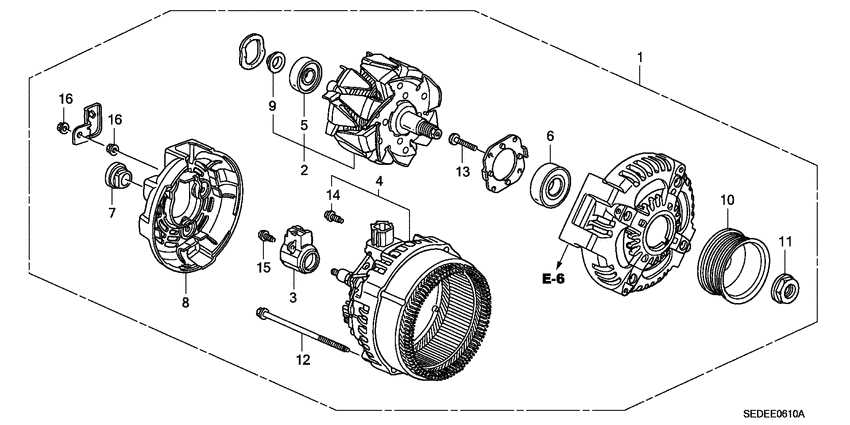

Alternator (DENSO) 4 / 29
CB8 Alternator (DENSO)
CM2 Alternator (DENSO)
# OEM CB8 CM2
7 31111-PT0-003 Bearing - RR. GENERATOR Bearing - RR. GENERATOR
17 31138-PD1-004 Cover - BEARING Cover - BEARING
19 31142-PD1-004 Nut - PULLEY LOCK Nut - PULLEY LOCK
22 31147-PT0-003 Screw-washer Screw-washer

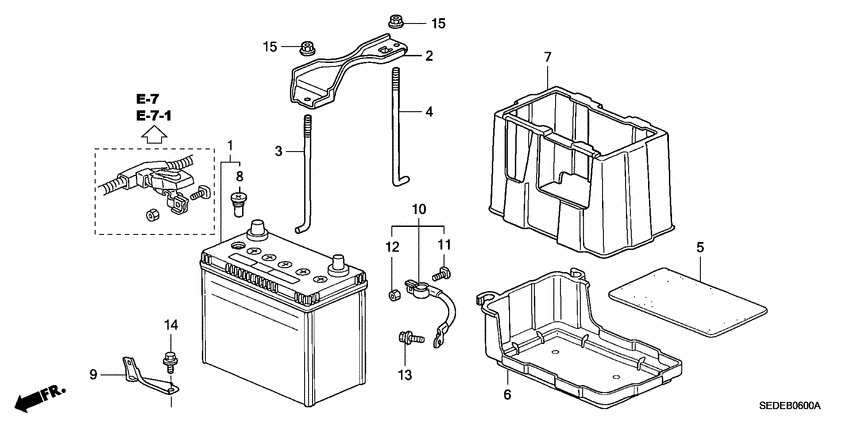

Battery 4 / 19
CB8 Battery
CM2 Battery
# OEM CB8 CM2
11 32601-SK7-900 Bolt - BATTERY TERMINAL Bolt - BATTERY TERMINAL
12 32602-SK7-900 Nut - BATTERY TERMINAL Nut - BATTERY TERMINAL
17 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
19 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)

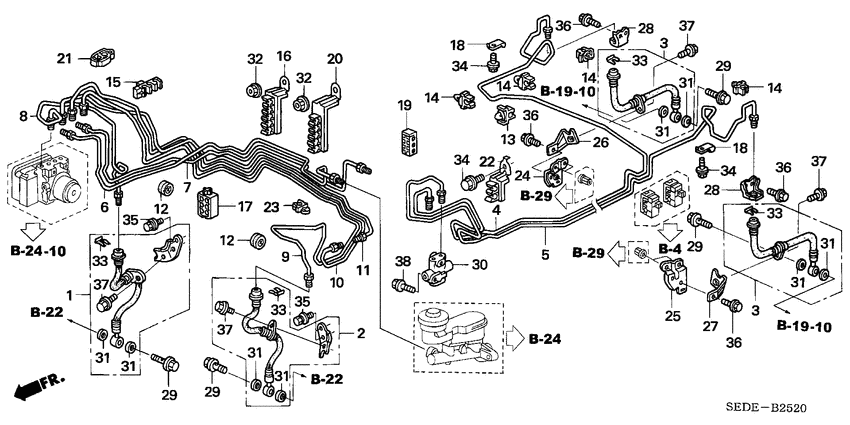

Brake line (LH) 4 / 36
CB8 Brake line (LH)
CM2 Brake lines (VSA; LH; 1)
# OEM CB8 CM2
16 46380-SB0-000 Grommet a - BRAKE PIPE (BLACK) Grommet a - BRAKE PIPE (BLACK)
37 46462-SE0-000 Bolt - OIL Bolt - OIL
39 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
44 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Brake master cylinder/ master power 1 / 24
CB8 Brake master cylinder/ master power
CM2 Brake master cylinder/ master power (LH)
# OEM CB8 CM2
29 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
Breather tube 3 / 7
CB8 Breather tube
CM2 Cylinder head cover
# OEM CB8 CM2
5 17139-PK1-000 Grommet - PCV VALVE Grommet - PCV VALVE
7 91405-679-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
7 91405-PM5-004 Clamp - TUBE (D17) Clamp - TUBE (D17)
Bumper 2 / 27
CB8 Bumper
CM2 Bumpers
# OEM CB8 CM2
20 90110-SE7-000 Bolt-washer - 8X21 Bolt-washer - 8X21
22 90302-SD2-003 Nut-washer - 8MM Nut-washer - 8MM

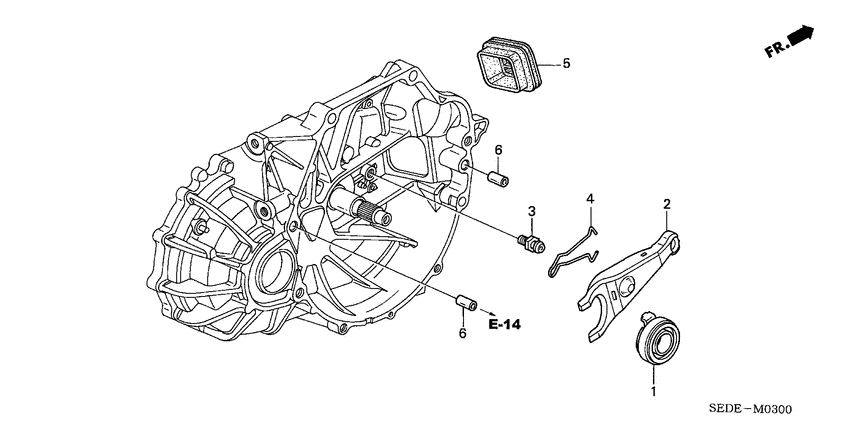

Clutch housing 3 / 26
CB8 Clutch housing
CM2 Clutch release
# OEM CB8 CM2
7 22825-P0S-000 Bolt - RELEASE FORK Bolt - RELEASE FORK
8 22835-P0S-000 Spring - RELEASE FORK SETTING Spring - RELEASE FORK SETTING
12 90705-PG2-000 Dowel pin - 14X20 Dowel pin - 14X20
Clutch master cylinder (LH) 4 / 42
CB8 Clutch master cylinder (LH)
CM2 Clutch master cylinder (LH)
# OEM CB8 CM2
1 43352-567-000 Screw - BLEEDER Screw - BLEEDER
6 46182-500-013 Circlip Circlip
9 46472-568-000 Packing - OIL BOLT Packing - OIL BOLT
44 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Clutch/torque converter 1 / 10
CB8 Clutch/torque converter
CM2 Clutch/torque converter
# OEM CB8 CM2
10 90034-689-000 Bolt - TWELVE POINT, 8MM (TOKAI TRW) Bolt - TWELVE POINT, 8MM (TOKAI TRW)
Combination switch 3 / 23
CB8 Combination switch
CM2 Combination switch (LH)
# OEM CB8 CM2
3 35102-SV4-003 Bolt - BREAK HEAD Bolt - BREAK HEAD
21 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
26 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
Console 1 / 10
CB8 Console
CM2 Console
# OEM CB8 CM2
15 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM

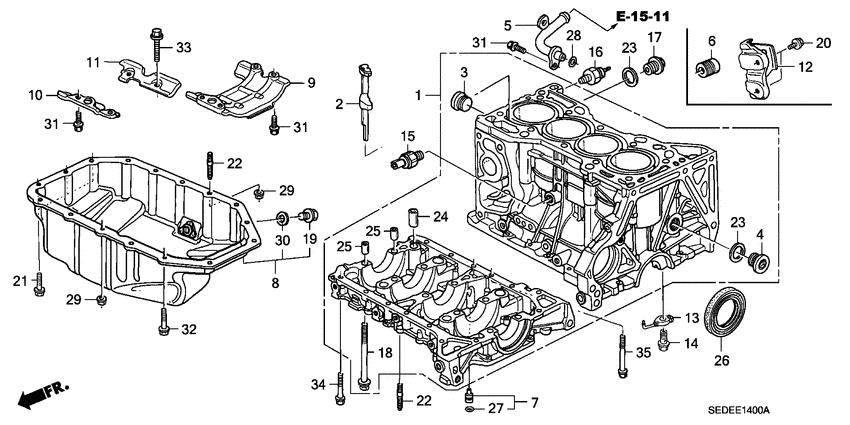

Cylinder block/oil pan 3 / 35
CB8 Cylinder block/oil pan
CM2 Cylinder block/oil pan
# OEM CB8 CM2
19 90001-PM3-003 Bolt - DRAIN PLUG, 28MM Bolt - DRAIN PLUG, 28MM
22 90009-PH1-000 Bolt - DRAIN PLUG, 14MM Bolt - DRAIN PLUG, 14MM
24 90041-PA5-000 Bolt - STUD, 6X28 Bolt - STUD, 6X28

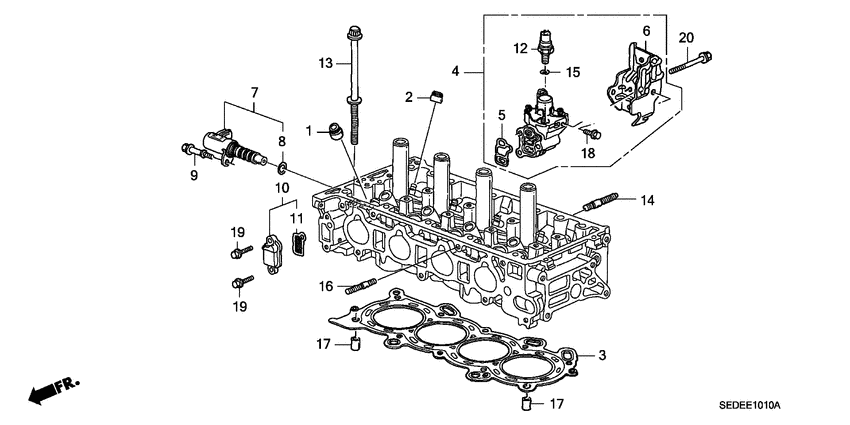

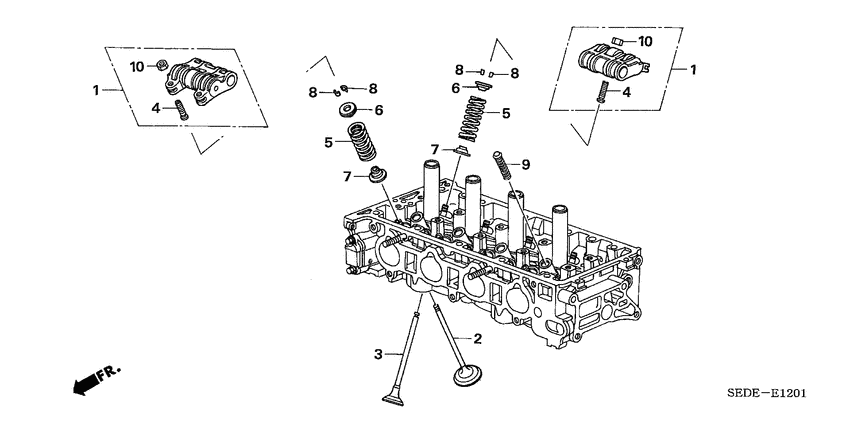

Cylinder head 4 / 28
CB8 Cylinder head
CM2 Vtc oil control valve
# OEM CB8 CM2
4 12210-PZ1-004 SEAL A, VALVE STEM (NOK) SEAL A, VALVE STEM (NOK)
4 12210-PZ1-003 Seal a - VALVE STEM(ARAI) Seal a - VALVE STEM(ARAI)
5 12211-PZ1-004 Seal b - VALVE STEM(NOK) Seal b - VALVE STEM(NOK)
5 12211-PZ1-003 Seal b - VALVE STEM(ARAI) Seal b - VALVE STEM(ARAI)
Cylinder head cover 2 / 9
CB8 Cylinder head cover
CM2 Cylinder head cover
# OEM CB8 CM2
6 15613-PC6-000 Packing, Oil Filler Packing, Oil Filler
8 90213-PH3-000 Nut - CAP, 6MM Nut - CAP, 6MM
Driveshaft/half shaft 6 / 28
CB8 Driveshaft/half shaft
CM2 Front driveshaft/half sha ft (1)
# OEM CB8 CM2
7 44327-SV4-305 Band - JOINT BOOT (DOUBLE ROLLED BAND) Band - JOINT BOOT (DOUBLE ROLLED BAND)
17 90102-SF1-000 Bolt - HEX., 10X1.25 Bolt - HEX., 10X1.25
18 90165-SE0-000 Bolt - FLANGE, 10X37 Bolt - FLANGE, 10X37
19 90305-SD4-003 Nut - SPINDLE (24MM) Nut - SPINDLE (24MM)
27 44329-SV4-305 Band - SHAFT BOOT (DOUBLE ROLLED BAND) Band - SHAFT BOOT (DOUBLE ROLLED BAND)
28 44337-SB0-300 Ring b - STOPPER Ring b - STOPPER
Emblem 1 / 15
CB8 Emblem
CM2 Molding
# OEM CB8 CM2
18 91512-SR3-004 Clip - TUBULAR Clip - TUBULAR
Engine sub cord/clamp 2 / 34
CB8 Engine sub cord/clamp
CM2 Battery
# OEM CB8 CM2
30 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
31 90204-PH7-000 Nut - SPECIAL Nut - SPECIAL

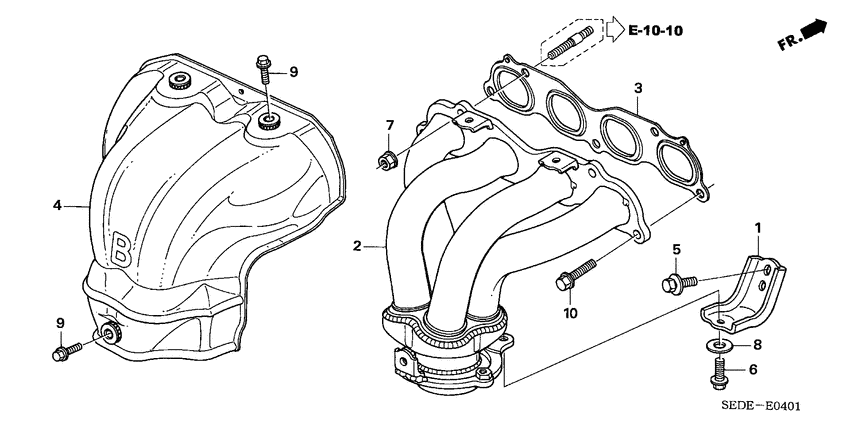

Exhaust manifold (2.2I) 2 / 14
CB8 Exhaust manifold (2.2I)
CM2 Exhaust manifold (2.4L)
# OEM CB8 CM2
8 90010-PE2-900 Bolt - SPECIAL, 10X22 Bolt - SPECIAL, 10X22
13 90451-PE2-000 Washer - SPECIAL, 11X28 Washer - SPECIAL, 11X28
Exhaust pipe 3 / 30
CB8 Exhaust pipe
CM2 Exhaust pipe (2.4L)
# OEM CB8 CM2
27 90023-PK1-000 Bolt - FLANGE, 6X10 Bolt - FLANGE, 6X10
27 90023-PR7-A01 BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT) BOLT, FLANGE (6X12) - 6X12 (IWATA BOLT)
29 90212-SA5-003 Nut - SELF-LOCK, 10MM Nut - SELF-LOCK, 10MM
Floor mat 1 / 8
CB8 Floor mat
CM2 Floor mat
# OEM CB8 CM2
13 91517-SE0-003 Clip - LOWER OUTER DASHBOARD INSULATOR Clip - LOWER OUTER DASHBOARD INSULATOR
Front brake 3 / 28
CB8 Front brake
CM2 Rear brake
# OEM CB8 CM2
1 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
2 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
22 90107-SM4-000 Bolt - CALIPER MOUNTING (12X21) Bolt - CALIPER MOUNTING (12X21)
Front combination light 1 / 14
CB8 Front combination light
CM2 Headlight
# OEM CB8 CM2
3 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
Front door locks 2 / 28
CB8 Front door locks
CM2 Harness band/bracket (LH)
# OEM CB8 CM2
35 90627-SA5-003 Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
37 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
Front door panels 2 / 16
CB8 Front door panels
CM2 Rear door panels
# OEM CB8 CM2
12 72142-SM4-000 Stopper - DOOR Stopper - DOOR
22 75891-SA7-000 Stopper - DOOR Stopper - DOOR

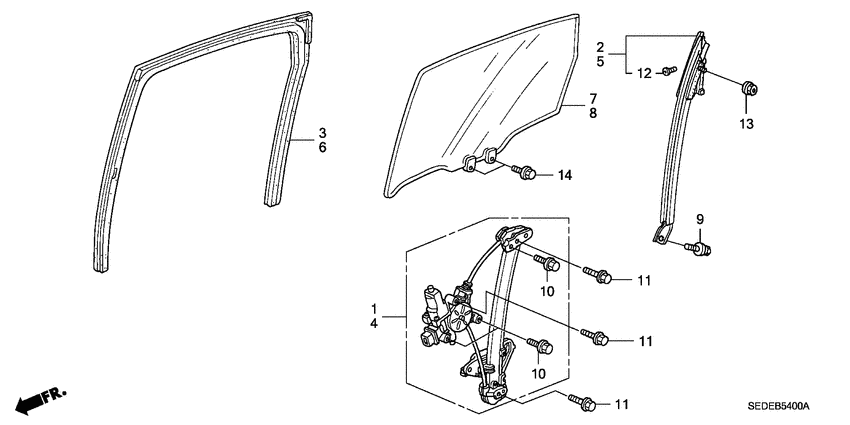

Front door windows 2 / 20
CB8 Front door windows
CM2 Rear door glass/door regu lator
# OEM CB8 CM2
17 90115-SG0-003 Bolt - FLANGE, 6MM Bolt - FLANGE, 6MM
19 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)

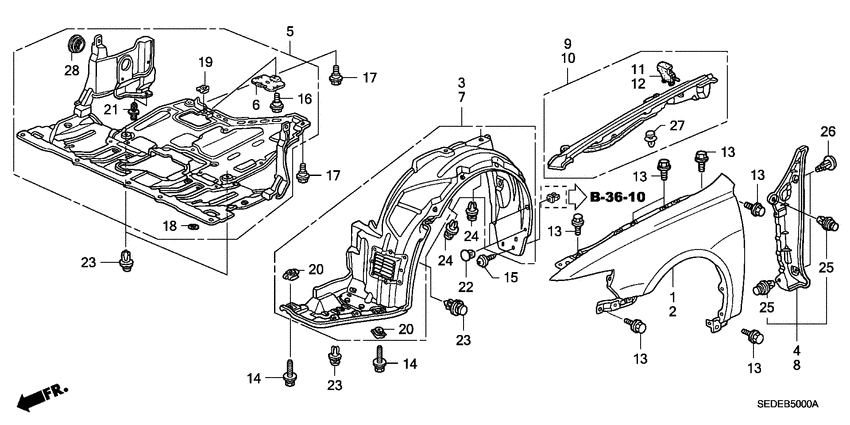

Front fenders 2 / 9
CB8 Front fenders
CM2 Front fenders
# OEM CB8 CM2
12 90657-SB0-003 Clip, SPLASH SHIELD Clip, SPLASH SHIELD
13 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Front grille 1 / 8
CB8 Front grille
CM2 Bumpers
# OEM CB8 CM2
10 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
Front shock absorber 2 / 26
CB8 Front shock absorber
CM2 Front shock absorber
# OEM CB8 CM2
9 51685-SH3-014 Plate - DUST COVER(SHOWA) Plate - DUST COVER(SHOWA)
16 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Front stabilizer/ front lower arm 1 / 29
CB8 Front stabilizer/ front lower arm
CM2 Front stabilizer/ front lower arm
# OEM CB8 CM2
27 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
Front windshield wiper (LH) 4 / 25
CB8 Front windshield wiper (LH)
CM2 Front windshield wiper (LH)
# OEM CB8 CM2
5 76516-SM4-003 Rubber - MOUNTING Rubber - MOUNTING
6 76517-SM4-003 Collar Collar
8 76524-SD4-003 Dust seal Dust seal
9 76524-SE0-013 Dust seal Dust seal

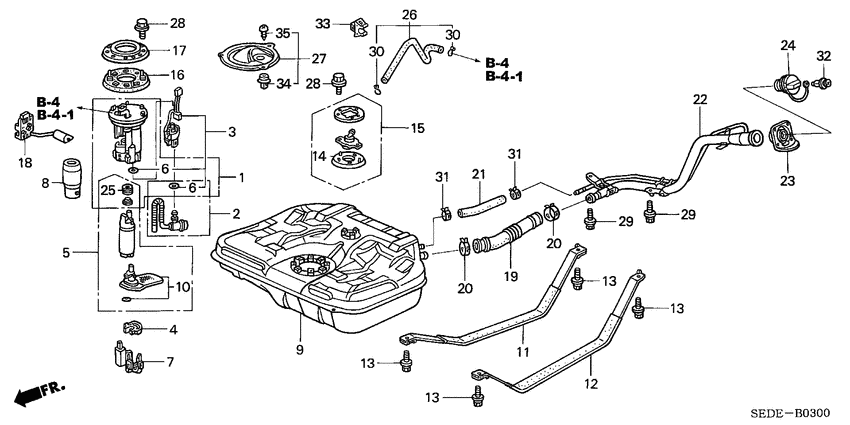

Fuel tank 3 / 44
CB8 Fuel tank
CM2 Fuel tank
# OEM CB8 CM2
7 17525-SM4-000 Bolt-washer - 10X35 Bolt-washer - 10X35
39 90700-SB0-003 Clip - AIR BLEED TUBE Clip - AIR BLEED TUBE
41 91601-SH3-013 Grommet - SCREW, 5MM (BLACK) Grommet - SCREW, 5MM (BLACK)
Grommet 7 / 23
CB8 Grommet
CM2 Grommet (FRONT)
# OEM CB8 CM2
6 75826-634-300 Seal - INSIDE PANEL, 15MM Seal - INSIDE PANEL, 15MM
7 82871-671-000 Grommet - DRAIN HOLE, 25MM Grommet - DRAIN HOLE, 25MM
9 85268-SA0-000 Protection - TAILGATE, 20MM (CIRCLE) Protection - TAILGATE, 20MM (CIRCLE)
15 91606-SK7-003 Plug - BLIND, 25MM Plug - BLIND, 25MM
16 91610-SD4-000 Plug - HOLE, 28MM Plug - HOLE, 28MM
18 91611-SM4-003 Plug - FLOOR HOLE, 25MM Plug - FLOOR HOLE, 25MM
24 91619-SE0-000 Seal - DOOR HOLE, 30MM(BLACK) Seal - DOOR HOLE, 30MM(BLACK)
Headlight 2 / 24
CB8 Headlight
CM2 Headlight
# OEM CB8 CM2
5 33116-SD4-961 Socket - BULB (OSRAM) (HALOGEN) Socket - BULB (OSRAM) (HALOGEN)
11 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
Heater unit 1 / 13
CB8 Heater unit
CM2 Heater unit (LH)
# OEM CB8 CM2
12 79770-SE0-000 Grommet - WATER VALVE CABLE Grommet - WATER VALVE CABLE
Instrument panel (LH) 2 / 23
CB8 Instrument panel (LH)
CM2 Console
# OEM CB8 CM2
28 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
29 91641-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Instrument panel garnish (LH) 3 / 41
CB8 Instrument panel garnish (LH)
CM2 Instrument panel garnish (DRIVER SIDE; LH)
# OEM CB8 CM2
5 35505-692-003 Bulb - 14V 1.4W Bulb - 14V 1.4W
44 90302-SA4-003 Nut - SPRING, 4MM Nut - SPRING, 4MM
46 91640-SM4-003 Grommet - SCREW, 4MM Grommet - SCREW, 4MM
Interior light 2 / 6
CB8 Interior light
CM2 Interior light
# OEM CB8 CM2
3 34253-671-003 Bulb - 12V 8W)(DAIICHI Bulb - 12V 8W)(DAIICHI
3 04110-SWA-305 BULB T10X318W BULB T10X318W
Knuckle 2 / 19
CB8 Knuckle
CM2 Front knuckle/upper arm
# OEM CB8 CM2
8 52226-SL0-003 Circlip - LOWER BALL(MUSASHI) Circlip - LOWER BALL(MUSASHI)
14 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
Mainshaft 3 / 24
CB8 Mainshaft
CM2 Mainshaft (2.4L; 6MT)
# OEM CB8 CM2
15 23927-PG2-A00 Washer - SPRING, 28MM Washer - SPRING, 28MM
16 23928-PS1-000 Washer - 28MM Washer - 28MM
18 90401-PG1-000 Washer - DRAIN PLUG, 10MM Washer - DRAIN PLUG, 10MM
Mirror 1 / 12
CB8 Mirror
CM2 Mirror
# OEM CB8 CM2
20 90615-SK7-003 Clip - MIRROR GARNISH Clip - MIRROR GARNISH

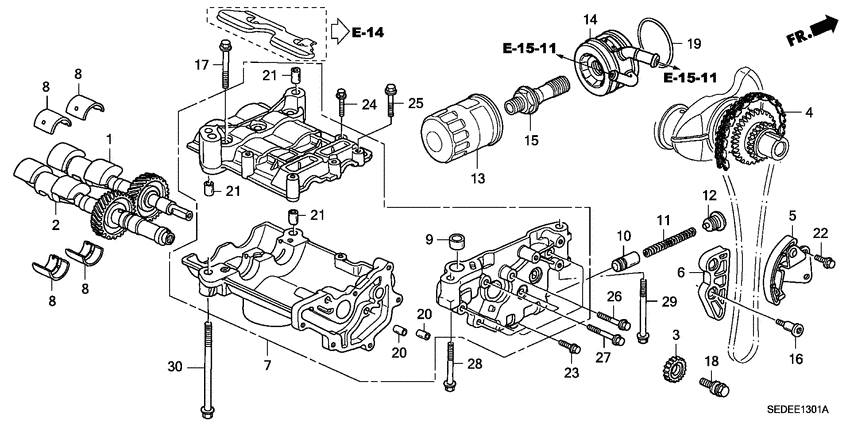

Oil pump 5 / 33
CB8 Oil pump
CM2 Oil pump (2.4L)
# OEM CB8 CM2
13 15231-PE0-000 Valve - RELIEF Valve - RELIEF
15 15233-PC6-000 Bolt - SEALING, 18MM Bolt - SEALING, 18MM
17 15400-RTA-003 OIL FILTER (MAHLE TENNEX) OIL FILTER (MAHLE TENNEX)
24 90041-PA5-000 Bolt - STUD, 6X28 Bolt - STUD, 6X28
31 91316-PE7-730 O-ring - 62.4X3.1 O-ring - 62.4X3.1

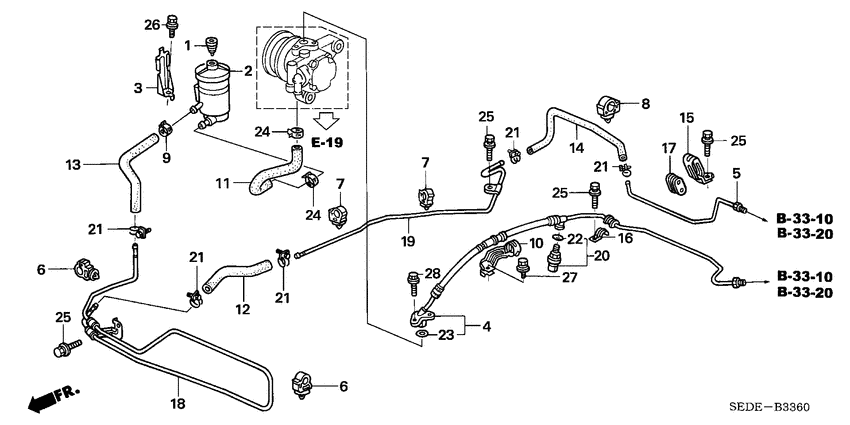

P.s. line 4 / 42
CB8 P.s. line
CM2 P.s. lines (LH)
# OEM CB8 CM2
1 53697-SB3-952 Cap - OIL TANK Cap - OIL TANK
18 53729-671-003 Clamp d - 15.5MM Clamp d - 15.5MM
46 90635-SM4-A02 Clip - OIL HOSE (MEIJI) Clip - OIL HOSE (MEIJI)
48 91304-PA6-003 O-ring - 7.8X1.9 O-ring - 7.8X1.9
Parking brake 5 / 15
CB8 Parking brake
CM2 Parking brake (LH)
# OEM CB8 CM2
6 47360-SB2-000 Equalizer Equalizer
7 47365-538-000 Pin - EQUALIZER Pin - EQUALIZER
9 47522-594-000 Nut - PARKING BRAKE ADJUSTING Nut - PARKING BRAKE ADJUSTING
10 47537-671-670 Spring - PARKING BRAKE ROD Spring - PARKING BRAKE ROD
15 90651-538-000 Clip - BRAKE HOSE Clip - BRAKE HOSE
Pedal (LH) 3 / 32
CB8 Pedal (LH)
CM2 Pedal (LH)
# OEM CB8 CM2
18 46505-SA5-000 Pad - PEDAL STOPPER Pad - PEDAL STOPPER
21 46545-SA5-000 Cover, Pedal Cover, Pedal
35 75891-611-000 Cover - DOOR SWITCH Cover - DOOR SWITCH
Pillar garnish 1 / 11
CB8 Pillar garnish
CM2 Floor mat
# OEM CB8 CM2
24 90611-SM4-013 Clip - PILLAR GARNISH Clip - PILLAR GARNISH
Protector 4 / 27
CB8 Protector
CM2 Bumpers
# OEM CB8 CM2
22 90308-SB2-013 Nut - SUSPENSION, 5MM Nut - SUSPENSION, 5MM
27 90682-SB0-003 Grommet - SCREW, 5MM Grommet - SCREW, 5MM
28 91513-SM4-000 Clip - SIDE SILL UPPER GARNISH Clip - SIDE SILL UPPER GARNISH
29 91545-SE0-003 Clip assy. - 8MM Clip assy. - 8MM

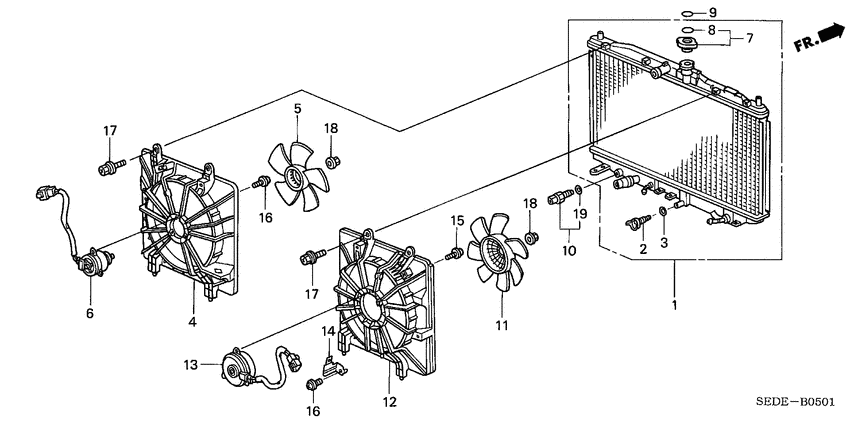

Radiator (DENSO) 4 / 16
CB8 Radiator (DENSO)
CM2 Radiator (2.4L)
# OEM CB8 CM2
2 19011-PH1-621 Bolt - DRAIN (DENSO) Bolt - DRAIN (DENSO)
3 19012-671-300 Packing - DRAIN (DENSO) Packing - DRAIN (DENSO)
13 90042-PAA-A01 Bolt-washer - 6X16 (DENSO) Bolt-washer - 6X16 (DENSO)
14 90043-PD2-003 Nut - HEX., 5MM (DENSO) Nut - HEX., 5MM (DENSO)

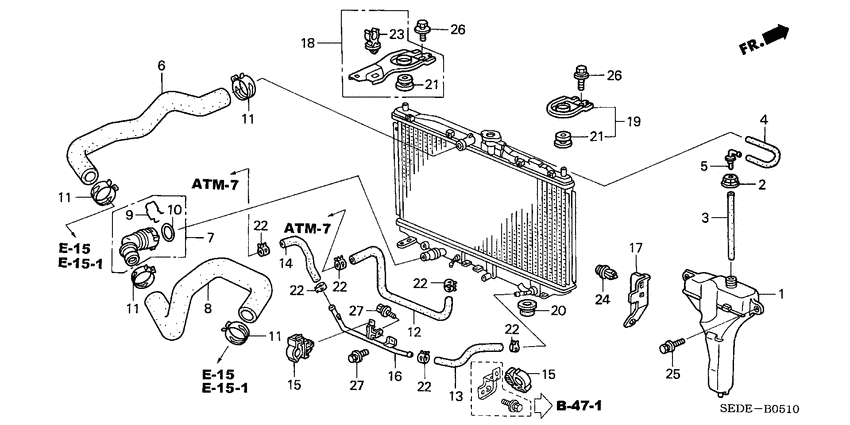

Radiator hose 3 / 14
CB8 Radiator hose
CM2 Radiator hose/reserve tan k
# OEM CB8 CM2
11 19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) Clip, HOSE(36.5MM) (CHUO SPRING)
12 19511-PT0-004 Clip - WATER HOSE (36.5MM) (KEIHIN) Clip - WATER HOSE (36.5MM) (KEIHIN)
21 74173-SJ4-000 Cushion - RADIATOR MOUNTING UPPER Cushion - RADIATOR MOUNTING UPPER
Radio antenna/speaker 4 / 20
CB8 Radio antenna/speaker
CM2 Floor mat
# OEM CB8 CM2
19 90611-SM4-013 Clip - PILLAR GARNISH Clip - PILLAR GARNISH
21 91507-693-003 Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
22 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
23 91902-SB2-003 Cushion - WIRE HARNESS(50X100) Cushion - WIRE HARNESS(50X100)
Rear brake 9 / 51
CB8 Rear brake
CM2 Rear brake
# OEM CB8 CM2
14 43227-SG0-013 Spring - PAD Spring - PAD
27 43244-SG0-003 Retainer Retainer
37 43262-S84-A51 Pin b Pin b
40 43352-SM4-951 Screw - BLEEDER Screw - BLEEDER
41 43353-SD5-003 Cap - BLEEDER SCREW Cap - BLEEDER SCREW
43 45240-SC2-003 Bolt - FLANGE, 8X22 Bolt - FLANGE, 8X22
44 90113-SA0-025 Bolt - WHEEL (NAGOYA RASHI) Bolt - WHEEL (NAGOYA RASHI)
44 90113-SM1-005 Bolt - WHEEL (ROCKNEL FASTENER) Bolt - WHEEL (ROCKNEL FASTENER)
45 90305-SD4-003 Nut - SPINDLE (24MM) Nut - SPINDLE (24MM)
Rear door lock 1 / 24
CB8 Rear door lock
CM2 Harness band/bracket (LH)
# OEM CB8 CM2
29 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
Rear door panel 1 / 12
CB8 Rear door panel
CM2 Front door panels
# OEM CB8 CM2
20 75891-SA7-000 Stopper - DOOR Stopper - DOOR
Rear door window 1 / 18
CB8 Rear door window
CM2 Harness band/bracket (LH)
# OEM CB8 CM2
18 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
Rear floor box 2 / 8
CB8 Rear floor box
CM2 Instrument panel garnish (DRIVER SIDE; LH)
# OEM CB8 CM2
2 66418-579-000 Stopper - GLOVE BOX LID Stopper - GLOVE BOX LID
3 75353-671-000 Lock - SCREW Lock - SCREW
Rear shock absorber 2 / 19
CB8 Rear shock absorber
CM2 Rear shock absorber
# OEM CB8 CM2
5 52621-SB2-004 Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA) Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA)
16 90364-SG0-004 Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
Rear stabilizer/rear lower arm 4 / 58
CB8 Rear stabilizer/rear lower arm
CM2 Rear lower arm
# OEM CB8 CM2
18 52338-SL0-003 Circlip - CONTROL ARM Circlip - CONTROL ARM
45 90026-SM4-000 Bolt b - TRAILING ARM (10X45) Bolt b - TRAILING ARM (10X45)
46 90028-SM4-000 Bolt - TRAILING, 8X19 Bolt - TRAILING, 8X19
53 90215-SB0-003 Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)

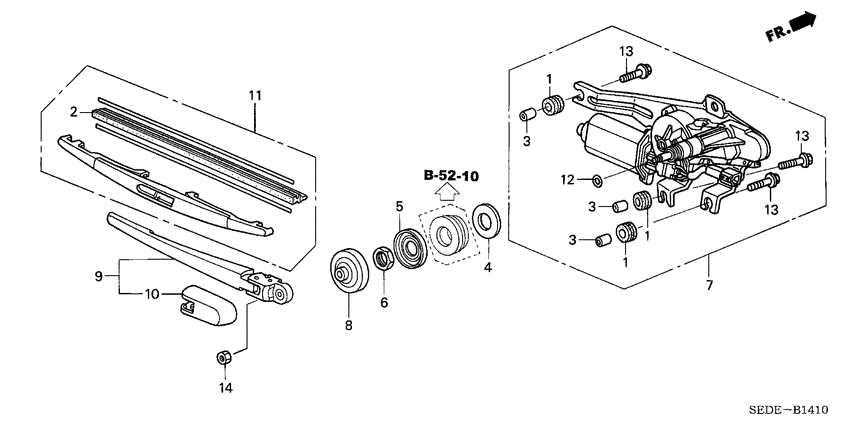

Rear wiper 2 / 15
CB8 Rear wiper
CM2 Rear wiper
# OEM CB8 CM2
7 76709-SE0-A01 Nut - SPECIAL, 18MM Nut - SPECIAL, 18MM
14 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)

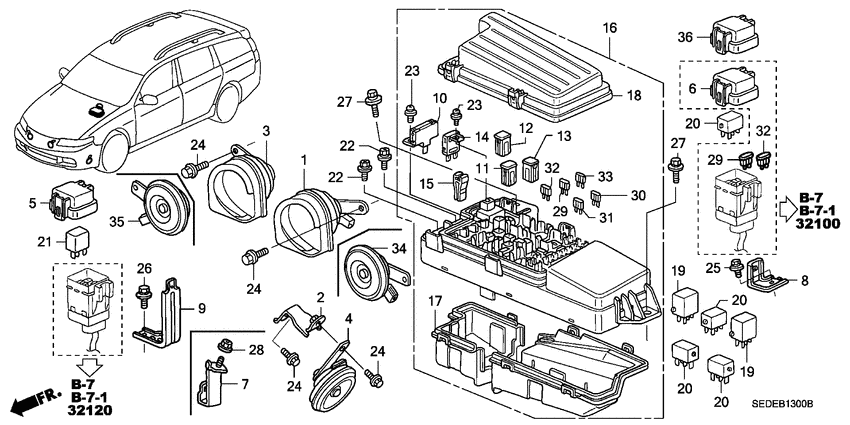

Relay/horn/fuse box 1 / 51
CB8 Relay/horn/fuse box
CM2 Control unit (ENGINE ROOM)
# OEM CB8 CM2
41 90114-SM4-900 Bolt - 6X15 Bolt - 6X15
Shift arm 1 / 18
CB8 Shift arm
CM2 Shift fork (2.4L; 6MT)
# OEM CB8 CM2
12 90028-PB6-010 Bolt - SPECIAL, 6X22.5 Bolt - SPECIAL, 6X22.5

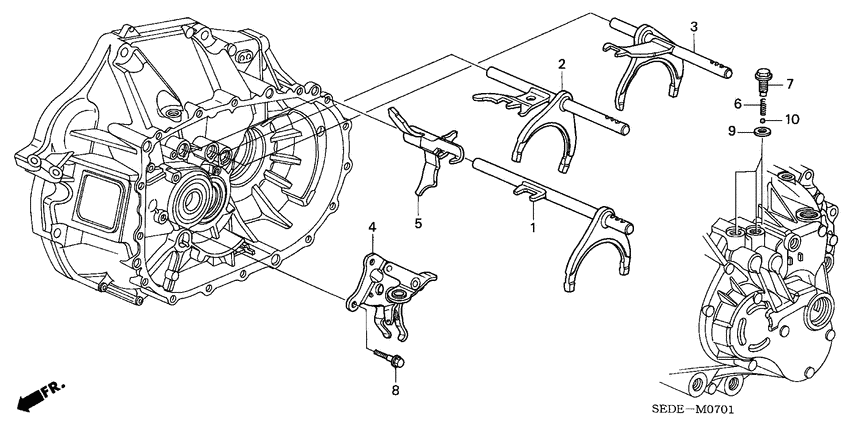

Shift fork 2 / 10
CB8 Shift fork
CM2 Shift fork (2.4L; 6MT)
# OEM CB8 CM2
7 24519-PB6-000 Screw - BALL SPRING SETTING Screw - BALL SPRING SETTING
8 90028-PB6-010 Bolt - SPECIAL, 6X22.5 Bolt - SPECIAL, 6X22.5

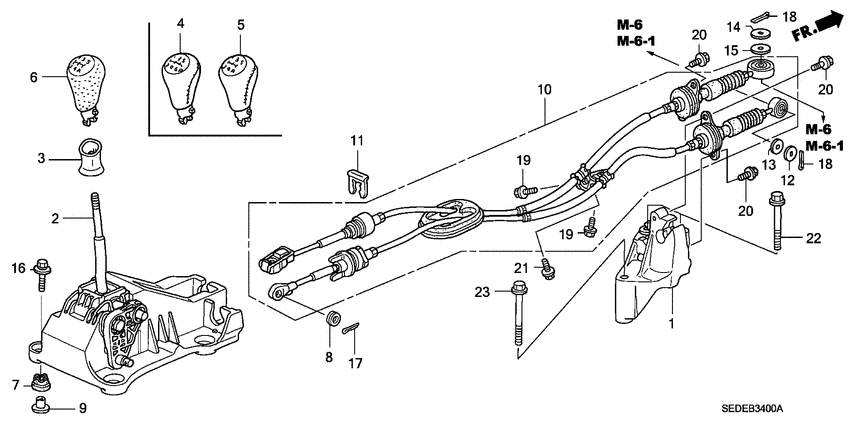

Shift lever 5 / 33
CB8 Shift lever
CM2 Shift lever (LH)
# OEM CB8 CM2
21 54357-SF1-003 Plate - CHANGE WIRE Plate - CHANGE WIRE
29 90555-SF1-000 Washer a - SHIFT WIRE(1.6MM) Washer a - SHIFT WIRE(1.6MM)
30 90556-SF1-000 Washer b - SHIFT WIRE (0.5MM) Washer b - SHIFT WIRE (0.5MM)
31 90557-SF1-000 Washer a - SELECT WIRE (1.6MM) Washer a - SELECT WIRE (1.6MM)
32 90558-SF1-000 Washer b - SELECT WIRE (0.5MM) Washer b - SELECT WIRE (0.5MM)
Side lining 3 / 17
CB8 Side lining
CM2 Side lining
# OEM CB8 CM2
1 37115-SA0-601 Packing - NS Packing - NS
2 75353-671-000 Lock - SCREW Lock - SCREW
3 84605-SM5-A01 Spring - SIDE LID Spring - SIDE LID
Speedometer component 1 / 27
CB8 Speedometer component
CM2 Instrument panel garnish (DRIVER SIDE; LH)
# OEM CB8 CM2
6 37115-SA0-601 Packing - NS Packing - NS
Steering column 2 / 19
CB8 Steering column
CM2 Steering column
# OEM CB8 CM2
18 90361-SR3-000 Nut - FLANGE, 8MM Nut - FLANGE, 8MM
19 90511-671-003 Washer - TOOTHED LOCK Washer - TOOTHED LOCK
Sunvisor/grab rail 2 / 8
CB8 Sunvisor/grab rail
CM2 Side lining
# OEM CB8 CM2
1 75353-671-000 Lock - SCREW Lock - SCREW
17 90133-SM4-003 Bolt-washer - 5X16 Bolt-washer - 5X16
Tailgate 1 / 29
CB8 Tailgate
CM2 Engine hood (LH)
# OEM CB8 CM2
34 91518-SM4-003 Clip - TRUNK MOLDING Clip - TRUNK MOLDING
Taillight 2 / 40
CB8 Taillight
CM2 Headlight
# OEM CB8 CM2
1 33301-SA0-741 Bulb (12V 5W) - (12V 5W) (STANLEY) Bulb (12V 5W) - (12V 5W) (STANLEY)
40 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
Tire/wheel disk 1 / 44
CB8 Tire/wheel disk
CM2 Tire/wheel disks
# OEM CB8 CM2
4 42753-SB8-661 Valve - RIM (SCHRADER) Valve - RIM (SCHRADER)

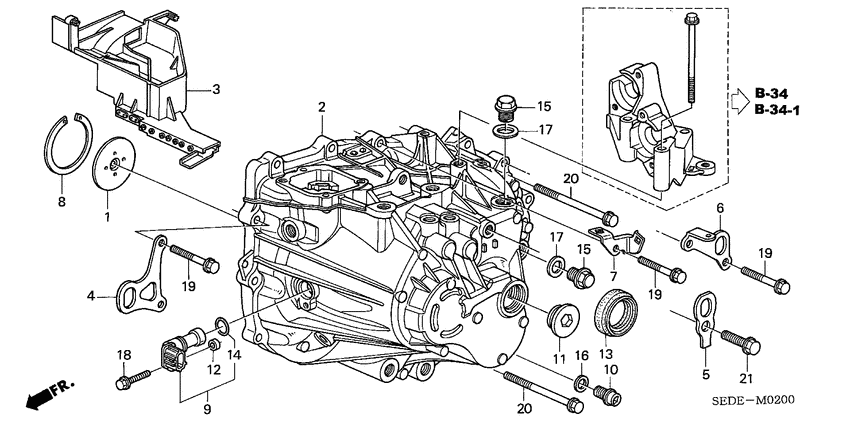

Transmission housing 1 / 55
CB8 Transmission housing
CM2 Transmission case
# OEM CB8 CM2
11 90081-PB6-000 Bolt - PLUG, 14MM Bolt - PLUG, 14MM
Valve/rocker arm 2 / 17
CB8 Valve/rocker arm
CM2 Valve/rocker arm (2.4L)
# OEM CB8 CM2
13 14775-PT0-000 Seat - VALVE SPRING Seat - VALVE SPRING
15 90206-PT0-004 Nut - TAPPET ADJUSTING Nut - TAPPET ADJUSTING
Washer nozzle/washer tube 2 / 29
CB8 Washer nozzle/washer tube
CM2 Windshield washer (HEADLIGHT WASHER; 1)
# OEM CB8 CM2
3 76803-SE1-S03 Clip - WASHER HOSE Clip - WASHER HOSE
25 91511-SJ8-003 Clip - WASHER TUBE Clip - WASHER TUBE

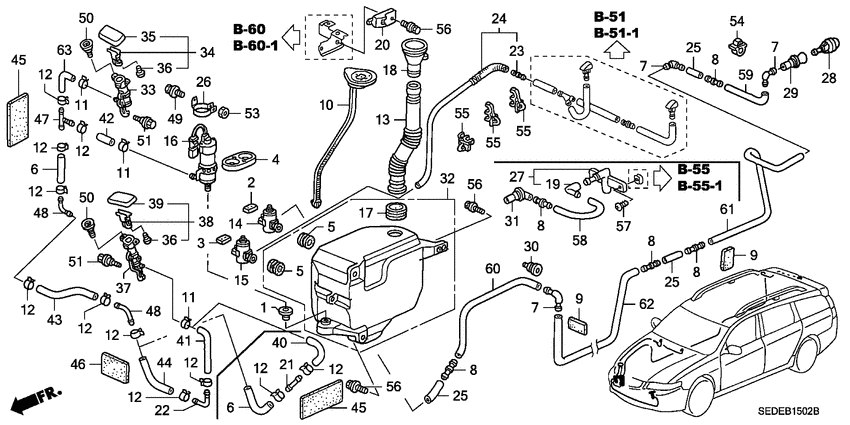

Washer tank 3 / 25
CB8 Washer tank
CM2 Windshield washer (HEADLIGHT WASHER; 1)
# OEM CB8 CM2
4 76803-SE1-S03 Clip - WASHER HOSE Clip - WASHER HOSE
24 90316-SM5-G03 Nut - HEX., 6MM Nut - HEX., 6MM
26 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)

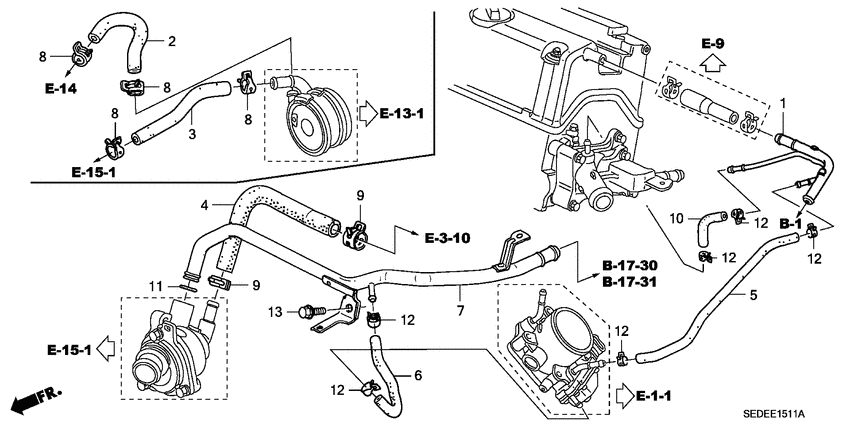

Water hose 3 / 18
CB8 Water hose
CM2 Water hose (2.4L)
# OEM CB8 CM2
7 19512-PK2-003 Clip - HOSE, 18.7MM Clip - HOSE, 18.7MM
8 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
20 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
Water pump 2 / 24
CB8 Water pump
CM2 Radiator (2.4L)
# OEM CB8 CM2
17 91307-PN4-000 O-ring - 17.5X1.4 O-ring - 17.5X1.4
17 91307-PN3-000 O-ring,17.8x1.4 O-ring,17.8x1.4
Water valve 2 / 6
CB8 Water valve
CM2 Water valve (LH)
# OEM CB8 CM2
4 91405-PK1-003 Clip, WATER HOSE, 24MM Clip, WATER HOSE, 24MM
4 19513-PE0-003 Clamp - WATER HOSE (21.7MM) (CHUO SPRING) Clamp - WATER HOSE (21.7MM) (CHUO SPRING)
Wire harness 12 / 62
CB8 Wire harness
CM2 Harness band/bracket (LH)
# OEM CB8 CM2
12 32132-SM4-003 Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM)
13 32133-SM4-003 Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) Band - HARNESS OFFSET (30) (YELLOW) (122.5MM)
14 32134-SM4-003 Band - HARNESS OFFSET (10) (BROWN) (122.5MM) Band - HARNESS OFFSET (10) (BROWN) (122.5MM)
33 90148-SE0-003 Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN)
34 90149-SE0-003 Bolt - EARTH, 6X16 Bolt - EARTH, 6X16
36 90627-SA5-003 Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) Clip - WIRE HARNESS(BLUE) (HARNESS TAPING)(50MM)
40 90667-SB2-003 Clip - WIRE HARNESS (GRAY) (HARNESS TAPING) (50MM) Clip - WIRE HARNESS (GRAY) (HARNESS TAPING) (50MM)
45 91476-SB6-003 Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM) Clip - ROOF ARCH(NATURAL) (HARNESS TAPING)(60MM)
47 91507-693-003 Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
55 91551-SF4-003 Band - WIRE HARNESS(BROWN) (110MM) Band - WIRE HARNESS(BROWN) (110MM)
57 91555-SM4-003 Clip - COUPLER (RED) Clip - COUPLER (RED)
59 91559-SE3-003 Clip - WIRE HARNESS (WHITE) (55MM) Clip - WIRE HARNESS (WHITE) (55MM)
