検索 › 比較 › BA8 × BB3
BA8
Honda PRELUDE — 2,678 中 1,928 共有
BB3
Honda PRELUDE — 2,396 中 1,928 共有
Abs unit (LH) 3 / 9
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 3 | 37821-P12-A00 | Cover comp. - L. ELECTRONIC CONTROL UNIT | Cover comp. - L. ELECTRONIC CONTROL UNIT |
| 11 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 16 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Air cleaner 36 / 40
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 17211-P13-000 | Cover - AIR CLEANER | Cover - AIR CLEANER |
| 2 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 3 | 17213-P13-000 | Rubber - AIR CLEANER CASE MOUNTING | Rubber - AIR CLEANER CASE MOUNTING |
| 4 | 17215-PR3-000 | Clip set A, Wire | Clip set A, Wire |
| 5 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 6 | 17216-PR3-000 | Clip set B, Wire | Clip set B, Wire |
| 9 | 17230-P13-000 | Chamber assy - RESONATOR | Chamber assy - RESONATOR |
| 10 | 17233-P13-000 | Rubber - RESONATOR SEAL | Rubber - RESONATOR SEAL |
| 11 | 17241-P13-000 | Case comp. - AIR CLEANER | Case comp. - AIR CLEANER |
| 12 | 17242-P13-000 | Tube comp - AIR INTAKE | Tube comp - AIR INTAKE |
| 13 | 17245-P13-003 | Diaphragm comp - VALVE CONTROL | Diaphragm comp - VALVE CONTROL |
| 15 | 17249-PY3-000 | Spring - AIR FLOW TUBE | Spring - AIR FLOW TUBE |
| 16 | 17250-P13-000 | Valve assy. - AIR CONTROL | Valve assy. - AIR CONTROL |
| 17 | 17252-P13-000 | Tube assy. b - AIR INTAKE | Tube assy. b - AIR INTAKE |
| 18 | 17255-PD6-000 | Collar - RESONATOR | Collar - RESONATOR |
| 19 | 17256-PD6-000 | Rubber - RESONATOR MOUNTING | Rubber - RESONATOR MOUNTING |
| 20 | 17256-P13-000 | Ring - SEAL | Ring - SEAL |
| 21 | 17257-PT0-000 | Grommet - INTAKE | Grommet - INTAKE |
| 22 | 17257-P13-000 | Tube comp - AIR INTAKE CONTROL | Tube comp - AIR INTAKE CONTROL |
| 24 | 17259-P13-003 | Clamp - INTAKE CONTROL TUBE | Clamp - INTAKE CONTROL TUBE |
| 29 | 17283-P13-000 | Stay b - AIR INTAKE TUBE | Stay b - AIR INTAKE TUBE |
| 30 | 17284-PP8-003 | Band - HOSE (D52) | Band - HOSE (D52) |
| 31 | 17307-P13-000 | Rubber - AIR INTAKE SEAL | Rubber - AIR INTAKE SEAL |
| 32 | 17315-PH3-003 | Clamp - AIR FLOW TUBE (74) | Clamp - AIR FLOW TUBE (74) |
| 33 | 17358-P13-000 | Stay comp - VACUUM TANK | Stay comp - VACUUM TANK |
| 34 | 17414-PC6-660 | Joint - TWO WAY (3.5) | Joint - TWO WAY (3.5) |
| 36 | 36010-PA6-004 | Joint - THREE WAY | Joint - THREE WAY |
| 37 | 36138-PM1-G01 | Filter assy - SOLENOID VALVE | Filter assy - SOLENOID VALVE |
| 38 | 36145-PM4-004 | Valve - CHECK | Valve - CHECK |
| 39 | 36351-P13-003 | Tank comp. - VACUUM | Tank comp. - VACUUM |
| 40 | 36352-PT2-003 | Valve assy. - IN. CONTROL SOLENOID | Valve assy. - IN. CONTROL SOLENOID |
| 41 | 36355-P13-000 | Tube - AIR INTAKE CONTROL | Tube - AIR INTAKE CONTROL |
| 42 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 43 | 90006-PN4-000 | Bolt-washer - SPECIAL, 6X25 | Bolt-washer - SPECIAL, 6X25 |
| 44 | 90011-PL2-000 | Screw-washer - 5X8 | Screw-washer - 5X8 |
Air conditioner (COMPRESSOR; KEIHIN) 12 / 14
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 18127-P13-010 | Insulator - EX. MANIFOLD HEAT | Insulator - EX. MANIFOLD HEAT |
| 2 | 38801-P06-006 | Valve sub assy. - SAFETY | Valve sub assy. - SAFETY |
| 3 | 38810-P13-016 | Compressor comp. - KEIHIN | Compressor comp. - KEIHIN |
| 4 | 38829-P06-006 | Nut | Nut |
| 6 | 38908-P13-016 | Protector set - THERMAL | Protector set - THERMAL |
| 7 | 38912-P06-006 | Shim set | Shim set |
| 8 | 38913-P06-006 | Circlip - EXTERNAL, 45MM | Circlip - EXTERNAL, 45MM |
| 9 | 38914-P06-006 | Circlip - EXTERNAL, 35MM | Circlip - EXTERNAL, 35MM |
| 10 | 38920-P14-A01 | Belt - COMPRESSOR (MITSUBOSHI) | Belt - COMPRESSOR (MITSUBOSHI) |
| 10 | 38920-P14-A02 | Belt - COMPRESSOR (BANDO) | Belt - COMPRESSOR (BANDO) |
| 12 | 38930-P13-000 | Bracket - COMPRESSOR | Bracket - COMPRESSOR |
| 14 | 90023-P01-000 | Bolt - FLANGE, 8X105 | Bolt - FLANGE, 8X105 |
Air conditioner (CONDENSER) 14 / 14
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 32175-647-920 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 1 | 30701-883-000 | Clip, high tension cord (8mm) | Clip, high tension cord (8mm) |
| 2 | 38611-PT2-J02 | Fan comp - COOLING (MITSUBA) | Fan comp - COOLING (MITSUBA) |
| 3 | 38615-PT3-A00 | Shroud comp. - AIR CONDITIONER | Shroud comp. - AIR CONDITIONER |
| 4 | 38616-PT3-A03 | Motor - COOLING FAN (MITSUBA) | Motor - COOLING FAN (MITSUBA) |
| 5 | 38619-PT2-J00 | Protector - FAN MOTOR | Protector - FAN MOTOR |
| 6 | 80107-SS0-000 | Mount - CONDENSER UPPER | Mount - CONDENSER UPPER |
| 8 | 80110-SS0-023 | Condenser comp. - SAK | Condenser comp. - SAK |
| 9 | 80111-SS0-000 | Bracket - CONDENSER MOUNT UPPER | Bracket - CONDENSER MOUNT UPPER |
| 10 | 80175-SE0-000 | Mount - CONDENSER | Mount - CONDENSER |
| 11 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 12 | 90041-PD2-004 | Nut - SPECIAL, 5MM (MITSUBA) | Nut - SPECIAL, 5MM (MITSUBA) |
| 12 | 90311-MB6-003 | Nut toothed 5mm | Nut toothed 5mm |
| 13 | 90403-PM3-004 | Washer - PLAIN, 7MM | Washer - PLAIN, 7MM |
Air conditioner (COOLING UNIT; 1) 29 / 29
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 2 | 80872-SL0-900 | O-ring - 1/2" | O-ring - 1/2" |
| 3 | 38725-SA5-003 | Diode assy. | Diode assy. |
| 4 | 39795-SB2-003 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 6 | 80201-SS0-A01 | Case - EVAPORATOR UPPER | Case - EVAPORATOR UPPER |
| 7 | 80202-SS0-A01 | Case - EVAPORATOR LOWER | Case - EVAPORATOR LOWER |
| 8 | 80205-SS0-A01 | Insulator - EVAPORATOR UPPER | Insulator - EVAPORATOR UPPER |
| 9 | 80206-SS0-A01 | Insulator - EVAPORATOR LOWER | Insulator - EVAPORATOR LOWER |
| 10 | 80208-SS0-000 | Holder - PIPE | Holder - PIPE |
| 11 | 80214-SL5-A01 | Insulator - EXPANSION | Insulator - EXPANSION |
| 12 | 80215-SS0-H02 | Evaporator comp. - SAK | Evaporator comp. - SAK |
| 13 | 80216-SS0-H01 | Pipe - LIQUID (SAK) | Pipe - LIQUID (SAK) |
| 15 | 80220-SS0-H01 | Valve assy. - EXPANSION | Valve assy. - EXPANSION |
| 16 | 80225-SR3-010 | Clamp | Clamp |
| 17 | 80275-SS0-000 | Hose - DRAIN | Hose - DRAIN |
| 18 | 80286-SS0-A00 | Seal - EVAPORATOR INNER | Seal - EVAPORATOR INNER |
| 19 | 80287-SS0-A00 | Seal - EVAPORATOR OUTER | Seal - EVAPORATOR OUTER |
| 20 | 80291-SR3-000 | Grommet - EVAPORATOR SENSOR | Grommet - EVAPORATOR SENSOR |
| 21 | 80380-SM4-G00 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 21 | 80380-SF4-000 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 23 | 80430-SS0-A01 | Thermostat - AIR CONDITIONER | Thermostat - AIR CONDITIONER |
| 25 | 80431-SS0-A00 | Bracket - THERMOSTAT | Bracket - THERMOSTAT |
| 27 | 80491-SS0-020 | Bracket - AIR CONDITIONER RELAY | Bracket - AIR CONDITIONER RELAY |
| 28 | 80566-SF1-941 | Clip - EVAPORATOR SENSOR | Clip - EVAPORATOR SENSOR |
| 30 | 90137-SF1-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 32 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 33 | 90659-692-000 | Clamp - CASE | Clamp - CASE |
| 34 | 80873-SL0-900 | O-ring - 8MM | O-ring - 8MM |
| 39 | 90308-SD2-A00 | Nut - FLANGE, 6MM (DACRO COATING) | Nut - FLANGE, 6MM (DACRO COATING) |
| 40 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Air conditioner (HOSES/PIPES; LH) 24 / 24
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 38601-SA7-000 | Rubber - CONDENSER MOUNTING | Rubber - CONDENSER MOUNTING |
| 3 | 80871-SL0-900 | O-ring - 5/8" | O-ring - 5/8" |
| 4 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 6 | 80310-SS0-H02 | Hose comp. - SUCTION (NICHIRIN) | Hose comp. - SUCTION (NICHIRIN) |
| 7 | 80315-SS0-H02 | Hose comp. - DISCHARGE (NICHIRIN) | Hose comp. - DISCHARGE (NICHIRIN) |
| 8 | 80321-SS0-H01 | Pipe - SUCTION (SAK) | Pipe - SUCTION (SAK) |
| 9 | 80325-SS0-H01 | Pipe - DISCHARGE (SAK) | Pipe - DISCHARGE (SAK) |
| 10 | 80331-SS0-H01 | Pipe - CONDENSER (SAK) | Pipe - CONDENSER (SAK) |
| 11 | 80341-SS0-H01 | Pipe - RECEIVER (SAK) | Pipe - RECEIVER (SAK) |
| 12 | 80351-SS0-H01 | Receiver comp - SAK | Receiver comp - SAK |
| 13 | 80352-SS0-010 | Bracket - LIQUID TANK | Bracket - LIQUID TANK |
| 14 | 80361-SS0-A00 | Bracket - SUCTION PIPE | Bracket - SUCTION PIPE |
| 15 | 80362-SP0-A00 | Clamp b - SUCTION PIPE | Clamp b - SUCTION PIPE |
| 16 | 80369-SS0-000 | Stay - AIR CONDITIONER HOSE | Stay - AIR CONDITIONER HOSE |
| 17 | 80372-SS0-000 | Clamp b - DISCHARGE PIPE | Clamp b - DISCHARGE PIPE |
| 18 | 80378-SS0-000 | Bracket - AIR CONDITIONER HOSE | Bracket - AIR CONDITIONER HOSE |
| 19 | 80382-SS0-000 | Clamp b - RECEIVER PIPE | Clamp b - RECEIVER PIPE |
| 20 | 80384-SS0-003 | Clamp - AIR CONDITIONER PIPE (8MM) | Clamp - AIR CONDITIONER PIPE (8MM) |
| 21 | 80440-SS0-901 | Switch - DUAL PRESSURE (FUJI) | Switch - DUAL PRESSURE (FUJI) |
| 23 | 80873-SL0-900 | O-ring - 8MM | O-ring - 8MM |
| 24 | 80872-SL0-900 | O-ring - 1/2" | O-ring - 1/2" |
| 25 | 80865-SL0-003 | Cap - VALVE (H) | Cap - VALVE (H) |
| 26 | 80866-SL0-003 | Cap - VALVE(L) | Cap - VALVE(L) |
| 29 | 90308-SD2-A00 | Nut - FLANGE, 6MM (DACRO COATING) | Nut - FLANGE, 6MM (DACRO COATING) |
Alternator (DENSO) 27 / 27
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 31100-P11-E02 | Alternator assy - CJS84) (DENSO | Alternator assy - CJS84) (DENSO |
| 2 | 31101-PV1-A01 | Rotor assy. | Rotor assy. |
| 3 | 31103-PT0-003 | Seal - RING | Seal - RING |
| 4 | 31104-PT0-003 | Seal - RING | Seal - RING |
| 5 | 31105-PR7-A01 | Holder assy. - BRUSH | Holder assy. - BRUSH |
| 6 | 31111-PT0-003 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 7 | 31114-PT0-013 | Bearing - FR. GENERATOR | Bearing - FR. GENERATOR |
| 8 | 31116-PT0-003 | Plate - RETAINER | Plate - RETAINER |
| 9 | 31116-P13-003 | Plate - TERMINAL | Plate - TERMINAL |
| 10 | 31118-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 11 | 31119-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 12 | 31127-PT0-013 | Rectifier assy. | Rectifier assy. |
| 13 | 31135-PT0-013 | Cover - RR. END | Cover - RR. END |
| 14 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 15 | 31141-PT2-N91 | Pulley - ### | Pulley - ### |
| 16 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 17 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 18 | 31146-PT0-003 | Screw | Screw |
| 19 | 31147-PT0-003 | Screw-washer | Screw-washer |
| 20 | 31147-P13-003 | Screw | Screw |
| 21 | 31148-PT0-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 22 | 31148-P13-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 23 | 31150-PD6-024 | Regulator assy | Regulator assy |
| 24 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |
| 25 | 90232-PT0-003 | Nut - HEX., 6MM | Nut - HEX., 6MM |
| 26 | 90424-PR7-A01 | Washer | Washer |
| 27 | 91415-PT0-013 | Clip - CORD | Clip - CORD |
Auto cruise (LH) 2 / 27
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 4 | 17921-SA4-730 | Seal - THROTTLE CABLE | Seal - THROTTLE CABLE |
| 22 | 90308-SD2-A00 | Nut - FLANGE, 6MM (DACRO COATING) | Nut - FLANGE, 6MM (DACRO COATING) |
Auto radio 1 / 16
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 23 | 39116-SS0-G00 | Pocket - AUTO RADIO | Pocket - AUTO RADIO |
Battery 18 / 27
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 3 | 31513-SM4-000 | Bolt - BATTERY SETTING(195MM) | Bolt - BATTERY SETTING(195MM) |
| 4 | 31513-SP0-010 | Bolt - BATTERY SETTING (210MM) | Bolt - BATTERY SETTING (210MM) |
| 5 | 31521-SS0-000 | Box - BATTERY (80D, 70D) | Box - BATTERY (80D, 70D) |
| 6 | 31542-SA5-666 | Plug - VENT (MF) (FURUKAWA) | Plug - VENT (MF) (FURUKAWA) |
| 6 | 31542-SA5-665 | Plug - VENT (MF) (PANASONIC) | Plug - VENT (MF) (PANASONIC) |
| 7 | 32138-SS0-000 | Bracket - STARTER CABLE MOUNT | Bracket - STARTER CABLE MOUNT |
| 8 | 32410-SS0-020 | Cable assy - STARTER | Cable assy - STARTER |
| 9 | 32412-SS0-010 | Bracket a - CABLE | Bracket a - CABLE |
| 10 | 32414-SS0-010 | Bracket b - CABLE | Bracket b - CABLE |
| 11 | 32600-SS0-010 | Cable assy - EARTH | Cable assy - EARTH |
| 12 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 13 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 14 | 32746-SM4-000 | Clamp - STARTER CABLE | Clamp - STARTER CABLE |
| 16 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 17 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 18 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 20 | 91551-SW5-003 | Clip - HARNESS BAND (BROWN) (151MM) | Clip - HARNESS BAND (BROWN) (151MM) |
| 21 | 91584-SM4-003 | Clip - CABLE BAND (BLACK) | Clip - CABLE BAND (BLACK) |
Brake lines (LH) 25 / 25
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 01464-SS0-020 | Hose set - R. FR. BRAKE | Hose set - R. FR. BRAKE |
| 2 | 01465-SS0-010 | Hose set - L. FR. BRAKE | Hose set - L. FR. BRAKE |
| 3 | 01466-SS0-020 | Hose set - R. RR. BRAKE | Hose set - R. RR. BRAKE |
| 4 | 01468-SS0-010 | Hose set - L. RR. BRAKE | Hose set - L. RR. BRAKE |
| 5 | 46210-SS0-003 | Valve assy. - DUAL PROPORTIONING | Valve assy. - DUAL PROPORTIONING |
| 6 | 46310-SS0-A00 | Pipe comp. a - BRAKE | Pipe comp. a - BRAKE |
| 7 | 46320-SS0-A00 | Pipe comp. b - BRAKE | Pipe comp. b - BRAKE |
| 8 | 46321-SS0-A00 | Pipe comp. h - BRAKE | Pipe comp. h - BRAKE |
| 9 | 46330-SS0-A00 | Pipe comp. c - BRAKE | Pipe comp. c - BRAKE |
| 10 | 46340-SS0-A00 | Pipe comp. d - BRAKE | Pipe comp. d - BRAKE |
| 11 | 46360-SS0-A00 | Pipe comp. f - BRAKE | Pipe comp. f - BRAKE |
| 12 | 46380-SB0-000 | Grommet a - BRAKE PIPE (BLACK) | Grommet a - BRAKE PIPE (BLACK) |
| 13 | 46391-SL4-000 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 14 | 46391-SM4-J01 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 15 | 46392-SE0-000 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 16 | 46392-SM4-A01 | Clip b - BRAKE PIPE | Clip b - BRAKE PIPE |
| 17 | 46392-SM4-961 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 22 | 46435-SS0-000 | Bracket b - R. RR. BRAKE HOSE | Bracket b - R. RR. BRAKE HOSE |
| 23 | 46436-SS0-000 | Bracket b - L. RR. BRAKE HOSE | Bracket b - L. RR. BRAKE HOSE |
| 24 | 46438-SS0-000 | Bracket - R. RR. BRAKE HOSE | Bracket - R. RR. BRAKE HOSE |
| 25 | 46439-SS0-000 | Bracket - L. RR. BRAKE HOSE | Bracket - L. RR. BRAKE HOSE |
| 26 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 27 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 30 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 34 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Brake master cylinder/ master power 20 / 23
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 4 | 46135-SE3-013 | Guide assy - PISTON | Guide assy - PISTON |
| 5 | 46138-SM4-003 | Packing | Packing |
| 6 | 46139-SM4-013 | Bolt - STOP | Bolt - STOP |
| 7 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 9 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 10 | 46191-634-000 | Gasket - MASTER CYLINDER BRACKET | Gasket - MASTER CYLINDER BRACKET |
| 12 | 46400-SM5-A01 | Power assy. - MASTER (7"+8") | Power assy. - MASTER (7"+8") |
| 13 | 46403-SE0-003 | Valve comp. - CHECK (NISSIN) | Valve comp. - CHECK (NISSIN) |
| 14 | 46404-SS0-A00 | Tube a - MASTER POWER | Tube a - MASTER POWER |
| 17 | 46405-SS0-A00 | Tube b - MASTER POWER | Tube b - MASTER POWER |
| 20 | 46407-SE0-010 | Clamp - CHECK VALVE | Clamp - CHECK VALVE |
| 21 | 46512-SB2-000 | Pin - PEDAL | Pin - PEDAL |
| 22 | 46660-SM4-013 | Tank - RESERVE | Tank - RESERVE |
| 23 | 46662-SM4-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 24 | 46665-ST5-003 | Band - RESERVE TANK | Band - RESERVE TANK |
| 25 | 46666-SE3-013 | Filter - MASTER CYLINDER | Filter - MASTER CYLINDER |
| 26 | 46669-SE3-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 27 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 28 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
| 29 | 57562-SF1-003 | Circlip | Circlip |
Breather tube 7 / 7
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 3 | 17130-PK1-003 | Valve assy. - PCV | Valve assy. - PCV |
| 4 | 17137-P12-A00 | Pipe comp - BREATHER | Pipe comp - BREATHER |
| 8 | 17138-P12-A00 | Tube - BREATHER | Tube - BREATHER |
| 9 | 17139-PK1-000 | Grommet - PCV VALVE | Grommet - PCV VALVE |
| 11 | 91405-PH7-003 | Clamp - TUBE (D15) | Clamp - TUBE (D15) |
| 12 | 91405-679-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
| 12 | 91405-PM5-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
Bumpers (1) 26 / 39
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 12 | 71147-SS0-000 | Stay - FR. BUMPER UPPER | Stay - FR. BUMPER UPPER |
| 14 | 71148-SS0-000 | Plate - FR. BUMPER BAFFLE | Plate - FR. BUMPER BAFFLE |
| 15 | 71160-SS0-010 | Stay assy - FR. BUMPER CENTER | Stay assy - FR. BUMPER CENTER |
| 24 | 71540-SS0-000 | Beam comp - RR. BUMPER UPPER | Beam comp - RR. BUMPER UPPER |
| 27 | 75101-SS0-003 | Grille comp - R. | Grille comp - R. |
| 28 | 75102-SS0-003 | Grille comp - L. | Grille comp - L. |
| 30 | 90106-SS0-003 | Grommet - SCREW | Grommet - SCREW |
| 31 | 90107-SS0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 32 | 90108-SS0-003 | Clip - BUMPER SIDE | Clip - BUMPER SIDE |
| 33 | 90109-SS0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 34 | 90110-SE7-000 | Bolt-washer - 8X21 | Bolt-washer - 8X21 |
| 35 | 90111-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 37 | 90139-SE0-003 | Screw-washer - 5X25 | Screw-washer - 5X25 |
| 38 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 39 | 90303-SA5-003 | Nut - FR. COMBINATION LIGHT | Nut - FR. COMBINATION LIGHT |
| 40 | 90305-SM4-000 | Nut - AIR SPOILER CLIP | Nut - AIR SPOILER CLIP |
| 41 | 90312-SM4-000 | Nut-washer - 8MM | Nut-washer - 8MM |
| 42 | 90323-SE1-000 | Nut - CLIP, 6MM | Nut - CLIP, 6MM |
| 42 | 90305-SH3-000 | Nut - AIR SPOILER CLIP | Nut - AIR SPOILER CLIP |
| 46 | 91502-SP0-003 | Clip - BUMPER FACE | Clip - BUMPER FACE |
| 47 | 91503-SP0-013 | Clip A - BUMPER | Clip A - BUMPER |
| 47 | 91503-SP0-003 | Clip A | Clip A |
| 48 | 91505-SS0-003 | Clip - SPACER | Clip - SPACER |
| 49 | 91601-SS0-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
| 50 | 91603-SS0-003 | Clip - GRILLE SETTING | Clip - GRILLE SETTING |
| 54 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Camshaft/timing belt (SOHC) 34 / 35
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 11810-PT0-010 | Cover - TIMING BELT LOWER | Cover - TIMING BELT LOWER |
| 2 | 11811-PT0-000 | Rubber - TIMING BELT LOWER SEAL | Rubber - TIMING BELT LOWER SEAL |
| 3 | 11820-PT0-000 | Cover - TIMING BELT UPPER | Cover - TIMING BELT UPPER |
| 4 | 11830-PT0-000 | Cover - TIMING BELT BACK | Cover - TIMING BELT BACK |
| 5 | 11831-PT0-000 | Rubber a - TIMING BELT BACK SEAL | Rubber a - TIMING BELT BACK SEAL |
| 6 | 11832-PT0-000 | Rubber b - TIMING BELT BACK SEAL | Rubber b - TIMING BELT BACK SEAL |
| 7 | 11833-PT0-000 | Rubber c - TIMING BELT BACK SEAL | Rubber c - TIMING BELT BACK SEAL |
| 8 | 11925-PT0-000 | Rubber a - ENGINE MOUNTING BRACKET SEAL | Rubber a - ENGINE MOUNTING BRACKET SEAL |
| 9 | 11926-PT0-000 | Rubber b - ENGINE MOUNTING BRACKET SEAL | Rubber b - ENGINE MOUNTING BRACKET SEAL |
| 10 | 13404-PT0-004 | Adjuster comp - BALANCER BELT (NIPPON SEIKO) | Adjuster comp - BALANCER BELT (NIPPON SEIKO) |
| 10 | 13404-PT0-003 | Adjuster comp - BALANCER BELT (KOYO) | Adjuster comp - BALANCER BELT (KOYO) |
| 11 | 13405-PT0-004 | Belt - BALANCER TIMING (UNITTA) | Belt - BALANCER TIMING (UNITTA) |
| 12 | 13407-P0A-000 | Spring - BELT ADJUSTER | Spring - BELT ADJUSTER |
| 12 | 13407-PT0-000 | Spring b comp. - BELT ADJUSTER | Spring b comp. - BELT ADJUSTER |
| 13 | 13415-P0A-000 | Bracket - BALANCER BELT ADJUSTER | Bracket - BALANCER BELT ADJUSTER |
| 15 | 14210-PT0-003 | Pulley - TIMING BELT DRIVEN | Pulley - TIMING BELT DRIVEN |
| 16 | 14400-PT0-004 | Belt - TIMING (UNITTA) (113RU24 A-555) | Belt - TIMING (UNITTA) (113RU24 A-555) |
| 17 | 14510-PT0-004 | Adjuster comp - TIMING BELT (NIPPON SEIKO) | Adjuster comp - TIMING BELT (NIPPON SEIKO) |
| 17 | 14510-PT0-003 | Adjuster comp - TIMING BELT (KOYO) | Adjuster comp - TIMING BELT (KOYO) |
| 18 | 14516-PT0-000 | Spring comp - TIMING BELT ADJUSTER | Spring comp - TIMING BELT ADJUSTER |
| 18 | 14516-P0A-000 | Spring comp - TIMING BELT ADJUSTER | Spring comp - TIMING BELT ADJUSTER |
| 19 | 90002-PT0-000 | Bolt b - TIMING BELT COVER | Bolt b - TIMING BELT COVER |
| 20 | 90007-679-000 | Bolt a - TIMING BELT COVER | Bolt a - TIMING BELT COVER |
| 21 | 90015-PT0-000 | Bolt - TIMING BELT ADJUSTER SPRING | Bolt - TIMING BELT ADJUSTER SPRING |
| 22 | 90016-PT0-000 | Bolt - TIMING BELT ADJUSTER | Bolt - TIMING BELT ADJUSTER |
| 23 | 90018-PT0-010 | Bolt - BALANCER BELT ADJUSTER | Bolt - BALANCER BELT ADJUSTER |
| 24 | 90031-PT0-003 | Bolt-washer - 8X22 | Bolt-washer - 8X22 |
| 24 | 90032-ZW5-003 | Bolt-washer, 8x22 | Bolt-washer, 8x22 |
| 25 | 90051-PT0-000 | Bolt - SUB BELT ADJUSTER SPRING | Bolt - SUB BELT ADJUSTER SPRING |
| 26 | 90216-P0A-000 | Nut - 10MM | Nut - 10MM |
| 27 | 90401-PT0-000 | Rubber - TIMING BELT ADJUSTER | Rubber - TIMING BELT ADJUSTER |
| 28 | 90501-MB7-610 | Washer - 10.3X25 | Washer - 10.3X25 |
| 29 | 90741-657-000 | Key - 25.4X13 | Key - 25.4X13 |
| 30 | 91213-PT0-003 | Oil seal - 28X42X8 (ARAI) | Oil seal - 28X42X8 (ARAI) |

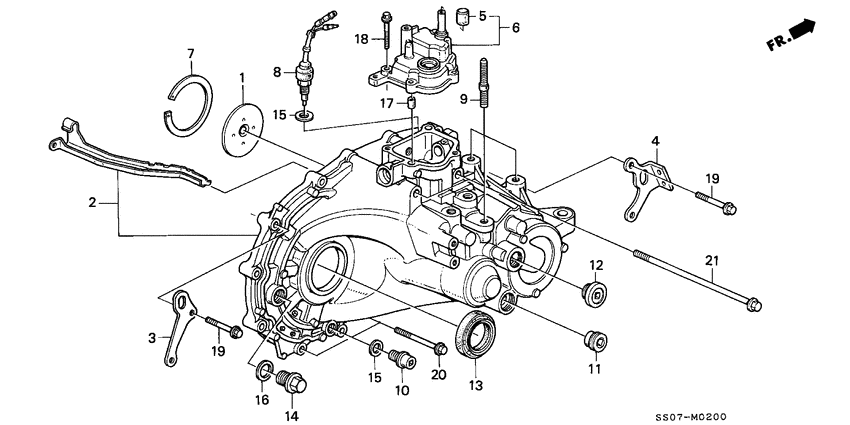

Clutch case 18 / 18
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 21000-P0S-020 | Case comp. - CLUTCH | Case comp. - CLUTCH |
| 2 | 21101-PG2-000 | Plate - NEEDLE BEARING SETTING | Plate - NEEDLE BEARING SETTING |
| 3 | 21103-PX5-010 | Plate c - OIL GUIDE | Plate c - OIL GUIDE |
| 4 | 21120-PG2-003 | Magnet - TRANSMISSION | Magnet - TRANSMISSION |
| 5 | 22810-PX5-J02 | Bearing - CLUTCH RELEASE (KOYO SEIKO) | Bearing - CLUTCH RELEASE (KOYO SEIKO) |
| 6 | 22821-P0S-000 | Fork - CLUTCH RELEASE | Fork - CLUTCH RELEASE |
| 7 | 22825-P0S-000 | Bolt - RELEASE FORK | Bolt - RELEASE FORK |
| 8 | 22835-P0S-000 | Spring - RELEASE FORK SETTING | Spring - RELEASE FORK SETTING |
| 9 | 22841-PX5-000 | Boot - RELEASE FORK | Boot - RELEASE FORK |
| 10 | 24600-PX5-000 | Stay - CHANGE WIRE | Stay - CHANGE WIRE |
| 11 | 90030-PG2-000 | Bolt - SPECIAL, 6MM | Bolt - SPECIAL, 6MM |
| 12 | 90705-PG2-000 | Dowel pin - 14X20 | Dowel pin - 14X20 |
| 13 | 91002-PG1-018 | Bearing - BALL, 63/28C (TOYO) | Bearing - BALL, 63/28C (TOYO) |
| 14 | 91103-PX5-004 | Bearing - NEEDLE, 38X65X22 (KOYO) | Bearing - NEEDLE, 38X65X22 (KOYO) |
| 15 | 91205-PX5-005 | Oil seal - 35X56X8 (NOK) | Oil seal - 35X56X8 (NOK) |
| 15 | 91205-PL3-A01 | Oil seal - 35X56X8 (ARAI) | Oil seal - 35X56X8 (ARAI) |
| 16 | 91216-PH8-005 | Oil seal - 28X41X7 (NOK) | Oil seal - 28X41X7 (NOK) |
| 16 | 91216-PH8-003 | Oil seal - 28X41X7 (ARAI) | Oil seal - 28X41X7 (ARAI) |
Clutch master cylinder (LH) 41 / 44
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-548-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 3 | 46151-SA5-003 | Yoke comp. - NISSIN | Yoke comp. - NISSIN |
| 5 | 46182-500-013 | Circlip | Circlip |
| 6 | 46184-611-000 | Dust seal - MASTER CYLINDER | Dust seal - MASTER CYLINDER |
| 7 | 46472-SM4-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 8 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 9 | 46912-SD4-000 | Pin - CLUTCH PEDAL | Pin - CLUTCH PEDAL |
| 10 | 46918-SM4-020 | Clip a13 - TUBE | Clip a13 - TUBE |
| 11 | 46920-SM4-A03 | Cylinder assy. - CLUTCH MASTER | Cylinder assy. - CLUTCH MASTER |
| 13 | 46926-SF1-003 | Piston assy. | Piston assy. |
| 14 | 46928-SF1-000 | Seal - CLUTCH MASTER CYLINDER | Seal - CLUTCH MASTER CYLINDER |
| 15 | 46930-SM4-003 | Cylinder assy. - SLAVE | Cylinder assy. - SLAVE |
| 16 | 46932-SD4-003 | Piston - SLAVE CYLINDER | Piston - SLAVE CYLINDER |
| 17 | 46933-SD4-013 | Cup a - PISTON | Cup a - PISTON |
| 18 | 46934-SD4-003 | Cup b - PISTON | Cup b - PISTON |
| 19 | 46935-SP0-000 | Spring - SLAVE CYLINDER | Spring - SLAVE CYLINDER |
| 20 | 46937-SD4-003 | Boot - SLAVE CYLINDER | Boot - SLAVE CYLINDER |
| 21 | 46938-SD4-003 | Rod - PUSH | Rod - PUSH |
| 22 | 46939-SV4-003 | Joint - CLUTCH HOSE | Joint - CLUTCH HOSE |
| 23 | 46950-SM4-950 | Rod assy - PUSH | Rod assy - PUSH |
| 24 | 46952-SD4-003 | Joint - TUBE | Joint - TUBE |
| 25 | 46953-SD4-003 | Packing | Packing |
| 26 | 46960-SM4-913 | Pipe assy. b - CLUTCH | Pipe assy. b - CLUTCH |
| 27 | 46960-SS0-A00 | Pipe assy. - CLUTCH | Pipe assy. - CLUTCH |
| 29 | 46961-SV4-003 | Hose - CLUTCH | Hose - CLUTCH |
| 30 | 46963-SD4-020 | Bolt - CLUTCH OIL | Bolt - CLUTCH OIL |
| 31 | 46964-SM4-020 | Clamp - CLUTCH PIPE | Clamp - CLUTCH PIPE |
| 32 | 46966-SM4-A01 | Holder - TANK | Holder - TANK |
| 33 | 46970-SM4-020 | Pipe comp - CLUTCH | Pipe comp - CLUTCH |
| 34 | 46971-SS0-A00 | Tube - CLUTCH FLUID | Tube - CLUTCH FLUID |
| 35 | 46972-SD4-003 | Tank - CLUTCH FLUID | Tank - CLUTCH FLUID |
| 36 | 46973-SD4-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 38 | 46993-SS0-003 | Damper assy. - CLUTCH | Damper assy. - CLUTCH |
| 39 | 46995-SS0-000 | Bracket - CLUTCH PIPE | Bracket - CLUTCH PIPE |
| 40 | 46998-SM4-000 | Clamp - CLUTCH PIPE | Clamp - CLUTCH PIPE |
| 41 | 46998-SS0-A00 | Clamp - CLUTCH PIPE | Clamp - CLUTCH PIPE |
| 42 | 46999-SM4-010 | Bracket - CLUTCH PIPE | Bracket - CLUTCH PIPE |
| 43 | 46999-SS0-A00 | Clamp - CLUTCH PIPE | Clamp - CLUTCH PIPE |
| 45 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 55 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Clutch/torque converter 6 / 12
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 21350-PT0-000 | Cover - CLUTCH CASE | Cover - CLUTCH CASE |
| 3 | 22100-P13-005 | Flywheel comp. | Flywheel comp. |
| 4 | 22200-P13-005 | Disk comp - FRICTION | Disk comp - FRICTION |
| 5 | 22300-PT4-000 | Disk comp - PRESSURE | Disk comp - PRESSURE |
| 8 | 90011-PH3-000 | Bolt - FLANGE, 12MM | Bolt - FLANGE, 12MM |
| 10 | 90034-689-000 | Bolt - TWELVE POINT, 8MM (TOKAI TRW) | Bolt - TWELVE POINT, 8MM (TOKAI TRW) |
Combination switch (LH) 17 / 26
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 2 | 32146-SH3-003 | Connector - DIODE(2P) | Connector - DIODE(2P) |
| 4 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 5 | 35103-SE3-003 | Screw - RECESSED, 3X8 | Screw - RECESSED, 3X8 |
| 9 | 35108-SV4-A01 | Holder - COLUMN (SRS) | Holder - COLUMN (SRS) |
| 10 | 35113-SH3-G02 | Key - BLANK (MAIN) (MOLD=BLACK) | Key - BLANK (MAIN) (MOLD=BLACK) |
| 12 | 35114-SH4-K01 | Key - BLANK (SUB) (MOLD=GRAY) | Key - BLANK (SUB) (MOLD=GRAY) |
| 14 | 35130-SS0-A01 | Switch comp - STEERING | Switch comp - STEERING |
| 16 | 35251-SS0-003 | Body - SWITCH | Body - SWITCH |
| 18 | 35255-SX0-G01 | Switch assy - LIGHTING | Switch assy - LIGHTING |
| 21 | 35400-SG0-023 | Switch assy - DOOR | Switch assy - DOOR |
| 22 | 35409-SG0-901 | Screw - FLANGE, 6X12 | Screw - FLANGE, 6X12 |
| 23 | 35417-SE3-003 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 23 | 35410-692-003 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 25 | 53271-SS0-003 | Cam - TURN SIGNAL SWITCH | Cam - TURN SIGNAL SWITCH |
| 26 | 90101-SA4-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 28 | 90690-SA0-003 | Strap - WIRE HARNESS, 25MM (BLACK) | Strap - WIRE HARNESS, 25MM (BLACK) |
| 29 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
Console (2) 21 / 22
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 66418-SA5-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 2 | 66418-688-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 4 | 77234-SV4-003 | Clip | Clip |
| 5 | 77237-SS0-003 | Pin - LOCK | Pin - LOCK |
| 6 | 77238-SS0-003 | Plate - SPRING | Plate - SPRING |
| 7 | 77239-SS0-003 | Screw a - TAPPING, 3X5 | Screw a - TAPPING, 3X5 |
| 12 | 83403-SS0-J00 | Box - RR. CONSOLE | Box - RR. CONSOLE |
| 14 | 83406-SR4-G00 | Hinge comp - ARMREST | Hinge comp - ARMREST |
| 15 | 83407-SS0-J00 | Bracket - RR. CONSOLE | Bracket - RR. CONSOLE |
| 16 | 83408-SS0-J00 | Lock - ARMREST | Lock - ARMREST |
| 17 | 83409-SS0-J00 | Mat - CONSOLE BOX | Mat - CONSOLE BOX |
| 18 | 83411-SS0-J00 | Lid - RR. CONSOLE BOX | Lid - RR. CONSOLE BOX |
| 20 | 83425-SS0-J00 | Bracket - RR. CONSOLE BASE | Bracket - RR. CONSOLE BASE |
| 25 | 88324-SB3-950 | Cover - RR. ASHTRAY | Cover - RR. ASHTRAY |
| 26 | 90103-SS0-003 | Screw - SPECIAL TAPPING, 4X16 | Screw - SPECIAL TAPPING, 4X16 |
| 27 | 90611-SM4-013 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 28 | 90651-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 29 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 30 | 90681-693-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 32 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 33 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Control device (2) 5 / 5
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 36010-PA6-004 | Joint - THREE WAY | Joint - THREE WAY |
| 2 | 36033-P13-004 | Stay - DEVICE | Stay - DEVICE |
| 3 | 36034-PE2-004 | Joint - MAP SENSOR | Joint - MAP SENSOR |
| 4 | 37830-P13-003 | Sensor assy - MAP | Sensor assy - MAP |
| 5 | 90308-SD2-A00 | Nut - FLANGE, 6MM (DACRO COATING) | Nut - FLANGE, 6MM (DACRO COATING) |
Control unit (CABIN; LH) 12 / 19
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 8 | 38235-SA5-003 | Puller - FUSE (SUMITOMO) | Puller - FUSE (SUMITOMO) |
| 9 | 38300-SB0-004 | Relay assy - TURN SIGNAL & HAZARD (DENSO) | Relay assy - TURN SIGNAL & HAZARD (DENSO) |
| 9 | 38300-SB0-013 | Relay assy - TURN SIGNAL & HAZARD (MITSUBA) | Relay assy - TURN SIGNAL & HAZARD (MITSUBA) |
| 12 | 39400-SS0-003 | Relay assy - MAIN (MITSUBA) (RZ-0139) | Relay assy - MAIN (MITSUBA) (RZ-0139) |
| 15 | 39762-SB0-004 | Relay assy - POWER (5P) (056700-6710) (DENSO) | Relay assy - POWER (5P) (056700-6710) (DENSO) |
| 15 | 39762-SB0-003 | Relay assy - POWER (5P) (MITSUBA) | Relay assy - POWER (5P) (MITSUBA) |
| 16 | 39792-SM4-003 | Relay assy - POWER (4P NO.305) (DENSO) (056700-9340) | Relay assy - POWER (4P NO.305) (DENSO) (056700-9340) |
| 16 | 39792-SM4-004 | Relay assy - POWER (4P) (OMRON) (G4R-1A21T-49H) | Relay assy - POWER (4P) (OMRON) (G4R-1A21T-49H) |
| 17 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 17 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 19 | 90137-SF1-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 20 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
Control unit (ENGINE ROOM; LH) 24 / 24
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 30700-SS0-A01 | Resistor assy. | Resistor assy. |
| 2 | 32101-SS0-A00 | Holder - DASH COUPLER | Holder - DASH COUPLER |
| 3 | 38100-SM4-A02 | Horn assy - LOW | Horn assy - LOW |
| 4 | 38150-SM4-A02 | Horn assy - HIGH | Horn assy - HIGH |
| 4 | 38150-SH3-013 | Horn assy - HIGH (MITSUBA) | Horn assy - HIGH (MITSUBA) |
| 5 | 38212-SM4-003 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 6 | 38213-SM4-003 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 7 | 38218-SM4-003 | Fuse - BLOCK (100A) | Fuse - BLOCK (100A) |
| 8 | 38250-SS0-G02 | Box assy - RELAY | Box assy - RELAY |
| 9 | 38251-SS0-A00 | Bracket - RELAY BOX | Bracket - RELAY BOX |
| 10 | 38251-SS0-003 | Cover - LOWER | Cover - LOWER |
| 11 | 38252-SS0-003 | Cover - UPPER | Cover - UPPER |
| 12 | 38253-SS0-G01 | Label | Label |
| 13 | 39762-SG0-003 | Relay assy - POWER (5P) (DENSO) (056700-8160) | Relay assy - POWER (5P) (DENSO) (056700-8160) |
| 14 | 39792-SE0-004 | Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22) | Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22) |
| 14 | 39792-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7410) | Relay assy - POWER(4P)(DENSO) (056700-7410) |
| 15 | 39793-SE3-004 | Relay assy - POWER (5P) (058700-1081) (DENSO) | Relay assy - POWER (5P) (058700-1081) (DENSO) |
| 15 | 39793-SE3-003 | Relay assy - POWER (5P) (MITSUBA) | Relay assy - POWER (5P) (MITSUBA) |
| 16 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 16 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 17 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 18 | 90138-SM4-003 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 19 | 90182-SB6-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 23 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Countershaft 15 / 47
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 23220-PX5-J41 | Countershaft comp. | Countershaft comp. |
| 2 | 23421-PX5-J41 | Gear - COUNTERSHAFT LOW | Gear - COUNTERSHAFT LOW |
| 3 | 23431-P16-J00 | Gear - COUNTERSHAFT SECOND | Gear - COUNTERSHAFT SECOND |
| 7 | 23521-P16-315 | Sleeve set - SYNCHRONIZER (1-2) | Sleeve set - SYNCHRONIZER (1-2) |
| 8 | 23918-P21-010 | Collar - DISTANCE, 36.5X42X29 (0.07-0.09) | Collar - DISTANCE, 36.5X42X29 (0.07-0.09) |
| 9 | 23921-PG1-000 | Washer a - 40X54X1.96 | Washer a - 40X54X1.96 |
| 10 | 23926-PG1-010 | Washer - SPRING, 23MM | Washer - SPRING, 23MM |
| 11 | 90202-PH8-000 | Nut - HEX., 23MM | Nut - HEX., 23MM |
| 12 | 90602-PG1-770 | Ring - SNAP, 56MM | Ring - SNAP, 56MM |
| 13 | 91003-PG2-008 | Bearing - SPECIAL BALL (NTN) | Bearing - SPECIAL BALL (NTN) |
| 14 | 91102-PG2-008 | Bearing - NEEDLE, 25X56.4X19 | Bearing - NEEDLE, 25X56.4X19 |
| 15 | 91105-P16-008 | Bearing - NEEDLE, 40X46X26.8 (NTN) | Bearing - NEEDLE, 40X46X26.8 (NTN) |
| 16 | 91105-P21-003 | Bearing - NEEDLE, 42X47X24 | Bearing - NEEDLE, 42X47X24 |
| 17 | 91211-PX5-008 | Damper - FRICTION (LOW) | Damper - FRICTION (LOW) |
| 18 | 91212-PX5-018 | Damper - FRICTION (SECOND) | Damper - FRICTION (SECOND) |
Cross beam 9 / 11
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 50100-SS0-000 | Beam - CENTER | Beam - CENTER |
| 2 | 50200-SS0-A00 | Beam - RR. | Beam - RR. |
| 6 | 90162-SS0-000 | Bolt - FLANGE, 12X143 | Bolt - FLANGE, 12X143 |
| 7 | 90174-SS0-003 | Bolt - FLANGE, 10X23 | Bolt - FLANGE, 10X23 |
| 8 | 90190-SM4-003 | Bolt - FLANGE, 12X108 | Bolt - FLANGE, 12X108 |
| 9 | 90191-SM4-003 | Bolt - FLANGE, 12X95 | Bolt - FLANGE, 12X95 |
| 10 | 90193-SM4-003 | Bolt - FLANGE, 12X135 | Bolt - FLANGE, 12X135 |
| 11 | 90506-SE0-000 | Washer - PLAIN, 12MM | Washer - PLAIN, 12MM |
| 12 | 91613-SE0-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
Cylinder block/oil pan 30 / 33
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 11000-PT0-020 | Block assy - CYLINDER | Block assy - CYLINDER |
| 2 | 11106-PT0-300 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 4 | 11107-PT0-000 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 5 | 11108-PT0-003 | Bolt - SEALING, 18MM | Bolt - SEALING, 18MM |
| 6 | 11109-PK2-010 | Seal - TIMING RUBBER | Seal - TIMING RUBBER |
| 7 | 11126-PK1-003 | Bolt - SEALING, 22MM | Bolt - SEALING, 22MM |
| 8 | 11130-PT0-010 | Bridge comp - BEARING CAP | Bridge comp - BEARING CAP |
| 9 | 11200-PT0-010 | Pan comp - OIL | Pan comp - OIL |
| 13 | 11251-P0A-000 | Packing comp. - OIL PAN | Packing comp. - OIL PAN |
| 15 | 11910-PT0-020 | Bracket - ENGINE MOUNTING | Bracket - ENGINE MOUNTING |
| 16 | 11912-PT0-000 | Stay a - ENGINE MOUNTING BRACKET | Stay a - ENGINE MOUNTING BRACKET |
| 19 | 12207-634-300 | Washer - SEALING BOLT | Washer - SEALING BOLT |
| 20 | 13421-PT0-003 | Metal - BALANCER SHAFT (NO.1) (DAIDO) | Metal - BALANCER SHAFT (NO.1) (DAIDO) |
| 21 | 13422-PT0-013 | Metal - BALANCER SHAFT (NO.2) (DAIDO) | Metal - BALANCER SHAFT (NO.2) (DAIDO) |
| 22 | 13423-PT0-003 | Metal - BALANCER SHAFT (NO.3) (DAIDO) | Metal - BALANCER SHAFT (NO.3) (DAIDO) |
| 23 | 15140-PH3-000 | Orifice assy - OIL CONTROL | Orifice assy - OIL CONTROL |
| 24 | 15142-PH3-003 | O-ring - 10.8X2.4 (ARAI) | O-ring - 10.8X2.4 (ARAI) |
| 27 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 29 | 90007-PK1-003 | Bolt-washer - 11X121 | Bolt-washer - 11X121 |
| 30 | 90008-PM3-000 | Bolt - MOUNTING BRACKET, 10X32.5 | Bolt - MOUNTING BRACKET, 10X32.5 |
| 31 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 32 | 90030-PT0-000 | Bolt - STUD, 10X35 | Bolt - STUD, 10X35 |
| 33 | 90041-PA5-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 34 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 35 | 90041-PT0-000 | Bolt - STUD, 12X60 | Bolt - STUD, 12X60 |
| 36 | 90051-PH7-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 37 | 90061-PT0-000 | Bolt - DRAIN PLUG, 12MM | Bolt - DRAIN PLUG, 12MM |
| 38 | 90705-PT0-000 | Dowel pin - 16X22 | Dowel pin - 16X22 |
| 39 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
| 41 | 91323-PH7-003 | Packing - BEARING CAP BRIDGE (ARAI) | Packing - BEARING CAP BRIDGE (ARAI) |

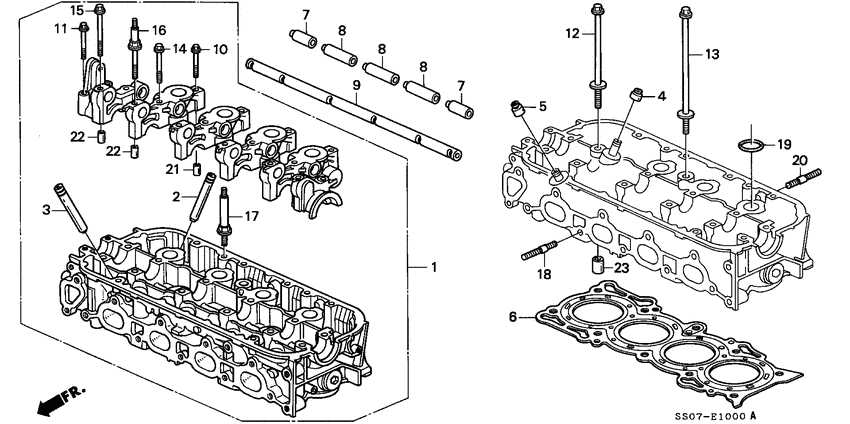

Cylinder head (SOHC) 21 / 22
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 2 | 12204-PJ7-305 | Guide - IN. VALVE (OS) | Guide - IN. VALVE (OS) |
| 3 | 12205-PJ7-305 | Guide - EX. VALVE (OS) | Guide - EX. VALVE (OS) |
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 6 | 12251-PT0-J02 | Gasket, CYLINDER HEAD (ISHINO GASKET) | Gasket, CYLINDER HEAD (ISHINO GASKET) |
| 7 | 14631-P0B-A00 | Shaft a - ROCKER ARM | Shaft a - ROCKER ARM |
| 8 | 14632-P0B-A00 | Shaft b - ROCKER ARM | Shaft b - ROCKER ARM |
| 9 | 14633-P0B-A00 | Shaft - EX. VALVE ROCKER ARM | Shaft - EX. VALVE ROCKER ARM |
| 10 | 90003-PT0-000 | Bolt - FLANGE, 6X50 | Bolt - FLANGE, 6X50 |
| 11 | 90004-PT0-000 | Bolt - FLANGE, 6X50 | Bolt - FLANGE, 6X50 |
| 12 | 90005-PT0-003 | Bolt-washer - 12X163 | Bolt-washer - 12X163 |
| 13 | 90006-PT0-003 | Bolt-washer - 12X199 | Bolt-washer - 12X199 |
| 14 | 90007-PT0-000 | Bolt - FLANGE, 8X55 | Bolt - FLANGE, 8X55 |
| 15 | 90002-P0A-000 | Bolt - FLANGE, 8X76 | Bolt - FLANGE, 8X76 |
| 16 | 90012-PT0-000 | Bolt a - HEAD COVER | Bolt a - HEAD COVER |
| 17 | 90013-PT0-000 | Bolt b - HEAD COVER | Bolt b - HEAD COVER |
| 18 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
| 19 | 91301-PT0-004 | O-ring - 29.7X2.5 (NOK) | O-ring - 29.7X2.5 (NOK) |
| 19 | 91301-PT0-003 | O-ring - 29.7X2.5 (ARAI) | O-ring - 29.7X2.5 (ARAI) |

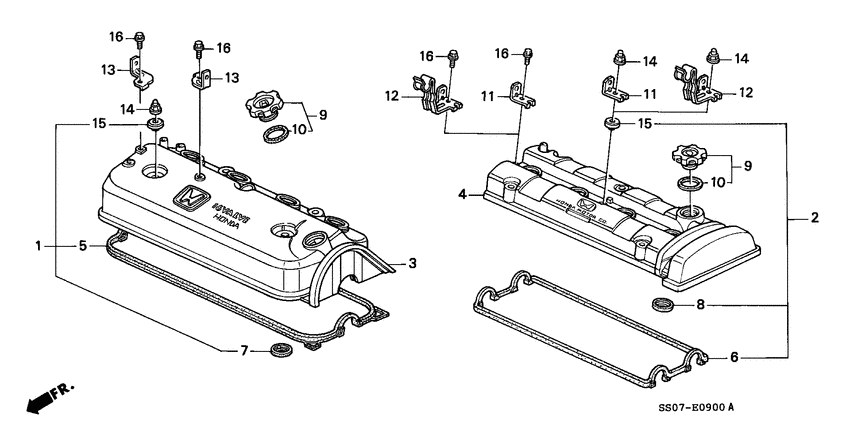

Cylinder head cover (SOHC/DOHC) 8 / 9
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 12030-PT0-000 | Packing set - HEAD COVER | Packing set - HEAD COVER |
| 5 | 12341-PT0-000 | Packing - CYLINDER HEAD COVER | Packing - CYLINDER HEAD COVER |
| 7 | 12342-PT0-000 | Packing b - HEAD COVER | Packing b - HEAD COVER |
| 9 | 15610-P2A-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 10 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 13 | 32762-PT0-010 | Stay b - HIGH TENSION CORD CLAMP | Stay b - HIGH TENSION CORD CLAMP |
| 14 | 90213-PH3-000 | Nut - CAP, 6MM | Nut - CAP, 6MM |
| 15 | 90441-PT0-000 | Washer - HEAD COVER | Washer - HEAD COVER |
Differential 26 / 60
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 41100-PX5-E43 | Differential comp. | Differential comp. |
| 2 | 41233-PX5-J41 | Gear - FINAL DRIVEN | Gear - FINAL DRIVEN |
| 3 | 41380-PG2-A10 | Shim - 75MM | Shim - 75MM |
| 4 | 41388-PX5-000 | Shim h - 68MM (2.11) | Shim h - 68MM (2.11) |
| 4 | 41383-PX5-000 | Shim c - 68MM (1.96) | Shim c - 68MM (1.96) |
| 4 | 41400-PX5-000 | Shim t - 68MM (2.47) | Shim t - 68MM (2.47) |
| 4 | 41395-PX5-000 | Shim o - 68MM (2.32) | Shim o - 68MM (2.32) |
| 4 | 41390-PX5-000 | Shim j - 68MM (2.17) | Shim j - 68MM (2.17) |
| 4 | 41385-PX5-000 | Shim e - 68MM (2.02) | Shim e - 68MM (2.02) |
| 4 | 41397-PX5-000 | Shim q - 68MM (2.38) | Shim q - 68MM (2.38) |
| 4 | 41392-PX5-000 | Shim l - 68MM (2.23) | Shim l - 68MM (2.23) |
| 4 | 41387-PX5-000 | Shim g - 68MM (2.08) | Shim g - 68MM (2.08) |
| 4 | 41382-PX5-000 | Shim b - 68MM (1.93) | Shim b - 68MM (1.93) |
| 4 | 41399-PX5-000 | Shim s - 68MM (2.44) | Shim s - 68MM (2.44) |
| 4 | 41394-PX5-000 | Shim n - 68MM (2.29) | Shim n - 68MM (2.29) |
| 4 | 41389-PX5-000 | Shim i - 68MM (2.14) | Shim i - 68MM (2.14) |
| 4 | 41384-PX5-000 | Shim d - 68MM (1.99) | Shim d - 68MM (1.99) |
| 4 | 41396-PX5-000 | Shim p - 68MM (2.35) | Shim p - 68MM (2.35) |
| 4 | 41391-PX5-000 | Shim k - 68MM (2.20) | Shim k - 68MM (2.20) |
| 4 | 41386-PX5-000 | Shim f - 68MM (2.05) | Shim f - 68MM (2.05) |
| 4 | 41381-PX5-000 | Shim a - 68MM (1.90) | Shim a - 68MM (1.90) |
| 4 | 41398-PX5-000 | Shim r - 68MM (2.41) | Shim r - 68MM (2.41) |
| 4 | 41393-PX5-000 | Shim m - 68MM (2.26) | Shim m - 68MM (2.26) |
| 5 | 90017-689-000 | Bolt - SPECIAL, 10MM | Bolt - SPECIAL, 10MM |
| 6 | 91005-PG2-004 | Bearing - TAPER, 40X75X21 (KOYO) | Bearing - TAPER, 40X75X21 (KOYO) |
| 7 | 91006-PX5-008 | Bearing - TAPER, 40X68X22 (NTN) | Bearing - TAPER, 40X68X22 (NTN) |
Distributor (TEC) 11 / 11
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 30100-P11-E01 | Distributor assy - TD-58U) (TEC | Distributor assy - TD-58U) (TEC |
| 2 | 30102-P54-006 | Cap assy. | Cap assy. |
| 3 | 30103-P08-003 | Distributor Rotor Head Assembly | Distributor Rotor Head Assembly |
| 4 | 30105-P11-E01 | Housing comp - DISTRIBUTOR | Housing comp - DISTRIBUTOR |
| 5 | 30107-P08-006 | Cover - LEAK | Cover - LEAK |
| 6 | 30110-PA1-732 | O-ring - 26.4X3.1 (TEC) | O-ring - 26.4X3.1 (TEC) |
| 9 | 30130-P12-006 | Igniter unit - E12-302) (HITACHI | Igniter unit - E12-302) (HITACHI |
| 10 | 30132-PT2-006 | Packing - CAP | Packing - CAP |
| 11 | 30135-P08-006 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 11 | 30135-P73-004 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 12 | 30510-PT2-006 | Ignition Coil | Ignition Coil |
Door locks 33 / 39
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 2 | 72116-SM4-003 | Snap d - VIOLET | Snap d - VIOLET |
| 3 | 72117-SS0-A01 | Protector - R. DOOR LOCK | Protector - R. DOOR LOCK |
| 4 | 72119-S04-003 | Stopper a - OUTSIDE HANDLE | Stopper a - OUTSIDE HANDLE |
| 6 | 72123-SM1-003 | Ring - OUTSIDE HANDLE | Ring - OUTSIDE HANDLE |
| 7 | 72130-SS0-A01 | Protector - R. DOOR CYLINDER | Protector - R. DOOR CYLINDER |
| 8 | 72131-SS0-013 | Rod - R. FR. INSIDE HANDLE | Rod - R. FR. INSIDE HANDLE |
| 10 | 72132-SS0-003 | Rod - R. FR. INSIDE LOCK | Rod - R. FR. INSIDE LOCK |
| 11 | 72133-SS0-013 | Rod - R. RR. INSIDE LOCK | Rod - R. RR. INSIDE LOCK |
| 12 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 13 | 72134-SM4-003 | Snap - R. (VIOLET) | Snap - R. (VIOLET) |
| 14 | 72134-SS0-003 | Crank assy - FR. DOOR | Crank assy - FR. DOOR |
| 15 | 72135-SM4-003 | Striker assy - DOOR | Striker assy - DOOR |
| 16 | 72136-SM4-003 | Holder - ROD, 4MM | Holder - ROD, 4MM |
| 17 | 72136-SS0-003 | Snap | Snap |
| 18 | 72137-SS0-003 | Holder | Holder |
| 19 | 72138-SS0-000 | Cushion - LOCK ROD | Cushion - LOCK ROD |
| 20 | 72139-SS0-000 | Protector - R. FR. DOOR ROD | Protector - R. FR. DOOR ROD |
| 24 | 72144-SV1-003 | Cap - OUTSIDE HANDLE OUTER | Cap - OUTSIDE HANDLE OUTER |
| 25 | 72145-SL4-003 | Cylinder - R. DOOR | Cylinder - R. DOOR |
| 26 | 72146-SL4-003 | Cylinder - L. DOOR | Cylinder - L. DOOR |
| 28 | 72157-SS0-A01 | Protector - L. DOOR LOCK | Protector - L. DOOR LOCK |
| 30 | 72170-SS0-A01 | Protector - L. DOOR CYLINDER | Protector - L. DOOR CYLINDER |
| 31 | 72171-SS0-013 | Rod - L. FR. INSIDE HANDLE | Rod - L. FR. INSIDE HANDLE |
| 33 | 72172-SS0-003 | Rod - L. FR. INSIDE LOCK | Rod - L. FR. INSIDE LOCK |
| 34 | 72173-SS0-013 | Rod - L. RR. INSIDE LOCK | Rod - L. RR. INSIDE LOCK |
| 35 | 72174-SM4-003 | Snap - L. (YELLOW) | Snap - L. (YELLOW) |
| 36 | 72179-SS0-000 | Protector - L. FR. DOOR ROD | Protector - L. FR. DOOR ROD |
| 38 | 75411-634-000 | Joint | Joint |
| 39 | 75551-SF1-003 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 41 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 43 | 90668-SA5-003 | Grommet - SCREW, 6MM | Grommet - SCREW, 6MM |
| 45 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 46 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
Door panels 10 / 14
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 17 | 72326-SS0-003 | Weatherstrip - FR. LOWER | Weatherstrip - FR. LOWER |
| 18 | 72327-SS0-000 | Seal - DOOR UPPER HOLE | Seal - DOOR UPPER HOLE |
| 19 | 72340-SS0-003 | Checker comp. - DOOR | Checker comp. - DOOR |
| 22 | 75760-SB2-003 | Pin - DOOR CHECKER | Pin - DOOR CHECKER |
| 23 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 24 | 90101-SE3-003 | Bolt-washer - 8X23.5 | Bolt-washer - 8X23.5 |
| 25 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 27 | 91530-SE0-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 27 | 90664-671-003 | Clip - CANOE | Clip - CANOE |
| 28 | 91530-SH4-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
Door windows 29 / 29
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 72211-SS0-J01 | Regulator - R. FR. DOOR POWER | Regulator - R. FR. DOOR POWER |
| 3 | 72215-SS0-A01 | Motor assy. - R. WINDOW | Motor assy. - R. WINDOW |
| 4 | 72230-SS0-003 | Sash - R. FR. DOOR LOWER | Sash - R. FR. DOOR LOWER |
| 5 | 72231-SS0-003 | Sash - R. FR. DOOR CENTER LOWER | Sash - R. FR. DOOR CENTER LOWER |
| 6 | 72232-SS0-003 | Guide - R. DOOR CENTER SASH | Guide - R. DOOR CENTER SASH |
| 7 | 72233-SS0-003 | Cover - SASH GUIDE | Cover - SASH GUIDE |
| 8 | 72235-SS0-013 | Runchannel - R. FR. DOOR | Runchannel - R. FR. DOOR |
| 9 | 72236-SS0-003 | Runchannel - R. FR. DOOR LOWER | Runchannel - R. FR. DOOR LOWER |
| 11 | 72251-SS0-J01 | Regulator - L. FR. DOOR POWER | Regulator - L. FR. DOOR POWER |
| 12 | 72255-SS0-A01 | Motor assy. - L. WINDOW | Motor assy. - L. WINDOW |
| 13 | 72270-SS0-003 | Sash - L. FR. DOOR LOWER | Sash - L. FR. DOOR LOWER |
| 14 | 72271-SS0-003 | Sash - L. FR. DOOR CENTER LOWER | Sash - L. FR. DOOR CENTER LOWER |
| 15 | 72272-SS0-003 | Guide - L. DOOR CENTER SASH | Guide - L. DOOR CENTER SASH |
| 16 | 72275-SS0-013 | Runchannel - L. FR. DOOR | Runchannel - L. FR. DOOR |
| 17 | 72276-SS0-003 | Runchannel - L. FR. DOOR LOWER | Runchannel - L. FR. DOOR LOWER |
| 18 | 72332-SM4-003 | Stopper - DOOR GLASS | Stopper - DOOR GLASS |
| 19 | 73300-SS0-J00 | Glass assy - R. FR. DOOR (GREEN)(ASAHI) | Glass assy - R. FR. DOOR (GREEN)(ASAHI) |
| 20 | 73341-SS0-000 | Bracket - PIN GUIDE | Bracket - PIN GUIDE |
| 21 | 73342-SS0-010 | Bolt - PIN GUIDE | Bolt - PIN GUIDE |
| 22 | 73344-SM2-A00 | Seal a - PIN GUIDE | Seal a - PIN GUIDE |
| 23 | 73345-SM2-A00 | Seal b - PIN GUIDE | Seal b - PIN GUIDE |
| 24 | 73350-SS0-J00 | Glass assy - L. FR. DOOR (GREEN)(ASAHI) | Glass assy - L. FR. DOOR (GREEN)(ASAHI) |
| 25 | 90011-896-000 | Bolt - FLANGE, 6X8 | Bolt - FLANGE, 6X8 |
| 26 | 90115-SG0-003 | Bolt - FLANGE, 6MM | Bolt - FLANGE, 6MM |
| 27 | 90120-SE3-003 | Bolt - FLANGE, 6X12 | Bolt - FLANGE, 6X12 |
| 28 | 90126-SS0-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 29 | 91530-SH4-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 30 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 31 | 91623-SM2-003 | Grommet - GLASS GUIDE | Grommet - GLASS GUIDE |
Emblems 7 / 10
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 3 | 19043-PV1-G00 | Label - COOLANT INFORMATION | Label - COOLANT INFORMATION |
| 4 | 31511-SB2-671 | Mark - BATTERY CAUTION (MAINTENANCE FREE) | Mark - BATTERY CAUTION (MAINTENANCE FREE) |
| 11 | 75700-SS0-000 | Emblem - FR. CENTER (H) | Emblem - FR. CENTER (H) |
| 12 | 75701-SS0-000 | Emblem - RR. CENTER (H) | Emblem - RR. CENTER (H) |
| 13 | 75722-SS0-000 | Emblem - RR. (PRELUDE) | Emblem - RR. (PRELUDE) |
| 21 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
| 22 | 91535-SS0-003 | Clip - BUMPER EMBLEM | Clip - BUMPER EMBLEM |
Engine mounts 18 / 23
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 2 | 50806-SS0-000 | Rubber - TRANSMISSION MOUNTING (MT) | Rubber - TRANSMISSION MOUNTING (MT) |
| 3 | 50810-SS0-000 | Rubber - ENGINE RR. MOUNTING (MT) | Rubber - ENGINE RR. MOUNTING (MT) |
| 4 | 50814-SS0-000 | Stopper - FR. ENGINE (MT) | Stopper - FR. ENGINE (MT) |
| 5 | 50820-SS0-J01 | Rubber assy. - ENGINE SIDE MOUNTING | Rubber assy. - ENGINE SIDE MOUNTING |
| 7 | 50825-SS0-000 | Bracket - TRANSMISSION MOUNTING (MT) | Bracket - TRANSMISSION MOUNTING (MT) |
| 8 | 50826-SS0-000 | Bracket - FR. ENGINE STOPPER | Bracket - FR. ENGINE STOPPER |
| 9 | 50827-SS0-010 | Bracket - ENGINE RR. MOUNTING | Bracket - ENGINE RR. MOUNTING |
| 11 | 90163-SC2-000 | Bolt - FLANGE, 12X25 | Bolt - FLANGE, 12X25 |
| 12 | 90165-SM4-020 | Bolt - FLANGE, 12X101 | Bolt - FLANGE, 12X101 |
| 13 | 90169-SM4-000 | Bolt - FLANGE, 12X30 | Bolt - FLANGE, 12X30 |
| 14 | 90170-SM4-000 | Bolt - FLANGE, 12X40 | Bolt - FLANGE, 12X40 |
| 15 | 90173-SM4-000 | Bolt - FLANGE, 12X60 | Bolt - FLANGE, 12X60 |
| 16 | 90176-SM4-000 | Bolt - FLANGE, 12X95 | Bolt - FLANGE, 12X95 |
| 17 | 90186-SF1-000 | Bolt - FLANGE, 12X125 | Bolt - FLANGE, 12X125 |
| 18 | 90162-SV4-000 | Bolt-washer - 10X30 | Bolt-washer - 10X30 |
| 19 | 90371-SM4-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 20 | 90504-SB0-000 | Washer - PLAIN, 12MM | Washer - PLAIN, 12MM |
| 21 | 90551-SB2-000 | Washer - PLAIN, 10MM | Washer - PLAIN, 10MM |
Engine wire harness/clamp 31 / 39
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 3 | 31112-PT0-000 | Bracket - ALTERNATOR | Bracket - ALTERNATOR |
| 4 | 31117-PT0-000 | Plate - ALTERNATOR ADJUSTER | Plate - ALTERNATOR ADJUSTER |
| 5 | 31118-PT0-000 | Stay - ALTERNATOR ADJUSTER | Stay - ALTERNATOR ADJUSTER |
| 7 | 32112-P12-A00 | Stay comp - COUPLER | Stay comp - COUPLER |
| 9 | 32113-P13-A00 | Stay b - ENGINE HARNESS COUPLER | Stay b - ENGINE HARNESS COUPLER |
| 10 | 32127-PT2-000 | Holder comp - HARNESS | Holder comp - HARNESS |
| 14 | 32741-P12-A01 | Clamp comp. a - ENGINE WIRE HARNESS | Clamp comp. a - ENGINE WIRE HARNESS |
| 16 | 32742-P11-G00 | Clamp comp. b - ENGINE WIRE HARNESS | Clamp comp. b - ENGINE WIRE HARNESS |
| 17 | 32744-P13-000 | Clamp d - ENGINE WIRE HARNESS (GREEN) | Clamp d - ENGINE WIRE HARNESS (GREEN) |
| 18 | 32745-P12-A00 | Clamp e - ENGINE WIRE HARNESS (BLACK) | Clamp e - ENGINE WIRE HARNESS (BLACK) |
| 20 | 32746-P12-A01 | Clamp f - ENGINE WIRE HARNESS | Clamp f - ENGINE WIRE HARNESS |
| 22 | 32748-P13-000 | Stay - WIRE HARNESS CLAMP | Stay - WIRE HARNESS CLAMP |
| 23 | 32749-PT0-000 | Stay a - ENGINE WIRE HARNESS | Stay a - ENGINE WIRE HARNESS |
| 24 | 32750-PT0-000 | Stay b - ENGINE WIRE HARNESS | Stay b - ENGINE WIRE HARNESS |
| 25 | 32751-PT2-000 | Stay c - ENGINE WIRE HARNESS | Stay c - ENGINE WIRE HARNESS |
| 29 | 32759-P13-000 | Clamp j - ENGINE WIRE HARNESS | Clamp j - ENGINE WIRE HARNESS |
| 31 | 37240-PT0-014 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 31 | 37240-PT0-023 | Switch - OIL PRESSURE(DENSO) | Switch - OIL PRESSURE(DENSO) |
| 33 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 36 | 90004-PA0-000 | Bolt - HEX., 6X14 | Bolt - HEX., 6X14 |
| 38 | 90052-PT0-000 | Bolt - FLANGE, 10X60 | Bolt - FLANGE, 10X60 |
| 39 | 90053-PT0-000 | Bolt - FLANGE, 10X50 | Bolt - FLANGE, 10X50 |
| 40 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 41 | 90204-PH7-000 | Nut - SPECIAL | Nut - SPECIAL |
| 42 | 90310-PT0-003 | Bolt - SPECIAL | Bolt - SPECIAL |
| 43 | 90312-PT0-000 | Bolt - ADJUSTER SPECIAL | Bolt - ADJUSTER SPECIAL |
| 44 | 90313-PT0-000 | Bolt - SPECIAL, 10X90 | Bolt - SPECIAL, 10X90 |
| 45 | 91307-PK2-005 | O-ring - 9.5X1.5(HONDA KIKAKI) | O-ring - 9.5X1.5(HONDA KIKAKI) |
| 46 | 91506-PT0-003 | Band - ENGINE WIRE HARNESS UP LOCK (GRAY) | Band - ENGINE WIRE HARNESS UP LOCK (GRAY) |
| 48 | 91507-PT3-A01 | Band - WIRE HARNESS (BLACK) (90.4MM) | Band - WIRE HARNESS (BLACK) (90.4MM) |
| 50 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
Exhaust manifold (SOHC) 10 / 13
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 11942-PT0-000 | Stay - L. EX. MANIFOLD | Stay - L. EX. MANIFOLD |
| 3 | 18115-PT0-004 | Gasket - EX. MANIFOLD (ISHINO GASKET) | Gasket - EX. MANIFOLD (ISHINO GASKET) |
| 3 | 18115-PT0-003 | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) |
| 6 | 32747-PT0-010 | Clamp g - ENGINE WIRE HARNESS | Clamp g - ENGINE WIRE HARNESS |
| 11 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 12 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 14 | 90065-PC1-300 | Bolt - STUD, 10X34.5 | Bolt - STUD, 10X34.5 |
| 15 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 15 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 16 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
Exhaust pipe 19 / 21
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 18030-SS0-010 | Silencer set - EX. | Silencer set - EX. |
| 11 | 18212-SM4-003 | Gasket - EX. PIPE (ISHINO) | Gasket - EX. PIPE (ISHINO) |
| 12 | 18213-SM4-A34 | Stay - EX. PIPE | Stay - EX. PIPE |
| 14 | 18215-SA7-000 | Rubber - SILENCER MOUNTING (70X45X25) | Rubber - SILENCER MOUNTING (70X45X25) |
| 15 | 18215-SB6-960 | Rubber - EX. PIPE MOUNTING | Rubber - EX. PIPE MOUNTING |
| 16 | 18215-SE0-000 | Rubber d - EX. PIPE MOUNTING | Rubber d - EX. PIPE MOUNTING |
| 17 | 18215-SS0-J31 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 20 | 18282-SS0-000 | Bracket b - FLEXIBLE MOUNTING | Bracket b - FLEXIBLE MOUNTING |
| 21 | 18303-SM4-020 | Gasket - SILENCER | Gasket - SILENCER |
| 22 | 18310-SB0-023 | Finisher - EX. PIPE | Finisher - EX. PIPE |
| 23 | 18393-SH3-S00 | Gasket - PRE-CHAMBER (52.5MM-53.5MM) | Gasket - PRE-CHAMBER (52.5MM-53.5MM) |
| 29 | 74601-SS0-A00 | Plate - FLOOR HEAT BAFFLE | Plate - FLOOR HEAT BAFFLE |
| 31 | 74651-SS0-000 | Plate - TANK BAFFLE | Plate - TANK BAFFLE |
| 32 | 74653-SS0-300 | Protector - TANK BAFFLE | Protector - TANK BAFFLE |
| 33 | 74655-SS0-000 | Plate - SILENCER BAFFLE | Plate - SILENCER BAFFLE |
| 35 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 36 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 37 | 90212-671-005 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 42 | 90301-SV7-000 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Floor mat 10 / 14
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 83101-SS0-A02 | Insulator - DASHBOARD | Insulator - DASHBOARD |
| 2 | 83106-SS0-A00 | Cover - INSULATOR (LH) | Cover - INSULATOR (LH) |
| 5 | 83302-SS0-000 | Protector assy. b - SIDE SILL | Protector assy. b - SIDE SILL |
| 6 | 83303-SS0-000 | Protector assy. a - SIDE SILL | Protector assy. a - SIDE SILL |
| 16 | 90114-SA0-000 | Nut - SELF-LOCK, 6MM | Nut - SELF-LOCK, 6MM |
| 18 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 19 | 90676-SE0-003 | Clip - JOINT COVER PLATE | Clip - JOINT COVER PLATE |
| 21 | 91546-SS0-003 | Plug - BLIND | Plug - BLIND |
| 22 | 91547-SM4-003 | Cap - INSULATOR | Cap - INSULATOR |
| 23 | 91641-SH3-013 | Grommet assy, GARNISH | Grommet assy, GARNISH |
Front brake 23 / 24
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 01463-SM4-000 | Caliper set - FR. | Caliper set - FR. |
| 2 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 3 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 4 | 44300-SS0-018 | Bearing assy - FR. HUB (NTN) | Bearing assy - FR. HUB (NTN) |
| 4 | 44300-SS0-014 | Bearing assy - FR. HUB (KOYO SEIKO) | Bearing assy - FR. HUB (KOYO SEIKO) |
| 5 | 44600-SS0-000 | Hub assy - FR. | Hub assy - FR. |
| 6 | 45018-SS0-000 | Caliper sub assy. - R. FR. | Caliper sub assy. - R. FR. |
| 7 | 45019-SS0-000 | Caliper sub assy. - L. FR. | Caliper sub assy. - L. FR. |
| 11 | 45216-SM4-003 | Piston | Piston |
| 13 | 45225-SS0-003 | Shim a - INNER | Shim a - INNER |
| 14 | 45226-SS0-003 | Shim b - INNER | Shim b - INNER |
| 16 | 45228-SS0-003 | Shim - OUTER PAD | Shim - OUTER PAD |
| 18 | 45233-SS0-003 | Bush - 11MM | Bush - 11MM |
| 20 | 45235-SL0-003 | Pin a | Pin a |
| 21 | 45236-SS0-003 | Pin b | Pin b |
| 22 | 45237-SS0-A01 | Retainer | Retainer |
| 23 | 45240-SM4-003 | Bolt - FLANGE, 10X24 | Bolt - FLANGE, 10X24 |
| 24 | 45251-SS0-000 | Disk - FR. BRAKE | Disk - FR. BRAKE |
| 25 | 45255-SS0-000 | Guard - FR. BRAKE SPLASH | Guard - FR. BRAKE SPLASH |
| 26 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 27 | 90113-SD4-902 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 27 | 90113-SD4-901 | Bolt - WHEEL (MEIRA) | Bolt - WHEEL (MEIRA) |
| 28 | 90681-SG0-000 | Circlip - INTERNAL, 84MM | Circlip - INTERNAL, 84MM |
Front bulkhead 2 / 2
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 28 | 60821-SS0-000 | Hook - TIE DOWN | Hook - TIE DOWN |
| 37 | 90105-SV1-000 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
Front combination light 19 / 19
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 33300-SS0-G02 | Light assy - R. FR. TURN (###) | Light assy - R. FR. TURN (###) |
| 2 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 3 | 33302-SS0-A02 | Lens - R. | Lens - R. |
| 5 | 33303-SM4-003 | Holder | Holder |
| 7 | 33305-SH3-A01 | Socket comp - GRAY | Socket comp - GRAY |
| 8 | 33305-SM4-A01 | Tube | Tube |
| 9 | 33350-SS0-G02 | Light assy - L. FR. TURN (###) | Light assy - L. FR. TURN (###) |
| 10 | 33352-SS0-A02 | Lens - L. | Lens - L. |
| 13 | 33810-SS0-G02 | Garnish assy - R. FR. SIDE TURN | Garnish assy - R. FR. SIDE TURN |
| 14 | 33811-SS0-G02 | Garnish comp. - R. | Garnish comp. - R. |
| 17 | 33860-SS0-G02 | Garnish assy - L. FR. SIDE TURN | Garnish assy - L. FR. SIDE TURN |
| 18 | 33861-SS0-G02 | Garnish comp. - L. | Garnish comp. - L. |
| 19 | 34300-SL4-003 | Light assy - R. SIDE TURN | Light assy - R. SIDE TURN |
| 20 | 34301-SL4-003 | Lamp unit - R. SIDE TURN | Lamp unit - R. SIDE TURN |
| 21 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 22 | 34350-SL4-003 | Light assy - L. SIDE TURN | Light assy - L. SIDE TURN |
| 23 | 34351-SL4-003 | Lamp unit - L. SIDE TURN | Lamp unit - L. SIDE TURN |
| 25 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 26 | 90303-SA5-003 | Nut - FR. COMBINATION LIGHT | Nut - FR. COMBINATION LIGHT |
Front door lining 18 / 22
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 8 | 35760-SS0-003 | Switch assy - POWER WINDOW PASSENGER | Switch assy - POWER WINDOW PASSENGER |
| 15 | 72335-SS0-003 | Weatherstrip - R. DOOR INNER | Weatherstrip - R. DOOR INNER |
| 16 | 72375-SS0-003 | Weatherstrip - L. DOOR INNER | Weatherstrip - L. DOOR INNER |
| 21 | 83506-SS0-000 | Duct - R. SIDE VENT | Duct - R. SIDE VENT |
| 23 | 83508-SS0-000 | Seal - INLET | Seal - INLET |
| 26 | 83511-SS0-000 | Duct - R. SIDE DEFROSTER | Duct - R. SIDE DEFROSTER |
| 36 | 83556-SS0-000 | Duct - L. SIDE VENT | Duct - L. SIDE VENT |
| 40 | 83561-SS0-000 | Duct - L. SIDE DEFROSTER | Duct - L. SIDE DEFROSTER |
| 46 | 90111-SA0-000 | Screw - TAPPING, 4X8 | Screw - TAPPING, 4X8 |
| 47 | 90131-SE3-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 48 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 49 | 90148-SP0-000 | Screw - TAPPING | Screw - TAPPING |
| 50 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 52 | 90662-671-003 | Grommet - SCREW, 5MM (WHITE) | Grommet - SCREW, 5MM (WHITE) |
| 53 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 55 | 90681-693-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 56 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 56 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Front driveshaft/ half shaft 25 / 30
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 44010-SS0-030 | Driveshaft set - R. | Driveshaft set - R. |
| 2 | 44011-SS0-030 | Driveshaft set - L. | Driveshaft set - L. |
| 3 | 44017-SS0-010 | Boot set - INBOARD | Boot set - INBOARD |
| 5 | 44310-SS0-901 | Joint comp - INBOARD | Joint comp - INBOARD |
| 6 | 44310-SS0-300 | Joint comp - INBOARD | Joint comp - INBOARD |
| 7 | 44319-SE0-000 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 7 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 8 | 44327-SB0-300 | Band - OUTBOARD BOOT | Band - OUTBOARD BOOT |
| 9 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 11 | 44329-SB0-300 | Band - DRIVESHAFT BOOT | Band - DRIVESHAFT BOOT |
| 11 | 44352-SA2-300 | Band - DAMPER WEIGHT | Band - DAMPER WEIGHT |
| 12 | 44336-SB0-300 | Ring a - STOPPER | Ring a - STOPPER |
| 13 | 44338-SB0-300 | Circlip - 26MM | Circlip - 26MM |
| 15 | 44500-SS0-010 | Shaft assy - HALF | Shaft assy - HALF |
| 16 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 17 | 90165-SE0-000 | Bolt - FLANGE, 10X37 | Bolt - FLANGE, 10X37 |
| 18 | 90305-SD4-003 | Nut - SPINDLE (24MM) | Nut - SPINDLE (24MM) |
| 19 | 90681-SR3-000 | Circlip - EXTERNAL, 33MM | Circlip - EXTERNAL, 33MM |
| 20 | 91057-SR3-008 | Bearing - HALF SHAFT(NTN) | Bearing - HALF SHAFT(NTN) |
| 21 | 91260-SR3-003 | Seal - HALF SHAFT OUTER(NOK) | Seal - HALF SHAFT OUTER(NOK) |
| 21 | 91260-SR3-004 | Seal - HALF SHAFT OUTER (ARAI) | Seal - HALF SHAFT OUTER (ARAI) |
| 23 | 44014-SS0-000 | Joint set - OUTBOARD | Joint set - OUTBOARD |
| 24 | 44018-S30-C00 | Boot set - OUTBOARD | Boot set - OUTBOARD |
| 25 | 44337-SB0-300 | Ring b - STOPPER | Ring b - STOPPER |
| 26 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
Front fenders 11 / 11
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 5 | 74101-SS0-000 | Fender - R. FR. INNER | Fender - R. FR. INNER |
| 6 | 74111-SS0-003 | Shield - FR. SPLASH | Shield - FR. SPLASH |
| 7 | 74151-SS0-000 | Fender - L. FR. INNER | Fender - L. FR. INNER |
| 8 | 90108-SF1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 9 | 90114-SE0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 10 | 90119-SE0-000 | Bolt - FLANGE, 6MM | Bolt - FLANGE, 6MM |
| 11 | 90305-SM4-000 | Nut - AIR SPOILER CLIP | Nut - AIR SPOILER CLIP |
| 12 | 90501-SM4-003 | Bolt - FENDER | Bolt - FENDER |
| 13 | 90657-SB0-003 | Clip, SPLASH SHIELD | Clip, SPLASH SHIELD |
| 14 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 15 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
Front seat 6 / 10
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 9 | 81163-SG0-A01 | Seal - R. WALK-IN | Seal - R. WALK-IN |
| 13 | 81235-SS0-003 | Cable - RECLINING CONTROL | Cable - RECLINING CONTROL |
| 22 | 81563-SG0-J01 | Seal - L. WALK-IN | Seal - L. WALK-IN |
| 26 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
Front seat components (1) 9 / 9
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 77208-SA5-003 | Bush - NYLON (TS TECH) | Bush - NYLON (TS TECH) |
| 2 | 77209-SB0-003 | Washer - NYLON | Washer - NYLON |
| 3 | 77517-SA5-014 | Cap - SLIDE ADJUSTER | Cap - SLIDE ADJUSTER |
| 5 | 81261-SM4-J32 | Cap - RAIL END LOWER | Cap - RAIL END LOWER |
| 6 | 81630-SS0-A21 | Adjuster - L. RECLINING | Adjuster - L. RECLINING |
| 9 | 81660-SS0-G01 | Adjuster - L. OUTER SLIDE | Adjuster - L. OUTER SLIDE |
| 10 | 81670-SS0-A01 | Adjuster - L. INNER SLIDE | Adjuster - L. INNER SLIDE |
| 11 | 90135-SS1-000 | Bolt-washer - 10X18 | Bolt-washer - 10X18 |
| 12 | 90143-SV4-003 | Bolt-washer - 10X22 | Bolt-washer - 10X22 |
Front seat components (2) 9 / 9
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 77208-SA5-003 | Bush - NYLON (TS TECH) | Bush - NYLON (TS TECH) |
| 2 | 77209-SB0-003 | Washer - NYLON | Washer - NYLON |
| 3 | 77517-SA5-014 | Cap - SLIDE ADJUSTER | Cap - SLIDE ADJUSTER |
| 4 | 81230-SS0-A21 | Adjuster - R. FR. SEAT RECLINING | Adjuster - R. FR. SEAT RECLINING |
| 8 | 81260-SS0-G01 | Adjuster - R. OUTER SLIDE | Adjuster - R. OUTER SLIDE |
| 9 | 81261-SM4-J32 | Cap - RAIL END LOWER | Cap - RAIL END LOWER |
| 10 | 81270-SS0-A01 | Adjuster - R. INNER SLIDE | Adjuster - R. INNER SLIDE |
| 11 | 90135-SS1-000 | Bolt-washer - 10X18 | Bolt-washer - 10X18 |
| 12 | 90143-SV4-003 | Bolt-washer - 10X22 | Bolt-washer - 10X22 |
Front shock absorber 13 / 19
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 4 | 51605-SS0-902 | Absorber unit - R. FR. SHOCK | Absorber unit - R. FR. SHOCK |
| 5 | 51606-SS0-902 | Absorber unit - L. FR. SHOCK | Absorber unit - L. FR. SHOCK |
| 6 | 51621-SD4-004 | Washer - SHOCK ABSORBER MOUNTING (SHOWA) | Washer - SHOCK ABSORBER MOUNTING (SHOWA) |
| 7 | 51631-SS0-004 | Rubber - SHOCK ABSORBER MOUNTING | Rubber - SHOCK ABSORBER MOUNTING |
| 8 | 51675-SS0-004 | Base - SHOCK ABSORBER MOUNTING | Base - SHOCK ABSORBER MOUNTING |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 10 | 51686-SM4-004 | Rubber - FR. SPRING SEAT (SHOWA) | Rubber - FR. SPRING SEAT (SHOWA) |
| 11 | 51687-SM4-014 | Cover - FR. SLEEVE DUST (SHOWA) | Cover - FR. SLEEVE DUST (SHOWA) |
| 12 | 51689-SH3-004 | Plate - BUMP STOP (SHOWA) | Plate - BUMP STOP (SHOWA) |
| 13 | 51722-SS0-004 | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) |
| 14 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 15 | 90304-SM4-000 | Nut - FR. SHOCK ABSORBER FLANGE (10MM) | Nut - FR. SHOCK ABSORBER FLANGE (10MM) |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Front stabilizer/ front lower arm 29 / 29
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 51300-SS0-003 | Spring - FR. STABILIZER | Spring - FR. STABILIZER |
| 2 | 51306-SM4-010 | Bush - STABILIZER HOLDER | Bush - STABILIZER HOLDER |
| 3 | 51308-SG0-020 | Bracket - FR. STABILIZER | Bracket - FR. STABILIZER |
| 4 | 51312-SM4-000 | Collar b - STABILIZER END (27.2MM) | Collar b - STABILIZER END (27.2MM) |
| 5 | 51313-SS0-000 | Washer - STABILIZER END | Washer - STABILIZER END |
| 6 | 51314-SM4-020 | Rubber - STABILIZER END | Rubber - STABILIZER END |
| 7 | 51320-SS0-003 | Link - FR. STABILIZER | Link - FR. STABILIZER |
| 8 | 51352-SS0-003 | Rod - R. FR. RADIUS | Rod - R. FR. RADIUS |
| 9 | 51355-SS0-000 | Arm comp - R. FR. LOWER | Arm comp - R. FR. LOWER |
| 10 | 51362-SS0-003 | Rod - L. FR. RADIUS | Rod - L. FR. RADIUS |
| 11 | 51365-SS0-000 | Arm comp - L. FR. LOWER | Arm comp - L. FR. LOWER |
| 12 | 51381-SM4-013 | Bush - FR. RADIUS ROD (RR.) | Bush - FR. RADIUS ROD (RR.) |
| 13 | 51391-SM4-013 | Bush - FR. RADIUS ROD (FR.) | Bush - FR. RADIUS ROD (FR.) |
| 14 | 51393-SL5-013 | Bush - FR. LOWER ARM | Bush - FR. LOWER ARM |
| 15 | 51394-SM4-010 | Washer - CASTER ADJUSTER | Washer - CASTER ADJUSTER |
| 16 | 51398-SM4-000 | Collar - RADIUS ROD | Collar - RADIUS ROD |
| 17 | 51399-SM4-000 | Washer - FR. RADIUS ROD | Washer - FR. RADIUS ROD |
| 18 | 51810-SS0-004 | Bush - SHOCK ABSORBER FORK (YAMASHITA) | Bush - SHOCK ABSORBER FORK (YAMASHITA) |
| 19 | 51811-SS0-000 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 20 | 51821-SS0-000 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 21 | 90117-SM4-003 | Bolt - FR. SHOCK ABSORBER LOCK (10X44) | Bolt - FR. SHOCK ABSORBER LOCK (10X44) |
| 22 | 90118-SL4-003 | Bolt - SELF-LOCK, 12X84 | Bolt - SELF-LOCK, 12X84 |
| 23 | 90121-SM4-010 | Bolt - SHOCK ABSORBER FORK (12X98) | Bolt - SHOCK ABSORBER FORK (12X98) |
| 24 | 90178-SM4-013 | Bolt - FR. RADIUS ROD (12X31) | Bolt - FR. RADIUS ROD (12X31) |
| 25 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 26 | 90303-SF1-003 | Nut - SELF-LOCK, 12MM | Nut - SELF-LOCK, 12MM |
| 27 | 90362-SF1-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 28 | 90362-SG0-013 | Nut - TRAILING ARM, 12MM | Nut - TRAILING ARM, 12MM |
| 28 | 90215-SMA-003 | Nut | Nut |
Front windshield 13 / 13
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 73111-SS0-G02 | Glass - FR. WINDSHIELD (GREEN) (ASAHI) | Glass - FR. WINDSHIELD (GREEN) (ASAHI) |
| 2 | 73125-SS0-000 | Rubber - FR. WINDSHIELD DAM | Rubber - FR. WINDSHIELD DAM |
| 2 | 73125-SL4-000 | Rubber - FR. WINDSHIELD DAM | Rubber - FR. WINDSHIELD DAM |
| 3 | 91536-SS0-J01 | Fastener a - WINDSHIELD | Fastener a - WINDSHIELD |
| 4 | 73150-SS0-010 | Molding assy. Fr. Windshield | Molding assy. Fr. Windshield |
| 5 | 73155-SS0-004 | Clip - R. CORNER | Clip - R. CORNER |
| 6 | 73156-SS0-004 | Clip - L. CORNER | Clip - L. CORNER |
| 7 | 91538-SS0-J01 | Fastener c - RR. WINDSHIELD | Fastener c - RR. WINDSHIELD |
| 8 | 91525-SS0-003 | Clip d - FR. WINDSHIELD SIDE | Clip d - FR. WINDSHIELD SIDE |
| 9 | 91528-SS0-003 | Clip A - FR. WINDSHIELD SIDE | Clip A - FR. WINDSHIELD SIDE |
| 10 | 91529-SS0-003 | Clip b - FR. WINDSHIELD SIDE | Clip b - FR. WINDSHIELD SIDE |
| 11 | 91530-SS0-003 | Clip c - FR. WINDSHIELD SIDE | Clip c - FR. WINDSHIELD SIDE |
| 14 | 91542-SS0-003 | Holder - FR. WINDSHIELD GLASS (NATURAL) | Holder - FR. WINDSHIELD GLASS (NATURAL) |
Front windshield wiper (LH) 15 / 22
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 2 | 76505-SP0-003 | Motor comp - FR. WIPER | Motor comp - FR. WIPER |
| 3 | 76515-SM4-013 | Seal a | Seal a |
| 4 | 76516-SL4-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 5 | 76516-SM4-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 6 | 76517-SM4-003 | Collar | Collar |
| 7 | 76520-SM4-003 | Link unit a | Link unit a |
| 8 | 76524-SD4-003 | Dust seal | Dust seal |
| 9 | 76524-SE0-013 | Dust seal | Dust seal |
| 11 | 76540-SS0-003 | Rod unit a | Rod unit a |
| 12 | 76550-SS0-003 | Rod unit b | Rod unit b |
| 13 | 76558-SS0-003 | Cap - PIVOT | Cap - PIVOT |
| 20 | 90116-SS0-003 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 21 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 22 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
| 24 | 91620-SM4-003 | Grommet - WIPER MOTOR (BLACK) | Grommet - WIPER MOTOR (BLACK) |
Fuel pipe (LH) 46 / 46
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 16010-SS0-932 | Strainer set - FUEL | Strainer set - FUEL |
| 2 | 16712-SF4-J30 | Cushion - FUEL STRAINER | Cushion - FUEL STRAINER |
| 3 | 16720-P12-A01 | Hose comp. - FUEL FEED | Hose comp. - FUEL FEED |
| 4 | 16918-SS0-A30 | Stay - FUEL STRAINER | Stay - FUEL STRAINER |
| 5 | 16919-SL4-930 | Band - FUEL STRAINER | Band - FUEL STRAINER |
| 6 | 16922-SH3-930 | Rubber - MOUNTING | Rubber - MOUNTING |
| 7 | 16923-SP0-930 | Collar - DISTANCE | Collar - DISTANCE |
| 8 | 17300-SS0-A31 | Canister assy | Canister assy |
| 9 | 17358-SS0-A30 | Bracket - CANISTER | Bracket - CANISTER |
| 10 | 17372-SS0-A00 | Tube - CANISTER | Tube - CANISTER |
| 11 | 17700-SS0-A30 | Pipe comp - FUEL FEED | Pipe comp - FUEL FEED |
| 12 | 17720-SS0-000 | Pipe comp - VENT | Pipe comp - VENT |
| 13 | 17723-SS0-931 | Hose - PRESSURE REGULATOR RETURN | Hose - PRESSURE REGULATOR RETURN |
| 14 | 17727-SS0-930 | Insulator rubber - FUEL HOSE | Insulator rubber - FUEL HOSE |
| 15 | 17740-SS0-930 | Pipe comp - FUEL RETURN | Pipe comp - FUEL RETURN |
| 16 | 17742-SS0-A02 | Joint - CANISTER DRAIN TUBE | Joint - CANISTER DRAIN TUBE |
| 17 | 17743-SM4-003 | Cap - DRAIN TUBE | Cap - DRAIN TUBE |
| 18 | 17743-SS0-A01 | Joint - CANISTER DRAIN BYPASS TUBE | Joint - CANISTER DRAIN BYPASS TUBE |
| 19 | 17749-SS0-J31 | Clamp - RETURN HOSE | Clamp - RETURN HOSE |
| 20 | 17752-SS0-003 | Protector - FUEL PIPE | Protector - FUEL PIPE |
| 21 | 17762-SS0-000 | Stay b - FUEL PIPE | Stay b - FUEL PIPE |
| 22 | 17763-SM4-000 | Stay c - FUEL PIPE | Stay c - FUEL PIPE |
| 23 | 17764-SM4-000 | Stay d - FUEL PIPE | Stay d - FUEL PIPE |
| 24 | 17765-SM4-000 | Stay e - FUEL PIPE | Stay e - FUEL PIPE |
| 25 | 17766-SS0-000 | Stay f - FUEL PIPE | Stay f - FUEL PIPE |
| 26 | 17767-SS0-000 | Stay g - FUEL PIPE | Stay g - FUEL PIPE |
| 27 | 17768-SS0-000 | Stay h - FUEL PIPE | Stay h - FUEL PIPE |
| 28 | 90009-PE2-010 | Bolt - SEALING, 6MM | Bolt - SEALING, 6MM |
| 28 | 90009-RMX-010 | Bolt,sealing 6mm | Bolt,sealing 6mm |
| 29 | 90020-PD6-000 | Bolt - SEALING, 12MM | Bolt - SEALING, 12MM |
| 31 | 90201-PD1-000 | Nut a - SEALING, 12MM | Nut a - SEALING, 12MM |
| 32 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 33 | 90430-PD6-003 | Washer - SEALING, 6MM | Washer - SEALING, 6MM |
| 34 | 91406-SA7-931 | Clamp - FUEL HOSE, 15.5MM | Clamp - FUEL HOSE, 15.5MM |
| 34 | 91406-SL0-931 | Clamp - FUEL HOSE, 15.5MM | Clamp - FUEL HOSE, 15.5MM |
| 35 | 91462-SA5-950 | Clamp d - 19MM | Clamp d - 19MM |
| 36 | 91549-SE0-003 | Holder - DRAIN HOSE | Holder - DRAIN HOSE |
| 37 | 91591-SS0-000 | Clip b - BRACKET | Clip b - BRACKET |
| 38 | 91592-SS0-000 | Clip c - BRACKET | Clip c - BRACKET |
| 39 | 91593-SS0-A01 | Clamp - PURGE HOSE | Clamp - PURGE HOSE |
| 40 | 91595-SM4-003 | Clip b - FUEL PIPE | Clip b - FUEL PIPE |
| 41 | 91595-SS0-003 | Clip b - FUEL PIPE | Clip b - FUEL PIPE |
| 42 | 91596-SM4-931 | Clamp c - FUEL PIPE | Clamp c - FUEL PIPE |
| 43 | 91598-SM4-931 | Clamp b - FUEL PIPE | Clamp b - FUEL PIPE |
| 44 | 91599-SM4-931 | Clamp a - FUEL PIPE | Clamp a - FUEL PIPE |
| 48 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Fuel tank 40 / 44
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 17040-SS0-A30 | Pump set - FUEL | Pump set - FUEL |
| 1 | 17040-SS0-V30 | Pump set - FUEL | Pump set - FUEL |
| 5 | 17511-SS0-000 | Bracket - FUEL TANK BAND | Bracket - FUEL TANK BAND |
| 7 | 17521-SS0-000 | Band assy. - R. FUEL TANK MOUNTING | Band assy. - R. FUEL TANK MOUNTING |
| 8 | 17522-SS0-000 | Band assy. - L. FUEL TANK MOUNTING | Band assy. - L. FUEL TANK MOUNTING |
| 9 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 10 | 17570-SL0-013 | Valve - FUEL CUT | Valve - FUEL CUT |
| 11 | 17574-SE0-000 | Packing - BASE | Packing - BASE |
| 12 | 17651-SS0-000 | Tube - FILLER NECK | Tube - FILLER NECK |
| 13 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 14 | 17656-SM4-000 | Bolt - FILLER PIPE MOUNTING | Bolt - FILLER PIPE MOUNTING |
| 15 | 17658-SS0-000 | Tube assy - BREATHER | Tube assy - BREATHER |
| 16 | 17659-SL5-000 | Holder - FILLER PACKING | Holder - FILLER PACKING |
| 18 | 17662-SL5-000 | Packing - FUEL FILLER PIPE | Packing - FUEL FILLER PIPE |
| 19 | 17663-SL5-A00 | Band - FILLER PACKING | Band - FILLER PACKING |
| 20 | 17670-SM1-A03 | Cap comp. - FUEL FILLER (STANT) | Cap comp. - FUEL FILLER (STANT) |
| 20 | 17670-S3N-003 | Cap comp. - FUEL FILLER (TOYODA) | Cap comp. - FUEL FILLER (TOYODA) |
| 21 | 17704-SL0-931 | Hose - FUEL TANK RETURN (110MM) | Hose - FUEL TANK RETURN (110MM) |
| 22 | 17704-SN4-930 | Hose - FUEL TANK RETURN | Hose - FUEL TANK RETURN |
| 26 | 17731-SS0-930 | Pipe comp - FUEL | Pipe comp - FUEL |
| 28 | 37800-SS0-003 | Meter unit - FUEL | Meter unit - FUEL |
| 28 | 37800-SS0-C01 | METER UNIT ASSY | METER UNIT ASSY |
| 29 | 37801-SL0-003 | Packing - BASE | Packing - BASE |
| 29 | 37801-SV4-L01 | Packing - BASE | Packing - BASE |
| 30 | 74559-SS0-000 | Cover - FUEL PIPE | Cover - FUEL PIPE |
| 31 | 74660-SS0-000 | Cap assy. - FLOOR MAINTENANCE HOLE | Cap assy. - FLOOR MAINTENANCE HOLE |
| 32 | 90020-PD6-000 | Bolt - SEALING, 12MM | Bolt - SEALING, 12MM |
| 34 | 90103-SB0-010 | Nut - FLANGE, 5MM | Nut - FLANGE, 5MM |
| 35 | 90106-SS0-003 | Grommet - SCREW | Grommet - SCREW |
| 36 | 90105-SA4-000 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 38 | 90301-SE0-J00 | Nut - FLANGE, 6MM | Nut - FLANGE, 6MM |
| 39 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 42 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 43 | 91406-SA7-931 | Clamp - FUEL HOSE, 15.5MM | Clamp - FUEL HOSE, 15.5MM |
| 43 | 91406-SL0-931 | Clamp - FUEL HOSE, 15.5MM | Clamp - FUEL HOSE, 15.5MM |
| 44 | 91462-SA5-950 | Clamp d - 19MM | Clamp d - 19MM |
| 45 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 46 | 91594-SS0-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 47 | 91597-SS0-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 48 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
Gasket kit/engine assy./ transmission assy. 1 / 7
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 06110-PT3-A03 | Gasket kit - CYLINDER HEAD | Gasket kit - CYLINDER HEAD |
Grommet 11 / 13
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 2 | 72206-SA5-000 | Cap - FLOOR HOLE, 53MM | Cap - FLOOR HOLE, 53MM |
| 3 | 72849-SA5-000 | Insulator b - SIDE SILL HOLD | Insulator b - SIDE SILL HOLD |
| 4 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 5 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 6 | 90615-SM4-000 | Cap - WELD HOLE, 46X72 | Cap - WELD HOLE, 46X72 |
| 7 | 90852-SA5-000 | Plug - HOLE, 10MM | Plug - HOLE, 10MM |
| 13 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
| 14 | 91610-SD4-000 | Plug - HOLE, 28MM | Plug - HOLE, 28MM |
| 16 | 91611-SM4-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 17 | 91611-SS0-003 | Plug - HOLE, 25MM | Plug - HOLE, 25MM |
| 19 | 91615-SA5-000 | Grommet - HOLE, 25MM | Grommet - HOLE, 25MM |
Headlight (1) 8 / 39
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 13 | 33116-SM4-A01 | Screw - TAPPING, 5X18 | Screw - TAPPING, 5X18 |
| 23 | 33128-SS0-A01 | Screw - TAPPING, 4X21 (SEMS) | Screw - TAPPING, 4X21 (SEMS) |
| 30 | 34301-SS0-A02 | Lamp unit - R. | Lamp unit - R. |
| 31 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 32 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
| 34 | 34351-SS0-A02 | Lamp unit - L. | Lamp unit - L. |
| 35 | 90105-SA4-000 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 38 | 91635-SM4-003 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
Heater blower (LH) 11 / 11
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 2 | 79191-SD4-003 | Washer - LINK | Washer - LINK |
| 3 | 79192-SD4-003 | Bush - 6.7MM | Bush - 6.7MM |
| 4 | 79195-SF1-003 | Holder - ROD | Holder - ROD |
| 5 | 79300-SS0-A01 | Blower assy | Blower assy |
| 6 | 79310-SR3-A01 | Motor assy. - BLOWER (DENSO) | Motor assy. - BLOWER (DENSO) |
| 7 | 79330-SS0-003 | Resistor - BLOWER | Resistor - BLOWER |
| 8 | 79350-SS0-A01 | Motor assy. - FRESH & RECIRCULAR | Motor assy. - FRESH & RECIRCULAR |
| 9 | 79391-SM4-003 | Holder - BLOWER | Holder - BLOWER |
| 10 | 90137-SF1-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 11 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Heater control (MANUAL) 8 / 9
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 34354-SB0-003 | Bulb - NEO WEDGE (14V 100MA) | Bulb - NEO WEDGE (14V 100MA) |
| 2 | 39383-SA5-000 | Clamp - CONTROL CABLE | Clamp - CONTROL CABLE |
| 4 | 79542-SS0-A00 | Cable - TEMPERATURE CONTROL | Cable - TEMPERATURE CONTROL |
| 6 | 79570-SS0-003 | Switch assy - FAN | Switch assy - FAN |
| 7 | 79581-SS0-003 | Knob - TEMPERATURE CONTROL | Knob - TEMPERATURE CONTROL |
| 8 | 80411-SS0-003 | Knob - AIR CONDITIONER SWITCH | Knob - AIR CONDITIONER SWITCH |
| 9 | 90188-SS0-003 | Screw - SPECIAL TAPPING, 3X12 | Screw - SPECIAL TAPPING, 3X12 |
| 10 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Heater unit (LH) 12 / 12
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 2 | 79100-SS0-G02 | Heater unit | Heater unit |
| 3 | 79105-SS0-A01 | Outlet a - HEATER | Outlet a - HEATER |
| 4 | 79106-SS0-A01 | Outlet b - HEATER | Outlet b - HEATER |
| 5 | 79110-SS0-A01 | Core comp - HEATER | Core comp - HEATER |
| 6 | 79140-SS0-A01 | Motor assy. - MODE | Motor assy. - MODE |
| 7 | 79191-SD4-003 | Washer - LINK | Washer - LINK |
| 8 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 9 | 79195-SF1-003 | Holder - ROD | Holder - ROD |
| 10 | 79680-SS0-A00 | Cable - WATER VALVE | Cable - WATER VALVE |
| 11 | 79770-SE0-000 | Grommet - WATER VALVE CABLE | Grommet - WATER VALVE CABLE |
| 12 | 90137-SF1-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
High tension cord/plug 11 / 11
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 32700-PT0-000 | Cord assy - HIGH TENSION (SUMITOMO)(###) | Cord assy - HIGH TENSION (SUMITOMO)(###) |
| 2 | 32701-PT0-000 | Cord comp - RESISTANCE (NO.1) (SUMITOMO) | Cord comp - RESISTANCE (NO.1) (SUMITOMO) |
| 3 | 32702-PT0-000 | Cord comp - RESISTANCE (NO.2) (SUMITOMO) | Cord comp - RESISTANCE (NO.2) (SUMITOMO) |
| 4 | 32703-PT0-000 | Cord comp - RESISTANCE (NO.3) (SUMITOMO) | Cord comp - RESISTANCE (NO.3) (SUMITOMO) |
| 4 | 32703-P0B-A00 | Cord comp - RESISTANCE (NO.3) (SUMITOMO) | Cord comp - RESISTANCE (NO.3) (SUMITOMO) |
| 5 | 32704-PT0-000 | Cord comp - RESISTANCE (NO.4) (SUMITOMO) | Cord comp - RESISTANCE (NO.4) (SUMITOMO) |
| 13 | 32765-PT0-000 | Clamp a - HIGH TENSION CORD | Clamp a - HIGH TENSION CORD |
| 14 | 32766-PM3-000 | Clamp b - HIGH TENSION CORD | Clamp b - HIGH TENSION CORD |
| 16 | 32767-PT0-000 | Grommet - HIGH TENSION CORD | Grommet - HIGH TENSION CORD |
| 18 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
| 20 | 32722-P0B-405 | Cord comp (Auto) - HIGH TENSION (SUMITOMO) | Cord comp (Auto) - HIGH TENSION (SUMITOMO) |
Hood 31 / 31
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 4 | 60128-SS0-000 | Stopper - HOOD HINGE | Stopper - HOOD HINGE |
| 6 | 74120-SS0-003 | Lock assy - HOOD | Lock assy - HOOD |
| 6 | 74120-SS0-J00 | Lock assy - HOOD | Lock assy - HOOD |
| 7 | 74130-SS0-A00 | Wire assy. - HOOD | Wire assy. - HOOD |
| 8 | 74134-SM4-000 | Grommet - HOOD WIRE | Grommet - HOOD WIRE |
| 11 | 74142-SS0-000 | Rubber - HOOD SEAL | Rubber - HOOD SEAL |
| 12 | 74144-SE0-000 | Cushion - HOOD | Cushion - HOOD |
| 13 | 74145-SS0-000 | Stay - HOOD OPENER | Stay - HOOD OPENER |
| 14 | 74146-SJ4-000 | Clip - ENGINE HOOD OPEN STAY END | Clip - ENGINE HOOD OPEN STAY END |
| 15 | 74146-SS0-000 | Cushion - HOOD SIDE | Cushion - HOOD SIDE |
| 16 | 74148-SS0-000 | Rubber - FR. HOOD SEAL | Rubber - FR. HOOD SEAL |
| 17 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 18 | 74200-SS0-A00 | Cowl top comp. | Cowl top comp. |
| 19 | 74203-SS0-000 | Seal rubber - RR. HOOD | Seal rubber - RR. HOOD |
| 20 | 74211-SS0-A00 | Cover - R. HOOD HINGE | Cover - R. HOOD HINGE |
| 21 | 74221-SS0-A00 | Screen - WATER | Screen - WATER |
| 22 | 74223-SS0-000 | Valve - AIR | Valve - AIR |
| 23 | 74261-SS0-A00 | Cover - L. HOOD HINGE | Cover - L. HOOD HINGE |
| 24 | 90102-SB3-000 | Bolt - HINGE STOPPER | Bolt - HINGE STOPPER |
| 25 | 90106-SE1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 26 | 90107-SM4-003 | Clip - HOOD SEAL | Clip - HOOD SEAL |
| 27 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 28 | 90307-SD2-A00 | Nut - CAP, 6MM | Nut - CAP, 6MM |
| 29 | 90670-SE0-003 | Grommet - HOOD STAY | Grommet - HOOD STAY |
| 32 | 91501-SL4-003 | Clip - FR. COWL | Clip - FR. COWL |
| 33 | 91501-SS0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 34 | 91503-SS0-003 | Holder - ROD | Holder - ROD |
| 35 | 91513-SE0-003 | Clip - HOOD SEAL | Clip - HOOD SEAL |
| 36 | 91515-SM4-003 | Clip - ANCHOR | Clip - ANCHOR |
| 38 | 91524-SE0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 39 | 91558-SE3-003 | Clip - HOOD WIRE | Clip - HOOD WIRE |
Install pipe/tubing (2) 2 / 7
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 5 | 17420-P13-000 | Pipe comp - DASHBOARD INSTALL | Pipe comp - DASHBOARD INSTALL |
| 7 | 90634-PA0-000 | Cap - SEALING | Cap - SEALING |
Instrument panel (LH) 21 / 22
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 4 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 5 | 66871-611-000 | Nut - CENTER PANEL | Nut - CENTER PANEL |
| 7 | 77104-SS0-000 | Seal - INSTRUMENT SIDE | Seal - INSTRUMENT SIDE |
| 8 | 77105-SS0-000 | Seal - FR. DEFROSTER | Seal - FR. DEFROSTER |
| 15 | 77135-SS0-000 | Bracket a - INSTRUMENT VISOR | Bracket a - INSTRUMENT VISOR |
| 16 | 77136-SS0-000 | Bracket b - INSTRUMENT VISOR | Bracket b - INSTRUMENT VISOR |
| 17 | 77140-SS0-000 | Bracket - R. INSTRUMENT SIDE | Bracket - R. INSTRUMENT SIDE |
| 18 | 77145-SS0-000 | Bracket - L. INSTRUMENT SIDE | Bracket - L. INSTRUMENT SIDE |
| 19 | 77163-SS0-A01 | Bracket - INSTRUMENT CENTER | Bracket - INSTRUMENT CENTER |
| 23 | 77213-SS0-A00 | Bracket - DRIVER LOWER COVER | Bracket - DRIVER LOWER COVER |
| 26 | 77421-SS0-A01 | Duct assy. a - AIR CONDITIONER DRIVER SIDE | Duct assy. a - AIR CONDITIONER DRIVER SIDE |
| 27 | 77425-SS0-A00 | Duct b assy. - AIR CONDITIONER DRIVER | Duct b assy. - AIR CONDITIONER DRIVER |
| 28 | 77451-SS0-000 | Plug - R. FR. DEFROSTER | Plug - R. FR. DEFROSTER |
| 29 | 77456-SS0-000 | Plug - L. FR. DEFROSTER | Plug - L. FR. DEFROSTER |
| 36 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 37 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 39 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 40 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 41 | 90667-SS0-000 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 42 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 43 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Instrument panel garnish (LH) 20 / 21
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 4 | 66418-SB2-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 5 | 66856-SA0-660 | Lock - FUSE PANEL | Lock - FUSE PANEL |
| 6 | 77160-SS0-A00 | Frame comp - INSTRUMENT CENTER (LH) | Frame comp - INSTRUMENT CENTER (LH) |
| 7 | 77165-SS0-010 | Bracket - RADIO | Bracket - RADIO |
| 8 | 77202-SJ5-000 | Clip - INSTRUMENT PANEL FACE | Clip - INSTRUMENT PANEL FACE |
| 16 | 77355-SG0-A00 | Label - IGNITION INFORMATION | Label - IGNITION INFORMATION |
| 18 | 77371-SM4-000 | Ring - COLUMN COVER | Ring - COLUMN COVER |
| 19 | 77510-SS0-000 | Hinge - PASSENGER LOWER COVER | Hinge - PASSENGER LOWER COVER |
| 21 | 77512-SS0-000 | Knob - DOCUMENT BOX LID | Knob - DOCUMENT BOX LID |
| 22 | 77513-SS0-000 | Strap - DOCUMENT BOX LID | Strap - DOCUMENT BOX LID |
| 23 | 77515-SS0-000 | Spring - DOCUMENT BOX | Spring - DOCUMENT BOX |
| 29 | 90135-SG0-A01 | Clamp - CABLE, 5MM | Clamp - CABLE, 5MM |
| 30 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 31 | 90606-SS0-000 | Spring - FR. ASHTRAY | Spring - FR. ASHTRAY |
| 32 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 34 | 90681-693-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 35 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 48 | 39600-SW3-305 | Lighter unit - CIGARETTE | Lighter unit - CIGARETTE |
| 48 | 39600-SW3-505 | LIGHTER ASSYCIGA | LIGHTER ASSYCIGA |
| 49 | 39628-SM4-307 | Cord assy | Cord assy |
Intake manifold (SOHC) 29 / 32
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 06164-P0A-000 | INJECTOR, FUEL | INJECTOR, FUEL |
| 2 | 16472-P0H-A01 | Seal ring - INJECTOR (NOK) | Seal ring - INJECTOR (NOK) |
| 2 | 16472-PH7-003 | Seal ring - INJECTOR (OTSUKA) | Seal ring - INJECTOR (OTSUKA) |
| 3 | 16473-PD6-000 | Cushion ring - INJECTOR (OTSUKA) | Cushion ring - INJECTOR (OTSUKA) |
| 3 | 16473-P10-A01 | Cushion ring - INJECTOR (NOK) | Cushion ring - INJECTOR (NOK) |
| 4 | 16474-PT2-000 | Insulator - INJECTOR | Insulator - INJECTOR |
| 6 | 16610-P13-A00 | Pipe comp - FUEL | Pipe comp - FUEL |
| 7 | 16623-PT2-000 | Cover - FUEL LINE | Cover - FUEL LINE |
| 8 | 16638-PT2-000 | Insulator - FUEL PIPE | Insulator - FUEL PIPE |
| 9 | 16740-PT2-000 | Regulator assy - PRESSURE | Regulator assy - PRESSURE |
| 10 | 16741-PG7-005 | O-ring - PRESSURE REGULATOR | O-ring - PRESSURE REGULATOR |
| 11 | 17010-PT3-A01 | Manifold comp. b - INTAKE | Manifold comp. b - INTAKE |
| 13 | 17105-PT2-014 | Packing - INTAKE MANIFOLD (NIPPON LEAKLESS) | Packing - INTAKE MANIFOLD (NIPPON LEAKLESS) |
| 14 | 17113-PH3-300 | Emblem - INTAKE MANIFOLD (PGM-FI) | Emblem - INTAKE MANIFOLD (PGM-FI) |
| 15 | 17121-PT3-A01 | Packing - INTAKE MANIFOLD (B) (ISHINO GASKET) | Packing - INTAKE MANIFOLD (B) (ISHINO GASKET) |
| 16 | 17125-P11-S00 | Stay comp - INTAKE MANIFOLD | Stay comp - INTAKE MANIFOLD |
| 19 | 19527-P13-000 | Clamp - HEATER HOSE | Clamp - HEATER HOSE |
| 20 | 32752-PT2-000 | Stay d - ENGINE WIRE HARNESS | Stay d - ENGINE WIRE HARNESS |
| 22 | 90009-PE2-010 | Bolt - SEALING, 6MM | Bolt - SEALING, 6MM |
| 22 | 90009-RMX-010 | Bolt,sealing 6mm | Bolt,sealing 6mm |
| 24 | 90020-P0A-003 | Bolt - SEALING, 12MM | Bolt - SEALING, 12MM |
| 25 | 90027-PT2-000 | Bolt - STUD, 6X63 | Bolt - STUD, 6X63 |
| 26 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 27 | 90430-PD6-003 | Washer - SEALING, 6MM | Washer - SEALING, 6MM |
| 28 | 91301-PM7-003 | O-ring - 7.3X2.2 (ARAI) | O-ring - 7.3X2.2 (ARAI) |
| 28 | 91301-P2F-A01 | O-ring - 7.3X2.2 (NOK) | O-ring - 7.3X2.2 (NOK) |
| 28 | 16074-ZY3-000 | O-ring | O-ring |
| 29 | 91301-PR3-003 | O-ring - 23.8X1.9 | O-ring - 23.8X1.9 |
| 30 | 91303-PK2-005 | O-ring (7.5X1.5) | O-ring (7.5X1.5) |
Interior light 3 / 6
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 9 | 34260-SW5-003 | Light assy - TRUNK ROOM | Light assy - TRUNK ROOM |
| 12 | 34295-SJ8-003 | Bulb - 12V 5W) (DAIICHI | Bulb - 12V 5W) (DAIICHI |
| 12 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
Knuckle 13 / 13
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 44348-SS0-000 | Ring - FR. KNUCKLE | Ring - FR. KNUCKLE |
| 2 | 51210-SS0-010 | Knuckle comp - R. FR. | Knuckle comp - R. FR. |
| 4 | 51215-SS0-010 | Knuckle comp - L. FR. | Knuckle comp - L. FR. |
| 5 | 51225-SL5-003 | Boot - LOWER BALL DUST | Boot - LOWER BALL DUST |
| 6 | 51450-SS0-003 | Arm assy. - R. FR. UPPER | Arm assy. - R. FR. UPPER |
| 7 | 51460-SS0-003 | Arm assy. - L. FR. UPPER | Arm assy. - L. FR. UPPER |
| 8 | 52226-SL0-003 | Circlip - LOWER BALL(MUSASHI) | Circlip - LOWER BALL(MUSASHI) |
| 9 | 53546-SA0-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 10 | 53548-SL0-A01 | Circlip - TIE ROD | Circlip - TIE ROD |
| 15 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 17 | 90307-SL5-000 | Nut - CASTLE, 14MM | Nut - CASTLE, 14MM |
| 18 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 19 | 90856-SA0-000 | Plug - COATING HOLE, 25MM | Plug - COATING HOLE, 25MM |
Mainshaft 17 / 42
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 23210-PX5-J41 | Mainshaft comp. | Mainshaft comp. |
| 2 | 23261-PX5-A00 | Shaft - REVERSE IDLE GEAR | Shaft - REVERSE IDLE GEAR |
| 6 | 23540-P16-000 | Gear comp - REVERSE IDLE | Gear comp - REVERSE IDLE |
| 8 | 23623-P0S-305 | Sleeve set - SYNCHRONIZER (3-4) | Sleeve set - SYNCHRONIZER (3-4) |
| 9 | 23626-PX5-307 | Sleeve set - SYNCHRONIZER (5) | Sleeve set - SYNCHRONIZER (5) |
| 10 | 23645-PX5-010 | Ring - BLOCKING (50S) | Ring - BLOCKING (50S) |
| 11 | 23646-PX5-000 | Ring - BRAKE STOPPER | Ring - BRAKE STOPPER |
| 12 | 23647-PX5-010 | Ring - TAPER CONE | Ring - TAPER CONE |
| 13 | 23652-PB6-000 | Spring - SYNCHRONIZER (50MM) | Spring - SYNCHRONIZER (50MM) |
| 14 | 23915-P21-000 | Collar - DISTANCE, 31X38X56.5 | Collar - DISTANCE, 31X38X56.5 |
| 15 | 23916-PX5-010 | Collar - DISTANCE, 28X37X15 | Collar - DISTANCE, 28X37X15 |
| 16 | 23927-PG2-A00 | Washer - SPRING, 28MM | Washer - SPRING, 28MM |
| 17 | 23928-PS1-000 | Washer - 28MM | Washer - 28MM |
| 19 | 90401-PG1-000 | Washer - DRAIN PLUG, 10MM | Washer - DRAIN PLUG, 10MM |
| 20 | 91004-PX5-008 | Bearing - BALL, 28X78X20 | Bearing - BALL, 28X78X20 |
| 21 | 91104-P21-008 | Bearing - NEEDLE, 38X43X26 (NTN) | Bearing - NEEDLE, 38X43X26 (NTN) |
| 22 | 91108-PX5-018 | Bearing - NEEDLE, 37X42X16.8 (NTN) | Bearing - NEEDLE, 37X42X16.8 (NTN) |
Meter components (1) 14 / 20
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 3 | 37106-SJ4-J00 | Knob - TRIP | Knob - TRIP |
| 4 | 37115-SA0-601 | Packing - NS | Packing - NS |
| 5 | 37238-SD2-A00 | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN |
| 6 | 78108-SS0-A01 | Panel - COMBINATION PRINT | Panel - COMBINATION PRINT |
| 7 | 78111-SS0-A02 | Case | Case |
| 10 | 78128-SS0-003 | Indicator assy. | Indicator assy. |
| 11 | 78141-SS0-A01 | Cover | Cover |
| 12 | 78155-SS0-A01 | Visor assy - METER | Visor assy - METER |
| 13 | 78163-SS0-003 | Packing | Packing |
| 15 | 90132-SL4-003 | Screw-washer - 3X10 | Screw-washer - 3X10 |
| 16 | 90132-SS0-003 | Screw-washer - 3X12 | Screw-washer - 3X12 |
| 17 | 90334-SH3-000 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
Meter sub display (LH) 11 / 15
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 39701-SS0-A01 | Flt & circuit assy. - CLOCK | Flt & circuit assy. - CLOCK |
| 2 | 78116-SS0-A01 | Cover | Cover |
| 4 | 78145-SS0-003 | Flt & circuit assy. - FUEL & TEMPERATURE | Flt & circuit assy. - FUEL & TEMPERATURE |
| 6 | 78166-SS0-A51 | Case assy. - FR. | Case assy. - FR. |
| 8 | 78180-SS0-003 | Socket assy - BULB (T-6.5 3W) | Socket assy - BULB (T-6.5 3W) |
| 9 | 78180-SS0-901 | Socket assy - BULB (T-7 3W) | Socket assy - BULB (T-7 3W) |
| 11 | 90102-SA4-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 12 | 90102-SS0-003 | Screw - TAPPING, 3X14 | Screw - TAPPING, 3X14 |
| 13 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 14 | 90601-SS0-003 | Clip | Clip |
| 15 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Meter visor (LH) 10 / 11
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 37106-SJ4-J00 | Knob - TRIP | Knob - TRIP |
| 2 | 37115-SA0-601 | Packing - NS | Packing - NS |
| 3 | 39702-SS0-003 | Switch assy - CLOCK | Switch assy - CLOCK |
| 5 | 78110-SS0-A01 | Case assy. | Case assy. |
| 6 | 78117-SS0-A01 | Seal - METER | Seal - METER |
| 7 | 78118-SS0-A01 | Visor assy - METER | Visor assy - METER |
| 8 | 90102-SA4-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 9 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 10 | 90667-SS0-003 | Clip | Clip |
| 11 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Mirror (1) 7 / 11
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 5 | 76220-SS0-000 | Garnish - R. DOOR MIRROR (R.C.) | Garnish - R. DOOR MIRROR (R.C.) |
| 8 | 76270-SS0-000 | Garnish - L. DOOR MIRROR (R.C.) | Garnish - L. DOOR MIRROR (R.C.) |
| 11 | 76409-SL0-003 | Washer - TOOTHED | Washer - TOOTHED |
| 12 | 76419-SL4-003 | Spring - HOLDER | Spring - HOLDER |
| 13 | 76410-SL4-003 | Bolt - LOCK | Bolt - LOCK |
| 14 | 76420-SL4-003 | Plate - HOOK | Plate - HOOK |
| 15 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
Oil pump 26 / 29
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 2 | 13500-PT0-J00 | Case set - GEAR | Case set - GEAR |
| 4 | 15100-PT0-020 | Oil Pump assy | Oil Pump assy |
| 5 | 15113-PT0-003 | Packing a - OIL PUMP (ARAI) | Packing a - OIL PUMP (ARAI) |
| 6 | 15114-PT0-003 | Packing b - OIL PUMP (ARAI) | Packing b - OIL PUMP (ARAI) |
| 7 | 15200-P13-000 | Pipe comp - OIL LEVEL | Pipe comp - OIL LEVEL |
| 8 | 15220-P0B-000 | Strainer comp. - OIL | Strainer comp. - OIL |
| 9 | 15221-PT0-000 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 9 | 15221-P5K-004 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 10 | 15231-PE0-000 | Valve - RELIEF | Valve - RELIEF |
| 11 | 15232-PG6-000 | Spring - RELIEF VALVE | Spring - RELIEF VALVE |
| 12 | 15233-PC6-000 | Bolt - SEALING, 18MM | Bolt - SEALING, 18MM |
| 13 | 15233-PK1-000 | Bolt - SEALING, 20MM | Bolt - SEALING, 20MM |
| 15 | 15400-PR3-003 | Cartridge - OIL FILTER (TSUCHIYA) | Cartridge - OIL FILTER (TSUCHIYA) |
| 15 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 19 | 15650-P39-000 | Gauge comp. - OIL LEVEL | Gauge comp. - OIL LEVEL |
| 20 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 21 | 90018-PT0-010 | Bolt - BALANCER BELT ADJUSTER | Bolt - BALANCER BELT ADJUSTER |
| 22 | 90023-PT0-003 | Bolt-washer - 8X33 | Bolt-washer - 8X33 |
| 23 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 24 | 90052-PK1-000 | Bolt - FLANGE, 6X25 | Bolt - FLANGE, 6X25 |
| 25 | 90063-PC6-000 | Bolt - STUD, 6X25 | Bolt - STUD, 6X25 |
| 26 | 90703-PT0-000 | Dowel pin - 49X10 | Dowel pin - 49X10 |
| 27 | 91212-P0A-004 | Oil seal - 40X52X7 (ARAI) | Oil seal - 40X52X7 (ARAI) |
| 28 | 91233-PT0-003 | Oil seal - 27X40X8 (NOK) | Oil seal - 27X40X8 (NOK) |
| 29 | 91309-PJ7-010 | O-ring - 11.5X3.5 | O-ring - 11.5X3.5 |
| 30 | 91313-PC9-003 | O-ring - 9X2.3(NOK) | O-ring - 9X2.3(NOK) |
Outer panels 5 / 5
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 22 | 70494-SE0-000 | Spring - FUEL LID OPENER | Spring - FUEL LID OPENER |
| 23 | 74422-SS0-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 25 | 75450-SS0-000 | Outlet assy - RR. AIR | Outlet assy - RR. AIR |
| 26 | 75451-SP0-000 | Clip - RR. AIR OUTLET | Clip - RR. AIR OUTLET |
| 27 | 90103-SM4-010 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
P.s. gear box (LH) 28 / 28
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 50210-SS0-A00 | Stiffener - RR. BEAM | Stiffener - RR. BEAM |
| 2 | 50220-SS0-A00 | Stiffener - STEERING GEAR BOX | Stiffener - STEERING GEAR BOX |
| 3 | 53010-SS0-000 | End set - RACK | End set - RACK |
| 4 | 53411-SL4-951 | Tube - AIR TRANSFER | Tube - AIR TRANSFER |
| 5 | 53434-SD9-000 | Clip - TIE ROD | Clip - TIE ROD |
| 5 | 53434-S04-J51 | CLIP, TIE ROD | CLIP, TIE ROD |
| 6 | 53436-SP0-000 | Cushion - STEERING GEAR BOX | Cushion - STEERING GEAR BOX |
| 7 | 53438-SS0-000 | Bracket - STEERING GEAR BOX | Bracket - STEERING GEAR BOX |
| 8 | 53446-SS0-000 | Rubber - BAND (T) | Rubber - BAND (T) |
| 9 | 53447-SS0-000 | Band - TRANSFER TUBE | Band - TRANSFER TUBE |
| 10 | 53448-SS0-000 | Clip - TRANSFER TUBE | Clip - TRANSFER TUBE |
| 11 | 53449-SL0-A00 | Band b - BELLOWS | Band b - BELLOWS |
| 11 | 53449-S04-J51 | Band b - BELLOWS | Band b - BELLOWS |
| 12 | 53459-SH3-A50 | Stay - TRANSFER TUBE | Stay - TRANSFER TUBE |
| 13 | 53534-SL4-J01 | Dust seal comp. - TIE ROD (B) | Dust seal comp. - TIE ROD (B) |
| 14 | 53536-SS0-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 15 | 53540-SS0-003 | End comp - R. TIE ROD (MUSASHI) | End comp - R. TIE ROD (MUSASHI) |
| 16 | 53546-SD4-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 18 | 53560-SS0-003 | End comp - L. TIE ROD (MUSASHI) | End comp - L. TIE ROD (MUSASHI) |
| 19 | 53601-SS0-A50 | Box assy - POWER STEERING GEAR | Box assy - POWER STEERING GEAR |
| 20 | 53685-SL5-000 | Bush - STEERING GEAR BOX MOUNTING | Bush - STEERING GEAR BOX MOUNTING |
| 21 | 53686-SL5-000 | Collar - GEAR BOX MOUNTING | Collar - GEAR BOX MOUNTING |
| 22 | 53692-SS0-A00 | Guard - GEAR BOX SPLASH | Guard - GEAR BOX SPLASH |
| 23 | 90108-SH3-003 | Bolt - GEAR BOX MOUNTING (10X55) | Bolt - GEAR BOX MOUNTING (10X55) |
| 24 | 90163-SL5-A00 | Bolt - FLANGE, 10X50 | Bolt - FLANGE, 10X50 |
| 25 | 90166-SF1-010 | Bolt-washer - 10X21 | Bolt-washer - 10X21 |
| 26 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 27 | 90683-SF1-003 | Circlip - FR. UPPER (MUSASHI) | Circlip - FR. UPPER (MUSASHI) |
P.s. gear box components (LH) 48 / 48
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 06531-SS0-000 | Seal kit a - POWER STEERING | Seal kit a - POWER STEERING |
| 2 | 06532-SS0-000 | Seal kit b - POWER STEERING | Seal kit b - POWER STEERING |
| 3 | 53412-SM4-J61 | O-ring - RACK GUIDE (NOK) | O-ring - RACK GUIDE (NOK) |
| 3 | 53412-SM4-J62 | O-ring - RACK GUIDE (ARAI) | O-ring - RACK GUIDE (ARAI) |
| 4 | 53413-SD4-951 | Spring - RACK GUIDE PRESSURE | Spring - RACK GUIDE PRESSURE |
| 5 | 53414-SM4-J60 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 6 | 53416-SM4-J61 | Guide - STEERING RACK | Guide - STEERING RACK |
| 7 | 53449-SL0-A00 | Band b - BELLOWS | Band b - BELLOWS |
| 7 | 53449-S04-J51 | Band b - BELLOWS | Band b - BELLOWS |
| 8 | 53458-SM4-J60 | Nut - RACK SCREW LOCK | Nut - RACK SCREW LOCK |
| 9 | 53501-SF1-950 | Cover - PINION DUST | Cover - PINION DUST |
| 10 | 53536-SS0-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 11 | 53608-SS0-A50 | Housing sub assy. - STEERING GEAR BOX (###) | Housing sub assy. - STEERING GEAR BOX (###) |
| 12 | 53611-SS0-951 | Cylinder comp | Cylinder comp |
| 13 | 53612-SS0-950 | Barrel - CYLINDER | Barrel - CYLINDER |
| 14 | 53613-SS0-950 | Retainer - PACKING | Retainer - PACKING |
| 15 | 53614-SS0-950 | Cap - CYLINDER | Cap - CYLINDER |
| 16 | 53615-SM4-J60 | Washer - RETAINER | Washer - RETAINER |
| 17 | 53617-SF1-950 | Port - ORIFICE | Port - ORIFICE |
| 18 | 53622-SS0-A51 | Pinion - STEERING | Pinion - STEERING |
| 19 | 53625-SS0-950 | Cap - GEAR BOX HOUSING | Cap - GEAR BOX HOUSING |
| 20 | 53626-SS0-A51 | Rack comp - STEERING | Rack comp - STEERING |
| 21 | 53630-SP0-000 | Spring - CYLINDER | Spring - CYLINDER |
| 22 | 53631-SS0-951 | Bushing a - STEERING RACK | Bushing a - STEERING RACK |
| 23 | 53632-SM4-J61 | Bush - STEERING (B) | Bush - STEERING (B) |
| 24 | 53634-SM4-J60 | Clip - BUSH STOPPER | Clip - BUSH STOPPER |
| 25 | 53640-SS0-A50 | Body unit - VALVE | Body unit - VALVE |
| 26 | 53643-SM4-G61 | Port comp. - VALVE | Port comp. - VALVE |
| 27 | 53645-SK7-A50 | Cap - VALVE BODY | Cap - VALVE BODY |
| 28 | 53647-SM4-010 | Spool - FOUR WAY | Spool - FOUR WAY |
| 29 | 53650-SP0-010 | Valve - GAIN CONTROL | Valve - GAIN CONTROL |
| 30 | 53658-SS0-950 | Orifice - SENSOR | Orifice - SENSOR |
| 31 | 53666-SK7-A51 | Plunger - DIAMETER=8MM | Plunger - DIAMETER=8MM |
| 32 | 53667-SS0-950 | Spring - RETURN | Spring - RETURN |
| 33 | 53688-SP0-000 | Spring - PRESSURE CONTROL VALVE | Spring - PRESSURE CONTROL VALVE |
| 35 | 53790-SK7-J51 | Valve - PRESSURE CONTROL | Valve - PRESSURE CONTROL |
| 36 | 90102-SK7-J50 | Bolt - POWER STEERING VALVE | Bolt - POWER STEERING VALVE |
| 37 | 90684-SM4-J60 | Ring - SNAP, 31MM | Ring - SNAP, 31MM |
| 38 | 90693-SE0-951 | Circlip - INTERNAL, 28MM | Circlip - INTERNAL, 28MM |
| 39 | 90697-SA5-003 | Circlip - EXTERNAL, 31MM | Circlip - EXTERNAL, 31MM |
| 40 | 91052-SL5-A01 | Bearing - RADIAL BALL, 6906/31ZZ | Bearing - RADIAL BALL, 6906/31ZZ |
| 41 | 91053-SM4-951 | Bearing - RADIAL BALL, 6001ZZ | Bearing - RADIAL BALL, 6001ZZ |
| 42 | 91103-429-000 | Dowel pin - 8X10 | Dowel pin - 8X10 |
| 43 | 91154-SK7-J51 | Roller - 3.5X31.8 (NTN) | Roller - 3.5X31.8 (NTN) |
| 44 | 91352-SF4-951 | O-ring - 9.8X1.9 (NOK) | O-ring - 9.8X1.9 (NOK) |
| 44 | 91318-PT0-003 | O-ring - 9.8X1.9 (NOK) | O-ring - 9.8X1.9 (NOK) |
| 45 | 91362-SE0-951 | O-ring - 45.5X2 (ARAI) | O-ring - 45.5X2 (ARAI) |
| 45 | 91362-SE0-952 | O-ring - 45.5X2 (NOK) | O-ring - 45.5X2 (NOK) |
P.s. lines (LH) 39 / 41
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 2 | 53701-SS0-003 | Tank comp. - POWER STEERING OIL | Tank comp. - POWER STEERING OIL |
| 3 | 53703-SS0-000 | Pipe comp. a - SENSOR RETURN (10MM) | Pipe comp. a - SENSOR RETURN (10MM) |
| 4 | 53711-SS0-000 | Bracket assy - OIL TANK | Bracket assy - OIL TANK |
| 5 | 53713-SS0-A01 | Hose comp. - POWER STEERING FEED | Hose comp. - POWER STEERING FEED |
| 6 | 53714-SS0-003 | Protector - FEED HOSE | Protector - FEED HOSE |
| 7 | 53717-SS0-000 | Bolt - FLANGE (6X20) | Bolt - FLANGE (6X20) |
| 8 | 53720-SS0-A00 | Pipe - RETURN, 10MM | Pipe - RETURN, 10MM |
| 9 | 53723-SM4-013 | Clip - RETURN, 6MM | Clip - RETURN, 6MM |
| 10 | 53723-SS0-003 | Clip - SENSOR PIPE, 6MM | Clip - SENSOR PIPE, 6MM |
| 11 | 53724-SS0-A00 | Pipe comp - RETURN, 6MM | Pipe comp - RETURN, 6MM |
| 12 | 53725-SS0-000 | Hose - SPEED SENSOR INLET | Hose - SPEED SENSOR INLET |
| 13 | 53726-SS0-A00 | Pipe comp - SENSOR | Pipe comp - SENSOR |
| 14 | 53727-SS0-000 | Tube a - SPEED SENSOR RETURN | Tube a - SPEED SENSOR RETURN |
| 15 | 53728-SL4-951 | Clip - RETURN PIPE, 6MM | Clip - RETURN PIPE, 6MM |
| 16 | 53728-SM4-013 | Clip - RETURN PIPE, 10MM | Clip - RETURN PIPE, 10MM |
| 17 | 53729-SM4-G61 | Clip - DRAIN HOSE | Clip - DRAIN HOSE |
| 18 | 53729-SS0-003 | Clip - RETURN HOSE | Clip - RETURN HOSE |
| 19 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 21 | 53732-SS0-010 | Hose - OIL COOLER | Hose - OIL COOLER |
| 22 | 53733-SS0-000 | Tube - OIL COOLER RETURN | Tube - OIL COOLER RETURN |
| 23 | 53734-SS0-000 | Hose - COMBINATION PIPE RETURN | Hose - COMBINATION PIPE RETURN |
| 24 | 53735-SS0-000 | Hose - OIL COOLER RETURN | Hose - OIL COOLER RETURN |
| 25 | 53736-SS0-010 | Holder b - POWER STEERING PIPE | Holder b - POWER STEERING PIPE |
| 26 | 53737-SS0-000 | Tube - COMBINATION PIPE RETURN | Tube - COMBINATION PIPE RETURN |
| 27 | 53740-SE0-953 | Clip - SENSOR HOSE | Clip - SENSOR HOSE |
| 28 | 53741-SS0-000 | Holder c - POWER STEERING PIPE | Holder c - POWER STEERING PIPE |
| 29 | 53745-SS0-000 | Tube - SPEED SENSOR RETURN | Tube - SPEED SENSOR RETURN |
| 32 | 53776-SS0-003 | Clip - POWER STEERING TUBE | Clip - POWER STEERING TUBE |
| 33 | 53779-SS0-000 | Pipe comp - POWER STEERING COMBINATION | Pipe comp - POWER STEERING COMBINATION |
| 34 | 56490-PT0-023 | Switch assy - POWER STEERING PRESSURE | Switch assy - POWER STEERING PRESSURE |
| 35 | 90188-SM4-000 | Bolt - FLANGE, 6X12 (BLACK) | Bolt - FLANGE, 6X12 (BLACK) |
| 36 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 36 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 38 | 91304-PA6-003 | O-ring - 7.8X1.9 | O-ring - 7.8X1.9 |
| 39 | 91370-SM4-004 | O-ring - 11X1.9 (ARAI) | O-ring - 11X1.9 (ARAI) |
| 39 | 91370-SM4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 40 | 91405-SS0-003 | Clamp - TUBE (D21) | Clamp - TUBE (D21) |
| 41 | 91410-SA1-950 | Clip - SENSOR HOSE | Clip - SENSOR HOSE |
Parking brake 14 / 14
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 43471-SD2-930 | Pin - BRAKE WIRE END | Pin - BRAKE WIRE END |
| 4 | 47142-671-010 | Knob - PARKING BRAKE PUSH ROD | Knob - PARKING BRAKE PUSH ROD |
| 5 | 47143-SD4-300 | Spring - PUSH ROD | Spring - PUSH ROD |
| 6 | 47342-SL4-000 | Switch - PARKING BRAKE | Switch - PARKING BRAKE |
| 8 | 47345-SL4-010 | Cover - PLATE RATCHET | Cover - PLATE RATCHET |
| 9 | 47360-SB2-000 | Equalizer | Equalizer |
| 10 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 11 | 47510-SS0-023 | Wire a - R. PARKING BRAKE | Wire a - R. PARKING BRAKE |
| 12 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 13 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 14 | 47560-SS0-023 | Wire a - L. PARKING BRAKE | Wire a - L. PARKING BRAKE |
| 15 | 47572-SE0-300 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 18 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 19 | 90705-SD2-931 | Pin - SNAP, 6MM | Pin - SNAP, 6MM |
Pedal (LH) 27 / 37
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 17800-SS0-A00 | Pedal comp - ACCELERATOR | Pedal comp - ACCELERATOR |
| 2 | 17812-SA7-010 | Washer - ACCELERATOR PEDAL | Washer - ACCELERATOR PEDAL |
| 3 | 17814-SS0-980 | Spring - ACCELERATOR PEDAL | Spring - ACCELERATOR PEDAL |
| 4 | 17816-SF1-000 | Cover - ACCELERATOR PEDAL | Cover - ACCELERATOR PEDAL |
| 5 | 17818-SS0-000 | Stopper - ACCELERATOR STROKE | Stopper - ACCELERATOR STROKE |
| 9 | 17910-SS0-A11 | Wire - THROTTLE | Wire - THROTTLE |
| 10 | 17921-SA4-730 | Seal - THROTTLE CABLE | Seal - THROTTLE CABLE |
| 11 | 17925-SS0-A01 | Stay - THROTTLE WIRE | Stay - THROTTLE WIRE |
| 16 | 46500-SS0-A00 | Pedal comp - BRAKE | Pedal comp - BRAKE |
| 18 | 46504-ST5-300 | Bush - PEDAL | Bush - PEDAL |
| 20 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 21 | 46530-SM4-000 | Spring assy - PEDAL RETURN | Spring assy - PEDAL RETURN |
| 22 | 46535-SM4-000 | Collar - PEDAL | Collar - PEDAL |
| 23 | 46545-SA5-000 | Cover, Pedal | Cover, Pedal |
| 25 | 46590-SS0-A00 | Bracket - PEDAL | Bracket - PEDAL |
| 26 | 46904-SM4-300 | Pad - ACCELERATOR STOPPER | Pad - ACCELERATOR STOPPER |
| 28 | 46910-SS0-G00 | Pedal comp - CLUTCH | Pedal comp - CLUTCH |
| 29 | 46911-SD4-930 | Bush - PEDAL PIN | Bush - PEDAL PIN |
| 31 | 46936-SM4-000 | Collar - CLUTCH PEDAL | Collar - CLUTCH PEDAL |
| 32 | 46980-SD4-930 | Spring - CLUTCH ASSISTANT | Spring - CLUTCH ASSISTANT |
| 32 | 46980-SD4-931 | Spring - CLUTCH ASSISTANT | Spring - CLUTCH ASSISTANT |
| 33 | 46981-SD4-930 | Bush a - CLUTCH ASSISTANT | Bush a - CLUTCH ASSISTANT |
| 34 | 46982-SD4-930 | Bush b - CLUTCH ASSISTANT | Bush b - CLUTCH ASSISTANT |
| 35 | 46990-SM4-940 | Bracket - CLUTCH PEDAL | Bracket - CLUTCH PEDAL |
| 36 | 46991-SS0-A01 | Bracket - FOOTREST | Bracket - FOOTREST |
| 37 | 75891-611-000 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 39 | 90382-SM4-000 | Nut - HEX. CAP, 6MM | Nut - HEX. CAP, 6MM |
Pillar garnish/ side lining 17 / 18
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 5 | 72315-SS0-003 | Seal - R. FR. DOOR OPENING | Seal - R. FR. DOOR OPENING |
| 6 | 72355-SS0-003 | Seal - L. FR. DOOR OPENING | Seal - L. FR. DOOR OPENING |
| 7 | 73861-SS0-000 | Trim - QUARTER WINDSHIELD | Trim - QUARTER WINDSHIELD |
| 8 | 74514-SS0-000 | Seal - R. QUARTER HOLE | Seal - R. QUARTER HOLE |
| 9 | 74554-SS0-000 | Seal - L. QUARTER HOLE | Seal - L. QUARTER HOLE |
| 27 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 28 | 90610-SS0-000 | Clip - SIDE LINING | Clip - SIDE LINING |
| 29 | 90611-SM4-013 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 30 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 31 | 90665-SP0-000 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 32 | 90666-SD4-000 | Clip - PILLAR LINING | Clip - PILLAR LINING |
| 33 | 90681-693-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 34 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 34 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 35 | 91626-SP0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 36 | 90662-671-003 | Grommet - SCREW, 5MM (WHITE) | Grommet - SCREW, 5MM (WHITE) |
| 37 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Piston/crankshaft 19 / 43
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 2 | 13021-PT0-B03 | Ring set - PISTON (OS 0.25) (TEIKOKU) | Ring set - PISTON (OS 0.25) (TEIKOKU) |
| 2 | 13031-PT0-B04 | Ring set - PISTON (OS 0.50) (RIKEN) | Ring set - PISTON (OS 0.50) (RIKEN) |
| 2 | 13031-PT0-B03 | Ring set - PISTON (OS 0.50) (TEIKOKU) | Ring set - PISTON (OS 0.50) (TEIKOKU) |
| 2 | 13021-PT0-B04 | Ring set - PISTON (OS 0.25) (RIKEN) | Ring set - PISTON (OS 0.25) (RIKEN) |
| 3 | 13014-P11-810 | Washer set - THRUST (TAIHO) | Washer set - THRUST (TAIHO) |
| 3 | 13014-P11-800 | Washer set - THRUST (DAIDO) | Washer set - THRUST (DAIDO) |
| 5 | 13112-PT0-000 | Pin - PISTON | Pin - PISTON |
| 13 | 13402-PT0-000 | Pulley b - FR. TIMING BELT DRIVEN | Pulley b - FR. TIMING BELT DRIVEN |
| 14 | 13406-PT0-003 | Metal f - THRUST BALANCER SHAFT | Metal f - THRUST BALANCER SHAFT |
| 15 | 13408-PT0-003 | Pulley - BALANCER BELT DRIVE | Pulley - BALANCER BELT DRIVE |
| 16 | 13621-P0A-003 | Pulley - TIMING BELT DRIVE | Pulley - TIMING BELT DRIVE |
| 17 | 13622-PV1-000 | Plate - TIMING BELT GUIDE | Plate - TIMING BELT GUIDE |
| 18 | 13810-PT1-003 | Pulley comp - CRANKSHAFT (NOK) | Pulley comp - CRANKSHAFT (NOK) |
| 19 | 90017-PY3-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 19 | 90017-RJA-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 20 | 90019-PT0-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 21 | 90031-PT0-003 | Bolt-washer - 8X22 | Bolt-washer - 8X22 |
| 21 | 90032-ZW5-003 | Bolt-washer, 8x22 | Bolt-washer, 8x22 |
| 22 | 90704-PT0-000 | Key - 4.5X38.5 | Key - 4.5X38.5 |
Power steering pump 27 / 28
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 2 | 56110-P11-020 | Pump sub assy - POWER STEERING | Pump sub assy - POWER STEERING |
| 3 | 56123-P11-010 | Joint comp - IN. | Joint comp - IN. |
| 4 | 56141-P02-000 | Shaft - POWER STEERING PUMP DRIVE | Shaft - POWER STEERING PUMP DRIVE |
| 5 | 56167-PY3-000 | Spacer - PUMP SEAL | Spacer - PUMP SEAL |
| 6 | 56483-P11-000 | Pulley - POWER STEERING PUMP | Pulley - POWER STEERING PUMP |
| 7 | 56500-PT3-010 | Sensor assy - POWER STEERING | Sensor assy - POWER STEERING |
| 8 | 56992-P13-003 | Belt - POWER STEERING PUMP (MITSUBOSHI) | Belt - POWER STEERING PUMP (MITSUBOSHI) |
| 9 | 56994-P12-A00 | Bracket - POWER STEERING PUMP | Bracket - POWER STEERING PUMP |
| 11 | 90001-P13-003 | Bolt - SPECIAL, 8X52 | Bolt - SPECIAL, 8X52 |
| 12 | 90002-P13-003 | Bolt - SPECIAL, 8X52 | Bolt - SPECIAL, 8X52 |
| 13 | 90011-PT0-000 | Bolt-washer - 8X26 | Bolt-washer - 8X26 |
| 14 | 90305-PT0-000 | Nut - POWER STEERING PULLEY | Nut - POWER STEERING PULLEY |
| 15 | 90311-P13-000 | Bolt - ADJUSTER SPECIAL | Bolt - ADJUSTER SPECIAL |
| 16 | 91021-148-004 | Bearing - NEEDLE, 1010(NTN) | Bearing - NEEDLE, 1010(NTN) |
| 17 | 91048-PY3-003 | Bearing - RADIAL BALL, 15X38X12 | Bearing - RADIAL BALL, 15X38X12 |
| 18 | 91148-PY3-003 | Roller - 5X26.8 | Roller - 5X26.8 |
| 19 | 91149-PY3-003 | Roller - 4.5X49.8 | Roller - 4.5X49.8 |
| 20 | 91249-PY3-003 | Seal - POWER STEERING PUMP (NOK) | Seal - POWER STEERING PUMP (NOK) |
| 20 | 91249-P02-003 | Seal - POWER STEERING PUMP | Seal - POWER STEERING PUMP |
| 21 | 91304-PT0-000 | O-ring - 14.8X1.9 | O-ring - 14.8X1.9 |
| 22 | 91313-611-010 | O-ring - 23.5X2 | O-ring - 23.5X2 |
| 23 | 91317-P02-003 | O-ring - 5.8X1.9 (NOK) | O-ring - 5.8X1.9 (NOK) |
| 24 | 91345-PY3-000 | O-ring - 13.0X1.9 | O-ring - 13.0X1.9 |
| 25 | 91346-PY3-000 | O-ring - 22.1X1.9 | O-ring - 22.1X1.9 |
| 26 | 91347-PY3-000 | O-ring - 16.8X1.9 | O-ring - 16.8X1.9 |
| 27 | 91348-PY3-000 | O-ring - 54.0X1.9 | O-ring - 54.0X1.9 |
| 28 | 91349-PY3-000 | O-ring - 68.5X1.9 | O-ring - 68.5X1.9 |
R. side cover 1 / 30
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 27 | 91558-SE3-003 | Clip - HOOD WIRE | Clip - HOOD WIRE |
Radiator (DENSO) 15 / 16
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 4 | 19014-PK1-003 | Clip - HARNESS | Clip - HARNESS |
| 5 | 19015-PT0-003 | Shroud comp - DENSO | Shroud comp - DENSO |
| 7 | 19020-PT0-003 | Fan - COOLING (DENSO) | Fan - COOLING (DENSO) |
| 8 | 19030-PT0-003 | Motor - COOLING FAN (DENSO) | Motor - COOLING FAN (DENSO) |
| 10 | 19033-P39-003 | Stay - COUPLER | Stay - COUPLER |
| 11 | 19045-PT0-003 | Cap comp - DENSO | Cap comp - DENSO |
| 11 | 19045-PT0-004 | Cap comp - TOYO | Cap comp - TOYO |
| 12 | 19046-PV1-000 | Seal - CAP | Seal - CAP |
| 13 | 90041-PH2-003 | Screw-washer - 4X10 (DENSO) | Screw-washer - 4X10 (DENSO) |
| 14 | 90042-PH2-003 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 14 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 15 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 16 | 90201-PT0-003 | Nut - SQUARE | Nut - SQUARE |
Radiator (TOYO) 2 / 14
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 10 | 19045-PT0-004 | Cap comp - TOYO | Cap comp - TOYO |
| 11 | 19046-PV1-000 | Seal - CAP | Seal - CAP |
Radiator hose 15 / 29
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 19101-P13-000 | Tank - RESERVE | Tank - RESERVE |
| 2 | 19103-P13-000 | Hose - RESERVE TANK | Hose - RESERVE TANK |
| 3 | 19104-P13-000 | Tube - RESERVE TANK | Tube - RESERVE TANK |
| 4 | 19108-PM0-003 | Clamp - RESERVE TANK TUBE (BLACK) | Clamp - RESERVE TANK TUBE (BLACK) |
| 5 | 19110-P13-000 | Cap set - RESERVE TANK | Cap set - RESERVE TANK |
| 6 | 19501-PT0-000 | Hose - WATER UPPER | Hose - WATER UPPER |
| 7 | 19502-P39-000 | Hose - WATER LOWER | Hose - WATER LOWER |
| 8 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 9 | 19511-PT0-004 | Clip - WATER HOSE (36.5MM) (KEIHIN) | Clip - WATER HOSE (36.5MM) (KEIHIN) |
| 10 | 19519-P13-000 | Clamp - LOWER HOSE | Clamp - LOWER HOSE |
| 20 | 74171-SS0-000 | Bracket - R. RADIATOR MOUNTING UPPER | Bracket - R. RADIATOR MOUNTING UPPER |
| 21 | 74172-SM4-970 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 22 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 23 | 74176-SS0-000 | Bracket - L. RADIATOR MOUNT | Bracket - L. RADIATOR MOUNT |
| 26 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
Radio antenna/speaker 17 / 23
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 2 | 39112-SM4-000 | Bracket - FR. SPEAKER SEAL | Bracket - FR. SPEAKER SEAL |
| 13 | 39150-SS0-G02 | Antenna assy - MOTOR | Antenna assy - MOTOR |
| 15 | 39151-SS0-003 | Bracket | Bracket |
| 16 | 39152-SR4-003 | Mast assy. | Mast assy. |
| 17 | 39154-SR4-013 | Nut | Nut |
| 18 | 39155-SS0-G02 | Motor assy. | Motor assy. |
| 20 | 39156-SS0-013 | Insulator | Insulator |
| 21 | 39159-SS0-J03 | Feeder - MOTOR ANTENNA | Feeder - MOTOR ANTENNA |
| 22 | 39168-SS0-A01 | Cylinder | Cylinder |
| 23 | 39170-SS0-000 | Valve - RR. DRAIN | Valve - RR. DRAIN |
| 24 | 39179-SS0-A02 | Tube comp | Tube comp |
| 25 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 26 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 27 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 28 | 91554-SH3-003 | Band - WIRE HARNESS (NATURAL) (100.5MM) | Band - WIRE HARNESS (NATURAL) (100.5MM) |
| 29 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
Rear brake 45 / 47
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 01473-SM4-010 | Caliper set - RR. | Caliper set - RR. |
| 2 | 42200-SM4-A01 | Bearing assy - RR. HUB UNIT (NTN) | Bearing assy - RR. HUB UNIT (NTN) |
| 3 | 42324-SB2-020 | Washer - HUB UNIT | Washer - HUB UNIT |
| 4 | 42326-SG0-000 | Cap - HUB UNIT | Cap - HUB UNIT |
| 5 | 42510-SS0-J00 | Disk - RR. BRAKE | Disk - RR. BRAKE |
| 6 | 43018-SS0-000 | Caliper sub assy. - R. RR. | Caliper sub assy. - R. RR. |
| 7 | 43019-SS0-000 | Caliper sub assy. - L. RR. | Caliper sub assy. - L. RR. |
| 8 | 43022-SL5-000 | Pad set - RR. | Pad set - RR. |
| 11 | 43215-SM4-951 | Piston assy. | Piston assy. |
| 13 | 43223-SD2-932 | BEARING A | BEARING A |
| 14 | 43224-SD2-931 | Spring b - ADJUSTING | Spring b - ADJUSTING |
| 15 | 43224-SP0-003 | Shim - BRAKE PAD OUTER | Shim - BRAKE PAD OUTER |
| 16 | 43225-SL5-A01 | Shim - BRAKE PAD INNER | Shim - BRAKE PAD INNER |
| 17 | 43227-SG0-013 | Spring - PAD | Spring - PAD |
| 18 | 43228-SD2-933 | Shaft a | Shaft a |
| 19 | 43229-SD2-931 | Rod | Rod |
| 22 | 43233-S04-003 | Piston comp - SLEEVE | Piston comp - SLEEVE |
| 24 | 43235-SD2-931 | Pin a | Pin a |
| 25 | 43236-S04-003 | Spacer | Spacer |
| 26 | 43238-SF1-003 | Ring - RETAINING | Ring - RETAINING |
| 27 | 43241-SF1-003 | Guide - SPRING | Guide - SPRING |
| 29 | 43243-SD2-931 | Nut - PARKING | Nut - PARKING |
| 30 | 43244-SG0-003 | Retainer | Retainer |
| 31 | 43245-SS0-003 | Lever - R. | Lever - R. |
| 32 | 43246-SS0-003 | Spring - R. RETURN | Spring - R. RETURN |
| 33 | 43247-SS0-003 | Arm - R. | Arm - R. |
| 34 | 43248-SD2-933 | Shaft b | Shaft b |
| 35 | 43249-S04-003 | Bolt - ADJUSTER | Bolt - ADJUSTER |
| 36 | 43253-SS0-000 | Guard - R. RR. SPLASH (14") | Guard - R. RR. SPLASH (14") |
| 37 | 43254-SS0-000 | Guard - L. RR. SPLASH (14") | Guard - L. RR. SPLASH (14") |
| 38 | 43255-SS0-000 | Protector - R. RR. CALIPER | Protector - R. RR. CALIPER |
| 39 | 43256-SS0-000 | Protector - L. RR. CALIPER | Protector - L. RR. CALIPER |
| 40 | 43262-S04-003 | Pin b | Pin b |
| 41 | 43265-SS0-003 | Lever - L. | Lever - L. |
| 42 | 43266-SS0-003 | Spring - L. RETURN | Spring - L. RETURN |
| 43 | 43267-SS0-003 | Arm - L. | Arm - L. |
| 44 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 45 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 47 | 45240-SC2-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 48 | 90113-SD4-901 | Bolt - WHEEL (MEIRA) | Bolt - WHEEL (MEIRA) |
| 48 | 90113-SD4-902 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 48 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 48 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 48 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 49 | 90305-692-010 | Nut | Nut |
Rear seat 13 / 13
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 4 | 82126-SS0-J21 | Frame comp - RR. SEATBACK | Frame comp - RR. SEATBACK |
| 6 | 82136-SS0-J21 | Frame - R. RR. SEAT CUSHION WIRE | Frame - R. RR. SEAT CUSHION WIRE |
| 7 | 82137-SS0-003 | Clip - RR. SEAT CUSHION | Clip - RR. SEAT CUSHION |
| 9 | 82226-SH4-A04 | Cylinder - RR. SEAT | Cylinder - RR. SEAT |
| 11 | 82232-SS0-003 | Rod - SEAT FOLD DOWN | Rod - SEAT FOLD DOWN |
| 13 | 82290-SS0-003 | Bracket comp. - SEAT PIVOT | Bracket comp. - SEAT PIVOT |
| 14 | 82295-SS0-003 | Bracket - CENTER SEAT PIVOT | Bracket - CENTER SEAT PIVOT |
| 16 | 82526-SS0-J21 | Frame comp - RR. SEATBACK WIRE | Frame comp - RR. SEATBACK WIRE |
| 18 | 82536-SS0-J21 | Frame - L. RR. SEAT CUSHION WIRE | Frame - L. RR. SEAT CUSHION WIRE |
| 19 | 82620-SS0-003 | Lock assy - RR. SEAT | Lock assy - RR. SEAT |
| 20 | 90609-SE1-960 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
Rear shock absorber 14 / 18
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 51689-SH9-003 | Plate - BUMP STOP(SHOWA) | Plate - BUMP STOP(SHOWA) |
| 4 | 52611-SS0-903 | Absorber unit, R. RR. SHOCK | Absorber unit, R. RR. SHOCK |
| 5 | 52612-SS0-903 | Absorber unit, L. RR. SHOCK | Absorber unit, L. RR. SHOCK |
| 7 | 52621-SB2-004 | Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 8 | 52675-SS0-004 | Base - RR. SHOCK ABSORBER MOUNTING | Base - RR. SHOCK ABSORBER MOUNTING |
| 9 | 52686-SS0-004 | Rubber - RR. SPRING MOUNTING | Rubber - RR. SPRING MOUNTING |
| 10 | 52687-SS0-004 | Cover - RR. DUST | Cover - RR. DUST |
| 11 | 52688-SE0-003 | Plate - RR. BUMP STOP | Plate - RR. BUMP STOP |
| 12 | 52688-SR3-003 | End - RR. DUST COVER (SHOWA) | End - RR. DUST COVER (SHOWA) |
| 13 | 52722-SS0-003 | Rubber - RR. BUMP STOPPER (POLYURETHAN KASEI) | Rubber - RR. BUMP STOPPER (POLYURETHAN KASEI) |
| 14 | 52725-SS0-004 | Rubber - RR. SHOCK ABSORBER | Rubber - RR. SHOCK ABSORBER |
| 15 | 52728-SB2-004 | Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA) | Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA) |
| 16 | 90020-SM4-962 | Bolt - RADIUS ROD, 12X93.5 | Bolt - RADIUS ROD, 12X93.5 |
| 17 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
Rear stabilizer/ rear lower arm 52 / 56
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 3 | 47523-SS0-000 | Stay - R. BRAKE WIRE BRACKET | Stay - R. BRAKE WIRE BRACKET |
| 4 | 47524-SS0-000 | Stay - L. BRAKE WIRE BRACKET | Stay - L. BRAKE WIRE BRACKET |
| 5 | 51225-SL5-003 | Boot - LOWER BALL DUST | Boot - LOWER BALL DUST |
| 6 | 52111-SS0-010 | Knuckle comp - R. RR. | Knuckle comp - R. RR. |
| 7 | 52116-SS0-010 | Knuckle comp - L. RR. | Knuckle comp - L. RR. |
| 8 | 52213-SS0-000 | Protector - RR. KNUCKLE | Protector - RR. KNUCKLE |
| 9 | 52226-SL0-003 | Circlip - LOWER BALL(MUSASHI) | Circlip - LOWER BALL(MUSASHI) |
| 10 | 52250-SS0-000 | Spindle assy - R. RR. WHEEL | Spindle assy - R. RR. WHEEL |
| 11 | 52260-SS0-000 | Spindle assy - L. RR. WHEEL | Spindle assy - L. RR. WHEEL |
| 12 | 52300-SS0-003 | Spring - RR. STABILIZER | Spring - RR. STABILIZER |
| 13 | 52308-SS0-000 | Holder - RR. STABILIZER | Holder - RR. STABILIZER |
| 14 | 52315-SS0-010 | Bush - RR. STABILIZER HOLDER | Bush - RR. STABILIZER HOLDER |
| 15 | 52316-SM4-960 | Rubber - RR. STABILIZER | Rubber - RR. STABILIZER |
| 16 | 52317-SS0-000 | Bracket - R. RR. STABILIZER | Bracket - R. RR. STABILIZER |
| 17 | 52318-SS0-000 | Bracket - L. RR. STABILIZER | Bracket - L. RR. STABILIZER |
| 18 | 52320-SS0-003 | Link assy - RR. STABILIZER | Link assy - RR. STABILIZER |
| 19 | 52323-SS0-003 | Bolt - RR. LINK (10X62.5) | Bolt - RR. LINK (10X62.5) |
| 20 | 52328-SS0-010 | Washer - 34X2.6 | Washer - 34X2.6 |
| 21 | 52350-SS0-020 | Arm comp - R. RR. LOWER | Arm comp - R. RR. LOWER |
| 22 | 52353-SM4-962 | Bush - LOWER ARM CONNECT (HOKUSHIN) | Bush - LOWER ARM CONNECT (HOKUSHIN) |
| 23 | 52354-SS0-023 | Bush a - RR. LOWER ARM | Bush a - RR. LOWER ARM |
| 25 | 52357-SS0-013 | Bush b - RR. LOWER ARM | Bush b - RR. LOWER ARM |
| 26 | 52360-SS0-020 | Arm comp - L. RR. LOWER | Arm comp - L. RR. LOWER |
| 31 | 52387-SE0-023 | Bolt - LOWER ARM ADJUSTING | Bolt - LOWER ARM ADJUSTING |
| 33 | 52388-SE0-030 | Plate - CAM | Plate - CAM |
| 35 | 52390-SS0-003 | Arm assy. - R. RR. UPPER | Arm assy. - R. RR. UPPER |
| 36 | 52400-SS0-003 | Arm assy. - L. RR. UPPER | Arm assy. - L. RR. UPPER |
| 37 | 52622-SS0-003 | Bush - RR. SHOCK ABSORBER LOWER | Bush - RR. SHOCK ABSORBER LOWER |
| 38 | 52677-SS0-000 | Bracket - R. RR. RADIUS ARM | Bracket - R. RR. RADIUS ARM |
| 39 | 52678-SS0-000 | Bracket - L. RR. RADIUS ARM | Bracket - L. RR. RADIUS ARM |
| 40 | 53546-SA0-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 41 | 53546-SD4-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 42 | 53548-SL0-A01 | Circlip - TIE ROD | Circlip - TIE ROD |
| 45 | 90020-SM4-962 | Bolt - RADIUS ROD, 12X93.5 | Bolt - RADIUS ROD, 12X93.5 |
| 47 | 90022-SM4-003 | Bolt - TRAILING ARM BRACKET, 12X69 | Bolt - TRAILING ARM BRACKET, 12X69 |
| 48 | 90023-SM4-003 | Bolt - TRAILING ARM BRACKET, 12X55.5 | Bolt - TRAILING ARM BRACKET, 12X55.5 |
| 49 | 90028-SM4-000 | Bolt - TRAILING, 8X19 | Bolt - TRAILING, 8X19 |
| 51 | 90163-SS0-003 | Bolt - RR. SPINDLE, 10X52 | Bolt - RR. SPINDLE, 10X52 |
| 52 | 90164-SM4-961 | Bolt - RR. SPINDLE, 10X37 | Bolt - RR. SPINDLE, 10X37 |
| 53 | 90164-SS0-003 | Bolt - RR. SPINDLE, 10X67 | Bolt - RR. SPINDLE, 10X67 |
| 54 | 90166-SM4-003 | Nut - SELF-LOCK | Nut - SELF-LOCK |
| 55 | 90167-SF1-003 | Bolt - RR. LOWER ARM, 14X77 | Bolt - RR. LOWER ARM, 14X77 |
| 56 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 57 | 90216-SE0-010 | Nut | Nut |
| 57 | 90216-SE0-305 | NUT, LWR ARM | NUT, LWR ARM |
| 58 | 90230-SB0-950 | Bolt-washer - 6X12 (GREEN) | Bolt-washer - 6X12 (GREEN) |
| 59 | 90307-SL5-000 | Nut - CASTLE, 14MM | Nut - CASTLE, 14MM |
| 60 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 61 | 90362-SG0-013 | Nut - TRAILING ARM, 12MM | Nut - TRAILING ARM, 12MM |
| 61 | 90215-SMA-003 | Nut | Nut |
| 62 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 64 | 90438-SE0-000 | Washer - TRAILING, 12MM | Washer - TRAILING, 12MM |
Rear tray/trunk lining 6 / 6
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 38689-680-960 | E-ring - 4MM | E-ring - 4MM |
| 3 | 66856-SF1-000 | Lock - JACK COVER | Lock - JACK COVER |
| 4 | 66857-SA0-660 | Spring - FUSE PANEL | Spring - FUSE PANEL |
| 6 | 78163-SF1-000 | Damper - RR. SEAT | Damper - RR. SEAT |
| 20 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 23 | 90668-SJ4-003 | Clip - RR. TRAY | Clip - RR. TRAY |
Rear windshield 9 / 10
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 2 | 73225-SS0-A01 | Rubber - RR. WINDSHIELD DAM | Rubber - RR. WINDSHIELD DAM |
| 3 | 73250-SS0-013 | Molding comp. - RR. WINDSHIELD UPPER & SIDE | Molding comp. - RR. WINDSHIELD UPPER & SIDE |
| 4 | 73251-SS0-000 | Molding assy. - RR. WINDSHIELD LOWER | Molding assy. - RR. WINDSHIELD LOWER |
| 5 | 73500-SS0-J12 | Glass assy - R. QUARTER (GREEN)(ASAHI) | Glass assy - R. QUARTER (GREEN)(ASAHI) |
| 6 | 73550-SS0-J12 | Glass assy - L. QUARTER (GREEN)(ASAHI) | Glass assy - L. QUARTER (GREEN)(ASAHI) |
| 7 | 91531-SS0-003 | Holder - RR. LOWER MOLDING | Holder - RR. LOWER MOLDING |
| 8 | 91532-SS0-003 | Holder - RR. WINDSHIELD GLASS | Holder - RR. WINDSHIELD GLASS |
| 9 | 91538-SS0-J01 | Fastener c - RR. WINDSHIELD | Fastener c - RR. WINDSHIELD |
| 10 | 91536-SS0-J01 | Fastener a - WINDSHIELD | Fastener a - WINDSHIELD |
Roof lining 5 / 5
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 16 | 90132-SP0-003 | Screw - PAN, 5X15 | Screw - PAN, 5X15 |
| 18 | 90609-SS0-000 | Clip - ROOF LINING | Clip - ROOF LINING |
| 19 | 90667-SD4-003 | Clip - ROOF LINING | Clip - ROOF LINING |
| 20 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 20 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
Roof slide components 32 / 32
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 70241-SS0-003 | Channel - R. RR. DRAIN | Channel - R. RR. DRAIN |
| 2 | 70246-SS0-003 | Channel - L. RR. DRAIN | Channel - L. RR. DRAIN |
| 3 | 70251-SS0-003 | Channel - R. FR. DRAIN | Channel - R. FR. DRAIN |
| 4 | 70256-SS0-003 | Channel - L. FR. DRAIN | Channel - L. FR. DRAIN |
| 5 | 70302-SR3-003 | Stopper - FR. | Stopper - FR. |
| 6 | 70307-SS0-003 | Stopper - RR. | Stopper - RR. |
| 7 | 70310-SS0-003 | Rail - R. GUIDE | Rail - R. GUIDE |
| 8 | 70313-SS0-003 | Holder - R. RR. RAIL | Holder - R. RR. RAIL |
| 9 | 70315-SS0-003 | Rail - L. GUIDE | Rail - L. GUIDE |
| 10 | 70318-SS0-003 | Holder - L. RR. RAIL | Holder - L. RR. RAIL |
| 11 | 70330-SS0-003 | Bracket - R. PANEL | Bracket - R. PANEL |
| 12 | 70331-SS0-003 | Stay - R. PANEL | Stay - R. PANEL |
| 13 | 70332-SR3-003 | Slider a - GLASS LIFTER | Slider a - GLASS LIFTER |
| 14 | 70333-SS0-003 | Slider - R. | Slider - R. |
| 15 | 70334-SS0-003 | Slider b - LIFTER | Slider b - LIFTER |
| 16 | 70335-SS0-003 | Bracket - L. PANEL | Bracket - L. PANEL |
| 17 | 70336-SS0-003 | Stay - L. PANEL | Stay - L. PANEL |
| 18 | 70338-SS0-003 | Slider - L. | Slider - L. |
| 19 | 70340-SS0-003 | Anchor comp. - R. | Anchor comp. - R. |
| 20 | 70345-SS0-003 | Anchor comp. - L. | Anchor comp. - L. |
| 21 | 70347-SS0-003 | Spring - ANCHOR | Spring - ANCHOR |
| 22 | 70351-SS0-003 | Stopper - ANCHOR | Stopper - ANCHOR |
| 23 | 70361-SS0-003 | Link - R. SLIDE STOPPER | Link - R. SLIDE STOPPER |
| 24 | 70366-SS0-003 | Link - L. SLIDE STOPPER | Link - L. SLIDE STOPPER |
| 25 | 70372-SS0-003 | Lifter - R. | Lifter - R. |
| 26 | 70377-SS0-003 | Lifter - L. | Lifter - L. |
| 27 | 70391-SR3-003 | Screw - PAN, 5X10 | Screw - PAN, 5X10 |
| 28 | 70400-SS0-003 | Cable assy - SUNROOF | Cable assy - SUNROOF |
| 29 | 70450-SS0-003 | Motor assy. - SUNROOF | Motor assy. - SUNROOF |
| 30 | 70631-SS0-003 | Cover - R. GUIDE RAIL HOLDER | Cover - R. GUIDE RAIL HOLDER |
| 31 | 70636-SS0-003 | Cover - L. GUIDE RAIL HOLDER | Cover - L. GUIDE RAIL HOLDER |
| 32 | 71997-692-920 | Shim - STAY (1.0MM) | Shim - STAY (1.0MM) |
Seatbelts 3 / 3
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 8 | 81495-SE0-A00 | Guide - WEBBING SHOULDER | Guide - WEBBING SHOULDER |
| 17 | 90301-SS0-000 | Nut - CLIP, 6MM | Nut - CLIP, 6MM |
| 18 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
Select lever (LH) 3 / 33
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 41 | 90114-SA0-000 | Nut - SELF-LOCK, 6MM | Nut - SELF-LOCK, 6MM |
| 42 | 90156-SM4-000 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 44 | 90665-SP0-000 | Clip - SNAP FITTING | Clip - SNAP FITTING |
Shift arm/shift lever 17 / 17
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 24411-PX5-010 | Arm - SHIFT | Arm - SHIFT |
| 2 | 24431-P16-000 | Interlock comp. | Interlock comp. |
| 3 | 24433-PX5-000 | Bolt - INTERLOCK | Bolt - INTERLOCK |
| 4 | 24440-PK5-000 | Cam comp - REVERSE LOCK | Cam comp - REVERSE LOCK |
| 5 | 24460-PX5-010 | Lever comp - SELECT | Lever comp - SELECT |
| 6 | 24463-PK5-000 | Pin - SELECT RETURN | Pin - SELECT RETURN |
| 7 | 24464-P0S-000 | Spring - SELECT RETURN | Spring - SELECT RETURN |
| 8 | 24465-P0S-000 | Spring - FIFTH & REVERSE SELECT | Spring - FIFTH & REVERSE SELECT |
| 9 | 24470-PX5-000 | Lever comp - SHIFT | Lever comp - SHIFT |
| 10 | 24474-PK5-000 | Boot - SHIFT LEVER | Boot - SHIFT LEVER |
| 11 | 24480-PK5-000 | Arm comp - SELECT | Arm comp - SELECT |
| 12 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 13 | 90029-PX5-010 | Bolt - SPECIAL, 8X24 | Bolt - SPECIAL, 8X24 |
| 14 | 90406-PX5-010 | Washer - LOCK | Washer - LOCK |
| 15 | 91209-PE9-003 | Dust seal - 16X23X5(ARAI) | Dust seal - 16X23X5(ARAI) |
| 15 | 91209-PE9-005 | Dust seal - 16X23X5(NOK) | Dust seal - 16X23X5(NOK) |
| 16 | 91215-PK5-000 | Oil seal - 16X27X14 | Oil seal - 16X27X14 |
Shift fork 8 / 8
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 24200-P16-J00 | Fork comp - FIFTH GEARSHIFT | Fork comp - FIFTH GEARSHIFT |
| 2 | 24210-P0S-010 | Fork comp - GEARSHIFT (3-4) | Fork comp - GEARSHIFT (3-4) |
| 3 | 24220-PX5-J01 | Fork comp - GEARSHIFT (1-2) | Fork comp - GEARSHIFT (1-2) |
| 4 | 24230-PX5-J00 | Holder comp - REVERSE SHIFT | Holder comp - REVERSE SHIFT |
| 5 | 24243-PX5-J00 | Piece - FIFTH & REVERSE SHIFT | Piece - FIFTH & REVERSE SHIFT |
| 6 | 24452-P16-000 | Spring a - BALL SETTING | Spring a - BALL SETTING |
| 7 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 8 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
Shift lever 29 / 29
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 54101-SS0-000 | Lever - CHANGE | Lever - CHANGE |
| 3 | 54105-SS0-010 | Bracket - CHANGE LEVER | Bracket - CHANGE LEVER |
| 5 | 54110-SF1-003 | Seat - CHANGE LEVER BALL | Seat - CHANGE LEVER BALL |
| 6 | 54111-SM4-000 | Holder - CHANGE BALL | Holder - CHANGE BALL |
| 7 | 54112-SV4-000 | Pivot - CHANGE LEVER | Pivot - CHANGE LEVER |
| 8 | 54113-SM4-000 | Bush - CHANGE PIVOT | Bush - CHANGE PIVOT |
| 9 | 54114-SM4-003 | Guide - CHANGE LEVER PIVOT | Guide - CHANGE LEVER PIVOT |
| 11 | 54115-SV4-000 | Linkage - CHANGE LEVER | Linkage - CHANGE LEVER |
| 12 | 54116-SV4-000 | Pin - LINKAGE | Pin - LINKAGE |
| 13 | 54117-SM4-003 | Rubber a - FLOATING | Rubber a - FLOATING |
| 14 | 54118-SH9-000 | Rubber b - FLOATING | Rubber b - FLOATING |
| 16 | 54119-SM4-000 | Collar - FLOATING | Collar - FLOATING |
| 17 | 54141-SM4-000 | Collar - SELECT LINK | Collar - SELECT LINK |
| 18 | 54210-SM4-000 | Bush c - CHANGE LEVER | Bush c - CHANGE LEVER |
| 19 | 54211-SD9-010 | Ball - CUSHION | Ball - CUSHION |
| 20 | 54310-SS0-014 | Wire comp - CHANGE (CHUO HATSUJO) | Wire comp - CHANGE (CHUO HATSUJO) |
| 20 | 54310-SS0-003 | Wire comp - CHANGE (NIPPON CABLE SYSTEM) | Wire comp - CHANGE (NIPPON CABLE SYSTEM) |
| 21 | 54340-SC2-000 | Washer - WAVE | Washer - WAVE |
| 22 | 54357-SF1-003 | Plate - CHANGE WIRE | Plate - CHANGE WIRE |
| 23 | 90101-SM4-900 | Bolt-washer - 8X45 | Bolt-washer - 8X45 |
| 24 | 90114-SA0-000 | Nut - SELF-LOCK, 6MM | Nut - SELF-LOCK, 6MM |
| 25 | 90156-SM4-000 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 26 | 90165-SS0-000 | Bolt - CHANGE WIRE | Bolt - CHANGE WIRE |
| 27 | 90166-SS0-000 | Collar - CHANGE WIRE | Collar - CHANGE WIRE |
| 28 | 90555-SF1-000 | Washer a - SHIFT WIRE(1.6MM) | Washer a - SHIFT WIRE(1.6MM) |
| 29 | 90556-SF1-000 | Washer b - SHIFT WIRE (0.5MM) | Washer b - SHIFT WIRE (0.5MM) |
| 30 | 90557-SF1-000 | Washer a - SELECT WIRE (1.6MM) | Washer a - SELECT WIRE (1.6MM) |
| 31 | 90558-SF1-000 | Washer b - SELECT WIRE (0.5MM) | Washer b - SELECT WIRE (0.5MM) |
| 32 | 91301-SD9-000 | O-ring - 2.3X24.5 | O-ring - 2.3X24.5 |
Side protectors 19 / 22
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 71800-SS0-000 | Garnish assy - R. SIDE SILL | Garnish assy - R. SIDE SILL |
| 2 | 71850-SS0-000 | Garnish assy - L. SIDE SILL | Garnish assy - L. SIDE SILL |
| 3 | 72410-SS0-003 | Molding assy. - R. FR. DOOR | Molding assy. - R. FR. DOOR |
| 4 | 72412-SS0-003 | Cap - R. RR. DOOR MOLDING END | Cap - R. RR. DOOR MOLDING END |
| 5 | 72417-SS0-003 | Cap - L. RR. DOOR MOLDING END | Cap - L. RR. DOOR MOLDING END |
| 6 | 72450-SS0-003 | Molding assy. - L. FR. DOOR | Molding assy. - L. FR. DOOR |
| 7 | 74306-SS0-003 | Molding assy. - R. ROOF | Molding assy. - R. ROOF |
| 8 | 74316-SS0-003 | Molding assy. - L. ROOF | Molding assy. - L. ROOF |
| 9 | 75800-SS0-010 | Mudguard - R. FR. | Mudguard - R. FR. |
| 10 | 75810-SS0-010 | Mudguard - L. FR. | Mudguard - L. FR. |
| 14 | 90139-SE0-003 | Screw-washer - 5X25 | Screw-washer - 5X25 |
| 17 | 90331-SS0-000 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 18 | 90505-SM4-003 | Clip - GARNISH | Clip - GARNISH |
| 18 | 90505-SX0-003 | Clip - GARNISH | Clip - GARNISH |
| 19 | 90666-SS0-003 | Clip - ROOF MOLDING | Clip - ROOF MOLDING |
| 20 | 90668-SA5-003 | Grommet - SCREW, 6MM | Grommet - SCREW, 6MM |
| 21 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 22 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
| 23 | 91523-SS0-003 | Clip - DOOR MOLDING | Clip - DOOR MOLDING |
Sliding roof 19 / 19
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 15707-634-000 | Clip - OIL DRAIN TUBE | Clip - OIL DRAIN TUBE |
| 2 | 18534-634-670 | Clip - AIR HOSE, 16MM | Clip - AIR HOSE, 16MM |
| 3 | 70050-SS0-000 | Tube - FR. DRAIN VINYL (SUNROOF) | Tube - FR. DRAIN VINYL (SUNROOF) |
| 4 | 70052-SS0-000 | Valve - FR. DRAIN (SUNROOF) | Valve - FR. DRAIN (SUNROOF) |
| 5 | 70060-SS0-A00 | Tube a - RR. DRAIN VINYL (SUNROOF) | Tube a - RR. DRAIN VINYL (SUNROOF) |
| 6 | 70060-SS0-000 | Tube - RR. DRAIN VINYL (SUNROOF) | Tube - RR. DRAIN VINYL (SUNROOF) |
| 7 | 70062-SH3-000 | Valve - RR. DRAIN (SUNROOF) | Valve - RR. DRAIN (SUNROOF) |
| 8 | 70080-SS0-003 | Seal - SUNROOF FRAME | Seal - SUNROOF FRAME |
| 10 | 70100-SS0-013 | Frame comp - SUNROOF | Frame comp - SUNROOF |
| 11 | 70205-SS0-003 | Seal - SUNROOF PANEL | Seal - SUNROOF PANEL |
| 13 | 70271-SS0-003 | Holder - FR. | Holder - FR. |
| 14 | 70272-SS0-003 | Holder - RR. | Holder - RR. |
| 15 | 70273-SS0-003 | Holder - R. SIDE | Holder - R. SIDE |
| 16 | 70278-SS0-003 | Holder - L. SIDE | Holder - L. SIDE |
| 18 | 90110-SS0-000 | Screw - TAPPING, 4X8 | Screw - TAPPING, 4X8 |
| 20 | 90662-679-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 21 | 91504-SE3-920 | Clip - SLIDE ROOF DRAIN TUBE | Clip - SLIDE ROOF DRAIN TUBE |
| 22 | 91504-SS0-003 | Clip - SLIDE ROOF DRAIN TUBE | Clip - SLIDE ROOF DRAIN TUBE |
| 23 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
Speed sensor (1) 5 / 5
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 78113-SS0-A01 | Visor assy - BLIND | Visor assy - BLIND |
| 5 | 78410-SV4-003 | Sensor assy - SPEED (MATSUSHITA) | Sensor assy - SPEED (MATSUSHITA) |
| 6 | 78411-SM4-003 | Joint - SPEED SENSOR (MATSUSHITA) | Joint - SPEED SENSOR (MATSUSHITA) |
| 8 | 90102-SA4-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 9 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
Starter motor (MITSUBA) 13 / 16
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 31200-P12-005 | Motor assy. - STARTER (SM-422-14) (MITSUBA) | Motor assy. - STARTER (SM-422-14) (MITSUBA) |
| 2 | 31202-P0C-004 | Bolt - SETTING | Bolt - SETTING |
| 3 | 31204-P0A-004 | Gear assy - ### | Gear assy - ### |
| 4 | 31206-P0C-004 | Yoke assy - ### | Yoke assy - ### |
| 5 | 31207-P0C-004 | Armature assy - ### | Armature assy - ### |
| 6 | 31208-P0G-A01 | Stay assy - BRUSH | Stay assy - BRUSH |
| 7 | 31210-P1R-004 | Switch assy | Switch assy |
| 8 | 31211-PC2-006 | Ring - SQUARE (MITSUBA) | Ring - SQUARE (MITSUBA) |
| 9 | 31217-PC2-006 | Screw-washer - 4X28 (MITSUBA) | Screw-washer - 4X28 (MITSUBA) |
| 10 | 31235-P0G-A01 | Cover - TERMINAL (###) | Cover - TERMINAL (###) |
| 11 | 31251-PJ7-904 | Tube - LABYRINTH (###) | Tube - LABYRINTH (###) |
| 12 | 31252-PD2-006 | Rubber - BUSH (MITSUBA) | Rubber - BUSH (MITSUBA) |
| 14 | 31292-P45-G11 | Stay assy - ENGINE WIRE HARNESS (###) | Stay assy - ENGINE WIRE HARNESS (###) |
Steering column 19 / 19
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 53200-SS0-G01 | Column assy - STEERING | Column assy - STEERING |
| 2 | 53216-SM4-010 | Holder b - STEERING COLUMN | Holder b - STEERING COLUMN |
| 3 | 53217-SL4-N50 | Collar - STEERING RETAINER | Collar - STEERING RETAINER |
| 5 | 53320-SS0-G00 | Cover - STEERING JOINT | Cover - STEERING JOINT |
| 6 | 53321-SF1-950 | Guard - STEERING JOINT | Guard - STEERING JOINT |
| 7 | 53323-SL4-J01 | Joint comp. b - STEERING | Joint comp. b - STEERING |
| 8 | 53325-SB0-010 | Clip A - JOINT COVER | Clip A - JOINT COVER |
| 9 | 53326-SB0-000 | Clip b - JOINT COVER | Clip b - JOINT COVER |
| 10 | 53334-SS0-000 | Dust seal comp. - JOINT | Dust seal comp. - JOINT |
| 12 | 53363-SS0-A00 | Pivot comp - COLUMN | Pivot comp - COLUMN |
| 13 | 53364-SL4-000 | Collar - PIVOT | Collar - PIVOT |
| 14 | 53365-SA0-961 | Bush - PIVOT | Bush - PIVOT |
| 15 | 53371-SM4-013 | Spring - COLUMN HANGER | Spring - COLUMN HANGER |
| 18 | 90135-SB0-003 | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) |
| 19 | 90361-SM4-003 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 19 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 20 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 21 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 23 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
Switch (LH) 5 / 8
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 3 | 35510-SS0-013 | Switch assy - HAZARD | Switch assy - HAZARD |
| 6 | 35830-SS0-003 | Switch assy - ROOF | Switch assy - ROOF |
| 8 | 35833-SS0-003 | Lid | Lid |
| 9 | 35851-SM4-003 | Bulb - NEO WEDGE (14V 60MA) (TEC) | Bulb - NEO WEDGE (14V 60MA) (TEC) |
| 10 | 35851-SS0-003 | Bulb - NEO WEDGE (14V 60MA) | Bulb - NEO WEDGE (14V 60MA) |
Taillight (1) 16 / 29
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 2 | 33500-SS0-E03 | Taillight assy. - R. (###) | Taillight assy. - R. (###) |
| 3 | 33501-SS0-G01 | Lamp unit - R. | Lamp unit - R. |
| 4 | 33502-SS0-E02 | Cover & coupler - R. | Cover & coupler - R. |
| 5 | 33503-SS0-A01 | Gasket - BASE | Gasket - BASE |
| 6 | 33509-SS0-A01 | Screw - TAPPING, 4X24 | Screw - TAPPING, 4X24 |
| 7 | 33550-SS0-E03 | Taillight assy. - L. (###) | Taillight assy. - L. (###) |
| 8 | 33551-SS0-G01 | Lamp unit - L. | Lamp unit - L. |
| 9 | 33552-SS0-E02 | Cover & coupler - L. | Cover & coupler - L. |
| 28 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 30 | 34911-634-611 | Bulb - 12V 21/5W) (ECE) (STANLEY | Bulb - 12V 21/5W) (ECE) (STANLEY |
| 31 | 37540-SM4-003 | Sensor - STOP LAMP FAILURE | Sensor - STOP LAMP FAILURE |
| 33 | 75523-SS0-000 | Packing - SEAL | Packing - SEAL |
| 34 | 75524-SS0-000 | Bolt - SPECIAL, 5MM | Bolt - SPECIAL, 5MM |
| 35 | 75525-SD4-013 | Clip - RR. PANEL GARNISH | Clip - RR. PANEL GARNISH |
| 38 | 90665-SS0-003 | Grommet - RR. COMBINATION | Grommet - RR. COMBINATION |
| 41 | 91524-SE0-003 | Clip - COWL TOP | Clip - COWL TOP |
Throttle body (SOHC) 11 / 17
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 16016-PM6-005 | Screw set | Screw set |
| 2 | 16075-PE2-005 | O-ring - 31.2X1.9 | O-ring - 31.2X1.9 |
| 3 | 16077-PR3-005 | O-ring | O-ring |
| 4 | 16176-PT2-004 | Gasket - THROTTLE BODY (NIPPON LEAKLESS) | Gasket - THROTTLE BODY (NIPPON LEAKLESS) |
| 4 | 16176-PT2-003 | Gasket - THROTTLE BODY (ISHINO GASKET) | Gasket - THROTTLE BODY (ISHINO GASKET) |
| 5 | 16400-P12-A00 | Throttle Body Assy - GF82B | Throttle Body Assy - GF82B |
| 6 | 16411-PT2-000 | Stay - THROTTLE WIRE | Stay - THROTTLE WIRE |
| 7 | 16500-PT2-000 | Valve assy. - FAST IDLE (AF15C) | Valve assy. - FAST IDLE (AF15C) |
| 9 | 17341-PT2-000 | Packing - AIR BOOST VALVE | Packing - AIR BOOST VALVE |
| 12 | 36454-PS4-003 | Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI) | Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI) |
| 14 | 91304-PE2-005 | O-ring - 15.8X1.9 | O-ring - 15.8X1.9 |
Tire/wheel disk 21 / 40
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 3 | 42700-SS0-A01 | Disk - WHEEL (14X5 1/2JJ) (BLACK) (KANAI) | Disk - WHEEL (14X5 1/2JJ) (BLACK) (KANAI) |
| 7 | 42751-SS0-G01 | Tire - 195/65R14 89H) (BRIDGESTONE | Tire - 195/65R14 89H) (BRIDGESTONE |
| 7 | 42751-SS0-G02 | Tire - 195/65R14 89H) (DUNLOP | Tire - 195/65R14 89H) (DUNLOP |
| 9 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 9 | 42753-SE0-A02 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 12 | 44721-SM4-003 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 12 | 44728-SM4-003 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 12 | 44726-SM4-003 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 12 | 44724-SM4-003 | Weight - BALANCE (40G) (YAMATE) | Weight - BALANCE (40G) (YAMATE) |
| 12 | 44722-SM4-003 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 12 | 44729-SM4-003 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 12 | 44727-SM4-003 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 12 | 44725-SM4-003 | Weight - BALANCE (50G) (YAMATE) | Weight - BALANCE (50G) (YAMATE) |
| 12 | 44723-SM4-003 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 12 | 44730-SM4-003 | Weight - BALANCE (45G) (YAMATE) | Weight - BALANCE (45G) (YAMATE) |
| 16 | 44733-SS0-A02 | Trim - WHEEL (14") | Trim - WHEEL (14") |
| 18 | 44736-SA0-981 | Nut - WHEEL (FUSE RASHI) | Nut - WHEEL (FUSE RASHI) |
| 20 | 44737-SA0-981 | Washer - WHEEL NUT (FUSE RASHI) | Washer - WHEEL NUT (FUSE RASHI) |
| 22 | 74654-SM4-A00 | Bolt - ANCHOR (58MM) | Bolt - ANCHOR (58MM) |
| 23 | 74665-SM4-A00 | Adapter - ANCHOR BOLT | Adapter - ANCHOR BOLT |
| 24 | 90304-SA0-981 | Nut comp. - WHEEL (FUSE RASHI) | Nut comp. - WHEEL (FUSE RASHI) |
Tools/jack 6 / 10
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 2 | 71969-SA7-890 | Wrench - SUNROOF | Wrench - SUNROOF |
| 4 | 89101-SW5-003 | Bag - TOOL | Bag - TOOL |
| 5 | 89211-SE3-003 | Wrench - WHEEL | Wrench - WHEEL |
| 10 | 89310-SP0-003 | Jack assy - PANTOGRAPH | Jack assy - PANTOGRAPH |
| 11 | 89320-SE3-003 | Bar - JACK | Bar - JACK |
| 11 | 89320-S50-003 | Bar - JACK | Bar - JACK |
Transmission case 54 / 83
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 21104-PX5-010 | Plate m - OIL GUIDE | Plate m - OIL GUIDE |
| 1 | 19108-PM0-003 | Clamp - RESERVE TANK TUBE (BLACK) | Clamp - RESERVE TANK TUBE (BLACK) |
| 2 | 21200-P16-J00 | Case comp. - TRANSMISSION | Case comp. - TRANSMISSION |
| 3 | 21222-PX5-000 | Hanger b - TRANSMISSION | Hanger b - TRANSMISSION |
| 4 | 21223-PX5-000 | Hanger a - TRANSMISSION | Hanger a - TRANSMISSION |
| 5 | 21396-PX5-000 | Cap - BREATHER | Cap - BREATHER |
| 6 | 21520-PX5-000 | Cover comp. - SHIFT ARM | Cover comp. - SHIFT ARM |
| 7 | 23955-PK5-000 | Shim o - 78MM (1.62) | Shim o - 78MM (1.62) |
| 7 | 23950-PK5-000 | Shim j - 78MM (1.47) | Shim j - 78MM (1.47) |
| 7 | 23977-PK5-000 | Shim ak - 78MM (2.28) | Shim ak - 78MM (2.28) |
| 7 | 23945-PK5-000 | Shim e - 78MM (1.32) | Shim e - 78MM (1.32) |
| 7 | 23972-PK5-000 | Shim af - 78MM (2.13) | Shim af - 78MM (2.13) |
| 7 | 23967-PK5-000 | Shim aa - 78MM (1.98) | Shim aa - 78MM (1.98) |
| 7 | 23962-PK5-000 | Shim v - 78MM (1.83) | Shim v - 78MM (1.83) |
| 7 | 23957-PK5-000 | Shim q - 78MM (1.68) | Shim q - 78MM (1.68) |
| 7 | 23952-PK5-000 | Shim l - 78MM (1.53) | Shim l - 78MM (1.53) |
| 7 | 23979-PK5-000 | Shim am - 78MM (2.34) | Shim am - 78MM (2.34) |
| 7 | 23947-PK5-000 | Shim g - 78MM (1.38) | Shim g - 78MM (1.38) |
| 7 | 23942-PK5-000 | Shim b - 78MM (1.23) | Shim b - 78MM (1.23) |
| 7 | 23974-PK5-000 | Shim ah - 78MM (2.19) | Shim ah - 78MM (2.19) |
| 7 | 23969-PK5-000 | Shim ac - 78MM (2.04) | Shim ac - 78MM (2.04) |
| 7 | 23964-PK5-000 | Shim x - 78MM (1.89) | Shim x - 78MM (1.89) |
| 7 | 23959-PK5-000 | Shim s - 78MM (1.74) | Shim s - 78MM (1.74) |
| 7 | 23954-PK5-000 | Shim n - 78MM (1.59) | Shim n - 78MM (1.59) |
| 7 | 23949-PK5-000 | Shim i - 78MM (1.44) | Shim i - 78MM (1.44) |
| 7 | 23976-PK5-000 | Shim aj - 78MM (2.25) | Shim aj - 78MM (2.25) |
| 7 | 23944-PK5-000 | Shim d - 78MM (1.29) | Shim d - 78MM (1.29) |
| 7 | 23971-PK5-000 | Shim ae - 78MM (2.10) | Shim ae - 78MM (2.10) |
| 7 | 23966-PK5-000 | Shim z - 78MM (1.95) | Shim z - 78MM (1.95) |
| 7 | 23961-PK5-000 | Shim u - 78MM (1.80) | Shim u - 78MM (1.80) |
| 7 | 23956-PK5-000 | Shim p - 78MM (1.65) | Shim p - 78MM (1.65) |
| 7 | 23951-PK5-000 | Shim k - 78MM (1.50) | Shim k - 78MM (1.50) |
| 7 | 23978-PK5-000 | Shim al - 78MM (2.31) | Shim al - 78MM (2.31) |
| 7 | 23946-PK5-000 | Shim f - 78MM (1.35) | Shim f - 78MM (1.35) |
| 7 | 23941-PK5-000 | Shim a - 78MM (1.20) | Shim a - 78MM (1.20) |
| 7 | 23973-PK5-000 | Shim ag - 78MM (2.16) | Shim ag - 78MM (2.16) |
| 7 | 23968-PK5-000 | Shim ab - 78MM (2.01) | Shim ab - 78MM (2.01) |
| 7 | 23963-PK5-000 | Shim w - 78MM (1.86) | Shim w - 78MM (1.86) |
| 7 | 23958-PK5-000 | Shim r - 78MM (1.71) | Shim r - 78MM (1.71) |
| 7 | 23953-PK5-000 | Shim m - 78MM (1.56) | Shim m - 78MM (1.56) |
| 7 | 23980-PK5-000 | Shim an - 78MM (2.37) | Shim an - 78MM (2.37) |
| 7 | 23948-PK5-000 | Shim h - 78MM (1.41) | Shim h - 78MM (1.41) |
| 7 | 23948-P16-000 | Shim h - 78MM (1.41) | Shim h - 78MM (1.41) |
| 7 | 23943-PK5-000 | Shim c - 78MM (1.26) | Shim c - 78MM (1.26) |
| 7 | 23975-PK5-000 | Shim ai - 78MM (2.22) | Shim ai - 78MM (2.22) |
| 7 | 23970-PK5-000 | Shim ad - 78MM (2.07) | Shim ad - 78MM (2.07) |
| 7 | 23965-PK5-000 | Shim y - 78MM (1.92) | Shim y - 78MM (1.92) |
| 7 | 23960-PK5-000 | Shim t - 78MM (1.77) | Shim t - 78MM (1.77) |
| 8 | 35600-PK5-003 | Switch assy - BACK UP LIGHT (TEC) | Switch assy - BACK UP LIGHT (TEC) |
| 9 | 90042-PX5-010 | Bolt - STUD, 10X50 | Bolt - STUD, 10X50 |
| 10 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 11 | 90081-PX5-000 | Screw - SEALING, 32MM | Screw - SEALING, 32MM |
| 12 | 90083-PK5-000 | Bolt - SEALING, 28MM | Bolt - SEALING, 28MM |
| 13 | 91206-PX5-005 | Oil seal - 40X58X8(NOK) | Oil seal - 40X58X8(NOK) |
Trunk lid 23 / 23
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 11 | 73219-693-951 | Seal - FUEL LID OPENER (GREEN) | Seal - FUEL LID OPENER (GREEN) |
| 12 | 74411-SS0-A01 | Cable - FUEL LID OPENER | Cable - FUEL LID OPENER |
| 13 | 74827-SH2-003 | Stopper - TAILGATE | Stopper - TAILGATE |
| 14 | 74827-SK7-000 | Stopper a - TAILGATE | Stopper a - TAILGATE |
| 15 | 74851-SM4-003 | Lock - TRUNK | Lock - TRUNK |
| 18 | 74861-SS0-003 | Cylinder - TRUNK | Cylinder - TRUNK |
| 19 | 74862-SS0-003 | Striker - TRUNK | Striker - TRUNK |
| 20 | 74863-SS0-003 | Rod - TRUNK LOCK | Rod - TRUNK LOCK |
| 21 | 74864-SM4-003 | Cover - TRUNK LOCK | Cover - TRUNK LOCK |
| 22 | 74865-SS0-000 | Weatherstrip - TRUNK LID | Weatherstrip - TRUNK LID |
| 23 | 74871-SS0-000 | Spring - R. TRUNK OPENER | Spring - R. TRUNK OPENER |
| 24 | 74872-SS0-000 | Spring - L. TRUNK OPENER | Spring - L. TRUNK OPENER |
| 25 | 74873-SM4-003 | Clip - TRUNK OPENER SPRING | Clip - TRUNK OPENER SPRING |
| 26 | 74880-SS0-A00 | Cable - TRUNK OPENER | Cable - TRUNK OPENER |
| 31 | 74886-SH4-A03 | Cylinder - TRUNK REMOTE CONTROL | Cylinder - TRUNK REMOTE CONTROL |
| 32 | 83418-SG3-003 | Cushion - TRUNK HINGE | Cushion - TRUNK HINGE |
| 33 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 34 | 90101-SM3-003 | Screw-washer - 6X14 | Screw-washer - 6X14 |
| 35 | 90109-SM4-000 | Bolt - SPECIAL, 6X35 | Bolt - SPECIAL, 6X35 |
| 37 | 90127-SE0-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 38 | 90501-SS0-000 | Packing - SEAT | Packing - SEAT |
| 41 | 91558-SE3-003 | Clip - HOOD WIRE | Clip - HOOD WIRE |
Valve/rocker arm (SOHC) 16 / 17
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 14621-PT0-000 | Arm comp - IN. ROCKER (A) | Arm comp - IN. ROCKER (A) |
| 2 | 14622-PT0-000 | Arm comp - IN. ROCKER (B) | Arm comp - IN. ROCKER (B) |
| 3 | 14623-PT0-000 | Arm comp - EX. ROCKER | Arm comp - EX. ROCKER |
| 4 | 14645-PT0-003 | Spring a - VALVE ROCKER ARM (SANKO) | Spring a - VALVE ROCKER ARM (SANKO) |
| 5 | 14646-PN4-003 | Spring b - VALVE ROCKER ARM (SANKO) | Spring b - VALVE ROCKER ARM (SANKO) |
| 6 | 14647-PT0-000 | Washer - WAVE | Washer - WAVE |
| 7 | 14711-PT3-A00 | Valve - IN. | Valve - IN. |
| 9 | 14744-PT0-004 | Screw - TAPPET ADJUSTING | Screw - TAPPET ADJUSTING |
| 10 | 14762-P0B-A02 | Spring - EX. VALVE (PINK) (CHUO SPRING) | Spring - EX. VALVE (PINK) (CHUO SPRING) |
| 10 | 14762-P0B-A01 | Spring - EX. VALVE (PINK) (NIPPON HATSUJO) | Spring - EX. VALVE (PINK) (NIPPON HATSUJO) |
| 11 | 14761-P0B-A01 | Spring - IN. VALVE (YELLOW-GREEN)(NIPPON HATSUJO) | Spring - IN. VALVE (YELLOW-GREEN)(NIPPON HATSUJO) |
| 11 | 14761-P0B-A02 | Spring - IN. VALVE (YELLOW-GREEN)(CHUO SPRING) | Spring - IN. VALVE (YELLOW-GREEN)(CHUO SPRING) |
| 12 | 14765-PT0-000 | Retainer - VALVE SPRING | Retainer - VALVE SPRING |
| 13 | 14775-PT0-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 14 | 14781-PJ7-003 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 15 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
Water hose (SOHC) 10 / 10
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 19314-PH6-000 | Clamp - HOSE (D13.5) | Clamp - HOSE (D13.5) |
| 2 | 19504-P39-000 | Hose - BYPASS IN. | Hose - BYPASS IN. |
| 3 | 19507-P12-A00 | Hose a - FAST IDLE CONTROL | Hose a - FAST IDLE CONTROL |
| 4 | 19508-PT2-000 | Hose b - FAST IDLE CONTROL | Hose b - FAST IDLE CONTROL |
| 5 | 19510-P12-000 | Hose - THROTTLE BODY | Hose - THROTTLE BODY |
| 6 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 7 | 19513-P12-A00 | Hose - ELECTRONIC AIR CONTROL VALVE | Hose - ELECTRONIC AIR CONTROL VALVE |
| 8 | 19514-PT2-000 | Hose a - BREATHER HEATER | Hose a - BREATHER HEATER |
| 9 | 19515-P12-A00 | Hose b - BREATHER HEATER | Hose b - BREATHER HEATER |
| 10 | 53740-SE0-953 | Clip - SENSOR HOSE | Clip - SENSOR HOSE |
Water pump 23 / 23
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 19200-P0A-003 | Pump comp - WATER (YAMADA) | Pump comp - WATER (YAMADA) |
| 2 | 19222-PT0-300 | Packing - WATER PUMP | Packing - WATER PUMP |
| 3 | 19223-PT0-000 | Rubber - WATER PUMP SEAL | Rubber - WATER PUMP SEAL |
| 4 | 19301-P08-305 | Thermostat assy - FUJI THOMSON | Thermostat assy - FUJI THOMSON |
| 4 | 19301-PAA-306 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 4 | 19301-P08-316 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 6 | 19305-PT0-000 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 6 | 19305-PLC-A00 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 8 | 19311-PT0-000 | Cover - THERMOSTAT | Cover - THERMOSTAT |
| 10 | 19313-PT0-000 | Packing - THERMOSTAT CASE | Packing - THERMOSTAT CASE |
| 11 | 19320-PT2-000 | Case comp. - THERMOSTAT | Case comp. - THERMOSTAT |
| 13 | 19360-PT3-A00 | Cover - WATER OUTLET | Cover - WATER OUTLET |
| 14 | 19500-PE0-000 | Joint, Tube | Joint, Tube |
| 15 | 19505-PT3-A00 | Pipe comp - CONNECTING | Pipe comp - CONNECTING |
| 16 | 19516-PC1-000 | Bolt - BREATHING WATER | Bolt - BREATHING WATER |
| 17 | 37773-PT3-A01 | Switch - THERMO (A-106) (UCHIYA) | Switch - THERMO (A-106) (UCHIYA) |
| 18 | 37773-PT0-004 | Sensor - THERMO (A-93) (TEC) | Sensor - THERMO (A-93) (TEC) |
| 19 | 90002-PD2-000 | Bolt - FLANGE, 8X16 | Bolt - FLANGE, 8X16 |
| 20 | 91307-611-000 | O-ring (13.5X1.4) | O-ring (13.5X1.4) |
| 20 | 91307-PH7-660 | O-ring (13.5X1.4) | O-ring (13.5X1.4) |
| 21 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 21 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 23 | 91314-PH7-003 | O-ring 31.2X4.1 (NOK) | O-ring 31.2X4.1 (NOK) |
Water valve 10 / 10
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 79710-SS0-003 | Valve assy. - WATER | Valve assy. - WATER |
| 3 | 79720-SS0-030 | Hose - WATER IN. | Hose - WATER IN. |
| 4 | 79721-SS0-000 | Hose a - WATER IN. | Hose a - WATER IN. |
| 5 | 79725-SS0-010 | Hose - WATER OUTLET | Hose - WATER OUTLET |
| 6 | 79731-SH3-000 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 7 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 8 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 8 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 9 | 91551-SD5-003 | Clamp - HEATER | Clamp - HEATER |
| 10 | 91553-SM4-003 | Clamp - HEATER HOSE (24MM & 39MM) | Clamp - HEATER HOSE (24MM & 39MM) |
Windshield washer 13 / 19
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 36062-671-000 | Clamp b - TUBE | Clamp b - TUBE |
| 3 | 38516-SA5-671 | Packing - T-TYPE) (MITSUBA | Packing - T-TYPE) (MITSUBA |
| 8 | 76804-SE0-003 | Float - WASHER | Float - WASHER |
| 10 | 76806-SE0-S01 | Motor - WASHER (MITSUBA) | Motor - WASHER (MITSUBA) |
| 12 | 76810-SS0-981 | Nozzle assy. - R. WINDSHIELD WASHER (BLACK) | Nozzle assy. - R. WINDSHIELD WASHER (BLACK) |
| 14 | 76815-SS0-981 | Nozzle assy. - L. WINDSHIELD WASHER (BLACK) | Nozzle assy. - L. WINDSHIELD WASHER (BLACK) |
| 15 | 76816-SS0-003 | Adapter - NOZZLE | Adapter - NOZZLE |
| 16 | 76820-SS0-003 | Grommet - TUBE WASHER | Grommet - TUBE WASHER |
| 17 | 76830-SM4-003 | Joint y - WASHER | Joint y - WASHER |
| 20 | 38519-SB0-003 | Bush - WASHER TANK (MITSUBA) | Bush - WASHER TANK (MITSUBA) |
| 23 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 26 | 91512-SE0-003 | Clip - WASHER TUBE | Clip - WASHER TUBE |
| 27 | 91539-SS0-003 | Clip - TUBE WASHER | Clip - TUBE WASHER |
Wire harness (LH) 28 / 41
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 7 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 8 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 10 | 32152-SD4-000 | Separator - WIRE HARNESS (GRAY) | Separator - WIRE HARNESS (GRAY) |
| 13 | 32160-SS0-000 | Grommet a - WIRE HARNESS | Grommet a - WIRE HARNESS |
| 14 | 32161-SS0-000 | Grommet b - WIRE HARNESS | Grommet b - WIRE HARNESS |
| 15 | 32202-SS0-000 | Cord - DEFROSTER EARTH | Cord - DEFROSTER EARTH |
| 16 | 32302-SS0-A00 | Bracket - ASSISTANT COUPLER HOLDER | Bracket - ASSISTANT COUPLER HOLDER |
| 17 | 32610-SS0-000 | Cable - SUB EARTH | Cable - SUB EARTH |
| 20 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 21 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 22 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 23 | 90330-SB3-000 | Nut-washer - 6MM | Nut-washer - 6MM |
| 24 | 91506-SS0-013 | Clip - WIRE & WASHER TUBE | Clip - WIRE & WASHER TUBE |
| 25 | 91507-SS0-003 | Clip - OFFSET, 30 (8MM) (BLACK) | Clip - OFFSET, 30 (8MM) (BLACK) |
| 26 | 91509-SA5-003 | Clip - OFFSET (45)(GRAY)(57MM) | Clip - OFFSET (45)(GRAY)(57MM) |
| 27 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 28 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 30 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 32 | 91551-SW5-003 | Clip - HARNESS BAND (BROWN) (151MM) | Clip - HARNESS BAND (BROWN) (151MM) |
| 33 | 91552-SS0-003 | Clip - WIRE HARNESS (M5) (BROWN) (93.5MM) | Clip - WIRE HARNESS (M5) (BROWN) (93.5MM) |
| 34 | 91553-SS0-003 | Clip - HARNESS (3 CONNECT) (BLACK) | Clip - HARNESS (3 CONNECT) (BLACK) |
| 35 | 91554-SH3-003 | Band - WIRE HARNESS (NATURAL) (100.5MM) | Band - WIRE HARNESS (NATURAL) (100.5MM) |
| 36 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 37 | 91556-SM4-003 | Clip - BAND (BLACK) (100MM) | Clip - BAND (BLACK) (100MM) |
| 39 | 91557-SS0-003 | Holder - COUPLER (VIOLET) | Holder - COUPLER (VIOLET) |
| 43 | 91572-SM4-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 44 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 45 | 91786-SR3-003 | Bar - JOINT (10P) | Bar - JOINT (10P) |
| # | OEM | BA8 | BB3 |
|---|---|---|---|
| 1 | 01463-SM4-000 | Caliper set - FR. | Caliper set - FR. |
| 1 | 01464-SS0-020 | Hose set - R. FR. BRAKE | Hose set - R. FR. BRAKE |
| 2 | 01465-SS0-010 | Hose set - L. FR. BRAKE | Hose set - L. FR. BRAKE |
| 3 | 01466-SS0-020 | Hose set - R. RR. BRAKE | Hose set - R. RR. BRAKE |
| 4 | 01468-SS0-010 | Hose set - L. RR. BRAKE | Hose set - L. RR. BRAKE |
| 1 | 01473-SM4-010 | Caliper set - RR. | Caliper set - RR. |
| 1 | 04810-SB3-000 | C clip set - TRIM FASTENER (30 PIECES) | C clip set - TRIM FASTENER (30 PIECES) |
| 1 | 04810-SB3-R00 | C clip set - TRIM FASTENER (100 PIECES) | C clip set - TRIM FASTENER (100 PIECES) |
| 1 | 06110-PT3-A03 | Gasket kit - CYLINDER HEAD | Gasket kit - CYLINDER HEAD |
| 1 | 06164-P0A-000 | INJECTOR, FUEL | INJECTOR, FUEL |
| 1 | 06531-SS0-000 | Seal kit a - POWER STEERING | Seal kit a - POWER STEERING |
| 2 | 06532-SS0-000 | Seal kit b - POWER STEERING | Seal kit b - POWER STEERING |
| 1 | 11000-PT0-020 | Block assy - CYLINDER | Block assy - CYLINDER |
| 2 | 11106-PT0-300 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 4 | 11107-PT0-000 | Bolt - SEALING, 16MM | Bolt - SEALING, 16MM |
| 5 | 11108-PT0-003 | Bolt - SEALING, 18MM | Bolt - SEALING, 18MM |
| 6 | 11109-PK2-010 | Seal - TIMING RUBBER | Seal - TIMING RUBBER |
| 7 | 11126-PK1-003 | Bolt - SEALING, 22MM | Bolt - SEALING, 22MM |
| 8 | 11130-PT0-010 | Bridge comp - BEARING CAP | Bridge comp - BEARING CAP |
| 9 | 11200-PT0-010 | Pan comp - OIL | Pan comp - OIL |
| 13 | 11251-P0A-000 | Packing comp. - OIL PAN | Packing comp. - OIL PAN |
| 1 | 11810-PT0-010 | Cover - TIMING BELT LOWER | Cover - TIMING BELT LOWER |
| 2 | 11811-PT0-000 | Rubber - TIMING BELT LOWER SEAL | Rubber - TIMING BELT LOWER SEAL |
| 3 | 11820-PT0-000 | Cover - TIMING BELT UPPER | Cover - TIMING BELT UPPER |
| 4 | 11830-PT0-000 | Cover - TIMING BELT BACK | Cover - TIMING BELT BACK |
| 5 | 11831-PT0-000 | Rubber a - TIMING BELT BACK SEAL | Rubber a - TIMING BELT BACK SEAL |
| 6 | 11832-PT0-000 | Rubber b - TIMING BELT BACK SEAL | Rubber b - TIMING BELT BACK SEAL |
| 7 | 11833-PT0-000 | Rubber c - TIMING BELT BACK SEAL | Rubber c - TIMING BELT BACK SEAL |
| 15 | 11910-PT0-020 | Bracket - ENGINE MOUNTING | Bracket - ENGINE MOUNTING |
| 16 | 11912-PT0-000 | Stay a - ENGINE MOUNTING BRACKET | Stay a - ENGINE MOUNTING BRACKET |
| 8 | 11925-PT0-000 | Rubber a - ENGINE MOUNTING BRACKET SEAL | Rubber a - ENGINE MOUNTING BRACKET SEAL |
| 9 | 11926-PT0-000 | Rubber b - ENGINE MOUNTING BRACKET SEAL | Rubber b - ENGINE MOUNTING BRACKET SEAL |
| 1 | 11942-PT0-000 | Stay - L. EX. MANIFOLD | Stay - L. EX. MANIFOLD |
| 1 | 12030-PT0-000 | Packing set - HEAD COVER | Packing set - HEAD COVER |
| 2 | 12204-PJ7-305 | Guide - IN. VALVE (OS) | Guide - IN. VALVE (OS) |
| 3 | 12205-PJ7-305 | Guide - EX. VALVE (OS) | Guide - EX. VALVE (OS) |
| 19 | 12207-634-300 | Washer - SEALING BOLT | Washer - SEALING BOLT |
| 4 | 12210-PZ1-003 | Seal a - VALVE STEM(ARAI) | Seal a - VALVE STEM(ARAI) |
| 4 | 12210-PZ1-004 | SEAL A, VALVE STEM (NOK) | SEAL A, VALVE STEM (NOK) |
| 5 | 12211-PZ1-003 | Seal b - VALVE STEM(ARAI) | Seal b - VALVE STEM(ARAI) |
| 5 | 12211-PZ1-004 | Seal b - VALVE STEM(NOK) | Seal b - VALVE STEM(NOK) |
| 6 | 12251-PT0-J02 | Gasket, CYLINDER HEAD (ISHINO GASKET) | Gasket, CYLINDER HEAD (ISHINO GASKET) |
| 5 | 12341-PT0-000 | Packing - CYLINDER HEAD COVER | Packing - CYLINDER HEAD COVER |
| 7 | 12342-PT0-000 | Packing b - HEAD COVER | Packing b - HEAD COVER |
| 3 | 13014-P11-800 | Washer set - THRUST (DAIDO) | Washer set - THRUST (DAIDO) |
| 3 | 13014-P11-810 | Washer set - THRUST (TAIHO) | Washer set - THRUST (TAIHO) |
| 2 | 13021-PT0-B03 | Ring set - PISTON (OS 0.25) (TEIKOKU) | Ring set - PISTON (OS 0.25) (TEIKOKU) |
| 2 | 13021-PT0-B04 | Ring set - PISTON (OS 0.25) (RIKEN) | Ring set - PISTON (OS 0.25) (RIKEN) |
| 2 | 13031-PT0-B03 | Ring set - PISTON (OS 0.50) (TEIKOKU) | Ring set - PISTON (OS 0.50) (TEIKOKU) |
| 2 | 13031-PT0-B04 | Ring set - PISTON (OS 0.50) (RIKEN) | Ring set - PISTON (OS 0.50) (RIKEN) |
| 5 | 13112-PT0-000 | Pin - PISTON | Pin - PISTON |
| 13 | 13402-PT0-000 | Pulley b - FR. TIMING BELT DRIVEN | Pulley b - FR. TIMING BELT DRIVEN |
| 10 | 13404-PT0-003 | Adjuster comp - BALANCER BELT (KOYO) | Adjuster comp - BALANCER BELT (KOYO) |
| 10 | 13404-PT0-004 | Adjuster comp - BALANCER BELT (NIPPON SEIKO) | Adjuster comp - BALANCER BELT (NIPPON SEIKO) |
| 11 | 13405-PT0-004 | Belt - BALANCER TIMING (UNITTA) | Belt - BALANCER TIMING (UNITTA) |
| 14 | 13406-PT0-003 | Metal f - THRUST BALANCER SHAFT | Metal f - THRUST BALANCER SHAFT |
| 12 | 13407-P0A-000 | Spring - BELT ADJUSTER | Spring - BELT ADJUSTER |
| 12 | 13407-PT0-000 | Spring b comp. - BELT ADJUSTER | Spring b comp. - BELT ADJUSTER |
| 15 | 13408-PT0-003 | Pulley - BALANCER BELT DRIVE | Pulley - BALANCER BELT DRIVE |
| 13 | 13415-P0A-000 | Bracket - BALANCER BELT ADJUSTER | Bracket - BALANCER BELT ADJUSTER |
| 20 | 13421-PT0-003 | Metal - BALANCER SHAFT (NO.1) (DAIDO) | Metal - BALANCER SHAFT (NO.1) (DAIDO) |
| 21 | 13422-PT0-013 | Metal - BALANCER SHAFT (NO.2) (DAIDO) | Metal - BALANCER SHAFT (NO.2) (DAIDO) |
| 22 | 13423-PT0-003 | Metal - BALANCER SHAFT (NO.3) (DAIDO) | Metal - BALANCER SHAFT (NO.3) (DAIDO) |
| 2 | 13500-PT0-J00 | Case set - GEAR | Case set - GEAR |
| 16 | 13621-P0A-003 | Pulley - TIMING BELT DRIVE | Pulley - TIMING BELT DRIVE |
| 17 | 13622-PV1-000 | Plate - TIMING BELT GUIDE | Plate - TIMING BELT GUIDE |
| 18 | 13810-PT1-003 | Pulley comp - CRANKSHAFT (NOK) | Pulley comp - CRANKSHAFT (NOK) |
| 15 | 14210-PT0-003 | Pulley - TIMING BELT DRIVEN | Pulley - TIMING BELT DRIVEN |
| 16 | 14400-PT0-004 | Belt - TIMING (UNITTA) (113RU24 A-555) | Belt - TIMING (UNITTA) (113RU24 A-555) |
| 17 | 14510-PT0-003 | Adjuster comp - TIMING BELT (KOYO) | Adjuster comp - TIMING BELT (KOYO) |
| 17 | 14510-PT0-004 | Adjuster comp - TIMING BELT (NIPPON SEIKO) | Adjuster comp - TIMING BELT (NIPPON SEIKO) |
| 18 | 14516-P0A-000 | Spring comp - TIMING BELT ADJUSTER | Spring comp - TIMING BELT ADJUSTER |
| 18 | 14516-PT0-000 | Spring comp - TIMING BELT ADJUSTER | Spring comp - TIMING BELT ADJUSTER |
| 1 | 14621-PT0-000 | Arm comp - IN. ROCKER (A) | Arm comp - IN. ROCKER (A) |
| 2 | 14622-PT0-000 | Arm comp - IN. ROCKER (B) | Arm comp - IN. ROCKER (B) |
| 3 | 14623-PT0-000 | Arm comp - EX. ROCKER | Arm comp - EX. ROCKER |
| 7 | 14631-P0B-A00 | Shaft a - ROCKER ARM | Shaft a - ROCKER ARM |
| 8 | 14632-P0B-A00 | Shaft b - ROCKER ARM | Shaft b - ROCKER ARM |
| 9 | 14633-P0B-A00 | Shaft - EX. VALVE ROCKER ARM | Shaft - EX. VALVE ROCKER ARM |
| 4 | 14645-PT0-003 | Spring a - VALVE ROCKER ARM (SANKO) | Spring a - VALVE ROCKER ARM (SANKO) |
| 5 | 14646-PN4-003 | Spring b - VALVE ROCKER ARM (SANKO) | Spring b - VALVE ROCKER ARM (SANKO) |
| 6 | 14647-PT0-000 | Washer - WAVE | Washer - WAVE |
| 7 | 14711-PT3-A00 | Valve - IN. | Valve - IN. |
| 9 | 14744-PT0-004 | Screw - TAPPET ADJUSTING | Screw - TAPPET ADJUSTING |
| 11 | 14761-P0B-A01 | Spring - IN. VALVE (YELLOW-GREEN)(NIPPON HATSUJO) | Spring - IN. VALVE (YELLOW-GREEN)(NIPPON HATSUJO) |
| 11 | 14761-P0B-A02 | Spring - IN. VALVE (YELLOW-GREEN)(CHUO SPRING) | Spring - IN. VALVE (YELLOW-GREEN)(CHUO SPRING) |
| 10 | 14762-P0B-A01 | Spring - EX. VALVE (PINK) (NIPPON HATSUJO) | Spring - EX. VALVE (PINK) (NIPPON HATSUJO) |
| 10 | 14762-P0B-A02 | Spring - EX. VALVE (PINK) (CHUO SPRING) | Spring - EX. VALVE (PINK) (CHUO SPRING) |
| 12 | 14765-PT0-000 | Retainer - VALVE SPRING | Retainer - VALVE SPRING |
| 13 | 14775-PT0-000 | Seat - VALVE SPRING | Seat - VALVE SPRING |
| 14 | 14781-PJ7-003 | Cotter - VALVE (FUJI VALVE) | Cotter - VALVE (FUJI VALVE) |
| 4 | 15100-PT0-020 | Oil Pump assy | Oil Pump assy |
| 5 | 15113-PT0-003 | Packing a - OIL PUMP (ARAI) | Packing a - OIL PUMP (ARAI) |
| 6 | 15114-PT0-003 | Packing b - OIL PUMP (ARAI) | Packing b - OIL PUMP (ARAI) |
| 23 | 15140-PH3-000 | Orifice assy - OIL CONTROL | Orifice assy - OIL CONTROL |
| 24 | 15142-PH3-003 | O-ring - 10.8X2.4 (ARAI) | O-ring - 10.8X2.4 (ARAI) |
| 7 | 15200-P13-000 | Pipe comp - OIL LEVEL | Pipe comp - OIL LEVEL |
| 8 | 15220-P0B-000 | Strainer comp. - OIL | Strainer comp. - OIL |
| 9 | 15221-P5K-004 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 9 | 15221-PT0-000 | Packing - OIL STRAINER | Packing - OIL STRAINER |
| 10 | 15231-PE0-000 | Valve - RELIEF | Valve - RELIEF |
| 11 | 15232-PG6-000 | Spring - RELIEF VALVE | Spring - RELIEF VALVE |
| 12 | 15233-PC6-000 | Bolt - SEALING, 18MM | Bolt - SEALING, 18MM |
| 13 | 15233-PK1-000 | Bolt - SEALING, 20MM | Bolt - SEALING, 20MM |
| 15 | 15400-PR3-003 | Cartridge - OIL FILTER (TSUCHIYA) | Cartridge - OIL FILTER (TSUCHIYA) |
| 15 | 15400-RTA-003 | OIL FILTER (MAHLE TENNEX) | OIL FILTER (MAHLE TENNEX) |
| 9 | 15610-P2A-000 | Cap assy. - OIL FILLER | Cap assy. - OIL FILLER |
| 10 | 15613-PC6-000 | Packing, Oil Filler | Packing, Oil Filler |
| 19 | 15650-P39-000 | Gauge comp. - OIL LEVEL | Gauge comp. - OIL LEVEL |
| 1 | 15707-634-000 | Clip - OIL DRAIN TUBE | Clip - OIL DRAIN TUBE |
| 1 | 16010-SS0-932 | Strainer set - FUEL | Strainer set - FUEL |
| 1 | 16016-PM6-005 | Screw set | Screw set |
| 28 | 16074-ZY3-000 | O-ring | O-ring |
| 2 | 16075-PE2-005 | O-ring - 31.2X1.9 | O-ring - 31.2X1.9 |
| 3 | 16077-PR3-005 | O-ring | O-ring |
| 4 | 16176-PT2-003 | Gasket - THROTTLE BODY (ISHINO GASKET) | Gasket - THROTTLE BODY (ISHINO GASKET) |
| 4 | 16176-PT2-004 | Gasket - THROTTLE BODY (NIPPON LEAKLESS) | Gasket - THROTTLE BODY (NIPPON LEAKLESS) |
| 5 | 16400-P12-A00 | Throttle Body Assy - GF82B | Throttle Body Assy - GF82B |
| 6 | 16411-PT2-000 | Stay - THROTTLE WIRE | Stay - THROTTLE WIRE |
| 2 | 16472-P0H-A01 | Seal ring - INJECTOR (NOK) | Seal ring - INJECTOR (NOK) |
| 2 | 16472-PH7-003 | Seal ring - INJECTOR (OTSUKA) | Seal ring - INJECTOR (OTSUKA) |
| 3 | 16473-P10-A01 | Cushion ring - INJECTOR (NOK) | Cushion ring - INJECTOR (NOK) |
| 3 | 16473-PD6-000 | Cushion ring - INJECTOR (OTSUKA) | Cushion ring - INJECTOR (OTSUKA) |
| 4 | 16474-PT2-000 | Insulator - INJECTOR | Insulator - INJECTOR |
| 7 | 16500-PT2-000 | Valve assy. - FAST IDLE (AF15C) | Valve assy. - FAST IDLE (AF15C) |
| 6 | 16610-P13-A00 | Pipe comp - FUEL | Pipe comp - FUEL |
| 7 | 16623-PT2-000 | Cover - FUEL LINE | Cover - FUEL LINE |
| 8 | 16638-PT2-000 | Insulator - FUEL PIPE | Insulator - FUEL PIPE |
| 2 | 16712-SF4-J30 | Cushion - FUEL STRAINER | Cushion - FUEL STRAINER |
| 3 | 16720-P12-A01 | Hose comp. - FUEL FEED | Hose comp. - FUEL FEED |
| 9 | 16740-PT2-000 | Regulator assy - PRESSURE | Regulator assy - PRESSURE |
| 10 | 16741-PG7-005 | O-ring - PRESSURE REGULATOR | O-ring - PRESSURE REGULATOR |
| 4 | 16918-SS0-A30 | Stay - FUEL STRAINER | Stay - FUEL STRAINER |
| 5 | 16919-SL4-930 | Band - FUEL STRAINER | Band - FUEL STRAINER |
| 6 | 16922-SH3-930 | Rubber - MOUNTING | Rubber - MOUNTING |
| 7 | 16923-SP0-930 | Collar - DISTANCE | Collar - DISTANCE |
| 11 | 17010-PT3-A01 | Manifold comp. b - INTAKE | Manifold comp. b - INTAKE |
| 1 | 17040-SS0-A30 | Pump set - FUEL | Pump set - FUEL |
| 1 | 17040-SS0-V30 | Pump set - FUEL | Pump set - FUEL |
| 13 | 17105-PT2-014 | Packing - INTAKE MANIFOLD (NIPPON LEAKLESS) | Packing - INTAKE MANIFOLD (NIPPON LEAKLESS) |
| 14 | 17113-PH3-300 | Emblem - INTAKE MANIFOLD (PGM-FI) | Emblem - INTAKE MANIFOLD (PGM-FI) |
| 15 | 17121-PT3-A01 | Packing - INTAKE MANIFOLD (B) (ISHINO GASKET) | Packing - INTAKE MANIFOLD (B) (ISHINO GASKET) |
| 16 | 17125-P11-S00 | Stay comp - INTAKE MANIFOLD | Stay comp - INTAKE MANIFOLD |
| 3 | 17130-PK1-003 | Valve assy. - PCV | Valve assy. - PCV |
| 4 | 17137-P12-A00 | Pipe comp - BREATHER | Pipe comp - BREATHER |
| 8 | 17138-P12-A00 | Tube - BREATHER | Tube - BREATHER |
| 9 | 17139-PK1-000 | Grommet - PCV VALVE | Grommet - PCV VALVE |
| 1 | 17211-P13-000 | Cover - AIR CLEANER | Cover - AIR CLEANER |
| 2 | 17212-P2J-J00 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 2 | 17212-PN3-000 | Rubber, AIR CLEANER MOUNTING | Rubber, AIR CLEANER MOUNTING |
| 3 | 17213-P13-000 | Rubber - AIR CLEANER CASE MOUNTING | Rubber - AIR CLEANER CASE MOUNTING |
| 4 | 17215-PR3-000 | Clip set A, Wire | Clip set A, Wire |
| 5 | 17216-PN3-000 | Collar - AIR CLEANER MOUNTING | Collar - AIR CLEANER MOUNTING |
| 6 | 17216-PR3-000 | Clip set B, Wire | Clip set B, Wire |
| 9 | 17230-P13-000 | Chamber assy - RESONATOR | Chamber assy - RESONATOR |
| 10 | 17233-P13-000 | Rubber - RESONATOR SEAL | Rubber - RESONATOR SEAL |
| 11 | 17241-P13-000 | Case comp. - AIR CLEANER | Case comp. - AIR CLEANER |
| 12 | 17242-P13-000 | Tube comp - AIR INTAKE | Tube comp - AIR INTAKE |
| 13 | 17245-P13-003 | Diaphragm comp - VALVE CONTROL | Diaphragm comp - VALVE CONTROL |
| 15 | 17249-PY3-000 | Spring - AIR FLOW TUBE | Spring - AIR FLOW TUBE |
| 16 | 17250-P13-000 | Valve assy. - AIR CONTROL | Valve assy. - AIR CONTROL |
| 17 | 17252-P13-000 | Tube assy. b - AIR INTAKE | Tube assy. b - AIR INTAKE |
| 18 | 17255-PD6-000 | Collar - RESONATOR | Collar - RESONATOR |
| 20 | 17256-P13-000 | Ring - SEAL | Ring - SEAL |
| 19 | 17256-PD6-000 | Rubber - RESONATOR MOUNTING | Rubber - RESONATOR MOUNTING |
| 22 | 17257-P13-000 | Tube comp - AIR INTAKE CONTROL | Tube comp - AIR INTAKE CONTROL |
| 21 | 17257-PT0-000 | Grommet - INTAKE | Grommet - INTAKE |
| 24 | 17259-P13-003 | Clamp - INTAKE CONTROL TUBE | Clamp - INTAKE CONTROL TUBE |
| 29 | 17283-P13-000 | Stay b - AIR INTAKE TUBE | Stay b - AIR INTAKE TUBE |
| 30 | 17284-PP8-003 | Band - HOSE (D52) | Band - HOSE (D52) |
| 8 | 17300-SS0-A31 | Canister assy | Canister assy |
| 31 | 17307-P13-000 | Rubber - AIR INTAKE SEAL | Rubber - AIR INTAKE SEAL |
| 32 | 17315-PH3-003 | Clamp - AIR FLOW TUBE (74) | Clamp - AIR FLOW TUBE (74) |
| 9 | 17341-PT2-000 | Packing - AIR BOOST VALVE | Packing - AIR BOOST VALVE |
| 33 | 17358-P13-000 | Stay comp - VACUUM TANK | Stay comp - VACUUM TANK |
| 9 | 17358-SS0-A30 | Bracket - CANISTER | Bracket - CANISTER |
| 10 | 17372-SS0-A00 | Tube - CANISTER | Tube - CANISTER |
| 34 | 17414-PC6-660 | Joint - TWO WAY (3.5) | Joint - TWO WAY (3.5) |
| 5 | 17420-P13-000 | Pipe comp - DASHBOARD INSTALL | Pipe comp - DASHBOARD INSTALL |
| 5 | 17511-SS0-000 | Bracket - FUEL TANK BAND | Bracket - FUEL TANK BAND |
| 7 | 17521-SS0-000 | Band assy. - R. FUEL TANK MOUNTING | Band assy. - R. FUEL TANK MOUNTING |
| 8 | 17522-SS0-000 | Band assy. - L. FUEL TANK MOUNTING | Band assy. - L. FUEL TANK MOUNTING |
| 9 | 17525-SM4-000 | Bolt-washer - 10X35 | Bolt-washer - 10X35 |
| 10 | 17570-SL0-013 | Valve - FUEL CUT | Valve - FUEL CUT |
| 11 | 17574-SE0-000 | Packing - BASE | Packing - BASE |
| 12 | 17651-SS0-000 | Tube - FILLER NECK | Tube - FILLER NECK |
| 13 | 17652-SA5-000 | Clip - FILLER TUBE | Clip - FILLER TUBE |
| 14 | 17656-SM4-000 | Bolt - FILLER PIPE MOUNTING | Bolt - FILLER PIPE MOUNTING |
| 15 | 17658-SS0-000 | Tube assy - BREATHER | Tube assy - BREATHER |
| 16 | 17659-SL5-000 | Holder - FILLER PACKING | Holder - FILLER PACKING |
| 18 | 17662-SL5-000 | Packing - FUEL FILLER PIPE | Packing - FUEL FILLER PIPE |
| 19 | 17663-SL5-A00 | Band - FILLER PACKING | Band - FILLER PACKING |
| 20 | 17670-S3N-003 | Cap comp. - FUEL FILLER (TOYODA) | Cap comp. - FUEL FILLER (TOYODA) |
| 20 | 17670-SM1-A03 | Cap comp. - FUEL FILLER (STANT) | Cap comp. - FUEL FILLER (STANT) |
| 11 | 17700-SS0-A30 | Pipe comp - FUEL FEED | Pipe comp - FUEL FEED |
| 21 | 17704-SL0-931 | Hose - FUEL TANK RETURN (110MM) | Hose - FUEL TANK RETURN (110MM) |
| 22 | 17704-SN4-930 | Hose - FUEL TANK RETURN | Hose - FUEL TANK RETURN |
| 1 | 17706-SC3-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 12 | 17720-SS0-000 | Pipe comp - VENT | Pipe comp - VENT |
| 13 | 17723-SS0-931 | Hose - PRESSURE REGULATOR RETURN | Hose - PRESSURE REGULATOR RETURN |
| 14 | 17727-SS0-930 | Insulator rubber - FUEL HOSE | Insulator rubber - FUEL HOSE |
| 26 | 17731-SS0-930 | Pipe comp - FUEL | Pipe comp - FUEL |
| 15 | 17740-SS0-930 | Pipe comp - FUEL RETURN | Pipe comp - FUEL RETURN |
| 16 | 17742-SS0-A02 | Joint - CANISTER DRAIN TUBE | Joint - CANISTER DRAIN TUBE |
| 17 | 17743-SM4-003 | Cap - DRAIN TUBE | Cap - DRAIN TUBE |
| 18 | 17743-SS0-A01 | Joint - CANISTER DRAIN BYPASS TUBE | Joint - CANISTER DRAIN BYPASS TUBE |
| 19 | 17749-SS0-J31 | Clamp - RETURN HOSE | Clamp - RETURN HOSE |
| 20 | 17752-SS0-003 | Protector - FUEL PIPE | Protector - FUEL PIPE |
| 21 | 17762-SS0-000 | Stay b - FUEL PIPE | Stay b - FUEL PIPE |
| 22 | 17763-SM4-000 | Stay c - FUEL PIPE | Stay c - FUEL PIPE |
| 23 | 17764-SM4-000 | Stay d - FUEL PIPE | Stay d - FUEL PIPE |
| 24 | 17765-SM4-000 | Stay e - FUEL PIPE | Stay e - FUEL PIPE |
| 25 | 17766-SS0-000 | Stay f - FUEL PIPE | Stay f - FUEL PIPE |
| 26 | 17767-SS0-000 | Stay g - FUEL PIPE | Stay g - FUEL PIPE |
| 27 | 17768-SS0-000 | Stay h - FUEL PIPE | Stay h - FUEL PIPE |
| 1 | 17800-SS0-A00 | Pedal comp - ACCELERATOR | Pedal comp - ACCELERATOR |
| 2 | 17812-SA7-010 | Washer - ACCELERATOR PEDAL | Washer - ACCELERATOR PEDAL |
| 3 | 17814-SS0-980 | Spring - ACCELERATOR PEDAL | Spring - ACCELERATOR PEDAL |
| 4 | 17816-SF1-000 | Cover - ACCELERATOR PEDAL | Cover - ACCELERATOR PEDAL |
| 5 | 17818-SS0-000 | Stopper - ACCELERATOR STROKE | Stopper - ACCELERATOR STROKE |
| 9 | 17910-SS0-A11 | Wire - THROTTLE | Wire - THROTTLE |
| 4 | 17921-SA4-730 | Seal - THROTTLE CABLE | Seal - THROTTLE CABLE |
| 11 | 17925-SS0-A01 | Stay - THROTTLE WIRE | Stay - THROTTLE WIRE |
| 1 | 18030-SS0-010 | Silencer set - EX. | Silencer set - EX. |
| 3 | 18115-PT0-003 | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) | Gasket - EX. MANIFOLD (NIPPON LEAKLESS) |
| 3 | 18115-PT0-004 | Gasket - EX. MANIFOLD (ISHINO GASKET) | Gasket - EX. MANIFOLD (ISHINO GASKET) |
| 1 | 18127-P13-010 | Insulator - EX. MANIFOLD HEAT | Insulator - EX. MANIFOLD HEAT |
| 11 | 18212-SM4-003 | Gasket - EX. PIPE (ISHINO) | Gasket - EX. PIPE (ISHINO) |
| 12 | 18213-SM4-A34 | Stay - EX. PIPE | Stay - EX. PIPE |
| 14 | 18215-SA7-000 | Rubber - SILENCER MOUNTING (70X45X25) | Rubber - SILENCER MOUNTING (70X45X25) |
| 15 | 18215-SB6-960 | Rubber - EX. PIPE MOUNTING | Rubber - EX. PIPE MOUNTING |
| 16 | 18215-SE0-000 | Rubber d - EX. PIPE MOUNTING | Rubber d - EX. PIPE MOUNTING |
| 17 | 18215-SS0-J31 | Rubber - EX. MOUNTING | Rubber - EX. MOUNTING |
| 20 | 18282-SS0-000 | Bracket b - FLEXIBLE MOUNTING | Bracket b - FLEXIBLE MOUNTING |
| 21 | 18303-SM4-020 | Gasket - SILENCER | Gasket - SILENCER |
| 22 | 18310-SB0-023 | Finisher - EX. PIPE | Finisher - EX. PIPE |
| 23 | 18393-SH3-S00 | Gasket - PRE-CHAMBER (52.5MM-53.5MM) | Gasket - PRE-CHAMBER (52.5MM-53.5MM) |
| 2 | 18534-634-670 | Clip - AIR HOSE, 16MM | Clip - AIR HOSE, 16MM |
| 2 | 19011-PH1-621 | Bolt - DRAIN (DENSO) | Bolt - DRAIN (DENSO) |
| 3 | 19012-671-300 | Packing - DRAIN (DENSO) | Packing - DRAIN (DENSO) |
| 4 | 19014-PK1-003 | Clip - HARNESS | Clip - HARNESS |
| 5 | 19015-PT0-003 | Shroud comp - DENSO | Shroud comp - DENSO |
| 7 | 19020-PT0-003 | Fan - COOLING (DENSO) | Fan - COOLING (DENSO) |
| 8 | 19030-PT0-003 | Motor - COOLING FAN (DENSO) | Motor - COOLING FAN (DENSO) |
| 10 | 19033-P39-003 | Stay - COUPLER | Stay - COUPLER |
| 3 | 19043-PV1-G00 | Label - COOLANT INFORMATION | Label - COOLANT INFORMATION |
| 11 | 19045-PT0-003 | Cap comp - DENSO | Cap comp - DENSO |
| 11 | 19045-PT0-004 | Cap comp - TOYO | Cap comp - TOYO |
| 12 | 19046-PV1-000 | Seal - CAP | Seal - CAP |
| 1 | 19101-P13-000 | Tank - RESERVE | Tank - RESERVE |
| 2 | 19103-P13-000 | Hose - RESERVE TANK | Hose - RESERVE TANK |
| 3 | 19104-P13-000 | Tube - RESERVE TANK | Tube - RESERVE TANK |
| 4 | 19108-PM0-003 | Clamp - RESERVE TANK TUBE (BLACK) | Clamp - RESERVE TANK TUBE (BLACK) |
| 5 | 19110-P13-000 | Cap set - RESERVE TANK | Cap set - RESERVE TANK |
| 1 | 19200-P0A-003 | Pump comp - WATER (YAMADA) | Pump comp - WATER (YAMADA) |
| 2 | 19222-PT0-300 | Packing - WATER PUMP | Packing - WATER PUMP |
| 3 | 19223-PT0-000 | Rubber - WATER PUMP SEAL | Rubber - WATER PUMP SEAL |
| 4 | 19301-P08-305 | Thermostat assy - FUJI THOMSON | Thermostat assy - FUJI THOMSON |
| 4 | 19301-P08-316 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 4 | 19301-PAA-306 | Thermostat assy - NIPPON THERMOSTAT | Thermostat assy - NIPPON THERMOSTAT |
| 6 | 19305-PLC-A00 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 6 | 19305-PT0-000 | Rubber - THERMOSTAT MOUNTING | Rubber - THERMOSTAT MOUNTING |
| 8 | 19311-PT0-000 | Cover - THERMOSTAT | Cover - THERMOSTAT |
| 10 | 19313-PT0-000 | Packing - THERMOSTAT CASE | Packing - THERMOSTAT CASE |
| 1 | 19314-PH6-000 | Clamp - HOSE (D13.5) | Clamp - HOSE (D13.5) |
| 11 | 19320-PT2-000 | Case comp. - THERMOSTAT | Case comp. - THERMOSTAT |
| 13 | 19360-PT3-A00 | Cover - WATER OUTLET | Cover - WATER OUTLET |
| 14 | 19500-PE0-000 | Joint, Tube | Joint, Tube |
| 6 | 19501-PT0-000 | Hose - WATER UPPER | Hose - WATER UPPER |
| 7 | 19502-P39-000 | Hose - WATER LOWER | Hose - WATER LOWER |
| 2 | 19504-P39-000 | Hose - BYPASS IN. | Hose - BYPASS IN. |
| 15 | 19505-PT3-A00 | Pipe comp - CONNECTING | Pipe comp - CONNECTING |
| 3 | 19507-P12-A00 | Hose a - FAST IDLE CONTROL | Hose a - FAST IDLE CONTROL |
| 4 | 19508-PT2-000 | Hose b - FAST IDLE CONTROL | Hose b - FAST IDLE CONTROL |
| 5 | 19510-P12-000 | Hose - THROTTLE BODY | Hose - THROTTLE BODY |
| 8 | 19511-PH7-003 | Clip, HOSE(36.5MM) (CHUO SPRING) | Clip, HOSE(36.5MM) (CHUO SPRING) |
| 9 | 19511-PT0-004 | Clip - WATER HOSE (36.5MM) (KEIHIN) | Clip - WATER HOSE (36.5MM) (KEIHIN) |
| 7 | 19513-P12-A00 | Hose - ELECTRONIC AIR CONTROL VALVE | Hose - ELECTRONIC AIR CONTROL VALVE |
| 6 | 19513-PE0-003 | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) | Clamp - WATER HOSE (21.7MM) (CHUO SPRING) |
| 8 | 19514-PT2-000 | Hose a - BREATHER HEATER | Hose a - BREATHER HEATER |
| 9 | 19515-P12-A00 | Hose b - BREATHER HEATER | Hose b - BREATHER HEATER |
| 16 | 19516-PC1-000 | Bolt - BREATHING WATER | Bolt - BREATHING WATER |
| 10 | 19519-P13-000 | Clamp - LOWER HOSE | Clamp - LOWER HOSE |
| 19 | 19527-P13-000 | Clamp - HEATER HOSE | Clamp - HEATER HOSE |
| 1 | 21000-P0S-020 | Case comp. - CLUTCH | Case comp. - CLUTCH |
| 2 | 21101-PG2-000 | Plate - NEEDLE BEARING SETTING | Plate - NEEDLE BEARING SETTING |
| 3 | 21103-PX5-010 | Plate c - OIL GUIDE | Plate c - OIL GUIDE |
| 1 | 21104-PX5-010 | Plate m - OIL GUIDE | Plate m - OIL GUIDE |
| 4 | 21120-PG2-003 | Magnet - TRANSMISSION | Magnet - TRANSMISSION |
| 2 | 21200-P16-J00 | Case comp. - TRANSMISSION | Case comp. - TRANSMISSION |
| 3 | 21222-PX5-000 | Hanger b - TRANSMISSION | Hanger b - TRANSMISSION |
| 4 | 21223-PX5-000 | Hanger a - TRANSMISSION | Hanger a - TRANSMISSION |
| 1 | 21350-PT0-000 | Cover - CLUTCH CASE | Cover - CLUTCH CASE |
| 5 | 21396-PX5-000 | Cap - BREATHER | Cap - BREATHER |
| 6 | 21520-PX5-000 | Cover comp. - SHIFT ARM | Cover comp. - SHIFT ARM |
| 3 | 22100-P13-005 | Flywheel comp. | Flywheel comp. |
| 4 | 22200-P13-005 | Disk comp - FRICTION | Disk comp - FRICTION |
| 5 | 22300-PT4-000 | Disk comp - PRESSURE | Disk comp - PRESSURE |
| 5 | 22810-PX5-J02 | Bearing - CLUTCH RELEASE (KOYO SEIKO) | Bearing - CLUTCH RELEASE (KOYO SEIKO) |
| 6 | 22821-P0S-000 | Fork - CLUTCH RELEASE | Fork - CLUTCH RELEASE |
| 7 | 22825-P0S-000 | Bolt - RELEASE FORK | Bolt - RELEASE FORK |
| 8 | 22835-P0S-000 | Spring - RELEASE FORK SETTING | Spring - RELEASE FORK SETTING |
| 9 | 22841-PX5-000 | Boot - RELEASE FORK | Boot - RELEASE FORK |
| 1 | 23210-PX5-J41 | Mainshaft comp. | Mainshaft comp. |
| 1 | 23220-PX5-J41 | Countershaft comp. | Countershaft comp. |
| 2 | 23261-PX5-A00 | Shaft - REVERSE IDLE GEAR | Shaft - REVERSE IDLE GEAR |
| 2 | 23421-PX5-J41 | Gear - COUNTERSHAFT LOW | Gear - COUNTERSHAFT LOW |
| 3 | 23431-P16-J00 | Gear - COUNTERSHAFT SECOND | Gear - COUNTERSHAFT SECOND |
| 7 | 23521-P16-315 | Sleeve set - SYNCHRONIZER (1-2) | Sleeve set - SYNCHRONIZER (1-2) |
| 6 | 23540-P16-000 | Gear comp - REVERSE IDLE | Gear comp - REVERSE IDLE |
| 8 | 23623-P0S-305 | Sleeve set - SYNCHRONIZER (3-4) | Sleeve set - SYNCHRONIZER (3-4) |
| 9 | 23626-PX5-307 | Sleeve set - SYNCHRONIZER (5) | Sleeve set - SYNCHRONIZER (5) |
| 10 | 23645-PX5-010 | Ring - BLOCKING (50S) | Ring - BLOCKING (50S) |
| 11 | 23646-PX5-000 | Ring - BRAKE STOPPER | Ring - BRAKE STOPPER |
| 12 | 23647-PX5-010 | Ring - TAPER CONE | Ring - TAPER CONE |
| 13 | 23652-PB6-000 | Spring - SYNCHRONIZER (50MM) | Spring - SYNCHRONIZER (50MM) |
| 14 | 23915-P21-000 | Collar - DISTANCE, 31X38X56.5 | Collar - DISTANCE, 31X38X56.5 |
| 15 | 23916-PX5-010 | Collar - DISTANCE, 28X37X15 | Collar - DISTANCE, 28X37X15 |
| 8 | 23918-P21-010 | Collar - DISTANCE, 36.5X42X29 (0.07-0.09) | Collar - DISTANCE, 36.5X42X29 (0.07-0.09) |
| 9 | 23921-PG1-000 | Washer a - 40X54X1.96 | Washer a - 40X54X1.96 |
| 10 | 23926-PG1-010 | Washer - SPRING, 23MM | Washer - SPRING, 23MM |
| 16 | 23927-PG2-A00 | Washer - SPRING, 28MM | Washer - SPRING, 28MM |
| 17 | 23928-PS1-000 | Washer - 28MM | Washer - 28MM |
| 7 | 23941-PK5-000 | Shim a - 78MM (1.20) | Shim a - 78MM (1.20) |
| 7 | 23942-PK5-000 | Shim b - 78MM (1.23) | Shim b - 78MM (1.23) |
| 7 | 23943-PK5-000 | Shim c - 78MM (1.26) | Shim c - 78MM (1.26) |
| 7 | 23944-PK5-000 | Shim d - 78MM (1.29) | Shim d - 78MM (1.29) |
| 7 | 23945-PK5-000 | Shim e - 78MM (1.32) | Shim e - 78MM (1.32) |
| 7 | 23946-PK5-000 | Shim f - 78MM (1.35) | Shim f - 78MM (1.35) |
| 7 | 23947-PK5-000 | Shim g - 78MM (1.38) | Shim g - 78MM (1.38) |
| 7 | 23948-P16-000 | Shim h - 78MM (1.41) | Shim h - 78MM (1.41) |
| 7 | 23948-PK5-000 | Shim h - 78MM (1.41) | Shim h - 78MM (1.41) |
| 7 | 23949-PK5-000 | Shim i - 78MM (1.44) | Shim i - 78MM (1.44) |
| 7 | 23950-PK5-000 | Shim j - 78MM (1.47) | Shim j - 78MM (1.47) |
| 7 | 23951-PK5-000 | Shim k - 78MM (1.50) | Shim k - 78MM (1.50) |
| 7 | 23952-PK5-000 | Shim l - 78MM (1.53) | Shim l - 78MM (1.53) |
| 7 | 23953-PK5-000 | Shim m - 78MM (1.56) | Shim m - 78MM (1.56) |
| 7 | 23954-PK5-000 | Shim n - 78MM (1.59) | Shim n - 78MM (1.59) |
| 7 | 23955-PK5-000 | Shim o - 78MM (1.62) | Shim o - 78MM (1.62) |
| 7 | 23956-PK5-000 | Shim p - 78MM (1.65) | Shim p - 78MM (1.65) |
| 7 | 23957-PK5-000 | Shim q - 78MM (1.68) | Shim q - 78MM (1.68) |
| 7 | 23958-PK5-000 | Shim r - 78MM (1.71) | Shim r - 78MM (1.71) |
| 7 | 23959-PK5-000 | Shim s - 78MM (1.74) | Shim s - 78MM (1.74) |
| 7 | 23960-PK5-000 | Shim t - 78MM (1.77) | Shim t - 78MM (1.77) |
| 7 | 23961-PK5-000 | Shim u - 78MM (1.80) | Shim u - 78MM (1.80) |
| 7 | 23962-PK5-000 | Shim v - 78MM (1.83) | Shim v - 78MM (1.83) |
| 7 | 23963-PK5-000 | Shim w - 78MM (1.86) | Shim w - 78MM (1.86) |
| 7 | 23964-PK5-000 | Shim x - 78MM (1.89) | Shim x - 78MM (1.89) |
| 7 | 23965-PK5-000 | Shim y - 78MM (1.92) | Shim y - 78MM (1.92) |
| 7 | 23966-PK5-000 | Shim z - 78MM (1.95) | Shim z - 78MM (1.95) |
| 7 | 23967-PK5-000 | Shim aa - 78MM (1.98) | Shim aa - 78MM (1.98) |
| 7 | 23968-PK5-000 | Shim ab - 78MM (2.01) | Shim ab - 78MM (2.01) |
| 7 | 23969-PK5-000 | Shim ac - 78MM (2.04) | Shim ac - 78MM (2.04) |
| 7 | 23970-PK5-000 | Shim ad - 78MM (2.07) | Shim ad - 78MM (2.07) |
| 7 | 23971-PK5-000 | Shim ae - 78MM (2.10) | Shim ae - 78MM (2.10) |
| 7 | 23972-PK5-000 | Shim af - 78MM (2.13) | Shim af - 78MM (2.13) |
| 7 | 23973-PK5-000 | Shim ag - 78MM (2.16) | Shim ag - 78MM (2.16) |
| 7 | 23974-PK5-000 | Shim ah - 78MM (2.19) | Shim ah - 78MM (2.19) |
| 7 | 23975-PK5-000 | Shim ai - 78MM (2.22) | Shim ai - 78MM (2.22) |
| 7 | 23976-PK5-000 | Shim aj - 78MM (2.25) | Shim aj - 78MM (2.25) |
| 7 | 23977-PK5-000 | Shim ak - 78MM (2.28) | Shim ak - 78MM (2.28) |
| 7 | 23978-PK5-000 | Shim al - 78MM (2.31) | Shim al - 78MM (2.31) |
| 7 | 23979-PK5-000 | Shim am - 78MM (2.34) | Shim am - 78MM (2.34) |
| 7 | 23980-PK5-000 | Shim an - 78MM (2.37) | Shim an - 78MM (2.37) |
| 1 | 24200-P16-J00 | Fork comp - FIFTH GEARSHIFT | Fork comp - FIFTH GEARSHIFT |
| 2 | 24210-P0S-010 | Fork comp - GEARSHIFT (3-4) | Fork comp - GEARSHIFT (3-4) |
| 3 | 24220-PX5-J01 | Fork comp - GEARSHIFT (1-2) | Fork comp - GEARSHIFT (1-2) |
| 4 | 24230-PX5-J00 | Holder comp - REVERSE SHIFT | Holder comp - REVERSE SHIFT |
| 5 | 24243-PX5-J00 | Piece - FIFTH & REVERSE SHIFT | Piece - FIFTH & REVERSE SHIFT |
| 1 | 24411-PX5-010 | Arm - SHIFT | Arm - SHIFT |
| 2 | 24431-P16-000 | Interlock comp. | Interlock comp. |
| 3 | 24433-PX5-000 | Bolt - INTERLOCK | Bolt - INTERLOCK |
| 4 | 24440-PK5-000 | Cam comp - REVERSE LOCK | Cam comp - REVERSE LOCK |
| 6 | 24452-P16-000 | Spring a - BALL SETTING | Spring a - BALL SETTING |
| 5 | 24460-PX5-010 | Lever comp - SELECT | Lever comp - SELECT |
| 6 | 24463-PK5-000 | Pin - SELECT RETURN | Pin - SELECT RETURN |
| 7 | 24464-P0S-000 | Spring - SELECT RETURN | Spring - SELECT RETURN |
| 8 | 24465-P0S-000 | Spring - FIFTH & REVERSE SELECT | Spring - FIFTH & REVERSE SELECT |
| 9 | 24470-PX5-000 | Lever comp - SHIFT | Lever comp - SHIFT |
| 10 | 24474-PK5-000 | Boot - SHIFT LEVER | Boot - SHIFT LEVER |
| 11 | 24480-PK5-000 | Arm comp - SELECT | Arm comp - SELECT |
| 7 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 10 | 24600-PX5-000 | Stay - CHANGE WIRE | Stay - CHANGE WIRE |
| 1 | 30100-P11-E01 | Distributor assy - TD-58U) (TEC | Distributor assy - TD-58U) (TEC |
| 2 | 30102-P54-006 | Cap assy. | Cap assy. |
| 3 | 30103-P08-003 | Distributor Rotor Head Assembly | Distributor Rotor Head Assembly |
| 4 | 30105-P11-E01 | Housing comp - DISTRIBUTOR | Housing comp - DISTRIBUTOR |
| 5 | 30107-P08-006 | Cover - LEAK | Cover - LEAK |
| 6 | 30110-PA1-732 | O-ring - 26.4X3.1 (TEC) | O-ring - 26.4X3.1 (TEC) |
| 9 | 30130-P12-006 | Igniter unit - E12-302) (HITACHI | Igniter unit - E12-302) (HITACHI |
| 10 | 30132-PT2-006 | Packing - CAP | Packing - CAP |
| 11 | 30135-P08-006 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 11 | 30135-P73-004 | Screw-washer - 5X12 | Screw-washer - 5X12 |
| 12 | 30510-PT2-006 | Ignition Coil | Ignition Coil |
| 1 | 30700-SS0-A01 | Resistor assy. | Resistor assy. |
| 1 | 30701-883-000 | Clip, high tension cord (8mm) | Clip, high tension cord (8mm) |
| 1 | 31100-P11-E02 | Alternator assy - CJS84) (DENSO | Alternator assy - CJS84) (DENSO |
| 2 | 31101-PV1-A01 | Rotor assy. | Rotor assy. |
| 3 | 31103-PT0-003 | Seal - RING | Seal - RING |
| 4 | 31104-PT0-003 | Seal - RING | Seal - RING |
| 5 | 31105-PR7-A01 | Holder assy. - BRUSH | Holder assy. - BRUSH |
| 6 | 31111-PT0-003 | Bearing - RR. GENERATOR | Bearing - RR. GENERATOR |
| 3 | 31112-PT0-000 | Bracket - ALTERNATOR | Bracket - ALTERNATOR |
| 7 | 31114-PT0-013 | Bearing - FR. GENERATOR | Bearing - FR. GENERATOR |
| 9 | 31116-P13-003 | Plate - TERMINAL | Plate - TERMINAL |
| 8 | 31116-PT0-003 | Plate - RETAINER | Plate - RETAINER |
| 4 | 31117-PT0-000 | Plate - ALTERNATOR ADJUSTER | Plate - ALTERNATOR ADJUSTER |
| 5 | 31118-PT0-000 | Stay - ALTERNATOR ADJUSTER | Stay - ALTERNATOR ADJUSTER |
| 10 | 31118-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 11 | 31119-PT0-003 | Bush - INSULATION | Bush - INSULATION |
| 12 | 31127-PT0-013 | Rectifier assy. | Rectifier assy. |
| 13 | 31135-PT0-013 | Cover - RR. END | Cover - RR. END |
| 14 | 31138-PD1-004 | Cover - BEARING | Cover - BEARING |
| 15 | 31141-PT2-N91 | Pulley - ### | Pulley - ### |
| 16 | 31142-PD1-004 | Nut - PULLEY LOCK | Nut - PULLEY LOCK |
| 17 | 31145-PD1-004 | Bolt - STUD, 6X68 | Bolt - STUD, 6X68 |
| 18 | 31146-PT0-003 | Screw | Screw |
| 20 | 31147-P13-003 | Screw | Screw |
| 19 | 31147-PT0-003 | Screw-washer | Screw-washer |
| 22 | 31148-P13-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 21 | 31148-PT0-003 | Screw - WAVE WASHER | Screw - WAVE WASHER |
| 23 | 31150-PD6-024 | Regulator assy | Regulator assy |
| 1 | 31200-P12-005 | Motor assy. - STARTER (SM-422-14) (MITSUBA) | Motor assy. - STARTER (SM-422-14) (MITSUBA) |
| 2 | 31202-P0C-004 | Bolt - SETTING | Bolt - SETTING |
| 3 | 31204-P0A-004 | Gear assy - ### | Gear assy - ### |
| 4 | 31206-P0C-004 | Yoke assy - ### | Yoke assy - ### |
| 5 | 31207-P0C-004 | Armature assy - ### | Armature assy - ### |
| 6 | 31208-P0G-A01 | Stay assy - BRUSH | Stay assy - BRUSH |
| 7 | 31210-P1R-004 | Switch assy | Switch assy |
| 8 | 31211-PC2-006 | Ring - SQUARE (MITSUBA) | Ring - SQUARE (MITSUBA) |
| 9 | 31217-PC2-006 | Screw-washer - 4X28 (MITSUBA) | Screw-washer - 4X28 (MITSUBA) |
| 10 | 31235-P0G-A01 | Cover - TERMINAL (###) | Cover - TERMINAL (###) |
| 11 | 31251-PJ7-904 | Tube - LABYRINTH (###) | Tube - LABYRINTH (###) |
| 12 | 31252-PD2-006 | Rubber - BUSH (MITSUBA) | Rubber - BUSH (MITSUBA) |
| 14 | 31292-P45-G11 | Stay assy - ENGINE WIRE HARNESS (###) | Stay assy - ENGINE WIRE HARNESS (###) |
| 4 | 31511-SB2-671 | Mark - BATTERY CAUTION (MAINTENANCE FREE) | Mark - BATTERY CAUTION (MAINTENANCE FREE) |
| 3 | 31513-SM4-000 | Bolt - BATTERY SETTING(195MM) | Bolt - BATTERY SETTING(195MM) |
| 4 | 31513-SP0-010 | Bolt - BATTERY SETTING (210MM) | Bolt - BATTERY SETTING (210MM) |
| 5 | 31521-SS0-000 | Box - BATTERY (80D, 70D) | Box - BATTERY (80D, 70D) |
| 6 | 31542-SA5-665 | Plug - VENT (MF) (PANASONIC) | Plug - VENT (MF) (PANASONIC) |
| 6 | 31542-SA5-666 | Plug - VENT (MF) (FURUKAWA) | Plug - VENT (MF) (FURUKAWA) |
| 2 | 32101-SS0-A00 | Holder - DASH COUPLER | Holder - DASH COUPLER |
| 7 | 32112-P12-A00 | Stay comp - COUPLER | Stay comp - COUPLER |
| 9 | 32113-P13-A00 | Stay b - ENGINE HARNESS COUPLER | Stay b - ENGINE HARNESS COUPLER |
| 10 | 32127-PT2-000 | Holder comp - HARNESS | Holder comp - HARNESS |
| 7 | 32132-SM4-003 | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) | Band - WIRE HARNESS OFFSET (20) (BLACK) (122.5MM) |
| 8 | 32133-SM4-003 | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) | Band - HARNESS OFFSET (30) (YELLOW) (122.5MM) |
| 1 | 32134-SM4-003 | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) | Band - HARNESS OFFSET (10) (BROWN) (122.5MM) |
| 7 | 32138-SS0-000 | Bracket - STARTER CABLE MOUNT | Bracket - STARTER CABLE MOUNT |
| 2 | 32146-SH3-003 | Connector - DIODE(2P) | Connector - DIODE(2P) |
| 10 | 32152-SD4-000 | Separator - WIRE HARNESS (GRAY) | Separator - WIRE HARNESS (GRAY) |
| 13 | 32160-SS0-000 | Grommet a - WIRE HARNESS | Grommet a - WIRE HARNESS |
| 14 | 32161-SS0-000 | Grommet b - WIRE HARNESS | Grommet b - WIRE HARNESS |
| 1 | 32175-647-920 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 15 | 32202-SS0-000 | Cord - DEFROSTER EARTH | Cord - DEFROSTER EARTH |
| 16 | 32302-SS0-A00 | Bracket - ASSISTANT COUPLER HOLDER | Bracket - ASSISTANT COUPLER HOLDER |
| 8 | 32410-SS0-020 | Cable assy - STARTER | Cable assy - STARTER |
| 9 | 32412-SS0-010 | Bracket a - CABLE | Bracket a - CABLE |
| 10 | 32414-SS0-010 | Bracket b - CABLE | Bracket b - CABLE |
| 11 | 32600-SS0-010 | Cable assy - EARTH | Cable assy - EARTH |
| 12 | 32601-SK7-900 | Bolt - BATTERY TERMINAL | Bolt - BATTERY TERMINAL |
| 13 | 32602-SK7-900 | Nut - BATTERY TERMINAL | Nut - BATTERY TERMINAL |
| 17 | 32610-SS0-000 | Cable - SUB EARTH | Cable - SUB EARTH |
| 1 | 32700-PT0-000 | Cord assy - HIGH TENSION (SUMITOMO)(###) | Cord assy - HIGH TENSION (SUMITOMO)(###) |
| 2 | 32701-PT0-000 | Cord comp - RESISTANCE (NO.1) (SUMITOMO) | Cord comp - RESISTANCE (NO.1) (SUMITOMO) |
| 3 | 32702-PT0-000 | Cord comp - RESISTANCE (NO.2) (SUMITOMO) | Cord comp - RESISTANCE (NO.2) (SUMITOMO) |
| 4 | 32703-P0B-A00 | Cord comp - RESISTANCE (NO.3) (SUMITOMO) | Cord comp - RESISTANCE (NO.3) (SUMITOMO) |
| 4 | 32703-PT0-000 | Cord comp - RESISTANCE (NO.3) (SUMITOMO) | Cord comp - RESISTANCE (NO.3) (SUMITOMO) |
| 5 | 32704-PT0-000 | Cord comp - RESISTANCE (NO.4) (SUMITOMO) | Cord comp - RESISTANCE (NO.4) (SUMITOMO) |
| 20 | 32722-P0B-405 | Cord comp (Auto) - HIGH TENSION (SUMITOMO) | Cord comp (Auto) - HIGH TENSION (SUMITOMO) |
| 14 | 32741-P12-A01 | Clamp comp. a - ENGINE WIRE HARNESS | Clamp comp. a - ENGINE WIRE HARNESS |
| 16 | 32742-P11-G00 | Clamp comp. b - ENGINE WIRE HARNESS | Clamp comp. b - ENGINE WIRE HARNESS |
| 17 | 32744-P13-000 | Clamp d - ENGINE WIRE HARNESS (GREEN) | Clamp d - ENGINE WIRE HARNESS (GREEN) |
| 18 | 32745-P12-A00 | Clamp e - ENGINE WIRE HARNESS (BLACK) | Clamp e - ENGINE WIRE HARNESS (BLACK) |
| 20 | 32746-P12-A01 | Clamp f - ENGINE WIRE HARNESS | Clamp f - ENGINE WIRE HARNESS |
| 14 | 32746-SM4-000 | Clamp - STARTER CABLE | Clamp - STARTER CABLE |
| 6 | 32747-PT0-010 | Clamp g - ENGINE WIRE HARNESS | Clamp g - ENGINE WIRE HARNESS |
| 22 | 32748-P13-000 | Stay - WIRE HARNESS CLAMP | Stay - WIRE HARNESS CLAMP |
| 23 | 32749-PT0-000 | Stay a - ENGINE WIRE HARNESS | Stay a - ENGINE WIRE HARNESS |
| 24 | 32750-PT0-000 | Stay b - ENGINE WIRE HARNESS | Stay b - ENGINE WIRE HARNESS |
| 25 | 32751-PT2-000 | Stay c - ENGINE WIRE HARNESS | Stay c - ENGINE WIRE HARNESS |
| 20 | 32752-PT2-000 | Stay d - ENGINE WIRE HARNESS | Stay d - ENGINE WIRE HARNESS |
| 29 | 32759-P13-000 | Clamp j - ENGINE WIRE HARNESS | Clamp j - ENGINE WIRE HARNESS |
| 13 | 32762-PT0-010 | Stay b - HIGH TENSION CORD CLAMP | Stay b - HIGH TENSION CORD CLAMP |
| 13 | 32765-PT0-000 | Clamp a - HIGH TENSION CORD | Clamp a - HIGH TENSION CORD |
| 14 | 32766-PM3-000 | Clamp b - HIGH TENSION CORD | Clamp b - HIGH TENSION CORD |
| 16 | 32767-PT0-000 | Grommet - HIGH TENSION CORD | Grommet - HIGH TENSION CORD |
| 13 | 33116-SM4-A01 | Screw - TAPPING, 5X18 | Screw - TAPPING, 5X18 |
| 23 | 33128-SS0-A01 | Screw - TAPPING, 4X21 (SEMS) | Screw - TAPPING, 4X21 (SEMS) |
| 1 | 33300-SS0-G02 | Light assy - R. FR. TURN (###) | Light assy - R. FR. TURN (###) |
| 2 | 33301-SA0-741 | Bulb (12V 5W) - (12V 5W) (STANLEY) | Bulb (12V 5W) - (12V 5W) (STANLEY) |
| 3 | 33302-SS0-A02 | Lens - R. | Lens - R. |
| 5 | 33303-SM4-003 | Holder | Holder |
| 7 | 33305-SH3-A01 | Socket comp - GRAY | Socket comp - GRAY |
| 8 | 33305-SM4-A01 | Tube | Tube |
| 9 | 33350-SS0-G02 | Light assy - L. FR. TURN (###) | Light assy - L. FR. TURN (###) |
| 10 | 33352-SS0-A02 | Lens - L. | Lens - L. |
| 2 | 33500-SS0-E03 | Taillight assy. - R. (###) | Taillight assy. - R. (###) |
| 3 | 33501-SS0-G01 | Lamp unit - R. | Lamp unit - R. |
| 4 | 33502-SS0-E02 | Cover & coupler - R. | Cover & coupler - R. |
| 5 | 33503-SS0-A01 | Gasket - BASE | Gasket - BASE |
| 6 | 33509-SS0-A01 | Screw - TAPPING, 4X24 | Screw - TAPPING, 4X24 |
| 7 | 33550-SS0-E03 | Taillight assy. - L. (###) | Taillight assy. - L. (###) |
| 8 | 33551-SS0-G01 | Lamp unit - L. | Lamp unit - L. |
| 9 | 33552-SS0-E02 | Cover & coupler - L. | Cover & coupler - L. |
| 13 | 33810-SS0-G02 | Garnish assy - R. FR. SIDE TURN | Garnish assy - R. FR. SIDE TURN |
| 14 | 33811-SS0-G02 | Garnish comp. - R. | Garnish comp. - R. |
| 17 | 33860-SS0-G02 | Garnish assy - L. FR. SIDE TURN | Garnish assy - L. FR. SIDE TURN |
| 18 | 33861-SS0-G02 | Garnish comp. - L. | Garnish comp. - L. |
| 9 | 34260-SW5-003 | Light assy - TRUNK ROOM | Light assy - TRUNK ROOM |
| 12 | 34295-SJ8-003 | Bulb - 12V 5W) (DAIICHI | Bulb - 12V 5W) (DAIICHI |
| 19 | 34300-SL4-003 | Light assy - R. SIDE TURN | Light assy - R. SIDE TURN |
| 20 | 34301-SL4-003 | Lamp unit - R. SIDE TURN | Lamp unit - R. SIDE TURN |
| 30 | 34301-SS0-A02 | Lamp unit - R. | Lamp unit - R. |
| 21 | 34304-SH3-A01 | Socket comp. | Socket comp. |
| 22 | 34350-SL4-003 | Light assy - L. SIDE TURN | Light assy - L. SIDE TURN |
| 32 | 34351-657-921 | Bulb - 12V/5W) (STANLEY | Bulb - 12V/5W) (STANLEY |
| 23 | 34351-SL4-003 | Lamp unit - L. SIDE TURN | Lamp unit - L. SIDE TURN |
| 34 | 34351-SS0-A02 | Lamp unit - L. | Lamp unit - L. |
| 1 | 34354-SB0-003 | Bulb - NEO WEDGE (14V 100MA) | Bulb - NEO WEDGE (14V 100MA) |
| 25 | 34908-634-611 | Bulb - 12V 21W) (ECE) (STANLEY | Bulb - 12V 21W) (ECE) (STANLEY |
| 30 | 34911-634-611 | Bulb - 12V 21/5W) (ECE) (STANLEY | Bulb - 12V 21/5W) (ECE) (STANLEY |
| 4 | 35102-SV4-003 | Bolt - BREAK HEAD | Bolt - BREAK HEAD |
| 5 | 35103-SE3-003 | Screw - RECESSED, 3X8 | Screw - RECESSED, 3X8 |
| 9 | 35108-SV4-A01 | Holder - COLUMN (SRS) | Holder - COLUMN (SRS) |
| 10 | 35113-SH3-G02 | Key - BLANK (MAIN) (MOLD=BLACK) | Key - BLANK (MAIN) (MOLD=BLACK) |
| 12 | 35114-SH4-K01 | Key - BLANK (SUB) (MOLD=GRAY) | Key - BLANK (SUB) (MOLD=GRAY) |
| 14 | 35130-SS0-A01 | Switch comp - STEERING | Switch comp - STEERING |
| 16 | 35251-SS0-003 | Body - SWITCH | Body - SWITCH |
| 18 | 35255-SX0-G01 | Switch assy - LIGHTING | Switch assy - LIGHTING |
| 21 | 35400-SG0-023 | Switch assy - DOOR | Switch assy - DOOR |
| 22 | 35409-SG0-901 | Screw - FLANGE, 6X12 | Screw - FLANGE, 6X12 |
| 23 | 35410-692-003 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 23 | 35417-SE3-003 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 2 | 35506-SA5-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 3 | 35510-SS0-013 | Switch assy - HAZARD | Switch assy - HAZARD |
| 8 | 35600-PK5-003 | Switch assy - BACK UP LIGHT (TEC) | Switch assy - BACK UP LIGHT (TEC) |
| 8 | 35760-SS0-003 | Switch assy - POWER WINDOW PASSENGER | Switch assy - POWER WINDOW PASSENGER |
| 6 | 35830-SS0-003 | Switch assy - ROOF | Switch assy - ROOF |
| 8 | 35833-SS0-003 | Lid | Lid |
| 9 | 35851-SM4-003 | Bulb - NEO WEDGE (14V 60MA) (TEC) | Bulb - NEO WEDGE (14V 60MA) (TEC) |
| 10 | 35851-SS0-003 | Bulb - NEO WEDGE (14V 60MA) | Bulb - NEO WEDGE (14V 60MA) |
| 36 | 36010-PA6-004 | Joint - THREE WAY | Joint - THREE WAY |
| 2 | 36033-P13-004 | Stay - DEVICE | Stay - DEVICE |
| 3 | 36034-PE2-004 | Joint - MAP SENSOR | Joint - MAP SENSOR |
| 1 | 36062-671-000 | Clamp b - TUBE | Clamp b - TUBE |
| 37 | 36138-PM1-G01 | Filter assy - SOLENOID VALVE | Filter assy - SOLENOID VALVE |
| 38 | 36145-PM4-004 | Valve - CHECK | Valve - CHECK |
| 39 | 36351-P13-003 | Tank comp. - VACUUM | Tank comp. - VACUUM |
| 40 | 36352-PT2-003 | Valve assy. - IN. CONTROL SOLENOID | Valve assy. - IN. CONTROL SOLENOID |
| 41 | 36355-P13-000 | Tube - AIR INTAKE CONTROL | Tube - AIR INTAKE CONTROL |
| 12 | 36454-PS4-003 | Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI) | Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI) |
| 3 | 37106-SJ4-J00 | Knob - TRIP | Knob - TRIP |
| 4 | 37115-SA0-601 | Packing - NS | Packing - NS |
| 5 | 37238-SD2-A00 | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN | Bulb & socket - T6.5 CAP) (NS) (BASE:BROWN |
| 31 | 37240-PT0-014 | Switch - OIL PRESSURE (TEC) | Switch - OIL PRESSURE (TEC) |
| 31 | 37240-PT0-023 | Switch - OIL PRESSURE(DENSO) | Switch - OIL PRESSURE(DENSO) |
| 31 | 37540-SM4-003 | Sensor - STOP LAMP FAILURE | Sensor - STOP LAMP FAILURE |
| 33 | 37750-PH2-014 | Thermo unit - DENSO | Thermo unit - DENSO |
| 18 | 37773-PT0-004 | Sensor - THERMO (A-93) (TEC) | Sensor - THERMO (A-93) (TEC) |
| 17 | 37773-PT3-A01 | Switch - THERMO (A-106) (UCHIYA) | Switch - THERMO (A-106) (UCHIYA) |
| 28 | 37800-SS0-003 | Meter unit - FUEL | Meter unit - FUEL |
| 28 | 37800-SS0-C01 | METER UNIT ASSY | METER UNIT ASSY |
| 29 | 37801-SL0-003 | Packing - BASE | Packing - BASE |
| 29 | 37801-SV4-L01 | Packing - BASE | Packing - BASE |
| 3 | 37821-P12-A00 | Cover comp. - L. ELECTRONIC CONTROL UNIT | Cover comp. - L. ELECTRONIC CONTROL UNIT |
| 4 | 37830-P13-003 | Sensor assy - MAP | Sensor assy - MAP |
| 3 | 38100-SM4-A02 | Horn assy - LOW | Horn assy - LOW |
| 4 | 38150-SH3-013 | Horn assy - HIGH (MITSUBA) | Horn assy - HIGH (MITSUBA) |
| 4 | 38150-SM4-A02 | Horn assy - HIGH | Horn assy - HIGH |
| 5 | 38212-SM4-003 | Fuse - BLOCK (40A) | Fuse - BLOCK (40A) |
| 6 | 38213-SM4-003 | Fuse - BLOCK (50A) | Fuse - BLOCK (50A) |
| 7 | 38218-SM4-003 | Fuse - BLOCK (100A) | Fuse - BLOCK (100A) |
| 8 | 38235-SA5-003 | Puller - FUSE (SUMITOMO) | Puller - FUSE (SUMITOMO) |
| 8 | 38250-SS0-G02 | Box assy - RELAY | Box assy - RELAY |
| 10 | 38251-SS0-003 | Cover - LOWER | Cover - LOWER |
| 9 | 38251-SS0-A00 | Bracket - RELAY BOX | Bracket - RELAY BOX |
| 11 | 38252-SS0-003 | Cover - UPPER | Cover - UPPER |
| 12 | 38253-SS0-G01 | Label | Label |
| 9 | 38300-SB0-004 | Relay assy - TURN SIGNAL & HAZARD (DENSO) | Relay assy - TURN SIGNAL & HAZARD (DENSO) |
| 9 | 38300-SB0-013 | Relay assy - TURN SIGNAL & HAZARD (MITSUBA) | Relay assy - TURN SIGNAL & HAZARD (MITSUBA) |
| 3 | 38516-SA5-671 | Packing - T-TYPE) (MITSUBA | Packing - T-TYPE) (MITSUBA |
| 20 | 38519-SB0-003 | Bush - WASHER TANK (MITSUBA) | Bush - WASHER TANK (MITSUBA) |
| 1 | 38601-SA7-000 | Rubber - CONDENSER MOUNTING | Rubber - CONDENSER MOUNTING |
| 2 | 38611-PT2-J02 | Fan comp - COOLING (MITSUBA) | Fan comp - COOLING (MITSUBA) |
| 3 | 38615-PT3-A00 | Shroud comp. - AIR CONDITIONER | Shroud comp. - AIR CONDITIONER |
| 4 | 38616-PT3-A03 | Motor - COOLING FAN (MITSUBA) | Motor - COOLING FAN (MITSUBA) |
| 5 | 38619-PT2-J00 | Protector - FAN MOTOR | Protector - FAN MOTOR |
| 1 | 38689-680-960 | E-ring - 4MM | E-ring - 4MM |
| 3 | 38725-SA5-003 | Diode assy. | Diode assy. |
| 2 | 38801-P06-006 | Valve sub assy. - SAFETY | Valve sub assy. - SAFETY |
| 3 | 38810-P13-016 | Compressor comp. - KEIHIN | Compressor comp. - KEIHIN |
| 4 | 38829-P06-006 | Nut | Nut |
| 6 | 38908-P13-016 | Protector set - THERMAL | Protector set - THERMAL |
| 7 | 38912-P06-006 | Shim set | Shim set |
| 8 | 38913-P06-006 | Circlip - EXTERNAL, 45MM | Circlip - EXTERNAL, 45MM |
| 9 | 38914-P06-006 | Circlip - EXTERNAL, 35MM | Circlip - EXTERNAL, 35MM |
| 10 | 38920-P14-A01 | Belt - COMPRESSOR (MITSUBOSHI) | Belt - COMPRESSOR (MITSUBOSHI) |
| 10 | 38920-P14-A02 | Belt - COMPRESSOR (BANDO) | Belt - COMPRESSOR (BANDO) |
| 12 | 38930-P13-000 | Bracket - COMPRESSOR | Bracket - COMPRESSOR |
| 2 | 39112-SM4-000 | Bracket - FR. SPEAKER SEAL | Bracket - FR. SPEAKER SEAL |
| 23 | 39116-SS0-G00 | Pocket - AUTO RADIO | Pocket - AUTO RADIO |
| 13 | 39150-SS0-G02 | Antenna assy - MOTOR | Antenna assy - MOTOR |
| 15 | 39151-SS0-003 | Bracket | Bracket |
| 16 | 39152-SR4-003 | Mast assy. | Mast assy. |
| 17 | 39154-SR4-013 | Nut | Nut |
| 18 | 39155-SS0-G02 | Motor assy. | Motor assy. |
| 20 | 39156-SS0-013 | Insulator | Insulator |
| 21 | 39159-SS0-J03 | Feeder - MOTOR ANTENNA | Feeder - MOTOR ANTENNA |
| 22 | 39168-SS0-A01 | Cylinder | Cylinder |
| 23 | 39170-SS0-000 | Valve - RR. DRAIN | Valve - RR. DRAIN |
| 24 | 39179-SS0-A02 | Tube comp | Tube comp |
| 1 | 39246-671-003 | Clamp - CASE HOLD | Clamp - CASE HOLD |
| 2 | 39383-SA5-000 | Clamp - CONTROL CABLE | Clamp - CONTROL CABLE |
| 12 | 39400-SS0-003 | Relay assy - MAIN (MITSUBA) (RZ-0139) | Relay assy - MAIN (MITSUBA) (RZ-0139) |
| 48 | 39600-SW3-305 | Lighter unit - CIGARETTE | Lighter unit - CIGARETTE |
| 48 | 39600-SW3-505 | LIGHTER ASSYCIGA | LIGHTER ASSYCIGA |
| 49 | 39628-SM4-307 | Cord assy | Cord assy |
| 1 | 39701-SS0-A01 | Flt & circuit assy. - CLOCK | Flt & circuit assy. - CLOCK |
| 3 | 39702-SS0-003 | Switch assy - CLOCK | Switch assy - CLOCK |
| 15 | 39762-SB0-003 | Relay assy - POWER (5P) (MITSUBA) | Relay assy - POWER (5P) (MITSUBA) |
| 15 | 39762-SB0-004 | Relay assy - POWER (5P) (056700-6710) (DENSO) | Relay assy - POWER (5P) (056700-6710) (DENSO) |
| 13 | 39762-SG0-003 | Relay assy - POWER (5P) (DENSO) (056700-8160) | Relay assy - POWER (5P) (DENSO) (056700-8160) |
| 14 | 39792-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7410) | Relay assy - POWER(4P)(DENSO) (056700-7410) |
| 14 | 39792-SE0-004 | Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22) | Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22) |
| 16 | 39792-SM4-003 | Relay assy - POWER (4P NO.305) (DENSO) (056700-9340) | Relay assy - POWER (4P NO.305) (DENSO) (056700-9340) |
| 16 | 39792-SM4-004 | Relay assy - POWER (4P) (OMRON) (G4R-1A21T-49H) | Relay assy - POWER (4P) (OMRON) (G4R-1A21T-49H) |
| 15 | 39793-SE3-003 | Relay assy - POWER (5P) (MITSUBA) | Relay assy - POWER (5P) (MITSUBA) |
| 15 | 39793-SE3-004 | Relay assy - POWER (5P) (058700-1081) (DENSO) | Relay assy - POWER (5P) (058700-1081) (DENSO) |
| 17 | 39794-SE0-003 | Relay assy - POWER(4P)(DENSO) (056700-7250) | Relay assy - POWER(4P)(DENSO) (056700-7250) |
| 17 | 39794-SL0-004 | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) | Relay assy - POWER(4P) (MITSUBA)(RC-2225)(BLACK) |
| 4 | 39795-SB2-003 | Relay assy - POWER (4P) (MITSUBA) (RC-2201) | Relay assy - POWER (4P) (MITSUBA) (RC-2201) |
| 1 | 41100-PX5-E43 | Differential comp. | Differential comp. |
| 2 | 41233-PX5-J41 | Gear - FINAL DRIVEN | Gear - FINAL DRIVEN |
| 3 | 41380-PG2-A10 | Shim - 75MM | Shim - 75MM |
| 4 | 41381-PX5-000 | Shim a - 68MM (1.90) | Shim a - 68MM (1.90) |
| 4 | 41382-PX5-000 | Shim b - 68MM (1.93) | Shim b - 68MM (1.93) |
| 4 | 41383-PX5-000 | Shim c - 68MM (1.96) | Shim c - 68MM (1.96) |
| 4 | 41384-PX5-000 | Shim d - 68MM (1.99) | Shim d - 68MM (1.99) |
| 4 | 41385-PX5-000 | Shim e - 68MM (2.02) | Shim e - 68MM (2.02) |
| 4 | 41386-PX5-000 | Shim f - 68MM (2.05) | Shim f - 68MM (2.05) |
| 4 | 41387-PX5-000 | Shim g - 68MM (2.08) | Shim g - 68MM (2.08) |
| 4 | 41388-PX5-000 | Shim h - 68MM (2.11) | Shim h - 68MM (2.11) |
| 4 | 41389-PX5-000 | Shim i - 68MM (2.14) | Shim i - 68MM (2.14) |
| 4 | 41390-PX5-000 | Shim j - 68MM (2.17) | Shim j - 68MM (2.17) |
| 4 | 41391-PX5-000 | Shim k - 68MM (2.20) | Shim k - 68MM (2.20) |
| 4 | 41392-PX5-000 | Shim l - 68MM (2.23) | Shim l - 68MM (2.23) |
| 4 | 41393-PX5-000 | Shim m - 68MM (2.26) | Shim m - 68MM (2.26) |
| 4 | 41394-PX5-000 | Shim n - 68MM (2.29) | Shim n - 68MM (2.29) |
| 4 | 41395-PX5-000 | Shim o - 68MM (2.32) | Shim o - 68MM (2.32) |
| 4 | 41396-PX5-000 | Shim p - 68MM (2.35) | Shim p - 68MM (2.35) |
| 4 | 41397-PX5-000 | Shim q - 68MM (2.38) | Shim q - 68MM (2.38) |
| 4 | 41398-PX5-000 | Shim r - 68MM (2.41) | Shim r - 68MM (2.41) |
| 4 | 41399-PX5-000 | Shim s - 68MM (2.44) | Shim s - 68MM (2.44) |
| 4 | 41400-PX5-000 | Shim t - 68MM (2.47) | Shim t - 68MM (2.47) |
| 2 | 42200-SM4-A01 | Bearing assy - RR. HUB UNIT (NTN) | Bearing assy - RR. HUB UNIT (NTN) |
| 3 | 42324-SB2-020 | Washer - HUB UNIT | Washer - HUB UNIT |
| 4 | 42326-SG0-000 | Cap - HUB UNIT | Cap - HUB UNIT |
| 5 | 42510-SS0-J00 | Disk - RR. BRAKE | Disk - RR. BRAKE |
| 3 | 42700-SS0-A01 | Disk - WHEEL (14X5 1/2JJ) (BLACK) (KANAI) | Disk - WHEEL (14X5 1/2JJ) (BLACK) (KANAI) |
| 7 | 42751-SS0-G01 | Tire - 195/65R14 89H) (BRIDGESTONE | Tire - 195/65R14 89H) (BRIDGESTONE |
| 7 | 42751-SS0-G02 | Tire - 195/65R14 89H) (DUNLOP | Tire - 195/65R14 89H) (DUNLOP |
| 9 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 9 | 42753-SE0-A02 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 6 | 43018-SS0-000 | Caliper sub assy. - R. RR. | Caliper sub assy. - R. RR. |
| 7 | 43019-SS0-000 | Caliper sub assy. - L. RR. | Caliper sub assy. - L. RR. |
| 8 | 43022-SL5-000 | Pad set - RR. | Pad set - RR. |
| 11 | 43215-SM4-951 | Piston assy. | Piston assy. |
| 13 | 43223-SD2-932 | BEARING A | BEARING A |
| 14 | 43224-SD2-931 | Spring b - ADJUSTING | Spring b - ADJUSTING |
| 15 | 43224-SP0-003 | Shim - BRAKE PAD OUTER | Shim - BRAKE PAD OUTER |
| 16 | 43225-SL5-A01 | Shim - BRAKE PAD INNER | Shim - BRAKE PAD INNER |
| 17 | 43227-SG0-013 | Spring - PAD | Spring - PAD |
| 18 | 43228-SD2-933 | Shaft a | Shaft a |
| 19 | 43229-SD2-931 | Rod | Rod |
| 22 | 43233-S04-003 | Piston comp - SLEEVE | Piston comp - SLEEVE |
| 24 | 43235-SD2-931 | Pin a | Pin a |
| 25 | 43236-S04-003 | Spacer | Spacer |
| 26 | 43238-SF1-003 | Ring - RETAINING | Ring - RETAINING |
| 27 | 43241-SF1-003 | Guide - SPRING | Guide - SPRING |
| 29 | 43243-SD2-931 | Nut - PARKING | Nut - PARKING |
| 30 | 43244-SG0-003 | Retainer | Retainer |
| 31 | 43245-SS0-003 | Lever - R. | Lever - R. |
| 32 | 43246-SS0-003 | Spring - R. RETURN | Spring - R. RETURN |
| 33 | 43247-SS0-003 | Arm - R. | Arm - R. |
| 34 | 43248-SD2-933 | Shaft b | Shaft b |
| 35 | 43249-S04-003 | Bolt - ADJUSTER | Bolt - ADJUSTER |
| 36 | 43253-SS0-000 | Guard - R. RR. SPLASH (14") | Guard - R. RR. SPLASH (14") |
| 37 | 43254-SS0-000 | Guard - L. RR. SPLASH (14") | Guard - L. RR. SPLASH (14") |
| 38 | 43255-SS0-000 | Protector - R. RR. CALIPER | Protector - R. RR. CALIPER |
| 39 | 43256-SS0-000 | Protector - L. RR. CALIPER | Protector - L. RR. CALIPER |
| 40 | 43262-S04-003 | Pin b | Pin b |
| 41 | 43265-SS0-003 | Lever - L. | Lever - L. |
| 42 | 43266-SS0-003 | Spring - L. RETURN | Spring - L. RETURN |
| 43 | 43267-SS0-003 | Arm - L. | Arm - L. |
| 1 | 43352-567-000 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43352-SM4-951 | Screw - BLEEDER | Screw - BLEEDER |
| 2 | 43353-548-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 3 | 43353-SD5-003 | Cap - BLEEDER SCREW | Cap - BLEEDER SCREW |
| 1 | 43471-SD2-930 | Pin - BRAKE WIRE END | Pin - BRAKE WIRE END |
| 1 | 44010-SS0-030 | Driveshaft set - R. | Driveshaft set - R. |
| 2 | 44011-SS0-030 | Driveshaft set - L. | Driveshaft set - L. |
| 23 | 44014-SS0-000 | Joint set - OUTBOARD | Joint set - OUTBOARD |
| 3 | 44017-SS0-010 | Boot set - INBOARD | Boot set - INBOARD |
| 24 | 44018-S30-C00 | Boot set - OUTBOARD | Boot set - OUTBOARD |
| 4 | 44300-SS0-014 | Bearing assy - FR. HUB (KOYO SEIKO) | Bearing assy - FR. HUB (KOYO SEIKO) |
| 4 | 44300-SS0-018 | Bearing assy - FR. HUB (NTN) | Bearing assy - FR. HUB (NTN) |
| 6 | 44310-SS0-300 | Joint comp - INBOARD | Joint comp - INBOARD |
| 5 | 44310-SS0-901 | Joint comp - INBOARD | Joint comp - INBOARD |
| 7 | 44319-S84-300 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 7 | 44319-SE0-000 | Set ring - 28X2.0 | Set ring - 28X2.0 |
| 8 | 44327-SB0-300 | Band - OUTBOARD BOOT | Band - OUTBOARD BOOT |
| 9 | 44327-SV4-305 | Band - JOINT BOOT (DOUBLE ROLLED BAND) | Band - JOINT BOOT (DOUBLE ROLLED BAND) |
| 11 | 44329-SB0-300 | Band - DRIVESHAFT BOOT | Band - DRIVESHAFT BOOT |
| 26 | 44329-SV4-305 | Band - SHAFT BOOT (DOUBLE ROLLED BAND) | Band - SHAFT BOOT (DOUBLE ROLLED BAND) |
| 12 | 44336-SB0-300 | Ring a - STOPPER | Ring a - STOPPER |
| 25 | 44337-SB0-300 | Ring b - STOPPER | Ring b - STOPPER |
| 13 | 44338-SB0-300 | Circlip - 26MM | Circlip - 26MM |
| 1 | 44348-SS0-000 | Ring - FR. KNUCKLE | Ring - FR. KNUCKLE |
| 11 | 44352-SA2-300 | Band - DAMPER WEIGHT | Band - DAMPER WEIGHT |
| 15 | 44500-SS0-010 | Shaft assy - HALF | Shaft assy - HALF |
| 5 | 44600-SS0-000 | Hub assy - FR. | Hub assy - FR. |
| 12 | 44721-SM4-003 | Weight - BALANCE (10G) (YAMATE) | Weight - BALANCE (10G) (YAMATE) |
| 12 | 44722-SM4-003 | Weight - BALANCE (20G) (YAMATE) | Weight - BALANCE (20G) (YAMATE) |
| 12 | 44723-SM4-003 | Weight - BALANCE (30G) (YAMATE) | Weight - BALANCE (30G) (YAMATE) |
| 12 | 44724-SM4-003 | Weight - BALANCE (40G) (YAMATE) | Weight - BALANCE (40G) (YAMATE) |
| 12 | 44725-SM4-003 | Weight - BALANCE (50G) (YAMATE) | Weight - BALANCE (50G) (YAMATE) |
| 12 | 44726-SM4-003 | Weight - BALANCE (5G) (YAMATE) | Weight - BALANCE (5G) (YAMATE) |
| 12 | 44727-SM4-003 | Weight - BALANCE (15G) (YAMATE) | Weight - BALANCE (15G) (YAMATE) |
| 12 | 44728-SM4-003 | Weight - BALANCE (25G) (YAMATE) | Weight - BALANCE (25G) (YAMATE) |
| 12 | 44729-SM4-003 | Weight - BALANCE (35G) (YAMATE) | Weight - BALANCE (35G) (YAMATE) |
| 12 | 44730-SM4-003 | Weight - BALANCE (45G) (YAMATE) | Weight - BALANCE (45G) (YAMATE) |
| 16 | 44733-SS0-A02 | Trim - WHEEL (14") | Trim - WHEEL (14") |
| 18 | 44736-SA0-981 | Nut - WHEEL (FUSE RASHI) | Nut - WHEEL (FUSE RASHI) |
| 20 | 44737-SA0-981 | Washer - WHEEL NUT (FUSE RASHI) | Washer - WHEEL NUT (FUSE RASHI) |
| 6 | 45018-SS0-000 | Caliper sub assy. - R. FR. | Caliper sub assy. - R. FR. |
| 7 | 45019-SS0-000 | Caliper sub assy. - L. FR. | Caliper sub assy. - L. FR. |
| 11 | 45216-SM4-003 | Piston | Piston |
| 13 | 45225-SS0-003 | Shim a - INNER | Shim a - INNER |
| 14 | 45226-SS0-003 | Shim b - INNER | Shim b - INNER |
| 16 | 45228-SS0-003 | Shim - OUTER PAD | Shim - OUTER PAD |
| 18 | 45233-SS0-003 | Bush - 11MM | Bush - 11MM |
| 20 | 45235-SL0-003 | Pin a | Pin a |
| 21 | 45236-SS0-003 | Pin b | Pin b |
| 22 | 45237-SS0-A01 | Retainer | Retainer |
| 47 | 45240-SC2-003 | Bolt - FLANGE, 8X22 | Bolt - FLANGE, 8X22 |
| 23 | 45240-SM4-003 | Bolt - FLANGE, 10X24 | Bolt - FLANGE, 10X24 |
| 24 | 45251-SS0-000 | Disk - FR. BRAKE | Disk - FR. BRAKE |
| 25 | 45255-SS0-000 | Guard - FR. BRAKE SPLASH | Guard - FR. BRAKE SPLASH |
| 4 | 46135-SE3-013 | Guide assy - PISTON | Guide assy - PISTON |
| 5 | 46138-SM4-003 | Packing | Packing |
| 6 | 46139-SM4-013 | Bolt - STOP | Bolt - STOP |
| 3 | 46151-SA5-003 | Yoke comp. - NISSIN | Yoke comp. - NISSIN |
| 7 | 46151-SB2-003 | Yoke - PUSH ROD (NISSIN) | Yoke - PUSH ROD (NISSIN) |
| 5 | 46182-500-013 | Circlip | Circlip |
| 6 | 46184-611-000 | Dust seal - MASTER CYLINDER | Dust seal - MASTER CYLINDER |
| 9 | 46185-SE0-003 | Seal - ROD | Seal - ROD |
| 10 | 46191-634-000 | Gasket - MASTER CYLINDER BRACKET | Gasket - MASTER CYLINDER BRACKET |
| 5 | 46210-SS0-003 | Valve assy. - DUAL PROPORTIONING | Valve assy. - DUAL PROPORTIONING |
| 6 | 46310-SS0-A00 | Pipe comp. a - BRAKE | Pipe comp. a - BRAKE |
| 7 | 46320-SS0-A00 | Pipe comp. b - BRAKE | Pipe comp. b - BRAKE |
| 8 | 46321-SS0-A00 | Pipe comp. h - BRAKE | Pipe comp. h - BRAKE |
| 9 | 46330-SS0-A00 | Pipe comp. c - BRAKE | Pipe comp. c - BRAKE |
| 10 | 46340-SS0-A00 | Pipe comp. d - BRAKE | Pipe comp. d - BRAKE |
| 11 | 46360-SS0-A00 | Pipe comp. f - BRAKE | Pipe comp. f - BRAKE |
| 12 | 46380-SB0-000 | Grommet a - BRAKE PIPE (BLACK) | Grommet a - BRAKE PIPE (BLACK) |
| 13 | 46391-SL4-000 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 14 | 46391-SM4-J01 | Clamp - BRAKE PIPE | Clamp - BRAKE PIPE |
| 15 | 46392-SE0-000 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 17 | 46392-SM4-961 | Clip - BRAKE PIPE | Clip - BRAKE PIPE |
| 16 | 46392-SM4-A01 | Clip b - BRAKE PIPE | Clip b - BRAKE PIPE |
| 12 | 46400-SM5-A01 | Power assy. - MASTER (7"+8") | Power assy. - MASTER (7"+8") |
| 13 | 46403-SE0-003 | Valve comp. - CHECK (NISSIN) | Valve comp. - CHECK (NISSIN) |
| 14 | 46404-SS0-A00 | Tube a - MASTER POWER | Tube a - MASTER POWER |
| 17 | 46405-SS0-A00 | Tube b - MASTER POWER | Tube b - MASTER POWER |
| 20 | 46407-SE0-010 | Clamp - CHECK VALVE | Clamp - CHECK VALVE |
| 22 | 46435-SS0-000 | Bracket b - R. RR. BRAKE HOSE | Bracket b - R. RR. BRAKE HOSE |
| 23 | 46436-SS0-000 | Bracket b - L. RR. BRAKE HOSE | Bracket b - L. RR. BRAKE HOSE |
| 24 | 46438-SS0-000 | Bracket - R. RR. BRAKE HOSE | Bracket - R. RR. BRAKE HOSE |
| 25 | 46439-SS0-000 | Bracket - L. RR. BRAKE HOSE | Bracket - L. RR. BRAKE HOSE |
| 26 | 46462-SE0-000 | Bolt - OIL | Bolt - OIL |
| 27 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 7 | 46472-SM4-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 16 | 46500-SS0-A00 | Pedal comp - BRAKE | Pedal comp - BRAKE |
| 18 | 46504-ST5-300 | Bush - PEDAL | Bush - PEDAL |
| 20 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 21 | 46512-SB2-000 | Pin - PEDAL | Pin - PEDAL |
| 21 | 46530-SM4-000 | Spring assy - PEDAL RETURN | Spring assy - PEDAL RETURN |
| 22 | 46535-SM4-000 | Collar - PEDAL | Collar - PEDAL |
| 23 | 46545-SA5-000 | Cover, Pedal | Cover, Pedal |
| 25 | 46590-SS0-A00 | Bracket - PEDAL | Bracket - PEDAL |
| 22 | 46660-SM4-013 | Tank - RESERVE | Tank - RESERVE |
| 23 | 46662-SM4-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 24 | 46665-ST5-003 | Band - RESERVE TANK | Band - RESERVE TANK |
| 25 | 46666-SE3-013 | Filter - MASTER CYLINDER | Filter - MASTER CYLINDER |
| 26 | 46669-SE3-003 | Seal - RESERVE TANK | Seal - RESERVE TANK |
| 26 | 46904-SM4-300 | Pad - ACCELERATOR STOPPER | Pad - ACCELERATOR STOPPER |
| 28 | 46910-SS0-G00 | Pedal comp - CLUTCH | Pedal comp - CLUTCH |
| 29 | 46911-SD4-930 | Bush - PEDAL PIN | Bush - PEDAL PIN |
| 9 | 46912-SD4-000 | Pin - CLUTCH PEDAL | Pin - CLUTCH PEDAL |
| 10 | 46918-SM4-020 | Clip a13 - TUBE | Clip a13 - TUBE |
| 11 | 46920-SM4-A03 | Cylinder assy. - CLUTCH MASTER | Cylinder assy. - CLUTCH MASTER |
| 13 | 46926-SF1-003 | Piston assy. | Piston assy. |
| 14 | 46928-SF1-000 | Seal - CLUTCH MASTER CYLINDER | Seal - CLUTCH MASTER CYLINDER |
| 15 | 46930-SM4-003 | Cylinder assy. - SLAVE | Cylinder assy. - SLAVE |
| 16 | 46932-SD4-003 | Piston - SLAVE CYLINDER | Piston - SLAVE CYLINDER |
| 17 | 46933-SD4-013 | Cup a - PISTON | Cup a - PISTON |
| 18 | 46934-SD4-003 | Cup b - PISTON | Cup b - PISTON |
| 19 | 46935-SP0-000 | Spring - SLAVE CYLINDER | Spring - SLAVE CYLINDER |
| 31 | 46936-SM4-000 | Collar - CLUTCH PEDAL | Collar - CLUTCH PEDAL |
| 20 | 46937-SD4-003 | Boot - SLAVE CYLINDER | Boot - SLAVE CYLINDER |
| 21 | 46938-SD4-003 | Rod - PUSH | Rod - PUSH |
| 22 | 46939-SV4-003 | Joint - CLUTCH HOSE | Joint - CLUTCH HOSE |
| 23 | 46950-SM4-950 | Rod assy - PUSH | Rod assy - PUSH |
| 24 | 46952-SD4-003 | Joint - TUBE | Joint - TUBE |
| 25 | 46953-SD4-003 | Packing | Packing |
| 26 | 46960-SM4-913 | Pipe assy. b - CLUTCH | Pipe assy. b - CLUTCH |
| 27 | 46960-SS0-A00 | Pipe assy. - CLUTCH | Pipe assy. - CLUTCH |
| 29 | 46961-SV4-003 | Hose - CLUTCH | Hose - CLUTCH |
| 30 | 46963-SD4-020 | Bolt - CLUTCH OIL | Bolt - CLUTCH OIL |
| 31 | 46964-SM4-020 | Clamp - CLUTCH PIPE | Clamp - CLUTCH PIPE |
| 32 | 46966-SM4-A01 | Holder - TANK | Holder - TANK |
| 33 | 46970-SM4-020 | Pipe comp - CLUTCH | Pipe comp - CLUTCH |
| 34 | 46971-SS0-A00 | Tube - CLUTCH FLUID | Tube - CLUTCH FLUID |
| 35 | 46972-SD4-003 | Tank - CLUTCH FLUID | Tank - CLUTCH FLUID |
| 36 | 46973-SD4-003 | Cap comp. - RESERVE TANK | Cap comp. - RESERVE TANK |
| 32 | 46980-SD4-930 | Spring - CLUTCH ASSISTANT | Spring - CLUTCH ASSISTANT |
| 32 | 46980-SD4-931 | Spring - CLUTCH ASSISTANT | Spring - CLUTCH ASSISTANT |
| 33 | 46981-SD4-930 | Bush a - CLUTCH ASSISTANT | Bush a - CLUTCH ASSISTANT |
| 34 | 46982-SD4-930 | Bush b - CLUTCH ASSISTANT | Bush b - CLUTCH ASSISTANT |
| 35 | 46990-SM4-940 | Bracket - CLUTCH PEDAL | Bracket - CLUTCH PEDAL |
| 36 | 46991-SS0-A01 | Bracket - FOOTREST | Bracket - FOOTREST |
| 38 | 46993-SS0-003 | Damper assy. - CLUTCH | Damper assy. - CLUTCH |
| 39 | 46995-SS0-000 | Bracket - CLUTCH PIPE | Bracket - CLUTCH PIPE |
| 40 | 46998-SM4-000 | Clamp - CLUTCH PIPE | Clamp - CLUTCH PIPE |
| 41 | 46998-SS0-A00 | Clamp - CLUTCH PIPE | Clamp - CLUTCH PIPE |
| 42 | 46999-SM4-010 | Bracket - CLUTCH PIPE | Bracket - CLUTCH PIPE |
| 43 | 46999-SS0-A00 | Clamp - CLUTCH PIPE | Clamp - CLUTCH PIPE |
| 4 | 47142-671-010 | Knob - PARKING BRAKE PUSH ROD | Knob - PARKING BRAKE PUSH ROD |
| 5 | 47143-SD4-300 | Spring - PUSH ROD | Spring - PUSH ROD |
| 6 | 47342-SL4-000 | Switch - PARKING BRAKE | Switch - PARKING BRAKE |
| 8 | 47345-SL4-010 | Cover - PLATE RATCHET | Cover - PLATE RATCHET |
| 9 | 47360-SB2-000 | Equalizer | Equalizer |
| 10 | 47365-538-000 | Pin - EQUALIZER | Pin - EQUALIZER |
| 11 | 47510-SS0-023 | Wire a - R. PARKING BRAKE | Wire a - R. PARKING BRAKE |
| 12 | 47522-594-000 | Nut - PARKING BRAKE ADJUSTING | Nut - PARKING BRAKE ADJUSTING |
| 3 | 47523-SS0-000 | Stay - R. BRAKE WIRE BRACKET | Stay - R. BRAKE WIRE BRACKET |
| 4 | 47524-SS0-000 | Stay - L. BRAKE WIRE BRACKET | Stay - L. BRAKE WIRE BRACKET |
| 13 | 47537-671-670 | Spring - PARKING BRAKE ROD | Spring - PARKING BRAKE ROD |
| 14 | 47560-SS0-023 | Wire a - L. PARKING BRAKE | Wire a - L. PARKING BRAKE |
| 15 | 47572-SE0-300 | Base - WIRE GUIDE | Base - WIRE GUIDE |
| 1 | 50100-SS0-000 | Beam - CENTER | Beam - CENTER |
| 2 | 50200-SS0-A00 | Beam - RR. | Beam - RR. |
| 1 | 50210-SS0-A00 | Stiffener - RR. BEAM | Stiffener - RR. BEAM |
| 2 | 50220-SS0-A00 | Stiffener - STEERING GEAR BOX | Stiffener - STEERING GEAR BOX |
| 2 | 50806-SS0-000 | Rubber - TRANSMISSION MOUNTING (MT) | Rubber - TRANSMISSION MOUNTING (MT) |
| 3 | 50810-SS0-000 | Rubber - ENGINE RR. MOUNTING (MT) | Rubber - ENGINE RR. MOUNTING (MT) |
| 4 | 50814-SS0-000 | Stopper - FR. ENGINE (MT) | Stopper - FR. ENGINE (MT) |
| 5 | 50820-SS0-J01 | Rubber assy. - ENGINE SIDE MOUNTING | Rubber assy. - ENGINE SIDE MOUNTING |
| 7 | 50825-SS0-000 | Bracket - TRANSMISSION MOUNTING (MT) | Bracket - TRANSMISSION MOUNTING (MT) |
| 8 | 50826-SS0-000 | Bracket - FR. ENGINE STOPPER | Bracket - FR. ENGINE STOPPER |
| 9 | 50827-SS0-010 | Bracket - ENGINE RR. MOUNTING | Bracket - ENGINE RR. MOUNTING |
| 2 | 51210-SS0-010 | Knuckle comp - R. FR. | Knuckle comp - R. FR. |
| 4 | 51215-SS0-010 | Knuckle comp - L. FR. | Knuckle comp - L. FR. |
| 5 | 51225-SL5-003 | Boot - LOWER BALL DUST | Boot - LOWER BALL DUST |
| 1 | 51300-SS0-003 | Spring - FR. STABILIZER | Spring - FR. STABILIZER |
| 2 | 51306-SM4-010 | Bush - STABILIZER HOLDER | Bush - STABILIZER HOLDER |
| 3 | 51308-SG0-020 | Bracket - FR. STABILIZER | Bracket - FR. STABILIZER |
| 4 | 51312-SM4-000 | Collar b - STABILIZER END (27.2MM) | Collar b - STABILIZER END (27.2MM) |
| 5 | 51313-SS0-000 | Washer - STABILIZER END | Washer - STABILIZER END |
| 6 | 51314-SM4-020 | Rubber - STABILIZER END | Rubber - STABILIZER END |
| 7 | 51320-SS0-003 | Link - FR. STABILIZER | Link - FR. STABILIZER |
| 8 | 51352-SS0-003 | Rod - R. FR. RADIUS | Rod - R. FR. RADIUS |
| 9 | 51355-SS0-000 | Arm comp - R. FR. LOWER | Arm comp - R. FR. LOWER |
| 10 | 51362-SS0-003 | Rod - L. FR. RADIUS | Rod - L. FR. RADIUS |
| 11 | 51365-SS0-000 | Arm comp - L. FR. LOWER | Arm comp - L. FR. LOWER |
| 12 | 51381-SM4-013 | Bush - FR. RADIUS ROD (RR.) | Bush - FR. RADIUS ROD (RR.) |
| 13 | 51391-SM4-013 | Bush - FR. RADIUS ROD (FR.) | Bush - FR. RADIUS ROD (FR.) |
| 14 | 51393-SL5-013 | Bush - FR. LOWER ARM | Bush - FR. LOWER ARM |
| 15 | 51394-SM4-010 | Washer - CASTER ADJUSTER | Washer - CASTER ADJUSTER |
| 16 | 51398-SM4-000 | Collar - RADIUS ROD | Collar - RADIUS ROD |
| 17 | 51399-SM4-000 | Washer - FR. RADIUS ROD | Washer - FR. RADIUS ROD |
| 6 | 51450-SS0-003 | Arm assy. - R. FR. UPPER | Arm assy. - R. FR. UPPER |
| 7 | 51460-SS0-003 | Arm assy. - L. FR. UPPER | Arm assy. - L. FR. UPPER |
| 4 | 51605-SS0-902 | Absorber unit - R. FR. SHOCK | Absorber unit - R. FR. SHOCK |
| 5 | 51606-SS0-902 | Absorber unit - L. FR. SHOCK | Absorber unit - L. FR. SHOCK |
| 6 | 51621-SD4-004 | Washer - SHOCK ABSORBER MOUNTING (SHOWA) | Washer - SHOCK ABSORBER MOUNTING (SHOWA) |
| 7 | 51631-SS0-004 | Rubber - SHOCK ABSORBER MOUNTING | Rubber - SHOCK ABSORBER MOUNTING |
| 8 | 51675-SS0-004 | Base - SHOCK ABSORBER MOUNTING | Base - SHOCK ABSORBER MOUNTING |
| 9 | 51685-SH3-014 | Plate - DUST COVER(SHOWA) | Plate - DUST COVER(SHOWA) |
| 10 | 51686-SM4-004 | Rubber - FR. SPRING SEAT (SHOWA) | Rubber - FR. SPRING SEAT (SHOWA) |
| 11 | 51687-SM4-014 | Cover - FR. SLEEVE DUST (SHOWA) | Cover - FR. SLEEVE DUST (SHOWA) |
| 12 | 51689-SH3-004 | Plate - BUMP STOP (SHOWA) | Plate - BUMP STOP (SHOWA) |
| 1 | 51689-SH9-003 | Plate - BUMP STOP(SHOWA) | Plate - BUMP STOP(SHOWA) |
| 13 | 51722-SS0-004 | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) | Rubber - FR. BUMP STOPPER (POLYURETHAN KASEI) |
| 14 | 51728-SB0-004 | Collar - SHOCK ABSORBER MOUNTING (SHOWA) | Collar - SHOCK ABSORBER MOUNTING (SHOWA) |
| 18 | 51810-SS0-004 | Bush - SHOCK ABSORBER FORK (YAMASHITA) | Bush - SHOCK ABSORBER FORK (YAMASHITA) |
| 19 | 51811-SS0-000 | Fork - R. FR. SHOCK ABSORBER | Fork - R. FR. SHOCK ABSORBER |
| 20 | 51821-SS0-000 | Fork - L. FR. SHOCK ABSORBER | Fork - L. FR. SHOCK ABSORBER |
| 6 | 52111-SS0-010 | Knuckle comp - R. RR. | Knuckle comp - R. RR. |
| 7 | 52116-SS0-010 | Knuckle comp - L. RR. | Knuckle comp - L. RR. |
| 8 | 52213-SS0-000 | Protector - RR. KNUCKLE | Protector - RR. KNUCKLE |
| 8 | 52226-SL0-003 | Circlip - LOWER BALL(MUSASHI) | Circlip - LOWER BALL(MUSASHI) |
| 10 | 52250-SS0-000 | Spindle assy - R. RR. WHEEL | Spindle assy - R. RR. WHEEL |
| 11 | 52260-SS0-000 | Spindle assy - L. RR. WHEEL | Spindle assy - L. RR. WHEEL |
| 12 | 52300-SS0-003 | Spring - RR. STABILIZER | Spring - RR. STABILIZER |
| 13 | 52308-SS0-000 | Holder - RR. STABILIZER | Holder - RR. STABILIZER |
| 14 | 52315-SS0-010 | Bush - RR. STABILIZER HOLDER | Bush - RR. STABILIZER HOLDER |
| 15 | 52316-SM4-960 | Rubber - RR. STABILIZER | Rubber - RR. STABILIZER |
| 16 | 52317-SS0-000 | Bracket - R. RR. STABILIZER | Bracket - R. RR. STABILIZER |
| 17 | 52318-SS0-000 | Bracket - L. RR. STABILIZER | Bracket - L. RR. STABILIZER |
| 18 | 52320-SS0-003 | Link assy - RR. STABILIZER | Link assy - RR. STABILIZER |
| 19 | 52323-SS0-003 | Bolt - RR. LINK (10X62.5) | Bolt - RR. LINK (10X62.5) |
| 20 | 52328-SS0-010 | Washer - 34X2.6 | Washer - 34X2.6 |
| 21 | 52350-SS0-020 | Arm comp - R. RR. LOWER | Arm comp - R. RR. LOWER |
| 22 | 52353-SM4-962 | Bush - LOWER ARM CONNECT (HOKUSHIN) | Bush - LOWER ARM CONNECT (HOKUSHIN) |
| 23 | 52354-SS0-023 | Bush a - RR. LOWER ARM | Bush a - RR. LOWER ARM |
| 25 | 52357-SS0-013 | Bush b - RR. LOWER ARM | Bush b - RR. LOWER ARM |
| 26 | 52360-SS0-020 | Arm comp - L. RR. LOWER | Arm comp - L. RR. LOWER |
| 31 | 52387-SE0-023 | Bolt - LOWER ARM ADJUSTING | Bolt - LOWER ARM ADJUSTING |
| 33 | 52388-SE0-030 | Plate - CAM | Plate - CAM |
| 35 | 52390-SS0-003 | Arm assy. - R. RR. UPPER | Arm assy. - R. RR. UPPER |
| 36 | 52400-SS0-003 | Arm assy. - L. RR. UPPER | Arm assy. - L. RR. UPPER |
| 4 | 52611-SS0-903 | Absorber unit, R. RR. SHOCK | Absorber unit, R. RR. SHOCK |
| 5 | 52612-SS0-903 | Absorber unit, L. RR. SHOCK | Absorber unit, L. RR. SHOCK |
| 7 | 52621-SB2-004 | Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA) | Washer - RR. SHOCK ABSORBER MOUNTING (SHOWA) |
| 37 | 52622-SS0-003 | Bush - RR. SHOCK ABSORBER LOWER | Bush - RR. SHOCK ABSORBER LOWER |
| 8 | 52675-SS0-004 | Base - RR. SHOCK ABSORBER MOUNTING | Base - RR. SHOCK ABSORBER MOUNTING |
| 38 | 52677-SS0-000 | Bracket - R. RR. RADIUS ARM | Bracket - R. RR. RADIUS ARM |
| 39 | 52678-SS0-000 | Bracket - L. RR. RADIUS ARM | Bracket - L. RR. RADIUS ARM |
| 9 | 52686-SS0-004 | Rubber - RR. SPRING MOUNTING | Rubber - RR. SPRING MOUNTING |
| 10 | 52687-SS0-004 | Cover - RR. DUST | Cover - RR. DUST |
| 11 | 52688-SE0-003 | Plate - RR. BUMP STOP | Plate - RR. BUMP STOP |
| 12 | 52688-SR3-003 | End - RR. DUST COVER (SHOWA) | End - RR. DUST COVER (SHOWA) |
| 13 | 52722-SS0-003 | Rubber - RR. BUMP STOPPER (POLYURETHAN KASEI) | Rubber - RR. BUMP STOPPER (POLYURETHAN KASEI) |
| 14 | 52725-SS0-004 | Rubber - RR. SHOCK ABSORBER | Rubber - RR. SHOCK ABSORBER |
| 15 | 52728-SB2-004 | Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA) | Collar - RR. SHOCK ABSORBER MOUNTING(SHOWA) |
| 3 | 53010-SS0-000 | End set - RACK | End set - RACK |
| 1 | 53200-SS0-G01 | Column assy - STEERING | Column assy - STEERING |
| 2 | 53216-SM4-010 | Holder b - STEERING COLUMN | Holder b - STEERING COLUMN |
| 3 | 53217-SL4-N50 | Collar - STEERING RETAINER | Collar - STEERING RETAINER |
| 25 | 53271-SS0-003 | Cam - TURN SIGNAL SWITCH | Cam - TURN SIGNAL SWITCH |
| 5 | 53320-SS0-G00 | Cover - STEERING JOINT | Cover - STEERING JOINT |
| 6 | 53321-SF1-950 | Guard - STEERING JOINT | Guard - STEERING JOINT |
| 7 | 53323-SL4-J01 | Joint comp. b - STEERING | Joint comp. b - STEERING |
| 8 | 53325-SB0-010 | Clip A - JOINT COVER | Clip A - JOINT COVER |
| 9 | 53326-SB0-000 | Clip b - JOINT COVER | Clip b - JOINT COVER |
| 10 | 53334-SS0-000 | Dust seal comp. - JOINT | Dust seal comp. - JOINT |
| 12 | 53363-SS0-A00 | Pivot comp - COLUMN | Pivot comp - COLUMN |
| 13 | 53364-SL4-000 | Collar - PIVOT | Collar - PIVOT |
| 14 | 53365-SA0-961 | Bush - PIVOT | Bush - PIVOT |
| 15 | 53371-SM4-013 | Spring - COLUMN HANGER | Spring - COLUMN HANGER |
| 4 | 53411-SL4-951 | Tube - AIR TRANSFER | Tube - AIR TRANSFER |
| 3 | 53412-SM4-J61 | O-ring - RACK GUIDE (NOK) | O-ring - RACK GUIDE (NOK) |
| 3 | 53412-SM4-J62 | O-ring - RACK GUIDE (ARAI) | O-ring - RACK GUIDE (ARAI) |
| 4 | 53413-SD4-951 | Spring - RACK GUIDE PRESSURE | Spring - RACK GUIDE PRESSURE |
| 5 | 53414-SM4-J60 | Screw - RACK GUIDE | Screw - RACK GUIDE |
| 6 | 53416-SM4-J61 | Guide - STEERING RACK | Guide - STEERING RACK |
| 5 | 53434-S04-J51 | CLIP, TIE ROD | CLIP, TIE ROD |
| 5 | 53434-SD9-000 | Clip - TIE ROD | Clip - TIE ROD |
| 6 | 53436-SP0-000 | Cushion - STEERING GEAR BOX | Cushion - STEERING GEAR BOX |
| 7 | 53438-SS0-000 | Bracket - STEERING GEAR BOX | Bracket - STEERING GEAR BOX |
| 8 | 53446-SS0-000 | Rubber - BAND (T) | Rubber - BAND (T) |
| 9 | 53447-SS0-000 | Band - TRANSFER TUBE | Band - TRANSFER TUBE |
| 10 | 53448-SS0-000 | Clip - TRANSFER TUBE | Clip - TRANSFER TUBE |
| 11 | 53449-S04-J51 | Band b - BELLOWS | Band b - BELLOWS |
| 11 | 53449-SL0-A00 | Band b - BELLOWS | Band b - BELLOWS |
| 8 | 53458-SM4-J60 | Nut - RACK SCREW LOCK | Nut - RACK SCREW LOCK |
| 12 | 53459-SH3-A50 | Stay - TRANSFER TUBE | Stay - TRANSFER TUBE |
| 9 | 53501-SF1-950 | Cover - PINION DUST | Cover - PINION DUST |
| 13 | 53534-SL4-J01 | Dust seal comp. - TIE ROD (B) | Dust seal comp. - TIE ROD (B) |
| 14 | 53536-SS0-000 | Washer - TIE ROD LOCK | Washer - TIE ROD LOCK |
| 15 | 53540-SS0-003 | End comp - R. TIE ROD (MUSASHI) | End comp - R. TIE ROD (MUSASHI) |
| 9 | 53546-SA0-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 16 | 53546-SD4-003 | Boot - TIE ROD END (MUSASHI) | Boot - TIE ROD END (MUSASHI) |
| 10 | 53548-SL0-A01 | Circlip - TIE ROD | Circlip - TIE ROD |
| 18 | 53560-SS0-003 | End comp - L. TIE ROD (MUSASHI) | End comp - L. TIE ROD (MUSASHI) |
| 19 | 53601-SS0-A50 | Box assy - POWER STEERING GEAR | Box assy - POWER STEERING GEAR |
| 11 | 53608-SS0-A50 | Housing sub assy. - STEERING GEAR BOX (###) | Housing sub assy. - STEERING GEAR BOX (###) |
| 12 | 53611-SS0-951 | Cylinder comp | Cylinder comp |
| 13 | 53612-SS0-950 | Barrel - CYLINDER | Barrel - CYLINDER |
| 14 | 53613-SS0-950 | Retainer - PACKING | Retainer - PACKING |
| 15 | 53614-SS0-950 | Cap - CYLINDER | Cap - CYLINDER |
| 16 | 53615-SM4-J60 | Washer - RETAINER | Washer - RETAINER |
| 17 | 53617-SF1-950 | Port - ORIFICE | Port - ORIFICE |
| 18 | 53622-SS0-A51 | Pinion - STEERING | Pinion - STEERING |
| 19 | 53625-SS0-950 | Cap - GEAR BOX HOUSING | Cap - GEAR BOX HOUSING |
| 20 | 53626-SS0-A51 | Rack comp - STEERING | Rack comp - STEERING |
| 21 | 53630-SP0-000 | Spring - CYLINDER | Spring - CYLINDER |
| 22 | 53631-SS0-951 | Bushing a - STEERING RACK | Bushing a - STEERING RACK |
| 23 | 53632-SM4-J61 | Bush - STEERING (B) | Bush - STEERING (B) |
| 24 | 53634-SM4-J60 | Clip - BUSH STOPPER | Clip - BUSH STOPPER |
| 25 | 53640-SS0-A50 | Body unit - VALVE | Body unit - VALVE |
| 26 | 53643-SM4-G61 | Port comp. - VALVE | Port comp. - VALVE |
| 27 | 53645-SK7-A50 | Cap - VALVE BODY | Cap - VALVE BODY |
| 28 | 53647-SM4-010 | Spool - FOUR WAY | Spool - FOUR WAY |
| 29 | 53650-SP0-010 | Valve - GAIN CONTROL | Valve - GAIN CONTROL |
| 30 | 53658-SS0-950 | Orifice - SENSOR | Orifice - SENSOR |
| 31 | 53666-SK7-A51 | Plunger - DIAMETER=8MM | Plunger - DIAMETER=8MM |
| 32 | 53667-SS0-950 | Spring - RETURN | Spring - RETURN |
| 20 | 53685-SL5-000 | Bush - STEERING GEAR BOX MOUNTING | Bush - STEERING GEAR BOX MOUNTING |
| 21 | 53686-SL5-000 | Collar - GEAR BOX MOUNTING | Collar - GEAR BOX MOUNTING |
| 33 | 53688-SP0-000 | Spring - PRESSURE CONTROL VALVE | Spring - PRESSURE CONTROL VALVE |
| 22 | 53692-SS0-A00 | Guard - GEAR BOX SPLASH | Guard - GEAR BOX SPLASH |
| 1 | 53697-SB3-952 | Cap - OIL TANK | Cap - OIL TANK |
| 2 | 53701-SS0-003 | Tank comp. - POWER STEERING OIL | Tank comp. - POWER STEERING OIL |
| 3 | 53703-SS0-000 | Pipe comp. a - SENSOR RETURN (10MM) | Pipe comp. a - SENSOR RETURN (10MM) |
| 4 | 53711-SS0-000 | Bracket assy - OIL TANK | Bracket assy - OIL TANK |
| 5 | 53713-SS0-A01 | Hose comp. - POWER STEERING FEED | Hose comp. - POWER STEERING FEED |
| 6 | 53714-SS0-003 | Protector - FEED HOSE | Protector - FEED HOSE |
| 7 | 53717-SS0-000 | Bolt - FLANGE (6X20) | Bolt - FLANGE (6X20) |
| 8 | 53720-SS0-A00 | Pipe - RETURN, 10MM | Pipe - RETURN, 10MM |
| 9 | 53723-SM4-013 | Clip - RETURN, 6MM | Clip - RETURN, 6MM |
| 10 | 53723-SS0-003 | Clip - SENSOR PIPE, 6MM | Clip - SENSOR PIPE, 6MM |
| 11 | 53724-SS0-A00 | Pipe comp - RETURN, 6MM | Pipe comp - RETURN, 6MM |
| 12 | 53725-SS0-000 | Hose - SPEED SENSOR INLET | Hose - SPEED SENSOR INLET |
| 13 | 53726-SS0-A00 | Pipe comp - SENSOR | Pipe comp - SENSOR |
| 14 | 53727-SS0-000 | Tube a - SPEED SENSOR RETURN | Tube a - SPEED SENSOR RETURN |
| 15 | 53728-SL4-951 | Clip - RETURN PIPE, 6MM | Clip - RETURN PIPE, 6MM |
| 16 | 53728-SM4-013 | Clip - RETURN PIPE, 10MM | Clip - RETURN PIPE, 10MM |
| 27 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 17 | 53729-SM4-G61 | Clip - DRAIN HOSE | Clip - DRAIN HOSE |
| 18 | 53729-SS0-003 | Clip - RETURN HOSE | Clip - RETURN HOSE |
| 21 | 53732-SS0-010 | Hose - OIL COOLER | Hose - OIL COOLER |
| 22 | 53733-SS0-000 | Tube - OIL COOLER RETURN | Tube - OIL COOLER RETURN |
| 23 | 53734-SS0-000 | Hose - COMBINATION PIPE RETURN | Hose - COMBINATION PIPE RETURN |
| 24 | 53735-SS0-000 | Hose - OIL COOLER RETURN | Hose - OIL COOLER RETURN |
| 25 | 53736-SS0-010 | Holder b - POWER STEERING PIPE | Holder b - POWER STEERING PIPE |
| 26 | 53737-SS0-000 | Tube - COMBINATION PIPE RETURN | Tube - COMBINATION PIPE RETURN |
| 27 | 53740-SE0-953 | Clip - SENSOR HOSE | Clip - SENSOR HOSE |
| 28 | 53741-SS0-000 | Holder c - POWER STEERING PIPE | Holder c - POWER STEERING PIPE |
| 29 | 53745-SS0-000 | Tube - SPEED SENSOR RETURN | Tube - SPEED SENSOR RETURN |
| 32 | 53776-SS0-003 | Clip - POWER STEERING TUBE | Clip - POWER STEERING TUBE |
| 33 | 53779-SS0-000 | Pipe comp - POWER STEERING COMBINATION | Pipe comp - POWER STEERING COMBINATION |
| 35 | 53790-SK7-J51 | Valve - PRESSURE CONTROL | Valve - PRESSURE CONTROL |
| 1 | 54101-SS0-000 | Lever - CHANGE | Lever - CHANGE |
| 3 | 54105-SS0-010 | Bracket - CHANGE LEVER | Bracket - CHANGE LEVER |
| 5 | 54110-SF1-003 | Seat - CHANGE LEVER BALL | Seat - CHANGE LEVER BALL |
| 6 | 54111-SM4-000 | Holder - CHANGE BALL | Holder - CHANGE BALL |
| 7 | 54112-SV4-000 | Pivot - CHANGE LEVER | Pivot - CHANGE LEVER |
| 8 | 54113-SM4-000 | Bush - CHANGE PIVOT | Bush - CHANGE PIVOT |
| 9 | 54114-SM4-003 | Guide - CHANGE LEVER PIVOT | Guide - CHANGE LEVER PIVOT |
| 11 | 54115-SV4-000 | Linkage - CHANGE LEVER | Linkage - CHANGE LEVER |
| 12 | 54116-SV4-000 | Pin - LINKAGE | Pin - LINKAGE |
| 13 | 54117-SM4-003 | Rubber a - FLOATING | Rubber a - FLOATING |
| 14 | 54118-SH9-000 | Rubber b - FLOATING | Rubber b - FLOATING |
| 16 | 54119-SM4-000 | Collar - FLOATING | Collar - FLOATING |
| 17 | 54141-SM4-000 | Collar - SELECT LINK | Collar - SELECT LINK |
| 18 | 54210-SM4-000 | Bush c - CHANGE LEVER | Bush c - CHANGE LEVER |
| 19 | 54211-SD9-010 | Ball - CUSHION | Ball - CUSHION |
| 20 | 54310-SS0-003 | Wire comp - CHANGE (NIPPON CABLE SYSTEM) | Wire comp - CHANGE (NIPPON CABLE SYSTEM) |
| 20 | 54310-SS0-014 | Wire comp - CHANGE (CHUO HATSUJO) | Wire comp - CHANGE (CHUO HATSUJO) |
| 21 | 54340-SC2-000 | Washer - WAVE | Washer - WAVE |
| 22 | 54357-SF1-003 | Plate - CHANGE WIRE | Plate - CHANGE WIRE |
| 2 | 56110-P11-020 | Pump sub assy - POWER STEERING | Pump sub assy - POWER STEERING |
| 3 | 56123-P11-010 | Joint comp - IN. | Joint comp - IN. |
| 4 | 56141-P02-000 | Shaft - POWER STEERING PUMP DRIVE | Shaft - POWER STEERING PUMP DRIVE |
| 5 | 56167-PY3-000 | Spacer - PUMP SEAL | Spacer - PUMP SEAL |
| 6 | 56483-P11-000 | Pulley - POWER STEERING PUMP | Pulley - POWER STEERING PUMP |
| 34 | 56490-PT0-023 | Switch assy - POWER STEERING PRESSURE | Switch assy - POWER STEERING PRESSURE |
| 7 | 56500-PT3-010 | Sensor assy - POWER STEERING | Sensor assy - POWER STEERING |
| 8 | 56992-P13-003 | Belt - POWER STEERING PUMP (MITSUBOSHI) | Belt - POWER STEERING PUMP (MITSUBOSHI) |
| 9 | 56994-P12-A00 | Bracket - POWER STEERING PUMP | Bracket - POWER STEERING PUMP |
| 28 | 57173-SB0-801 | O-ring - CONNECTOR | O-ring - CONNECTOR |
| 29 | 57562-SF1-003 | Circlip | Circlip |
| 4 | 60128-SS0-000 | Stopper - HOOD HINGE | Stopper - HOOD HINGE |
| 28 | 60821-SS0-000 | Hook - TIE DOWN | Hook - TIE DOWN |
| 2 | 66418-688-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 1 | 66418-SA5-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 4 | 66418-SB2-000 | Stopper - GLOVE BOX LID | Stopper - GLOVE BOX LID |
| 4 | 66844-SA7-000 | Cap - INSTRUMENT PANEL STAY | Cap - INSTRUMENT PANEL STAY |
| 5 | 66856-SA0-660 | Lock - FUSE PANEL | Lock - FUSE PANEL |
| 3 | 66856-SF1-000 | Lock - JACK COVER | Lock - JACK COVER |
| 4 | 66857-SA0-660 | Spring - FUSE PANEL | Spring - FUSE PANEL |
| 5 | 66871-611-000 | Nut - CENTER PANEL | Nut - CENTER PANEL |
| 3 | 70050-SS0-000 | Tube - FR. DRAIN VINYL (SUNROOF) | Tube - FR. DRAIN VINYL (SUNROOF) |
| 4 | 70052-SS0-000 | Valve - FR. DRAIN (SUNROOF) | Valve - FR. DRAIN (SUNROOF) |
| 6 | 70060-SS0-000 | Tube - RR. DRAIN VINYL (SUNROOF) | Tube - RR. DRAIN VINYL (SUNROOF) |
| 5 | 70060-SS0-A00 | Tube a - RR. DRAIN VINYL (SUNROOF) | Tube a - RR. DRAIN VINYL (SUNROOF) |
| 7 | 70062-SH3-000 | Valve - RR. DRAIN (SUNROOF) | Valve - RR. DRAIN (SUNROOF) |
| 8 | 70080-SS0-003 | Seal - SUNROOF FRAME | Seal - SUNROOF FRAME |
| 10 | 70100-SS0-013 | Frame comp - SUNROOF | Frame comp - SUNROOF |
| 11 | 70205-SS0-003 | Seal - SUNROOF PANEL | Seal - SUNROOF PANEL |
| 1 | 70241-SS0-003 | Channel - R. RR. DRAIN | Channel - R. RR. DRAIN |
| 2 | 70246-SS0-003 | Channel - L. RR. DRAIN | Channel - L. RR. DRAIN |
| 3 | 70251-SS0-003 | Channel - R. FR. DRAIN | Channel - R. FR. DRAIN |
| 4 | 70256-SS0-003 | Channel - L. FR. DRAIN | Channel - L. FR. DRAIN |
| 13 | 70271-SS0-003 | Holder - FR. | Holder - FR. |
| 14 | 70272-SS0-003 | Holder - RR. | Holder - RR. |
| 15 | 70273-SS0-003 | Holder - R. SIDE | Holder - R. SIDE |
| 16 | 70278-SS0-003 | Holder - L. SIDE | Holder - L. SIDE |
| 5 | 70302-SR3-003 | Stopper - FR. | Stopper - FR. |
| 6 | 70307-SS0-003 | Stopper - RR. | Stopper - RR. |
| 7 | 70310-SS0-003 | Rail - R. GUIDE | Rail - R. GUIDE |
| 8 | 70313-SS0-003 | Holder - R. RR. RAIL | Holder - R. RR. RAIL |
| 9 | 70315-SS0-003 | Rail - L. GUIDE | Rail - L. GUIDE |
| 10 | 70318-SS0-003 | Holder - L. RR. RAIL | Holder - L. RR. RAIL |
| 11 | 70330-SS0-003 | Bracket - R. PANEL | Bracket - R. PANEL |
| 12 | 70331-SS0-003 | Stay - R. PANEL | Stay - R. PANEL |
| 13 | 70332-SR3-003 | Slider a - GLASS LIFTER | Slider a - GLASS LIFTER |
| 14 | 70333-SS0-003 | Slider - R. | Slider - R. |
| 15 | 70334-SS0-003 | Slider b - LIFTER | Slider b - LIFTER |
| 16 | 70335-SS0-003 | Bracket - L. PANEL | Bracket - L. PANEL |
| 17 | 70336-SS0-003 | Stay - L. PANEL | Stay - L. PANEL |
| 18 | 70338-SS0-003 | Slider - L. | Slider - L. |
| 19 | 70340-SS0-003 | Anchor comp. - R. | Anchor comp. - R. |
| 20 | 70345-SS0-003 | Anchor comp. - L. | Anchor comp. - L. |
| 21 | 70347-SS0-003 | Spring - ANCHOR | Spring - ANCHOR |
| 22 | 70351-SS0-003 | Stopper - ANCHOR | Stopper - ANCHOR |
| 23 | 70361-SS0-003 | Link - R. SLIDE STOPPER | Link - R. SLIDE STOPPER |
| 24 | 70366-SS0-003 | Link - L. SLIDE STOPPER | Link - L. SLIDE STOPPER |
| 25 | 70372-SS0-003 | Lifter - R. | Lifter - R. |
| 26 | 70377-SS0-003 | Lifter - L. | Lifter - L. |
| 27 | 70391-SR3-003 | Screw - PAN, 5X10 | Screw - PAN, 5X10 |
| 28 | 70400-SS0-003 | Cable assy - SUNROOF | Cable assy - SUNROOF |
| 29 | 70450-SS0-003 | Motor assy. - SUNROOF | Motor assy. - SUNROOF |
| 22 | 70494-SE0-000 | Spring - FUEL LID OPENER | Spring - FUEL LID OPENER |
| 30 | 70631-SS0-003 | Cover - R. GUIDE RAIL HOLDER | Cover - R. GUIDE RAIL HOLDER |
| 31 | 70636-SS0-003 | Cover - L. GUIDE RAIL HOLDER | Cover - L. GUIDE RAIL HOLDER |
| 12 | 71147-SS0-000 | Stay - FR. BUMPER UPPER | Stay - FR. BUMPER UPPER |
| 14 | 71148-SS0-000 | Plate - FR. BUMPER BAFFLE | Plate - FR. BUMPER BAFFLE |
| 15 | 71160-SS0-010 | Stay assy - FR. BUMPER CENTER | Stay assy - FR. BUMPER CENTER |
| 24 | 71540-SS0-000 | Beam comp - RR. BUMPER UPPER | Beam comp - RR. BUMPER UPPER |
| 1 | 71800-SS0-000 | Garnish assy - R. SIDE SILL | Garnish assy - R. SIDE SILL |
| 2 | 71850-SS0-000 | Garnish assy - L. SIDE SILL | Garnish assy - L. SIDE SILL |
| 2 | 71969-SA7-890 | Wrench - SUNROOF | Wrench - SUNROOF |
| 32 | 71997-692-920 | Shim - STAY (1.0MM) | Shim - STAY (1.0MM) |
| 2 | 72116-SM4-003 | Snap d - VIOLET | Snap d - VIOLET |
| 3 | 72117-SS0-A01 | Protector - R. DOOR LOCK | Protector - R. DOOR LOCK |
| 4 | 72119-S04-003 | Stopper a - OUTSIDE HANDLE | Stopper a - OUTSIDE HANDLE |
| 6 | 72123-SM1-003 | Ring - OUTSIDE HANDLE | Ring - OUTSIDE HANDLE |
| 7 | 72130-SS0-A01 | Protector - R. DOOR CYLINDER | Protector - R. DOOR CYLINDER |
| 8 | 72131-SS0-013 | Rod - R. FR. INSIDE HANDLE | Rod - R. FR. INSIDE HANDLE |
| 10 | 72132-SS0-003 | Rod - R. FR. INSIDE LOCK | Rod - R. FR. INSIDE LOCK |
| 11 | 72133-SS0-013 | Rod - R. RR. INSIDE LOCK | Rod - R. RR. INSIDE LOCK |
| 12 | 72134-SM1-003 | Bush - OUTSIDE HANDLE JOINT | Bush - OUTSIDE HANDLE JOINT |
| 13 | 72134-SM4-003 | Snap - R. (VIOLET) | Snap - R. (VIOLET) |
| 14 | 72134-SS0-003 | Crank assy - FR. DOOR | Crank assy - FR. DOOR |
| 15 | 72135-SM4-003 | Striker assy - DOOR | Striker assy - DOOR |
| 16 | 72136-SM4-003 | Holder - ROD, 4MM | Holder - ROD, 4MM |
| 17 | 72136-SS0-003 | Snap | Snap |
| 18 | 72137-SS0-003 | Holder | Holder |
| 19 | 72138-SS0-000 | Cushion - LOCK ROD | Cushion - LOCK ROD |
| 20 | 72139-SS0-000 | Protector - R. FR. DOOR ROD | Protector - R. FR. DOOR ROD |
| 24 | 72144-SV1-003 | Cap - OUTSIDE HANDLE OUTER | Cap - OUTSIDE HANDLE OUTER |
| 25 | 72145-SL4-003 | Cylinder - R. DOOR | Cylinder - R. DOOR |
| 26 | 72146-SL4-003 | Cylinder - L. DOOR | Cylinder - L. DOOR |
| 28 | 72157-SS0-A01 | Protector - L. DOOR LOCK | Protector - L. DOOR LOCK |
| 30 | 72170-SS0-A01 | Protector - L. DOOR CYLINDER | Protector - L. DOOR CYLINDER |
| 31 | 72171-SS0-013 | Rod - L. FR. INSIDE HANDLE | Rod - L. FR. INSIDE HANDLE |
| 33 | 72172-SS0-003 | Rod - L. FR. INSIDE LOCK | Rod - L. FR. INSIDE LOCK |
| 34 | 72173-SS0-013 | Rod - L. RR. INSIDE LOCK | Rod - L. RR. INSIDE LOCK |
| 35 | 72174-SM4-003 | Snap - L. (YELLOW) | Snap - L. (YELLOW) |
| 36 | 72179-SS0-000 | Protector - L. FR. DOOR ROD | Protector - L. FR. DOOR ROD |
| 2 | 72206-SA5-000 | Cap - FLOOR HOLE, 53MM | Cap - FLOOR HOLE, 53MM |
| 1 | 72211-SS0-J01 | Regulator - R. FR. DOOR POWER | Regulator - R. FR. DOOR POWER |
| 3 | 72215-SS0-A01 | Motor assy. - R. WINDOW | Motor assy. - R. WINDOW |
| 4 | 72230-SS0-003 | Sash - R. FR. DOOR LOWER | Sash - R. FR. DOOR LOWER |
| 5 | 72231-SS0-003 | Sash - R. FR. DOOR CENTER LOWER | Sash - R. FR. DOOR CENTER LOWER |
| 6 | 72232-SS0-003 | Guide - R. DOOR CENTER SASH | Guide - R. DOOR CENTER SASH |
| 7 | 72233-SS0-003 | Cover - SASH GUIDE | Cover - SASH GUIDE |
| 8 | 72235-SS0-013 | Runchannel - R. FR. DOOR | Runchannel - R. FR. DOOR |
| 9 | 72236-SS0-003 | Runchannel - R. FR. DOOR LOWER | Runchannel - R. FR. DOOR LOWER |
| 11 | 72251-SS0-J01 | Regulator - L. FR. DOOR POWER | Regulator - L. FR. DOOR POWER |
| 12 | 72255-SS0-A01 | Motor assy. - L. WINDOW | Motor assy. - L. WINDOW |
| 13 | 72270-SS0-003 | Sash - L. FR. DOOR LOWER | Sash - L. FR. DOOR LOWER |
| 14 | 72271-SS0-003 | Sash - L. FR. DOOR CENTER LOWER | Sash - L. FR. DOOR CENTER LOWER |
| 15 | 72272-SS0-003 | Guide - L. DOOR CENTER SASH | Guide - L. DOOR CENTER SASH |
| 16 | 72275-SS0-013 | Runchannel - L. FR. DOOR | Runchannel - L. FR. DOOR |
| 17 | 72276-SS0-003 | Runchannel - L. FR. DOOR LOWER | Runchannel - L. FR. DOOR LOWER |
| 5 | 72315-SS0-003 | Seal - R. FR. DOOR OPENING | Seal - R. FR. DOOR OPENING |
| 17 | 72326-SS0-003 | Weatherstrip - FR. LOWER | Weatherstrip - FR. LOWER |
| 18 | 72327-SS0-000 | Seal - DOOR UPPER HOLE | Seal - DOOR UPPER HOLE |
| 18 | 72332-SM4-003 | Stopper - DOOR GLASS | Stopper - DOOR GLASS |
| 15 | 72335-SS0-003 | Weatherstrip - R. DOOR INNER | Weatherstrip - R. DOOR INNER |
| 19 | 72340-SS0-003 | Checker comp. - DOOR | Checker comp. - DOOR |
| 6 | 72355-SS0-003 | Seal - L. FR. DOOR OPENING | Seal - L. FR. DOOR OPENING |
| 16 | 72375-SS0-003 | Weatherstrip - L. DOOR INNER | Weatherstrip - L. DOOR INNER |
| 3 | 72410-SS0-003 | Molding assy. - R. FR. DOOR | Molding assy. - R. FR. DOOR |
| 4 | 72412-SS0-003 | Cap - R. RR. DOOR MOLDING END | Cap - R. RR. DOOR MOLDING END |
| 5 | 72417-SS0-003 | Cap - L. RR. DOOR MOLDING END | Cap - L. RR. DOOR MOLDING END |
| 6 | 72450-SS0-003 | Molding assy. - L. FR. DOOR | Molding assy. - L. FR. DOOR |
| 3 | 72849-SA5-000 | Insulator b - SIDE SILL HOLD | Insulator b - SIDE SILL HOLD |
| 1 | 73111-SS0-G02 | Glass - FR. WINDSHIELD (GREEN) (ASAHI) | Glass - FR. WINDSHIELD (GREEN) (ASAHI) |
| 2 | 73125-SL4-000 | Rubber - FR. WINDSHIELD DAM | Rubber - FR. WINDSHIELD DAM |
| 2 | 73125-SS0-000 | Rubber - FR. WINDSHIELD DAM | Rubber - FR. WINDSHIELD DAM |
| 4 | 73150-SS0-010 | Molding assy. Fr. Windshield | Molding assy. Fr. Windshield |
| 5 | 73155-SS0-004 | Clip - R. CORNER | Clip - R. CORNER |
| 6 | 73156-SS0-004 | Clip - L. CORNER | Clip - L. CORNER |
| 11 | 73219-693-951 | Seal - FUEL LID OPENER (GREEN) | Seal - FUEL LID OPENER (GREEN) |
| 2 | 73225-SS0-A01 | Rubber - RR. WINDSHIELD DAM | Rubber - RR. WINDSHIELD DAM |
| 3 | 73250-SS0-013 | Molding comp. - RR. WINDSHIELD UPPER & SIDE | Molding comp. - RR. WINDSHIELD UPPER & SIDE |
| 4 | 73251-SS0-000 | Molding assy. - RR. WINDSHIELD LOWER | Molding assy. - RR. WINDSHIELD LOWER |
| 19 | 73300-SS0-J00 | Glass assy - R. FR. DOOR (GREEN)(ASAHI) | Glass assy - R. FR. DOOR (GREEN)(ASAHI) |
| 20 | 73341-SS0-000 | Bracket - PIN GUIDE | Bracket - PIN GUIDE |
| 21 | 73342-SS0-010 | Bolt - PIN GUIDE | Bolt - PIN GUIDE |
| 22 | 73344-SM2-A00 | Seal a - PIN GUIDE | Seal a - PIN GUIDE |
| 23 | 73345-SM2-A00 | Seal b - PIN GUIDE | Seal b - PIN GUIDE |
| 24 | 73350-SS0-J00 | Glass assy - L. FR. DOOR (GREEN)(ASAHI) | Glass assy - L. FR. DOOR (GREEN)(ASAHI) |
| 5 | 73500-SS0-J12 | Glass assy - R. QUARTER (GREEN)(ASAHI) | Glass assy - R. QUARTER (GREEN)(ASAHI) |
| 6 | 73550-SS0-J12 | Glass assy - L. QUARTER (GREEN)(ASAHI) | Glass assy - L. QUARTER (GREEN)(ASAHI) |
| 7 | 73861-SS0-000 | Trim - QUARTER WINDSHIELD | Trim - QUARTER WINDSHIELD |
| 5 | 74101-SS0-000 | Fender - R. FR. INNER | Fender - R. FR. INNER |
| 6 | 74111-SS0-003 | Shield - FR. SPLASH | Shield - FR. SPLASH |
| 6 | 74120-SS0-003 | Lock assy - HOOD | Lock assy - HOOD |
| 6 | 74120-SS0-J00 | Lock assy - HOOD | Lock assy - HOOD |
| 7 | 74130-SS0-A00 | Wire assy. - HOOD | Wire assy. - HOOD |
| 8 | 74134-SM4-000 | Grommet - HOOD WIRE | Grommet - HOOD WIRE |
| 11 | 74142-SS0-000 | Rubber - HOOD SEAL | Rubber - HOOD SEAL |
| 12 | 74144-SE0-000 | Cushion - HOOD | Cushion - HOOD |
| 13 | 74145-SS0-000 | Stay - HOOD OPENER | Stay - HOOD OPENER |
| 14 | 74146-SJ4-000 | Clip - ENGINE HOOD OPEN STAY END | Clip - ENGINE HOOD OPEN STAY END |
| 15 | 74146-SS0-000 | Cushion - HOOD SIDE | Cushion - HOOD SIDE |
| 16 | 74148-SS0-000 | Rubber - FR. HOOD SEAL | Rubber - FR. HOOD SEAL |
| 7 | 74151-SS0-000 | Fender - L. FR. INNER | Fender - L. FR. INNER |
| 20 | 74171-SS0-000 | Bracket - R. RADIATOR MOUNTING UPPER | Bracket - R. RADIATOR MOUNTING UPPER |
| 21 | 74172-SM4-970 | Cushion - RADIATOR MOUNTING LOWER | Cushion - RADIATOR MOUNTING LOWER |
| 22 | 74173-SJ4-000 | Cushion - RADIATOR MOUNTING UPPER | Cushion - RADIATOR MOUNTING UPPER |
| 23 | 74176-SS0-000 | Bracket - L. RADIATOR MOUNT | Bracket - L. RADIATOR MOUNT |
| 17 | 74177-SD4-000 | Cushion a - HOOD | Cushion a - HOOD |
| 18 | 74200-SS0-A00 | Cowl top comp. | Cowl top comp. |
| 19 | 74203-SS0-000 | Seal rubber - RR. HOOD | Seal rubber - RR. HOOD |
| 20 | 74211-SS0-A00 | Cover - R. HOOD HINGE | Cover - R. HOOD HINGE |
| 21 | 74221-SS0-A00 | Screen - WATER | Screen - WATER |
| 22 | 74223-SS0-000 | Valve - AIR | Valve - AIR |
| 23 | 74261-SS0-A00 | Cover - L. HOOD HINGE | Cover - L. HOOD HINGE |
| 7 | 74306-SS0-003 | Molding assy. - R. ROOF | Molding assy. - R. ROOF |
| 8 | 74316-SS0-003 | Molding assy. - L. ROOF | Molding assy. - L. ROOF |
| 12 | 74411-SS0-A01 | Cable - FUEL LID OPENER | Cable - FUEL LID OPENER |
| 23 | 74422-SS0-000 | Cushion - FUEL FILLER LID | Cushion - FUEL FILLER LID |
| 8 | 74514-SS0-000 | Seal - R. QUARTER HOLE | Seal - R. QUARTER HOLE |
| 9 | 74554-SS0-000 | Seal - L. QUARTER HOLE | Seal - L. QUARTER HOLE |
| 30 | 74559-SS0-000 | Cover - FUEL PIPE | Cover - FUEL PIPE |
| 29 | 74601-SS0-A00 | Plate - FLOOR HEAT BAFFLE | Plate - FLOOR HEAT BAFFLE |
| 31 | 74651-SS0-000 | Plate - TANK BAFFLE | Plate - TANK BAFFLE |
| 32 | 74653-SS0-300 | Protector - TANK BAFFLE | Protector - TANK BAFFLE |
| 22 | 74654-SM4-A00 | Bolt - ANCHOR (58MM) | Bolt - ANCHOR (58MM) |
| 33 | 74655-SS0-000 | Plate - SILENCER BAFFLE | Plate - SILENCER BAFFLE |
| 31 | 74660-SS0-000 | Cap assy. - FLOOR MAINTENANCE HOLE | Cap assy. - FLOOR MAINTENANCE HOLE |
| 23 | 74665-SM4-A00 | Adapter - ANCHOR BOLT | Adapter - ANCHOR BOLT |
| 13 | 74827-SH2-003 | Stopper - TAILGATE | Stopper - TAILGATE |
| 14 | 74827-SK7-000 | Stopper a - TAILGATE | Stopper a - TAILGATE |
| 15 | 74851-SM4-003 | Lock - TRUNK | Lock - TRUNK |
| 18 | 74861-SS0-003 | Cylinder - TRUNK | Cylinder - TRUNK |
| 19 | 74862-SS0-003 | Striker - TRUNK | Striker - TRUNK |
| 20 | 74863-SS0-003 | Rod - TRUNK LOCK | Rod - TRUNK LOCK |
| 21 | 74864-SM4-003 | Cover - TRUNK LOCK | Cover - TRUNK LOCK |
| 22 | 74865-SS0-000 | Weatherstrip - TRUNK LID | Weatherstrip - TRUNK LID |
| 23 | 74871-SS0-000 | Spring - R. TRUNK OPENER | Spring - R. TRUNK OPENER |
| 24 | 74872-SS0-000 | Spring - L. TRUNK OPENER | Spring - L. TRUNK OPENER |
| 25 | 74873-SM4-003 | Clip - TRUNK OPENER SPRING | Clip - TRUNK OPENER SPRING |
| 26 | 74880-SS0-A00 | Cable - TRUNK OPENER | Cable - TRUNK OPENER |
| 31 | 74886-SH4-A03 | Cylinder - TRUNK REMOTE CONTROL | Cylinder - TRUNK REMOTE CONTROL |
| 27 | 75101-SS0-003 | Grille comp - R. | Grille comp - R. |
| 28 | 75102-SS0-003 | Grille comp - L. | Grille comp - L. |
| 38 | 75411-634-000 | Joint | Joint |
| 25 | 75450-SS0-000 | Outlet assy - RR. AIR | Outlet assy - RR. AIR |
| 26 | 75451-SP0-000 | Clip - RR. AIR OUTLET | Clip - RR. AIR OUTLET |
| 33 | 75523-SS0-000 | Packing - SEAL | Packing - SEAL |
| 34 | 75524-SS0-000 | Bolt - SPECIAL, 5MM | Bolt - SPECIAL, 5MM |
| 35 | 75525-SD4-013 | Clip - RR. PANEL GARNISH | Clip - RR. PANEL GARNISH |
| 39 | 75551-SF1-003 | Holder - DOOR LOCK ROD | Holder - DOOR LOCK ROD |
| 11 | 75700-SS0-000 | Emblem - FR. CENTER (H) | Emblem - FR. CENTER (H) |
| 12 | 75701-SS0-000 | Emblem - RR. CENTER (H) | Emblem - RR. CENTER (H) |
| 13 | 75722-SS0-000 | Emblem - RR. (PRELUDE) | Emblem - RR. (PRELUDE) |
| 22 | 75760-SB2-003 | Pin - DOOR CHECKER | Pin - DOOR CHECKER |
| 9 | 75800-SS0-010 | Mudguard - R. FR. | Mudguard - R. FR. |
| 10 | 75810-SS0-010 | Mudguard - L. FR. | Mudguard - L. FR. |
| 37 | 75891-611-000 | Cover - DOOR SWITCH | Cover - DOOR SWITCH |
| 23 | 75891-SA7-000 | Stopper - DOOR | Stopper - DOOR |
| 5 | 76220-SS0-000 | Garnish - R. DOOR MIRROR (R.C.) | Garnish - R. DOOR MIRROR (R.C.) |
| 8 | 76270-SS0-000 | Garnish - L. DOOR MIRROR (R.C.) | Garnish - L. DOOR MIRROR (R.C.) |
| 11 | 76409-SL0-003 | Washer - TOOTHED | Washer - TOOTHED |
| 13 | 76410-SL4-003 | Bolt - LOCK | Bolt - LOCK |
| 12 | 76419-SL4-003 | Spring - HOLDER | Spring - HOLDER |
| 14 | 76420-SL4-003 | Plate - HOOK | Plate - HOOK |
| 2 | 76505-SP0-003 | Motor comp - FR. WIPER | Motor comp - FR. WIPER |
| 3 | 76515-SM4-013 | Seal a | Seal a |
| 4 | 76516-SL4-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 5 | 76516-SM4-003 | Rubber - MOUNTING | Rubber - MOUNTING |
| 6 | 76517-SM4-003 | Collar | Collar |
| 7 | 76520-SM4-003 | Link unit a | Link unit a |
| 8 | 76524-SD4-003 | Dust seal | Dust seal |
| 9 | 76524-SE0-013 | Dust seal | Dust seal |
| 11 | 76540-SS0-003 | Rod unit a | Rod unit a |
| 12 | 76550-SS0-003 | Rod unit b | Rod unit b |
| 13 | 76558-SS0-003 | Cap - PIVOT | Cap - PIVOT |
| 8 | 76804-SE0-003 | Float - WASHER | Float - WASHER |
| 10 | 76806-SE0-S01 | Motor - WASHER (MITSUBA) | Motor - WASHER (MITSUBA) |
| 12 | 76810-SS0-981 | Nozzle assy. - R. WINDSHIELD WASHER (BLACK) | Nozzle assy. - R. WINDSHIELD WASHER (BLACK) |
| 14 | 76815-SS0-981 | Nozzle assy. - L. WINDSHIELD WASHER (BLACK) | Nozzle assy. - L. WINDSHIELD WASHER (BLACK) |
| 15 | 76816-SS0-003 | Adapter - NOZZLE | Adapter - NOZZLE |
| 16 | 76820-SS0-003 | Grommet - TUBE WASHER | Grommet - TUBE WASHER |
| 17 | 76830-SM4-003 | Joint y - WASHER | Joint y - WASHER |
| 7 | 77104-SS0-000 | Seal - INSTRUMENT SIDE | Seal - INSTRUMENT SIDE |
| 8 | 77105-SS0-000 | Seal - FR. DEFROSTER | Seal - FR. DEFROSTER |
| 15 | 77135-SS0-000 | Bracket a - INSTRUMENT VISOR | Bracket a - INSTRUMENT VISOR |
| 16 | 77136-SS0-000 | Bracket b - INSTRUMENT VISOR | Bracket b - INSTRUMENT VISOR |
| 17 | 77140-SS0-000 | Bracket - R. INSTRUMENT SIDE | Bracket - R. INSTRUMENT SIDE |
| 18 | 77145-SS0-000 | Bracket - L. INSTRUMENT SIDE | Bracket - L. INSTRUMENT SIDE |
| 6 | 77160-SS0-A00 | Frame comp - INSTRUMENT CENTER (LH) | Frame comp - INSTRUMENT CENTER (LH) |
| 19 | 77163-SS0-A01 | Bracket - INSTRUMENT CENTER | Bracket - INSTRUMENT CENTER |
| 7 | 77165-SS0-010 | Bracket - RADIO | Bracket - RADIO |
| 8 | 77202-SJ5-000 | Clip - INSTRUMENT PANEL FACE | Clip - INSTRUMENT PANEL FACE |
| 1 | 77208-SA5-003 | Bush - NYLON (TS TECH) | Bush - NYLON (TS TECH) |
| 2 | 77209-SB0-003 | Washer - NYLON | Washer - NYLON |
| 23 | 77213-SS0-A00 | Bracket - DRIVER LOWER COVER | Bracket - DRIVER LOWER COVER |
| 4 | 77234-SV4-003 | Clip | Clip |
| 5 | 77237-SS0-003 | Pin - LOCK | Pin - LOCK |
| 6 | 77238-SS0-003 | Plate - SPRING | Plate - SPRING |
| 7 | 77239-SS0-003 | Screw a - TAPPING, 3X5 | Screw a - TAPPING, 3X5 |
| 16 | 77355-SG0-A00 | Label - IGNITION INFORMATION | Label - IGNITION INFORMATION |
| 18 | 77371-SM4-000 | Ring - COLUMN COVER | Ring - COLUMN COVER |
| 26 | 77421-SS0-A01 | Duct assy. a - AIR CONDITIONER DRIVER SIDE | Duct assy. a - AIR CONDITIONER DRIVER SIDE |
| 27 | 77425-SS0-A00 | Duct b assy. - AIR CONDITIONER DRIVER | Duct b assy. - AIR CONDITIONER DRIVER |
| 28 | 77451-SS0-000 | Plug - R. FR. DEFROSTER | Plug - R. FR. DEFROSTER |
| 29 | 77456-SS0-000 | Plug - L. FR. DEFROSTER | Plug - L. FR. DEFROSTER |
| 19 | 77510-SS0-000 | Hinge - PASSENGER LOWER COVER | Hinge - PASSENGER LOWER COVER |
| 21 | 77512-SS0-000 | Knob - DOCUMENT BOX LID | Knob - DOCUMENT BOX LID |
| 22 | 77513-SS0-000 | Strap - DOCUMENT BOX LID | Strap - DOCUMENT BOX LID |
| 23 | 77515-SS0-000 | Spring - DOCUMENT BOX | Spring - DOCUMENT BOX |
| 3 | 77517-SA5-014 | Cap - SLIDE ADJUSTER | Cap - SLIDE ADJUSTER |
| 6 | 78108-SS0-A01 | Panel - COMBINATION PRINT | Panel - COMBINATION PRINT |
| 5 | 78110-SS0-A01 | Case assy. | Case assy. |
| 7 | 78111-SS0-A02 | Case | Case |
| 1 | 78113-SS0-A01 | Visor assy - BLIND | Visor assy - BLIND |
| 2 | 78116-SS0-A01 | Cover | Cover |
| 6 | 78117-SS0-A01 | Seal - METER | Seal - METER |
| 7 | 78118-SS0-A01 | Visor assy - METER | Visor assy - METER |
| 10 | 78128-SS0-003 | Indicator assy. | Indicator assy. |
| 11 | 78141-SS0-A01 | Cover | Cover |
| 4 | 78145-SS0-003 | Flt & circuit assy. - FUEL & TEMPERATURE | Flt & circuit assy. - FUEL & TEMPERATURE |
| 12 | 78155-SS0-A01 | Visor assy - METER | Visor assy - METER |
| 6 | 78163-SF1-000 | Damper - RR. SEAT | Damper - RR. SEAT |
| 13 | 78163-SS0-003 | Packing | Packing |
| 6 | 78166-SS0-A51 | Case assy. - FR. | Case assy. - FR. |
| 8 | 78180-SS0-003 | Socket assy - BULB (T-6.5 3W) | Socket assy - BULB (T-6.5 3W) |
| 9 | 78180-SS0-901 | Socket assy - BULB (T-7 3W) | Socket assy - BULB (T-7 3W) |
| 5 | 78410-SV4-003 | Sensor assy - SPEED (MATSUSHITA) | Sensor assy - SPEED (MATSUSHITA) |
| 6 | 78411-SM4-003 | Joint - SPEED SENSOR (MATSUSHITA) | Joint - SPEED SENSOR (MATSUSHITA) |
| 2 | 79100-SS0-G02 | Heater unit | Heater unit |
| 3 | 79105-SS0-A01 | Outlet a - HEATER | Outlet a - HEATER |
| 4 | 79106-SS0-A01 | Outlet b - HEATER | Outlet b - HEATER |
| 5 | 79110-SS0-A01 | Core comp - HEATER | Core comp - HEATER |
| 6 | 79140-SS0-A01 | Motor assy. - MODE | Motor assy. - MODE |
| 2 | 79191-SD4-003 | Washer - LINK | Washer - LINK |
| 3 | 79192-SD4-003 | Bush - 6.7MM | Bush - 6.7MM |
| 8 | 79192-SR3-003 | Bush - LINK | Bush - LINK |
| 4 | 79195-SF1-003 | Holder - ROD | Holder - ROD |
| 5 | 79300-SS0-A01 | Blower assy | Blower assy |
| 6 | 79310-SR3-A01 | Motor assy. - BLOWER (DENSO) | Motor assy. - BLOWER (DENSO) |
| 7 | 79330-SS0-003 | Resistor - BLOWER | Resistor - BLOWER |
| 8 | 79350-SS0-A01 | Motor assy. - FRESH & RECIRCULAR | Motor assy. - FRESH & RECIRCULAR |
| 9 | 79391-SM4-003 | Holder - BLOWER | Holder - BLOWER |
| 4 | 79542-SS0-A00 | Cable - TEMPERATURE CONTROL | Cable - TEMPERATURE CONTROL |
| 6 | 79570-SS0-003 | Switch assy - FAN | Switch assy - FAN |
| 7 | 79581-SS0-003 | Knob - TEMPERATURE CONTROL | Knob - TEMPERATURE CONTROL |
| 10 | 79680-SS0-A00 | Cable - WATER VALVE | Cable - WATER VALVE |
| 1 | 79710-SS0-003 | Valve assy. - WATER | Valve assy. - WATER |
| 3 | 79720-SS0-030 | Hose - WATER IN. | Hose - WATER IN. |
| 4 | 79721-SS0-000 | Hose a - WATER IN. | Hose a - WATER IN. |
| 5 | 79725-SS0-010 | Hose - WATER OUTLET | Hose - WATER OUTLET |
| 6 | 79731-SH3-000 | Grommet - HEATER PIPE | Grommet - HEATER PIPE |
| 11 | 79770-SE0-000 | Grommet - WATER VALVE CABLE | Grommet - WATER VALVE CABLE |
| 4 | 80050-SP0-000 | Label - AIR CONDITIONER CAUTION (HFC134A) | Label - AIR CONDITIONER CAUTION (HFC134A) |
| 6 | 80107-SS0-000 | Mount - CONDENSER UPPER | Mount - CONDENSER UPPER |
| 8 | 80110-SS0-023 | Condenser comp. - SAK | Condenser comp. - SAK |
| 9 | 80111-SS0-000 | Bracket - CONDENSER MOUNT UPPER | Bracket - CONDENSER MOUNT UPPER |
| 10 | 80175-SE0-000 | Mount - CONDENSER | Mount - CONDENSER |
| 6 | 80201-SS0-A01 | Case - EVAPORATOR UPPER | Case - EVAPORATOR UPPER |
| 7 | 80202-SS0-A01 | Case - EVAPORATOR LOWER | Case - EVAPORATOR LOWER |
| 8 | 80205-SS0-A01 | Insulator - EVAPORATOR UPPER | Insulator - EVAPORATOR UPPER |
| 9 | 80206-SS0-A01 | Insulator - EVAPORATOR LOWER | Insulator - EVAPORATOR LOWER |
| 10 | 80208-SS0-000 | Holder - PIPE | Holder - PIPE |
| 11 | 80214-SL5-A01 | Insulator - EXPANSION | Insulator - EXPANSION |
| 12 | 80215-SS0-H02 | Evaporator comp. - SAK | Evaporator comp. - SAK |
| 13 | 80216-SS0-H01 | Pipe - LIQUID (SAK) | Pipe - LIQUID (SAK) |
| 15 | 80220-SS0-H01 | Valve assy. - EXPANSION | Valve assy. - EXPANSION |
| 16 | 80225-SR3-010 | Clamp | Clamp |
| 17 | 80275-SS0-000 | Hose - DRAIN | Hose - DRAIN |
| 18 | 80286-SS0-A00 | Seal - EVAPORATOR INNER | Seal - EVAPORATOR INNER |
| 19 | 80287-SS0-A00 | Seal - EVAPORATOR OUTER | Seal - EVAPORATOR OUTER |
| 20 | 80291-SR3-000 | Grommet - EVAPORATOR SENSOR | Grommet - EVAPORATOR SENSOR |
| 6 | 80310-SS0-H02 | Hose comp. - SUCTION (NICHIRIN) | Hose comp. - SUCTION (NICHIRIN) |
| 7 | 80315-SS0-H02 | Hose comp. - DISCHARGE (NICHIRIN) | Hose comp. - DISCHARGE (NICHIRIN) |
| 8 | 80321-SS0-H01 | Pipe - SUCTION (SAK) | Pipe - SUCTION (SAK) |
| 9 | 80325-SS0-H01 | Pipe - DISCHARGE (SAK) | Pipe - DISCHARGE (SAK) |
| 10 | 80331-SS0-H01 | Pipe - CONDENSER (SAK) | Pipe - CONDENSER (SAK) |
| 11 | 80341-SS0-H01 | Pipe - RECEIVER (SAK) | Pipe - RECEIVER (SAK) |
| 12 | 80351-SS0-H01 | Receiver comp - SAK | Receiver comp - SAK |
| 13 | 80352-SS0-010 | Bracket - LIQUID TANK | Bracket - LIQUID TANK |
| 14 | 80361-SS0-A00 | Bracket - SUCTION PIPE | Bracket - SUCTION PIPE |
| 15 | 80362-SP0-A00 | Clamp b - SUCTION PIPE | Clamp b - SUCTION PIPE |
| 16 | 80369-SS0-000 | Stay - AIR CONDITIONER HOSE | Stay - AIR CONDITIONER HOSE |
| 17 | 80372-SS0-000 | Clamp b - DISCHARGE PIPE | Clamp b - DISCHARGE PIPE |
| 18 | 80378-SS0-000 | Bracket - AIR CONDITIONER HOSE | Bracket - AIR CONDITIONER HOSE |
| 21 | 80380-SF4-000 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 21 | 80380-SM4-G00 | Grommet - AIR CONDITIONER PIPE | Grommet - AIR CONDITIONER PIPE |
| 19 | 80382-SS0-000 | Clamp b - RECEIVER PIPE | Clamp b - RECEIVER PIPE |
| 20 | 80384-SS0-003 | Clamp - AIR CONDITIONER PIPE (8MM) | Clamp - AIR CONDITIONER PIPE (8MM) |
| 8 | 80411-SS0-003 | Knob - AIR CONDITIONER SWITCH | Knob - AIR CONDITIONER SWITCH |
| 23 | 80430-SS0-A01 | Thermostat - AIR CONDITIONER | Thermostat - AIR CONDITIONER |
| 25 | 80431-SS0-A00 | Bracket - THERMOSTAT | Bracket - THERMOSTAT |
| 21 | 80440-SS0-901 | Switch - DUAL PRESSURE (FUJI) | Switch - DUAL PRESSURE (FUJI) |
| 27 | 80491-SS0-020 | Bracket - AIR CONDITIONER RELAY | Bracket - AIR CONDITIONER RELAY |
| 28 | 80566-SF1-941 | Clip - EVAPORATOR SENSOR | Clip - EVAPORATOR SENSOR |
| 25 | 80865-SL0-003 | Cap - VALVE (H) | Cap - VALVE (H) |
| 26 | 80866-SL0-003 | Cap - VALVE(L) | Cap - VALVE(L) |
| 3 | 80871-SL0-900 | O-ring - 5/8" | O-ring - 5/8" |
| 2 | 80872-SL0-900 | O-ring - 1/2" | O-ring - 1/2" |
| 34 | 80873-SL0-900 | O-ring - 8MM | O-ring - 8MM |
| 9 | 81163-SG0-A01 | Seal - R. WALK-IN | Seal - R. WALK-IN |
| 4 | 81230-SS0-A21 | Adjuster - R. FR. SEAT RECLINING | Adjuster - R. FR. SEAT RECLINING |
| 13 | 81235-SS0-003 | Cable - RECLINING CONTROL | Cable - RECLINING CONTROL |
| 8 | 81260-SS0-G01 | Adjuster - R. OUTER SLIDE | Adjuster - R. OUTER SLIDE |
| 5 | 81261-SM4-J32 | Cap - RAIL END LOWER | Cap - RAIL END LOWER |
| 10 | 81270-SS0-A01 | Adjuster - R. INNER SLIDE | Adjuster - R. INNER SLIDE |
| 8 | 81495-SE0-A00 | Guide - WEBBING SHOULDER | Guide - WEBBING SHOULDER |
| 22 | 81563-SG0-J01 | Seal - L. WALK-IN | Seal - L. WALK-IN |
| 6 | 81630-SS0-A21 | Adjuster - L. RECLINING | Adjuster - L. RECLINING |
| 9 | 81660-SS0-G01 | Adjuster - L. OUTER SLIDE | Adjuster - L. OUTER SLIDE |
| 10 | 81670-SS0-A01 | Adjuster - L. INNER SLIDE | Adjuster - L. INNER SLIDE |
| 4 | 82126-SS0-J21 | Frame comp - RR. SEATBACK | Frame comp - RR. SEATBACK |
| 6 | 82136-SS0-J21 | Frame - R. RR. SEAT CUSHION WIRE | Frame - R. RR. SEAT CUSHION WIRE |
| 7 | 82137-SS0-003 | Clip - RR. SEAT CUSHION | Clip - RR. SEAT CUSHION |
| 9 | 82226-SH4-A04 | Cylinder - RR. SEAT | Cylinder - RR. SEAT |
| 11 | 82232-SS0-003 | Rod - SEAT FOLD DOWN | Rod - SEAT FOLD DOWN |
| 13 | 82290-SS0-003 | Bracket comp. - SEAT PIVOT | Bracket comp. - SEAT PIVOT |
| 14 | 82295-SS0-003 | Bracket - CENTER SEAT PIVOT | Bracket - CENTER SEAT PIVOT |
| 16 | 82526-SS0-J21 | Frame comp - RR. SEATBACK WIRE | Frame comp - RR. SEATBACK WIRE |
| 18 | 82536-SS0-J21 | Frame - L. RR. SEAT CUSHION WIRE | Frame - L. RR. SEAT CUSHION WIRE |
| 19 | 82620-SS0-003 | Lock assy - RR. SEAT | Lock assy - RR. SEAT |
| 4 | 82871-671-000 | Grommet - DRAIN HOLE, 25MM | Grommet - DRAIN HOLE, 25MM |
| 1 | 83101-SS0-A02 | Insulator - DASHBOARD | Insulator - DASHBOARD |
| 2 | 83106-SS0-A00 | Cover - INSULATOR (LH) | Cover - INSULATOR (LH) |
| 5 | 83302-SS0-000 | Protector assy. b - SIDE SILL | Protector assy. b - SIDE SILL |
| 6 | 83303-SS0-000 | Protector assy. a - SIDE SILL | Protector assy. a - SIDE SILL |
| 12 | 83403-SS0-J00 | Box - RR. CONSOLE | Box - RR. CONSOLE |
| 14 | 83406-SR4-G00 | Hinge comp - ARMREST | Hinge comp - ARMREST |
| 15 | 83407-SS0-J00 | Bracket - RR. CONSOLE | Bracket - RR. CONSOLE |
| 16 | 83408-SS0-J00 | Lock - ARMREST | Lock - ARMREST |
| 17 | 83409-SS0-J00 | Mat - CONSOLE BOX | Mat - CONSOLE BOX |
| 18 | 83411-SS0-J00 | Lid - RR. CONSOLE BOX | Lid - RR. CONSOLE BOX |
| 32 | 83418-SG3-003 | Cushion - TRUNK HINGE | Cushion - TRUNK HINGE |
| 20 | 83425-SS0-J00 | Bracket - RR. CONSOLE BASE | Bracket - RR. CONSOLE BASE |
| 21 | 83506-SS0-000 | Duct - R. SIDE VENT | Duct - R. SIDE VENT |
| 23 | 83508-SS0-000 | Seal - INLET | Seal - INLET |
| 26 | 83511-SS0-000 | Duct - R. SIDE DEFROSTER | Duct - R. SIDE DEFROSTER |
| 36 | 83556-SS0-000 | Duct - L. SIDE VENT | Duct - L. SIDE VENT |
| 40 | 83561-SS0-000 | Duct - L. SIDE DEFROSTER | Duct - L. SIDE DEFROSTER |
| 5 | 85268-SA0-000 | Protection - TAILGATE, 20MM (CIRCLE) | Protection - TAILGATE, 20MM (CIRCLE) |
| 25 | 88324-SB3-950 | Cover - RR. ASHTRAY | Cover - RR. ASHTRAY |
| 4 | 89101-SW5-003 | Bag - TOOL | Bag - TOOL |
| 5 | 89211-SE3-003 | Wrench - WHEEL | Wrench - WHEEL |
| 10 | 89310-SP0-003 | Jack assy - PANTOGRAPH | Jack assy - PANTOGRAPH |
| 11 | 89320-S50-003 | Bar - JACK | Bar - JACK |
| 11 | 89320-SE3-003 | Bar - JACK | Bar - JACK |
| 42 | 90001-P0A-000 | Bolt-washer - SPECIAL, 6X35 | Bolt-washer - SPECIAL, 6X35 |
| 11 | 90001-P13-003 | Bolt - SPECIAL, 8X52 | Bolt - SPECIAL, 8X52 |
| 27 | 90001-PM3-003 | Bolt - DRAIN PLUG, 28MM | Bolt - DRAIN PLUG, 28MM |
| 15 | 90002-P0A-000 | Bolt - FLANGE, 8X76 | Bolt - FLANGE, 8X76 |
| 12 | 90002-P13-003 | Bolt - SPECIAL, 8X52 | Bolt - SPECIAL, 8X52 |
| 19 | 90002-PD2-000 | Bolt - FLANGE, 8X16 | Bolt - FLANGE, 8X16 |
| 19 | 90002-PT0-000 | Bolt b - TIMING BELT COVER | Bolt b - TIMING BELT COVER |
| 18 | 90003-P01-000 | Bolt-washer - 8X28 | Bolt-washer - 8X28 |
| 10 | 90003-PT0-000 | Bolt - FLANGE, 6X50 | Bolt - FLANGE, 6X50 |
| 36 | 90004-PA0-000 | Bolt - HEX., 6X14 | Bolt - HEX., 6X14 |
| 11 | 90004-PT0-000 | Bolt - FLANGE, 6X50 | Bolt - FLANGE, 6X50 |
| 12 | 90005-PT0-003 | Bolt-washer - 12X163 | Bolt-washer - 12X163 |
| 43 | 90006-PN4-000 | Bolt-washer - SPECIAL, 6X25 | Bolt-washer - SPECIAL, 6X25 |
| 13 | 90006-PT0-003 | Bolt-washer - 12X199 | Bolt-washer - 12X199 |
| 20 | 90007-679-000 | Bolt a - TIMING BELT COVER | Bolt a - TIMING BELT COVER |
| 29 | 90007-PK1-003 | Bolt-washer - 11X121 | Bolt-washer - 11X121 |
| 14 | 90007-PT0-000 | Bolt - FLANGE, 8X55 | Bolt - FLANGE, 8X55 |
| 30 | 90008-PM3-000 | Bolt - MOUNTING BRACKET, 10X32.5 | Bolt - MOUNTING BRACKET, 10X32.5 |
| 28 | 90009-PE2-010 | Bolt - SEALING, 6MM | Bolt - SEALING, 6MM |
| 31 | 90009-PH1-000 | Bolt - DRAIN PLUG, 14MM | Bolt - DRAIN PLUG, 14MM |
| 28 | 90009-RMX-010 | Bolt,sealing 6mm | Bolt,sealing 6mm |
| 11 | 90010-PE2-900 | Bolt - SPECIAL, 10X22 | Bolt - SPECIAL, 10X22 |
| 25 | 90011-896-000 | Bolt - FLANGE, 6X8 | Bolt - FLANGE, 6X8 |
| 8 | 90011-PH3-000 | Bolt - FLANGE, 12MM | Bolt - FLANGE, 12MM |
| 44 | 90011-PL2-000 | Screw-washer - 5X8 | Screw-washer - 5X8 |
| 13 | 90011-PT0-000 | Bolt-washer - 8X26 | Bolt-washer - 8X26 |
| 11 | 90012-PC6-000 | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) | Bolt - SPECIAL, 6X12 (+) (DACRO COATING) |
| 16 | 90012-PT0-000 | Bolt a - HEAD COVER | Bolt a - HEAD COVER |
| 17 | 90013-PT0-000 | Bolt b - HEAD COVER | Bolt b - HEAD COVER |
| 20 | 90015-PH1-013 | Holder - OIL FILTER | Holder - OIL FILTER |
| 21 | 90015-PT0-000 | Bolt - TIMING BELT ADJUSTER SPRING | Bolt - TIMING BELT ADJUSTER SPRING |
| 12 | 90015-PT0-J00 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 22 | 90016-PT0-000 | Bolt - TIMING BELT ADJUSTER | Bolt - TIMING BELT ADJUSTER |
| 5 | 90017-689-000 | Bolt - SPECIAL, 10MM | Bolt - SPECIAL, 10MM |
| 19 | 90017-PY3-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 19 | 90017-RJA-003 | Bolt-washer - 16X49 | Bolt-washer - 16X49 |
| 23 | 90018-PT0-010 | Bolt - BALANCER BELT ADJUSTER | Bolt - BALANCER BELT ADJUSTER |
| 20 | 90019-PT0-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 24 | 90020-P0A-003 | Bolt - SEALING, 12MM | Bolt - SEALING, 12MM |
| 29 | 90020-PD6-000 | Bolt - SEALING, 12MM | Bolt - SEALING, 12MM |
| 16 | 90020-SM4-962 | Bolt - RADIUS ROD, 12X93.5 | Bolt - RADIUS ROD, 12X93.5 |
| 47 | 90022-SM4-003 | Bolt - TRAILING ARM BRACKET, 12X69 | Bolt - TRAILING ARM BRACKET, 12X69 |
| 14 | 90023-P01-000 | Bolt - FLANGE, 8X105 | Bolt - FLANGE, 8X105 |
| 22 | 90023-PT0-003 | Bolt-washer - 8X33 | Bolt-washer - 8X33 |
| 48 | 90023-SM4-003 | Bolt - TRAILING ARM BRACKET, 12X55.5 | Bolt - TRAILING ARM BRACKET, 12X55.5 |
| 18 | 90026-PT0-000 | Bolt - STUD, 8X38 | Bolt - STUD, 8X38 |
| 25 | 90027-PT2-000 | Bolt - STUD, 6X63 | Bolt - STUD, 6X63 |
| 12 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 49 | 90028-SM4-000 | Bolt - TRAILING, 8X19 | Bolt - TRAILING, 8X19 |
| 13 | 90029-PX5-010 | Bolt - SPECIAL, 8X24 | Bolt - SPECIAL, 8X24 |
| 11 | 90030-PG2-000 | Bolt - SPECIAL, 6MM | Bolt - SPECIAL, 6MM |
| 32 | 90030-PT0-000 | Bolt - STUD, 10X35 | Bolt - STUD, 10X35 |
| 24 | 90031-PT0-003 | Bolt-washer - 8X22 | Bolt-washer - 8X22 |
| 24 | 90032-ZW5-003 | Bolt-washer, 8x22 | Bolt-washer, 8x22 |
| 10 | 90034-689-000 | Bolt - TWELVE POINT, 8MM (TOKAI TRW) | Bolt - TWELVE POINT, 8MM (TOKAI TRW) |
| 33 | 90041-PA5-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 12 | 90041-PD2-004 | Nut - SPECIAL, 5MM (MITSUBA) | Nut - SPECIAL, 5MM (MITSUBA) |
| 13 | 90041-PH2-003 | Screw-washer - 4X10 (DENSO) | Screw-washer - 4X10 (DENSO) |
| 35 | 90041-PT0-000 | Bolt - STUD, 12X60 | Bolt - STUD, 12X60 |
| 14 | 90042-PAA-A01 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 14 | 90042-PH2-003 | Bolt-washer - 6X16 (DENSO) | Bolt-washer - 6X16 (DENSO) |
| 34 | 90042-PR3-000 | Bolt - STUD, 6X28 | Bolt - STUD, 6X28 |
| 9 | 90042-PX5-010 | Bolt - STUD, 10X50 | Bolt - STUD, 10X50 |
| 15 | 90043-PD2-003 | Nut - HEX., 5MM (DENSO) | Nut - HEX., 5MM (DENSO) |
| 36 | 90051-PH7-000 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 25 | 90051-PT0-000 | Bolt - SUB BELT ADJUSTER SPRING | Bolt - SUB BELT ADJUSTER SPRING |
| 24 | 90052-PK1-000 | Bolt - FLANGE, 6X25 | Bolt - FLANGE, 6X25 |
| 38 | 90052-PT0-000 | Bolt - FLANGE, 10X60 | Bolt - FLANGE, 10X60 |
| 39 | 90053-PT0-000 | Bolt - FLANGE, 10X50 | Bolt - FLANGE, 10X50 |
| 37 | 90061-PT0-000 | Bolt - DRAIN PLUG, 12MM | Bolt - DRAIN PLUG, 12MM |
| 25 | 90063-PC6-000 | Bolt - STUD, 6X25 | Bolt - STUD, 6X25 |
| 14 | 90065-PC1-300 | Bolt - STUD, 10X34.5 | Bolt - STUD, 10X34.5 |
| 10 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 11 | 90081-PX5-000 | Screw - SEALING, 32MM | Screw - SEALING, 32MM |
| 12 | 90083-PK5-000 | Bolt - SEALING, 28MM | Bolt - SEALING, 28MM |
| 26 | 90101-SA4-000 | Screw - TAPPING, 4X12 | Screw - TAPPING, 4X12 |
| 24 | 90101-SE3-003 | Bolt-washer - 8X23.5 | Bolt-washer - 8X23.5 |
| 34 | 90101-SM3-003 | Screw-washer - 6X14 | Screw-washer - 6X14 |
| 23 | 90101-SM4-900 | Bolt-washer - 8X45 | Bolt-washer - 8X45 |
| 11 | 90102-SA4-000 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 24 | 90102-SB3-000 | Bolt - HINGE STOPPER | Bolt - HINGE STOPPER |
| 16 | 90102-SF1-000 | Bolt - HEX., 10X1.25 | Bolt - HEX., 10X1.25 |
| 36 | 90102-SK7-J50 | Bolt - POWER STEERING VALVE | Bolt - POWER STEERING VALVE |
| 12 | 90102-SS0-003 | Screw - TAPPING, 3X14 | Screw - TAPPING, 3X14 |
| 34 | 90103-SB0-010 | Nut - FLANGE, 5MM | Nut - FLANGE, 5MM |
| 27 | 90103-SM4-010 | Bolt - FLANGE, 6X18 | Bolt - FLANGE, 6X18 |
| 26 | 90103-SS0-003 | Screw - SPECIAL TAPPING, 4X16 | Screw - SPECIAL TAPPING, 4X16 |
| 36 | 90105-SA4-000 | Screw - TAPPING, 5X16 | Screw - TAPPING, 5X16 |
| 37 | 90105-SV1-000 | Bolt-washer - 8X20 | Bolt-washer - 8X20 |
| 25 | 90106-SE1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 30 | 90106-SS0-003 | Grommet - SCREW | Grommet - SCREW |
| 26 | 90107-SM4-000 | Bolt - CALIPER MOUNTING (12X21) | Bolt - CALIPER MOUNTING (12X21) |
| 26 | 90107-SM4-003 | Clip - HOOD SEAL | Clip - HOOD SEAL |
| 31 | 90107-SS0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 8 | 90108-SF1-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 23 | 90108-SH3-003 | Bolt - GEAR BOX MOUNTING (10X55) | Bolt - GEAR BOX MOUNTING (10X55) |
| 32 | 90108-SS0-003 | Clip - BUMPER SIDE | Clip - BUMPER SIDE |
| 35 | 90109-SM4-000 | Bolt - SPECIAL, 6X35 | Bolt - SPECIAL, 6X35 |
| 33 | 90109-SS0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 34 | 90110-SE7-000 | Bolt-washer - 8X21 | Bolt-washer - 8X21 |
| 18 | 90110-SS0-000 | Screw - TAPPING, 4X8 | Screw - TAPPING, 4X8 |
| 46 | 90111-SA0-000 | Screw - TAPPING, 4X8 | Screw - TAPPING, 4X8 |
| 35 | 90111-SM4-003 | Bolt - BUMPER | Bolt - BUMPER |
| 48 | 90113-SA0-006 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 48 | 90113-SA0-025 | Bolt - WHEEL (NAGOYA RASHI) | Bolt - WHEEL (NAGOYA RASHI) |
| 27 | 90113-SD4-901 | Bolt - WHEEL (MEIRA) | Bolt - WHEEL (MEIRA) |
| 27 | 90113-SD4-902 | Bolt - WHEEL (SAGA) | Bolt - WHEEL (SAGA) |
| 48 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 16 | 90114-SA0-000 | Nut - SELF-LOCK, 6MM | Nut - SELF-LOCK, 6MM |
| 9 | 90114-SE0-000 | Screw - TAPPING, 5X20 | Screw - TAPPING, 5X20 |
| 16 | 90114-SM4-900 | Bolt - 6X15 | Bolt - 6X15 |
| 35 | 90115-659-003 | Nut - SELF-LOCK, 8MM (CLINCH) | Nut - SELF-LOCK, 8MM (CLINCH) |
| 26 | 90115-SG0-003 | Bolt - FLANGE, 6MM | Bolt - FLANGE, 6MM |
| 20 | 90116-SS0-003 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 21 | 90117-SM4-003 | Bolt - FR. SHOCK ABSORBER LOCK (10X44) | Bolt - FR. SHOCK ABSORBER LOCK (10X44) |
| 22 | 90118-SL4-003 | Bolt - SELF-LOCK, 12X84 | Bolt - SELF-LOCK, 12X84 |
| 10 | 90119-SE0-000 | Bolt - FLANGE, 6MM | Bolt - FLANGE, 6MM |
| 27 | 90120-SE3-003 | Bolt - FLANGE, 6X12 | Bolt - FLANGE, 6X12 |
| 41 | 90120-SV4-000 | Bolt - LOCK STRIKER | Bolt - LOCK STRIKER |
| 23 | 90121-SM4-010 | Bolt - SHOCK ABSORBER FORK (12X98) | Bolt - SHOCK ABSORBER FORK (12X98) |
| 21 | 90126-SR3-000 | Bolt-washer - 6X32 | Bolt-washer - 6X32 |
| 28 | 90126-SS0-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 37 | 90127-SE0-000 | Bolt-washer - 6X15 | Bolt-washer - 6X15 |
| 36 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 47 | 90131-SE3-003 | Screw - TAPPING, 4X16 | Screw - TAPPING, 4X16 |
| 15 | 90132-SL4-003 | Screw-washer - 3X10 | Screw-washer - 3X10 |
| 16 | 90132-SP0-003 | Screw - PAN, 5X15 | Screw - PAN, 5X15 |
| 48 | 90132-SS0-000 | Screw - TAPPING, 4X10 (PO) | Screw - TAPPING, 4X10 (PO) |
| 16 | 90132-SS0-003 | Screw-washer - 3X12 | Screw-washer - 3X12 |
| 26 | 90134-SE3-003 | Screw - TAPPING, 5X10 | Screw - TAPPING, 5X10 |
| 18 | 90135-SB0-003 | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) | Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO) |
| 29 | 90135-SG0-A01 | Clamp - CABLE, 5MM | Clamp - CABLE, 5MM |
| 11 | 90135-SS1-000 | Bolt-washer - 10X18 | Bolt-washer - 10X18 |
| 30 | 90137-SF1-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 18 | 90138-SM4-003 | Bolt-washer - 8X14 | Bolt-washer - 8X14 |
| 37 | 90139-SE0-003 | Screw-washer - 5X25 | Screw-washer - 5X25 |
| 12 | 90143-SV4-003 | Bolt-washer - 10X22 | Bolt-washer - 10X22 |
| 27 | 90146-SA7-000 | Bolt-washer - 6X16 (DACRO COATING) | Bolt-washer - 6X16 (DACRO COATING) |
| 20 | 90148-SE0-003 | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) | Bolt - EARTH, 6X16 (WASHER 12.5MM) (ZN) |
| 49 | 90148-SP0-000 | Screw - TAPPING | Screw - TAPPING |
| 38 | 90149-SA0-003 | Bolt - BUMPER | Bolt - BUMPER |
| 17 | 90149-SE0-003 | Bolt - EARTH, 6X16 | Bolt - EARTH, 6X16 |
| 22 | 90153-SE0-003 | Bolt - EARTH, 6X12 | Bolt - EARTH, 6X12 |
| 32 | 90155-SE0-003 | Screw - TAPPING, 6X20 | Screw - TAPPING, 6X20 |
| 42 | 90156-SM4-000 | Bolt-washer - 6X20 | Bolt-washer - 6X20 |
| 6 | 90162-SS0-000 | Bolt - FLANGE, 12X143 | Bolt - FLANGE, 12X143 |
| 18 | 90162-SV4-000 | Bolt-washer - 10X30 | Bolt-washer - 10X30 |
| 11 | 90163-SC2-000 | Bolt - FLANGE, 12X25 | Bolt - FLANGE, 12X25 |
| 24 | 90163-SL5-A00 | Bolt - FLANGE, 10X50 | Bolt - FLANGE, 10X50 |
| 51 | 90163-SS0-003 | Bolt - RR. SPINDLE, 10X52 | Bolt - RR. SPINDLE, 10X52 |
| 52 | 90164-SM4-961 | Bolt - RR. SPINDLE, 10X37 | Bolt - RR. SPINDLE, 10X37 |
| 53 | 90164-SS0-003 | Bolt - RR. SPINDLE, 10X67 | Bolt - RR. SPINDLE, 10X67 |
| 17 | 90165-SE0-000 | Bolt - FLANGE, 10X37 | Bolt - FLANGE, 10X37 |
| 12 | 90165-SM4-020 | Bolt - FLANGE, 12X101 | Bolt - FLANGE, 12X101 |
| 26 | 90165-SS0-000 | Bolt - CHANGE WIRE | Bolt - CHANGE WIRE |
| 25 | 90166-SF1-010 | Bolt-washer - 10X21 | Bolt-washer - 10X21 |
| 54 | 90166-SM4-003 | Nut - SELF-LOCK | Nut - SELF-LOCK |
| 27 | 90166-SS0-000 | Collar - CHANGE WIRE | Collar - CHANGE WIRE |
| 55 | 90167-SF1-003 | Bolt - RR. LOWER ARM, 14X77 | Bolt - RR. LOWER ARM, 14X77 |
| 13 | 90169-SM4-000 | Bolt - FLANGE, 12X30 | Bolt - FLANGE, 12X30 |
| 14 | 90170-SM4-000 | Bolt - FLANGE, 12X40 | Bolt - FLANGE, 12X40 |
| 15 | 90173-SM4-000 | Bolt - FLANGE, 12X60 | Bolt - FLANGE, 12X60 |
| 7 | 90174-SS0-003 | Bolt - FLANGE, 10X23 | Bolt - FLANGE, 10X23 |
| 16 | 90176-SM4-000 | Bolt - FLANGE, 12X95 | Bolt - FLANGE, 12X95 |
| 24 | 90178-SM4-013 | Bolt - FR. RADIUS ROD (12X31) | Bolt - FR. RADIUS ROD (12X31) |
| 19 | 90182-SB6-000 | Bolt-washer - 6X16 | Bolt-washer - 6X16 |
| 17 | 90186-SF1-000 | Bolt - FLANGE, 12X125 | Bolt - FLANGE, 12X125 |
| 35 | 90188-SM4-000 | Bolt - FLANGE, 6X12 (BLACK) | Bolt - FLANGE, 6X12 (BLACK) |
| 9 | 90188-SS0-003 | Screw - SPECIAL TAPPING, 3X12 | Screw - SPECIAL TAPPING, 3X12 |
| 8 | 90190-SM4-003 | Bolt - FLANGE, 12X108 | Bolt - FLANGE, 12X108 |
| 9 | 90191-SM4-003 | Bolt - FLANGE, 12X95 | Bolt - FLANGE, 12X95 |
| 10 | 90193-SM4-003 | Bolt - FLANGE, 12X135 | Bolt - FLANGE, 12X135 |
| 31 | 90201-PD1-000 | Nut a - SEALING, 12MM | Nut a - SEALING, 12MM |
| 16 | 90201-PT0-003 | Nut - SQUARE | Nut - SQUARE |
| 22 | 90201-SK7-000 | Nut - HEX. CAP, 10MM | Nut - HEX. CAP, 10MM |
| 11 | 90202-PH8-000 | Nut - HEX., 23MM | Nut - HEX., 23MM |
| 41 | 90204-PH7-000 | Nut - SPECIAL | Nut - SPECIAL |
| 15 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
| 37 | 90212-671-005 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 15 | 90212-PD2-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 15 | 90212-RCA-A01 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 36 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 14 | 90213-PH3-000 | Nut - CAP, 6MM | Nut - CAP, 6MM |
| 25 | 90215-SB0-003 | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) | Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH) |
| 28 | 90215-SMA-003 | Nut | Nut |
| 26 | 90216-P0A-000 | Nut - 10MM | Nut - 10MM |
| 57 | 90216-SE0-010 | Nut | Nut |
| 57 | 90216-SE0-305 | NUT, LWR ARM | NUT, LWR ARM |
| 58 | 90230-SB0-950 | Bolt-washer - 6X12 (GREEN) | Bolt-washer - 6X12 (GREEN) |
| 24 | 90231-PD1-014 | Nut-washer - 5MM | Nut-washer - 5MM |
| 25 | 90232-PT0-003 | Nut - HEX., 6MM | Nut - HEX., 6MM |
| 38 | 90301-SE0-J00 | Nut - FLANGE, 6MM | Nut - FLANGE, 6MM |
| 40 | 90301-SP0-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 17 | 90301-SS0-000 | Nut - CLIP, 6MM | Nut - CLIP, 6MM |
| 42 | 90301-SV7-000 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 50 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 39 | 90303-SA5-003 | Nut - FR. COMBINATION LIGHT | Nut - FR. COMBINATION LIGHT |
| 26 | 90303-SF1-003 | Nut - SELF-LOCK, 12MM | Nut - SELF-LOCK, 12MM |
| 24 | 90304-SA0-981 | Nut comp. - WHEEL (FUSE RASHI) | Nut comp. - WHEEL (FUSE RASHI) |
| 15 | 90304-SM4-000 | Nut - FR. SHOCK ABSORBER FLANGE (10MM) | Nut - FR. SHOCK ABSORBER FLANGE (10MM) |
| 49 | 90305-692-010 | Nut | Nut |
| 14 | 90305-PT0-000 | Nut - POWER STEERING PULLEY | Nut - POWER STEERING PULLEY |
| 18 | 90305-SD4-003 | Nut - SPINDLE (24MM) | Nut - SPINDLE (24MM) |
| 42 | 90305-SH3-000 | Nut - AIR SPOILER CLIP | Nut - AIR SPOILER CLIP |
| 40 | 90305-SM4-000 | Nut - AIR SPOILER CLIP | Nut - AIR SPOILER CLIP |
| 28 | 90307-SD2-A00 | Nut - CAP, 6MM | Nut - CAP, 6MM |
| 17 | 90307-SL5-000 | Nut - CASTLE, 14MM | Nut - CASTLE, 14MM |
| 39 | 90308-SD2-A00 | Nut - FLANGE, 6MM (DACRO COATING) | Nut - FLANGE, 6MM (DACRO COATING) |
| 42 | 90310-PT0-003 | Bolt - SPECIAL | Bolt - SPECIAL |
| 12 | 90311-MB6-003 | Nut toothed 5mm | Nut toothed 5mm |
| 15 | 90311-P13-000 | Bolt - ADJUSTER SPECIAL | Bolt - ADJUSTER SPECIAL |
| 43 | 90312-PT0-000 | Bolt - ADJUSTER SPECIAL | Bolt - ADJUSTER SPECIAL |
| 41 | 90312-SM4-000 | Nut-washer - 8MM | Nut-washer - 8MM |
| 44 | 90313-PT0-000 | Bolt - SPECIAL, 10X90 | Bolt - SPECIAL, 10X90 |
| 18 | 90321-SE0-000 | Nut - UPPER BALL PIN, 10MM | Nut - UPPER BALL PIN, 10MM |
| 42 | 90323-SE1-000 | Nut - CLIP, 6MM | Nut - CLIP, 6MM |
| 23 | 90330-SB3-000 | Nut-washer - 6MM | Nut-washer - 6MM |
| 17 | 90331-SS0-000 | Nut - SPRING, 5MM | Nut - SPRING, 5MM |
| 17 | 90334-SH3-000 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 19 | 90361-SM4-003 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 19 | 90361-SR3-000 | Nut - FLANGE, 8MM | Nut - FLANGE, 8MM |
| 16 | 90361-SV4-003 | Nut - PAINT CUTTING, 6MM | Nut - PAINT CUTTING, 6MM |
| 27 | 90362-SF1-003 | Nut - SELF-LOCK, 8MM | Nut - SELF-LOCK, 8MM |
| 28 | 90362-SG0-013 | Nut - TRAILING ARM, 12MM | Nut - TRAILING ARM, 12MM |
| 26 | 90363-SF1-000 | Nut - CASTLE, 12MM | Nut - CASTLE, 12MM |
| 16 | 90364-SG0-004 | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) | Nut - SELF-LOCK, 10MM (SHOWA) (NYLON) |
| 19 | 90371-SM4-000 | Nut - FLANGE, 10MM | Nut - FLANGE, 10MM |
| 39 | 90382-SM4-000 | Nut - HEX. CAP, 6MM | Nut - HEX. CAP, 6MM |
| 19 | 90401-PG1-000 | Washer - DRAIN PLUG, 10MM | Washer - DRAIN PLUG, 10MM |
| 27 | 90401-PT0-000 | Rubber - TIMING BELT ADJUSTER | Rubber - TIMING BELT ADJUSTER |
| 13 | 90403-PM3-004 | Washer - PLAIN, 7MM | Washer - PLAIN, 7MM |
| 14 | 90406-PX5-010 | Washer - LOCK | Washer - LOCK |
| 26 | 90424-PR7-A01 | Washer | Washer |
| 32 | 90428-PD6-003 | Washer - SEALING, 12MM | Washer - SEALING, 12MM |
| 33 | 90430-PD6-003 | Washer - SEALING, 6MM | Washer - SEALING, 6MM |
| 64 | 90438-SE0-000 | Washer - TRAILING, 12MM | Washer - TRAILING, 12MM |
| 15 | 90441-PT0-000 | Washer - HEAD COVER | Washer - HEAD COVER |
| 16 | 90451-PE2-000 | Washer - SPECIAL, 11X28 | Washer - SPECIAL, 11X28 |
| 28 | 90501-MB7-610 | Washer - 10.3X25 | Washer - 10.3X25 |
| 12 | 90501-SM4-003 | Bolt - FENDER | Bolt - FENDER |
| 38 | 90501-SS0-000 | Packing - SEAT | Packing - SEAT |
| 20 | 90504-SB0-000 | Washer - PLAIN, 12MM | Washer - PLAIN, 12MM |
| 18 | 90505-SM4-003 | Clip - GARNISH | Clip - GARNISH |
| 18 | 90505-SX0-003 | Clip - GARNISH | Clip - GARNISH |
| 11 | 90506-SE0-000 | Washer - PLAIN, 12MM | Washer - PLAIN, 12MM |
| 20 | 90511-671-003 | Washer - TOOTHED LOCK | Washer - TOOTHED LOCK |
| 21 | 90551-SB2-000 | Washer - PLAIN, 10MM | Washer - PLAIN, 10MM |
| 28 | 90555-SF1-000 | Washer a - SHIFT WIRE(1.6MM) | Washer a - SHIFT WIRE(1.6MM) |
| 29 | 90556-SF1-000 | Washer b - SHIFT WIRE (0.5MM) | Washer b - SHIFT WIRE (0.5MM) |
| 30 | 90557-SF1-000 | Washer a - SELECT WIRE (1.6MM) | Washer a - SELECT WIRE (1.6MM) |
| 31 | 90558-SF1-000 | Washer b - SELECT WIRE (0.5MM) | Washer b - SELECT WIRE (0.5MM) |
| 14 | 90601-SS0-003 | Clip | Clip |
| 12 | 90602-PG1-770 | Ring - SNAP, 56MM | Ring - SNAP, 56MM |
| 31 | 90606-SS0-000 | Spring - FR. ASHTRAY | Spring - FR. ASHTRAY |
| 20 | 90609-SE1-960 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 39 | 90609-SG0-003 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 18 | 90609-SS0-000 | Clip - ROOF LINING | Clip - ROOF LINING |
| 28 | 90610-SS0-000 | Clip - SIDE LINING | Clip - SIDE LINING |
| 27 | 90611-SM4-013 | Clip - PILLAR GARNISH | Clip - PILLAR GARNISH |
| 15 | 90615-SK7-003 | Clip - MIRROR GARNISH | Clip - MIRROR GARNISH |
| 6 | 90615-SM4-000 | Cap - WELD HOLE, 46X72 | Cap - WELD HOLE, 46X72 |
| 7 | 90634-PA0-000 | Cap - SEALING | Cap - SEALING |
| 36 | 90635-SM4-A01 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 36 | 90635-SM4-A02 | Clip - OIL HOSE (MEIJI) | Clip - OIL HOSE (MEIJI) |
| 30 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 28 | 90651-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 23 | 90652-SB2-023 | Clip - TUBE, 7MM | Clip - TUBE, 7MM |
| 13 | 90657-SB0-003 | Clip, SPLASH SHIELD | Clip, SPLASH SHIELD |
| 33 | 90659-692-000 | Clamp - CASE | Clamp - CASE |
| 52 | 90662-671-003 | Grommet - SCREW, 5MM (WHITE) | Grommet - SCREW, 5MM (WHITE) |
| 20 | 90662-679-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 27 | 90664-671-003 | Clip - CANOE | Clip - CANOE |
| 20 | 90665-SM4-000 | Grommet - SCREW, 4MM (YELLOW) | Grommet - SCREW, 4MM (YELLOW) |
| 31 | 90665-SP0-000 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 38 | 90665-SS0-003 | Grommet - RR. COMBINATION | Grommet - RR. COMBINATION |
| 32 | 90666-SD4-000 | Clip - PILLAR LINING | Clip - PILLAR LINING |
| 29 | 90666-SD4-003 | Clip - FITTING | Clip - FITTING |
| 19 | 90666-SS0-003 | Clip - ROOF MOLDING | Clip - ROOF MOLDING |
| 19 | 90667-SD4-003 | Clip - ROOF LINING | Clip - ROOF LINING |
| 41 | 90667-SS0-000 | Clip - SNAP FITTING | Clip - SNAP FITTING |
| 10 | 90667-SS0-003 | Clip | Clip |
| 43 | 90668-SA5-003 | Grommet - SCREW, 6MM | Grommet - SCREW, 6MM |
| 23 | 90668-SJ4-003 | Clip - RR. TRAY | Clip - RR. TRAY |
| 29 | 90670-SE0-003 | Grommet - HOOD STAY | Grommet - HOOD STAY |
| 18 | 90676-SB2-003 | Clip - DASHBOARD INSULATOR | Clip - DASHBOARD INSULATOR |
| 19 | 90676-SE0-003 | Clip - JOINT COVER PLATE | Clip - JOINT COVER PLATE |
| 30 | 90681-693-000 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 28 | 90681-SG0-000 | Circlip - INTERNAL, 84MM | Circlip - INTERNAL, 84MM |
| 19 | 90681-SR3-000 | Circlip - EXTERNAL, 33MM | Circlip - EXTERNAL, 33MM |
| 14 | 90682-SB0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 27 | 90683-SF1-003 | Circlip - FR. UPPER (MUSASHI) | Circlip - FR. UPPER (MUSASHI) |
| 37 | 90684-SM4-J60 | Ring - SNAP, 31MM | Ring - SNAP, 31MM |
| 25 | 90686-692-003 | Cap - LINING MOUNT | Cap - LINING MOUNT |
| 28 | 90690-SA0-003 | Strap - WIRE HARNESS, 25MM (BLACK) | Strap - WIRE HARNESS, 25MM (BLACK) |
| 38 | 90693-SE0-951 | Circlip - INTERNAL, 28MM | Circlip - INTERNAL, 28MM |
| 39 | 90697-SA5-003 | Circlip - EXTERNAL, 31MM | Circlip - EXTERNAL, 31MM |
| 26 | 90703-PT0-000 | Dowel pin - 49X10 | Dowel pin - 49X10 |
| 22 | 90704-PT0-000 | Key - 4.5X38.5 | Key - 4.5X38.5 |
| 12 | 90705-PG2-000 | Dowel pin - 14X20 | Dowel pin - 14X20 |
| 38 | 90705-PT0-000 | Dowel pin - 16X22 | Dowel pin - 16X22 |
| 19 | 90705-SD2-931 | Pin - SNAP, 6MM | Pin - SNAP, 6MM |
| 39 | 90715-PC6-000 | Dowel pin - 13X20 | Dowel pin - 13X20 |
| 29 | 90741-657-000 | Key - 25.4X13 | Key - 25.4X13 |
| 7 | 90852-SA5-000 | Plug - HOLE, 10MM | Plug - HOLE, 10MM |
| 19 | 90856-SA0-000 | Plug - COATING HOLE, 25MM | Plug - COATING HOLE, 25MM |
| 13 | 91002-PG1-018 | Bearing - BALL, 63/28C (TOYO) | Bearing - BALL, 63/28C (TOYO) |
| 13 | 91003-PG2-008 | Bearing - SPECIAL BALL (NTN) | Bearing - SPECIAL BALL (NTN) |
| 20 | 91004-PX5-008 | Bearing - BALL, 28X78X20 | Bearing - BALL, 28X78X20 |
| 6 | 91005-PG2-004 | Bearing - TAPER, 40X75X21 (KOYO) | Bearing - TAPER, 40X75X21 (KOYO) |
| 7 | 91006-PX5-008 | Bearing - TAPER, 40X68X22 (NTN) | Bearing - TAPER, 40X68X22 (NTN) |
| 16 | 91021-148-004 | Bearing - NEEDLE, 1010(NTN) | Bearing - NEEDLE, 1010(NTN) |
| 17 | 91048-PY3-003 | Bearing - RADIAL BALL, 15X38X12 | Bearing - RADIAL BALL, 15X38X12 |
| 40 | 91052-SL5-A01 | Bearing - RADIAL BALL, 6906/31ZZ | Bearing - RADIAL BALL, 6906/31ZZ |
| 41 | 91053-SM4-951 | Bearing - RADIAL BALL, 6001ZZ | Bearing - RADIAL BALL, 6001ZZ |
| 20 | 91057-SR3-008 | Bearing - HALF SHAFT(NTN) | Bearing - HALF SHAFT(NTN) |
| 14 | 91102-PG2-008 | Bearing - NEEDLE, 25X56.4X19 | Bearing - NEEDLE, 25X56.4X19 |
| 42 | 91103-429-000 | Dowel pin - 8X10 | Dowel pin - 8X10 |
| 14 | 91103-PX5-004 | Bearing - NEEDLE, 38X65X22 (KOYO) | Bearing - NEEDLE, 38X65X22 (KOYO) |
| 21 | 91104-P21-008 | Bearing - NEEDLE, 38X43X26 (NTN) | Bearing - NEEDLE, 38X43X26 (NTN) |
| 15 | 91105-P16-008 | Bearing - NEEDLE, 40X46X26.8 (NTN) | Bearing - NEEDLE, 40X46X26.8 (NTN) |
| 16 | 91105-P21-003 | Bearing - NEEDLE, 42X47X24 | Bearing - NEEDLE, 42X47X24 |
| 22 | 91108-PX5-018 | Bearing - NEEDLE, 37X42X16.8 (NTN) | Bearing - NEEDLE, 37X42X16.8 (NTN) |
| 18 | 91148-PY3-003 | Roller - 5X26.8 | Roller - 5X26.8 |
| 19 | 91149-PY3-003 | Roller - 4.5X49.8 | Roller - 4.5X49.8 |
| 43 | 91154-SK7-J51 | Roller - 3.5X31.8 (NTN) | Roller - 3.5X31.8 (NTN) |
| 15 | 91205-PL3-A01 | Oil seal - 35X56X8 (ARAI) | Oil seal - 35X56X8 (ARAI) |
| 15 | 91205-PX5-005 | Oil seal - 35X56X8 (NOK) | Oil seal - 35X56X8 (NOK) |
| 13 | 91206-PX5-005 | Oil seal - 40X58X8(NOK) | Oil seal - 40X58X8(NOK) |
| 15 | 91209-PE9-003 | Dust seal - 16X23X5(ARAI) | Dust seal - 16X23X5(ARAI) |
| 15 | 91209-PE9-005 | Dust seal - 16X23X5(NOK) | Dust seal - 16X23X5(NOK) |
| 17 | 91211-PX5-008 | Damper - FRICTION (LOW) | Damper - FRICTION (LOW) |
| 27 | 91212-P0A-004 | Oil seal - 40X52X7 (ARAI) | Oil seal - 40X52X7 (ARAI) |
| 18 | 91212-PX5-018 | Damper - FRICTION (SECOND) | Damper - FRICTION (SECOND) |
| 30 | 91213-PT0-003 | Oil seal - 28X42X8 (ARAI) | Oil seal - 28X42X8 (ARAI) |
| 16 | 91215-PK5-000 | Oil seal - 16X27X14 | Oil seal - 16X27X14 |
| 16 | 91216-PH8-003 | Oil seal - 28X41X7 (ARAI) | Oil seal - 28X41X7 (ARAI) |
| 16 | 91216-PH8-005 | Oil seal - 28X41X7 (NOK) | Oil seal - 28X41X7 (NOK) |
| 28 | 91233-PT0-003 | Oil seal - 27X40X8 (NOK) | Oil seal - 27X40X8 (NOK) |
| 20 | 91249-P02-003 | Seal - POWER STEERING PUMP | Seal - POWER STEERING PUMP |
| 20 | 91249-PY3-003 | Seal - POWER STEERING PUMP (NOK) | Seal - POWER STEERING PUMP (NOK) |
| 21 | 91260-SR3-003 | Seal - HALF SHAFT OUTER(NOK) | Seal - HALF SHAFT OUTER(NOK) |
| 21 | 91260-SR3-004 | Seal - HALF SHAFT OUTER (ARAI) | Seal - HALF SHAFT OUTER (ARAI) |
| 28 | 91301-P2F-A01 | O-ring - 7.3X2.2 (NOK) | O-ring - 7.3X2.2 (NOK) |
| 28 | 91301-PM7-003 | O-ring - 7.3X2.2 (ARAI) | O-ring - 7.3X2.2 (ARAI) |
| 29 | 91301-PR3-003 | O-ring - 23.8X1.9 | O-ring - 23.8X1.9 |
| 19 | 91301-PT0-003 | O-ring - 29.7X2.5 (ARAI) | O-ring - 29.7X2.5 (ARAI) |
| 19 | 91301-PT0-004 | O-ring - 29.7X2.5 (NOK) | O-ring - 29.7X2.5 (NOK) |
| 32 | 91301-SD9-000 | O-ring - 2.3X24.5 | O-ring - 2.3X24.5 |
| 30 | 91303-PK2-005 | O-ring (7.5X1.5) | O-ring (7.5X1.5) |
| 38 | 91304-PA6-003 | O-ring - 7.8X1.9 | O-ring - 7.8X1.9 |
| 14 | 91304-PE2-005 | O-ring - 15.8X1.9 | O-ring - 15.8X1.9 |
| 21 | 91304-PT0-000 | O-ring - 14.8X1.9 | O-ring - 14.8X1.9 |
| 20 | 91307-611-000 | O-ring (13.5X1.4) | O-ring (13.5X1.4) |
| 20 | 91307-PH7-660 | O-ring (13.5X1.4) | O-ring (13.5X1.4) |
| 45 | 91307-PK2-005 | O-ring - 9.5X1.5(HONDA KIKAKI) | O-ring - 9.5X1.5(HONDA KIKAKI) |
| 21 | 91307-PN3-000 | O-ring,17.8x1.4 | O-ring,17.8x1.4 |
| 21 | 91307-PN4-000 | O-ring - 17.5X1.4 | O-ring - 17.5X1.4 |
| 29 | 91309-PJ7-010 | O-ring - 11.5X3.5 | O-ring - 11.5X3.5 |
| 22 | 91313-611-010 | O-ring - 23.5X2 | O-ring - 23.5X2 |
| 30 | 91313-PC9-003 | O-ring - 9X2.3(NOK) | O-ring - 9X2.3(NOK) |
| 23 | 91314-PH7-003 | O-ring 31.2X4.1 (NOK) | O-ring 31.2X4.1 (NOK) |
| 23 | 91317-P02-003 | O-ring - 5.8X1.9 (NOK) | O-ring - 5.8X1.9 (NOK) |
| 44 | 91318-PT0-003 | O-ring - 9.8X1.9 (NOK) | O-ring - 9.8X1.9 (NOK) |
| 41 | 91323-PH7-003 | Packing - BEARING CAP BRIDGE (ARAI) | Packing - BEARING CAP BRIDGE (ARAI) |
| 24 | 91345-PY3-000 | O-ring - 13.0X1.9 | O-ring - 13.0X1.9 |
| 25 | 91346-PY3-000 | O-ring - 22.1X1.9 | O-ring - 22.1X1.9 |
| 26 | 91347-PY3-000 | O-ring - 16.8X1.9 | O-ring - 16.8X1.9 |
| 27 | 91348-PY3-000 | O-ring - 54.0X1.9 | O-ring - 54.0X1.9 |
| 28 | 91349-PY3-000 | O-ring - 68.5X1.9 | O-ring - 68.5X1.9 |
| 44 | 91352-SF4-951 | O-ring - 9.8X1.9 (NOK) | O-ring - 9.8X1.9 (NOK) |
| 45 | 91362-SE0-951 | O-ring - 45.5X2 (ARAI) | O-ring - 45.5X2 (ARAI) |
| 45 | 91362-SE0-952 | O-ring - 45.5X2 (NOK) | O-ring - 45.5X2 (NOK) |
| 39 | 91370-SM4-003 | O-ring - 11X1.9 (NOK) | O-ring - 11X1.9 (NOK) |
| 39 | 91370-SM4-004 | O-ring - 11X1.9 (ARAI) | O-ring - 11X1.9 (ARAI) |
| 12 | 91405-679-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
| 11 | 91405-PH7-003 | Clamp - TUBE (D15) | Clamp - TUBE (D15) |
| 8 | 91405-PK1-003 | Clip, WATER HOSE, 24MM | Clip, WATER HOSE, 24MM |
| 12 | 91405-PM5-004 | Clamp - TUBE (D17) | Clamp - TUBE (D17) |
| 40 | 91405-SS0-003 | Clamp - TUBE (D21) | Clamp - TUBE (D21) |
| 34 | 91406-SA7-931 | Clamp - FUEL HOSE, 15.5MM | Clamp - FUEL HOSE, 15.5MM |
| 34 | 91406-SL0-931 | Clamp - FUEL HOSE, 15.5MM | Clamp - FUEL HOSE, 15.5MM |
| 41 | 91410-SA1-950 | Clip - SENSOR HOSE | Clip - SENSOR HOSE |
| 27 | 91415-PT0-013 | Clip - CORD | Clip - CORD |
| 35 | 91462-SA5-950 | Clamp d - 19MM | Clamp d - 19MM |
| 32 | 91501-SL4-003 | Clip - FR. COWL | Clip - FR. COWL |
| 33 | 91501-SS0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 46 | 91502-SP0-003 | Clip - BUMPER FACE | Clip - BUMPER FACE |
| 47 | 91503-SP0-003 | Clip A | Clip A |
| 47 | 91503-SP0-013 | Clip A - BUMPER | Clip A - BUMPER |
| 34 | 91503-SS0-003 | Holder - ROD | Holder - ROD |
| 21 | 91504-SE3-920 | Clip - SLIDE ROOF DRAIN TUBE | Clip - SLIDE ROOF DRAIN TUBE |
| 22 | 91504-SS0-003 | Clip - SLIDE ROOF DRAIN TUBE | Clip - SLIDE ROOF DRAIN TUBE |
| 48 | 91505-SS0-003 | Clip - SPACER | Clip - SPACER |
| 46 | 91506-PT0-003 | Band - ENGINE WIRE HARNESS UP LOCK (GRAY) | Band - ENGINE WIRE HARNESS UP LOCK (GRAY) |
| 24 | 91506-SS0-013 | Clip - WIRE & WASHER TUBE | Clip - WIRE & WASHER TUBE |
| 26 | 91507-693-003 | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) | Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
| 48 | 91507-PT3-A01 | Band - WIRE HARNESS (BLACK) (90.4MM) | Band - WIRE HARNESS (BLACK) (90.4MM) |
| 25 | 91507-SS0-003 | Clip - OFFSET, 30 (8MM) (BLACK) | Clip - OFFSET, 30 (8MM) (BLACK) |
| 26 | 91509-SA5-003 | Clip - OFFSET (45)(GRAY)(57MM) | Clip - OFFSET (45)(GRAY)(57MM) |
| 26 | 91512-SE0-003 | Clip - WASHER TUBE | Clip - WASHER TUBE |
| 21 | 91512-SR3-004 | Clip - TUBULAR | Clip - TUBULAR |
| 15 | 91512-SX0-003 | Clip - INNER FENDER CLIP | Clip - INNER FENDER CLIP |
| 35 | 91513-SE0-003 | Clip - HOOD SEAL | Clip - HOOD SEAL |
| 22 | 91513-SM4-000 | Clip - SIDE SILL UPPER GARNISH | Clip - SIDE SILL UPPER GARNISH |
| 36 | 91515-SM4-003 | Clip - ANCHOR | Clip - ANCHOR |
| 23 | 91523-SS0-003 | Clip - DOOR MOLDING | Clip - DOOR MOLDING |
| 38 | 91524-SE0-003 | Clip - COWL TOP | Clip - COWL TOP |
| 8 | 91525-SS0-003 | Clip d - FR. WINDSHIELD SIDE | Clip d - FR. WINDSHIELD SIDE |
| 9 | 91528-SS0-003 | Clip A - FR. WINDSHIELD SIDE | Clip A - FR. WINDSHIELD SIDE |
| 10 | 91529-SS0-003 | Clip b - FR. WINDSHIELD SIDE | Clip b - FR. WINDSHIELD SIDE |
| 27 | 91530-SE0-003 | Clip A - DOOR WEATHERSTRIP | Clip A - DOOR WEATHERSTRIP |
| 28 | 91530-SH4-003 | Clip - DOOR WEATHERSTRIP | Clip - DOOR WEATHERSTRIP |
| 11 | 91530-SS0-003 | Clip c - FR. WINDSHIELD SIDE | Clip c - FR. WINDSHIELD SIDE |
| 7 | 91531-SS0-003 | Holder - RR. LOWER MOLDING | Holder - RR. LOWER MOLDING |
| 8 | 91532-SS0-003 | Holder - RR. WINDSHIELD GLASS | Holder - RR. WINDSHIELD GLASS |
| 22 | 91535-SS0-003 | Clip - BUMPER EMBLEM | Clip - BUMPER EMBLEM |
| 3 | 91536-SS0-J01 | Fastener a - WINDSHIELD | Fastener a - WINDSHIELD |
| 7 | 91538-SS0-J01 | Fastener c - RR. WINDSHIELD | Fastener c - RR. WINDSHIELD |
| 27 | 91539-SS0-003 | Clip - TUBE WASHER | Clip - TUBE WASHER |
| 18 | 91540-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) | Clip - HARNESS BAND (NATURAL) (145.2MM) |
| 14 | 91542-SS0-003 | Holder - FR. WINDSHIELD GLASS (NATURAL) | Holder - FR. WINDSHIELD GLASS (NATURAL) |
| 28 | 91545-SV4-003 | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) | Clip - HARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
| 21 | 91546-SS0-003 | Plug - BLIND | Plug - BLIND |
| 29 | 91547-SF4-003 | Band - WIRE HARNESS (BLUE) (123.5MM) | Band - WIRE HARNESS (BLUE) (123.5MM) |
| 30 | 91547-SH3-003 | Clip - BAND(NATURAL)(160MM) | Clip - BAND(NATURAL)(160MM) |
| 22 | 91547-SM4-003 | Cap - INSULATOR | Cap - INSULATOR |
| 36 | 91549-SE0-003 | Holder - DRAIN HOSE | Holder - DRAIN HOSE |
| 9 | 91551-SD5-003 | Clamp - HEATER | Clamp - HEATER |
| 20 | 91551-SW5-003 | Clip - HARNESS BAND (BROWN) (151MM) | Clip - HARNESS BAND (BROWN) (151MM) |
| 33 | 91552-SS0-003 | Clip - WIRE HARNESS (M5) (BROWN) (93.5MM) | Clip - WIRE HARNESS (M5) (BROWN) (93.5MM) |
| 10 | 91553-SM4-003 | Clamp - HEATER HOSE (24MM & 39MM) | Clamp - HEATER HOSE (24MM & 39MM) |
| 34 | 91553-SS0-003 | Clip - HARNESS (3 CONNECT) (BLACK) | Clip - HARNESS (3 CONNECT) (BLACK) |
| 28 | 91554-SH3-003 | Band - WIRE HARNESS (NATURAL) (100.5MM) | Band - WIRE HARNESS (NATURAL) (100.5MM) |
| 11 | 91555-SM4-003 | Clip - COUPLER (RED) | Clip - COUPLER (RED) |
| 37 | 91556-SM4-003 | Clip - BAND (BLACK) (100MM) | Clip - BAND (BLACK) (100MM) |
| 39 | 91557-SS0-003 | Holder - COUPLER (VIOLET) | Holder - COUPLER (VIOLET) |
| 39 | 91558-SE3-003 | Clip - HOOD WIRE | Clip - HOOD WIRE |
| 56 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | CLIP, DOOR LINING (NATURAL) |
| 56 | 91560-SP0-003 | Clip - DOOR LINING (GRAY) | Clip - DOOR LINING (GRAY) |
| 43 | 91572-SM4-003 | Clip - WIRE HARNESS | Clip - WIRE HARNESS |
| 44 | 91580-SM4-003 | Clip - COUPLER(ORANGE) | Clip - COUPLER(ORANGE) |
| 21 | 91584-SM4-003 | Clip - CABLE BAND (BLACK) | Clip - CABLE BAND (BLACK) |
| 37 | 91591-SS0-000 | Clip b - BRACKET | Clip b - BRACKET |
| 38 | 91592-SS0-000 | Clip c - BRACKET | Clip c - BRACKET |
| 39 | 91593-SS0-A01 | Clamp - PURGE HOSE | Clamp - PURGE HOSE |
| 46 | 91594-SS0-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 40 | 91595-SM4-003 | Clip b - FUEL PIPE | Clip b - FUEL PIPE |
| 41 | 91595-SS0-003 | Clip b - FUEL PIPE | Clip b - FUEL PIPE |
| 42 | 91596-SM4-931 | Clamp c - FUEL PIPE | Clamp c - FUEL PIPE |
| 47 | 91597-SS0-003 | Clip - FUEL PIPE | Clip - FUEL PIPE |
| 43 | 91598-SM4-931 | Clamp b - FUEL PIPE | Clamp b - FUEL PIPE |
| 44 | 91599-SM4-931 | Clamp a - FUEL PIPE | Clamp a - FUEL PIPE |
| 48 | 91601-SH3-013 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
| 49 | 91601-SS0-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
| 50 | 91603-SS0-003 | Clip - GRILLE SETTING | Clip - GRILLE SETTING |
| 13 | 91606-SK7-003 | Plug - BLIND, 25MM | Plug - BLIND, 25MM |
| 14 | 91610-SD4-000 | Plug - HOLE, 28MM | Plug - HOLE, 28MM |
| 16 | 91611-SM4-003 | Plug - FLOOR HOLE, 25MM | Plug - FLOOR HOLE, 25MM |
| 17 | 91611-SS0-003 | Plug - HOLE, 25MM | Plug - HOLE, 25MM |
| 12 | 91613-SE0-003 | Grommet - SUB FRAME, 15MM | Grommet - SUB FRAME, 15MM |
| 19 | 91615-SA5-000 | Grommet - HOLE, 25MM | Grommet - HOLE, 25MM |
| 24 | 91620-SM4-003 | Grommet - WIPER MOTOR (BLACK) | Grommet - WIPER MOTOR (BLACK) |
| 31 | 91623-SM2-003 | Grommet - GLASS GUIDE | Grommet - GLASS GUIDE |
| 35 | 91626-SP0-003 | Grommet - SCREW, 5MM | Grommet - SCREW, 5MM |
| 38 | 91635-SM4-003 | Grommet - SCREW, 5MM (BLACK) | Grommet - SCREW, 5MM (BLACK) |
| 32 | 91640-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 23 | 91641-SH3-013 | Grommet assy, GARNISH | Grommet assy, GARNISH |
| 33 | 91641-SM4-003 | Grommet - SCREW, 4MM | Grommet - SCREW, 4MM |
| 45 | 91786-SR3-003 | Bar - JOINT (10P) | Bar - JOINT (10P) |
| 29 | 91902-SB2-003 | Cushion - WIRE HARNESS(50X100) | Cushion - WIRE HARNESS(50X100) |
