Accelerator pedal (LH) 3 / 20

#	OEM	BA4	BA8
6	17812-SA7-010	Washer - ACCELERATOR PEDAL	Washer - ACCELERATOR PEDAL
9	17816-SF1-000	Cover - ACCELERATOR PEDAL	Cover - ACCELERATOR PEDAL
19	17921-SA4-730	Seal - THROTTLE CABLE	Seal - THROTTLE CABLE

Air cleaner (PGM-F1; 2) 1 / 45

#	OEM	BA4	BA8
44	90149-SA0-003	Bolt - BUMPER	Bolt - BUMPER

Air conditioner (CONDENSER) 5 / 18

#	OEM	BA4	BA8
13	80175-SE0-000	Mount - CONDENSER	Mount - CONDENSER
15	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
16	90041-PD2-004	Nut - SPECIAL, 5MM (MITSUBA)	Nut - SPECIAL, 5MM (MITSUBA)
16	90311-MB6-003	Nut toothed 5mm	Nut toothed 5mm
17	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)	Washer - PLAIN, 7MM (MITSUBA)

Air conditioner (UNIT) 7 / 29

#	OEM	BA4	BA8
1	32152-SD4-000	Separator - WIRE HARNESS (GRAY)	Separator - WIRE HARNESS (GRAY)
5	39795-SB2-003	Relay assy - POWER (4P) (MITSUBA) (RC-2201)	Relay assy - POWER (4P) (MITSUBA) (RC-2201)
24	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
25	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
26	90137-SF1-000	Bolt-washer - 6X25	Bolt-washer - 6X25
28	90155-SE0-003	Screw - TAPPING, 6X20	Screw - TAPPING, 6X20
29	90659-692-000	Clamp - CASE	Clamp - CASE

Alternator (ND) 5 / 29

#	OEM	BA4	BA8
16	31138-PD1-004	Cover - BEARING	Cover - BEARING
18	31142-PD1-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
20	31145-PD1-004	Bolt - STUD, 6X68	Bolt - STUD, 6X68
24	31150-PD6-024	Regulator assy	Regulator assy
25	90231-PD1-014	Nut-washer - 5MM	Nut-washer - 5MM

Auto cruise (2) 12 / 27

#	OEM	BA4	BA8
4	36522-PC1-004	O-ring - HITACHI	O-ring - HITACHI
6	36524-PC1-004	Screw - TAPPING (HITACHI)	Screw - TAPPING (HITACHI)
7	36525-PC1-004	Filter - HITACHI	Filter - HITACHI
8	36526-PC1-004	Paper - FILTER (HITACHI)	Paper - FILTER (HITACHI)
10	36528-PT3-A00	Cover - FILTER (HITACHI)	Cover - FILTER (HITACHI)
11	36529-PC1-014	Drain - HITACHI	Drain - HITACHI
12	36600-PD2-000	Grommet - ACTUATOR VENT TUBE	Grommet - ACTUATOR VENT TUBE
13	36612-PC6-000	Support comp - WIRE	Support comp - WIRE
15	36615-PJ5-003	Clamp - TUBE, 4.5(NATURAL)	Clamp - TUBE, 4.5(NATURAL)
16	36619-PC6-004	Rubber - MOUNTING	Rubber - MOUNTING
23	90526-PC1-000	Collar - DISTANCE	Collar - DISTANCE
24	90528-PC1-000	Washer - 16X6.5X1.0	Washer - 16X6.5X1.0

Battery/ignition coil 2 / 19

#	OEM	BA4	BA8
14	31542-SA5-666	Plug - VENT (MF) (FURUKAWA)	Plug - VENT (MF) (FURUKAWA)
14	31542-SA5-665	Plug - VENT (MF) (PANASONIC)	Plug - VENT (MF) (PANASONIC)

Body structure components (2) 1 / 1

#	OEM	BA4	BA8
30	90852-671-003	Plug - HOLE	Plug - HOLE

Body structure components (3) 1 / 3

#	OEM	BA4	BA8
28	70494-SE0-000	Spring - FUEL LID OPENER	Spring - FUEL LID OPENER

Brake master cylinder 6 / 14

#	OEM	BA4	BA8
4	46135-SE3-013	Guide assy - PISTON	Guide assy - PISTON
7	57562-SF1-003	Circlip	Circlip
8	46185-SE0-003	Seal - ROD	Seal - ROD
12	46666-SE3-013	Filter - MASTER CYLINDER	Filter - MASTER CYLINDER
13	46669-SE3-003	Seal - RESERVE TANK	Seal - RESERVE TANK
14	57173-SB0-801	O-ring - CONNECTOR	O-ring - CONNECTOR

Brake pedal/clutch pedal (LH) 8 / 32

#	OEM	BA4	BA8
1	36750-SE0-013	Switch assy - STOP & CRUISE (TEC)	Switch assy - STOP & CRUISE (TEC)
8	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
16	46545-SA5-000	Cover, Pedal	Cover, Pedal
17	46545-SE0-980	Cover - BRAKE PEDAL	Cover - BRAKE PEDAL
27	46981-SD4-930	Bush a - CLUTCH ASSISTANT	Bush a - CLUTCH ASSISTANT
28	46982-SD4-930	Bush b - CLUTCH ASSISTANT	Bush b - CLUTCH ASSISTANT
30	75891-611-000	Cover - DOOR SWITCH	Cover - DOOR SWITCH
31	90212-671-005	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Brake pipe/hose (1) 4 / 28

#	OEM	BA4	BA8
11	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)	Grommet a - BRAKE PIPE (BLACK)
26	46462-SE0-000	Bolt - OIL	Bolt - OIL
27	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
30	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Bumpers (LH; 2) 4 / 38

#	OEM	BA4	BA8
32	90110-SE7-000	Bolt-washer - 8X21	Bolt-washer - 8X21
34	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
38	90303-SA5-003	Nut - FR. COMBINATION LIGHT	Nut - FR. COMBINATION LIGHT
41	90324-SM4-000	Nut - SUSPENSION, 5MM	Nut - SUSPENSION, 5MM

Camshaft/timing belt (PGM-FI) 4 / 25

#	OEM	BA4	BA8
17	90031-PT0-003	Bolt-washer - 8X22	Bolt-washer - 8X22
17	90032-ZW5-003	Bolt-washer, 8x22	Bolt-washer, 8x22
20	90501-MB7-610	Washer - 10.3X25	Washer - 10.3X25
21	90741-657-000	Key - 25.4X13	Key - 25.4X13

Change lever 17 / 32

#	OEM	BA4	BA8
7	54110-SF1-003	Seat - CHANGE LEVER BALL	Seat - CHANGE LEVER BALL
11	54114-SM4-003	Guide - CHANGE LEVER PIVOT	Guide - CHANGE LEVER PIVOT
13	54117-SM4-003	Rubber a - FLOATING	Rubber a - FLOATING
15	54118-SH9-000	Rubber b - FLOATING	Rubber b - FLOATING
16	54119-SM4-000	Collar - FLOATING	Collar - FLOATING
17	54210-SM4-000	Bush c - CHANGE LEVER	Bush c - CHANGE LEVER
18	54211-SD9-010	Ball - CUSHION	Ball - CUSHION
21	54340-SC2-000	Washer - WAVE	Washer - WAVE
22	54357-SF1-003	Plate - CHANGE WIRE	Plate - CHANGE WIRE
24	90101-SM4-900	Bolt-washer - 8X45	Bolt-washer - 8X45
25	90114-SA0-000	Nut - SELF-LOCK, 6MM	Nut - SELF-LOCK, 6MM
26	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
28	90557-SF1-000	Washer a - SELECT WIRE (1.6MM)	Washer a - SELECT WIRE (1.6MM)
29	90555-SF1-000	Washer a - SHIFT WIRE(1.6MM)	Washer a - SHIFT WIRE(1.6MM)
30	90556-SF1-000	Washer b - SHIFT WIRE (0.5MM)	Washer b - SHIFT WIRE (0.5MM)
31	90558-SF1-000	Washer b - SELECT WIRE (0.5MM)	Washer b - SELECT WIRE (0.5MM)
32	91301-SD9-000	O-ring - 2.3X24.5	O-ring - 2.3X24.5

Clutch housing 7 / 18

#	OEM	BA4	BA8
2	21101-PG2-000	Plate - NEEDLE BEARING SETTING	Plate - NEEDLE BEARING SETTING
4	21120-PG2-003	Magnet - TRANSMISSION	Magnet - TRANSMISSION
9	22841-PX5-000	Boot - RELEASE FORK	Boot - RELEASE FORK
11	90030-PG2-000	Bolt - SPECIAL, 6MM	Bolt - SPECIAL, 6MM
13	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)	Oil seal - 35X56X8 (ARAI)
14	91216-PH8-003	Oil seal - 28X41X7 (ARAI)	Oil seal - 28X41X7 (ARAI)
14	91216-PH8-005	Oil seal - 28X41X7 (NOK)	Oil seal - 28X41X7 (NOK)

Clutch master cylinder 20 / 37

#	OEM	BA4	BA8
1	43352-567-000	Screw - BLEEDER	Screw - BLEEDER
2	43353-548-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
7	46182-500-013	Circlip	Circlip
8	46184-611-000	Dust seal - MASTER CYLINDER	Dust seal - MASTER CYLINDER
9	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
10	46512-SB2-000	Pin - PEDAL	Pin - PEDAL
14	46926-SF1-003	Piston assy.	Piston assy.
16	46928-SF1-000	Seal - CLUTCH MASTER CYLINDER	Seal - CLUTCH MASTER CYLINDER
17	46472-SM4-000	Packing - OIL BOLT	Packing - OIL BOLT
19	46932-SD4-003	Piston - SLAVE CYLINDER	Piston - SLAVE CYLINDER
20	46933-SD4-013	Cup a - PISTON	Cup a - PISTON
21	46934-SD4-003	Cup b - PISTON	Cup b - PISTON
23	46937-SD4-003	Boot - SLAVE CYLINDER	Boot - SLAVE CYLINDER
24	46938-SD4-003	Rod - PUSH	Rod - PUSH
28	46952-SD4-003	Joint - TUBE	Joint - TUBE
29	46953-SD4-003	Packing	Packing
31	46963-SD4-020	Bolt - CLUTCH OIL	Bolt - CLUTCH OIL
38	46972-SD4-003	Tank - CLUTCH FLUID	Tank - CLUTCH FLUID
40	46973-SD4-003	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
41	46975-SD4-003	Seal - RESERVE TANK	Seal - RESERVE TANK

Clutch/torque converter 5 / 12

#	OEM	BA4	BA8
8	90011-PH3-000	Bolt - FLANGE, 12MM	Bolt - FLANGE, 12MM
9	90023-PA9-000	Bolt - SPECIAL	Bolt - SPECIAL
10	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)
11	90429-PC6-900	Washer - 40X86X2	Washer - 40X86X2
12	91302-639-000	O-ring - 32X1.9	O-ring - 32X1.9

Combination meter (2) 1 / 13

#	OEM	BA4	BA8
12	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12

Combination meter components (2) 2 / 27

#	OEM	BA4	BA8
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	35506-SA5-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W

Console 5 / 15

#	OEM	BA4	BA8
1	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
21	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
23	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
26	90666-SD4-003	Clip - FITTING	Clip - FITTING
31	39600-SW3-505	LIGHTER ASSYCIGA	LIGHTER ASSYCIGA

Control wire 3 / 17

#	OEM	BA4	BA8
11	90001-PA9-000	Bolt - HEX., 6MM	Bolt - HEX., 6MM
14	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
15	90436-PA9-000	Washer - LOCK, 5MM	Washer - LOCK, 5MM

Countershaft 1 / 43

#	OEM	BA4	BA8
24	91307-PA9-003	O-ring 31.2X1.9 (ARAI)	O-ring 31.2X1.9 (ARAI)

Countershaft/gear 7 / 23

#	OEM	BA4	BA8
9	23921-PG1-000	Washer a - 40X54X1.96	Washer a - 40X54X1.96
10	23926-PG1-010	Washer - SPRING, 23MM	Washer - SPRING, 23MM
11	90202-PH8-000	Nut - HEX., 23MM	Nut - HEX., 23MM
12	90602-PG1-770	Ring - SNAP, 56MM	Ring - SNAP, 56MM
13	91003-PG2-008	Bearing - SPECIAL BALL (NTN)	Bearing - SPECIAL BALL (NTN)
14	91102-PG2-008	Bearing - NEEDLE, 25X56.4X19	Bearing - NEEDLE, 25X56.4X19
17	91211-PX5-008	Damper - FRICTION (LOW)	Damper - FRICTION (LOW)

Cylinder block/oil pan 12 / 32

#	OEM	BA4	BA8
5	11109-PK2-010	Seal - TIMING RUBBER	Seal - TIMING RUBBER
8	11126-PK1-003	Bolt - SEALING, 22MM	Bolt - SEALING, 22MM
16	12207-634-300	Washer - SEALING BOLT	Washer - SEALING BOLT
17	15140-PH3-000	Orifice assy - OIL CONTROL	Orifice assy - OIL CONTROL
18	15142-PH3-003	O-ring - 10.8X2.4 (ARAI)	O-ring - 10.8X2.4 (ARAI)
20	90002-PD2-000	Bolt - FLANGE, 8X16	Bolt - FLANGE, 8X16
22	90007-PK1-003	Bolt-washer - 11X121	Bolt-washer - 11X121
23	90009-PH1-000	Bolt - DRAIN PLUG, 14MM	Bolt - DRAIN PLUG, 14MM
25	90041-PA5-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
28	90715-PC6-000	Dowel pin - 13X20	Dowel pin - 13X20
29	91214-PC6-013	Oil seal - 80X100X10 (NOK)	Oil seal - 80X100X10 (NOK)
31	91323-PH7-003	Packing - BEARING CAP BRIDGE (ARAI)	Packing - BEARING CAP BRIDGE (ARAI)

Cylinder head cover 1 / 14

#	OEM	BA4	BA8
9	15613-PC6-000	Packing, Oil Filler	Packing, Oil Filler

Device control 5 / 17

#	OEM	BA4	BA8
5	36010-PA6-004	Joint - THREE WAY	Joint - THREE WAY
14	36138-PM1-G01	Filter assy - SOLENOID VALVE	Filter assy - SOLENOID VALVE
15	36145-PM4-004	Valve - CHECK	Valve - CHECK
19	37862-PJ0-601	Cap - IGNITION MIXTURE ADJUSTER SENSOR	Cap - IGNITION MIXTURE ADJUSTER SENSOR
23	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)

Differential 30 / 38

#	OEM	BA4	BA8
6	41355-PG1-000	Washer e - DIFFERENTIAL PINION THRUST(0.9MM)	Washer e - DIFFERENTIAL PINION THRUST(0.9MM)
6	41353-PG1-000	Washer c - DIFFERENTIAL PINION THRUST(0.8MM)	Washer c - DIFFERENTIAL PINION THRUST(0.8MM)
6	41356-PG1-000	Washer f - DIFFERENTIAL PINION THRUST(0.95MM)	Washer f - DIFFERENTIAL PINION THRUST(0.95MM)
6	41354-PG1-000	Washer d - DIFFERENTIAL PINION THRUST(0.85MM)	Washer d - DIFFERENTIAL PINION THRUST(0.85MM)
6	41357-PG1-000	Washer g - DIFFERENTIAL PINION THRUST(1.0MM)	Washer g - DIFFERENTIAL PINION THRUST(1.0MM)
6	41351-PG1-000	Washer a - DIFFERENTIAL PINION THRUST(0.7MM)	Washer a - DIFFERENTIAL PINION THRUST(0.7MM)
6	41352-PG1-000	Washer b - DIFFERENTIAL PINION THRUST(0.75MM)	Washer b - DIFFERENTIAL PINION THRUST(0.75MM)
8	41396-PX5-000	Shim p - 68MM (2.35)	Shim p - 68MM (2.35)
8	41391-PX5-000	Shim k - 68MM (2.20)	Shim k - 68MM (2.20)
8	41386-PX5-000	Shim f - 68MM (2.05)	Shim f - 68MM (2.05)
8	41381-PX5-000	Shim a - 68MM (1.90)	Shim a - 68MM (1.90)
8	41398-PX5-000	Shim r - 68MM (2.41)	Shim r - 68MM (2.41)
8	41393-PX5-000	Shim m - 68MM (2.26)	Shim m - 68MM (2.26)
8	41388-PX5-000	Shim h - 68MM (2.11)	Shim h - 68MM (2.11)
8	41383-PX5-000	Shim c - 68MM (1.96)	Shim c - 68MM (1.96)
8	41400-PX5-000	Shim t - 68MM (2.47)	Shim t - 68MM (2.47)
8	41395-PX5-000	Shim o - 68MM (2.32)	Shim o - 68MM (2.32)
8	41390-PX5-000	Shim j - 68MM (2.17)	Shim j - 68MM (2.17)
8	41385-PX5-000	Shim e - 68MM (2.02)	Shim e - 68MM (2.02)
8	41397-PX5-000	Shim q - 68MM (2.38)	Shim q - 68MM (2.38)
8	41392-PX5-000	Shim l - 68MM (2.23)	Shim l - 68MM (2.23)
8	41387-PX5-000	Shim g - 68MM (2.08)	Shim g - 68MM (2.08)
8	41382-PX5-000	Shim b - 68MM (1.93)	Shim b - 68MM (1.93)
8	41399-PX5-000	Shim s - 68MM (2.44)	Shim s - 68MM (2.44)
8	41394-PX5-000	Shim n - 68MM (2.29)	Shim n - 68MM (2.29)
8	41389-PX5-000	Shim i - 68MM (2.14)	Shim i - 68MM (2.14)
8	41384-PX5-000	Shim d - 68MM (1.99)	Shim d - 68MM (1.99)
12	90017-689-000	Bolt - SPECIAL, 10MM	Bolt - SPECIAL, 10MM
13	41371-PG2-000	Washer - THRUST, 37X55X1.5	Washer - THRUST, 37X55X1.5
15	91006-PX5-008	Bearing - TAPER, 40X68X22 (NTN)	Bearing - TAPER, 40X68X22 (NTN)

Distributor (PGM-FI) 1 / 18

#	OEM	BA4	BA8
5	30110-PA1-732	O-ring - 26.4X3.1 (TEC)	O-ring - 26.4X3.1 (TEC)

Door lining (2) 8 / 39

#	OEM	BA4	BA8
2	34257-SM4-000	Plate - COURTESY LIGHT	Plate - COURTESY LIGHT
4	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
45	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
48	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
51	90662-671-003	Grommet - SCREW, 5MM (WHITE)	Grommet - SCREW, 5MM (WHITE)
54	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
57	91530-SE0-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
57	90664-671-003	Clip - CANOE	Clip - CANOE

Door locks 4 / 26

#	OEM	BA4	BA8
14	72134-SM1-003	Bush - OUTSIDE HANDLE JOINT	Bush - OUTSIDE HANDLE JOINT
32	75411-634-000	Joint	Joint
34	75551-SF1-003	Holder - DOOR LOCK ROD	Holder - DOOR LOCK ROD
36	90111-SA0-000	Screw - TAPPING, 4X8	Screw - TAPPING, 4X8

Door panels 2 / 24

#	OEM	BA4	BA8
30	75760-SB2-003	Pin - DOOR CHECKER	Pin - DOOR CHECKER
32	90101-SE3-003	Bolt-washer - 8X23.5	Bolt-washer - 8X23.5

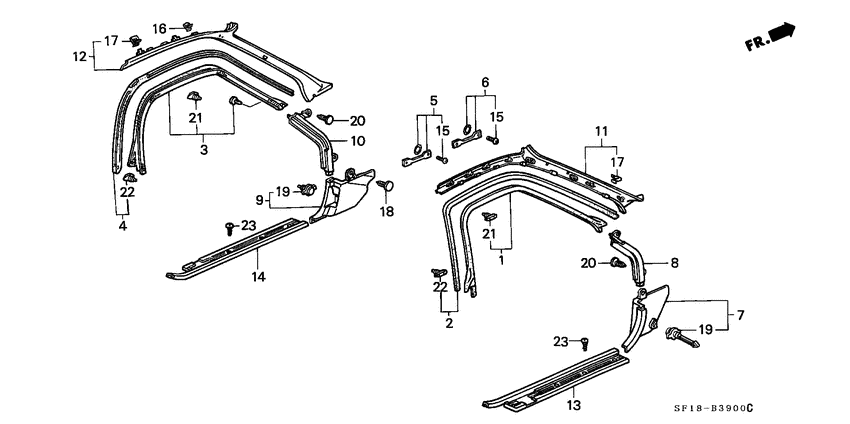

Door trim 3 / 12

#	OEM	BA4	BA8
17	90609-SG0-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH
21	91530-SE0-003	Clip A - DOOR WEATHERSTRIP	Clip A - DOOR WEATHERSTRIP
21	90664-671-003	Clip - CANOE	Clip - CANOE

Door windows 3 / 33

#	OEM	BA4	BA8
25	90011-896-000	Bolt - FLANGE, 6X8	Bolt - FLANGE, 6X8
27	90115-SG0-003	Bolt - FLANGE, 6MM	Bolt - FLANGE, 6MM
28	90120-SE3-003	Bolt - FLANGE, 6X12	Bolt - FLANGE, 6X12

Driveshaft/half shaft 9 / 25

#	OEM	BA4	BA8
8	44319-SE0-000	Set ring - 28X2.0	Set ring - 28X2.0
8	44319-S84-300	Set ring - 28X2.0	Set ring - 28X2.0
10	44328-SB0-300	Band - INBOARD BOOT	Band - INBOARD BOOT
11	44329-SB0-300	Band - DRIVESHAFT BOOT	Band - DRIVESHAFT BOOT
11	44352-SA2-300	Band - DAMPER WEIGHT	Band - DAMPER WEIGHT
13	44336-SB0-300	Ring a - STOPPER	Ring a - STOPPER
14	44338-SB0-300	Circlip - 26MM	Circlip - 26MM
22	90102-SF1-000	Bolt - HEX., 10X1.25	Bolt - HEX., 10X1.25
23	90165-SE0-000	Bolt - FLANGE, 10X37	Bolt - FLANGE, 10X37

Emblems 1 / 10

#	OEM	BA4	BA8
3	31511-SB2-671	Mark - BATTERY CAUTION (MAINTENANCE FREE)	Mark - BATTERY CAUTION (MAINTENANCE FREE)

Engine mounts 9 / 32

#	OEM	BA4	BA8
20	90166-SF1-010	Bolt-washer - 10X21	Bolt-washer - 10X21
22	90186-SF1-000	Bolt - FLANGE, 12X125	Bolt - FLANGE, 12X125
24	90173-SM4-000	Bolt - FLANGE, 12X60	Bolt - FLANGE, 12X60
25	90169-SM4-000	Bolt - FLANGE, 12X30	Bolt - FLANGE, 12X30
27	90438-SE0-000	Washer - TRAILING, 12MM	Washer - TRAILING, 12MM
28	90504-SB0-000	Washer - PLAIN, 12MM	Washer - PLAIN, 12MM
29	90506-SE0-000	Washer - PLAIN, 12MM	Washer - PLAIN, 12MM
30	90551-SB2-000	Washer - PLAIN, 10MM	Washer - PLAIN, 10MM
31	91613-SE0-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM

Engine sub cord/clamp 4 / 40

#	OEM	BA4	BA8
30	37750-PH2-014	Thermo unit - DENSO	Thermo unit - DENSO
33	90012-PC6-000	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)	Bolt - SPECIAL, 6X12 (+) (DACRO COATING)
37	91307-PK2-005	O-ring - 9.5X1.5(HONDA KIKAKI)	O-ring - 9.5X1.5(HONDA KIKAKI)
51	90075-PD3-000	Bolt - FLANGE, 10X43	Bolt - FLANGE, 10X43

Exhaust manifold 2 / 10

#	OEM	BA4	BA8
12	90010-PE2-900	Bolt - SPECIAL, 10X22	Bolt - SPECIAL, 10X22
18	90451-PE2-000	Washer - SPECIAL, 11X28	Washer - SPECIAL, 11X28

Exhaust pipe 3 / 16

#	OEM	BA4	BA8
15	18310-SB0-023	Finisher - EX. PIPE	Finisher - EX. PIPE
16	18393-SH3-S00	Gasket - PRE-CHAMBER (52.5MM-53.5MM)	Gasket - PRE-CHAMBER (52.5MM-53.5MM)
22	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Floor mat 1 / 9

#	OEM	BA4	BA8
11	90676-SB2-003	Clip - DASHBOARD INSULATOR	Clip - DASHBOARD INSULATOR

Front brake caliper (PGM-FI) 2 / 19

#	OEM	BA4	BA8
2	43353-SA0-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
2	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW

Front combination light (2) 4 / 14

#	OEM	BA4	BA8
2	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
7	33305-SH3-A01	Socket comp - GRAY	Socket comp - GRAY
11	34304-SH3-A01	Socket comp.	Socket comp.
12	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY

Front fenders 5 / 16

#	OEM	BA4	BA8
14	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20
15	90119-SE0-000	Bolt - FLANGE, 6MM	Bolt - FLANGE, 6MM
17	90139-SE0-003	Screw-washer - 5X25	Screw-washer - 5X25
19	90657-SB0-003	Clip, SPLASH SHIELD	Clip, SPLASH SHIELD
21	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Front seat 1 / 4

#	OEM	BA4	BA8
22	81163-SG0-A01	Seal - R. WALK-IN	Seal - R. WALK-IN

Front seat components (LH) 3 / 12

#	OEM	BA4	BA8
1	77208-SA5-003	Bush - NYLON (TS TECH)	Bush - NYLON (TS TECH)
2	77209-SB0-003	Washer - NYLON	Washer - NYLON
30	90134-SE3-003	Screw - TAPPING, 5X10	Screw - TAPPING, 5X10

Front shock absorber 5 / 25

#	OEM	BA4	BA8
12	51685-SH3-014	Plate - DUST COVER(SHOWA)	Plate - DUST COVER(SHOWA)
15	51689-SH3-004	Plate - BUMP STOP (SHOWA)	Plate - BUMP STOP (SHOWA)
17	51728-SB0-004	Collar - SHOCK ABSORBER MOUNTING (SHOWA)	Collar - SHOCK ABSORBER MOUNTING (SHOWA)
19	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
21	90304-SM4-000	Nut - FR. SHOCK ABSORBER FLANGE (10MM)	Nut - FR. SHOCK ABSORBER FLANGE (10MM)

Front stabilizer/front lower arm 4 / 24

#	OEM	BA4	BA8
2	51306-SM4-010	Bush - STABILIZER HOLDER	Bush - STABILIZER HOLDER
18	90117-SM4-003	Bolt - FR. SHOCK ABSORBER LOCK (10X44)	Bolt - FR. SHOCK ABSORBER LOCK (10X44)
22	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
24	90362-SF1-003	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM

Front windshield wiper (LH) 3 / 21

#	OEM	BA4	BA8
7	76524-SD4-003	Dust seal	Dust seal
8	76524-SE0-013	Dust seal	Dust seal
17	38472-SB0-671	Rubber - BLADE (475MM)	Rubber - BLADE (475MM)

Fuel Pump 5 / 15

#	OEM	BA4	BA8
4	17574-SE0-000	Packing - BASE	Packing - BASE
14	90020-PD6-000	Bolt - SEALING, 12MM	Bolt - SEALING, 12MM
15	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
19	91406-SA7-931	Clamp - FUEL HOSE, 15.5MM	Clamp - FUEL HOSE, 15.5MM
19	91406-SL0-931	Clamp - FUEL HOSE, 15.5MM	Clamp - FUEL HOSE, 15.5MM

Fuel pipe (2) 8 / 38

#	OEM	BA4	BA8
27	46380-SB0-000	Grommet a - BRAKE PIPE (BLACK)	Grommet a - BRAKE PIPE (BLACK)
29	90009-PE2-010	Bolt - SEALING, 6MM	Bolt - SEALING, 6MM
29	90009-RMX-010	Bolt,sealing 6mm	Bolt,sealing 6mm
30	90020-PD6-000	Bolt - SEALING, 12MM	Bolt - SEALING, 12MM
31	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
32	90430-PD6-003	Washer - SEALING, 6MM	Washer - SEALING, 6MM
37	91406-SA7-931	Clamp - FUEL HOSE, 15.5MM	Clamp - FUEL HOSE, 15.5MM
37	91406-SL0-931	Clamp - FUEL HOSE, 15.5MM	Clamp - FUEL HOSE, 15.5MM

Fuel tank 4 / 37

#	OEM	BA4	BA8
13	17652-SA5-000	Clip - FILLER TUBE	Clip - FILLER TUBE
20	17669-SD4-P00	Label - FUEL FILLER CAUTION (REGULAR GASOLINE)	Label - FUEL FILLER CAUTION (REGULAR GASOLINE)
32	90103-SB0-010	Nut - FLANGE, 5MM	Nut - FLANGE, 5MM
33	90114-SE0-000	Screw - TAPPING, 5X20	Screw - TAPPING, 5X20

Glove box 4 / 13

#	OEM	BA4	BA8
6	66418-SB2-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
7	66418-688-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
15	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
16	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Grommet 5 / 25

#	OEM	BA4	BA8
3	72206-SA5-000	Cap - FLOOR HOLE, 53MM	Cap - FLOOR HOLE, 53MM
5	72849-SA5-000	Insulator b - SIDE SILL HOLD	Insulator b - SIDE SILL HOLD
9	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
18	90852-671-003	Plug - HOLE	Plug - HOLE
20	90856-SA0-000	Plug - COATING HOLE, 25MM	Plug - COATING HOLE, 25MM

Headliner trim 4 / 20

#	OEM	BA4	BA8
1	15707-634-000	Clip - OIL DRAIN TUBE	Clip - OIL DRAIN TUBE
2	18534-634-670	Clip - AIR HOSE, 16MM	Clip - AIR HOSE, 16MM
27	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
29	91504-SE3-920	Clip - SLIDE ROOF DRAIN TUBE	Clip - SLIDE ROOF DRAIN TUBE

Heater blower 4 / 21

#	OEM	BA4	BA8
2	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
3	79191-SD4-003	Washer - LINK	Washer - LINK
4	79192-SD4-003	Bush - 6.7MM	Bush - 6.7MM
19	79195-SF1-003	Holder - ROD	Holder - ROD

Heater control 2 / 16

#	OEM	BA4	BA8
2	39383-SA5-000	Clamp - CONTROL CABLE	Clamp - CONTROL CABLE
18	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12

Heater duct 3 / 14

#	OEM	BA4	BA8
2	66871-611-000	Nut - CENTER PANEL	Nut - CENTER PANEL
19	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
21	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Heater unit (LH) 4 / 22

#	OEM	BA4	BA8
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
19	79191-SD4-003	Washer - LINK	Washer - LINK
20	79192-SD4-003	Bush - 6.7MM	Bush - 6.7MM
22	79195-SF1-003	Holder - ROD	Holder - ROD

Hood 7 / 34

#	OEM	BA4	BA8
17	74144-SE0-000	Cushion - HOOD	Cushion - HOOD
26	90106-SE1-000	Bolt-washer - 6X15	Bolt-washer - 6X15
29	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)
31	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
35	90670-SE0-003	Grommet - HOOD STAY	Grommet - HOOD STAY
39	91513-SE0-003	Clip - HOOD SEAL	Clip - HOOD SEAL
40	91558-SE3-003	Clip - HOOD WIRE	Clip - HOOD WIRE

Instrument panel (LH) 11 / 34

#	OEM	BA4	BA8
6	66418-SA5-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
8	66844-SA7-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
9	66856-SA0-660	Lock - FUSE PANEL	Lock - FUSE PANEL
10	66857-SA0-660	Spring - FUSE PANEL	Spring - FUSE PANEL
11	66871-611-000	Nut - CENTER PANEL	Nut - CENTER PANEL
48	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
49	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
50	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25
51	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
55	90662-671-003	Grommet - SCREW, 5MM (WHITE)	Grommet - SCREW, 5MM (WHITE)
56	90666-SD4-003	Clip - FITTING	Clip - FITTING

Intake manifold (PGM-FI) 8 / 27

#	OEM	BA4	BA8
3	16473-PD6-000	Cushion ring - INJECTOR (OTSUKA)	Cushion ring - INJECTOR (OTSUKA)
3	16473-P10-A01	Cushion ring - INJECTOR (NOK)	Cushion ring - INJECTOR (NOK)
8	16741-PG7-005	O-ring - PRESSURE REGULATOR	O-ring - PRESSURE REGULATOR
12	17113-PH3-300	Emblem - INTAKE MANIFOLD (PGM-FI)	Emblem - INTAKE MANIFOLD (PGM-FI)
21	90201-PD1-000	Nut a - SEALING, 12MM	Nut a - SEALING, 12MM
22	90428-PD6-003	Washer - SEALING, 12MM	Washer - SEALING, 12MM
23	91301-P2F-A01	O-ring - 7.3X2.2 (NOK)	O-ring - 7.3X2.2 (NOK)
24	91303-PK2-005	O-ring (7.5X1.5)	O-ring (7.5X1.5)

Interior light 3 / 12

#	OEM	BA4	BA8
7	34295-SA5-003	Bulb - 12V 3.4W) (DAIICHI	Bulb - 12V 3.4W) (DAIICHI
11	66871-611-000	Nut - CENTER PANEL	Nut - CENTER PANEL
12	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16

Knuckle 8 / 29

#	OEM	BA4	BA8
15	53546-SA0-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)
17	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
17	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
20	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
21	90305-SD4-003	Nut - SPINDLE (24MM)	Nut - SPINDLE (24MM)
22	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM
23	90363-SF1-000	Nut - CASTLE, 12MM	Nut - CASTLE, 12MM
26	90683-SF1-003	Circlip - FR. UPPER (MUSASHI)	Circlip - FR. UPPER (MUSASHI)

Main valve body 11 / 39

#	OEM	BA4	BA8
6	25145-PA9-010	Shaft - OIL PUMP GEAR	Shaft - OIL PUMP GEAR
10	27122-PX4-000	Cap - SHIFT VALVE (1-2)	Cap - SHIFT VALVE (1-2)
12	27256-PA9-000	Valve - RELIEF	Valve - RELIEF
13	27259-PK4-000	Spring - COOLER CHECK VALVE	Spring - COOLER CHECK VALVE
14	27263-PA9-000	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM
30	27623-PK4-000	Spring - LOCK UP SHIFT	Spring - LOCK UP SHIFT
31	27626-PX4-000	Valve - LOCK UP TIMING	Valve - LOCK UP TIMING
34	27728-PF4-000	Cap - REVERSE CONTROL VALVE	Cap - REVERSE CONTROL VALVE
35	27750-PL5-J01	Filter - SECONDARY BODY	Filter - SECONDARY BODY
37	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
40	91101-PF4-003	Roller - 3.5X21.8	Roller - 3.5X21.8

Mainshaft 6 / 42

#	OEM	BA4	BA8
1	22814-PF4-003	Ring - SEALING, 35MM	Ring - SEALING, 35MM
2	22814-PK4-003	Ring - SEALING, 29MM	Ring - SEALING, 29MM
17	91011-PG4-003	Bearing - NEEDLE, 32X38X20 (NTN)	Bearing - NEEDLE, 32X38X20 (NTN)
19	91017-PK4-003	Bearing - NEEDLE, 23X29X20	Bearing - NEEDLE, 23X29X20
20	91018-P56-003	Bearing - THRUST NEEDLE, 32X44X2 (NTN)	Bearing - THRUST NEEDLE, 32X44X2 (NTN)
26	91307-PA9-003	O-ring 31.2X1.9 (ARAI)	O-ring 31.2X1.9 (ARAI)

Mainshaft/gear 5 / 23

#	OEM	BA4	BA8
11	23646-PX5-000	Ring - BRAKE STOPPER	Ring - BRAKE STOPPER
13	23652-PB6-000	Spring - SYNCHRONIZER (50MM)	Spring - SYNCHRONIZER (50MM)
16	23927-PG2-A00	Washer - SPRING, 28MM	Washer - SPRING, 28MM
17	23928-PS1-000	Washer - 28MM	Washer - 28MM
19	90401-PG1-000	Washer - DRAIN PLUG, 10MM	Washer - DRAIN PLUG, 10MM

Master power 4 / 14

#	OEM	BA4	BA8
2	46151-SB2-003	Yoke - PUSH ROD (NISSIN)	Yoke - PUSH ROD (NISSIN)
3	46191-634-000	Gasket - MASTER CYLINDER BRACKET	Gasket - MASTER CYLINDER BRACKET
18	46512-SB2-000	Pin - PEDAL	Pin - PEDAL
20	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Mirror/sunvisor 1 / 11

#	OEM	BA4	BA8
30	90662-671-003	Grommet - SCREW, 5MM (WHITE)	Grommet - SCREW, 5MM (WHITE)

Oil filter/water pump (PGM-FI) 7 / 44

#	OEM	BA4	BA8
3	17130-PK1-003	Valve assy. - PCV	Valve assy. - PCV
6	17139-PK1-000	Grommet - PCV VALVE	Grommet - PCV VALVE
29	19516-PC1-000	Bolt - BREATHING WATER	Bolt - BREATHING WATER
33	90002-PD2-000	Bolt - FLANGE, 8X16	Bolt - FLANGE, 8X16
34	91314-PH7-003	O-ring 31.2X4.1 (NOK)	O-ring 31.2X4.1 (NOK)
36	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
36	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)

Oil pump 8 / 26

#	OEM	BA4	BA8
8	15231-PE0-000	Valve - RELIEF	Valve - RELIEF
9	15232-PG6-000	Spring - RELIEF VALVE	Spring - RELIEF VALVE
10	15233-PK1-000	Bolt - SEALING, 20MM	Bolt - SEALING, 20MM
13	15400-RTA-003	OIL FILTER (MAHLE TENNEX)	OIL FILTER (MAHLE TENNEX)
13	15400-PR3-003	Cartridge - OIL FILTER (TSUCHIYA)	Cartridge - OIL FILTER (TSUCHIYA)
18	90042-PR3-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
18	90041-PA5-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
28	90052-PK1-000	Bolt - FLANGE, 6X25	Bolt - FLANGE, 6X25

P.s. gear box components (4WS; LH) 9 / 89

#	OEM	BA4	BA8
3	53413-SD4-951	Spring - RACK GUIDE PRESSURE	Spring - RACK GUIDE PRESSURE
8	53501-SF1-950	Cover - PINION DUST	Cover - PINION DUST
13	53617-SF1-950	Port - ORIFICE	Port - ORIFICE
52	90693-SE0-951	Circlip - INTERNAL, 28MM	Circlip - INTERNAL, 28MM
56	91103-429-000	Dowel pin - 8X10	Dowel pin - 8X10
60	91352-SF4-951	O-ring - 9.8X1.9 (NOK)	O-ring - 9.8X1.9 (NOK)
60	91318-PT0-003	O-ring - 9.8X1.9 (NOK)	O-ring - 9.8X1.9 (NOK)
64	91362-SE0-951	O-ring - 45.5X2 (ARAI)	O-ring - 45.5X2 (ARAI)
64	91362-SE0-952	O-ring - 45.5X2 (NOK)	O-ring - 45.5X2 (NOK)

Parking brake 8 / 14

#	OEM	BA4	BA8
1	43471-SD2-930	Pin - BRAKE WIRE END	Pin - BRAKE WIRE END
4	47142-671-010	Knob - PARKING BRAKE PUSH ROD	Knob - PARKING BRAKE PUSH ROD
5	47143-SD4-300	Spring - PUSH ROD	Spring - PUSH ROD
8	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
10	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
11	47537-671-670	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD
15	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE
16	90705-SD2-931	Pin - SNAP, 6MM	Pin - SNAP, 6MM

Piston/crankshaft 9 / 36

#	OEM	BA4	BA8
4	13205-PH7-000	Nut - CONNECTING ROD	Nut - CONNECTING ROD
6	13211-PK2-751	BEARING A - CONNECTING ROD (BLUE) (DAIDO)	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
6	13216-PK2-751	Bearing f - CONNECTING ROD (PINK) (DAIDO)	Bearing f - CONNECTING ROD (PINK) (DAIDO)
6	13214-PK2-751	Bearing d - CONNECTING ROD (GREEN) (DAIDO)	Bearing d - CONNECTING ROD (GREEN) (DAIDO)
6	13213-PK2-751	Bearing c - CONNECTING ROD (BROWN) (DAIDO)	Bearing c - CONNECTING ROD (BROWN) (DAIDO)
6	13212-PK2-751	Bearing b - CONNECTING ROD (BLACK) (DAIDO)	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
6	13217-PK2-751	Bearing g - CONNECTING ROD (RED) (DAIDO)	Bearing g - CONNECTING ROD (RED) (DAIDO)
6	13215-PK2-751	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
7	13213-ME2-000	Bolt - CONNECTING ROD	Bolt - CONNECTING ROD

Power steering lines 6 / 61

#	OEM	BA4	BA8
1	90635-SM4-A01	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
1	90635-SM4-A02	Clip - OIL HOSE (MEIJI)	Clip - OIL HOSE (MEIJI)
2	53697-SB3-952	Cap - OIL TANK	Cap - OIL TANK
24	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM
67	91304-PA6-003	O-ring - 7.8X1.9	O-ring - 7.8X1.9
71	91462-SA5-950	Clamp d - 19MM	Clamp d - 19MM

Power steering pump/ speed sensor 2 / 39

#	OEM	BA4	BA8
33	91304-PT0-000	O-ring - 14.8X1.9	O-ring - 14.8X1.9
34	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2

R. side cover 14 / 43

#	OEM	BA4	BA8
9	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
12	24537-PA9-003	Stopper - PARKING BRAKE (1)	Stopper - PARKING BRAKE (1)
12	24539-PA9-003	Stopper - PARKING BRAKE (3)	Stopper - PARKING BRAKE (3)
12	24538-PA9-003	Stopper - PARKING BRAKE (2)	Stopper - PARKING BRAKE (2)
14	24553-PN6-000	Roller - PARKING BRAKE	Roller - PARKING BRAKE
15	24555-PN6-000	Pin - ROLLER, 6MM	Pin - ROLLER, 6MM
23	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
24	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
25	90471-580-000	Packing - 8MM	Packing - 8MM
28	90701-639-000	Dowel pin - 8X55	Dowel pin - 8X55
30	91301-PC9-003	O-ring - 7.7X2.3 (ARAI)	O-ring - 7.7X2.3 (ARAI)
31	91305-PC9-003	O-ring - 34X1.9 (ARAI)	O-ring - 34X1.9 (ARAI)
33	91311-PA9-004	O-ring - 7.7X1.9 (NOK)	O-ring - 7.7X1.9 (NOK)
35	91344-PC9-004	O-ring - 29X2.4 (NOK)	O-ring - 29X2.4 (NOK)

Radiator (ND) 9 / 17

#	OEM	BA4	BA8
2	19011-PH1-621	Bolt - DRAIN (DENSO)	Bolt - DRAIN (DENSO)
3	19012-671-300	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
4	19014-PK1-003	Clip - HARNESS	Clip - HARNESS
11	32175-647-920	Clip - WIRE HARNESS	Clip - WIRE HARNESS
11	30701-883-000	Clip, high tension cord (8mm)	Clip, high tension cord (8mm)
12	90041-PH2-003	Screw-washer - 4X10 (DENSO)	Screw-washer - 4X10 (DENSO)
13	90042-PH2-003	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
13	90042-PAA-A01	Bolt-washer - 6X16 (DENSO)	Bolt-washer - 6X16 (DENSO)
14	90043-PD2-003	Nut - HEX., 5MM (DENSO)	Nut - HEX., 5MM (DENSO)

Radiator (TOYO) 8 / 14

#	OEM	BA4	BA8
2	19011-PH2-004	Cock - DRAIN (T.RAD)	Cock - DRAIN (T.RAD)
3	19012-PD2-004	Packing - DRAIN (T.RAD)	Packing - DRAIN (T.RAD)
5	19017-PK1-004	Clip - HARNESS(T.RAD)	Clip - HARNESS(T.RAD)
7	19020-PT0-004	Fan comp - COOLING (MITSUBA)	Fan comp - COOLING (MITSUBA)
12	90041-PG6-004	Nut - HEX., 5MM(MITSUBA)	Nut - HEX., 5MM(MITSUBA)
13	90042-PK1-004	Bolt-washer - 6X16	Bolt-washer - 6X16
14	90050-PK1-004	Screw-washer - 4X12(T.RAD)	Screw-washer - 4X12(T.RAD)
15	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)	Washer - PLAIN, 7MM (MITSUBA)

Radiator hose 8 / 42

#	OEM	BA4	BA8
17	19511-PH7-003	Clip, HOSE(36.5MM) (CHUO SPRING)	Clip, HOSE(36.5MM) (CHUO SPRING)
25	25216-PK1-900	Clamp - ATF HOSE (BLACK)	Clamp - ATF HOSE (BLACK)
28	25951-639-000	Bolt - JOINT	Bolt - JOINT
29	36600-PD2-000	Grommet - ACTUATOR VENT TUBE	Grommet - ACTUATOR VENT TUBE
35	90003-PG7-660	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)
37	90146-SA7-000	Bolt-washer - 6X16 (DACRO COATING)	Bolt-washer - 6X16 (DACRO COATING)
40	91307-611-000	O-ring (13.5X1.4)	O-ring (13.5X1.4)
40	91307-PH7-660	O-ring (13.5X1.4)	O-ring (13.5X1.4)

Rear brake caliper 13 / 38

#	OEM	BA4	BA8
6	43223-SD2-932	BEARING A	BEARING A
7	43224-SD2-931	Spring b - ADJUSTING	Spring b - ADJUSTING
9	43228-SD2-933	Shaft a	Shaft a
10	43229-SD2-931	Rod	Rod
15	43235-SD2-931	Pin a	Pin a
16	43236-S04-003	Spacer	Spacer
17	43238-SF1-003	Ring - RETAINING	Ring - RETAINING
18	43241-SF1-003	Guide - SPRING	Guide - SPRING
20	43243-SD2-931	Nut - PARKING	Nut - PARKING
25	43248-SD2-933	Shaft b	Shaft b
32	43353-SA0-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
32	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
34	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22

Rear brake disk 5 / 29

#	OEM	BA4	BA8
21	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
22	90113-SA0-025	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
24	90215-SB0-003	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)	Nut - SELF-LOCK, 12MM (SATO RASHI) (CLINCH)
26	90321-SE0-000	Nut - UPPER BALL PIN, 10MM	Nut - UPPER BALL PIN, 10MM
27	90363-SF1-000	Nut - CASTLE, 12MM	Nut - CASTLE, 12MM

Rear p.s. gear box (4WS) 1 / 15

#	OEM	BA4	BA8
13	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)

Rear seat 1 / 6

#	OEM	BA4	BA8
3	78163-SF1-000	Damper - RR. SEAT	Damper - RR. SEAT

Rear shock absorber 3 / 16

#	OEM	BA4	BA8
2	51689-SH3-004	Plate - BUMP STOP (SHOWA)	Plate - BUMP STOP (SHOWA)
19	90364-SG0-004	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)	Nut - SELF-LOCK, 10MM (SHOWA) (NYLON)
21	90304-SM4-000	Nut - FR. SHOCK ABSORBER FLANGE (10MM)	Nut - FR. SHOCK ABSORBER FLANGE (10MM)

Rear stabilizer/rear lower arm 7 / 35

#	OEM	BA4	BA8
30	90173-SM4-000	Bolt - FLANGE, 12X60	Bolt - FLANGE, 12X60
32	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
38	90303-SF1-003	Nut - SELF-LOCK, 12MM	Nut - SELF-LOCK, 12MM
40	90362-SF1-003	Nut - SELF-LOCK, 8MM	Nut - SELF-LOCK, 8MM
42	90438-SE0-000	Washer - TRAILING, 12MM	Washer - TRAILING, 12MM
45	90683-SF1-003	Circlip - FR. UPPER (MUSASHI)	Circlip - FR. UPPER (MUSASHI)
46	91613-SE0-003	Grommet - SUB FRAME, 15MM	Grommet - SUB FRAME, 15MM

Rear tray 4 / 12

#	OEM	BA4	BA8
1	38689-680-960	E-ring - 4MM	E-ring - 4MM
3	66856-SF1-000	Lock - JACK COVER	Lock - JACK COVER
4	66857-SA0-660	Spring - FUSE PANEL	Spring - FUSE PANEL
25	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Regulator/lock up valve 7 / 21

#	OEM	BA4	BA8
8	27246-PN6-800	Cap - REGULATOR SPRING	Cap - REGULATOR SPRING
11	27256-PA9-000	Valve - RELIEF	Valve - RELIEF
19	27645-PL1-000	Cap - LOCK UP CONTROL	Cap - LOCK UP CONTROL
20	90004-PC9-000	Bolt - FLANGE, 6X90	Bolt - FLANGE, 6X90
22	90089-PK4-000	Bolt - STOPPER, 6MM	Bolt - STOPPER, 6MM
23	90701-PK4-000	Dowel pin - 8X80	Dowel pin - 8X80
24	91316-PF4-003	O-ring - 31X1.7 (ARAI)	O-ring - 31X1.7 (ARAI)

Relay/control unit (1) 11 / 27

#	OEM	BA4	BA8
4	38300-SB0-013	Relay assy - TURN SIGNAL & HAZARD (MITSUBA)	Relay assy - TURN SIGNAL & HAZARD (MITSUBA)
4	38300-SB0-004	Relay assy - TURN SIGNAL & HAZARD (DENSO)	Relay assy - TURN SIGNAL & HAZARD (DENSO)
13	39762-SB0-004	Relay assy - POWER (5P) (056700-6710) (DENSO)	Relay assy - POWER (5P) (056700-6710) (DENSO)
13	39762-SB0-003	Relay assy - POWER (5P) (MITSUBA)	Relay assy - POWER (5P) (MITSUBA)
14	39792-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7410)	Relay assy - POWER(4P)(DENSO) (056700-7410)
14	39792-SE0-004	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)	Relay assy - POWER (4P) (OMRON) (G4R-1A21T-H22)
15	39793-SE3-004	Relay assy - POWER (5P) (058700-1081) (DENSO)	Relay assy - POWER (5P) (058700-1081) (DENSO)
15	39793-SE3-003	Relay assy - POWER (5P) (MITSUBA)	Relay assy - POWER (5P) (MITSUBA)
16	39794-SE0-003	Relay assy - POWER(4P)(DENSO) (056700-7250)	Relay assy - POWER(4P)(DENSO) (056700-7250)
20	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
24	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Relay/horn/fuse box 1 / 13

#	OEM	BA4	BA8
7	36049-PC6-660	Rubber - CUSHION	Rubber - CUSHION

Roof motor 1 / 25

#	OEM	BA4	BA8
23	71997-692-920	Shim - STAY (1.0MM)	Shim - STAY (1.0MM)

Secondary body/servo body (2) 15 / 54

#	OEM	BA4	BA8
4	24530-PN1-000	Sleeve comp. - SERVO DETENT	Sleeve comp. - SERVO DETENT
6	27263-PA9-000	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM	Seat Valve Sping 1.0mm - VALVE SPRING, 1.0MM
21	27653-PF4-000	Cap - CLUTCH PRESSURE CONTROL VALVE	Cap - CLUTCH PRESSURE CONTROL VALVE
23	27655-PC9-950	Valve - CLUTCH PRESSURE CONTROL	Valve - CLUTCH PRESSURE CONTROL
30	27724-PF4-010	Cap - KICK DOWN VALVE	Cap - KICK DOWN VALVE
31	27728-PF4-000	Cap - REVERSE CONTROL VALVE	Cap - REVERSE CONTROL VALVE
41	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
42	91101-PF4-003	Roller - 3.5X21.8	Roller - 3.5X21.8
43	91302-PK4-003	O-ring - 24X2.9	O-ring - 24X2.9
45	91321-PF4-004	O-ring - 18.3X2.4(NOK)	O-ring - 18.3X2.4(NOK)
46	91324-PF4-004	O-ring - 28.3X2.4 (NOK)	O-ring - 28.3X2.4 (NOK)
47	91331-PC9-003	O-ring	O-ring
48	91344-PC9-004	O-ring - 29X2.4 (NOK)	O-ring - 29X2.4 (NOK)
49	91344-580-000	O-ring - 31X2.7 (ARAI)	O-ring - 31X2.7 (ARAI)
50	91704-PF4-000	Dowel pin - 8X40	Dowel pin - 8X40

Select lever 3 / 35

#	OEM	BA4	BA8
2	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
31	54142-SA5-980	Bush - GUIDE	Bush - GUIDE
49	90114-SA0-000	Nut - SELF-LOCK, 6MM	Nut - SELF-LOCK, 6MM

Shift arm/shift lever (2) 11 / 17

#	OEM	BA4	BA8
3	24433-PX5-000	Bolt - INTERLOCK	Bolt - INTERLOCK
4	24440-PK5-000	Cam comp - REVERSE LOCK	Cam comp - REVERSE LOCK
6	24463-PK5-000	Pin - SELECT RETURN	Pin - SELECT RETURN
10	24474-PK5-000	Boot - SHIFT LEVER	Boot - SHIFT LEVER
11	24480-PK5-000	Arm comp - SELECT	Arm comp - SELECT
12	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5
13	90029-PX5-010	Bolt - SPECIAL, 8X24	Bolt - SPECIAL, 8X24
14	90406-PX5-010	Washer - LOCK	Washer - LOCK
15	91209-PE9-005	Dust seal - 16X23X5(NOK)	Dust seal - 16X23X5(NOK)
15	91209-PE9-003	Dust seal - 16X23X5(ARAI)	Dust seal - 16X23X5(ARAI)
16	91215-PK5-000	Oil seal - 16X27X14	Oil seal - 16X27X14

Shift fork (2) 3 / 8

#	OEM	BA4	BA8
5	24243-PX5-J00	Piece - FIFTH & REVERSE SHIFT	Piece - FIFTH & REVERSE SHIFT
7	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
8	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5

Side lining 3 / 6

#	OEM	BA4	BA8
13	90609-SG0-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH
14	90662-671-003	Grommet - SCREW, 5MM (WHITE)	Grommet - SCREW, 5MM (WHITE)
16	90681-693-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Starter motor (MITSUBA) 3 / 25

#	OEM	BA4	BA8
10	31211-PC2-006	Ring - SQUARE (MITSUBA)	Ring - SQUARE (MITSUBA)
13	31217-PC2-006	Screw-washer - 4X28 (MITSUBA)	Screw-washer - 4X28 (MITSUBA)
17	31252-PD2-006	Rubber - BUSH (MITSUBA)	Rubber - BUSH (MITSUBA)

Steering column 6 / 18

#	OEM	BA4	BA8
6	53321-SF1-950	Guard - STEERING JOINT	Guard - STEERING JOINT
9	53326-SB0-000	Clip b - JOINT COVER	Clip b - JOINT COVER
18	77355-SG0-A00	Label - IGNITION INFORMATION	Label - IGNITION INFORMATION
21	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
22	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
25	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK

Switch 5 / 22

#	OEM	BA4	BA8
4	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
5	35103-SE3-003	Screw - RECESSED, 3X8	Screw - RECESSED, 3X8
19	35410-692-003	Cover - DOOR SWITCH	Cover - DOOR SWITCH
21	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
23	90690-SA0-003	Strap - WIRE HARNESS, 25MM (BLACK)	Strap - WIRE HARNESS, 25MM (BLACK)

Taillight (2) 4 / 26

#	OEM	BA4	BA8
1	33301-SA0-741	Bulb (12V 5W) - (12V 5W) (STANLEY)	Bulb (12V 5W) - (12V 5W) (STANLEY)
27	34911-634-611	Bulb - 12V 21/5W) (ECE) (STANLEY	Bulb - 12V 21/5W) (ECE) (STANLEY
29	37540-SM4-003	Sensor - STOP LAMP FAILURE	Sensor - STOP LAMP FAILURE
30	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16

Throttle body (PGM-F1; 1) 5 / 14

#	OEM	BA4	BA8
1	16016-PM6-005	Screw set	Screw set
2	16075-PE2-005	O-ring - 31.2X1.9	O-ring - 31.2X1.9
3	16176-PT2-004	Gasket - THROTTLE BODY (NIPPON LEAKLESS)	Gasket - THROTTLE BODY (NIPPON LEAKLESS)
11	36454-PS4-003	Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI)	Filter comp - ELECTRONIC AIR CONTROL VALVE (TOYO ROKI)
14	91304-PE2-005	O-ring - 15.8X1.9	O-ring - 15.8X1.9

Tie rod 2 / 19

#	OEM	BA4	BA8
2	53434-SD9-000	Clip - TIE ROD	Clip - TIE ROD
2	53434-S04-J51	CLIP, TIE ROD	CLIP, TIE ROD

Tire/wheel disk 12 / 34

#	OEM	BA4	BA8
12	42753-671-003	Valve - RIM (TAIHEIYO)	Valve - RIM (TAIHEIYO)
12	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
12	42753-SE0-A02	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
14	44726-SF1-A01	Weight - BALANCE (5G) (YAMATE)	Weight - BALANCE (5G) (YAMATE)
14	44727-SF1-A01	Weight - BALANCE (15G) (YAMATE)	Weight - BALANCE (15G) (YAMATE)
14	44721-SF1-A01	Weight - BALANCE (10G) (YAMATE)	Weight - BALANCE (10G) (YAMATE)
14	44728-SF1-A01	Weight - BALANCE (25G) (YAMATE)	Weight - BALANCE (25G) (YAMATE)
14	44722-SF1-A01	Weight - BALANCE (20G) (YAMATE)	Weight - BALANCE (20G) (YAMATE)
14	44729-SF1-A01	Weight - BALANCE (35G) (YAMATE)	Weight - BALANCE (35G) (YAMATE)
14	44723-SF1-A01	Weight - BALANCE (30G) (YAMATE)	Weight - BALANCE (30G) (YAMATE)
14	44730-SF1-A01	Weight - BALANCE (45G) (YAMATE)	Weight - BALANCE (45G) (YAMATE)
14	44724-SF1-A01	Weight - BALANCE (40G) (YAMATE)	Weight - BALANCE (40G) (YAMATE)

Tools/jack 5 / 12

#	OEM	BA4	BA8
1	71969-SA7-890	Wrench - SUNROOF	Wrench - SUNROOF
6	89211-SE3-003	Wrench - WHEEL	Wrench - WHEEL
10	89320-SE3-003	Bar - JACK	Bar - JACK
10	89320-S50-003	Bar - JACK	Bar - JACK
11	89600-SE3-Y01	Extinguisher - FIRE	Extinguisher - FIRE

Torque converter housing (2) 36 / 56

#	OEM	BA4	BA8
2	23225-PF0-850	Plate - OIL GUIDE	Plate - OIL GUIDE
15	41356-PG1-000	Washer f - DIFFERENTIAL PINION THRUST(0.95MM)	Washer f - DIFFERENTIAL PINION THRUST(0.95MM)
15	41351-PG1-000	Washer a - DIFFERENTIAL PINION THRUST(0.7MM)	Washer a - DIFFERENTIAL PINION THRUST(0.7MM)
15	41358-PG1-000	Washer h - DIFFERENTIAL PINION THRUST(1.05MM)	Washer h - DIFFERENTIAL PINION THRUST(1.05MM)
15	41353-PG1-000	Washer c - DIFFERENTIAL PINION THRUST(0.8MM)	Washer c - DIFFERENTIAL PINION THRUST(0.8MM)
15	41355-PG1-000	Washer e - DIFFERENTIAL PINION THRUST(0.9MM)	Washer e - DIFFERENTIAL PINION THRUST(0.9MM)
15	41357-PG1-000	Washer g - DIFFERENTIAL PINION THRUST(1.0MM)	Washer g - DIFFERENTIAL PINION THRUST(1.0MM)
15	41352-PG1-000	Washer b - DIFFERENTIAL PINION THRUST(0.75MM)	Washer b - DIFFERENTIAL PINION THRUST(0.75MM)
15	41354-PG1-000	Washer d - DIFFERENTIAL PINION THRUST(0.85MM)	Washer d - DIFFERENTIAL PINION THRUST(0.85MM)
16	41371-PG2-000	Washer - THRUST, 37X55X1.5	Washer - THRUST, 37X55X1.5
17	41455-PK4-000	Shim o - 76MM (2.90)	Shim o - 76MM (2.90)
17	41449-PK4-000	Shim i - 76MM (2.60)	Shim i - 76MM (2.60)
17	41444-PK4-000	Shim d - 76MM (2.35)	Shim d - 76MM (2.35)
17	41457-PK4-000	Shim q - 76MM (3.00)	Shim q - 76MM (3.00)
17	41451-PK4-000	Shim k - 76MM (2.70)	Shim k - 76MM (2.70)
17	41446-PK4-000	Shim f - 76MM (2.45)	Shim f - 76MM (2.45)
17	41441-PK4-000	Shim a - 76MM (2.20)	Shim a - 76MM (2.20)
17	41454-PK4-000	Shim n - 76MM (2.85)	Shim n - 76MM (2.85)
17	41448-PK4-000	Shim h - 76MM (2.55)	Shim h - 76MM (2.55)
17	41443-PK4-000	Shim c - 76MM (2.30)	Shim c - 76MM (2.30)
17	41456-PK4-000	Shim p - 76MM (2.95)	Shim p - 76MM (2.95)
17	41450-PK4-000	Shim j - 76MM (2.65)	Shim j - 76MM (2.65)
17	41445-PK4-000	Shim e - 76MM (2.40)	Shim e - 76MM (2.40)
17	41458-PK4-000	Shim r - 76MM (3.05)	Shim r - 76MM (3.05)
17	41452-PK4-000	Shim l - 76MM (2.75)	Shim l - 76MM (2.75)
17	41447-PK4-000	Shim g - 76MM (2.50)	Shim g - 76MM (2.50)
17	41442-PK4-000	Shim b - 76MM (2.25)	Shim b - 76MM (2.25)
18	90003-PA9-003	Bolt - FLANGE, 10MM	Bolt - FLANGE, 10MM
19	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
20	90471-580-000	Packing - 8MM	Packing - 8MM
21	90705-PA9-000	Dowel pin - 14X25	Dowel pin - 14X25
23	91001-PX4-004	Bearing - BALL, 40X68X9 (KOYO)	Bearing - BALL, 40X68X9 (KOYO)
25	91122-PK4-013	Bearing - SPECIAL TAPER, 40X76.2X18	Bearing - SPECIAL TAPER, 40X76.2X18
27	91205-PX5-005	Oil seal - 35X56X8 (NOK)	Oil seal - 35X56X8 (NOK)
27	91205-PL3-A01	Oil seal - 35X56X8 (ARAI)	Oil seal - 35X56X8 (ARAI)
29	91209-612-003	Oil seal - 12X22X7 (ARAI)	Oil seal - 12X22X7 (ARAI)

Transmission housing 54 / 86

#	OEM	BA4	BA8
8	21396-PX5-000	Cap - BREATHER	Cap - BREATHER
9	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
11	23963-PK5-000	Shim w - 78MM (1.86)	Shim w - 78MM (1.86)
11	23943-PK5-000	Shim c - 78MM (1.26)	Shim c - 78MM (1.26)
11	23942-PK5-000	Shim b - 78MM (1.23)	Shim b - 78MM (1.23)
11	23972-PK5-000	Shim af - 78MM (2.13)	Shim af - 78MM (2.13)
11	23941-PK5-000	Shim a - 78MM (1.20)	Shim a - 78MM (1.20)
11	23958-PK5-000	Shim r - 78MM (1.71)	Shim r - 78MM (1.71)
11	23948-PK5-000	Shim h - 78MM (1.41)	Shim h - 78MM (1.41)
11	23948-P16-000	Shim h - 78MM (1.41)	Shim h - 78MM (1.41)
11	23978-PK5-000	Shim al - 78MM (2.31)	Shim al - 78MM (2.31)
11	23967-PK5-000	Shim aa - 78MM (1.98)	Shim aa - 78MM (1.98)
11	23953-PK5-000	Shim m - 78MM (1.56)	Shim m - 78MM (1.56)
11	23962-PK5-000	Shim v - 78MM (1.83)	Shim v - 78MM (1.83)
11	23971-PK5-000	Shim ae - 78MM (2.10)	Shim ae - 78MM (2.10)
11	23957-PK5-000	Shim q - 78MM (1.68)	Shim q - 78MM (1.68)
11	23947-PK5-000	Shim g - 78MM (1.38)	Shim g - 78MM (1.38)
11	23977-PK5-000	Shim ak - 78MM (2.28)	Shim ak - 78MM (2.28)
11	23966-PK5-000	Shim z - 78MM (1.95)	Shim z - 78MM (1.95)
11	23975-PK5-000	Shim ai - 78MM (2.22)	Shim ai - 78MM (2.22)
11	23952-PK5-000	Shim l - 78MM (1.53)	Shim l - 78MM (1.53)
11	23961-PK5-000	Shim u - 78MM (1.80)	Shim u - 78MM (1.80)
11	23970-PK5-000	Shim ad - 78MM (2.07)	Shim ad - 78MM (2.07)
11	23956-PK5-000	Shim p - 78MM (1.65)	Shim p - 78MM (1.65)
11	23946-PK5-000	Shim f - 78MM (1.35)	Shim f - 78MM (1.35)
11	23976-PK5-000	Shim aj - 78MM (2.25)	Shim aj - 78MM (2.25)
11	23965-PK5-000	Shim y - 78MM (1.92)	Shim y - 78MM (1.92)
11	23974-PK5-000	Shim ah - 78MM (2.19)	Shim ah - 78MM (2.19)
11	23951-PK5-000	Shim k - 78MM (1.50)	Shim k - 78MM (1.50)
11	23960-PK5-000	Shim t - 78MM (1.77)	Shim t - 78MM (1.77)
11	23950-PK5-000	Shim j - 78MM (1.47)	Shim j - 78MM (1.47)
11	23980-PK5-000	Shim an - 78MM (2.37)	Shim an - 78MM (2.37)
11	23969-PK5-000	Shim ac - 78MM (2.04)	Shim ac - 78MM (2.04)
11	23955-PK5-000	Shim o - 78MM (1.62)	Shim o - 78MM (1.62)
11	23945-PK5-000	Shim e - 78MM (1.32)	Shim e - 78MM (1.32)
11	23964-PK5-000	Shim x - 78MM (1.89)	Shim x - 78MM (1.89)
11	23973-PK5-000	Shim ag - 78MM (2.16)	Shim ag - 78MM (2.16)
11	23959-PK5-000	Shim s - 78MM (1.74)	Shim s - 78MM (1.74)
11	23949-PK5-000	Shim i - 78MM (1.44)	Shim i - 78MM (1.44)
11	23979-PK5-000	Shim am - 78MM (2.34)	Shim am - 78MM (2.34)
11	23968-PK5-000	Shim ab - 78MM (2.01)	Shim ab - 78MM (2.01)
11	23954-PK5-000	Shim n - 78MM (1.59)	Shim n - 78MM (1.59)
11	23944-PK5-000	Shim d - 78MM (1.29)	Shim d - 78MM (1.29)
12	35600-PK5-003	Switch assy - BACK UP LIGHT (TEC)	Switch assy - BACK UP LIGHT (TEC)
14	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
16	90081-PX5-000	Screw - SEALING, 32MM	Screw - SEALING, 32MM
17	90083-PK5-000	Bolt - SEALING, 28MM	Bolt - SEALING, 28MM
18	90401-PG1-000	Washer - DRAIN PLUG, 10MM	Washer - DRAIN PLUG, 10MM
19	90705-PG2-000	Dowel pin - 14X20	Dowel pin - 14X20
23	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
25	90607-081-000	Circlip - 7MM	Circlip - 7MM
27	90615-PF4-000	Ring - SNAP, 75MM	Ring - SNAP, 75MM
30	91201-PA9-004	Oil seal - 9X18X7 (ARAI)	Oil seal - 9X18X7 (ARAI)
31	91206-PK4-003	Oil seal - 40X66X8 (NOK)	Oil seal - 40X66X8 (NOK)

Trunk lid 4 / 31

#	OEM	BA4	BA8
8	73219-693-951	Seal - FUEL LID OPENER (GREEN)	Seal - FUEL LID OPENER (GREEN)
11	83418-SG3-003	Cushion - TRUNK HINGE	Cushion - TRUNK HINGE
29	74827-SH2-003	Stopper - TAILGATE	Stopper - TAILGATE
32	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12

Water valve/hose 1 / 10

#	OEM	BA4	BA8
9	79770-SE0-000	Grommet - WATER VALVE CABLE	Grommet - WATER VALVE CABLE

Windshield washer 7 / 13

#	OEM	BA4	BA8
1	76802-SS0-003	Cap - MOUTH	Cap - MOUTH
2	38516-SA5-671	Packing - T-TYPE) (MITSUBA	Packing - T-TYPE) (MITSUBA
4	76804-SE0-003	Float - WASHER	Float - WASHER
5	76806-SE0-S01	Motor - WASHER (MITSUBA)	Motor - WASHER (MITSUBA)
11	90652-SB2-023	Clip - TUBE, 7MM	Clip - TUBE, 7MM
12	91512-SE0-003	Clip - WASHER TUBE	Clip - WASHER TUBE
14	90682-SB0-003	Grommet - SCREW, 5MM	Grommet - SCREW, 5MM

Wire harness (1) 4 / 46

#	OEM	BA4	BA8
13	32601-SK7-900	Bolt - BATTERY TERMINAL	Bolt - BATTERY TERMINAL
14	32602-SK7-900	Nut - BATTERY TERMINAL	Nut - BATTERY TERMINAL
31	90114-SM4-900	Bolt - 6X15	Bolt - 6X15
32	90149-SE0-003	Bolt - EARTH, 6X16	Bolt - EARTH, 6X16

Wire harness (2) 2 / 23

#	OEM	BA4	BA8
18	91507-693-003	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)	Clip - WIRE HARNESS (BLACK) (50MM) (HARNESS TAPING)
23	91555-SM4-003	Clip - COUPLER (RED)	Clip - COUPLER (RED)
