検索 › 比較 › AVE30 × GSE25
AVE30
Lexus IS — 6,269 中 708 共有
GSE25
Lexus IS — 10,946 中 708 共有

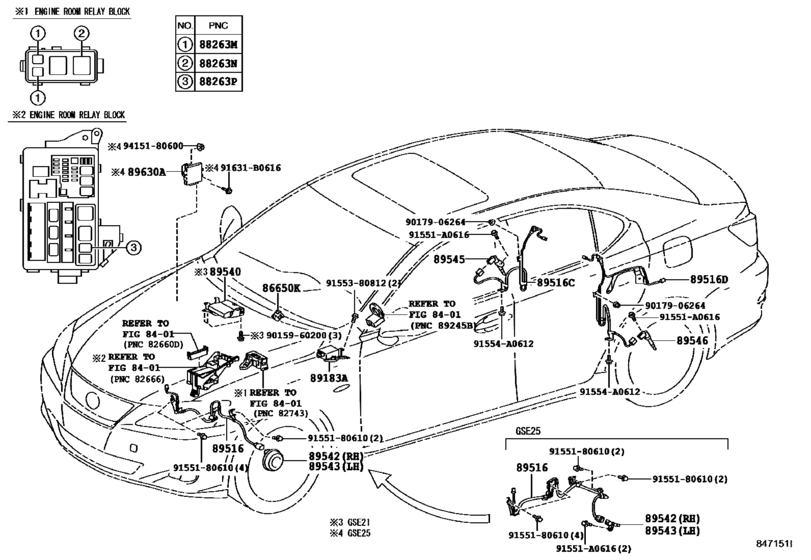

Abs & Vsc ([04.2013 - ] (1304- )ARL) 7 / 17
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 86652 | 86652-50010 | Buzzer Assy | Buzzer Assy |
| 88263 | 88263-21010 | Relay | Relay |
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9155180610 | 91551-80610 | BOLT FLANGE | BOLT FLANGE |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Abs & Vsc ([04.2013 - ] (1304- )LHD) 7 / 18
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 86652 | 86652-50010 | Buzzer Assy | Buzzer Assy |
| 88263 | 88263-21010 | Relay | Relay |
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9155180610 | 91551-80610 | BOLT FLANGE | BOLT FLANGE |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Accelerator Link ([04.2013 - ] (1304- )ARL) 3 / 13
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 91621 | 91621-B0625 | New Genuine Part | New Genuine Part |
| 9011906120 | 90119-06120 | BOLT | BOLT |
| 9017906274 | 90179-06274 | Nut | Nut |
Accelerator Link ([04.2013 - ] (1304- )LHD) 3 / 13
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 91621 | 91621-B0625 | New Genuine Part | New Genuine Part |
| 9011906120 | 90119-06120 | BOLT | BOLT |
| 9017906274 | 90179-06274 | Nut | Nut |
Air Bag ([04.2013 - ] (1304- )) 4 / 25
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 89178 | 89178-33050 | Sensor, Seat Position Air Bag | Sensor, Seat Position Air Bag |
| 91553 | 91553-A0622 | New Genuine Part | New Genuine Part |
| 9155380618 | 91553-80618 | Direct | Direct |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) | Nut (For Transmission Control Cable) |
Air Cleaner ([04.2013 - ] (1304- )2ARFSE) 6 / 21
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 17769 | 17769-31030 | Support, Air Cleaner | Support, Air Cleaner |
| 17881 | 96111-10880 | Clamp(For Air Intake Rubber Seal) | Clamp(For Air Intake Rubber Seal) |
| 17882 | 17891-31010 | Clamp(For Air Cleaner Hose, No.1) | Clamp(For Air Cleaner Hose, No.1) |
| 9009900289 | 90099-00289 | SCREW | SCREW |
| 9011906393 | 90119-06393 | Bolt(For Suspension Control Oil Cooler) | Bolt(For Suspension Control Oil Cooler) |
| 9011906953 | 90119-06953 | BOLT WWASHER | BOLT WWASHER |
Antenna ([04.2013 - ] (1304- )) 2 / 27
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9017906274 | 90179-06274 | Nut | Nut |

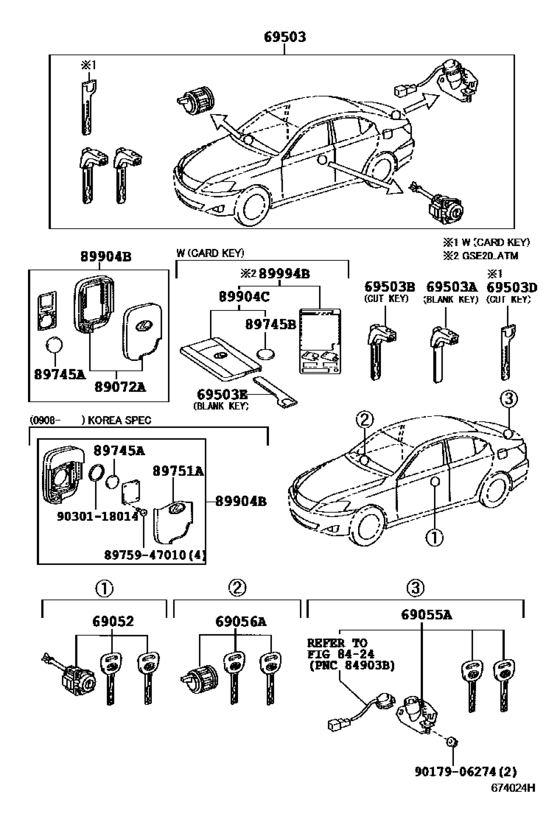

Anti-Theft Device ([04.2013 - ] (1304- )) 1 / 7
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
Armrest & Visor ([04.2013 - ] VISOR & ASSIST GRIP (1304- )) 4 / 54
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 74317 | 74317-60020-B1 | Cover, Visor Bracket, Rh | Cover, Visor Bracket, Rh |
| 74636 | 74649-51010-C0 | Grip, Back Door Assist - LUGGAGE COMPARTMENT DOOR ASSIST | Grip, Back Door Assist - LUGGAGE COMPARTMENT DOOR ASSIST |
| 9015960350 | 90159-60350 | SCREW WWASHER | SCREW WWASHER |
| 9322915020 | 93229-15020 | SCREW | SCREW |

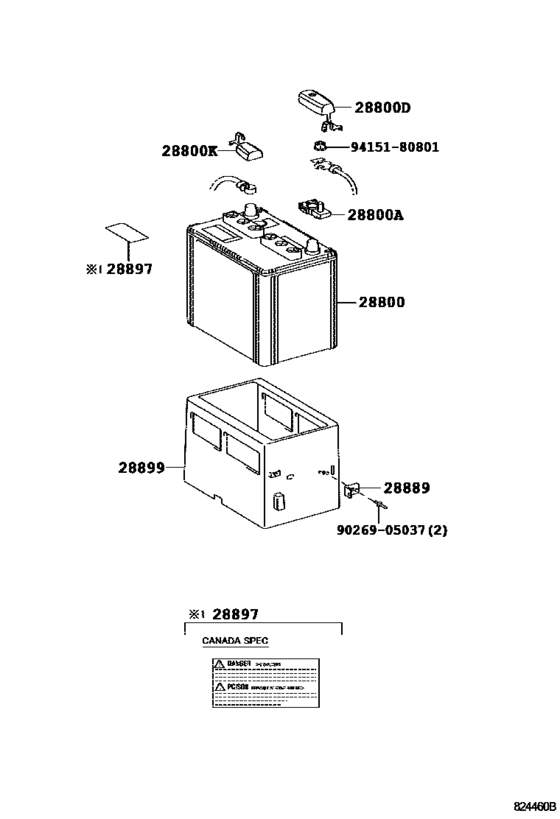

Battery & Battery Cable ([04.2013 - ] 12V BATTERY (1304- )AVE30) 1 / 5
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9415180801 | 94151-80801 | NUT FLANGE | NUT FLANGE |
Battery & Battery Cable ([04.2013 - ] HV BATTERY (1304- )AVE30) 3 / 20
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906984 | 90119-06984 | BOLT WWASHER | BOLT WWASHER |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9046707214 | 90467-07214 | Clip, Front Fender Liner | Clip, Front Fender Liner |
Battery Carrier ([04.2013 - ] (1304- )AVE30) 1 / 6
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9017906274 | 90179-06274 | Nut | Nut |
Brake Master Cylinder ([04.2013 - ] (1304- )AVE30..ARL) 11 / 20
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 44785 | 44785-47010 | Gasket, Brake Booster | Gasket, Brake Booster |
| 47201 | 90029-15803 | Ring Pin, Brake Master Cylinder | Ring Pin, Brake Master Cylinder |
| 47230 | 47230-20140 | Cap Assy, Brake Master Cylinder Reservoir Filler | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47234 | 96135-51300 | Clamp, Hose | Clamp, Hose |
| 47255 | 90029-48001 | Grommet, Master Cylinder Reservoir | Grommet, Master Cylinder Reservoir |
| 47287 | 47287-20010 | Label, Brake Fluid Information | Label, Brake Fluid Information |
| 9017908204 | 90179-08204 | Nut | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER | NUT, WWASHER |
| 9412041000 | 94120-41000 | Nut(For Clutch Pedal Stopper) | Nut(For Clutch Pedal Stopper) |
| 9412041000 | 90170-A0002 | Nut | Nut |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) | Nut (For Transmission Control Cable) |
Brake Master Cylinder ([04.2013 - ] (1304- )AVE30..GEN) 11 / 20
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 44785 | 44785-47010 | Gasket, Brake Booster | Gasket, Brake Booster |
| 47201 | 90029-15803 | Ring Pin, Brake Master Cylinder | Ring Pin, Brake Master Cylinder |
| 47230 | 47230-20140 | Cap Assy, Brake Master Cylinder Reservoir Filler | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47234 | 96135-51300 | Clamp, Hose | Clamp, Hose |
| 47255 | 90029-48001 | Grommet, Master Cylinder Reservoir | Grommet, Master Cylinder Reservoir |
| 47287 | 47287-20010 | Label, Brake Fluid Information | Label, Brake Fluid Information |
| 9017908204 | 90179-08204 | Nut | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER | NUT, WWASHER |
| 9412041000 | 94120-41000 | Nut(For Clutch Pedal Stopper) | Nut(For Clutch Pedal Stopper) |
| 9412041000 | 90170-A0002 | Nut | Nut |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) | Nut (For Transmission Control Cable) |
Brake Tube & Clamp ([04.2013 - ] BRAKE ACTUATOR (1304- )AVE30..ARL) 4 / 11
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 31478 | 31478-30010 | Bleeder Plug Cap | Bleeder Plug Cap |
| 9009905277 | 90099-05277 | New Genuine Part | New Genuine Part |
| 9017908249 | 90179-08249 | New Genuine Part | New Genuine Part |
| 9155380812 | 91553-80812 | New Genuine Part | New Genuine Part |
Brake Tube & Clamp ([04.2013 - ] BRAKE ACTUATOR (1304- )AVE30..GEN) 4 / 11
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 31478 | 31478-30010 | Bleeder Plug Cap | Bleeder Plug Cap |
| 9009905277 | 90099-05277 | New Genuine Part | New Genuine Part |
| 9017908249 | 90179-08249 | New Genuine Part | New Genuine Part |
| 9155380812 | 91553-80812 | New Genuine Part | New Genuine Part |
Brake Tube & Clamp ([04.2013 - ] BRAKE TUBE (1304- )AVE30..ARL) 8 / 39
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 47313 | 90401-10058 | Bolt, Union(For Front Flexible Hose) | Bolt, Union(For Front Flexible Hose) |
| 47313 | 47389-50020 | Gasket(For Front Flexible Hose) | Gasket(For Front Flexible Hose) |
| 47371 | 90464-00876 | Clamp, Brake Tube, No.1 | Clamp, Brake Tube, No.1 |
| 47372 | 90949-01D12 | Clamp(For Clutch Master Cylinder Tube) | Clamp(For Clutch Master Cylinder Tube) |
| 47373 | 90949-01D13 | Clamp, Brake Tube, No.9 | Clamp, Brake Tube, No.9 |
| 91673 | 91673-A0620 | BOLT FLANGE | BOLT FLANGE |
| 9017906161 | 90179-06161 | Bolt, Union(For Clutch Accumulator) | Bolt, Union(For Clutch Accumulator) |
| 9046808040 | 90468-08040 | CLIP | CLIP |
Brake Tube & Clamp ([04.2013 - ] BRAKE TUBE (1304- )AVE30..GEN) 8 / 41
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 47313 | 90401-10058 | Bolt, Union(For Front Flexible Hose) | Bolt, Union(For Front Flexible Hose) |
| 47313 | 47389-50020 | Gasket(For Front Flexible Hose) | Gasket(For Front Flexible Hose) |
| 47371 | 90949-01D13 | Clamp, Brake Tube, No.9 | Clamp, Brake Tube, No.9 |
| 47372 | 90464-00876 | Clamp, Brake Tube, No.1 | Clamp, Brake Tube, No.1 |
| 47374 | 90949-01D12 | Clamp(For Clutch Master Cylinder Tube) | Clamp(For Clutch Master Cylinder Tube) |
| 91673 | 91673-A0620 | BOLT FLANGE | BOLT FLANGE |
| 9017906161 | 90179-06161 | Bolt, Union(For Clutch Accumulator) | Bolt, Union(For Clutch Accumulator) |
| 9046808040 | 90468-08040 | CLIP | CLIP |

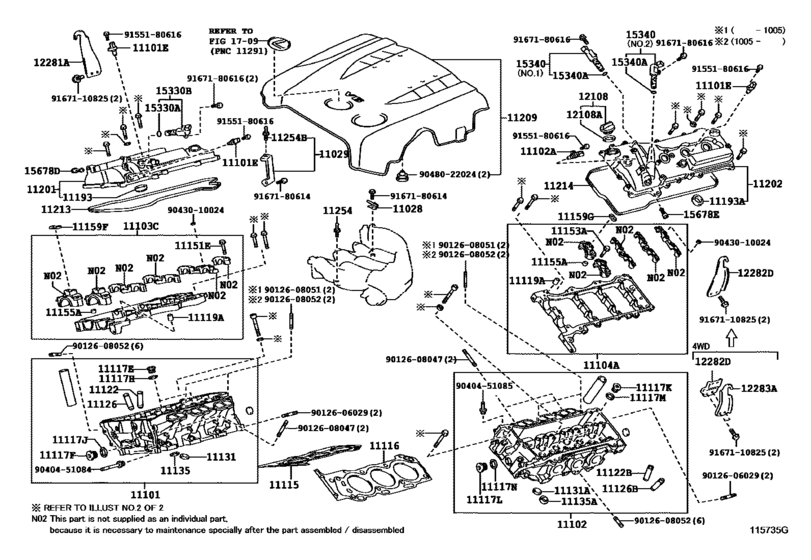

Camshaft & Valve ([04.2013 - ] (1304- )2ARFSE) 11 / 32
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 13711 | 90913-02101 | Seal Or Ring, O(For Valve Stem Oil) - Intake side | Seal Or Ring, O(For Valve Stem Oil) - Intake side |
| 13715 | 90913-02112 | Seal Or Ring, O(For Valve Stem Oil) | Seal Or Ring, O(For Valve Stem Oil) |
| 13716 | 13716-75020 | Cap, Valve Stem | Cap, Valve Stem |
| 13734 | 13734-62020 | Washer, Plate(For Valve Spring Seat) | Washer, Plate(For Valve Spring Seat) |
| 13741 | 13741-20021 | Retainer, Valve Spring | Retainer, Valve Spring |
| 13741 | 90913-03028 | Lock, Valve Spring Retainer | Lock, Valve Spring Retainer |
| 13750 | 13750-31030 | Adjuster Assy, Valve Lash | Adjuster Assy, Valve Lash |
| 13801 | 13801-23011 | Arm Sub-Assy, Valve Rocker, No.1 | Arm Sub-Assy, Valve Rocker, No.1 |
| 9011912370 | 90119-12370 | Bolt(For Camshaft Timing Gear) | Bolt(For Camshaft Timing Gear) |
| 9155180630 | 91551-80630 | Bolt(For Cylinder Head Cover) | Bolt(For Cylinder Head Cover) |
| 9167180820 | 91671-80820 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
Caution Plate & Name Plate (Engine) ([04.2013 - ] (1304- )) 1 / 5
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 16793 | 16793-38010 | Label, Cooling Fan Caution | Label, Cooling Fan Caution |
Caution Plate (Exterior & Interior) ([04.2013 - ] ENGINE ROOM & EXTERIOR (1304- )) 4 / 26
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 11293 | 11293-31120 | Label, Engine Caution | Label, Engine Caution |
| 74511 | 74511-2B300 | Plate, Name | Plate, Name |
| 74515 | 74515-30040 | Plate, Theft Warning | Plate, Theft Warning |
| 74596 | 74596-53011 | Label, Side Air Bag Caution | Label, Side Air Bag Caution |
Caution Plate (Exterior & Interior) ([04.2013 - ] INTERIOR (1304- )) 1 / 1
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 74598 | 74598-20010 | Label, Driver & Passenger Air Bag Caution | Label, Driver & Passenger Air Bag Caution |
Clearance & Back Sonar ([04.2013 - 10.2016] (1304-1610)ARL,GCC,GEN ; (1304-1611)CHI) 1 / 41
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Clearance & Back Sonar ([10.2016 - ] (1610- )ARL,GCC,GEN) 1 / 38
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |

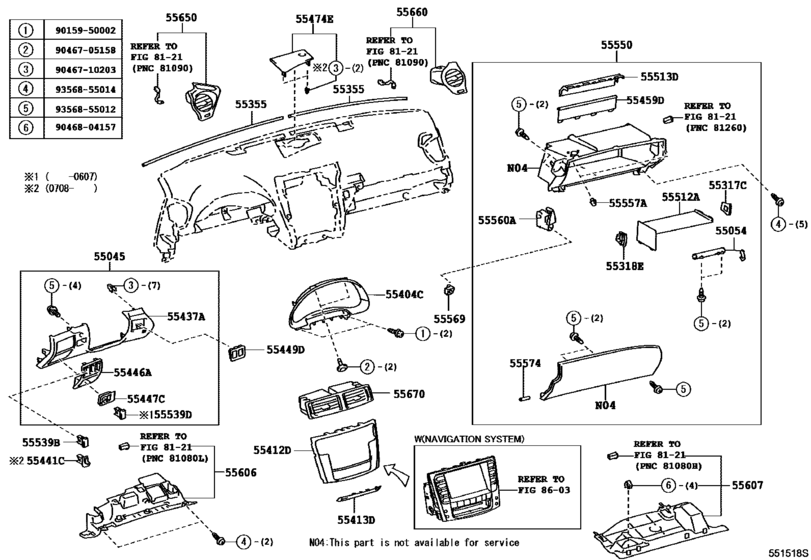

Console Box & Bracket ([04.2013 - 10.2016] (1304-1610)ARL) 6 / 63
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 58959 | 58959-60060 | Cushion, Instrument Panel | Cushion, Instrument Panel |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9018305094 | 90183-05094 | NUT | NUT |
| 9046710203 | 90467-10203 | Direct | Direct |
| 9165160618 | 91651-60618 | Bolt(For Oil Receiver Pipe) | Bolt(For Oil Receiver Pipe) |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
Console Box & Bracket ([04.2013 - 10.2016] (1304-1610)GCC,GEN ; (1304-1611)CHI) 6 / 65
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 58959 | 58959-60060 | Cushion, Instrument Panel | Cushion, Instrument Panel |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9018305094 | 90183-05094 | NUT | NUT |
| 9046710203 | 90467-10203 | Direct | Direct |
| 9165160618 | 91651-60618 | Bolt(For Oil Receiver Pipe) | Bolt(For Oil Receiver Pipe) |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
Console Box & Bracket ([10.2016 - ] (1610- )ARL) 6 / 61
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 58959 | 58959-60060 | Cushion, Instrument Panel | Cushion, Instrument Panel |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9018305094 | 90183-05094 | NUT | NUT |
| 9046710203 | 90467-10203 | Direct | Direct |
| 9165160618 | 91651-60618 | Bolt(For Oil Receiver Pipe) | Bolt(For Oil Receiver Pipe) |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
Console Box & Bracket ([10.2016 - ] (1610- )GCC,GEN ; (1611- )) 6 / 63
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 58959 | 58959-60060 | Cushion, Instrument Panel | Cushion, Instrument Panel |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9018305094 | 90183-05094 | NUT | NUT |
| 9046710203 | 90467-10203 | Direct | Direct |
| 9165160618 | 91651-60618 | Bolt(For Oil Receiver Pipe) | Bolt(For Oil Receiver Pipe) |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
Cowl Panel & Windshield Glass ([04.2013 - ] (1304- )ARL) 5 / 26
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 55725 | 55725-51020 | Reinforcement, Hood Hinge Mounting | Reinforcement, Hood Hinge Mounting |
| 55781 | 90467-08108 | Clip(For Hood To Cowl Top Seal) | Clip(For Hood To Cowl Top Seal) |
| 56116 | 56116-22050 | Stopper, Windshield Glass, No.1 | Stopper, Windshield Glass, No.1 |
| 56117 | 56117-64010 | Dam, Window Glass Adhesive | Dam, Window Glass Adhesive |
| 9046710206 | 90467-10206 | Clip, Front Fender Liner, No.3 | Clip, Front Fender Liner, No.3 |
Cowl Panel & Windshield Glass ([04.2013 - ] (1304- )LHD) 5 / 25
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 55725 | 55725-51020 | Reinforcement, Hood Hinge Mounting | Reinforcement, Hood Hinge Mounting |
| 55781 | 90467-08108 | Clip(For Hood To Cowl Top Seal) | Clip(For Hood To Cowl Top Seal) |
| 56116 | 56116-22050 | Stopper, Windshield Glass, No.1 | Stopper, Windshield Glass, No.1 |
| 56117 | 56117-64010 | Dam, Window Glass Adhesive | Dam, Window Glass Adhesive |
| 9046710206 | 90467-10206 | Clip, Front Fender Liner, No.3 | Clip, Front Fender Liner, No.3 |
Crankshaft & Piston ([04.2013 - ] (1304- )2ARFSE) 3 / 74
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 13101 | 90520-22025 | Ring, Hole Snap(For Piston Pin) | Ring, Hole Snap(For Piston Pin) |
| 13405 | 90250-08120 | Pin, Straight, No.1 | Pin, Straight, No.1 |
| 13434 | 95161-30516 | Key(For Oil Pump Drive Spline) | Key(For Oil Pump Drive Spline) |
Cruise Control (Auto Drive) ([04.2013 - ] (1304- )) 3 / 14
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 86652 | 86652-50010 | Buzzer Assy | Buzzer Assy |
| 9011906782 | 90119-06782 | BOLT WWASHER | BOLT WWASHER |
| 9015950199 | 90159-50199 | SCREW | SCREW |
Cylinder Block ([04.2013 - ] (1304- )2ARFSE) 7 / 37
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 11434 | 90250-10113 | Pin, Straight(For Timing Gear Cover Set) | Pin, Straight(For Timing Gear Cover Set) |
| 12101 | 90341-12012 | Plug(For Oil Pan Drain) | Plug(For Oil Pan Drain) |
| 12101 | 90341-T0004 | Plug(For Oil Pan Drain) | Plug(For Oil Pan Drain) |
| 12101 | 90430-12031 | Gasket (For Oil Pan Drain Plug) | Gasket (For Oil Pan Drain Plug) |
| 9010510168 | 90105-10168 | New Genuine Part | New Genuine Part |
| 9011906938 | 90119-06938 | BOLT WWASHER | BOLT WWASHER |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
Cylinder Head ([04.2013 - ] (1304- )2ARFSE) 16 / 47
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 11101 | 90201-11034 | Washer, Plate(For Cylinder Head Set) | Washer, Plate(For Cylinder Head Set) |
| 11101 | 90919-05060 | Sensor, Cam Position | Sensor, Cam Position |
| 11117 | 90430-20004 | Gasket(For Cylinder Head Screw Plug) | Gasket(For Cylinder Head Screw Plug) |
| 11126 | 11126-31030 | Bush, Exhaust Valve Guide | Bush, Exhaust Valve Guide |
| 11126 | 11127-31030 | Bush, Exhaust Valve Guide | Bush, Exhaust Valve Guide |
| 11151 | 90119-07009 | Bolt(For Camshaft Housing Set) | Bolt(For Camshaft Housing Set) |
| 11159 | 90430-10024 | Gasket, Camshaft Bearing Cap Oil Hole | Gasket, Camshaft Bearing Cap Oil Hole |
| 11201 | 91551-80635 | Bolt(For Head To Camshaft Bearing Cap) | Bolt(For Head To Camshaft Bearing Cap) |
| 11201 | 91551-A0625 | Bolt(For Cylinder Head Cover) | Bolt(For Cylinder Head Cover) |
| 12108 | 90430-35001 | Gasket(For Oil Filler Cap) | Gasket(For Oil Filler Cap) |
| 15330 | 90099-14137 | Ring, O(For Cam Timing Oil Control Valve) | Ring, O(For Cam Timing Oil Control Valve) |
| 9010906385 | 90109-06385 | Bolt , V-Bank Cover, No.1 | Bolt , V-Bank Cover, No.1 |
| 9048022024 | 90480-22024 | Grommet | Grommet |
| 9155180616 | 91551-80616 | BOLT FLANGE | BOLT FLANGE |
| 9155281040 | 91552-81040 | Bolt(For Alternator) | Bolt(For Alternator) |
| 9167180616 | 91671-80616 | BOLT FLANGE | BOLT FLANGE |
Disc Wheel & Wheel Cap ([04.2013 - ] BALANCE WEIGHT (1304- )) 21 / 21
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9094203146 | 90942-03146 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203147 | 90942-03147 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203148 | 90942-03148 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203149 | 90942-03149 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203150 | 90942-03150 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203151 | 90942-03151 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203152 | 90942-03152 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203153 | 90942-03153 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203154 | 90942-03154 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203167 | 90942-03167 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203208 | 90942-03208 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203209 | 90942-03209 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203210 | 90942-03210 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203211 | 90942-03211 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203212 | 90942-03212 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203213 | 90942-03213 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203214 | 90942-03214 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203264 | 90942-03264 | New Genuine Part | New Genuine Part |
| 9094203265 | 90942-03265 | WEIGHT BALANCE | WEIGHT BALANCE |
| 9094203267 | 90942-03267 | WEIGHT BALANCE | WEIGHT BALANCE |
| 9094203273 | 90942-03273 | WEIGHT BALANCE | WEIGHT BALANCE |
Disc Wheel & Wheel Cap ([04.2013 - ] DISC WHEEL (1304- )) 6 / 34
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 4423 | 04423-33030 | Fitting Kit, Tire Pressure Monitor Or Balancer Valve | Fitting Kit, Tire Pressure Monitor Or Balancer Valve |
| 4423 | 04423-33060 | Fitting Kit, Tire Pressure Monitor Or Balancer Valve | Fitting Kit, Tire Pressure Monitor Or Balancer Valve |
| 42601 | 90942-01033 | Nut, Hub (For Axle) | Nut, Hub (For Axle) |
| 42611 | 90942-05028 | Valve (For Tubeless Tire) | Valve (For Tubeless Tire) |
| 42611 | 90942-05029 | Cap, Tire Valve | Cap, Tire Valve |
| 42611 | 90942-05042 | Cap, Tire Valve | Cap, Tire Valve |
Disc Wheel & Wheel Cap ([04.2013 - ] WHEEL HUB ORNAMENT (1304- )) 2 / 4
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 42603 | 42603-30550 | Ornament Sub-Assy, Wheel Hub | Ornament Sub-Assy, Wheel Hub |
| 42603 | 42603-30551 | ORNAMENT SUBASSY | ORNAMENT SUBASSY |
Eco-Run System ([08.2015 - ] (1508- )ARL) 1 / 1
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Eco-Run System ([08.2015 - ] (1508- )LHD) 1 / 1
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Electronic Fuel Injection System ([04.2013 - ] (1304- )AVE30) 9 / 27
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 85910 | 90987-02027 | Relay | Relay |
| 89422 | 89422-33030 | Sensor, Water Temperature (For E.f.i.) | Sensor, Water Temperature (For E.f.i.) |
| 9011905021 | 90119-05021 | BOLT WWASHER | BOLT WWASHER |
| 9012606029 | 90126-06029 | Bolt, Stud(For Vacuum Transmitting Pipe) | Bolt, Stud(For Vacuum Transmitting Pipe) |
| 9012606029 | 90126-A0014 | Bolt, Stud(For Oil Strainer) | Bolt, Stud(For Oil Strainer) |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9155180616 | 91551-80616 | BOLT FLANGE | BOLT FLANGE |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Electronic Height Control ([04.2013 - ] (1304- )) 3 / 5
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 91554 | 91554-A0612 | New Genuine Part | New Genuine Part |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9418560600 | 94185-60600 | Nut, Wire Adjusting, No.1 | Nut, Wire Adjusting, No.1 |
Electronic Modulated Suspension ([04.2013 - 10.2016] (1304-1610)AVE30) 3 / 9
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9155380610 | 91553-80610 | BOLT FLANGE | BOLT FLANGE |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Electronic Modulated Suspension ([10.2016 - ] (1610- )AVE30) 3 / 10
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9155380610 | 91553-80610 | BOLT FLANGE | BOLT FLANGE |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Engine Oil Cooler ([04.2013 - ] (1304- )2ARFSE) 3 / 5
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9012608050 | 90126-08050 | New Genuine Part | New Genuine Part |
| 9155180820 | 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) | Bolt, W/washer (For Transmission Oil Pump Cover) |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) | Nut (For Transmission Control Cable) |
Engine Oil Pump ([04.2013 - ] (1304- )2ARFSE,8ARFTS) 1 / 3
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9155180620 | 91551-80620 | Bolt | Bolt |
Exhaust Gas Recirculation System ([04.2013 - ] (1304- )2ARFSE) 5 / 14
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9012608050 | 90126-08050 | New Genuine Part | New Genuine Part |
| 9167110825 | 91671-10825 | BOLT, FLANGE | BOLT, FLANGE |
| 9167180820 | 91671-80820 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) | Nut (For Transmission Control Cable) |
Exhaust Pipe ([04.2013 - ] (1304- )2ARFSE) 8 / 13
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 17410 | 90917-06078 | Gasket, Exhaust Pipe | Gasket, Exhaust Pipe |
| 17410 | 90917-A6003 | Gasket, Exhaust Pipe | Gasket, Exhaust Pipe |
| 17565 | 17565-22040 | Support, Exhaust Pipe, No.1 | Support, Exhaust Pipe, No.1 |
| 9010510558 | 90105-10558 | BOLT FLANGE | BOLT FLANGE |
| 9017910037 | 90179-10037 | NUT | NUT |
| 9017910037 | 90179-10128 | NUT | NUT |
| 9050135028 | 90501-35028 | Spring, Exhaust Pipe | Spring, Exhaust Pipe |
| 9090105026 | 90901-05026 | Bolt, Exhaust Pipe Support | Bolt, Exhaust Pipe Support |
Floor Insulator ([04.2013 - ] (1304- )) 4 / 9
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906403 | 90119-06403 | BOLT W-WASHER | BOLT W-WASHER |
| 9017906219 | 90179-06219 | Nut | Nut |
| 9017906219 | 90182-A0005 | Nut | Nut |
| 9054109151 | 90541-09151 | Cushion(For Luggage Compartment Door Panel) | Cushion(For Luggage Compartment Door Panel) |
Floor Pan & Lower Back Panel ([04.2013 - ] FLOOR PAN & LOWER BACK PANEL (1304- )AVE30) 8 / 58
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 57051 | 57051-30100 | Member Sub-Assy, Front Floor Cross, Rh | Member Sub-Assy, Front Floor Cross, Rh |
| 57257 | 57257-30042 | Bracket, Engine Rear Mounting Member, Rh | Bracket, Engine Rear Mounting Member, Rh |
| 58111 | 57257-30070 | Bracket, Engine Rear Mounting Member, Rh | Bracket, Engine Rear Mounting Member, Rh |
| 58111 | 87212-30431 | Duct, Air, Rear No.1 | Duct, Air, Rear No.1 |
| 58136 | 58136-51010 | Cover, Front Floor Hole | Cover, Front Floor Hole |
| 91553 | 91553-L1030 | New Genuine Part | New Genuine Part |
| 9010508088 | 90105-08088 | New Genuine Part | New Genuine Part |
| 9010510361 | 90105-10361 | Bolt (For Rear Differential Carrier Cover Setting) | Bolt (For Rear Differential Carrier Cover Setting) |
Floor Pan & Lower Back Panel ([04.2013 - ] FLOOR UNDER COVER (1304- )) 6 / 16
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 58399 | 90467-14053 | Clip, No.1(For Floor Under Cover) | Clip, No.1(For Floor Under Cover) |
| 9015960500 | 90159-60500 | SCREW WWASHER | SCREW WWASHER |
| 9018906066 | 90189-06066 | CLIP | CLIP |
| 9048010024 | 90480-10024 | Clip, No.2(For Floor Under Cover) | Clip, No.2(For Floor Under Cover) |
| 9056111011 | 90561-11011 | Clip, No.1(For Floor Under Cover) | Clip, No.1(For Floor Under Cover) |
| 9056113003 | 90561-13003 | Clip, No.4(For Floor Under Cover) | Clip, No.4(For Floor Under Cover) |
Floor Pan & Lower Back Panel ([04.2013 - ] WELD BOLT (1304- )) 3 / 4
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011506167 | 90115-06167 | Bolt, Weld(For Front Floor Panel, Center) | Bolt, Weld(For Front Floor Panel, Center) |
| 9011506242 | 90115-06242 | New Genuine Part | New Genuine Part |
| 9011506243 | 90115-06243 | Bolt, Weld(For Front Floor Panel, Center) | Bolt, Weld(For Front Floor Panel, Center) |
Floor Side Member ([04.2013 - ] (1304- )ARL) 17 / 49
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 0 | 82711-1E320 | Clamp, Wiring Harness | Clamp, Wiring Harness |
| 57103 | 57103-30022 | Crossmenber Sub-Assy, Floor, No.3 | Crossmenber Sub-Assy, Floor, No.3 |
| 57111 | 57111-30092 | Member, Front Side, Rh | Member, Front Side, Rh |
| 57112 | 57112-30102 | Member, Front Side, Lh | Member, Front Side, Lh |
| 57115 | 57115-30060 | Plate, Front Side Member, Outer Rh | Plate, Front Side Member, Outer Rh |
| 57116 | 57116-30030 | Plate, Front Side Member, Outer Lh | Plate, Front Side Member, Outer Lh |
| 57141 | 57141-30040 | Support, Front Bumper Arm, Rh | Support, Front Bumper Arm, Rh |
| 57142 | 57142-30040 | Support, Front Bumper Arm, Lh | Support, Front Bumper Arm, Lh |
| 57151 | 57151-30040 | Reinforcement, Front Side Member, No.1 Rh | Reinforcement, Front Side Member, No.1 Rh |
| 57152 | 57152-30040 | Reinforcement, Front Side Member, No.1 Lh | Reinforcement, Front Side Member, No.1 Lh |
| 57183 | 57183-30030 | Plate, Front Side Member, No.4 Rh | Plate, Front Side Member, No.4 Rh |
| 57184 | 57184-30020 | Plate, Front Side Member, No.4 Lh | Plate, Front Side Member, No.4 Lh |
| 91553 | 91553-L1030 | New Genuine Part | New Genuine Part |
| 91554 | 91554-A0612 | New Genuine Part | New Genuine Part |
| 91655 | 91655-B1040 | BOLT WWASHER | BOLT WWASHER |
| 9010510361 | 90105-10361 | Bolt (For Rear Differential Carrier Cover Setting) | Bolt (For Rear Differential Carrier Cover Setting) |
| 9011910928 | 90119-10928 | BOLT WWASHER | BOLT WWASHER |
Floor Side Member ([04.2013 - ] (1304- )LHD) 17 / 49
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 0 | 82711-1E320 | Clamp, Wiring Harness | Clamp, Wiring Harness |
| 57103 | 57103-30031 | Crossmenber Sub-Assy, Floor, No.3 | Crossmenber Sub-Assy, Floor, No.3 |
| 57111 | 57111-30092 | Member, Front Side, Rh | Member, Front Side, Rh |
| 57112 | 57112-30102 | Member, Front Side, Lh | Member, Front Side, Lh |
| 57115 | 57115-30060 | Plate, Front Side Member, Outer Rh | Plate, Front Side Member, Outer Rh |
| 57116 | 57116-30030 | Plate, Front Side Member, Outer Lh | Plate, Front Side Member, Outer Lh |
| 57141 | 57141-30040 | Support, Front Bumper Arm, Rh | Support, Front Bumper Arm, Rh |
| 57142 | 57142-30040 | Support, Front Bumper Arm, Lh | Support, Front Bumper Arm, Lh |
| 57151 | 57151-30040 | Reinforcement, Front Side Member, No.1 Rh | Reinforcement, Front Side Member, No.1 Rh |
| 57152 | 57152-30040 | Reinforcement, Front Side Member, No.1 Lh | Reinforcement, Front Side Member, No.1 Lh |
| 57183 | 57183-30030 | Plate, Front Side Member, No.4 Rh | Plate, Front Side Member, No.4 Rh |
| 57184 | 57184-30020 | Plate, Front Side Member, No.4 Lh | Plate, Front Side Member, No.4 Lh |
| 91553 | 91553-L1030 | New Genuine Part | New Genuine Part |
| 91554 | 91554-A0612 | New Genuine Part | New Genuine Part |
| 91655 | 91655-B1040 | BOLT WWASHER | BOLT WWASHER |
| 9010510361 | 90105-10361 | Bolt (For Rear Differential Carrier Cover Setting) | Bolt (For Rear Differential Carrier Cover Setting) |
| 9011910928 | 90119-10928 | BOLT WWASHER | BOLT WWASHER |
Front Axle Arm & Steering Knuckle ([04.2013 - 10.2016] (1304-1610) ; (1610-1611)CHI) 15 / 33
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 43330 | 90171-14014 | Nut, Castle (For Front Lower Ball Joint Rh) | Nut, Castle (For Front Lower Ball Joint Rh) |
| 43330 | 91552-L1455 | Bolt (For Steering Knuckle Rh) | Bolt (For Steering Knuckle Rh) |
| 48068 | 94151-21601 | Nut(For Front Suspension Lower Arm) | Nut(For Front Suspension Lower Arm) |
| 48075 | 48075-30030 | Bracket Sub-Assy, Lwr Arm, No,1, RH | Bracket Sub-Assy, Lwr Arm, No,1, RH |
| 48075 | 48075-30040 | Bracket Sub-Assy, Lwr Arm, No,1 | Bracket Sub-Assy, Lwr Arm, No,1 |
| 48075 | 48075-30050 | Bracket Sub-Assy, Lwr Arm, No,1 | Bracket Sub-Assy, Lwr Arm, No,1 |
| 48076 | 48076-30030 | Bracket Sub-Assy, Lwr Arm, No.2, LH | Bracket Sub-Assy, Lwr Arm, No.2, LH |
| 48076 | 48076-30040 | Bracket Sub-Assy, Lwr Arm, No.2 | Bracket Sub-Assy, Lwr Arm, No.2 |
| 48076 | 48076-30050 | Bracket Sub-Assy, Lwr Arm, No.2 | Bracket Sub-Assy, Lwr Arm, No.2 |
| 48610 | 90171-12012 | Nut, Castle(For Tie Rod End) | Nut, Castle(For Tie Rod End) |
| 48610 | 91672-G1070 | Bolt(For Suspension Upper Arm) | Bolt(For Suspension Upper Arm) |
| 48610 | 90173-10012 | Nut(For Suspension Upper Arm) | Nut(For Suspension Upper Arm) |
| 9020116244 | 90201-16244 | Washer, Plate (For Rear Drive Pinion) | Washer, Plate (For Rear Drive Pinion) |
| 9046816017 | 90468-16017 | CLIP | CLIP |
| 9046816029 | 90468-16029 | CLIP | CLIP |
Front Axle Arm & Steering Knuckle ([10.2016 - ] (1610- )ARL,GCC,GEN ; (1611- )) 15 / 33
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 43330 | 90171-14014 | Nut, Castle (For Front Lower Ball Joint Rh) | Nut, Castle (For Front Lower Ball Joint Rh) |
| 43330 | 91552-L1455 | Bolt (For Steering Knuckle Rh) | Bolt (For Steering Knuckle Rh) |
| 48068 | 94151-21601 | Nut(For Front Suspension Lower Arm) | Nut(For Front Suspension Lower Arm) |
| 48075 | 48075-30030 | Bracket Sub-Assy, Lwr Arm, No,1, RH | Bracket Sub-Assy, Lwr Arm, No,1, RH |
| 48075 | 48075-30040 | Bracket Sub-Assy, Lwr Arm, No,1 | Bracket Sub-Assy, Lwr Arm, No,1 |
| 48075 | 48075-30050 | Bracket Sub-Assy, Lwr Arm, No,1 | Bracket Sub-Assy, Lwr Arm, No,1 |
| 48076 | 48076-30030 | Bracket Sub-Assy, Lwr Arm, No.2, LH | Bracket Sub-Assy, Lwr Arm, No.2, LH |
| 48076 | 48076-30040 | Bracket Sub-Assy, Lwr Arm, No.2 | Bracket Sub-Assy, Lwr Arm, No.2 |
| 48076 | 48076-30050 | Bracket Sub-Assy, Lwr Arm, No.2 | Bracket Sub-Assy, Lwr Arm, No.2 |
| 48610 | 90171-12012 | Nut, Castle(For Tie Rod End) | Nut, Castle(For Tie Rod End) |
| 48610 | 91672-G1070 | Bolt(For Suspension Upper Arm) | Bolt(For Suspension Upper Arm) |
| 48610 | 90173-10012 | Nut(For Suspension Upper Arm) | Nut(For Suspension Upper Arm) |
| 9020116244 | 90201-16244 | Washer, Plate (For Rear Drive Pinion) | Washer, Plate (For Rear Drive Pinion) |
| 9046816017 | 90468-16017 | CLIP | CLIP |
| 9046816029 | 90468-16029 | CLIP | CLIP |
Front Axle Hub ([04.2013 - ] (1304- )) 5 / 7
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 43501 | 90942-02049 | Bolt, Hub | Bolt, Hub |
| 43501 | 90942-02070 | Bolt, Hub | Bolt, Hub |
| 43501 | 90942-02082 | Bolt, Hub | Bolt, Hub |
| 43512 | 43512-30310 | Disc, Front | Disc, Front |
| 9011912358 | 90119-12358 | BOLT WWASHER | BOLT WWASHER |
Front Bumper & Bumper Stay ([04.2013 - 10.2016] (1304-1610)ARL,GCC,GEN ; (1304-1611)CHI) 9 / 72
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 52161 | 52161-16010 | Clip | Clip |
| 52161 | 52161-0K040 | Clip | Clip |
| 52161 | 52161-02020 | Clip | Clip |
| 52535 | 52535-50060 | Retainer, Front Bumper Side | Retainer, Front Bumper Side |
| 53121 | 90467-08186-C0 | Clip(For Front Bumper), No.1 | Clip(For Front Bumper), No.1 |
| 4774950090 | 47749-50090 | Clip, Pin Hold | Clip, Pin Hold |
| 9011906782 | 90119-06782 | BOLT WWASHER | BOLT WWASHER |
| 9015960431 | 90159-60431 | SCREW | SCREW |
| 9017906349 | 90179-06349 | NUT | NUT |
Front Bumper & Bumper Stay ([04.2013 - 10.2016] F-SPORT (1304-1610)ARL,GCC,GEN ; (1304-1611)CHI) 10 / 81
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 52161 | 52161-16010 | Clip | Clip |
| 52161 | 52161-0K040 | Clip | Clip |
| 52161 | 52161-02020 | Clip | Clip |
| 52535 | 52535-50060 | Retainer, Front Bumper Side | Retainer, Front Bumper Side |
| 53121 | 90467-08186-C0 | Clip(For Front Bumper), No.1 | Clip(For Front Bumper), No.1 |
| 4774950090 | 47749-50090 | Clip, Pin Hold | Clip, Pin Hold |
| 9011906782 | 90119-06782 | BOLT WWASHER | BOLT WWASHER |
| 9015960431 | 90159-60431 | SCREW | SCREW |
| 9017906127 | 90179-06127 | Bracket, Front Licence Plate Mounting | Bracket, Front Licence Plate Mounting |
| 9017906349 | 90179-06349 | NUT | NUT |
Front Bumper & Bumper Stay ([10.2016 - ] (1610- )ARL,GCC,GEN) 8 / 72
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 52161 | 52161-16010 | Clip | Clip |
| 52161 | 52161-0K040 | Clip | Clip |
| 52161 | 52161-02020 | Clip | Clip |
| 52535 | 52535-50060 | Retainer, Front Bumper Side | Retainer, Front Bumper Side |
| 53121 | 90467-08186-C0 | Clip(For Front Bumper), No.1 | Clip(For Front Bumper), No.1 |
| 4774950090 | 47749-50090 | Clip, Pin Hold | Clip, Pin Hold |
| 9015960431 | 90159-60431 | SCREW | SCREW |
| 9017906349 | 90179-06349 | NUT | NUT |
Front Bumper & Bumper Stay ([10.2016 - ] F-SPORT (1610- )ARL,GCC,GEN) 9 / 83
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 52161 | 52161-16010 | Clip | Clip |
| 52161 | 52161-0K040 | Clip | Clip |
| 52161 | 52161-02020 | Clip | Clip |
| 52535 | 52535-50060 | Retainer, Front Bumper Side | Retainer, Front Bumper Side |
| 53121 | 90467-08186-C0 | Clip(For Front Bumper), No.1 | Clip(For Front Bumper), No.1 |
| 75392 | 75392-50070 | Retainer, Outside Moulding - FRONT SPOILER, NO.1 | Retainer, Outside Moulding - FRONT SPOILER, NO.1 |
| 4774950090 | 47749-50090 | Clip, Pin Hold | Clip, Pin Hold |
| 9015960431 | 90159-60431 | SCREW | SCREW |
| 9017906349 | 90179-06349 | NUT | NUT |
Front Clearance Lamp ([04.2013 - 10.2016] (1304-1610)ARL,GCC,GEN ; (1304-1611)CHI) 3 / 10
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 5216116010 | 52161-16010 | Clip | Clip |
| 5216116010 | 52161-0K040 | Clip | Clip |
| 5216116010 | 52161-02020 | Clip | Clip |
Front Clearance Lamp ([10.2016 - ] (1610- )ARL,GCC,GEN) 3 / 18
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 5216116010 | 52161-16010 | Clip | Clip |
| 5216116010 | 52161-0K040 | Clip | Clip |
| 5216116010 | 52161-02020 | Clip | Clip |
Front Disc Brake Caliper & Dust Cover ([04.2013 - ] (1304- )AVE30,GSE30..ARL,CHI,GEN) 24 / 33
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 4465 | 04465-53040 | Pad Kit, Disc Brake, Front | Pad Kit, Disc Brake, Front |
| 4479 | 04478-30250 | Cylinder Kit, Disc Brake, Front | Cylinder Kit, Disc Brake, Front |
| 4479 | 04478-30260 | Cylinder Kit, Disc Brake, Front | Cylinder Kit, Disc Brake, Front |
| 4945 | 04945-53050 | Shim Kit, Anti Squeal, Front | Shim Kit, Anti Squeal, Front |
| 4947 | 04947-53020 | Fitting Kit, Disc Brake, Front | Fitting Kit, Disc Brake, Front |
| 31478 | 31478-30010 | Bleeder Plug Cap | Bleeder Plug Cap |
| 47547 | 47547-27030 | Plug, Bleeder(For Front Disc Brake) | Plug, Bleeder(For Front Disc Brake) |
| 47710 | 90119-12415 | Bolt, Hexagon(For Front Disc Brake Caliper) | Bolt, Hexagon(For Front Disc Brake Caliper) |
| 47715 | 47715-22070 | Pin, Front Disc Brake Cylinder Slide | Pin, Front Disc Brake Cylinder Slide |
| 47715 | 90105-08164 | Bolt(For Front Disc Brake Cylinder Slide) | Bolt(For Front Disc Brake Cylinder Slide) |
| 47715 | 47715-33050 | Pin, Front Disc Brake Cylinder Slide | Pin, Front Disc Brake Cylinder Slide |
| 47715 | 47715-52190 | Pin, Main(For Front Disc Brake Cylinder Slide) | Pin, Main(For Front Disc Brake Cylinder Slide) |
| 47721 | 47721-53060 | Mounting, Front Disc Brake Cylinder, Rh | Mounting, Front Disc Brake Cylinder, Rh |
| 47722 | 47722-53060 | Mounting, Front Disc Brake Cylinder, Lh | Mounting, Front Disc Brake Cylinder, Lh |
| 47730 | 47730-53060 | Cylinder Assy, Front Disc Brake, Rh | Cylinder Assy, Front Disc Brake, Rh |
| 47731 | 47731-33070 | Piston, Front Disc Brake | Piston, Front Disc Brake |
| 47731 | 47731-30570 | PISTON DISC BRAKE | PISTON DISC BRAKE |
| 47731 | 47731-53060 | Piston, Front Disc Brake | Piston, Front Disc Brake |
| 47731 | 47731-12A10 | Piston, Front Disc Brake | Piston, Front Disc Brake |
| 47750 | 47750-53060 | Cylinder Assy, Disc Brake, Lh | Cylinder Assy, Disc Brake, Lh |
| 47769 | 47769-50010 | Bush, Cylinder Slide, No.1(For Front Disc Brake) | Bush, Cylinder Slide, No.1(For Front Disc Brake) |
| 47771 | 47771-33340 | Plate, Pad Wear Indicator, No.1 | Plate, Pad Wear Indicator, No.1 |
| 47775 | 47775-50010 | Boot, Bush Dust(For Front Disc Brake) | Boot, Bush Dust(For Front Disc Brake) |
| 47795 | 47795-30520 | Plate, Front Disc Brake Caliper, No.1 | Plate, Front Disc Brake Caliper, No.1 |
Front Disc Brake Caliper & Dust Cover ([04.2013 - ] F-SPORT OR THE CRAFTED LINE (1304- )AVE30,GSE30..ARL,CHI,GEN) 24 / 33
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 4465 | 04465-53040 | Pad Kit, Disc Brake, Front | Pad Kit, Disc Brake, Front |
| 4479 | 04478-30250 | Cylinder Kit, Disc Brake, Front | Cylinder Kit, Disc Brake, Front |
| 4479 | 04478-30260 | Cylinder Kit, Disc Brake, Front | Cylinder Kit, Disc Brake, Front |
| 4945 | 04945-53050 | Shim Kit, Anti Squeal, Front | Shim Kit, Anti Squeal, Front |
| 4947 | 04947-53020 | Fitting Kit, Disc Brake, Front | Fitting Kit, Disc Brake, Front |
| 31478 | 31478-30010 | Bleeder Plug Cap | Bleeder Plug Cap |
| 47547 | 47547-27030 | Plug, Bleeder(For Front Disc Brake) | Plug, Bleeder(For Front Disc Brake) |
| 47710 | 90119-12415 | Bolt, Hexagon(For Front Disc Brake Caliper) | Bolt, Hexagon(For Front Disc Brake Caliper) |
| 47715 | 47715-22070 | Pin, Front Disc Brake Cylinder Slide | Pin, Front Disc Brake Cylinder Slide |
| 47715 | 90105-08164 | Bolt(For Front Disc Brake Cylinder Slide) | Bolt(For Front Disc Brake Cylinder Slide) |
| 47715 | 47715-33050 | Pin, Front Disc Brake Cylinder Slide | Pin, Front Disc Brake Cylinder Slide |
| 47715 | 47715-52190 | Pin, Main(For Front Disc Brake Cylinder Slide) | Pin, Main(For Front Disc Brake Cylinder Slide) |
| 47721 | 47721-53060 | Mounting, Front Disc Brake Cylinder, Rh | Mounting, Front Disc Brake Cylinder, Rh |
| 47722 | 47722-53060 | Mounting, Front Disc Brake Cylinder, Lh | Mounting, Front Disc Brake Cylinder, Lh |
| 47730 | 47730-53060 | Cylinder Assy, Front Disc Brake, Rh | Cylinder Assy, Front Disc Brake, Rh |
| 47731 | 47731-33070 | Piston, Front Disc Brake | Piston, Front Disc Brake |
| 47731 | 47731-30570 | PISTON DISC BRAKE | PISTON DISC BRAKE |
| 47731 | 47731-53060 | Piston, Front Disc Brake | Piston, Front Disc Brake |
| 47731 | 47731-12A10 | Piston, Front Disc Brake | Piston, Front Disc Brake |
| 47750 | 47750-53060 | Cylinder Assy, Disc Brake, Lh | Cylinder Assy, Disc Brake, Lh |
| 47769 | 47769-50010 | Bush, Cylinder Slide, No.1(For Front Disc Brake) | Bush, Cylinder Slide, No.1(For Front Disc Brake) |
| 47771 | 47771-33340 | Plate, Pad Wear Indicator, No.1 | Plate, Pad Wear Indicator, No.1 |
| 47775 | 47775-50010 | Boot, Bush Dust(For Front Disc Brake) | Boot, Bush Dust(For Front Disc Brake) |
| 47795 | 47795-30520 | Plate, Front Disc Brake Caliper, No.1 | Plate, Front Disc Brake Caliper, No.1 |
Front Door Lock & Handle ([04.2013 - ] (1304- )) 7 / 133
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 69205 | 90541-04014 | Cushion, Console Box | Cushion, Console Box |
| 69283 | 69283-30050-C0 | Plug, Front Door Inside Handle Bezel, Rh | Plug, Front Door Inside Handle Bezel, Rh |
| 69284 | 69284-30050-C0 | Plug, Front Door Inside Handle Bezel, Lh | Plug, Front Door Inside Handle Bezel, Lh |
| 69318 | 69318-51010 | Seal, Front Door Lock Hole, Rh | Seal, Front Door Lock Hole, Rh |
| 69415 | 69415-33010 | Cover, Door Lock Striker, Front | Cover, Door Lock Striker, Front |
| 69415 | 69415-60020 | Cover, Door Lock Striker, Front | Cover, Door Lock Striker, Front |
| 9014880066 | 90148-80066 | SCREW HEXALOBULAR | SCREW HEXALOBULAR |
Front Door Panel & Glass ([04.2013 - ] DOOR PANEL (1304- )) 14 / 58
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 67001 | 90541-09069 | Cushion, Hood Bumper | Cushion, Hood Bumper |
| 67837 | 67837-51010 | Seal, Front Door Vent, Rh | Seal, Front Door Vent, Rh |
| 67867 | 67867-12150 | Clip(For Hood Air Intake Duct Seal) | Clip(For Hood Air Intake Duct Seal) |
| 67923 | 67923-48060 | Cushion, Front Door Stiffener, No.1 | Cushion, Front Door Stiffener, No.1 |
| 91673 | 91673-A0620 | BOLT FLANGE | BOLT FLANGE |
| 9010908295 | 90109-08295 | BOLT | BOLT |
| 9011906956 | 90119-06956 | BOLT WWASHER | BOLT WWASHER |
| 9015960303 | 90159-60303 | SCREW | SCREW |
| 9017906159 | 90179-06159 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 9017906159 | 90080-17210 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 9018904200 | 90189-04200 | GROMMET SCREW | GROMMET SCREW |
| 9018906227 | 90189-06227 | GROMMET SCREW | GROMMET SCREW |
| 9095001506 | 90950-01506 | Plug, Hole(For Luggage Compartment Door Panel) | Plug, Hole(For Luggage Compartment Door Panel) |
| 9095001841 | 90950-01841 | Direct | Direct |
Front Door Panel & Glass ([04.2013 - ] DOOR TRIM (1304- )) 2 / 100
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 67491 | 90467-09206 | Clip, Front Air Shutter Seal | Clip, Front Air Shutter Seal |
| 9016450031 | 90164-50031 | SCREW BINDING | SCREW BINDING |
Front Door Window Regulator & Hinge ([04.2013 - ] (1304- )) 4 / 15
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 68710 | 68710-12151 | Hinge Assy, Front Door, Upper Rh | Hinge Assy, Front Door, Upper Rh |
| 68720 | 68720-12151 | Hinge Assy, Front Door, Upper Lh | Hinge Assy, Front Door, Upper Lh |
| 9010506260 | 90105-06260 | BOLT, WASHER BASED | BOLT, WASHER BASED |
| 9016850040 | 90168-50040 | SCREW TAPPING | SCREW TAPPING |
Front Fender Apron & Dash Panel ([04.2013 - ] (1304- )ARL) 14 / 73
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 53202 | 53119-53021 | Protector, Radiator Grille | Protector, Radiator Grille |
| 53205 | 90119-06932 | BOLT WWASHER | BOLT WWASHER |
| 53259 | 90467-07217 | Clip, Radiator Support To Frame Seal | Clip, Radiator Support To Frame Seal |
| 53711 | 53711-53040 | Apron, Front Fender, Front Rh | Apron, Front Fender, Front Rh |
| 53712 | 53712-53040 | Apron, Front Fender, Front Lh | Apron, Front Fender, Front Lh |
| 53712 | 53712-53041 | Apron, Front Fender, Front Lh | Apron, Front Fender, Front Lh |
| 55210 | 90904-67034 | Clip | Clip |
| 57117 | 57117-30050 | Retainer, Front Bumper Arm, Rh | Retainer, Front Bumper Arm, Rh |
| 57118 | 57118-30050 | Retainer, Front Bumper Arm, Lh | Retainer, Front Bumper Arm, Lh |
| 9010506137 | 90105-06137 | BOLT, WASHER BASED H | BOLT, WASHER BASED H |
| 9010908241 | 90109-08241 | BOLT | BOLT |
| 9011906403 | 90119-06403 | BOLT W-WASHER | BOLT W-WASHER |
| 9046707201 | 90467-07201 | Clamp(For Cool Air Intake) | Clamp(For Cool Air Intake) |
| 9046710183 | 90467-10183 | Clip(For Luggage Compartment Trim Inner Cover) | Clip(For Luggage Compartment Trim Inner Cover) |
Front Fender Apron & Dash Panel ([04.2013 - ] (1304- )LHD) 14 / 74
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 53202 | 53119-53021 | Protector, Radiator Grille | Protector, Radiator Grille |
| 53205 | 90119-06932 | BOLT WWASHER | BOLT WWASHER |
| 53259 | 90467-07217 | Clip, Radiator Support To Frame Seal | Clip, Radiator Support To Frame Seal |
| 53711 | 53711-53040 | Apron, Front Fender, Front Rh | Apron, Front Fender, Front Rh |
| 53712 | 53712-53040 | Apron, Front Fender, Front Lh | Apron, Front Fender, Front Lh |
| 53712 | 53712-53041 | Apron, Front Fender, Front Lh | Apron, Front Fender, Front Lh |
| 55210 | 90904-67034 | Clip | Clip |
| 57117 | 57117-30050 | Retainer, Front Bumper Arm, Rh | Retainer, Front Bumper Arm, Rh |
| 57118 | 57118-30050 | Retainer, Front Bumper Arm, Lh | Retainer, Front Bumper Arm, Lh |
| 9010506137 | 90105-06137 | BOLT, WASHER BASED H | BOLT, WASHER BASED H |
| 9010908241 | 90109-08241 | BOLT | BOLT |
| 9011906403 | 90119-06403 | BOLT W-WASHER | BOLT W-WASHER |
| 9046707201 | 90467-07201 | Clamp(For Cool Air Intake) | Clamp(For Cool Air Intake) |
| 9046710183 | 90467-10183 | Clip(For Luggage Compartment Trim Inner Cover) | Clip(For Luggage Compartment Trim Inner Cover) |
Front Moulding ([04.2013 - ] (1304- )) 1 / 6
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 75547 | 75547-51021 | Clip, Windshield Outside Moulding, No.3 | Clip, Windshield Outside Moulding, No.3 |
Front Seat & Seat Track ([04.2013 - ] LH SEAT(MANUAL) (1304- )ASE30..CHI ; (1304- )AVE30,GSE3#) 4 / 235
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 72020 | 73214-75010 | Plate, Front Seat Belt Anchor | Plate, Front Seat Belt Anchor |
| 73949 | 71848-33010 | Cap, Rear Seat | Cap, Rear Seat |
| 9417060600 | 94170-60600 | NUT CAP | NUT CAP |
| 9418560600 | 94185-60600 | Nut, Wire Adjusting, No.1 | Nut, Wire Adjusting, No.1 |
Front Seat & Seat Track ([04.2013 - ] LH SEAT(POWER) (1304- )) 5 / 265
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 71430 | 90467-08186-C0 | Clip(For Front Bumper), No.1 | Clip(For Front Bumper), No.1 |
| 72020 | 73214-75010 | Plate, Front Seat Belt Anchor | Plate, Front Seat Belt Anchor |
| 73949 | 71848-33010 | Cap, Rear Seat | Cap, Rear Seat |
| 9417060600 | 94170-60600 | NUT CAP | NUT CAP |
| 9418560600 | 94185-60600 | Nut, Wire Adjusting, No.1 | Nut, Wire Adjusting, No.1 |
Front Seat & Seat Track ([04.2013 - ] RH SEAT(MANUAL) (1304- )ASE30..CHI ; (1304- )AVE30,GSE3#) 4 / 235
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 72010 | 73214-75010 | Plate, Front Seat Belt Anchor | Plate, Front Seat Belt Anchor |
| 73949 | 71848-33010 | Cap, Rear Seat | Cap, Rear Seat |
| 9417060600 | 94170-60600 | NUT CAP | NUT CAP |
| 9418560600 | 94185-60600 | Nut, Wire Adjusting, No.1 | Nut, Wire Adjusting, No.1 |
Front Seat & Seat Track ([04.2013 - ] RH SEAT(POWER) (1304- )) 5 / 265
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 71430 | 90467-08186-C0 | Clip(For Front Bumper), No.1 | Clip(For Front Bumper), No.1 |
| 72010 | 73214-75010 | Plate, Front Seat Belt Anchor | Plate, Front Seat Belt Anchor |
| 73949 | 71848-33010 | Cap, Rear Seat | Cap, Rear Seat |
| 9417060600 | 94170-60600 | NUT CAP | NUT CAP |
| 9418560600 | 94185-60600 | Nut, Wire Adjusting, No.1 | Nut, Wire Adjusting, No.1 |
Front Seat & Seat Track ([04.2013 - ] SEAT COVER EDGE WIRE & CLIP (1304- )) 2 / 4
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9046816019 | 90468-16019 | Clip (For Rear Seat Back) | Clip (For Rear Seat Back) |
| 9046818008 | 90468-18008 | Clip (For Rear Seat Back) | Clip (For Rear Seat Back) |
Front Spring & Shock Absorber ([04.2013 - 10.2016] (1304-1610) ; (1610-1611)CHI) 5 / 50
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 48158 | 48158-30020 | Insulator, Front Coil Spring, Lower | Insulator, Front Coil Spring, Lower |
| 48603 | 90178-10014 | Nut(For Front Suspension Support) | Nut(For Front Suspension Support) |
| 48820 | 94151-21241 | Nut(For Front Stabilizer Link) | Nut(For Front Stabilizer Link) |
| 53729 | 53729-53020 | Reinforcement, Front Spring Support, No.3 | Reinforcement, Front Spring Support, No.3 |
| 9017712002 | 90177-12002 | Nut | Nut |
Front Spring & Shock Absorber ([10.2016 - ] (1610- )ARL,GCC,GEN) 5 / 50
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 48158 | 48158-30020 | Insulator, Front Coil Spring, Lower | Insulator, Front Coil Spring, Lower |
| 48603 | 90178-10014 | Nut(For Front Suspension Support) | Nut(For Front Suspension Support) |
| 48820 | 94151-21241 | Nut(For Front Stabilizer Link) | Nut(For Front Stabilizer Link) |
| 53729 | 53729-53020 | Reinforcement, Front Spring Support, No.3 | Reinforcement, Front Spring Support, No.3 |
| 9017712002 | 90177-12002 | Nut | Nut |
Front Steering Gear & Link ([04.2013 - ] (1304- )ARL) 7 / 18
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 45535 | 45535-59045 | Boot, Steering Rack, No.1 | Boot, Steering Rack, No.1 |
| 45535 | 45535-59065 | Boot, Steering Rack, No.1 | Boot, Steering Rack, No.1 |
| 45535 | 90467-19019 | Clip | Clip |
| 8271530 | 82715-30C10 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 9010506299 | 90105-06299 | New Genuine Part | New Genuine Part |
| 9017814015 | 90178-14015 | New Genuine Part | New Genuine Part |
| 9046816017 | 90468-16017 | CLIP | CLIP |
Front Steering Gear & Link ([04.2013 - ] (1304- )LHD) 7 / 18
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 45535 | 45535-59045 | Boot, Steering Rack, No.1 | Boot, Steering Rack, No.1 |
| 45535 | 45535-59065 | Boot, Steering Rack, No.1 | Boot, Steering Rack, No.1 |
| 45535 | 90467-19019 | Clip | Clip |
| 8271530 | 82715-30C10 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 9010506299 | 90105-06299 | New Genuine Part | New Genuine Part |
| 9017814015 | 90178-14015 | New Genuine Part | New Genuine Part |
| 9046816017 | 90468-16017 | CLIP | CLIP |
Fuel Injection System ([04.2013 - ] (1304- )2ARFSE..ARL) 2 / 49
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 23801 | 90430-12026 | Gasket | Gasket |
| 9155180650 | 91551-80650 | BOLT FLANGE | BOLT FLANGE |
Fuel Injection System ([04.2013 - ] (1304- )2ARFSE..GEN) 2 / 48
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 23801 | 90430-12026 | Gasket | Gasket |
| 9155180650 | 91551-80650 | BOLT FLANGE | BOLT FLANGE |
Fuel Tank & Tube ([04.2013 - ] FUEL LID OPENER (1304- )) 3 / 7
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 77391 | 77391-12020 | Ring, Fuel Inlet Box | Ring, Fuel Inlet Box |
| 9015950269 | 90159-50269 | SCREW WWASHER | SCREW WWASHER |
| 9018905137 | 90189-05137 | GROMMET SCREW | GROMMET SCREW |
Fuel Tank & Tube ([04.2013 - ] FUEL TANK (1304- )AVE30) 14 / 68
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 23280 | 90301-04013 | Ring, O(For Fuel Pump) | Ring, O(For Fuel Pump) |
| 23280 | 90301-15024 | Ring, O(For Fuel Pump) | Ring, O(For Fuel Pump) |
| 77241 | 77241-33011 | Clip, Tube Joint | Clip, Tube Joint |
| 77289 | 77289-52090 | Holder, Fuel Tank Pipe Setting | Holder, Fuel Tank Pipe Setting |
| 77310 | 77300-52030 | Cap Assy, Fuel Tank | Cap Assy, Fuel Tank |
| 77316 | 77316-52040 | Gasket, Fuel Tank Cap | Gasket, Fuel Tank Cap |
| 91626 | 91626-B0614 | BOLT, W/WASHER | BOLT, W/WASHER |
| 91671 | 91671-A0820 | New Genuine Part | New Genuine Part |
| 9011910971 | 90119-10971 | Bolt, Fuel Tank Band Set | Bolt, Fuel Tank Band Set |
| 9017906169 | 90179-06169 | Nut | Nut |
| 9030108020 | 90301-08020 | Ring, O(For Fuel Pump) | Ring, O(For Fuel Pump) |
| 9030111025 | 90301-11025 | Ring, O(For Fuel Pump) | Ring, O(For Fuel Pump) |
| 9046022002 | 90460-22002 | CLAMP | CLAMP |
| 9046022002 | 90460-22001 | CLAMP | CLAMP |
Fuel Tank & Tube ([04.2013 - ] FUEL TUBE (1304- )AVE30..ARL) 2 / 14
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 77286 | 77286-30170 | Clamp, Fuel Tube, No.2 | Clamp, Fuel Tube, No.2 |
| 91673 | 91673-A0620 | BOLT FLANGE | BOLT FLANGE |
Fuel Tank & Tube ([04.2013 - ] FUEL TUBE (1304- )AVE30..GEN) 2 / 13
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 77286 | 77286-30170 | Clamp, Fuel Tube, No.2 | Clamp, Fuel Tube, No.2 |
| 91673 | 91673-A0620 | BOLT FLANGE | BOLT FLANGE |
Headlamp ([04.2013 - 10.2016] DISCHARGE (1304-1610)ARL,GCC,GEN ; (1304-1611)CHI) 6 / 45
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 81110 | 90981-20024 | Bulb, Discharge Headlamp | Bulb, Discharge Headlamp |
| 81510 | 90981-15021 | Bulb (For Front Turn Signal Lamp) | Bulb (For Front Turn Signal Lamp) |
| 85669 | 90075-99120 | Packing, Headlamp Leveling Motor Base | Packing, Headlamp Leveling Motor Base |
| 9010906374 | 90109-06374 | BOLT | BOLT |
| 9015950311 | 90159-50311 | SCREW | SCREW |
| 9015950311 | 90159-A0034 | SCREW WWASHER | SCREW WWASHER |
Headlamp ([04.2013 - 10.2016] LED (1304-1610)ARL,GCC,GEN ; (1304-1611)CHI) 5 / 45
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 81510 | 90981-15021 | Bulb (For Front Turn Signal Lamp) | Bulb (For Front Turn Signal Lamp) |
| 85669 | 90075-99120 | Packing, Headlamp Leveling Motor Base | Packing, Headlamp Leveling Motor Base |
| 9010906374 | 90109-06374 | BOLT | BOLT |
| 9015950311 | 90159-50311 | SCREW | SCREW |
| 9015950311 | 90159-A0034 | SCREW WWASHER | SCREW WWASHER |
Headlamp ([10.2016 - ] LED (1610- )ARL,GCC,GEN ; (1611- )) 6 / 64
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 81510 | 90981-15021 | Bulb (For Front Turn Signal Lamp) | Bulb (For Front Turn Signal Lamp) |
| 85669 | 90075-99120 | Packing, Headlamp Leveling Motor Base | Packing, Headlamp Leveling Motor Base |
| 9007502056 | 90075-02056 | Screw, Headlamp | Screw, Headlamp |
| 9010906374 | 90109-06374 | BOLT | BOLT |
| 9015950311 | 90159-50311 | SCREW | SCREW |
| 9015950311 | 90159-A0034 | SCREW WWASHER | SCREW WWASHER |
Headlamp ([10.2016 - ] TRINOCULAR FULL LED (1610- )ARL,GCC,GEN ; (1611- )) 5 / 64
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 85669 | 90075-99120 | Packing, Headlamp Leveling Motor Base | Packing, Headlamp Leveling Motor Base |
| 9007502056 | 90075-02056 | Screw, Headlamp | Screw, Headlamp |
| 9010906374 | 90109-06374 | BOLT | BOLT |
| 9015950311 | 90159-50311 | SCREW | SCREW |
| 9015950311 | 90159-A0034 | SCREW WWASHER | SCREW WWASHER |
Headlamp Cleaner ([04.2013 - 10.2016] (1304-1610)ARL,GCC,GEN ; (1304-1611)CHI) 8 / 49
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 85271 | 90075-15064 | Hose, Headlamp Cleaner, No.1 | Hose, Headlamp Cleaner, No.1 |
| 85272 | 90075-90512 | Clamp, Headlamp Cleaner, No.1 | Clamp, Headlamp Cleaner, No.1 |
| 85330 | 90099-32089 | Bush, Headlamp Cleaner Washer Jar | Bush, Headlamp Cleaner Washer Jar |
| 85330 | 90068-32002 | Bush, Windshield Washer Jar | Bush, Windshield Washer Jar |
| 85348 | 90075-17004 | Joint, Headlamp Cleaner Hose, No.2 - HEADLAMP CLEANER ELBOW, NO.1 | Joint, Headlamp Cleaner Hose, No.2 - HEADLAMP CLEANER ELBOW, NO.1 |
| 85376 | 85277-50040 | Protector, Headlamp Cleaner Hose, No.1 | Protector, Headlamp Cleaner Hose, No.1 |
| 8271145020 | 82711-45020 | Clamp, Headlamp Cleaner, No.1 | Clamp, Headlamp Cleaner, No.1 |
| 9007591002 | 90075-91002 | Clamp, Headlamp Cleaner, No.1 | Clamp, Headlamp Cleaner, No.1 |
Headlamp Cleaner ([04.2013 - 10.2016] F SPORT OR THE CRAFTED LINE (1304-1610)ARL,GCC,GEN ; (1304-1611)CHI) 7 / 46
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 85271 | 90075-15064 | Hose, Headlamp Cleaner, No.1 | Hose, Headlamp Cleaner, No.1 |
| 85272 | 90075-90512 | Clamp, Headlamp Cleaner, No.1 | Clamp, Headlamp Cleaner, No.1 |
| 85330 | 90099-32089 | Bush, Headlamp Cleaner Washer Jar | Bush, Headlamp Cleaner Washer Jar |
| 85330 | 90068-32002 | Bush, Windshield Washer Jar | Bush, Windshield Washer Jar |
| 85348 | 90075-17004 | Joint, Headlamp Cleaner Hose, No.2 - HEADLAMP CLEANER ELBOW, NO.1 | Joint, Headlamp Cleaner Hose, No.2 - HEADLAMP CLEANER ELBOW, NO.1 |
| 85376 | 85277-50040 | Protector, Headlamp Cleaner Hose, No.1 | Protector, Headlamp Cleaner Hose, No.1 |
| 9007591002 | 90075-91002 | Clamp, Headlamp Cleaner, No.1 | Clamp, Headlamp Cleaner, No.1 |
Headlamp Cleaner ([10.2016 - ] (1610- )ARL,GCC,GEN ; (1611- )) 8 / 58
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 85271 | 90075-15064 | Hose, Headlamp Cleaner, No.1 | Hose, Headlamp Cleaner, No.1 |
| 85272 | 90075-90512 | Clamp, Headlamp Cleaner, No.1 | Clamp, Headlamp Cleaner, No.1 |
| 85330 | 90099-32089 | Bush, Headlamp Cleaner Washer Jar | Bush, Headlamp Cleaner Washer Jar |
| 85330 | 90068-32002 | Bush, Windshield Washer Jar | Bush, Windshield Washer Jar |
| 85348 | 90075-17004 | Joint, Headlamp Cleaner Hose, No.2 - HEADLAMP CLEANER ELBOW, NO.1 | Joint, Headlamp Cleaner Hose, No.2 - HEADLAMP CLEANER ELBOW, NO.1 |
| 85376 | 85277-50040 | Protector, Headlamp Cleaner Hose, No.1 | Protector, Headlamp Cleaner Hose, No.1 |
| 8271145020 | 82711-45020 | Clamp, Headlamp Cleaner, No.1 | Clamp, Headlamp Cleaner, No.1 |
| 9007591002 | 90075-91002 | Clamp, Headlamp Cleaner, No.1 | Clamp, Headlamp Cleaner, No.1 |
Heating & Air Conditioning - Compressor ([04.2013 - ] (1304- )AVE30) 2 / 6
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9017908025 | 90179-08025 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
| 9155180825 | 91551-80825 | Bolt(For Cylinder Head Set Sub) | Bolt(For Cylinder Head Set Sub) |
Heating & Air Conditioning - Control & Air Duct ([04.2013 - ] AIR DUCT (1304- )ARL) 8 / 22
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 87212 | 87216-53010 | Duct, Air, Rear No.2 | Duct, Air, Rear No.2 |
| 87212 | 87212-30430 | Duct, Air, Rear No.1 | Duct, Air, Rear No.1 |
| 87212 | 87212-30431 | Duct, Air, Rear No.1 | Duct, Air, Rear No.1 |
| 87212 | 87215-53010 | Duct, Air, Rear No.4 | Duct, Air, Rear No.4 |
| 9011906952 | 90119-06952 | New Genuine Part | New Genuine Part |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9015950346 | 90159-50346 | SCREW | SCREW |
| 9018305094 | 90183-05094 | NUT | NUT |
Heating & Air Conditioning - Control & Air Duct ([04.2013 - ] AIR DUCT (1304- )LHD) 8 / 22
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 87212 | 87216-53010 | Duct, Air, Rear No.2 | Duct, Air, Rear No.2 |
| 87212 | 87212-30430 | Duct, Air, Rear No.1 | Duct, Air, Rear No.1 |
| 87212 | 87212-30431 | Duct, Air, Rear No.1 | Duct, Air, Rear No.1 |
| 87212 | 87215-53010 | Duct, Air, Rear No.4 | Duct, Air, Rear No.4 |
| 9011906952 | 90119-06952 | New Genuine Part | New Genuine Part |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9015950346 | 90159-50346 | SCREW | SCREW |
| 9018305094 | 90183-05094 | NUT | NUT |
Heating & Air Conditioning - Control & Air Duct ([04.2013 - ] HEATER CONTROL (1304- )) 1 / 11
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9046710203 | 90467-10203 | Direct | Direct |
Heating & Air Conditioning - Control & Air Duct ([04.2013 - ] SENSOR (1304- )ARL) 1 / 3
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 88625 | 88625-47021 | Thermistor, Cooler No.3 | Thermistor, Cooler No.3 |
Heating & Air Conditioning - Control & Air Duct ([04.2013 - ] SENSOR (1304- )LHD) 1 / 3
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 88625 | 88625-47021 | Thermistor, Cooler No.3 | Thermistor, Cooler No.3 |
Heating & Air Conditioning - Cooler Piping ([04.2013 - ] (1304- )AVE30) 9 / 25
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 91551 | 91551-A0612 | BOLT FLANGE | BOLT FLANGE |
| 91551 | 91551-A0625 | Bolt(For Cylinder Head Cover) | Bolt(For Cylinder Head Cover) |
| 91551 | 91551-A0630 | New Genuine Part | New Genuine Part |
| 8871832220 | 88718-32220 | Clamp(For Cooler Refrigerant Pipe), No.2 | Clamp(For Cooler Refrigerant Pipe), No.2 |
| 9009914119 | 90099-14119 | Ring, O(For Cooler Refrigerant Liquid Pipe) | Ring, O(For Cooler Refrigerant Liquid Pipe) |
| 9009914119 | 90099-14119-TH | O RING | O RING |
| 9009914120 | 90099-14120 | O-Ring, Cooler Evaporator No.1(Discharge) | O-Ring, Cooler Evaporator No.1(Discharge) |
| 9009914121 | 90099-14121 | O-Ring, Cooler Evaporator No.1(Suction) | O-Ring, Cooler Evaporator No.1(Suction) |
| 9415180641 | 94151-80641 | NUT FLANGE | NUT FLANGE |
Heating & Air Conditioning - Cooler Unit ([04.2013 - ] (1304- )ARL) 13 / 54
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 87128 | 87128-30050 | Grommet, Heater | Grommet, Heater |
| 88897 | 88897-35030 | Grommet, (For Cooler Pipe) | Grommet, (For Cooler Pipe) |
| 88897 | 87128-35020 | Grommet, Heater | Grommet, Heater |
| 8889944050 | 88899-44050 | Bolt, W/Washer | Bolt, W/Washer |
| 9009900318 | 90099-00318 | New Genuine Part | New Genuine Part |
| 9009914119 | 90099-14119 | Ring, O(For Cooler Refrigerant Liquid Pipe) | Ring, O(For Cooler Refrigerant Liquid Pipe) |
| 9009914119 | 90099-14119-TH | O RING | O RING |
| 9009914120 | 90099-14120 | O-Ring, Cooler Evaporator No.1(Discharge) | O-Ring, Cooler Evaporator No.1(Discharge) |
| 9009914121 | 90099-14121 | O-Ring, Cooler Evaporator No.1(Suction) | O-Ring, Cooler Evaporator No.1(Suction) |
| 9011906952 | 90119-06952 | New Genuine Part | New Genuine Part |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9015960195 | 90159-60195 | New Genuine Part | New Genuine Part |
| 9017906282 | 90179-06282 | New Genuine Part | New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([04.2013 - ] (1304- )LHD) 13 / 53
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 87128 | 87128-30050 | Grommet, Heater | Grommet, Heater |
| 88897 | 88897-35030 | Grommet, (For Cooler Pipe) | Grommet, (For Cooler Pipe) |
| 88897 | 87128-35020 | Grommet, Heater | Grommet, Heater |
| 8889944050 | 88899-44050 | Bolt, W/Washer | Bolt, W/Washer |
| 9009900318 | 90099-00318 | New Genuine Part | New Genuine Part |
| 9009914119 | 90099-14119 | Ring, O(For Cooler Refrigerant Liquid Pipe) | Ring, O(For Cooler Refrigerant Liquid Pipe) |
| 9009914119 | 90099-14119-TH | O RING | O RING |
| 9009914120 | 90099-14120 | O-Ring, Cooler Evaporator No.1(Discharge) | O-Ring, Cooler Evaporator No.1(Discharge) |
| 9009914121 | 90099-14121 | O-Ring, Cooler Evaporator No.1(Suction) | O-Ring, Cooler Evaporator No.1(Suction) |
| 9011906952 | 90119-06952 | New Genuine Part | New Genuine Part |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9015960195 | 90159-60195 | New Genuine Part | New Genuine Part |
| 9017906282 | 90179-06282 | New Genuine Part | New Genuine Part |
Heating & Air Conditioning - Water Piping ([04.2013 - ] (1304- )AVE30) 4 / 10
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 8700930040 | 87009-30040 | Hose Set, Water, No.1 | Hose Set, Water, No.1 |
| 9167180612 | 91671-80612 | Bolt | Bolt |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) | Clip(For Ventilation Hose) |
| 9613642701 | 96136-42701 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Clamp Or Clip, Hose(For Water By-Pass Hose) |
Hole Plug ([04.2013 - ] (1304- )) 28 / 34
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 0 | 82711-1E320 | Clamp, Wiring Harness | Clamp, Wiring Harness |
| 5861930080 | 58619-30080 | Sheet, Center Floor Silencer Sub | Sheet, Center Floor Silencer Sub |
| 9033320001 | 90333-20001 | PLUG | PLUG |
| 9033330002 | 90333-30002 | Cover, Front Floor Hole | Cover, Front Floor Hole |
| 9033330008 | 90333-30008 | PLUG PLATE | PLUG PLATE |
| 9033335002 | 90333-35002 | Plug, Hole(For Rear Door Panel) | Plug, Hole(For Rear Door Panel) |
| 9033348001 | 90333-48001 | Plate, Quarter Panel, Upper No.1 | Plate, Quarter Panel, Upper No.1 |
| 9095001259 | 90950-01259 | PLUG | PLUG |
| 9095001398 | 90950-01398 | CUSHION | CUSHION |
| 9095001510 | 90950-01510 | New Genuine Part | New Genuine Part |
| 9095001527 | 90950-01527 | PLUG | PLUG |
| 9095001611 | 90950-01611 | New Genuine Part | New Genuine Part |
| 9095001710 | 90950-01710 | PLUG HOLE | PLUG HOLE |
| 9095001759 | 90950-01759 | PLUG | PLUG |
| 9095001762 | 90950-01762 | New Genuine Part | New Genuine Part |
| 9095001824 | 90950-01824 | PLUG HOLE | PLUG HOLE |
| 9095001841 | 90950-01841 | Direct | Direct |
| 9095001948 | 90950-01948 | PLUG HOLE | PLUG HOLE |
| 9095001954 | 90950-01954 | PLUG HOLE | PLUG HOLE |
| 9095001955 | 90950-01955 | Plug, Hole, No.1(For Dash Panel) | Plug, Hole, No.1(For Dash Panel) |
| 9095001956 | 90950-01956 | PLUG HOLE | PLUG HOLE |
| 9095001957 | 90950-01957 | PLUG HOLE | PLUG HOLE |
| 9095001958 | 90950-01958 | Plug, Hole(For Back Door Panel) | Plug, Hole(For Back Door Panel) |
| 9095001959 | 90950-01959 | Cover, Console Box Hole | Cover, Console Box Hole |
| 9095001960 | 90950-01960 | Plug, Hole(For Floor Panel) | Plug, Hole(For Floor Panel) |
| 9095001962 | 90950-01962 | PLUG HOLE | PLUG HOLE |
| 9095001974 | 90950-01974 | New Genuine Part | New Genuine Part |
| 9095001982 | 90950-01982 | New Genuine Part | New Genuine Part |
Hood & Front Fender ([04.2013 - ] (1304- )) 9 / 48
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 53341 | 90467-09050 | Clip(For Hood Insulator) | Clip(For Hood Insulator) |
| 53381 | 90467-08011 | Clip(For Headlamp Cover Seal) | Clip(For Headlamp Cover Seal) |
| 53381 | 90467-08011-TH | CLIP | CLIP |
| 53381 | 90467-08011-83 | Clip(For Headlamp Cover Seal) | Clip(For Headlamp Cover Seal) |
| 53866 | 90467-10162 | Clip, Front Wheel Opening Extensoion | Clip, Front Wheel Opening Extensoion |
| 53879 | 53879-50010 | Retainer, Front Fender Liner | Retainer, Front Fender Liner |
| 9015960477 | 90159-60477 | SCREW, WWASHER | SCREW, WWASHER |
| 9015960507 | 90159-60507 | SCREW WWASHER | SCREW WWASHER |
| 9046707214 | 90467-07214 | Clip, Front Fender Liner | Clip, Front Fender Liner |
Hood Lock & Hinge ([04.2013 - ] (1304- )ARL) 6 / 31
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 53497 | 53497-50020 | Pad, Hood Hinge, No.1 | Pad, Hood Hinge, No.1 |
| 53510 | 90506-14086 | Spring, Tension(For Hood Lock) | Spring, Tension(For Hood Lock) |
| 53614 | 90959-01369 | Clamp, Hood Lock Control Cable | Clamp, Hood Lock Control Cable |
| 91551 | 91551-A0814 | BOLT FLANGE | BOLT FLANGE |
| 9011908718 | 90119-08718 | BOLT WWASHER | BOLT WWASHER |
| 9046707214 | 90467-07214 | Clip, Front Fender Liner | Clip, Front Fender Liner |
Hood Lock & Hinge ([04.2013 - ] (1304- )LHD) 6 / 31
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 53497 | 53497-50020 | Pad, Hood Hinge, No.1 | Pad, Hood Hinge, No.1 |
| 53510 | 90506-14086 | Spring, Tension(For Hood Lock) | Spring, Tension(For Hood Lock) |
| 53614 | 90959-01369 | Clamp, Hood Lock Control Cable | Clamp, Hood Lock Control Cable |
| 91551 | 91551-A0814 | BOLT FLANGE | BOLT FLANGE |
| 9011908718 | 90119-08718 | BOLT WWASHER | BOLT WWASHER |
| 9046707214 | 90467-07214 | Clip, Front Fender Liner | Clip, Front Fender Liner |
Horn ([04.2013 - ] (1304- )AVE30) 4 / 7
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 86510 | 86510-30700 | Horn Assy, High Pitched | Horn Assy, High Pitched |
| 86520 | 86520-30610 | Horn Assy, Low Pitched | Horn Assy, Low Pitched |
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9011908718 | 90119-08718 | BOLT WWASHER | BOLT WWASHER |
Hv Inverter ([04.2013 - ] (1304- )AVE30..ARL) 2 / 8
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9017908040 | 90179-08040 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
Hv Inverter ([04.2013 - ] (1304- )AVE30..GEN) 4 / 12
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9017908040 | 90179-08040 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Ignition Coil & Spark Plug ([04.2013 - ] (1304- )2ARFSE) 2 / 3
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 19500 | 90919-02256 | Coil Assy, Ignition | Coil Assy, Ignition |
| 91551 | 91551-A0625 | Bolt(For Cylinder Head Cover) | Bolt(For Cylinder Head Cover) |
Inside Trim Board & Door Opening Trim Moulding ([04.2013 - ] (1304- )) 5 / 77
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 62170 | 90119-06869 | Bolt, W/washer | Bolt, W/washer |
| 62211 | 90467-10161 | Clip | Clip |
| 62566 | 62566-30010 | Clip, No.2(For Cowl Side Trim) | Clip, No.2(For Cowl Side Trim) |
| 9155380618 | 91553-80618 | Direct | Direct |
| 9356855014 | 93568-55014 | Screw | Screw |
Instrument Panel & Glove Compartment ([04.2013 - ] (1304- )ARL) 16 / 123
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 55315 | 55315-53040 | Spacer, Instrument Panel, No.1 - INSTRUMENT PANEL, NO.2 | Spacer, Instrument Panel, No.1 - INSTRUMENT PANEL, NO.2 |
| 55355 | 55355-30100 | Cushion, Instrument Panel, No.1 | Cushion, Instrument Panel, No.1 |
| 55574 | 55574-53010 | Shaft, Glove Compartment Door Hinge | Shaft, Glove Compartment Door Hinge |
| 9011906951 | 90119-06951 | BOLT WWASHER | BOLT WWASHER |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9017906292 | 90179-06292 | NUT | NUT |
| 9018305094 | 90183-05094 | NUT | NUT |
| 9046710203 | 90467-10203 | Direct | Direct |
| 9046804157 | 90468-04157 | Clip (Metal) | Clip (Metal) |
| 9046805135 | 90468-05135 | Clip, Instrument Panel | Clip, Instrument Panel |
| 9163160816 | 91631-60816 | BOLT | BOLT |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
| 9167380816 | 91673-80816 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9356855012 | 93568-55012 | SCREW | SCREW |
| 9356855014 | 93568-55014 | Screw | Screw |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) | Nut (For Transmission Control Cable) |
Instrument Panel & Glove Compartment ([04.2013 - ] (1304- )LHD) 16 / 133
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 55315 | 55315-53040 | Spacer, Instrument Panel, No.1 - INSTRUMENT PANEL, NO.2 | Spacer, Instrument Panel, No.1 - INSTRUMENT PANEL, NO.2 |
| 55355 | 55355-30100 | Cushion, Instrument Panel, No.1 | Cushion, Instrument Panel, No.1 |
| 55574 | 55574-53010 | Shaft, Glove Compartment Door Hinge | Shaft, Glove Compartment Door Hinge |
| 9011906951 | 90119-06951 | BOLT WWASHER | BOLT WWASHER |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9017906292 | 90179-06292 | NUT | NUT |
| 9018305094 | 90183-05094 | NUT | NUT |
| 9046710203 | 90467-10203 | Direct | Direct |
| 9046804157 | 90468-04157 | Clip (Metal) | Clip (Metal) |
| 9046805135 | 90468-05135 | Clip, Instrument Panel | Clip, Instrument Panel |
| 9163160816 | 91631-60816 | BOLT | BOLT |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
| 9167380816 | 91673-80816 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9356855012 | 93568-55012 | SCREW | SCREW |
| 9356855014 | 93568-55014 | Screw | Screw |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) | Nut (For Transmission Control Cable) |
Interior Lamp ([04.2013 - ] (1304- )) 10 / 39
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 81230 | 81230-30200 | Lamp Assy, Courtesy | Lamp Assy, Courtesy |
| 81230 | 90981-12010 | Bulb (For Lower Back Finish Panel Emblem) | Bulb (For Lower Back Finish Panel Emblem) |
| 81260 | 81080-22040 | Lamp Assy, Interior Illumination, No.1 Rh | Lamp Assy, Interior Illumination, No.1 Rh |
| 81260 | 90981-11062 | Bulb, Room Lamp, No.1 | Bulb, Room Lamp, No.1 |
| 81330 | 99132-12050 | Bulb (12V 5W) | Bulb (12V 5W) |
| 81330 | 90080-81053 | Bulb(For Clearance Lamp) | Bulb(For Clearance Lamp) |
| 81340 | 81340-30110 | Lamp Assy, Vanity | Lamp Assy, Vanity |
| 81380 | 90981-11020 | Bulb (For Lower Back Finish Panel Emblem) | Bulb (For Lower Back Finish Panel Emblem) |
| 9046710161 | 90467-10161 | Clip | Clip |
| 9046710167 | 90467-10167 | Clip(For Rear Floor Finish Plate) | Clip(For Rear Floor Finish Plate) |
Inverter Cooling ([04.2013 - ] (1304- )AVE30..ARL) 4 / 18
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 91673 | 91673-A0620 | BOLT FLANGE | BOLT FLANGE |
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9155180630 | 91551-80630 | Bolt(For Cylinder Head Cover) | Bolt(For Cylinder Head Cover) |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) | Clip(For Ventilation Hose) |
Inverter Cooling ([04.2013 - ] (1304- )AVE30..GEN) 4 / 17
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 91673 | 91673-A0620 | BOLT FLANGE | BOLT FLANGE |
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9155180630 | 91551-80630 | Bolt(For Cylinder Head Cover) | Bolt(For Cylinder Head Cover) |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) | Clip(For Ventilation Hose) |
Lane-Keeping Assist ([04.2013 - 10.2016] (1304-1610)ARL) 1 / 3
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 86652 | 86652-50010 | Buzzer Assy | Buzzer Assy |
Lane-Keeping Assist ([04.2013 - 10.2016] (1304-1610)GCC,GEN ; (1304-1611)CHI) 1 / 3
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 86652 | 86652-50010 | Buzzer Assy | Buzzer Assy |
Lock Cylinder Set ([04.2013 - ] (1304- )ARL) 7 / 53
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 69062 | 69056-50160 | Cylinder & Key Set, Glove Compartment Lock | Cylinder & Key Set, Glove Compartment Lock |
| 69503 | 69515-30330 | Key, Cut(Card Key) | Key, Cut(Card Key) |
| 69503 | 69515-30350 | Key, Blank(Card Key) | Key, Blank(Card Key) |
| 89745 | 89745-50030 | Battery, Transmitter(Card Key) | Battery, Transmitter(Card Key) |
| 9017905011 | 90179-05011 | NUT | NUT |
| 9017905011 | 90178-A0005 | New Genuine Part | New Genuine Part |
| 9017906274 | 90179-06274 | Nut | Nut |
Lock Cylinder Set ([04.2013 - ] (1304- )LHD) 7 / 30
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 69062 | 69056-50160 | Cylinder & Key Set, Glove Compartment Lock | Cylinder & Key Set, Glove Compartment Lock |
| 69503 | 69515-30330 | Key, Cut(Card Key) | Key, Cut(Card Key) |
| 69503 | 69515-30350 | Key, Blank(Card Key) | Key, Blank(Card Key) |
| 89745 | 89745-50030 | Battery, Transmitter(Card Key) | Battery, Transmitter(Card Key) |
| 9017905011 | 90179-05011 | NUT | NUT |
| 9017905011 | 90178-A0005 | New Genuine Part | New Genuine Part |
| 9017906274 | 90179-06274 | Nut | Nut |
Luggage Compartment Door & Lock ([04.2013 - ] (1304- )) 4 / 32
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 64459 | 90541-09116 | Cushion(For Luggage Compartment Door Panel) | Cushion(For Luggage Compartment Door Panel) |
| 9010506120 | 90105-06120 | BOLT WASHER BASED | BOLT WASHER BASED |
| 9010506168 | 90105-06168 | BOLT WASHER BASED | BOLT WASHER BASED |
| 9014880066 | 90148-80066 | SCREW HEXALOBULAR | SCREW HEXALOBULAR |
Manifold ([04.2013 - ] W(EGR) (1304- )2ARFSE) 8 / 24
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011910668 | 90119-10668 | BOLT WWASHER | BOLT WWASHER |
| 9012606029 | 90126-06029 | Bolt, Stud(For Vacuum Transmitting Pipe) | Bolt, Stud(For Vacuum Transmitting Pipe) |
| 9012606029 | 90126-A0014 | Bolt, Stud(For Oil Strainer) | Bolt, Stud(For Oil Strainer) |
| 9012908001 | 90129-08001 | BOLT WWASHER | BOLT WWASHER |
| 9017906292 | 90179-06292 | NUT | NUT |
| 9167180612 | 91671-80612 | Bolt | Bolt |
| 9167180616 | 91671-80616 | BOLT FLANGE | BOLT FLANGE |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Manifold ([04.2013 - ] W/O(EGR) (1304- )2ARFSE) 7 / 24
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011910668 | 90119-10668 | BOLT WWASHER | BOLT WWASHER |
| 9012606029 | 90126-06029 | Bolt, Stud(For Vacuum Transmitting Pipe) | Bolt, Stud(For Vacuum Transmitting Pipe) |
| 9012606029 | 90126-A0014 | Bolt, Stud(For Oil Strainer) | Bolt, Stud(For Oil Strainer) |
| 9017906292 | 90179-06292 | NUT | NUT |
| 9167180612 | 91671-80612 | Bolt | Bolt |
| 9167180616 | 91671-80616 | BOLT FLANGE | BOLT FLANGE |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Mat & Carpet ([04.2013 - ] (1304- )ARL) 2 / 23
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 58564 | 90467-05164-B8 | Clip(For Front Floor Carpet) | Clip(For Front Floor Carpet) |
| 6213530020 | 62135-30020 | Retainer, Floor Carpet | Retainer, Floor Carpet |
Mat & Carpet ([04.2013 - ] (1304- )LHD) 2 / 23
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 58564 | 90467-05164-B8 | Clip(For Front Floor Carpet) | Clip(For Front Floor Carpet) |
| 6213530020 | 62135-30020 | Retainer, Floor Carpet | Retainer, Floor Carpet |
Meter ([04.2013 - ] (1304- )) 1 / 11
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015950002 | 90159-50002 | SCREW | SCREW |
Mirror ([04.2013 - ] (1304- )) 2 / 422
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 87810 | 87810-60191 | Mirror Assy, Inner Rear View | Mirror Assy, Inner Rear View |
| 9017906146 | 90179-06146 | Nut | Nut |
Mounting ([04.2013 - ] (1304- )2ARFSE) 3 / 10
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 0 | 91553-E1240 | Bolt | Bolt |
| 9017812018 | 90178-12018 | NUT FLANGE | NUT FLANGE |
| 9415180841 | 94151-80841 | FLANGE NUT | FLANGE NUT |
Mudguard & Spoiler ([04.2013 - ] (1304- )) 3 / 5
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 76625 | 75867-30120 | Clip, Rocker Panel Moulding | Clip, Rocker Panel Moulding |
| 9015960507 | 90159-60507 | SCREW WWASHER | SCREW WWASHER |
| 9018906172 | 90189-06172 | GROMMET | GROMMET |
Navigation & Front Monitor Display ([04.2013 - 10.2016] (1304-1610)ARL) 4 / 53
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015350010 | 90153-50010 | BOLT | BOLT |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9046710203 | 90467-10203 | Direct | Direct |
| 9155380614 | 91553-80614 | BOLT FLANGE | BOLT FLANGE |
Navigation & Front Monitor Display ([04.2013 - 10.2016] (1304-1610)GCC,GEN ; (1304-1611)CHI) 4 / 45
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015350010 | 90153-50010 | BOLT | BOLT |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9046710203 | 90467-10203 | Direct | Direct |
| 9155380614 | 91553-80614 | BOLT FLANGE | BOLT FLANGE |
Navigation & Front Monitor Display ([10.2016 - ] (1610- )ARL) 4 / 52
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015350010 | 90153-50010 | BOLT | BOLT |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9046710203 | 90467-10203 | Direct | Direct |
| 9155380614 | 91553-80614 | BOLT FLANGE | BOLT FLANGE |
Navigation & Front Monitor Display ([10.2016 - ] (1610- )GCC,GEN ; (1611- )) 4 / 44
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015350010 | 90153-50010 | BOLT | BOLT |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9046710203 | 90467-10203 | Direct | Direct |
| 9155380614 | 91553-80614 | BOLT FLANGE | BOLT FLANGE |
Oil Cooler & Tube (Hv Or Fcv) ([04.2013 - ] (1304- )AVE30) 2 / 12
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 91671 | 91671-A0820 | New Genuine Part | New Genuine Part |
| 9030111030 | 90301-11030 | Ring, O(For Oil Cooler Tube Union) | Ring, O(For Oil Cooler Tube Union) |
Oil Filter ([04.2013 - ] (1304- )2ARFSE,8ARFTS) 3 / 7
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 15620 | 90301-79006 | Gasket(For Oil Filter Cap) | Gasket(For Oil Filter Cap) |
| 15643 | 15643-31050 | Plug(For Oil Filter Cap) | Plug(For Oil Filter Cap) |
| 15643 | 96723-35028 | Gasket(For Oil Filter Cap) | Gasket(For Oil Filter Cap) |
Overdrive & Electronic Controlled Transmission ([04.2013 - ] AA81E (1304- )AVE30,GSE31) 2 / 6
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906120 | 90119-06120 | BOLT | BOLT |
| 9017906274 | 90179-06274 | Nut | Nut |
Package Tray Panel & Luggage Compartment Mat ([04.2013 - 08.2015] REAR SEAT(FIXED TYPE) (1304-1508)AVE30) 8 / 71
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 64330 | 90467-10161 | Clip | Clip |
| 64330 | 90467-08186-C0 | Clip(For Front Bumper), No.1 | Clip(For Front Bumper), No.1 |
| 64711 | 90467-07214 | Clip, Front Fender Liner | Clip, Front Fender Liner |
| 64712 | 90467-12069 | Clip(For Rear Floor Finish Plate) | Clip(For Rear Floor Finish Plate) |
| 66310 | 66310-30011-C0 | Hook Assy, Rope | Hook Assy, Rope |
| 9011906018 | 90119-06018 | New Genuine Part | New Genuine Part |
| 9011906767 | 90119-06767 | Bolt, W/washer(For Engine Under Cover) | Bolt, W/washer(For Engine Under Cover) |
| 9155380614 | 91553-80614 | BOLT FLANGE | BOLT FLANGE |
Package Tray Panel & Luggage Compartment Mat ([04.2013 - ] REAR SEAT(FOLDING TYPE) (1304- )AVE30) 8 / 78
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 64330 | 90467-10161 | Clip | Clip |
| 64330 | 90467-08186-C0 | Clip(For Front Bumper), No.1 | Clip(For Front Bumper), No.1 |
| 64711 | 90467-07214 | Clip, Front Fender Liner | Clip, Front Fender Liner |
| 64712 | 90467-12069 | Clip(For Rear Floor Finish Plate) | Clip(For Rear Floor Finish Plate) |
| 66310 | 66310-30011-C0 | Hook Assy, Rope | Hook Assy, Rope |
| 9011906018 | 90119-06018 | New Genuine Part | New Genuine Part |
| 9011906767 | 90119-06767 | Bolt, W/washer(For Engine Under Cover) | Bolt, W/washer(For Engine Under Cover) |
| 9155380614 | 91553-80614 | BOLT FLANGE | BOLT FLANGE |
Parking Brake & Cable ([04.2013 - ] (1304- )) 12 / 14
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 46505 | 46505-30230 | Block Sub-Assy, Parking Brake Anchor | Block Sub-Assy, Parking Brake Anchor |
| 46540 | 46530-30011 | Shoe Assy, Parking Brake, Rh Or Center No.1 | Shoe Assy, Parking Brake, Rh Or Center No.1 |
| 46550 | 90506-14080 | Spring, Tension, No.1(For Parking Brake Shoe Return) | Spring, Tension, No.1(For Parking Brake Shoe Return) |
| 46550 | 90506-23052 | Spring, Tension, No.1(For Parking Brake Shoe Return) | Spring, Tension, No.1(For Parking Brake Shoe Return) |
| 46601 | 46601-50050 | Lever Sub-Assy, Parking Brake Shoe, Rh | Lever Sub-Assy, Parking Brake Shoe, Rh |
| 46602 | 46602-50050 | Lever Sub-Assy, Parking Brake Shoe, Lh | Lever Sub-Assy, Parking Brake Shoe, Lh |
| 47405 | 47405-32010 | Screw Set, Shoe Adjusting, Rh(For Parking Brake) | Screw Set, Shoe Adjusting, Rh(For Parking Brake) |
| 47406 | 47406-32010 | Screw Set, Shoe Adjusting, Lh(For Parking Brake) | Screw Set, Shoe Adjusting, Lh(For Parking Brake) |
| 47447 | 47447-10020 | Pin, Shoe Hold Down Spring(For Front Brake) | Pin, Shoe Hold Down Spring(For Front Brake) |
| 47447 | 90501-16118 | Spring, Compression(For Parking Brake Shoe Hold Down) | Spring, Compression(For Parking Brake Shoe Hold Down) |
| 47449 | 47449-30030 | Cup, Brake Shoe Hold Down | Cup, Brake Shoe Hold Down |
| 9415121241 | 94151-21241 | Nut(For Front Stabilizer Link) | Nut(For Front Stabilizer Link) |
Parking Brake & Cable ([04.2013 - ] (1304- )ARL) 16 / 24
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 46200 | 46200-53010 | Pedal Assy, Parking Brake Control | Pedal Assy, Parking Brake Control |
| 46252 | 46252-22010 | Pad, Parking Pedal | Pad, Parking Pedal |
| 46341 | 46341-22060 | Equalizer, Parking Brake | Equalizer, Parking Brake |
| 46410 | 46410-53030 | Cable Assy, Parking Brake, No.1 | Cable Assy, Parking Brake, No.1 |
| 46441 | 46441-12010 | Nut, Wire Adjusting, No.1 | Nut, Wire Adjusting, No.1 |
| 46441 | 90179-06299 | Nut, Wire Adjusting, No.1 | Nut, Wire Adjusting, No.1 |
| 9011906428 | 90119-06428 | New Genuine Part | New Genuine Part |
| 9011908681 | 90119-08681 | BOLT W-WASHER | BOLT W-WASHER |
| 9017906161 | 90179-06161 | Bolt, Union(For Clutch Accumulator) | Bolt, Union(For Clutch Accumulator) |
| 9017906264 | 90179-06264 | NUT, WWASHER | NUT, WWASHER |
| 9017908200 | 90179-08200 | New Genuine Part | New Genuine Part |
| 9046808001 | 90468-08001 | CLIP | CLIP |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
| 9167380816 | 91673-80816 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9167480825 | 91674-80825 | BOLT FLANGE | BOLT FLANGE |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Parking Brake & Cable ([04.2013 - ] (1304- )LHD) 13 / 24
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 46252 | 46252-22010 | Pad, Parking Pedal | Pad, Parking Pedal |
| 46341 | 46341-22060 | Equalizer, Parking Brake | Equalizer, Parking Brake |
| 46441 | 46441-12010 | Nut, Wire Adjusting, No.1 | Nut, Wire Adjusting, No.1 |
| 46441 | 90179-06299 | Nut, Wire Adjusting, No.1 | Nut, Wire Adjusting, No.1 |
| 9011906428 | 90119-06428 | New Genuine Part | New Genuine Part |
| 9011908681 | 90119-08681 | BOLT W-WASHER | BOLT W-WASHER |
| 9017906161 | 90179-06161 | Bolt, Union(For Clutch Accumulator) | Bolt, Union(For Clutch Accumulator) |
| 9017906264 | 90179-06264 | NUT, WWASHER | NUT, WWASHER |
| 9046808001 | 90468-08001 | CLIP | CLIP |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
| 9167380816 | 91673-80816 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) | Nut (For Transmission Control Cable) |
Propeller Shaft & Universal Joint ([04.2013 - ] (1304- )ASE30,AVE30,GSE31) 6 / 14
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 37230 | 90119-10902 | Bolt, No.1 (For Center Support Bearing) | Bolt, No.1 (For Center Support Bearing) |
| 37230 | 90201-10008 | Washer, No.2 (For Center Support Bearing) | Washer, No.2 (For Center Support Bearing) |
| 37230 | 90201-10017 | Washer, No.2 (For Center Support Bearing) | Washer, No.2 (For Center Support Bearing) |
| 37230 | 90201-10033 | Washer, No.2 (For Center Support Bearing) | Washer, No.2 (For Center Support Bearing) |
| 37230 | 90201-10034 | Washer, No.2 (For Center Support Bearing) | Washer, No.2 (For Center Support Bearing) |
| 37230 | 90201-10106 | Washer, No.2 (For Center Support Bearing) | Washer, No.2 (For Center Support Bearing) |
Radiator & Water Outlet ([04.2013 - ] RADIATOR SIDE (1304- )2ARFSE) 9 / 44
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 16400 | 16417-21280 | Cock Sub-Assy, Radiator Drain | Cock Sub-Assy, Radiator Drain |
| 16400 | 16492-21050 | Ring, O(For Oil Cooler Drain Cock) | Ring, O(For Oil Cooler Drain Cock) |
| 16470 | 90480-18010 | Grommet, Radiator Reserve Tank Hose | Grommet, Radiator Reserve Tank Hose |
| 16535 | 90480-40021 | Grommet(For Radiator Support) | Grommet(For Radiator Support) |
| 16567 | 96136-42701 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 16571 | 90466-39002 | Clip, Hose(For Radiator Hose Sub-Assy) | Clip, Hose(For Radiator Hose Sub-Assy) |
| 16581 | 16581-28070 | Clamp, Hose(For Water Hose) | Clamp, Hose(For Water Hose) |
| 9009904119 | 90099-04119 | BOLT WASHER HEAD | BOLT WASHER HEAD |
| 9009905164 | 90099-05164 | Nut | Nut |
Radiator & Water Outlet ([04.2013 - ] W(EGR),EXHAUST SIDE (1304- )2ARFSE) 7 / 29
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 16261 | 96136-42701 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 16283 | 96136-42101 | Clip, Hose(For Radiator Hose Sub-Assy) | Clip, Hose(For Radiator Hose Sub-Assy) |
| 9012606029 | 90126-06029 | Bolt, Stud(For Vacuum Transmitting Pipe) | Bolt, Stud(For Vacuum Transmitting Pipe) |
| 9012606029 | 90126-A0014 | Bolt, Stud(For Oil Strainer) | Bolt, Stud(For Oil Strainer) |
| 9155180620 | 91551-80620 | Bolt | Bolt |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Radiator & Water Outlet ([04.2013 - ] W(EGR),INTAKE SIDE (1304- )2ARFSE) 3 / 13
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 16282 | 96136-42101 | Clip, Hose(For Radiator Hose Sub-Assy) | Clip, Hose(For Radiator Hose Sub-Assy) |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9167180820 | 91671-80820 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
Radiator & Water Outlet ([04.2013 - ] W/O(EGR),EXHAUST SIDE (1304- )2ARFSE) 7 / 29
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 16261 | 96136-42701 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 16283 | 96136-42101 | Clip, Hose(For Radiator Hose Sub-Assy) | Clip, Hose(For Radiator Hose Sub-Assy) |
| 9012606029 | 90126-06029 | Bolt, Stud(For Vacuum Transmitting Pipe) | Bolt, Stud(For Vacuum Transmitting Pipe) |
| 9012606029 | 90126-A0014 | Bolt, Stud(For Oil Strainer) | Bolt, Stud(For Oil Strainer) |
| 9155180620 | 91551-80620 | Bolt | Bolt |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Radiator & Water Outlet ([04.2013 - ] W/O(EGR),INTAKE SIDE (1304- )2ARFSE) 3 / 13
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 16282 | 96136-42101 | Clip, Hose(For Radiator Hose Sub-Assy) | Clip, Hose(For Radiator Hose Sub-Assy) |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9167180820 | 91671-80820 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
Radiator Grille ([04.2013 - 10.2016] (1304-1610)ARL,GCC,GEN ; (1304-1611)CHI) 1 / 34
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906782 | 90119-06782 | BOLT WWASHER | BOLT WWASHER |
Radiator Grille ([04.2013 - 10.2016] F SPORT OR THE CRAFTED LINE (1304-1610)ARL,GCC,GEN ; (1304-1611)CHI) 1 / 33
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906782 | 90119-06782 | BOLT WWASHER | BOLT WWASHER |
Radio Receiver & Amplifier & Condenser ([04.2013 - ] (1304- )ARL) 4 / 65
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015350010 | 90153-50010 | BOLT | BOLT |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9155380614 | 91553-80614 | BOLT FLANGE | BOLT FLANGE |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
Radio Receiver & Amplifier & Condenser ([04.2013 - ] (1304- )LHD) 4 / 49
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015350010 | 90153-50010 | BOLT | BOLT |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9155380614 | 91553-80614 | BOLT FLANGE | BOLT FLANGE |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
Radio Receiver & Amplifier & Condenser ([04.2013 - ] CONDENSER (1304- )) 1 / 3
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
Rear Axle Housing & Differential ([04.2013 - ] (1304- )ASE30,AVE30,GSE31) 7 / 95
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 41110 | 90341-18035 | Plug, No.1 (With Magnet) | Plug, No.1 (With Magnet) |
| 41110 | 12157-10010 | Gasket (For Drain Plug) | Gasket (For Drain Plug) |
| 41110 | 90341-18032 | Plug Sub-Assy, Drain(Mtm) - No magnet | Plug Sub-Assy, Drain(Mtm) - No magnet |
| 41110 | 90930-03077 | Plug, Breather (For Automatic Transmission Case) | Plug, Breather (For Automatic Transmission Case) |
| 41110 | 90109-12081 | Bolt, No.4 (For Rear Differential Carrier Set) | Bolt, No.4 (For Rear Differential Carrier Set) |
| 41181 | 90105-10417 | Bolt (For Front Differential Carrier Cover Setting) | Bolt (For Front Differential Carrier Cover Setting) |
| 41183 | 91651-60614 | Bolt | Bolt |
Rear Axle Shaft & Hub ([04.2013 - ] (1304- )) 7 / 15
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 42311 | 90177-26001 | Nut (For Rear Axle Shaft Rh) | Nut (For Rear Axle Shaft Rh) |
| 42311 | 90942-02049 | Bolt, Hub | Bolt, Hub |
| 42311 | 90942-02070 | Bolt, Hub | Bolt, Hub |
| 42311 | 90942-02082 | Bolt, Hub | Bolt, Hub |
| 42360 | 90521-34003 | Ring, Hole Snap (For Diff Side Gear Intermeddiate Shaft) | Ring, Hole Snap (For Diff Side Gear Intermeddiate Shaft) |
| 42421 | 90110-12009 | Bolt (For Rear Axle Bearing Case Rh) | Bolt (For Rear Axle Bearing Case Rh) |
| 42491 | 47491-50010 | Plug, Shoe Adjusting Hole (For Parking Brake) | Plug, Shoe Adjusting Hole (For Parking Brake) |
Rear Bumper & Bumper Stay ([04.2013 - 10.2016] (1304-1610)AVE30) 8 / 37
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 52161 | 52161-16010 | Clip | Clip |
| 52161 | 52161-0K040 | Clip | Clip |
| 52161 | 52161-02020 | Clip | Clip |
| 9012908001 | 90129-08001 | BOLT WWASHER | BOLT WWASHER |
| 9015960431 | 90159-60431 | SCREW | SCREW |
| 9015960477 | 90159-60477 | SCREW, WWASHER | SCREW, WWASHER |
| 9015960500 | 90159-60500 | SCREW WWASHER | SCREW WWASHER |
| 9018906066 | 90189-06066 | CLIP | CLIP |
Rear Bumper & Bumper Stay ([10.2016 - ] (1610- )AVE30) 8 / 39
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 52161 | 52161-16010 | Clip | Clip |
| 52161 | 52161-0K040 | Clip | Clip |
| 52161 | 52161-02020 | Clip | Clip |
| 9012908001 | 90129-08001 | BOLT WWASHER | BOLT WWASHER |
| 9015960431 | 90159-60431 | SCREW | SCREW |
| 9015960477 | 90159-60477 | SCREW, WWASHER | SCREW, WWASHER |
| 9015960500 | 90159-60500 | SCREW WWASHER | SCREW WWASHER |
| 9018906066 | 90189-06066 | CLIP | CLIP |
Rear Combination Lamp ([04.2013 - 10.2016] (1304-1610)ARL,GCC,GEN ; (1304-1611)CHI) 8 / 40
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 81496 | 81496-60010 | Guide, Rear Combination Lamp | Guide, Rear Combination Lamp |
| 81550 | 90981-15011 | Bulb (For Turn Signal Lamp) 12V 21W, AMBER | Bulb (For Turn Signal Lamp) 12V 21W, AMBER |
| 81550 | 90981-11059 | Bulb(For Rear Combination Lamp) (12V 16W) | Bulb(For Rear Combination Lamp) (12V 16W) |
| 81584 | 81584-22040 | Gasket, Rear Combination Lamp, Rh | Gasket, Rear Combination Lamp, Rh |
| 9017605018 | 90176-05018 | NUT, CAP | NUT, CAP |
| 9017905102 | 90179-05102 | Nut | Nut |
| 9018906203 | 90189-06203 | GROMMET SCREW | GROMMET SCREW |
| 9046709206 | 90467-09206 | Clip, Front Air Shutter Seal | Clip, Front Air Shutter Seal |
Rear Combination Lamp ([10.2016 - ] (1610- )ARL,GCC,GEN ; (1611- )) 6 / 35
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 81496 | 81496-60010 | Guide, Rear Combination Lamp | Guide, Rear Combination Lamp |
| 81584 | 81584-22040 | Gasket, Rear Combination Lamp, Rh | Gasket, Rear Combination Lamp, Rh |
| 9017605018 | 90176-05018 | NUT, CAP | NUT, CAP |
| 9017905102 | 90179-05102 | Nut | Nut |
| 9018906203 | 90189-06203 | GROMMET SCREW | GROMMET SCREW |
| 9046709206 | 90467-09206 | Clip, Front Air Shutter Seal | Clip, Front Air Shutter Seal |
Rear Disc Brake Caliper & Dust Cover ([04.2013 - ] (1304- )) 2 / 23
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 47721 | 90105-08164 | Bolt(For Front Disc Brake Cylinder Slide) | Bolt(For Front Disc Brake Cylinder Slide) |
| 47810 | 90119-12416 | Bolt, Hexagon(For Rear Caliper) | Bolt, Hexagon(For Rear Caliper) |
Rear Door Lock & Handle ([04.2013 - ] (1304- )) 7 / 96
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 69205 | 90541-04014 | Cushion, Console Box | Cushion, Console Box |
| 69283 | 69283-30050-C0 | Plug, Front Door Inside Handle Bezel, Rh | Plug, Front Door Inside Handle Bezel, Rh |
| 69284 | 69284-30050-C0 | Plug, Front Door Inside Handle Bezel, Lh | Plug, Front Door Inside Handle Bezel, Lh |
| 69318 | 69318-51010 | Seal, Front Door Lock Hole, Rh | Seal, Front Door Lock Hole, Rh |
| 69415 | 69415-33010 | Cover, Door Lock Striker, Front | Cover, Door Lock Striker, Front |
| 69415 | 69415-60020 | Cover, Door Lock Striker, Front | Cover, Door Lock Striker, Front |
| 9014880066 | 90148-80066 | SCREW HEXALOBULAR | SCREW HEXALOBULAR |
Rear Door Panel & Glass ([04.2013 - ] DOOR PANEL (1304- )) 13 / 49
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 67003 | 90541-09069 | Cushion, Hood Bumper | Cushion, Hood Bumper |
| 67867 | 67867-12150 | Clip(For Hood Air Intake Duct Seal) | Clip(For Hood Air Intake Duct Seal) |
| 67869 | 90467-04034 | Clip | Clip |
| 67923 | 67923-48060 | Cushion, Front Door Stiffener, No.1 | Cushion, Front Door Stiffener, No.1 |
| 9010908295 | 90109-08295 | BOLT | BOLT |
| 9011906817 | 90119-06817 | BOLT WWASHER | BOLT WWASHER |
| 9011906817 | 90119-A0044 | New Genuine Part | New Genuine Part |
| 9015150026 | 90151-50026 | SCREW CROSSRECESS | SCREW CROSSRECESS |
| 9017906159 | 90179-06159 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 9017906159 | 90080-17210 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 9018904200 | 90189-04200 | GROMMET SCREW | GROMMET SCREW |
| 9095001506 | 90950-01506 | Plug, Hole(For Luggage Compartment Door Panel) | Plug, Hole(For Luggage Compartment Door Panel) |
| 9095001841 | 90950-01841 | Direct | Direct |
Rear Door Panel & Glass ([04.2013 - ] DOOR TRIM (1304- )) 2 / 99
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 67603 | 90467-09206 | Clip, Front Air Shutter Seal | Clip, Front Air Shutter Seal |
| 9016450031 | 90164-50031 | SCREW BINDING | SCREW BINDING |
Rear Door Window Regulator & Hinge ([04.2013 - ] (1304- )) 9 / 17
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 68750 | 68750-20122 | Hinge Assy, Rear Door, Upper Rh | Hinge Assy, Rear Door, Upper Rh |
| 68760 | 68760-20122 | Hinge Assy, Rear Door, Upper Lh | Hinge Assy, Rear Door, Upper Lh |
| 68770 | 68770-52031 | Hinge Assy, Rear Door, Lower Rh | Hinge Assy, Rear Door, Lower Rh |
| 68780 | 68780-52031 | Hinge Assy, Rear Door, Lower Lh | Hinge Assy, Rear Door, Lower Lh |
| 69905 | 69905-53030 | Channel Sub-Assy, Rear Door Glass, Rh | Channel Sub-Assy, Rear Door Glass, Rh |
| 69906 | 69906-53030 | Channel Sub-Assy, Rear Door Glass, Lh | Channel Sub-Assy, Rear Door Glass, Lh |
| 69975 | 69975-52010 | Filler, Rear Door Glass Channel | Filler, Rear Door Glass Channel |
| 9010506260 | 90105-06260 | BOLT, WASHER BASED | BOLT, WASHER BASED |
| 9016850040 | 90168-50040 | SCREW TAPPING | SCREW TAPPING |
Rear Moulding ([04.2013 - ] (1304- )) 2 / 46
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015960498 | 90159-60498 | SCREW W-WASHER | SCREW W-WASHER |
| 9046709206 | 90467-09206 | Clip, Front Air Shutter Seal | Clip, Front Air Shutter Seal |
Rear Seat & Seat Track ([04.2013 - ] FIXED TYPE SEAT (1304- )AVE30,GSE3#) 4 / 160
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 71398 | 71398-30010 | Holder, Rear Seat Back | Holder, Rear Seat Back |
| 72693 | 72693-12080 | Hook, Rear Seat Cushion Lock | Hook, Rear Seat Cushion Lock |
| 9011908 | 90119-08C20 | BOLT WWASHER | BOLT WWASHER |
| 9151180816 | 91511-80816 | BOLTFLANGE | BOLTFLANGE |
Rear Seat & Seat Track ([04.2013 - ] FOLD TYPE(SEAT BACK) (1304- )) 1 / 234
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9356054010 | 93560-54010 | SCREW | SCREW |
Rear Seat & Seat Track ([04.2013 - ] FOLD TYPE(SEAT SIDE & CUSHION) (1304- )) 4 / 215
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 71398 | 71398-30010 | Holder, Rear Seat Back | Holder, Rear Seat Back |
| 72693 | 72693-12080 | Hook, Rear Seat Cushion Lock | Hook, Rear Seat Cushion Lock |
| 9011908 | 90119-08C20 | BOLT WWASHER | BOLT WWASHER |
| 9151180816 | 91511-80816 | BOLTFLANGE | BOLTFLANGE |
Rear Seat & Seat Track ([04.2013 - ] SEAT COVER EDGE WIRE & CLIP (1304- )) 2 / 3
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9046816019 | 90468-16019 | Clip (For Rear Seat Back) | Clip (For Rear Seat Back) |
| 9046818008 | 90468-18008 | Clip (For Rear Seat Back) | Clip (For Rear Seat Back) |
Rear Spring & Shock Absorber ([04.2013 - 10.2016] (1304-1610) ; (1610-1611)CHI) 15 / 61
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 48530 | 90948-03021 | Washer, Rear Shock Absorber Cushion, No.1 | Washer, Rear Shock Absorber Cushion, No.1 |
| 48750 | 90179-12127 | Nut | Nut |
| 48750 | 90178-A0071 | New Genuine Part | New Genuine Part |
| 48830 | 90179-12151 | Nut(For Front Stabilizer Link) | Nut(For Front Stabilizer Link) |
| 91672 | 91672-G1485 | BOLT FLANGE | BOLT FLANGE |
| 9010514200 | 90105-14200 | BOLT FLANGE | BOLT FLANGE |
| 9010514202 | 90105-14202 | BOLT FLANGE | BOLT FLANGE |
| 9017712001 | 90177-12001 | NUT, LOCK | NUT, LOCK |
| 9017810014 | 90178-10014 | Nut(For Front Suspension Support) | Nut(For Front Suspension Support) |
| 9017914044 | 90179-14044 | NUT | NUT |
| 9017914068 | 90179-14068 | Nut(For Front Suspension Lower Arm) | Nut(For Front Suspension Lower Arm) |
| 9017914069 | 90179-14069 | Nut | Nut |
| 9415121401 | 94151-21401 | NUT FLANGE | NUT FLANGE |
| 9415121601 | 94151-21601 | Nut(For Front Suspension Lower Arm) | Nut(For Front Suspension Lower Arm) |
| 9462251400 | 94622-51400 | Washer(For Front Suspension Lower Arm No.1 Rh) | Washer(For Front Suspension Lower Arm No.1 Rh) |
Rear Spring & Shock Absorber ([10.2016 - ] (1610- )ARL,GCC,GEN) 15 / 60
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 48530 | 90948-03021 | Washer, Rear Shock Absorber Cushion, No.1 | Washer, Rear Shock Absorber Cushion, No.1 |
| 48750 | 90179-12127 | Nut | Nut |
| 48750 | 90178-A0071 | New Genuine Part | New Genuine Part |
| 48830 | 90179-12151 | Nut(For Front Stabilizer Link) | Nut(For Front Stabilizer Link) |
| 91672 | 91672-G1485 | BOLT FLANGE | BOLT FLANGE |
| 9010514200 | 90105-14200 | BOLT FLANGE | BOLT FLANGE |
| 9010514202 | 90105-14202 | BOLT FLANGE | BOLT FLANGE |
| 9017712001 | 90177-12001 | NUT, LOCK | NUT, LOCK |
| 9017810014 | 90178-10014 | Nut(For Front Suspension Support) | Nut(For Front Suspension Support) |
| 9017914044 | 90179-14044 | NUT | NUT |
| 9017914068 | 90179-14068 | Nut(For Front Suspension Lower Arm) | Nut(For Front Suspension Lower Arm) |
| 9017914069 | 90179-14069 | Nut | Nut |
| 9415121401 | 94151-21401 | NUT FLANGE | NUT FLANGE |
| 9415121601 | 94151-21601 | Nut(For Front Suspension Lower Arm) | Nut(For Front Suspension Lower Arm) |
| 9462251400 | 94622-51400 | Washer(For Front Suspension Lower Arm No.1 Rh) | Washer(For Front Suspension Lower Arm No.1 Rh) |
Roof Headlining & Silencer Pad ([04.2013 - ] (1304- )) 3 / 30
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 63310 | 90467-09126 | Clip(For Roof Headlining Trim) | Clip(For Roof Headlining Trim) |
| 63310 | 90467-10181 | Clip, Roof Headlining | Clip, Roof Headlining |
| 63381 | 63381-30091 | Retainer, Headlining, Front | Retainer, Headlining, Front |
Roof Panel & Back Window Glass ([04.2013 - ] WITH(MOON ROOF) (1304- )) 13 / 65
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 56116 | 56116-22050 | Stopper, Windshield Glass, No.1 | Stopper, Windshield Glass, No.1 |
| 63236 | 63236-30010 | Clamp, Sliding Roof Or Removable Roof Drain Hose | Clamp, Sliding Roof Or Removable Roof Drain Hose |
| 63669 | 63669-50010 | Grommet, Sliding Roof Drain | Grommet, Sliding Roof Drain |
| 64270 | 90467-14001 | Clip Or Clamp(For Ventilation Hose) | Clip Or Clamp(For Ventilation Hose) |
| 64270 | 90466-T0026 | Clip Or Clamp(For Ventilation Hose) | Clip Or Clamp(For Ventilation Hose) |
| 91631 | 91631-J0612 | BRACKET | BRACKET |
| 9011908 | 90119-08C20 | BOLT WWASHER | BOLT WWASHER |
| 9010506049 | 90105-06049 | Bolt(For Transmission Case No.2 Plate) | Bolt(For Transmission Case No.2 Plate) |
| 9015950336 | 90159-50336 | SCREW WWASHER | SCREW WWASHER |
| 9017906008 | 90179-06008 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 9017906008 | 90179-06159 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9046915004 | 90469-15004 | New Genuine Part | New Genuine Part |
Roof Panel & Back Window Glass ([04.2013 - ] WITHOUT(MOON ROOF) (1304- )) 3 / 40
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 56116 | 56116-22050 | Stopper, Windshield Glass, No.1 | Stopper, Windshield Glass, No.1 |
| 9011908 | 90119-08C20 | BOLT WWASHER | BOLT WWASHER |
| 9010506049 | 90105-06049 | Bolt(For Transmission Case No.2 Plate) | Bolt(For Transmission Case No.2 Plate) |
Roof Side Ventilator ([04.2013 - ] (1304- )) 1 / 4
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015960431 | 90159-60431 | SCREW | SCREW |
Seat Belt & Child Restraint Seat ([04.2013 - ] FRONT SEAT (1304- )) 9 / 53
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 73200 | 73200-53010 | Adjuster Assy, Front Shoulder Belt Anchor | Adjuster Assy, Front Shoulder Belt Anchor |
| 73214 | 73214-75010 | Plate, Front Seat Belt Anchor | Plate, Front Seat Belt Anchor |
| 73219 | 73219-33010 | Stopper, Tongue Plate | Stopper, Tongue Plate |
| 73219 | 73219-33020 | Stopper, Tongue Plate | Stopper, Tongue Plate |
| 73219 | 73219-33030 | Stopper, Tongue Plate | Stopper, Tongue Plate |
| 9010510523 | 90105-10523 | BOLT FLANGE | BOLT FLANGE |
| 9010510523 | 90105-A0186 | New Genuine Part | New Genuine Part |
| 9017911010 | 90179-11010 | NUT | NUT |
| 9155380612 | 91553-80612 | BOLT FLANGE | BOLT FLANGE |
Seat Belt & Child Restraint Seat ([04.2013 - ] REAR SEAT(60:40 FOLD-TYPE) (1304- )) 9 / 68
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 73219 | 73219-33010 | Stopper, Tongue Plate | Stopper, Tongue Plate |
| 73219 | 73219-33020 | Stopper, Tongue Plate | Stopper, Tongue Plate |
| 73219 | 73219-33030 | Stopper, Tongue Plate | Stopper, Tongue Plate |
| 73373 | 73373-33030-C0 | Cover, Rear Seat Shoulder Belt | Cover, Rear Seat Shoulder Belt |
| 73719 | 73719-30010 | Bracket, Child Restraint Seat Tether Anchor | Bracket, Child Restraint Seat Tether Anchor |
| 9010508253 | 90105-08253 | BOLT WASHER BASED | BOLT WASHER BASED |
| 9010511058 | 90105-11058 | BOLT FLANGE | BOLT FLANGE |
| 9017911010 | 90179-11010 | NUT | NUT |
| 9155380612 | 91553-80612 | BOLT FLANGE | BOLT FLANGE |
Seat Belt & Child Restraint Seat ([04.2013 - ] REAR SEAT(FIX-TYPE) (1304- )AVE30,GSE3#) 8 / 57
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 73219 | 73219-33010 | Stopper, Tongue Plate | Stopper, Tongue Plate |
| 73219 | 73219-33020 | Stopper, Tongue Plate | Stopper, Tongue Plate |
| 73219 | 73219-33030 | Stopper, Tongue Plate | Stopper, Tongue Plate |
| 73373 | 73373-33030-C0 | Cover, Rear Seat Shoulder Belt | Cover, Rear Seat Shoulder Belt |
| 73719 | 73719-30010 | Bracket, Child Restraint Seat Tether Anchor | Bracket, Child Restraint Seat Tether Anchor |
| 9010508253 | 90105-08253 | BOLT WASHER BASED | BOLT WASHER BASED |
| 9010511058 | 90105-11058 | BOLT FLANGE | BOLT FLANGE |
| 9155380612 | 91553-80612 | BOLT FLANGE | BOLT FLANGE |
Shift Lever & Retainer ([04.2013 - ] (1304- )AVE30..ARL) 7 / 18
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 33675 | 33726-35010 | Pin, W/hole (For Transmission Control Rod) | Pin, W/hole (For Transmission Control Rod) |
| 35569 | 90480-17013 | Grommet | Grommet |
| 35569 | 90560-08091 | Bush (For Floor Shift Control Shaft) | Bush (For Floor Shift Control Shaft) |
| 9011906775 | 90119-06775 | BOLT WWASHER | BOLT WWASHER |
| 9017908233 | 90179-08233 | NUT | NUT |
| 9046814011 | 90468-14011 | Clip, No.2(For Parking Brake) | Clip, No.2(For Parking Brake) |
| 9356855014 | 93568-55014 | Screw | Screw |
Shift Lever & Retainer ([04.2013 - ] (1304- )AVE30..GEN) 7 / 18
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 33675 | 33726-35010 | Pin, W/hole (For Transmission Control Rod) | Pin, W/hole (For Transmission Control Rod) |
| 35569 | 90480-17013 | Grommet | Grommet |
| 35569 | 90560-08091 | Bush (For Floor Shift Control Shaft) | Bush (For Floor Shift Control Shaft) |
| 9011906775 | 90119-06775 | BOLT WWASHER | BOLT WWASHER |
| 9017908233 | 90179-08233 | NUT | NUT |
| 9046814011 | 90468-14011 | Clip, No.2(For Parking Brake) | Clip, No.2(For Parking Brake) |
| 9356855014 | 93568-55014 | Screw | Screw |
Side Member ([04.2013 - ] LH (1304- )) 5 / 51
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 61339 | 61339-30010 | Seal, Center Body Pillar, Inner No.1 | Seal, Center Body Pillar, Inner No.1 |
| 64459 | 90541-11010 | Cushion, Luggage Compartment Door | Cushion, Luggage Compartment Door |
| 6548753020 | 65487-53020 | Clip, Corner Protector | Clip, Corner Protector |
| 9017806011 | 90178-06011 | NUT FLANGE | NUT FLANGE |
| 9018906157 | 90189-06157 | GROMMET SCREW | GROMMET SCREW |
Side Member ([04.2013 - ] RH (1304- )) 5 / 47
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 61339 | 61339-30010 | Seal, Center Body Pillar, Inner No.1 | Seal, Center Body Pillar, Inner No.1 |
| 64459 | 90541-11010 | Cushion, Luggage Compartment Door | Cushion, Luggage Compartment Door |
| 6548753020 | 65487-53020 | Clip, Corner Protector | Clip, Corner Protector |
| 9017806011 | 90178-06011 | NUT FLANGE | NUT FLANGE |
| 9018906157 | 90189-06157 | GROMMET SCREW | GROMMET SCREW |
Side Moulding ([04.2013 - ] (1304- )) 10 / 35
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 68211 | 68211-30180 | Clip, Door Belt Moulding | Clip, Door Belt Moulding |
| 75867 | 75867-30120 | Clip, Rocker Panel Moulding | Clip, Rocker Panel Moulding |
| 75867 | 75867-33030 | Clip (For Center Lower Garnish) | Clip (For Center Lower Garnish) |
| 9015960498 | 90159-60498 | SCREW W-WASHER | SCREW W-WASHER |
| 9016240034 | 90162-40034 | SCREW OVAL | SCREW OVAL |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9018306019 | 90183-06019 | Clip, Outside Moulding, No.1 | Clip, Outside Moulding, No.1 |
| 9018904059 | 90189-04059 | CLIP | CLIP |
| 9018906172 | 90189-06172 | GROMMET | GROMMET |
| 9026904051 | 90269-04051 | RIVET | RIVET |
Side Turn Signal Lamp & Outer Mirror Lamp ([04.2013 - ] (1304- )) 2 / 5
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 81880 | 99132-12050 | Bulb (12V 5W) | Bulb (12V 5W) |
| 81880 | 90080-81053 | Bulb(For Clearance Lamp) | Bulb(For Clearance Lamp) |
Speaker ([04.2013 - ] (1304- )ARL) 5 / 21
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015960303 | 90159-60303 | SCREW | SCREW |
| 9017905102 | 90179-05102 | Nut | Nut |
| 9018906227 | 90189-06227 | GROMMET SCREW | GROMMET SCREW |
| 9155380614 | 91553-80614 | BOLT FLANGE | BOLT FLANGE |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Speaker ([04.2013 - ] (1304- )LHD) 4 / 20
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015960303 | 90159-60303 | SCREW | SCREW |
| 9017905102 | 90179-05102 | Nut | Nut |
| 9018906227 | 90189-06227 | GROMMET SCREW | GROMMET SCREW |
| 9155380614 | 91553-80614 | BOLT FLANGE | BOLT FLANGE |
Standard Tool ([04.2013 - ] (1304- )) 7 / 18
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9113 | 09113-13040 | Handle, Jack | Handle, Jack |
| 9130 | 09130-50040 | Pliers | Pliers |
| 9135 | 99915-10700 | Driver, Screw - No Toyota stamp | Driver, Screw - No Toyota stamp |
| 9135 | 90089-99009 | Driver, Screw (ATC) (Thailand) - Screw Driver (ATC) | Driver, Screw (ATC) (Thailand) - Screw Driver (ATC) |
| 9141 | 09141-60010 | Spanner | Spanner |
| 9141 | 09141-60020 | Spanner | Spanner |
| 51960 | 51961-30020 | Hook Assy, Front | Hook Assy, Front |
Steering Column & Shaft ([04.2013 - ] POWER TILT & TELESCOPIC (1304- )) 10 / 21
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 45897 | 45897-12020 | Bolt, Steering Lock Set | Bolt, Steering Lock Set |
| 91553 | 91553-A0616 | New Genuine Part | New Genuine Part |
| 9011908560 | 90119-08560 | Bolt, Hexagon | Bolt, Hexagon |
| 9011908560 | 90080-11555 | Bolt w-washer | Bolt w-washer |
| 9017810027 | 90178-10027 | New Genuine Part | New Genuine Part |
| 9017906008 | 90179-06008 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 9017906008 | 90179-06159 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 9046081005 | 90460-81005 | New Genuine Part | New Genuine Part |
| 9046081007 | 90460-81007 | CLAMP HOSE | CLAMP HOSE |
| 9356855014 | 93568-55014 | Screw | Screw |
Steering Wheel ([04.2013 - 08.2015] 3-SPOKE (1304-1508)) 3 / 15
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 45201 | 90179-12071 | Nut, Steering Wheel Set | Nut, Steering Wheel Set |
| 9015950199 | 90159-50199 | SCREW | SCREW |
| 9016840113 | 90168-40113 | Screw, Steering Wheel Pad Attaching | Screw, Steering Wheel Pad Attaching |
Steering Wheel ([08.2015 - 10.2016] 3-SPOKE (1508-1610)) 3 / 17
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 45201 | 90179-12071 | Nut, Steering Wheel Set | Nut, Steering Wheel Set |
| 9015950199 | 90159-50199 | SCREW | SCREW |
| 9016840113 | 90168-40113 | Screw, Steering Wheel Pad Attaching | Screw, Steering Wheel Pad Attaching |
Steering Wheel ([10.2016 - ] 3-SPOKE, W(PRE-COLLISION SYSTEM) (1610- )) 3 / 17
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 45201 | 90179-12071 | Nut, Steering Wheel Set | Nut, Steering Wheel Set |
| 9015950199 | 90159-50199 | SCREW | SCREW |
| 9016840113 | 90168-40113 | Screw, Steering Wheel Pad Attaching | Screw, Steering Wheel Pad Attaching |
Steering Wheel ([10.2016 - ] 3-SPOKE, W/O(PRE-COLLISION SYSTEM) (1610- )) 3 / 17
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 45201 | 90179-12071 | Nut, Steering Wheel Set | Nut, Steering Wheel Set |
| 9015950199 | 90159-50199 | SCREW | SCREW |
| 9016840113 | 90168-40113 | Screw, Steering Wheel Pad Attaching | Screw, Steering Wheel Pad Attaching |
Suspension Crossmember & Under Cover ([04.2013 - 08.2015] UNDER COVER (1304-1508)AVE30) 8 / 24
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015960431 | 90159-60431 | SCREW | SCREW |
| 9015960477 | 90159-60477 | SCREW, WWASHER | SCREW, WWASHER |
| 9018906066 | 90189-06066 | CLIP | CLIP |
| 9046707214 | 90467-07214 | Clip, Front Fender Liner | Clip, Front Fender Liner |
| 9046714053 | 90467-14053 | Clip, No.1(For Floor Under Cover) | Clip, No.1(For Floor Under Cover) |
| 9048010024 | 90480-10024 | Clip, No.2(For Floor Under Cover) | Clip, No.2(For Floor Under Cover) |
| 9056111011 | 90561-11011 | Clip, No.1(For Floor Under Cover) | Clip, No.1(For Floor Under Cover) |
| 9056113003 | 90561-13003 | Clip, No.4(For Floor Under Cover) | Clip, No.4(For Floor Under Cover) |
Suspension Crossmember & Under Cover ([04.2013 - ] SUSPENSION CROSSMEMBER (1304- )) 6 / 41
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011908 | 90119-08A87 | BOLT W-WASHER | BOLT W-WASHER |
| 9011908516 | 90119-08516 | BOLT | BOLT |
| 9011914148 | 90119-14148 | Bolt, Differential Support Member Mounting, No.2 | Bolt, Differential Support Member Mounting, No.2 |
| 9011914154 | 90119-14154 | Bolt, Differential Support Member Mounting, No.1 | Bolt, Differential Support Member Mounting, No.1 |
| 9017814012 | 90178-14012 | NUT FLANGE | NUT FLANGE |
| 9167480820 | 91674-80820 | BOLT FLANGE | BOLT FLANGE |
Suspension Crossmember & Under Cover ([08.2015 - ] UNDER COVER (1508- )ASE30,AVE30) 9 / 24
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015960431 | 90159-60431 | SCREW | SCREW |
| 9015960477 | 90159-60477 | SCREW, WWASHER | SCREW, WWASHER |
| 9015960496 | 90159-60496 | SCREW WWASHER | SCREW WWASHER |
| 9018906066 | 90189-06066 | CLIP | CLIP |
| 9046707214 | 90467-07214 | Clip, Front Fender Liner | Clip, Front Fender Liner |
| 9046714053 | 90467-14053 | Clip, No.1(For Floor Under Cover) | Clip, No.1(For Floor Under Cover) |
| 9048010024 | 90480-10024 | Clip, No.2(For Floor Under Cover) | Clip, No.2(For Floor Under Cover) |
| 9056111011 | 90561-11011 | Clip, No.1(For Floor Under Cover) | Clip, No.1(For Floor Under Cover) |
| 9056113003 | 90561-13003 | Clip, No.4(For Floor Under Cover) | Clip, No.4(For Floor Under Cover) |
Switch & Relay & Computer ([04.2013 - ] COWL (1304- )ARL) 14 / 80
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 82600 | 90982-09020 | Fusible Link | Fusible Link |
| 82600 | 90982-09021 | Fusible Link | Fusible Link |
| 82600 | 90982-09022 | Instrument Panel Fuse | Instrument Panel Fuse |
| 82600 | 90982-09023 | Instrument Panel Fuse | Instrument Panel Fuse |
| 82600 | 90982-09025 | Instrument Panel Fuse | Instrument Panel Fuse |
| 84550 | 84550-16060 | Switch Assy, Parking Brake | Switch Assy, Parking Brake |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9015960383 | 90159-60383 | SCREW WWASHER | SCREW WWASHER |
| 9015960383 | 90159-A0010 | SCREW WWASHER TAPP | SCREW WWASHER TAPP |
| 9155380610 | 91553-80610 | BOLT FLANGE | BOLT FLANGE |
| 9155380614 | 91553-80614 | BOLT FLANGE | BOLT FLANGE |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
| 9331314010 | 93313-14010 | New Genuine Part | New Genuine Part |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Switch & Relay & Computer ([04.2013 - ] COWL (1304- )LHD) 13 / 62
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 82600 | 90982-09020 | Fusible Link | Fusible Link |
| 82600 | 90982-09021 | Fusible Link | Fusible Link |
| 82600 | 90982-09022 | Instrument Panel Fuse | Instrument Panel Fuse |
| 82600 | 90982-09023 | Instrument Panel Fuse | Instrument Panel Fuse |
| 82600 | 90982-09025 | Instrument Panel Fuse | Instrument Panel Fuse |
| 84550 | 84550-16060 | Switch Assy, Parking Brake | Switch Assy, Parking Brake |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9015960383 | 90159-60383 | SCREW WWASHER | SCREW WWASHER |
| 9015960383 | 90159-A0010 | SCREW WWASHER TAPP | SCREW WWASHER TAPP |
| 9155380610 | 91553-80610 | BOLT FLANGE | BOLT FLANGE |
| 9155380614 | 91553-80614 | BOLT FLANGE | BOLT FLANGE |
| 9331314010 | 93313-14010 | New Genuine Part | New Genuine Part |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Switch & Relay & Computer ([04.2013 - ] DOOR & ROOF (1304- )ARL) 4 / 21
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 84234 | 84231-50190 | Switch Assy, Courtesy Lamp (For Front Door) | Switch Assy, Courtesy Lamp (For Front Door) |
| 9015960303 | 90159-60303 | SCREW | SCREW |
| 9016440103 | 90164-40103 | SCREW BINDING | SCREW BINDING |
| 9018906227 | 90189-06227 | GROMMET SCREW | GROMMET SCREW |
Switch & Relay & Computer ([04.2013 - ] DOOR & ROOF (1304- )LHD) 4 / 21
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 84234 | 84231-50190 | Switch Assy, Courtesy Lamp (For Front Door) | Switch Assy, Courtesy Lamp (For Front Door) |
| 9015960303 | 90159-60303 | SCREW | SCREW |
| 9016440103 | 90164-40103 | SCREW BINDING | SCREW BINDING |
| 9018906227 | 90189-06227 | GROMMET SCREW | GROMMET SCREW |
Switch & Relay & Computer ([04.2013 - ] ENGINE & TRANSMISSION (1304- )AVE30) 6 / 15
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 83530 | 83530-28020 | Switch Assy, Oil Pressure (For Engine) | Switch Assy, Oil Pressure (For Engine) |
| 83530 | 83530-60020 | Switch Assy, Oil Pressure (For Engine) - ＹＡＺＡＫＩ→ＤＥＮＳＯ | Switch Assy, Oil Pressure (For Engine) - ＹＡＺＡＫＩ→ＤＥＮＳＯ |
| 83530 | 83530-0E010 | Switch Assy, Oil Pressure (For Engine) | Switch Assy, Oil Pressure (For Engine) |
| 89491 | 89493-60010 | Gasket, Engine Oil Level Sensor | Gasket, Engine Oil Level Sensor |
| 89615 | 89615-20090 | Sensor, Knock Control | Sensor, Knock Control |
| 9165160614 | 91651-60614 | Bolt | Bolt |
Switch & Relay & Computer ([04.2013 - ] ENGINE ROOM (1304- )AVE30..ARL) 1 / 20
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 91553 | 91553-A0616 | New Genuine Part | New Genuine Part |
Switch & Relay & Computer ([04.2013 - ] ENGINE ROOM (1304- )AVE30..GEN) 1 / 20
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 91553 | 91553-A0616 | New Genuine Part | New Genuine Part |
Switch & Relay & Computer ([04.2013 - ] ENGINE ROOM RELAY BLOCK (1304- )AVE30) 10 / 32
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 28371 | 90987-02027 | Relay | Relay |
| 82600 | 90982-09020 | Fusible Link | Fusible Link |
| 82600 | 90982-09021 | Fusible Link | Fusible Link |
| 82600 | 90982-09022 | Instrument Panel Fuse | Instrument Panel Fuse |
| 82600 | 90982-09023 | Instrument Panel Fuse | Instrument Panel Fuse |
| 82600 | 90982-09024 | Instrument Panel Fuse | Instrument Panel Fuse |
| 82600 | 90982-09025 | Instrument Panel Fuse | Instrument Panel Fuse |
| 82616 | 82616-58010 | Puller, Fuse | Puller, Fuse |
| 85924 | 90987-02025 | Relay | Relay |
| 85948 | 90987-04004 | Relay, Starter Cut | Relay, Starter Cut |
Switch & Relay & Computer ([04.2013 - ] FLOOR & LUGGAGE (1304- )) 5 / 14
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 82600 | 90982-09020 | Fusible Link | Fusible Link |
| 88790 | 88790-22131 | Thermistor, Cooler | Thermistor, Cooler |
| 89730 | 90987-02027 | Relay | Relay |
| 89747 | 89747-52010 | Buzzer, Wireless Door Lock | Buzzer, Wireless Door Lock |
| 9017806012 | 90178-06012 | NUT FLANGE | NUT FLANGE |
Switch & Relay & Computer ([04.2013 - ] INSTRUMENT PANEL 1/2 (1304- )ARL) 1 / 22
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 84840 | 84840-24020 | Switch Assy, Luggage Door Opening, Cancel | Switch Assy, Luggage Door Opening, Cancel |
Switch & Relay & Computer ([04.2013 - ] INSTRUMENT PANEL 1/2 (1304- )LHD) 1 / 22
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 84840 | 84840-24020 | Switch Assy, Luggage Door Opening, Cancel | Switch Assy, Luggage Door Opening, Cancel |
Switch & Relay & Computer ([04.2013 - ] INSTRUMENT PANEL 2/2 (1304- )ARL) 2 / 14
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9046710203 | 90467-10203 | Direct | Direct |
| 9046805135 | 90468-05135 | Clip, Instrument Panel | Clip, Instrument Panel |
Switch & Relay & Computer ([04.2013 - ] INSTRUMENT PANEL 2/2 (1304- )LHD) 2 / 13
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9046710203 | 90467-10203 | Direct | Direct |
| 9046805135 | 90468-05135 | Clip, Instrument Panel | Clip, Instrument Panel |
Switch & Relay & Computer ([04.2013 - ] SEAT (1304- )) 1 / 12
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9356054010 | 93560-54010 | SCREW | SCREW |
Switch & Relay & Computer ([04.2013 - ] STEERING (1304- )) 2 / 36
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015950199 | 90159-50199 | SCREW | SCREW |
| 9015950265 | 90159-50265 | New Genuine Part | New Genuine Part |
Telephone & Mayday ([04.2013 - ] (1304- )) 2 / 2
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9015350010 | 90153-50010 | BOLT | BOLT |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Timing Gear Cover & Rear End Plate ([04.2013 - ] (1304- )2ARFSE) 5 / 18
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 91551 | 91551-L0830 | Bolt(For Camshaft Housing Set) | Bolt(For Camshaft Housing Set) |
| 9155180612 | 91551-80612 | Bolt (For Front Differential Breather Plug Oil Deflector) | Bolt (For Front Differential Breather Plug Oil Deflector) |
| 9155180616 | 91551-80616 | BOLT FLANGE | BOLT FLANGE |
| 9155180845 | 91551-80845 | BOLT FLANGE | BOLT FLANGE |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) | Nut (For Transmission Control Cable) |
Tire Pressure Warning System ([04.2013 - ] (1304- )ARL) 1 / 3
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
Tire Pressure Warning System ([04.2013 - ] (1304- )LHD) 3 / 5
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Transaxle Assy, Hv Or Fcv ([04.2013 - ] (1304- )AVE30) 10 / 23
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 30910 | 90341-10011 | Drain Plug (No Type) | Drain Plug (No Type) |
| 30910 | 90341-18060 | Plug, W/head Straight Screw(For Transaxle Housing & Case) | Plug, W/head Straight Screw(For Transaxle Housing & Case) |
| 30910 | 90430-18008 | Gasket | Gasket |
| 30910 | 90430-T0021 | Gasket(For Manual Transmission Filler Plug) | Gasket(For Manual Transmission Filler Plug) |
| 35106 | 90119-06173 | Bolt, Stud (For Automatic Transmission Oil Pan Setting) | Bolt, Stud (For Automatic Transmission Oil Pan Setting) |
| 35178 | 35178-30010 | Drain Plug Gasket | Drain Plug Gasket |
| 9010506049 | 90105-06049 | Bolt(For Transmission Case No.2 Plate) | Bolt(For Transmission Case No.2 Plate) |
| 9413000802 | 94130-00802 | Nut, No.1 (For Center Support Bearing) | Nut, No.1 (For Center Support Bearing) |
| 9413000802 | 90170-A0001 | New Genuine Part | New Genuine Part |
| 9451200800 | 94512-00800 | Washer, No.1 (For Propeller Shaft & Differential Setting) | Washer, No.1 (For Propeller Shaft & Differential Setting) |
Transaxle Assy, Hv Or Fcv ([04.2013 - ] (1304- )AVE30..ARL) 5 / 10
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011910260 | 90119-10260 | Bolt | Bolt |
| 9155180612 | 91551-80612 | Bolt (For Front Differential Breather Plug Oil Deflector) | Bolt (For Front Differential Breather Plug Oil Deflector) |
| 9161961250 | 91619-61250 | Bolt | Bolt |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
| 9167380816 | 91673-80816 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
Transaxle Assy, Hv Or Fcv ([04.2013 - ] (1304- )AVE30..GEN) 5 / 10
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011910260 | 90119-10260 | Bolt | Bolt |
| 9155180612 | 91551-80612 | Bolt (For Front Differential Breather Plug Oil Deflector) | Bolt (For Front Differential Breather Plug Oil Deflector) |
| 9161961250 | 91619-61250 | Bolt | Bolt |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
| 9167380816 | 91673-80816 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
Vacuum Piping ([04.2013 - ] (1304- )2ARFSE) 3 / 6
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 23827 | 96132-51300 | Clip(For Ventilation Hose No.2) | Clip(For Ventilation Hose No.2) |
| 23827 | 90467-15022 | Clip Or Clamp(For Ventilation Hose) | Clip Or Clamp(For Ventilation Hose) |
| 9167180816 | 91671-80816 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
Ventilation Hose ([04.2013 - ] (1304- )2ARFSE) 2 / 12
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 12263 | 90467-21004 | Clip Or Clamp(For Ventilation Hose) | Clip Or Clamp(For Ventilation Hose) |
| 9155180616 | 91551-80616 | BOLT FLANGE | BOLT FLANGE |
Water Pump ([04.2013 - ] (1304- )2ARFSE) 2 / 4
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9155180620 | 91551-80620 | Bolt | Bolt |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Windshield Washer ([04.2013 - ] (1304- )) 13 / 30
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 85310 | 85330-60190 | Motor And Pump Assy, Windshield Washer | Motor And Pump Assy, Windshield Washer |
| 85319 | 85319-33230 | Packing, Front Washer | Packing, Front Washer |
| 85330 | 85336-60300 | Bush, Windshield Washer Jar | Bush, Windshield Washer Jar |
| 85348 | 85349-89122 | Valve Sub-Assy, Washer | Valve Sub-Assy, Washer |
| 85348 | 85355-12360 | Joint, Windshield Washer Elbow, No.1 | Joint, Windshield Washer Elbow, No.1 |
| 85355 | 85321-28020 | Valve Sub-Assy, Washer | Valve Sub-Assy, Washer |
| 85369 | 90959-01568 | Clamp | Clamp |
| 85371 | 90099-33080 | Hose, Windshield Washer (From Motor To Joint) | Hose, Windshield Washer (From Motor To Joint) |
| 85372 | 90099-33299 | Joint, Windshield Washer Elbow, No.2 | Joint, Windshield Washer Elbow, No.2 |
| 85397 | 85397-30400 | Switch Assy,level Warning | Switch Assy,level Warning |
| 827112 | 82711-2B700 | Wire, Fuse To Fuse(for Combustion Heater) | Wire, Fuse To Fuse(for Combustion Heater) |
| 827113 | 82711-3A540 | Clamp, Sliding Roof Drain Hose | Clamp, Sliding Roof Drain Hose |
| 9011906767 | 90119-06767 | Bolt, W/washer(For Engine Under Cover) | Bolt, W/washer(For Engine Under Cover) |
Windshield Wiper ([04.2013 - ] (1304- )) 3 / 21
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 85178 | 90182-10006 | Nut (For Front Wiper Arm Setting) | Nut (For Front Wiper Arm Setting) |
| 85292 | 85292-13010 | Cover, Windshield Wiper Arm | Cover, Windshield Wiper Arm |
| 9011906864 | 90119-06864 | BOLT W-WASHER | BOLT W-WASHER |
Wireless Door Lock ([04.2013 - ] (1304- )ARL) 5 / 14
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9015960498 | 90159-60498 | SCREW W-WASHER | SCREW W-WASHER |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Wireless Door Lock ([04.2013 - ] (1304- )LHD) 6 / 13
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9015960383 | 90159-60383 | SCREW WWASHER | SCREW WWASHER |
| 9015960383 | 90159-A0010 | SCREW WWASHER TAPP | SCREW WWASHER TAPP |
| 9015960498 | 90159-60498 | SCREW W-WASHER | SCREW W-WASHER |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Wiring & Clamp ([04.2013 - ] CLAMP & BRACKET (1304- )) 28 / 66
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 91551 | 91551-A0612 | BOLT FLANGE | BOLT FLANGE |
| 91621 | 91621-J0614 | BOLT W-WASHER | BOLT W-WASHER |
| 8271530 | 82715-30A40 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30A50 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30A60 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30A70 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30A80 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30A90 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30B00 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30C10 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30G30 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271522800 | 82715-22800 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271550440 | 82715-50440 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8272930040 | 82729-30040 | New Genuine Part | New Genuine Part |
| 9011906375 | 90119-06375 | Bolt (For Transmission Housing & Case Setting) | Bolt (For Transmission Housing & Case Setting) |
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9026905037 | 90269-05037 | New Genuine Part | New Genuine Part |
| 9155380614 | 91553-80614 | BOLT FLANGE | BOLT FLANGE |
| 9167180610 | 91671-80610 | New Genuine Part | New Genuine Part |
| 9167180612 | 91671-80612 | Bolt | Bolt |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9167180616 | 91671-80616 | BOLT FLANGE | BOLT FLANGE |
| 9167180816 | 91671-80816 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9167180820 | 91671-80820 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9167380612 | 91673-80612 | BOLT FLANGE | BOLT FLANGE |
| 9167380816 | 91673-80816 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9223372036854775807 | 82715-30E60 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 9223372036854775807 | 82715-30E70 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
Wiring & Clamp ([04.2013 - ] CONNECTOR (1304- )) 19 / 28
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 8282460460 | 82824-60460 | Connector, Wiring Harness | Connector, Wiring Harness |
| 9098010619 | 90980-10619 | Housing, Connector | Housing, Connector |
| 9098010860 | 90980-10860 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098010996 | 90980-10996 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098010997 | 90980-10997 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098011070 | 90980-11070 | HOUSING, CONNECTOR | HOUSING, CONNECTOR |
| 9098011148 | 90980-11148 | Housing, Connector | Housing, Connector |
| 9098011246 | 90980-11246 | HOUSING, CONNECTOR | HOUSING, CONNECTOR |
| 9098011587 | 90980-11587 | New Genuine Part | New Genuine Part |
| 9098012297 | 90980-12297 | HOUSINGCONNECTOR | HOUSINGCONNECTOR |
| 9098012460 | 90980-12460 | New Genuine Part | New Genuine Part |
| 9098012490 | 90980-12490 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098012551 | 90980-12551 | New Genuine Part | New Genuine Part |
| 9098012552 | 90980-12552 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098012553 | 90980-12553 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098012554 | 90980-12554 | HOUSINGCONNECTOR | HOUSINGCONNECTOR |
| 9098012555 | 90980-12555 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098012686 | 90980-12686 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098012699 | 90980-12699 | HOUSING CONNECTOR | HOUSING CONNECTOR |
Wiring & Clamp ([04.2013 - ] DOOR (1304- )) 1 / 33
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9167180616 | 91671-80616 | BOLT FLANGE | BOLT FLANGE |
Wiring & Clamp ([04.2013 - ] ENGINE (1304- )AVE30) 9 / 24
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9012606029 | 90126-06029 | Bolt, Stud(For Vacuum Transmitting Pipe) | Bolt, Stud(For Vacuum Transmitting Pipe) |
| 9012606029 | 90126-A0014 | Bolt, Stud(For Oil Strainer) | Bolt, Stud(For Oil Strainer) |
| 9017906178 | 90179-06178 | Nut (For Rear Wiper Arm Setting) | Nut (For Rear Wiper Arm Setting) |
| 9165160816 | 91651-60816 | BOLT | BOLT |
| 9165160816 | 90080-11396 | Bolt | Bolt |
| 9167180616 | 91671-80616 | BOLT FLANGE | BOLT FLANGE |
| 9167180816 | 91671-80816 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Wiring & Clamp ([04.2013 - ] ENGINE ROOM (1304- )AVE30..ARL) 4 / 36
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 82114 | 82114-53010 | Wire, Engine Room, No.4 | Wire, Engine Room, No.4 |
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9011906995 | 90119-06995 | BOLT WWASHER | BOLT WWASHER |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Wiring & Clamp ([04.2013 - ] ENGINE ROOM (1304- )AVE30..GEN) 4 / 29
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 82114 | 82114-53010 | Wire, Engine Room, No.4 | Wire, Engine Room, No.4 |
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9011906995 | 90119-06995 | BOLT WWASHER | BOLT WWASHER |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Wiring & Clamp ([04.2013 - ] FLOOR & ROOF (1304- )) 4 / 104
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Wiring & Clamp ([04.2013 - ] HIGH-TENSION CABLE (1304- )AVE30..ARL) 1 / 6
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Wiring & Clamp ([04.2013 - ] HIGH-TENSION CABLE (1304- )AVE30..GEN) 2 / 7
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 9017906274 | 90179-06274 | Nut | Nut |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
Wiring & Clamp ([04.2013 - ] INSTRUMENT PANEL (1304- )ARL) 2 / 17
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 82817 | 82817-33820 | Protector, Wiring Harness, No.4 | Protector, Wiring Harness, No.4 |
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
Wiring & Clamp ([04.2013 - ] INSTRUMENT PANEL (1304- )LHD) 2 / 15
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 82817 | 82817-33820 | Protector, Wiring Harness, No.4 | Protector, Wiring Harness, No.4 |
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| # | OEM | AVE30 | GSE25 |
|---|---|---|---|
| 4423 | 04423-33030 | Fitting Kit, Tire Pressure Monitor Or Balancer Valve | Fitting Kit, Tire Pressure Monitor Or Balancer Valve |
| 4423 | 04423-33060 | Fitting Kit, Tire Pressure Monitor Or Balancer Valve | Fitting Kit, Tire Pressure Monitor Or Balancer Valve |
| 4465 | 04465-53040 | Pad Kit, Disc Brake, Front | Pad Kit, Disc Brake, Front |
| 4479 | 04478-30250 | Cylinder Kit, Disc Brake, Front | Cylinder Kit, Disc Brake, Front |
| 4479 | 04478-30260 | Cylinder Kit, Disc Brake, Front | Cylinder Kit, Disc Brake, Front |
| 4945 | 04945-53050 | Shim Kit, Anti Squeal, Front | Shim Kit, Anti Squeal, Front |
| 4947 | 04947-53020 | Fitting Kit, Disc Brake, Front | Fitting Kit, Disc Brake, Front |
| 9113 | 09113-13040 | Handle, Jack | Handle, Jack |
| 9130 | 09130-50040 | Pliers | Pliers |
| 9141 | 09141-60010 | Spanner | Spanner |
| 9141 | 09141-60020 | Spanner | Spanner |
| 11126 | 11126-31030 | Bush, Exhaust Valve Guide | Bush, Exhaust Valve Guide |
| 11126 | 11127-31030 | Bush, Exhaust Valve Guide | Bush, Exhaust Valve Guide |
| 11293 | 11293-31120 | Label, Engine Caution | Label, Engine Caution |
| 41110 | 12157-10010 | Gasket (For Drain Plug) | Gasket (For Drain Plug) |
| 13716 | 13716-75020 | Cap, Valve Stem | Cap, Valve Stem |
| 13734 | 13734-62020 | Washer, Plate(For Valve Spring Seat) | Washer, Plate(For Valve Spring Seat) |
| 13741 | 13741-20021 | Retainer, Valve Spring | Retainer, Valve Spring |
| 13750 | 13750-31030 | Adjuster Assy, Valve Lash | Adjuster Assy, Valve Lash |
| 13801 | 13801-23011 | Arm Sub-Assy, Valve Rocker, No.1 | Arm Sub-Assy, Valve Rocker, No.1 |
| 15643 | 15643-31050 | Plug(For Oil Filter Cap) | Plug(For Oil Filter Cap) |
| 16400 | 16417-21280 | Cock Sub-Assy, Radiator Drain | Cock Sub-Assy, Radiator Drain |
| 16400 | 16492-21050 | Ring, O(For Oil Cooler Drain Cock) | Ring, O(For Oil Cooler Drain Cock) |
| 16581 | 16581-28070 | Clamp, Hose(For Water Hose) | Clamp, Hose(For Water Hose) |
| 16793 | 16793-38010 | Label, Cooling Fan Caution | Label, Cooling Fan Caution |
| 17565 | 17565-22040 | Support, Exhaust Pipe, No.1 | Support, Exhaust Pipe, No.1 |
| 17769 | 17769-31030 | Support, Air Cleaner | Support, Air Cleaner |
| 17882 | 17891-31010 | Clamp(For Air Cleaner Hose, No.1) | Clamp(For Air Cleaner Hose, No.1) |
| 31478 | 31478-30010 | Bleeder Plug Cap | Bleeder Plug Cap |
| 33675 | 33726-35010 | Pin, W/hole (For Transmission Control Rod) | Pin, W/hole (For Transmission Control Rod) |
| 35178 | 35178-30010 | Drain Plug Gasket | Drain Plug Gasket |
| 42603 | 42603-30550 | Ornament Sub-Assy, Wheel Hub | Ornament Sub-Assy, Wheel Hub |
| 42603 | 42603-30551 | ORNAMENT SUBASSY | ORNAMENT SUBASSY |
| 43512 | 43512-30310 | Disc, Front | Disc, Front |
| 44785 | 44785-47010 | Gasket, Brake Booster | Gasket, Brake Booster |
| 45535 | 45535-59045 | Boot, Steering Rack, No.1 | Boot, Steering Rack, No.1 |
| 45535 | 45535-59065 | Boot, Steering Rack, No.1 | Boot, Steering Rack, No.1 |
| 45897 | 45897-12020 | Bolt, Steering Lock Set | Bolt, Steering Lock Set |
| 46200 | 46200-53010 | Pedal Assy, Parking Brake Control | Pedal Assy, Parking Brake Control |
| 46252 | 46252-22010 | Pad, Parking Pedal | Pad, Parking Pedal |
| 46341 | 46341-22060 | Equalizer, Parking Brake | Equalizer, Parking Brake |
| 46410 | 46410-53030 | Cable Assy, Parking Brake, No.1 | Cable Assy, Parking Brake, No.1 |
| 46441 | 46441-12010 | Nut, Wire Adjusting, No.1 | Nut, Wire Adjusting, No.1 |
| 46505 | 46505-30230 | Block Sub-Assy, Parking Brake Anchor | Block Sub-Assy, Parking Brake Anchor |
| 46540 | 46530-30011 | Shoe Assy, Parking Brake, Rh Or Center No.1 | Shoe Assy, Parking Brake, Rh Or Center No.1 |
| 46601 | 46601-50050 | Lever Sub-Assy, Parking Brake Shoe, Rh | Lever Sub-Assy, Parking Brake Shoe, Rh |
| 46602 | 46602-50050 | Lever Sub-Assy, Parking Brake Shoe, Lh | Lever Sub-Assy, Parking Brake Shoe, Lh |
| 47230 | 47230-20140 | Cap Assy, Brake Master Cylinder Reservoir Filler | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47287 | 47287-20010 | Label, Brake Fluid Information | Label, Brake Fluid Information |
| 47313 | 47389-50020 | Gasket(For Front Flexible Hose) | Gasket(For Front Flexible Hose) |
| 47405 | 47405-32010 | Screw Set, Shoe Adjusting, Rh(For Parking Brake) | Screw Set, Shoe Adjusting, Rh(For Parking Brake) |
| 47406 | 47406-32010 | Screw Set, Shoe Adjusting, Lh(For Parking Brake) | Screw Set, Shoe Adjusting, Lh(For Parking Brake) |
| 47447 | 47447-10020 | Pin, Shoe Hold Down Spring(For Front Brake) | Pin, Shoe Hold Down Spring(For Front Brake) |
| 47449 | 47449-30030 | Cup, Brake Shoe Hold Down | Cup, Brake Shoe Hold Down |
| 42491 | 47491-50010 | Plug, Shoe Adjusting Hole (For Parking Brake) | Plug, Shoe Adjusting Hole (For Parking Brake) |
| 47547 | 47547-27030 | Plug, Bleeder(For Front Disc Brake) | Plug, Bleeder(For Front Disc Brake) |
| 47715 | 47715-22070 | Pin, Front Disc Brake Cylinder Slide | Pin, Front Disc Brake Cylinder Slide |
| 47715 | 47715-33050 | Pin, Front Disc Brake Cylinder Slide | Pin, Front Disc Brake Cylinder Slide |
| 47715 | 47715-52190 | Pin, Main(For Front Disc Brake Cylinder Slide) | Pin, Main(For Front Disc Brake Cylinder Slide) |
| 47721 | 47721-53060 | Mounting, Front Disc Brake Cylinder, Rh | Mounting, Front Disc Brake Cylinder, Rh |
| 47722 | 47722-53060 | Mounting, Front Disc Brake Cylinder, Lh | Mounting, Front Disc Brake Cylinder, Lh |
| 47730 | 47730-53060 | Cylinder Assy, Front Disc Brake, Rh | Cylinder Assy, Front Disc Brake, Rh |
| 47731 | 47731-12A10 | Piston, Front Disc Brake | Piston, Front Disc Brake |
| 47731 | 47731-30570 | PISTON DISC BRAKE | PISTON DISC BRAKE |
| 47731 | 47731-33070 | Piston, Front Disc Brake | Piston, Front Disc Brake |
| 47731 | 47731-53060 | Piston, Front Disc Brake | Piston, Front Disc Brake |
| 4774950090 | 47749-50090 | Clip, Pin Hold | Clip, Pin Hold |
| 47750 | 47750-53060 | Cylinder Assy, Disc Brake, Lh | Cylinder Assy, Disc Brake, Lh |
| 47769 | 47769-50010 | Bush, Cylinder Slide, No.1(For Front Disc Brake) | Bush, Cylinder Slide, No.1(For Front Disc Brake) |
| 47771 | 47771-33340 | Plate, Pad Wear Indicator, No.1 | Plate, Pad Wear Indicator, No.1 |
| 47775 | 47775-50010 | Boot, Bush Dust(For Front Disc Brake) | Boot, Bush Dust(For Front Disc Brake) |
| 47795 | 47795-30520 | Plate, Front Disc Brake Caliper, No.1 | Plate, Front Disc Brake Caliper, No.1 |
| 48075 | 48075-30030 | Bracket Sub-Assy, Lwr Arm, No,1, RH | Bracket Sub-Assy, Lwr Arm, No,1, RH |
| 48075 | 48075-30040 | Bracket Sub-Assy, Lwr Arm, No,1 | Bracket Sub-Assy, Lwr Arm, No,1 |
| 48075 | 48075-30050 | Bracket Sub-Assy, Lwr Arm, No,1 | Bracket Sub-Assy, Lwr Arm, No,1 |
| 48076 | 48076-30030 | Bracket Sub-Assy, Lwr Arm, No.2, LH | Bracket Sub-Assy, Lwr Arm, No.2, LH |
| 48076 | 48076-30040 | Bracket Sub-Assy, Lwr Arm, No.2 | Bracket Sub-Assy, Lwr Arm, No.2 |
| 48076 | 48076-30050 | Bracket Sub-Assy, Lwr Arm, No.2 | Bracket Sub-Assy, Lwr Arm, No.2 |
| 48158 | 48158-30020 | Insulator, Front Coil Spring, Lower | Insulator, Front Coil Spring, Lower |
| 51960 | 51961-30020 | Hook Assy, Front | Hook Assy, Front |
| 52161 | 52161-02020 | Clip | Clip |
| 52161 | 52161-0K040 | Clip | Clip |
| 52161 | 52161-16010 | Clip | Clip |
| 52535 | 52535-50060 | Retainer, Front Bumper Side | Retainer, Front Bumper Side |
| 53202 | 53119-53021 | Protector, Radiator Grille | Protector, Radiator Grille |
| 53497 | 53497-50020 | Pad, Hood Hinge, No.1 | Pad, Hood Hinge, No.1 |
| 53711 | 53711-53040 | Apron, Front Fender, Front Rh | Apron, Front Fender, Front Rh |
| 53712 | 53712-53040 | Apron, Front Fender, Front Lh | Apron, Front Fender, Front Lh |
| 53712 | 53712-53041 | Apron, Front Fender, Front Lh | Apron, Front Fender, Front Lh |
| 53729 | 53729-53020 | Reinforcement, Front Spring Support, No.3 | Reinforcement, Front Spring Support, No.3 |
| 53879 | 53879-50010 | Retainer, Front Fender Liner | Retainer, Front Fender Liner |
| 55315 | 55315-53040 | Spacer, Instrument Panel, No.1 - INSTRUMENT PANEL, NO.2 | Spacer, Instrument Panel, No.1 - INSTRUMENT PANEL, NO.2 |
| 55355 | 55355-30100 | Cushion, Instrument Panel, No.1 | Cushion, Instrument Panel, No.1 |
| 55574 | 55574-53010 | Shaft, Glove Compartment Door Hinge | Shaft, Glove Compartment Door Hinge |
| 55725 | 55725-51020 | Reinforcement, Hood Hinge Mounting | Reinforcement, Hood Hinge Mounting |
| 56116 | 56116-22050 | Stopper, Windshield Glass, No.1 | Stopper, Windshield Glass, No.1 |
| 56117 | 56117-64010 | Dam, Window Glass Adhesive | Dam, Window Glass Adhesive |
| 57051 | 57051-30100 | Member Sub-Assy, Front Floor Cross, Rh | Member Sub-Assy, Front Floor Cross, Rh |
| 57103 | 57103-30022 | Crossmenber Sub-Assy, Floor, No.3 | Crossmenber Sub-Assy, Floor, No.3 |
| 57103 | 57103-30031 | Crossmenber Sub-Assy, Floor, No.3 | Crossmenber Sub-Assy, Floor, No.3 |
| 57111 | 57111-30092 | Member, Front Side, Rh | Member, Front Side, Rh |
| 57112 | 57112-30102 | Member, Front Side, Lh | Member, Front Side, Lh |
| 57115 | 57115-30060 | Plate, Front Side Member, Outer Rh | Plate, Front Side Member, Outer Rh |
| 57116 | 57116-30030 | Plate, Front Side Member, Outer Lh | Plate, Front Side Member, Outer Lh |
| 57117 | 57117-30050 | Retainer, Front Bumper Arm, Rh | Retainer, Front Bumper Arm, Rh |
| 57118 | 57118-30050 | Retainer, Front Bumper Arm, Lh | Retainer, Front Bumper Arm, Lh |
| 57141 | 57141-30040 | Support, Front Bumper Arm, Rh | Support, Front Bumper Arm, Rh |
| 57142 | 57142-30040 | Support, Front Bumper Arm, Lh | Support, Front Bumper Arm, Lh |
| 57151 | 57151-30040 | Reinforcement, Front Side Member, No.1 Rh | Reinforcement, Front Side Member, No.1 Rh |
| 57152 | 57152-30040 | Reinforcement, Front Side Member, No.1 Lh | Reinforcement, Front Side Member, No.1 Lh |
| 57183 | 57183-30030 | Plate, Front Side Member, No.4 Rh | Plate, Front Side Member, No.4 Rh |
| 57184 | 57184-30020 | Plate, Front Side Member, No.4 Lh | Plate, Front Side Member, No.4 Lh |
| 57257 | 57257-30042 | Bracket, Engine Rear Mounting Member, Rh | Bracket, Engine Rear Mounting Member, Rh |
| 58111 | 57257-30070 | Bracket, Engine Rear Mounting Member, Rh | Bracket, Engine Rear Mounting Member, Rh |
| 58136 | 58136-51010 | Cover, Front Floor Hole | Cover, Front Floor Hole |
| 5861930080 | 58619-30080 | Sheet, Center Floor Silencer Sub | Sheet, Center Floor Silencer Sub |
| 58959 | 58959-60060 | Cushion, Instrument Panel | Cushion, Instrument Panel |
| 61339 | 61339-30010 | Seal, Center Body Pillar, Inner No.1 | Seal, Center Body Pillar, Inner No.1 |
| 6213530020 | 62135-30020 | Retainer, Floor Carpet | Retainer, Floor Carpet |
| 62566 | 62566-30010 | Clip, No.2(For Cowl Side Trim) | Clip, No.2(For Cowl Side Trim) |
| 63236 | 63236-30010 | Clamp, Sliding Roof Or Removable Roof Drain Hose | Clamp, Sliding Roof Or Removable Roof Drain Hose |
| 63381 | 63381-30091 | Retainer, Headlining, Front | Retainer, Headlining, Front |
| 63669 | 63669-50010 | Grommet, Sliding Roof Drain | Grommet, Sliding Roof Drain |
| 6548753020 | 65487-53020 | Clip, Corner Protector | Clip, Corner Protector |
| 66310 | 66310-30011-C0 | Hook Assy, Rope | Hook Assy, Rope |
| 67837 | 67837-51010 | Seal, Front Door Vent, Rh | Seal, Front Door Vent, Rh |
| 67867 | 67867-12150 | Clip(For Hood Air Intake Duct Seal) | Clip(For Hood Air Intake Duct Seal) |
| 67923 | 67923-48060 | Cushion, Front Door Stiffener, No.1 | Cushion, Front Door Stiffener, No.1 |
| 68211 | 68211-30180 | Clip, Door Belt Moulding | Clip, Door Belt Moulding |
| 68710 | 68710-12151 | Hinge Assy, Front Door, Upper Rh | Hinge Assy, Front Door, Upper Rh |
| 68720 | 68720-12151 | Hinge Assy, Front Door, Upper Lh | Hinge Assy, Front Door, Upper Lh |
| 68750 | 68750-20122 | Hinge Assy, Rear Door, Upper Rh | Hinge Assy, Rear Door, Upper Rh |
| 68760 | 68760-20122 | Hinge Assy, Rear Door, Upper Lh | Hinge Assy, Rear Door, Upper Lh |
| 68770 | 68770-52031 | Hinge Assy, Rear Door, Lower Rh | Hinge Assy, Rear Door, Lower Rh |
| 68780 | 68780-52031 | Hinge Assy, Rear Door, Lower Lh | Hinge Assy, Rear Door, Lower Lh |
| 69062 | 69056-50160 | Cylinder & Key Set, Glove Compartment Lock | Cylinder & Key Set, Glove Compartment Lock |
| 69283 | 69283-30050-C0 | Plug, Front Door Inside Handle Bezel, Rh | Plug, Front Door Inside Handle Bezel, Rh |
| 69284 | 69284-30050-C0 | Plug, Front Door Inside Handle Bezel, Lh | Plug, Front Door Inside Handle Bezel, Lh |
| 69318 | 69318-51010 | Seal, Front Door Lock Hole, Rh | Seal, Front Door Lock Hole, Rh |
| 69415 | 69415-33010 | Cover, Door Lock Striker, Front | Cover, Door Lock Striker, Front |
| 69415 | 69415-60020 | Cover, Door Lock Striker, Front | Cover, Door Lock Striker, Front |
| 69503 | 69515-30330 | Key, Cut(Card Key) | Key, Cut(Card Key) |
| 69503 | 69515-30350 | Key, Blank(Card Key) | Key, Blank(Card Key) |
| 69905 | 69905-53030 | Channel Sub-Assy, Rear Door Glass, Rh | Channel Sub-Assy, Rear Door Glass, Rh |
| 69906 | 69906-53030 | Channel Sub-Assy, Rear Door Glass, Lh | Channel Sub-Assy, Rear Door Glass, Lh |
| 69975 | 69975-52010 | Filler, Rear Door Glass Channel | Filler, Rear Door Glass Channel |
| 71398 | 71398-30010 | Holder, Rear Seat Back | Holder, Rear Seat Back |
| 73949 | 71848-33010 | Cap, Rear Seat | Cap, Rear Seat |
| 72693 | 72693-12080 | Hook, Rear Seat Cushion Lock | Hook, Rear Seat Cushion Lock |
| 73200 | 73200-53010 | Adjuster Assy, Front Shoulder Belt Anchor | Adjuster Assy, Front Shoulder Belt Anchor |
| 72020 | 73214-75010 | Plate, Front Seat Belt Anchor | Plate, Front Seat Belt Anchor |
| 73219 | 73219-33010 | Stopper, Tongue Plate | Stopper, Tongue Plate |
| 73219 | 73219-33020 | Stopper, Tongue Plate | Stopper, Tongue Plate |
| 73219 | 73219-33030 | Stopper, Tongue Plate | Stopper, Tongue Plate |
| 73373 | 73373-33030-C0 | Cover, Rear Seat Shoulder Belt | Cover, Rear Seat Shoulder Belt |
| 73719 | 73719-30010 | Bracket, Child Restraint Seat Tether Anchor | Bracket, Child Restraint Seat Tether Anchor |
| 74317 | 74317-60020-B1 | Cover, Visor Bracket, Rh | Cover, Visor Bracket, Rh |
| 74511 | 74511-2B300 | Plate, Name | Plate, Name |
| 74515 | 74515-30040 | Plate, Theft Warning | Plate, Theft Warning |
| 74596 | 74596-53011 | Label, Side Air Bag Caution | Label, Side Air Bag Caution |
| 74598 | 74598-20010 | Label, Driver & Passenger Air Bag Caution | Label, Driver & Passenger Air Bag Caution |
| 74636 | 74649-51010-C0 | Grip, Back Door Assist - LUGGAGE COMPARTMENT DOOR ASSIST | Grip, Back Door Assist - LUGGAGE COMPARTMENT DOOR ASSIST |
| 75392 | 75392-50070 | Retainer, Outside Moulding - FRONT SPOILER, NO.1 | Retainer, Outside Moulding - FRONT SPOILER, NO.1 |
| 75547 | 75547-51021 | Clip, Windshield Outside Moulding, No.3 | Clip, Windshield Outside Moulding, No.3 |
| 76625 | 75867-30120 | Clip, Rocker Panel Moulding | Clip, Rocker Panel Moulding |
| 75867 | 75867-33030 | Clip (For Center Lower Garnish) | Clip (For Center Lower Garnish) |
| 77241 | 77241-33011 | Clip, Tube Joint | Clip, Tube Joint |
| 77286 | 77286-30170 | Clamp, Fuel Tube, No.2 | Clamp, Fuel Tube, No.2 |
| 77289 | 77289-52090 | Holder, Fuel Tank Pipe Setting | Holder, Fuel Tank Pipe Setting |
| 77310 | 77300-52030 | Cap Assy, Fuel Tank | Cap Assy, Fuel Tank |
| 77316 | 77316-52040 | Gasket, Fuel Tank Cap | Gasket, Fuel Tank Cap |
| 77391 | 77391-12020 | Ring, Fuel Inlet Box | Ring, Fuel Inlet Box |
| 81260 | 81080-22040 | Lamp Assy, Interior Illumination, No.1 Rh | Lamp Assy, Interior Illumination, No.1 Rh |
| 81230 | 81230-30200 | Lamp Assy, Courtesy | Lamp Assy, Courtesy |
| 81340 | 81340-30110 | Lamp Assy, Vanity | Lamp Assy, Vanity |
| 81496 | 81496-60010 | Guide, Rear Combination Lamp | Guide, Rear Combination Lamp |
| 81584 | 81584-22040 | Gasket, Rear Combination Lamp, Rh | Gasket, Rear Combination Lamp, Rh |
| 82114 | 82114-53010 | Wire, Engine Room, No.4 | Wire, Engine Room, No.4 |
| 82616 | 82616-58010 | Puller, Fuse | Puller, Fuse |
| 0 | 82711-1E320 | Clamp, Wiring Harness | Clamp, Wiring Harness |
| 827112 | 82711-2B700 | Wire, Fuse To Fuse(for Combustion Heater) | Wire, Fuse To Fuse(for Combustion Heater) |
| 827113 | 82711-3A540 | Clamp, Sliding Roof Drain Hose | Clamp, Sliding Roof Drain Hose |
| 8271145020 | 82711-45020 | Clamp, Headlamp Cleaner, No.1 | Clamp, Headlamp Cleaner, No.1 |
| 8271522800 | 82715-22800 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30A40 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30A50 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30A60 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30A70 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30A80 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30A90 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30B00 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30C10 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 9223372036854775807 | 82715-30E60 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 9223372036854775807 | 82715-30E70 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271530 | 82715-30G30 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8271550440 | 82715-50440 | Bracket,wiring Harness Clamp | Bracket,wiring Harness Clamp |
| 8272930040 | 82729-30040 | New Genuine Part | New Genuine Part |
| 82817 | 82817-33820 | Protector, Wiring Harness, No.4 | Protector, Wiring Harness, No.4 |
| 8282460460 | 82824-60460 | Connector, Wiring Harness | Connector, Wiring Harness |
| 83530 | 83530-0E010 | Switch Assy, Oil Pressure (For Engine) | Switch Assy, Oil Pressure (For Engine) |
| 83530 | 83530-28020 | Switch Assy, Oil Pressure (For Engine) | Switch Assy, Oil Pressure (For Engine) |
| 83530 | 83530-60020 | Switch Assy, Oil Pressure (For Engine) - ＹＡＺＡＫＩ→ＤＥＮＳＯ | Switch Assy, Oil Pressure (For Engine) - ＹＡＺＡＫＩ→ＤＥＮＳＯ |
| 84234 | 84231-50190 | Switch Assy, Courtesy Lamp (For Front Door) | Switch Assy, Courtesy Lamp (For Front Door) |
| 84550 | 84550-16060 | Switch Assy, Parking Brake | Switch Assy, Parking Brake |
| 84840 | 84840-24020 | Switch Assy, Luggage Door Opening, Cancel | Switch Assy, Luggage Door Opening, Cancel |
| 85376 | 85277-50040 | Protector, Headlamp Cleaner Hose, No.1 | Protector, Headlamp Cleaner Hose, No.1 |
| 85292 | 85292-13010 | Cover, Windshield Wiper Arm | Cover, Windshield Wiper Arm |
| 85319 | 85319-33230 | Packing, Front Washer | Packing, Front Washer |
| 85355 | 85321-28020 | Valve Sub-Assy, Washer | Valve Sub-Assy, Washer |
| 85310 | 85330-60190 | Motor And Pump Assy, Windshield Washer | Motor And Pump Assy, Windshield Washer |
| 85330 | 85336-60300 | Bush, Windshield Washer Jar | Bush, Windshield Washer Jar |
| 85348 | 85349-89122 | Valve Sub-Assy, Washer | Valve Sub-Assy, Washer |
| 85348 | 85355-12360 | Joint, Windshield Washer Elbow, No.1 | Joint, Windshield Washer Elbow, No.1 |
| 85397 | 85397-30400 | Switch Assy,level Warning | Switch Assy,level Warning |
| 86510 | 86510-30700 | Horn Assy, High Pitched | Horn Assy, High Pitched |
| 86520 | 86520-30610 | Horn Assy, Low Pitched | Horn Assy, Low Pitched |
| 86652 | 86652-50010 | Buzzer Assy | Buzzer Assy |
| 8700930040 | 87009-30040 | Hose Set, Water, No.1 | Hose Set, Water, No.1 |
| 87128 | 87128-30050 | Grommet, Heater | Grommet, Heater |
| 88897 | 87128-35020 | Grommet, Heater | Grommet, Heater |
| 87212 | 87212-30430 | Duct, Air, Rear No.1 | Duct, Air, Rear No.1 |
| 58111 | 87212-30431 | Duct, Air, Rear No.1 | Duct, Air, Rear No.1 |
| 87212 | 87215-53010 | Duct, Air, Rear No.4 | Duct, Air, Rear No.4 |
| 87212 | 87216-53010 | Duct, Air, Rear No.2 | Duct, Air, Rear No.2 |
| 87810 | 87810-60191 | Mirror Assy, Inner Rear View | Mirror Assy, Inner Rear View |
| 88263 | 88263-21010 | Relay | Relay |
| 88625 | 88625-47021 | Thermistor, Cooler No.3 | Thermistor, Cooler No.3 |
| 8871832220 | 88718-32220 | Clamp(For Cooler Refrigerant Pipe), No.2 | Clamp(For Cooler Refrigerant Pipe), No.2 |
| 88790 | 88790-22131 | Thermistor, Cooler | Thermistor, Cooler |
| 88897 | 88897-35030 | Grommet, (For Cooler Pipe) | Grommet, (For Cooler Pipe) |
| 8889944050 | 88899-44050 | Bolt, W/Washer | Bolt, W/Washer |
| 89178 | 89178-33050 | Sensor, Seat Position Air Bag | Sensor, Seat Position Air Bag |
| 89422 | 89422-33030 | Sensor, Water Temperature (For E.f.i.) | Sensor, Water Temperature (For E.f.i.) |
| 89491 | 89493-60010 | Gasket, Engine Oil Level Sensor | Gasket, Engine Oil Level Sensor |
| 89615 | 89615-20090 | Sensor, Knock Control | Sensor, Knock Control |
| 89745 | 89745-50030 | Battery, Transmitter(Card Key) | Battery, Transmitter(Card Key) |
| 89747 | 89747-52010 | Buzzer, Wireless Door Lock | Buzzer, Wireless Door Lock |
| 47201 | 90029-15803 | Ring Pin, Brake Master Cylinder | Ring Pin, Brake Master Cylinder |
| 47255 | 90029-48001 | Grommet, Master Cylinder Reservoir | Grommet, Master Cylinder Reservoir |
| 85330 | 90068-32002 | Bush, Windshield Washer Jar | Bush, Windshield Washer Jar |
| 9007502056 | 90075-02056 | Screw, Headlamp | Screw, Headlamp |
| 85271 | 90075-15064 | Hose, Headlamp Cleaner, No.1 | Hose, Headlamp Cleaner, No.1 |
| 85348 | 90075-17004 | Joint, Headlamp Cleaner Hose, No.2 - HEADLAMP CLEANER ELBOW, NO.1 | Joint, Headlamp Cleaner Hose, No.2 - HEADLAMP CLEANER ELBOW, NO.1 |
| 85272 | 90075-90512 | Clamp, Headlamp Cleaner, No.1 | Clamp, Headlamp Cleaner, No.1 |
| 9007591002 | 90075-91002 | Clamp, Headlamp Cleaner, No.1 | Clamp, Headlamp Cleaner, No.1 |
| 85669 | 90075-99120 | Packing, Headlamp Leveling Motor Base | Packing, Headlamp Leveling Motor Base |
| 9165160816 | 90080-11396 | Bolt | Bolt |
| 9011908560 | 90080-11555 | Bolt w-washer | Bolt w-washer |
| 9017906159 | 90080-17210 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 9017908204 | 90080-18070 | NUT, WWASHER | NUT, WWASHER |
| 81330 | 90080-81053 | Bulb(For Clearance Lamp) | Bulb(For Clearance Lamp) |
| 9135 | 90089-99009 | Driver, Screw (ATC) (Thailand) - Screw Driver (ATC) | Driver, Screw (ATC) (Thailand) - Screw Driver (ATC) |
| 9009900289 | 90099-00289 | SCREW | SCREW |
| 9009900318 | 90099-00318 | New Genuine Part | New Genuine Part |
| 9009904119 | 90099-04119 | BOLT WASHER HEAD | BOLT WASHER HEAD |
| 9009905164 | 90099-05164 | Nut | Nut |
| 9009905277 | 90099-05277 | New Genuine Part | New Genuine Part |
| 9009914119 | 90099-14119 | Ring, O(For Cooler Refrigerant Liquid Pipe) | Ring, O(For Cooler Refrigerant Liquid Pipe) |
| 9009914119 | 90099-14119-TH | O RING | O RING |
| 9009914120 | 90099-14120 | O-Ring, Cooler Evaporator No.1(Discharge) | O-Ring, Cooler Evaporator No.1(Discharge) |
| 9009914121 | 90099-14121 | O-Ring, Cooler Evaporator No.1(Suction) | O-Ring, Cooler Evaporator No.1(Suction) |
| 15330 | 90099-14137 | Ring, O(For Cam Timing Oil Control Valve) | Ring, O(For Cam Timing Oil Control Valve) |
| 85330 | 90099-32089 | Bush, Headlamp Cleaner Washer Jar | Bush, Headlamp Cleaner Washer Jar |
| 85371 | 90099-33080 | Hose, Windshield Washer (From Motor To Joint) | Hose, Windshield Washer (From Motor To Joint) |
| 85372 | 90099-33299 | Joint, Windshield Washer Elbow, No.2 | Joint, Windshield Washer Elbow, No.2 |
| 9010506049 | 90105-06049 | Bolt(For Transmission Case No.2 Plate) | Bolt(For Transmission Case No.2 Plate) |
| 9010506120 | 90105-06120 | BOLT WASHER BASED | BOLT WASHER BASED |
| 9010506137 | 90105-06137 | BOLT, WASHER BASED H | BOLT, WASHER BASED H |
| 9010506168 | 90105-06168 | BOLT WASHER BASED | BOLT WASHER BASED |
| 9010506260 | 90105-06260 | BOLT, WASHER BASED | BOLT, WASHER BASED |
| 9010506299 | 90105-06299 | New Genuine Part | New Genuine Part |
| 9010508088 | 90105-08088 | New Genuine Part | New Genuine Part |
| 47715 | 90105-08164 | Bolt(For Front Disc Brake Cylinder Slide) | Bolt(For Front Disc Brake Cylinder Slide) |
| 9010508253 | 90105-08253 | BOLT WASHER BASED | BOLT WASHER BASED |
| 9010510168 | 90105-10168 | New Genuine Part | New Genuine Part |
| 9010510361 | 90105-10361 | Bolt (For Rear Differential Carrier Cover Setting) | Bolt (For Rear Differential Carrier Cover Setting) |
| 41181 | 90105-10417 | Bolt (For Front Differential Carrier Cover Setting) | Bolt (For Front Differential Carrier Cover Setting) |
| 9010510523 | 90105-10523 | BOLT FLANGE | BOLT FLANGE |
| 9010510558 | 90105-10558 | BOLT FLANGE | BOLT FLANGE |
| 9010511058 | 90105-11058 | BOLT FLANGE | BOLT FLANGE |
| 9010514200 | 90105-14200 | BOLT FLANGE | BOLT FLANGE |
| 9010514202 | 90105-14202 | BOLT FLANGE | BOLT FLANGE |
| 9010510523 | 90105-A0186 | New Genuine Part | New Genuine Part |
| 9010906374 | 90109-06374 | BOLT | BOLT |
| 9010906385 | 90109-06385 | Bolt , V-Bank Cover, No.1 | Bolt , V-Bank Cover, No.1 |
| 9010908241 | 90109-08241 | BOLT | BOLT |
| 9010908295 | 90109-08295 | BOLT | BOLT |
| 41110 | 90109-12081 | Bolt, No.4 (For Rear Differential Carrier Set) | Bolt, No.4 (For Rear Differential Carrier Set) |
| 42421 | 90110-12009 | Bolt (For Rear Axle Bearing Case Rh) | Bolt (For Rear Axle Bearing Case Rh) |
| 9011506167 | 90115-06167 | Bolt, Weld(For Front Floor Panel, Center) | Bolt, Weld(For Front Floor Panel, Center) |
| 9011506242 | 90115-06242 | New Genuine Part | New Genuine Part |
| 9011506243 | 90115-06243 | Bolt, Weld(For Front Floor Panel, Center) | Bolt, Weld(For Front Floor Panel, Center) |
| 9011905021 | 90119-05021 | BOLT WWASHER | BOLT WWASHER |
| 9011906018 | 90119-06018 | New Genuine Part | New Genuine Part |
| 9011906120 | 90119-06120 | BOLT | BOLT |
| 35106 | 90119-06173 | Bolt, Stud (For Automatic Transmission Oil Pan Setting) | Bolt, Stud (For Automatic Transmission Oil Pan Setting) |
| 9011906375 | 90119-06375 | Bolt (For Transmission Housing & Case Setting) | Bolt (For Transmission Housing & Case Setting) |
| 9011906393 | 90119-06393 | Bolt(For Suspension Control Oil Cooler) | Bolt(For Suspension Control Oil Cooler) |
| 9011906403 | 90119-06403 | BOLT W-WASHER | BOLT W-WASHER |
| 9011906428 | 90119-06428 | New Genuine Part | New Genuine Part |
| 9011906767 | 90119-06767 | Bolt, W/washer(For Engine Under Cover) | Bolt, W/washer(For Engine Under Cover) |
| 9011906775 | 90119-06775 | BOLT WWASHER | BOLT WWASHER |
| 9011906782 | 90119-06782 | BOLT WWASHER | BOLT WWASHER |
| 9011906817 | 90119-06817 | BOLT WWASHER | BOLT WWASHER |
| 9011906864 | 90119-06864 | BOLT W-WASHER | BOLT W-WASHER |
| 62170 | 90119-06869 | Bolt, W/washer | Bolt, W/washer |
| 9011906915 | 90119-06915 | BOLT W-WASHER | BOLT W-WASHER |
| 53205 | 90119-06932 | BOLT WWASHER | BOLT WWASHER |
| 9011906938 | 90119-06938 | BOLT WWASHER | BOLT WWASHER |
| 9011906951 | 90119-06951 | BOLT WWASHER | BOLT WWASHER |
| 9011906952 | 90119-06952 | New Genuine Part | New Genuine Part |
| 9011906953 | 90119-06953 | BOLT WWASHER | BOLT WWASHER |
| 9011906956 | 90119-06956 | BOLT WWASHER | BOLT WWASHER |
| 9011906984 | 90119-06984 | BOLT WWASHER | BOLT WWASHER |
| 9011906995 | 90119-06995 | BOLT WWASHER | BOLT WWASHER |
| 11151 | 90119-07009 | Bolt(For Camshaft Housing Set) | Bolt(For Camshaft Housing Set) |
| 9011908516 | 90119-08516 | BOLT | BOLT |
| 9011908560 | 90119-08560 | Bolt, Hexagon | Bolt, Hexagon |
| 9011908681 | 90119-08681 | BOLT W-WASHER | BOLT W-WASHER |
| 9011908718 | 90119-08718 | BOLT WWASHER | BOLT WWASHER |
| 9011908 | 90119-08A87 | BOLT W-WASHER | BOLT W-WASHER |
| 9011908 | 90119-08C20 | BOLT WWASHER | BOLT WWASHER |
| 9011910260 | 90119-10260 | Bolt | Bolt |
| 9011910668 | 90119-10668 | BOLT WWASHER | BOLT WWASHER |
| 37230 | 90119-10902 | Bolt, No.1 (For Center Support Bearing) | Bolt, No.1 (For Center Support Bearing) |
| 9011910928 | 90119-10928 | BOLT WWASHER | BOLT WWASHER |
| 9011910971 | 90119-10971 | Bolt, Fuel Tank Band Set | Bolt, Fuel Tank Band Set |
| 9011912358 | 90119-12358 | BOLT WWASHER | BOLT WWASHER |
| 9011912370 | 90119-12370 | Bolt(For Camshaft Timing Gear) | Bolt(For Camshaft Timing Gear) |
| 47710 | 90119-12415 | Bolt, Hexagon(For Front Disc Brake Caliper) | Bolt, Hexagon(For Front Disc Brake Caliper) |
| 47810 | 90119-12416 | Bolt, Hexagon(For Rear Caliper) | Bolt, Hexagon(For Rear Caliper) |
| 9011914148 | 90119-14148 | Bolt, Differential Support Member Mounting, No.2 | Bolt, Differential Support Member Mounting, No.2 |
| 9011914154 | 90119-14154 | Bolt, Differential Support Member Mounting, No.1 | Bolt, Differential Support Member Mounting, No.1 |
| 9011906817 | 90119-A0044 | New Genuine Part | New Genuine Part |
| 9012606029 | 90126-06029 | Bolt, Stud(For Vacuum Transmitting Pipe) | Bolt, Stud(For Vacuum Transmitting Pipe) |
| 9012608050 | 90126-08050 | New Genuine Part | New Genuine Part |
| 9012606029 | 90126-A0014 | Bolt, Stud(For Oil Strainer) | Bolt, Stud(For Oil Strainer) |
| 9012908001 | 90129-08001 | BOLT WWASHER | BOLT WWASHER |
| 9014880066 | 90148-80066 | SCREW HEXALOBULAR | SCREW HEXALOBULAR |
| 9015150026 | 90151-50026 | SCREW CROSSRECESS | SCREW CROSSRECESS |
| 9015350010 | 90153-50010 | BOLT | BOLT |
| 9015950002 | 90159-50002 | SCREW | SCREW |
| 9015950199 | 90159-50199 | SCREW | SCREW |
| 9015950265 | 90159-50265 | New Genuine Part | New Genuine Part |
| 9015950269 | 90159-50269 | SCREW WWASHER | SCREW WWASHER |
| 9015950311 | 90159-50311 | SCREW | SCREW |
| 9015950327 | 90159-50327 | SCREW WWASHER | SCREW WWASHER |
| 9015950336 | 90159-50336 | SCREW WWASHER | SCREW WWASHER |
| 9015950346 | 90159-50346 | SCREW | SCREW |
| 9015960195 | 90159-60195 | New Genuine Part | New Genuine Part |
| 9015960303 | 90159-60303 | SCREW | SCREW |
| 9015960350 | 90159-60350 | SCREW WWASHER | SCREW WWASHER |
| 9015960383 | 90159-60383 | SCREW WWASHER | SCREW WWASHER |
| 9015960431 | 90159-60431 | SCREW | SCREW |
| 9015960477 | 90159-60477 | SCREW, WWASHER | SCREW, WWASHER |
| 9015960496 | 90159-60496 | SCREW WWASHER | SCREW WWASHER |
| 9015960498 | 90159-60498 | SCREW W-WASHER | SCREW W-WASHER |
| 9015960500 | 90159-60500 | SCREW WWASHER | SCREW WWASHER |
| 9015960507 | 90159-60507 | SCREW WWASHER | SCREW WWASHER |
| 9015960383 | 90159-A0010 | SCREW WWASHER TAPP | SCREW WWASHER TAPP |
| 9015950311 | 90159-A0034 | SCREW WWASHER | SCREW WWASHER |
| 9016240034 | 90162-40034 | SCREW OVAL | SCREW OVAL |
| 9016440103 | 90164-40103 | SCREW BINDING | SCREW BINDING |
| 9016450031 | 90164-50031 | SCREW BINDING | SCREW BINDING |
| 9016840113 | 90168-40113 | Screw, Steering Wheel Pad Attaching | Screw, Steering Wheel Pad Attaching |
| 9016850040 | 90168-50040 | SCREW TAPPING | SCREW TAPPING |
| 9413000802 | 90170-A0001 | New Genuine Part | New Genuine Part |
| 9412041000 | 90170-A0002 | Nut | Nut |
| 48610 | 90171-12012 | Nut, Castle(For Tie Rod End) | Nut, Castle(For Tie Rod End) |
| 43330 | 90171-14014 | Nut, Castle (For Front Lower Ball Joint Rh) | Nut, Castle (For Front Lower Ball Joint Rh) |
| 48610 | 90173-10012 | Nut(For Suspension Upper Arm) | Nut(For Suspension Upper Arm) |
| 9017605018 | 90176-05018 | NUT, CAP | NUT, CAP |
| 9017712001 | 90177-12001 | NUT, LOCK | NUT, LOCK |
| 9017712002 | 90177-12002 | Nut | Nut |
| 42311 | 90177-26001 | Nut (For Rear Axle Shaft Rh) | Nut (For Rear Axle Shaft Rh) |
| 9017806011 | 90178-06011 | NUT FLANGE | NUT FLANGE |
| 9017806012 | 90178-06012 | NUT FLANGE | NUT FLANGE |
| 48603 | 90178-10014 | Nut(For Front Suspension Support) | Nut(For Front Suspension Support) |
| 9017810027 | 90178-10027 | New Genuine Part | New Genuine Part |
| 9017812018 | 90178-12018 | NUT FLANGE | NUT FLANGE |
| 9017814012 | 90178-14012 | NUT FLANGE | NUT FLANGE |
| 9017814015 | 90178-14015 | New Genuine Part | New Genuine Part |
| 9017905011 | 90178-A0005 | New Genuine Part | New Genuine Part |
| 48750 | 90178-A0071 | New Genuine Part | New Genuine Part |
| 9017905011 | 90179-05011 | NUT | NUT |
| 9017905102 | 90179-05102 | Nut | Nut |
| 9017906008 | 90179-06008 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 9017906127 | 90179-06127 | Bracket, Front Licence Plate Mounting | Bracket, Front Licence Plate Mounting |
| 9017906146 | 90179-06146 | Nut | Nut |
| 9017906159 | 90179-06159 | Nut, Rear Wiper Link Pivot, No.1 | Nut, Rear Wiper Link Pivot, No.1 |
| 9017906161 | 90179-06161 | Bolt, Union(For Clutch Accumulator) | Bolt, Union(For Clutch Accumulator) |
| 9017906169 | 90179-06169 | Nut | Nut |
| 9017906178 | 90179-06178 | Nut (For Rear Wiper Arm Setting) | Nut (For Rear Wiper Arm Setting) |
| 9017906219 | 90179-06219 | Nut | Nut |
| 9017906264 | 90179-06264 | NUT, WWASHER | NUT, WWASHER |
| 9017906274 | 90179-06274 | Nut | Nut |
| 9017906282 | 90179-06282 | New Genuine Part | New Genuine Part |
| 9017906292 | 90179-06292 | NUT | NUT |
| 46441 | 90179-06299 | Nut, Wire Adjusting, No.1 | Nut, Wire Adjusting, No.1 |
| 9017906349 | 90179-06349 | NUT | NUT |
| 9017908025 | 90179-08025 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
| 9017908040 | 90179-08040 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
| 9017908200 | 90179-08200 | New Genuine Part | New Genuine Part |
| 9017908204 | 90179-08204 | Nut | Nut |
| 9017908233 | 90179-08233 | NUT | NUT |
| 9017908249 | 90179-08249 | New Genuine Part | New Genuine Part |
| 9017910037 | 90179-10037 | NUT | NUT |
| 9017910037 | 90179-10128 | NUT | NUT |
| 9017911010 | 90179-11010 | NUT | NUT |
| 45201 | 90179-12071 | Nut, Steering Wheel Set | Nut, Steering Wheel Set |
| 48750 | 90179-12127 | Nut | Nut |
| 48830 | 90179-12151 | Nut(For Front Stabilizer Link) | Nut(For Front Stabilizer Link) |
| 9017914044 | 90179-14044 | NUT | NUT |
| 9017914068 | 90179-14068 | Nut(For Front Suspension Lower Arm) | Nut(For Front Suspension Lower Arm) |
| 9017914069 | 90179-14069 | Nut | Nut |
| 85178 | 90182-10006 | Nut (For Front Wiper Arm Setting) | Nut (For Front Wiper Arm Setting) |
| 9017906219 | 90182-A0005 | Nut | Nut |
| 9018305094 | 90183-05094 | NUT | NUT |
| 9018306019 | 90183-06019 | Clip, Outside Moulding, No.1 | Clip, Outside Moulding, No.1 |
| 9018904059 | 90189-04059 | CLIP | CLIP |
| 9018904200 | 90189-04200 | GROMMET SCREW | GROMMET SCREW |
| 9018905137 | 90189-05137 | GROMMET SCREW | GROMMET SCREW |
| 9018906066 | 90189-06066 | CLIP | CLIP |
| 9018906157 | 90189-06157 | GROMMET SCREW | GROMMET SCREW |
| 9018906172 | 90189-06172 | GROMMET | GROMMET |
| 9018906203 | 90189-06203 | GROMMET SCREW | GROMMET SCREW |
| 9018906227 | 90189-06227 | GROMMET SCREW | GROMMET SCREW |
| 37230 | 90201-10008 | Washer, No.2 (For Center Support Bearing) | Washer, No.2 (For Center Support Bearing) |
| 37230 | 90201-10017 | Washer, No.2 (For Center Support Bearing) | Washer, No.2 (For Center Support Bearing) |
| 37230 | 90201-10033 | Washer, No.2 (For Center Support Bearing) | Washer, No.2 (For Center Support Bearing) |
| 37230 | 90201-10034 | Washer, No.2 (For Center Support Bearing) | Washer, No.2 (For Center Support Bearing) |
| 37230 | 90201-10106 | Washer, No.2 (For Center Support Bearing) | Washer, No.2 (For Center Support Bearing) |
| 11101 | 90201-11034 | Washer, Plate(For Cylinder Head Set) | Washer, Plate(For Cylinder Head Set) |
| 9020116244 | 90201-16244 | Washer, Plate (For Rear Drive Pinion) | Washer, Plate (For Rear Drive Pinion) |
| 13405 | 90250-08120 | Pin, Straight, No.1 | Pin, Straight, No.1 |
| 11434 | 90250-10113 | Pin, Straight(For Timing Gear Cover Set) | Pin, Straight(For Timing Gear Cover Set) |
| 9026904051 | 90269-04051 | RIVET | RIVET |
| 9026905037 | 90269-05037 | New Genuine Part | New Genuine Part |
| 23280 | 90301-04013 | Ring, O(For Fuel Pump) | Ring, O(For Fuel Pump) |
| 9030108020 | 90301-08020 | Ring, O(For Fuel Pump) | Ring, O(For Fuel Pump) |
| 9030111025 | 90301-11025 | Ring, O(For Fuel Pump) | Ring, O(For Fuel Pump) |
| 9030111030 | 90301-11030 | Ring, O(For Oil Cooler Tube Union) | Ring, O(For Oil Cooler Tube Union) |
| 23280 | 90301-15024 | Ring, O(For Fuel Pump) | Ring, O(For Fuel Pump) |
| 15620 | 90301-79006 | Gasket(For Oil Filter Cap) | Gasket(For Oil Filter Cap) |
| 9033320001 | 90333-20001 | PLUG | PLUG |
| 9033330002 | 90333-30002 | Cover, Front Floor Hole | Cover, Front Floor Hole |
| 9033330008 | 90333-30008 | PLUG PLATE | PLUG PLATE |
| 9033335002 | 90333-35002 | Plug, Hole(For Rear Door Panel) | Plug, Hole(For Rear Door Panel) |
| 9033348001 | 90333-48001 | Plate, Quarter Panel, Upper No.1 | Plate, Quarter Panel, Upper No.1 |
| 30910 | 90341-10011 | Drain Plug (No Type) | Drain Plug (No Type) |
| 12101 | 90341-12012 | Plug(For Oil Pan Drain) | Plug(For Oil Pan Drain) |
| 41110 | 90341-18032 | Plug Sub-Assy, Drain(Mtm) - No magnet | Plug Sub-Assy, Drain(Mtm) - No magnet |
| 41110 | 90341-18035 | Plug, No.1 (With Magnet) | Plug, No.1 (With Magnet) |
| 30910 | 90341-18060 | Plug, W/head Straight Screw(For Transaxle Housing & Case) | Plug, W/head Straight Screw(For Transaxle Housing & Case) |
| 12101 | 90341-T0004 | Plug(For Oil Pan Drain) | Plug(For Oil Pan Drain) |
| 47313 | 90401-10058 | Bolt, Union(For Front Flexible Hose) | Bolt, Union(For Front Flexible Hose) |
| 11159 | 90430-10024 | Gasket, Camshaft Bearing Cap Oil Hole | Gasket, Camshaft Bearing Cap Oil Hole |
| 23801 | 90430-12026 | Gasket | Gasket |
| 12101 | 90430-12031 | Gasket (For Oil Pan Drain Plug) | Gasket (For Oil Pan Drain Plug) |
| 30910 | 90430-18008 | Gasket | Gasket |
| 11117 | 90430-20004 | Gasket(For Cylinder Head Screw Plug) | Gasket(For Cylinder Head Screw Plug) |
| 12108 | 90430-35001 | Gasket(For Oil Filler Cap) | Gasket(For Oil Filler Cap) |
| 30910 | 90430-T0021 | Gasket(For Manual Transmission Filler Plug) | Gasket(For Manual Transmission Filler Plug) |
| 9046022002 | 90460-22001 | CLAMP | CLAMP |
| 9046022002 | 90460-22002 | CLAMP | CLAMP |
| 9046081005 | 90460-81005 | New Genuine Part | New Genuine Part |
| 9046081007 | 90460-81007 | CLAMP HOSE | CLAMP HOSE |
| 47371 | 90464-00876 | Clamp, Brake Tube, No.1 | Clamp, Brake Tube, No.1 |
| 16571 | 90466-39002 | Clip, Hose(For Radiator Hose Sub-Assy) | Clip, Hose(For Radiator Hose Sub-Assy) |
| 64270 | 90466-T0026 | Clip Or Clamp(For Ventilation Hose) | Clip Or Clamp(For Ventilation Hose) |
| 67869 | 90467-04034 | Clip | Clip |
| 58564 | 90467-05164-B8 | Clip(For Front Floor Carpet) | Clip(For Front Floor Carpet) |
| 9046707201 | 90467-07201 | Clamp(For Cool Air Intake) | Clamp(For Cool Air Intake) |
| 9046707214 | 90467-07214 | Clip, Front Fender Liner | Clip, Front Fender Liner |
| 53259 | 90467-07217 | Clip, Radiator Support To Frame Seal | Clip, Radiator Support To Frame Seal |
| 53381 | 90467-08011 | Clip(For Headlamp Cover Seal) | Clip(For Headlamp Cover Seal) |
| 53381 | 90467-08011-83 | Clip(For Headlamp Cover Seal) | Clip(For Headlamp Cover Seal) |
| 53381 | 90467-08011-TH | CLIP | CLIP |
| 55781 | 90467-08108 | Clip(For Hood To Cowl Top Seal) | Clip(For Hood To Cowl Top Seal) |
| 53121 | 90467-08186-C0 | Clip(For Front Bumper), No.1 | Clip(For Front Bumper), No.1 |
| 53341 | 90467-09050 | Clip(For Hood Insulator) | Clip(For Hood Insulator) |
| 63310 | 90467-09126 | Clip(For Roof Headlining Trim) | Clip(For Roof Headlining Trim) |
| 67491 | 90467-09206 | Clip, Front Air Shutter Seal | Clip, Front Air Shutter Seal |
| 62211 | 90467-10161 | Clip | Clip |
| 53866 | 90467-10162 | Clip, Front Wheel Opening Extensoion | Clip, Front Wheel Opening Extensoion |
| 9046710167 | 90467-10167 | Clip(For Rear Floor Finish Plate) | Clip(For Rear Floor Finish Plate) |
| 63310 | 90467-10181 | Clip, Roof Headlining | Clip, Roof Headlining |
| 9046710183 | 90467-10183 | Clip(For Luggage Compartment Trim Inner Cover) | Clip(For Luggage Compartment Trim Inner Cover) |
| 9046710203 | 90467-10203 | Direct | Direct |
| 9046710206 | 90467-10206 | Clip, Front Fender Liner, No.3 | Clip, Front Fender Liner, No.3 |
| 64712 | 90467-12069 | Clip(For Rear Floor Finish Plate) | Clip(For Rear Floor Finish Plate) |
| 64270 | 90467-14001 | Clip Or Clamp(For Ventilation Hose) | Clip Or Clamp(For Ventilation Hose) |
| 58399 | 90467-14053 | Clip, No.1(For Floor Under Cover) | Clip, No.1(For Floor Under Cover) |
| 23827 | 90467-15022 | Clip Or Clamp(For Ventilation Hose) | Clip Or Clamp(For Ventilation Hose) |
| 45535 | 90467-19019 | Clip | Clip |
| 12263 | 90467-21004 | Clip Or Clamp(For Ventilation Hose) | Clip Or Clamp(For Ventilation Hose) |
| 9046804157 | 90468-04157 | Clip (Metal) | Clip (Metal) |
| 9046805135 | 90468-05135 | Clip, Instrument Panel | Clip, Instrument Panel |
| 9046808001 | 90468-08001 | CLIP | CLIP |
| 9046808040 | 90468-08040 | CLIP | CLIP |
| 9046814011 | 90468-14011 | Clip, No.2(For Parking Brake) | Clip, No.2(For Parking Brake) |
| 9046816017 | 90468-16017 | CLIP | CLIP |
| 9046816019 | 90468-16019 | Clip (For Rear Seat Back) | Clip (For Rear Seat Back) |
| 9046816029 | 90468-16029 | CLIP | CLIP |
| 9046818008 | 90468-18008 | Clip (For Rear Seat Back) | Clip (For Rear Seat Back) |
| 9046915004 | 90469-15004 | New Genuine Part | New Genuine Part |
| 9048010024 | 90480-10024 | Clip, No.2(For Floor Under Cover) | Clip, No.2(For Floor Under Cover) |
| 35569 | 90480-17013 | Grommet | Grommet |
| 16470 | 90480-18010 | Grommet, Radiator Reserve Tank Hose | Grommet, Radiator Reserve Tank Hose |
| 9048022024 | 90480-22024 | Grommet | Grommet |
| 16535 | 90480-40021 | Grommet(For Radiator Support) | Grommet(For Radiator Support) |
| 47447 | 90501-16118 | Spring, Compression(For Parking Brake Shoe Hold Down) | Spring, Compression(For Parking Brake Shoe Hold Down) |
| 9050135028 | 90501-35028 | Spring, Exhaust Pipe | Spring, Exhaust Pipe |
| 46550 | 90506-14080 | Spring, Tension, No.1(For Parking Brake Shoe Return) | Spring, Tension, No.1(For Parking Brake Shoe Return) |
| 53510 | 90506-14086 | Spring, Tension(For Hood Lock) | Spring, Tension(For Hood Lock) |
| 46550 | 90506-23052 | Spring, Tension, No.1(For Parking Brake Shoe Return) | Spring, Tension, No.1(For Parking Brake Shoe Return) |
| 13101 | 90520-22025 | Ring, Hole Snap(For Piston Pin) | Ring, Hole Snap(For Piston Pin) |
| 42360 | 90521-34003 | Ring, Hole Snap (For Diff Side Gear Intermeddiate Shaft) | Ring, Hole Snap (For Diff Side Gear Intermeddiate Shaft) |
| 69205 | 90541-04014 | Cushion, Console Box | Cushion, Console Box |
| 67001 | 90541-09069 | Cushion, Hood Bumper | Cushion, Hood Bumper |
| 64459 | 90541-09116 | Cushion(For Luggage Compartment Door Panel) | Cushion(For Luggage Compartment Door Panel) |
| 9054109151 | 90541-09151 | Cushion(For Luggage Compartment Door Panel) | Cushion(For Luggage Compartment Door Panel) |
| 64459 | 90541-11010 | Cushion, Luggage Compartment Door | Cushion, Luggage Compartment Door |
| 35569 | 90560-08091 | Bush (For Floor Shift Control Shaft) | Bush (For Floor Shift Control Shaft) |
| 9056111011 | 90561-11011 | Clip, No.1(For Floor Under Cover) | Clip, No.1(For Floor Under Cover) |
| 9056113003 | 90561-13003 | Clip, No.4(For Floor Under Cover) | Clip, No.4(For Floor Under Cover) |
| 9090105026 | 90901-05026 | Bolt, Exhaust Pipe Support | Bolt, Exhaust Pipe Support |
| 55210 | 90904-67034 | Clip | Clip |
| 13711 | 90913-02101 | Seal Or Ring, O(For Valve Stem Oil) - Intake side | Seal Or Ring, O(For Valve Stem Oil) - Intake side |
| 13715 | 90913-02112 | Seal Or Ring, O(For Valve Stem Oil) | Seal Or Ring, O(For Valve Stem Oil) |
| 13741 | 90913-03028 | Lock, Valve Spring Retainer | Lock, Valve Spring Retainer |
| 17410 | 90917-06078 | Gasket, Exhaust Pipe | Gasket, Exhaust Pipe |
| 17410 | 90917-A6003 | Gasket, Exhaust Pipe | Gasket, Exhaust Pipe |
| 19500 | 90919-02256 | Coil Assy, Ignition | Coil Assy, Ignition |
| 11101 | 90919-05060 | Sensor, Cam Position | Sensor, Cam Position |
| 41110 | 90930-03077 | Plug, Breather (For Automatic Transmission Case) | Plug, Breather (For Automatic Transmission Case) |
| 42601 | 90942-01033 | Nut, Hub (For Axle) | Nut, Hub (For Axle) |
| 43501 | 90942-02049 | Bolt, Hub | Bolt, Hub |
| 43501 | 90942-02070 | Bolt, Hub | Bolt, Hub |
| 43501 | 90942-02082 | Bolt, Hub | Bolt, Hub |
| 9094203146 | 90942-03146 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203147 | 90942-03147 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203148 | 90942-03148 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203149 | 90942-03149 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203150 | 90942-03150 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203151 | 90942-03151 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203152 | 90942-03152 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203153 | 90942-03153 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203154 | 90942-03154 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203167 | 90942-03167 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203208 | 90942-03208 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203209 | 90942-03209 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203210 | 90942-03210 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203211 | 90942-03211 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203212 | 90942-03212 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203213 | 90942-03213 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203214 | 90942-03214 | Weight, Balance (For Disc Wheel) | Weight, Balance (For Disc Wheel) |
| 9094203264 | 90942-03264 | New Genuine Part | New Genuine Part |
| 9094203265 | 90942-03265 | WEIGHT BALANCE | WEIGHT BALANCE |
| 9094203267 | 90942-03267 | WEIGHT BALANCE | WEIGHT BALANCE |
| 9094203273 | 90942-03273 | WEIGHT BALANCE | WEIGHT BALANCE |
| 42611 | 90942-05028 | Valve (For Tubeless Tire) | Valve (For Tubeless Tire) |
| 42611 | 90942-05029 | Cap, Tire Valve | Cap, Tire Valve |
| 42611 | 90942-05042 | Cap, Tire Valve | Cap, Tire Valve |
| 48530 | 90948-03021 | Washer, Rear Shock Absorber Cushion, No.1 | Washer, Rear Shock Absorber Cushion, No.1 |
| 47372 | 90949-01D12 | Clamp(For Clutch Master Cylinder Tube) | Clamp(For Clutch Master Cylinder Tube) |
| 47373 | 90949-01D13 | Clamp, Brake Tube, No.9 | Clamp, Brake Tube, No.9 |
| 9095001259 | 90950-01259 | PLUG | PLUG |
| 9095001398 | 90950-01398 | CUSHION | CUSHION |
| 9095001506 | 90950-01506 | Plug, Hole(For Luggage Compartment Door Panel) | Plug, Hole(For Luggage Compartment Door Panel) |
| 9095001510 | 90950-01510 | New Genuine Part | New Genuine Part |
| 9095001527 | 90950-01527 | PLUG | PLUG |
| 9095001611 | 90950-01611 | New Genuine Part | New Genuine Part |
| 9095001710 | 90950-01710 | PLUG HOLE | PLUG HOLE |
| 9095001759 | 90950-01759 | PLUG | PLUG |
| 9095001762 | 90950-01762 | New Genuine Part | New Genuine Part |
| 9095001824 | 90950-01824 | PLUG HOLE | PLUG HOLE |
| 9095001841 | 90950-01841 | Direct | Direct |
| 9095001948 | 90950-01948 | PLUG HOLE | PLUG HOLE |
| 9095001954 | 90950-01954 | PLUG HOLE | PLUG HOLE |
| 9095001955 | 90950-01955 | Plug, Hole, No.1(For Dash Panel) | Plug, Hole, No.1(For Dash Panel) |
| 9095001956 | 90950-01956 | PLUG HOLE | PLUG HOLE |
| 9095001957 | 90950-01957 | PLUG HOLE | PLUG HOLE |
| 9095001958 | 90950-01958 | Plug, Hole(For Back Door Panel) | Plug, Hole(For Back Door Panel) |
| 9095001959 | 90950-01959 | Cover, Console Box Hole | Cover, Console Box Hole |
| 9095001960 | 90950-01960 | Plug, Hole(For Floor Panel) | Plug, Hole(For Floor Panel) |
| 9095001962 | 90950-01962 | PLUG HOLE | PLUG HOLE |
| 9095001974 | 90950-01974 | New Genuine Part | New Genuine Part |
| 9095001982 | 90950-01982 | New Genuine Part | New Genuine Part |
| 53614 | 90959-01369 | Clamp, Hood Lock Control Cable | Clamp, Hood Lock Control Cable |
| 85369 | 90959-01568 | Clamp | Clamp |
| 9098010619 | 90980-10619 | Housing, Connector | Housing, Connector |
| 9098010860 | 90980-10860 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098010996 | 90980-10996 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098010997 | 90980-10997 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098011070 | 90980-11070 | HOUSING, CONNECTOR | HOUSING, CONNECTOR |
| 9098011148 | 90980-11148 | Housing, Connector | Housing, Connector |
| 9098011246 | 90980-11246 | HOUSING, CONNECTOR | HOUSING, CONNECTOR |
| 9098011587 | 90980-11587 | New Genuine Part | New Genuine Part |
| 9098012297 | 90980-12297 | HOUSINGCONNECTOR | HOUSINGCONNECTOR |
| 9098012460 | 90980-12460 | New Genuine Part | New Genuine Part |
| 9098012490 | 90980-12490 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098012551 | 90980-12551 | New Genuine Part | New Genuine Part |
| 9098012552 | 90980-12552 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098012553 | 90980-12553 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098012554 | 90980-12554 | HOUSINGCONNECTOR | HOUSINGCONNECTOR |
| 9098012555 | 90980-12555 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098012686 | 90980-12686 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 9098012699 | 90980-12699 | HOUSING CONNECTOR | HOUSING CONNECTOR |
| 81380 | 90981-11020 | Bulb (For Lower Back Finish Panel Emblem) | Bulb (For Lower Back Finish Panel Emblem) |
| 81550 | 90981-11059 | Bulb(For Rear Combination Lamp) (12V 16W) | Bulb(For Rear Combination Lamp) (12V 16W) |
| 81260 | 90981-11062 | Bulb, Room Lamp, No.1 | Bulb, Room Lamp, No.1 |
| 81230 | 90981-12010 | Bulb (For Lower Back Finish Panel Emblem) | Bulb (For Lower Back Finish Panel Emblem) |
| 81550 | 90981-15011 | Bulb (For Turn Signal Lamp) 12V 21W, AMBER | Bulb (For Turn Signal Lamp) 12V 21W, AMBER |
| 81510 | 90981-15021 | Bulb (For Front Turn Signal Lamp) | Bulb (For Front Turn Signal Lamp) |
| 81110 | 90981-20024 | Bulb, Discharge Headlamp | Bulb, Discharge Headlamp |
| 82600 | 90982-09020 | Fusible Link | Fusible Link |
| 82600 | 90982-09021 | Fusible Link | Fusible Link |
| 82600 | 90982-09022 | Instrument Panel Fuse | Instrument Panel Fuse |
| 82600 | 90982-09023 | Instrument Panel Fuse | Instrument Panel Fuse |
| 82600 | 90982-09024 | Instrument Panel Fuse | Instrument Panel Fuse |
| 82600 | 90982-09025 | Instrument Panel Fuse | Instrument Panel Fuse |
| 85924 | 90987-02025 | Relay | Relay |
| 85910 | 90987-02027 | Relay | Relay |
| 85948 | 90987-04004 | Relay, Starter Cut | Relay, Starter Cut |
| 9151180816 | 91511-80816 | BOLTFLANGE | BOLTFLANGE |
| 9155180610 | 91551-80610 | BOLT FLANGE | BOLT FLANGE |
| 9155180612 | 91551-80612 | Bolt (For Front Differential Breather Plug Oil Deflector) | Bolt (For Front Differential Breather Plug Oil Deflector) |
| 9155180616 | 91551-80616 | BOLT FLANGE | BOLT FLANGE |
| 9155180620 | 91551-80620 | Bolt | Bolt |
| 9155180630 | 91551-80630 | Bolt(For Cylinder Head Cover) | Bolt(For Cylinder Head Cover) |
| 11201 | 91551-80635 | Bolt(For Head To Camshaft Bearing Cap) | Bolt(For Head To Camshaft Bearing Cap) |
| 9155180650 | 91551-80650 | BOLT FLANGE | BOLT FLANGE |
| 9155180820 | 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) | Bolt, W/washer (For Transmission Oil Pump Cover) |
| 9155180825 | 91551-80825 | Bolt(For Cylinder Head Set Sub) | Bolt(For Cylinder Head Set Sub) |
| 9155180845 | 91551-80845 | BOLT FLANGE | BOLT FLANGE |
| 91551 | 91551-A0612 | BOLT FLANGE | BOLT FLANGE |
| 11201 | 91551-A0625 | Bolt(For Cylinder Head Cover) | Bolt(For Cylinder Head Cover) |
| 91551 | 91551-A0630 | New Genuine Part | New Genuine Part |
| 91551 | 91551-A0814 | BOLT FLANGE | BOLT FLANGE |
| 91551 | 91551-L0830 | Bolt(For Camshaft Housing Set) | Bolt(For Camshaft Housing Set) |
| 9155281040 | 91552-81040 | Bolt(For Alternator) | Bolt(For Alternator) |
| 43330 | 91552-L1455 | Bolt (For Steering Knuckle Rh) | Bolt (For Steering Knuckle Rh) |
| 9155380610 | 91553-80610 | BOLT FLANGE | BOLT FLANGE |
| 9155380612 | 91553-80612 | BOLT FLANGE | BOLT FLANGE |
| 9155380614 | 91553-80614 | BOLT FLANGE | BOLT FLANGE |
| 9155380618 | 91553-80618 | Direct | Direct |
| 9155380812 | 91553-80812 | New Genuine Part | New Genuine Part |
| 91553 | 91553-A0616 | New Genuine Part | New Genuine Part |
| 91553 | 91553-A0622 | New Genuine Part | New Genuine Part |
| 0 | 91553-E1240 | Bolt | Bolt |
| 91553 | 91553-L1030 | New Genuine Part | New Genuine Part |
| 91554 | 91554-A0612 | New Genuine Part | New Genuine Part |
| 9161961250 | 91619-61250 | Bolt | Bolt |
| 91621 | 91621-B0625 | New Genuine Part | New Genuine Part |
| 91621 | 91621-J0614 | BOLT W-WASHER | BOLT W-WASHER |
| 91626 | 91626-B0614 | BOLT, W/WASHER | BOLT, W/WASHER |
| 9163160816 | 91631-60816 | BOLT | BOLT |
| 91631 | 91631-J0612 | BRACKET | BRACKET |
| 41183 | 91651-60614 | Bolt | Bolt |
| 9165160618 | 91651-60618 | Bolt(For Oil Receiver Pipe) | Bolt(For Oil Receiver Pipe) |
| 9165160816 | 91651-60816 | BOLT | BOLT |
| 91655 | 91655-B1040 | BOLT WWASHER | BOLT WWASHER |
| 9167110825 | 91671-10825 | BOLT, FLANGE | BOLT, FLANGE |
| 9167180610 | 91671-80610 | New Genuine Part | New Genuine Part |
| 9167180612 | 91671-80612 | Bolt | Bolt |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9167180616 | 91671-80616 | BOLT FLANGE | BOLT FLANGE |
| 9167180816 | 91671-80816 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 9167180820 | 91671-80820 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 91671 | 91671-A0820 | New Genuine Part | New Genuine Part |
| 48610 | 91672-G1070 | Bolt(For Suspension Upper Arm) | Bolt(For Suspension Upper Arm) |
| 91672 | 91672-G1485 | BOLT FLANGE | BOLT FLANGE |
| 9167380612 | 91673-80612 | BOLT FLANGE | BOLT FLANGE |
| 9167380616 | 91673-80616 | Bolt, W/washer | Bolt, W/washer |
| 9167380816 | 91673-80816 | Bolt (For Transmission Control Cable Bracket) | Bolt (For Transmission Control Cable Bracket) |
| 91673 | 91673-A0620 | BOLT FLANGE | BOLT FLANGE |
| 9167480820 | 91674-80820 | BOLT FLANGE | BOLT FLANGE |
| 9167480825 | 91674-80825 | BOLT FLANGE | BOLT FLANGE |
| 9322915020 | 93229-15020 | SCREW | SCREW |
| 9331314010 | 93313-14010 | New Genuine Part | New Genuine Part |
| 9356054010 | 93560-54010 | SCREW | SCREW |
| 9356855012 | 93568-55012 | SCREW | SCREW |
| 9356855014 | 93568-55014 | Screw | Screw |
| 9412041000 | 94120-41000 | Nut(For Clutch Pedal Stopper) | Nut(For Clutch Pedal Stopper) |
| 9413000802 | 94130-00802 | Nut, No.1 (For Center Support Bearing) | Nut, No.1 (For Center Support Bearing) |
| 48820 | 94151-21241 | Nut(For Front Stabilizer Link) | Nut(For Front Stabilizer Link) |
| 9415121401 | 94151-21401 | NUT FLANGE | NUT FLANGE |
| 48068 | 94151-21601 | Nut(For Front Suspension Lower Arm) | Nut(For Front Suspension Lower Arm) |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Nut, Cap(For Cylinder Head Cover) |
| 9415180641 | 94151-80641 | NUT FLANGE | NUT FLANGE |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) | Nut (For Transmission Control Cable) |
| 9415180801 | 94151-80801 | NUT FLANGE | NUT FLANGE |
| 9415180841 | 94151-80841 | FLANGE NUT | FLANGE NUT |
| 9417060600 | 94170-60600 | NUT CAP | NUT CAP |
| 9418560600 | 94185-60600 | Nut, Wire Adjusting, No.1 | Nut, Wire Adjusting, No.1 |
| 9451200800 | 94512-00800 | Washer, No.1 (For Propeller Shaft & Differential Setting) | Washer, No.1 (For Propeller Shaft & Differential Setting) |
| 9462251400 | 94622-51400 | Washer(For Front Suspension Lower Arm No.1 Rh) | Washer(For Front Suspension Lower Arm No.1 Rh) |
| 13434 | 95161-30516 | Key(For Oil Pump Drive Spline) | Key(For Oil Pump Drive Spline) |
| 17881 | 96111-10880 | Clamp(For Air Intake Rubber Seal) | Clamp(For Air Intake Rubber Seal) |
| 23827 | 96132-51300 | Clip(For Ventilation Hose No.2) | Clip(For Ventilation Hose No.2) |
| 47234 | 96135-51300 | Clamp, Hose | Clamp, Hose |
| 16283 | 96136-42101 | Clip, Hose(For Radiator Hose Sub-Assy) | Clip, Hose(For Radiator Hose Sub-Assy) |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) | Clip(For Ventilation Hose) |
| 9613642701 | 96136-42701 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 15643 | 96723-35028 | Gasket(For Oil Filter Cap) | Gasket(For Oil Filter Cap) |
| 81330 | 99132-12050 | Bulb (12V 5W) | Bulb (12V 5W) |
| 9135 | 99915-10700 | Driver, Screw - No Toyota stamp | Driver, Screw - No Toyota stamp |
