検索 › 比較 › ASS × EP2
ASS
Honda CIVIC — 2,030 中 58 共有
EP2
Honda CIVIC — 2,198 中 58 共有
Body structure components 1 / 4
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 27 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
Brake hose/brake pipe 2 / 24
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 25 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 26 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
Clutch 2 / 40
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 4 | 22541-PC9-000 | Spring - CLUTCH RETURN | Spring - CLUTCH RETURN |
| 9 | 91006-634-008 | Bearing - CLUTCH PILOT (NTN) | Bearing - CLUTCH PILOT (NTN) |
Clutch release 1 / 13
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 8 | 90029-611-010 | Bolt - HEX., 8X24 | Bolt - HEX., 8X24 |
Countershaft/ speedometer gear 2 / 52
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 8 | 23541-PA9-010 | Gear - REVERSE IDLE | Gear - REVERSE IDLE |
| 29 | 91307-PA9-003 | O-ring 31.2X1.9 (ARAI) | O-ring 31.2X1.9 (ARAI) |
Crankshaft 1 / 27
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 11 | 90704-634-000 | Key - 4.5X11.0 | Key - 4.5X11.0 |
Differential gear 3 / 22
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 7 | 90015-634-010 | Bolt - FLANGE, 10MM | Bolt - FLANGE, 10MM |
| 8 | 90003-PA9-003 | Bolt - FLANGE, 10MM | Bolt - FLANGE, 10MM |
| 10 | 90608-PA9-000 | Circlip - EXTERNAL, 90MM | Circlip - EXTERNAL, 90MM |
Driveshaft 1 / 20
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 16 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
Exhaust pipe 1 / 17
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 17 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
Front door panels (5D) 1 / 8
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 15 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
Front fenders 1 / 14
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 20 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
Heater lever 1 / 23
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 1 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
Hood 1 / 22
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 19 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
Instrument panel 2 / 7
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 10 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 11 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
Main valve body/regulator 3 / 34
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 6 | 25145-PA9-010 | Shaft - OIL PUMP GEAR | Shaft - OIL PUMP GEAR |
| 20 | 27256-639-000 | Valve - TORQUE CONVERTER CHECK | Valve - TORQUE CONVERTER CHECK |
| 29 | 91344-580-000 | O-ring - 31X2.7 (ARAI) | O-ring - 31X2.7 (ARAI) |

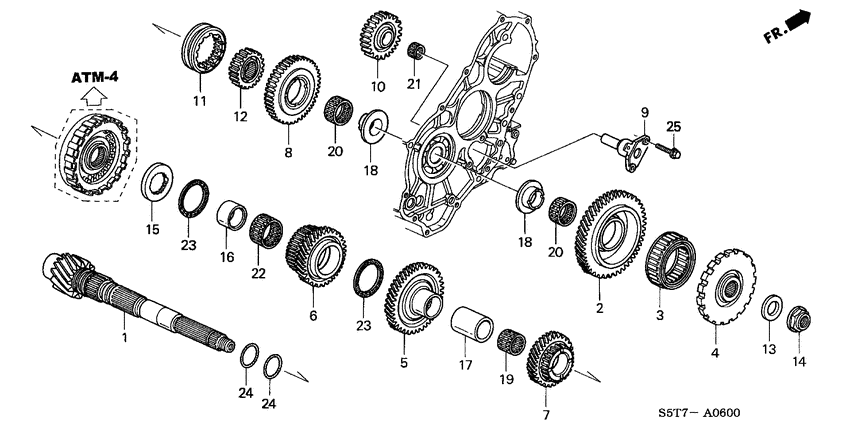

Mainshaft 4 / 37
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 13 | 90613-PA9-000 | Ring - SNAP, 26MM | Ring - SNAP, 26MM |
| 19 | 91018-P56-003 | Bearing - THRUST NEEDLE, 32X44X2 (NTN) | Bearing - THRUST NEEDLE, 32X44X2 (NTN) |
| 21 | 91307-PA9-003 | O-ring 31.2X1.9 (ARAI) | O-ring 31.2X1.9 (ARAI) |
| 22 | 91308-PA9-003 | O-ring - 19.8X1.9 (ARAI) | O-ring - 19.8X1.9 (ARAI) |
Oil cooler hose/ oil strainer 2 / 16
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 7 | 25951-639-000 | Bolt - JOINT | Bolt - JOINT |
| 11 | 90656-PB1-003 | Band - OIL HOSE | Band - OIL HOSE |
Pedal (D,P,Y) 1 / 26
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 16 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
Piston/connecting rod 1 / 25
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 5 | 13205-634-010 | Nut | Nut |
Power master 1 / 15
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 17 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
Rear brake drum 1 / 25
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 12 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
Rear door panel (5D) 1 / 8
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 18 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
Rear shelf (3D,5D) 1 / 4
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 1 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
Roof console 2 / 20
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 4 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 4 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |

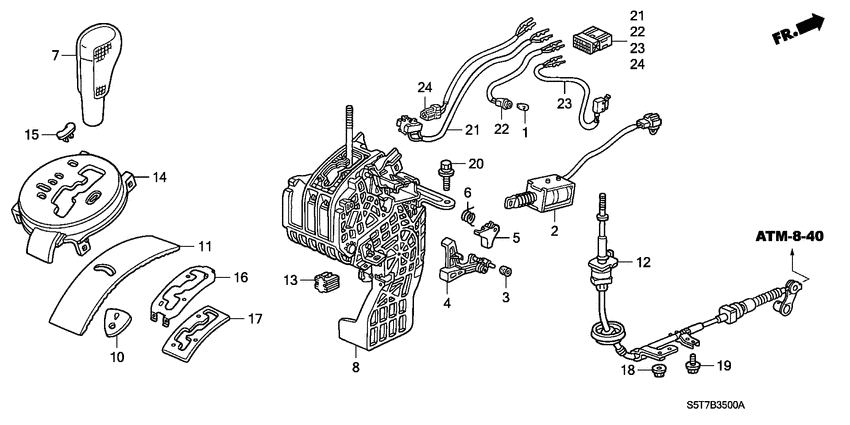

Selector lever (HMT) 1 / 17
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 2 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
Shift arm/shift rod 2 / 20
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 18 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 19 | 90029-611-010 | Bolt - HEX., 8X24 | Bolt - HEX., 8X24 |
Shift fork/fork shaft 2 / 13
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 11 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 13 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
Shift lever shaft 5 / 21
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 2 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 12 | 24538-PA9-003 | Stopper - PARKING BRAKE (2) | Stopper - PARKING BRAKE (2) |
| 19 | 90001-PA9-000 | Bolt - HEX., 6MM | Bolt - HEX., 6MM |
| 20 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 21 | 90701-639-000 | Dowel pin - 8X55 | Dowel pin - 8X55 |
Speedometer comp (2; NS) 2 / 15
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 11 | 37115-SA0-601 | Packing - NS | Packing - NS |
Starter motor comp. (DENSO) 1 / 21
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 15 | 31223-PA0-006 | Nut - HEX. | Nut - HEX. |
Tire/wheel disk 1 / 18
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 5 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
Torque converter housing 5 / 12
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 5 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 6 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 7 | 91001-591-004 | Bearing - BALL, 16008 (KOYO) | Bearing - BALL, 16008 (KOYO) |
| 7 | 91001-PX4-004 | Bearing - BALL, 40X68X9 (KOYO) | Bearing - BALL, 40X68X9 (KOYO) |
| 11 | 91209-612-003 | Oil seal - 12X22X7 (ARAI) | Oil seal - 12X22X7 (ARAI) |

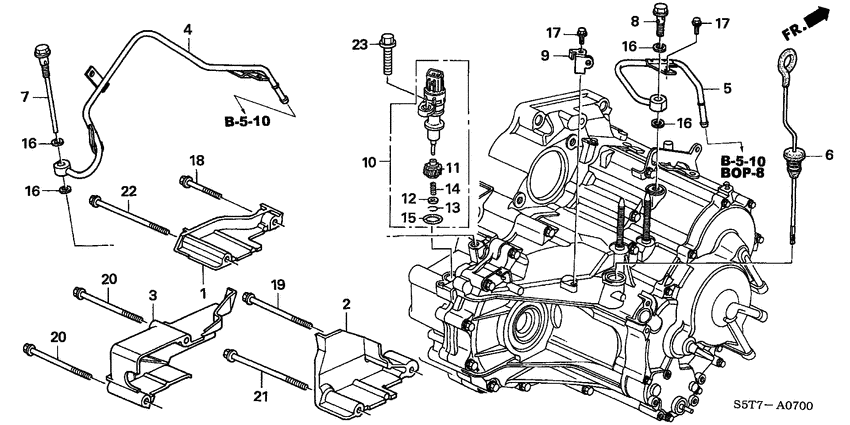

Transmission housing 10 / 37
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 7 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 8 | 22721-PA9-003 | Flange - FEED PIPE | Flange - FEED PIPE |
| 14 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 16 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 17 | 90507-PA9-000 | Collar - 8X11 | Collar - 8X11 |
| 18 | 90701-639-000 | Dowel pin - 8X55 | Dowel pin - 8X55 |
| 19 | 90703-PA9-003 | Roller - 2X19.8 | Roller - 2X19.8 |
| 20 | 90705-PA9-000 | Dowel pin - 14X25 | Dowel pin - 14X25 |
| 23 | 91308-PA9-003 | O-ring - 19.8X1.9 (ARAI) | O-ring - 19.8X1.9 (ARAI) |
| 24 | 91311-PA9-004 | O-ring - 7.7X1.9 (NOK) | O-ring - 7.7X1.9 (NOK) |
Valve/rocker arm 2 / 17
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 13 | 90206-590-000 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
| 13 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
Water pump/thermostat (1) 1 / 16
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 13 | 91314-634-000 | O-ring | O-ring |
| # | OEM | ASS | EP2 |
|---|---|---|---|
| 4 | 04110-SWA-305 | BULB T10X318W | BULB T10X318W |
| 5 | 13205-634-010 | Nut | Nut |
| 4 | 22541-PC9-000 | Spring - CLUTCH RETURN | Spring - CLUTCH RETURN |
| 8 | 22721-PA9-003 | Flange - FEED PIPE | Flange - FEED PIPE |
| 8 | 23541-PA9-010 | Gear - REVERSE IDLE | Gear - REVERSE IDLE |
| 11 | 24282-634-000 | Bolt - SHAFT FORK SETTING | Bolt - SHAFT FORK SETTING |
| 13 | 24519-PB6-000 | Screw - BALL SPRING SETTING | Screw - BALL SPRING SETTING |
| 12 | 24538-PA9-003 | Stopper - PARKING BRAKE (2) | Stopper - PARKING BRAKE (2) |
| 6 | 25145-PA9-010 | Shaft - OIL PUMP GEAR | Shaft - OIL PUMP GEAR |
| 7 | 25951-639-000 | Bolt - JOINT | Bolt - JOINT |
| 20 | 27256-639-000 | Valve - TORQUE CONVERTER CHECK | Valve - TORQUE CONVERTER CHECK |
| 15 | 31223-PA0-006 | Nut - HEX. | Nut - HEX. |
| 4 | 34253-671-003 | Bulb - 12V 8W)(DAIICHI | Bulb - 12V 8W)(DAIICHI |
| 1 | 35505-692-003 | Bulb - 14V 1.4W | Bulb - 14V 1.4W |
| 1 | 35505-SA5-003 | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) | Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK) |
| 11 | 37115-SA0-601 | Packing - NS | Packing - NS |
| 5 | 42753-SB8-661 | Valve - RIM (SCHRADER) | Valve - RIM (SCHRADER) |
| 25 | 46472-568-000 | Packing - OIL BOLT | Packing - OIL BOLT |
| 16 | 46505-SA5-000 | Pad - PEDAL STOPPER | Pad - PEDAL STOPPER |
| 17 | 53729-671-003 | Clamp d - 15.5MM | Clamp d - 15.5MM |
| 1 | 75353-671-000 | Lock - SCREW | Lock - SCREW |
| 19 | 90001-PA9-000 | Bolt - HEX., 6MM | Bolt - HEX., 6MM |
| 8 | 90003-PA9-003 | Bolt - FLANGE, 10MM | Bolt - FLANGE, 10MM |
| 7 | 90015-634-010 | Bolt - FLANGE, 10MM | Bolt - FLANGE, 10MM |
| 5 | 90024-612-000 | Bolt - SEALING, 8MM | Bolt - SEALING, 8MM |
| 18 | 90028-PB6-010 | Bolt - SPECIAL, 6X22.5 | Bolt - SPECIAL, 6X22.5 |
| 8 | 90029-611-010 | Bolt - HEX., 8X24 | Bolt - HEX., 8X24 |
| 7 | 90081-PB6-000 | Bolt - PLUG, 14MM | Bolt - PLUG, 14MM |
| 27 | 90105-634-000 | Bolt-washer (8x20) | Bolt-washer (8x20) |
| 16 | 90113-SM1-005 | Bolt - WHEEL (ROCKNEL FASTENER) | Bolt - WHEEL (ROCKNEL FASTENER) |
| 20 | 90114-SZ3-000 | Screw-washer - 5X20 | Screw-washer - 5X20 |
| 10 | 90128-SA7-000 | Bolt-washer - 6X25 | Bolt-washer - 6X25 |
| 15 | 90157-SA0-000 | Bolt-washer - 8X25 | Bolt-washer - 8X25 |
| 13 | 90206-590-000 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
| 13 | 90206-PT0-004 | Nut - TAPPET ADJUSTING | Nut - TAPPET ADJUSTING |
| 17 | 90212-SA5-003 | Nut - SELF-LOCK, 10MM | Nut - SELF-LOCK, 10MM |
| 11 | 90302-SA4-003 | Nut - SPRING, 4MM | Nut - SPRING, 4MM |
| 20 | 90433-639-000 | Washer - LOCK, 6MM | Washer - LOCK, 6MM |
| 6 | 90471-580-000 | Packing - 8MM | Packing - 8MM |
| 17 | 90507-PA9-000 | Collar - 8X11 | Collar - 8X11 |
| 10 | 90608-PA9-000 | Circlip - EXTERNAL, 90MM | Circlip - EXTERNAL, 90MM |
| 13 | 90613-PA9-000 | Ring - SNAP, 26MM | Ring - SNAP, 26MM |
| 26 | 90651-538-000 | Clip - BRAKE HOSE | Clip - BRAKE HOSE |
| 11 | 90656-PB1-003 | Band - OIL HOSE | Band - OIL HOSE |
| 21 | 90701-639-000 | Dowel pin - 8X55 | Dowel pin - 8X55 |
| 19 | 90703-PA9-003 | Roller - 2X19.8 | Roller - 2X19.8 |
| 11 | 90704-634-000 | Key - 4.5X11.0 | Key - 4.5X11.0 |
| 20 | 90705-PA9-000 | Dowel pin - 14X25 | Dowel pin - 14X25 |
| 7 | 91001-591-004 | Bearing - BALL, 16008 (KOYO) | Bearing - BALL, 16008 (KOYO) |
| 7 | 91001-PX4-004 | Bearing - BALL, 40X68X9 (KOYO) | Bearing - BALL, 40X68X9 (KOYO) |
| 9 | 91006-634-008 | Bearing - CLUTCH PILOT (NTN) | Bearing - CLUTCH PILOT (NTN) |
| 19 | 91018-P56-003 | Bearing - THRUST NEEDLE, 32X44X2 (NTN) | Bearing - THRUST NEEDLE, 32X44X2 (NTN) |
| 11 | 91209-612-003 | Oil seal - 12X22X7 (ARAI) | Oil seal - 12X22X7 (ARAI) |
| 29 | 91307-PA9-003 | O-ring 31.2X1.9 (ARAI) | O-ring 31.2X1.9 (ARAI) |
| 22 | 91308-PA9-003 | O-ring - 19.8X1.9 (ARAI) | O-ring - 19.8X1.9 (ARAI) |
| 24 | 91311-PA9-004 | O-ring - 7.7X1.9 (NOK) | O-ring - 7.7X1.9 (NOK) |
| 13 | 91314-634-000 | O-ring | O-ring |
| 29 | 91344-580-000 | O-ring - 31X2.7 (ARAI) | O-ring - 31X2.7 (ARAI) |
