Air cleaner 27 / 28

#	OEM	ASL	AWC
1	17210-PA1-020	Cover comp. - AIR CLEANER	Cover comp. - AIR CLEANER
2	17212-PA0-000	Washer - AIR CLEANER	Washer - AIR CLEANER
2	17212-PC0-000	Washer - AIR CLEANER	Washer - AIR CLEANER
3	17216-671-000	Clip A - WIRE (DACRO COATING)	Clip A - WIRE (DACRO COATING)
4	17217-634-670	Clip b - WIRE	Clip b - WIRE
5	17220-PA1-601	Element - AIR CLEANER	Element - AIR CLEANER
6	17221-PA1-310	Packing - ELEMENT	Packing - ELEMENT
7	17222-657-300	Seal - VALVE	Seal - VALVE
8	17242-PA1-641	Pipe - AIR INTAKE	Pipe - AIR INTAKE
10	17243-671-000	Clip - AIR INTAKE TUBE	Clip - AIR INTAKE TUBE
11	17244-PA0-010	Clamp - AIR INTAKE PIPE	Clamp - AIR INTAKE PIPE
12	17245-657-013	Diaphragm - CONTROL VALVE	Diaphragm - CONTROL VALVE
13	17247-PA0-000	Insulator - SENSOR	Insulator - SENSOR
14	17250-PA0-003	Sensor comp - AIR IN.	Sensor comp - AIR IN.
15	17251-657-920	Valve comp. - AIR CONTROL	Valve comp. - AIR CONTROL
16	17253-689-300	Plug - CONTROL VALVE	Plug - CONTROL VALVE
17	17255-PA1-000	Stay - CLEANER CASE	Stay - CLEANER CASE
18	17257-634-310	Pin - PLUG LOCK	Pin - PLUG LOCK
19	17258-634-300	Gasket - CLEANER CASE	Gasket - CLEANER CASE
20	17266-PA1-640	Insulator - CLEANER CASE	Insulator - CLEANER CASE
22	17271-PA1-640	Chamber - BREATHER	Chamber - BREATHER
23	17272-634-000	Gasket - BREATHER	Gasket - BREATHER
24	17362-PA1-000	Clamp - CENTER CORD	Clamp - CENTER CORD
25	17415-PA1-732	Plate - RECTIFY	Plate - RECTIFY
26	90070-PA5-660	Screw - TAPPING, 6X16	Screw - TAPPING, 6X16
27	90203-PB2-000	Nut - AIR CLEANER COVER (DACRO COATING)	Nut - AIR CLEANER COVER (DACRO COATING)
28	90809-PA1-730	Plug - BAFFLE PLATE	Plug - BAFFLE PLATE

Air cleaner tubing 6 / 6

#	OEM	ASL	AWC
2	15705-PA1-020	Tube - BREATHER	Tube - BREATHER
4	17150-PA6-004	Valve - CHECK	Valve - CHECK
5	17344-PA0-660	Clamp - CLUTCH CABLE	Clamp - CLUTCH CABLE
6	91405-679-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
6	91405-PM5-004	Clamp - TUBE (D17)	Clamp - TUBE (D17)
9	15720-PA1-641	Tube comp	Tube comp

Air conditioner (COMPRESSOR COMPONENTS) 18 / 18

#	OEM	ASL	AWC
1	38810-PA1-741	Compressor comp.	Compressor comp.
2	38811-PA0-003	Seal set - SHAFT	Seal set - SHAFT
3	38816-PA0-003	Repair set - MAGNETIC CLUTCH	Repair set - MAGNETIC CLUTCH
4	38817-PA5-661	Cylinder assy. - COMPRESSOR	Cylinder assy. - COMPRESSOR
5	38819-692-003	Cover - FR. END	Cover - FR. END
6	38820-PA0-661	Elbow set	Elbow set
7	38821-692-003	O-ring set	O-ring set
8	38824-PA5-661	Plate - SUCTION VALVE	Plate - SUCTION VALVE
9	38825-692-003	Pin - KNOCK	Pin - KNOCK
10	38828-PA5-661	Head - CYLINDER	Head - CYLINDER
11	38832-PA0-003	Spacer	Spacer
12	38832-692-003	Bolt set - COMPRESSOR	Bolt set - COMPRESSOR
13	38833-PA0-661	Cover - RR. END	Cover - RR. END
14	38833-657-811	Ring - WEDGE, 40	Ring - WEDGE, 40
15	38834-657-811	Ring - WEDGE, 50	Ring - WEDGE, 50
16	38835-PA0-003	Terminal	Terminal
17	38836-657-811	Screw - PAN, 5X8	Screw - PAN, 5X8
18	38900-PA5-661	Clutch set - MAGNETIC	Clutch set - MAGNETIC

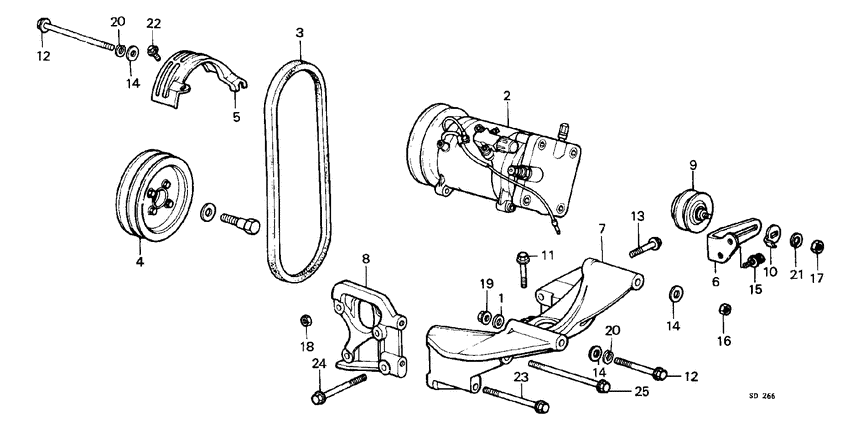

Air conditioner (COMPRESSOR/BELT) 15 / 15

#	OEM	ASL	AWC
1	38778-692-000	Spacer - A.C. GENERATOR	Spacer - A.C. GENERATOR
2	38800-PA1-742	Compressor assy	Compressor assy
3	38920-PA1-003	Belt - COMPRESSOR	Belt - COMPRESSOR
3	38920-PA1-004	Belt - COMPRESSOR	Belt - COMPRESSOR
4	38921-PA1-652	Pulley - CRANKSHAFT	Pulley - CRANKSHAFT
5	38925-PA1-010	Cover - COMPRESSOR BELT	Cover - COMPRESSOR BELT
6	38926-PA1-000	Stay - IDLE PULLEY	Stay - IDLE PULLEY
7	38930-PA1-020	Bracket a - COMPRESSOR	Bracket a - COMPRESSOR
8	38932-PA1-000	Bracket b - COMPRESSOR	Bracket b - COMPRESSOR
9	38942-PA1-000	Pulley comp - IDLE	Pulley comp - IDLE
10	38945-PA1-000	Washer - LOCK	Washer - LOCK
11	90003-PA0-000	Bolt b - MOUNTING, 8X47	Bolt b - MOUNTING, 8X47
12	90005-PA0-000	Bolt - HEX., 10X132	Bolt - HEX., 10X132
13	90178-422-000	Bolt - SPECIAL FLANGE, 10X38	Bolt - SPECIAL FLANGE, 10X38
14	90438-611-010	Washer - SPECIAL, 23X11X2.3	Washer - SPECIAL, 23X11X2.3

Air conditioner (CONDENSER/RECEIVER) 24 / 24

#	OEM	ASL	AWC
2	38600-SA0-661	Condenser assy	Condenser assy
3	38608-692-000	Rubber - MOUNTING	Rubber - MOUNTING
4	38609-692-000	Collar - DISTANCE	Collar - DISTANCE
5	38611-692-003	Fan comp - COOLING	Fan comp - COOLING
6	38612-692-000	Rubber - MOTOR MOUNT	Rubber - MOTOR MOUNT
7	38613-692-000	Collar - MOTOR MOUNTING	Collar - MOTOR MOUNTING
8	38615-PA1-600	Shroud comp.	Shroud comp.
9	38616-PA0-300	Rubber - SEAL	Rubber - SEAL
10	38616-PB9-300	Rubber - SEAL	Rubber - SEAL
11	38618-PA5-010	Spacer comp - CONDENSER FAN	Spacer comp - CONDENSER FAN
11	38618-PA5-901	Spacer comp - CONDENSER FAN	Spacer comp - CONDENSER FAN
13	38620-PA1-611	Motor - COOLING FAN	Motor - COOLING FAN
14	38640-SA0-662	Receiver assy	Receiver assy
15	38641-692-003	Switch - PRESSURE (SHOWA)	Switch - PRESSURE (SHOWA)
16	38641-692-662	Switch - PRESSURE (FASCO)	Switch - PRESSURE (FASCO)
16	38641-692-661	Switch - PRESSURE (SINGER)	Switch - PRESSURE (SINGER)
17	38642-692-661	Plug - FUSIBLE	Plug - FUSIBLE
18	38645-SA0-671	Glass comp. - SIGHT	Glass comp. - SIGHT
19	38646-692-660	O-ring - 3/8"	O-ring - 3/8"
19	80874-SL0-900	O-ring - 3/8"	O-ring - 3/8"
20	60867-SA0-010	Rubber - RADIATOR MOUNTING	Rubber - RADIATOR MOUNTING
21	90011-PA0-000	Bolt - FLANGE, 6X93	Bolt - FLANGE, 6X93
22	90401-PA0-004	Washer - TOYO	Washer - TOYO
23	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)	Washer - PLAIN, 7MM (MITSUBA)

Air conditioner (COOLER UNIT) 18 / 18

#	OEM	ASL	AWC
1	35850-693-003	Switch assy - AIR CONDITIONER	Switch assy - AIR CONDITIONER
2	37553-SA0-003	Bulb & socket - 14V 1.4W	Bulb & socket - 14V 1.4W
3	38620-692-661	Cooler unit	Cooler unit
4	38625-692-000	Grommet - TUBE	Grommet - TUBE
5	38626-692-000	Hose - DRAIN	Hose - DRAIN
6	38627-692-000	Grommet - DRAIN HOSE	Grommet - DRAIN HOSE
7	38638-692-010	Band a - AIR CONDITIONER	Band a - AIR CONDITIONER
8	38639-692-010	Band b - AIR CONDITIONER	Band b - AIR CONDITIONER
9	38650-692-661	Valve assy. - EXPANSION	Valve assy. - EXPANSION
10	38655-692-662	Evaporator sub assy.	Evaporator sub assy.
11	38659-692-660	Nut - EVAPORATOR	Nut - EVAPORATOR
12	38660-692-661	Thermostat	Thermostat
13	38685-689-000	Label - AIR CONDITIONER	Label - AIR CONDITIONER
14	39430-692-672	Motor comp - BLOWER	Motor comp - BLOWER
15	39473-692-013	Resistor - HEATER	Resistor - HEATER
16	76841-672-000	Seal - RR. DOOR LOCK HOLE	Seal - RR. DOOR LOCK HOLE
17	90659-692-000	Clamp - CASE	Clamp - CASE
18	90668-671-003	Strap a - CABLE, 95MM (WHITE)	Strap a - CABLE, 95MM (WHITE)

Air conditioner kit/ alternator 9 / 9

#	OEM	ASL	AWC
1	31100-PA1-745	Alternator assy - DENSO) (CPB-04 45A	Alternator assy - DENSO) (CPB-04 45A
2	31110-PA1-742	Belt - ALTERNATOR (BANDO)	Belt - ALTERNATOR (BANDO)
2	31110-PA1-741	Belt - ALTERNATOR (MITSUBOSHI)	Belt - ALTERNATOR (MITSUBOSHI)
3	31112-PA1-740	Bracket - ALTERNATOR	Bracket - ALTERNATOR
4	31113-PA1-740	Stay - ALTERNATOR	Stay - ALTERNATOR
5	38005-SA0-620	Conditioner kit - AIR	Conditioner kit - AIR
5	38005-SA0-610	Conditioner kit - AIR	Conditioner kit - AIR
6	90057-671-000	Bolt - ALTERNATOR	Bolt - ALTERNATOR
7	90438-611-010	Washer - SPECIAL, 23X11X2.3	Washer - SPECIAL, 23X11X2.3

Air conditioner suction/ discharge hoses 16 / 16

#	OEM	ASL	AWC
1	38646-692-660	O-ring - 3/8"	O-ring - 3/8"
1	80874-SL0-900	O-ring - 3/8"	O-ring - 3/8"
2	38647-692-660	O-ring - 1/2"	O-ring - 1/2"
3	38648-692-660	O-ring - 5/8"	O-ring - 5/8"
4	38670-SA0-662	Hose comp. - SUCTION	Hose comp. - SUCTION
5	38671-SA0-662	Hose comp. - DISCHARGE	Hose comp. - DISCHARGE
6	38676-692-000	Protector - GROMMET	Protector - GROMMET
7	38677-SA0-662	Stay a - HOSE CLAMP	Stay a - HOSE CLAMP
8	38678-SA0-660	Stay comp. b - HOSE	Stay comp. b - HOSE
9	38681-SA0-661	Pipe - RECEIVER	Pipe - RECEIVER
14	38710-SA0-720	Harness - AIR CONDITIONER WIRE	Harness - AIR CONDITIONER WIRE
15	38711-692-010	Protector - PRESSURE SWITCH	Protector - PRESSURE SWITCH
16	38731-SA0-000	Bracket - AIR CONDITIONER RELAY	Bracket - AIR CONDITIONER RELAY
17	39400-657-672	Relay assy - FAN (DENSO)	Relay assy - FAN (DENSO)
17	39400-SA5-003	Relay assy - POWER (4P) (MITSUBA)	Relay assy - POWER (4P) (MITSUBA)
20	90690-671-000	Band - HOSE	Band - HOSE

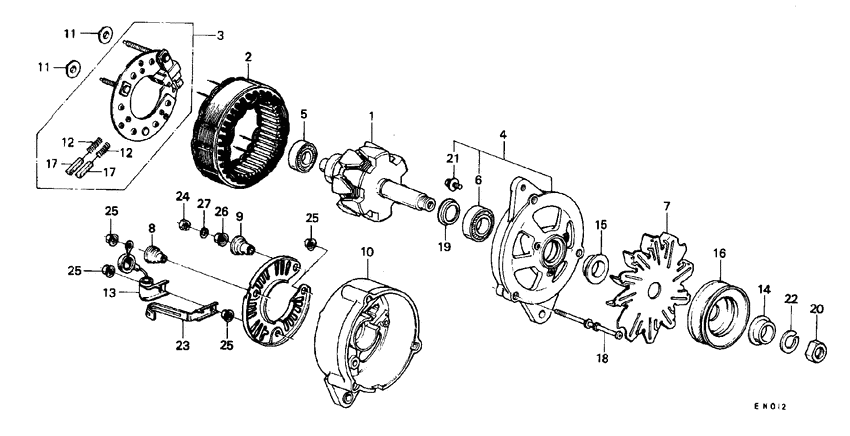

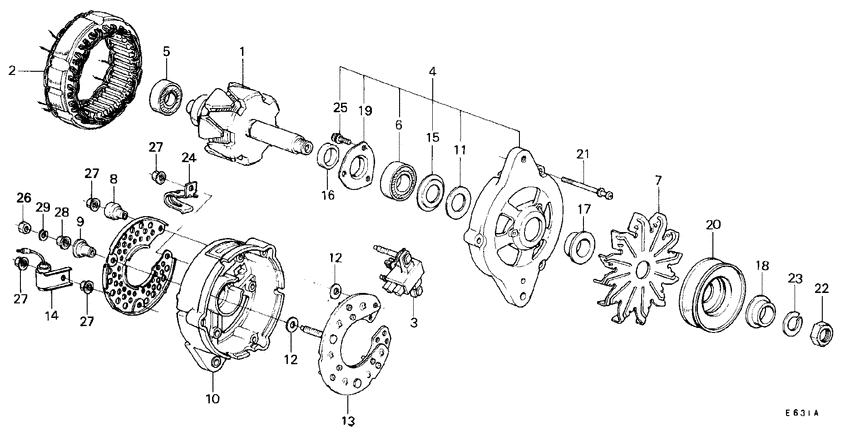

Alternator components (1) 25 / 25

#	OEM	ASL	AWC
1	31101-611-004	Rotor assy. - ALTERNATOR	Rotor assy. - ALTERNATOR
2	31102-611-014	Stator assy. - ALTERNATOR	Stator assy. - ALTERNATOR
3	31105-611-014	Holder assy. - ALTERNATOR BRUSH	Holder assy. - ALTERNATOR BRUSH
4	31109-PA0-004	Frame assy - DRIVE END	Frame assy - DRIVE END
5	31111-671-004	Bearing - RR.	Bearing - RR.
6	31114-657-004	Bearing - BALL (6202)	Bearing - BALL (6202)
7	31115-PA1-004	Fan - ALTERNATOR	Fan - ALTERNATOR
8	31118-611-004	Insulator - TERMINAL	Insulator - TERMINAL
9	31119-611-004	Insulator - TERMINAL	Insulator - TERMINAL
10	31121-PA0-004	Frame - RECTIFIER SIDE END	Frame - RECTIFIER SIDE END
11	31123-611-004	Felt - OIL	Felt - OIL
12	31125-611-004	Washer - INSULATION	Washer - INSULATION
13	31127-611-014	Rectifier assy.	Rectifier assy.
14	31130-657-014	Condenser	Condenser
15	31132-611-004	Cover - FELT	Cover - FELT
16	31133-611-004	Collar - SPACE	Collar - SPACE
17	31134-657-004	Collar - SPACE	Collar - SPACE
18	31135-657-004	Collar - SPACE	Collar - SPACE
19	31139-611-004	Plate - BEARING RETAINING	Plate - BEARING RETAINING
20	31141-PA1-014	Pulley - ALTERNATOR	Pulley - ALTERNATOR
21	31148-611-004	Bolt - THROUGH	Bolt - THROUGH
22	38755-590-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
23	90093-PB1-004	Screw-washer - 5X15	Screw-washer - 5X15
24	90094-PB1-004	Washer - SPRING, 14MM	Washer - SPRING, 14MM
25	91415-PA0-004	Clip - CORD	Clip - CORD

Alternator components (2) 23 / 23

#	OEM	ASL	AWC
1	31101-657-811	Rotor assy.	Rotor assy.
2	31102-PA0-662	Stator assy. - ALTERNATOR	Stator assy. - ALTERNATOR
3	31106-PA0-662	Sub rectifier assy.	Sub rectifier assy.
4	31109-PA1-743	Frame assy - DRIVE END	Frame assy - DRIVE END
5	31111-671-004	Bearing - RR.	Bearing - RR.
6	31114-671-004	Bearing - FR.	Bearing - FR.
7	31115-PB2-004	Fan - ALTERNATOR	Fan - ALTERNATOR
8	31118-PA0-662	Bush - INSULATION	Bush - INSULATION
9	31119-PA0-662	Bush - INSULATION	Bush - INSULATION
10	31121-PA1-743	Frame - RECTIFIER SIDE END	Frame - RECTIFIER SIDE END
11	31125-PA0-662	Washer - INSULATION	Washer - INSULATION
12	31129-671-004	Spring - BRUSH	Spring - BRUSH
13	31130-PA0-662	Condenser	Condenser
14	31133-PA0-662	Collar - SPACE	Collar - SPACE
15	31134-671-004	Collar - SPACE	Collar - SPACE
16	31141-PA1-742	Pulley - ALTERNATOR	Pulley - ALTERNATOR
17	31144-516-004	Brush	Brush
18	31145-634-671	Bolt - THROUGH	Bolt - THROUGH
19	38741-590-004	Ring - SPACE	Ring - SPACE
20	38755-590-004	Nut - PULLEY LOCK	Nut - PULLEY LOCK
21	90093-PB1-004	Screw-washer - 5X15	Screw-washer - 5X15
22	90094-PB1-004	Washer - SPRING, 14MM	Washer - SPRING, 14MM
23	91415-PA0-004	Clip - CORD	Clip - CORD

Auto radio 13 / 22

#	OEM	ASL	AWC
2	39100-SA5-783	Tuner assy - RADIO (CASSETTE+MW/SW) (PANASONIC)	Tuner assy - RADIO (CASSETTE+MW/SW) (PANASONIC)
2	39100-SA5-793	Tuner assy - RADIO (CASSETTE+FM/AM) (PANASONIC)	Tuner assy - RADIO (CASSETTE+FM/AM) (PANASONIC)
8	39107-SA0-730	Panel - RADIO	Panel - RADIO
9	39108-693-004	Bolt-washer - 5X8	Bolt-washer - 5X8
12	39111-SA5-631	Bracket - AUTO RADIO	Bracket - AUTO RADIO
13	34908-GB4-700	Bulb	Bulb
15	39117-SA0-000	Rubber - RADIO MOUNTING	Rubber - RADIO MOUNTING
16	39120-693-004	Speaker assy - PANASONIC	Speaker assy - PANASONIC
17	39150-SA4-731	Antenna assy - AUTO RADIO	Antenna assy - AUTO RADIO
18	39152-594-004	Cap - ROOF SEAL	Cap - ROOF SEAL
19	39153-594-014	Washer - SEAL CAP	Washer - SEAL CAP
20	90102-SA0-003	Screw - PAN, 4X16	Screw - PAN, 4X16
21	90502-SA0-003	Washer - WATER PROOF	Washer - WATER PROOF

Body structure components 4 / 4

#	OEM	ASL	AWC
24	61119-SA0-000	Stay - R. FR. FENDER	Stay - R. FR. FENDER
25	61169-SA0-000	Stay - L. FR. FENDER	Stay - L. FR. FENDER
26	90344-692-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
27	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)

Brake hose/brake pipe 13 / 24

#	OEM	ASL	AWC
2	46310-SA0-000	Pipe comp. a - BRAKE	Pipe comp. a - BRAKE
12	46360-SA0-040	Pipe comp. f - BRAKE	Pipe comp. f - BRAKE
15	46380-594-300	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
16	46381-SA0-300	Grommet b - BRAKE PIPE	Grommet b - BRAKE PIPE
17	46382-SA0-300	Grommet a - BRAKE PIPE	Grommet a - BRAKE PIPE
18	46392-692-003	Clip d - BRAKE PIPE (WHITE)	Clip d - BRAKE PIPE (WHITE)
19	46410-SA0-023	Hose - FR. BRAKE (NICHIRIN)	Hose - FR. BRAKE (NICHIRIN)
19	46410-SA0-025	Hose - FR. BRAKE (TOYODA)	Hose - FR. BRAKE (TOYODA)
19	46410-SA0-024	Hose - FR. BRAKE (MEIJI)	Hose - FR. BRAKE (MEIJI)
23	46462-663-670	Bolt - OIL	Bolt - OIL
24	46470-SA0-000	Joint - SIX WAY	Joint - SIX WAY
25	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
26	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder 11 / 16

#	OEM	ASL	AWC
3	46120-SA0-003	Piston assy. - PRIMARY	Piston assy. - PRIMARY
4	46122-SA0-003	Piston assy. - SECONDARY	Piston assy. - SECONDARY
5	46138-568-671	Packing	Packing
6	46139-632-000	Bolt - STOPPER	Bolt - STOPPER
8	46151-SA0-013	Yoke comp - NISSHIN	Yoke comp - NISSHIN
12	46512-671-000	Pin - PEDAL	Pin - PEDAL
13	46660-692-013	Tank - RESERVE	Tank - RESERVE
14	46662-692-603	Cap comp. - RESERVE TANK	Cap comp. - RESERVE TANK
15	46665-671-651	Band - RESERVE TANK	Band - RESERVE TANK
16	46666-692-013	Filter - MASTER CYLINDER	Filter - MASTER CYLINDER
17	46669-692-003	Seal - RESERVE TANK	Seal - RESERVE TANK

Bumper 17 / 23

#	OEM	ASL	AWC
1	60825-SA0-010	Shelter - FR. BULKHEAD	Shelter - FR. BULKHEAD
4	62510-SA0-680	Bumper comp. - FR. CENTER	Bumper comp. - FR. CENTER
4	62510-SA0-662	Bumper comp. - FR. CENTER	Bumper comp. - FR. CENTER
6	62518-SA0-000	Slider - BUMPER CORNER	Slider - BUMPER CORNER
12	62560-SA0-663	Absorber - FR. ENERGY	Absorber - FR. ENERGY
13	62565-SA0-661	Bracket - FR. BUMPER ABSORBER	Bracket - FR. BUMPER ABSORBER
14	90503-SA0-000	Washer - PLAIN, 9MM	Washer - PLAIN, 9MM
15	62580-SA0-660	Molding - BUMPER	Molding - BUMPER
16	62544-SA0-000	Stopper - BUMPER APRON	Stopper - BUMPER APRON
17	84110-SA0-662	Bumper comp. - RR. CENTER	Bumper comp. - RR. CENTER
17	84110-SA0-680	Bumper comp. - RR.	Bumper comp. - RR.
23	84131-SA0-660	Guide - RR. BUMPER STAY	Guide - RR. BUMPER STAY
33	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
37	90146-SA0-660	Bolt - 10X80	Bolt - 10X80
42	90657-671-631	Clip - TRIM (BLACK)	Clip - TRIM (BLACK)
43	90671-SA5-003	Clip - LICENSE PLATE	Clip - LICENSE PLATE
45	90679-SA0-013	Clip - BUMPER CORNER	Clip - BUMPER CORNER

Camshaft/timing belt 12 / 12

#	OEM	ASL	AWC
1	14110-PA1-010	Camshaft	Camshaft
2	14211-634-000	Pulley - TIMING BELT DRIVEN	Pulley - TIMING BELT DRIVEN
3	14400-634-005	Belt - TIMING	Belt - TIMING
4	14510-634-000	Adjuster comp - TIMING BELT	Adjuster comp - TIMING BELT
5	14516-634-000	Spring - TIMING BELT ADJUSTER	Spring - TIMING BELT ADJUSTER
6	90016-657-003	Bolt - TIMING BELT ADJUSTING	Bolt - TIMING BELT ADJUSTING
7	90401-634-000	Rubber - TIMING BELT ADJUSTER	Rubber - TIMING BELT ADJUSTER
8	90435-611-000	Washer - SPECIAL, 28X8.5X4.0	Washer - SPECIAL, 28X8.5X4.0
9	90437-634-000	Washer - SPECIAL, 21X11X2.3	Washer - SPECIAL, 21X11X2.3
10	90705-611-000	Key - WOODRUFF, 30X16.8MM	Key - WOODRUFF, 30X16.8MM
11	91203-611-004	Oil seal - 27X43X9 (NOK)	Oil seal - 27X43X9 (NOK)
11	91203-PFB-013	OIL SEAL	OIL SEAL

Canister 1 / 2

#	OEM	ASL	AWC
4	17710-SA0-000	Grommet - FUEL PIPE	Grommet - FUEL PIPE

Carburetor (1) 24 / 24

#	OEM	ASL	AWC
1	16010-PA1-641	Gasket set	Gasket set
2	16011-PC3-601	Valve set - FLOAT	Valve set - FLOAT
3	16013-PA1-641	Float set	Float set
4	16016-PA1-751	Screw set a	Screw set a
5	16019-PA1-641	Rod set - PUMP	Rod set - PUMP
6	16021-PA1-631	Diaphragm set - PUMP	Diaphragm set - PUMP
7	16028-634-671	Screw set b	Screw set b
8	16032-PA1-641	Rod set - THROTTLE	Rod set - THROTTLE
9	16041-676-641	Economizer set	Economizer set
11	16080-676-641	Bolt-washer - 4X10	Bolt-washer - 4X10
12	16100-PA1-784	Carburetor assy - DA65A C	Carburetor assy - DA65A C
14	16129-PA1-641	Plate - STAY	Plate - STAY
15	16133-634-672	Clamp a	Clamp a
17	16164-664-005	Tube - EMULSION SECONDARY	Tube - EMULSION SECONDARY
18	16166-PA1-005	Tube - EMULSION PRIMARY	Tube - EMULSION PRIMARY
19	16168-634-671	Tube - PRIMARY SLOW EMULSION	Tube - PRIMARY SLOW EMULSION
20	16178-548-004	O-ring - 5.8X1.9	O-ring - 5.8X1.9
21	16230-PA1-641	Valve - FUEL MAGNETIC	Valve - FUEL MAGNETIC
22	22415-551-000	Washer - 6.5MM	Washer - 6.5MM
23	90085-PA1-310	Bolt - STUD, 6X105MM	Bolt - STUD, 6X105MM
31	99105-663-0900	Jet - AIR, #90	Jet - AIR, #90
32	99105-663-1000	Jet - AIR, #100	Jet - AIR, #100
33	99107-663-0700	Jet - SLOW AIR, #70	Jet - SLOW AIR, #70
34	99107-663-1600	Jet - SLOW AIR, #160	Jet - SLOW AIR, #160

Carburetor comp (FOR AIR CONDITIONER) 10 / 10

#	OEM	ASL	AWC
1	36062-671-000	Clamp b - TUBE	Clamp b - TUBE
2	36138-PA0-004	Filter assy - SOLENOID VALVE	Filter assy - SOLENOID VALVE
3	38771-PA6-014	Valve assy. - AIR CONDITIONER SOLENOID	Valve assy. - AIR CONDITIONER SOLENOID
5	38775-PA6-000	Stay - AIR CONDITIONER SOLENOID VALVE	Stay - AIR CONDITIONER SOLENOID VALVE
6	38776-671-000	Cap - AIR FILTER	Cap - AIR FILTER
8	38781-PA1-641	Diaphragm assy.	Diaphragm assy.
10	38787-676-300	Collar - DIAPHRAGM SETTING	Collar - DIAPHRAGM SETTING
11	38788-PA1-730	Stay - WIRE	Stay - WIRE
13	38789-676-300	Washer - PLAIN	Washer - PLAIN
14	90092-657-000	Screw-washer - 5X8	Screw-washer - 5X8

Carburetor insulator/ fuel pump (1) 11 / 12

#	OEM	ASL	AWC
1	16211-PA1-600	Insulator - CARBURETOR	Insulator - CARBURETOR
2	16213-PA1-010	Plate - BAFFLE	Plate - BAFFLE
3	16219-PA1-010	Stay - HIGH TENSION CORD	Stay - HIGH TENSION CORD
4	16700-634-674	Pump assy. - FUEL	Pump assy. - FUEL
5	16701-634-000	Insulator comp. - FUEL PUMP	Insulator comp. - FUEL PUMP
6	17100-PA1-661	Manifold - INTAKE	Manifold - INTAKE
8	17105-634-000	Gasket - INTAKE MANIFOLD	Gasket - INTAKE MANIFOLD
9	17303-PA1-000	Clamp - HOT AIR PIPE	Clamp - HOT AIR PIPE
11	90064-634-000	Bolt - STUD, 8X50MM	Bolt - STUD, 8X50MM
12	90064-634-671	Bolt - STUD, 6X52	Bolt - STUD, 6X52
13	90474-580-000	Washer - 12MM	Washer - 12MM

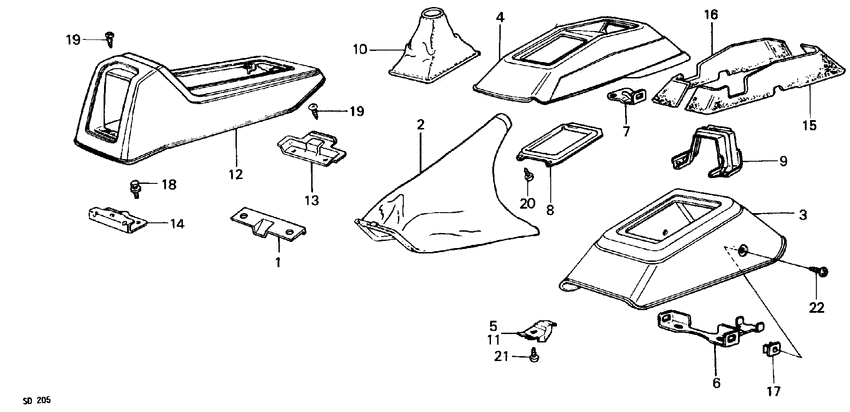

Center console 9 / 10

#	OEM	ASL	AWC
1	70267-SA0-620	Stopper - WIRE GUIDE	Stopper - WIRE GUIDE
2	72829-SA0-033	Cover - PARKING BRAKE	Cover - PARKING BRAKE
5	77702-693-980	Stay - R. CENTER CONSOLE	Stay - R. CENTER CONSOLE
6	77703-SA0-670	Bracket - CONSOLE COVER	Bracket - CONSOLE COVER
11	77712-693-980	Stay - L. CENTER CONSOLE	Stay - L. CENTER CONSOLE
13	77772-SA0-000	Bracket - CENTER CONSOLE	Bracket - CENTER CONSOLE
15	77780-SA0-300	Insulator - R. CENTER CONSOLE	Insulator - R. CENTER CONSOLE
16	77785-SA0-300	Insulator - L. CENTER CONSOLE	Insulator - L. CENTER CONSOLE
17	90662-671-003	Grommet - SCREW, 5MM (WHITE)	Grommet - SCREW, 5MM (WHITE)

Clutch 40 / 40

#	OEM	ASL	AWC
1	22000-PA1-030	Clutch assy.	Clutch assy.
1	22500-PA9-040	Clutch assy. - LOW	Clutch assy. - LOW
1	22500-PA9-050	Clutch assy. - LOW	Clutch assy. - LOW
2	22100-PA1-010	Flywheel assy.	Flywheel assy.
2	22510-PA9-000	Guide comp - LOW CLUTCH	Guide comp - LOW CLUTCH
3	22103-PA5-300	Roller - 6.1X17.8	Roller - 6.1X17.8
3	22530-PA9-030	Piston comp - CLUTCH	Piston comp - CLUTCH
3	22530-PA9-020	Piston - CLUTCH	Piston - CLUTCH
4	22200-PA6-000	Disk - FRICTION	Disk - FRICTION
4	22541-PA9-000	Spring - CLUTCH RETURN	Spring - CLUTCH RETURN
4	22541-PC9-000	Spring - CLUTCH RETURN	Spring - CLUTCH RETURN
5	22300-PA5-000	Plate assy. - PRESSURE	Plate assy. - PRESSURE
5	22542-PA9-000	Seat - CLUTCH SPRING	Seat - CLUTCH SPRING
6	22410-PA5-000	Cover comp. - CLUTCH	Cover comp. - CLUTCH
6	22543-PA9-000	Plate - CLUTCH (106MM)	Plate - CLUTCH (106MM)
7	22421-PA0-300	Spring - CLUTCH STOPPER	Spring - CLUTCH STOPPER
7	22544-PA9-010	Disk - CLUTCH	Disk - CLUTCH
8	90011-689-000	Bolt - HEX., 10MM	Bolt - HEX., 10MM
8	22566-PA9-010	Plate - CLUTCH END (16) (3.65MM)	Plate - CLUTCH END (16) (3.65MM)
8	22561-PA9-010	Plate - CLUTCH END (11) (2.15MM)	Plate - CLUTCH END (11) (2.15MM)
8	22551-PA9-010	Plate - CLUTCH END (1) (2.3MM)	Plate - CLUTCH END (1) (2.3MM)
8	22563-PA9-010	Plate - CLUTCH END (13) (2.75MM)	Plate - CLUTCH END (13) (2.75MM)
8	22553-PA9-010	Plate - CLUTCH END (3) (2.9MM)	Plate - CLUTCH END (3) (2.9MM)
8	22565-PA9-010	Plate - CLUTCH END (15) (3.35MM)	Plate - CLUTCH END (15) (3.35MM)
8	22555-PA9-010	Plate - CLUTCH END (5) (3.5MM)	Plate - CLUTCH END (5) (3.5MM)
8	22562-PA9-010	Plate - CLUTCH END (12) (2.45MM)	Plate - CLUTCH END (12) (2.45MM)
8	22552-PA9-010	Plate - CLUTCH END (2) (2.6MM)	Plate - CLUTCH END (2) (2.6MM)
8	22564-PA9-010	Plate - CLUTCH END (14) (3.05MM)	Plate - CLUTCH END (14) (3.05MM)
8	22554-PA9-010	Plate - CLUTCH END (4) (3.2MM)	Plate - CLUTCH END (4) (3.2MM)
9	91006-634-004	Bearing - CLUTCH PILOT (KOYO)	Bearing - CLUTCH PILOT (KOYO)
9	91006-634-008	Bearing - CLUTCH PILOT (NTN)	Bearing - CLUTCH PILOT (NTN)
9	22600-PA9-050	Clutch assy. - SECOND	Clutch assy. - SECOND
9	22600-PA9-040	Clutch assy. - SECOND	Clutch assy. - SECOND
10	22611-PA9-000	Guide - SECOND CLUTCH	Guide - SECOND CLUTCH
11	90603-PA9-000	Circlip - EXTERNAL, 40MM	Circlip - EXTERNAL, 40MM
12	90605-PA9-000	Ring - SNAP, 114X1.8	Ring - SNAP, 114X1.8
13	91302-PA9-004	O-ring - 39.8X2.2 (NOK)	O-ring - 39.8X2.2 (NOK)
13	91302-PA9-003	O-ring, 39.8X2.2 (ARAI)	O-ring, 39.8X2.2 (ARAI)
14	91303-PA9-004	O-ring - 100X2.2 (NOK)	O-ring - 100X2.2 (NOK)
14	91303-PA9-003	O-ring - 100X2.2(ARAI)	O-ring - 100X2.2(ARAI)

Clutch housing 20 / 20

#	OEM	ASL	AWC
1	21100-PB7-050	Housing - CLUTCH	Housing - CLUTCH
2	21101-634-000	Plate - NEEDLE BEARING RETAINING	Plate - NEEDLE BEARING RETAINING
3	21103-PA0-000	Plate - OIL GUIDE	Plate - OIL GUIDE
4	21121-PB6-000	Magnet - TRANSMISSION	Magnet - TRANSMISSION
5	21122-PB6-000	Holder - MAGNET	Holder - MAGNET
6	21350-PA6-000	Cover - CLUTCH CASE	Cover - CLUTCH CASE
7	21391-PB7-000	Gasket - CLUTCH CASE	Gasket - CLUTCH CASE
8	91005-657-003	Bearing - BALL, 62/22 (FUJIKOSHI)	Bearing - BALL, 62/22 (FUJIKOSHI)
8	91002-PL0-018	Bearing (62/22)	Bearing (62/22)
8	91005-657-008	Bearing - BALL, 62/22(NTN)	Bearing - BALL, 62/22(NTN)
8	91005-657-004	Bearing - BALL, 62/22 (KOYO)	Bearing - BALL, 62/22 (KOYO)
9	91101-657-014	Bearing - NEEDLE, 30X47X17 (KOYO)	Bearing - NEEDLE, 30X47X17 (KOYO)
9	91101-657-018	Bearing - NEEDLE, 30X47X17 (TOYO)	Bearing - NEEDLE, 30X47X17 (TOYO)
10	91206-611-003	Oil seal - 35X68X9 (ARAI)	Oil seal - 35X68X9 (ARAI)
10	91206-611-005	Oil seal - 35X68X9 (NOK)	Oil seal - 35X68X9 (NOK)
11	91208-611-005	Dust seal - 14X20X4 (NOK)	Dust seal - 14X20X4 (NOK)
11	91208-611-003	Dust seal - 14X20X4 (ARAI)	Dust seal - 14X20X4 (ARAI)
12	91215-PA0-003	Oil seal - 14X25X24	Oil seal - 14X25X24
13	91216-PA0-003	Oil seal - 22X35X7 (ARAI)	Oil seal - 22X35X7 (ARAI)
13	91216-PA0-005	Oil seal - 22X35X7 (NOK)	Oil seal - 22X35X7 (NOK)

Clutch release 13 / 13

#	OEM	ASL	AWC
1	22810-PB7-010	Holder comp - RELEASE BEARING	Holder comp - RELEASE BEARING
2	22821-PA0-000	Arm a - CLUTCH RELEASE	Arm a - CLUTCH RELEASE
3	22830-PB7-010	Shaft - CLUTCH RELEASE	Shaft - CLUTCH RELEASE
4	22851-634-000	Spring - RELEASE ARM	Spring - RELEASE ARM
5	22861-634-000	Clip - RELEASE ARM	Clip - RELEASE ARM
6	22863-634-004	Bearing - CLUTCH RELEASE (KOYO)	Bearing - CLUTCH RELEASE (KOYO)
6	22863-634-023	Bearing - CLUTCH RELEASE (NACHI)	Bearing - CLUTCH RELEASE (NACHI)
7	22871-PB7-010	Stay - CLUTCH WIRE	Stay - CLUTCH WIRE
8	90029-611-000	Bolt - HEX., 8X24	Bolt - HEX., 8X24
8	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
9	90081-PB7-000	Screw - SOCKET, 8X20	Screw - SOCKET, 8X20
10	90406-611-000	Washer - LOCK, 8MM	Washer - LOCK, 8MM
10	90406-PS1-000	Washer - LOCK	Washer - LOCK

Countershaft/ countershaft gear 23 / 26

#	OEM	ASL	AWC
2	23421-PB7-920	Gear - COUNTERSHAFT LOW	Gear - COUNTERSHAFT LOW
3	23431-PB7-920	Gear - COUNTERSHAFT SECOND	Gear - COUNTERSHAFT SECOND
4	23441-PB7-000	Gear - COUNTERSHAFT THIRD	Gear - COUNTERSHAFT THIRD
5	23451-PB7-000	Gear - COUNTERSHAFT FOURTH	Gear - COUNTERSHAFT FOURTH
7	23521-PA0-305	Sleeve set - SYNCHRONIZER (1-2)	Sleeve set - SYNCHRONIZER (1-2)
8	23623-PB7-315	Sleeve set - SYNCHRONIZER (3-4)	Sleeve set - SYNCHRONIZER (3-4)
9	23915-PB7-000	Collar d - DISTANCE, 25X32X30.8 (+0.10/+0.13)	Collar d - DISTANCE, 25X32X30.8 (+0.10/+0.13)
9	23914-PB7-000	Collar c - DISTANCE, 25X32X30.8 (+0.07/+0.10)	Collar c - DISTANCE, 25X32X30.8 (+0.07/+0.10)
9	23912-PB7-000	Collar a - DISTANCE, 25X32X30.8 (+0.01/+0.04)	Collar a - DISTANCE, 25X32X30.8 (+0.01/+0.04)
9	23913-PB7-000	Collar b - DISTANCE, 25X32X30.8 (+0.04/+0.07)	Collar b - DISTANCE, 25X32X30.8 (+0.04/+0.07)
10	23912-634-000	Spacer - 28MM (+0.07/+0.10)	Spacer - 28MM (+0.07/+0.10)
10	23915-PA0-008	Spacer - 28MM (+0.01/+0.04)	Spacer - 28MM (+0.01/+0.04)
10	23913-634-008	Spacer - 28MM (+0.04/+0.07)	Spacer - 28MM (+0.04/+0.07)
10	23914-657-000	Spacer - 28MM (+0.10/+0.13)	Spacer - 28MM (+0.10/+0.13)
11	23925-634-000	Washer c - THRUST, 32MM (-0.08/-0.11)	Washer c - THRUST, 32MM (-0.08/-0.11)
11	23924-634-000	Washer b - THRUST, 32MM (-0.05/-0.08)	Washer b - THRUST, 32MM (-0.05/-0.08)
11	23921-634-000	Washer a - THRUST, 32MM (-0.02/-0.05)	Washer a - THRUST, 32MM (-0.02/-0.05)
13	23923-671-000	Washer - THRUST, 26MM	Washer - THRUST, 26MM
15	90202-680-000	Nut - HEX., 22MM	Nut - HEX., 22MM
16	90603-689-000	Ring - SNAP, 62MM	Ring - SNAP, 62MM
18	91104-634-004	Bearing - NEEDLE, 32X37X27 (KOYO)	Bearing - NEEDLE, 32X37X27 (KOYO)
18	91104-634-008	Bearing - NEEDLE, 32X37X27 (NTN)	Bearing - NEEDLE, 32X37X27 (NTN)
18	91104-634-006	Bearing - NEEDLE, 32X37X27 (THOMPSON)	Bearing - NEEDLE, 32X37X27 (THOMPSON)

Countershaft/ speedometer gear 52 / 52

#	OEM	ASL	AWC
1	13111-360-000	Pin - PISTON	Pin - PISTON
1	13111-444-000	Pin,piston	Pin,piston
2	23220-PA9-902	Countershaft	Countershaft
3	23421-PA9-900	Gear - COUNTERSHAFT LOW	Gear - COUNTERSHAFT LOW
4	23422-PA9-901	Gear - PARKING	Gear - PARKING
5	23441-PA9-900	Gear - COUNTERSHAFT SECOND	Gear - COUNTERSHAFT SECOND
6	23451-PA9-000	Gear - COUNTERSHAFT THIRD	Gear - COUNTERSHAFT THIRD
7	23531-PA9-000	Gear - COUNTERSHAFT REVERSE	Gear - COUNTERSHAFT REVERSE
8	23541-PA9-010	Gear - REVERSE IDLE	Gear - REVERSE IDLE
9	23565-639-000	Gear - REVERSE SELECTOR	Gear - REVERSE SELECTOR
10	23566-PA9-000	Hub - REVERSE SELECTOR	Hub - REVERSE SELECTOR
11	23811-689-020	Holder comp - SPEEDOMETER GEAR	Holder comp - SPEEDOMETER GEAR
12	23813-689-000	Plate - SPEEDOMETER GEAR HOLDER	Plate - SPEEDOMETER GEAR HOLDER
13	23814-689-000	Seal - GEAR HOLDER	Seal - GEAR HOLDER
14	23820-PA9-010	Gear - SPEEDOMETER DRIVEN	Gear - SPEEDOMETER DRIVEN
15	90201-689-900	Nut - HEX., 20MM	Nut - HEX., 20MM
16	90409-PA9-000	Washer - THRUST, 28X45X2.60	Washer - THRUST, 28X45X2.60
16	90402-PA9-010	Washer - THRUST, 28 X 45 X 2.35	Washer - THRUST, 28 X 45 X 2.35
16	90404-PA9-010	Washer - THRUST, 28 X 45 X 2.45	Washer - THRUST, 28 X 45 X 2.45
16	90408-PA9-000	Washer - THRUST, 28X45X2.55	Washer - THRUST, 28X45X2.55
16	90401-PA9-010	Washer - THRUST, 28 X 45 X 2.30	Washer - THRUST, 28 X 45 X 2.30
16	90403-PA9-010	Washer - THRUST, 28 X 45 X 2.40	Washer - THRUST, 28 X 45 X 2.40
16	90407-PA9-000	Washer - THRUST, 28 X 45 X 2.50	Washer - THRUST, 28 X 45 X 2.50
17	90415-PA9-010	Washer - SPLINE, 35X50X3.20	Washer - SPLINE, 35X50X3.20
17	90419-PA9-000	Washer - SPLINE, 35X50X3.30	Washer - SPLINE, 35X50X3.30
17	90412-PA9-010	Washer - SPLINE, 35X50X3.05	Washer - SPLINE, 35X50X3.05
17	90421-PA9-000	Washer - SPLINE, 35X50X3.40	Washer - SPLINE, 35X50X3.40
17	90414-PA9-010	Washer - SPLINE, 35X50X3.15	Washer - SPLINE, 35X50X3.15
17	90418-PA9-000	Washer - SPLINE, 35X50X3.25	Washer - SPLINE, 35X50X3.25
17	90411-PA9-010	Washer - SPLINE, 35X50X3.00	Washer - SPLINE, 35X50X3.00
17	90420-PA9-000	Washer - SPLINE, 35X50X3.35	Washer - SPLINE, 35X50X3.35
17	90413-PA9-010	Washer - SPLINE, 35X50X3.10	Washer - SPLINE, 35X50X3.10
18	90501-PA9-000	Collar - REVERSE GEAR	Collar - REVERSE GEAR
19	90503-PA9-000	Collar - DISTANCE, 28MM	Collar - DISTANCE, 28MM
20	90603-689-000	Ring - SNAP, 62MM	Ring - SNAP, 62MM
21	90637-689-000	Clip - SPEEDOMETER CABLE	Clip - SPEEDOMETER CABLE
22	90638-689-000	Clip - SPEEDOMETER GEAR	Clip - SPEEDOMETER GEAR
23	91004-PA9-003	Bearing - BALL, 6305 (NTN)	Bearing - BALL, 6305 (NTN)
24	91011-PA9-004	Bearing - NEEDLE, 32X38X20 (KOYO)	Bearing - NEEDLE, 32X38X20 (KOYO)
24	91011-PA9-003	Bearing - NEEDLE, 32X38X20 (NTN)	Bearing - NEEDLE, 32X38X20 (NTN)
24	91011-PG4-003	Bearing - NEEDLE, 32X38X20 (NTN)	Bearing - NEEDLE, 32X38X20 (NTN)
25	91014-PA9-003	Bearing - THRUST NEEDLE, 35X52X2 (NTN)	Bearing - THRUST NEEDLE, 35X52X2 (NTN)
25	91014-PTD-901	Bearing - THRUST NEEDLE, 35X52X2	Bearing - THRUST NEEDLE, 35X52X2
26	91016-PA9-004	Bearing - NEEDLE, 28X33X20 (KOYO)	Bearing - NEEDLE, 28X33X20 (KOYO)
26	91016-PA9-003	Bearing - NEEDLE, 28X33X20 (NTN)	Bearing - NEEDLE, 28X33X20 (NTN)
27	91024-PA9-003	Bearing - NEEDLE, 30X36X14 (NTN)	Bearing - NEEDLE, 30X36X14 (NTN)
28	91025-639-004	Bearing - NEEDLE, 14X18X15 (KOYO)	Bearing - NEEDLE, 14X18X15 (KOYO)
28	91025-639-008	Bearing - NEEDLE, 14X18X15 (NTN)	Bearing - NEEDLE, 14X18X15 (NTN)
28	91025-639-006	Bearing - NEEDLE, 14X18X15 (THOMPSON)	Bearing - NEEDLE, 14X18X15 (THOMPSON)
29	91307-PA9-003	O-ring 31.2X1.9 (ARAI)	O-ring 31.2X1.9 (ARAI)
29	91307-PA9-004	O-ring - 31.2X1.9 (NOK)	O-ring - 31.2X1.9 (NOK)
30	91313-611-000	O-ring - 23.5X2	O-ring - 23.5X2

Crankshaft 27 / 27

#	OEM	ASL	AWC
1	13310-PA5-010	Crankshaft comp.	Crankshaft comp.
2	13325-634-004	Bearing e - MAIN (YELLOW) (TAIHO)	Bearing e - MAIN (YELLOW) (TAIHO)
2	13323-634-003	Bearing c - MAIN (BROWN) (DAIDO)	Bearing c - MAIN (BROWN) (DAIDO)
2	13326-634-004	Bearing f - MAIN (PINK) (TAIHO)	Bearing f - MAIN (PINK) (TAIHO)
2	13324-634-003	Bearing d - MAIN (GREEN) (DAIDO)	Bearing d - MAIN (GREEN) (DAIDO)
2	13321-634-004	BEARING A - MAIN (BLUE) (TAIHO)	BEARING A - MAIN (BLUE) (TAIHO)
2	13327-634-004	Bearing g - MAIN (RED) (TAIHO)	Bearing g - MAIN (RED) (TAIHO)
2	13325-634-003	Bearing e - MAIN (YELLOW) (DAIDO)	Bearing e - MAIN (YELLOW) (DAIDO)
2	13322-634-004	Bearing b - MAIN (BLACK) (TAIHO)	Bearing b - MAIN (BLACK) (TAIHO)
2	13326-634-003	Bearing f - MAIN (PINK) (DAIDO)	Bearing f - MAIN (PINK) (DAIDO)
2	13323-634-004	Bearing c - MAIN (BROWN) (TAIHO)	Bearing c - MAIN (BROWN) (TAIHO)
2	13321-634-003	BEARING A - MAIN (BLUE) (DAIDO)	BEARING A - MAIN (BLUE) (DAIDO)
2	13327-634-003	Bearing g - MAIN (RED) (DAIDO)	Bearing g - MAIN (RED) (DAIDO)
2	13324-634-004	Bearing d - MAIN (GREEN) (TAIHO)	Bearing d - MAIN (GREEN) (TAIHO)
2	13322-634-003	Bearing b - MAIN (BLACK) (DAIDO)	Bearing b - MAIN (BLACK) (DAIDO)
3	13331-634-003	Washer - THRUST (DAIDO)	Washer - THRUST (DAIDO)
3	13331-634-004	Washer - THRUST (TAIHO)	Washer - THRUST (TAIHO)
4	13621-611-020	Pulley - TIMING BELT DRIVE	Pulley - TIMING BELT DRIVE
5	13622-611-000	Plate a - TIMING BELT GUIDE	Plate a - TIMING BELT GUIDE
6	13623-611-000	Plate b - TIMING BELT GUIDE	Plate b - TIMING BELT GUIDE
7	13811-PA1-651	Pulley - CRANKSHAFT	Pulley - CRANKSHAFT
9	90017-PB2-003	Bolt - SPECIAL, 12MM (SATO)	Bolt - SPECIAL, 12MM (SATO)
9	90017-PB2-004	Bolt - SPECIAL, 12MM (SAGA)	Bolt - SPECIAL, 12MM (SAGA)
10	90402-PB2-000	Washer - 12X30X4.5	Washer - 12X30X4.5
11	90704-634-000	Key - 4.5X11.0	Key - 4.5X11.0
12	91212-611-003	Oil seal - 35X50X8	Oil seal - 35X50X8
13	91214-634-004	Oil seal - 74X98X12	Oil seal - 74X98X12

Cylinder block/oil pan 18 / 18

#	OEM	ASL	AWC
1	11000-PA1-040	Block assy - CYLINDER	Block assy - CYLINDER
2	11103-634-300	Pipe - OIL LEVEL	Pipe - OIL LEVEL
3	11200-PA1-040	Pan comp - OIL	Pan comp - OIL
4	11251-PA6-004	Gasket - OIL PAN (OTSUKA)	Gasket - OIL PAN (OTSUKA)
4	11251-PA6-003	Gasket - OIL PAN (KOKOKU)	Gasket - OIL PAN (KOKOKU)
5	11810-PA1-000	Cover comp. - TIMING BELT LOWER	Cover comp. - TIMING BELT LOWER
6	11812-PA1-000	Cover - TIMING BELT UPPER	Cover - TIMING BELT UPPER
7	11813-634-310	Collar - TIMING BELT UPPER COVER	Collar - TIMING BELT UPPER COVER
8	11814-634-300	Collar - TIMING BELT LOWER COVER	Collar - TIMING BELT LOWER COVER
9	11821-PA1-010	Rubber a - SEAL	Rubber a - SEAL
10	11831-PA1-010	Rubber b - SEAL	Rubber b - SEAL
11	11900-PA1-000	Bracket comp. - ENGINE MOUNTING	Bracket comp. - ENGINE MOUNTING
12	90006-642-000	Bolt - MOUNTING BRACKET	Bolt - MOUNTING BRACKET
13	90008-634-003	Bolt - FLANGE, 10X100	Bolt - FLANGE, 10X100
14	90009-634-000	Bolt - DRAIN PLUG, 20MM	Bolt - DRAIN PLUG, 20MM
15	90041-PA5-000	Bolt - STUD, 6X28	Bolt - STUD, 6X28
16	90437-634-000	Washer - SPECIAL, 21X11X2.3	Washer - SPECIAL, 21X11X2.3
18	90443-PA6-000	Washer - DRAIN PLUG, 20MM	Washer - DRAIN PLUG, 20MM

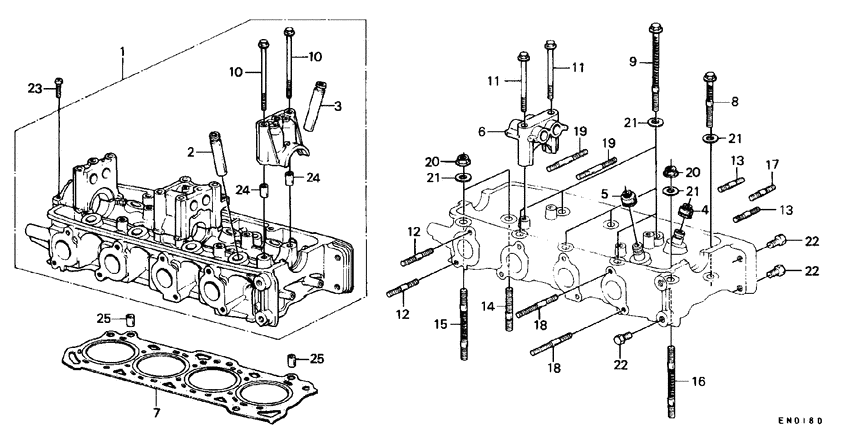

Cylinder head 23 / 23

#	OEM	ASL	AWC
1	12100-PB9-000	Head assy - CYLINDER	Head assy - CYLINDER
2	12205-PB9-305	Guide - EX. VALVE (OS)	Guide - EX. VALVE (OS)
3	12208-634-920	Guide - IN. VALVE (OS)	Guide - IN. VALVE (OS)
4	12210-PA6-004	Seal a - VALVE STEM (NOK)	Seal a - VALVE STEM (NOK)
4	12210-PA6-003	Seal a - VALVE STEM (ARAI)	Seal a - VALVE STEM (ARAI)
5	12211-PA6-003	Seal b	Seal b
5	12211-PA6-004	Seal b - VALVE STEM (NOK)	Seal b - VALVE STEM (NOK)
6	12237-PA1-000	Holder - VALVE ROCKER ARM SHAFT	Holder - VALVE ROCKER ARM SHAFT
7	12251-642-020	Gasket - CYLINDER HEAD	Gasket - CYLINDER HEAD
8	90001-PB9-003	Bolt - FLANGE, 10X65	Bolt - FLANGE, 10X65
9	90003-PB9-003	Bolt - FLANGE, 10X105	Bolt - FLANGE, 10X105
10	90005-634-003	Bolt - FLANGE, 8X77	Bolt - FLANGE, 8X77
11	90007-634-000	Bolt - FLANGE, 8X70	Bolt - FLANGE, 8X70
12	90020-634-000	Bolt - STUD, 8X40MM	Bolt - STUD, 8X40MM
13	90021-634-000	Bolt - STUD, 8X45MM	Bolt - STUD, 8X45MM
14	90023-PB9-003	Bolt - STUD, 10X76	Bolt - STUD, 10X76
15	90024-PB9-003	Bolt - STUD, 10X117	Bolt - STUD, 10X117
16	90025-PB9-003	Bolt - STUD, 10X107	Bolt - STUD, 10X107
17	90026-634-000	Bolt - STUD, 8X47MM	Bolt - STUD, 8X47MM
18	90027-634-000	Bolt - STUD, 8X50MM	Bolt - STUD, 8X50MM
19	90064-634-000	Bolt - STUD, 8X50MM	Bolt - STUD, 8X50MM
20	90204-634-000	Nut - FLANGE, 10MM	Nut - FLANGE, 10MM
21	90437-634-000	Washer - SPECIAL, 21X11X2.3	Washer - SPECIAL, 21X11X2.3

Cylinder head cover 7 / 7

#	OEM	ASL	AWC
1	12310-PA1-020	Cover - CYLINDER HEAD	Cover - CYLINDER HEAD
2	12341-PA1-020	Gasket - CYLINDER HEAD COVER	Gasket - CYLINDER HEAD COVER
4	12513-634-013	Seal - R. CYLINDER HEAD	Seal - R. CYLINDER HEAD
6	17261-PA1-731	Clamp comp - CABLE	Clamp comp - CABLE
9	90013-PA0-000	Bolt - HEAD COVER	Bolt - HEAD COVER
10	90207-PC0-000	Nut - CAP, 6MM	Nut - CAP, 6MM
11	90441-PA6-000	Washer - HEAD COVER	Washer - HEAD COVER

Differential gear 21 / 22

#	OEM	ASL	AWC
1	41221-PB7-000	Gear - DRIVE PINION	Gear - DRIVE PINION
2	41233-PA9-900	Gear - FINAL DRIVEN	Gear - FINAL DRIVEN
3	41311-PB7-000	Case - DIFFERENTIAL	Case - DIFFERENTIAL
3	41311-PA9-000	Case - DIFFERENTIAL	Case - DIFFERENTIAL
4	41321-634-010	Shaft - PINION	Shaft - PINION
4	41312-PA9-000	Gear - SPEEDOMETER DRIVE	Gear - SPEEDOMETER DRIVE
5	41341-PB7-000	Gear - DIFFERENTIAL PINION	Gear - DIFFERENTIAL PINION
5	41321-689-900	Shaft - PINION	Shaft - PINION
6	41353-689-000	Washer c - DIFFERENTIAL PINION (0.9MM)	Washer c - DIFFERENTIAL PINION (0.9MM)
6	41352-689-000	Washer b - DIFFERENTIAL PINION (0.8MM)	Washer b - DIFFERENTIAL PINION (0.8MM)
6	41354-689-000	Washer d - DIFFERENTIAL PINION (1.0MM)	Washer d - DIFFERENTIAL PINION (1.0MM)
6	41351-689-000	Washer a - DIFFERENTIAL PINION (0.7MM)	Washer a - DIFFERENTIAL PINION (0.7MM)
7	90015-634-010	Bolt - FLANGE, 10MM	Bolt - FLANGE, 10MM
8	90416-634-000	Ring - SNAP, 72MM (2.65MM)	Ring - SNAP, 72MM (2.65MM)
8	90418-634-000	Ring - SNAP, 72MM (2.85MM)	Ring - SNAP, 72MM (2.85MM)
8	90415-634-000	Ring - SNAP, 72MM (2.55MM)	Ring - SNAP, 72MM (2.55MM)
8	90417-634-000	Ring - SNAP, 72MM (2.75MM)	Ring - SNAP, 72MM (2.75MM)
8	90419-634-000	Ring - SNAP, 72MM (2.95MM)	Ring - SNAP, 72MM (2.95MM)
8	90414-634-000	Ring - SNAP, 72MM (2.45MM)	Ring - SNAP, 72MM (2.45MM)
8	90003-PA9-003	Bolt - FLANGE, 10MM	Bolt - FLANGE, 10MM
10	90608-PA9-000	Circlip - EXTERNAL, 90MM	Circlip - EXTERNAL, 90MM

Distributor components (TEC) 28 / 28

#	OEM	ASL	AWC
1	30101-PA6-006	Base - PICK UP	Base - PICK UP
2	30102-PC3-642	Cap assy. - DISTRIBUTOR	Cap assy. - DISTRIBUTOR
3	30103-PA1-732	Head - ROTOR	Head - ROTOR
4	30104-PA1-732	Control assy. - VACUUM (TEC)	Control assy. - VACUUM (TEC)
5	30107-PA1-732	Terminal	Terminal
6	30108-PA1-642	Coil assy - PICK UP	Coil assy - PICK UP
7	30109-PB1-006	Plate - SETTING	Plate - SETTING
8	30110-PA1-732	O-ring - 26.4X3.1 (TEC)	O-ring - 26.4X3.1 (TEC)
9	30111-PA1-732	E-ring - 3.2MM	E-ring - 3.2MM
10	30115-PA1-732	Point set - CARBON	Point set - CARBON
11	30116-PA1-732	Spring - GOVERNOR	Spring - GOVERNOR
12	30126-PC3-642	Reluctor set	Reluctor set
13	30127-PA6-006	Shaft set - PICK UP	Shaft set - PICK UP
14	30128-PA1-642	Clamp - WIRE HARNESS	Clamp - WIRE HARNESS
15	30132-PB1-006	Rubber - SEAL	Rubber - SEAL
16	30134-PA6-006	Screw-washer - 4X30	Screw-washer - 4X30
17	30141-PA1-942	Collar - SLIDE	Collar - SLIDE
18	30142-PA6-006	Pipe - VENTILATOR	Pipe - VENTILATOR
19	30143-PA1-642	Pinion set	Pinion set
20	30146-PA1-732	Washer - THRUST, 5X0.2	Washer - THRUST, 5X0.2
21	30167-PB1-006	Collar - SETTING	Collar - SETTING
22	90048-PC1-004	Bolt-washer - 4X18	Bolt-washer - 4X18
23	90056-PC1-004	Bolt-washer - 5X16	Bolt-washer - 5X16
24	90482-567-000	Washer - SPECIAL, 6MM	Washer - SPECIAL, 6MM
24	90581-831-650	Washer (18mm)	Washer (18mm)
25	90055-PA6-004	Bolt - HEX., 6X14	Bolt - HEX., 6X14
26	90051-PC1-004	Screw-washer - 4X14	Screw-washer - 4X14
28	90052-PC1-004	Screw-washer - 4X8	Screw-washer - 4X8

Door lining (3D) 4 / 9

#	OEM	ASL	AWC
1	73862-672-003	Clip - DOOR WEATHERSTRIP	Clip - DOOR WEATHERSTRIP
12	90663-692-003	Clip - LINING	Clip - LINING
13	90664-671-003	Clip - CANOE	Clip - CANOE
14	90666-SA5-003	Grommet - SCREW, 6MM	Grommet - SCREW, 6MM

Door locks (3D) 18 / 33

#	OEM	ASL	AWC
2	75411-634-000	Joint	Joint
3	75412-SA0-000	Fastener	Fastener
15	75551-692-003	Holder - DOOR LOCK ROD	Holder - DOOR LOCK ROD
16	75555-692-003	Striker - DOOR LOCK	Striker - DOOR LOCK
17	75556-605-010	Bolt - LOCK STRIKER	Bolt - LOCK STRIKER
19	75581-671-000	Spring - LOCK KEY SETTING	Spring - LOCK KEY SETTING
20	75585-SA0-033	Cylinder - DOOR	Cylinder - DOOR
22	75610-SA0-972	Handle assy - R. OUTSIDE (HONDA LOCK)	Handle assy - R. OUTSIDE (HONDA LOCK)
22	75610-SA0-971	Handle assy - R. OUTSIDE (MITSUI)	Handle assy - R. OUTSIDE (MITSUI)
23	75611-SA0-972	Seat - OUTSIDE HANDLE (HONDA LOCK)	Seat - OUTSIDE HANDLE (HONDA LOCK)
23	75611-SA0-971	Seat - OUTSIDE HANDLE (MITSUI)	Seat - OUTSIDE HANDLE (MITSUI)
24	75612-611-000	Bush - OUTSIDE HANDLE JOINT	Bush - OUTSIDE HANDLE JOINT
25	75620-SA0-972	Handle assy - L. OUTSIDE (HONDA LOCK)	Handle assy - L. OUTSIDE (HONDA LOCK)
25	75620-SA0-971	Handle assy - L. OUTSIDE (MITSUI)	Handle assy - L. OUTSIDE (MITSUI)
26	90115-SA0-000	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10
27	90662-671-003	Grommet - SCREW, 5MM (WHITE)	Grommet - SCREW, 5MM (WHITE)
31	75415-SA0-300	Eliminator - R. NOISE	Eliminator - R. NOISE
32	75455-SA0-300	Eliminator - L. NOISE	Eliminator - L. NOISE

Door panels (3D) 3 / 7

#	OEM	ASL	AWC
10	75760-692-000	Pin assy - DOOR CHECK	Pin assy - DOOR CHECK
16	75891-634-600	Stopper - DOOR	Stopper - DOOR
17	90157-SA0-000	Bolt-washer - 8X25	Bolt-washer - 8X25

Door trim (3D) 1 / 1

#	OEM	ASL	AWC
9	90659-SA0-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH

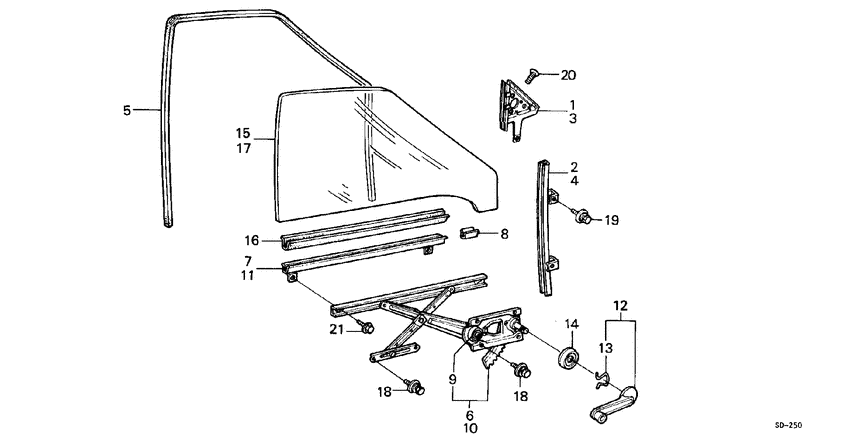

Door window/regulator (3D) 13 / 20

#	OEM	ASL	AWC
6	75310-SA0-004	Regulator - R. FR. DOOR (SHIROKI)	Regulator - R. FR. DOOR (SHIROKI)
6	75310-SA0-003	Regulator - R. FR. DOOR (IMASEN)	Regulator - R. FR. DOOR (IMASEN)
7	75311-SA0-004	Holder - R. FR. DOOR GLASS (SHIROKI)	Holder - R. FR. DOOR GLASS (SHIROKI)
7	75311-SA0-003	Holder - R. FR. DOOR GLASS (IMASEN)	Holder - R. FR. DOOR GLASS (IMASEN)
8	75312-SA0-000	Sub holder - DOOR GLASS	Sub holder - DOOR GLASS
9	75319-SA0-004	Spring - SPIRAL (SHIRAKI)	Spring - SPIRAL (SHIRAKI)
9	75319-SA0-003	Spring - SPIRAL (IMASEN)	Spring - SPIRAL (IMASEN)
10	75320-SA0-004	Regulator - L. FR. DOOR (SHIROKI)	Regulator - L. FR. DOOR (SHIROKI)
10	75320-SA0-003	Regulator - L. FR. DOOR (IMASEN)	Regulator - L. FR. DOOR (IMASEN)
11	75321-SA0-003	Holder - L. FR. DOOR GLASS (IMASEN)	Holder - L. FR. DOOR GLASS (IMASEN)
11	75321-SA0-004	Holder - L. FR. DOOR GLASS (SHIROKI)	Holder - L. FR. DOOR GLASS (SHIROKI)
13	75342-679-000	Pin - WINDOW REGULATOR HANDLE	Pin - WINDOW REGULATOR HANDLE
16	75352-SA0-660	Cushion - FR. DOOR GLASS	Cushion - FR. DOOR GLASS

Driveshaft 19 / 19

#	OEM	ASL	AWC
1	44305-SA4-000	Driveshaft assy. - R.	Driveshaft assy. - R.
2	44306-SA4-000	Driveshaft assy. - L.	Driveshaft assy. - L.
3	44310-SA2-300	Joint comp - INBOARD	Joint comp - INBOARD
5	44315-SA2-300	Boot b	Boot b
6	44317-SA2-300	Band b - BOOT	Band b - BOOT
7	44318-689-300	Band c - BOOT	Band c - BOOT
8	44316-SA2-310	Band a - BOOT	Band a - BOOT
9	44319-SA2-000	Set ring - 26X1.8	Set ring - 26X1.8
10	44333-SA2-310	Boot a - OTSUKA	Boot a - OTSUKA
11	44338-SA2-300	Circlip - 24MM	Circlip - 24MM
12	44351-SA0-000	Weight a - DYNAMIC DAMPER	Weight a - DYNAMIC DAMPER
13	44352-SA2-300	Band - DAMPER WEIGHT	Band - DAMPER WEIGHT
14	44610-SA0-010	Hub - FR.	Hub - FR.
15	45251-SA0-010	Disk - FR. BRAKE	Disk - FR. BRAKE
16	90113-SA0-005	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
16	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
16	90113-SA0-003	Bolt - WHEEL (TOKAI TRW)	Bolt - WHEEL (TOKAI TRW)
16	90113-SA0-013	Bolt - WHEEL (TOKAI TRW)	Bolt - WHEEL (TOKAI TRW)
17	90305-692-010	Nut	Nut

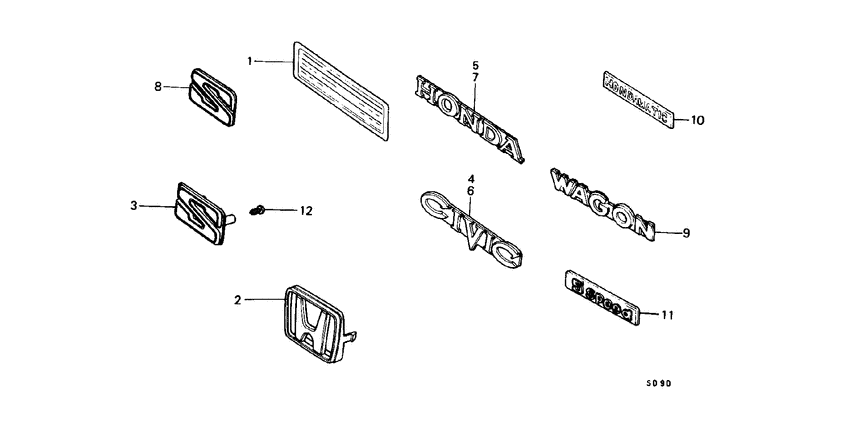

Emblem 4 / 5

#	OEM	ASL	AWC
1	42760-SA0-700	Plate - TIRE PRESSURE CAUTION	Plate - TIRE PRESSURE CAUTION
2	87101-SA0-010	Emblem - FR. GRILLE (H)	Emblem - FR. GRILLE (H)
4	87301-SA0-661	Emblem - RR. (CIVIC)	Emblem - RR. (CIVIC)
10	87305-SA0-970	Emblem - RR. (HONDAMATIC)	Emblem - RR. (HONDAMATIC)

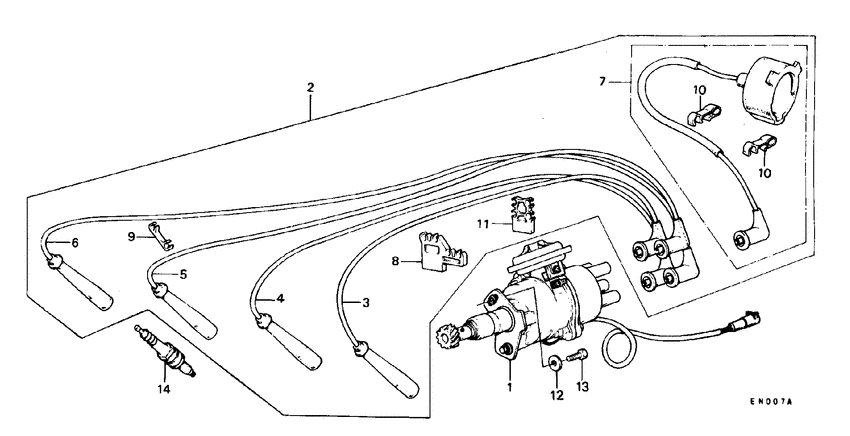

Engine electrical (1) 12 / 12

#	OEM	ASL	AWC
1	30100-PA1-752	Distributor assy - TD-02E) (TEC	Distributor assy - TD-02E) (TEC
2	32700-PA1-730	Wire assy. - SPARK PLUG	Wire assy. - SPARK PLUG
3	32710-PA1-000	Wire - PLUG, NO.1	Wire - PLUG, NO.1
4	32712-PA1-000	Wire - PLUG, NO.2	Wire - PLUG, NO.2
5	32713-PA1-000	Wire - PLUG, NO.3	Wire - PLUG, NO.3
6	32714-PA1-000	Wire - PLUG, NO.4	Wire - PLUG, NO.4
7	32723-PA1-730	Cord comp - IGNITION CENTER	Cord comp - IGNITION CENTER
8	32762-PA0-000	Clamp - HIGH TENSION CORD	Clamp - HIGH TENSION CORD
11	32777-PA1-000	Clamp - HIGH TENSION CORD	Clamp - HIGH TENSION CORD
12	90482-567-000	Washer - SPECIAL, 6MM	Washer - SPECIAL, 6MM
12	90581-831-650	Washer (18mm)	Washer (18mm)
13	90055-PA6-004	Bolt - HEX., 6X14	Bolt - HEX., 6X14

Engine electrical (2) 26 / 26

#	OEM	ASL	AWC
1	31100-PA1-014	Alternator assy - DENSO) (CJE-75 35A	Alternator assy - DENSO) (CJE-75 35A
2	31100-PA1-745	Alternator assy - DENSO) (CPB-04 45A	Alternator assy - DENSO) (CPB-04 45A
3	31110-PA6-004	Belt - ALTERNATOR (BANDO)	Belt - ALTERNATOR (BANDO)
3	31110-PA1-741	Belt - ALTERNATOR (MITSUBOSHI)	Belt - ALTERNATOR (MITSUBOSHI)
3	31110-PA6-003	Belt - ALTERNATOR (MITSUBOSHI)	Belt - ALTERNATOR (MITSUBOSHI)
3	31110-PA1-742	Belt - ALTERNATOR (BANDO)	Belt - ALTERNATOR (BANDO)
4	31112-PA1-000	Bracket - ALTERNATOR	Bracket - ALTERNATOR
5	31112-PA1-740	Bracket - ALTERNATOR	Bracket - ALTERNATOR
6	31113-PA1-000	Stay - ALTERNATOR	Stay - ALTERNATOR
7	31113-PA1-740	Stay - ALTERNATOR	Stay - ALTERNATOR
8	31200-PA6-005	Motor assy. - STARTER (HITACHI)	Motor assy. - STARTER (HITACHI)
8	31200-PC0-004	Motor assy. - STARTER (DENSO) (0.8KW DFDE6)	Motor assy. - STARTER (DENSO) (0.8KW DFDE6)
10	32745-PA6-660	Clamp e - ENGINE WIRE HARNESS	Clamp e - ENGINE WIRE HARNESS
11	35600-PA5-013	Switch assy - BACK UP LIGHT	Switch assy - BACK UP LIGHT
12	37240-657-013	Switch - OIL PRESSURE (DENSO)	Switch - OIL PRESSURE (DENSO)
12	37240-P13-013	Switch assy - OIL PRESSURE (DENSO)	Switch assy - OIL PRESSURE (DENSO)
13	37750-611-154	Sending unit - WATER TEMPERATURE (DENSO)	Sending unit - WATER TEMPERATURE (DENSO)
14	90002-PA6-003	Bolt-washer - 4X8 (DENSO)	Bolt-washer - 4X8 (DENSO)
15	90052-657-010	Bolt - FLANGE, 8X105	Bolt - FLANGE, 8X105
16	90057-671-000	Bolt - ALTERNATOR	Bolt - ALTERNATOR
17	90430-657-000	Washer - 23X8.3X3.2	Washer - 23X8.3X3.2
18	90436-611-000	Washer - SPECIAL, 22X8.5X2	Washer - SPECIAL, 22X8.5X2
19	90438-611-010	Washer - SPECIAL, 23X11X2.3	Washer - SPECIAL, 23X11X2.3
20	91307-611-000	O-ring (13.5X1.4)	O-ring (13.5X1.4)
20	91307-PH7-660	O-ring (13.5X1.4)	O-ring (13.5X1.4)
21	91404-679-000	Clamp - CORD, 2X130	Clamp - CORD, 2X130

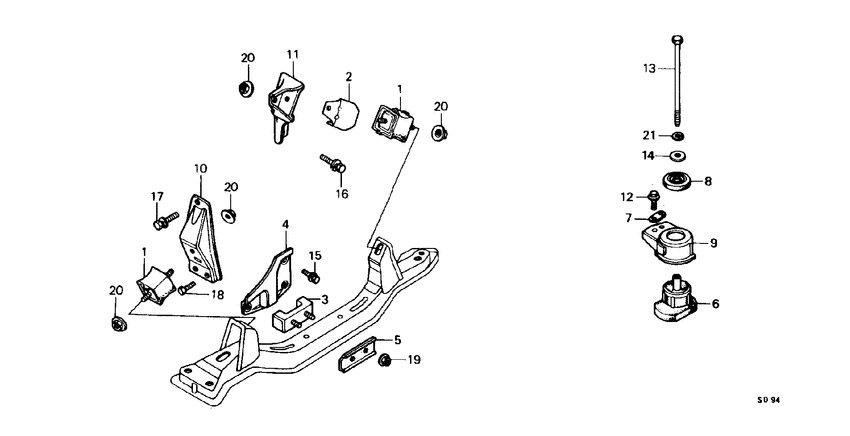

Engine mounts 15 / 15

#	OEM	ASL	AWC
1	50811-SA0-020	Rubber - ENGINE MOUNTING INSULATOR	Rubber - ENGINE MOUNTING INSULATOR
1	50811-SA0-980	Rubber - ENGINE MOUNTING INSULATOR	Rubber - ENGINE MOUNTING INSULATOR
2	50812-SA0-000	Insulator - RR. MOUNTING HEAT	Insulator - RR. MOUNTING HEAT
3	50815-SA0-010	Rubber - CENTER STOPPER INSULATOR	Rubber - CENTER STOPPER INSULATOR
4	50816-SA0-020	Bracket - CENTER STOPPER	Bracket - CENTER STOPPER
5	50817-SA0-000	Plate - CENTER STOPPER	Plate - CENTER STOPPER
6	50821-SA0-020	Rubber - ENGINE SIDE INSULATOR	Rubber - ENGINE SIDE INSULATOR
7	50822-634-940	Washer b - MOUNTING RUBBER	Washer b - MOUNTING RUBBER
8	50823-SA0-000	Stopper - SIDE MOUNTING RUBBER	Stopper - SIDE MOUNTING RUBBER
9	50824-SA0-000	Bracket - SIDE MOUNTING	Bracket - SIDE MOUNTING
10	50825-SA0-000	Bracket - FR. ENGINE MOUNTING	Bracket - FR. ENGINE MOUNTING
11	50827-SA0-000	Bracket - ENGINE RR. MOUNTING	Bracket - ENGINE RR. MOUNTING
12	90116-634-940	Bolt - HEX., 8X20	Bolt - HEX., 8X20
13	90162-SA0-000	Bolt - HEX., 8X96	Bolt - HEX., 8X96
14	90430-657-000	Washer - 23X8.3X3.2	Washer - 23X8.3X3.2

Exhaust manifold (1) 7 / 7

#	OEM	ASL	AWC
1	17302-PA1-641	Pipe - HOT AIR	Pipe - HOT AIR
2	17308-634-000	Clip - HOT AIR DUCT	Clip - HOT AIR DUCT
3	18101-PA1-010	Manifold - EX.	Manifold - EX.
4	18110-PA1-000	Gasket - EX. PIPE	Gasket - EX. PIPE
5	18120-PA1-000	Cover - HOT AIR	Cover - HOT AIR
6	90065-689-310	Bolt - STUD, 10X39.5	Bolt - STUD, 10X39.5
7	90205-634-000	Nut - HEX., 8MM	Nut - HEX., 8MM

Exhaust pipe 16 / 17

#	OEM	ASL	AWC
1	18210-SA0-606	Pipe - EX.	Pipe - EX.
2	18212-671-003	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)	Gasket - EX. PIPE(ISHINO) (59.5MM-60.5MM)
2	18212-SA0-003	Gasket - EX. PIPE(ISHINO)	Gasket - EX. PIPE(ISHINO)
3	18213-SA0-600	Clamp a - EX. PIPE	Clamp a - EX. PIPE
4	18214-SA0-600	Clamp b - EX. PIPE	Clamp b - EX. PIPE
5	18215-SA0-000	Rubber - SILENCER MOUNTING (74X45X22)	Rubber - SILENCER MOUNTING (74X45X22)
6	18215-659-010	Rubber d - EX. MOUNTING	Rubber d - EX. MOUNTING
7	18236-659-020	Retainer - EX. PIPE	Retainer - EX. PIPE
9	18242-SA0-000	Bracket b - EX. PIPE MOUNTING	Bracket b - EX. PIPE MOUNTING
10	18302-659-000	Gasket - EX. PIPE	Gasket - EX. PIPE
12	18351-SA0-000	Collar - EX. MOUNTING	Collar - EX. MOUNTING
13	70268-SA0-020	Bracket - TANK HEAT BAFFLE	Bracket - TANK HEAT BAFFLE
14	72202-SA0-010	Plate - SIDE BRAKE HEAT BAFFLE	Plate - SIDE BRAKE HEAT BAFFLE
15	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
16	90122-671-000	Bolt-washer - 8X20	Bolt-washer - 8X20
17	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

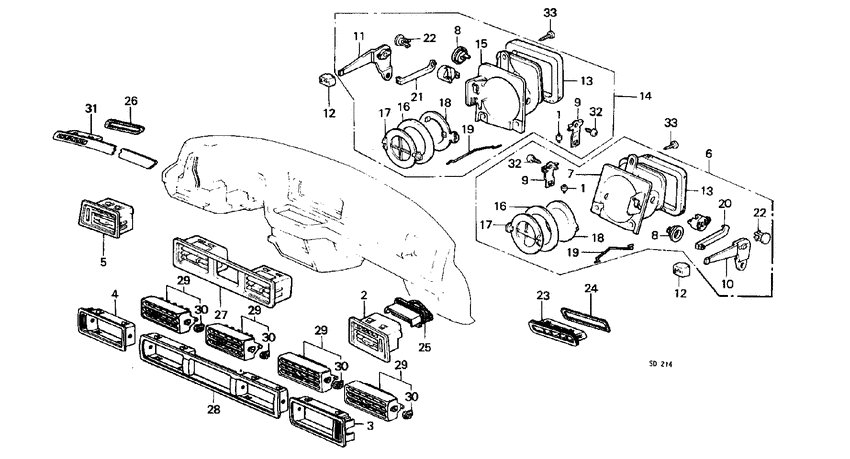

Fresh air vents 18 / 19

#	OEM	ASL	AWC
1	39379-693-010	Roller - LEVER	Roller - LEVER
6	64420-SA0-660	Valve assy. - R. VENT	Valve assy. - R. VENT
7	64421-SA0-660	Case - R. VENT VALVE	Case - R. VENT VALVE
9	64426-SA0-660	Spring - VENT LEVER	Spring - VENT LEVER
10	64427-SA0-660	Lever - R. VENT	Lever - R. VENT
11	64428-SA0-660	Lever - L. VENT	Lever - L. VENT
13	64433-SA0-000	Seal - INSTRUMENT PANEL	Seal - INSTRUMENT PANEL
14	64440-SA0-660	Valve assy. - L. VENT	Valve assy. - L. VENT
15	64441-SA0-660	Case - L. VENT VALVE	Case - L. VENT VALVE
16	64442-SA0-660	Seal - VENT	Seal - VENT
17	64443-SA0-660	Valve b - VENT	Valve b - VENT
18	64444-SA0-660	Valve a - VENT	Valve a - VENT
20	64447-SA0-660	Rod - R. VENTILATION VALVE CONNECTING	Rod - R. VENTILATION VALVE CONNECTING
21	64448-SA0-660	Rod - L. VENTILATION VALVE CONNECTING	Rod - L. VENTILATION VALVE CONNECTING
22	64449-SA0-660	Shaft - VENTILATION	Shaft - VENTILATION
25	64453-SA0-660	Duct - R. SIDE DEFROSTER	Duct - R. SIDE DEFROSTER
32	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
33	90102-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16

Front brake 14 / 14

#	OEM	ASL	AWC
1	45022-SA0-660	Pad set - FR.	Pad set - FR.
2	45210-SA0-691	Caliper assy - R. (15CL-12ST)	Caliper assy - R. (15CL-12ST)
3	45214-SA0-671	Boot - PISTON	Boot - PISTON
4	45216-SA0-681	Piston	Piston
5	45217-SA0-671	Seal - PISTON	Seal - PISTON
6	45224-533-004	Screw - BLEEDER	Screw - BLEEDER
7	45225-579-013	Cap	Cap
8	45227-SA0-672	Spring - PAD	Spring - PAD
9	45228-SA0-671	Shim - BRAKE PAD	Shim - BRAKE PAD
10	45230-SA0-691	Caliper assy - L. (15CL-12ST)	Caliper assy - L. (15CL-12ST)
11	45234-SA0-671	Boot - PIN	Boot - PIN
12	45235-SA0-671	Pin - CALIPER HOLDER	Pin - CALIPER HOLDER
13	45240-SA0-671	Bolt - FLANGE	Bolt - FLANGE
14	90107-663-670	Bolt - CALIPER MOUNTING	Bolt - CALIPER MOUNTING

Front fenders 14 / 14

#	OEM	ASL	AWC
4	61140-SA9-730	Fender - R. FR. INNER	Fender - R. FR. INNER
5	61140-SA0-660	Fender - R. FR. INNER	Fender - R. FR. INNER
6	61150-SA9-730	Fender - L. FR. INNER	Fender - L. FR. INNER
7	61150-SA0-660	Fender - L. FR. INNER	Fender - L. FR. INNER
15	61810-SA0-963	Mudguard - R. FR.	Mudguard - R. FR.
16	61820-SA0-963	Mudguard - L. FR.	Mudguard - L. FR.
20	90107-SA0-000	Screw-washer - 5X20	Screw-washer - 5X20
20	90114-SZ3-000	Screw-washer - 5X20	Screw-washer - 5X20
21	90306-SA0-671	Nut - CLIP, 4MM	Nut - CLIP, 4MM
22	90344-692-003	Nut - CLIP, 6MM	Nut - CLIP, 6MM
23	90662-671-003	Grommet - SCREW, 5MM (WHITE)	Grommet - SCREW, 5MM (WHITE)
25	90673-692-003	Clip - FR. COWL	Clip - FR. COWL
26	90680-SA0-003	Clip - INNER FENDER	Clip - INNER FENDER
28	90127-SA0-000	Bolt-washer - 6X16	Bolt-washer - 6X16

Front grille 10 / 10

#	OEM	ASL	AWC
2	62301-SA0-944	Grille - FR.	Grille - FR.
3	62310-SA0-940	Cap - FR. GRILLE	Cap - FR. GRILLE
4	62325-SA0-000	Molding - FR. GRILLE LOWER	Molding - FR. GRILLE LOWER
5	62410-SA0-020	Garnish assy - R. HEADLIGHT	Garnish assy - R. HEADLIGHT
6	62420-SA0-020	Garnish assy - L. HEADLIGHT	Garnish assy - L. HEADLIGHT
7	75522-634-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
7	90866-SA0-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
8	90105-SA4-000	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
9	90651-689-003	Clip - FR. GRILLE	Clip - FR. GRILLE
10	90662-671-003	Grommet - SCREW, 5MM (WHITE)	Grommet - SCREW, 5MM (WHITE)

Front seat belt 1 / 1

#	OEM	ASL	AWC
9	90102-692-000	Bolt - FR. SEAT	Bolt - FR. SEAT

Front seat components 7 / 7

#	OEM	ASL	AWC
4	77208-671-003	Bush - NYLON	Bush - NYLON
20	77510-SA0-673	Adjuster assy - R. FR. SEAT (MATSUYAMA)	Adjuster assy - R. FR. SEAT (MATSUYAMA)
21	77520-SA0-672	Adjuster assy - L. FR. SEAT (IMASEN)	Adjuster assy - L. FR. SEAT (IMASEN)
21	77520-SA0-671	Adjuster assy - L. FR. SEAT (MATSUYAMA)	Adjuster assy - L. FR. SEAT (MATSUYAMA)
22	77530-SA0-671	Adjuster assy - L. FR.	Adjuster assy - L. FR.
25	90301-SA0-000	Nut - FLANGE CAP, 8MM	Nut - FLANGE CAP, 8MM
25	90443-KF9-900	Nut, cap (8mm)	Nut, cap (8mm)

Front shock absorber 22 / 22

#	OEM	ASL	AWC
1	51401-SA4-903	Spring - FR.	Spring - FR.
1	51401-SA4-901	Spring - FR.	Spring - FR.
2	51601-SA4-974	Absorber assy - FR. SHOCK	Absorber assy - FR. SHOCK
3	51605-SA0-902	Absorber unit - FR. SHOCK	Absorber unit - FR. SHOCK
4	51687-SA0-004	Cover - DUST	Cover - DUST
5	51688-SA0-004	Seat comp - FR. SPRING UPPER	Seat comp - FR. SPRING UPPER
6	51722-692-005	Rubber - FR. BUMP STOPPER (NOK)	Rubber - FR. BUMP STOPPER (NOK)
6	51722-692-006	Rubber - FR. BUMP STOPPER (M.T.P. KASEI)	Rubber - FR. BUMP STOPPER (M.T.P. KASEI)
7	51724-SA0-004	Seal - BUSH	Seal - BUSH
8	51725-671-004	Seal - DUST	Seal - DUST
9	51726-671-004	Bearing - NEEDLE (SHOWA)	Bearing - NEEDLE (SHOWA)
10	51727-671-004	Race - THRUST (SHOWA)	Race - THRUST (SHOWA)
11	51728-692-004	Spacer - BEARING (SHOWA)	Spacer - BEARING (SHOWA)
12	51921-SA0-731	Rubber - FR. SHOCK ABSORBER MOUNTING (SUMITOMO)	Rubber - FR. SHOCK ABSORBER MOUNTING (SUMITOMO)
12	51921-SA0-732	Rubber - FR. SHOCK ABSORBER MOUNTING (HOKUSHIN)	Rubber - FR. SHOCK ABSORBER MOUNTING (HOKUSHIN)
13	51923-SA0-004	Base comp. - FR. MOUNTING RUBBER	Base comp. - FR. MOUNTING RUBBER
14	51924-692-004	Nut - SPRING SEAT (SHOWA)	Nut - SPRING SEAT (SHOWA)
14	51924-692-003	Nut - SPRING SEAT (TOKICO)	Nut - SPRING SEAT (TOKICO)
15	51925-SA0-010	Seat - REBOUND STOP	Seat - REBOUND STOP
16	51926-693-013	Stopper	Stopper
17	51932-SA0-010	Cap - SHOCK ABSORBER MOUNT	Cap - SHOCK ABSORBER MOUNT
18	90212-692-003	Nut - SELF-LOCK, 12MM	Nut - SELF-LOCK, 12MM

Front windshield washer (P,D,T,U,Y) 9 / 9

#	OEM	ASL	AWC
1	38508-SA0-003	Clip	Clip
2	38510-SA0-013	Washer comp - WINDSHIELD	Washer comp - WINDSHIELD
3	38512-634-642	Motor - WASHER	Motor - WASHER
4	38513-634-004	Cap - WASHER MOUTH	Cap - WASHER MOUTH
5	38519-SA0-003	Cover - WATER SHIELD	Cover - WATER SHIELD
6	38540-692-013	Nozzle - WINDSHIELD WASHER	Nozzle - WINDSHIELD WASHER
7	38564-658-921	Grommet - WASHER TUBE	Grommet - WASHER TUBE
8	38581-671-003	Joint - TUBE	Joint - TUBE
8	38581-679-003	Joint - TUBE	Joint - TUBE

Front windshield wiper (D,P,Y) 22 / 26

#	OEM	ASL	AWC
1	38400-SA0-679	Wiper assy. - FR. WINDSHIELD	Wiper assy. - FR. WINDSHIELD
1	38400-SA0-681	Wiper assy. - FR. WINDSHIELD	Wiper assy. - FR. WINDSHIELD
2	38401-SA0-671	Coil assy - FR. WIPER CHOKE	Coil assy - FR. WIPER CHOKE
3	38403-SA0-003	Rubber - MOUNTING	Rubber - MOUNTING
4	38404-SA0-003	Rubber - MOUNTING	Rubber - MOUNTING
5	38407-SA0-672	Link a	Link a
6	38408-SA0-673	Link b	Link b
7	38409-SA0-033	Link c	Link c
8	38410-SA0-606	Motor comp - WIPER	Motor comp - WIPER
8	38410-SA0-607	Motor comp - WIPER	Motor comp - WIPER
9	38411-SA0-003	Collar	Collar
10	38413-SA0-003	Cover - WATER SEAL	Cover - WATER SEAL
11	38413-671-003	Seal - DUST	Seal - DUST
12	38413-692-003	Seal - DUST	Seal - DUST
13	38414-SA0-673	Rod unit a	Rod unit a
14	38415-SA0-673	Rod unit b	Rod unit b
15	38416-SA0-023	Cap - PIVOT	Cap - PIVOT
16	38417-SA0-003	Cover - MOTOR	Cover - MOTOR
17	38417-SA4-003	Nut - SPECIAL, 18X1.0	Nut - SPECIAL, 18X1.0
18	38418-SA0-013	Washer	Washer
19	38419-693-013	Rubber a - CUSHION	Rubber a - CUSHION
24	90301-SA0-003	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM

Front windshield/ rear windshield 10 / 17

#	OEM	ASL	AWC
1	67201-SA0-620	Glass - FR. WINDSHIELD	Glass - FR. WINDSHIELD
2	67202-SA0-673	Weatherstrip - FR. WINDSHIELD	Weatherstrip - FR. WINDSHIELD
3	67801-SA0-010	Molding - R. FR. SIDE	Molding - R. FR. SIDE
4	67802-SA0-000	Molding - L. FR. SIDE	Molding - L. FR. SIDE
5	67803-SA0-010	Molding - FR. UPPER	Molding - FR. UPPER
6	67804-SA0-010	Molding - FR. LOWER	Molding - FR. LOWER
7	67805-SA0-010	Joint - R. FR. UPPER	Joint - R. FR. UPPER
8	67806-SA0-010	Joint - FR. LOWER	Joint - FR. LOWER
9	67815-SA0-010	Joint - L. FR. UPPER	Joint - L. FR. UPPER
17	74804-SA0-010	Joint - RR. UPPER	Joint - RR. UPPER

Fuel strainer 5 / 7

#	OEM	ASL	AWC
1	16900-SA0-901	Strainer comp. - FUEL (TOKYO ROKI)	Strainer comp. - FUEL (TOKYO ROKI)
1	16900-SA0-902	Strainer comp. - FUEL (TOYO ROKI)	Strainer comp. - FUEL (TOYO ROKI)
3	17371-SA0-661	Valve - TWO WAY	Valve - TWO WAY
5	17916-PA6-003	Clip - TUBE (BLACK)	Clip - TUBE (BLACK)
6	90854-SA0-680	Grommet - FUEL TUBE (BLACK)	Grommet - FUEL TUBE (BLACK)

Fuel tank 13 / 15

#	OEM	ASL	AWC
1	17500-SA0-070	Tank comp. - FUEL	Tank comp. - FUEL
3	17652-SA0-000	Clip - FILLER TUBE	Clip - FILLER TUBE
5	17670-SA5-003	Cap comp. - FUEL FILLER	Cap comp. - FUEL FILLER
6	37800-SA0-024	Meter unit - FUEL (DENSO)	Meter unit - FUEL (DENSO)
6	37800-SA0-023	Meter unit - FUEL (NIPPON SEIKI)	Meter unit - FUEL (NIPPON SEIKI)
7	37801-689-000	Packing - BASE	Packing - BASE
8	37802-689-000	Retainer - FUEL UNIT	Retainer - FUEL UNIT
8	37802-SD2-000	Retainer - FUEL UNIT	Retainer - FUEL UNIT
11	73211-SA0-000	Damper - FILLER LID	Damper - FILLER LID
12	73215-SA0-000	Striker - FUEL FILLER	Striker - FUEL FILLER
13	73220-SA0-023	Lock - FILLER LID	Lock - FILLER LID
14	75581-673-000	Spring - LOCK KEY SETTING	Spring - LOCK KEY SETTING
16	90700-671-000	Clip - TUBE	Clip - TUBE

Fuel tubing (1) 1 / 1

#	OEM	ASL	AWC
1	16703-634-670	Hose assy - FUEL	Hose assy - FUEL

Fuse box/horn 12 / 14

#	OEM	ASL	AWC
1	38100-SA0-013	Horn assy - LOW	Horn assy - LOW
4	38200-SA0-679	Box assy - FUSE	Box assy - FUSE
4	38200-SA0-681	Box assy - FUSE	Box assy - FUSE
7	38230-SA5-003	Fuse b - 10A) (FURUKAWA	Fuse b - 10A) (FURUKAWA
8	38231-SA5-003	Fuse b - 15A) (FURUKAWA	Fuse b - 15A) (FURUKAWA
9	38235-SA5-004	Puller - FUSE (DAIICHI)	Puller - FUSE (DAIICHI)
9	38235-SA5-003	Puller - FUSE (SUMITOMO)	Puller - FUSE (SUMITOMO)
10	38250-SA0-033	Box assy - MAIN FUSE	Box assy - MAIN FUSE
12	38300-SA5-004	Relay assy - TURN SIGNAL & HAZARD (MITSUBA)	Relay assy - TURN SIGNAL & HAZARD (MITSUBA)
12	38300-SA5-013	Relay assy - TURN SIGNAL & HAZARD (DENSO)	Relay assy - TURN SIGNAL & HAZARD (DENSO)
13	38965-671-672	Buzzer assy. - BELT	Buzzer assy. - BELT
19	90127-634-000	Bolt - FLANGE, 6X20	Bolt - FLANGE, 6X20

Gasket kit/ transmission assy. 2 / 3

#	OEM	ASL	AWC
5	10003-PA1-602	General assy. - CYLINDER HEAD	General assy. - CYLINDER HEAD
6	20021-PA9-942	Transmission assy - 2MT+OD	Transmission assy - 2MT+OD

Glove box 10 / 10

#	OEM	ASL	AWC
2	66402-SA0-660	Frame - GLOVE BOX	Frame - GLOVE BOX
3	66405-693-000	Stay - GLOVE BOX HINGE	Stay - GLOVE BOX HINGE
4	66406-SA0-000	Stopper - GLOVE BOX	Stopper - GLOVE BOX
5	66417-SA0-000	Rubber - GLOVE BOX STOPPER	Rubber - GLOVE BOX STOPPER
7	66418-579-000	Stopper - GLOVE BOX LID	Stopper - GLOVE BOX LID
8	66430-SA0-660	Striker - GLOVE BOX	Striker - GLOVE BOX
9	66450-689-000	Lock assy - GLOVE BOX	Lock assy - GLOVE BOX
10	66451-692-661	Clip - GLOVE BOX LOCK	Clip - GLOVE BOX LOCK
11	90305-SA0-000	Nut - FLOATING, 4MM	Nut - FLOATING, 4MM
13	90103-SA4-000	Screw-washer - 5X18	Screw-washer - 5X18

Grommet 11 / 14

#	OEM	ASL	AWC
3	60852-568-680	Plug - HEATER LEVER HOLE	Plug - HEATER LEVER HOLE
4	61109-623-670	Grommet - FR. FENDER	Grommet - FR. FENDER
5	70226-611-000	Plug - SETTING HOLE	Plug - SETTING HOLE
6	90873-SA5-000	Plug - DRAIN HOLE	Plug - DRAIN HOLE
7	70562-SA1-000	Seal - CENTER PILLAR HOLE	Seal - CENTER PILLAR HOLE
9	72851-SA0-000	Seal - FR. DOOR HINGE HOLE	Seal - FR. DOOR HINGE HOLE
10	75826-605-300	Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)	Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)
12	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
15	90856-SA0-000	Plug - COATING HOLE, 25MM	Plug - COATING HOLE, 25MM
16	90862-SA0-980	Plug - CLUTCH CABLE HOLE	Plug - CLUTCH CABLE HOLE
17	90865-SA0-000	Plug - CONTROL WIRE	Plug - CONTROL WIRE

Headlight/ front combination light 28 / 28

#	OEM	ASL	AWC
2	33100-SA0-791	Headlight assy	Headlight assy
2	33100-SA0-761	Headlight assy	Headlight assy
2	33100-SA0-792	Headlight assy	Headlight assy
2	33100-SA0-762	Headlight assy	Headlight assy
4	33102-692-003	Ring - RETAINER	Ring - RETAINER
4	33102-SA0-791	Ring - RETAINING	Ring - RETAINING
5	33103-692-013	Ring - MOUNTING	Ring - MOUNTING
5	33103-SA0-791	Ring - MOUNTING	Ring - MOUNTING
5	33103-692-003	Ring - MOUNTING	Ring - MOUNTING
5	33103-SA0-792	Ring - MOUNTING	Ring - MOUNTING
6	33110-SA0-791	Headlight unit - STANLEY	Headlight unit - STANLEY
9	33112-671-612	Cover - RUBBER (STANLEY)	Cover - RUBBER (STANLEY)
11	33141-692-003	Spring - ADJUSTING	Spring - ADJUSTING
13	33143-692-003	Screw - ADJUSTING (45MM)	Screw - ADJUSTING (45MM)
14	33300-SA0-751	Light assy - R. FR. COMBINATION	Light assy - R. FR. COMBINATION
15	33302-SA0-731	Lens comp	Lens comp
16	33303-692-003	Packing - STANLEY	Packing - STANLEY
16	33303-958-003	Gasket	Gasket
17	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
18	33350-SA0-751	Light assy - L. FR. COMBINATION	Light assy - L. FR. COMBINATION
19	33503-506-600	Bulb - 12V 21W) (STANLEY	Bulb - 12V 21W) (STANLEY
19	34905-KV7-671	Bulb,winker (12v	Bulb,winker (12v
19	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY
20	34901-390-611	Bulb - HEADLIGHT (12V 45/40W) (LOCAL PROCUREMENT PART)	Bulb - HEADLIGHT (12V 45/40W) (LOCAL PROCUREMENT PART)
22	90140-SA0-003	Screw - TAPPING, 4X38	Screw - TAPPING, 4X38
23	90162-692-003	Screw - PAN, 4X8	Screw - PAN, 4X8
23	90162-692-013	Screw - PAN, 4X8	Screw - PAN, 4X8
24	90303-SA5-003	Nut - FR. COMBINATION LIGHT	Nut - FR. COMBINATION LIGHT

Headliner trim/ roof lining 11 / 16

#	OEM	ASL	AWC
1	70152-SA0-000	Holder - R. FR. SIDE LINING	Holder - R. FR. SIDE LINING
2	70153-SA0-000	Holder - L. FR. SIDE LINING	Holder - L. FR. SIDE LINING
6	71801-SA0-004	Holder - TS TECH	Holder - TS TECH
6	71801-SA0-003	Holder - SANWA	Holder - SANWA
9	71811-SA0-000	Molding - R. FR. DRIP	Molding - R. FR. DRIP
11	71815-SA0-000	Joint - DRIP MOLDING	Joint - DRIP MOLDING
14	71821-SA0-000	Molding - L. FR. DRIP	Molding - L. FR. DRIP
17	71852-SA0-010	Molding - FR. ROOF END	Molding - FR. ROOF END
18	71853-SA0-010	Molding - RR. ROOF END	Molding - RR. ROOF END
19	71856-SA0-000	Bracket - LIFTING WIRE	Bracket - LIFTING WIRE
22	90181-SA0-000	Screw - TAPPING, 3X7	Screw - TAPPING, 3X7

Heater blower 11 / 11

#	OEM	ASL	AWC
1	39227-671-000	Clamp - CABLE	Clamp - CABLE
2	39228-692-003	Guide - CABLE	Guide - CABLE
3	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
4	39410-SA0-744	Blower assy	Blower assy
5	39430-SA0-003	Motor comp - BLOWER	Motor comp - BLOWER
6	39436-692-671	Fan	Fan
8	39443-692-003	Packing	Packing
9	39473-SA0-003	Resistor - HEATER	Resistor - HEATER
10	39480-692-673	Duct - HEATER	Duct - HEATER
11	90307-SA0-003	Nut - FLANGE, 5MM	Nut - FLANGE, 5MM
12	90501-671-003	Washer - SPECIAL	Washer - SPECIAL

Heater lever 23 / 23

#	OEM	ASL	AWC
1	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
2	35650-693-023	Switch assy - HEATER FAN	Switch assy - HEATER FAN
3	39330-SA0-675	Control assy. - HEATER	Control assy. - HEATER
4	39345-693-000	Shade - HEATER CONTROL	Shade - HEATER CONTROL
5	39350-693-030	Lever - MODE & TEMPERATURE	Lever - MODE & TEMPERATURE
6	39360-693-020	Lever - FRESH & RECIRCULAR	Lever - FRESH & RECIRCULAR
7	39371-SA0-010	Cable - TEMPERATURE CONTROL	Cable - TEMPERATURE CONTROL
8	39372-SA0-010	Cable - MODE CONTROL	Cable - MODE CONTROL
9	39373-SA0-671	Cable - FRESH RECIRCULAR	Cable - FRESH RECIRCULAR
10	39375-693-010	Spring - CLICK	Spring - CLICK
11	39377-SA4-000	Spring - CONTROL LEVER	Spring - CONTROL LEVER
12	39379-693-010	Roller - LEVER	Roller - LEVER
13	39381-693-010	Knob - HEATER CONTROL	Knob - HEATER CONTROL
14	39383-692-000	Clamp - CONTROL CABLE	Clamp - CONTROL CABLE
15	39383-693-000	Clamp - CONTROL CABLE	Clamp - CONTROL CABLE
16	39384-SA4-000	Shaft - MODE LEVER	Shaft - MODE LEVER
17	39385-SA4-000	Stopper - CONTROL LEVER	Stopper - CONTROL LEVER
18	39386-SA4-000	Shaft - FRESH RECIRCULAR LEVER	Shaft - FRESH RECIRCULAR LEVER
19	39387-SA4-000	Collar	Collar
20	39390-SA0-023	Illumination assy. - HEATER	Illumination assy. - HEATER
21	39392-SA0-003	Cap - PANEL HOLE	Cap - PANEL HOLE
22	39395-693-003	Bulb - ILLUMINATION CONTROL	Bulb - ILLUMINATION CONTROL
23	90130-693-000	Screw - TAPPING, 4X10	Screw - TAPPING, 4X10

Heater unit/water hose 27 / 27

#	OEM	ASL	AWC
1	19518-634-000	Tube - BYPASS HOSE	Tube - BYPASS HOSE
2	38691-SA9-600	Hose a - WATER	Hose a - WATER
3	38692-SA9-600	Hose b - WATER	Hose b - WATER
4	38693-SA0-600	Cable - CONTROL VALVE	Cable - CONTROL VALVE
5	39205-SA0-003	Plate - GEAR	Plate - GEAR
6	39206-SA0-003	Lever - MODE CABLE	Lever - MODE CABLE
7	39207-SA0-911	Link - HOT AIR DAMPER	Link - HOT AIR DAMPER
8	39210-SA0-678	Heater unit	Heater unit
9	39214-692-000	Grommet - HEATER PIPE	Grommet - HEATER PIPE
10	39219-671-000	Clamp - HOSE	Clamp - HOSE
11	39223-634-671	Clamp - WATER HOSE	Clamp - WATER HOSE
12	39223-659-007	Clamp - WATER HOSE	Clamp - WATER HOSE
13	39223-692-003	Pivot - ADJUSTABLE	Pivot - ADJUSTABLE
14	39225-SA0-003	Rod - HOT DAMPER	Rod - HOT DAMPER
15	39233-692-003	Nut - INSTRUMENT PANEL	Nut - INSTRUMENT PANEL
16	39245-692-003	Core comp - HEATER	Core comp - HEATER
17	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
18	39246-692-003	Stopper - LEVER	Stopper - LEVER
19	39248-692-003	Packing - HEATER	Packing - HEATER
20	39271-SA0-023	Valve assy. - WATER	Valve assy. - WATER
21	39272-692-013	Cover - WATER VALVE DUST	Cover - WATER VALVE DUST
22	39274-SA9-601	Bracket - WATER VALVE	Bracket - WATER VALVE
23	39278-692-003	Pipe - WATER IN.	Pipe - WATER IN.
24	39286-692-003	Hose - WATER	Hose - WATER
25	39292-SA0-013	Cover - WATER VALVE	Cover - WATER VALVE
26	39293-692-003	Pipe - WATER OUTLET	Pipe - WATER OUTLET
27	39312-SA0-600	Hose - WATER OUTLET	Hose - WATER OUTLET

Hood 22 / 22

#	OEM	ASL	AWC
1	60654-SA0-000	Cushion - WINDSHIELD LOWER	Cushion - WINDSHIELD LOWER
2	60655-SA0-010	Grille - AIRSCOOP	Grille - AIRSCOOP
3	60656-SA0-010	Seal - AIRSCOOP	Seal - AIRSCOOP
4	60657-SA0-020	Rubber - RR. HOOD SEAL	Rubber - RR. HOOD SEAL
5	60895-692-000	Rubber - HOOD SEAL	Rubber - HOOD SEAL
6	62320-SA0-000	Molding assy. - ENGINE HOOD	Molding assy. - ENGINE HOOD
7	62321-SA0-960	End - R. MOLDING	End - R. MOLDING
8	62322-SA0-960	End - L. MOLDING	End - L. MOLDING
11	63415-SA0-000	Shim - ENGINE HOOD HINGE	Shim - ENGINE HOOD HINGE
13	63441-SA0-000	Stay - HOOD OPENER	Stay - HOOD OPENER
14	63450-SA0-662	Wire comp - HOOD	Wire comp - HOOD
15	63455-SA0-000	Grommet - HOOD WIRE	Grommet - HOOD WIRE
16	63510-SA0-010	Lock assy - HOOD	Lock assy - HOOD
17	75522-611-000	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM
18	85268-SA5-003	Stopper - TAILGATE (BLACK)	Stopper - TAILGATE (BLACK)
19	90105-634-000	Bolt-washer (8x20)	Bolt-washer (8x20)
20	90155-SA0-003	Bolt - SETTING, 4MM	Bolt - SETTING, 4MM
21	90301-634-013	Nut - SPECIAL, 4MM	Nut - SPECIAL, 4MM
22	90651-SA0-003	Clip - MOLDING	Clip - MOLDING
23	90670-SA0-000	Grommet - HOOD STAY	Grommet - HOOD STAY
24	90671-SA0-003	Holder - ROD	Holder - ROD
25	90672-671-003	Clip - TRIM	Clip - TRIM

Ignition coil/battery/ regulator 14 / 15

#	OEM	ASL	AWC
1	30500-SA0-732	Coil assy - IGNITION	Coil assy - IGNITION
3	30510-SA0-923	Condenser comp. - PANASONIC	Condenser comp. - PANASONIC
3	30510-SA0-922	Condenser comp. - HITACHI	Condenser comp. - HITACHI
4	30510-SA0-933	Condenser comp. - PANASONIC	Condenser comp. - PANASONIC
4	30510-SA0-932	Condenser comp. - HITACHI	Condenser comp. - HITACHI
6	30550-692-014	Igniter unit - OKI	Igniter unit - OKI
6	30550-689-003	Igniter unit - NEC	Igniter unit - NEC
7	31400-SA0-013	Regulator assy	Regulator assy
8	31500-507-671	Battery - 32C 24R) (YUASA	Battery - 32C 24R) (YUASA
9	31511-689-670	Label - BATTERY CAUTION	Label - BATTERY CAUTION
11	31513-SA0-670	Bolt - BATTERY SETTING	Bolt - BATTERY SETTING
12	31521-SA0-000	Box assy - BATTERY	Box assy - BATTERY
13	31542-SA0-611	Plug - VENT (YUASA)	Plug - VENT (YUASA)
16	90330-SA0-000	Nut - FLANGE, 6MM	Nut - FLANGE, 6MM

Instrument panel 7 / 7

#	OEM	ASL	AWC
4	66844-611-000	Cap - INSTRUMENT PANEL STAY	Cap - INSTRUMENT PANEL STAY
5	66845-SA0-000	Bracket - INSTRUMENT PLATE	Bracket - INSTRUMENT PLATE
7	66886-SA0-660	Bracket - R. INSTRUMENT SIDE	Bracket - R. INSTRUMENT SIDE
8	66887-SA0-660	Bracket - L. INSTRUMENT SIDE	Bracket - L. INSTRUMENT SIDE
9	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
10	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25
11	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Instrument panel comp. 14 / 15

#	OEM	ASL	AWC
2	66188-SA5-010	Label - FUSE	Label - FUSE
5	66219-SA0-660	Panel - ILLUMINATION	Panel - ILLUMINATION
6	66242-SA0-000	Lid - SWITCH HOLE	Lid - SWITCH HOLE
12	66835-SA0-660	Panel - SWITCH	Panel - SWITCH
13	66838-SA0-661	Duct - SPEAKER DRIVER	Duct - SPEAKER DRIVER
15	66842-SA0-661	Lid - RADIO	Lid - RADIO
17	66856-SA0-660	Lock - FUSE PANEL	Lock - FUSE PANEL
18	66857-SA0-660	Spring - FUSE PANEL	Spring - FUSE PANEL
19	66858-SA0-660	Stopper - FUSE PANEL	Stopper - FUSE PANEL
20	66859-SA0-660	Clip - FUSE PANEL STOPPER	Clip - FUSE PANEL STOPPER
21	66871-611-000	Nut - CENTER PANEL	Nut - CENTER PANEL
23	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
24	90601-836-000	E-ring - 4MM	E-ring - 4MM
25	90668-688-003	Grommet - SCREW, 4MM	Grommet - SCREW, 4MM

Insulator/floor mat 3 / 4

#	OEM	ASL	AWC
1	64841-SA0-000	Insulator - R. SIDE COWL	Insulator - R. SIDE COWL
2	64845-SA0-000	Insulator - L. SIDE COWL	Insulator - L. SIDE COWL
3	65841-SA0-734	Insulator - DASHBOARD	Insulator - DASHBOARD

Interior light/ trunk room light 9 / 9

#	OEM	ASL	AWC
2	34252-SA0-921	Lens	Lens
4	34255-SA0-671	Light assy - ILLUMINATION	Light assy - ILLUMINATION
6	34258-SA0-660	Lens - ILLUMINATION LAMP	Lens - ILLUMINATION LAMP
7	34260-SA0-013	Light assy - TRUNK ROOM	Light assy - TRUNK ROOM
8	34262-SA0-003	Lens	Lens
9	34295-538-003	Bulb - 12V 5W) (DAIICHI	Bulb - 12V 5W) (DAIICHI
9	34295-SD4-003	Bulb - 12V 5W.K	Bulb - 12V 5W.K
11	37801-568-671	Bulb - 12V2W	Bulb - 12V2W
11	34908-GB4-700	Bulb	Bulb

Knuckle 11 / 11

#	OEM	ASL	AWC
1	45255-SA0-000	Guard - FR. BRAKE SPLASH	Guard - FR. BRAKE SPLASH
2	51211-SA0-901	Knuckle - R.	Knuckle - R.
3	51216-SA0-901	Knuckle - L.	Knuckle - L.
4	90120-SB0-003	Bolt - SHOCK ABSORBER LOCK, 10X42	Bolt - SHOCK ABSORBER LOCK, 10X42
5	91051-692-004	Bearing - FR. WHEEL (KOYO SEIKO)	Bearing - FR. WHEEL (KOYO SEIKO)
5	91051-692-003	Bearing - FR. WHEEL (NIPPON SEIKO)	Bearing - FR. WHEEL (NIPPON SEIKO)
5	91051-692-008	Bearing - FR. WHEEL (TOYO SEIKO)	Bearing - FR. WHEEL (TOYO SEIKO)
6	91250-SA2-025	Dust seal a - FR. BEARING (NOK)	Dust seal a - FR. BEARING (NOK)
6	91250-SA2-023	Dust seal a - FR. BEARING (ARAI)	Dust seal a - FR. BEARING (ARAI)
7	91251-692-013	Dust seal b - FR. BEARING (ARAI)	Dust seal b - FR. BEARING (ARAI)
7	91251-692-015	Dust seal b - FR. BEARING (NOK)	Dust seal b - FR. BEARING (NOK)

Main valve body/regulator 34 / 34

#	OEM	ASL	AWC
1	22741-PA9-000	Pipe - LOW CLUTCH	Pipe - LOW CLUTCH
2	22743-PA9-000	Pipe - THIRD CLUTCH	Pipe - THIRD CLUTCH
3	24271-PA9-903	Shaft a - SHIFT FORK	Shaft a - SHIFT FORK
3	24273-PA9-903	Shaft c - SHIFT FORK	Shaft c - SHIFT FORK
3	24272-PA9-903	Shaft b - SHIFT FORK	Shaft b - SHIFT FORK
4	24461-PA9-000	Spring - ROLLER	Spring - ROLLER
4	24461-PA9-010	Spring - ROLLER	Spring - ROLLER
5	24471-612-000	Roller - 6X16	Roller - 6X16
6	25145-PA9-010	Shaft - OIL PUMP GEAR	Shaft - OIL PUMP GEAR
7	27100-PA9-904	Body assy - MAIN VALVE	Body assy - MAIN VALVE
8	27105-PA9-901	Body sub assy. - MAIN VALVE	Body sub assy. - MAIN VALVE
9	27112-PA9-901	Plate - MAIN SEPARATING	Plate - MAIN SEPARATING
10	27200-PA9-901	Regulator assy	Regulator assy
11	27211-PA9-010	Body - REGULATOR VALVE	Body - REGULATOR VALVE
12	27221-PA9-010	Valve - REGULATOR	Valve - REGULATOR
13	27231-PA9-900	Spring a - REGULATOR VALVE	Spring a - REGULATOR VALVE
14	27232-PA9-000	Spring b - REGULATOR VALVE	Spring b - REGULATOR VALVE
15	27233-PA9-000	Spring - REACTION STATOR	Spring - REACTION STATOR
16	27246-PA9-000	Cap - REGULATOR SPRING	Cap - REGULATOR SPRING
17	27247-PA9-000	Seat - REACTION SPRING	Seat - REACTION SPRING
18	27255-639-010	Spring - CHECK VALVE	Spring - CHECK VALVE
19	27256-PA9-000	Valve - RELIEF	Valve - RELIEF
20	27256-639-000	Valve - TORQUE CONVERTER CHECK	Valve - TORQUE CONVERTER CHECK
21	27257-PA9-000	Spring - RELIEF VALVE	Spring - RELIEF VALVE
22	27258-680-900	Seat - RELIEF VALVE SPRING	Seat - RELIEF VALVE SPRING
23	27400-PA9-904	Body set - SERVO	Body set - SERVO
24	27410-PA9-902	Body comp. c - SERVO	Body comp. c - SERVO
24	27409-PA9-901	Body comp. b - SERVO	Body comp. b - SERVO
24	27408-PA9-901	Body comp. a - SERVO	Body comp. a - SERVO
25	27421-PA9-902	Valve - MANUAL	Valve - MANUAL
26	27861-PA9-010	Spring - SERVO RETURN	Spring - SERVO RETURN
27	90007-PA9-000	Bolt - FLANGE, 6X30	Bolt - FLANGE, 6X30
28	90089-591-020	Bolt - STOPPER, 6MM	Bolt - STOPPER, 6MM
29	91344-580-000	O-ring - 31X2.7 (ARAI)	O-ring - 31X2.7 (ARAI)

Mainshaft 37 / 37

#	OEM	ASL	AWC
1	22814-PA9-023	Ring - SEALING, 32MM	Ring - SEALING, 32MM
2	23210-PA9-010	Mainshaft	Mainshaft
3	23411-PA9-900	Gear - MAINSHAFT LOW	Gear - MAINSHAFT LOW
4	23431-PA9-900	Gear - MAINSHAFT SECOND	Gear - MAINSHAFT SECOND
5	90201-PA9-000	Nut - FLANGE, 19MM	Nut - FLANGE, 19MM
6	90418-PA9-000	Washer - SPLINE, 35X50X3.25	Washer - SPLINE, 35X50X3.25
6	90412-PA9-010	Washer - SPLINE, 35X50X3.05	Washer - SPLINE, 35X50X3.05
6	90420-PA9-000	Washer - SPLINE, 35X50X3.35	Washer - SPLINE, 35X50X3.35
6	90414-PA9-010	Washer - SPLINE, 35X50X3.15	Washer - SPLINE, 35X50X3.15
6	90411-PA9-010	Washer - SPLINE, 35X50X3.00	Washer - SPLINE, 35X50X3.00
6	90419-PA9-000	Washer - SPLINE, 35X50X3.30	Washer - SPLINE, 35X50X3.30
6	90413-PA9-010	Washer - SPLINE, 35X50X3.10	Washer - SPLINE, 35X50X3.10
6	90421-PA9-000	Washer - SPLINE, 35X50X3.40	Washer - SPLINE, 35X50X3.40
6	90415-PA9-010	Washer - SPLINE, 35X50X3.20	Washer - SPLINE, 35X50X3.20
7	90417-PA9-000	Washer - 26 X 45 X 4	Washer - 26 X 45 X 4
8	90422-PA9-000	Washer - THRUST, 26MM	Washer - THRUST, 26MM
9	90506-PA9-010	Collar - DISTANCE, 20MM	Collar - DISTANCE, 20MM
10	90508-PA9-000	Collar - 26MM	Collar - 26MM
11	90603-689-900	Circlip - EXTERNAL, 20MM	Circlip - EXTERNAL, 20MM
12	90609-PA9-000	Ring - SNAP, 68MM	Ring - SNAP, 68MM
13	90613-PA9-000	Ring - SNAP, 26MM	Ring - SNAP, 26MM
14	91002-PA9-003	Bearing - BALL, 63/26 (NTN)	Bearing - BALL, 63/26 (NTN)
15	91011-PA9-004	Bearing - NEEDLE, 32X38X20 (KOYO)	Bearing - NEEDLE, 32X38X20 (KOYO)
15	91011-PA9-003	Bearing - NEEDLE, 32X38X20 (NTN)	Bearing - NEEDLE, 32X38X20 (NTN)
15	91011-PG4-003	Bearing - NEEDLE, 32X38X20 (NTN)	Bearing - NEEDLE, 32X38X20 (NTN)
16	91011-428-008	Bearing - NEEDLE, 20X26X20	Bearing - NEEDLE, 20X26X20
16	91011-P48-008	Bearing - NEEDLE, 20X26X20	Bearing - NEEDLE, 20X26X20
17	91012-PA9-003	Bearing - NEEDLE, 31X36X18.5	Bearing - NEEDLE, 31X36X18.5
18	91014-PA9-003	Bearing - THRUST NEEDLE, 35X52X2 (NTN)	Bearing - THRUST NEEDLE, 35X52X2 (NTN)
18	91014-PTD-901	Bearing - THRUST NEEDLE, 35X52X2	Bearing - THRUST NEEDLE, 35X52X2
19	91018-PA9-003	Bearing - THRUST NEEDLE, 32X44X2 (NTN)	Bearing - THRUST NEEDLE, 32X44X2 (NTN)
19	91018-P56-003	Bearing - THRUST NEEDLE, 32X44X2 (NTN)	Bearing - THRUST NEEDLE, 32X44X2 (NTN)
20	91019-PA9-013	Bearing - THRUST NEEDLE, 31X47X2	Bearing - THRUST NEEDLE, 31X47X2
21	91307-PA9-004	O-ring - 31.2X1.9 (NOK)	O-ring - 31.2X1.9 (NOK)
21	91307-PA9-003	O-ring 31.2X1.9 (ARAI)	O-ring 31.2X1.9 (ARAI)
22	91308-PA9-004	O-ring - 19.8X1.9 (NOK)	O-ring - 19.8X1.9 (NOK)
22	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)	O-ring - 19.8X1.9 (ARAI)

Mainshaft/mainshaft gears 8 / 9

#	OEM	ASL	AWC
2	23261-PB7-000	Shaft - REVERSE IDLE GEAR	Shaft - REVERSE IDLE GEAR
3	23540-PB7-000	Gear - REVERSE IDLE	Gear - REVERSE IDLE
7	90201-PB7-010	Nut - HEX., 17MM	Nut - HEX., 17MM
8	90601-PB7-010	Ring - SNAP, 47MM	Ring - SNAP, 47MM
9	90602-PB7-010	Ring - SNAP, 48MM	Ring - SNAP, 48MM
10	91003-PB7-004	Bearing - BALL, 6303 (KOYO)	Bearing - BALL, 6303 (KOYO)
10	91003-PB7-003	Bearing - BALL, 6303 (FUJIKOSHI)	Bearing - BALL, 6303 (FUJIKOSHI)
11	91102-PB7-008	Bearing - NEEDLE, 28X48X16	Bearing - NEEDLE, 28X48X16

Mirror/sunvisor 16 / 20

#	OEM	ASL	AWC
4	88011-SA0-660	Holder set - FR. ASHTRAY	Holder set - FR. ASHTRAY
6	88141-SA0-000	Holder - RR. VIEW MIRROR	Holder - RR. VIEW MIRROR
9	88150-SA0-748	Mirror assy - DOOR	Mirror assy - DOOR
9	88150-SA0-747	Mirror assy - DOOR	Mirror assy - DOOR
10	88152-SA0-744	Boot - R. DOOR MIRROR	Boot - R. DOOR MIRROR
10	88152-SA0-743	Boot - R. DOOR MIRROR	Boot - R. DOOR MIRROR
11	88154-SA0-743	Knob - DOOR MIRROR	Knob - DOOR MIRROR
11	88154-SA0-672	Knob - DOOR MIRROR	Knob - DOOR MIRROR
12	88155-SA0-747	Mirror assy - DOOR	Mirror assy - DOOR
12	88155-SA0-748	Mirror assy - DOOR	Mirror assy - DOOR
13	88157-SA0-744	Boot - L. DOOR MIRROR	Boot - L. DOOR MIRROR
13	88157-SA0-743	Boot - L. DOOR MIRROR	Boot - L. DOOR MIRROR
27	88324-SA0-000	Cover - RR. ASHTRAY	Cover - RR. ASHTRAY
28	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
29	90133-SA0-000	Screw - PAN, 5X12	Screw - PAN, 5X12
30	90195-SA0-000	Screw-washer - 6X20	Screw-washer - 6X20

Oil cooler hose/ oil strainer 16 / 16

#	OEM	ASL	AWC
1	25150-PA9-305	Shaft - TORQUE CONVERTER STATOR	Shaft - TORQUE CONVERTER STATOR
2	25213-PA6-911	Hose comp. - OIL COOLER, 780 (MEIJI)	Hose comp. - OIL COOLER, 780 (MEIJI)
2	25213-PA6-912	Hose comp. - OIL COOLER, 780 (YAMASHITA)	Hose comp. - OIL COOLER, 780 (YAMASHITA)
3	25213-639-900	Hose - OIL COOLER, 400MM (MEIJI)	Hose - OIL COOLER, 400MM (MEIJI)
3	25213-639-902	Hose - OIL COOLER, 400MM (YAMASHITA)	Hose - OIL COOLER, 400MM (YAMASHITA)
4	25420-PA9-000	Strainer - TRANSMISSION	Strainer - TRANSMISSION
5	25610-PA9-000	Gauge comp. - ATF	Gauge comp. - ATF
6	25910-639-000	Joint a - OIL HOSE	Joint a - OIL HOSE
7	25951-639-000	Bolt - JOINT	Bolt - JOINT
8	25960-PA9-000	Joint - OIL HOSE	Joint - OIL HOSE
9	39228-PA0-901	Band - HOSE, 220MM	Band - HOSE, 220MM
10	90635-671-000	Clip - OIL HOSE	Clip - OIL HOSE
11	90656-PB1-003	Band - OIL HOSE	Band - OIL HOSE
12	91301-250-000	O-ring - 21.5MM	O-ring - 21.5MM
12	91307-425-003	O-ring - 21.5X3.2	O-ring - 21.5X3.2
13	91316-612-000	O-ring - 27.5X1.7	O-ring - 27.5X1.7

Oil filter/oil gauge 6 / 6

#	OEM	ASL	AWC
1	15400-PA6-003	Filter - OIL (TOKYO ROKI)	Filter - OIL (TOKYO ROKI)
1	15400-PA6-506	OILFILTER CARTRID	OILFILTER CARTRID
1	15400-PA6-004	Filter - OIL (TOYO ROKI)	Filter - OIL (TOYO ROKI)
2	15610-PC1-000	Cap assy. - OIL FILLER	Cap assy. - OIL FILLER
3	15650-PA1-000	Gauge - OIL LEVEL	Gauge - OIL LEVEL
4	90015-689-000	Holder - OIL FILTER	Holder - OIL FILTER

Oil pump 19 / 19

#	OEM	ASL	AWC
1	15100-PB9-000	Pump assy. - OIL	Pump assy. - OIL
2	15101-PB9-000	Body - OIL PUMP	Body - OIL PUMP
3	15105-634-000	Gasket - OIL PUMP BODY	Gasket - OIL PUMP BODY
4	15109-634-000	Gear - OIL PUMP DRIVE	Gear - OIL PUMP DRIVE
5	15117-634-000	Holder - OIL PUMP DRIVE GEAR	Holder - OIL PUMP DRIVE GEAR
6	15120-634-000	Shaft - OIL PUMP DRIVE GEAR	Shaft - OIL PUMP DRIVE GEAR
7	15125-PB9-000	Shaft - OIL PUMP	Shaft - OIL PUMP
8	15128-611-000	Pipe - OIL PASS	Pipe - OIL PASS
9	15129-611-000	Screen - OIL PUMP FILTER	Screen - OIL PUMP FILTER
10	15131-PB9-000	Rotor - PUMP INNER	Rotor - PUMP INNER
11	15132-PB9-000	Rotor - PUMP OUTER	Rotor - PUMP OUTER
12	15221-PA1-000	Body - OIL STRAINER	Body - OIL STRAINER
13	15225-PB9-000	Block - OIL PASS	Block - OIL PASS
14	15231-634-010	Valve - OIL PRESSURE RELIEF	Valve - OIL PRESSURE RELIEF
14	15231-PE0-000	Valve - RELIEF	Valve - RELIEF
15	15232-PB2-000	Spring - RELIEF VALVE	Spring - RELIEF VALVE
16	15233-634-000	Seat - RELIEF VALVE SPRING	Seat - RELIEF VALVE SPRING
17	91303-634-010	O-ring - 12.5X2.2MM	O-ring - 12.5X2.2MM
18	91306-634-000	O-ring - 17X3.5MM	O-ring - 17X3.5MM

Parking brake 8 / 14

#	OEM	ASL	AWC
1	47105-SA4-030	Lever assy. - PARKING BRAKE	Lever assy. - PARKING BRAKE
2	47142-659-310	Knob - PARKING BRAKE PUSH ROD	Knob - PARKING BRAKE PUSH ROD
3	47143-671-310	Spring - PUSH ROD	Spring - PUSH ROD
4	47153-SA0-000	Pin b - PARKING BRAKE	Pin b - PARKING BRAKE
5	47342-SA0-003	Switch - PARKING BRAKE	Switch - PARKING BRAKE
7	47365-538-000	Pin - EQUALIZER	Pin - EQUALIZER
11	47522-594-000	Nut - PARKING BRAKE ADJUSTING	Nut - PARKING BRAKE ADJUSTING
12	47537-671-670	Spring - PARKING BRAKE ROD	Spring - PARKING BRAKE ROD

Pedal (D,P,Y) 24 / 25

#	OEM	ASL	AWC
1	17344-PA0-660	Clamp - CLUTCH CABLE	Clamp - CLUTCH CABLE
2	17800-SA4-730	Pedal assy - ACCELERATOR	Pedal assy - ACCELERATOR
3	17812-634-670	Washer - ACCELERATOR PEDAL	Washer - ACCELERATOR PEDAL
3	17812-SA7-010	Washer - ACCELERATOR PEDAL	Washer - ACCELERATOR PEDAL
4	17814-SA5-000	Spring - ACCELERATOR PEDAL	Spring - ACCELERATOR PEDAL
5	17816-692-000	Cover - ACCELERATOR PEDAL	Cover - ACCELERATOR PEDAL
6	17832-611-000	Stopper - ACCELERATOR PEDAL	Stopper - ACCELERATOR PEDAL
7	17833-SA0-000	Bolt - ACCELERATOR STOPPER	Bolt - ACCELERATOR STOPPER
8	17835-SA0-670	Base b - ACCELERATOR STOPPER	Base b - ACCELERATOR STOPPER
9	17910-SA0-731	Wire comp - THROTTLE	Wire comp - THROTTLE
10	17921-689-000	Seal - THROTTLE CABLE	Seal - THROTTLE CABLE
12	22917-634-000	Seal - CLUTCH WIRE	Seal - CLUTCH WIRE
13	46500-SA0-732	Pedal assy - BRAKE	Pedal assy - BRAKE
15	46504-679-300	Bush - PEDAL	Bush - PEDAL
16	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER
17	46530-SA0-000	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
17	46530-SA0-900	Spring assy - PEDAL RETURN	Spring assy - PEDAL RETURN
18	46535-692-000	Collar - PEDAL	Collar - PEDAL
19	46545-538-010	Cover - PEDAL	Cover - PEDAL
20	46545-692-980	Cover - BRAKE PEDAL	Cover - BRAKE PEDAL
21	46590-SA0-731	Bracket - PEDAL	Bracket - PEDAL
21	46590-SA0-781	Bracket - PEDAL	Bracket - PEDAL
22	46900-SA0-732	Pedal assy - CLUTCH	Pedal assy - CLUTCH
23	90111-671-010	Bolt - ACCELERATOR PEDAL	Bolt - ACCELERATOR PEDAL

Piston/connecting rod 25 / 25

#	OEM	ASL	AWC
1	13011-PA1-004	Ring set - PISTON (STD.)(RIKEN)	Ring set - PISTON (STD.)(RIKEN)
1	13021-PA1-004	Ring set - PISTON (OS 0.25)	Ring set - PISTON (OS 0.25)
1	13031-PA1-004	Ring set - PISTON (OS 0.50)	Ring set - PISTON (OS 0.50)
2	13103-PA1-000	Piston - OS 0.5	Piston - OS 0.5
2	13102-PA1-010	Piston - OS 0.25	Piston - OS 0.25
2	13101-PA1-010	Piston - STD.	Piston - STD.
3	13112-634-000	Pin - PISTON	Pin - PISTON
4	13204-PA0-003	Bolt - CONNECTING ROD (TOKAI TRW)	Bolt - CONNECTING ROD (TOKAI TRW)
4	13204-PA0-004	Bolt - CONNECTING ROD (NAGOYA RASHI)	Bolt - CONNECTING ROD (NAGOYA RASHI)
5	13205-634-010	Nut	Nut
5	13205-689-004	Nut - CONNECTING ROD (NAGOYA RASHI)	Nut - CONNECTING ROD (NAGOYA RASHI)
6	13210-PA5-000	Rod assy - CONNECTING	Rod assy - CONNECTING
7	13217-PB9-003	Bearing g - CONNECTING ROD (RED) (DAIDO)	Bearing g - CONNECTING ROD (RED) (DAIDO)
7	13214-PB9-004	Bearing d - CONNECTING ROD (GREEN) (TAIHO)	Bearing d - CONNECTING ROD (GREEN) (TAIHO)
7	13211-PB9-004	BEARING A - CONNECTING ROD (BLUE) (TAIHO)	BEARING A - CONNECTING ROD (BLUE) (TAIHO)
7	13215-PB9-004	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)	Bearing e - CONNECTING ROD (YELLOW) (TAIHO)
7	13212-PB9-004	Bearing b - CONNECTING ROD (BLACK) (TAIHO)	Bearing b - CONNECTING ROD (BLACK) (TAIHO)
7	13216-PB9-004	Bearing f - CONNECTING ROD (PINK) (TAIHO)	Bearing f - CONNECTING ROD (PINK) (TAIHO)
7	13213-PB9-004	Bearing c - CONNECTING ROD (BROWN) (TAIHO)	Bearing c - CONNECTING ROD (BROWN) (TAIHO)
7	13211-PB9-003	BEARING A - CONNECTING ROD (BLUE) (DAIDO)	BEARING A - CONNECTING ROD (BLUE) (DAIDO)
7	13217-PB9-004	Bearing g - CONNECTING ROD (RED) (TAIHO)	Bearing g - CONNECTING ROD (RED) (TAIHO)
7	13215-PB9-003	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)	Bearing e - CONNECTING ROD (YELLOW) (DAIDO)
7	13212-PB9-003	Bearing b - CONNECTING ROD (BLACK) (DAIDO)	Bearing b - CONNECTING ROD (BLACK) (DAIDO)
7	13216-PB9-003	Bearing f - CONNECTING ROD (PINK) (DAIDO)	Bearing f - CONNECTING ROD (PINK) (DAIDO)
7	13213-PB9-003	Bearing c - CONNECTING ROD (BROWN) (DAIDO)	Bearing c - CONNECTING ROD (BROWN) (DAIDO)

Power master 1 / 1

#	OEM	ASL	AWC
18	90686-SA0-621	Clip	Clip

Radiator 49 / 50

#	OEM	ASL	AWC
1	19010-PA5-003	Radiator comp - DENSO	Radiator comp - DENSO
1	19010-PA5-014	Radiator comp - TOYO	Radiator comp - TOYO
1	19010-PA5-905	Radiator comp - DENSO	Radiator comp - DENSO
1	19010-PA5-906	Radiator comp - TOYO	Radiator comp - TOYO
2	19011-PA0-004	Cock - DRAIN (TOYO)	Cock - DRAIN (TOYO)
2	19011-PA0-003	Cock - DRAIN (DENSO)	Cock - DRAIN (DENSO)
3	19012-PA0-004	Packing - DRAIN (TOYO)	Packing - DRAIN (TOYO)
3	19012-PA0-003	Packing - DRAIN (DENSO)	Packing - DRAIN (DENSO)
3	19012-ZB5-003	Packing, drain	Packing, drain
4	19015-PA6-013	Shroud comp - DENSO	Shroud comp - DENSO
4	19015-PA6-014	Shroud comp.	Shroud comp.
6	19020-PA6-004	Fan comp - COOLING (MITSUBA)	Fan comp - COOLING (MITSUBA)
6	19020-PA6-003	Fan - COOLING (DENSO)	Fan - COOLING (DENSO)
7	19021-PA0-020	Rubber - RADIATOR MOUNTING	Rubber - RADIATOR MOUNTING
8	19024-PA6-000	Collar - DISTANCE	Collar - DISTANCE
9	19030-PC1-003	Motor - COOLING FAN (DENSO)	Motor - COOLING FAN (DENSO)
9	19030-PA6-004	Motor - COOLING FAN (MITSUBA)	Motor - COOLING FAN (MITSUBA)
10	19040-611-003	Bush	Bush
11	19041-611-003	Rubber - BUSHING	Rubber - BUSHING
12	19043-PB2-661	Label - RADIATOR CAUTION	Label - RADIATOR CAUTION
13	19045-692-003	Cap comp. - RADIATOR (DENSO)	Cap comp. - RADIATOR (DENSO)
13	19045-PA0-014	Cap comp. - RADIATOR (TOYO)	Cap comp. - RADIATOR (TOYO)
14	19101-PA0-000	Tank - RESERVE	Tank - RESERVE
15	19102-PA0-020	Cap - RESERVE TANK	Cap - RESERVE TANK
16	19103-PA0-000	Hose - RESERVE TANK	Hose - RESERVE TANK
17	19104-PA0-000	Tube - RESERVE TANK	Tube - RESERVE TANK
18	19105-PA0-010	Mark - RESERVE TANK	Mark - RESERVE TANK
19	19106-PA0-020	Joint - RESERVE TANK	Joint - RESERVE TANK
20	19107-PA0-000	Clip - RESERVE TANK JOINT	Clip - RESERVE TANK JOINT
21	19501-PA1-010	Hose - WATER UPPER	Hose - WATER UPPER
22	19502-PA1-020	Hose - WATER LOWER	Hose - WATER LOWER
22	19502-PA1-902	Hose - WATER LOWER	Hose - WATER LOWER
24	37760-PB2-003	Switch assy - THERMOSTAT (A-90) (NIPPON THERMOSTAT)	Switch assy - THERMOSTAT (A-90) (NIPPON THERMOSTAT)
25	60867-SA0-010	Rubber - RADIATOR MOUNTING	Rubber - RADIATOR MOUNTING
26	90041-679-003	Screw-washer - 4X18	Screw-washer - 4X18
26	90041-PA0-004	Screw-washer - 4X20 (TOYO)	Screw-washer - 4X20 (TOYO)
27	90042-679-003	Bolt-washer - 6X10 (DENSO)	Bolt-washer - 6X10 (DENSO)
27	90042-PA0-004	Bolt-washer - 6X10 (TOYO)	Bolt-washer - 6X10 (TOYO)
28	90401-PA0-004	Washer - TOYO	Washer - TOYO
28	90401-679-003	Washer - SPRING, 5MM	Washer - SPRING, 5MM
29	90402-PA6-004	Washer - PLAIN, 5MM (TOYO)	Washer - PLAIN, 5MM (TOYO)
29	90402-679-003	Washer - PLAIN, 5MM	Washer - PLAIN, 5MM
30	90403-679-003	Washer - PLAIN, 6.8MM (DENSO)	Washer - PLAIN, 6.8MM (DENSO)
30	90501-671-003	Washer - SPECIAL	Washer - SPECIAL
30	90403-PA0-004	Washer - PLAIN, 7MM (MITSUBA)	Washer - PLAIN, 7MM (MITSUBA)
31	91307-611-000	O-ring (13.5X1.4)	O-ring (13.5X1.4)
31	91307-PH7-660	O-ring (13.5X1.4)	O-ring (13.5X1.4)
32	91414-634-000	Washer - PLAIN, 6X20	Washer - PLAIN, 6X20
32	90563-355-000	Washer, wheel, 6mm	Washer, wheel, 6mm

Rear brake drum 15 / 25

#	OEM	ASL	AWC
1	42324-671-010	Washer - RR. HUB	Washer - RR. HUB
2	42325-671-000	Holder - SPLIT PIN	Holder - SPLIT PIN
3	42326-SA0-000	Cap - HUB	Cap - HUB
12	90113-SA0-013	Bolt - WHEEL (TOKAI TRW)	Bolt - WHEEL (TOKAI TRW)
12	90113-SA0-005	Bolt - WHEEL (NAGOYA RASHI)	Bolt - WHEEL (NAGOYA RASHI)
12	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
13	90120-SB0-003	Bolt - SHOCK ABSORBER LOCK, 10X42	Bolt - SHOCK ABSORBER LOCK, 10X42
14	90402-SA0-000	Nut - HUB	Nut - HUB
15	91052-671-008	Bearing assy - RR. HUB (A) (TOYO SEIKO)	Bearing assy - RR. HUB (A) (TOYO SEIKO)
15	91052-671-004	Bearing assy - RR. HUB (A) (KOYO SEIKO)	Bearing assy - RR. HUB (A) (KOYO SEIKO)
16	91053-671-008	Bearing assy - RR. HUB (B) (TOYO SEIKO)	Bearing assy - RR. HUB (B) (TOYO SEIKO)
16	91053-671-004	Bearing assy - RR. HUB (B) (KOYO SEIKO)	Bearing assy - RR. HUB (B) (KOYO SEIKO)
17	91252-692-003	Seal - RR. HUB (ARAI)	Seal - RR. HUB (ARAI)
17	91252-692-005	Seal - RR. HUB (NOK)	Seal - RR. HUB (NOK)
18	91301-567-003	O-ring - 44X1.3	O-ring - 44X1.3

Rear brake shoe 21 / 28

#	OEM	ASL	AWC
5	43171-SA0-003	Spring a - R. BRAKE	Spring a - R. BRAKE
6	43172-693-003	Spring b - BRAKE SHOE RETURN	Spring b - BRAKE SHOE RETURN
7	43175-SA0-003	Spring - R. ROD	Spring - R. ROD
8	43181-SA0-003	Spring a - L. BRAKE	Spring a - L. BRAKE
9	43185-SA0-003	Spring - L. ROD	Spring - L. ROD
10	43300-SA0-003	Cylinder assy. - R. RR. WHEEL	Cylinder assy. - R. RR. WHEEL
11	43301-SA0-003	Cylinder assy. - L. RR. WHEEL	Cylinder assy. - L. RR. WHEEL
12	43315-671-631	Cover - DUST	Cover - DUST
12	43315-SN4-003	Cover - DUST	Cover - DUST
13	43321-SA0-003	Piston - WHEEL CYLINDER	Piston - WHEEL CYLINDER
14	43325-567-003	Cup - PISTON	Cup - PISTON
15	43323-SA0-003	Spring - RR. WHEEL CYLINDER	Spring - RR. WHEEL CYLINDER
16	43352-568-003	SCREW, BLEEDER (NISSIN)	SCREW, BLEEDER (NISSIN)
17	43353-548-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
19	43367-671-631	Spring - QUADRANT	Spring - QUADRANT
20	43368-SA0-003	Stopper - LEVER	Stopper - LEVER
23	43431-567-300	Boot - BRAKE LEVER	Boot - BRAKE LEVER
24	43432-SA0-003	Grip - BRAKE LEVER SEAL	Grip - BRAKE LEVER SEAL
27	45172-SA0-003	Spring - SHOE CLAMP	Spring - SHOE CLAMP
27	45172-S04-003	Spring - SHOE CLAMP	Spring - SHOE CLAMP
28	45175-SA0-003	Pin - TENSIONER	Pin - TENSIONER

Rear lower arm/radius arm 2 / 17

#	OEM	ASL	AWC
1	51393-692-014	Bush - FR. LOWER ARM	Bush - FR. LOWER ARM
1	51393-SH3-003	Bush - FR. LOWER ARM (HOKUSHIN)	Bush - FR. LOWER ARM (HOKUSHIN)

Rear seat/seatbelt (3D,5D) 2 / 5

#	OEM	ASL	AWC
4	78113-693-003	Rubber - RR. SEAT SETTING	Rubber - RR. SEAT SETTING
27	90128-634-000	Bolt - FLANGE, 6X28	Bolt - FLANGE, 6X28

Rear shock absorber 2 / 17

#	OEM	ASL	AWC
1	51722-692-005	Rubber - FR. BUMP STOPPER (NOK)	Rubber - FR. BUMP STOPPER (NOK)
1	51722-692-006	Rubber - FR. BUMP STOPPER (M.T.P. KASEI)	Rubber - FR. BUMP STOPPER (M.T.P. KASEI)

Rear side lining (3D,5D) 3 / 3

#	OEM	ASL	AWC
21	83863-671-000	Cap - RR. LINING	Cap - RR. LINING
23	90659-SA0-003	Clip - PILLAR GARNISH	Clip - PILLAR GARNISH
24	90663-692-003	Clip - LINING	Clip - LINING

Roof console 20 / 20

#	OEM	ASL	AWC
1	32156-SA0-970	Cord - ROOF	Cord - ROOF
2	34250-SA0-971	Light assy - INTERIOR	Light assy - INTERIOR
3	34252-671-003	Lens	Lens
4	34253-671-003	Bulb - 12V 8W)(DAIICHI	Bulb - 12V 8W)(DAIICHI
4	04110-SWA-305	BULB T10X318W	BULB T10X318W
5	34260-SA0-971	Lamp assy. - SPOT	Lamp assy. - SPOT
6	34295-538-003	Bulb - 12V 5W) (DAIICHI	Bulb - 12V 5W) (DAIICHI
6	34295-SD4-003	Bulb - 12V 5W.K	Bulb - 12V 5W.K
7	35360-689-971	Switch - SPOT LIGHT	Switch - SPOT LIGHT
8	35365-SA0-971	Switch - ROOM LAMP	Switch - ROOM LAMP
11	71871-SA0-970	Bracket comp. a - ROOF CONSOLE	Bracket comp. a - ROOF CONSOLE
12	71871-689-970	Hanger - FR. ROOF CONSOLE	Hanger - FR. ROOF CONSOLE
13	71872-SA0-970	Bracket comp. b - ROOF CONSOLE	Bracket comp. b - ROOF CONSOLE
14	71872-689-970	Bracket - FR.	Bracket - FR.
15	71873-SA0-970	Grommet - ROOF CONSOLE	Grommet - ROOF CONSOLE
16	71875-689-970	Holder - PAPER	Holder - PAPER
17	71876-689-970	Garnish - CENTER	Garnish - CENTER
18	71877-689-970	Garnish - RR.	Garnish - RR.
19	71878-689-970	Counter - MEMORY	Counter - MEMORY
20	90653-688-880	Holder - ROD	Holder - ROD

Selector lever (HMT) 17 / 17

#	OEM	ASL	AWC
1	30158-700-010	E-clip - 3MM	E-clip - 3MM
2	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W
3	37700-SA0-982	Lamp assy. - INDICATOR (AT)	Lamp assy. - INDICATOR (AT)
4	54110-689-980	Stopper comp - SELECT LEVER	Stopper comp - SELECT LEVER
5	54113-692-980	Collar - LOCK PIN	Collar - LOCK PIN
6	54115-692-980	Bolt - SELECT LEVER STOP	Bolt - SELECT LEVER STOP
7	54117-692-980	Spring - LOCK PIN	Spring - LOCK PIN
8	54118-689-980	Spring - SELECT STOPPER	Spring - SELECT STOPPER
9	54119-689-981	Pin - LOCK	Pin - LOCK
10	54123-SA0-980	Collar - SELECT LEVER	Collar - SELECT LEVER
12	54132-SA5-982	Knob - PUSH	Knob - PUSH
13	54133-SA5-981	Spring - PUSH KNOB	Spring - PUSH KNOB
14	54135-SA0-981	Lever - SELECT	Lever - SELECT
15	54136-SA0-980	Rod comp - LOCK PIN	Rod comp - LOCK PIN
16	54211-SA0-713	Case - INDICATOR LAMP	Case - INDICATOR LAMP
17	54222-689-980	Cover - SELECT LEVER	Cover - SELECT LEVER
18	54710-693-802	Console - INDICATOR	Console - INDICATOR

Selector lever control unit (HMT) 16 / 16

#	OEM	ASL	AWC
1	24415-PA9-000	Roller - CONTROL LEVER	Roller - CONTROL LEVER
2	54201-SA0-980	Bracket - SELECT LEVER	Bracket - SELECT LEVER
3	54202-SA0-981	Bracket - CONTROL	Bracket - CONTROL
4	54204-SA0-980	Guide - WIRE HARNESS	Guide - WIRE HARNESS
5	54315-693-982	Wire - CONTROL (KOKOKU)	Wire - CONTROL (KOKOKU)
5	54315-693-981	Wire - CONTROL (NIPPON CABLE SYSTEM)	Wire - CONTROL (NIPPON CABLE SYSTEM)
6	54317-693-980	Holder - CONTROL WIRE	Holder - CONTROL WIRE
7	54318-634-980	Seal - CONTROL	Seal - CONTROL
8	54319-SA0-980	Seal - CONTROL CABLE BRACKET	Seal - CONTROL CABLE BRACKET
10	54341-SA0-980	Boot - CONTROL WIRE	Boot - CONTROL WIRE
11	54342-689-980	Boot a - CONTROL WIRE	Boot a - CONTROL WIRE
12	54347-SA0-980	Pin a - CONTROL ROD	Pin a - CONTROL ROD
13	54351-SA0-980	Bracket - CONTROL CABLE	Bracket - CONTROL CABLE
14	54360-689-981	Adjuster assy - CONTROL WIRE	Adjuster assy - CONTROL WIRE
15	54361-689-981	Pipe - CONTROL WIRE ADJUSTING	Pipe - CONTROL WIRE ADJUSTING
17	54363-689-981	Pin - CONTROL WIRE ADJUSTER	Pin - CONTROL WIRE ADJUSTER

Shift arm/shift rod 15 / 20

#	OEM	ASL	AWC
3	24311-PB7-000	Rod - GEARSHIFT	Rod - GEARSHIFT
4	24316-679-000	Boot	Boot
6	24411-PB7-000	Arm - GEARSHIFT	Arm - GEARSHIFT
10	24429-634-000	Bar - INTERLOCK	Bar - INTERLOCK
11	24431-PA0-000	Retainer - SELECT SPRING	Retainer - SELECT SPRING
12	24432-PA0-000	Retainer - REVERSE SELECT	Retainer - REVERSE SELECT
13	24453-PB7-000	Spring - REVERSE STOPPER	Spring - REVERSE STOPPER
14	24454-PB7-000	Spring - REVERSE SELECT	Spring - REVERSE SELECT
17	24621-PB7-000	Spring - SHIFT SELECT	Spring - SHIFT SELECT
18	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5
19	90029-611-000	Bolt - HEX., 8X24	Bolt - HEX., 8X24
19	90029-611-010	Bolt - HEX., 8X24	Bolt - HEX., 8X24
20	90406-611-000	Washer - LOCK, 8MM	Washer - LOCK, 8MM
20	90406-PS1-000	Washer - LOCK	Washer - LOCK
21	90435-634-000	Washer - 8MM	Washer - 8MM

Shift fork/fork shaft 11 / 13

#	OEM	ASL	AWC
2	24211-PB7-000	Fork - TOP GEARSHIFT	Fork - TOP GEARSHIFT
3	24221-PE6-000	Fork - LOW GEARSHIFT	Fork - LOW GEARSHIFT
4	24242-PB7-000	Piece - TOP SHIFT	Piece - TOP SHIFT
7	24251-PB7-010	Shaft - TOP FORK	Shaft - TOP FORK
8	24261-PB7-010	Shaft - LOW FORK	Shaft - LOW FORK
11	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
12	24452-PA0-000	Spring - BALL SETTING	Spring - BALL SETTING
13	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
14	90432-634-000	Plate - LOCK, 6MM	Plate - LOCK, 6MM
15	90439-634-000	Plate - LOCK, 6MM	Plate - LOCK, 6MM
15	90439-PH8-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM

Shift lever (MT) 26 / 26

#	OEM	ASL	AWC
1	18260-659-000	Rubber - EX. PIPE MOUNTING	Rubber - EX. PIPE MOUNTING
2	18262-659-000	Stopper - EXTENSION MOUNTING	Stopper - EXTENSION MOUNTING
3	54101-693-000	Lever - CHANGE	Lever - CHANGE
4	54102-SA4-911	Knob - CHANGE LEVER	Knob - CHANGE LEVER
5	54104-692-000	Dust seal a	Dust seal a
6	54105-692-010	Washer - THRUST	Washer - THRUST
7	54106-692-010	Holder - CHANGE BOOT	Holder - CHANGE BOOT
8	54107-SA0-010	Bush, RR. JOINT	Bush, RR. JOINT
9	54108-SA0-020	Boot - CHANGE LEVER	Boot - CHANGE LEVER
10	54110-692-020	Seat - CHANGE LEVER BALL	Seat - CHANGE LEVER BALL
11	54113-611-000	Clip - CHANGE JOINT PIN	Clip - CHANGE JOINT PIN
12	54114-SA0-000	Collar - PIPE MOUNTING	Collar - PIPE MOUNTING
13	54114-692-020	Dust seal b - CHANGE	Dust seal b - CHANGE
14	54117-692-000	Collar - RR. JOINT	Collar - RR. JOINT
15	54119-692-010	Stopper - CHANGE LEVER BALL	Stopper - CHANGE LEVER BALL
16	54201-SA0-030	Rod comp - CHANGE	Rod comp - CHANGE
17	54301-SA0-050	Extension - CHANGE	Extension - CHANGE
18	54303-SA0-020	Rubber - EXTENSION END	Rubber - EXTENSION END
18	54303-SA5-000	Rubber - EXTENSION END	Rubber - EXTENSION END
19	54304-689-000	Washer a - EXTENSION END	Washer a - EXTENSION END
20	54305-SA0-000	Washer b - EXTENSION END	Washer b - EXTENSION END
21	54318-SA0-000	Seal - SHIFT LEVER MOUNTING	Seal - SHIFT LEVER MOUNTING
22	91301-671-671	O-ring - 1.9X11	O-ring - 1.9X11
22	91303-HA0-004	O-ring, 11x1.9 (nok)	O-ring, 11x1.9 (nok)
23	91351-689-000	O-ring - 35X3	O-ring - 35X3
28	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)

Shift lever shaft 21 / 21

#	OEM	ASL	AWC
1	24111-PA9-010	Fork - REVERSE SHIFT	Fork - REVERSE SHIFT
2	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING
3	24411-PA9-900	Shaft - CONTROL	Shaft - CONTROL
4	24412-PC9-000	Lever - CONTROL	Lever - CONTROL
5	24414-PA9-010	Pin - CONTROL	Pin - CONTROL
6	24415-PA9-000	Roller - CONTROL LEVER	Roller - CONTROL LEVER
7	24421-PA9-300	Lever - MANUAL VALVE	Lever - MANUAL VALVE
8	24423-PA9-000	Pin - MANUAL VALVE	Pin - MANUAL VALVE
9	24425-639-000	Roller - MANUAL VALVE	Roller - MANUAL VALVE
10	24532-689-900	Lever - PARKING BRAKE	Lever - PARKING BRAKE
11	24535-PA9-010	Spring - PARKING BRAKE	Spring - PARKING BRAKE
12	24538-PA9-003	Stopper - PARKING BRAKE (2)	Stopper - PARKING BRAKE (2)
13	24552-PA9-000	Spring - PARKING BRAKE PAWL	Spring - PARKING BRAKE PAWL
14	24553-612-000	Roller - PARKING BRAKE	Roller - PARKING BRAKE
15	24555-PA9-000	Pin - ROLLER, 6MM	Pin - ROLLER, 6MM
16	24561-PA9-030	Pawl - PARKING BRAKE	Pawl - PARKING BRAKE
17	24562-PA9-000	Shaft - PARKING BRAKE	Shaft - PARKING BRAKE
18	24901-PA9-000	Holder - CONTROL WIRE	Holder - CONTROL WIRE
19	90001-PA9-000	Bolt - HEX., 6MM	Bolt - HEX., 6MM
20	90433-639-000	Washer - LOCK, 6MM	Washer - LOCK, 6MM
21	90701-639-000	Dowel pin - 8X55	Dowel pin - 8X55

Side turn signal light/ license plate light 17 / 17

#	OEM	ASL	AWC
2	33902-SA8-671	Screw - TAPPING, 3X22	Screw - TAPPING, 3X22
3	34100-SA0-003	Light assy - R. SIDE LICENSE	Light assy - R. SIDE LICENSE
7	34101-692-003	Lens	Lens
9	34102-692-003	Packing - LENS	Packing - LENS
11	34103-692-003	Packing - R. BASE	Packing - R. BASE
12	34104-SA0-003	Screw - TAPPING, 5X16	Screw - TAPPING, 5X16
13	34105-692-003	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
14	34150-SA0-003	Light assy - L. SIDE LICENSE	Light assy - L. SIDE LICENSE
15	34153-692-003	Packing - L. BASE	Packing - L. BASE
16	34300-SA0-735	Light assy - R. SIDE TURN SIGNAL	Light assy - R. SIDE TURN SIGNAL
17	34301-SA0-013	Lens - R.	Lens - R.
18	34350-SA0-735	Light assy - L. SIDE TURN SIGNAL	Light assy - L. SIDE TURN SIGNAL
19	34351-SA0-013	Lens - L.	Lens - L.
20	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY
22	34909-505-003	Bulb - 12V8W	Bulb - 12V8W
22	34904-634-611	BULB (12V 5W) (ECE) - (12V, 5W) ECE	BULB (12V 5W) (ECE) - (12V, 5W) ECE
23	90655-SA0-003	Nut - NYLON, 3MM	Nut - NYLON, 3MM

Speedometer 8 / 8

#	OEM	ASL	AWC
3	37230-SA0-671	Cable assy - SPEEDOMETER (1260MM)	Cable assy - SPEEDOMETER (1260MM)
3	37230-SA0-682	Cable assy - SPEEDOMETER (980MM)	Cable assy - SPEEDOMETER (980MM)
4	37233-SA0-661	Cable - INNER	Cable - INNER
4	37233-SA0-682	Cable - INNER	Cable - INNER
6	37236-SA0-661	Clamp - SPEEDOMETER CABLE	Clamp - SPEEDOMETER CABLE
8	39700-SA1-968	Clock assy - DIGITAL (SANKYO)	Clock assy - DIGITAL (SANKYO)
8	39700-SA1-966	Clock assy - DIGITAL (JECO)	Clock assy - DIGITAL (JECO)
9	66871-611-000	Nut - CENTER PANEL	Nut - CENTER PANEL

Speedometer comp (1; DENSO) 16 / 16

#	OEM	ASL	AWC
1	35505-SA5-004	Bulb & socket - 14V 1.4W) (DENSO) (BASE:BLACK	Bulb & socket - 14V 1.4W) (DENSO) (BASE:BLACK
2	37102-SA0-673	Visor assy - DENSO	Visor assy - DENSO
3	37102-SA5-004	Socket assy - BULB (14V 3.4W) (DENSO)	Socket assy - BULB (14V 3.4W) (DENSO)
4	37106-671-005	Knob - TRIP (DENSO)	Knob - TRIP (DENSO)
5	37108-SA0-674	Panel - PRINT (DENSO)	Panel - PRINT (DENSO)
6	37109-SA3-676	Panel - ILLUMINATION PRINT (DENSO)	Panel - ILLUMINATION PRINT (DENSO)
6	37109-SA0-712	Panel - ILLUMINATION PRINT (DENSO)	Panel - ILLUMINATION PRINT (DENSO)
7	37110-SA0-677	Case - METER (DENSO)	Case - METER (DENSO)
8	37114-671-005	Grommet - TRIP KNOB (NS)	Grommet - TRIP KNOB (NS)
9	37150-SA0-917	Meter assy - INDICATOR (DENSO)	Meter assy - INDICATOR (DENSO)
10	37191-SA0-672	Case - ILLUMINATION (DENSO)	Case - ILLUMINATION (DENSO)
11	37194-SA0-672	Lens - ILLUMINATION LIGHT (DENSO)	Lens - ILLUMINATION LIGHT (DENSO)
12	37205-SA0-696	Speedometer assy - DENSO	Speedometer assy - DENSO
13	37575-SA0-952	Bulb assy - DENSO	Bulb assy - DENSO
14	37117-SA0-692	Visor - INNER (DENSO)	Visor - INNER (DENSO)
14	37112-SA0-752	Visor - INNER (DENSO)	Visor - INNER (DENSO)

Speedometer comp (2; NS) 14 / 14

#	OEM	ASL	AWC
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
2	37102-SA5-003	Socket assy - BULB (14V 3.4W) (NS) (BASE:BLACK)	Socket assy - BULB (14V 3.4W) (NS) (BASE:BLACK)
4	37106-SA0-911	Knob - TRIP (NS)	Knob - TRIP (NS)
7	37109-SA3-675	Panel - ILLUMINATION PRINT (NS)	Panel - ILLUMINATION PRINT (NS)
8	37110-SA0-676	Case - METER (NS)	Case - METER (NS)
9	37117-SA0-691	Visor assy - NS	Visor assy - NS
9	37112-SA0-731	Visor assy - NS	Visor assy - NS
10	37114-671-005	Grommet - TRIP KNOB (NS)	Grommet - TRIP KNOB (NS)
11	37115-SA0-601	Packing - NS	Packing - NS
14	37150-SA0-916	Meter assy - INDICATOR (NS)	Meter assy - INDICATOR (NS)
15	37191-SA0-671	Case - ILLUMINATION (NS)	Case - ILLUMINATION (NS)
16	37194-SA0-671	Lens - ILLUMINATION LIGHT (NS)	Lens - ILLUMINATION LIGHT (NS)
17	37205-SA0-695	Speedometer assy - NIPPON SEIKI	Speedometer assy - NIPPON SEIKI
17	37200-SA0-695	Speedometer assy - NIPPON SEIKI	Speedometer assy - NIPPON SEIKI

Speedometer gear 10 / 11

#	OEM	ASL	AWC
1	23812-PA0-670	Holder - SPEEDOMETER GEAR	Holder - SPEEDOMETER GEAR
2	23813-590-010	Collar - SPEEDOMETER GEAR	Collar - SPEEDOMETER GEAR
3	23814-689-901	Seal - GEAR HOLDER	Seal - GEAR HOLDER
5	90070-590-000	Bolt - SPECIAL, 6MM	Bolt - SPECIAL, 6MM
6	90472-580-000	Washer - 6MM	Washer - 6MM
7	90633-671-000	Clip - SPEEDOMETER CABLE	Clip - SPEEDOMETER CABLE
8	91208-551-013	Oil seal - 8X16X6 (ARAI)	Oil seal - 8X16X6 (ARAI)
8	91254-792-003	Oil seal, 8x16x6	Oil seal, 8x16x6
8	91208-551-015	Oil seal - 8X16X6 (NOK)	Oil seal - 8X16X6 (NOK)
9	91313-611-000	O-ring - 23.5X2	O-ring - 23.5X2

Stabilizer spring/ front lower arm 13 / 14

#	OEM	ASL	AWC
1	50250-SA0-000	Base - STABILIZER FITTING	Base - STABILIZER FITTING
2	51300-SA0-901	Spring - STABILIZER	Spring - STABILIZER
3	51310-693-000	Bracket - STABILIZER HOLD	Bracket - STABILIZER HOLD
4	51315-SA0-000	Bush a - STABILIZER	Bush a - STABILIZER
5	51350-SA0-030	Arm comp - LOWER	Arm comp - LOWER
6	51393-692-014	Bush - FR. LOWER ARM	Bush - FR. LOWER ARM
6	51393-SH3-003	Bush - FR. LOWER ARM (HOKUSHIN)	Bush - FR. LOWER ARM (HOKUSHIN)
8	53546-611-310	Seal - BALL JOINT	Seal - BALL JOINT
9	53548-611-003	Circlip - CHUO HATSUJO	Circlip - CHUO HATSUJO
10	90117-693-010	Bolt - FR. LOWER ARM	Bolt - FR. LOWER ARM
11	90212-634-000	Nut - SELF-LOCK, 12MM	Nut - SELF-LOCK, 12MM
12	90320-601-000	Nut - CASTLE, 10MM	Nut - CASTLE, 10MM
13	90501-692-000	Washer - FR. RADIUS ROD	Washer - FR. RADIUS ROD

Starter motor comp. (DENSO) 21 / 21

#	OEM	ASL	AWC
1	31201-590-004	Ring - SNAP	Ring - SNAP
2	31202-590-004	Collar - CLUTCH STOP	Collar - CLUTCH STOP
3	31203-PA5-911	Lever - PINION DRIVE	Lever - PINION DRIVE
4	31204-PC1-024	Switch assy - MAGNETIC (###)	Switch assy - MAGNETIC (###)
5	31206-PA0-006	Armature comp.	Armature comp.
6	31207-PA0-006	Pinion	Pinion
7	31208-PC1-004	Case - GEAR	Case - GEAR
8	31209-590-004	BEARING A - STARTER MOTOR	BEARING A - STARTER MOTOR
9	31210-PA0-006	Bearing b - STARTER MOTOR	Bearing b - STARTER MOTOR
10	31212-PA0-006	Spring - BRUSH	Spring - BRUSH
11	31214-PA0-006	Bolt - THROUGH	Bolt - THROUGH
12	31215-657-006	Plate - LOCK	Plate - LOCK
13	31218-PB1-006	Yoke comp.	Yoke comp.
14	31219-PC1-004	Frame comp - COMMUTATOR END	Frame comp - COMMUTATOR END
15	31223-PA0-006	Nut - HEX.	Nut - HEX.
16	31224-657-006	Rubber a - SEAL	Rubber a - SEAL
17	31231-PA0-006	Holder comp - BRUSH (###)	Holder comp - BRUSH (###)
18	31232-PA0-006	Cap - END FRAME	Cap - END FRAME
19	31233-PB1-931	Cover - SHAFT	Cover - SHAFT
20	31239-PA5-911	Cover - MAGNETIC SWITCH	Cover - MAGNETIC SWITCH
21	31291-PC0-014	Stay - ENGINE WIRE HARNESS	Stay - ENGINE WIRE HARNESS

Starter motor comp. (HITACHI) 20 / 20

#	OEM	ASL	AWC
1	31201-634-005	Clip - PINION STOPPER (HITACHI)	Clip - PINION STOPPER (HITACHI)
2	31202-634-005	Stopper - PINION (HITACHI)	Stopper - PINION (HITACHI)
3	31203-671-005	Lever - PINION DRIVE	Lever - PINION DRIVE
4	31204-PC1-005	Switch assy - MAGNETIC	Switch assy - MAGNETIC
5	31205-PA0-005	Coil - FIELD	Coil - FIELD
6	31206-PA0-005	Armature comp.	Armature comp.
7	31207-671-015	Pinion	Pinion
8	31208-PB1-005	Case - GEAR	Case - GEAR
9	31212-634-005	Spring - BRUSH	Spring - BRUSH
10	31214-679-005	Bolt - THROUGH (HITACHI)	Bolt - THROUGH (HITACHI)
11	31215-679-005	Brush - POSITIVE	Brush - POSITIVE
12	31231-PA0-005	Holder comp - BRUSH	Holder comp - BRUSH
13	31232-634-005	Cover d - DUST	Cover d - DUST
14	31236-634-005	Cover c - DUST	Cover c - DUST
15	31237-634-005	Screw - POLE CORE SETTING	Screw - POLE CORE SETTING
16	31238-PA6-005	Cover comp. - RR.	Cover comp. - RR.
17	31265-671-005	Spring - TORSION	Spring - TORSION
18	31271-634-005	Washer kit - THRUST (HITACHI)	Washer kit - THRUST (HITACHI)
19	31281-634-005	Cover set - DUST	Cover set - DUST
20	31291-PC0-015	Stay - ENGINE WIRE HARNESS	Stay - ENGINE WIRE HARNESS

Steering column 21 / 21

#	OEM	ASL	AWC
1	53210-SA0-010	Column - STEERING	Column - STEERING
2	53211-SA0-000	Hold - STEERING COLUMN	Hold - STEERING COLUMN
3	53212-SA0-000	Plate comp. a - BENDING	Plate comp. a - BENDING
4	53213-657-000	Band - RUBBER	Band - RUBBER
5	53214-SA0-672	Cover - STEERING COLUMN HOLDER	Cover - STEERING COLUMN HOLDER
6	53216-SA0-000	Holder b - STEERING COLUMN	Holder b - STEERING COLUMN
7	53217-SA0-731	Collar - COLUMN HOLD	Collar - COLUMN HOLD
9	53221-SA0-003	Bush - STEERING COLUMN	Bush - STEERING COLUMN
10	53224-679-003	Ring - COLUMN THRUST	Ring - COLUMN THRUST
11	53231-689-000	Label - IGNITION SWITCH	Label - IGNITION SWITCH
14	53235-SA0-600	Ring - COLUMN COVER	Ring - COLUMN COVER
16	53271-692-003	Cam - TURN SIGNAL SWITCH CANCEL (TEC) (WHITE)	Cam - TURN SIGNAL SWITCH CANCEL (TEC) (WHITE)
17	53275-671-000	Ring - HORN EARTH	Ring - HORN EARTH
18	53300-SA0-670	Joint assy. - STEERING	Joint assy. - STEERING
18	53300-692-671	Joint assy. - STEERING (NIPPON SEIKO)	Joint assy. - STEERING (NIPPON SEIKO)
19	53310-SA0-600	Shaft a - STEERING	Shaft a - STEERING
20	53311-692-000	Washer - STEERING SHAFT	Washer - STEERING SHAFT
22	53322-SA0-671	Insulator - JOINT HOLE	Insulator - JOINT HOLE
23	53335-SA0-000	Bush - COLUMN HANGER	Bush - COLUMN HANGER
25	90107-SA4-000	Screw - TAPPING, 4X16	Screw - TAPPING, 4X16
26	90135-579-010	Bolt - STEERING YOKE, 8X22	Bolt - STEERING YOKE, 8X22

Steering gear box (D,P,Y) 16 / 16

#	OEM	ASL	AWC
1	53040-SA0-671	Box comp - STEERING GEAR	Box comp - STEERING GEAR
2	53413-SA0-670	Spring - RACK GUIDE PRESSURE	Spring - RACK GUIDE PRESSURE
3	53414-679-013	Screw - RACK GUIDE	Screw - RACK GUIDE
4	53416-692-003	Guide - STEERING RACK	Guide - STEERING RACK
5	53418-679-003	Washer - WAVE	Washer - WAVE
6	53422-SA0-671	Pinion - STEERING	Pinion - STEERING
7	53426-671-004	Dust seal - STEERING PINION (NOK)	Dust seal - STEERING PINION (NOK)
7	53426-671-003	Dust seal - STEERING PINION (ARAI)	Dust seal - STEERING PINION (ARAI)
8	53427-SA0-671	Rack - STEERING	Rack - STEERING
9	53430-SA0-003	Bush - RACK END	Bush - RACK END
10	53435-693-000	Cushion a - STEERING GEAR BOX	Cushion a - STEERING GEAR BOX
11	53436-692-000	Cushion b - STEERING GEAR BOX	Cushion b - STEERING GEAR BOX
12	53437-692-000	Bracket a - STEERING GEAR BOX	Bracket a - STEERING GEAR BOX
13	53438-692-000	Bracket b - STEERING GEAR BOX	Bracket b - STEERING GEAR BOX
14	53458-634-010	Nut - RACK SCREW LOCK	Nut - RACK SCREW LOCK
15	53501-692-000	Grommet a - STEERING GEAR BOX	Grommet a - STEERING GEAR BOX

Steering wheel 6 / 11

#	OEM	ASL	AWC
2	53122-SA0-013	Emblem - STEERING WHEEL (NIPPON PURASUTO)	Emblem - STEERING WHEEL (NIPPON PURASUTO)
7	53153-SA0-003	Washer - NIPPON PURASUTO	Washer - NIPPON PURASUTO
8	53154-SA0-003	Screw - SLIDE (NIPPON PURASUTO)	Screw - SLIDE (NIPPON PURASUTO)
9	53155-SA0-003	Spring - HORN (NIPPON PURASUTO)	Spring - HORN (NIPPON PURASUTO)
14	90101-SA4-000	Screw - TAPPING, 4X12	Screw - TAPPING, 4X12
15	90380-693-013	Nut-washer - 12MM (FUSE RASHI)	Nut-washer - 12MM (FUSE RASHI)

Switch choke wire (1) 9 / 9

#	OEM	ASL	AWC
1	17950-SA0-734	Wire comp - CHOKE	Wire comp - CHOKE
2	17951-SA0-000	Knob - CHOKE CABLE	Knob - CHOKE CABLE
3	17957-659-003	Nut - 14MM	Nut - 14MM
6	90130-SA0-003	Screw - PAN, 2.6X6	Screw - PAN, 2.6X6
9	35500-SA4-013	Switch assy - RR. DEFOGGER	Switch assy - RR. DEFOGGER
10	37553-SA0-003	Bulb & socket - 14V 1.4W	Bulb & socket - 14V 1.4W
17	39620-SB3-305	Socket assy - CIGARETTE LIGHTER	Socket assy - CIGARETTE LIGHTER
18	39600-S84-G01	Lighter assy - CIGARETTE	Lighter assy - CIGARETTE
18	39600-SW3-505	LIGHTER ASSYCIGA	LIGHTER ASSYCIGA

Switch cylinder key (2) 8 / 10

#	OEM	ASL	AWC
2	35100-SA0-023	Lock assy - STEERING	Lock assy - STEERING
3	35112-SA0-315	Key - BLANK (TYPE 2)	Key - BLANK (TYPE 2)
3	35111-SA0-315	Key - BLANK (TYPE 1)	Key - BLANK (TYPE 1)
5	35255-SA0-921	Switch assy - DIMMER (TEC)	Switch assy - DIMMER (TEC)
6	35350-679-003	Switch assy - STOP (TEC)	Switch assy - STOP (TEC)
7	35400-692-023	Switch assy - DOOR	Switch assy - DOOR
8	35700-693-982	Switch assy - INHIBITOR & BACK UP LIGHT	Switch assy - INHIBITOR & BACK UP LIGHT
10	35409-692-003	Screw - FLANGE, 4X12	Screw - FLANGE, 4X12

Tailgate (3D,5D) 9 / 23

#	OEM	ASL	AWC
1	75411-634-000	Joint	Joint
2	75612-611-000	Bush - OUTSIDE HANDLE JOINT	Bush - OUTSIDE HANDLE JOINT
11	85260-SA2-000	Cushion - R. TAILGATE SIDE	Cushion - R. TAILGATE SIDE
12	85263-SA2-000	Shim - TAILGATE SIDE CUSHION	Shim - TAILGATE SIDE CUSHION
13	85265-SA2-000	Cushion - L. TAILGATE SIDE	Cushion - L. TAILGATE SIDE
14	85267-671-000	Cushion - TAILGATE	Cushion - TAILGATE
18	85277-SA0-020	Cover - TAILGATE OPEN STAY END	Cover - TAILGATE OPEN STAY END
30	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
31	90129-SA0-000	Bolt - FLANGE, 6X15	Bolt - FLANGE, 6X15

Tailgate lining (3D,5D) 1 / 7

#	OEM	ASL	AWC
5	83863-671-000	Cap - RR. LINING	Cap - RR. LINING

Taillight 3 / 12

#	OEM	ASL	AWC
6	33503-506-600	Bulb - 12V 21W) (STANLEY	Bulb - 12V 21W) (STANLEY
6	34905-KV7-671	Bulb,winker (12v	Bulb,winker (12v
6	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY

Tie rod 13 / 13

#	OEM	ASL	AWC
1	53434-SA0-000	Clip - BOOT	Clip - BOOT
2	53449-579-000	Band - BELLOWS	Band - BELLOWS
3	53521-SA0-003	End comp - RACK	End comp - RACK
4	53535-SA0-000	Washer - TIE ROD STOPPER	Washer - TIE ROD STOPPER
5	53536-SA0-000	Washer - TIE ROD LOCK	Washer - TIE ROD LOCK
6	53537-SA0-000	Dust seal - TIE ROD (NIPPON OIL SEAL)	Dust seal - TIE ROD (NIPPON OIL SEAL)
7	53540-SA0-003	End comp - TIE ROD (MUSASHI)	End comp - TIE ROD (MUSASHI)
8	53540-679-004	End comp - TIE ROD (TOKAI)	End comp - TIE ROD (TOKAI)
8	53540-SC2-004	End,r tie rod	End,r tie rod
9	53546-SA0-003	Boot - TIE ROD END (MUSASHI)	Boot - TIE ROD END (MUSASHI)
10	53546-679-004	Seal - BALL JOINT (TOKAI)	Seal - BALL JOINT (TOKAI)
11	53548-SA0-003	Circlip - MUSASHI	Circlip - MUSASHI
12	90320-601-000	Nut - CASTLE, 10MM	Nut - CASTLE, 10MM

Tire/wheel disk 8 / 18

#	OEM	ASL	AWC
1	42700-SA0-971	Disk - WHEEL (13X4 1/2J) (SILVER STOUT METALLIC)	Disk - WHEEL (13X4 1/2J) (SILVER STOUT METALLIC)
1	42700-SA0-972	Disk - WHEEL (13X4 1/2J) (SILVER STOUT METALLIC)	Disk - WHEEL (13X4 1/2J) (SILVER STOUT METALLIC)
3	42750-SA5-986	Tire assy - 165SR13) (YOKOHAMA) (TUBELESS	Tire assy - 165SR13) (YOKOHAMA) (TUBELESS
3	42750-SA5-625	Tire assy - 165SR13) (DUNLOP) (TUBELESS	Tire assy - 165SR13) (DUNLOP) (TUBELESS
5	42753-634-003	Valve - RIM (BRIDGESTONE)	Valve - RIM (BRIDGESTONE)
5	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)
5	42753-671-962	Valve - RIM (DUNLOP)	Valve - RIM (DUNLOP)
11	90304-SA5-003	Nut - WHEEL	Nut - WHEEL

Tools/jack 10 / 10

#	OEM	ASL	AWC
2	89000-SA0-734	Tool set - KOWA	Tool set - KOWA
2	89000-SA0-733	Tool set - RIKEN	Tool set - RIKEN
3	89101-647-600	Bag - TOOL	Bag - TOOL
4	89211-673-000	Wrench - WHEEL NUT	Wrench - WHEEL NUT
4	89211-673-010	Wrench - WHEEL NUT	Wrench - WHEEL NUT
5	89216-SA0-731	Wrench - SPARK PLUG	Wrench - SPARK PLUG
6	89218-611-004	Shaft - WRENCH (KOWA)	Shaft - WRENCH (KOWA)
6	89218-611-003	Shaft - WRENCH (RIKEN)	Shaft - WRENCH (RIKEN)
8	89320-SA0-003	Bar comp - JACK	Bar comp - JACK
9	90663-SA0-003	Clamp - JACK BAR	Clamp - JACK BAR

Torque converter 20 / 20

#	OEM	ASL	AWC
1	26210-PA9-951	Pump - TORQUE CONVERTER	Pump - TORQUE CONVERTER
2	26220-PA9-010	Turbine comp. - TORQUE CONVERTER (23 FANS)	Turbine comp. - TORQUE CONVERTER (23 FANS)
2	26220-PA9-003	Turbine comp. - TORQUE CONVERTER (22 FANS)	Turbine comp. - TORQUE CONVERTER (22 FANS)
3	26230-PA9-010	Stator Comp	Stator Comp
4	26232-657-900	Ring - STATOR	Ring - STATOR
5	26233-657-901	Cam - TORQUE CONVERTER STATOR	Cam - TORQUE CONVERTER STATOR
6	26234-689-901	Plate - STATOR SIDE	Plate - STATOR SIDE
7	26237-657-901	Spring - STATOR ROLLER	Spring - STATOR ROLLER
8	26240-PA9-020	Cover - TORQUE CONVERTER	Cover - TORQUE CONVERTER
9	26251-PA6-671	Plate - DRIVE	Plate - DRIVE
10	31112-PA9-000	Gear - RING	Gear - RING
11	90023-612-000	Bolt - HEX., 10MM	Bolt - HEX., 10MM
12	90026-PA9-000	Bolt - FLANGE, 6X44.5	Bolt - FLANGE, 6X44.5
13	90405-PA9-003	Washer - TORQUE CONVERTER COVER	Washer - TORQUE CONVERTER COVER
14	90429-657-900	Washer - SPECIAL, 40X80X2	Washer - SPECIAL, 40X80X2
15	90623-689-900	Ring - SNAP, 66MM	Ring - SNAP, 66MM
16	90701-657-900	Roller - 5X20.8	Roller - 5X20.8
17	91302-639-000	O-ring - 32X1.9	O-ring - 32X1.9
18	91306-PA9-004	O-ring - 227X2.5 (NOK)	O-ring - 227X2.5 (NOK)
18	91306-PA9-003	O-ring - 227X2.5 (ARAI)	O-ring - 227X2.5 (ARAI)

Torque converter housing 12 / 12

#	OEM	ASL	AWC
1	21111-PA9-904	Case - TORQUE CONVERTER	Case - TORQUE CONVERTER
2	21351-PC0-900	Cover - TORQUE CONVERTER CASE	Cover - TORQUE CONVERTER CASE
3	21811-PA9-020	Gasket - TORQUE CONVERTER CASE	Gasket - TORQUE CONVERTER CASE
4	23225-PA9-000	Plate - OIL GUIDE	Plate - OIL GUIDE
5	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
6	90471-580-000	Packing - 8MM	Packing - 8MM
7	91001-591-004	Bearing - BALL, 16008 (KOYO)	Bearing - BALL, 16008 (KOYO)
7	91001-PX4-004	Bearing - BALL, 40X68X9 (KOYO)	Bearing - BALL, 40X68X9 (KOYO)
8	91101-689-008	Bearing - NEEDLE, 33X55X17 (TOYO)	Bearing - NEEDLE, 33X55X17 (TOYO)
9	91206-639-005	Oil seal - 35X68X9	Oil seal - 35X68X9
10	91207-639-015	Oil seal - 44X68X8 (NOK)	Oil seal - 44X68X8 (NOK)
11	91209-612-003	Oil seal - 12X22X7 (ARAI)	Oil seal - 12X22X7 (ARAI)

Torque rod/center beam 17 / 17

#	OEM	ASL	AWC
1	50100-SA0-050	Beam - CENTER	Beam - CENTER
2	50820-SA0-020	Bracket - FR. TORQUE ROD	Bracket - FR. TORQUE ROD
3	50834-SA0-010	Insulator a - TORQUE ROD	Insulator a - TORQUE ROD
4	50835-SA0-000	Rod - RR. TORQUE	Rod - RR. TORQUE
5	50836-SA0-010	Insulator b - TORQUE ROD	Insulator b - TORQUE ROD
6	50836-SA0-981	Insulator b - TORQUE ROD	Insulator b - TORQUE ROD
7	50837-692-010	Washer - TORQUE ROD	Washer - TORQUE ROD
8	50838-SA0-000	Rod - FR. TORQUE	Rod - FR. TORQUE
9	50839-SA0-000	Nut - PLATE, 12MM	Nut - PLATE, 12MM
10	50839-692-000	Nut - YOKE, 12MM	Nut - YOKE, 12MM
11	50841-SA0-000	Bracket - L. TORQUE ROD	Bracket - L. TORQUE ROD
12	50842-SA0-000	Bracket - R. TORQUE ROD	Bracket - R. TORQUE ROD
14	90122-679-000	Bolt - SIDE MOUNTING, 10X85	Bolt - SIDE MOUNTING, 10X85
15	90131-692-000	Bolt - TORQUE ROD, 12X76	Bolt - TORQUE ROD, 12X76
16	90160-SA0-020	Bolt - HEX., 10X140	Bolt - HEX., 10X140
17	90504-SA0-000	Washer - PLAIN, 10MM	Washer - PLAIN, 10MM
23	90129-692-000	Bolt - FLANGE, 10X44	Bolt - FLANGE, 10X44

Transmission housing 37 / 37

#	OEM	ASL	AWC
1	21104-PB7-010	Plate - OIL GUIDE	Plate - OIL GUIDE
1	21211-PA9-902	Housing - TRANSMISSION	Housing - TRANSMISSION
2	21200-PB7-040	Housing - TRANSMISSION	Housing - TRANSMISSION
2	21215-PA9-000	Holder - REVERSE IDLE SHAFT	Holder - REVERSE IDLE SHAFT
3	21310-PB7-800	Cover - TRANSMISSION	Cover - TRANSMISSION
3	21232-PA9-700	Hanger - TRANSMISSION	Hanger - TRANSMISSION
4	21311-PB7-003	Cap - TRANSMISSION COVER	Cap - TRANSMISSION COVER
4	21240-PA9-010	Cover - R. TRANSMISSION SIDE	Cover - R. TRANSMISSION SIDE
5	21395-PB7-010	Gasket - TRANSMISSION CASE	Gasket - TRANSMISSION CASE
5	21396-611-010	Cap - BREATHER	Cap - BREATHER
6	21397-634-000	Cap - BREATHER	Cap - BREATHER
6	21812-PA9-000	Gasket - R. OUTER COVER	Gasket - R. OUTER COVER
7	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
7	22712-PA9-000	Pipe a - FEED	Pipe a - FEED
8	90083-657-000	Bolt - FLANGE, 6X10	Bolt - FLANGE, 6X10
8	22721-PA9-003	Flange - FEED PIPE	Flange - FEED PIPE
9	91205-611-005	Oil seal - 35X56X9 (NOK)	Oil seal - 35X56X9 (NOK)
9	91205-611-003	Oil seal - 35X56X9 (ARAI)	Oil seal - 35X56X9 (ARAI)
9	22722-PA9-010	Pipe b - FEED	Pipe b - FEED
10	91413-679-000	Clip - 2X70	Clip - 2X70
10	27496-PA9-900	Stay - EARTH CABLE	Stay - EARTH CABLE
11	90014-PA9-000	Bolt - FLANGE, 10X55	Bolt - FLANGE, 10X55
12	90015-PA9-000	Bolt - FLANGE, 10X75	Bolt - FLANGE, 10X75
13	90016-PA9-000	Bolt - FLANGE, 10X90	Bolt - FLANGE, 10X90
14	90024-612-000	Bolt - SEALING, 8MM	Bolt - SEALING, 8MM
15	90081-PA0-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM
16	90471-580-000	Packing - 8MM	Packing - 8MM
17	90507-PA9-000	Collar - 8X11	Collar - 8X11
18	90701-639-000	Dowel pin - 8X55	Dowel pin - 8X55
19	90703-PA9-003	Roller - 2X19.8	Roller - 2X19.8
20	90705-PA9-000	Dowel pin - 14X25	Dowel pin - 14X25
21	91205-639-005	Oil seal - 35X56X9	Oil seal - 35X56X9
22	91301-300-000	O-ring - 6X2.3	O-ring - 6X2.3
23	91308-PA9-003	O-ring - 19.8X1.9 (ARAI)	O-ring - 19.8X1.9 (ARAI)
23	91308-PA9-004	O-ring - 19.8X1.9 (NOK)	O-ring - 19.8X1.9 (NOK)
24	91311-PA9-004	O-ring - 7.7X1.9 (NOK)	O-ring - 7.7X1.9 (NOK)
24	91311-PA9-003	O-ring - 7.7X1.9 (ARAI)	O-ring - 7.7X1.9 (ARAI)

Valve/rocker arm 17 / 17

#	OEM	ASL	AWC
1	14621-PA1-000	Arm - VALVE ROCKER	Arm - VALVE ROCKER
2	14630-PA1-010	Shaft - IN. ROCKER ARM	Shaft - IN. ROCKER ARM
3	14635-PA1-010	Shaft - EX. VALVE ROCKER ARM	Shaft - EX. VALVE ROCKER ARM
4	14641-634-000	Spring a - VALVE ROCKER ARM	Spring a - VALVE ROCKER ARM
5	14711-634-921	Valve - IN.	Valve - IN.
6	14721-PA1-000	Valve - EX.	Valve - EX.
7	14745-611-000	Screw - TAPPET ADJUSTING	Screw - TAPPET ADJUSTING
8	14751-634-672	Spring - EX. VALVE INNER (CHUO HATSUJO)	Spring - EX. VALVE INNER (CHUO HATSUJO)
8	14751-634-671	Spring - EX. VALVE INNER (NIPPON HATSUJO)	Spring - EX. VALVE INNER (NIPPON HATSUJO)
9	14761-634-672	Spring - EX. VALVE OUTER (CHUO SPRING)	Spring - EX. VALVE OUTER (CHUO SPRING)
9	14761-634-671	Spring - EX. VALVE OUTER (NIPPON HATSUJO)	Spring - EX. VALVE OUTER (NIPPON HATSUJO)
10	14765-634-670	Retainer - EX. VALVE SPRING	Retainer - EX. VALVE SPRING
11	14775-689-000	Seat - VALVE SPRING	Seat - VALVE SPRING
12	14782-695-003	Cotter - VALVE	Cotter - VALVE
13	90206-590-000	Nut - TAPPET ADJUSTING	Nut - TAPPET ADJUSTING
13	90206-PT0-004	Nut - TAPPET ADJUSTING	Nut - TAPPET ADJUSTING
14	90703-634-000	Pin - STRAIGHT, 4X24MM	Pin - STRAIGHT, 4X24MM

Water pump/thermostat (1) 16 / 16

#	OEM	ASL	AWC
1	19200-PA1-030	Pump comp - WATER	Pump comp - WATER
2	19222-634-000	Gasket - WATER PUMP	Gasket - WATER PUMP
3	19224-PA6-020	Pulley - WATER PUMP	Pulley - WATER PUMP
4	19300-692-013	Thermostat unit - FUJI SEIKO	Thermostat unit - FUJI SEIKO
4	19300-634-812	Thermostat unit - NIPPON THERMOSTAT	Thermostat unit - NIPPON THERMOSTAT
4	19300-692-812	Thermostat unit - FUJI SEIKO	Thermostat unit - FUJI SEIKO
5	19305-PA0-000	Rubber - THERMOSTAT MOUNTING	Rubber - THERMOSTAT MOUNTING
6	19311-PA1-000	Cover - THERMOSTAT	Cover - THERMOSTAT
7	19505-PA1-010	Pipe - CONNECTING	Pipe - CONNECTING
8	19508-PA1-000	Hose - BYPASS OUTLET	Hose - BYPASS OUTLET
9	19516-PC1-000	Bolt - BREATHING WATER	Bolt - BREATHING WATER
10	19519-PA1-010	Clamp - WATER HOSE UPPER	Clamp - WATER HOSE UPPER
11	90004-PA0-000	Bolt - HEX., 6X14	Bolt - HEX., 6X14
12	91302-317-700	O-ring - 54X2	O-ring - 54X2
12	91307-MB0-003	O-ring (54x2)	O-ring (54x2)
13	91314-634-000	O-ring	O-ring

Wire harness (1) 20 / 21

#	OEM	ASL	AWC
1	32100-SA0-734	Harness - CABIN WIRE	Harness - CABIN WIRE
1	32100-SA0-754	Harness - CABIN WIRE	Harness - CABIN WIRE
2	32110-SA0-761	Sub cord - ENGINE	Sub cord - ENGINE
3	32111-594-000	Grommet - 24MM	Grommet - 24MM
5	32155-SA0-010	Cord assy - INTERIOR	Cord assy - INTERIOR
6	32410-SA0-672	Cable assy - STARTER	Cable assy - STARTER
6	32410-SA0-671	Cable assy - STARTER	Cable assy - STARTER
7	32600-SA0-673	Cable assy - EARTH (FURUKAWA)	Cable assy - EARTH (FURUKAWA)
7	32600-SA0-672	Cable assy - EARTH (SUMITOMO)	Cable assy - EARTH (SUMITOMO)
8	32601-SA5-004	Bolt - BATTERY TERMINAL (FURUKAWA)	Bolt - BATTERY TERMINAL (FURUKAWA)
8	32601-SA5-003	Bolt - BATTERY TERMINAL (SUMITOMO)	Bolt - BATTERY TERMINAL (SUMITOMO)
9	32602-SA5-003	Nut - BATTERY TERMINAL (SUMITOMO)	Nut - BATTERY TERMINAL (SUMITOMO)
9	32602-SA5-004	Nut - BATTERY TERMINAL (FURUKAWA)	Nut - BATTERY TERMINAL (FURUKAWA)
10	32610-659-000	Cable - SUB EARTH	Cable - SUB EARTH
11	32818-SA0-000	Protector - INTERIOR CORD	Protector - INTERIOR CORD
15	39299-SA0-613	Harness - HEATER WIRE	Harness - HEATER WIRE
16	90616-SA0-003	Clip - WIRE HARNESS	Clip - WIRE HARNESS
17	90618-SA0-003	Clip - WIRE HARNESS	Clip - WIRE HARNESS
19	90668-671-003	Strap a - CABLE, 95MM (WHITE)	Strap a - CABLE, 95MM (WHITE)
20	90669-671-003	Strap b - CABLE, 125MM (BLUE)	Strap b - CABLE, 125MM (BLUE)

Wire harness (2) 1 / 3

#	OEM	ASL	AWC
6	32170-SA0-010	Cord - FUEL UNIT	Cord - FUEL UNIT
