Atf pipe/speedometer gear 4 / 24

#	OEM	3A2	AVF
3	23814-689-000	Seal - GEAR HOLDER	Seal - GEAR HOLDER
22	90637-689-000	Clip - SPEEDOMETER CABLE	Clip - SPEEDOMETER CABLE
23	90638-689-000	Clip - SPEEDOMETER GEAR	Clip - SPEEDOMETER GEAR
24	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2

Brake lines 2 / 21

#	OEM	3A2	AVF
19	46472-568-000	Packing - OIL BOLT	Packing - OIL BOLT
21	90651-538-000	Clip - BRAKE HOSE	Clip - BRAKE HOSE

Brake master cylinder/ master power 4 / 18

#	OEM	3A2	AVF
7	46191-634-000	Gasket - MASTER CYLINDER BRACKET	Gasket - MASTER CYLINDER BRACKET
12	46512-SB2-000	Pin - PEDAL	Pin - PEDAL
17	46669-692-003	Seal - RESERVE TANK	Seal - RESERVE TANK
18	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

Bumpers ('01-) 1 / 9

#	OEM	3A2	AVF
12	90540-SA7-000	Washer - BUMPER	Washer - BUMPER

Clutch housing 1 / 8

#	OEM	3A2	AVF
3	21120-PG2-003	Magnet - TRANSMISSION	Magnet - TRANSMISSION

Clutch release 7 / 17

#	OEM	3A2	AVF
7	23811-PC1-000	Holder comp - SPEEDOMETER GEAR	Holder comp - SPEEDOMETER GEAR
8	23813-689-000	Plate - SPEEDOMETER GEAR HOLDER	Plate - SPEEDOMETER GEAR HOLDER
13	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM
14	90637-689-000	Clip - SPEEDOMETER CABLE	Clip - SPEEDOMETER CABLE
15	90638-689-000	Clip - SPEEDOMETER GEAR	Clip - SPEEDOMETER GEAR
16	91208-PB6-005	Dust seal - 16X21X4 (NOK)	Dust seal - 16X21X4 (NOK)
17	91313-611-010	O-ring - 23.5X2	O-ring - 23.5X2

Clutch/torque converter 1 / 13

#	OEM	3A2	AVF
10	90034-689-000	Bolt - TWELVE POINT, 8MM (TOKAI TRW)	Bolt - TWELVE POINT, 8MM (TOKAI TRW)

Combination switch (2) 4 / 17

#	OEM	3A2	AVF
4	35102-SV4-003	Bolt - BREAK HEAD	Bolt - BREAK HEAD
13	35400-692-033	Switch assy - DOOR	Switch assy - DOOR
14	35409-692-013	Screw - FLANGE, 4X12	Screw - FLANGE, 4X12
15	35410-692-003	Cover - DOOR SWITCH	Cover - DOOR SWITCH

Countershaft 1 / 59

#	OEM	3A2	AVF
9	23926-PB6-010	Washer - SPRING, 22MM	Washer - SPRING, 22MM

Differential gear 1 / 33

#	OEM	3A2	AVF
5	90015-634-010	Bolt - FLANGE, 10MM	Bolt - FLANGE, 10MM

Emblems 1 / 8

#	OEM	3A2	AVF
8	91512-SR3-004	Clip - TUBULAR	Clip - TUBULAR

Exhaust manifold (2) 2 / 17

#	OEM	3A2	AVF
15	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
16	90451-657-000	Washer - SPECIAL, 9X24X4	Washer - SPECIAL, 9X24X4

Exhaust pipe 2 / 17

#	OEM	3A2	AVF
12	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
14	90212-SA5-003	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM

Front brake 4 / 21

#	OEM	3A2	AVF
3	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
9	45216-SC2-003	Piston - 51MM	Piston - 51MM
14	45240-SC2-003	Bolt - FLANGE, 8X22	Bolt - FLANGE, 8X22
19	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)

Front door lining 1 / 9

#	OEM	3A2	AVF
11	90662-693-003	Grommet - SCREW, 4MM (BLUE)	Grommet - SCREW, 4MM (BLUE)

Front door locks 2 / 22

#	OEM	3A2	AVF
21	75411-634-000	Joint	Joint
25	90111-SA0-000	Screw - TAPPING, 4X8	Screw - TAPPING, 4X8

Front door panels 4 / 15

#	OEM	3A2	AVF
16	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
18	90157-SA0-000	Bolt-washer - 8X25	Bolt-washer - 8X25
19	90686-692-003	Cap - LINING MOUNT	Cap - LINING MOUNT
21	90664-671-003	Clip - CANOE	Clip - CANOE

Front driveshaft ('00-) 1 / 15

#	OEM	3A2	AVF
14	90305-692-010	Nut	Nut

Front fenders 2 / 11

#	OEM	3A2	AVF
8	90126-SA7-000	Screw-washer - 5X20	Screw-washer - 5X20
8	90114-SZ3-000	Screw-washer - 5X20	Screw-washer - 5X20

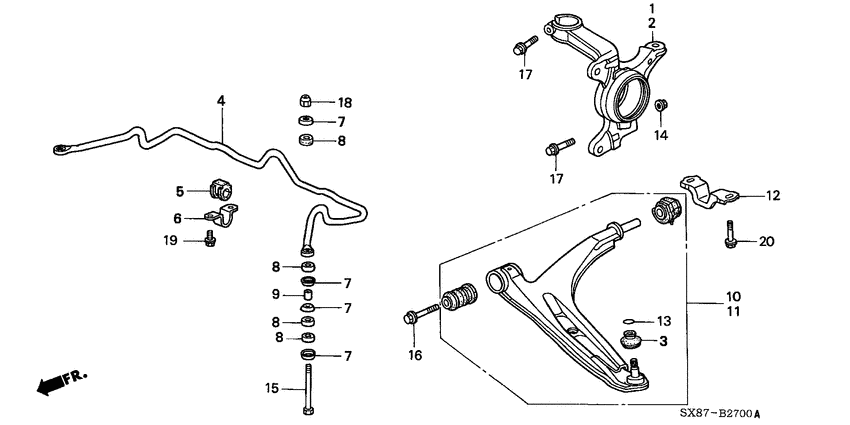

Front lower arm/knuckle 4 / 18

#	OEM	3A2	AVF
3	51225-671-003	Boot - SUSPENSION BALL	Boot - SUSPENSION BALL
13	53548-611-003	Circlip - CHUO HATSUJO	Circlip - CHUO HATSUJO
14	90002-SA7-000	Nut - SELF-LOCK, 10MM	Nut - SELF-LOCK, 10MM
17	90120-SA7-010	Bolt - BALL JOINT, 10X50	Bolt - BALL JOINT, 10X50

Front seat components (L.) 2 / 11

#	OEM	3A2	AVF
11	90301-SA0-000	Nut - FLANGE CAP, 8MM	Nut - FLANGE CAP, 8MM
11	90443-KF9-900	Nut, cap (8mm)	Nut, cap (8mm)

Front seat components (R.) 2 / 11

#	OEM	3A2	AVF
11	90301-SA0-000	Nut - FLANGE CAP, 8MM	Nut - FLANGE CAP, 8MM
11	90443-KF9-900	Nut, cap (8mm)	Nut, cap (8mm)

Fuel pipe 2 / 39

#	OEM	3A2	AVF
21	38608-692-000	Rubber - MOUNTING	Rubber - MOUNTING
22	38609-692-000	Collar - DISTANCE	Collar - DISTANCE

Fuel tank 2 / 29

#	OEM	3A2	AVF
22	37801-689-000	Packing - BASE	Packing - BASE
23	37802-SD2-000	Retainer - FUEL UNIT	Retainer - FUEL UNIT

Grommet 3 / 12

#	OEM	3A2	AVF
3	75826-605-300	Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)	Seal - DOOR HOLE, 30MM (CIRCLE) (BLACK)
5	82871-671-000	Grommet - DRAIN HOLE, 25MM	Grommet - DRAIN HOLE, 25MM
8	90853-680-000	Plug - LOCATE HOLE	Plug - LOCATE HOLE

Heater blower 2 / 10

#	OEM	3A2	AVF
2	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD
9	90501-671-003	Washer - SPECIAL	Washer - SPECIAL

Heater unit 1 / 13

#	OEM	3A2	AVF
1	39246-671-003	Clamp - CASE HOLD	Clamp - CASE HOLD

Hood 1 / 27

#	OEM	3A2	AVF
24	90127-SA0-000	Bolt-washer - 6X16	Bolt-washer - 6X16

Instrument panel 4 / 15

#	OEM	3A2	AVF
20	90128-SA7-000	Bolt-washer - 6X25	Bolt-washer - 6X25
21	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM
27	39600-S84-G01	Lighter assy - CIGARETTE	Lighter assy - CIGARETTE
27	39600-SW3-505	LIGHTER ASSYCIGA	LIGHTER ASSYCIGA

Instrument panel garnish 1 / 11

#	OEM	3A2	AVF
17	90302-SA4-003	Nut - SPRING, 4MM	Nut - SPRING, 4MM

Interior light 1 / 8

#	OEM	3A2	AVF
6	34351-657-921	Bulb - 12V/5W) (STANLEY	Bulb - 12V/5W) (STANLEY

Meter components (NS) 2 / 26

#	OEM	3A2	AVF
1	35505-SA5-003	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)	Socket assy, BULB(14V 1.4W) (NS)(BASE:BLACK)
4	37114-671-005	Grommet - TRIP KNOB (NS)	Grommet - TRIP KNOB (NS)

Outer panels 1 / 5

#	OEM	3A2	AVF
21	70495-692-000	Cushion - FUEL FILLER LID	Cushion - FUEL FILLER LID

Parking brake 1 / 12

#	OEM	3A2	AVF
3	47143-671-310	Spring - PUSH ROD	Spring - PUSH ROD

Pedal 3 / 31

#	OEM	3A2	AVF
3	17812-SA7-010	Washer - ACCELERATOR PEDAL	Washer - ACCELERATOR PEDAL
10	17921-SA4-730	Seal - THROTTLE CABLE	Seal - THROTTLE CABLE
18	46505-SA5-000	Pad - PEDAL STOPPER	Pad - PEDAL STOPPER

Piston/crankshaft 2 / 33

#	OEM	3A2	AVF
6	13205-634-010	Nut	Nut
15	90704-634-000	Key - 4.5X11.0	Key - 4.5X11.0

Power steering lines 1 / 17

#	OEM	3A2	AVF
5	53729-671-003	Clamp d - 15.5MM	Clamp d - 15.5MM

R. side cover 1 / 33

#	OEM	3A2	AVF
7	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING

Rear brake (DRUM) 6 / 43

#	OEM	3A2	AVF
16	43323-663-003	Spring - RR. WHEEL CYLINDER	Spring - RR. WHEEL CYLINDER
18	43352-568-003	SCREW, BLEEDER (NISSIN)	SCREW, BLEEDER (NISSIN)
19	43353-SD5-003	Cap - BLEEDER SCREW	Cap - BLEEDER SCREW
34	45172-S04-003	Spring - SHOE CLAMP	Spring - SHOE CLAMP
37	90113-SM1-005	Bolt - WHEEL (ROCKNEL FASTENER)	Bolt - WHEEL (ROCKNEL FASTENER)
38	90305-692-010	Nut	Nut

Rear door locks 2 / 21

#	OEM	3A2	AVF
21	75411-634-000	Joint	Joint
24	90111-SA0-000	Screw - TAPPING, 4X8	Screw - TAPPING, 4X8

Rear door panels 3 / 13

#	OEM	3A2	AVF
18	75891-SA7-000	Stopper - DOOR	Stopper - DOOR
20	90157-SA0-000	Bolt-washer - 8X25	Bolt-washer - 8X25
21	90664-671-003	Clip - CANOE	Clip - CANOE

Select lever 1 / 34

#	OEM	3A2	AVF
2	35505-692-003	Bulb - 14V 1.4W	Bulb - 14V 1.4W

Shift fork 1 / 11

#	OEM	3A2	AVF
2	24282-634-000	Bolt - SHAFT FORK SETTING	Bolt - SHAFT FORK SETTING

Shift fork/fork shaft 1 / 10

#	OEM	3A2	AVF
10	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5

Shift lever 4 / 24

#	OEM	3A2	AVF
7	54109-SA7-000	Seal A, CHANGE LEVER DUST	Seal A, CHANGE LEVER DUST
22	90115-659-003	Nut - SELF-LOCK, 8MM (CLINCH)	Nut - SELF-LOCK, 8MM (CLINCH)
24	91301-671-671	O-ring - 1.9X11	O-ring - 1.9X11
24	91303-HA0-004	O-ring, 11x1.9 (nok)	O-ring, 11x1.9 (nok)

Shift rod/shift holder 4 / 21

#	OEM	3A2	AVF
13	24461-PB6-000	Collar - SPRING	Collar - SPRING
16	24519-PB6-000	Screw - BALL SPRING SETTING	Screw - BALL SPRING SETTING
17	90028-PB6-010	Bolt - SPECIAL, 6X22.5	Bolt - SPECIAL, 6X22.5
20	90412-679-000	Washer - CONICAL SPRING, 8MM	Washer - CONICAL SPRING, 8MM

Starter motor (DENSO) 1 / 18

#	OEM	3A2	AVF
14	31223-PA0-006	Nut - HEX.	Nut - HEX.

Steering column 3 / 13

#	OEM	3A2	AVF
8	90135-SB0-003	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)	Bolt - STEERING YOKE, 8X28 (NIPPON SEIKO)
9	90511-671-003	Washer - TOOTHED LOCK	Washer - TOOTHED LOCK
10	90654-SA5-003	Clip - JOINT COVER	Clip - JOINT COVER

Taillight ('01-) 1 / 24

#	OEM	3A2	AVF
18	34908-634-611	Bulb - 12V 21W) (ECE) (STANLEY	Bulb - 12V 21W) (ECE) (STANLEY

Tire/wheel disks 1 / 20

#	OEM	3A2	AVF
3	42753-SB8-661	Valve - RIM (SCHRADER)	Valve - RIM (SCHRADER)

Transmission housing 2 / 68

#	OEM	3A2	AVF
3	21321-689-000	Plug - BREATHER TUBE	Plug - BREATHER TUBE
7	90081-PB6-000	Bolt - PLUG, 14MM	Bolt - PLUG, 14MM

Water pump/sensor 1 / 22

#	OEM	3A2	AVF
16	91314-634-000	O-ring	O-ring
