ZZW30

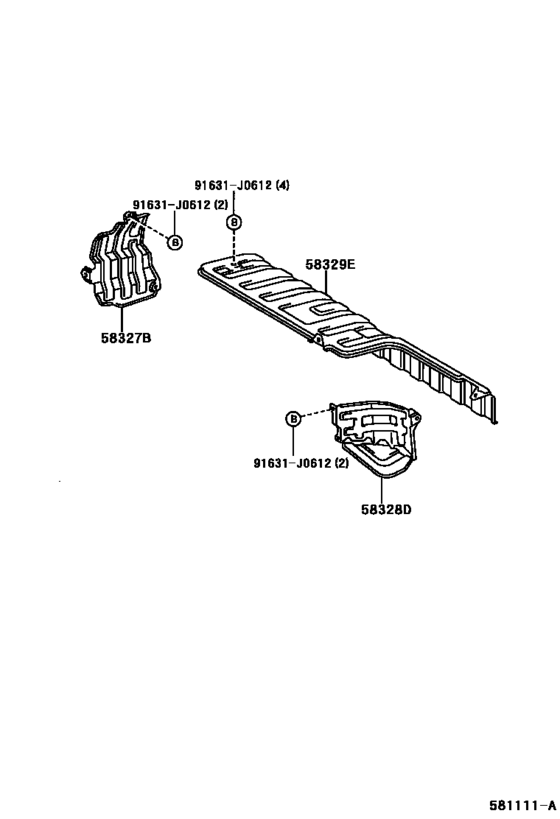

Floor Insulator ([10.1999 - ] (9910- )) 5
| # | OEM | Part name |
|---|---|---|
| 58327 | 58327-17030 | Insulator, Main Muffler Heat |
| 58328 | 58328-17020 | Insulator, Main Muffler Heat, Lh |
| 58329 | 58329-17010 | Insulator, Main Muffler Hart, Rear Upper |
| 58329 | 58329-17011 | Insulator, Main Muffler Hart, Rear Upper |
| 91631 | 91631-J0612 | BRACKET |
| OEM | Part name | Category |
|---|---|---|
| 58327-17030 | Insulator, Main Muffler Heat | Floor Insulator ([10.1999 - ] (9910- )) |
| 58328-17020 | Insulator, Main Muffler Heat, Lh | Floor Insulator ([10.1999 - ] (9910- )) |
| 58329-17010 | Insulator, Main Muffler Hart, Rear Upper | Floor Insulator ([10.1999 - ] (9910- )) |
| 58329-17011 | Insulator, Main Muffler Hart, Rear Upper | Floor Insulator ([10.1999 - ] (9910- )) |
| 91631-J0612 | BRACKET | Floor Insulator ([10.1999 - ] (9910- )) |
