Search › Model › ZZV50
ZZV50

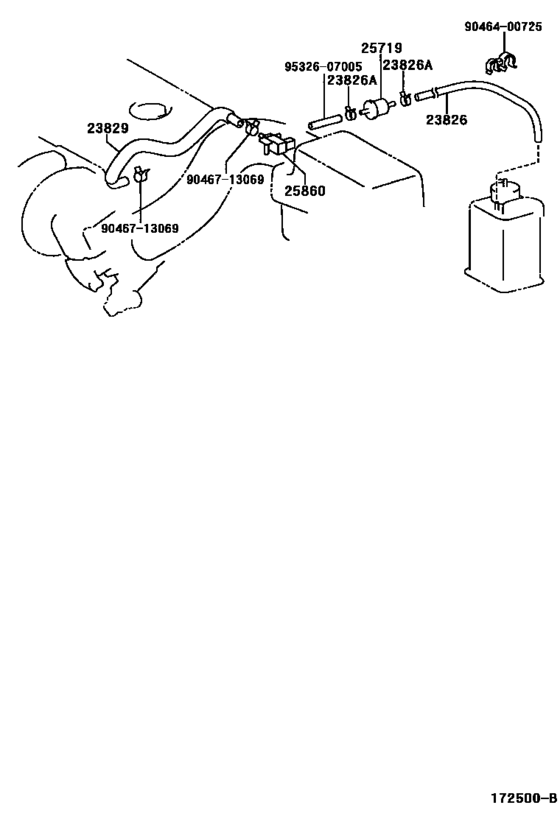

Vacuum Piping ([04.2000 - ] (0004- )1ZZFE) 11
| # | OEM | Part name |
|---|---|---|
| 23826 | 23826-22080 | Hose, Fuel Vapor Feed, No.1 |
| 23826 | 96132-41100 | Clamp Or Clip(For Radiator Reserve Tank Hose) |
| 23826 | 96132-51100 | Clip (For Hose) |
| 23829 | 23829-22050 | Hose, Fuel Vapor Feed, No.3 |
| 23829 | 23829-22080 | Hose, Fuel Vapor Feed, No.3 |
| 25719 | 25719-74020 | Tank, Vacuum Surge |
| 25860 | 25860-22060 | Valve Assy, Vacuum Switching, No.1 |
| 9046400725 | 90464-00725 | Clip(For Fuel Vapor Feed Hose) |
| 9046713069 | 90467-13069 | Clip(For Fuel Vapor Feed Hose, No.2) |
| 9046713069 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| 9532607005 | 95326-07005 | Hose, Fuel Vapor Feed, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 23826-22080 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([04.2000 - ] (0004- )1ZZFE) |
| 23829-22050 | Hose, Fuel Vapor Feed, No.3 | Vacuum Piping ([04.2000 - ] (0004- )1ZZFE) |
| 23829-22080 | Hose, Fuel Vapor Feed, No.3 | Vacuum Piping ([04.2000 - ] (0004- )1ZZFE) |
| 25719-74020 | Tank, Vacuum Surge | Vacuum Piping ([04.2000 - ] (0004- )1ZZFE) |
| 25860-22060 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([04.2000 - ] (0004- )1ZZFE) |
| 90464-00725 | Clip(For Fuel Vapor Feed Hose) | Vacuum Piping ([04.2000 - ] (0004- )1ZZFE) |
| 90467-13069 | Clip(For Fuel Vapor Feed Hose, No.2) | Vacuum Piping ([04.2000 - ] (0004- )1ZZFE) |
| 95326-07005 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([04.2000 - ] (0004- )1ZZFE) |
| 96132-41100 | Clamp Or Clip(For Radiator Reserve Tank Hose) | Vacuum Piping ([04.2000 - ] (0004- )1ZZFE) |
| 96132-51100 | Clip (For Hose) | Vacuum Piping ([04.2000 - ] (0004- )1ZZFE) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Vacuum Piping ([04.2000 - ] (0004- )1ZZFE) |
