ZZV50

Toyota VISTA-VISTA-ARDEO · 1998 · 4,076 parts · 176 categories

4,076 items

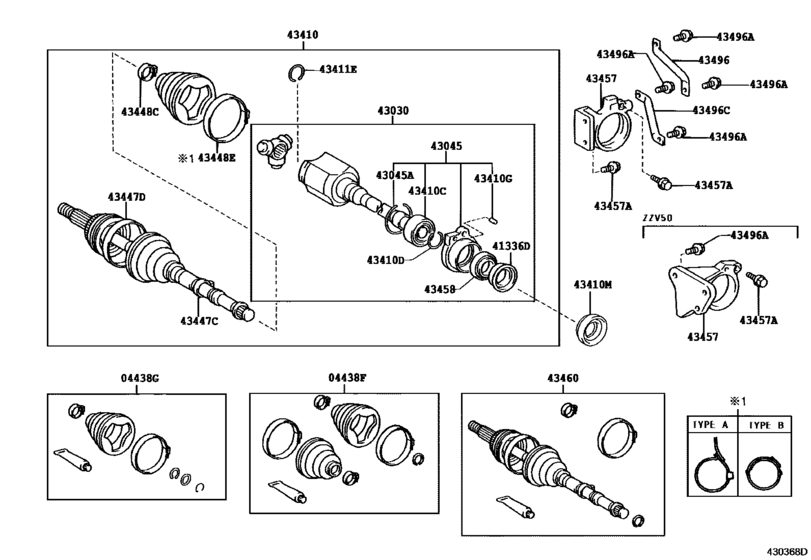

Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50) 35

#	OEM	Part name
4438	04438-12302	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-63010	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04428-12250	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-32231	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-32290	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-32240	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-42201	Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336	41336-20050	Cover, Front Drive Shaft Dust, Rh
43030	43030-32060	Joint Assy, Rear Drive Shaft Inboard, Rh
43045	43045-20010	Case Sub Assy, Drive Shaft Bearing
43045	96153-00680	Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)
43410	43410-32301	Shaft Assy, Front Drive, Rh
43410	43410-32302	Shaft Assy, Front Drive, Rh
43410	90363-36004	Bearing(For Rear Drive Shaft)
43410	90520-33008	Ring, Hole Snap (For Differential Side Gear Shaft)
43410	90250-06003	Pin, Straight
43410	90311-35045	Oil Seal, Front Drive Shaft, Rh
43411	90520-22005	Ring, Snap (For Rear Drive Shaft)
43447	42345-12150	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)
43447	42345-12190	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)
43447	42345-20100	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)
43447	42345-12140	Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)
43447	42345-12180	Clamp (For Front Axle Outboard Joint Boot Lh)
43447	42345-20120	Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)
43448	90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43448	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43448	90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43448	90949-01946	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43457	43457-32070	Bracket, Drive Shaft Bearing
43457	90105-10285	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43457	90105-10361	Bolt (For Rear Differential Carrier Cover Setting)
43458	43458-20011	Cover, Front Drive Shaft Dust
43460	43460-19776	Joint Assy, Rear Drive Shaft Outboard, Lh
43460	43460-39086	Shaft Assy, Front Drive Outboard Joint, Rh
43496	90105-10381	Bolt (For Drive Shaft Bearing Bracket Setting No.1)

OEM	Part name	Category
04428-12250	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
04438-12302	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
04438-32231	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
04438-32240	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
04438-32290	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
04438-42201	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
04438-63010	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
41336-20050	Cover, Front Drive Shaft Dust, Rh	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
42345-12140	Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
42345-12150	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
42345-12180	Clamp (For Front Axle Outboard Joint Boot Lh)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
42345-12190	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
42345-20100	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
42345-20120	Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
43030-32060	Joint Assy, Rear Drive Shaft Inboard, Rh	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
43045-20010	Case Sub Assy, Drive Shaft Bearing	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
43410-32301	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
43410-32302	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
43457-32070	Bracket, Drive Shaft Bearing	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
43458-20011	Cover, Front Drive Shaft Dust	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
43460-19776	Joint Assy, Rear Drive Shaft Outboard, Lh	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
43460-39086	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
90105-10285	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
90105-10361	Bolt (For Rear Differential Carrier Cover Setting)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
90105-10381	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
90250-06003	Pin, Straight	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
90311-35045	Oil Seal, Front Drive Shaft, Rh	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
90363-36004	Bearing(For Rear Drive Shaft)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
90520-22005	Ring, Snap (For Rear Drive Shaft)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
90520-33008	Ring, Hole Snap (For Differential Side Gear Shaft)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
90949-01946	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
96153-00680	Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)	Front Drive Shaft ([06.1998 - ] RH (9806- )AZV50,SV50,ZZV50)
