Search › Model › ZZE141

ZZE141

Toyota COROLLA · 2007 · 2,823 parts · 170 categories

2,823 items

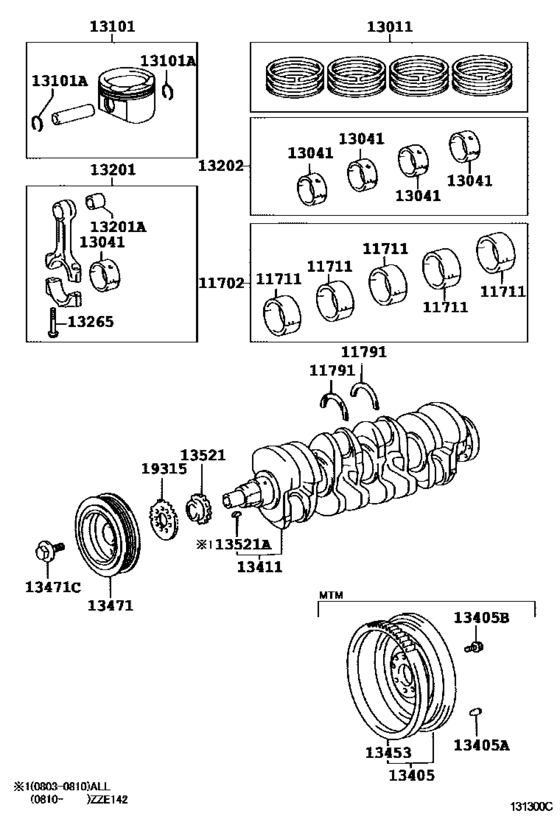

Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE) 42

#	OEM	Part name
11702	11704-22011	Bearing Set, Crankshaft
11711	11701-0D041-01	Bearing, Crankshaft
11711	11701-0D041-02	Bearing, Crankshaft
11711	11701-0D041-03	Bearing, Crankshaft
11711	11701-0D041-04	Bearing, Crankshaft
11711	11701-22011-01	Bearing, Crankshaft
11711	11701-22011-02	Bearing, Crankshaft
11711	11701-22011-03	Bearing, Crankshaft
11711	11701-22011-04	Bearing, Crankshaft
11791	11791-0D030	Washer, Crankshaft Thrust, Upper
11791	11791-22020	Washer, Crankshaft Thrust, Upper
13011	13011-22140	Ring Set, Piston
13011	13011-22221	Ring Set, Piston
13041	13041-0D030-01	Bearing, Connecting Rod
13041	13041-0D030-02	Bearing, Connecting Rod
13041	13041-0D030-03	Bearing, Connecting Rod
13041	13041-22024-01	Bearing, Connecting Rod
13041	13041-22024-02	Bearing, Connecting Rod
13041	13041-22024-03	Bearing, Connecting Rod
13101	13101-0D111	Piston Sub-Assy, W/pin
13101	90520-20064	Ring, Hole Snap(For Piston Pin)
13201	13201-09491	Rod Sub-Assy, Connecting
13201	13201-29645	Rod Sub-Assy, Connecting
13201	90999-73151	Bush(For Connecting Rod Small End)
13202	13204-22024	Bearing Set, Connecting Rod
13265	13265-22020	Bolt, Connecting Rod
13265	13265-22040	BOLT, CONNECTING ROD
13405	13405-0D040	Flywheel Sub-Assy
13405	13405-22020	Flywheel Sub-Assy
13405	90250-08054	Pin, Straight
13405	90250-08120	Pin, Straight, No.1
13405	90910-02103	Bolt, Flywheel Setting
13411	13401-0D030	Crankshaft
13411	13401-22030	Crankshaft
13453	13453-0D030	Gear, Flywheel Ring
13453	13453-10010	Gear, Flywheel Ring
13471	13470-22041	Pulley, Crankshaft
13471	90119-12127	Bolt(For Crankshaft Pulley Set)
13521	13521-0D020	Gear Or Sprocket, Crankshaft Timing
13521	13521-22020	Gear Or Sprocket, Crankshaft Timing
13521	95161-30416	Pin, Straight(For Crankshaft)
19315	19315-22020	Plate, Crank Angle Sensor, No.1

OEM	Part name	Category
11701-0D041-01	Bearing, Crankshaft	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
11701-0D041-02	Bearing, Crankshaft	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
11701-0D041-03	Bearing, Crankshaft	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
11701-0D041-04	Bearing, Crankshaft	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
11701-22011-01	Bearing, Crankshaft	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
11701-22011-02	Bearing, Crankshaft	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
11701-22011-03	Bearing, Crankshaft	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
11701-22011-04	Bearing, Crankshaft	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
11704-22011	Bearing Set, Crankshaft	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
11791-0D030	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
11791-22020	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13011-22140	Ring Set, Piston	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13011-22221	Ring Set, Piston	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13041-0D030-01	Bearing, Connecting Rod	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13041-0D030-02	Bearing, Connecting Rod	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13041-0D030-03	Bearing, Connecting Rod	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13041-22024-01	Bearing, Connecting Rod	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13041-22024-02	Bearing, Connecting Rod	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13041-22024-03	Bearing, Connecting Rod	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13101-0D111	Piston Sub-Assy, W/pin	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13201-09491	Rod Sub-Assy, Connecting	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13201-29645	Rod Sub-Assy, Connecting	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13204-22024	Bearing Set, Connecting Rod	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13265-22020	Bolt, Connecting Rod	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13265-22040	BOLT, CONNECTING ROD	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13401-0D030	Crankshaft	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13401-22030	Crankshaft	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13405-0D040	Flywheel Sub-Assy	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13405-22020	Flywheel Sub-Assy	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13453-0D030	Gear, Flywheel Ring	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13453-10010	Gear, Flywheel Ring	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13470-22041	Pulley, Crankshaft	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13521-0D020	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
13521-22020	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
19315-22020	Plate, Crank Angle Sensor, No.1	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
90119-12127	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
90250-08054	Pin, Straight	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
90250-08120	Pin, Straight, No.1	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
90520-20064	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
90910-02103	Bolt, Flywheel Setting	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
90999-73151	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
95161-30416	Pin, Straight(For Crankshaft)	Crankshaft & Piston ([03.2008 - ] (0803- )1ZZ#,3ZZFE)
