ZZE121

Toyota COROLLA-VERSO · 2001 · 3,629 parts · 172 categories
ZZE121 ×
3,629 items
Abs & Vsc ([09.2001 - ] (0109- )) 16
#OEMPart name
89516 89516-12010 Wire, Skid Control Sensor
89516 89516-12020 Wire, Skid Control Sensor
89542 89542-12070 Sensor, Speed, Front Rh
89543 89543-12070 Sensor, Speed, Front Lh
89544 89544-32030 Sensor, Skid Control
89544 89544-32040 Sensor, Skid Control
91511 91511-G0814 New Genuine Part
91621 91621-B0618 New Genuine Part
91621 91651-B0620 New Genuine Part
91621 91621-J0614 BOLT W-WASHER
91651 91651-B0618 BOLT WWASHER
9015970003 90159-70003 Bolt, W/washer
9162160610 91621-60610 New Genuine Part
9162160610 91651-B0612 Bolt
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
9359016014 93590-16014 New Genuine Part
Accelerator Link ([10.2001 - ] (0110- )ZZE12#..LHD..MTM) 13
#OEMPart name
78024 78024-12090 Bracket Sub-Assy, Accelerator Control Cable
78110 90508-26036 Spring (For Accelerator Pedal Rod)
78111 78111-20060 Pedal, Accelerator
78111 90254-04019 Pin (For Accelerator Pedal)
78120 78120-12310 Rod Assy, Accelerator Pedal
78180 78180-13020 Cable Assy, Accelerator Control
78180 78180-13021 Cable Assy, Accelerator Control
78186 78186-13030 Support, Accelerator Control Cable, No.1
78189 78189-12100 Support, Accelerator Control Cable, No.2
91641 91641-C0614 Bolt
91651 91651-B0618 BOLT WWASHER
9165140630 91651-40630 BOLT
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
Air Bag ([09.2001 - ] (0109- )) 13
#OEMPart name
89170 89170-13030 Sensor Assy, Air Bag
89170 89170-13080 Sensor Assy, Air Bag
89170 89170-13040 Sensor Assy, Air Bag
89170 89170-13050 Sensor Assy, Air Bag
89170 89170-13060 Sensor Assy, Air Bag
89173 89173-19265 Sensor, Air Bag, Front Rh
89174 89174-19075 Sensor, Air Bag, Front Lh
89860 89860-13010 Sensor Assy, Side Air Bag, Rh
89860 89830-13010 Sensor Assy, Side Air Bag, Lh
91553 91553-A0612 New Genuine Part
91553 91553-A0810 New Genuine Part
9011908 90119-08C48 Direct
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
Air Cleaner ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 20
#OEMPart name
17700 17700-22120 Cleaner Assy, Air
17705 17705-22120 Cap Sub-Assy, Air Cleaner
17751 17751-21060 Inlet, Air Cleaner, No.1
17751 17751-21140 Inlet, Air Cleaner, No.1
17801 17801-22020 Element Sub-Assy, Air Cleaner Filter
17801 17801-0D030 Element Sub-Assy, Air Cleaner Filter
17881 17881-22070 Hose, Air Cleaner, No.1
17881 96111-10730 Clamp(For Air Cleaner Inlet, No.1)
17881 96111-10800 Clamp, Hose(For Air Cleaner Duct)
22204 22204-22010 Meter Sub-Assy, Intake Air Flow
22204 90099-14141 Ring, O(For Intake Air Flow Meter)
9009900289 90099-00289 SCREW
9011906770 90119-06770 New Genuine Part
9011906770 90119-06859 BOLT WWASHER
9046707166 90467-07166 Clip(For Front Fender Apron Seal)
9163160614 91631-60614 BOLT
9163160614 91661-60616 BOLT
9163560618 91635-60618 New Genuine Part
9163560618 91631-B0614 BOLT WWASHER
9418560600 94185-60600 Nut, Wire Adjusting, No.1
Alternator ([09.2001 - ] 12V 80A (0109- )1ZZFE,3ZZFE) 9
#OEMPart name
27020 27060-22100 Alternator Assy
27020 90105-10075 Bolt(For Alternator)
27020 91511-80830 Bolt(For Alternator)
27330 27330-74550 Rotor Assy, Alternator
27357 27357-22050 Holder, Alternator, W/rectifier
27370 27370-75060 Holder Assy, Alternator Brush
27411 27411-50050 Pulley, Alternator
27700 27700-46060 Regulator Assy, Generator
9415080600 94150-80600 NUT FLANGE
Antenna ([09.2001 - ] (0109- )) 15
#OEMPart name
86011 90980-12040 Housing, Connector Male, Outer
86101 86101-13050 Cord Sub-Assy, Antenna
86101 86101-13051 Cord Sub-Assy, Antenna
86300 86300-13030 Antenna Assy, Amplifier, No.1
86309 86309-13010 Pole Sub-Assy, Roof Antenna
86396 86396-12030 Nut, Antenna
86396 86396-20040 Nut, Antenna
86860 86860-13020 Antenna Assy, Navigation
86860 86860-13050 Antenna Assy, Navigation
827111 82711-1A770 Clamp, Wiring Harness
8271135520 82711-35520 Clamp No.1 (For Windseield Washer)
8281713250 82817-13250 Protector, Wiring Harness, No.5
8281713290 82817-13290 Protector, Wiring Harness, No.1
9011906390 90119-06390 BOLT WWASHER
9356855014 93568-55014 Screw
Anti-Theft Device ([09.2001 - ] (0109- )) 2
#OEMPart name
89783 89783-13010 Amplifier, Transponder Key
9015960547 90159-60547 New Genuine Part
Armrest & Visor ([09.2001 - ] ARMREST (0109- )LHD) 17
#OEMPart name
74231 74231-13120 Panel, Front Armrest Base, Upper Rh
74231 74231-13110-B0 Panel, Front Armrest Base, Upper Rh
74232 74232-13080 Panel, Front Armrest Base, Upper Lh
74232 74232-13100 Panel, Front Armrest Base, Upper Lh
74232 74232-13090-B0 Panel, Front Armrest Base, Upper Lh
74271 74271-13040 Panel, Rear Door Armrest Base, Upper Rh
74271 74271-13050-A0 Panel, Rear Door Armrest Base, Upper Rh
74271 74271-13050-B0 Panel, Rear Door Armrest Base, Upper Rh
74272 74272-13040 Panel, Rear Door Armrest Base, Upper Lh
74272 74272-13050-A0 Panel, Rear Door Armrest Base, Upper Lh
74272 74272-13050-B0 Panel, Rear Door Armrest Base, Upper Lh
74813 74813-52010-A0 Handle, Front Door Pull, Rh
74813 74813-52010-B2 Handle, Front Door Pull, Rh
74814 74814-52010-A0 Handle, Front Door Pull, Lh
74814 74814-52010-B2 Handle, Front Door Pull, Lh
9016450032 90164-50032 Screw
9046710203 90467-10203 Direct

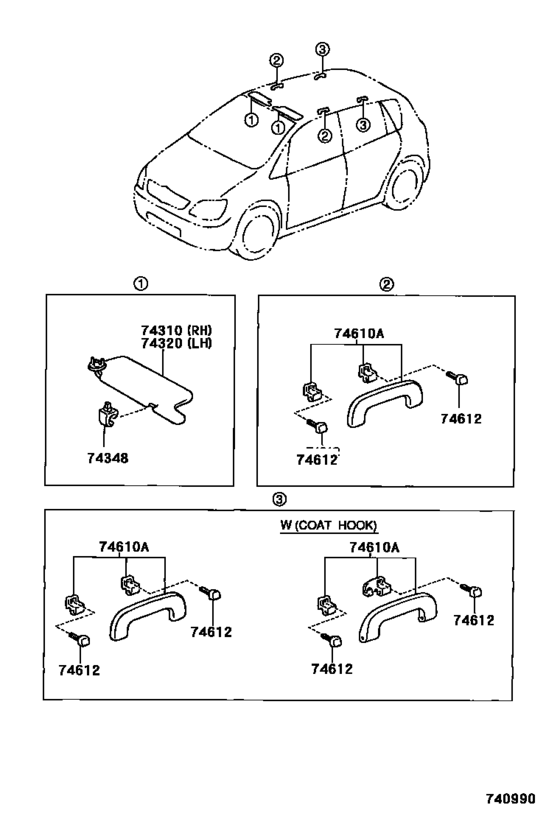

Armrest & Visor ([09.2001 - ] VISOR & ASSIST GRIP (0109- )) 12
#OEMPart name
74310 74310-13330-A0 Visor Assy, Rh
74310 74310-13330-B0 Visor Assy, Rh
74320 74320-13210-A0 Visor Assy, Lh
74320 74320-13210-B0 Visor Assy, Lh
74348 74348-12040-A0 Holder, Visor
74348 74348-12040-B0 Holder, Visor
74610 74610-13011-A0 Assist Grip Sub-Assy
74610 74610-13011-B0 Assist Grip Sub-Assy
74610 74610-13021-A0 Grip Sub-Assy, Assist
74610 74610-13021-B0 Grip Sub-Assy, Assist
74612 74612-13010-A0 Cover, Assist Grip
74612 74612-13010-B0 Cover, Assist Grip

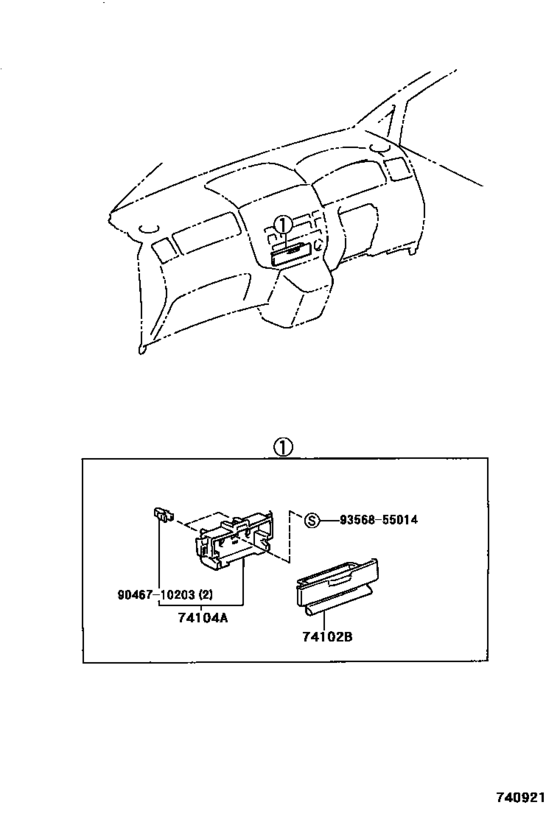

Ash Receptacle ([09.2001 - ] (0109- )) 7
#OEMPart name
74102 74102-13020-B0 Box Sub-Assy, Front Ash Receptacle
74102 74102-13070-B0 Box Sub-Assy, Front Ash Receptacle
74102 74102-13050 Box Sub-Assy, Front Ash Receptacle
74102 74102-13100 Box Sub-Assy, Front Ash Receptacle
74104 74104-13020 Retainer Sub-Assy, Front Ash Receptacle
9046710203 90467-10203 Direct
9356855014 93568-55014 Screw
Back Door Lock & Handle ([09.2001 - ] (0109- )) 17
#OEMPart name
68810 68810-21050 Hinge Assy, Back Door, Upper
68810 68810-21051 Hinge Assy, Back Door, Rh
68945 68945-13040 Bracket, Back Door Damper Stay, Upper Rh
68946 68946-13040 Bracket, Back Door Damper Stay, Upper Rh
68950 68950-0W101 Stay Assy, Back Door, Rh
68960 68960-0W091 Stay Assy, Back Door, Lh
68961 68961-87003 Bolt, Back Door Stay
69211 69023-13020 Handle Sub-Assy, Back Door Outside
69350 69350-13260 Lock Assy, Back Door
69430 69430-52020 Striker Assy, Back Door Lower Lock
8629960020 86299-60020 Pad, Speaker
9010506184 90105-06184 BOLT WASHER BASED
9011906473 90119-06473 BOLTWWASHER
9015980019 90159-80019 New Genuine Part
9017908096 90179-08096 NUT
9017908096 90080-18061 New Genuine Part
9165140816 91651-40816 BOLT
Back Door Panel & Glass ([09.2001 - ] (0109- )) 39
#OEMPart name
64708 90467-07083-A0 Clip(For Package Tray Trim Panel)
64708 90467-07083-B1 Clip(For Package Tray Trim Panel)
64827 64827-13010 Clip, Back Window Glass, Rh
64828 64828-13010 Clip, Back Window Glass, Lh
66243 66243-13010 Protector, Rear Body, No.1
67005 67005-13A20 Panel Sub-Assy, Back Door
67005 67005-1F751 Panel Sub-Assy, Back Door
67005 67005-13A60 Panel Sub-Assy, Back Door
67005 67005-1F761 Panel Sub-Assy, Back Door
67005 67005-1F750 Panel Sub-Assy, Back Door
67005 67005-1F760 Panel Sub-Assy, Back Door
67751 64781-13080-A0 Board, Back Door Trim
67751 64781-13080-B0 Board, Back Door Trim
67881 67881-13250 Weatherstrip, Back Door
67881 67881-13251 Weatherstrip, Back Door
67937 67937-13030-A1 Garnish, Back Door Side, Rh
67937 67937-13020-B0 Garnish, Back Door Side, Rh
67937 67937-13030-B1 Garnish, Back Door Side, Rh
67938 67938-13030-A1 Garnish, Back Door Side, Lh
67938 67938-13020-B0 Garnish, Back Door Side, Lh
67938 67938-13030-B1 Garnish, Back Door Side, Lh
67939 67939-13040-A1 Garnish, Back Door, Center
67939 67939-13030-B0 Garnish, Back Door, Center
67939 67939-13040-B1 Garnish, Back Door, Center
68131 68105-13140 Glass, Back Door
68131 68105-13141 Glass, Back Door
68131 68105-13210 Glass, Back Door
68131 68105-13211 Glass, Back Door
68291 56117-13030 Dam, Window Glass Adhesive
68291 56117-47010 Dam Kit, Back Window Glass Adhesive
68291 64814-13010 Dam Kit, Back Window Glass
68291 64813-68010 Dam Kit, Back Window Glass Adhesive
9011906915 90119-06915 BOLT W-WASHER
9046707152 90467-07152-C0 Clip (For Roof Side Garnish)
9046709141 90467-09141 Clip(For Front Door Trim Board)
9046710161 90467-10161 Clip
9046805077 90468-05077 Clip(For Front Body Pillar Garnish)
9054109035 90541-09035 Cushion(For Luggage Compartment Door Panel)
9054109101 90541-09101 CUSHION
Battery & Battery Cable ([09.2001 - ] (0109- )) 9
#OEMPart name
28800 28800-16160 Battery
28800 28800-20060 Battery (Cannot be supplied)
28800 28800-70070 Battery
28800 90982-05056 Terminal, Battery Positive
28800 82821-12500 Cover, Connector(For Battery Terminal)
28898 28898-16020 Plate, Battery
28898 28898-46010 Plate, Battery
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut

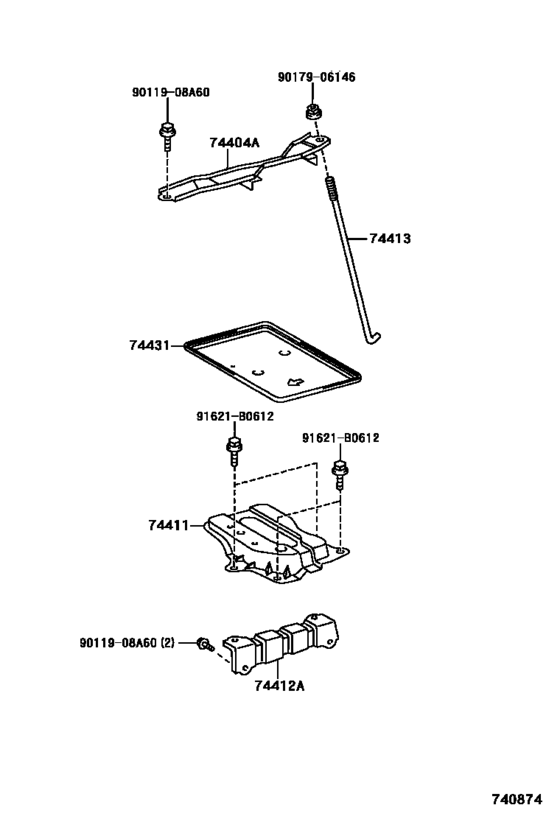

Battery Carrier ([09.2001 - ] (0109- )) 12
#OEMPart name
74404 74404-12410 Clamp Sub-Assy, Battery
74404 74404-13030 Clamp Sub-Assy, Battery
74411 74411-12140 Carrier, Battery
74412 74412-12020 Carrier, Battery, No.2
74413 74451-12130 Bolt, Battery Clamp
74413 74451-12140 Bolt, Battery Clamp
74431 74431-12060 Tray, Battery
74431 74431-12090 Tray, Battery
91621 91621-B0612 New Genuine Part
91621 91621-J0612 BOLT W-WASHER
9011908 90119-08A60 New Genuine Part
9017906146 90179-06146 Nut
Brake Booster & Vacuum Tube ([10.2001 - ] (0110- )ZZE12#..LHD) 12
#OEMPart name
44610 44610-13110 Booster Assy, Brake
44696 90480-24015 Grommet, Check Valve
44730 44730-28010 Valve Assy, Vacuum Check(For Brake)
44758 44758-42010 Bracket, Vacuum Check Valve
44773 44773-12710 Hose, Union To Check Valve
44774 44774-12470 Hose, Union To Connector Tube
44785 44785-20020 Gasket, Brake Booster
47264 47264-63010 Clevis, Master Cylinder Push Rod
9017908038 90179-08038 Nut
9017910065 90179-10065 Nut, Master Cylinder Push Rod Clevis Lock
9046716002 90467-16002 Clip(Vaccum Transmitting Hose No.1)
9046716002 96133-41500 Clamp Or Clip(For Air Hose, No.5)
Brake Master Cylinder ([10.2001 - ] (0110- )LHD) 15
#OEMPart name
4493 04493-13010 Cylinder Kit, Brake Master
4493 04493-1A010 Cylinder Kit, Brake Master
4493 04493-1A030 Cylinder Kit, Brake Master
47201 47201-13110 Cylinder Sub-Assy, Brake Master
47201 90029-20059 Ring, O(For Brake Master Cylinder)
47202 47220-13060 Reservoir Sub-Assy, Brake Master Cylinder
47210 90029-43001 Gasket(For Master Cylinder)
47210 90430-06104 Gasket(For Brake Actuator)
47210 90109-06077 Bolt(For Brake Master Cylinder)
47230 47230-12040 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 47255-16010 Grommet, Master Cylinder Reservoir
47299 47299-25010 Strainer, Master Cylinder Reservoir
9014940006 90149-40006 Bolt
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut

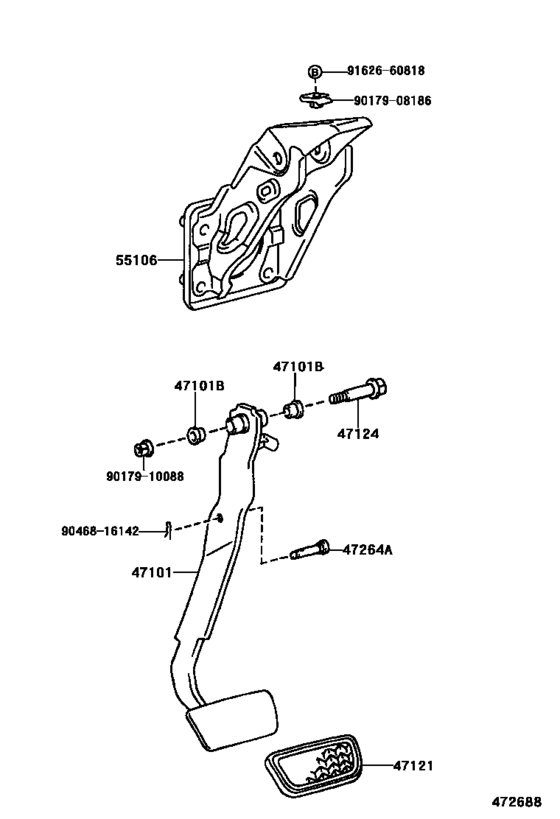

Brake Pedal & Bracket ([09.2001 - ] (0109- )) 11
#OEMPart name
47101 47101-12610 Pedal Sub-Assy, Brake
47101 90386-13015 Bush(For Clutch Pedal)
47121 31321-52010 Pad, Brake Pedal
47124 90109-10174 Shaft, Clutch Pedal
47264 47148-12070 Pin(For Push Rod)
55106 55106-13030 Support Sub-Assy, Brake Pedal
9017908186 90179-08186 New Genuine Part
9017910088 90179-10088 Nut
9046816142 90468-16142 Clip(For Push Rod Clevis Pin)
9162660818 91626-60818 Bolt (For Transmission Control Cable Bracket)
9162660818 91621-J0814 Bolt (For Transmission Control Cable Bracket)
Brake Tube & Clamp ([09.2001 - ] (0109- )) 8
#OEMPart name
44510 44050-13070 Actuator Assy, Brake
44546 44546-12100 Cushion, Brake Actuator Bolt
44590 44590-12060 Bracket Assy, Brake Actuator
9011908 90119-08C24 New Genuine Part
9011906834 90119-06834 Bolt, Brake Actuator Cushion
9011906834 90119-06844 Bolt, Brake Actuator Cushion
9017908189 90179-08189 NUT
9056106013 90561-06013 Spacer(For Height Control Compressor Bracket)
Brake Tube & Clamp ([10.2001 - ] (0110- )LHD) 34
#OEMPart name
47311 47311-12810 Tube, Front Brake, No.1
47311 90904-12051 Way, No.1(For Front Brake Tube)
47312 47312-12430 Tube, Front Brake, No.2
47313 47313-12620 Tube, Front Brake, No.3
47313 90947-02C47 Hose, Flexible, No.1(For Front)
47313 90947-02C48 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose)
47314 47314-12440 Tube, Front Brake, No.4
47315 47315-12510 Tube, Front Brake, No.5
47317 47317-12220 Tube, Front Brake, No.7
47318 47318-12400 Tube, Front Brake, No.8
47318 90401-10045 Bolt, Union(For Front Flexible Hose)
47318 90947-02C50 Hose, Flexible(For Rear Rh)
47321 47321-13160 Tube, Rear Brake, No.1
47321 90904-12088 Way, No.1(For Rear Brake Tube)
47322 47322-13200 Tube, Rear Brake, No.2
47371 47371-12230 Clamp, Brake Tube, No.1
47372 47374-12050 Clamp, Brake Tube, No.1
47373 47371-52010 Clamp, Brake Tube, No.1
47374 47372-52010 Clamp, Brake Tube, No.2
47375 77299-32030 Clamp, Brake Tube, No.6
9094901 90949-01B45 Clamp(For Clutch Master Cylinder Tube)
9094901 90949-01B66 New Genuine Part
9094901 90949-01C50 New Genuine Part
9094901 90949-01C74 Clamp, Brake Tube, No.8
9011908868 90119-08868 BOLT WWASHER
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9094901970 90949-01970 Clamp, Brake Tube, No.3
9151560645 91515-60645 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
Brake Tube & Clamp ([10.2001 - ] W(VSC) (0110- )LHD) 34
#OEMPart name
47311 47311-12810 Tube, Front Brake, No.1
47311 90904-12051 Way, No.1(For Front Brake Tube)
47312 47312-12430 Tube, Front Brake, No.2
47313 47313-12620 Tube, Front Brake, No.3
47313 90947-02C47 Hose, Flexible, No.1(For Front)
47313 90947-02C48 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose)
47314 47314-12440 Tube, Front Brake, No.4
47315 47315-12510 Tube, Front Brake, No.5
47317 47317-12220 Tube, Front Brake, No.7
47318 47318-12400 Tube, Front Brake, No.8
47318 90401-10045 Bolt, Union(For Front Flexible Hose)
47318 90947-02C50 Hose, Flexible(For Rear Rh)
47321 47321-13160 Tube, Rear Brake, No.1
47321 90904-12088 Way, No.1(For Rear Brake Tube)
47322 47322-13200 Tube, Rear Brake, No.2
47371 47371-12230 Clamp, Brake Tube, No.1
47372 47374-12050 Clamp, Brake Tube, No.1
47373 47371-52010 Clamp, Brake Tube, No.1
47374 47372-52010 Clamp, Brake Tube, No.2
47375 77299-32030 Clamp, Brake Tube, No.6
9094901 90949-01B45 Clamp(For Clutch Master Cylinder Tube)
9094901 90949-01B66 New Genuine Part
9094901 90949-01C59 Clamp, Brake Tube, No.1
9094901 90949-01C60 New Genuine Part
9094901 90949-01C74 Clamp, Brake Tube, No.8
9011908868 90119-08868 BOLT WWASHER
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9151560645 91515-60645 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
Camshaft & Valve ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 65
#OEMPart name
13050 13050-22011 Gear Assy, Camshaft Timing
13050 13050-0D010 Gear Assy, Camshaft Timing
13506 13506-22030 Chain Sub-Assy
13511 13501-22060 Camshaft
13511 13501-22062 Camshaft
13511 13501-22061 Camshaft
13512 13502-22010 Camshaft, No.2
13512 13502-22011 Camshaft, No.2
13523 13523-22020 Gear Or Sprocket, Camshaft Timing
13540 13540-22022 Tensioner Assy, Chain, No.1
13540 90301-22013 Ring, O(For Chain Tensioner)
13559 13559-22011 Slipper, Chain Tensioner
13561 13561-22020 Damper, Chain Vibration, No.1
13711 13711-22040 Valve, Intake
13711 13711-0D010 Valve, Intake
13711 90913-02101 Seal Or Ring, O(For Valve Stem Oil) - Intake side
13711 90913-02111 Seal Or Ring, O(For Valve Stem Oil) - Exhaust side
13711 90501-29048 Spring, Compression(For Inner)
13711 90905-01084 Spring, Compression(For Inner)
13715 13715-22040 Valve, Exhaust
13734 13734-74010 Seat, Valve Spring
13741 13741-22021 Retainer, Valve Spring
13741 90913-03028 Lock, Valve Spring Retainer
13751 13751-46030 Lifter, Valve
13751 13751-46040 Lifter, Valve
13751 13751-46050 Lifter, Valve
13751 13751-46060 Lifter, Valve
13751 13751-46070 Lifter, Valve
13751 13751-46080 Lifter, Valve
13751 13751-46090 Lifter, Valve
13751 13751-46100 Lifter, Valve
13751 13751-46110 Lifter, Valve
13751 13751-46120 Lifter, Valve
13751 13751-46130 Lifter, Valve
13751 13751-46140 Lifter, Valve
13751 13751-46150 Lifter, Valve
13751 13751-46160 Lifter, Valve
13751 13751-46170 Lifter, Valve
13751 13751-46180 Lifter, Valve
13751 13751-46190 Lifter, Valve
13751 13751-46200 Lifter, Valve
13751 13751-46210 Lifter, Valve
13751 13751-46220 Lifter, Valve
13751 13751-46230 Lifter, Valve
13751 13751-46240 Lifter, Valve
13751 13751-46250 Lifter, Valve
13751 13751-46260 Lifter, Valve
13751 13751-46270 Lifter, Valve
13751 13751-46280 Lifter, Valve
13751 13751-46290 Lifter, Valve
13751 13751-46300 Lifter, Valve
13751 13751-46310 Lifter, Valve
13751 13751-46320 Lifter, Valve
13751 13751-46330 Lifter, Valve
13751 13751-46340 Lifter, Valve
13751 13751-46350 Lifter, Valve
13751 13751-46360 Lifter, Valve
13751 13751-46370 Lifter, Valve
9010510445 90105-10445 BOLT, WASHER BASED
9010908268 90109-08268 BOLT
9011910889 90119-10889 Bolt(For Camshaft Timing Gear)
9012606017 90126-06017 New Genuine Part
9164380620 91643-80620 New Genuine Part
9164380620 91641-80616 BOLT W-WASHER
9415080640 94150-80640 NUT FLANGE
Caution Plate & Name Plate (Engine) ([09.2001 - ] (0109- )) 1
#OEMPart name
1356410010 13564-10010 Plate, Timing Belt Caution
Caution Plate (Exterior & Interior) ([09.2001 - ] (0109- )) 14
#OEMPart name
69339 69339-12010 Plate, Child Protector Lock Caution
69339 69339-AA020 Plate, Child Protector Lock Caution
73794 73794-13030 Label, Rear Seat Belt Notice
74541 42661-13180 Plate, Tire Pressure Caution
74543 74543-13240 Label, Rear Seat Caution
74559 74559-14050 Plate, Fuel Caution
74559 74559-01010 Plate, Fuel Caution - FUEL INFORMATION
74571 47287-12010 Plate, Brake Fluid Caution
74596 74596-12020 Label, Side Air Bag Caution
74596 74596-53010 Label, Side Air Bag Caution
74598 74598-20010 Label, Driver & Passenger Air Bag Caution
74598 74598-30040 Label, Passenger Air Bag Caution
87529 87529-50010 Plate, Air Filter Caution - A/C FILTER INFORMATION
88723 88723-28220 Label, Cooler Service Caution
Center Stop Lamp ([09.2001 - ] (0109- )) 6
#OEMPart name
81570 81570-13190 Lamp Assy, Center Stop
81570 99132-12050 Bulb (12V 5W)
81570 90080-81053 Bulb(For Clearance Lamp)
81978 81978-13020 Bracket, Stop Center
9017905076 90179-05076 NUT
9017905076 90179-05030 NUT
Clutch & Release Fork ([09.2001 - ] (0109- )MTM) 11
#OEMPart name
31126 31126-12051 Boot, Clutch Release Fork
31204 31204-17010 Fork Sub-Assy, Clutch Release
31210 31210-12201 Cover Assy, Clutch
31210 31210-52053 Cover Assy, Clutch
31230 31230-12191 Bearing Assy, Clutch Release
31232 31232-12070 Clip, Release Bearing Hub
31236 31236-12020 Support, Release Fork
31250 31250-20280 Disc Assy, Clutch
31250 31250-12570 Disc Assy, Clutch
9011908026 90119-08026 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908026 90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)
Clutch Housing & Transmission Case (Mtm) ([09.2001 - ] C50,C52 (0109- )ZZE12#) 24
#OEMPart name
31105 91619-61255 Bolt(For Transaxle & Engine Setting)
31105 91642-81055 Bolt(For Transaxle & Engine Setting)
33030 90105-08064 Bolt(For Transaxle Case & Transmission Case Setting)
33030 90105-08353 Bolt(For Head To Camshaft Bearing Cap)
33030 90105-08086 Bolt(For Transaxle Case & Transmission Case Setting)
33101 90341-18006 Plug (No magnet)
33101 90430-18008 Gasket
33101 90430-T0021 Gasket(For Manual Transmission Filler Plug)
33102 33102-12021 Cover Sub-Assy, Manual Transmission Case
33111 33111-16063 Case, Manual Transmission
33111 33111-52140 Case, Manual Transmission
33111 90101-08166 Bolt, Stud Or Bolt(For Transmission Case)
33111 90201-08049 Washer(For Rear Wheel Cylinder)
33111 90250-08054 Pin, Straight
33111 90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)
33121 91611-60835 Bolt(For Clutch Release Cylinder Setting)
33124 33124-20050 Pipe, Oil Receiver, No.1(Mtm)
33124 33124-12021 Pipe, Oil Receiver, No.2(Mtm)
33124 91611-60820 Bolt(For Transaxle & Engine Setting)
33124 91611-G0820 Bolt
33403 33403-35230 Cover Sub-Assy, Speedometer Driven Hole
33403 96711-24030 Ring,o (For Speedometer Driven Hole Cover)
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
Clutch Master Cylinder ([09.2001 - ] (0109- )MTM) 6
#OEMPart name
4311 04311-12110 Cylinder Kit, Clutch Master
31410 31420-20070 Cylinder Assy, Clutch Master
31434 31434-13020 Tube, Clutch Reservoir
9017908038 90179-08038 Nut
9046716003 90467-16003 Clip Or Clamp(For Ventilation Hose)
9046716003 96133-41500 Clamp Or Clip(For Air Hose, No.5)
Clutch Pedal & Flexible Hose ([09.2001 - ] (0109- )MTM) 18
#OEMPart name
31301 31301-13010 Pedal Sub-Assy, Clutch
31301 90507-14047 Spring(For Clutch Pedal)
31301 90541-06036 Cushion, No.1(For Clutch Pedal)
31301 90386-13015 Bush(For Clutch Pedal)
31301 90101-10369 Bolt(For Clutch Pedal Stopper)
31321 31321-52010 Pad, Brake Pedal
31324 90109-10167 Shaft, Clutch Pedal
31453 90249-08243 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)
31453 90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)
55107 55107-13010 Support Sub-Assy, Clutch Pedal
9017908186 90179-08186 New Genuine Part
9017910088 90179-10088 Nut
9046816142 90468-16142 Clip(For Push Rod Clevis Pin)
9162660818 91626-60818 Bolt (For Transmission Control Cable Bracket)
9162660818 91621-J0814 Bolt (For Transmission Control Cable Bracket)
9163560832 91635-60832 New Genuine Part
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
Clutch Pedal & Flexible Hose ([09.2001 - ] (0109- )ZZE12#..MTM) 14
#OEMPart name
31418 90947-02D20 Hose, Clutch
31481 31481-12310 Tube, Clutch Master Cylinder To Flexible Hose
31482 31482-13020 Tube, Clutch Release Cylinder To Flexible Hose
31484 31484-20460 Bracket, Clutch Tube, No.1
31485 31484-12430 Bracket, Flexible Hose, No.2(For Clutch)
9011910669 90119-10669 New Genuine Part
9046108652 90461-08652 Clamp, Brake Tube, No.8
9046109005 90461-09005 New Genuine Part
9046110781 90461-10781 Clamp, Brake Tube, No.6
9046808040 90468-08040 CLIP
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165141016 91651-41016 Bolt(For Transaxle & Engine Setting)
Clutch Release Cylinder ([09.2001 - ] (0109- )MTM) 8
#OEMPart name
4313 04313-17040 Cylinder Kit, Clutch Release
31470 31470-12111 Cylinder Assy, Clutch Release
31470 31470-12140 Cylinder Assy, Clutch Release
31470 91611-60822 Bolt
31473 31473-20031 Rod, Clutch Release Cylinder Push, No.1
31476 31476-22010 Boot, Clutch Release Cylinder
31477 47547-20010 Plug, Bleeder(For Release Cylinder)
31478 31478-30010 Bleeder Plug Cap
Console Box & Bracket ([09.2001 - ] (0109- )) 23
#OEMPart name
55449 55449-13010-A0 Base, Switch
55449 55449-13010-B0 Base, Switch
55539 55539-32010-A0 Cover, Spare Switch Hole
55539 55539-32010-C0 Cover, Cooler Switch Hole (BLACK)
55539 55539-32010-P3 Cover, Spare Switch Hole
58815 58815-13010-A0 Carpet, Console Box
58815 58815-13010-B0 Carpet, Console Box
58901 58901-13070-A0 Box Sub-Assy, Console, Rear
58901 58901-13070-B0 Box Sub-Assy, Console, Rear
58904 58904-13010-A0 Cover Sub-Assy, Parking Brake Hole
58904 58904-13010-B0 Cover Sub-Assy, Parking Brake Hole
58916 58916-13010-A0 Mat, Box Bottom
58916 58916-13010-B0 Mat, Box Bottom
58916 58916-13020-A0 Mat, Box Bottom, No.1
58916 58916-13020-B0 Mat, Box Bottom, No.1
58916 58916-13030-A0 Mat, Box Bottom, No.2
58916 58916-13030-B0 Mat, Box Bottom, No.2
58916 58916-13040-A0 Mat, Box Bottom, No.3
58916 58916-13040-B0 Mat, Box Bottom, No.3
9011908358 90119-08358 BOLT WWASHER
9011908358 91621-G0816 BOLT WWASHER
9163560616 91635-60616 BOLT WWASHER
9163560616 91631-J0612 BRACKET
Cowl Panel & Windshield Glass ([09.2001 - ] (0109- )) 25
#OEMPart name
53383 53383-13020 Seal, Hood To Cowl Top
53827 53878-28050 Protector, Front Fender Side Panel, Rh
53827 53878-28070 Protector, Front Fender Side Panel, No.2
55701 55700-13030 Panel Sub-Assy, Cowl
55711 55701-13040 Panel, Cowl Top, Outer
55713 55713-13020 Panel, Cowl Top Side, Rh
55714 55714-13020 Panel, Cowl Top Side, Lh
55751 55751-13020 Shield, Cowl Ventilator Splash
55781 55708-13040 Louver, Cowl Top Ventilator, Rh
55781 55708-13050 Louver, Cowl Top Ventilator, Rh
55782 55709-13030 Louver, Cowl Top Ventilator, Lh
55786 55786-13020 Plate, Cowl Top Ventilator Louver
55797 55797-13010 Seal, Cowl Water Extract
55797 55797-13020 Seal, Cowl Water Extract
56111 56111-13020 Glass, Windshield
56115 56115-22010 Stopper, Windshield Glass, No.1
56115 56115-30100 Stopper, Windshield Glass, No.1
56116 56116-22050 Stopper, Windshield Glass, No.1
56117 56117-13030 Dam, Window Glass Adhesive
56117 56117-47010 Dam Kit, Back Window Glass Adhesive
56118 56118-13020 Dam, Window Glass Adhesive, No.2
56118 56117-52040 Dam, Window Glass Adhesive
9011906635 90119-06635 New Genuine Part
9046706133 90467-06133-C0 Clip, Step Plate Cover
9046708108 90467-08108 Clip(For Hood To Cowl Top Seal)

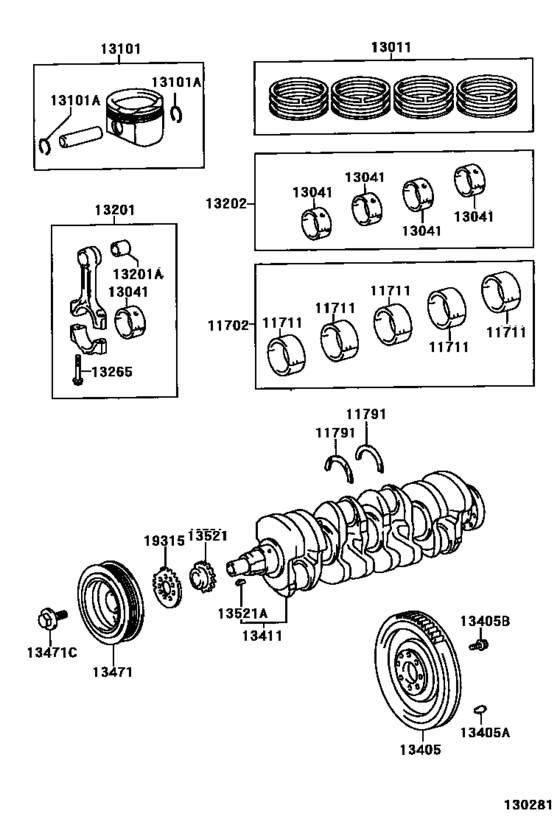

Crankshaft & Piston ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 45
#OEMPart name
11702 11704-22030 Bearing Set, Crankshaft
11702 11704-22011 Bearing Set, Crankshaft
11711 11701-22010-01 Bearing, Crankshaft
11711 11701-22011-01 Bearing, Crankshaft
11711 11701-22010-02 Bearing, Crankshaft
11711 11701-22011-02 Bearing, Crankshaft
11711 11701-22010-03 Bearing, Crankshaft
11711 11701-22011-03 Bearing, Crankshaft
11711 11701-22010-04 Bearing, Crankshaft
11711 11701-22011-04 Bearing, Crankshaft
11791 11791-22020 Washer, Crankshaft Thrust, Upper
13011 13011-22100 Ring Set, Piston
13011 13011-22221 Ring Set, Piston
13011 13011-22170 Ring Set, Piston
13011 13011-22200 Ring Set, Piston
13041 13041-22023-01 Bearing, Connecting Rod
13041 13041-22024-01 Bearing, Connecting Rod
13041 13041-22023-02 Bearing, Connecting Rod
13041 13041-22024-02 Bearing, Connecting Rod
13041 13041-22023-03 Bearing, Connecting Rod
13041 13041-22024-03 Bearing, Connecting Rod
13101 13101-0D110 Piston Sub-Assy, W/pin
13101 13101-0D111 Piston Sub-Assy, W/pin
13101 90520-20064 Ring, Hole Snap(For Piston Pin)
13201 13201-09140 Rod Sub-Assy, Connecting
13201 13201-09491 Rod Sub-Assy, Connecting
13201 13201-29145 Rod Sub-Assy, Connecting
13201 13201-29645 Rod Sub-Assy, Connecting
13201 90999-73140 Bush(For Connecting Rod Small End)
13202 13204-22023 Bearing Set, Connecting Rod
13202 13204-22024 Bearing Set, Connecting Rod
13265 13265-22020 Bolt, Connecting Rod
13265 13265-22040 BOLT, CONNECTING ROD
13405 13451-22020 Flywheel Sub-Assy
13405 13405-22020 Flywheel Sub-Assy
13405 90250-08054 Pin, Straight
13405 90250-08120 Pin, Straight, No.1
13405 90910-02103 Bolt, Flywheel Setting
13411 13401-22030 Crankshaft
13471 13470-22040 Pulley, Crankshaft
13471 13470-22041 Pulley, Crankshaft
13471 90119-12127 Bolt(For Crankshaft Pulley Set)
13521 13521-22020 Gear Or Sprocket, Crankshaft Timing
13521 95161-30416 Pin, Straight(For Crankshaft)
19315 19315-22020 Plate, Crank Angle Sensor, No.1
Cylinder Block ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 35
#OEMPart name
11361 11361-22021 Cover, Flywheel Housing Under
11401 11410-29057 Block Sub-Assy, Cylinder
11401 11410-29156 Block Sub-Assy, Cylinder
11401 16258-28030 Gasket(For Heater Return)
11401 16268-22091 Pipe, Water By-Pass, No.1
11401 16268-22101 Pipe, Water By-Pass, No.1
11401 16268-22161 Pipe, Water By-Pass, No.1
11401 11410-29155 Block Sub-Assy, Cylinder
11401 90311-76001 Seal, Engine Rear Oil
11401 90311-76003 Seal, Engine Rear Oil
11415 90910-09107 Cock Sub-Assy, Water Drain(For Cylinder Block)
11415 90910-09087 Plug, Water Drain Cock(For Cylinder Block)
11416 90105-08363 Bolt(For Crankshaft Bearing Cap Set)
11416 91511-K0840 Bolt(For Crankshaft Bearing Cap Set)
11421 90126-06010 Bolt, Stud(For Oil Pan)
11434 90250-10113 Pin, Straight(For Timing Gear Cover Set)
11434 90253-14003 Pin, Ring(For Crankshaft Bearing Cap Set)
11434 90253-13017 Pin, Ring W/head
11452 11452-22030 Guide, Oil Level Gage
11452 11452-22031 Guide, Oil Level Gage
11452 11459-22010 Support, Oil Level Gage Guide
11452 96721-19010 Ring, O(For Oil Level Gage Guide)
12101 12101-22024 Pan Sub-Assy, Oil
12101 90341-12012 Plug(For Oil Pan Drain)
12101 90341-12026 Plug, Drain
12101 90430-12031 Gasket (For Oil Pan Drain Plug)
15301 15301-22030 Gage Sub-Assy, Oil Level
15301 15301-22050 Gage Sub-Assy, Oil Level
15301 96741-19005 O-Ring (For Oil Level Gage)
91512 91512-B1016 New Genuine Part
9010510335 90105-10335 New Genuine Part
9011906737 90119-06737 BOLT WWASHER
9011906888 90119-06888 New Genuine Part
9091002122 90910-02122 Bolt(For Crankshaft Bearing Cap Set)
9415080640 94150-80640 NUT FLANGE
Cylinder Head ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 47
#OEMPart name
11101 11101-22070 Head Sub-Assy, Cylinder
11101 13711-22040 Valve, Intake
11101 11101-22071 Head Sub-Assy, Cylinder
11101 11101-22110 Head Sub-Assy, Cylinder
11101 90910-02134 Bolt(For Cylinder Head Set)
11101 90910-02152 Bolt(For Cylinder Head Set)
11101 90201-10344 Washer, Plate(For Cylinder Head Set)
11101 90919-05026 Sensor, Position
11101 15330-22030 Valve Assy, Camshaft Timing Oil Control
11101 15330-22050 Valve Assy, Camshaft Timing Oil Control
11115 11115-22040 Gasket, Cylinder Head
11115 11115-22050 Gasket, Cylinder Head
11115 11115-22041 Gasket, Cylinder Head
11117 90341-20002 Plug, W/head Taper Screw, No.1
11117 90430-20004 Gasket(For Cylinder Head Screw Plug)
11122 11122-20020 Bush, Intake Valve Guide
11122 11122-22040 Bush, Intake Valve Guide
11122 11123-20020 Bush, Intake Valve Guide
11155 90250-06001 Pin, Straight
11159 90109-06080 Bolt, Stud(For Head To Cylinder Head Cover)
11159 90119-08A29 Bolt(For Head To Camshaft Bearing Cap)
11201 11201-22060 Cover Sub-Assy, Cylinder Head
11201 90210-06013 Washer, Seal(For Cylinder Head Cover)
11201 90105-06202 Bolt(For Cylinder Head Cover)
11201 90105-06281 Bolt(For Cylinder Head Cover)
11212 11212-22070 Cover, Cylinder Head, No.2
11212 11212-22903 Cover, Cylinder Head, No.2
11212 11212-22130 Cover, Cylinder Head, No.2
11213 11213-22050 Gasket, Cylinder Head Cover
12108 12180-21010 Cap Sub-Assy, Oil Filler
12108 12180-55010 Cap Sub-Assy, Oil Filler
12108 90430-37140 Gasket(For Oil Filler Cap)
12281 12281-15050 Hanger, Engine, No.1
12281 12281-22021 Hanger, Engine
15678 15678-21010 Filter, Oil Control Valve
91512 91512-B1016 New Genuine Part
9010506283 90105-06283 BOLT, FLANGE
9011606169 90116-06169 BOLT STUD
9012606009 90126-06009 STUD HEX LOBULAR
9017606028 90176-06028 Nut, Cap(For Cylinder Head Cover)
9034114014 90341-14014 New Genuine Part
9043014009 90430-14009 Gasket(For Cylinder Head Screw Plug)
9046706202 90467-06202 CLIP
9151160612 91511-60612 BOLT
9151180614 91511-80614 BOLT FLANGE
9212280612 92122-80612 BOLTSTUD
9415010641 94150-10641 Nut
Deck Board & Deck Trim Cover ([09.2001 - ] (0109- )) 56
#OEMPart name
58410 58410-13140 Board Assy, Deck
58570 58570-13270-A0 Carpet Assy, Rear Floor
58570 58570-13270-B0 Carpet Assy, Rear Floor
63434 63434-13050-A1 Net, Room Rack
63434 63434-13050-B1 Net, Room Rack
64312 64312-13010-A0 Bracket, Package Tray, Rh
64312 64312-13011-B0 Bracket, Package Tray, Rh
64312 64312-13010-B0 Bracket, Package Tray, Rh
64312 64312-13011-A0 Bracket, Package Tray, Rh
64313 64313-13010-A0 Bracket, Package Tray, Lh
64313 64313-13011-B0 Bracket, Package Tray, Lh
64313 64313-13010-B0 Bracket, Package Tray, Lh
64313 64313-13011-A0 Bracket, Package Tray, Lh
64314 64314-13010 Reinforcement, Package Tray Bracket, Rh
64314 64314-13011 Reinforcement, Package Tray Bracket, Rh
64315 64315-13010 Reinforcement, Package Tray Bracket, Lh
64315 64315-13011 Reinforcement, Package Tray Bracket, Lh
64330 64330-13030-A2 Panel Assy, Package Tray Trim
64330 64330-13031-A2 Panel Assy, Package Tray Trim
64330 64330-13030-B2 Panel Assy, Package Tray Trim
64330 64330-13031-B2 Panel Assy, Package Tray Trim
64330 90467-07083-A0 Clip(For Package Tray Trim Panel)
64330 90467-07083-B1 Clip(For Package Tray Trim Panel)
64335 64335-13010-A0 Pad, Package Tray Trim Silencer, Rear
64335 64335-13010-B0 Pad, Package Tray Trim Silencer, Rear
64373 64373-13010-A0 Stopper, Package Tray Trim
64373 64373-13010-B0 Stopper, Package Tray Trim
64379 64379-13010-A0 Stopper, Package Tray Trim, Lh
64379 64379-13010-B0 Stopper, Package Tray Trim, Lh
64716 64716-13150-A0 Cover, Deck Trim, Rear
64716 64716-13150-B0 Cover, Deck Trim, Rear
64725 64725-13010-A0 Hook, Luggage Compartment Trim, No.1
64725 64725-13010-B0 Hook, Luggage Compartment Trim, No.1
64730 64730-13230-A0 Panel Assy, Deck Trim Side, Rh
64730 64730-13230-B0 Panel Assy, Deck Trim Side, Rh
64740 64740-13160-A0 Board, Deck Trim Side, Lh
64740 64740-13160-B0 Board, Deck Trim Side, Lh
64741 64741-13030-A0 Box, Deck Side Trim, Rh
64741 64741-13030-B0 Box, Deck Side Trim, Rh
64742 64742-13030-A0 Box, Deck Side Trim, Lh
64742 64742-13030-B0 Box, Deck Side Trim, Lh
64745 64745-13020-A0 Cover, Rear Combination Lamp Service, Rh
64745 64745-13020-B0 Cover, Rear Combination Lamp Service, Rh
64746 64746-13030-A0 Cover, Rear Combination Lamp Service, Lh
64746 64746-13030-B0 Cover, Rear Combination Lamp Service, Lh
64753 64753-13010 Garnish, Deck Side, Rear, Rh
64754 64754-13010 Garnish, Deck Side, Rear, Lh
66311 66310-13010 Hook Assy, Rope
73297 73297-13040-A0 Cover, Deck Trim Side Belt Hole, Rh
73297 73297-13040-B0 Cover, Deck Trim Side Belt Hole, Rh
73298 73298-13040-A0 Cover,deck Trim Side Belt Hole, Lh
73298 73298-13040-B0 Cover,deck Trim Side Belt Hole, Lh
74810 74810-13020 Bar Assy, Separator
9011906840 90119-06840 BOLT WWASHER
9046710161 90467-10161 Clip
9046710167 90467-10167 Clip(For Rear Floor Finish Plate)

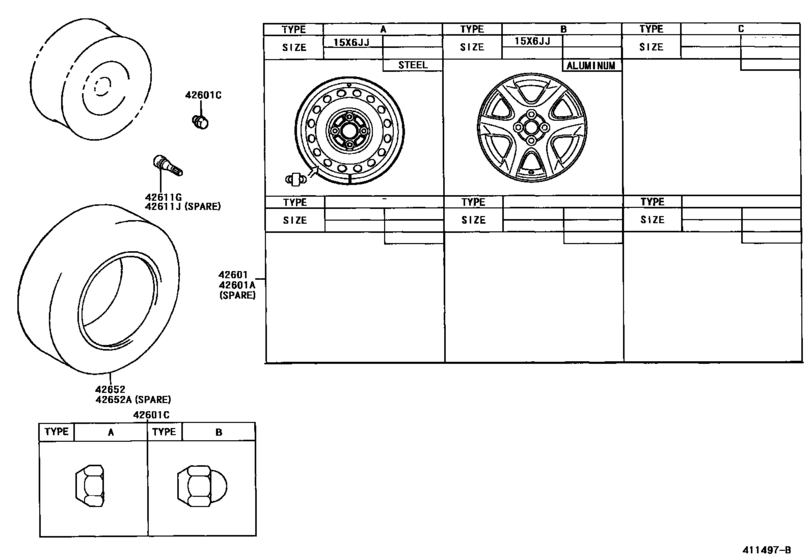

Disc Wheel & Wheel Cap ([09.2001 - ] (0109- )) 56
#OEMPart name
42601 42611-13130 Wheel, Disc
42601 42611-1A480 Wheel, Disc (steel)
42601 90942-01007 Nut, Hub (For Axle)
42601 90942-01058 Wheel Nut
42603 42603-32210 Ornament Sub-Assy, Wheel Hub
42611 90942-05009 Valve (For Tubeless Tire)
42611 90080-94031 Valve (For Tubeless Tire)
42621 42602-13040 Cap, Wheel
42652 42652-13110 Tire
42652 42652-2D010 Tire
9008042119 90080-42119 Weight, Balance (For Disc Wheel)
9008042120 90080-42120 Weight, Balance (For Disc Wheel)
9008042121 90080-42121 Weight, Balance (For Disc Wheel)
9094203017 90942-03017 Weight, Balance (For Disc Wheel)
9094203020 90942-03020 Weight, Balance (For Disc Wheel)
9094203022 90942-03022 Weight, Balance (For Disc Wheel)
9094203025 90942-03025 Weight, Balance (For Disc Wheel)
9094203027 90942-03027 Weight, Balance (For Disc Wheel)
9094203041 90942-03041 Weight, Balance (For Disc Wheel)
9094203098 90942-03098 Weight, Balance (For Disc Wheel)
9094203099 90942-03099 Weight, Balance (For Disc Wheel)
9094203100 90942-03100 Weight, Balance (For Disc Wheel)
9094203101 90942-03101 Weight, Balance (For Disc Wheel)
9094203102 90942-03102 Weight, Balance (For Disc Wheel)
9094203108 90942-03108 Weight, Balance (For Disc Wheel)
9094203146 90942-03146 Weight, Balance (For Disc Wheel)
9094203147 90942-03147 Weight, Balance (For Disc Wheel)
9094203148 90942-03148 Weight, Balance (For Disc Wheel)
9094203149 90942-03149 Weight, Balance (For Disc Wheel)
9094203150 90942-03150 Weight, Balance (For Disc Wheel)
9094203151 90942-03151 Weight, Balance (For Disc Wheel)
9094203152 90942-03152 Weight, Balance (For Disc Wheel)
9094203153 90942-03153 Weight, Balance (For Disc Wheel)
9094203154 90942-03154 Weight, Balance (For Disc Wheel)
9094203155 90942-03155 Weight, Balance (For Disc Wheel)
9094203156 90942-03156 Weight, Balance (For Disc Wheel)
9094203161 90942-03161 Weight, Balance (For Disc Wheel)
9094203167 90942-03167 Weight, Balance (For Disc Wheel)
9094203194 90942-03194 Weight, Balance (For Disc Wheel)
9094203195 90942-03195 Weight, Balance (For Disc Wheel)
9094203203 90942-03203 Weight, Balance (For Disc Wheel)
9094203204 90942-03204 Weight, Balance (For Disc Wheel)
9094203205 90942-03205 Weight, Balance (For Disc Wheel)
9094203206 90942-03206 Weight, Balance (For Disc Wheel)
9094203207 90942-03207 Weight, Balance (For Disc Wheel)
9094203208 90942-03208 Weight, Balance (For Disc Wheel)
9094203209 90942-03209 Weight, Balance (For Disc Wheel)
9094203210 90942-03210 Weight, Balance (For Disc Wheel)
9094203211 90942-03211 Weight, Balance (For Disc Wheel)
9094203212 90942-03212 Weight, Balance (For Disc Wheel)
9094203213 90942-03213 Weight, Balance (For Disc Wheel)
9094203214 90942-03214 Weight, Balance (For Disc Wheel)
9094203264 90942-03264 New Genuine Part
9094203265 90942-03265 WEIGHT BALANCE
9094203267 90942-03267 WEIGHT BALANCE
9094203273 90942-03273 WEIGHT BALANCE
Electronic Controled Diesel (Ecd) ([10.2001 - ] (0110- )LHD) 6
#OEMPart name
9015950138 90159-50138 SCREW
9017906074 90179-06074 Nut(For Suspension Control Oil Cooler)
9043012005 90430-12005 Gasket(For Water Hole)
9043016010 90430-16010 Gasket, Neutral Start Switch
9331914006 93319-14006 SCREW WITH WASHER
9331915010 93319-15010 SCREW
Electronic Fuel Injection System ([09.2001 - ] (0109- )LHD) 13
#OEMPart name
85910 90987-02020 Relay, Ignition, No.1
89279 89279-12150 Cover, Engine Control Computer
89422 89422-35010 Sensor, Water Temperature (For E.f.i.)
89452 89452-20130 Sensor, Throttle Position (For E.f.i.)
89661 89661-13070 Computer, Engine Control
89661 89661-13071 Computer, Engine Control
89661 89661-13140 Computer, Engine Control
89667 89667-12190 Bracket, Engine Control Computer
89668 89668-12100 Bracket, Engine Control Computer, No.2
89669 89669-12030 Bracket, Engine Control Computer, No.3
9015950138 90159-50138 SCREW
9043012005 90430-12005 Gasket(For Water Hole)
9331915010 93319-15010 SCREW
Emblem & Name Plate (Exterior & Interior) ([09.2001 - ] (0109- )) 8
#OEMPart name
75311 75311-13170 Emblem, Radiator Grille (Or Front Panel)
75311 75311-13171 Emblem, Radiator Grille (Or Front Panel)
75361 75361-13020 Plate, Front Fender Name, No.1
75441 75441-13220 Plate, Back Door Name
75442 75442-13310 Plate, Back Door Name, No.2
75442 75442-13320 Plate, Back Door Name, No.2
75442 75442-52080 Plate, Luggage Compartment Door Name, No.2
75741 90975-02036 Emblem, Hood
Engine Oil Pump ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 15
#OEMPart name
15100 15100-22040 Pump Assy, Oil
15100 15100-22041 Pump Assy, Oil
15100 90253-09003 Pin, Ring(For Oil Pump Set)
15104 15104-22022 Strainer Sub-Assy, Oil
15104 15104-22023 Strainer Sub-Assy, Oil
15131 15131-24010 Valve, Oil Pump Relief
15132 15132-22040 Spring, Oil Pump Relief Valve
15133 15133-20010 Plug, Oil Pump Relief Valve
15149 15149-22010 Gasket, Oil Strainer Flange
15193 15197-22010 Gasket, Oil Pump
9011606127 90116-06127 Bolt, Stud(For Oil Pan)
9151180610 91511-80610 New Genuine Part
9151180635 91511-80635 New Genuine Part
9151180635 91511-C0635 BOLT, FLANGE
9415080640 94150-80640 NUT FLANGE
Engine Overhaul Gasket Kit ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 6
#OEMPart name
4111 04111-22180 Gasket Kit, Engine Overhaul
4111 04111-22182 Gasket Kit, Engine Overhaul
4111 04111-22181 Gasket Kit, Engine Overhaul
4112 04112-22180 Gasket Kit, Engine Valve Grind
4112 04112-22182 Gasket Kit, Engine Valve Grind
4112 04112-22181 Gasket Kit, Engine Valve Grind
Exhaust Pipe ([09.2001 - ] (0109- )) 12
#OEMPart name
17410 17410-22260 Pipe Assy, Exhaust, Front
17410 17451-22070 Gasket, Exhaust Pipe
17430 17430-22240 Pipe Assy, Exhaust, Tail
17451 17451-64030 Gasket, Exhaust Pipe
17451 17451-64031 Gasket, Exhaust Pipe, Center
17561 17565-21030 Support, Exhaust Pipe, No.1
17561 17565-22030 Support, Exhaust Pipe, No.1
17565 17565-21040 Support, Exhaust Pipe, No.5
9050135035 90501-35035 Spring, Exhaust Pipe
9050135037 90501-35037 Spring, Exhaust Pipe
9090105020 90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front)
9090105026 90901-05026 Bolt, Exhaust Pipe Support
Floor Insulator ([09.2001 - ] (0109- )) 9
#OEMPart name
58151 58151-12180 Insulator, Front Floor Heat, No.1
58151 58151-12210 Insulator, Front Floor Heat, No.1
58151 58151-12220 Insulator, Front Floor Heat, No.1
58153 58153-20141 Insulator, Front Floor Heat, No.2
58327 58327-13050 Insulator, Main Muffler Heat
91631 91631-B0618 BOLT WWASHER
9017906219 90179-06219 Nut
9017906219 90182-A0005 Nut
9054107036 90541-07036 CUSHION
Floor Pan & Lower Back Panel ([09.2001 - ] (0109- )) 44
#OEMPart name
57417 57417-13020 Reinforcement, Front Floor Under
57418 57418-13020 Reinforcement, Front Floor Under
57435 57435-13020 Member, Center Floor Side, Rh
57436 57436-13010 Member, Center Floor Side, Lh
57451 57451-12191 Member, Front Floor Cross, Rh
57451 57051-12020 Member, Front Floor Cross, Rh
57451 57451-12192 Member, Front Floor Cross, Rh
57452 57452-12021 Member, Front Floor Cross, Lh
57509 57509-12050 Reinforcement Sub-Assy, Front Floor, Center
57661 57407-13120 Member, Rear Floor Cross, Front
57663 57663-13020 Member, Rear Floor Cross, Center
58111 58111-13900 Pan, Front Floor
58123 58013-12040 Support, Shift & Select Lever
58136 58136-33010 Cover, Front Floor Hole
58141 58141-13040 Reinforcement, Front Side Member To Floor Pan, Rh
58142 58142-13020 Reinforcemnt, Front Side Member To Floor Pan, Lh
58161 57805-12120 Reinforcement, Belt Anchor To Floor Pan
58191 58192-13010 Footrest, Front Floor
58198 58198-13020 Clip, Footrest
58208 58211-13300 Pan, Center Floor
58215 57805-13040 Bracket, Rear Seat Mounting, Rh
58215 57806-13040 Reinforcement, Center Floor Panel, No.2 Rh
58216 57807-13010 Bracket, Rear Seat Mounting, Lh
58216 57808-13010 Reinforcement, Center Floor Panel, No.2 Lh
58251 58251-12030 Brace, Floor Panel, Front
58273 58273-13020 Reinforcement, Belt Anchor To Center Floor
58285 58285-13040 Cover, Center Floor Hole
58307 58307-13170 Panel Sub-Assy, Body Lower Back
58311 58311-13909 Pan, Rear Floor
58311 58311-13915 Pan, Rear Floor
58311 90950-01958 Plug, Hole(For Back Door Panel)
58313 58313-13190 Panel, Rear Floor Side, Rh
58314 58314-13160 Panel, Rear Floor Side, Lh
58325 58325-12110 Cover, Rear Floor Service Hole
58336 58336-13060 Reinforcement, Rear Floor Pan, Rh
58341 58341-13040 Bracket, Rear Absorber Mounting, No.1 Rh
58342 58342-13040 Bracket, Rear Absorber Mounting, No.1 Lh
58351 58351-33010 Bracket Sub-Assy, Spare Wheel Clamp
58791 58791-13090 Carrier, Jack
9010511047 90105-11047 New Genuine Part
9011506166 90115-06166 Bolt, Weld(For Front Floor Pan)
9011506219 90115-06219 Bolt, Weld(For Front Floor Pan, Lh)
9017908206 90179-08206 Nut(For Front Suspension Support)
9164180814 91641-80814 BOLTWWASHER
Floor Side Member ([09.2001 - ] (0109- )) 36
#OEMPart name
51681 51681-32050 Bracket, Flexible Hose
51682 51682-32040 Bracket, Flexible Hose, Lh
53651 53651-32010 Brace, Rear Floor Side Member
57013 52011-13030 Member Sub-Assy, Floor, Front Rh
57014 52012-13030 Member Sub-Assy, Floor, Front Lh
57101 57101-13040 Member Sub-Assy, Front Side, Rh
57102 57102-13050 Member Sub-Assy, Front Side, Lh
57111 57111-13010 Member, Front Side, Rh
57112 57112-13030 Member, Front Side, Lh
57113 57113-13010 Extension, Front Side Member, Rh
57114 57114-13010 Extension, Front Side Member, Lh
57115 57115-12080 Plate, Front Side Member, Outer Rh
57116 57116-12080 Plate, Front Side Member, Outer Lh
57117 57117-12130 Plate Sub-Assy, Front Side Member, Front Rh
57118 57118-12130 Plate Sub-Assy, Front Side Member, Front Lh
57141 57013-13010 Support, Front Bumper Arm, Rh
57142 57014-13010 Support, Front Bumper Arm, Lh
57153 57016-13020 Reinforcement, Front Side Member, No.2 Rh
57154 57017-12060 Reinforcement, Front Side Member, No.2 Lh
57197 57197-12030 Box, Torque, Front Rh
57198 57198-12030 Box, Torque, Front Lh
57271 57271-13020 Extension, Steering Gear Box Support Member, Rh
57272 57272-13020 Extension, Steering Gear Box Suport Member, Lh
57411 57401-13070 Member, Floor Side, Inner Rh
57411 57401-13090 Member, Floor Side, Inner Rh
57412 57402-13050 Member, Floor Side, Inner Lh
57412 57402-13070 Member, Floor Side, Inner Lh
57601 57601-13470 Member Sub-Assy, Rear Floor Side, Rh
57602 57602-13460 Member Sub-Assy, Rear Floor Side, Lh
57605 57605-13080 Member Sub-Assy, Rear Floor Cross, No.1
57606 57606-13160 Member Sub-Assy, Rear Floor Cross, No.2
57615 57615-13904 Member, Rear Floor Side, Rear Rh
57616 57616-13906 Member, Rear Floor Side, Rear Lh
57616 57616-13910 Member, Rear Floor Side, Rear Lh
91645 91645-C0820 New Genuine Part
91645 91641-K0816 BOLT WWASHER
Fog Lamp ([09.2001 - ] (0109- )) 6
#OEMPart name
81210 90981-13047 Bulb (HB4)
81211 81211-52050 Lamp Unit, Fog Lamp, Rh
81211 81211-52053 Lamp Unit, Fog Lamp, Rh
81221 81221-52050 Lamp Unit, Fog Lamp, Lh
81221 81221-52053 Lamp Unit, Fog Lamp, Lh
81485 81485-13010 Insert, Fog Lamp Protector
Front Axle Arm & Steering Knuckle ([09.2001 - ] (0109- )) 20
#OEMPart name
43211 43211-19015 Knuckle, Steering, Rh
43211 90105-15001 Bolt (For Rear Axle Carrier)
43211 90105-15004 Bolt (For Steering Knuckle Rh)
43211 90105-15005 Bolt (For Steering Knuckle Rh)
43211 90105-15006 Bolt (For Steering Knuckle Rh)
43211 90179-15006 Nut
43212 43212-19015 Knuckle, Steering, Lh
43330 43330-19115 Lower Ball Joint Assy, Front
43330 90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)
43330 90105-12156 Bolt (For Front Lower Ball Joint)
43330 90105-12336 Bolt (For Front Lower Ball Joint Rh)
43330 90178-12015 Nut (For Front Lower Ball Joint Rh)
43330 90179-12070 Nut (For Front Lower Ball Joint Setting)
48068 48068-12260 Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068 48068-13010 Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068 90119-14086 Bolt(For Front Suspension Lower Arm No.1 Rh)
48069 48069-12260 Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48069 48069-13010 Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48641 90179-14068 Nut(For Front Suspension Lower Arm)
9538102525 95381-02525 PINCOTTER
Front Axle Housing & Differential ([09.2001 - ] C50,C52 (0109- )ZZE12#..MTM) 45
#OEMPart name
31105 90331-08002 Plug, Tight(For Front Transaxle Case)
31105 90311-25011 Seal, Oil, No.1(For Front Transaxle Case)
31105 90311-25028 Seal, Oil, No.1(For Front Transaxle Case)
31105 90311-25016 Seal, Oil, No.1(For Front Transaxle Case)
31115 31115-12110 Case, Front Transaxle(Mtm)
31115 31105-12240 Case, Front Transaxle(Mtm)
33449 33449-12020 Magnet, Transmission
33481 33481-12040 Gear, Speedometer Drive (Mtm)
41221 41221-12340 Gear, Front Differential Ring
41221 41221-52271 Gear, Front Differential Ring
41221 90105-11040 Bolt (For Rear Differential Ring Gear Set)
41311 41301-12041 Case, Front Differential
41311 90366-38004 Bearing(For Counter Driven Gear)
41311 90368-38010 Bearing(For Rear Differential Case)
41311 90560-41003 Shim(For Rear Differential Case)
41311 90564-41014 Washer, Plate (For Front Differential Case Rear)
41311 90564-41015 Washer, Plate (For Front Differential Case Rear)
41311 90564-41016 Washer, Plate (For Front Differential Case Rear)
41311 90564-41017 Washer, Plate (For Front Differential Case Rear)
41311 90564-41018 Washer, Plate (For Front Differential Case Rear)
41311 90564-41019 Washer, Plate (For Front Differential Case Rear)
41311 90564-41020 Washer, Plate (For Front Differential Case Rear)
41311 90564-41021 Washer, Plate (For Front Differential Case Rear)
41311 90564-41022 Washer, Plate (For Front Differential Case Rear)
41311 90564-41023 Washer, Plate (For Front Differential Case Rear)
41311 90564-41024 Washer, Plate (For Front Differential Case Rear)
41311 90564-41025 Washer, Plate (For Front Differential Case Rear)
41311 90564-41026 Washer, Plate (For Front Differential Case Rear)
41311 90564-41027 Washer, Plate (For Front Differential Case Rear)
41311 90564-41028 Washer, Plate (For Front Differential Case Rear)
41311 90564-41029 Washer, Plate (For Front Differential Case Rear)
41311 90564-41030 Washer, Plate (For Front Differential Case Rear)
41311 90564-41031 Washer, Plate (For Front Differential Case Rear)
41311 90564-41032 Washer, Plate (For Front Differential Case Rear)
41331 41331-12011 Gear, Rear Differential Side
41341 41341-12030 Pinion, Rear Differential
41342 90250-06058 Pin, Straight(For Timing Gear Case)
41342 41342-12140 Shaft, Front Differential Pinion, No.1
41351 41351-12020 Washer, Rear Differential Pinion Thrust
41361 41361-22020 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-22030 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-22040 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-22140 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-22150 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-22160 Washer, Rear Differential Side Gear Thrust, No.1
Front Axle Hub ([09.2001 - ] (0109- )) 8
#OEMPart name
43501 43502-12140 Hub Sub-Assy, Front Axle, Rh
43501 90942-02049 Bolt, Hub
43501 90942-02082 Bolt, Hub
43501 90363-40066 Bearing (For Axle Shaft)
43501 90521-79002 Ring, Snap (For Axle Shaft)
43501 90177-22001 Nut (For Axle Shaft)
43512 43512-13030 Disc, Front
43512 43512-47020 Disc, Front
Front Bumper & Bumper Stay ([09.2001 - ] (0109- )) 24
#OEMPart name
52112 52112-13040 Extension, Front Bumper, Rh
52113 52113-13040 Extension, Front Bumper, Lh
52119 52119-13904 Cover, Front Bumper
52119 52119-13905 Cover, Front Bumper
52127 52127-13060 Cover, Front Bumper Hole, Rh
52128 52128-13060 Cover, Front Bumper Hole, Lh
52131 52021-13020 Reinforcement, Front Bumper
52141 52081-13010 Stay, Front Bumper, Rh
52141 52081-13011 Stay, Front Bumper, Rh
52142 52082-13010 Stay, Front Bumper, Lh
52142 52082-13011 Stay, Front Bumper, Lh
52535 52535-13030 Retainer, Front Bumper Side, Rh
52535 52535-13031 Retainer, Front Bumper Side, Rh
52536 52536-13030 Retainer, Front Bumper Side, Lh
52536 52536-13031 Retainer, Front Bumper Side, Lh
52543 52543-13010 Seal, Front Bumper Side, Rh
52544 52544-13010 Seal, Front Bumper Side, Lh
91511 91511-B0818 BOLT FLANGE
9011906137 90119-06137 BOLT
9015950311 90159-50311 SCREW
9015950311 90159-A0034 SCREW WWASHER
9017906127 90179-06127 Bracket, Front Licence Plate Mounting
9017908068 90179-08068 NUT
9046709093 90467-09093 Piece, Rear Bumper
Front Disc Brake Caliper & Dust Cover ([10.2001 - ] (0110- )ZZE121) 23
#OEMPart name
4465 04465-13050 Pad Kit, Disc Brake, Front
4479 04479-20320 Cylinder Kit, Disc Brake, Front
4479 04478-47060 Cylinder Kit, Disc Brake, Front
4945 04945-20210 Shim Kit, Anti Squeal, Front
4947 04947-20110 Fitting Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap
47547 47547-20010 Plug, Bleeder(For Release Cylinder)
47710 90105-12208 Bolt, Hexagon(For Front Disc Brake Caliper)
47715 47715-52010 Pin, Front Disc Brake Cylinder Slide
47716 47716-20200 Plate, Pad Support, No.1(For Front Disc Brake)
47717 47717-20100 Plate, Pad Support, No.2(For Front Disc Brake)
47721 47721-20440 Mounting, Front Disc Brake Cylinder, Rh
47721 90105-08164 Bolt(For Front Disc Brake Cylinder Slide)
47722 47722-20130 Mounting, Front Disc Brake Cylinder, Lh
47730 47730-20600 Cylinder Assy, Front Disc Brake, Rh
47731 47731-20260 Piston, Front Disc Brake
47731 90520-86005 Ring, Set(For Front Disc Brake Piston)
47750 47750-20510 Cylinder Assy, Disc Brake, Lh
47775 47775-52010 Boot, Bush Dust(For Front Disc Brake)
47775 47775-02130 Boot, Bush Dust(For Front Disc Brake)
47781 47781-12240 Cover, Disc Brake Dust, Front Rh
47781 90119-06227 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
47782 47782-12240 Cover, Disc Brake Dust, Front Lh
Front Door Lock & Handle ([09.2001 - ] (0109- )) 73
#OEMPart name
69030 69030-12520 Lock Assy, Front Door W/motor, Rh
69030 69030-12460 Lock Assy, Front Door W/motor, Rh
69040 69040-12510 Lock Assy, Front Door W/motor, Lh
69110 69110-12090 Actuator Assy, Front Door Lock, Rh
69110 69110-12080 Actuator Assy, Front Door Lock, Rh
69120 69120-12080 Actuator Assy, Front Door Lock, Lh
69201 69201-12030 Frame Sub-Assy, Front Door Outside Handle, Rh
69202 69202-12020 Frame Sub-Assy, Front Door Outside Handle, Lh
69205 69205-13020-A0 Handle Sub-Assy, Front Door Inside, Rh
69205 69205-13020-B0 Handle Sub-Assy, Front Door Inside, Rh
69205 90541-04027 Cushion(For Front Door Inside Handle)
69206 69206-13020-A0 Handle Sub-Assy, Front Door Inside, Lh
69206 69206-13020-B0 Handle Sub-Assy, Front Door Inside, Lh
69210 69211-12220-A0 Handle Assy, Front Door, Outside Rh
69210 69211-12220-B1 Handle Assy, Front Door, Outside Rh
69210 69211-12220-C0 Handle Assy, Front Door, Outside Rh
69210 69211-12220-C2 Handle Assy, Front Door, Outside Rh
69210 69211-12220-D1 Handle Assy, Front Door, Outside Rh
69210 69211-12220-X7 Handle Assy, Front Door, Outside Rh
69210 69211-12220-D2 Handle Assy, Front Door, Outside Rh
69210 69211-12220-F1 Handle Assy, Front Door, Outside Rh
69210 69211-12220-F5 Handle Assy, Front Door, Outside Rh
69210 69211-12220-G0 Handle Assy, Front Door, Outside Rh
69210 69211-12220-H3 Handle Assy, Front Door, Outside Rh
69210 69211-12220-J0 Handle Assy, Front Door, Outside Rh
69210 69211-12220-J1 Handle Assy, Front Door, Outside Rh
69210 69211-12220-J2 Handle Assy, Front Door, Outside Rh
69210 69211-12220-P0 Handle Assy, Front Door, Outside Rh
69217 69217-12040-A0 Cover, Front Door Outside Handle
69217 69217-12040-B0 Cover, Front Door Outside Handle
69217 69217-12040-B4 Cover, Front Door Outside Handle
69217 69217-12040-C0 Cover, Front Door Outside Handle
69217 69217-12040-C2 Cover, Back Door Outside Handle
69217 69217-12040-D2 Cover, Front Door Outside Handle
69217 69217-12040-D3 Cover, Front Door Outside Handle
69217 69217-12040-F0 Cover, Front Door Outside Handle
69217 69217-12040-G0 Cover, Front Door Outside Handle
69217 69217-12040-H2 Cover, Front Door Outside Handle
69217 69217-12040-J0 Cover, Front Door Outside Handle
69217 69217-12040-J1 Cover, Front Door Outside Handle
69217 69217-12040-J2 Cover, Front Door Outside Handle
69217 69217-42020-A3 Cover, Front Door Outside Handle
69217 69217-42020-B1 Cover, Front Door Outside Handle
69217 69217-42020-C1 Cover, Front Door Outside Handle
69217 69217-42020-C2 Cover, Front Door Outside Handle
69217 69217-42020-D2 Cover, Front Door Outside Handle
69217 69217-42020-D5 Cover, Front Door Outside Handle
69217 69217-42020-F1 Cover, Front Door Outside Handle
69217 69217-42020-F5 Cover, Front Door Outside Handle
69217 69217-42020-G1 Cover, Front Door Outside Handle
69217 69217-42020-H3 Cover, Front Door Outside Handle
69217 69217-42020-J2 Cover, Front Door Outside Handle
69217 69217-42020-J5 Cover, Front Door Outside Handle
69217 69217-42020-J6 Cover, Front Door Outside Handle
69217 69217-42020-P0 Cover, Front Door Outside Handle
69241 69241-42020 Pad, Front Door Outside Handle, Rh
69242 69242-42010 Pad, Front Door Outside Handle, Lh
69283 69283-13010-A0 Plug, Front Door Inside Handle Bezel, Rh
69283 69283-13010-B0 Plug, Front Door Inside Handle Bezel, Rh
69293 69293-10010 Snap, Front Door Outside Handle
69293 69293-10020 Snap, Front Door Outside Handle
69410 69410-20110 Plate Assy, Front Door Lock Striker
69749 69749-32040 Clamp, Front Door Lock Link
9014850003 90148-50003 Screw Hex Lobular
9014860022 90148-60022 BOLT
9014860022 90148-A0005 Hexalobular Screw
9014880027 90148-80027 Screw Hex Lobular
9015940202 90159-40202 SCREW WWASHER
9015950322 90159-50322 SCREW WWASHER
9015960550 90159-60550 New Genuine Part
9016450032 90164-50032 Screw
9016650003 90166-50003 New Genuine Part
9018905003 90189-05003 CLIP
Front Door Panel & Glass ([09.2001 - ] (0109- )) 61
#OEMPart name
67001 67001-13130 Panel Sub-Assy, Front Door, Rh
67001 67001-13131 Panel Sub-Assy, Front Door, Rh
67002 67002-13110 Panel Sub-Assy, Front Door, Lh
67002 67002-13111 Panel Sub-Assy, Front Door, Lh
67111 67111-12670 Panel, Front Door, Outer Rh
67112 67112-12660 Panel, Front Door, Outer Lh
67153 67153-13010 Reinforcement, Front Door Inside, No.1
67154 67154-13010 Reinforcement, Front Door Inside, No.2
67403 67403-13020 Frame Sub-Assy, Front Door, Rear Lower Rh
67404 67404-13020 Frame Sub-Assy, Front Door, Rear Lower Lh
67491 67491-13040 Garnish, Front Door Lower Frame Bracket, Rh
67491 67491-13030 Garnish, Front Door Lower Frame Bracket, Rh
67492 67492-13040 Garnish, Front Door Lower Frame Bracket, Lh
67492 67492-13030 Garnish, Front Door Lower Frame Bracket, Lh
67601 67610-1F060-A0 Board Sub-Assy, Front Door Trim, Rh
67601 67610-1F060-B0 Board Sub-Assy, Front Door Trim, Rh
67601 67610-1F050-B0 Board Sub-Assy, Front Door Trim, Rh
67602 67620-13820-A0 Board Sub-Assy, Front Door Trim, Lh
67602 67620-13820-B0 Board Sub-Assy, Front Door Trim, Lh
67602 67620-13800-B0 Board Sub-Assy, Front Door Trim, Lh
67602 67620-13810-B0 Board Sub-Assy, Front Door Trim, Lh
67625 67625-13010 Bracket, Front Door Trim, Rh
67626 67626-13010 Bracket, Front Door Trim, Lh
67715 67715-13010-A0 Pad, Door Trim, No.1
67715 67715-13010-B0 Pad, Door Trim, No.1
67813 67817-47010 Pad, Rear Door Silencer
67831 67831-13070 Cover, Front Door Service Hole, Rh
67832 67832-13050 Cover, Front Door Service Hole, Lh
67861 67861-13030 Weatherstrip, Front Door, Rh
67861 67861-13040 Weatherstrip, Front Door, Rh
67862 67862-13030 Weatherstrip, Front Door, Lh
67862 67862-13040 Weatherstrip, Front Door, Lh
67867 67867-12150 Clip(For Hood Air Intake Duct Seal)
67869 67869-30020 Clip, Headlamp Door Filler
68101 68101-13080 Glass Sub-Assy, Front Door, Rh
68102 68102-13080 Glass Sub-Assy, Front Door, Lh
68141 68141-13140 Run, Front Door Glass, Rh
68141 68141-13141 Run, Front Door Glass, Rh
68145 69759-12110 Seal, Rear Door Frame
68151 68151-13040 Run, Front Door Glass, Lh
68151 68151-13041 Run, Front Door Glass, Lh
68171 68171-13030 Weatherstrip, Front Door Glass, Inner Rh
68172 68172-13020 Weatherstrip, Front Door Glass, Inner Lh
68610 68610-12170 Check Assy, Front Door, Rh
68620 68620-12100 Check Assy, Front Door, Lh
75921 75921-13010 Tape, Black Out, No.1 Rh
75921 75921-13012 Tape, Black Out, No.1 Rh
75921 75921-13011 Tape, Black Out, No.1 Rh
75922 75922-13010 Tape, Black Out, No.1 Lh
75922 75922-13012 Tape, Black Out, No.1 Lh
75922 75922-13011 Tape, Black Out, No.1 Lh
6777112050 67771-12050 Clip, Radiator Grille
9010908295 90109-08295 BOLT
9015960550 90159-60550 New Genuine Part
9016460018 90164-60018 SCREW
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9018906018 90189-06018 GROMMET
9046710188 90467-10188 Clip(For Deck Boad)
9046805106 90468-05106 Clip, Cool Air Ornament
9054109069 90541-09069 Cushion, Hood Bumper
Front Door Window Regulator & Hinge ([09.2001 - ] (0109- )) 19
#OEMPart name
68710 68710-12150 Hinge Assy, Front Door, Upper Rh
68710 68710-12151 Hinge Assy, Front Door, Upper Rh
68720 68720-12150 Hinge Assy, Front Door, Upper Lh
68720 68720-12151 Hinge Assy, Front Door, Upper Lh
68730 68730-52010 Hinge Assy, Front Door, Lower Rh
68740 68740-52010 Hinge Assy, Front Door, Lower Lh
69801 69801-13020 Regulator Sub-Assy, Front Door Window, Rh
69802 69802-13020 Regulator Sub-Assy, Front Door Window, Lh
85710 85710-13030 Motor Assy, Power Window Regulator, Rh
85710 85710-52110 Motor Assy, Power Window Regulator, Rh
85720 85720-13030 Motor Assy, Power Window Regulator, Lh
85720 85720-52110 Motor Assy, Power Window Regulator, Rh
9010506102 90105-06102 Bolt, Flange
9010506102 90105-06260 BOLT, WASHER BASED
9010508077 90105-08077 BOLT
9010508291 90105-08291 BOLT
9016850040 90168-50040 SCREW TAPPING
9020908014 90209-08014 WASHER
9153160610 91531-60610 New Genuine Part
Front Drive Shaft ([09.2001 - ] LH (0109- )) 25
#OEMPart name
4438 04438-12630 Boot Kit, Front Drive Shaft, In & Outboard, Rh - FRONT DRIVE SHAFT, IN & OUTBOARD, LH
4438 04428-12260 Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438 04438-52051 Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438 04438-32290 Boot Kit, Front Drive Shaft Inboard Joint
41336 41336-12010 Cover, Dust(For Differential Side Gear Shaft)
43040 43403-12040 Joint Assy, Front Drive Inboard
43412 90520-22005 Ring, Snap (For Rear Drive Shaft)
43420 43420-13050 Shaft Assy, Front Drive, Lh
43420 43420-13051 Shaft Assy, Front Drive, Lh
43420 90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)
43420 90311-34028 Oil Seal, Front Drive Shaft, Lh
43420 90311-34042 Oil Seal, Front Drive Shaft, Lh
43447 42345-12150 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)
43447 42345-12190 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)
43447 42345-12140 Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)
43447 42345-12180 Clamp (For Front Axle Outboard Joint Boot Lh)
43448 42345-16140 Clamp (For Front Axle Outboard Joint Boot Rh)
43448 90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)
43448 42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43448 90949-01076 Clamp (For Rear Drive Shaft Outboard Joint Boot)
43448 90949-01946 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43470 43470-80018 Shaft Assy, Front Drive Outboard Joint, Lh
43474 43474-13020 Damper, Front Drive Shaft, Lh
43474 42345-14010 Clamp, Rear Drive Shaft Boot
43474 90949-01947 Clamp (For Front Axle Outboard Joint Boot Rh)
Front Drive Shaft ([09.2001 - ] RH (0109- )ZZE12#) 21
#OEMPart name
4438 04438-12610 Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438 04428-12260 Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438 04438-52051 Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438 04438-32290 Boot Kit, Front Drive Shaft Inboard Joint
41336 41336-12010 Cover, Dust(For Differential Side Gear Shaft)
43030 43403-12040 Joint Assy, Front Drive Inboard
43410 43410-12660 Shaft Assy, Front Drive, Rh
43410 90311-34023 Seal, Type T Oil, No.2(For Cvt)
43410 90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)
43411 90520-22005 Ring, Snap (For Rear Drive Shaft)
43447 42345-12150 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)
43447 42345-12190 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)
43447 42345-12140 Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)
43447 42345-12180 Clamp (For Front Axle Outboard Joint Boot Lh)
43448 90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)
43448 42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43448 90949-01076 Clamp (For Rear Drive Shaft Outboard Joint Boot)
43448 90949-01946 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43460 43460-80001 Shaft Assy, Front Drive Outboard Joint, Rh
43474 43474-12120 Damper, Drive Shaft
43474 43474-12210 Damper, Drive Shaft
Front Fender Apron & Dash Panel ([09.2001 - ] (0109- )) 54
#OEMPart name
52141 52141-13040 Stay, Front Bumper, Rh
52142 52142-13040 Stay, Front Bumper, Lh
53201 53201-13050 Support Sub-Assy, Radiator
53208 53208-13050 Support Sub-Assy, Hood Lock
53211 53211-12410 Support, Radiator, Rh
53212 53212-12350 Support, Radiator, Lh
53216 53216-13900 Support, Radiator, Upper
53285 53285-13010 Seal, Radiator Side Air, No.1
53286 53286-13010 Seal, Radiator Side Air, No.2
53289 53289-13010 Cover, Radiator Support Opening
53701 53701-13050 Apron Sub-Assy, Front Fender, Rh
53701 53701-13040 Apron Sub-Assy, Front Fender, Rh
53702 53702-13030 Apron Sub-Assy, Front Fender, Lh
53711 53711-13900 Apron, Front Fender, Front Rh
53711 53711-13902 Apron, Front Fender, Front Rh
53712 53712-13900 Apron, Front Fender, Front Lh
53712 53712-13902 Apron, Front Fender, Front Lh
53714 53714-12150 Extension, Front Fender Apron, Front Lh
53714 53714-13020 Extension, Front Fender Apron, Front Lh
53723 53723-12080 Reinforcement, Front Spring Support, Rh
53724 53724-12070 Reinforcement, Front Spring Support, Lh
53731 53731-12160 Member, Front Apron To Cowl Side, Upper Rh
53732 53732-12140 Member, Front Apron To Cowl Side, Upper Lh
53737 53737-13020 Plate, Front Apron To Cowl Side Member, Rh
53738 53738-13020 Plate, Front Apron To Cowl Side Member, Lh
53747 53747-13010 Extension, Apron Fender Side, Rh
53748 53748-13010 Extension, Apron Fender Side, Lh
53813 53813-13010 Extension, Front Fender, Rh
53814 53814-13010 Extension, Front Fender, Lh
55101 55101-13180 Panel Sub-Assy, Dash
55129 55129-32030 Cover, Dash Panel Hole
55129 55139-32010 Cover, Dash Panel Hole
55210 55210-13030 Insulator Assy, Dash Panel
55210 90467-10005-B0 Clip
55210 90467-10005-C0 Clip
55223 55223-13010 Insulator, Dash Panel, Outer
55257 55257-32010 Cover, Dash Panel Opening
57104 57104-12170 Member Sub-Assy, Front Cross
57104 57104-12250 Member Sub-Assy, Front Cross
57123 57123-13010 Support, Front Side Member, Rh
57124 57124-13010 Support, Front Side Member, Lh
57165 57165-12070 Reinforcement, Front Crossmember, Lower Rh
57166 57166-12020 Reinforcement, Front Crossmember, Lower Lh
57167 57167-12110 Gusset, Front Crossmember Side, Rh
57168 57168-12110 Gusset, Front Crossmember Side, Lh
57169 57169-12020 Member, Front Floor, Front Rh
57218 57218-12020 Gusset, Front Side Member, No.1
57218 57218-12030 Gusset, Front Side Member, No.1
57219 57219-12010 Gusset, Front Side Member, No.2
57219 57219-12030 Gusset, Front Side Member, No.2
828171 82817-1A810 Grommet(For Front Fender Apron)
9011906010 90119-06010 BOLT WWASHER
9046708217 90467-08217 Clip(For Radiator Side Air Seal)
9054115025 90541-15025 Cushion, Hood Bumper
Front Moulding ([09.2001 - ] (0109- )) 6
#OEMPart name
75533 75533-13040 Moulding, Windshield, Outside
75533 75533-13050 Moulding, Windshield, Outside
75770 75770-13050 Moulding Assy, Hood, Front
9015950318 90159-50318 SCREW WWASHER
9017605008 90176-05008 Nut
9018906125 90189-06125 NUT
Front Seat & Seat Track ([09.2001 - ] (0109- )) 80
#OEMPart name
71071 71071-1F010-A0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-1F010-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-1F020-A0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-1F020-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-1F030-A0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-1F030-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71072-1F030-A0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71072-1F030-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-13870-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-13880-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-13890-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71072-13880-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-1F080-A0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-1F080-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-1F090-A0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-1F090-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-1F100-A0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-1F100-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-1F200-A0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-1F200-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-1F050-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-1F060-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-1F070-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-1F190-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71073 71073-13890-A0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-13890-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-1F020-A0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-1F020-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-13770-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-13790-B0 Cover, Front Seat Back, Rh(For Separate Type)
71074 71074-13800-A0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-13800-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-13820-A0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-13820-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-13730-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-13750-B0 Cover, Front Seat Back, Lh(For Separate Type)
71430 71430-1F190-A1 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-1F190-B1 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-1F200-A1 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-1F200-B1 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-13880-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-1F010-B0 Back Assy, Front Seat, Rh(For Separate Type)
71440 71440-1F140-A0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-1F140-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-1F160-A0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-1F160-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-1F100-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-1F120-B0 Back Assy, Front Seat, Lh(For Separate Type)
71511 71511-63020 Pad, Front Seat Cushion, Rh(For Separate Type)
71551 71551-13170 Pad, Front Seat Back, Rh(For Separate Type)
71551 71551-13160 Pad, Front Seat Back, Rh(For Separate Type)
71552 71552-13100 Pad, Front Seat Back, Lh(For Separate Type)
71630 71630-63021 Spring Assy, Front Seat Back, Rh(For Separate Type)
71630 71630-63030 Spring Assy, Front Seat Back, Rh(For Separate Type)
71640 71640-13060 Spring Assy, Front Seat Back, Lh(For Separate Type)
71640 71640-13040 Spring Assy, Front Seat Back, Lh(For Separate Type)
71753 71753-52010 Tray, Front Seat Under
71759 71759-13020-A0 Hook, Front Seat Back
71759 71759-13020-B0 Hook, Front Seat Back
71910 71910-13280-A1 Headrest Assy, Front Seat
71910 71910-13280-B1 Headrest Assy, Front Seat
71910 71910-13240-B0 Headrest Assy, Front Seat
71931 71930-47010-A0 Support, Front Seat Headrest
71931 71930-47010-B2 Support, Front Seat Headrest
71931 71931-47010-A0 Support, Front Seat Headrest
71931 71931-47010-B2 Support Assy, Front Seat Headrest
72877 72849-13010-A0 Cover, Seat Armrest, Rh
72877 72849-13010-B0 Cap, Seat Armrest, No.2
72880 72880-13050-A0 Armrest Assy, Seat, C Rh
72880 72880-13050-B0 Armrest Assy, Seat, C Rh
72890 72890-13010-A0 Armrest Assy, Seat, C Lh
72890 72890-13010-B0 Armrest Assy, Seat, C Lh
87510 87510-13040 Heater Assy, Front Seat Cushion, Rh
87510 87510-13010 Heater Assy, Front Seat Cushion, Rh - FRONT SEAT CUSHION, LH
87510 87510-13020 Heater Assy, Front Seat Back, Rh
7270213020 72702-13020 Bracket Sub-assy, Rear Seat Back Striker
9016740044 90167-40044 BOLT
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
9046818071 90468-16019 Clip (For Rear Seat Back)
9356855016 93568-55016 Screw
Front Seat & Seat Track ([09.2001 - ] NORMAL ADJUSTER (0109- )) 35
#OEMPart name
71537 71537-26010 Protector, Front Seat Cushion
71811 71811-47040-A0 Shield, Front Seat Cushion, Rh
71811 71811-47040-B3 Shield, Front Seat Cushion, Rh
71811 71811-47050-A0 Shield, Front Seat Cushion, Rh
71811 71811-47050-B1 Shield, Front Seat Cushion, Rh
71812 71812-13050-A0 Shield, Front Seat Cushion, Lh
71812 71812-13050-B0 Shield, Front Seat Cushion, Lh
71812 71812-47040-A0 Shield, Front Seat Cushion, Lh
71812 71812-47040-B1 Shield, Front Seat Cushion, Lh
71861 71861-47020-A0 Shield, Front Seat Cushion, Inner Rh
71861 71861-47020-B3 Shield, Front Seat Cushion, Inner Rh
71862 71862-47030-A0 Shield, Front Seat Cushion, Inner Lh
71862 71862-47030-B1 Shield, Front Seat Cushion, Inner Lh
71875 71875-47020-A0 Cover, Reclining Adjuster Inside, Rh
71875 71875-47020-B1 Cover, Reclining Adjuster Inside, Rh
71876 71876-47020-A0 Cover, Reclining Adjuster Inside, Lh
71876 71876-47020-B1 Cover, Reclining Adjuster Inside, Lh
72011 72010-13050 Adjuster Sub-Assy, Front Seat, Rh
72011 72010-13070 Adjuster Sub-Assy, Front Seat, Rh
72012 72020-13110 Adjuster Sub-Assy, Front Seat, Lh
72012 72020-13110-A0 Adjuster Sub-Assy, Front Seat, Lh
72012 72020-13110-B0 Adjuster Sub-Assy, Front Seat, Lh
72125 72125-13040 Cover, Seat Track, Upper Rear
72137 72137-13030-A0 Cover, Seat Track, Rh
72137 72137-13030-B0 Cover, Seat Track, Rh
72138 72138-13030-A0 Cover, Seat Track, Lh
72138 72138-13030-B0 Cover, Seat Track, Lh
72265 72265-13040 Cover, Seat Track Upper Rail, Rh
72525 72525-47020-A0 Handle, Reclining Adjuster Release, Rh
72525 72525-47020-B1 Handle, Reclining Adjuster Release, Rh
72526 72526-47020-A0 Handle, Reclining Adjuster Release, Lh
72526 72526-47020-B1 Handle, Reclining Adjuster Release, Lh
9011910921 90119-10921 BOLT WWASHER
9016740044 90167-40044 BOLT
9151581025 91515-81025 New Genuine Part
Front Seat & Seat Track ([09.2001 - ] VERTCLE SEAT ADJUSTER (0109- )) 37
#OEMPart name
71811 71811-47040-A0 Shield, Front Seat Cushion, Rh
71811 71811-47040-B3 Shield, Front Seat Cushion, Rh
71811 71811-47050-A0 Shield, Front Seat Cushion, Rh
71811 71811-47050-B1 Shield, Front Seat Cushion, Rh
71812 71812-13050-A0 Shield, Front Seat Cushion, Lh
71812 71812-13050-B0 Shield, Front Seat Cushion, Lh
71812 71812-47040-A0 Shield, Front Seat Cushion, Lh
71812 71812-47040-B1 Shield, Front Seat Cushion, Lh
71861 71861-47020-A0 Shield, Front Seat Cushion, Inner Rh
71861 71861-47020-B3 Shield, Front Seat Cushion, Inner Rh
71862 71862-47030-A0 Shield, Front Seat Cushion, Inner Lh
71862 71862-47030-B1 Shield, Front Seat Cushion, Inner Lh
71875 71875-47020-A0 Cover, Reclining Adjuster Inside, Rh
71875 71875-47020-B1 Cover, Reclining Adjuster Inside, Rh
71876 71876-47020-A0 Cover, Reclining Adjuster Inside, Lh
71876 71876-47020-B1 Cover, Reclining Adjuster Inside, Lh
72011 72010-13050 Adjuster Sub-Assy, Front Seat, Rh
72011 72010-13070 Adjuster Sub-Assy, Front Seat, Rh
72012 72020-13110 Adjuster Sub-Assy, Front Seat, Lh
72012 72020-13110-A0 Adjuster Sub-Assy, Front Seat, Lh
72012 72020-13110-B0 Adjuster Sub-Assy, Front Seat, Lh
72125 72125-13040 Cover, Seat Track, Upper Rear
72137 72137-13030-A0 Cover, Seat Track, Rh
72137 72137-13030-B0 Cover, Seat Track, Rh
72138 72138-13030-A0 Cover, Seat Track, Lh
72138 72138-13030-B0 Cover, Seat Track, Lh
72265 72265-13040 Cover, Seat Track Upper Rail, Rh
72457 72457-18010-A1 Knob, Vertical Seat Adjuster
72457 72457-18010-S1 Knob, Vertical Seat Adjuster
72525 72525-47020-A0 Handle, Reclining Adjuster Release, Rh
72525 72525-47020-B1 Handle, Reclining Adjuster Release, Rh
72526 72526-47020-A0 Handle, Reclining Adjuster Release, Lh
72526 72526-47020-B1 Handle, Reclining Adjuster Release, Lh
9011910921 90119-10921 BOLT WWASHER
9016740044 90167-40044 BOLT
9052001006 90520-01006 Ring, Shaft Snap(For Lumber Support Lever)
9151581025 91515-81025 New Genuine Part
Front Spring & Shock Absorber ([09.2001 - ] (0109- )) 22
#OEMPart name
48131 48131-13140 Spring, Front Coil, Rh
48157 48157-12080 Insulator, Front Coil Spring, Upper
48158 48158-47010 Insulator, Front Coil Spring, Lower Rh
48331 48331-12200 Bumper, Front Spring, Rh
48471 48044-12100 Seat, Front Coil Spring, Upper
48510 48510-80028 Absorber Assy, Shock, Front Rh
48510 48510-80074 Absorber Assy, Shock, Front Rh
48520 48520-19745 Absorber Assy, Shock, Front Lh
48520 48520-19855 Absorber Assy, Shock, Front Lh
48603 48609-13010 Support Sub-Assy, Front Suspension
48603 90303-22002 Seal, Dust(For Front Suspension Support)
48603 90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)
48684 48684-12070 Cover, Front Suspension Support Dust
48684 48684-52010 Cover, Front Suspension Support Dust
48810 48820-47010 Link Assy, Front Stabilizer
48811 48811-13050 Bar, Stabilizer, Front
48815 48815-13040 Bush, Front Stabilizer Bar, No.1
48820 90179-12151 Nut(For Front Stabilizer Link)
48824 48824-26210 Bracket, Front Stabilizer, No.1
9011908 90119-08C04 BOLT WWASHER
9017808010 90178-08010 Nut(For Front Suspension Support)
9161160822 91611-60822 Bolt
Front Steering Gear & Link ([10.2001 - ] (0110- )LHD) 16
#OEMPart name
4445 04445-13010 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455 04455-44010 Gasket Kit, Power Steering Control Valve Overhole
44200 44200-13030 Link Assy, Power Steering
44250 44250-13030 Gear Assy, Power Steering(For Rack & Pinion)
45046 45046-49115 End Sub-Assy, Tie Rod, Rh
45046 90171-12028 Nut, Castle(For Pitman Arm)
45047 45047-49045 End Sub-Assy, Tie Rod, Lh
45503 45503-19255 End Sub-Assy, Steering Rack
45503 45503-19256 End Sub-Assy, Steering Rack
45503 90214-14009 Washer, Claw(For Steering Rack End)
45535 45535-13010 Boot, Steering Rack, No.1
45535 90467-19019 Clip
45535 90460-55016 Clamp(For Power Steering Rack Boot)
9011912379 90119-12379 New Genuine Part
9017014012 90170-14012 Nut, Rack End Lock
9538103020 95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin)
Fuel Injection System ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 13
#OEMPart name
23217 23217-23010 Filter, Fuel Pump
23220 23221-22030 Pump Assy, Fuel
23220 23221-22140 Pump Assy, Fuel
23225 23225-21010 Spacer, Fuel Pump
23229 23229-16010 Clip(For Fuel Pump Filter)
23229 23219-03010 Clip(For Fuel Pump Filter)
23239 23239-21010 Seal, Fuel Pump Filter
23249 23249-46180 Rubber, Cushion(For Fuel Pump)
23280 23020-20010 Regulator Assy, Fuel Pressure
23280 23280-20060 Regulator Assy, Fuel Pressure
23280 23280-22010 Regulator Assy, Fuel Pressure
23280 90301-07020 Ring, O(For Fuel Pressure Regulator)
23300 23300-21010 Filter Assy, Fuel
Fuel Injection System ([10.2001 - ] (0110- )3ZZFE) 25
#OEMPart name
22210 22210-22150 Body Assy, Throttle
22215 22215-74400 Gasket, Throttle Body Cover
22270 22270-22050 Valve Assy, Idle Speed Control(For Thlottle Body)
22271 22271-22070 Gasket, Throttle Body
23250 23209-0D020 Injector Assy, Fuel
23250 23209-0D030 Injector Assy, Fuel
23250 90301-07030 Ring, O(For Fuel Injector)
23250 90080-48058 Grommet(For Fuel Injector)
23250 90480-13005 Grommet(For Fuel Injector)
23291 23291-22010 Insulator, Injector Vibration
23807 23807-22030 Pipe Sub-Assy, Fuel Delivery
23807 23807-22061 Pipe Sub-Assy, Fuel Delivery
23807 90561-08055 Spacer, No.1(For Delivery Pipe)
23841 23841-28010 Clamp, Fuel Pipe, No.1(For Efi)
23841 23841-21050 Clamp, Fuel Pipe, No.1(For Efi)
23842 23842-22020 Clamp, Fuel Pipe, No.1(For Efi)
23901 23901-22140 Tube Sub-Assy, Fuel
91511 91511-C0850 New Genuine Part
9007911057 90079-11057 SCREW WWASHER
9007915315 90079-15315 New Genuine Part
9010508181 90105-08181 Bolt(For Alternator)
9010508181 91511-J0840 Bolt(For Alternator)
9012608028 90126-08028 New Genuine Part
9151180614 91511-80614 BOLT FLANGE
9415080801 94150-80801 Nut
Fuel Tank & Tube ([09.2001 - ] (0109- )) 56
#OEMPart name
77024 77024-12010 Plate Sub-Assy, Fuel Suction
77027 77027-12040 Tube Sub-Assy, Fuel Evaporation, No.2
77035 77035-13120 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-12860 Tank Assy, Fuel
77100 77001-12C20 Tank Assy, Fuel
77100 77001-1A010 Tank Assy, Fuel
77108 77108-12040 Valve Sub-Assy, Fuel Tank Filler Check
77168 77168-52010 Plate, Fuel Tank Vent Tube Set
77169 77169-33020 Gasket, Fuel Pump Bracket
77175 77175-47010 Support, Fuel Suction, No.2
77179 77179-33010 Gasket, Fuel Tank Evap/vent Tube
77201 77201-12590 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-12591 Pipe Sub-Assy, Fuel Tank Inlet
77202 95313-13034 Hose, Fuel, No.1 (For Breather Tube)
77209 77209-12160 Tube Sub-Assy, Fuel Tank Main
77213 77213-32090 Hose, Fuel Tank To Filler Pipe
77216 77216-32060 Support, Fuel Tank Filler Pipe, No.1
77217 77217-32050 Support, Fuel Tank Filler Pipe, No.2
77241 77241-33011 Clip, Tube Joint
77276 77276-12050 Protector, Fuel Hose
77276 77276-12120 Protector, Fuel Hose
77276 77276-12130 Protector, Fuel Hose
77281 77281-32040 Bracket, Fuel Main Tube, No.1
77281 77281-12070 Clamp, Fuel Filler Pipe
77289 77289-12030 Clamp, Fuel Tube, No.3
77290 77291-13040 Shield Assy, Fuel Tank Filler Pipe
77295 77295-12070 Grommet, Fuel Tube
77296 77296-12030 Support, Fuel Tube Protector, No.1
77306 77306-13030 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-28010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-13090 Lid Assy, Fuel Filler Opening
77366 77360-30080 Spring Assy, Fuel Filler Opening Lid
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12040 Ring, Fuel Inlet Box
77391 77391-12020 Ring, Fuel Inlet Box
77601 77601-12250 Band Sub-Assy, Fuel Tank, No.1
77602 77602-12180 Case Sub-Assy, Fuel Tank, Upper
77641 77641-12170 Protector, Fuel Tank, No.1
77651 77651-20090 Cushion, Fuel Tank, No.1
77681 77681-34030 Seat, Fuel Tank Band, Rh
77682 77681-32060 Seat, Fuel Tank Band, Rh
77785 77785-52020 Harness, Fuel Pump
91621 91621-B0818 Bolt, Radiator Side Support Plate
91621 91651-B0820 Bolt, Radiator Side Support Plate
91626 91626-B0614 BOLT, W/WASHER
9011906120 90119-06120 BOLT
9011906391 90119-06391 Bolt, W/Washer
9011910922 90119-10922 BOLT WWASHER
9011910922 90080-11654 New Genuine Part
9015950343 90159-50343 SCREW, W-WASHER
9026906017 90269-06017 RIVET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
Fuel Tank & Tube ([09.2001 - ] (0109- )ZZE12#) 15
#OEMPart name
77251 77251-12660 Tube, Fuel Main
77261 77261-12460 Tube, Fuel Tank To Canister
77261 95337-06013 Hose Or Tube(For Fuel Evaporative Separator)
77285 77286-47020 Clamp, Fuel Tube W/grommet, No.1
77285 77286-12060 Clamp, Brake Tube, No.4
77286 77298-12060 Clamp, Fuel Tube, No.1
77286 77298-68030 Clamp, Fuel Tube, No.1
77286 77289-20060 Clamp, Fuel Tube, No.1
77298 77298-12100 Clamp, Fuel Tube W/grommet, No.2
77298 77298-20080 Clamp, Fuel Tube W/grommet, No.1
77740 77740-12690 Canister Assy, Charcoal
77751 77750-12170 Bracket, Charcoal Canister Base
9011906918 90119-06918 New Genuine Part
9017906074 90179-06074 Nut(For Suspension Control Oil Cooler)
9613251100 96132-51100 Clip (For Hose)
Gear Shift Fork & Lever Shaft (Mtm) ([09.2001 - ] C50,C52 (0109- )ZZE12#..MTM) 51
#OEMPart name
33111 90930-03133 Plug, Breather
33205 33205-20030 Shaft Sub-Assy, Gear Shift Fork, No.1
33205 33205-52010 Shaft Sub-Assy, Gear Shift Fork, No.1
33205 33205-20040 Shaft Sub-Assy, Gear Shift Fork, No.1
33211 33211-12021 Fork, Reverse Shift
33211 90360-06004 Ball, Detent(For Gear Shift Head No.4)
33211 90080-36191 Ball, Check Valve
33212 33212-10013 Fork, Gear Shift, No.1
33213 90105-06115 Bolt(For Shift Fork Set)
33213 33213-20050 Fork, Gear Shift, No.2
33214 33214-20050 Fork, Gear Shift, No.3
33232 90520-12003 Ring(For Reverse Shift Head)
33232 33232-12012 Head, Gear Shift, No.1
33232 33232-20030 Head, Gear Shift, No.1
33240 33240-16020 Bracket Assy, Reverse Shift Arm
33243 33243-20070 Shaft, Gear Shift Fork, No.2
33244 33244-20060 Shaft, Gear Shift Fork, No.3
33244 33244-52030 Shaft, Gear Shift Fork, No.3
33244 33244-20070 Shaft, Gear Shift Fork, No.3
33251 33251-12080 Lever, Shift, Inner No.1
33251 90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)
33251 90501-18125 Spring, Compression, No.1 (For Select Return)
33252 33252-12011 Lever, Shift, Inner No.2
33256 33256-12022 Lever, Select Inner
33261 33261-12120 Shaft, Shift & Select Lever
33266 90109-18005 Bolt (For Shift Inter Lock Plate)
33266 33266-12021 Plate, Shift Inter Lock
33266 90430-18008 Gasket
33266 90430-T0021 Gasket(For Manual Transmission Filler Plug)
33275 33275-12041 Seat, Shift Detent Ball Spring, No.1
33275 90360-10003 Ball(For Transmission Oil Pump Cover)
33275 90501-12168 Spring, Compression (For Shift Detent Ball)
33275 90341-12004 Plug, Oil Pan(For Oil Cooler)
33276 33276-12022 Seat, Select Spring, No.1
33276 90520-15003 Ring, Shaft Snap (For Select Spring No.1 Seat)
33277 33277-12011 Seat, Select Spring, No.2
33277 90501-16136 Spring, Compression, No.2 (For Select Return)
33277 90523-12003 Ring, E(For Reverse Restrict Pin)
33280 33280-12061 Pin Assy, Reverse Restrict
33283 90341-10065 Plug, Straight, No.1
33283 90254-05003 Pin, Slotted Spring(For Shift Fork Set)
33290 33290-12011 Ball Assy, Lock, No.1
33528 33506-12131 Cover, Control Shaft
33528 90311-18013 Seal, Oil (For Control Shaft Cover)
33528 90119-10288 Bolt (For Control Shaft Cover)
33528 91612-61025 Bolt (For Control Shaft Cover)
33531 33531-12030 Boot, Dust (For Shift & Select Lever Shaft)
33544 33544-12040 Damper, Shift Lever
33584 33584-12050 Gasket, Control Shift Lever Retainer
9011908 90119-08A41 New Genuine Part
9164180822 91641-80822 New Genuine Part
Headlamp ([09.2001 - ] (0109- )) 18
#OEMPart name
81110 90981-13047 Bulb (HB4)
81110 90080-81041 Bulb(For Headlamp, No.1)
81110 90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)
81131 81130-13260 Unit, Headlamp, Rh
81171 81170-13260 Unit, Headlamp, Lh
81193 81193-13010 Retainer, Headlamp Protector, Upper Rh
81194 81194-13010 Retainer, Headlamp Protector, Upper Lh
81195 81196-13010 Retainer, Headlamp Protector, Lower Rh
81197 81195-13010 Bracket, Headlamp, Lower Rh
81510 90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER
81515 90075-60028 Socket, Headlamp, Bulb
81610 99132-12050 Bulb (12V 5W)
81610 90080-81053 Bulb(For Clearance Lamp)
81615 90075-60001 Socket And Wire, License Plate Lamp
9010506246 90105-06246 BOLT
9015960602 90159-60602 SCREW
9017906127 90179-06127 Bracket, Front Licence Plate Mounting
9018906018 90189-06018 GROMMET
Headlamp Cleaner ([10.2001 - ] (0110- )LHD) 43
#OEMPart name
85207 85207-13010 Actuator Sub-Assy, Headlamp Washer, Rh
85208 85208-13010 Actuator Sub-Assy, Headlamp Washer, Lh
85271 90445-14056 Hose, Headlamp Cleaner, No.4
85271 90075-15021 Hose, Headlamp Cleaner, No.2
85271 90075-15020 Hose, Headlamp Cleaner, No.3
85280 85280-20020 Motor And Pump Assy, Headlamp Cleaner
85336 85336-10010 Bush, Windshield Washer Jar
85341 85381-13020-A0 Nozzle, Headlamp Cleaner Washer
85341 85381-13020-B0 Nozzle, Headlamp Cleaner Washer
85341 85381-13020-B1 Nozzle, Headlamp Cleaner Washer
85341 85381-13020-C0 Nozzle, Headlamp Cleaner Washer
85341 85381-13020-C1 Nozzle, Headlamp Cleaner Washer
85341 85381-13020-D0 Nozzle, Headlamp Cleaner Washer
85341 85381-13020-D1 Nozzle, Headlamp Cleaner Washer
85341 85381-13020-F0 Nozzle, Headlamp Cleaner Washer
85341 85381-13020-G0 Nozzle, Headlamp Cleaner Washer
85341 85381-13020-H0 Nozzle, Headlamp Cleaner Washer
85341 85381-13020-J0 Nozzle, Headlamp Cleaner Washer
85341 85381-13020-J1 Nozzle, Headlamp Cleaner Washer
85341 85381-13020-J2 Nozzle, Headlamp Cleaner Washer
85341 85382-13020-A0 Nozzle, Headlamp Cleaner Washer
85341 85382-13020-B0 Nozzle, Headlamp Cleaner Washer
85341 85382-13020-B1 Nozzle, Headlamp Cleaner Washer
85341 85382-13020-C0 Nozzle, Headlamp Cleaner Washer
85341 85382-13020-C1 Nozzle, Headlamp Cleaner Washer
85341 85382-13020-D0 Nozzle, Headlamp Cleaner Washer
85341 85382-13020-D1 Nozzle, Headlamp Cleaner Washer
85341 85382-13020-F0 Nozzle, Headlamp Cleaner Washer
85341 85382-13020-G0 Nozzle, Headlamp Cleaner Washer
85341 85382-13020-H0 Nozzle, Headlamp Cleaner Washer
85341 85382-13020-J0 Nozzle, Headlamp Cleaner Washer
85341 85382-13020-J1 Nozzle, Headlamp Cleaner Washer
85341 85382-13020-J2 Nozzle, Headlamp Cleaner Washer
85348 85352-12010 Joint, Headlamp Cleaner Hose, No.1
85361 85361-33020 Bracket, Washer
85371 90075-15016 Hose, Headlamp Cleaner, No.1
91651 91651-A0616 BOLTWWASHER
8527220050 85272-20050 Clamp, Headlamp Cleaner, No.1
8527220080 85272-20080 Clamp, Headlamp Cleaner, No.1
8527320020 85273-20020 Clamp, Headlamp Cleaner, No.1
9007506003 90075-06003 BOLT
9017906127 90179-06127 Bracket, Front Licence Plate Mounting
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
Heating & Air Conditioning - Compressor ([09.2001 - ] (0109- )) 12
#OEMPart name
88320 88320-1A491 Compressor Assy, Cooler
88320 88320-1A570 Compressor Assy, Cooler
88330 88335-14020 Washer
88410 88410-1A220 Clutch Assy, Magnet
88410 88410-1A260 Clutch Assy, Magnet
88410 88410-1A290 Clutch Assy, Magnet
9011908 90119-08B42 BOLT WWASHER
8836587201 88365-87201 Ring, Snap
8889912400 88899-12400 Bolt, Compressor, No.1
9009904349 90099-04349 Bolt, Magnet Clutch Setting
9009907065 90099-07065 SNAP RING
9010508100 90105-08100 BOLT
Heating & Air Conditioning - Control & Air Duct ([09.2001 - ] AIR DUCT (0109- )) 15
#OEMPart name
55843 55843-13030 Duct, Heater To Register, No.1
55844 55844-13020 Duct, Heater To Register, No.2
55950 55950-13030 Nozzle Assy, Defroster
55971 55971-13020 Duct, Side Defroster Nozzle, No.1
55972 55972-13020 Duct, Side Defroster Nozzle, No.2
87201 87201-13030 Duct Sub-Assy, Air, No.1
87212 87212-12120 Duct, Air, Rear No.1
87213 87213-12080 Duct, Air, Rear No.2
87215 87215-12040 Duct, Air, Rear No.3
87216 87216-12020 Duct, Air, Rear No.4
87217 87217-13020 Duct, Air, Rear No.6
87218 87218-13040 Duct, Air, Rear No.6
9017906314 90179-06314 NUT
9046705014 90467-05014-B3 Clip, Heater To Register Duct
904670502022 90467-05020-22 Clip, Instrument Panel (Black)
Heating & Air Conditioning - Control & Air Duct ([09.2001 - ] CONTROL PANEL (0109- )) 10
#OEMPart name
55900 55900-13070-B0 Control Assy, Air Conditioner
55900 90981-11040 Bulb, Position Indicator Lamp
55905 55905-13050-B0 Knob, Heater Control
55906 55906-13030 Cable Sub-Assy, Defroster Damper Control
55908 55908-13030 Cable Sub-Assy, Air Inlet Damper Control
55909 55909-13020 Cable Sub-Assy, Airmix Damper Control
55921 55921-12120 Retainer, Heater Control
55921 55921-12161 Retainer, Heater Control
55933 55933-52010 Clamp, Heater Control Cable
9356855014 93568-55014 Screw
Heating & Air Conditioning - Control & Air Duct ([09.2001 - ] CONTROL PANEL--AUTO AIR CONDITIONER (0109- )SOL) 17
#OEMPart name
55904 55904-12010 Housing Sub-Assy, Heater Control
55905 55905-12670 Knob, Heater Control, No.2
55905 55905-12680 Knob, Heater Control, No.2
55905 55905-12690 Knob, Heater Control, No.3
55905 55905-12660 Knob Sub-Assy, Control
55905 55905-12720 Knob Sub-Assy, Control
55912 55912-12070 Housing, Heater Control
55935 55935-12120 Circuit, Center Cluster Module
55936 90010-05135 Bulb, Air Conditioner Control
55936 90010-05137 Blub, Center Cluster Module Switch
55936 90010-05138 Blub, Center Cluster Module Switch
55936 90010-05139 Blub, Center Cluster Module Switch
81942 81942-13040 Sheet, Heater Control Name, No.1
81942 81942-12650 Sheet, Heater Control Name, No.2
81942 81942-12820 Sheet, Heater Control Name, No.2
88650 88650-13030 Amplifier Assy, Airconditioner
9016730010 90167-30010 SCREW PAN TAPPING
Heating & Air Conditioning - Control & Air Duct ([09.2001 - ] SENSOR (0109- )) 4
#OEMPart name
88625 88625-47031 Thermistor, Cooler (Solar Sensor)
88625 88790-22131 Thermistor, Cooler
88625 88625-47021 Thermistor, Cooler No.3
88648 88648-13020 Wiring, Cooler
Heating & Air Conditioning - Cooler Piping ([09.2001 - ] O-RING (0109- )) 5
#OEMPart name
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
Heating & Air Conditioning - Cooler Piping ([10.2001 - ] (0110- )LHD) 27
#OEMPart name
88460 88450-13030 Condenser Assy, Cooler
88460 88450-13031 Condenser Assy, Cooler
88460 88460-13020 Condenser Assy, Cooler
88460 88460-13021 Condenser Assy, Cooler
88467 88467-12180 Cushion, Cooler Condenser, No.1
88469 88469-52010 Collar, Condenser Bracket, No.1
88474 88474-17010 Dryer, Cooler
88474 88474-47010 Dryer, Cooler
88711 88703-12540 Hose, Cooler Refrigerant Discharge, No.1
88711 88703-12630 Hose, Cooler Refrigerant Discharge, No.1
88711 88703-12631 Hose, Cooler Refrigerant Discharge, No.1
88712 88704-12850 Hose, Cooler Refrigerant Suction, No.1
88716 88710-13040 Pipe, Cooler Refrigerant Liquid, A
88716 88710-13041 Pipe, Cooler Refrigerant Liquid, A
88716 88710-13050 Pipe, Cooler Refrigerant Liquid, A
88716 88710-13051 Pipe, Cooler Refrigerant Liquid, A
91511 91511-G0625 BOLT FLANGE
91631 91631-J0612 BRACKET
887182 88718-2A230 Clamp(For Cooler Refrigerant Pipe), No.3
887182 88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
8889952050 88899-52050 Cover, Evaporator
9017906156 90179-06156 Nut (For Transmission Control Cable)
9151160635 91511-60635 Bolt
9151160635 90080-10195 Bolt
9223372036854775807 88688-1E050 Bracket, Cooler Refrigerant Hose, No.1
9223372036854775807 88688-1E060 Bracket, Cooler Refrigerant Hose, No.2
Heating & Air Conditioning - Cooler Piping ([10.2001 - ] DEALER OPTION (0110- )LHD) 28
#OEMPart name
88460 88450-13030 Condenser Assy, Cooler
88460 88450-13031 Condenser Assy, Cooler
88460 88460-13020 Condenser Assy, Cooler
88460 88460-13021 Condenser Assy, Cooler
88467 88467-12180 Cushion, Cooler Condenser, No.1
88469 88469-52010 Collar, Condenser Bracket, No.1
88474 88474-17010 Dryer, Cooler
88474 88474-47010 Dryer, Cooler
88711 88703-12540 Hose, Cooler Refrigerant Discharge, No.1
88711 88703-12630 Hose, Cooler Refrigerant Discharge, No.1
88711 88703-12631 Hose, Cooler Refrigerant Discharge, No.1
88712 88704-12850 Hose, Cooler Refrigerant Suction, No.1
88716 88710-13040 Pipe, Cooler Refrigerant Liquid, A
88716 88710-13041 Pipe, Cooler Refrigerant Liquid, A
88716 88710-13050 Pipe, Cooler Refrigerant Liquid, A
88716 88710-13051 Pipe, Cooler Refrigerant Liquid, A
88716 88716-1A660 Pipe, Cooler Refrigerant Liquid, B
91511 91511-G0625 BOLT FLANGE
91631 91631-J0612 BRACKET
887182 88718-2A230 Clamp(For Cooler Refrigerant Pipe), No.3
887182 88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
8889952050 88899-52050 Cover, Evaporator
9017906156 90179-06156 Nut (For Transmission Control Cable)
9151160635 91511-60635 Bolt
9151160635 90080-10195 Bolt
9223372036854775807 88688-1E050 Bracket, Cooler Refrigerant Hose, No.1
9223372036854775807 88688-1E060 Bracket, Cooler Refrigerant Hose, No.2
Heating & Air Conditioning - Cooler Unit ([09.2001 - ] O-RING (0109- )) 5
#OEMPart name
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
Heating & Air Conditioning - Cooler Unit ([10.2001 - ] AUTO AIR CONDITIONER (0110- )LHD) 32
#OEMPart name
87050 87050-13080 Radiator Assy, Air Conditioner
87050 87050-13110 Radiator Assy, Air Conditioner
87050 87050-13120 Radiator Assy, Air Conditioner
87050 87050-13140 Radiator Assy, Air Conditioner
87050 87050-12200 Radiator Assy, Air Conditioner
87050 87050-13100 Radiator Assy, Air Conditioner
87103 87103-12070 Motor Sub-Assy, Blower W/fan
87106 87106-12130 Servo Sub-Assy, Damper(For Airmix)
87106 87106-12131 Servo Sub-Assy, Damper(For Airmix)
87106 87106-12140 Servo Sub-Assy, Damper(For Mode)
87106 87106-13010 Servo Sub-Assy, Damper(For Recirculation)
87107 87107-12560 Unit Sub-Assy, Heater Radiator
87130 87130-12460 Blower Assy
87130 87130-13020 Blower Assy
87139 88568-13010 Filter, Clean Air
87165 87165-13010 Control, Blower Motor
88501 88501-12450 Evaporator Sub-Assy, Cooler, No.1
88508 88508-13010 Filter Sub-Assy, Clean Air
88515 88515-27020 Valve, Cooler Expansion
88515 88515-28160 Valve, Cooler Expansion
88515 88515-07040 Valve, Cooler Expansion
88515 88515-48040 Valve, Cooler Expansion
88625 88625-60140 Thermistor, Cooler, No.1
88897 90480-01434 Grommet, (For Cooler Pipe)
9009932129 90099-32129 Grommet (For Cooler Unit Drain Hose)
9011906390 90119-06390 BOLT WWASHER
9011906833 90119-06833 BOLT WWASHER
9015960125 90159-60125 New Genuine Part
9015960125 90159-60383 SCREW WWASHER
9017906054 90179-06054 NUT
9017906054 90179-06314 NUT
9048001405 90480-01405 Grommet, Heater Hose
Heating & Air Conditioning - Cooler Unit ([10.2001 - ] MANUAL AIR CONDITIONER (0110- )LHD) 31
#OEMPart name
87050 87050-13080 Radiator Assy, Air Conditioner
87050 87050-13110 Radiator Assy, Air Conditioner
87050 87050-13120 Radiator Assy, Air Conditioner
87050 87050-13140 Radiator Assy, Air Conditioner
87050 87050-12200 Radiator Assy, Air Conditioner
87050 87050-13100 Radiator Assy, Air Conditioner
87103 87103-12070 Motor Sub-Assy, Blower W/fan
87107 87107-12560 Unit Sub-Assy, Heater Radiator
87130 87130-12460 Blower Assy
87130 87130-13020 Blower Assy
87138 87138-20360 Resistor, Blower
87139 88568-13010 Filter, Clean Air
88501 88501-12450 Evaporator Sub-Assy, Cooler, No.1
88508 88508-13010 Filter Sub-Assy, Clean Air
88515 88515-27020 Valve, Cooler Expansion
88515 88515-28160 Valve, Cooler Expansion
88515 88515-07040 Valve, Cooler Expansion
88515 88515-48040 Valve, Cooler Expansion
88625 88625-60140 Thermistor, Cooler, No.1
88650 88650-1E420 Amplifier Assy, Air Conditioner, No.1
88710 88710-12550 Tube Assy, Air Conditioner - AIRCONDITIONER
88897 90480-01434 Grommet, (For Cooler Pipe)
9009900947 90099-00947 New Genuine Part
9009932129 90099-32129 Grommet (For Cooler Unit Drain Hose)
9011906833 90119-06833 BOLT WWASHER
9015950138 90159-50138 SCREW
9015960125 90159-60125 New Genuine Part
9015960125 90159-60383 SCREW WWASHER
9017906054 90179-06054 NUT
9017906054 90179-06314 NUT
9048001405 90480-01405 Grommet, Heater Hose
Heating & Air Conditioning - Set ([09.2001 - ] (0109- )) 2
#OEMPart name
88300 88300-13570 Cooler & Accessory Assy
88300 88300-13571 Cooler & Accessory Assy
Heating & Air Conditioning - Water Piping ([09.2001 - ] (0109- )ZZE12#) 5
#OEMPart name
87245 87245-1E151 Hose, Heater Water, Inlet
87245 87245-1E152 Hose, Heater Water, Inlet
87246 87245-1E160 Hose, Heater Water, Outlet
87246 87245-1E161 Hose, Heater Water, Outlet
9046621001 90466-21001 Clamp Or Clip, Hose(For Water By-Pass Hose)
Hole Plug ([09.2001 - ] (0109- )) 30
#OEMPart name
9033301011 90333-01011 New Genuine Part
9033325003 90333-25003 Plug, Hole(For Hood)
9033330002 90333-30002 Cover, Front Floor Hole
9033330008 90333-30008 PLUG PLATE
9095001444 90950-01444 PLUG
9095001478 90950-01478 Plug, Hole(For Front Suspension Lower Arm)
9095001550 90950-01550 PLUG HOLE
9095001559 90950-01559 Grommet, (For Cooler Pipe)
9095001620 90950-01620 PLUG HOLE
9095001637 90950-01637 PLUG HOLE
9095001742 90950-01742 New Genuine Part
9095001759 90950-01759 PLUG
9095001826 90950-01826 Plug, Hole(For Floor Panel)
9095001864 90950-01864 Plug, Hole(For Luggage Compartment Door Panel)
9095001866 90950-01866 Plug, Hole(For Front Door Panel)
9095001867 90950-01867 PLUG HOLE
9095001871 90950-01871 PLUG
9095001882 90950-01882 Cover, Hole
9095001919 90950-01919 Cushion, Rear Seat
9095001949 90950-01949 PLUG HOLE
9095001955 90950-01955 Plug, Hole, No.1(For Dash Panel)
9095001956 90950-01956 PLUG HOLE
9095001958 90950-01958 Plug, Hole(For Back Door Panel)
9095001959 90950-01959 Cover, Console Box Hole
9095001960 90950-01960 Plug, Hole(For Floor Panel)
9095001963 90950-01963 PLUG HOLE
9095006105 90950-06105 Seal, Front Door Front Lower Frame Cover
9095006108 90950-06108 COVER HOLE
9095006109 90950-06109 New Genuine Part
9095006113 90950-06113 New Genuine Part
Hood & Front Fender ([09.2001 - ] (0109- )) 31
#OEMPart name
53301 53301-13050 Hood Sub-Assy
53341 53341-13010 Insulator, Hood
53381 53381-13020 Seal, Hood To Radiator Support
53381 90467-08011 Clip(For Headlamp Cover Seal)
53381 90467-08011-TH CLIP
53381 90467-08011-83 Clip(For Headlamp Cover Seal)
53801 53811-13100 Fender Sub-Assy, Front Rh
53801 53811-13110 Fender Sub-Assy, Front Rh
53802 53812-13090 Fender Sub-Assy, Front Lh
53802 53812-13100 Fender Sub-Assy, Front Lh
53827 53827-13050 Protector, Front Fender Side Panel, Rh
53828 53828-13030 Protector, Front Fender Side Panel, Lh
53835 53835-13030 Brace, Front Fender To Apron, Rh
53836 53836-13030 Brace, Front Fender To Extension, Lh
53851 53851-13020 Pad, Front Wheel Opening Extension, No.1
53875 53875-13020 Liner, Front Fender, Rh
53876 53876-13020 Liner, Front Fender, Lh
53879 53879-13010 Retainer, Front Fender Liner
53879 53879-47010 Retainer, Front Fender Liner
53882 53882-16030 Pad, Rear Bumper, Center
9011906137 90119-06137 BOLT
9011906877 90119-06877 BOLT WWASHER
9015960304 90159-60304 SCREW
9015960488 90159-60488 SCREW WWASHER
9015960602 90159-60602 SCREW
9018906013 90189-06013 CLIP
9046705138 90467-05138 Clip(For Front Bumper Retainer)
9046707132 90467-07132 Clip
9046708124 90467-08124 Clip(For Hood Insulator)
9046710183 90467-10183 Clip(For Luggage Compartment Trim Inner Cover)
9054115019 90541-15019 Cushion, Hood Bumper
Hood Lock & Hinge ([10.2001 - ] (0110- )LHD) 21
#OEMPart name
53410 53410-13010 Hinge Assy, Hood, Rh
53420 53420-13010 Hinge Assy, Hood, Lh
53451 53440-13020 Rod, Hood Support
53451 90480-15034 Grommet(For Hood Support)
53452 53452-13010 Holder, Hood Stay
53497 53497-50010 Pad, Hood Hinge, No.1
53510 53510-13060 Lock Assy, Hood
53510 90506-12063 Spring, Tension(For Hood Lock)
53510 90506-16077 Spring, Tension(For Hood Lock)
53510 90506-18067 Spring, Tension(For Hood Lock)
53510 90905-06005 Spring, Tension(For Hood Lock)
53601 53601-52010-A0 Lever Sub-Assy, Hood Lock Control
53601 53601-52010-B3 Lever Sub-Assy, Hood Lock Control
53601 53601-52010-C0 Lever Sub-Assy, Hood Lock Control
53601 53601-52010-C1 Lever Sub-Assy, Hood Lock Control
53630 53630-12510 Cable Assy, Hood Lock Control
827113 82711-3F230 Clamp, Sliding Roof Drain Hose
8271135470 82711-35470 Wire, Fuse To Fuse(for Combustion Heater)
9011906423 90119-06423 BOLT WWASHER
9011908716 90119-08716 BOLT WWASHER
9046709043 90467-09043 Clamp, Hood Lock Control Cable
Horn ([09.2001 - ] (0109- )) 4
#OEMPart name
86520 86520-12600 Horn Assy, Low Pitched
86520 86520-47010 Horn Assy, Low Pitched
86520 86520-28180 Horn Assy, Low Pitched
9011908375 90119-08375 BOLT
Ignition Coil & Spark Plug ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 4
#OEMPart name
19100 90919-01164 Spark plug (Denso K16R-U11)
19500 90919-02239 Coil Assy, Ignition
19500 90919-02262 Coil Assy, Ignition - IGNITION, NO.1
9010506283 90105-06283 BOLT, FLANGE
Indicator ([09.2001 - ] (0109- )) 1
#OEMPart name
81850 81850-13010 Lamp Assy, Security Indicator
Inside Trim Board & Door Opening Trim Moulding ([09.2001 - ] (0109- )) 55
#OEMPart name
62111 62111-13070-A0 Trim Sub-Assy, Cowl Side, Rh
62111 62111-13070-B0 Trim Sub-Assy, Cowl Side, Rh
62111 90467-06120 Clip, Cowl Side Trim Board Set
62112 62112-13110-A0 Trim Sub-Assy, Cowl Side, Lh
62112 62112-13110-B0 Trim Sub-Assy, Cowl Side, Lh
62211 62211-13070-A1 Garnish, Front Pillar, Rh
62211 62211-13070-B1 Garnish, Front Pillar, Rh
62212 62212-13070-A1 Garnish, Front Pillar, Lh
62212 62212-13070-B1 Garnish, Front Pillar, Lh
62218 62218-13040-A1 Piece, Front Pillar Garnish Corner, Rh
62218 62218-13040-B1 Piece, Front Pillar Garnish Corner, Rh
62219 62219-13040-A1 Piece, Front Pillar Garnish Corner, Lh
62219 62219-13040-B1 Piece, Front Pillar Garnish Corner, Lh
62311 62311-13020-A0 Weatherstrip, Front Door Opening Trim, Rh
62311 62311-13020-B0 Weatherstrip, Front Door Opening Trim, Rh
62312 62312-13020-A0 Weatherstrip, Front Door Opening Trim, Lh
62312 62312-13020-B0 Weatherstrip, Front Door Opening Trim, Lh
62331 62331-13040-A0 Weatherstrip, Rear Door Opening Trim, Rh
62331 62331-13040-B0 Weatherstrip, Rear Door Opening Trim, Rh
62332 62332-13040-A0 Weatherstrip, Rear Door Opening Trim, Lh
62332 62332-13040-B0 Weatherstrip, Rear Door Opening Trim, Lh
62411 62411-13060-A1 Garnish, Center Pillar, Rh
62411 62411-13050-B0 Garnish, Center Pillar, Rh
62411 62411-13060-B1 Garnish, Center Pillar, Rh
62412 62412-13060-A1 Garnish, Center Pillar, Lh
62412 62412-13050-B0 Garnish, Center Pillar, Lh
62412 62412-13060-B1 Garnish, Center Pillar, Lh
62413 62413-12231-A0 Garnish, Center Pillar, Lower Rh
62413 62413-12231-B1 Garnish, Center Pillar, Lower Rh
62414 62414-12231-A0 Garnish, Center Pillar, Lower Lh
62414 62414-12231-B1 Garnish, Center Pillar, Lower Lh
62471 62471-13130-A1 Garnish, Roof Side, Inner Rh
62471 62471-13130-B1 Garnish, Roof Side, Inner Rh
62472 62472-13130-A1 Garnish, Roof Side, Inner Lh
62472 62472-13130-B1 Garnish, Roof Side, Inner Lh
67911 67911-13010 Plate, Front Door Scuff, Outside, Rh
67912 67912-13010 Plate, Front Door Scuff, Outside Lh
67913 67913-13040-A0 Plate, Front Door Scuff, Rh
67913 67913-13040-B0 Plate, Front Door Scuff, Rh
67914 67914-13040-A0 Plate, Front Door Scuff, Lh
67914 67914-13040-B0 Plate, Front Door Scuff, Lh
67915 67915-13010 Plate, Rear Door Scuff, Outside Rh
67916 67916-13010 Plate, Rear Door Scuff, Outside Lh
67917 67917-13070-A0 Plate, Rear Door Scuff, Rh
67917 67917-13070-B0 Plate, Rear Door Scuff, Rh
67918 67918-13070-A0 Plate, Rear Door Scuff, Lh
67918 67918-13070-B0 Plate, Rear Door Scuff, Lh
67924 67924-46010 Clamp, Door Scuff Plate, No.2
6792353010 67923-53010 Clamp, Door Scuff Plate, No.1
9046708186 90467-08186-C0 Clip(For Front Bumper), No.1
9046709215 90467-09215 Clip (For Center Lower Garnish)
9046710161 90467-10161 Clip
9046710188 90467-10188 Clip(For Deck Boad)
9046710192 90467-10192 Clip(For Front Pillar Garnish)
9046806082 90468-06082 Clip(For Front Body Pillar Garnish)
Instrument Panel & Glove Compartment ([10.2001 - ] (0110- )LHD) 89
#OEMPart name
55046 55045-13050-A0 Panel Sub-Assy, Instrument Panel Finish, Lower Lh
55046 55045-13050-B0 Panel Sub-Assy, Instrument Panel Finish, Lower Lh
55054 55054-12010 Stopper Sub-Assy, Glove Compartment Door
55301 55300-13020-B0 Panel Sub-Assy, Instrument
55306 55306-13030 Brace Sub-Assy, Instrument Panel, No.1
55307 55307-13030 Brace Sub-Assy, Instrument Panel, No.2
55310 55310-13020-A1 Panel Assy, Instrument, Lower
55310 55310-13020-B1 Panel Assy, Instrument, Lower
55318 55317-13020-B0 Panel, Instrument Side, Lh
55331 55330-13050 Reinforcement, Instrument Panel
55331 55330-13051 Reinforcement, Instrument Panel
55355 55355-52012 Cushion, Instrument Panel, No.1
55356 55356-13060 Cushion, Instrument Panel, No.2
55357 55357-13060 Cushion, Instrument Panel, No.3
55368 55362-12050 Bracket, Meter Mounting
55368 55368-13020 Bracket, Meter Mounting
55374 55349-13010 Bracket, Instrument Panel Lower Mounting, No.1
55376 55376-13020 Bracket, Instrument Panel Mounting, No.1
55411 55411-13030-B0 Panel, Instrument Cluster Finish, No.1
55417 55417-13010-B0 Retainer, Radio Tuner Finish
55420 55420-13010-B0 Panel Assy, Instrument Cluster Finish, Center
55420 55420-13050 Panel Assy, Instrument Cluster Finish, Center
55423 55423-13010 Cushion, Center Cluster, No.1
55424 55424-13020 Cushion, Center Cluster, No.2
55434 55434-13022-A0 Panel, Instrument Panel Finish, Lower Center
55434 55434-13022-B0 Panel, Instrument Panel Finish, Lower Center
55434 55434-13032-A0 Panel, Instrument Panel Finish, Lower Center
55434 55434-13032-B0 Panel, Instrument Panel Finish, Lower Center
55440 55440-13010-B0 Box Assy, Instrument Panel
55440 55440-13011-B0 Box Assy, Instrument Panel
55441 55441-12150-A0 Box, Instrument Panel
55441 55441-12150-B1 Box, Instrument Panel
55441 55441-20140-A0 Box, Instrument Panel Coin
55441 55441-20140-B7 Box, Instrument Panel
55441 55441-20140-C0 Box, Instrument Panel Coin
55444 55444-12080 Spring, Instrument Panel Box
55457 55457-13020 Spacer, Instrument Panel Safety Pad
55458 55458-13020 Cover, Instrument Lower, Rh
55459 55459-13020 Cover, Instrument, Lower Lh
55505 55506-33030-A0 Handle, Glove Compartment Door Lock
55505 55506-33030-B0 Lock Assy, Glove Compartment Door
55510 55550-13020-A0 Door Assy, Glove Compartment
55510 55550-13020-B0 Door Assy, Glove Compartment
55531 55531-13020 Panel, Glove Compartment
55532 55532-13010 Stopper, Glove Door
55533 55533-13010 Cover, Auto Clock Hole
55538 55538-12100 Cover, Cooler Switch Hole
55539 55539-32010-A0 Cover, Spare Switch Hole
55539 55539-32010-C0 Cover, Cooler Switch Hole (BLACK)
55539 55539-32010-P3 Cover, Spare Switch Hole
55548 55548-13050-B0 Cover, Instrument Panel Hole
55549 55549-13010-B0 Cover, Instrument Panel Hole, No.2
55561 55308-13020 Striker, Glove Compartment Door Lock
55561 55561-13030 Striker, Glove Compartment Door Lock
55606 55606-13020 Cover Sub-Assy, Instrument Panel Under, No.1
55607 55607-13040-A0 Cover Sub-Assy, Instrument Panel Under, No.2
55607 55607-13040-B0 Cover Sub-Assy, Instrument Panel Under, No.2
55608 55608-13020 Cover Sub-Assy, Instrument Panel Under, No.3
55636 55637-13020 Bracket, Instrument Panel Under Cover, No.2
55650 55650-13040-B0 Register Assy, Instrument Panel, No.1
55660 55660-13040-B0 Register Assy, Instrument Panel, No.2
55670 55670-13040-B0 Register Assy, Instrument Panel, No.3
55680 55680-13030-B0 Register Assy, Instrument Panel, No.4
58808 58808-13010-B0 Cover, Shifting Hole
58843 58843-13020-A0 Bezel, Shifting Hole
58843 58843-13020-B0 Bezel, Shifting Hole
58848 58848-13010 Cover, Shift Lever Hole
58871 58871-20060 Cushion, Console Box
73970 73970-13030-B0 Air Bag Assy, Instrument Panel Passenger
9015960383 90159-60383 SCREW WWASHER
9015960383 90159-A0010 SCREW WWASHER TAPP
9015970004 90159-70004 SCREW WWASHER
9016150007 90161-50007 New Genuine Part
9018305094 90183-05094 NUT
9018305103 90183-05103 NUT
9046706089 90467-06089-C0 Clip, Instrument Panel
9046706165 90467-06165 Clip, Instrument Panel
9046706165 90467-06165-C0 Clip, Instrument Panel
9046710203 90467-10203 Direct
9046712080 90467-12080 Clip(For Panel, Instrument Cluster Finish)
9046805135 90468-05135 Clip, Instrument Panel
9054105020 90541-05020 Cushion(For Glove Compartment)
9153560816 91535-60816 BOLT WWASHER
9163560616 91635-60616 BOLT WWASHER
9163560616 91631-J0612 BRACKET
9356855014 93568-55014 Screw
9415080600 94150-80600 NUT FLANGE
9415080800 94150-80800 NUT, FLANGE
904670502022 90467-05020-22 Clip, Instrument Panel (Black)
Interior Lamp ([09.2001 - ] (0109- )) 20
#OEMPart name
81205 90981-11018 Bulb, Position Indicator Lamp
81240 81240-12070-A0 Lamp Assy, Room, No.1
81240 81240-12070-B0 Lamp Assy, Room, No.1
81240 90981-14011 Bulb, Room Lamp, No.1
81240 81240-52010-A0 Lamp Assy, Room, No.1
81240 81240-52010-B0 Lamp Assy, Room, No.1
81241 81241-12070 Lens, Room Lamp, No.1
81241 81241-44010 Lens, Room Lamp, No.1
81260 81260-13040 Lamp Assy, Glove Box
81260 81260-13030-A0 Lamp Assy, Map
81260 81260-13031-A0 Lamp Assy, Map
81260 81260-13030-B0 Lamp Assy, Map
81260 81260-13031-B0 Lamp Assy, Map
81260 81260-14080-A2 Lamp Assy, Map
81260 81260-14080-B6 Lamp Assy, Map
81260 90981-12005 Bulb, Room Lamp, No.1
9016040021 90160-40021 New Genuine Part
9046804157 90468-04157 Clip (Metal)
9354014516 93540-14516 New Genuine Part
9354054014 93540-54014 SCREW
Lock Cylinder Set ([09.2001 - ] (0109- )LHD) 21
#OEMPart name
69051 69051-13230 Cylinder & Key Set, Door Lock, Rh
69052 69052-12600 Cylinder & Key Set, Door Lock, Lh
69055 69055-13290 Cylinder & Key Set, Back Door Lock
69056 69056-44010 Cylinder & Key Set, Glove Compartment Lock
69056 69056-60160 Cylinder & Key Set, Glove Compartment Lock
69057 89073-13010 Cylinder & Key Set, Ignition Switch Lock
69057 89708-13040 Cylinder & Key Set, Ignition Switch Lock
69057 69057-33280 Cylinder & Key Set, Ignition Switch Lock
69503 89073-13040 Cylinder Set, Lock
89070 89070-44090 Transmitter Assy, Door Control
89070 89070-42212 Transmitter Assy, Door Control
89071 89071-60081 Module Set, Transmitter Sub-Assy, Door Control
89708 89708-13030 Cylinder Set, Lock W/transponder Key Transmitter
89745 89745-40010 Transmitter Battery
89751 89751-13010 Cover, Transmitter Housing
89751 89751-13012 COVER TRANSMITTER
89785 89785-26020 Transmitter, Transponder Key Master - ЧИП
89786 89786-60050 Transmitter, Transponder Key Sub
8975840010 89758-40010 Packing, Door Control Transmitter
8975940010 89759-40010 Screw, Door Control Transmitter
8975941020 89759-41020 Screw, Door Control Transmitter
Manifold ([10.2001 - ] (0110- )3ZZFE) 25
#OEMPart name
17111 17120-22060 Manifold, Intake
17111 17120-0D031 Manifold, Intake
17118 17118-22020 Stay, Manifold
17119 17139-22050 Stay, Manifold, No.2
17141 17104-22100 Manifold, Exhaust
17159 90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head)
17159 90126-08037 Bolt, Stud(For Oil Strainer)
17159 90126-08043 Bolt, Stud(For Intake Manifold To Cylinder Head)
17167 17167-22080 Insulator, Exhaust Manifold Heat, No.1
17168 17168-22080 Insulator, Exhaust Manifold Heat, No.2
17173 17173-22010 Gasket, Exhaust Manifold To Head
17177 17171-22030 Gasket, Intake Manifold To Head, No.1
91621 91621-B0825 BOLT WWASHER
9011908530 90119-08530 New Genuine Part
9011908908 90119-08908 BOLT WWASHER
9017908101 90179-08101 NUT
9038709062 90387-09062 New Genuine Part
9091790005 90917-90005 New Genuine Part
9091790006 90917-90006 New Genuine Part
9091791002 90917-91002 New Genuine Part
9162160812 91621-60812 BOLTWWASHER
9162160812 91651-B0814 Bolt with washer
9164180835 91641-80835 Bolt, Compressor, No.1
9164281028 91642-81028 Bolt
9415080801 94150-80801 Nut
Mat & Carpet ([09.2001 - ] (0109- )) 37
#OEMPart name
58427 58427-13040 Spacer, Rear Floor Board
58510 58510-1F700-A0 Carpet Assy, Front Floor, Front
58510 58510-1F700-B0 Carpet Assy, Front Floor, Front
58510 58510-1F720-A0 Carpet Assy, Front Floor, Front
58510 58510-1F720-B0 Carpet Assy, Front Floor, Front
58511 90467-08188 Clip, Radiator Support To Frame
58521 58521-13030 Hook, Floor Carpet
58521 58521-13020 Hook, Floor Carpet
58530 90467-06001-A0 Clip(For Front Floor Carpet)
58530 90467-06001-B3 Clip(For Deck Boad)
58533 58533-13010 Board, Front Floor Mat, Center No.1 Rh
58534 58534-13010-A0 Board, Front Floor Mat, Center No.2 Rh
58534 58534-13010-B0 Board, Front Floor Mat, Center No.2 Rh
58543 58543-13010 Board, Front Floor Mat, Center No.1 Lh
58544 58544-13050-A0 Board, Front Floor Mat, Center No.2 Lh
58544 58544-13050-B0 Board, Front Floor Mat, Center No.2 Lh
58551 90467-08159-A0 Clip(For Floor Mat, Rear)
58551 90467-08159-B2 Clip(For Floor Mat, Rear)
58559 58559-13050 Carpet, Rear Seat Belt Anchor Cover
58561 58561-13070 Silencer, Front Floor, No.1
58612 58612-13080 Plate, Mat Set, No.2
58622 58622-13010 Pad, Front Floor Silencer, Lh
58624 58624-13030 Pad, Center Floor Silencer, Rh
58625 58625-13020 Pad, Center Floor Silencer, Lh
58632 58632-13020-A0 Cover, Seat Floor Box
58632 58632-13020-B0 Cover, Seat Floor Box
72123 72123-13010-A0 Cover, Seat Track Bracket, Outer Front Rh
72123 72123-13010-B0 Cover, Seat Track Bracket, Outer Front Rh
72124 72124-13010-A0 Cover, Seat Track Bracket, Outer Front Lh
72124 72124-13010-B0 Cover, Seat Track Bracket, Outer Front Lh
72157 72157-13040-A0 Cover, Seat Track Bracket, Inner Front Rh
72157 72157-13040-B0 Cover, Seat Track Bracket, Inner Front Rh
72158 72158-13060-A0 Cover, Seat Track Bracket, Inner Front Lh
72158 72158-13060-B0 Cover, Seat Track Bracket, Inner Front Lh
9046706077 90467-06077 Clip(For Floor Carpet, Rear)
9046707049 90467-07049-B7 Clip(For Front Floor Carpet)
9046709118 90467-09118 Clip(For Hood Insulator)
Meter ([09.2001 - ] (0109- )) 7
#OEMPart name
83100 83800-13110 Meter Assy, Combination
83138 83852-13100 Glass, Combination Meter
83910 83910-12580 Clock Assy
83910 90010-07018 Bulb, Clock Indicator
9018305033 90183-05033 NUT
9356755018 93567-55018 New Genuine Part
9356755018 93568-55018 SCREW
Mirror ([09.2001 - ] (0109- )) 45
#OEMPart name
87810 87810-13050-A0 Mirror Assy, Inner Rear View
87810 87810-13050-B0 Mirror Assy, Inner Rear View (Lt.Gray)
87834 87834-20080-A2 Cover, Inner Rear View Mirror Stay Holder
87834 87834-20080-B6 Cover, Inner Rear View Mirror Stay Holder
87901 87931-42580 Mirror Sub-Assy, Outer Rear View, Rh
87901 87931-42610 Mirror Sub-Assy, Outer Rear View, Rh
87906 87961-42550 Mirror Sub-Assy, Outer Rear View, Lh
87906 87961-42580 Mirror Sub-Assy, Outer Rear View, Lh
87910 87910-13190 Mirror Assy, Outer Rear View, Rh
87910 87910-13200 Mirror Assy, Outer Rear View, Rh
87911 87911-13020 Gasket, Outer Rear View Mirror, Rh
87915 87915-42020-A2 Cover, Outer Mirror, Rh
87915 87915-42020-B1 Cover, Outer Mirror, Rh
87915 87915-42020-B7 Cover, Outer Mirror, Rh
87915 87915-42020-C1 Cover, Outer Mirror, Rh
87915 87915-42020-C2 Cover, Outer Mirror, Rh
87915 87915-42020-D1 Cover, Outer Mirror, Rh
87915 87915-42020-D2 Cover, Outer Mirror, Rh
87915 87915-42020-F1 Cover, Outer Mirror, Rh
87915 87915-42020-G1 Cover, Outer Mirror, Rh
87915 87915-42020-H1 Cover, Outer Mirror, Rh
87915 87915-42020-J2 Cover, Outer Mirror, Rh
87915 87915-42020-J3 Cover, Outer Mirror, Rh
87915 87915-42020-J4 Cover, Outer Mirror, Rh
87915 87915-42010 Cover, Outer Mirror, Rh
87940 87940-13190 Mirror Assy, Outer Rear View, Lh
87940 87940-13200 Mirror Assy, Outer Rear View, Lh
87941 87941-13020 Gasket, Outer Rear View Mirror, Lh
87945 87945-42020-A2 Cover, Outer Mirror, Lh
87945 87945-42020-B1 Cover, Outer Mirror, Lh
87945 87945-42020-B7 Cover, Outer Mirror, Lh
87945 87945-42020-C1 Cover, Outer Mirror, Lh
87945 87945-42020-C2 Cover, Outer Mirror, Lh
87945 87945-42020-D1 Cover, Outer Mirror, Lh
87945 87945-42020-D2 Cover, Outer Mirror, Lh
87945 87945-42020-F1 Cover, Outer Mirror, Lh
87945 87945-42020-G1 Cover, Outer Mirror, Lh
87945 87945-42020-H1 Cover, Outer Mirror, Lh
87945 87945-42020-J2 Cover, Outer Mirror, Lh
87945 87945-42020-J3 Cover, Outer Mirror, Lh
87945 87945-42020-J4 Cover, Outer Mirror, Lh
87945 87945-42010 Cover, Outer Mirror, Lh
9015460034 90154-60034 New Genuine Part
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
Mounting ([09.2001 - 12.2001] (0109-0112)1ZZFE,3ZZFE..MTM ; (0109- )1ZZFE.. ATM) 25
#OEMPart name
12305 12305-22150 Insulator Sub-Assy, Engine Mounting, Rh
12305 12305-22270 Insulator Sub-Assy, Engine Mounting, Rh
12305 12305-22200 Insulator Sub-Assy, Engine Mounting, Rh
12311 12311-22110 Bracket, Engine Mounting, Front(For Transverse Engine)
12311 12311-22170 Bracket, Engine Mounting, Front(For Transverse Engine)
12315 12315-22050 Bracket, Engine Mounting, Rh(For Transverse Engine)
12321 12321-22110 Bracket, Engine Mounting, Rear(For Transverse Engine)
12325 12325-22090 Bracket, Engine Mounting, Lh(For Transverse Engine)
12325 12325-22200 Bracket, Engine Mounting, Lh(For Transverse Engine)
12361 12361-22080 Insulator, Engine Mounting, Front(For Transverse Engine)
12371 12371-22170 Insulator, Engine Mounting, Rear
12372 12372-21070 Insulator, Engine Mounting, Lh(For Transverse Engine)
9010510301 90105-10301 BOLT WASHER BASED
9010510422 90105-10422 New Genuine Part
9010510450 90105-10450 BOLT WASHER BASED
9010510469 90105-10469 Bolt (For Rear Axle Bearing Case Rh)
9010510494 90105-10494 BOLT FLANGE
9010510495 90105-10495 BOLT FLANGE
9010512153 90105-12153 BOLT
9011910818 90119-10818 BOLT WWASHER
9011910866 90119-10866 BOLT WWASHER
9011910904 90119-10904 BOLT WWASHER
9017910108 90179-10108 NUT
9017910154 90179-10154 NUT
9017910176 90179-10176 NUT
Mounting ([12.2001 - ] (0112- )1ZZFE,3ZZFE..MTM) 29
#OEMPart name
12305 12305-22150 Insulator Sub-Assy, Engine Mounting, Rh
12305 12305-22270 Insulator Sub-Assy, Engine Mounting, Rh
12305 12305-22200 Insulator Sub-Assy, Engine Mounting, Rh
12311 12311-22110 Bracket, Engine Mounting, Front(For Transverse Engine)
12311 12311-22170 Bracket, Engine Mounting, Front(For Transverse Engine)
12315 12315-22050 Bracket, Engine Mounting, Rh(For Transverse Engine)
12321 12321-22110 Bracket, Engine Mounting, Rear(For Transverse Engine)
12325 12325-22090 Bracket, Engine Mounting, Lh(For Transverse Engine)
12325 12325-22200 Bracket, Engine Mounting, Lh(For Transverse Engine)
12351 12351-22080 Damper, Engine Mounting
12351 12351-74110 Damper, Engine Mounting(For Insulator)
12361 12361-22080 Insulator, Engine Mounting, Front(For Transverse Engine)
12371 12371-22170 Insulator, Engine Mounting, Rear
12372 12372-21070 Insulator, Engine Mounting, Lh(For Transverse Engine)
9010510301 90105-10301 BOLT WASHER BASED
9010510422 90105-10422 New Genuine Part
9010510450 90105-10450 BOLT WASHER BASED
9010510469 90105-10469 Bolt (For Rear Axle Bearing Case Rh)
9010510494 90105-10494 BOLT FLANGE
9010510495 90105-10495 BOLT FLANGE
9010512153 90105-12153 BOLT
9011910818 90119-10818 BOLT WWASHER
9011910866 90119-10866 BOLT WWASHER
9011910904 90119-10904 BOLT WWASHER
9017906007 90179-06007 Nut
9017908068 90179-08068 NUT
9017910108 90179-10108 NUT
9017910154 90179-10154 NUT
9017910176 90179-10176 NUT
Mudguard & Spoiler ([09.2001 - ] (0109- )) 55
#OEMPart name
65631 65631-13020 Plate, Rear Wheel House, Front Rh
65632 65632-13020 Plate, Rear Wheel House, Front Lh
75851 75851-12091 Moulding, Body Rocker Panel, Rh
75852 75852-12061 Moulding, Body Rocker Panel, Lh
75895 75895-13010 Tape, Moulding, No.1
76603 76621-12210 Mudguard Sub-Assy, Front Fender, Rh
76604 76622-12210 Mudguard Sub-Assy, Front Fender, Lh
76607 76625-13110 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76607 76625-13120-A0 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76607 76625-13120-B0 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76607 76625-13120-B2 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76607 76625-13120-C0 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76607 76625-13120-C1 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76607 76625-13120-D0 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76607 76625-13120-D1 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76607 76625-13120-F0 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76607 76625-13120-G0 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76607 76625-13120-H0 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76607 76625-13120-J0 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76607 76625-13120-J1 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76607 76625-13120-J2 Mudguard Sub-Assy, Quarter Panel, Rear Rh
76608 76626-13110 Mudguard Sub-Assy, Quarter Panel, Rear Lh
76608 76626-13120-A0 Mudguard Sub-Assy, Quarter Panel, Rear Lh
76608 76626-13120-B0 Mudguard Sub-Assy, Quarter Panel, Rear Lh
76608 76626-13120-B2 Mudguard Sub-Assy, Quarter Panel, Rear Lh
76608 76626-13120-C0 Mudguard Sub-Assy, Quarter Panel, Rear Lh
76608 76626-13120-C1 Mudguard Sub-Assy, Quarter Panel, Rear Lh
76608 76626-13120-D0 Mudguard Sub-Assy, Quarter Panel, Rear Lh
76608 76626-13120-D1 Mudguard Sub-Assy, Quarter Panel, Rear Lh
76608 76626-13120-F0 Mudguard Sub-Assy, Quarter Panel, Rear Lh
76608 76626-13120-G0 Mudguard Sub-Assy, Quarter Panel, Rear Lh
76608 76626-13120-H0 Mudguard Sub-Assy, Quarter Panel, Rear Lh
76608 76626-13120-J0 Mudguard Sub-Assy, Quarter Panel, Rear Lh
76608 76626-13120-J1 Mudguard Sub-Assy, Quarter Panel, Rear Lh
76608 76626-13120-J2 Mudguard Sub-Assy, Quarter Panel, Rear Lh
76851 76851-13080 Cover, Front Spoiler, Rh
76852 76852-13060 Cover, Front Spoiler, Lh
76865 67771-16170 Retainer, Door Trim, Rh
76901 76901-13900 Mudguard Sub-Assy, Side, Rh
76902 76902-13900 Mudguard Sub-Assy, Side, Lh
76915 76915-13020 Mudguard, Side, Fr Rh
76916 76916-13020 Mudguard, Side, Fr Lh
76924 76924-52021 Retainer, Side Mudguard
76925 76925-13020-B0 Protector, Side Mudguard, Rh
76925 76925-13020-C0 Protector, Side Mudguard, Rh
5216120010 52161-20010 Piece, Front Bumper
9015960444 90159-60444 SCREW WWASHER
9015960602 90159-60602 SCREW
9017606036 90176-06036 NUT
9018306019 90183-06019 Clip, Outside Moulding, No.1
9018906006 90189-06006 Grommet
9018906066 90189-06066 CLIP
9046709093 90467-09093 Piece, Rear Bumper
9046709196 90467-09196 Clip, Rear Spoiler, No.1
9046710162 90467-10162 Clip, Front Wheel Opening Extensoion
Navigation & Front Monitor Display ([09.2001 - ] (0109- )) 15
#OEMPart name
86120 86120-33420 Receiver Assy, Navigation
86120 86120-33421 Receiver Assy, Navigation
86271 86271-24120 Disc, Disc Player
86271 86271-24126 Disc, Disc Player
86271 86271-24121 Disc, Disc Player
86271 86271-24122 Disc, Disc Player
86274 86274-13010 Bracket, Disc Player
86274 86274-13020 Bracket, Disc Player, No.2
86841 86841-13020 Computer, Navigation
86843 86804-13010 Cover, Navigation Computer
9001023011 90010-23011 New Genuine Part
9011908151 90119-08151 New Genuine Part
9015350010 90153-50010 BOLT
9015350012 90153-50012 SCREW CROSSRECESS
9046705159 90467-05159-C0 Clip, Deck Rear Trim
Oil Filter ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 3
#OEMPart name
15600 90904-04002 Union(For Oil Filter)
15601 90915-10003 Oil Filter (Thailand-China) - Thailand or China made
15601 90915-10009 Oil Filter Sub-Assy (DENSO, CHINA)
Overdrive & Electronic Controlled Transmission ([09.2001 - ] (0109- )LHD) 2
#OEMPart name
9161160616 91611-60616 Bolt(For Transaxle Case Receiver)
9161160616 91611-B0616 Bolt(For Transaxle Case Receiver)
Parking Brake & Cable ([09.2001 - ] (0109- )) 27
#OEMPart name
46201 46201-13040-B0 Lever Sub-Assy, Parking Brake
46341 46341-20070 Equalizer, Parking Brake
46410 46410-42040 Cable Assy, Parking Brake, No.1
46420 46420-12490 Cable Assy, Parking Brake, No.2
46430 46430-12400 Cable Assy, Parking Brake, No.3
46441 90179-06058 Nut, Wire Adjusting, No.1
46441 90179-06299 Nut, Wire Adjusting, No.1
46441 46441-12010 Nut, Wire Adjusting, No.1
46458 46458-28010 Retainer, Cable
46503 46503-20070 Plate Sub-Assy, Parking Brake, Rh
46504 46504-20070 Plate Sub-Assy, Parking Brake, Lh
46540 46540-20080 Shoe Assy, Parking Brake, Rh Or Center No.1
46550 90905-06044 Spring, Tension, No.1(For Parking Brake Shoe Return)
46550 90905-06045 Spring, Tension, No.1(For Parking Brake Shoe Return)
46550 90905-06046 Spring, Tension, No.1(For Parking Brake Shoe Return)
46550 90905-06043 Spring, Tension, No.3(For Parking Brake Shoe Return)
47405 47405-32010 Screw Set, Shoe Adjusting, Rh(For Parking Brake)
47406 47406-32010 Screw Set, Shoe Adjusting, Lh(For Parking Brake)
47447 47446-32010 Spring, Compression(For Parking Brake Shoe Hold Down)
47447 47447-11010 Pin, Shoe Hold Down Spring(For Parking Brake)
47611 47601-32030 Lever, Parking Brake Shoe, Rh
47612 47602-32030 Lever, Parking Brake Shoe, Lh
47613 47613-32030 Strut, Parking Brake Shoe, Rh
9011908146 90119-08146 Bolt(For Parking Brake Setting)
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
Partial Engine Assembly ([09.2001 - ] (0109- )) 5
#OEMPart name
11000 19000-22220 Engine Assy, Partial
11000 16258-28030 Gasket(For Heater Return)
11000 16268-22091 Pipe, Water By-Pass, No.1
11000 16268-22101 Pipe, Water By-Pass, No.1
11000 19000-22221 Engine Assy, Partial
Power Steering Tube ([10.2001 - ] (0110- )ZZE12#..LHD) 15
#OEMPart name
44348 44348-12091 Hose, Oil Reservoir To Pump, No.1
44406 44406-13011 Tube Sub-Assy, Return
44410 44410-13040 Tube Assy, Pressure Feed
9010510271 90105-10271 BOLT WASHER BASED
9011906357 90119-06357 BOLT WWASHER
9017910173 90179-10173 NUT
9046716008 90467-16008 Clip(For Oil Return Hose)
9046716008 90467-16019 Clip(For Return No.1)
9046721005 90467-21005 Clip(For Suction Hose No.1)
9046721005 90467-21010 Clip(For Ventilation Hose No.2)
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
9163560616 91635-60616 BOLT WWASHER
9163560616 91631-J0612 BRACKET
9163560618 91635-60618 New Genuine Part
9163560618 91631-B0614 BOLT WWASHER
Quarter Window ([09.2001 - ] (0109- )) 4
#OEMPart name
62110 62110-13040 Window Assy, Front Side Fix, Rh
62120 62120-13040 Window Assy, Front Side Fix, Lh
62710 62710-13120 Window Assy, Quarter, Rh
62720 62720-13120 Window Assy, Quarter, Lh
Radiator & Water Outlet ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 51
#OEMPart name
16261 16261-22100 Hose, Water By-Pass
16261 96135-41300 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 96135-51300 Clamp, Hose
16264 16264-22110 Hose, Water By-Pass, No.2
16268 16268-22100 Pipe, Water By-Pass, No.1
16268 16268-22101 Pipe, Water By-Pass, No.1
16268 16258-22010 Gasket(For Water By-Pass Pipe)
16321 16321-22070 Inlet, Water
16325 16325-62010 Gasket, Water Inlet Housing, No.1
16331 90916-03125 Thermostat
16361 16361-21060 Fan
16363 16363-23020 Motor, Cooling Fan
16400 16400-21140 Radiator Assy
16400 16400-21130 Radiator Assy
16400 23322-54010 Plug,air(For Oil Cooler Drain Cock)
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16401 16401-72090 Cap Sub-Assy, Radiator
16401 16401-20353 Cap Sub-Assy, Radiator
16401 16401-36030 Cap Sub-Assy, Radiator
16441 16441-21180 Tank, Radiator, Upper
16442 16442-21180 Ring, O(For Radiator Upper Tank)
16461 16461-21150 Tank, Radiator, Lower
16462 16462-21180 Ring, O(For Radiator Lower Tank)
16470 16377-21040 Hose Or Pipe(For Radiator Reserve Tank)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16471 16405-21030 Cap Sub-Assy, Reserve Tank
16471 16471-23010 Cap Sub-Assy, Reserve Tank
16523 16523-21020 Cushion, Radiator Support
16533 16533-21020 Support, Radiator, Upper
16535 90480-40016 Support, Radiator, Lower
16571 16571-22070 Hose, Radiator, Inlet
16571 90467-34003 Clip(For Oil Return Hose)
16571 90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16571 90467-37002 Clip(For Water Inlet Hose)
16571 90467-37005 Clip(For Water Inlet Hose)
16572 16572-22070 Hose, Radiator, Outlet
16572 90466-35001 Clamp Or Clip, Hose(For Radiator Inlet)
16572 90466-37002 Clamp Or Clip, Hose(For Radiator Inlet)
16701 16711-22100 Shroud Sub-Assy, Fan
16701 16711-22130 Shroud Sub-Assy, Fan
91621 91621-B0814 Bolt (For Transmission Control Cable Bracket)
91621 91621-J0814 Bolt (For Transmission Control Cable Bracket)
91651 91651-B0616 BOLT WWASHER
9009904119 90099-04119 BOLT WASHER HEAD
9009905164 90099-05164 Nut
9012606009 90126-06009 STUD HEX LOBULAR
9012606012 90126-06012 STUD, HEX LOBULAR
9046400239 90464-00239 New Genuine Part
9151180614 91511-80614 BOLT FLANGE
9415010641 94150-10641 Nut
9415080640 94150-80640 NUT FLANGE
Radiator Grille ([09.2001 - ] (0109- )) 4
#OEMPart name
53111 53111-13240 Grille, Radiator
53119 53119-12150 Cover, Front Bumper Side(For Gllile Guard)
9016850057 90168-50057 SCREW RADIATOR GRIL
9018905037 90189-05037 GROMMET
Radio Receiver & Amplifier & Condenser ([09.2001 - ] (0109- )) 7
#OEMPart name
86120 86120-13050-B0 Receiver Assy, Radio
86120 86120-13060-B0 Receiver Assy, Radio
86211 86211-13030 Bracket, Radio, No.1
86212 86212-13030 Bracket, Radio, No.2
9001024110 90010-24110 New Genuine Part
9015350010 90153-50010 BOLT
9015950322 90159-50322 SCREW WWASHER
Radio Receiver & Amplifier & Condenser ([09.2001 - ] CONDENSER (0109- )) 5
#OEMPart name
86011 90980-04148 Condenser, Radio Setting
86011 90980-04154 Condenser, Radio Setting
86011 90980-04208 Condenser, Radio Setting
9011906390 90119-06390 BOLT WWASHER
9165160612 91651-60612 BOLT
Rear Axle Shaft & Hub ([09.2001 - ] (0109- )) 9
#OEMPart name
42311 90942-02049 Bolt, Hub
42311 90942-02082 Bolt, Hub
42421 90105-10470 Bolt (For Rear Axle Bearing Case Rh)
42421 90105-10507 Bolt (For Rear Axle Bearing Case Rh)
42431 42431-12210 Disc, Rear
42431 42431-12250 Disc, Rear
42450 42450-13010 Hub & Bearing Assy, Rear Axle, Rh
42450 42450-12070 Hub & Bearing Assy, Rear Axle, Rh
42491 47491-22020 Plug, Shoe Adjusting Hole (For Parking Brake)
Rear Bumper & Bumper Stay ([09.2001 - ] (0109- )) 25
#OEMPart name
52023 52023-13030 Reinforcement Sub-Assy, Rear Bumper
52159 52159-13905 Cover, Rear Bumper
52181 58323-13020 Arm, Rear Bumper, Rh
52182 58324-13010 Arm, Rear Bumper, Lh
52562 52562-13050 Retainer, Rear Bumper, Upper Rh
52563 52563-13050 Retainer, Rear Bumper, Upper Lh
52575 52575-13040 Retainer, Rear Bumper Side, Rh
52576 52576-13040 Retainer, Rear Bumper Side, Lh
52591 52591-13060 Seal, Rear Bumper Side, Rh
52592 52592-13060 Seal, Rear Bumper Side, Lh
5216116010 52161-16010 Clip
5216116010 52161-0K040 Clip
5216116010 52161-02020 Clip
5279112040 52791-12040 Bolt, Bumper Moulding Set, No.1
9011908636 90119-08636 BOLT
9015950311 90159-50311 SCREW
9015950311 90159-A0034 SCREW WWASHER
9015960602 90159-60602 SCREW
9017908104 90179-08104 New Genuine Part
9017908104 90179-08200 New Genuine Part
9018906039 90189-06039 New Genuine Part
9018906057 90189-06057 GROMMET
9018906224 90189-06224 GROMMET SCREW
9043005019 90430-05019 GASKETROUND TYPE
9415080600 94150-80600 NUT FLANGE
Rear Combination Lamp ([09.2001 - ] (0109- )) 12
#OEMPart name
81496 81496-12020 Guide, Rear Combination Lamp
81550 90981-11048 Bulb(For Rear Combination Lamp)
81550 90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)
81550 90981-13043 Bulb (12V 21W)
81551 81551-13540 Lens, Rear Combination Lamp, Rh
81554 81554-13510 Gasket, Rear Combination Lamp Body, No.1 Rh
81555 81555-13510 Socket, Tail Lamp
81555 81555-13520 Socket, Rear Turn Signal Lamp
81555 81555-13530 Socket, Back Up Lamp
81561 81561-13540 Lens, Rear Combination Lamp, Lh
9017905076 90179-05076 NUT
9017905076 90179-05030 NUT
Rear Disc Brake Caliper & Dust Cover ([09.2001 - ] (0109- )) 20
#OEMPart name
4466 04466-52030 Pad Kit, Disc Brake, Rear
4479 04479-13010 Cylinder Kit, Disc Brake, Rear
4946 04946-20020 Shim Kit, Anti Squeal(For Rear Disc Brake)
4948 04948-20010 Fitting Kit, Disc Brake, Rear
31478 31478-30010 Bleeder Plug Cap
47547 47547-35020 Plug, Bleeder(For Front Disc Brake)
47715 47715-20030 Pin, Cylinder Slide(For Rear Disc Brake)
47715 47715-20040 Pin, Cylinder Slide(For Rear Disc Brake)
47721 90389-10053 Collar(For Rear Disc Brake Cylinder Mounting)
47721 90389-10054 Collar(For Rear Disc Brake Cylinder Mounting)
47730 47730-13020 Cylinder Assy, Rear Disc Brake, Rh
47731 47731-13010 Piston, Rear Disc Brake
47731 90522-42001 Ring, Set(For Rear Disc Brake Piston)
47743 47743-20030 Spring, Anti-Rattle, No.2(For Rear Disc Brake)
47748 47748-20040 Spring, Anti-Rattle, No.1(For Rear Disc Brake)
47748 90240-06021 Pin, W/hole(For Rear Disc Brake)
47748 90468-12025 Clip(For Rear Disc Brake)
47750 47750-13020 Cylinder Assy, Disc Brake, Rear Lh
47775 47775-22020 Boot, Bush Dust(For Rear Disc Brake)
47775 47775-42010 Boot, Bush Dust(For Rear Disc Brake)
Rear Door Lock & Handle ([09.2001 - ] (0109- )) 55
#OEMPart name
69050 69050-13090 Lock Assy, Rear Door W/motor, Rh
69060 69060-13090 Lock Assy, Rear Door W/motor, Lh
69203 69203-13030 Frame Sub-Assy, Rear Door Outside Handle, Rh
69204 69204-13030 Frame Sub-Assy, Rear Door Outside Handle, Lh
69205 69205-12190-A0 Handle Sub-Assy, Front Door Inside, Rh
69205 69205-12190-B1 Handle Sub-Assy, Front Door Inside, Rh
69205 90541-04027 Cushion(For Front Door Inside Handle)
69206 69206-12190-A0 Handle Sub-Assy, Front Door Inside, Lh
69206 69206-12190-B1 Handle Sub-Assy, Front Door Inside, Lh
69227 69227-42070-A3 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-B1 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-C1 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-C2 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-D2 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-X7 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-D5 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-F1 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-G1 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-H3 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-J2 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-J5 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-J6 Cover, Rear Door Outside Handle, Rh
69227 69227-42070-P0 Cover, Rear Door Outside Handle, Rh
69230 69211-12220-A0 Handle Assy, Front Door, Outside Rh
69230 69211-12220-B1 Handle Assy, Front Door, Outside Rh
69230 69211-12220-C0 Handle Assy, Front Door, Outside Rh
69230 69211-12220-C2 Handle Assy, Front Door, Outside Rh
69230 69211-12220-D1 Handle Assy, Front Door, Outside Rh
69230 69211-12220-X7 Handle Assy, Front Door, Outside Rh
69230 69211-12220-D2 Handle Assy, Front Door, Outside Rh
69230 69211-12220-F1 Handle Assy, Front Door, Outside Rh
69230 69211-12220-F5 Handle Assy, Front Door, Outside Rh
69230 69211-12220-G0 Handle Assy, Front Door, Outside Rh
69230 69211-12220-H3 Handle Assy, Front Door, Outside Rh
69230 69211-12220-J0 Handle Assy, Front Door, Outside Rh
69230 69211-12220-J1 Handle Assy, Front Door, Outside Rh
69230 69211-12220-J2 Handle Assy, Front Door, Outside Rh
69230 69211-12220-P0 Handle Assy, Front Door, Outside Rh
69241 69241-42020 Pad, Front Door Outside Handle, Rh
69242 69242-42010 Pad, Front Door Outside Handle, Lh
69283 69283-13020-A0 Plug, Rear Door Inside Handle Bezel, Rh
69283 69283-13020-B0 Plug, Rear Door Inside Handle Bezel, Rh
69318 69318-51010 Seal, Front Door Lock Hole, Rh
69410 69410-20110 Plate Assy, Front Door Lock Striker
69730 69730-13030 Cable Assy, Rear Door Lock Remote Control, Rh
69749 69749-32040 Clamp, Front Door Lock Link
69770 69770-13020 Link Assy, Rear Door Inside Locking, Rh
69780 69780-13020 Cable Assy, Rear Door Inside Locking, Lh
9014850003 90148-50003 Screw Hex Lobular
9014860022 90148-60022 BOLT
9014860022 90148-A0005 Hexalobular Screw
9014880027 90148-80027 Screw Hex Lobular
9015950381 90159-50381 New Genuine Part
9016650003 90166-50003 New Genuine Part
9018905003 90189-05003 CLIP
Rear Door Panel & Glass ([09.2001 - ] (0109- )) 60
#OEMPart name
67003 67003-13310 Panel Sub-Assy, Rear Door, Rh
67004 67004-13310 Panel Sub-Assy, Rear Door, Lh
67113 67113-13050 Panel, Rear Door, Outer Rh
67114 67114-13050 Panel, Rear Door, Outer Lh
67407 67407-13080 Bar Sub-Assy, Rear Door Window Division, Rh
67408 67408-13080 Bar Sub-Assy, Rear Door Window Division, Lh
67603 67630-13790-A0 Board Sub-Assy, Rear Door Trim, Rh
67603 67630-13790-B0 Board Sub-Assy, Rear Door Trim, Rh
67603 67630-13830-A0 Board Sub-Assy, Rear Door Trim, Rh
67603 67630-13830-B0 Board Sub-Assy, Rear Door Trim, Rh
67603 67630-13780-B0 Board Sub-Assy, Rear Door Trim, Rh
67604 67640-13790-A0 Board Sub-Assy, Rear Door Trim, Lh
67604 67640-13790-B0 Board Sub-Assy, Rear Door Trim, Lh
67604 67640-13830-A0 Board Sub-Assy, Rear Door Trim, Lh
67604 67640-13830-B0 Board Sub-Assy, Rear Door Trim, Lh
67604 67640-13780-B0 Board Sub-Assy, Rear Door Trim, Lh
67627 67625-52010 Bracket, Front Door Trim, Rh
67715 67715-13010-A0 Pad, Door Trim, No.1
67715 67715-13010-B0 Pad, Door Trim, No.1
67814 67817-47010 Pad, Rear Door Silencer
67841 67841-13070 Cover, Rear Door Service Hole, Rh
67842 67842-13030 Cover, Rear Door Service Hole, Lh
67857 67857-12090 Protector, Rear Door Panel, Rh
67858 67858-12080 Protector, Rear Door Panel, Lh
67867 67867-12150 Clip(For Hood Air Intake Duct Seal)
67871 67871-13160 Weatherstrip, Rear Door, Rh
67872 67872-13150 Weatherstrip, Rear Door, Lh
68103 68103-13300 Glass Sub-Assy, Rear Door, Rh
68104 68104-13290 Glass Sub-Assy, Rear Door, Lh
68123 68123-13260 Glass, Rear Door Quarter Window, Rh
68124 68124-13250 Glass, Rear Door Quarter Window, Lh
68142 68142-13130 Run, Rear Door Glass, Rh
68145 69759-12110 Seal, Rear Door Frame
68152 68152-13090 Run, Rear Door Glass, Lh
68173 68173-13030 Weatherstrip, Rear Door Glass, Inner Rh
68174 68174-13030 Weatherstrip, Rear Door Glass, Inner Lh
68188 68188-13100 Weatherstrip, Rear Door Quarter Window, Rh
68189 68189-13100 Weatherstrip, Rear Door Quarter Window, Lh
68630 68630-12090 Check Assy, Rear Door, Rh
68640 68640-12050 Check Assy, Rear Door, Lh
75923 75923-13030 Tape, Black Out, No.2 Rh
75923 75923-13032 Tape, Black Out, No.2 Rh
75923 75923-13031 Tape, Black Out, No.2 Rh
75924 75924-13030 Tape, Black Out, No.2 Lh
75924 75924-13032 Tape, Black Out, No.2 Lh
75924 75924-13031 Tape, Black Out, No.2 Lh
75925 75925-13020 Tape, Black Out, No.3 Rh
75925 75925-13021 Tape, Black Out, No.3 Rh
75926 75926-13020 Tape, Black Out, No.3 Lh
75926 75926-13021 Tape, Black Out, No.3 Lh
6777112050 67771-12050 Clip, Radiator Grille
9010908295 90109-08295 BOLT
9015150016 90151-50016 New Genuine Part
9015960550 90159-60550 New Genuine Part
9016460018 90164-60018 SCREW
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9018906018 90189-06018 GROMMET
9054107032 90541-07032 Cushion, Hood Bumper
9054109069 90541-09069 Cushion, Hood Bumper
Rear Door Window Regulator & Hinge ([09.2001 - ] (0109- )) 29
#OEMPart name
68750 68750-52011 Hinge Assy, Rear Door, Upper Rh
68760 68760-52011 Hinge Assy, Rear Door, Upper Lh
68770 68770-52030 Hinge Assy, Rear Door, Lower Rh
68770 68770-52031 Hinge Assy, Rear Door, Lower Rh
68780 68780-52030 Hinge Assy, Rear Door, Lower Lh
68780 68780-52031 Hinge Assy, Rear Door, Lower Lh
69260 69260-14030-A0 Handle Assy, Front Door Window Regulator - REAR DOOR WINDOW REGULATOR
69260 69260-14030-B7 Handle Assy, Front Door Window Regulator - REAR DOOR WINDOW REGULATOR
69260 90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)
69272 69268-12020 Plate, Front Door Regulator Inside Handle
69803 69803-13020 Regulator Sub-Assy, Rear Door Window, Rh
69803 69830-13040 Regulator Sub-Assy, Rear Door Window, Rh
69803 69830-12360 Regulator Sub-Assy, Rear Door Window, Rh
69804 69804-13020 Regulator Sub-Assy, Rear Door Window, Lh
69804 69840-13050 Regulator Sub-Assy, Rear Door Window, Lh
69804 69840-12360 Regulator Sub-Assy, Rear Door Window, Lh
69905 69905-52020 Bracket Sub-Assy, Rear Door Glass, Rh
69906 69906-52010 Channel Sub-Assy, Rear Door Glass, Rh
69975 69975-52010 Filler, Rear Door Glass Channel
85710 85720-13040 Motor Assy, Power Window Regulator, Rh
85710 85720-20400 Motor Assy, Power Window Regulator, Lh
85720 85710-13040 Motor Assy, Power Window Regulator, Lh
85720 85710-20380 Motor Assy, Power Window Regulator, Rh
9010508077 90105-08077 BOLT
9010508320 90105-08320 BOLT WASHER BASED
9016850040 90168-50040 SCREW TAPPING
9017908086 90179-08086 New Genuine Part
9020908014 90209-08014 WASHER
9153160610 91531-60610 New Genuine Part
Rear License Plate Lamp ([09.2001 - ] (0109- )) 6
#OEMPart name
81270 81270-13330 Lamp Assy, License Plate
81270 99132-12050 Bulb (12V 5W)
81270 90080-81053 Bulb(For Clearance Lamp)
81271 81271-21110 Lens, License Plate Lamp
81272 81272-95J07 Gasket, License Plate Lamp Lens
8127989118 81279-89118 Washer, Side Turn Signal Lamp
Rear Monitor Display & Camera ([09.2001 - ] (0109- )) 24
#OEMPart name
86790 86790-13020 Camera Assy, Television
86792 86792-13040 Controller, Television Camera
86794 86794-13020-A0 Cover, Television Camera Wire
86794 86794-13020-B0 Cover, Television Camera Wire
86794 86794-13020-B2 Cover, Television Camera Wire
86794 86794-13020-C0 Cover, Television Camera Wire
86794 86794-13020-C1 Cover, Television Camera Wire
86794 86794-13020-D0 Cover, Television Camera Wire
86794 86794-13020-D1 Cover, Television Camera Wire
86794 86794-13020-F0 Cover, Television Camera Wire
86794 86794-13020-G0 Cover, Television Camera Wire
86794 86794-13020-H0 Cover, Television Camera Wire
86794 86794-13020-J0 Cover, Television Camera Wire
86794 86794-13020-J1 Cover, Television Camera Wire
86794 86794-13020-J2 Cover, Television Camera Wire
86794 86795-13010 Cover, Television Camera Wire, No.2
86797 86797-13010 Wire, Television Camera, No.2
86799 86799-13010 Wire, Television Camera
93560 93560-A5010 SCREW TAPPING
827111 82711-1A750 Clamp, No.1(For Back Door Lock Control Cable)
9017905011 90179-05011 NUT
9017905011 90178-A0005 New Genuine Part
9018305094 90183-05094 NUT
9356855014 93568-55014 Screw
Rear Moulding ([09.2001 - ] (0109- )) 24
#OEMPart name
75573 75573-13080 Moulding, Back Window, Outside Rh
75574 75574-13030 Moulding, Back Window, Outside Lh
76801 76811-13110-A0 Garnish Sub-Assy, Back Door, Outside
76801 76811-13110-B0 Garnish Sub-Assy, Back Door, Outside
76801 76811-13110-B2 Garnish Sub-Assy, Back Door, Outside
76801 76811-13110-C0 Garnish Sub-Assy, Back Door, Outside
76801 76811-13110-C1 Garnish Sub-Assy, Back Door, Outside
76801 76811-13110-D0 Garnish Sub-Assy, Back Door, Outside
76801 76811-13110-D1 Garnish Sub-Assy, Back Door, Outside
76801 76811-13110-F0 Garnish Sub-Assy, Back Door, Outside
76801 76811-13110-G0 Garnish Sub-Assy, Back Door, Outside
76801 76811-13110-H0 Garnish Sub-Assy, Back Door, Outside
76801 76811-13110-J0 Garnish Sub-Assy, Back Door, Outside
76801 76811-13110-J1 Garnish Sub-Assy, Back Door, Outside
76801 76811-13110-J2 Garnish Sub-Assy, Back Door, Outside
76821 76821-13040 Protector, Luggage Compartment Door Outside Garnish
9010805002 90108-05002 BOLT SQUARE
9011605036 90116-05036 Bolt(For Garnish Setting)
9011606172 90116-06172 BOLT STUD
9017905102 90179-05102 Nut
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9043005003 90430-05003 GASKET
9056204007 90562-04007 RING
Rear Seat & Seat Track ([09.2001 - ] (0109- )) 53
#OEMPart name
66993 66993-13020-A0 Tray, Rear Center Seat Cup Holder
66993 66993-13020-B0 Tray, Rear Center Seat Cup Holder
71017 71017-13260 Frame Sub-Assy, Rear Seat Back
71018 71018-13110 Frame Sub-Assy, Rear Seat Back, Lh
71075 79021-13050-A1 Cover Sub-Assy, Rear Seat Cushion, Rh
71075 79021-13050-B1 Cover Sub-Assy, Rear Seat Cushion, Rh
71075 71075-1F130-A0 Cover, Rear Seat Cushion, Rh (For Separate Type)
71075 71075-1F130-B0 Cover, Rear Seat Cushion, Rh (For Separate Type)
71075 71075-1F180-A0 Cover, Rear Seat Cushion, Rh (For Separate Type)
71075 71075-1F180-B0 Cover, Rear Seat Cushion, Rh (For Separate Type)
71075 79021-13040-B1 Cover Sub-Assy, Rear Seat Cushion, Rh
71075 71075-1F120-B0 Cover, Rear Seat Cushion, Rh (For Separate Type)
71075 71075-1F170-B0 Cover, Rear Seat Cushion, Rh (For Separate Type)
71076 79022-13050-A1 Cover, Rear Seat Cushion, Rear Lh
71076 79022-13050-B1 Cover, Rear Seat Cushion, Rear Lh
71076 71076-13560-A0 Cover, Rear Seat Cushion, Lh (For Separate Type)
71076 71076-13560-B0 Cover, Rear Seat Cushion, Lh (For Separate Type)
71076 71076-13610-A0 Cover, Rear Seat Cushion, Lh (For Separate Type)
71076 71076-13610-B1 Cover, Rear Seat Cushion, Lh (For Separate Type)
71076 79022-13040-B1 Cover, Rear Seat Cushion, Rear Lh
71076 71076-13550-B0 Cover, Rear Seat Cushion, Lh (For Separate Type)
71076 71076-13600-B1 Cover, Rear Seat Cushion, Lh (For Separate Type)
71077 71077-1F580-A0 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-1F580-B0 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-1F570-B0 Cover, Rear Seat Back, Rh (For Separate Type)
71078 71078-1F030-A0 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-1F030-B0 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-13820 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-1F020-B0 Cover, Rear Seat Back, Lh(For Separate Type)
71095 71095-13050-A0 Cover Sub-Assy, Center Seat Back
71095 71095-13050-B0 Cover Sub-Assy, Center Seat Back
71095 71095-13020-B0 Cover Sub-Assy, Center Seat Back
71305 71305-13030 Frame Sub-Assy, Center Seat Back
71358 71365-13020 Pad, Center Seat Back
71611 71611-13310 Pad, Rear Seat Cushion, Rh
71611 71611-13320 Pad, Rear Seat Cushion, Rh
71612 71612-13170 Pad, Rear Seat Cushion, Lh
71612 71612-13180 Pad, Rear Seat Cushion, Lh
71651 71651-13300 Pad, Rear Seat Back, Rh(For Separate Type)
71652 71652-13180 Pad, Rear Seat Back, Lh(For Separate Type)
71931 71956-47010-A0 Support, Rear Seat Headrest
71931 71956-47010-B2 Support, Rear Seat Headrest
71931 71970-47010-A0 Support, Rear Seat Headrest
71931 71970-47010-B2 Support, Rear Seat Headrest
71940 71940-13230-A1 Headrest Assy, Rear Seat
71940 71940-13230-B1 Headrest Assy, Rear Seat
71940 71940-13160-B0 Headrest Assy, Rear Seat
71960 71960-13020-A1 Headrest Assy, Rear Seat, Center
71960 71960-13020-B1 Headrest Assy, Rear Seat
71960 71960-13010-B0 Headrest Assy, Rear Seat, Center
79135 79235-13010 Pad, No.1 Seat Cushion, Rh
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
9046818071 90468-16019 Clip (For Rear Seat Back)
Rear Seat & Seat Track ([09.2001 - ] LH SEAT ADJUSTER (0109- )) 51
#OEMPart name
71016 71016-13050 Frame Sub-Assy, Rear Seat Cushion, Lh
71016 71016-13060 Frame Sub-Assy, Rear Seat Cushion, Lh
71694 71694-13050-A0 Cover, Rear Seat Cushion Hinge, Outer Lh
71694 71694-13050-B0 Cover, Rear Seat Cushion Hinge, Outer Lh
71694 71834-13060-A0 Cover, Rear Seat Cushion Hinge, Inner Lh
71694 71834-13060-B0 Cover, Rear Seat Cushion Hinge, Inner Lh
71779 71779-13010-A0 Cover, Rear Seat Side Hinge Male, Lh
71779 71779-13010-B0 Cover, Rear Seat Side Hinge Male, Lh
72040 72040-13050-A0 Adjuster Assy, Rear No.2 Seat
72040 72040-13050-B0 Adjuster Assy, Rear No.2 Seat
72040 72040-13060-A0 Adjuster Assy, Rear No.2 Seat
72040 72040-13060-B0 Adjuster Assy, Rear No.2 Seat
72125 72125-13020 Cover, Seat Track, Upper Rear Rh
72125 72125-13050 Cover, Seat Track, Upper Rear Lh
72170 72170-13030 Track Assy, Rear Seat, Outer Lh
72170 72170-13040 Track Assy, Rear Seat, Outer Lh
72190 72190-13010 Track Assy, Rear Seat Inner, Lh
72190 72190-13020 Track Assy, Rear Seat Inner, Lh
72213 72213-13020-A0 Knob, Seat Track Adjusting Handle, Rh
72213 72213-13020-C0 Knob, Seat Track Adjusting Handle, Rh
72242 72242-13010 Lever, Outer Seat Track Lock, Lh
72302 72302-13020 Wire Sub-Assy, Rear Seat Track Equalizing, Lh
72520 72520-13040 Adjuster Assy, Rear Reclining Seat, Outer Lh
72613 72613-13110 Striker, Rear Seat Lock
72613 72613-13120 Striker, Rear Seat Lock
72615 72615-13060-A0 Cover, Rear Seat Lock Striker, Rh
72615 72615-13060-B0 Cover, Rear Seat Lock Striker, Rh
72635 72635-13010-A0 Hook, Rear Seat Back Lock(Male)
72635 72635-13010-B0 Hook, Rear Seat Back Lock
72635 72635-13020-A0 Hook, Rear Seat Back Lock(Female)
72635 72635-13020-B0 Hook, Rear Seat Back Lock
72727 72727-13030-A0 Knob, Rear Seat Reclining Control Lever, Rh
72727 72727-13030-C0 Knob, Rear Seat Reclining Control Lever, Rh
72928 72928-13050-A0 Cover, Rear Seat Cushion Under, Lh
72928 72928-13050-B0 Cover, Rear Seat Cushion Under, Lh
72998 72995-13040-A0 Cover, Rear Seat Cushion, Rh
72998 72995-13040-B0 Cover, Rear Seat Cushion, Rh
74620 74620-13010 Strap Assy, Assist, Rh
79102 79102-13020-A0 Frame Sub-Assy, No.1 Seat Cushion, Lh
79102 79102-13020-B0 Frame Sub-Assy, No.1 Seat Cushion, Lh
79117 79117-13010-A0 Cover, No.1 Seat Cushion, Rh
79117 79117-13010-B0 Cover, No.1 Seat Cushion, Rh
79247 79247-13010 Pad, Junior Seat Cushion Cover, A
91515 91515-H1025 New Genuine Part
7270252010 72702-52010 Bracket Sub-assy, Rear Seat Back Striker
9011910921 90119-10921 BOLT WWASHER
9016740044 90167-40044 BOLT
9016850078 90168-50078 SCREW TAPPING
9338116010 93381-16010 New Genuine Part
9356855012 93568-55012 SCREW
9415080800 94150-80800 NUT, FLANGE
Rear Seat & Seat Track ([09.2001 - ] RH SEAT ADJUSTER (0109- )) 56
#OEMPart name
71015 71015-13080 Frame Sub-Assy, Rear Seat Cushion, Rh
71015 71015-13090 Frame Sub-Assy, Rear Seat Cushion, Rh
71629 71629-13040-A0 Cover, Rear Seat Cushion Hinge, Rh
71629 71629-13040-B0 Cover, Rear Seat Cushion Hinge, Rh
71693 71693-13040-A0 Cover, Rear Seat Cushion Hinge, Outer Rh
71693 71693-13040-B0 Cover, Rear Seat Cushion Hinge, Outer Rh
71693 71694-13030-A0 Cover, Rear Seat Cushion Hinge, Inner Rh
71693 71694-13030-B0 Cover, Rear Seat Cushion Hinge, Inner Rh
71778 71778-13010-A0 Cover, Rear Seat Side Hinge Male, Rh
71778 71778-13010-B0 Cover, Rear Seat Side Hinge Male, Rh
71778 71778-13020-A0 Cover, Rear Seat Side Hinge Male, Rh
71778 71778-13020-B0 Cover, Rear Seat Side Hinge Male, Rh
72030 72030-13050-A0 Adjuster Assy, Rear No.1 Seat
72030 72030-13050-B0 Adjuster Assy, Rear No.1 Seat
72030 72030-13060-A0 Adjuster Assy, Rear No.1 Seat
72030 72030-13060-B0 Adjuster Assy, Rear No.1 Seat
72125 72125-13020 Cover, Seat Track, Upper Rear Rh
72160 72160-13030 Track Assy, Rear Seat, Outer Rh
72160 72160-13040 Track Assy, Rear Seat, Outer Rh
72180 72180-13010 Track Assy, Rear Seat, Inner Rh
72180 72180-13020 Track Assy, Rear Seat, Inner Rh
72213 72213-13020-A0 Knob, Seat Track Adjusting Handle, Rh
72213 72213-13020-C0 Knob, Seat Track Adjusting Handle, Rh
72241 72241-13010 Lever, Outer Seat Track Lock, Rh
72302 72302-13010 Wire Sub-Assy, Rear Seat Track Equalizing, Rh
72510 72510-13040 Adjuster Assy, Rear Reclining Seat, Outer Rh
72550 72550-13010 Adjuster Assy, Reclining Seat, Center Rh
72613 72613-13110 Striker, Rear Seat Lock
72613 72613-13120 Striker, Rear Seat Lock
72615 72615-13060-A0 Cover, Rear Seat Lock Striker, Rh
72615 72615-13060-B0 Cover, Rear Seat Lock Striker, Rh
72635 72635-13010-A0 Hook, Rear Seat Back Lock(Male)
72635 72635-13010-B0 Hook, Rear Seat Back Lock
72635 72635-13020-A0 Hook, Rear Seat Back Lock(Female)
72635 72635-13020-B0 Hook, Rear Seat Back Lock
72727 72727-13030-A0 Knob, Rear Seat Reclining Control Lever, Rh
72727 72727-13030-C0 Knob, Rear Seat Reclining Control Lever, Rh
72927 72927-13060-A0 Cover, Rear Seat Cushion Under, Rh
72927 72927-13060-B0 Cover, Rear Seat Cushion Under, Rh
72995 72995-13040-A0 Cover, Rear Seat Cushion, Rh
72995 72995-13040-B0 Cover, Rear Seat Cushion, Rh
74620 74620-13010 Strap Assy, Assist, Rh
79101 79101-13020-A0 Frame Sub-Assy, No.1 Seat Cushion, Rh
79101 79101-13020-B0 Frame Sub-Assy, No.1 Seat Cushion, Rh
79117 79117-13010-A0 Cover, No.1 Seat Cushion, Rh
79117 79117-13010-B0 Cover, No.1 Seat Cushion, Rh
79247 79247-13010 Pad, Junior Seat Cushion Cover, A
91515 91515-H1025 New Genuine Part
7270213010 72702-13010 Bracket Sub-assy, Rear Seat Back Striker
7270252010 72702-52010 Bracket Sub-assy, Rear Seat Back Striker
9011910921 90119-10921 BOLT WWASHER
9016740044 90167-40044 BOLT
9016850078 90168-50078 SCREW TAPPING
9338116010 93381-16010 New Genuine Part
9356855012 93568-55012 SCREW
9415080800 94150-80800 NUT, FLANGE
Rear Spring & Shock Absorber ([09.2001 - ] (0109- )) 25
#OEMPart name
42110 42101-32040 Beam Assy, Rear Axle
48231 48231-13100 Spring, Coil, Rear Rh
48257 48257-32090 Insulator, Rear Coil Spring, Upper Rh
48341 48341-47010 Bumper, Rear Spring, No.1 Rh
48401 48401-32020 Bracket Sub-Assy, Rear Spring, Front Rh
48402 48403-32010 Bracket Sub-Assy, Rear Spring, Front Lh
48530 48530-80044 Absorber Assy, Shock, Rear Rh
48530 48530-80225 Absorber Assy, Shock, Rear Rh
48530 90948-03021 Washer, Rear Shock Absorber Cushion, No.1
48531 90560-14028 Retainer, Cushion, No.1(For Rear Shock Absorber)
48725 48725-12580 Bush, Rear Axle Carrier, Rh
48750 48750-47010 Support Assy, Rear Suspension, Rh
48755 48755-63010 Cushion, Rear Shock Absorber, No.1
48812 48812-13030 Bar, Stabilizer, Rear
48812 48812-68030 Bar, Stabilizer, Rear
48812 48812-32480 Bar, Stabilizer, Rear
48817 90105-14138 Bolt(For Rear Stabilizer)
48830 90179-14062 Nut (For Steering Knuckle Rh)
9010510435 90105-10435 Bolt (For Rear Differential Carrier Cover Setting)
9010510435 90105-10361 Bolt (For Rear Differential Carrier Cover Setting)
9011912357 90119-12357 BOLT WWASHER
9017810014 90178-10014 Nut(For Front Suspension Support)
9017812009 90178-12009 Nut(For Suspension Lower Arm Shaft)
9017814004 90178-14004 NUT FLANGE
9017912078 90179-12078 New Genuine Part
Rear Washer ([09.2001 - ] (0109- )) 17
#OEMPart name
85035 85391-13030 Nozzle Sub-Assy, Rear Washer
85348 85375-10260 Joint, Windshield Washer Hose, No.1
85348 85355-20200 Joint, Windshield Washer Hose, No.1
85348 85375-20800 Joint, Windshield Washer Hose, No.1
85372 90099-33080 Hose, Windshield Washer (From Motor To Joint)
85372 90446-07001 Hose, Windshield Washer (From Motor To Joint)
85372 90099-33589 Hose, Rear Washer (From Motor To Joint)
85372 90099-59057 Hose, Headlamp Cleaner, No.3
85373 90099-33299 Joint, Windshield Washer Elbow, No.2
827111 82711-1A770 Clamp, Wiring Harness
827113 82711-3F290 Clamp, Rear Washer Hose
8271116790 82711-16790 Clamp, Wiring Harness
8537220020 85372-20020 Grommet, Rear Washer Hose
8537220040 85372-20040 Grommet, Rear Washer Hose
8537916180 85379-16180 Grommet, Washer, A
9223372036854775807 82711-1E120 Wire, Fuse To Fuse(for Combustion Heater)
9223372036854775807 82711-1E260 Clamp (For Fuel Lid Lock Control Cable)
Rear Wiper ([09.2001 - ] (0109- )) 7
#OEMPart name
85110 85130-13120 Motor Assy, Rear Wiper
85143 85143-13070 Grommet, Rear Wiper Motor
85190 85241-28070 Arm Assy, Rear Wiper
85192 85292-28030 Cover, Rear Wiper Arm
85214 85214-30280 Rubber, Rear Wiper
85242 85242-13060 Blade, Rr Wiper
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
Reflex Reflector ([09.2001 - ] (0109- )) 3
#OEMPart name
81910 81910-21050 Reflector Assy, Reflex, Rh
81920 81920-21040 Reflector Assy, Reflex, Lh
9015960476 90159-60476 SCREW WWASHER
Roof Headlining & Silencer Pad ([09.2001 - ] (0109- )) 35
#OEMPart name
63303 63306-52030-A1 Trim Sub-Assy, Sunshade, No.2
63303 63306-52031-A1 Trim Sub-Assy, Sunshade, No.2
63303 63306-52030-B2 Trim Sub-Assy, Sunshade, No.2
63303 63306-52031-B2 Trim Sub-Assy, Sunshade, No.2
63303 63306-52020-A1 Trim Sub-Assy, Sunshade, No.2 Front
63303 63306-52021-A1 Trim Sub-Assy, Sunshade, No.2 Front
63303 63306-52020-B2 Trim Sub-Assy, Sunshade, No.2 Front
63303 63306-52021-B2 Trim Sub-Assy, Sunshade, No.2 Front
63306 63306-52010-A1 Trim Sub-Assy, Sunshade
63306 63306-52012-A1 Trim Sub-Assy, Sunshade
63306 63306-52010-B2 Trim Sub-Assy, Sunshade
63306 63306-52012-B2 Trim Sub-Assy, Sunshade
63306 63306-52011-A1 Trim Sub-Assy, Sunshade
63306 63306-52011-B2 Trim Sub-Assy, Sunshade
63310 63310-13580-A1 Headlining Assy, Roof
63310 63310-13580-B1 Headlining Assy, Roof
63310 63310-13620-A1 Headlining Assy, Roof
63310 63310-13620-B1 Headlining Assy, Roof
63310 90467-08213-A0 Clip, Roof Headlining
63310 90467-08213-B0 Clip, Roof Headlining
63318 63318-13050-A0 Moulding, Roof Headlining Set, No.1
63318 63318-13050-B0 Moulding, Roof Headlining Set, No.1
63319 63318-52010-A0 Moulding, Sun Roof Opening Trim
63319 63318-52010-B0 Moulding, Sun Roof Opening Trim
63328 63328-12030-A1 Knob, Sunshade Trim
63328 63328-12030-B7 Knob, Sunshade Trim
63341 63341-16010 Pad, Roof Silencer, No.1
63341 63341-12330 Pad, Roof Silencer, No.1
63342 63341-51010 Pad, Roof Silencer, Front
66413 66413-13010 Spacer, Side Rail, Front Rh
66414 66414-13020 Spacer, Side Rail, Rear Rh
66415 66415-13020 Spacer, Side Rail, Rear No.2 Rh
66423 66423-13010 Spacer, Side Rail, Front Lh
66424 66424-13020 Spacer, Side Rail, Rear Lh
66425 66425-13020 Spacer, Side Rail, Rear No.2 Lh
Roof Panel & Back Window Glass ([09.2001 - ] (0109- )) 24
#OEMPart name
63102 63132-13060 Panel Sub-Assy, Windshield Header
63103 63103-13020 Reinforcement Sub-Assy, Roof Panel
63105 63105-13180 Frame Sub-Assy, Back Window, Upper
63111 63111-13320 Panel, Roof
63111 63111-13330 Panel, Roof
63111 63111-13340 Panel, Roof
63111 63111-13350 Panel, Roof
63111 63111-13360 Panel, Roof
63111 63111-13370 Panel, Roof
63111 63111-13380 Panel, Roof
63111 63111-13390 Panel, Roof
63118 63118-13020 Support, Roof Panel, Rh
63137 63137-13050 Bracket, Dome Lamp, No.1
63137 63137-13060 Bracket, Dome Lamp, No.1
63141 63141-13100 Reinforcement, Roof Panel, Center
63142 63142-13090 Reinforcement, Roof Panel, No.2
63143 63143-13060 Reinforcement, Roof Panel, No.3
63144 63144-13040 Reinforcement, Roof Panel, No.4
63148 63148-13040 Reinforcement, Roof Panel, No.7
63149 63149-13030 Reinforcement, Roof Panel, No.1 Rear
9017906069 90179-06069 Direct
9017906069 90179-06274 Nut
9151160610 91511-60610 New Genuine Part
9151160610 91511-B0610 BOLT FLANGE
Roof Panel & Back Window Glass ([09.2001 - ] W(ROOF RAIL) (0109- )) 17
#OEMPart name
63185 63185-13080 Bracket, Roof Rack, Front Rh
63186 63186-13090 Bracket, Roof Rack, Front Lh
63187 63187-13030 Bracket, Roof Rack, No.1 Rear Rh
63189 63189-13070 Bracket, Roof Rack, Center Rh
63460 63460-13130-A0 Rack Assy, Roof, Rh
63460 63460-13130-B0 Rack Assy, Roof, Rh
63460 63460-13130-B1 Rack Assy, Roof, Rh
63460 63460-13130-C1 Rack Assy, Roof, Rh
63460 63460-13130-D0 Rack Assy, Roof, Rh
63470 63470-13130-A0 Rack Assy, Roof, Lh
63470 63470-13130-B0 Rack Assy, Roof, Lh
63470 63470-13130-B1 Rack Assy, Roof, Lh
63470 63470-13130-C1 Rack Assy, Roof, Lh
63470 63470-13130-D0 Rack Assy, Roof, Lh
9017906200 90179-06200 New Genuine Part
9151160610 91511-60610 New Genuine Part
9151160610 91511-B0610 BOLT FLANGE
Roof Panel & Back Window Glass ([09.2001 - ] W(SUN ROOF) (0109- )) 48
#OEMPart name
63201 63201-13030 Glass Sub-Assy, Tilt Roof
63201 63201-13031 Glass Sub-Assy, Tilt Roof
63201 63201-13040 Glass Sub-Assy, Sliding Roof
63201 63201-13041 Glass Sub-Assy, Sliding Roof
63203 63203-44020 Housing Sub-Assy, Tilt Roof
63203 63203-13040 Housing Sub-Assy, Sliding Roof
63205 63205-12150 Cable Sub-Assy, Sliding Roof Drive
63206 63260-13040 Gear Sub-Assy, Sliding Roof Drive
63218 63249-13070 Hose, Sliding Roof Drain
63239 63239-12030 Stopper, Sliding Roof Panel
63239 63239-26020 Pad, Tilt Roof Glass
63241 63241-13020 Bracket, Sliding Roof Housing, No.1
63243 63243-52020 Bracket, Sliding Roof Housing, No.1
63249 63249-13080 Hose, Sliding Roof Drain
63249 63249-13180 Hose, Sliding Roof Drain
63249 63249-13090 Hose, Sliding Roof Drain
63251 63251-12160 Weatherstrip, Sliding Roof Panel Or Removable Roof
63251 63251-12161 Weatherstrip, Sliding Roof
63251 63251-44010 Weatherstrip, Tilt Roof
63251 63251-44011 Weatherstrip, Tilt Roof
63256 63256-44010 Seal, Tilt Roof Glass
63260 63260-26030 Handle Assy, Removable Roof Lock
63282 63282-13010 Striker, Tilt Roof Lock
63282 63282-44010 Striker, Tilt Roof Lock
63329 63329-44030 Stopper, Sunshade Lock
63619 63619-44010 Cover, Tilt Roof Panel
63641 63641-13010 Rail, Sunshade, No.1 Front Rh
63642 63642-13010 Rail, Sunshade, No.1 Front Lh
91511 91511-G0614 BOLTFLANGE
8271135520 82711-35520 Clamp No.1 (For Windseield Washer)
9011906357 90119-06357 BOLT WWASHER
9011906588 90119-06588 BOLT WWASHER
9014860021 90148-60021 Screw Hex Lobular
9015950336 90159-50336 SCREW WWASHER
9016450008 90164-50008 SCREW
9016840027 90168-40027 New Genuine Part
9017906083 90179-06083 New Genuine Part
9017906216 90179-06216 Direct
9017906216 90179-06274 Nut
9017906218 90179-06218 New Genuine Part
9017906218 90179-06264 NUT, WWASHER
9017906306 90179-06306 NUT
9046714001 90467-14001 Clip Or Clamp(For Ventilation Hose)
9046714001 90466-T0026 Clip Or Clamp(For Ventilation Hose)
9046717126 90467-17126 Clip Or Clamp(For Ventilation Hose)
9048026026 90480-26026 Grommet, Sliding Roof Drain
9090154002 90901-54002 New Genuine Part
9095901566 90959-01566 New Genuine Part
Roof Side Ventilator ([09.2001 - ] (0109- )) 1
#OEMPart name
62930 62940-16060 Duct Assy, Quarter Vent, Rh
Seat Belt & Child Restraint Seat ([09.2001 - ] FRONT SEAT (0109- )) 30
#OEMPart name
73135 73135-12030-A0 Cover, Shoulder Belt Anchorage Plate
73135 73135-12030-B9 Cover, Shoulder Belt Anchorage Plate
73178 73178-33020-A1 Cap, Seat Belt Anchor Cover
73178 73178-33020-B3 Cap, Seat Belt Anchor Cover
73200 73200-52010-A0 Adjuster Assy, Front Shoulder Belt Anchor
73200 73200-52010-B0 Adjuster Assy, Front Shoulder Belt Anchor
73200 73200-52040-A0 Adjuster Assy, Front Shoulder Belt Anchor
73200 73200-52040-B0 Adjuster Assy, Front Shoulder Belt Anchor
73210 73210-13230-A0 Belt Assy, Front Seat Outer, Rh
73210 73210-13230-C0 Belt Assy, Front Seat Outer, Rh
73210 73210-13240-A0 Belt Assy, Front Seat Outer, Rh
73210 73210-13240-C0 Belt Assy, Front Seat Outer, Rh
73219 73219-33010 Stopper, Tongue Plate
73220 73220-13220-A0 Belt Assy, Front Seat Outer, Lh
73220 73220-13220-C0 Belt Assy, Front Seat Outer, Lh
73220 73220-13230-A0 Belt Assy, Front Seat Outer, Lh
73220 73220-13230-C0 Belt Assy, Front Seat Outer, Lh
73230 73230-52080-A0 Belt Assy, Front Seat Inner, Rh
73230 73230-52080-B2 Belt Assy, Front Seat Inner, Rh
73230 73230-52280-A0 Belt Assy, Front Seat Inner, Rh
73230 73230-52280-B0 Belt Assy, Front Seat Inner, Lh - FRONT SEAT INNER, RH
9010511052 90105-11052 New Genuine Part
9010911028 90109-11028 New Genuine Part
9010911052 90109-11052 BOLT
9090119040 90901-19040 BOLT WWASHER
9090119040 90084-11055 New Genuine Part
9151160614 91511-60614 LEXBOLT
9151160614 91511-B0614 BOLT, FLANGE
9151161025 91511-61025 New Genuine Part
9151161025 91512-G1025 BOLTFLANGE
Seat Belt & Child Restraint Seat ([09.2001 - ] REAR SEAT (0109- )) 36
#OEMPart name
73135 73135-13040-A1 Cover, Shoulder Belt Anchor, Rh
73135 73135-13040-B1 Cover, Shoulder Belt Anchor, Rh
73340 73460-13030-A0 Belt Assy, Rear Seat Lap Type, Lh
73340 73460-13030-C0 Belt Assy, Rear Seat Lap Type, Lh
73340 73460-13040-A0 Belt Assy, Rear Seat Lap Type, Lh
73340 73460-13040-C0 Belt Assy, Rear Seat Lap Type, Lh
73350 73350-13040-A0 Belt Assy, Rear Seat, Outer Center
73350 73350-13040-C0 Belt Assy, Rear Seat, Outer Center
73350 73350-13060-A0 Belt Assy, Rear Seat, Outer Center
73350 73350-13060-C0 Belt Assy, Rear Seat, Outer Center
73360 73360-13320-A0 Belt Assy, Rear Seat 3 Point Type, Outer Rh
73360 73360-13320-C0 Belt Assy, Rear Seat 3 Point Type, Outer Rh
73360 73360-13340-A0 Belt Assy, Rear Seat 3 Point Type, Outer Rh
73360 73360-13340-C0 Belt Assy, Rear Seat 3 Point Type, Outer Rh
73360 73360-13350-A0 Belt Assy, Rear Seat 3 Point Type, Outer Rh
73360 73360-13350-C0 Belt Assy, Rear Seat 3 Point Type, Outer Rh
73370 73370-13260-A0 Belt Assy, Rear Seat 3 Point Type, Outer Lh
73370 73370-13260-C0 Belt Assy, Rear Seat 3 Point Type, Outer Lh
73370 73370-13280-A0 Belt Assy, Rear Seat 3 Point Type, Outer Lh
73370 73370-13280-C0 Belt Assy, Rear Seat 3 Point Type, Outer Lh
73370 73370-13290-A0 Belt Assy, Rear Seat 3 Point Type, Outer Lh
73370 73370-13290-C0 Belt Assy, Rear Seat 3 Point Type, Outer Lh
73371 73371-13060-A1 Hanger Rear Seat Shoulder Belt
73371 73371-13060-B1 Hanger Rear Seat Shoulder Belt
73380 73380-13130-A0 Belt Assy, Rear Seat, Inner
73380 73380-13130-C0 Belt Assy, Rear Seat, Inner
73390 73380-13120-A0 Belt Assy, Rear Seat, Inner
73390 73380-13120-C0 Belt Assy, Rear Seat, Inner
73450 73450-13010-A0 Buckle Assy, Rear Center Seat Belt
73450 73450-13010-C0 Buckle Assy, Rear Center Seat Belt
73450 73450-13020-A0 Buckle Assy, Rear Center Seat Belt
73450 73450-13020-C0 Buckle Assy, Rear Center Seat Belt
9010511036 90105-11036 New Genuine Part
9010511052 90105-11052 New Genuine Part
9010911028 90109-11028 New Genuine Part
9017911010 90179-11010 NUT
Shift Lever & Retainer ([09.2001 - ] (0109- )MTM) 43
#OEMPart name
33504 33504-13040-B0 Knob Sub-Assy, Shift Lever
33504 33504-52051-C0 Knob Sub-Assy, Shift Lever
33504 33504-13041-B0 Knob Sub-Assy, Shift Lever
33504 33504-13010-B0 Knob Sub-Assy, Shift Lever
33524 33524-42020 Bracket, Control Lever Housing Support (For Floor Shift)
33527 33557-33010 Bush (For Shift & Select Lever)
33530 33530-13060 Lever Assy, Shift (For Floor Shift)
33530 33530-13061 Lever Assy, Shift (For Floor Shift)
33534 33534-42010 Crank, Selecting Bell, No.2
33534 90386-12022 Bush (For Selecting Bellcrank No.1)
33534 90201-08028 Washer, Plate (For Selecting Bellcrank No.2)
33557 33557-32010 Cover, Selecting Bellcrank Dust, No.1
33558 33558-10030 Cover, Selecting Bellcrank Dust, No.2
33574 33574-12100 Retainer, Shift Cable Grommet, No.1
33608 33608-42010 Support Sub-Assy, Selecting Bellcrank
33821 33821-13030 Cable Transmission Control Shift (For Floor Shift)
33821 33821-13031 Cable Transmission Control Shift (For Floor Shift)
33821 33821-13050 Cable Transmission Control Shift (For Floor Shift)
33821 33821-13032 Cable Transmission Control Shift (For Floor Shift)
33821 90201-08077 Washer, Plate (For Transmission Control Cable)
33822 33822-13020 Cable Transmission Control Select (For Floor Shift)
33822 33822-13021 Cable Transmission Control Select (For Floor Shift)
33822 33822-13022 Cable Transmission Control Select (For Floor Shift)
9011910216 90119-10216 Bolt (For Control Shaft Cover)
9017906263 90179-06263 Nut (For Rear Wiper Arm Setting)
9017906263 90179-06178 Nut (For Rear Wiper Arm Setting)
9046814016 90468-14016 CLIP
9046814032 90468-14032 CLIP
9046814035 90468-14035 New Genuine Part
9161160820 91611-60820 Bolt(For Transaxle & Engine Setting)
9161160820 91611-G0820 Bolt
9161160822 91611-60822 Bolt
9161161020 91611-61020 Bolt(For Transaxle & Engine Setting)
9161161020 91612-B1020 Bolt (For Transfer Case)Cover No.2
9162640618 91626-40618 BOLTWWASHER
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
9415080830 94150-80830 New Genuine Part
9415080830 94151-80800 Nut (For Transmission Control Cable)
9451100800 94511-00800 WASHERSPRING
9453100800 94531-00800 Washer (For Transfer Shift Outer Lever)
Short Block Assembly ([09.2001 - ] (0109- )) 5
#OEMPart name
11400 11400-22080 Block Assy, Short
11400 11400-22081 Block Assy, Short
11400 16258-28030 Gasket(For Heater Return)
11400 16268-22091 Pipe, Water By-Pass, No.1
11400 16268-22101 Pipe, Water By-Pass, No.1
Side Member ([09.2001 - ] (0109- )) 99
#OEMPart name
53821 53821-16010 Bracket, Front Fender, Rear Rh
53827 53878-28050 Protector, Front Fender Side Panel, Rh
58745 58741-12160 Protector, Quarter Panel, Front Rh
58746 58742-12140 Protector, Quarter Panel, Front Lh
61023 61023-13030 Pillar Sub-Assy, Front Body, Inner Rh
61023 61023-13031 Pillar Sub-Assy, Front Body, Inner Rh
61024 61024-13020 Pillar Sub-Assy, Front Body, Inner Lh
61024 61024-13021 Pillar Sub-Assy, Front Body, Inner Lh
61037 61037-13900 Reinforcement Sub-Assy, Center Body Pillar, Rh
61038 61038-13900 Reinforcement Sub-Assy, Center Body Pillar, Lh
61108 61108-13020 Reinforce Sub-Assy, Front Body Pillar, Lower Rh
61109 61109-13020 Reinforce Sub-Assy, Front Body Pillar, Lower Lh
61128 61103-13010 Reinforcement, Cowl Side Panel, Rh
61129 61104-13010 Reinforcement, Cowl Side Panel, Lh
61131 61131-13070 Pillar, Front Body, Upper Outer Rh
61131 61131-13080 Pillar, Front Body, Upper Outer Rh
61132 61132-13070 Pillar, Front Body, Upper Outer Lh
61132 61132-13080 Pillar, Front Body, Upper Outer Lh
61175 61175-13020 Reinforcement, Front Pillar, Upper Outer No.2 Rh
61176 61176-13020 Reinforce, Front Body Pillar, Upper Out No.2 Lh
61211 61211-13100 Rail, Roof Side, Outer Rh
61211 61211-13101 Rail, Roof Side, Outer Rh
61212 61212-13100 Rail, Roof Side, Outer Lh
61212 61212-13101 Rail, Roof Side, Outer Lh
61231 61231-13230 Rail, Roof Side, Inner Rh
61231 61231-13240 Rail, Roof Side, Inner Rh
61232 61232-13210 Rail, Roof Side, Inner Lh
61232 61232-13220 Rail, Roof Side, Inner Lh
61235 61235-13030 Bracket, Assist Grip
61235 61245-13070 Bracket, Assist Grip
61236 61237-13030 Bracket, Assist Grip
61236 61247-13030 Bracket, Assist Grip
61245 61245-13060 Reinforcement, Roof Side Rail, Outer Rh
61246 61246-13060 Reinforcement, Roof Side Rail, Outer Lh
61255 61255-52010 Plate, Roof Side Rail, Outer Rh
61311 61311-13050 Pillar, Center Body, Outer Rh
61311 61311-13060 Pillar, Center Body, Outer Rh
61312 61312-13050 Pillar, Center Body, Outer Lh
61312 61312-13060 Pillar, Center Body, Outer Lh
61315 61315-22020 Retainer, Door Lock Striker Plate
61343 61343-13020 Pillar, Center Body, Inner Rh
61344 61344-13020 Pillar, Center Body, Inner Lh
61403 61403-13010 Reinforce Sub-Assy, Rocker, Outer Rh
61404 61404-13010 Reinforce Sub-Assy, Rocker, Outer Lh
61503 61503-13020 Reinforcement Sub-Assy, Quarter Lock Pillar, Rh
61504 61504-13020 Reinforcement Sub-Assy, Quarter Lock Pillar, Lh
61611 61611-13400 Panel, Quarter, Rh
61611 61611-13401 Panel, Quarter, Rh
61611 61611-13410 Panel, Quarter, Rh
61611 61611-13411 Panel, Quarter, Rh
61612 61602-13640 Panel, Quarter, Lh
61612 61602-13641 Panel, Quarter, Lh
61612 61602-13650 Panel, Quarter, Lh
61612 61602-13651 Panel, Quarter, Lh
61621 61621-13070 Trough, Back Door Opening, Rh
61622 61622-13070 Trough, Back Door Opening, Lh
61623 61623-13060 Trough, Back Door Opening, Rear Rh
61624 61624-13050 Trough, Back Door Opening, Rear Lh
61625 61625-13080 Extension Sub-Assy, Quarter Panel, Rh
61626 61626-13080 Extension Sub-Assy, Quarter Panel, Lh
61627 61627-13020 Extension, Quarter Panel, Rear Lower Rh
61628 61628-13020 Extension, Quarter Panel, Rear Lower Lh
61631 61631-12410 Panel, Quarter Wheel House, Outer Rh
61632 61632-12430 Panel, Quarter Wheel House, Outer Lh
61633 61607-13900 Panel, Quarter Wheel House, Inner Rh
61634 61608-13900 Panel, Quarter Wheel House, Inner Lh
61637 61609-13010 Brace, Quarter Wheel House, Rh
61645 61645-12150 Gusset, Quarter Wheel House, Rear Rh
61646 61646-12140 Gusset, Quarter Wheel House, Rear Lh
61653 61653-13020 Bracket, Deck Side Trim
61654 61654-13010 Bracket, Deck Side Trim, No.2
61655 61655-13040 Gusset, Quarter Wheel House, Inner Rh
61656 61656-13040 Gusset, Quarter Wheel House, Inner Lh
61656 61656-13041 Gusset, Quarter Wheel House, Inner Lh
61683 61683-13010 Bracket, Rear Wheel Opening, No.1 Rh
61684 61684-12040 Bracket, Rear Wheel Opening, No.1 Lh
61711 61711-13130 Panel, Roof Side, Outer Rh
61712 61712-13130 Panel, Roof Side, Outer Lh
61731 61731-13901 Panel, Roof Side, Inner Rh
61731 61731-13903 Panel, Roof Side, Inner Rh
61732 61732-13900 Panel, Roof Side, Inner Lh
61815 61815-32020 Cover, Roof Side, Inner Upper Rh
61824 61824-12040 Plate, Noise Control, No.1
61824 61824-50020 Cover, Front Pillar Service Hole
62152 62152-12050 Pad, Cowl Side Silencer, No.2
62554 62554-12180 Pad, Pillar, No.4
65637 65637-13010 Liner, Rear Wheel House, Rh
65638 65638-13010 Liner, Rear Wheel House, Lh
75941 75941-13010 Stripe, Center Pillar, Rh
75941 75941-13011 Stripe, Center Pillar, Rh
75942 75942-13010 Stripe, Center Pillar, Lh
75942 75942-13011 Stripe, Center Pillar, Lh
9011506340 90115-06340 BOLT WELD
9015960602 90159-60602 SCREW
9017906308 90179-06308 NUT
9046706169 90467-06169 Clip
9046707166 90467-07166 Clip(For Front Fender Apron Seal)
9151560816 91515-60816 New Genuine Part
9151560816 91511-B0812 BOLT FLANGE
Side Moulding ([09.2001 - ] (0109- )) 69
#OEMPart name
75551 75551-13160 Moulding, Roof Drip Side Finish, Rh
75551 75551-13161 Moulding, Roof Drip Side Finish, Rh
75552 75552-13160 Moulding, Roof Drip Side Finish, Lh
75552 75552-13161 Moulding, Roof Drip Side Finish, Lh
75561 75561-52020 Clip, Roof Drip Side Finish Moulding, No.1
75710 75710-13040 Moulding Assy, Front Door Belt, Rh
75710 75710-13041 Moulding Assy, Front Door Belt, Rh
75720 75720-13040 Moulding Assy, Front Door Belt, Lh
75720 75720-13041 Moulding Assy, Front Door Belt, Lh
75730 75730-13060 Moulding Assy, Rear Door Belt, Rh
75730 75730-13061 Moulding Assy, Rear Door Belt, Rh
75731 75731-13160-A0 Moulding, Front Door, Outside Rh
75731 75731-13160-B0 Moulding, Front Door, Outside Rh
75731 75731-13160-B1 Moulding, Front Door, Outside Rh
75731 75731-13160-C0 Moulding, Front Door, Outside Rh
75731 75731-13160-C1 Moulding, Front Door, Outside Rh
75731 75731-13160-D0 Moulding, Front Door, Outside Rh
75731 75731-13160-D1 Moulding, Front Door, Outside Rh
75731 75731-13160-F0 Moulding, Front Door, Outside Rh
75731 75731-13160-G0 Moulding, Front Door, Outside Rh
75731 75731-13160-H0 Moulding, Front Door, Outside Rh
75731 75731-13160-J0 Moulding, Front Door, Outside Rh
75731 75731-13160-J1 Moulding, Front Door, Outside Rh
75731 75731-13160-J2 Moulding, Front Door, Outside Rh
75731 75731-13150 Moulding, Front Door, Outside Rh
75732 75732-13160-A0 Moulding, Front Door, Outside Lh
75732 75732-13160-B0 Moulding, Front Door, Outside Lh
75732 75732-13160-B1 Moulding, Front Door, Outside Lh
75732 75732-13160-C0 Moulding, Front Door, Outside Lh
75732 75732-13160-C1 Moulding, Front Door, Outside Lh
75732 75732-13160-D0 Moulding, Front Door, Outside Lh
75732 75732-13160-D1 Moulding, Front Door, Outside Lh
75732 75732-13160-F0 Moulding, Front Door, Outside Lh
75732 75732-13160-G0 Moulding, Front Door, Outside Lh
75732 75732-13160-H0 Moulding, Front Door, Outside Lh
75732 75732-13160-J0 Moulding, Front Door, Outside Lh
75732 75732-13160-J1 Moulding, Front Door, Outside Lh
75732 75732-13160-J2 Moulding, Front Door, Outside Lh
75732 75732-13150 Moulding, Front Door, Outside Lh
75740 75740-13060 Moulding Assy, Rear Door Belt, Lh
75740 75740-13061 Moulding Assy, Rear Door Belt, Lh
75741 75741-13170-A0 Moulding, Rear Door, Outside Rh
75741 75741-13170-B0 Moulding, Rear Door, Outside Rh
75741 75741-13170-B1 Moulding, Rear Door, Outside Rh
75741 75741-13170-C0 Moulding, Rear Door, Outside Rh
75741 75741-13170-C1 Moulding, Rear Door, Outside Rh
75741 75741-13170-D0 Moulding, Rear Door, Outside Rh
75741 75741-13170-D1 Moulding, Rear Door, Outside Rh
75741 75741-13170-F0 Moulding, Rear Door, Outside Rh
75741 75741-13170-G0 Moulding, Rear Door, Outside Rh
75741 75741-13170-H0 Moulding, Rear Door, Outside Rh
75741 75741-13170-J0 Moulding, Rear Door, Outside Rh
75741 75741-13170-J1 Moulding, Rear Door, Outside Rh
75741 75741-13170-J2 Moulding, Rear Door, Outside Rh
75741 75741-13160 Moulding, Rear Door, Outside Rh
75742 75742-13160-A0 Moulding, Rear Door, Outside Lh
75742 75742-13160-B0 Moulding, Rear Door, Outside Lh
75742 75742-13160-B1 Moulding, Rear Door, Outside Lh
75742 75742-13160-C0 Moulding, Rear Door, Outside Lh
75742 75742-13160-C1 Moulding, Rear Door, Outside Lh
75742 75742-13160-D0 Moulding, Rear Door, Outside Lh
75742 75742-13160-D1 Moulding, Rear Door, Outside Lh
75742 75742-13160-F0 Moulding, Rear Door, Outside Lh
75742 75742-13160-G0 Moulding, Rear Door, Outside Lh
75742 75742-13160-H0 Moulding, Rear Door, Outside Lh
75742 75742-13160-J0 Moulding, Rear Door, Outside Lh
75742 75742-13160-J1 Moulding, Rear Door, Outside Lh
75742 75742-13160-J2 Moulding, Rear Door, Outside Lh
75742 75742-13150 Moulding, Rear Door, Outside Lh
Side Turn Signal Lamp & Outer Mirror Lamp ([09.2001 - ] (0109- )) 5
#OEMPart name
81730 99132-12050 Bulb (12V 5W)
81730 90080-81053 Bulb(For Clearance Lamp)
81731 81731-53010 Lens, Side Turn Signal Lamp, Rh
81731 81731-53011 Lens, Side Turn Signal Lamp
81735 90075-60001 Socket And Wire, License Plate Lamp
Spare Wheel Carrier ([09.2001 - ] (0109- )) 1
#OEMPart name
51900 51900-12160 Carrier Assy, Spare Wheel
Speaker ([09.2001 - ] (0109- )) 7
#OEMPart name
86160 86160-44120 Speaker Assy, Front No.1
86160 86160-68090 Speaker Assy, Front No.1
86160 86160-13080 Speaker Assy, Rear
86160 86160-44130 Speaker Assy, Rear
86160 86160-13060 Speaker Assy, Front No.2
86160 86160-13070 Speaker Assy, Front No.2
9026905034 90269-05034 RIVET
Standard Tool ([09.2001 - ] (0109- )) 15
#OEMPart name
9110 09111-20110 Jack Assy
9110 09111-02020 Jack Assy
9113 09113-12030 Handle, Jack
9113 09113-20040 Handle, Jack
9113 09113-52010 Handle, Jack
9120 09120-16030 Tool Bag (Type A) BLACK, No Toyota Label
9130 99913-11500 Pliers (China) - No Toyota stamp
9135 99915-10700 Driver, Screw - No Toyota stamp
9135 90089-99009 Driver, Screw (ATC) (Thailand) - Screw Driver (ATC)
9141 99914-10810 Spanner (China) - No Toyota stamp
9141 09141-0K030 Spanner (ATC) (Thailand) - 8x10
9141 99914-11214 Spanner (China) - No Toyota stamp
9141 09141-0K040 Spanner (Thailand)
9150 09150-35070 Wrench, Hub Nut Box
9184 09184-00010 Stopper, Wheel
Starter ([09.2001 - ] 12V 0.8,1.0KW (0109- )1ZZFE,3ZZFE) 16
#OEMPart name
28011 28011-70020 Clutch Sub-Assy, Starter
28100 28100-22030 Starter Assy
28100 28100-22031 Starter Assy
28100 28100-22040 Starter Assy
28100 28100-22041 Starter Assy
28120 28120-70020 Yoke Assy, Starter
28120 28120-70050 Yoke Assy, Starter
28140 28140-70020 Holder Assy, Starter Brush
28150 28150-70030 Switch Assy, Magnet Starter
28150 28150-22100 Switch Assy, Magnet Starter
28160 28160-70021 Armature Assy, Starter
28160 28160-70050 Armature Assy, Starter
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9161261065 91612-61065 Bolt(For Transaxle & Engine Setting)
9161261065 90119-A0104 Bolt with Washer
Steering Column & Shaft ([09.2001 - ] (0109- )) 30
#OEMPart name
45025 45025-13040 Cover Sub-Assy, Steering Column Hole, No.1
45201 45274-42010 Bearing(For Steering Main Shaft)
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90520-17269 Ring, Shaft Snap(For Steering Main Shaft)
45209 45209-12180 Yoke Sub-Assy, Steering Sliding
45209 45209-12H00 Yoke Sub-Assy, Steering Sliding
45210 45210-13010 Shaft Assy, Steering Main
45221 45221-12290 Shaft, Steering Intermediate
45221 45221-12291 Shaft, Steering Intermediate
45250 45250-13070 Column Assy, Steering
45259 45259-12030 Sheet, Column Hole Cover Silencer
45259 45259-12031 Sheet, Column Hole Cover Silencer
45260 45260-13040 Shaft Assy, Steering Intermediate, No.2
45271 45271-16020 Clamp, Steering Column, Upper
45280 45280-13010 Bracket Assy, Steering Column, Upper
45280 45280-13030 Bracket Assy, Steering Column, Upper
45286 45286-13902-B1 Cover, Steering Column
45286 45286-13901-B1 Cover, Steering Column
45884 45884-13010 Bracket, Tilt Lever
45897 45897-12020 Bolt, Steering Lock Set
9011908 90119-08C42 New Genuine Part
9010508418 90105-08418 New Genuine Part
9010508418 91551-80855 New Genuine Part
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9046706188 90467-06188 Retainer, Dash Panel Silencer
9321955008 93219-55008 New Genuine Part
9321955008 93219-15010 SCREW
9331314012 93313-14012 SCREW
9356855014 93568-55014 Screw
Steering Wheel ([09.2001 - ] 3-SPOKE (0109- )) 7
#OEMPart name
45100 45100-13050-B0 Wheel Assy, Steering
45100 45100-13060-B0 Wheel Assy, Steering
45100 45100-13030-B0 Wheel Assy, Steering
45100 45100-13040-B0 Wheel Assy, Steering
45130 45130-13040-B0 Button Assy, Horn
45188 90148-60007 Screw, Steering Wheel Pad Attaching
45201 90179-12071 Nut, Steering Wheel Set
Suspension Crossmember & Under Cover ([09.2001 - ] (0109- )) 27
#OEMPart name
51201 51201-20350 Crossmember Sub-Assy, Front Suspension
51201 51201-20352 Crossmember Sub-Assy, Front Suspension
51201 51201-20351 Crossmember Sub-Assy, Front Suspension
51204 51204-12150 Member Sub-Assy, Engine Mounting, Center
51227 51227-12080 Damper, Front Suspension Member Dynamic
51227 51227-12081 Damper, Front Suspension Member Dynamic
51441 51410-12040 Cover, Engine Under, Rh
51441 51451-13010 Cover, Engine Under
51442 51420-12030 Cover, Engine Under, Lh
51963 51960-13010 Hook, No.1 - TRANSPORT, FRONT RH
51968 51968-13040 Hook, Transport, Rear Lh
58398 58398-13070 Cover, Floor Under, No.1
91621 91621-B0816 BOLT WWASHER
91622 91622-B1018 BOLT WWASHER
91645 91645-C1232 New Genuine Part
9011910601 90119-10601 BOLT W-WASHER
9011910904 90119-10904 BOLT WWASHER
9011914092 90119-14092 BOLT
9011914092 90119-A0014 New Genuine Part
9011914101 90119-14101 BOLT W-WASHER
9015960488 90159-60488 SCREW WWASHER
9015960496 90159-60496 SCREW WWASHER
9018906027 90189-06027 Grommet
9046705138 90467-05138 Clip(For Front Bumper Retainer)
9046706169 90467-06169 Clip
9046707164 90467-07164 Clip(For Front Fender Apron Seal)
9046709093 90467-09093 Piece, Rear Bumper
Switch & Relay & Computer ([09.2001 - ] COWL (0109- )LHD) 30
#OEMPart name
28371 90987-02020 Relay, Ignition, No.1
81980 81980-50030 Flasher Assy, Turn Signal
82210 90982-08246 Fusible Link
82210 90982-08280 Fusible Link
82210 90982-08281 Fusible Link
82210 90982-08283 Fusible Link
82210 90982-08284 Fusible Link
82241 82241-02010 Wire, Relay
82600 90982-09007 Fusible Link
82600 90982-09009 Fusible Link
82600 90982-09010 Fusible Link
82600 90982-09013 Fusible Link
82641 82641-13040 Relay, Integration No.1 - INTEGRATION W/DOOR CONTROL
82641 82641-12200 Relay, Integration No.1
82641 82641-12320 Relay, Integration No.1
82642 82642-12050 Relay, Running Light
82642 90987-02012 Relay, Ignition, No.1
82666 82666-02100 Holder, Connector No.5
82673 82673-13040 Bracket, Junction Block
82810 82810-13060 Relay Assy, Running Light
82824 82824-30140 Connector, Wiring Harness - SHORT
84340 84340-19015 Switch Assy, Stop Lamp
84345 84345-51010 Adjuster, Stop Lamp Switch Mounting
84550 84550-33010 Switch Assy, Parking Brake
85910 90987-04010 Relay Assy (For Heater Blower Motor)
85912 90080-87008 Relay Assy, Circuit Opening (For Efi)
9015950295 90159-50295 New Genuine Part
9015960547 90159-60547 New Genuine Part
9015970003 90159-70003 Bolt, W/washer
9331514012 93315-14012 Screw with washer
Switch & Relay & Computer ([09.2001 - ] DOOR,ROOF,FLOOR & LUGGAGE (0109- )) 28
#OEMPart name
83320 83320-13170 Gage Assy, Fuel Sender
83320 83320-13200 Gage Assy, Fuel Sender
84150 84150-13020 Switch Assy, Headlamp Cleaner
84150 84150-20050 Switch Assy, Headlamp Cleaner
84150 84999-10320 Bulb, Satellite Switch
84231 84231-60070 Switch, Courtesy Lamp
84234 84231-53010 Switch Assy, Courtesy Lamp (For Front Door)
84751 84751-13010 Switch, Seat Heater
84751 84751-12060 Switch, Seat Heater
84751 84999-10330 Bulb, Seat Heater Switch
84751 84999-10190 Bulb, Hazard Warning Signal Switch
84810 84030-13030 Switch Assy, Power Window Regulator
84810 84030-13031 Switch Assy, Power Window Regulator
84820 84040-13060 Master Switch Assy, Power Window Regulator
84820 84040-13061 Master Switch Assy, Power Window Regulator
84820 84040-13080 Master Switch Assy, Power Window Regulator
84820 84040-13081 Master Switch Assy, Power Window Regulator
85530 85530-33020 Socket Assy, Power Outlet, No.1
85530 85530-06010 Socket Assy, Power Outlet, No.1
85535 85535-13020-A0 Cover, Power Outlet Socket, No.1 - POWER POINT SOCKET
85535 85535-60020-C0 Cover, Power Outlet Socket, No.1 - POWER POINT SOCKET
85535 85535-13020-B3 Cover, Power Outlet Socket, No.1 - POWER POINT SOCKET
85539 85539-60020 Label, Power Outlet Notice
85920 85920-13020-A0 Relay & Switch Assy, Sliding Roof
85920 85920-13020-B0 Relay & Switch Assy, Sliding Roof
9010906296 90109-06296 BOLT
9016440103 90164-40103 SCREW BINDING
9331914008 93319-14008 SCREW
Switch & Relay & Computer ([09.2001 - ] ENGINE (0109- )ZZE12#) 13
#OEMPart name
83530 83530-28020 Switch Assy, Oil Pressure (For Engine)
83530 83530-60020 Switch Assy, Oil Pressure (For Engine) - ＹＡＺＡＫＩ→ＤＥＮＳＯ
83530 83530-0E010 Switch Assy, Oil Pressure (For Engine)
84210 84210-12040 Switch Assy, Back-Up Lamp
84210 84210-52050 Switch Assy, Back-Up Lamp
89465 89465-13030 Sensor, Oxygen
89465 89465-13040 Sensor, Oxygen - OXYGEN NO.2
89615 89615-20090 Sensor, Knock Control
9012608046 90126-08046 New Genuine Part
9017908153 90179-08153 NUT
9043018008 90430-18008 Gasket
9043018008 90430-T0021 Gasket(For Manual Transmission Filler Plug)
9165140620 91651-40620 BOLT
Switch & Relay & Computer ([09.2001 - ] ENGINE ROOM (0109- )) 40
#OEMPart name
82210 90982-08246 Fusible Link
82210 90982-08280 Fusible Link
82210 90982-08281 Fusible Link
82210 90982-08283 Fusible Link
82210 90982-08284 Fusible Link
82600 90982-09007 Fusible Link
82600 90982-09009 Fusible Link
82600 90982-09010 Fusible Link
82600 90982-09013 Fusible Link
82616 82616-20010 Puller, Fuse
82642 90987-02016 Relay Assy, Starter
82642 90987-02025 Relay
82662 82662-13020 Cover, Relay Block, Upper, No.1
82662 82662-12020 Cover, Relay Block, Upper, No.2
82663 82663-12010 Cover, Relay Block, Lower
82663 82663-12040 Cover, Relay Block, Lower, No.2
82741 82741-12020 Block, Engine Room Relay
82742 82741-12050 Block, Engine Room Relay, No.2
85926 90987-04006 Relay Assy (For Heater Blower Motor)
85926 90987-04010 Relay Assy (For Heater Blower Motor)
85927 90987-02012 Relay, Ignition, No.1
85927 90987-04004 Relay, Starter Cut
85928 85928-12010 Resistor, Cooling Fan
85934 90987-02022 Relay, Starter Cut
85942 85942-13010 Relay, Headlamp Cleaner Control
86530 90987-02020 Relay, Ignition, No.1
89438 89438-33010 Switch, Power Steering Oil Pressure
91651 91651-B0614 BOLT WWASHER
91651 91651-B0618 BOLT WWASHER
8271512540 82715-12540 Bracket,wiring Harness Clamp
8271513200 82715-13200 Bracket,wiring Harness Clamp
9011906539 90119-06539 New Genuine Part
9011906706 90119-06706 New Genuine Part
9011906918 90119-06918 New Genuine Part
9017906307 90179-06307 New Genuine Part
9017906307 90179-06292 NUT
9162640620 91626-40620 New Genuine Part
9162640620 91621-40616 Step Cover Bolt
9163560616 91635-60616 BOLT WWASHER
9163560616 91631-J0612 BRACKET
Switch & Relay & Computer ([09.2001 - ] IGNITION & COMBINATION SWITCH (0109- )) 14
#OEMPart name
84052 84052-32030 Switch Assy, Un-Lock Warning
84140 84140-13010 Switch Assy, Headlamp Dimmer
84140 84140-13020 Switch Assy, Headlamp Dimmer
84306 84306-44010 Cable Sub-Assy, Spiral
84306 84306-52020 Cable Sub-Assy, Spiral
84306 84307-12010 Cable Sub-Assy, Spiral
84450 84450-52010 Switch Assy, Ignition Or Starter
84650 84652-1A830 Switch Assy, Windshield Wiper
84650 84652-42120 Switch Assy, Windshield Wiper
86230 86230-13010 Controller Assy, Stereo Component
89245 89245-12010 Sensor, Steering
9016840129 90168-40129 SCREW TAPPING
9046400551 90464-00551 New Genuine Part
9331914006 93319-14006 SCREW WITH WASHER
Switch & Relay & Computer ([09.2001 - ] INSTRUMENT PANEL (0109- )LHD) 20
#OEMPart name
84152 84152-12050 Switch, Headlamp Leveling
84152 84152-12051 Switch, Headlamp Leveling
84152 90010-08103 Bulb (For Headlamp Leveling Switch)
84330 84332-12480 Switch Assy, Hazard Warning Signal
84330 84332-12440 Switch Assy, Hazard Warning Signal
84330 84332-12490 Switch Assy, Hazard Warning Signal
84330 84332-12460 Switch Assy, Hazard Warning Signal
84330 84999-10310 Bulb, Air Conditioner Control
84656 84656-12130-A0 Bezel, Switch
84656 84656-12130-B0 Bezel, Switch
84660 84660-12210 Switch, Cooler
84660 90010-03059 Bulb(For Cooler Switch)
84790 90010-01079 Bulb(For Rear Window Defogger Switch)
84870 84872-52030 Switch Assy, Outer Mirror
85500 85500-12240 Lighter Assy, Cigarette
85500 90010-01015 Bulb, Cigarette Lighter
85510 85510-16040 Socket & Retainer Assy, Cigarlighter
85513 85513-12020 Cover, Cigarette Lighter
85515 85515-47010 Stay, Cigarette Lighter Bezel
85520 85520-28010 Knob And Element Assy, Cigarette Lighter
Timing Gear Cover & Rear End Plate ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 15
#OEMPart name
11301 90250-08074 Pin, Straight(For Timing Gear Case)
11301 90919-05030 Sensor, Crank Position
11302 11321-0D030 Cover Sub-Assy, Timing Chain Or Belt
11302 11321-22021 Cover Sub-Assy, Timing Chain Or Belt
11302 90311-38059 Seal, Oil(For Timing Chain Or Belt Cover)
19941 19941-22010 Clamp, Cord(For Crank Position Sensor)
91511 91511-C0845 New Genuine Part
91511 91511-K0845 Bolt
9010506265 90105-06265 New Genuine Part
9010506283 90105-06283 BOLT, FLANGE
9012606011 90126-06011 New Genuine Part
9151180614 91511-80614 BOLT FLANGE
9162160612 91621-60612 BOLTWWASHER
9162160612 91621-J0612 BOLT W-WASHER
9415010641 94150-10641 Nut
Transaxle Or Transmission Assy & Gasket Kit (Mtm) ([10.2001 - ] C50 (0110- )ZZE121) 3
#OEMPart name
4331 04331-13010 Gasket Kit, Transaxle Overhaul(Mtm)
30300 30300-13070 Transaxle Assy, Manual
30300 30300-13071 Transaxle Assy, Manual
Transmission Gear (Mtm) ([09.2001 - ] C50,C52 (0109- )ZZE12#) 125
#OEMPart name
33111 90520-57002 Ring, Hole Snap(For Output Shaft Rear Bearing)
33125 33125-12011 Receiver, Manual Transaxle Case
33125 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
33125 91611-B0812 Bolt
33134 33134-12022 Cover, Output Shaft(Mtm)
33151 33151-12021 Retainer, Bearing, Rear(Mtm)
33151 33151-52010 Retainer, Bearing, Rear(Mtm)
33151 90119-08944 Bolt(For Rear Bearing Retainer)
33311 33311-12170 Shaft, Input
33311 33311-12231 Shaft, Input
33311 33311-12171 Shaft, Input
33311 90365-25021 Bearing (For Input Shaft Front)
33311 90363-25068 Bearing, Radial Ball (For Input Shaft Rear)
33311 90363-25092 Bearing, Radial Ball (For Input Shaft Rear)
33311 90520-22006 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-22007 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-22008 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-22009 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-22010 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-22011 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-64002 Ring, Hole Snap (For Input Shaft Rear Bearing)
33321 33321-17011 Shaft, Output
33321 33321-52111 Shaft, Output
33321 90363-25067 Bearing (For Output Shaft Rear)
33321 90363-25060 Bearing (For Output Shaft Rear)
33321 90179-18005 Nut (For Manual Transmission Output Shaft Rear Set)
33321 90365-33005 Bearing (For Output Shaft Front)
33326 33326-12010 Plate, Bearing Lock
33331 33331-20070 Gear, Reverse
33331 33331-12060 Gear, Reverse
33332 33033-12060 Gear, 2Nd
33332 33033-12090 Gear, 2Nd
33332 90364-32014 Ring, Hole Snap(For Output Shaft Rear Bearing)
33332 90364-T0046 Bearing, Needle Roller (For 2Nd Gear)
33332 90560-32008 Spacer (For 2Nd Gear Bearing)
33333 33034-12110 Gear, 3Rd
33333 33034-12150 Gear, 3Rd
33333 33368-12150 Ring, Synchronizer, No.2
33333 33368-12160 Ring, Synchronizer, No.2
33333 33368-12170 Ring, Synchronizer, No.2
33333 33368-12220 Ring, Synchronizer, No.2
33333 33368-12230 Ring, Synchronizer, No.2
33333 33368-12240 Ring, Synchronizer, No.2
33333 33368-12250 Ring, Synchronizer, No.2
33333 33368-12260 Ring, Synchronizer, No.2
33333 33368-12270 Ring, Synchronizer, No.2
33333 33368-12280 Ring, Synchronizer, No.2
33333 33368-12290 Ring, Synchronizer, No.2
33333 33034-12111 Gear, 3Rd
33333 90364-31002 Bearing, Needle Roller (For 3Rd Gear)
33334 33035-20160 Gear, 4Th
33334 33035-12180 Gear, 4Th
33334 33368-12180 Ring, Synchronizer, No.2
33334 33368-12190 Ring, Synchronizer, No.2
33334 33035-20161 Gear, 4Th
33334 90364-29002 Bearing, Needle Roller (For 4Th Gear)
33334 90560-29001 Spacer (For 4Th Gear Bearing)
33335 33032-12060 Gear, 1St
33335 33032-12130 Gear, 1St
33335 90364-38007 Bearing, Needle Roller(For 1St Gear)
33336 33036-20070 Gear, 5Th
33336 33036-12130 Gear, 5Th
33336 90364-24006 Bearing, Needle Roller (For 5Th Gear)
33336 90364-24005 Bearing, Needle Roller (For 5Th Gear)
33336 90560-25006 Spacer (For 5Th Gear Bearing)
33348 33348-12010 Washer, 1St Gear Thrust
33348 90360-05012 Ball, Reverse Shift Restrict
33361 33361-12060 Hub, Transmission Clutch, No.1
33361 90520-29018 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-29019 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-29020 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-29021 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-29022 Ring, Shaft Snap (For Clutch Hub No.1)
33361 90520-29023 Ring, Shaft Snap (For Clutch Hub No.1)
33362 33362-12040 Hub, Transmission Clutch, No.2
33362 33362-12051 Hub, Transmission Clutch, No.2
33362 90520-27046 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-27047 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-27048 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-27049 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-27050 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-27051 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33364 33364-12030 Sleeve, Transmission Hub, No.2
33364 33364-12051 Sleeve, Transmission Hub, No.2
33364 33364-20051 Sleeve, Transmission Hub, No.2
33365 33365-12051 Key, Synchromesh Shifting, No.1
33365 33365-52030 Key, Synchromesh Shifting, No.1
33366 33366-12041 Key, Synchromesh Shifting, No.2
33366 33366-52030 Key, Synchromesh Shifting, No.2
33367 33367-20070 Ring, Synchronizer, No.1
33367 33367-20080 Ring, Synchronizer, No.1
33368 33368-12121 Ring, Synchronizer, No.2
33368 33368-12210 Ring, Synchronizer (For 3Rd Gear)
33368 33368-20071 Ring, Synchronizer, No.2
33369 33369-20040 Ring, Synchronizer, No.3
33371 33371-12040 Spring, Synchromesh Shifting Key, No.1
33371 33371-52030 Spring, Synchromesh Shifting Key, No.1
33391 33391-12040 Spring, Synchromesh Shifting Key, No.2
33391 33391-52020 Spring, Synchromesh Shifting Key, No.2
33392 33391-12030 Spring, Synchromesh Shifting Key (For No.3 Clutch Hub)
33393 33393-12031 Hub, Transmission Clutch, No.3
33393 33393-12060 Hub, Transmission Clutch, No.3
33393 90520-18002 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-18003 Ring, Shaft Snap (For Output Shaft Front)
33393 90520-18004 Ring, Shaft Snap (For Output Shaft Front)
33393 90520-18006 Ring, Shaft Snap (For Output Shaft Front)
33393 90520-18007 Ring, Shaft Snap (For Output Shaft Front)
33393 90520-18008 Ring, Shaft Snap (For Output Shaft Front)
33393 90520-18009 Ring, Shaft Snap (For Output Shaft Front)
33394 33394-12011 Key, Synchromesh Shifting, No.3
33394 33394-52020 Key, Synchromesh Shifting, No.3
33395 33395-20040 Sleeve, Transmission Hub, No.3
33395 33395-20041 Sleeve, Transmission Hub, No.3
33402 33402-12041 Gear Sub-Assy, Reverse Idler
33402 33402-12042 Gear Sub-Assy, Reverse Idler
33422 33422-12050 Gear, 4Th Driven
33422 33422-12090 Gear, 4Th Driven
33423 33423-12010 Gear, 3Rd Driven
33428 33428-12050 Gear, 5Th Driven
33428 33428-12110 Gear, 5Th Driven
33431 33431-12010 Spacer, Output Gear
33451 33451-12021 Shaft, Reverse Idler Gear
33451 90109-08097 Bolt (For Reverse Idler Gear Shaft)
33451 90430-08010 Gasket (For Reverse Idler Gear Shaft)
33462 33462-12010 Washer, Reverse Idler Thrust
V-Belt ([09.2001 - ] (0109- )) 4
#OEMPart name
16361 90916-02506 Belt, V(For Fan & Alternator)
16361 99366-H1810 Belt, V(For Fan & Alternator)
16361 90916-02535 Belt, V(For Fan & Alternator)
16361 90916-02551 Belt, V(For Fan & Alternator)
Vacuum Piping ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 8
#OEMPart name
23826 23826-21030 Hose, Fuel Vapor Feed, No.1
23826 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
23826 96132-51100 Clip (For Hose)
23829 23829-22050 Hose, Fuel Vapor Feed, No.3
23829 23829-22080 Hose, Fuel Vapor Feed, No.3
25860 90910-12257 Valve, Vacuum Switching
9046713069 90467-13069 Clip(For Fuel Vapor Feed Hose, No.2)
9046713069 96132-51300 Clip(For Ventilation Hose No.2)
Vane Pump & Reservoir (Power Steering) ([09.2001 - ] (0109- )ZZE12#) 13
#OEMPart name
4446 04446-32050 Gasket Kit, Power Steering Pump
44303 44303-32010 Shaft Sub-Assy, W/pulley
44305 44305-28030 Cap Sub-Assy, Vane Pump Oil Reservoir
44305 44305-28061 Cap Sub-Assy, Vane Pump Oil Reservoir
44320 44310-13010 Pump Assy, Vane
44337 44337-48010 Union, Power Steering Suction Port
44337 90301-11020 Ring, O, No.1(For Vane Pump Housing)
44360 44360-12100 Reservoir Assy, Vane Pump Oil
44369 44369-12060 Bracket, Oil Reservoir, No.1
44442 44442-12040 Bracket, Vane Pump, Rear
9011908 90119-08B61 New Genuine Part
9011906390 90119-06390 BOLT WWASHER
9151261075 91512-61075 New Genuine Part
Ventilation Hose ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 7
#OEMPart name
12204 12204-22050 Valve Sub-Assy, Ventilation
12204 12204-22051 Valve Sub-Assy, Ventilation
12261 12261-22050 Hose, Ventilation
12261 90467-21152 Clip Or Clamp(For Ventilation Hose)
12262 12262-22060 Hose, Ventilation, No.2
12262 90467-13103 Clip Or Clamp(For Ventilation Hose)
12262 90467-19003 Clip Or Clamp(For Ventilation Hose)
Water Pump ([09.2001 - ] (0109- )1ZZFE,3ZZFE) 12
#OEMPart name
16100 16100-29175 Pump Assy, Engine Water
16100 16100-29415 Pump Assy, Engine Water
16100 90301-69006 Ring, O(For Water Pump)
16620 16620-22011 Tensioner Assy, V-Ribbed Belt
16620 16620-0W093 Tensioner Assy, V-Ribbed Belt
9010512297 90105-12297 BOLT WASHER BASED
9012608021 90126-08021 Bolt, Stud(For Intake Manifold To Cylinder Head)
9017908263 90179-08263 New Genuine Part
9151160622 91511-60622 New Genuine Part
9151160622 91511-G0622 BOLT, FLANGE
9151180635 91511-80635 New Genuine Part
9151180635 91511-C0635 BOLT, FLANGE
Windshield Washer ([09.2001 - ] (0109- )) 19
#OEMPart name
85035 85381-13030 Nozzle Sub-Assy, Washer
85035 85381-44010 Nozzle Sub-Assy, Washer
85301 85318-12450 Inlet Sub-Assy, Washer
85301 85318-13020 Inlet Sub-Assy, Washer
85310 85330-44010 Motor And Pump Assy, Windshield Washer
85330 85315-13020 Jar Assy, Windshield Washer
85330 85315-13030 Jar Assy, Windshield Washer
85330 90099-32089 Bush, Headlamp Cleaner Washer Jar
85330 90068-32002 Bush, Windshield Washer Jar
85332 85316-42011 Cap, Washer, Inlet
85348 85375-10260 Joint, Windshield Washer Hose, No.1
85348 85355-16192 Joint, Windshield Washer Elbow, No.1
85348 85375-20800 Joint, Windshield Washer Hose, No.1
85348 85348-14390 Joint, Windshield Washer Hose, No.1
85371 90099-33080 Hose, Windshield Washer (From Motor To Joint)
827113 82711-3F230 Clamp, Sliding Roof Drain Hose
8271135470 82711-35470 Wire, Fuse To Fuse(for Combustion Heater)
8538702110 85387-02110 Clamp No.1 (for Windseield Washer)
9011906767 90119-06767 Bolt, W/washer(For Engine Under Cover)
Windshield Wiper ([09.2001 - ] (0109- )) 13
#OEMPart name
85110 85110-13100 Motor Assy, Windshield Wiper
85160 85150-13080 Link Assy, Windshield Wiper
85178 90179-10223 Nut (For Front Wiper Arm Setting)
85192 85292-13010 Cover, Windshield Wiper Arm
85211 85211-13050 Arm, Front Wiper, Rh - FR WIPER, RH
85212 85212-13030 Blade, Fr Wiper, Rh
85212 85212-13031 Blade, Fr Wiper, Rh - RR WIPER
85214 85214-50060 Rubber, Wiper, Lh
85214 85214-50061 Rubber, Wiper, Rh
85214 85214-44140 Rubber, Wiper, Rh
85221 85221-13060 Arm, Front Wiper, Lh - FR WIPER, LH
85222 85222-44070 Blade, Fr Wiper, Lh
9011906864 90119-06864 BOLT W-WASHER
Wireless Door Lock ([09.2001 - ] (0109- )) 2
#OEMPart name
89741 89741-13040 Receiver, Door Control
9011906390 90119-06390 BOLT WWASHER
Wiring & Clamp ([09.2001 - ] CABLE BOND (0109- )ZZE12#) 10
#OEMPart name
82001 90980-07109 Cable, Bond, No.1
82001 90980-07407 Cable, Bond, No.1
8761622010 87616-22010 Clamp, Cooling Unit Case
9010510143 90105-10143 New Genuine Part
9010510143 91512-B1016 New Genuine Part
9011906915 90119-06915 BOLT W-WASHER
9011910550 90119-10550 New Genuine Part
9011910550 90080-11399 New Genuine Part
9162160612 91621-60612 BOLTWWASHER
9162160612 91621-J0612 BOLT W-WASHER
Wiring & Clamp ([09.2001 - ] CLAMP & BRACKET (0109- )) 44
#OEMPart name
0 82711-1E370 Clamp, Hood Lock Control Cable
91631 91631-B0612 BRACKET
91631 91631-J0612 BRACKET
91651 91651-B0614 BOLT WWASHER
827111 82711-1A770 Clamp, Wiring Harness
827113 82711-3F040 Wire, Fuse To Fuse(for Combustion Heater)
827152 82715-2B200 Bracket,wiring Harness Clamp
9094901 90949-01C15 Clamp, Throttle Cable, No.1
7818520080 78185-20080 Clamp, Accelerator Control Cable, No.2
8271012010 82710-12010 Harness Assy, Oil Heater
8271130370 82711-30370 Wire, Fuse To Fuse(for Combustion Heater)
8271512420 82715-12420 Bracket,wiring Harness Clamp
8271512560 82715-12560 Bracket,wiring Harness Clamp
8271512610 82715-12610 Bracket,wiring Harness Clamp
8271512630 82715-12630 Bracket,wiring Harness Clamp
8271512660 82715-12660 Bracket,wiring Harness Clamp
8271512680 82715-12680 Bracket,wiring Harness Clamp
8271512700 82715-12700 Bracket,wiring Harness Clamp
8271512710 82715-12710 Bracket,wiring Harness Clamp
8271512780 82715-12780 Bracket,wiring Harness Clamp
8271513120 82715-13120 Bracket,wiring Harness Clamp
8271513130 82715-13130 Bracket,wiring Harness Clamp
8271513140 82715-13140 Bracket,wiring Harness Clamp
8271513150 82715-13150 Bracket,wiring Harness Clamp
8271513200 82715-13200 Bracket,wiring Harness Clamp
8271532390 82715-32390 Bracket,wiring Harness Clamp
8271532470 82715-32470 Bracket,wiring Harness Clamp
8271534430 82715-34430 Bracket,wiring Harness Clamp
8271542550 82715-42550 Bracket,wiring Harness Clamp
8271542560 82715-42560 Bracket,wiring Harness Clamp
8271542580 82715-42580 Bracket,wiring Harness Clamp
8272920010 82729-20010 New Genuine Part
8761622010 87616-22010 Clamp, Cooling Unit Case
9010510143 90105-10143 New Genuine Part
9010510143 91512-B1016 New Genuine Part
9011906918 90119-06918 New Genuine Part
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9162160612 91621-60612 BOLTWWASHER
9162160612 91621-J0612 BOLT W-WASHER
9165160610 91651-60610 BOLT
9165160610 91651-B0610 BOLTWWASHER
9165160612 91651-60612 BOLT
9223372036854775807 82711-1E260 Clamp (For Fuel Lid Lock Control Cable)
Wiring & Clamp ([09.2001 - ] CONNECTOR (0109- )) 7
#OEMPart name
9098010619 90980-10619 Housing, Connector
9098010797 90980-10797 HOUSING CONNECTOR
9098011019 90980-11019 HOUSING, CONNECTOR
9098011159 90980-11159 HOUSING CONNECTOR
9098011162 90980-11162 Housing, Connector
9098011659 90980-11659 HOUSING CONNECTOR
9098011660 90980-11660 HOUSING CONNECTOR
Wiring & Clamp ([09.2001 - ] DOOR, FLOOR & ROOF (0109- )) 46
#OEMPart name
82151 82151-13190 Wire, Front Door, Rh
82151 82151-13191 Wire, Front Door, Rh
82151 82151-13210 Wire, Front Door, Rh
82151 82151-13211 Wire, Front Door, Rh
82151 82151-13180 Wire, Front Door, Rh
82151 82151-13181 Wire, Front Door, Rh
82151 82151-13200 Wire, Front Door, Rh
82151 82151-13201 Wire, Front Door, Rh
82152 82152-13140 Wire, Front Door, Lh
82152 82152-13141 Wire, Front Door, Lh
82152 82152-13160 Wire, Front Door, Lh
82152 82152-13161 Wire, Front Door, Lh
82152 82152-13130 Wire, Front Door, Lh
82152 82152-13131 Wire, Front Door, Lh
82152 82152-13150 Wire, Front Door, Lh
82152 82152-13151 Wire, Front Door, Lh
82153 82153-13050 Wire, Rear Door, No.1
82153 82153-13060 Wire, Rear Door, No.1
82153 82153-13061 Wire, Rear Door, No.1
82154 82154-13030 Wire, Rear Door, No.2
82154 82154-13040 Wire, Rear Door, No.2
82154 82154-13041 Wire, Rear Door, No.2
82161 82161-1F850 Wire, Floor
82161 82161-1F851 Wire, Floor
82161 82161-1F860 Wire, Floor
82161 82199-13030 Wire, Floor
82161 82199-13031 Wire, Floor
82161 82199-13050 Wire, Floor
82161 82199-13051 Wire, Floor
82161 82199-13040 Wire, Floor
82161 82199-13041 Wire, Floor
82161 82199-13060 Wire, Floor
82161 82199-13061 Wire, Floor
82161 82199-13120 Wire, Floor
82161 82199-13121 Wire, Floor
82171 82171-13270 Wire, Roof, No.1
82171 82171-13280 Wire, Roof, No.1
82171 82171-13300 Wire, Roof, No.1
82171 82171-13310 Wire, Roof, No.1
82184 82184-13440 Wire, Back Door, No.1
82185 82185-13590 Wire, Back Door, No.2
82185 82185-13600 Wire, Back Door, No.2
82666 82666-12330 Holder, Connector No.8
82817 82817-13260 Protector, Wiring Harness, No.2
82817 82817-13250 Protector, Wiring Harness, No.5
9011906915 90119-06915 BOLT W-WASHER
Wiring & Clamp ([09.2001 - ] ENGINE (0109- )ZZE12#) 12
#OEMPart name
82121 82121-13831 Wire, Engine
82123 82123-13040 Wire, Engine, No.3
82823 82823-22050 Cap, Terminal, No.1
82823 82823-12090 Cap, Terminal, No.1
82991 82991-12070 Wire, Fusible Link Repair
91635 91635-G0616 BOLTWWASHER
9010508096 90105-08096 New Genuine Part
9010510122 90105-10122 New Genuine Part
9011606127 90116-06127 Bolt, Stud(For Oil Pan)
9011906915 90119-06915 BOLT W-WASHER
9164380614 91643-80614 New Genuine Part
9415080640 94150-80640 NUT FLANGE
Wiring & Clamp ([10.2001 - ] ENGINE ROOM (0110- )LHD) 6
#OEMPart name
82111 82111-13670 Wire, Engine Room Main
82111 82111-13680 Wire, Engine Room Main
82111 82111-13790 Wire, Engine Room Main
82671 82671-30360 Block, Junction
82821 82821-10050 Retainer, Headlamp Harness
9011906915 90119-06915 BOLT W-WASHER
Wiring & Clamp ([10.2001 - ] INSTRUMENT PANEL (0110- )LHD) 38
#OEMPart name
82141 82145-13380 Wire, Instrument Panel
82141 82145-13381 Wire, Instrument Panel
82141 82145-13390 Wire, Instrument Panel
82141 82145-13391 Wire, Instrument Panel
82141 82145-13400 Wire, Instrument Panel
82141 82145-13401 Wire, Instrument Panel
82141 82145-13410 Wire, Instrument Panel
82141 82145-13411 Wire, Instrument Panel
82141 82145-13420 Wire, Instrument Panel
82141 82145-13421 Wire, Instrument Panel
82141 82145-13430 Wire, Instrument Panel
82141 82145-13431 Wire, Instrument Panel
82141 82145-13440 Wire, Instrument Panel
82141 82145-13441 Wire, Instrument Panel
82141 82145-13450 Wire, Instrument Panel
82141 82145-13451 Wire, Instrument Panel
82141 82145-13840 Wire, Instrument Panel
82141 82145-13841 Wire, Instrument Panel
82141 82145-13850 Wire, Instrument Panel
82141 82145-13851 Wire, Instrument Panel
82141 82145-13860 Wire, Instrument Panel
82141 82145-13861 Wire, Instrument Panel
82141 82145-13870 Wire, Instrument Panel
82141 82145-13871 Wire, Instrument Panel
82143 82143-13190 Wire, Instrument Panel, No.3
82143 82143-13191 Wire, Instrument Panel, No.3
82143 82143-13200 Wire, Instrument Panel, No.3
82143 82143-13201 Wire, Instrument Panel, No.3
82144 82144-12060 Wire, Instrument Panel, No.4
82666 82666-12260 Holder, Connector No.2
82666 82666-12270 Holder, Connector No.3
82666 82666-12280 Holder, Connector No.4
82666 82666-13070 Holder, Connector No.5
82817 82817-1A761 Protector, Wiring Harness, No.1
82817 82817-1A830 Protector, Wiring Harness, No.1
9011906915 90119-06915 BOLT W-WASHER
9015950295 90159-50295 New Genuine Part
9015970003 90159-70003 Bolt, W/washer
Source
Public OEM parts-catalog data
Variants
2 / 4
Category
172
Collected
2026-08-02
