ZVW50

Toyota PRIUS · 2015 · 3,072 parts · 203 categories

3,072 items

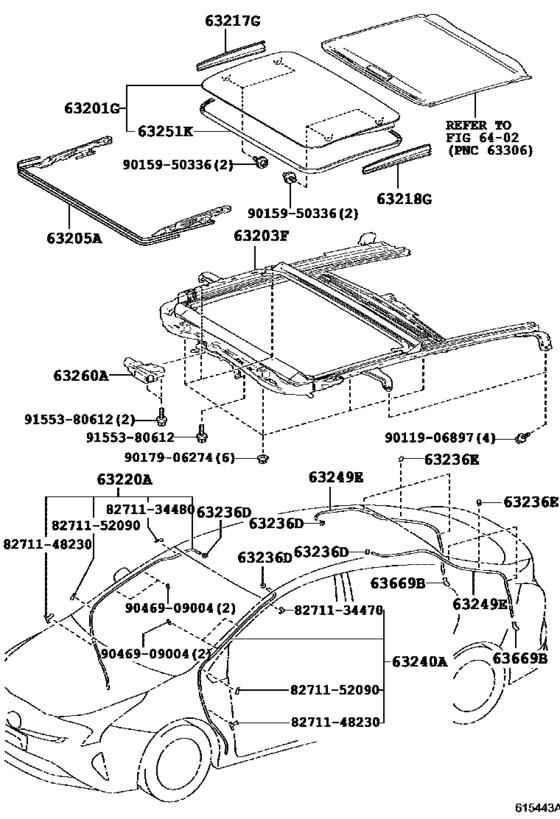

Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- )) 21

#	OEM	Part name
63201	63201-47110	Glass Sub-Assy, Sliding Roof
63203	63203-47050	Housing Sub-Assy, Sliding Roof
63205	63205-47010	Cable Sub-Assy, Sliding Roof Drive
63217	63217-47020	Garnish, Sliding Roof Side, Rh
63220	63220-47010	Hose Assy, Sliding Roof Drain, Rh
63236	63236-33030	Clamp, Sliding Roof Or Removable Roof Drain Hose
63236	63236-42010	Clamp, Sliding Roof Drain Hose
63240	63240-47010	Hose Assy, Sliding Roof Drain, Lh
63249	63220-47020	Hose, Sliding Roof Drain
63251	63251-47020	Weatherstrip, Tilt Roof
63260	63260-47030	Gear Sub-Assy, Sliding Roof Drive
63669	63669-30040	Grommet, Sliding Roof Drain
8271134470	82711-34470	Wire, Fuse To Fuse(for Combustion Heater)
8271134480	82711-34480	Clamp, Wiring Harness
8271148230	82711-48230	Wire, Fuse To Fuse(for Combustion Heater)
8271152090	82711-52090	Clamp
9011906897	90119-06897	BOLT WWASHER
9015950336	90159-50336	SCREW WWASHER
9017906274	90179-06274	Nut
9046909004	90469-09004	Clamp, Sliding Roof Or Removable Roof Drain Hose
9155380612	91553-80612	BOLT FLANGE

OEM	Part name	Category
63201-47110	Glass Sub-Assy, Sliding Roof	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
63203-47050	Housing Sub-Assy, Sliding Roof	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
63205-47010	Cable Sub-Assy, Sliding Roof Drive	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
63217-47020	Garnish, Sliding Roof Side, Rh	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
63220-47010	Hose Assy, Sliding Roof Drain, Rh	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
63220-47020	Hose, Sliding Roof Drain	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
63236-33030	Clamp, Sliding Roof Or Removable Roof Drain Hose	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
63236-42010	Clamp, Sliding Roof Drain Hose	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
63240-47010	Hose Assy, Sliding Roof Drain, Lh	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
63251-47020	Weatherstrip, Tilt Roof	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
63260-47030	Gear Sub-Assy, Sliding Roof Drive	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
63669-30040	Grommet, Sliding Roof Drain	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
82711-34470	Wire, Fuse To Fuse(for Combustion Heater)	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
82711-34480	Clamp, Wiring Harness	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
82711-48230	Wire, Fuse To Fuse(for Combustion Heater)	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
82711-52090	Clamp	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
90119-06897	BOLT WWASHER	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
90159-50336	SCREW WWASHER	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
90179-06274	Nut	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
90469-09004	Clamp, Sliding Roof Or Removable Roof Drain Hose	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))
91553-80612	BOLT FLANGE	Roof Panel & Back Window Glass ([11.2015 - ] SLIDING ROOF (1511- ))

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 203
Collected: 2026-08-02
