Search › Model › ZVW50
ZVW50

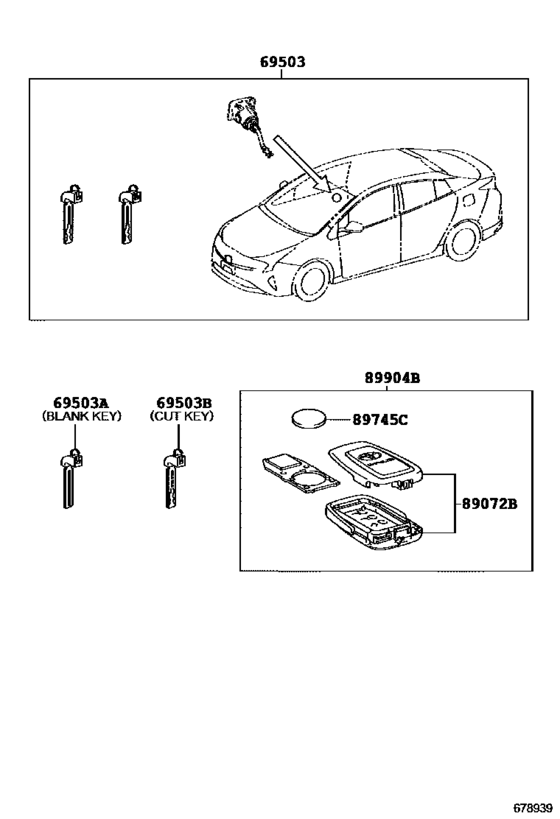

Lock Cylinder Set ([11.2015 - ] (1511- )ARL) 7
| # | OEM | Part name |
|---|---|---|
| 69503 | 69005-47240 | Cylinder Set, Lock |
| 69503 | 69515-47030 | Key, Blank |
| 69503 | 69515-47020 | Key, Cut |
| 89072 | 89072-47190 | Housing Set, Door Control Transmitter (For Smart Key) |
| 89745 | 89745-45010 | Battery, Transmitter |
| 89745 | 89745-50020 | Battery, Transmitter |
| 89904 | 89904-47530 | Transmitter Sub-Assy, Electrical Key |
| OEM | Part name | Category |
|---|---|---|
| 69005-47240 | Cylinder Set, Lock | Lock Cylinder Set ([11.2015 - ] (1511- )ARL) |
| 69515-47020 | Key, Cut | Lock Cylinder Set ([11.2015 - ] (1511- )ARL) |
| 69515-47030 | Key, Blank | Lock Cylinder Set ([11.2015 - ] (1511- )ARL) |
| 89072-47190 | Housing Set, Door Control Transmitter (For Smart Key) | Lock Cylinder Set ([11.2015 - ] (1511- )ARL) |
| 89745-45010 | Battery, Transmitter | Lock Cylinder Set ([11.2015 - ] (1511- )ARL) |
| 89745-50020 | Battery, Transmitter | Lock Cylinder Set ([11.2015 - ] (1511- )ARL) |
| 89904-47530 | Transmitter Sub-Assy, Electrical Key | Lock Cylinder Set ([11.2015 - ] (1511- )ARL) |
