検索 › 型式 › ZVW50

ZVW50

Toyota プリウス · 2015 · 3,072 部品 · 203 カテゴリ

3,072 件

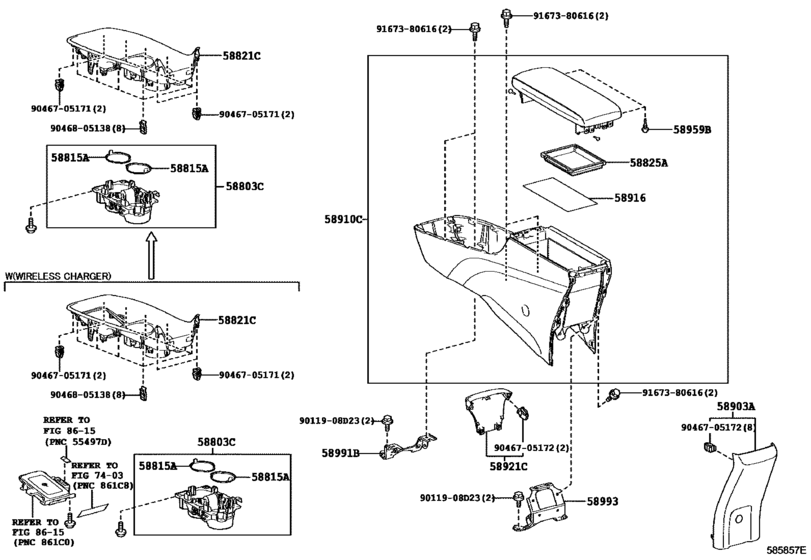

Console Box & Bracket ([11.2015 - ] (1511- )ARL) 26

#	OEM	部品名
58803	58803-47010	Box Sub-Assy, Console Cup Holder
58803	58803-47011-A0	Box Sub-Assy, Console Cup Holder
58803	58803-47011-C0	Box Sub-Assy, Console Cup Holder
58815	58815-47080	Carpet, Console Box
58821	58821-47040	Panel, Console, Upper
58821	58821-47041-A0	Panel, Console, Upper
58821	58821-47041-C0	Panel, Console, Upper
58821	58821-47050	Panel, Console, Upper
58821	58821-47051-A0	Panel, Console, Upper
58821	58821-47051-C0	Panel, Console, Upper
58825	58825-47060	Pocket, Console Box
58903	58903-47050-C0	Panel Sub-Assy, Console Rear End
58910	58910-47030-C2	Box Assy, Console, Rear
58910	58910-47040-C2	Box Assy, Console, Rear
58916	58916-47020	Mat, Box Bottom
58921	58921-47020	Plate, Box, Upper No.1
58921	58921-47021-A0	Plate, Box, Upper No.1
58921	58921-47021-C0	Plate, Box, Upper No.1
58959	90541-03078	Cushion(For Cup Holder)
58991	58991-47020	Bracket, Console Box Mounting, Front
58993	58996-47030	Bracket, Console Box Mounting, Rear
9011908	90119-08D23	New Genuine Part
9046705171	90467-05171	Clip, Instrument Panel
9046705172	90467-05172	Clip, Instrument Panel, No.1
9046805138	90468-05138	Clip, Instrument Panel
9167380616	91673-80616	Bolt, W/washer

OEM	部品名	カテゴリ
58803-47010	Box Sub-Assy, Console Cup Holder	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58803-47011-A0	Box Sub-Assy, Console Cup Holder	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58803-47011-C0	Box Sub-Assy, Console Cup Holder	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58815-47080	Carpet, Console Box	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58821-47040	Panel, Console, Upper	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58821-47041-A0	Panel, Console, Upper	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58821-47041-C0	Panel, Console, Upper	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58821-47050	Panel, Console, Upper	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58821-47051-A0	Panel, Console, Upper	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58821-47051-C0	Panel, Console, Upper	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58825-47060	Pocket, Console Box	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58903-47050-C0	Panel Sub-Assy, Console Rear End	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58910-47030-C2	Box Assy, Console, Rear	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58910-47040-C2	Box Assy, Console, Rear	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58916-47020	Mat, Box Bottom	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58921-47020	Plate, Box, Upper No.1	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58921-47021-A0	Plate, Box, Upper No.1	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58921-47021-C0	Plate, Box, Upper No.1	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58991-47020	Bracket, Console Box Mounting, Front	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
58996-47030	Bracket, Console Box Mounting, Rear	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
90119-08D23	New Genuine Part	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
90467-05171	Clip, Instrument Panel	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
90467-05172	Clip, Instrument Panel, No.1	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
90468-05138	Clip, Instrument Panel	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
90541-03078	Cushion(For Cup Holder)	Console Box & Bracket ([11.2015 - ] (1511- )ARL)
91673-80616	Bolt, W/washer	Console Box & Bracket ([11.2015 - ] (1511- )ARL)

ソース: OEM純正パーツカタログ公開情報
Variants: 2 / 6
カテゴリ: 203
収集日: 2026-08-02
