ZRE186

Toyota AURIS-COROLLA · 2012 · 3,840 parts · 210 categories

← Back to categories

3,840 items

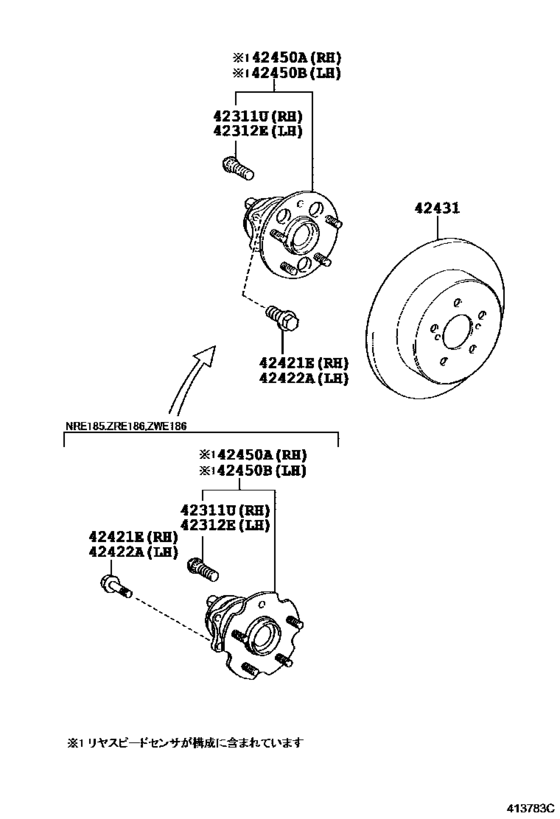

Rear Axle Shaft & Hub ([08.2012 - ] (1208- )NRE185,NZE181,ZRE186,ZWE186) 5

#	OEM	Part name
42311	90942-02049	Bolt, Hub
42311	90942-02082	Bolt, Hub
42421	90105-12350	Bolt (For Rear Axle Bearing Case Rh)
42431	42431-12260	Disc, Rear
42450	42450-42040	Hub & Bearing Assy, Rear Axle

OEM	Part name	Category
42431-12260	Disc, Rear	Rear Axle Shaft & Hub ([08.2012 - ] (1208- )NRE185,NZE181,ZRE186,ZWE186)
42450-42040	Hub & Bearing Assy, Rear Axle	Rear Axle Shaft & Hub ([08.2012 - ] (1208- )NRE185,NZE181,ZRE186,ZWE186)
90105-12350	Bolt (For Rear Axle Bearing Case Rh)	Rear Axle Shaft & Hub ([08.2012 - ] (1208- )NRE185,NZE181,ZRE186,ZWE186)
90942-02049	Bolt, Hub	Rear Axle Shaft & Hub ([08.2012 - ] (1208- )NRE185,NZE181,ZRE186,ZWE186)
90942-02082	Bolt, Hub	Rear Axle Shaft & Hub ([08.2012 - ] (1208- )NRE185,NZE181,ZRE186,ZWE186)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 210
Collected: 2026-08-02
