ZRE186

Toyota AURIS-COROLLA · 2012 · 3,840 parts · 210 categories

3,840 items

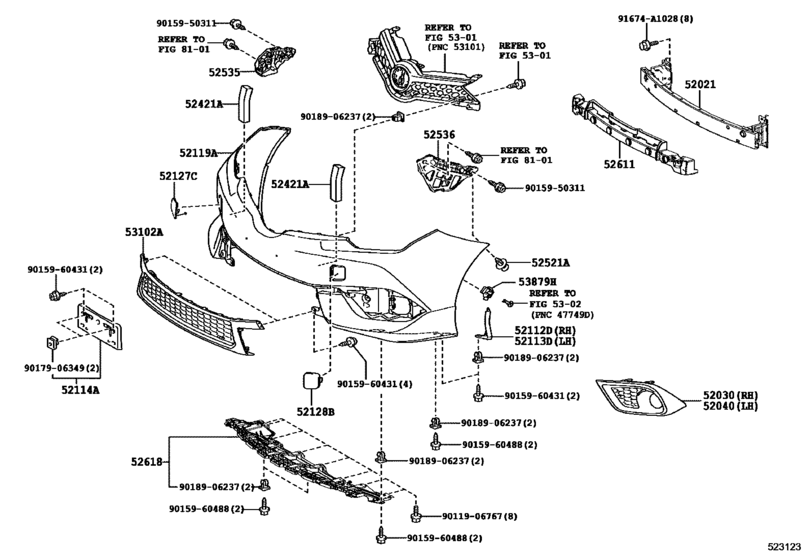

Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185) 72

#	OEM	Part name
52021	52021-12320	Reinforcement Sub-Assy, Front Bumper
52021	52021-12380	Reinforcement Sub-Assy, Front Bumper
52030	52030-12100	Cover Assy, Front Bumper Hole, Rh
52040	52040-12100	Cover Assy, Front Bumper Hole, Lh
52112	52112-12270	Extension, Front Bumper, Rh
52113	52113-12230	Extension, Front Bumper, Lh
52114	52114-12200	Bracket, Front Bumper Extention Mounting
52119	52119-12C30-A1	Cover, Front Bumper
52119	52119-12C30-B0	Cover, Front Bumper
52119	52119-12977	Cover, Front Bumper
52119	52119-12C30-C0	Cover, Front Bumper
52119	52119-12C30-D0	Cover, Front Bumper
52119	52119-12C30-E0	Cover, Front Bumper
52119	52119-12C30-E1	Cover, Front Bumper
52119	52119-12C30-J1	Cover, Front Bumper
52119	52119-12E90-A1	Cover, Front Bumper
52119	52119-12F70-A1	Cover, Front Bumper
52119	52119-12E90-B0	Cover, Front Bumper
52119	52119-12F70-B0	Cover, Front Bumper
52119	52119-12E90-C0	Cover, Front Bumper
52119	52119-12F70-C0	Cover, Front Bumper
52119	52119-12E90-D0	Cover, Front Bumper
52119	52119-12F70-D0	Cover, Front Bumper
52119	52119-12E90-E0	Cover, Front Bumper
52119	52119-12F70-E0	Cover, Front Bumper
52119	52119-12E90-G0	Cover, Front Bumper
52119	52119-12F70-G0	Cover, Front Bumper
52119	52119-12E90-J1	Cover, Front Bumper
52119	52119-12F70-J0	Cover, Front Bumper
52119	52119-12F30-A1	Cover, Front Bumper
52127	52127-12320-A1	Cover, Front Bumper Hole
52127	52127-12320-B0	Cover, Front Bumper Hole
52127	52127-12910	Cover, Front Bumper Hole
52127	52127-12320-C0	Cover, Front Bumper Hole
52127	52127-12320-D0	Cover, Front Bumper Hole
52127	52127-12320-E0	Cover, Front Bumper Hole
52127	52127-12320-E1	Cover, Front Bumper Hole
52127	52127-12320-J1	Cover, Front Bumper Hole
52127	52127-12350-A1	Cover, Front Bumper Hole
52127	52127-12350-B0	Cover, Front Bumper Hole
52127	52127-12350-C0	Cover, Front Bumper Hole
52127	52127-12350-D0	Cover, Front Bumper Hole
52127	52127-12350-E0	Cover, Front Bumper Hole
52127	52127-12350-G0	Cover, Front Bumper Hole
52127	52127-12350-J1	Cover, Front Bumper Hole
52127	52127-12370-A1	Cover, Front Bumper Hole
52128	52128-12290-A1	Cover, Front Bumper Hole, Lh
52128	52128-12290-B0	Cover, Front Bumper Hole, Lh
52128	52128-12290-C0	Cover, Front Bumper Hole, Lh
52128	52128-12290-D0	Cover, Front Bumper Hole, Lh
52128	52128-12290-E0	Cover, Front Bumper Hole, Lh
52128	52128-12290-G0	Cover, Front Bumper Hole, Lh
52128	52128-12290-J1	Cover, Front Bumper Hole, Lh
52128	52128-12914	Cover, Front Bumper Hole, Lh
52421	52422-12140	Pad, Front Bumper
52521	90467-05170	Clip, Rear Bumper Side
52535	52535-12130	Retainer, Front Bumper Side, Rh
52536	52536-12130	Retainer, Front Bumper Side, Lh
52611	52611-12330	Absorber, Front Bumper Energy
52611	52611-12360	Absorber, Front Bumper Energy
52618	52618-12030	Absorber, Front Bumper, Lower
53102	53102-12100	Grille Sub-Assy, Radiator, Lwr
53879	53879-50020	Retainer, Front Fender Liner
53879	53879-58010	Retainer, Front Fender Liner
91674	91674-A1028	BOLT FLANGE
9011906767	90119-06767	Bolt, W/washer(For Engine Under Cover)
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9015960431	90159-60431	SCREW
9015960488	90159-60488	SCREW WWASHER
9017906349	90179-06349	NUT
9018906237	90189-06237	Grommet(For Engine Under Cover)

OEM	Part name	Category
52021-12320	Reinforcement Sub-Assy, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52021-12380	Reinforcement Sub-Assy, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52030-12100	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52040-12100	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52112-12270	Extension, Front Bumper, Rh	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52113-12230	Extension, Front Bumper, Lh	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52114-12200	Bracket, Front Bumper Extention Mounting	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12977	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12C30-A1	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12C30-B0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12C30-C0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12C30-D0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12C30-E0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12C30-E1	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12C30-J1	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12E90-A1	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12E90-B0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12E90-C0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12E90-D0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12E90-E0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12E90-G0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12E90-J1	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12F30-A1	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12F70-A1	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12F70-B0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12F70-C0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12F70-D0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12F70-E0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12F70-G0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52119-12F70-J0	Cover, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12320-A1	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12320-B0	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12320-C0	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12320-D0	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12320-E0	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12320-E1	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12320-J1	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12350-A1	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12350-B0	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12350-C0	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12350-D0	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12350-E0	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12350-G0	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12350-J1	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12370-A1	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52127-12910	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52128-12290-A1	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52128-12290-B0	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52128-12290-C0	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52128-12290-D0	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52128-12290-E0	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52128-12290-G0	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52128-12290-J1	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52128-12914	Cover, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52422-12140	Pad, Front Bumper	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52535-12130	Retainer, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52536-12130	Retainer, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52611-12330	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52611-12360	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
52618-12030	Absorber, Front Bumper, Lower	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
53102-12100	Grille Sub-Assy, Radiator, Lwr	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
53879-50020	Retainer, Front Fender Liner	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
53879-58010	Retainer, Front Fender Liner	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
90119-06767	Bolt, W/washer(For Engine Under Cover)	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
90159-50311	SCREW	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
90159-60431	SCREW	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
90159-60488	SCREW WWASHER	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
90159-A0034	SCREW WWASHER	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
90179-06349	NUT	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
90189-06237	Grommet(For Engine Under Cover)	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
90467-05170	Clip, Rear Bumper Side	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
91674-A1028	BOLT FLANGE	Front Bumper & Bumper Stay ([03.2015 - ] RS ; NRE185 RSﾊﾟｯｹｰｼﾞ (1503- )RS ; (1604- )NRE185)
