ZRE186

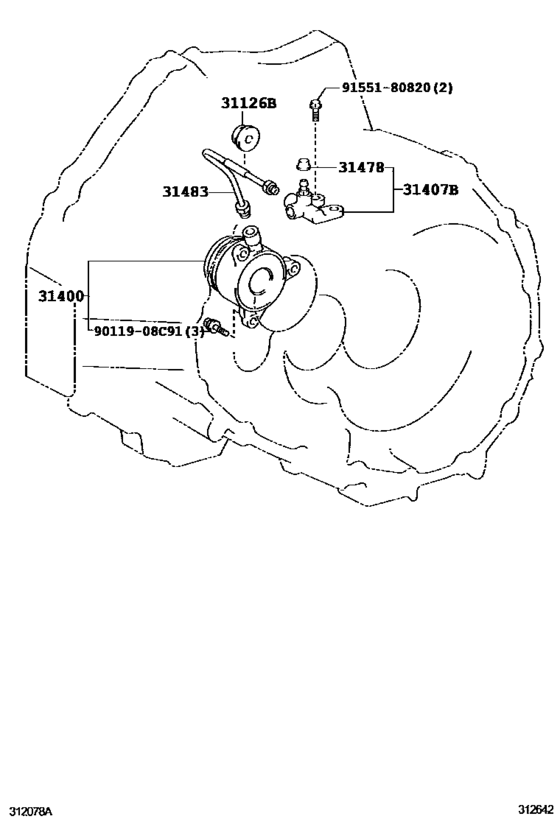

Clutch Release Cylinder ([08.2012 - ] (1208- )RS) 8
| # | OEM | Part name |
|---|---|---|
| 31126 | 31126-20090 | Boot, Clutch Tube |
| 31400 | 31400-59015 | Cylinder Assy, Clutch Release W/bearing |
| 31400 | 31400-59025 | Cylinder Assy, Clutch Release W/bearing |
| 31407 | 31407-52010 | Bleeder Sub-Assy, Clutch Release |
| 31478 | 31478-30010 | Bleeder Plug Cap |
| 31483 | 31482-52090 | Tube, Bleeder Clutch Release |
| 9011908 | 90119-08C91 | New Genuine Part |
| 9155180820 | 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) |
| OEM | Part name | Category |
|---|---|---|
| 31126-20090 | Boot, Clutch Tube | Clutch Release Cylinder ([08.2012 - ] (1208- )RS) |
| 31400-59015 | Cylinder Assy, Clutch Release W/bearing | Clutch Release Cylinder ([08.2012 - ] (1208- )RS) |
| 31400-59025 | Cylinder Assy, Clutch Release W/bearing | Clutch Release Cylinder ([08.2012 - ] (1208- )RS) |
| 31407-52010 | Bleeder Sub-Assy, Clutch Release | Clutch Release Cylinder ([08.2012 - ] (1208- )RS) |
| 31478-30010 | Bleeder Plug Cap | Clutch Release Cylinder ([08.2012 - ] (1208- )RS) |
| 31482-52090 | Tube, Bleeder Clutch Release | Clutch Release Cylinder ([08.2012 - ] (1208- )RS) |
| 90119-08C91 | New Genuine Part | Clutch Release Cylinder ([08.2012 - ] (1208- )RS) |
| 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) | Clutch Release Cylinder ([08.2012 - ] (1208- )RS) |
