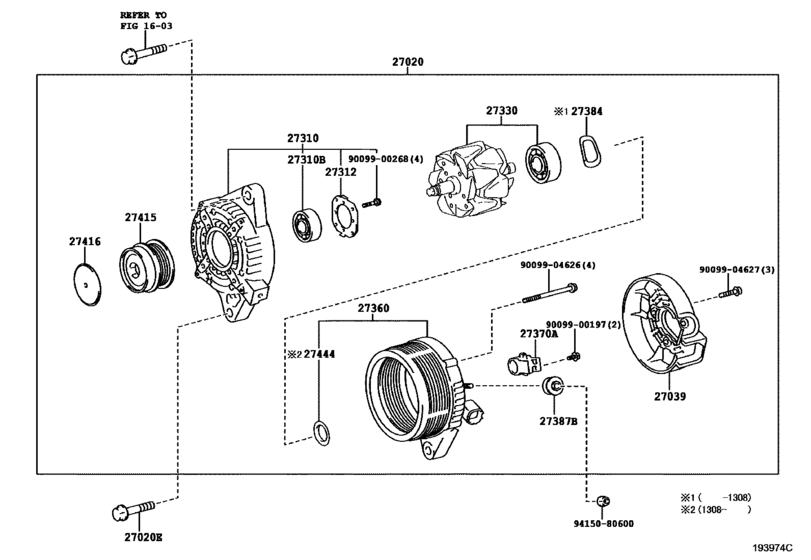

| 27039-47310 |
Cover, Alternator Rear End |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27039-47330 |
Cover, Alternator Rear End |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27060-37101 |
Alternator Assy |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27060-37131 |
Alternator Assy |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27060-37180 |
Alternator Assy |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27060-37210 |
Alternator Assy |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27060-37220 |
Alternator Assy |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27310-37130 |
Frame Assy, Drive End, Alternator |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27310-37160 |
Frame Assy, Drive End, Alternator |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27312-72100 |
Plate, Bearing Retainer, Alternator |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27330-47310 |
Rotor Assy, Alternator |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27330-47330 |
Rotor Assy, Alternator |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27360-37130 |
Coil Assy, Alternator |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27360-37131 |
Coil Assy, Alternator |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27360-37160 |
Coil Assy, Alternator |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27360-37211 |
Coil Assy, Alternator |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27360-37250 |
Coil Assy, Alternator |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27370-31220 |
Holder Assy, Alternator Brush |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27384-38130 |
Washer |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27387-20130 |
Insulator, Terminal |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27387-47310 |
Insulator, Terminal |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27415-0T011 |
Pulley, Alternator W/clutch |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27415-0T060 |
Pulley, Alternator W/clutch |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27415-0T070 |
Pulley, Alternator W/clutch |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27415-0V010 |
Pulley, Alternator W/clutch |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27415-0V011 |
Pulley, Alternator W/clutch |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27416-0W020 |
Cap, Alternator Pulley |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27416-0W050 |
Cap, Alternator Pulley |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 27444-21190 |
Packing, Alternator Bearing Cover |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 90099-00197 |
Screw |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 90099-00268 |
Screw(For Alternator Drive End Frame) |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 90099-04626 |
Bolt(For Alternator Coil) |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 90099-04627 |
Bolt(For Alternator Rear End Cover) |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 90099-10223 |
Bearing(For Alternator Drive End Frame) |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 90099-10227 |
Bearing(For Alternator Drive End Frame) - VACUUM PUMP |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 90105-10307 |
Bolt(For Alternator) |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
| 94150-80600 |
NUT FLANGE |
Alternator ([08.2012 - ] 12V 100A (1208- )2ZRFAE) |
