Search › Model › ZRE185

ZRE185

Toyota AURIS-COROLLA · 2012 · 3,019 parts · 177 categories

3,019 items

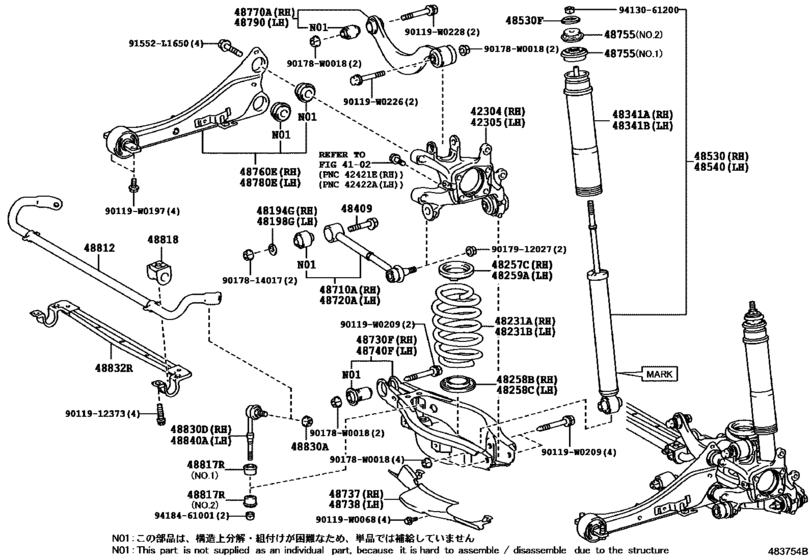

Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186) 40

#	OEM	Part name
42304	42304-02140	Carrier Sub-Assy, Rear Axle, Rh
42305	42305-02140	Carrier Sub-Assy, Rear Axle, Lh
48194	48198-42010	Cam, Rear Suspension Camber Adjust, No.1 Rh
48231	48231-02C00	Spring, Coil, Rear Rh
48231	48231-02C01	Spring, Coil, Rear Rh
48257	48257-0D010	Insulator, Rear Coil Spring, Upper Rh
48258	48258-05020	Insulator, Rear Coil Spring, Lower Rh
48341	48341-02080	Bumper, Rear Spring, No.1 Rh
48409	48409-42030	Cam Sub-Assy, Rear Suspension Toe Adjust
48530	48530-8Z026	Absorber Assy, Shock, Rear Rh
48530	90948-02159	Retainer, Cushion, No.1(For Front Shock Absorber)
48710	48710-05090	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-05070	Arm Assy, Rear Suspension, No.2 Rh
48737	48737-05010	Cover, Rear Suspension Arm, Rh
48738	48738-05010	Cover, Rear Suspension Arm, Lh
48740	48740-05060	Arm Assy, Rear Suspension, No.2 Lh
48755	48755-02080	Support, Rear Suspension
48755	48755-02090	Support, Rear Suspension
48760	48760-02011	Arm Assy, Trailing, Rear
48770	48770-12010	Arm Assy, Upper Control, Rear Rh
48780	48780-02061	Arm Assy, Trailing, Rear
48812	48812-05160	Bar, Stabilizer, Rear
48817	48817-05010	Cushion, Stabilizer(For Rear)
48817	48817-05020	Cushion, Stabilizer(For Rear)
48818	48818-05120	Bush, Stabilizer, Rear
48830	90178-W0051	Nut(For Front Stabilizer Link)
48830	48830-05030	Link Assy, Rear Stabilizer, Rh
48832	48832-02041	Bracket, Rear Stabilizer Bar, No.1 Rh
90119	90119-W0068	Bolt
90119	90119-W0197	New Genuine Part
90119	90119-W0209	New Genuine Part
90119	90119-W0226	New Genuine Part
90119	90119-W0228	New Genuine Part
90178	90178-W0018	New Genuine Part
91552	91552-L1650	Bolt
9011912373	90119-12373	New Genuine Part
9017814017	90178-14017	NUT FLANGE
9017912027	90179-12027	Nut, Castle (For Front Lower Ball Joint Setting)
9413061200	94130-61200	Nut
9418461001	94184-61001	Nut(For Front Stabilizer Bar)

OEM	Part name	Category
42304-02140	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
42305-02140	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48198-42010	Cam, Rear Suspension Camber Adjust, No.1 Rh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48231-02C00	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48231-02C01	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48257-0D010	Insulator, Rear Coil Spring, Upper Rh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48258-05020	Insulator, Rear Coil Spring, Lower Rh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48341-02080	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48409-42030	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48530-8Z026	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48710-05090	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48730-05070	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48737-05010	Cover, Rear Suspension Arm, Rh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48738-05010	Cover, Rear Suspension Arm, Lh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48740-05060	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48755-02080	Support, Rear Suspension	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48755-02090	Support, Rear Suspension	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48760-02011	Arm Assy, Trailing, Rear	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48770-12010	Arm Assy, Upper Control, Rear Rh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48780-02061	Arm Assy, Trailing, Rear	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48812-05160	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48817-05010	Cushion, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48817-05020	Cushion, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48818-05120	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48830-05030	Link Assy, Rear Stabilizer, Rh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
48832-02041	Bracket, Rear Stabilizer Bar, No.1 Rh	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
90119-12373	New Genuine Part	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
90119-W0068	Bolt	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
90119-W0197	New Genuine Part	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
90119-W0209	New Genuine Part	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
90119-W0226	New Genuine Part	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
90119-W0228	New Genuine Part	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
90178-14017	NUT FLANGE	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
90178-W0018	New Genuine Part	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
90178-W0051	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
90179-12027	Nut, Castle (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
90948-02159	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
91552-L1650	Bolt	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
94130-61200	Nut	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)
94184-61001	Nut(For Front Stabilizer Bar)	Rear Spring & Shock Absorber ([10.2012 - ] (1210- )ADE186,NRE185,WWE185,ZRE185,ZWE186)

Source: Public OEM parts-catalog data
Variants: 2 / 20
Category: 177
Collected: 2026-08-02
