Search › Model › ZRE185
ZRE185

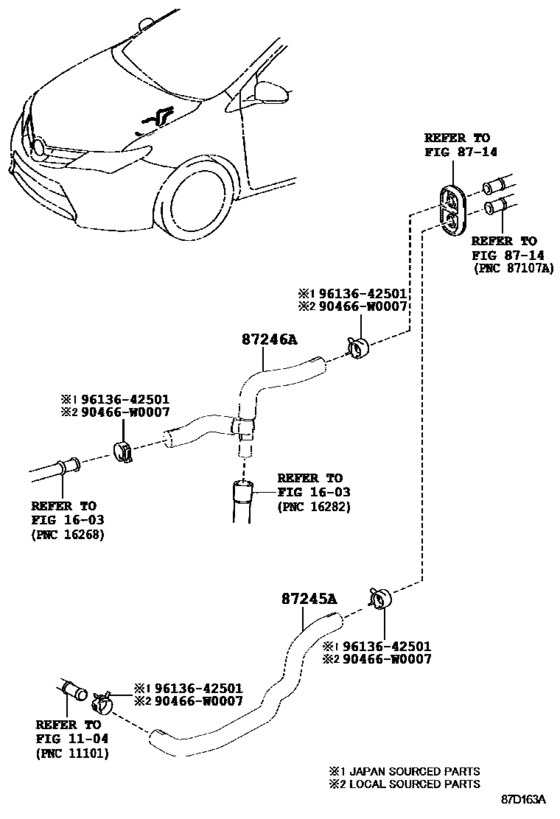

Heating & Air Conditioning - Water Piping ([10.2012 - ] (1210- )ZRE185..CVT) 4
| # | OEM | Part name |
|---|---|---|
| 87245 | 87245-02P00 | Hose, Heater Water, Inlet |
| 87246 | 87209-05041 | Hose Sub-Assy, Water |
| 90466 | 90466-W0007 | Clip(For Water By-Pass Hose No.1) |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 87209-05041 | Hose Sub-Assy, Water | Heating & Air Conditioning - Water Piping ([10.2012 - ] (1210- )ZRE185..CVT) |
| 87245-02P00 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([10.2012 - ] (1210- )ZRE185..CVT) |
| 90466-W0007 | Clip(For Water By-Pass Hose No.1) | Heating & Air Conditioning - Water Piping ([10.2012 - ] (1210- )ZRE185..CVT) |
| 96136-42501 | Clip(For Ventilation Hose) | Heating & Air Conditioning - Water Piping ([10.2012 - ] (1210- )ZRE185..CVT) |
